C56 VoIP Phone User
Manual
Cortelco
1703 Sawyer Road
Corinth, MS 38834
USA
www.cortelco.com
Tel: (662)287-5281
Fax:(662)287-3889
- 2 -
Safety Notices
Please read the following safety notices before installing or using this phone. They are crucial
for the safe and reliable operation of the device.
- Please use the external power supply that is included in the package. Other power
supplies may cause damage to the device, affect the behavior or induce noise.
- Before using the external power supply, please be sure it is for use with your power
voltage. Incorrect power voltage may cause fire and damage.
- Please do not damage the power cord. If the power cord or plug is damaged, do not use it.
This may cause fire or electric shock.
- The power plug should be accessible at all times because this is the only way to remove
power from the device.
- Handle the phone carefully. Do not drop it or shake it. Rough handling can cause internal
damage.
- Do not install the device in direct sunlight. Also do not put the device on carpets or
cushions, or other poorly ventilated locations. This may cause fire or overheating.
- Avoid exposure to temperatures above 40℃, below 0℃ or high humidity. Avoid wetting
the unit with any liquid.
- Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. If
cleaning is necessary use a soft cloth that has been slightly dampened in a mild soap and
water solution.
- Do not touch the power cord or network cable during a thunderstorm. There is a slight
risk of electrical shock.
- Do not attempt to open the device. Consult your authorized dealer for repair.
- 3 -
Table of Contents
1 INTRODUCING C56 VOIP PHONE ............................................................................... 5
1.1 THANK YOU .......................................................................................................................... 5
1.2 BOX CONTENTS .................................................................................................................... 5
1.3 KEYPAD ................................................................................................................................ 5
1.4 INPUT/OUTPUT PORTS .......................................................................................................... 7
2 INITIAL CONNECTION AND SETTING ..................................................................... 7
2.1 CONNECTING THE PHONE ...................................................................................................... 7
2.2 NETWORK SETTINGS ............................................................................................................ 8
2.2.1 PPPoE Mode ........................................................................................................................ 8
2.2.2 Static IP Mode ..................................................................................................................... 9
2.2.3 DHCP Mode ...................................................................................................................... 10
3 BASIC FUNCTIONS....................................................................................................... 10
3.1 MAKING A CALL ................................................................................................................. 10
3.1.1 Call Device ........................................................................................................................ 10
3.1.2 Call Methods...................................................................................................................... 10
3.2 ANSWERING A CALL ............................................................................................................ 10
3.3 CALL HOLD ........................................................................................................................ 10
3.4 CALL WAITING ................................................................................................................... 11
3.5 CALL TRANSFER ................................................................................................................. 11
3.5.1 Blind Transfer .................................................................................................................... 11
3.5.2 Attended Transfer .............................................................................................................. 11
3.6 3-WAY CONFERENCE CALL .................................................................................................. 11
4 ADVANCED FUNCTIONS ............................................................................................ 11
4.1 DIALING PAUSE .................................................................................................................. 11
4.2 MWI(MESSAGE WAITING INDICATION) .............................................................................. 12
4.3 REDIAL / UNREDIAL ........................................................................................................... 12
4.4 CLICK TO DIAL .................................................................................................................... 12
4.5 AUTO ANSWER .................................................................................................................... 12
5 WEB CONFIGURATION .............................................................................................. 12
5.1 INTRODUCTION OF CONFIGURATION ................................................................................... 12
5.1.1 Configuration Methods ...................................................................................................... 12
5.1.2 Password Configuration..................................................................................................... 13
5.2 SETTING VIA WEB BROWSER ............................................................................................... 13
5.3 CONFIGURATION VIA WEB ................................................................................................. 14
5.3.1 BASIC ............................................................................................................................... 14
5.3.1.1 Status ................................................................................................................................. 14
5.3.1.2 Wizard ............................................................................................................................... 15
5.3.1.2.1 Static IP.............................................................................................................................. 16
5.3.1.2.2 DHCP ................................................................................................................................ 16
- 4 -
5.3.1.2.3 PPPoE ................................................................................................................................ 16
5.3.1.2.4 Quick SIP Settings ............................................................................................................. 17
5.3.1.3 Call Log ............................................................................................................................. 18
5.3.2 Network ............................................................................................................................. 18
5.3.2.1 WAN Config ...................................................................................................................... 18
5.3.2.1.1 Static IP.............................................................................................................................. 19
5.3.2.1.2 DHCP ................................................................................................................................ 19
5.3.2.1.3 PPPoE ................................................................................................................................ 19
5.3.2.2 Qos & VLAN Config ......................................................................................................... 19
5.3.2.3 Service Port ....................................................................................................................... 22
5.3.2.4 TIME&DATE .................................................................................................................... 22
5.3.3 VOIP .................................................................................................................................. 24
5.3.3.1 SIP Configuration .............................................................................................................. 24
5.3.3.2 STUN Config ..................................................................................................................... 29
5.3.3.3 DIAL PEER ....................................................................................................................... 30
5.3.4 Phone ................................................................................................................................. 33
5.3.4.1 AUDIO .............................................................................................................................. 33
5.3.4.2 FEATURE .......................................................................................................................... 34
5.3.4.3 DIAL PLAN ...................................................................................................................... 37
5.3.4.4 CONTACT ......................................................................................................................... 39
5.3.4.5 WEB DIAL ........................................................................................................................ 40
5.3.5 Function Key ..................................................................................................................... 40
5.3.6 Maintenance....................................................................................................................... 41
5.3.6.1 Auto Provision ................................................................................................................... 41
5.3.6.2 Syslog ................................................................................................................................ 43
5.3.6.3 Config Setting .................................................................................................................... 44
5.3.6.4 Update................................................................................................................................ 45
5.3.6.5 Access ................................................................................................................................ 46
5.3.6.6 Reboot................................................................................................................................ 47
5.3.7 Security .............................................................................................................................. 47
5.3.7.1 WEB FILTER .................................................................................................................... 47
5.3.7.2 Firewall .............................................................................................................................. 48
5.3.8 Logout................................................................................................................................ 49
5.4 SETTINGS VIA PHONE’S KEYBOARD ................................................................................... 49
5.4.1 Procedure ........................................................................................................................... 49
5.4.2 Phone menu ....................................................................................................................... 49
6 APPENDIX ...................................................................................................................... 50
6.1 SPECIFICATION ................................................................................................................... 50
6.1.1 Hardware ........................................................................................................................... 50
6.1.2 Voice Features .................................................................................................................... 50
6.1.3 Network Features ............................................................................................................... 52
6.1.4 Maintenance and management........................................................................................... 52
6.2 DIGIT-CHARACTER MAP TABLE ........................................................................................... 53
- 5 -
1 Introducing C56 VoIP Phone
1.1 Thank you
Thank you for purchasing the C56(P) Voice Over Internet Protocol (VoIP) telephone. The
C56(P) is a fully featured telephone that provides voice communication over the data network.
This phone has all the features of a traditional telephone and gives access to many data
service features. This guide will help you easily use the various features and services
available on your phone.
1.2 Box Contents
The following items should be packed with your telephone. Please contact your dealer if
any of them are missing.
Telephone (Main body) with display and keypad
Handset
Handset cord
Power supply
Ethernet cable
1.3 Keypad

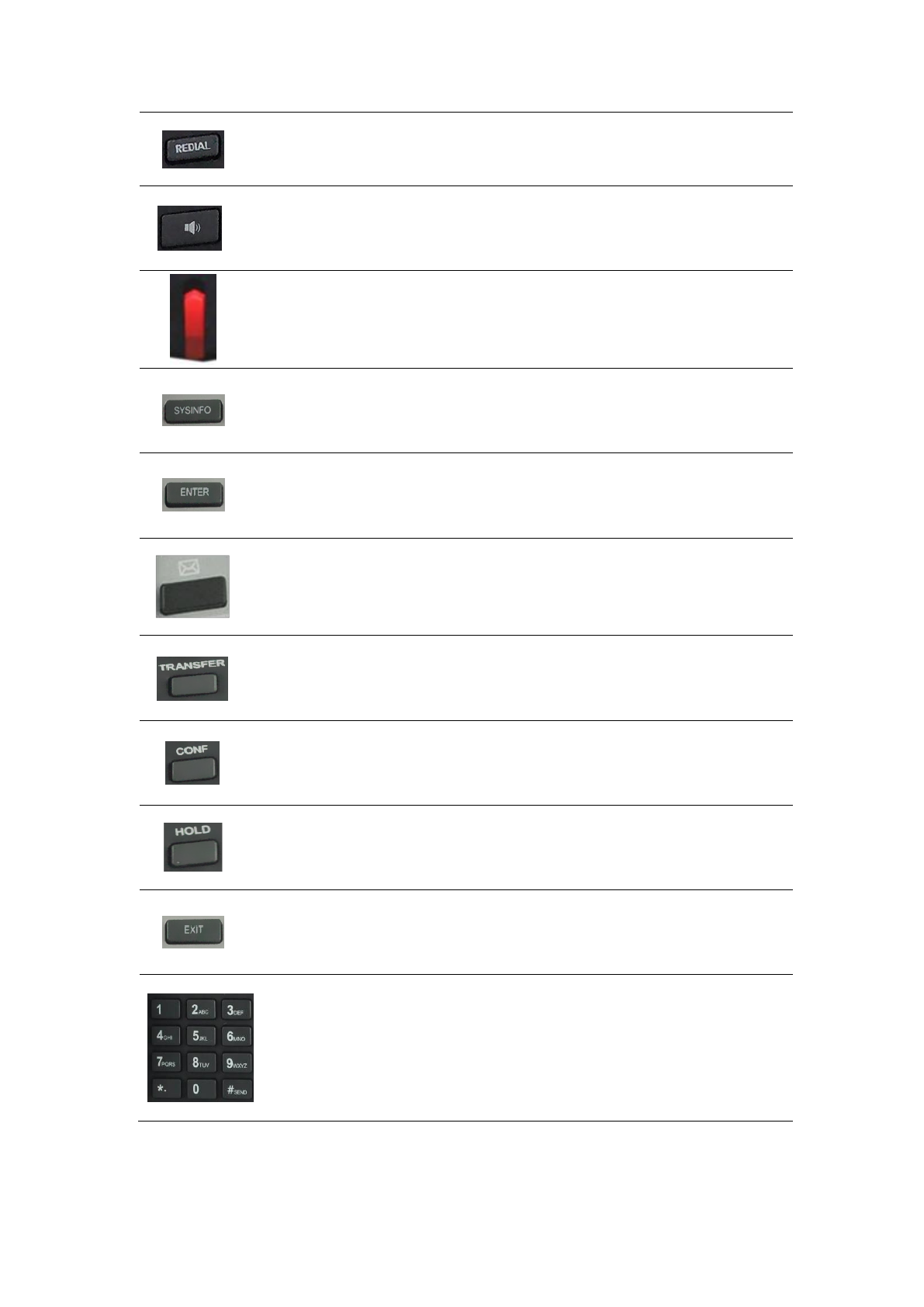

Key
Key name
Function Description
Navigation
Use this key to choose item in the menu, callers or phone
book.
Notice: the left has deleting function.
History
Displays lists of Incoming, Outgoing, or Missed calls
Mute
Deactivates the handset or speakerphone microphone.
Allows you to talk without being heard by the distant party.
Volume -/+
Adjust the volume by pressing these two keys.
- 6 -
Redial
When off hook, this will dial the last called number.
In stand-by mode, it will check the Outgoing Call.
Speaker
phone
Activate speakerphone mode.
Indicator
light
This light blinks to indicate a missed call.
SYSINFO
Displays phone settings such as phone number, IP address,
gateway address, etc.
ENTER
Used to enter next menu or confirm settings
MWI
Accesses voice mail system.
TRANSFER
Performs blind or attended transfers. See Section 3.1.4 for
more details.
CONFEREN
CE
Creates a conference (3-Way) call. See Section 3.1.5 for
more details.
HOLD
Places caller on hold.
EXIT
Return to a previous menu, cancel a setting or reject an
incoming call
Keyboard
Dial phone numbers
- 7 -
1.4 Input/Output Ports
Port
Port name
Description
Power switch
Input: 5V AC, 1A
WAN
10/100M Connect to Network
LAN
10/100M Connect to PC
Handset
Port type: RJ-9 connector
2 Initial Connection and Setting
2.1 Connecting the phone
1. Connect to the network. Use the Ethernet cable in the package to connect the WAN port
on the back of your phone to an Ethernet port. The following two figures show
connection options.
2. Connect the handset to the handset jack using the handset cable in the package.
3. Connect the power supply to the DC port on the back of the phone. Connect the
power supply to a standard power outlet. Note that the power supply will not be
needed if your network provides Power over Ethernet (PoE), and you have a C56P.
- 8 -
4. The phone’s LCD screen displays “WAIT LOGON”. Later, a ready screen displays
the date, time and current network mode.
If your LCD screen displays different information from the above, more information may
need to be entered. Please refer to the next section. If your phone registers into your IP
telephony Server, it is ready to use. If not, continue to read for more configuration
information.
2.2 Network Settings
DHCP is supported by default. This allows the phone to receive an IP address and other
network-related settings (Netmask, IP gateway, DNS server) from the DHCP server. If no
DHCP server is available, the network connection settings must be changed. Follow the
instructions below to change to either PPPoE or static IP.
2.2.1 PPPoE Mode
1. Press the 3 key for three seconds.
2. Press ENTER to confirm.
3. Press OK. The LCD will display “INPUT PASSWORD”.
4. Input the password (default value is 123).
5. Press ENTER. The LCD will display “NETWORK”.
6. Press ENTER. The LCD will display “WAN”.
7. Press UP ARROW.
8. Press ENTER. The LCD will display “STATIC NET”.
9. Press UP ARROW.
10. Press ENTER. The LCD will display “USER NAME”.
11. Press ENTER.
12. Press LEFT ARROW.
13. Enter your PPPoE account number. Use LEFT ARROW to delete if necessary.
14. Press ENTER. The LCD will display the PPPoE account number.
15. Press EXIT to return to the previous menu.
16. Press UP ARROW. The LCD will display “PASSWORD”.
17. Press ENTER.
18. Press LEFT ARROW.
19. Enter your PPPoE password. Use LEFT ARROW to delete if necessary.
20. Press ENTER. The LCD will display the password.
21. Press EXIT four times.
22. Press DOWN ARROW until the LCD displays “SYSTEM”.
23. Press ENTER. The LCD will display “SAVE”.
24. Press ENTER. The LCD will display “ARE YOU SURE”.
25. Press ENTER. The LCD will display “SAVING NOW” and then display “SAVE”.
26. Press EXIT twice.
27. Press and hold 3 until the LCD displays “ARE YOU SURE”.
28. Press ENTER. The LCD will display “CHANGING”. This means the phone is trying
- 9 -
to switch to PPPoE mode. When the PPPoE icon at the top of the LCD stops blinking, the
mode change is complete.
2.2.2 Static IP Mode
1. Press and hold 1 for three seconds.
2. Press ENTER to confirm.
3. Press ENTER. The LCD will display “INPUT PASSWORD”.
4. Input the password (default is 123).
5. Press ENTER. The LCD will display” NETWORK”.
6. Press ENTER. The LCD will display “LAN”.
7. Press UP ARROW.
8. Press ENTER. The LCD will display “STATIC NET”.
9. Press ENTER. The LCD will display “IP”.
10. Press ENTER.
11. Press LEFT ARROW.
12. Input the IP address. Use “*” to enter the periods in the IP address.
13. Press ENTER. The LCD will display the IP address.
14. Press EXIT to return to the previous menu.
15. Press DOWN ARROW. The LCD will display “DNS2”.
16. Press ENTER.
17. Press LEFT ARROW.
18. Input the secondary DNS address.
19. Press ENTER. The LCD will display the DNS address.
20. Press EXIT to return to the previous menu.
21. Press DOWN ARROW. The LCD will display “DNS”.
22. Press ENTER.
23. Press LEFT ARROW.
24. Input the primary DNS address.
25. Press ENTER. The LCD will display the DNS address.
26. Press EXIT to return to the previous menu.
27. Press DOWN ARROW. The LCD will display “GATEWAY”.
28. Press ENTER.
29. Press LEFT ARROW.
30. Input the gateway IP address.
31. Press ENTER. The LCD will display the gateway address.
32. Press EXIT to return to the previous menu.
33. Press DOWN ARROW. The LCD will display “NETMASK”.
34. Press ENTER.
35. Press LEFT ARROW.
36. Input the netmask.
37. Press ENTER. The LCD will display the netmask.
38. Press EXIT four times.
39. Press DOWN ARROW until the LCD displays “SYSTEM”.
40. Press ENTER. The LCD will display “SAVE”.
- 10 -
41. Press ENTER. The LCD will display “ARE YOU SURE”.
42. Press ENTER. The LCD will display “SAVING NOW” and then display “SAVE”.
43. Press EXIT twice.
44. Press and hold 1 until the LCD displays “ARE YOU SURE”.
45. Press ENTER. The LCD will display “CHANGING”. This means the phone is trying
to switch to static IP mode. When the STATIC icon at the top of the LCD stops blinking,
the mode change is complete.
2.2.3 DHCP Mode
1. Press and hold 2 until the LCD displays “ARE YOU SURE”.
2. Press ENTER. The LCD will display “CHANGING”. This means the phone is trying
to switch to DHCP mode. When the DHCP icon at the top of the LCD stops blinking, the
mode change is complete.
3 Basic Functions
3.1 Making a call
3.1.1 Call Device
Calls can be made using either the handset or speakerphone:
1. Handset - Pick up the handset. The icon will be shown on the LCD screen.
2. Speakerphone - Press the Speaker button. The icon will be shown on the LCD
screen.
The number may also be dialed first. Then the method of speaking can be chosen.
3.1.2 Call Methods
Press an available line button then use one of the following methods to place a call.
1. Dial the desired number using the keypad.
2. Press the REDIAL button to redial the last number called.
3.2 Answering a call
If the phone is idle, lift the handset, or press the Speaker button to answer using the speaker
phone.
During the conversation, you can alternate between Handset and Speaker phone by pressing
the speaker button or picking up the handset.
3.3 Call Hold
1. Press the Hold key to put the active call on hold.
2. While a call is on hold, you can establish another call by dialing the desired number and
- 11 -
confirming it with the # button.
3. Pressing the HOLD button during the second call will resume the first call.
3.4 Call Waiting
1. When a third party calls during an established call, the LCD will display the incoming
call number. Press the HOLD key to place the established call on hold and answer the
incoming call.
2. Press # to hang up the established call and answer the incoming call.
NOTE: Call Waiting service must be enabled.
3.5 Call transfer
3.5.1 Blind Transfer
During a conversation, press the transfer key, dial the number to which the call is to be
transferred followed by "#" and then hang up.
3.5.2 Attended Transfer
During a conversation, press the hold key, dial the number to which the call is to be
transferred followed by "#". After the third party answers, press transfer key to complete the
transfer.
NOTE: Call waiting and call transfer must be enabled.
NOTE: The SIP server must support RFC3515.
3.6 3-way conference call
1. Press the hold key during an active call.
2. The first call will be placed on hold and dial tone will be heard.
3. Dial the number to be added to the conference.
4. Press Send.
5. When the call is answered, press CONF to add the caller to the conference.
4 Advanced Functions
4.1 Dialing Pause
In some cases, it is desirable to have the phone pause when outputting digits. For example, a
call to an IVR system that requires a password should wait until the system answers before
dialing the password.
To insert a pause press the HOLD key while pre-dialing. Each press of the HOLD key will
insert a 2 second pause and will show on the screen as “- -“. For example, if the LCD
shows 123 -- -- 45, the phone will output 123, wait 4 seconds and then output 45.
- 12 -
4.2 MWI(Message Waiting Indication)
This LED will flash to indicate a new voicemail. Pressing the MWI key will access the
voicemail if the key has been configured correctly.
4.3 Redial / Unredial
If B is on a call when A calls, A will get busy tone. If A wants to connect to B as soon as B
is available, he can use the redial function. To use this feature, A dials a prefix and then B’s
number.
When the redial function is activated, A will check B’s calling status every 60 seconds.
When B is available, A’s phone will ring. When A goes off hook, the phone will call B
automatically. If A does not want to call B, the redial function can be cancelled by dialing a
prefix plus B’s number.
*3* is the redial prefix code. A can dial *3* plus B’s phone number to activate the redial
function.
*4* is the unredial prefix code. A can dial *4* to cancel the redial function.
The user can select any prefix as long as it does not interfere with dialing rules.
4.4 Click to dial
If User A browses to User B’s phone number or SIP address in the contact page and clicks it,
User A’s phone will ring. After he goes off hook, the phone will call User B.
Note：This feature requires that the PBX support click to dial.
4.5 Auto answer
If this feature is activated, the phone will answer incoming calls after a programmable delay.
5 Web Configuration
5.1 Introduction of configuration
5.1.1 Configuration Methods
There are three methods which can be used to configure this phone:
- Phone keypad – As discussed in previous sections
- Web browser - Recommended way
- Telnet with CLI command
- 13 -
5.1.2 Password Configuration
There are two levels of access: root level and general level. A user with root level access
can browse and set all configuration parameters, while a user with general level can set all
configuration parameters except server parameters for SIP or IAX2.
Default user with general level:
Username: guest
Password: guest
Default user with root level:
Username: admin
Password: admin
The default password for the phone screen menu is 123.
5.2 Setting via web browser
Enter the phone’s IP address into the address bar of the web browser. This assumes that the pc
and the phone are on the same subnet. Note: Internet Explorer, Firefox, Chrome, or Safari
are supported browsers.
If the IP address is not known, it can be displayed on the phone’s LCD by pressing the
Menu->Status.

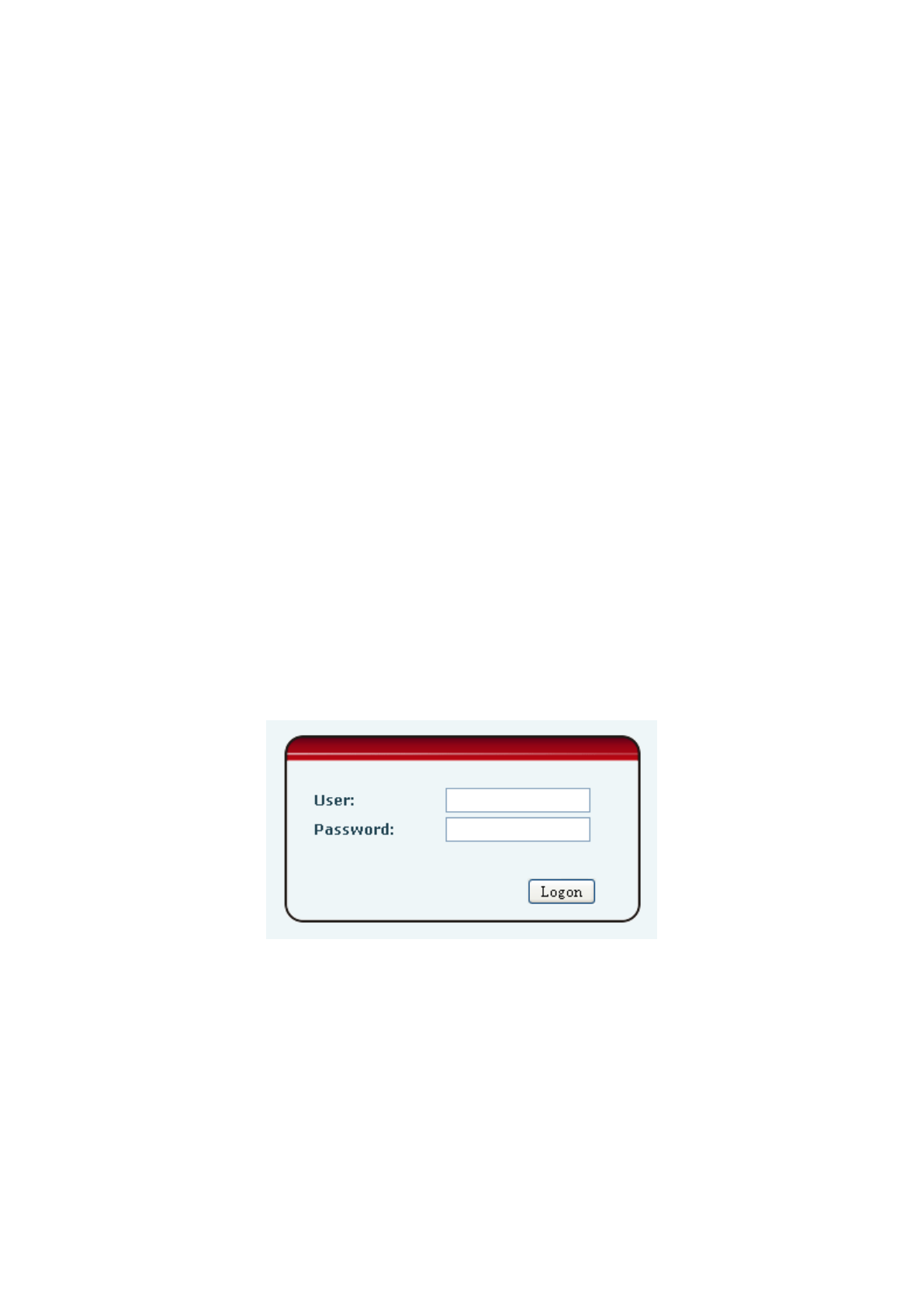

After entering the IP address, the following screen is displayed.
After configuring the IP phone, remember to click SAVE under the Maintenance tab. If this
is not done, the phone will lose the modifications when it is rebooted.
- 14 -
5.3 Configuration via WEB
5.3.1 BASIC
5.3.1.1 Status
Explanation
Shows the configuration information for WAN and LAN port,
including connection mode of WAN port (Static, DHCP, PPPoE),
MAC address, IP address of WAN port and LAN port, DHCP server
status for LAN port (ENABLED or DISABLED).
Shows the phone numbers and registration status for the 2 SIP
LINES.
- 15 -
5.3.1.2 Wizard

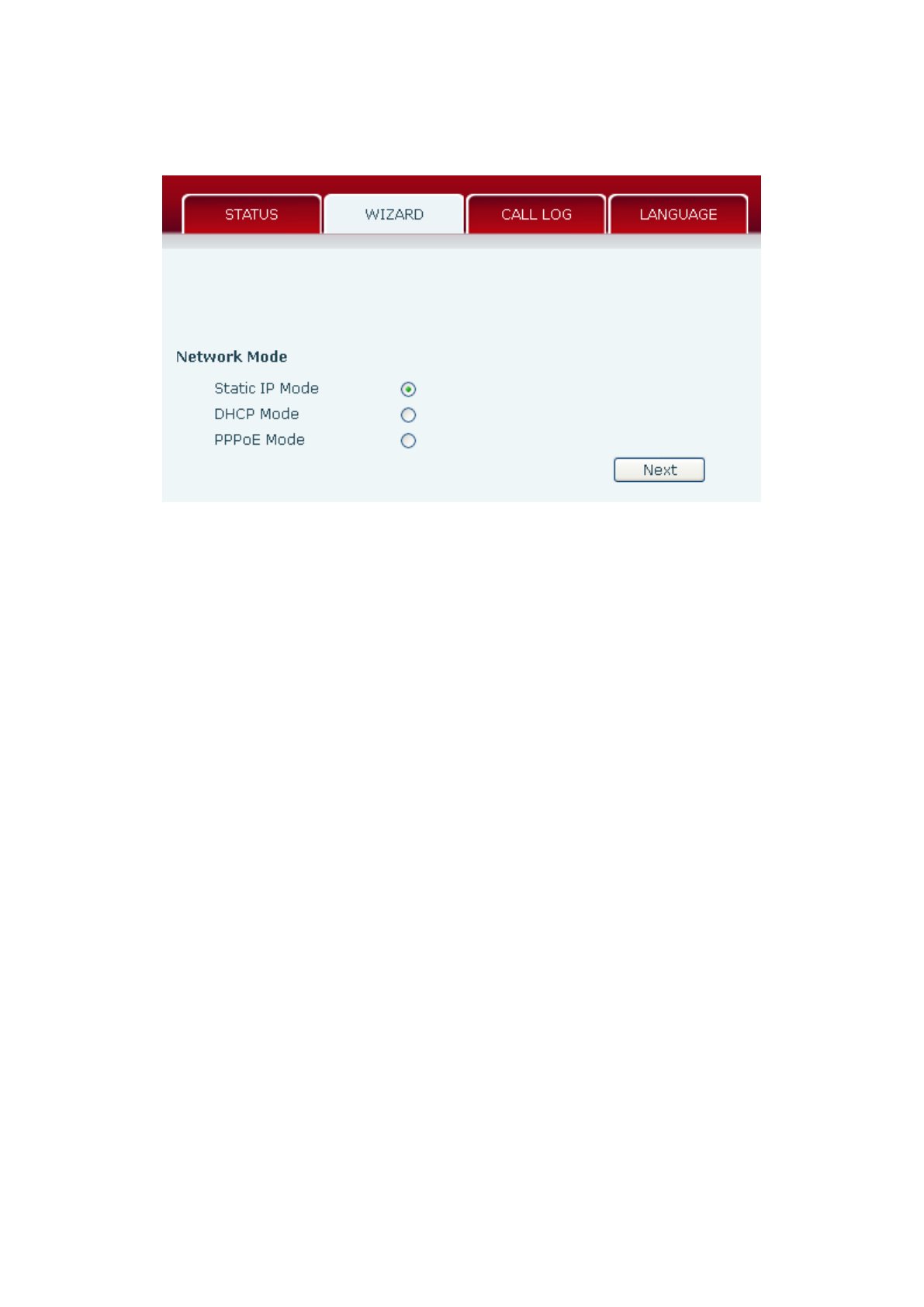

Select the appropriate network mode. The phone supports three network modes:
1 Static: The parameters of a Static IP connection must be provided by your ISP.
2 DHCP: In this mode, network parameter information will be obtained automatically from a
DHCP server.
3 PPPoE: In this mode, you must enter your ADSL account and password.
Refer to Section 2.2 for detailed information about configuring the network parameters.
- 16 -
5.3.1.2.1 Static IP
If Static IP is selected, this screen will be displayed. Information provided by the ISP should be
entered.
Click Back to return to the Wizard screen. Click Next to go to Quick SIP Settings
5.3.1.2.2 DHCP
After selecting DHCP and clicking NEXT, the Quick SIP Settings screen will appear. Click Back to
return to the Wizard screen. Click Next to go to the Summary screen.
5.3.1.2.3 PPPoE
If PPPoE is selected, this screen will appear. Enter the information provided by the ISP.
Click Back to return to the Wizard screen. Click Next to go to Quick SIP Setting.
- 17 -
5.3.1.2.4 Quick SIP Settings
Field Name
Explanation
Display Name
The name shown in caller ID.
Server Address
SIP server address either IP address or URI.
Server Port
SIP server port (usually 5060).
Authentication User
Login name or Authentication ID.
Authentication Password
SIP password.
SIP User
Phone number.
Enable Registration
Submits registration information. Normally checked.
Click Back to return to the IP Address screen. Click Next to see summary screen.
Click Finish button to save settings and reboot. After the reboot, SIP calls can be made.
- 18 -
5.3.1.3 Call Log
Outgoing call logs can be seen on this page.
Field Name
Explanation
Start Time
Start time of the outgoing call
Duration
Duration of the outgoing call.
Dialed Calls
Account, protocol, and line of the outgoing call.
5.3.2 Network
5.3.2.1 WAN Config
Field Name
Explanation
Active IP Address
The current IP address of the phone.
Current Subnet Mask
The current Subnet Mask.
Current IP Gateway
The current Gateway IP address.
MAC Address
The MAC address of the phone.
MAC Timestamp
Time the MAC address was obtained.
WAN Settings
The phone supports three network modes. These are also discussed in Section 2.2.
Static: Network parameters must be entered manually and will not change. All
parameters are provided by the ISP.
DHCP: Network parameters are provided automatically by a DHCP server.
PPPoE: Account and Password must be input manually. These are provided by your
ISP.
- 19 -
5.3.2.1.1 Static IP
If Static IP is chosen, the screen below will appear. Enter values provided by the ISP.
5.3.2.1.2 DHCP
If DHCP is chosen, all configuration information will be provided by a DHCP server. Contact
the ISP to determine if DHCP is used.
5.3.2.1.3 PPPoE
If PPPoE is chosen, the screen below will appear. Enter the information provided by the ISP.
Service Name
IP Address or name of DSL Server
User
DSL User Name or Login ID
Password
DSL Password
After entering the new settings, click the APPLY button. The phone will save the new
settings and apply them. If a new IP address was entered for the phone, it must be used to
login to the phone after clicking the APPLY button.
5.3.2.2 Qos & VLAN Config
The phone supports 802.1Q/P protocol and DiffServ configuration. Use of a Virtual LAN
(VLAN) allows voice and data traffic to be separated.
- 20 -
Chart 1 shows a network switch with no VLAN. Any broadcast frames will be transmitted
to all other ports. For example, and frames broadcast from Port 1 will be sent to Ports 2, 3,
and 4.
Chart 2 shows an example with two VLANs indicated by red and blue. In this example,
frames broadcast from Port 1 will only go to Port 2 since Ports 3 and 4 are in a different
VLAN. VLANs can be used to divide a network by restricting the transmission of broadcast
frames.
Note: In practice, VLANs are distinguished by the use of VLAN IDs.
- 21 -
Field Name
Explanation
Enable LLDP
Enable or Disable Link Layer Discovery Protocol (LLDP)
Packet Interval
The time interval for sending LLDP Packets
Enable Learning Function
Enables the telephone to synchronize its VLAN data with the
Network Switch. The telephone will automatically synchronize
DSCP, 802.1p, and VLAN ID values even if these values differ
from those provided by the LLDP server.
Enable DSCP
Enable or Disable Differentiated Services Code Point (DSCP)
SIP DSCP
Specify the value of the SIP DSCP in decimal
Audio DSCP
Specify the value of the Audio DSCP in decimal
Enable WAN Port VLAN
Enable or Disable WAN Port VLAN
WAN Port VLAN ID
Specify the value of the WAN Port VLAN ID. Range is
0-4095
SIP 802.1P Priority
Specify the value of the voice 802.1p priority. Range is 0-7
Audio 8021P Priority
Specify the value of the signal 8021.p priority. Range is 0-7
LAN Port VLAN Mode
Follow WAN: LAN Port ID is same as WAN ID
Disable: Disable Port VALN
Enable: Specify a VLAN ID for the LAN port which is different
from WAN ID
LAN Port VLAN ID
Used when the VLAN ID is different from WAN ID. Range is
0-4095
- 22 -

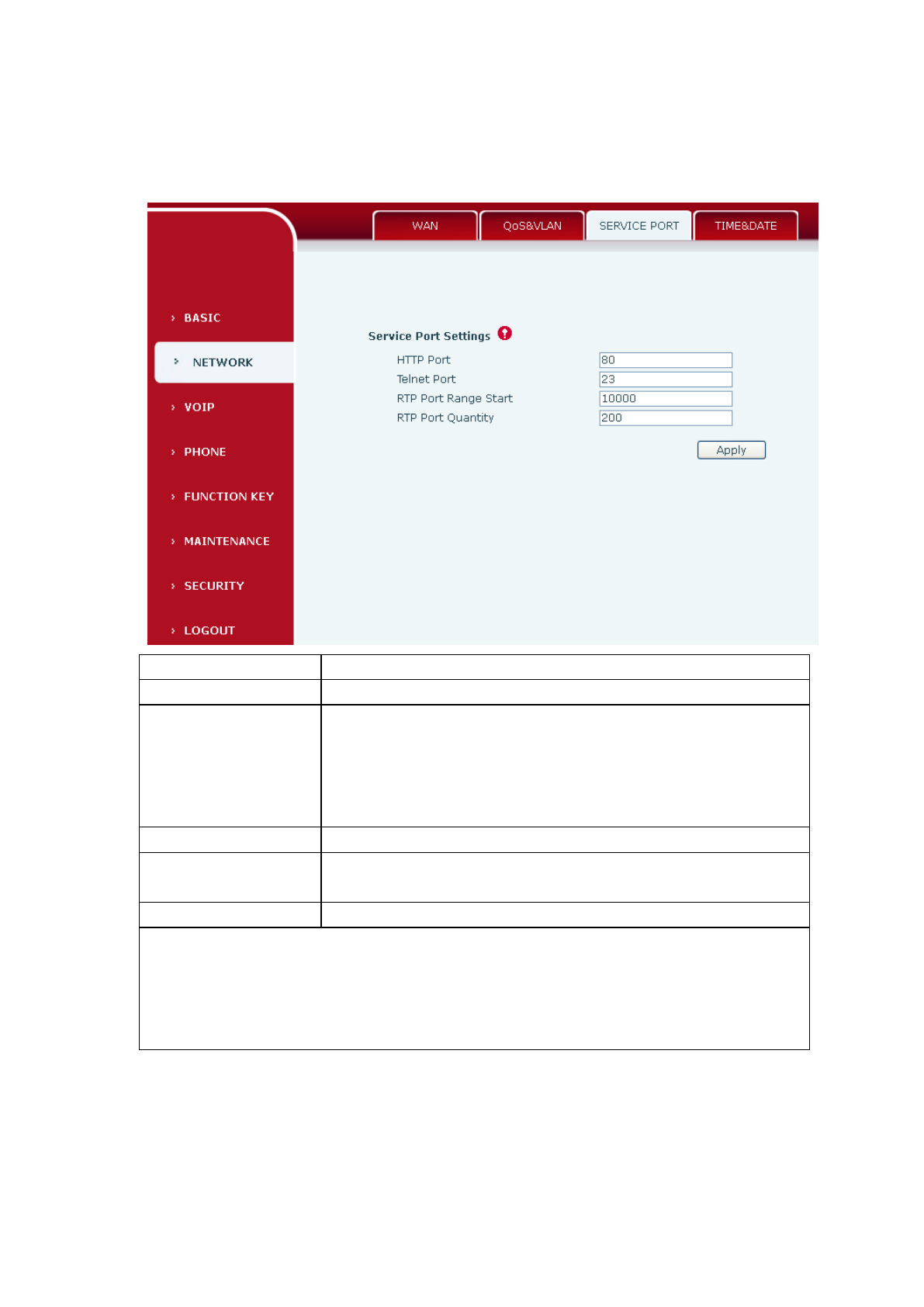

5.3.2.3 Service Port
Set the port values for Telnet/HTTP/RTP on this page.
Explanation
Specify Web Server Type – HTTP or HTTPS
Port for web browser access. Default value is 80. To enhance
security, change this from the default. Setting this port to 0 will
disable HTTP access.
Example: The IP address is 192.168.1.70 and the port value is 8090,
the accessing address is http://192.168.1.70:8090.
Port for Telnet access. The default is 23.
Set the beginning value for RTP Ports. Ports are dynamically
allocated.
Set the maximum quantity of RTP Ports. The default is 200.
Notes:
1. Any changes made on this page require a reboot to become active.
2. It is suggested that changes to HTTP Port and Telnet ports be values greater than 1024.
Values less than 1024 are reserved.
3. If the HTTP port is set to 0, HTTP service will be disabled.
5.3.2.4 TIME&DATE
Set the time zone and SNTP (Simple Network Time Protocol) server on this page. Daylight
savings time configuration and manual time and date entry are also done on this page
- 23 -
Explanation
Simple Network Time Protocol (SNTP) Settings
Enable or Disable SNTP
If this is enabled, phone will synchronize time with DHCP server.
IP address of Primary SNTP Server
IP address of Secondary SNTP Server
Local Time Zone
Time between resync to SNTP server. Default is 60 seconds.
If checked, clock is 12 hour mode. If unchecked, 24 hour mode.
Default is 24 hour mode.
Specify the date format. Fourteen different formats are available.
Four date separators are available: /, - , . , space
Daylight Saving Time Settings
Enable daylight saving time.
DST offset. Default is 60 minutes.
Start and end month for DST
- 24 -
Start and end week for DST
Start and end day for DST
Start and end hour for DST
Start and end minute for DST
Manual Time Settings
Enter the values for the current year, month, day, hour and minute. All values are required.
Note: Be sure to disable SNTP service before entering manual time and date.
5.3.3 VOIP
5.3.3.1 SIP Configuration
Configure a SIP server on this page.
- 25 -
Field Name
Explanation
Choose the sip line to configured (SIP 1 – SIP 2). Click the dropdown arrow to select the line.
Status
Shows registration status. Will show “Registered” if registered
or “Unapplied” if not registered.
Server Address
SIP server IP address or URI.
Server Port
SIP server port. Default is 5060.
Authentication User
SIP account name (Login ID).
Authentication Password
SIP registration password.
SIP User
Phone number assigned by VoIP service provider. Phone will not
register if there is no phone number configured.
- 26 -
Display Name
Set the display name. This name is shown on Caller ID.
Enable Registration
Check to submit registration information.
Domain Realm
SIP Domain if different than the SIP Registrar Server.
Proxy Server Address
SIP proxy server IP address or URI（This is normally the same as
the SIP Registrar Server)
Proxy Server Port
SIP Proxy server port. Normally 5060.
Proxy User
SIP Proxy server account.
Proxy Password
SIP Proxy server password.
Backup Server Address
Backup SIP Server Address or URI (This server will be used if the
primary server is unavailable)
Backup Server Port
Backup SIP Server Port
Server Name
Name of SIP Backup server
Codecs Settings
Click on the desired codec to select it. Then use the Left/Right arrow keys to move to the
Enabled or Disabled List. Use the Up/Down arrow to change the priority of enabled codecs.
Advanced SIP Settings
Forward Type
There are 3 call forwarding modes plus Disabled.
Disabled：No call forwarding – Default mode
Busy：If the phone is busy, incoming calls will be forwarded.
No answer：If there is no answer, incoming calls will be forwarded
after a specified time.
Always：All incoming calls will be forwarded.
Forward Number
Number to which calls are to be forwarded.
No Ans. Fwd Wait Time
Used in conjunction with Call Forward No Answer. Wait time in
seconds before call is forwarded.
Transfer Timeout
Time interval between sending “bye” message and hanging up
after the phone transfers a call.
Enable Hotline
Activate Hot Line feature. Automatically call a number by going
off hook.
Hotline Number
Number to be called in Hot Line Mode.
Warm Line Wait Time
Used in Hot Line Mode. Time the phone waits after off hook
before dialing the hot line number.
SIP Encryption
Enable/Disable SIP Encryption.
SIP Encryption Key
SIP Encryption key.
RTP Encryption
Enable/Disable RTP Encryption.
RTP Encryption Key
RTP encryption key
Enable Auto Answer
Activate Auto Answer mode. If activated, phone will
automatically answer an incoming call.
Auto Answer Timeout
Used in conjunction with Auto Answer. The phone will answer
an incoming call after the Auto Answer Timeout
Enable Session Timer
If enabled, this will refresh the SIP session timer per RFC4028.
Session Timeout
Refresh interval if Session Timer is enabled.
- 27 -
Subscribe For MWI
If enabled, the phone will send Message Waiting Indication
(MWI) Subscribe message to the SIP Server
MWI Number
Specify the number to call to retrieve Voice Messages.
Subscribe Period
Time interval between MWI Subscribe Messages.
Conference Type
Choose Conference Type, either local or network
Conference Number
Number to dial to access network conference server. Not needed
if Local conference mode is chosen
Registration Expires
SIP re-registration time. Default is 3600 seconds. If the server
requests a different time, the phone will change to that value.
Enable Service Code
Enables or disables the services described below. These codes
will be sent to the SIP server to activate or deactivate the service.
DND On Code
Do Not Disturb (DND) – When this hot key is pressed, all calls to
the extension to be rejected by the server. The incoming call
record will not be displayed in the Call History.
DND Off Code
Disable Server DND as described above.
Always CFwd On Code
Always Call Forward On – When this function is enabled, the
server will forward all calls to a designated number. The
incoming call record will not be displayed in the Call History.
Always CFwd Off Code
Disable Server Always CFwd as described above.
Busy CFwd On Code
Busy Call Forward On - When this function is enabled, the server
will forward all calls to a designated number if the telephone is
busy. The call record will not be displayed in Call History.
Busy CFwd Off Code
Disable Server Busy CFwd as described above.
No Ans. CFwd On Code
No Answer Call Forward On - When this function is enabled, the
server will forward all calls to a designated number if there is no
answer within a designated time. The incoming call record will not
be displayed in the Call History.
No Ans. CFwd Off Code
Disable Server No Ans. CFwd as described above.
Anonymous On Code
Anonymous On – When this function is enabled, the server will
allow the phone to make anonymous calls. In other words
“Anonymous” will be transmitted for Caller ID.
Anonymous Off Code
Disable Anonymous Calling function described above.
Keep Alive Type
Specifies the NAT keep alive type. If OPTION is selected, the
phone will send OPTION sip messages to the server every NAT
Keep Alive Period. The server will then respond with 200 OK.
If UDP is selected, the phone will send a UDP message to the
server every NAT Keep Alive Period.
Keep Alive Interval
Set the NAT Keep Alive Interval. Default is 60 seconds
User Agent
Set SIP User Agent value.
DTMF Type
DTMF sending mode. There are four modes:
- In-band (Relay)
- RFC2833
- SIP_INFO
- AUTO
- 28 -
Different VoIP Service providers may require different modes.
Local port
SIP port. Default is 5060.
Ring type
Set ring tone. There are 9 standard options and 3 user options.
Enable Rport
Enable/Disable support for NAT traversal via RFC3581 (Rport).
Enable PRACK
Enable or disable SIP PRACK function. Default is OFF. It is
suggested this be used.
Enable Long Contact
Allow more parameters in contact field per RFC 3840
Convert URI
Converts # to %23 when sending URI information.
Dial Without Registered
Allow outgoing calls without registration.
Ban Anonymous Call
Refuse Anonymous Calls
Enable DNS SRV
Enables use of DNS SRV records
Enable Missed Call Log
If enabled, the phone will save missed calls into the call history
record.
BLF List Number
BLF List allows one BLF key to monitor the status of a group.
Multiple BLF lists are supported.
Enable BLF List
Enable/Disable BLF List
Server Type
Configures phone for unique requirements of selected server.
RFC Protocol Edition
Select SIP protocol version RFC3261 or RFC2543. Default is
RFC3261. Used for servers which only support RFC2543.
Transport Protocol
Set transport protocol TCP, UDP or TLS.
Anonymous Call Edition
Set privacy support RFC3323, RFC3325 or none
Keep Authentication
Enable /disable registration with authentication. It will use the
last authentication field which passed authentication by server.
This will decrease the load on the server if enabled.
Ans. With a Single Codec
If enabled phone will respond to incoming calls with only one
codec.
Auto TCP
Force the use of TCP protocol to guarantee usability of transport
for SIP messages above 1500 bytes
Enable Strict Proxy
Enables the use of strict routing. When the phone receives
packets from the server，it will use the source IP address, not the
address in via field.
Enable GRUU
Support for Globally Routable User-Agent URI (GRUU)
Enable Displayname
Quote
Puts quotation marks around the display-name in SIP messages.
For servers that require this.
Enable user=phone
Sets user=phone in SIP messages. For compatibility with servers
that require this.
Click to Talk
Set click to Talk (needs support from server).
SIP Global Settings
Strict Branch
Enable Strict Branch - The value of the branch must be after
“z9hG4bK” in the VIA field of the INVITE message received, or
the phone will not respond to the INVITE.
Note: This will affect all lines
Enable Group
Enable SIP Group Backup. This will affect all lines
- 29 -
Registration Failure Retry
Time
Registration failure retry time – If registration fails, the phone will
attempt to register again after registration failure retry time.
This will affect all lines
5.3.3.2 STUN Config
STUN support is configured in this page.
STUN – Simple Traversal of UDP through NAT – A STUN server allows a phone in a private
network to know its public IP and port as well as the type of NAT being used. The phone can
then use this information to register itself to a SIP server so that it can make and receive calls
while in a private network.
- 30 -
Field Name
Explanation
STUN NAT Transversal
Shows whether or not STUN NAT Transversal was successful.
Server Address
STUN Server IP address
Server Port
STUN Server Port – Default is 3478.
Binding Period
STUN blinding period – STUN packets are sent at this interval
to keep the NAT mapping active.
SIP Waiting Time
Waiting time for SIP. This will vary depending on the
network.
SIP Line Using STUN
SIP Line Using STUN
Select the Line for use with STUN (SIP 1 - SIP 2)
Use STUN
Enable/Disable STUN on the selected line.
5.3.3.3 DIAL PEER
This feature allows the user to create rules to make dialing easier. There are several different
options for dial rules. The examples below will show how this can be used.
Example 1: Substitution – Assume that it is desired to place a direct IP call to IP address
192.168.119. Using this feature, 156 can be substituted for 192.168.1.119.
Example 2: Substitution – To dial a long distance call to Beijing requires dialing area code
010 before the local phone number. Using this feature 1 can be substituted for 010. For
example, to call 62213123 would only require dialing 162213123 instead of 01062213123.
Example 3: Addition – Two examples are shown. In the first case, it is assumed that 0 must
be dialed before any 11 digit number beginning with 13. In the second case, it is assumed
that 0 must be dialed before any 11 digit number beginning with 135, 136, 137, 138, or 139.
Two different special characters are used.
x – Matches any single digit that is dialed.
[] – Specifies a range of numbers to be matched. It may be a range, a list of ranges separated
by commas, or a list of digits.
- 31 -
Field Name
Explanation
Phone number
There are two types of matching: Full Matching or Prefix Matching.
In Full matching, the entire phone number is entered and then
mapped per the Dial Peer rules.
In prefix matching, only part of the number is entered followed by
T. The mapping with then take place whenever these digits are
dialed. Prefix mode supports a maximum of 30 digits.
Destination
Set Destination address. This is optional. For a peer to peer call,
enter the destination IP address or domain name. To use a dial rule
on the SIP2 line, enter 0.0.0.2. For SIP3 enter 0.0.0.3
Port
Set the Signaling port, the default is 5060.
Alias
Set the Alias. This is the text to be added, replaced, or deleted. It is
optional.
Note: There are four types of aliases.
1) Add: xxx – xxx will be dialed before any phone number.
2) All: xxx – xxx will replace the phone number.
3) Del: The characters will be deleted from the phone number.
4) Rep: xxx – xxx will be substituted for the specified characters.
Call Mode
Select either SIP or IAX2 protocol.
Suffix
Characters to be added at the end of the phone number. This is
optional.
- 32 -
Dial Peer Examples
Web Interface
Explanation
Example
Set phone number,
Destination, Alias and Delete
Length.
Phone number is XXXT;
Destination is 255.255.255.255
(0.0.0.2) and Alias is del.
Any phone number that begins
with XXX will be sent via
SIP2 after the first several
digits are deleted depending on
the delete length.
Dial “93333”
The SIP2 server will
receive “3333”
This creates a speed dial
function. Dialing “2”, will
cause the entire alias number
to be sent out.
Dial “2”
The SIP1 server will
receive 33334444
The phone will add the alias to
the end of the dialed number if
the dialed number matches the
template in the Phone Number
box.
Dial “8309“
The SIP1 server will
receive “07558309”
Set Phone Number, Alias and
Delete Length. Phone number
is XXXT and Alias is rep: xxx
If the dialed phone number
starts with the digits in the
Phone Number box, the
matching digits will be
replaced by the alias number.
Dial “0106228”
The SIP1 server will
receive “86106228”
If the dialed phone number
starts with the digits in the
Phone Number box, the phone
will send out the dialed phone
number and add the suffix
number.
Dial “147”
The SIP1 server will
receive “1470011”
Delete Length
Sets the number of characters to be deleted. For example, if this is
set to 3, the phone will delete the first 3 digits of the phone number.
This is optional.
- 33 -
5.3.4 Phone
5.3.4.1 AUDIO

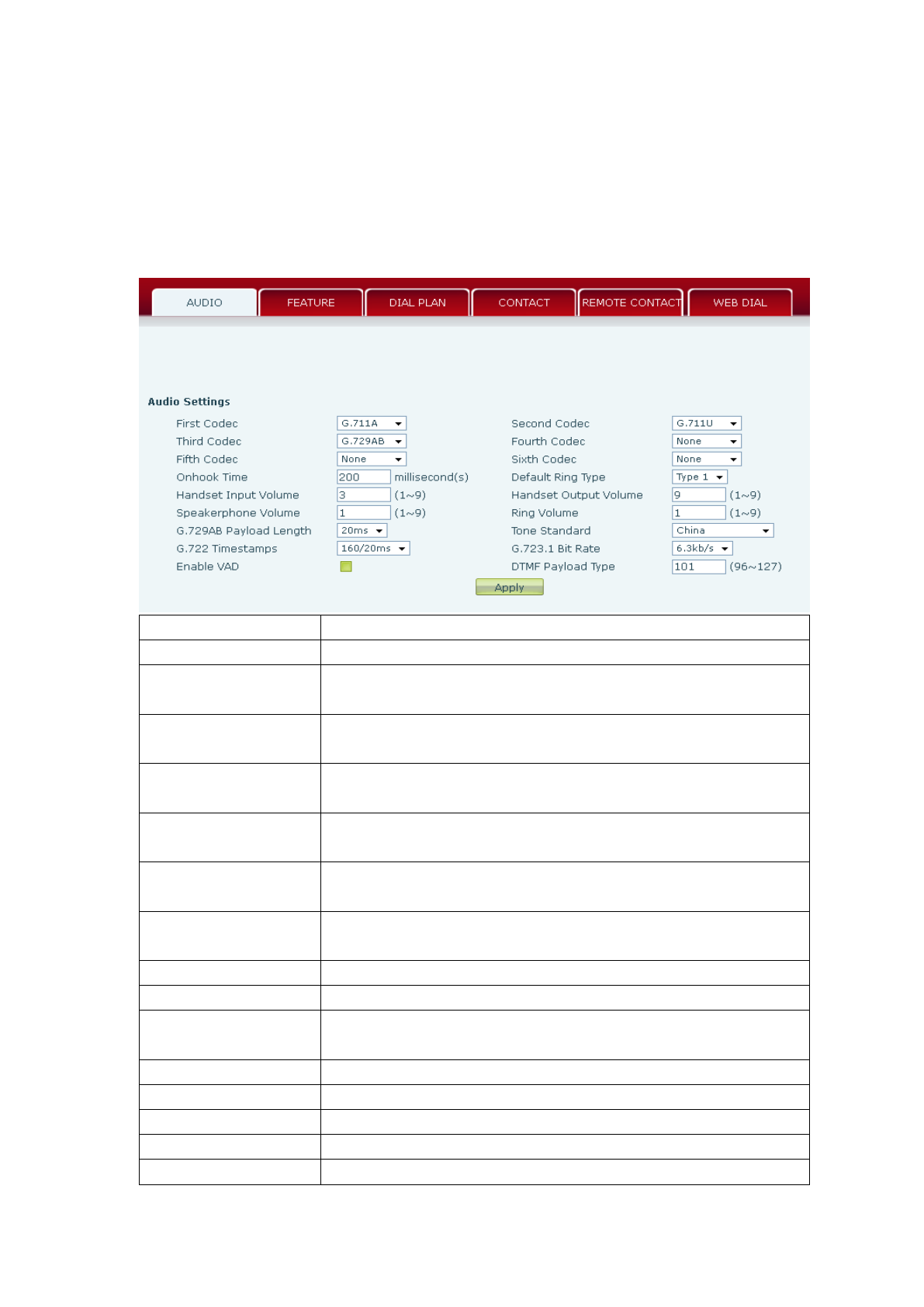

This page configures audio parameters such as voice codec, handset volume, and ringer
volume.
Field Name
Explanation
First Codec
The first codec choice: G.711A/u, G.722, G.723, G.729, G.726
Second Codec
The second codec choice: G.711A/u, G.722, G.723, G.729, G.726,
None
Third Codec
The third codec choice: G.711A/u, G.722, G.723, G.729, G.726,
None
Fourth Codec
The forth codec choice: G.711A/u, G.722, G.723, G.729, G.726,
None
Fifth Codec
The fifth codec choice G.711A/u, G.722, G.723, G.729, G.726,
None
Sixth codec
The sixth codec choice G.711A/u, G.722, G.723, G.729, G.726,
None
Onhook Time
Time the handset must be on hook to disconnect a call. Default is
200ms.
Default Ring Type
Ring Sound – There are 9 standard types and 3 User types
Handset Input Volume
Handset Microphone volume – 9 levels
Handset Output
Volume
Handset receiver volume - 9 levels
Speakerphone Volume
Speaker volume in hands free mode - 9 levels
Ring Volume
Ringer Volume - 9 levels
G729 Payload Length
G729 Payload Length – Adjusts from 10 – 60 mSec
Tone Standard
Select tone plan for the country of operation
G722 Timestamps
Choices are 160/20ms or 320/20ms
- 34 -
G723.1 Bit Rate
Choices are 5.3kb/s or 6.3kb/s
Enable VAD
Enable or disable Voice Activity Detection (VAD). If VAD is
enabled, G729 Payload length cannot be set greater than 20 mSec.
DTMF Payload Type
The RTP Payload type that indicates DTMF. Default is 101
5.3.4.2 FEATURE
This page configures various features such as Hotline, Call Transfer, Call Waiting, etc.
- 35 -
Field Name
Explanation
Do Not Disturb
If enabled, the phone will reject incoming calls. The callers receive
busy tone. Outgoing calls may be made.
Enable Call Transfer
If enabled, Call Transfer is allowed.
Semi-Attended
Transfer
If enabled, Semi-Attended Transfer is allowed.
Enable Auto
Handdown
If enabled in speakerphone mode, the phone will automatically hang
up and return to idle when the distant party terminates the call. In
handset mode, it will play dial tone instead of returning to idle.
Auto Handdown Time
Wait time before the phone performs the Auto Handdown behavior
described above.
Enable Auto Redial
If enabled, the phone will automatically redial a call if a busy tone is
received.
Auto Redial Interval
Wait time between auto redial attempts in seconds.
Auto Redial Times
Maximum number of auto redial attempts.
- 36 -
Enable Intercom
If enabled, allows intercom calls.
Enable Intercom Tone
If enabled, plays intercom ring tone to alert to an intercom call.
P2P IP Prefix
Set Prefix for peer to peer IP call. For example: You wish to dial
192.168.1.119. If the P2P IP Prefix is defined as 192.168.1., it is
only necessary to dial #119. The default is “.”. If this box is left
blank, IP dialing is disabled.
Turn Off Power Light
Disables Power Light if selected.
Emergency Call
Number
The phone will dial the emergency call number even if the keyboard
is locked.
Enable Password Dial
When a number is entered beginning with the password prefix, the
following N numbers after the password prefix will be displayed as
*. N is the value entered in the Password Length field.
For example: If the password prefix is 3 and the Password Length is
2, then dialing the number 34567 will display 3**67 on the phone.
Password Dial Prefix
Prefix for password dialing as described above.
Password Dial Length
Length for password dialing as described above.
Ban Outgoing
If enabled, no outgoing calls can be made.
Enable Call Waiting
If enabled, notifies user of a second call during a call. Caller ID of
the new caller will be displayed. Press HOLD button to place
existing call on hold and answer new call. Press HOLD again to
return to first call.
Enable 3-way
Conference
If enabled, allows 3-way conference.
Accept Any Call
If enabled, the phone will accept a call even if the called number
does not belong to the phone.
Enable Call
Completion
This is similar to Auto Redial except that the phone detects the state
of the called number before making a new call attempt.
Enable Pre-Dial
If this feature is enabled, digits dialed on-hook will be transmitted
when the phone goes off-hook.
Enable Silent Mode
If enabled, the phone will not ring to indicate a new call. Instead,
the light below the key pad will blink to indicate a new call.
Hide DTMF
This feature sets how DTMF digits are displayed after a call is in
progress. For example, dialing a PIN code to access banking
information. There are 4 choices.
4. Disabled – All the digits will be shown on the LCD.
5. All – None of the digits will be shown on the LCD. The “*”
will be shown.
6. Delay – The last digit entered will be shown for a short time and
then replaced by “*.”
7. Last Show – The last digit entered will be shown. Previous
digits are replaced by “*.”
Enable Intercom Mute
If enabled, mutes incoming calls during an intercom call
Enable Intercom Barge
If enabled, the phone will auto-answer an intercom call during an
- 37 -
outside call. If an intercom call is established, a second intercom
call will be rejected.
DND Return Code
Specify SIP Code returned for DND. Default is 480 - Temporarily
Not Available.
Busy Return Code
Specify SIP Code returned for Busy. Default is 486 – Busy Here.
Reject Return Code
Specify SIP Code returned for Rejected call. Default is 603 –
Decline.
Active URI Limit IP
IP address of the server for the Action URL messages described
below.
Push XML Server
IP address for XML server which can send display content to the
phone.
Enable Call Waiting
Tone
Enables audible notification of call waiting.
Action URL Settings
URL for various actions performed by the phone. These actions
are recorded and sent as xml files to the server. Sample format is
http://InternalServer /FileName.xml
Block Out Settings
Add or Delete Blocked numbers – Enter the prefix of numbers
which should not be dialed by the phone. For example, if 001 is
entered, the phone will not dial any numbers beginning with 001.
X and x are wildcards which match single digits. For example, if
4xxx or 4XXX is entered, the phone will not dial any 4 digit
numbers beginning with 4. It will dial numbers beginning with 4
which are longer or shorter than 4 digits.
5.3.4.3 DIAL PLAN
This phone supports 7 dialing modes:
1. End with “#”– Dial the desired number, and press # to send it to the server.
2. Fixed Length – The number will be sent to the server after the specified number of digits
are dialed.
3. Time Out – Number will be sent to the server after the specified time.
4. User Defined – Customized rules created by the user.
There is a special feature in the dial plan for the case where the user must dial an access code
to get an external line. A digit followed by a “,” will cause secondary dial tone to be
generated. For example, assume a rule “9,xxxxxxx” is added. When the user dials 9, the
phone will generate secondary dial tone. Then, when 8 digits have been dialed, they will all
be sent to the server.
5. Press # to Do Blind Transfer - Press # after entering the target number for the transfer.
The phone will transfer the current call to the third party.
6. Blind Transfer on Onhook - Hang up after entering the target number for the transfer. The
phone will transfer the current call to the third party.
7. Attended Transfer on Onhook - Hang up after the third party answers. The phone will
transfer the current call to the third party.
- 38 -

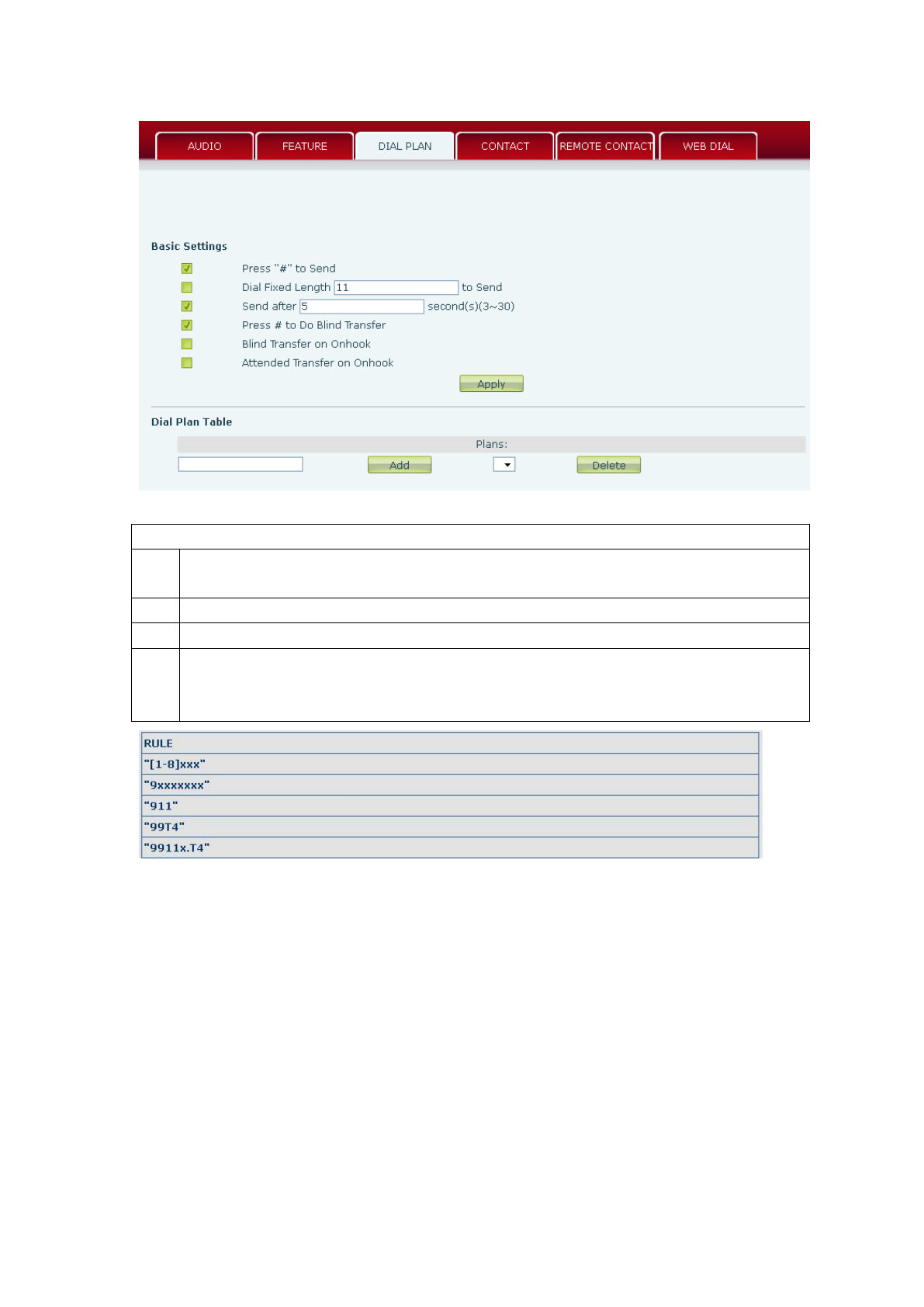

Dial Plan Special Characters
[]
Specifies a range of digits to match. May be a range, a list of ranges separated by
commas, or a list of digits.
*
Match any single digit that is dialed.
.
Match any arbitrary number of digits including none.
Tn
A time out period before digits are sent of n seconds in length. n is mandatory and can
have a value of 0 to 9 seconds. Tn must be the last 2 characters of a dial plan. If Tn is not
specified it is assumed to be T0 by default on all dial plans.
Cause extensions 1000-8999 to be dialed immediately
Cause 8 digit numbers beginning with 9 to be dialed immediately
Cause 911 to be dialed immediately
Cause 99 to be dialed after 4 seconds.
Cause any number beginning with 9911 to be dialed 4 seconds after dialing ceases.
Note: End with “#”, Fixed Length, Time out and Digital Map Table can be used
simultaneously.
- 39 -
5.3.4.4 CONTACT
Enter the name, phone number and ring type for each contact here.
Field Name
Explanation
Phonebook Tables
Name
Contact name
Office Number
Contact phone numbers
Ring Type
Ring type for this contact
Add Contact
Name
Contact name
Office Number
Contact phone numbers
Ring Type
Ring type for this contact
Import Contact List
Select File
Click the browse button to select the phonebook file to import.
Then click the update button and the selected file will be added to
the phone. File must be xml, vcf or csv format.
- 40 -
5.3.4.5 WEB DIAL
This feature allows a call to be initiated by a computer. To place a call, enter the number in
the Dial Number box, select the line in the Line Selection box and press the Dial button. To
end the call, press the Hangup button.
5.3.5 Function Key
The phone has 4 programmable DSS/Function keys which can be made to perform various
functions. The functions are described below.
Export Contact File
Export XML
Export contacts to xml file.
Export CSV
Export contacts to csv file.
Export VCF
Export contacts to vcf file.
Blacklist Settings
Type
Select the blacklist type - number or prefix
Value
Input number or prefix
Line
Select the sip line
Note: The maximum capability of the phonebook is 500 contacts.
Note: “x” and “.” are special characters in the black list. “x” matches any single digit and “.”
matches any number of digits. For example, “4xxx” matches any 4 digit number beginning
with 4. “6.” Matches any digit string beginning with 6.
Note: There is also an allowed number list feature if the user only wants to allow a limited
access to the phone. To use this, precede the number with “-“. For example, -123456, or
-1234xx.
Allowed number lists must end with an entry which is only a “.”
This will forbid incoming calls from any number except 4119.
- 41 -
Memory Key – Select Type as Memory Key and enter the number to be dialed in the Value
box. When the key is pressed, the phone will dial the programmed number.
Key Event – Select Type as Key Event and then select the SubType from the following
options:
None
Message Wait Indication (MWI)
Do Not Disturb (DND)
Hold
Transfer
Phone Book
Redial
Auto redial on
Auto redial off
Call Forward
History
Flash
Headset
Call Back
5.3.6 Maintenance
5.3.6.1 Auto Provision
The phone supports PnP, DHCP, and Phone Flash to obtain configuration parameters. They
will be queried in the following order when the phone boots.
DHCP PnP server Phone Flash
- 42 -
Auto Provision Setting
Explanation
Current Config Version
Show the current config file’s version. If the version of
configuration downloaded is higher than this, the configuration will
be upgraded. If the endpoints confirm the configuration by the
Digest method, the configuration will not be upgraded unless it
differs from the current configuration.
Common Config
Version
Show the common config file’s version. If the configuration
downloaded and this configuration are the same, the auto provision
will stop. If the endpoints confirm the configuration by the Digest
method, the configuration will not be upgraded unless it differs from
the current configuration.
User
Username for configuration server. Used for FTP/HTTP/HTTPS.
- 43 -
If this is blank the phone will use anonymous.
Password
Password for configuration server. Used for FTP/HTTP/HTTPS.
Config Encryption Key
Encryption key for the configuration file
Common Config
Encryption Key
Encryption key for common configuration file
DHCP Option Settings
Explanation
DHCP Option Setting
The phone supports configuration from Option 43, Option 66, or a
Custom DHCP option. It may also be disabled.
Custom DHCP Option
Custom option number. Must be from 128 to 254.
Plug and Play Settings
Enable PnP
If this is enabled, the phone will send SIP SUBSCRIBE messages to
a multicast address when it boots up. Any SIP server understanding
that message will reply with a SIP NOTIFY message containing the
Auto Provisioning Server URL where the phones can request their
configuration.
PnP Server
PnP Server Address
PnP Port
PnP Server Port
PnP Transport
PnP Transfer protocol – UDP or TCP
PnP Interval
Interval time for querying PnP server. Default is 1 hour.
Phone Flash Settings
Server Address
Set FTP/TFTP/HTTP server IP address for auto update. The address
can be an IP address or Domain name with subdirectory.
Protocol Type
Specify the Protocol type FTP, TFTP or HTTP.
Config File Name
Specify configuration file name. The phone will use its MAC ID
as the config file name if this is blank.
Update Interval
Specify the update interval time. Default is 1 hour.
Update Mode
1. Disable – no update
2. Update after reboot – update only after reboot.
3. Update at time interval – update at periodic update interval
5.3.6.2 Syslog
Syslog is a protocol used to record log messages using a client/server mechanism. The
Syslog server receives the messages from clients, and classifies them based on priority and
type. Then these messages will be written into a log by rules which the administrator has
configured. There are 8 levels of debug information.
- 44 -
Level
Name
Description
0
Emergency
System is unusable. This is the highest debug info level.
1
Alert
Action must be taken immediately.
2
Critical
Critical conditions. System is probably working incorrectly.
3
Error
Error conditions. System may not work correctly.
4
Warning
Warning conditions. System may work correctly but needs
attention.
5
Notice
Normal but significant condition.
6
Informational
Normal daily messages.
7
Debug
Debug messages normally used by system designer. This level
can only be displayed via telnet.
Syslog Configuration
Field Name
Explanation
Syslog Settings
Server IP
Syslog server IP address.
Server Port
Syslog server port.
MGR Log Level
Set the level of MGR log.
SIP Log Level
Set the level of SIP log.
Enable Syslog
Enable or disable syslog.
Web Capture
Start
Capture a packet stream from the phone. This is normally used
to troubleshoot problems.
Stop
Stop capturing the packet stream
5.3.6.3 Config Setting
- 45 -
Config Setting
Field Name
Explanation
Save Configuration
Save the current phone configuration. Clicking this saves all
configuration changes and makes them effective immediately.
Backup Configuration
Save the phone configuration to a txt or xml file. Please note to
Right click on the choice and then choose “Save Link As.”
Clear Configuration
Logged in as Admin, this will restore factory default and remove all
configuration information.
Logged in as Guest, this will reset all configuration information
except for VoIP accounts (SIP1-2) and version number.
5.3.6.4 Update
This page allows uploading configuration files to the phone.
Update
Explanation
Web Update
Browse to the config file, and press Update to load it to the phone. Various
types of files can be loaded here including firmware, ring tones, local
phonebook and config files in either text or xml format.
TFTP/FTP Update
FTP/TFTP server address for download/upload. The address can be IP
address or Domain name with subdirectory.
FTP server Username for download/upload.
FTP server password for download/upload.
Name of update file or config file. The default name is the MAC of the
phone.
Note: The exported config file can be modified. The config file is made up of modules. Modules
which do not need changes may be deleted. For example, a config file can be downloaded and all
modules removed except the SIP module. After rebooting, only the SIP settings will be changed.
- 46 -
Action to be executed by the phone.
1. Application update - download system update file
1. Config file export - Upload config file to FTP/TFTP server. It
can then be named and saved.
2. Config file import - Download the config file from FTP/TFTP
server. The configuration will be effective after the phone is
reset.
3. Phone book export (.vcf, .csv, .xml) - Upload the phonebook file
to FTP/TFTP server. It can then be named and saved.
4. PhoneBook import (.vcf, .csv, .xml) - Download phonebook file
from FTP/TFTP server.
Select FTP/TFTP server.
5.3.6.5 Access
User accounts can be added or deleted from this page. The authority of accounts can also be
changed.
Access Configuration
Field Name
Explanation
LCD Menu Password Settings
Menu Password
Sets the password for entering the setup menu from the phone
keypad. The password must be only digits.
User Settings
This table shows the current user accounts
Add User
User
Set User Account name
User Level
There are two levels. Root user can modify the configuration.
General user can only read the configuration.
- 47 -
Password
Set the password
Confirm
Confirm the password
User Management
Select the account and click Modify to modify the selected account. Click Delete to delete
the selected account.
A General user can only add another General user.
5.3.6.6 Reboot
Some configuration modifications require a reboot to become effective. Clicking the Reboot
button will cause the phone to reboot immediately.
Note: Be sure to save the configuration before rebooting.
5.3.7 Security
5.3.7.1 WEB FILTER
WEB Filter
The Web filter is used to limit access to the phone. When the web filter is enabled, only the
IP addresses between the start IP and end IP can access the phone.
Explanation
Start IP Address
Beginning IP Address for MMI Filter
End IP Address
Ending IP Address for MMI Filter
- 48 -
Add this filter range to the Web Filter Table
Enable Web Filter
Select to enable MMI Filter.
Apply
Make filter settings effective.
Note: Once a range is added, it can be modified or deleted.
Note: Be sure that the filter range includes the IP address of the configuration computer.
5.3.7.2 Firewall
Firewall Configuration
Firewall rules can be used to prevent unauthorized Internet users from accessing private
networks connected to this phone (input rule), or prevent unauthorized devices connected to
this phone from accessing the Internet (output rule). Each rule type supports a maximum of
10 items.
Field Name
Explanation
Enable Input Rules
Enable rules limiting access from the Internet.
Enable Output Rules
Enable rules limiting access to the Internet.
Input/Output
Specify if the current rule is input or output.
Deny/Permit
Specify if the current rule is Deny or Permit.
Protocol
Filter protocol type (TCP/ UDP/ ICMP/ IP)
Port Range
Set the filter Port range
Src Address
Set source address. It can be a single IP address or use * as a wild
card. For example: 192.168.1.14 or *.*.*.14.
- 49 -

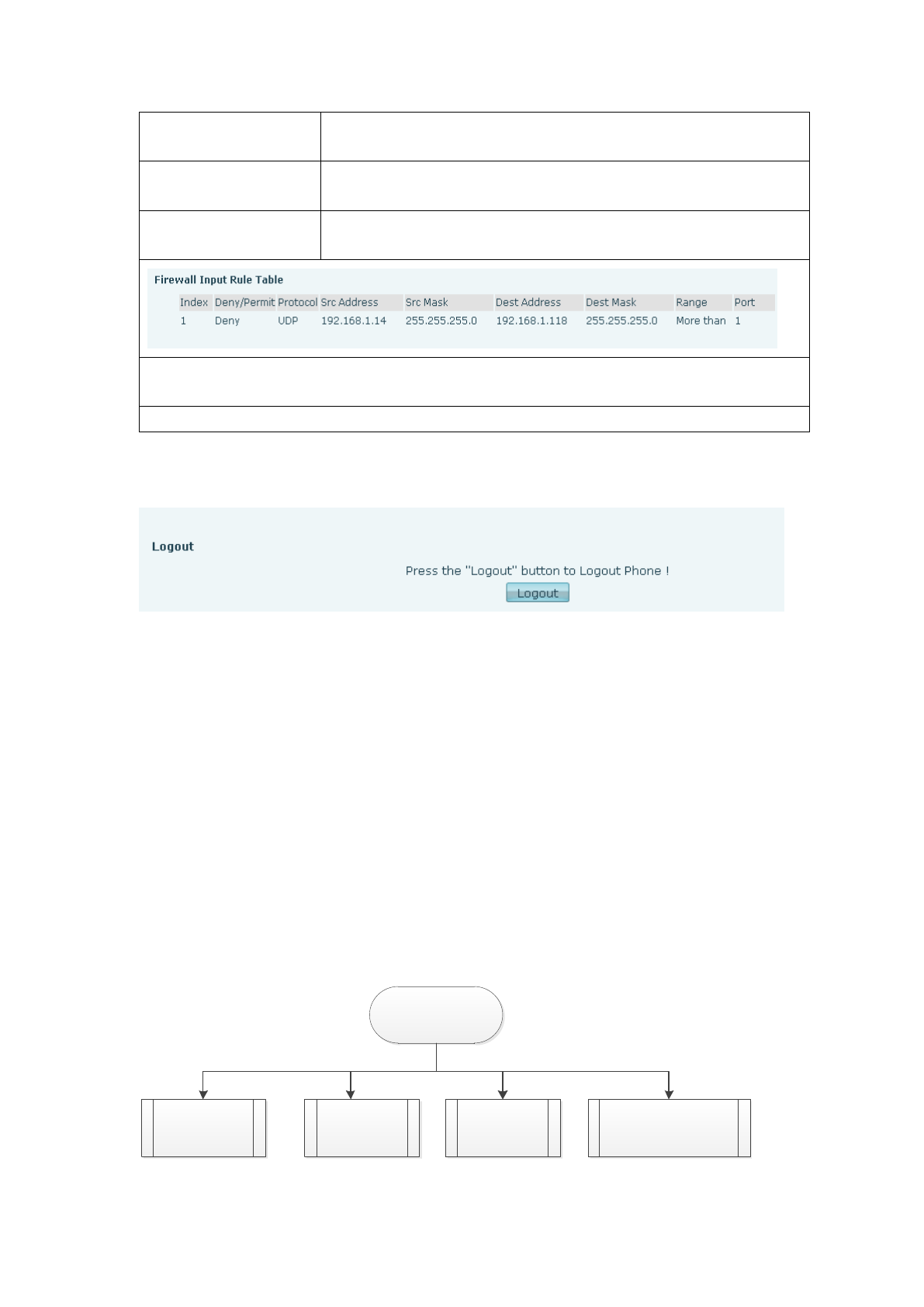

Dest Address
Set destination address. It can be a single IP address or use * as a
wild card. For example: 192.168.1.14 or *.*.*.14.
Src Mask
Set the source address mask. For example: 255.255.255.255 points to
one host while 255.255.255.0 points to a C type network.
Dest Mask
Set the destination address mask. For example: 255.255.255.255
points to one host while 255.255.255.0 points to a C type network.
When a connected device tries to access 192.168.1.118, the phone will deny the request
because of the out_access rule. Access to any other IP address will be allowed.
Click the Delete button to delete the selected rule.
5.3.8 Logout
Click Logout to exit the phone web page.
5.4 Settings via Phone’s Keyboard
5.4.1 Procedure
Use the Menu key to begin configuration from the keypad.
Use the Up/Down key to browse menus and submenus.
Use the ENTER key to enter submenus and confirm operations.
Use the EXIT key to go back or to cancel operation.
5.4.2 Phone menu
Phone main menu:
Config
SystemNetwork Phone bookDSP
- 50 -
6 Appendix
6.1 Specification
6.1.1 Hardware
Item
Specification
Power Adapter
Input: 100-240V
Output: 5V 1A
Port
WAN
10/100Base- T RJ-45 1 PORT
LAN
10/100Base- T RJ-45 1 PORT
Power Consumption
Idle: 1.5W
Active: 1.8W
LCD Size
74x28mm
Operation Temperature
0～40℃
Relative Humidity
10～65%
CPU
Broadcom
SDRAM
8MB
Flash
2MB
Dimension(L x W x H)
20 X 18.5 X 19.3cm
Weight
0.99kg
6.1.2 Voice Features
- Supports 2 SIP servers
- Supports RFC3261
- Codecs
G.711A/u
G.723.1 high/low
G.729a/b
G.722
G.726
Codec Setting per SIP line
- Echo cancellation: G.168 Compliance in LEC, additional acoustic echo
cancellation(AEC) can reach 96ms max filter length in hands-free mode
- Supports Voice Gain Setting, VAD, CNG
- Full duplex hands-free
- SIP support
SIP domain
SIP authentication
none
basic
MD5
- 51 -
- DNS
- Peer to Peer/ IP call
- Automatic line selection
- 9 Standard ring tones
- DTMF
SIP info
DTMF Relay (In-Band)
RFC2833
AUTO
- SIP applications
Call Forward
Call Transfer（Blind/Attended）
Hold
Call Waiting
3 Way Conference
Redial
paging
Intercom
Auto Redial
- Call control features
Flexible dial plan
Hotline
Anonymous Call Reject
Black List (Reject Authenticated Call)
Approved Caller List
Limit Call
Do Not Disturb
Caller ID
CLIR (reject anonymous call)
CLIP(make anonymous call)
Dial without Registration
- Phonebook 500 records
Incoming Calls
Outgoing Calls
Missed Calls
Max of 300 Records Each
Supports vCard/XML/CSV
- 4 DSS keys
- Time Display
12/24 Hour
Support Daylight Saving Time
- Supports Path, Group
- Supports SIP Privacy
- Supports MWI
- 52 -
6.1.3 Network Features
- WAN/LAN
Bridge
Bridge with port mirror
- Supports PPPoE for xDSL
- Supports VLAN
802.1Q
802.1P
- Supports STUN
- Wan Port Supports Main DNS and Secondary DNS
- Supports DNS via DHCP or Static DNS
- Supports DHCP client on WAN
- QoS with DiffServ
- Network Tools in Telnet Server
Ping
Trace Route
Telnet Client
6.1.4 Maintenance and management
- Firmware Upgrade
POST
HTTP
FTP
TFTP
- Configuration
Web
Telnet
- Two Account Levels
- Supports Syslog
- Supports Auto Provisioning
Firmware Upgrade
Auto-Provisioning
- 53 -

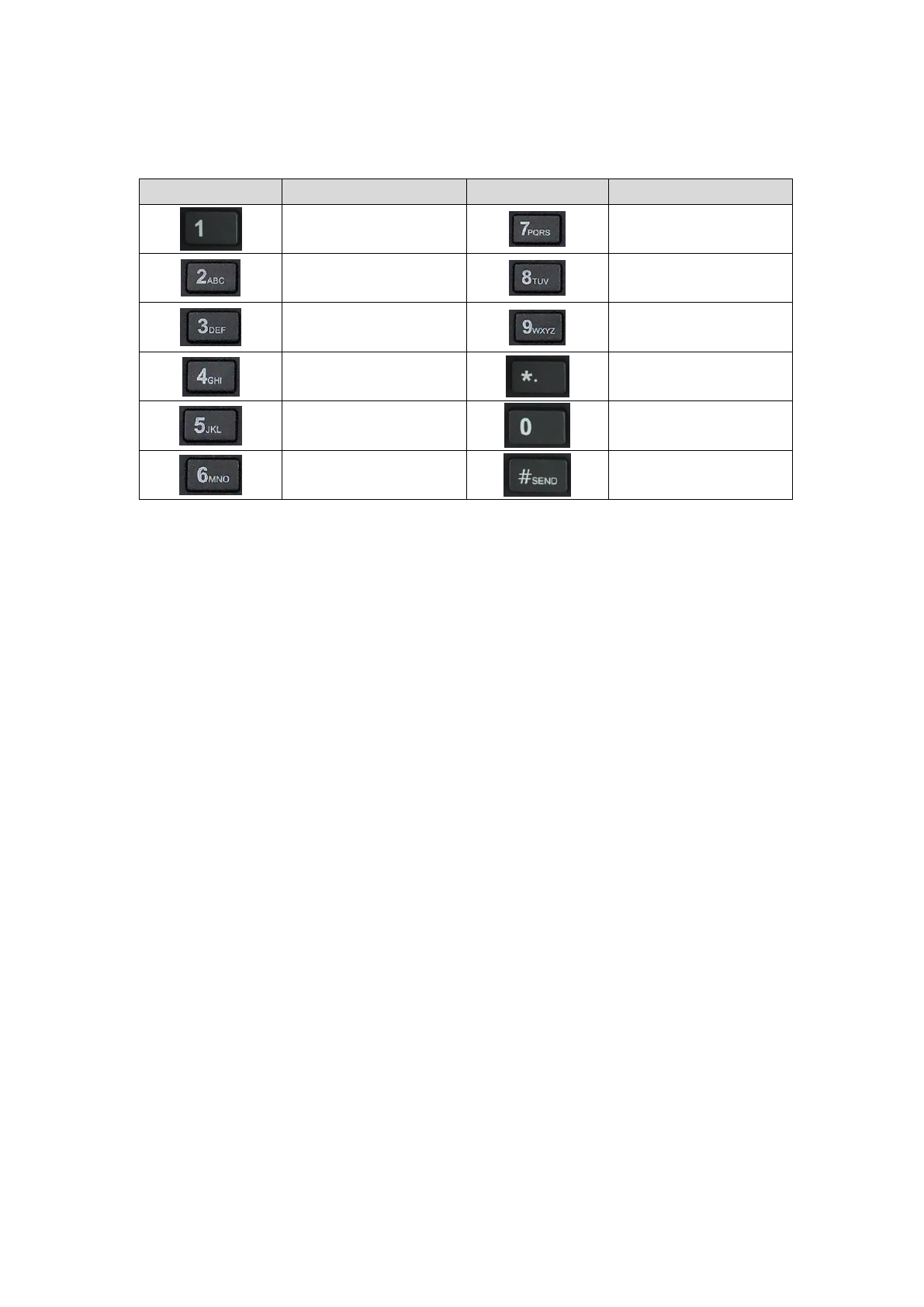

6.2 Digit-character map table
Keypad
Character
Keypad
Character
1 @
7 P Q R S p q r s
2 A B C a b c
8 T U V t u v
3 D E F d e f
9 W X Y Z w x y z
4 G H I g h i
.
5 J K L j k l
0
6 M N O m n o
#/send

Navigation menu
