Coulisse ABC04 Motor for drive a panel blind by RF remote control User Manual
Coulisse B.V. Motor for drive a panel blind by RF remote control
Coulisse >
user manual
Coulisse B.V., Vonderweg 48, 7468 DC Enter, The Netherlands
indoor use only
227
82,4
107,5
+0/-1.5
34,5 6
64,5
99,3
107,5
+0/-1.5
34,5
6
64,5
116,2
125,5
+4.2/-4.2
34,5 6
64,5
-
+
ABC-04-U_R0_
!
!
PTC34-#PTC34-#PTC34-#

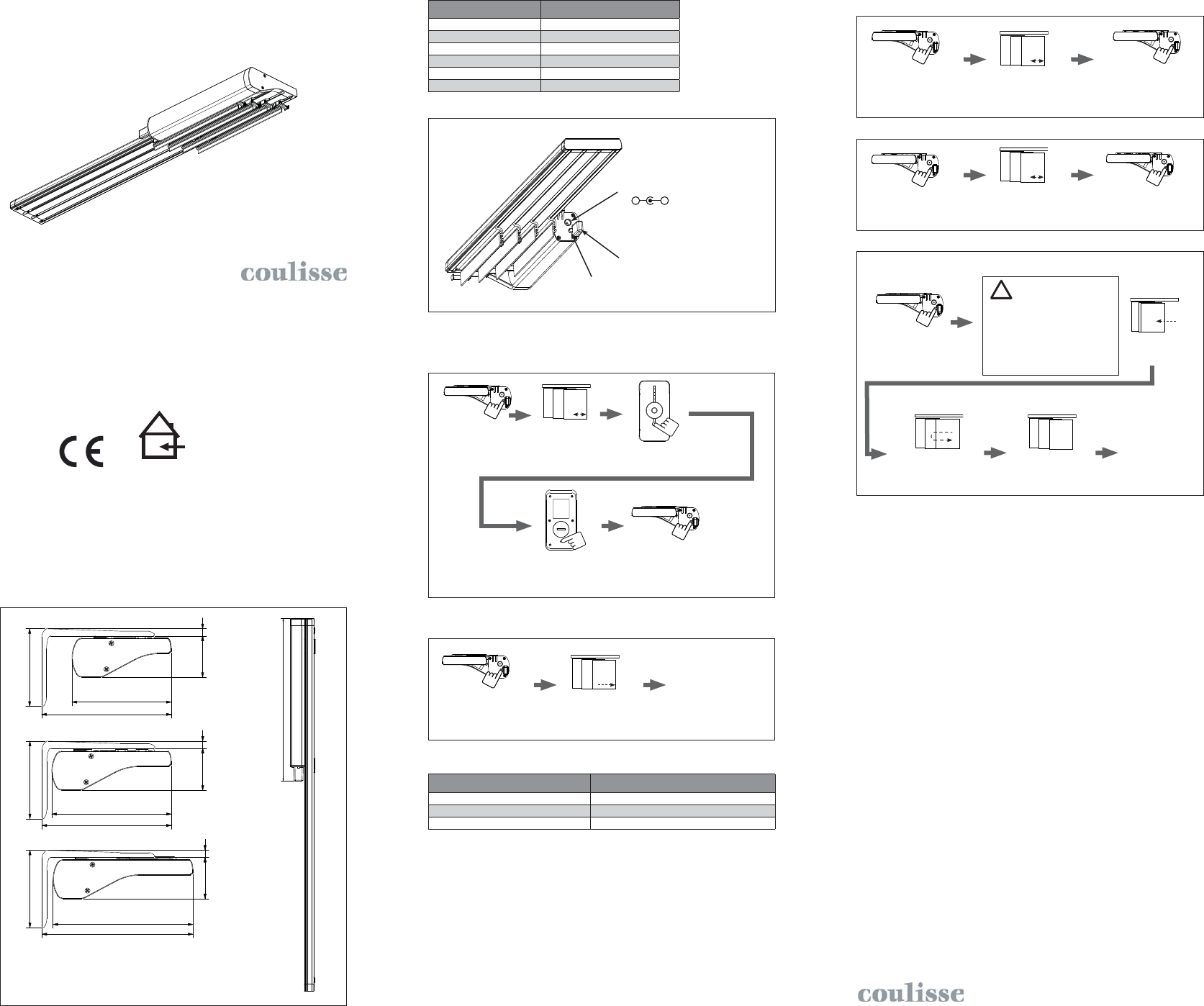

User Manual
Absolute Control
Panel motor ABC-04
WARNING: Important safety instructions. Follow all instructions, since incorrect
installation can lead to severe injury.
Do not make repairs yourself. Do not attempt to open the device or
disassemble it. You run the risk of electric shock and voiding the limited
warranty. No user-serviceable parts are inside.
WARNING:
1. General information
1.1 General dimensions
The ABC-04 is a complete kit to motorize Panel Absolute systems. The kit fi ts on 3, 4
and 5 track rails. The motorunit is always situated on the left side of the system.
The motorunit is operated with a Coulisse remote control only.
The software in the motorunit is selfl earning and detects it’s endpoint automatically.
3-way
4-way
5-way
ABC-04
Powersupply 12-24V DC - 0.6A
Rated power 7 W
Chain speed 3,75 mtr/min
Max. pullingforce 3 kg
Operating temperature 5 - 60°C
Max. channels to pair 32 channels
1.2 Performances
1.3 Connectors and buttons
12-24V DC - 0.6A input
Program button
Antenna
2. Programming and operating
- Pair to a channel/remote
2.1 Programming
(also possible by using SingleSelect, see manual Remote control*)
Set in Program mode:
Shortly press
program button
Program mode:
Blind is
stepping...
Choose channel by pressing
the ChannelSelect button
Pair/unpair by pressing
the program button
Exit Program mode:
Shortly press
program button to exit
Press program button
for more than 2 sec.
- Manual Control
Blind moves as long
as button is pressed
(max. 15 sec.)
Exit or press program
button another time
for more than >2 sec.
and blind moves
in opposite direction
2.2 Operating
- Control by remote
Disclaimer:
© Copyright Coulisse
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, by any means,
electronic, mechanical, photocopying, recording, digital or otherwise without the written permission of the publisher.
Although this manual has been composed with the most care, Coulisse B.V. does not accept any responsibility for damage due to
mistakes and/or faults in this manual.
Coulisse B.V. reserves the right to revise the manual and to revise and/or changes its content at any time, without obligation to notify any
person or entity of such revisions or changes.
The most recent version replaces older versions of this manual. The most recent version is available at ww.coulisse.nl or contact your
Coulisse contact person .
We invite you to send remarks and comments about this manual to Coulisse at manuals@coulisse.nl.
Additional blind settings: Available
Switch rotation direction Yes
Favorite position Yes
BatteryMode Yes
We refer to the manual of the Coulisse Remote control to set the additional blind settings.
2.3 Additional blind settings
- Reset to factory defaults
2.4 Reset & initialisation
New motors can be initialized directly without resetting
Set in Program mode:
Shortly press
program button
Program mode:
Blind is
stepping...
Hold program button for
10 sec. untill blind stops
stepping
Set in Program mode:
Shortly press
program button
Program mode:
Blind is
stepping...
Hold program button for
15 sec. untill blind stops
stepping and steps once
Shortly press
program button
It is important that the panels
move fi rst towards the motor.
If not, press program button
to stop and press it again to
change the direction.
Blind moves slowly
and is detecting
the endpoints...
Blind is now
ready for normal
use.
Blind is initialized
when panels stops
5. Service & Support
4. Safety & Cleaning
4.1 Safety
4.2 Cleaning
Follow these general rules when cleaning the outside of the device and its components:
- Make sure the device is unplugged.
- Use a damp, soft, lint-free cloth. Avoid getting moisture in openings.
- Don’t use aerosol sprays, solvents, alcohol, or abrasives.
Do not make repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding the limited
warranty. No user-serviceable parts are inside.
WARNING:
Do not make repairs yourself. Do not attempt to open the device or
disassemble it. You run the risk of electric shock and voiding the limited
warranty. No user-serviceable parts are inside.
WARNING:
- Do not let children play with the blind and/or remote control.
- Only use powersupplies or batteries that comply with the specifi cations on the motor.
- In case of malfunction, unplug the device or remove the batteries and contact your dealer.
- Take care that the blind can move freely and is not blocked by objects.
- Take care that the powersupply cable is out of reach for children.
- Do not paint the device.
- Keep the device dry .
Online Resources
For the latest information and updated manuals go to www.coulisse.nl.
Obtaining Warranty Service
First follow the advice in this booklet and then go to your local dealer.
If the product appears to be damaged or does not function properly, go to your local dealer
for instructions on how to obtain warranty service.
3. Tips & Troubleshooting
Please check www.coulisse.nl for the latest tips and troubleshooting guide.
(see manual Remote control)
- Reset to factory defaults & Erase all paired channels/remotes
1. Connect the motorunit with the 12-24V DC - 0.6A powersupply
2. Detect endpositions:
- Initialisation (only possible after reset)
10 sec.1 sec.
1 sec. 15 sec.
1 sec.
1 sec.
> 2 sec.
Panels move slowly
1 sec.
GB1
11.4.2012
FCC Manual
Regulatory information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC ID: ZY4ABC04
FCC Warning Messages:
This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna
or transmitter.
1 FCC Information to User
This product does not contain any user serviceable components and is to be used with approved
antennas only. Any product changes or modifications will invalidate all applicable regulatory certi-
fications and approvals.
2 FCC Guidelines for Human Exposure
Warning:
In order to comply with RF exposure limits, the user is advised to maintain a distance of at least
20 cm from the antenna structure of this device while it is in use.
3 FCC Electronic Emission Notices
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may cause unde-
sired operation.
4 FCC Radio Frequency Interference statement
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
Operation of this equipment in a residential area may cause harmful interference, in which case
the user
will be required to correct the interference at his own expense.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help
