Country Mate Technology AHBTOENC Over-the-Ear Bluetooth Noise Cancelling Headphones User Manual NS AHBTOENC 18 0656 QSG V1 EN ai

Country Mate Technology Ltd Over-the-Ear Bluetooth Noise Cancelling Headphones NS AHBTOENC 18 0656 QSG V1 EN ai

UserManual.wiki >

Country Mate Technology >

AHBTOENC User Manual

User manual

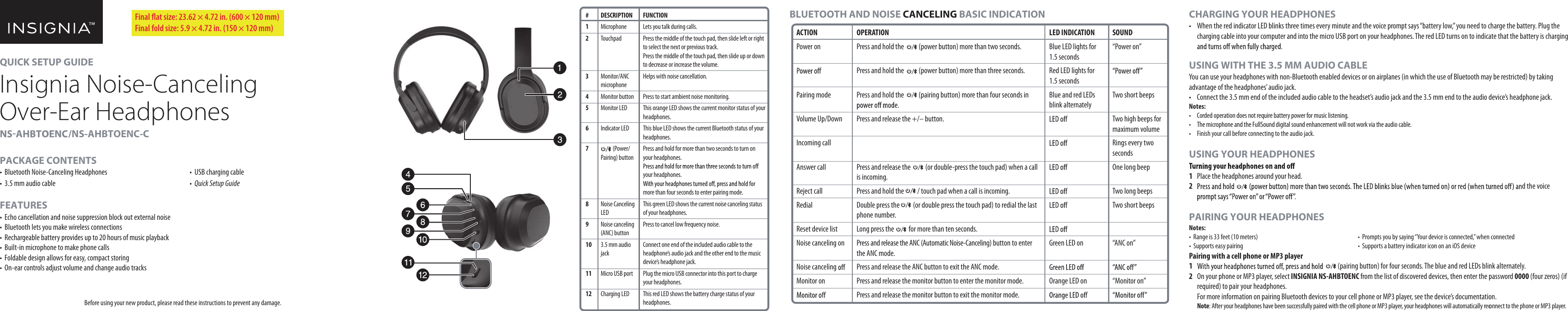

# DESCRIPTION1 Microphone2 Touchpad3 Monitor/ANC microphone4 Monitor button5 Monitor LED6 Indicator LED7 (Power/Pairing) button8 Noise Canceling LED9 Noise canceling (ANC) button10 3.5 mm audio jack11 Micro USB port12 Charging LEDFUNCTIONLets you talk during calls.Press the middle of the touch pad, then slide left or right to select the next or previous track.Press the middle of the touch pad, then slide up or down to decrease or increase the volume.Helps with noise cancellation.Press to start ambient noise monitoring.This orange LED shows the current monitor status of your headphones.This blue LED shows the current Bluetooth status of your headphones.Press and hold for more than two seconds to turn on your headphones.your headphones.more than four seconds to enter pairing mode.This green LED shows the current noise canceling status of your headphones.Press to cancel low frequency noise.Connect one end of the included audio cable to the headphone’s audio jack and the other end to the music device’s headphone jack.Plug the micro USB connector into this port to charge your headphones.This red LED shows the battery charge status of your headphones.BLUETOOTH AND NOISE CANCELING BASIC INDICATIONFinal ﬂat size: 23.62 × 4.72 in. (600 × 120 mm)Final fold size: 5.9 × 4.72 in. (150 × 120 mm)QUICK SETUP GUIDEInsignia Noise-Canceling Over-Ear HeadphonesPACKAGE CONTENTS/NS-AHBTOENC-C• Bluetooth Noise-Canceling Headphones • USB charging cable • elbac oidua mm 5.3 •Quick Setup GuideFEATURES• Echo cancellation and noise suppression block out external noise• Bluetooth lets you make wireless connections• Rechargeable battery provides up to 20 hours of music playback• Built-in microphone to make phone calls• Foldable design allows for easy, compact storing• On-ear controls adjust volume and change audio tracksCHARGING YOUR HEADPHONES• When the red indicator LED blinks three times every minute and the voice prompt says “battery low,” you need to charge the battery. Plug the charging cable into your computer and into the micro USB port on your headphones. The red LED turns on to indicate that the battery is charging USING WITH THE 3.5 MM AUDIO CABLEYou can use your headphones with non-Bluetooth enabled devices or on airplanes (in which the use of Bluetooth may be restricted) by taking advantage of the headphones’ audio jack.• Connect the 3.5 mm end of the included audio cable to the headset’s audio jack and the 3.5 mm end to the audio device’s headphone jack.Notes:• Corded operation does not require battery power for music listening. • The microphone and the FullSound digital sound enhancement will not work via the audio cable.• Finish your call before connecting to the audio jack.USING YOUR HEADPHONES1 Place the headphones around your head.2d the voice PAIRING YOUR HEADPHONESNotes:detcennoc nehw ”,detcennoc si ecived ruoY“ gniyas yb uoy stpmorP • )sretem 01( teef 33 si egnaR •ecived SOi na no noci rotacidni yrettab a stroppuS • gniriap ysae stroppuS •Pairing with a cell phone or MP3 player1 (pairing button) for four seconds. The blue and red LEDs blink alternately. 2 On your phone or MP3 player, select INSIGNIA NS-AHBTOENC from the list of discovered devices, then enter the password 0000 (four zeros) (if required) to pair your headphones. For more information on pairing Bluetooth devices to your cell phone or MP3 player, see the device’s documentation. Note: After your headphones have been successfully paired with the cell phone or MP3 player, your headphones will automatically reconnect to the phone or MP3 player.Before using your new product, please read these instructions to prevent any damage.ACTIONPower onPairing modeVolume Up/DownIncoming callAnswer callReject callRedialReset device listNoise canceling onNoise canceling Monitor onOPERATIONPress and hold the (power button) more than two seconds.Press and hold the (power button) more than three seconds.Press and hold the (pairing button) more than four seconds in Press and release the +/– button.Press and release the (or double-press the touch pad) when a call is incoming.Press and hold the / touch pad when a call is incoming.Double press the (or double press the touch pad) to redial the last phone number.Long press the for more than ten seconds.Press and release the ANC (Automatic Noise-Canceling) button to enter the ANC mode.Press and release the ANC button to exit the ANC mode.Press and release the monitor button to enter the monitor mode.Press and release the monitor button to exit the monitor mode.LED INDICATIONBlue LED lights for 1.5 secondsRed LED lights for 1.5 secondsBlue and red LEDs blink alternately Green LED onOrange LED onSOUND“Power on”Two short beepsTwo high beeps for maximum volumeRings every two secondsOne long beepTwo long beepsTwo short beeps“ANC on”“Monitor on”
