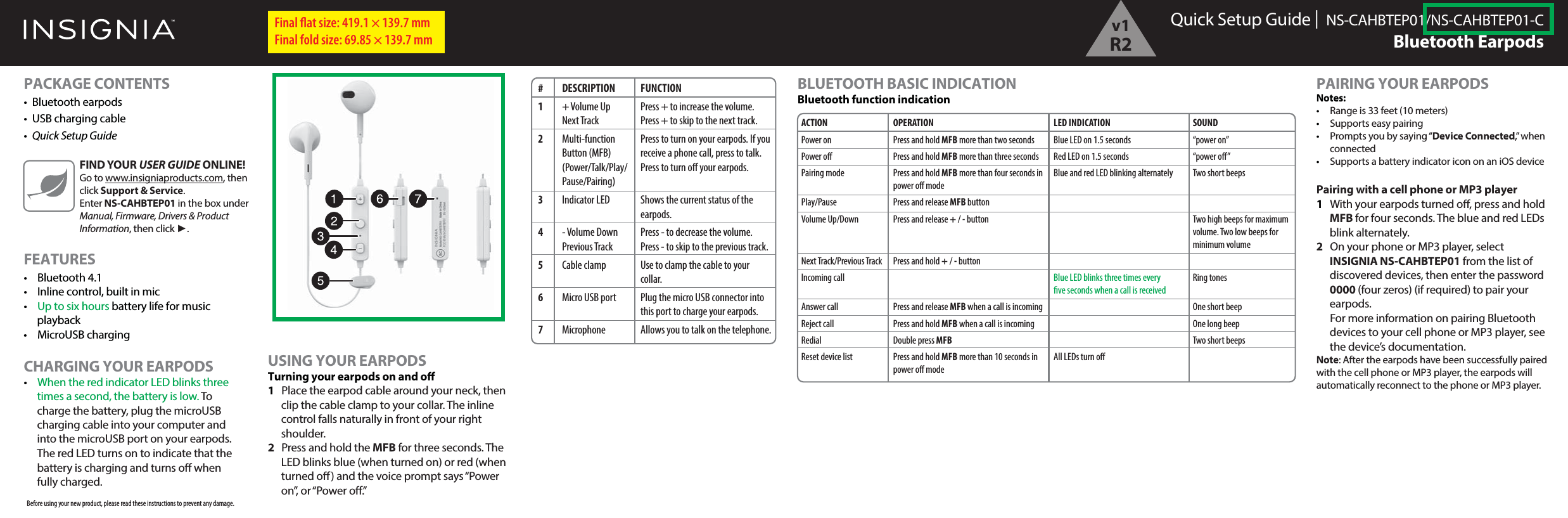

Quick Setup Guide |  NS-CAHBTEP01/NS-CAHBTEP01-CBluetooth EarpodsPACKAGE CONTENTS• Bluetooth earpods•  USB charging cable•  Quick Setup GuideFEATURES• Bluetooth 4.1•  Inline control, built in mic•  Up to six hours battery life for music playback• MicroUSB charging CHARGING YOUR EARPODS• When the red indicator LED blinks three times a second, the battery is low. To charge the battery, plug the microUSB charging cable into your computer and into the microUSB port on your earpods.  The red LED turns on to indicate that the battery is charging and turns o when fully charged.Final flat size: 419.1 × 139.7 mm Final fold size: 69.85 × 139.7 mmFIND YOUR USER GUIDE ONLINE!Go to www.insigniaproducts.com, then click Support & Service. Enter NS-CAHBTEP01 in the box under Manual, Firmware, Drivers & Product Information, then click ►.# DESCRIPTION1 + Volume Up Next Track2 Multi-function  Button (MFB) (Power/Talk/Play/ Pause/Pairing) 3 Indicator LED4 - Volume Down  Previous Track5 Cable clamp6  Micro USB port7 MicrophoneFUNCTIONPress + to increase the volume.Press + to skip to the next track.Press to turn on your earpods. If you receive a phone call, press to talk. Press to turn o your earpods.Shows the current status of the earpods.Press - to decrease the volume.Press - to skip to the previous track.Use to clamp the cable to your collar.Plug the micro USB connector into this port to charge your earpods.Allows you to talk on the telephone.USING YOUR EARPODSTurning your earpods on and o1  Place the earpod cable around your neck, then clip the cable clamp to your collar. The inline control falls naturally in front of your right shoulder.2  Press and hold the MFB for three seconds. The LED blinks blue (when turned on) or red (when turned o) and the voice prompt says “Power on”, or “Power o.” BLUETOOTH BASIC INDICATIONBluetooth function indicationPAIRING YOUR EARPODSNotes:•  Range is 33 feet (10 meters)•  Supports easy pairing•  Prompts you by saying “Device Connected,” when connected•  Supports a battery indicator icon on an iOS devicePairing with a cell phone or MP3 player 1  With your earpods turned o, press and hold MFB for four seconds. The blue and red LEDs blink alternately. 2  On your phone or MP3 player, select INSIGNIA NS-CAHBTEP01 from the list of discovered devices, then enter the password 0000 (four zeros) (if required) to pair your earpods.  For more information on pairing Bluetooth devices to your cell phone or MP3 player, see the device’s documentation.Note: After the earpods have been successfully paired with the cell phone or MP3 player, the earpods will automatically reconnect to the phone or MP3 player.ACTIONPower onPower oPairing modePlay/PauseVolume Up/DownNext Track/Previous TrackIncoming callAnswer callReject callRedialReset device listOPERATIONPress and hold MFB more than two secondsPress and hold MFB more than three secondsPress and hold MFB more than four seconds in power o modePress and release MFB buttonPress and release + / - buttonPress and hold + / - buttonPress and release MFB when a call is incomingPress and hold MFB when a call is incomingDouble press MFB Press and hold MFB more than 10 seconds in power o modeLED INDICATIONBlue LED on 1.5 secondsRed LED on 1.5 secondsBlue and red LED blinking alternatelyBlue LED blinks three times every ve seconds when a call is receivedAll LEDs turn oSOUND“power on”“power o”Two short beeps Two high beeps for maximum volume. Two low beeps for minimum volumeRing tonesOne short beepOne long beepTwo short beeps Before using your new product, please read these instructions to prevent any damage.v1R2

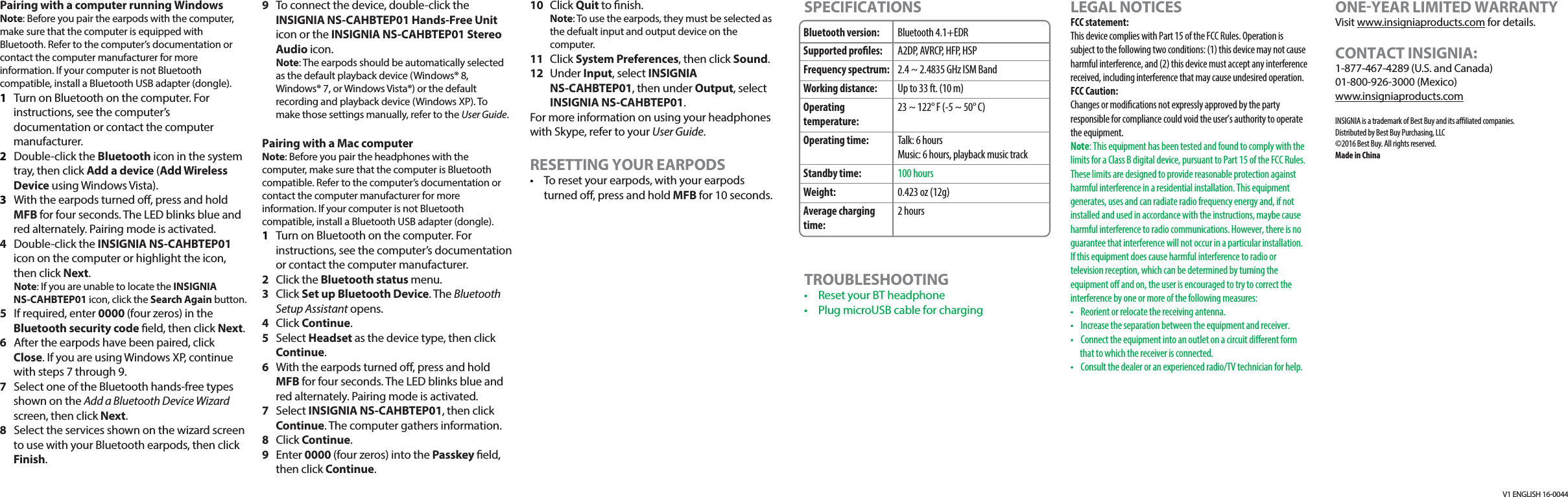

V1 ENGLISH 16-0044Pairing with a computer running WindowsNote: Before you pair the earpods with the computer, make sure that the computer is equipped with Bluetooth. Refer to the computer’s documentation or contact the computer manufacturer for more information. If your computer is not Bluetooth compatible, install a Bluetooth USB adapter (dongle).1  Turn on Bluetooth on the computer. For instructions, see the computer’s documentation or contact the computer manufacturer.2 Double-click the Bluetooth icon in the system tray, then click Add a device (Add Wireless Device using Windows Vista).3  With the earpods turned o, press and hold MFB for four seconds. The LED blinks blue and red alternately. Pairing mode is activated.4  Double-click the INSIGNIA NS-CAHBTEP01 icon on the computer or highlight the icon, then click Next. Note: If you are unable to locate the INSIGNIA NS-CAHBTEP01 icon, click the Search Again button.5  If required, enter 0000 (four zeros) in the Bluetooth security code eld, then click Next.6  After the earpods have been paired, click Close. If you are using Windows XP, continue with steps 7 through 9. 7  Select one of the Bluetooth hands-free types shown on the Add a Bluetooth Device Wizard screen, then click Next.8  Select the services shown on the wizard screen to use with your Bluetooth earpods, then click Finish.9  To connect the device, double-click the INSIGNIA NS-CAHBTEP01 Hands-Free Unit icon or the INSIGNIA NS-CAHBTEP01 Stereo Audio icon. Note: The earpods should be automatically selected as the default playback device (Windows® 8, Windows® 7, or Windows Vista®) or the default recording and playback device (Windows XP). To make those settings manually, refer to the User Guide.Pairing with a Mac computer Note: Before you pair the headphones with the computer, make sure that the computer is Bluetooth compatible. Refer to the computer’s documentation or contact the computer manufacturer for more information. If your computer is not Bluetooth compatible, install a Bluetooth USB adapter (dongle).1  Turn on Bluetooth on the computer. For instructions, see the computer’s documentation or contact the computer manufacturer.2 Click the Bluetooth status menu.3 Click Set up Bluetooth Device. The Bluetooth Setup Assistant opens. 4 Click Continue.5 Select Headset as the device type, then click Continue.6  With the earpods turned o, press and hold MFB for four seconds. The LED blinks blue and red alternately. Pairing mode is activated.7 Select INSIGNIA NS-CAHBTEP01, then click Continue. The computer gathers information.8 Click Continue.9 Enter 0000 (four zeros) into the Passkey eld, then click Continue.10 Click Quit to nish. Note: To use the earpods, they must be selected as the defualt input and output device on the computer.11 Click System Preferences, then click Sound.12 Under Input, select INSIGNIA NS-CAHBTEP01, then under Output, select INSIGNIA NS-CAHBTEP01.For more information on using your headphones with Skype, refer to your User Guide. RESETTING YOUR EARPODS•  To reset your earpods, with your earpods turned o, press and hold MFB for 10 seconds.Bluetooth version:Supported proles:Frequency spectrum:Working distance:Operating temperature:Operating time:Standby time:Weight:Average charging time:Bluetooth 4.1+EDRA2DP, AVRCP, HFP, HSP2.4 ~ 2.4835 GHz ISM BandUp to 33 ft. (10 m)23 ~ 122° F (-5 ~ 50° C)Talk: 6 hoursMusic: 6 hours, playback music track100 hours0.423 oz (12g)2 hoursSPECIFICATIONSTROUBLESHOOTING•  Reset your BT headphone•  Plug microUSB cable for chargingLEGAL NOTICESFCC statement:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution:Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, maybe cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:•  Reorient or relocate the receiving antenna.•  Increase the separation between the equipment and receiver.•  Connect the equipment into an outlet on a circuit dierent form that to which the receiver is connected.•  Consult the dealer or an experienced radio/TV technician for help.ONEYEAR LIMITED WARRANTYVisit www.insigniaproducts.com for details.CONTACT INSIGNIA:1-877-467-4289 (U.S. and Canada)01-800-926-3000 (Mexico)www.insigniaproducts.comINSIGNIA is a trademark of Best Buy and its aliated companies. Distributed by Best Buy Purchasing, LLC©2016 Best Buy. All rights reserved. Made in China
