CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

`

Preface

CradlePoint reserves the right to revise this publication and to make changes in the content thereof without obligation to

notify any person or organization of any revisions or changes.

Manual Revisions

Revision

Date

Description

Author

1.0

Sept. 13, 2011

Initial release for Firmware version 3.3.0

Jeremy Cramer

Trademarks

CradlePoint and the CradlePoint logo are registered trademarks of CradlePoint, Inc. in the United States and other

countries. All other company or product names mentioned herein are trademarks or registered trademarks of their

respective companies.

by CradlePoint, Inc.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

`

Table of Contents

1 INTRODUCTION ................................................................ 3

1.1 PACKAGE CONTENTS ............................................................. 3

1.2 SYSTEM REQUIREMENTS......................................................... 3

1.3 IBR600 OVERVIEW .............................................................. 3

2 HARDWARE OVERVIEW .................................................... 6

2.1 PORTS, LEDS, AND SWITCHES ................................................. 7

2.2 MOUNTING BRACKET .......................................................... 11

3 QUICK START .................................................................. 14

3.1 BASIC SETUP ...................................................................... 14

3.2 CONNECT TO A COMPUTER OR OTHER DEVICE .......................... 15

3.3 COMMON PROBLEMS .......................................................... 18

4 WEB INTERFACE -- ESSENTIALS ........................................ 19

4.1 ADMINISTRATOR LOGIN ....................................................... 20

4.2 GETTING STARTED – FIRST TIME SETUP ................................... 22

4.3 QUICK LINKS ...................................................................... 26

4.4 BASIC MODE VS. ADVANCED MODE ....................................... 27

4.5 NETWORK SETTINGS VS. INTERNET ......................................... 28

5 STATUS ........................................................................... 29

5.1 CLIENT LIST........................................................................ 30

5.2 DASHBOARD ...................................................................... 32

5.3 GPS ................................................................................. 35

5.4 GRE TUNNELS (ADVANCED MODE ONLY) ................................ 36

5.5 INTERNET CONNECTIONS ...................................................... 37

5.6 STATISTICS ......................................................................... 41

5.7 SYSTEM LOGS..................................................................... 42

5.8 VPN TUNNELS (ADVANCED MODE ONLY) ............................... 43

6 NETWORK SETTINGS ....................................................... 44

6.1 CONTENT FILTERING ............................................................ 45

6.2 DHCP SERVER (ADVANCED MODE ONLY) ............................... 48

6.3 DNS (ADVANCED MODE ONLY)............................................. 49

6.4 FIREWALL (ADVANCED MODE ONLY) ...................................... 52

6.5 MAC FILTER ...................................................................... 57

6.6 ROUTING (ADVANCED MODE ONLY) ....................................... 58

6.7 WIFI / LOCAL NETWORKS .................................................... 59

6.8 WIPIPE QOS (ADVANCED MODE ONLY) .................................. 75

7 INTERNET ........................................................................ 79

7.1 CONNECTION MANAGER ...................................................... 80

7.2 DATA USAGE (ADVANCED MODE ONLY) ................................. 83

7.3 ETHERNET MANAGER .......................................................... 88

7.4 GRE TUNNELS (ADVANCED MODE ONLY) ................................ 90

7.5 LOAD BALANCE (ADVANCED MODE ONLY) ............................... 93

7.6 MODEM SETTINGS .............................................................. 94

7.7 VPN TUNNELS (ADVANCED MODE ONLY) ............................. 100

7.8 WIFI AS WAN SETTINGS (ADVANCED MODE ONLY) ................ 110

8 SYSTEM SETTINGS ......................................................... 113

8.1 ADMINISTRATION ............................................................. 114

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8.2 DEVICE ALERTS (ADVANCED MODE ONLY) ............................. 121

8.3 GPIO CONNECTOR ........................................................... 123

8.4 HOTSPOT SERVICES (ADVANCED MODE ONLY) ....................... 125

8.5 MANAGED SERVICES (ADVANCED MODE ONLY) ASK YOUR

CRADLEPOINT SALES REPRESENTATIVE FOR DETAILS ........... 129

8.6 SYSTEM CONTROL ............................................................. 130

8.7 SYSTEM SOFTWARE ........................................................... 131

9 GLOSSARY..................................................................... 132

10 APPENDIX ................................................................... 146

10.1 PRODUCT INFORMATION AND SAFETY GUIDE ....................... 146

10.2 SPECIFICATIONS .............................................................. 149

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

1 INTRODUCTION

1.1 Package Contents

 CradlePoint COR: Integrated Broadband Router (IBR600) with embedded high-speed 3G EV-DO rev A modem

 Two external 3G EV-DO modem antennas

 AC power adapter (12V, 1.5A)

 Two 2.4 GHz High Performance 802.11n WiFi Antennas

 Mounting Hardware

 Quick Start Guide

1.2 System Requirements

 At least one internet source: an active subscription for the embedded 3G EV-DO modem; an Ethernet-based

modem; or WiFi as WAN

 Windows 2000/XP/7, Mac OS X, or Linux computer (with WiFi adapter for WiFi functionality)

 Internet Explorer v6.0 or higher, Firefox v2.0 or higher, Safari v1.0 or higher

1.3 IBR600 Overview

COR: THE HEART OF YOUR M2M NETWORK

 For use in business critical high-availability installations such as ATMs, Kiosks, Surveillance, Vehicles, etc. that

require 24x7 connectivity

 Increase your network availability with WiPipe™-powered automatic failover/failback internal functionality

 Supports both wireless and wired Internet connections (two Ethernet ports for either LAN/LAN or WAN/LAN)

 Secure IPSec VPN (5 concurrent sessions maximum)

 Wireless 2x2 MIMO ―N‖ WiFi (802.11 b/g/n)

 Create a customized Hotspot with our captive portal feature (include Terms of Service, advertisements, etc.)

 Centralize the administration and monitoring of distributed routers using WiPipe Central.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

ENHANCED WIFI

 500+ feet of WiFi Range

 Wireless ―N‖ WiFi (802.11n, legacy 802.11b/g, 2x2 MIMO antenna system)

 Enhanced performance around walls and other obstructions

 2.4 GHz WiFi broadcast

 Maximum security with both Public and Private networks

ADDITIONAL FEATURES

 2x2 MIMO antenna system, removable external antennas, dual SSIDs

 Standardized platform and centralized remote management

 Built-in GPS

 IP passthrough

 Up to 5 concurrent VPN endpoint sessions

 Compatible with Cisco, Juniper, SonicWall, and other VPN termination systems

 Establish continuous uptime with optimum total cost of ownership for broad deployment

 Simple to install, configure and maintain with minimal impact on IT

 Virtual LAN capabilities

 Data Usage section that allows users to track and manage modem use relative to data plans

 NAT-less routing

 VPN NAT traversal

The CradlePoint IBR600E is a highly-featured, compact and robust router designed for deployment in critical business

and enterprise applications that require 24x7 connectivity via Ethernet and/or WiFi. The router features a built-in high-

speed 3G EV-DO modem as well as support for wired networks such as DSL or Cable. With its compact size, sleek metal

case and mounting bracket, and external Cellular and WiFi antennas the IBR600E is ideal for use in high-availability

portable or fixed applications (ATM, kiosk, surveillance, vehicle). With failover/failback capability, the IBR600E supports

both wired and wireless internet.

The router increases internet availability and business continuity by detecting network failures and seamlessly switching

over to the other network(s). It is also ideal for deployment as a primary connection solution where wired internet is not

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

available. The IBR600E provides secure and reliable VPN functionality, allowing users to create, manage and terminate

up to 5 concurrent IPSec VPN sessions. It allows for secure access to company networks for enterprise applications and

provides a secure way to transmit sensitive data to and from a remote site.

1.3.1 Captive Portal

The Captive Portal solution provided by CradlePoint routers enables businesses to provide their customers with a public

WiFi hotspot with access controls. The controls can be as simple as requiring acceptance of a Terms of Service

agreement, while Advanced features allow administrators to control and monitor usage, require login, direct users to

specific web pages, provide revenue through services fees or paid advertising, and more.

1.3.2 WiPipe Central

CradlePoint‘s cloud-based router management service allows for remote monitoring, configuration, and firmware updates

of deployed routers like the IBR600. WiPipe Central drastically simplifies router administration for businesses using

multiple routers. WiPipe Central can be purchased separately at http://cradlepoint.com/support/wipipe-central.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

2 HARDWARE OVERVIEW

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

2.1 Ports, LEDs, and Switches

WiFi Antennas: The IBR600 comes with two 2.4 GHz WiFi antennas (Reverse SMA).

These antennas are simple to attach and adjust for maximum WiFi broadcast.

Power 12VDC: The power connector includes two pins for power and two pins for GPIO

(General Purpose Input/Output) functionality. The included power adapter, however,

only connects to the power pins. You will need a separate adapter for GPIO

functionality.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Reset: You can return your router to factory default settings by pressing and holding the Reset button. This button is

recessed, so it requires a pointed object such as a paper clip to press. Press and hold for 10 seconds to initiate reset.

Ethernet Ports: By default, the IBR600 has one WAN (Wide Area Network—your internet source) port and one LAN

(Local Area Network) port. Each of these ports can be reconfigured, however, if you need two LAN or two WAN Ethernet

ports.

Ethernet LED:

 Solid Green – connected

 Blinking Green – data transfer activity

Micro USB: This port can be used to attach a direct firmware upgrade to enable manual firmware upgrades if necessary.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Modem Antennas: The IBR600 comes with two modem antennas to enhance reception for the embedded modem.

These antennas are simple to attach and adjust.

Power On/Off:

 I = On

 O = Off

Power LED:

 Blue = On

 No light = Off

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

WiFi LED:

 Green = On and operating normally

 No light = Off

Modem LED:

 Green = On and operating normally

 Blinking Green = Connecting

 Amber = Not available (idle, for example)

 Blinking Amber = Cellular data connection error

 No light = Off

Additional LED Indications:

Factory reset button detected

WiFi and modem LEDs blink amber

twice

Error during USB firmware

upgrade

WiFi and modem LEDs blink red

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

2.2 Mounting Bracket

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

2.2.1 Attaching the IBR600 to the Mounting Bracket

1) Attach the bracket to the wall or other surface with screws.

NOTE: Screws are not provided because the type of screw required

depends on the mounting surface.

2) Place the router‘s edge

against the bottom of the

bracket.

3) Press the router down

firmly, then push it inside

the bracket. It should

latch.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

2.2.2 Removing the IBR600 from the Mounting Bracket

From the top of the bracket, press down firmly on the router using your thumb(s) and pull the device out.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

3 QUICK START

3.1 Basic Setup

1. Attach the WiFi (right) and

modem antennas.

2. Plug the power supply into

an electrical outlet and

connect it to the IBR600.

3. Make sure the power is

switched on.

O = OFF I = ON

3.1.1 Activate Your Modem

A wireless broadband data plan must be added to your IBR600. Wireless broadband data plans are available from

wireless carriers such as Sprint and Verizon. A new line of service can be added or a data plan can be transferred from an

existing account. You will need the ESN number from your product label on your router to add or transfer a line of service.

After adding a data plan to the modem, the modem may need to be activated. To activate the modem:

1. Log in to the IBR600 administration pages (see Accessing the Administration Pages).

2. Select Internet from the top navigation bar and Modem Settings from the dropdown menu (Internet → Modem

Settings).

3. Find and select the CradlePoint modem.

4. Click Update/Activate.

5. Click Activate in the popup.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

3.2 Connect to a Computer or other Device

3.2.1 Wireless Network Connection

1) Find the network. On a WiFi-enabled computer or

device, open the window or dropdown menu that allows

you to access wireless networks. The IBR600 network

will appear on the list: select this network.

2) Log in. You will need to input the Default Password

when prompted. The Default Password is provided on

the product label found on the bottom of your router

(this password is the last eight digits of the router‘s MAC

address, which can be found on the product box or on

the product label).

NOTE: If more than one IBR600 wireless router is visible, you can find the correct unit by

checking for its SSID (service set identifier; the unique name of the local network). The default

SSID of the primary network has the form IBR600-xxx, where ―xxx‖ is the last 3 digits of the

router‘s MAC address.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

3.2.2 Accessing the Administration Pages

For most users the IBR600 Router can be

used immediately without any special

configuration changes. If you would like to

change your network name or password or

configure any of the advanced features of the

IBR600, you will need to log in to the

administration pages:

 Access your router‘s Administrator

Login screen by opening a web

browser window and typing ―cp/‖ (your

router‘s default hostname) or the IP

address ―192.168.0.1‖ into the address

bar.

 Enter your Default Password. This

password can be found on the bottom

of the IBR600. Then click the LOGIN button.

 When you log in for the first time, you will be automatically directed to the First Time Setup Wizard. Follow the

instructions given with the Wizard or see Getting Started – First Time Setup for more information about using the

First Time Setup Wizard.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

3.2.3 Connect to the Internet

If you used the First Time Setup Wizard, you might

have changed the ―WiFi Network Name‖ or the

―Security Mode‖ password. If so, you will need to

reconnect your device(s) to the IBR600 network.

 Find the network. Look for your new

personalized network name (or the default

SSID of the form ―IBR600-xxx‖).

 Log in using your new personalized WiFi

security password (or the Default Password

found the bottom of the router).



Your network should now be up and running, and

users who have the security password can access the

network on WiFi-enabled devices.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

3.3 Common Problems

Please visit CradlePoint Knowledgebase at http://knowledgebase.cradlepoint.com/ for more help and answers to your

other questions.

3.3.1 You are Connected to the Router but Cannot Connect to the Internet

Make sure that you have an active data plan and that your modem has been activated. A wireless broadband data plan

must be added to your IBR600. Wireless broadband data plans are available from wireless carriers such as Sprint and

Verizon. A new line of service can be added or a data plan can be transferred from an existing account. You will need the

ESN number from your product label on your router to add or transfer a line of service.

After adding a data plan to the modem, you must activate the modem:

1. Log in to the IBR600 administration pages (see Accessing the Administration Pages).

2. Select Internet from the top navigation bar and Modem Settings from the dropdown menu (Internet → Modem

Settings).

3. Find and select the CradlePoint modem.

4. Click Update/Activate.

5. Click Activate in the popup.

Finally, if you have an active data plan and you have already activated your modem, you may be out of range of your

service provider. Check your signal strength in the Internet section of the Dashboard (Status → Dashboard). If you have

a weak signal in your location, contact your service provider.

If you are still not online after activating the modem, call CradlePoint Technical Support for further assistance.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

4 WEB INTERFACE -- ESSENTIALS

The IBR600 has a Web interface for configuration and administration of all features. The interface is organized with a

button for toggling between Basic Mode and Advanced Mode and 5 tabs at the top of the screen:

 Getting Started

 Status

 Network Settings

 Internet

 System Settings

Web Interface – Essentials contains the following sections to help you more quickly and easy navigate these

administration pages:

4.1 Administrator Login

4.2 Getting Started – First Time Setup

4.3 Quick Links

4.4 Basic Mode vs. Advanced Mode

4.5 Network Settings vs. Internet

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

4.1 Administrator Login

To access the administration pages, open a Web browser and type the hostname ―cp/‖ or IP address ―http://192.168.0.1‖

into the address bar. The Administrator Login page will appear.

Log in using your administrator password. Initially, this password can be found on the bottom of the IBR600 unit as the

Default Password. This password is also the last eight digits of the unit‘s MAC address.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

You may have changed the administrator password during initial setup using the First Time Setup Wizard. Log in using

your personalized administrator password.

If you have forgotten your personalized password, you can reset the IBR600 to factory defaults. When you reset the

router, the administrator password will revert back to the Default Password. Press and hold the reset button on the

router unit until the lights flash (Approximately 10-15 seconds). You can then log in using the Default Password (found

on the bottom of your router).

4.1.1 Router Details

The Administrator Login page includes a section that shows the following Router Details:

 Model Number: IBR600

 WiFi Status: The number of clients.

 WiFi Channel: The channel number.

 WiFi Network: The name of the main network.

 Guest WiFi Network: ―Disabled‖ or, if enabled, the name of the guest network.

 Internet Connection: Connected/Disconnected

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

4.2 Getting Started – First Time Setup

The First Time Setup Wizard will help you customize the name of your wireless network, change passwords to

something you choose, and establish an optimal WiFi security mode. The IBR600 comes out of the box with a unique

password at WPA1/WPA2 WiFi security level.

1) Open a browser window and type ―cp/‖ or

―192.168.0.1‖ into the address bar. Press

enter/return.

2) When prompted for your password, type the eight

character Default Password found on the product

label on the bottom of the IBR600 (this is also the

last 8 digits of the router‘s MAC address).

3) When you log in for the first time, you will be

automatically directed to the FIRST TIME SETUP

WIZARD. (Otherwise, go to Getting Started → First

Time Setup).

4) CradlePoint recommends that you change the

router‘s ADMINISTRATOR PASSWORD, which is

used to log in to the administration pages. The

administrator password is separate from the WiFi

security password, although initially the Default Password is used for both.

5) You can select your TIME ZONE from a dropdown list. (This may be necessary to properly show time in your router

log, but typically your router will automatically determine your time zone through your browser.) Click NEXT.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

6) CradlePoint recommends that you customize your

WiFi Network Name. Type in your personalized

Network name here. You can also enable the Guest

Network feature (for more configuration options, see

Network Settings → WiFi / Local Networks and

the Wireless (WiFi) Network Settings section of this

manual).

Choose the WIFI SECURITY MODE that best fits

your needs:

 BEST (WPA2): Select this option if your

wireless adapters support WPA2-only mode.

This will connect to most new devices and is

the most secure, but may not connect to older

devices or some handheld devices such as a

PSP.

 GOOD (WPA1 & WPA2): Select this option if

your wireless adapters support WPA or

WPA2. This is the most compatible with

modern devices and PCs.

 POOR (WEP): Select this option if your

wireless adapters only support WEP. This should only be used if a legacy device that only supports WEP will be

connected to the router. WEP is insecure and obsolete and is only supported in the router for legacy reasons.

The router cannot use 802.11n modes if WEP is enabled; WiFi performance and range will be limited.

 NONE (OPEN): Select this option if you do not want to activate any security features.

CradlePoint recommends BEST (WPA2) WiFi security. Try this option first and switch only if you have a device that

is incompatible with WPA2.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Choose a personalized WPA PASSWORD or WEP KEY. This password will be used to connect devices to the

router‘s WiFi broadcast once the security settings have been saved.

 WPA Password: The WPA Password must be between 8 and 64 characters long. A combination of upper and

lower case letters along with numbers and special characters is recommended to prevent hackers from gaining

access to your network.

 WEP Key: A WEP Key must be either a hexadecimal value of 5 or 13 characters or a text value of 10 or 26

characters.

Click NEXT.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7) Review the details and record your wireless

network name, administrative password,

and WPA password (or WEP key). Move

your mouse over the passwords to

selectively reveal each password.

Please record these settings for future

access. You may need this information to

configure other wireless devices.

NOTE: If you are currently using the IBR600 WiFi

network, reconnect your devices to the network

using the new wireless network name and security

password.

Click APPLY to save the settings and

update them to your router.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

4.3 Quick Links

The CradlePoint logo in the upper left-hand corner of all the administration pages is a link

to the Dashboard (Status → Dashboard), which displays fundamental information about

the router.

The black bar across the top provides quick access to important information and controls.

Internet Connection This links to the Connection

Manager (Internet → Connection Manager) where you

can manage your internet sources.

Click on the image of four signal bars to open a

―Modem Connection Quality‖ popup window that

shows the strength of your internet signal.

WiFi Clients Click to view a signal strength indicator for

your network, ―WiFi Connection Strength‖.

Logout Click to log out of the administration pages.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

4.4 Basic Mode vs. Advanced Mode

For less complex uses, the IBR600 can be controlled within Basic Mode. Clicking on the Basic Mode button switches the

complete Web interface to Advanced Mode. Advanced Mode provides several additional features.

The following chart shows the complete list of features found in Basic Mode and found exclusively in Advanced Mode:

Getting Started

Status

Network Settings

Internet

System Settings

Basic Mode

First Time Setup

WiFi Protected

Setup

Client List

Dashboard

GPS

Internet

Connections

Statistics

System Logs

Content Filtering

MAC Filter

WiFi / Local

Networks

Connection

Manager

Data Usage

Ethernet Settings

Modem Settings

Administration

GPIO Connector

System Control

System Software

Advanced

Mode

(also

includes all

options in

Basic Mode)

GRE Tunnels

VPN Tunnels

DHCP Server

DNS

Firewall

Routing

WiPipe QoS

GRE Tunnels

Load Balance

VPN Tunnels

WiFi as WAN

Settings

Device Alerts

Hotspot Services

Managed Services

Since Advanced Mode includes all features found in both modes, ALL REMAINING INSTRUCTIONS IN THIS

MANUAL WILL ASSUME YOU ARE IN ADVANCED MODE.

If an expected feature is missing from the user interface, be sure to check that you are using Advanced Mode.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

4.5 Network Settings vs. Internet

When using the Web interface, it will be important to pay attention to the difference between the internet source for your

IBR600 and the network created by the IBR600. The “Internet” tab broadly refers to the router‘s source of internet, while

the “Network Settings” tab broadly refers to the network created by the router.

The following chart highlights this difference:

Network Settings tab

Internet ―output‖

Network created by IBR600

LAN (Local Area Network)

Internet tab

Internet ―input‖

Source for IBR600

WAN (Wide Area Network)

Examples:

 If you want to change the content filtering settings for the network created by the IBR600, go to the Network

Settings tab.

 If you have multiple internet sources—such as the embedded modem and an Ethernet connection—for which you

would like to set priority levels, go to the Internet tab.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

5 STATUS

The Status tab displays information—no adjustments can be made from within these pages. It provides access to 8

submenu options:

 Client List

 Dashboard

 GPS

 GRE Tunnels

 Internet Connections

 Statistics

 System Logs

 VPN Tunnels

(GRE Tunnels and VPN Tunnels:

Advanced Mode only)

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

5.1 Client List

The Client List displays the specifications of each

device connected to your router, including

Wireless and Wired clients.

Wireless Clients. For each device using a wireless

connection to your IBR600, the following

information is displayed: Hostname, IP, MAC,

Connection, and Time Online.

Wired Clients. For each device using a wired

connection to your IBR600, the following

information is displayed: Hostname, IP, and MAC.

Hostname: The name by which each computer or device in a network is known.

IP: The ―IP address,‖ or ―Internet Protocol address,‖ specifies a location for each device.

MAC: This is the "MAC address", a factory-assigned identifier used to identify a specific attached computer or device.

Connection: Summary of the wireless connection. For example: 802.11n, 20 MHz, 130 Mbps, -26 dBm

 802.11n: The transmission standard being used by the client. Possible values include 802.11a, 802.11b, 802.11g,

and 802.11n. 802.11n is the newest and best standard, but some older devices may not support it.

 20 MHz: This is the channel width that defines the theoretical data rate (in megahertz) that the attached computer

or device can send to or receive from the router. The channel width is set in Network Settings → WiFi / Local

Networks. Typically this will be 20 MHz, but 40 MHz is possible if the router is set to use two adjacent 20 MHz

channels. A wider channel can mean better performance, but not if there is too much interference. Even if you set

the channel width to 40 MHz, the router may still fall back to 20 MHz if it encounters too much interference.

 130 Mbps: The transmit rate (in megabits per second) currently used to transmit packets from the router to the

client. This rate changes automatically to match environmental conditions. Distance from the router, interference,

etc can impact this value. Higher values indicate better performance. Devices can still function in the network with

as little as 1 Mbps.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

 -26 dBm: A relative measure of wireless signal quality (decibels relative to one milliwatt). This expresses

theoretical best quality. The value is given as a negative exponent: -20 is a very good value while -80 is relatively

poor. Signal quality can be reduced by distance, by interference from other radio-frequency sources (such as

cordless telephones or neighboring wireless networks), and by obstacles between the router and the wireless

device.

Time Online: Simply the amount of time the device has been connected to the router.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

5.2 Dashboard

The Dashboard shows fundamental information about your router, divided into the following basic categories:

 Router Information

 Internet

 Local Networks

 WiFi Networks

For more in-depth information and/or

configuration options, click on the Detailed Info

link beside the category title. For each

category, this links to:

 Router Information: System Settings →

Administration

 Internet: Internet → Connection Manager

 Local Networks: Network Settings → WiFi

/ Local Networks

 WiFi Networks: Network Settings → WiFi

/ Local Networks

After the initial setup of the router, every time you log in you will automatically be directed

to this Dashboard. Also, you can click on the CradlePoint logo in the upper left-hand

corner to return to the Dashboard from any page.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Router Information: “Detailed Info‖ links to System Settings → Administration.

 Product: IBR600

 Serial: The product serial number.

 Firmware: Gives the number of the current firmware version.

 Build Date: Year-month-day-hours-minutes-seconds for the most recent firmware upgrade.

 CPU Usage: Expressed as a percentage.

 Up Time: Total time for current session.

 Clock: Current local date and time.

To check for Firmware upgrades, see System Settings → System Software.

Internet: “Detailed Info‖ links to Internet → Connection Manager.

 State: Connected/Disconnected

 Signal Strength: Expressed as a percentage. (Signal Strength is not included if Ethernet is the WAN type.)

 WAN Type: Ethernet, Modem, or WiFi as WAN.

 Connected Time: The time the current Internet source (WAN) has been connected.

 IP Address

 Gateway

 DNS Servers

For general configuration options, see Internet → Connection Manager. For more in-depth Internet source

configuration options see the appropriate settings page for your WAN type.

 Internet → Ethernet Settings

 Internet → Modem Settings

 Internet → WiFi as WAN Settings

The IP address and gateway describe your active WAN source.

For DNS server configuration options, see Network Settings → DNS.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Local Networks: “Detailed Info‖ links to Network Settings → WiFi / Local Networks.

 Clients: The number of current clients.

For each network, the following information is displayed:

 Network Name: IP Address/Netmask

o Route Mode: NAT (Network Address Translation), Standard (NAT-less), Hotspot, or Disabled.

o Access: Admin Access, LAN Isolation, UPnP (Universal Plug and Play), and/or DHCP.

To configure a network, see Network Settings → WiFi / Local Networks.

WiFi Networks: “Detailed Info‖ links to Network Settings → WiFi / Local Networks.

 WiFi Radio: Channel: 1-11. Transmit Power (Expressed as a percentage).

For each WiFi network, the following information is displayed:

 SSID: Service Set Identifier—an identifier or name for a wireless network.

o Security: WPA2/WPA1/WEP Personal/Enterprise or Open; Isolated Clients

o Network: The name of the local network.

To configure WiFi network settings see Network Settings → WiFi / Local Networks.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

5.3 GPS

If GPS support is enabled and the embedded

modem is connected, this page will show a

graphical view of your router's location. See the

GPS section in System Settings →

Administration to enable GPS support.

GPS information is only displayed if the modem has

sufficient GPS signal strength. Make sure the

modem is in an area where it can receive a signal

from the GPS satellites.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

5.4 GRE Tunnels (Advanced Mode only)

View the status of configured GRE Tunnels. To set up or edit a GRE tunnel, go to Internet → GRE Tunnels.

Included information:

 Name

 Status

 Transmit (packets/bytes)

 Receive (packets/bytes)

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

5.5 Internet Connections

The Internet Connections submenu option provides a list of attached WAN devices used as the internet source for the

IBR600. Select one of these devices to see detailed information about that particular device.

For each type of device, different information will be included in the Device Information section. Possible devices

include:

 Ethernet

 WiFi

 EVDO Modem (embedded modem)

Depending on the device, possible information will be in the following sections: Diagnostics, General Information, IP

Information, and Statistics. For modems, the Diagnostics section provides specific information about how the modem is

communicating with its carrier.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

5.5.1 Ethernet

Diagnostics

 Connection State (connected, idle,

etc.)

General Information

 Protocol Ethernet Static

 Product Built-in Ethernet

 Type Ethernet

 Port

 Unique Identifier

Statistics

 Outgoing Bits/Second

 Incoming Bits/Second

 Incoming Bytes

 Outgoing Bytes

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

5.5.2 WiFi as WAN

Diagnostics

 Connection State (connected, idle,

etc.)

General Information

 Product Wireless As WAN

 Unique Identifier

 Type wwan

IP Information

 Netmask

 IP Address

 Gateway

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

5.5.3 EVDO Modem (embedded modem)

Diagnostics

 Signal Strength (dBm)

 PRL Version

 Service Display 1xEV-DO,1X

 Carrier Status UP or DOWN

 Connection Type CDMA

 Connection State (connected, idle, etc.)

 Connection Uptime

General Information

 Product EVDO Modem

 Protocol PPP

 Unique Identifier

 ESN/IMEI

 Model MC100E-VZ

 Type modem

 Port 1

 Manufacturer CradlePoint Inc.

IP Information

 Netmask

 IP Address

 Gateway

Statistics

 Outgoing Bits/Second

 Incoming Bits/Second

 Incoming Bytes

 Outgoing Bytes

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

5.6 Statistics

The Statistics submenu option displays basic

traffic statistics for both LAN and WAN

connections, separating Outgoing Traffic and

Incoming Traffic.

Data Rate: A measure of the amount of

information that is currently being sent or

received through the network.

Data: A measure of the total amount of

information that has been sent or received.

Packets: The number of network packets that

have been sent or received.

Errors: The number of network packets that

failed to be sent or received.

NOTE: Data, Packets, and Errors statistics include only

the numbers since the router was most recently turned

on or reset, not lifetime for the router.

Reset All: Press this button to zero all

statistics. Counting restarts immediately.

Reminder: LAN vs. WAN

 LAN, or Local Area Network, is the network you have created through the IBR600.

 WAN, or Wide Area Network, is the internet source the IBR600 is using to create a new LAN. Possible WAN

sources include: Ethernet, the embedded modem, or WiFi as WAN.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

5.7 System Logs

The router automatically logs (records) events of

possible interest in its internal memory. If there is not

enough internal memory for all events, logs of older

events are deleted, but logs of the latest events are

retained. The log options allow you to filter the router

logs so you can easily find relevant messages. This

router also has external Syslog Server support so

you can send the log files to a computer on your

network that is running a Syslog utility.

Auto Update: The logs automatically refresh

whenever the router creates a new message.

Update: Click to check for new router messages.

Save log to a file: This will open a dialog in your

browser that will allow you to save the router's log to

your computer.

Search: Enter keywords to find specific events.

Level: Select/Deselect from the following levels to

filter messages by priority.

 Critical

 Error

 Warning

 Info

NOTE: The logs are erased whenever the router is rebooted or loses power.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

5.8 VPN Tunnels (Advanced Mode only)

View the status of configured VPN tunnels. To set up or edit a VPN tunnel, go to Internet → VPN Tunnels.

Included information:

 Name

 Connections

 Status

 Protocols

 Transferred

 Direction

 Time Online

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6 NETWORK SETTINGS

The Network Settings tab provides access to 8 submenu options for administering the following functions/tasks. These

functions are all related to controlling the LAN (Local Area Network), the network you set up with the IBR600.

 Content Filtering

 DHCP Server

 DNS

 Firewall

 MAC Filter

 Routing

 WiFi / Local Networks

 WiPipe QoS

(DHCP Server, DNS, Firewall,

Routing, and WiPipe QoS:

Advanced Mode only)

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.1 Content Filtering

You have two main options for filtering

content in a network created through your

IBR600.

1) Domain / URL Filter Rules: Create a

list of websites that will be either

disallowed (facebook.com, for

example) or allowed exclusively (your

company‘s website, for example).

2) OpenDNS Content Filtering: Allows

several options for filtering rules.

To create Domain / URL Filter Rules, simply input one or more website domain names or URLs. By default, these

websites will be disallowed as part of a Blacklist. You can change this to a Whitelist to exclusively allow these sites.

Enable Whitelist: Domain / URL filters allow you to block access from your network to any external domain or website.

Enabling this as a Whitelist will allow access to only those sites in the list.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.1.1 OpenDNS

OpenDNS is a service that protects you

online by filtering websites. OpenDNS

protects you from phishing websites and

URL typos once you select a filtering level.

 None: Disables Web filtering that

uses OpenDNS,

 Minimal: Filters phishing and URL

typos.

 Good: Filters any Web site containing

pornography and enables typo and

phishing redirection.

 Better: Filters more nudity, sexuality,

and tasteless content.

 Best: Filters more nudity, sexuality,

and tasteless content. Selecting ―Best‖ will filter all content that is deemed adult content by OpenDNS.

 Custom: Custom OpenDNS settings. See below for more information.

In addition to the standard filtering levels,

you have the following options for filter

control:

Custom OpenDNS: To use the Custom

OpenDNS setting you need to first create an

OpenDNS account. You can create an

account at OpenDNS and click on the

―Create Account‖ link. Follow the onscreen

instructions to create an account.

Once you have an OpenDNS account, enter your account information in order to use your Custom OpenDNS settings.

Custom OpenDNS settings use the DNS-O-MATIC (an OpenDNS Service) API to update the IP address of your

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

OpenDNS network. In order for Custom settings to work you need to login to DNS-O-MATIC using your OpenDNS

credentials and "Add A Service" for the network specified above.

Enable OpenDNS ISP Filter Bypass Algorithm: It is possible that your Internet Service Provider (ISP) uses the port that

OpenDNS is configured to access, port 53, which will prevent OpenDNS filtering. If OpenDNS does not appear to be

working correctly, enabling this will attempt to bypass those ports when using an OpenDNS content filtering level.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.2 DHCP Server (Advanced Mode only)

DHCP stands for Dynamic Host Configuration Protocol. The built-in DHCP server automatically assigns IP addresses to

the computers and other devices on each local area network (LAN). In this section you can view a list of assigned IP

addresses and reserve IP addresses for particular devices.

Active Leases: A list of devices that have

been provided DHCP leases. The DHCP

server automatically assigns these leases.

This list will not include any devices that

have static IP addresses on the network.

Reservations: This option lets you reserve

IP addresses; you can assign the same IP

address to the network device with the

specified MAC address any time it requests

an IP address. This is almost the same as

when a device has a static IP address except that the device must still request an IP address from the router. The router

will provide the device the same IP address every time. DHCP Reservations are helpful for server computers on the local

network that are hosting applications such as Web and FTP. Servers on your network should either use a static IP

address or a reservation.

While you have the option to manually input the information to reserve an IP address (Hostname, Hardware Addr, IP

Addr), it is much simpler to select a device under the Active Leases section and click ―Reserve.‖ The selected device‘s

information will automatically be added under Reservations.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.3 DNS (Advanced Mode only)

DNS, or Domain Name System, is a naming system that translates between domain names (www.cradlepoint.com, for

example) and internet IP addresses (206.207.82.197). A DNS server acts as an internet phone book, translating between

names that make sense to people and the more complex numerical identifiers. The DNS page for the IBR600 has these

distinct functions:

 DNS Settings: By default your router is set to automatically acquire DNS servers through your internet provider

(Automatic). DNS Settings allows you to specify DNS servers of your choosing instead (Static).

 Dynamic DNS Configuration: Allows you to host a server (Web, FTP, etc.) using a domain name that you have

purchased (www.yourname.com) with your dynamically assigned IP address.

 Known Hosts Configuration: Allows you to map a name (printer, scanner, laptop, etc.) to an IP address of a

device on the network.

6.3.1 DNS Settings

You have the option to choose specific DNS

servers for your network instead of using the DNS

servers assigned by your internet provider. The

default DNS servers are usually adequate. You

may want to assign DNS servers if the default

DNS servers are performing poorly, if you want

WiFi clients to access DNS servers that you use for customized addressing, or if you have a local DNS server on your

network.

Automatic Config: Automatic or Static (default: Automatic). Switching to ―Static‖ enables you to set specific DNS servers

in the Primary DNS and Secondary DNS fields.

Primary DNS and Secondary DNS: If you choose to specify your DNS servers, then enter the IP addresses of the

servers you want as your primary and secondary DNS servers in these fields. For example, Google Public DNS servers

have the IP addresses 8.8.8.8 and 8.8.4.4 while 4.2.2.2 and 4.2.2.3 are servers from Level 3 Communications.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.3.2 Dynamic DNS Configuration

The Dynamic DNS feature allows you to host a server (Web, FTP, etc.) using a domain name that you have purchased

(www.yourname.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign

dynamic (changing) IP addresses. When you use a Dynamic DNS service provider, you can enter your host name to

connect to your server, no matter what your IP address is.

Enable Dynamic DNS Service: Enable this

option only if you have purchased your own

domain name and registered with a Dynamic

DNS service provider.

Server Type. Select a Dynamic DNS service

provider from the pull-down list:

 www.DynDNS.org

 www.DNSomatic.com

 www.ChangeIP.com

 www.NO-IP.com

 Custom Server (DynDNS clone)

Custom Server Address. Only available if you

select Custom Server from the Server Address

dropdown list. Enter your custom dynamic DNS

server address here. The server must support

the Dynamic DNS protocol. See

www.dyndns.org for details. Example:

myserver.mydomain.net.

Host name: Enter your host name, fully qualified. For example: myhost.mydomain.net.

User name: Enter the user name or key provided by the Dynamic DNS service provider. If the Dynamic DNS provider

supplies only a key, enter that key for both the User name and Password fields.

Password: Enter the password or key provided by the Dynamic DNS service provider.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.3.3 Advanced Dynamic DNS Settings

Update period (hours). (Default: 576.) The time between periodic updates to the Dynamic DNS if your dynamic IP

address has not changed. The timeout period is entered in hours so valid values are from 1 to 8760.

Override External IP. The external IP is usually configured automatically during connection. However, in situations where

the unit is within a private network behind a firewall or router, the network's external IP address will have to be manually

configured in this field.

You may find out what your external IP address is by going to http://myip.dnsomatic.com/ in a web browser.

6.3.4 Known Hosts Configuration

The Known Hosts Configuration feature allows

you to map a name (printer, scanner, laptop, etc.)

to an IP address of a device on the network. This

assigns a new hostname that can be used to

conveniently identify a device within the network,

such as an office printer.

Click Add to name a device in your network.

Fill in the following fields:

 Hostname: Choose a name that is meaningful to you. No

spaces are allowed in this field.

 IP address: The address of the device within your

network.

EXAMPLE: a personal laptop with IP address 192.168.0.164 could be

assigned the name ―MyLaptop‖.

Since the assigned name is mapped to an IP address, the

device‘s IP address should not change. To ensure that the device keeps the same IP address, go to the ―Reservations‖

section under Network Settings → DHCP Server and reserve the IP address for the device.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.4 Firewall (Advanced Mode only)

The router automatically provides a firewall. Unless you configure the router to the contrary, the router does not respond

to unsolicited incoming requests on any port, thereby making your LAN invisible to cyber attackers.

However, some network applications cannot run with a tight firewall. Those applications need to selectively open ports in

the firewall to function correctly. The options on this page control ways of opening the firewall to address the needs of

specific types of applications.

6.4.1 Port Forwarding Rules

A port forwarding rule allows traffic from the

internet to reach a computer on the inside of your

network. For example, a port forwarding rule might

be used to run a Web server.

Exercise caution when adding new rules as they impact the security of your network.

Click Add to create a new port forwarding rule.

Add New Port Forwarding Rule: page 1

 Name: Name your rule.

 Description: Enter a short description of this rule for future

reference.

 Click ―Next‖ to continue.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

Add New Port Forwarding Rule: page 2

 Use Port Range: Changes the selection options to allow you

to input a range of ports (if desired).

 Internet Port(s): The port number(s) as you want it defined on

the internet. Typically these will be the same as the local port

numbers, but they do not have to be. These numbers will be

mapped to the local port numbers.

 Local Computer: Select the IP address of an attached device

from the dropdown menu, or manually input the IP address of a

device.

 Local Port(s): The port number(s) that corresponds to the service (Web server, FTP, etc) on a local computer or

device.

For example, you might input ―80‖ in the Local Port(s) field to open a port for a Web server on a computer within

your network. The Internet Port(s) field could then also be 80, or you could choose another port number that will

be used across the internet to access your Web server. If you choose a number other than 80 for the internet Port,

connections to that number will be mapped to 80—and therefore the Web server—within your network.

Add New Port Forwarding Rule: page 3

 Protocol: Select from the following options in the dropdown

menu:

o TCP

o UDP

o TCP & UDP

 Click Submit to save your completed port forwarding rule.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.4.2 IP Filter Rules

An "Incoming" IP filter rule restricts remote access

to computers on your local network. "Outgoing" filter

rules prevent computers on your local network from

initiating communication to the address range

specified in the rule.

This feature is especially useful when combined with

port forwarding and/or DMZ to restrict remote access to a specified host or network range. For example, in order to host a

server you might have opened ports with a port forwarding rule that could expose your LAN to cyber attacks. With an

incoming IP filter rule, you can restrict the access to your LAN to only known devices.

 Name: Name your rule.

 Direction: ―Incoming‖ or ―Outgoing‖

 Action: ―Allow‖ or ―Deny‖

 Start Port: Use for a single port or a range of ports.

 End Port: Use for a single port or a range of ports.

 Network Address

 Subnet Mask

Use Start Port, End Port, Network Address, and Subnet Mask to

specify the ports and addresses for which the rule applies. You can

specify a range of ports or a single port (by inputting the same value in

both port fields). Similarly, the subnet mask can be used to define

either a range of addresses (i.e. 255.255.255.0) or a single address

(255.255.255.255).

Example of an IP Filter Rule: Suppose you have opened a port in your firewall in

order to run a server. Someone, Johnny, is abusing that opening, so you would like to

restrict his access. Create a rule that will deny Johnny‘s IP address.

 Name: No more Johnny

 Direction: Incoming

 Action: Deny

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

 Start Port: 80

 End Port: 80

 Network Address: 172.22.24.160 (Johnny‘s IP address)

 Subnet Mask: 255.255.255.255 (This subnet mask restricts the rule to one single address).

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.4.3 DMZ (DeMilitarized Zone)

A DMZ host is effectively not firewalled in the sense

that any computer on the internet may attempt to

remotely access network services at the DMZ IP

address. Typical uses involve running a public Web

server or sharing files.

Input the IP Address of a single device in your network to create a DeMilitarized Zone for that device. To ensure that the

IP address of the selected device remains consistent, go to the ―Reservations‖ section under Network Settings → DHCP

Server and reserve the IP address for the device.

As with port forwarding, use caution when enabling the DMZ feature as it can threaten the security of your

network. Only use DMZ as a last resort.

6.4.4 Firewall Options

Anti-Spoof: Anti-Spoof checks help protect against

malicious users faking the source address in

packets they transmit in order to either hide

themselves or to impersonate someone else. Once

the user has spoofed their address they can launch

a network attack without revealing the true source of

the attack or attempt to gain access to network services that are restricted to certain addresses.

Packet Normalization: Normalizing packets helps secure the router in untrusted environments. It does so by "scrubbing"

packets that are ambiguous or might represent a break-in attempt. Packet Normalization also helps insure reliable

connectivity for some WAN devices such as WiMAX modems. Only disable this option if you are sure you do not need it.

Static NAT Ports: If enabled the source port does not translate in TCP and UDP packets during NAT. Some NAT

traversal protocols such as STUN(T) require that the source port stay the same when traversing the firewall.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.5 MAC Filter

The MAC Filter allows you to create a

list of devices that have either

exclusive access (whitelist) or no

access (blacklist) to your wireless

LAN.

Enabled: Click to allow MAC Filter

options.

Whitelist: Select either ―Whitelist‖ or

―Blacklist‖ from a dropdown list. By

default, the list of addresses is

designated a ―white list.‖ Deselecting

White List turns the list of addresses

into a disallowed black list.

MAC Filter List (Whitelist or Blacklist): Add devices to either your white list or black list simply by inputting each

device‘s MAC address.

NOTE: Use caution when using the MAC Filter to avoid accidentally blocking yourself from accessing the router.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.6 Routing (Advanced Mode only)

Add a new static route to the IP routing table or

edit/remove an existing route.

Static routes are unnecessary for most users.

They are typically only used in networks with

more than one layer, such as when there is a

network within a network so that packet destinations are hidden behind an additional router. Adding a static route is a way

of telling the router about an additional step that packets will need to take to reach their destination.

Click Add to create a new static route.

IP/Network Address: The IP address of the target

network or host.

Type: Select from a dropdown list to specify the type of the

target:

 Network

 Host

Netmask: The Netmask, along with the IP address,

defines the network the computer belongs to and which

other IP addresses the computer can see in the same

LAN. An IP address of 192.168.0.1 along with a Netmask

of 255.255.255.0 defines a network with 256 available IP addresses from 192.168.0.0 to 192.168.0.255.

NOTE: 255.255.255.255 is used to signify only the host that was entered in the IP/Network Address field.

Gateway: Specifies the next hop to be taken if this route is used. A gateway of 0.0.0.0 implies there is no next hop, and

the IP address matched is directly connected to the router on the interface specified: LAN or WAN.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.7 WiFi / Local Networks

This section is used to configure the

settings for wireless networks created by

your router. Note that changes made in this

section may also need to be duplicated on

wireless devices that you want to connect

to your wireless network.

For example, if you change a LAN‘s IP address,

devices within that network will lose connection.

They will have to reconnect to the network.

The user can set up multiple networks on

the IBR600, each with its own unique

configuration and its own selection of

interfaces. Each local network can be

attached to any of the following types of

interfaces:

 WiFi

 Ethernet

 VLAN

For example, one network might be just an

isolated WiFi hotspot for guests, while

another might be the main network with

administrative access, an Ethernet port, a

password-protected WiFi SSID, and a

VLAN interface.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.7.1 Local IP Networks

Local IP Networks displays the following information for each network:

 Network Name

 IP address/Netmask

 DHCP Server (Enabled/Disabled)

 Routing Mode (NAT, Standard,

Hotspot, Disabled)

 Access Control (Admin Access, UPnP

Gateway, LAN Isolation)

 Attached Interfaces (Ethernet ports,

WiFi, VLAN)

Click Add to configure a new network, or select an existing network and click Edit to view configuration options.

HotSpot (Captive Portal)

When you set a network as a ―Hotspot‖ under

Routing Mode, you will also need to:

1) Configure hotspot settings under

System Settings → Hotspot

Services. This is where you can

configure a ―Terms of Service‖ agreement or select a website for redirection, for example. Click on Configure to

link to the Hotspot Services page.

2) If you want a hotspot that includes WiFi, first set one of your WiFi interfaces to ―Open‖ for its Security Mode and

attach this interface to your hotspot network. Otherwise guests will need to know the password to connect to the

WiFi network even before viewing a Terms of Service page (or other hotspot options).

Finally, make sure your WiFi interface is ―Enabled‖.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.7.2 Local Network Editor

The Local Network Editor contains the following tabs: IP Settings, Interfaces, Access Control, and DHCP Server.

IP Settings:

Name: This primarily helps to identify this network during

other administration tasks.

Hostname: [Default: cp (for CradlePoint)] The hostname

is the DNS name associated with the router's local area

network IP address.

NOTE: You can access the router‘s administration pages by typing

the hostname into your browser, so if you change ―cp‖ to another

hostname, you can access the administration pages through the new

hostname.

IP Address: This is the address used by the router for

local area network communication. Changes to this

parameter may require a restart to computers on this

network.

Each network must have a distinct IP address. Most users

will want an address from one of the following private IP ranges:

 10.0.0.1 - 10.255.255.1

 172.16.0.1 - 172.31.255.1

 192.168.0.1 - 192.168.255.1

NOTE: The final number does not have to be 1, but it is a simple, logical convention for routers that leaves higher numbers free for other devices.

Netmask: (Default: 255.255.255.0) The netmask controls how many IP addresses can be used in this network. The

default value allows for 254 IP addresses, which is enough in most cases.

Routing Mode: (Default: NAT) Each network can use a unique routing mode to connect to the internet and other local

networks. NAT is desirable for most configurations. Select from the following options in the dropdown list:

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

 NAT: Network Address Translation hides private IP addresses behind the router's IP address. This is the simplest

and most common choice for users, because NAT does the translation work for you.

 Standard: NAT-less routing. If you select Standard, you must separately configure your IP addresses so that they

will be publically accessible. Typically you will not select this option unless you have a specific reason to bypass

NAT.

 Hotspot: Provide Hotspot Services on this network, requiring Terms of Service or RADIUS/UAM authentication

before WAN access will occur on both wireless and wired LAN connections. To enable a Hotspot you must also

configure your Hotspot settings under System Settings → Hotspot Services.

 Disabled: Disable this network.

Interfaces:

Select network interfaces to attach to this network.

Choose from WiFi, Ethernet ports, and VLAN interfaces.

Double-click on any of the interfaces shown on the left in

the Available section to move them to the Selected

section on the right (or highlight an interface and click the

+ button). To deselect an interface, double-click on an

interface in the Selected section (or highlight the interface

and click the – button).

If you want more interface options, you must configure

additional WiFi, Ethernet ports, and VLAN interfaces

separately. See the Local Network Interfaces section

below (on this same administration page: Network

Settings → WiFi / Local Networks).

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

Access Control:

Tune the access control settings of this network to match

the intended use. Simply select or deselect any of the

following:

 LAN Isolation: When checked, this network will

NOT be allowed to communicate with other local

networks.

 UPnP Gateway: Select the UPnP (Universal Plug

and Play) option if you want to enable the UPnP

Gateway service for computers on this network.

 Admin Access: When enabled, users may access

these administration pages on this network.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

DHCP Server:

Changing settings for the DHCP server is optional. The default selections are almost always sufficient.

DHCP Server: (Default: Enabled) When the DHCP server

is enabled, users of your network will be able to

automatically connect to the internet without any special

configuration. It is recommended that you leave this

enabled. Disabling the DHCP server is only

recommended if you have another DHCP server on your

network and it is configured properly.

Range Start and Range End: These designate the range

of values in the reserved pool of IP addresses for the

DHCP server. Values within this range will be given to any

DHCP enabled computers on your network. The default

values are almost always sufficient (default: 72 to 200, as

in 192.168.0.72 to 192.168.0.200).

Example: The IBR600 uses an IP address of 192.168.0.1 for its

primary network by default. A computer designated as a Web server

has a static IP address of 192.168.0.3. Another computer is

designated as an FTP server with a static IP address of 192.168.0.4. The starting IP address for the DHCP server needs to be 192.168.0.5 or

higher.

Lease Time: [Default: 720 minutes (12 hours)] The lease time specifies how long DHCP-enabled computers will wait

before requesting a new DHCP lease. Smaller values are better suited to busy environments.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.7.3 Local Network Interfaces

Each LAN type—WiFi, Ethernet, and VLAN—has a separate section with configuration options. Unless the default

configuration is sufficient, YOU MUST CONFIGURE EACH INTERFACE SEPARATELY in order to create the desired

interface options for a network. You can then select these interfaces to add to a network in the Local Network Editor

(see above).

Select from the following tabs:

 Wireless (WiFi) Network Settings

 Ethernet Port Configuration

 VLAN Interfaces

Wireless (WiFi) Network Settings

The IBR600 can broadcast two SSIDs

(service set identifiers — the names for

WiFi networks). One primary WiFi network

is enabled by default, while you may have

enabled a second guest network when

using the First Time Setup Wizard. You

have the ability to change the settings for

either of these networks.

Wireless Radio: Enable/Disable. (Default:

Enabled). Leave enabled unless you don‘t

want any WiFi networks broadcast from your router.

Select a WiFi network and click Edit to change the settings.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

Wireless Network Editor

WiFi Name (SSID): When you are browsing for available

wireless networks, this is the name that will be broadcast

from this router for the selected network. This name is

referred to as the SSID (service set identifier). For

security purposes, CradlePoint highly recommends that

you change this from the pre-configured name.

Hidden: This shows whether the router broadcasts its

SSID. It is somewhat harder for hackers to find and attack

a router that is not broadcasting its SSID, which adds to

the wireless security, but it is also more difficult for friendly

users to attach to a WiFi network with a hidden SSID.

Isolate: Select this to isolate all wireless clients so they

cannot directly communicate with each other on the

wireless network.

WMM: WiFi Multimedia. This is a basic traffic shaping, or QoS (quality of service), system for the network. WMM works

behind the scenes to set priorities for different types of traffic on your network. For example, video streams are given

higher priority than print jobs, since video streams need consistent throughput.

Enabled: If the network is available.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

Security Mode: You have several options for selecting a security mode. The mode you choose depends on the security

features your wireless adapters support.

 WPA2 Personal

 WPA / WPA2 Personal

 WPA Personal

 WPA2 Enterprise

 WPA / WPA2 Enterprise

 WPA Enterprise

 WEP Auto

 Open

Select ―Open‖ to create a hotspot: otherwise select the best

security that your devices will support (CradlePoint recommends

WPA2).

Depending on which Security Mode you select, there are different

setup options.

 ―Personal‖ security modes require passwords and a ―Re-key Interval‖ (default: 3600 seconds).

 ―Enterprise‖ security modes are linked to a RADIUS server and require RADIUS authentication: IP, Port, and

Shared Key.

 ―WPA2‖ (Personal or Enterprise) forces AES as the WPA Cipher.

 ―WPA/WPA2‖ and ―WPA‖ (Personal or Enterprise) allow AES, TKIP/AES, and TKIP.

 ―WEP Auto‖ requires a WEP Key.

 ―Open‖ has no password or other security measures.

NOTE: If you don‘t know whether you should choose Personal or Enterprise, assume Personal since you need to know RADIUS authentication for

Enterprise.

In order to protect your network from hackers and unauthorized users, CradlePoint highly recommends WPA2/AES for

security if your attached devices can support it. WEP and WPA/TKIP are obsolete and have been replaced by WPA/AES.

Using those security settings will cause the WiFi to limit to 802.11g modes.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

NOTE: If you select one of the security modes and are unable to connect to the router afterwards, you can use the reset buttons to reset the router

to its factory default state and try a different security mode instead.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

Ethernet Port Configuration

Ethernet Port Configuration provides

controls for your router‘s Ethernet ports.

There are two ports: one set as LAN and

one set as WAN. While default settings will

be sufficient in most circumstances, you

have the ability to control: Mode (WAN or

LAN) and Link Speed. Additional controls

for WAN ports are available in Internet →

Ethernet Settings.

Mode: WAN or LAN.

 Internet (WAN) is used to connect to another network such as a hotel or office wired network. The WAN

connection is used as a possible source of internet for the IBR600.

 Local Network (LAN) is for connecting a computer or similar device directly to the router with an Ethernet cable.

Link Speed: Default setting is Auto. The Auto setting is preferred in most cases.

 Auto

 10Mbps - Half Duplex

 10Mbps - Full Duplex

 100Mbps - Half Duplex

 100Mbps - Full Duplex

 1000Mbps - Full Duplex

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

Ethernet Port Group Editor

A Port Group represents a logical grouping of Ethernet

ports. Any computers physically connected to ports in a

group will be allowed to freely communicate with each

other.

Since the IBR600 has only 2 Ethernet ports, this feature

will rarely be necessary. It is possible, however, to set both

ports as LAN ports (or both ports as WAN ports) and then

either separate them or group them together. (For

example, you could use one for the primary network and

one for a guest network, or you could use both for the

primary network.)

NOTE: When a port group uses the LAN mode you must separately

ensure that this logical interface is attached to a Local IP Network in

the top panel of this page.

Port Group ID: The Group ID field provides a reference to

this grouping of ports to be used in other parts of the router

configuration. For example, this ID is referenced in the

Local IP Networks configuration to attach this logical group of Ethernet ports with a network configuration. Use a simple

short text phrase to describe a group, such as "main", "guestports", "backup_wan", etc.

Select one or more ports to create a port group that you can subsequently attach to a network in the Local Network

Editor. Double-click on any of the Ethernet ports shown on the left in the Available section to move them to the Selected

section on the right (or highlight a port and click the + button). To deselect an Ethernet port, double-click on an interface in

the Selected section (or highlight the port and click the – button).

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

VLAN Interfaces

A virtual local area network, or VLAN,

functions as any other physical LAN, but it

enables computers and other devices to

be grouped together even if they are not

physically attached to the same network

switch.

To enable a VLAN, select a VID (virtual LAN ID) and a group of Ethernet ports through which users can access the VLAN.

Then go back up to the Local Network Editor to attach your new VLAN to a network. To use a VLAN, the VID must be

shared with another router or similar device so that multiple physical networks have access to the one virtual network.

Click Add to create a new VLAN interface.

VLAN Editor

VID: An integer value that is the Virtual LAN ID.

Ethernet Group: Select the LAN ports with which you want

to associate the VLAN ID from a dropdown list. Your

Ethernet group must be created separately under Ethernet

Port Configuration.

Click Submit to save your configured VLAN.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.7.4 WiFi Settings (Advanced Mode only)

When you select the Wireless (WiFi)

Networks Settings tab in the Local

Network Interfaces section, you have

several additional options for configuring

your wireless LANs under the WiFi Settings

heading.

Random Channel: Select to randomize the

WiFi channel. This makes it less likely that

the wireless signal from this router will

conflict with another router in the same area.

Channel: (Shows if Random Channel is

deselected.) The WiFi channel corresponds

to a frequency the router uses to

communicate with other devices. The range

is 1 to 11, and 1, 6, and 11 do not overlap

each other. Select a channel from the

dropdown list:

 1 (2412 MHz)

 2 (2417 MHz)

 3 (2422 MHz)

 4 (2427 MHz)

 5 (2432 MHz)

 6 (2437 MHz)

 7 (2442 MHz)

 8 (2447 MHz)

 9 (2452 MHz)

 10 (2457 MHz)

 11 (2462 MHz)

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

Client Timeout: (Default: 300 seconds) If the access point is not able to communicate with the client it will disconnect

after this amount of time in seconds.

TX Power: Normally the wireless transmitter operates at 100% power. In some circumstances, however, there might be a

need to isolate specific frequencies to a smaller area. By reducing the power of the radio, you can prevent transmissions

from reaching beyond your corporate/home office or designated wireless area.

RTS Threshold: When an excessive number of wireless packet collisions are occurring, wireless performance can be

improved by using the RTS/CTS (Request to Send/Clear to Send) handshake protocol. The wireless transmitter will begin

to send RTS frames (and wait for CTS) when data frame size in bytes is greater than the RTS Threshold. This setting

should remain at its default value.

Fragmentation Threshold: Wireless frames can be divided into smaller units (fragments) to improve performance in the

presence of RF interference and at the limits of RF coverage. Fragmentation will occur when frame size in bytes is greater

than the Fragmentation Threshold. This setting should remain at its default value. Setting the Fragmentation value too low

may result in poor performance.

DTIM: A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages.

When the wireless router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM

with a DTIM Interval value. Wireless clients detect the beacons and awaken to receive the broadcast and multicast

messages. The default value is 1. Valid settings are between 1 and 255.

Beacon: Beacons are packets sent by a wireless router to synchronize wireless devices. Specify a Beacon Period value

between 20 and 1000 milliseconds.

WPS: WiFi Protected Setup is a method for easy and secure establishment of a wireless network. It can be used instead

of passwords when connecting clients that support WPS.

Short Slot: Slot Time is the period wireless clients use in determining if the channel is free for transmission. Enabling this

value allows clients that can utilize a shorter time to do so. Disabling this option forces all clients to use a longer backoff

check and thus may reduce network throughput while reducing the number of transmission collisions.

Wireless Mode: Select the WiFi clients the router will be compatible with. Greater compatibility is a tradeoff with better

performance. For greatest compatibility with all WiFi devices, select "802.11 b/g/n". For best performance, connect with

only other 802.11n-compatible devices and select "802.11 n."

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

 802.11 b

 802.11 b/g

 802.11 b/g/n

 802.11 n

Channel Width: Selects whether the router uses a single 20 MHz channel to send/receive, or uses two adjacent 20 MHz

channels to create a 40 MHz channel. Higher performance is possible with the 40 MHz channel. Selecting Auto is

generally best. Enabling WiFi as WAN will force 20 MHz only mode.

Extended Channel: When operating in 40 MHz mode the access point will use an extended channel either below or

above the current channel. Optimal selection will depend on the channels of other networks in the area.

MCS: 802.11n uses multiple Modulation Coding Schemes to enable higher throughput in various environments. Since

clients can dynamically change rates depending on environment, selecting Auto is generally best.

Short GI: Short GI is an optimization for shortening the interval between transmissions. May be incompatible with older

clients.

Greenfield Mode: Greenfield mode uses an 802.11n-only preamble to transmit packets that older wireless clients cannot

interpret. Use of greenfield mode in a mixed 802.11 environment may result in degraded performance but can improve

performance if all devices in the area are 802.11n compatible.

RADIUS Timeout: (Default: 3600 seconds) When using an Enterprise security mode clients will be forced to re-

authenticate with the RADIUS server at this interval in seconds. This allows administrators to revoke access so when an

attached client‘s authentication expires, the client must re-authenticate.

RADIUS Retry: (Default: 60 seconds) When using an Enterprise security mode, if a RADIUS query fails to receive a

response from the server it will delay by this interval (in seconds) before attempting another query. This helps protect the

network from floods of authentication requests if the RADIUS server is temporarily unreachable.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.8 WiPipe QoS (Advanced Mode only)

When WiPipe QoS (Quality of Service/Traffic

Shaping) is enabled, the router will control the

flow of internet traffic according to the user-

defined rules. In other words, Traffic Shaping

improves performance by allowing the user to

prioritize applications.

Enable WiPipe QoS: Click on this box to open

options for controlling internet traffic. You can

control Uplink Speed values or define your own

Traffic Shaping rules. When WiPipe QoS is

enabled, the router restricts the flow of outbound

traffic so as not to exceed the WAN uplink

bandwidth.

Default Uplink Speed: By default, the Uplink

Speed values are set as fast as possible. Click

to deselect default values if you want to restrict

the maximum uplink speed for the internet

source(s) you are using (4G Modem, Ethernet,

3G Modem, and/or WiFi).

You might do this to reduce overall bandwidth

use for cost reasons or to prioritize available

bandwidth for download. It is recommended that

you experiment with different values for your particular internet connection to yield the best results.

NOTE: Uplink speed is the speed at which data can be transferred to your ISP. You can test your uplink speed with a service such as

speedtest.net.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

6.8.1 Add Traffic Shaping Rule

A Traffic Shaping Rule identifies a specific message flow and assigns a priority to that flow. For most applications,

automatic classification will be adequate, and specific Traffic Shaping Rules will not be required.

Traffic Shaping supports overlap between rules, where more than one rule can match for a specific message flow. If more

than one rule matches, the rule with the highest priority will be used.

Name. Create a name for the rule that is meaningful to

you.

Protocol. The protocol used by the messages: TCP,

UDP, or ICMP. Select ―Any‖ if your rule does not control a

specific type of message that uses a specific protocol.

Priority. The priority of the message flow is entered here-

-15 receives the highest priority (most urgent) and 0

receives the lowest priority (least urgent).

Enable. Specifies whether the entry will be active or

inactive.

Click Next to continue to the next page.

Example: You sometimes work from home, and you share bandwidth with your children. You can set a rule to prioritize your computer and a rule

to reduce priority for their computer. To prioritize your computer, you might use the following settings:

 Name: My Computer

 Protocol: Any (Your computer will use all three protocols; there‘s no reason to restrict this rule to just one protocol)

 Priority: 15

To lower the priority of your children‘s computer, you might use these settings:

 Name: Kids‘ Computer

 Protocol: Any

 Priority: 2

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

The second page allows you to designate the computer(s) on the local network for which you want to adjust traffic priority.

NOTE: Leaving a field empty will match any IP address and/or any

port number. All fields are optional.

Local Start Port and Local End Port: The rule applies to

a flow of messages whose LAN-side port number is within

the range set here.

Local IP Address: The rule applies to a flow of messages

with this LAN-side IP address.

Local Netmask: The rule applies to a flow of messages

with this LAN-side netmask.

Example (continued from previous page): To select your computer

or your kids‘ computer, you only need to input the Local IP Address.

You can ignore the other settings on this page.

CRADLEPOINT IBR600| USER MANUAL Firmware ver. 3.3.0

The third and last page allows you to designate the

network or server on the internet for which you want to

shape traffic.

NOTE: Leaving a field empty will match any IP address and/or any

port number. All fields are optional.

Remote Start Port and Remote End Port: The rule

applies to a flow of messages whose WAN-side port

number is within the range set here.

Remote IP Address. The rule applies to a flow of

messages with this WAN-side IP address.

Remote Netmask. The rule applies to a flow of messages

with this WAN-side Netmask.

Submit. Click to record the changes you have made.

Example (continued from previous page): Since the goal is simply to control which devices in your network get priority, you can ignore all of the

remote settings. Leave them blank to include all possibilities.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7 INTERNET

The Internet tab provides access to 8 submenu items for managing a variety of internet connection options.

 Connection Manager

 Data Usage

 Ethernet Settings

 GRE Tunnels

 Load Balance

 Modem Settings

 VPN Tunnels

 WiFi as WAN Settings

(Data Usage, GRE Tunnels, Load

Balance, VPN Tunnels, and WiFi as

WAN Settings: Advanced Mode only)

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.1 Connection Manager

The router can establish an uplink via the Ethernet WAN port, WiFi as WAN, or the embedded modem. If the primary

WAN connection fails the router will automatically attempt to bring up a new link on another device. This feature is called

failover. If Load Balance is enabled, multiple WAN devices may be plugged in and each may establish a link.

7.1.1 WAN Interfaces

This is a list of the available interfaces used

to access the internet. You can enable, stop,

or start devices from this section. By using

the priority arrows (the arrows in the red

boxes; these show if you have more than

one available interface), you can set the interface the router uses by default and the order that it allows failover. To

configure a specific interface, use the settings page for that type of interface (e.g. Ethernet Settings page for wired

connections).

In the example shown, Ethernet is set as the primary internet source, while the embedded modem is a backup. The

Ethernet is ―Connected‖ while the modem is ―Idle.‖

Load Balance: If this is enabled, the router will use multiple WAN interfaces to increase the data transfer throughput by

using any connected WAN interface consecutively. Selecting Load Balance will automatically start the WAN interface and

add it to the pool of WAN interfaces to use for data transfer. Turning off Load Balance for an active WAN interface may

require the user to restart any current browsing session.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.1.2 Failure Check (Advanced Mode Only)

If this is enabled, the router will check that the

highest priority active WAN interface can get to the

internet even if the WAN connection is not actively

being used. If the interface goes down, the router

will switch to the next highest priority interface

available. If this is not selected, the router will still

failover to the next highest priority interface but

only after the user has attempted to get out to the

internet and failed.

Idle Check Interval: The amount of time between each check. (Default: 30 seconds. Range: 10-3600 seconds.)

ICMP Ping Check and Ping IP Address: Enable and configure an IP address that the router will use to check if the WAN

connection is available. For best results, select an established public IP address.

For example, you might ping Google Public DNS at 8.8.8.8 or Level 3 Communications at 4.2.2.2.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.1.3 Failback Configuration (Advanced Mode Only)

This is used to configure failback, which is the

ability to go back to a higher priority WAN

interface if it regains connection to its network.

Usage: Fail back based on the amount of data

passed over time. This is a good setting for when

you have a dual-mode EVDO/WiMAX modem

and you are going in and out of WiMAX

coverage. If the router has failed over to EVDO it

will wait until you have low data usage before

bringing down the EVDO connection to check if a

WiMAX connection can be made.

 High (Rate: 80 KB/s. Time Period: 30

seconds.)

 Normal (Rate: 20 KB/s. Time Period: 90 seconds.)

 Low (Rate: 10 KB/s. Time Period: 240 seconds.)

 Custom (Rate range: 1-100 KB/s. Time Period range: 10-300 seconds.)

Time: Fail back only after a set period of time. (Default: 90 seconds. Range: 10-300 seconds.) This is a good setting if

you have a primary wired WAN connection and only use a modem for failover when your wired connection goes down.

This ensures that the higher priority interface has remained online for a set period of time before it becomes active (in

case the connection is dropping in and out, for example).

Disabled: Deactivate failback mode.

Immediate Mode: Fail back immediately whenever a higher priority interface is plugged in or when there is a priority

change. Immediate failback returns you to the use of your preferred internet source more quickly which may have

advantages such as reducing the cost of a failover data plan, but it may cause more interruptions in your network than

Usage or Time modes.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.2 Data Usage (Advanced Mode Only)

Data Usage Management & Alerts allows you to create and manage rules that help control the data usage of a modem.

If you have a limited data plan or a price increase on your plan after a certain amount of usage, a Data Usage Rule can

help you track these amounts. You can set a rule to shut down use of a modem and/or send a message when you reach a

data usage amount you set.

Enable Data Usage: Enabled/Disabled. (Default:

Disabled.)

When you select Enabled, you will see the Data Usage

Agreement shown to the right. The purpose of this

agreement is to ensure that you understand that the data

numbers for the IBR600 may not perfectly match those of

your carrier: CradlePoint cannot be held responsible. You

must accept the agreement by clicking Yes in order to

begin creating data usage rules.

Warning: You should set your data limits lower than your

Data Allowance and regularly compare the numbers

provided by the router with the numbers from your carrier.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.2.1 Data Usage Rules

The Date Usage Rule display shows basic

information for each rule you have created

(including rules created with a template).

The following information is displayed:

 Rule Name

 Enabled: True/False

 Date for Rule Reset

 Cycle Type: Daily, Weekly, or

Monthly

 Cap: Amount in MB.

 Current Usage: Shown as an amount in MB, as a percentage of the cap, and in a bar graph.

Click Add to configure a new Data Usage Rule.

Usage Rule Configuration – page 1

Rule Name: Give your rule a name for later recognition.

WAN Selection: Select from the dropdown list of currently

attached WAN devices.

Assigned Usage in MB: Enter a cap amount in megabytes. 1024

megabytes equals 1 gigabyte.

Rule Enabled: (Default: Enabled.) Click to disable.

Click Next to continue to page 2.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Usage Rule Configuration – page 2

Cycle Type: How often the rule will reset. The data usage

amount will be reset at the end of each cycle. Select the

length of a cycle from a dropdown menu with the following

choices:

 Daily

 Weekly

 Monthly

Cycle Start Date: Select

the date you wish the

rule to begin. This date

will be used to track

when the rule will be

reset.

Shutdown WAN on Cap: If selected, the WAN device will

shut down when the assigned usage is reached. A cycle

reset or a rule deletion will re-enable the device.

Send Alert on Cap: An email alert will be generated and sent when the assigned usage is reached.

WARNING: The SMTP mail server must be configured in System Settings → Device Alerts.

Custom Alert: When checked you enable a second email to be configured for a percentage of the assigned usage.

Percent of Usage (1-1000): If selected, a custom alert will be sent when your data usage reaches this percentage of your

usage cap. For example, you could set this at 90 percent so that you know when your usage is nearing 100 percent of the

cap.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.2.2 Template Configuration

Templates allow you to control multiple

WAN devices with the same rule. Each WAN

device that matches a template will

automatically have its own rule created.

Click Add to configure a new Template rule.

Create a Template Name that you can recognize.

The template will apply to one of the following

WAN types:

 All WAN

 All Ethernet

 All Modems

Select one of these types.

The rest of the rule settings options match those in

the Data Usage Rules. See the section above for

additional information about how to configure your

template usage rules.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.2.3 Historical Data

Historical Data shows a graph of data usage for

each attached WAN source that has an assigned

Data Usage Rule. The graph shows the usage trend

for one day.

Click Add Usage to manually input additional usage

for an attached data source. You might do this if you

used your modem while not attached to your router

and you want to keep an accurate count of your

data usage.

Enter the date of usage by using the pop-up

calendar. Then enter the total data in MB—both in

and out—to update the usage amounts.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.3 Ethernet Manager

The Ethernet Manager provides

controls for your router‘s Ethernet

WAN ports. By default, only one

port is set as a WAN port, but the

other port can be reconfigured as

a WAN port in Network Settings → WiFi / Local Networks.

While default settings for each WAN Ethernet port will be sufficient in most circumstances, you have the ability to control:

 Connect Method: DHCP (Automatic), Static

(Manual), or PPPoE (Point-to-Point Protocol

over Ethernet).

 MAC Address: You have the ability to change

the MAC address, but typically this is

unnecessary. You can match this address with

your device‘s address by clicking: ―Clone Your

PC’s MAC Address‖.

7.3.1 Connect Method

Your router‘s Ethernet ports are automatically configured for DHCP connection. DHCP (Dynamic Host Configuration

Protocol) automatically assigns dynamic IP addresses to devices in your networks. This is preferable in most

circumstances.

If you want to use a Static (Manual) or PPPoE connection instead, you will need to fill out additional information.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Static (Manual):

 IP Address

 Subnet Mask

 Gateway IP

 Primary DNS Server

 Secondary DNS Server

PPPoE:

 Username

 Password

 Password Confirm

 Service

 Auth Type: None, PAP, CHAP

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.4 GRE Tunnels (Advanced Mode only)

Generic Routing Encapsulation (GRE) tunnels can be used to create a connection between two private networks. The

IBR600 is enabled for either GRE or VPN tunnels. GRE tunnels are simpler to configure and more flexible for different

kinds of packet exchanges, but VPN tunnels are much more secure.

In order to set up a tunnel you must know the following:

 Local Network and Remote Network addresses for the ―Glue Network,‖ the network that is created by the

administrator that serves as the ―glue‖ between the networks of the tunnel. Each address must be a different IP

address from the same private network, and these addresses together form the endpoints of the tunnel.

 Remote Gateway, the public facing WAN IP address that the local gateway is going to connect to.

 Optionally, you might also want to enable the tunnel Keep Alive feature to monitor the status of a tunnel and more

accurately determine if the tunnel is alive or not.

Click Add to configure a new GRE tunnel.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Page 1: General

Tunnel Name: Choose a name that is meaningful to you.

Local Network: This is the local side of the ―Glue

Network,‖ a network created by the administrator to form

the tunnel. The user creates the IP address inputted

here. It must be different from the IP addresses of the

networks it is gluing together.

Choose any private IP address from the following three

ranges that doesn‘t match either network:

 10.0.0.0 - 10.255.255.255

 172.16.0.0 - 172.31.255.255

 192.168.0.0 - 192.168.255.255

Remote Network: This is the remote side of the ―Glue

Network.‖ Again, the user must create an IP address that

is distinct from the IP addresses of the networks that are

being glued together.

The Remote Network and Local Network values will be

flipped when inputted for the other side of the tunnel

configuration.

Subnet Mask: This is the subnet mask for the Glue

Network. The Local and Remote Network addresses

must fit with this mask. 255.255.255.0 is a logical choice

for most users.

Remote Gateway: This is the public facing, WAN-side IP address of the network that the local gateway is going to

connect to.

Tunnel Enabled: Select to activate the tunnel.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Keep Alive: This feature monitors the status of a tunnel. This will more accurately determine if the tunnel is alive or not.

Choose the Rate in seconds for each check (Default: 10 seconds. Range: 2 – 3600 seconds) and the number of Retry

attempts (Default: 3. Range: 1 – 255).

Page 2: Routes

Adding routes allows you to configure what types of

network traffic from the local host or hosts will be allowed

through the tunnel.

Click Add Route to configure a new route. You will need

to input the following information, defined by the remote

network:

 Network Address

 Netmask: (Default: 255.255.255.0)

You can set the tunnel to connect to a range of IP

addresses or to a single IP address. For example, you

could input 192.168.0.0 and 255.255.255.0 to connect

your tunnel to all the addresses of the remote network in

the 192.168.0.x range. Alternatively, you could select a

single address by inputting that address along with a

Netmask of 255.255.255.255.

Click Save to record each new route.

When you have finished adding routes, click Finish to save your GRE tunnel configuration.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.5 Load Balance (Advanced Mode only)

When enabled in Connection Manager (Internet → Connection Manager), the router will use multiple WAN interfaces

to increase the data transfer throughput by using any connected WAN interface consecutively. Connections are load

balanced between interfaces based on a dynamic measurement of bandwidth available.

Leave ―Use default rates‖ selected for automatically defined bandwidth values for Load Balance.

The default minimum rate can be changed to reflect the minimum bandwidth used during dynamic measurement. The

dynamic measurement will assume that the interface has at least the specified minimum bandwidth available. You have

the ability to set these minimum rates for:

 4G Modem

 Ethernet

 3G Modem

 WiFi

Range: 100-50000 Kbs.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.6 Modem Settings

This section allows you to change the

settings for your embedded modem.

7.6.1 Update/Activate a Modem

The embedded modem can be

activated (or reactivated/upgraded).

Select the checkbox next to the

CradlePoint device and click ―Update /

Activate‖.

 Modem Activation / Update: Activate, Reactivate, or Upgrade Configuration. Click Activate to start the process.

If the modem is connected when you start an operation

the router will automatically disconnect it. The router may

start another device as a failover measure. When the

operation is done the modem will go back to an idle state,

at which point the router may restart it depending on

failover and failback settings.

NOTE: Only one operation is supported at a time. If you try to start

the same operation on the same modem twice the UI will not report

failure and the request will finish normally when the original request is

done. However if you try to start a different operation or use a

different modem, this second request will fail without interfering with

the pending operation.

Process Timeout: If the process fails an error message

will display.

Activation has a 3-minute timeout.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.6.2 Modem Connection Settings (Advanced Mode Only)

This section changes settings that affect how

modems attempt to connect to the service

provider's network.

Connection Mode: Typically modem connections

are not set to remain on. The router allows you to

set the type of reconnection mode.

 Always On: A connection to the internet is

continuously maintained.

 On Demand: A connection to the internet is made as needed.

 Manual: The administrator has to navigate to the Connection Manager (Internet → Connection Manager) page

and use the control buttons shown in the WAN Interfaces table.

Maximum Idle Time: The interval at which the machine can be idle before the modem connection is disconnected. This

setting is only valid for the "On Demand" and "Manual" connection modes.

Aggressive Reset: When Aggressive Reset is enabled the system will attempt to maintain a good modem connection. If

the internet has been unreachable for a period of time a reset of the modem will occur in attempt to re-establish the

connection.

7.6.3 Modem Configuration Rules (Advanced

Mode Only)

This section allows you to create simple or

complex rules that affect how individual modems

or classes of modems behave in the router.

Click Add to create a new rule.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Configuration Rule: First page. Create a name for your rule and the condition for which the rule applies.

Rule Name: Create a name meaningful to you.

Select each of the following to create a condition for

your rule. The condition will be of the following form:

― (When) is/is not (value) ‖

For example:

―Type is not WiMAX‖

When:

 Port (Internal USB Port)

 Manufacturer

 Model

 Type (WiMAX, Modem, HSPA)

 Serial Number

 MAC Address

 Unique ID

Value: If you chose Port or Type, select from the dropdown list. If you chose Manufacturer, Model, Serial Number, MAC

Address, or Unique ID, you will need to manually input the information.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Configuration Rule: WiMAX Settings

WiMAX Realm: Select from the following dropdown

options:

 Clear – clearwire-wmx.net

 Rover – rover-wmx.net

 Sprint 3G/4G – sprintpcs.com

 Xohm –xohm.com

 BridgeMAXX – bridgeMAXX.com

 Time Warner Cable – mobile.rr.com

 Comcast – mob.comcast.net

TTLS Authentication Mode: TTLS inner authentication

protocol. Select from the following dropdown options:

 MSCHAPv2/MD5 (Microsoft Challenge Handshake

Authentication Protocol version2/Message-Digest

Algorithm 5)

 PAP (Password Authentication Protocol)

 CHAP (Challenge Handshake Authentication

Protocol)

TTLS Username: Username for TTLS authentication.

TTLS Password: Password for TTLS authentication.

WiMAX Authentication Identity: User ID on the network. Leave this blank unless your provider tells you otherwise.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Configuration Rule: Modem Settings

AT Dial Script: Enter the AT commands to be used in establishing

a network connection. Each command must be entered on a

separate line. All command responses must include ―OK‖ except the

final command response, which must include ―CONNECT‖.

Example:

AT

AT+CGDCONT=2,‖IP‖,‖isp.cingular‖

ATCT*99***2#

PPP Authentication Protocol: Set this only if your service provider

requires a specific protocol and the Auto option chooses the wrong

one.

 Auto

 PAP (Password Authentication Protocol)

 CHAP (Challenge Handshake Authentication Protocol)

PPP Password: Password for PPP authentication.

PPP Username: Username for PPP authentication.

SIM PIN: PIN number for GSM modem with a locked SIM.

Access Point Name (APN): Some wireless carriers provide multiple Access Point Names that a modem can connect to.

If you wish to specify an APN, enter it into this field. Some examples of APN are ‗isp.cingular‖ and ―vpn.com‖. This APN

will be set in the first profile position.

LTE Connection Mode: Specify how the LTE Multi Mode modem should connect to the network.

 Auto: Let the modem decide which network to use.

 Auto EVDO/1xRTT: Connect to CDMA, letting the modem decide which 3G network to use. Do not attempt to

connect to LTE.

 Force LTE: Connect to LTE only (do not attempt to connect to CDMA/GSM).

 Force EVDO: Connect to CDMA EVDO network only.

 Force 1xRTT: Connect to CDMA 1xRTT network only.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Configuration Rule: SIM/APN Settings

SIM PIN: PIN number for a GSM modem with a locked

SIM.

Access Point Name (APN): Some wireless carriers

provide multiple Access Point Names that a modem can

connect to.

 Default: Let the router choose an APN

automatically.

 Manual: Enter an APN by hand.

 Select: Select from a dropdown menu of the

profiles already on the SIM.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.7 VPN Tunnels (Advanced Mode only)

VPN (virtual private network) tunnels are

used to establish a secure connection to a

remote network over a public network. For

example, VPN tunnels can be used across

the internet by an individual to connect to

an office network while traveling or by two

office networks to function as one network.

The two networks set up a secure

connection across the (normally) unsecure

internet by assigning VPN encryption protocols.

The IBR600 uses IPsec (Internet Protocol security) to authenticate and encrypt packets exchanged across the tunnel. To

set up a VPN tunnel with the IBR600 on one end, there must be another device (usually a router) that also supports IPsec

on the other end.

IKE (Internet Key Exchange) is the security protocol in IPsec. IKE has two phases, Phase 1 and Phase 2. The IBR600

has several different security protocol options for each phase, but the default selections will be sufficient for most users.

The VPN tunnel status page allows you to view the state of the VPN tunnels. If a tunnel fails to connect to the remote site,

check the System Logs for more information. You may double click on a cell to directly edit that information.

Click Add to configure a new VPN tunnel.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.7.1 Page 1: General

Tunnel Name: Choose a name meaningful to you.

Local Identity: This can be left blank for most users. If left blank

it will default to the IP address of the WAN connection. Currently

we only support identifiers in the form of an IP address, a user

fully qualified domain name (user@mydomain.com) or just a

fully qualified domain name (www.mydomain.com). If the

remote side of the tunnel is configured to expect an identifier,

then both must match in order for the negotiation to succeed.

Remote Identity: This can be left blank for most users. If left

blank it will default to the IP address of the WAN connection.

Currently we only support identifiers in the form of an IP

address, a user fully qualified domain name

(user@mydomain.com) or just a fully qualified domain name

(www.mydomain.com). If no identifier is defined then no

verification of the remote peer's identification will be done.

Pre-shared Key: Create a password or key. The routers on both

sides of the tunnel must use this same key.

Mode: Tunnel or Transport. Tunnel Mode is used for

protecting traffic between different networks, when traffic must

pass through an intermediate, untrusted network. Transport

Mode is used for end-to-end communications (for example, for

communications between a client and a server).

Initiator Mode: ―Always On/Boot” or ―On Demand.‖ ―Always On/Boot‖ is used if you want the tunnel to initiate the

tunnel connection whenever the WAN becomes available. On Demand is used if you want the tunnel to initiate a

connection if and only if there is data traffic bound for the remote side of the tunnel.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Tunnel Enabled: Enabled or Disabled.

MBR1200 Quick Connect: VPN tunnels in the IBR600 have more choices than they do in the MBR1200, so it is more

complex to configure. Check this box to simplify setup by streamlining your options.

7.7.2 Page 2: Networks

Local Network: The Network IP address and the Subnet Mask

define what local devices have access to or can be accessed

from the VPN tunnel. The IBR600 will automatically fill in the

values for your network, but you can change the values to limit

the tunnel to only some of the devices in your network.

NOTE: The local network IP address must be different from the remote

network IP address.

Remote Network: Enter the remote Gateway's IP address or

fully qualified domain name (my.domain.com). It is

recommended you use a dynamic DNS host name instead of the

static IP address. By using the dynamic DNS host name updates

of the remote WAN IP are compensated for while connecting to

a VPN tunnel.

Enter the Network IP address with the Subnet Mask to define

the remote network subnet that the local devices will have

access to.

NOTE: The remote network IP address must be different from the local

network IP address.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.7.3 Page 3: IKE Phase 1

IKE security has two phases, Phase 1 and Phase 2. You have the ability to distinctly configure each phase, but the default

settings will be sufficient for most users.

To set up a tunnel with a remote site, you need to match your tunnel's IKE negotiation parameters with the remote site. By

selecting several encryption, hash, and DH group options, you

improve your chances for a successful tunnel negotiation. For

greatest compatibility, select all options; for greatest security,

select only the most secure options that your devices support.

Exchange Mode: The IKE protocol has 2 modes of negotiating

phase 1 - Main (also called Identity Protection) and Aggressive.

 In Main mode, IKE separates the key information from

the identities, allowing for the identities of peers to be

secure at the expense of extra packet exchanges.

 In Aggressive mode, IKE tries to combine as much

information into fewer packets while maintaining security.

Aggressive mode is slightly faster but less secure.

Because it has better security, Main mode is recommended for

most users.

Key Lifetime: The lifetime of the generated keys of Phase 1 of

the IPsec negotiation from IKE. After the time has expired, IKE

will renegotiate a new set of Phase 1 keys.

Encryption, Hash, and DH Groups: Each IKE exchange uses

one encryption algorithm, one hash function, and one DH group

to make a secure exchange.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

 Encryption: Used to encrypt messages sent and received by IPsec.

o AES 128

o AES 256

o Blowfish

o CAST

o DES

o 3DES

 Hash: Used to compare, authenticate, and validate that data across the VPN arrives in its intended form and to

derive keys used by IPsec.

o MD5

o SHA1

o SHA2 256

o SHA2 384

o SHA2 512

 DH Groups: The DH (Diffie-Hellman) Group is a property of IKE and is used to determine the length of prime

numbers associated with key generation. The strength of the key generated is partially determined by the strength

of the DH Group. Group 5, for instance, has greater strength than Group 2.

o DH group 1: 768-bit key.

o DH group 2: 1024-bit key.

o DH group 5: 1536-bit key.

In Phase 1, only one DH group can be selected while using Aggressive exchange mode.

By default, all the algorithms (encryption, hash, and DH groups) supported by the IBR600 are checked, which means they

are allowed for any given exchange. Deselect these options to limit which algorithms will be accepted. Be sure to check

that the router (or similar device) at the other end of the tunnel has matching algorithms.

The algorithms are listed in order by priority. You can reorder this priority list by clicking and dragging algorithms up or

down. Any selected algorithm may be used for IKE exchange, but the algorithms on the top of the list are more likely to be

used more often.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.7.4 Page 4: IKE Phase 2

Perfect Forward Secrecy (PFS): Enabling this feature will

require IKE to generate a new set of keys in Phase 2 rather than

using the same key generated in Phase 1.

Additionally, the new keys generated in Phase 2 (with this option

enabled) are exchanged in an encrypted session. Enabling this

feature affords the policy greater security.

Key Lifetime: The lifetime of the generated keys of Phase 2 of

the IPsec negotiation from IKE. After the time has expired, IKE

will renegotiate a new set of Phase 2 keys.

Phase 2 has the same selection of Encryption, Hash, and DH

Groups as Phase 1, but you are restricted to only one DH

Group. Phase 2 and Phase 1 selections do not have to match.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.7.5 Page 5: Dead Peer Detection

Dead Peer Detection (DPD) defines how the router will detect

when one end of the IPsec session loses connection while a

policy is in use.

Connection Idle Time allows you to configure how long the

router will allow an IPsec session to be idle before beginning to

send Dead Peer Detection (DPD) packets to the peer machine.

Request Frequency allows you to adjust the delay between

these DPD packets to send as quickly as every 2 seconds up to

30 seconds apart.

Additionally, you can specify how many Maximum Requests to

send at the selected time interval before the tunnel is considered

dead.

You must click Finish to save your VPN tunnel.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.7.6 Page 6: Tunnel Summary

The final page of the tunnel configuration interface is a summary of the tunnel specifications. This is especially helpful for

matching this information with the router (or similar device) at the other end of the tunnel.

 Tunnel Name

 Mode

 Initiation Mode

 Pre-shared Key

 Local Network

 Remote Gateway

 Remote Network

 IKE Phase 1:

o Exchange Mode

o Key Lifetime (Secs)

o Encryption

o Hash

o DH Groups

 IKE Phase 2:

o PFS

o Key Lifetime (Secs)

o Encryption

o Hash

o DH Groups

 DPD

Click Yes at the bottom of the Tunnel Summary page to save

your configuration changes. This will cause active tunnels to

restart.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.7.7 Global VPN Settings

These settings apply to all configured VPN tunnels. Changing the Global VPN Settings is rarely necessary; the default

values are almost always sufficient.

 IKE / ISAKMP Port: Internet Key Exchange / Internet Security Association and Key Management Protocol port.

Default: 500. This is a standard VPN port that usually does not need to be changed.

 IKE / ISAKMP NAT-T Port: Internet Key Exchange / Internet Security Association and Key Management Protocol

network address translation traversal port. Default: 4500. This is a standard VPN NAT-T port that usually does not

need to be changed.

 NAT-T KeepAlive Interval: Default: 20 seconds. Range: 0-3600 seconds. 20 seconds will be sufficient in almost

all cases.

 Tunnel Connect Retry: Default: 30 seconds. Range: 10-255 seconds. 30 seconds will be sufficient in almost all

cases.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.7.8 VPN with NAT-T

If one side of a planned VPN tunnel is behind a NAT (network address translation) firewall, the setup of your tunnel

requires the following specifications:

1. Each side of the tunnel must use both a Local Identity and a Remote Identity. These must match the identities on

the other side: The Local Identity must match the Remote Identity on the other side of the tunnel, and vice versa. In

this case, these identities can each be a simple word.

2. The Tunnel Name for the side of the tunnel that is not behind the NAT firewall must be ―anonymous‖.

3. The VPN tunnel must be initiated from the side that is behind the NAT firewall.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.8 WiFi as WAN Settings (Advanced Mode only)

When WiFi as WAN is enabled and configured the router will use a remote WiFi access point for internet connectivity. In

other words, external WiFi—from a hotel for example—can be used as the internet source for your own private network.

When enabled in the WiFi as WAN Settings page, the IBR600 will find possible WiFi sources that you can select and add.

Unless the WiFi source is on an unprotected network, you will need to know the password or key.

All CradlePoint routers and some other routers use the same default IP address for the primary network, 192.168.0.1. If

you attempt to set up WiFi as WAN and there is an ―IP conflict,‖ you need to change the IP address. The router is

attempting to use the same IP address for both WAN and LAN, which is impossible. Go to Network Settings → WiFi /

Local Networks. Select the network and click Edit. You can change the IP address under IP Settings. For example, you

might change 192.168.0.1 to 192.168.1.1.

Saved Profiles:

This is a list of WiFi networks that have already

been configured as WAN sources. The router will

attempt to connect to any of these access points

using the password you have configured. If more

than one access point is in range, then the router

will connect with the highest priority network.

7.8.1 Site Survey

This is a list of WiFi networks that the router can currently find, along with information about the network such as its mode

and channel. If you click on a network in the Site Survey, you can import it as a saved profile. You can sort the list based

on any of the fields by clicking on the field name.

Click ―Refresh‖ if a WiFi network to which you want to connect is invisible. Site Survey only operates on the band—2.4

GHz or 5.0 GHz—that is currently configured in the WiFi advanced settings. In order to connect to networks in a different

band, first switch the WiFi settings to that band (Network Settings → WiFi / Local Networks in Advanced Mode).

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Network Name (SSID): The name that is

broadcast from each access point.

Network ID (BSSID): The numeric ID of the

network. This parameter is required when trying to

connect to a hidden network using WiFi as WAN.

It is optional when connecting to a visible network.

Auth Mode: The type of encryption that is used by

the network.

 None

 WEP Auto

 WEP Open

 WEP Shared

 WPA1 Personal

 WPA2 Personal

 WPA1 & WPA2 Personal

7.8.2 Profile Editor

You have the option to manually add network profiles, but it is

usually much easier to import them from Site Survey. Either

click on Add under ―Saved Profiles‖ or select a WiFi network

in ―Site Survey‖ and click Import.

If you import a network from Site Survey, most of the

information about the network will already be completed. You

need to input the password (if there is one) and then click

submit to save the WiFi as WAN profile.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

7.8.3 Wireless Scan Settings

Scan Interval: How often WiFi as WAN scans the environment for updates. (Default: 60 seconds. Range: 5-3600

seconds.)

Scan While Connected: Continue to scan for WiFi as WAN profile updates when connected. Each time a scan occurs

the wireless communication of the router will be temporarily interrupted. Normally this should be disabled.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8 SYSTEM SETTINGS

The System Settings tab has 7 submenu options that provide access to tools for broad administrative control of the

IBR600:

 Administration

 Device Alerts

 GPIO Connector

 Hotspot Services

 Managed Services

 System Control

 System Software

(Device Alerts, Hotspot Services,

and Managed Services: Advanced

Mode only)

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8.1 Administration

Select the Administration submenu item in order to control any of the following functions:

 Web Login

 Network Time Protocol

 Timezone

 Bounce Pages

 UPnP

 Remote Management

 GPS

 Syslog Settings

8.1.1 Web Login

This password is the administration password; this is

separate from the WiFi security password. It allows a user

to change router settings. This password can also be

changed through the First Time Setup Wizard. The default

password is found on the bottom of the router.

8.1.2 Network Time Protocol

Enabling NTP will tell the router to get its system time from

a remote server on the internet. If you do not enable NTP

then the router time will be based on when the router

firmware was built, which is guaranteed to be wrong.

Whenever the internet connection is re-established and

once a week thereafter the router will ask the server for the current time so it can correct itself.

You then have the option of selecting an NTP server and adjusting the NTP server port. Any of the given NTP servers will

be sufficient unless, for example, you need to synchronize your router‘s time with other devices in a network.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8.1.3 Timezone

This is the time zone and daylight savings setting

used by the router for its own clock. You can also

select this in the First Time Setup Wizard, but

normally the router will automatically select the

correct time zone from the browser.

Daylight Savings Time: Select this checkbox if your location observes daylight savings time.

8.1.4 Bounce Pages

Bounce pages show up in your web browser when

the router is not connected to the internet. They

inform you that you are not connected and try to

explain why. If you disable bounce pages then you

will just get the usual browser timeout. In the normal case when the router is connected to the internet you don't see them

at all.

This allows a user to disable bounce pages for cases where the router WAN link is down.

8.1.5 UPnP

Universal Plug and Play is a set of networking

protocols standardized by the UPnP Forum. UPnP

enables clients to determine network configuration

and configure the network to allow traffic through the firewall without direct user interaction. UPnP can simplify the use of

special applications or devices that require network configuration, but can also allow unprivileged users to manipulate

network configuration.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8.1.6 Remote Management

Allows a user to enable incoming WAN pings or to

change settings for the router from the internet using

the router's internet address.

Allow WAN pings: When enabled the functionality

allows an external WAN client to ping the router.

WAN Hostname: This hostname is the DNS name

associated with the router's internet connection

interface. If DHCP is used on the interface this

hostname will be used when requesting a DHCP

lease.

Allow Remote Web Administration: When remote

administration is enabled it allows access to these

administration web pages from the internet. With it disabled, you must be a client on the local network to access the

administration website. For security, remote access is usually done via a non-standard http port. Additionally, encrypted

connections can be required for an added level of security. Requiring a secure (https) connection is recommended.

 Require Secure Connection

 HTTP Port: Default: 8080. This option is disabled if you select ―Require Secure Connection‖.

 Secure HTTPS Port: Default: 8443.

Enable SSH Server: When the router's SSH server is enabled you may access the router's command line interface (CLI)

using the standards based SSH protocol. Use the username "admin" and the standard system password to login.

 SSH Server Port: Default: 22.

 Allow Remote SSH Access

Technical Support Access: Only enable this option if instructed by a CradlePoint support agent.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8.1.7 GPS

If you have an attached device with GPS support, you can enable a graphical view of your router‘s location which will

appear in Status → GPS Status.

Users can configure GPS NMEA GGA format

sentence reporting, available through a router-

based server and/or a remote server.

NOTE: Some carriers disable GPS support in otherwise

supported modems. If you encounter issues with obtaining a

fix, contact your carrier and ensure that GPS is supported.

 Enable GPS support: Enables support for

querying GPS information from supported

modems.

 Enable GPS server on WAN: Enables a

TCP server on the WAN side of the firewall,

which will periodically send GPS NMEA

sentences to connected clients.

 Enable GPS server on LAN: Enables a TCP server on the LAN side of the firewall, which will periodically send

GPS NMEA sentences to connected clients.

o GPS server port number

 Enable GPS reporting to remote server: Enables periodic reporting of GPS NMEA sentences to a remote server.

The router will buffer NMEA data if errors are encountered or if the internet connection goes down and send the

buffered sentences when the connection is restored.

o Remote server hostname or IP

o Remote server port

o Report only over specific time interval: Restricts the NMEA sentence reporting to a remote server to a

specific time interval.

The following GPS spec is copied from http://aprs.gids.nl/nmea/

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8.1.8 $GPGGA – Global Positioning System Fix Data

Name

Example Data

Description

Sentence Identifier

$GPGGA

Global Positioning System Fix Data

Time

170834

17:08:34 Z

Latitude

4124.8963, N

41d 24.8963' N or 41d 24' 54" N

Longitude

08151.6838, W

81d 51.6838' W or 81d 51' 41" W

Fix Quality:

- 0 = Invalid

- 1 = GPS fix

- 2 = DGPS fix

1

Data is from a GPS fix

Number of Satellites

05

5 Satellites are in view

Horizontal Dilution of Precision (HDOP)

1.5

Relative accuracy of horizontal position

Altitude

280.2, M

280.2 meters above mean sea level

Height of geoid above WGS84 ellipsoid

-34.0, M

-34.0 meters

Time since last DGPS update

blank

No last update

DGPS reference station id

blank

No station id

Checksum

*75

Used by program to check for transmission errors

Courtesy of Brian McClure, N8PQI.

Global Positioning System Fix Data. Time, position, and fix related data for a GPS receiver.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

eg2. $--GGA,hhmmss.ss,llll.ll,a,yyyyy.yy,a,x,xx,x.x,x.x,M,x.x,M,x.x,xxxx

hhmmss.ss = UTC of position

llll.ll = latitude of position

a = N or S

yyyyy.yy = Longitude of position

a = E or W

x = GPS Quality indicator (0=no fix, 1=GPS fix, 2=Dif. GPS fix)

xx = number of satellites in use

x.x = horizontal dilution of precision

x.x = Antenna altitude above mean-sea-level

M = units of antenna altitude, meters

x.x = Geoidal separation

M = units of geoidal separation, meters

x.x = Age of Differential GPS data (seconds)

xxxx = Differential reference station ID

eg3. $GPGGA,hhmmss.ss,llll.ll,a,yyyyy.yy,a,x,xx,x.x,x.x,M,x.x,M,x.x,xxxx*hh

1 = UTC of Position

2 = Latitude

3 = N or S

4 = Longitude

5 = E or W

6 = GPS quality indicator (0=invalid; 1=GPS fix; 2=Diff. GPS fix)

7 = Number of satellites in use [not those in view]

8 = Horizontal dilution of position

9 = Antenna altitude above/below mean sea level (geoid)

10 = Meters (Antenna height unit)

11 = Geoidal separation (Diff. between WGS-84 earth ellipsoid and mean sea level. -=geoid is below WGS-84 ellipsoid)

12 = Meters (Units of geoidal separation)

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

13 = Age in seconds since last update from diff. reference station

14 = Diff. reference station ID#

15 = Checksum

8.1.9 Syslog Settings

Enabling this option will send log messages to a

specified Syslog server. After enabling, type the

Hostname or IP address of the Syslog server.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8.2 Device Alerts (Advanced Mode only)

The Device Alerts submenu choice allows you

to receive email notifications of specific system

events. YOU MUST ENABLE AN SMTP EMAIL

SERVER TO RECEIVE ALERTS. Alerts can be

included for the following:

 Firmware Upgrade Available: A

firmware update is available for this

device.

 WAN Device Status Change: An

attached WAN device has changed

status. The possible statuses are

plugged, unplugged, connected, and

disconnected.

 Login Failure: A failed login attempt has been detected.

 Full System Log: The system log has filled. This alert contains the contents of the system log.

 Recurring System Log: The system log is sent periodically. This alert contains all of the system events since the

last recurring alert. It can be scheduled for daily, weekly and monthly reports. You also choose the time you want

the alert sent.

8.2.1 SMTP Mail Server

Since the IBR600 does not have its own email server, to receive alerts you must enable an SMTP server. This is possible

through most email services (Gmail, Yahoo, etc.).

Each SMTP server will have different specifications for setup, so you have to look those up separately. The following is an

example using Gmail:

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

 Server Address: smtp.gmail.com

 Server Port: 587 (for TLS, or

Transport Layer Security port; the

IBR600 does not support SSL).

 Authentication Required: For

Gmail, mark this checkbox.

 User Name: Your full email

address

 Password: Your Gmail password

 From Address: Your email

address

 To Address: Your email address

Once you have filled in the information for

the SMTP server, click on the ―Verify

SMTP Settings‖ button. You should receive a test email at your account.

Advanced: Delivery Options

Email Subject Prefix: This optional string

is prefixed to the alert subject. It can be

customized to help you identify alerts

from specific routers.

Retry Attempts: The number of attempts made to send an alert to the mail server. After the attempts are exhausted, the

alert is discarded.

Retry Delay: The delay between retry attempts.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8.3 GPIO Connector

The power connector includes two pins defined for general purpose LVTTL compatible input and output. These pins are

ESD protected and the input is 5V tolerant.

NOTE: GPIO functionality requires a separate adapter to connect to the I/O pins.

Definition

1

Ground

2

12VDC Power

3

Input: LVTTL Digital Input with 50K ohm pullup to 3.3VDC (5V tolerant)

4

Output: LVTTL Digital Output (capable of source/sink of 50mA)

This section is used to configure these Input and Output General Purpose I/O pins.

Current Value: Displays HIGH or LOW for both the Input Pin and Output Pin.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Input Pin – The Input Pin can be used to read a value—either high or low—from an external device and either display

that value on this administration page (as the Current Value) or cause the router to reset. Select one of the following

options from the dropdown menu:

 Default/Ignored: In this mode the input pin is not used.

 Input Sensing: In this mode the logic state (high or low) is automatically sensed by the router and is readable as

the Current Value.

 Router Reset: In this mode an external device can reset the router by holding the input low for 10-seconds.

Output Pin – The Output Pin can be used to allow an external device to read either whether the router is running or

whether the modem is connected. Select one of the following options from the dropdown menu:

 Default/Low: In this mode the output pin is not used and is at 0V (ground potential).

 Set High/Router Running: In these modes the output pin is logic low while the router is booting and transitions to

logic high when the router is fully running. If the router is reset, the output returns to low until the router has fully

rebooted.

 Modem Connected: In this mode the output pin is logic low until the modem has connected to a tower. If the

connection drops, this output is set low until the connection is restored.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8.4 Hotspot Services (Advanced Mode only)

Any of your networks can be enabled as a hotspot. To

enable a hotspot, you need to select a network and

set it as a hotspot in Network Settings → WiFi /

Local Networks.

NOTE: Although any network can be a hotspot, the IBR600

allows only one hotspot.

Enable Hotspot Services: Disabled by default. Click

Enabled to activate Hotspot options.

Hotspot Mode: Choose from the following dropdown

options:

 Simple: Allows ―Terms of Use‖ page and

timeout settings controlled within the router.

 RADIUS/UAM: Allows you to set up external authentication servers.

LAN Group: A single LAN Group—including both WiFi and Ethernet—can be configured as your hotspot. If you do not

already have a LAN Group configured as a hotspot, go to the WiFi / Local Networks page (you can click Configure to link

to this page) and set the Routing Mode to "Hotspot" for the LAN Group you want to use.

NOTE: Routing Mode is in the Local Network Editor under the IP Settings tab. Select a network in Network Settings → WiFi / Local Networks

and click Edit to open the Local Network Editor. The IP Settings tab will already be open: the Routing Mode dropdown menu is at the bottom.

Allow Service on 3G/4G Modems: Allows you to enable or disable hotspot access to the internet over a modem. This is

often used if the router has a main wired link and a secondary modem for failover (typically with a more expensive/limited

data plan). Select this option if you want the router to allow data traffic over the modem if the wired connection goes down.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8.4.1 Simple Mode Settings

Display: This section allows you to choose if a

"Terms of Use" page will be given to the user

connecting to the hotspot.

 Internal Terms of Use. Fill in your own

terms of use.

 External Terms of Use. Specify a URL

that has the Terms of Use page. Users will

automatically be directed to this page.

 No Terms of Use. Redirect Only.

Redirection: Depending on your choice for the

―Terms of Use‖ page, your have further options for

where the user will be directed. After the user

accepts the terms, you can either let him/her

continue to the URL they were trying to reach or

you can force the user to go to a specified URL

once before continuing on.

 To the URL the user intended to visit.

 To an administrator-defined URL.

Redirect URL: If you have chosen to send users

to an administrator-defined URL, you will need to

specify the address.

Session Timeout: The amount of time the user may use the router before being forced to authenticate again.

Idle Timeout: If the user is idle for this amount of time, make them re-authenticate.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

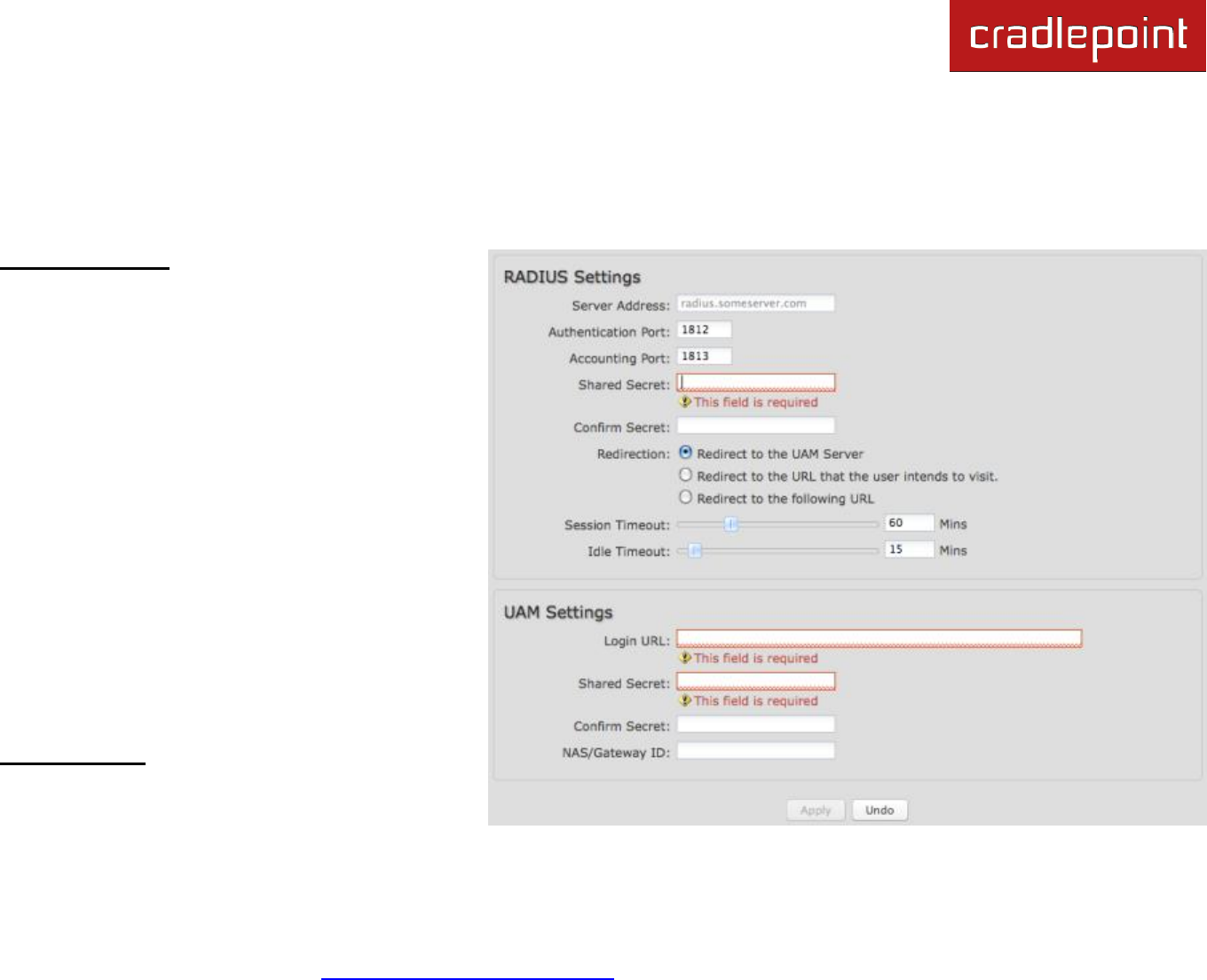

8.4.2 RADIUS/UAM Settings

This section allows you to configure a RADIUS or Universal Access Method server. After the user accepts the terms, you

can either let him/her continue to the URL they were trying to reach or you can force the user to go to a specified UAM

Server or URL once before continuing on.

RADIUS settings:

 Server Address

 Authentication Port (Default: 1812)

 Accounting Port (Default: 1813)

 Shared Secret

 Redirection: Choose from the dropdown

list of options for redirection:

o Redirect to the UAM Server

o Redirect to the URL that the user

intends to visit.

o Redirect to the following URL (input

the desired URL)

 Session Timeout: The amount of time the

user may use the router before being

forced to authenticate again. This value

can be overwritten by the RADIUS server.

 Idle Timeout: If the user is idle for this

amount of time, make them re-

authenticate.

UAM Settings:

 Login URL

 Shared Secret

 NAS/Gateway ID

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8.4.3 Host/Domain Name

Adding Host / Domain names gives you the ability

to allow access from your network to any external

domain or website prior to being authenticated.

For example, a hotel might allow access to its own

website prior to authentication.

Click Add to enter new hostnames you wish to

allow.

Enter the Host or Domain Name of the website

you wish to allow, i.e. www.google.com. To

make sure the full domain is allowed, enter the

most inclusive domain, i.e. google.com will

effectively allow www.google.com as well as

mail.google.com and images.google.com.

Click Submit to save your additions.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8.5 Managed Services (Advanced Mode only) ASK YOUR CRADLEPOINT SALES

REPRESENTATIVE FOR DETAILS

Managed Services allow you to centralize your router configuration using the WiPipe Central server. WiPipe Central

services must be purchased separately.

Enable Services: Enables the WiPipe

Central client to contact the server.

Ethernet Communication Only: The

WiPipe Central client will not start unless

the WAN is Ethernet.

Registration URL: Register your router

using the code provided by CradlePoint

when you purchase WiPipe Central.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Advanced: System Automatic Reboot

and Ping Test

8.6 System Control

Restore to Factory Defaults: This changes all

settings back to their default values.

Reboot The Device: This causes the router to

restart.

Scheduled Reboot: This causes the router to

restart at a user-determined time.

Watchdog Reboot: This causes the router to

automatically restart when it determines an

unrecoverable error condition has occurred.

Ping Test: A simple test to check internet

connectivity. Type the Hostname or IP address of

the computer you want to ping and press 'Enter' or

click the 'Ping' button.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

8.7 System Software

Firmware Upgrade: This allows the

administrator to load new firmware onto the

router to add new features or fix defects. If you

are happy with the operation of the router, you

may not want to upgrade just because a new

version is available. Check the firmware release

notes for information to decide if you should

upgrade or not.

Automatic (Internet): Have the router download

the file and perform the upgrade with no user

interaction.

Manual Firmware Upload: Upload the router firmware from an attached computer.

Factory Reset: Set default settings to match the new firmware. This is safest, as settings may have changed. You should

back up your current settings and restore them after the new firmware is loaded.

Backup Current Settings: Save your current settings to a file on a computer.

Restore Settings: Restore your previous settings from a file on a computer.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

9 GLOSSARY

802.11

A family of specifications for wireless local area networks

(WLANs) developed by a working group of the Institute of

Electrical and Electronics Engineers (IEEE).

Access Control List

ACL. This is a database of network devices that are

allowed to access resources on the network.

Access Point

AP. Device that allows wireless clients to connect to it

and access the network.

ActiveX

A Microsoft specification for the interaction of software

components.

Ad-hoc network

Peer-to-Peer network between wireless clients.

Address Resolution Protocol

ARP. Used to map MAC addresses to IP addresses so

that conversions can be made in both directions.

ADSL

Asymmetric Digital Subscriber Line.

Advanced Encryption Standard

AES. Government encryption standard.

Alphanumeric

Characters A-Z and 0-9.

Antenna

Used to transmit and receive RF signals.

AppleTalk

A set of Local Area Network protocols developed by

Apple for their computer systems.

AppleTalk Address Resolution Protocol

AARP. Used to map the MAC addresses of Apple

computers to their AppleTalk network addresses, so that

conversions can be made in both directions.

Application layer

7th Layer of the OSI model. Provides services to

applications to ensure that they can communicate

properly with other applications on a network.

ASCII

American Standard Code for Information Interchange.

This system of characters is most commonly used for text

files.

Attenuation

The loss in strength of digital and analog signals. The

loss is greater when the signal is being transmitted over

long distances.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Authentication

To provide credentials, like a Password, in order to verify

that the person or device is really who they are claiming

to be.

Automatic Private IP Addressing

APIPA. An IP address that a Windows computer will

assign itself when it is configured to obtain an IP address

automatically but no DHCP server is available on the

network.

Backward Compatible

The ability for new devices to communicate and interact

with older legacy devices to guarantee interoperability.

Bandwidth

The maximum amount of bytes or bits per second that

can be transmitted to and from a network device.

Basic Input/Output System

BIOS. A program that the processor of a computer uses

to startup the system once it is turned on.

Baud

Data transmission speed.

Beacon

A data frame by which one of the stations in a WiFi

network periodically broadcasts network control data to

other wireless stations.

Bit rate

The amount of bits that pass in given amount of time.

Bit/sec

Bits per second.

BOOTP

Bootstrap Protocol. Allows for computers to be booted up

and given an IP address with no user intervention.

Bottleneck

A time during processes when something causes the

process to slowdown or stop all together.

Broadband

A wide band of frequencies available for transmitting

data.

Broadcast

Transmitting data in all directions at once.

Browser

A program that allows you to access resources on the

web and provides them to you graphically.

Cable modem

A device that allows you to connect a computer up to a

coaxial cable and receive internet access from your

Cable provider.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

CardBus

A newer version of the PC Card or PCMCIA interface. It

supports a 32- bit data path, DMA, and consumes less

voltage.

CAT 5

Category 5. Used for 10/100 Mbps or 1Gbps Ethernet

connections.

Client

A program or user that requests data from a server.

Collision

When do two devices on the same Ethernet network try

and transmit data at the exact same time.

Cookie

Information that is stored on the hard drive of your

computer that holds your preferences to the site that

gave your computer the cookie.

Data

Information that has been translated into binary so that it

can be processed or moved to another device.

Data Encryption Standard

Uses a randomly selected 56-bit key that must be known

by both the sender and the receiver when information is

exchanged.

Data-Link layer

The second layer of the OSI model. Controls the

movement of data on the physical link of a network.

Database

Organizes information so that it can be managed

updated, as well as easily accessed by users or

applications.

DB-25

A 25-pin male connector for attaching External modems

or RS-232 serial devices.

DB-9

A 9-pin connector for RS-232 connections

dBd

Decibels related to dipole antenna.

dBi

Decibels relative to isotropic radiator.

dBm

Decibels relative to one milliwatt.

Decrypt

To unscramble an encrypted message back into plain

text.

Default

A predetermined value or setting that is used by a

program when no user input has been entered for this

value or setting.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Demilitarized zone

DMZ: A single computer or group of computers that can

be accessed by both users on the internet as well as

users on the Local Network, but that is not protected by

the same security as the Local Network.

DHCP

Dynamic Host Configuration Protocol: Used to

automatically assign IP addresses from a predefined pool

of addresses to computers or devices that request them.

Digital certificate

An electronic method of providing credentials to a server

in order to have access to it or a network.

Direct Sequence Spread Spectrum

DSSS: Modulation technique used by 802.11b wireless

devices.

DMZ

―Demilitarized Zone‖. A computer that logically sits in a

―no-mans-land‖ between the LAN and the WAN. The

DMZ computer trades some of the protection of the

router‘s security mechanisms for the convenience of

being directly addressable from the internet.

DNS

Domain Name System: Translates Domain Names to IP

addresses.

Domain name

A name that is associated with an IP address.

Download

To send a request from one computer to another and

have the file transmitted back to the requesting computer.

DSL

Digital Subscriber Line. High bandwidth internet

connection over telephone lines.

Duplex

Sending and Receiving data transmissions at the same

time.

Dynamic DNS service

Dynamic DNS is provided by companies to allow users

with Dynamic IP addresses to obtain a Domain Name

that will always be linked to their changing IP address.

The IP address is updated by either client software

running on a computer or by a router that supports

Dynamic DNS, whenever the IP address changes.

Dynamic IP address

IP address that is assigned by a DHCP server and that

may change. Cable internet providers usually use this

method to assign IP addresses to their customers.

EAP

Extensible Authentication Protocol.

Email

Electronic Mail is a computer-stored message that is

transmitted over the internet.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Encryption

Converting data into cyphertext so that it cannot be easily

read.

Ethernet

The most widely used technology for Local Area

Networks.

Fiber optic

A way of sending data through light impulses over glass

or plastic wire or fiber.

File server

A computer on a network that stores data so that the

other computers on the network can all access it.

File sharing

Allowing data from computers on a network to be

accessed by other computers on the network with

different levels of access rights.

Firewall

A device that protects resources of the Local Area

Network from unauthorized users outside of the local

network.

Firmware

Programming that is inserted into a hardware device that

tells it how to function.

Fragmentation

Breaking up data into smaller pieces to make it easier to

store.

FTP

File Transfer Protocol. Easiest way to transfer files

between computers on the internet.

Full-duplex

Sending and Receiving data at the same time.

Gain

The amount an amplifier boosts the wireless signal.

Gateway

A device that connects your network to another, like the

internet.

Gbps

Gigabits per second.

Gigabit Ethernet

Transmission technology that provides a data rate of 1

billion bits per second.

GUI

Graphical user interface.

H.323

A standard that provides consistency of voice and video

transmissions and compatibility for video conferencing

devices.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Half-duplex

Data cannot be transmitted and received at the same

time.

Hashing

Transforming a string of characters into a shorter string

with a predefined length.

Hexadecimal

Characters 0-9 and A-F.

Hop

The action of data packets being transmitted from one

router to another.

Host

Computer on a network.

HTTP

Hypertext Transfer Protocol is used to transfer files from

HTTP servers (web servers) to HTTP clients (web

browsers).

HTTPS

HTTP over SSL is used to encrypt and decrypt HTTP

transmissions.

Hub

A networking device that connects multiple devices

together.

ICMP

Internet Control Message Protocol.

IEEE

Institute of Electrical and Electronics Engineers.

IGMP

Internet Group Management Protocol is used to make

sure that computers can report their multicast group

membership to adjacent routers.

IIS

Internet Information Server is a WEB server and FTP

server provided by Microsoft.

IKE

Internet Key Exchange is used to ensure security for

VPN connections.

Infrastructure

In terms of a wireless network, this is when wireless

clients use an access point to gain access to the network.

Internet

A system of worldwide networks that use TCP/IP to allow

for resources to be accessed from computers around the

world.

Internet Explorer

A World Wide Web browser created and provided by

Microsoft.

Internet Protocol

The method of transferring data from one computer to

another on the internet.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Internet Protocol Security

IPsec provides security at the packet processing layer of

network communication.

Internet Service Provider

An ISP provides access to the internet to individuals or

companies.

Intranet

A private network.

Intrusion Detection

A type of security that scans a network to detect attacks

coming from inside and outside of the network.

IP

Internet Protocol.

IP address

A 32-bit number, when talking about Internet Protocol

Version 4, that identifies each computer that transmits

data on the internet or on an intranet.

IPsec

Internet Protocol Security.

IPX

Internetwork Packet Exchange is a networking protocol

developed by Novell to enable their Netware clients and

servers to communicate.

ISP

Internet Service Provider.

Java

A programming language used to create programs and

applets for web pages.

Kbps

Kilobits per second.

Kbyte

Kilobyte.

L2TP

Layer 2 Tunneling Protocol.

LAN

Local Area Network.

Latency

The amount of time that it takes a packet to get from the

one point to another on a network. Also referred to as

delay.

LED

Light Emitting Diode.

Legacy

Older devices or technology.

Local Area Network

LAN. A group of computers in a building that usually

access files from a server.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

LPR/LPD

―Line Printer Requestor‖/‖Line Printer Daemon‖. A

TCP/IP protocol for transmitting streams of printer data.

MAC Address

A unique hardware ID assigned to every Ethernet

adapter by the manufacturer.

Mbps

Megabits per second.

MDI

Medium Dependent Interface is an Ethernet port for a

connection to a straight-through cable.

MDIX

Medium Dependent Interface Crossover is an Ethernet

port for a connection to a crossover cable.

MIB

Management Information Base is a set of objects that

can be managed by using SNMP.

Modem

A device that modulates digital signals from a computer

to an analog signal in order to transmit the signal over

phone lines. It also demodulates the analog signals

coming from the phone lines to digital signals for your

computer.

MPPE

Microsoft Point-to-Point Encryption is used to secure data

transmissions over PPTP connections.

MTU

Maximum Transmission Unit is the largest packet that

can be transmitted on a packet-based network like the

internet.

Multicast

Sending data from one device to many devices on a

network.

NAT

Network Address Translation allows many private IP

addresses to connect to the internet, or another network,

through one IP address.

NetBEUI

NetBIOS Extended User Interface is a Local Area

Network communication protocol. This is an updated

version of NetBIOS.

NetBIOS

Network Basic Input/Output System.

Netmask

Determines what portion of an IP address designates the

Network and which part designates the Host.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Network Interface Card

NIC. A card installed in a computer or built onto the

motherboard that allows the computer to connect to a

network.

Network Layer

The third layer of the OSI model which handles the

routing of traffic on a network.

Network Time Protocol

Used to synchronize the time of all the computers in a

network.

NIC

Network Interface Card.

NTP

Network Time Protocol.

OFDM

Orthogonal Frequency-Division Multiplexing is the

modulation technique for both 802.11a and 802.11g.

OSI

Open Systems Interconnection is the reference model for

how data should travel between two devices on a

network.

OSPF

Open Shortest Path First is a routing protocol that is used

more than RIP in larger scale networks because only

changes to the routing table are sent to all the other

routers in the network as opposed to sending the entire

routing table at a regular interval, which is how RIP

functions.

Password

A sequence of characters that is used to authenticate

requests to resources on a network.

Personal Area Network

The interconnection of networking devices within a range

of 10 meters.

Physical layer

The first layer of the OSI model. Provides the hardware

means of transmitting electrical signals on a data carrier.

Ping

A utility program that verifies that a given internet

address exists and can receive messages. The utility

sends a control packet to the given address and waits for

a response.

PoE

Power over Ethernet is the means of transmitting

electricity over the unused pairs in a category 5 Ethernet

cable.

POP3

Post Office Protocol 3 is used for receiving email.

Port

A logical channel endpoint in a network. A computer

might have only one physical channel (its Ethernet

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

channel) but can have multiple ports (logical channels)

each identified by a number.

PPP

Point-to-Point Protocol is used for two computers to

communicate with each over a serial interface, like a

phone line.

PPPoE

Point-to-Point Protocol over Ethernet is used to connect

multiple computers to a remote server over Ethernet.

PPTP

Point-to-Point Tunneling Protocol is used for creating

VPN tunnels over the internet between two networks.

Preamble

Used to synchronize communication timing between

devices on a network.

QoS

Quality of Service.

RADIUS

Remote Authentication Dial-In User Service allows for

remote users to dial into a central server and be

authenticated in order to access resources on a network.

Reboot

To restart a computer and reload its operating software

or firmware from nonvolatile storage.

Rendezvous

Apple‘s version of UPnP, which allows for devices on a

network to discover each other and be connected without

the need to configure any settings.

Repeater

Retransmits the signal of an access point in order to

extend its coverage.

RIP

Routing Information Protocol is used to synchronize the

routing table of all the routers on a network.

RJ-11

The most commonly used connection method for

telephones.

RJ-45

The most commonly used connection method for

Ethernet.

RS-232C

The interface for serial communication between

computers and other related devices.

RSA

Algorithm used for encryption and authentication.

Server

A computer on a network that provides services and

resources to other computers on the network.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Session key

An encryption and decryption key that is generated for

every communication session between two computers.

Session layer

The fifth layer of the OSI model which coordinates the

connection and communication between applications on

both ends.

Simple Mail Transfer Protocol

Used for sending and receiving email.

Simple Network Management Protocol

Governs the management and monitoring of network

devices.

SIP

Session Initiation Protocol. A standard protocol for

initiating a user session that involves multimedia content,

such as voice or chat.

SMTP

Simple Mail Transfer Protocol.

SNMP

Simple Network Management Protocol.

SOHO

Small Office/Home Office.

SPI

Stateful Packet Inspection.

SSH

Secure Shell is a command line interface that allows for

secure connections to remote computers.

SSID

Service Set Identifier is a name for a wireless network.

Stateful Packet Inspection

A feature of a firewall that monitors outgoing and

incoming traffic to make sure that only valid responses to

outgoing requests are allowed to pass though the

firewall.

Subnet mask

Determines what portion of an IP address designates the

Network and which part designates the Host.

Syslog

System Logger -- a distributed logging interface for

collecting in one place the logs from different sources.

Originally written for UNIX, it is now available for other

operating systems, including Windows.

TCP

Transmission Control Protocol.

TCP Raw

A TCP/IP protocol for transmitting streams of printer data.

TCP/IP

Transmission Control Protocol/Internet Protocol.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

TFTP

Trivial File Transfer Protocol is a utility used for

transferring files that is simpler to use than FTP but with

less features.

Throughput

The amount of data that can be transferred in a given

time period.

Traceroute

A utility displays the routes between you computer and

specific destination.

UDP

User Datagram Protocol.

Unicast

Communication between a single sender and receiver.

Universal Plug and Play

UPnP. A standard that allows network devices to

discover each other and configure themselves to be a

part of the network.

Update

To install a more recent version of a software or firmware

product.

Upgrade

To install a more recent version of a software or firmware

product.

Upload

To send a request from one computer to another and

have a file transmitted from the requesting computer to

the other.

UPnP

Universal Plug and Play.

URL

Uniform Resource Locator is a unique address for files

accessible on the internet.

USB

Universal Serial Bus.

UTP

Unshielded Twisted Pair.

Virtual Private Network

VPN: A secure tunnel over the internet to connect remote

offices or users to their company‘s network.

VLAN

Virtual LAN.

Voice over IP

Sending voice information over the internet as opposed

to the PSTN

VoIP

Voice over IP.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Wake on LAN

Allows you to power up a computer through it‘s Network

Interface Card.

WAN

Wide Area Network.

WCN

Windows Connect Now. A Microsoft method for

configuring and bootstrapping wireless networking

hardware (access points) and wireless clients, including

PCs and other devices.

WDS

Wireless Distribution System. A system that enables the

interconnection of access points wirelessly.

Web browser

A utility that allows you to view content and interact with

all of the information on the World Wide Web.

WEP

Wired Equivalent Privacy is security for wireless networks

that is supposed to be comparable to that of a wired

network.

WiFi

Wireless Fidelity. Used to describe any of the 802.11

wireless networking specifications.

WiFi Protected Access

An updated version of security for wireless networks that

provides authentication as well as encryption.

Wide Area Network

The larger network that your LAN is connected to, which

may be the internet itself, or a regional or corporate

network.

Wireless (WiFi) LAN

Connecting to a Local Area Network over one of the

802.11 wireless standards.

Wireless ISP

WISP. A company that provides a broadband internet

connection over a wireless connection.

WISP

Wireless Internet Service Provider.

WLAN

Wireless Local Area Network.

WPA

WiFi Protected Access. A WiFi security enhancement

that provides improved data encryption, relative to WEP.

xDSL

A generic term for the family of digital subscriber line

(DSL) technologies, such as ADSL, HDSL, RADSL, and

SDSL.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

Yagi antenna

A directional antenna used to concentrate wireless

signals on a specific location.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

10 APPENDIX

10.1 Product Information and Safety Guide

This important Product Information and Safety Guide contains safety, handling, disposal, regulatory, trademark, copyright, and software licensing information. Read all safety

information below and operating instructions before using the IBR600 3G device to avoid injury.

SAFETY AND HAZARDS

Under no circumstances should the IBR600 3G device be used in any areas (a) where blasting is in progress, (b) where explosive atmospheres may be present, or (c) that are near (i)

medical or life support equipment, or (ii) any equipment which may be susceptible to any form of radio interference. In such areas, the IBR600 3G device MUST BE POWERED OFF

AT ALL TIMES (since the device otherwise could transmit signals that might interfere with such equipment). In addition, under no circumstances should the IBR600 3G device be used

in any aircraft, regardless of whether the aircraft is on the ground or in flight. In any aircraft, the IBR600 3G device MUST BE POWERED OFF AT ALL TIMES (since the device

otherwise could transmit signals that might interfere with various onboard systems on such aircraft). Furthermore, under no circumstances should the IBR600 3G device be used by

the driver or operator of any vehicle. Such use of the device will detract from the driver or operator‘s control of that vehicle. In some jurisdictions, use of the IBR600 3G device while

driving or operating a vehicle constitutes a civil and/or criminal offense.

Due to the nature of wireless communications, transmission and reception of data by the IBR600 3G device can never be guaranteed, and it is possible that data communicated or

transmitted wirelessly may be delayed, corrupted (i.e., contain errors), or totally lost. The IBR600 3G device is not intended for, and CradlePoint recommends the device not be used in

any critical applications where failure to transmit or receive data could result in property damage or loss or personal injury of any kind (including death) to the user or to any other party.

CradlePoint expressly disclaims liability for damages of any kind resulting from: (a) delays, errors, or losses of any data transmitted or received using the device; or (b) any failure of

the device to transmit or receive such data.

Warning: This product is only to be installed by qualified personnel!

To comply with FCC/IC regulations limiting both maximum RF output power and human exposure to RF radiation, the maximum antenna gain must not exceed 5 dBi in the Cellular

band and 4 dBi in the PCS band.

ANTENNA CONSIDERATIONS

Although the antenna model(s) used with these devices meet(s) the Industry Canada Radio Frequency requirements, it is possible that the future customers may swap them for

different ones without network providers knowledge and approval. Such customers must be made aware of, and follow, the Radio Frequency requirements applied in the Technical

Approval:

• RSS-102 ―Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands)‖

• RSS-129 ―800 MHz Dual-Mode CDMA Cellular Telephones‖

• RSS-132e ―Cellular Telephones Employing New Technologies Operating in the Bands 824-849 MHz and 869-894 MHz‖

• RSS-133 r1 ―2 GHz Personal Communications Services‖

FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.

This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.

IMPORTANT NOTE

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and

operated with minimum distance 20cm between the radiator & your body.

OPEN SOURCE SOFTWARE

This product contains software distributed under one or more of the following open source licenses: GNU General Public License Version 2, NetBSD Foundation License, and PSF

License Agreement for Python 3.1.1. For more information on this software, including licensing terms and your rights to access source code, contact CradlePoint at

www.cradlepoint.com/opensource.

WARRANTY INFORMATION

Limited 1 Year Warranty included featuring 5x12 technical support + access to software updates + hardware repair or replacement. Optional Enterprise Support Agreement available

with 24x7 technical support + software updates and upgrades + advanced hardware exchange.

CradlePoint, Inc. warrants this product against defects in materials and workmanship to the original purchaser (or the first purchaser in the case of resale by an authorized distributor)

for a period of one (1) year from the date of shipment. This warranty is limited to a repair or replacement of the product, at CradlePoint‘s discretion. CradlePoint does not warrant that

the operation of the device will meet your requirements or be error free. Within thirty (30) days of receipt should the product fail for any reason other than damage due to customer

negligence, purchaser may return the product to the point of purchase for a full refund of the purchase price. If the purchaser wishes to upgrade or convert to another CradlePoint, Inc.

product within the thirty (30) day period, purchaser may return the product and apply the full purchase price toward the purchase of another CradlePoint product. Any other return will

be subject to CradlePoint, Inc.‘s existing return policy.

LIMITATION OF CRADLEPOINT LIABILITY

The information contained in this Quick Start Guide is subject to change without notice and does not represent any commitment on the part of CradlePoint or its affiliates.

CRADLEPOINT AND ITS AFFILIATES HEREBY SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL: (A) DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL,

CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING WITHOUT LIMITATION FOR LOSS OF PROFITS OR REVENUE OR OF ANTICIPATED PROFITS OR

REVENUE ARISING OUT OF THE USE OR INABILITY TO USE THE IBR600 3G DEVICE, EVEN IF CRADLEPOINT AND/OR ITS AFFILIATES HAVE BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES, AND EVEN IF SUCH DAMAGES ARE FORESEEABLE; OR (B) CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event

shall the aggregate liability of CradlePoint and/or its affiliates arising under or in connection with the IBR600 3G device, regardless of the number of events, occurrences, or claims

giving rise to liability, exceed the price paid by the original purchaser of the IBR600 3G device.

PRIVACY

CradlePoint may collect general data pertaining to the use of CradlePoint products via the Internet including, by way of example, IP address, device ID, operating system, browser type

and version number, etc. To review CradlePoint‘s privacy policy, please visit: http://www.cradlepoint.com/privacy.

OTHER BINDING DOCUMENTS; TRADEMARKS; COPYRIGHT

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

By activating or using your IBR600 3G device, you agree to be bound by CradlePoint‘s Terms of Use, User License and other Legal Policies, all as posted at

www.cradlepoint.com/legal. Please read these documents carefully. CradlePoint, the CradlePoint logo, and IBR600 are trademarks of CradlePoint, Inc.

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

10.2 Specifications

MODEL NAME

CradlePoint COR Integrated Broadband Router IBR600

DATA IN

3G via internal EVDO Rev. A modem, backwards compatible to

EVDO Rev 0 and 1xRTT, 10/100 Ethernet Port, WiFi

DATA OUT

WiFi (802.11 b/g/n), Two 10/100 Ethernet Ports (WAN/LAN

Switchable)

ANTENNAS

2 external 2.4 GHz WiFi antennas (500+ feet range); 2 external 3G

EV-DO modem antennas

BUTTONS / SWITCHES

Power Switch, Reset

LED INDICATORS

Power, WiFi, Modem, Signal Strength, Ethernet LAN, Ethernet WAN

DIMENSIONS

3.3-in x 4-in x 0.9-in (85mm x 102mm x 22mm)

WEIGHT: 7.2 oz (200g)

CERTIFICATIONS: FCC, IC, CE, WiFi Alliance, PTCRB, 802.3, plus

Carrier specific certifications

OPERATING TEMPERATURE

-10°C to 60°C (14°F to 140°F) Operating Modem as WAN

-10°C to 50°C (14°F to 122°F) Operating Ethernet as WAN

-20°C to 70°C (-4°F to 158°F) Storage

DETAILS

 WAN Security NAT, SPI, ALG, inbound filtering of IP

Addresses (future), Port Blocking, Service Filtering (FTP,

SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3,

SSH), Protocol filtering, WAN ping (allow/ignore)

 Redundancy and Load Balancing Failover/Failback with

3G/ Ethernet, Load Balancing, WAN Failure Detection via

ping

 Intelligent Routing UPnP, DMZ, Virtual Server/Port

Forwarding, Routing Rules, Route Management, Content

Filtering, Website Filtering, Local DHCP server, DHCP

Client, DNS, DNS Proxy. ALGs: PPTP, L2TP, PPPoE pass-

through, IPSec pass-through, FTP (passive), FTP (active),

MAC Address Filtering, Dynamic DNS

 Management Remote WAN Web-based Management

Access (HTTP, HTTPS), Web-based GUI (Easy

Management), One-button firmware upgrade, USB firmware

upgrade, Modem Configuration and Management, Server-

based centralized Management (WiPipe™ Central), Modem

configuration and management

 Performance & Heath Monitoring WiPipe™ QoS, with

Traffic Shaping, SSID-based priority, WAN port speed

control

 VPN (IPSec). Device to CradlePoint, Cisco/Linksys, Linux

system, Transfer Modes, Hash (MD5, SHA128, SHA256,

SHA384, SHA512), Cipher (AES, 3DES, DES), Support for 5

concurrent connections, GRE Tunneling

CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0

http://www.cradlepoint.com/

Cradlepoint Ibr600 Users Manual Mobile Broadband Router

Navigation menu

Versions of this User Manual:

Views

Navigation
