Page Count: 56

fSave This Manual

For Future Reference

owners

manual

MODEL NO.

413.198340

10" RADIALSAW

WITH44" CABINET

Serial

Number

Model and serial numbers

may be found on the

backside of the bas_.

You should record both

model and serial number

in a safe place for future

Use,

CAUTION:

READALL

INSTRUCTIONS

CAREFULLY

£RRFTgMRN

IO-INCH RADIAL SAW

• assembly

•operating

•repair parts

_,. jk.. _J

Sold by SEARS,ROEBUCKAND CO., Chicago, IL.60684 U.S.A.

Part No. SP5015 Printed in U.S.A

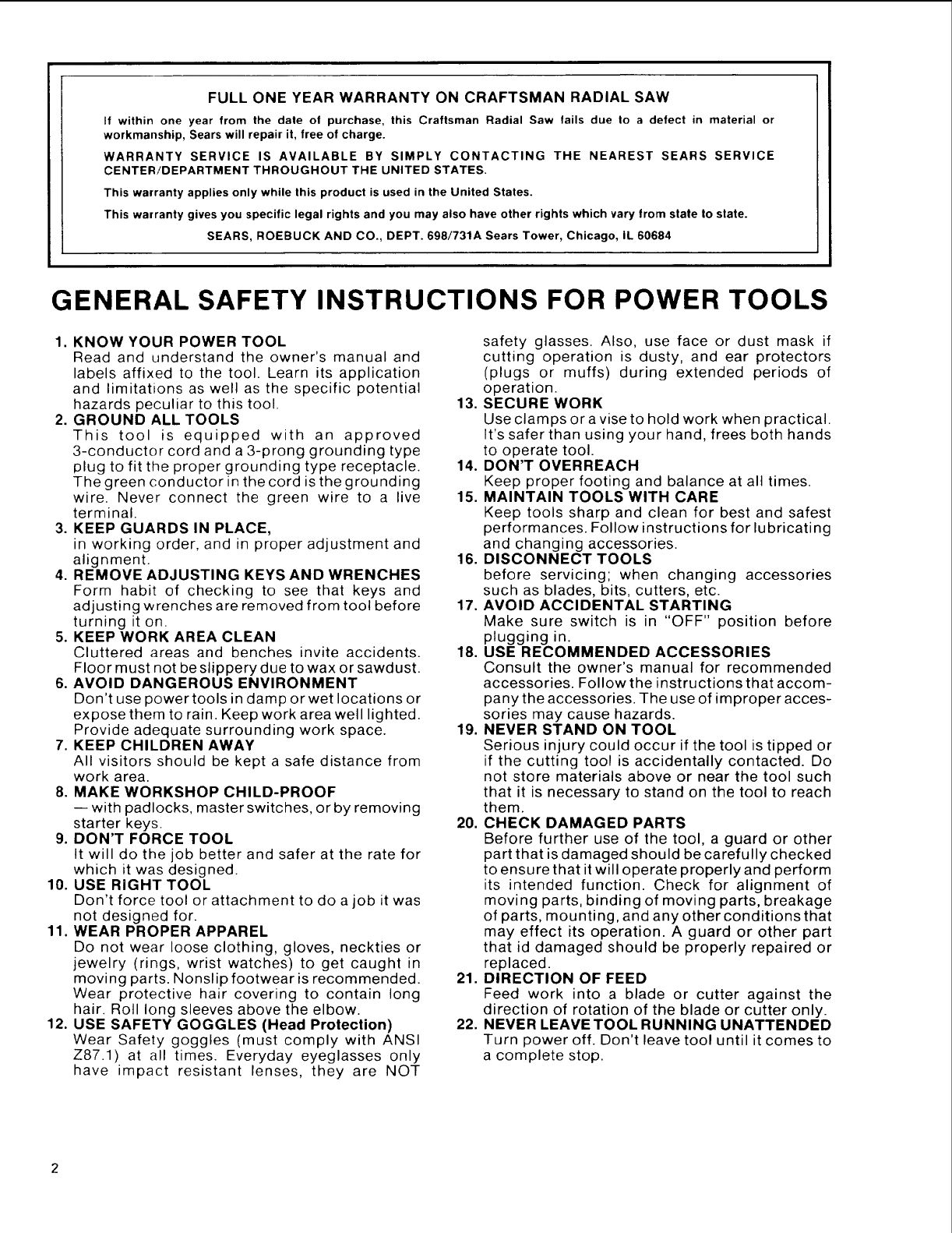

FULL ONE YEAR WARRANTY ON CRAFTSMAN RADIAL SAW

If within one year from the date ol purchase, this Craftsman Radial Saw tails due to a defect in material or

workmanship,Searswill repair it, free of charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS SERVICE

CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.

This warranty applies only while this product is used in the United States.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

SEARS, ROEBUCK AND CO., DEPT. 698/731A Sears Tower, Chicago, IL 60684

GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS

1. KNOW YOUR POWER TOOL

Read and understand the owner's manual and

labels affixed to the tool. Learn its application

and limitations as well as the specific potential

hazards peculiar to this tool.

2. GROUND ALL TOOLS

This tool is equipped with an approved

3-conductor cord and a 3-prong grounding type

plug to fit the proper grounding type receptacle.

The green conductor in the cord is the grounding

wire. Never connect the green wire to a live

terminal.

3. KEEP GUARDS IN PLACE,

in working order, and in proper adjustment and

alignment.

4. REMOVE ADJUSTING KEYS AND WRENCHES

Form habit of checking to see that keys and

adjusting wrenches are removed from tool before

turning it on.

5. KEEP WORK AREA CLEAN

Cluttered areas and benches invite accidents.

Floor must not be slippery due to wax or sawdust.

6. AVOID DANGEROUS ENVIRONMENT

Don't use power tools in damp or wet locations or

expose them to rain. Keep work area well lighted.

Provide adequate surrounding work space.

7. KEEP CHILDREN AWAY

All visitors should be kept a safe distance from

work area.

8. MAKE WORKSHOP CHILD-PROOF

-- with padlocks, master switches, or by removing

starter keys.

9. DON'T FORCE TOOL

It will do the job better and safer at the rate for

which it was designed.

10. USE RIGHT TOOL

Don't force tool or attachment to do a job it was

not designed for.

11. WEAR PROPER APPAREL

Do not wear loose clothing, gloves, neckties or

jewelry (rings, wrist watches) to get caught in

moving parts. Nonslip footwear is recommended.

Wear protective hair covering to contain long

hair. Roll long sleeves above the elbow.

12. USE SAFETY GOGGLES (Head Protection)

Wear Safety goggles (must comply with ANSI

Z87.1) at all times. Everyday eyeglasses only

have impact resistant lenses, they are NOT

safety glasses. Also, use face or dust mask if

cutting operation is dusty, and ear protectors

(plugs or muffs) during extended periods of

operation.

13. SECURE WORK

Use clamps or a vise to hold work when practical.

It's safer than using your hand, frees both hands

to operate tool.

14. DON'T OVERREACH

Keep proper footing and balance at all times.

15. MAINTAIN TOOLS WITH CARE

Keep tools sharp and clean for best and safest

performances. Follow instructions for lubricating

and changing accessories.

16. DISCONNECT TOOLS

before servicing; when changing accessories

such as blades, bits, cutters, etc.

17. AVOID ACCIDENTAL STARTING

Make sure switch is in "OFF" position before

plugging in.

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended

accessories. Follow the instructions that accom-

pany the accessories. The use of improper acces-

sories may cause hazards.

19. NEVER STAND ON TOOL

Serious injury could occur if the tool is tipped or

if the cutting tool is accidentally contacted. Do

not store materials above or near the tool such

that it is necessary to stand on the tool to reach

them.

20. CHECK DAMAGED PARTS

Before further use of the tool, a guard or other

part that is damaged should be carefully checked

to ensure that it will operate properly and perform

its intended function. Check for alignment of

moving parts, binding of moving parts, breakage

of parts, mounting, and any other conditions that

may effect its operation. A guard or other part

that id damaged should be properly repaired or

replaced.

21. DIRECTION OF FEED

Feed work into a blade or cutter against the

direction of rotation of the blade or cutter only.

22. NEVER LEAVE TOOL RUNNING UNATTENDED

Turn power off. Don't leave tool until it comes to

a complete stop.

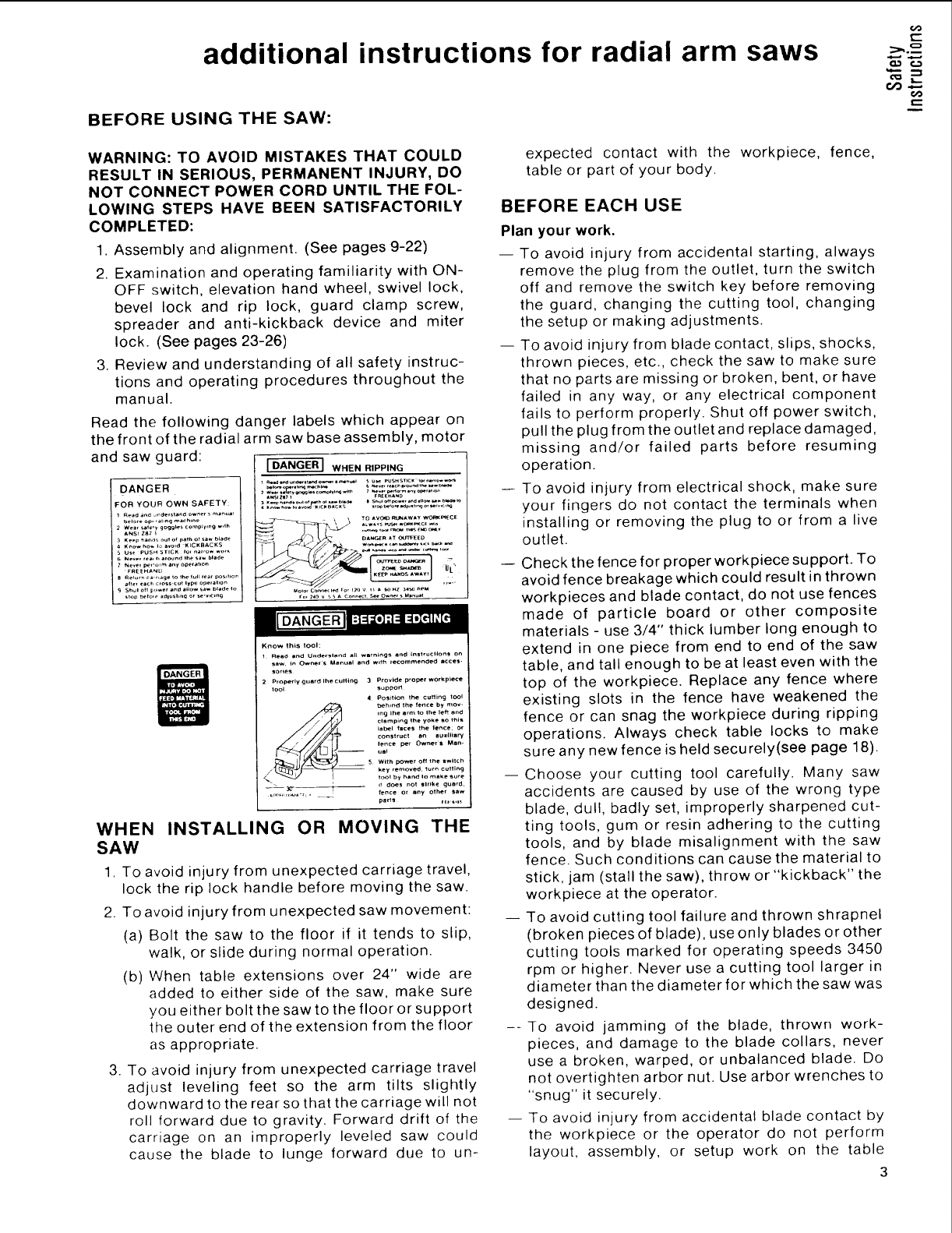

additional instructions for radial arm saws

BEFORE USING THE SAW:

t'-

GO..,--,

r-.

WARNING: TO AVOID MISTAKES THAT COULD

RESULT IN SERIOUS, PERMANENT INJURY, DO

NOT CONNECT POWER CORD UNTIL THE FOL-

LOWING STEPS HAVE BEEN SATISFACTORILY

COMPLETED:

1. Assembly and alignment. (See pages 9-22)

2. Examination and operating familiarity with ON-

OFF switch, elevation hand wheel, swivel lock,

bevel lock and rip lock, guard clamp screw,

spreader and anti-kickback device and miter

lock. (See pages 23-26)

3. Review and understanding of all safety instruc-

tions and operating procedures throughout the

manual.

Read the following danger labels which appear on

the front of the radial arm saw base assembly, motor

and saw guard: _ W.E_ _PP_NG

....._o°_,,__..... _,o_........

Know this look

1 _e_ end Und_r_l_nd BII wBr_I_gS _nd Instruc_lons on

s_w, _n Owners Msnu_ _nd with r_ommended acted-

sor,e_

2 Properly guard Ihe cunJn 9 3 Provide pro13er workplec'e

tool s_pporl

4 Position the cuffing tOOl

__ beh,nd the re.co by mo_-

,rig Ihe arm _oIhe left an_

c_mpmg Ihe yo_e so t_s

hal:_l _aces the lence: or

construct en auKl_ar_

lence per Owner $ Man-

uBI

5 With power otf the gwltch

key removed¸ turn cuttin 9

t_ by hana Io mike sure

',_ does not slr_ke guar_t

_r,,..,,*_.-_v __.._ f_nce or any other S_W

WHEN INSTALLING OR MOVING THE

SAW

1. To avoid injury from unexpected carriage travel,

lock the rip lock handle before moving the saw.

2. To avoid injury from unexpected saw movement:

(a) Bolt the saw to the floor if it tends to slip,

walk, or slide during normal operation.

(b) When table extensions over 24" wide are

added to either side of the saw, make sure

you either bolt the saw to the floor or support

the outer end of the extension from the floor

as appropriate.

3. To avoid injury from unexpected carriage travel

adjust leveling feet so the arm tilts slightly

downward to the rear so that the carriage will not

roll forward due to gravity. Forward drift of the

carriage on an improperly leveled saw could

cause the blade to lunge forward due to un-

expected contact with the workpiece, fence,

table or part of your body.

BEFORE EACH USE

Plan your work.

-- To avoid injury from accidental starting, always

remove the plug from the outlet, turn the switch

off and remove the switch key before removing

the guard, changing the cutting tool, changing

the setup or making adjustments.

-- To avoid injury from blade contact, slips, shocks,

thrown pieces, etc., check the saw to make sure

that no parts are missing or broken, bent, or have

failed in any way, or any electrical component

fails to perform properly. Shut off power switch,

pull the plug from the outlet and replace damaged,

missing and/or failed parts before resuming

operation.

-- To avoid injury from electrical shock, make sure

your fingers do not contact the terminals when

installing or removing the plug to or from a live

outlet.

-- Check the fence for proper workpiece support. To

avoid fence breakage which could result in thrown

workpieces and blade contact, do not use fences

made of particle board or other composite

materials - use 3/4" thick lumber long enough to

extend in one piece from end to end of the saw

table, and tall enough to be at least even with the

top of the workpiece. Replace any fence where

existing slots in the fence have weakened the

fence or can snag the workpiece during ripping

operations. Always check table locks to make

su re any new fence is held secu rely(see page 18).

--Choose your cutting tool carefully. Many saw

accidents are caused by use of the wrong type

blade, dull, badly set, improperly sharpened cut-

ting tools, gum or resin adhering to the cutting

tools, and by blade misalignment with the saw

fence. Such conditions can cause the material to

stick, jam (stall the saw), throw or "kickback" the

workpiece at the operator.

-- To avoid cutting tool failure and thrown shrapnel

(broken pieces of blade), use only blades or other

cutting tools marked for operating speeds 3450

rpm or higher. Never use a cutting tool larger in

diameter than the diameter for which the saw was

designed.

--q-o avoid jamming of the blade, thrown work-

pieces, and damage to the blade collars, never

use a broken, warped, or unbalanced blade. Do

not overtighten arbor nut. Use arbor wrenches to

"snug" it securely.

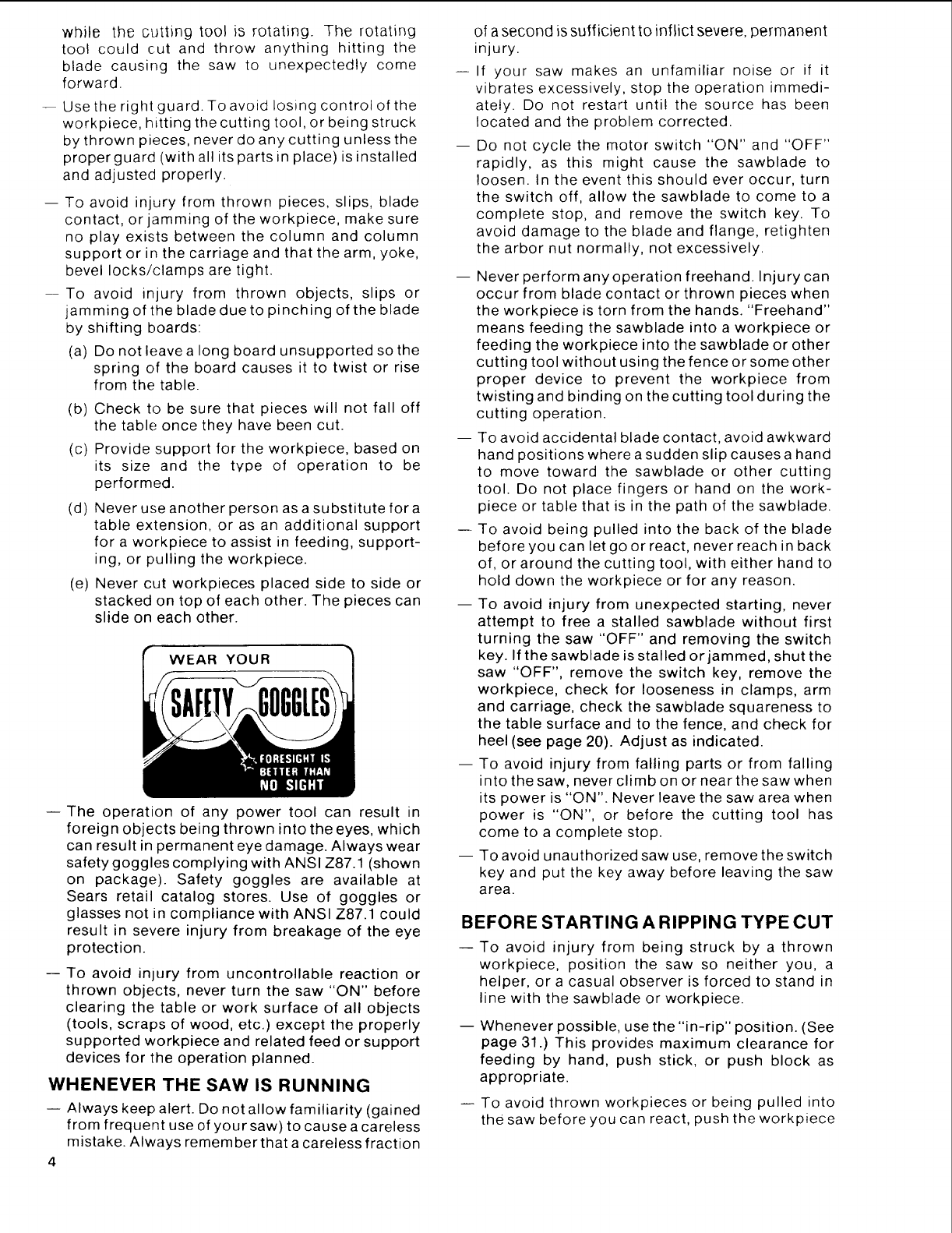

-- To avoid injury from accidental blade contact by

the workpiece or the operator do not perform

layout, assembly, or setup work on the table

while the cuttingtool is rotating.The rotating

tool could cut and throw anything hitting the

bladecausingthe saw to unexpectedlycome

forward.

-- Usetherightguard.Toavoidlosingcontrolofthe

workpiece,hittingthecuttingtool,orbeingstruck

bythrownpieces,neverdoanycuttingunlessthe

properguard(withallitspartsinplace)isinstalled

andadjustedproperly.

-- To avoidinjuryfromthrown pieces,slips,blade

contact,orjammingof theworkpiece,makesure

noplayexistsbetweenthe columnandcolumn

supportor inthecarriageandthatthearm,yoke,

bevellocks/clampsaretight.

--To avoid injury from thrown objects,slips or

jammingofthebladedueto pinchingoftheblade

byshiftingboards:

(a)Donotleavealongboardunsupportedsothe

springof the boardcausesit to twist or rise

fromthetable.

(b) Checkto besurethat pieceswill notfall off

thetableoncetheyhavebeencut.

its size and the type of operation to be

performed.

(d)Neveruseanotherpersonasasubstitutefora

tableextension,or asanadditionalsupport

for aworkpieceto assistin feeding,support-

ing,or pullingtheworkpiece.

(e)Nevercut workpiecesplacedsideto sideor

stackedontopof eachother.Thepiecescan

slideoneachother.

WEARYOUR

--The operationof any powertool can resultin

foreignobjectsbeingthrownintotheeyes,which

canresultinpermanenteyedamage.Alwayswear

safetygogglescomplyingwithANSIZ87.1(shown

on package).Safety gogglesare availableat

Searsretail catalogstores.Useof gogglesor

glassesnotincompliancewithANSIZ87.1could

resultin severeinjuryfrom breakageof theeye

protection.

-- To avoidinjuryfrom uncontrollablereactionor

thrownobjects,neverturn thesaw"ON" before

clearingthetableor work surfaceof all objects

(tools,scrapsof wood,etc.)exceptthe properly

supportedworkpieceandrelatedfeedorsupport

devicesfor theoperationplanned.

WHENEVER THE SAW IS RUNNING

-- Always keep alert. Do not allow familiarity (gained

from frequent use of your saw) to cause a careless

mistake. Always remember that a careless fraction

of a second is sufficient to inflict severe, permanent

injury.

If your saw makes an unfamiliar noise or if it

vibrates excessively, stop the operation immedi-

ately. Do not restart until the source has been

located and the problem corrected.

Do not cycle the motor switch "ON" and "OFF"

rapidly, as this might cause the sawblade to

loosen, tn the event this should ever occur, turn

the switch off, allow the sawblade to come to a

complete stop, and remove the switch key. To

avoid damage to the blade and flange, retighten

the arbor nut normally, not excessively.

-- Never perform any operation freehand. Injury can

occur from blade contact or thrown pieces when

the workpiece is torn from the hands. "Freehand"

means feeding the sawblade into a workpiece or

feeding the workpiece into the sawblade or other

cutting tool without using the fence or some other

proper device to prevent the workpiece from

twisting and binding on the cutting tool during the

cutting operation.

-- To avoid accidental blade contact, avoid awkward

hand positions where a sudden slip causes a hand

to move toward the sawblade or other cutting

tool. Do not place fingers or hand on the work-

piece or table that is in the path of the sawblade.

-- To avoid being pulled into the back of the blade

before you can let go or react, never reach in back

of, or around the cutting tool, with either hand to

hold down the workpiece or for any reason.

-- To avoid injury from unexpected starting, never

attempt to free a stalled sawblade without first

turning the saw "OFF" and removing the switch

key. If the sawblade is stalled or jammed, shut the

saw "OFF", remove the switch key, remove the

workpiece, check for looseness in clamps, arm

and carriage, check the sawblade squareness to

the table surface and to the fence, and check for

heel (see page 20). Adjust as indicated.

-- To avoid injury from falling parts or from falling

into the saw, never climb on or near the saw when

its power is "ON". Never leave the saw area when

power is "ON", or before the cutting tool has

come to a complete stop.

-- To avoid unauthorized saw use, remove the switch

key and put the key away before leaving the saw

area.

BEFORE STARTING A RIPPING TYPE CUT

To avoid injury from being struck by a thrown

workpiece, position the saw so neither you, a

helper, or a casual observer is forced to stand in

line with the sawblade or workpiece.

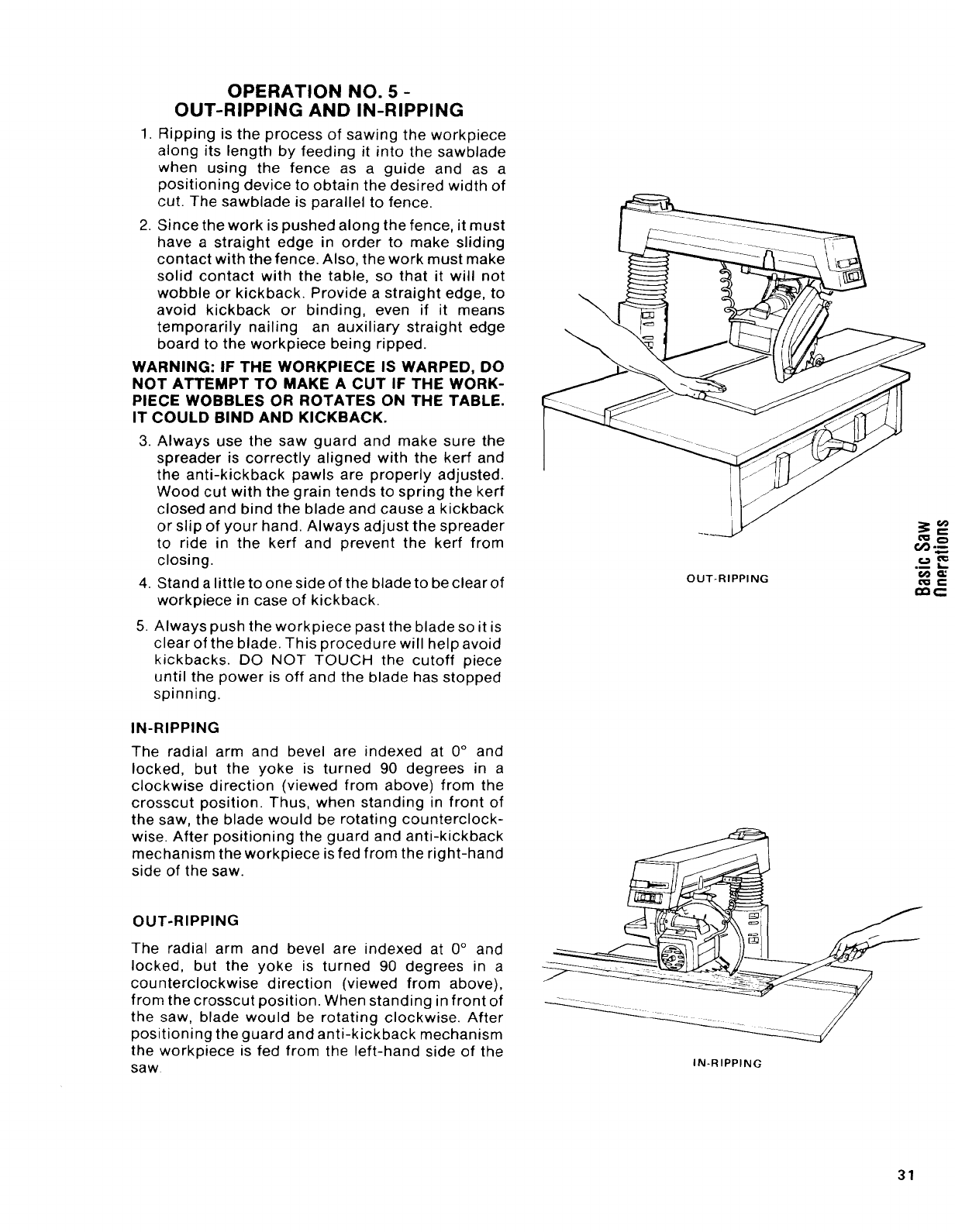

Whenever possible, use the "in-rip" position. (See

page 31.) This provides maximum clearance for

feeding by hand, push stick, or push block as

appropriate.

To avoid thrown workpieces or being pulled into

the saw before you can react, push the workpiece

fromthenoseside(oppositethesawdustexhaust

chute) of the guard. Notethe warningon the

guard.

-- Toavoidinjuryfromthrownpieces,slips,orjams,

theworkpiecemustbehelddownonthetableand

againstthefence.Planyourhandplacementsto

safelyfeedthe workpieceinto the cutting tool.

Featherboardscanalsohelpkeeptheworkagainst

thefence.Afeatherboardismadeof solidhJmher

persketch. -:__-_J

-- Toavoidaccidentalbladecontact,neverposition

the guard or anti-kickbackassemblywith the

power"ON"orthebladespinning.

-- Whenproperlyadjustedto just clearthe work-

piece,theguardnosewillhelpkeeptheworkpiece

down on the table.To preventinjury from the

workpiecerising from the table,thrown chips

from the workpieceor blade,or handslippage

towardsthefront of theblade,positionthenose

guardto justcleartheworkpiece.(Seepage26).

-- To maximizeprotectionfromtherearoftheblade

andavoidinjuryfrom kickbacks,adjusttheanti-

kickback and spreaderdevicesas instructed.

(Seepage22& 26.)

-- Toavoidinjuryfromkickback,makesurebytrial

before startingthe cut that the anti-kickback

pawlswill stopthekickbackonceit hasstarted.

Makesurepointsof pawlsaresharp.(Seepage

26.)Warning:Useextracarefor non-thrucuts

becausetheanti-kickbackpawlscannotalways

grabtheirregularsurfacecreatedbytheoperation.

INSPECT YOUR WORKPIECE

-- To keep the sawblade from rising up on top of the

workpiece and throwing it back at the operator,

when sawing 1/4" or thinner materials, follow all

normal ripping procedures except set sawblade

into the table top at least 1/8".

-- To avoid kickback, use extra care when ripping

wood that has a twisted grain or is twisted or

bowed - it may rock on the table and/or pinch the

sawblade. If the workpiece cannot be made stable

against the fence and table top, do not cut it with a

radial arm saw.

-- To avoid blade contact and/or kickback, use a

push stick when ripping short (10 to 12 inches

long) or narrow (2 to 6-1/2 inches wide) work-

pieces. Usea push block as illustrated on page 30

for pieces 3/8 to 2 inches wide or, wherever

possible, place the wider section of the board

between the fence and the blade.

--To avoid kickbacks never feed a workpiece _-

through the saw with another piece (butting _"_---_.,...

second piece against trailing end of piece being --_ =

cut) even if of the same thickness, oo +-,

-- To keep control of your workpiece, never rip work --

shorter than the blade diameter.

-- For rip or rip-type cuts, the trailing end of the

workpiece to which a push stick or push board is

applied must be square (perpendicular to the

fence and table top) so that feed pressure applied

to the workpiece by the push stick or push block

will not cause the workpiece to come away from

the fence or rise from the table and possibly cause

a kickback.

--Plastic and composition (like particle board)

materials may be cut on your saw. However, since

these are often quite hard and slippery, the anti-

kickback pawls may not stop a kickback. To get

best performance, rip with the finished side down

(next to the table) and the roughest side up, and

be especially attentive to follow proper set up and

cutting procedures.

WHILE DOING A RIP TYPE OPERATION

-- Never reach around the blade to the outfeed side

to touch the portion of workpiece beyond the

blade until the whole workpiece has been pushed

beyond and clear of the blade. Your touch could

cause a kickback which could strike someone or

pull your hand into the rear (outfeed side) of the

blade before you can let go or react.

-- Position your body at the nose (in-feed) side of

the guard. Start and complete the cut from that

same side. This will require added table support

for long or wide workpieces that extend beyond

the length or width of the saw table to prevent

workpiece from being thrown as it falls from the

table.

-- Never apply the feed force to the section of the

workpiece that will become the cutoff (free)

piece. Feed force when ripping must always be

applied between the sawblade and the fence so

that the slot cut by the blade (kerf) will not be

pinched shut on the blade causing a kickback.

Never touch the piece that has been cut off until

the blade has come to a complete stop.

--Keep pushing the section of the workp_ece

between the blade and the fence until the piece

has been pushed completely past the blade, so

the blade will not grab the piece and throw it back

at the operator.

BEFORE DOING A CROSSCUT TYPE CUT

--To avoid blade contact, do not perform any

operation that requires the cutting tool to extend

beyond the edges of the table used for supporting

the workpiece.

--To maximize protection from accidental blade

contact and reduce risk of jamming objects into

the guard, place guard in a horizontal position

and adjust anti-kickback pawls to just clear the

top of the fence or the workpiece, whichever is

higher. The anti-kickback pawl assembly will

provideadditionalguardingfromcontactwiththe

front of theblade.

--To preventthe cutting tool from grabbingthe

table or workpieceand beingpropelledtoward

you,neverlowerarevolvingcuttingtoolintothe

tableor aworkpiecewithoutfirst lockingtherip

lockhandleandclampingtheworkpieceinplace.

Releasethe handle only after having firmly

graspedthecarriagehandle.

-- Toavoidbladecontactor injuryfromathrowncut

off piece,neverusea lengthstopon the cut off

endoredgeoftheworkpiece.Neverhangontoor

touchthecutoffpieceoftheworkpiecewhilethe

poweris"ON"and/orthesawbladeisrotating.To

preventpinchingthatcouldcausethepieceto be

thrown,thecut offpiecemustneverbeconfined,

pushed,or grabbedwhilethebladeisspinning.

INSPECT YOUR WORKPIECE

--To avoid injury from thrown objects, slips or

jamming of the blade, make sure the workpiece

will fit the supports (fence, table, fixtures or jigs)

so it will not twist, rock or otherwise bind on the

cutting tool. Make sure there is no sawdust or

other foreign material between theworkpieceand

its support.

WHILE DOING A CROSSCUT TYPE CUT

--Always start with the carriage in the full rear

position behind the fence before turning the saw

on.

-- Never push the carriage and blade backwards

into the work to do a crosscutting type operation.

The cutting tool can throw the work over the

fence, striking someone or causing you to fall into

the blade.

--Always return the carriage to the full rearward

position behind the fence at the completion of

each crosscut type operation. Never remove your

hand from the yoke handle unless the carriage is

in this position. Otherwise, the cutting tool may

climb up on the workpiece and be propelled

toward you.

BEFORE USING ACCESSORIES

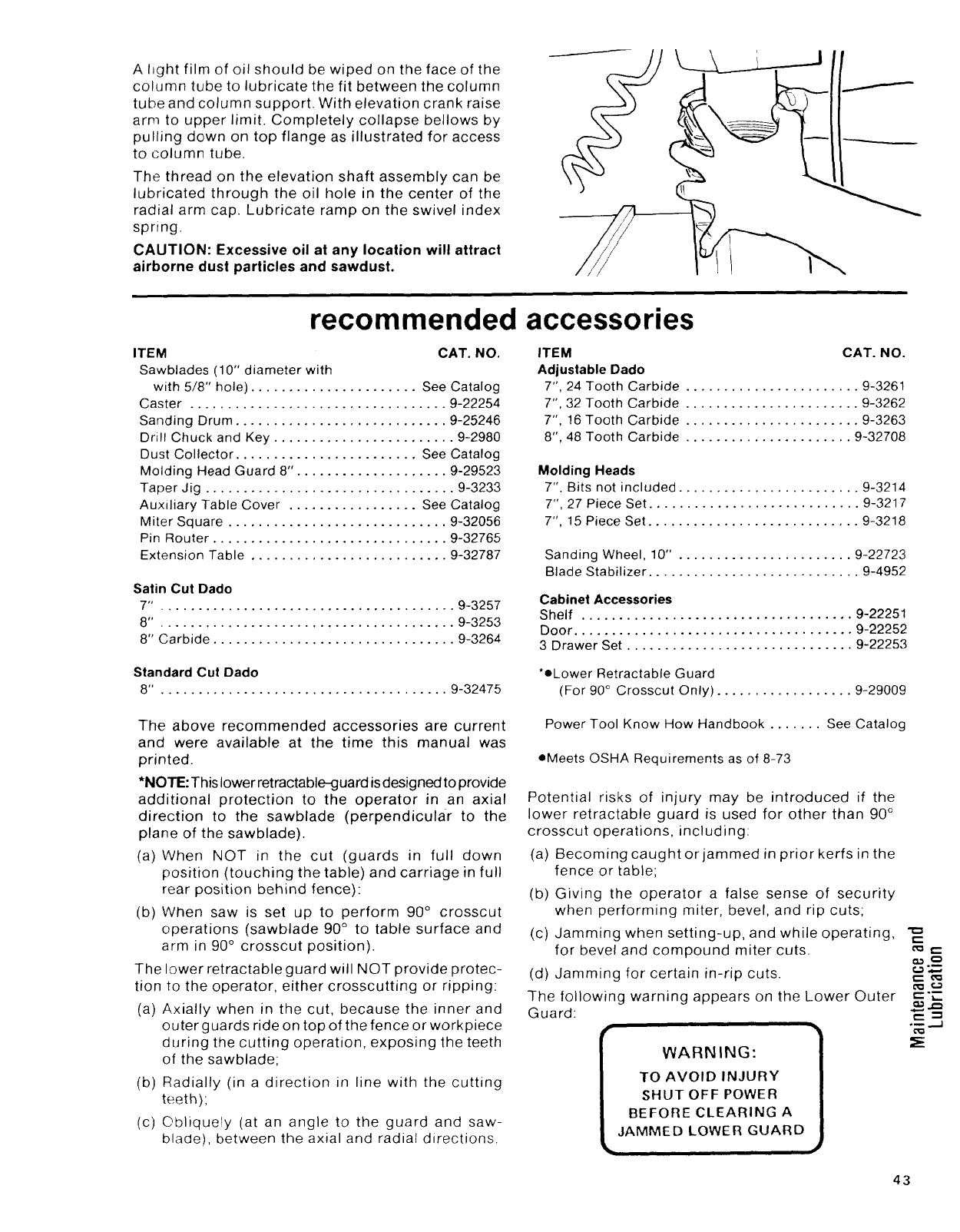

To avoid injury from unanticipated hazards, use

only recommended accessories as listed on page

43.

The use of grinding wheels, abrasive or cut off

wheels, or wire wheels, can be dangerous and are

not recommended. Such devices can break ex-

plosively and throw shrapnel, causing severe

injury.

Thesawblade, dado, orothercutting tool must be

removed from the saw arbor before using the

accessory shaft. Never operate the saw with

cutting tools (including sanding accessories or

buffing) installed on both ends of the sawarborto

avoid being pulled into moving parts by hair,

threads, clothing, etc. Make sure the unused

arbor is always covered by a guard, the arm, or the

screw cap.

Using a drill chuck. To avoid injury from sudden

bending or breaking of a drill bit, do not install or

use twist drills longer than 7" in length or extend-

ing more than 6" beyond the chuck jaws. Do not

install or use any reduced shank drill except the

spade type (!" diameter or smaller). Use for

drilling wood or plastic only - bit speed cannot be

properly adjusted for other materials. Do not use

twist drills larger than 1/2" in diameter.

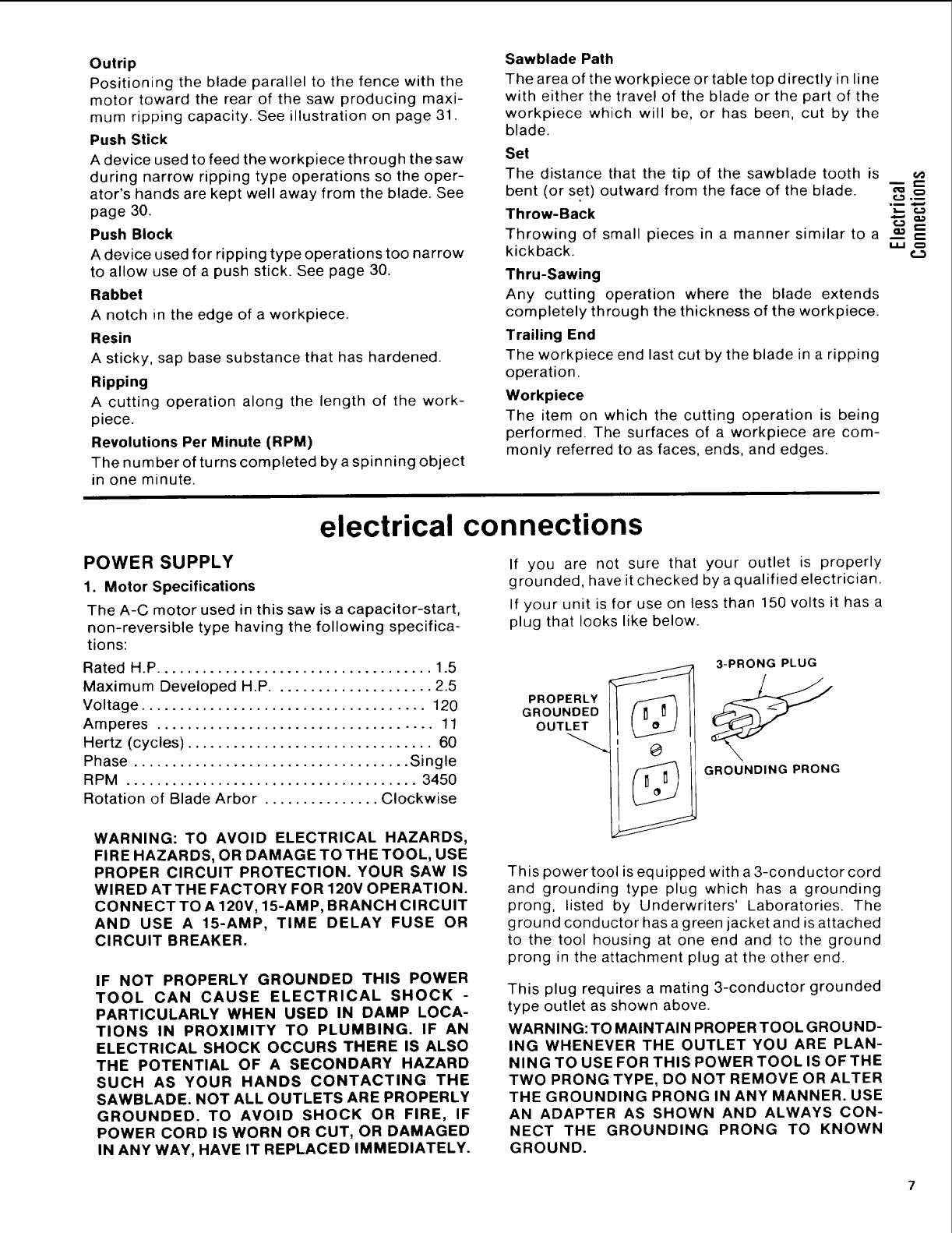

glossary of terms for woodworking

Anti-Kickback Pawls (AKB)

Device which, when properly adjusted, is designed

to stop the workpiece from being kicked back at the

operator during ripping operations. See illustrations

on pages 22 & 26.

Arbor

The shaft on which a cutting tool is mounted.

Crosscut

Acutting or shaping operation made across the

width of the workpiece. See illustrations on pages

28 & 29.

Dado

A non-through cut which produces a square sided

notch or trough in theworkpiece.

Featherboard

A device which can assist in guiding workpieces

during rip type operations.

Freehand

Performing a cut without the use of fence (guide),

hold down or other proper device to prevent the

workpiece from twisting during the cutting opera-

tion. Twisting of the workpiece can cause it to be

thrown or kicked back by a radial saw.

Gum

A sticky, sap based residue from wood products.

Heel

Misalignment of the blade. See page 20 & 21.

In-Rip

Positioning the blade parallel to the fence with the

motor toward the front of the saw. See illustration on

page 31.

Kerf

The amount of material removed by the blade in a

through cut or the slot produced by the blade in a

non-through or partial cut.

Kickback

An uncontrolled grabbing and throwing of the work-

piece back toward the operator during a rip type

operation.

Leading End

The end of the workpiece which, during a rip type

operation, is pushed into the cutting tool first.

Molding

A non-through cut which produces a special shape

in the workpiece used for joining or decoration.

Outrip

Positioning the blade parallel to the fence with the

motor toward the rear of the saw producing maxi-

mum ripping capacity. See illustration on page 31.

Push Stick

A device used to feed the workpiece through the saw

during narrow ripping type operations so the oper-

ator's hands are kept well away from the blade. See

page 30.

Push Block

A device used for ripping type operations too narrow

to allow use of a push stick. See page 30.

Rabbet

A notch in the edge of a workpiece.

Resin

A sticky, sap base substance that has hardened.

Ripping

A cutting operation along the length of the work-

piece.

Revolutions Per Minute (RPM)

The number of turns completed by a spinning object

in one minute.

Sawblade Path

The area of the workpiece or table top directly in line

with either the travel of the blade or the part of the

workpiece which will be, or has been, cut by the

blade.

Set

The distance that the tip of the sawblade tooth is =o

bent (or set) outward from the face of the blade.

Throw-Back _ _

Throwing of small pieces in a manner similar to a =_

kickback. "' ==

Thru-Sawing

Any cutting operation where the blade extends

completely through the thickness of the workpiece.

Trailing End

The workpiece end last cut by the blade in a ripping

operation.

Workpiece

The item on which the cutting operation is being

performed. The surfaces of a workpiece are com-

monly referred to as faces, ends, and edges.

electrical connections

POWER SUPPLY

1. Motor Specifications

The A-C motor used in this saw is a capacitor-start,

non-reversible type having the following specifica-

tions:

Rated H.P .................................... 1.5

Maximum Developed H.P ..................... 2.5

Voltage ..................................... 120

Amperes .................................... 11

Hertz (cycles) ................................ 60

Phase .................................... Single

RPM ...................................... 3450

Rotation of Blade Arbor ............... Clockwise

WARNING: TO AVOID ELECTRICAL HAZARDS,

FIRE HAZARDS, OR DAMAGE TO THE TOOL, USE

PROPER CIRCUIT PROTECTION. YOUR SAW IS

WIRED ATTHE FACTORY FOR 120V OPERATION.

CONNECT TO A 120V, 15-AMP, BRANCH CIRCUIT

AND USE A 15-AMP, TIME DELAY FUSE OR

CIRCUIT BREAKER.

IF NOT PROPERLY GROUNDED THIS POWER

TOOL CAN CAUSE ELECTRICAL SHOCK -

PARTICULARLY WHEN USED IN DAMP LOCA-

TIONS IN PROXIMITY TO PLUMBING. IF AN

ELECTRICAL SHOCK OCCURS THERE IS ALSO

THE POTENTIAL OF A SECONDARY HAZARD

SUCH AS YOUR HANDS CONTACTING THE

SAWBLADE. NOT ALL OUTLETS ARE PROPERLY

GROUNDED. TO AVOID SHOCK OR FIRE, IF

POWER CORD IS WORN OR CUT, OR DAMAGED

IN ANY WAY, HAVE IT REPLACED IMMEDIATELY.

If you are not sure that your outlet is properly

grounded, have it checked by a qualified electrician.

If your unit is for use on tess than 150 volts it has a

plug that looks like below.

PROPERLY

GROUNDED

OUTLET

3-PRONG PLUG

GROUNDING PRONG

This power tool is equipped with a 3-conductor cord

and grounding type plug which has a grounding

prong, listed by Underwriters' Laboratories. The

ground conductor has a green jacket and is attached

to the tool housing at one end and to the ground

prong in the attachment plug at the other end.

This plug requires a mating 3-conductor grounded

type outlet as shown above.

WARNING: TO MAINTAIN PROPER TOOL GROUND-

ING WHENEVER THE OUTLET YOU ARE PLAN-

NING TO USE FOR THIS POWER TOOL IS OF THE

TWO PRONG TYPE, DO NOT REMOVE OR ALTER

THE GROUNDING PRONG IN ANY MANNER. USE

AN ADAPTER AS SHOWN AND ALWAYS CON-

NECT THE GROUNDING PRONG TO KNOWN

GROUND.

It isrecommendedthatyouhaveaqualifiedelectri-

cian replacethe two prongoutletwith a properly

groundedthreeprongoutlet.

Anadapterasshownbelowisavailableforconnect-

ingplugto 2-prongreceptacles.Thegreenground-

ing leadextendingfrom theadaptermustbecon-

nectedtoa permanentgroundsuchasto aproperly

groundedoutletbox.

GROUNDING LUG

3-PRONG \_-; / MAKE SURE THIS IS

_._ _ONNECTED TO A

PLUG _ ._t_[i..T_,_F KNOWN GROUND

L -PRONG

RECEPTACLE

WARNING: THE ADAPTER ILLUSTRATED IS FOR

USE ONLY IF YOU ALREADY HAVE A PROPERLY

GROUNDED 2-PRONG RECEPTACLE,

MOTOR SAFETY PROTECTION

CAUTION: TO AVOID MOTOR DAMAGE THIS

MOTOR SHOULD BE BLOWN OUTOR VACUUMED

FREQUENTLY TO PREVENT SAWDUST BUILD-

UP WHICH WILL INTERFERE WITH NORMAL

MOTOR VENTILATION.

1. This tool should be connected toa 120V, 15Amp

branch circuit with a 15 Amp time delay fuse or

circuit breaker. Failure to use the proper size

fuse can result in damage to the motor.

2. If the motor fails to start, turn the power switch to

the "OFF" position immediately. UNPLUG THE

TOOL. Check the saw blade to insure that it turns

freely and that its teeth are not wedged into the

table top. After the blade has been freed, try to

start the motor again. If, at this point, the motor

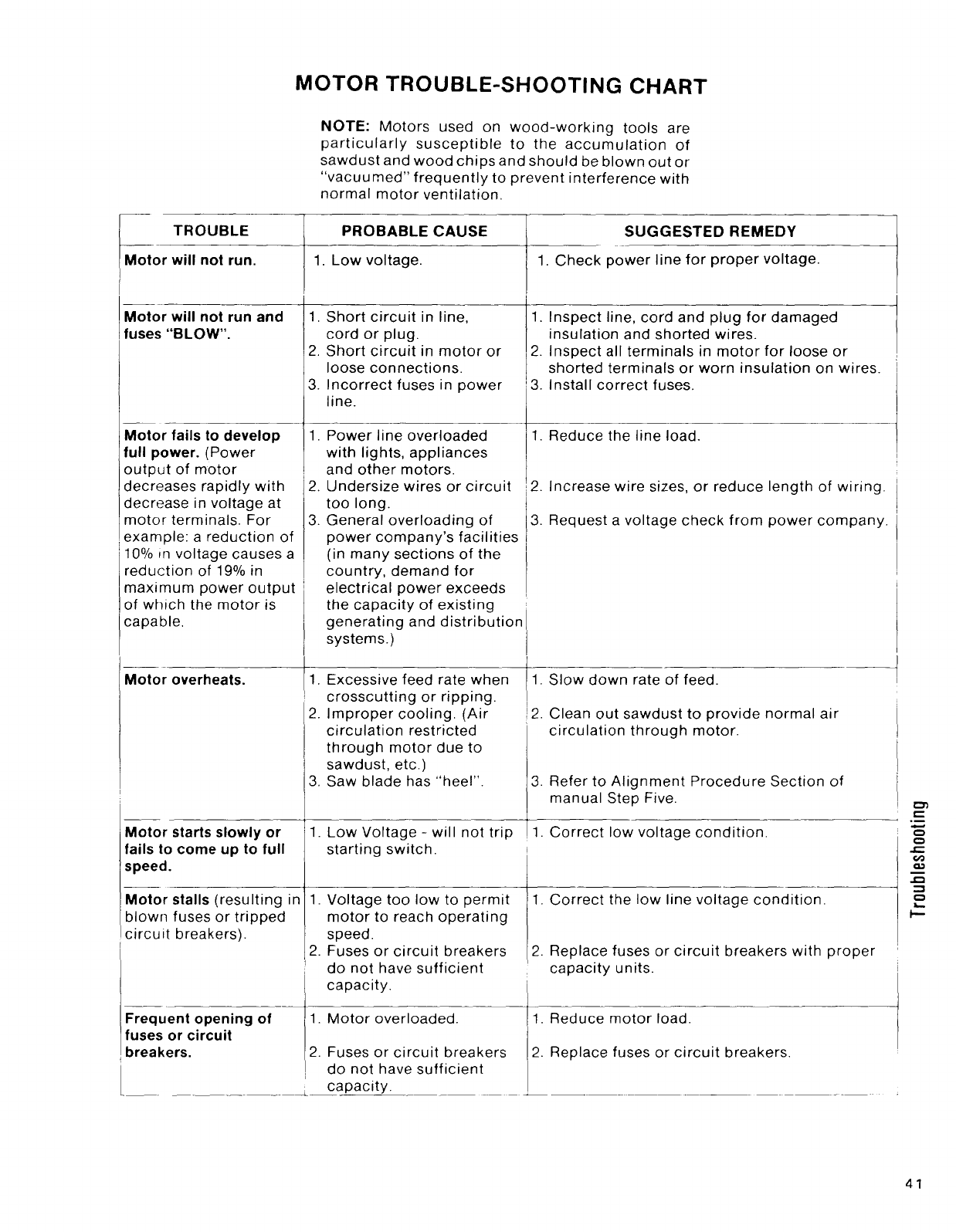

still fails to start, refer to the "Motor Trouble-

Shooting Chart."

3. If the motor should suddenly stall while cutting

wood, the power switch should be turned off, the

tool unplugged and the blade freed from the

wood. The motor may now be restarted and the

cut finished.

4. Frequent "blowing" of fu£e£ or tripping of circuit

breakers may result if:

(a) MOTOR IS OVERLOADED - Overloading can

occur if you feed too rapidly or if saw is

misaligned so that the blade heels (pg. 19,20).

(b) MOTOR CIRCUIT tS FUSED DIFFERENTLY

FROM RECOMMENDATIONS - Always follow

instructions for the proper fuse/breaker. Do

not use a fuse/breaker of greater capacity

without consulting a qualified electrician.

designed for operation on the voltage and

frequency specified on motor nameplate,

normal loads will be handled safely on vol-

tages not more than 10% above or below the

nameplate voltage. Heavy loads, however,

require that voltage at motor terminals equals

the voltage specified on nameplate.

5. Most motor troubles may be traced to loose or

incorrect connections, overloading, reduced

input voltage (such as small size wire in the

supply circuit) or to overly long supply circuit

wire. Always check the connections, the load

and the supply circuit whenever motor fails to

perform satisfactorily. Check wire sizes and

length with the Wire Size Chart below.

WIRE SIZES

The use of any extension cord will cause some loss

of power. To keep this to a minimum and to prevent

over-heating and motor burn-out, use the table

below to determine the minimum wire size (A.W.G_)

extension cord. Use only 3 wire extension cords

which have 3 prong grounding type plugs and 3-pole

receptacles which accept the tools plug.

CAUTION: For circuits that are farther away from

electrical service box, the wire size must be increased

proportionately in order to deliver ample voltage to

the saw motor.

Length of the

Conductor

0 - 50 Feet

50 - 100 Feet

Over 100 Feet

Wire Sizes Required

(American Wire Gage Number)

240V Lines 120V Lines

No. 16 [ No. 14

No. 14 / No. 12

No. 12 ] No. 8

contents

Page

Guarantee .................................... 2

General Safety Instructions for Power Tools .... 2

Additional Safety Instructions for Radial Saws .. 3

Glossary of Terms for Woodworking ........... 6

Electrical Connections ........................ 7

Assembly and Alignment ..................... 9

Unpacking and Preassembly ................ 10

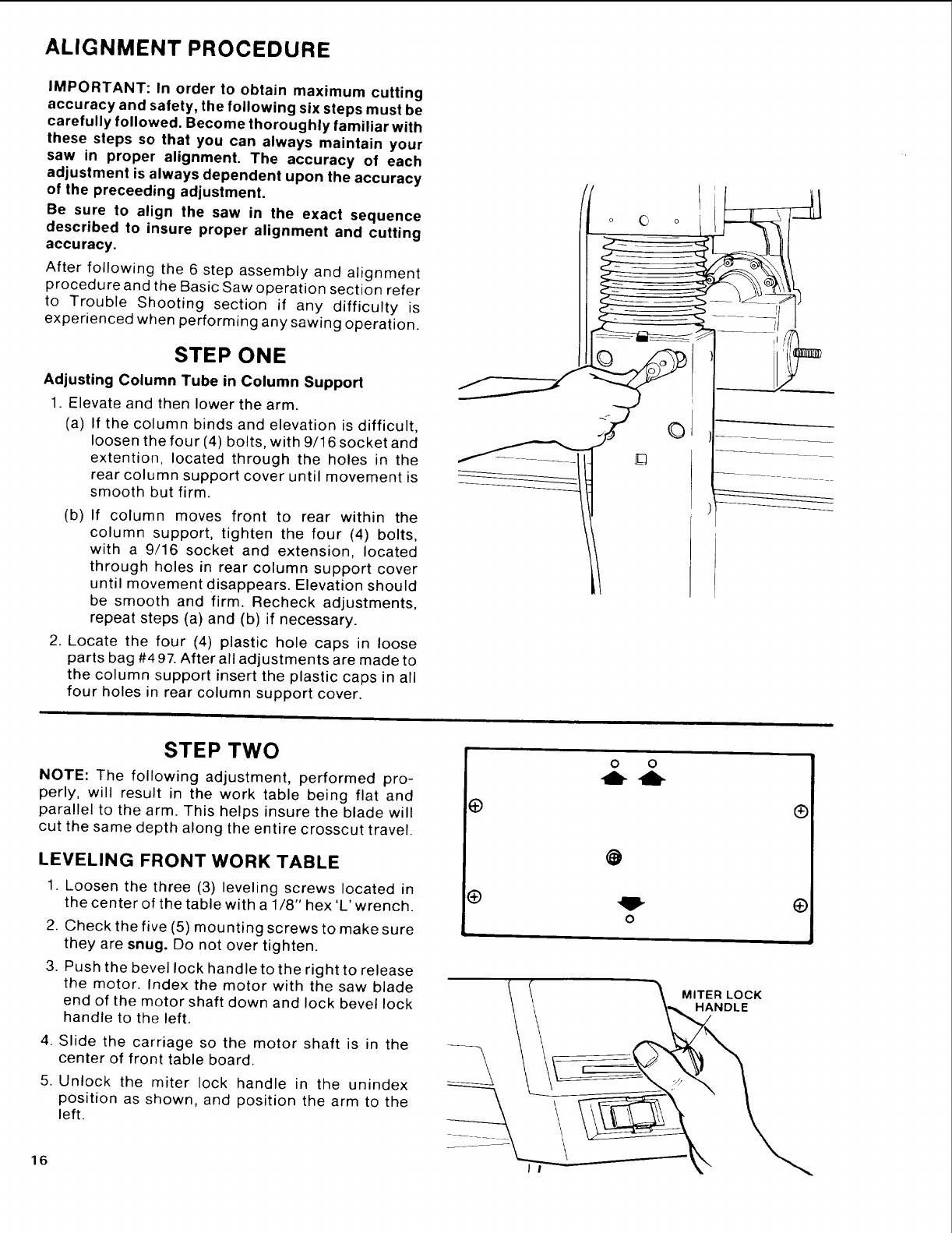

Alignment Procedure ....................... 16

Page

Location and Function of Controls ............ 23

Basic Saw Operations ........................ 27

Adjustments to Compensate for Wear ......... 33

Trouble Shooting ............................ 37

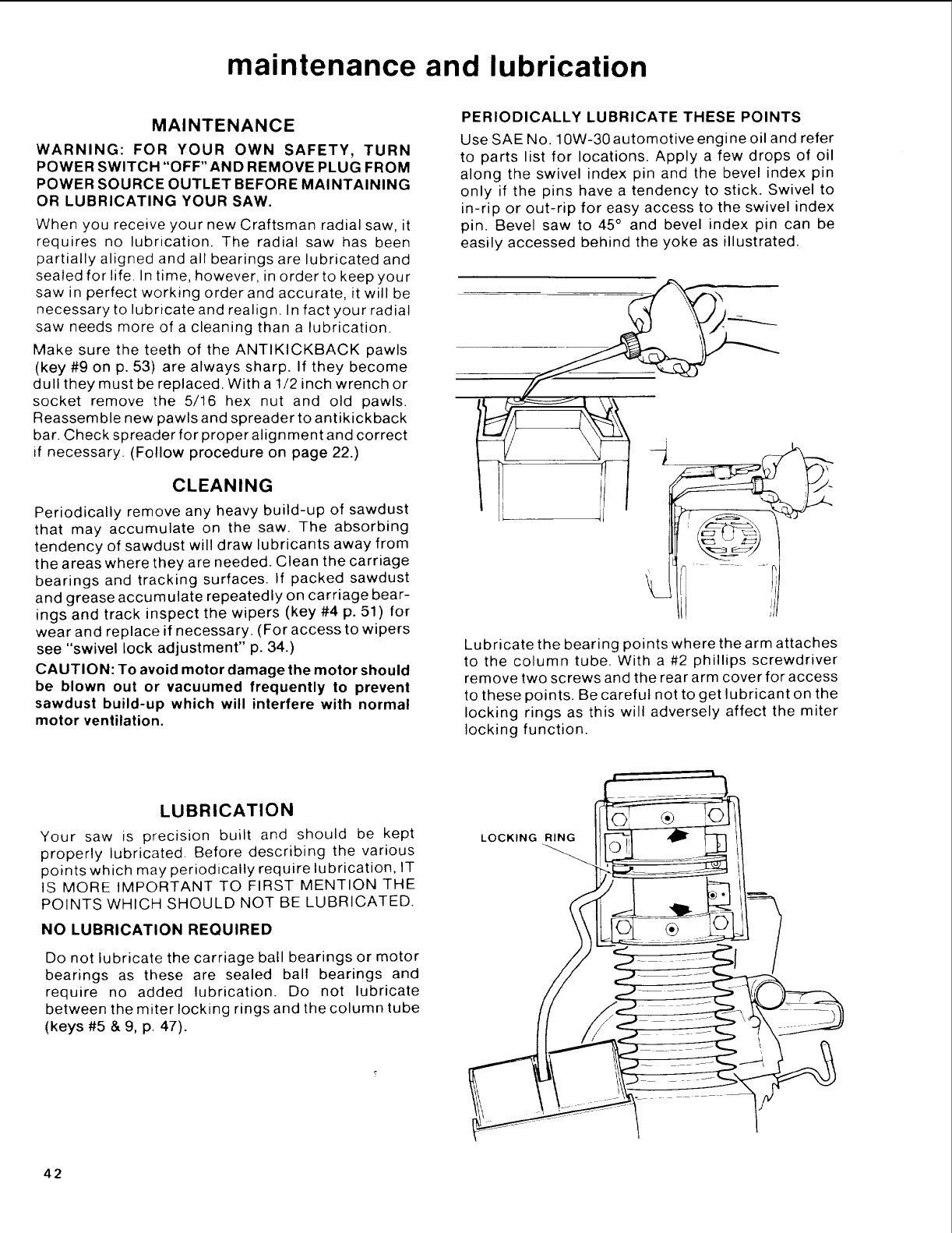

Maintenance and Lubrication ................. 42

Recommended Accessories ................... 43

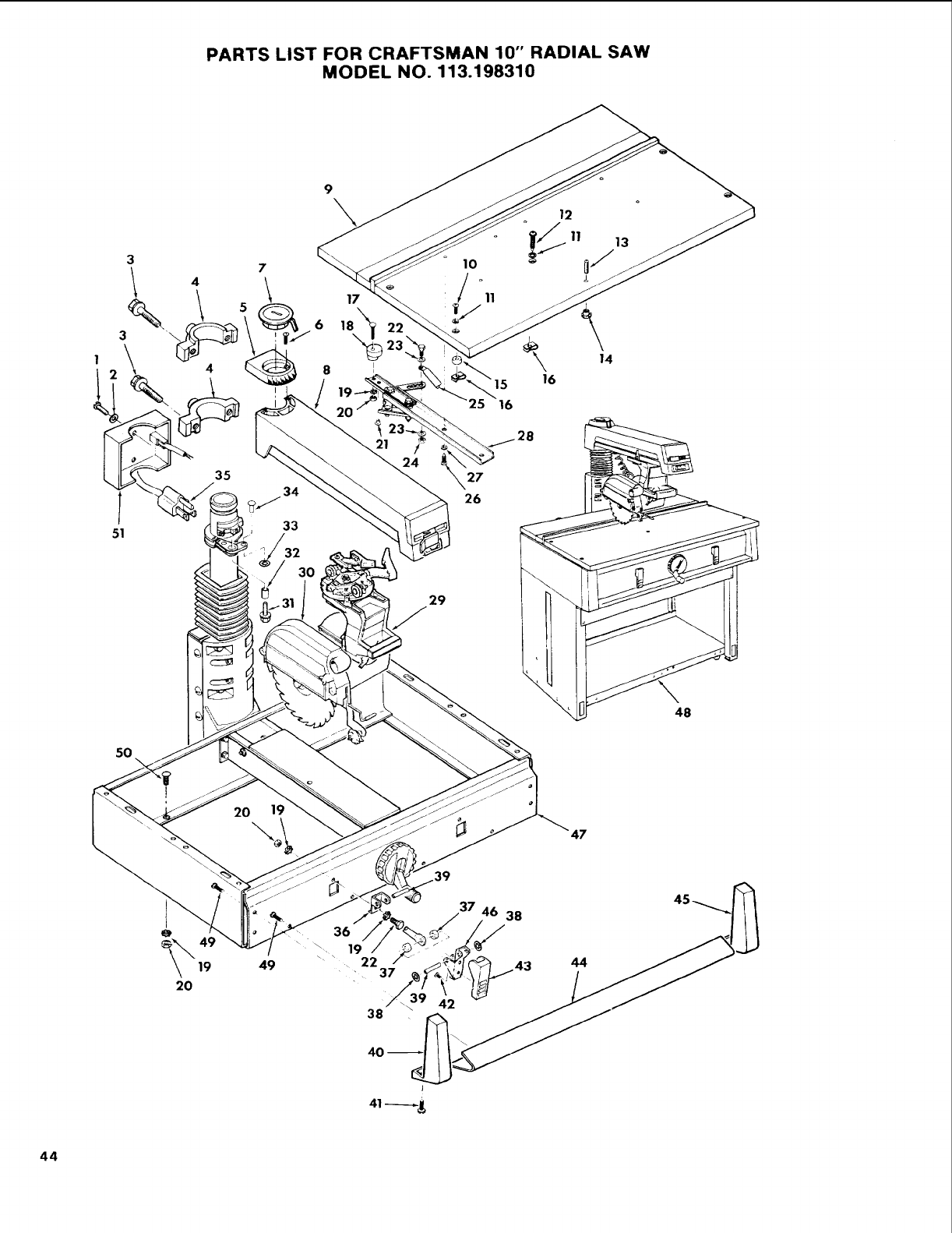

Repair Parts ................................. 44

assembly and alignment

=E_

TOOLS NEEDED

7/16" WRENCH

1/2" WRENCH

3/4" WRENCH

3/4" SOCKET

9/16" SOCKET

7/16" SOCKET

SOCKET EXTENSION

SOCKET WRENCH

MEDIUM SCREWDRIVER

#2 PHILLIPS SCREWDRIVER _:_

Li:_L:ii",i !:..!:..'...: !i., i !' i.__

FRAMING SQUARE

PENCIL

1/8" HEX "L" WRENCH

3/16" HEX "L" WRENCH

FRAMING SQUARE MUST BE TRUE.

Check its accuracy as illustrated below.

CHECKING ACCURACY OF CHECKING ACCURACY OF

INSIDE OF SQUARE OUTSIDE OF SQUARE

REAR EDGE OF FRONT TABLE

(FENCE, SPACER AND BACK _FENCE

BOARDS REMOVED) I u /= I

DRAW LIGHT LINE ON _I/DRAW LIGHT LINE ON

TABLE ALONG THIS EDG_E __= _/_TABLE ALONG THIS EDGE

q rill I _hL

L _!_ _',

L_t_ID Ut_J

SHOULD BE NO GAP OR SHOULD BE NO GAP OR

OVERLAP HERE WHEN OVERLAP HERE WHEN

SQUARE IS FLIPPED OVER SQUARE IS FLIPPED OVER

IN DOTTED POSITION IN DOTTED POSITION

unpacking and preassembly

WARNING: TO AVOID INJURY FROM UNEXPECT-

ED STARTING OR ELECTRICAL SHOCK, DO NOT

PLUG THE POWER CORD INTO A SOURCE OF

POWER UNTIL ALL ASSEMBLY AND ALIGNMENT

STEPS ARE COMPLETE. THIS CORD MUST

REMAIN UNPLUGGED WHENEVER YOU ARE

WORKING ON THE SAW.

Model 113.198310 Radial Saw is shipped complete

in one box.

1. Unpacking and Checking Contents

(a) Separate all "loose parts from packaging

materials and check each item with "Table of

Loose Parts" to make sure all items are

accounted for, before discarding any packing

material.

WARNING: IF ANY PARTS ARE MISSING, DO NOT

ATTEMPT TO ASSEMBLE RADIAL ARM SAW,

PLUG IN THE POWER CORD, OR TURN THE

SWITCH ON UNTIL THE MISSING PARTS ARE

OBTAINED AND ARE INSTALLED CORRECTLY.

LOOSE PARTS LIST FOR MODEL 113.198310

Item Description Qty.

M Bag of Loose Parts #507495 ............ 1

Containing the Following Items:

A Foot Leveling .................... 4

B Nut Hex Jam 1/2-13 .............. 8

C Screw, Truss Hd. 1/4-20 x 1/2 ..... 48

D Lockwasher Ext. 1/4 .............. 48

E Nut Hex 1/4-20 ................... 48

F Screw, Pan Hd.

Ty "BT" 1/4 x 1/2 ................ 8

G Screw, Pan Hd. Ty B #10 x 1 ....... 6

° @ °

® @

F G

Item Description Qty.

A Basic Saw Assembly ................... 1

B Owners Manual ....................... 1

CFence, Rip ............................ 1

DTable, Rear ........................... 1

E Table, Spacer ......................... 1

FCap Trim, L.H ......................... 1

G Cabinet Asse'mbly ..................... 1

H Handwheel Assembly .................. 1

I Trim Ledge ........................... 1

J Cap Trim, R.H ......................... 1

K Arbor Wrench ......................... 1

L Shaft Wrench ......................... 1

NBag of Loose Parts #50749._.Z7............ 1

Containing the Following Items:

A Pad Guard ....................... 1

B Indicator Rip ..................... 2

C Indicator Bevel ................... 1

D Cap Motor Support ............... 1

E Plug Plastic ...................... 4

F Screw Pan Hd. 10-32 x 1/2 ........ 1

G Lockwasher Ext. #10 .............. 1

H Cover ............................ 2

I Switch Key ....................... 1

AN M

E F

NOTE: Loose Parts Bag and Assembly Numbers

refer to three digits, underlined in example below, or

the I.D. Number printed on each bag or carton.

X04507488H000

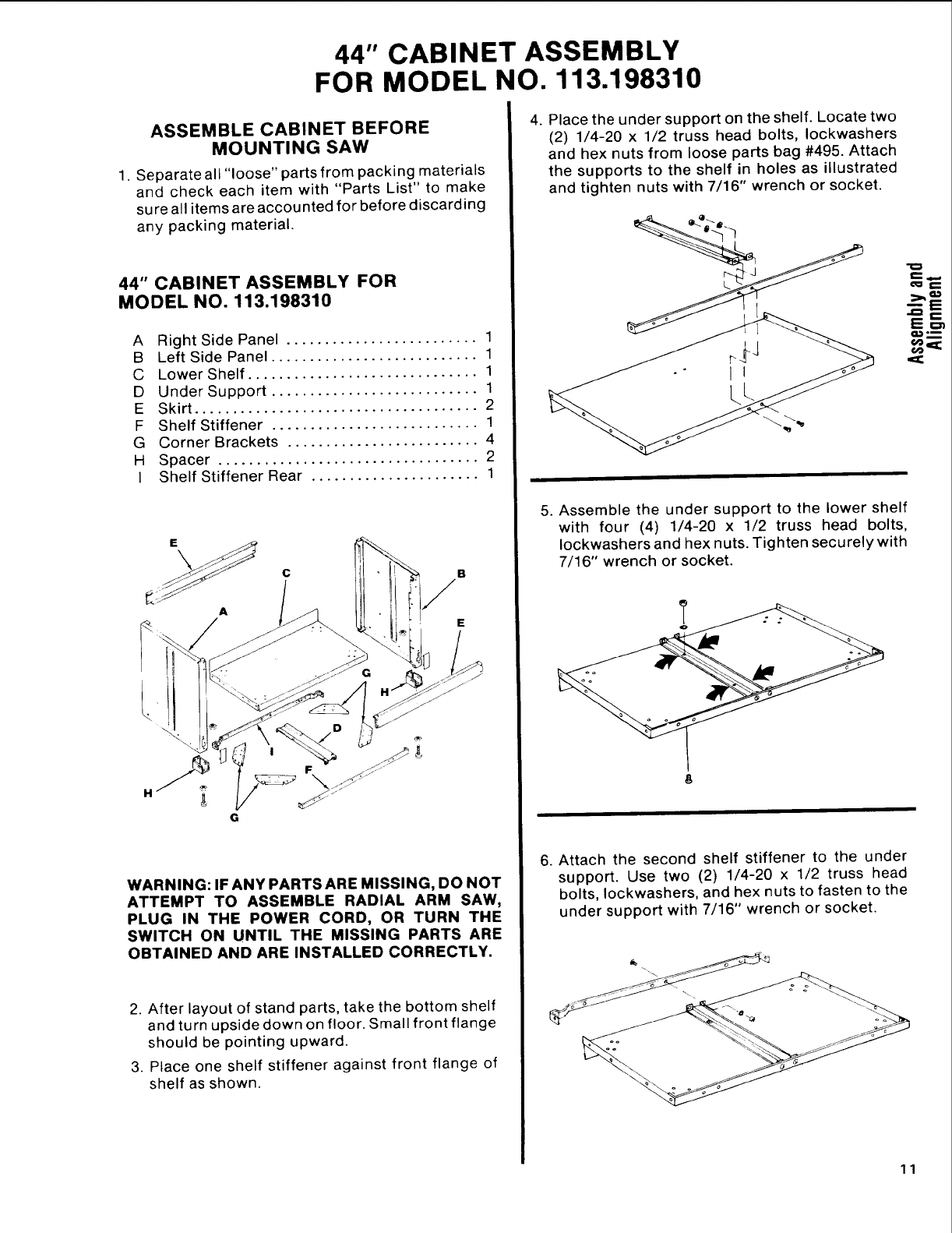

44" CABINET ASSEMBLY

FOR MODEL NO. 113.198310

ASSEMBLE CABINET BEFORE

MOUNTING SAW

1. Separate all "loose" parts from packing materials

and check each item with "Parts List" to make

su re all items are accounted for before discarding

any packing material.

44" CABINET ASSEMBLY FOR

MODEL NO. 113.198310

Right Side Panel ......................... 1

Left Side Panel ........................... 1

Lower Shelf .............................. 1

Under Support ........................... 1

Skirt ..................................... 2

Shelf Stiffener ........................... 1

Corner Brackets ......................... 4

Spacer .................................. 2

Shelf Stiffener Rear ...................... 1

WARNING: IF ANY PARTS ARE MISSING, DO NOT

ATTEMPT TO ASSEMBLE RADIAL ARM SAW,

PLUG IN THE POWER CORD, OR TURN THE

SWITCH ON UNTIL THE MISSING PARTS ARE

OBTAINED AND ARE INSTALLED CORRECTLY.

2. After layout of stand parts, take the bottom shelf

and turn upside down on floor. Small front flange

should be pointing upward.

3. Place one shelf stiffener against front flange of

shelf as shown.

4. Place the under support on the shelf. Locate two

(2) 1/4-20 x 1/2 truss head bolts, Iockwashers

and hex nuts from loose parts bag #495. Attach

the supports to the shelf in holes as illustrated

and tighten nuts with 7/16" wrench or socket.

5. Assemble the under support to the lower shelf

with four (4) 1/4-20 x 1/2 truss head bolts,

Iockwashers and hex nuts. Tighten securely with

7/16" wrench or socket.

6. Attach the second shelf stiffener to the under

support. Use two (2) 1/4-20 x 1/2 truss head

bolts, Iockwashers, and hex nuts to fasten to the

under support with 7/16" wrench or socket.

e==

7. Locate the four (4) corner brackets and use eight

(8) 1/4-20 x 1/2 truss head bolts, Iockwashers

and hex nuts to mount the corner brackets to the

shelf AS ILLUSTRATED. Tighten the nuts with a

7/16" wrench or socket.

8. Locate the right and left side panels and eight (8)

1/4-20 x 1/2 truss head bolts, Iockwashers and

hex nuts to attach side panels to shelf. Mount the

bolts through the four holes as illustrated and

tighten with 7/16 wrench or socket. To assemble,

lay the side panel on its backside and stand th6

shelf up as illustrated.

BOTTOM SIDE

OF LOWER SHELF RIGHT SIDE

PANEL

9. Locate the two (2) skirts and the eight (8) 1/4-20 x

1/2 truss head bolts, Iockwashers and hex nuts to

attach them to the top of the side panels. Attach

one to the front and one to the rear of the stand as

illustrated and hand tighten nuts.

10. Secure rear of lower shelf to right side and left

side panels using two (2) 1/4-20 x 1/2 truss head

bolts, Iockwashers and hex nuts. Hand tighten

nuts only at this time.

11. Locate the right and left side spacers, the six (6)

1/4-20 x 1/2 truss head bolts, Iockwashers, and

hex nuts. Position the spacer inside the right and

left side panels and fasten in the three holes as

illustrated. Hand tighten nuts.

12. Locate the two (2) covers and attach to openings

in the right and left side panels as illustrated.

SPACER

I/4-20 x 1/2

SIDE PANEL

COVER

¢D---

uo,_:

CHECKING CABINET FOR SQUARENESS

TOOLS NEEDED: Framing square, 3/4" wrench

and 7/16" wrench or socket.

1. With cabinet on back side place a square on

lower shelf next to right side panel. Adjust stand

so both right side panel and lower shelf touch

square (as illustrated). Then tighten nut holding

rear of shelf to side panel and right side spacer to

front of lower shelf. Repeat procedure for left

side.

2. Place square at top side of cabinet and adjust

stand so square touches both skirt and side

panel (as illustrated). Then tighten right side of

front and rear skirts to side panel. Repeat pro-

cedure for left side.

3. Locate four (4) leveling and eight (8) 1/2-13 hex

nuts. Attach the leveling feet to bottom of side

panels in front and rear as illustrated. Hand

tighten hex nuts.

WARNING: TO AVOID INJURY FROM UNEXPECT-

ED SAW OR WORK MOVEMENT, LEVELING FEET

MUST BE ADJUSTED SO THAT SAW DOES NOT

ROCK. TO AVOID UNEXPECTED CARRIAGE MOVE-

MENT, ADJUST LEVELING FEET SO THAT THE

ARM SLOPES SLIGHTLY DOWNWARD TO THE

REAR.

4. To adjust leveling feet so the saw will set properly:

a. Move saw to desired location.

b. With 3/4" wrench loosen bottom nut.

c. Back off top nut by hand.

d. Raise or lower foot by adjusting bottom nut

using 3/4" wrench.

e. Snug top nut against inside of leg by hand.

f. Adjust all four feet as necessary, then tighten

all four bottom nuts using a 3/4" wrench.

CABINET

NUTS

LEVELING FOOT

MOUNTING SAW

1. From loose parts bag #495, find the following

hardware:

8 - Truss Head Botts 1/4-20 x 1/2

8 - Lockwashers External 1/4

8 - Hex Nuts 1/4-20

2. Place saw on cabinet so that holes in bottom of

saw line up with holes in top of cabinet.

3. Install bolts, Iockwashers, and nuts as shown.

Tighten securely using a 7/16" wrench or socket.

NOTE: It may be necessary to loosen the bolts

holding the skirt to the side panel of the cabinet if the

holes do not line up. Once mounting bolt is in place

retighten cabinet bolts securely.

SAW BASE _ H

jl*°

,',,,

HEX NUT

ATTACHING TRIM CAPS & TRIM LEDGE

1. Locate the two (2) trim caps, the trim ledge, the

six (6) type "B" #10x 1 screws and eight (8) type

BT 1/4 x 1/2 screws.

2. Place the trim ledge against the bottom of the

base using four (4) type"B" metal screws, secure

the trim ledge to the base from below using a

phillips screwdriver.

TRIM LEDGE

3. Then reach through the base from behind the

front table board and secure the trim ledge with

four (4) type "BT" screws using a phillips

screwdriver.

4. Position the trim caps in place and hold in place

with type B metal screw from the bottom side.

5. Then reach through the base from behind the

front table board and secure the trim cap with

two (2) type "BT" screws using a phillips screw-

driver. Repeat procedure for other side.

TRIM CAF

ATTACH ELEVATION HANDWHEEL

1. From loose parts bag #497, find one (1) screw

10-32 x 1/2 and one (1) external Iockwasher.

Install handwheel to front of base as illustrated.

ELEVATION

HANDWHEEL

MOUNTING MOTOR

1. Remove the blade guard. Locate the arbor

wrenches and remove the blade.

CAUTION: Do not attempt to mount the motor until

the blade guard and blade have been removed.

2. Elevate the arm approximately 2 inches to remove

shipping pad.

3. Using a 3/4 socket remove 1/2-13 lock nut and

1/2" flat washer from motor pivot support.

4. Slide motor on motor pivot support until motor is

firmly seated on support as illustrated.

5. Re-install the flat washer and lock nut and

tighten until snug with 3/4" socket.

WARNING: DO NOT OVER TIGHTEN LOCKNUT.

To insure proper function of the bevel lock, move the

bevel lock handle while tightening the Iocknut.

Adjust according to Step 6.

6. Push bevel lock handle to left side to lock.

NOTE: Bevel lock handle should not contact extreme

left side of yoke when in locked position. If bevel

lock handle is permitted to contact yoke the following

adjustment is required

a. Unlock bevel lock handle and tighten motor

Iocknut. Recheck bevel lock handle position (see

illustration).

b. Repeat adjustment if necessary Do not over

tighten or motor will not index.

ALIGNMENT PROCEDURE

IMPORTANT: In order to obtain maximum cutting

accuracy and safety, the following six steps must be

carefully followed. Become thoroughly familiar with

these steps so that you can always maintain your

saw in proper alignment. The accuracy of each

adjustment is always dependent upon the accuracy

of the preceeding adjustment.

Be sure to align the saw in the exact sequence

described to insure proper alignment and cutting

accuracy.

After following the 6 step assembly and alignment

procedure and the Basic Saw operation section refer

to Trouble Shooting section if any difficulty is

experienced when performing any sawing operation.

STEP ONE

Adjusting Column Tube in Column Support

1. Elevate and then lower the arm.

(a) If the column binds and elevation is difficult,

loosen the four (4) bolts, with 9/16 socket and

extention, located through the holes in the

rear column support cover until movement is

smooth but firm.

(b) If column moves front to rear within the

column support, tighten the four (4) bolts,

with a 9/16 socket and extension, located

through holes in rear column support cover

until movement disappears. Elevation should

be smooth and firm. Recheck adjustments,

repeat steps (a) and (b) if necessary.

2. Locate the four (4) plastic hole caps in loose

parts bag #497. After all adjustments are made to

the column support insert the plastic caps in all

four holes in rear column support cover.

STEP TWO

NOTE: The following adjustment, performed pro-

perly, will result in the work table being flat and

parallel to the arm. This helps insure the blade will

cut the same depth along the entire crosscut travel.

LEVELING FRONT WORK TABLE

1. Loosen the three (3) leveling screws located in

the center of the table with a 1/8" hex 'L' wrench.

2. Check the five (5) mounting screws to make sure

they are snug. Do not over tighten.

3. Push the bevel lock handle to the right to release

the motor. Index the motor with the saw blade

end of the motor shaft down and lock bevel lock

handle to the left.

4. Slide the carriage so the motor shaft is in the

center of front table board.

5. Unlock the miter lock handle in the unindex

position as shown, and position the arm to the

left.

o o

-db

MITER LOCK

16 I

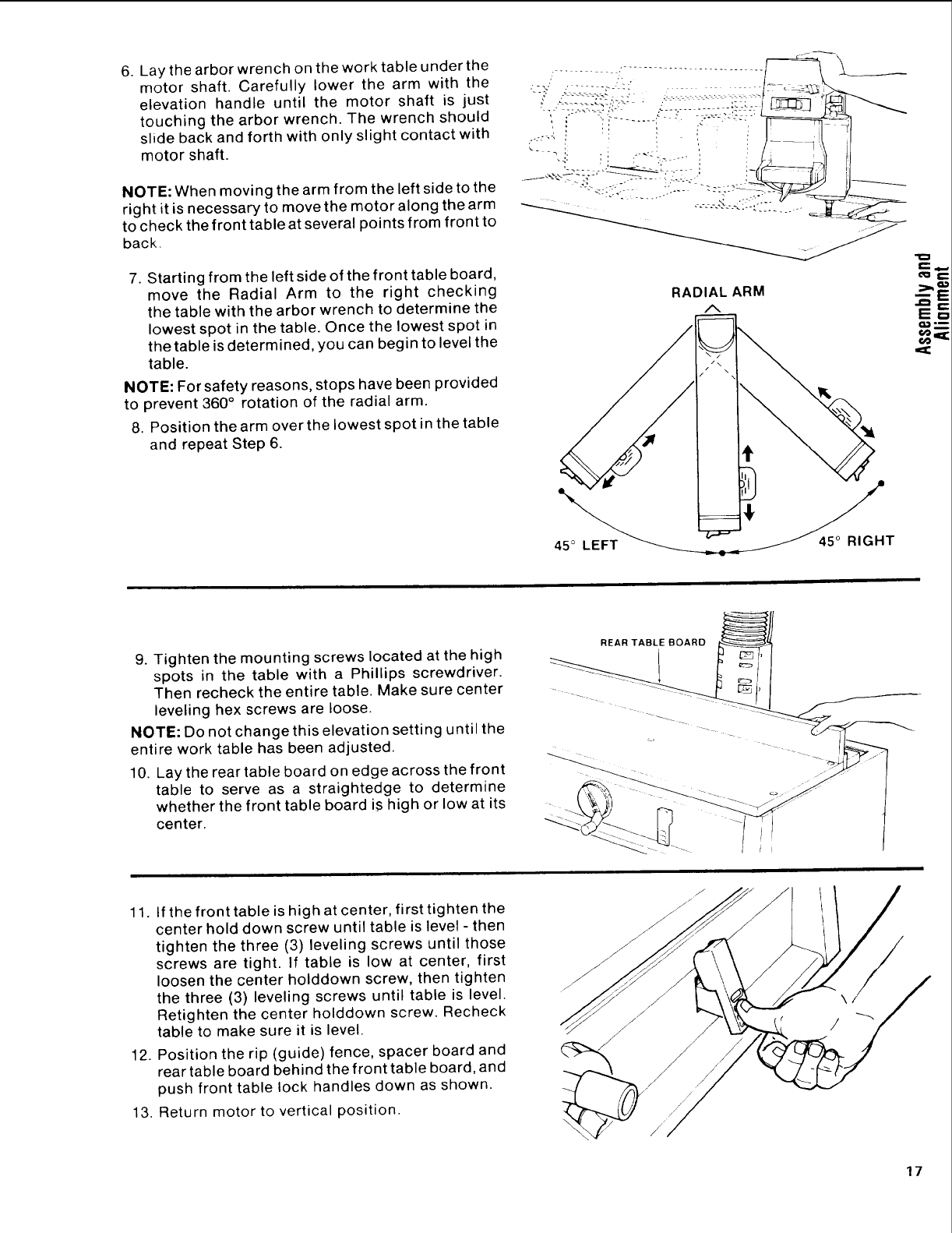

6. Lay the arbor wrench on the work table under the

motor shaft. Carefully lower the arm with the

elevation handle until the motor shaft is just

touching the arbor wrench. The wrench should

slide back and forth with only slight contact with

motor shaft.

NOTE: When moving the arm from the left side to the

right it is necessary to move the motor along the arm

to check the front table at several points from front to

back.

7. Starting from the left side of the front table board,

move the Radial Arm to the right checking

the table with the arbor wrench to determine the

lowest spot in the table. Once the lowest spot in

the table is determined, you can begin to level the

table.

NOTE: For safety reasons, stops have been provided

to prevent 360° rotation of the radial arm.

8. Position the arm over the lowest spot in the table

and repeat Step 6.

RADIAL ARM

//\\

45_LEFT_ T

€,o €

9. Tighten the mounting screws located at the high

spots in the table with a Phillips screwdriver.

Then recheck the entire table. Make sure center

leveling hex screws are loose.

NOTE: Do not change this elevation setting until the

entire work table has been adjusted.

10. Lay the rear table board on edge across the front

table to serve as astraightedge to determine

whether the front table board is high or low at its

center.

11. If the front table is high at center, first tighten the

center hold down screw until table is level - then

tighten the three (3) leveling screws until those

screws are tight. If table is low at center, first

loosen the center holddown screw, then tighten

the three (3) leveling screws until table is level.

Retighten the center holddown screw. Recheck

table to make sure it is level.

12. Position the rip (guide) fence, spacer board and

rear table board behind the front table board, and

push front table lock handles down as shown.

13. Return motor to vertical position.

Adjusting tront table lock handles

WARNING: TO AVOID SUDDEN SLIPPAGE,

BREAKAGE, OR THROWING OF PARTS, FRONT

TABLE BOARD LOCK HANDLE MUST LOCK

TABLE BOARDS AND RIP FENCE SECURELY IN

PLACE.

1. To adjust the table board clamps check by

pulling up on rip fence. There should be enough

pressure to keep the rip fence from pulling up. To

adjust the pressure on the clamp:

a. Lift front table lock handles up to release

pressure on boards.

b. Loosen the two eccentric spacer clamps

located at the rear of the table top with a

7/16" wrench or socket.

c. Rotate the spacer toward the rear table board.

Tighten spacer with 7/16" wrench or socket.

Repeat procedure for clamp on other side.

d. Push down on front lock handles and recheck

pressure by pulling up on rip fence. If rip fence

is too loose, repeat adjustment.

STEP THREE

Squaring Crosscut Travel

NOTE: This adjustment helps ensure the blade

accurately travels square to the rip fence.

1. Index arm at 0 ° miter and lock.

2. Install saw blade as shown. Motor shaft has left

handed threads - turn nut counterclockwise to

tighten.

CAUTION: Do not overtighten arbor nut. Use arbor

wrench to "snug" nut in place. Overtightening could

distort the blade collars and cause blade to wobble.

3. Lower arm until saw blade just clears the front

table. Be sure the miter lock handle and the bevel

lock handle are locked.

SHAFT

4. Place a framing square on the table as shown and

position the blade and square until the leg of the

square just contacts a tooth of the blade. Mark

this tooth with a pencil.

NOTE: The framing (or combination) square must

be "true" - see start of "Assembly and Alignment"

section on page 10 for checking method.

5. When the carriage is moved back and forth on

the arm, the marked tooth should just touch the

square at all points. If marked tooth moves into

square or away from square the following adjust-

ments are required.

(a) Loosen the four (4) 1/4-20 socket set screws

on both sides of the front column support (2

on each side) with a 1/8" Hex "L" wrench as

illustrated on next page.

(b) Move the arm in the proper direction to make

marked tooth follow edge of square when the

saw blade is moved along arm in a "crosscut"

manner.

_,,. BEVEL LOCK

_""--. HANDLE _ \

set screws alternating from left side to right

side so as not to force arm out of adjustment,

(d)

(e)

Recheck blade travel. Adjust arm position as

needed by readjusting upper screws only.

Once arm position is good, tighten lower 1/4-

20 socket set screws. Do not overtighten.

Check elevating handwheel for ease of rota-

tion. If rotating handwheel is difficult, re-

adjust socket set screw tightness as needed.

NOTE: The life of your saw table will be lengthened

considerably if you will cover the front table with a

fitted piece of 1/4 inch plywood. This should be

tacked in place for easy replacement. Use of such a

cover will allow you to do all cutting into the cover,

rather than your table top. This will help prevent

dulling of the saw blade and striking table mounting

hardware. Place tacks out of the path of the saw

blade.

5_L

FOUR SOCKET

HEAD SCREWs

(f) Set miter indicator on 0° position as shown.

STEP FOUR

Squaring Saw Blade to (Work) Table

NOTE: If alignment procedure step two was not

performed, this adjustment cannot be accomplished.

1. Place a framing square on the table with the short

leg against the saw blade. Do not allow the

square to rest against a "set-out" tooth; it must

rest flat against the blade side.

2 If the square does not touch the saw blade as

shown (with square held firm against table top)

the following adjustments are required.

(a) Tighten rip lock handle.

(b) Unlock bevel lock handle. Do not un-index

motor.

SQUARE

RIPLOCK

HANDLE_

behindyokeasillustratedwitha1/8" Hex"L"

wrench.Rotatemotorwhile holdingsquare

firmly againstsaw bladeandtable top until

thesquaretouchesthesawbladeasshown.

(d) Lockbevellockhandle.Recheckalignmentto

makesure bladedid not movewhen bevel

lockhandlewaslocked.

(e)

(f)

Tighten the four socket set screws. Unlock

bevel lock handle, unindex the motor, re-

index and relock the bevel lock handle.

Recheck alignment again. If blade is not

square to table, return to step (c) and repeat.

To assure the blade is square to the table,

elevate the arm enough to bevel the motor to

45 ° stop. Then return to 0 ° position, lower the

arm and lock bevel lock handle. Recheck

alignment.

4sOCKET

SET sCREWS

WRONG

SQUARE I_

TABLE

WRONG

SQUARE

TABLE

RIGHT

SQUARE ]_

TABLE

(g) Install bevel scale indicator by inserting one

end into the opening in the yoke. Slide the

indicator to one side and push until it snaps in

place. Tabs are located on the outside of the

opening. Adjust indicator by sliding red line

to 0 ° position.

STEP FIVE

Squaring Blade to Rip Fence

NOTE: If alignment procedure steps three and four

were not performed, this adjustment step cannot be

accomplished. This adjustment helps avoid binding

(kickbacks) or splintering of wood surface, or burn-

ing of the kerf.

1. Position carriage as shown and tighten rip lock

handle. Place a framing square against the rip

fence and the saw blade, as shown. The long leg

of the square must be held firmly against both the

fence and the table top, and the short leg must

not touch any of the "out-set" teeth on the saw

blade. Check at several points of blade rotation.

2. If the square does not touch the blade at both of

the two points as shown, a heel condition exists.

3. To correct "heel" condition, proceed as follows:

(a) Unlock swivel lock handle.

(b) Usinga1/8" Hex"L" wrenchloosenthefour

socket set screwslocatedthrough access

holesonbottomsideof yokeasillustrated.

properly.

(d) Lockswivellockhandleandretightenthefour

(4)socketsetscrews.Recheckforheel.Ifheel

conditionexists,returntostep(b)andrepeat.

NOTE:Thisalignmentprocedurewillsimultaneously

setbothyokeindexingpositionsfor bladeinandout

rip

FENCE FENCE

j RIGHT

FENCE q

IWRONG

NOTE: It may be necessary to use

pliers to grip the short end of the

Hex "L" wrench to loosen or tighten

the socket cap screws. Remember

to wear eye protection when per-

forming this procedure.

Bevel Heel Adjustment

This adjustment helps avoid the grabbing or throwing

of the wood during edging operations.

1. With sawblade in 90 ° crosscut position, elevate

saw, then rotate motor to its vertical position

(blade parallel to table top). Lock bevel lock

handle and be sure swivel lock handle is in

locked position.

2. Check blade for bevel heel by positioning square

perpendicular to fence and between blade and

table as shown. Lower arm until face of blade

rests on square. Be sure square is resting on face

of blade and not on a "set-out" tooth as this will

result in a false measurement.

3. If there is a visible gap between saw blade face

and the edge of the square, a bevel heel condition

exists and the following adjustment is necessary.

a. Unlock the bevel lock handle and loosen the

two cap screws located thru the rear of the

motor support (see illustration). A 1/8" hex "L"

wrench is needed to loosen these screws.

b. Lift or lower the rear of the motor support until

the gap between the blade and square dis-

appears. Lock the bevel lock handles.

c. Tighten the two cap screws and recheck

alignment between the face of the blade and

the square. If a gap condition exists, repeat the

above adjustment.

d. From loose parts bag #497 find the motor

support cap and install into rear of motor

support.

MOTOR SUPPORT

2 CAP SCREWS

NOTE: It may be necessary to use

pliers to grip the short end of the

Hex "L" wrench to loosen or tighten

the socket cap screws. Remember

to wear eye protection when per-

forming this procedure.

SQUARE

/RIGHT

TABLE WRONG WRONG

STEP SIX

Installing Blade Guard and Adjusting Anti-Kickback

Pawls and Spreader

1. Install blade guard on motor.

2. Unlock the swivel lock handle and rotate the

blade into the IN-RIP position. Lock the swivel

lock handle.

3. Position blade against fence and lock the rip lock

handle. Loosen wing screw and lower the anti-

kickback bar assembly until side of the spreader

is flush against the fence and the anti-kickback

pawl is resting on top of the fence (as illustrated).

NOTE: If the spreader is not flush against the fence

or will not easily clear the top of the fence when

lowered, the following adjustment is required.

a. Loosen the two hex nuts, one on each side of

the spreader with 1/2" open end wrench.

b. Slide the spreader with fingers until the side of

the spreader rests flush with the rip fence.

c. Snug both nuts against the spreader and

recheck alignment.

d. If spreader aligns with fence and blade, tighten

with wrench and raise anti-kickback spreader

up to guard and retighten wing screw.

4. Release rip lock handle, move blade away from

fence and rotate to crosscut position.

5. From loose parts bag #497, locate the blade

guard rear bumper pad and install.

GUARD ---------_i

ANTIKICKBACK PAWLS

FENCE

SPREADER

TABLE

ANTIKICK BACK/SPREADER

WING SCREW

TAB

BUMPER PAD FENCE ANTIKICKBACK BAR

ANTIKICKBACK PAWLS

STEP SEVEN

Installing and Adjusting Rip Scale Indicators

NOTE: The rip scales and pointers are intented to be

used for quick settings. Adjustments will be neces-

sary for blades of different thicknesses. For greater

accuracy take direct measurements between blade

and fence with ruler or measuring tape.

1. Locate rip scale indicators in loose parts bag

#497 and slide indicators onto mounting brackets.

2. Unlock swivel lock handle and move the blade

into the OUT-RIP position. Lock the swivel lock

handle.

Measure 2" from rip fence to nearest tooth on the

blade and lock rip lock handle.

Adjust "out rip" scale indicator by sliding until

indicator line reads 2 inches on the upper of the

two "out rip" scales as illustrated. Out rip scales

are located on left side of arm.

Unlock rip lock handle and move blade away

from fence. Unlock the swivel handle and rotate

the motor to the IN-RIP position. Lock the swivel

lock handle.

Adjust "in-rip" scale indicator (located on right

side of arm) by sliding until indicator line reads

"0" inches.

location and function of controls

WARNING: FOR YOUR OWN SAFETY ALWAYS

LOCK THE SWITCH "OFF" WHEN SAW IS NOT IN

USE. REMOVE KEY AND KEEP IT IN A SAFE

PLACE . .. ALSO IN THE EVENT OF A POWER

FAILURE, TURN SWITCH OFF. LOCK IT AND

REMOVE THE KEY. THIS WILL PREVENT THE

SAW FROM STARTING UP AGAIN WHEN THE

POWER COMES BACK ON.

WARNING:THE SAWBLADE, DADO, OR CUTTING

TOOL MUST BE REMOVED FROM THE SAW

ARBOR BEFORE USING THE ACCESSORY SHAFT,

NEVER OPERATE THE SAW WITH CUTTING

TOOLS (INCLUDING SANDING ACCESSORIES)

INSTALLED ON BOTH ENDS OFTHE SAW ARBOR.

MAKE SURE THE UNUSED ARBOR IS ALWAYS

COVERED BY A GUARD, A CAP, OR THE ARM.

BLADE GUARD

ANTI-KICKBACK

SPREADER

WING SCREW

ANTI-KICKBACK PAWLS

MITER SCALE

OUT-RIP INDICATOR IN-RIP INDICATOR

MITER LOCK

HANDLE

ON-OFF SWITCH

HANDLE

BEVEL LOCK

HANDLE

ANDLE

GUARD SWIVEL LOCK

CLAMP HANDLE

SCREW

ACCESSORY SHAFT

TABLE LOCK

HANDLES

ELEVATION

HANDWHEEL

f_ =,--

t,--

\\i

.Depth of Cut (Elevation)

a. The diagram shows the elevation crank which

is used to raise and lower the saw blade.

b. Clockwise rotation raises the blade . . .

counterclockwise rotation lowers it. One

complete turn of the handle will raise or lower

the saw blade 1/16 inch.

c. Handle can be folded in when not in use.

2. Angle of Cut (Miter)

Proper Indexing Method - Experienced operators of

woodworking equipment such as this Craftsman

Radial Saw, acquire the habit of indexing in one

direction only, whenever a new setting is made in

preparation for a different operation.

Example: When moving the arm to a miter index

position move it slightly past the desired index

position, then return to the index position carefully

to index and lock. Yoke indexing and bevel indexing

can be accomplished in a similar manner. This

indexing technique tends to neutralize any stresses

impaired upon saw components and contributes to

the high degree of accuracy the saw is capable of

producing when operated expertly.

a. The miter lock handle locks, unlocks and

indexes the arm for left and right miter cuts.

NOTE: For safety reasons stops have been provided

to prevent 360 ° rotation of the radial arm.

b. The radial arm has positive index positions at

0° and 45 ° left and right. The arm is rotated by

pulling the miter lock handle from left to right

and releasing the index pin. Move the arm to

the desired miter angle and push the miter

lock handle back to the lock position.

3. Yoke Swivel (Ripping)

a. Swivel lock handle is to lock, unlock and index

the yoke swivel adjustment.

b. The yoke swivel index pin automatically

indexes the yoke at 90° position. Pull the

swivel lock handle forward to unlock the yoke,

continue to pull this handle until the index pin

is released.

C. The swivel lock handle locks the yoke to the

carriage in any position. Pull the handle for-

ward to release the yoke; push the handle

rearward to secure the yoke.

4. Rip Position Lock

a. The rip lock handle is pushed rearward to lock

the carriage on the radial arm and pulled

forward to release it.

b. When performing crosscutting operations, the

rip lock handle must be released so the carriage

is free to travel along the arm. The lock handle

should be tightened until the operator is ready

to grasp the yoke handle and make a cut.

MITER LOCK

SWIVEL LOCK

HANDLE

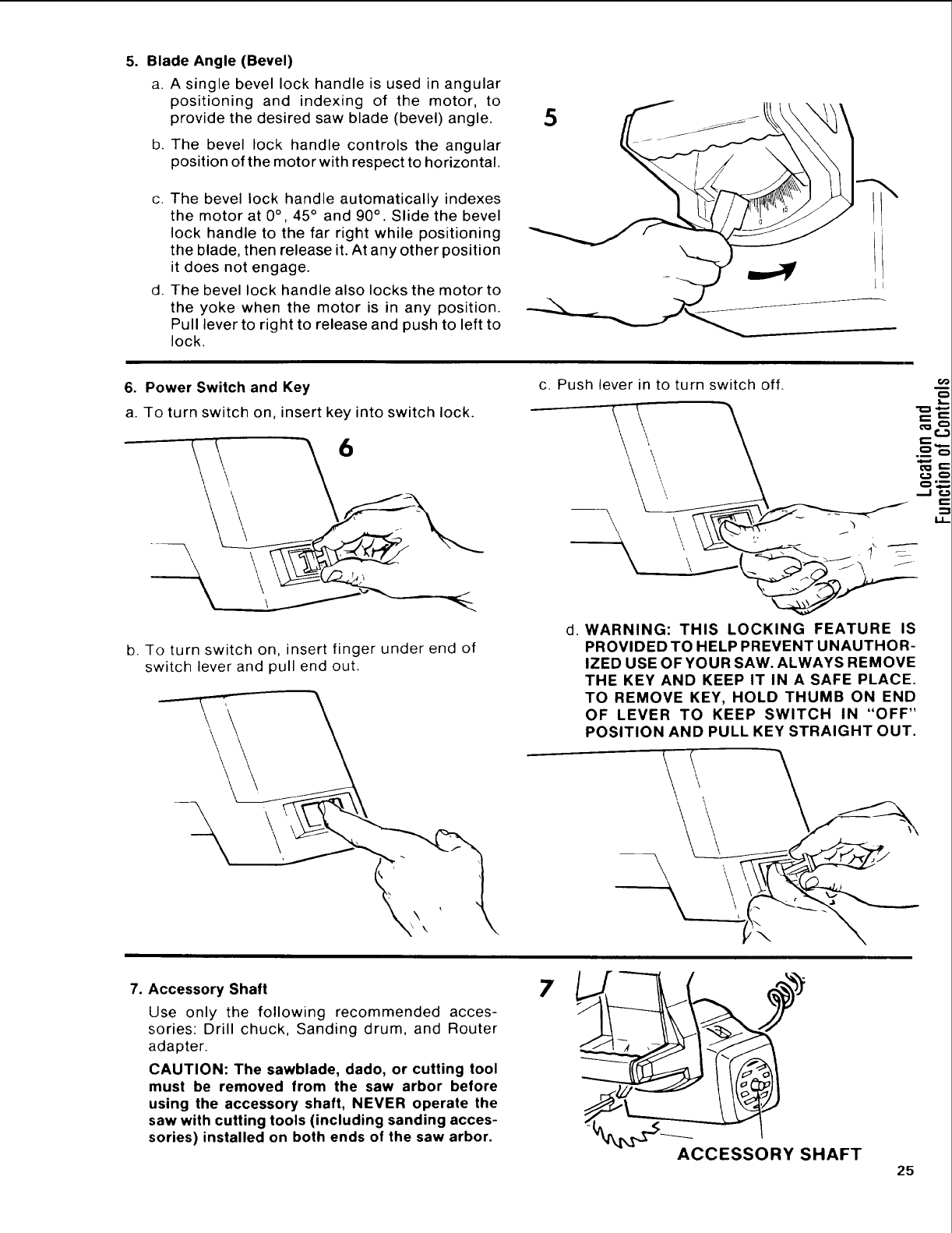

5. Blade Angle (Bevel)

a. A single bevel lock handle is used in angular

positioning and indexing of the motor, to

provide the desired saw blade (bevel) angle.

b. The bevel lock handle controls the angular

position of the motor with respect to horizontal.

c. The bevel lock handle automatically indexes

the motor at 0°, 45 ° and 90 °.Slide the bevel

lock handle to the far right while positioning

the blade, then release it. At any other position

it does not engage.

d. The bevel lock handle also locks the motor to

the yoke when the motor is in any position.

Pull lever to right to release and push to left to

lock.

6. Power Switch and Key

a. To turn switch on, insert key into switch lock.

b. To turn switch on, insert finger under end of

switch lever and pull end out.

c. Push lever in to turn switch off.

d. WARNING: THIS LOCKING FEATURE IS

PROVIDED TO HELP PREVENT UNAUTHOR-

IZED USE OF YOUR SAW. ALWAYS REMOVE

THE KEY AND KEEP IT IN ASAFE PLACE.

TO REMOVE KEY, HOLD THUMB ON END

OF LEVER TO KEEP SWITCH IN "OFF"

POSITION AND PULL KEY STRAIGHT OUT.

7. Accessory Shaft

Use only the following recommended acces-

sories: Drill chuck, Sanding drum, and Router

adapter.

CAUTION: The sawblade, dado, or cutting tool

must be removed from the saw arbor before

using the accessory shaft, NEVER operate the

saw with cutting tools (including sanding acces-

sories) installed on both ends of the saw arbor. ACCESSORY SHAFT 25

8. Blade Guard and Anti-Kickback/Spreader

Assembly - Positioning for Ripping.

WARNING: NEVER POSITION THE GUARD OR

ANTI-KICKBACK/SPREADER ASSEMBLY WITH

THE SAW RUNNING. NEVER POSITION THE ANTI-

KICKBACK/SPREADER ASSEMBLY BY GRASPING

THE PAWLS OR SPREADER. TO MAINTAIN

SPREADER ALIGNMENT, USE THE TAB LOCATED

ON THE ANTI-KICKBACK BAR.

a. The blade guard is positioned by loosening

the guard clamp screw and rotating the guard

so that the "nose" just clears the workpiece as

shown.

MINIMUM

_6 ......

INFEED

DIRECTION NOSE OF

GUARD

GUARD CLAMP

SCREW

OUTFEED

_/ SIDE

This adjustment is necessary to:

1) Protect the operator from accidentally con-

tacting the sawblade from the "infeed"

direction

2) Prevent the workpiece from being lifted

from the table by the sawblade thus mini-

mizing lifting or fluttering (particularly with

thin and/or light workpieces).

3) Minimize sawdust from being thrown toward

the operator.

The anti-kickback and spreader assembly is

adjustable to accommodate the thickness of

the board being ripped.

For ripping the anti-kickback and spreader

assembly is positioned by loosening the wing

screw and, with the tab provided, positioning

the anti-kickback and spreader assembly until

the pawls assume approximately the position

shown. Tighten the wing screw.

Make sure by trial - without saw running -

before starting the cut that the anti-kickback

pawls will stop a kickback once it has started.

Insert workpiece alongside spreader under

outer set of pawls byapproaching pawls in the

feed direction. Push workpiece sharply in the

direction of a kickback (opposite direction of

feed). Readjust pawls if they do not stop the

kickback motion by biting into the workpiece.

If the leading edge of the workpiece does not

feed smoothly under the pawls, the spreader

may be set too deeply. Loosen the wing screw,

raise the spreader slightly, retighten the screw,

recheck workpiece in-feed and kickback pawl

function.

These adjustments when properly made will:

1) Reduce possibility of kickbacks by prevent-

ing the kerf from closing on the sawblacle.

2) Prevent "wrong-way feed". "Wrong-way

feed" is feeding the workpiece - when the

sawblade is in a rip position - into the out

feed side of the cutting tool (sawblade,

dado, molding head, etc), the side contain-

ing the anti-kickback pawls/spreader. This

can be extremely hazardous because the

sawblade may grab the workpiece and throw

ANTIKICKBAC K,SPREADER

WING SCREW

GUARD CLAMP

SCREW

CK BAR

SPREADER

ANTIKICKBACK PAWL

I_ DIRECTION OF

FEED

QI I

DIRECTION OF KICKBACK ANTIKICKBACK PAWL POSITION

it violently toward the nose of the guard

(infeed side of the tool) possibly pulling

your hand with it before you can react. See

Danger label on outfeed side of the guard

just below the dust elbow.

"Wrong-way feed" differs from kickback". A

"kickback" is generated by the sides (one or

both) of the teeth, because of binding

between the fence (heel), pinching of the

sides of the sawblade (failure to use

spreader), a dull blade, and/or inadequate

set of teeth of sawblade.

3) Actas a partial guard regarding accidental

contact with the sawblade at the outfeed

side when ripping.

For crosscutting the anti-kickback and spreader

assembly is positioned by loosening wing screw.

With the tab provided position the anti-kickback

spreaders assembly until the pawls just clear ',he

workpiece or fence which ever is higher.

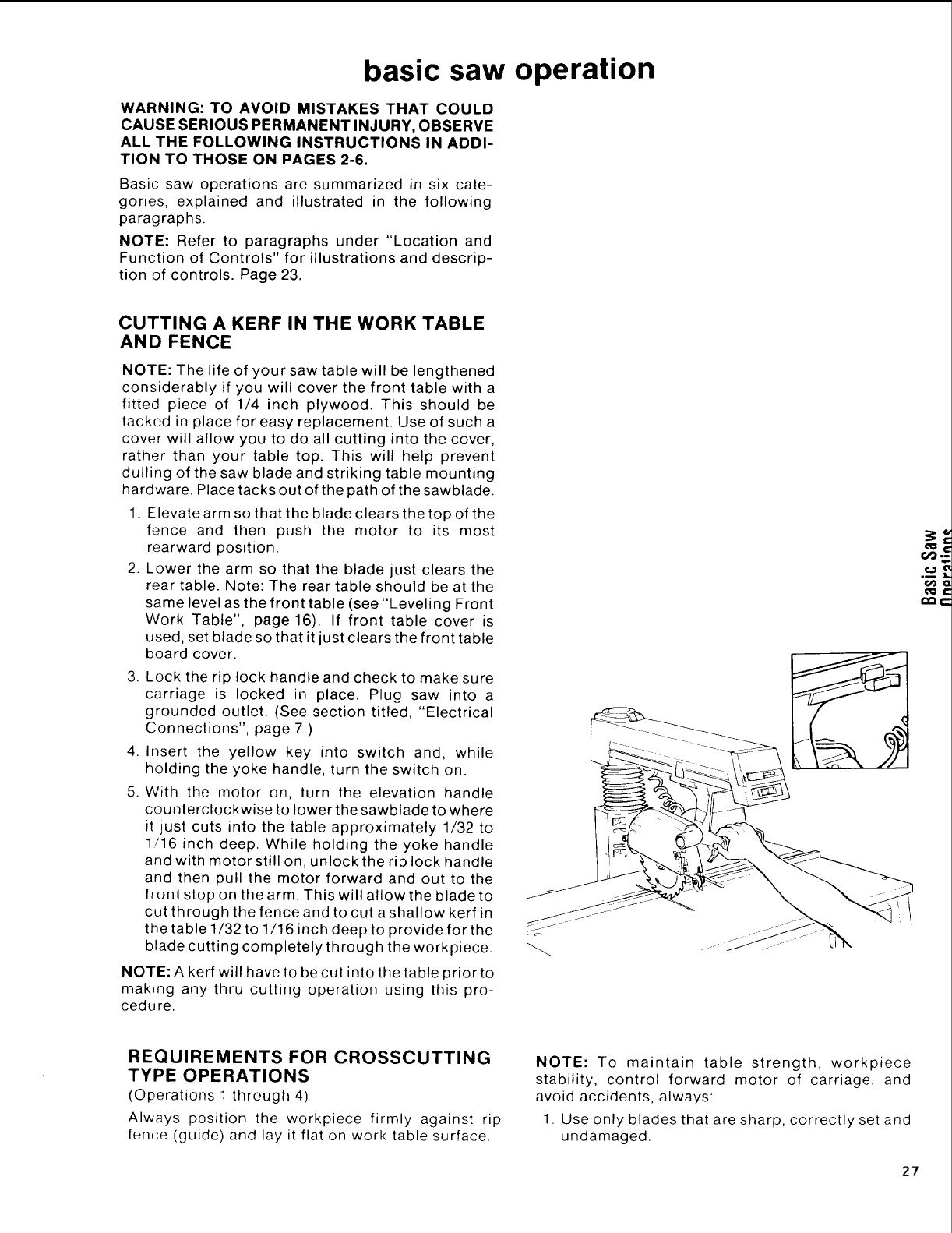

basic saw operation

WARNING: TO AVOID MISTAKES THAT COULD

CAUSE SERIOUS PERMANENT INJURY, OBSERVE

ALL THE FOLLOWING INSTRUCTIONS IN ADDI-

TION TO THOSE ON PAGES 2-6.

Basic saw operations are summarized in six cate-

gories, explained and illustrated in the following

paragraphs.

NOTE: Refer to paragraphs under "Location and

Function of Controls" for illustrations and descrip-

tion of controls. Page 23.

CUTTING A KERF IN THE WORK TABLE

AND FENCE

NOTE: The life of your saw table will be lengthened

considerably if you will cover the front table with a

fitted piece of 1/4 inch plywood. This should be

tacked in place for easy replacement. Use of such a

cover will allow you to do all cutting into the cover,

rather than your table top. This will help prevent

dulling of the saw blade and striking table mounting

hardware. Place tacks out of the path of the sawblade.

1. Elevate arm so that the blade clears the top of the

fence and then push the motor to its most

rearward position.

2. Lower the arm so that the blade just clears the

rear table. Note: The rear table should be at the

same level as the front table (see "Leveling Front

Work Table", page 16). If front table cover is

used, set blade so that it just clears the front table

board cover.

3. Lock the rip lock handle and check to make sure

carriage is locked in place. Plug saw into a

grounded outlet. (See section titled, "Electrical

Connections", page 7.)

4. Insert the yellow key into switch and, while

holding the yoke handle, turn the switch on.

5. With the motor on, turn the elevation handle

counterclockwise to lower the sawblade to where

it just cuts into the table approximately 1/32 to

1/16 inch deep. While holding the yoke handle

and with motor still on, unlock the rip lock handle

and then pull the motor forward and out to the

front stop on the arm. This will allow the blade to

cut through the fence and to cut ashallow kerf in

thetable 1/32to 1/16 inch deepto provide for the

blade cutting completely through the workpiece.

NOTE:A kerfwill have to be cut into the table priorto

makJng any thru cutting operation using this pro-

cedure.

°_

REQUIREMENTS FOR CROSSCUTTING

TYPE OPERATIONS

(Operations 1 through 4)

Always position the workpiece firmly against rip

fence (guide) and lay it flat on work table surface.

NOTE: To maintain table strength, workpiece

stability, control forward motor of carriage, and

avoid accidents, always:

1. Use only blades that are sharp, correctly set and

undamaged.

2. Make sure the arbor nut is snug.

3. Clamp the guard in a horizontal position.

4. Lock the swivel lock handle. Make sure it is firmly

locked. (See page 24.)

5. Hold work firmly against table and fence. To

avoid tipping or throwing of workpieces thicker

than the fence is high, install a higher fence (at

least workpiece thickness). Always place the

fence in the most forward position (farthest from

the column support) compatible with the work-

piece being processed and the operation being

performed. With the carriage fully retracted, the

blade must not contact the workpiece when

placed against the fence, within the stated capa-

cities of you r saw. Do not confine the cutoff piece

with your hand, length stop or any other item.

The blade could throw it, causing an accident.

6. Keep hands well away from saw blade. Do not

place hands where sudden blade or workpiece

movement could cause hand to slip into the path

of the blade. Always keep the hand holding the

workpiece visible at all times.

10.

Lock the bevel lock handle. Make sure it is firmly

locked. (See page 25.)

Adjust the elevation so blade will cut into the

table cover or table not more than 1/32 inch.

To adjust the anti-kickback and spreader assem-

bly so the pawls just clear the workpiece and the

fence. (See page 26.)

Pull saw forward just enough to cut the lumber in

two, and then return the saw to its full rear

position. It is dangerous to pull blade too far out

beyond the piece being cut. When it is returned it

can pick up the board and throw it over the fence.

OPERATION NO. 1 - CROSSCUT

Crosscutting is the process of sawing across the

width of the workpiece by pulling the saw blade

through it and using the fence as a support for the

edge of the workpiece. Never crosscut free-hand.

WARNING: YOU WILL NOTICE THAT WHEN PULL-

ING THE SAW BLADE TOWARD YOU DURING

CROSSCUTTING THE BLADE TENDS TO FEED

ITSELF THROUGH THE WORKPIECE. THIS IS

DUE TO THE ROTATION OF THE BLADE. TO

CONTROL THIS YOU SHOULD DEVELOP THE

HABIT HOLDING YOUR RIGHT FOREARM IN LINE

WITH THE ARM OF THE SAW THROUGHOUT THE

CUT. ALSO MAKE SURE THE CARRIAGE BEAR-

INGS ARE ADJUSTED PROPERLY SO CARRIAGE

DOESN'T TRAVEL TOO FREELY.

OPERATION NO. 2 - MITER CROSSCUT

Miter crosscutting is the process of sawing across

the width of a workpiece at any angle other than a

90 ° (square) cut. The 45 ° miter angle is a popular

one, since two boards cut to 45 ° can be assembled

to form a 90 ° corner for producing a square or

DIRECTION _.

PROPER

(SEE ITEM "10" AT LEFT)

DIRECTION

OF TRAVEL° o - r_

IMPROPER

(SEE ITEM "10" AT LEFT)

rectangularframe.Theradialarmissetto adesired

angleof cut, swiveland bevelsettingsat 0° and

locked.Theworkpiecebeingcut is positionedand

heldfirmlyagainstthefenceandthecarriagepulled

forward along the radial arm just far enoughto

completethecut.Carriageshouldthenbereturned

to the full rearpositionand locked.Allowthesaw

bladeto cometo astopbeforeremovingthework-

piecefromthesawtable.

OPERATION NO. 3 -BEVEL CROSSCUT

Bevel crosscutting is the process of sawing at 90 °

(square) across the width of a workpiece with the

saw blade set to an angle other than 90 ° to the table.

The radial arm and yoke are indexed at 0 ° and

locked securely in place. The bevel is set to the

desired angle of cut and locked. The workpiece

being cut is positioned and held firmly against the

fence and the carriage is pulled forward along the

radial arm just far enough to complete the cut. The

carriage should then be returned to the full rear

position and locked. Allow the saw blade to come to

a stop before removing the workpieces from the saw

table.

OPERATION NO. 4 -

COMPOUND CROSSCUT

Compound crosscut is the combination of miter and

bevel crosscut. The radial arm and the angle of the

blade are set to produce the desired cut - the yoke is

indexed at 0 ° and locked. The workpiece is posi-

tioned and held firmly against the fence and the

carriage is pulled forward along the radial arm just

far enough to complete the cut. The carriage should

then be returned to the full rear position and locked.

Allow the blade to come to a stop before removing

the workpieces from the saw table.

REQUIREMENT WHEN RIPPING

(Operations 5 and 6)

WARNING: TO AVOID MISTAKES THAT COULD

CAUSE SERIOUS PERMANENT INJURY, OBSERVE

ALL THE FOLLOWING INSTRUCTIONS IN ADDI-

TION TO THOSE ON PAGES 2-6.

1. Make sure that the blade is sharp, correctly set

and undamaged.

2. Lock the rip lock handle. (See page 24).

3. Lock the radial arm at the 0 ° position.

4. Make sure the workpiece is kept in firm contact

with the fence and the table. The edge of the

board against the fence must be straight and will

not catch on kerfs in the fence. NEVER RIP

"FREEHAND" (without aid of fence).

5. Properly set the anti-kickback and spreader

assembly. Observe INSTRUCTIONS in paragraph

"Positioning guard and anti-kickback and

spreader assembly for ripping" under "Location

and Function of Controls" page 23.

6. Never rip pieces shorter than the diameter of the

blade.

7. When ripping narrow stock (less than 6 inches

but more than 2 inches between the guard and

the fence (guide) use a "PUSH STICK" (as

shown) so the workpiece is clear of the blade

before your hand reaches the guard. The end of

the workpiece to which the push stick or push

block (see below) is applied must be square to

the fence and table.

3/'4

8. When ripping stock 3/8" to 2" or less between the

guard and fence (guide) use an auxiliary fence

and push block. Make these work helpers to the

dimension shown.

a. Make the auxiliary fence using a piece of 3/8"

and 3/4" plywood. Fasten together with glue

and nails. 2-1

SLIGHTLY LESS THAN

THICKNESS OF WORKPIECE

UP TO 318" _, \

2" OR LESS

PUSH STICK I

NOTE: All dimensions in inches.

3/4" PLYWOOD

THIS FACE AND THIS

EDGE MUST BE PARALLEL

3/8" PLYWOOD 1

.5-1/2

b. Make the push block using a piece of 3/8" and

3/4" plywood.

THESE EDGES MUST

BE PARALLEL

3/8 _ -

2-1/2-

_--_--_ 3/8" PLYWOOD

5-1/8

3/4" PLYWOOD

X 1-1/4

2-1/2

3/8 3/8

NOTE: All dimensions in inches

NOTE: Since the push block is used with the

auxiliary fence the 4-3/4 inch dimension must be

held identical on both of the pieces.

The small piece of wood 3/8 inch x 3/8 inch x

2-1/2 inch should be GLUED to the plywood...

PUSH BLOCK AUXILIARY

FENCE

DO NOT USE NAILS. This is to prevent dulling

the sawblade in the event you cut into the push

block.

NOTE: To insure reliable support use only push

block and auxiliary fences that have not been

damaged by blade contact during use.

Position the handle at the edge of the plywood

and fasten together with glue and wood screws.

10.

11.

The push block should feed the stock being

ripped until the stock is clear of the rear of the

blade, and then pulled back with use of the grip.

When ripping narrower than 3/8 inch position the

saw blade to remove the narrow strip from edge

of workpiece furthest from the fence. (See out

ripping section below) Follow procedures as

above based on distance from blade to fence.

Keep HANDS away from the saw blade.

Saw blade must be parallel to fence to minimize

possibility of kickbacks.

OPERATION NO. 5 -

OUT-RIPPING AND IN-RIPPING

1. Ripping is the process of sawing the workpiece

along its length by feeding it into the sawblade

when using the fence as a guide and as a

positioning device to obtain the desired width of

cut. The sawblade is parallel to fence.

2. Since the work is pushed along the fence, it must

have a straight edge in order to make sliding

contact with the fence. Also, the work must make

solid contact with the table, so that it will not

wobble or kickback. Provide a straight edge, to

avoid kickback or binding, even if it means

temporarily nailing an auxiliary straight edge

board to the workpiece being ripped.

WARNING: IF THE WORKPIECE IS WARPED, DO

NOT ATTEMPT TO MAKE A CUT IF THE WORK-

PIECE WOBBLES OR ROTATES ON THE TABLE.

IT COULD BIND AND KICKBACK.

3. Always use the saw guard and make sure the

spreader is correctly aligned with the kerf and

the anti-kickback pawls are properly adjusted.

Wood cut with the grain tends to spring the kerf

closed and bind the blade and cause a kickback

or slip of your hand. Always adjust the spreader

to ride in the kerf and prevent the kerf from

closing.

4. Stand a little to one side of the blade to be clear of

workpiece in case of kickback.

5. Always push the workpiece past the blade so it is

clear of the blade. This procedure will help avoid

kickbacks. DO NOT TOUCH the cutoff piece

until the power is off and the blade has stopped

spinning.

IN-RIPPING

The radial arm and bevel are indexed at 0° and

locked, but the yoke is turned 90 degrees in a

clockwise direction (viewed from above) from the

crosscut position. Thus, when standing in front of

the saw, the blade would be rotating counterclock-

wise. After positioning the guard and anti-kickback

mechanism the workpiece is fed from the right-hand

side of the saw.

OUT-RIPPING

The radial arm and bevel are indexed at 0° and

locked, but the yoke is turned 90 degrees in a

counterclockwise direction (viewed from above),

from the crosscut position. When standing in front of

the saw, blade would be rotating clockwise. After

positioning the guard and anti-kickback mechanism

the workpiece is fed from the left-hand side of the

saw

OUT-RIPPING

IN-RIPPING

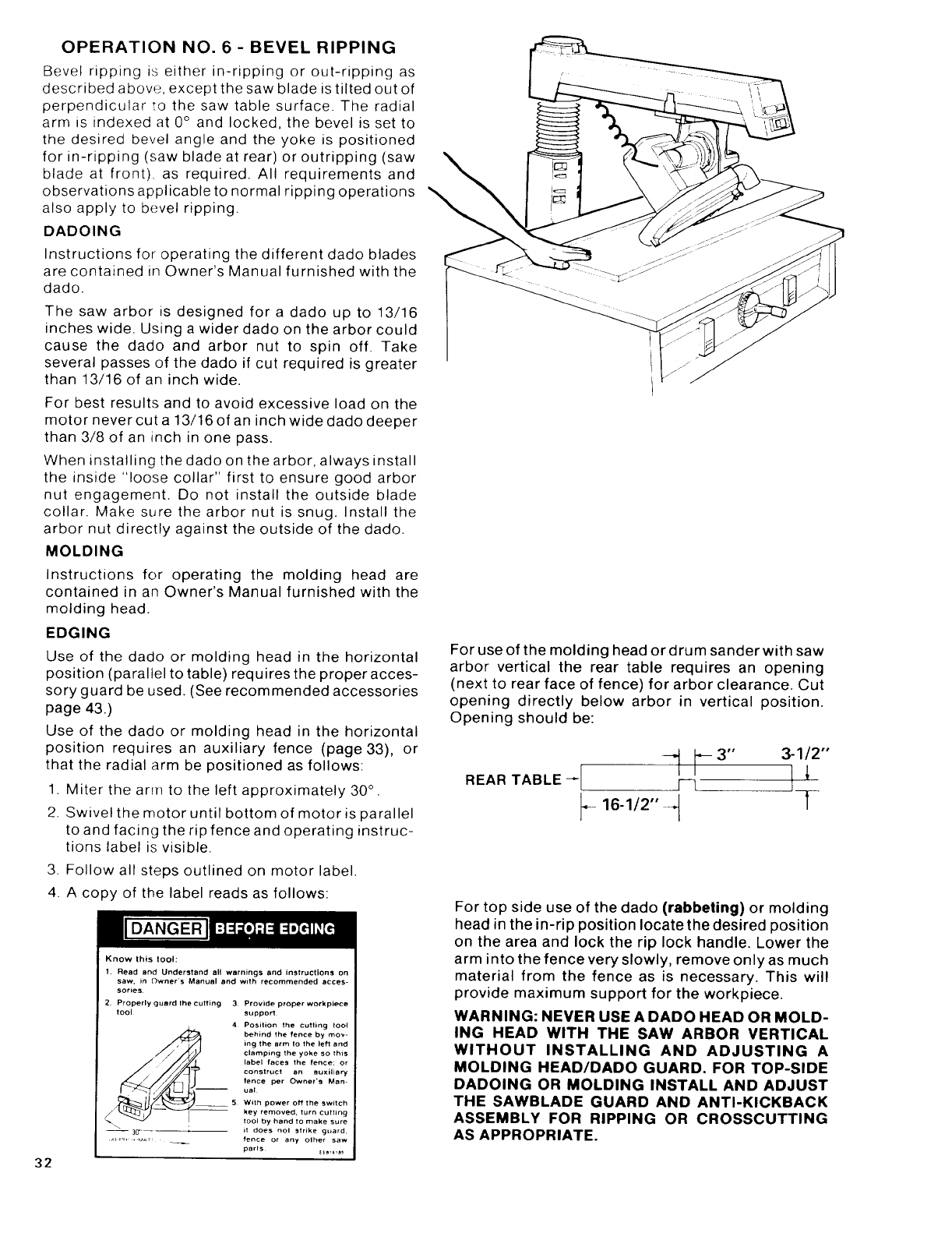

OPERATION NO. 6 -BEVEL RIPPING

Bevel ripping is either in-ripping or out-ripping as

described above, except the saw blade is tilted out of

perpendicular to the saw table surface. The radial

arm is indexed at 0 ° and locked, the bevel is set to

the desired bevel angle and the yoke is positioned

for in-ripping (saw blade at rear) or outripping (saw

blade at front), as required. All requirements and

observations applicable to normal ripping operations

also apply to bevel ripping.

DADOING

Instructions for operating the different dado blades

are contained in Owner's Manual furnished with the

dado.

The saw arbor is designed for a dado up to 13/16

inches wide. Using a wider dado on the arbor could

cause the dado and arbor nut to spin off. Take

several passes of the dado if cut required is greater

than 13/16 of an inch wide.

For best results and to avoid excessive load on the

motor never cut a 13/16of an inch wide dado deeper

than 3/8 of an inch in one pass.

When installing thedadoon the arbor, always install

the inside "loose collar" first to ensure good arbor

nut engagement. Do not install the outside blade

collar. Make sure the arbor nut is snug. Install the

arbor nut directly against the outside of the dado.

MOLDING

Instructions for operating the molding head are

contained in an Owner's Manual furnished with the

molding head.

EDGING

Use of the dado or molding head in the horizontal

position (parallel to table) requires the proper acces-

sory guard be used. (See recommended accessories

page 43.)

Use of the dado or molding head in the horizontal

position requires an auxiliary fence (page 33), or

that the radial arm be positioned as follows:

1. Miter the arm to the left approximately 30 ° .

2. Swivel the motor until bottom of motor is parallel

to and facing the rip fence and operating instruc-

tions label is visible.

3. Follow all steps outlined on motor label.

4. A copy of the label reads as follows:

[DANGER

Know this took

1. Read and Understand all warnings and instructions on

2. Properly guard Ihe cutting 3. Provide proper workplace

tool support.

4 Posilion the curling tool

/_ behind the fence by mov-

ing the arm to the lefl and

clamping the yoke so this

label faces the fence; or

construct an auxiliary

fence per Owner's Man-

ual

5 With power Off the switch

key removed, turn cutting

, tool by hand to make sure

--3(7 _t does nol strike guard,

_,_,_ ,_ _fence or any olher saw

paris Ee_,6,_

For use of the molding head or drum sander with saw

arbor vertical the rear table requires an opening

(next to rear face of fence) for arbor clearance. Cut

opening directly below arbor in vertical position.

Opening should be:

REAR TABLE _ 1 b 3" 3-1/2"

_,- 16-1/2" -_ [

For top side use of the dado (rabbeting) or molding

head in the in-rip position locate the desired position

on the area and lock the rip lock handle. Lower the

arm into the fence very slowly, remove only as much

material from the fence as is necessary. This will

provide maximum support for the workpiece.

WARNING: NEVER USE A DADO HEAD OR MOLD-

ING HEAD WITH THE SAW ARBOR VERTICAL

WITHOUT INSTALLING AND ADJUSTING A

MOLDING HEAD/DADO GUARD. FOR TOP-SIDE

DADOING OR MOLDING INSTALL AND ADJUST

THE SAWBLADE GUARD AND ANTI-KICKBACK

ASSEMBLY FOR RIPPING OR CROSSCUTTING

AS APPROPRIATE.

AUXILIARY FENCE FOR MOLDING

To use the molding head with the arm in the 0°

crosscut position an auxiliary fence must be used.

WARNING: IF THE AUXILIARY FENCE IS NOT

USED WHEN THE SAW ARM IS IN THE0 ° CROSS-

CUT POSITION, THE MOLDING HEAD CANNOT

BE LOCATED BEHIND THE FENCE FOR SAFE

AND PROPER OPERATION.

Make the auxiliary fence from a piece of knot free

pine. Cut to the following dimensions.

183/4 '' i I

_ 181/4"

I"45_ _'_ 45_ 21/="

Follow the instructions that are contained in an

Owner's Manual furnished with the molding head.

For use of the molding head or drum sander with saw

arbor vertical the rear table requires an opening

(next to rear face of fence) for arbor clearance. Cut

opening directly below arbor in vertical position.

Opening should be:

REAR TABLE-- --_F-_3"" 3"1/f_ "'2 1

When using the accessory shaft, the guard, saw

blade, dado, mold head or other cutting tool must be

removed from the saw arbor before using the acces-

sory shaft. Never operate the saw with cutting tools

(including sanding accessories, buffing wheels and

drill chuck) installed on both ends of the saw arbor.

To use the accessory shaft in the vertical position it

is necessry to swivel the motor 90 ° before beveling

the motor so the accessory shaft is in vertical

AUXILIARY FENCE

\SPACER TABLE

REAR TABLE

position. This is done so the blade arbor will be _

positioned under the arm for maximum protection to _ E

the operator. As illustrated.

adjustments to compensate for wear

ADJUSTING BEVEL LOCK LEVER

The purpose of this lever is to lock the motor at any

bevel angle. An adjustment is required if the motor

can be easily moved by hand when lever is locked or

bevel lock lever offers minimal resistance when

moving lever to the locked position. To make this

adjustment:

1. Remove motor support cover.

2. Position motor at approximately 30 ° bevel angle

and lock bevel lock lever.

3. With a 3/4 socket tighten the 1/2-13 hex nut

located at the back of the motor support casting

untilthe motor can no longer be easily moved by

hand. Do not overtighten.

4. Unlock bevel lock lever and move motor to any of

the five index positions. If the motor does not

index securely the adjustment is too tight. Loosen

1/2-13 hex nut until bevel index pin seats properly.

5. Adjustmentis completewhenbothlockingand

indexingfunctionsareworkingproperly.Replace

motorsupportcover.

ADJUSTING SWIVEL LOCK HANDLE

This handle provides a friction lock between the

upper face of the yoke and the bottom face of the

carriage. It should eliminate any play or rotation

between these two parts when locked. An adjustment

is required if the yoke can be easily rotated by hand

when handle is locked or yoke lock handle offers

minimal resistance when moving handle to the

locked position. To make this adjustment:

1. With a 1/2 wrench or socket remove six (6) 5/16-

18 hex head tapping screws and separate track

from arm as illustrated.

2. Slide yoke assembly from track. Keep carriage in

line with track until rip lock mechanism clears

end of track.

3. With a 15/16 wrench or socket tighten the 5/8-11

hex nut until maximum effort is required to place

yoke lock handle in the locked position.

4. Unlock yoke lock handle and swivel yoke to an

unindexed position. Return yoke to an indexed

position. If the yoke does not index securely the

adjustment is too tight. Loosen 5/8-11 hex nut

until swivel index pin seats properly.

5. Adjustment is complete when both locking and

indexing functions are working properly.

6. Slide carriage onto track starting with rip lock

mechanism. Keep carriage in line with track until

all of the bearings are on the track. Be careful not

to catch the wipers on the edge of the track.

7. Re-attach track to arm using six (6) 5/16-18 hex

head tapping screws.

ADJUSTING ARM TO COLUMN

With the miter lock handle unlocked and in the

unindexed position the arm should fit snugly to the

column tube and not allow any vertical movement. If

you can move the end of the arm up and down and

adjustment is needed.

1. With a #2 phillips screwdriver remove two screws

and the rear arm cover as illustrated.

2. With a 9/16 inch wrench or socket tighten evenly

the top two 3/8-16 hex head tapping screws. The

bottom two screws should also be tightened

evenly but not as tight as the top screws.

3. This adjustment is correct when the arm moves

firmly without vertical movement.

4. Re-install the rear arm cover.

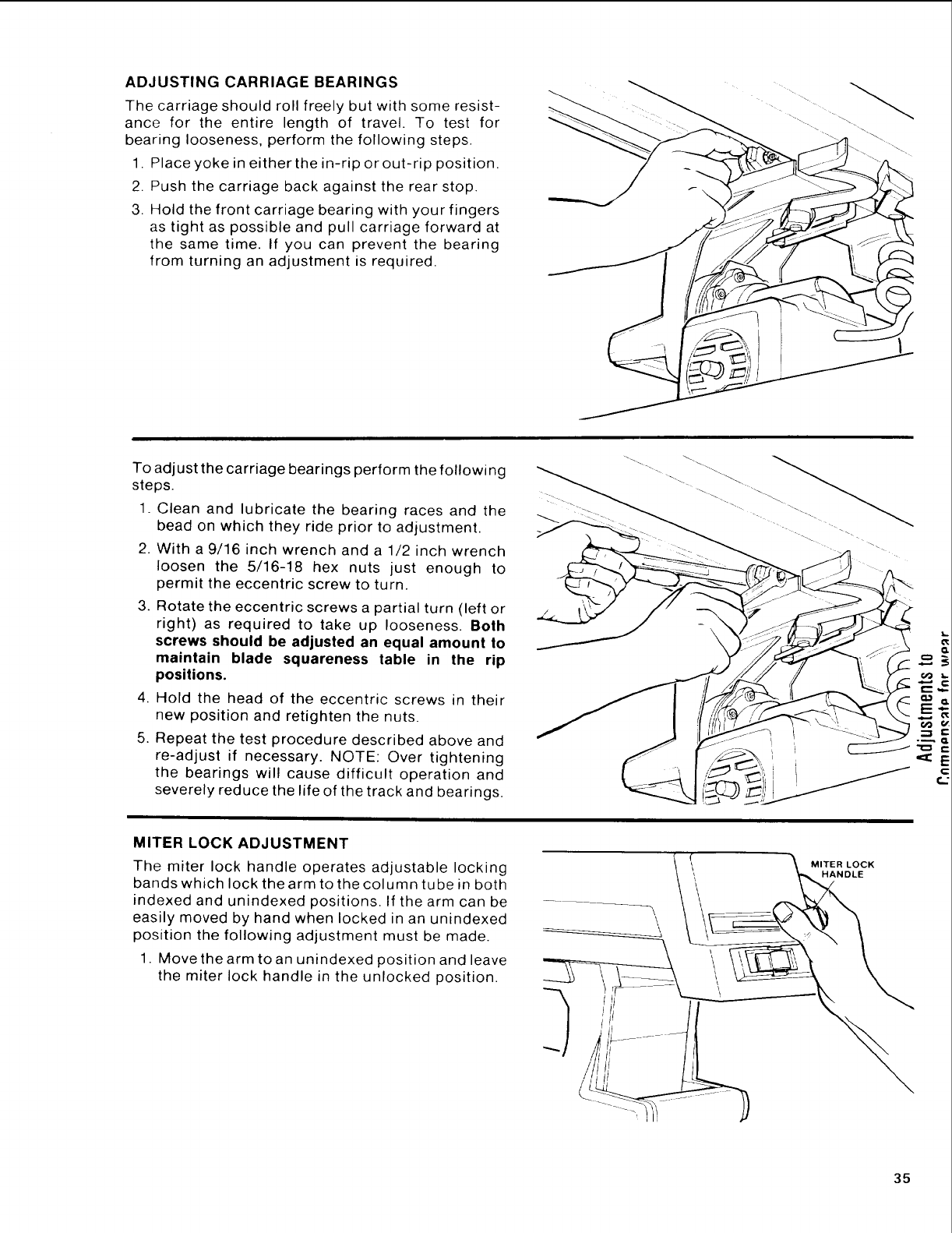

ADJUSTING CARRIAGE BEARINGS

The carriage should roll freely but with some resist-

ance for the entire length of travel. To test for

bearing looseness, perform the following steps.

1. Place yoke in eitherthein-rip orout-rip position.

2. Push the carriage back against the rear stop.

3. Hold the front carriage bearing with your fingers

as tight as possible and pull carriage forward at

the same time. If you can prevent the bearing

from turning an adjustment is required.

To adjust the carriage bearings perform the following

steps.

1. Clean and lubricate the bearing races and the

bead on which they ride prior to adjustment.

2. With a 9/16 inch wrench and a 1/2 inch wrench

loosen the 5/16-18 hex nuts just enough to

permit the eccentric screw to turn.

3. Rotate the eccentric screws a partial turn (left or

right) as required to take up looseness. Both

screws should be adjusted an equal amount to

maintain blade squareness table in the rip

positions.

4. Hold the head of the eccentric screws in their

new position and retighten the nuts.

5. Repeat the test procedure described above and

re-adjust if necessary. NOTE: Over tightening

the bearings will cause difficult operation and

severely reduce the life of the track and bearings.

t,_ tat

.=_._=

"_E

MITER LOCK ADJUSTMENT

The miter lock handle operates adjustable locking

bands which lock the arm to the column tube in both

indexed and unindexed positions. If the arm can be

easily moved by hand when locked in an unindexed

position the following adjustment must be made.

1. Move the arm to an unindexed position and leave

the miter lock handle in the unlocked position.

MITER LOCK

HANDLE

2. With a 3/16 inch hex "L" wrench find the 1/4-20

hex socket cap screw through the hole in the rear

arm cover. To tighten turn the wrench clockwise

approximately 1/4 turn.

3. Lock the miter lock handle and try again to move

the arm. Readjust if necessary.

4. If it becomes extremely difficult to push the miter

lock handle into the locked position too much

adjustment has been made. Turn the wrench

counterclockwise one half the amount of the last

adjustment and try again to lock the arm.

F- (

b i

•@

RIP LOCK ADJUSTMENT

The rip lock handle locks the carriage in any position

along the length of the track. If the carriage can be

easily moved by pushing and pulling on the yoke

handle when the rip lock handle is in the locked

position an adjustment is required.

1. Hold the rip lock handle in the unlocked position

and with a 7/16 inch wrench tighten the 1/4-20

hex lock nut 1/4 turn as illustrated.

2. Lock the rip lock handle and try again to move

the carriage. Make additional adjustments if

necessary.

3. Now place the rip lock handle in the unlocked

position and move the carriage back and forth

from stop to stop. If the carriage is difficult to

move at any point or you can feel the rip lock

dragging on the track the adjustment is too tight.

Loosen the hex nut one half the amount of the

last adjustment and try again.

ARM

RIP LOCK

LEVER

TRACK

_LOCKNUT

SPRING /

CAM CARRIAGE

BOLT

trouble-shooting

HAVE YOU FOLLOWED ALL SIX STEPS OF

THE ALIGNMENT PROCEDURE? IF YOU

HAVE NOT FOLLOWED THEM IN THEIR

PROPER SEQUENCE, YOU CANNOT

EXPECT A CCURA TE CUTTING RESUL"I S.

In addition to the proper alignment of your saw, you

must also become familiar with the following prac-

tices in order to expect the best results.

1. Edge of workpiecewhich is placed against fence

must be as straight as the long side of your

framing square.

2 Workpiecemust be as flat as the front table board

on your saw.

3 There must be no sawdust or other wood chips

between the fence and the front table board.

4 There must be no sawdust or other wood chips

underneath workpiece or between workpiece

and fence.

5 Workpiece must be held tightly against fence

and down against the table.., this is especially

important when making angle cuts because the

workpiece has a tendency to move.

6. Always use the correct sawblade for the job...

Always keep it sharp.

7. When making a four sided frame:

a. The two side pieces must be exactly the same

length.

b. The top and bottom pieces must be exactly the

same length.

c. Always place the same edge of the workpiece

against the fence.., turn the workpiece end

for end for the successive cuts and mark a

pencil line on the table for gauging the required

length.

Deviation from any of the above practices will

have an effect on the accuracy of the cuts that

you make.

WARNING: REMOVE POWER CORD FROM POWER

SOURCE BEFORE TROUBLE SHOOTING.

NOTE: Changing one adjustment will effect another,

so it is best to perform all of the alignment procedures

when correcting any one problem.

The usual operating "troubles" are listed in the

following paragraphs with the necessary corrections

listed.

THIS EDGE OF BOARD FENCE

AGAINST FENCE FOR ALL CUTS

Turn workpiece over end for end.., keep same edge

against fence when making successive cuts.

PENCIL LINE FOR

GAUGING REQUIRED LENGTH

_T SCRAP

t,,,,,-

°m

t,,-,

I,,,--

I--

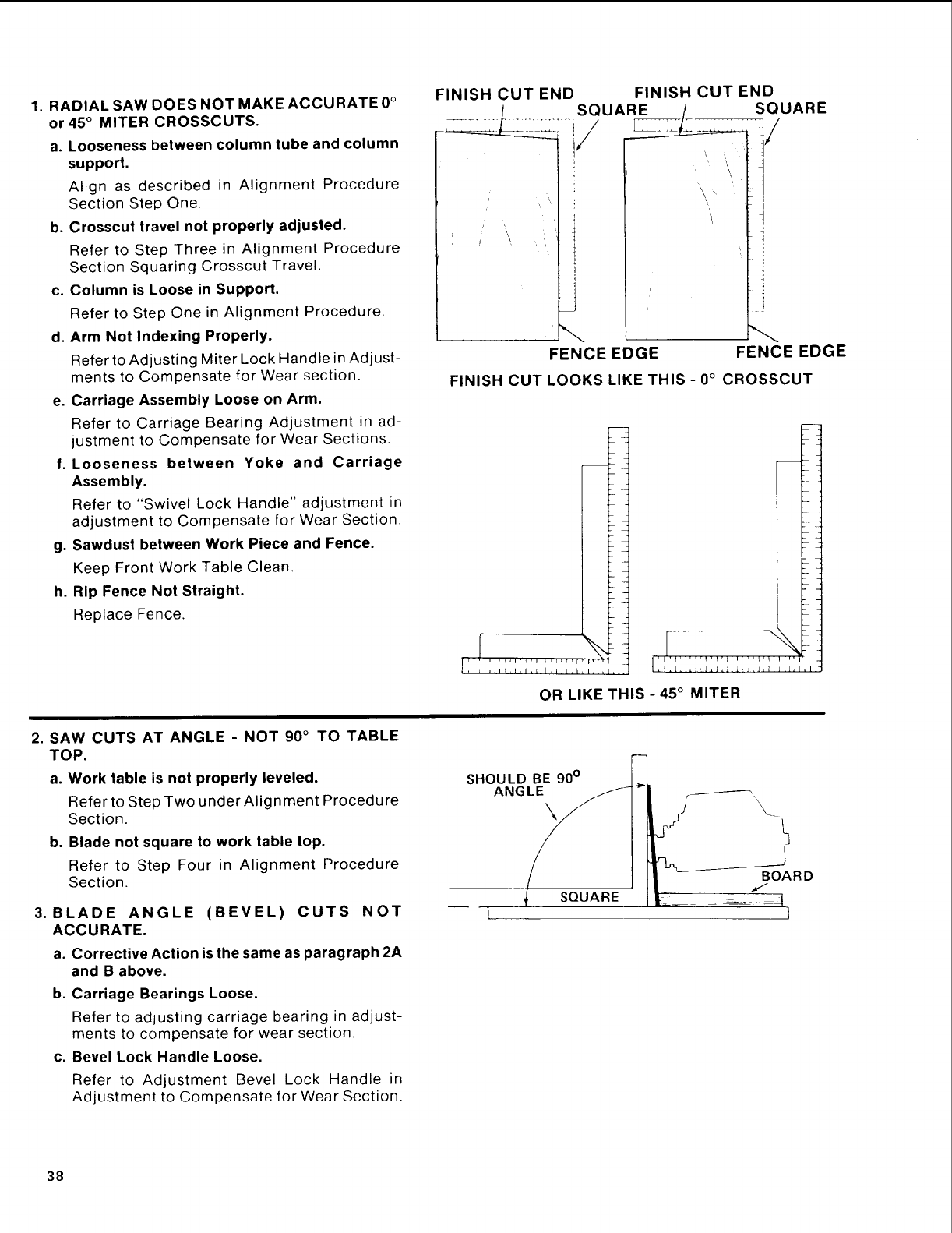

1. RADIAL SAW DOES NOT MAKE ACCURATE0 °

or 45 °MITER CROSSCUTS.

a. Looseness between column tube and column

support.

Align as described in Alignment Procedure

Section Step One.

b. Crosscut travel not properly adjusted.

Refer to Step Three in Alignment Procedure

Section Squaring Crosscut Travel.

c. Column is Loose in Support.

Refer to Step One in Alignment Procedure.

d. Arm Not Indexing Properly.

Refer to Adjusting Miter Lock Handle in Adjust-

ments to Compensate for Wear section.

e. Carriage Assembly Loose on Arm.

Refer to Carriage Bearing Adjustment in ad-

justment to Compensate for Wear Sections.

f. Looseness between Yoke and Carriage

Assembly.

Refer to "Swivel Lock Handle" adjustment in

adjustment to Compensate for Wear Section.

g. Sawdust between Work Piece and Fence.

Keep Front Work Table Clean.

h. Rip Fence Not Straight.

Replace Fence.

FINISH CUT END FINISH CUT END

SQUARE /SQUARE

: \

)

-... -....

FENCE EDGE FENCE EDGE

FINISH CUT LOOKS LIKE THIS - 0° CROSSCUT

j Ti/J,],l,l.i ,i,i, r,T,r

OR LIKE THIS - 45°MITER

2. SAW CUTS AT ANGLE - NOT 90°TO TABLE

TOP.

a. Work table is not properly leveled.

Refer to Step Two under Alignment Procedure

Section.

b. Blade not square to work table top.

Refer to Step Four in Alignment Procedure

Section.

3. BLADE ANGLE (BEVEL) CUTS NOT

ACCURATE.

Corrective Action is the same as paragraph 2A

and B above.

Carriage Bearings Loose.

Refer to adjusting carriage bearing in adjust-

ments to compensate for wear section.

Bevel Lock Handle Loose.

Refer to Adjustment Bevel Lock Handle in

Adjustment to Compensate for Wear Section.

SHOULD BE 90 °

ANGLE

SQUARE

BOARD

4. SAW KERF (CUT EDGE) OF STOCK ROUGH

-TOOTH MARKS LEFT ON EDGE OF SAW

KERF.

NOTE: This condition is commonly called "HEEL".

a. Crosscutting or Miter Cutting.

"Heeling" will tend to slide the workpiece

along the guide fence, as the cut is being

made, and make a square cut almost impos-

sible.

Refer to step 5 under Alignment Procedure

Section - "Squaring Blade to Fence."

b. Bevel Crosscutting Or Bevel Ripping.

Refer to Step 5 Under Alignment Procedure

Section Vertical Heel Adjusting.

c. Using Improper Blade for Finish Cut Desired.

Use Proper Smooth Cutting Blade.

RO U G H KER F _--_..____: WlD E

--EDGE ---J _L (:El

FENCE

CUT

(KERF) _

J_ jf_-

___ Y

*-- BLADE "HEELING"

:o,z¢c;o.OF//i

- BLADE TRAVELII t/

DIRECTION OF

BLADE TRAVEL

5. WOOD BINDS, SMOKES AND MOTOR SLOWS

DOWN OR STOPS WHEN RIPPING.

a. Dull blade or warped board.

Sharpen or replace the saw blade. Do not use

severely warped material.

b. Feed rate too fast.

Slow Feed Rate.

c. Saw blade heels.

Check and align as described in Alignment

Procedure Section, Step Five.

d. Fence not straight.

Replace fence.

e. Carriage Assembly Loose on Arm.

Refer to adjusting carriage bearings in adjust-

ments to compensate for wear section.

6. BOARD P 'LS AWAY FROM FENCE WHEN

RIPPING.

a. Saw Blade has heel.

Corrective action is the same as preceding

instructions explained in paragraph c.

7. WORKPIECE STRIKES SPREADER WHEN

RIPPING.

a. Adjust spreader per instructions in Step Six

under "Adjusting Anti-Kickback Pawls and

Spreader".

8. SAW DOES NOT TRAVEL SMOOTHLY ON ARM

TRACK.

a. Dirty Track.

Clean Track, and Lubricate with Light Grease.

b. Bad Bearing.

Replace Bearing.

c. Worn Track.

Replace Track.

IN RIP POSITION

TOP VIEW WITH ARM 90 °TO THE FENCE

HEELT' RIGHT:

INCORRECT

\\\/

NOT PARALLEL

WITH FENCE

FEE°

FENCE iDIRECTION

BLADE I

HEEL TO LEFT:

INCORRECT

FENCE I

----EO UAL

P RAL EL I

WITH FENCE [x_

CORRECT

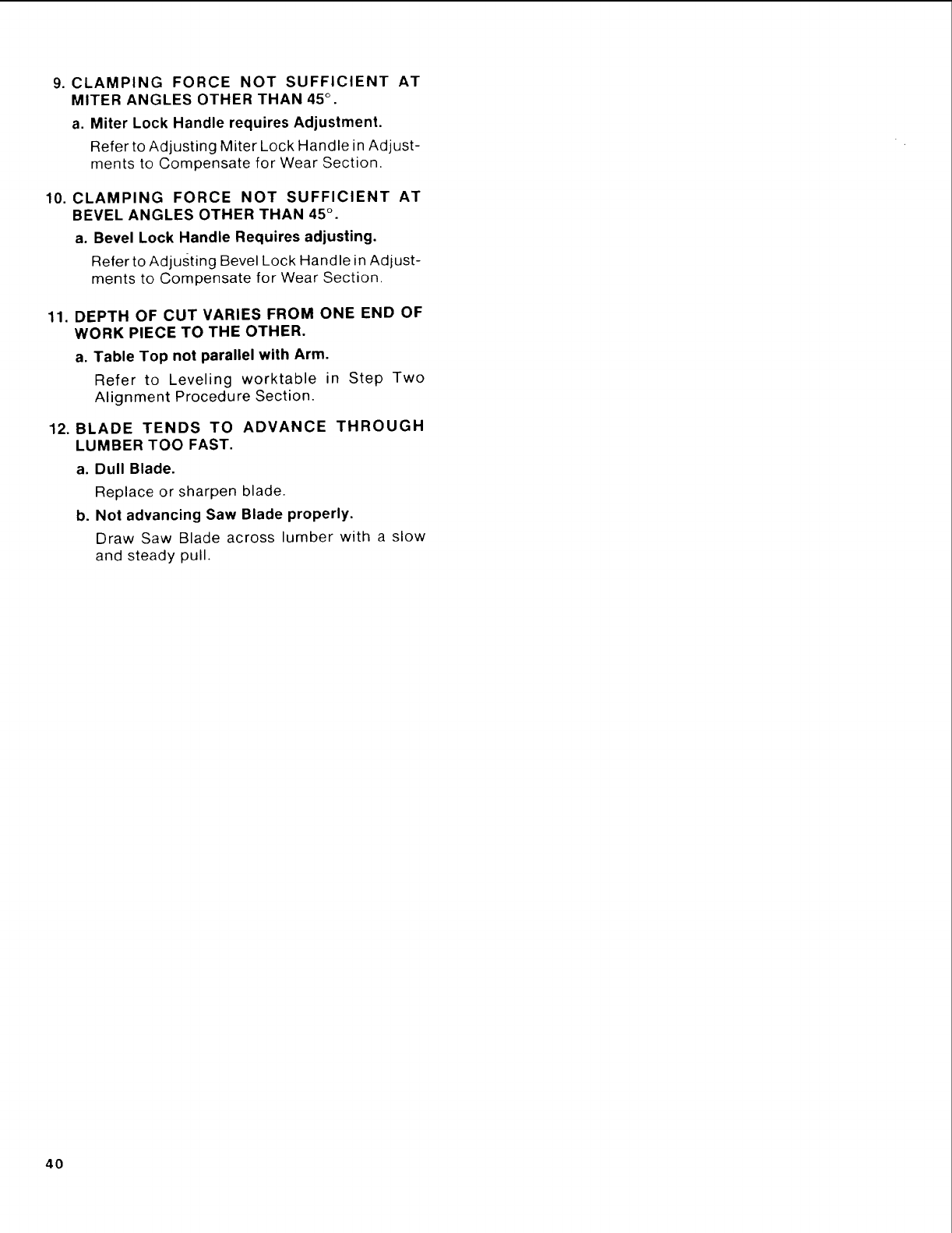

9. CLAMPING FORCE NOT SUFFICIENT AT

MITER ANGLES OTHER THAN 45°.

a. Miter Lock Handle requires Adjustment.

Refer to Adjusting Miter Lock Handle in Adjust-

ments to Compensate for Wear Section.

10. CLAMPING FORCE NOT SUFFICIENT AT

BEVEL ANGLES OTHER THAN 45 °.

a. Bevel Lock Handle Requires adjusting.

Refer to Adjusting Bevel Lock Handle in Adjust-

ments to Compensate for Wear Section.

11. DEPTH OF CUT VARIES FROM ONE END OF

WORK PIECE TO THE OTHER.

a. Table Top not parallel with Arm.

Refer to Leveling worktable in Step Two

Alignment Procedure Section.

12. BLADE TENDS TO ADVANCE THROUGH

LUMBER TOO FAST.

a. Dull Blade.

Replace or sharpen blade.

b. Not advancing Saw Blade properly.

Draw Saw Blade across lumber with a slow

and steady pull.

MOTOR TROUBLE-SHOOTING CHART

NOTE: Motors used on wood-working tools are

particularly susceptible to the accumulation of

sawdust and wood chips and should be blown out or

"vacuumed" frequently to prevent interference with

normal motor ventilation.

TROUBLE

Motor will not run.

Motor will not run and

fuses "BLOW".

Motor fails to develop

full power. (Power

output of motor

decreases rapidly with

decrease in voltage at

motor terminals. For

example: a reduction of

10% in voltage causes a

reduction of 19% in

maximum power output

of which the motor is

capab e.

Motor overheats.

Motor starts slowly or

fails to come up to full

speed.

Motor stalls (resulting in

blown fuses or tripped

circuit breakers).

Frequent opening of

fuses or circuit

, breakers.

PROBABLE CAUSE

1. Low voltage.

1. Short circuit in line,

cord or plug.

2. Short circuit in motor or

loose connections.

3. Incorrect fuses in power

line.

Power line overloaded

with lights, appliances

and other motors.

Undersize wires or circuit

too long.

General overloading of

power company's facilities

(in many sections of the

country, demand for

electrical power exceeds

the capacity of existing

generating and distribution

systems.)

1. Excessive feed rate when

crosscutting or ripping.

2. Improper cooling. (Air

circulation restricted

through motor due to

sawdust, etc.)

3. Saw blade has "heel".

1. Low Voltage - will not trip

starting switch.

1. Voltage too low to permit

motor to reach operating

speed.

2. Fuses or circuit breakers

do not have sufficient

capacity.

1. Motor overloaded.

2. Fuses or circuit breakers

do not have sufficient

capacity.

SUGGESTED REMEDY

1 Check power line for proper voltage.

1. nspect line, cord and plug for damaged

insulation and shorted wires.

2. Inspect all terminals in motor for loose or

shorted terminals or worn insulation on wires.

3. Install correct fuses.

1. Reduce the line load.

2. Increase wire sizes, or reduce length of wiring.

3. Request a voltage check from power company.

1. Slow down rate of feed.

!2. Clean out sawdust to provide normal air

circulation through motor.

3. Refer to Alignment Procedure Section of

manual Step Five.

1. Correct low voltage condition.

1. Correct the low line voltage condition.

Replace fuses or circuit breakers with proper

capacity units.

Reduce motor load.

Replace fuses or circuit breakers.

t--

G.1

I--

maintenance and lubrication

MAINTENANCE

WARNING: FOR YOUR OWN SAFETY, TURN

POWER SWITCH "OFF" AND REMOVE PLUG FROM

POWER SOURCE OUTLET BEFORE MAINTAINING

OR LUBRICATING YOUR SAW.

When you receive your new Craftsman radial saw, it

requires no lubrication. The radial saw has been

partially aligned and all bearings are lubricated and

sealed for life. In time, however, in order to keep your

saw in perfect working order and accurate, it will be

necessary to lubricate and realign. In fact your radial

saw needs more of a cleaning than a lubrication.

Make sure the teeth of the ANTIKICKBACK pawls

(key #9 on p. 53) are always sharp. If they become

dull they must be replaced. With a 1/2 inch wrench or

socket remove the 5/16 hex nut and old pawls.

Reassemble new pawls and spreader to antikickback

bar. Check spreader for proper align ment and correct

if necessary. (Follow procedure on page 22.)

CLEANING

Periodically remove any heavy build-up of sawdust

that may accumulate on the saw. The absorbing

tendency of sawdust will draw lubricants away from

the areas where they are needed. Clean the carriage

bearings and tracking surfaces. If packed sawdust

and grease accumulate repeatedly on carriage bear-

ings and track inspect the wipers (key #4 p. 51) for

wear and replace if necessary. (For access to wipers

see "swivel lock adjustment" p. 34.)

CAUTION: To avoid motor damage the motor should

be blown out or vacuumed frequently to prevent

sawdust build-up which will interfere with normal

motor ventilation.

PERIODICALLY LUBRICATE THESE POINTS

Use SAE No. 10W-30 automotive engine oil and refer

to parts list for locations. Apply a few drops of oil

along the swivel index pin and the bevel index pin

only if the pins have a tendency to stick. Swivel to

in-rip or out-rip for easy access to the swivel index

pin. Bevel saw to 45 ° and bevel index pin can be

easily accessed behind the yoke as illustrated.

Lubricate the bearing points where the arm attaches

to the column tube. With a #2 phillips screwdriver

remove two screws and the rear arm cover for access

to these points. Be careful not to get lubricant on the

locking rings as this will adversely affect the miter

locking function.

LUBRICATION

Your saw is precision built and should be kept

properly lubricated. Before describing the various

points which may periodically require lubrication, IT

IS MORE IMPORTANT TO FIRST MENTION THE

POINTS WHICH SHOULD NOT BE LUBRICATED.

NO LUBRICATION REQUIRED

Do not lubricate the carriage ball bearings or motor

bearings as these are sealed ball bearings and

require no added lubrication. Do not lubricate

between the miter locking rings and the column tube

(keys #5 & 9, p. 47).

LOCKING RING

A lightfilmof oil shouldbewipedon thefaceof the

columntubeto lubricatethefit betweenthecolumn

tubeandcolumnsupport.Withelevationcrankraise

armto upperlimit.Completelycollapsebellowsby

pullingdownontopflangeasillustratedfor access

to columntube.

Thethreadontheelevationshaftassemblycanbe

lubricatedthroughthe oil holein the centerofthe

radialarmcap.Lubricaterampontheswivelindex

spring.

CAUTION: Excessive oil at any location will attract

airborne dust particles and sawdust.

recommended accessories

ITEM CAT. NO.

Sawblades (10" diameter with

with 5/8" hole) ...................... See Catalog

Caster .................................. 9-22254

Sanding Drum ............................ 9-25246

Drill Chuck and Key ........................ 9-2980

Dust Collector ........................ See Catalog

Molding Head Guard 8". ................... 9-29523

Taper Jig ................................. 9-3233

Auxiliary Table Cover ................. See Catalog

Miter Square ............................. 9-32056

Pin Router ............................... 9-32765

Extension Table .......................... 9-32787

Satin Cut Dado

7". ...................................... 9-3257

8". ...................................... 9-3253

8" Carbide ................................ 9-3264

Standard Cut Dado

8". ..................................... 9-32475

ITEM CAT. NO.

Adjustable Dado

7", 24 Tooth Carbide ....................... 9-3261

7", 32 Tooth Carbide ....................... 9-3262

7", 16 Tooth Carbide ....................... 9-3263

8", 48 Tooth Carbide ...................... 9-32708

Molding Heads

7". Bits not included ........................ 9-3214

7", 27 Piece Set ............................ 9-3217

7", 15 Piece Set ............................ 9-3218

Sanding Wheel, 10" . ...................... 9-22723

Blade Stabilizer ............................ 9-4952

Cabinet Accessories

Shelf .................................... 9-22251

Door ..................................... 9-22252

3Drawer Set .............................. 9-22253

*eLower Retractable Guard

(For 90 ° Crosscut Only) .................. 9-29009

The above recommended accessories are current

and were available at the time this manual was

printed.

*NOTE: This lower retractable-guard is designed to provide

additional protection to the operator in an axial

direction to the sawblade (perpendicular to the

plane of the sawblade).

(a) When NOT in the cut (guards in full down

position (touching the table) and carriage in full

rear position behind fence):

(b) When saw is set up to perform 90 ° crosscut

operations (sawblade 90 ° to table surface and

arm in 90 ° crosscut position).

The lower retractable guard will NOT provide protec-

tion to the operator, either crosscutting or ripping:

(a) Axially when in the cut, because the inner and

outer guards ride on top of the fence or workpiece

during the cutting operation, exposing the teeth

of the sawblade;

(b) Radially (in a direction in line with the cutting

teeth);

blade), between the axial and radial directions.

Power Tool Know How Handbook ....... See Catalog

•Meets OSHA Requirements as of 8-73

Potential risks of injury may be introduced if the

lower retractable guard is used for other than 90 °

crosscut operations, including:

(a) Becoming caught or jammed in prior kerfs in the

fence or table;

(b) Giving the operator a false sense of security

when performing miter, bevel, and rip cuts;

for bevel and compound miter cuts.

(d) Jamming for certain in-rip cuts.

The following warning appears on the Lower Outer

Guard: i

WARNING:

TO AVOID INJURY

SHUT OFF POWER

BEFORE CLEARINGA

JAMMED LOWER GUARD

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW

MODEL NO. 113.198310

1 4

51 /32

816

20 19

\'_ _ ,,7

37 16 38

36 _

49 •2237 43 44

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW

MODEL NO. 113.198310

Always order by Part Number -Not by Key Number

FIGURE 1

Key Part

No. No. Description

1 STD601103

STD551010

815857-1

815649

815777

816333-1

7 815778

10 806828-2

11 60128

12 1815797

13 1141594-31

14 _37384

15 !815762

16 1815989

17 STD532512

18 815834

19 STD551225

20 STD541025

21 815990

22 STD522506

23 STD551012

24 !STD541425

25 815832

26 815797

27 446188

*Screw, Pan Rec.

Type T 10-32 x 3/8

*Washer, Flat

13/64 x 17/32 x 1/16

Screw, Hex Washer Hd.

3/8-16 x 1-1/2

Bearing, Arm

Scale, Miter

Screw, Pan Rec. Hd.

Type "TT" 10-32 x 1/2

Indicator, Miter

Arm Assembly (see Fig. 5)

Table Boards Set (see Fig. 7)

Screw, Pan Cross Ty T

1/4-20 x 1-1/4

Washer, 17/64 x 5/8 x 1/32

Screw, Pan Hd. Rec.

Type AB 1/4 x 1-1/4

Screw, Hex Socket Set

1/4-20 x 1-1/4

Nut, Tee

Bushing, Rubber

Clip, "U" 1/4-20

*Bolt, Carriage 1/4-20 x 1-1/4

Bushing, Eccentric

*Lockwasher, External 1/4

*Nut, Hex 1/4-20

Button, Table Slide

*Screw, Hex Hd. 1/4-20 x 5/8

*Washer 17/64 x 9/16 x 1/32

*Nut, Lock 1/4-20

Rod, Actuator

Screw, Pan Hd. Rec.

Type AB 1/4 x 1-1/4

Washer, 17/64 x 3/4 x 1/16

Key Part

No. No. Description

815939

815986

31 815856-1

32 815980

33 60208

34 815774

35 816115

36 815764

37 802279-8

38 802955-7

39 62410

40 815869

41 STD611010

42 STD601103

43 815753

44 815922

45 815881

46 815766

49 815935

805589-5

815773

SP5015

5O7497

507495

Rail Assembly, L.H.

Rail Assembly, R.H.

Yoke and Motor Assembly

(see Fig. 3)

Guard Assembly (see Fig. 6)

Screw, Hex Wash Hd.

5/16-18 x 1-1/4

Bushing

Nut, Push 1/4

Rivet 1/4 x 1/2

Cord with Plug

Bracket, Pivot

Bushing

Ring, Push-On

Cap, Trim L.H.

*Screw, Pan Rec,

Type "B" No. 10 x 1

*Screw, Pan Rec. Hd.

Type "T" #10-32 x 3/8

Cover, Lever

Ledge, Trim

Cap, Trim R.H.

Lever, Lock

Base and Column Assembly

(see Fig. 2)

Cabinet Assembly (see Fig. 8)

Screw Pan Hd. Ty "BT"

1/4 x 1/2

Screw, Truss Hd. 1/4-20 x 1/2

Cover, Rear Arm

Owners Manual (Not Ills.)

Bag of Loose Parts (Not Ills.)

*Standard Hardware Item may be Purchased Locally.

OZ.

¢Z:

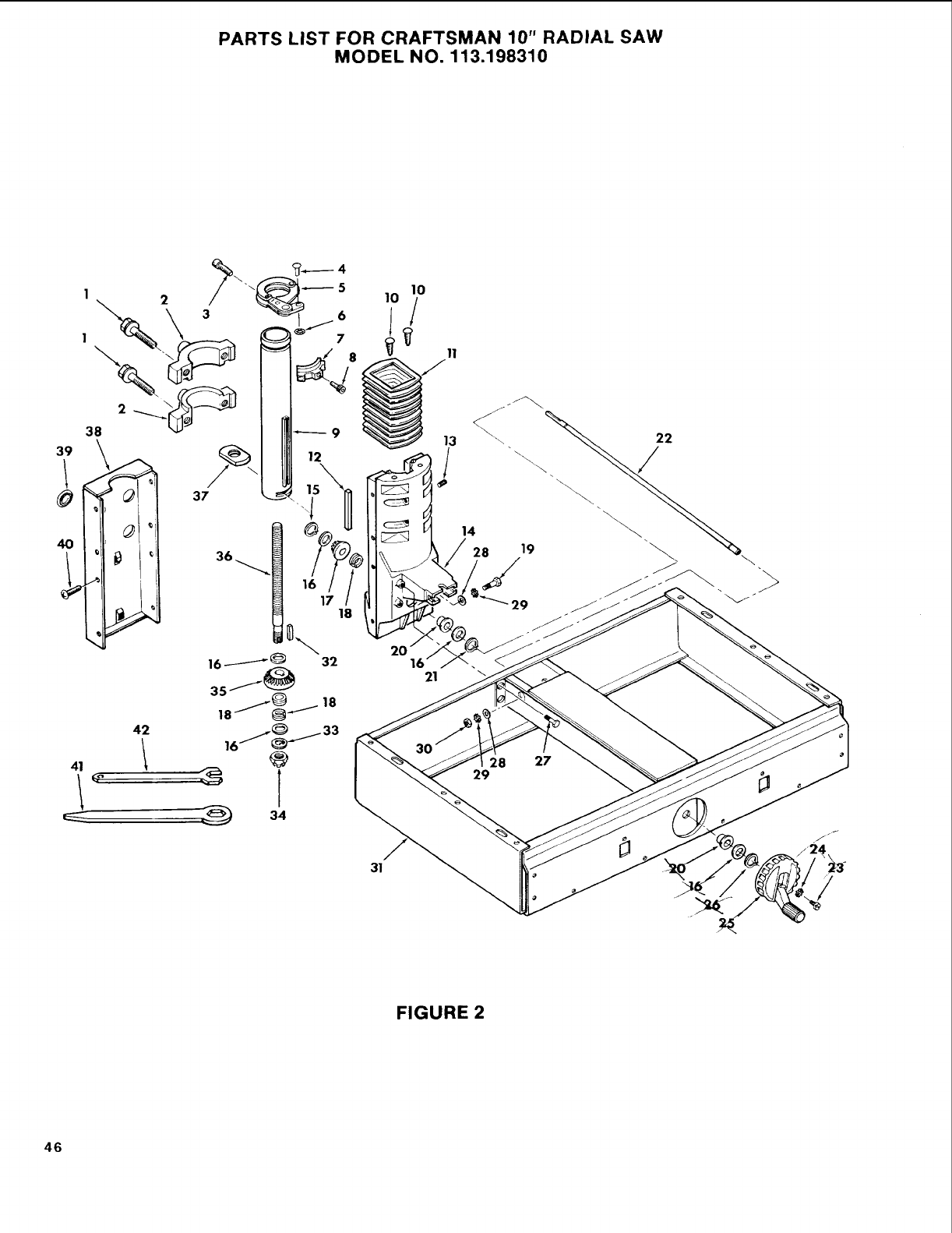

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW

MODEL NO. 113.198310

1 2

liJ11

28 27

FIGURE 2

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW

MODEL NO. 113.198310

Always order by Part Number - Not by Key Number

FIGURE 2 -BASE AND COLUMN ASSEMBLY

Key

No. Description

Part

No,

!815857-1

815649

1141594-31

4 815774

5 !815702

6 60208

7 815763

8 816845-1

9 _815672

10 330751

11 815754

12 :815770

13 !60531

14 815690

15 STD581043

16 63500

17 63618

18 63614

19 !STD523107

2O 815772

Screw, Hex Washer Hd.

3/8-16 x 1-1/2

Bearing, Arm

*Screw, Socket Hd. Cap

1/4-20 x 1-1/4

Rivet, 1/4 x 1/2

Lock Assembly

Nut, Push 1/4

Latch Arm

Screw, Soc. Hd.

Ty T 1/4-20 x 3/4

Tube

Fastener

Bellows, Tube

Gib, Column Tube

Screw, Locking Set 1/4-20

Support, Column Tube

*Ring, Retaining 7/16

Washer, Thrust

.502 x .927 x .031

Gear, Pinion

Bearing Lift Shaft

*Screw, Hex Hal.

5/16-18 x 3/4

Bushing, Elevation

Key Part

No. No.

21 STD582050

22 815699

23 STD511105

24 STD551210

25 815707 j.

,.26 804182 _

27 9416187

28 STD551031

29 STD551131

30 STD541031

31 815646-2

32 805049-1

33 39711

34 STD541450

35 63615

36 815700

37 815771

38 815864

39 816102

40 815273

41 3540

42 63062

Description

*Ring, Retaining 1/2

Shaft, Elevating Crank

*Screw, Pan Hd. 10-32 x 1/2

*Lockwasher, External #10

Handwheel

*Ring, Retaining

Screw, Hex Hd. Ty "T"

5/16-18 x 3/4

*Washer, 21/64 x 3/4 x 1/16

*Lockwasher, External 5/16

*Nut, Hex 5/16-18

Base Assembly

Key, Square 1/8 x 3/8

Washer, Keyed

*Nut, Lock 1/2-13

Gear, Bevel

Shaft, Elevating

Nut, Elevation

Cover, Column Support

Plug

Screw, Truss Rec. Hd.

1/4-20 x 1/2

Wrench, Arbor

Wrench, Shaft

*Standard Hardware Item may be Purchased Locally.

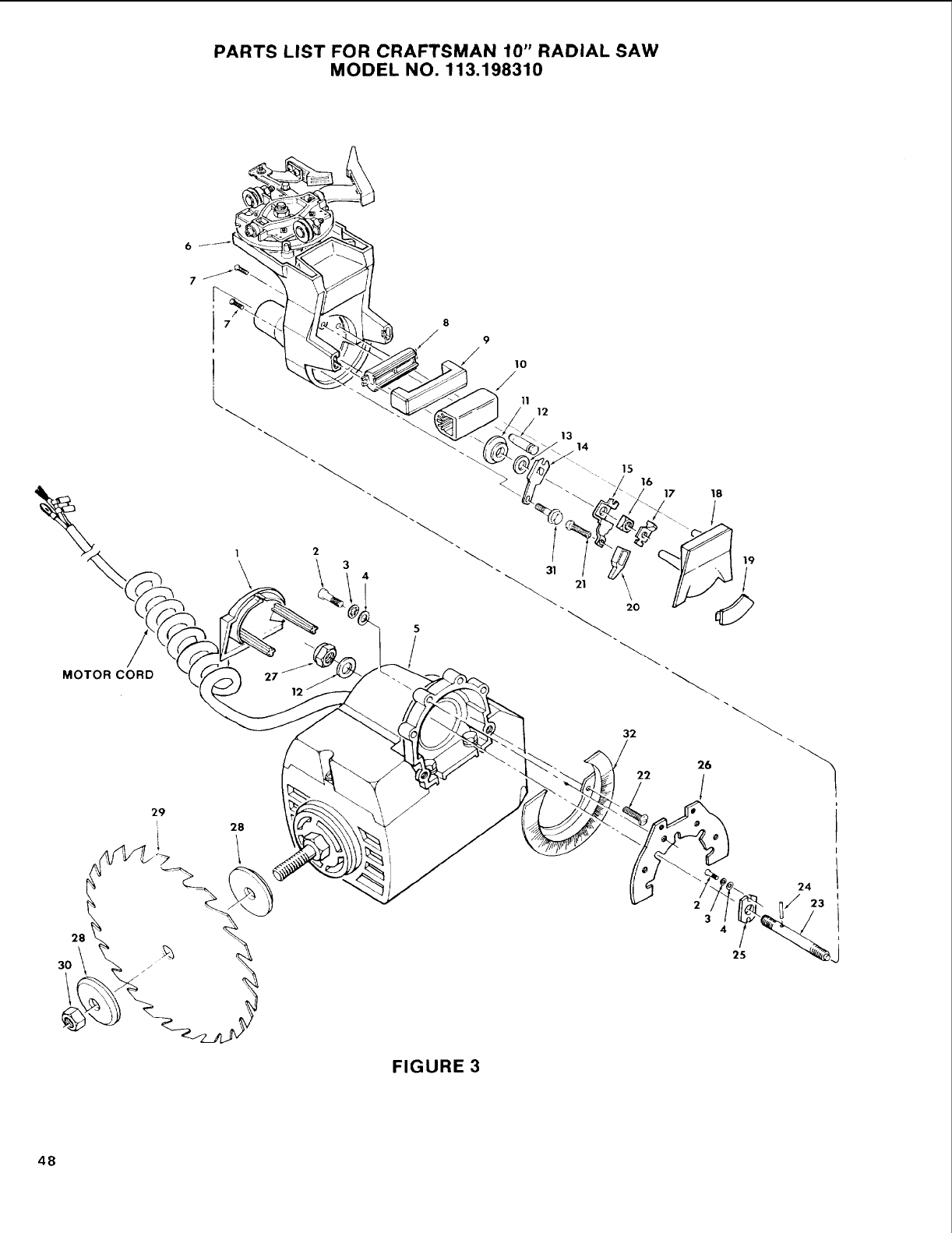

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW

MODEL NO. 113.198310

MOTOR CORD

/12

_. 13 14

FIGURE 3

21 \

34!

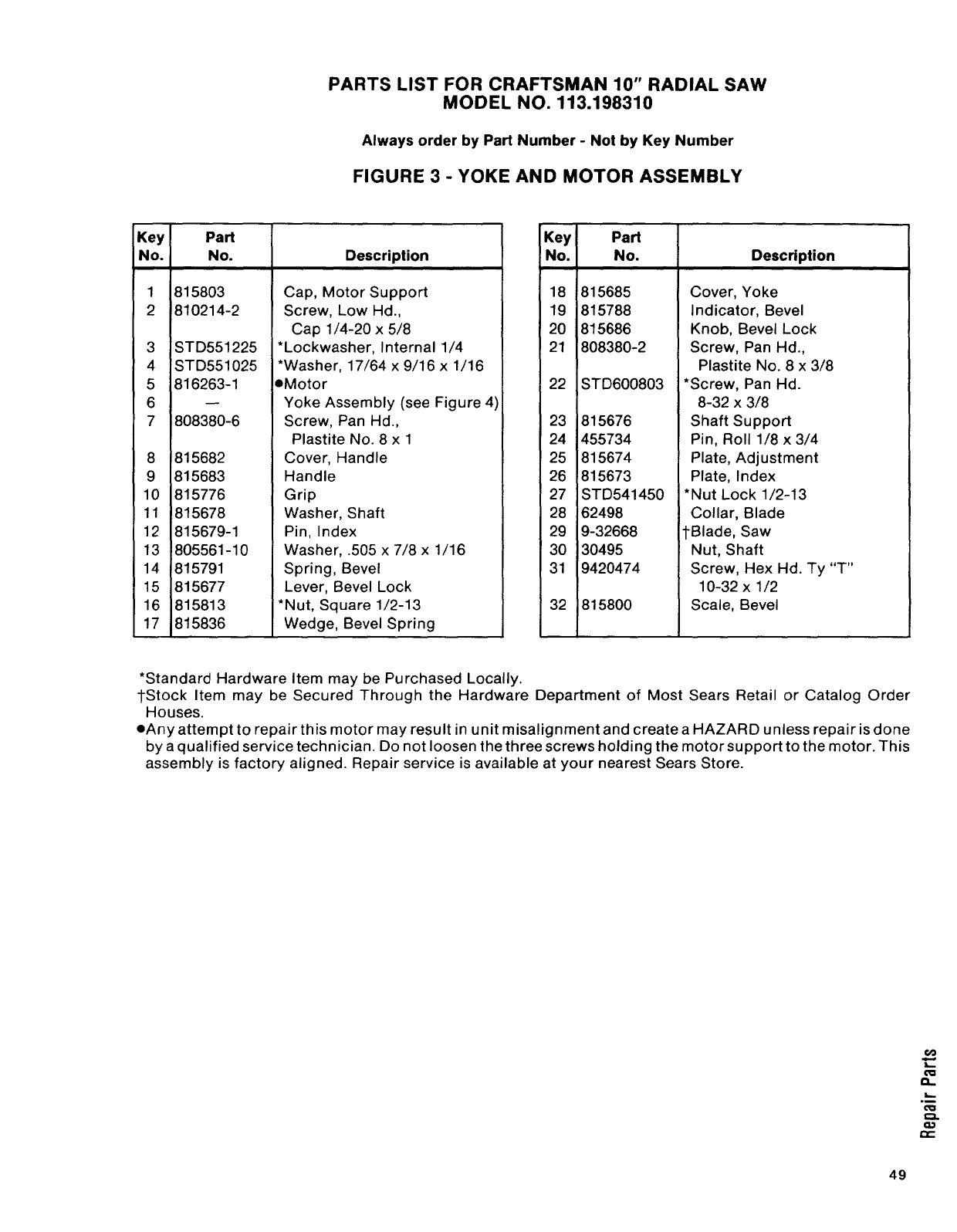

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW

MODEL NO. 113.198310

Always order by Part Number - Not by Key Number

FIGURE 3 - YOKE AND MOTOR ASSEMBLY

Key Part

No. No. Description

1 815803

2 810214-2

3 STD551225

4 STD551025

5 816263-1

7 808380-6

8 815682

9 815683

10 815776

11 815678

12 815679-1

13 805561-10

14 815791

15 815677

16 815813

17 815836

Cap, Motor Support

Screw, Low Hd.,

Cap 1/4-20 x 5/8

*Lockwasher, Internal 1/4

*Washer, 17/64 x 9/16 x 1/16

eMotor

Yoke Assembly (see Figure 4)

Screw, Pan Hd.,

Plastite No. 8 x 1

Cover, Handle

Handle

Grip

Washer, Shaft

Pin, Index

Washer, .505 x 7/8 x 1/16

Spring, Bevel

Lever, Bevel Lock

*Nut, Square 1/2-13

Wedge, Bevel Spring

Key Part

No. No. Description

18 815685 Cover, Yoke

19 815788 Indicator, Bevel

20 815686 Knob, Bevel Lock

21 808380-2 Screw, Pan Hd.,

Plastite No. 8 x 3/8

22 STD600803 *Screw, Pan Hd.

8-32 x 3/8

23 815676 Shaft Support

24 455734 Pin, Roll 1/8 x 3/4

25 _115674 Plate, Adjustment

26 5673 Plate, Index

27 STD541450 *Nut Lock 1/2-13

28 62498 Collar, Blade

29 9-32668 1-Blade, Saw

30 30495 Nut, Shaft

31 9420474 Screw, Hex Hd. Ty "T"

10-32 x 1/2

32 815800 Scale, Bevel

*Standard Hardware Item may be Purchased Locally.

-j-Stock Item may be Secured Through the Hardware Department of Most Sears Retail or Catalog Order

Houses.

eAny attempt to repair this motor may result in unit misalignment and create a HAZARD unless repair is done

by aqualified service technician. Do not loosen the three screws holding the motor support to the motor. This

assembly is factory aligned. Repair service is available at your nearest Sears Store.

a..

Q,3

p,,-

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW

MODEL NO. 113.198310

23 21 20

38 25

FIGURE 4

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW

MODEL NO. 113.198310

Always order by Part Number -Not by Key Number

FIGURE 4 -YOKE ASSEMBLY

Key

No.

Part

No.

810214-3

STD315485

STD551031

815808

815805

815806

159572-98

815689

STD551062

815817

STD541462

62636

815693

STD541425

273229

816497

815671

'815804

815692

STD532507

808380-2

Description

Screw, Low Hd.

Cap 5/16-18 x 7/8

*Bearing, Ball .3150 I.D.

*Washer, 21/64 x 5/8 x 1/32

Wiper, Track

Support Indicator

Indicator Rip

Screw, Hex Wash

Ty "T" 8-32 x 1/4

Carriage

*Washer, .630 x 1-1/8 x 3/32

Nut, Sq. Lock

*Nut, Lock 5/8-11

Nut, Sq. 1/4-20

Bracket, Rip Lock

*Nut, Lock 1/4-20

Screw, Hex Hd.

Type "T" 1/4-20 x 1/2

Spring, Rip Lock

Cam, Rip Lock

Knob, Rip Lock

Lever, Rip Lock

,*Bolt, Carriage 1/4-20 x 3/4

Screw, Pan Hd.,

Plastite No. 8 x 3/8

Key Part

No. No. Description

22 _STD541231

23 STD551131

24 1815691

25 STD551012

26 815798

27 810214-2

28 1815645

29 815681

30 ISTD510803

31 815849

32 109529

33 815679

34 815680

35 9420474

36 '815694

37 STD551031

38 63777

39 60438

40 815807

*Nut, Hex Jam 5/16-18

*Lockwasher, External 5/16

Ring, Yoke Index

*Washer, 17/64 x 7/16 x 1/32

Lockwasher, High Collar 1/4

Screw, Low Hd.,

Cap 1/4-20 x 5/8

Yoke

Knob, Swivel Lock

*Screw, Pan Rec. Hd.

8-32 x 3/8

Lever, Swivel

Nut, Square 5/8-11

Pin, Index

Spring, Swivel

Screw, Hex Type "T"

10-32 x 3/8

Stud, Yoke Clamp

*Washer, 21/64 x 3/4 x 1/16

Bearing, Carriage

Washer, No. 2 Carriage

Bearing

Screw, Eccentric

*Standard Hardware Item may be Purchased Locally.

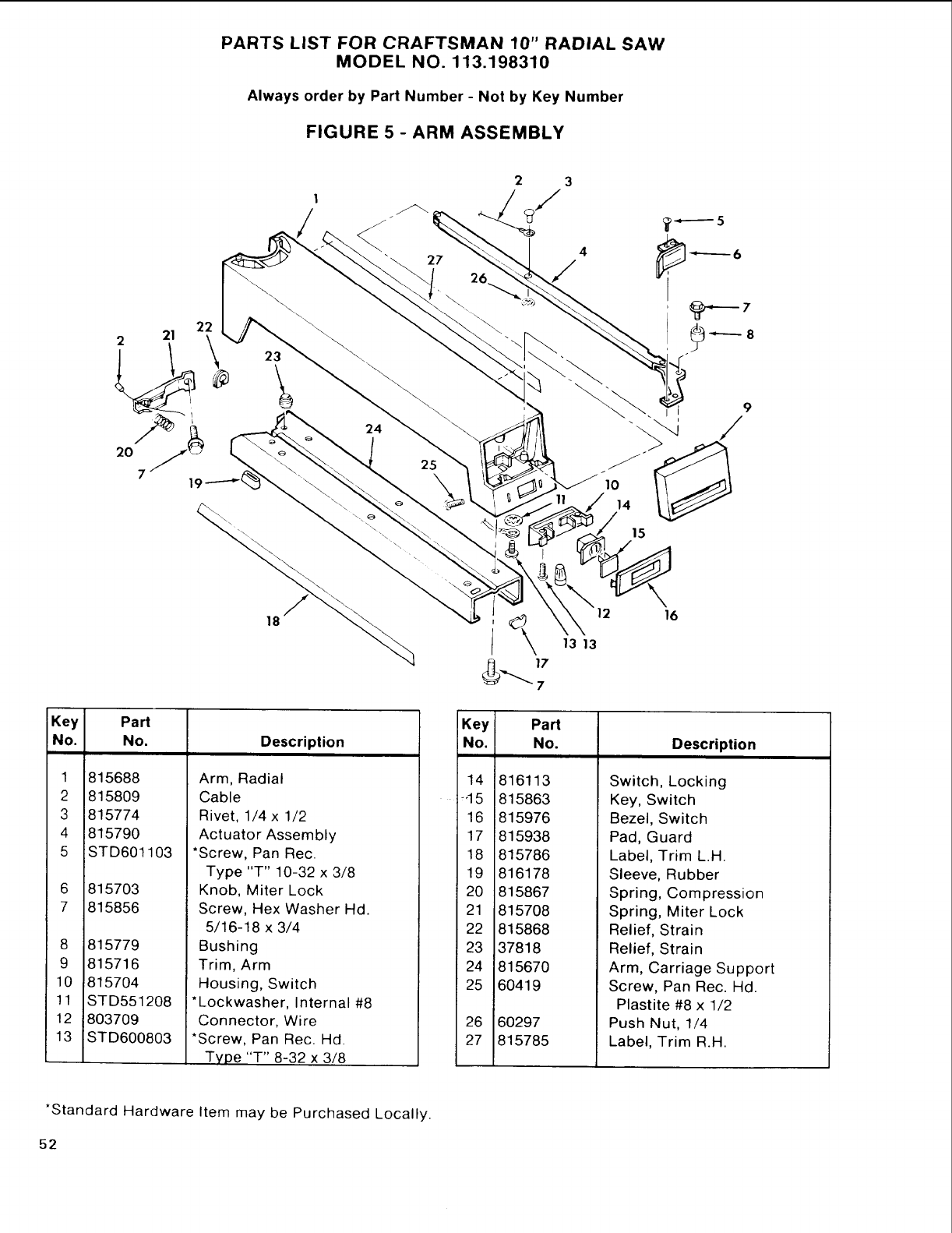

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW

MODEL NO. 113.198310

Always order by Part Number - Not by Key Number

FIGURE 5 -ARM ASSEMBLY

2 21 22

Key Part

No. No. Description

815688

815809

815774

815790

STD601103

815703

815856

815779

815716

!815704

STD551208

803709

STD600803

Arm, Radial

Cable

Rivet, 1/4 x 1/2

Actuator Assembly

*Screw, Pan Rec.

Type "T" 10-32 x 3/8

Knob, Miter Lock

Screw, Hex Washer Hd.

5/16-18 x 3/4

Bushing

Trim, Arm

Housing, Switch

*Lockwasher, Internal #8

Connector, Wire

*Screw, Pan Rec. Hd.

Type "T" 8-32 x 3/8

13 13

\16

Key Part

No. No. Description

-d5

816113

815863

815976

815938

815786

816178

815867

815708

815868

37818

815670

60419

60297

815785

Switch, Locking

Key, Switch

Bezel, Switch

Pad, Guard

Label, Trim L.H.

Sleeve, Rubber

Spring, Compression

Spring, Miter Lock

Relief, Strain

Arm, Carriage Support

Screw, Pan Rec. Hd.

Plastite #8 x 1/2

Push Nut, 1/4

Label, Trim R.H.

*Standard Hardware Item may be Purchased Locally.

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW

MODEL NO. 113.198310

Always order by Part Number -Not by Key Number

FIGURE 6 -GUARD ASSEMBLY

Key

No. Description

Part

No.

!816264

120399

63258

;63541

815816

STD551010

STD601103

STD541231

815815

Guard

*Nut, Square 5/16-18

Elbow, Dust

Bar, Anti-Kickback

Guide, Anti-Kickback

*Washer, 13/64 x 5/8 x 1/32

*Screw, Pan Hd.

Type "T" 10-32 x 3/8

*Nut, Hex Jam 5/6-18

Pawl

*Standard Hardware Item may be Purchased Locally.

Key Part

No. No. Description

10 STD581050

11 63270

12 816341

13 60435

14 816070

15 166785-3

16 63538

17 STD510805

18 STD551208

19 STD541008

*Ring, Retaining

Spreader

Bearing (Includes Key #10)

Grip

Screw, Guard Clamp

Screw, Wing 5/16-18 x 2-3/4

Clamp, Guard

*Screw, Pan Hd. 8-32 x 1/2

*Lockwasher, External No. 8

*Nut, Hex 8-32 Q_

PARTS LIST FOR CRAFTSMAN 10" RADIAL _AW

MODEL NO. 113.198310

Always order by Part Number -Not by Key Number

FIGURE 7 -TABLE ASSEMBLY

123

Key Part

No. No. Description

1 815757

2 815755

3 815758

4 815756

Table, Rear

Table Spacer

Fence, Rip

Table, Front

*Standard Hardware Item may be Purchased Locally.

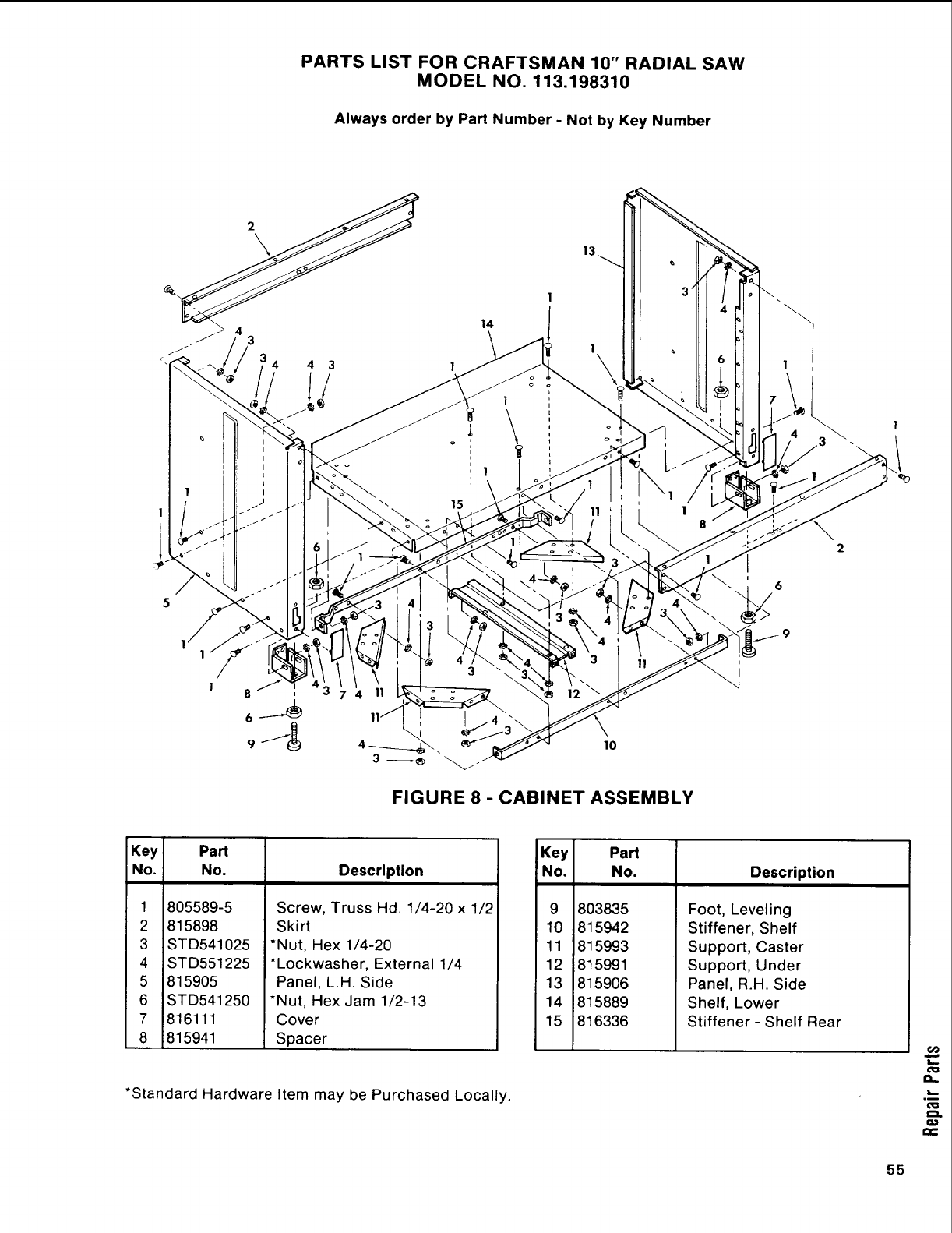

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW

MODEL NO. 113.198310

Always order by Part Number - Not by Key Number

FIGURE 8 -CABINET ASSEMBLY

_\ 6

Key Part

No. No. Description

1 805589-5

2 815898

3 STD541025

4 STD551225

5 8159O5

6 STD541250

7 816111

8 815941

Screw, Truss Hd. 1/4-20 x 1/2

Skirt

*Nut, Hex 1/4-20

*Lockwasher, External 1/4

Panel, L.H. Side

*Nut, Hex Jam 1/2-13

Cover

Spacer

*Standard Hardware Item may be Purchased Locally.

Key Part

No. No. Description

9 803835

10 815942

11 815993

12 815991

13 815906

14 815889

15 816336

Foot, Leveling

Stiffener, Shelf

Support, Caster

Support, Under

Panel, R.H. Side

Shelf, Lower

Stiffener - Shelf Rear

L'_

owners

manual

SERVICE

MODEL NO.

113.198310

10" RADIAl.SAW

WITH44" CABINET

HOW TO ORDER

REPAIRPARTS

10-INCH RADIAL SAW

Now that you have purchased your 10-inch radial saw, should

a need ever exist for repair parts or sen/ice, simply contact any

Scars Service Center and most Scars, Roebuck and Co. stores. Be

sure to provide all pertinent facts when you call or visit.

The model number ofyour 10-inch radial sawwill be found on a

plate attached to your saw, on the backside of the base.

WHEN ORDERING REPAIR PARTS,ALWAYS GIVE THEFOLLOWING

INFORMATION:

PARTNUMBER PARTDESCRIPTION

MODEL NUMBER

113.198310

NAME OF ITEM

10-INCH RADIAL SAW

All parts listed may be ordered from any Sears Service Center

and most Sears stores. If the paris you need are not stocked

locally, your order will be electronically transmitted to a Sears

Repair Parts Distribution Center for handling.

Sold by SEARS,ROEBUCKAND CO., Chicago, IL.60684 U.S.A.

Part No. SP5015 Form No. SP5015-3 Printed in U.S.A. 3/87

Craftsman 113198310 User Manual 10 INCH RADIAL SAW Manuals And Guides L0904585

CRAFTSMAN Saw Radial Manual L0904585 CRAFTSMAN Saw Radial Owner's Manual, CRAFTSMAN Saw Radial installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
