8INCH DIRECT DRIVE

TABLE SA W

oassembly

®operating

orepair parts

Sold by SEARS, ROEBUCK AND CO,, Chicago, IL 60684 U.S.A.

Part No, SP5022 Primed i_ U S A

FULL ONE YEAR WARRANTY ON CRAFTSMAN TABLE SAW

If within one year from the date of purchase, this Craftsman Table Saw fails due to a defect in

material or workmanship, Sears will repair it, free of charge

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE TABLE SAW TO THE NEAREST

SEARS RETAIL/CATALOG STORE OR SERVICE CENTER/DEPARTMENT IN THE UNITED

STATES

This warranty gives you specific legal rights and you may also have other rights which vary

from state to state,

SEARS, ROEBUCK AND CO,,, Scars Tower, BSC 4%3, Chicago, iL 60684

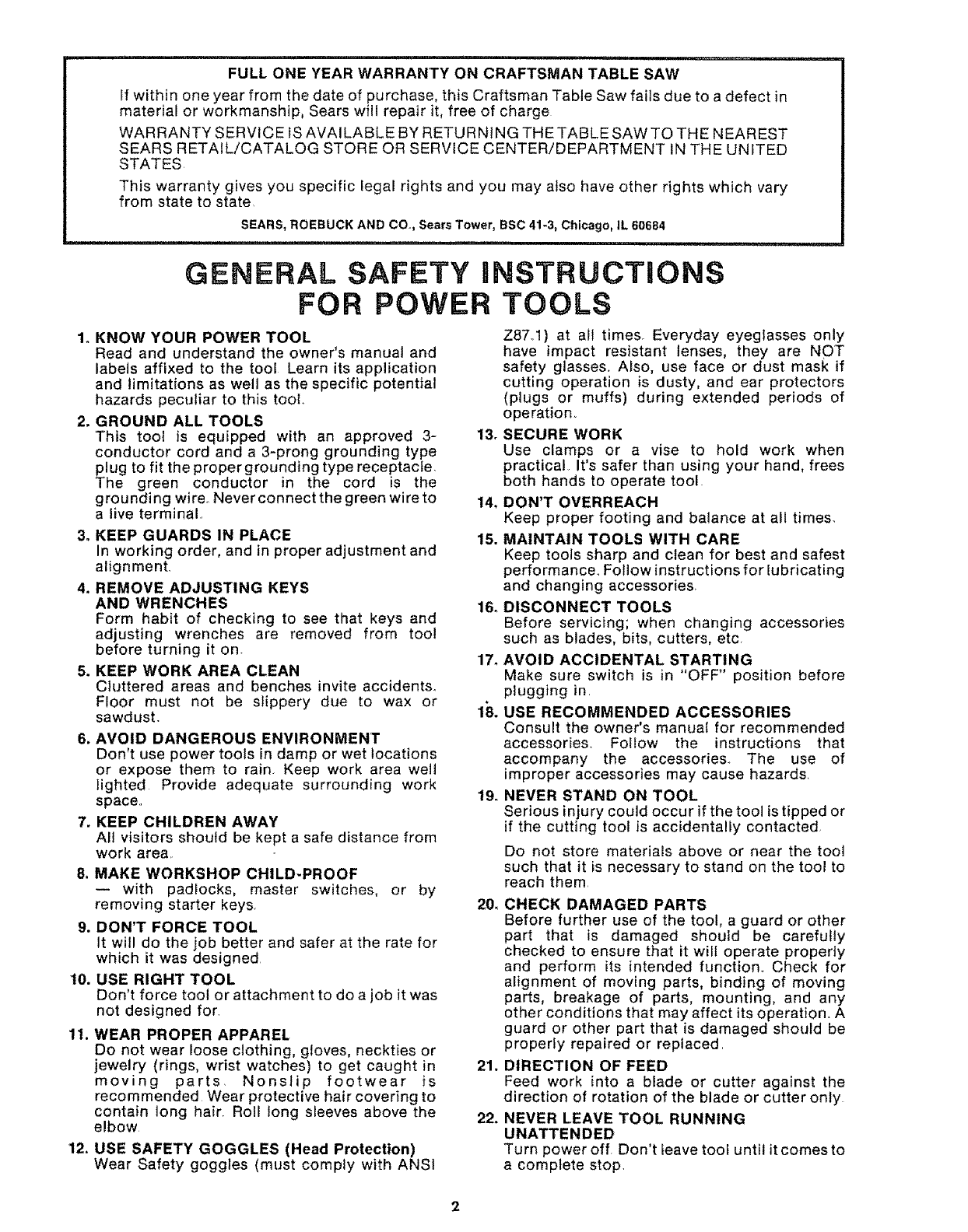

GENERAL SAFETY iNSTRUCTiONS

FOR POWER TOOLS

1. KNOW YOUR POWER TOOL

Read and understand the owner's manual and

labels affixed to the tool Learn its application

and limitations as well as the specific potential

hazards peculiar to this tool

2. GROUND ALL TOOLS

This tool is equipped with an approved 3-

conductor cord and a 3-prong grounding type

plug to fit the propergrounding type receptacle,

The green conductor in the cord is the

grounding wire° Never connect the green wire to

a live terminal

3. KEEP GUARDS IN PLACE

In working order, and in proper adjustment and

alignment.

4. REMOVE ADJUSTING KEYS

AND WRENCHES

Form habit of checking to see that keys and

adjusting wrenches are removed from tool

before turning it on.

5. KEEP WORK AREA CLEAN

Cluttered areas and benches invite accidents.,

Floor must not be siippery due to wax or

sawdust.

6, AVOID DANGEROUS ENVIRONMENT

Don't use power tools in damp or wet locations

or expose them to rain. Keep work area well

lighted Provide adequate surrounding work

space..

7, KEEP CHILDREN AWAY

All visitors should be kept a safe distance from

work area,

8. MAKE WORKSHOP CHILD-PROOF

-- with padlocks, master switches, or by

removing starter keys.

9. DON'T FORCE TOOL

It wit! do the job better and safer at the rate for

which it was designed

10. USE RIGHT TOOL

Don't force tool or attachment to do a job it was

not designed for.

11. WEAR PROPER APPAREL

Do not wear loose clothing, gloves, neckties or

jewelry (rings, wrist watches) to get caught in

moving parts, Nonslip footwear is

recommended Wear protective hair covering to

contain tong hair Roll long sleeves above the

elbow

12. USE SAFETY GOGGLES (Head Protection)

Wear Safety goggles (must comply with ANSI

Z87.,1) at all times° Everyday eyeglasses only

have impact resistant lenses, they are NOT

safety glasses. Also, use face or dust mask if

cutting operation is dusty, and ear protectors

(plugs or muffs) during extended periods of

operation.

13. SECURE WORK

Use clamps or a vise to hold work when

practical It's safer than using your hand, frees

both hands to operate tool

14. DON'T OVERREACH

Keep proper footing and balance at all times,

15. MAINTAIN TOOLS WITH CARE

Keep tools sharp and clean for best and safest

performance,, Follow instructions for lubricating

and changing accessories,

16. DISCONNECT TOOLS

Before servicing; when changing accessories

such as blades, bits, cutters, etc

17_ AVOID ACCIDENTAL STARTING

Make sure switch is in "OFF" position before

plugging in,

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended

accessories, Follow the instructions that

accompany the accessories_ The use of

improper accessories may cause hazards.

19. NEVER STAND ON TOOL

Serious injury could occur if the tool istipped or

if the cutting tool is accidentally contacted,

Do not store materials above or near the toot

such that it is necessary to stand on the tool to

reach them

20. CHECK DAMAGED PARTS

Before further use of the tool, a guard or other

part that is damaged should be carefully

checked to ensure that it will operate properly

and perform its intended function., Check for

alignment of moving parts, binding of moving

parts, breakage of parts, mounting, and any

other conditions that may affect its operation. A

guard or other part that is damaged should be

properly repaired or replaced

21. DIRECTION OF FEED

Feed work into a blade or cutter against the

direction of rotation of the blade or cutter only

22. NEVER LEAVE TOOL RUNNING

UNATTENDED

Turn power off Don't leave tool until it comes to

a complete stop,

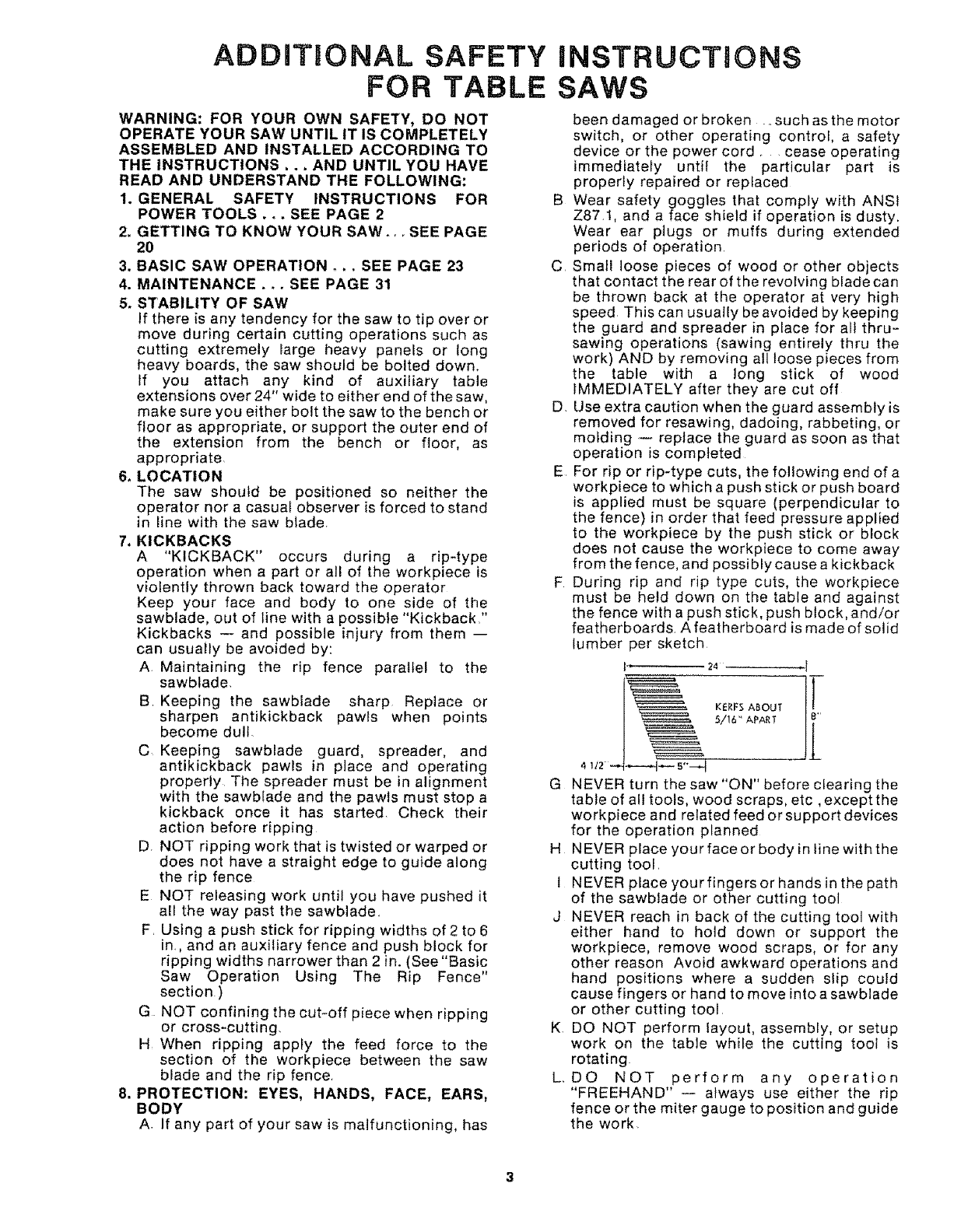

ADDITIONAL SAFETY

FOR TABLE

WARNING: FOR YOUR OWN SAFETY, DO NOT

OPERATE YOUR SAW UNTIL IT IS COMPLETELY

ASSEMBLED AND INSTALLED ACCORDING TO

THE INSTRUCTIONS,.. AND UNTIL YOU HAVE

READ AND UNDERSTAND THE FOLLOWING:

1. GENERAL SAFETY INSTRUCTIONS FOR

POWER TOOLS. _. SEE PAGE 2

2, GETTING TO KNOW YOUR SAW.,, SEE PAGE

3. BASIC SAW OPERATION _., SEE PAGE 23

4. MAINTENANCE ._. SEE PAGE 31

5. STABILITY OF SAW

if there is any tendency for the saw to tip over or

move during certain cutting operations such as

cutting extremely large heavy panels or long

heavy boards, the saw should be bolted down.

If you attach any kind of auxiliary table

extensions over 24" wide to either end of the saw,

make sure you either bolt the saw to the bench or

floor as appropriate, or support the outer end of

the extension from the bench or floor, as

appropriate,

6. LOCATION

The saw should be positioned so neither the

operator nor a casual observer is forced to stand

in line with the saw biade,

7. KICKBACKS

A "KICKBACK" occurs during a rip-type

operation when a part or all of the workpiece is

violently thrown back toward the operator

Keep your face and body to one side of the

sawblade, out of line with a possible "Kickback."

Kickbacks -- and possible injury from them --

can usually be avoided by:

A Maintaining the rip fence parallel to the

sawblade,

B Keeping the sawblade sharp Replace or

sharpen antikickback pawls when points

become dull

C. Keeping sawblade guard, spreader, and

antikickback pawls in place and operating

properly The spreader must be in alignment

with the sawblade and the pawls must stop a

kickback once it has started. Check their

action before ripping

D, NOT ripping work that is twisted or warped or

does not have a straight edge to guide along

the rip fence

E NOT releasing work until you have pushed it

all the way past the sawblade.

F. Using a push stick for ripping widths of 2 to 6

in., and an auxiliary fence and push block for

ripping widths narrower than 2 in. (See "Basic

Saw Operation Using The Rip Fence"

section )

G NOT confining the cut-off piece when ripping

or cross-cutting

H When ripping apply the feed force to the

section of the workpiece between the saw

blade and the rip fence.

8. PROTECTION: EYES, HANDS, FACE, EARS,

BODY

A if any part of your saw is malfunctioning, has

INSTRUCTIONS

SAWS

been damaged or broken ...such as the motor

switch, or other operating control, a safety

device or the power cord. cease operating

immediately until the particular part is

properly repaired or replaced

Wear safety goggles that comply with ANSI

Z87.1, and a face shield if operation is dusty.

Wear ear plugs or muffs during extended

periods of operation.

Smali loose pieces of wood or other objects

that contact the rear of the revolving blade can

be thrown back at the operator at very high

speed. This can usually be avoided by keeping

the guard and spreader in place for all thru-

sawing operations (sawing entirely thru the

work) AND by removing all loose pieces from

the table with a long stick of wood

IMMEDIATELY after they are cut off

Use extra caution when the guard assembly is

removed for resawing, dadoing, rabbeting, or

molding ,-- replace the guard as soon as that

operation is completed

For rip or rip-type cuts, the following end of a

workpiece to which a push stick or push board

is applied must be square (perpendicular to

the fence) in order that feed pressure applied

to the workpiece by the push stick or block

does not cause the workpiece to come away

from the fence, and possibly cause a kickback

During rip and rip type cuts, the workpiece

must be held down on the table and against

the fence with a push stick, push block, and/or

featherboards A featherboard is made of solid

lumber per sketch

5/I 6" APA_RT

G NEVER turn the saw "ON" before clearing the

table of all tools, wood scraps, etc, except the

workpiece and related feed or support devices

for the operation planned

H NEVER place your face or body in line with the

cutting tool.

t NEVER pface yourfingers or hands in the path

of the sawblade or other cutting tool

J NEVER reach in back of the cutting tool with

either hand to hold down or support the

workpiece, remove wood scraps, or for any

other reason Avoid awkward operations and

hand positions where a sudden slip could

cause fingers or hand to move into a sawblade

or other cutting tool

K. DO NOT perform layout, assembly, or setup

work on the table while the cutting tool is

rotating

L, DO NOT perform any operation

"FREEHAND" -- always use either the rip

fence or the miter gauge to position and guide

the work

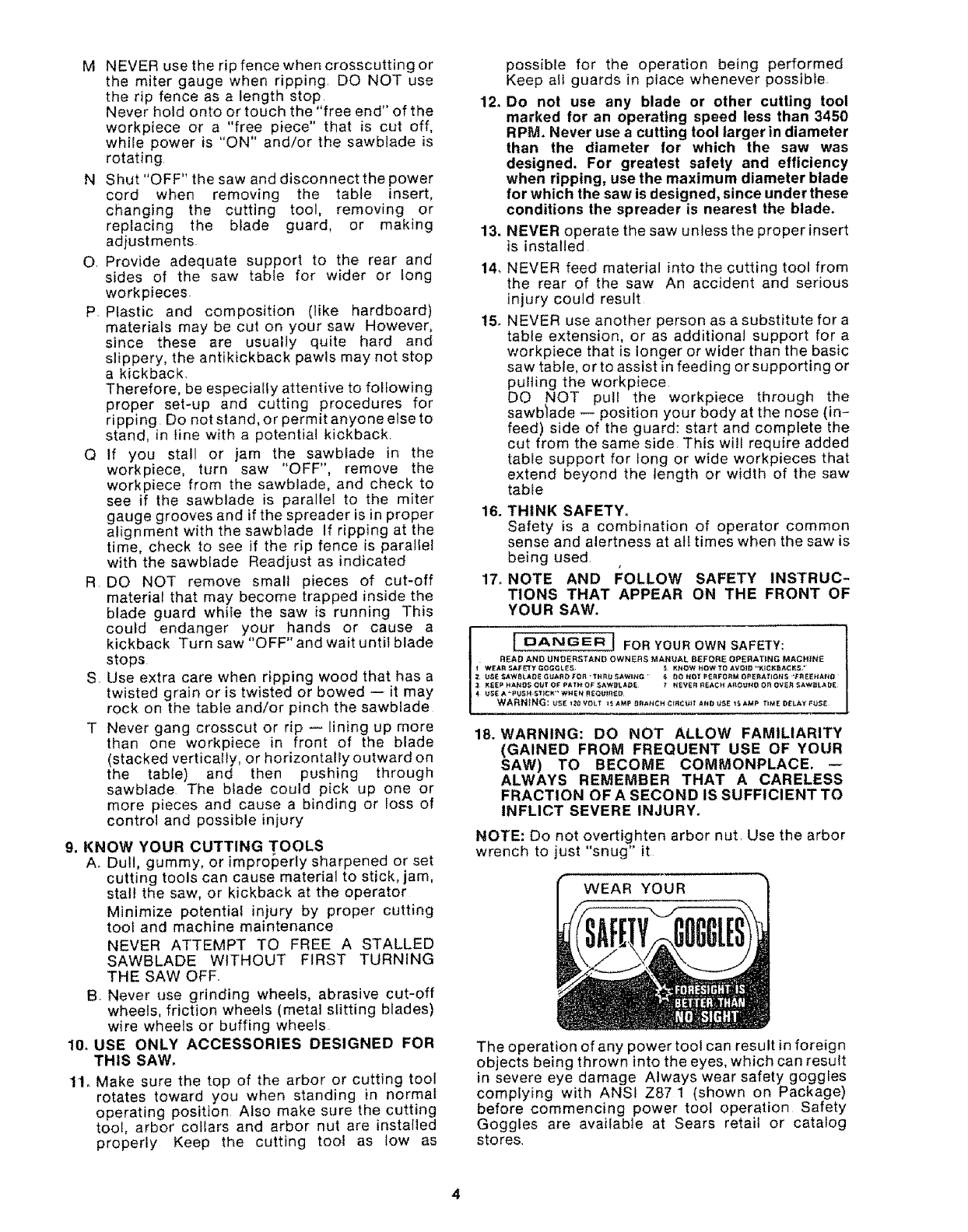

M NEVERusetheripfencewhencrosscuttingor

the mitergaugewhenripping,DO NOTuse

the rip fenceasa lengthstop

Neverholdontoortouchthe"freeend"ofthe

workpieceor a "free piece"that is cut off,

whilepoweris "ON"and/orthe sawbladeis

rotating

N Shut"OFF"thesawanddisconnectthepower

cord when removing the table insert,

changing the cutting tool, removing or

replacing the blade guard, or making

adjustments

O Provideadequatesupport to the rear and

sides of the saw table for wider or tong

workpieces

P.Plastic and composition (like hardboard)

materialsmaybecut on yoursaw However,

since these are usually quite hard and

slippery,theantikickbackpawlsmaynotstop

a kickback,

Therefore,beespeciallyattentiveto following

proper set-up and cutting proceduresfor

ripping Donotstand,orpermitanyoneelseto

stand,in linewitha potentialkickback

Q If you stall or jam the sawbladein the

workpiece,turn saw "OFF", remove the

workpiecefrom thesawblade,andcheckto

seeif the sawbladeis parallelto the miter

gaugegroovesandif thespreaderisin proper

alignmentwiththesawbladeIf rippingat the

time,checkto seeif the rip fenceis parallel

withthesawbladeReadjustas indicated

R DO NOT remove small pieces of cut-off

materialthat maybecometrappedinsidethe

bladeguardwhilethe sawis running This

could endanger your hands or cause a

kickbackTurnsaw"OFF"andwaituntilblade

stops

S. Useextracarewhenrippingwoodthat hasa

twistedgrainor istwistedor bowedi it may

rockonthetableand/orpinchthesawblade

T Nevergangcrosscutor rip -- lining up more

than one workpiece in front of the blade

(stacked vertically, or horizontally outward on

the table) and then pushing through

sawblade The blade could pick up one or

more pieces and cause a binding or loss of

control and possible injury

9. KNOW YOUR CUTTING TOOLS

A° Dull, gummy, or improlSerly sharpened or set

cutting tools can cause material to stick, jam,

stall the saw, or kickback at the operator

Minimize potential injury by proper cutting

tool and machine maintenance

NEVER ATTEMPT TO FREE A STALLED

SAWBLADE WITHOUT FIRST TURNING

THE SAW OFF.

B- Never use grinding wheels, abrasive cut-off

wheels, friction wheels (metal slitting blades)

wire wheels or buffing wheels

10o USE ONLY ACCESSORIES DESIGNED FOR

THIS SAW,

11_ Make sure the top of the arbor or cutting tool

rotates toward you when standing in normal

operating position Also make sure the cutting

tool, arbor collars and arbor nut are installed

properly Keep the cutting tool as low as

possible for the operation being performed

Keep all guards in place whenever possible

12_ Do not use any blade or other culling tool

marked for an operating speed less than 3450

RPM. Never use a cutting tool larger in diameter

than the diameter for which the saw was

designed. For greatest safety and efficiency

when ripping, use the maximum diameter blade

for which the saw is designed, since under these

conditions the spreader is nearest the blade.

13. NEVER operate the saw unless the proper insert

is installed

14, NEVER feed material into the cutting tool from

the rear of the saw An accident and serious

injury could result

t5, NEVER use another person as a substitute for a

table extension, or as additional support for a

workpiece that is longer or wider than the basic

saw table, orto assist in feeding or supporting or

pulling the workpiece,

DO NOT pull the workpiece through the

sawblade -- position your body at the nose (in-

feed) side of the guard: start and complete the

cut from the same side This will require added

table support for tong or wide workpieces that

extend beyond the length or width of the saw

table

16. THINK SAFETY.

Safety is a combination of operator common

sense and alertness at att times when the saw is

being used r

17_ NOTE AND FOLLOW SAFETY INSTRUC-

TIONS THAT APPEAR ON THE FRONT OF

YOUR SAW.

li E=ANGERI o. ou. ow.sAFETY:

READ AND UNDERSTAND OWNERS MANUAL BEFORE OPERATING MACH|NE

I WE,AR 5AFE'T_ GOGGLES 5 KNOW HOW TO AVOIO'*_ICt_ACKS,*

U_E I_AWSLAI_E GG_gO FOR 1H P_$_SAWING _DO t_O_ tJ_.RFORM OP_RATION_ 'F_ EEHAf_I

_EEP HANOS OUr OF PATP: OF _AWI_t.A_E INI_VE _ REACH AAOURL1 On OV,_ _ _AWgLA D_

U_E A ' PUSH'$T_CK =' WHEN R[QUIR_O

WARNING: use 1_0 VOLT 15 A_P a_NCH CtRCIJtT AtG3 USE I_ AMP TiME DELAY I_GJSE

18. WARNING: DO NOT ALLOW FAMILIARITY

(GAINED FROM FREQUENT USE OF YOUR

SAW) TO BECOME COMMONPLACE.

ALWAYS REMEMBER THAT A CARELESS

FRACTION OF A SECOND IS SUFFICIENT TO

INFLICT SEVERE INJURY.

NOTE: Do not overtighten arbor nut. Use the arbor

wrench to just "snug" it

WEAR YOUR

The operation of any power tool can result in foreign

objects being thrown into the eyes, which can result

in severe eye damage Always wear safety goggles

comptying with ANSI Z87 1 (shown on Package)

before commencing power too! operation Safety

Goggles are available at Sears retail or catalog

stores.

MOTOR SPEC FICATIONS AND

ELECTR!CAL REQUIREMENTS

MOTOR SPECIFICATIONS

The AC motor used in this saw is a non-reversible

type, with the following specifications:

Amperes ...................................... 7.8

Hertz .................................... 60

Phase ...................................... Single

RPM ................................... 3450

Rotation (viewed from

Sawblade end) .......... Counterclockwise

MOTOR SAFETY PROTECTION

the Canadian Standards Association The ground

conductor has a green jacket and is attached to the

toot housing at one end and to the ground prong in

the attachment plug at the other end

This plug requires a mating 3-conductor grounded

type outlet as shown

WARNING: DO NOT PERMIT FINGERS TO

TOUCH THE TERMINALS OF PLUGS WHEN

INSTALLING OR REMOVING THE PLUG TO OR

FROM THE OUTLET.

MOTOR SAFETY PROTECTION

1 REPEATED STALLING OF THE SAW BLADE

WILL SHORTEN THE LIFE OF THE MOTOR.

Always avoid stalling the blade If the motor has

been abused (repeated stalling) and fails to start

(hums), TURN THE SWITCH OFF, ALLOW THE

MOTOR TO COOL, THEN RE-START IT

2 ALWAYS USE SHARP BLADES A dull blade

requires excessive power and does not produce

quality results

3. NOTE: The starting relay is a GRAVITY

SENSITIVE TYPE. NEVER TURN THE POWER

ON WHILE TH E SAW tS UPSIDE DOWN AS THIS

WILL DAMAGE THE MOTOR.

4 Frequent opening of fuses or circuit breakers

may result if motor is overloaded, or if the motor

circuit is fused with a fuse other than those

recommended Do not use a fuse of greater

capacity without consulting the power company°

5 Although the motor is designed for operation on

the voltage and frequency specified on motor

nameplate, normal loads will be handled safely

on voltages not more than 10% above or below

the nameplate voltage

Heavy loads, however, require that voltage at

motor terminals by not tess than the voltage

specified on nameplate

6 Most motor troubles may be traced to loose or

incorrect connections, overloading, reduced

input voltage (which results when small size wires

are used in the supply circuit) or when the supply

circuit is extremely long Always check

connection, load and supply circuit when the

motor fails to perform satisfactorily. Check wire

sizes and lengths with table at end of this section

CONNECTING TO POWER SUPPLY OUTLET

If power cord is worn or cut, or damaged in any way,

have it replaced immediately.

WARNING: IF NOT PROPERLY GROUNDED THIS

POWER TOOL CAN CAUSE AN ELECTRICAL SHOCK

PARTICULARY WHEN USED IN DAMP LOCATIONS

CLOSE TO PLUMBING. IF AN ELECTRICAL SHOCK

OCCURSTHEREtSTHEPOTENTIALOFASECONDARY

HAZARD SUCH AS YOUR HANDS CONTACTING

THE SAW BLADE.

If you are not sure that your outlet, as pictured

below, is properly grounded, have it checked by a

qualified electrician

Your unit is for use on 110=120volts, and has a plug

that looks like illustration below

This power tool is equipped with a 3-conductor cord

and grounding type plug which has a grounding

prong, approved by Underwriters' Laboratories and

3-PRONG PLUG

GROUNDING PRONG

"_ PROPERLY GROUNDED

3-PRONG OUTLET

Plug power cord into a 110-120V properly grounded

type outlet protected by a 15-amp dual element

time delay or CircuibSaver fuse or circuit breaker

If the outlet you are planning to use for this power

tool is of the 2 prong type, DO NOT REMOVE OR

ALTER THE GROUNDING PRONG IN ANY

MANNER Use an adapter as shown below and

always connect the grounding lug to known

ground.

A temporary adapter as shown below is available for

connecting plugs to 2-prong receptacles The green

grounding lug extending from the adapter must be

connected to a permanent ground such as to a

properly grounded outlet box

A temporary adapter as illustrated is available for

connecting plugs to 2-prong receptacles The

temporary adapter should be used only until a

properly grounded outlet can be installed by a

qualified electrician

GROUNDING LUG

_MAKE SURE THIS tS

3-PRONG _"'_- _-_ CONNECTED TO A

PLUG _-'l(_'_lt KNOWNGROUND

/_RECEPTACLE

ADAPTER

WARNING: THE GREEN GROUNDING LUG

EXTENDING FROM THE ADAPTER MUST BE

CONNECTED TO A PERMANENT GROUND

SUCH AS TO A PROPERLY GROUNDED OUTLET

BOX. NOT ALL OUTLET BOXES ARE PROPERLY

GROUNDED.

If you are not sure that your outlet box is properly

grounded, have it checked by a qualified electrician.

NOTE: The adapter illustrated is for use only if you

already have a properly grounded 2-prong

rec'eptacte_ Adapter is not allowed in Canada by the

Canadian Electrical Code

Theuseof anyextensioncordwillcausesomeloss

of power.To keepthistoa minimumandtoprevent

over-heatingandmotorburn-out,usethefollowing

tableto determinetheminimumwiresize(A.WoG)

extensioncord.

Useonly3wireextension¢ordswhichhave3-prong

groundingtypeplugsand3-polereceptacleswhich

acceptthe toolsplug.

Extension Cord Length Wire Size A.W.G.

Up to 100 Ft.............................. !4

100-200 Ft.................................. 12

200-400 Ft.................. ............... 8

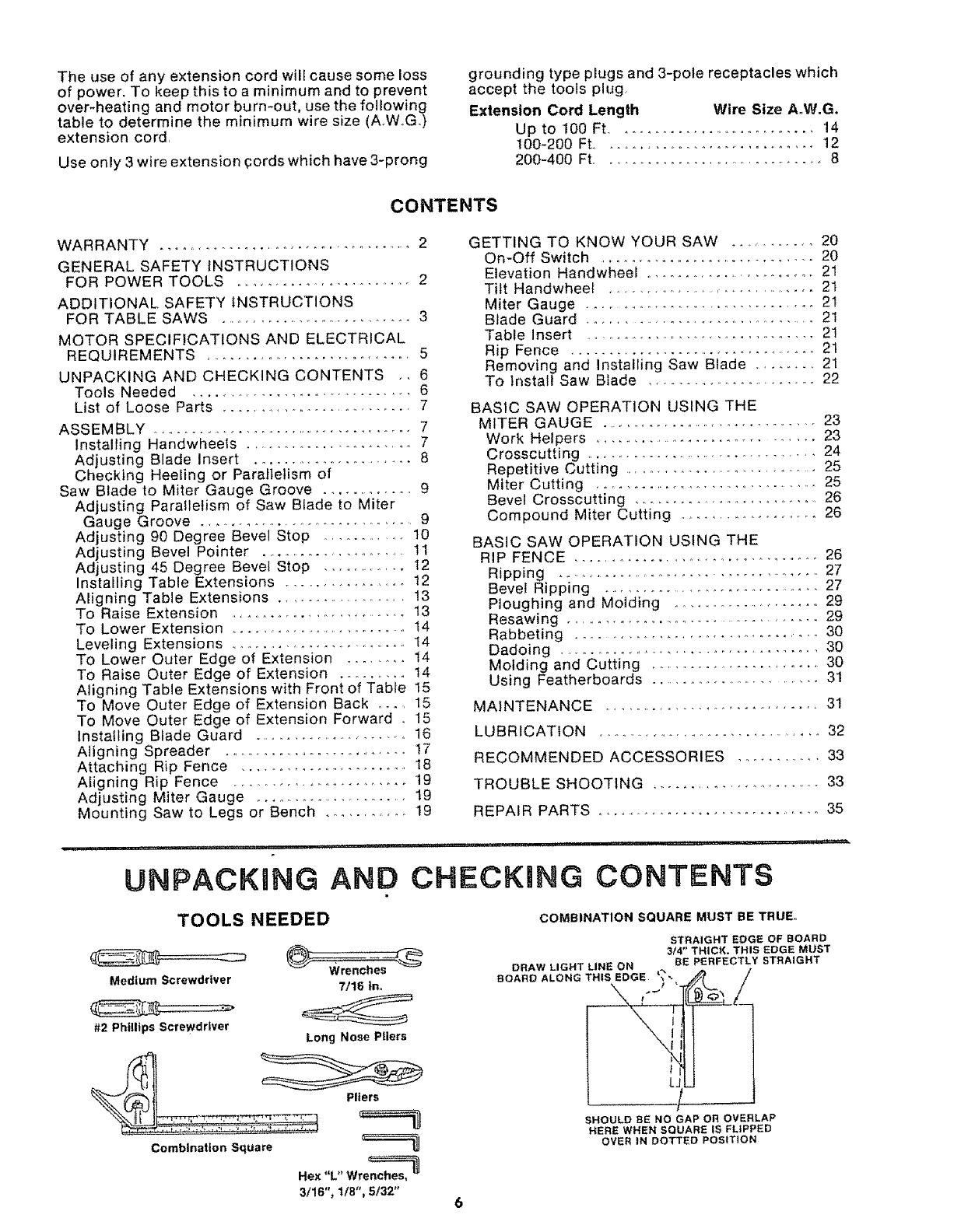

CONTENTS

WARRANTY ....................................... 2

GENERAL SAFETY INSTRUCTIONS

FOR POWER TOOLS ............................ 2

ADDITIONAL SAFETY INSTRUCTIONS

FOR TABLE SAWS ........................... 3

MOTOR SPECIFICATIONS AND ELECTRICAL

REQUIREMENTS ............................ 5

UNPACKING AND CHECKING CONTENTS ., 6

Tools Needed ............................... 6

List of Loose Parts ........................... 7

ASSEMBLY .......................................... 7

Installing Handwheels ........................... 7

Adjusting Blade Insert ....................... 8

Checking Heeling or Parallelism of

Saw Blade to Miter Gauge Groove ............ 9

Adjusting Parallelism of Saw Blade to Miter

Gauge Groove ................................ 9

Adjusting 90 Degree Bevel Stop ............. 10

Adjusting Bevel Pointer ........................ 11

Adjusting 45 Degree Bevel Stop ............. I2

Installing Table Extensions ................. 12

Aligning Table Extensions ................... 13

To Raise Extension ...................... 13

To Lower Extension .............................. 14

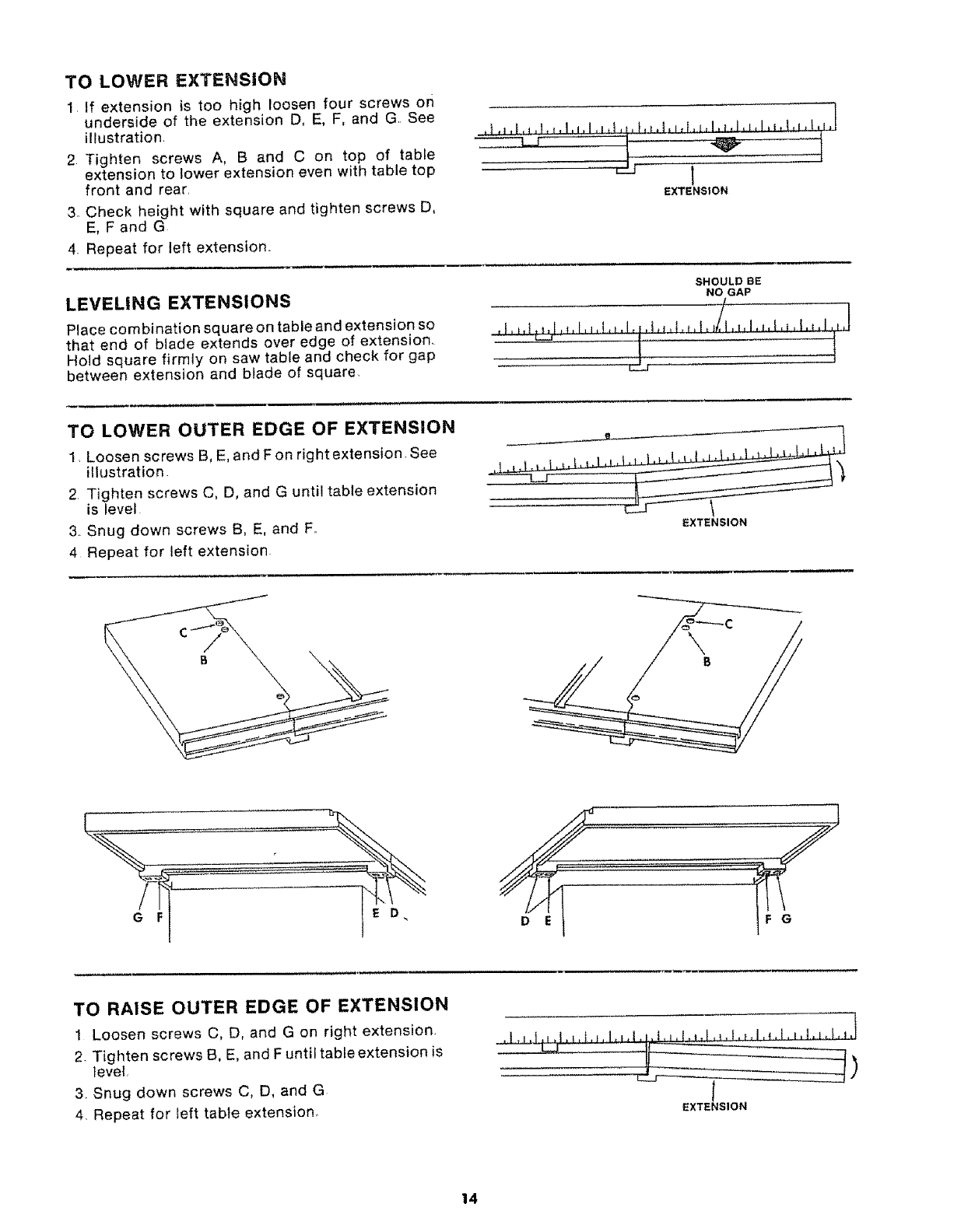

Leveling Extensions ........................ 14

To Lower Outer Edge of Extension ........ 14

TO Raise Outer Edge of Extension .......... 14

Aligning Table Extensions with Front of Table I5

To Move Outer Edge of Extension Back ..... 15

To Move Outer Edge of Extension Forward , 15

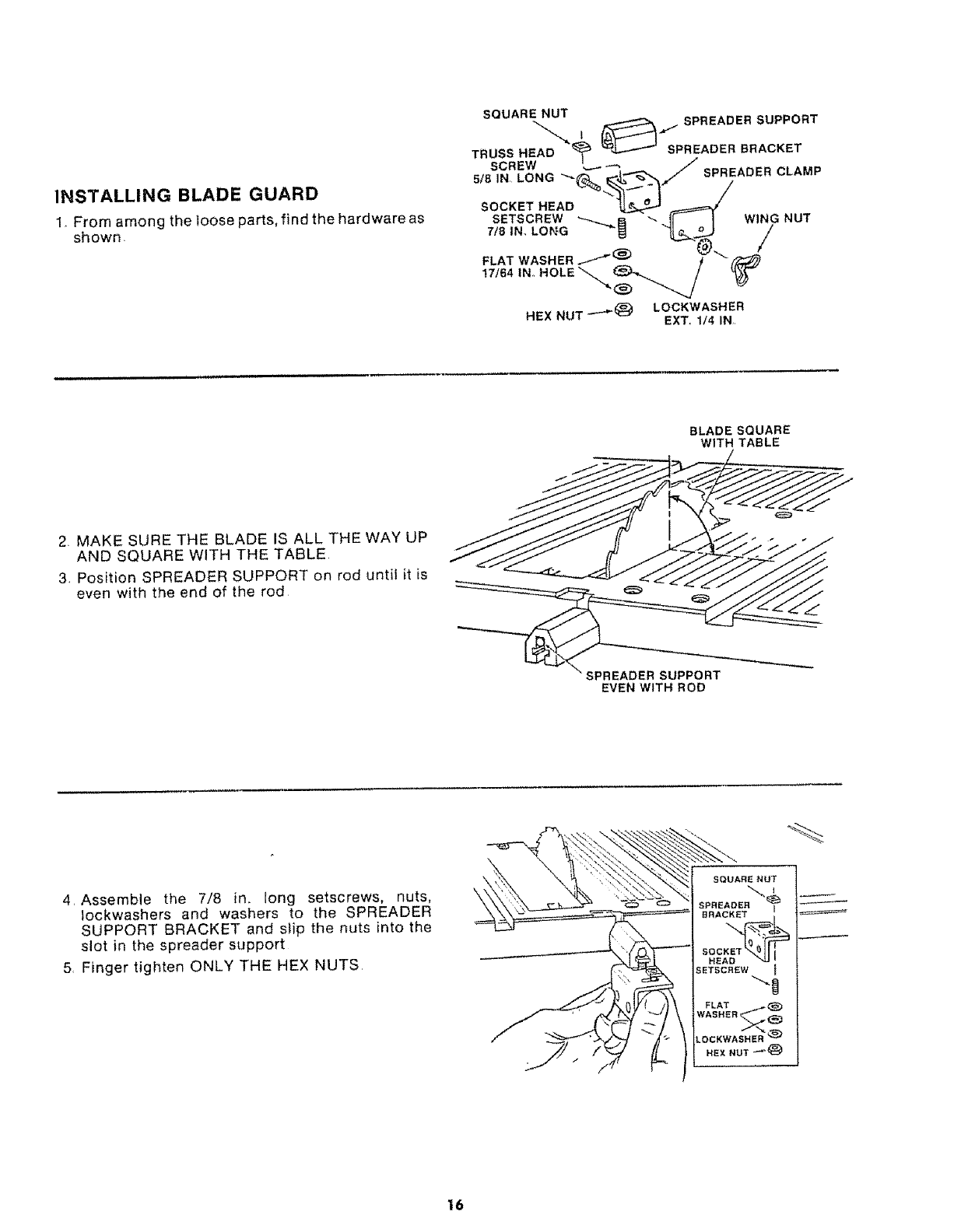

Installing Blade Guard ........................ 16

Aligning Spreader ............................... 17

Attaching Rip Fence ........................... 18

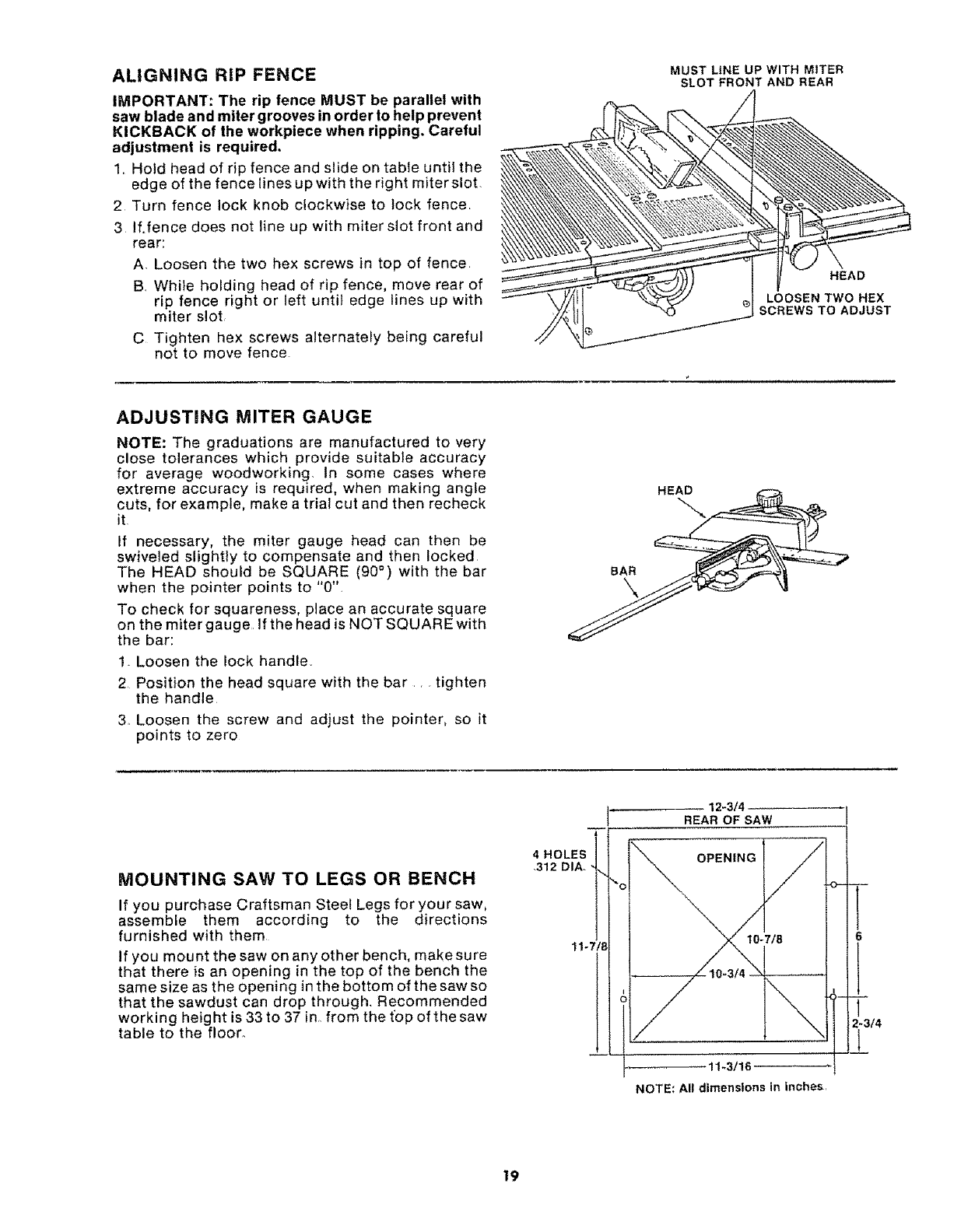

Aligning Rip Fence ....................... 19

Adjusting Miter Gauge ...................... 19

Mounting Saw to Legs or Bench ............. t9

,,u,u,H ' ' ="'111

UNPACKING AND

TOOLS NEEDED

Medium Screwdriver 7/16 tn.

#2 Phillips Screwdriver Long Nose Pliers

Combination Square

Hex "L" Wre_

3/16", t/8", 5/32"

GETTING TO KNOW YOUR SAW ........... 20

On-Off Switch ................................. 20

Elevation Handwheel ......................... 21

Tilt Handwheel .................................. 21

Miter Gauge ................................ 21

Blade Guard .............................. 21

Table Insert ................................... 21

Rip Fence .................................... 21

Removing and Installing Saw Blade ......... 21

To Install Saw Blade ........................... 22

BASIC SAW OPERATION USING THE

MITER GAUGE .................................. 23

Work Helpers ................................ 23

Crosscutting .................................. 24

Repetitive Cutting ............................. 25

Miter Cutting ............................... 25

Bevel Crosscutting ............................... 26

Compound Miter Cutting ..................... 26

BASIC SAW OPERATION USING THE

RIP FENCE ..................................... 26

Ripping ...................................... 27

Bevel Ripping ..................................... 27

Ploughing and Molding ...................... 29

Resawing ...................................... 29

Rabbeting .................................. 30

Dadoing ..... .................................. 30

Molding and Cutting ......................... 30

Using Featherboards ........................... 31

MAINTENANCE ............................... 31

LUBRICATION ..................................... 32

RECOMMENDED ACCESSORIES ............. 33

TROUBLE SHOOTING ......................... 33

REPAIR PARTS .................................. 35

CHECKING CONTENTS

COMBINATION SQUARE MUST BE TRUE°

STRAIGHT EDGE OF BOARD

3t4" THICK. THIS EDGE MUST

DRAW LIGHT LINE ON BE PERFECTLY STRAIGHT

THIS EDGE _'_

BOARD ALONG "} ",

SHOULD BE NO GAP OR OVERLAP

HERE WHEN SQUARE IS FLIPPED

OVER tN DOTTED POSITION

Model 1! 3221611 Table Saw with Table Extensions

is shipped complete in one carton

Separate all parts from packing materials and check

each one with the illustration and the list of Loose

Parts to make certain alf items are accounted for,

before discarding any packing material

If any parts are missing, do not attempt to assemble

the table saw, plug in the power cord or turn the

switch on until the missing parts are obtained and

are installed correctly

Apioly a coat of automobile wax to the table.

Wipe att parts thoroughly with a clean, dry cloth.

WARNING: FOR YOUR OWN SAFETY, NEVER

CONNECT PLUG TO POWER SOURCE OUTLET

UNTIL ALL ASSEMBLY STEPS ARE COMPLETE,

AND YOU HAVE READ AND UNDERSTAND THE

SAFETY AND OPERATIONAl, INSTRUCTIONS_

ITEM

LIST OF LOOSE PARTS

DESCRIPTION QTY.

Guard Assembly ....................... 1

Extension Table LH ...................... 1

Extension Table R..H................... 1

Handwheel .............................. 2

Rip Fence Assembly ................... 1

Miter Gauge Assembly ................. 1

Owners Manual ...................... 1

Loose Parts Bag No. 507545

(Containing the following items):

H Wrench, Arbor .......................... 1

J Wrench, Shaft .......................... 1

K Support, Spreader ..................... 1

LBracket, Spreader ..................... 1

M Clamp, Spreader_.. .................. t

N Nut, Wing 1/4-20 ....................... 2

Loose Parts Bag No. 507546

(Containing the following items):

O Washer, t7/64 x 9/16 x 3/64 .......... 4

P Screw, Pan Hd. 8_32 x 3/8 ............ 2

Q Nut, Sq.. 1/4-20 ........................ 2

R Screw, Soc. Set 1/4-20 x 7/8 ......... 2

S Lockwasher, Ext. I/4 ................ 4

S Lockwasher, Ext. #8 ...................... 2

T Nut, Hex 1/4-20 ........................ 2

U Screw, Truss Hd 1/4-20 x 5/8 ......... 2

V Screw, Flat Hd 1/4-20 x 5/8 ............ 14

W Key,Switch ........................... 1

--- o

INSTALLING HANDWHEELS

1 From among the loose parts find two #8 external

tockwashers and two 8-32 x3/8 inch long Phillips

screws

2. Install elevation handwheel onto elevation shaft

by lining up FLAT SPOT on shaft with flat inside

handwheel. Install screw and Iockwasher.

3. Install bevel handwheel onto bevel shaft by

lining up FLAT SPOT on shaft with flat inside

handwheet, Install screw and Iockwasher

WARNING: Failure to complete the following two

steps could result in damage to your saw.

4. Turn elevation handwheel counter-clockwise to

pull motor away from inner packing cardboard,

5 Remove cardboard.

ASSEMBLY

LO(

SCREW

REMOVE CARDBOARD FROM

UNDERNEATH MOTOR

LOCKWASHER

SCREW

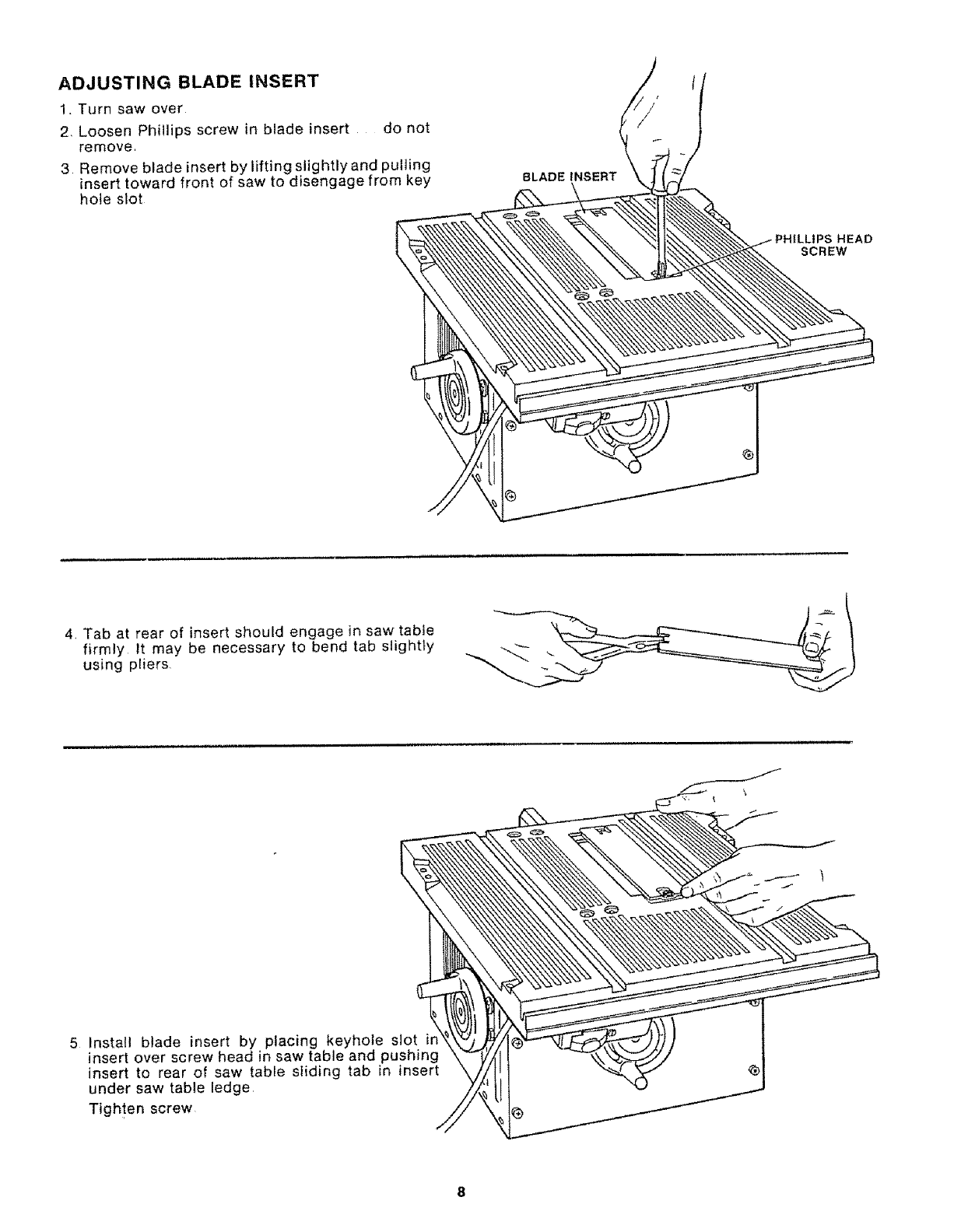

ADJUSTING BLADE INSERT

1,,Turn saw over

2, Loosen Phillips screw in blade insert do not

remove,

3 Remove blade insert by lifting slightlyand pulling

insert toward front of saw to disengage from key

hole slot

BLADE INSERT

HEAD

SCREW

4, Tab at rear of insert should engage in saw table

firmly It may be necessary to bend tab slightly

using pliers.

5 Install blade insert by placing keyhole slot in

insert over screw head in saw table and pushing

insert to rear of saw table sliding tab in insert

under saw table ledge

Tighten screw

CHECKING HEELING OR PARALLELISM

OF SAW BLADE TO MITER GAUGE

GROOVE

While cutting, the material must move in a straight

line PARALLEL to the SAW BLADE . . therefore

both the miter gauge GROOVE and the RIP FENCE

must be PARALLEL to the SAW BLADE

If the saw blade is not parallel to the miter gauge

groove, it is said to have "HEEL" This condition can

cause the workpiece to bind or move workpiece

away from the rip fence at the end of a cut, possibly

causing a kickback

WARNING: TO AVOID INJURY FROM

ACCIDENTAL START MAKE SURE SWITCH IS

"OFF" AND PLUG IS NOT CONNECTED TO

POWER SOURCE OUTLET.

1. Elevate blade to maximum height by turning

elevation handwheef

2. Mark an "X" on one of the teeth which _s SET

(bent) to the LEFT

3, Place the head of a combination square in the

MITER GROOVE. Adjust blade of square so that it

just touches the tip of the MARKED tooth

4. Move squar;_ to REAR, rotate blade to see if

MARKED tooth again touches blade of square.

5 If tooth touches square the same amount at

FRONT and REAR, sawblade is PARALLEL to

MITER GAUGE GROOVE

MARK 'X" ON

TOOTH

ADJUSTING PARALLELISM OF SAW

BLADE TO MITER GAUGE GROOVE

If tooth does not touch front and rear the

mechanism underneath must be adjusted to make

the blade PARALLEL to miter gauge groove

1. Loosen the four hex socket screws in the top of

the table next to the saw blade using a 3/16 inch

hex L wrench This will allow the mechanism

below the table to be shifted sideways

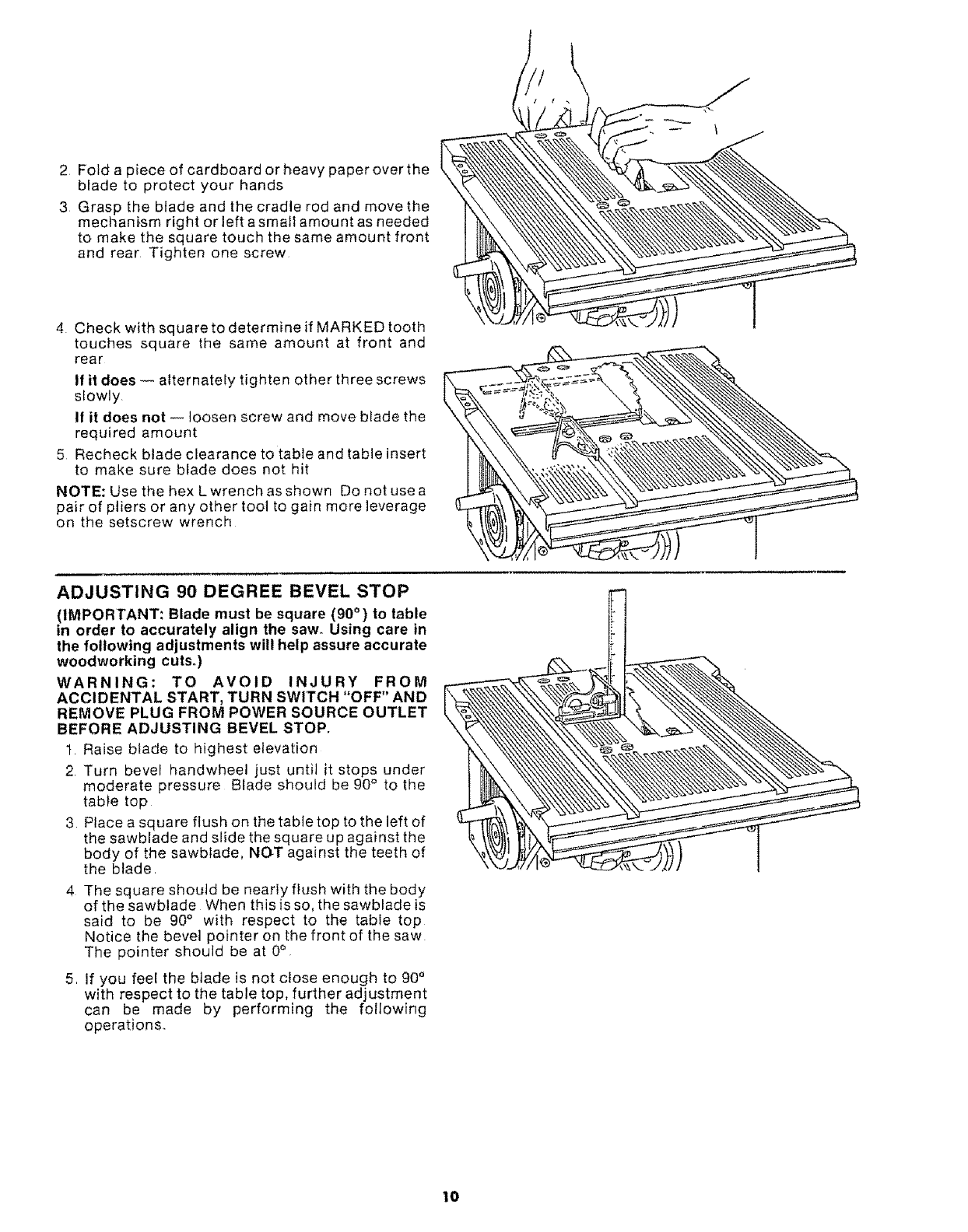

2 Fold a piece of cardboard or heavy paper over the

blade to protect your hands

3 Grasp the blade and the cradle rod and move the

mechani,sm right or left a small amount as needed

to make the square touch the same amount front

and rear Tighten one screw

4 Check with squareto determine if MARKED tooth

touches square the same amount at front and

rear

tf it does -- alternately tighten other three screws

sfowly

If it does not -- loosen screw and move blade the

required amount

5 Recheck blade clearance to table and table insert

to make sure blade does not hit

NOTE: Use the hex L wrench as shown Do not usea

pair of pliers or any other tool to gain more leverage

on the setscrew wrench

ADJUSTING 90 DEGREE BEVEL STOP

(IMPORTANT: Blade must be square (90 ° ) to table

in order to accurately align the saw° Using care in

the following adjustments will help assure accurate

woodworking cuts.)

WARNING: TO AVOID INJURY FROM

ACCIDENTAL START, TURN SWITCH "OFF" AND

REMOVE PLUG FROM POWER SOURCE OUTLET

BEFORE ADJUSTING BEVEL STOP.

t Raise blade to highest elevation

2 Turn bevel handwheet just until it stops under

moderate pressure Blade should be 90° to the

table top

3 Place a square flush on the table top to the left of

the sawblade and slide the square up against the

body of the sawblade, NOT against the teeth of

the blade

4 The square should be nearly flush with the body

of the sawblade When this is so, the sawblade is

said to be 90° with respect to the table top

Notice the bevel pointer on the front of the saw

The pointer should be at 0°

5, If you feel the blade is not close enough to 90°

with respect to the table top, further adjustment

can be made by performing the following

operation&.

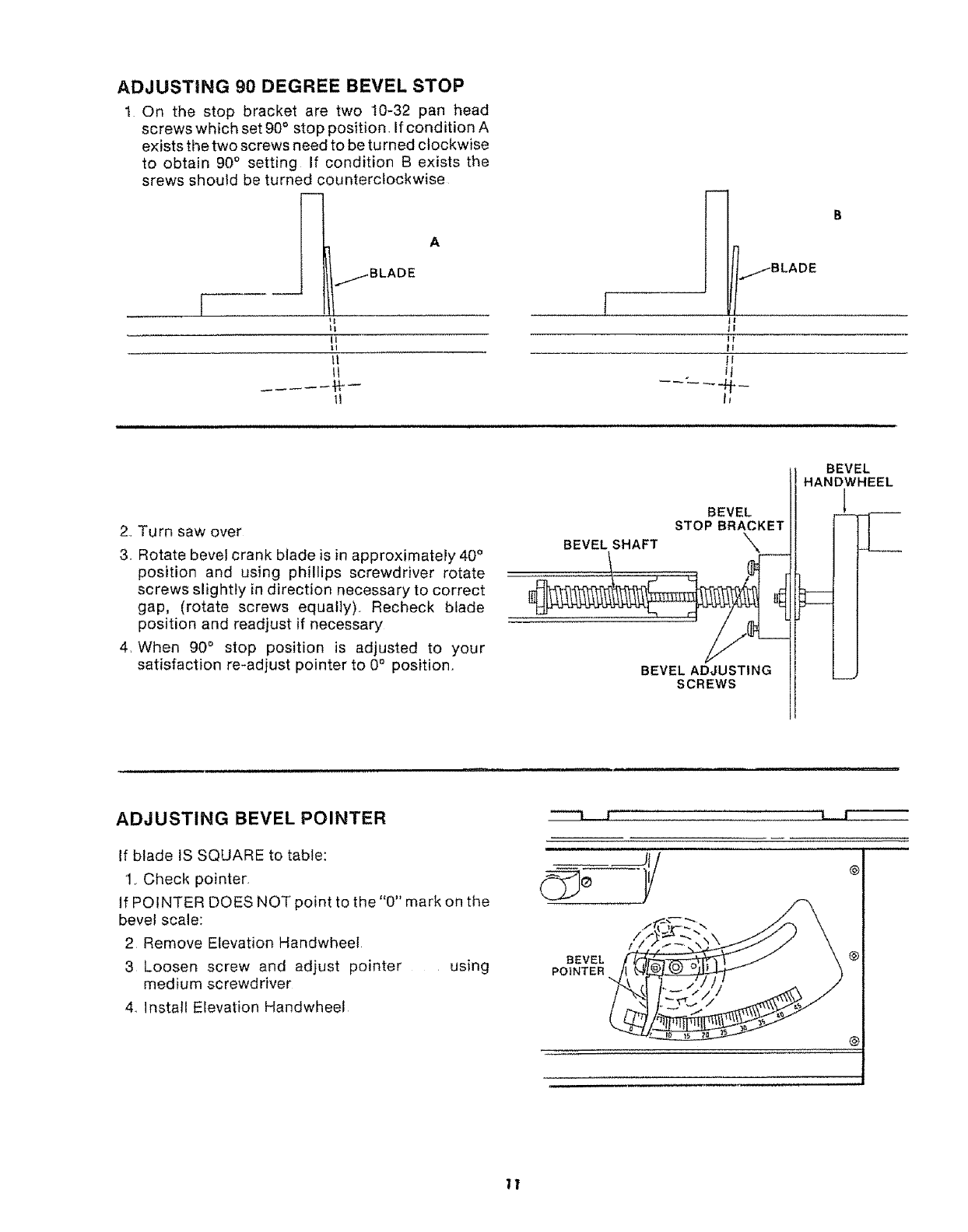

ADJUSTING 90 DEGREE BEVEL STOP

1 On the stop bracket are two t0-32 pan head

screws which set 90°stop position. If condition A

exists the two screws need to be turned clockwise

to obtain 90° setting if condition B exists the

stews should be turned counterclockwise

[ t/BLADE

I I.,.,.,,-'_BLADE

2.. Turn saw over

3, Rotate bevel crank blade is in approximateFy 40°

position and using phillips screwdriver rotate

screws slightly in direction necessary to correct

gap, (rotate screws equally),. Recheck blade

position and readjust if necessary

4, When 90° stop position is adjusted to your

satisfaction re-adjust pointer to 0° position,

BEVEL

STOP BRACKET

BEVEL SHAFT X_

BEVEL ADJUSTING

SCREWS

BEVEL

HANDWHEEL

ADJUSTING BEVEL POINTER

If blade IS SQUARE to table:

1,, Check pointer.

If POINTER DOES NOT point to the "0" mark on the

bevel scale:

2 Remove Elevation Handwheel

3 Loosen screw and adjust pointer using

medium screwdriver

4o Install Elevation Handwheel

! r

BEVEL

POINTER

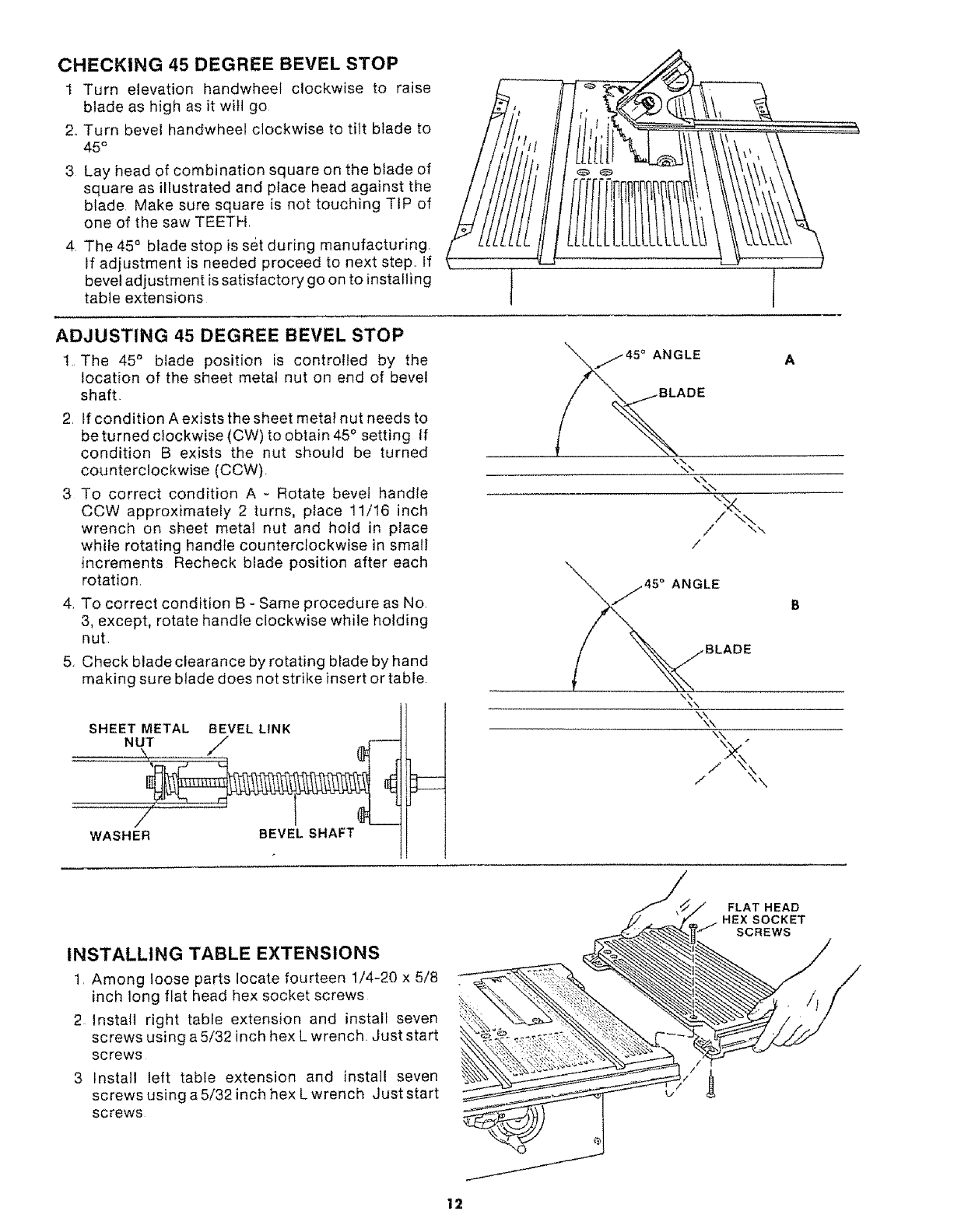

CHECKING 45 DEGREE BEVEL STOP

1 Turn elevation handwheet clockwise to raise

blade as high as it will go ,,

2oTurn bevel handwheel clockwise to tilt blade to /,

45 °

3 Lay head of combination square on the blade of

square as illustrated and place head against the

blade Make sure square is not touching TIP of

one of the saw TEETH

4, The 45° blade stop is set during manufacturing.

If adjustment is needed proceed to next step,, If

bevel adjustment is satisfactory go on to installing t

table extensions I

ADJUSTING 45 DEGREE BEVEL STOP

! The 45° blade position is controlled by the

location of the sheet metal nut on end of bevel

shaft

2, ff condition A exists the sheet metal nut needs to

be turned clockwise (CW) to obtain 45° setting If

condition B exists the nut should be turned

counterclockwise (CCW),

3 To correct condition A - Rotate bevel handle

CCW approximately 2 turns, place 11/16 inch

wrench on sheet metal nut and hold in place

while rotating handle counterclockwise in small

increments Recheck blade position after each

rotation.

4. To correct condition B - Same procedure as No

3, except, rotate handle clockwise while holding

nut,

5, Check blade clearance by rotating blade by hand

making sure blade does not strike insert or table

SHEET METAL BEVEL LINK

WASHER BEVEL SHAFT

ANGLE A

\\ \\

/" \\

ANGLE

\x \\ \\ _X

INSTALLING TABLE EXTENSIONS

1, Among toose parts locate fourteen 1/4-20 x 5/8

inch tong flat head hex socket screws

2 Install right table extension and install seven

screws using a 5/32 inch hex L wrench. Just start

screws

3 Install left table extension and install seven

screws using a5/32 inch hex Lwrench Just start

screws

FLAT HEAD

HEX SOCKET

SCREWS

3 Install left table extension and install seven

screws using 5/32 inch hex L wrench Just start

screws

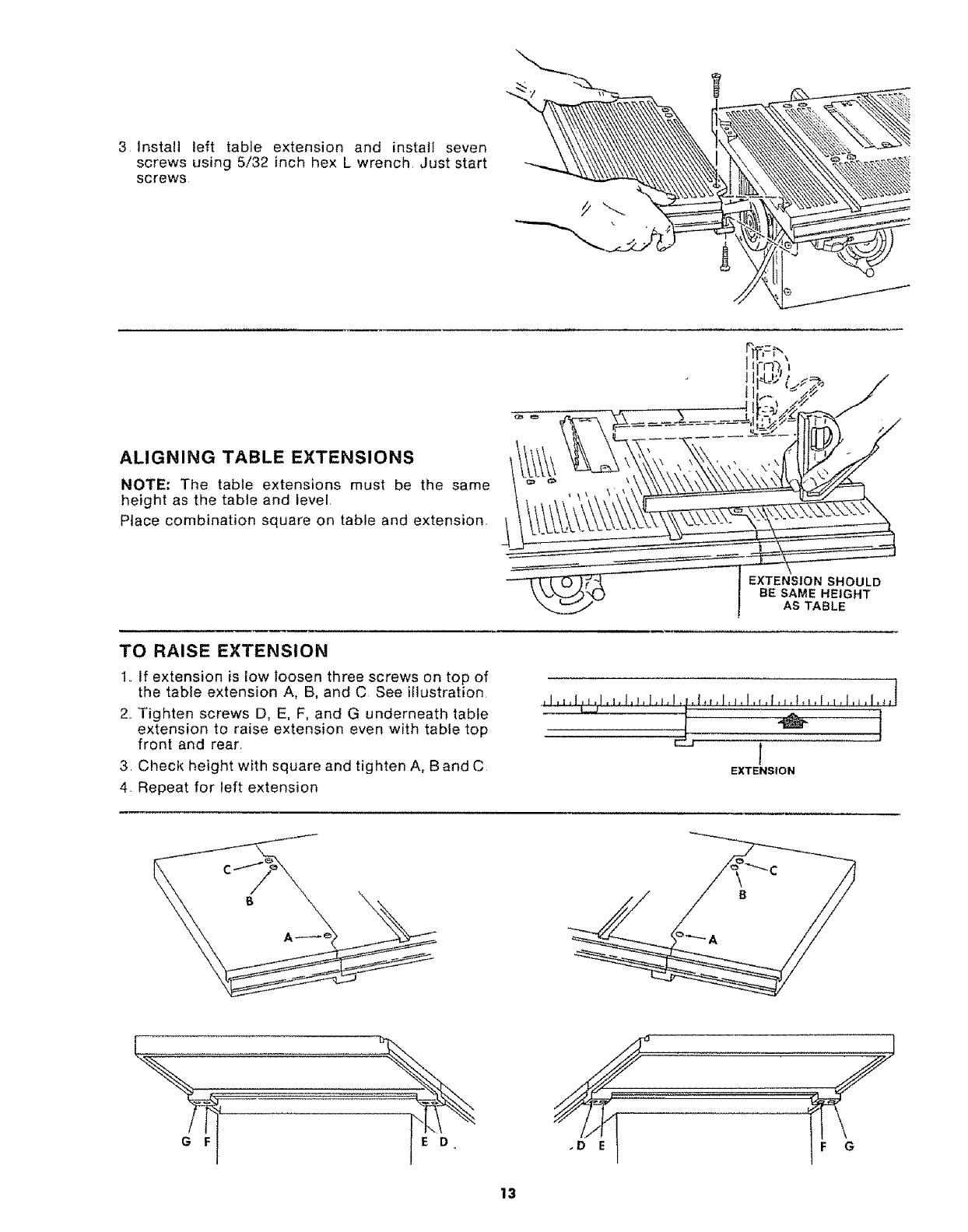

ALIGNING TABLE EXTENSIONS

NOTE; The table extensions must be the same

height as the table and level,

Place combination square on table and extension,

"-_ EXTENSION SHOULD

BE SAME HEIGHT

AS TABLE

TO RAISE EXTENSION

1, If extension is low loosen three screws on top of

the table extension A, B, and C See illustration

2, Tighten screws D, E, F, and G underneath table

extension to raise extension even with table top

front and rear

3, Check height with square and tighten A, Band C

4, Repeat for left extension

L==J I"

EXTENS{ON

TO LOWER EXTENSION

!. If extension is too high loosen four screws on

underside of the extension D, E, F, and G. See

illustration.

2 Tighten screws A, B and C on top of table

extension to lower extension even with table top

front and rear.

3. Check height with square and tighten screws D,

E, F and G

4. Repeat for left extension.

,,,u,

EXTENSfON

LEVELING EXTENSIONS

Place combination square on table and extension so

that end of blade extends over edge of extension.

HoLd square firmly on saw table and check for gap

between extension and blade of square.

SHOULD BE

NO GAP

TO LOWER OUTER EDGE OF EXTENSION

1. Loosen screws B_E, and Fon right extension. See

ilhJstration

2 Tighten screws C, D, and G until table extension

is Level

3oSnug down screws B, E, and Fr.

4Repeat for left extension

EXTENSION

TO RAISE OUTER EDGE OF EXTENSION

1 Loosen screws C, D, and G on right extension.

2. Tighten screws B, E, and F until table extension is

tevet

3. Snug down screws C, D, and G

4. Repeat for left table extension. 1

EXTENSION

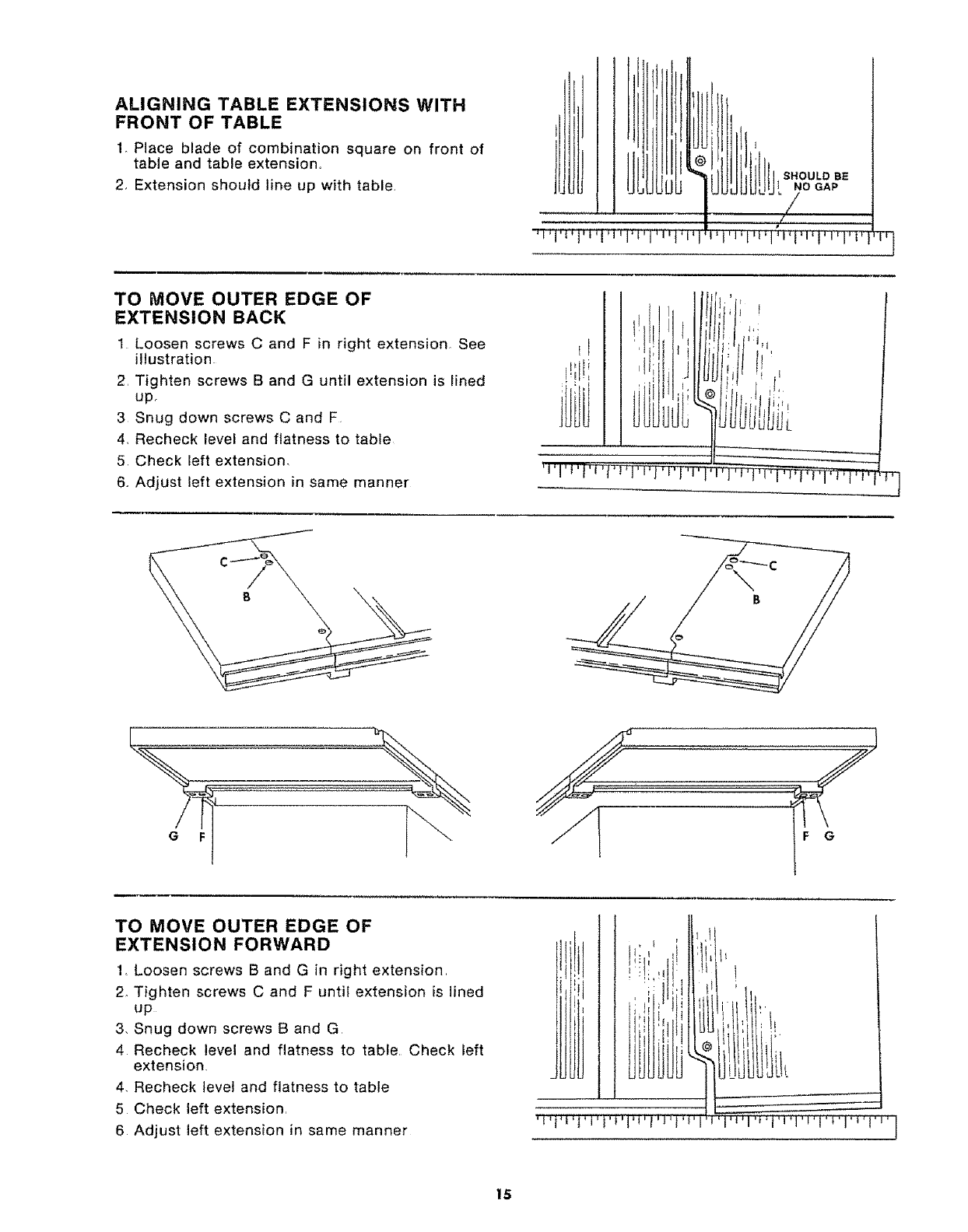

ALIGNING TABLE EXTENSIONS WITH

FRONT OF TABLE

!, Place blade of combination square on front of

table and table extension,,

2, Extension should line up with table,

'l'l='l'_'l'_'l'l'l'_'t'l'l'I'l'J'l,t'l'l'l'l't'l,l't,t I' I

TO MOVE OUTER EDGE OF

EXTENSION BACK

1Loosen screws C and Fin right extension See

illustration

2, Tighten screws B and G until extension is lined

up,

3 Snug down screws C and F

4, Recheck level and flatness to table

5, Check left extension

6. Adjust left extension in same manner

TO MOVE OUTER EDGE OF

EXTENSION FORWARD

1 Loosen screws B and G in right extension

2, Tighten screws C and F until extension is lined

3, Snug down screws B and G

4 Recheck level and flatness to table Check left

extension,

4_ Recheck level and flatness to table

5 Check left extension

6 Adjust left extension in same manner

lltI! l

, LH

INSTALLING BLADE GUARD

1. From among the loose parts, find the hardware as

shown

SQUARE NUT

_....._ , _..,_F SPREADER St'IPPORT

TRUSS HEAD _ _ SPREADER BRACKET

SCREW _ _ J"

5/8 IN LONG "_,_(7"_ K-_}_-"_'_.,.,_ SPREADER CLAMP

SOCKETHEAD _

SETSCREW _,_-_,_1_ "-_ (J'-- I WING NUT

718,.,Lo.a g "IL_&j /

FLAT WASHER/_) @'_.

HEX NUT -"-'_'_ LOCKWASHER

EXT, 1/4 IN.

BLADE SQUARE

WITH TABLE

2 MAKE SURE THE BLADE IS ALL THE WAY UP

AND SQUARE WITH THE TABLE

3, Position SPREADER SUPPORT on rod until it is

even with the end of the rod

SPREADER SUPPORT

EVEN WITH ROD

4. Assemble the 7/8 in, long setscrews, nuts,

Iockwashers and washers to the SPREADER

SUPPORT BRACKET and slip the nuts into the

slot in the spreader support

5 Finger tighten ONLY THE HEX NUTS

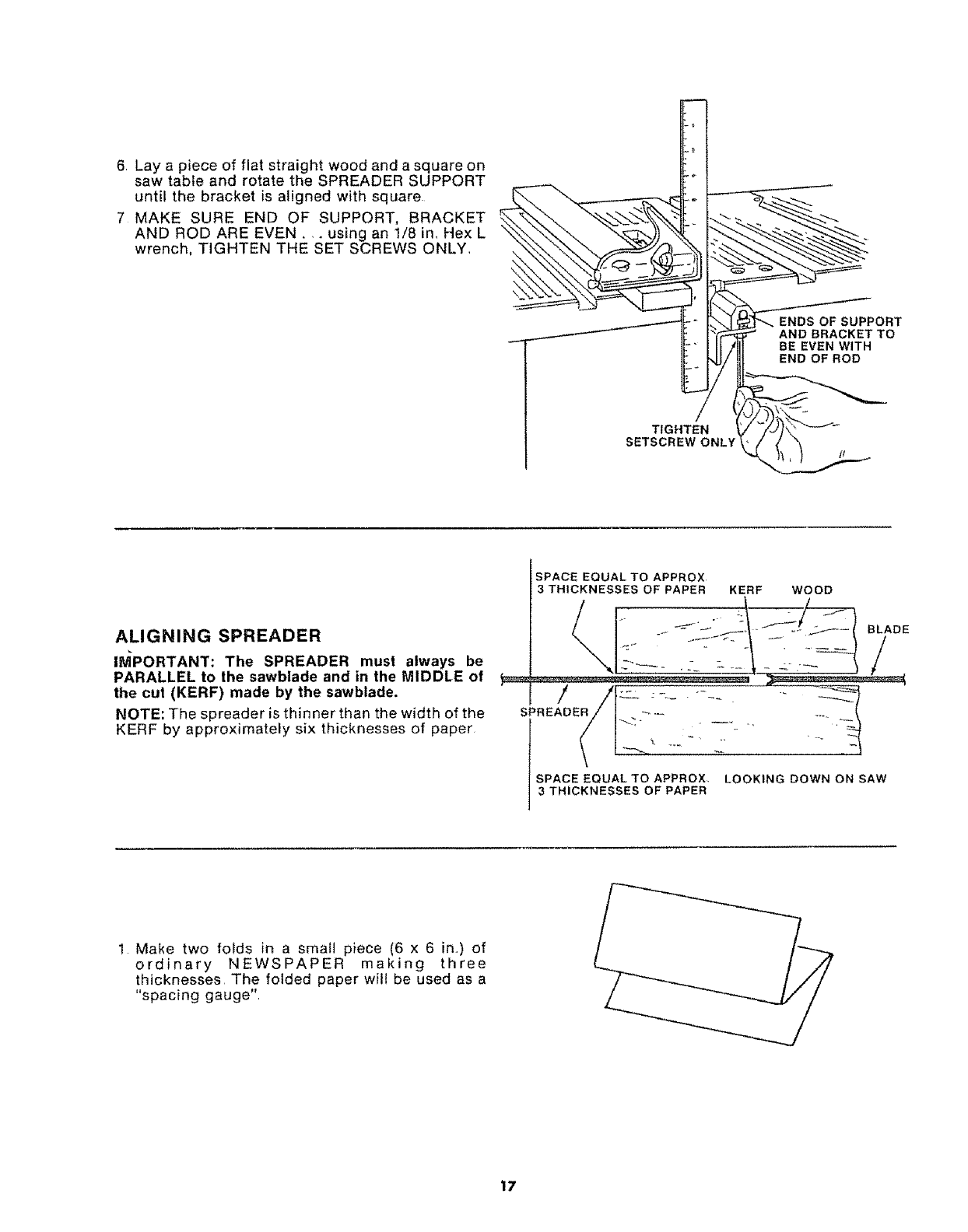

6 Layapieceof flat straightwoodandasquareon

sawtableandrotatetheSPREADERSUPPORT

until the bracketis alignedwithsquare

7 MAKE SURE ENDOF SUPPORT,BRACKET

ANDRODAREEVEN.,+usingan1/8in+HexL

wrench,TIGHTENTHESETSCREWSONLY,

ENDS OF SUPPORT

AND BRACKET TO

BE EVEN WITH

END OF ROD

TIGHTEN

SETSCREW ONLY

ALIGNING SPREADER

IMPORTANT: The SPREADER must always be

PARALLEL to the sawblade and in the MIDDLE of

the cut (KERF) made by the sawblade.

NOTE: The spreader is thinner than the width of the

KERF by approximately six thicknesses of paper

SPACE EQUAL TO APPROX

3THICKNESSES OF PAPER KERF WOOD

.... :_ o/ J

SPREADER

SPACE EQUAL TOAPPROX, LOOKING DOWN ON SAW

3THICKNESSES OF PAPER

1 Make two folds in a small piece (6 x 6 in,,) of

ordinary NEWSPAPER making three

thicknesses The folded paper witl be used as a

"spacing gauge"

2, Installthe SPREADERCLAMP.Placespreader

betweenspreaderclamp and bracket, Move

forwarduntilallthreeareinline,TIGHTENWING

NUTS.

3 Lay a piece of straightflat wood againstthe

sawblade.Insertfoldedpaperbetweenspreader

andstripof wood.

4,MAKESURETHE HEXNUTSUNDERNEATH

ARELOOSE

5 Lift the antikickbackpawlto clearthewoodand

holdthespreadertightlyagainstthewood,Make

sure the wood is against the saw blade

TIGHTENTHEHEXNUTS,

This will alignthespreaderin themiddleof the

cut (KERF)madeby sawblade

THREE THICKNESSES

OFPAPER SPREADER

WING NUT CLAMP

PIECE OF

STRAIGHT WOOD

HOLD WOOD 1

"IGHTLY AGAINST

BLADE

ACK

HOLD SPREADER

TIGHTLY AGAINST WOOD

BRACKET

ATTACHING RIP FENCE

Apply a coat of paste wax to the top surface and

front ledge of the saw table This will allow the fence

to slide more easily

1 Loosen fence lock knob by turning counter-

clockwise,.

2. Attach fence head by placing head of fence over

front ledge in saw table.,

FENCE LOCK

KNOB

ALIGNING RiP FENCE

IMPORTANT: The rip fence MUST be parallel with

saw blade and miter grooves in order to help prevent

KICKBACK of the workpiece when ripping. Careful

adjustment is required,

1..Hold head of rip fence and slide on table until the

edge of the fence lines up with the right miter slot.

2 Turn fence lock knob clockwise to lock fence.

3 If..fence does not line up with miter slot front and

rear:

A. Loosen the two hex screws in top of fence

B. While holding head of rip fence, move rear of

rip fence right or left until edge lines up with

miter s!ot_

C Tighten hex screws alternately being careful

not to move fence

MUST LINE UP WITH MITER

SLOT FRONT AND REAR

HEAD

LOOSEN TWO HEX

SCREWS TO ADJUST

ADJUSTING MITER GAUGE

NOTE: The graduations are manufactured to very

close tolerances which provide suitable accuracy

for average woodworking. In some cases where

extreme accuracy is required, when making angle

cuts, for example, make a trial cut and then recheck

it.

If necessary, the miter gauge head can then be

swiveled slightly to compensate and then locked

The HEAD should be SQUARE (90 ° ) with the bar

when the pointer points to "0".

To check for squareness, place an accurate square

on the mitergauge If the head is NOTSQUAREwith

the bar:

1. Loosen the lock handle.

2 Position the head square with the bar .. •tighten

the handle

3 Loosen the screw and adjust the pointer, so it

points to zero

BAR

HEAD

MOUNTING SAW TO LEGS OR BENCH

If you purchase Craftsman Steel Legs for your saw,

assemble them according to the directions

furnished with them

If you mount the saw on any other bench, makesure

that there is an opening in the top of the bench the

same size as the opening in the bottom of the saw so

that the sawdust can drop through, Recommended

working height is 33 to 37 in. from the fop of the saw

table to the floor°

4HOLES

.312 DIA'

12-3/4

REAR OF SAW

OPENING

11-3/16

NOTE; All dimensions in Inches,

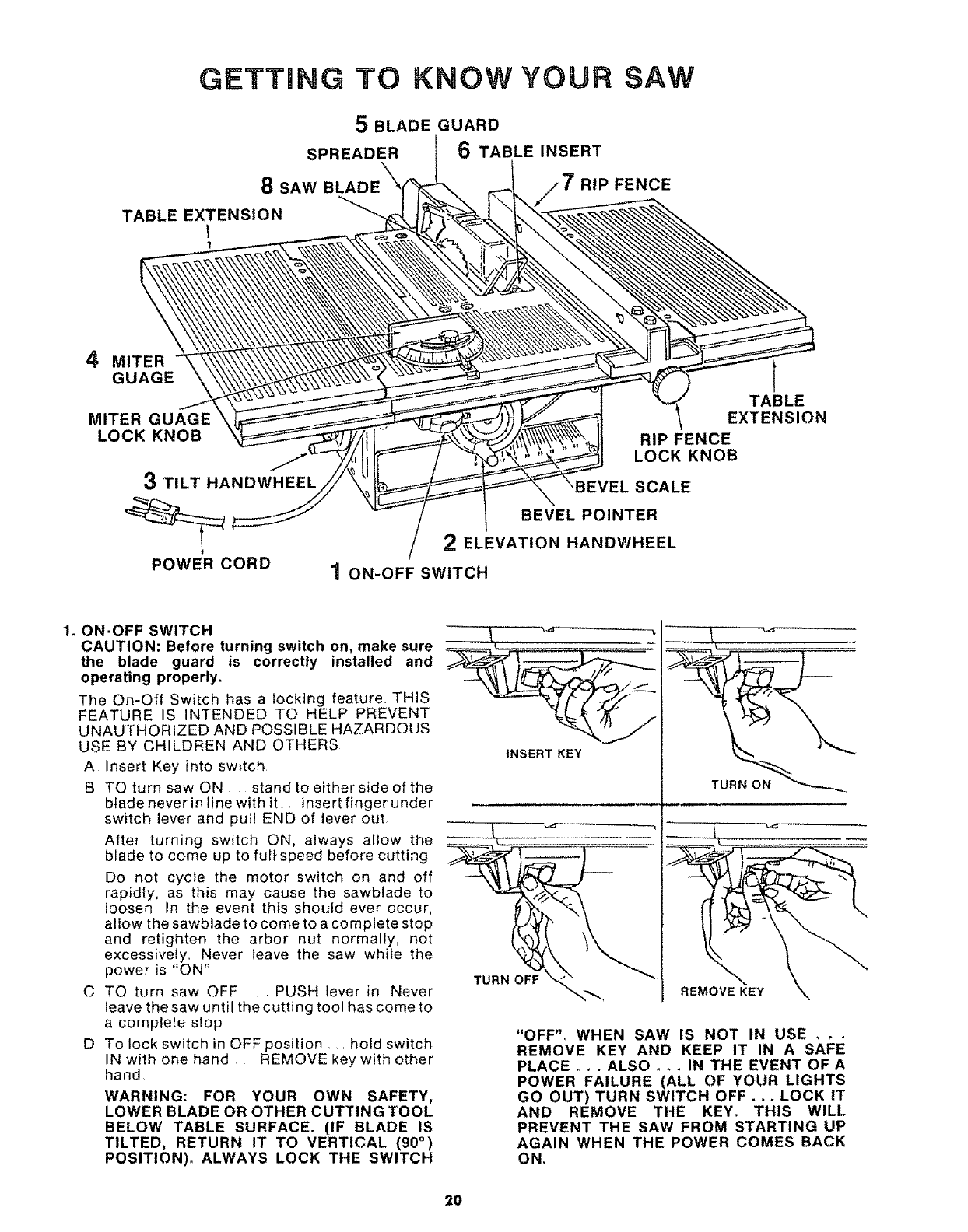

GETTING TO KNOW YOUR SAW

5 BLADE GUARD

SPREADER 6TABLE INSERT

8 SAW BLADE "k* RIP FENCE

TABLE EXTENSION

4MITER

GUAGE

MITER GUAGE

LOCK KNOB

3TILT HANDWHEEL

POWER CORD

TABLE

EXTENSION

RIP FENCE

LOCK KNOB

,BEVEL SCALE

BEVEL POINTER

2ELEVATION HANDWHEEL

1ON-OFF SWITCH

1. ON-OFF SWITCH

CAUTION: Before turning switch on, make sure

the blade guard is correctly installed and

operating properly,

The On-Off Switch has a locking feature. THiS

FEATURE IS INTENDED TO HELP PREVENT

UNAUTHORIZED AND POSSIBLE HAZARDOUS

USE BY CHILDREN AND OTHERS

AInsert Key into switch

B TO turn saw ON stand to either side of the

blade never in line with it. insert finger under

switch lever and pull END of lever out

After turning switch ON, always allow the

blade to come up to fuff speed before cutting

Do not cycle the motor switch on and off

rapidly, as this may cause the sawblade to

loosen In the event this should ever occur,

allow the sawblade to come to a complete stop

and retighten the arbor nut normally, not

excessively. Never leave the saw while the

power is "ON"

C TO turn saw OFF PUSH lever in Never

leave the saw until the cutting toot has come to

a complete stop

D To lock switch in OFF position hold switch

IN with one hand REMOVE key with other

hand

WARNING: FOR YOUR OWN SAFETY,

LOWER BLADE OR OTHER CUTTING TOOL

BELOW TABLE SURFACE. (IF BLADE IS

TILTED, RETURN IT TO VERTICAL (90 ° )

POSITION). ALWAYS LOCK THE SWITCH

INSERT KEY

TURN O\F_F _, _ \_-=_,_

TURN ON

REMOVE KEY

"OFF", WHEN SAW IS NOT IN USE o , .

REMOVE KEY AND KEEP IT IN A SAFE

PLACE .,. ALSO , , . IN THE EVENT OF A

POWER FAILURE (ALL OF YOUR LIGHTS

GO OUT) TURN SWITCH OFF,. , LOCK IT

AND REMOVE THE KEY. THIS WILL

PREVENT THE SAW FROM STARTING UP

AGAIN WHEN THE POWER COMES BACK

ON.

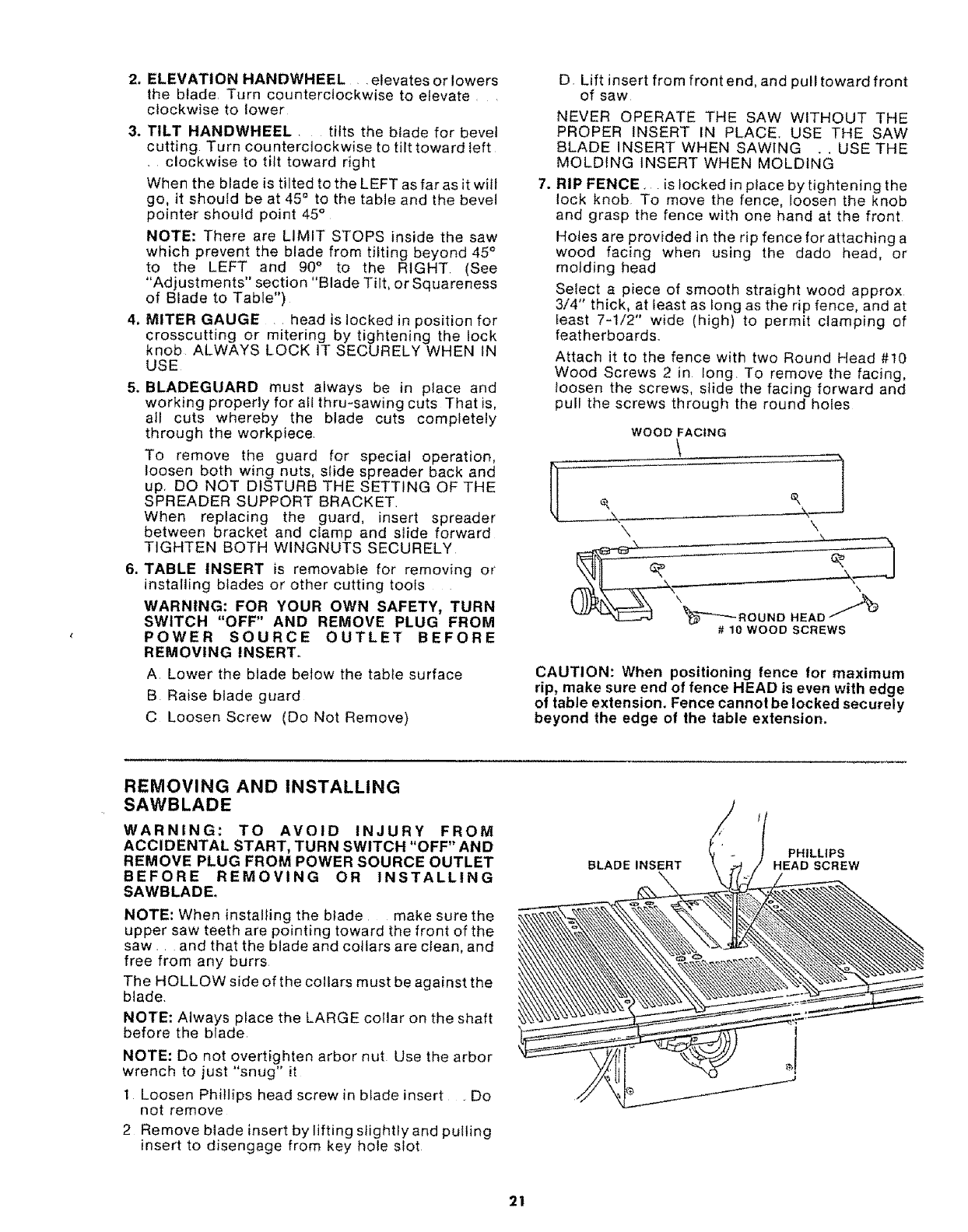

2. ELEVATION HANDWHEEL ,elevates orlowers

the blade, Turn counterclockwise to elevate

clockwise to lower

3. TILT HANDWHEEL tilts the blade for bevel

cutting Turn counterclockwise to tift toward left

, clockwise to tilt toward right

When the blade is tilted to the LEFT as far as it witt

go, it should be at 45° to the table and the bevel

pointer should point 45°

NOTE: There are LIMIT STOPS inside the saw

which prevent the blade from tilting beyond 45 °

to the LEFT and 90° to the RIGHT (See

"Adjustments" section "Blade Tilt, or Squareness

of Blade to Table")

4. MITER GAUGE head is locked in position for

crosscutting or mitering by tightening the lock

knob ALWAYS LOCK IT SECURELY WHEN IN

USE

5. BLADEGUARD must always be in place and

working properly for all thru-sawing cuts That is,

all cuts whereby the blade cuts completely

through the workpiece

To remove the guard for special operation,

loosen both wing nuts, slide spreader back and

up. DO NOT DISTURB THE SETTING OF THE

SPREADER SUPPORT BRACKET

When replacing the guard, insert spreader

between bracket and clamp and slide forward

TIGHTEN BOTH WINGNUTS SECURELY

6. TABLE INSERT is removable for removing or"

installing blades or other cutting tools

WARNING: FOR YOUR OWN SAFETY, TURN

SWITCH "OFF" AND REMOVE PLUG FROM

POWER SOURCE OUTLET BEFORE

REMOVING INSERT.

A Lower the blade below the table surface

B Raise blade guard

C Loosen Screw (Do Not Remove)

D, Lift insert from front end, and pull toward front

of saw

NEVER OPERATE THE SAW WITHOUT THE

PROPER INSERT IN PLACE. USE THE SAW

BLADE INSERT WHEN SAWING . . USE THE

MOLDING INSERT WHEN MOLDING

RIP FENCE, is locked in place by tightening the

lock knob To move the fence, loosen the knob

and grasp the fence with one hand at the front

Holes are provided in the rip fence for attaching a

wood facing when using the dado head, or

molding head

Select a piece of smooth straight wood approx

3/4" thick, at least as long as the rip fence, and at

Ieast 7-1/2" wide (high) to permit clamping of

featherboards

Attach it to the fence with two Round Head #10

Wood Screws 2 in long To remove the facing,

loosen the screws, slide the facing forward and

puli the screws through the round holes

WOOD FACING

\ \

#10 WOOD SCREWS

CAUTION: When positioning fence for maximum

rip, make sure end of fence HEAD is even with edge

of table extension. Fence cannot be locked securely

beyond the edge of the table extension.

REMOVING AND INSTALLING

SAWBLADE

WARNING: TO AVOID INJURY FROM

ACCIDENTAL START, TURN SWITCH "OFF" AND

REMOVE PLUG FROM POWER SOURCE OUTLET

BEFORE REMOVING OR INSTALLING

SAWBLADE.

NOTE: When installing the blade make sure the

upper saw teeth are pointing toward the front of the

saw, and that the blade and collars are clean, and

free from any burrs

The HOLLOW side of the collars must be against the

blade.

NOTE: Always place the LARGE collar on the shaft

before the blade

NOTE: Do not overtighten arbor nut Use the arbor

wrench to just "snug" it

1 Loosen Phillips head screw in blade insert Do

not remove

2 Remove blade insert by lifting stightly and pulling

insert to disengage from key hole slot

PHILLIPS

BLADE INSERT HEAD SCREW

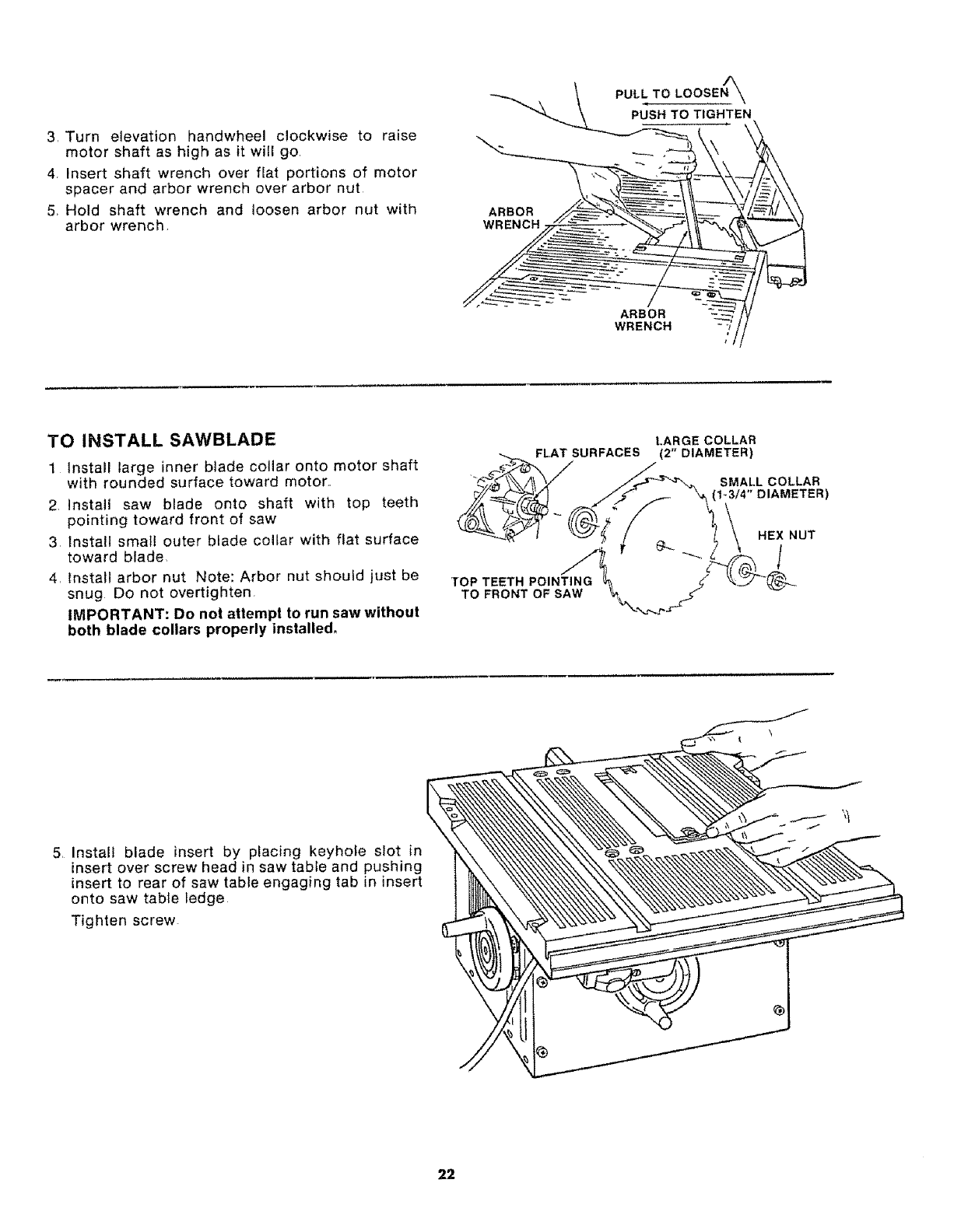

3, Turn elevation handwheel clockwise to raise

motor shaft as high as it will go,

4, Insert shaft wrench over flat portions of motor

spacer and arbor wrench over arbor nut

5 Hold shaft wrench and loosen arbor nut with

arbor wrench

ARBOR

WRENCH

TO INSTALL SAWBLADE

1 Install large inner blade collar onto motor shaft

with rounded surface toward motor,,

2 Install saw blade onto shaft with top teeth

pointing toward front of saw

3 Install sina!! outer blade collar with flat surface

toward blade

4, Install arbor nut Note: Arbor nut should just be

snug Do not overtighten

IMPORTANT: Do not attempt to run saw without

both blade collars properly installed_

FLAT SURFACES

TOP TEETH POINTING

TO FRONT OF SAW

LARGE COLLAR

(2" DIAMETER)

SMALL COLLAR

(1-3/4" DIAMETER)

HEX NUT

5, Install blade insert by placing keyhole slot in

insert over screw head in saw table and pushing

insert to rear of saw table engaging tab in insert

onto saw table Iedge

Tighten screw.

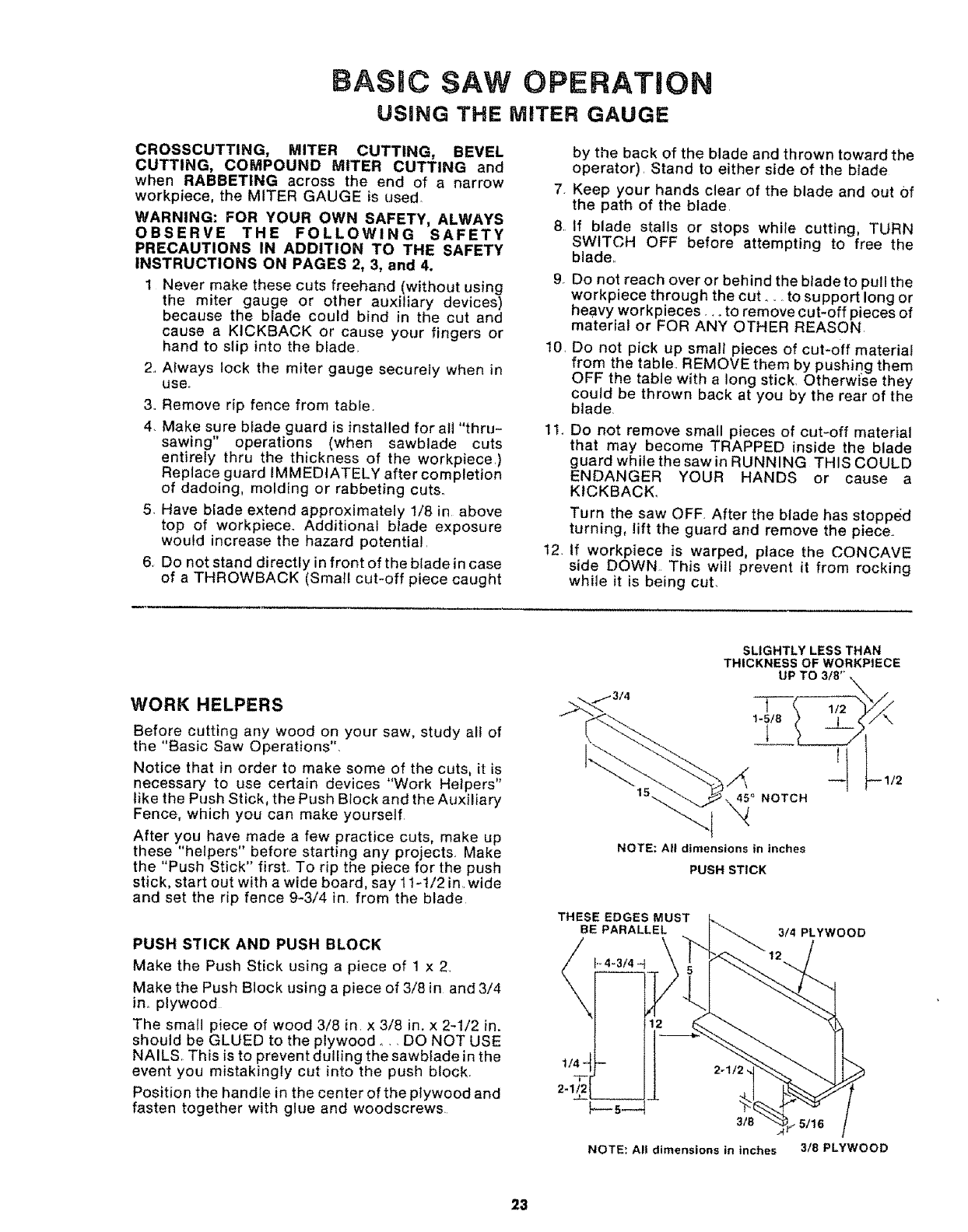

BASIC SAW OPERATION

USING THE MITER GAUGE

CROSSCUTTING, MITER CUTTING, BEVEL

CUTTING, COMPOUND MITER CUTTING and

when RABBETING across the end of a narrow

workpiece, the MITER GAUGE is used

WARNING: FOR YOUR OWN SAFETY, ALWAYS

OBSERVE THE FOLLOWING SAFETY

PRECAUTIONS IN ADDITION TO THE SAFETY

INSTRUCTIONS ON PAGES 2, 3, and 4.

1Never make these cuts freehand (without using

the miter gauge or other auxiliary devices)

because the blade could bind in the cut and

cause a KICKBACK or cause your fingers or

hand to slip into the blade,

2., Always lock the miter gauge securely when in

USe.

3. Remove rip fence from table,

4, Make sure blade guard is installed for atl "thru-

sawing" operations (when sawbiade cuts

entirely thru the thickness of the workpiece,)

Replace guard IMMEDIATELY after completion

of dadoing, molding or rabbeting cuts.,

5. Have blade extend approximately 1/8 in above

top of workpiece° Additional blade exposure

would increase the hazard potential,

6, Do not stand directly in front of the blade in case

of a THROWBACK (Small cut-off piece caught

by the back of the blade and thrown toward the

operator), Stand to either side of the blade

Keep your hands clear of the blade and out Of

the path of the blade,

If blade stalls or stops while cutting, TURN

SWITCH OFF before attempting to free the

blade,,

9. Do not reach over or behind the blade to pul! the

workpiece through the cut,. oto support long or

heavy workpieces, ,. to remove cut-off pieces of

material or FOR ANY OTHER REASON

10, Do not pick up small pieces of cut-off material

from the table. REMOVE them by pushing them

OFF the table with a long stick, Otherwise they

could be thrown back at you by the rear of the

blade.

11. Do not remove small pieces of cut-off material

that may become TRAPPED inside the blade

guard while the saw in RUNNING THIS COULD

ENDANGER YOUR HANDS or cause a

K1CKBACK_

Turn the saw OFF. After the blade has stopped

turning, lift the guard and remove the piece.

12 If workpiece is warped, place the CONCAVE

side DOWN This will prevent it from rocking

while it is being cut,

WORK HELPERS

Before cutting any wood on your saw, study all of

the "Basic Saw Operations'L

Notice that in order to make some of the cuts, it is

necessary to use certain devices "Work Helpers"

like the Push Stick, the Push Block and the Auxiliary

Fence, which you can make yourself

After you have made a few practice cuts, make up

these "helpers" before starting any projects, Make

the "Push Stick" first, To rip the piece for the push

stick, start out with a wide board, say 11-t/2 in. wide

and set the rip fence 9-3/4 in. from the blade

PUSH STICK AND PUSH BLOCK

Make the Push Stick using a piece of 1 x 2.

Make the Push Block using a piece of 3/8 in and 3/4

in. plywood

The small piece of wood 3/8 in, x 3/8 in, x 2-1/2 in.

should be GLUED to the plywood ... • DO NOT USE

NAILS, This is to prevent dulling the sawblade in the

event you mistakingly cut into the push block,

Position the handle in the center of the plywood and

fasten together with glue and woodscrews

SLIGHTLY LESS THAN

THICKNESS OF WORKPIECE

UP TO

t-5/8

45 °NOTCH

NOTE: All dimensions in inches

PUSH STICK

THESE EDGES MUST

BE PARALLEL

_\ 1"4"3/4_

3/4 PLYWOOD

114 -" 2-1/2

3/8

NOTE: All dimensions in inches 3/8 PLYWOOD

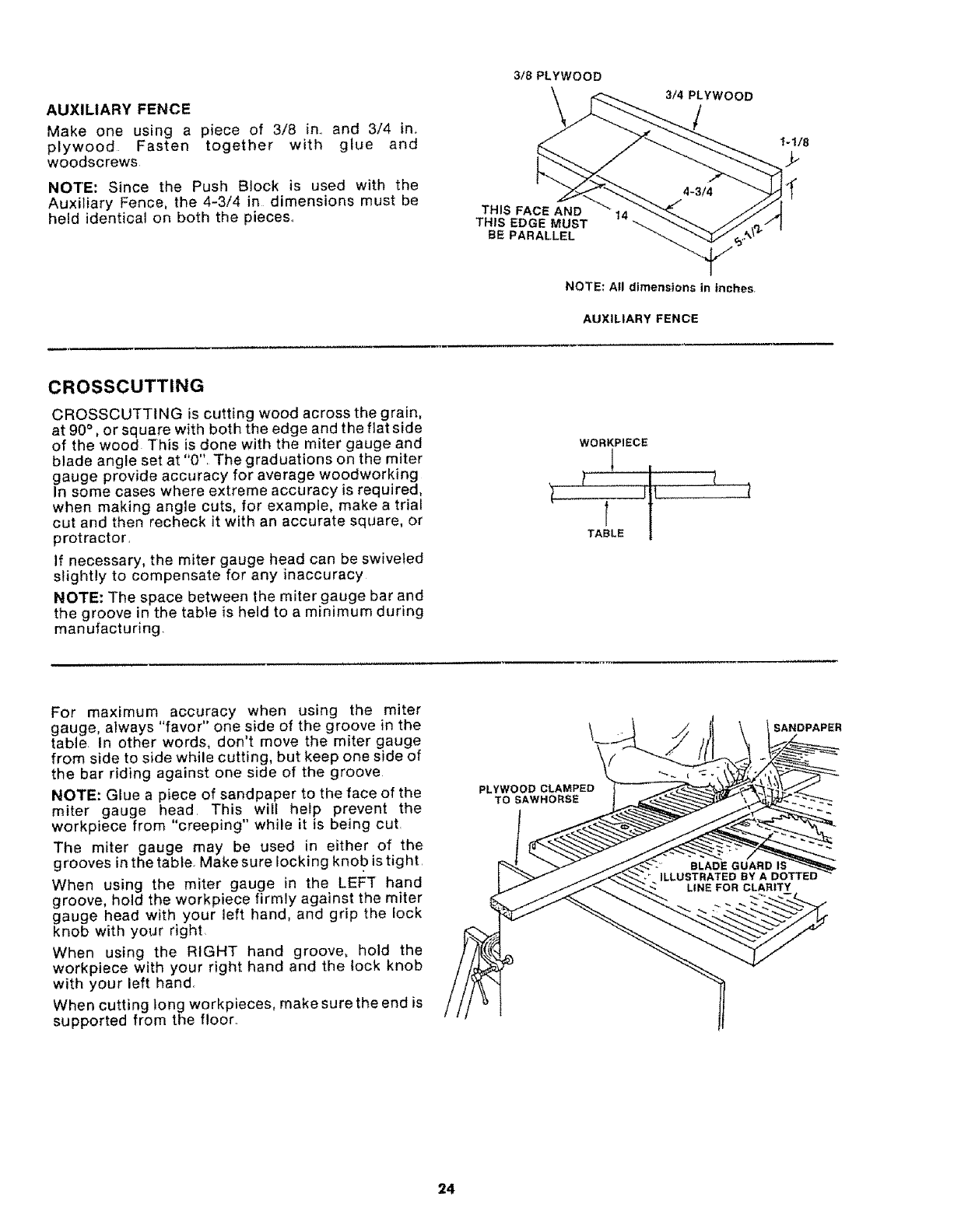

AUXILIARYFENCE

Make one using a piece of 3/8 in,. and 3/4 in,

plywood Fasten together with glue and

woodscrews

NOTE: Since the Push Block is used with the

Auxiliary Fence, the 4-3/4 in dimensions must be

held identical on both the pieces.

3/8 PLYWOOD

THIS FACE AND

THIS EDGE MUST

BE PARALLEL

3/'4 PLYWOOD

NOTE: All dimensions in Inches

AUXILIARY FENCE

CROSSCUTTING

CROSSCUTTING is cutting wood across the grain,

at 90_, or square with both the edge and the flat side

of the wood This is done with the miter gauge and

blade angle set at "0". The graduations on the miter

gauge provide accuracy for average woodworking

In some cases where extreme accuracy is required,

when making angle cuts, for example, make a trial

cut and then recheck it with an accurate square, or

protractor.

_f necessary, the miter gauge head can be swiveled

slightly to compensate for any inaccuracy

NOTE: The space between the miter gauge bar and

the groove in the table is held to a minimum during

manufacturing.

WORKPIECE

1 ,

TABLE

For maximum accuracy when using the miter

gauge, always "favor" one side of the groove in the

table In other words, don't move the miter gauge

from side to side while cutting, but keep one side of

the bar riding against one side of the groove

NOTE: Glue apiece of sandpaper to the face of the

miter gauge head, This will hetp prevent the

workpiece from "creeping" while it is being cut.

The miter gauge may be used in either of the

grooves in the table. Make sure locking knob is tight.

When using the miter gauge in the LEFT hand

groove, hold the workpiece firmly against the miter

gauge head with your left hand, and grip the lock

knob with your right

When using the RIGHT hand groove, hold the

workpiece with your right hand and the tock knob

with your left hand.

When cutting tong workpieces, make sure the end is

supported from the floor..

PLYWOOD CLAMPED

TO SAWHORSE

SANDPAPER

LINE FOR CLARITY

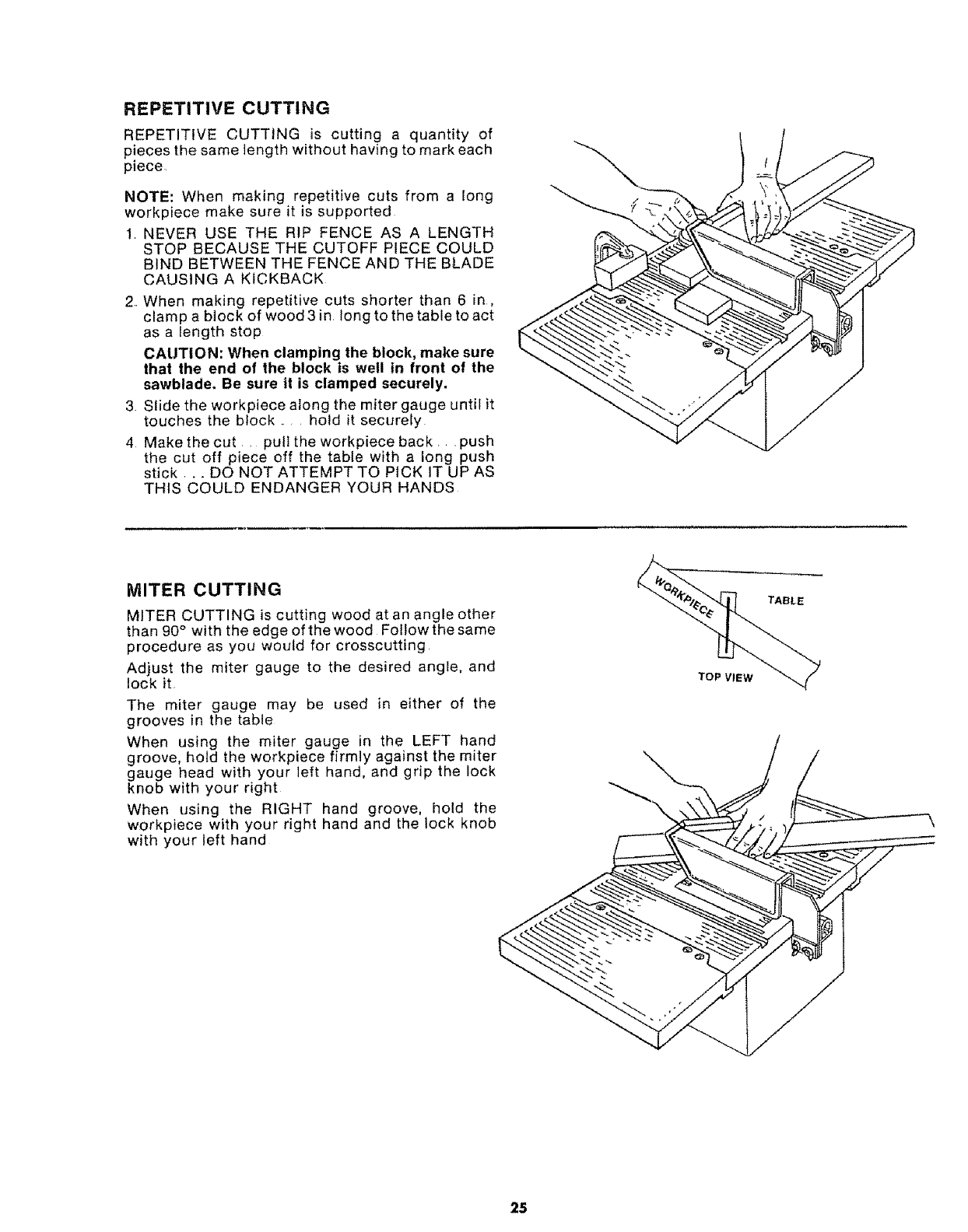

REPETITIVE CUTTING

REPETITIVE CUTTING is cutting a quantity of

pieces the same length without having to mark each

piece

NOTE: When making repetitive cuts from a long

workpiece make sure it is supported

1 NEVER USE THE RIP FENCE AS A LENGTH

STOP BECAUSE THE CUTOFF PIECE COULD

BIND BETWEEN THE FENCE AND THE BLADE

CAUSING A KICKBACK

2, When making repetitive cuts shorter than 6 in,

clamp a block of wood 3 in long to the table to act

as a length stop

CAUTION: When clamping the block, make sure

that the end of the block is well in front of the

sawblade, Be sure it is clamped securely.

3. Slide the workpiece along the miter gauge until it

touches the block,, hold it securely

4 Make the cut ,pull the workpiece back _ push

the cut off piece off the table with a long push

stick .. DO NOT ATTEMPT TO PICK IT UP AS

THIS COULD ENDANGER YOUR HANDS

MITER CUTTING

MITER CUTTING is cutting wood at an angle other

than 90°with the edge of the wood Follow the same

procedure as you would for crosscutting

Adjust the miter gauge to the desired angle, and

lock it

The miter gauge may be used in either of the

grooves in the table

When using the miter gauge in the LEFT hand

groove, hold the workpiece firmly against the miter

gauge head with your left hand, and grip the lock

knob with your right

When using the RIGHT hand groove, hold the

workpiece with your right hand and the lock knob

with your left hand

TOP VIEW

TABLE

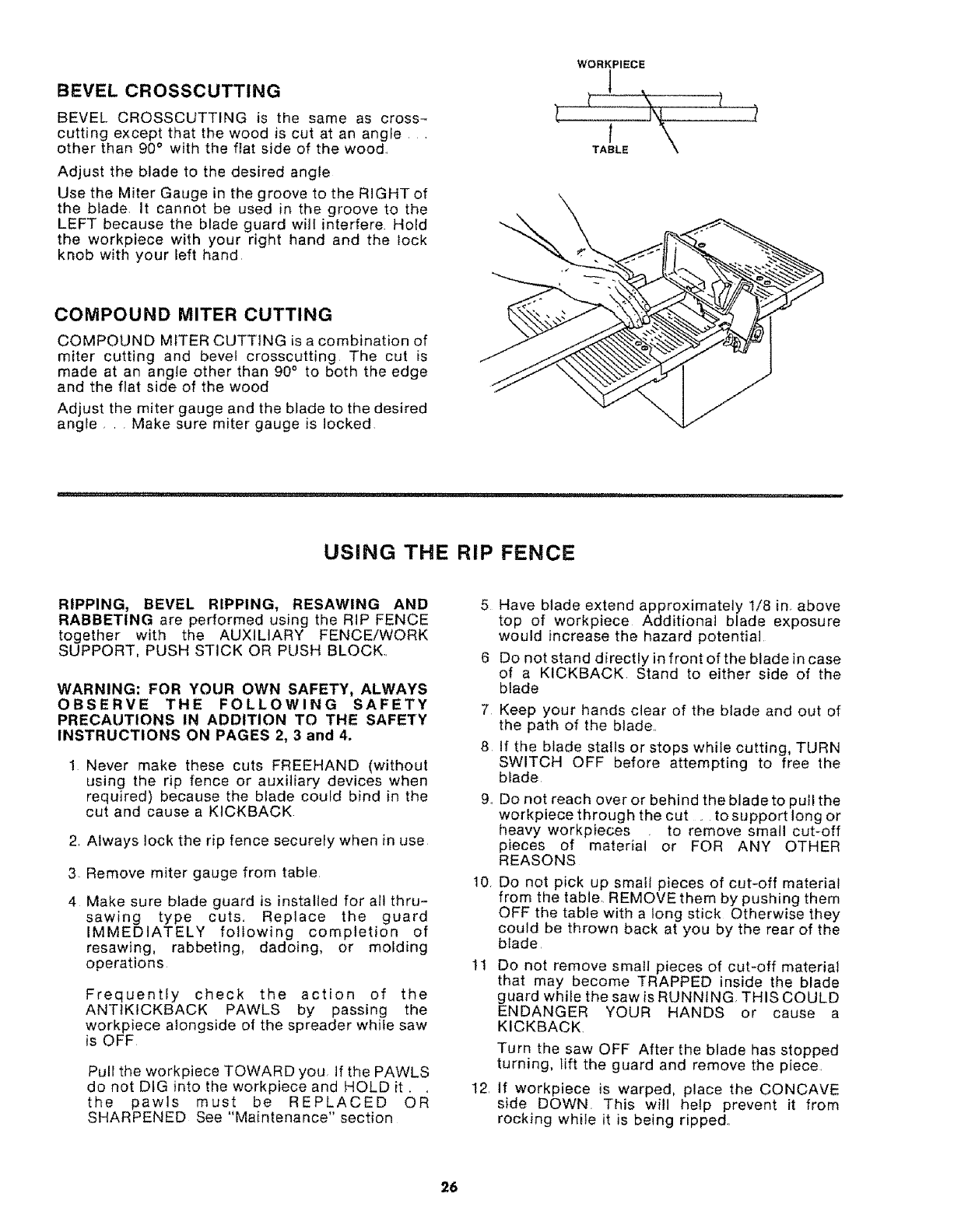

BEVEL CROSSCUTTING

BEVEL CROSSCUTTING is the same as cross-

cutting except that the wood is cut at an angle

other than 90°with the flat side of the wood.

Adjust the blade to the desired angle

Use the Miter Gauge in the groove to the RIGHTof

the blade It cannot be used in the groove to the

LEFT because the blade guard will interfere Hold

the workpiece with your right hand and the Dock

knob with your left hand

WORKPIECE

TA!LE

?,1

COMPOUND MITER CUTTING

COMPOUND MITER CUTTING is a combination of

miter cutting and bevel crosscutting The cut is

made at an angle other than 90° to both the edge

and the flat side of the wood

Adjust the miter gauge and the blade to the desired

angle. Make sure miter gauge is locked

USING THE RIP FENCE

RIPPING, BEVEL RIPPING, RESAWING AND

RABBETING are performed using the RiP FENCE

together with the AUXILIARY FENCE/WORK

SUPPORT, PUSH STICK OR PUSH BLOCK..

WARNING: FOR YOUR OWN SAFETY, ALWAYS

OBSERVE THE FOLLOWING SAFETY

PRECAUTIONS IN ADDITION TO THE SAFETY

INSTRUCTIONS ON PAGES 2, 3 and 4.

1 Never make these cuts FREEHAND (without

using the rip fence or auxiliary devices when

required) because the blade could bind in the

cut and cause a KICKBACK

2. Always lock the rip fence securely when in use

3. Remove miter gauge from table.

4 Make sure blade guard is installed for aft thru-

sawing type cuts. Replace the guard

IMMEDIATELY following completion of

resawing, rabbeting, dadoing, or molding

operations

Frequently check the action of the

ANTtKICKBACK PAWLS by passing the

workpiece alongside of the spreader while saw

is OFF

Pull the workpiece TOWARD you. If the PAWLS

do not DtG into the workpiece and HOLD it..

the pawls must be REPLACED OR

SHARPENED See "Maintenance" section

5 Have blade extend approximately 1/8 in above

top of workpiece Additional blade exposure

would increase the hazard potential

6 Do not stand directly in front of the blade in case

of a KICKBACK Stand to either side of the

blade

7 Keep your hands clear of the blade and out of

the path of the blade,,

8 If the blade stalls or stops while cutting, TURN

SWITCH OFF before attempting to free the

blade

10,

Do not reach over or behind the blade to pull the

workpiece through the cut., to support long or

heavy workpieces ,to remove small cut-off

pieces of material or FOR ANY OTHER

REASONS

Do not pick up small pieces of cut-off material

from the table. REMOVE them by pushing them

OFF the table with a long stick Otherwise they

could be thrown back at you by the rear of the

blade

11 Do not remove small pieces of cut-off material

that may become TRAPPED inside the blade

guard while the saw is RUNNING, THIS COULD

ENDANGER YOUR HANDS or cause a

KICKBACK,

Turn the saw OFF After the blade has stopped

turning, lift the guard and remove the piece,

12, If workpiece is warped, place the CONCAVE

side DOWN, This will help prevent it from

rocking while it is being ripped.

RIPPING

RIPPING is cutting a piece of wood with the grain, or

lengthwise. This is done using the rip fence,

Position the fence to the desired WIDTH OF RIP and

lock in place

Before starting to rip, be sure

A, Rip Fence is parallel to sawblade.

B Spreader is properly aligned with sawbfade

C. Anti-Kickback pawls are functioning properly,

D Rip fence knob is tightened to secure the fence to

the table

Position the fence to the desired WIDTH OF RIP by

measuring the distance from the sawblade

WORKPIECE

k.j

TABLE

When ripping LONG BOARDS or LARGE PANELS,

always t,_sea work support.

A simple one can be made by clamping a piece of

plywood to a sawhorse.

BEVEL RIPPING

When bevel ripping material 6 in or narrower, use

fence on the right side of the blade ONLY. This will

provide more space between the fence and the

sawblade for use of a push stick if the fence is

mounted to the left, the sawbtade guard may

interfere with proper use of a push stick

ALWAYS SUPPORT

LONG WORKPIECES

When "WIDTH OF RIP" is 6 in and WIDER use your

RIGHT hand to feed the workpiece until it is c_ear of

the table,

Use LEFT hand ONLY to guide the workpiece. Ldo

not PUSH the workpiece with the left hand

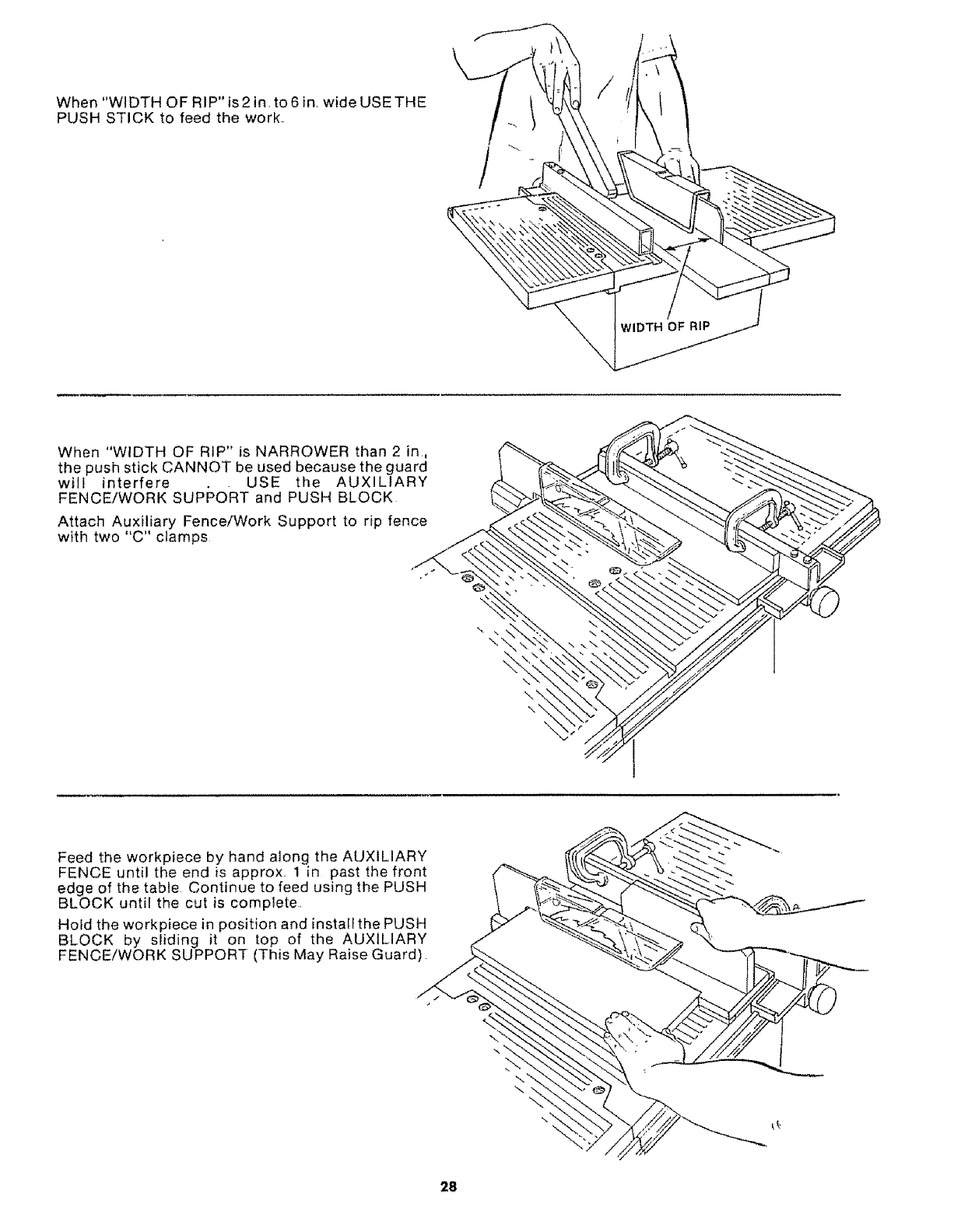

When "WIDTH OF RIP" is 2 in, to 6 in, wide USE THE

PUSH STICK to feed the work,

When "WIDTH OF RIP" is NARROWER than 2 in,,

the push stick CANNOT be used because the guard

will interfere USE the AUXILIARY

FENCEIWORK SUPI_ORT and PUSH BLOCK

Attach Auxiliary Fence/Work Support to rip fence

with two "C" clamps

Feed the workpiece by hand along the AUXILIARY

FENCE until the end is approx, 1 in past the front

edge of the table Continue to feed using the PUSH

BLOCK until the cut is complete.,

Hold the workpiece in position and instalf the PUSH

BLOCK by sliding it on top of the AUXILIARY

FENCE/WORK SUPPORT (This May Raise Guard)

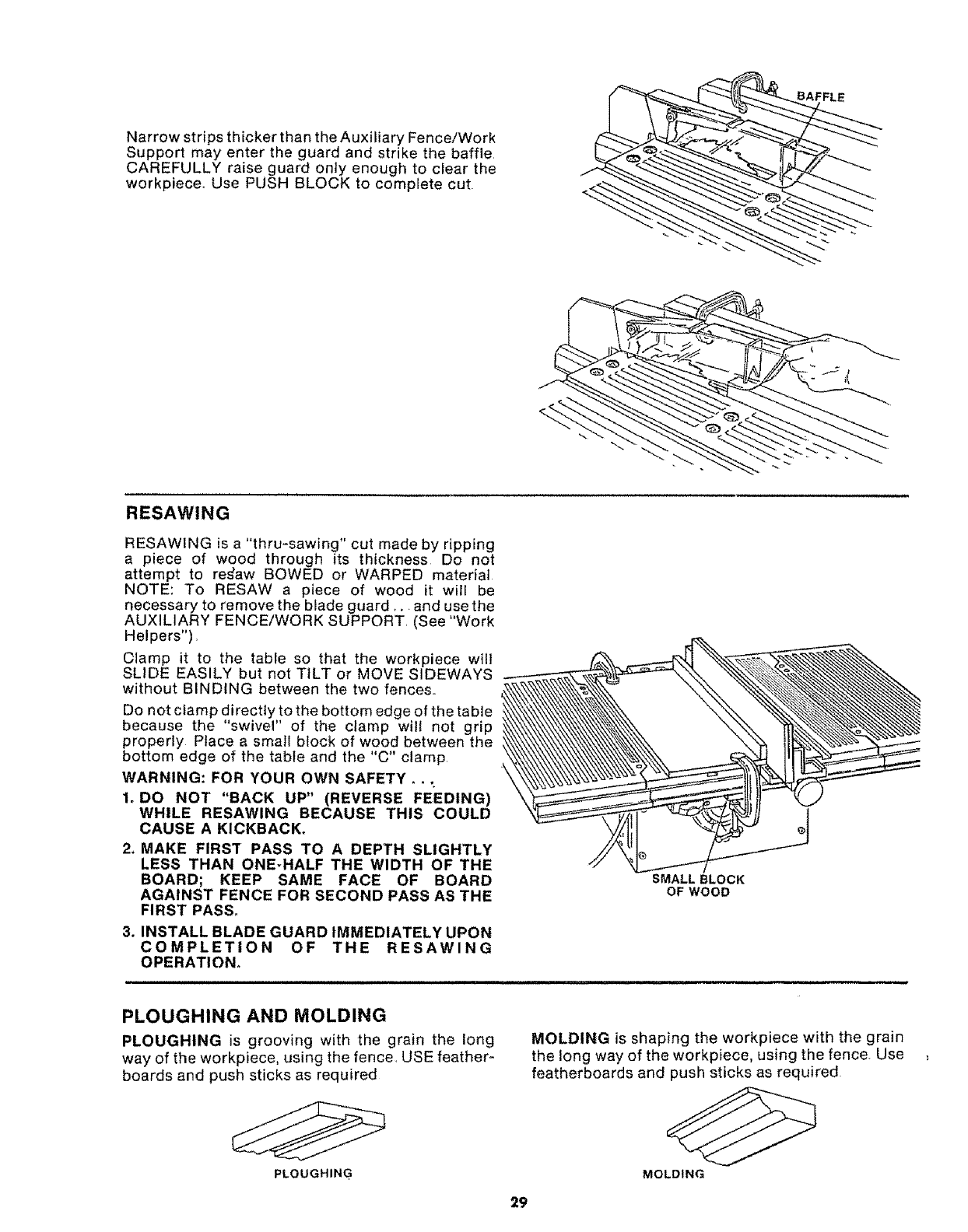

Narrow strips thicker than the Auxiliary Fence/Work

Support may enter the guard and strike the baffle

CAREFULLY raise guard only enough to clear the

workpiece. Use PUSH BLOCK to complete cut.

FLE

RESAWING

RESAWlNG is a "thru-sawing" cut made by ripping

a piece of wood through its thickness Do not

attempt to res'aw BOWED or WARPED material

NOTE: To RESAW a piece of wood it will be

necessary to remove the blade guard _, and use the

AUXILIARY FENCE/WORK SUPPORT. (See "Work

Helpers").

Clamp it to the table so that the workpiece will

SLIDE EASILY but not TILT or MOVE SIDEWAYS

without BINDING between the two fences.

Do not clamp directly to the bottom edge of the table

because the "swivel" of the clamp will not grip

properly Place a small block of wood between the

bottom edge of the table and the "C" clamp.

WARNING: FOR YOUR OWN SAFETY ..:

1. DO NOT "BACK UP" (REVERSE FEEDING)

WHILE RESAWING BECAUSE THIS COULD

CAUSE A KICKBACK.

2, MAKE FIRST PASS TO A DEPTH SLIGHTLY

LESS THAN ONE-HALF THE WIDTH OF THE

BOARD; KEEP SAME FACE OF BOARD

AGAINST FENCE FOR SECOND PASS AS THE

FIRST PASS,

3. INSTALL BLADE GUARD IMMEDIATELY UPON

COMPLETION OF THE RESAWING

OPERATION,

SMALL BLOCK

OF WOOD

PLOUGHING AND MOLDING

PLOUGHING is grooving with the grain the long

way of the workpiece, using the fence. USE feather-

boards and push sticks as required

MOLDING is shaping the workpiece with the grain

the long way of the workpiece, using the fence. Use

featherboards and push sticks as required

PLOUGHING

MOLDING

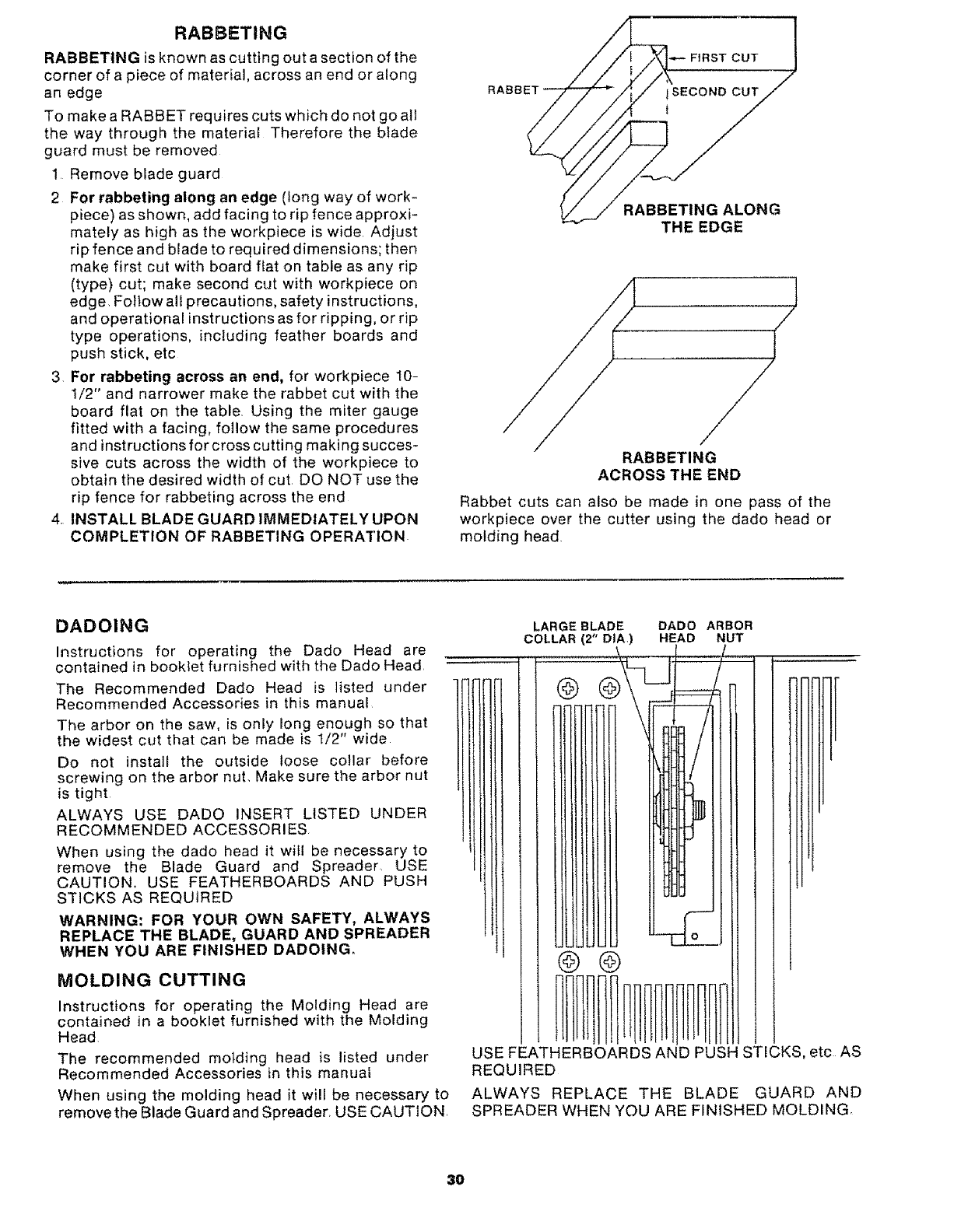

RABBETING

RABBETING is known as cutting out a section of the

corner of a piece of material, across an end or along

an edge

To make a RABBET requires cuts which do not go all

the way through the material Therefore the blade

guard must be removed

1 Remove blade guard

2 For rabbeting along an edge (long way of work-

piece) as shown, add facing to rip fence approxi-

mately as high as the workpiece is wide Adjust

rip fence and blade to required dimensions; then

make first cut with board flat on table as any rip

(type) cut; make second cut with workpiece on

edge Foitow all precautions, safety instructions,

and operational instructions as for ripping, or rip

type operations, including feather boards and

push stick, etc

3 For rabbeting across an end, for workpiece 10-

1/2" and narrower make the rabbet cut with the

board flat on the table Using the miter gauge

fitted with a facing, follow the same procedures

and instructions for cross cutting making succes-

sive cuts across the width of the workpiece to

obtain the desired width of cut DO NOT use the

rip fence for rabbeting across the end

4, INSTALL BLADE GUARD IMMEDIATELY UPON

COMPLETION OF RABBETING OPERATION

RABB!

FIRST CUT

RABBETING ALONG

THEEDGE

RABBETING

ACROSS THE END

Rabbet cuts can also be made in one pass of the

workpiece over the cutter using the dado head or

molding head

DADOING

Instructions for operating the Dado Head are

contained in booklet furnished with the Dado Head

The Recommended Dado Head is listed under

Recommended Accessories in this manual

The arbor on the saw, is only long enough so that

the widest cut that can be made is 1/2" wide

Do not install the outside loose collar before

screwing on the arbor nut Make sure the arbor nut

is tight

ALWAYS USE DADO INSERT LISTED UNDER

RECOMMENDED ACCESSORIES

When using the dado head it will be necessary to

remove the Blade Guard and Spreader USE

CAUTION, USE FEATHERBOARDS AND PUSH

STICKS AS REQUIRED

WARNING'. FOR YOUR OWN SAFETY, ALWAYS

REPLACE THE BLADE, GUARD AND SPREADER

WHEN YOU ARE FINISHED DADOING_

MOLDING CUTTING

Instructions for operating the Molding Head are

contained in a booklet furnished with the Molding

Head

The recommended molding head is listed under

Recommended Accessories in this manual

When using the molding head it will be necessary to

remove the Blade Guard and Spreader. USE CAUTION

LARGE BLADE DADO ARBOR

COLLAR (2" DIA,) HEAD NUT li

USE FEATHERBOARDS AND PUSH STICKS, etc AS

REQUIRED

ALWAYS REPLACE THE BLADE GUARD AND

SPREADER WHEN YOU ARE FINISHED MOLDING

-C'CLAMPS FEATHERBOARD

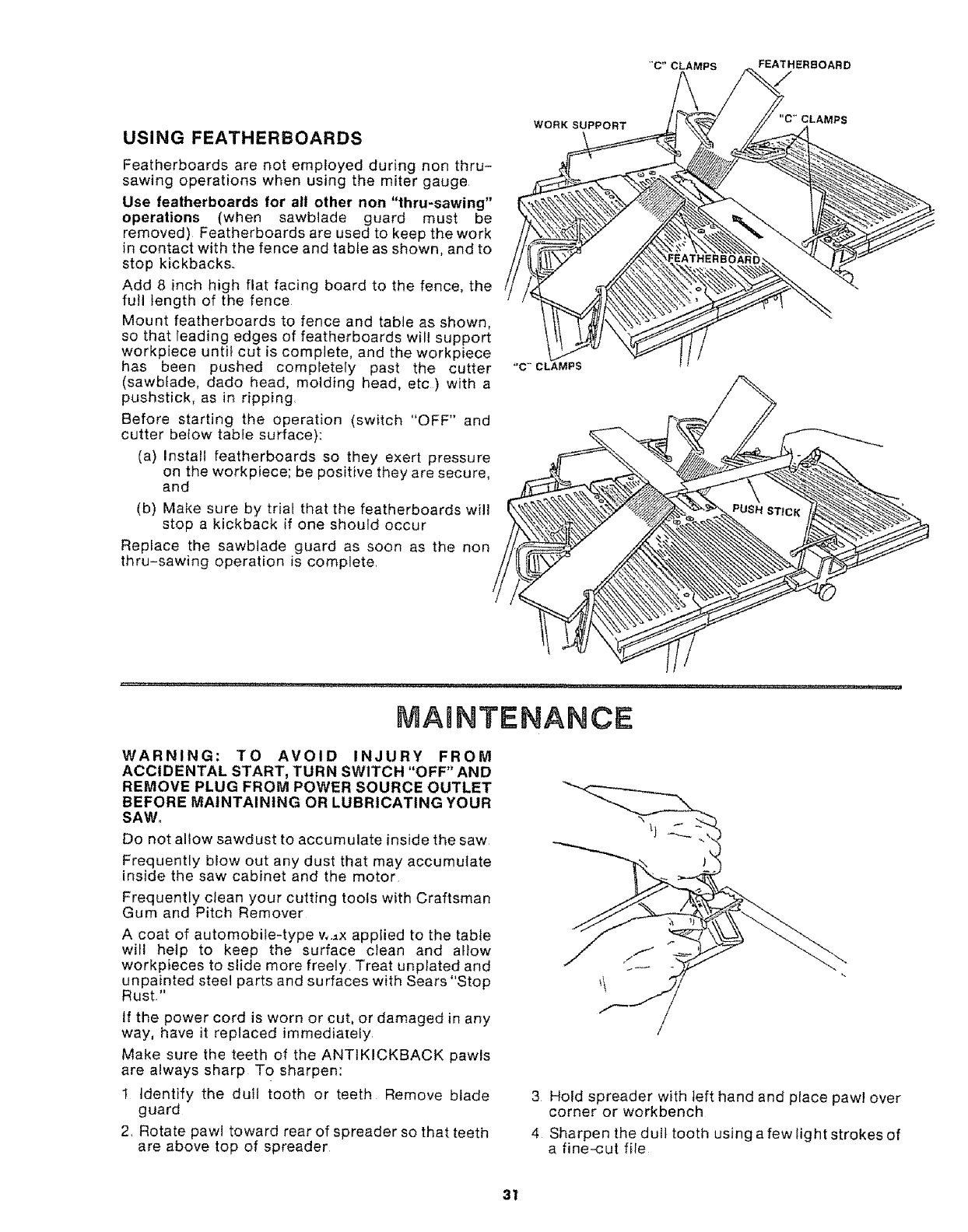

USING FEATHERBOARDS

Featherboards are not employed during non thru-

sawing operations when using the miter gauge

Use featherboards for all other non "thru-sawing"

operations (when sawblade guard must be

removed) Featherboards are used to keep the work

in contact with the fence and table as shown, and to

stop kickbacks,,

Add 8 inch high fiat facing board to the fence, the

full length of the fence

Mount featherboards to fence and table as shown,

so that leading edges of featherboards will support

workpiece until cut is complete, and the workpiece

has been pushed completely past the cutter

(sawbtade, dado head, molding head, etc ) with a

pushstick, as in ripping,

Before starting the operation (switch "OFF" and

cutter befow table surface):

(a) install featherboards so they exert pressure

on the workpiece; be positive they are secure,

and

(b) Make sure by trial that the featherboards will

stop a kickback if one should occur

Replace the sawblade guard as soon as the non

thru-sawing operation is complete,

WORK SUPPORT "C'*CLAMPS

MAmNTENANCE

WARNING: TO AVOID INJURY FROM

ACCIDENTAL START, TURN SWITCH "OFF" AND

REMOVE PLUG FROM POWER SOURCE OUTLET

BEFORE MAINTAINING OR LUBRICATING YOUR

SAW.

Do not allow sawdust to accumulate inside the saw

Frequently blow out any dust that may accumulate

inside the saw cabinet and the motor

Frequently clean your cutting tools with Craftsman

Gum and Pitch Remover

A coat of automobile-type v,,=x applied to the table

will hetp to keep the surface clean and allow

workpieces to slide more freely, Treat unplated and

unpainted steel parts and surfaces with Sears "Stop

Rust,"

If the power cord is worn or cut, or damaged in any

way, have it replaced immedia[efy

Make sure the teeth of the ANTtKICKBACK pawls

are always sharp To sharpen:

t Identify the dull tooth or teeth Remove blade

guard

2, Rotate pawl toward rear of spreader so that teeth

are above top of spreader

3 Hold spreader with left hand and place pawl over

corner or workbench

4 Sharpen the dull tooth using a few light strokes of

a fine-cut file

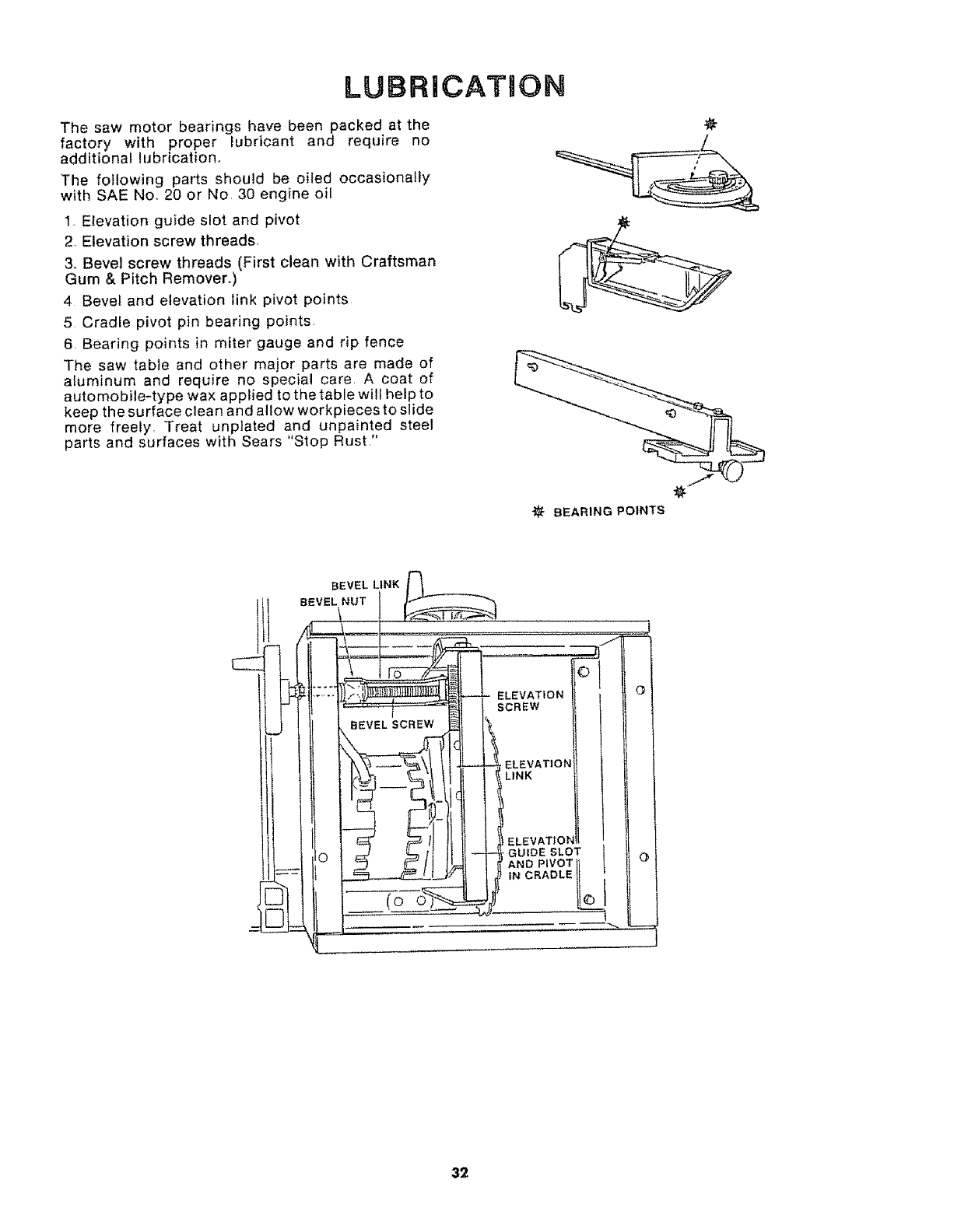

LUBRiCATiON

The saw motor bearings have been packed at the

factory with proper lubricant and require no

additional lubrication,

The following parts should be oiled occasionally

with SAE Noo 20 or No, 30 engine oil

1_Elevation guide slot and pivot

2, Elevation screw threads,

3., Bevel screw threads (First clean with Craftsman

Gum & Pitch Remover.)

4 Bevel and elevation link pivot points

5 Cradle pivot pin bearing points

6, Bearing points in miter gauge and rip fence

The saw table and other major parts are made of

aluminum and require no special care. A coat of

automobile-type wax applied to the table will help to

keep the surface clean and allow workpieces to slide

more freely, Treat unplated and unpainted steel

parts and surfaces with Sears "Stop Rust "

BEARING POINTS

ELEVATION .7 I

SCREW

ELEVATION

LINK

ELEVATIOI'

,GUIDE SLOT I

AND PIVOT tl LD

IN CRADLE tl I

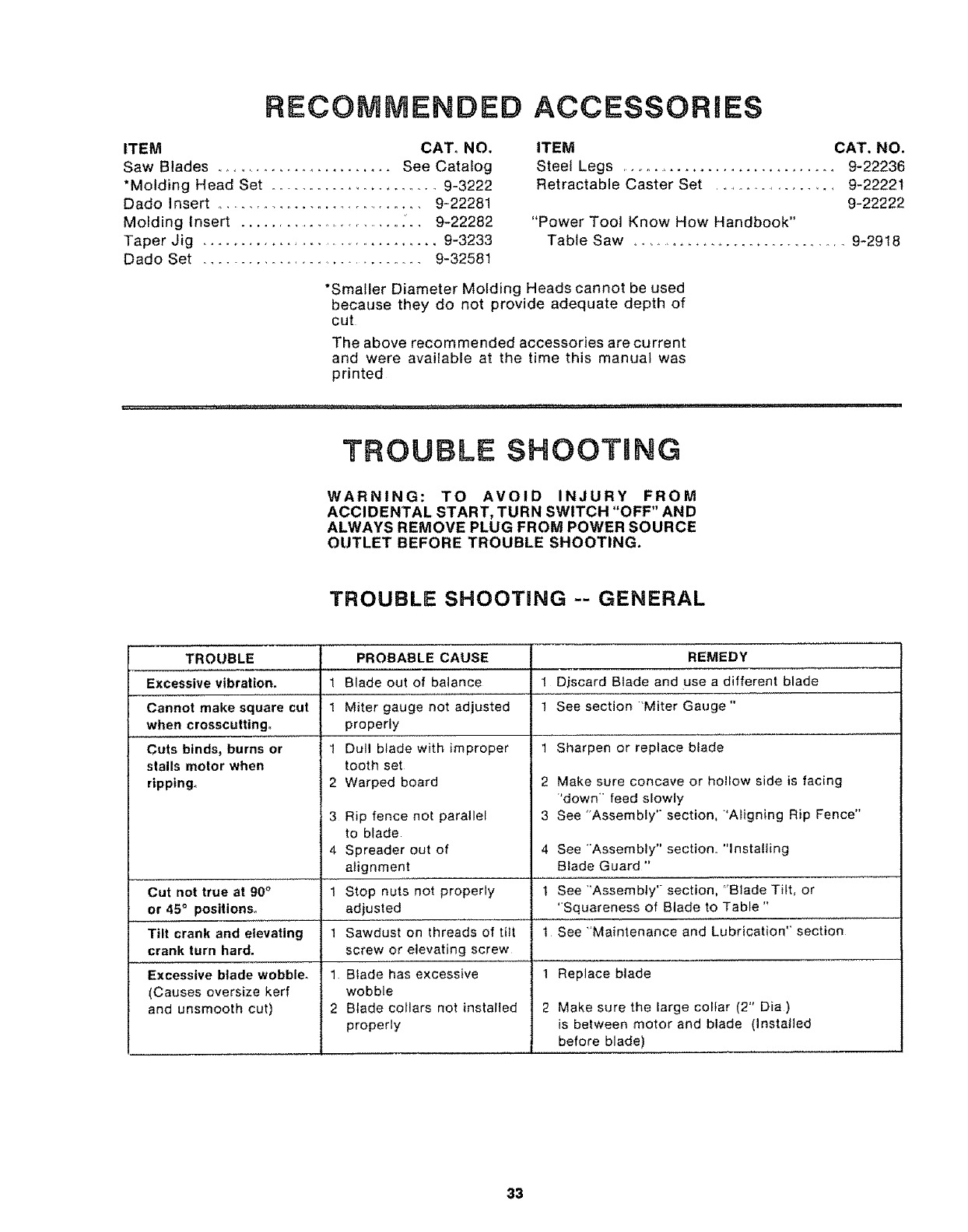

RECOMMENDED ACCESSORIES

ITEM CAT. NO,

Saw Blades ......................... See Catalog

*Molding Head Set ...................... 9-3222

Dado Insert ............................ 9-22281

Molding Insert ........................... 9-22282

Taper Jig ................................. 9-3233

Dado Set ............................... 9-32581

ITEM CAT. NO.

Steel Legs ............................... 9-22236

Retractable Caster Set .................... 9-22221

9-22222

"Power Tool Know How Handbook"

Table Saw ............................. 9-2918

*Smaller Diameter Molding Heads cannot be used

because they do not provide adequate depth of

cut

The above recommended accessories are current

and were available at the time this manual was

printed

TROUBLE SHOOTING

WARNING: TO AVOID INJURY FROM

ACCIDENTAL START, TURN SWITCH "OFF" AND

ALWAYS REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE TROUBLE SHOOTING.

TROUBLE SHOOTING -- GENERAL

TROUBLE PROBABLE CAUSE REMEDY

Excessive vibration, t Blade out of balance 1 Discard Blade and use a different blade

1 1 See section 'Miter Gauge"

Sharpen or replace blade

Cannot make square cut

when crosscutting_

Cuts binds, burns or 1

stalls motor when

ripping_ 2

Miter gauge not adjusted

properly

Dull blade with improper

tooth set

Warped board

3 Rip fence not parallel

to blade

4 Spreader out of

alignment

1 Stop nuts not properly

adjusted

1 Sawdust on threads of tilt

screw or elevating screw

1. Blade has excessive

wobble

2 Blade collars not installed

properly

Make sure concave or hollow side is facing

'down" feed slowly

See "Assembly" section, *Aligning Rip Fence"

See "Assembly" section. "Installing

Blade Guard "

Cut not true at 90 °t See 'Assembly" section, _Blade Tilt, or

or 45 °positions, "Squareness of Blade to Table"

Tilt crank and elevating t See "Maintenance and Lubrication" section

crank turn hard.

Excessive blade wobble° 1 Replace blade

(Causes oversize kerr

and unsmooth cut) 2 Make sure the _arge collar (2" Dia )

is between motor and blade (Installed

before blade)

TROUBLE SHOOTING -- MOTOR

NOTE: Motors used on wood-working tools are

particulary susceptible to the accumulation of

sawdust and wood chips and should be blown out or

'*vaccummed" frequently to prevent interferences

with normal motor ventilation

NOTE: The starting relay is a GRAVITY SENSITIVE

TYPE NEVER TURN THE POWER ON WHILE THE

SAW IS UPSIDE DOWN AS THIS WILL DAMAGE

THE MOTOR

TROUBLE

Excessive noise°

Motor fails to develop

lull power,. (Power

output of motor decreases

rapidly with decrease in

voltage at motor terminals

For example, areduction

of 10% in voltage causes

a reduction of 19% in

maximum power output of

which the motor is capable,

white a reduction of 20%

in voltage causes

reduction of 36% in

maximum power output )

Motor starts slowly or

fails to come up to

lull speed.

Motor overheats,

Starting relay in motor

will not operate (Motor

does not come up

to full speed°)

Motor stalls (resulting

in blown fuses or tripped

circuit breakers)

Frequent opening of

fuses or circuit breakers.

PROBABLE CAUSE

1 Motor

1 Circuit overloaded with

lights, appliances and

other motors

2 Undersize wires or circuit

too long

3 Generat overloading of power

company facilities (In

some sections of the

country, demand for electrical

power may exceed the

capacity of existing

generating and distribution

systems )

4 Incorrect fuses or circuit

breakers in power tine

1 Low voltage-will not trip

relay

2 Starting relay not operating

1 Motor overloaded

2 Improper cooling (Air

circulation restricted

through motor due to

sawdust, accumulating

inside of saw

Burned relay contacts (due

to extended hold-in periods

caused by low line voltage

etc )

2 Saw not in upright position,

3. Loose or broken connections

I Starting relay not operating

2 Voltage too low to permit

motor to reach operating

speed

3 Fuses or circuit breakers

do not have sufficient

capacity

1 Motor overloaded

2 Fuses or circuit breakers

do not have sufficient

capacity

3 Starting relay not operating

(motor does not reach

normal speed)

REMEDY

Have motor checked by qualified service

technician Repair service is available at

your nearest Sears store

Do not use other appliances or motors on

same circuit when using the saw

Increase wire sizes, or reduce length of wiring

See "Motor Specification and Electrical

Requirements" section

Request a voltage check from the power

company

install correct fuses or circuit breakers

Request a voltage check from the power

company

Have retay replaced,

Do not cut so fast-Feed work slower into blade

Clean out sawdust to provide normal air

circulation through motor

See "Maintenance and Lubrication" section

Have reiay replaced and request a voltage check

from the power company

2 Place saw in upright position

3 Have wiring checked and repaired

I Have relay replaced

2 Request a voltage check from the power

company

3 Install proper size fuses or circuit breakers

1 Don't cut so fast-Feed work slower into blade

2 lnstalt proper size fuses or circuit breakers

3 Have relay replaced

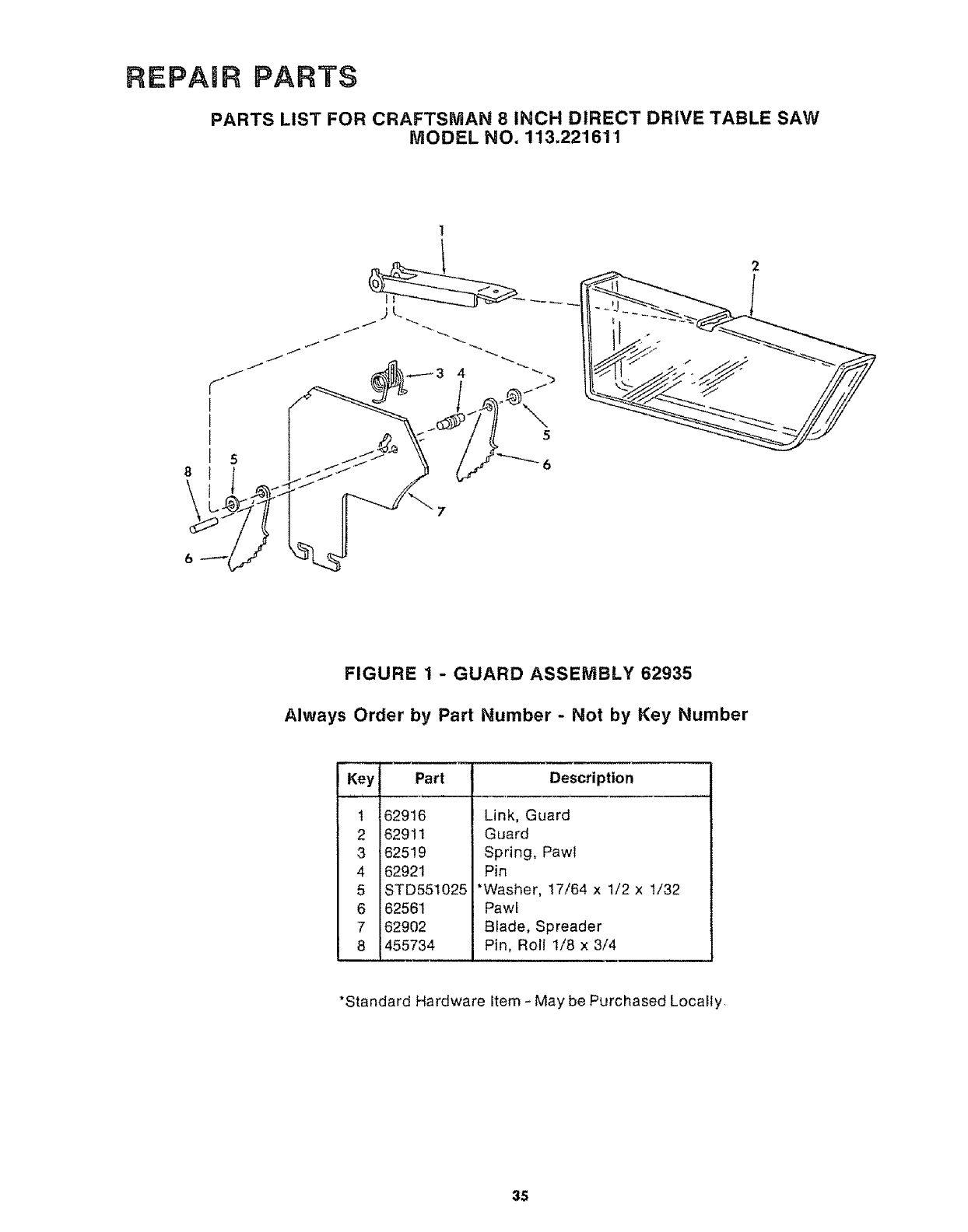

REPAIR PARTS

PARTS LIST FOR CRAFTSMAN 8 INCH DIRECT DRIVE TABLE SAW

MODEL NO. 113.221611

FIGURE 1 -GUARD ASSEMBLY 62935

Always Order by Part Number - Not by Key Number

Key

Part Description

62916

62911

62519

i62921

iSTD551025

i62561

i62902

i455734

Link, Guard

Guard

Spring, Pawl

*Washer, 17/64 x 1/2 x 1/32

Pawl

Blade, Spreader

Pin, Roll 1/8 x 3/4

*Standard Hardware Item - May be Purchased Locally

f,,,t

¢P,

PARTS LiST FOR CRAFTSMAN 8 lINCH DIRECT DRIVE TABLE SAW

MODEL NO. 113.221611

8 9

\\65

10 1t

50 51 52

41-41.40 46

64 63

PARTS LIST FOR CRAFTSMAN 8 INCH DIRECT DRIVE TABLE SAW

MODEL NO. 113.221611

FIGURE 2

(ey

No.

H,=

2'1

Part

No.

62905

ST D601 'I03

62436

62625

816075

62908

805297_9

]05297-1

_293l

62915

iSTD600805

62909

62937

62924

STD601105

62936

62442

60256

803709

67085

STD510603

62913

62925

62938

62935

62642

STD54!025

62809

STD551225

STD541625

]0074

}TD551012

STD54t025

62643

60314

_420417

ITD611005

816072

816073

STD551037

Description

Bracket, Cradle

*Screw, Hex Washer Hd

Type "T" 10-32 x 3/8

Nut

Hanger

Rod, Cradle

Extension, Table LH

Screw, Socket Fiat Hd

1/4-20 x 5/8

Screw, Flat Hd

5/16-18 x 1-1/4

Table

Insert, Table

*Screw, Pan Hd 8-32 x 1/2

Extension, Table R.H

Fence Assy, Rip (See Fig 3)

Plate, Switch

*Screw, Pan Hd. Cross

Recess Type "T" 10-32 x 1/2

Lead Assembly

Switch, Locking

Key, Locking

Connector, Wire

Cord with Plug

*Screw, Pan Rec..

Type "T" 6-32 x 3/8

Housing, Switch

oRelay

Gauge Assembly, Miter

(See Fig. 4)

Guard Assembly (See Fig 1)

Support, Spreader

*Nut, Square 1/4-20

Bracket, Spreader

*Lockwasher, External 1/4-20

*Nut, Wing 1/4-20

Screw, Socket Set

1/4-20 x 7/8

*Washer, 17/64 x 9/16 x 3/64

*Nut, Hex 1/4-20

Clamp, Spreader

Screw, Truss Hd. 1/4-20 x 5/8

Screw, Washer Type "T"

1/4-20 x 5/8

*Screw, Pan Rec Type "AB"

No 10 x 1/2

Panel, Front

indicator, Bevel

*Washer, 380 x 47/64 x 1/16

*Standard Hardware item - May be purchased

locally.

1"Stock Item- May be secured through the Hardware

Department of most Sears Retail Stores and

Catalog Order House,

"klf this part is removed, discard and replace with a

new Push Nut

Key Part

No. No.

4I 60240

42 62912

43 STD551208

44 STD510803

45 }2901

46 814638

47 STD522506

48 STD551125

49 816071

50 806752W

51 60540

52 62919

53 62917

54 62923

55 816076

56 9414920

57 160388

58 814663

59 65093

60 62900

6t 60548

62 62989

63 6054I

64 60546

65 60545

66 18992

67 60547

68 6362

69 62498

70 62992

71 62856

STD541025

60539

62922

STD551025

814770

3540

63062

STD551210

507545

507546

SP5022

Description

,=,

t_Nut, Push 3/8

Handwheel, 3-5/8

*Lockwasher, No 8

*Screw, Pan 8-32 x 3/8

Base

Plate, Thrust

*Screw, Hex 1/4-20 x 5/8

*Lockwasher, 1/4

Bracket Lead Screw

Screw, Pan Hd Type "T"

10-32 x 1-1/8

Ring, Retaining 11/16

Nut, Elevation

Link

Pin, Guide

Shaft, Tilt

Washer, t7/64 x 5/8 x 1/16

Nut, Self-Threading

Shaft, Elevation

Clip, Wire

Baffle

Screw, Hex Washer Type "T"

1/4-20 x 3/8

Bracket, Lead Screw

Screw, Hex Locking

1/4-20 x 3/4

Washer, Spring

Washer, Nylon

1:Blade, 8"

Collar, Outer

Nut, Saw Arbor

Collar, Inner

Cradle

oMotor

*Nut, Hex 1/4-20

Ring, Retaining 1/4

Pin, Guide

*Washer, 17/64 x 1/2 x 1/32

Link

Wrench, Arbor

Wrench, Shaft

*Lockwasher Ext, #10

Bag of Loose Parts

(Not Illustrated)

Bag of Loose Parts

(Not Illustrated)

Owners Manual

(Not Illustrated)

QRelay must accompany motor when motor is

returned for service. Any attempt to repair this

motor may create a hazard unless repair is done by

a qualified service technician Repair service is

available at your nearest Sears Store.

PARTS LIST FOR CRAFTSMAN 8 INCH DIRECT DRIVE TABLE SAW

MODEL NO. 113,221611

7 6

FIGURE 3 - RIP FENCE ASSEMBLY 62937

Key

No.

Part

No, Description

62906

STD522505

62985

62482

STD541231

60543

62939

Channel, Fence

*Screw, Hex Hd, Sems

1/4-20 x 1/2

Head, Fence

Knob, t-1/4 Dia

*Nut, Hex ,Jam 5/16-18

Screw, Truss Hd 5/16-!8 x 2

Clip, Shoe

*Standard Hardware Item - May be Purchased Locally

PARTS LIST FOR CRAFTSMAN 8 INCH DIRECT DRIVE TABLE SAW

MODEL NO. 113.221611

FIGURE 4 - MITER GAUGE ASSEMBLY 62938

Key Part

No. No.

162176

2 STD551010

3 62173

4 62175

5 STD510803

6 38724

7 60544

8 62927

Description

Knob, Miter Gauge

*Washer, I3/64 x 5/8 x 1/32

Gauge, Miter

Pin, Miter Pivot

*Screw, Pan Hd 8-32 x 3/8

Pointer

Spacer

Rod, Miter Gauge

*Standard Hardware Item = May be Purchased Locally

SERVICE

MODEL NO.

113.221611

SAW WITH

TABLE EXTENSIONS

HOW TO ORDER

REPAIR PARTS

8 iNCH DIRECT DRIVE

TABLE SAW

Now that you have purchased your 8 inch direct drive table

saw should a need ever exist for repair parts or service,

simply contact any Sears Service Center and most Sears,

Roebuck and Co stores Be sure to provide all pertinent

facts when you call or visit.

The model number of your 8 inch direct drive table saw will

be found on a plate attached to your saw, at the rear of the

base

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

PART NUMBER

MODEL NUMBER

113o221611

PART DESCRIPTION

NAME OF ITEM

8 INCH DIRECT DRIVE

TABLE SAW

All parts listed may be ordered from any Sears Service

Center and most Sears stores, If the parts you need are

not stocked locally, your order will be electronically

transmitted to a Sears Repair Parts Distribution Center

for handling.

Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.

Part No SP5022 Form No.. SP5022-2 Printed in US.A. 7/87

Craftsman 113221611 User Manual 8 IN. DIRECT DRIVE TABLE SAW Manuals And Guides L0710012

CRAFTSMAN Saw Radial Manual L0710012 CRAFTSMAN Saw Radial Owner's Manual, CRAFTSMAN Saw Radial installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
