For Future Reference
MODEL NO.
113.225705
Serial
Number
Model and serial numbers
may be found on the back side
of the base.
You should record both model
and serial number in a safe
place for future use.
FOR YOUR
SAFETY
OSCILLATI
DLE S,
, assembly
•operating
• repair parts
®
READ ALL
iNSTRUCTIONS
CAREFULLY
.... J
Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.
Part No. SP6031
FULL ONE YEAR WARRANW ON CRAFTSMAN BENCHTOP TOOLS
eSander:fails dueto a defect in material or workmanship within one year
fi_omthe date of purchase, RETURN IT TOTHE NEAREST SEARS SERVICE CENTER IN THE UNITED
!STATES_ Iand Sears will repair it, free of charge::
-_if this Oscillating Spindle Sander is used for commercial or rental purposes, this warranty will apply
for ninety days from the date of purchase.
This warranty applies only while this product is in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
=Sears, Roebuck and Co., I)/817 WA Hoffman Estates, IL 60179

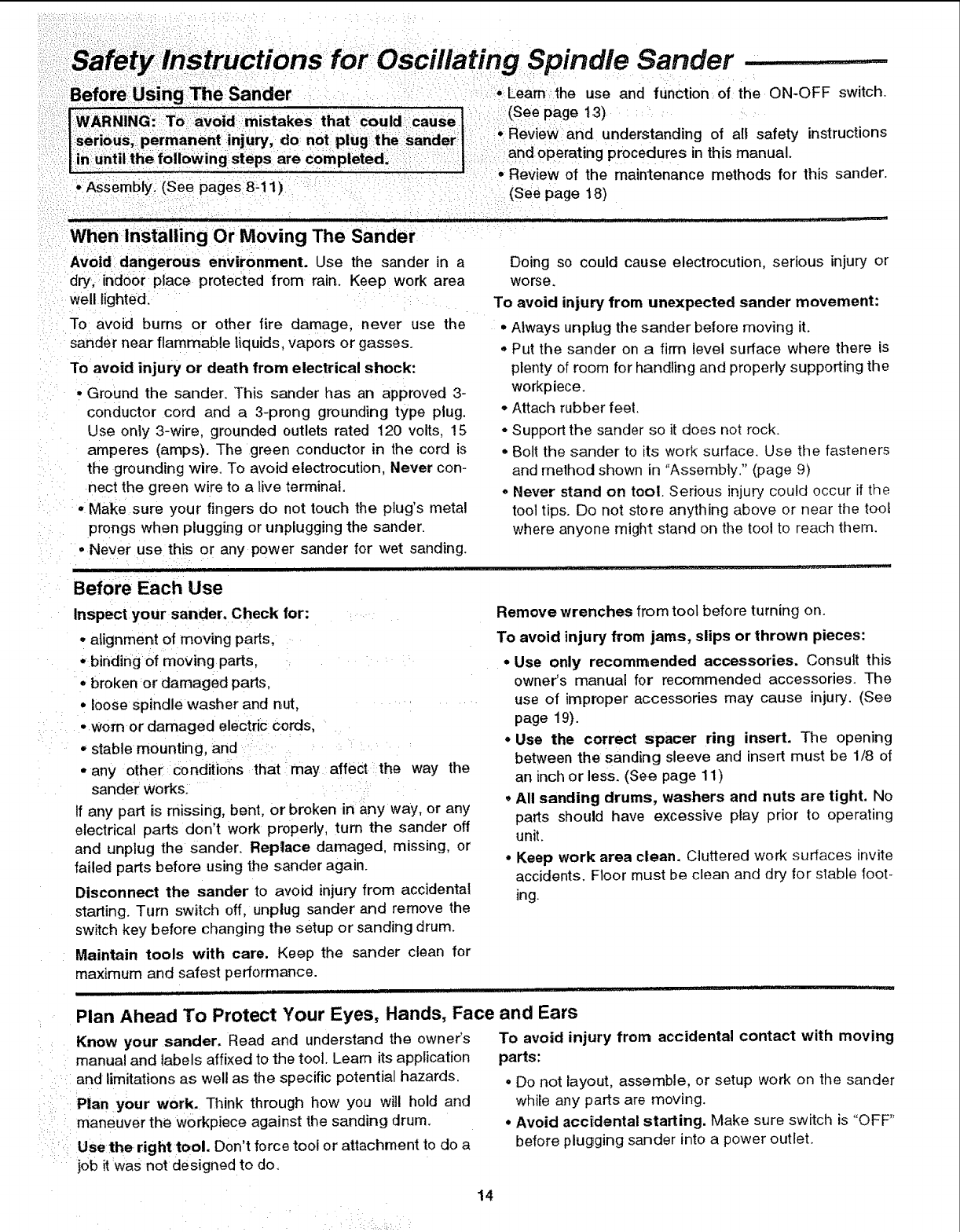

Safety Instructions For Oscillating Spindle Sander .....
Safety is a combination of common sense, staying alert and knowing how your oscillating spindle sander works. Read
this manual to understand this sander,
Safety Signal Words
DANGER:means if the safety information is not followed
someone will be seriously injured or killed.
Before Using The Sander
WARNING: To avoid mistakes that could cause !
/
serious, permanent injury, do not plug the sander 1
in until the following steps are completed.
•Assembly. (See pages 8-1 1)
° Learn the use and function of the ON-OFF switch,
(See page 13)
WARNING: means if the safety information is not fol-
lowed someone could be seriously injured or killed,
CAUTION: means if the safety information is not followed
someone may be injured.
.............. J i....
- !
oReview and understanding of all safety instructions
and operating procedures in this manual.
-Review of the maintenance methods for this sander.
(See page 18)
Read the following WARNING label found on the front of
the sander:
[J JI [ L lI=lt_
1; Read manual before using sander. ,::: ::: :: i::: ,
: Wear_afety ....... :
=:i : : =
: ::3! Weara dust masl(_ :i:: : : :: ::
:4. Keep fingers away from abrasive s[beve:when machine is on.
i:
li ..... ;, ,,,,;.......... . ,,,,uu I II
i.. ....................... ,,,,,,,,
When Installing Or Moving The Sander
Avoid dangerous environment. Use the sander in a
dry, indoor place protected from rain. Keep work area
well Fighted.
To avoid burns or other fire damage, never use the
5. Use the proper spacer ring insert for each sleeve to minimize pinch
points between sleeve and spacer ring insert.
6. Always support workpiece against the table.
7. Avoid fire, clean out all sawdust and disconnect
from any vacuum before sanding metals.
I i iii1,1 ,1_ i I ......... _,,,i
,,,,1.111 ,,,,,,,..,, nil
,, ,,,
,, ,, ,,,,,,,,,,,,,,,
oNever use this or any power sander for wet sanding.
Doing so could cause electrocution, serious injury or
worse.
To avoid injury from unexpected sander movement:
sander near flammable liquids, vapors or gasses.
To avoid injury or death from electrical shock:
° Ground the sander. This sander has an approved 3-
conductor cord and a 3-prong grounding type plug.
Use only 3_wire, grounded outlets rated 120 volts, 15
amperes (amps), The green conductor in the cord is
........ the grounding wire, To avoid electrocution, Never con-
.... nect the green wire to .a live terminal.
::: i :"Make sure your fingers do not touch the plug's metal
:::: : :: plugging or unplugging the sander.
!
- Always unplug the sander before, moving it.
o Put the sander on afirm level surface where there is
plenty of room for handling and properly supporting the
workpiece.
Attach rubber feet. ::
o Support the sander so it does not rock: ......
-Bolt the sander to its work surface. Use the fasteners
and method shown in "Assembly." (See page 9.)
o Never stand on too!. Serious injury could occur #the
tool tips. Do not store anything above or near the too]
where anyone might stand on the tool to reach it.

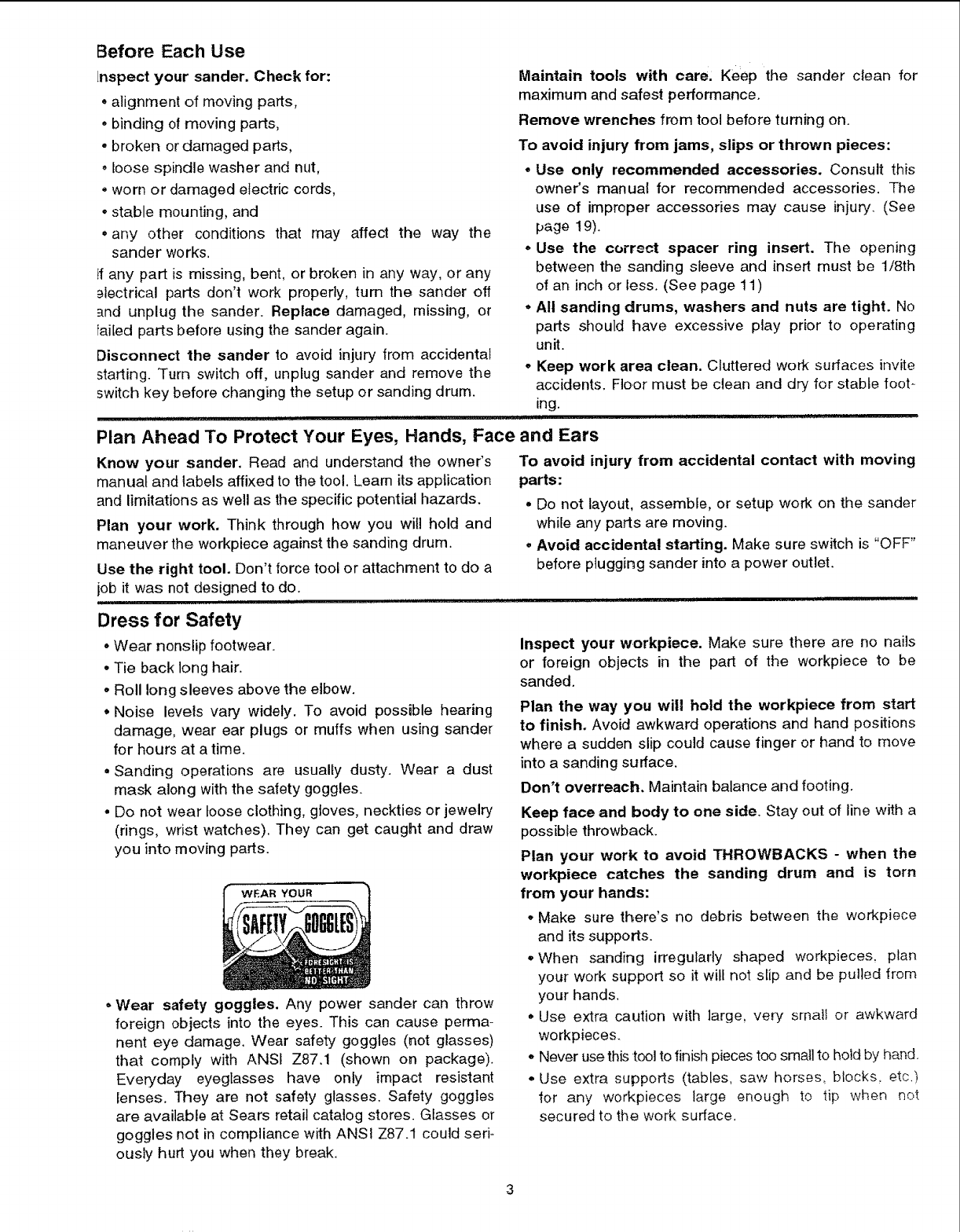

Before Each Use
Lnspect your sander. Check for:
*alignment of moving parts,
o binding ol moving parts,
obroken or damaged parts,
oloose spindle washer and nut,
o worn or damaged electric cords,
° stable mounting, and
oany other conditions that may affect the way the
sander works.
If any part is missing, bent, or broken in any way, or any
_=lectrical parts don't work properly, turn the sander off
and unplug the sander. Replace damaged, missing, or
Failed parts before using the sander again.
Disconnect the sander to avoid injury from accidental
starting. Turn switch off, unplug sander and remove the
switch key before changing the setup or sanding drum.
i jill IllllllllHIIll I I I IIIJIIql I iiiii! iiiiiiii!1
Maintain tools with care: Keep the sander clean for
maximum and safest performance.
Remove wrenches from tool before turning on.
To avoid injury from jams, slips or thrown pieces:
•Use only recommended accessories. Consult this
owner's manual for recommended accessories. The
use of improper accessories may cause injury. (See
page 19).
o Use the correct spacer ring insert. The opening
between the sanding sleeve and insert must be 1/8th
of an inch or less. (See page 11)
• All sanding drums, washers and nuts are tight. No
parts should have excessive play prior to operating
unit.
o Keep work area clean. Cluttered work surfaces invite
accidents. Floor must be clean and dry for stabte foot-
ing.
[ I IBJl I II II U

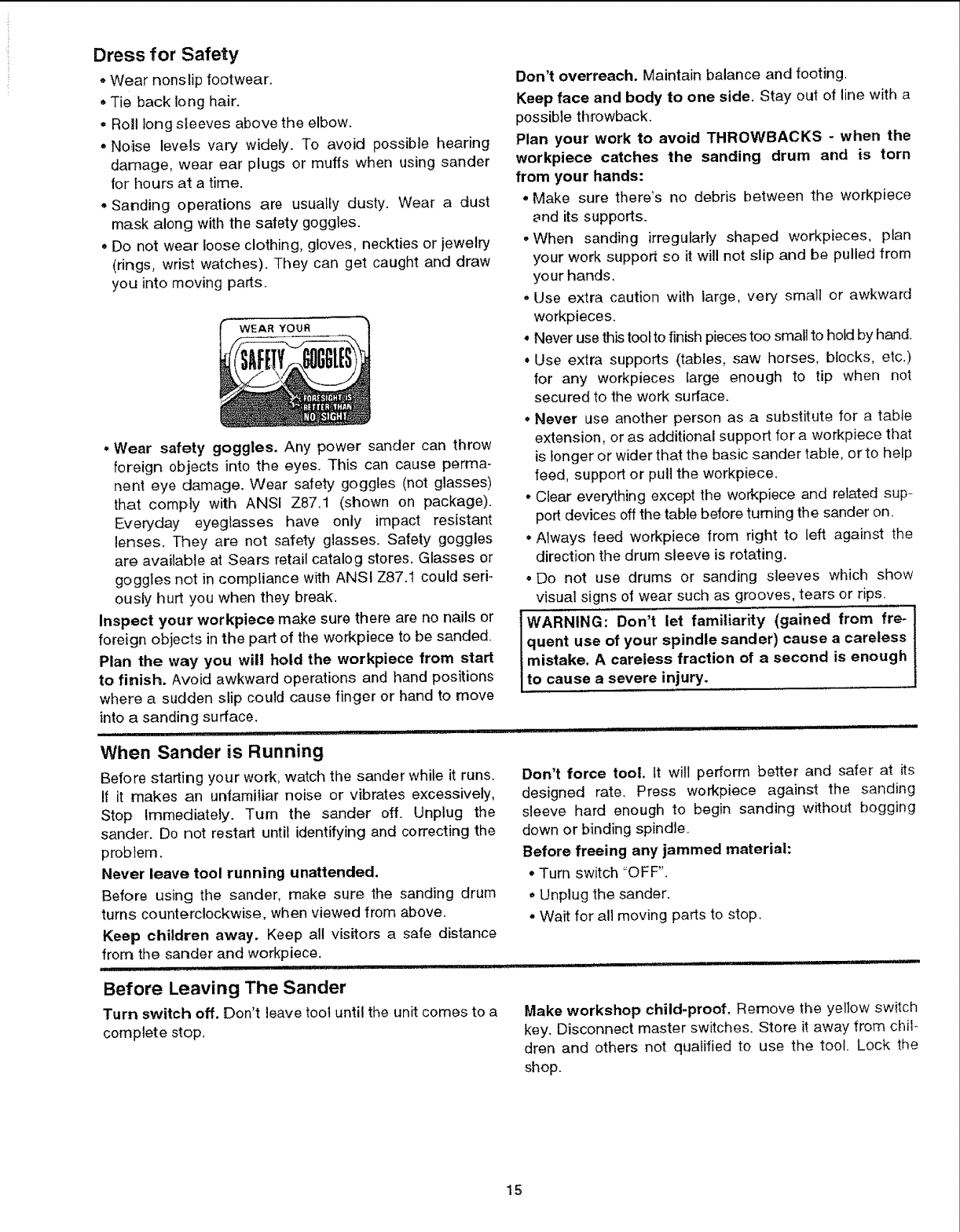

Plan Ahead To Protect Your Eyes, Hands, Face and Ears
Know your sander. Read and understand the owner's
manual and labels affixed to the tool. Learn its application
and limitations as well as the specific potential hazards.
Plan your work. Think through how you will hold and
maneuver the workpiece against the sanding drum.
Use the right tool. Don't force tool or attachment to do a
job it was not designed to do.
ill ,i u,i, ,hi,, Ill ................ I_p_ I ,I
Dress for Safety
• Wear nonstip footwear.
° Tie back long hair.
• Roll long sleeves above the elbow.
° Noise levels vary widely. To avoid possible hearing
damage, wear ear plugs or muffs when using sander
for hours at a time.
• Sanding operations are usually dusty. Wear a dust
mask along with the safety goggles.
°Do not wear loose clothing, gloves, neckties or jewelry
(rings, wrist watches), They can get caught and draw
you into moving parts.
WEAR YOUR
° Wear safety goggles. Any power sander can throw
foreign objects into the eyes. This can cause perma-
nent eye damage. Wear safety goggles (not glasses)
that comply with ANSI Z87.1 (shown on package).
Everyday eyeglasses have only impact resistant
lenses. They are not safety glasses. Safety goggles
are available at Sears retail catalog stores. Glasses or
goggles not in compliance with ANS! Z87.1 could serf
ously hurt you when they break.
To avoid injury from accidental contact with moving
parts:
. Do not layout, assemble, or setup work on the sander
while any parts are moving.
•Avoid accidental starting. Make sure switch is "OFF"
before plugging sander into a power outlet.
inspect your workpiece. Make sure there are no nails
or foreign objects in the part of the workpiece to be
sanded.
Plan the way you will hold the workpiece from start
to finish. Avoid awkward operations and hand positions
where a sudden slip could cause finger or hand to move
into a sanding surface.
Don't overreach. Maintain balance and footing.
Keep face and body to one side. Stay out of line with a
possible throwback.
Plan your work to avoid THROWBACKS - when the
workpiece catches the sanding drum and is torn
from your hands:
oMake sure there's no debris between the workpiece
and its supports.
-When sanding irregularly shaped workpieces, plan
your work support so it will not slip and be pulled from
your hands,
° Use extra caution with large, very small or awkward
workpieces.
o Never use this tool to finish pieces too small to hold by hand.
• Use extra supports (tables, saw horses_ blocks, etc.l
for any workpieces large enough to tip when not
secured to the work surface,
3

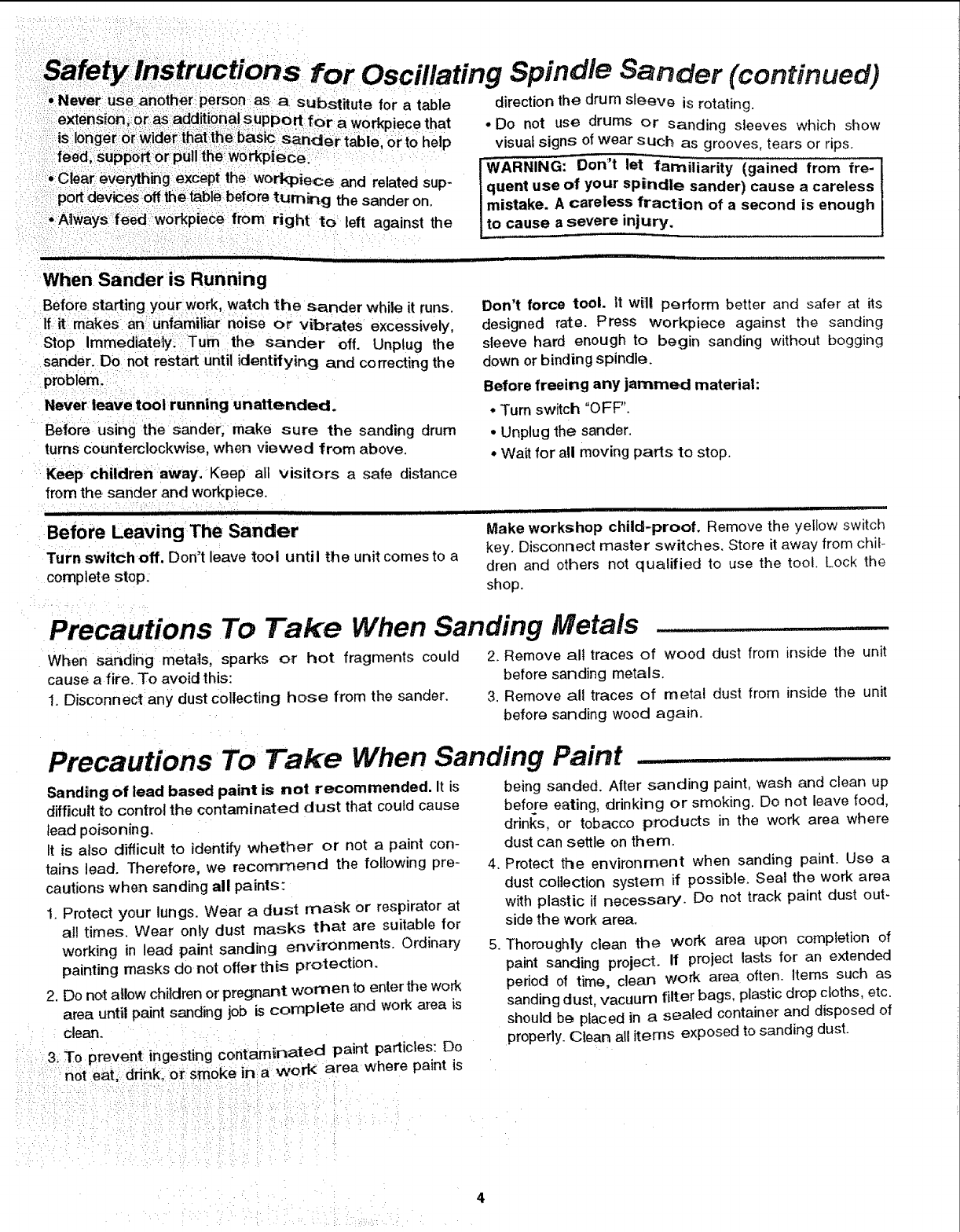

When Sanderis Running
Befo[e starting your :work,watch the sander while it runs.
If it:imakes;: an! dnfamiiiar: noise o:r vibrates excessively,
: stop i the sander off. Unp!_g the
: sander. Do not restart until identifying and co rrecting the
Don't force tool. It will perform better and safer at its
designed rate. Press workpiece against the sanding
sleeve hard enough to begin sanding without bogging
....Before Using thesander; make sure the sanding drum
turns Counterclockwise, when viewed from above.
Keepcttiidrenaway. Keep' all visitors a safe distance
from the sander and workpiece.
;,i,i_i,,,,',,,,_ _ .......................
Before Leaving The Sander
Turn switch off. Don't leave tool until the unit comes to a
complete stop:
: i. i:i ....
down or binding spindle.
Before freeing any jammed material:
•Tum switch "OFF".
• Unplug the sander.
•Wait for all moving parts to stop.
Illll IL II I, I II Illllllll Illl I IIlll ,l!l ,I,I II
Make workshop child-proof. Remove the yellow switch
key. Disconnect master switches. Store it away from chil-
dren and others not qualified to use the tool. Lock the
shop.

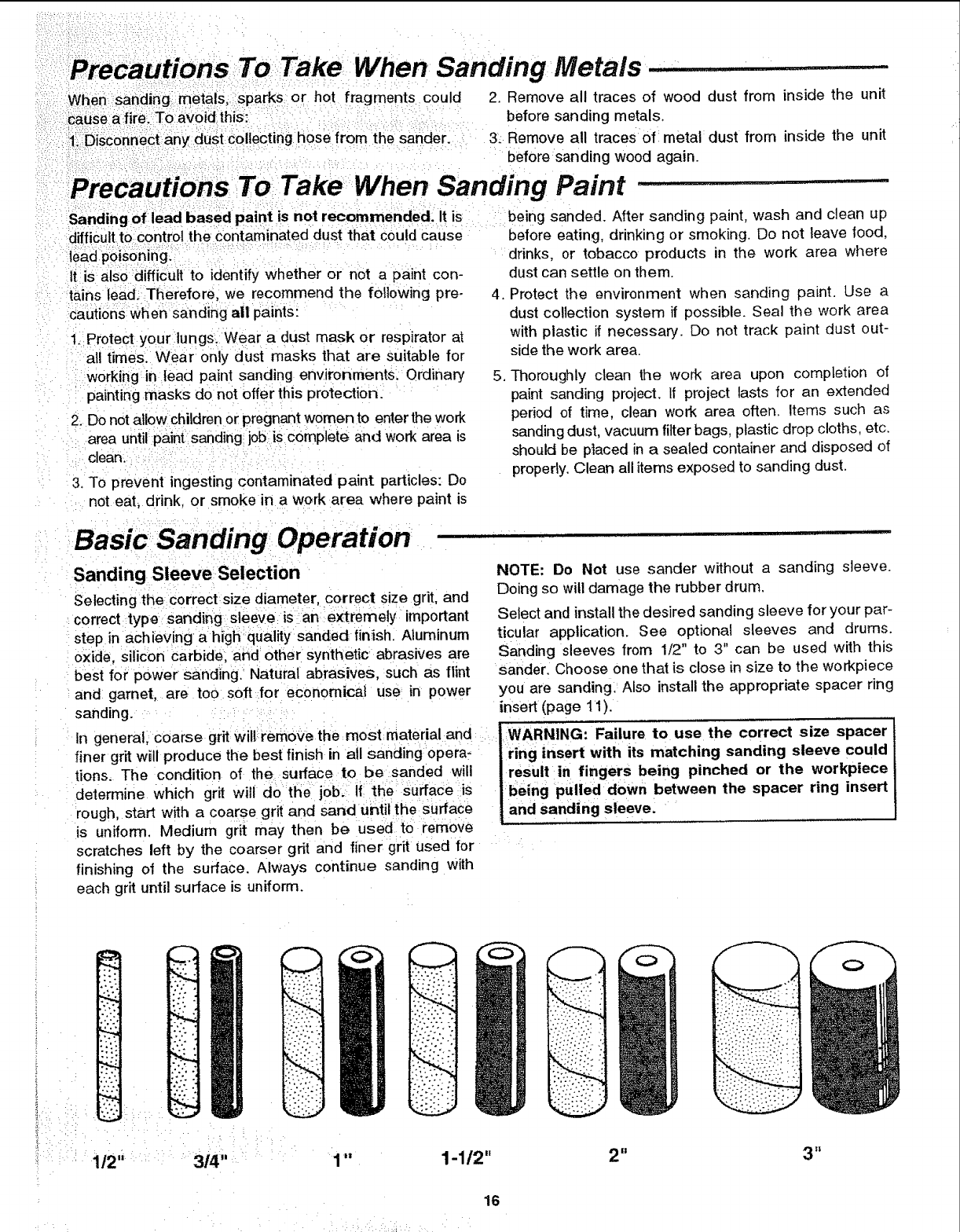

Precautions To Take When Sanding Metals ......
When sanding metals, sparks or hot fragments could 2. Remove all traces of wood dust from inside the unit
cause a fire. To avoid this: before sanding metals.
1. Disconnect any dust collecting hose from the sander. 3. Remove all traces of metal dust from inside the unit
before sanding wood again.
Precautions ToTake When Sanding Paint
Sanding of lead based paint is not recommended. It is
difficult to control the contaminated dust that could cause
lead poisoning.
It is also difficult to identify whether or not a paint con-
tains lead. Therefore, we recommend the following pre- 4.
cautions when sanding all paints:
1. Protect your lungs. Wear a dust mask or respirator at
al! times. Wear only dust masks that are suitable for
working in lead paint sanding environments. Ordinary 5.
painting masks do not offer this protection.
2. Do not allow children or pregnant women to enter the work
area until paint sanding job is complete and work area is
clean. :,
To prevent ingesting contaminated paint particles: Do
i:::_::_iinot eat;_i:i:drink; 1:0t:_smoke in a:work: area'where paint Is
• i 4
-- ii i i,u
being sanded. After sanding paint, wash and clean up
before eating, drinking or smoking. Do not leave food,
drinl_s, or tobacco products in the work area where
dust can settle on them.
Protect the environment when sanding paint. Use a
dust collection system if possible. Seal the work area
with plastic if necessary. Do not track paint dust out-
side the work area.
Thoroughly clean the work area upon completion of
paint sanding project. It project lasts for an extended
period of time, clean work area often. Items such as
sanding dust, vacuum filter bags, plastic drop cloths, etc.
should be placed in a sealed container and disposed of
properly. Clean al! items exposed to sanding dust.

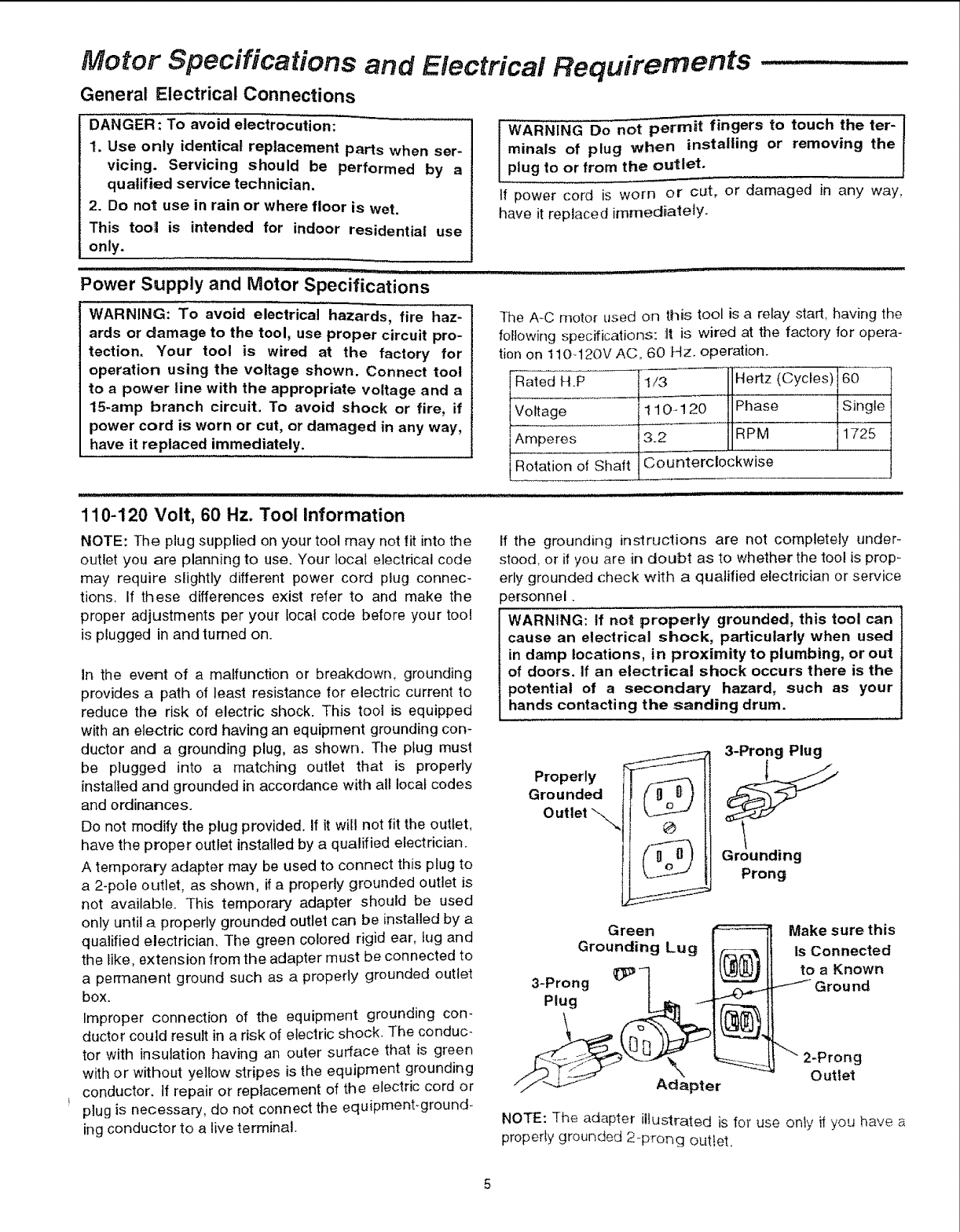

Motor Specifications and Electrical Requirements ..............
General Electrical Connections
DANGER: To avoid electrocution:
1. Use only identical replacement parts when ser-
vicing. Servicing should be performed by a
qualified service technician.
2. Do not use in rain or where floor is wet.
This too] is intended for indoor residential use
only.
WARNING Do not permit fingers to touch the ter-
minals of plug when installing or removing the
plug to or from the outlet.
If power cord is worn or cut, or damaged in any way,
have it replaced immediately-
I!,ln . "1 Ul I,, I I
Power Supply and Motor Specifications
WARNING: To avoid electrical hazards, fire haz-
ards or damage to the tool, use proper circuit pro-
tection. Your tool is wired at the factory for
operation using the voltage shown. Connect tool
to a power line with the appropriate voltage and a
15-amp branch circuit. To avoid shock or fire, if
power cord is worn or cut, or damaged in any way,
have it replaced immediately.
The A-C motor used on this tool is a relay start, having the
following specifications: ',It is wired at the factory for opera-
tion on 11Oq20V AC. 60 Hz. operation.
1/3 JJ_Z (Cycles) 6
110-120 _e
Counterclockwise
110-120 V01t, 60 Hz. Tool information
NOTE: The plug supplied on your tool may not fit into the
outlet you are planning to use, Your local electrical code
may require slightly different power cord plug connec-
tions. If these differences exist refer to and make the
proper adjustments per your local code before your tool
is plugged in and turned on.
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reduce the risk of electric shock. This tool is equipped
with an electric cord having an equipment grounding con-
ductor and a grounding plug, as shown, The plug must
be plugged into a matching outlet that is properly
installed and grounded in accordance w_th all local codes
and ordinances.
Do not modify the plug provided. If it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
A temporary adapter may be used to connect this plug to
a 2-pole outlet, as shown, if a properly grounded outlet is
not available. This temporary adapter should be used
only until a properly grounded outlet can be installed by a
qualified electrician, The green colored rigid ear, lug and
the like, extension from the adapter must be connected to
a permanent ground such as a properly grounded outlet
box.
Improper connection of the equipment grounding con-
ductor could result in a risk of electric shock. The conduc-
tor with insulation having an outer surface that is green
with or without yellow stripes is the equipment grounding
conductor. If repair or replacement of the electric cord or
plug is necessary, do not connect the equipment_g round-
ing conductor to a live terminal
If the grounding instructions are not completely under-
stood, or if you are in doubt as to whether the Iool is prop-
erly grounded check with a qualified electrician or service
personnel.
WARNING: if no_ properly grounded, this tool can
cause an electrical shock, particularly when used
in damp locations, in proximity to plumbing, or out
of doors. If an electrical shock occurs there is the
potential of a secondary hazard, such as your
hands contacting the sanding drum.
Properly
Grounded
Outlet _,
3-Prong Plug
Grounding
Prong
Green I
Grounding Lug !(_-_
3-Prong _:_1
P,ug
Adapter
Make sure this
is Connected
to a Known
Ground
NOTE: The adapter illustrated is for use only if you have a
properly grounded 2-pro,qg outlet,

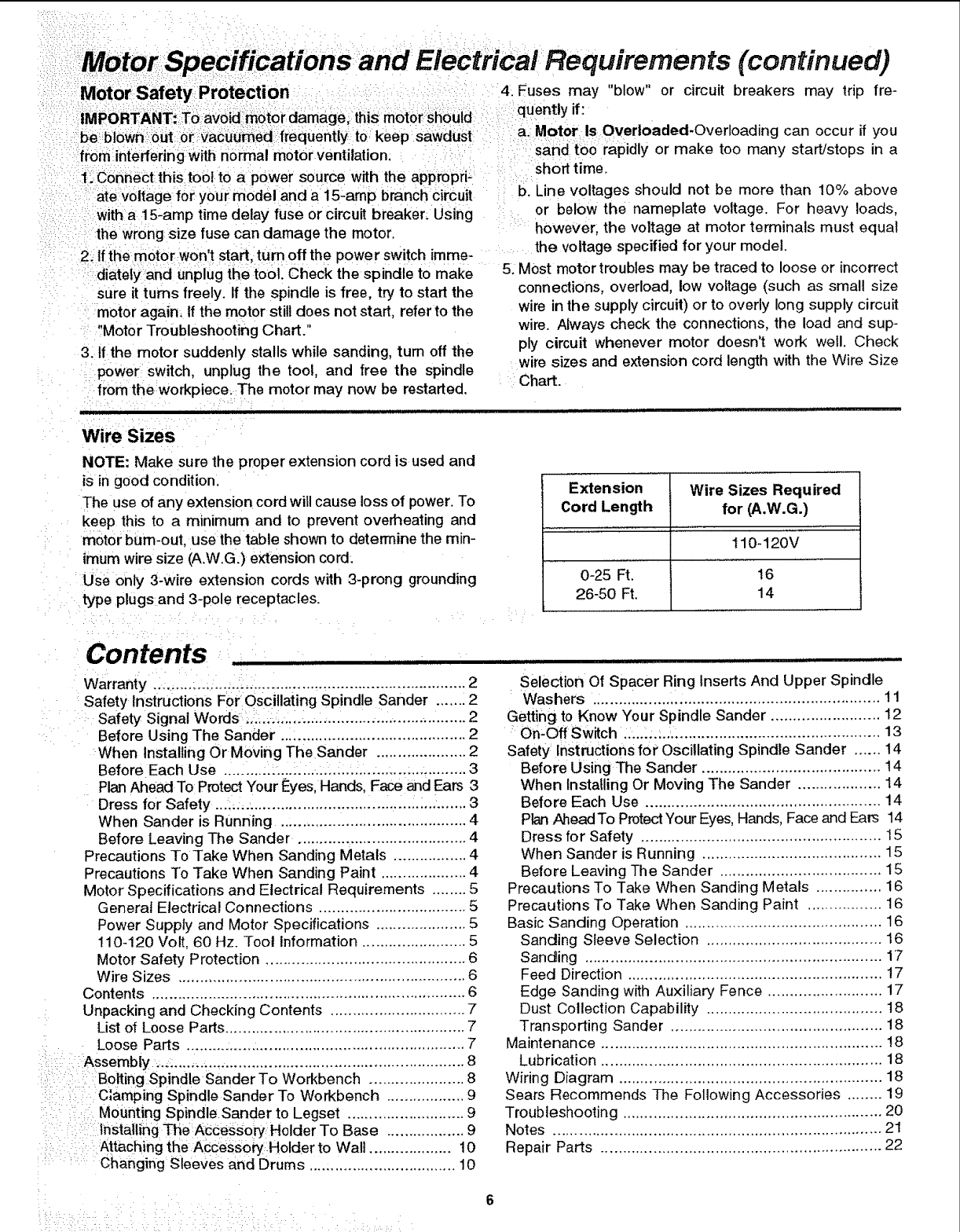

Motor Specifications and E/ectrical Requirements (continued)
Motor Safety Protecti on
IMPORTANT: Tb avoidmotor damage; this motor should
be_blown' Out: Or vacuumed: frequently to keep sawdust
from interfering with normal motor ventilation.
1.Connect this tool to a power source with the appropri-
ate voltage for your model and a 15-amp branch circuit
with a 15-amp time delay fuse or circuit breaker. Using
the wrong size fuse can damage the motor.
2, Ifthe motor won't start, turn off the power switch imme-
d ately:and unplug the toot. Check the spindle to make
sure it turns freely. If the spindle is free, try to start the
motor again, If the motor stiU does not start, refer to the
"Motor Troubleshooting Chart.'
3. tf the motor suddenly stalls while sanding, turn off the
power switch, unplug the tool, and free the spindle
from the workpiece. The motor may now be restarted.
4. Fuses may "blow" or circuit breakers may trip fre-
quently if:
a: Motor Is Overloaded-Overloading can occur if you
sand too rapidly or make too many staWstops in a
short time.
b. Line voltages should not be more than 10% above
or below the nameplate voltage. For heavy loads,
however, the voltage at motor terminals must equal
the voltage specified for your model.
5. Most motor troubles may be traced to loose or incorrect
connections, overload, low voltage (such as small size
wire in the supply circuit) or to overly long supply circuit
wire. Always check the connections, the load and sup-
ply circuit whenever motor doesn't work well. Check
wire sizes and extension cord length with the Wire Size
Chart.
Wire Sizes
NOTE: Make sure the proper extension cord is used and
is in good condition.
The use of any extension cord will cause loss of power. To
keep this to a minimum and to prevent overheating and
motor bum-out, use the table shown to determine the min-
imum wire size (A.W.G.) extension cord.
Use only 3-wire extension cords with 3-prong grounding
type plugs and 3-pole receptacles.
Extension Wire Sizes Required
Cord Length for (A.W.G.)
t10-120V
0-25 Ft. 16
26-50 Ft. 14
Contents
Warranty ........................................................................ 2
Safety Instructions For Oscillating Spindle Sander ....... 2
Safety Signal Words. ................................................... 2
Before Using The Sander ........................................... 2
When Installing Or Moving The Sander ..................... 2
Before Each Use ........................................................ 3
PlanAhead To Protect Your Eyes, Hands, Face and Ears 3
Dress for Safety. ......................................................... 3
When Sander is Running ........................................... 4
Before Leaving The Sander ....................................... 4
Precautions To Take When Sanding Metals ................. 4
Precautions To Take When Sanding Paint .................... 4
Motor Specifications and Electrical Requirements ........ 5
General Electrical Connections .................................. 5
Power Supply and Motor Specifications ..................... 5
110-120 Volt, 60 Hz. Tool Information ........................ 5
Motor Safety Protection .............................................. 6
Wire Sizes .................................................................. 6
Contents ........................................................................ 6
Unpacking and Checking Contents ............................... 7
List of Loose Parts ....................................................... 7
Loose Parts ................................................................ 7
:i: iAssembly ..:.................................................... 8
i: i iBoiting Spindle Sander To Workbench ...................... 8
C;amping Spindle Sander To Workbench .................. 9
Mounting Spindle Sander to Legset ........................... 9
installing The ACcessory: Holder To Base .................. 9
Attaching the ACcesso_ Holder to Wa I......... 10
.... :Changing Sleeves and [)rums .................................. 10
i i uu iii iiii i i i ul
Selection OI Spacer Ring Inserts And Upper Spindle
Washers .................................................................. 11
Getting to Know Your Spindle Sander ......................... 12
On-Off Switch ........................................................... 13
Safety Instructions for Oscillating Spindle Sander ...... 14
Before Using The Sander ......................................... 14
When Installing Or Moving The Sander ................... 14
Before Each Use ...................................................... !4
Ptan Ahead To Protect Your Eyes, Hands, Face and Ears 14
Dress for Safety ....................................................... 15
When Sander is Running ......................................... 15
Before Leaving The Sander ..................................... 15
Precautions To Take When Sanding Metals ............... 16
Precautions To Take When Sanding Paint ................. 16
Basic Sanding Operation ............................................. 16
Sanding Sleeve Selection ........................................ 16
Sanding .................................................................... 17
Feed Direction .......................................................... 17
Edge Sanding with Auxiliary Fence .......................... 17
Dust Collection Capability ........................................ 18
Transporting Sander ................................................ 18
Maintenance ................................................................ ! 8
Lubrication ................................................................ 18
Wiring Diagram ............................................................ 18
Sears Recommends The Following Accessories ........ 19
Troubleshooting ........................................................... 20
Notes ........................................................................... 21
Repair Parts ................................................................ 22
?: : !, :ii :i<i • • .......
Unpacking and Checking
1, Remove tooi from carton by lifting unit,
2. Place the tool on a secure, stationary work surface and
took the tool over carefully.
WARNING: For your own safety, never connect
plug to power source outlet, or insert switch key
until all assembly steps are complete and until you
have read and understood the entire owners man-
ual.
WARNING: To avoid injury, if any parts are miss-
ing, do not attempt to assemble the spindle sander,
plug in the power cord, or turn the switch on until
the missing parts are obtained and installed cor-
rectly.
Contents

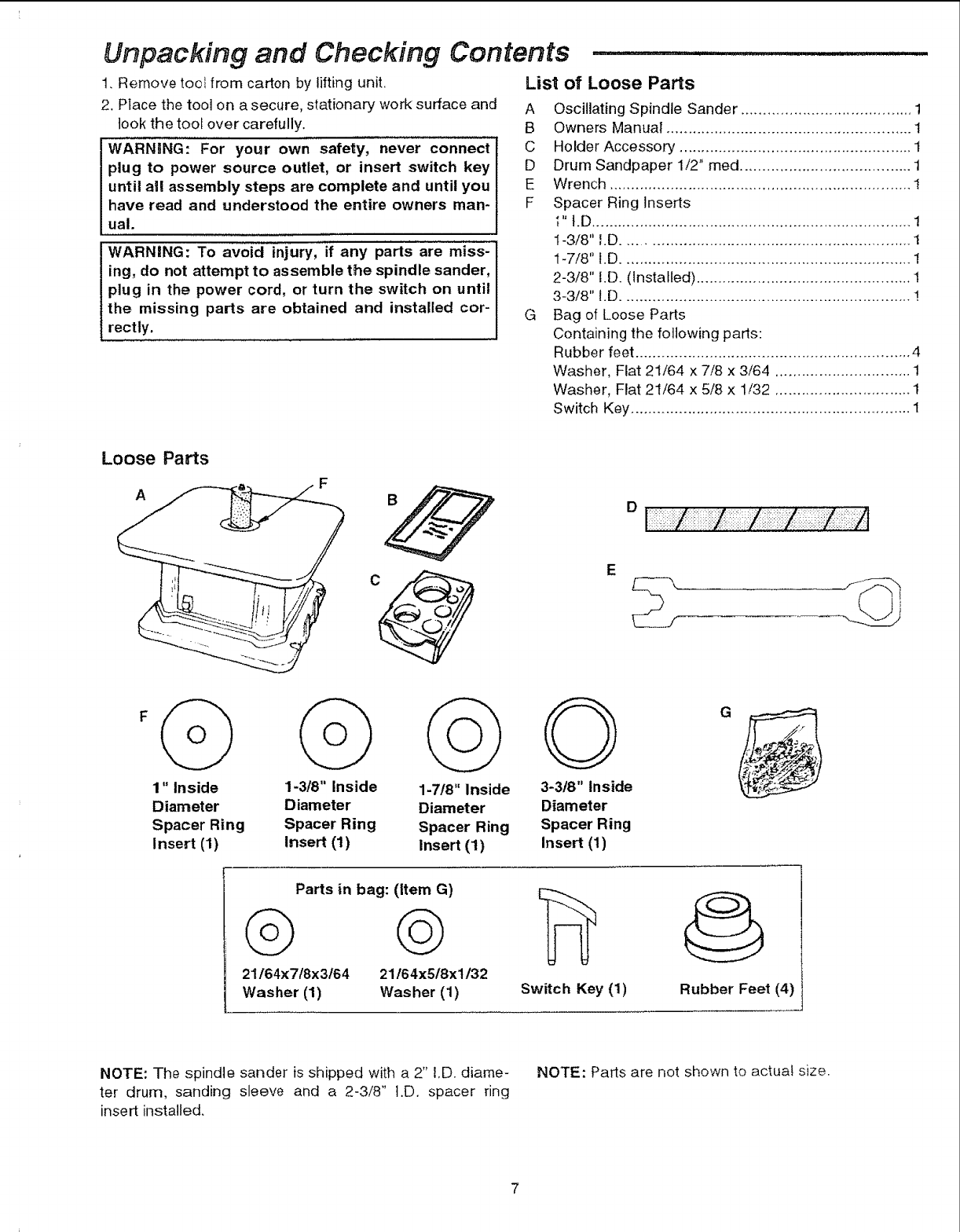

List of Loose Parts
A Oscillating Spindle Sander ....................................... 1
B Owners Manual ........................................................ 1
C Holder Accessory ..................................................... 1
D Drum Sandpaper 1/2" reed ....................................... 1
E Wrench ..................................................................... !
F Spacer Ring inserts
1"1.D......................................................................... 1
1-3/8" LD................................................................. 1
1-7/8" I.D.................................................................. t
2-3/8" I.D. (Installed ................................................. 1
3-3/8" I.D.................................................................. !
G Bag of Loose Parts
Containing the fo]towlng parts:
Rubber feet ............................................................... 4
Washer, Flat 21/64 x 7/8 x 3/64 ............................... 1
Washer, Flat 21/64 x 5/8 x 1/32 ............................... 1
Switch Key ................................................................ 1
Loose Parts
AF
1" Inside 1-318" Inside 1-7/8" Inside 3-3/8" Inside
Diameter D iameter Diameter Diameter
Spacer Ring Spacer Ring Spacer Ring Spacer Ring
Insert (1) Insert (1) Insert (1) Insert (1)
/_//
4#© ©
21164×718x3164 21164xSISx1132
Washer (1) Washer (1) Switch Key (1) Rubber Feet (4)
NOTE: The spindle sander is shipped with a 2" 1.D. diame-
ter drum, sanding sleeve and a 2-3/8" I.D. spacer ring
insert installed.
NOTE: Parts are not shown to actuai size.
CAUTION: To avoid injury from tool movement,
supporting surface where spindle sander is
mounted should be examined carefully after
mounting to insure no movement during use can
result_ If any tipping or walking is noticed, secure
to workbench or supporting surface before operat-
ing spindle sander.

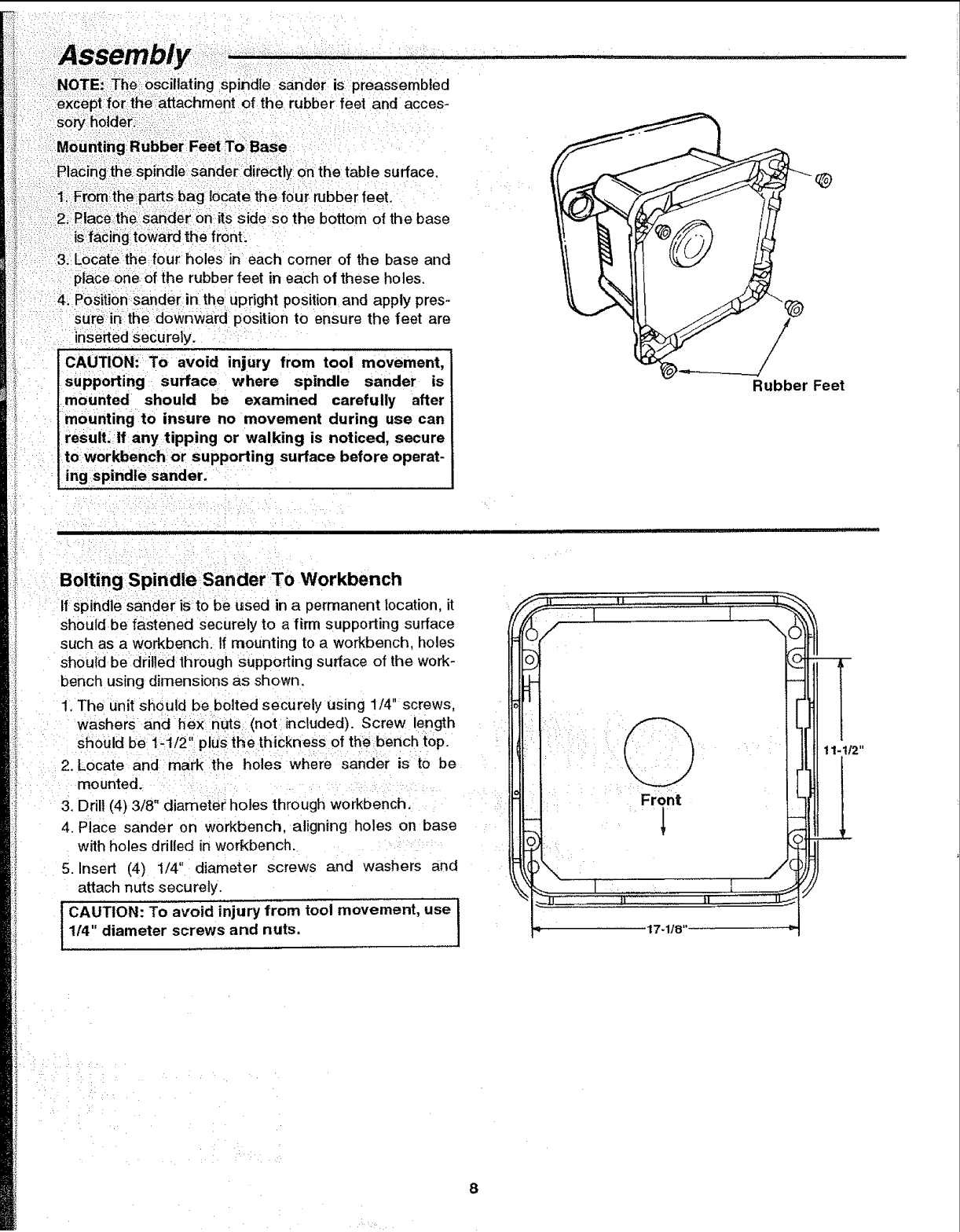

Bolting Spindle Sander To.Workbench
If Spindle sander isto be used in a permanent location, it
should be fastened securely to a firm supporting surface
such as a workbench. If mounting to a workbench, holes
should be drilled through supporting surface of the work-
bench using dimensions as shown.
1. The unit should be bolted securely using 1/4" screws,
washers and hex nuts (not included). Screw length
should be 1-1/2" plus the thickness of thebench top.
Locate and mark the holes where sander is to be
mounted.
Drill (4) 3/8" diameter holes through workbench,
Place sander on workbench, aligning holes on base
with holes drilled in workbench.
Insert (4) 1/4" diameter screws and washers and
attach nuts securely. 1
,
3.
4.
5.
I CAUTION: To avoid injury from tool movement, use
lf4" diameter screws and nuts.
Rubber Feet
-IT fl
O •
11-t/2"
Front
1
1__
l! •
17-1t8"
8
Clamping Spindle Sander To Workbench
An alternative method of mounting is to fasten the spindle
sander to a mounting board. The board should be suffi-
cient size to avoid tipping while in use. Any good grade of
plywood or chipboard with a 3/4" thickness is recom-
mended. (Thinner chipboard can break.)
NOTE: For proper stability, holes must be countersunk
so screw heads are flush with the surface of supporting
board.
Mounting Spindle Sander to Legset
The sander may also be attached to the 9-22243 tegset
as shown.
NOTE: To assemble legset follow directions provided in
legset carton.
Installing The Accessory Holder To Base
1. Attach holder to the side of the base as shown.
2. Remove the spacer ring inserts, 1/2" diameter sleeve,
washers and wrench from the loose parts bag and
insert each part in the holder as shown.
NOTE: This holder is designed to be removable to permit
attachment to the wall, or workbench as shown.
The 7/8" and 5/8" diameter washers wilt be used with the
sanding sleeve sizes identified on page 11. Do not dis-
card.
ASsembly(continued)
usingthe dimensions in the figure. Screw them in until
there is al/i6 gap between the Screws and the wall.
..... If secUring to drywall or plaster, toggle bolts will be
:::required to adequately support the holder.
:2,Slide the slots in the back of the accessory holder over
the. sCrew heads. If the holder is not snug against the
wall, adjust the screws as necessary. ._. 1_314,,-,.-
ii i

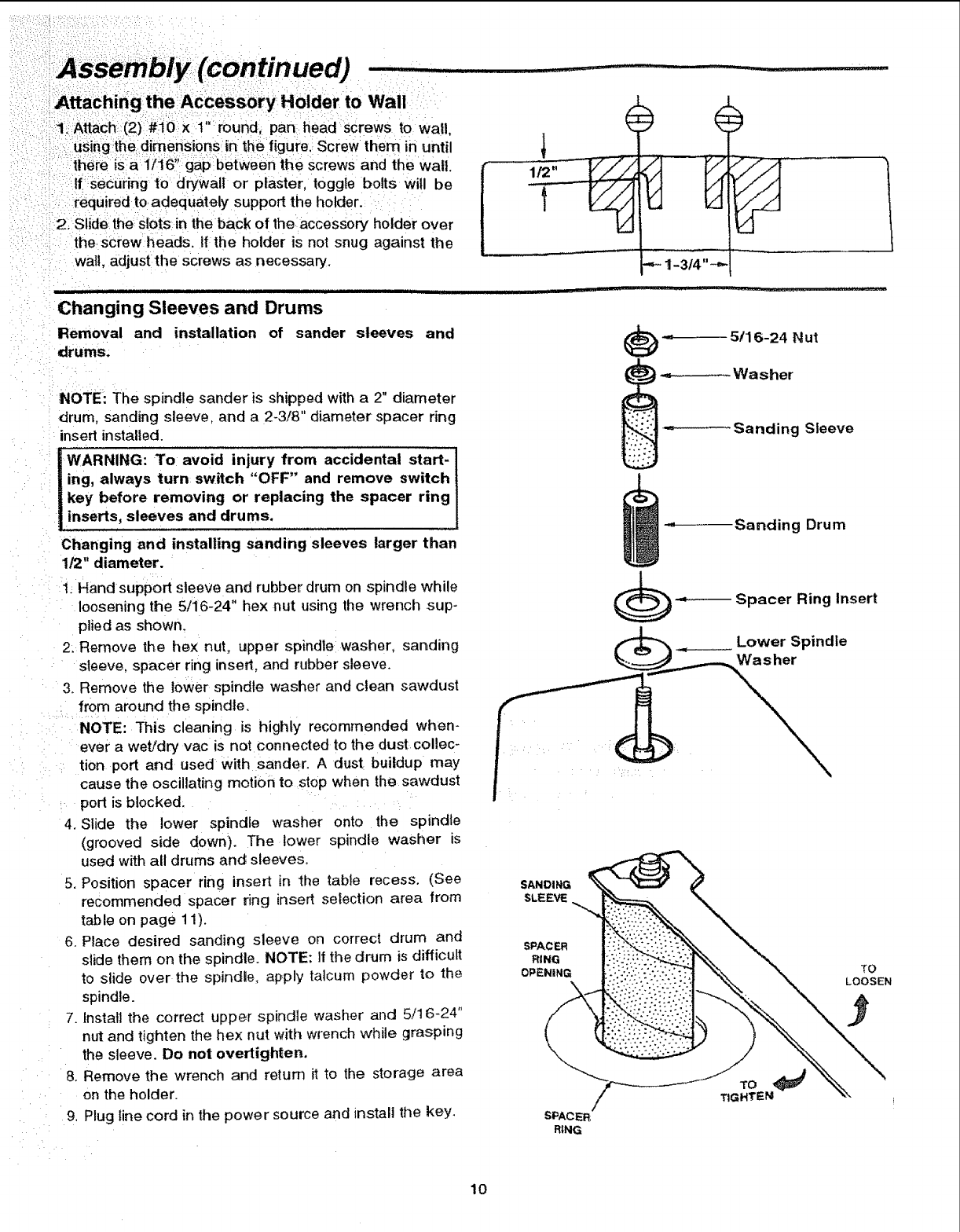

(;hanging Sleeves and Drums
Removal and installation of sander sleeves and
drums.
NOTE: The spindle sander is shipped with a 2" diameter
drum, sanding sleeve, and a 2-3/8" diameter spacer ring
insert installed.
WARNING: To avoid injury from accidental start-
ing, always turn switch "OFF" and remove switch
key before removing or replacing the spacer ring
inserts, sleeves and drums.
Changing and installing sanding sleeves larger than
1/2" diameter.
t. Hand support sleeve and rubber drum on spindle while
loosening the 5/16-24" hex nut using the wrench .sup-
(_--,_-_- 5t16-24 Nut
__ : : Washer
Sanding Sleeve
Sanding Drum
(_-----_ Spacer Ring Insert
plied as shown. __%
2. Remove the hex nut, upper spindle washer, sanding _ Lower Spindle
sleeve, spacer ring insert, and rubber sleeve.
3. Remove the lower spindle washer and clean sawdust
from around the spindle,
NOTE: This cleaning is highly recommended when-
ever a wet!dry vac is not connected to the dust collec-
tion port and used with sander. A dust buildup may
cause the oscillating motion to stop when the sawdust
port is blocked.
4. Slide the lower spindle washer onto the spindle
(grooved side down). The lower spindle washer is
used with all drums and sleeves.
5, Position spacer ring insert in the table recess. (See
recommended spacer ring insert selection area from
table on page 1 1).
6. Place desired sanding sleeve on correct drum and
slide them on the spindle. NOTE: It the drum is difficult
to slide over the spindle, apply talcum powder to the
spindle.
7. Install the correct upper spindle washer and 5/1 6-24"
nut and tighten the hex nut with wrench while grasping
the sleeve. Do not overtighten.
8. Remove the wrench and return it to the storage area
on the holder.
9. Plug line cord in the power source and install the key.
SANOING
SLEEVE
SPAC ER
R| NG
OPENING
SPACER:
RING
TO
LOOSEN
10
WARNING: To avoid injury from accidental start-
ing, always turn switch "OFF", unplug the sander
and remove switch key before removing or replac-
ing the spacer ring inserts, sleeves and drums.

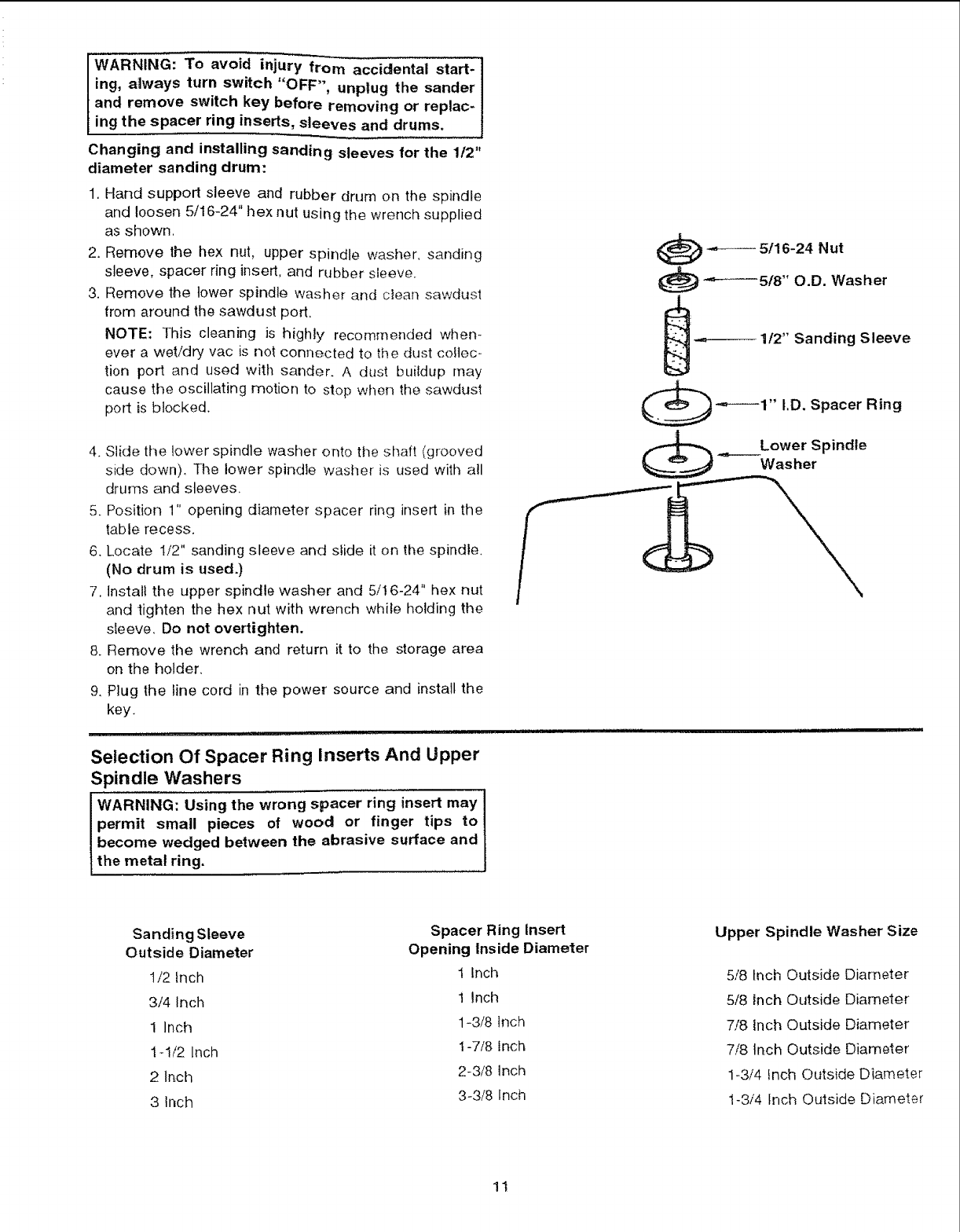

Changing and installing sanding sleeves for the 1t2"
diameter sanding drum:
1. Hand support sleeve and rubber drum on the spindle
and loosen 5/16-24" hex nut using the wrench supplied
as shown.
2, Remove the hex nut, upper spindle washer, sanding
sleeve, spacer ring insert, and rubber sleeve,
3. Remove the lower spindle washer and clean sawdust
from around the sawdust port,
NOTE: This cleaning is highly recommended when-
ever a wet/dry vac is not connected to the dust coftec-
tion port and used with sander. A dust buildup may
cause the oscillating motion to stop when the sawdust
port is blocked,
4, Slide the lower spindle washer onto the shaft (grooved
side down), The lower spindle washer is used with all
drums and sleeves.
5. Position 1" opening diameter spacer ring insert in the
table recess.
6. Locate 1/2" sanding sleeve and slide it on the spindle.
(No drum is used.)
7. Install the upper spindle washer and 5/16-24" hex nut
and tighten the hex nut with wrench while holding the
sleeve. Do not overtighten.
8. Remove the wrench and return it to the storage area
on the holder,
9, Plug the line cord in the power source and install the
key.
_5/16-24 Nut
_it "'--_----518" O.D. Washer
--.,-_ 1/2" Sanding Sleeve
_1" I,D, Spacer Ring
_.._. ower Spindle
_Washer
/
Selection Of Spacer Ring Inserts And Upper
Spindle Washers
WARNING: Using the wrong spacer ring insert may
permit small pieces of wood or finger tips to
become wedged between the abrasive surface and
the metal ring.
Sanding Sleeve
Outside Diameter
t/2 Inch
3/4 Inch
1 Inch
1-1/2 Inch
2 Inch
3 Inch
Spacer Ring insert
Opening Inside Diameter
1 Inch
1 Inch
1-3/8 Inch
1-7/8 Inch
2-3/8 inch
3-3/8 Inch
Upper Spindle Washer Size
5/8 Inch Outside Diameter
5/8 Inch Outside Diameter
7/8 Inch Outside Diameter
7/8 Inch Outside Diameter
1-3/4 Inch Outside Diameter
1-3/4 Inch Outside Diameter
1t
Getting!to Know Your Spindle Sander
i: ii L LI L _[
4 Sanding 3Rubber Drum 2 Spacer Ring Insert
1Work Table
5On,
6Wrench Storage
7Accessory Holder
1. Work Table. Supports the workpiece.
2. Spacer Ring Insert. Permits a variety of abrasive
diameters to be used on various curve sizes.
3. Drum, Rubber support for the abrasive sleeve. NOTE:
Not required for 1/2" diameter sleeve.
4, Sanding Sleeve. Removes material from the wood.
5, On-Off switch_ ......... : :
6. Wrench Storage, Location of wrench when not in use.
8 Dust Collection Port
8. Dust Collection Port. 2:-112''_openingfor::we_dryivaC
hookup. : : :,: : i i::i:;: :::: :i:
,i
12

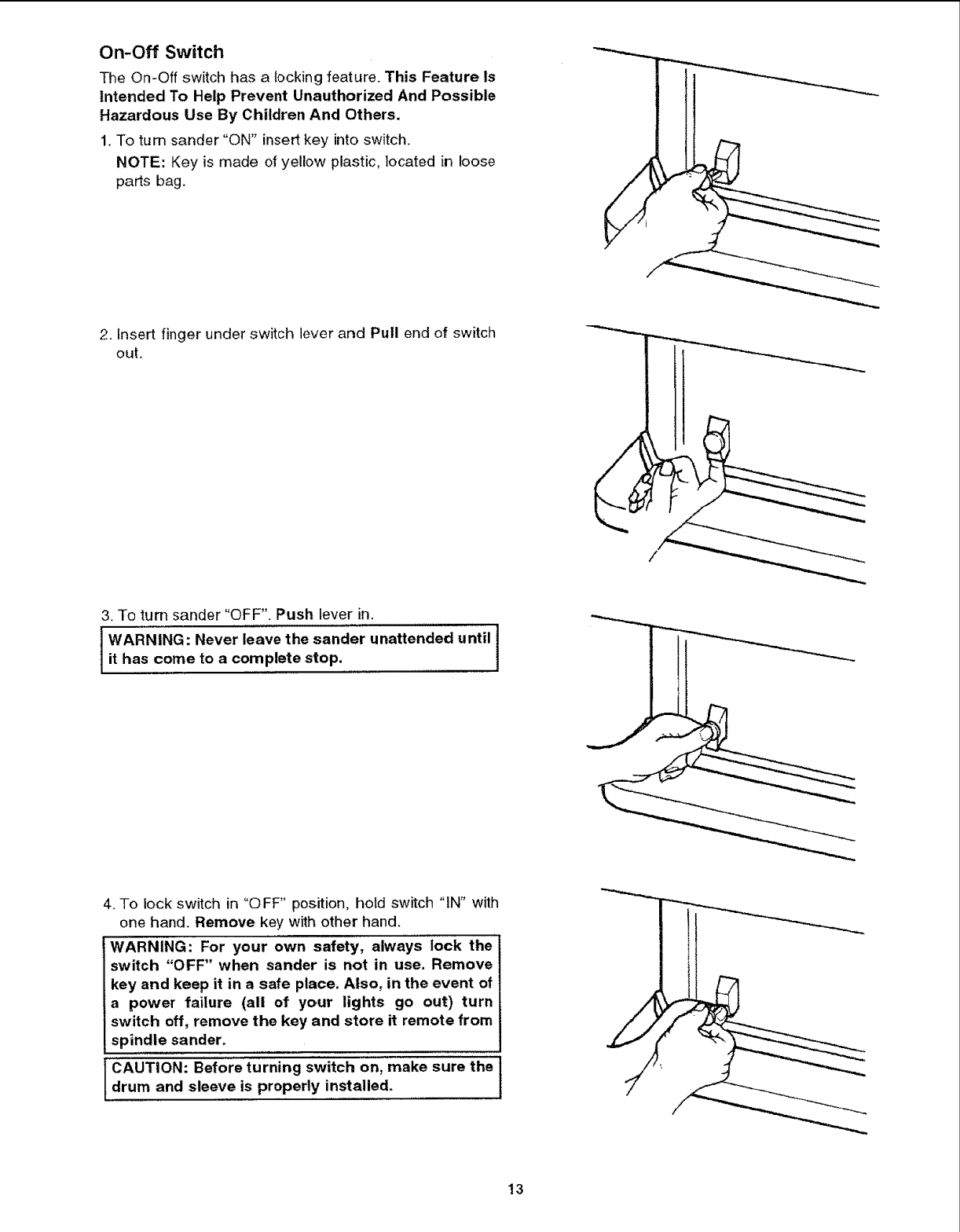

On-Off Switch
The On-Off switch has a locking feature. This Feature Is
Intended To Help Prevent Unauthorized And Possible
Hazardous Use By Children And Others.
1. To turn sander "ON" insert key into switch.
NOTE: Key is made of yellow plastic, located in loose
parts bag.
2. Insert finger under switch lever and Pull end of switch
out.
3. To turn sander "OFF". Push lever in.
WARNING: Never leave the sander unattended until !
it has come to a complete stop. I
4. To lock switch in "OFF" position, hold switch "IN" with
one hand. Remove key with other hand.
WARNING: For your own safety, always lock the
switch "OFF" when sander is not in use. Remove
key and keep it in asafe place. Also, in the event of
a power failure (all of your lights go out) turn
switch off, remove the key and store it remote from
spindle sander.
, ,,,,,,,,,,,__,,,_,,,_
CAUTION: Before turning switch on, make sure the
drum and sleeve is properly installed.
13
tylnstructionsfor:Oscillating iLearn fheSpindleandSanderfunction of '
i i i
Before Usinq The Sander use the ON-OFF switch.
(See page 13)
Review:and understanding of all safety instructions
and operating procedures in this manual.
-Review of the maintenance methods for this sander.
-Assembly. (See pages 8-11) (See page t8)
When Installing or Moving The Sander
Avoid dangerous environment. Use the sander in a
dry, indoor place protected from rain. Keep work area
well lighted.
To avoid burns or other fire damage, never use the
sander near flammable liquids, vapors or gasses.
To avoid injury or death from electrical shock:
•Ground the sander_ This sander has an approved 3-
conductor cord and a 3-prong grounding type plug.
Use only 3-wire, grounded outlets rated 120 volts, 15
amperes (amps). The green conductor in the cord is
the grounding wire To avoid electrocution, Never con-
nect the green wire to a live terminal.
- Make sure your fingers do not touch the plug's metal
prongs when plugging or unplugging the sander.
• Never use this or any power sander for wet sanding.
Before Each Use
Inspect your sander, Check for:
° alignment of moving pads,
Do=ng so could cause electrocution serious injury or
worse.
To avoid injury from unexpected sander movement:
° Always unplug the sander before moving it.
° Put the sander on a firm level surface where there is
plenty of room for handling and properly supporting the
workpiece,
*Attach rubber feet,
° Support the sander so it does not rock.
° Bolt the sander to its work surface. Use the fasteners
and method shown in "Assembly," (page 9)
oNever stand on tool. Serious injury could occur if the
tool tips. Do not store anything above or near the toot
where anyone might stand on the tool to reach them.
Remove wrenches from tool before turning on.
To avoid injury from jams, slips or thrown pieces:
° binding of moving parts,
° broken or damaged parts,
°loose spindle washer and nut,
• worn or damaged electric Cords,
° stable mounting, and
° any other conditions that may affect the way the
sander works:
If any part is missing, bent, or broken in any way, or any
electrical parts don't work properly, turn the sander off
and unplug the sander. Replace damaged, missing, or
failed parts before using the sander again.
Disconnect the sander to avoid injury from accidental
starting. Turn switch off, unplug sander and remove the
switch key before changing the setup or sanding drum.
Maintain tools with care. Keep the sander clean for
maximum and safest performance.
•Use only recommended accessories. Consult this
owner's manual for recommended accessories. The
use of improper accessories may cause injury. (See
page 19).
•Use the correct spacer ring insert. The opening
between the sanding sleeve and insert must be 1/8 of
an inch or less. (See page 11)
•All sanding drums, washers and nuts are tight. No
parts should have excessive play prior to operating
unit.
• Keep work area clean. Cluttered work surfaces invite
accidents. Floor must be clean and dry for stable foot-
ing.
ill i i
Plan Ahead To Protect Your Eyes, Hands, Face and Ears
Know your sander, Read and understand the owner's
: manual and labels affixed to the tool. Learn its application
, i and limitations as well as the specific potential hazards.
Plan your work, Think through how you witl hold and
i:: : maneuver the w0rkpiece against the sanding drum.
Use the right tool. Don't force tool or attachment to do a
job itwas not designed to do.
To avoid injury from accidental contact with moving
parts:
•Do not layout, assemble, or setup work on the sander
while any parts are moving.
° Avoid accidental starting. Make sure switch is "OFF"
before plugging sander into a power outlet.
14
Dress for Safety
* Wear nonslip footwear.
. Tie back long hair.
* Roll long s_eeves above the elbow.
oNoise levels vary widely. To avoid possible hearing
damage, wear ear plugs or muffs when using sander
for hours at a time.
* Sanding operations are usually dusty. Wear a dust
mask along with the safety goggles.
° Do not wear loose clothing, gloves, neckties or jewelry
(rings, wrist watches). They can get caught and draw
you into moving parts.
WEAR YOUR
• Wear safety goggles. Any power sander can throw
foreign objects into the eyes. This can cause perma-
nent eye damage. Wear safety goggles (not glasses)
that comply with ANSI Z87,1 (shown on package).
Everyday eyeglasses have only impact resistant
lenses. They are not safety glasses. Safety goggles
are available at Sears retail catalog stores. Glasses or
goggtes not in compliance with ANSI Z87.1 could seri-
ously hurt you when they break,
Inspect your workpiece make sure there are no nails or
foreign objects in the part of the workpiece to be sanded.
Plan the way you will hold the workpiece from start
to finish. Avoid awkward operations and hand positions
where a sudden slip could cause finger or hand to move
into a sanding surface.
Don't overreach. Maintain balance and footing.
Keep face and body to one side. Stay out of line with a
possible throwback.
Plan your work to avoid THROWBACKS - when the
workpiece catches the sanding drum and is torn
from your hands:
•Make sure there's no debris between the workpiece
_nd its supports.
• When sanding irregularly shaped workpieces, plan
your work support so it will not slip and be pulled from
your hands.
• Use extra caution with large, very small or awkward
workpieces.
° Never use this tool to finish pieces too smaUto hold by hand.
• Use extra supports (tables, saw horses, blocks, etc.)
for any workpieces large enough to tip when not
secured to the work surface.
° Never use another person as a substitute for a table
extension, or as additional support for a workpiece that
is longer or wider that the basic sander table, or to help
feed, support or pull the workpiece.
•Clear everything except the workpiece and related sup-
port devices off the table before turning the sander on.
• Always feed workpJece from right to left against the
direction the drum sleeve is rotating.
• Do not use drums or sanding sleeves which show
visual signs of wear such as grooves, tears or rips,
WARNING: Don't let familiarity (gained from fre-
quent use of your spindle sander) cause a careless
mistake. A careless fraction of a second is enough
to cause a severe injury.
When Sander is Running
Before starting your work, watch the sander while it runs.
If it makes an unfamiliar noise or vibrates excessively,
Stop Immediately. Turn the sander off. Unplug the
sander. Do not restart until identifying and correcting the
problem.
Never leave tool running unattended.
Before using the sander, make sure the sanding drum
turns counterclockwise, when viewed from above.
Keep children away. Keep all visitors a safe distance
from the sander and workpiece.
Before Leaving The Sander
Turn switch off. Don't leave toot until the unit comes to a
complete stop.
Don't force tool. It will perform better and safer at its
designed rate, Press workpiece against the sanding
sleeve hard enough to begin sanding without bogging
down or binding spindle.
Before freeing any jammed material:
•Turn switch "OFF".
•Unplug the sander.
• Wait for air moving parts to stop.
Make workshop child-proof. Remove the yellow switch
key. Disconnect master switches. Store it away from chiL
dren and others not qualified to use the tool. Lock the
shop.
15
Sanding Metals ........
When sandlng me_als,_ sparks or hot fragments could 2. Remove all traces of wood dust from inside the unit
cause:a fire::!To av0id this: : :_: : before sanding metals.
:::li_Disconnect any_:duStColtectinghosefromthe sandeil &Remove all traces of metal dust from inside the unit
before sanding wood again.
Precautions To Take When Sanding Paint .... •........
Sanding of lead based paint is not recommended. It is
difficult to control the contaminated dust that Could cause
lead poisoning.
It is also difficult to identify whether or not apaint con-
tains tead_Therefore, we recommend the following pre-
cautions when sanding all paints:
1. Protect your lungs, Wear a dust mask or respirator at
all times. Wear 0niy dust masks that are Suitable for
w0rking:in lead paint sanding environments. Ordinary
painting masks do not offer this protection.
2. Do not allow children or pregnantwomen to enter the work
area until paint sanding jobis complete and work area is
clean.
3. To prevent ingesting contaminated paint particles: Do
not eaL drink, or smoke in a work area where paint is
4,
,
being sanded. After sanding paint, wash and clean up
before eating, drinking or smoking. Do not leave food,
drinks, or tobacco products in the work area where
dust car settle on them.
Protect the environment when sanding paint. Use a
dust collection system if possible. Seal the work area
with plastic if necessary. Do not track paint dust out-
side the work area.
Thoroughly clean the work area upon completion of
paint sanding project. If project lasts for an extended
period of time, clean work area often. Items such as
sanding dust, vacuum filter bags, plastic drop cloths, etc.
should be placed in a sealed container and disposed of
properly. Clean all items exposed to sanding dust.
Basic Sanding Operation
Sanding Sleeve Selection
Selecting the correct size diameter, correct size grit, and
correct type sanding sleeve is an extremely important
step in achieving a high quality sand_ed finish. Aluminum
oxide, silicon carbide, and other synth etic abrasives are
best for power sanding. Natural abrasives, such as flint
and garnet, are too soft for economical use in power
sanding.
In general, coarse grit will:remove the most material and
finer grit will produce the best finish in all sanding operat
lions. The condition of the surface to be sanded will
determine which grit will do the job. If the surface is
rough, start with a coarse grit and sand until the surfaCe
is uniform. Medium grit may then be used to remove
scratches left by the coarser grit and finer grit used for
finishing of the surface, Always continue sanding with
each grit until surface is uniform.
NOTE: Do Not use sander without a sanding sleeve.
Doing so will damage the rubber drum.
Select and install the desired sanding sleeve for your par-
ticular application. See optional sleeves and drums.
Sanding sleeves from 1/2" to 3" can be used with this
sander. Choose one that is close in size to the workpiece
you are sanding. Also install the appropriate spacer ring
insert (page 11).
WARNING: Failure to use the correct size spacer
ring insert with its matching sanding sleeve could
result in fingers being pinched or the workpiece
being pulled down between the spacer ring insert
and sanding sleeve.
o
1" 1-1/2" 2" 3"
16

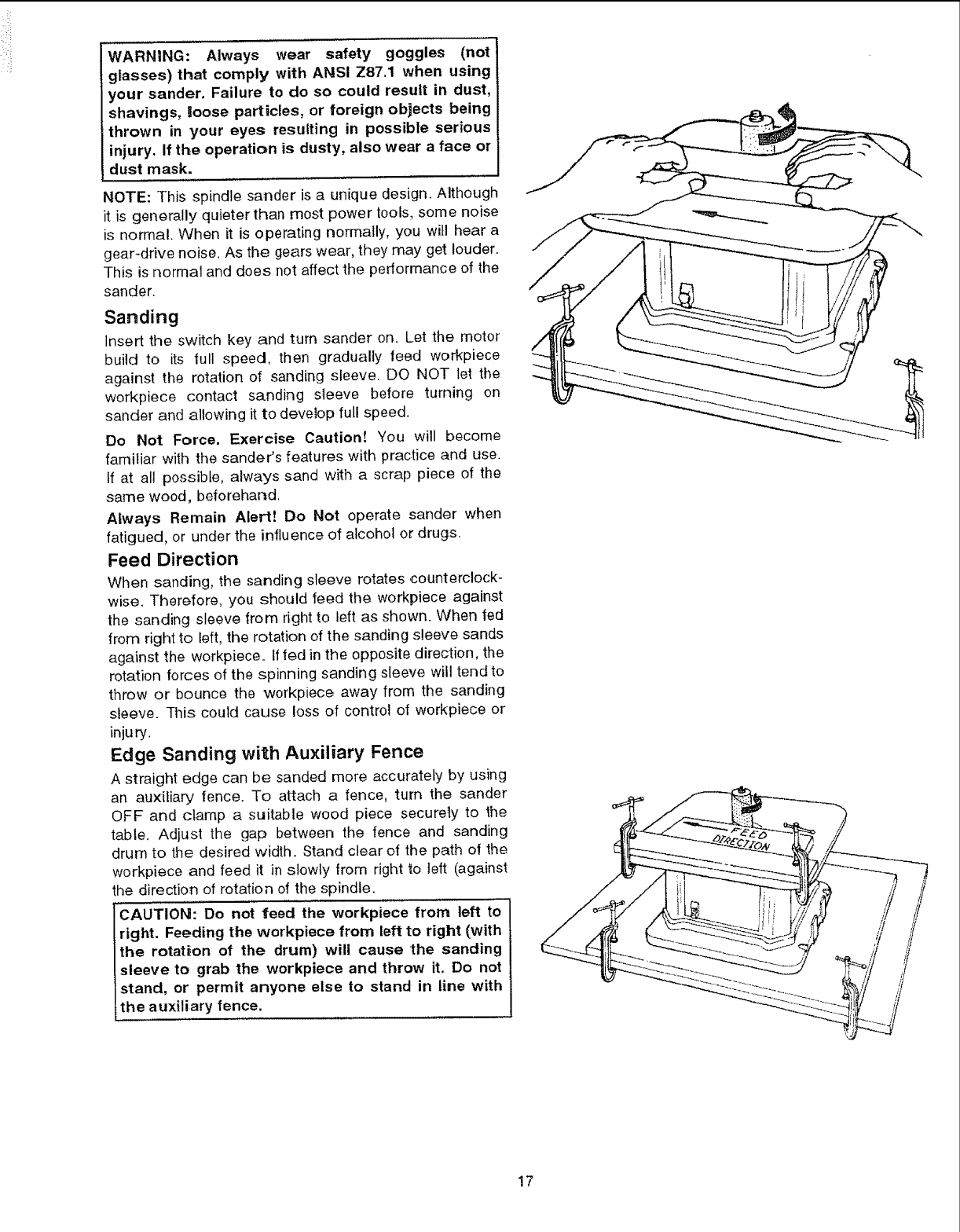

WARNING: Always wear safety goggles (not
glasses) that comply with ANSI Z87.1 when using
your sander. Failure to do so could result in dust,
shavings, loose particles, or foreign ob)ects being
thrown in your eyes resulting in possible serious
injury. If the operation is dusty, also wear a face or
dust mask.
NOTE: This spindle sander is a unique design. Although
it is generally quieter than most power tools, some noise
is normal. When it is operating normally, you will hear a
gear-drive noise. As the gears wear, they may get louder.
This is normal and does not affect the performance of the
sander.
Sanding
Insert the switch key and turn sander on. Let the motor
build to its full speed, then gradually feed workpiece
against the rotation of sanding sleeve. DO NOT let the
workpiece contact sanding sleeve before turning on
sander and allowing it to develop full speed.
Do Not Force. Exercise Caution! You will become
familiar with the sander's features with practice and use.
If at all possible, always sand with a scrap piece of the
same wood, beforehand.
Atways Remain Alert! Do Not operate sander when
fatigued, or under the influence of alcohol or drugs.
Feed Direction
When sanding, the sanding sleeve rotates counterclock-
wise. Therefore, you should feed the workpiece against
the sanding sleeve from right to left as shown. When led
from right to left, the rotation of the sanding sleeve sands
against the workpiece. Iffed in the opposite direction, the
rotation forces of the spinning sanding sleeve will tend to
throw or bounce the workpiece away from the sanding
sleeve. This could cause loss of control of workpiece or
injury.
Edge Sanding with Auxiliary Fence
A straight edge can be sanded more accurately by using
an auxiliary fence. To attach afence, turn the sander
OFF and clamp a suitable wood piece securely to the
table. Adjust the gap between the fence and sanding
drum to the desired width. Stand clear of the path of the
workpiece and feed it in slowly from right '_oteft (against
the direction of rotation of the spindle.
CAUTION: Do not feed the workpiece from left to
right. Feeding the workpiece from left to right (with
the rotation of the drum) will cause the sanding
sleeve to grab the workpiece and throw it. Do not
stand, or permit anyone else to stand in line with
the auxiliary fence. /
17

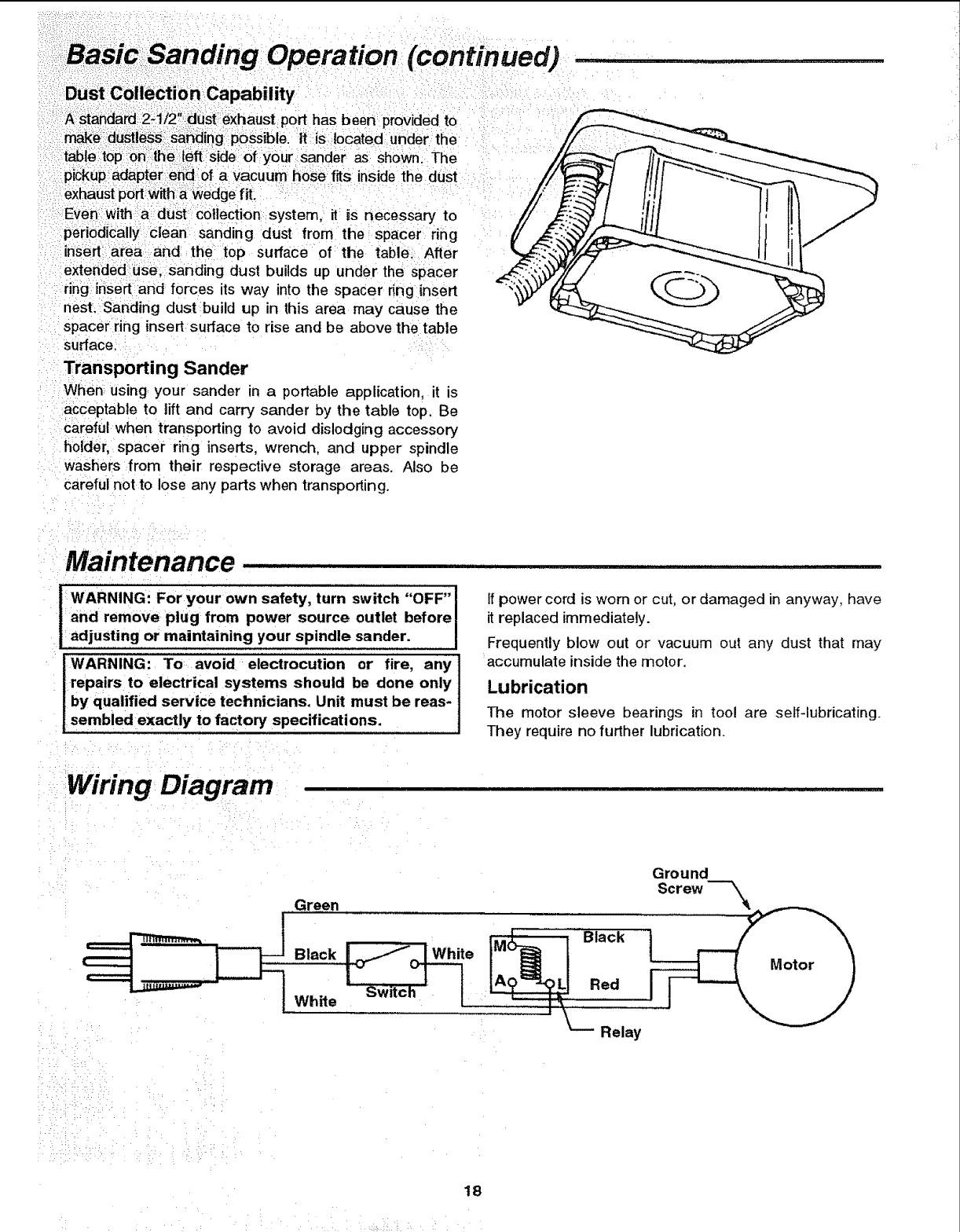

BasicSanding Operation (continued) -_
D,, tCOt e tion:Capab.ity
Astar_dard 2_-l/2"dust:exhaust port has been provided to
possible. :ff:is:::located under the
table:_topon!:theleftliside of your sander as shown. The
pickup adapter eridof a vacuum hose fits inside the dust
exhaust poffwith a Wedgefit:
EVen:with a dust collection system, it is necessary to
periodically clean sanding dust from the spacer ring
insert area and the top surface of the table: After
extended use, sanding dust builds up under the spacer
ring insert and forces its way into the spacer ring insert
nest. Sanding dust build up in this area may cause the
spacer nng insert surface to rise and be above the table
Surface.
Transporting Sander
When using your sander in aportable application, it is
acceptable to lift and carry sander by the table top. Be
careful when transporting to avoid dislodging accessory
holder, spacer ring inserts, wrench, and upper spindle
washers from their respective storage areas. Also be
Careful not to lose any parts when transporting.
Maintenance
WARNING: For your own safety, turn switch "OFF"
and remove plug from power source outlet before
adjusting or maintaining your spindle sander.
WARNING: To avoid electrocution or fire, any
repairs to electrical systems should be done only
by qualified service technicians. Unit must be reas-
sembled exactly to factory specifications.
L, , L ........
If power cord is worn or cut, or damaged in anyway, have
it replaced immediately.
Frequently blow out or vacuum out any dust that may
accumulate inside the motor.
Lubrication
The motor sleeve bearings in tool are serf-lubricating.
They require no further lubrication.
Wiring Diagram
Green
Black
White
t o_I_o_ e M__L Black
Switch , _Red
' "_-- Relay
Ground
Screw
18

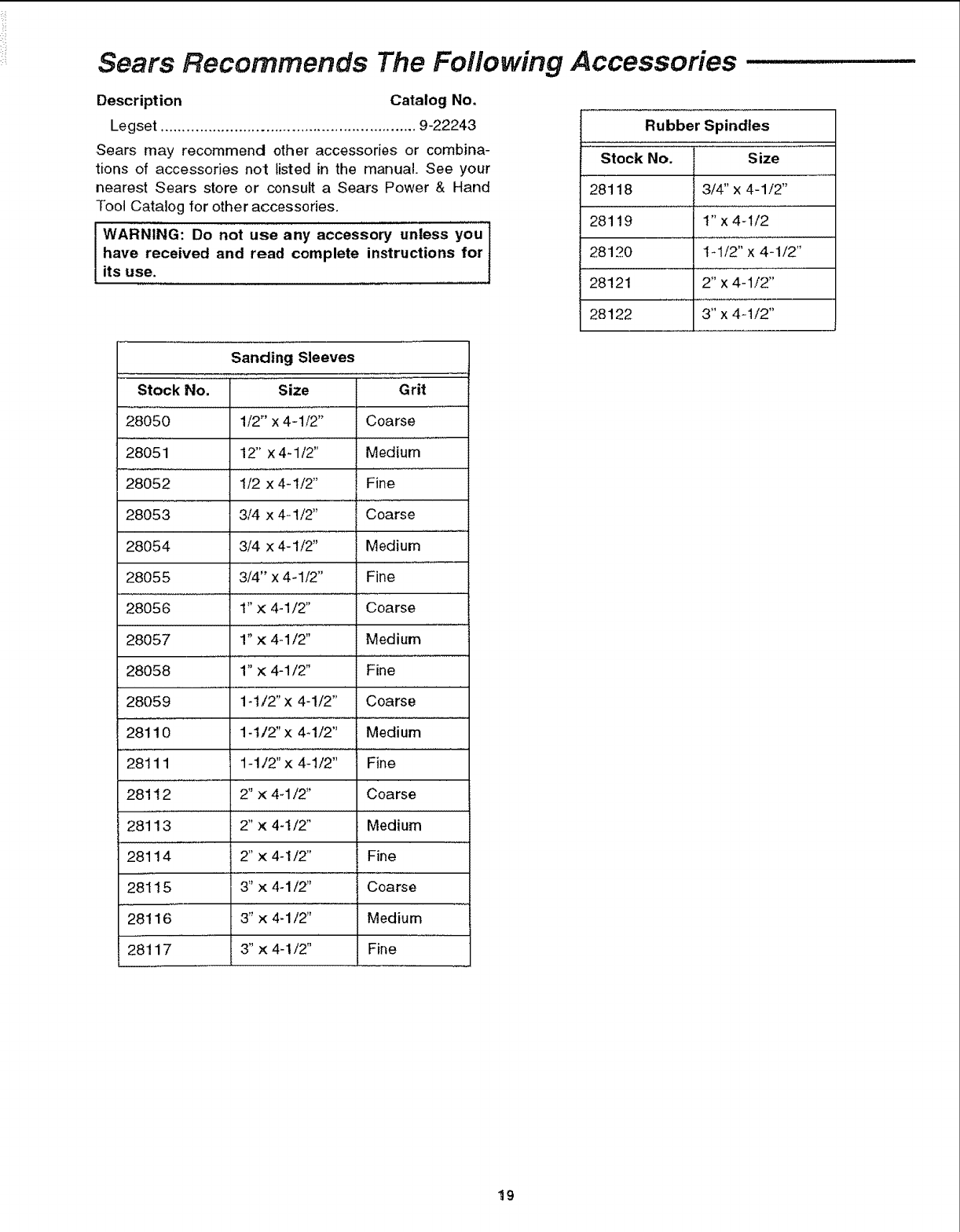

Sears Recommends The Following Accessories
Description Catalog No,
Legset ........................................................... 9-22243
Sears may recommend other accessories or combina-
tions of accessories not listed in the manual. See your
nearest Sears store or consult a Sears Power & Hand
Tool Catalog for other accessories.
WARNING: Do not use any accessory unless you]
have received and read complete instructions for 1
its use.
Rubber Spindles
Stock No. Size
28118 3/4" x 4-1/2"
28119 1" x 4-1/2
28120 1-1/2" x 4-1/2"
28121 2" x 4-1/2"
28122 3" x 4-t/2"
Sanding Sleeves
Stock No. Size
28050
28051
28052
28053
28054
28055
28056
28O57
28058
28059
28110
1/2" x 4-1/2"
12" x 4-1/2"
1/2 x 4-t/2"
3/4 x 4-1/2"
3/4 x 4-1/2"
3/4" x 4-1/2"
1" × 4-1/2"
1"× 44/2"
1" × 4-1/2"
.....Grit
Coarse
Medium
Fine
,, I ...............
Coarse
Medium
Fine
Coarse
Medium
Fine
1-1/2" x 4-1/2" Coarse
1-t/2" x 4-1/2" Medium
28111
28112
28113
28114
28115
28116
28117
1-1/2" x 4-1/2"
2"x 4-1/2"
2"x 4-1/2"
2" x 4-1/2"
3"x 4-1/2"
3" x 4-1/2"
3" x 4-1/2"
Fine
Coarse
Medium
Fine
Coarse
Medium
Fine
19

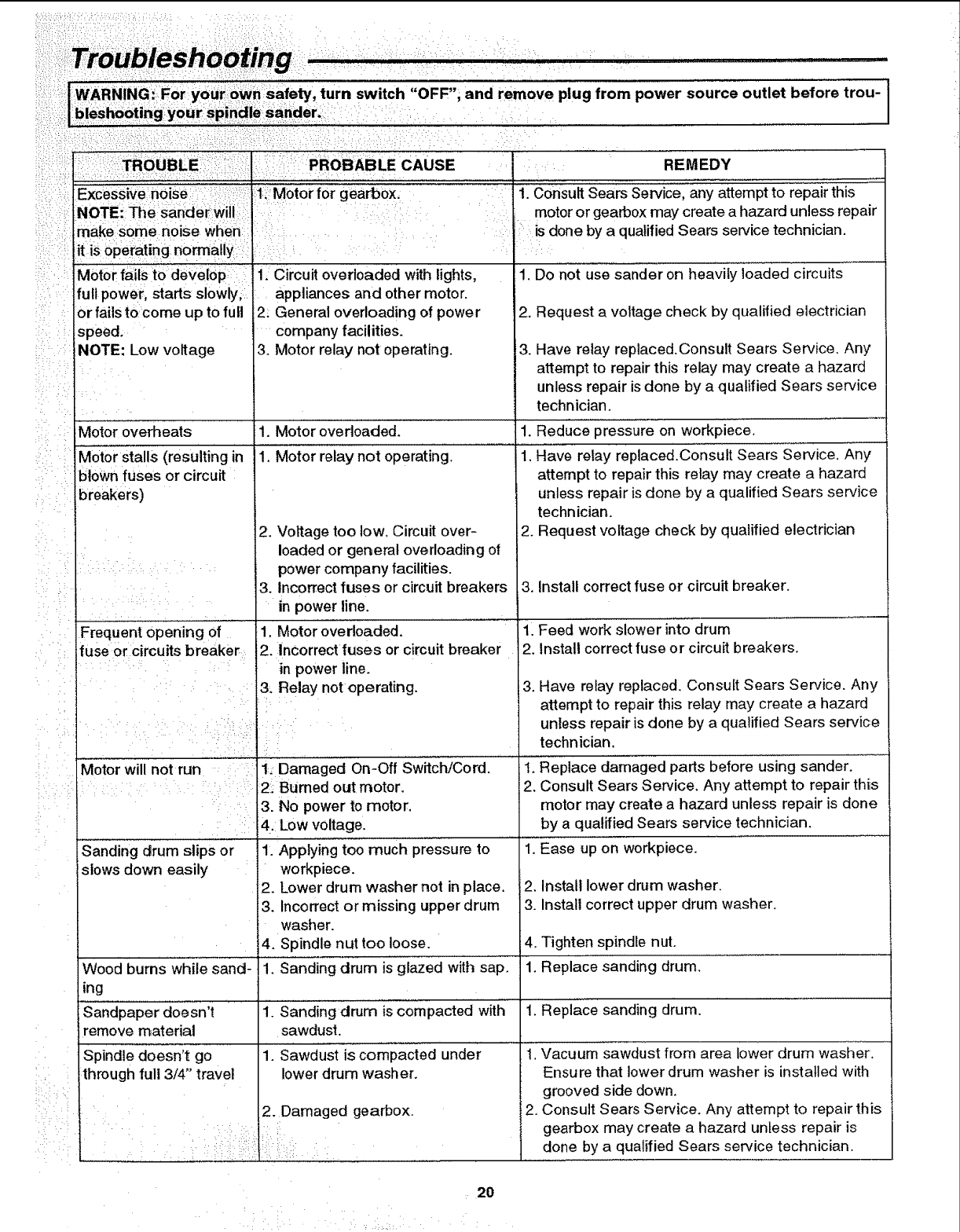

_i • _ _
iWARNING_ For yourow'n safety, turn switch "OFF", and remove plug from power source outlet before trou-
bleshooting your spindle: sander_ 1
i
CAUSE .... REMEDY
Excessive noise:' _ :_: 1! Motor for gearbox. 1. Consult Sears Service, any attempt to repairthis
NOTE: The sandel_wiii motoror gearboxmay create a hazard unless repair
makesome noise when: _: ....... is done by a qualifiedSears service technician.
itis operating normaily i _ :
Motor fails to develop::" 1. Circuit overloaded with lights, 1. Do not Use sander on heaviiyloaded circuits
full power, starts slowly;i
or fails to come up to full
speed,
NOTE: Low voltage
appliances and other motor.
2: General overloading of power
company facilities.
3. Motor relay not operating.
2, Request a voltage check by qualified electrician
,Have relay replaced.Consult Sears Service, Any
attempt to repair this relay may create a hazard
unless repair isdone by a qualified Sears service
technician,
Motor overheats
Motor stalls (resulting in
blown fuses or circuit
breakers)
Frequent opening of
fuse or circuits breaker
1. Motor Overloaded. I. Reduce' Pressure on workpiece,
i. Motor relay not operating. I, Have relay replaced.Consult Sears 'i3ervice, Any
2. Voltage too low. Circuit over-
loaded or ger_eral overloading of
power company facilities.
3, Incorrect fuses or circuit breakers 3.
in power line.
1. Motor Overloaded. 1.......... 1.
2, incorrect fuses or circuit breaker 2.
in power line.
3. Relay not operating. 3.
• • • •••_ :••••-• • i•
Motor will not run 1. Damaged On-Off Swffch/Cord,
2: Burned out motor.
3. No power to motor,
.... 4. Low voltage.
attempt to repair this relay may create a hazard
unless repair is done by a qualified Sears service
technician.
2, Request voltage check by qualified electrician
Install correct fuse or circuit breaker,
Feed work slower in'to drum
Install correct fuse or circuit breakers,
Have relay replaced, Consult Sears Service, Any
............. ,,L
Sanding drum slips or 1. Applying too much pressure to 1. Ease up on workpiece.
slows down easily
attempt to repair this relay may create a hazard
unless repair is done by a qualified Sears service
technician,
_f.Replace damaged parts before using sander,' .......
2. Consult Sears Service, Any attempt to repair this
motor may create a hazard unless repair is done
by a qualified Sears service technician.
workpiece.
2. Lower drum washer not in place.
3, Incorrect or missing upper drum
washer.
4, Spindle nut too loose.
2, Install lower drum washer.
3, Install correct upper drum washer.
,
........ i ......................................
Wood burns while sand- 1, Sanding drum is glazed with sap, 1.
Tighten spindle nut,
Replace sanding drum,
ing
iSandpaper doesn't
iremove material
Spindle doesn't go
through full 3/4" travel
1. Sanding dru'rn"is compacted with
sawdust.
1. sawdust is compacted under
lower drum washer.
2. Damaged gearbox.
1. Replace sanding drum.
i'. Vacuum sawdust from area lower drum wash'er.
Ensure that lower drum washer is installed with
grooved side down,
2, Consult Sears Service, Any attempt to repair this
gearbox may create a hazard unless repair is
done by a qualified Sears service technician.
•20
;i:_ i_: _
Notes .....................................................
21
Parts List For Craftsman Oscillating Spindle Sander
Model 113.225705
Figure 1
36\
33
\
27
22
i_ _ ii__iii _i_iii_i_iiii_i,_,ii_i_i_ili__i •

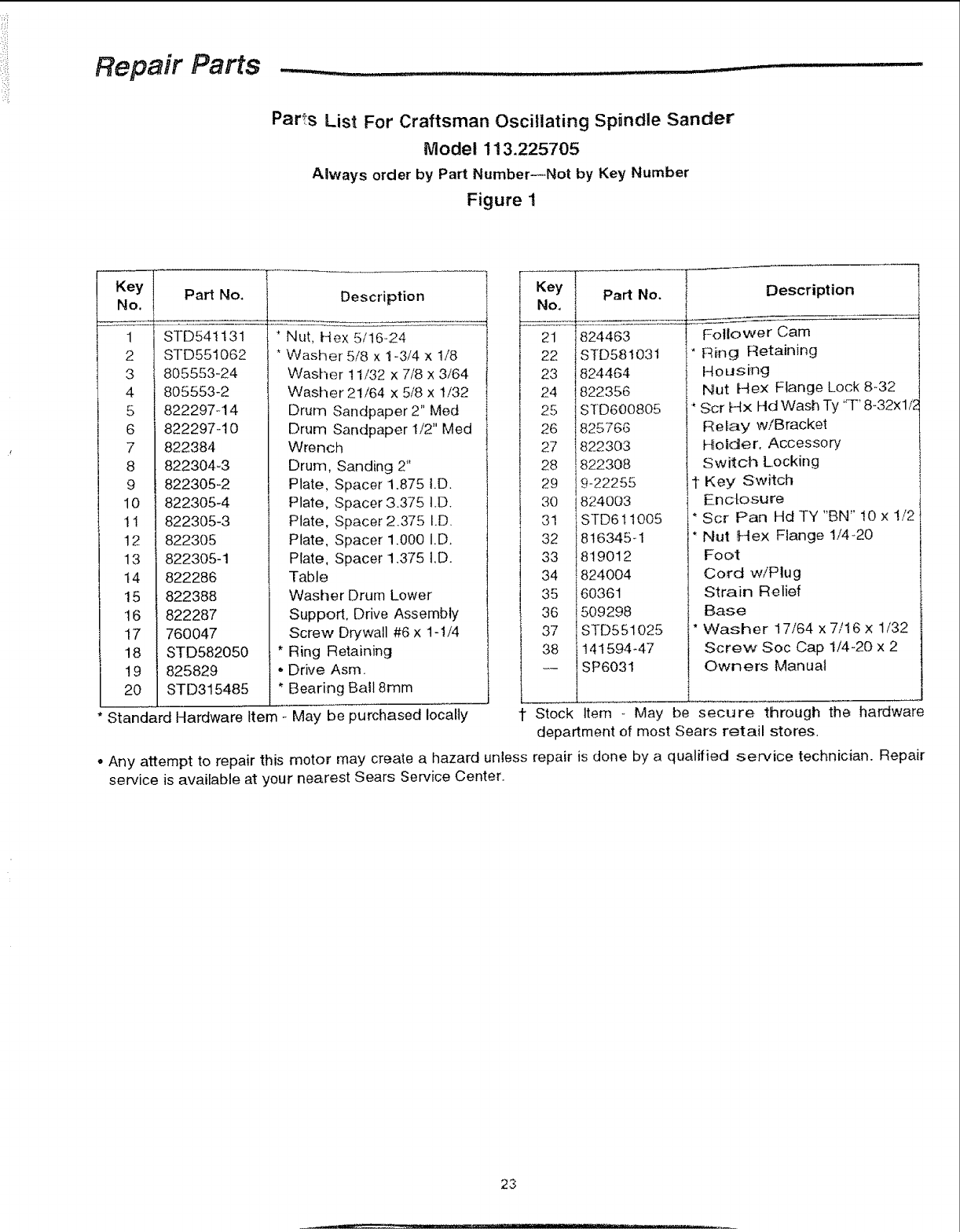

Repair Parts .................
Parts List For Craftsman Oscillating Spindle Sander
Model 113.225705
AJways order by Part Number--Not by Key Number
Figure 1
Key
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
t4
15
t6
17
18
19
2O
Part No.
STD54 ! t 31
STD551062
805553-24
805553-2
82229744
822297-10
822384
822304-3
822305=2
822305-4
822305-3
822305
822305-1
822286
822388
822287
760047
STD582050
825829
ST D315485
Description
o
Nut, Hex 5/16-24
Washer 5/8 x 1-3/4 x 1/8
Washer 11/32 x 7/8 x 3/64
Washer 21/64 x 5/8 x 1/32
Drum Sandpaper 2" Med
Drum Sandpaper I/2" Med
Wrench
Drum, Sanding 2"
Plate, Spacer 1.875 t.D,
Plate, Spacer 3.375 t.D,
Plate, Spacer 2.375 t.D.
Plate, Spacer 1.000 I.D.
Plate, Spacer 1 375 t,D.
Table
Washer Drum Lower
Support, Drive Assembly
Screw Drywall #6 x 1-1/4
Ring Retaining
Drive Asm.
Bearing Ball 8ram
Standard Hardware Item - May be purchased locally
Key
No,
22
23
24
26
27
28 ,
29
3O
31
32
33
34
35
36
37
38
t Stock
Pa_ No.
824463
STD58t031
824464
822356
STD600805
825766
822303
822308
19-22255
824003
Description
Follower Cam
Ring Retaining
Housing
Nut Hex Flange Lock 8-32
* Scr Hx Hd Wash Ty "m' 8-32xl/2
I Relay w/Bracket
1 t4older, Accessory
I Switch Locking
11 Key Switch
Enclosure
;STD611005 *
8t6345-I *
819012
824004
60361
509298
STD551025
141594-47
SP6031
Scr Pan Hd TY "BN'" t0 x 1/2
Nut Hex Flange 1/4-20
Foot
Cord w/Plug
Strain Relief
Base
Washer 17/64 x 7/16 x 1/32
Screw Soc Cap 1/4=20 x 2
Owners Manual
Item - May be secure through the hardware
department of most Sears retail stere&
• Any attempt to repair this motor may create a hazard unless repair is done by a qualified service technician. Repair
service is available at your nearest Sears Service Center.
23
MODEL NO.
113.225705
The model number of your
Spindte Sander may be found
on the back side of the base
When requesting service or
ordering parts, always provide
the following information:
•Product Type
• Model Number
• Part Number
•Part Description
OSCILLATING SP
SANDER
For the repair or replacement parts you need
Call 7 am - 7 prn, 7 days a week
t-800-366-PART
(1-800-386-7278)
For in-homemajor brand repair service
Call 24 hours a day, 7 days a week
1-800-4-REPAIIR
(1-800-473-7247)
For the location of a
Sears Repair Service Center in your area
Call 24 hours a day,7 days a week
t-800-488-1222
For information on purchasinga Sears
Maintenance Agreementor to inquire
about an existingAgreement
Call 9 am - 5 pro, M0nday_Saturday
1-800-827 =6655
SEAR,S
4meric3'S Repair Spec_a;_Sts
LE
Sears, Roebuck and Co,, Hoffman Estates, IL. 60179 U,S,A.
Part No. SP6031 Form No. SP603! Printed in U,S.A. 3!97
