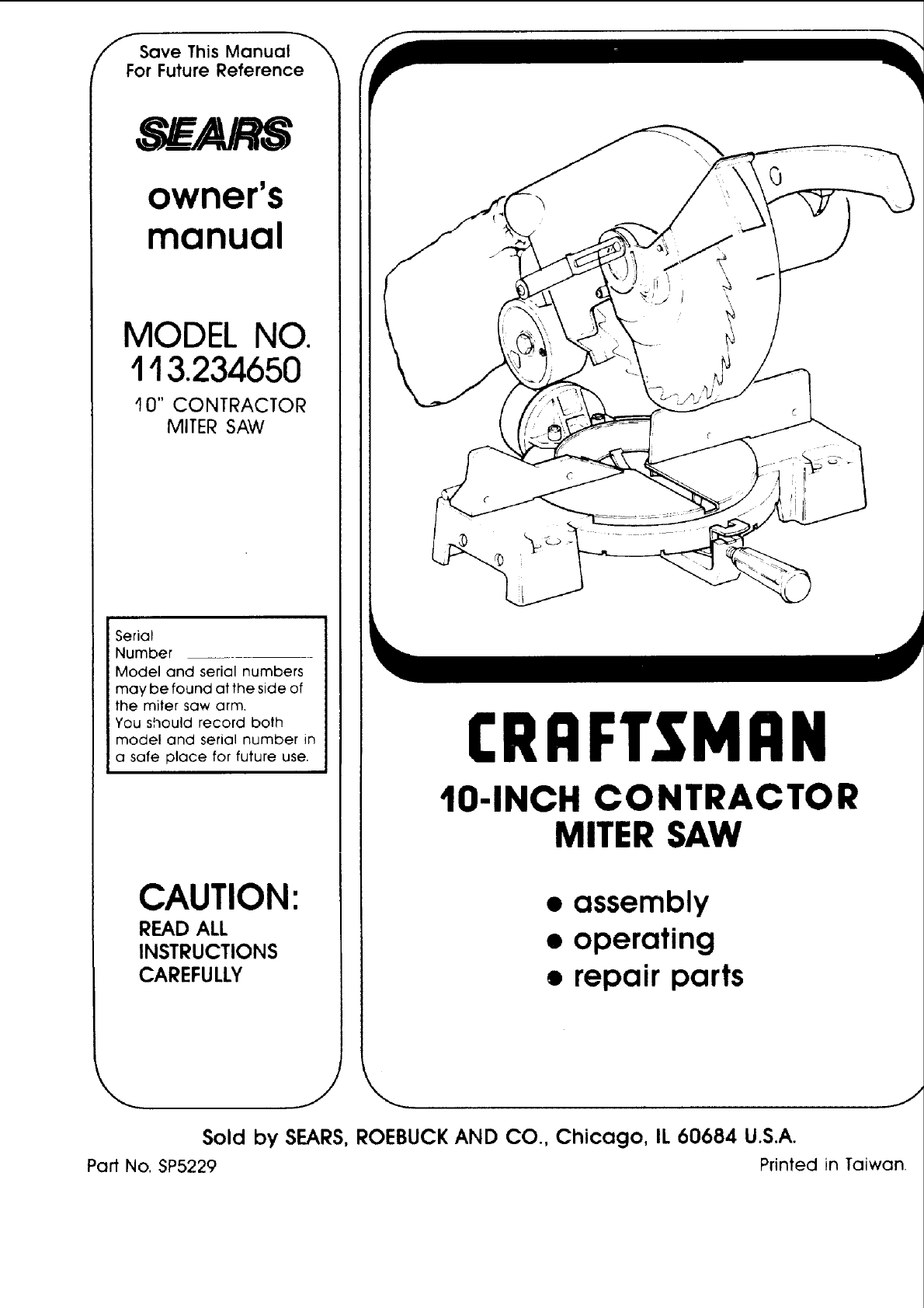

f'_ Save ThisManual

For Future Reference

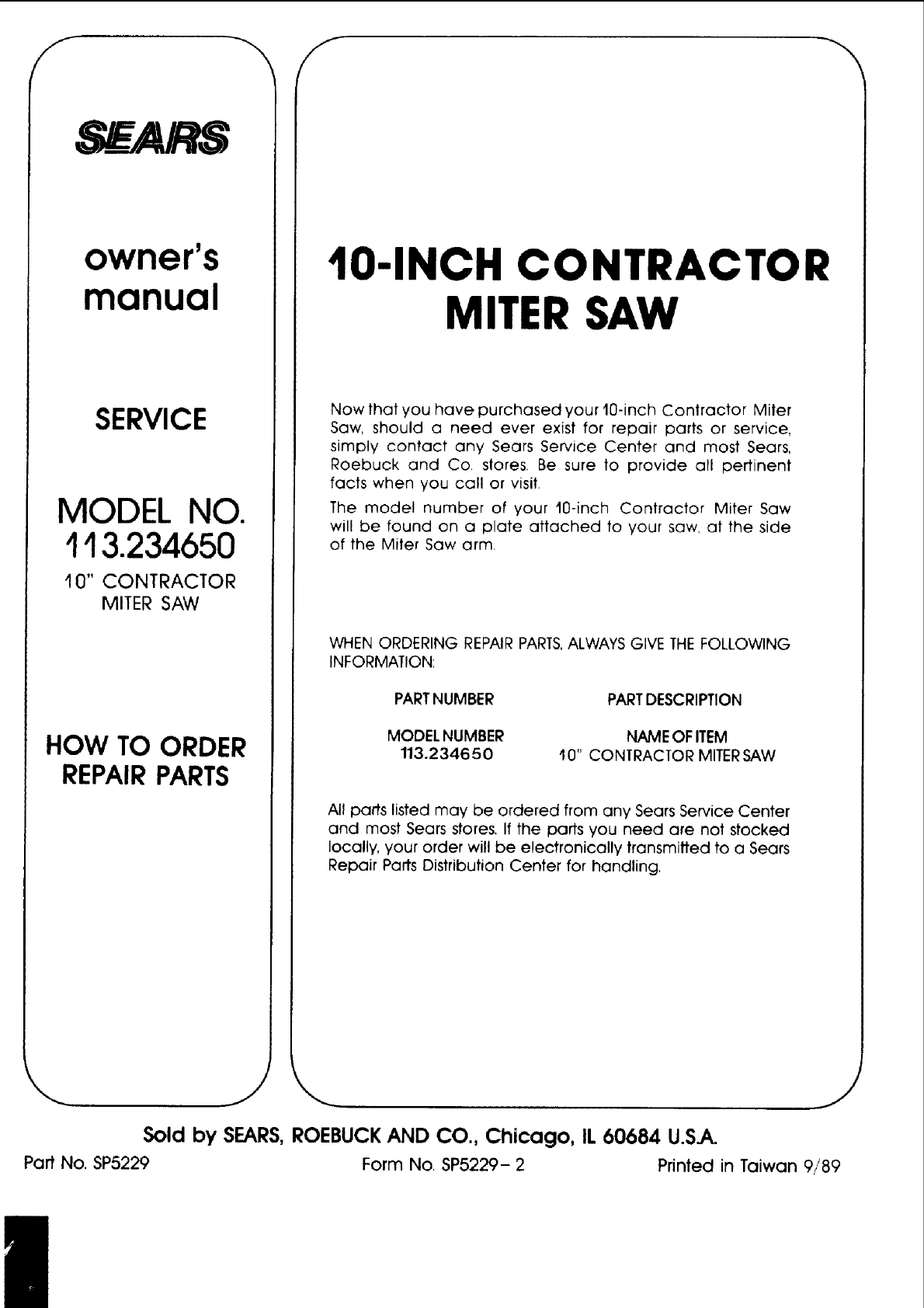

owner's

manual

MODEL NO.

113.234650

I 0" CONTRACTOR

MITER SAW

Serial

Number

Model and serial numbers

may be found at the side of

the miler saw arm.

You should record both

model and serial number in

a safe place for future use.

CAUTION:

READ ALL

INSTRUCTIONS

CAREFULLY

CRRFTSMRN

10-1NCH CONTRACTOR

MITER SAW

• assembly

• operating

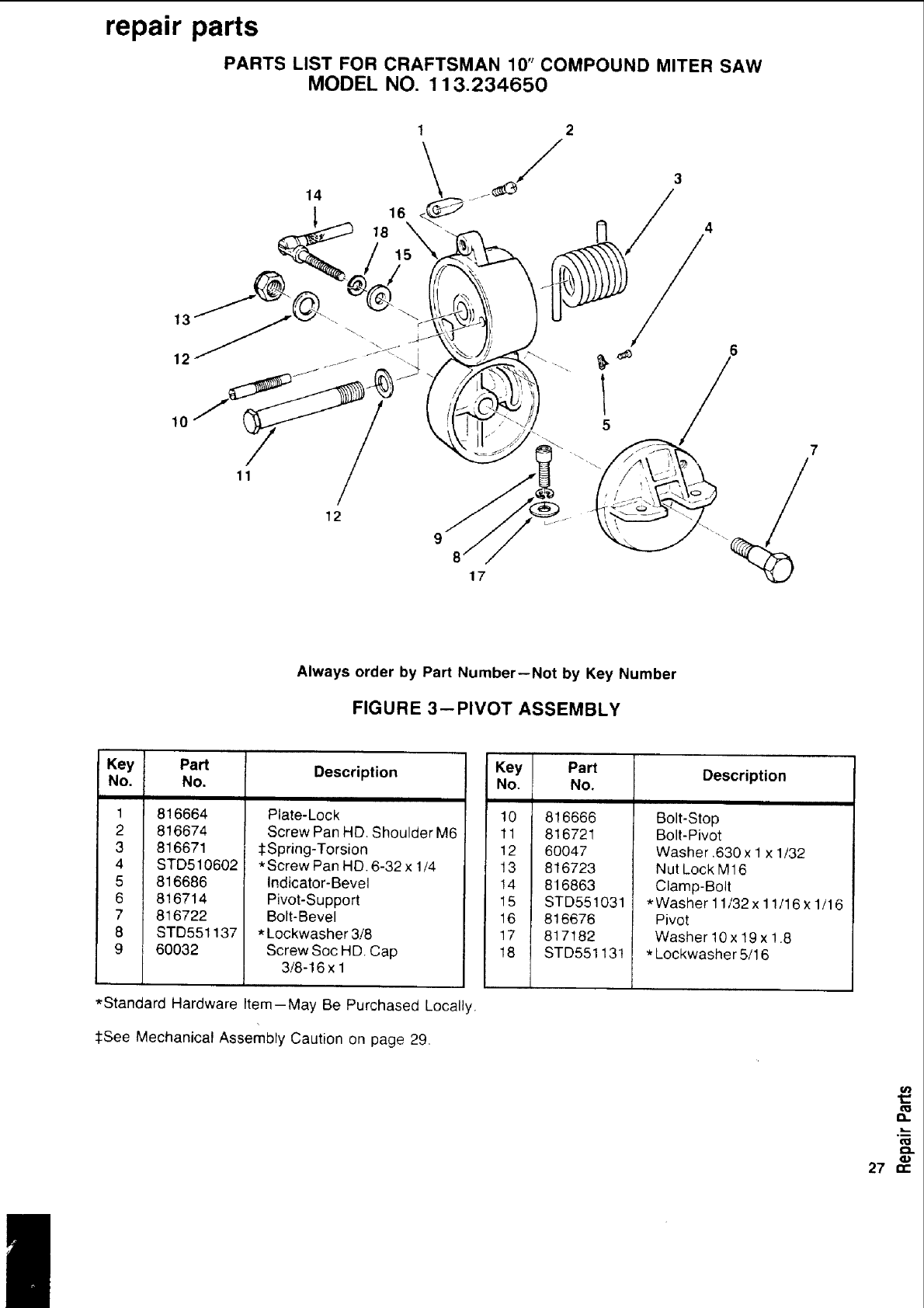

•repair parts

J J

Sold by SEARS, ROEBUCK AND CO., Chicago, IL 60684 U.S.A.

Part No. SP5229 Printed in Taiwan.

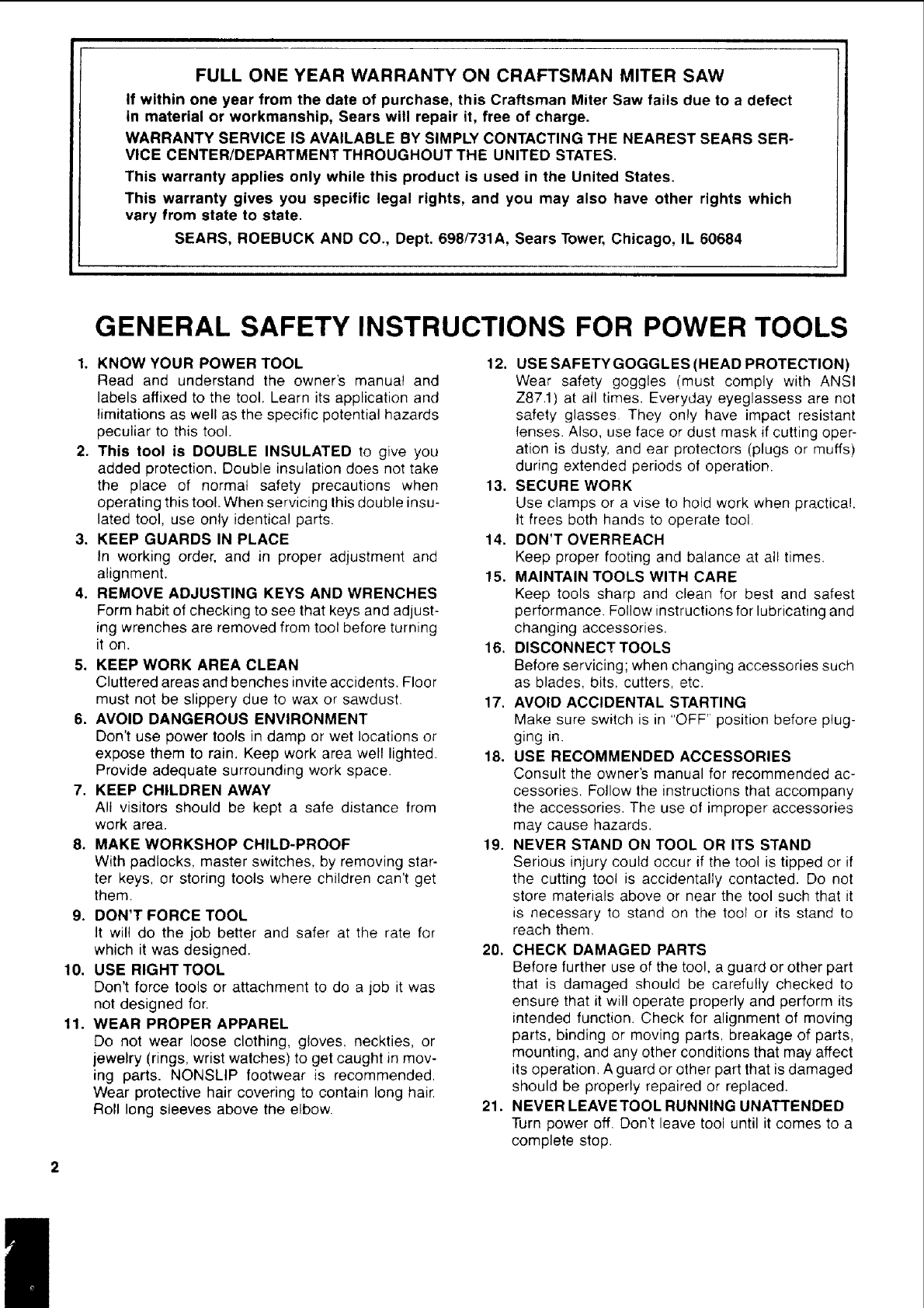

FULL ONE YEAR WARRANTY ON CRAFTSMAN MITER SAW

If within one year from the date of purchase, this Craftsman Miter Saw fails due to a defect

in material or workmanship, Sears will repair it, free of charge.

WARRANTY SERVICE iS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS SER-

VICE CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.

This warranty applies only while this product is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCK AND CO., Dept. 698/731A, Sears Tower, Chicago, IL 60684

GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS

1. KNOW YOUR POWER TOOL

Read and understand the owner's manual and

labels affixed to the tool. Learn its application and

limitations as well as the specific potential hazards

peculiar to this tool.

2. This tool is DOUBLE INSULATED to give you

added protection. Double insulation does not take

the place of normal safety precautions when

operating this tool. When servicing this double insu-

lated tool, use only identical parts.

3. KEEP GUARDS IN PLACE

In working order, and in proper adjustment and

alignment.

4. REMOVE ADJUSTING KEYS AND WRENCHES

Form habit of checking to see that keys and adjust-

ing wrenches are removed from tool before turning

it on.

5. KEEP WORK AREA CLEAN

Cluttered areas and benches invite accidents. Floor

must not be slippery due to wax or sawdust.

6. AVOID DANGEROUS ENVIRONMENT

Don't use power tools in damp or wet locations or

expose them to rain. Keep work area well lighted.

Provide adequate surrounding work space.

7. KEEP CHILDREN AWAY

All visitors should be kept a safe distance from

work area.

8. MAKE WORKSHOP CHILD-PROOF

With padlocks, master switches, by removing star-

ter keys, or storing tools where children can't get

them.

9. DON'T FORCE TOOL

It wil! do the job better and safer at the rate for

which it was designed.

10, USE RIGHTTOOL

Don't force tools or attachment to do a job it was

not designed for.

11. WEAR PROPER APPAREL

Do not wear loose clothing, gloves, neckties, or

jewelry (rings, wrist watches) to get caught in mov-

ing parts. NONSLIP footwear is recommended.

Wear protective hair covering to contain long hair.

Roll long sleeves above the elbow.

12. USE SAFETY GOGGLES (HEAD PROTECTION)

Wear safety goggles (must comply with ANSI

Z87.1) at all times. Everyday eyeglassess are not

safety glasses. They only have impact resistant

lenses. Also, use face or dust mask if cutting oper-

ation is dusty, and ear protectors (plugs or muffs)

during extended periods of operation.

13. SECURE WORK

Use clamps or a vise to hold work when practical.

It frees both hands to operate tool.

14. DON'T OVERREACH

Keep proper footing and balance at all times.

15. MAINTAIN TOOLS WITH CARE

Keep tools sharp and clean for best and safest

performance. Follow instructions for lubricating and

changing accessories.

16. DISCONNECT TOOLS

Before servicing; when changing accessories such

as blades, bits. cutters, etc.

17. AVOID ACCIDENTAL STARTING

Make sure switch is in "OFF" position before plug-

ging in.

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended ac-

cessories. Follow the instructions that accompany

the accessories. The use of improper accessories

may cause hazards.

19. NEVER STAND ON TOOL OR ITS STAND

Serious injury could occur if the tool is tipped or if

the cutting tool is accidentally contacted. Do not

store materials above or near the tool such that it

_s necessary to stand on the tool or its stand to

reach them.

20. CHECK DAMAGED PARTS

Before further use of the tool, a guard or other part

that is damaged should be carefully checked to

ensure that it will operate properly and perform its

intended function. Check for alignment of moving

parts, binding or moving parts, breakage of parts,

mounting, and any other conditions that may affect

its operation. A guard or other part that is damaged

should be properly repaired or replaced.

21. NEVER LEAVETOOL RUNNING UNATTENDED

Turn power off. Don't leave tool until it comes to a

complete stop.

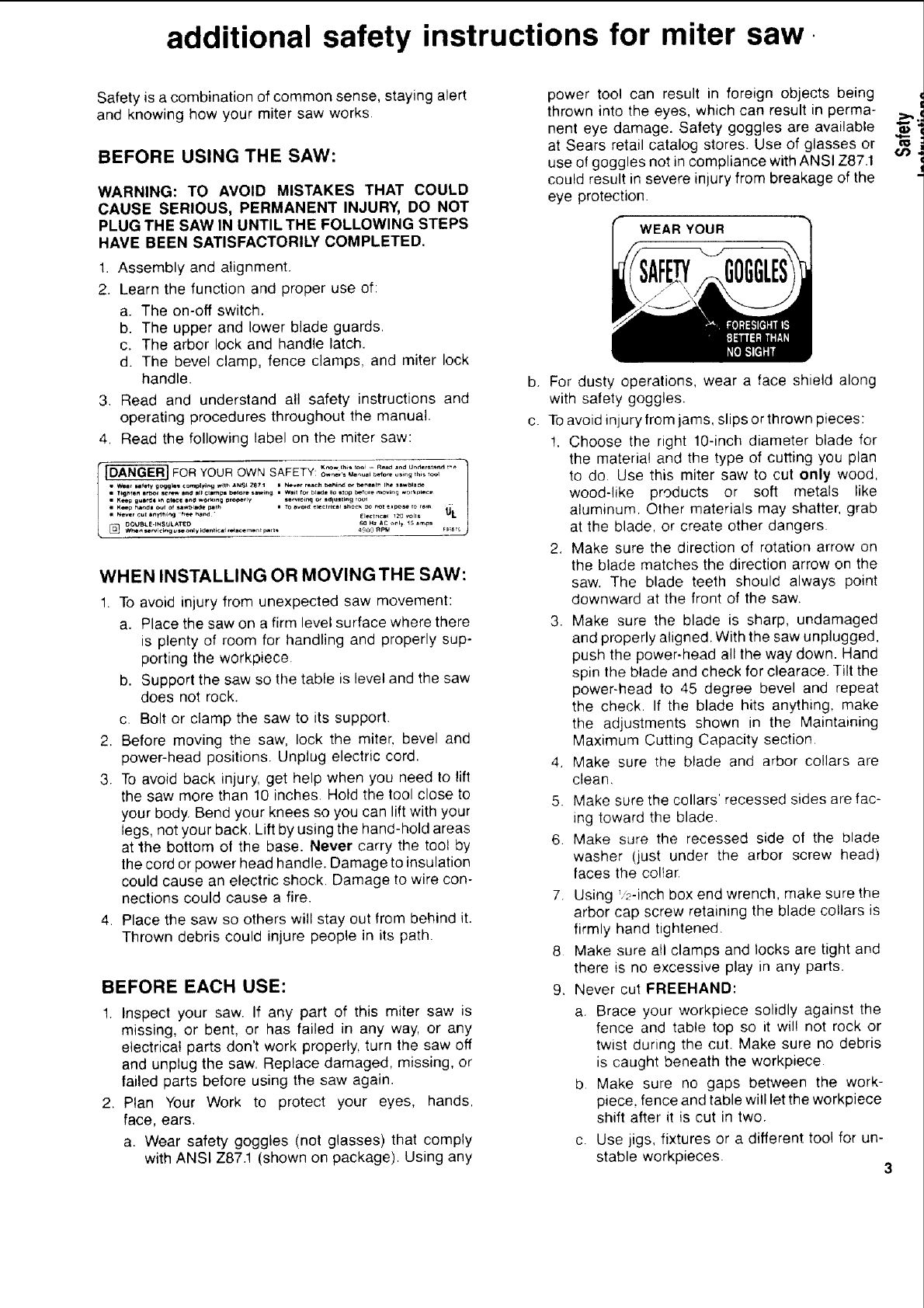

additional safety instructions for miter saw

Safety is a combination of common sense, staying alert

and knowing how your miter saw works.

BEFORE USING THE SAW:

WARNING: TO AVOID MISTAKES THAT COULD

CAUSE SERIOUS, PERMANENT INJURY, DO NOT

PLUG THE SAW IN UNTIL THE FOLLOWING STEPS

HAVE BEEN SATISFACTORILY COMPLETED.

1. Assembly and alignment.

2. Learn the function and proper use of:

a. The on-off switch.

b. The upper and lower blade guards.

c. The arbor lock and handle latch.

d. The bevel clamp, fence clamps, and miter lock

handle.

3. Read and understand all safety instructions and

operating procedures throughout the manual.

4. Read the following label on the miter saw:

WHEN INSTALLING OR MOVINGTHE SAW:

1. To avoid injury from unexpected saw movement:

a. Place the saw on a firm level surface where there

is plenty of room for handling and properly sup-

porting the workpiece.

b. Support the saw so the table is level and the saw

does not rock.

c. Bolt or clamp the saw to its support.

2. Before moving the saw, lock the miter, bevel and

power-head positions. Unplug electric cord.

3. To avoid back injury, get help when you need to lift

the saw more than 10 inches. Hold the tool close to

your body. Bend your knees so you can lift with your

legs, not your back. Lift by using the hand-hold areas

at "the bottom of the base. Never carry the tool by

the cord or power head handle. Damage to insulation

could cause an electric shock. Damage to wire con-

nections could cause a fire.

4. Place the saw so others will stay out from behind it.

Thrown debris could injure people in its path.

BEFORE EACH USE:

1. Inspect your saw. If any part of this miter saw is

missing, or bent, or has failed in any way, or any

electrical parts don't work properly, turn the saw off

and unplug the saw. Replace damaged, missing, or

failed parts before using the saw again.

2. Plan Your Work to protect your eyes, hands,

face, ears.

a. Wear safety goggles (not glasses) that comply

with ANSI Z87.1 (shown on package). Using any

power tool can result in foreign objects being

thrown into the eyes, which can result in perma-

nent eye damage. Safety goggles are available

at Sears retail catalog stores. Use of glasses or

use of goggles not in compliance with ANSI Z87.t

could result in severe injury from breakage of the

eye protection.

WEAR YOUR

b. For dusty operations, wear a face shield along

with safety goggles.

c. To avoid injury from jams, slips or thrown pieces:

t. Choose the right 10-inch diameter blade for

the material and the type of cutting you plan

to do. Use this miter saw to cut only wood,

wood-like products or soft metals like

aluminum. Other materials may shatter, grab

at the blade, or create other dangers.

2, Make sure the direction of rotation arrow on

the blade matches the direction arrow on the

saw. The blade teeth should always point

downward at the front of the saw.

3. Make sure the blade is sharp, undamaged

and properly aligned. With the saw unplugged,

push the power-head all the way down. Hand

spin the blade and check for clearace. Tilt the

power-head to 45 degree bevel and repeat

the check. If the blade hits anything, make

the adjustments shown in the Maintaining

Maximum Cutting Capacity section.

4. Make sure the blade and arbor collars are

clean,

5. Make sure the collars' recessed sides are fac-

ing toward the blade.

6. Make sure the recessed side of the blade

washer (just under the arbor screw head)

faces the collar.

7. Using l_._-inch box end wrench, make sure the

arbor cap screw retaining the blade collars is

firmly hand tightened

8 Make sure all clamps and locks are tight and

there is no excessive play in any parts.

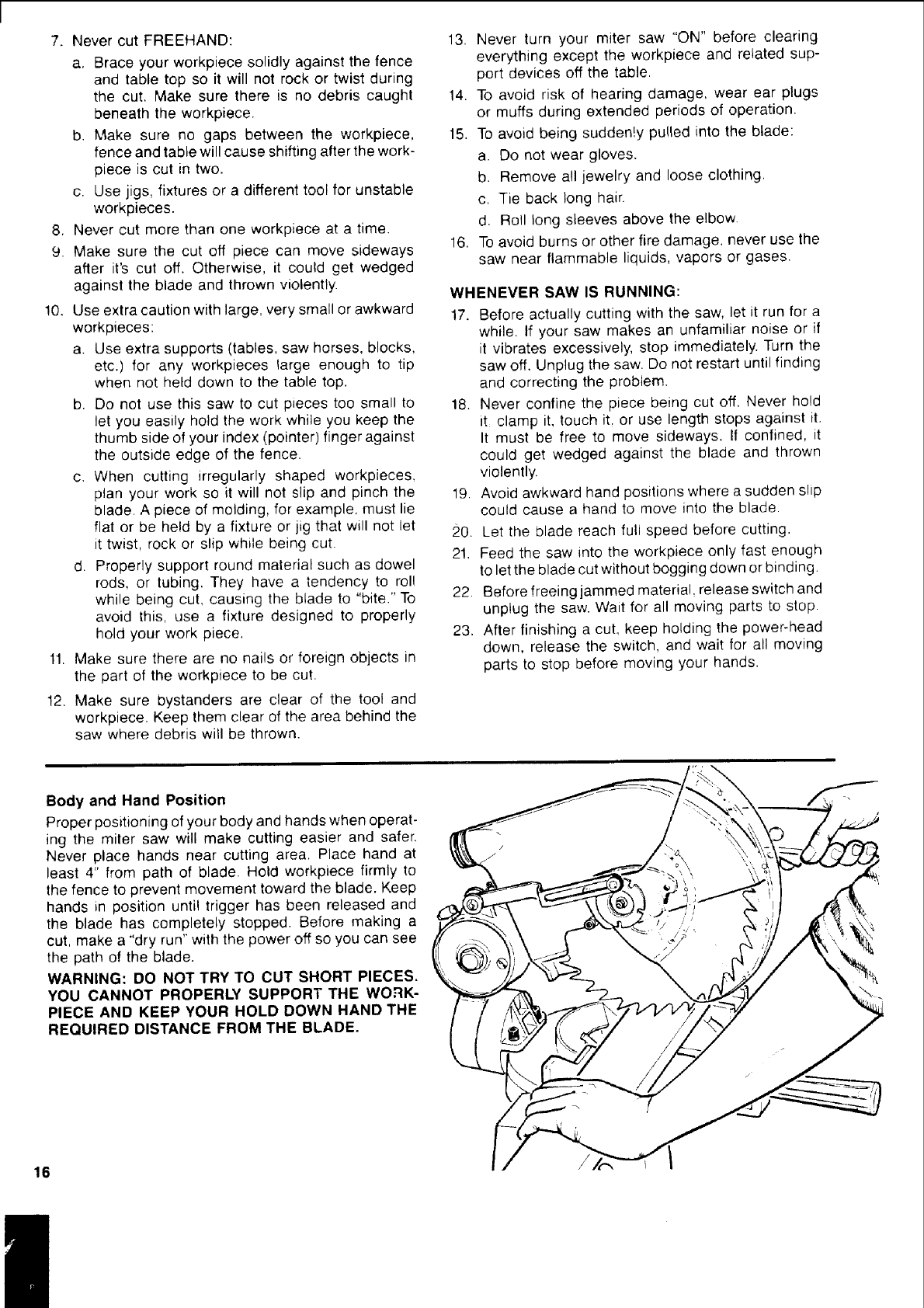

9. Never cut FREEHAND:

a Brace your workpiece solidly against the

fence and table top so it wil! not rock or

twist during the cut. Make sure no debris

is caught beneath the workpiece.

b Make sure no gaps between the work-

piece, fence and table will let the workpiece

shift after it is cut in two.

c Use jigs, fixtures or a different tool for un-

stable workpieces. 3

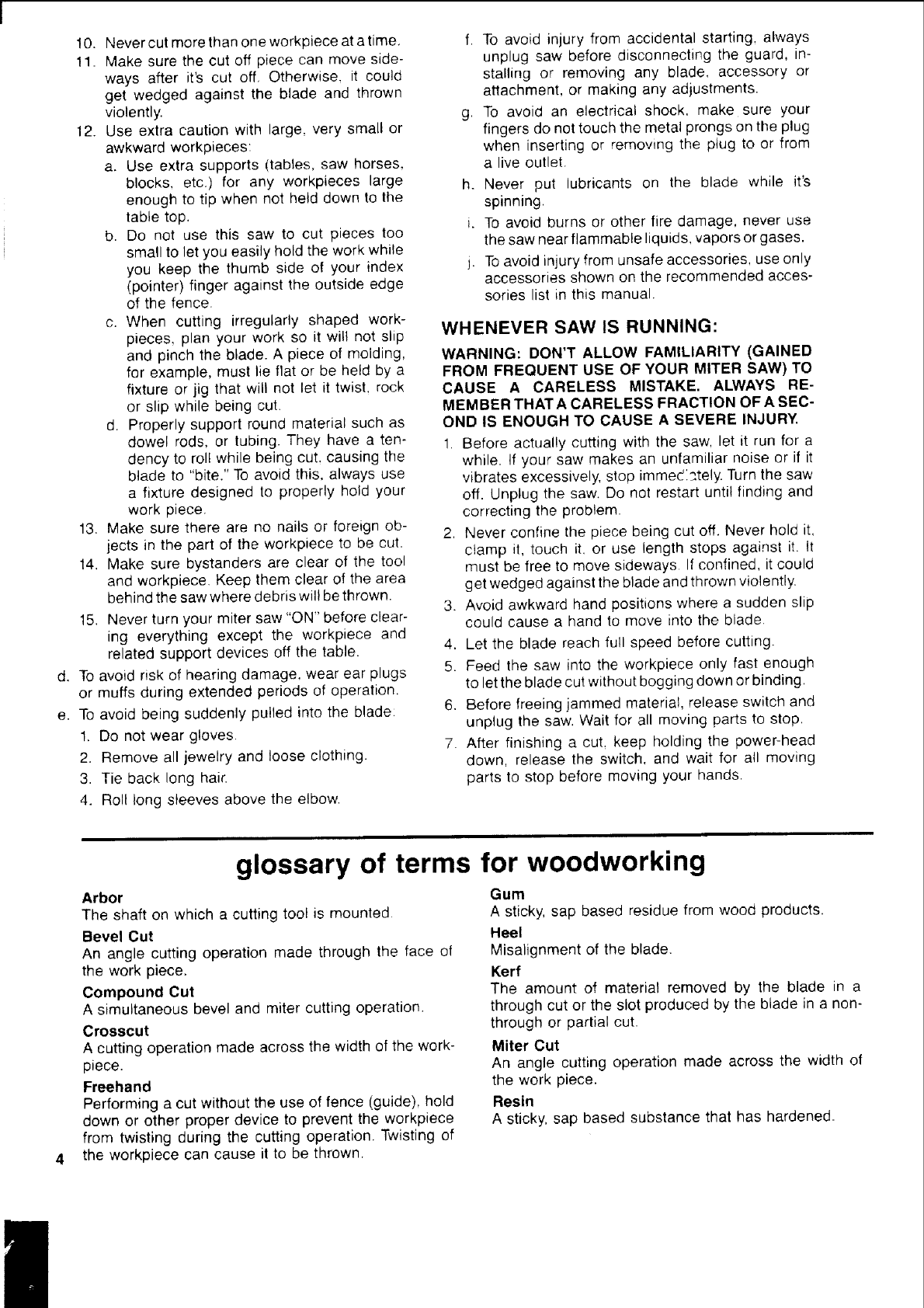

10. Never cut more than one workpiece at a time,

11. Make sure the cut off piece can move side-

ways after it's cut off, Otherwise, it could

get wedged against the blade and thrown

violently.

12. Use extra caution with large, very small or

awkward workpieces:

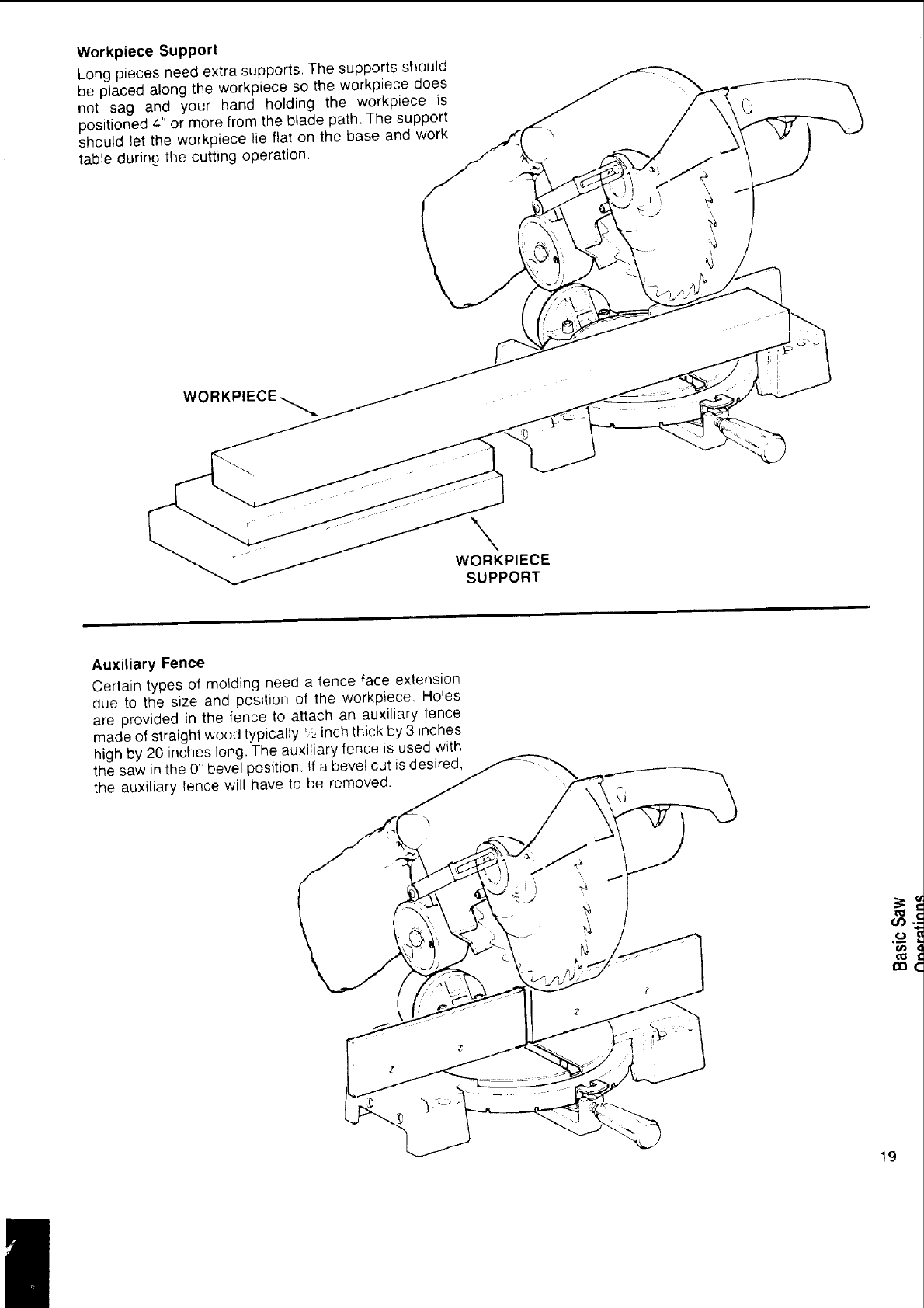

a. Use extra supports (tables, saw horses,

block& etc.) for any workpieces large

enough to tip when not held down to the

table top.

b. Do not use this saw to cut pieces too

small to let you easily hold the work while

you keep the thumb side of your index

(pointer) finger against the outside edge

of the fence.

c. When cutting irregularly shaped work-

pieces, plan your work so it will not slip

and pinch the blade. A piece of molding,

for example, must lie flat or be held by a

fixture or jig that will not let it twist, rock

or slip while being cut.

d. Properly support round material such as

dowel rods, or tubing. They have a ten-

dency to roll while being cut. causing the

blade to "bite." To avoid this, always use

a fixture designed to properly hold your

work piece.

13, Make sure there are no nails or foreign ob-

jects in the part of the workpiece to be cut.

14. Make sure bystanders are clear of the tool

and workpiece Keep them clear of the area

behind the saw where debris wilt be thrown.

15. Never turn your miter saw "ON" before clear-

ing everything except the workpiece and

related support devices off the table.

d. To avoid risk of hearing damage, wear ear plugs

or muffs during extended periods of operation.

e. To avoid being suddenly pulled into the blade:

1. Do not wear gloves.

2. Remove all jewelry and loose clothing.

3. Tie back long hair.

4. Roll long sleeves above the elbow.

f. To avoid injury from accidental starting, always

unplug saw before disconnecting the guard, in-

stalling or removing any blade, accessory or

attachment, or making any adjustments.

g, To avoid an electrical shock, make sure your

fingers do not touch the metal prongs on the plug

when inserting or remowng the ptug to or from

a live outlet.

h. Never put lubricants on the blade while it's

spinning,

i. To avoid burns or other fire damage, never use

the saw near flammable liquids, vapors or gases.

j. To avoid injury from unsafe accessories, use only

accessories shown on the recommended acces-

sories list in this manual.

WHENEVER SAW IS RUNNING:

WARNING: DON'T ALLOW FAMILIARITY (GAINED

FROM FREQUENT USE OF YOUR MITER SAW) TO

CAUSE A CARELESS MISTAKE. ALWAYS RE-

MEM BER THAT A CARELESS FRACTION OF A SEC-

OND IS ENOUGH TO CAUSE A SEVERE INJURY.

1. Before actually cutting with the saw, let it run for a

while. If your saw makes an unfamiliar noise or if it

vibrates excessively, stop immediately. Turn the saw

off. Unplug the saw. Do not restart until finding and

correcting the problem.

2, Never confine the piece being cut off. Never hold it,

ctamp it, touch it, or use length stops against it. It

must be free to move sideways If confined, it could

get wedged against the blade and thrown violently.

3. Avoid awkward hand positions where a sudden slip

could cause a hand to move into the blade.

4. Let the blade reach full speed before cutting.

5. Feed the saw into the workpiece only fast enough

to let the blade cut without bogging down or binding.

6. Before freeing jammed material, release switch and

unplug the saw. Wait for all moving parts to stop,

7. After finishing a cut. keep holding the power-head

down, release the switch, and wait for all moving

parts to stop before moving your hands.

glossary of terms for woodworking

Arbor

The shaft on which a cutting tool is mounted

Bevel Cut

An angle cutting operation made through the face of

the work piece.

Compound Cut

A simultaneous bevel and miter cutting operation.

Crosscut

A cutting operation made across the width of the work-

piece.

Freehand

Performing a cut without the use of fence (guide), hold

down or other proper device to prevent the workpiece

from twisting during the cutting operation. Twisting of

the workpiece can cause it to be thrown.

Gum

A sticky, sap based residue from wood products.

Heel

Misalignment of the blade.

Kerr

The amount of material removed by the blade in a

through cut or the slot produced by the blade in a non-

through or partial cut.

Miter Cut

An angle cutting operation made across the width of

the work piece.

Resin

A sticky, sap based substance that has hardened.

Revolutions Per Minute (RPM)

The number of turns completed by a spinning object in

one minute.

Sawblade Path

The area of the workpiece or table top directly in line

with either the travel of the blade or the part of the

workpiece which will be, or has been, cut by the blade.

Set

The distance that the tip of the sawblade tooth is bent

(or set) outward from the face of the blade.

Workpiece

The item on which the cutting operation is being per-

formed. The surfaces of a workpiece are commonly

referred to as faces, ends, and edges.

LEDGE

END

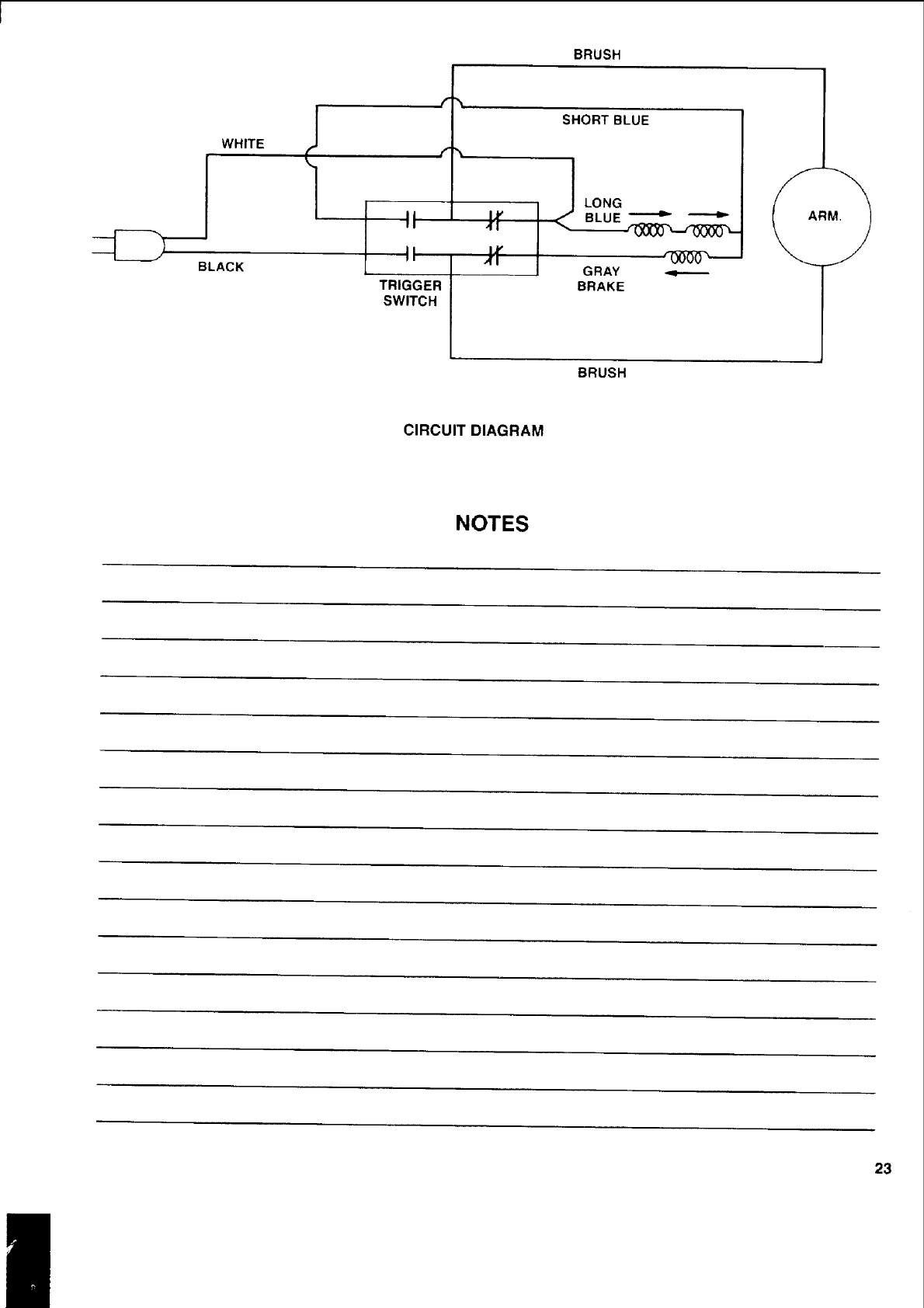

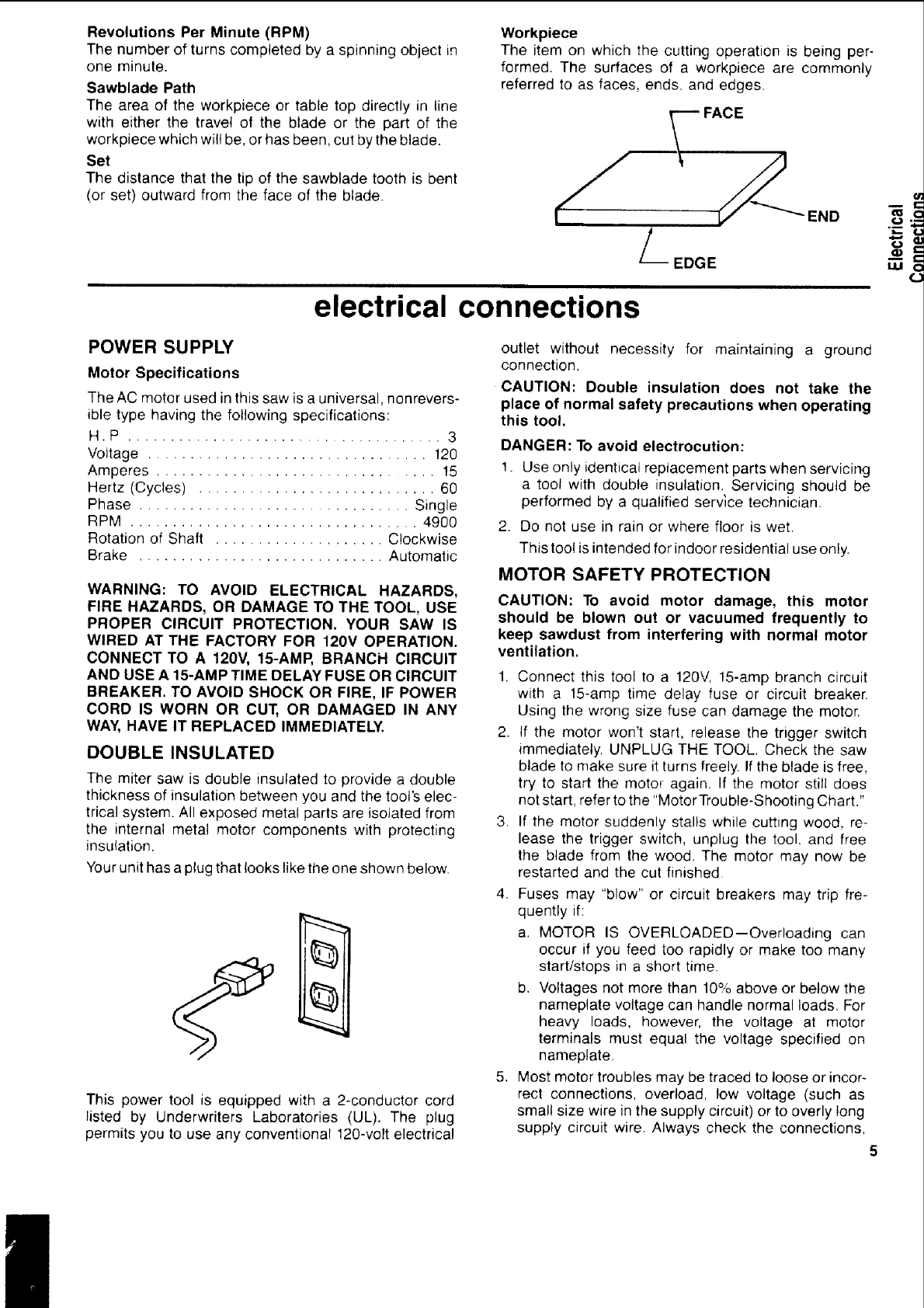

electrical connections

_=_,c

€1)

POWER SUPPLY

Motor Specifications

The AC motor used in this saw is a universal, nonrevers-

ible type having the following specifications:

H.P .................................... 3

Voltage ................................. 120

Amperes ................................ 15

Hertz (Cycles) ............................ 60

Phase ................................ Single

RPM .................................. 4900

Rotation of Shaft .................... Clockwise

Brake ............................. Automatic

WARNING: TO AVOID ELECTRICAL HAZARDS,

FIRE HAZARDS, OR DAMAGE TO THE TOOL, USE

PROPER CIRCUIT PROTECTION. YOUR SAW IS

WIRED AT THE FACTORY FOR 120V OPERATION.

CONNECT TO A 120V, 15-AMP, BRANCH CIRCUIT

AND USE A 15-AMP TIME DELAY FUSE OR CIRCUIT

BREAKER. TO AVOID SHOCK OR FIRE, IF POWER

CORD IS WORN OR CUT, OR DAMAGED IN ANY

WAY, HAVE IT REPLACED IMMEDIATELY.

DOUBLE INSULATED

The miter saw is double insulated to provide a double

thickness of insulation between you and the tool's elec-

trical system. All exposed metal parts are isolated from

the internal metal motor components with protecting

insulation.

Your unit has a plug that looks like the one shown below.

This power tool is equipped with a 2-conductor cord

listed by Underwriters Laboratories (UL). The plug

permits you to use any conventional 120-volt electrical

outlet without necessity for maintaining a ground

connection.

CAUTION: Double insulation does not take the

place of normal safety precautions when operating

this tool.

DANGER: To avoid electrocution:

1. Use only identical replacement parts when servicing

a tool with double insulation. Servicing should be

performed by a qualified service technician.

2. Do not use in rain or where floor is wet.

This tool is intended for indoor residential use only.

MOTOR SAFETY PROTECTION

CAUTION: To avoid motor damage, this motor

should be blown out or vacuumed frequently to

keep sawdust from interfering with normal motor

ventilation.

1. Connect this tool to a 120V, 15-amp branch circuit

with a 15-amp time delay fuse or circuit breaker.

Using the wrong size fuse can damage the motor.

2. If the motor won't start, release the trigger switch

immediately. UNPLUG THE TOOL. Check the saw

blade to make sure it turns freely. If the blade is free,

try to start the motor again. If the motor still does

not start, refer to the "MotorTrouble-Shooting Chart."

3. If the motor suddenly stalls while cutting wood, re-

lease the trigger switch, unplug the tool, and free

the blade from the wood. The motor may now be

restarted and the cut finished

4. Fuses may "blow" or circuit breakers may trip fre-

quently if:

a. MOTOR IS OVERLOADED--Overloading can

occur if you feed too rapidly or make too many

start/stops in a short time.

b. Voltages not more than 10% above or below the

nameplate voltage can handle normal loads. For

heavy loads, however, the voltage at motor

terminals must equal the voltage specified on

nameplate.

5. Most motor troubles may be traced to loose or incor-

rect connections, overload, tow voltage (such as

small size wire in the supply circuit) or to overly long

supply circuit wire. Always check the connections,

the load and the suppy c_rcu_t whenever motor

doesnt work well Check wire s_zes and length with

the Wire Size Chart below

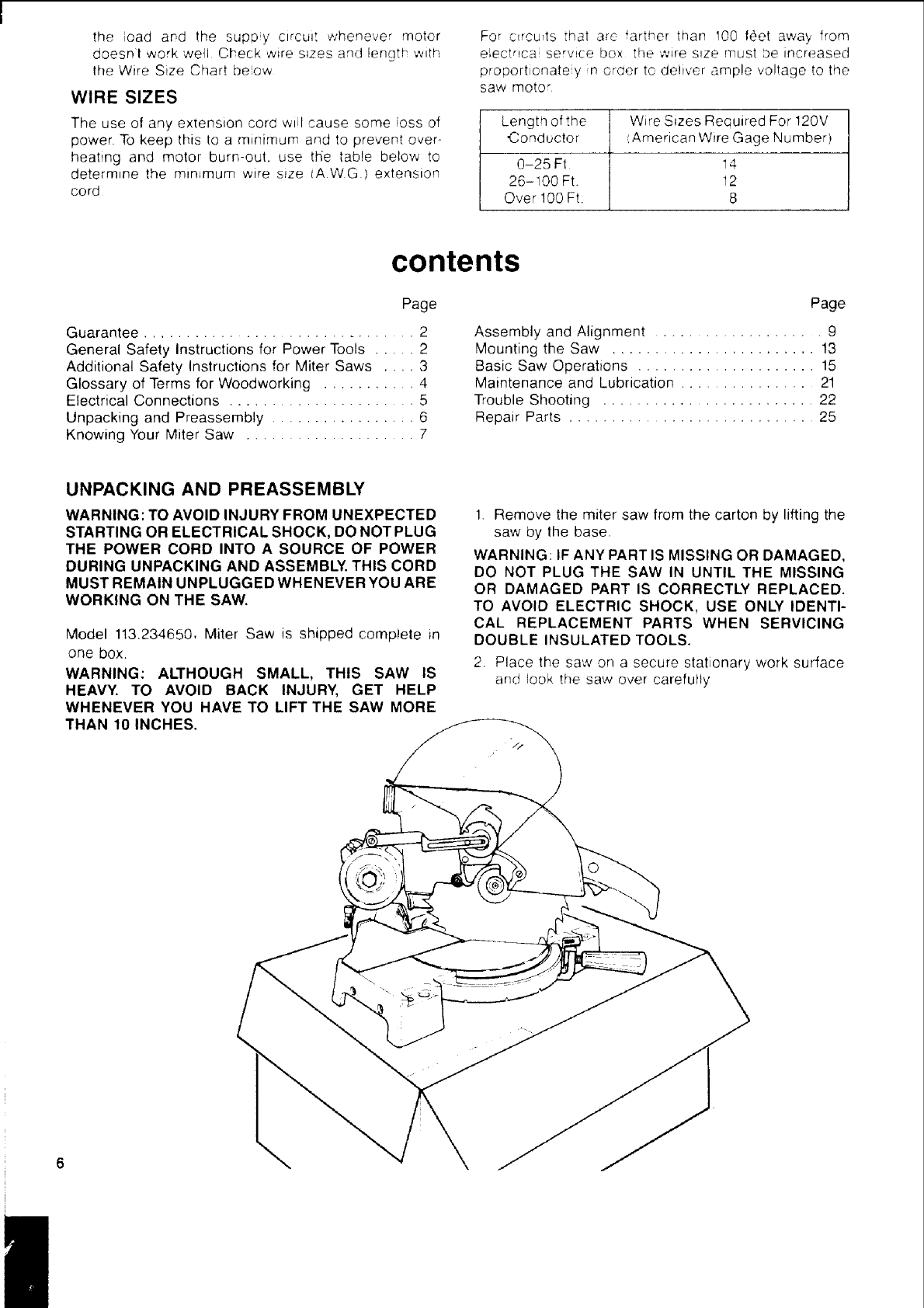

WIRE SIZES

The use of any extension cord will cause some _oss of

power To keep this to a minimum and to prevent over-

heating and motor burn-out, use the table below to

determine the minimum wire s_ze iAWG) extension

cord

For c_rcurts ',hat are farther than 100 f6et away from

electqca se'wce box the wire size rnust :)e increased

proportionatey n oraer to deliver ample voltage to the

saw motor

Length of the Wire Sizes Required For 120V

•Conductor ',American Wire Gage Number)

O-25 Ft 14

26-100 Ft. 12

Over 100 Ft 8

contents

Page

Guarantee ............................... 2

General Safety Instructions for Power Tools ..... 2

Additional Safety Instructions for Miter Saws .... 3

Glossary of Terms for Woodworking ........... 4

Electrical Connections ...................... 5

Unpacking and Preassembly ................. 6

Knowing Your Miter Saw ................... 7

Page

Assembly and Alignment ................... 9

Mounting the Saw ........................ 13

Basic Saw Operations ..................... 15

Maintenance and Lubrication ............... 21

Trouble Shooting ......................... 22

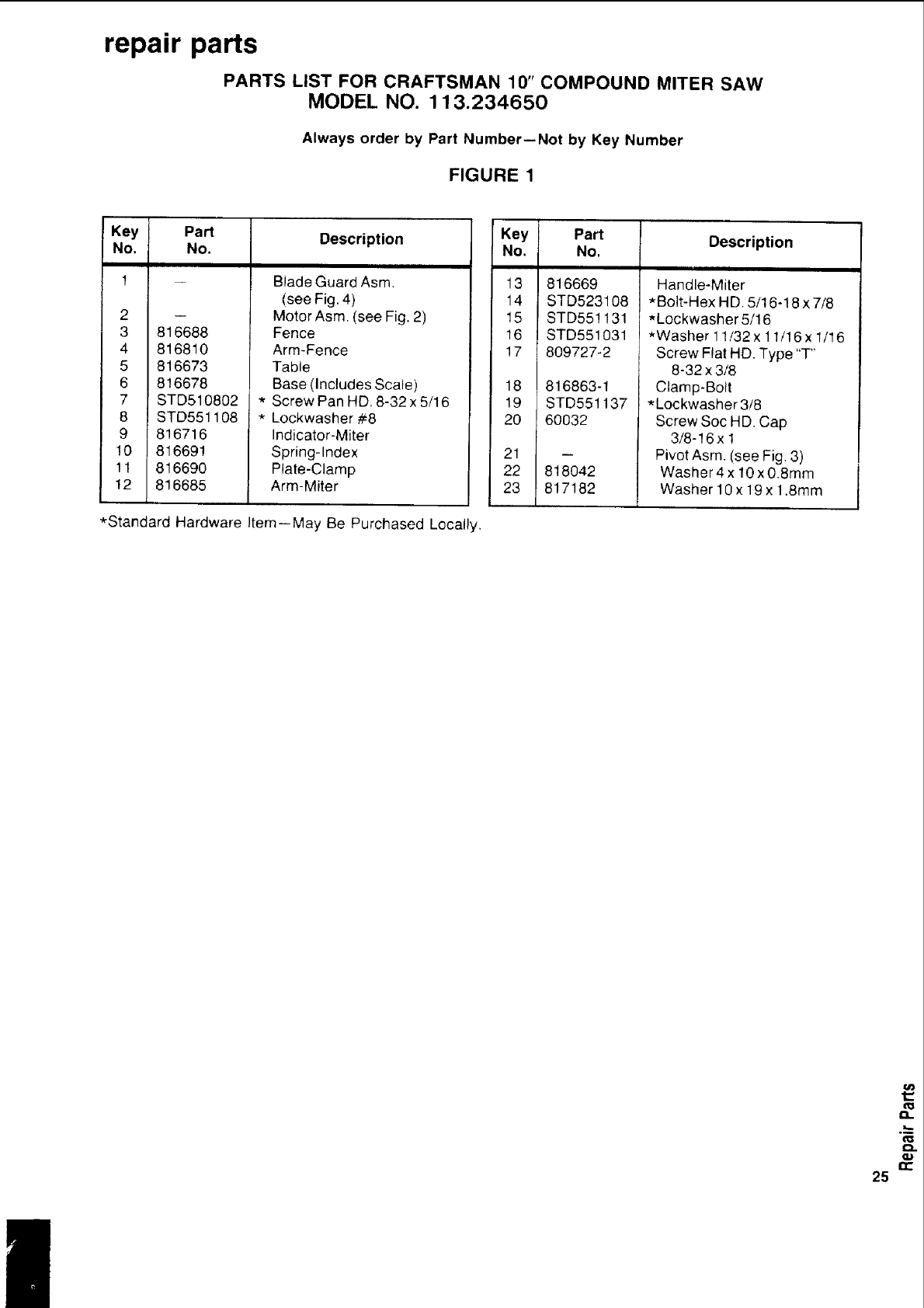

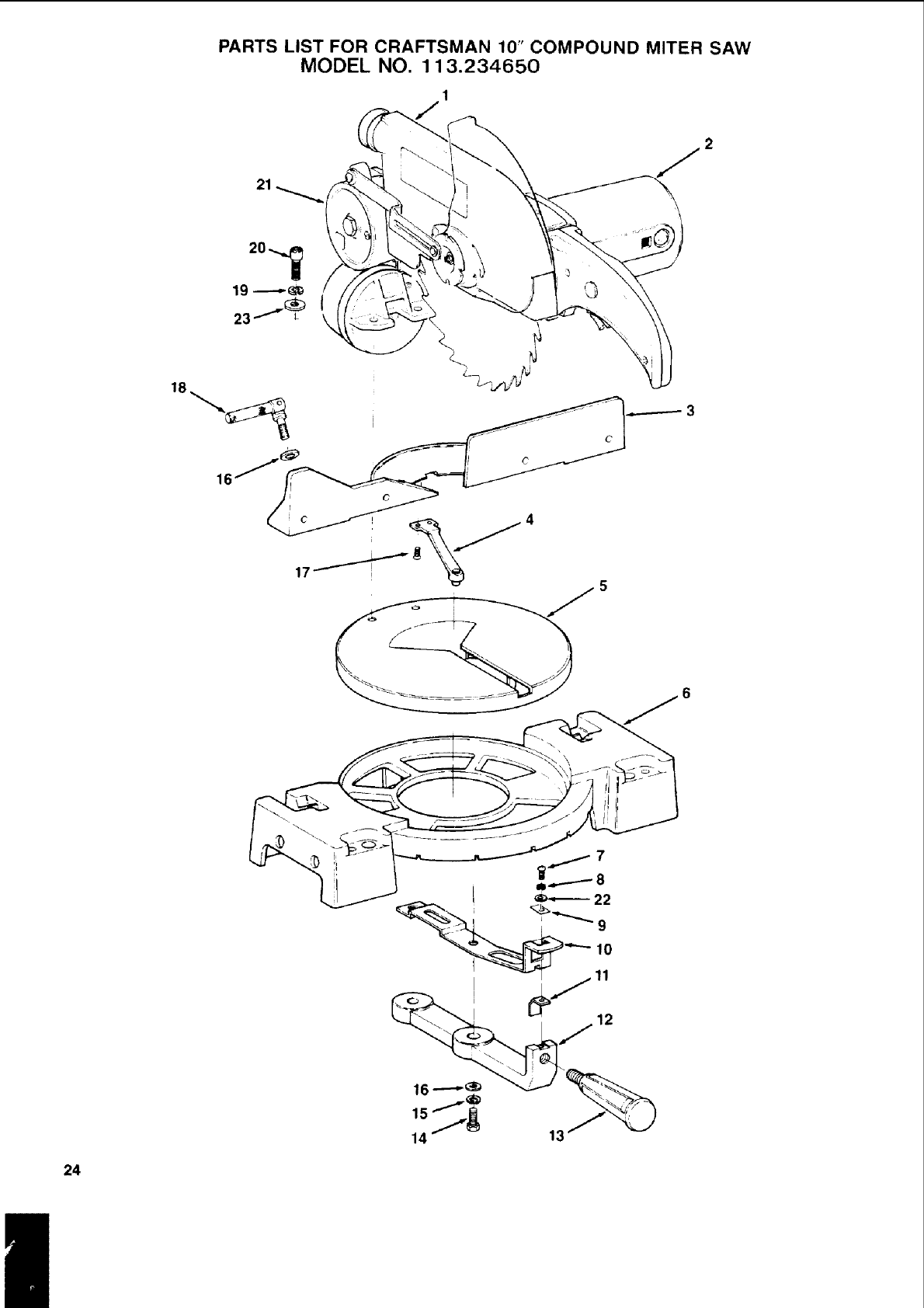

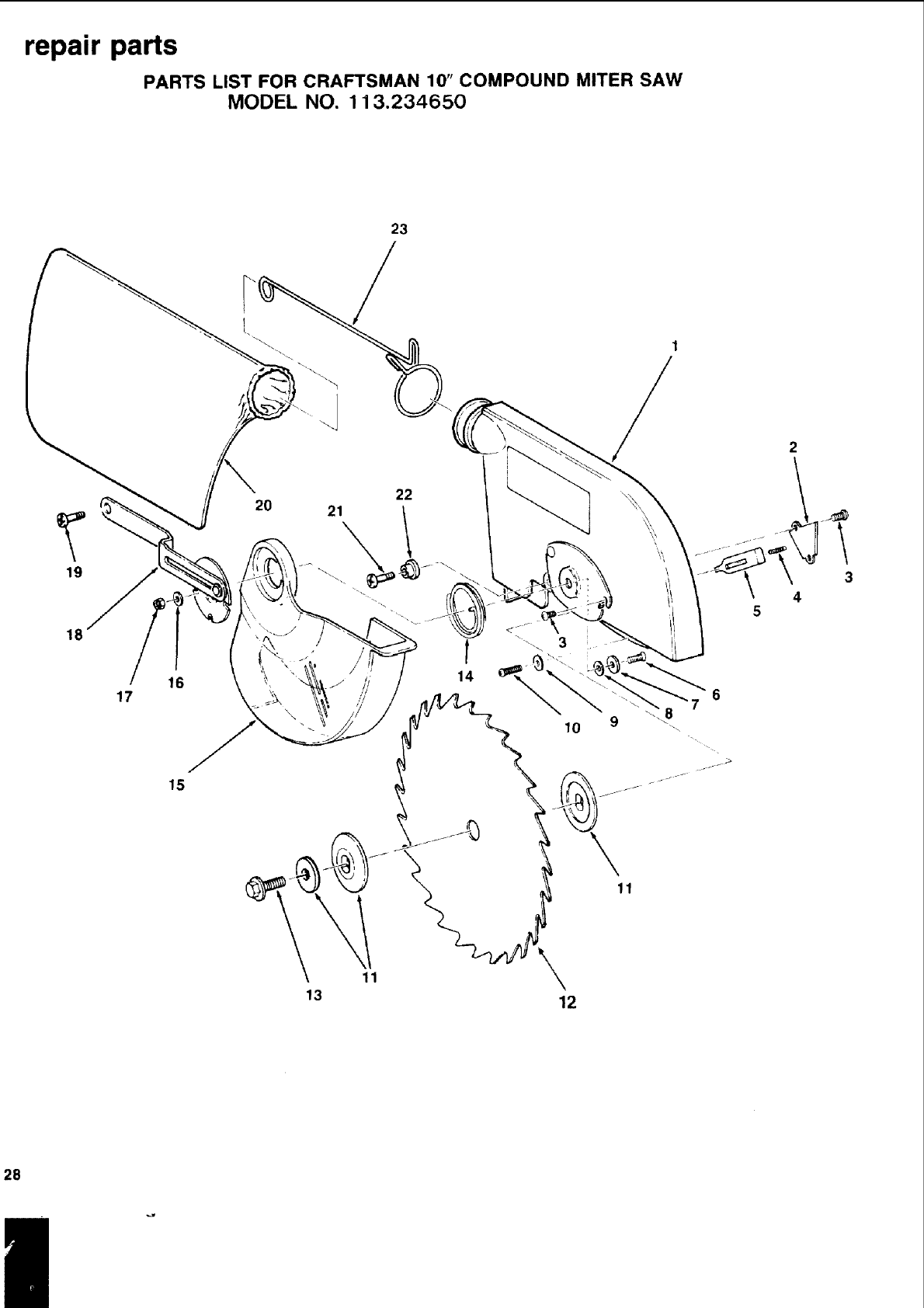

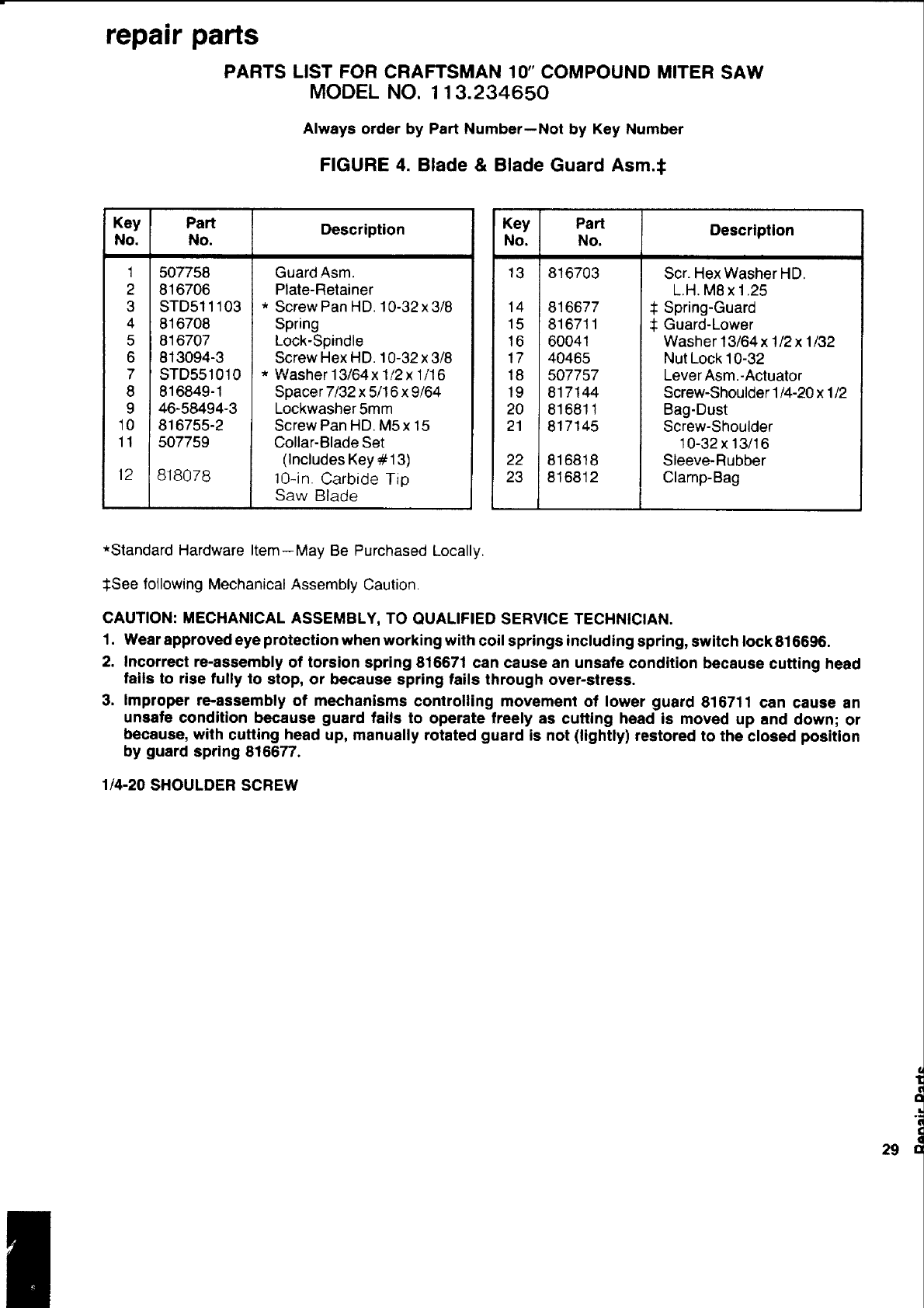

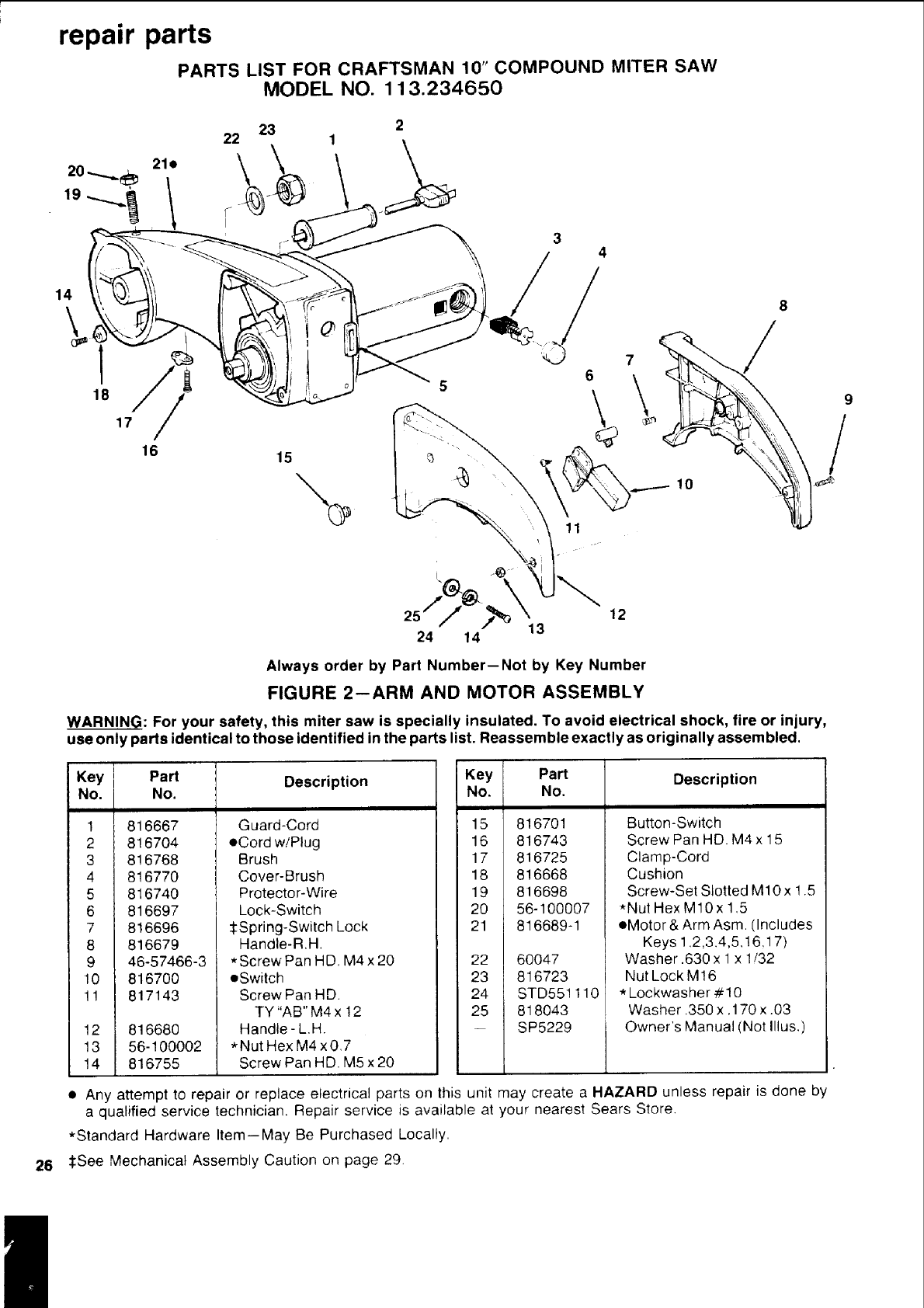

Repair Parts ............................. 25

UNPACKING AND PREASSEMBLY

WARNING: TO AVOID INJURY FROM UNEXPECTED

STARTING OR ELECTRICAL SHOCK, DO NOT PLUG

THE POWER CORD INTO A SOURCE OF POWER

DURING UNPACKING AND ASSEMBLY, THIS CORD

MUST REMAIN UNPLUGGED WHENEVER YOU ARE

WORKING ON THE SAW.

Model 113.234650, Miter Saw is shipped complete in

one box.

WARNING: ALTHOUGH SMALL, THIS SAW IS

HEAVY. TO AVOID BACK INJURY, GET HELP

WHENEVER YOU HAVE TO LIFT THE SAW MORE

THAN 10 INCHES.

1. Remove the miter saw from the carton by lifting the

saw by the base.

WARNING: IF ANY PART IS MISSING OR DAMAGED,

DO NOT PLUG THE SAW IN UNTIL THE MISSING

OR DAMAGED PART IS CORRECTLY REPLACED.

TO AVOID ELECTRIC SHOCK, USE ONLY IDENTI-

CAL REPLACEMENT PARTS WHEN SERVICING

DOUBLE INSULATED TOOLS.

2. Place the saw on a secure stationary work surface

and look the saw over carefully

tools needed

Tools required for assembly and alignment:

•Medium Screwdriver

•#2 Phillips Screwdriver

•Combination Square

• '_ Box End/Open End Wrench or Socket

•2 - ls/!6 Box End/Open End Wrenches or Adjustable

Wrenches or Socket Wrenches

• %6" Hex 't" Wrench

COMBINATION SQUARE MUST BE TRUE

DRAW LIGHT STRAIGHT EDGE OF

LINE ON BOARD BOARD 314" THICK

ALONG THIS EDGE-- C, ,m THIS EDGE MUST BE

"_.-'" "_)_:_ //PERFECTLY STRAIGHT

SHOULD BE NO GAP OR OVERLAP WHEN

SQUARE IS FLIPPED OVER IN DOTTED POSITION

MEDIUM SCREWDRIVER

#2 PHILLIPS SCREWDRIVER

iii:iIi;1111111;:]:]

COMBINATION SQUARE

5,46"HEX "1.:'WRENCH

....... _: _

1/2"WRENCH

W16"BOX END/OPEN END

WRENCHES

'/2" SOCKET

1%6" SOCKETS &

SOCKET WRENCHES

ADJUSTABLE WRENCH

=A-

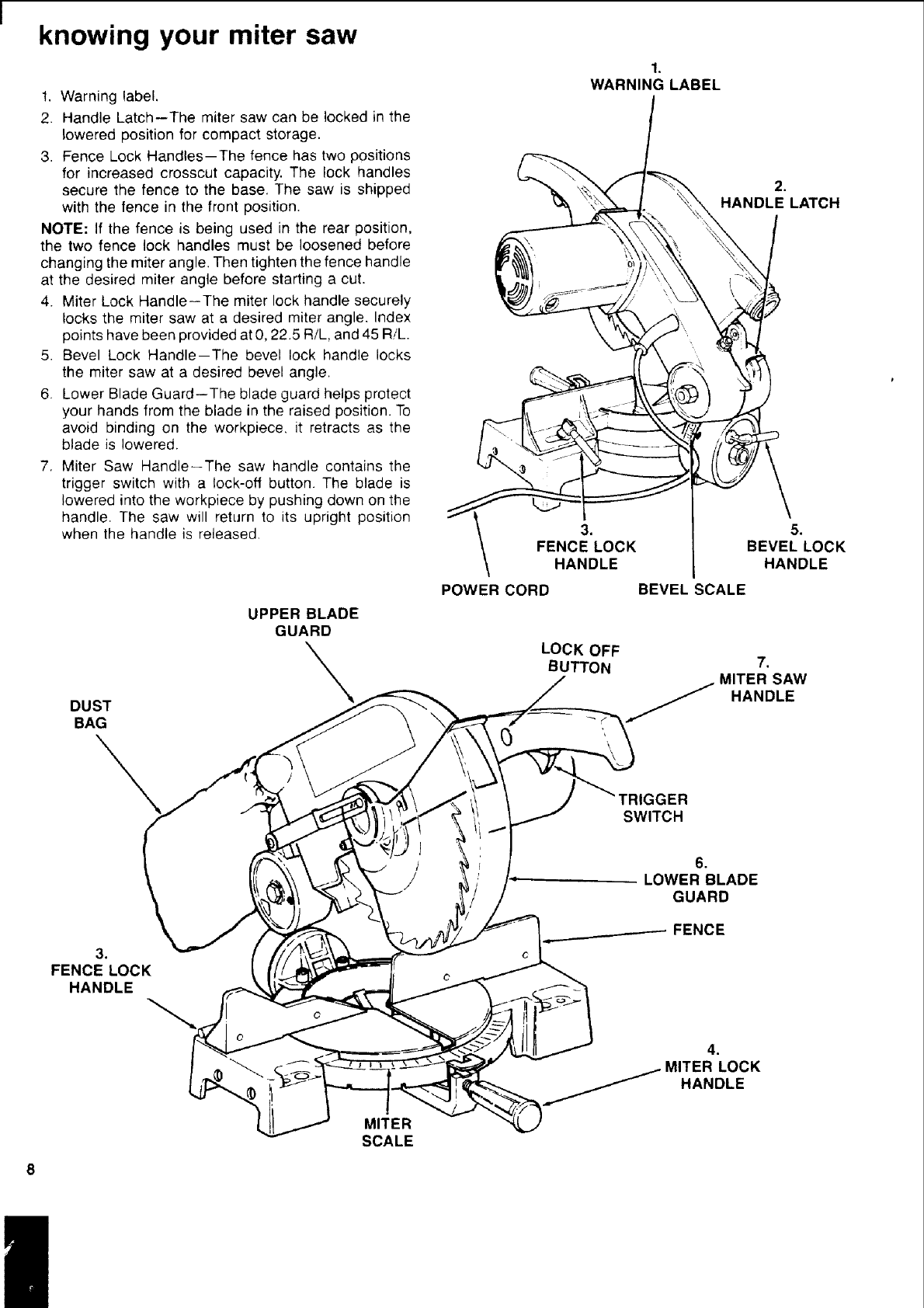

knowing your miter saw

1. Warning label,

2. Handle Latch--The miter saw can be locked in the

lowered position for compact storage.

3. Fence Lock Handles--The fence has two positions

for increased crosscut capacity. The lock handles

secure the fence to the base. The saw is shipped

with the fence in the front position.

NOTE: If the fence is being used in the rear position,

the two fence lock handles must be loosened before

changing the miter angle. Then tighten the fence handle

at the desired miter angle before starting a cut.

4. Miter Lock Handle--The miter lock handle securely

locks the miter saw at a desired miter angle. Index

points have been provided at 0, 22.5 R/L, and 45 RiL.

5. Bevel Lock Handle--The bevel lock handle locks

the miter saw at a desired bevel angle.

6. Lower Blade Guard--The blade guard helps protect

your hands from the blade in the raised position. To

avoid binding on the workpiece, it retracts as the

blade is lowered.

7, Miter Saw Handle--The saw handle contains the

trigger switch with a lock-off button. The blade is

lowered into the workpiece by pushing down on the

handle. The saw will return to its upright position

when the handle is released.

UPPER BLADE

GUARD

DUST

BAG

WARNING LABEL

HANDLE LATCH

FENCE LOCK

HANDLE

BEVEL LOCK

HANDLE

POWER CORD BEVEL SCALE

LOCK OFF

BUTTON ,

MITER SAW

HANDLE

TRIGGER

SWITCH

FENCE LOCK

HANDLE

LOWER BLADE

GUARD

FENCE

MITER

SCALE

4°

MITER LOCK

HANDLE

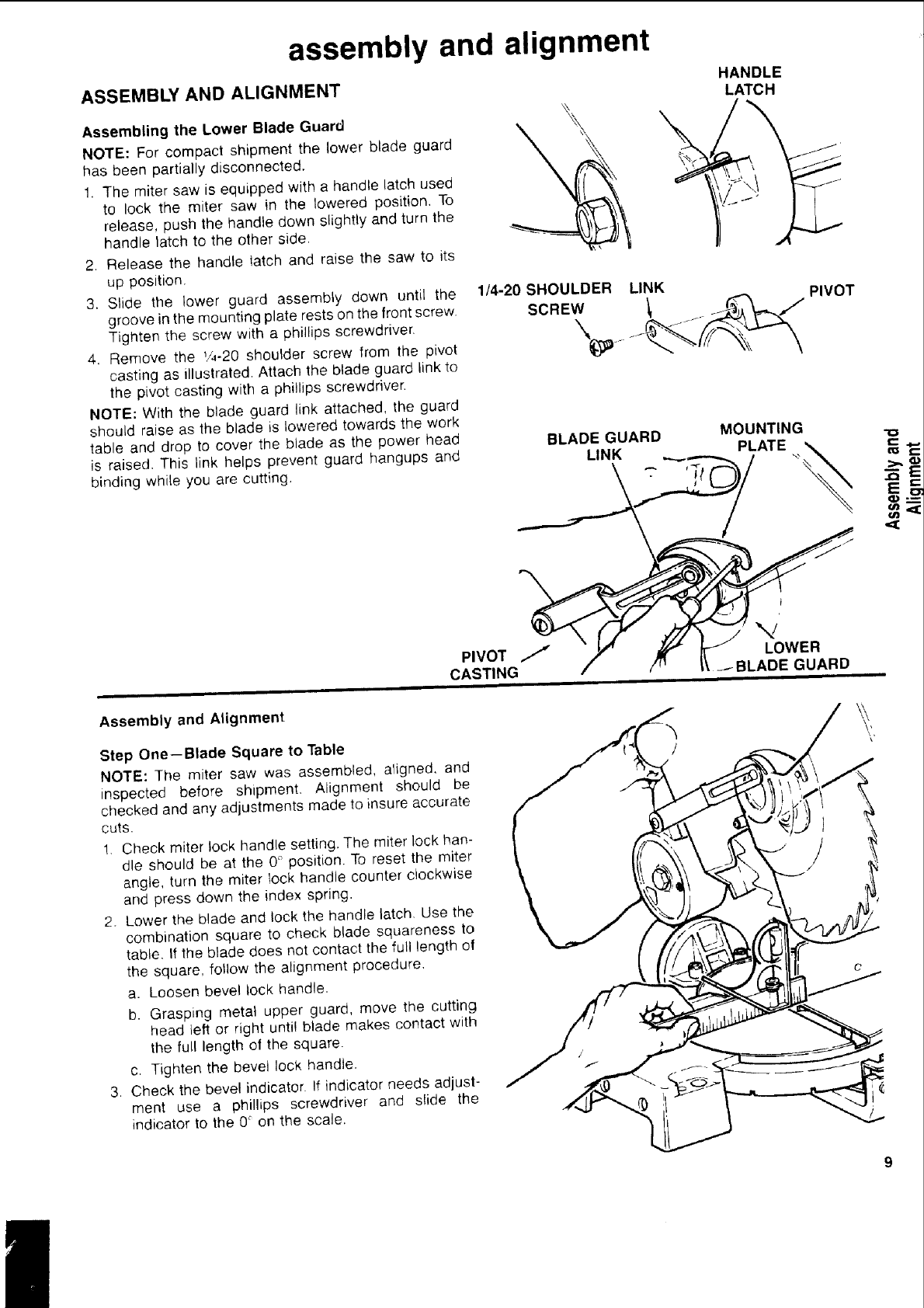

assembly and alignment

ASSEMBLY AND ALIGNMENT

Assembling the Lower Blade Guard

NOTE: For compact shipment the lower blade guard

has been partially disconnected.

1. The miter saw is equipped with a handle latch used

to lock the miter saw in the lowered position. To

release, push the handle down slightly and turn the

handle latch to the other side.

2, Release the handle iatch and raise the saw to its

up position.

3. Slide the lower guard assembly down until the

groove in the mounting plate rests on the front screw.

Tighten the screw with a phillips screwdriver,

4. Remove the v4.20 shoulder screw from the pivot

casting as illustrated, Attach the blade guard link to

the pivot casting with a phillips screwdriver.

NOTE: With the blade guard link attached, the guard

should raise as the blade is lowered towards the work

table and drop to cover the blade as the power head

HANDLE

LATCH

1/4-20 SHOULDER LINK

SCRE_;_, ____ PIVOT

BLADE GUARD MOUNTING

is raised. This link helps prevent guard hangups and LINK ,--.-._.--,._ PLATE -.-

.,vo. Y--" .ow .

CASTING f/71 _ JBLADE GUARD

Assembly and Alignment

Step One--Blade Square to Table

NOTE: The miter saw was assembled, aligned, and

inspected before shipment. Alignment should be

checked and any adjustments made to insure accurate

cuts.

1. Check miter lock handle setting, The miter lock han-

dle should be at the 0° position. To reset the miter

angle, turn the miter lock handle counter clockwise

and press down the index spring.

2. Lower the blade and lock the handle latch. Use the

combination square to check blade squareness to

table. If the blade does not contact the full length of

the square, follow the alignment procedure.

a. Loosen bevel lock handle.

b. Grasping metal upper guard, move the cutting

head left or right until blade makes contact with

the full length of the square.

c. Tighten the bevel IocX handle.

3, Check the bevel indicator. If indicator needs adjust-

ment use a phi/lips screwdriver and slide the

indicator to the 0° on the scale.

8.'.'

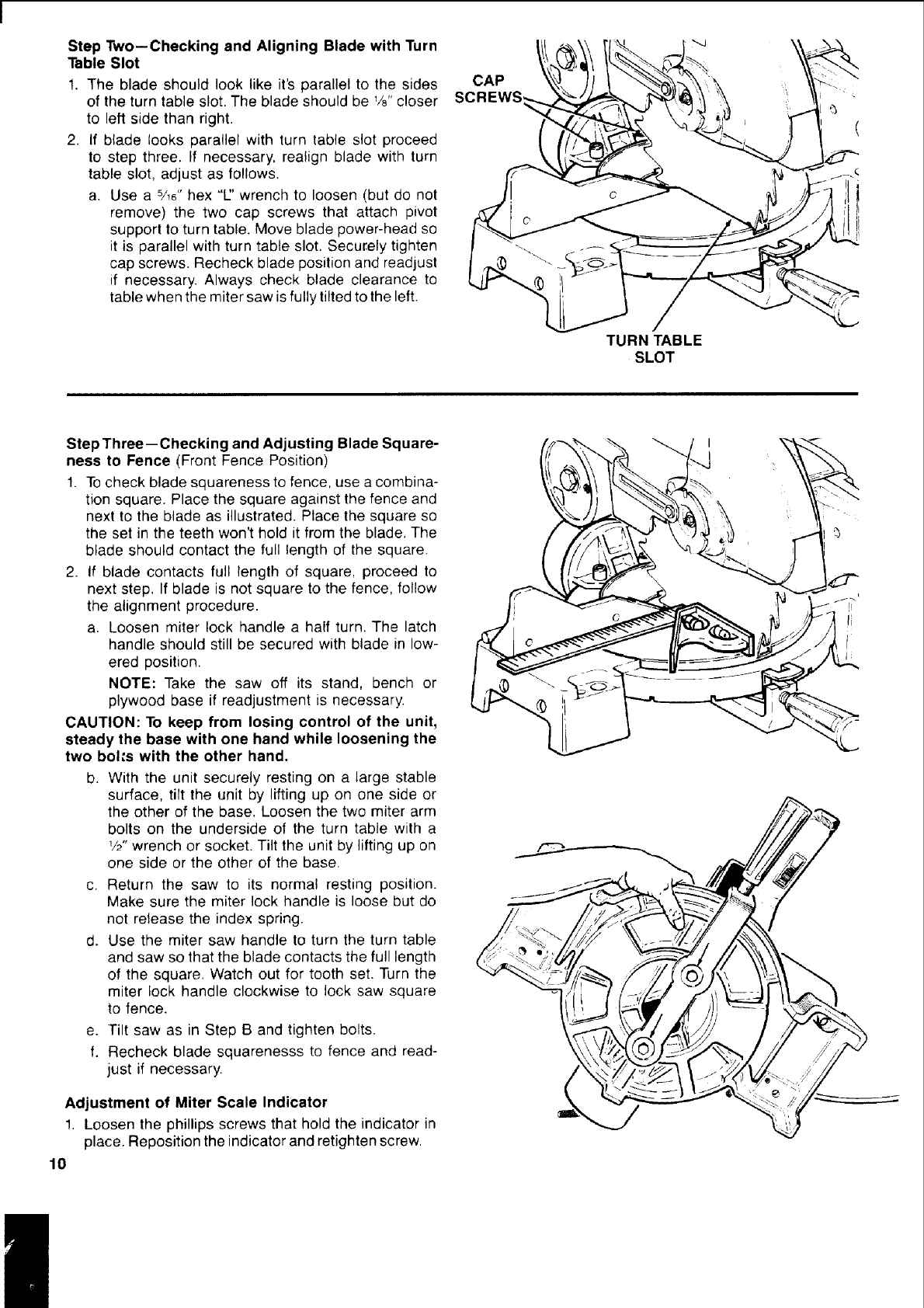

Step Two--Checking and Aligning Blade with Turn

Table Slot

1. The blade should look like it's parallel to the sides

of the turn table slot. The blade should be W' closer

to left side than right.

2. If blade looks parallel with turn table slot proceed

to step three. If necessary, realign blade with turn

table slot, adjust as follows.

a. Use a 5/16"hex "U' wrench to loosen (but do not

remove) the two cap screws that attach pivot

support to turn table. Move blade power-head so

it is parallel with turn table slot. Securely tighten

cap screws. Recheck blade position and readjust

if necessary. Always check blade clearance to

table when the miter saw isfully tilted to the left.

CAP

TURN TABLE

SLOT

Step Three-- Checking and Adjusting Blade Square-

ness to Fence (Front Fence Position)

1. To check blade squareness to fence, use a combina-

tion square. Place the square against the fence and

next to the blade as illustrated. Place the square so

the set in the teeth won't hold it from the blade. The

blade should contact the full length of the square.

2. If blade contacts full length of square, proceed to

next step. If blade is not square to the fence, follow

the alignment procedure.

a. Loosen miter lock handle a half turn. The latch

handle should still be secured with blade in low-

ered position.

NOTE: Take the saw off its stand, bench or

plywood base if readjustment is necessary.

CAUTION: To keep from losing control of the unit,

steady the base with one hand while loosening the

two bolt.s with the other hand.

b. With the unit securely resting on a large stable

surface, tilt the unit by lifting up on one side or

the other of the base. Loosen the two miter arm

bolts on the underside of the turn table with a

W' wrench or socket. Tilt the unit by lifting up on

one side or the other of the base.

c. Return the saw to its normal resting position.

Make sure the miter lock handle is loose but do

not release the index spring.

d. Use the miter saw handle to turn the turn table

and saw so that the blade contacts the full length

of the square, Watch out for tooth set. Turn the

miter lock handle clockwise to lock saw square

to fence.

e. Tilt saw as in Step B and tighten bolts.

f. Recheck blade squarenesss to fence and read-

just if necessary.

Adjustment of Miter Scale Indicator

1. Loosen the phillips screws that hold the indicator in

place. Reposition the indicator and retighten screw.

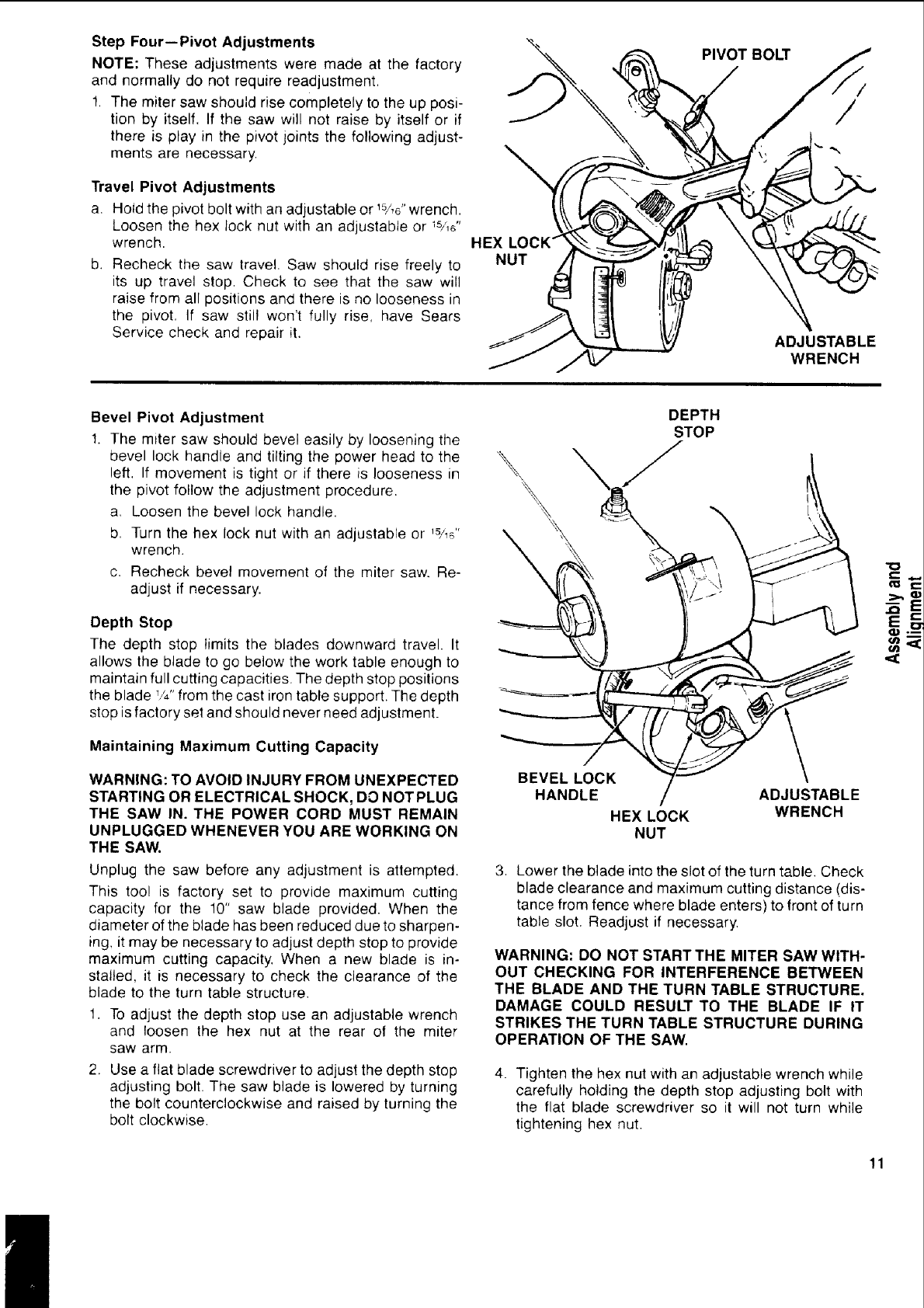

Step Four--Pivot Adjustments

NOTE: These adjustments were made at the factory

and normally do not require readjustment.

1. The miter saw should rise completely to the up posi-

tion by itself. If the saw will not raise by itself or if

there is play in the pivot joints the following adjust-

ments are necessary.

Travel Pivot Adjustments

a. Hold the pivot bolt with an adjustable or 1_A6"wrench.

Loosen the hex lock nut with an adjustable or Is/,6"

wrench.

b, Recheck the saw travel. Saw should rise freely to

its up travel stop. Check to see that the saw will

raise from all positions and there is no looseness in

the pivot. If saw still won't fully rise, have Sears

Service check and repair it.

HEX LOCK"

NUT

PIVOT BOLT

ADJUSTABLE

WRENCH

Bevel Pivot Adjustment

1. The miter saw should bevel easily by loosening the

bevel lock handle and tilting the power head to the

left. If movement is tight or if there is looseness in

the pivot follow the adjustment procedure.

a. Loosen the bevel lock handle.

b. Turn the hex lock nut with an adjustable or _5/1_"

wrench.

c. Recheck bevel movement of the miter saw. Re-

adjust if necessary.

Depth Stop

The depth stop limits the blades downward travel. It

allows the blade to go below the work table enough to

maintain full cutting capacities. The depth stop positions

the blade 1/_,,from the cast iron table support. The depth

stop is factory set and should never need adjustment.

Maintaining Maximum Cutting Capacity

WARNING: TO AVOID INJURY FROM UNEXPECTED

STARTING OR ELECTRICAL SHOCK, DO NOTPLUG

THE SAW IN. THE POWER CORD MUST REMAIN

UNPLUGGED WHENEVER YOU ARE WORKING ON

THE SAW.

Unplug the saw before any adjustment is attempted.

This too! is factory set to provide maximum cutting

capacity for the 10" saw blade provided. When the

diameter of the blade has been reduced clue to sharpen-

ing, it may be necessary to adjust depth stop to provide

maximum cutting capacity. When a new blade is in-

stalled, it is necessary to check the clearance of the

blade to the turn table structure.

1. To adjust the depth stop use an adjustable wrench

and loosen the hex nut at the rear of the miter

saw arm.

2. Use a flat blade screwdriver to adjust the depth stop

adjusting bolt. The saw blade is lowered by turning

the bolt counterclockwise and raised by turning the

bolt clockwise.

DEPTH

STOP

\ -

BEVEL LOCK 7

HANDLE ADJUSTABLE

HEX LOCK WRENCH

NUT

3. Lower the blade into the slot of the turn table. Check

blade clearance and maximum cutting distance (dis-

tance from fence where blade enters) to front of turn

table slot. Readjust if necessary.

WARNING: DO NOT START THE MITER SAW WITH-

OUT CHECKING FOR INTERFERENCE BETWEEN

THE BLADE AND THE TURN TABLE STRUCTURE.

DAMAGE COULD RESULT TO THE BLADE IF IT

STRIKES THE TURN TABLE STRUCTURE DURING

OPERATION OF THE SAW.

4. Tighten the hex nut with an adjustable wrench while

carefully holding the depth stop adjusting bolt with

the flat blade screwdriver so it will not turn while

tightening hex nut.

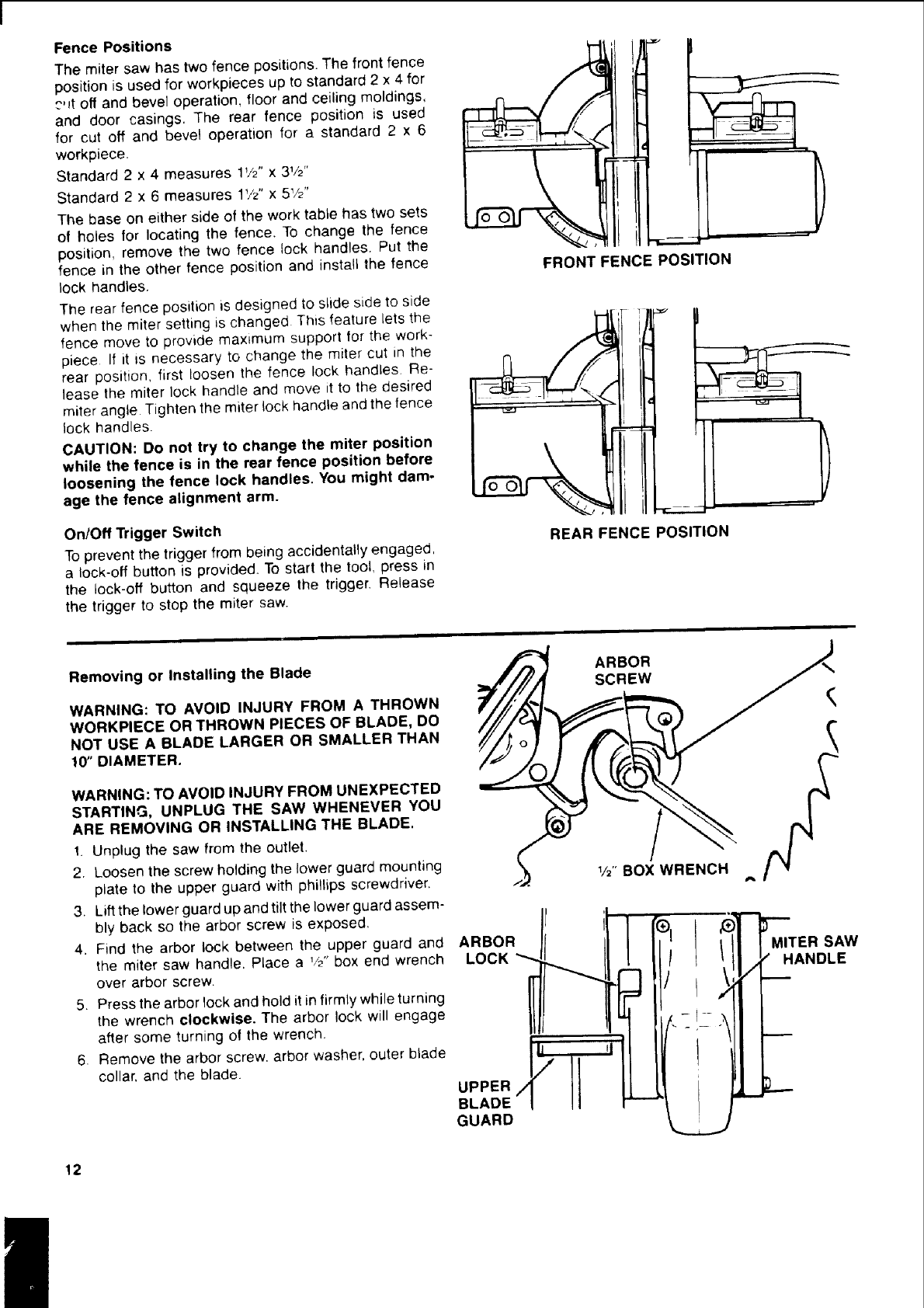

Fence Positions

The miter saw has two fence positions. The front fence

position is used for workpieces up to standard 2 x 4 for

.-',Jtoff and bevel operation, floor and ceiling moldings,

and door casings. The rear fence position is used

for cut off and beve_ operation for a standard 2 x 6

workpiece.

Standard 2x 4 measures if/2'' x 31/2"

Standard 2 x 6 measures 1'/_" x 5v2"

The base on either side of the work table has two sets

of holes for locating the fence. To change the fence

position, remove the two fence lock handles. Put the

fence in the other fence position and install the fence

lock handles.

The rear fence position is designed to slide side to side

when the miter setting is changed This feature lets the

fence move to provide maxtmum support for the work-

piece If it _snecessary to change the miter cut in the

rear position, first loosen the fence lock handles. Re-

lease the miter lock handle and move it to the desired

miter angle Tighten the miter lock handle and the fence

lock handles.

CAUTION: Do not try to change the miter position

while the fence is in the rear fence position before

loosening the fence lock handles. You might dam-

age the fence alignment arm.

On/Off Trigger Switch

To prevent the trigger from being accidentally engaged,

a lock-off button is provided. To start the tool, press in

the lock-off button and squeeze the trigger. Release

the trigger to stop the miter saw.

FRONT FENCE POSITION

REAR FENCE POSITION

Removing or Installing the Blade

WARNING: TO AVOID INJURY FROM A THROWN

WORKPIECE OR THROWN PIECES OF BLADE, DO

NOT USE A BLADE LARGER OR SMALLER THAN

10" DIAMETER.

WARNING: TO AVOID INJURY FROM UNEXPECTED

STARTING, UNPLUG THE SAW WHENEVER YOU

ARE REMOVING OR INSTALLING THE BLADE.

1. Unplug the saw from the outlet.

2. Loosen the screw holding the lower guard mounting

plate to the upper guard with phillips screwdriver,

3. Lift the lower guard up and tilt the lower guard assem-

bly back so the arbor screw is exposed.

4. Find the arbor lock between the upper guard and

the miter saw handle. Place a _/2"box end wrench

over arbor screw.

5. Press the arbor lock and hold it in firmly while turning

the wrench clockwise. The arbor lock will engage

after some turning of the wrench.

6. Remove the arbor screw, arbor washer, outer blade

collar, and the blade.

ARBOR

LOCK_

UPPER /

BLADE

GUARD I

ARBOR

SCREW

1/2"BOX WRENCH

'F'-"

MITER SAW

_HANDLE

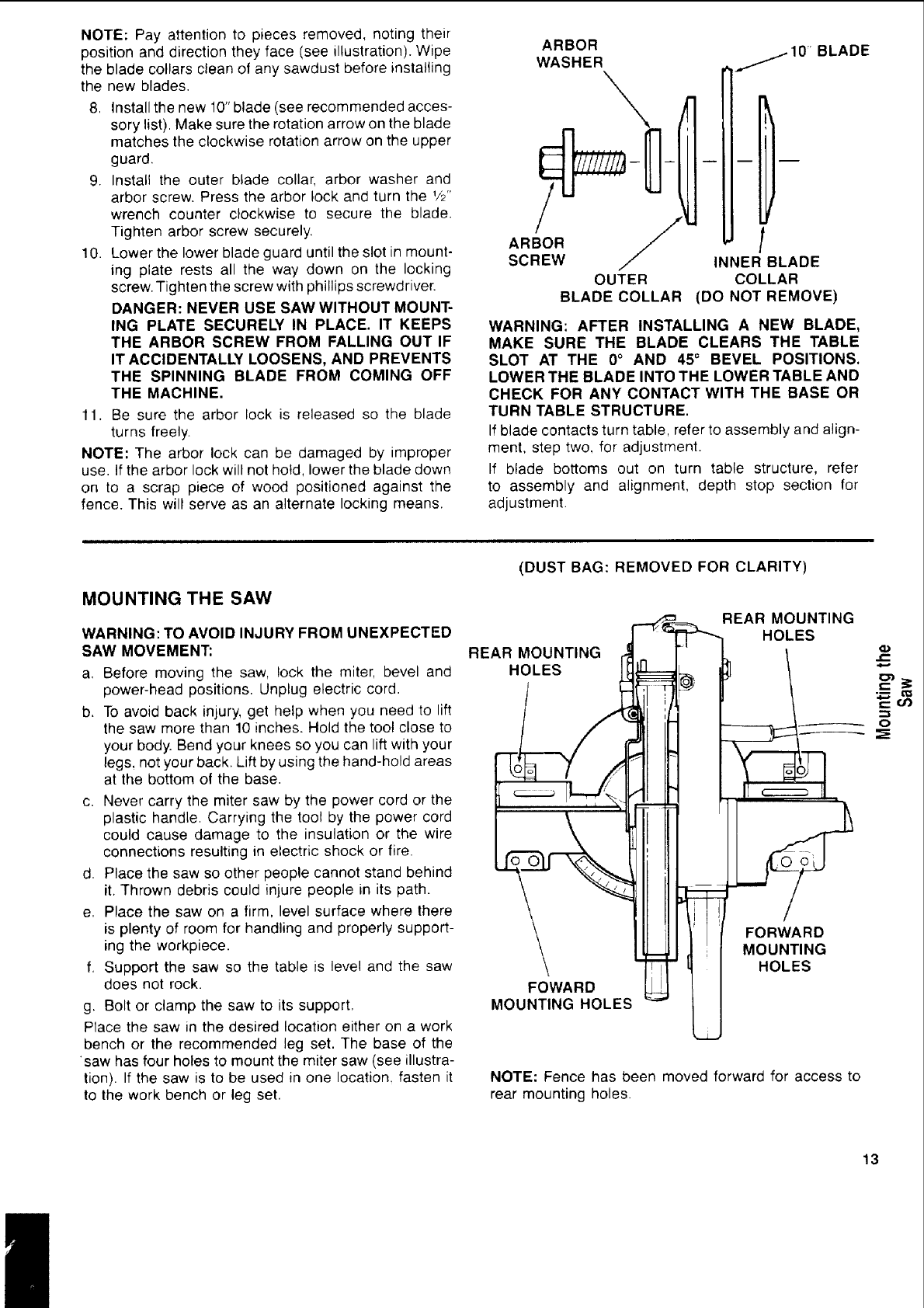

NOTE: Pay attention to pieces removed, noting their

position and direction they face (see illustration). Wipe

the blade collars clean of any sawdust before installing

the new blades.

8, Install the new 10" blade (see recommended acces-

sory list). Make sure the rotation arrow on the blade

matches the clockwise rotation arrow on the upper

guard.

9. Install the outer blade collar, arbor washer and

arbor screw. Press the arbor lock and turn the 1/2"

wrench counter clockwise to secure the blade.

Tighten arbor screw securely.

10. Lower the lower blade guard until the slot in mount-

ing plate rests all the way down on the locking

screw. Tighten the screw with phillips screwdriver.

DANGER: NEVER USE SAW WITHOUT MOUNT-

ING PLATE SECURELY IN PLACE. IT KEEPS

THE ARBOR SCREW FROM FALLING OUT IF

IT ACCIDENTALLY LOOSENS, AND PREVENTS

THE SPINNING BLADE FROM COMING OFF

THE MACHINE.

11. Be sure the arbor lock is released so the blade

turns freely.

NOTE: The arbor lock can be damaged by improper

use. If the arbor lock will not hold, lower the blade down

on to a scrap piece of wood positioned against the

fence. This will serve as an alternate locking means.

ARBOR

WASHER 111../10" BLADE

ARBOR

SCREW

OUTER

BLADE COLLAR

INNER BLADE

COLLAR

(DO NOT REMOVE)

WARNING: AFTER INSTALLING A NEW BLADE,

MAKE SURE THE BLADE CLEARS THE TABLE

SLOT AT THE 0°AND 45° BEVEL POSITIONS.

LOWER THE BLADE INTO THE LOWER TABLE AND

CHECK FOR ANY CONTACT WITH THE BASE OR

TURN TABLE STRUCTURE.

If blade contacts turn table, refer to assembly and align-

ment, step two, for adjustment.

If blade bottoms out on turn table structure, refer

to assembly and alignment, depth stop section for

adjustment.

MOUNTING THE SAW

WARNING: TO AVOID INJURY FROM UNEXPECTED

SAW MOVEMENT:

a_ Before moving the saw, lock the miter, bevel and

power-head positions, Unplug electric cord.

b. To avoid back injury, get help when you need to lift

the saw more than 10 inches. Hold the tool close to

your body. Bend your knees so you can lift with your

legs, not your back. Lift by using the hand-hold areas

at the bottom of the base.

c. Never carry the miter saw by the power cord or the

plastic handle. Carrying the tool by the power cord

could cause damage to the insulation or the wire

connections resulting in electric shock or fire.

d. Place the saw so other people cannot stand behind

it. Thrown debris could injure people in its path.

e, Place the saw on a firm. level surface where there

is plenty of room for handling and properly support-

ing the workpiece.

f, Support the saw so the table is level and the saw

does not rock.

g. Bolt or clamp the saw to its support,

Place the saw in the desired location either on a work

bench or the recommended leg set. The base of the

saw has four holes to mount the miter saw (see illustra-

tion). If the saw is to be used in one location, fasten it

to the work bench or leg set.

(DUST BAG: REMOVED FOR CLARITY)

REAR MOUNTING

HOLES

FOWARD

MOUNTING HOLES

REAR MOUNTING

HOLES

MOUNTING

HOLES

NOTE: Fence has been moved forward for access to

rear mounting holes.

If the saw _sto be used naportabteapplicaton, moun

the saw to a _" piece of plywood The mour'tm 9 board

can then be clamped down Io prevent ,t from t pplng

.._.-<

_J MOUNTING

.... "J BOLTS

I o

3/4" PLYWOOD

CATALOG NO, 9-22246 LEG SET

MOUNTING HOLES FOR MODEL

113.234650 MITER SAW

i o

°el°

o° 0

0 0

;,m

_"-STIFFENER--SIDE

c (- }oOo

STIFFENER--END

Attach miter saw to holes _ndicated

Recommended mounting hardware (not included)

4-s ,,;-18 x 3 hex head bolts

4 -s _,_flat washers

4 -s _, lock washers

4 -_"_ hex nuts

4-1e' __

14¸¸

i--'-

MOUNTING BOARD FOR CATALOG

FrO. 9-22244 LEG SET

NOTE: Attach the mounting board to the leg set first.

Then mount the miter saw to the mounting

board usng the recommended hardware (not

included

drill _.'dia. holes HOLES FOR

MTG. BOARD

_6 r__12''_L1 TO LEG SET

_4 _ _1,'_

FRONT

15_,:/r

24"

i"-..

314"

HOLES FOR

MTG. MITER

SAW

Recommended hardwaret(not included)

Mounting board to legset

4-s,_,-18 x 1 _*hex head bolts

4-_e fiat washers

4-o_5 lock washers

4-_' _, hex nuts

Mounting miter saw to mounting board

4-_,s-18 x 3_._,hex head bolts

4-%6 flat washer

4-5,_6 lock washer

4-s_6 hex nuts

FRONT SIDE

0 0

I i

o o

IIC_

o o o o

10 ¸.

14' ,I

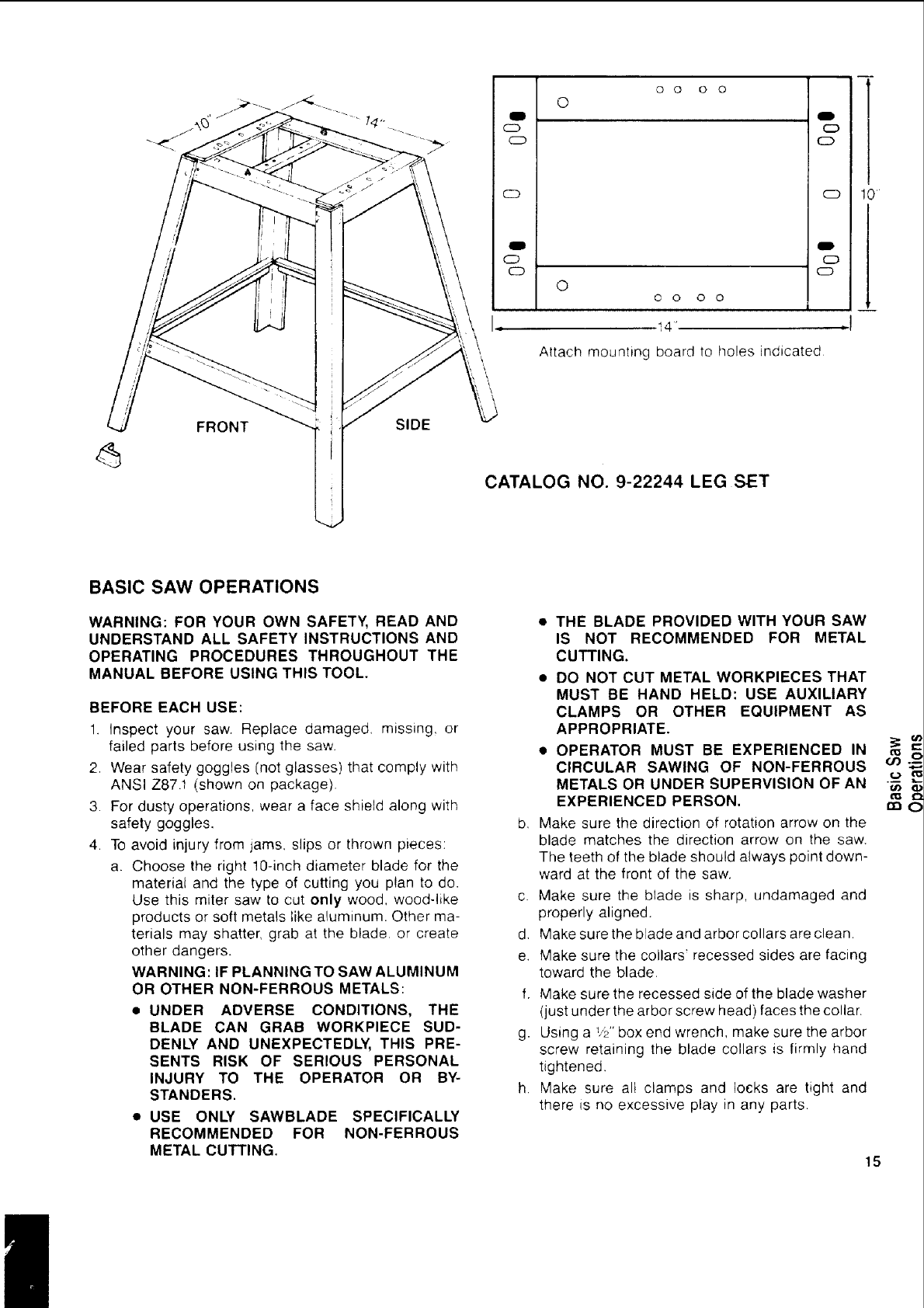

Attach mounting board to holes indicated

CATALOG NO. 9-22244 LEG SET

BASIC SAW OPERATIONS

WARNING: FOR YOUR OWN SAFETY, READ AND

UNDERSTAND ALL SAFETY INSTRUCTIONS AND

OPERATING PROCEDURES THROUGHOUT THE

MANUAL BEFORE USING THIS TOOL.

BEFORE EACH USE:

1. Inspect your saw. Replace damaged, missing, or

failed parts before using the saw.

2. Wear safety goggles (not glasses) that comply with

ANSI Z87.1 (shown on package).

3. For dusty operations, wear a face shield along with

safety goggles.

4. To avoid injury from jams, slips or thrown pieces:

a. Choose the right 10-inch diameter blade for the

material and the type of cutting you plan to do.

Use this miter saw to cut only wood, wood-like

products or soft metals like aluminum. Other ma-

terials may shatter, grab at the blade, or create

other dangers.

WARNING: IF PLANNING TO SAW ALUMINUM

OR OTHER NON-FERROUS METALS:

• UNDER ADVERSE CONDITIONS, THE

BLADE CAN GRAB WORKPIECE SUD-

DENLY AND UNEXPECTEDLY, THIS PRE-

SENTS RISK OF SERIOUS PERSONAL

INJURY TO THE OPERATOR OR BY-

STANDERS.

•USE ONLY SAWBLADE SPECIFICALLY

RECOMMENDED FOR NON-FERROUS

METAL CUTTING.

• THE BLADE PROVIDED WITH YOUR SAW

IS NOT RECOMMENDED FOR METAL

CUTTING.

• DO NOT CUT METAL WORKPIECES THAT

MUST BE HAND HELD: USE AUXILIARY

CLAMPS OR OTHER EQUIPMENT AS

APPROPRIATE.

• OPERATOR MUST BE EXPERIENCED IN

CIRCULAR SAWING OF NON-FERROUS

METALS OR UNDER SUPERVISION OF AN

EXPERIENCED PERSON.

b, Make sure the direction of rotation arrow on the

blade matches the direction arrow on the saw.

The teeth of the blade should always point down-

ward at the front of the saw.

c. Make sure the blade is sharp, undamaged and

properly aligned.

d. Make sure the blade and arbor collars are clean.

e. Make sure the collars' recessed sides are facing

toward the blade.

f. Make sure the recessed side of the blade washer

(just under the arbor screw head) faces the collar.

g. Using a X_"box end wrench, make sure the arbor

screw retaining the blade collars is firmly hand

tightened.

h. Make sure all clamps and locks are tight and

there _s no excessive play in any parts.

m O

7. Never cut FREEHAND:

a. Brace your workpiece solidly against the fence

and table top so it will not rock or twist during

the cut. Make sure there is no debris caught

beneath the workpiece.

b. Make sure no gaps between the workpiece,

fence and table will cause shifting after the work-

piece is cut in two.

c. Use jigs, fixtures or a different tool for unstable

workpieces.

8. Never cut more than one workpiece at a time.

9. Make sure the cut off piece can move sideways

after it's cut off. Otherwise, it could get wedged

against the blade and thrown violently.

10. Use extra caution with large, very small or awkward

workpieces:

a. Use extra supports (tables, saw horses, blocks,

etc.) for any workpieces large enough to tip

when not held down to the table top.

b. Do not use this saw to cut pieces too small to

let you easily hold the work while you keep the

thumb side of your index (pointer) finger against

the outside edge of the fence.

c. When cutting irregularly shaped workpieces.

plan your work so it will not slip and pinch the

blade. A piece of molding, for example, must lie

flat or be held by a fixture or jig that will not let

it twist, rock or slip while being cut.

d. Properly support round material such as dowel

rods, or tubing. They have a tendency to rol!

while being cuL causing the blade to "bite." To

avoid this, use a fixture designed to properly

hold your work piece.

11. Make sure there are no nails or foreign objects in

the part of the workpiece to be cut.

12. Make sure bystanders are clear of the tool and

workpiece. Keep them clear of the area behind the

saw where debris will be thrown.

13. Never turn your miter saw "ON" before clearing

everything except the workpiece and related sup-

port devices off the table.

14. To avoid risk of hearing damage, wear ear plugs

or muffs during extended periods of operation.

15. To avoid being sudden!y pulled into the blade:

a. Do not wear gloves.

b. Remove all jewelry and loose clothing.

c. Tie back long hair.

d. Roll long sleeves above the elbow.

16. To avoid burns or other fire damage, never use the

saw near flammable liquids, vapors or gases.

WHENEVER SAW IS RUNNING:

17, Before actually cutting with the saw, let it run for a

while. If your saw makes an unfamiliar noise or if

it vibrates excessively, stop immediately. Turn the

saw off. Unplug the saw. Do not restart until finding

and correcting the problem.

18. Never confine the piece being cut off. Never hold

it clamp it, touch it. or use length stops against it.

It must be free to move sideways. If confined, it

could get wedged against the blade and thrown

violently.

19. Avoid awkward hand positions where a sudden slip

could cause a hand to move into the blade.

20. Let the blade reach full speed before cutting.

21. Feed the saw into the workpiece only fast enough

to let the blade cut without bogging down or binding.

22. Before freeing jammed material, release switch and

unplug the saw. Wait for all moving parts to stop.

23. After finishing a cuL keep holding the power-head

down, release the switch, and wait for all moving

parts to stop before moving your hands.

Body and Hand Position

Proper positioning of your body and hands when operat-

ing the miter saw will make cutting easier and safer.

Never place hands near cutting area. Place hand at

least 4" from path of blade. Hold workpiece firmly to

the fence to prevent movement toward the blade. Keep

hands in position until trigger has been released and

the blade has completely stopped. Before making a

cut, make a "dry run" with the power off so you can see

the path of the blade.

WARNING: DO NOT TRY TO CUT SHORT PIECES,

YOU CANNOT PROPERLY SUPPORT THE WORK-

PIECE AND KEEP YOUR HOLD DOWN HAND THE

REQUIRED DISTANCE FROM THE BLADE.

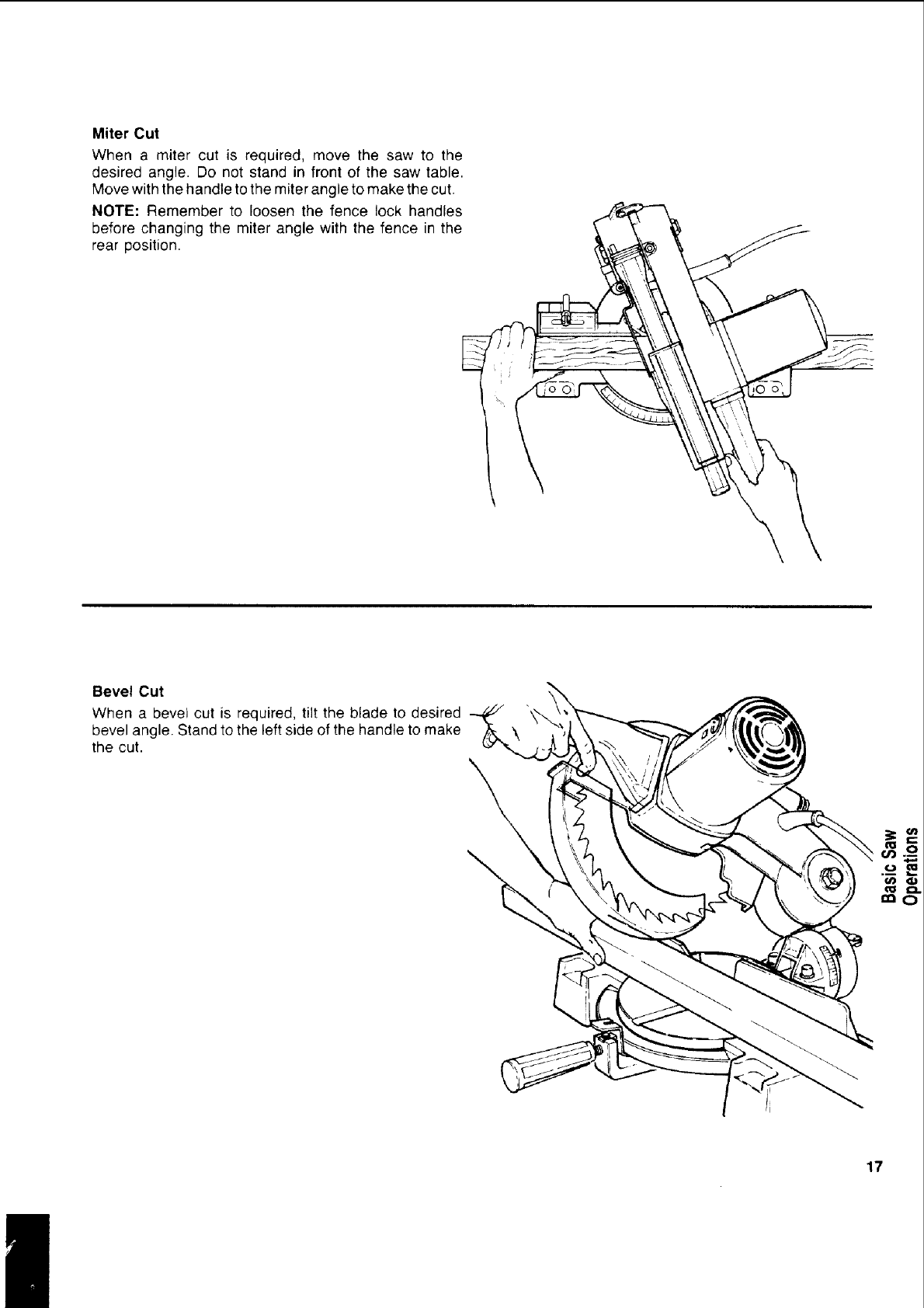

Miter Cut

When a miter cut is required, move the saw to the

desired angle. Do not stand in front of the saw table.

Move with the handle to the miter angle to make the cut.

NOTE: Remember to loosen the fence lock handles

before changing the miter angle with the fence in the

rear position.

Bevel Cut

When a bevet cut is required, tilt the blade to desired

bevel angle. Stand to the left side of the handle to make

the cut.

03 3

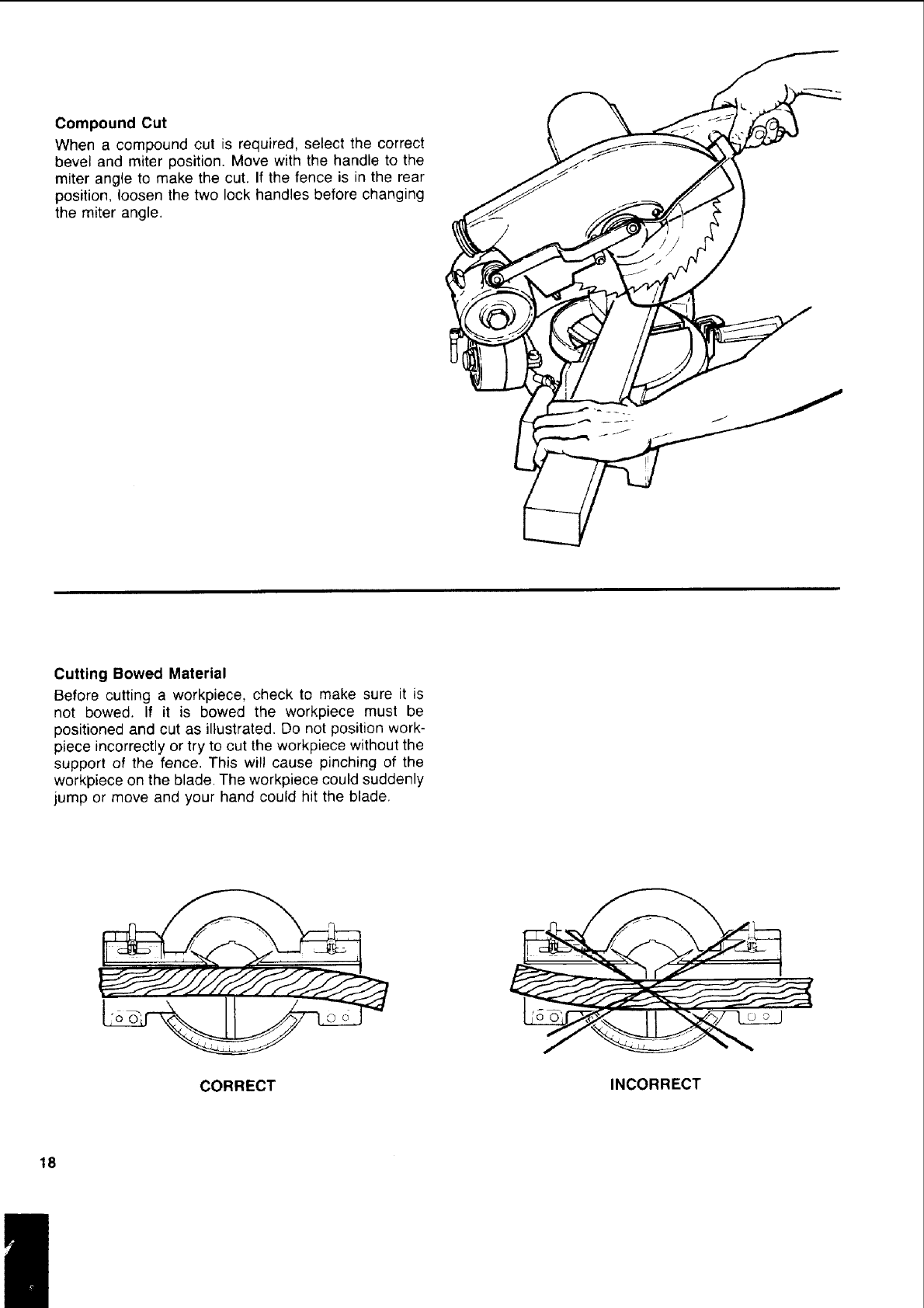

Compound Cut

When a compound cut is required, select the correct

bevel and miter position. Move with the handle to the

miter angle to make the cut. If the fence is in the rear

position, loosen the two lock handles before changing

the miter angle.

Cutting Bowed Material

Before cutting a workpiece, check to make sure it is

not bowed. If it is bowed the workpiece must be

positioned and cut as illustrated, Do not position work-

piece incorrectly or try to cut the workpiece without the

support of the fence, This will cause pinching of the

workpiece on the blade. The workpiece could suddenly

jump or move and your hand could hit the blade,

CORRECT INCORRECT

Workpiece Support

Long pieces need extra supports. The supports should

be placed along the workpiece so the workpiece does

not sag and your hand holding the workpiece is

positioned 4" or more from the blade path. The support

should let the workpiece lie fiat on the base and work

table during the cutting operation.

WORKPIECE

SUPPORT

Auxiliary Fence

Certain types of molding need a fence face extension

due to the size and position of the workpiece. HoPes

are provided in the fence to attach an auxiliary fence

made of straight wood typically v_ inch thick by 3 inches

high by 20 inches long. The auxiliary fence is used with

the saw in the 0° bevel position. If a bevel cut is desired,

the auxiliary fence will have to be removed.

it)

Filler Blocks for Cutting Crown Moldings

The majority of crown moldings have contact surfaces

of 52 ° and 38 to the rear surface of the molding. When

joining the face of the filler block these angles must be

maintained, The following illustrations show two

methods that can be used when cutting crown moldings

depending on how the filler block is attached to the

fence.

When the filler blocks are attached with the face of the

filler blocks pointing upwards, the moldin 9 must be

placed on the table L_ps_de down

When the filler blocks are attached to the fence with

the face of the filler blocks pointing downwards, the

molding must be placed on the table right side up, This

is the same position as it would be when nailed between

the ceiling and wail.

Make 2 filler blocks 10 inches long, Fasten blocks se-

curely to fence, For block face pointing downward, you

may need to drill new fastener holes in the fence.

FENCE

FILLER BLOCK FACE

POINTING UPWARD

MOLDING

TABLE

FENCE FILLER

BLOCK

FACE

POINTING

_52o /J DOWNWARD

F_ /M°LD'NG

" RZ /

?B,EI

Vertical Bevel Cutting

TO make a miter cut in a 2 x 4 workpiece (actual 1%"

x 31/2") in the vertical position (on edge) a spacer, such

as the auxiliary fence described on the previous page,

is required. Fence is located in the front fence position.

FENCE

SPACE BLOCK _

_FI 31/2"(8f Lmm)

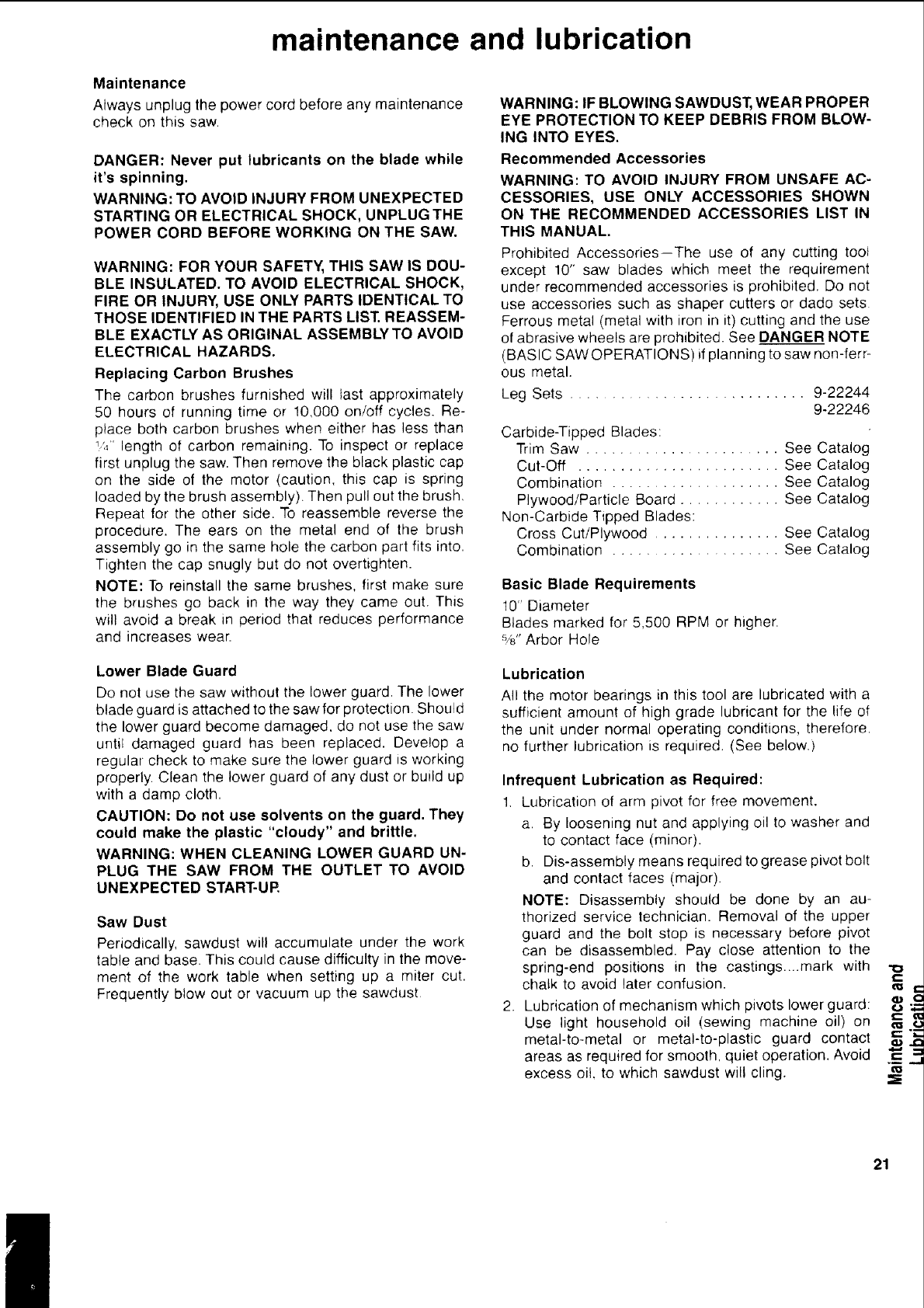

maintenance and lubrication

Maintenance

Always unplug the power cord before any maintenance

check on this saw.

DANGER: Never put lubricants on the blade while

it's spinning.

WARNING: TO AVOID INJURY FROM UNEXPECTED

STARTING OR ELECTRICAL SHOCK, UNPLUG THE

POWER CORD BEFORE WORKING ON THE SAW.

WARNING: FOR YOUR SAFETY, THIS SAW IS DOU-

BLE INSULATED. TO AVOID ELECTRICAL SHOCK,

FIRE OR INJURY, USE ONLY PARTS IDENTICAL TO

THOSE IDENTIFIED IN THE PARTS LIST. REASSEM-

BLE EXACTLY AS ORIGINAL ASSEMBLY TO AVOID

ELECTRICAL HAZARDS.

Replacing Carbon Brushes

The carbon brushes furnished will last approximately

50 hours of running time or 10,000 on!off cycles. Re-

place both carbon brushes when either has less than

1,_-length of carbon remaining. To inspect or replace

first unplug the saw. Then remove the black plastic cap

on the side of the motor (caution, this cap is spring

loaded by the brush assembly). Then pull out the brush,

Repeat for the other side. To reassemble reverse the

procedure. The ears on the metal end of the brush

assembly go in the same hole the carbon part fits into,

Tighten the cap snugly but do not overtighten.

NOTE: To reinstall the same brushes, first make sure

the brushes go back in the way they came out. This

win avoid a break in period that reduces performance

and increases wear.

Lower Blade Guard

Do not use the saw without the lower guard. The lower

blade guard is attached to the saw for protection. Should

the lower guard become damaged, do not use the saw

until damaged guard has been replaced. Develop a

regular check to make sure the lower guard is working

properly. Clean the lower guard of any dust or build up

with a damp cloth,

CAUTION: Do not use solvents on the guard. They

could make the plastic "cloudy" and brittle.

WARNING: WHEN CLEANING LOWER GUARD UN-

PLUG THE SAW FROM THE OUTLET TO AVOID

UNEXPECTED START-UP.

Saw Dust

Periodically, sawdust will accumulate under the work

table and base. This could cause difficulty in the move-

ment of the work table when setting up a miter cut.

Frequently blow out or vacuum up the sawdust

WARNING: IF BLOWING SAWDUST, WEAR PROPER

EYE PROTECTION TO KEEP DEBRIS FROM BLOW-

ING INTO EYES.

Recommended Accessories

WARNING: TO AVOID INJURY FROM UNSAFE AC-

CESSORIES, USE ONLY ACCESSORIES SHOWN

ON THE RECOMMENDED ACCESSORIES LIST IN

THIS MANUAL.

Prohibited Accessories--The use of any cutting tool

except 10" saw blades which meet the requirement

under recommended accessories is prohibited. Do not

use accessories such as shaper cutters or dado sets

Ferrous metal (metal with iron in it) cutting and the use

of abrasive wheels are prohibited. See DANGER NOTE

(BASIC SAW OPERATIONS) if planning to saw non-ferr-

ous metal.

Leg Sets ............................ 9-22244

9-22246

Carbide-Tipped Blades:

Trim Saw ....................... See Catalog

Cut-Off ........................ See Catalog

Combination .................... See Catalog

Plywood/Particle Board ............ See Catalog

Non-Carbide Tipped Blades:

Cross Cut/Plywood ............... See Catalog

Combination .................... See Catalog

Basic Blade Requirements

10" Diameter

Blades marked for 5,500 RPM or higher.

5/8"Arbor Hole

Lubrication

All the motor bearings in this tool are lubricated with a

sufficient amount of high grade lubricant for the life of

the unit under normal operating conditions, therefore.

no further lubrication is required. (See below.)

Infrequent Lubrication as Required:

1. Lubrication of arm pivot for free movement.

a. By loosening nut and applying oil to washer and

to contact face (minor).

b. Dis-assembly means required to grease pivot bolt

and contact faces (major).

NOTE: Disassembly should be done by an au-

thorized service technician. Removal of the upper

guard and the bolt stop is necessary before pivot

can be disassembled. Pay close attention to the

spring-end positions in the castings....mark with

chalk to avoid later confusion.

2. Lubrication of mechanism which pivots lower guard:

Use light household oil (sewing machine oil) on

metal-to-metal or metal-to-plastic guard contact

areas as required for smooth, quiet operation, Avoid

excess oil, to which sawdust will cling.

t-.

PROBLEM

Brake does not stop

blade within

2-5 seconds.

Motor does not start.

Brush sparking when

switch released.

TROUBLE SHOOTING GUIDE - MOTOR

PROBABLE CAUSE

Brushes not seated

or lightly sticking.

Motor brake winding--

overheated from use of not-

recommended accessory

or rapid on/off cycling.

3. Arbor screw loose.

4. Other.

!, Fuse.

2. Brushes worn.

3. Other.

1. Normal--automatic brake

working properly.

SUGGESTED CORRECTIVE ACTION

--Inspect/clean/replace brushes

(see maintenance section)

--Use a recommended blade

--Let cool down.

-- Retighten

--Authorized service. Check motor brake winding.

--15-Amp time delay fuse, or CKT. breaker.

--See "Maintenance," page 21.

--Authorized service.

TROUBLE SHOOTING GUIDE - GENERAL

PROBLEM

Blade hits table.

Angle of cut

not accurate.

Can't move

miter adjustment.

Power-head

wobbles.

Power-head

won't fully rise.

Blade binds, jams,

burns wood.

Tool vibrates or

shakes.

PROBABLE CAUSE

1. Misalignment.

2. Damaged depth stop.

1. Misalignment.

1. Fence in rear position

and clamp tight.

2. Sawdust under table.

1. Loose pivot points.

1, Pivot misadjustment.

2. Part failure.

3. Pivot spring not replaced

properly after service.

1. Improper operation.

2. Dull blade.

3. Improper blade

4. Warped blade.

1. Saw blade not round,

2. Saw blade damaged.

3. Saw blade loose

4. Other.

SUGGESTED CORRECTIVE ACTION

--See Assembly and Alignment, page 10.

--Get authorized Sears Service.

--See Assembly and Alignment, page 10.

--Loosen fence clamps. Retighten before starting

next cut.

--Vacuum or blow out dust.

WEAR EYE PROTECTION

--See Assembly and Alignment, Step 4, page 12.

-See Assembly and Alignment, Step 4, page 12.

--Get authorized Sears Service.

-See Basic Saw Operation, page 16.

--Replace or sharpen blade.

--Replace with 10" diameter blade designed

for the material being cut.

-- Replace blade.

--Replace blade.

--Tighten arbor screw.

--Get authorized Sears Service

WHITE

BLACK if'

TRIGGER

SWITCH

i,.v

BRUSH

SHORT BLUE

LONG

_'_ BLUE _

BRAKE

BRUSH

CIRCUIT DIAGRAM

NOTES

PARTS LIST FOR CRAFTSMAN 10 _'COMPOUND MITER SAW

MODEL NO. 113.234650

repair parts

PARTS LIST FOR CRAFTSMAN 10" COMPOUND MITER SAW

MODEL NO. 113.234650

Always order by Part Number--Not by Key Number

FIGURE 1

Key

No. Part

No.

3 816688

4 816810

5 816673

6 816678

7 STD510802

8 STD551108

9 816716

10 816691

11 816690

12 816685

Description

Blade Guard Asm.

(see Fig. 4)

Motor Asm. (see Fig. 2)

Fence

Arm-Fence

Table

Base (Includes Scale)

Screw Pan HD, 8-32 x 5/16

Lockwasher #8

Indicator-Miter

Spring-Index

Plate-Clamp

Arm-Miter

*Standard Hardware Item--May Be Purchased Locally.

Key Part Description

No. No.

13 816669

14 STD523108

15 STD551131

16 STD551031

17 809727-2

18 816863-1

19 STD551137

20 60032

22 818042

23 817182

Handle-Miter

*Bolt-Hex HD, 5/16-18 x 7/8

*Lockwasher 5/16

*Washer 11/32x 11/16x 1/16

Screw Flat HD. Type "T"

8-32 x 3/8

Clamp-Bolt

*Lockwasher 3/8

Screw Soc HD. Cap

3/8-16 x 1

Pivot Asm. (see Fig. 3)

Washer4x 10x0.8mm

Washer 10 x 19x 1.Smm

(f#

repair parts

PARTS LIST FOR CRAFTSMAN 10" COMPOUND MITER SAW

MODEL NO. 113.234650

21e

23 2

22 1

18 1,/

16 15 %11

; ;lil_

Always order by Part Number--Not by Key Number

FIGURE 2--ARM AND MOTOR ASSEMBLY

WARNING: For your safety, this miter saw is specially insulated. To avoid electrical shock, fire or injury,

use only parts identical to those identified in the parts list. Reassemble exactly as originally assembled.

Key Part

No. No.

1 816667

2 816704

3 816768

4 816770

5 816740

6 816697

7 816696

8 816679

9 46-57466-3

10 816700

11 817143

816680

56-100002

816755

Description

Guard-Cord

eCord w/Plug

Brush

Cover-Brush

Protector-Wire

Lock-Switch

.1:Spring-Switch Lock

Handle-RH

* Screw Pan HD, M4 x 20

eSwitch

Screw Pan HD.

TY "AB" M4 x 12

Handle - L, H.

*Nut Hex M4 x 0,7

Screw Pan HD, M5 x 20

Key IPart

No. No.

15 816701

16 816743

17 816725

18 816668

19 816698

20 56-100007

21 816689-1

22 60047

23 816723

24 STD551110

25 818043

-- SP5229

Description

Button-Switch

Screw Pan HD. M4 x 15

Clamp-Cord

Cushion

Screw-Set Slotted M10 x 1.5

*NutHex M10x 1,5

eMotor & Arm Asm (Includes

Keys 1,2,3,4,5,16,17)

Washer.630 x 1 x 1/32

NutLockM16

* Lockwasher #10

Washer .350 x.170 x.03

Owner's Manual (Not Illus.)

•Any attempt to repair or replace electrical parts on this unit may create a HAZARD unless repatr is done by

a qualified service technician. Repair service is available at your nearest Sears Store.

*Standard Hardware Item--May Be Purchased Locally.

26 :l:See Mechanical Assembly Caution on page 29.

repair parts

PARTS LIST FOR CRAFTSMAN 10" COMPOUND MITER SAW

MODEL NO. 113,234650

11 /

Always order by Part Number--Not by Key Number

FIGURE 3--PIVOT ASSEMBLY

Key

No.

Part

No.

816664

816674

816671

STD510602

816686

816714

816722

STD551137

60032

Description

Plate-Lock

Screw Pan HD. Shoulder M6

:l:Spring-Torsion

*Screw Pan HD. 6-32 x 1/4

Indicator-Bevel

Pivot-Support

Bolt-Bevel

*Lockwasher 3/8

Screw Soc HD Cap

3/8-16 x 1

*Standard Hardware Item--May Be Purchased Locally.

:l:See Mechanical Assembly Caution on page 29.

Key Part

No. No.

10 816666

11 816721

12 60047

13 816723

!4 816863

15 STD551031

16 816676

17 817182

18 STD551131

Description

Bolt-Stop

Bolt-Pivot

Washer ,630x I x 1/32

Nut Lock M 16

Clamp-Bolt

* Washer 11/32 x 11/16 x 1/16

Pivot

Washer 10 x 19 x 1.8

*Lockwasher 5/16

27 n-_

repair parts

PARTS LIST FOR CRAFTSMAN 10" COMPOUND MITER SAW

MODEL NO. 113.234650

17 16

2O 21 22

10 9...._....

13 11

repair parts

PARTS LIST FOR CRAFTSMAN 10" COMPOUND MITER SAW

MODEL NO, 113.234650

Always order by Part Number--Not by Key Number

FIGURE 4, Blade & Blade Guard Asm.t

Key Part

No. No.

1 507758

2 816706

3 STD511103

4 816708

5 816707

6 813094-3

7 STD551010

8 816849-1

9 46-58494-3

10 816755-2

11 507759

12 818078

Description

Guard Asm.

Plate-Retainer

Screw Pan HD. 10-32 x 3/8

Spring

Lock-Spindle

Screw Hex HD. 10-32 x 3/8

Washer 13/64 x 1/2x 1/16

Spacer 7/32 x 5/16 x 9/64

Lockwasher 5mm

Screw Pan HD. M5 x 15

Collar-Blade Set

(Includes Key # 13)

lO-in. Carbide Tip

Saw Blade

Key Part

No. No.

13 816703

14 816677

15 816711

16 60041

17 40465

18 507757

19 817144

20 816811

21 817145

22 816818

23 816812

Description

Scr. Hex Washer HD.

L.H. M8 x 1.25

:_ Spring-Guard

:1:Guard-Lower

Washer 13/64 x 1/2 x 1/32

Nut Lock 10-32

Lever Asm.-Actuator

Screw-Shoulder 1/4-20 x 1/2

Bag-Dust

Screw-Shoulder

10-32 x 13/16

Sleeve-Rubber

Clamp-Bag

*Standard Hardware Item--May Be Purchased Locally.

:l:See following Mechanical Assembly Caution.

CAUTION: MECHANICAL ASSEMBLY, TO QUALIFIED SERVICE TECHNICIAN.

1. Wear approved eye protecUon when working with coil springs including spring, switch lock 816696.

2. Incorrect re-assembly of torsion spring 816671 can cause an unsafe condition because cutting head

fails to rise fully to stop, or because spring fails through over-stress.

3. Improper re-assembly of mechanisms controlling movement of lower guard 816711 can cause an

unsafe condition because guard fails to operate freely as cutting head is moved up and down; or

because, with cutting head up, manually rotated guard is not (lightly) restored to the closed position

by guard spring 816677.

1/4-20 SHOULDER SCREW

29 n_

NOTES

owner's

manual

SERVICE

MODEL NO.

113.234650

I 0" CONTRACTOR

MITER SAW

HOW TO ORDER

REPAIRPARTS

10-1NCH CONTRACTOR

MITER SAW

Now that you have purchased your 10-inch Contractor Miter

Saw, should a need ever exist for repair parts or service,

simply contact any Sears Service Center and most Sears,

Roebuck and Co. stores. Be sure to provide all pertinent

facts when you call or visit.

The model number of your 10-inch Contractor Miter Saw

will be found on a plate attached to your saw, at the side

of the Miter Saw arm.

WHEN ORDERING REPAIR PARTS,ALWAYS GIVE THE FOLLOWING

INFORMATION:

PARTNUMBER

MODEL NUMBER

113.234650

PARTDESCRIPTION

NAME OF ITEM

10" CONTRACTOR MITERSAW

All parts listed may be ordered from any Sears Service Center

and most Sears stores. If the parts you need are not stocked

locally, your order will be electronically transmitted to a Sears

Repair Parts Distribution Center for handling.

Sold by SEARS, ROEBUCK AND CO., Chicago, IL 60684 U.S.A.

Part No, SP5229 Form No. SP5229- 2 Printed in Taiwan 9/89

Craftsman 113234650 User Manual MITER SAW Manuals And Guides L0804179

CRAFTSMAN Miter Saw Manual L0804179 CRAFTSMAN Miter Saw Owner's Manual, CRAFTSMAN Miter Saw installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
