Craftsman 11324140 User Manual 9 INCH MOTORIZED BENCH SAW Manuals And Guides L0804025

CRAFTSMAN Saw Table Manual L0804025 CRAFTSMAN Saw Table Owner's Manual, CRAFTSMAN Saw Table installation guides

User Manual: Craftsman 11324140 11324140 CRAFTSMAN CRAFTSMAN 9-INCH MOTORIZED BENCH SAW - Manuals and Guides View the owners manual for your CRAFTSMAN CRAFTSMAN 9-INCH MOTORIZED BENCH SAW #11324140. Home:Tool Parts:Craftsman Parts:Craftsman CRAFTSMAN 9-INCH MOTORIZED BENCH SAW Manual

Open the PDF directly: View PDF .
Page Count: 32

Sears

owners

manual

MODEL NO.

113.24140

CAUTION:

Read GENERAL

and ADDITIONAL

SAFETY

INSTRUCTIONS

carefully

CRRFTSMRN

9-INCH MO TORIZED

TABLE SAW

assembly

operating

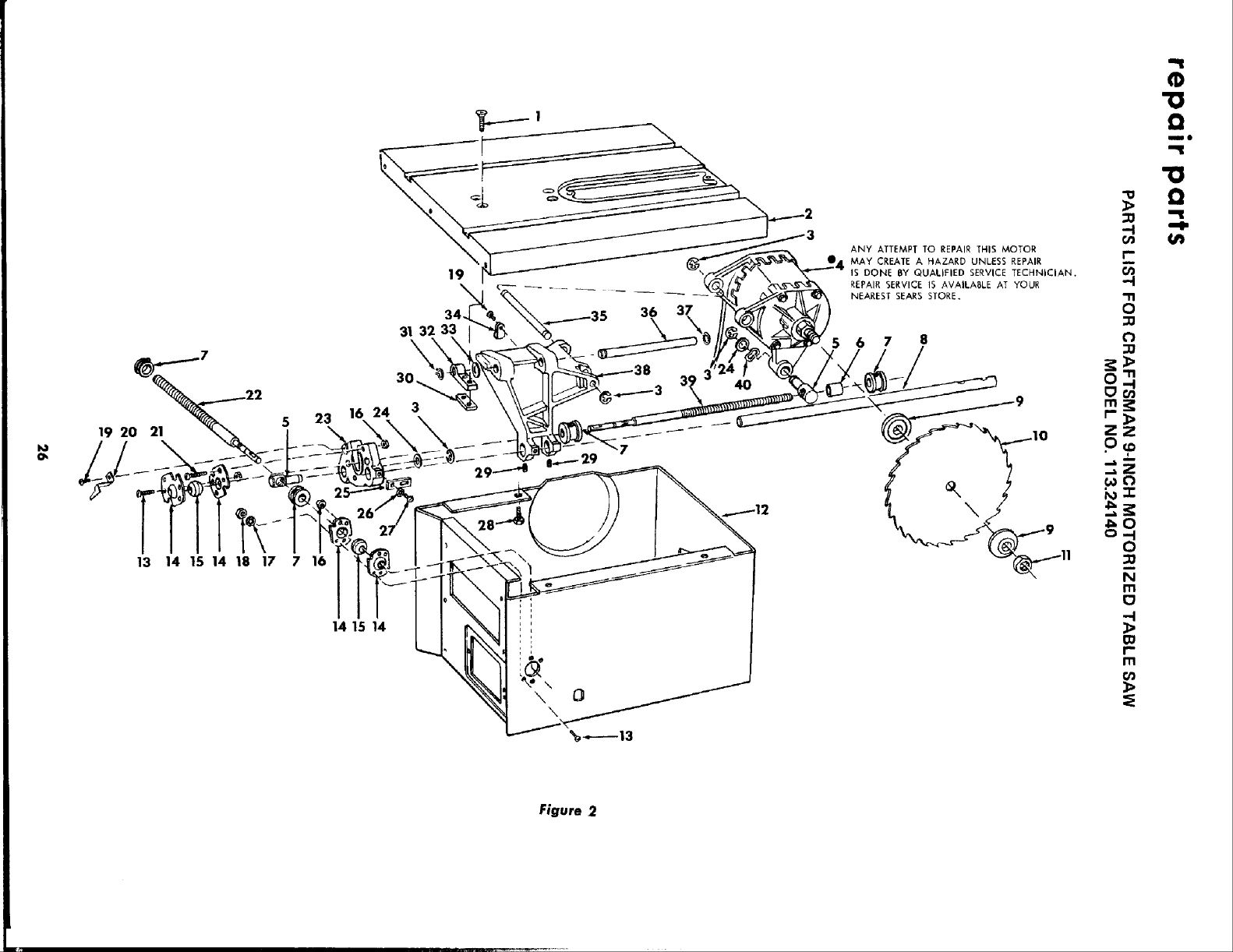

repair parts

SEARS, ROEBUCK AND CO., Chicago, IL 60684 U.S.A. and SIMPSONS-SEARS LIMITED, Toronto

Part No. 62446 Printed in U.S.A.

I II I II I I I II III I I I i III

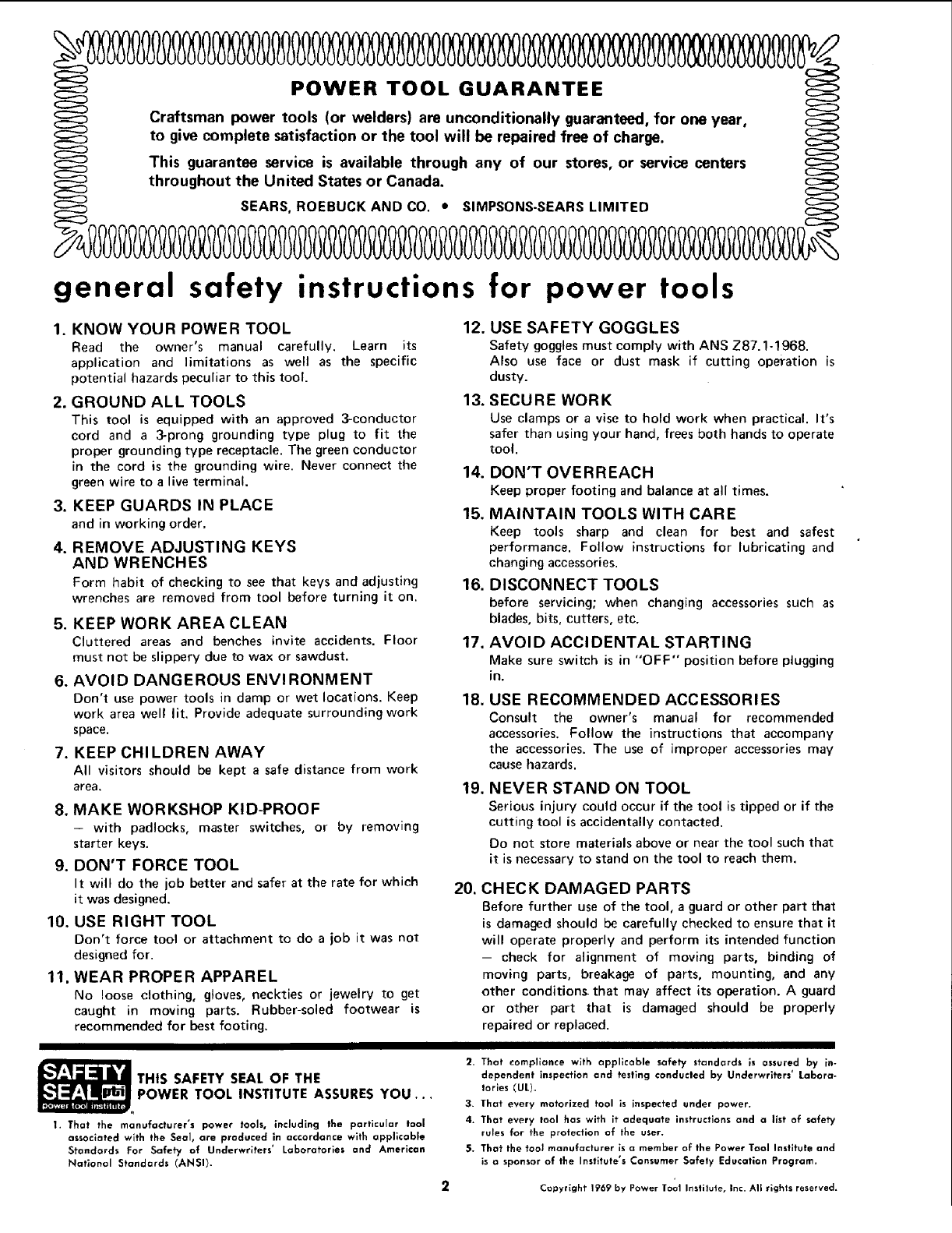

general safety instructions for power tools

1. KNOW YOUR POWER TOOL 12.

Read the owner's manual carefully. Learn its

application and limitations as well as the specific

potential hazards peculiar to this tool.

2. GROUND ALL TOOLS 13.

This tool is equipped with an approved 3-conductor

cord and a 3-prong grounding type plug to fit the

proper grounding type receptacle. The green conductor

in the cord is the grounding wire. Never connect the

green wire to a live terminal.

3. KEEP GUARDS IN PLACE

and in working order.

4. REMOVE ADJUSTING KEYS

AND WRENCHES

Form habit of checking to see that keys and adjusting

wrenches are removed from tool before turning it on.

5. KEEP WORK AREA CLEAN

Cluttered areas and benches invite accidents. Floor 17.

must not be slippery due to wax or sawdust.

6. AVOID DANGEROUS ENVI RONMENT

Don't use power tools in damp or wet locations. Keep 18.

work area well lit. Provide adequate surrounding work

space.

7. KEEP CHI LDREN AWAY

All visitors should be kept a safe distance from work

area, 19.

8. MAKE WORKSHOP KID-PROOF

- with padlocks, master switches, or by removing

starter keys.

9. DON'T FORCE TOOL

It will do the job better and safer at the rate for which 20.

it was designed.

10. USE RIGHT TOOL

Don't force tool or attachment to do a job it was not

designed for.

11. WEAR PROPER APPAREL

No loose clothing, gloves, neckties or jewelry to get

caught in moving parts. Rubber-soled footwear is

recommended for best footing.

USE SAFETY GOGGLES

Safety gogglesmust comply with ANS Z87.1-1968.

Also use face or dust mask if cutting operation is

dusty.

SECURE WORK

Use clamps or a vise to hold work when practical. It's

safer than usingyour hand, frees both hands to operate

tool.

14. DON'T OVERREACH

Keep proper footing and balance at all times.

15. MAINTAIN TOOLS WITH CARE

Keep tools sharp and clean for best and safest

performance. Follow instructions for lubricating and

changing accessories.

16. DISCONNECT TOOLS

before servicing; when changing accessories such as

blades, bits, cutters, etc.

AVOI D ACCI DENTAL STARTING

Make sure switch is in "OFF" position before plugging

in.

USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended

accessories. Follow the instructions that accompany

the accessories. The use of improper accessoriesmay

cause hazards.

NEVER STAND ON TOOL

Serious injury could occur if the tool is tipped or if the

cutting tool is accidentally contacted,

Do not store materials above or near the tool such that

it is necessary to stand on the tool to reach them.

CHECK DAMAGED PARTS

Before further use of the tool, a guard or other part that

is damaged should be carefully checked to ensure that it

will operate properly and perform its intended function

- check for alignment of moving parts, binding of

moving parts, breakage of parts, mounting, and any

other conditions that may affect its operation. Aguard

or other part that is damaged should be properly

repaired or replaced.

2. That compliance with applicable safety standards is assured by _n-

THIS SAFETY SEAL OF THE

POWER TOOL INSTITUTE ASSURES YOU...

1. That the manufacturer's power tools, including the particular tool

associated with the Seal, are produced in accordance with appl;cable

Standards For Safety of Underwriters' Laboratories and American

National Standards (ANSI).

dependent inspection and testing conducted by Underwriters' Labora-

tories (UL).

3. That every motorized tool is inspected under power.

4. That every tool has with it adequate instructions and a list of safety

rules for the protection of the user.

S. That the tool manufacturer is amember of the Power Tool Institute and

is a sponsor of the Institute's Consumer Safely Education Program.

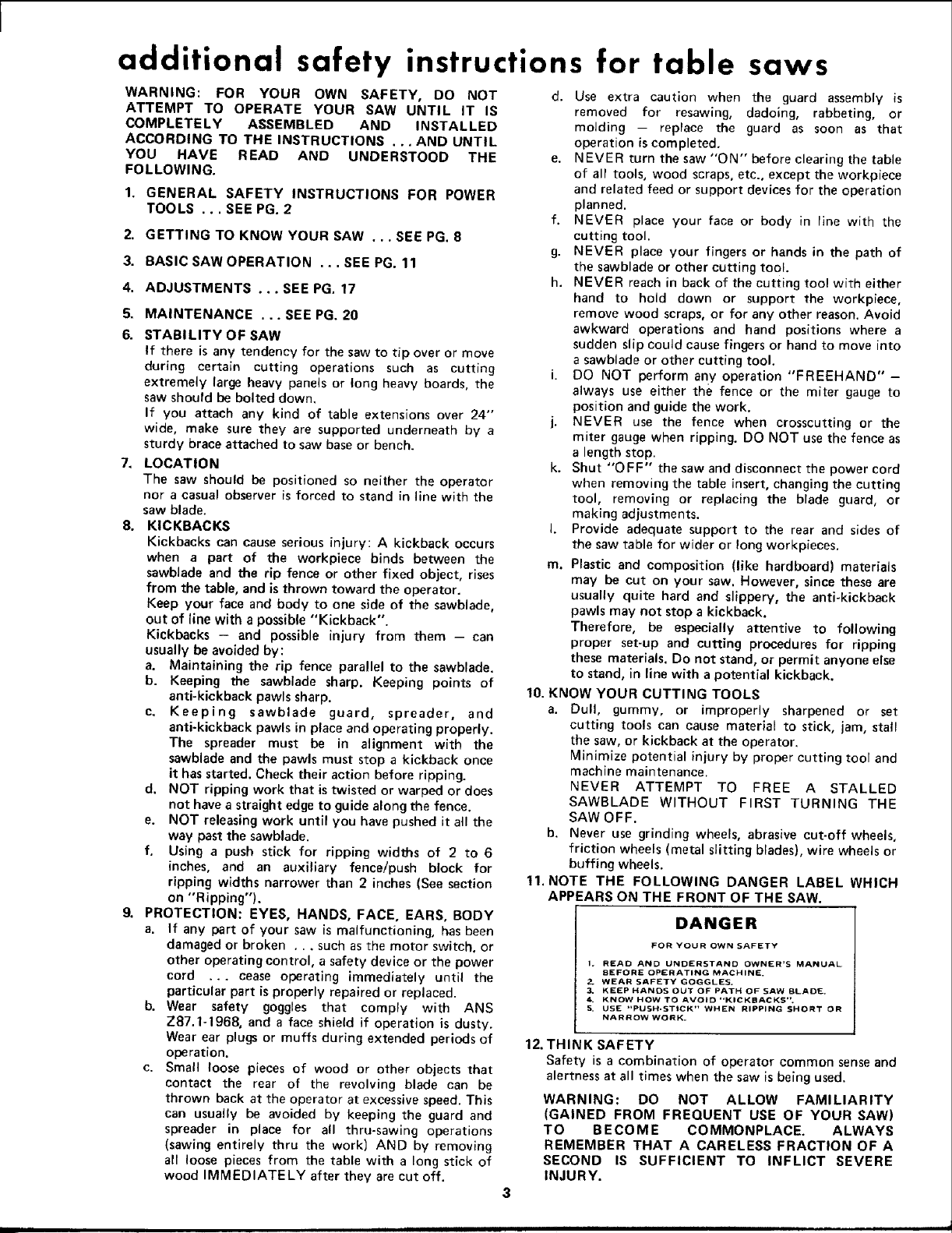

additional safety instructions for table saws

WARNING: FOR YOUR OWN SAFETY, DO NOT

ATTEMPT TO OPERATE YOUR SAW UNTIL IT IS

COMPLETELY ASSEMBLED AND INSTALLED

ACCORDING TO THE INSTRUCTIONS . .. AND UNTIL

YOU HAVE READ AND UNDERSTOOD THE

FOLLOWING.

1. GENERAL SAFETY INSTRUCTIONS FOR POWER

TOOLS ... SEE PG. 2

2. GETTING TO KNOW YOUR SAW ...SEE PG. 8

3. BASIC SAW OPERATION ... SEE PG. 11

4. ADJUSTMENTS ... SEE PG. 17

5. MAINTENANCE ... SEE PG. 20

6. STABILITY OF SAW

If there is any tendency for the saw to tip over or move

during certain cutting operations such as cutting

extremely large heavy panels or long heavy boards, the

saw should be bolted down,

If you attach any kind of table extensions over 24"

wide, make sure they are supported underneath by a

sturdy brace attached to saw base or bench.

7. LOCATION

The saw should be positioned so neither the operator

nor a casual observer is forced to stand in line with the

saw blade.

8. KICKBACKS

Kickbacks can cause serious injury: A kickback occurs

when a part of the workpiece binds between the

sawblade and the rip fence or other fixed object, rises

from the table, and is thrown toward the operator.

Keep your face and body to one side of the sawblade,

out of line with a possible "Kickback".

Kickbacks - and possible injury from them -- can

usually be avoided by:

a. Maintaining the rip fence parallel to the sawblade.

b. Keeping the sawblade sharp, Keeping points of

anti-kickback pawls sharp.

c. Keeping sawblade guard, spreader, and

anti-kickback pawls in place and operating properly.

The spreader must be in alignment with the

sawblade and the pawls must stop a kickback once

it has started. Check their action before ripping.

d. NOT ripping work that is twisted or warped or does

not have astraight edge to guide along the fence.

e. NOT releasing work until you have pushed it all the

way past the sawblade.

f. Using a push stick for ripping widths of 2 to 6

inches, and an auxiliary fence/push block for

ripping widths narrower than 2 inches (See section

on "'R ipping").

9. PROTECTION: EYES, HANDS, FACE, EARS, BODY

a. If any part of your saw is malfunctioning, has been

damaged or broken ... such as the motor switch, or

other operating control, asafety device or the power

cord ... cease operating immediately until the

particular part is properly repaired or replaced.

b. Wear safety goggles that comply with ANS

Z87.1-1968, and a face shield if operation is dusty.

Wear ear plugs or muffs during extended periods of

operation.

c. Small loose pieces of wood or other objects that

contact the rear of the revolving blade can be

thrown back at the operator at excessive speed. This

can usually be avoided by keeping the guard and

spreader in place for all thru-sawing operations

(sawing entirely thru the work) AND by removing

all loose pieces from the table with a long stick of

wood IMMEDIATELY after they are cut off.

d. Use extra caution when the guard assembly is

removed for resawing, dadoing, rabbeting, or

molding -- replace the guard as soon as that

operation is completed.

e. NEVER turn the saw "ON" before clearing the table

of all tools, wood scraps, etc., except the workpiece

and related feed or support devices for the operation

planned.

f. NEVER place your face or body in line with the

cutting tool.

g. NEVER place your fingers or hands in the path of

the sawblade or other cutting tool.

h. NEVER reach in back of the cutting tool with either

hand to hold down or support the workpiece,

remove wood scraps, or for any other reason. Avoid

awkward operations and hand positions where a

sudden slip could cause fingers or hand to move into

a sawblade or other cutting tool.

i. DO NOT perform anY operation "FREEHAND" -

always use either the fence or the miter gauge to

position and guide the work.

j. NEVER use the fence when crosscutting or the

miter gauge when ripping. DO NOT use the fence as

a length stop.

k. Shut "OFF" the saw and disconnect the power cord

when removing the table insert, changing the cutting

tool, removing or replacing the blade guard, or

making adjustments.

I. Provide adequate support to the rear and sides of

the saw table for wider or long workpieces.

m. Plastic and composition (like hardboard) materials

may be cut on your saw. However, since these are

usually quite hard and slippery, the anti-kickback

pawls may not stop a kickback.

Therefore, be especially attentive to following

proper set-up and cutting procedures for ripping

these materials. Do not stand, or permit anyone else

to stand, in line with a potential kickback.

10. KNOW YOUR CUTTING TOOLS

a. Dull, gummy, or improperly sharpened or set

cutting tools can cause material to stick, jam, stall

the saw, or kickback at the operator.

Minimize potential injury by proper cutting tool and

machine maintenance.

NEVER ATTEMPT TO FREE A STALLED

SAWBLADE WITHOUT FIRST TURNING THE

SAW OFF.

b. Never use grinding wheels, abrasive cut-off wheels,

friction wheels (metal slitting blades), wire wheels or

buffing wheels.

11. NOTE THE FOLLOWING DANGER LABEL WHICH

APPEARS ON THE FRONT OF THE SAW.

DANGER

FOR YOUR OWN SAFETY

1_ READ AND UNDERSTAND OWNER'S MANUAL

BEFORE OPERATING MACHINE.

2. WEAR SAFETY GOGGLES.

3. KEEP HANDS OUT OF PATH OF SAW BLADE_.

=K KNOW HOW TO AVOID "KICKBACKS".

5. USE I'PUSH-ST|CK "_ WHEN RIPPING SHORT OR

NARROW WORK.

12. THINK SAFETY

Safety is a combination of operator common sense and

alertness at all times when the saw is being used.

WARNING: DO NOT ALLOW FAMILIARITY

(GAINED FROM FREQUENT USE OF YOUR SAW)

TO BECOME COMMONPLACE. ALWAYS

REMEMBER THAT A CARELESS FRACTION OF A

SECOND IS SUFFICIENT TO INFLICT SEVERE

INJURY.

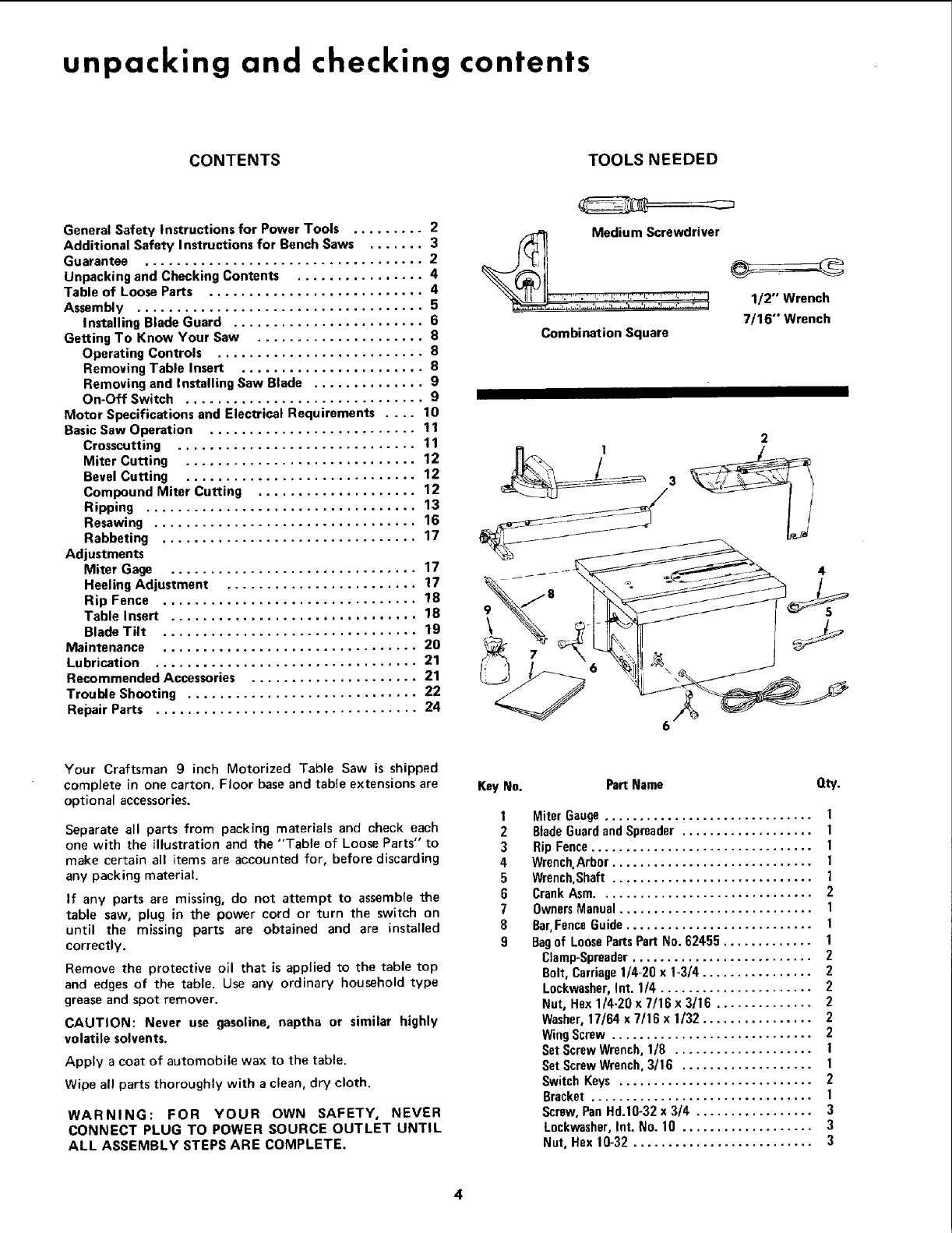

unpacking and checking contents

CONTENTS TOOLS NEEDED

General Safety Instructions for Power Tools ......... 2

Additional Safety Instructions for Bench Saws ....... 3

Guarantee ................................... 2

Unpacking and Checking Contents ................ 4

Table of Loose Parts ........................... 4

Assembly .................................... 5

Installing Blade Guard ........................ 6

Getting To Know Your Saw ..................... 8

Operating Controls .......................... 8

Removing Table Insert ....................... 8

Removing and Installing Saw Blade .............. 9

On-Off Switch .............................. 9

Motor Specifications and Electrical Requirements .... 10

Basic Saw Operation .......................... 11

Crosscutting .............................. 11

Miter Cutting ............................. 12

Bevel Cutting ............................. 12

Compound Miter Cutting .................... 12

Ripping .................................. 13

Resawing ................................. 16

Rabbeting ................................ 17

Adjustments

Miter Gage ............................... 17

Heeling Adjustment ........................ 17

Rip Fence ................................ 18

Table Insert ............................... 18

Blade Tilt ................................ 19

Maintenance ................................ 20

Lubrication ................................. 21

Recommended Accessories ..................... 21

Trouble Shooting ............................. 22

Repair Parts ................................. 24

MeimSlewiver

Combination Square

1/2" Wrench

7/16"" Wrench

Your Craftsman 9 inch Motorized Table Saw is shipped

complete in one carton. Floor base and table extensions are

optional accessories.

Separate all parts from packing materials and check each

one with the illustration and the "Table of Loose Parts" to

make certain all items are accounted for, before discarding

any packing material.

If any parts are missing, do not attempt to assemble the

table saw, plug in the power cord or turn the switch on

until the missing parts are obtained and are installed

correctly.

Remove the protective oil that is applied to the table top

and edges of the table. Use any ordinary household type

grease and spot remover.

CAUTION: Never use gasoline, naptha or similar highly

volatile solvents.

Apply a coat of automobile wax to the table.

Wipe all parts thoroughly with aclean, dry cloth.

WARNING: FOR YOUR OWN SAFETY, NEVER

CONNECT PLUG TO POWER SOURCE OUTLET UNTIL

ALL ASSEMBLY STEPS ARE COMPLETE.

Key No. Part Name Qty.

Miter Gauge.............................. 1

BladeGuardandSpreader ................... 1

Rip Fence................................ 1

Wrench,Arb0r ............................. 1

Wrench,Shaft............................. 1

Crank Asm............................... 2

OwnersManual............................ 1

Bar,FenceGuide........................... 1

Bagof LoosePartsPart No.62455 ............. 1

Clamp-Spreader.......................... 2

Bolt, Carriage1/4-20 x 1-3/4 ................ 2

L0ckwasher,Int. 1/4 ...................... 2

Nut, Hax 1/4-20 x7/16 x 3/16 .............. 2

Washer,17/64 x 7/16 x 1/32 ................ 2

WingScrew ............................. 2

SetScrewWrench,1/8 .................... i

SetScrewWrench,3/16 ................... 1

SwitchKeys ............................ 2

Bracket ................................ 1

Screw,Pan Hal.10-32x 3/4 ................. 3

Lockwasher,Int. No. 10 ................... 3

Nat. Hex 10-32 .......................... 3

assembly

MOUNTING SAW ON CRAFTSMAN FLOOR BASE

Place saw on base so that front corners of saw are even

with corners of base.

Find four hex. head bolts 3/4 in. long, nuts and washers

furnished with base.

Insert all four bolts through holes in saw and base ...

install washers and nuts ... tighten nuts using 1/2 inch

wrench.

If you mount the saw on any other bench, make sure

that there is an opening in the top of the bench the

same size as the opening in the bottom of the saw so

that the sawdust can drop through. Recommended

working height is 33 to 37 inches from the top of the

saw table to the floor.

INSTALLING ELEVATION AND TILT CRANKS

1. Line up set screw in cranks with FLAT SPOTS on

shafts ... tighten screws using 1/8 inch set screw

wrench furnished with saw.

INSTALLING FENCE GUIDE BAR

1. Find three pan head screws 10-32 x 3/4 inch,

Iockwashers and hex. nuts among the loose parts.

2. Insert screws through BAR ... through table ...

install washers and nuts ... don't tighten.

NOTE: The holes are larger than the screws, therefore

the bar can be adjusted UP or down.

3. Place a square against the fence ... if the fence is not

square with the table, move one end of bar UP or down

until fence is square ... tighten screws.

FENCE GUIDE BAR

3/4 IN. SCREWS

ALIGNING RIP FENCE

The rip fence must be PARALLEL with the Sawblade and

Miter Gage grooves. Push fence head against table ... move

fence until it is along side of groove. It should be parallel to

groove. If it is not;

a. Loosen the two "hex screws".

b. Move end of fence so that it is parallel with the

groove.

c. Tighten the knob.

d. Tighten the screws.

LOOSEN

RIP FENCE

HEAD

assembly

WiNG SCREW CARRIAGE BOLT

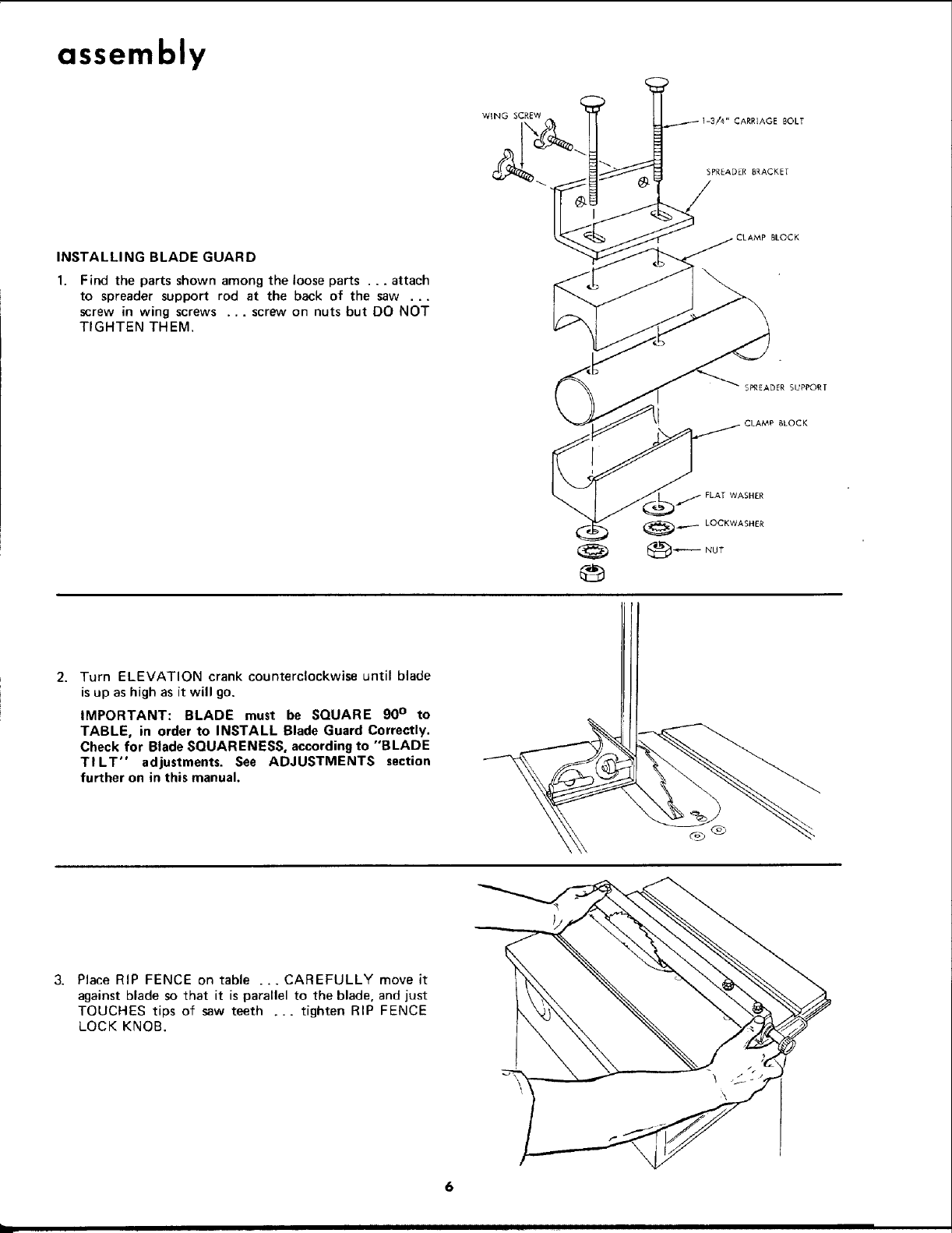

INSTALLING BLADE GUARD

Find the parts shown among the loose parts ... attach

to spreader support rod at the back of the saw ...

screw in wing screws ... screw on nuts but DO NOT

TIGHTEN THEM.

CLAMP BLOCK

2. Turn ELEVATION crank counterclockwise until blade

is up as high as it will go.

IMPORTANT: BLADE must be SQUARE 90 ° to

TABLE, in order to INSTALL Blade Guard Correctly.

Check for Blade SQUARENESS, according to "BLADE

TILT" adjustments. See ADJUSTMENTS section

further on in this manual.

Place RIP FENCE on table ... CAREFULLY move it

against blade so that it is parallel to the blade, and just

TOUCHES tips of saw teeth ... tighten RIP FENCE

LOCK KNOB.

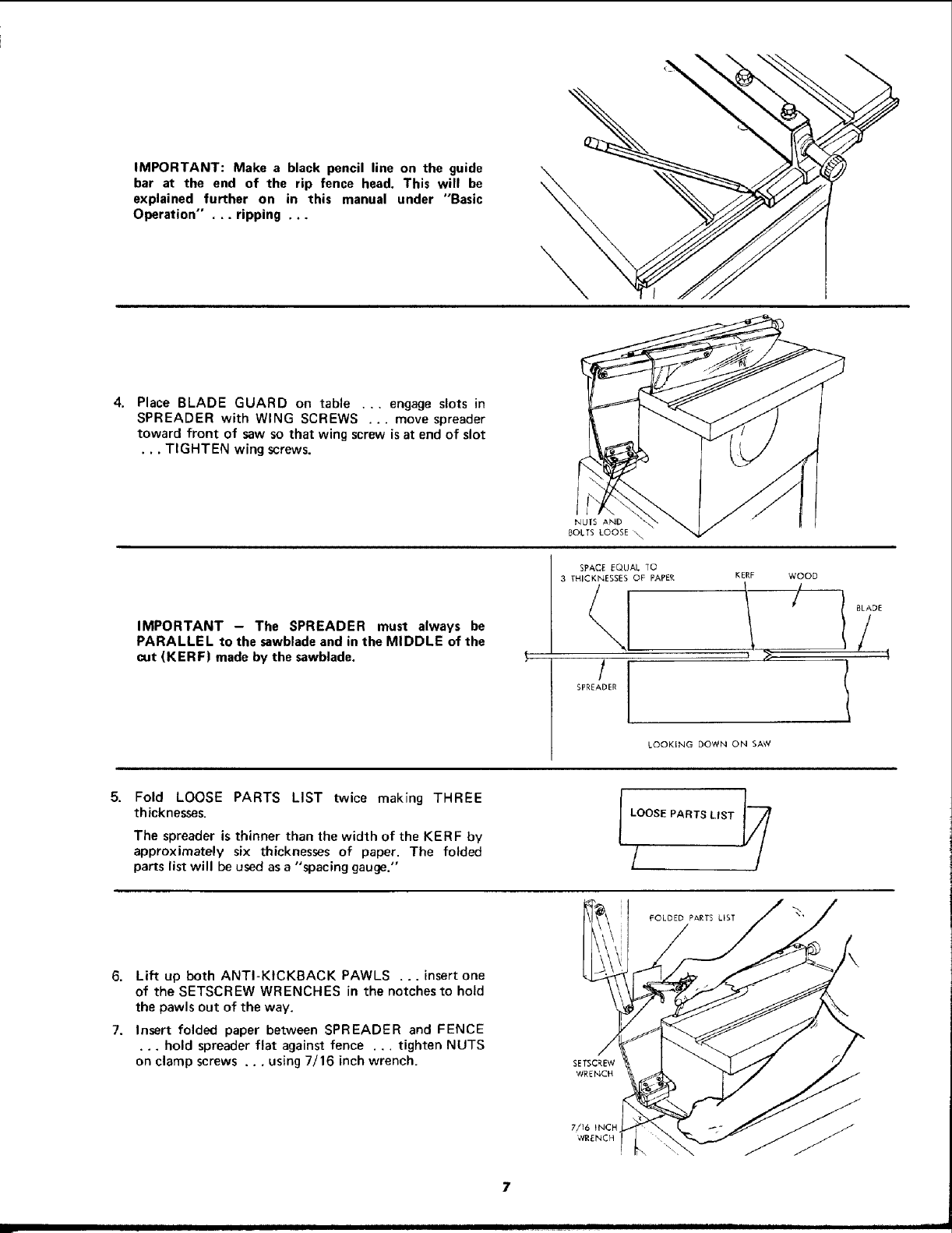

IMPORTANT: Make a black pencil line on the guide

bar at the end of the rip fence head. This will be

explained further on in this manual under "Basic

Operation" ... ripping ...

4. Place BLADE GUARD on table .., engage slots in

SPREADER with WING SCREWS ... move spreader

toward front of saw so that wing screw is at end of slot

•.. TIGHTEN wing screws.

NUIS AND

BOLTS LOOSE _

IMPORTANT - The SPREADER must always be

PARALLEL to the sawblade and in the MIDDLE of the

cut (KERF) made by the sawblade.

SPACE EQUAL TO

3THICKNESSES OF PAPER

SPREADER ]

LOOKING DOWN ON SAW

KERF WOOD

/BLiDE

, _ _

5. Fold LOOSE PARTS LIST twice making THREE

thicknesses,

The spreader i$ thinner than the width of the KERF by

approximately six thicknesses of paper. The folded

au "

parts list will be used as a"spacing g ge.

LOOSEPARTS LIST

FOLDED PARTS LIST

6. Lift up both ANTI-KICKBACK PAWLS ...insertone

of the SETSCREW WRENCHES in the notches to hold

the pawls out of the way.

7. Insert folded paper between SPREADER and FENCE

•.. hold spreader flat against fence ... tighten NUTS

on clamp screws ... using 7/16 inch wrench. SETSCREW

WRENCH

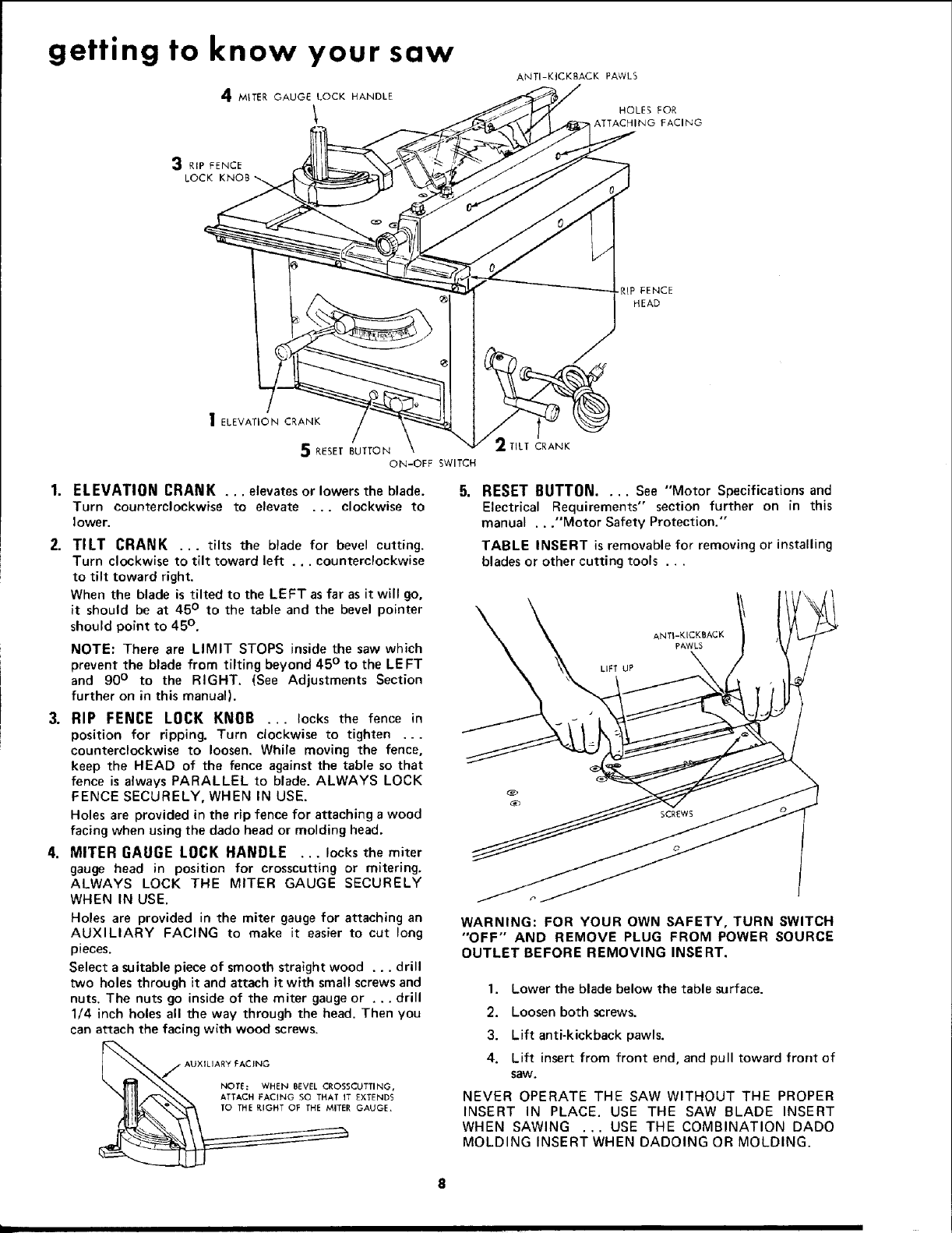

getting to know your saw

4 MITER GAUGE LOCK HANDLE

ANTI-KICKBACK PAWLS

HOLES FOR

ATTACHING FACING

3RIP FENCE

LOCK

IELEVATION CRANK

5 RESET BUTTON

ON-OFF SWITCH

TILT CRANK

ELEVATION CRANK ... elevatesor lowersthe blade.

Turn counterclockwise to elevate ... clockwise to

Iowe r.

2. TILT CRANK ... tilts the blade for bevel cutting.

Turn clockwise to tilt toward left ... counterclockwise

to tilt toward right.

When the blade is tilted to the LEFT asfar as it will go,

it should be at 45° to the table and the bevel pointer

should point to 45° .

NOTE: There are LIMIT STOPS inside the saw which

prevent the blade from tilting beyond 45 ° to the LEFT

and 90° to the RIGHT. (See Adjustments Section

further on in this manual).

3. RIP FENCE LOCK KNOB ... locks the fence in

position for ripping. Turn clockwise to tighten ...

counterclockwise to loosen, While moving the fence,

keep the HEAD of the fence against the table so that

fence is always PARALLEL to blade. ALWAYS LOCK

FENCE SECURELY, WHEN IN USE.

Holes are provided in the rip fence for attaching a wood

facing when using the dado head or molding head.

4. MITER fiAIJGE LOCK HANDLE ... locks the miter

gauge head in position for crosscutting or mitering.

ALWAYS LOCK THE MITER GAUGE SECURELY

WHEN IN USE.

Holes are provided in the miter gauge for attaching an

AUXILIARY FACING to make it easier to cut long

pieces.

Select a suitable piece of smooth straight wood ... drill

two holes through it and attach it with small screws and

nuts. The nuts go inside of the miter gaugeor ... drill

1/4 inch holes all the way through the head. Then you

can attach the facing with wood screws.

AUXILIARY PACING

NOTE: WHEN BEVEL CROSSCUTTING,

ATTACH FACING SO THAT IT EXTENDS

TO THE RIGHT OF THE MITER GAUGE,

RESET BUTTON.... See "Motor Specifications and

Electrical Requirements" section further on in this

manual ..."Motor Safety Protection."

TABLE INSERT is removable for removing or installing

blades or other cutting tools ...

LIFT LIP

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE REMOVING INSERT.

1. Lower the blade below the table surface.

2. Loosen both screws.

3. Lift anti-kickback pawls,

4, Lift insert from front end, and pull toward front of

SaW.

NEVER OPERATE THE SAW WITHOUT THE PROPER

INSERT IN PLACE. USE THE SAW BLADE INSERT

WHEN SAWING ... USE THE COMBINATION DADO

MOLDING INSERT WHEN DADOING OR MOLDING.

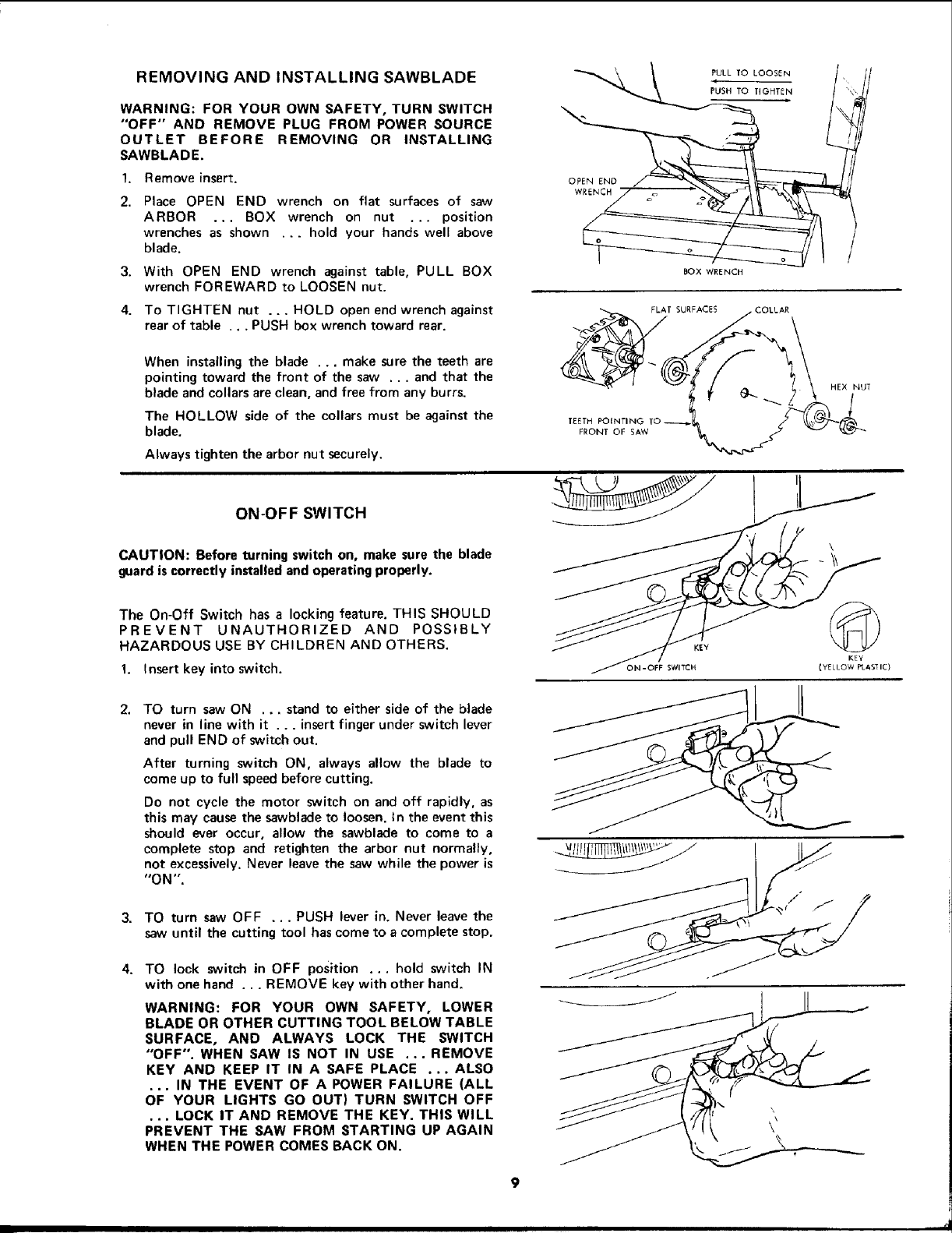

REMOVING AND INSTALLING SAWBLADE

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE REMOVING OR INSTALLING

SAWBLADE.

1. Remove insert.

2. Place OPEN END wrench on flat surfaces of saw

ARBOR ... BOX wrench on nut ... position

wrenches as shown ... hold your hands well above

blade.

3. With OPEN END wrench against table, PULL BOX

wrench FOREWARD to LOOSEN nut.

4. To TIGHTEN nut ... HOLD open end wrench against

rear of table ... PUSH box wrench toward rear.

PULL TO LOOSEN

OPEN END

WRENCH

FLAT SURFACES COLLAR

When installing the blade ... make sure the teeth are

pointing toward the front of the saw ... and that the

blade and collars are clean, and free from any burrs.

The HOLLOW side of the collars must be against the

blade.

Always tighten the arbor nut securely.

ON-OFF SWITCH

TEETH POINTIN(

FRONT OF SAW

HEX NUT

CAUTION: Before turning switch on, make sure the blade

guard is correctly installed and operating properly.

The On-Off Switch has a locking feature. THIS SHOULD

PREVENT UNAUTHORIZED AND POSSIBLY

HAZARDOUS USE BY CHILDREN AND OTHERS.

1. Insert key into switch.

2. TO turn saw ON ... stand to either side of the blade

never in line with it ... insert finger under switch lever

and pull END of switch out.

After turning switch ON, always allow the blade to

come up to full speed before cutting.

Do not cycle the motor switch on and off rapidly, as

this may cause the sawblade to loosen. In the event this

should ever occur, allow the sawblade to come to a

complete stop and retighten the arbor nut normally,

not excessively. Never leave the saw while the power is

"ON".

3. TO turn saw OFF ... PUSH lever in. Never leave the

saw until the cutting tool has come to a complete stop.

TO lock switch in OFF position ... hold switch IN

with one hand ... REMOVE key with other hand.

WARNING: FOR YOUR OWN SAFETY, LOWER

BLADE OR OTHER CUTTING TOOL BELOW TABLE

SURFACE, AND ALWAYS LOCK THE SWITCH

"OFF". WHEN SAW IS NOT IN USE ... REMOVE

KEY AND KEEP IT IN A SAFE PLACE ... ALSO

... IN THE EVENT OF A POWER FAILURE (ALL

OF YOUR LIGHTS GO OUT) TURN SWITCH OFF

• .. LOCK IT AND REMOVE THE KEY. THIS WILL

PREVENT THE SAW FROM STARTING UP AGAIN

WHEN THE POWER COMES BACK ON.

KEY

_ON-OFF SWITCH

KEY

(YELLOW PLAS_IC)

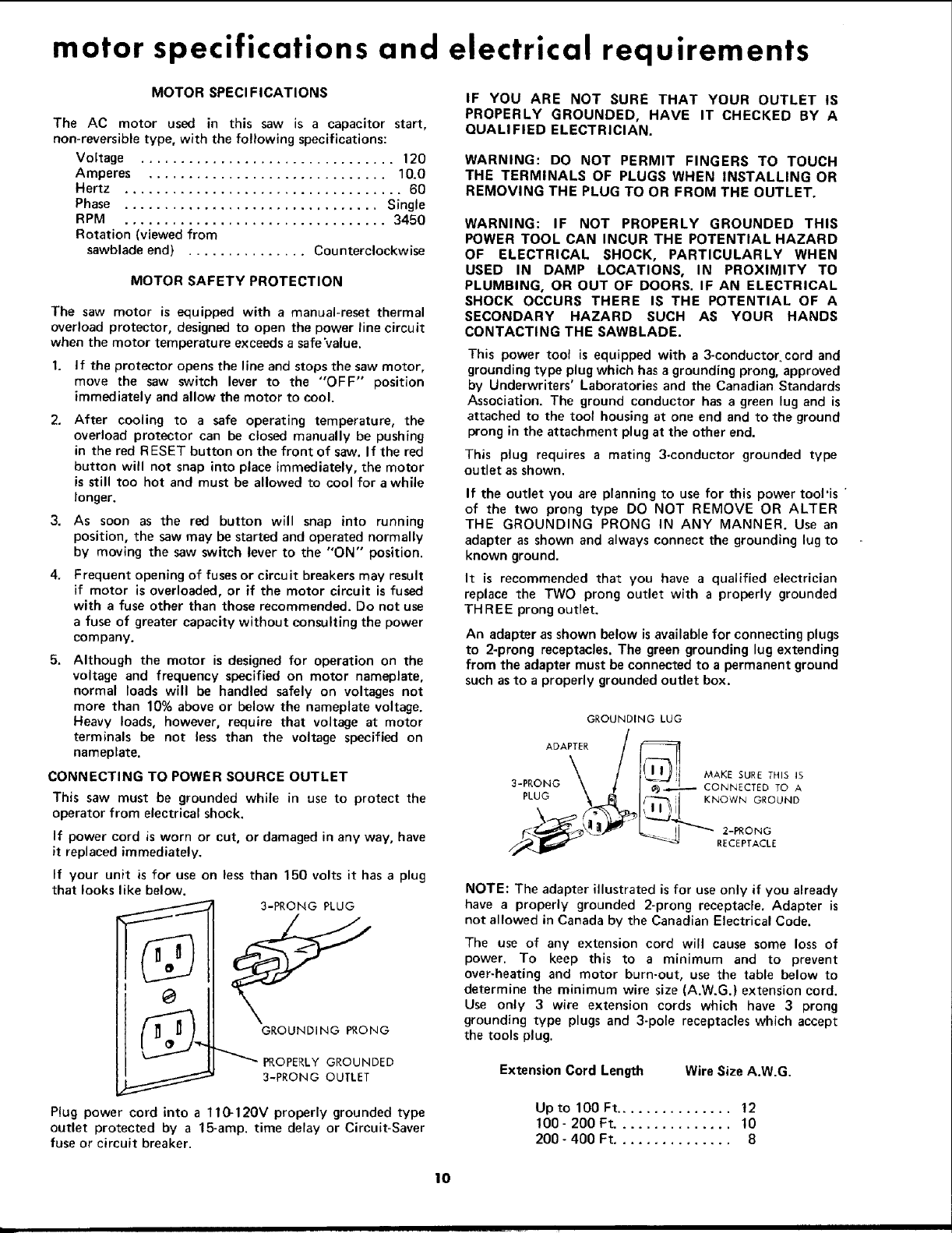

motor specifications and electrical requirements

MOTOR SPECl FICATIONS

The AC motor used in this saw is acapacitor start,

non-reversible type, with the following specifications:

Voltage ................................ 120

Amperes .............................. 10.0

Hertz ................................... 60

Phase ................................ Single

RPM ................................. 3450

Rotation (viewed from

sawblade end) ............... Counterclockwise

MOTOR SAFETY PROTECTION

The saw motor is equipped with a manual-reset thermal

overload protector, designed to open the power line circuit

when the motor temperature exceeds a safe'value.

1. If the protector opens the line and stops the saw motor,

move the saw switch lever to the "OFF" position

immediately and allow the motor to cool.

After cooling to a safe operating temperature, the

overload protector can be closed manually be pushing

in the red RESET button on the front of saw. If the red

button will not snap into place immediately, the motor

is still too hot and must be allowed to cool for a while

longer.

3. As soon as the red button will snap into running

position, the saw may be started and operated normally

by moving the saw switch lever to the "ON" position.

4. Frequent opening of fuses or circuit breakers may result

if motor is overloaded, or if the motor circuit is fused

with a fuse other than those recommended. Do not use

a fuse of greater capacity without consulting the power

company.

Although the motor is designed for operation on the

voltage and frequency specified on motor nameplate,

normal loads will be handled safely on voltages not

more than 10% above or below the nameplate voltage.

Heavy loads, however, require that voltage at motor

terminals be not less than the voltage specified on

nameplate.

CONNECTING TO POWER SOURCE OUTLET

This saw must be grounded while in use to protect the

operator from electrical shock.

If power cord is worn or cut, or damaged in any way, have

it replaced immediately.

If your unit is for use on less than 150 volts it has a plug

that looks like below.

3-PRONG PLUG

GROUNDING PRONG

_ PROPERLY GROUNDED

3-PRONG OUTLET

Plug power cord into a 110-120V properly grounded type

outlet protected by a 15-amp. time delay or Circuit-Saver

fuse or circuit breaker.

IF YOU ARE NOT SURE THAT YOUR OUTLET IS

PROPERLY GROUNDED, HAVE IT CHECKED BY A

QUALIFIED ELECTRICIAN.

WARNING: DO NOT PERMIT FINGERS TO TOUCH

THE TERMINALS OF PLUGS WHEN INSTALLING OR

REMOVING THE PLUG TO OR FROM THE OUTLET.

WARNING: IF NOT PROPERLY GROUNDED THIS

POWER TOOL CAN INCUR THE POTENTIAL HAZARD

OF ELECTRICAL SHOCK, PARTICULARLY WHEN

USED IN DAMP LOCATIONS, IN PROXIMITY TO

PLUMBING, OR OUT OF DOORS. IF AN ELECTRICAL

SHOCK OCCURS THERE IS THE POTENTIAL OF A

SECONDARY HAZARD SUCH AS YOUR HANDS

CONTACTING THE SAWBLADE.

This power tool is equipped with a 3-conductor cord and

grounding type plug which has agrounding prong, approved

by Underwriters' Laboratories and the Canadian Standards

Association. The ground conductor has a green lug and is

attached to the tool housing at one end and to the ground

prong in the attachment plug at the other end.

This plug requires a mating 3-conductor grounded type

outlet asshown.

If the outlet you are planning to use for this power tool'is "

of the two prong type DO NOT REMOVE OR ALTER

THE GROUNDING PRONG IN ANY MANNER. Use an

adapter as shown and always connect the grounding lug to

known ground.

It is recommended that you have a qualified electrician

replace the TWO prong outlet with a properly grounded

THREE prong outlet.

An adapter as shown below is available for connecting plugs

to 2-prong receptacles. The green grounding lug extending

from the adapter must be connected to a permanent ground

such asto a properly grounded outlet box.

GROUNDING LUG

ADAPTER /

\ MAKeSURETn_S_S

3-PRONG\ II%- I...-L---CO.NECTEDTOA

PLuG " J K.ow. oRou.0

-- _ RECEPTACLE

NOTE: The adapter illustrated is for use only if you already

have a properly grounded 2-prong receptacle. Adapter is

not allowed in Canada by the Canadian Electrical Code.

The use of any extension cord will cause some loss of

power. To keep this to a minimum and to prevent

over-heating and motor burn-out, use the table below to

determine the minimum wire size (A.W.G.) extension cord.

Use only 3 wire extension cords which have 3 prong

grounding type plugs and 3-pole receptacles which accept

the tools plug.

Extension Cord Length Wire Size A.W.G.

Upto 100 Ft ............... 12

100-200 Ft ............... 10

200-400 Ft ............... 8

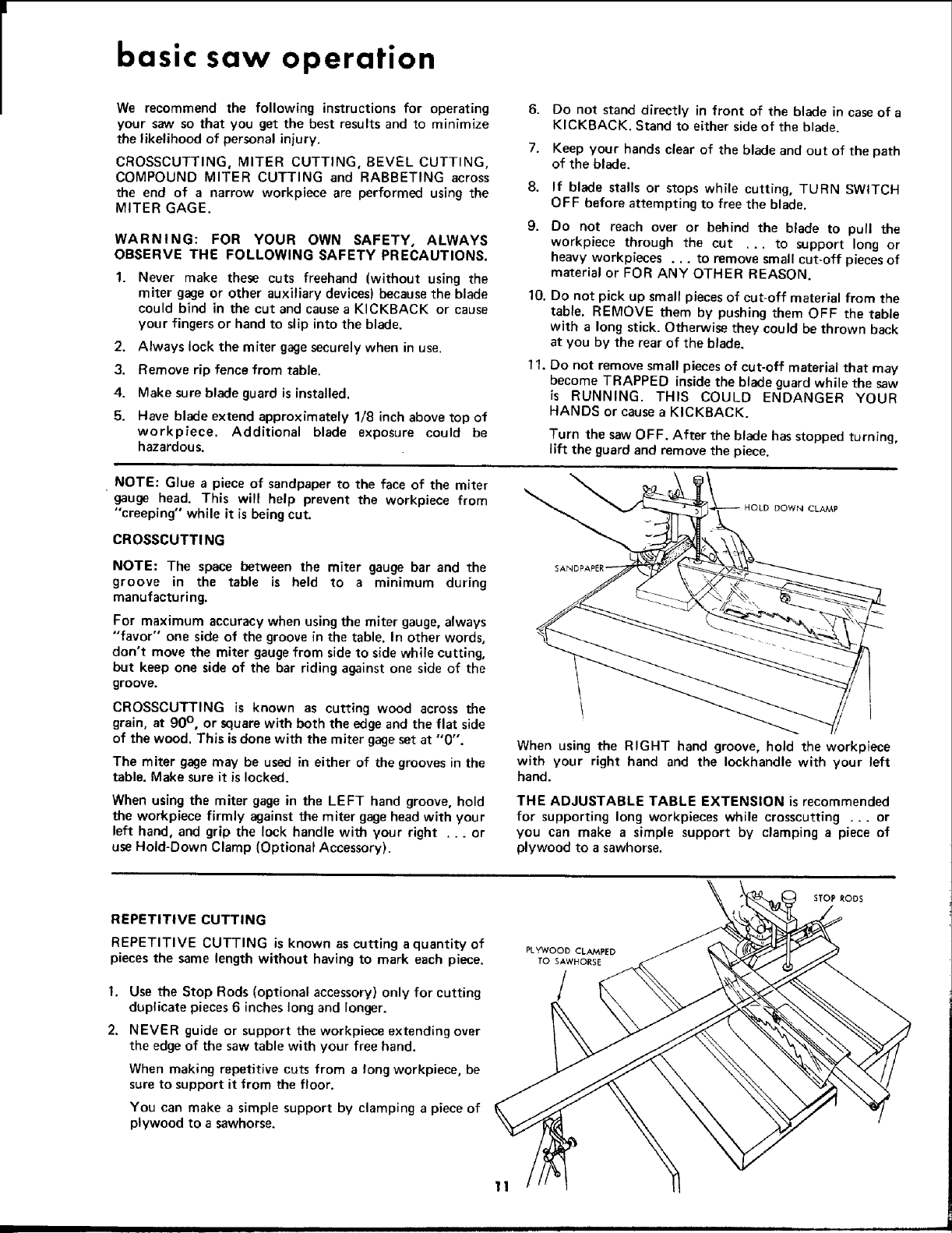

basic saw operation

We recommend the following instructions for operating

your saw so that you get the best results and to minimize

the likelihood of personal injury.

CROSSCUTTING, MITER CUTTING, BEVEL CUTTING,

COMPOUND MITER CUTTING and RABBETING across

the end of a narrow workpiece are performed using the

MITER GAGE.

WARNING: FOR YOUR OWN SAFETY, ALWAYS

OBSERVE THE FOLLOWING SAFETY PRECAUTIONS.

1. Never make these cuts freehand (without using the

miter gage or other auxiliary devices) because the blade

could bind in the cut and cause a KICKBACK or cause

your fingers or hand to slip into the blade.

2. Always lock the miter gage securely when in use.

3. Remove rip fence from table.

4. Make sure blade guard is installed.

5. Have blade extend approximately 1/8 inch above top of

workpiece. Additional blade exposure could be

hazardous.

6. Do not stand directly in front of the blade in case of a

KICKBACK. Stand to either side of the blade.

7. Keep your hands clear of the blade and out of the path

of the blade.

8. If blade stalls or stops while cutting, TURN SWITCH

OFF before attempting to free the blade.

9. Do not reach over or behind the blade to pull the

workpiece through the cut ... to support long or

heavy workpieces ... to remove small cut-off piecesof

material or FOR ANY OTHER REASON.

10. Do not pick up small pieces of cut-off material from the

table. REMOVE them by pushing them OFF the table

with a long stick. Otherwise they could be thrown back

at you by the rear of the blade.

11. Do not remove small pieces of cut-off material that may

become TRAPPED inside the blade guard while the saw

is RUNNING• THIS COULD ENDANGER YOUR

HANDS or cause a KICKBACK.

Turn the saw OFF. After the blade has stopped turning,

lift the guard and remove the piece.

•NOTE: Glue a piece of sandpaper to the face of the miter

gauge head. This will help prevent the workpiece from

"creeping" while it is being cut.

CROSSCUTTING

NOTE: The space between the miter gauge bar and the

groove in the table is held to a minimum during

manufacturing.

For maximum accuracy when using the miter gauge, always

"favor" one side of the groove in the table. In other words,

don't move the miter gaugefrom sideto sidewhile cutting,

but keep one side of the bar riding against one side of the

groove.

CROSSCUTTING is known as cutting wood across the

grain, at 90 °, or square with both the edge and the flat side

of the wood. This is done with the miter gage set at "'0".

The miter gage may be used in either of the grooves in the

table. Make sure it is locked.

When using the miter gage in the LEFT hand groove, hold

the workpiece firmly against the miter gage head with your

left hand, and grip the lock handle with your right ... or

use Hold-Down Clamp (Optional Accessory).

HOLD DOWN CLAMP

When using the RIGHT hand groove, hold the workpiece

with your right hand and the Iockhandle with your left

hand.

THE ADJUSTABLE TABLE EXTENSION is recommended

for supporting long workpieces while crosscutting ... or

you can make a simple support by clamping a piece of

plywood to a sawhorse.

REPETITIVE CUTTING

REPETITIVE CUTTING is known as cutting a quantity of

pieces the same length without having to mark each piece.

Use the Stop Rods (optional accessory) only for cutting

duplicate pieces 6 inches long and longer.

NEVER guide or support the workpiece extending over

the edge of the saw table with your free hand.

When making repetitive cuts from a long workpiece, be

sure to support it from the floor.

You can make a simple support by clamping a piece of

plywood to a sawhorse.

PLYWOOD CLAMPED

TO SAWHORSE

STOP RODS

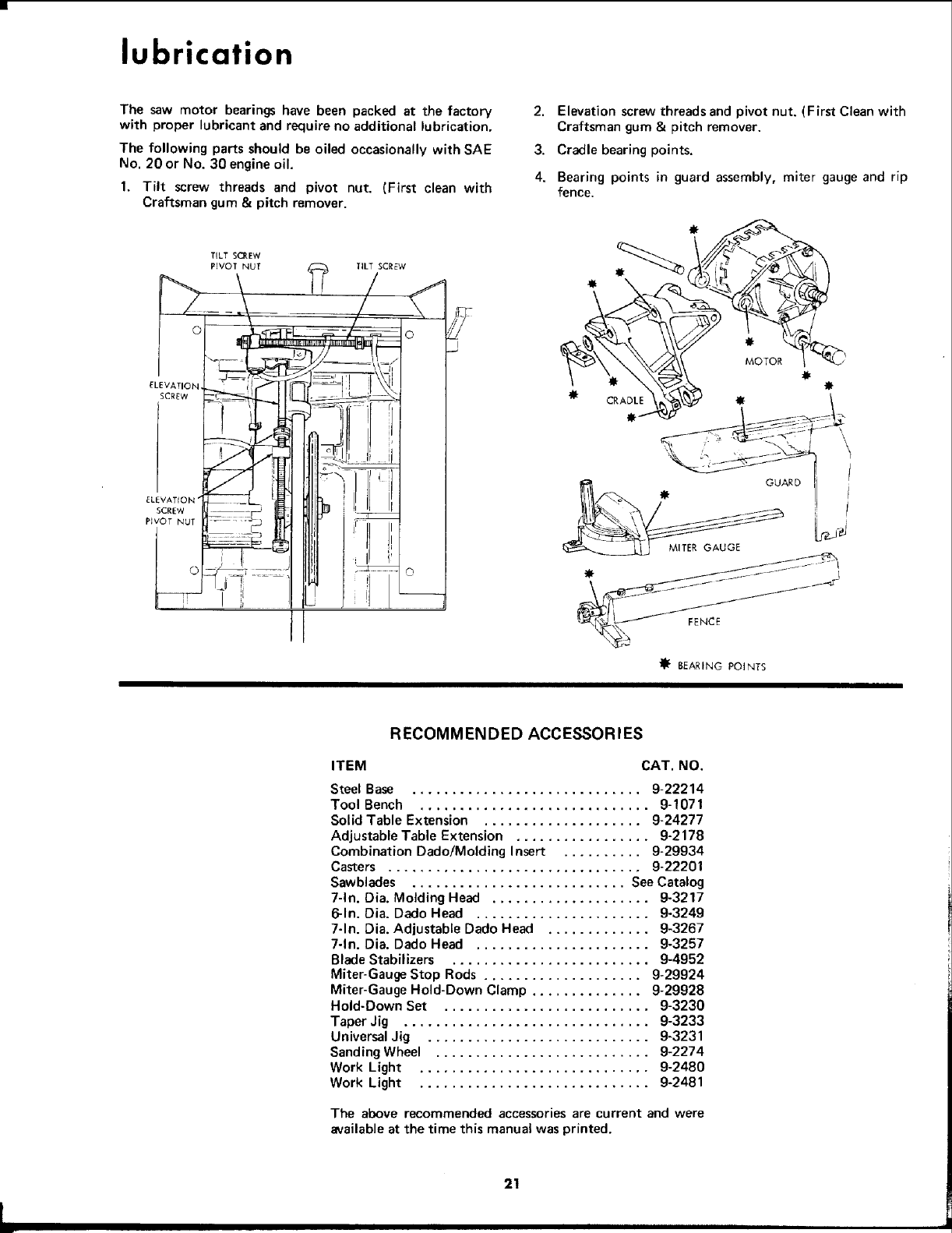

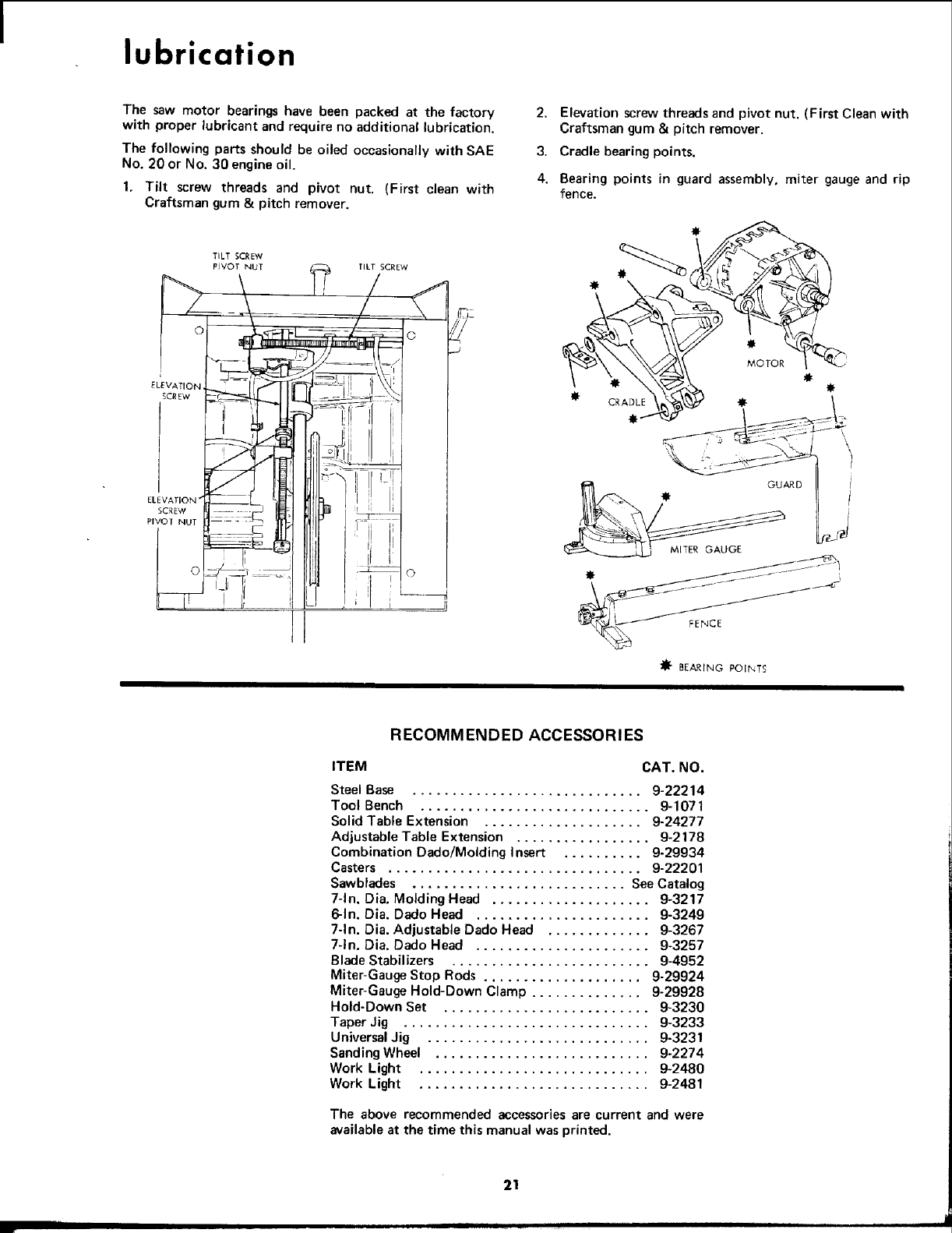

lubrication

The saw motor bearings have been packed at the factory

with proper lubricant and require no additional lubrication.

The following parts should be oiled occasionallv with SAE

No. 20 or No. 30 engine oil.

1. Tilt screw threads and pivot nut. (First clean with

Craftsman gum & pitch remover.

TILT SCREW

PIVOT NUT _ TILT SCREW

[LEVATION ': _ i-" -

sc.ew -- -_ t_1 rillIP i_

_lVOTNUT ...... _ J]];'J_II[ I_

II!lilIIII

I o _- _JlII1!III IP-_/_

.........t

J ], IlL J J.LL

Elevation screw threads and pivot nut. (First Clean with

Craftsman gum & pitch remover.

Cradle bearing points.

Bearing points in guard assembly, miter gauge and rip

fence.

CRADLE

MOTOR

GUARD

MITER GAUGE

FENCE

"_ BEARING POINTS

RECOMMENDED ACCESSORIES

ITEM CAT. NO.

Steel Base ............................. 9-22214

Tool Bench ............................. 9-1071

Solid Table Extension .................... 9-24277

Adjustable Table Extension ................. 9-2178

Combination Dado/Molding Insert .......... 9-29934

Casters ................................ 9-22201

Sawblades ........................... See Catalog

7-In. Dia. Molding Head .................... 9-3217

6-In. Dia. Dado Head ...................... 9-3249

7-In. Dia. Adjustable Dado Head ............. 9-3267

7-In. Dia. Dedo Head ...................... 9-3257

Blade Stabilizers ......................... 9-4952

Miter-Gauge Stop Rods .................... 9-29924

Miter-Gauge Hold-Down Clamp .............. 9-29928

Hold-Down Set .......................... 9-3230

Taper Jig ............................... 9-3233

Universal Jig ............................ 9-3231

Sanding Wheel ........................... 9-2274

Work Light ............................. 9-2480

Work Light ............................. 9-2481

The above recommended accessories are current and were

available at the time this manual was printed.

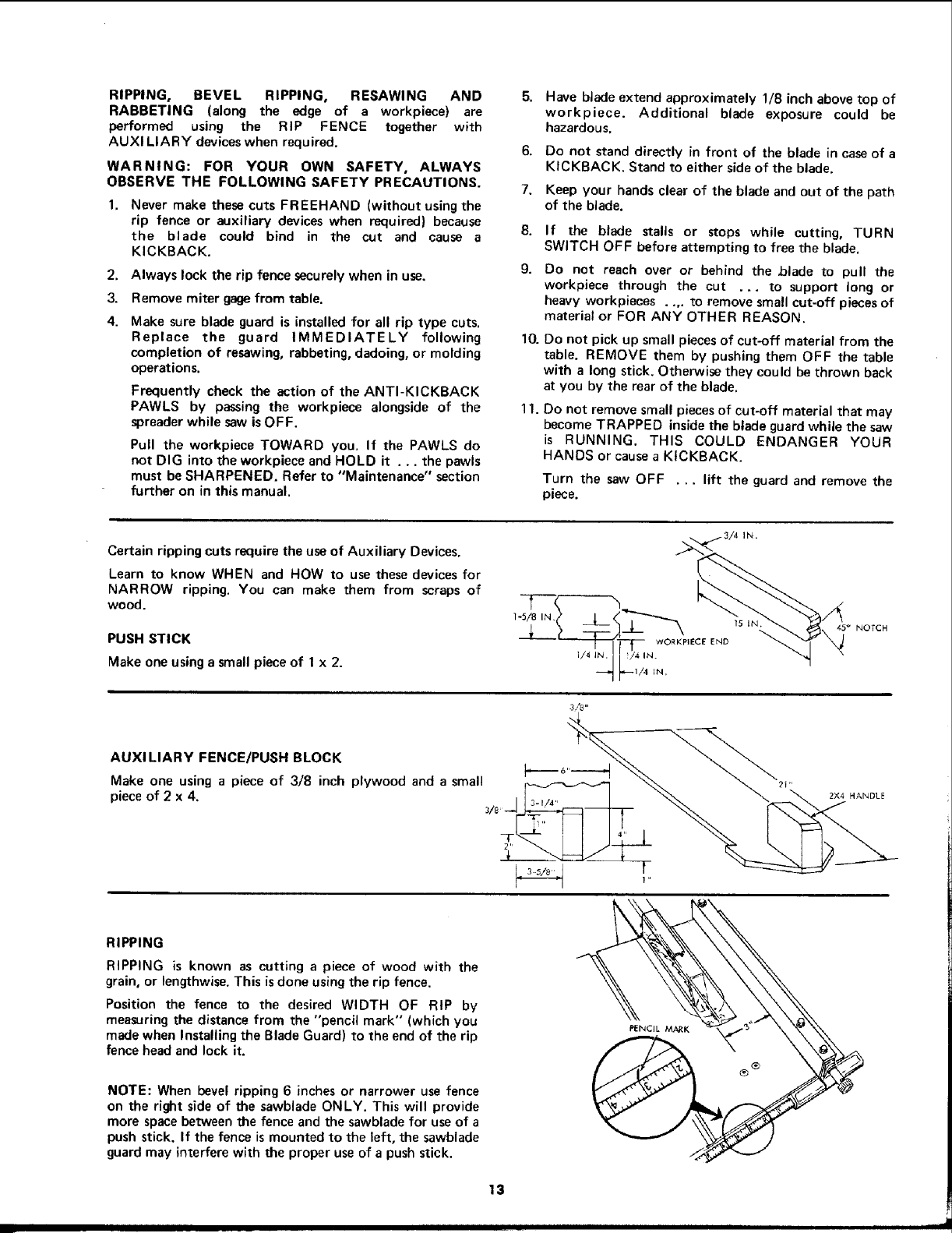

RIPPING,BEVEL RIPPING, RESAWINGAND

RABBETING(alongthe edgeof a workpiece)are

performedusing the RIP FENCEtogetherwith

AUXILIARYdeviceswhenrequired.

WARNING:FORYOUROWNSAFETY,ALWAYS

OBSERVETHEFOLLOWINGSAFETYPRECAUTIONS.

Nevermake these cuts FREEHAND (without using the

rip fence or auxiliary devices when required) because

the blade could bind in the cut and cause a

KICKBACK.

2. Always lock the rip fence securely when in use.

3. Remove miter gage from table.

4. Make sure blade guard is installed for all rip type cuts.

Replace the guard IMMEDIATELY following

completion of resewing, rabbeting, dadoing, or molding

operations.

Frequently check the action of the ANTI-KICKBACK

PAWLS by passing the workpiece alongside of the

spreader while saw is OFF.

Pull the workpiece TOWARD you. If the PAWLS do

not DIG into the workpiece and HOLD it ... the pawls

must be SHARPENED. Refer to "Maintenance" section

further on in this manual.

10.

11.

Have blade extend approximately 1/8 inch above top of

workpiece. Additional blade exposure could be

hazardous.

Do not stand directly in front of the blade in case of a

KICKBACK. Stand to either side of the blade.

Keep your hands clear of the blade and out of the path

of the blade.

If the blade stalls or stops while cutting, TURN

SWITCH OFF before attempting to free the blade.

Do not reach over or behind the blade to pull the

workpiece through the cut ... to support long or

heavy workpieces .... to remove small cut-off pieces of

material or FOR ANY OTHER REASON.

Do not pick up small pieces of cut-off material from the

table. REMOVE them by pushing them OFF the table

with along stick. Otherwise they could be thrown back

at you by the rear of the blade.

Do not remove small pieces of cut-off material that may

become TRAPPED inside the blade guard while the saw

is RUNNING. THIS COULD ENDANGER YOUR

HANDS or cause a KICKBACK.

Turn the saw OFF ... lift the guard and remove the

piece.

Certain ripping cuts require the use of Auxiliary Devices,

Learn to know WHEN and HOW to use these devices for

NARROW ripping. You can make them from scraps of

wood.

PUSH STICK

Make one using a small piece of 1x 2.

I-5/8 IN

318 ,,

_-S° NOTCH

AUXl LIARY FENCE/PUSH BLOCK F--6 -__. !

Make one using a piece of 3/8 inch plywood and a small

piece of 2x4. iI__,tA I

3/8

_- 4"

RIPPING

RIPPING is known as cutting a piece of wood with the

grain, or lengthwise. This isdone using the rip fence.

Position the fence to the desired WIDTH OF RIP by

measuring the distance from the "pencil mark" (which you

made when Installing the Blade Guard) to the end of the rip

fence head and lock it.

NOTE: When bevel ripping 6inches or narrower use fence

on the right side of the sawblade ONLY. This will provide

more space between the fence and the sawblade for use of a

push stick. If the fence is mounted to the left, the sawblade

guard may interfere with the proper use of a push stick.

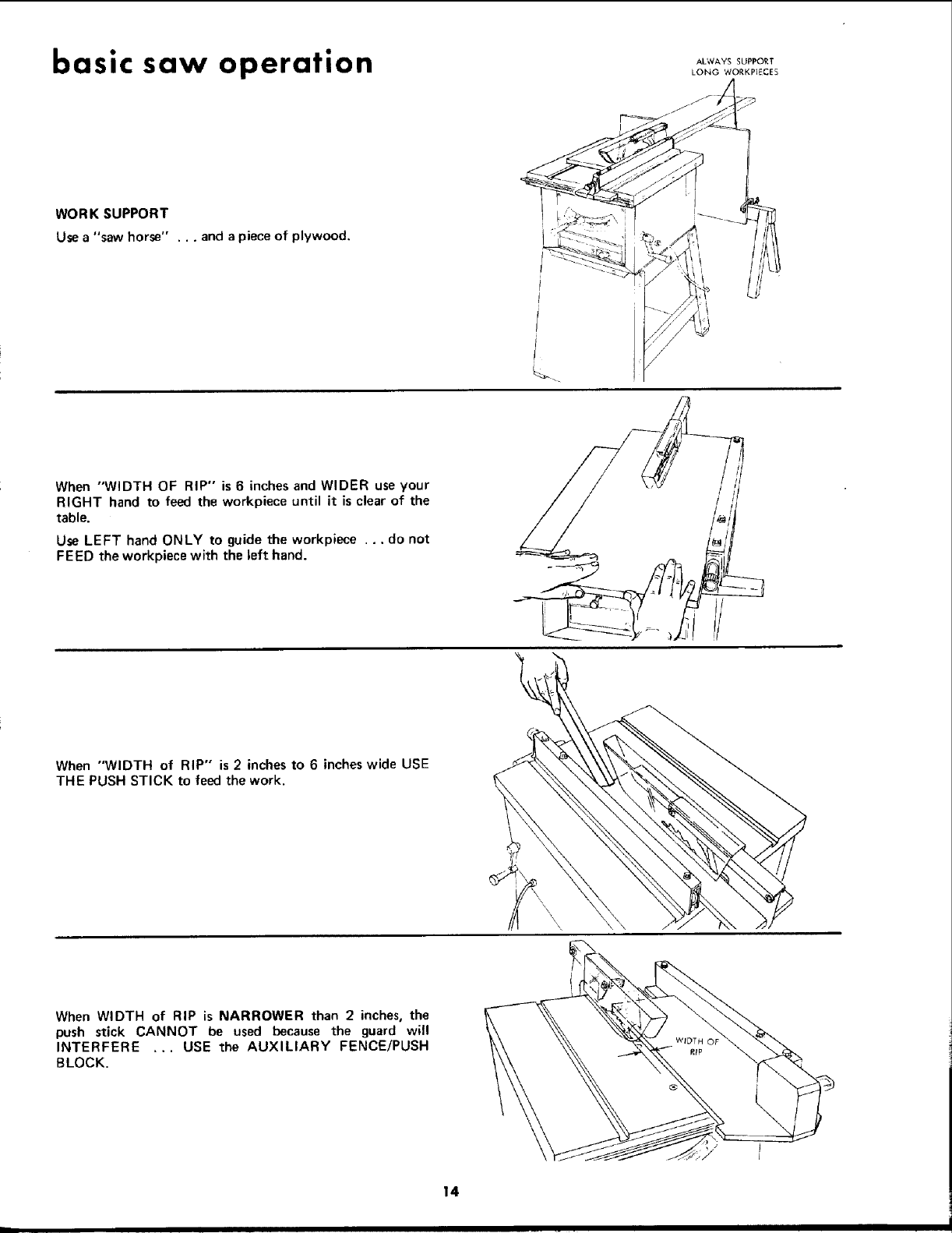

basic saw operation ALwAvs,op ,

LONO WORKP[ECES

WORK SUPPORT

Use a"saw horse" ... and a piece of plywood.

When "WIDTH OF RIP" is 6 inches and WIDER use your

RIGHT hand to feed the workpiece until it is clear of the

table.

Use LEFT hand ONLY to guide the workpiece ... do not

FEED the workpiece with the left hand.

When "WIDTH of RIP" is 2 inches to 6 inches wide USE

THE PUSH STICK to feed the work.

When WIDTH of RIP is NARROWER than 2inches, the

push stick CANNOT be used because the guard will

INTERFERE ... USE the AUXILIARY FENCE/PUSH

BLOCK.

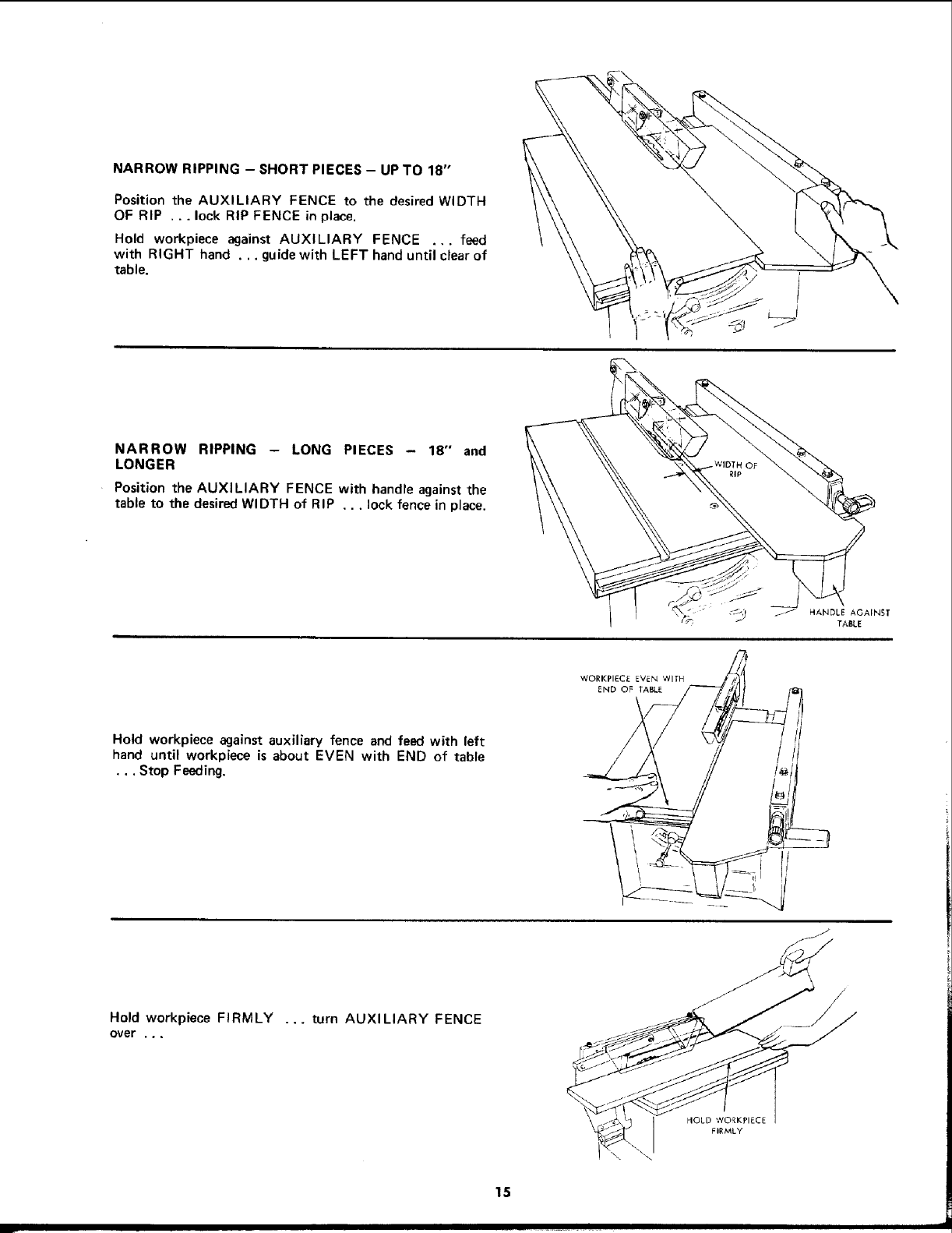

NARROW RIPPING - SHORT PIECES - UP TO 18"

Position the AUXILIARY FENCE to the desired WIDTH

OF RIP ... lock RIP FENCE in place.

Hold workpiece against AUXILIARY FENCE ,.. feed

with RIGHT hand ... guide with LEFT hand until clear of

table. /

NARROW RIPPING - LONG PIECES - 18" and

LONGER

Position the AUXILIARY FENCE with handle against the

table to the desired WIDTH of RIP .,. lock fence in place.

Hold workpiece against auxiliary fence and feed with left

hand until workpiece is about EVEN with END of table

•., Stop Feeding.

WORKPIECE EVEN WITH

END OF TABLE

Hold workpiece FIRMLY ... turn AUXILIARY FENCE

over ...

HOLD WORKPISCE

FIRMLY

basic saw operation

Hold workpiece against AUXILIARY FENCE ... feed

with RIGHT Hand ... guide with LEFT hand until clear of

table,

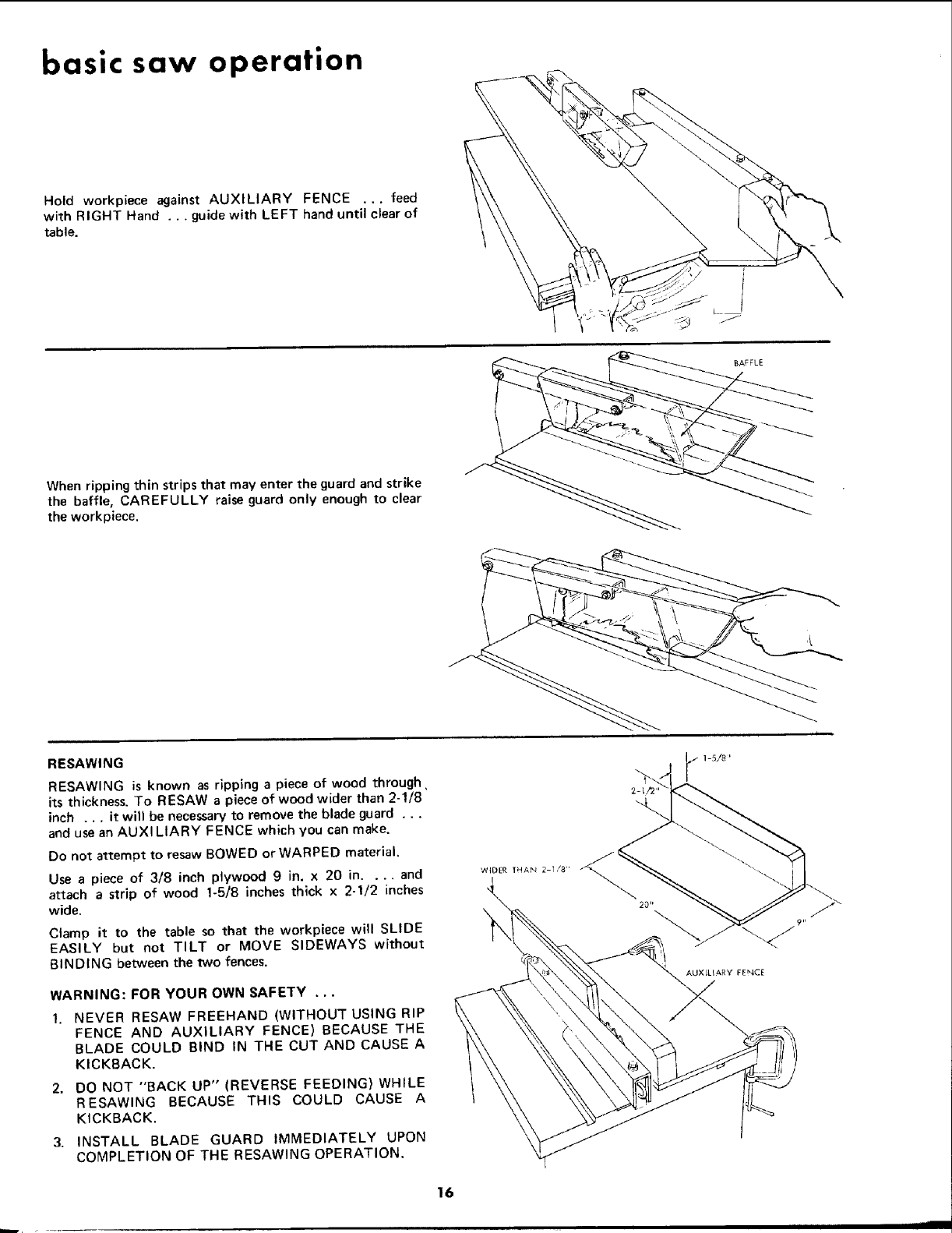

When ripping thin strips that may enter the guard and strike

the baffle, CAREFULLY raise guard only enough to clear

the workpiece.

BAFFLE

RESAWING

RESAWING is known as ripping apiece of wood through,

its thickness. To RESAW apiece of wood wider than 2-1/8

inch ... it will be necessary to remove the blade guard ...

and use an AUXl LIARY FENCE which you can make,

Do not attempt to resaw BOWED or WARPED material.

Use apiece of 3/8 inch plywood 9 in. x 20 in.... and

attach astrip of wood 1-5/8 inches thick x 2-1/2 inches

wide.

Clamp it to the table so that the workpiece will SLIDE

EASILY but not TILT or MOVE SIDEWAYS without

BINDING between the two fences.

WARNING: FOR YOUR OWN SAFETY ...

1. NEVER RESAW FREEHAND (WITHOUT USING RIP

FENCE AND AUXILIARY FENCE) BECAUSE THE

BLADE COULD BIND IN THE CUT AND CAUSE A

KICKBACK.

2. DO NOT "BACK UP" (REVERSE FEEDING) WHILE

RESAWlNG BECAUSE THIS COULD CAUSE A

KICKBACK.

3. INSTALL BLADE GUARD IMMEDIATELY UPON

COMPLETION OF THE RESAWlNG OPERATION.

WIDER THAN 2-1/8"

\<'"

AUX[L{ARY FENCE

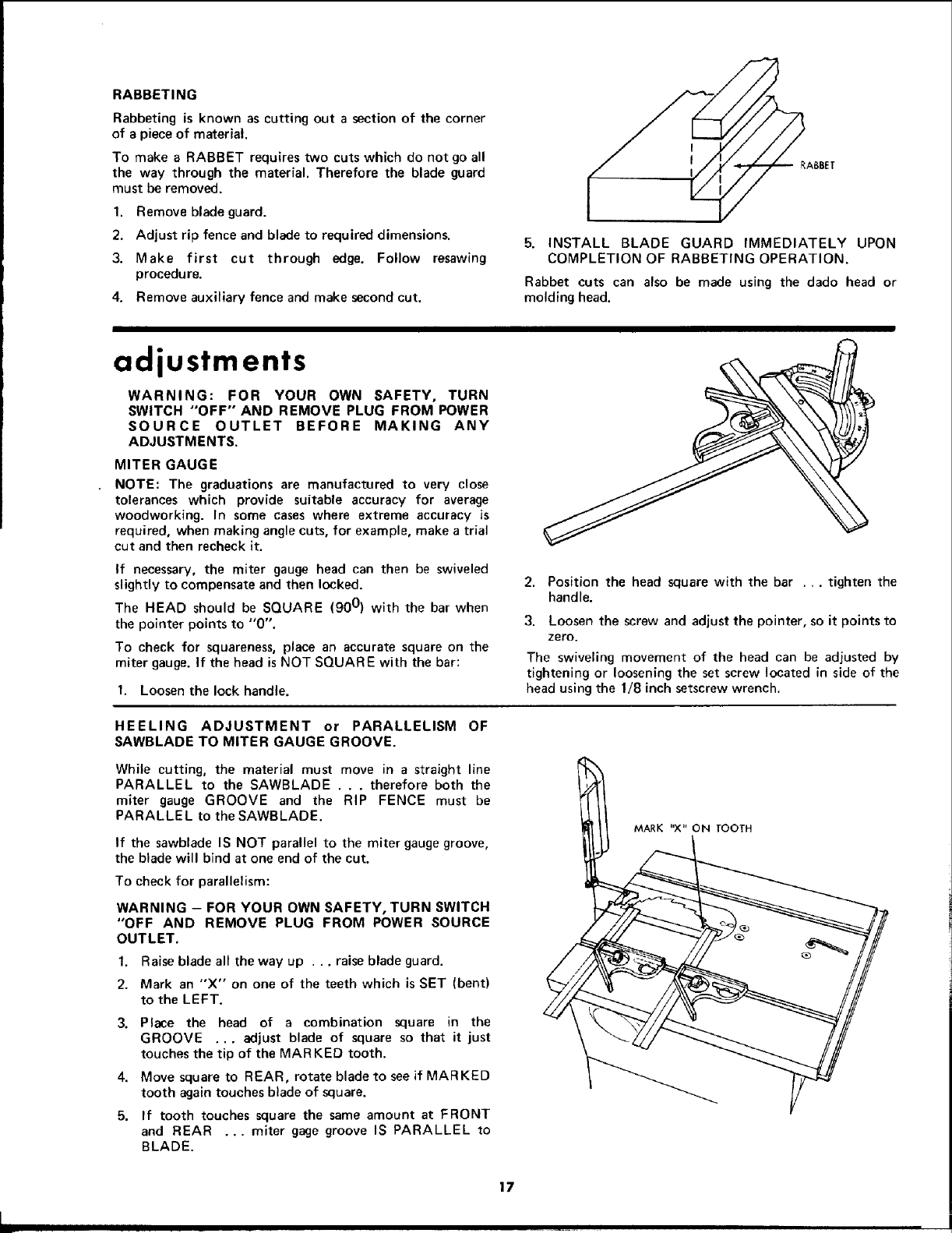

RABBETING

Rabbeting is known as cutting out a section of the corner

of a piece of material.

To make a RABBET requires two cuts which do not go all

the way through the material. Therefore the blade guard

must be removed.

1. Remove blade guard.

2. Adjust rip fence and blade to required dimensions.

3. Make first cut through edge. Follow resawing

procedure.

4. Remove auxiliary fence and make second cut.

RABBET

5. INSTALL BLADE GUARD IMMEDIATELY UPON

COMPLETION OF RABBETING OPERATION.

Rabbet cuts can also be made using the dado head or

molding head.

adjustments

WARNING: FOR YOUR OWN SAFETY, TURN

SWITCH "OFF" AND REMOVE PLUG FROM POWER

SOURCE OUTLET BEFORE MAKING ANY

ADJUSTMENTS.

MITER GAUGE

NOTE: The graduations are manufactured to very close

tolerances which provide suitable accuracy for average

woodworking. In some cases where extreme accuracy is

required, when making angle cuts, for example, make a trial

cut and then recheck it.

If necessary, the miter gauge head can then be swiveled

slightly to compensate and then locked.

The HEAD should be SQUARE (900 ) with the bar when

the pointer points to "0".

To check for squareness, place an accurate square on the

miter gauge. If the head is NOT SQUARE with the bar:

1. Loosen the lock handle.

2. Position the head square with the bar ... tighten the

handle.

HEELING ADJUSTMENT or PARALLELISM OF

SAWBLADE TO MITER GAUGE GROOVE.

While cutting, the material must move in astraight line

PARALLEL to the SAWBLADE . . .therefore both the

miter gauge GROOVE and the RIP FENCE must be

PARALLEL to the SAWBLADE.

If the sawblade IS NOT parallel to the miter gauge groove,

the blade will bind at one end of the cut.

To check for parallelism:

WARNING - FOR YOUR OWN SAFETY, TURN SWITCH

"OFF AND REMOVE PLUG FROM POWER SOURCE

OUTLET.

1. Raise blade all the way up . ., raise blade guard.

2. Mark an "X" on one of the teeth which is SET (bent)

to the LEFT.

3. Place the head of a combination square in the

GROOVE ... adjust blade of square so that it just

touches the tip of the MARKED tooth.

4. Move square to REAR, rotate blade to see if MARKED

tooth again touches blade of square.

5. If tooth touches square the same amount at FRONT

and REAR ... miter gage groove IS PARALLEL to

BLADE.

3. Loosen the screw and adjust the pointer, so it points to

zero.

The swiveling movement of the bead can be adjusted by

tightening or loosening the set screw located in side of the

head using the 1/8 inch setscrew wrench.

MARK "X" ON TOOTH

adjustments

If tooth does not touch the same amount .. the

mechanism underneath must be adjusted to make the blade

PARALLEL to GROOVE.

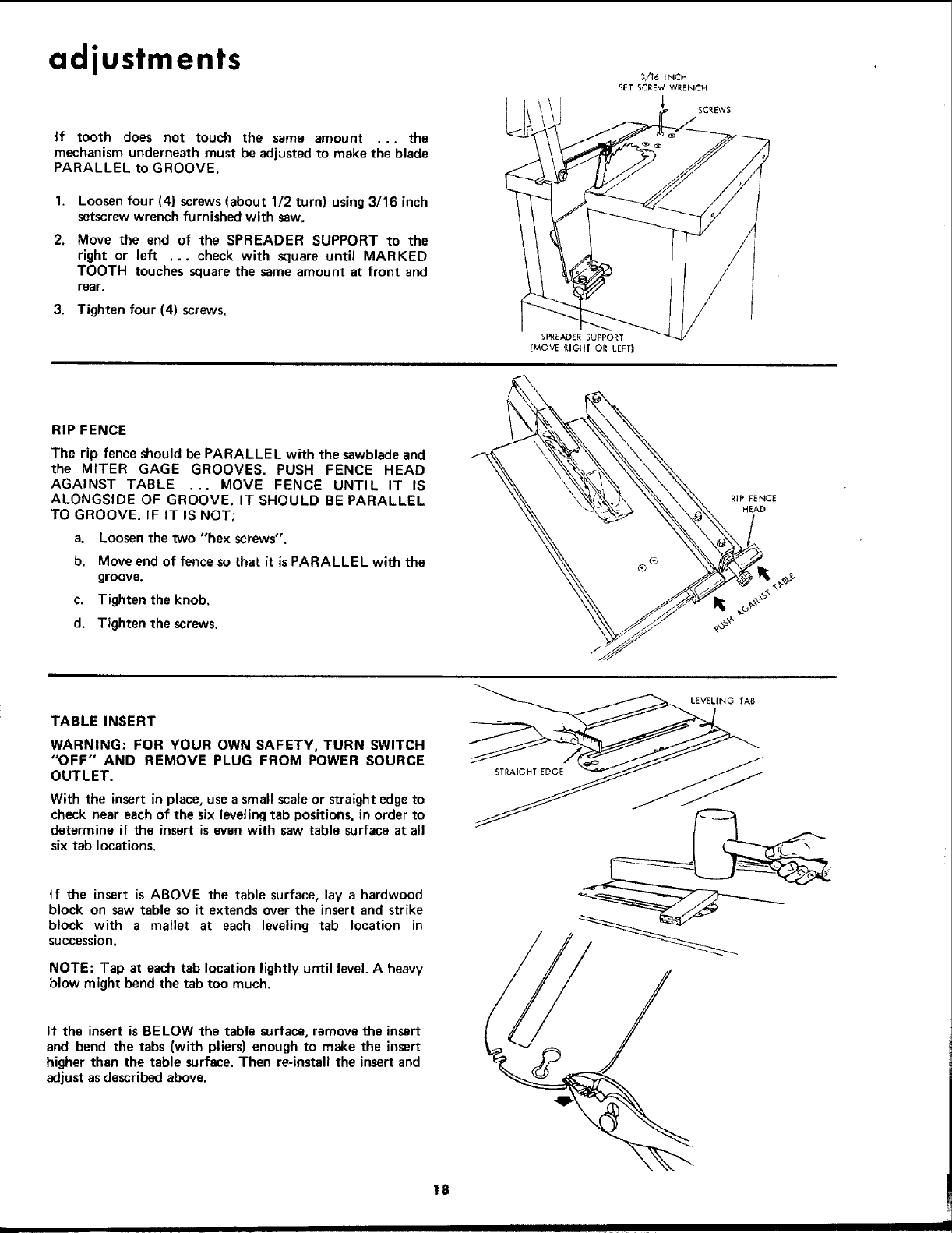

Loosen four (4) screws (about 1/2 turn) using 3/16 inch

setscrewwrench furnished with saw,

Move the end of the SPREADER SUPPORT to the

right or left ... check with square until MARKED

TOOTH touches square the same amount at front and

rear.

3. Tighten four (4) screws,

SPREADER SUPPORT

(MOVE RIGHI OR LEFT)

3/16 iNCH

SET SCREW WRENCH

SCREWS

RIP FENCE

The rip fence should be PARALLEL with the sawblade and

the MITER GAGE GROOVES. PUSH FENCE HEAD

AGAINST TABLE ... MOVE FENCE UNTIL IT IS

ALONGSIDE OF GROOVE. IT SHOULD BE PARALLEL

TO GROOVE. IF IT IS NOT,

a. Loosen the two "hex screws".

b. Move end of fence so that it is PARALLEL with the

groove.

c. Tighten the knob.

d. Tighten the screws.

RiP FENCE

HEAD

TABLE INSERT

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET.

With the insert in place, use a small scaleor straight edge to

check near each of the six leveling tab positions, in order to

determine if the insert is even with saw table surface at all

six tab locations.

If the insert is ABOVE the table surface, lay a hardwood

block on saw table so it extends over the insert and strike

block with a mallet at each leveling tab location in

succession.

NOTE: Tap at each tab location lightly until level. A heavy

blow might bend the tab too much.

If the insert is BELOW the table surface, remove the insert

and bend the tabs (with pliers) enough to make the insert

higher than the table surface. Then re-install the insert and

adjust as described above.

LEVELING TAB

STRAIGHT EDGE

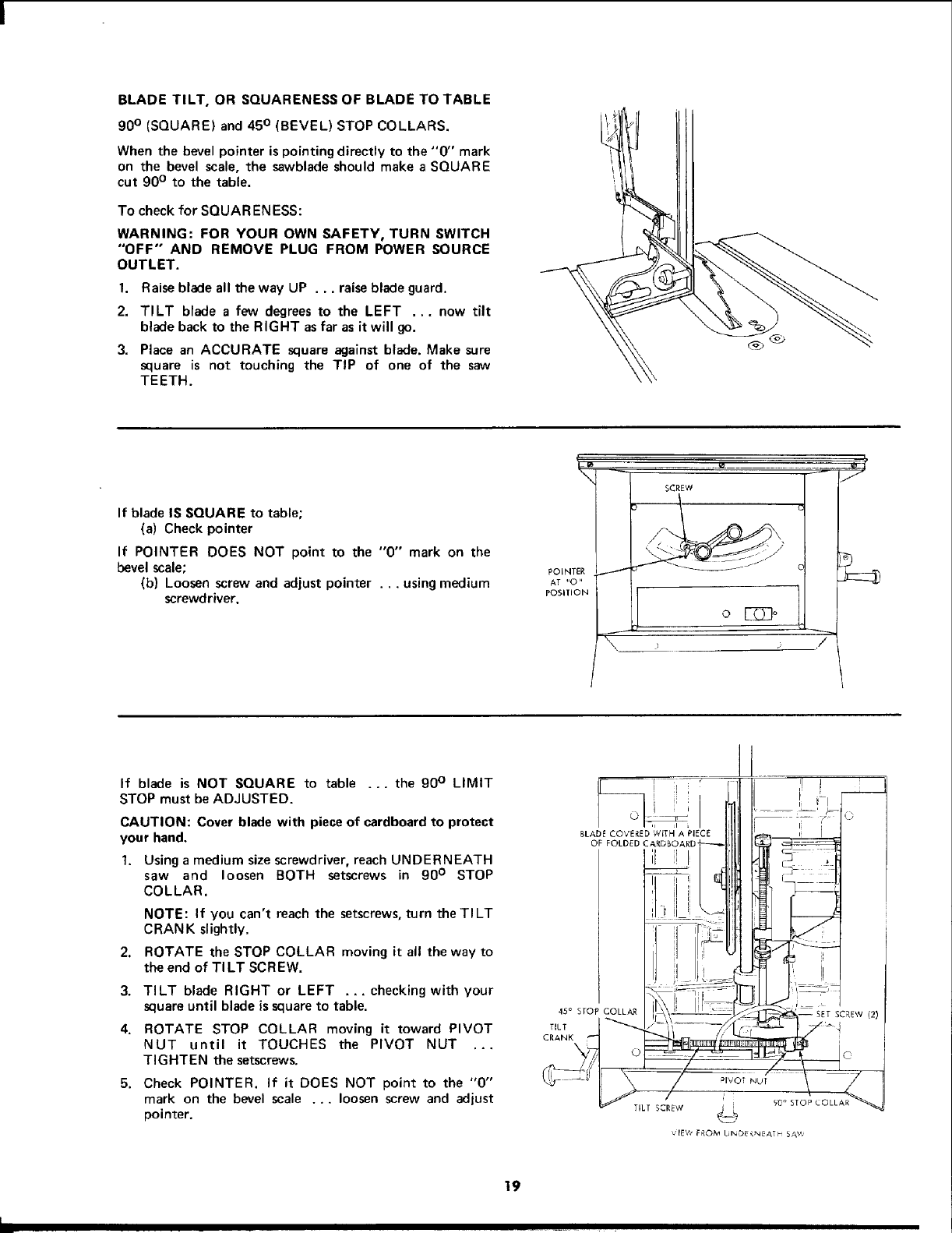

BLADE TILT, OR SQUARENESS OF BLADE TO TABLE

90° (SQUARE) and 45° (BEVEL) STOP COLLARS.

When the bevel pointer is pointing directly to the "0" mark

on the bevel scale, the sawblade should make a SQUARE

cut 90° to the table.

To check for SQUARENESS:

WARNING; FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET.

1. Raise blade all the way UP ... raise blade guard.

2. TILT blade a few degrees to the LEFT ... now tilt

blade back to the RIGHT asfar as it will go.

3. Place an ACCURATE square against blade. Make sure

square is not touching the TIP of one of the saw

TEETH.

If blade IS SQUARE to table;

(a) Check pointer

If POINTER DOES NOT point to the "0" mark on the

bevel scale;

(b) Loosen screw and adjust pointer ... using medium

screwdriver.

POINTER

AT "O "

POSiTiON

SCR£W

/ol -_

If blade is NOT SQUARE to table ... the 90° LIMIT

STOP must be ADJUSTED.

CAUTION: Cover blade with piece of cardboard to protect

your hand,

1. Using a medium size screwdriver, reach UNDERNEATH

saw and loosen BOTH setscrews in 90 ° STOP

COLLAR.

NOTE: If you can't reach the setscrews,turn the TILT

CRANK slightly.

ROTATE the STOP COLLAR moving it all the way to

the end of TILT SCREW.

3. TILT blade RIGHT or LEFT ,.. checking with your

square until blade is square to table.

4, ROTATE STOP COLLAR moving it toward PIVOT

NUT until it TOUCHES the PIVOT NUT ...

TIGHTEN the setscrews,

5. Check POINTER. If it DOES NOT point to the "0"

mark on the bevel scale ... loosen screw and adjust

pointer.

TiLtscrew _ -_

VI[W FROM 0ND[_Nt_ATI SAW

adjustments

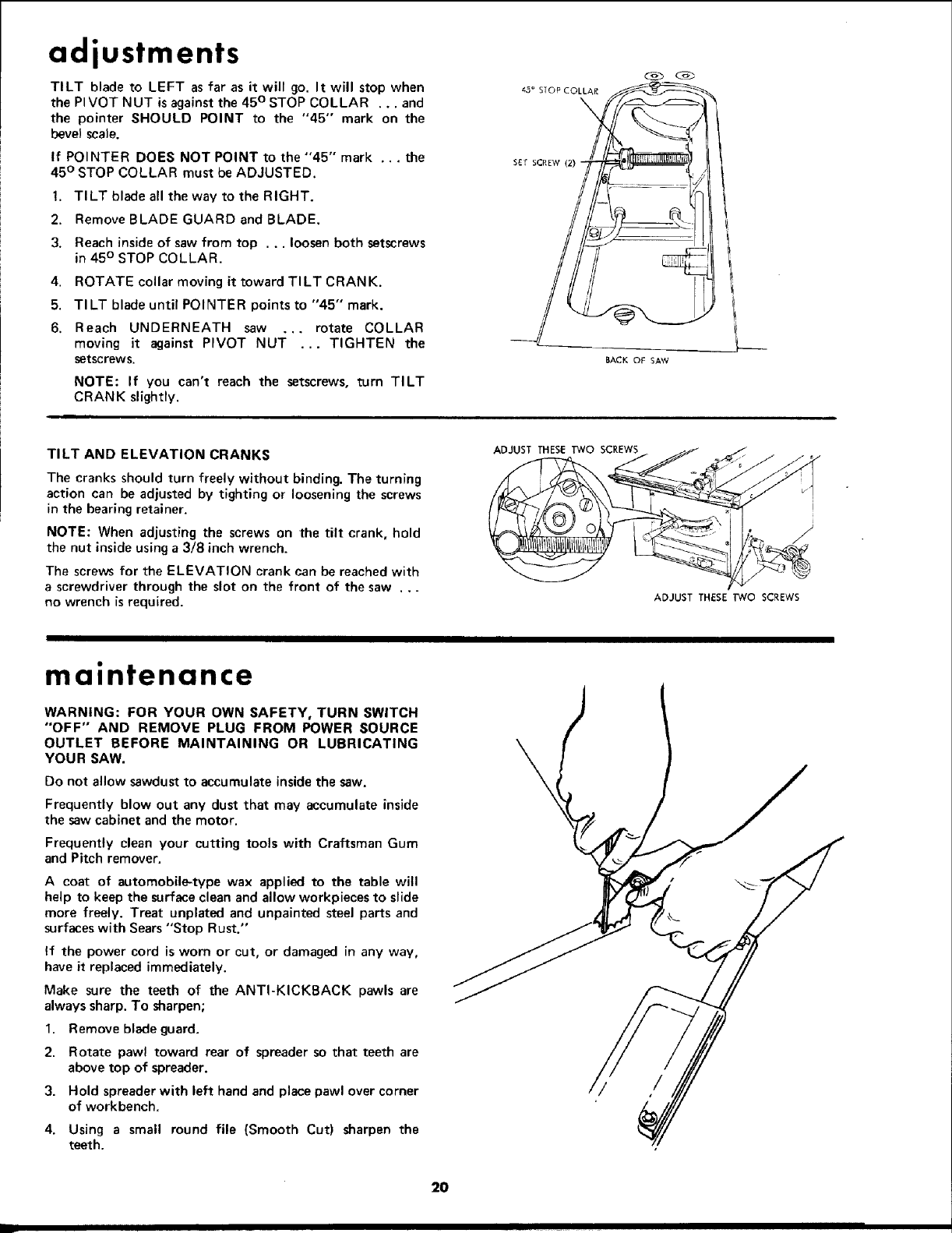

TILT blade to LEFT as far as it will go. It will stop when

the PIVOT NUT is against the 45 ° STOP COLLAR ... and

the pointer SHOULD POINT to the "45" mark on the

bevel scale.

If POINTER DOES NOT POINT to the "45" mark ... the

45 ° STOP COLLAR must be ADJUSTED.

1. TILT blade all the way to the RIGHT.

2. Remove BLADE GUARD and BLADE.

3. Reach inside of saw from top ... loosen both setscrews

in 45 ° STOP COLLAR.

4. ROTATE collar moving it toward TILT CRANK.

5. TILT blade until POINTER points to "45" mark.

6. Reach UNDERNEATH saw ... rotate COLLAR

moving it against PIVOT NUT ... TIGHTEN the

setscrews.

NOTE: If you can't reach the setscrews, turn TILT

CRANK slightly.

45 ° STOP COLLAR

BACK OF SAW

TILT AND ELEVATION CRANKS

The cranks should turn freely without binding. The turning

action can be adjusted by tighting or loosening the screws

in the hearing retainer.

NOTE: When adjusting the screws on the tilt crank, hold

the nut inside using a 3/8 inch wrench.

The screws for the ELEVATION crank can be reached with

ascrewdriver through the slot on the front of the saw ...

no wrench is required.

ADJUST THESE TWO SCREWS

maintenance

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE MAINTAINING OR LUBRICATING

YOUR SAW.

Do not allow sawdust to accumulate inside the saw.

Frequently blow out any dust that may accumulate inside

the saw cabinet and the motor.

Frequently clean your cutting tools with Craftsman Gum

and Pitch remover.

Acoat of automobile-type wax applied to the table will

help to keep the surface clean and allow workpieces to slide

more freely. Treat unplated and unpainted steel parts and

surfaceswith Sears "Stop Rust."

If the power cord is worn or cut, or damaged in any way,

have it replaced immediately.

Make sure the teeth of the ANTI-KICKBACK pawls are

always sharp. To sharpen;

1. Remove blade guard.

2. Rotate pawl toward rear of spreader so that teeth are

above top of spreader.

3. Hold spreader with left hand and place pawl over corner

of workbench.

4. Using a small round file (Smooth Cut) sharpen the

teeth.

lubrication

The saw motor bearings have been packed at the factory

with proper lubricant and require no additional lubrication.

The following parts should be oiled occasionally with SAE

No. 20 or No. 30 engine oil.

1. Tilt screw threads and pivot nut. (First clean with

Craftsman gum & pitch remover.

ELEVATION "

SCREW

PIVOT NUT

TILT SCREW

PJVOT NUT

2. Elevation screw threads and pivot nut. (First Clean with

Craftsman gum & pitch remover.

3. Cradle bearing points.

4. Bearing points in guard assembly, miter gauge and rip

fence.

FENCE

]1_ BEARING POINTS

RECOMMENDED ACCESSORIES

ITEM CAT. NO.

Steel Base ............................. 9-22214

Tool Bench ............................. 9-1071

Solid Table Extension .................... 9-24277

Adjustable Table Extension ................. 9-2178

Combination Dado/Molding Insert .......... 9-29934

Casters ................................ 9-22201

Sawblades ........................... See Catalog

7-In. Dia. Molding Head .................... 9-3217

6-In. Dia. Dado Head ...................... 9-3249

7-In. Dia. Adjustable Dado Head ............. 9-3267

7-In. Dia. Dado Head ...................... 9-3257

Blade Stabilizers ......................... 9-4952

Miter-Gauge Stop Rods .................... 9-29924

Miter-Gauge Hold-Down Clamp .............. 9-29928

Hold-Down Set .......................... 9-3230

Taper Jig ............................... 9-3233

Universal Jig ............................ 9-3231

Sanding Wheel ........................... 9-2274

Work Light ............................. 9-2480

Work Light ............................. 9-2481

The above recommended accessories are current and were

available at the time this manual was printed.

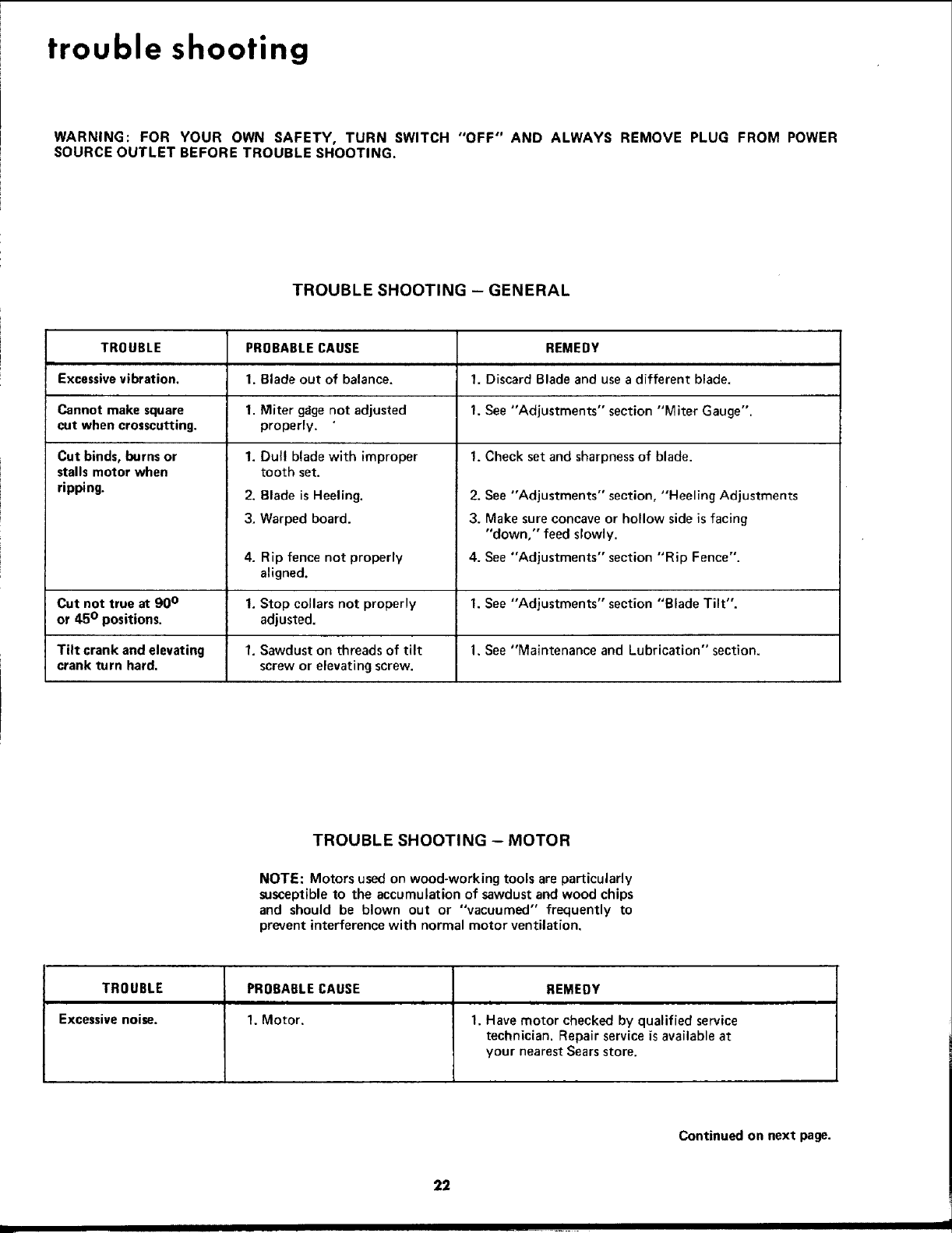

trouble shooting

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH "OFF" AND ALWAYS REMOVE PLUG FROM POWER

SOURCE OUTLET BEFORE TROUBLE SHOOTING.

TROUBLESHOOTING- GENERAL

TROUBLE

Excessive vibration. 1.

Cannot make square 1.

cut when crosscutting.

Cut binds, burns or 1.

stalls motor when

ripping. 2.

Cut not true at 90 ° 1.

or 45 ° positions.

Tilt crank and elevating

crank turn hard.

PROBABLECAUSE

Blade out of balance.

Miter gage not adjusted

properly. "

Dull blade with improper

tooth set.

Blade is Heeling.

Warped board.

Rip fence not properly

aligned.

Stop collars not properly

adjusted.

Sawdust on threads of tilt

screw or elevating screw.

REMEDY

1. Discard Blade and use a different blade.

1. See "Adjustments" section "Miter Gauge".

1. Check set and sharpnessof blade.

2. See "Adjustments" section, "Heeling Adjustments

3. Make sure concave or hollow side is facing

"down," feed slowly.

4. See "Adjustments" section "Rip Fence".

1. See "Adjustments" section "Blade Tilt".

1. See "Maintenance and Lubrication" section,

TROUBLE SHOOTING -- MOTOR

NOTE: Motors used on wood-working tools are particularly

susceptible to the accumulation of sawdust and wood chips

and should be blown out or "vacuumed" frequently to

prevent interference with normal motor ventilation.

TROUBLE PROBABLECAUSE REMEDY

Excessive noise. 1. Motor. 1. Have motor checked by qualified service

technician. Repair service is available at

your nearest Searsstore.

Continued on next page.

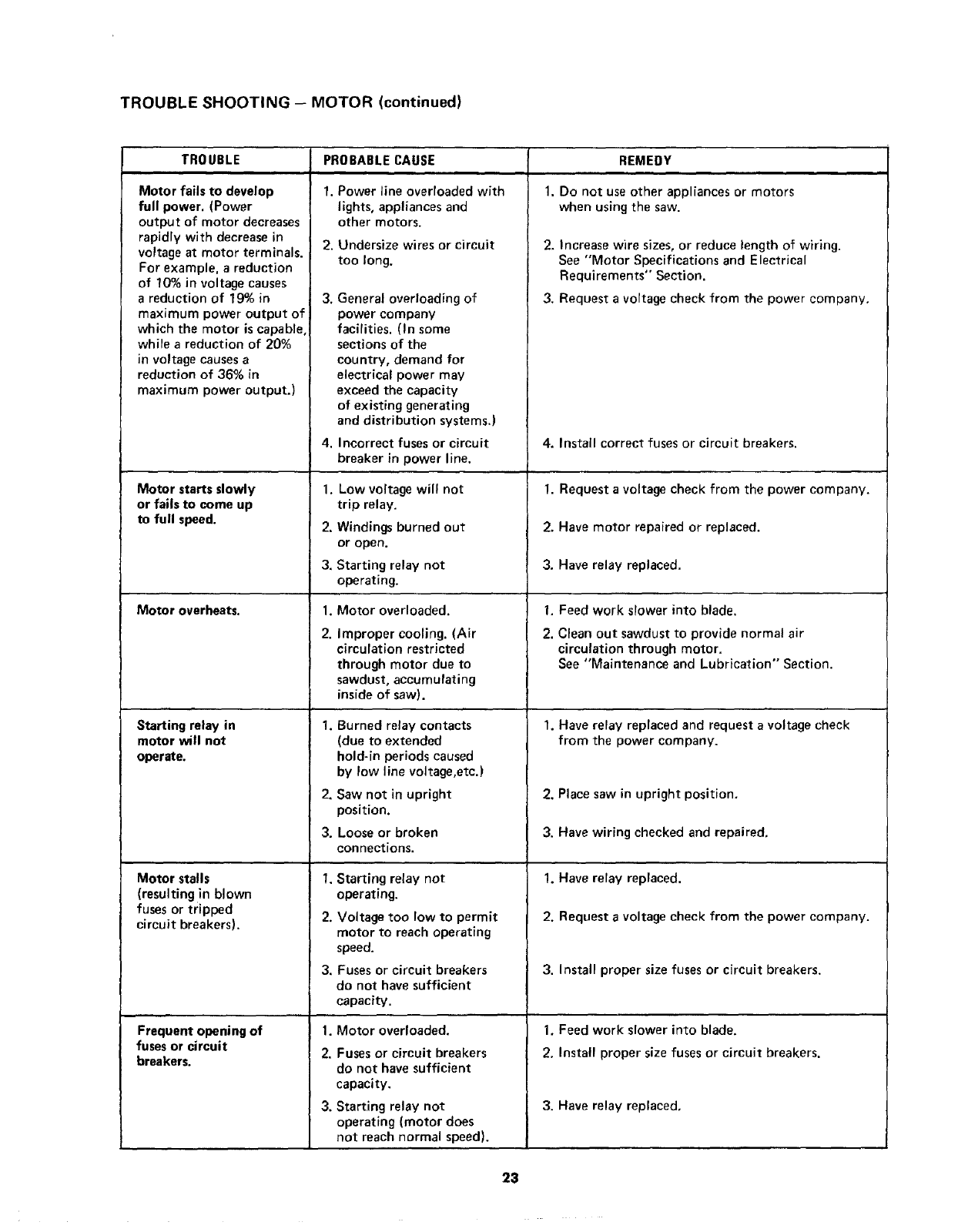

TROUBLESHOOTING- MOTOR(continued)

TROUBLE PROBABLECAUSE

Motor fails to develop

full power. (Power

output of motor decreases

rapidly with decrease in

voltage at motor terminals.

For example, a reduction

of 10% in voltage causes

a reduction of 19% in

maximum power output of

which the motor is capable,

while a reduction of 20%

in voltage causesa

reduction of 36% in

maximum power output.)

Motor starts slowly

or fails to come up

to full speed.

Motor overheats.

Starting relay in

motor will not

operate.

Motor stalls

(resulting in blown

fuses or tripped

circuit breakers),

Frequent opening of

fusesor circuit

breakers.

1. Power line overloaded with

lights, appliances and

other motors.

2. Undersize wires or circuit

too long.

3. General overloading of

power company

facilities. (In some

sections of the

cOuntry, demand for

electrical power may

exceed the capacity

of existing generating

and distribution systems,)

4. Incorrect fuses or circuit

breaker in power line.

1. Low voltage will not

trip relay.

2. Windings burned out

or open.

3. Starting relay not

operating.

1. Motor overloaded.

2. Improper cooling. (Air

circulation restricted

through motor due to

sawdust, accumulating

inside of saw).

1. Burned relay contacts

(due to extended

hold-in periods caused

by low line voltage,etc.)

2. Saw not in upright

position.

3. Loose or broken

connections.

1, Starting relay not

operating.

2. Voltage too low to permit

motor to reach operating

speed.

3. Fuses or circuit breakers

do not have sufficient

capacity.

1. Motor overloaded.

2, Fusesor circuit breakers

do not have sufficient

capacity.

3. Starting relay not

operating (motor does

not reach normal speed).

REMEDY

1. Do not use other appliances or motors

when using the saw.

2. Increase wire sizes, or reduce length of wiring.

See "Motor Specifications and Electrical

Requirements" Section.

3. Request a voltage check from the power company.

4. Install correct fuses or circuit breakers.

1. Request a voltage check from the power company.

2. Have motor repaired or replaced.

3, Have relay replaced,

1. Feed work slower into blade.

2. Clean out sawdust to provide normal air

circulation through motor.

See "Maintenance and Lubrication" Section.

1. Have relay replaced and request a voltage check

from the power company.

2. Place saw in upright position,

3. Have wiring checked and repaired,

!. Have relay replaced.

2. Request a voltage check from the power company.

3. Install proper size fuses or circuit breakers.

1. Feed work slower into blade.

2. Install proper size fuses or circuit breakers.

3. Have relay replaced,

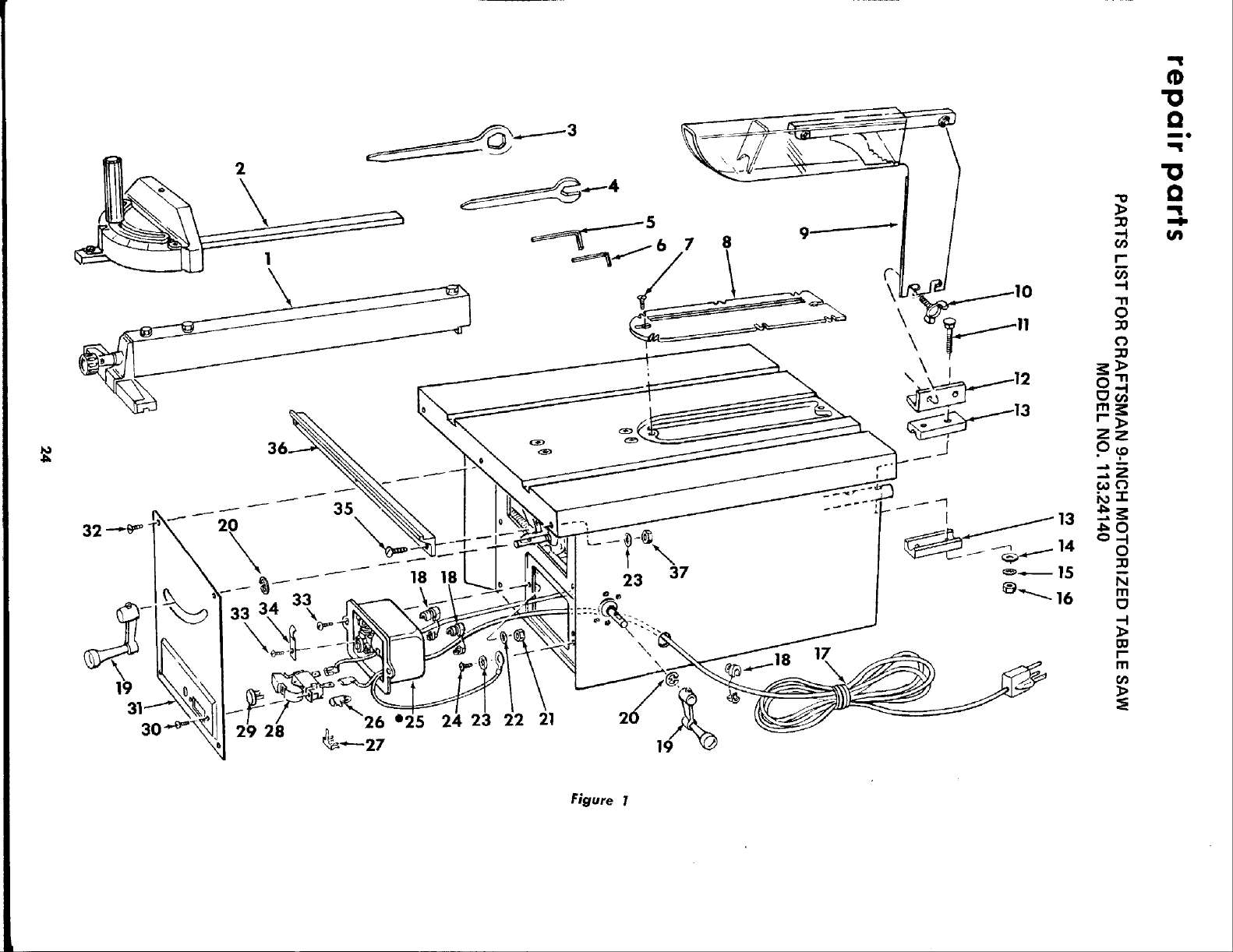

23 37

Figure I

All parts illustrated in Figures 1 through 5 and listed under part numbers may be ordered through any Sears retail mail order

store. Order parts by mail from the catalog order store which serves the territory in which you live. In several instances, part

numbers are listed for COMPLETE ASSEMBLIES. All parts are shipped prepaid within the limits of the continental United

States.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATIONAS SHOWN

ON THIS LIST:

1, THE PART NUMBER

2. THE PART NAME 3. THE MODEL NUMBER - 113.24140

4. THE NAME OF ITEM - 9-INCH MOTORIZED TABLE SAW

Always order by Part Number - not by Key Number

FIGURE 1

Key Part

No. No. Description

iiiii

162418

62070

3 3540

4 63062

_ 37911

30505

7 119264

_ 2447

62417

10 37858

11 109093

12 62448

13 62449

14 60089

138167

115120

62441

37818

62333

60045

115998

Fence Assembly, Rip

(See Figure 3)

Gage Assembly, Miter

(See Figure 4)

Wrench, Arbor

Wrench, Shaft

Wrench, Hex "L" 3/16

Wrench, Hex "'L'" 1/8

Screw, Flat Hd. 10-32 x 5/8

Insert

Guard Assy. (See Figure 5)

Screw, Wing

*Carriage Bolt, I/4-20 x 1-3/4

Bracket

Clamp, Spreader

*Washer, Plain,

!7/64 x 7/16 x 1/32

*Lockwasher, Internal Tooth 1/4

*Nut, Hex,

1/4-20 x 7/16 x 3/16

Cord with Plug

Relief, Strain

Crank Assembly, w/Set Screw

Ring, Retaining

*Nut, Hex 8-32

Key Part

No. No. Description

22 138166

23 115545

24 448033

25 62430

26 63467

27 62267

28 62442

29 60256

30 448001

62443

9426307

33 448013

34 62452

35 436753

36 62444

37 115999

- 62455

62446

*Lockwasher, Internal Tooth No.8

*Lockwasher, Internal Tooth No.10

*Screw, Pan Hd.Type 23,

10-32 x 3/8

• Motor and Control Box

(See Figure 2)

Cap - Flag Term

Clip, Capacitor

Switch, Locking

Key, Switch

*Screw, Type 23, Pan SI.

6-32 x 1/4

Panel, Front

*Screw, Pan Hd.o Type B,

No. 8 x 1/2

*Screw, Pan Hd.,8-32 x 1/2

Clamp, Relay

*Screw,Pan Hd.,10-32 x 3/4

Bar, Fence Guide

*Nut, Hex 10-32

Bag of Loose Parts

(not illustrated)

Owners Manual

(not illustrated)

Standard Hardware Item - May be Purchased Locally.

Any attempt to repair this motor may create a

HAZARD unless repair is done by a qualified service

technician. Repair service is available at your nearest

Sears Store.

"10

-1

-N

"11

m_:

r-_>

o,_

O-t 0

-t

r'-

13 14 15 14 18 17

34.

31 32 3

30,

23 16 24 3

7 16

14 15 14

Figure 2

ANY ATTEMPT TO REPAIR THIS MOTOR

MAY CREATE A HAZARD UNLESS REPAIR

IS DONE BY QUALIFIED SERVICE TECHNICIAN,

REPAIR SERVICE IS AVAILABLE AT YOUR

NEAREST SEARS STORE.

678

•_ Q

-.I -l,

-.t

-rl

o'n -I

CJcn

mE:

r"3>

._.0

o.-i

-1

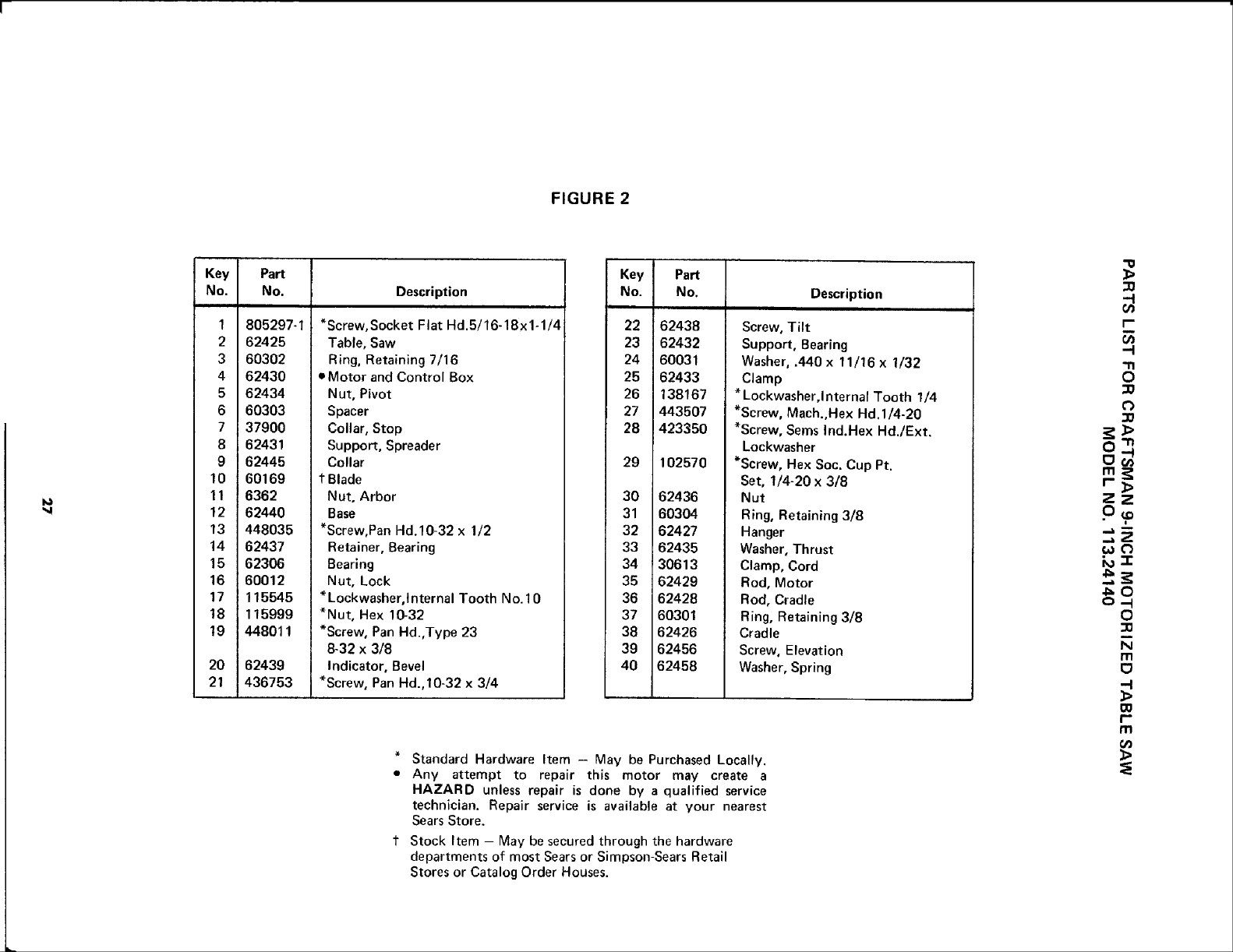

FIGURE 2

Key Part

No. No. Description

1805297-1

2 62425

3 60302

4 62430

5 62434

6 60303

737900

8 62431

9 62445

10 60169

11 6362

12 62440

13 448035

14 62437

15 62306

16 60012

17 115545

18 115999

19 448011

20 62439

21 436753

*Screw, Socket Flat Hd.5/16-18x1-1/4

Table, Saw

Ring, Retaining 7/16

• Motor and Control Box

Nut, Pivot

Spacer

Collar, Stop

Support, Spreader

Collar

t Blade

Nut, Arbor

Base

*Screw,Pan Hd.10-32 x 1/2

Retainer, Bearing

Bearing

Nut, Lock

*Lockwasher, lnternal Tooth No. I 0

*Nut, Hex 10-32

*Screw, Pan Hd.,Type 23

8-32 x 3/8

Indicator, Bevel

*Screw, Pan Hd.,10-32 x 3/4

Key

No.

Part

No.

62438

62432

60031

62433

138167

443507

423350

102570

30 62436

31 60304

32 62427

33 62435

34 30613

35 62429

36 62426

37 60301

38 62426

39 62456

40 62458

Description

Screw, Tilt

Support, Bearing

Washer, .440 x 11/16 x 1/32

Clamp

* Lockwasher,I nternal Tooth 1/4

*Screw, Mach.,Hex Hd.1/4-20

*Screw, Seres Ind.Hex Hd./Ext.

Lockwasher

*Screw, Hex Soc. Cup Pt.

Set, 1/4-20 x 3/8

Nut

Ring, Retaining 3/8

Hanger

Washer, Thrust

Clamp, Cord

Rod, Motor

Rod, Cradle

Ring, Retaining 3/8

Cradle

Screw, Elevation

Washer, Spring

* Standard Hardware Item - May be Purchased Locally.

• Any attempt to repair this motor may create a

HAZARD unless repair is done by a qualified service

technician. Repair service is available at your nearest

Sears Store,

t Stock Item - May be secured through the hardware

departments of most Sears or Simpson-Sears Retail

Stores or Catalog Order Houses.

"11

¢)

O.-n

-I

0o_

rn_

r;m

o,_

_('-)

o--to

-t

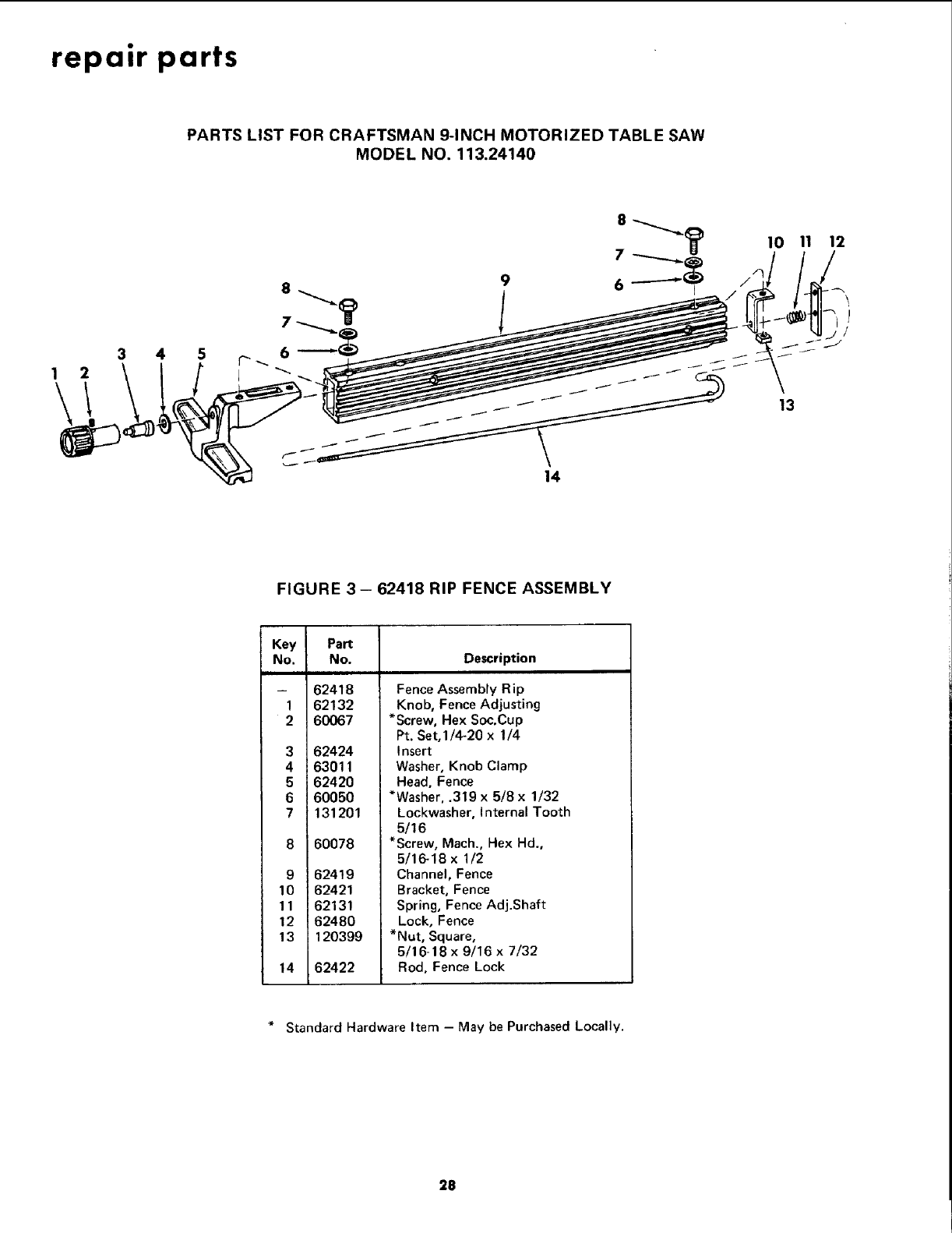

repair parts

PARTS LIST FOR CRAFTSMAN g-INCH MOTORIZED TABLE SAW

MODEL NO. 113.24140

1 2

11 12

FIGURE 3- 62418 RIP FENCE ASSEMBLY

Key Part

No. No.

-- 62418

1 62132

2 60067

62424

63011

62420

60050

131201

60078

962419

10 62421

11 62131

12 62480

13 120399

14 62422

Description

Fence Assembly Rip

Knob, Fence Adjusting

*Screw, Hex Soc.Cup

Pt. Set, I/4-20 x 1/4

Insert

Washer, Knob Clamp

Head, Fence

*Washer, .319 x 5/8 x 1/32

Lockwasher, Internal Tooth

5/16

*Screw, Mach., Hex Hd.,

5/16-18 x 1/2

Channel, Fence

Bracket, Fence

Spring, Fence Adj.Shaft

Lock, Fence

*Nut, Square,

5/16-18 x 9/16 x 7/32

Rod, Fence Lock

* Standard Hardware Item -May be Purchased Locally.

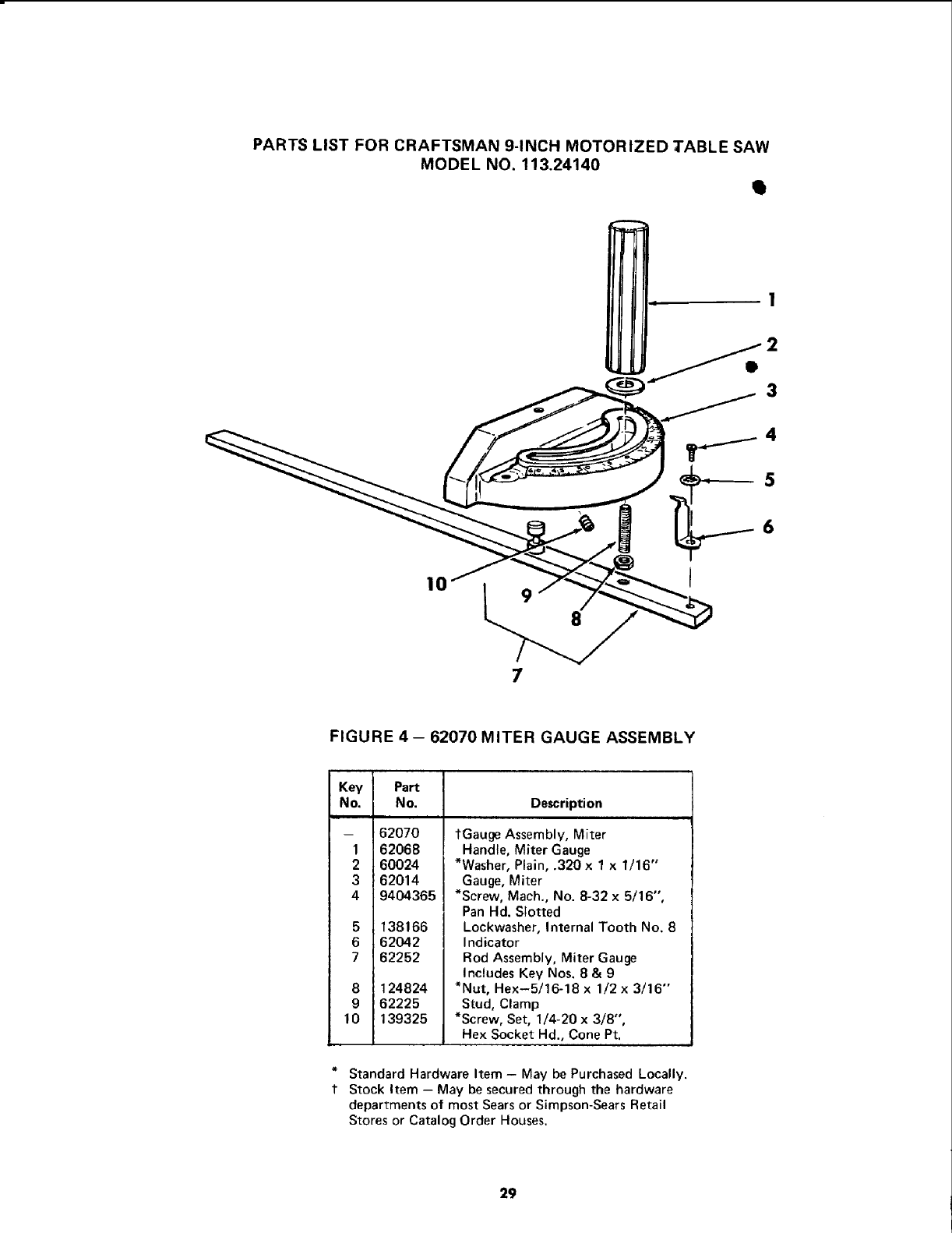

PARTS LIST FOR CRAFTSMAN 9-INCH MOTORIZED ;TABLE SAW

MODEL NO. 113.24140

FIGURE 4- 62070 MITER GAUGE ASSEMBLY

Key Part

No. No. Description

-- 62070

1 62068

260024

3:62014

49404365

138166

62042

62252

8124824

_2225

1139325

tGauge Assembly, Miter

Handle, Miter Gauge

*Washer, Plain, .320 x 1 x 1/16"

Gauge, Miter

*Screw, Mach., No. 8-32 x 5/16",

Pan Hd. Slotted

Lockwasher, Internal Tooth No. 8

Indicator

Rod Assembly, Miter Gauge

Includes Key Nos. 8 & 9

*Nut, Hex-5/16-18 x 1/2 x 3/16"

Stud, Clamp

*Screw, Set, 1/4-20 x 3/8",

Hex Socket Hd., Cone Pt.

Standard Hardware Item - May be Purchased Locally.

Stock Item - May be secured through the hardware

departments of most Sears or Simpson-Sears Retail

Stores or Catalog Order Houses.

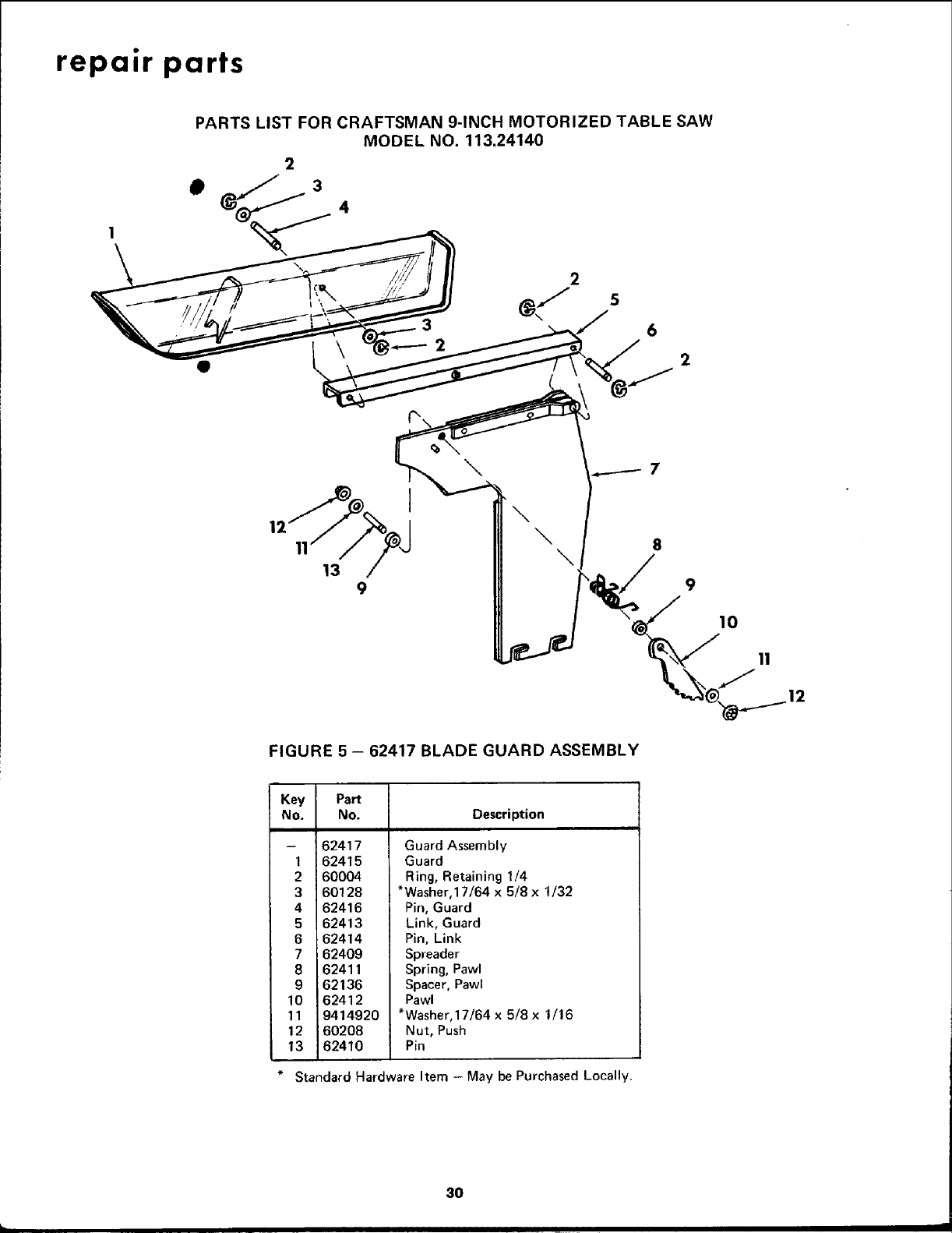

repair parts

PARTS LIST FOR CRAFTSMAN 9-INCH MOTORIZED TABLE SAW

MODEL NO. 113.24140

FIGURE 5 - 62417 BLADE GUARD ASSEMBLY

Key Part

No. No.

-- 62417

1 62415

2 60004

360128

4 62416

5 62413

662414

7 62409

8 62411

9 62136

10 62412

11 9414920

12 60208

13 62410

Description

Guard Assembly

Guard

Ring, Retaining 1/4

*Washer,17/64 x 5/8 x 1/32

Pin, Guard

Link, Guard

Pin, Link

Spreader

Spring, Pawl

Spacer, Pawl

Pawl

*Washer,17/64 x 5/8 x 1/16

Nut, Push

Standard Hardware Item - May be Purchased Locally.

Sears

owners

manual

MODEL NO.

113.24140

HOW TO ORDER

REPAIR PARTS

CRRFTSMRN

9-INCH MO TORIZED

TABLE SAW

The Model Number will be found on a plate attached to your

saw, at the left-hand side of the base. Always mention the

Model Number when requesting service or repair parts for your

Table Saw.

All parts listed herein may be ordered from Sears, Roebuck and

Co. or from Simpsons-Sears Limited, c/o Repair Parts Dept. 98.

When ordering parts by mail, selling prices will be furnished on

request, or parts will be shipped at current selling prices and

you will be billed accordingly.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

1. PART NUMBER 3. MODEL NUMBER

113.24140

2. PART DESCRIPTION 4. NAME OF ITEM-

9 INCH MOTORIZED

TABLE SAW

Your Sears merchandise takes on added value when you

discover that Sears has over 2000 Service Units throughout the

country. Each is staffed by Sears-trained, professional

technicians using Sears approved parts and methods.

SEARS, ROEBUCK AND CO., Chicago, IL 60684 U.S.A. and SIMPSONS-SEARS LIMITED, Toronto

Part No. 62446 Form No. SP3979-4 Printed in U.S.A. 10/74

Craftsman 11324140 User Manual 9 INCH MOTORIZED BENCH SAW Manuals And Guides L0804025

CRAFTSMAN Saw Table Manual L0804025 CRAFTSMAN Saw Table Owner's Manual, CRAFTSMAN Saw Table installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
