A/RS

owners

manual

MODEL NO,

113.241680

SAW WITH LEGS

TWO TABLE EXTENSIONS

AND MOTOR

Serial

Number

Model and serial

number may be found

at the rear of the base.

You should record both

model and serial number

in a safe place for

future use.

CAUTION:

READ ALL

INSTRUCTIONS

CAREFULLY

MRN

IO-INCH

FLEX DRIVE TABLE SAW

•assembly

•operating

• repair parts

Sold by SEARS, ROEBUCK AND CO., Chicago,

Part No. 62868

IL. 60684 U.S.A.

Printed in U,S.A

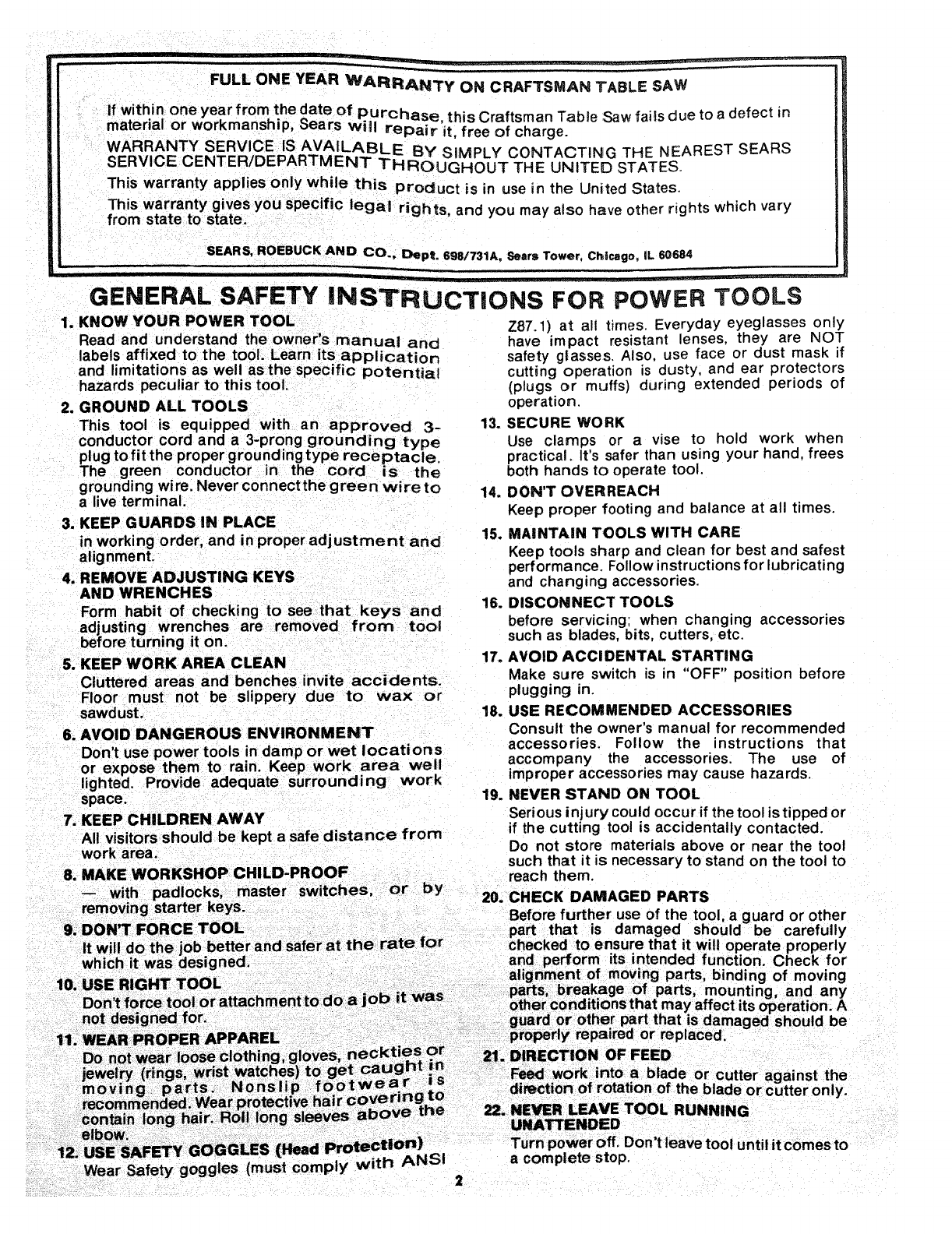

FULL ONE YEAR WARRANTY ON CRAFTSMAN TABLE SAW

If within one year from the date of Purchase this Craftsman Table Saw fails due to a defect in

material or workmansnip, _ears will repair'it, free of charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS

SERVICE CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.

This warranty applies only while this product is in use in the United States,

This warranty gives you specific legal rights, and you may also have other rights which vary

from state to state.

SEARS, ROEBUCK AND CO.; Dept. 698/731A. Sears Tower, Chicago, IL 60684

GENERAL SAFETY iNSTRUCTiONS FOR POWER TOOLS

1. KNOW YOUR POWER TOOL

Read and understand the owner's manual and

labels affixed to the tool. Learn its application

and limitations as well as the specific potential

hazards peculiar to this tool.

2. GROUND ALL TOOLS

This tool is equipped with an approved 3-

conductor cord and a 3-prong grounding type

plug to fit the proper grounding type receptacle

The green conductor n the cord is the

g rounding wire. Never connectthe green wire to

a live terminal.

3. KEEP GUARDS IN PLACE

in working order, and in proper adjustment and

alignment.

4. REMOVE ADJUSTING KEYS

AND WRENCHES

Form habit of checking to see that keys and

adjusting wrenches are removed from tool

before turning it on.

S. KEEP WORK AREA CLEAN

Cluttered areas and benches invite accidents.

Floor must not be slippery due to wax or

sawdust,

6. AVOID DANGEROUS ENVIRONMENT

Don't use power tools in damp or wet locations

or expose them to rain. Keep work area well

lighted. Provide adequate surrounding work

space.

7. KEEP CHILDREN AWAY

All visitors should be kept a safe distance from

work area.

13.

Z87.1) at all times. Everyday eyeglasses only

have impact resistant lenses, they are NOT

safety gtasses, Also, use face or dust mask if

cutting operation is dusty, and ear protectors

(plugs or muffs) during extended periods of

operation.

SECURE WORK

Use clamps or av_se to hold work when

practical. It's safer than using your hand, frees

both hands to operate tool.

DON'T OVERREACH

Keep proper footing and balance at all times.

MAINTAIN TOOLS WITH CARE

Keep tools sharp and clean for best and safest

performance. Follow instructions for lubricating

and changing accessories.

16. DISCONNECT TOOLS

before servicing; when changing accessories

such as blades, bits, cutters, etc.

17. AVOID ACCIDENTAL STARTING

Make sure switch is in "OFF" position before

plugging in

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended

accessories. Follow the instructions that

accompany the accessories. The use of

improper accessories may cause hazards.

19. NEVER STAND ON TOOL

Serious injury could occur if the tool is tipped or

if the cutting tool is accidentally contacted.

Do not store materials above or near the tool

such that it is necessary to stand on the tool to

Wear Safety goggles (must comply with ANSI a complete stop.

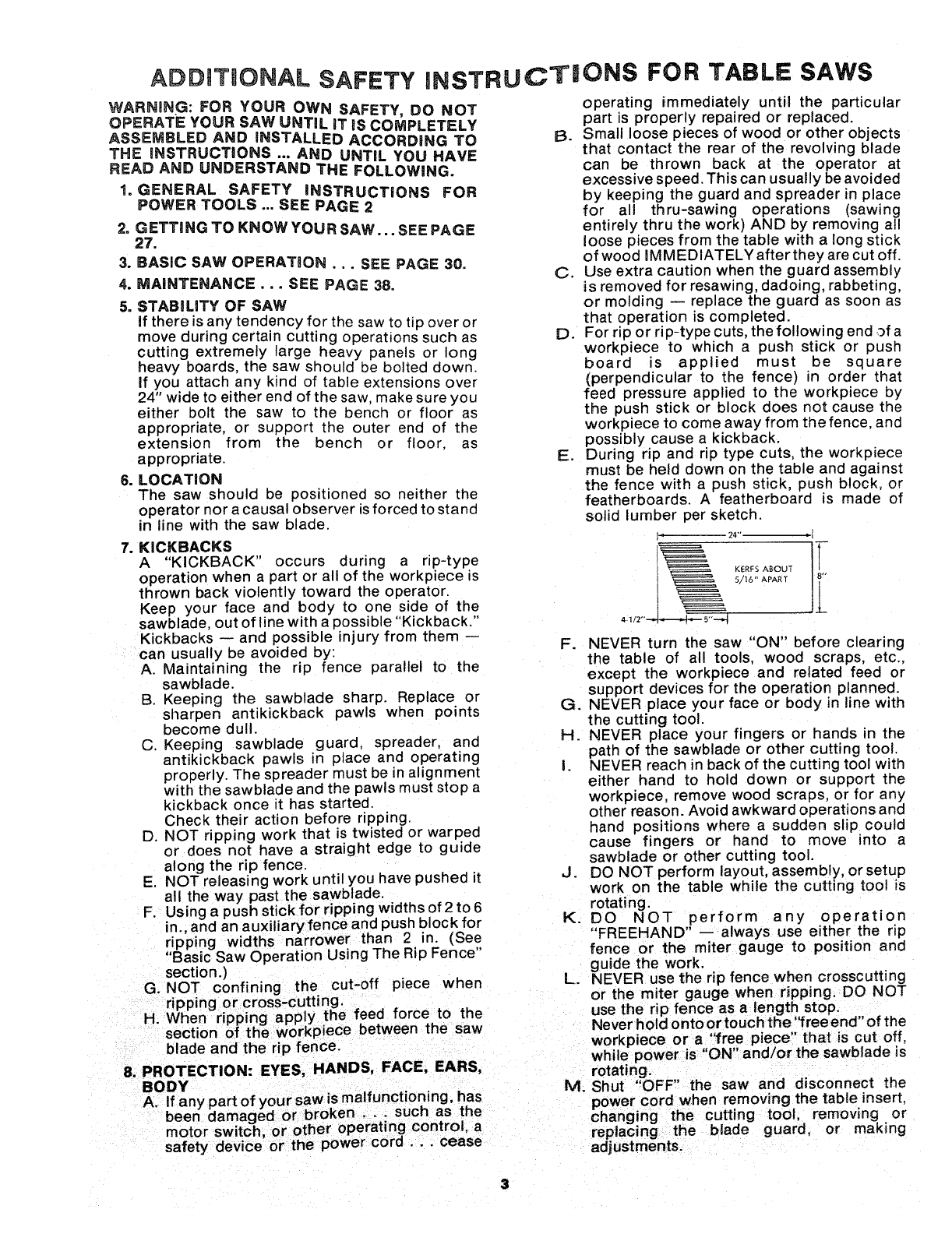

AE)DJTIONAL SAFETY aNSTRUCTiONS FOR TABLE SAWS

WARNING: FOR YOUR OWN SAFETY, DO NOT

OPERATE YOUR SAW UNTIL iT iS COMPLETELY

ASSEMBLED AND iNSTALLED ACCORDING TO

THE iNSTRUCTiONS ... AND UNTIL YOU HAVE

READ AND UNDERSTAND THE FOLLOWING.

1. GENERAL SAFETY iNSTRUCTiONS FOR

POWER TOOLS ... SEE PAGE 2

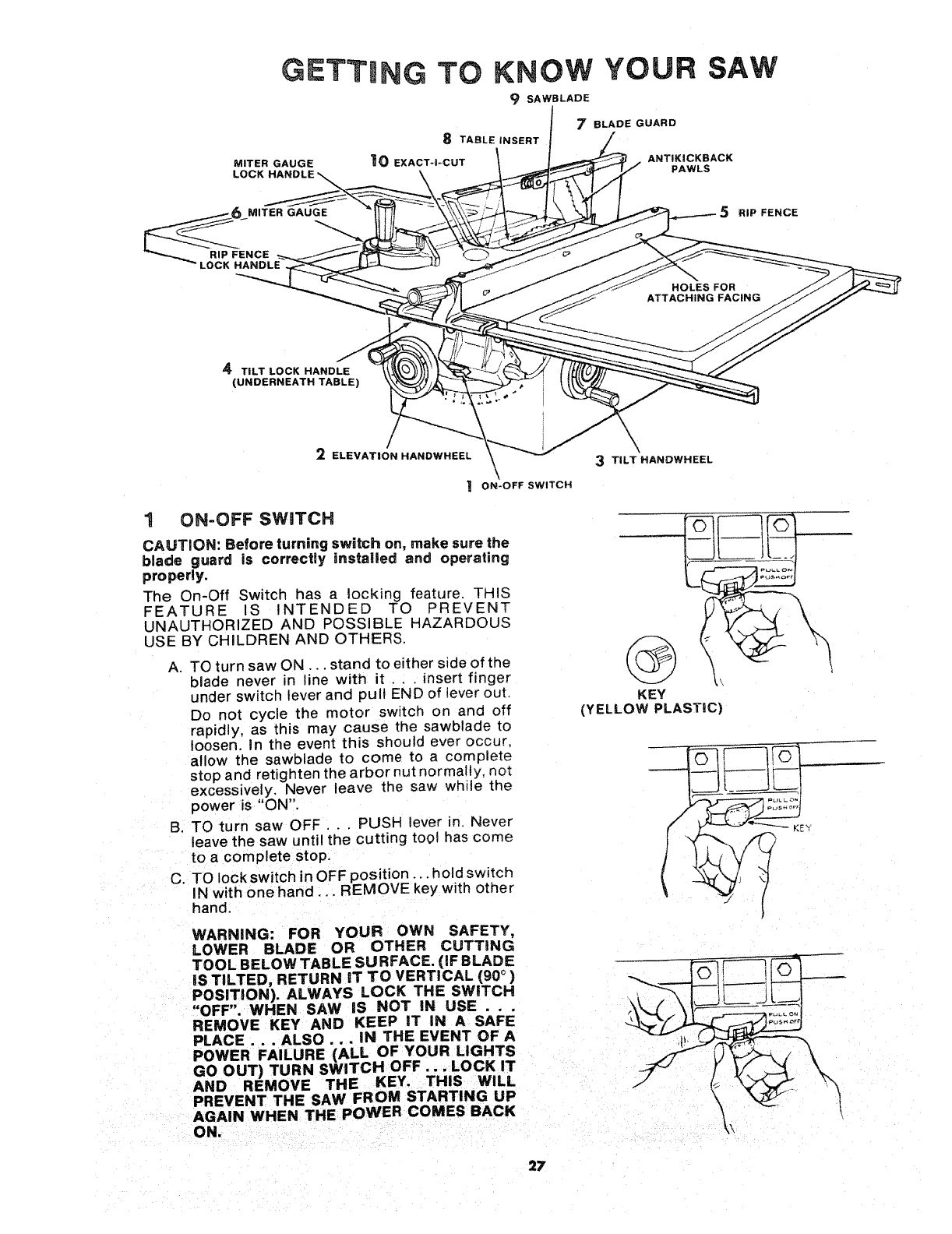

2. GETTING TO KNOW YOUR SAW... SEE PAGE

27.

3. BASIC SAW OPERATION ... SEE PAGE 30.

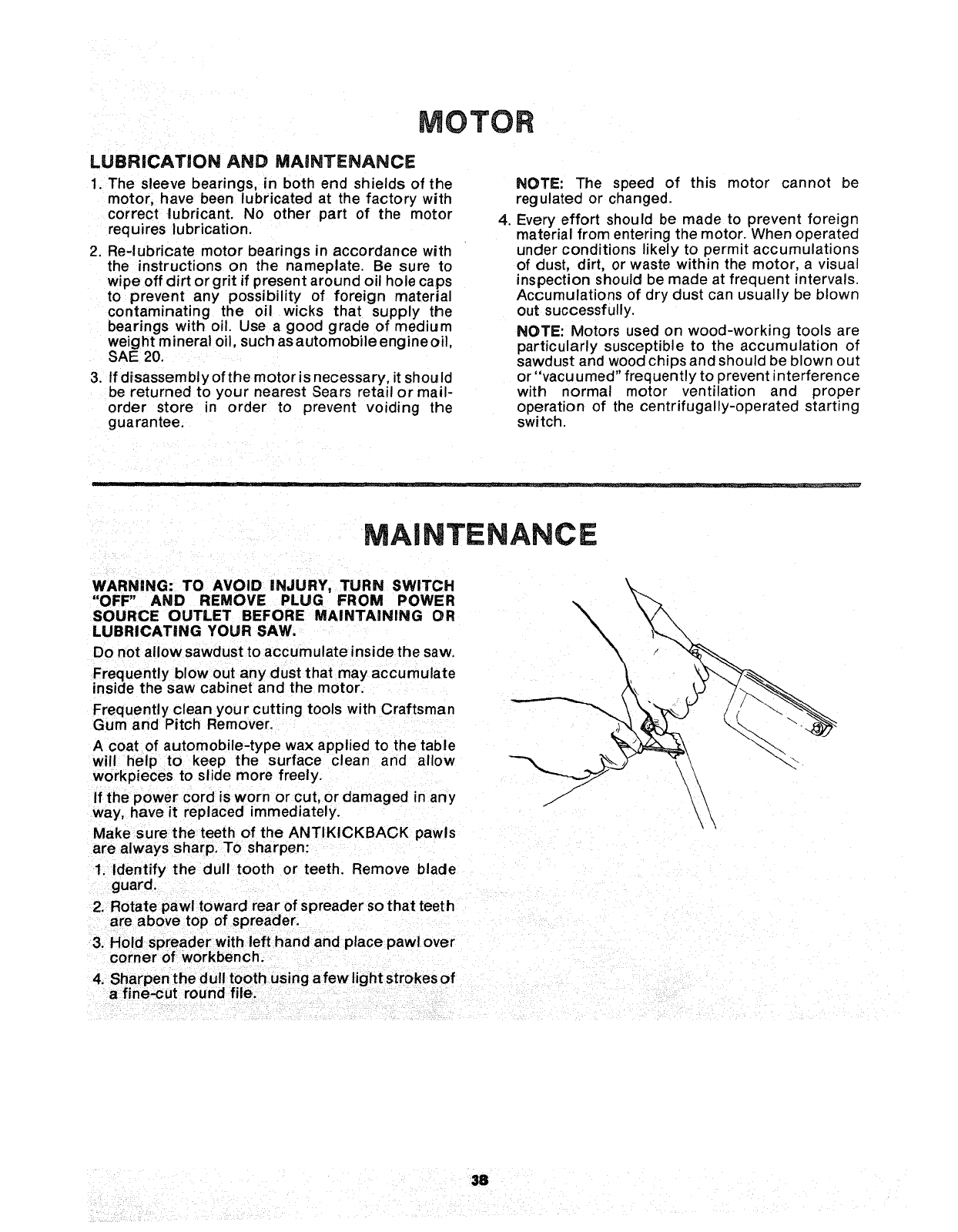

4. MAINTENANCE... SEE PAGE 38.

5. STABlUTY OF SAW

If there is any tendency for the saw to tip over or

move during certain cutting operations such as

cutting extremely large heavy panels or long

heavy boards, the saw should be bolted down.

if you attach any kind of table extensions over

24" wide to either end of the saw. make sure you

either bolt the saw to the bench or floor as

appropriate, or support the outer end of the

extension from the bench or floor, as

appropriate.

6. LOCATION

The saw should be positioned so neither the

operator nor a causal observer is forced to stand

in line with the saw blade.

7. KICKBACKS

A "KICKBACK" occurs during a rip-type

operation when a part or all of the workpiece is

thrown back violently toward the operator.

Keep your face and body to one side of the

sawblade, out of line with a possible "Kickback."

Kickbacks -- and possible injury from them --

can usually be avoided by:

A. Maintaining the rip fence parallel to the

sawblade.

B. Keeping the sawblade sharp. Replace or

sharpen antikickback pawls when points

become dull.

C. Keeping sawblade guard, spreader, and

antikickback pawls in place and operating

properly. The spreader must be in alignment

with the sawblade and the pawls must stop a

kickback once it has started.

Check their action before ripping.

D. NOT ripping work that is twisted or warped

or does not have a straight edge to guide

along the rip fence.

E. NOT releasing work until you have pushed it

all the way past the sawblade.

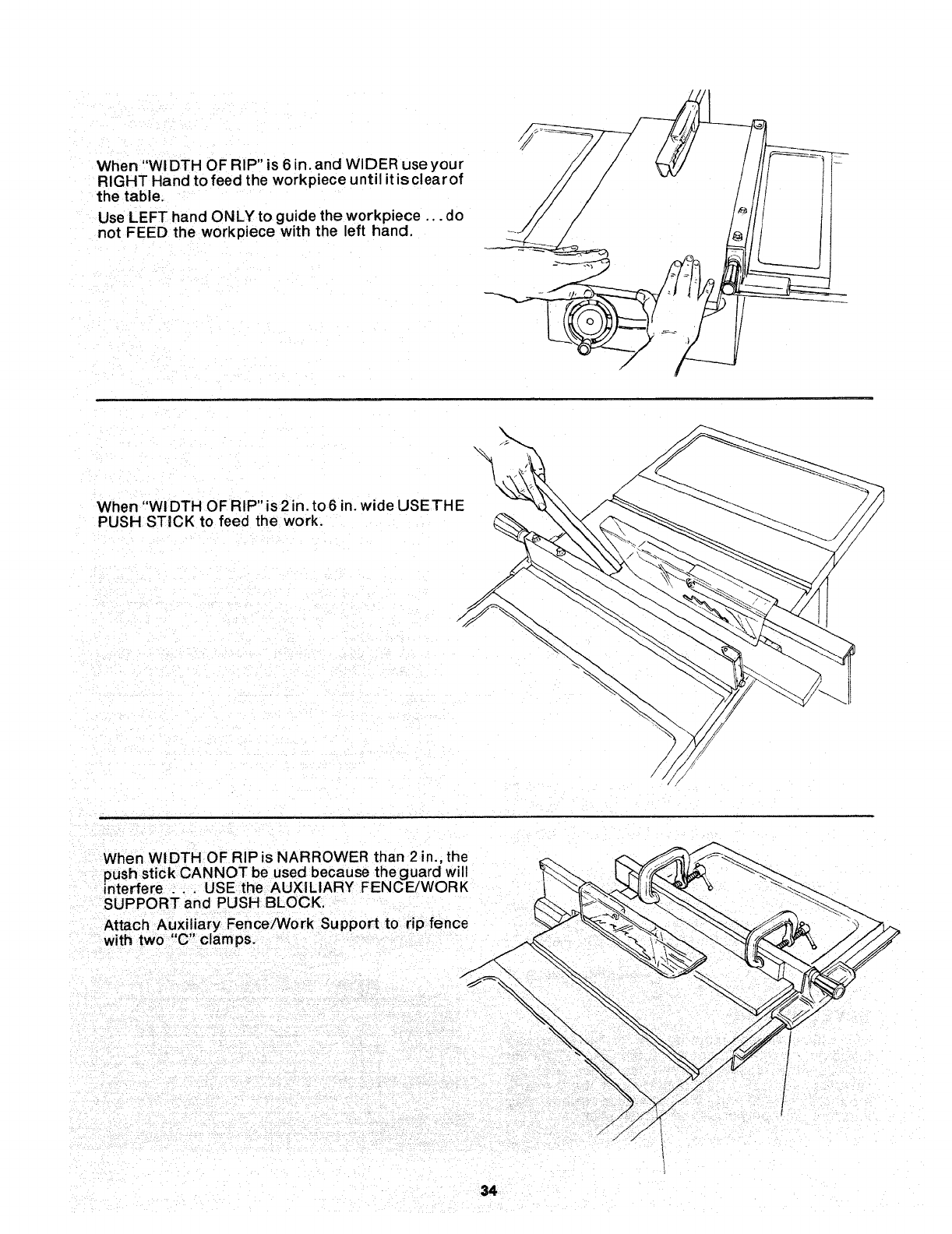

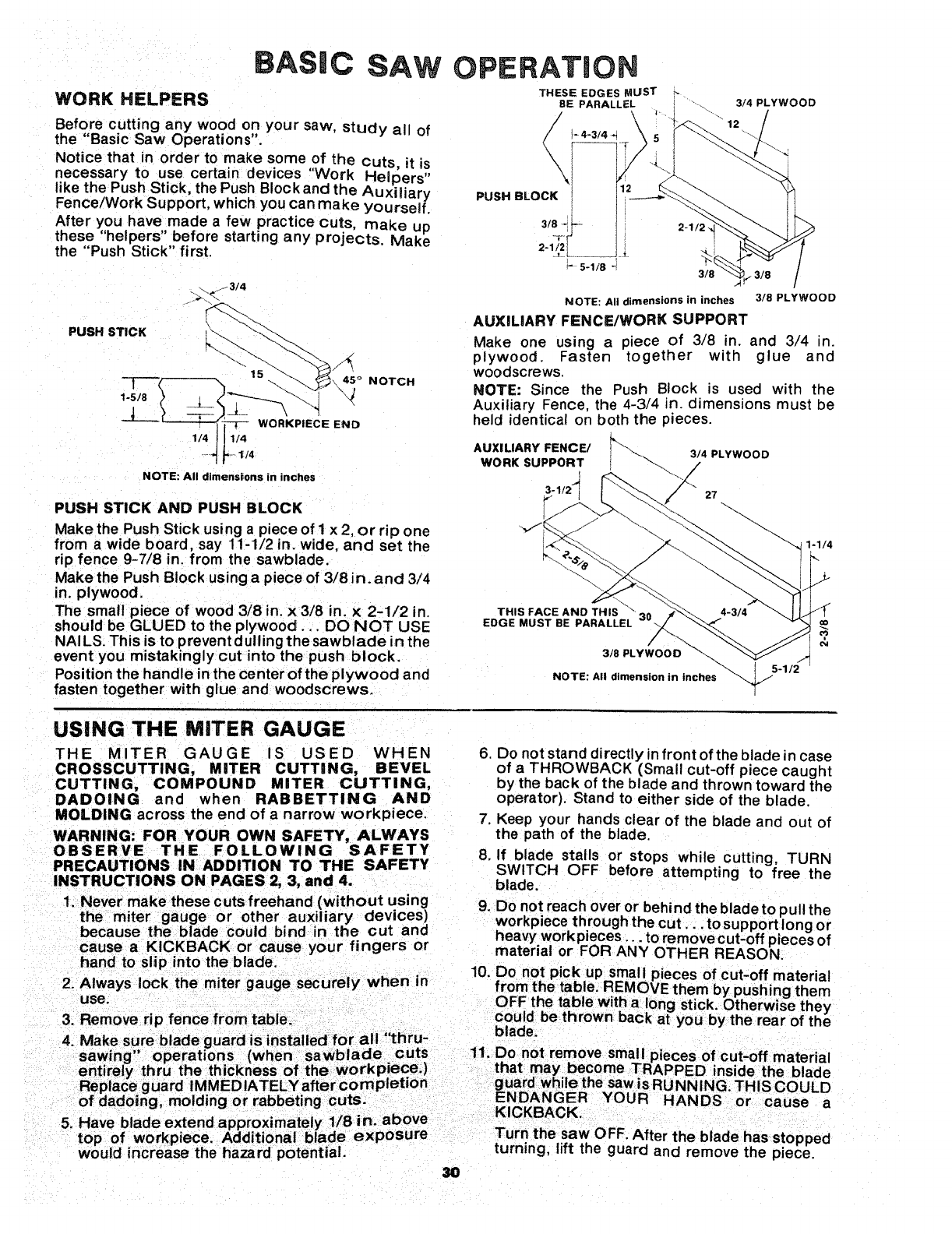

F. Using a push stick for ripping widths of 2 to 6

in., and an auxiliary fence and push block for

ripping widths narrower than 2 in. (See

"Basic Saw Operation Using The Rip Fence"

section.)

G. NOT confining the cut-off piece when

ripping or cross-cutting.

H. When ripping apply the feed force to the

section of the vvorkpiece between the saw

blade and the rip fence.

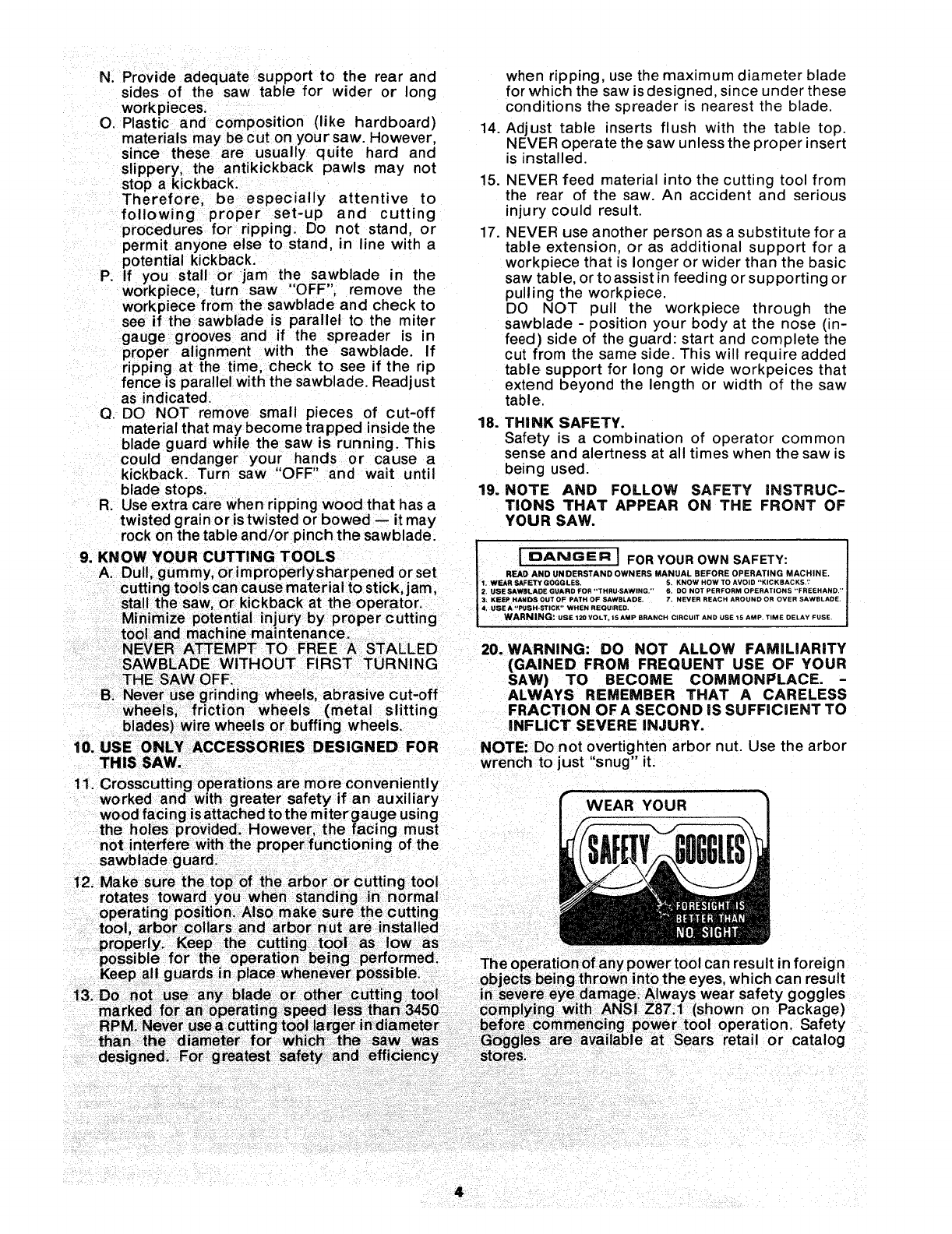

8. PROTECTION: EYES, HANDS, FACE, EARS,

BODY

A. If any part of your saw is malfunctioning, has

been damaged or broken .• • such as the

motor switch, or other operating control, a

safety device or the power cord.., cease

operating immediately until the particular

part is properly repaired or replaced.

B. Small loose pieces of wood or other objects

that contact the rear of the revolving blade

can be thrown back at the operator at

excessive speed. This can usually be avoided

by keeping the guard and spreader in place

for all thru-sawing operations (sawing

entirely thru the work) AND by removing all

loose pieces from the table with a long stick

of wood IMMEDIATELYafter they are cut off.

O. Use extra caution when the guard assembly

is removed for resawing, dadoing, rabbeting,

or molding -- replace the guard as soon as

that operation is completed.

g. For rip or rip-type cuts, the following end of a

workpiece to which a push stick or push

board is applied must be square

{perpendicular to the fence) in order that

feed pressure applied to the workpiece by

the push stick or block does not cause the

workpiece to come away from the fence, and

possibly cause a kickback.

E. During rip and rip type cuts, the workpiece

must be held down on the table and against

the fence with a push stick, push block, or

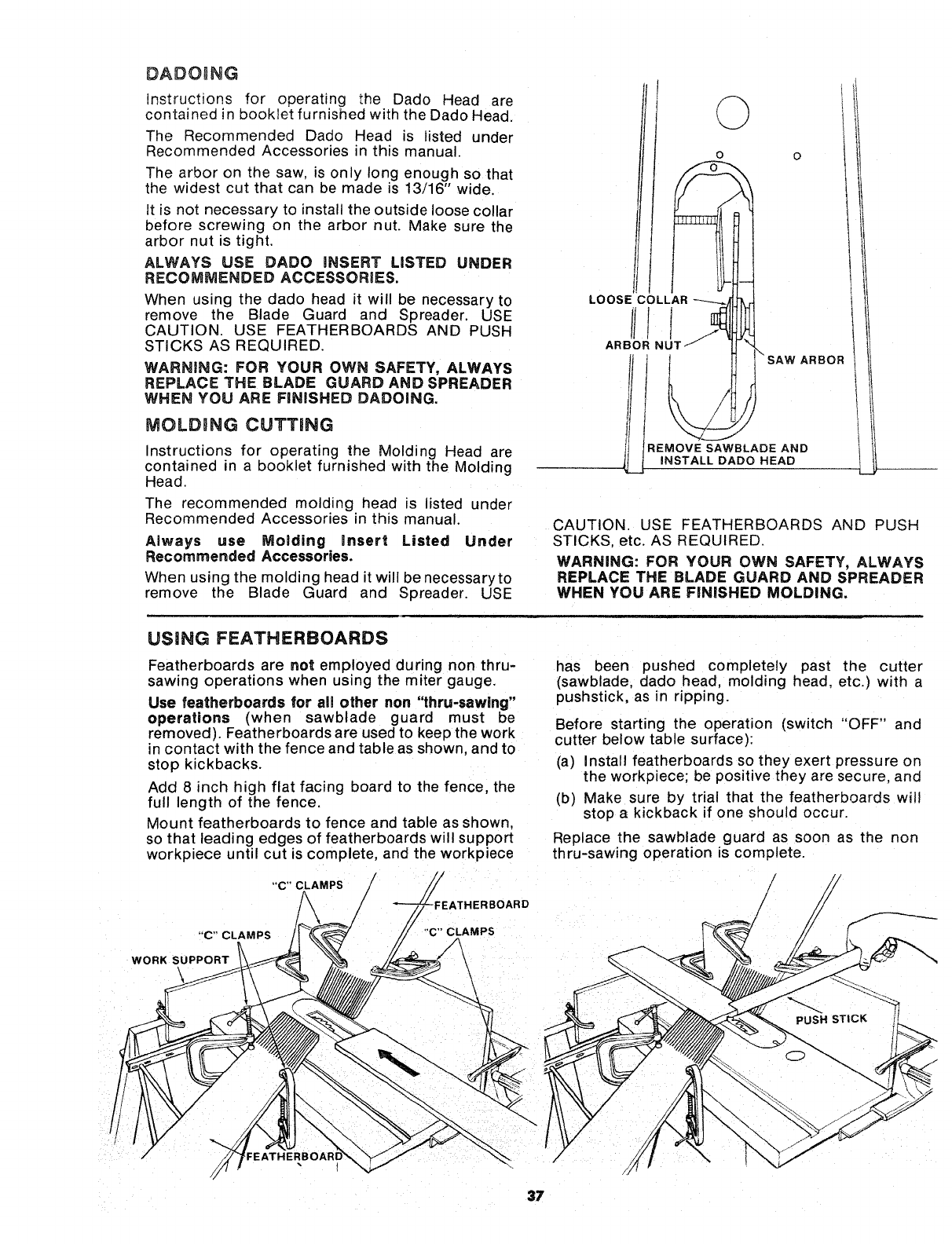

featherboards. A featherboard is made of

solid tumber per sketch.

l= 24" ,_

KERFS ABOUT J_

5/16" APART

F. NEVER turn the saw "ON" before clearing

the table of all tools, wood scraps, etc.,

except the workpiece and related feed or

support devices for the operation planned.

G. NEVER place your face or body in line with

the cutting tool.

H. NEVER place your fingers or hands in the

path of the sawblade or other cutting tool.

i. NEVER reach in back of the cutting tool with

either hand to hold down or support the

workpiece, remove wood scraps, or for any

other reason. Avoid awkward operations and

hand positions where a sudden slip could

cause fingers or hand to move into a

sawblade or other cutting tool.

J. DO NOT perform layout, assembly, or setup

work on the table while the cutting tool is

rotating.

K. DO NOT perform any operation

"FREEHAND" -- always use either the rip

fence or the miter gauge to position and

guide the work.

L. NEVER use the rip fence when crosscutting

or the miter gauge when ripping. DO NOT

use the rip fence as a length stop.

Never hold onto or touch the "free end" of the

workpiece or a "free piece" that is cut off,

while power is "ON" and/or the sawblade is

rotating.

M. Shut "OFF" the saw and disconnect the

power cord when removing the table insert,

changing ......... toot, removing or

replacing the blade guard, or making

adjustments.

N. Provide adequate support to the rear and

sides of the saw table for wider or long

work pieces.

O. Plastic and composition (like hardboard)

materials may be cut on your saw. However,

since these are usually quite hard and

slippery, the antikickback pawls may not

stop a kickback.

Therefore, be especially attentive to

following proper set-up and cutting

procedures for ripping. Do not stand, or

permit anyone else to stand, in line with a

potential kickback.

P. If you stall or jam the sawblade in the

workpiece, turn saw 'OFF", remove the

workpiece from the sawblade and check to

see if the sawblade is parallel to the miter

gauge grooves and if the spreader is in

proper alignment with the sawblade. If

ripping at the time, check to see if the rip

fence is parallel with the sawblade. Readjust

as indicated.

Q. DO NOT remove small pieces of cut-off

material that may become trapped inside the

blade guard while the saw is running. This

could endanger your hands or cause a

kickback. Turn saw "OFF" and wait until

blade stops.

R. Use extra care when ripping wood that has a

twisted grain oris twisted or bowed -- it may

rock on the table and/or pinch the sawblade.

9. KNOW YOUR CUTTING TOOLS

A. Dull, gummy, or improperlysharpened or set

cutting tools can cause material to stick,jam,

14.

15.

17.

when ripping, use the maximum diameter blade

for which the saw is designed, since under these

conditions the spreader is nearest the blade.

Adjust table inserts flush with the table top.

NEVER operate the saw unless the proper insert

is installed.

NEVER feed material into the cutting tool from

the rear of the saw. An accident and serious

injury could result.

NEVER use another person as a substitute for a

table extension, or as additional support for a

workpiece that is longer or wider than the basic

saw table, or to assist in feeding or supporting or

pulling the workpiece.

DO NOT pull the workpiece through the

sawblade - position your body at the nose (in-

feed) side of the guard: start and complete the

cut from the same side. This will require added

table support for iong or wide workpeices that

extend beyond the length or width of the saw

table.

18. THINK SAFETY.

Safety is a combination of operator common

sense and alertness at all times when the saw is

being used.

19. NOTE AND FOLLOW SAFETY iNSTRUC-

TIONS THAT APPEAR ON THE FRONT OF

YOUR SAW.

IDAi_GER IFOR YOUR OWN SAFETY:

READ AND UNDERSTAND OWNERS MANUAL BEFORE OPERATING MACHINE.

1_ WEAR SAFETY GOGGLES. S* KNOW HOW TO AVOID "KICKBACKS.'.'

2. USE SAWBLADE GUARD FOR "THRU-SAWING." 6. DO NOT PERFORM OPERATIONS "FREEHAND."

3. KEEP HANDS OUT OF PATH OF SAWBLAOE, 7. NEVER REACH AROUND OR OVER SAWBLADE.

4. USE A "PUSH-STICK" WHEN REQUIRED.

WARNING: USE 120 VOLT, |5 AMP BRANCH CIRCUIT AND USE 15 AMP, TIME DELAY FUSE,

too and machine maintenance.

NEVER ATTEMPT TO FREE A STALLED 20. WARNING: DO NOT ALLOW FAMILIARITY

SAWBLADE WITHOUT FIRST TURNING (GAINED FROM FREQUENT USE OF YOUR

THE SAW OFF. SAW) TO BECOME COMMONPLACE. -

THIS SAW. wrench to just "snug" it.

11. Crosscutting operations are more conveniently

worked and with greater safety if an auxiliary

wood facing isattached tothe mitergauge using WEAR YOUR

the holes provided. However, the facing must

not nterfere with the proper functioning of the

sawblade guard.

12. rotates

The operation of any power tool can result in foreign

thrown i which can result

y goggles

ge)

Ltion. Safety

retail or catalog

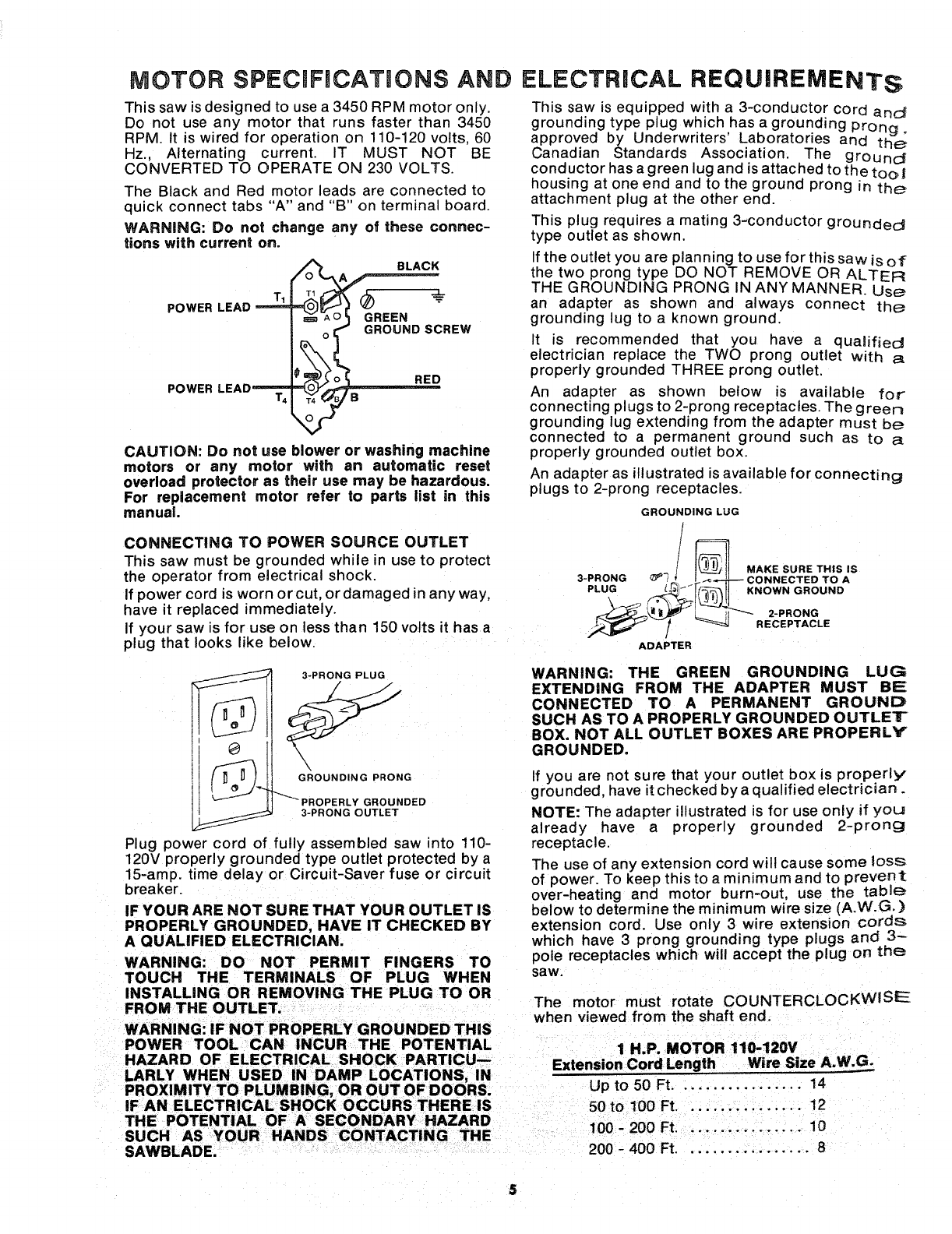

MOTOR SPECJFICATmONS AND ELECTRmCAL REQUIREMENTs

This saw is designed to use a 3450 RPM motor only.

Do not use any motor that runs faster than 3450

RPM It is wired for operation on 110-120 volts, 60

Hz., Alternating current. IT MUST NOT BE

CONVERTED TO OPERATE ON 230 VOLTS.

The Black and Red motor leads are connected to

quick connect tabs "A" and "B" on terminal board.

WARNING: Do not change any of these connec-

tions with current on.

POWER LEAD

BLACK

GREEN

GROUND SCREW

RED

CAUTION: Do not use blower or washing machine

motors or any motor with an automatic reset

overload protector as their use may be hazardous.

For replacement motor refer to parts list in this

manual.

CONNECTING TO POWER SOURCE OUTLET

This saw must be grounded while in use to protect

the operator from electrical shock.

If power cord is worn or cut, or damaged in anyway,

have it replaced immediately.

If your saw is for use on less than 150 volts it has a

plug that looks like below.

This saw is equipped with a3-conductor cord and

grounding type plug which has a grounding Prong,

approved by Underwriters' Laboratories and th_

Canadian Standards Association. The ground

conductor has a green lug and is attached to the to(_

housing at one end and to the ground prong in the

attachment plug at the other end.

This plug requires a mating 3-conductor grounded

type outlet as shown.

If the outlet you are planning to use for this saw is of

the two prong type DO NOT REMOVE OR ALTER

THE GROUNDING PRONG IN ANY MANNER. Use

an adapter as shown and always connect th_

grounding lug to a known ground.

It is recommended that you have a qualified

electrician replace the TWO prong outlet with a

properly grounded THREE prong outlet.

An adapter as shown below is available for

connecting plugs to 2-prong receptacles. The green

grounding lug extending from the adapter must be

connected to a permanent ground such as to a

properly grounded outlet box.

An adapter as illustrated is available for connecting

plugs to 2-prong receptacles.

GROUNDING LUG

!s,,

ADAPTER

3-PRONG PLUG

GROUNDING PRONG

GROUNDED

3-PRONG OUTLET

Plug power cord of fully assembled saw into 110-

120V properly grounded type outlet protected by a

15-amp. time delay or Circuit-Saver fuse or circuit

breaker.

IF YOUR ARE NOT SURE THAT YOUR OUTLET IS

PROPERLY GROUNDED, HAVE IT CHECKED BY

A QUALIFIED ELECTRICIAN.

WARNING: DO NOT PERMIT FINGERS TO

TOUCH THE TERMINALS OF PLUG WHEN

INSTALLING OR REMOVING THE PLUG TO OR

FROM THE OUTLET.

WARNING: IF NOT PROPERLY GROUNDED THIS

POWER TOOL CAN INCUR THE POTENTIAL

HAZARD OF ELECTRICAL SHOCK PARTICU-

LARLY WHEN USED IN DAMP LOCATIONS, IN

PROXIMITY TO PLUMBING, OR OUT OF DOORS.

WARNING: THE GREEN GROUNDING LUG

EXTENDING FROM THE ADAPTER MUST BE

CONNECTED TO A PERMANENT GROUND

SUCH AS TO A PROPERLY GROUNDED OUTLET

BOX. NOT ALL OUTLET BOXES ARE PROPERLY

GROUNDED.

If you are not sure that your outlet box is properly"

grounded, have it checked by a qualified electrician.

NOTE: The adapter illustrated is for use only if you

already have a properly grounded 2-prong

receptacle.

The use of any extension cord will cause some loss

of power. To keep this to a minimum and to prevent

ever-heating and motor burn-out, use the table

below to determine the minimum wire size (A.W.G,)

extension cord. Use only 3 wire extension cord_

which have 3 prong grounding type plugs and 3-

pole receptacles which will accept the plug on the

saw.

The motor must rotate COUNTERCLOCKWISE

when viewed from the shaft end.

1 H.P. MOTOR 110-120V

Extension Cord Length Wire Size A.W.G_:

Up to 50 Ft................. 14

IF AN ELECTRICAL SHOCK OCCURS THERE IS 50 to 100 Ft................ 12

THE POTENTIAL OF A SECONDARY HAZARD ....... t........

/UU tUU r

SUCH AS YOUR HANDS CONTACTING THE - . ....... 10

SAWBLADE. 200 -400 Ft................. 8

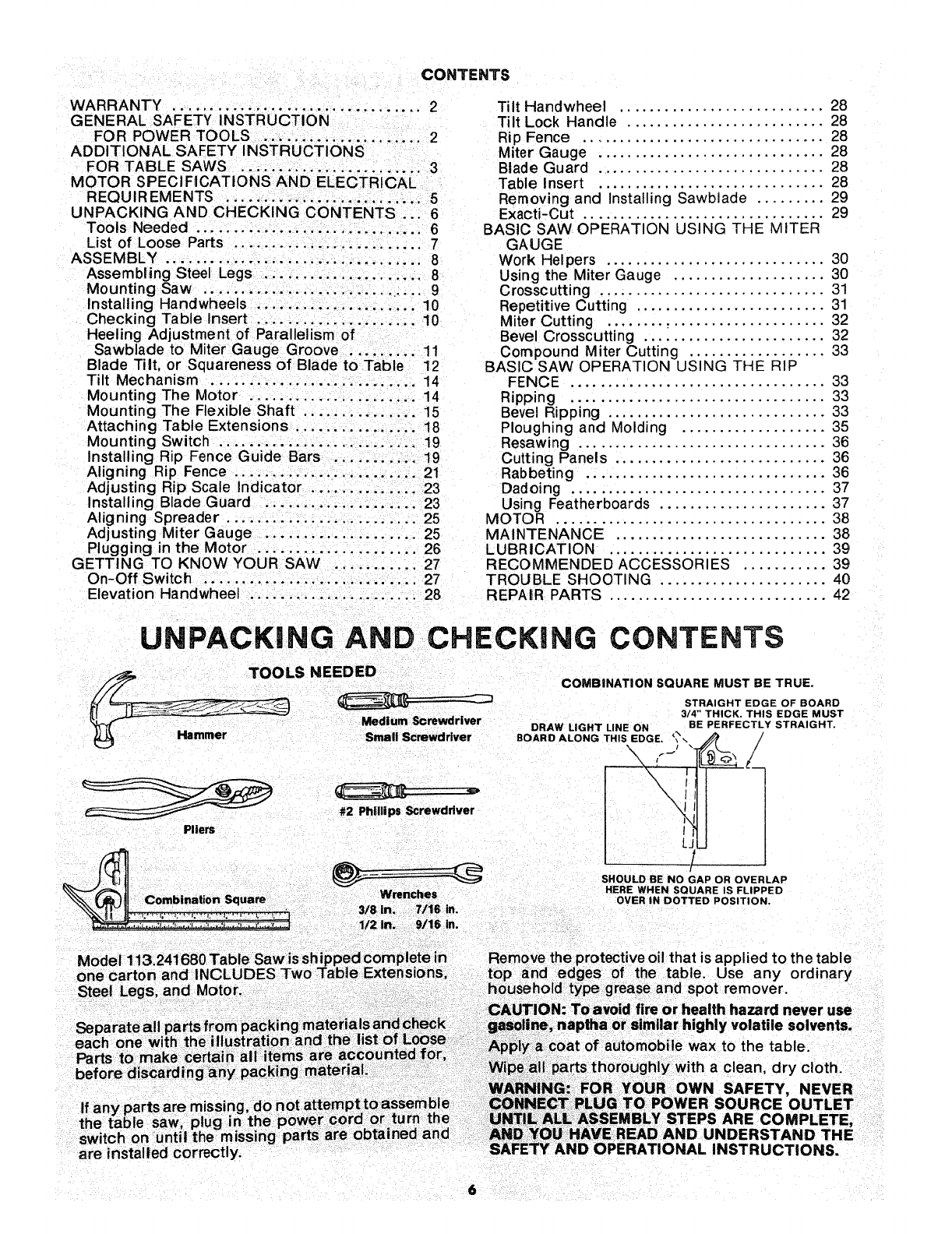

CONTENTS

WARRANTY ................................. 2

GENERAL SAFETY INSTRUCTION

• , 2

Tools Needed .............................. 6

List of Loose Parts ......................... 7

ASSEMBLY ................................... 8

Assembling Steel Legs ..................... 8

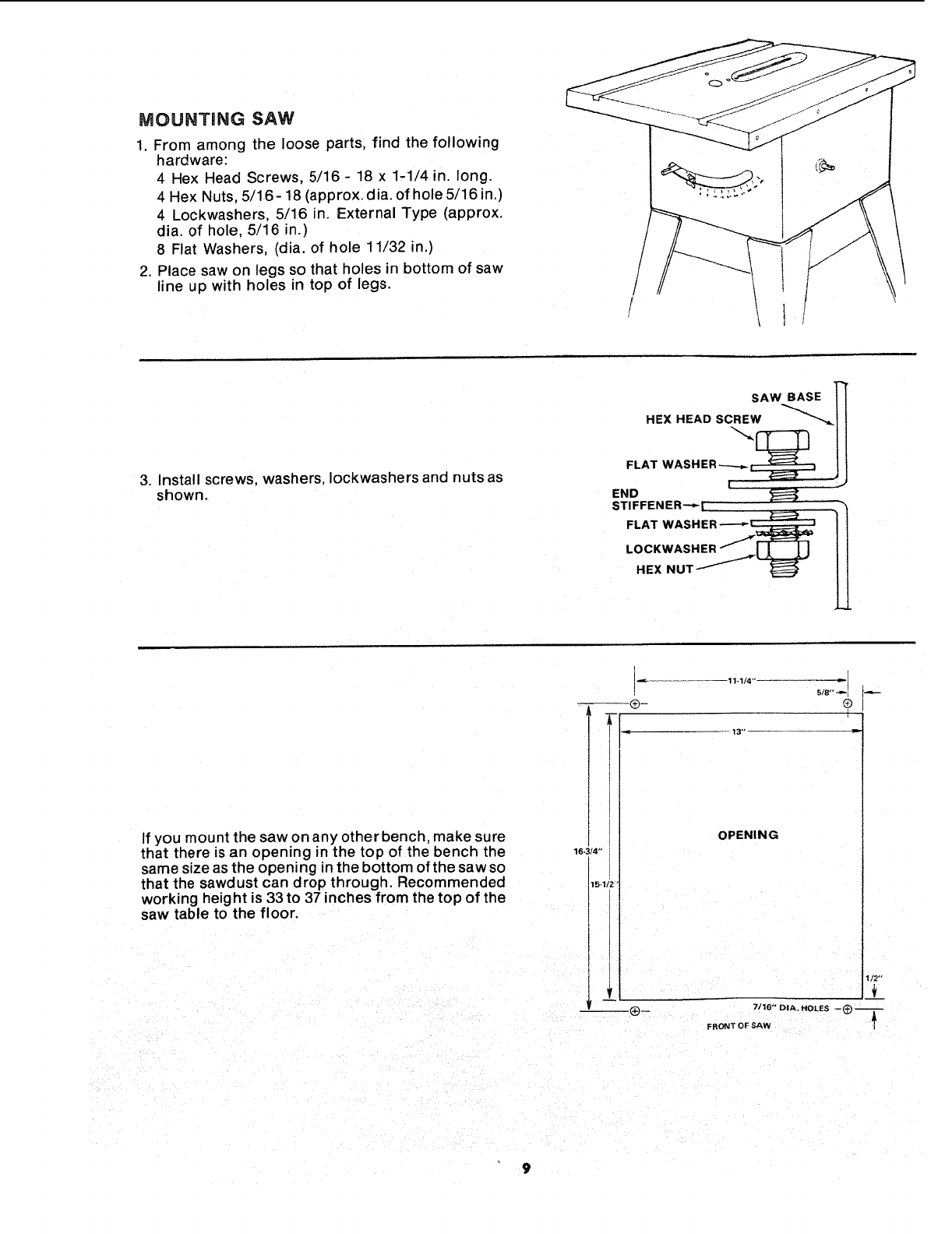

Mounting Saw ............................. 9

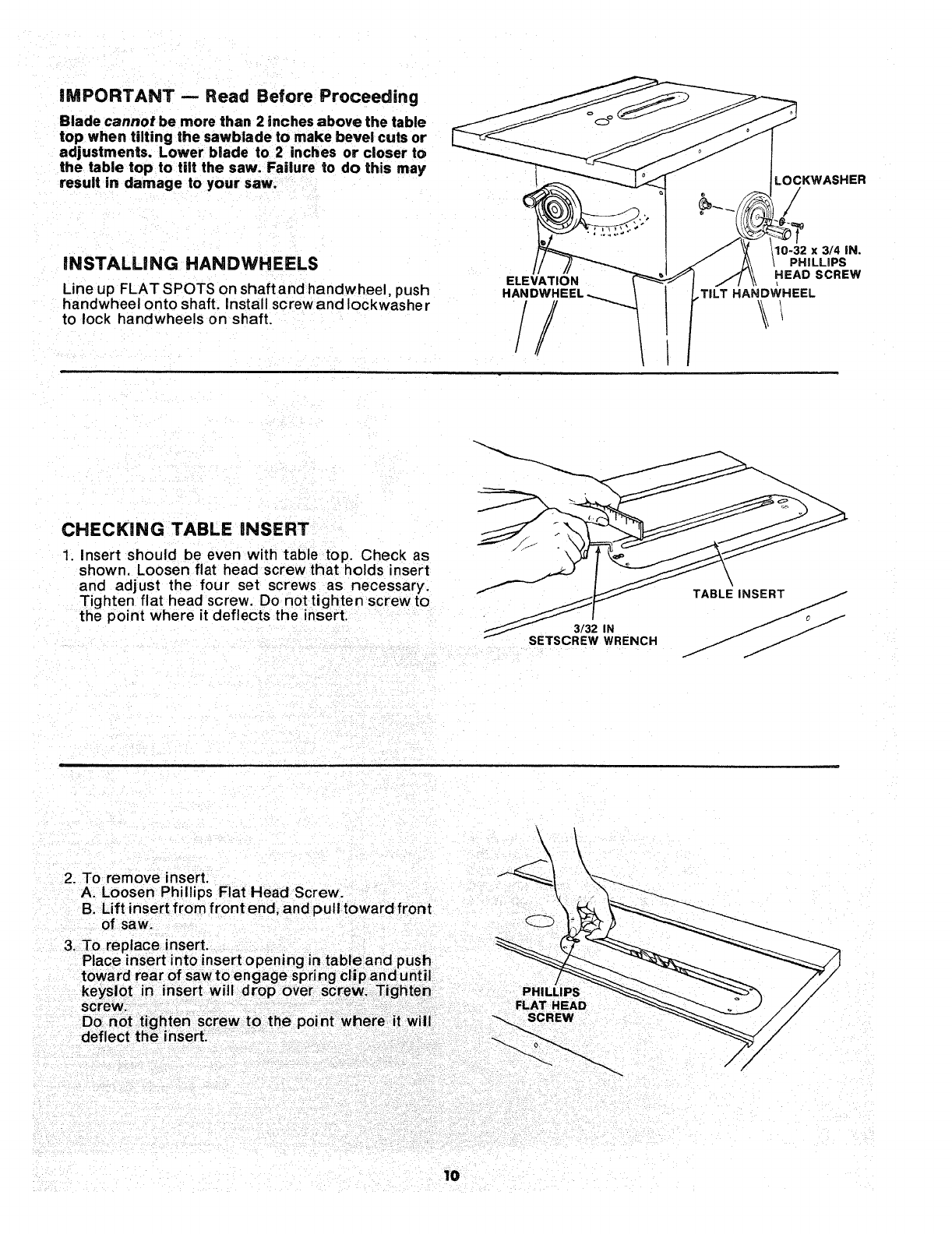

Installing Handwheels ..................... 10

Checking Table Insert. ............... ..... 10

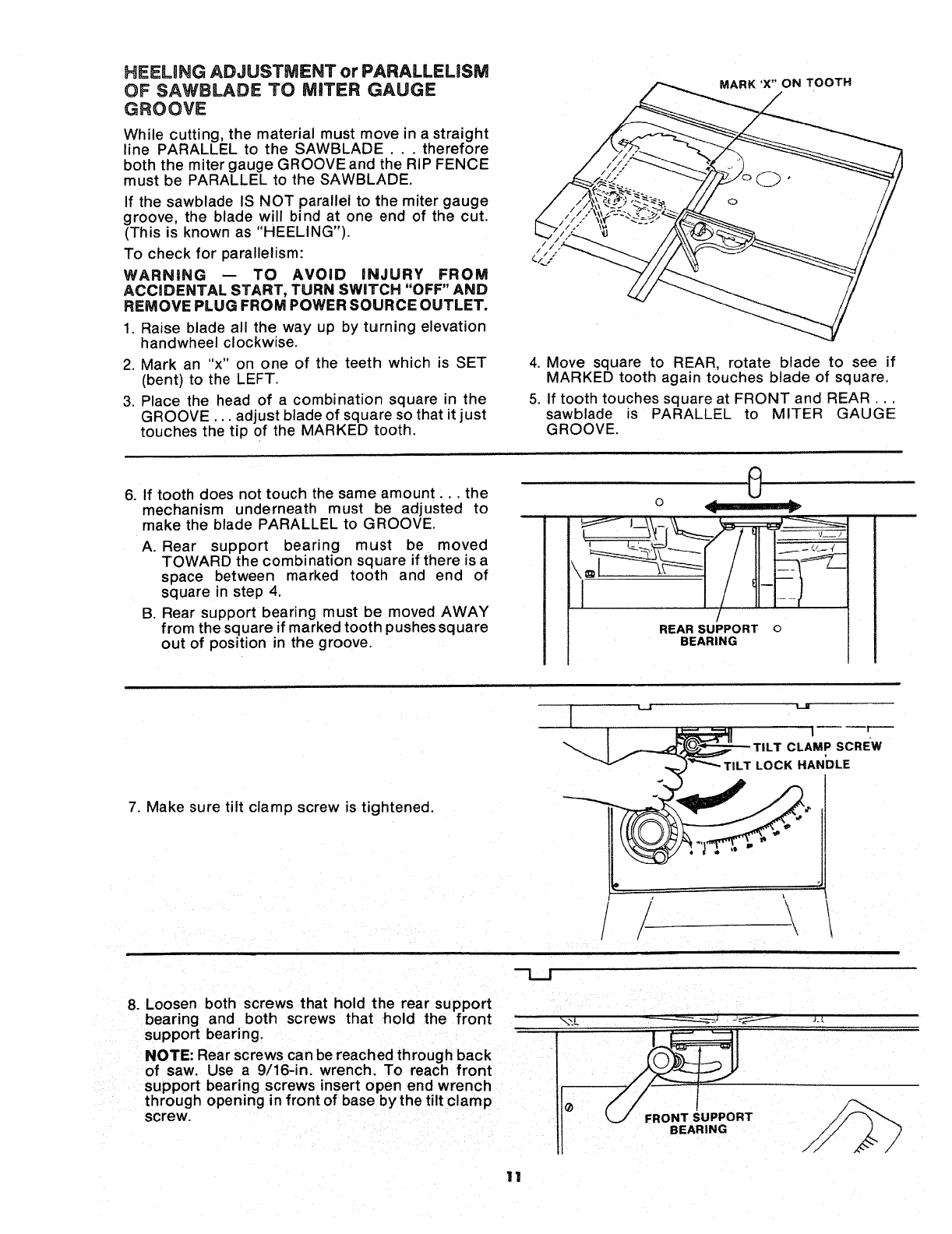

Heeling Adjustment of Parallelism of

Sawblade to Miter Gauge Groove ......... 11

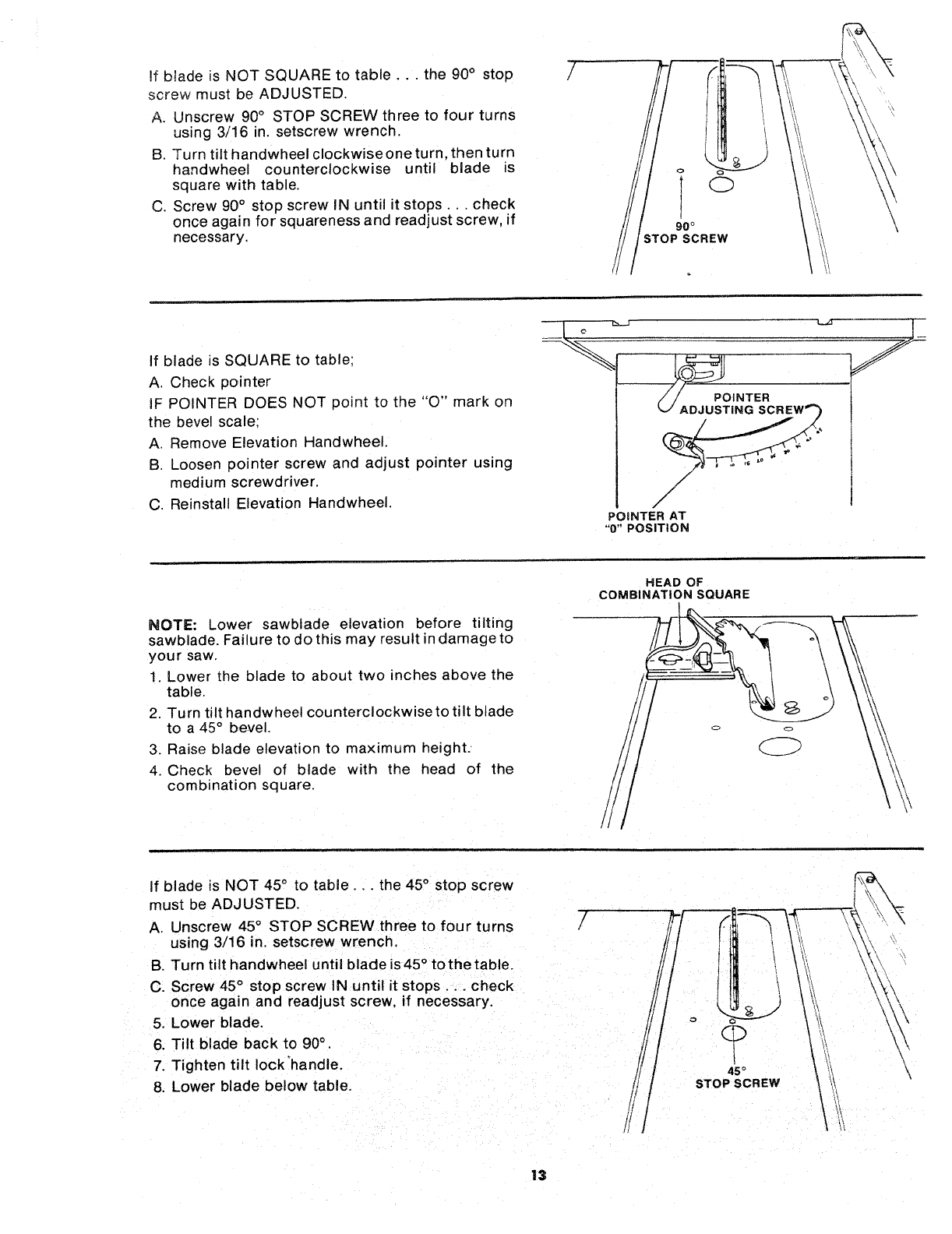

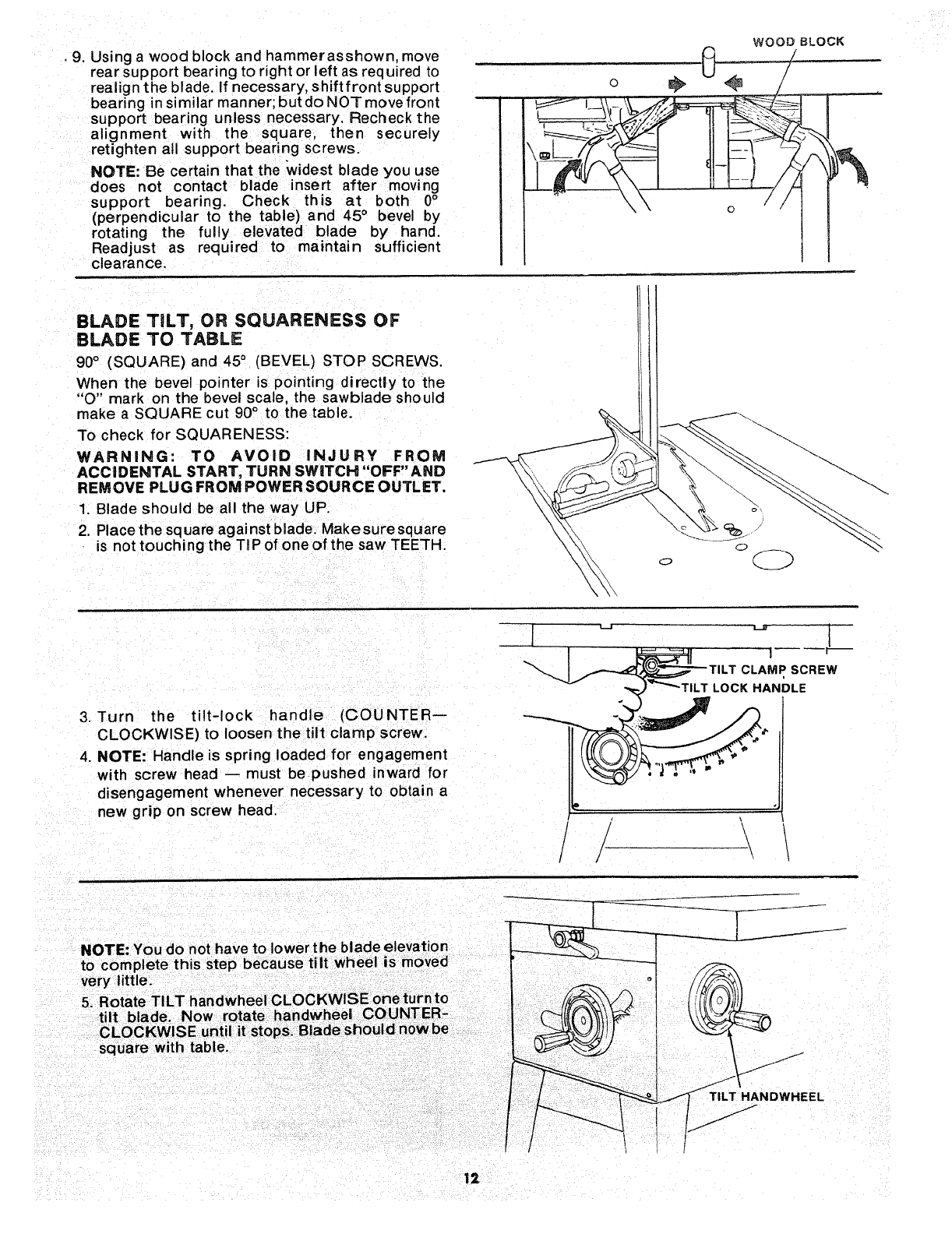

Blade Tilt, or Squareness of Blade to Table 12

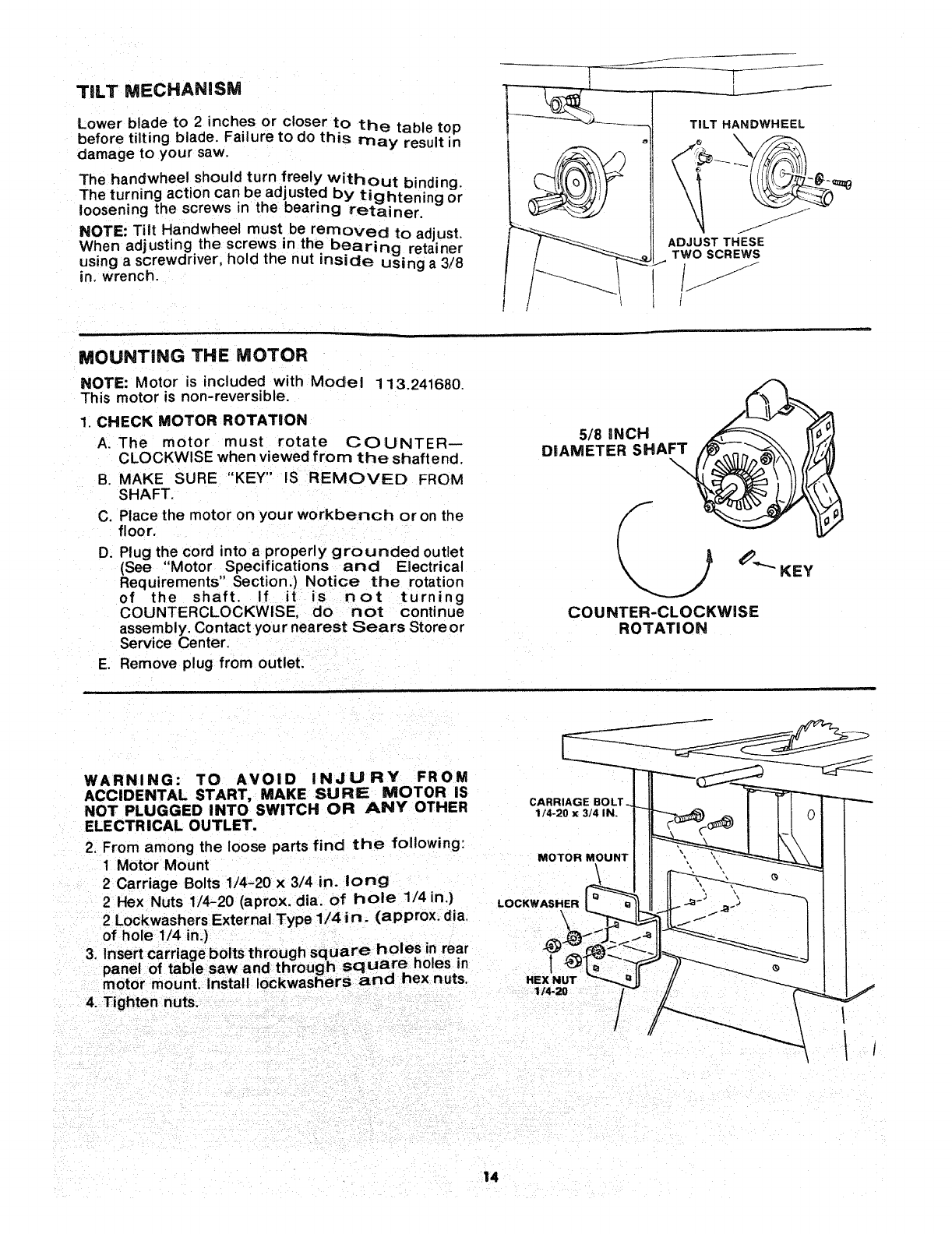

Tilt Mechanism ........................... 14

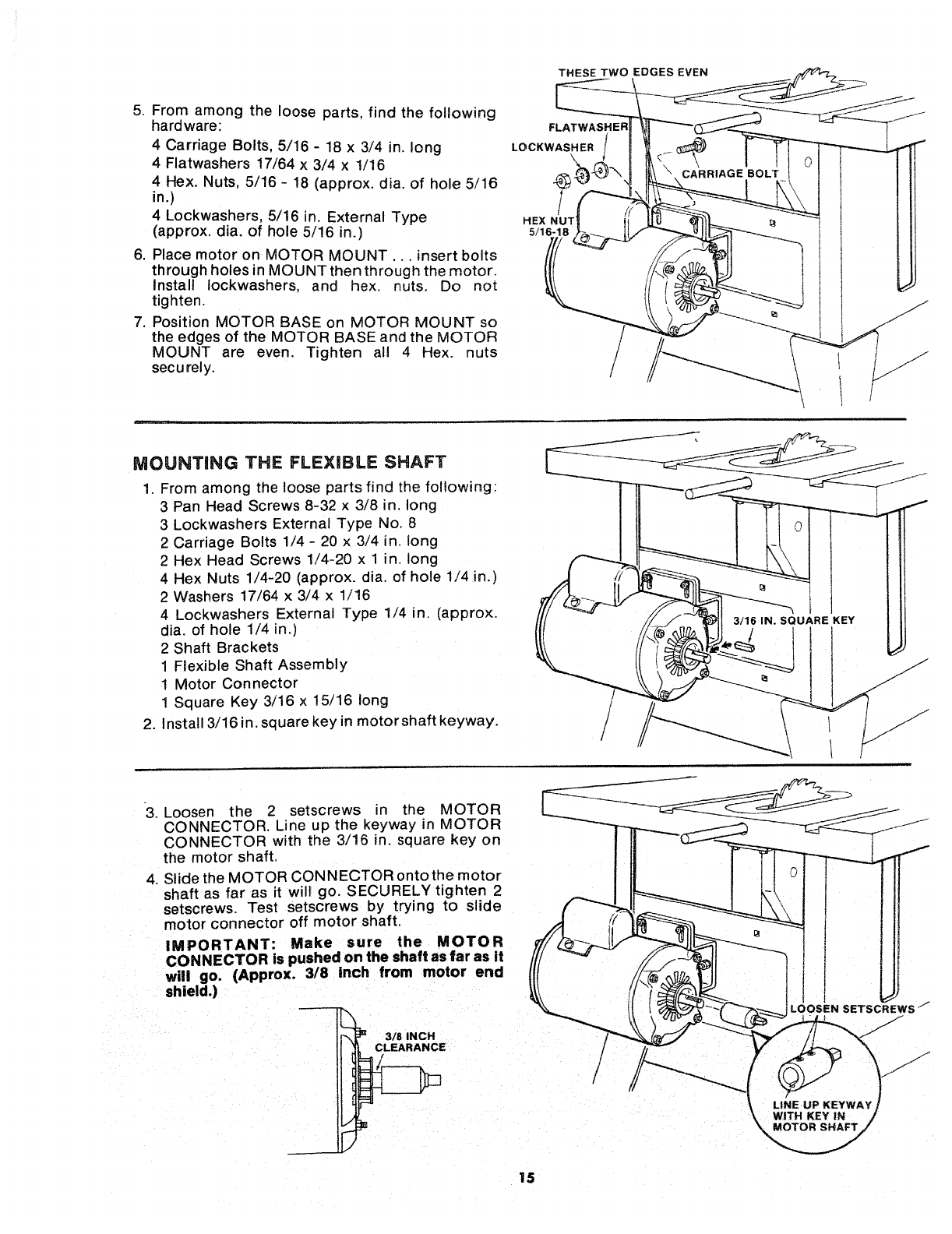

Mounting The Motor ...................... 14

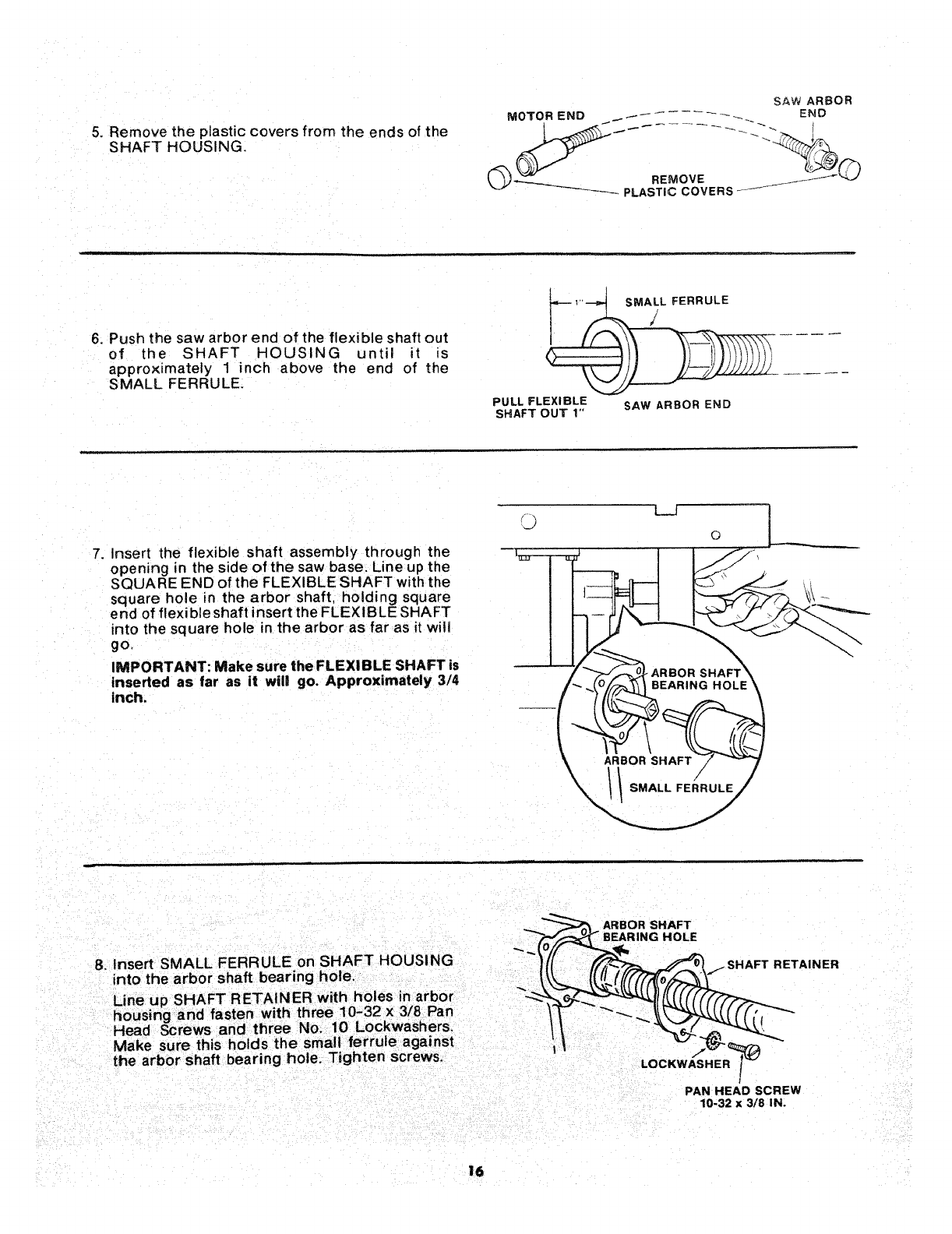

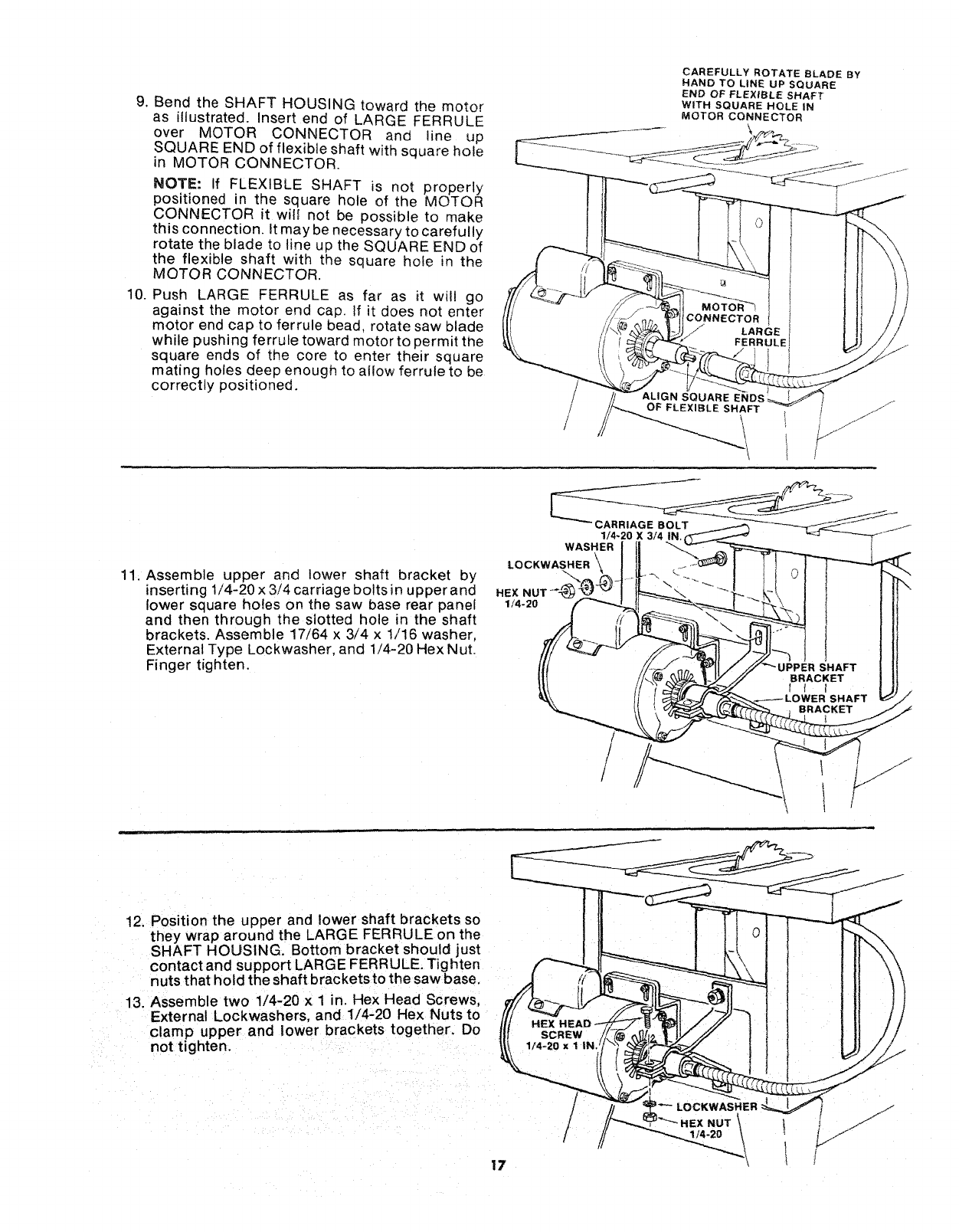

Mounting The Flexible Shaft ................ 15

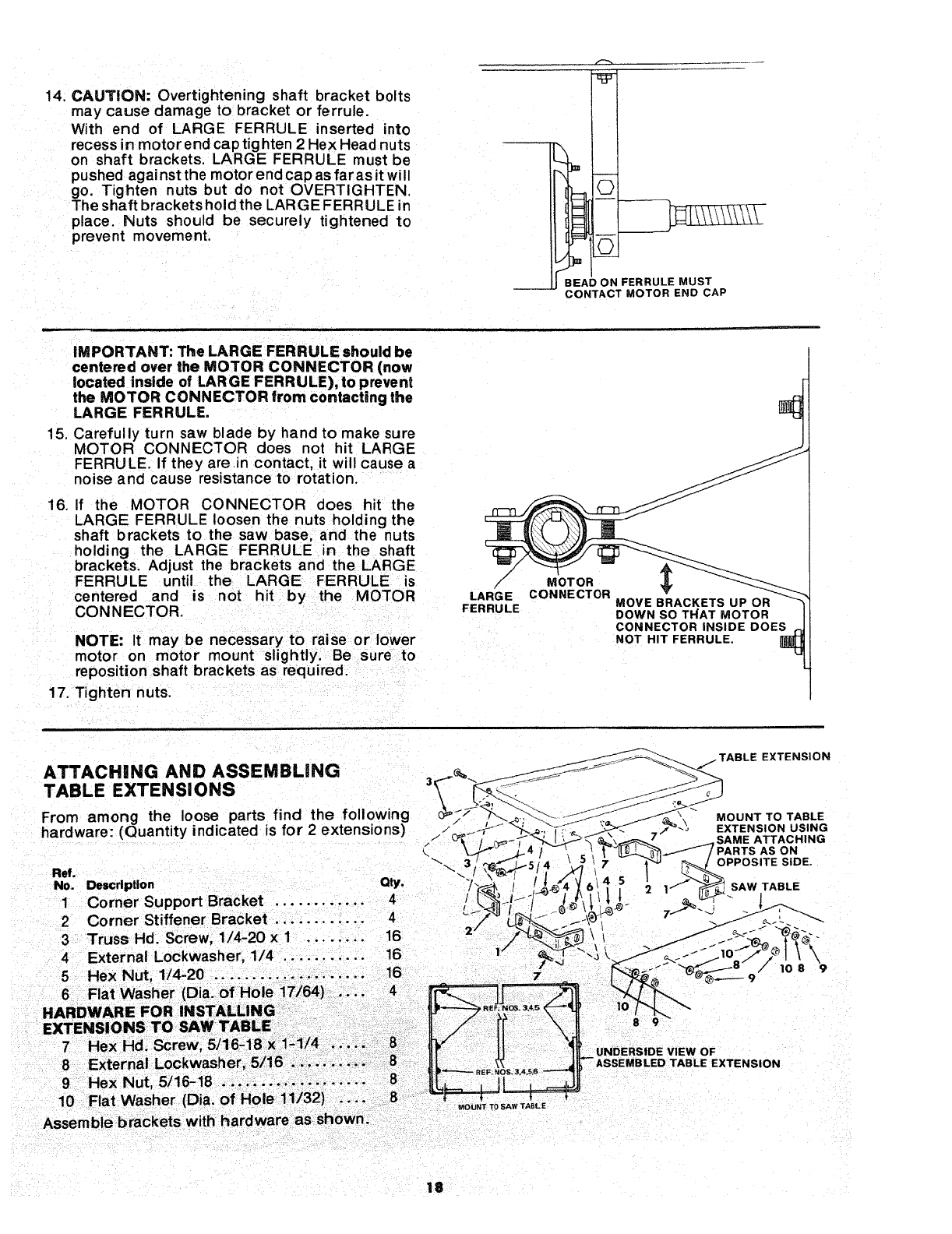

Attaching Table Extensions ................ 18

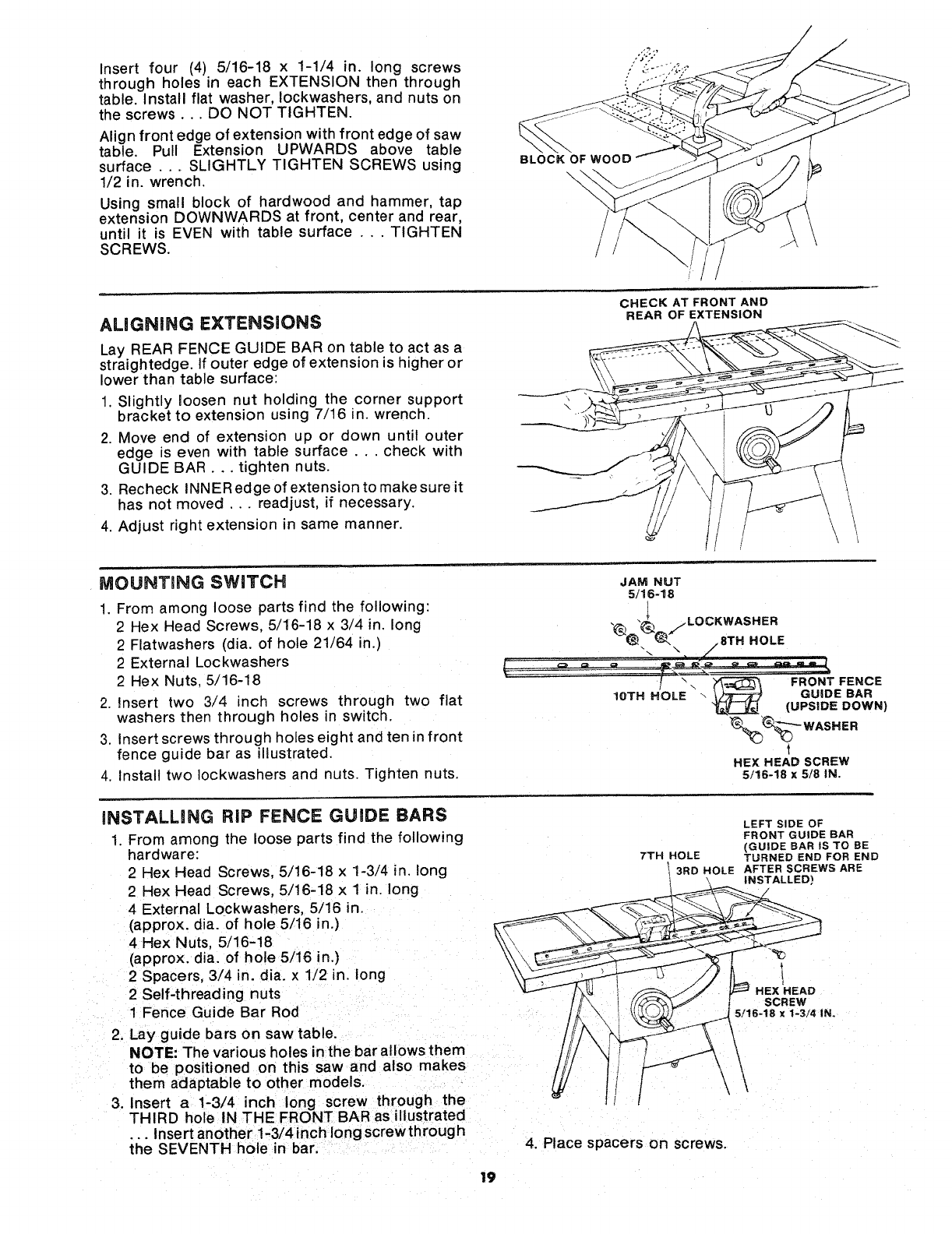

Mounting Switch .......................... 19

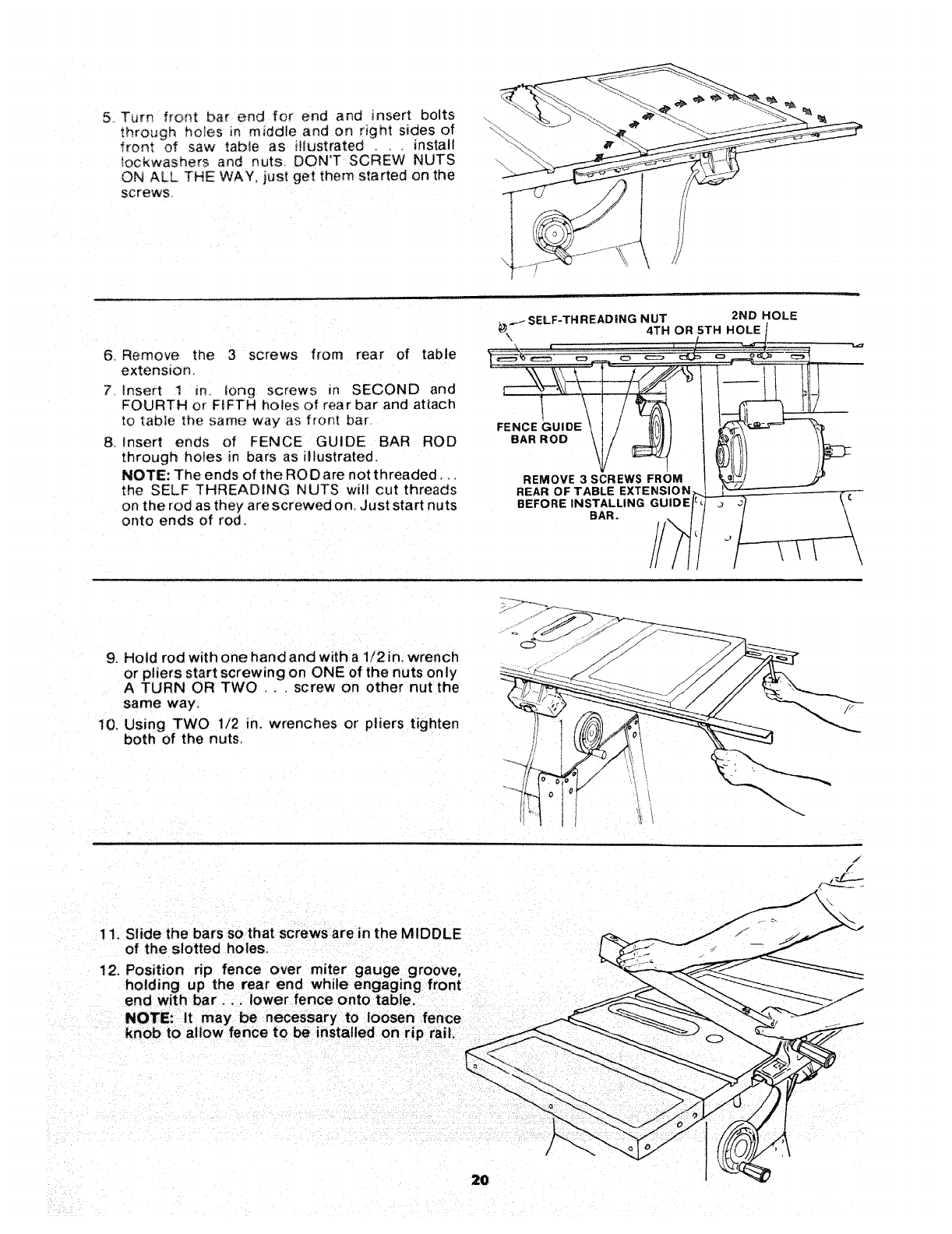

Installing Rip Fence Guide Bars .......... .19

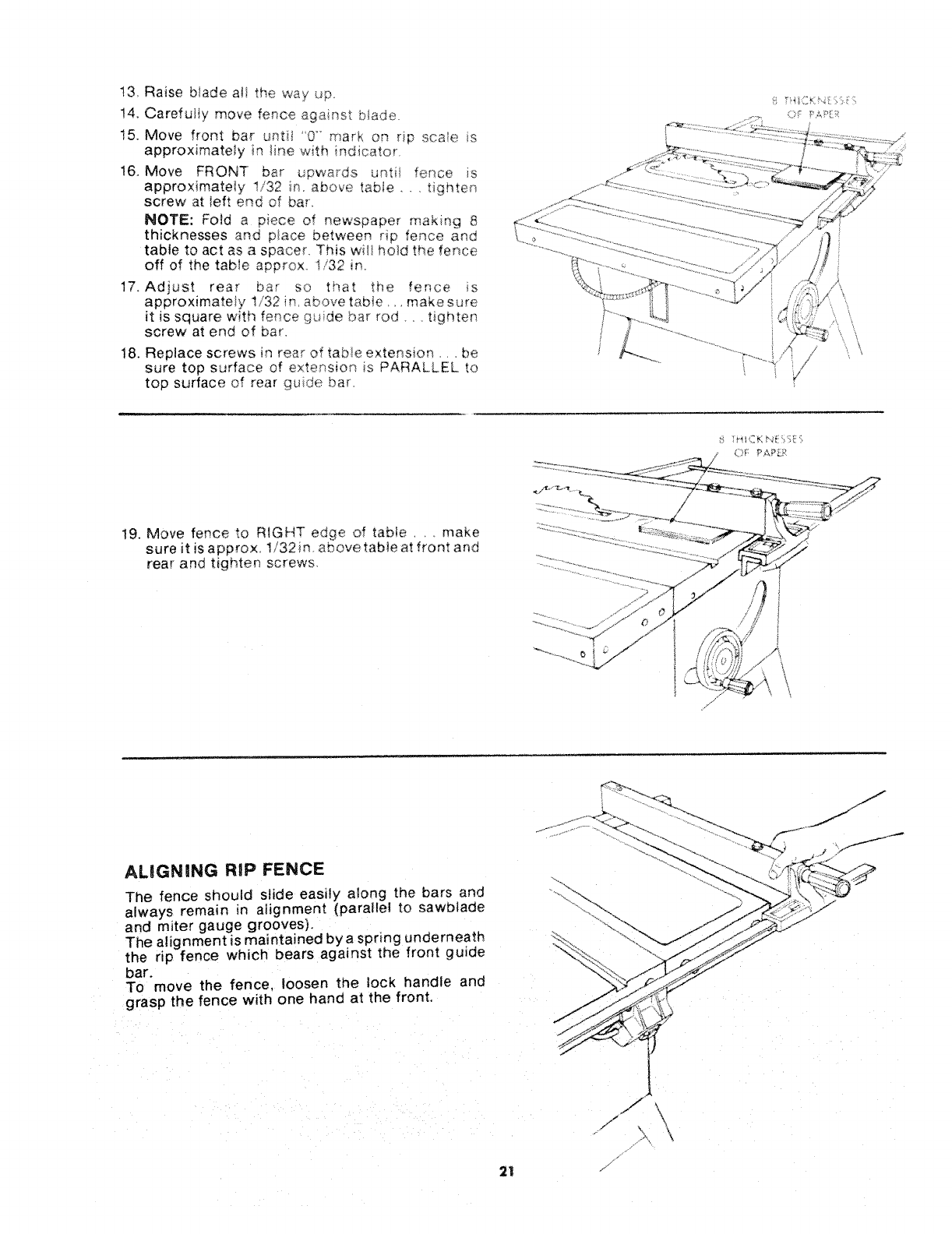

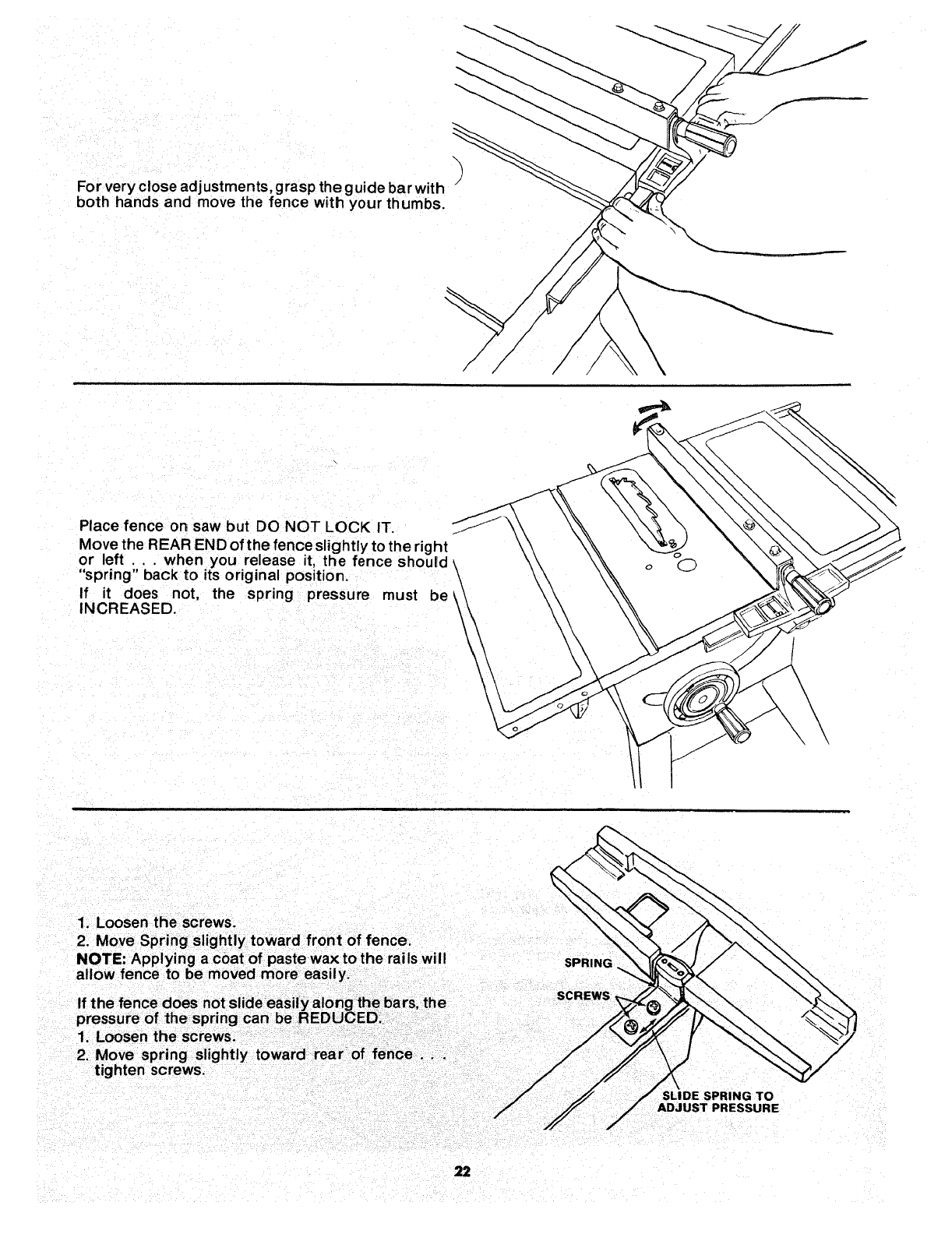

Aligning Rip Fence ........................ 21

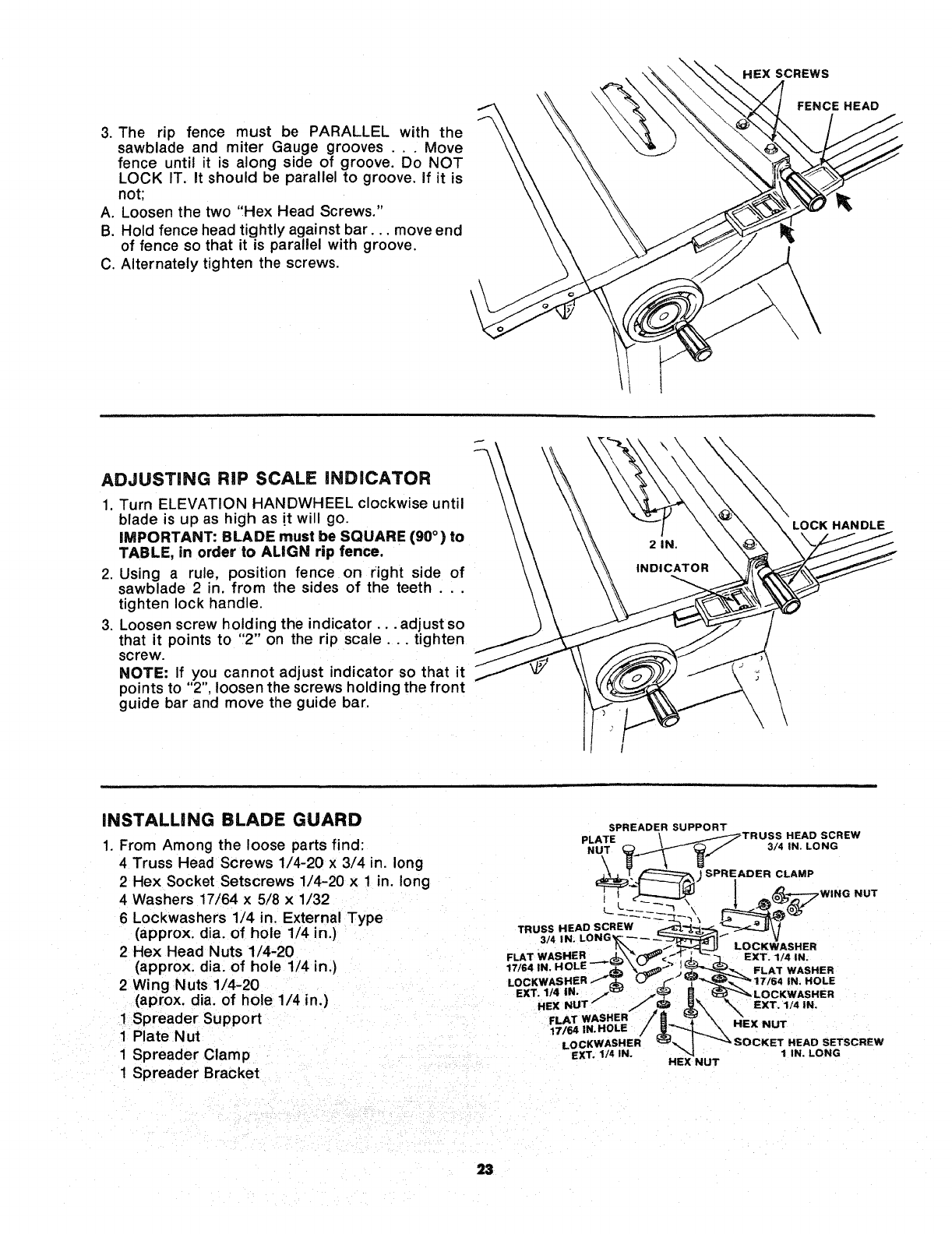

Adjusting Rip Scale Indicator .............. 23

Installing Blade Guard .................... 23

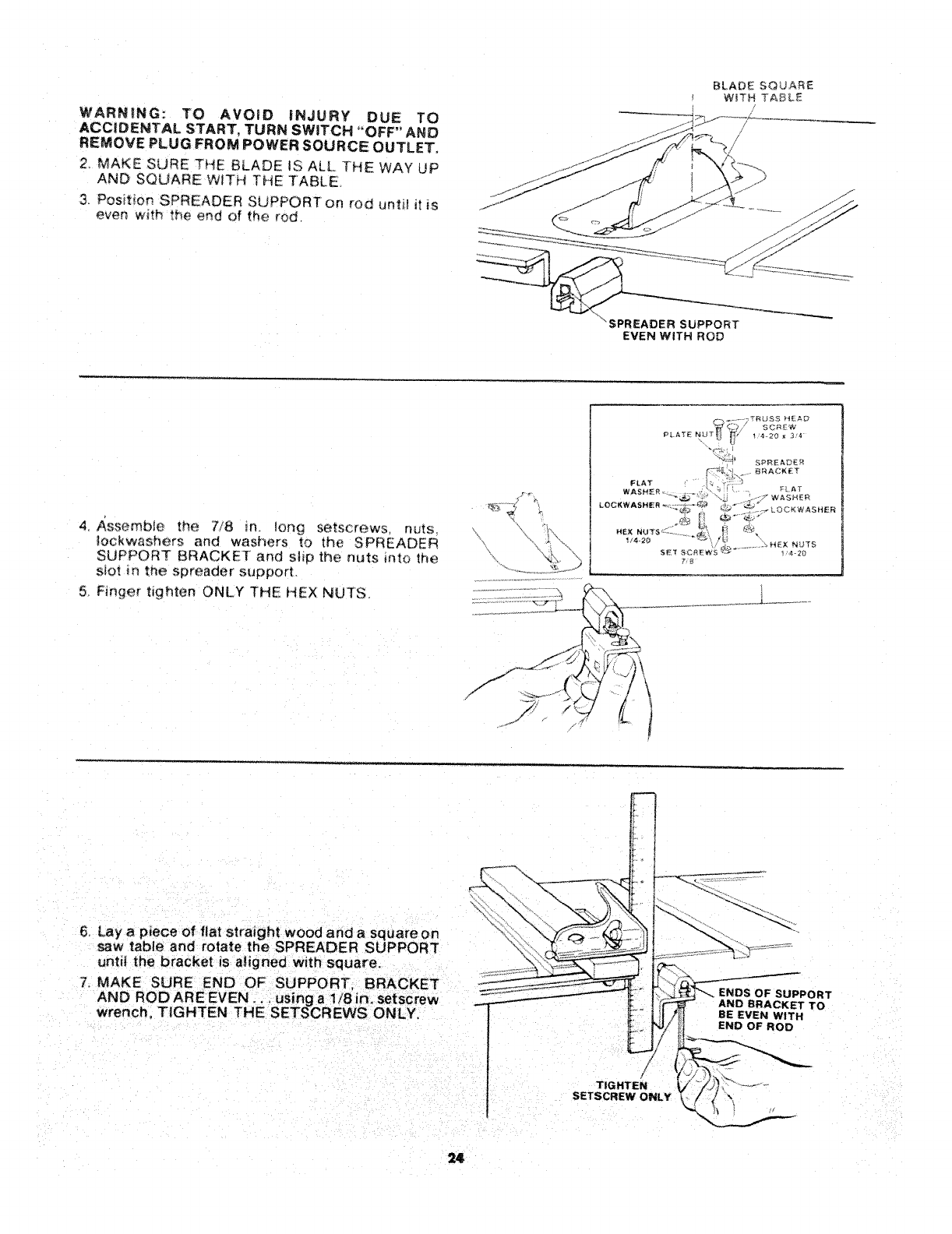

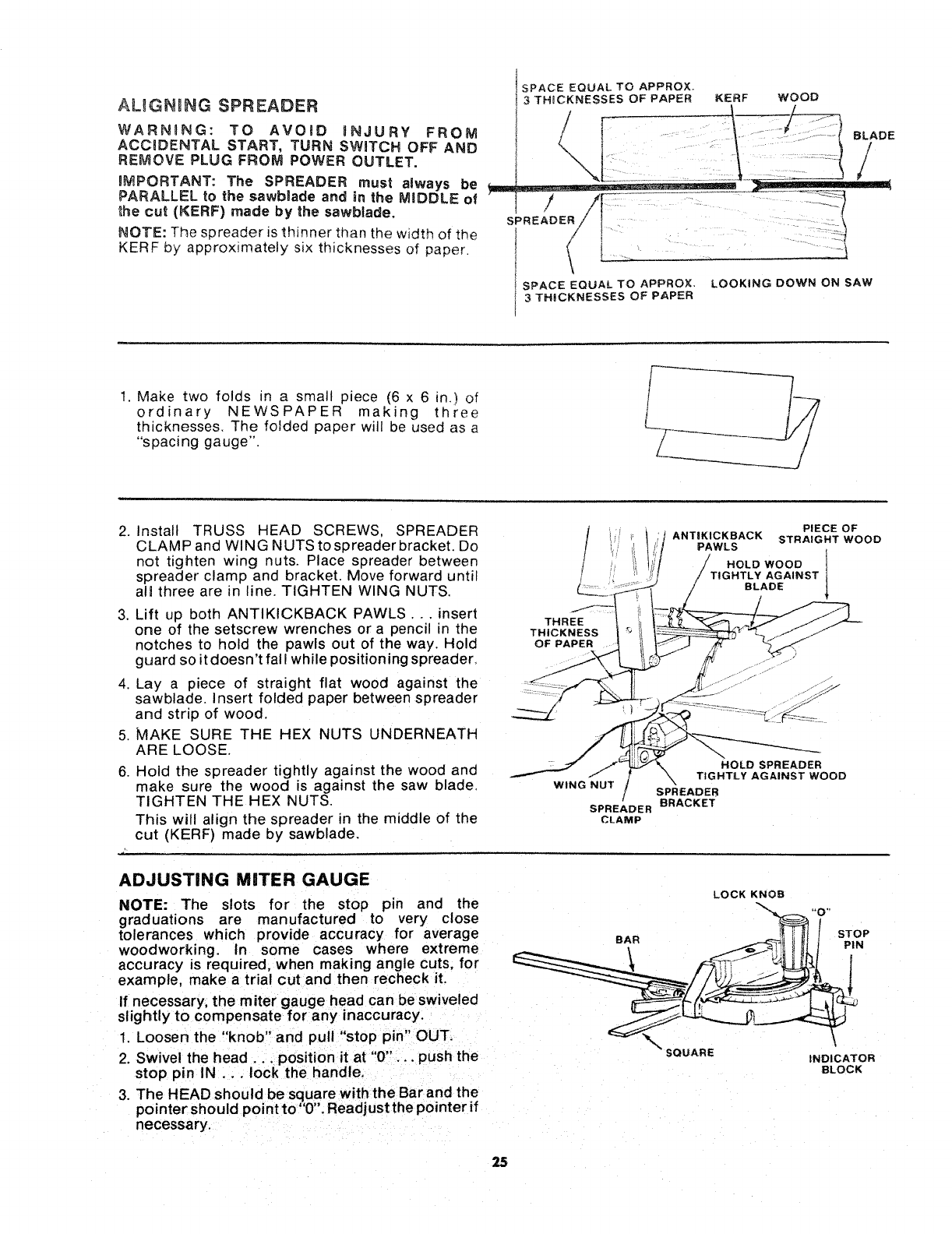

Aligning Spreader ......................... 25

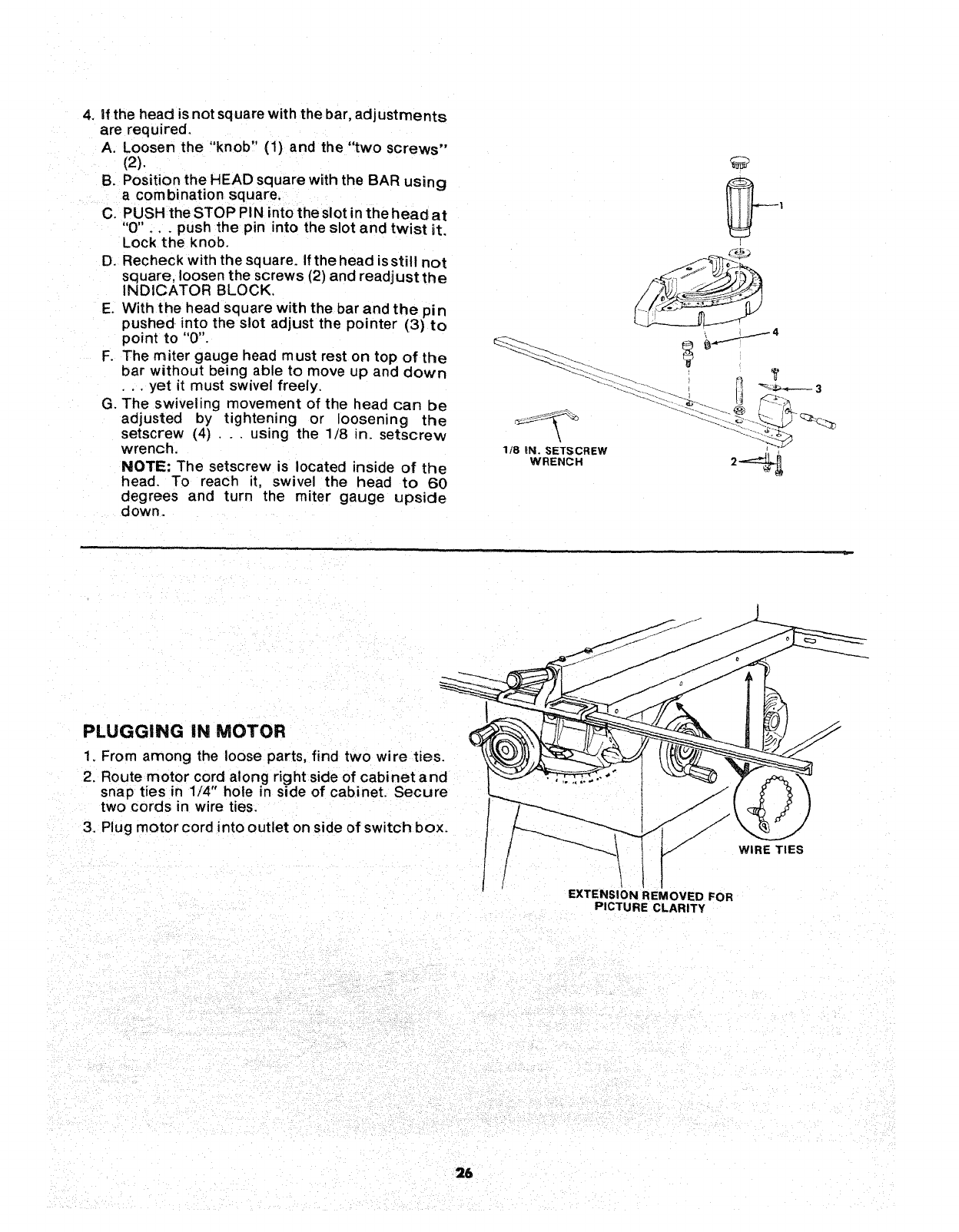

Adjusting Miter Gauge .................... 25

Plugging in the Motor ..................... 26

GETTING TO KNOW YOUR SAW ............ 27

On-Off Switch ............................ 27

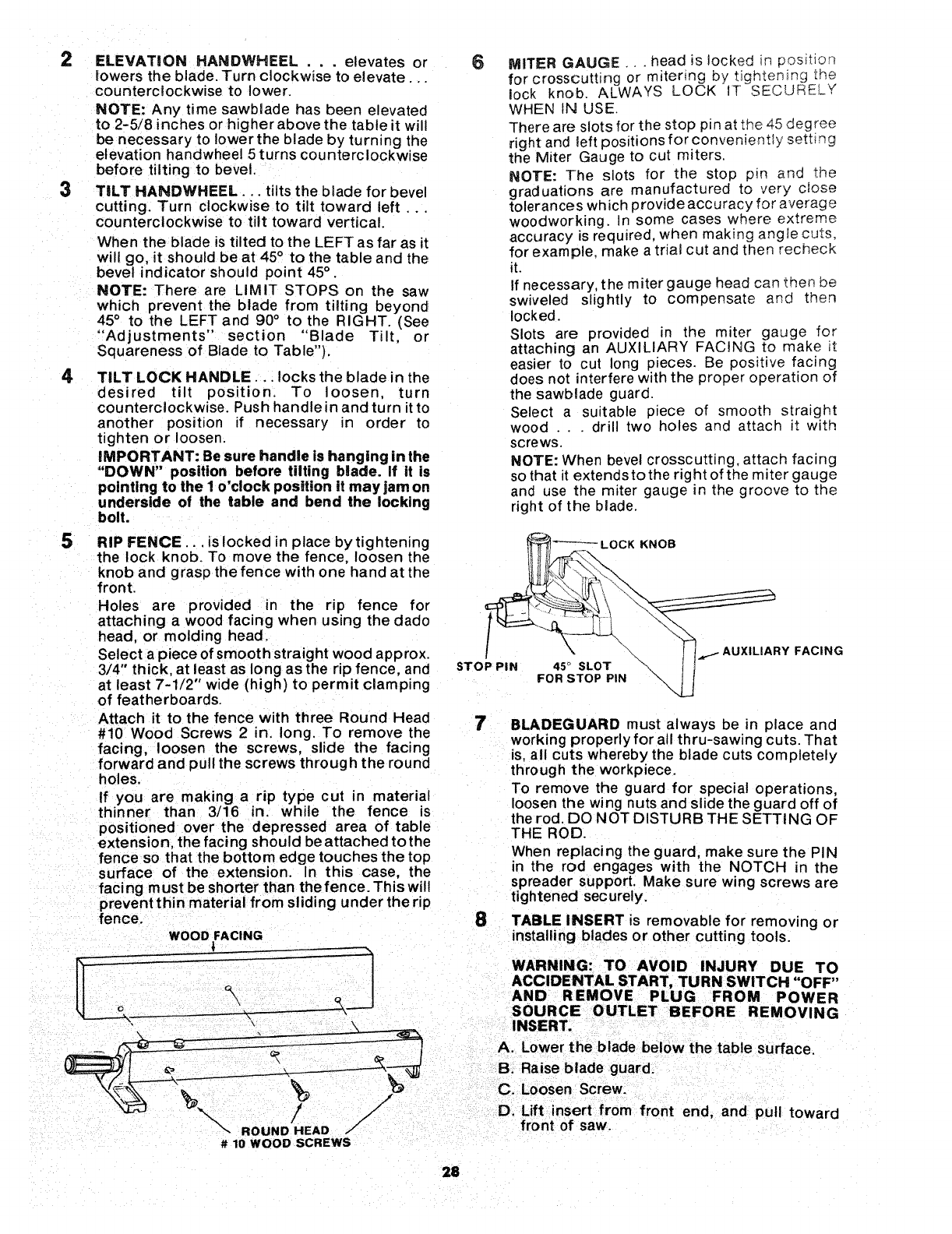

Elevation Handwheel ...................... 28

Tilt Handwheel ........................... 28

Tilt Lock Handle .......................... 28

Rip Fence ................................. 28

Miter Gauge .............................. 28

Blade Guard .............................. 28

Table Insert .............................. 28

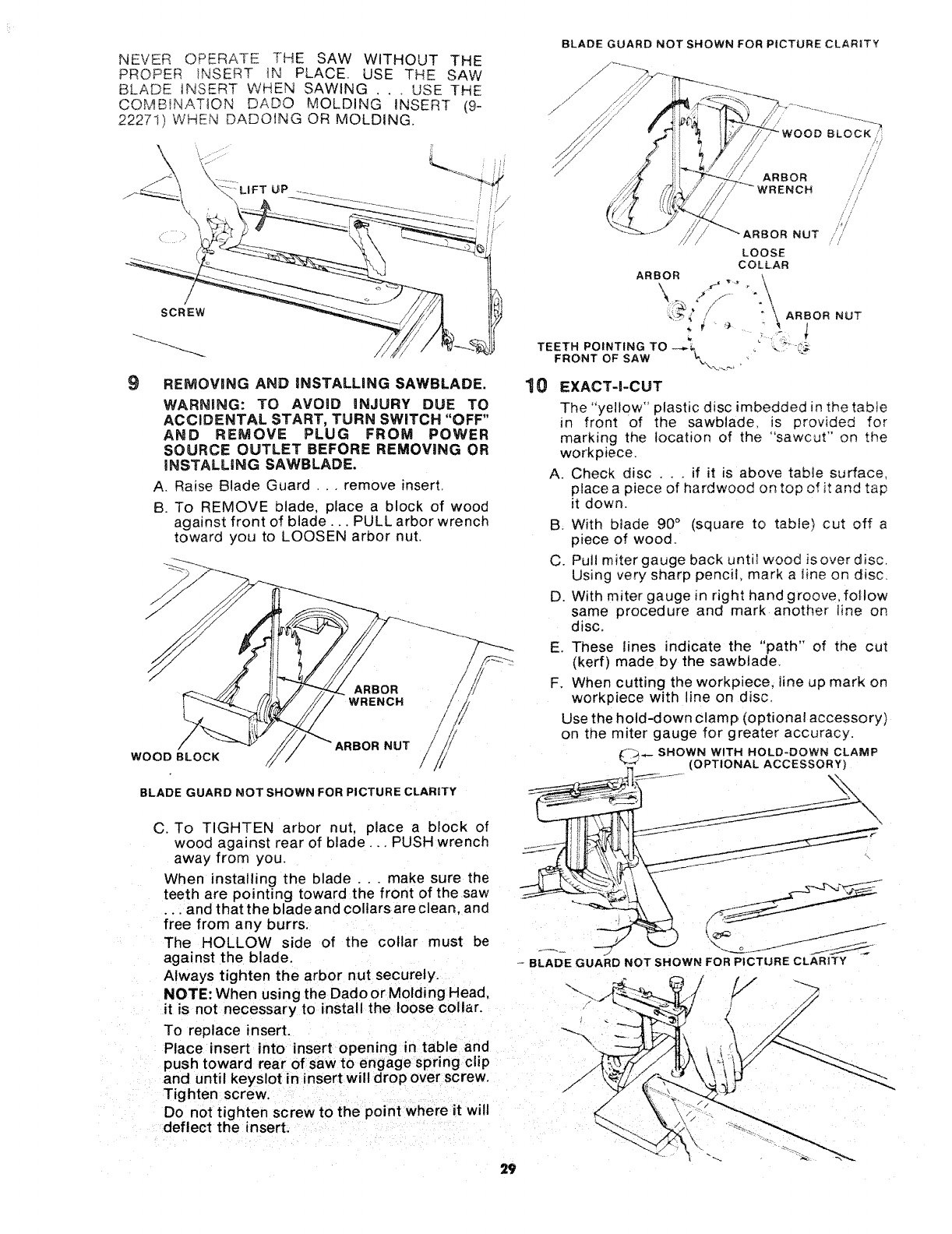

Removing and installing Sawblade ......... 29

Exacti-Cut ................................ 29

BASIC SAW OPERATION USING THE MITER

GAUGE

Work Helpers ............................. 30

Using the Miter Gauge .................... 30

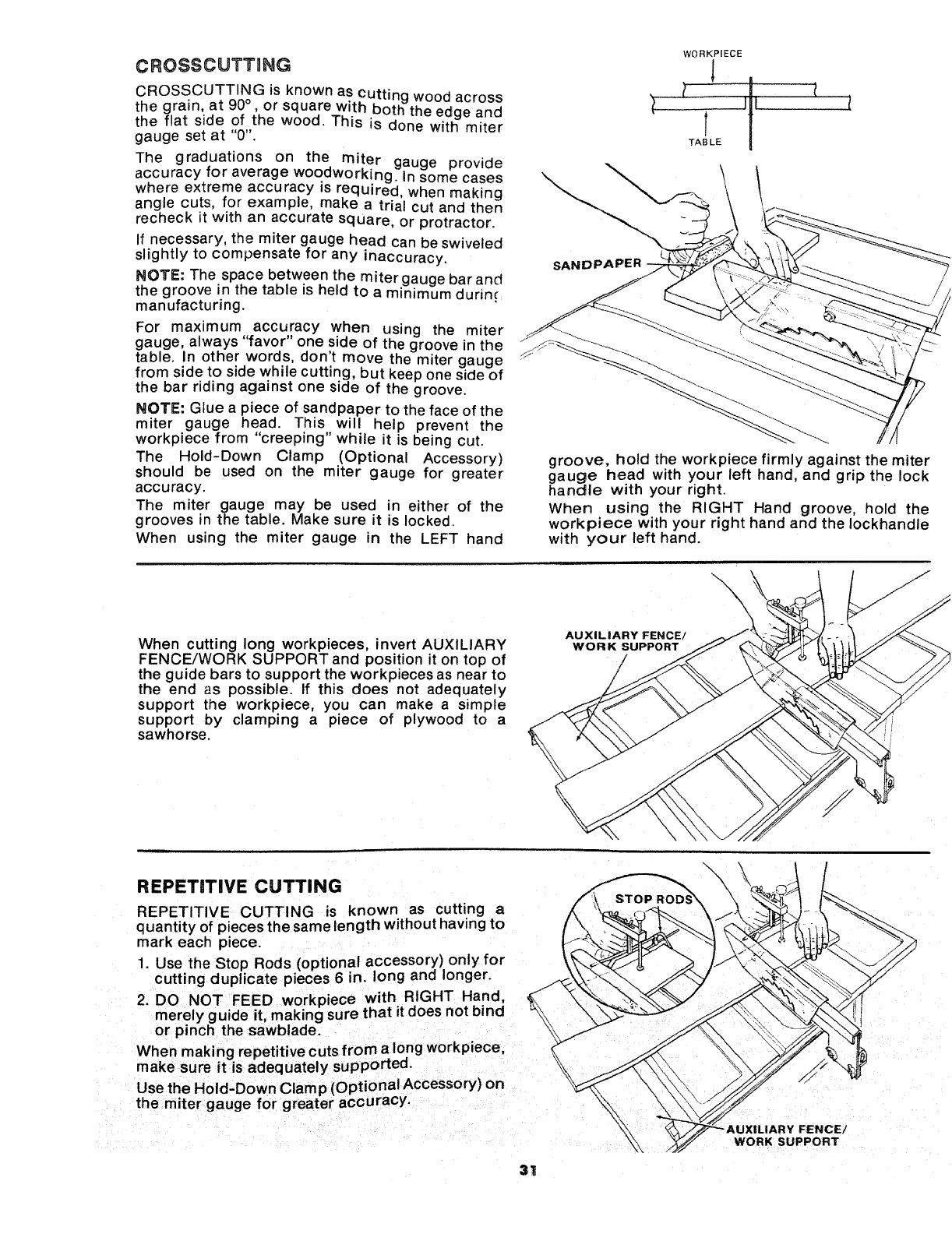

Crosscutting .............................. 31

Repetitive Cutting ......................... 31

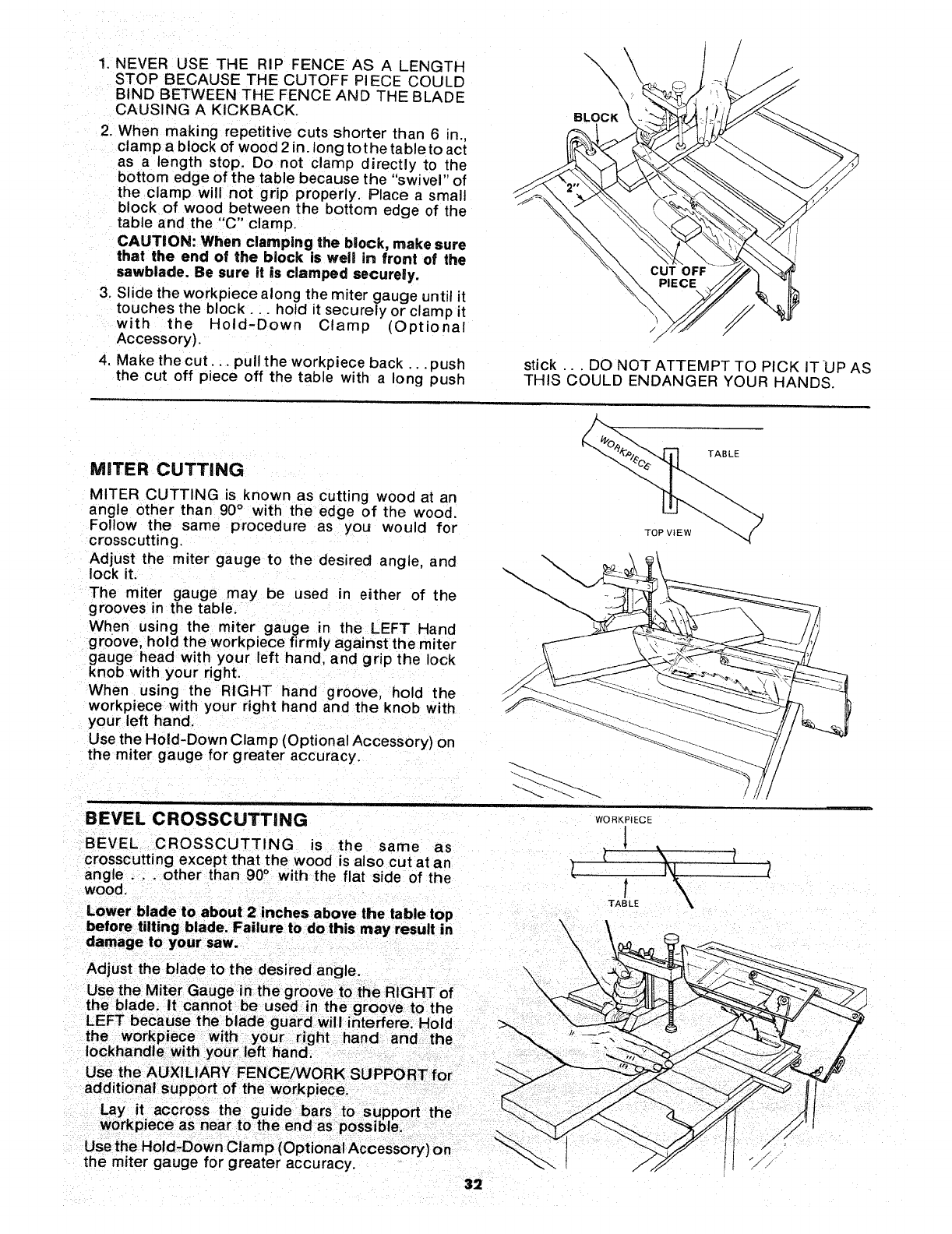

Miter Cutting ............................. 32

Bevel Crosscutting ........................ 32

Compound Miter Cutting .................. 33

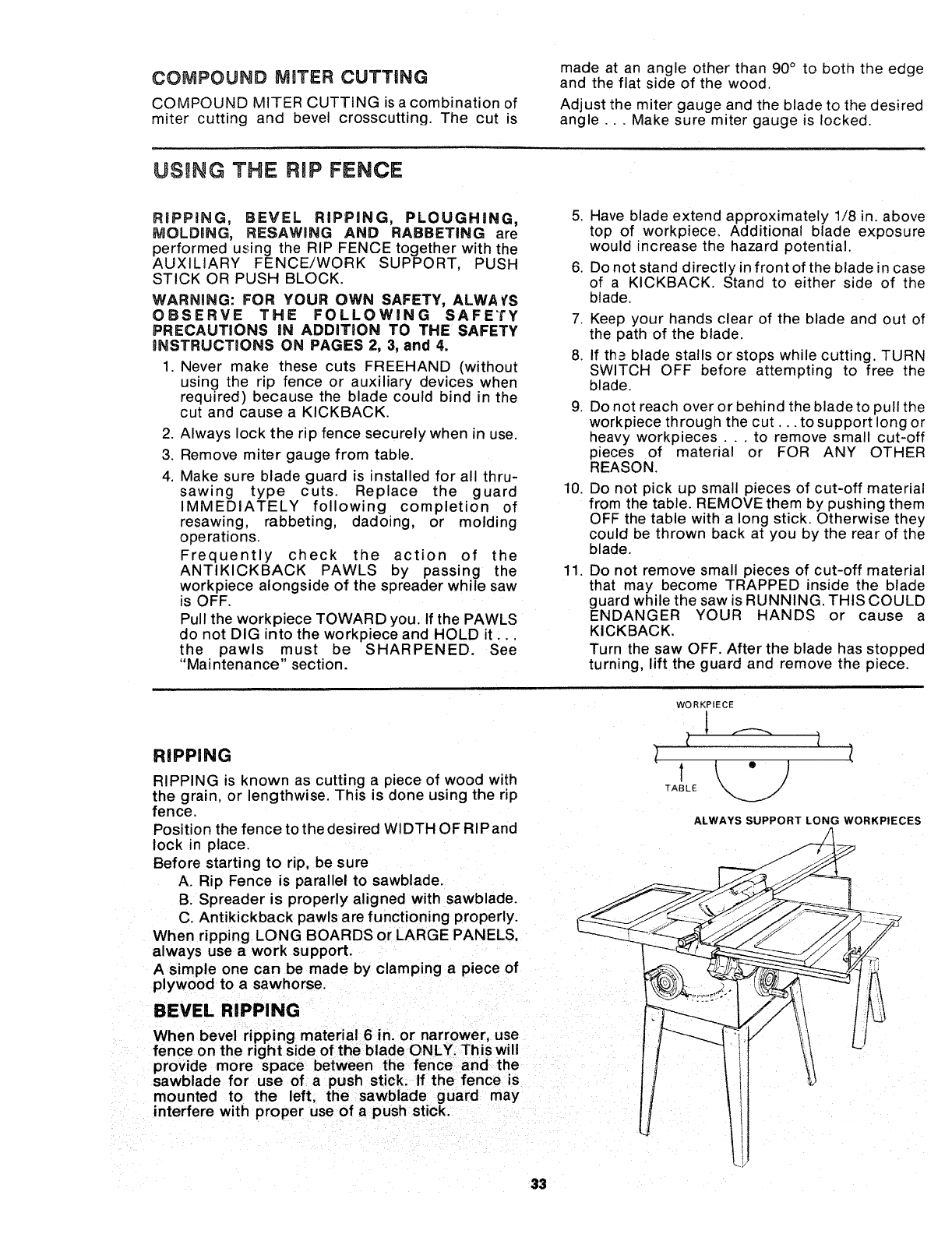

BASIC SAW OPERATION USING THE RIP

FENCE .................................. 33

Ripping .................................. 33

Bevel Ripping ............................. 33

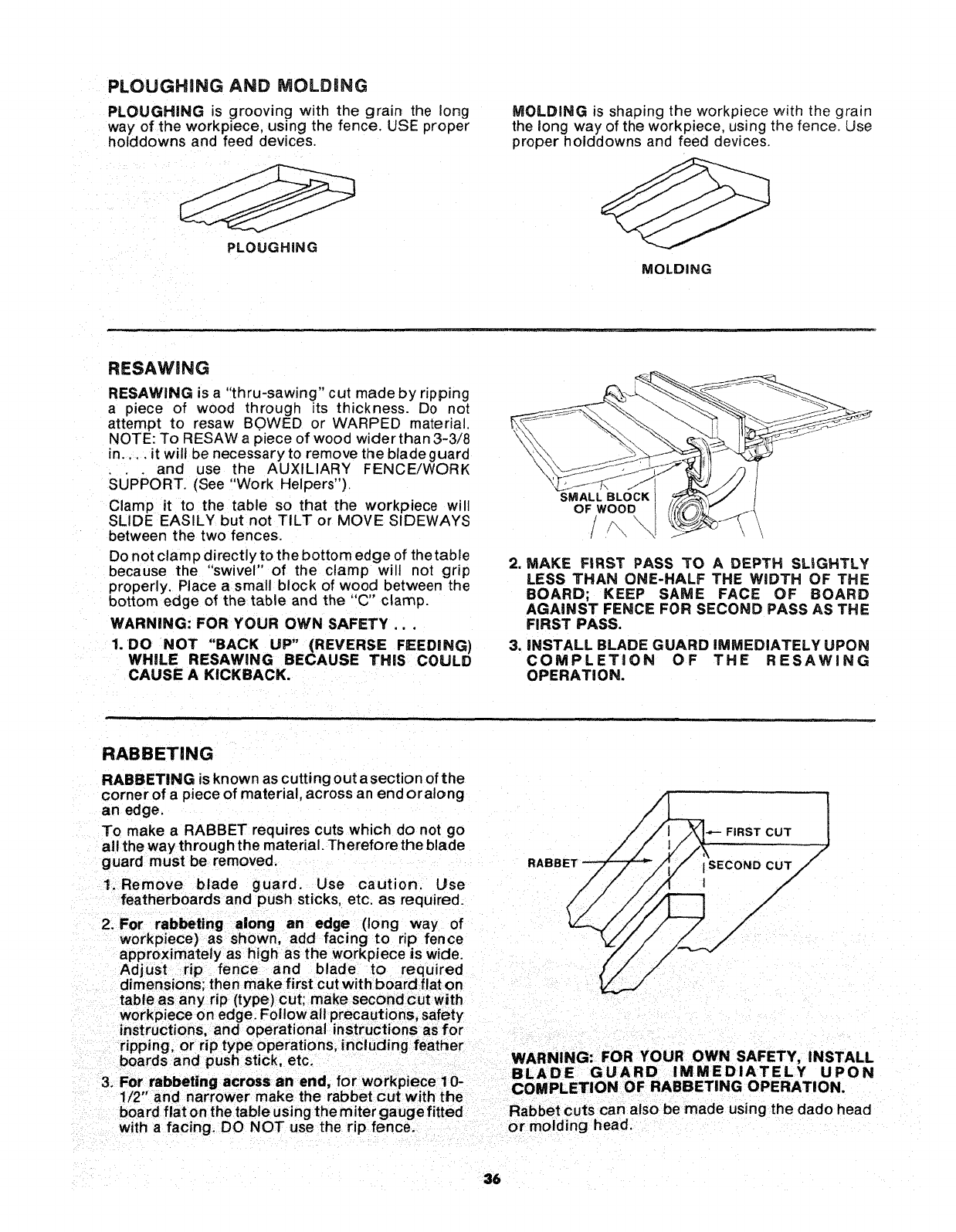

Ploughing and Molding ................... 35

Resawing ................................. 36

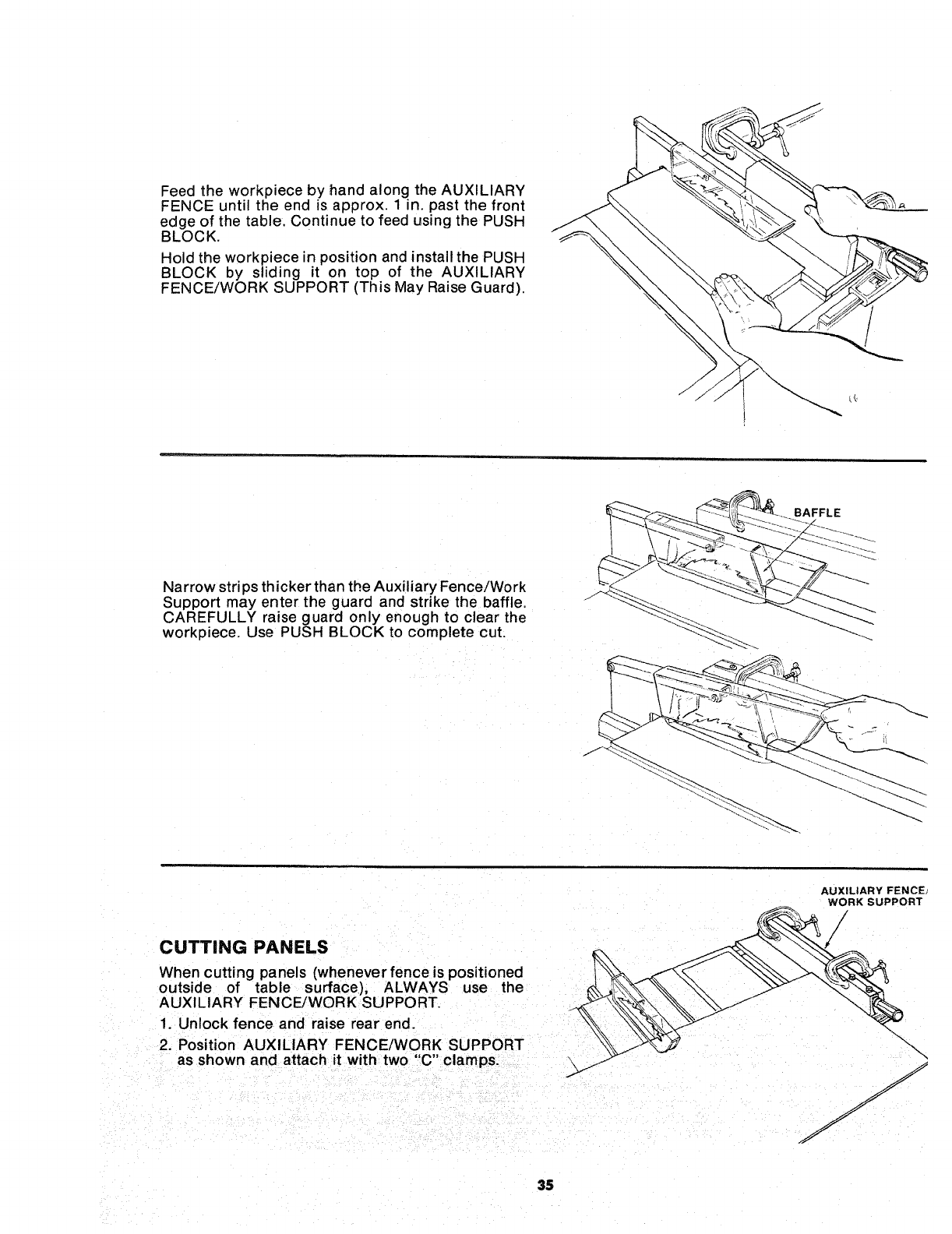

Cutting Panels ............................ 36

Rabbeting ................................ 36

Dadoing .................................. 37

Using Featherboards ...................... 37

MOTOR .................................... 38

MAINTENANCE ............................ 38

LUBRICATION ............................. 39

RECOMMENDED ACCESSORIES ........... 39

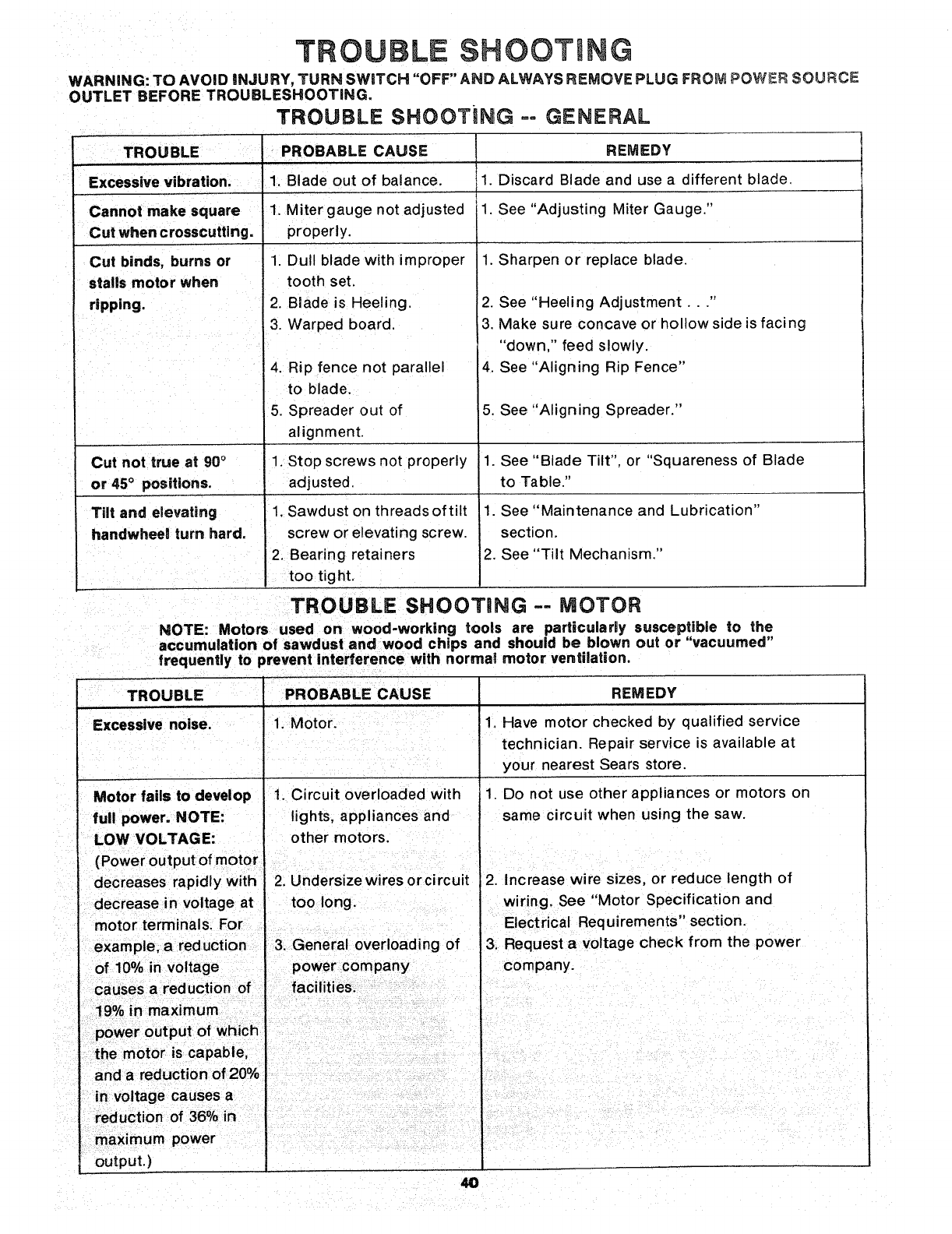

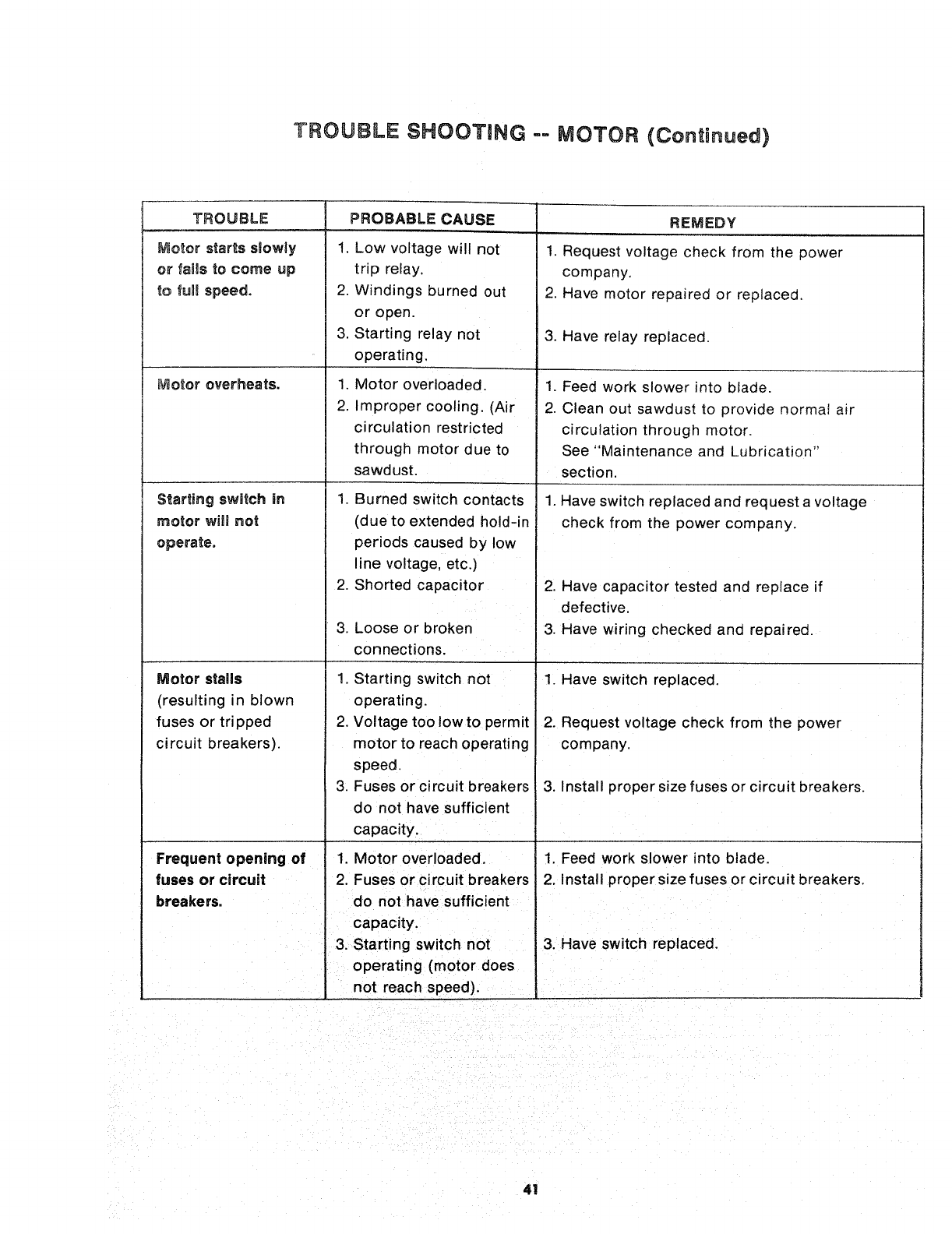

TROUBLE SHOOTING ...................... 40

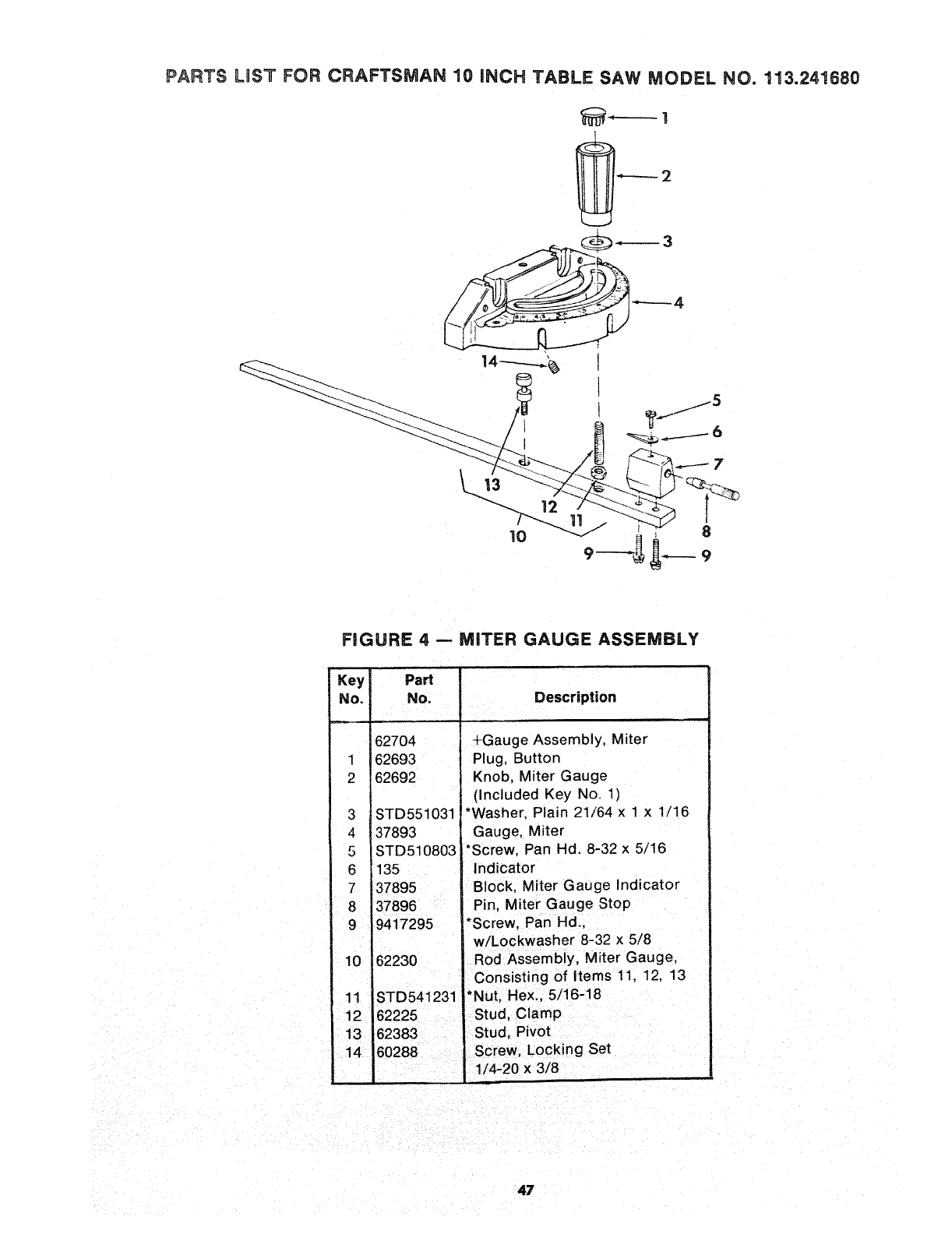

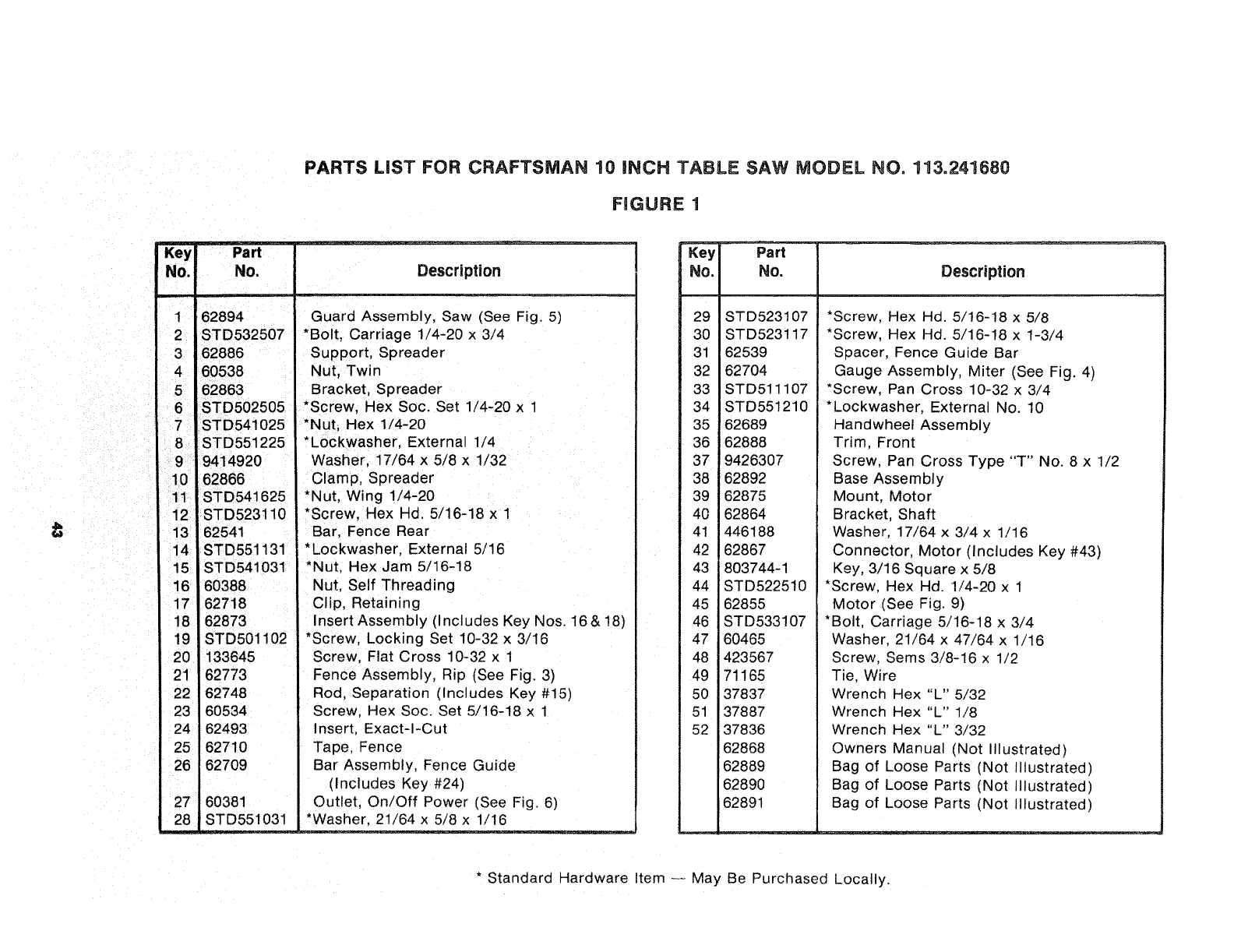

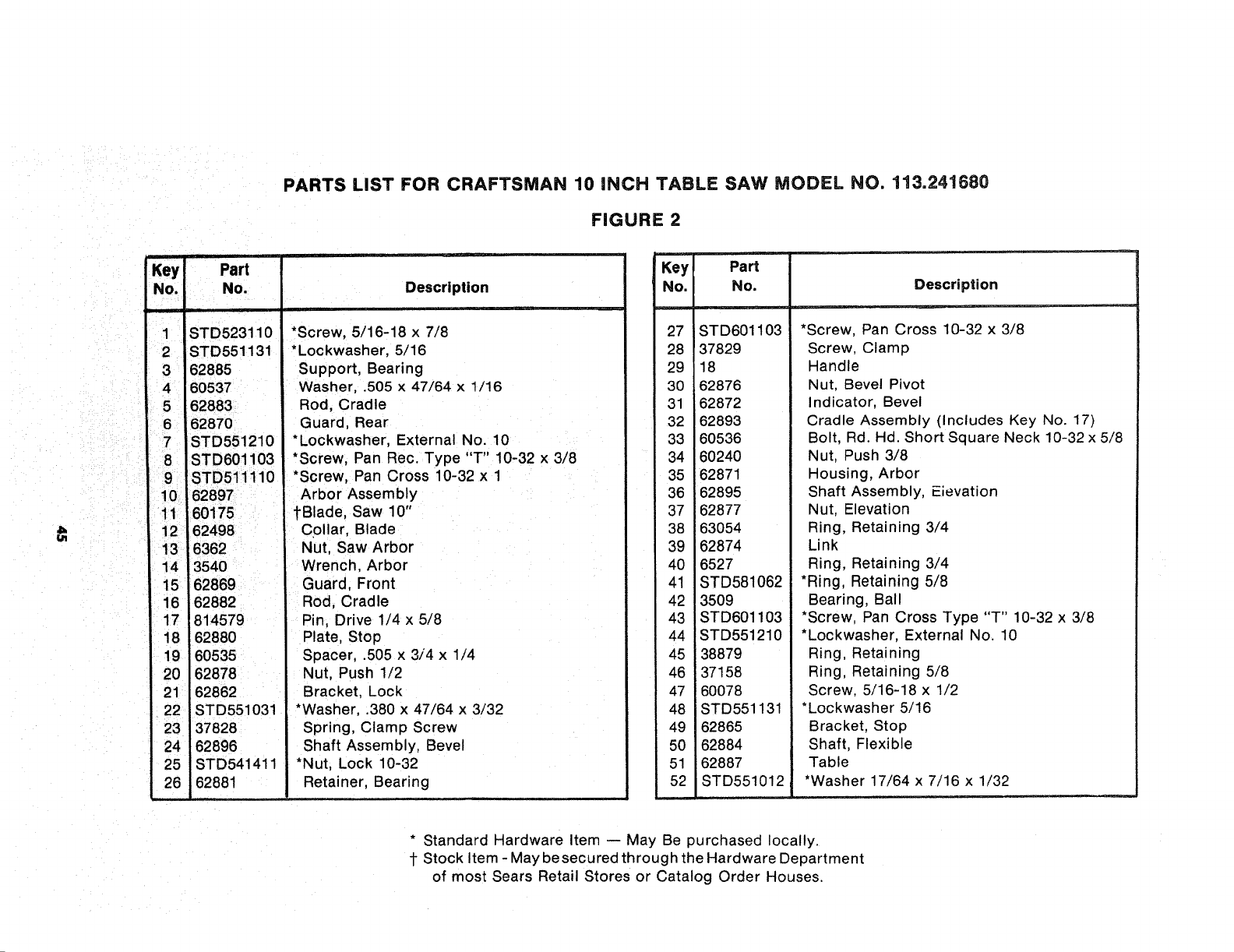

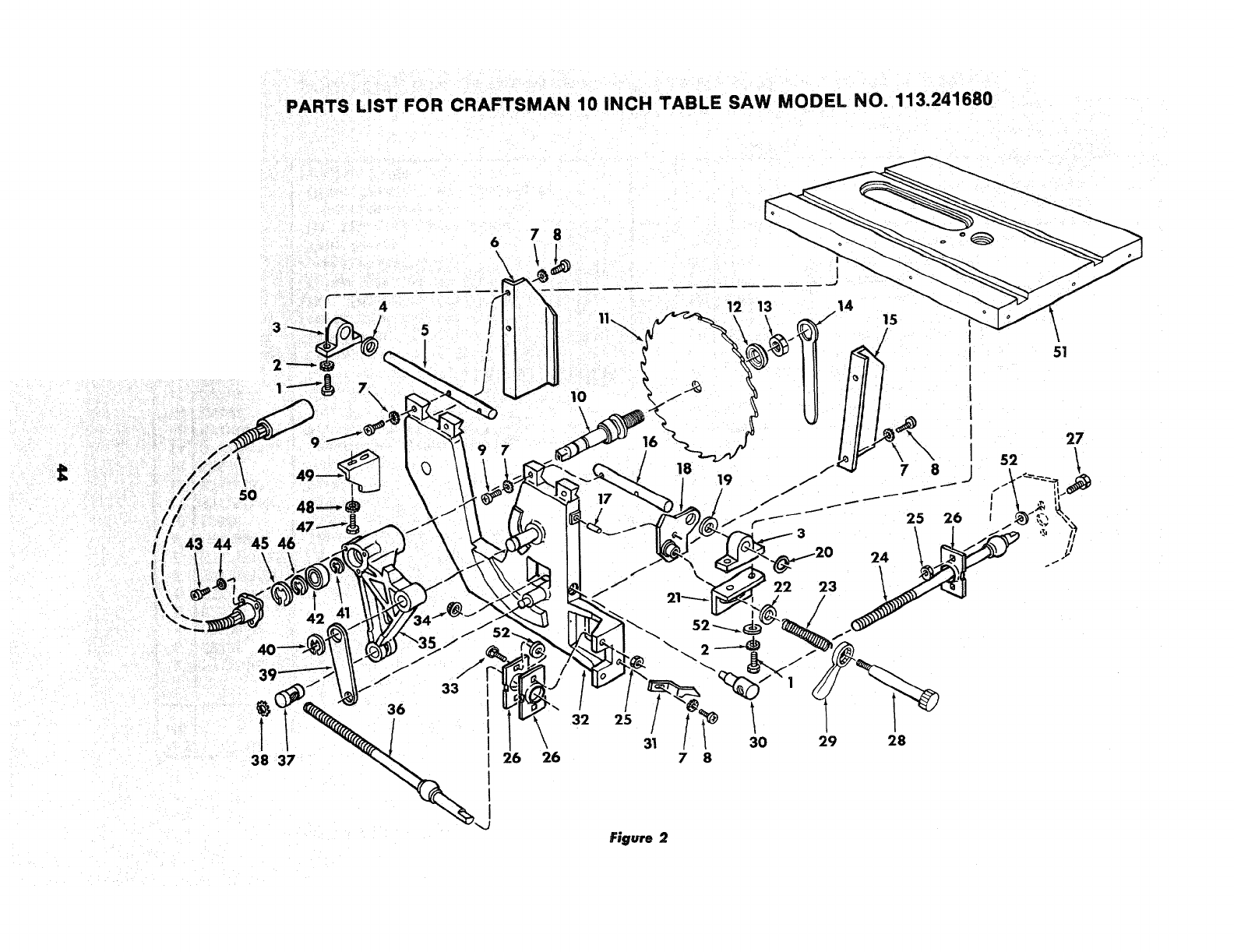

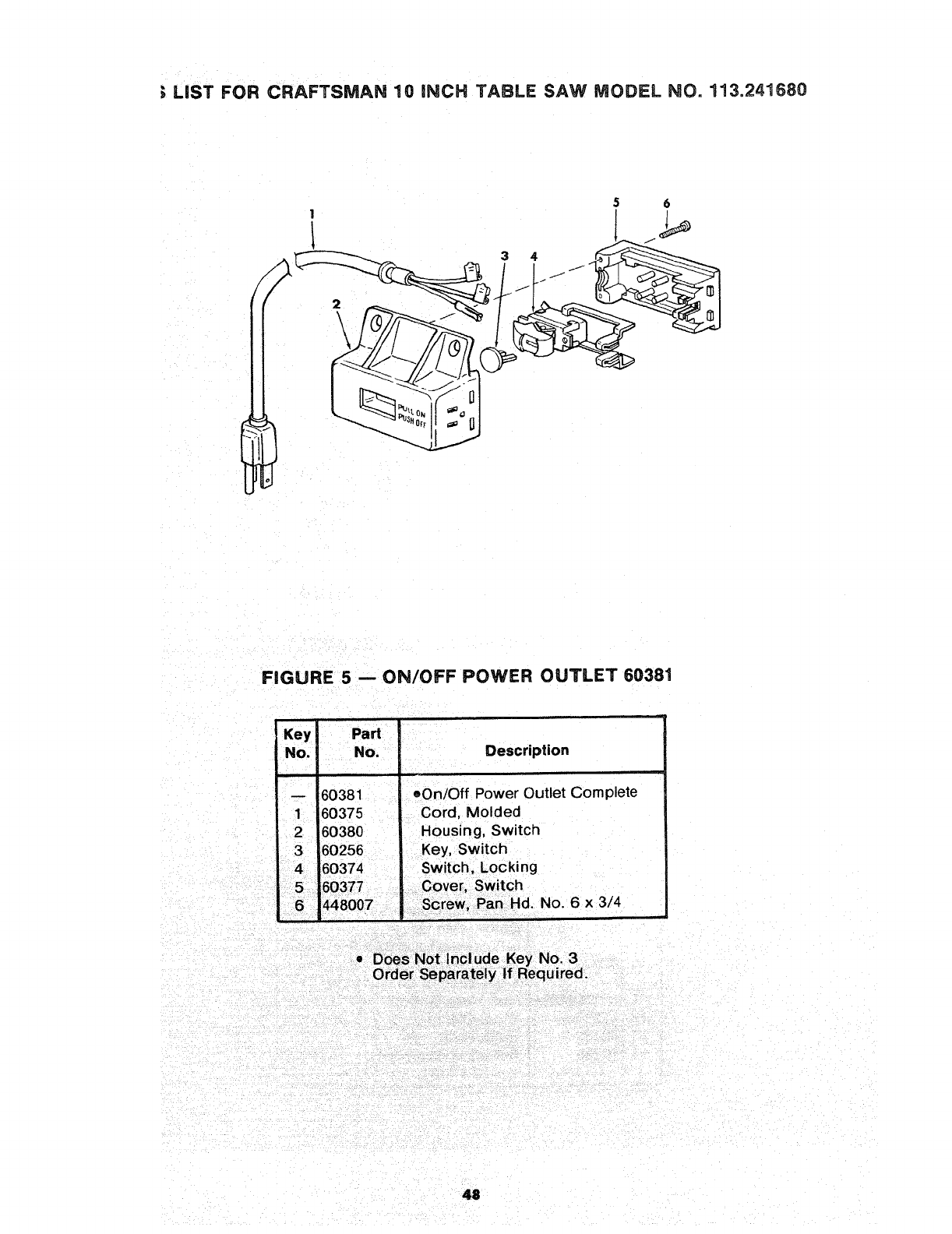

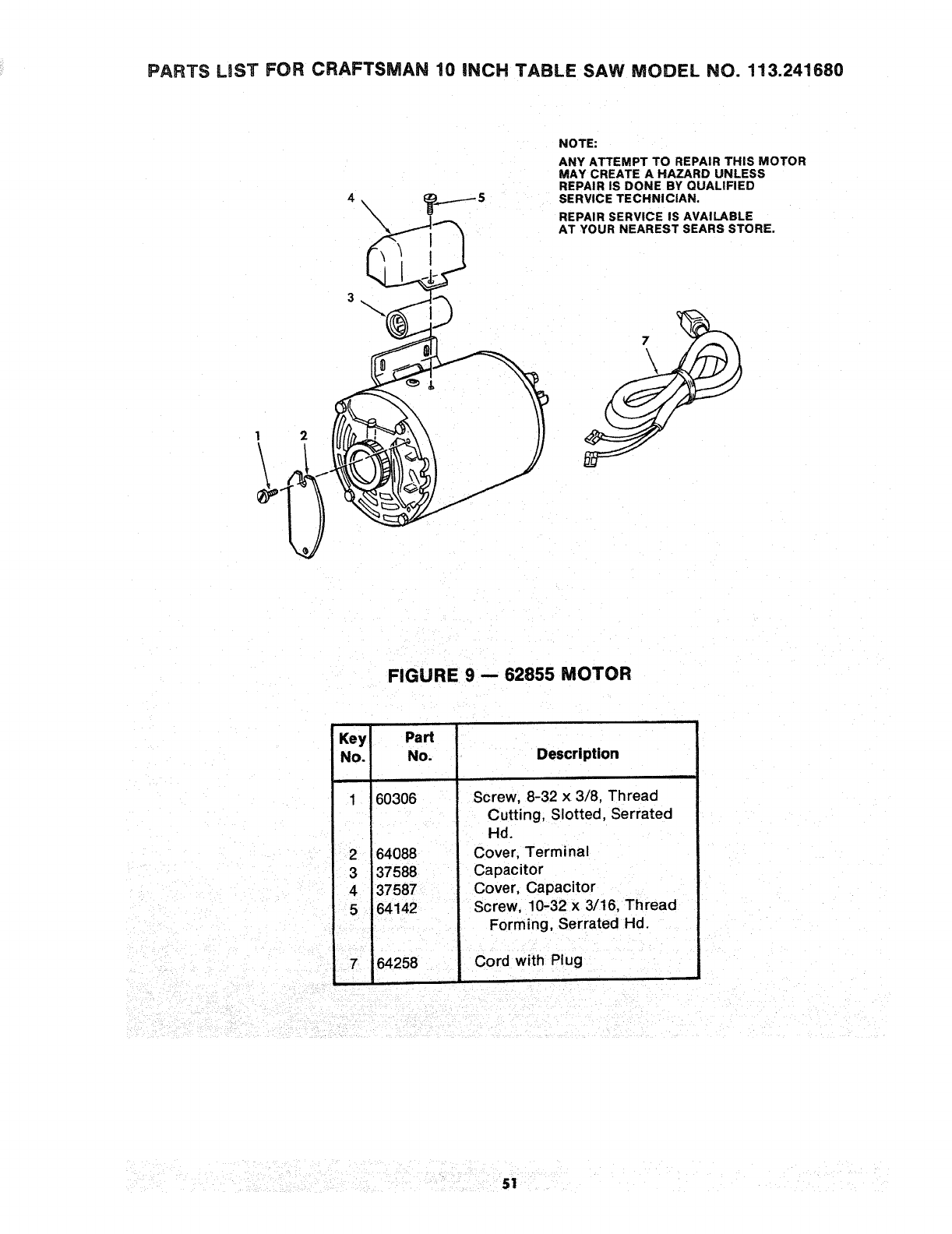

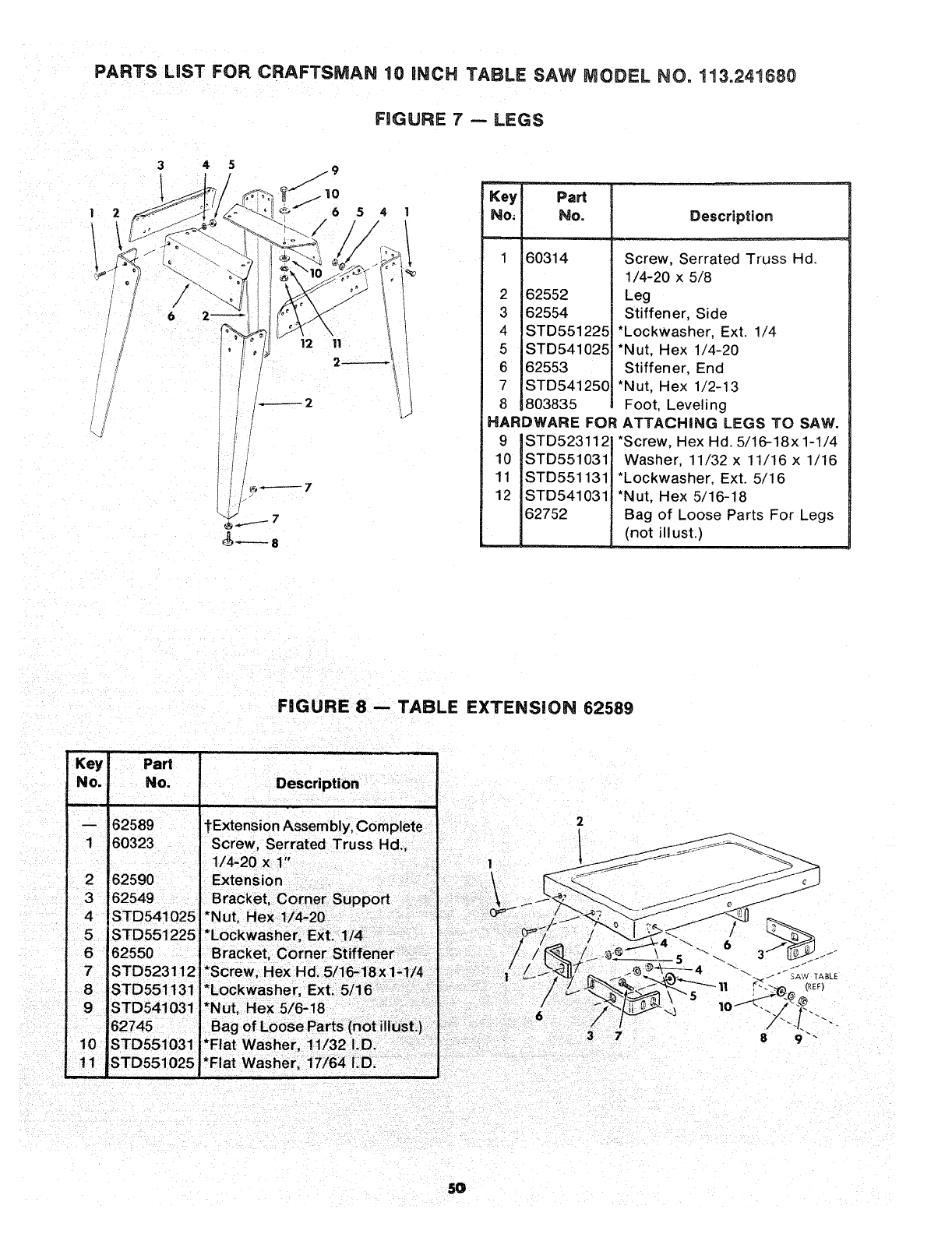

REPAIR PARTS ............................. 42

UNPACKING AND CHECKING CONTENTS

TOOLS NEEDED

COMBINATION SQUARE MUST BE TRUE.

_STRAIGHT EDGE OF BOARD

. .. . , . 3/4" THICK. THIS EDGE MUST

Meolum _crewarzver DRAW LIGHT LINE ON BE PERFECTLY STRAIGHT.

Small Screwdriver BOARD ALONG THIS EDGE _?-. //_

-t\I

#2 Ph|llips Screwdriver _1

Pliers J

SHOULD BE NO GAP OR OVERLAP

Combination Square inches HEREovERWHENINDOTTEDSQUAREposITION.ISFLIPPED

7/16 in.

one carton and INCLUDES Two T;

Steel Legs, and Motor.

are installed correctly.

the protective oil that is applied to the tab e

edges of the table. Use any ordinary

_ldtype grease and spot remover.

'N: TO a_oid fire or health hazard never use

, napUta or similar highly volatile solvents.

coat of automobile wax to the table.

parts thoroughly with a clean, dry cloth.

IG: FOR YouR OWN SAFETY, NEVER

CT PLUG TO POWER SOURCE OUTLET

i.LL ASSEMBLY STEPS ARE COMPLETE,

)U HAVE READ AND UNDERSTAND THE

'AND OPERATIONAL iNSTRUCTiONS.

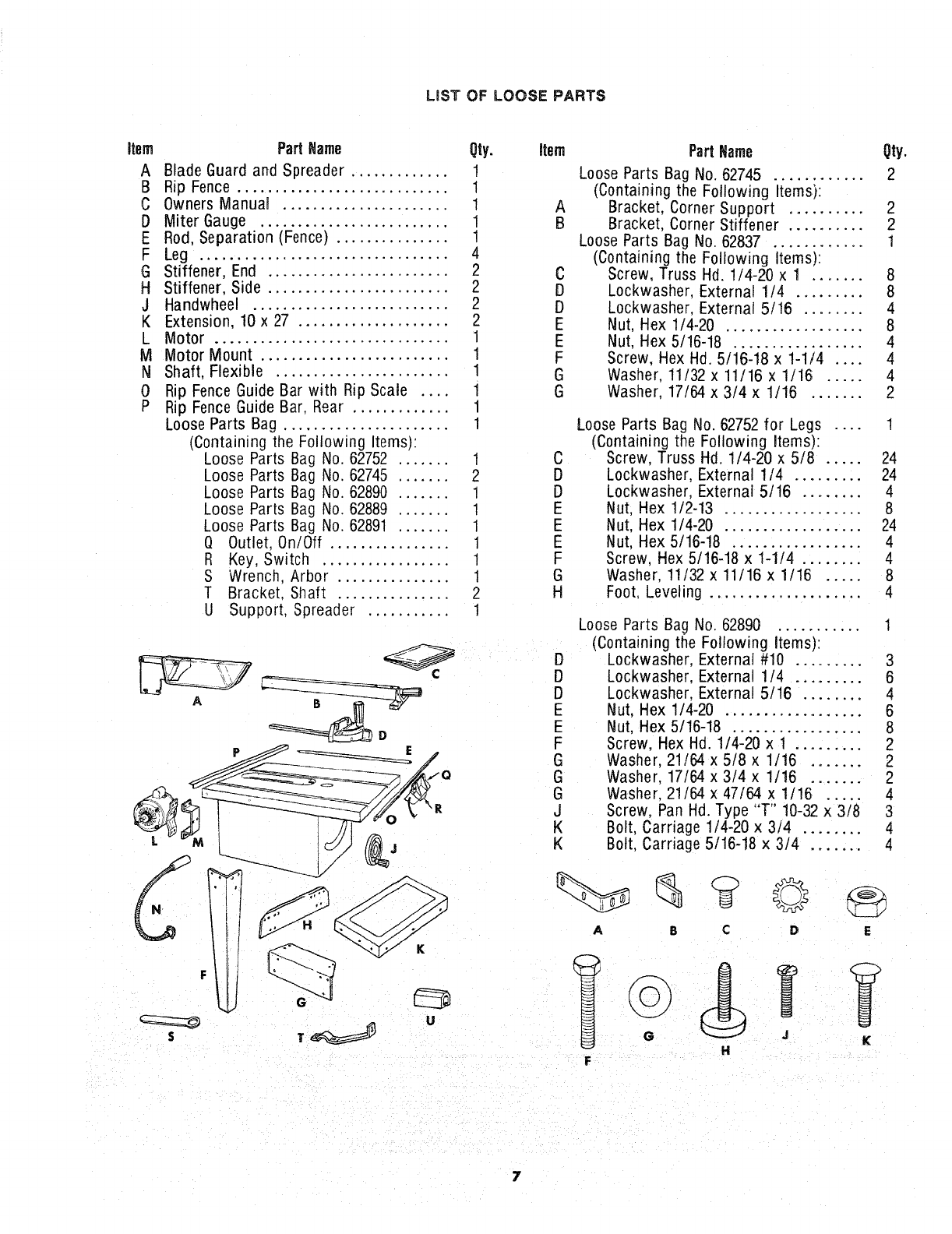

LISTOFLOOSEPARTS

Part Hame

item Qty.

ABlade Guard and Spreader ............. !

B Rip Fence ............................ 1

C Owners Manual ...................... 1

D Miter Gauge ......................... 1

E Rod, Separation (Fence) ............... 1

F Leg ................................. 4

GStiffener, End ........................ 2

H Stiffener, Side ........................ 2

J Handwheel .......................... 2

K Extension, 10 x 27 .................... 2

L Motor ............................... 1

M Motor Mount ......................... 1

N Shaft, Flexible ....................... 1

O Rip Fence Guide Bar with Rip Scale .... i

P Rip Fence Guide Bar, Rear ............. 1

Loose Parts Bag ...................... 1

(Containing the Following Items):

Loose Parts Bag No. 62752 ....... 1

Loose Parts Bag No. 62745 ....... 2

Loose Parts Bag No. 62890 ....... 1

Loose Parts Bag No. 62889 ....... 1

Loose Parts Bag No. 62891 ....... 1

Q Outlet. On/Off ................ 1

R Key, Switch ................. t

S Wrench. Arbor ............... 1

T Bracket. Shaft ............... 2

U Support, Spreader ........... 1

N-

_ u

Item Part Name Qty.

Loose Parts Bag No. 62745 ............ 2

(Containing the Following Items):

A Bracket, Corner Support .......... 2

B Bracket, Corner Stiffener .......... 2

Loose Parts Bag No. 62837 ............ 1

(Containing the Following Items):

C Screw, Truss Hd. 1/4-20 x 1 ....... 8

D Lockwasher, External 1/4 ......... 8

D Lockwasher, External 5/!6 ........ 4

E Nut, Hex 1/4-20 ................... 8

E Nut, Hex 5/16-18 ................. 4

F Screw, Hex Hd. 5/16-18 x 1-1/4 .... 4

G Washer, 11/32 x 11/16 x 1/16 ..... 4

G Washer, 17/64 x 3/4 x 1/16 ....... 2

Loose Parts Bag No. 62752 for Legs .... 1

(Containing the Following Items):

C Screw, Truss Hd. 1/4-20 x 5/8 ..... 24

D Lockwasher, External 1/4 ......... 24

D Lockwasher, External 5/16 ........ 4

E Nut, Hex 1/2-13 .................. 8

E Nut, Hex 1/4-20 .................. 24

E Nut, Hex 5/16-18 ................. 4

F Screw Hex 5/16-18 x 1-1/4 ........ 4

G Washer. 11/32 x 11/16 x 1/16 ..... 8

H Foot. Leveling .................... 4

Loose Parts Bag No. 62890 ........... 1

(Containing the Following Items):

D Lockwasher, External #10 ......... 3

D Lockwasher. External 1/4 ......... 6

D Lockwasher. External 5/18 ........ 4

E Nut, Hex 1/4-20 .................. 6

E Nut, Hex 5/16-18 ................. 8

F Screw, Hex Hd. 1/4-20 x 1 ......... 2

G Washer, 21/64 x 5/8 x 1/16 ....... 2

GWasher. 17/64 x 3/4 x 1/!6 ....... 2

G Washer. 21/64 x 47164 x t/16 ..... 4

J Screw, Pan Hd. Type "T" 10-32 x 3/8 3

KBolt, Carriage 1/4-20 x 3/4 ........ 4

Bolt. Carriage 5/16-18 x 3/4 ........ 4

A B C D E

G J K

Item Part Name Qty.

Loose Parts Bag No. 62889 ........... 1

(Containing the Following Items):

A Nut, Weld ...................... 1

B Clamp, Spreader ................ 1

C Bracket, Spreader ............... 1

D Lockwasher, External t/4 ........ 4

D Lockwasher, External #10 ........ 2

D Lockwasher, External 5/t6 ....... 5

E Wrench, Hex "L" 3/32 ....... 1

""1

E Wrench, Hex L /8 ............ 1

E Wrench, Hex "L" 5/32 .......... 1

F Tie Wire ........................ 2

G Spacer, Fence Guide Bar ......... 2

H Nut, Self-Threading .............. 2

J Connector, Motor ............... 1

ABC D

item

Part Mame

Loose Parts Bag No. 62891 ...........

(Containing the Following Items):

Bolt, Carriage 1/4-20 x 3/4 ........ 4

Screw, Soc. Set 1/4-20 x 1 ........ 2

Washer, 17/64 x 5/8 x 1/32 ....... 4

Nut, Hex 1/4-20 .................. 4

Nut, Wing 1/4-20 ................. 2

Screw, Hex Hd. 5/16-18 x 1-3/4 .... 2

Screw, Hex Hd. 5/16-18 x 3/4 ...... 1

Qty.

Screw, Hex Hd. 5/16-18 x 1 ........ 2

Screw, Pan Hd. 10-32 x 3/4 ........ 2

Key, Sq. 3/16 .................... 1

A B C D E

ASSEMBLY

ASSEMBLING STEEL LEGS

NOTE: Steel Legs are furnished with Model

113.241680. From among the loose parts, find the

following Hardware:

24 Truss Head Screws, 1/4 -20 x 5/8 in. long (top

of screw is rounded)

24 Lockwashers, 1/4 in. External Type (approx.

dia. of hole 1/4 in.)

24 Hex Nuts, 1/4- 20 (approx. dia. of hole 1/4 in.)

8 Hex Nuts, 1/2 -13 (approx. dia of hole 1/2 in.)

4 Leveling feet. END

Assemble the legs as shown ... STIFFENER

1. Insert the Truss Head Screws through

STIFFENERS MARKED "X".

3. Install leveling feet.

ASSEMBLE SCREWS

THROUGH HOLES

MARKED "X"

SIDE STIFFENER

\\\

IN. HEX NUTS

MOUNTING SAW

1. From among the loose parts, find the following

hardware:

4 Hex Head Screws, 5/16 -18 x 1-1/4 in. long.

4 Hex Nuts, 5/16- 18 (approx. dia. of hole 5/16 in.)

4 Lockwashers, 5/16 in. External Type (approx.

dia. of hole, 5/16 in.)

8 Flat Washers, (dia. of hole 11/32 in.)

2. Place saw on legs so that holes in bottom of saw

line up with holes in top of legs.

3. Install screws, washers, Iockwashers and nuts as

shown.

SAW BASE

HEX HEAD SCREW _l I

FLAT WASHER----_

END _ ""

STIFFENER-_|

FLAT WASHER __

LOCKWASHER/_]:=

HEX NUT """/_

If you mount the saw on any other bench, make sure

that there is an opening in the top of the bench the

same size as the opening in the bottom of the saw so

that the sawdust can drop through. Recommended

working height is 33 to 37 inches from the top of the

saw table to the floor.

16-3/4"

15-1/;

r --

-@-

11-1/4

]

OPENING

7/16" DIA. HOLES .....

FRONTOFSAW

1/2"

iMPORTANT mRead Before Proceeding

Blade cannot be more than 2 inches above the table

top when tilting the sawblade to make bevel cuts or

adjustments. Lower blade to 2 inches or closer to

the table top to tilt the saw. Failure to do this may

result in damage to your saw. LOCKWASHER

INSTALLING HANDWHEELS

Line up FLAT SPOTS on shaft and handwheel, push

handwheel onto shaft. Install screw and Iockwasher

to lock handwheels on shaft.

ELEVATION

HANDWHEEL

10-32 x 3/4 IN.

PHILLIPS

HEAD SCREW

TILT HANDWHEEL

CHECKING TABLE iNSERT

1. Insert should be even with table top. Check as

shown, Loosen flat head screw that holds insert

and adjust the four set screws as necessary.

Tighten flat head screw. Do not tighten screw to

the point where it deflects the insert. 3/32 IN

SETSCREW WRENCH

TABLE INSERT_

2. To remove insert. _-..._1

A. Loosen Phillips Flat Head Screw.

B. Lift insert from front end, and pull toward front

of saw.

3. To replace insert.

Place insert into insert opening in table and push

toward rear of sawto engage spring clip and until

keyslot in insert will drop over screw. Tighten

screw_ ......

Do not tighten screw to the point where it will

deflect the insert. _-_.

HEELING ADJUSTMENT or PARALLELISM

OF SAWBLADE TO MITER GAUGE

GROOVE

While cutting, the material must move in a straight

line PARALLEL to the SAWBLADE . . . therefore

both the miter gauge GROOVE and the RIP FENCE

must be PARALLEL to the SAWBLADE.

If the sawblade IS NOT parallel to the miter gauge

groove, the blade will bind at one end of the cut.

(This is known as "HEELING").

To check for parallelism:

WARNING -- TO AVOID INJURY FROM

ACCIDENTAL START, TURN SWITCH "OFF" AND

REMOVE PLUG FROM POWER SOURCE OUTLET.

1. Raise blade all the way up by turning elevation

handwheel clockwise.

2. Mark an "x" on one of the teeth which is SET

(bent) to the LEFT.

3. Place the head of a combination square in the

GROOVE... adjust blade of square so that it just

touches the tip of the MARKED tooth.

MARK'X"ON TOOTH

4. Move square to REAR, rotate blade to see if

MARKED tooth again touches blade of square.

5. If tooth touches square at FRONT and REAR...

sawblade is PARALLEL to MITER GAUGE

GROOVE.

6. If tooth does not touch the same amount .. the

mechanism underneath must be adjusted to

make the blade PARALLEL to GROOVE.

A. Rear support bearing must be moved

TOWARD the combination square if there is a

space between marked tooth and end of

square in step 4.

B. Rear support bearing must be moved AWAY

from the square if marked tooth pushes square

out of position in the groove.

REAR SUPPORT o

BEARING

t_J

I r---

tiLT CLAMP SCREW

ILT LOCK HANDLE

7. Make sure tilt clamp screw is tightened.

/!\

/- \

8. Loosen both screws that hold the rear support

bearing and both screws that-hold the front

support bearing.

NOTE: Rear screws can be reached through back

of saw. Use a 9/16-in. wrench. To reach front

support bearing screws insert open end wrench

through opening in front of base bythe tilt clamp

screw.

-'l.J

"%'-.L

OFRONT SUPPORT

BEARING

.9. Using a wood block and hammerasshown, move

rear support bearing to right or left as required to

realign the blade. If necessary, shift front support

bearing in similar manner; but do NOT move front

support bearing unless necessary. Recheck the

alignment with the square, then securely

retighten all support bearing screws.

NOTE: Be certain that the Widest blade you use

does not contact blade insert after moving

support bearing. Check this at both 0°

(perpendicular to the table) and 45°bevel by

rotating the fully elevated blade by hand.

Readjust as required to maintain sufficient

clearance.

BLADE TILT, OR SQUARENESS OF

BLADE TO TABLE

90° (SQUARE) and 45° (BEVEL) STOP SCREWS.

When the bevel pointer is pointing directly to the

"O" mark on the bevel scale, the sawlolade should

make a SQUARE cut 90° to the table.

To check for SQUARENESS:

WARNING: TO AVOID INJURY FROM

ACCIDENTAL START, TURN SWITCH "OFF" AND

REMOVE PLUG FROM POWER SOURCE OUTLET.

1. Blade should be all the way UP.

2. Place the square against blade. Make sure square

is not touching the TIP of one of the saw TEETH.

_1 \\_

WOOD BLOCK

3. Turn the tilt-lock handle (COUNTER--

CLOCKWISE) to loosen the tilt clamp screw,.

4. NOTE: Handle is spring loaded for engagement

with screw head -- must be pushed inward for

disengagement whenever necessary to obtain a

new grip on screw head.

12 • •

If blade is NOT SQUARE to table.., the 90° stop

screw must be ADJUSTED.

A. Unscrew 90° STOP SCREW three to four turns

using 3/16 in. setscrew wrench.

B. Turn tilt handwheel clockwiseoneturn, then turn

handwheel counterclockwise until blade is

square with table.

C. Screw 90° stop screw IN until it stops.., check

once again for squareness and readjust screw, if

necessary.

If blade is SQUARE to table:

A. Check pointer

JF POINTER DOES NOT point to the "O" mark on

the bevel scale:

A. Remove Elevation Handwheel.

B. Loosen pointer screw and adjust pointer using

medium screwdriver.

C. Reinstall Elevation Handwheel.

_POINTEk-_/ ADJUSTING S%REW _)

POINTER AT

"0" POSITION

NOTE: Lower sawblade elevation before tilting

sawblade. Failure to do this may result in damage to

your saw.

1. Lower the blade to about two inches above the

table.

2. Turn tilt handwheet counterclockwiseto tilt blade

to a 45 ° bevel.

3. Raise blade elevation to maximum height.

4. Check bevel of blade with the head of the

combination square.

HEAD OF

COMBINATION SQUARE

If blade is NOT 45 °to table.., the 45 °stop screw

must be ADJUSTED.

A Unscrew 45 ° STOP SCREWthree to four turns

using 3/16 in. setscrew wrench.

B. Turn tilt handwheel until blade is 45 ° to the table.

C. Screw 45°stop screw IN until it stops.., check

once again and readjust screw, if necessary.

5. Lower blade.

6. Tilt blade back to 90 ° ,

7. Tighten tilt lock handle.

8. Lower blade below table.

45 °

STOP SCREW

TILT MECHANISM

Lower blade to 2 inches or closer to the table top

before tilting blade. Failure to do this may result in

damage to your saw.

The handwheel should turn freely without binding.

The turning action can be adjusted by tightening or

loosening the screws in the bearing retainer.

NOTE: Tilt Handwheel must be removed to adjust.

When adjusting the screws in the bearing retainer

using a screwdriver, hold the nut inside using a 3/8

in. wrench.

TILT HANDWHEEL

ADJUST THESE

TWO SCREWS

MOUNTING THE MOTOR

NOTE: Motor is included with Model 113.241680.

This motor is non-reversible.

1CHECK MOTOR ROTATION

A. The motor must rotate COUNTER--

CLOCKWISE when viewed from the shaftend.

B. MAKE SURE "KEY" IS REMOVED FROM

SHAFT.

C. Place the motor on your workbench or on the

floor.

D. Plug the cord into a properly grounded outlet

(See "Motor Specifications and Electrical

Requirements" Section.) Notice the rotation

of the shaft. If it is ROt turning

COUNTERCLOCKWISE, do not continue

assembly. Contact your nearest Sears Store or

Service Center,

E. Remove plug from outlet.

5/8 iNCH __

DIAMETER Si-{AF_

_" KEY

COUNTER-CLOCKWISE

ROTATION

WARNING: TO AVOID INJURY FROM

ACCIDENTAL START, MAKE SURE MOTOR IS

NOT PLUGGED INTO SWITCH OR ANY OTHER

ELECTRICAL OUTLET.

2. From among the loose parts find the following:

1 Motor Mount

2 Carriage Bolts 1/4-20 x 3/4 in. long

2 Hex Nuts 1/4-20 (aprox. dia. of hole 1/4 in,) LOCKWASHER

2 Lockwashers External Type 1/4in. (approx. dia.

of hole 1/4 in.}

3. Insert carriage bolts through square holes in rear

panel of table saw and through square holes in

motor mount. Install Iockwashers and hex nuts. HEXNUT

1/4-20

CARRIAGE BOLT

1/4-20 x 3/4 IN.

MOTOR MOUNT

5. From among the loose parts, find the following

hardware:

4 Carriage Bolts, 5/16 - 18 x 3/4 in. long

4 Flatwashers 17/64 x 3/4 x 1/16

4 Hex. Nuts, 5/16 - 18 (approx. dia. of hole 5/16

in.)

4 Lockwashers, 5/16 in. External Type

(approx. dia. of hole 5/!6 in.)

6. Place motor on MOTOR MOUNT... insert bolts

through holes in MOUNT then through the motor.

Install Iockwashers, and hex. nuts. Do not

tighten.

7. Position MOTOR BASE on MOTOR MOUNT so

the edges of the MOTOR BASE and the MOTOR

MOUNT are even. Tighten all 4 Hex. nuts

securely.

THESE TWO EDGES EVEN

IL.o+,++ 1

MOUNTING THE FLEXIBLE SHAFT

1. From among the loose parts find the following:

3 Pan Head Screws 8-32 x 3/8 in, long

3 Lockwashers External Type No, 8

2Carriage Bolts 1/4 -20 x 3/4 in+ long

2 Hex Head Screws 1/4-20 x 1in. long

4 Hex Nuts 1/4-20 (approx. aia. of hole 1/4 in.)

2 Washers 17/64 x 3/4 x 1/16

4 Lockwashers External Type 1/4 in, (approx.

dia. of hole 1/4 in.)

2 Shaft Brackets

1Flexible Shaft Assembly

1Motor Connector

1Square Key 3/16 x 15/16 long

2. Install 3/16 in. square key in motorshaft keyway.

3/16 IN. SQUARE KEY

3. Loosen the 2 setscrews in the MOTOR

CONNECTOR. Line up the keyway in MOTOR

CONNECTOR with the 3/16 in. square key on

the motor shaft.

4. Slide the MOTOR CONNECTOR ontothe motor

shaft as far as it wilt go. SECURELY tighten 2

setscrews. Test setscrews by trying to slide

motor connector off motor shaft.

IMPORTANT: Make sure the MOTOR

CONNECTOR is pushed on the shaft as far as It

will go. (Approx. 3/8 inch from motor end

shield.)

_3/8 INCH

___

LOOSEN SETSCREWS _

/i+

5. Removetheplasticcoversfromtheendsofthe

SHAFTHOUSING.

SAW ARBOR

MOTOR END _-_ _-- ---_ ENO

6. Push the saw arbor end of the flexible shaft out

of the SHAFT HOUSING until it is

approximately 1 inch above the end of the

SMALL FERRULE.

PULL FLEXIBLE SAW ARBOR END

SHAFT OUT 1"

7. Insert the flexible shaft assembly through the

opening in the side of the saw base. Line up the

SQUARE END of the FLEXIBLE SHAFT with the

square hole in the arbor shaft, holding square

end of flexible shaft insert the FLEXIBLE SHAFT

into the square hole in the arbor as far as it will

go.

iMPORTANT: Make sure the FLEXIBLE SHAFT is

inserted as far as it will go. Approximately 3/4

inch.

'J L_.J o

8. Insert SMALL FERRULE on SHAFT HOUSING

into the arbor shaft bearing hole.

Line up SHAFT RETAINER with holes in arbor ""

lING HOLE

RETAINER

LOCKWASHER

PAN HEAD SCREW

10-32 x 318 IN.

9. Bend the SHAFT HOUSING toward the motor

as illustrated. Insert end of LARGE FERRULE

over MOTOR CONNECTOR and line up

SQUARE END of flexible shaft with square hole

in MOTOR CONNECTOR.

NOTE: If FLEXIBLE SHAFT is not properly

positioned in the square hole of the MOTOR

CONNECTOR it will not be possible to make

this connection. It may be necessary to carefully

rotate the blade to line up the SQUARE END of

the flexible shaft with the square hole in the

MOTOR CONNECTOR.

10. Push LARGE FERRULE as far as it will go

against the motor end cap. If it does not enter

motor end cap to ferrule bead, rotate saw blade

while pushing ferrule toward motor to permit the

square ends of the core to enter their square

mating holes deep enough to ailow ferrule to be

correctly positioned. /

CAREFULLY ROTATE BLADE BY

HAND TO LINE UP SQUARE

END OF FLEXIBLE SHAFT

WITH SQUARE HOLE IN

MOTOR CQNNECTOR

11. Assemble upper and lower shaft bracket by

inserting 1/4-20 x 3/4 carriage bolts in upper and

lower square holes on the saw base rear panel

and then through the slotted hole in the shaft

brackets, Assemble 17/64 x 3/4 x 1/16 washer,

External Type Lockwasher, and 1/4-20 Hex Nut.

Finger tighten.

1/4-20 X 3/4 IN,,"<"_ /

•ocKwAS. .\1II ,..... r •

BRACKET I |

12. Position the upper and lower shaft brackets so

they wrap around the LARGE FERRULE on the

SHAFT HOUSING. Bottom bracket should just

contact and support LARGE FERRULE. Tighten

nuts that hold the shaft brackets to the saw base.

13. Assemble two 1/4-20 x 1 in. Hex Head Screws,

External Lockwashers, and 1/4-20 Hex Nuts to

clamp upper and lower brackets together, Do

not tighten.

14.CAUTION:Overtighteningshaft bracketbolts

maycausedamageto bracketor ferrule.

With end of LARGEFERRULEinsertedinto

recessin motor end cap tighten 2 Hex Head nuts

on shaft brackets. LARGE FERRULE must be

pushed against the motor end cap as faras it will

go. Tighten nuts but do not OVERTIGHTEN.

The shaft brackets hold the LARGE FERRULE in

place. Nuts should be securely tightened to

prevent movement.

BEAD ON FERRULE MUST

CONTACT MOTOR END CAP

iMPORTANT: The LARGE FERRULE should be

centered over the MOTOR CONNECTOR (now

located inside of LARGE FERRULE), to prevent

the MOTOR CONNECTOR from contacting the

LARGE FERRULE.

15. Carefully turn saw blade by hand to make sure

MOTOR CONNECTOR does not hit LARGE

FERRULE. If they are in contact, it will cause a

noise and cause resistance to rotation.

16. If the MOTOR CONNECTOR does hit the

LARGE FERRULE loosen the nuts holding the

shaft brackets to the saw base, and the nuts

holding the LARGE FERRULE in the shaft

brackets. Adjust the brackets and the LARGE

FERRULE until the LARGE FERRULE is

centered and is not hit by the MOTOR

CONNECTOR.

NOTE: It may be necessary to raise or lower

motor on motor mount slightly. Be sure to

reposition shaft brackets as required.

17. Tighten nuts.

LARGE

FERRULE

MOTOR

CONNECTOR MOVE BRACKETS UP OR

DOWN SO THAT MOTOR

CONNECTOR INSIDE DOES

NOT HIT FERRULE.

ATTACHING AND ASSEMBLING

TABLE EXTENSIONS

From among the loose parts find the following

hardware: (Quantity indicated is for 2 extensions)

Ref.

No. DescflpUon Qty'.

1 Corner Support Bracket ............ 4/

2 Corner Stiffener Bracket ............ 4

3 Truss Hd. Screw, 1/4-20 x 1 ........ 16

4 External Lockwasher, 114 ........... 16 1/

HARDWARE FOR i

9Hex Nut, 5/16-18 ,...

10 Flat Washer

TABLE EXTENSION

MOUNT TO TABLE

EXTENSION USING

3AME ATTACHING

P'ARTS AS ON

OPPOSITE SIDE.

SAW TABLE

8 9 _

E)E VIEW OF

BLED TABLE EXTENSION

Insert four (4) 5/16-18 x 1-1/4 in. long screws

through holes in each EXTENSION then through

table. Install flat washer, Iockwashers, and nuts on

the screws... DO NOT TIGHTEN.

Align front edge of extension with front edge of saw

table. Pull Extension UPWARDS above table

surface . .. SLIGHTLY TIGHTEN SCREWS using

1/2 in. wrench.

Using small block of hardwood and hammer, tap

extension DOWNWARDS at front, center and rear,

until it is EVEN with table surface ... TIGHTEN

SC REWS.

BLOCK OF WOOD

ALiGNiNG EXTENSIONS

Lay REAR FENCE GUIDE BAR on table to act as a

straightedge, If outer edge of extension is higher or

lower than table surface:

1. Slightly loosen nut holding the corner support

bracket to extension using 7/16 in. wrench.

2. Move end of extension up or down until outer

edge is even with table surface.., check with

GUIDE BAR... tighten nuts.

3. Recheck INNER edge of extension to make sure it

has not moved.., readjust, if necessary.

4. Adjust right extension in same manner.

CHECK AT FRONT AND

REAR OF EXTENSION

MOUNTING SWITCH

1. From among loose parts find the following:

2 Hex Head Screws, 5/16-18 x 3/4 in. long

2 F[atwashers (dia. of hole 21/64 in.)

2 External Lockwashers __

2 Hex Nuts. 5/16-18

2. Insert two 3/4 inch screws through two flat

washers then through holes in switch.

3. Insert screws through holes eight and ten in front

fence guide bar as illustrated.

4. Install two Iockwashers and nuts. Tighten nuts.

J AM NUT

5/16-18

"_ "_ ,,,7 LOCKWASHER

@-_ ,8TH HOLE

........ ---_:F \---_-_ _ FRONT FENCE

1OTH HOLE \ _ GUIDE BAR

(UPSIDE DOWN)

%%"--- WASHER

HEX HEAD SCREW

5/16-18 x 5/8 IN.

0NSTALLmNG RiP FENCE GUIDE BARS

1. From among the loose parts find the following

hardware:

2Hex Head Screws, 5/16-18 x 1-3/4 in. long

2Hex Head Screws, 5/16-18 x1in. long

4External Lockwashers, 5/16 in.

(approx. dia. of hole 5/16 in.)

4 Hex Nuts, 5/16-18

(approx. dia. of hole 5/16 in.)

2 Spacers, 3/4 in. dia. x1/2 in. long

2 Self-threading nuts

1 Fence Guide Bar Rod

2. Lay guide bars on saw table.

NOTE: The various holes in the bar allows them

to be positioned on this saw and also makes

them adaptable to other models.

3. Insert a 1-3/4 inch long screw through the

THIRD hole IN THE FRONT BAR as illustrated

•.. Insert another 1-3/4 inch long screwthrough

the SEVENTH hole in bar.

LEFT SIDE OF

FRONT GUIDE BAR

(GUIDE BAR IS TO BE

TTH HOLE TURNED END FOR END

3RD HOLE AFTER SCREWS ARE

"_:_ _J" _ HEX_HEAD

4. Place spacers on screws.

5_Turn front bar end for end and insert bolts

througr_holesin m_ddleandon right sidesof

front of saw tabteas i!lustrated . .install

!ockwashers and nuts DON'T SCREW NUTS

ON ALL THE WAY. just get them started on the

sCreWS.

6. Remove the 3 screws from rear of table

extension

7 Insert 1 m _ong screws m SECOND and

FOURTH or FIFTH holes of rear bar and atiach

to table the same way as front bar

8 }nsert ends of FENCE GUIDE BAR ROD

through holes in bars as itlustrated

NOTE: The ends of the ROD are not threaded.

the SELF THREADING NUTS will cut threads

on the rod as they are screwed on. Just start nuts

onto ends of rod.

@..._ SELF-THREADING NUT 2ND HOLE

4TH OR 5TH HOLE

FENCE GUIDE

BAR ROD

REMOVE 3 SCREWS FROM

REAR OF TABLE EXTENSION

BEFORE INSTALLING GUIDE

BAR.

9. Hold rod with one hand and with a 1/2 in. wrench

or pliers start screwing on ONE of the nuts only

ATURN ORTWO . . screw on other nut the

same way

t0, Using TWO 1/2 in. wrenches or pliers tighten

both of the nuts.

t 1. Slide the bars so that screws are in the MIDDLE

of the slotted holes.

12, Position rip fence over miter gauge groove,

holding up the rear end while engaging front

end with bar.,, lower fence onto table.

NOTE: tt may be necessary to loosen fence

knob to allow fence to be installed on rip rail.

13, Raise blade a!! the way _p,

!4. Carefuiiy move fence against blade.

!5. Move front bar untit "0" mark on rip scale is

approximately in line with indicator.

16. Move FRONT bar upwards until fence is

approximately 1/32 in, above table., , tighten

screw at left end of bar,

NOTE; Fold a piece of newspaper making 8

thicknesses and place between rip fence and

table to act as a spacer• This will hold the fence

off of the table approx. 1/32 in

17. Adjust rear bar so that the fence is

approximateiy 1/32 in, above tab!e make sure

it is square with fence guide bar rod.., tighten

screw at end of bar.

t8. Replace screws in rear of table extension,., be

sure top surface of extension is PARALLEL to

top surface of rear guide bar.

19, Move fence to RIGHT edge of table , , ,make

sure it is approx, t/32 in, above table at front and

rear and tighten screws,

ALIGNING RIP FENCE

The fence should slide easily along the bars and

always remain in alignment (parallel to sawblade

and miter gauge grooves).

The alignment is maintained by a spring underneath

the rip fence which bears against the front guide

bar.

To move the fence, loosen the lock handle and

grasp the fence with one hand at the front,

21 -"

For very close adjustments, grasp the guide bar with

both hands and move the fence with your thumbs.

Place fence on saw but DO NOT LOCK IT.

Move the REAR END of the fence slightly to the right

or left ...when you release it, the fence should \

"spring" back to its original position.

If it does not, the spring pressure must be \

INCREASED.

1. Loosen the screws.

2. Move Spring slightly toward front of fence.

SPRING

tighten screws.

SLIDE SPRING TO

ADJUST PRESSURE

3. The rip fence must be PARALLEL with the

sawblade and miter Gauge grooves .,, Move

fence until it is along side of groove. Do NOT

LOCK IT. it should be parallel to groove, If it is

not;

A. Loosen the two "Hex Head Screws."

B. Hold fence head tightly against bar.., move end

of fence so that it is parallel with groove.

C. Alternately tighten the screws.

HEX SCREWS

FENCE HEAD

ADJUSTING RiP SCALE iNDiCATOR

1. Turn ELEVATION HANDWHEEL clockwise until

blade is up as high as it will go.

IMPORTANT: BLADE must be SQUARE (90°) to

TABLE, in order to ALIGN rip fence.

2. Using a rule, position fence on right side of

sawblade 2 in. from the sides of the teeth . . .

tighten lock handle.

3. Loosen screw holding the indicator.., adjust so

that it points to ,2" on the rip scale.., tighten

screw.

NOTE: If you cannot adjust indicator so that it

points to "2", loosen the screws holding the front

guide bar and move the guide bar.

LOCK HANDLE

INSTALLING BLADE GUARD

1. From Among the loose parts find:

4 Truss Head Screws 1/4-20 x 3/4 in. long

2 Hex Socket Setscrews 1/4-20 x 1in. long

4 Washers 17/64 x 5/8 x 1/32

6 Lockwashers 1/4 in. External Type

(approx. dia. of hole 1/4 in.)

2 Hex Head Nuts 1/4-20

(approx. dia. of hole 1/4 in.)

2 Wing Nuts 1/4-20

(aprox. dia. of hole 1/4 in.)

1Spreader Support

1 Plate Nut

1 Spreader Clamp

1 Spreader Bracket

SPREADER SUPPORT

PLATE \ _.._TRUSS HEAD SCREW

\ tl SpREAOE,C,,,P

TRUSS"%%%"EW_----_-_"-_'_'--'_J\t

"i_'_._ _. _ OCKWASHER

LOCKWASHERF'_!;_LT _" , _17/S, IN,HOLE

FLA /' _

HEX NUT

WARNIlNG: TO AVOID iNJURY DUE; TO

ACCIDENTAL START. TURN SWITCH "OFF" AND

REMOVE PLUG FROM POWER SOURCE O UTLET.

2, MAKE SURE THE BLADE IS ALL THE WAY UP

AND SQUARE WtTH THE TABLE

3 Posit_on SPREADER SUPPORT on rod until it Js

even w_h the cod of the rod.

BLADE S©UARE

W_TH TABLE

4 Assemble the Zt8 in long setscrews nuts

_ockwashers and washers to the SPREADER

SUPPORT BRACKET and s_ip the nuts into the

slot m tr_e spreader support,

5, Finger tighten ONLY THE HEX NUTS,

6Lay a piece of fiat straight wood and a square on

saw table and rotate the SPREADER SUPPORT

unti_ the bracket is a_igned with square.

7, MAKE SURE END OF SUPPORT, BRACKET

AND ROD ARE EVEN.., using a 1/8 in_ setscrew

wrench, TIGHTEN THE SET_CREWS ONLY.

ENDS OF SUPPORT

AND BRACKET TO

BE EVEN WITH

END OF ROD

TIGHTEN

SETSCREW ONLY

ALIGNING SPREADER

WARNING: TO AVOID _NJURY FROM

ACCIDENTAL START, TURN SWITCH OFF AND

REMOVE PLUG FROM POWER OUTLET.

IMPORTANT: The SPREADER must always be

PARALLEL to the sawblade and in the MIDDLE of

the cut (KERr) made by the sawblade,

NOTE: The spreader is thinner than the width of the

KERr by approximately six thicknesses of paper.

SPACE EQUAL TO APPROX_

3THICKNESSES OF PAPER KERr WOOD

SPACE EQUAL TO APPROX.

3 THICKNESSES OF PAPER

BLADE

LOOKING DOWN ON SAW

1. Make two folds in a small piece (6 x 6 in.) of

ordinary NEWSPAPER making three

thicknesses, The folded paper will be used as a

"spacing gauge".

2. Install TRUSS HEAD SCREWS, SPREADER

CLAMP and WING NUTS to spreader bracket. Do

not tighten wing nuts. Place spreader between

spreader clamp and bracket. Move forward until

all three are in line. TIGHTEN WING NUTS.

3. Lift up both ANTIKICKBACK PAWLS,., insert

one of the setscrew wrenches or a pencil in the

notches to hold the pawls out of the way. Hold

guard so it doesn't fall while positioning spreader,

4. Lay a piece of straight flat wood against the

sawblade. Insert folded paper between spreader

and strip of wood.

5. MAKE SURE THE HEX NUTS UNDERNEATH

ARE LOOSE.

6. Hold the spreader tightly against the wood and

make sure the wood is against the saw blade.

TIGHTEN THE HEX NUTS.

This will align the spreader in the middle of the

cut (KERr) made by sawblade.

THREE

THICKNESS

OF PAPER

WING NUT !

SPREADER

CLAMP

PIECE OF

ANTIKICKBACK STRAIGHT WOOD

PAWLS

HOLD WOOD 1

TIGHTLY AGAINST

BLADE

HOLD SPREADER

TIGHTLY AGAINST WOOD

SPREADER

BRACKET

ADJUSTING MITER GAUGE

NOTE: The slots for the stop pin and the

graduations are manufactured to very close

tolerances which provide accuracy for average

woodworking, in some cases where extreme

accuracy is required, when making angle cuts, for

example, make a trial cut and then recheck it.

If necessary, the miter gauge head can be swiveled

slightly to compensate for any inaccuracy.

1. Loosen the "knob" and pull "stop pin" OUT.

2. Swivel the head.., position it at "0"... push the

stop ;)in IN... lock the handle,

3. The HEAD should be square with the Bar and the

pointer should point to 0. Readjust the pointer if

necessary.

LOCK KNOB

INDICATOR

BLOCK

4. if the head is not square with the bar, adjustments

are required,

A. Loosen the "knob" (1) and the "two screws"

(2),

B. Position the HEAD square with the BAR using

a combination square.

C. PUSH the STOP PiN into theslot in the head a t

"0"... push the pin into the slot and twist it.

Lock the knob.

D. Recheck with the square. If the head is still not

square, loosen the screws (2) and readjust the

INDICATOR BLOCK,

E. With the head square with the bar and the pin

pushed into the slot adjust the pointer (3) to

point to "0".

F. The miter gauge head must rest on top of the

bar without being able to move up and down

. . yet it must swivel freely.

G. The swiveling movement of the head can be

adjusted by tightening or loosening the

setscrew (4) ... using the 1/8 in. setscrew

wrench.

NOTE: The setscrew is located inside of the

head. To reach it, swivel the head to 60

degrees and turn the miter gauge upside

down.

1/8 IN. SETSCREW

WRENCH

PLUGGING IN MOTOR

1. From among the loose parts, find two wire ties.

2. Route motor cord along right side of cabinet and

snap ties in 1/4" hole in side of cabinet. Secure

two cords in wire ties.

3. Plug motor cord into outlet on side of switch box.

WiRE TIES

EXTENSION REMOVED FOR

PICTURE CLARITY

GETTING TO KNOW YOUR SAW

9 SAWBLADE

7' BLADE GUARD

8 TABLE,NSERT / /__

M,TEROAUGE 10EXACT-I-COT1 > ANT'Z'C@CK

LOCK HANDLE _ \ _.._._iit_.._ /_v.w

yATTACHING FACING

4" TILT LOCK HANDLE "_,._'_' L_

(UNDERNEATH TABLE) _

2ELEVATION HANDWHEEL 3TILT HANDWHEEL

]ON-OFF SWITCH

1ON-OFF SWITCH

CAUTION: Before turning switch on, make sure the

blade guard is correctly installed and operating

properly,

The On-Off Switch has a locking feature. THIS

FEATURE IS INTENDED TO PREVENT

UNAUTHORIZED AND POSSIBLE HAZARDOUS

USE BY CHILDREN AND OTHERS,

A. TO turn saw ON..stand to either side of the

blade never in line with it ... insert finger

under switch lever and pull END of iever out,

Do not cycle the motor switch on and off

rapidly, as this may cause the sawblade to

loosen. In the event this should ever occur

allow the sawblade to come to a complete

stop and retighten the arbor nut normally, no_

excessively. Never leave the saw while the

power is "ON".

B, TO turn saw OFF . . . PUSH lever in, Never

leave the saw until the cutting tool has come

to a complete stop.

C. TO lock switch in OFF position.., hold switch

IN with one hand ... REMOVE key with other

hand.

WARNING: FOR YOUR OWN SAFETY,

LOWER BLADE OR OTHER CUTTING

TOOL BELOW TABLE SURFACE. (IF BLADE

IS TILTED, RETURN iT TO VERTICAL (90 °)

POSITION). ALWAYS LOCK THE SWITCH

"OFF". WHEN SAW IS NOT IN USE . . .

REMOVE KEY AND KEEP IT IN A SAFE

PLACE . . . ALSO . . . IN THE EVENT OF A

POWER FAILURE (ALL OF YOUR LIGHTS

GO OUT) TURN SWITCH OFF... LOCK IT

AND REMOVE THE KEY. THIS WILL

PREVENT THE SAW FROM STARTING UP

AGAIN WHEN THE POWER COMES BACK

ON.

KEY

(YELLOW PLASTIC)

2 ELEVATION HANDWHEEL , . . elevates or

lowers the blade. Turn clockwise to elevate...

counterclockwise to lower.

NOTE: Any time sawbiade has been elevated

to 2-5/8 inches or higher above the table it will

be necessary to lower the blade by turning the

elevation handwhee! 5 turns counterclockwise

before tilting to bevel,

3 TILT HANDWHEEL... tilts the blade for bevel

cutting. Turn clockwise to tilt toward left...

counterclockwise to tilt toward vertical.

When the blade is tilted to the LEFT as far as it

will go, it should be at 45°to the table and the

bevel indicator should point 45°.

NOTE: There are LIMIT STOPS on the saw

which prevent the blade from tilting beyond

45°to the LEFT and 90°to the RIGHT. (See

"'Adjustments" section "'Blade Tilt, or

Squareness of Blade to Table").

TiLT LOCK HANDLE... locks the blade in the

desired tilt position. To loosen, turn

counterclockwise. Push handle in and turn it to

another position if necessary in order to

tighten or loosen.

IMPORTANT: Be sure handle is hanging in the

"DOWN" position before tilting blade. If it is

pointing to the 1 o'clock position it may jam on

underside of the table and bend the locking

boil

6MITER GAUGE _ .nead is locked in position

for crosscutting or mitering by tightening the

lock knob. ALWAYS LOCK IT SECURELY

WHEN tN USE,

There are slots for the stop pin at the 45 degree

right and left positions forconveniently setting

the Miter Gauge to cut miters.

NOTE: The slots for the stop pin and the

graduations are manufactured to very close

tolera nces which provide accuracy for average

woodworking. In some cases where extreme

accuracy is required, when making angle cuts,

for example, make a trial cut and then recheck

it.

If necessary, the miter gauge head can then be

swiveled slightly to compensate and then

locked.

Slots are provided in the miter gauge for

attaching an AUXILIARY FACING to make it

easier to cut long pieces. Be positive facing

does not interfere with the proper operation of

the sawblade guard.

Select a suitable piece of smooth straight

wood ... dril two holes and attach it with

screws,

NOTE: When bevel crosscutting, attach facing

so that it extends to the right of the miter gauge

and use the miter gauge in the groove to the

nght of the blade.

RIP FENCE... is locked in place by tightening

the lock knob. To move the fence, loosen the

knob and grasp the fence with one hand atthe

front.

Holes are provided in the rip fence for

attaching a wood facing when using the dado

head, or molding head.

Select a piece of smooth straight wood approx.

3/4" thick, at least as long as the rip fence, and

at least 7-1/2" wide (high) to permit clamping

of featherboards.

Attach it to the fence with three Round Head 7

#10 Wood Screws 2 in. long. To remove the

facing, loosen the screws, slide the facing

forward and pull the screws through the round

holes.

If you are making a rip type cut in material

thinner than 3/16 in. while the fence is

positioned over the depressed area of table

extension, the facing should be attached to the

fence so that the bottom edge touches the top

surface of the extension. In this case, the

facing must be shorter than the fence. This will

prevent thin material from sliding under the rip

fence. 8

WOOD FACING

o _

STOP PiN

_---- LOCK KNOB

AUXILIARY FACING

45 _SLOT \'_

FOR STOP PIN

BLADEGUARD must always be in place and

working properly for all thru-sawing cuts. That

is, all cuts whereby the blade cuts completely

through the workpiece.

To remove the guard for special operations,

loosen the wing nuts and slide the guard off of

the rod. DO NOT DISTURB THE SETTING OF

THE ROD.

When replacing the guard, make sure the PIN

in the rod engages with the NOTCH in the

spreader support. Make sure wing screws are

tightened securely.

TABLE INSERT is removable for removing or

installing blades or other cutting tools.

WARNIMG: TO AVOID INJURY DUE TO

ACCIDENTAL START, TURN SWITCH "OFF"

AND REMOVE PLUG FROM POWER

SOURCE OUTLET BEFORE REMOVING

'INSERT.

A. Lower the blade below the table surface,

B. Raise blade guard.

,C. Loosen Screw.

•D. Lift insert from front end, and pull toward

ROUND HEAD /front of saw.

#10 WOOD SCREWS

NEVER OPERATE THE SAW WITHOUT THE

PROPER !NSERT IN PLACE. USE THE SAW

BLADE iNSERT WHEN SAWING,.. USE THE

COMBINATION DADO MOLDING INSERT (9-

22271) WHEN DADOING OR MOLDING.

SCREW

9REMOVING AND iNSTALLiNG SAWBLADE.

WARNING: TO AVOID iNJURY DUE TO

ACCIDENTAL START, TURN SWITCH "OFF"

AND REMOVE PLUG FROM POWER

SOURCE OUTLET BEFORE REMOVING OR

iNSTALLiNG SAWBLADE.

A. Raise Blade Guard •,. remove insert.

B. To REMOVE blade, place a block of wood

against front of blade... PULL arbor wrench

toward you to LOOSEN arbor nut.

WOOD BLOCK

ARBOR __

WRENCH

ARBORNUTi/S

BLADE GUARD NOT SHOWN FOR PICTURE CLARITY

BLOCK ,'

/ARBOR ,/

_H i,,

ARBOR NUT /

LOOSE

COLLAR

ARBOR

';7.,'>D, I

TEETH POINTING TO _-_

FRONT OF SAW _\..._

1O EXACT-I-CUT

ARBOR NUT

The "yellow" plastic disc imbedded in the table

in front of the sawblade, is provided for

marking the location of the "sawcut" on the

workpiece.

A. Check disc ...if it is above table surface,

place a piece of hardwood on top of it and tap

it down.

B. With blade 90 ° (square to table) cut off a

piece of wood°

C. Pull miter gauge back until wood is over disc,

Using very sharp pencil, mark a !ine on disc+

D. With miter gauge in right hand groove, follow

same procedure and mark another line on

disc,

E. These tines indicate the "path" of the cut

(kerf) made by the sawbtade.

F. When cutting the workpiece, line up mark on

workpiece with line on disc,

Use the hold-down clamp (optional accessory)

on the miter gauge for greater accuracy.

(___ SHOWN WITH HOLD-DOWN CLAMP

(OPTIONAL ACCESSORY)

C. To TIGHTEN arbor nut. place a block of

wood against rear of blade... PUSH wrench

away from you.

When installing the blade . . make sure the

teeth are pointing toward the front of the saw

... and that the blade and collars are clean, and

free from any burrs.

The HOLLOW side of the collar must be

against the blade.

Always tighten the arbor nut securely•

NOTE: When using the Dado or Molding Head,

it is not necessary to install the loose collar.

To replace insert.

Place insert into insert opening in table and

push toward rear of saw to engage spring clip

and until keyslot in insert wilt drop over screw.

Tighten screw.

Do not tighten screw to the point where it will

deflect the insert.

-BLADE GUARD NOT SHOWN FOR PICTURE CLARITY

BASIC SAW

WORK HELPERS

Before cutting any wood on your saw, study all of

the "Basic Saw Operations".

Notice that in order to make some of the cuts, it is

necessary to use certain devices "Work Helpers"

like the Push Stick, the Push Blockand the Auxiliary

Fence/Work Support, which you can make yourself.

After you have made a few practice cuts, make up

these "helpers" before starting any projects. Make

the "Push Stick" first.

J3/4

PUSH STICK

-I "

1-5/8

_L_

1/4

WORKPIECE END

1/4

NOTCH

NOTE: All dimensions in inches

PUSH STICK AND PUSH BLOCK

Make the Push Stick using a piece of 1 x 2, or rip one

from a wide board, say 11-1/2 in. wide, and set the

rip fence 9-7/8 in. from the sawblade.

Make the Push Block using a piece of 3/8 in. and 3/4

in. plywood.

The small piece of wood 3/8 in. x 3/8 in. x 2-1/2 in.

should be GLUED to the plywood... DO NOT USE

NAILS. This is to prevent dulling the sawblade in the

event you mistakingly cut into the push block.

Position the handle in the center of the plywood and

fasten together with glue and woodscrews.

OPERATmON

THESE EDGES MuST

BE PARALLEL

l- 4-3/4 -

F'--

PUSH BLOCK

3/4 PLYWOOD

3/8

MOTE: All dimensions in inches 3/8 PLYWOOD

AUXILIARY FENCE/WORK SUPPORT

Make one using a p_ece of 3/8 in and 3/4 in.

plywood. Fasten together with glue and

woodscrews.

NOTE: Since the Push Block is used with the

Auxiliary Fence, the 4-3/4 in. dimensions must be

held identical on both the pieces.

AUXILIARY FENCE/ _

WORK SUPPORT _3/4 PLYWOOD

3-1/2_ 27

%1/4

THIS FACE AND THIS

EDGE MUST BE PARALLEL

3/8 PLYWOOD

"_-. 5-1/2

NOTE: All dimension in inches _.._

USING THE MITER GAUGE

THE MITER GAUGE IS USED WHEN

CROSSCUTTING, MITER CUTTING, BEVEL

CUTTING, COMPOUND MITER CUTTING,

DADOING and when RABBETTING AND

MOLDING across the end of a narrow workpiece

WARNING: FOR YOUR OWN SAFETY, ALWAYS

OBSERVE THE FOLLOWING SAFETY

PRECAUTIONS IN ADDITION TO THE SAFETY

INSTRUCTIONS ON PAGES 2, 3, and 4.

1. Never make these cuts freehand (without using

the miter gauge or other auxiliary devices)

because the blade could bind in the cut and

cause a KICKBACK or cause your fingers or

hand to slip into the blade.

2. Always lock the miter gauge securely when in

use.

3. Remove rip fence from table.

6. Do not stand directly in front of the blade in case

of a THROWBACK (Small cut-off piece caught

by the back of the blade and thrown toward the

operator). Stand to either side of the blade.

7. Keep your hands clear of the blade and out of

the path of the blade.

8. If blade stalls or stops while cutting, TURN

SWITCH OFF before attempting to free the

blade.

9. Do not reach over or behind the blade to pull the

workpiece through the cut.., to support long or

heavy workpieces.., to remove cut-off pieces of

material or FOR ANY OTHER REASON.

10. Do not pickup small pieces of cut,off material

from the table. REMOVE them by pushing them

OFF the table with a long stick. Otherwise they

could be thrown back at you by the rear of the

blade.

5. Have blade extend approximately 1/8 in. above KICKBACK.

top of workpiece. Additional blade exposure Turn the saw OFF. After the blade has stopped

would incre_'se the hazard potential, turning, lift the guard and remove the piece.

CROSSCUTTING

CROSSCUTTING is known as cutting wood across

the grain, at 90° , or square with both the edge and

the flat side of the wood. This is done with miter

gauge set at "0".

The graduations on the miter gauge provide

accuracy for average woodworking. In some cases

where extreme accuracy Js required, when making

angle cuts, for example, make a trial cut and then

recheck it with an accurate square, or protractor.

If necessary, the miter gauge head can be swiveled

slightly to compensate for any inaccuracy.

NOTE: The space between the miter gauge bar and

the groove in the table is held to a minimum durin.(

manufacturing.

For maximum accuracy when using the miter

gauge, always "favor" one side of the groove in the

table. In other words, don't move the miter gauge

from side to side while cutting, but keep one side of

the bar riding against one side of the groove.

NOTE: Glue a piece of sandpaper to the face of the

miter gauge head. This will help prevent the

workpiece from "creeping" while it is being cut.

The Hold-Down Clamp (Optional Accessory)

should be used on the miter gauge for greater

accuracy.

The miter gauge may be used in either of the

grooves in the table. Make sure it is locked.

When using the miter gauge in the LEFT hand

SANDPAPER

WORKPIECE

/ I it i

TAB LE

When cutting long workpieces, invert AUXILIARY

FENCE/WORK SUPPORT and position it on top of

the guide bars to support the workpieces as near to

the end as possible. If this does not adequately

support the workpiece, you can make a simple

support by clamping a piece of plywood to a

sawhorse.

groove, hold the workpiece firmly against the miter

gauge head with your left hand, and grip the lock

handle with your right.

When using the RIGHT Hand groove, hold the

workpiece with your right hand and the Iockhandle

with your left hand.

AUXILIARY FENCE/

W'ORK SUPPORT

REPETITIVE CUTTING

REPETITIVE CUTTING is known as cutting a

quantity of pieces the same length without having to

mark each piece.

1. Use the Stop Rods (optional accessory) only for

cutting duplicate pieces 6 in. long and longer.

2. DO NOT FEED workpiece with RIGHT Hand,

merely guide it, making sure that it does not bind

or pinch the sawblade.

When making repetitive cuts from a long workpiece,

make sure it is adequately supported.

Use the N old-Down Clamp (Optional Accessory) on

the miter gauge for greater accuracy.

"AUXILIARY FENCE/

WORK SUPPORT

1. NEVER USE THE RIP FENCE AS A LENGTH

STOP BECAUSE THE CUTOFF PI ECE COULD

BiND BETWEEN THE FENCE AND THE BLADE

CAUSING A KICKBACK.

2. When making repetitive cuts shorter than 6 in.,

clamp a block of wood 2 in. long tothe table to act

as a length stop. Do not clamp directly to the

bottom edge of the table because the "swivel" of

the clamp will not grip properly. Place a small

block of wood between the bottom edge of the

table and the "C" clamp.

CAUTION: When clamping the block, make sure

that the end of the block is well in front of the

sswblade. Be sure it is clamped securely.

3. Slide the workpiece along the miter gauge until it

touches the block.., hold it securely or clamp it

with the Hold-Down Clamp (Optional

Accessory).

4. Make the cut.., pull the workpiece back ,.. push

the cut off piece off the table with a long !3ush

\\\\

BLOCK

stick... DO NOT ATTEMPT TO PICK IT UP AS

THIS COULD ENDANGER YOUR HANDS.

MITER CUTTING

MITER CUTTING is known as cutting wood at an

angle other than 90° with the edge of the wood.

Follow the same procedure as you would for

crosscutting.

Adjust the miter gauge to the desired angle, and

lock it.

The miter gauge may be used in either of the

grooves in the table.

When using the miter gauge in the LEFT Hand

groove, hold the workpiece firmly against the miter

gauge head with your left hand, and grip the lock

knob with your right.

When using the RIGHT hand groove, hold the

workpiece with your right hand and the knob with

your left hand.

Use the Hold-Down Clamp (Optional Accessory) on

the miter gauge for greater accuracy.

BEVEL CROSSCUTTING

BEVEL CROSSCUTTING is the same as

crosscutting except that the wood is also cut at an

angle ... other than 90° with the flat side of the

wood.

Lower blade to about 2 inches above the table top

before tilting blade. Failure to do this n_ay result in \

damage to your saw. \,

Adjust the blade to the desired angle. "\,

Use the Miter Gauge in the groove to the RIGHT of "

the blade, it cannot be used in the groove to the

LEFT because the blade guard will ir_terfere. Hold

the workpiece with your right hand and the

iockhandle with your left hand.

Use the AUXILIARY FENCE/WO

additional support of the workpiece.

TABLE

TOP VIEW

WORKPIECE

Use the Hold-Down Clamp (Optional Accessory} on

the miter gauge for greater accuracy.

COMPOUND MATER CUTTING

COMPOUND MITER CUTTING is a combination of

miter cutting and bevel crosscutting. The cut is

made at an angle other than 90° to both the edge

and the flat side of the wood.

Adjust the miter gauge and the blade to the desired

angle ... Make sure miter gauge is locked.

USgNG THE RIP FENCE

RIPPING, BEVEL RIPPING, PLOUGHING,

MOLDING, RESAWING AND RABBETING are

performed using the RIP FENCE together with the

AUXILIARY FENCE/WORK SUPPORT, PUSH

STICK OR PUSH BLOCK.

WARNING: FOR YOUR OWN SAFETY, ALWAt'S

OBSERVE THE FOLLOWING SAFETY

PRECAUTIONS IN ADDITION TO THE SAFETY

INSTRUCTIONS ON PAGES 2, 3, and 4.

1. Never make these cuts FREEHAND (without

using the rip fence or auxiliary devices when

required) because the blade could bind in the

cut and cause a KICKBACK.

2. Always lock the rip fence securely when in use.

3. Remove miter gauge from table.

4. Make sure blade guard is installed for all thru-

sawing type cuts. Replace the guard

IMMEDIATELY following completion of

resawing, rabbeting, dadoing, or molding

operations.

Frequently check the action of the

ANTIKICKBACK PAWLS by passing the

workpiece alongside of the spreader while saw

is OFF.

Pull the workpiece TOWARD you. tf the PAWLS

do not DIG into the workpiece and HOLD it...

the pawls must be SHARPENED. See

"Maintenance" section.

5. Have blade extend approximately 1/8 in. above

top of workpiece. Additional blade exposure

would increase the hazard potential.

6. Do not stand directly in front of the blade in case

of a KICKBACK. Stand to either side of the

blade.

7. Keep your hands clear of the blade and out of

the path of the blade.

8. If ths blade stalls or stops while cutting. TURN

SWITCH OFF before attempting to free the

blade.

10.

11.

Do not reach over or behind the blade to pull the

workpiece through the cut.., to support long or

heavy workpieces.., to remove small cut-off

pieces of material or FOR ANY OTHER

REASON.

Do not pick up small pieces of cut-off material

from the table. REMOVE them by pushing them

OFF the table with a long stick. Otherwise they

could be thrown back at you by the rear of the

blade.

Do not remove small pieces of cut-off material

that may become TRAPPED inside the blade

guard while the saw is RUNNING. THIS COULD

ENDANGER YOUR HANDS or cause a

KICKBACK.

Turn the saw OFF. After the blade has stopped

turning, lift the guard and remove the piece.

RiPPiNG

RIPPING is known as cutting a piece of wood with

the grain, or lengthwise. This is done using the rip

fence.

Position the fence to the desired WIDTH OF RIPand

lock in place.

Before starting to rip, be sure

A. Rip Fence is parallel to sawblade.

B. Spreader is properly aligned with sawblade.

C. Antikickback pawls are functioning properly.

When ripping LONG BOARDS or LARGE PANELS,

always use a work su pport.

A simple one can be made by clamping a piece of

plywood to a sawhorse.

BEVEL RIPPING

When bevel ripping material 6 in. or narrower, use

fence on the right side of the blade ONLY. This will

provide more space between the fence and the

sawblade for use of a push stick. If the fence is

mounted to the left, the sawblade guard may

interfere with proper use of a push stick.

WORKPIECE

tt*)

TABLE __......./J

ALWAYS SUPPORT LONG WORKPIECES

..<

When"WIDTH OF RIP" is 6in. and WIDER use your

RIGHT Handto feed the workpiece until it is clearof

the table.

Use LEFT hand ONLY to guide the workpiece ... do

not FEED the workpiece with the left hand.

When "Wi DTH OF RIP" is 2 in. to 6 in. wide USE THE

PUSH STICK to feed the work.

When WIDTH OF RIP is NARROWER than 2 in., the

push stick CANNOT be used because the guard will

interfere ... USE the AUXILIARY FENCE/WORK

SUPPORT and PUSH BLOCK,

Attach Auxiliary Fence/Work Support to rip fence

with two "C" clamps.

FeedtheworkpiecebyhandalongtheAUXILIARY

FENCEuntilthe endisapprox.1in. pastthefront

edgeof thetable.ContinuetofeedusingthePUSH

BLOCK.

HoldtheworkpieceinpositionandinstallthePUSH

BLOCKby sliding it on top of the AUXILIARY

FENCE/WORKSUPPORT(ThisMayRaiseGuard).

NarrowstripsthickerthantheAuxiliaryFence/Work

Supportmayentertheguardandstrikethe baffle.

CAREFULLYraiseguardonlyenoughto clearthe

workpiece.UsePUSHBLOCKto completecut.

BAFFLE

AUXILIARY FENCEr

WORK SUPPORT

CUTTING PANELS

When cutting panels (whenever fence is positioned

outside of table surface), ALWAYS use the

AUXILIARY FENCE/WORK SUPPORT.

1. Unlock fence and raise rear end.

2. Position AUXILIARY FENCE/WORK SUPPORT

as shown and attach it with two "C" clamps. . J"

PLOUGHING AND MOLDING

PLOUGHING is grooving with the grain the long

way of the workpmece, using the fence. USE proper

holddowns and feed devices.

PLOUGHING

MOLDING is shaping the workplece with the grain

the long way of the workpiece, using the fence. Use

proper hoiddowns and feed devices.

MOLDING

RESAWING

RESAWING is a "thru-sawing" cut made by ripping

a piece of wood through its thickness. Do not

attempt to resaw BOWED or WARPED material.

NOTE: To RESAW a Piece of wood wider than 3-3/8

in.... it will be necessary to remove the blade guard

•..and use the AUXILIARY FENCE/WORK

SUPPORT. (See "Work Helpers"),

Clamp it to the table so that the workpiece will

SLIDE EASILY but not TILT or MOVE SIDEWAYS

between the two fences.

Do not clam p directly to the bottom edge of the table

because the "swivel" of the clamp will not grip

properly. Place a small block of wood between the

bottom edge of the table and the "C" clamp.

WARNING: FOR YOUR OWN SAFETY ...

1. DO NOT "BACK UP" (REVERSE FEEDING)

WHILE RESAWING BECAUSE THIS COULD

CAUSE A KICKBACK.

SMALL BLOCK

OF WOOD

i&\

2. MAKE FIRST PASS TO A DEPTH SLIGHTLY

LESS THAN ONE-HALF THE WIDTH OF THE

BOARD; KEEP SAME FACE OF BOARD

AGAINST FENCE FOR SECOND PASS AS THE

FIRST PASS.

3. iNSTALL BLADE GUARD IMMEDIATELY UPON

COMPLETION OF THE RESAWING

OPERATION.

RABBETING

RABBETING is known as cutting out asection of the

corner of a piece of material, across an end oralong

an edge.

To make a RABBET requires cuts which do not go

al! the waythrough the material. Therefore the blade

guard must be removed.

1. Remove blade guard. Use caution. Use

featherboards and push sticks, etc. as required.

2. For rabbeting along an edge (long way of

workpiece) as shown, add facing to rip fence

approximately as high as the workpiece is wide.

Adjust rip fence and blade to required

dimensions; then make first cut with board flat on

table as any rip (typel cut; make second cut with

workpiece on edge. Follow all precautions, safety

instructions, and operational instructions as for

ripping, or rip type operations, including feather

boards and push stick, etc.

3. For,rabbeting across an end, for workpiece 10-

1/2' and narrower make the rabbet cut with the

board fiat on the table using the miter gauge fitted

with a facing. DO NOT use the rip fence.

RAB|

FIRST CUT 1

ISECOND CUT if

WARNING: FOR YOUR OWN SAFETY, INSTALL

BLADE GUARD IMMEDIATELY UPON

COMPLETION OF RABBETING OPERATION.

Rabbet cuts can also be made using the dado head

or molding head.

DADOING

instructions for operating the Dado Head are

contained in booklet furnished with the Dado Head.

The Recommended Dado Head is listed under

Recommended Accessories in this manual.

The arbor on the saw, is only long enough so that

the widest cut that can be made is 13/16" wide.

It is not necessary to install the outside loose collar

before screwing on the arbor nut. Make sure the

arbor nut is tight.

ALWAYS USE DADO iNSERT LISTED UNDER

RECOMMENDED ACCESSORIES.

When using the dado head it will be necessary to

remove the Blade Guard and Spreader. USE

CAUTION. USE FEATHER BOARDS AND PUSH

STICKS AS REQUIRED.

WARNING: FOR YOUR OWN SAFETY, ALWAYS

REPLACE THE BLADE GUARD AND SPREADER

WHEN YOU ARE FiNiSHED DADOING.

MOLDING CUTTING

Instructions for operating the Molding Head are

contained in a booklet furnished with the Molding

Head.

The recommended molding head is listed under

Recommended Accessories n this manual.

Always use Molding Insert Listed Under

Recommended Accessories.

When using the molding head it will be necessary to

remove the Blade Guard and Spreader. USE

o o

LOOSE COLLAR _L_

ARBOR T

__ SAWARBOR

REMOVE SAWBLADE AND

INSTALL DADO HEAD

CAUTION. USE FEATHERBOARDS AND PUSH

STICKS, etc. AS REQUIRED

WARNING: FOR YOUR OWN SAFETY, ALWAYS

REPLACE THE BLADE GUARD AND SPREADER

WHEN YOU ARE FINISHED MOLDING.

USING FEATHERBOARDS

Featherboards are not employed during non thru-

sawing operations when using the miter gauge.

Use featherboards for all other non "thru-sawing"

operations (when sawblade guard must be

removed). Featherboards are used to keep the work

in contact with the fence and table as shown, and to

stop kickbacks.

Add 8 inch high flat facing board to the fence, the

full length of the fence.

Mount featherboards to fence and table as shown.

so that leading edges of featherboards will support

workpiece until cut is complete, and the workpiece

:EATHERBOARD

"C"CLAMPS "C" CLAMPS

WORK SUPPORT

has been pushed completely past the cutter

(sawblade, dado head, molding head, etc.) with a

pushstick, as in ripping.

Before starting the operation (switch "OFF" and

cutter below table surface):

(a) Install featherboards so they exert pressure on

the workpiece; be positive they are secure, and

(b) Make sure by trial that the featherboards will

stop a kickback if one should occur.

Replace the sawblade guard as soon as the non

thru-sawing operation is complete.

STICK

MOTOR

LUBRICATION AND MAINTENANCE

1. The sleeve bearings, in both end shields of the

motor, have been lubricated at the factory with

correct lubricant. No other part of the motor

requires lubrication.

2. Re-lubricate motor bearings in accordance with

the instructions on the nameplate. Be sure to

wipe off dirt or grit if present around oil hole caps

to prevent any possibility of foreign material

contaminating the oil wicks that supply the

bearings with oil. Use a good grade of medium

weig ht mineral oil, such as automobile engine oil,

SAE 20.

3. If disassembly of the motor is necessary, it should

be returned to your nearest Sears retail or mail-

order store in order to prevent voiding the

guarantee.

NOTE: The speed of this motor cannot be

regulated or changed.

Every effort should be made to prevent foreign

material from entering the motor. When operated

under conditions likely to permit accumulations

of dust, dirt, or waste within the motor, a visual

inspection should be made at frequent intervals.

Accumulations of dry dust can usually be blown

out successfully.

NOTE: Motors used on wood-working tools are

particularly susceptible to the accumulation of

sawdust and wood chips and should be blown out

or "vacuumed" frequently to prevent interference

with normal motor ventilation and proper

operation of the centrifugally-operated starting

switch.

MAINTENANCE

WARNING: TO AVOID iNJURY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER

SOURCE OUTLET BEFORE MAiNTAiNING OR

LUBRICATING YOUR SAW.

Do not allow sawdust to accumulate inside the saw.

Frequently blow out any dust that may accumulate

inside the saw cabinet and the motor.

Frequently clean your cutting tools with Craftsman

Gum and Pitch Remover.

A coat of automobile-type wax applied to the table

will help to keep the surface clean and allow

workpieces to slide more freely.

If the power cord is worn or cut, or damaged in any

way, have it replaced immediately.

Make sure the teeth of the ANTIKICKBACK pawls

are always sharp. To sharpen:

1. Identify the dull tooth or teeth. Remove blade

guard.

2. Rotate pawl toward rear of spreader so that teeth

are above top of spreader.

3. Hold spreader with left hand and place pawl over

corner of workbench.

4. Sharpen the dull tooth using a few light strokes of

a fine-cut round file.

i!ii iiii!i iiiiiiiiiii!ii! iii!i i!!i , iii! i ii iii

LUBRiCATiON

The following parts should be oiled occasionally

with SAE No. 20 or No. 30 engine oil.

1. Tilt screw threads and pivot nut. (First Clean with

Craftsman Gum & Pitch Remover.)

2. Elevation screw threads and pivot nut. (First

Clean with Craftsman Gum & Pitch Remover.)

3. Cradle bearing points.

4. Bearing points in guard assembly, miter gauge

and rip fence.

LUBRtCATAON OF FLEXIBLE SHAFT

Flexible shafts do require periodic lubrication

because the core acts as a screw conveyor which

will pump the lubrication to one end of the shaft over

an extended period of operation. The frequency of

lubrication depends on how the saw is used. When

the saw operates continuously for long periods of

time, a lubrication schedule should be developed.

The time period may be every 80 or 100 hours. An

indication that the shaft needs lubrication is when it

becomes noisy. Conversely, when the saw has

limited and infrequent use. the grease will

GUARD _

_t- BEARING POINTS

eventually age and harden so that it wilt not provide

an adequate oil film between the core and casing

liner and must be replaced.

LUBRICATION PROCEDURES

1. Remove the core from the casing, clean the core

by washing with kerosene or an approved

solvent.

Dry, the core.

Inspect the core for worn or broken wires. If core

is damaged, it should be replaced.

"Butter" the entire length of the core with a good

grade of general purpose bearing grease with a

minimum operating temperature of -40°F and

reassemble in casing. DO NOT force the grease

into the casing with a grease gun. Too much

grease will affect shaft life because it makes the

core work harder.

® @

l/ I{/\1 \

BEARING POINTS

RECOMMENDED ACCESSORIES

ITEM CAT. NO.

Steel Stand ............................ 9-22214

Caster Sets ................. 9-22222 or 9-22221

Solid Table Extension ................. 9-29957

7In. Molding Head Set .................. 9-3217

7 In. Molding Head Set .................. 9-3218

7 In. Molding Head ...................... 9-3214

Molding/Dado Insert for 7in.

Dia. Molding or Dado Head .......... 9-22271

Work Light ............................. 9-2480

ITEM CAT. NO.

7 In. Dia. Adjustable Dado Head

9-3261 -9-3262 -9-3263

7 In, Dia. Dado Head .................... 9-3257

Sanding Wheel ....................... 9-22723

Miter-Gauge Stop Rods ............... 9-29924

Miter-Gauge Hold-Down Clamp ....... 9-29928

Taper Jig ............................... 9-3233

Universal Jig ........................... 9-3235

Powe Tool Know How Handbook

Sawdust Collection System ............ 9-24242 Table Saw ........................... 9-2918

10" Dia. Sawblades with 5/8" Bore . See Catalog Cast iron Extension, 12 x 27 inches .... 9-22261

Work Light ............................. 9-2481 Rip Fence Bar ........................ 9-29969

Table Extension Kit ................... 9-29968

TROUBLE SHOOTUNG

WARNING: TO AVOID INJURY, TURN SWITCH "OFF" AND ALWAYS REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE TROUBLESHOOTING.

TROUBLE SHOOTING == GENERAL

TROUBLE

Excessive vibration.

Cannot make square

Cut when crosscutting.

Cut binds, burns or

stalls motor when

ripping.

Cut not true at 900

or 45° positions.

Tilt and elevating

handwhee! turn hard.

PROBABLE CAUSE

1. Blade out of balance.

1. Miter gauge not adjusted

properly.

1. Dull blade with improper

tooth set.

2. Blade is Heeling.

3. Warped board.

4. Rip fence not parallel

to blade.

5. Spreader out of

alignment.

1. Stop screws not properly

adjusted.

1. Sawdust on threads oftitt

screw or elevating screw.

2. Bearing retainers

• too tight.

REMEDY

1. Discard Blade and use a different blade.

1. See "Adjusting Miter Gauge."

1. Sharpen or replace blade.

2. See "Heeling Adjustment ..."

3. Make sure concave or hollow side is facing

"down," feed slowly.

4. See "Aligning Rip Fence"

5. See "Aligning Spreader."

1. See "Blade Tilt", or "Squareness of Blade

to Table."

1. See "Maintenance and Lubrication"

section.

2. See "Tilt Mechanism."

TROUBLE SHOOTING-- MOTOR

NOTE: Motors used on wood-working tools are particularly susceptible to the

accumulation of sawdust and wood chips and should be blown out or "vacuumed"

frequently to )revent interference with normal motor ventilation.

TROUBLE PROBABLE CAUSE

Excessive noise. 1. Motor.

Motor fails to develop t. Circuit overloaded with

' full power. NOTE: lights, appliances and

LOW VOLTAGE: other motors.

decreases rapidly with " 2. Undersize wires or circuit

decrease in voltage at too long.

REMEDY

1. Have motor checked by qualified service

technician. Repair service is available at

your nearest Sears store.

1. Do not use other appliances or motors on

same circuit when using the saw.

2. increase wire sizes, or reduce length of

wiring. See "Motor Specification and

output.)

TROUBLE SHOOTING -= MOTOR {Continued)

TROUBLE;

Motor starts slowly

or fails to come up

to full speed.

Motor overheats. 1.

Starting switch in 1.

motor will not

operate.

Motor stalls 1.

(resulting in blown

fuses or tripped 2.

circuit breakers).

Frequent opening of 1.

fuses or circuit

breakers.

PROBABLE CAUSE REMEDY

1. Low voltage will not

trip relay.

2. Windings burned out

or open.

3. Starting relay not

operating,

Motor overloaded.

Improper cooling. (Air

circulation restricted

through motor due to

sawdust.

Burned switch contacts

(due to extended hold-in

periods caused by low

line voltage, etc.)

Shorted capacitor

Loose or broken

connections.

1. Request voltage check from the power

company.

2. Have motor repaired or replaced.

3. Have relay replaced.

Feed work slower into blade.

Clean out sawdust to provide normal air

circulation through motor.

See "Maintenance and Lubrication"

section.

1. Have switch replaced and request avoltage

check from the power company.

2. Have capacitor tested and replace if

defective.

3. Have wiring checked and repaired.

Starting switch not

operating.

Voltage too low to permit

motor to reach operating

speed.

Fuses or circuit breakers

do not have sufficient

capacity.

Motor overloaded.

2. Fuses or circuit breakers

do not have sufficient

capacity.

3. Starting switch not

operating (motor does

not reach speed).

1. Have switch replaced.

2. Request voltage check from the power

company.

3. Install proper size fuses or circuit breakers.

1. Feed work slower into blade.

2. Install proper size fuses or circuit breakers.

3. Have switch replaced.

11 12

15 14 47

45 _ I 46

[

_-----52 Figure 1

15 14

28 29

36 37'

34 33

PARTS LiST FOR CRAFTSMAN 10 iNCH TABLE SAW MODEL NO, 113,241680

FIGURE 1

Key Part

No. No. Description

62894

STD532507

62886

60538

62863

STD502505

STD541025

STD551225

9414920

62866

STD541625

STD523110

62541

STD551131

STD541031

60388

62718

62873

STD501102

133645

Guard Assembly, Saw (See Fig. 5)

*Bolt, Carriage 1/4-20 x 3/4

Support, Spreader

Nut, Twin

, Bracket, Spreader

Screw, Hex Soc. Set 1/4-20 x 1

*Nut, Hex 1/4-20

*Lockwasher, External 1/4

Washer, 17/64 x 5/8 x 1/32

Clamp, Spreader

*Nut, Wing 1/4-20

*Screw, Hex Hd 5/16-18 x 1

Bar, Fence Rear

* Lockwasher, External 5/16

*Nut. Hex Jam 5/16-18

Nut, Self Threading

Clip, Retaining

Insert Assembly (Includes Key Nos. 16 & 18)

*Screw, Locking Set 10-32 x 3/16

Screw, Flat Cross 10-32 x 1

62773

62748

60534

62493

62710

62709

60381

STD551031

Fence Assembly, Rip (See Fig. 3)

Rod, Separation (Includes Key #15)

Screw, Hex Soc. Set 5/16-18 x 1

Insert, Exact-I-Cut

Tape, Fence

Bar Assembly, Fence Guide

(Includes Key #24)

Outlet, On/Off Power (See Fig. 6)

*Washer, 21/64 x 5/8 x 1/16

-Key Part

NO. No. Description

STD523107

STD523117

62539

62704

STD511107

STD551210

62689

62888

9426307

62892

62875

62864

446188

62867

803744-1

STD522510

62855

STD533107

60465

423567

*Screw, Hex Hal. 5/16-18 x 5/8

*Screw, Hex Hd. 5/16-18 x 1-3/4

Spacer, Fence Guide Bar

Gauge Assembly, Miter (See Fig. 4)

*Screw, Pan Cross 10-32 x 3/4

*Lockwasher, External No. 10

Handwheel Assembly

Trim, Front

Screw, Pan Cross Type "T" No. 8 x 1/2

Base Assembly

Mount, Motor

Bracket, Shaft

Washer, 17/64 x 3/4 x 1/16

Connector, Motor (Includes Key #43)

Key, 3/16 Square x 5/8

*Screw, Hex Hd. 1/4-20 x 1

Motor (See Fig. 9)

*Bolt, Carriage 5/16-18 x 3/4

Washer, 21/64 x 47/64 x 1/16

Screw, Sems 3/8-16 x !/2

71165

37837

37887

37836

62868

62889

62890

62891

Tie, Wire

Wrench Hex "L" 5/32

Wrench Hex "L" 1/8

Wrench Hex "L" 3/32

Owners Manual (Not Illustrated)

Bag of Loose Parts (Not Illustrated)

* Standard Hardware Item --_ May Be Purchased Locally.

PARTS LIST FOR CRAFTSMAN 10 INCH TABLE SAW MODEL NO. 113.241680

45 46

38 37

/ J52

26 \

36 32

18 /' 7

31 30 29 28

7 8

Figure 2

PARTS LiST FOR CRAFTSMAN 10 iNCH TABLE SAW MODEL NO. 113.241680

FIGURE 2

Key Part

No. No. Description

1STD523110 *Screw, 5/16-18 x 7/6

2 STD551131 *Lockwasher, 5/16

3 62885 Support, Bearing

r4 60537 Washer, .505 x 47/64 x 1/16

5 .62883 Rod, Cradle

62870 Guard, Rear

STD551210 *Lockwasher, External No. 10

8 STD601103 *Screw, Pan Rec. Type "T" 10-32 x 3/8

9ISTD511110 *Screw, Pan Cross 10-32 x 1

10 62897 Arbor Assembly

11 60175 tBlade, Saw 10"

12 62498 Collar Blade

13 "6362 Nut, Saw Arbor

14 3540 Wrench, Arbor

15 62869 Guard, Front

16 62882 Rod, Cradle

17 814579 Pin, Drive 1/4 x 5/8

18 62880 Plate, Stop

19 60535 Spacer, .505 x 3/4 x 1/4

20 62878 Nut, Push 1/2

21 62862 Bracket, Lock

22 i STD551031 *Washer, .380 x 47/64 x 3/32

23 _37828 Spring, Clamp Screw

24 62896 Shaft Assembly, Bevel

25 STD541411 *Nut, Lock 10-32

26 62881 Retainer, Bearing

Key

No.

Part

No.

iSTD601103

'37829

,62876

62872

62893

60536

60240

62871

62895

62877

63054

62874

6527

STD581062

3509

STD601103

STD551210

38879

37158

60078

STD551131

62865

62884

62887

STD551012

Description

*Screw, Pan Cross 10-32 x 3/8

Screw, Clamp

Handle

Nut, Bevel Pivot

Indicator, Bevel

Cradle Assembly (Includes Key No. 17)

Bolt, Rd. Hd. Short Square Neck 10-32 x 5/8

Nut, Push 3/8

Housing, Arbor

Shaft Assembly, Elevation

Nut, Elevation

Ring, Retaining 3/4

Link

Ring, Retaining 3/4

*Ring, Retaining 5/8

Bearing, Ball

*Screw, Pan Cross Type "T" 10-32 x 3/8

*Lockwasher, External No, 10

Ring, Retaining

Ring, Retaining 5/8

Screw, 5/16-18 x 1/2

*Lockwasher 5/16

Bracket, Stop

Shaft, Flexible

Table

*Washer 17/64 x 7/16 x 1/32

* Standard Hardware Item -- May Be purchased locally.

1"Stock Item - May be secured through the Hardware Department

of most Sears Retail Stores or Catalog Order Houses.

PARTS LIST FOR CRAFTSMAN 10 iNCH TABLE SAW MODEL NO, 113.24t680

10 11

FIGURE 3 -- 62773 FENCE ASSEMBLY

Description

- 62773 =Fence Assembly', Rip

Key No. 1)

*rSTD551031 Washe , 21/64 I.D.3

1/4

* Standard Hardware Item =-- May Be Purchased Locally.

PARTS LiST FOR CRAFTSMAN 10 iNCH TABLE SAW MODEL NO. 113.241580

"-------4

FIGURE 4 -- MITER GAUGE ASSEMBLY

Key

No.

3 STD551031

4 37893

5ISTD510803

6 L135

7 37895

8 37896

9 9417295

10 162230

, I

_ 11

14 60288 Screw, Locking Set

I I 1/4-20 x3/8

Part

No. , Description

62704 +Gauge Assembly, Miter

62693 Plug, Button

62692 Knob, Miter Gauge

(Included Key No. 1)

*Washer, Plain 21/64 x 1 x1/16

Gauge, Miter

*Screw, Pan Hd. 8-32 x5/16

Indicator

Block, Miter Gauge Indicator

Pin, Miter Gauge Stop

*Screw, Pan Hd.,

w/Lockwasher 8-32 x5/8

Rod Assembly, Miter Gauge,

" Consisting of Items 11, 12, 13

STD541231 *Nut, Hex., 5/t6-18

62225 Stud, Clap

62383 Stud, Pivot

LiST FOR CRAFTSMAN 10 raNCH TABLE SAW MODEL NO. 113,24168G

3 4

FIGURE 5 mON/OFF POWER OUTLET 60381

]Key" Part "

tNo. Description

m60381 J oOn/Off Power Outlet Complete

160375 Cord, Molded

2 60380 Housing, Switch

3!60256 _ Key, Switch

• Does Not Include

Order Separately

PARTS LIST FOR CRAFTSMAN 10 iNCH TABLE SAW MODEL NO, 113=241680

1 2

8710

FIGURE 6 mGUARD ASSEMBLY

Key Part

No. No.

62894 Guard, Assembly, Saw

1 60297 Nut, Push

262391 Pin 1/4 x 1-1/2

k3 62395 Support, Guard

4 62389 Guard, Saw

5 62390 Pin, 1/4 x1-3/4

6 STD5510251*Washer, 17/64 x 5/8 x1/16

7 62520 Spacer, Pawl

8 62879 Pawl

952861 Spreader, Blade

10 62410 Pin, 1/4 x1-3/64

11 STD571810 *Pin, Roll, 3/16 x 15/16

12 B2519 " Spring, Pawl

Description

PARTS LiST FOR CRAFTSMAN 10 iNCH TABLE SAW MODEL NO, 113.24!580

FIGURE 7-- LEGS

I 2

54Key Part

No, No. Description

60314

62552

62554

STD551225

STD541025

62553

STD541250

803835

Screw, Serrated Truss Hd.

1/4-20 x 5/8

Leg

Stiffener, Side

*Lockwasher, Ext. 1/4

*Nut, Hex 1/4-20

Stiffener, End

*Nut, Hex 1/2-13

Foot, Leveling

HARDWARE

FOR

STD523112

STD551031

STD551131

STD541031

62752

ATTACHING LEGS TO SAW.

*Screw, Hex Hd. 5/16-18x 1-1/4

Washer, 11/32 x 1t/16 x 1/16

*Lockwasher, Ext. 5/16

*Nut, Hex 5/16-18

Bag of Loose Parts For Legs

(not illust.)

FIGURE 8 -- TABLE EXTENSION 62589

Key

No.

i i

Part I .....

No. Description

PARTS LiST FOR CRAFTSMAN 10 iNCH TABLE SAW MODEL NO. 113.241680

NOTE:

ANY ATTEMPT TO REPAIR THiS MOTOR

MAY CREATE A HAZARD UNLESS

REPAIR IS DONE BY QUALIFIED

4 \ _)_..---5 SERVICE TECHNICIAN.

REPAIR SERVICE IS AVAILABLE

AT YOUR NEAREST SEARS STORE.

FIGURE 9 -- 62855 MOTOR

Key PaN

No. No.

1 60306

64088

337588

Description

Screw, 8-32 x3/8, Thread

Cutting, Slotted, Serrated

Hd.

Cover, Terminal

Capacitor

437587 Cover, Capacitor

5 .64142 " Screw, 10-32 x 3/16, Thread

iForming, Serrated Hd.

I Cord with Plug

+ I ,,,,

! J i¸ • 511

SERVICE

MODEL NO,

113.241680

SAW WITH LEGS

TWO TABLE EXTENSIONS

AND MOTOR

HOW TO ORDER

REPAIR PARTS

10 iNCH

FLEX DRIVE TABLE SAW

Now that you have purchased your 10-inch table saw should a

need ever exist for repair parts or service, simply contact any

Sears Service Center and most Sears, Roebuck and Co. stores.

Be sure to provide all pertinent facts when you call or visit.

The model number of your 10-inch table saw will be found

at the rear of the base.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

PART NUMBER PART DESCRIPTION

MODEL NUMBER

113.241680 NAME OF ITEM

10-INCH FLEX DRIVE TABLE SAW

All parts listed may be ordered from any Sears Service Center

and most Sears stores. If the parts you need are not stocked

locally, your order will be electronically transmitted to a Sears

Repair Parts Distribution Center for handling.

Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.

Part No. 62868 Form No. SP4768-3 Printed in U.S.A. 11/85

Craftsman 113241680 User Manual 10 INCH FLEX DRIVE TABLE SAW Manuals And Guides 1107286L

Navigation menu

Versions of this User Manual:

Views

Navigation
