CRRFTSHRHo
12-INCH MOTORIZED
TABLE SAW
•assembly
•operating
=repair parts
Sold by SEARS, ROEBUCK AND CO., Chicago, IL 60684 U_S.A.
Part No. 62597 L_ ;_,,,:
FULL ONE YEAR WARRANTY ON CRAFTSMAN TABLE SAWS
If within one year from the date of purchase, this Craftsman Table Sae fails due to a defect in material or
workmanship, Sears will repair it, free of charge.
Warranty service is available by simply contacting the nearest Sears store or Service Center throughout the
United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
SEARS, ROEBUCK AND CO.
BSC 41-3
SEARS TOWER
CHICAGO, IL 60684
GENERAL SAFETY iNSTRUCTiONS
FOR POWER TOOLS
1. KNOW YOUR POWER TOOL
Read the owner's manual carefully. Learn its
application and limitations as well as the specific
potential hazards peculiar to this tool.
2. GROUND ALL TOOLS
This tool is equipped with an approved 3-conductor
cord and a 3-prong grounding type plug to fit the
proper grounding type receptacle. The green conductor
in the cord is the grounding wire. Never connect the
green wire to a live terminal.
3. KEEP GUARDS IN PLACE
in working order, and in proper adjustment and
alignment.
4. REMOVE ADJUSTING KEYS
AND WRENCHES
Form habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
5. KEEP WORK AREA CLEAN
Cluttered areas and benches invite accidents. Floor
must not be slippery due to wax or sawdust.
6. AVOID DANGEROUS ENVI RONMENT
Don't use power tools in damp or wet locations or
expose them to rain. Keep work area well lighted.
Provide adequate surrounding work space.
7. KEEP CHI LDREN AWAY
All visitors should be kept a safe distance from work
area.
8. MAKE WORKSHOP KID-PROOF
-- with padlocks, master switches, or by removing
starter keys.
9. DON'T FORCE TOOL
It will do the job better and safer at the rate for which
it was designed.
10. USE RIGHT TOOL
Don't force tool or attachment to do a job it was not
designed for.
11. WEAR PROPER APPAREL
Do not wear loose clothing, gloves, neckties or jewelry
(rings, wrist watches) to get caught in moving parts.
Nonslip footwear is recommended. Wear protective
hair covering to contain long hair. Roll long sleeves
above the et bow.
12. USE SAFETY GOGGLES (Head Protection)
Wear Safety goggles (must comply with ANS Z87.1) at
all times. Also, use face or dust mask if cutting
operation is dusty, and ear protectors (plugs or muffs)
during extended periods of operation.
13. SECURE WORK
Use clamps or a vise to hold work when practical. It's
safer than using your hand, frees both hands to operate
tool.
14. DON'T OVER REACH
Keep proper footing and balance at all times.
15. MAINTAIN TOOLS WITH CARE
Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and
changing accessories,
16. DISCONIklECT TOOLS
before servicing; when changing accessories such as
blades, bits, cutters, etc.
17. AVOID ACCIDENTAL STARTING
Make sure switch is in "OFF" position before plugging
in.
18. USE RECOMMENDED ACCESSORIES
Consult the owner's manual for recommended
accessories. Follow the instructions that accompany
the accessories. The use of improper accessories may
cause hazards.
19. NEVER STAND ON TOOL
Serious injury could occur if the tool is tipped or if the
cutting tool is accidentally contacted.
Do not store materials above or near the tool such that
it is necessary to stand on the tool to reach them.
20. CHECK DAMAGED PARTS
Before further use of the tool, a guard or other part that
is damaged should be carefully checked to ensure that it
will operate properly and perform its intended function.
Check for alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any other
conditions that may .affect its operation. Aguard or
other part that is damaged should be properly repaired
or replaced.
21.
22.
DIRECTION OF FEED
Feed work into a blade or cutter against the direction
of rotation of the blade or cutter only.
NEVER LEAVE TOOL RUNNING
UNATTE NDED
Turn power off. Don't leave toot until it comes to a
complete stop.

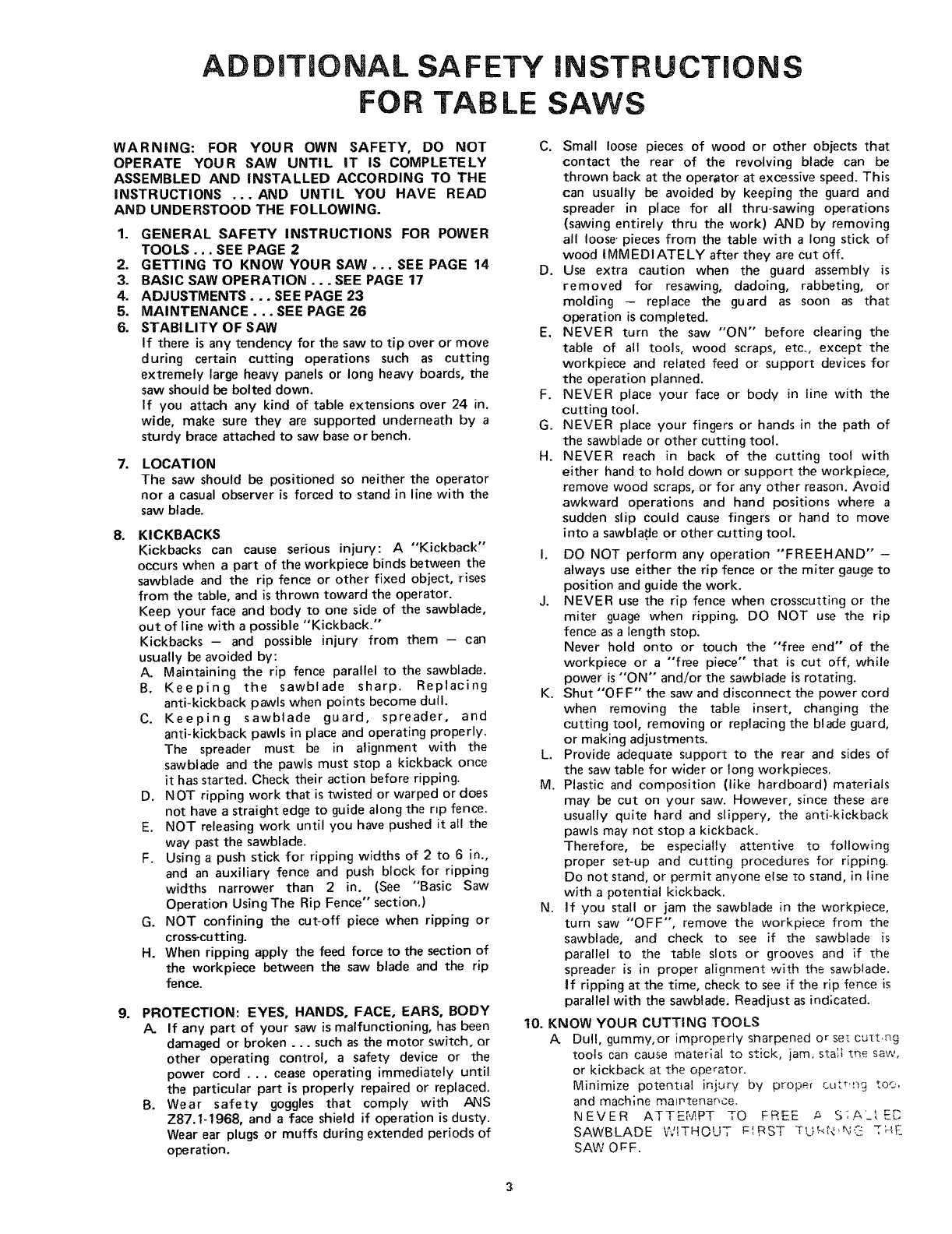

ADDiTiONAL SAFETY iNSTRUCTiONS
FOR TABLE SAWS
WARNING: FOR YOUR OWN SAFETY, DO NOT
OPERATE YOUR SAW UNTIL IT IS COMPLETELY
ASSEMBLED AND INSTALLED ACCORDING TO THE
INSTRUCTIONS ... AND UNTIL YOU HAVE READ
AND UNDERSTOOD THE FOLLOWING.
1.
2,
3.
4.
5.
6.
GENERAL SAFETY INSTRUCTIONS FOR POWER
TOOLS ... SEE PAGE 2
GETTING TO KNOW YOUR SAW ... SEE PAGE 14
BASIC SAW OPERATION... SEE PAGE 17
ADJUSTMENTS... SEE PAGE 23
MAINTENANCE... SEE PAGE 26
STABI LITY OF SAW
If there is any tendency for the saw to tip over or move
during certain cutting operations such as cutting
extremely large heavy panels or long heavy boards, the
saw should be bolted down.
If you attach any kind of table extensions over 24 in.
wide, make sure they are supported underneath by a
sturdy brace attached to saw base or bench.
7,
S.
LOCATION
The saw should be positioned so neither the operator
nor a casual observer is forced to stand in line with the
saw blade.
KICKBACKS
Kickbacks can cause serious injury: A "Kickback"
occurs when a part of the workpiece binds between the
sawblade and the rip fence or other fixed object, rises
from the table, and is thrown toward the operator.
Keep your face and body to one side of the sawblade,
out of line with a possible "Kickback."
Kickbacks- and possible injury from them- can
usually be avoided by:
A. Maintaining the rip fence parallel to the sawblade.
B. Keeping the sawblade sharp. Replacing
anti-kickback pawls when points become dull.
C. Keeping sawblade guard, spreader, and
anti-kickback pawls in place and operating properly.
The spreader must be in alignment with the
sawblade and the pawls must stop a kickback once
it has started. Check their action before ripping.
D. NOT ripping work that is twisted or warped or does
not have a straight edge to guide along the rip fence.
E. NOT releasing work until you have pushed it all the
way past the sawblade.

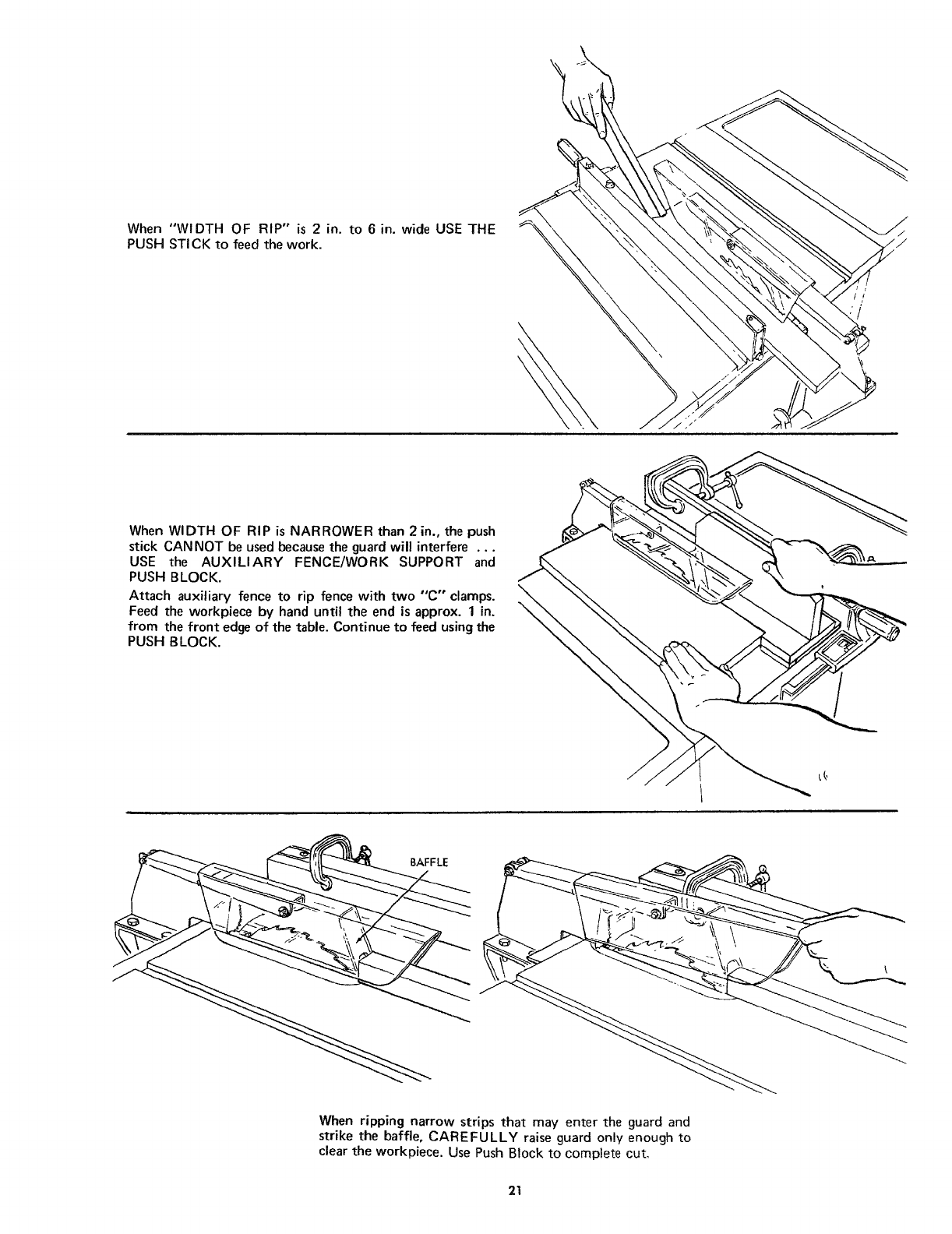

F. Using a push stick for ripping widths of 2 to 6 in.,
and an auxiliary fence and push block for ripping
widths narrower than 2 in. (See "Basic Saw
Operation Using The Rip Fence" section.)
G. NOT confining the cut-off piece when ripping or
cross-cutting.
H. When ripping apply the feed force to the section of
the workpiece between the saw blade and the rip
fence.
9. PROTECTION: EYES, HANDS, FACE, EARS, BODY
A. If any part of your saw is malfunctioning, has been
damaged or broken.., such as the motor switch, or
other operating control, a safety device or the
power cord ... cease operating immediately until
the particular part is properly repaired or replaced.
B. Wear safety goggles that comply with ANS
Z87.1-1968, and a face shield if operation is dusty.
Wear ear plugs or muffs during extended periods of
operation.
C. Small loose pieces of wood or other objects that
contact the rear of the revolving blade can be
thrown back at the operator at excessive speed. This
can usually be avoided by keeping the guard and
spreader in place for all thru-sawing operations
(sawing entirely thru the work) AND by removing
all loose, pieces from the table with a long stick of
wood I MM EDI ATE LY after they are cut off.
D. Use extra caution when the guard assembly is
removed for resawing, dadoing, rabbeting, or
molding - replace the guard as soon as that
operation is completed.
E. NEVER turn the saw "ON" before clearing the
table of all tools, wood scraps, etc., except the
workpiece and related feed or support devices for
the operation planned.
F. NEVER place your face or body in line with the
cutting tool.
G. NEVER place your fingers or hands in the path of
the sawblade or other cutting tool.
H. NEVER reach in back of the cutting tool with
either hand to hold down or support the workpiece,
remove wood scraps, or for any other reason. Avoid
awkward operations and hand positions where a
sudden slip could cause fingers or hand to move
into a sawbla.de or other cutting tool.
I. DO NOT perform any operation "FREEHAND" -
always use either the rip fence or the miter gauge to
position and guide the work.
J. NEVER use the rip fence when crosscutting or the
miter guage when ripping. DO NOT use the rip
fence as alength stop.
Never hold onto or touch the "free end" of the
workpiece or a "free piece" that is cut off, while
power is "ON" and/or the sawbtade is rotating.
K. Shut "OFF" the saw and disconnect the power cord
when removing the table insert, changing the
cutting tool, removing or replacing the blade guard,
or making adjustments.
L. Provide adequate support to the rear and sides of
the saw table for wider or long workpieces.
M. Plastic and composition (like hardboard) materials
may be cut on your saw. However, since these are
usually quite hard and slippery, the anti-kickback
pawls may not stop a kickback.
Therefore, be especially attentive to following
proper set-up and cutting procedures for ripping.
Do not stand, or permit anyone else to stand, in line
with a potential kickback.
N. If you stall or jam the sawblade in the workpiece,
turn saw "OFF", remove the workpiece from the
sawblade, and check to see if the sawblade is
parallel to the table slots or grooves and if _he
spreader is in proper alignment with the sawblade.
If ripping at the time, check to see if the rip fence is
parallel with the sawblade. Readjust as ind;cated.
10. KNOW YOUR CUTTING TOOLS
A Du!!, gummy, or improperly sharpened or set CUtt,_,g
tools can cause material to stick, jam. sta',i tr_e saw,
or kickback at the operator.
Minimize potential injury by prope_ cutt,p,9 too,
and machine mamtenar, ce.
NEVER ATTEMPT TO FREE _ S;A'_[E['.
SAWBLADE WITHOUT _:_RST TU_<t,,,NC" ]_£
SAW OFF.
B. Never use grinding wheels, abrasive cut-off wheels,
friction wheels (metal slitting blades) wire wheels or
buffing wheels.
11. USE ONLY ACCESSORIES DESIGNED FOR THIS
SAW.
12. Cross-cutting operations are more conveniently worked
and with greater safety if an auxiliary wood facing is
attached to the miter gaugeusing the holes provided.
13. Make sure the top of the arbor or cutting tool rotates
toward you when standing in normal operating
position. Also make sure the cutting tool, arbor collars
and arbor nut are installed properly. Keep the cutting
tool as low as possible for the operation being
performed. Keep all guards in place whenever possible.
14. Do not useany blade or other cutting tool marked for an
operating speed less than 3450 RPM. Never use a
cutting tool larger in diameter than the diameter for
which the saw was designed. For greatest safety and
efficiency when ripping, use the maximum diameter
blade for which the saw is designed, since under these
conditions the spreader is nearest the blade.
15, Adjust table inserts flush with the table top. NEVER
operate the saw unlessthe proper insert is installed.
WEAR YOUR
16. THINK SAFETY.
Safety is a combination of operator common sense and
alertnessat all times when the saw isbeing used.
17. NOTE AND FOLLOW SAFETY INSTRUCTIONS
THAT APPEAR ON THE FRONT OF YOUR SAW.
DANGER
FOR YOUR OWN SAFETY
READ AND UNDERSTAND OWNER'S MANUAL
BEFORE OPERATING MACHINE:
1. WEAR SAFETY GOGGLES
2. USE SAW-BLADE GUARD FOR "'THRU-SAWlNG"
3. KEEP HAMDS OUT OF PATH OF SAWBLADE
4. USE A"PUSH-STICK" WHEN REQUIRED
5. KNOW HOW TO AVOID "KICKBACKS'"
6. DO NOT PERFORM OPERATIONS "FREEHAND"
18. WARNING: DO NOT ALLOW FAMILIARITY
(GAINED FROM FREQUENT USE OF YOUR SAW)
TO BECOME COMMONPLACE. ALWAYS
REMEMBER THAT A CARELESS FRACTION OF A
SECOND IS SUFFICIENT TO INFLICT SEVERE
INJURY.
The operation of any power tool can result in foreign
objects being thrown into the eyes, which can result in
severe eye damage. Always wear safety goggles complying
with ANSI Z87.1 (shown on Package) before commencing
power tool operation. Safety Goggles are available at Sears
retail or catalog stores.

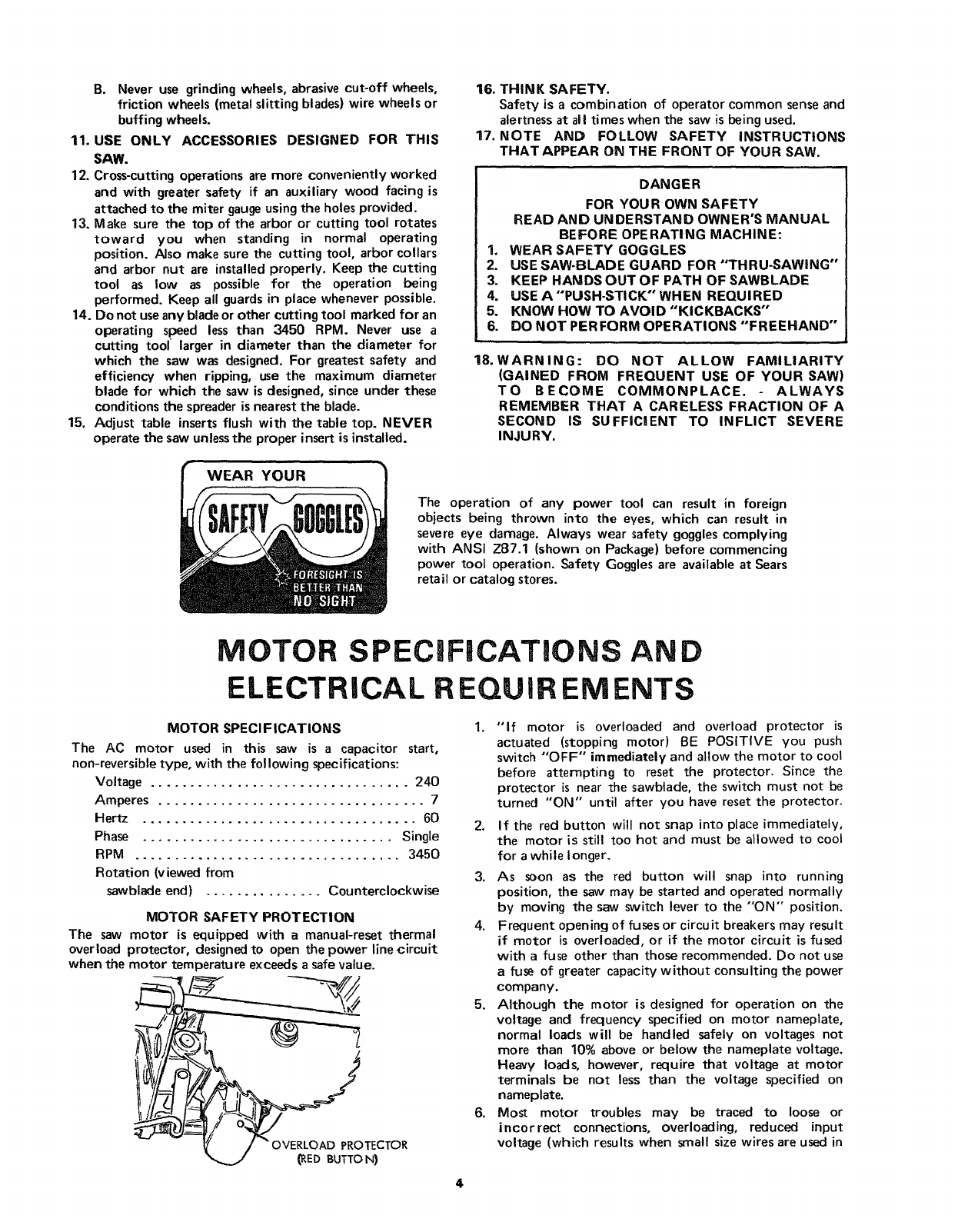

MOTOR SPEC|FICATIONS AND
ELECTRICAL REQUIREMENTS
MOTOR SPECIFICATIONS
The AC motor used in this saw is a capacitor start,
non-reversible type, with the following specifications:
Voltage ................................. 240
Amperes .................................. 7
Hertz ................................... 60
Phase ................................ Single
RPM .................................. 3450
Rotation (viewed from
sawblade end) ............... Countemlockwise
MOTOR SAFETY PROTECTION
The saw motor is equipped with a manual-reset thermal
overload protector, designedto open the power line circuit
when the motor temperature exceeds a safe value.
OVERLOAD PROTECTOR
(RED BUTTON)
I. "If motor is overloaded and overload protector is
actuated (stopping motor) BE POSITIVE you push
switch "'OFF" immediately and allow the motor to cool
before attempting to reset the protector. Since the
protector is near _he sawblade, the switch must not be
turned "ON" until after you have reset the protector.
2. If the red button will not snap into place immediately,
the motor is still too hot and must be allowed to cool
for a while longer.
3. As soon as the red button will snap into running
position, the saw may be started and operated normally
by moving the saw switch lever to the "'ON" position.
4. Frequent opening of fuses or circuit breakers may result
if motor is overloaded, or if the motor circuit is fused
with a fuse other than those recommended. Do not use
a fuse of greater capacity without consulting the power
company.
5. Although the motor is designed for operation on the
voltage and frequency specified on motor nameplate,
normal loads will be handled safely on voltages not
more than 10% above or below the nameplate voltage.
Heavy loads, however, require that voltage at motor
terminals be not less than the voltage specified on
nameplate.
6. Most motor troubles may be traced to loose or
incorrect connections, overloading, reduced input
voltage (which results when small size wires are used in
the supply circuit) or when the supply circuit is
extremely long. Always check connections, load and
supply circuit when the motor fails to perform
satisfactorily. Check wire sizes and lengths with the
table in the next paragraph. Replace or repair damaged
or worn cord immediately.

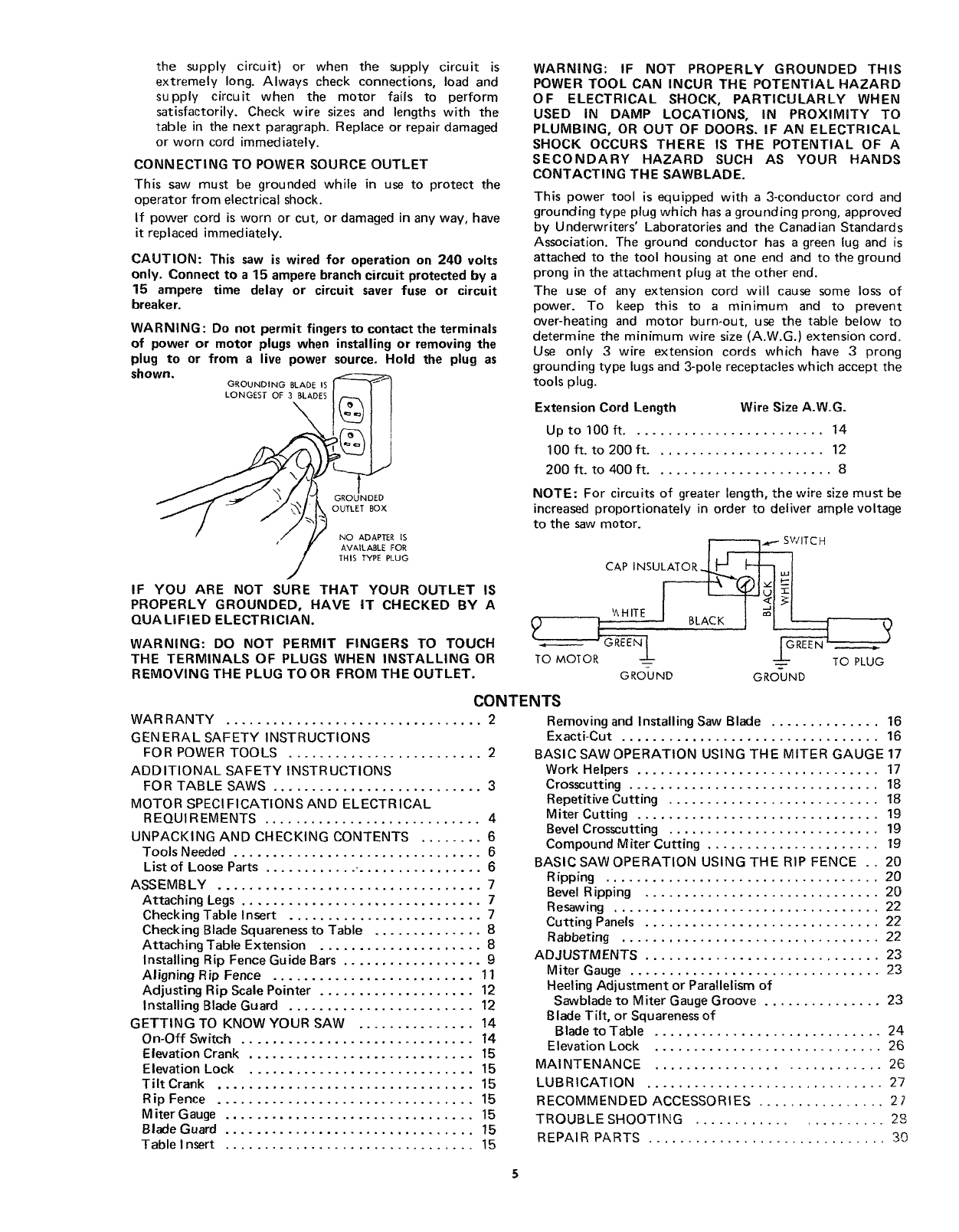

CONNECTING TO POWER SOURCE OUTLET
This saw must be grounded while in use to protect the
operator from electrical shock.
If power cord is worn or cut, or damaged in any way, have
it replaced immediately.
CAUTION: This saw is wired for operation on 240 volts
only. Connect to a 15 ampere branch circuit protected by a
15 ampere time delay or circuit saver fuse or circuit
breaker,
WARNING: Do not permit fingers to contact the terminals
of power or motor plugs when installing or removing the
plug to or from a live power source. Hold the plug as
shown,
GROUNDING BLADE IS
LONGEST OF 3 BLADES
WARNING: IF NOT PROPERLY GROUNDED THIS
POWER TOOL CAN INCUR THE POTENTIAL HAZARD
OF ELECTRICAL SHOCK, PARTICULARLY WHEN
USED IN DAMP LOCATIONS, IN PROXIMITY TO
PLUMBING, OR OUT OF DOORS. IF AN ELECTRICAL
SHOCK OCCURS THERE IS THE POTENTIAL OF A
SECONDARY HAZARD SUCH AS YOUR HANDS
CONTACTING THE SAWBLADE.
This power tool is equipped with a 3-conductor cord and
grounding type plug which has a grounding prong, approved
by Underwriters' Laboratories and the Canadian Standards
Association. The ground conductor has a green lug and is
attached to the tool housing at one end and to the ground
prong in the attachment plug at the other end.
The use of any extension cord will cause some loss of
power. To keep this to a minimum and to prevent
over-heating and motor burn-out, use the table below to
determine the minimum wire size (A.W.G.) extension cord.
Use only 3 wire extension cords which have 3 prong
grounding type lugs and 3-pole receptacles which accept the
tools plug.
Extension Cord Length Wire Size A.W.G.
Up to 100 ft ......................... 14
100 ft. to 200ft ...................... 12
200 ft. to 400 ft ....................... 8
GROUNDED
OUTLET BOX
NO ADAPTER IS
AVAILABLE FOR
THIS TYPE PLUG
IF YOU ARE NOT SURE THAT YOUR OUTLET IS
PROPERLY GROUNDED, HAVE IT CHECKED BY A
QUALIFIED ELECTRICIAN.
WARNING: DO NOT PERMIT FINGERS TO TOUCH
THE TERMINALS OF PLUGS WHEN INSTALLING OR
REMOVING THE PLUG TO OR FROM THE OUTLET.
NOTE: For circuits of greater length, the wire size must be
increased proportionately in order to deliver ample voltage
to the saw motor.
_- SWITCH
GROUND GROUND
CONTENTS
WAR RANTY ................................. 2
GENERAL SAFETY INSTRUCTIONS
FOR POWER TOOLS ......................... 2
ADDITIONAL SAFETY INSTRUCTIONS
FOR TABLE SAWS ........................... 3
MOTOR SPECIFICATIONS AND ELECTRICAL
REQUIREMENTS ............................ 4
UNPACKING AND CHECKING CONTENTS ........ 6
Tools Needed ................................ 6
List of Loose Parts ............ -................ 6
ASSEMBLY .................................. 7
Attaching Legs ............................... 7
Checking Table Insert ......................... 7
Checking Blade Squareness to Table .............. 8
Attaching Table Extension ..................... 8
Installing Rip Fence Guide Bars .................. 9
Aligning Rip Fence .......................... 11
Adjusting Rip Scale Pointer .................... 12
Installing Blade Guard ........................ 12
GETTING TO KNOW YOUR SAW ............... !4
On-Off Switch .............................. 14
Elevation Crank ............................. 15
Elevation Lock ............................. 15
Tilt Crank ................................. 15
Rip Fence ................................. 15
Miter Gauge ................................ 15
Blade Guard ................................ 15
Table insert ................................ !5
Removing and Installing Saw Blade .............. 16
Exacti-Cut ................................. 16
BASIC SAW OPERATION USING THE MITER GAUGE 17
Work Helpers ............................... 17
Crosscutting ................................ 18
Repetitive Cutting ........................... 18
Miter Cutting ............................... 19
Bevel Crosscutting ........................... 19
Compound Miter Cutting ...................... 19
BASIC SAW OPERATION USING THE RIP FENCE .. 20
Ripping ................................... 20
Bevel Ripping .............................. 20
Resawing .................................. 22
Cutting Panels .............................. 22
Rabbeting ................................. 22
ADJUSTMENTS .............................. 23
M iter Gauge ................................ 23
Heeling Adjustment or Parallelism of
Sawblade to Miter Gauge Groove ............... 23
Blade Tilt, or Squareness of
Blade to Table ............................. 24
Elevation Lock ............................. 26
MAINTENANCE ............................ 26
LUBRICATION .............................. 27
RECOMMENDED ACCESSORIES ................ 2 7
TROUBLE SHOOTING ...................... 2S
REPAIR PARTS .............................. 30

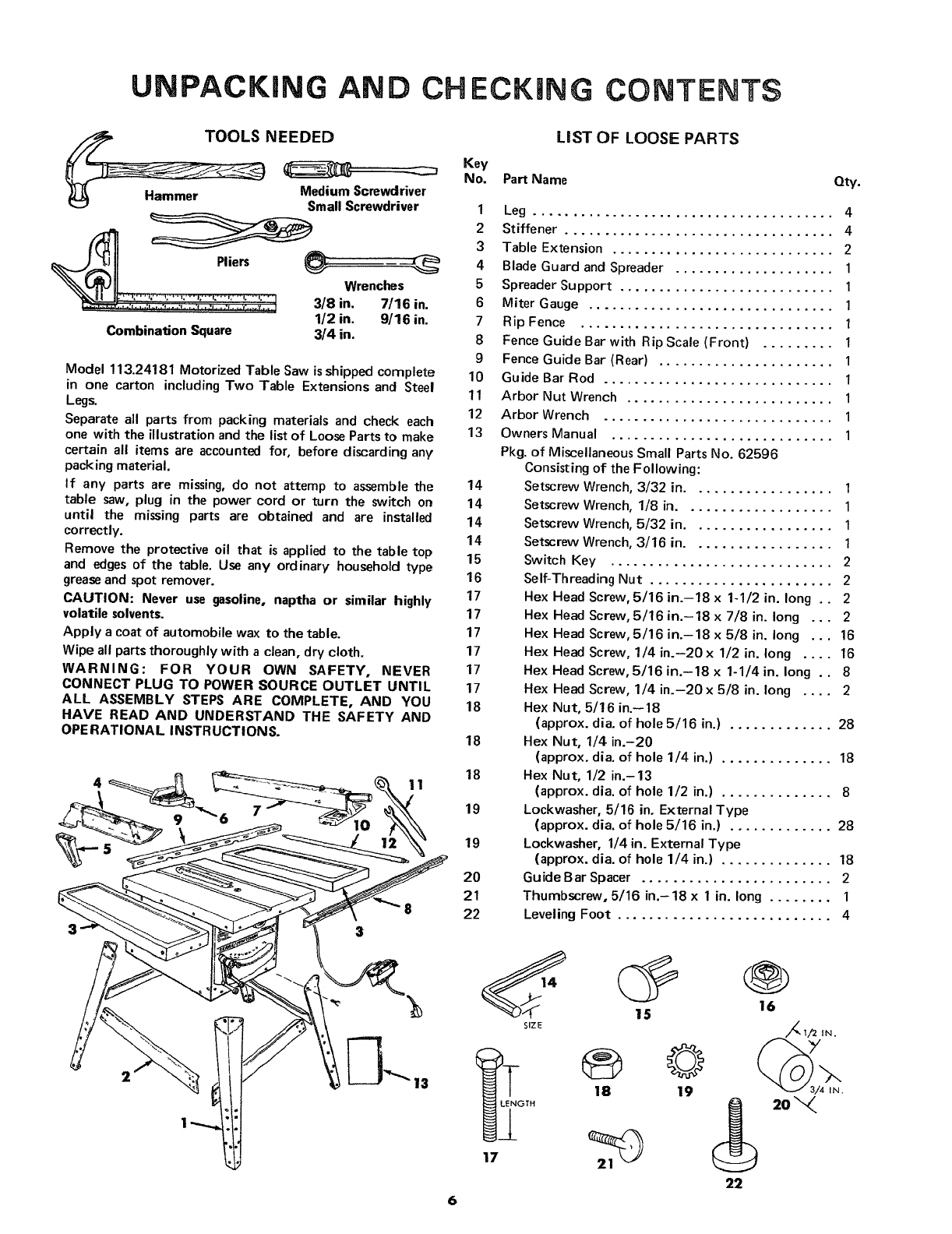

UNPACKING AND CHECKING CONTENTS
TOOLS NEEDED
,P,iers @ @
Wrenches
:iii! ?ii: iii iiii:!iii i;l 3/8in. 7/16in.
1/2 in. 9/16 in.
Combination Square 3/4 in.
Model 113.24181 Motorized Table Saw isshipped complete
in one carton including Two Table Extensions and Steel
Legs.
Separate all parts from packing materials and check each
one with the illustration and the list of Loose Parts to make
certain all items are accounted for, before discarding any
packing material.
If any parts are missing, do not attemp to assemble the
table saw, plug in the power cord or turn the switch on
until the missing parts are obtained and are installed
correctly.
Remove the protective oil that is applied to the table top
and edges of the table. Use any ordinary household type
grease and spot remover.
CAUTION: Never use gasoline, naptha or similar highly
volatile solvents.
Apply a coat of automobile wax to the table.
Wipe all parts thoroughly with a clean, dry cloth.
WARNING: FOR YOUR OWN SAFETY, NEVER
CONNECT PLUG TO POWER SOURCE OUTLET UNTIL
ALL ASSEMBLY STEPS ARE COMPLETE, AND YOU
HAVE READ AND UNDERSTAND THE SAFETY AND
OPERATIONAL INSTRUCTIONS.
8
3
LiST OF LOOSE PARTS
6
Key
No. Part Name Qty.
1Leg ...................................... 4
2 Stiffener .................................. 4
3 Table Extension ............................ 2
4 Blade Guard and Spreader .................... 1
5 Spreader Support ........................... 1
6 Miter Gauge ............................... 1
7Rip Fence ................................ 1
8 Fence Guide Bar with Rip Scale (Front) ......... 1
9 Fence Guide Bar (Rear) ...................... 1
10 Guide Bar Rod ............................. 1
11 Arbor Nut Wrench .......................... 1
12 Arbor Wrench ............................. 1
13 Owners Manual ............................ 1
Pkg. of Miscellaneous Small Parts No. 62596
Consisting of the Following:
14 Setscrew Wrench, 3/32 in .................. 1
14 Setscrew Wrench, 1/8 in................... 1
14 Setscrew Wrench, 5/32 in.................. 1
14 Setscrew Wrench, 3/16 in.................. 1
15 Switch Key ............................ 2
16 Self-Threading Nut ....................... 2
17 Hex Head Screw, 5/16 in.-18 x 1-1/2 in. long .. 2
17 Hex Head Screw, 5/16 in.-18 x 7/8 in. long ... 2
17 Hex Head Screw, 5/16 in.-18 x 5/8 in. long ... 16
17 Hex Head Screw, 1/4 in.-20 x 1/2 in. long .... 16
17 Hex Head Screw, 5/16in.-18x 1-1/4in. long .. 8
17 Hex Head Screw, 1/4 in.-20 x 5/8 in. long .... 2
18 Hex Nut, 5/16 in.--18
(approx. dia. of hole 5/16 in.) ............. 28
18 Hex Nut, 1/4 in.-20
(approx. dia. of hole 1/4 in.) .............. 18
18 Hex Nut, 1/2 in.-13
(approx. dia. of hole 1/2 in.) .............. 8
19 Lockwasher, 5/16 in. External Type
(approx. dia. of hole 5/16 in.) ............. 28
19 Lockwasher, 1/4 in. External Type
(approx. dia. of hole 1/4 in.) .............. 18
20 Guide Bar Spacer ........................ 2
21 Thumbscrew, 5/16 in.-18 x 1 in. long ........ 1
22 Leveling Foot ........................... 4
15 16
SIZE
T_ 18 19
//_ I/2 IN.
22

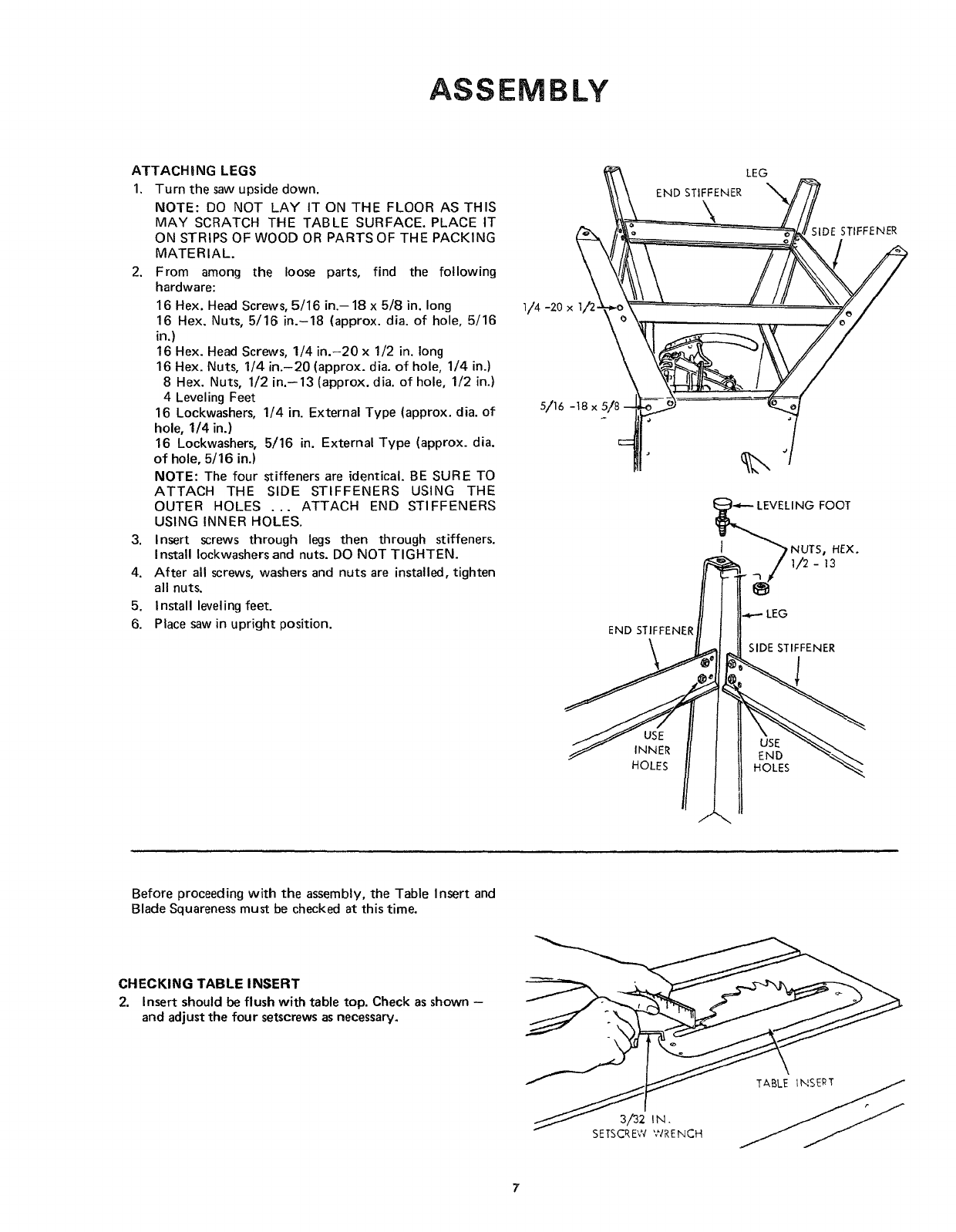

ASSEMBLY
ATTACHgNG LEGS
1. Turn the saw upside down.
NOTE: DO NOT LAY IT ON THE FLOOR AS THIS
MAY SCRATCH THE TABLE SURFACE. PLACE IT
ON STRIPS OF WOOD OR PARTS OF THE PACKING
MATERIAL.
2. From among the loose parts, find the following
hardware:
16 Hex. Head Screws, 5/16 in.- 18 x 5/8 in. long
16 Hex, Nuts, 5/16 in.-18 (approx. dia. of hole, 5/16
in.)
16 Hex. Head Screws, 1/4 in.-20 x 1/2 in. long
16 Hex. Nuts, 1/4 in.-20 (approx. dia. of hole, 1/4 in.)
8 Hex. Nuts, 1/2 in.--13 (approx. dia. of hole, 1/2 in.)
4 Leveling Feet
16 Lockwashers, 1/4 in. External Type (approx. dia. of
hole, 1/4 in.)
16 Lockwashers, 5/16 in. External Type (approx. dia.
of hole, 5/16 in.)
NOTE: The four stiffeners are identical. BE SURE TO
ATTACH THE SIDE STIFFENERS USING THE
OUTER HOLES ... ATTACH END STIFFENERS
USING INNER HOLES.
3. Insert screws through legs then through stiffeners.
Install Iockwashers and nuts. DO NOT TIGHTEN.
4. After all screws, washers and nuts are installed, tighten
all nuts.
5. Install leveling feet.
6. Place saw in upright position.
END STIFFENER
LEG
;IDE STIFFENER
5/16 -18 x 5/8
END STIFFENER
j_LEVELING FOOT
NUTS, HEX.
I/2- _3
i..,_-.-LEG
SIDE STIFFENER
INNER
HOLES END
HOLES
Before proceeding with the assembly, the Table Insert and
Blade Squareness must be checked at this time.

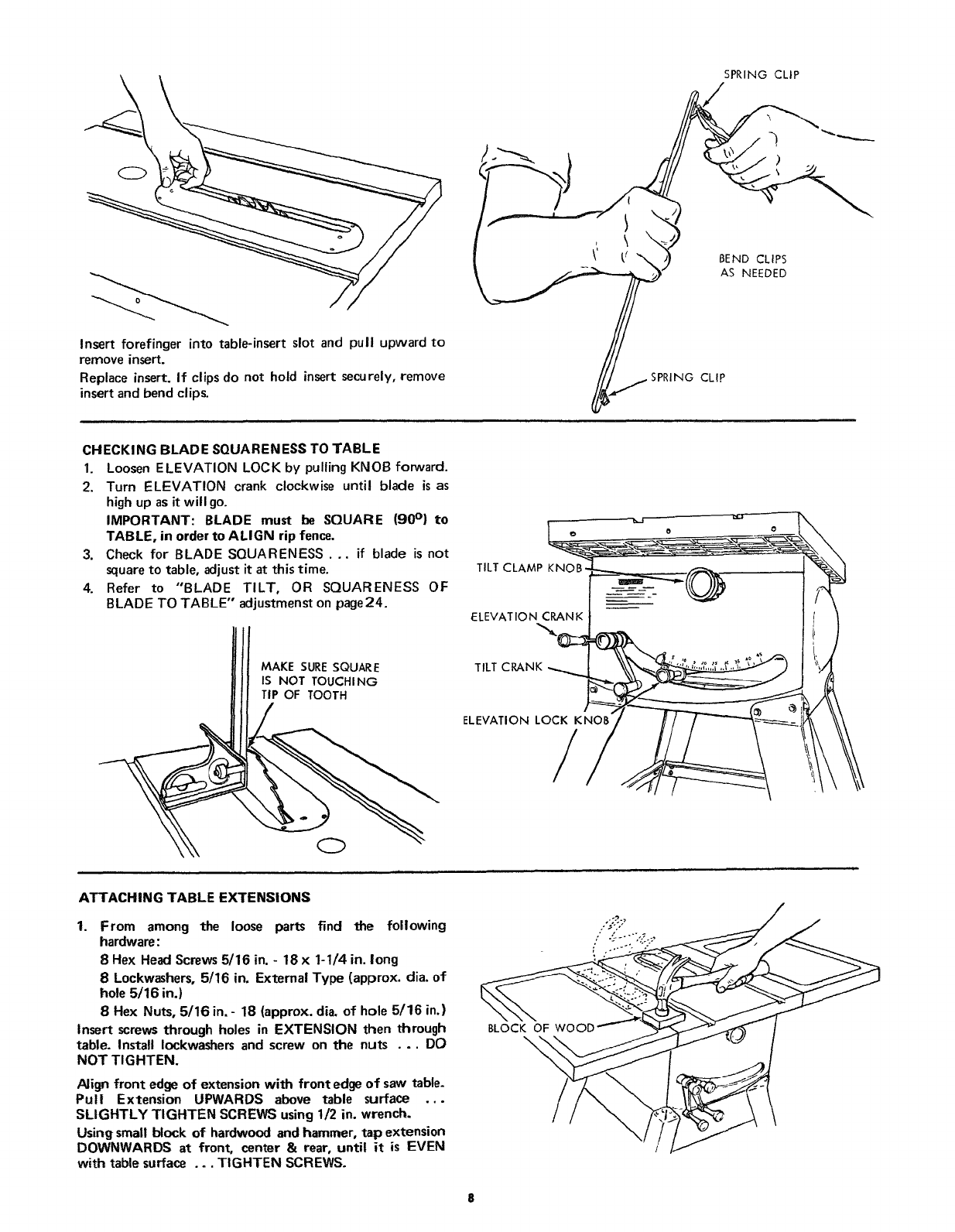

CHECKING TABLE INSERT
2. Insert should be flush with table top. Check asshown -
and adjust the four setscrewsas necessary.
3/32 IN.
SETSCREW WRENCH
Insert forefinger into table-insert slot and pull upward to
remove insert.
Replace insert. If clips do not hold insert securely, remove
insert and bend clips.
SPRING CLIP
BEND CLIPS
AS NEEDED
SPRING CLIP
CHECKING BLADE SQUARENESS TO TABLE
1. Loosen ELEVATION LOCK by pulling KNOB forward.
2. Turn ELEVATION crank clockwise until blade is as
high up as it will go.
IMPORTANT: BLADE must be SQUARE (90 ° ) to
TABLE, in order to ALIGN rip fence.
3. Check for BLADE SQUARENESS ... if blade is not
square to table, adjust it at this time.
4. Refer to "BLADE TILT, OR SQUARENESS OF
BLADE TO TABLE" adjustmenst on page24.
MAKE SURE SQUARE
IS NOT TOUCHING
TIP OF TOOTH
TILT CLAMP KNOB-
ELEVATION CRANK
TILT CRANK
ELEVATION LOCK KNOB
ATTACHING TABLE EXTENSIONS
1. From among the loose parts find the following
hardware:
8Hex Head Screws 5/16 in. - 18x 1-1/4 in. long
8 Lockwashers, 5/16 in. External Type (approx. dia. of
hole 5/16 in.)
8 Hex Nuts, 5/16in.- 18 (approx. dia. of hole 5/16 in.)
Insert screws through holes in EXTENSION then through
table. Install Iockwashers and screw on the nuts . .. DO
NOT TIGHTEN.
Align front edge of extension with front edge of saw table.
Pull Extension UPWARDS above table surface ...
SLIGHTLY TIGHTEN SCREWS using 1/2 in. wrench.
Using small block of hardwood and hammer, tap extension
DOWNWARDS at front, center & rear, until it is EVEN
with table surface ... TIGHTEN SCREWS.
BLOCK OF WOOE
\

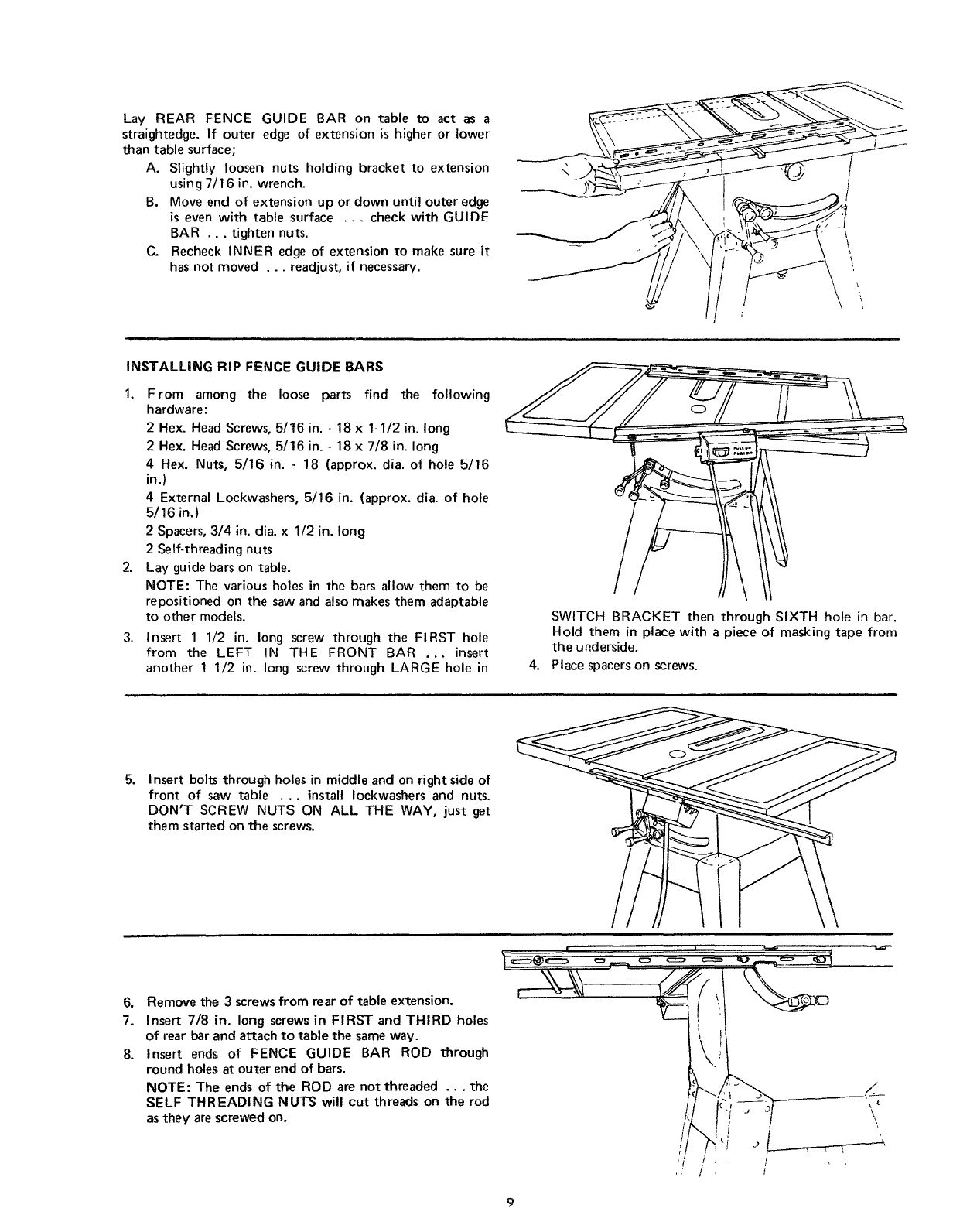

Lay REAR FENCE GUIDE BAR on table to act as a
straightedge. If outer edge of extension is higher or lower
than table surface;
A. Slightly loosen nuts holding bracket to extension
using 7/t6 in. wrench.
B. Move end of extension up or down until outer edge
is even with table surface ... check with GUIDE
BAR ... tighten nuts.
C. Recheck INNER edge of extension to make sure it
has not moved ... readjust, if necessary.
\
t
\
\\
INSTALLING RIP FENCE GUIDE BARS
1. From among the loose parts find the following
hardware:
2 Hex. Head Screws, 5/16 in. - 18 x 1-1/2 in. long
2 Hex. Head Screws, 5/16 in. - 18 x 7/8 in. long
4 Hex. Nuts, 5/16 in. - 18 (approx. dia. of hole 5/16
in.)
4 External Lockwashers, 5/16 in. (approx. dia. of hole
5/16 in.)
2 Spacers, 3/4 in. dia. x 1/2 in. long
2 Self-threading nuts
2. Lay guide bars on table.
NOTE: The various holes in the bars allow them to be
repositioned on the saw and also makes them adaptable
to other models,
3. Insert 1 1/2 in. long screw through the FIRST hole
from the LEFT IN THE FRONT BAR ... insert
another 1 1/2 in. long screw through LARGE hole in 4.
SWITCH BRACKET then through SIXTH hole in bar.
Hold them in place with a piece of masking tape from
the underside.
Place spacers on screws.
5. Insert bolts through holes in middle and on right side of
front of saw table ... install Iockwashers and nuts.
DON'T SCREW NUTS ON ALL THE WAY, just get
them started on the screws.
6.
7.
8°
Remove the 3 screws from rear of table extension,
Insert 7/8 in. long screws in FIRST and THIRD holes
of rear bar and attach to table the same way.
Insert ends of FENCE GUIDE BAR ROD through
round holes at outer end of bars.
NOTE: The ends of the ROD are not threaded ... the
SELF THREADING NUTS will cut threads on the rod
as they are screwed on.

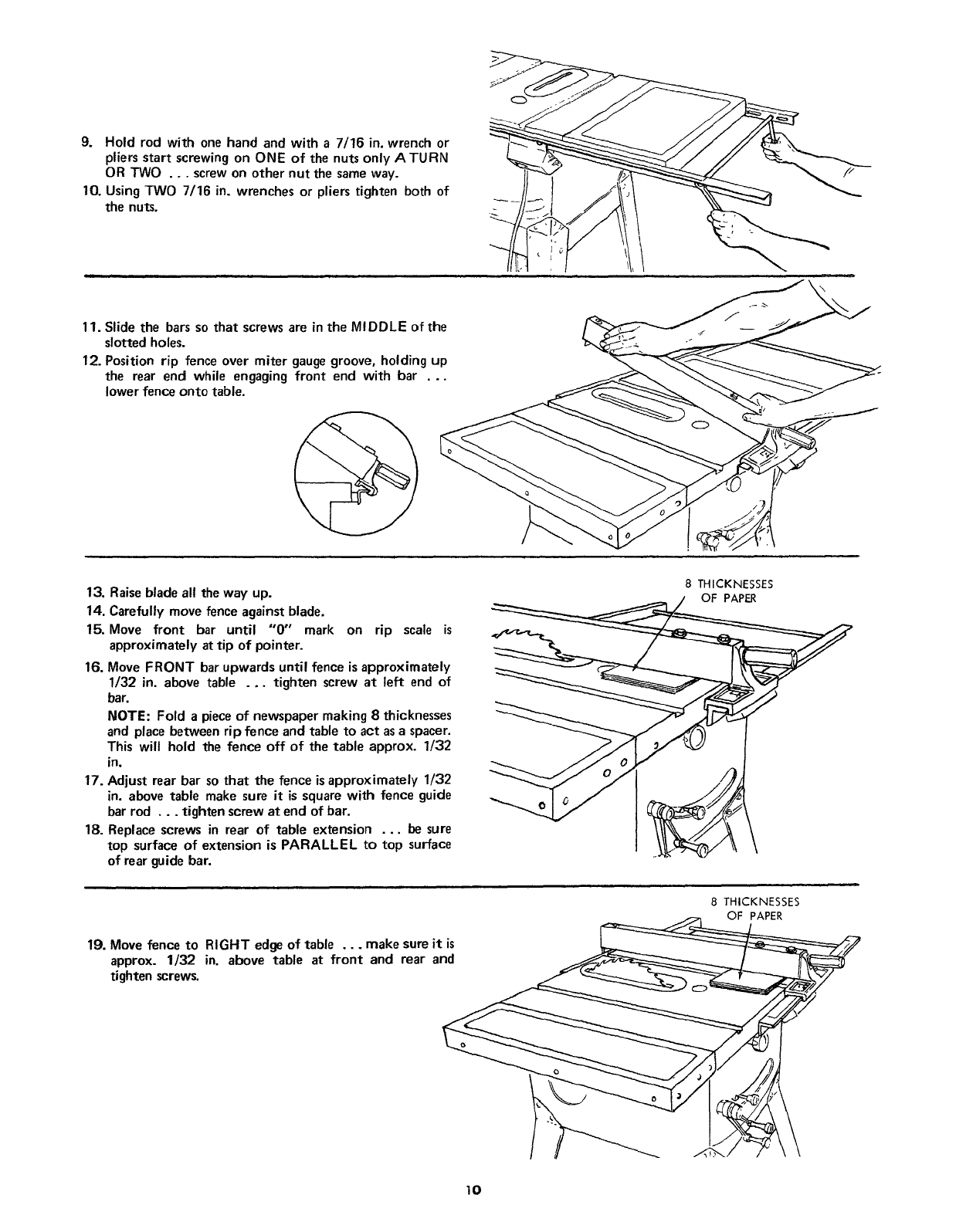

9. Holdrodwithonehandandwitha7/16 in. wrench or
pliers start screwing on ONE of the nutsonly ATURN
OR TWO ... screw on other nut the same way.
10. Using TWO 7/16 in. wrenches or pliers tighten both of
the nuts.
11. Slide the bars so that screws are in the MIDDLE of the
slotted holes.
12. Position rip fence over miter gauge groove, holding up
the rear end while engaging front end with bar ...
lower fence onto table.
13. Raise blade all the way up.
14. Carefully move fence against blade.
15. Move front bar until "0" mark
approximately at tip of pointer. on rip scale is
16. Move FRONT bar upwards until fence is approximately
1/32 in. above table ... tighten screw at left end of
bar.
NOTE: Fold a piece of newspaper making 8 thicknesses
and place between rip fence and table to act asa spacer.
This will hold the fence off of the table approx. 1/32
in.
17. Adjust rear bar so that the fence is approximately 1/32
in. above table make sure it is square with fence guide
bar rod ... tighten screw at end of bar.
18. Replace screws in rear of table extension ... be sure
top surface of extension is PARALLEL to top surface
of rear guide bar.
8 THICKNESSES
OF PAPER
19. Move fence to RIGHT edge of table ... make sure it is
approx. 1/32 in. above table at front and rear and
tighten screws.
8THICKNESSES
OF PAPER
IO

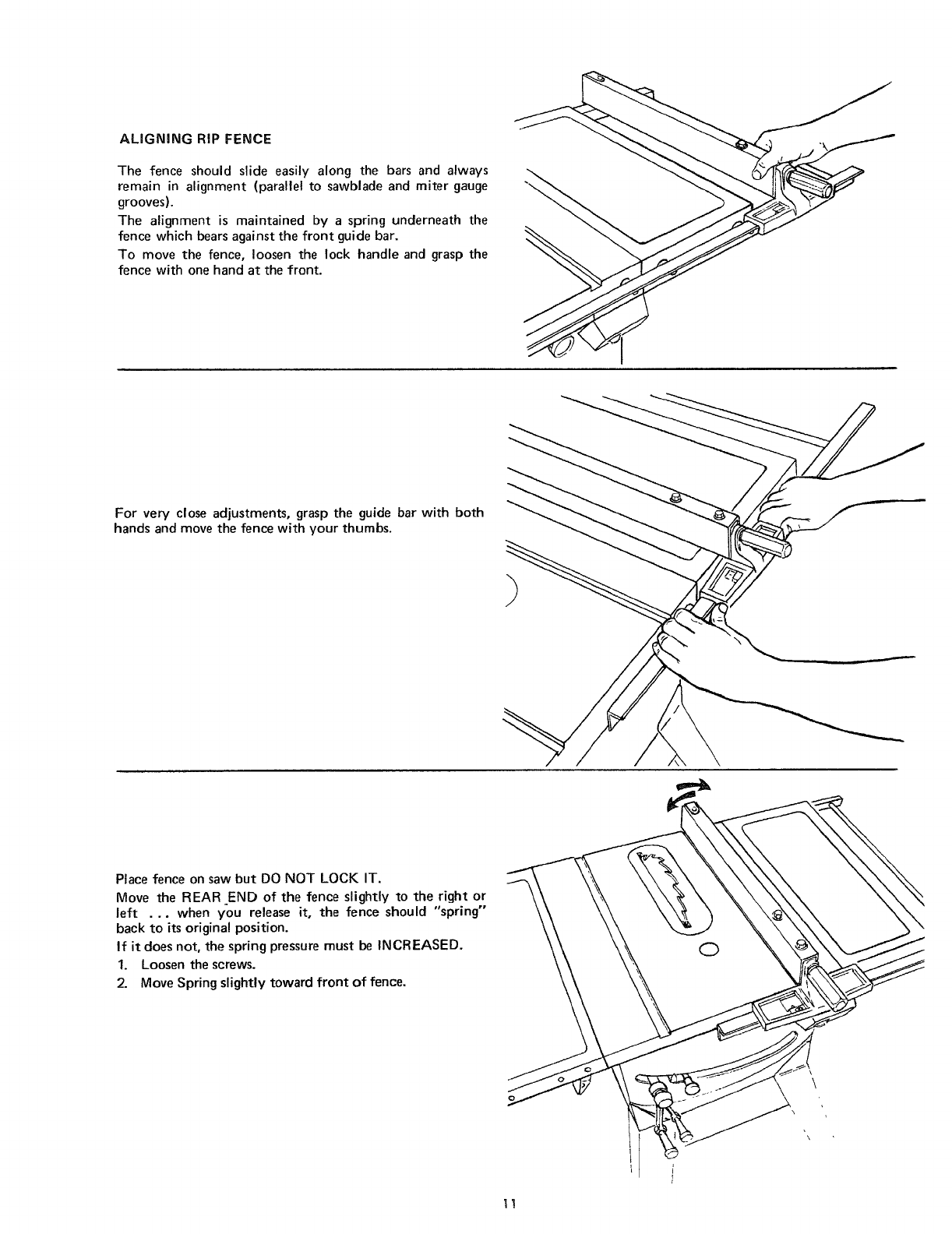

ALIGNING RIP FENCE
The fence should slide easily along the bars and always
remain in alignment (parallel to sawblade and miter gauge
grooves).
The alignment is maintained by a spring underneath the
fence which bears againstthe front guide bar.
To move the fence, loosen the lock handle and grasp the
fence with one hand at the front.
For very close adjustments, grasp the guide bar with both
hands and move the fence with your thumbs.
Place fence on saw but DO NOT LOCK IT.
Move the REAR END of the fence slightly to the right or
left ... when you release it, the fence should "spring'"
back to its original position.
If it does not, the spring pressure must be INCREASED.

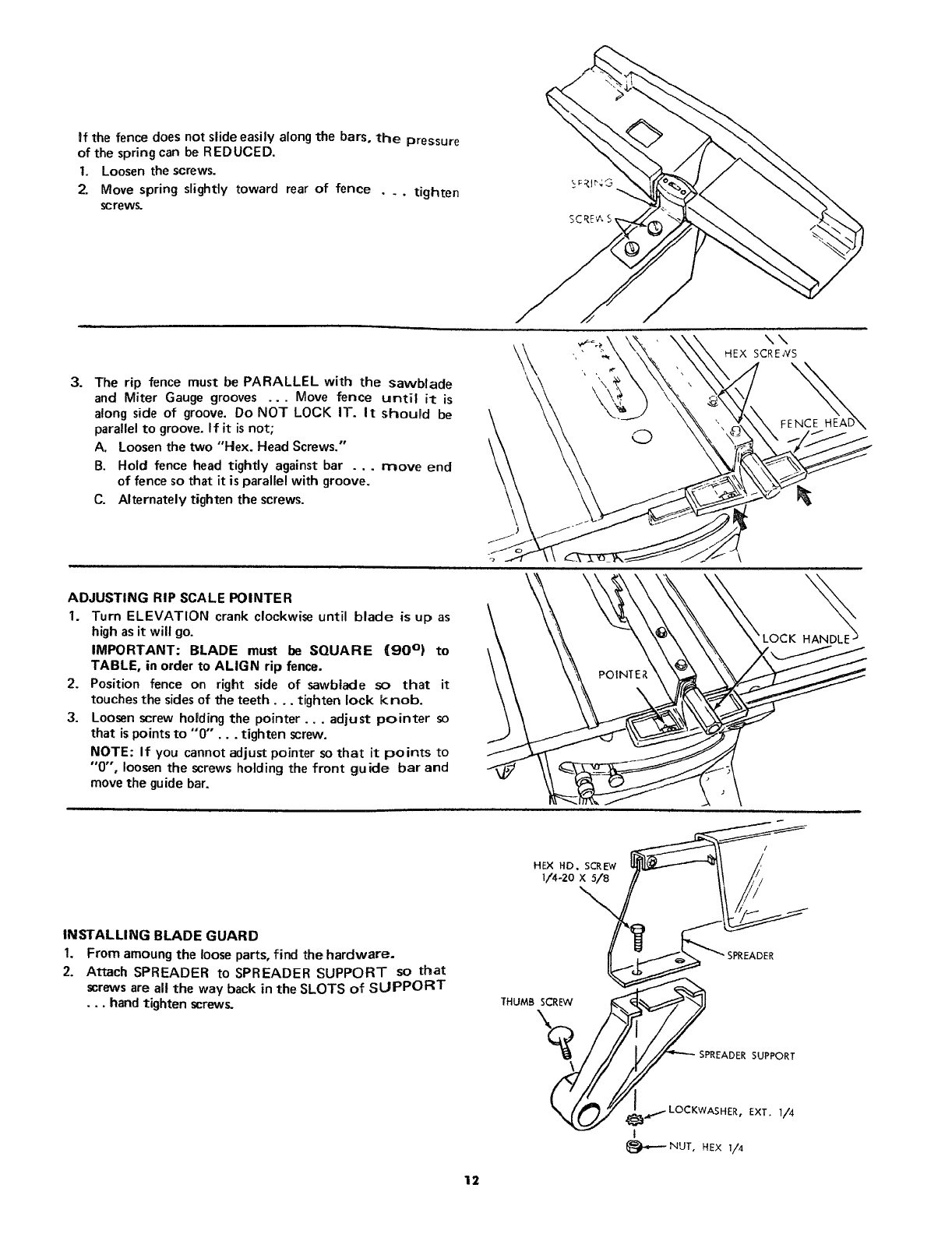

1. Loosen the screws.
2. Move Spring slightly toward front of fence.
If the fence does not slide easily along the bars, the pressure
of the spring can be REDUCED.
1. Loosen the screws.
2. Move spring slightly toward rear of fence ... tighten
screw_
3. The rip fence must be PARALLEL with the sawblade
and Miter Gauge grooves ... Move fence until it is
along side of groove. Do NOT LOCK IT. It should be
parallel to groove. If it is not;
A. Loosen the two "Hex. Head Screws."
B. Hold fence head tightly against bar ... move end
of fence so that it is parallel with groove.
C. Alternately tighten the screws. \
\
ADJUSTING RIP SCALE POINTER
I. Turn ELEVATION crank clockwise until blade is up as
high as it will go.
IMPORTANT: BLADE must be SQUARE {90 °) to
TABLE, in order to ALIGN rip fence.
2. Position fence on right side of sawblade so that it
touches the sides of the teeth.., tighten lock knob.
3. Loosen screw holding the pointer.., adjust pointer so
that is points to "0"... tighten screw.
NOTE: If you cannot adjust pointer so that it points to
"0", loosen the screws holding the front guide bar and
move the guide bar.
\\
HEX SCRE_VS
\
'LOCK
INSTALLING BLADE GUARD
1, From amoung the loose parts, find the hardware.
2. Attach SPREADER to SPREADER SUPPORT so that
screws are all the way back in the SLOTS of SUPPORT
... hand tighten screws.
HEX HD. SO_.EW
174-zo x s/e
\
SPREADER
THUMB SCREW I_
'q//READER SUPPORT
_I._e.._LOCKWASHER, EXT. I/4
NUT, HEX I/4
12

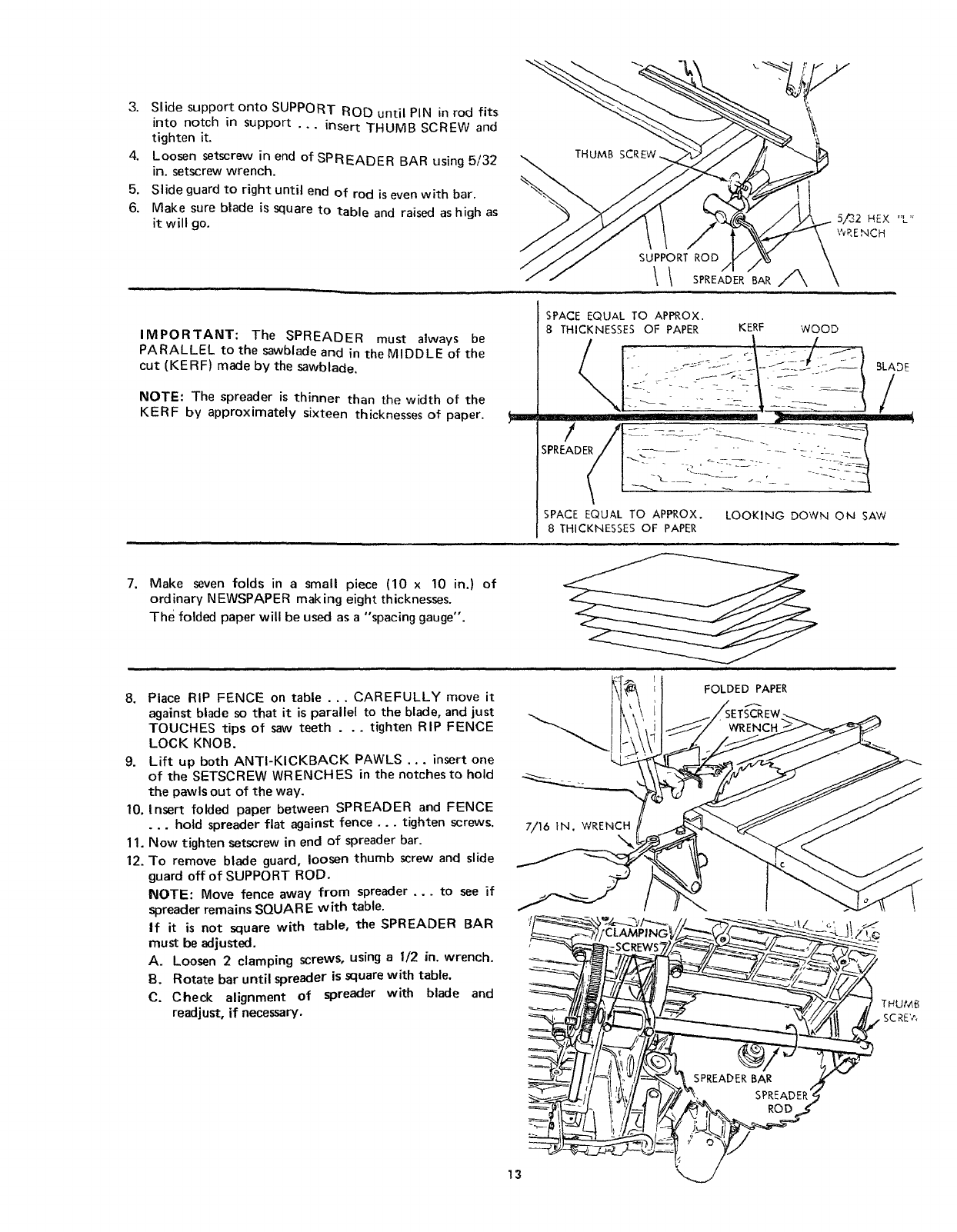

3. SHdesupportontoSUPPORTRODuntilPINinrodfits
intonotchin support... insertTHUMBSCREWand
tightenit.
4. LoosensetscrewinendofSPREADERBARusing5/32
in.setscrewwrench.
5. Slideguardto rightuntilendof rodisevenwithbar.
6. Makesurebladeissquareto tableandraisedashighas
it will go.
SUPPORT ROD
! I SPREADER BAR ,_
IMPORTANT: The SPREADER must always be
PARALLEL to the sawblade and in the MIDDLE of the
cut (KERF) made by the sawblade.
NOTE: The spreader is thinner than the width of the
KERF by approximately sixteen thicknesses of paper,
SPACE EQLJAL TO APPROX.
8 THICKNESSES OF PAPER KERF WOOD
SPACE EQUAL TO APPROX. LOOKING DOWN ON SAW
8 THICKNESSES OF PAPER
7. Make seven folds in a small piece (10 x 10 in.) of
ordinary NEWSPAPER making eight thicknesses.
The folded paper will be used asa "spacing gauge".
8. Place RIP FENCE on table ... CAREFULLY move it
against blade so that it is parallel to the blade, and just
TOUCHES tips of saw teeth . .. tighten RIP FENCE
LOCK KNOB.
9. Lift up both ANTI-KICKBACK PAWLS... insert one
of the SETSCREW WRENCHES in the notches to hold
the pawls out of the way.
10. Insert folded paper between SPREADER and FENCE
... hold spreader flat against fence.., tighten screws.
11. Now tighten setscrew in end of spreader bar.
12. To remove blade guard, loosen thumb screw and slide
guard off of SUPPORT ROD.
NOTE: Move fence away from spreader ... to see if
spreader remains SQUARE with table.
If it is not square with table, the SPREADER BAR
must be adjusted.
A. Loosen 2 clamping screws, using a 1/2 in. wrench.
B. Rotate bar until spreader is square with table.
C. Check alignment of spreader with blade and
readjust, if necessary.
FOLDED PAPER
7,/16 IN. WRENCH
,- _sCR[WS_ _/_----_ _PP-'-r-__-
___ SPREAD E_R/_'_ _

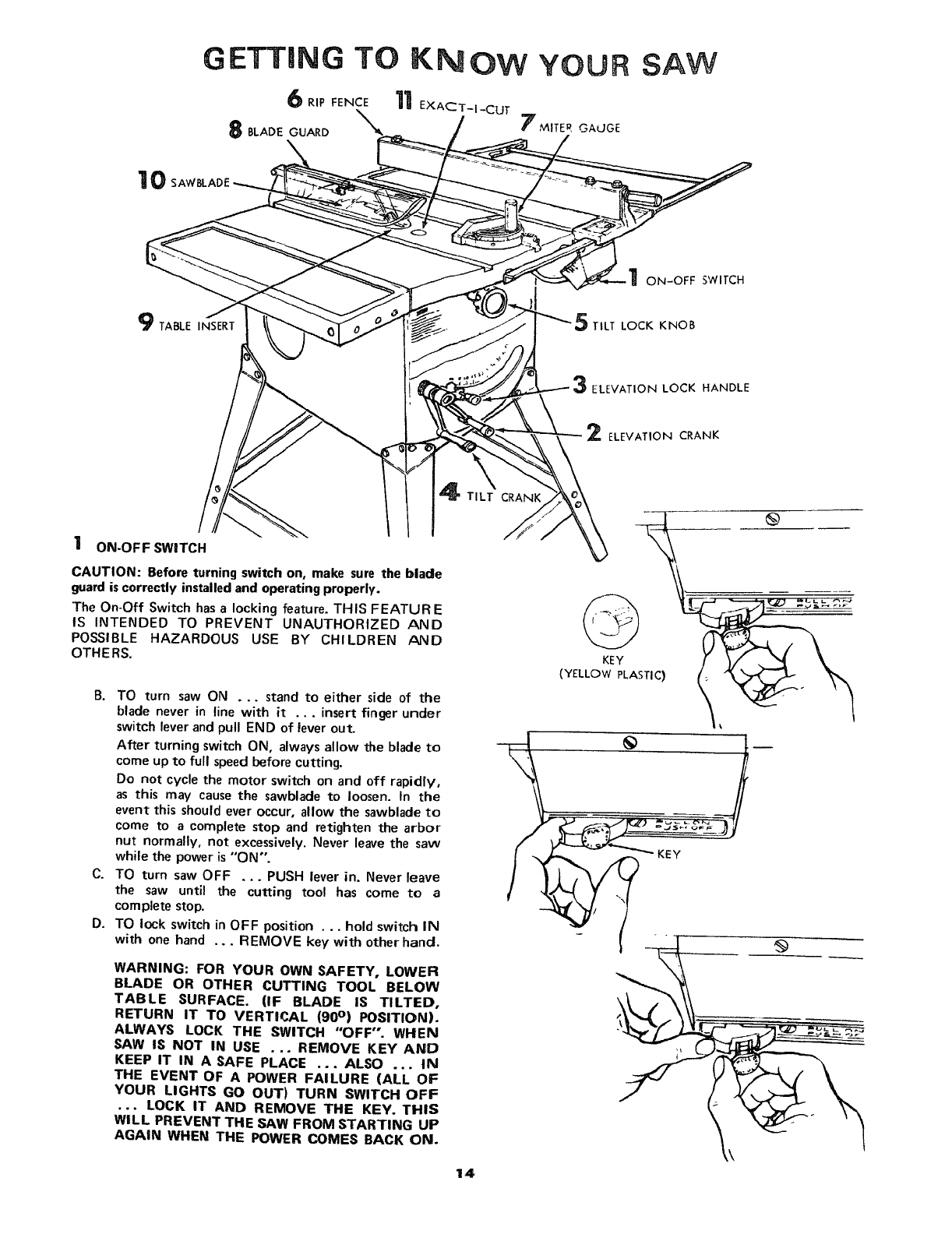

GETTING TO RN OW YOUR
6 11
8BLADE GUARD 7MITER GAUGE
SAW
0SAWBLADE
ON-OFF SWITCH
TABLE INSERT i TILT LOCK KNOB
ELEVATION LOCK HANDLE
ELEVATION CRANK
1ON-OFF SWITCH
CAUTION: Before turning switch on, make sure the blade
guard is correctly installed and operating properly.
The On-Off Switch has a locking feature. THIS FEATURE
IS INTENDED TO PREVENT UNAUTHORIZED AND
POSSIBLE HAZARDOUS USE BY CHILDREN AND
OTHERS.
B. TO turn saw ON ... stand to either side of the
blade never in line with it ... insert finger under
switch lever and pull END of lever out.
After turning switch ON, always allow the blade to
come up to full speed before cutting.
Do not cycle the motor switch on and off rapidly,
as this may cause the sawblade to loosen. In the
event this should ever occur, allow the sawblade to
come to a complete stop and retighten the arbor
nut normally, not excessively. Never leave the saw
while the power is "ON".
C. TO turn saw OFF ... PUSH lever in. Never leave
the saw until the cutting tool has come to a
complete stop.
D. TO lock switch in OFF position ... hold switch IN
with one hand ... REMOVE key with other hand.
WARNING: FOR YOUR OWN SAFETY, LOWER
BLADE OR OTHER CUTTING TOOL BELOW
TABLE SURFACE. {IF BLADE IS TILTED,
RETURN IT TO VERTICAL (90 °) POSITION).
ALWAYS LOCK THE SWITCH "OFF". WHEN
SAW IS NOT IN USE ... REMOVE KEY AND
KEEP IT IN A SAFE PLACE ... ALSO ... tN
THE EVENT OF A POWER FAILURE (ALL OF
YOUR LIGHTS GO OUT) TURN SWITCH OFF
... LOCK IT AND REMOVE THE KEY. THIS
WILL PREVENT THE SAW FROM STARTING UP
AGAIN WHEN THE POWER COMES BACK DIM.
TILT CRANK
KEY
(YELLOW PLASTIC)
\
KEY
@
14

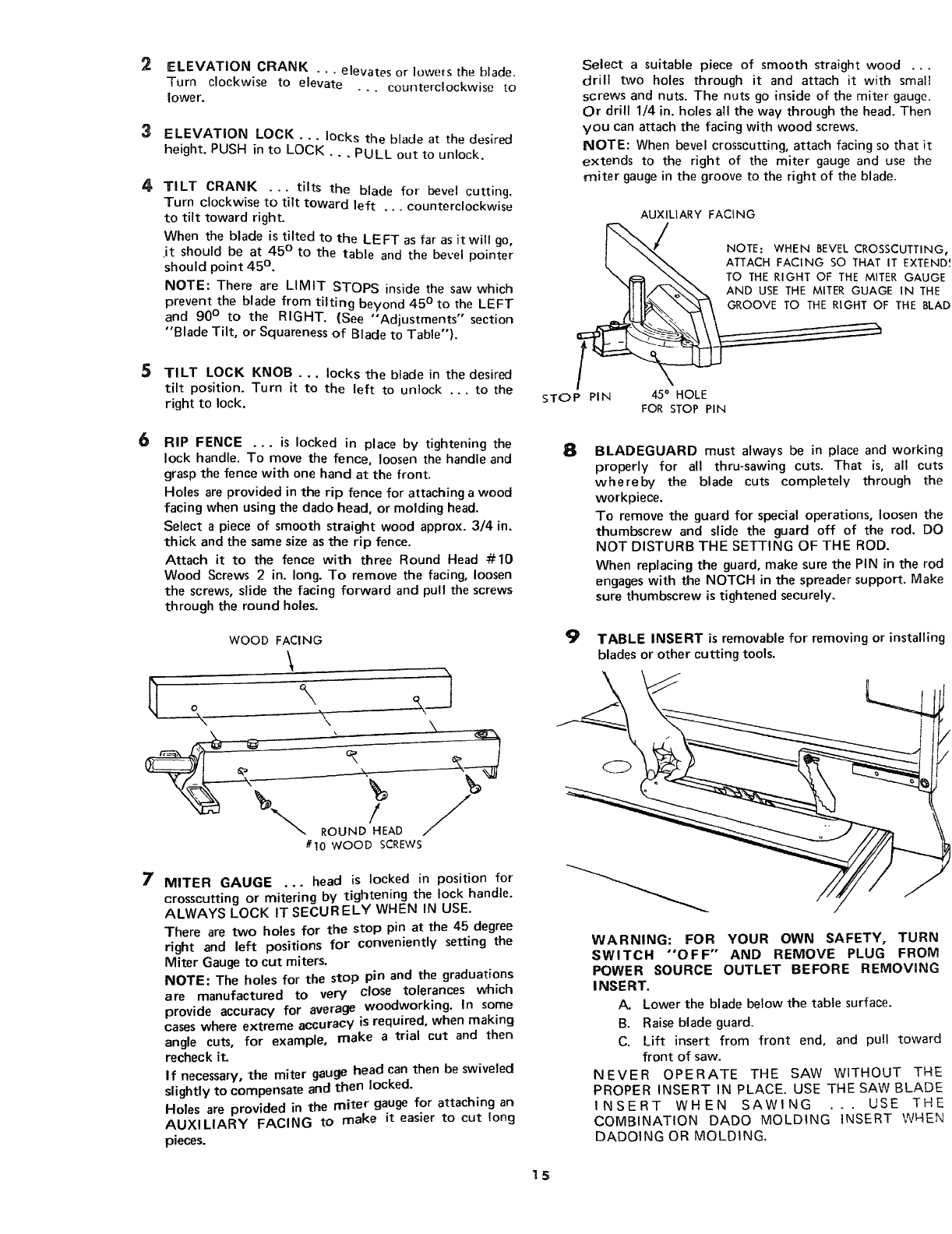

2ELEVATION CRANK . . . elevates or IoweFs the blade.
Turn clockwise to elevate ... counterclockwise to
lower.
3ELEVATION LOCK . •. locks the blade at the desired
height. PUSH in to LOCK... PULL out to unlock.
4TILT CRANK ... tilts the blade for bevel cutting.
Turn clockwise to tilt toward left ... counterclockwise
to tilt toward right.
When the blade is tilted to the LEFT as far as it will go,
.it should be at 45 ° to the table and the bevel pointer
should point 45 ° .
NOTE: There are LIMIT STOPS inside the saw which
prevent the blade from tilting beyond 45 ° to the LEFT
and 90 ° to the RIGHT. (See "Adjustments" section
"Blade Tilt, or Squareness of Blade to Table")•
5 TILT LOCK KNOB ... locks the blade in the desired
tilt position. Turn it to the left to unlock ... to the
right to lock.
Select a suitable piece of smooth straight wood ...
drill two holes through it and attach it with smalt
screws and nuts. The nuts go inside of the miter gauge.
Or drill 1/4 in. holes all the way through the head. Then
you can attach the facing with wood screws.
NOTE: When bevel crosscutting, attach facing so that it
extends to the right of the miter gauge and use the
miter gauge in the groove to the right of the blade.
STOP PIN
AUXILIARY FACING
NOTE: WHEN BEVEL CROSSCUTTING,.
45 ° HOLE
FOR STOP PIN
6RiP FENCE ... is locked in place by tightening the
lock handle. To move the fence, loosen the handle and
graspthe fence with one hand at the front.
Holes are provided in the rip fence for attaching a wood
facing when using the dado head, or molding head.
Select a piece of smooth straight wood approx. 3/4 in.
thick and the same size asthe rip fence.
Attach it to the fence with three Round Head #10
Wood Screws 2 in. long. To remove the facing, loosen
the screws, slide the facing forward and pull the screws
through the round holes.
WOOD FACING
\
ROUND _EAD //_
#10 WOOD SCREWS
7MITER GAUGE ... head is locked in position for
crosscutting or mitering by tightening the lock handle.
ALWAYS LOCK IT SECURELY WHEN IN USE.
There are two holes for the stop pin at the 45 degree
right and left positions for conveniently setting the
Miter Gauge to cut miters.
NOTE: The holes for the stop pin and the graduations
are manufactured to very close tolerances which
provide accuracy for average woodworking. In some
cases where extreme accuracy is required, when making
angle cuts, for example, make a trial cut and then
recheck it.
If necessary, the miter gauge head can then be swiveled
slightly to compensate and then locked.
Holes are provided in the miter gauge for attaching an
AUXILIARY FACING to make it easier to cut long
pieces.
8BLADEGUARD must always be in place and working
properly for all thru-sawing cuts. That is, all cuts
whereby the blade cuts completely through the
workpiece.
To remove the guard for special operations, loosen the
thumbscrew and slide the guard off of the rod. DO
NOT DISTURB THE SETTING OF THE ROD.
When replacing the guard, make sure the PIN in the rod
engages with the NOTCH in the spreader support. Make
sure thumbscrew is tightened securely.
9 TABLE INSERT is removable for removing or
blades or other cutting tools.
(_2D
installing
WARNING: FOR YOUR OWN SAFETY, TURN
SWITCH "OFF" AND REMOVE PLUG FROM
POWER SOURCE OUTLET BEFORE REMOVING
INSERT.
A. Lower the blade below the table surface.
B. Raise blade guard.
C. Lift insert from front end, and pull toward
front of saw.
NEVER OPERATE THE SAW WITHOUT THE
PROPER INSERT IN PLACE. USE THE SAW BLADE
INSERT WHEN SAWING .. . USE THE
COMBINATION DADO MOLDING INSERT WHEN
DADOING OR MOLDING.
15

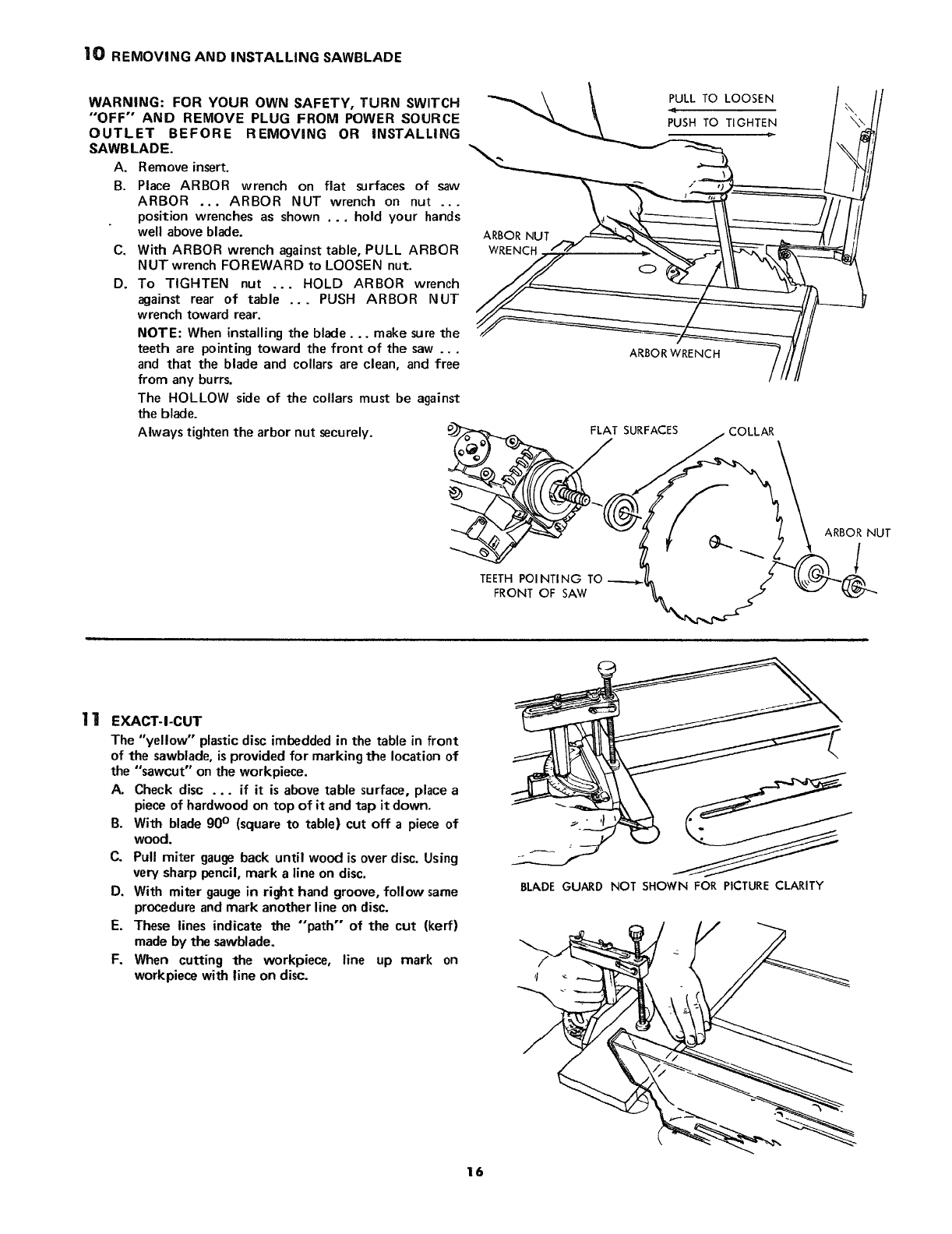

|0 REMOVING AND INSTALLING SAWBLADE
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET BEFORE REMOVING OR INSTALLING
SAWBLADE.
A. Remove insert.
B. Place ARBOR wrench on fiat surfaces of saw
ARBOR ... ARBOR NUT wrench on nut ...
position wrenches as shown ... hold your hands
well above blade.
C. With ARBOR wrench against table, PULL ARBOR
NUT wrench FOREWARD to LOOSEN nut.
D. To TIGHTEN nut ... HOLD ARBOR wrench
against rear of table ... PUSH ARBOR NUT
wrench toward rear.
NOTE: When installing the blade.., make sure the
teeth are pointing toward the front of the saw ...
and that the blade and collars are clean, and free
from any burrs.
The HOLLOW side of the collars must be against
the blade.
Always tighten the arbor nut securely.
ARBOR NUT
WRENCH
PULL TO LOOSEN
ARBOR WRENCH
FLAT SURFACES COLLAR
TEETH POI NTING
FRONT OF SAW
ARBOR NUT
!
11 EXACT-I-CUT
The "yellow" plastic disc imbedded in the table in front
of the sawblade, is provided for marking the location of
the "sawcut" on the workpiece.
A. Check disc ... if it is above table surface, place a
piece of hardwood on top of it and tap it down.
B. With blade 90 ° (square to table) cut off a piece of
wood.
C. Pull miter gauge back until wood is over disc. Using
very sharp pencil, mark a line on disc.
D. With miter gauge in right hand groove, follow same
procedure and mark another line on disc.
E. These lines indicate the "path" of the cut (kerf)
made by the sawblade.
F. When cutting the workpiece, line up mark on
workpiece with line on disc.
BLADE GUARD NOT SHOWN FOR PICTURE CLARITY
16

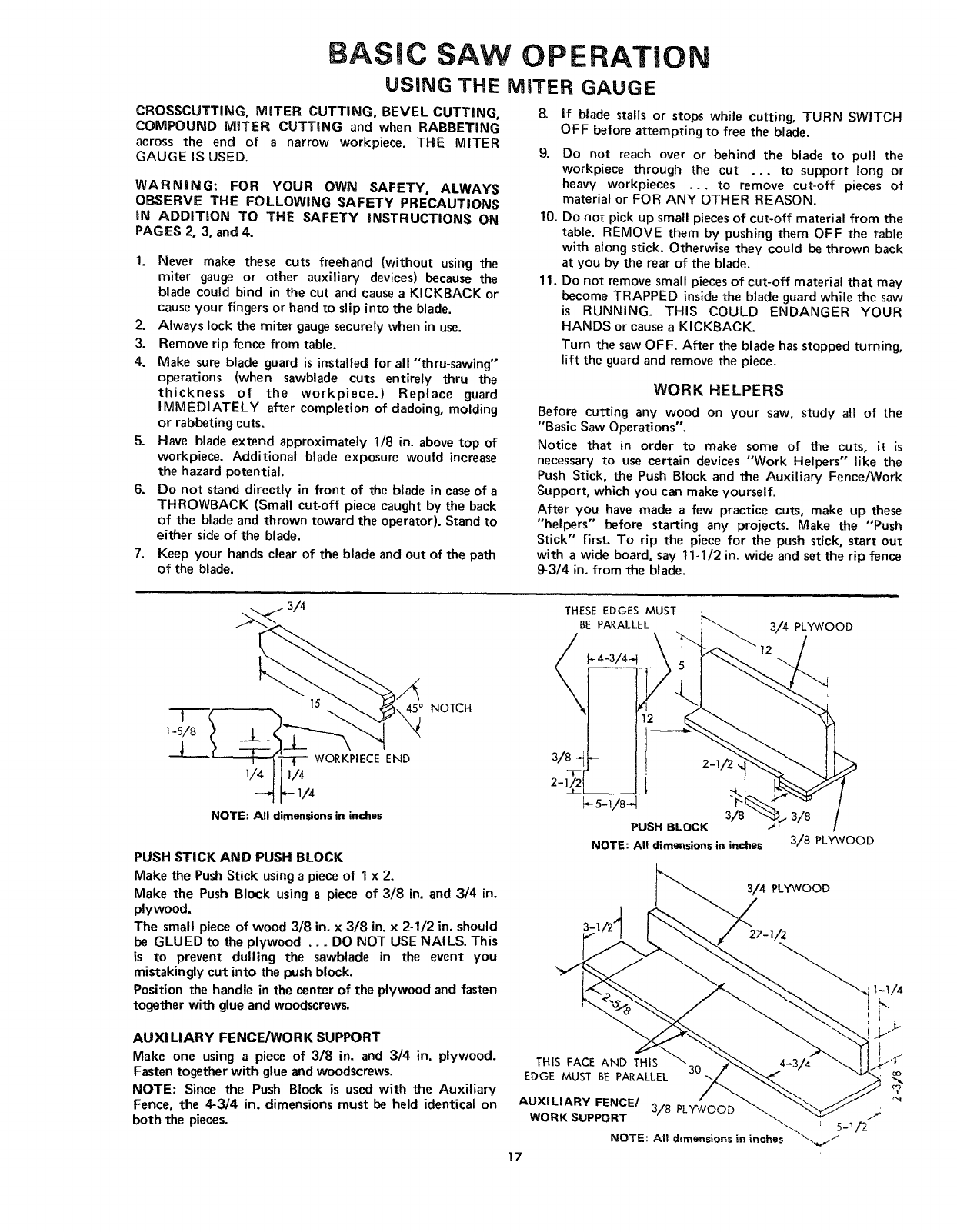

BASIC SAW OPERATION
USING THE MITER GAUGE
CROSSCUTTING, MITER CUTTING, BEVEL CUTTING,
COMPOUND MITER CUTTING and when RABBETING
across the end of a narrow workpiece, THE MITER
GAUGE IS USED.
WARNING: FOR YOUR OWN SAFETY, ALWAYS
OBSERVE THE FOLLOWING SAFETY PRECAUTIONS
iN ADDITION TO THE SAFETY iNSTRUCTIONS ON
PAGES 2, 3, and 4.
1. Never make these cuts freehand (without using the
miter gauge or other auxiliary devices) because the
blade could bind in the cut and cause a KICKBACK or
cause your fingers or hand to slip into the blade.
2. Always lock the miter gauge securely when in use.
3. Remove rip fence from table.
4. Make sure blade guard is installed for all "thru-sawing'"
operations (when sawblade cuts entirely thru the
thickness of the workpiece.) Replace guard
IMMEDIATELY after completion of dadoing, molding
or rabbeting cuts.
5. Have blade extend approximately 1/8 in. above top of
workpiece. Additional blade exposure would increase
the hazard potential.
6. Do not stand directly in front of the blade in case of a
THROWBACK (Small cut-off piece caught by the back
of the blade and thrown toward the operator). Stand to
either side of the blade.
7. Keep your hands clear of the blade and out of the path
of the blade.
8,
9.
10.
11.
If blade stalls or stops while cutting, TURN SWITCH
OFF before attempting to free the blade.
Do not reach over or behind the blade to pull the
workpiece through the cut ... to support long or
heavy workpieces ... to remove cut-off pieces of
material or FOR ANY OTHER REASON.
Do not pick up small pieces of cut-off material from the
table. REMOVE them by pushing them OFF the table
with along stick. Otherwise they could be thrown back
at you by the rear of the blade.
Do not remove small pieces of cut-off material that may
become TRAPPED inside the blade guard while the saw
is RUNNING. THIS COULD ENDANGER YOUR
HANDS or cause a KICKBACK.
Turn the saw OFF. After the blade has stopped turning,
lift the guard and remove the piece.
WORK HELPERS
Before cutting any wood on your saw, study all of the
"Basic Saw Operations".
Notice that in order to make some of the cuts, it is
necessary to use certain devices "Work Helpers" like the
Push Stick, the Push Block and the Auxiliary Fence/Work
Support, which you can make yourself.
After you have made a few practice cuts, make up these
"helpers" before starting any projects. Make the "Push
Stick" first. To rip the piece for the push stick, start out
with a wide board, say 11-1/2 in, wide and set the rip fence
93/4 in. from the blade.
15 450 NOTCH
WORKPIECE END
1/4 I14
1/4
NOTE: All dimensions in inches
PUSH STICK AND PUSH BLOCK
Make the PushStick usinga piece of 1 x 2.
Make the Push Block using a piece of 3/8 in. and 3/4 in.
plywood.
The small piece of wood 3/8 in. x 3/8 in. x 2-1/2 in. should
be GLUED to the plywood ... DO NOT USE NAILS. This
is to prevent dulling the sawblade in the event you
mistakingly cut into the push block.
Position the handle in the center of the plywood and fasten
together with glue and woodscrews.
AUXI LIARY FENCE/WORK SUPPORT
Make one using a piece of 3/8 in. and 3/4 in. plywood.
Fasten together with glue and woodscrews.
NOTE: Since the Push Block is used with the Auxiliary
Fence, the 4-3/4 in. dimensions must be held identical on
both the pieces.
THESE EDGES MUST
BE PARALLEL
_4-3/4
3/4 PLYWOOD
12
PUSH BLOCK 3/8
NOTE: All dimensions in inches
3/8
3/8 PLYWOOD
THIS FACE AND THIS
EDGE MUST BE PARALLEL 30
AUXILIARY FENCE/ 3/8 PLYWOOD
WORK SUPPORT
NOTE: All dimensions in inches
17

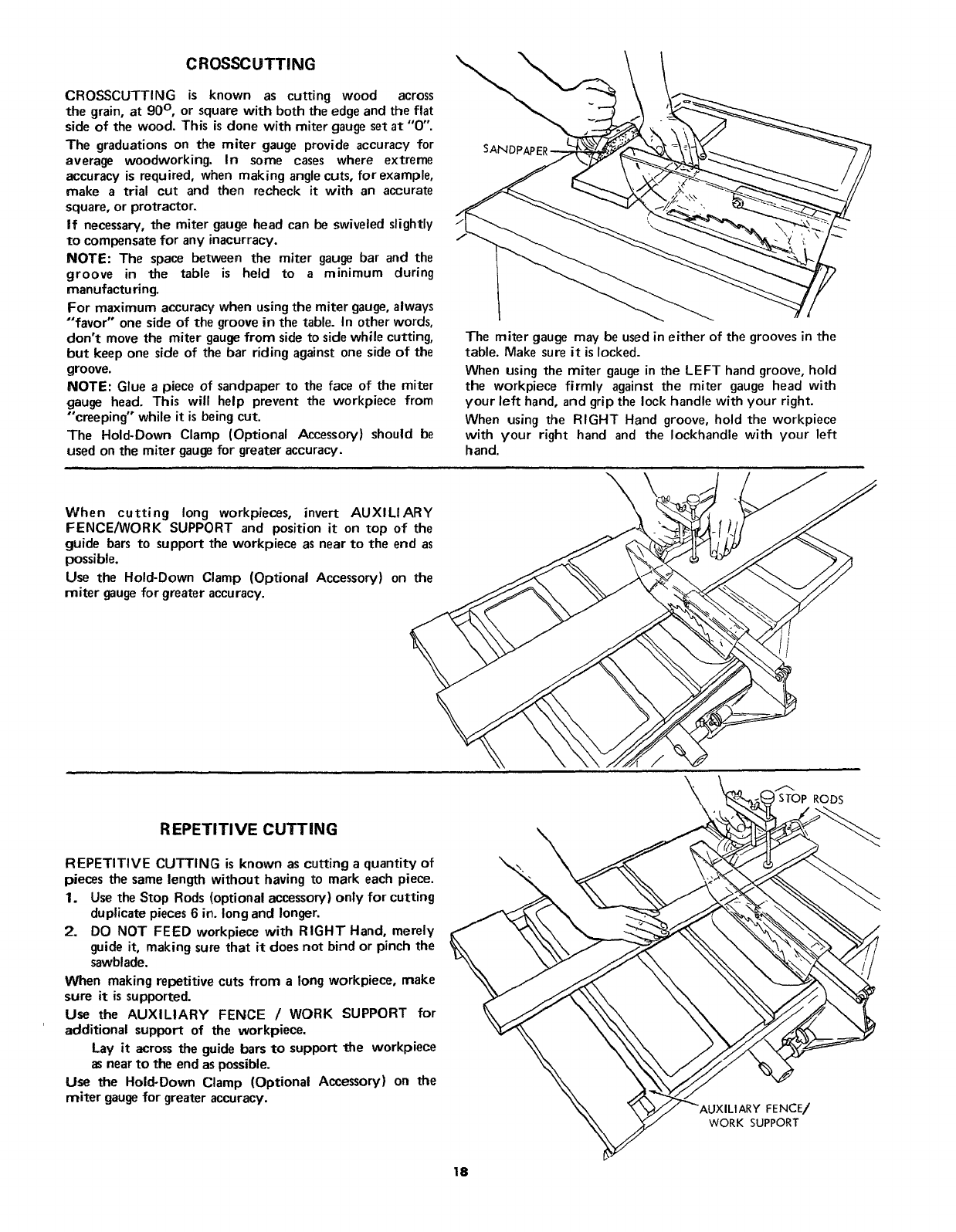

CROSSCUTTING
CROSSCUTTING is known as cutting wood across
the grain, at 90 ° ,or square with both the edge and the flat
side of the wood. This is done with miter gauge set at "0".
The graduations on the miter gauge provide accuracy for
average woodworking. In some cases where extreme
accuracy is required, when making angle cuts, for example,
make atrial cut and then recheck it with an accurate
square, or protractor.
If necessary, the miter gauge head can be swiveled slightly
to compensate for any inacurracy.
NOTE: The space between the miter gauge bar and the
groove in the table is held to a minimum during
manufacturing.
For maximum accuracy when using the miter gauge, always
"favor" one side of the groove in the table. In other words,
don't move the miter gauge from side to side while cutting,
but keep one side of the bar riding against one side of the
groove.
NOTE: Glue apiece of sandpaper to the face of the miter
gauge head. This will help prevent the workpiece from
"creeping" while it is being cut.
The Hold-Down Clamp (Optional Accessory) should be
used on the miter gauge for greater accuracy.
SANI
The miter gauge may be used in either of the grooves in the
table. Make sure it is locked.
When using the miter gauge in the LEFT hand groove, hold
the workpiece firmly against the miter gauge head with
your left hand, and grip the lock handle with your right.
When using the RIGHT Hand groove, hold the workpiece
with your right hand and the Iockhandle with your left
hand.
When cutting long workpieces, invert AUXILIARY
FENCE/WORK SUPPORT and position it on top of the
guide bars to support the workpiece as near to the end as
possible.
Use the Hold-Down Clamp (Optional Accessory) on the
miter gaugefor greater accuracy.
REPETITIVE CUTTING
REPETITIVE CUTTING is known as cutting a quantity of
pieces the same length without having to mark each piece.
1. Use the Stop Rods (optional accessory)only for cutting
duplicate pieces 6 in. long and longer.
2. DO NOT FEED workpiece with RIGHT Hand, merely
guide it, making sure that it does not bind or pinch the
sawblade.
When making repetitive cuts from a long workpiece, make
sure it is supported.
Use the AUXILIARY FENCE /WORK SUPPORT for
additional support of the workpiece.
Lay it across the guide bars to support the workpiece
asnear to the end aspossible.
Use the Hold-Down Clamp (Optional Accessory) on the
miter gauge for greater accuracy.
\
RODS
FENCE/
WORK SUPPORT
18

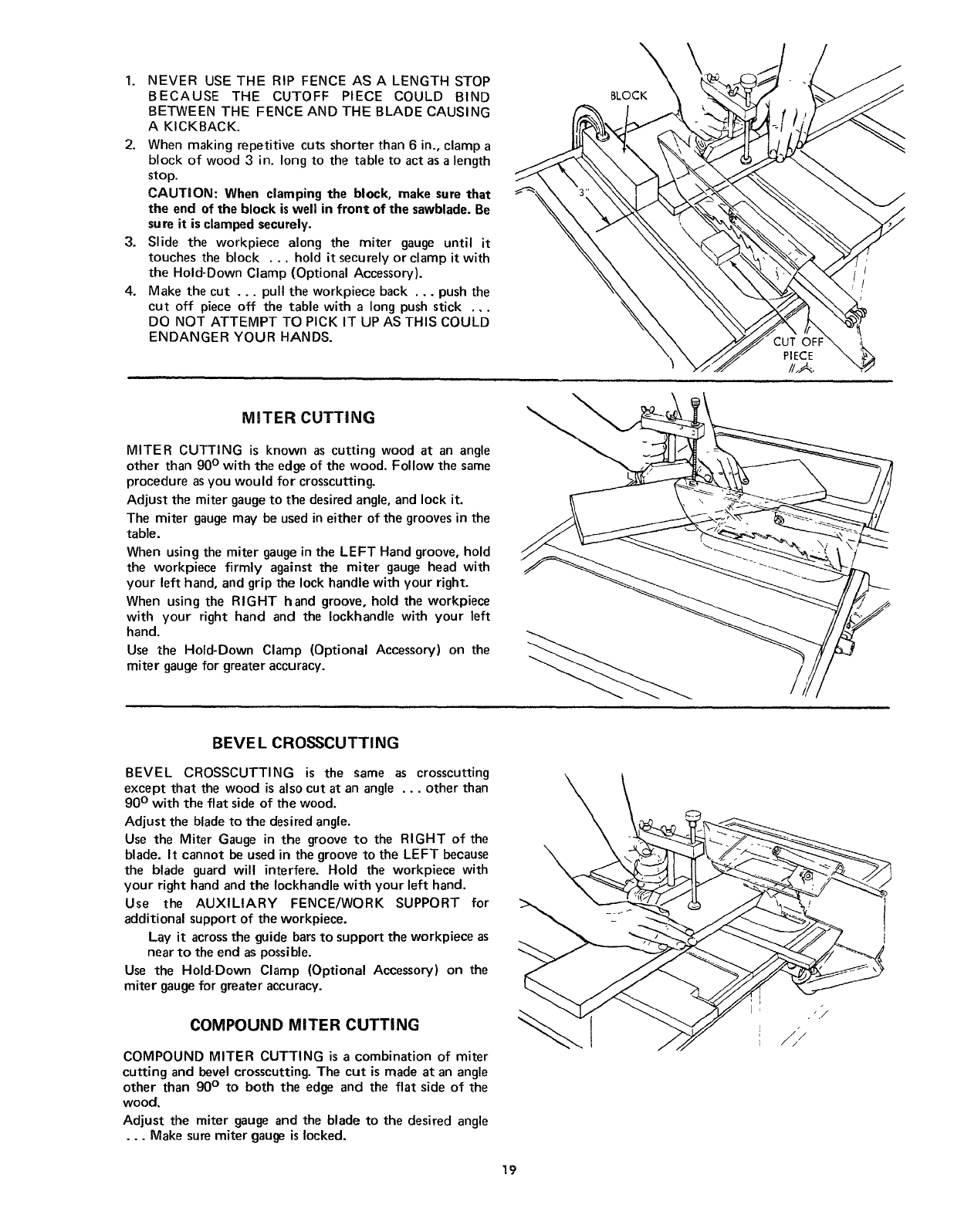

1. NEVERUSETHERIPFENCEASA LENGTHSTOP
BECAUSETHE CUTOFFPIECECOULDBIND
BETWEENTHEFENCEANDTHEBLADECAUSING
A KICKBACK.
2. Whenmakingrepetitivecutsshorterthan6in.,clampa
blockof wood3 in.longto thetabletoactasalength
stop.
CAUTION: When clamping the block, make sure that
the end of the block is well in front of the sawblade. Be
sure it is clamped securely.
3. Slide the workpiece along the miter gauge until it
touches the block ... hold it securely or clamp it with
the Hold-Down Clamp (Optional Accessory).
4. Make the cut ... pull the workpiece back ... push the
cut off piece off the table with a long push stick ...
DO NOT ATTEMPT TO PICK IT UP AS THIS COULD
ENDANGER YOUR HANDS.
MITER CUTTING
MITER CUTTING is known as cutting wood at an angle
other than 90 ° with the edge of the wood. Follow the same
procedure as you would for crosscutting.
Adjust the miter gauge to the desired angle, and lock it.
The miter gauge may be used in either of the grooves in the
table.
When using the miter gauge in the LEFT Hand groove, hold
the workpiece firmly against the miter gauge head with
your left hand, and grip the lock handle with your right.
When using the RIGHT hand groove, hold the workpiece
with your right hand and the Iockhandle with your left
hand.
Use the Hold-Down Clamp (Optional Accessory) on the
miter gauge for greater accuracy.
BEVE L CROSSCUTTING
BEVEL CROSSCUTTING is the same as crosscutting
except that the wood is also cut at an angle ... other than
g0 ° with the flat side of the wood.
Adjust the blade to the desired angle.
Use the Miter Gauge in the groove to the RIGHT of the
blade. It cannot be used in the groove to the LEFT because
the blade guard will interfere. Hold the workpiece with
your right hand and the Iockhandle with your left hand.
Use the AUXILIARY FENCE/WORK SUPPORT for
additional support of the workpiece.
Lay it across the guide bars to support the workpiece as
near to the end as possible.
Use the Hold-Down Clamp (Optional Accessory) on the
miter gauge for greater accuracy.
COMPOUND MITER CUTTING
COMPOUND MITER CUTTING is a combination of miter
cutting and bevel crosscutting. The cut is made at an angle
other than 90 ° to both the edge and the flat side of the
wood.
Adjust the miter gauge and the blade to the desired angle
... Make sure miter gauge is locked.
1
1
19
USING THE RiP FENCE
RIPPING, BEVEL RIPPING, RESAWING AND
RABBETING are performed using the RIP FENCE together
with the AUXILIARY FENCE/WORK SUPPORT, PUSH
STICK OR PUSH BLOCK.
WARNING: FOR YOUR OWN SAFETY, ALWAYS
OBSERVE THE FOLLOWING SAFETY PRECAUTIONS
IN ADDITION TO THE SAFETY INSTRUCTIONS ON
PAGES 2, 3, and 4.
1.
.
3.
4.
Never make these cuts FREEHAND (without using the
rip fence or auxiliary devices when required) because
the blade could bind in the cut and cause a
KICKBACK.
Always lock the rip fence securely when in use.
Remove miter gauge from table.
Make sure blade guard is installed for all thru-sawing
type cuts. Replace the guard IMMEDIATELY following
completion of resawing, rabbeting, dadoing, or molding
operations.
Frequently check the action of the ANTI-KICKBACK
PAWLS by passing the workpiece alongside of the
spreaderwhile sawis OFF.
Pull the workpiece TOWARD you. If the PAWLS do
not DIG into the workpiece and HOLD it ... the pawls
must be REPLACED. See "'Maintenance" section.
5. Have blade extend approximately 1/8 in. above top of
workpiece. Additional blade exposure would increase
the hazard potential.
6. Do not stand directly in front of the blade in case of a
KICKBACK. Stand to either side of the blade.
7. Keep your hands clear of the blade and out of the path
of the blade.
8. If the blade stalls or stops while cutting. TURN
SWITCH OFF before attempting to free the blade.
9. Do not reach over or behind the blade to pull the
workpiece through the cut ... to support long or
heavy workpieces .... to remove small cut-off pieces of
material or FOR ANY OTHER REASON.
10. Do not pick up small pieces of cut-off material from the
table. REMOVE them by pushing them OFF the table
with a long stick. Otherwise they could be thrown back
at you by the rear of the blade.
11. Do not remove small pieces of cut-off material that may
become TRAPPED inside the blade guard while the saw
is RUNNING. THIS COULD ENDANGER YOUR
HANDS or cause a KICKBACK.
Turn the saw OFF. After the blade has stopped turning,
lift the guard and remove the piece.
RIPPING
RIPPING is known as cutting a piece of wood with the
grain, or lengthwise. This is done using the rip fence.
Position the fence to the desired WIDTH OF RIP and lock
in place.
Before starting to rip, be sure
A. Rip Fence is parallel to sawblade.
B. Spreader is properly aligned with sawblade.
C. Anti-Kickback pawls are functioning properly.
When ripping LONG BOARDS or LARGE PANELS, always
use a work support.
Asimple one can be made by clamping a piece of plywood
to a sawhorse.
BEVEL RIPPING
When bevel ripping material 6 in. or narrower, use fence on
the right side of the blade ONLY. This will provide more
space between the fence and the sawblade for use of a push
stick. If the fence is mounted to the left, the sawblade
guard may interfere with proper use of a push stick.
ALWAYS SUPPORT LONG WORKPIECES
When "WIDTH OF RIP" is 6 in. and WIDER use your
RIGHT Hand to feed the workpiece until it is clear of the
table.
Use LEFT hand ONLY to guide the workpiece ... do not
FEED the workpiece with the left hand.
2O
When "WIDTH OF RIP" is 2 in. to 6 in. wide USE THE
PUSH STICK to feed the work.
\
!
! I
/
When WIDTH OF RIP is NARROWER than 2 in., the push
stick CANNOT be used because the guard will interfere ...
USE the AUXILIARY FENCE/WORK SUPPORT and
PUSH BLOCK.
Attach auxiliary fence to rip fence with two "'C "° clamps.
Feed the workpiece by hand until the end is approx. 1 in.
from the front edge of the table. Continue to feed using the
PUSH BLOCK.
BAFFLE
When ripping narrow strips that may enter the guard and
strike the baffle, CAREFULLY raise guard only enough to
clear the workpiece. Use Push Block to complete cut,
21

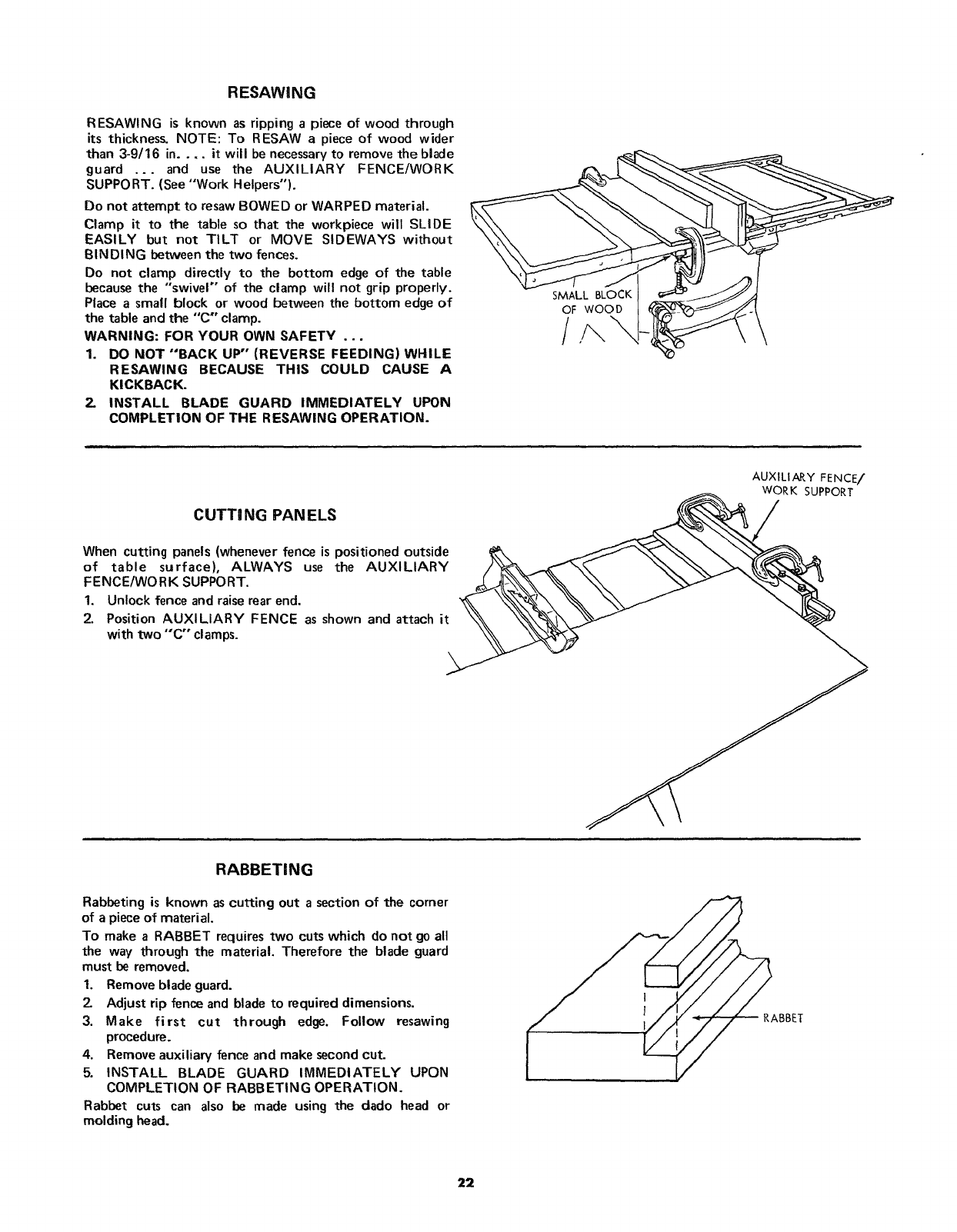

RESAWING
RESAWING is known as ripping apiece of wood through
its thickness. NOTE: To RESAW a piece of wood wider
than 3-9/16 in.... it will be necessary to remove the blade
guard ... and use the AUXILIARY FENCE/WORK
SUPPORT. (See "Work Helpers").
Do not attempt to resaw BOWED or WARPED material.
Clamp it to the table so that the workpiece will SLIDE
EASILY but not TILT or MOVE SIDEWAYS without
BINDING between the two fences.
Do not clamp directly to the bottom edge of the table
because the "swivel" of the clamp will not grip properly.
Place a small block or wood between the bottom edge of
the table and the "C" clamp.
WARNING: FOR YOUR OWN SAFETY ...
1. DO NOT "BACK UP" (REVERSE FEEDING) WHILE
RESAWlNG BECAUSE THIS COULD CAUSE A
KICKBACK.
Z INSTALL BLADE GUARD IMMEDIATELY UPON
COMPLETION OF THE RESAWlNG OPERATION.
CUTTI NG PAN ELS
When cutting panels (whenever fence is positioned outside
of table surface), ALWAYS use the AUXILIARY
FENCE/WORK SUPPORT.
1. Unlock fence and raise rear end.
2. Position AUXILIARY FENCE as shown and attach it
with two "C" clamps.
AUXILI AP_YFENCE/
WORK SUPPORT
RABBETING
Rabbeting is known as cutting out a section of the corner
of a piece of material.
To make a RABBET requires two cuts which do not go all
the way through the material. Therefore the blade guard
must be removed.
1. Remove blade guard.
ZAdjust rip fence and blade to required dimensions.
3. Make first cut through edge. Follow resawing
procedure.
4. Remove auxiliary fence and make second cut.
5. INSTALL BLADE GUARD IMMEDIATELY UPON
COMPLETION OF RABBETING OPERATION.
Rabbet cuts can also be made using the dado head or
molding head.
RABBET
22

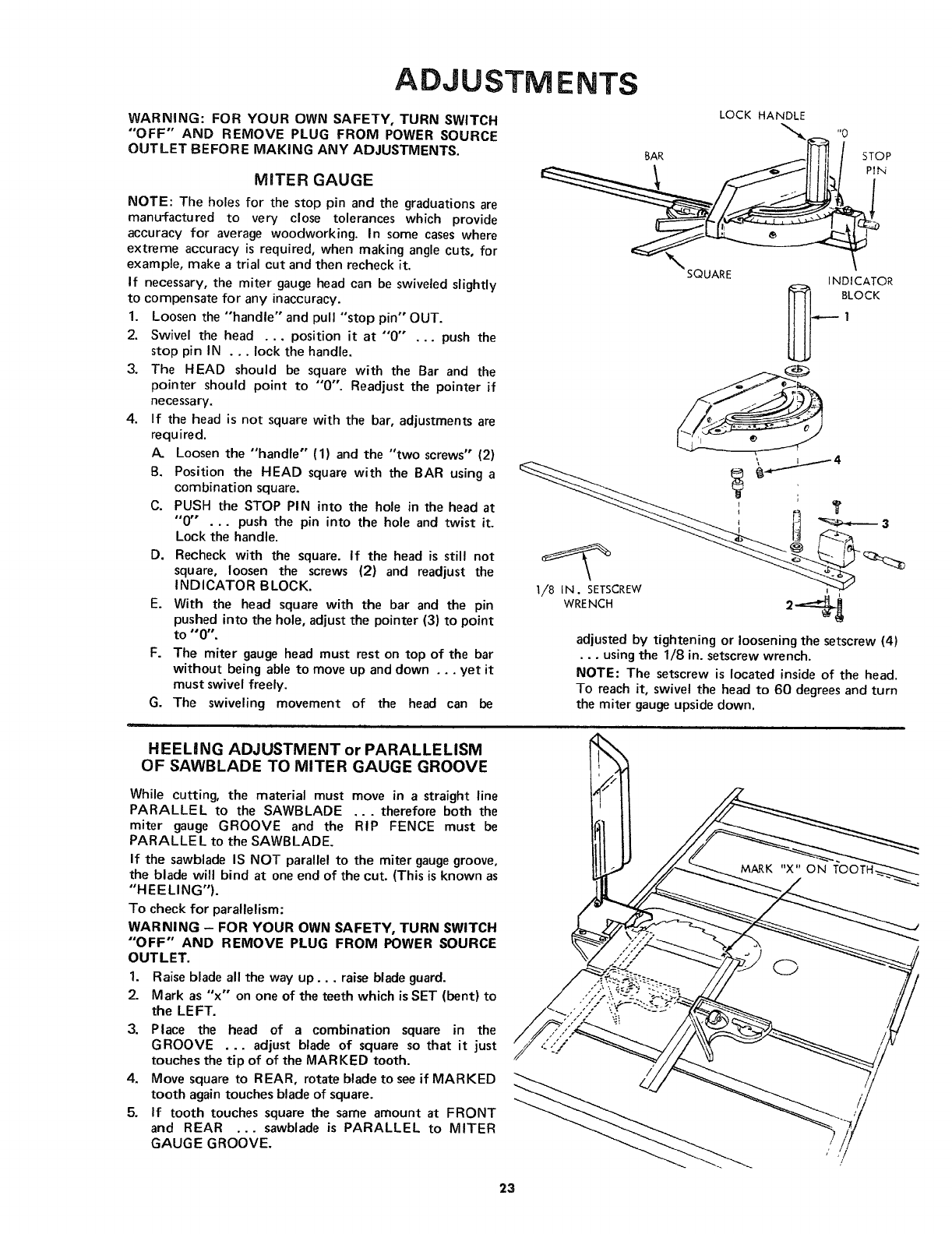

ADJUSTMENTS
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET BEFORE MAKING ANY ADJUSTMENTS•
MITER GAUGE
NOTE: The holes for the stop pin and the graduations are
manu-_actured to very close tolerances which provide
accuracy for average woodworking• In some cases where
extreme accuracy is required, when making angle cuts, for
example, make a trial cut and then recheck it.
If necessary, the miter gauge head can be swiveled slightly
to compensate for any inaccuracy•
1. Loosen the "handle" and pull "stop pin" OUT.
2. Swivel the head ... position it at "'0"" ..• push the
stop pin IN . . •lock the handle•
3• The HEAD should be square with the Bar and the
pointer should point to "0". Readjust the pointer if
necessary•
4. If the head is not square with the bar, adjustments are
required.
A. Loosen the "handle" (1) and the "two screws" (2)
B. Position the HEAD square with the BAR using a
combination square.
C. PUSH the STOP PIN into the hole in the head at
"0'" ... push the pin into the hole and twist it.
Lock the handle.
D. Recheck with the square• If the head is still not
square, loosen the screws (2) and readjust the
INDICATOR BLOCK.
E. With the head square with the bar and the pin
pushed into the hole, adjust the pointer (3) to point
to "0".
F. The miter gauge head must rest on top of the bar
without being able to move up and down . •. yet it
must swivel freely.
G. The swiveling movement of the head can be
LOCK HANDLE
"_ "0
BAR STOP
SQUARE INDICATOR
_ BLOCK
-_--- 1
..</ _,
g
WRENCH 2-_ '
adjusted by tightening or loosening the setscrew (4)
•.. usingthe 1/8 in. setscrew wrench.
NOTE: The setscrew is located inside of the head.
To reach it, swivel the head to 60 degreesand turn
the miter gauge upside down.
HEEUNG ADJUSTMENT or PARALLELISM
OF SAWBLADE TO MITER GAUGE GROOVE
While cutting, the material must move in a straight line
PARALLEL to the SAWBLADE .. therefore both the
miter gauge GROOVE and the RIP FENCE must be
PARALLEL to the SAWBLADE.
If the sawblade IS NOT parallel to the miter gaugegroove,
the blade will bind at one end of the cut. (This is known as
"HEELING")•
To check for parallelism:
WARNING - FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET•
1. Raise blade all the way up... raise blade guard.
2. Mark as "x'" on one of the teeth which is SET (bent) to
the LEFT.
3. Place the head of a combination square in the
GROOVE ... adjust blade of square so that it just
touches the tip of of the MARKED tooth.
4. Move square to REAR, rotate blade to see if MARKED
tooth again touches blade of square.
5. If tooth touches square the same amount at FRONT
and REAR ... sawblade is PARALLEL to MITER
GAUGE GROOVE.
23

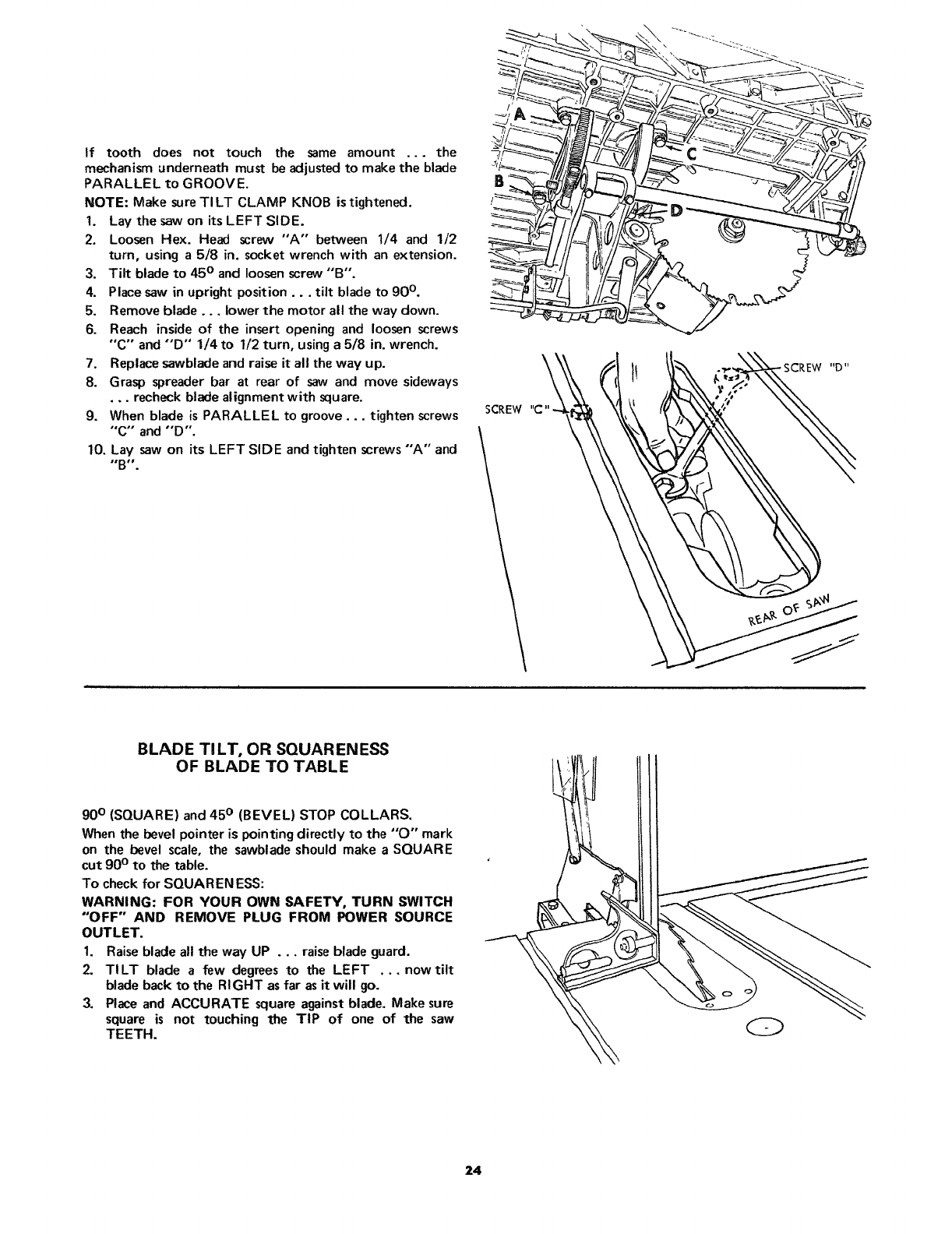

If tooth does not touch the same amount ... the
mechanism underneath must be adjusted to make the blade
PARALLEL to GROOVE.
NOTE: Make sureTILT CLAMP KNOB istightened.
1. Lay the saw on its LEFT SIDE.
2. Loosen Hex. Head screw "A" between 1/4 and 1/2
turn, using a 5/8 in. socket wrench with an extension.
3. Tilt blade to 45 ° and loosen screw "B".
4. Place saw in upright position.., tilt blade to 90 °.
5. Remove blade.., lower the motor all the way down.
6. Reach inside of the insert opening and loosen screws
"C" and "D" 1/4 to 1/2 turn, usinga 5/8 in. wrench.
7. Replace sawblade and raise it all the way up.
8. Grasp spreader bar at rear of saw and move sideways
•.. recheck blade alignment with square.
9. When blade is PARALLEL to groove.., tighten screws
"C'" and "'D".
10. Lay saw on its LEFT SIDE and tighten screws "'A" and
SnB01"
_-<_----.,-__--- _ _,, _._._
\
f
'x_i_(_j.-,_scR_w "D"
BLADE TILT, OR SQUARENESS
OF BLADE TO TABLE
90° (SQUARE) and 45° (BEVEL) STOP COLLARS.
When the bevel pointer is pointing directly to the "O" mark
on the bevel scale, the sawblade should make a SQUARE
cut 90° to the table.
To check for SQUAREN ESS:
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET.
1. Raise blade all the way UP ... raise blade guard.
2. TILT blade a few degrees to the LEFT ... nowtilt
blade back to the RIGHT asfar asit will go.
3. Place and ACCURATE square against blade. Make sure
square is not touching the TIP of one of the saw
TEETH.
24

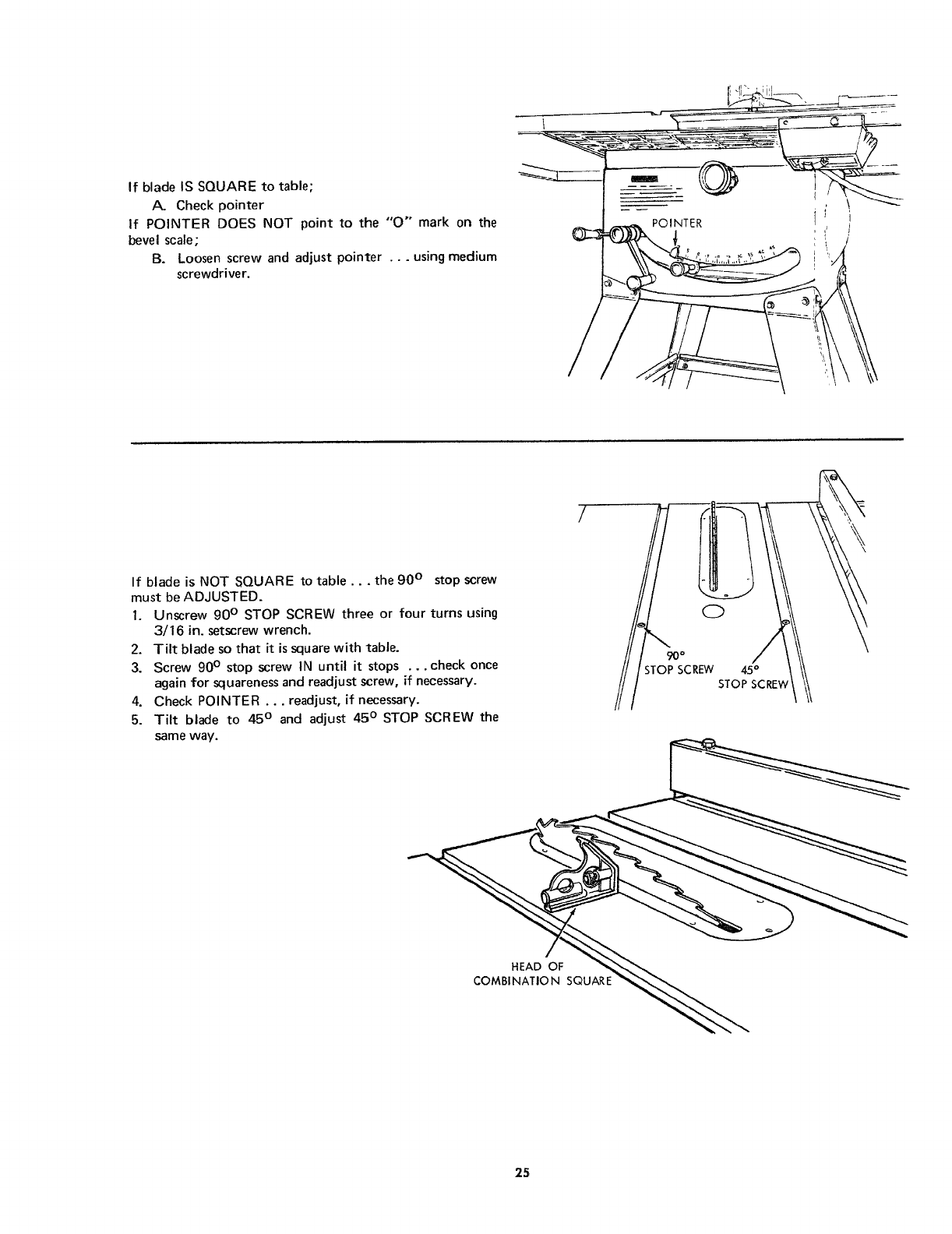

If bladeISSQUAREtotable;
A. Checkpointer
If POINTERDOESNOTpointto the"0" markonthe
bevelscale;
B. Loosenscrewandadjustpointer... usingmedium
screwdriver.
If bladeisNOTSQUAREtotable..,the90° stopscrew
mustbeADJUSTED.
1. Unscrewg0° STOPSCREWthreeor fourturnsusing
3/16in.setscrewwrench.
2. Tilt bladesothatit issquarewithtable.
3. Screw90° stopscrewINuntilit stops... checkonce
againforsquarenessandreadjustscrew,if necessary.
4. CheckPOINTER... readjust, if necessary.
5. Tilt blade to 45 ° and adjust 45 ° STOP SCREW the
same way.
90 °
STOP SCREW 45°
STOP SCREW
HEAD OF
COMBINATION SQUARE
25

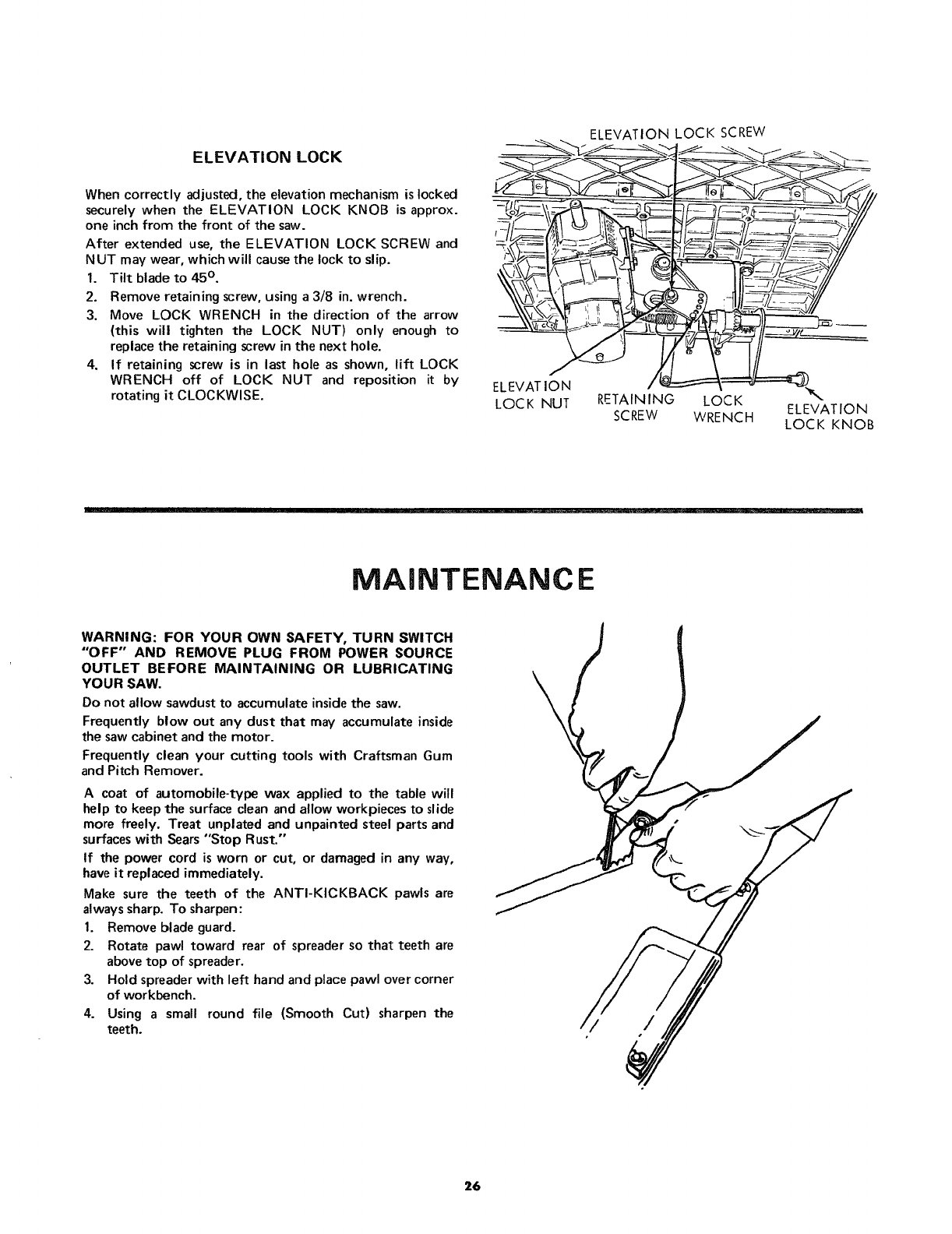

ELEVATION LOCK
When correctly adjusted, the elevation mechanism is locked
securely when the ELEVATION LOCK KNOB is approx.
one inch from the front of the saw.
After extended use, the ELEVATION LOCK SCREW and
NUT may wear, which will cause the lock to slip.
1. Tilt blade to 45 °.
2. Remove retaining screw, using a 3/8 in. wrench.
3. Move LOCK WRENCH in the direction of the arrow
(this will tighten the LOCK NUT) only enough to
replace the retaining screw in the next hole.
4. If retaining screw is in last hole as shown, lift LOCK
WRENCH off of LOCK NUT and reposition it by
rotating it CLOCKWISE. ELEVAT ION
LOCK NUT
ELEVATION LOCK SCREW
RETAINING LOCK
SCREW WRENCH ELEVATION
LOCK KNOB
MAINTENANCE
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET BEFORE MAINTAINING OR LUBRICATING
YOUR SAW.
Do not allow sawdust to accumulate inside the saw.
Frequently blow out any dust that may accumulate inside
the saw cabinet and the motor.
Frequently clean your cutting tools with Craftsman Gum
and Pitch Remover.
Acoat of automobile-type wax applied to the table will
help to keep the surface clean and allow workpieces to slide
more freely. Treat unplated and unpainted steel parts and
surfaceswith Sears "Stop Rust."
If the power cord is worn or cut, or damaged in any way,
have it replaced immediately.
Make sure the teeth of the ANTI-KICKBACK pawls are
always sharp. To sharpen:
1. Remove blade guard.
2. Rotate pawl toward rear of spreader so that teeth are
above top of spreader.
3. Hold spreader with left hand and place pawl over corner
of workbench.
4. Using a small round file (Smooth Cut) sharpen the
teeth. /
26

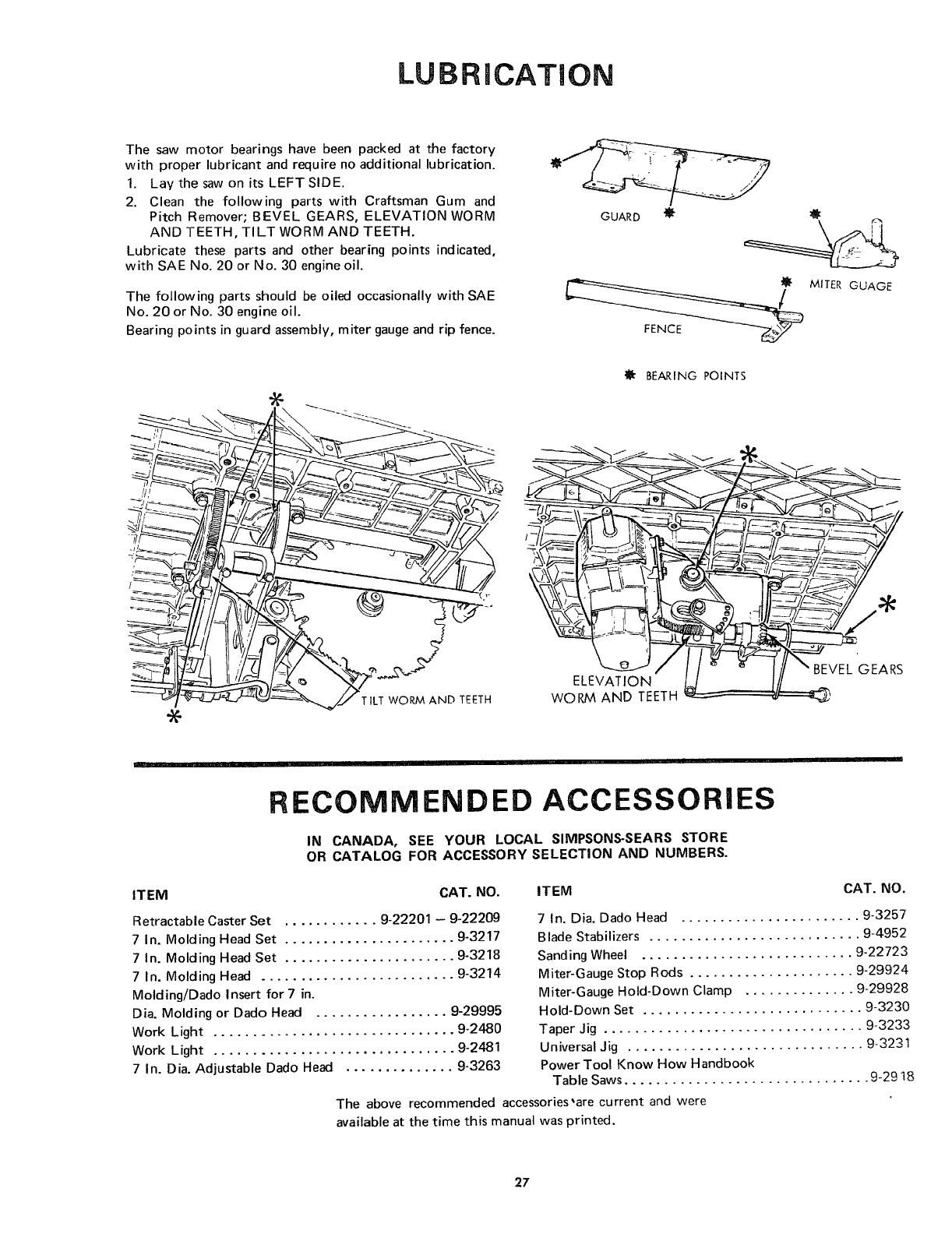

LUBRICATION
The saw motor bearings have been packed at the factory
with proper lubricant and require no additional lubrication.
1. Lay the saw on its LEFT SIDE.
2. Clean the following parts with Craftsman Gum and
Pitch Remover; BEVEL GEARS, ELEVATION WORM
AND TEETH, TILT WORM AND TEETH.
Lubricate these parts and other bearing points indicated,
with SAE No. 20 or No. 30 engine oil.
The following parts should be oiled occasionally with SAE
No. 20 or No. 30 engine oil.
Bearing points in guard assembly, miter gauge and rip fence.
GUARD 'm _:
_ MITER GUAGE
_lk BEARING POINTS
-/ ..... _-_v,'_/ TILT WORM AND TEETH WORM AND TEETH
IIII I
RECOMMENDED ACCESSORIES
IN CANADA, SEE YOUR LOCAL SIMPSONS-SEARS STORE
OR CATALOG FOR ACCESSORY SELECTION AND NUMBERS.
ITEM CAT. NO. ITEM CAT. NO.
Retractable Caster Set ............ 9-22201 -9-22209
7 In. Molding Head Set ...................... 9-3217
7In. Molding Head Set ...................... 9-3218
7 In. Molding Head ......................... 9-3214
Molding/Dedo Insert for 7 in.
Dia. Molding or Dado Head ................. 9-29995
Work Light ............................... 9-2480
Work Light ............................... 9-2481
7 In. Dia. Adjustable Dado Head .............. 9-3263
7 In. Dia. Dado Head ....................... 9-3257
Blade Stabilizers ........................... 9-4952
Sanding Wheel ........................... 9-22723
Miter-Gauge Stop Rods ..................... 9-29924
Miter-Gauge Hold-Down Clamp .............. 9-29928
Hold-Down Set ............................ 9-3230
Taper Jig ................................. 9-3233
Universal Jig .............................. 9-3231
Power Tool Know How Handbook
Table Saws ............................... 9-2918
The above recommended accessories 'are current and were
available at the time this manual was printed.
27

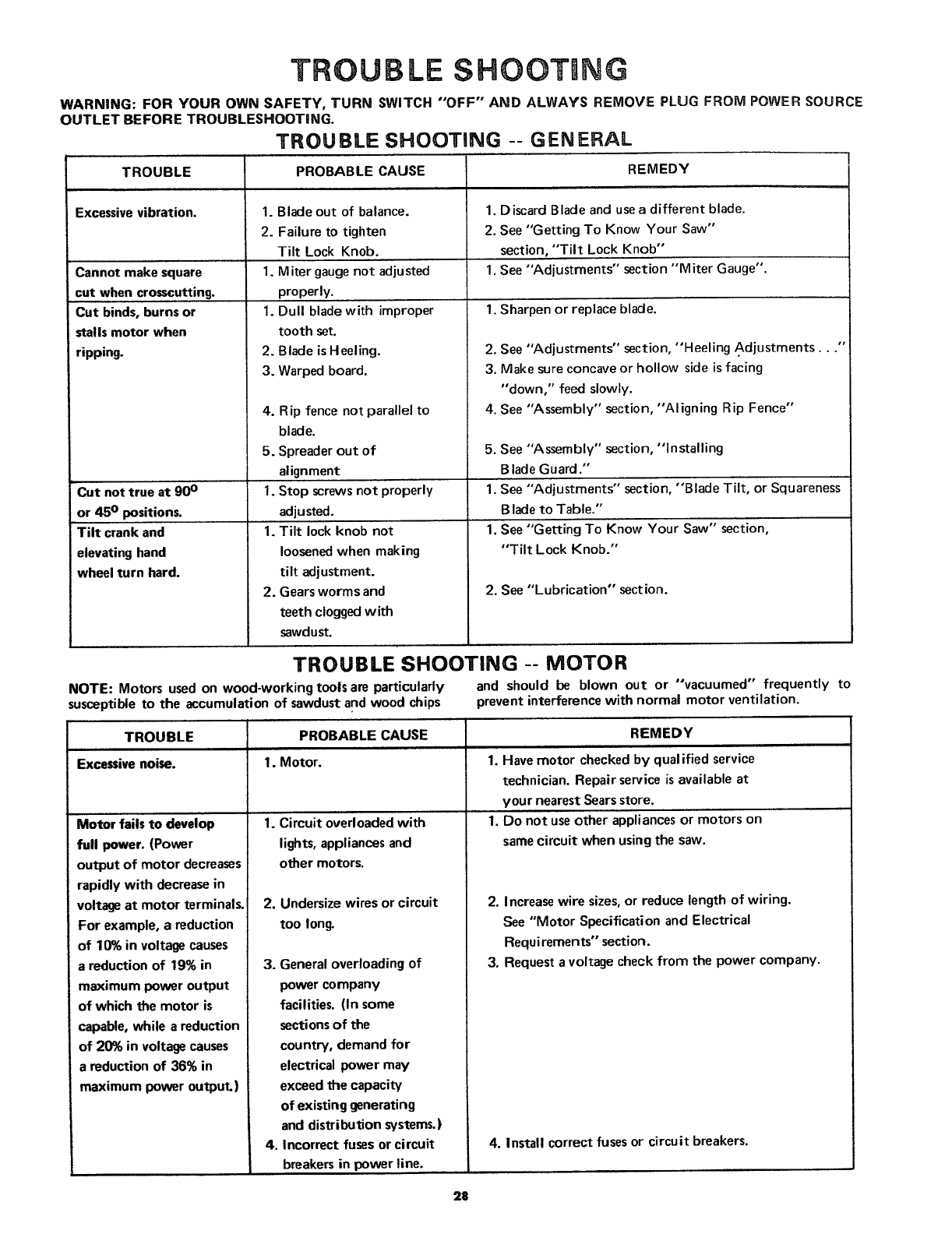

TROUBLE SHOOTING
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH "OFF" AND ALWAYS REMOVE PLUG FROM POWER SOURCE
OUTLET BEFORE TROUBLESHOOTING.
TROUBLE SHOOTING -- GENERAL
TROUBLE PROBABLE CAUSE REMEDY
Excessive vibration. 1. Discard Blade and usea different blade.
2. See "Getting To Know Your Saw"
section, "Tilt Lock Knob"
1. See "Adjustments" section "Miter Gauge".
1. Sharpen or replace blade.
Cannot make square
cut when crosscutting.
Cut binds, burns or
stalls motor when
ripping.
•Cut not true at 90°
or 45 ° positions.
"Tilt crank and
elevating hand
wheel turn hard.
1. Blade out of balance.
2. Failure to tighten
Tilt Lock Knob.
1. Miter gauge not adjusted
properly.
1. Dull blade with improper
tooth set.
2. Blade is Heeling.
3. Warped board.
4. Rip fence not parallel to
blade.
5. Spreader out of
alignment
1. Stop screws not properly
adjusted.
1. Tilt lock knob not
loosened when making
tilt adjustment.
2. Gears worms and
teeth clogged with
sawdust.
2. See "Adjustments" section, "Heeling Adjustments..."
3. Make sure concave or hollow side is facing
"down," feed slowly.
4. See "Assembly" section, "Aligning Rip Fence"
5. See "Assembly" section, "Installing
BladeGuard."
1. See "Adjustments" section, "Blade Tilt, or Squareness
Blade to Table."
1. See "Getting To Know Your Saw" section,
"Tilt Lock Knob."
2. See "Lubrication" section.
TROUBLE SHOOTING -- MOTOR
NOTE: Motors used on wood-working tools are particularly
susceptible to the accumulation of sawdust and wood chips
and should be blown out or "vacuumed" frequently to
prevent interference with normal motor ventilation.
TROUBLE PROBABLE CAUSE REMEDY
Excessive noise. 1. Motor. 1. Have motor checked by qualified service
technician. Repair service is available at
your nearest Sears store.
1. 1. Do not use other appliances or motors on
same circuit when using the saw.
Motor fails to develop
full power. (Power
output of motor decreases
rapidly with decrease in
voltage at motor terminals.
For example, a reduction
of 10% in voltage causes
a reduction of 19% in
maximum power output
of which the motor is
capable, while a reduction
of 20% in voltage causes
a reduction of 36% in
maximum power output.)
Circuit overloaded with
lights, appliances and
other motors.
Undersize wires or circuit
too lon_
2.
3. General overloading of
power company
facilities. (In some
sections of the
country, demand for
electrical power may
exceed the capacity
of existing generating
and distribution systems.)
4. Incorrect fusesor circuit
breakers in power line.
2. Increase wire sizes, or reduce length of wiring.
See "Motor Specification and Electrical
Requirements" section.
3. Request a voltage check from the power company.
4. Install correct fuses or circuit breakers.
28

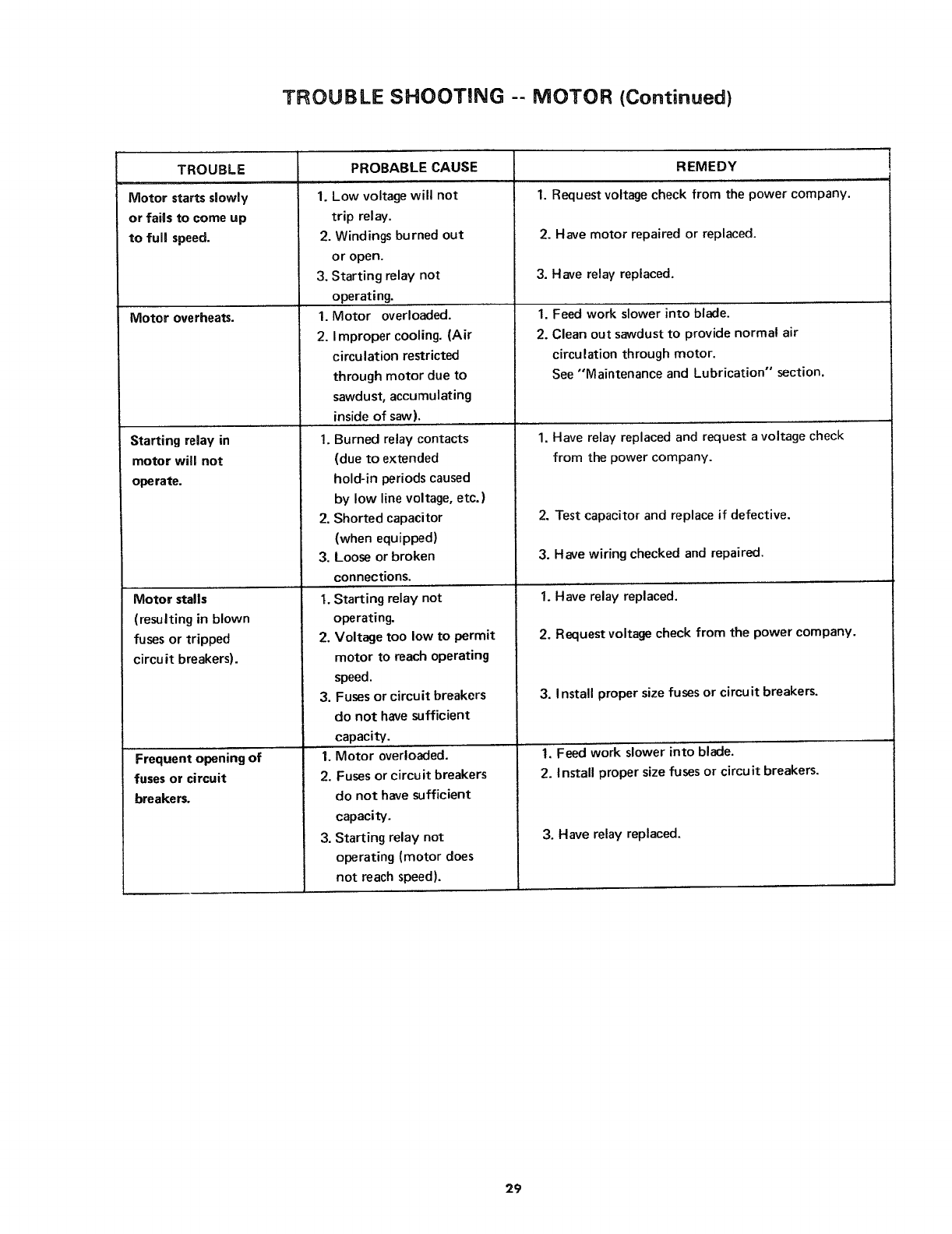

TROUBLE SHOOTING -- MOTOR (Continued)
TROUBLE PROBABLE CAUSE
Motor starts slowly
or fails to come up
to full speed.
Motor overheats.
Starting relay in
motor will not
operate.
Motor stalls
(resulting in blown
fuses or tripped
circu it breakers).
Frequent opening of
fusesor circuit
breakers.
1. Low voltage will not
trip relay.
2. Windings burned out
or open.
3. Starting relay not
operating.
1. Motor overloaded.
2. Improper cooling. (Air
circulation restricted
through motor due to
sawdust, accumulating
inside of saw).
1. Burned relay contacts
(due to extended
hold-in periodscaused
by low line voltage, etc.)
2. Shorted capacitor
(when equipped)
3. Loose or broken
connections.
I. Starting relay not
operating.
2. Voltage too low to permit
motor to reach operating
speed.
3. Fusesor circuit breakers
do not have sufficient
capacity.
1. Motor overloaded.
2. Fusesor circuit breakers
do not have sufficient
capacity.
3. Starting relay not
operating (motor does
not reach speed).
REMEDY
1. Request voltage check from the power company.
2. Have motor repaired or replaced.
3. Have relay replaced.
1. Feed work slower into blade.
2. Clean out sawdust to provide normal air
circulation through motor.
See "Maintenance and Lubrication" section.
1. Have relay replaced and request a voltage check
from the power company.
2. Test capacitor and replace if defective.
3. Have wiring checked and repaired.
1. Have relay replaced.
2. Request voltage check from the power company.
3. Install proper size fusesor circuit breakers.
1. Feed work slower into blade.
2. Install proper size fuses or circuit breakers.
3. Have relay replaced.
29
PARTS LIST FOR CRAFTSMAN 12-INCH MOTORIZED TABLE SAW
MODEL NUMBER 113.24181
7
1I
FIGURE 3 - 62581 FENCE ASSEMBLY
Key Part
No. No.
m
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
62581
62524
STD 551031
62534
60049
62527
423350
62582
STD611005
62528
62529
62531
62583
62533
STD 551210
62532
STD 600805
Description
Fence Assembly, Rip
Handle
*Washer, 21/64 I.D.
Indicator, Fence
*Screw, Pan Hd. Type "T" 4-40 x 3/16
Head, Fence
Screw, Sems 3/_16 x1/2
Channel, Fence
*Screw, Pan Hd. Type "A" No. 10x 1/2
Spring, Fence Lock
Lock, Rear Fence
Roller, Rear Fence
Rod, Fence Lock
Spring, Head Alignment
*Lockwasher, External No. 10
Pad, Alignment
*Screw, Pan Hd. Ty '_" 8-32 x 1/2
Standard Hardware Item -May be Purchased Locally.
34

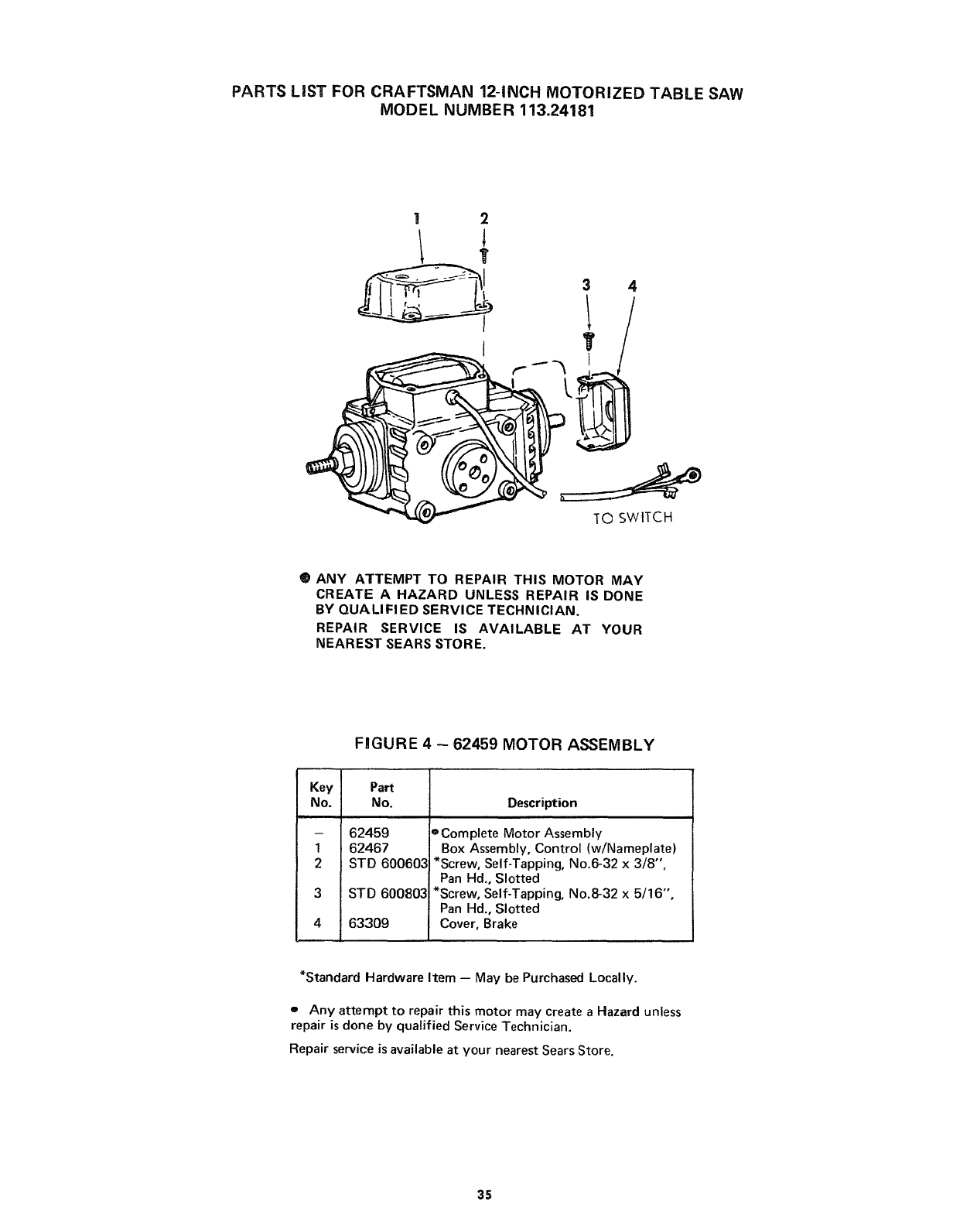

PARTS LIST FOR (;RAFTSMAN 12-INCH MOTORIZED TABLE SAW
MODEL NUMBER 113.24181
3 4
TO SWITCH
®ANY ATTEMPT TO REPAIR THIS MOTOR MAY
CREATE A HAZARD UNLESS REPAIR IS DONE
BY QUALI FlED SERVICE TECHNICIAN.
REPAIR SERVICE IS AVAILABLE AT YOUR
NEAREST SEARS STORE.
FIGURE 4 -62459 MOTOR ASSEMBLY
Key Part
No. No. Description
.i i
1
2
62459
62467
STD 600603
STD 600803
63309
® Complete Motor Assembly
Box Assembly, Control (w/Nameplate)
*Screw, Self-Tapping, No.6-32 x 3/8",
Pan Hd., Slotted
*Screw, Self-Tapping, No.8-32 x 5/16",
Pan Hd., Slotted
Cover, Brake
*Standard Hardware Item -- May be Purchased Locally.
e Any attempt to repair this motor may create a Hazard unless
repair is done by qualified Service Technician.
Repair service is available at your nearest Sears Store.
35
PARTS LiST FOR CRAFTSMAN 12-iNCH MOTORIZED TABLE SAW
MODEL NUMBER 113.24181
I
_ _--- 7
9--------_ _-J"_--'--" 8
13
I TO MOTOR_
12 11
9
3
4
5
SEE WIRING DIAGRAM, PAGE 5
FIGURE 5 -- SWITCH ASSEMBLY (DOMESTIC)
Key
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
Part
No.
62466
STD 601103
STD 551210i
STD 541110
62500
37838
60287
60256
STD 611005
37818
62613
60267
63467
Description
Bracket, Housing
Screw, Type 23, 10-32 x 3/8",
Pan Hd.
Lockwasher, External No. 10
Nut, Hex., 10-32 x 3/8x 1/8"
Box, Switch
Washer, 5/8 x 7/8 x1/64"
Screw, Nylon, 6-32 x 5/16"
Key
Screw, Type B No. 10 x1/2"
Relief, Strain
Cord with Plug
Switch
Cap, Insulator
*Standard Hardware Item -- May be Purchased Locally.
FIGURE 5- SWITCH ASSEMBLY (CANADA)
Key Part
No. No. Description
162466
2 STD 601103
3STD 551210
4 STD 541110
5 60291
6 60317
7 37838
8 STD 510605
9 60256
10 STD 611005
11 37818
12 62613
13 67023
14 60267
15 63467
Bracket, Housing
Screw, Type 23, 10-32 x 3/8",
Pan Hd.
Lockwasher, External No. 10
Nut, Hex., 10-32 x 3/8 x 1/8"
Box, Switch
Washer, 21/32 x1x1/64"
Washer, 5/8 x 7/8 x 1/64"
Screw, Pan Hd. 6-32 x 7/16"
Key
Screw, Type B No. 10 x 1/2"
Relief, Strain
Cord with Plug
Relief, Strain
Switch
Cap, Insulator
*Standard Hardware Item - May be Purchased Locally.
36

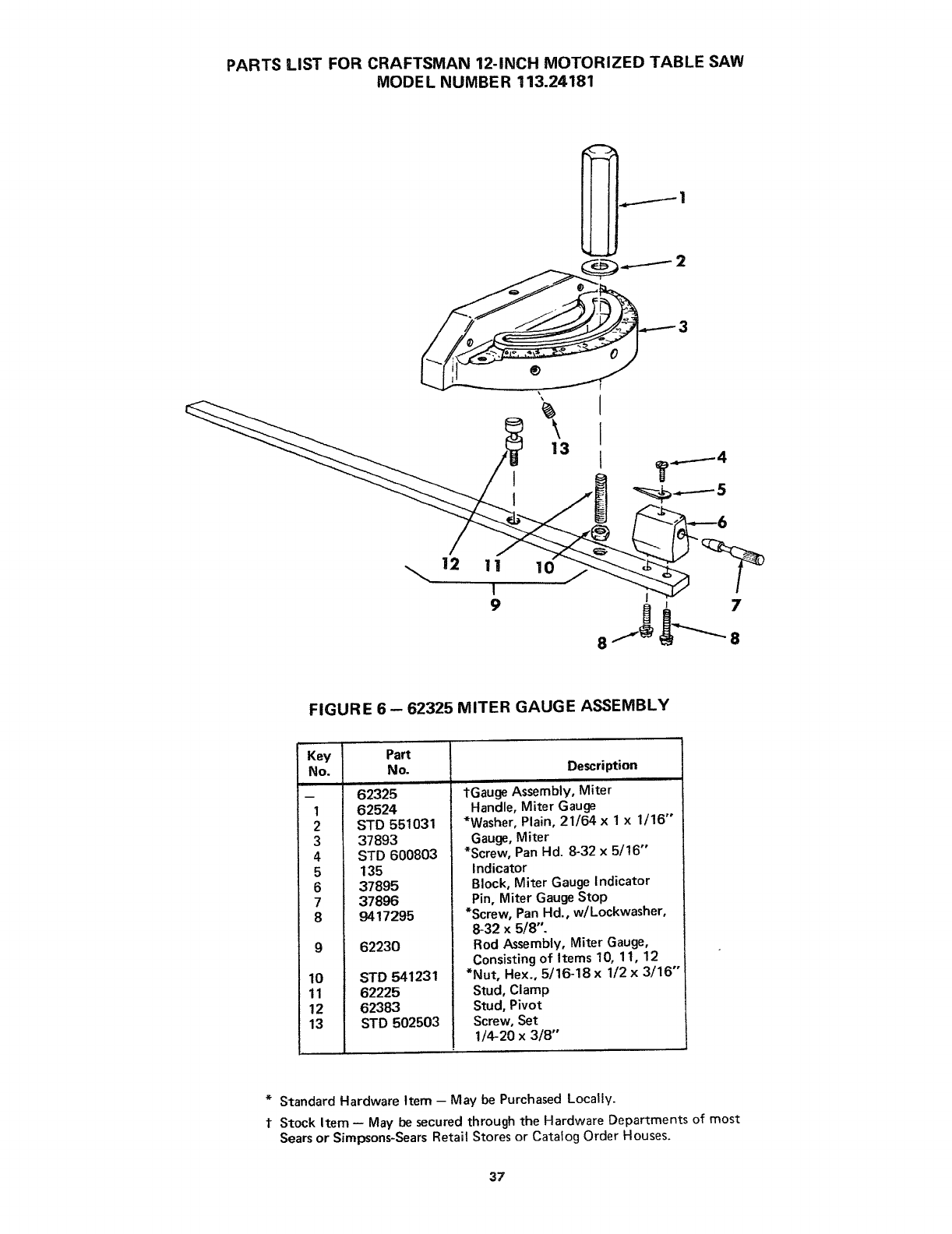

PARTS LIST FOR CRAFTSMAN 12-INCH MOTORIZED TABLE SAW
MODEL NUMBER 113.24181
8
FIGURE 6- 62325 MITER GAUGE ASSEMBLY
Key Part
No. No.
- 62325
1 62524
2STD 551031
3 37893
_STD 600803
135
6 37895
7 37896
8 9417295
62230
10 STD 541231
11 62225
12 62383
13 STD 502503
Description
i
tGauge Assembly, Miter
Handle, Miter Gauge
*Washer, Plain, 21/64 x 1 x 1/16"
Gauge, Miter
*Screw, Pan Hd. 8-32 x 5/16"
Indicator
Block, Miter Gauge Indicator
Pin, Miter Gauge Stop
*Screw, Pan Hd., w/Lockwasher,
8-32 x 5/8".
Rod Assembly, Miter Gauge,
Consisting of Items 10, 11, 12
*Nut, Hex., 5/16-18 x 1/2 x 3/16"
Stud, Clamp
Stud, Pivot
Screw, Set
1/4-20 x 3/8"
*Standard Hardware Item - May be Purchased Locally.
t Stock Item -- May be secured through the Hardware Departments of most
Searsor Simpsons-Sears Retail Stores or Catalog Order Houses.
37

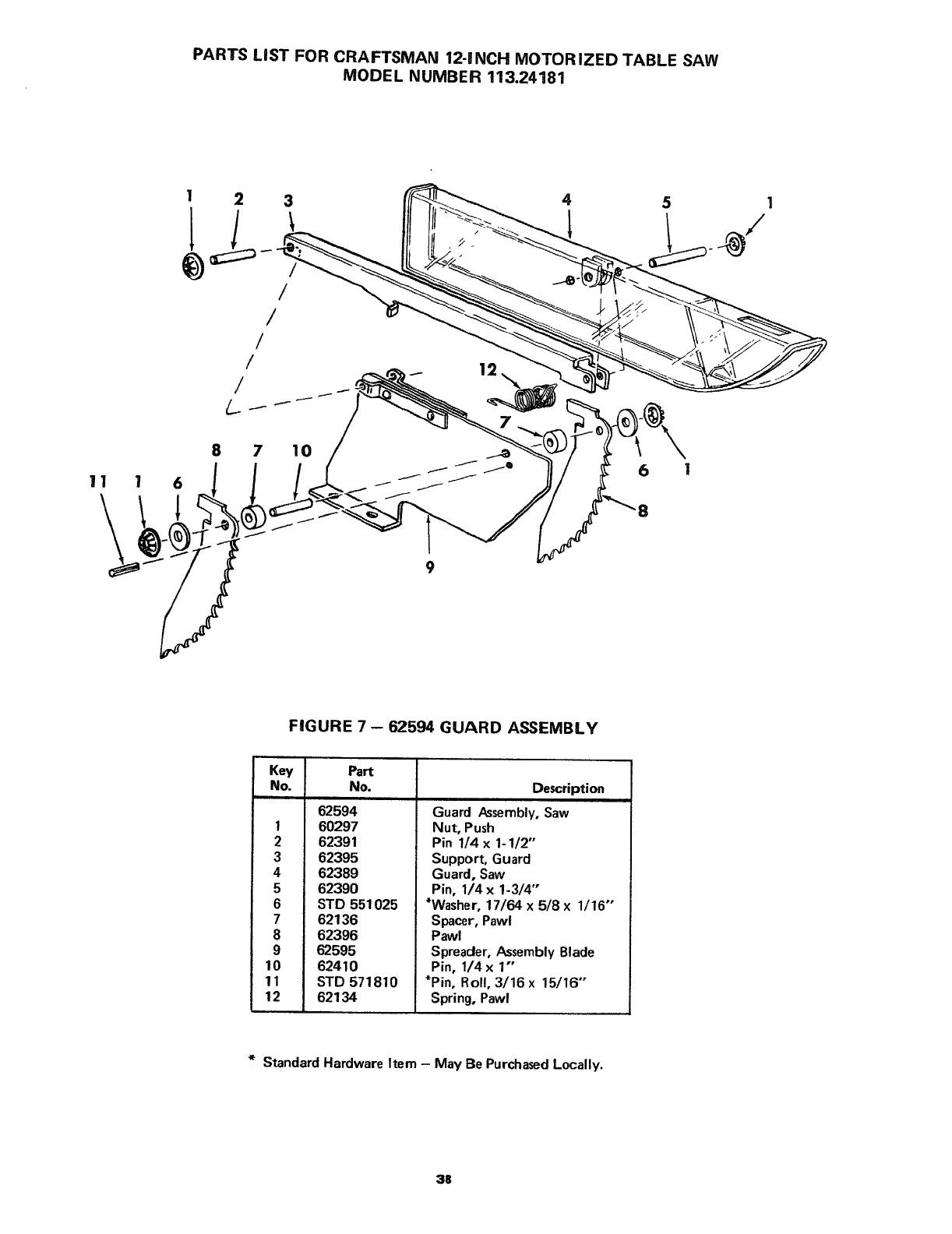

PARTS LIST FOR CRAFTSMAN 12-! NCH MOTORIZED TABLE SAW
MODEL NUMBER 113.24181
123
/
/
/
/
/
LI
12
5 |
8 7
9
6
FIGURE 7 -- 62594 GUARD ASSEMBLY
Key
No. Description
1
2
5
10
11
12
Part
No.
62594
60297
62391
62395
62389
62390
STD 551025
62136
62396
62595
62410
STD 571810
62134
Guard Assembly, Saw
Nut, Push
Pin 1/4 x 1-1/2'"
Support, Guard
Guard, Saw
Pin, 1/4 x 1-3/4"
*Washer, 17/64 x 5/8 x 1/16"
Spacer, Pawl
Pawl
Spreader, Assembly Blade
Pin, 1/4 x1""
*Pin, Roll, 3/16 x 15/16"
Spring, Pawl
*Standard Hardware Item - May Be Purchased Locally.
38

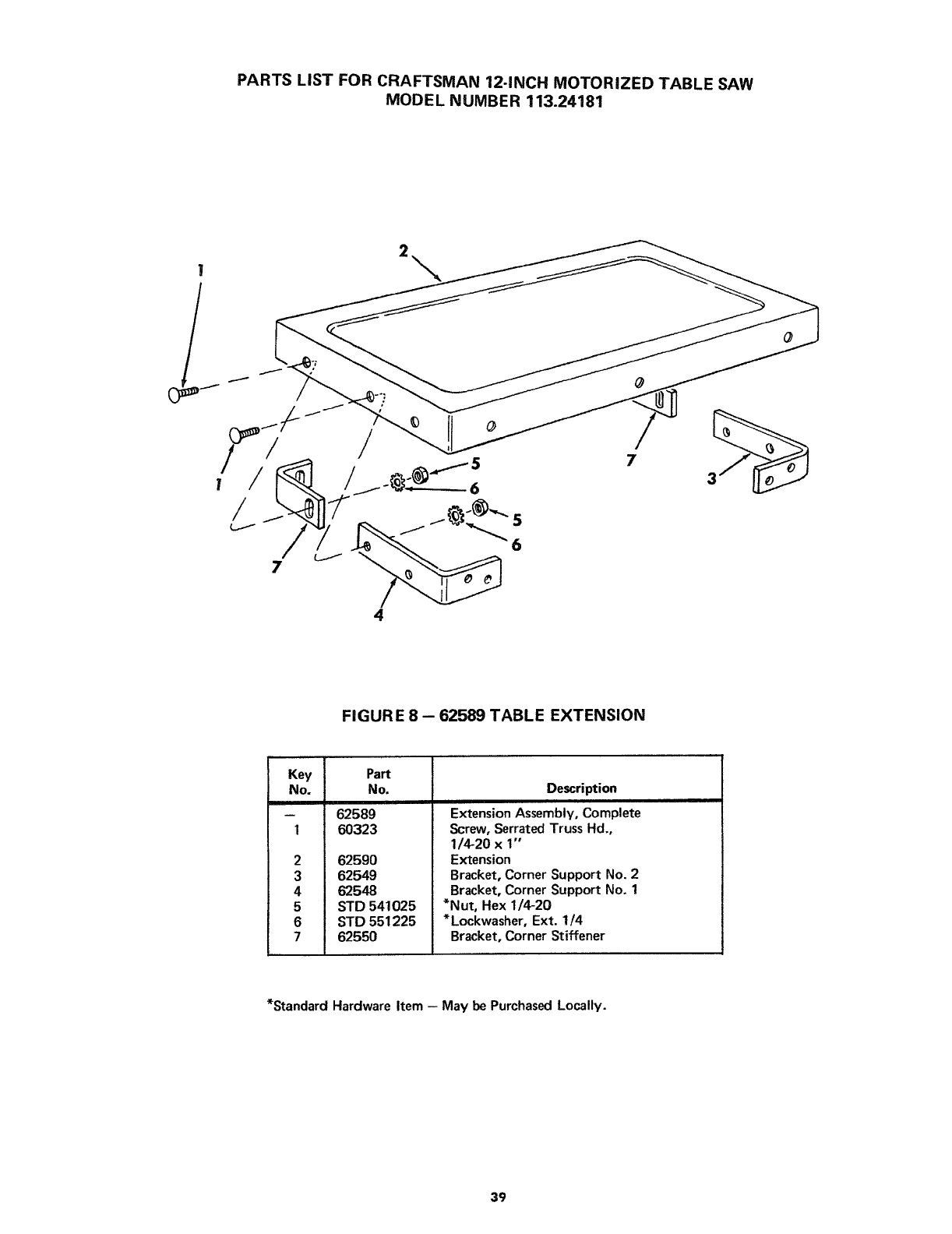

PARTS LIST FOR CRAFTSMAN 12-INCH MOTORIZED TABLE SAW
MODEL NUMBER 113.24181
!
4
7
FIGURE 8 -- 62589 TABLE EXTENSION
Key Part
No. No. Description
-- 62589
160323
2
3
4
5
6
7
62590
62549
62548
STD 541025
STD 551225
62550
Extension Assembly, Complete
Screw, Serrated Truss Hd.,
1/4-20 x1"
Extension
Bracket, Corner Support No. 2
Bracket, Corner Support No. 1
*Nut, Hex 1/4-20
*Lockwasher, Ext. 1/4
Bracket, Corner Stiffener
*Standard Hardware Item - May be Purchased Locally.
39
Sears
SERVICE
MODEL NO.
113.24181
HOW TO ORDER
REPAIR PARTS
12 iNCH MOTORIZED
TAB LE SAW
Now that you have purchased your 12-inch table saw, should a
need ever exist for repair parts or service, simply contact any
Sears Service Center and most Sears, Roebuck and Co. stores.
Be sure to provide all pertinent facts when you call or visit.
The model number of your 12-inch table saw will be found on a
plate attached to your saw, at the rear of the base.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION"
PART NUMBER PART DESCRIPTION
MODEL NUMBER
113.24181
NAME OF ITEM
12-INCH TABLE SAW
All parts listed may be ordered from any Sears Service Center
and most Sears stores. If the parts you need are not stocked
locally, your order will be electronically transmitted to a Sears
Repair Parts Distribution Center for handling.
Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.
Part No. 62597 Form No. SP4148-4 Printed in U.S.A. 4;77

Navigation menu
