MODEL NO.

113.24350

CAUTION:

Read GENERAL and

ADDITIONAL SAFETY

INSTRUCTIONS

carefully

// it

CRRFTSMRN

12-INCH BAND SAW/

SANDER

assembly

operating

repair parts

Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.

and SIMPSONS-SEARS LIMITED, Toronto, Ontario, Canada.

Part No. 69087 Printed In U.S.A,

If, within one year from date of purchase, this Craftsman Band Saw/Sander fails due to a

defect in material or workmanship, we will repair it free of charge.

This warranty service is available by simply contacting any Sears store or Service Center

throughout the United States,

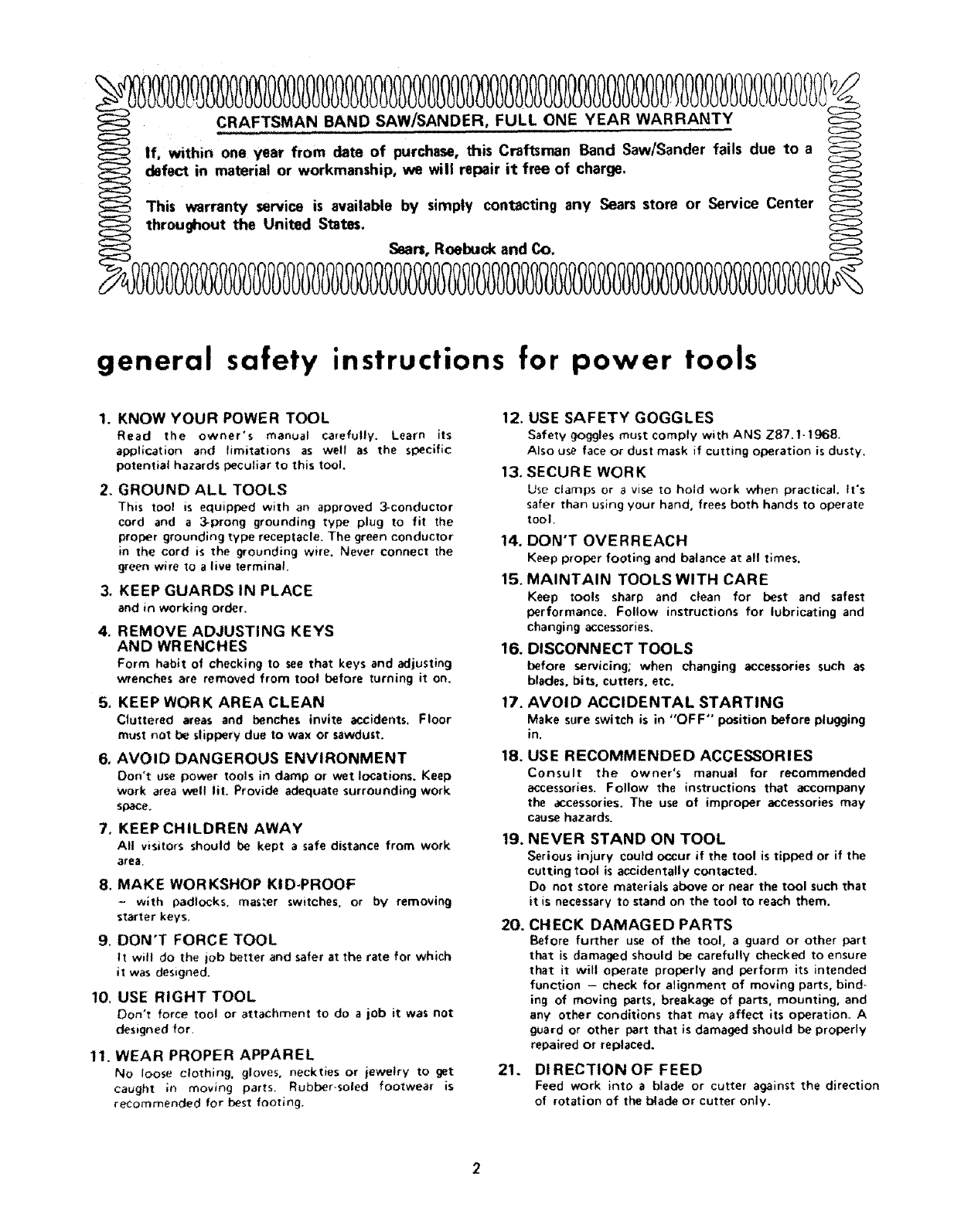

general safety instructions for power tools

1. KNOW YOUR POWER TOOL

Read the owner's manual Carefully. Learn its

application and limitations as well as the specific

potential hazards peculiar to this tool.

2, GROUND ALL TOOLS

This tool is equipped with an approved 3-conductor

cord and a 3-prong grounding type plug to fit the

proper grounding type receptacle. The green conductor

in the cord is the grounding wire. Never connect the

green wire to alive terminal.

3. KEEP GUARDS IN PLACE

and in working order.

4, REMOVE ADJUSTING KEYS

AND WRENCHES

Form habit of checking to see that keys and adjusting

wrenches are removed from tool before turning it on.

5. KEEP WORK AREA CLEAN

Cluttered areas and benches invite accidents. Floor

must not I:)e slippery due to wax or sawdust.

6, AVOID DANGEROUS ENVIRONMENT

Oon°t use power tools in damp or wet locations. Keep

work area well lit, Provide adequate surrounding work

space,

7, KEEP CHILDREN AWAY

All visitors should be kept asafe distance from work

area,

8. MAKE WORKSHOP KID-PROOF

- with padlocks, mas:er switches, or by removing

starter keys.

9. DON'T FORCE TOOL

It will do the job better and safer at the rate for which

it was designed.

10, USE RIGHT TOOL

Don't force tool or attaChment to do a job it was not

designed for.

11. WEAR PROPER APPAREL

No loose clothing, gloves, neckties or jewelry to get

caught in moving parts. Rubber-soled footwear is

recommended for best footing.

12. USE SAFETY GOGGLES

Safety goggles must comply with ANS Z87.1-1968.

Also use face or dust mask if cutting operation is dusty.

13, SECURE WORK

Use clamps or avise to hold work when practical. It's

safer than using your hand, frees both hands to operate

tool.

14. DON'T OVERREACH

Keep proper footing and balance at all times.

15. MAINTAIN TOOLS WITH CARE

Keep tools sharp and clean for best and safest

performance. Follow instructions for lubricating and

changing accessories,

16, DISCONNECT TOOLS

before servicing, when changing accessories such as

blades, bits, cutters, etc.

17. AVOID ACCIDENTAL STARTING

Make sure switch is in "OFF" position before plugging

in.

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended

accessories. Follow the instructions that accompany

the accessories. The use of improper accessories may

cause hazards.

19.

20.

21.

NEVER STAND ON TOOL

Serious injury could occur if the tool is tipped or if the

cutting tool is accidentally contacted.

Do not store materials above or near the tool such that

it is necessary to stand on the tool to reach them.

CHECK DAMAGED PARTS

Before further use of the tool, a guard or other part

that is damaged should be carefully checked to ensure

that it will operate properly and perform its intended

function - check for alignment of moving parts, bind-

ing of moving parts, breakage of parts, mounting, and

any other conditions that may affect its operation. A

guard or other part that is damaged should be properly

repaired or replaced.

DI RECTION OF FEED

Feed work into ablade or cutter against the direction

of rotation of the blade or cutter only.

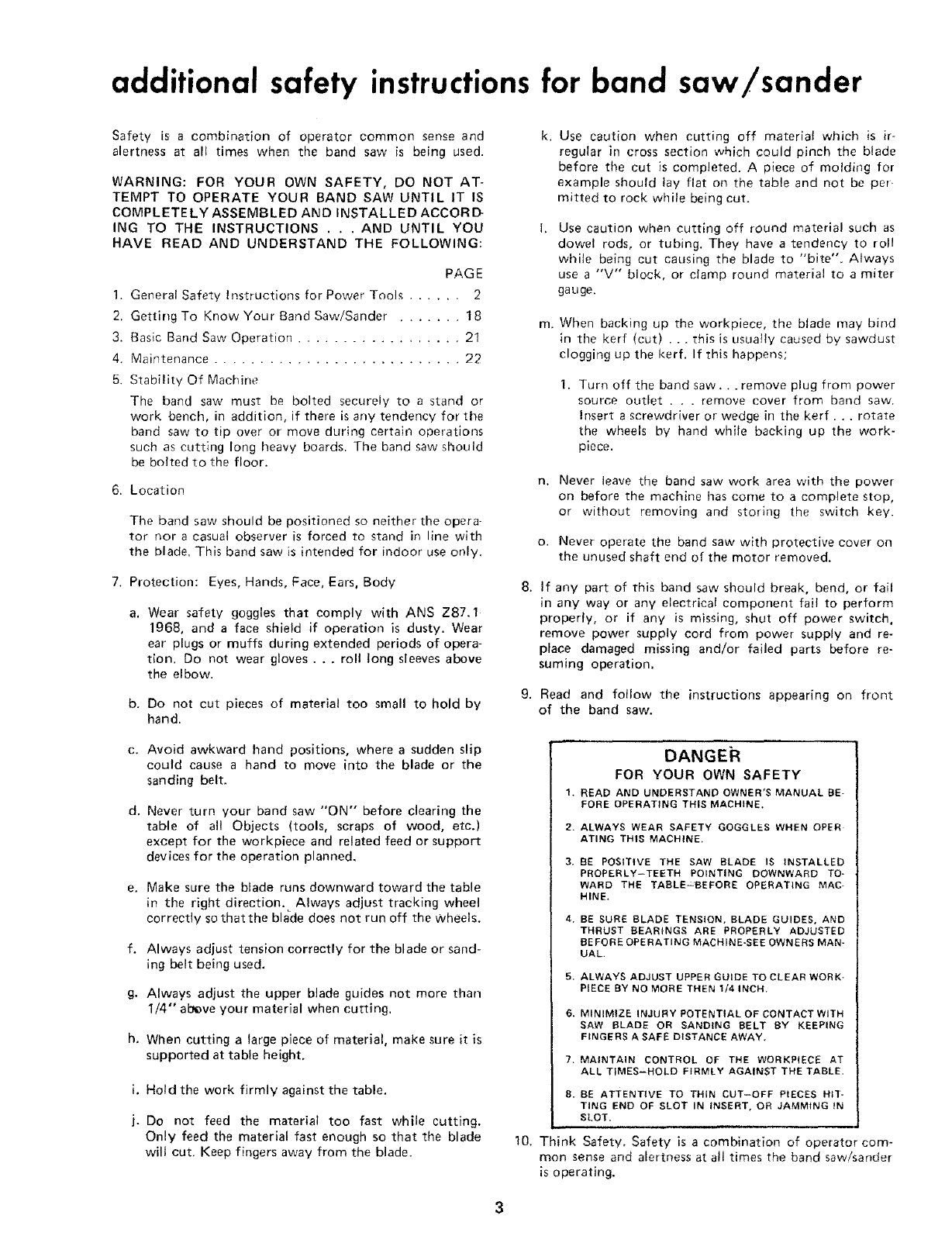

additional safety instructions for band saw/sander

Safety is a combination of operator common sense and

alertness at all times when the band saw is being used.

WARNING: FOR YOUR OWN SAFETY, DO NOT AT-

TEMPT TO OPERATE YOUR BAND SAW UNTIL IT I$

COMPLETELY ASSEMBLED AND INSTALLED ACCORD-

ING TO THE INSTRUCTIONS . . . AND UNTIL YOU

HAVE READ AND UNDERSTAND THE FOLLOWING:

PAGE

1. General Safety Instructions for Power Tools ...... 2

2. Getting To Know Your Band Saw/Sander ....... 18

3. Basic Band Saw Operation .................. 21

4, Maintenance ........................... 22

5. Stability Of Machine

The band saw must be bolted securely to a stand or

work bench, in addition, if there is any tendency for the

band saw to tip over or move during certain operations

such as cutting long heavy boards. The band saw should

be bolted to the floor.

6. Location

The band saw should be positioned so neither the opera-

tor nor a casual observer is forced to stand in line with

the blade. This band saw is intended for indoor use only.

7. Protection: Eyes, Hands, Face, Ears, Body

a. Wear safety goggles that comply with ANS Z87.1

1968, and a face shield if operation is dusty. Wear

ear plugs or muffs during extended periods of opera-

lion. Do not wear gloves. , . roll tong sleeves above

the elbow.

b, Do not cut pieces of material too small to hold by

hand.

c. Avoid awkward hand positions, where a sudden slip

could cause ahand to move into the blade or the

sanding belt.

d. Never turn your band saw "ON" before clearing the

table of all Objects (tools, scraps of wood, etc.)

except for the workpiece and related feed or support

devices for the operation planned.

e, Make sure the blade runs downward toward the table

in the right direction. Always adjust tracking wheel

correctly so that the blade does not run off the wheels.

f. Always adjust tension correctly for the blade or sand-

ing belt being used.

g. Always adjust the upper blade guides not more than

1/4" abeve your material when cutting.

h, When cutting a large piece of material, make sure it is

supported at table height,

i. Hold the work firmly against the table.

j. Do not feed the material too fast while cutting.

Only feed the material fast enough so that the blade

wilt cut. Keep fingers away from the blade.

k. Use caution when cutting off material which is ir-

regular in cross section which could pinch the blade

before the cut is completed. A piece of molding for

example should lay flat on the table and not be per-

mitted to rock while being cut.

Use caution when cutting off round material such as

dowel rods, or tubing. They have a tendency to roll

while being cut causing the blade to "bite", Always

use a "V" block, or clamp round material to a miter

ga u ge.

m. When backing up the workpiece, the blade may bind

in the kerf (cut) . . . this is usually caused by sawdust

clogging up the kerf. If this happens;

1. Turn off the band saw., . remove plug from power

source outlet . .. remove cover from band saw.

Insert a screwdriver or wedge in the kerf.., rotate

the wheels by hand while backing up the work-

piece.

n. Never leave the band saw work area with the power

on before the machine has come to a complete stop,

or without removing and storing the switch key.

o. Never operate the band saw with protective cover on

the unused shaft end of the motor removed.

8. If any part of this band saw should break, bend, or fail

in any way or any electrical component fail to perform

properly, or if any is missing, shut off power switch.

remove power supply cord from power supply and re-

place damaged missing and/or failed parts before re-

suming operation.

9. Read and follow the instructions appearing on front

of the band saw.

DANGER

FOR YOUR OWN SAFETY

1, READ AND UNDERSTANDOWNER'SMANUAL BE-

FORE OPERATING THIS MACHINE.

2. ALWAYS WEAR SAFETY GOGGLES WHEN OPER

ATING THIS MACHINE.

BE POSITIVE THE SAW BLADE IS INSTALLED

PROPERLY-TEETH POINTING DOWNWARD TO-

WARD THE TABLE_BEFORE OPERATING MAC-

HINE.

4. BE SURE BLADE TENSION, BLADE GUIDES, AND

THRUST BEARINGS ARE PROPERLY ADJUSTED

BEFORE OPERATING MACHINE-SEE OWNERS MAN-

UAL.

5. ALWAYS ADJUST UPPER GUIDE TO CLEAR WORK

PIECE BY NO MORE THEN 1/4 INCH.

6. MINIMIZE INJURY POTENTIAL OF CONTACT WITH

SAW BLADE OR SANDING BELT BY KEEPING

FINGERS A SAFE DISTANCE AWAY.

7. MAINTAIN CONTROL OF THE WORKEIECE AT

ALL TIMES-HOLD FIRMLY AGAINST THE TABLE,

8, BE ATTENTIVE TO THIN CUT-OFF PIECES {"I_I-

TING END OF SLOT IN INSERT, OR JAMMING tN

SLOT.

10. Think Safety, Safety is a combination of operator com-

mon sense and alertness at al! times the band saw/sander

is operating.

dditional safety instructions

_r band saw/sander

_RNING: THE 5" BAND SAW PULLEY AND THE

I/2" MOTOR PULLEY FURNISHED, WILL RUN THE

.ADE AT APPROXIMATELY 900 RPM (OR 2700

"ET PER MINUTE) WHEN USED WITH A 1725 RPM

I)TOR. NEVER SUBSTITUTE THESE PULLEYS TO

kCREASE THIS SPEED BECAUSE IT COULD BE DAN-

EROUS.

WARNING: DO NOT ALLOW FAMILIARITY (GAINED

FROM FREQUENT USE OF YOUR BAND SAW) TO

BECOME COMMONPLACE. ALWAYS REMEMBER THAT

ACARELESS FRACTION OF A SECOND IS SUFFI-

CIENT TO INFLICT SEVERE INJURY.

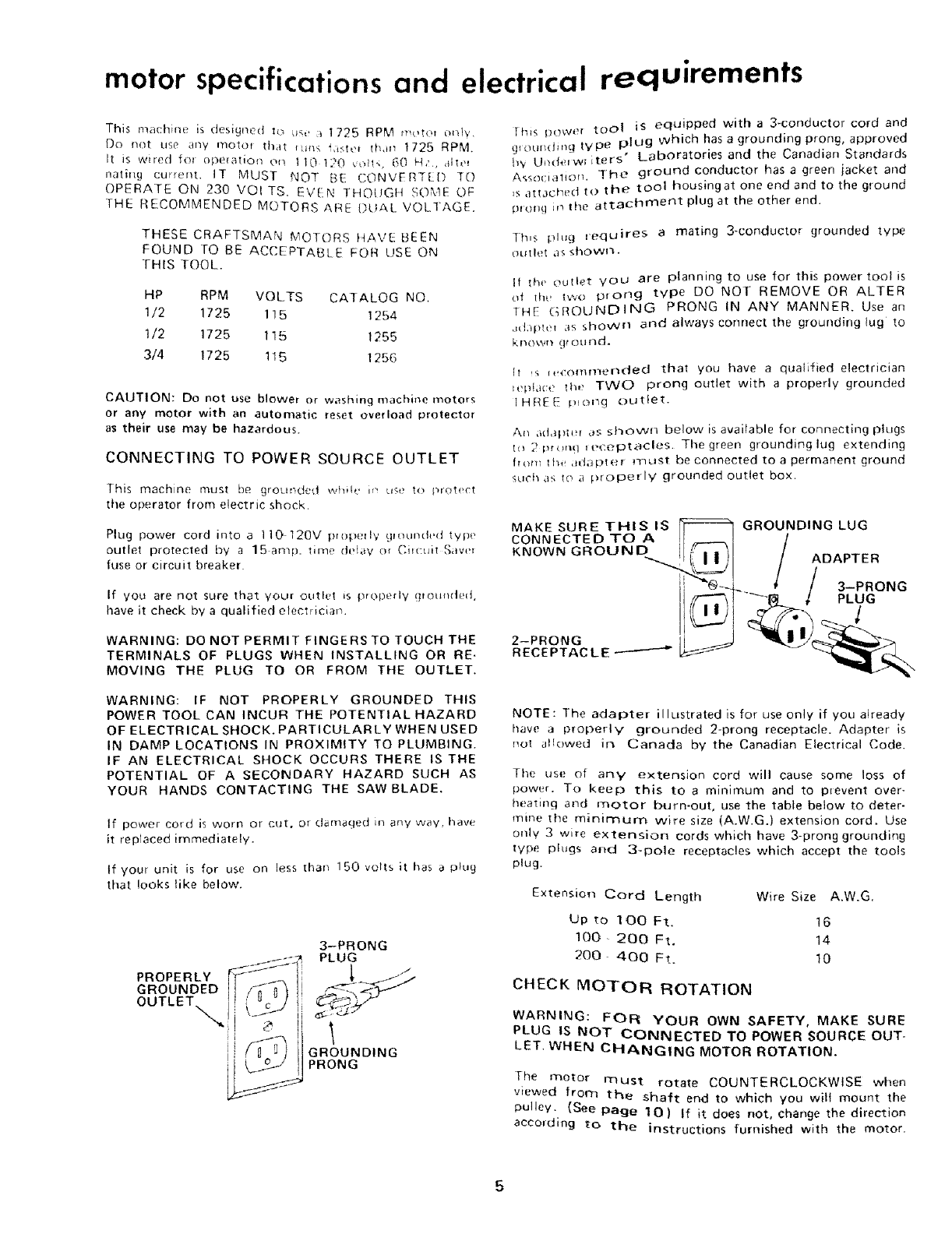

motor specifications and electrical requirements

This machine is designed _o iJq_ _ 1725 RPM m_m;_t on!v

Do not use any motto drlt rLlr_S_J-qet than 1725 RPM.

It is wired for operation o_ I10 t20 toll,, 60 H,_., dt_er

nating current. IT MUST NOT BE CONVEITT_D lO

OPERATE ON 230 VOLTS. EVEN ]'HOUGI_ ,qO_,_E OF

]HE RECOMMENDED MOTORS ARE DUAL VOLTAGE.

THESE CRAFTSMAN MO_rORS t4AVE BEEN

FOUND TO BE ACCEPTABLE FOR USE ON

THIS TOOL.

HP RPM VOLTS CAIALOG NO.

1/2 1725 115 1254

t/2 1725 115 1255

3/4 1725 115 1256

CAUTION: Do not use blower or washing machine motors

or any motor with an automatic reset overload protector

as their use may be hazardous.

CONNECTING TO POWER SOURCE OUTLET

This machine must be g_oL.xJed while in use t( protect

the operator from electric shock.

Plug power cord into a 110 120V propeily _mumh'4 type

outlet protected by a 15 amp. tm]e delay o_ ("_ilcuit Save+

fuse or circuit breaker.

If you are not sure that youl outle! _s {}rope_ly ground(_d,

have it check by a qualified electrician.

WARNING: DO NOT PERMIT FINGERS TO TOUCH THE

TERMINALS OF PLUGS WHEN INSTALLING OR RE-

MOVING THE PLUG TO OR FROM THE OUTLET.

WARNING: IF NOT PROPERLY GROUNDED THIS

POWER TOOL CAN INCUR THE POTENTIAL HAZARD

OF ELECTRICAL SHOCK. PARTICULARLY WHEN USED

IN DAMP LOCATIONS IN PROXIMITY TO PLUMBING.

IF AN ELECTRICAL SHOCK OCCURS THERE IS THE

POTENTIAL OF A SECONDARY HAZARD SUCH AS

YOUR HANDS CONTACTING THE SAW BLADE.

If power cor(J is worn or ctJt, ot damaged m any way, have

it replaced immediately.

If your unit is for use on less than 150 volts it has a pttJg

that looks like below.

PROPERLY

GROUNDED

OUTLET%

3-PRONG

PLUG

I GROUNDING

PRONG

ihis power tool is equipped with a 3-conductor cord and

gtoumimg type plug which has a grounding prong, approved

by Un(f*_fw_ters" Laboratories and the Canadian Standards

Assoc,allon. ]he ground conductor has a green jacket and

_sattached to t he toot housing at one end and to the ground

pmug m!he attachment plug at the other end.

Th_s plug requires a mating 3-conductor grounded type

outlet as showll.

if the' outlet you are planning to use for this power tool is

of tht_ two prong type DO NOT REMOVE OR ALTER

TIqF GROUNDING PRONG IN ANY MANNER. Use an

,,]apte_ as shown and always connect the grounding tug to

kn0wr} t]Iound.

Iv _s _t,{:ommended that you have a qualified electrician

_epia_:_: th_ TVVO prong outlet with a properly grounded

1HREE prong out_et.

An adapte[ as shOWn below is available for connecting plugs

t_ 2pronq _eceptacles. The green grounding lug extending

horn the adapter _'fqLlst be connected to a permanent ground

such as to _ properly grounded outlet box.

MAKE SURE THIS IS _:7 GROUNDING LUG

CONNECTED TO Ik I I

KNOWN GROU N D ADAPTER

2--PRONG I_

RECEPTACLE _ _

NOTE: The adapter illustrated is for use only if you already

hawz a properly grounded 2-prong receptacle. Adapter is

not allowed in Canada by the Canadian Electrical Code.

The use of any extension cord will cause some loss of

power. To keep this to a minirnum and to prevent over-

heating anti motor burn-out, use the table below to deter-

mine the minimum wire size (A.W.G.) extension cord. Use

only 3 wire extension cords which have 3-prong grounding

type plugs and 3-Dote receptacles which accept the tools

plug.

Extension Cord Length Wire Size A.W.G,

Up to 1OO Ft. 16

100. 200 Ft. 14

200 400 Ft. 10

CHECK MOTOR ROTATION

WARNING: FOR YOUR OWN SAFETY, MAKE SURE

PLUG IS NOT CONNECTED TO POWER SOURCE OUT-

LET. WHEN CHANGING MOTOR ROTATION.

i-he motor must rotate COUNTERCLOCKWISE when

viewed from the shaft end to which you wilt mount the

pulley, {See page 10) If it does not, change the direction

according to the instructions furnished with the motor.

unpacking and checking contents

UNPACKING AND CHECKING CONTENTS .....

ASSEMBLY ...........................

Mounting Band Saw/Sander on Recommended

Craftsman Floor Base ................... 7

Installing Sawdust Elbow ................. 7

Installing Table ....................... 8

Motor Pulley Belt Guard and Motor Installation.. 9

Check Motor Rotation .................. 10

Mounting Motor ...................... 10

Attaching Belt Guards ................... 11

Installing The Blade .................... 12

Adjusting The Table .................... 16

On-0ff Switch ........................ 16

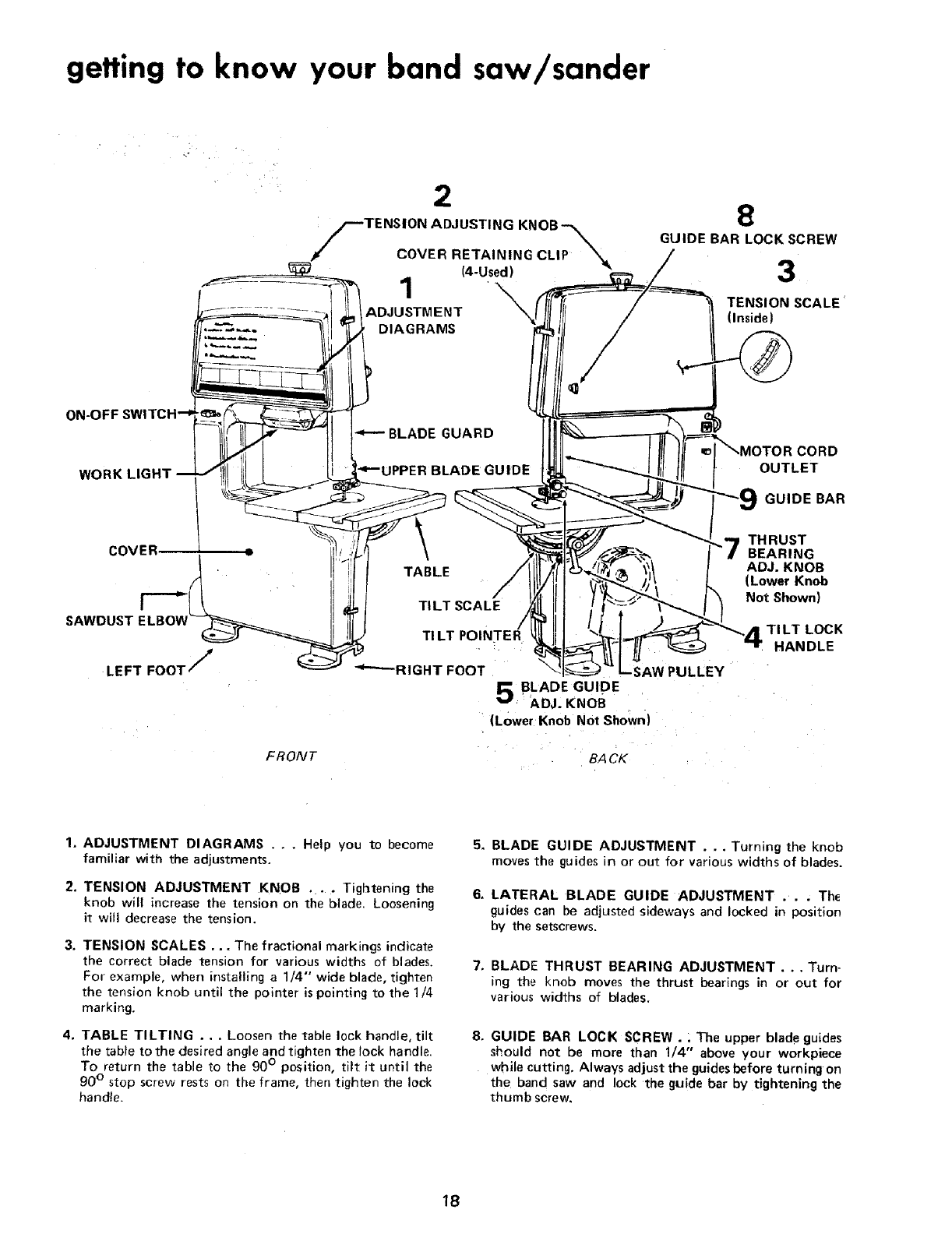

GETTING TO KNOW YOUR BAND

SAW/SANDER ......................... 18

Adjustment Diagrams ................... 18

Tension Adjustment Knob ................ 18

Tension Scales ........................ 18

CONTENTS

Table Tilting ......................... 18

Blade Guide Adjustment ................. 18

Lateral Guide Adjustment ................ 18

Blade Thrust Bearing Adjustment ........... 18

Guide Bar Lock Screw .................. 18

Guide Bar ........................... 19

Installing Sanding Attachment ............. 19

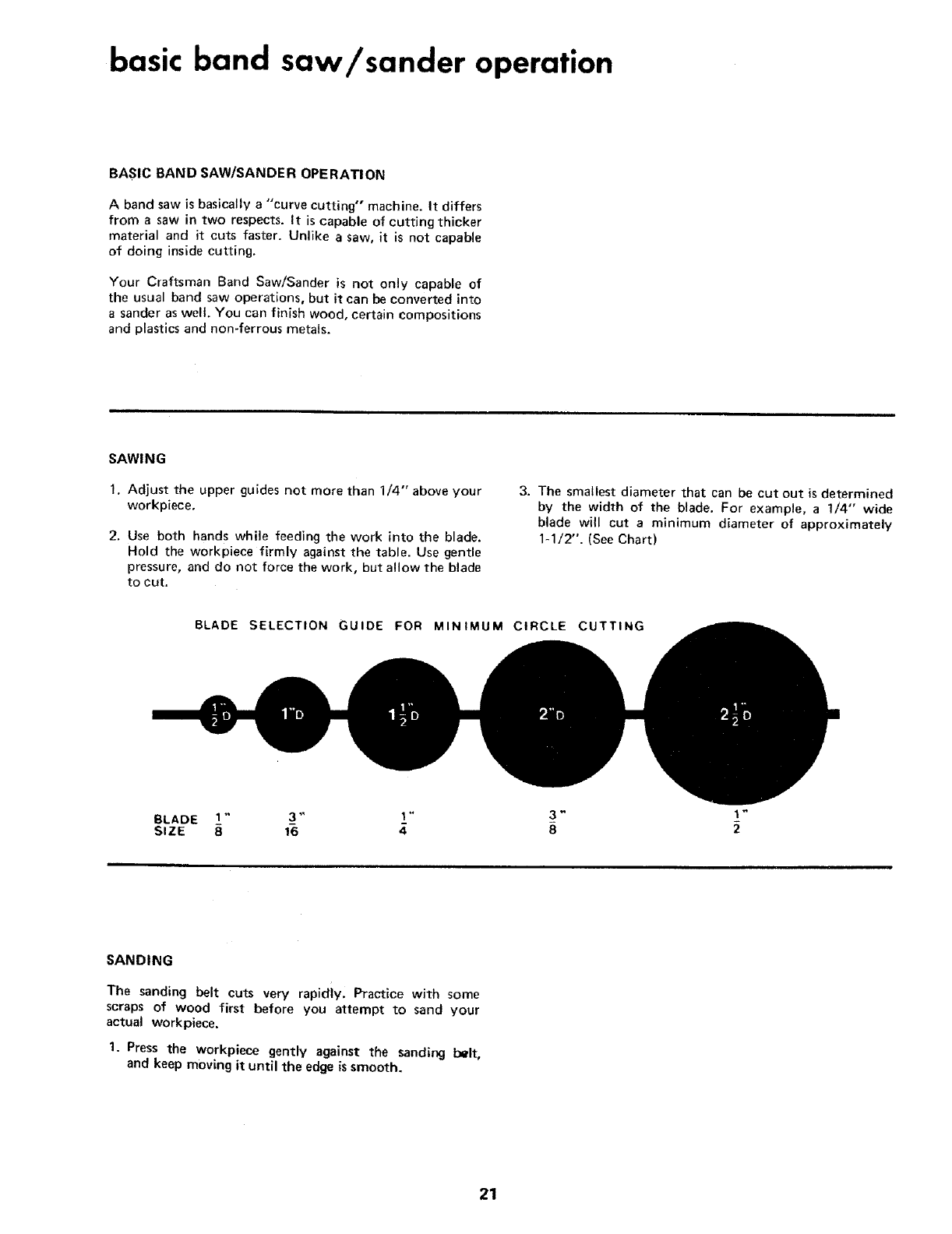

BASIC BAND SAW/SANDER OPERATION ...... 21

Sawing ............................. 21

Sanding ............................ 21

MAINTENANCE ........................ 22

Tires .............................. 22

General ............................ 22

Motor ............................. 22

Lubrication .......................... 22

TROUBLE SHOOTING ................... 23

Recommended Accessories ................ 23

REPAIR PARTS ........................ 24

TOOLS NEEDED

SMALL SCREWDRIVER COMBINATION SQUARE

MEDIUM SCREWDRtVE R 7/16 INCH WRENCH

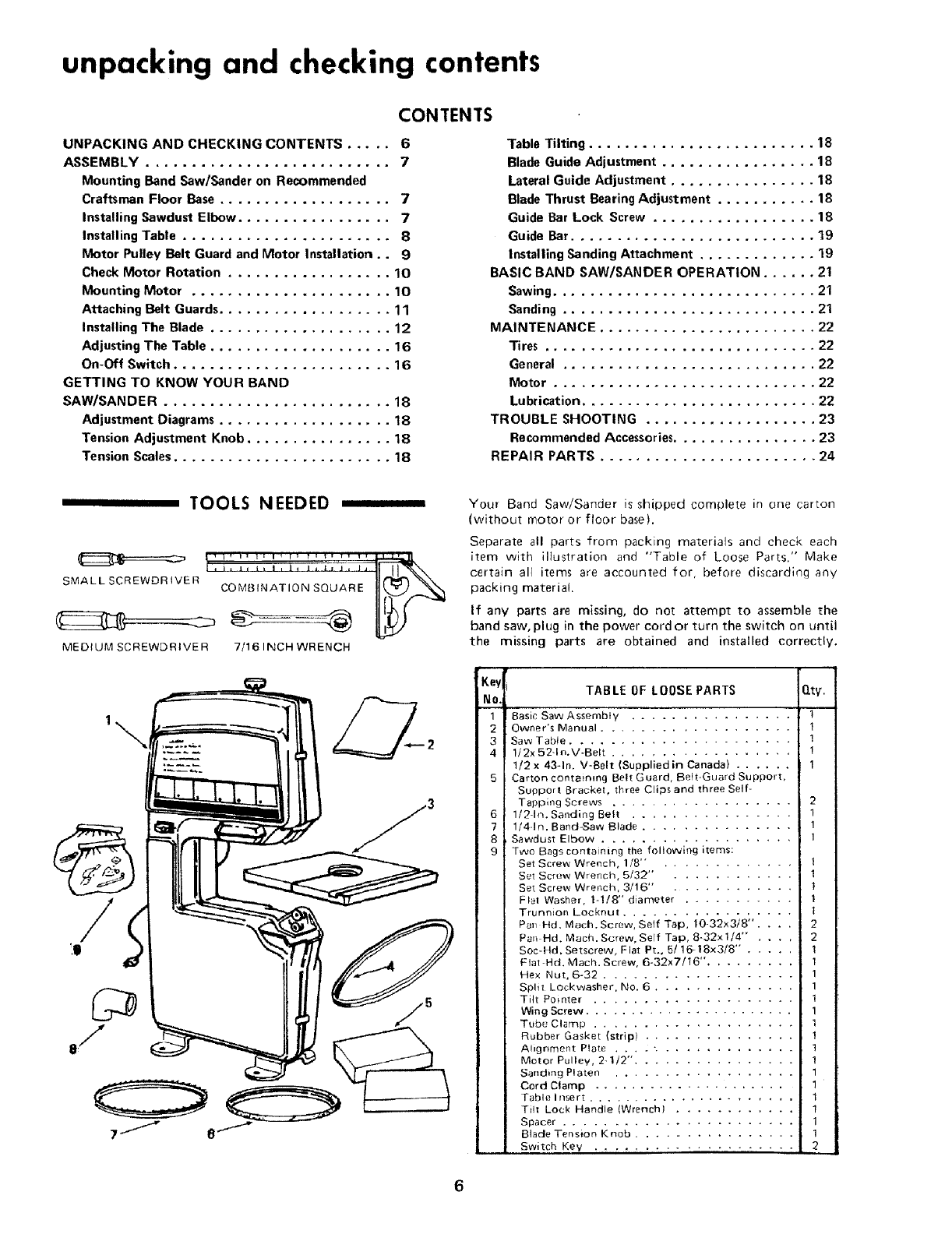

Your Band Saw/Sander is shipped complete in one carton

(without motor or floor base).

Separate all parts from packing materials and check each

item with illustration and "Table of Loose Parts." Make

certain all items are accounted for, before discarding any

packing material.

If any parts are missing, do not attempt to assemble the

band saw, plug in the power cord or turn the switch on until

the missing parts are obtained and installed correctly.

:,..eyj;K] TABLE OF LOOSE PARTS Qty.

No.I

1 Basic Saw Assembly ................. t

2 Owner's Manual 1

3 Saw Table ...................... !

4 1/2x 52-1n.V-Bek .................. !

1/2 x43-1n. V-Belt (Supplied in Canada) ...... 1

5Carton containing Belt Guard, Belt-Guard Support,

Support Bracket, three Clips and three Self

Tapping Screws 2

61/2-h% Sanding Belt 1

7 1/4-1n. Band=Saw Blade ............... 1

8 Sawdust Elbow ................... 1

9 Two Bags containing the following items:

Set Screw Wrench, 1/8" . ............ 1

Set Screw Wrench, 5/32" . ........... 1

Set Screw Wrench, 3/16" . ........... 1

Flat Washer, t-!/8" diameter ........... 1

Trunnion Looknut ................. 1

Pa_lHd, Mach. Screw, Self Tap, 10-32x3/8". .... 2

Pan Hd. Mach. Screw, Self Tap, 8-32x 1/4" . .... 2

Soc-Hd, Setscrew, Flat Pt. 5/16-18x3/8" . ..... 1

Flat-Hd. Macb. Screw, 6-32x7/16". ........ 1

He× Nut, 6-32 ................... 1

Spilt Lockwasher, No. 6 .............. 1

Tilt Pointer .................... 1

Wing Screw ....................... 1

Tube Clamp .................... '_

Rubber Gasket (stripl ............... !

Alignment Plate .... ". ............. 1

Motor Pulley, 2-I/2", ............... !

Banding Platen .................. 1

Cord Clamp !

Table Insert 1

Tilt Lock Handle (Wrench) 1

Spacer ....................... 1

Blade Tension Knob .............. 1

Switch Key .................... 2

assembly

MOUNTING BAND SAW/SANDER ON FLOOR STAND

NOTE: For illustrative purposes, the Band Saw is shown

mounted on the Craftsman Catalog No. 9-22236 Steel Leg

Set.

1. Remove the Band Saw cover by applying gentle side

pressure on the spring tabs and release [he top portion

of the cover by pulling it away from the frame. Repeat

procedure for bottom portion of cover.

NOTE: Check the bolts which hold the feet to the Band

Saw. Make sure they are tight.

2. Place the Band Saw on the Steel Legs, position as shown,

and align mounting holes. Mount according to instruc-

tions supplied with Steel Legs.

LEFT

FOOT'_

CHECK

FOR

RIGHT

FOOT

INSTALLING SAWDUST ELBOW

1. Find the sawdust elbow, the clamp, the strip of rubber

gasket, and two 10-32 x 3/8" self-threading screws

among the loose parts.

2. Place the elbow in the opening, and attach the clamp

with the two screws.

SELF-THREADING

SCREW

SAWDUST ELBOW

assembly

RUBBER GASKET

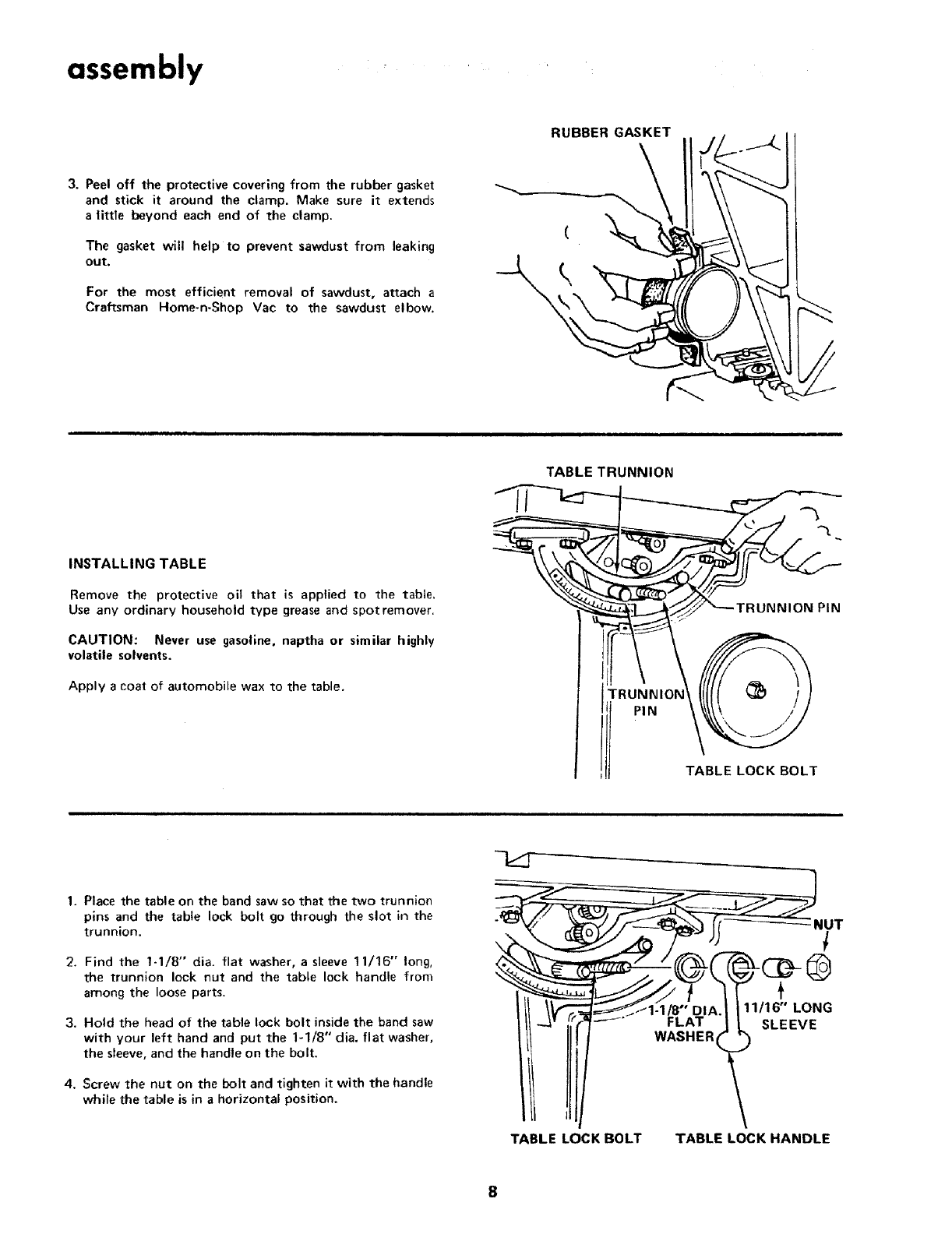

3. Peel off the protective covering from the rubber gasket

and stick it around the clamp. Make sure it extends

alittle beyond each end of the clamp.

The gasket will help to prevent sawdust from leaking

out.

For the most efficient removal of sawdust, attach a

Craftsman Home-n-Shop Vac to the sawdust elbow.

TABLETRUNNION

INSTALLING TABLE

Remove the protective oiT that is applied to the table.

Use any ordinary household type grease and spot remover.

CAUTION: Never use gasoline, naptha or similar highly

volatile solvents.

Apply acoat of automobile wax to the table.

_N PIN

TABLE LOCK BOLT

1. Place the table on the band saw so that the two trunnion

pins and the table lock bolt go through the slot in the

trunnion.

2. Find the 1-1/8" dia. flat washer, asleeve 11/16" long,

the trunnion lock nut and the table lock handle from

among the loose parts.

3. Hold the head of the table lock bolt inside the band saw

with your left hand and put the 1-1/'8" dia. flat washer,

the sleeve, and the handle on the bolt,

4, Screw the nut on the bolt and tighten it with the handle

while the table is in a horizontal position.

_NUT

TABLE LOCK BOLT TABLE LOCK HANDLE

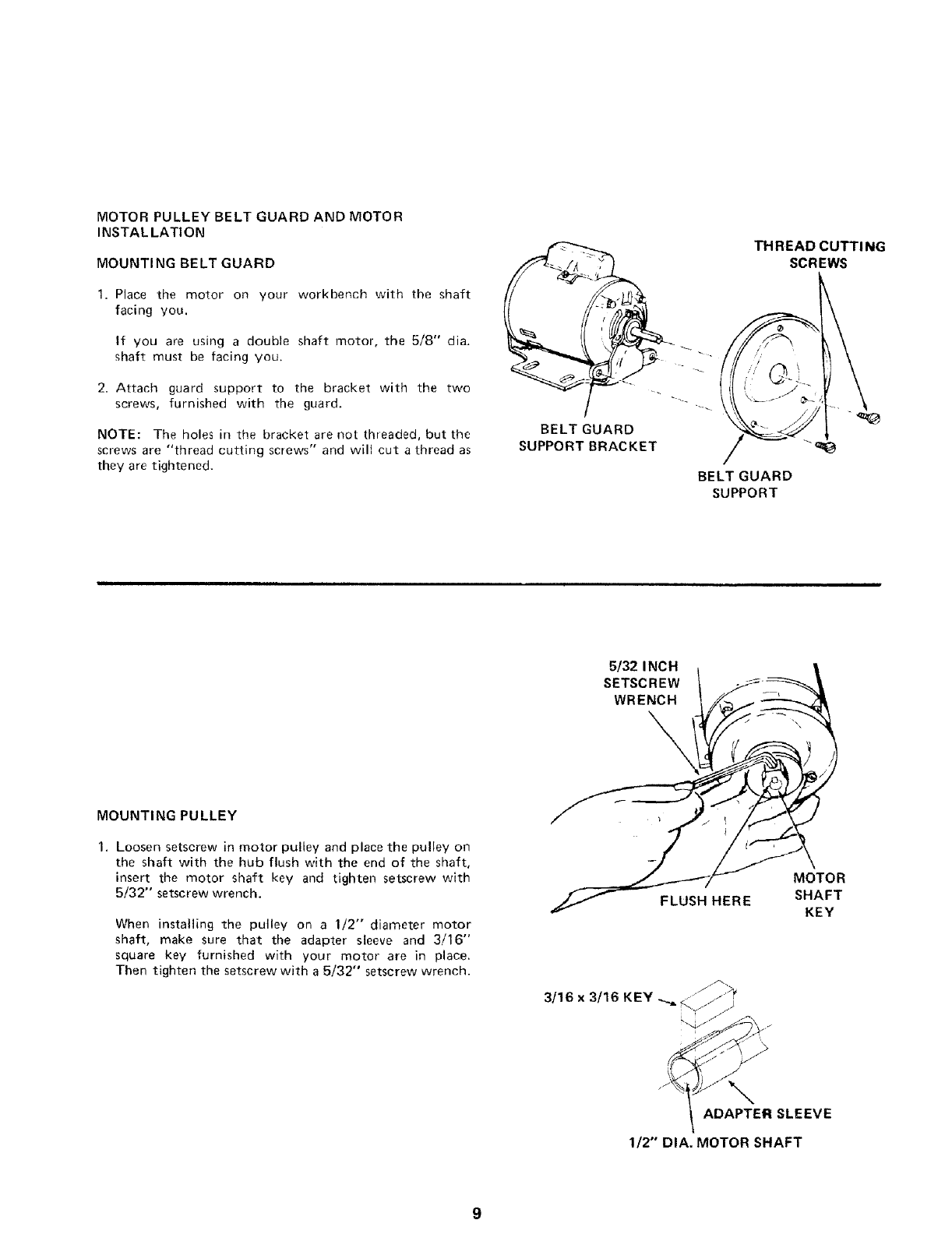

MOTORPULLEY BELT GUARD AND MOTOR

INSTAL LATION

MOUNTING BELT GUARD

1. Place the motor on your workbench with the shaft

facing you,

If you are using a double shaft motor, the 5/8" dia.

shaft must be facing you.

2. Attach guard support to the bracket with the two

screws, furnished with the guard,

NOTE: The holes in the bracket are not threaded, but the

screws are "thread cutting screws" and will cut a thread as

they are tightened.

BELT GUARD

SUPPORT BRACKET

TH READ CUTTI NG

SCREWS

BELT GUARD

SUPPORT

5/32 INCH

SETSCREW

WRENCH

MOUNTING PULLEY

1, Loosen setscrew in motor pulley and place the pulley on

the shaft with the hub flush with the end of the shaft,

insert the motor shaft key and tighten setscrew with

5/32" setscrew wrench.

When installing the pulley on a 1/2" diameter motor

shaft, make sure that the adapter sleeve and 3/16"

square key furnished with your motor are in place.

Then tighten the setscrew with a 5/32" setscrew wrench.

FLUSH HERE

3/16 x 3/16 KEY ,._

MOTOR

SHAFT

KEY

ADAPTER SLEEVE

1/2" DIA. MOTOR SHAFT

assembly

CHECK MOTOR ROTATION

The motor must rotate COUNTERCLOCKWISE when

viewed from the PULLEY end.

1. Place the motor on your workbench or on the floor.

2. Stand clear of the motor and plug the cord into a pro-

perly grounded outlet (See page 4). Notice the rotation

of the pulley. If it is not turning COUNTERCLOCK-

WISE, REMOVE the plug from the outlet, and change

the rotation of the motor according to the instructions

furnished with the motor.

WARNING: FOR YOUR OWN SAFETY, MAKE SURE

PLUG IS NOT CONNECTED TO POWER SOURCE OUT-

LET WHEN CHANGING MOTOR ROTATION.

MOUNTING MOTOR

1. Find four 5/16"-18 x 1"' carriage bolts, flat washers, lock-

washers and nuts supplied with base.

2. Insert bolts through holes marked "X'" from behind

motor mount bracket.

3. Attach motor . . .place a flat washer and a Iockwasher

on each bolt . .. screw on nuts but DON'T TIGHTEN

them.

4. Loosen the two BELT GUARD SUPPORT SCREWS.

5. Loosen the two MOTOR BASE CLAMP SCREWS and

rotate the motor so that the ventilation holes are

facing downward . ..tighten the screws.

6. Tighten the BELT GUARD SUPPORT SCREWS.

MOTOR MOUNT _.._._/ _

BRACKET -[ O

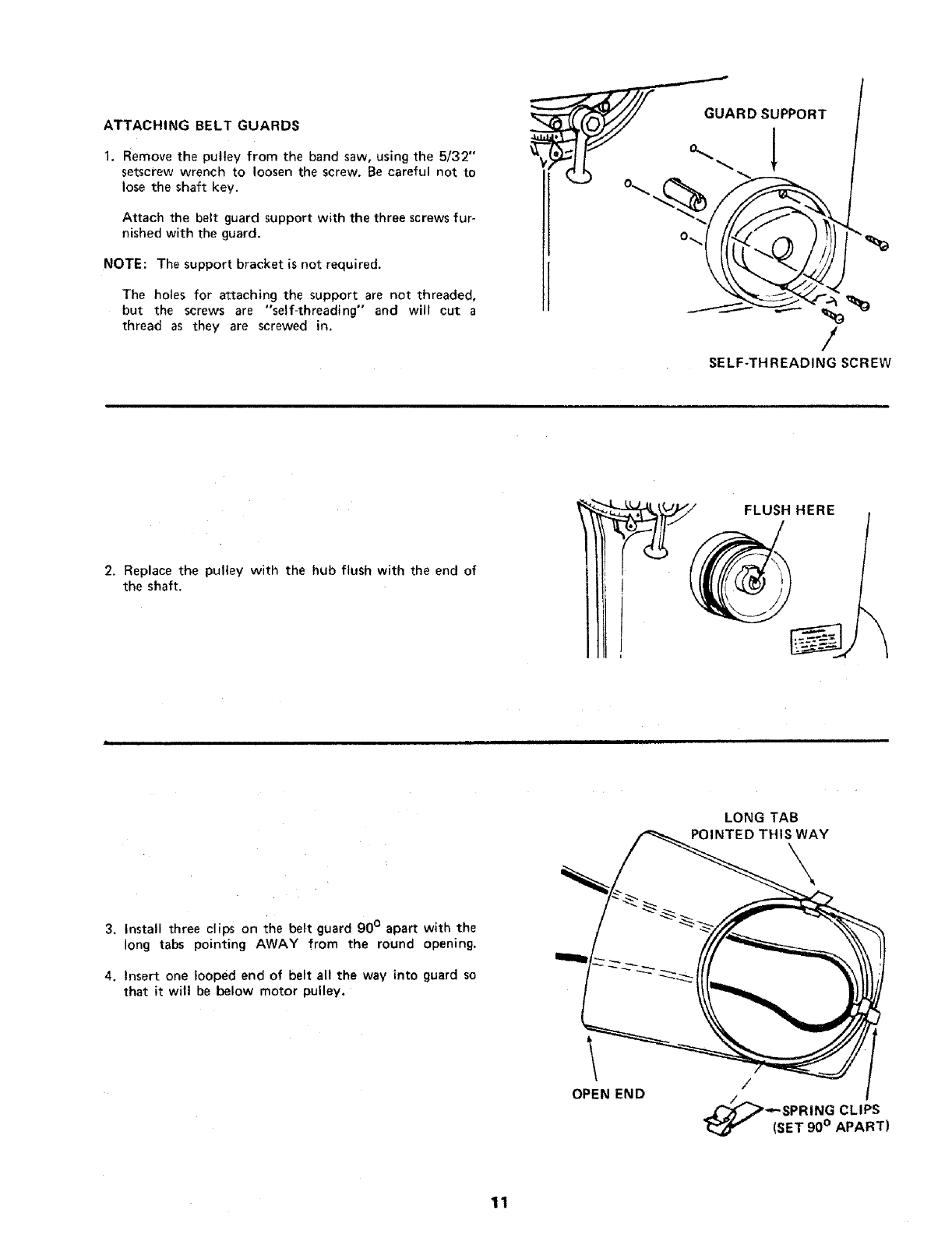

ATTACHING BELT GUARDS

1. Remove the pulley from the band saw, using the 5/32"

setscrew wrench to loosen the screw. Be careful not to

lose the shaft key.

Attach the belt guard support with the three screws fur-

nished with the guard.

NOTE: The support bracket is not required.

The holes for attaching the support are not threaded,

but the screws are "self-threading" and will cut a

thread as they are screwed in.

__--__GUARD SUPPORT

SELF-THREADING SCREW

2. Replace the pulley with the hub flush with the end of

the shaft.

FLUSH HERE

LONG TAB

POINTED THIS WAY

3. Install three clips on the belt guard 90 ° apart with the

long tabs pointing AWAY from the round opening,

4. Insert one looped end of belt all the way into guard so

that it will be below motor pulley.

OPEN END /

SPRING CLIPS

(SET 90 ° APART)

5. Snap the guard into position as shown.

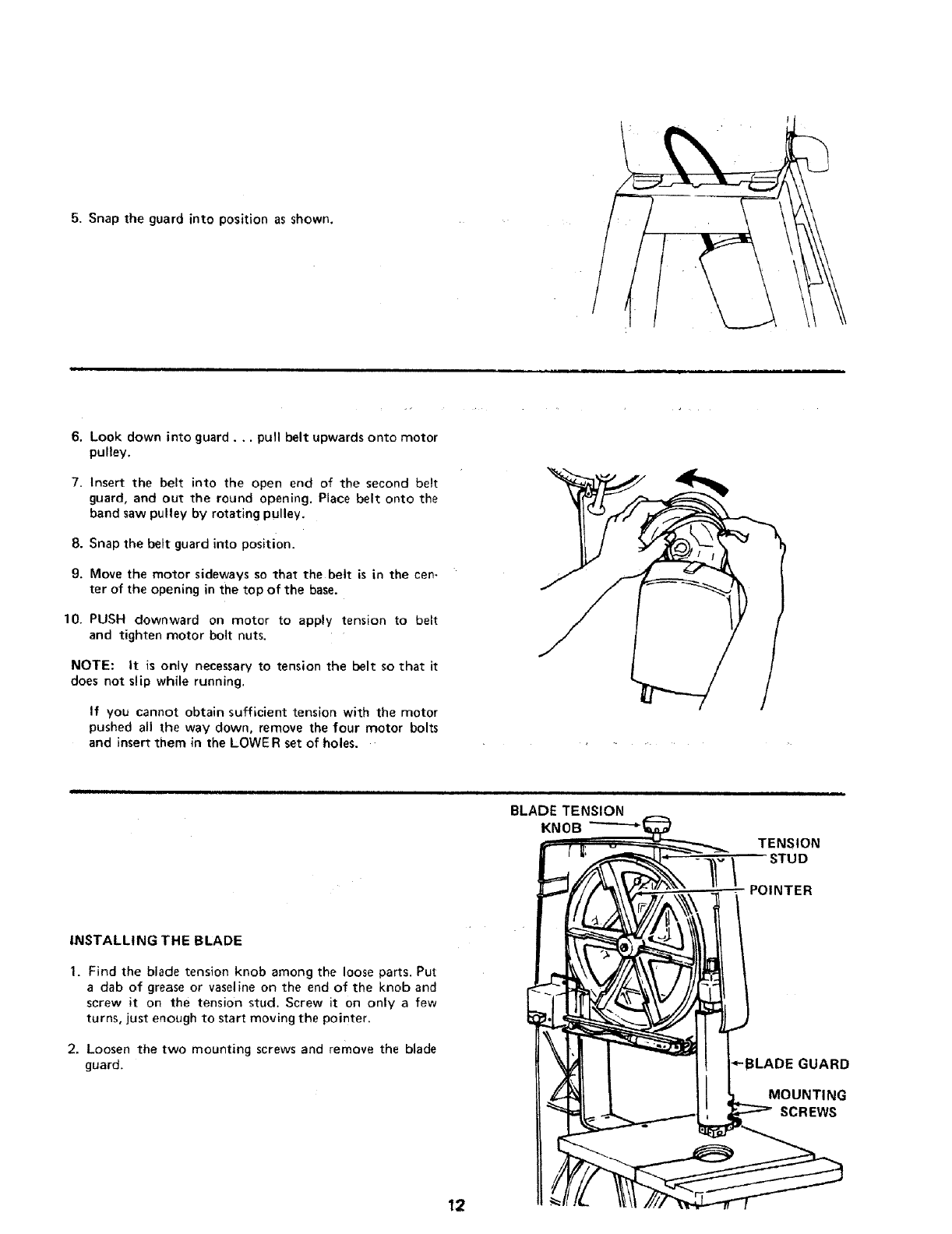

6. Look down into guard.., pull belt upwards onto motor

pulley.

7. Insert the belt into the open end of the second belt

guard, and out the round opening. Place belt onto the

band saw pulley by rotating pulley.

8. Snap the belt guard into position.

9. Move the motor sideways so that the belt is in the cen-

ter of the opening in the top of the base.

10. PUSH downward on motor to apply tension to belt

and tighten motor bott nuts.

NOTE: It is only necessary to tension the belt so that it

does not slip while running.

If you cannot obtain sufficient tension with the motor

pushed all the way down, remove the four motor bolts

and insert them in the LOWER set of holes.

TENSION

..........STUD

POINTER

INSTALLING THE BLADE

1. Find the blade tension knob among the loose parts. Put

a dab of grease or vaseline on the end of the knob and

screw it on the tension stud. Screw it on only a few

turns, just enough to start moving the pointer.

2. Loosen the two mounting screws and remove the blade

guard. GUARD

MOUNTING

SCREWS

GUIDE BAR LOCK SCREW

GUIDE BAR

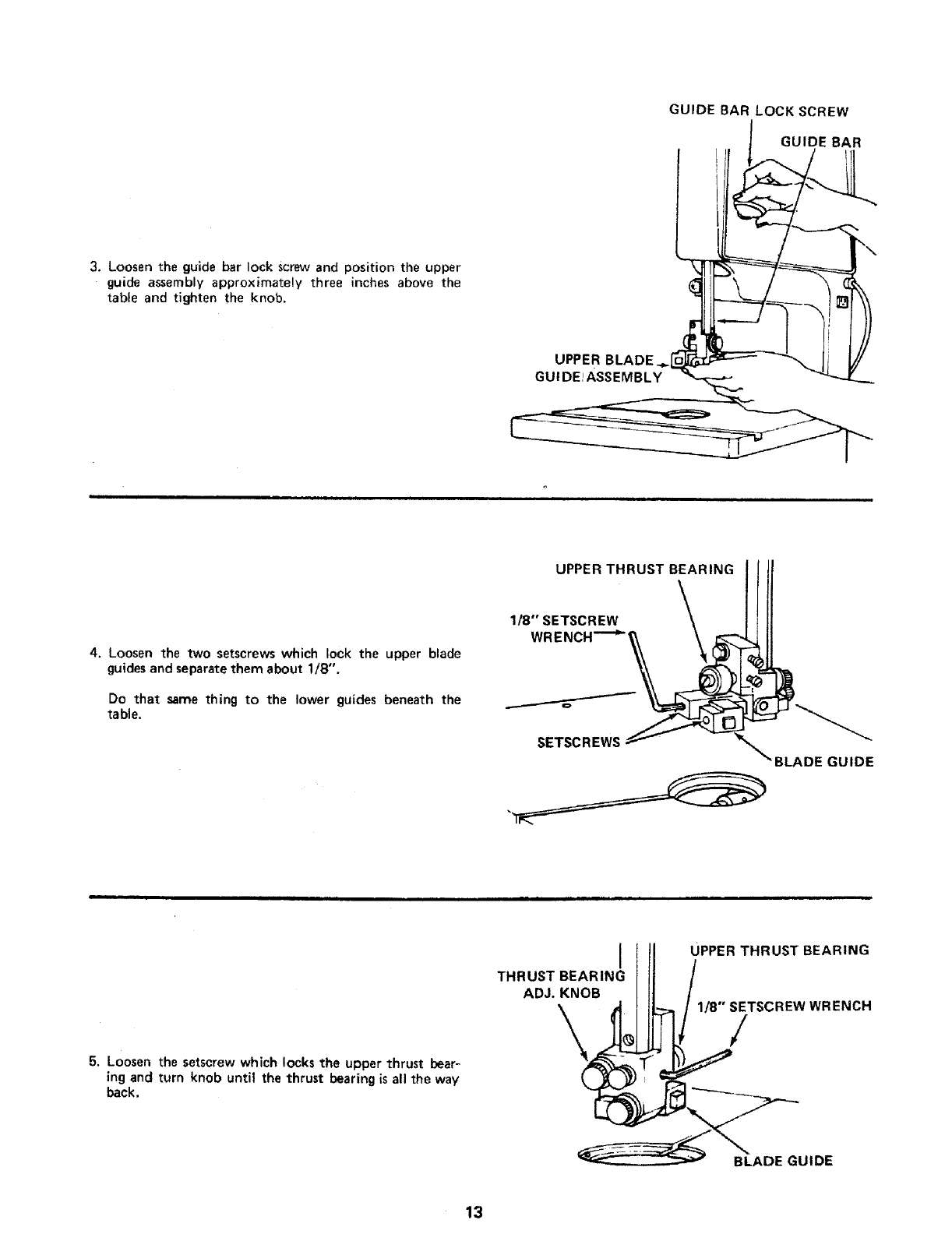

3. Loosen the guide bar lock screw and position the upper

guide assembly approximately three inches above the

table and tighten the knob,

UPPER BLADE

GUI DE ASSEMBLY

UPPER THRUST BEARING

4, Loosen the two setscrews which lock the upper blade

guidesand separate them about 1/B".

Do that same thing to the lower guides beneath the

table.

1/8" SETSCREW

WRENCH --_.-,

SETSCREWS

BLADE GUIDE

5. Loosen the setscrew which locks the upper thrust bear-

ing and turn knob until the thrust bearing isall the way

back.

THRUST BEARING

ADJ. KNOB

UPPER THRUST BEARING

1/8" SETSCREW WRENCH

BLADE GUIDE

assembly

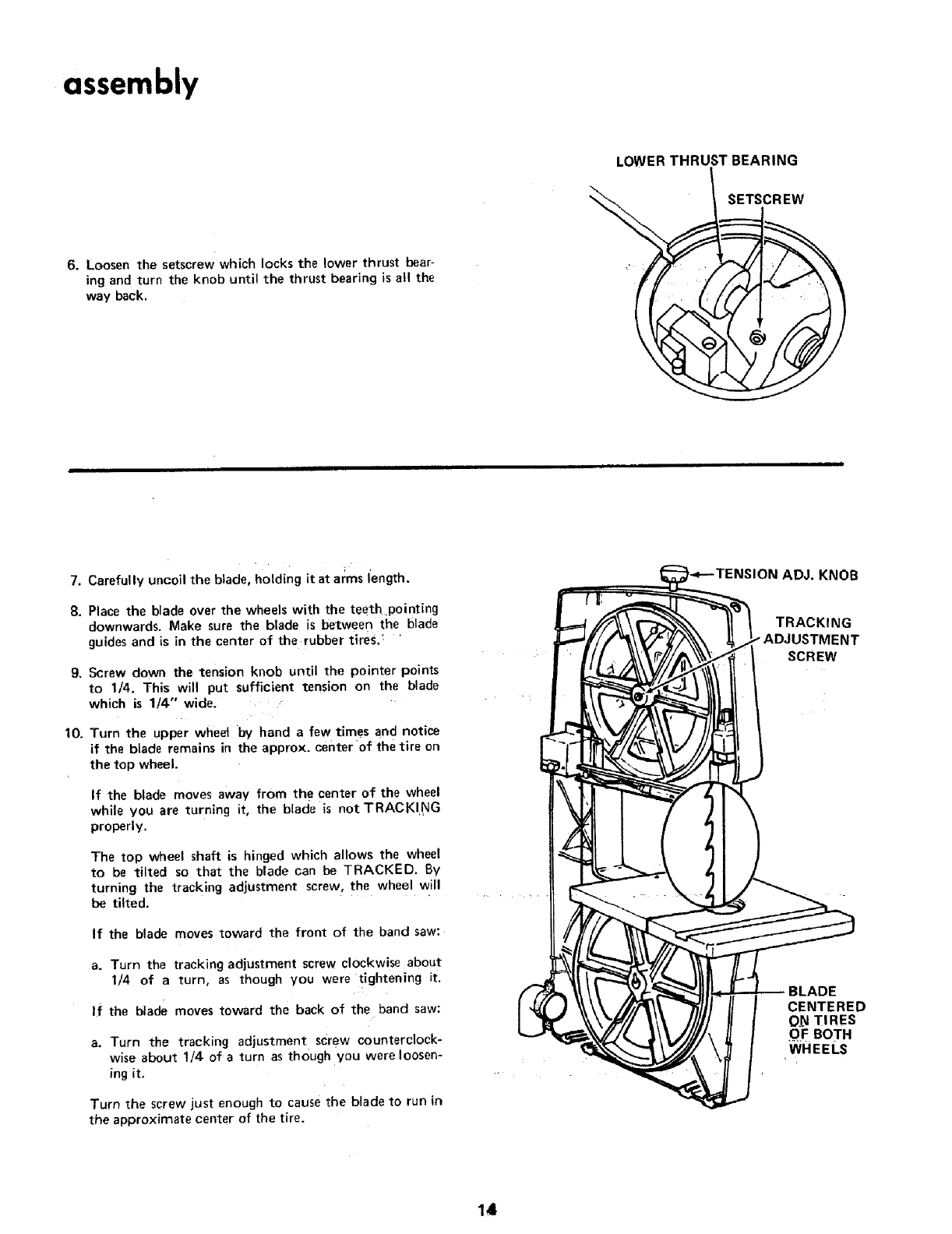

6. Loosen the setscrew which locks the lower thrust bear-

ing and turn the knob until the thrust bearing is all the

way back.

LOWER THRUST BEARING

7. Carefully uncoil the blade, holding it at arms length.

8. Place the blade over the wheels with the teeth ,pointing

downwards. Make sure the blade is between the blade

guidesand is in the center of the rubber tires,:

9. Screw down the tension knob until the pointer points

to 1/4. This will put sufficient tension on the blade

which is 1/4" wide.

10. Turn the upper wheel by hand afew times and notice

if the blade remains in the approx, center of the tire on

the top wheel.

If the blade moves away from the center of the wheel

while you are turning it, the blade is not TRACKING

properly.

The top wheel shaft is hinged which allows the wheel

to be tilted so that the blade can be TRACKED. 8y

turning the tracking adjustment screw, the wheel will

be tilted.

If the blade moves toward the front of the band saw:

a. Turn the tracking adjustment screw clockwise about

1/4 of a turn, as though you were tightening it.

If the blade moves toward the back of the band saw:

a. Turn the tracking adjustment screw counterclock-

wise about 1/4 of a turn as though you were loosen-

_ngit.

Turn the screw just enough to cause the blade to run in

the approximate center of the tire.

ADJ. KNOB

TRACKING

rMENT

SCREW

BLADE

CENTERED

ON TIRES

OF BOTH

WHEELS

The thrust bearings support the blade from the rear and

will rotate when the blade is pushed against them while

you are cutting. As soon as you stop cutting, the bear-

ings should stop rotating.

!1. Turn the thrust bearing adjustment knob so that the

thrust bearing moves toward the blade and almost

touches it.

12. TL_rn the upper wheel by hand so that the blade moves

downward, move the bearing until it barely touches the

blade ;and starts to rotate. Now move the bearing back

slightly, until it stops rotating. Tighten the thrust

bearing setscrew.

13. Adjust the lower thrust bearing the same way.

THRUST BEARING

rHRUST BEARING

ADJ. KNOB

14. Loosen the setscrew which locks the blade guide holder.

15. Turn the blade guide adjustment knob, so that the guides

move toward the blade, Move them until the "ledge" is

about 1/32" from the deepest part of the blade teeth.

This deep part is called a "gullet". Tighten the setscrew.

16. Adjust the lower guides the same way.

APPROX.

1/32" BLADE GUIDE

KNOB

SETSCREW

BLADE GUIDE HOLDER

17. Press the two guides evenly against the sides of the blade,

but don't pinch the blade. Release the guides and rotate

the upper wheel a little bit, moving the blade downward.

Make sure one guide is not farther away from the blade

than the other. Tighten both setscrews.

18. Adjust the lower guides the same way.

19, Rotate the upper wheel a few times by hand, and check

the guides and thrust bearings. Make readjustments if

necessary.

20. Replace the blade guard on the upper guide support.

21. Locate the table insert and place it in the opening m ti_e

table.

22, Replace the cover.

UPPER BLADE GUIDE

ASSEMBLY

SETSCREWS,

ALIGNMENT

SCREW

assembly

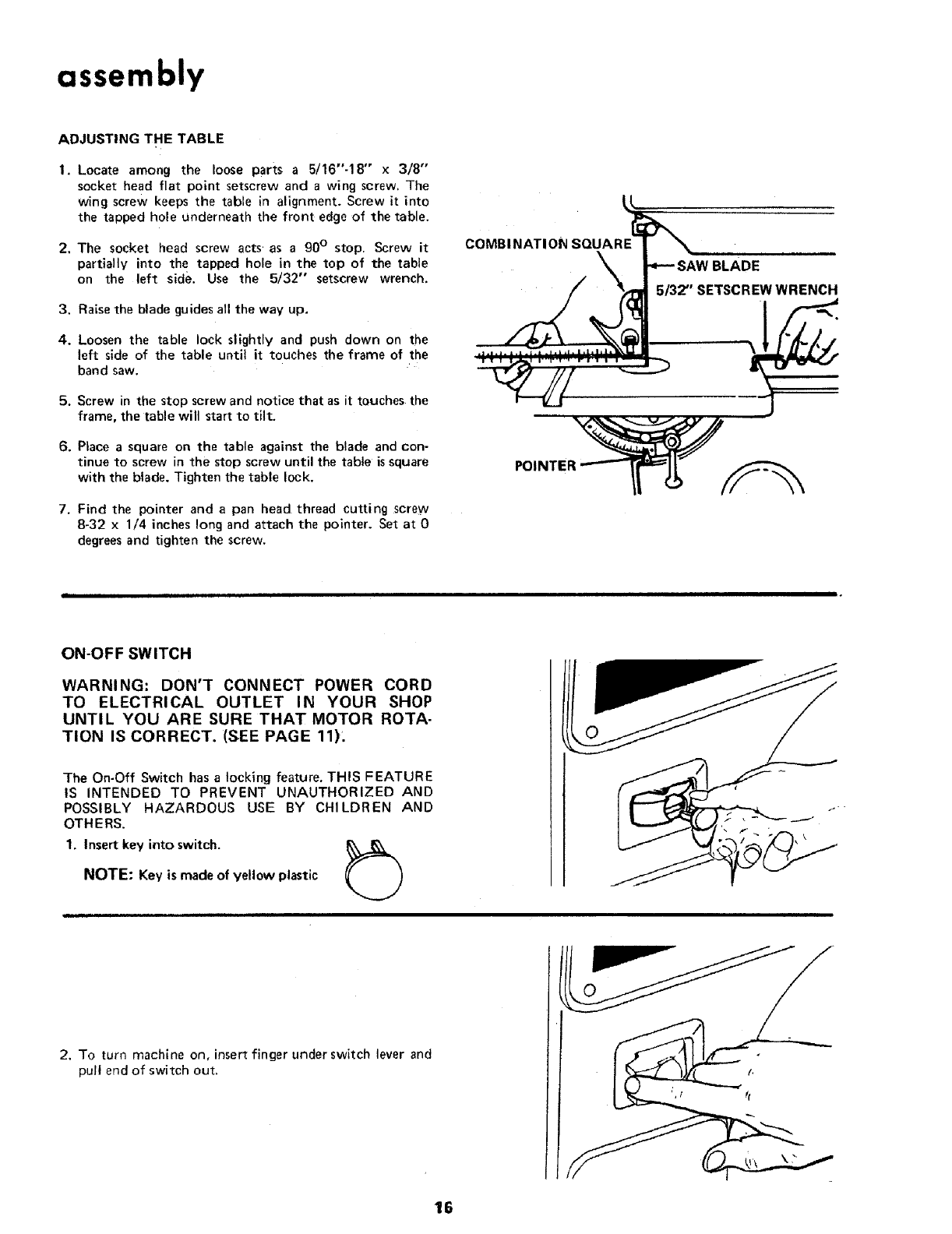

ADJUSTING THE TABLE

I. Locate among the loose parts a 5/16"-18" x 3/8"

socket head flat point setscrew and a wing screw. The

wing screw keeps the table in alignment. Screw it into

the tapped hole underneath the front edge of the table.

2. The socket head screw acts •as a 90 ° stop. Screw it

partially into the tapped hole in the top of the table

on the left side. Use the 5/32" setscrew wrench.

3. Raise the blade guides all the way up.

4. Loosen the table lock slightly and push down on the

left side of the table until it touches the frame of the

band saw.

5. Screw in the stop screw and notice that as it touches the

frame, the table will start to tilt.

6. Place a square on the table against the blade and con-

tinue to screw in the stop screw until the table is square

with the blade. Tighten the table lock.

7. Find the pointer and a pan head thread cutting screw

8-32 x 1/4 inches long and attach the pointer. Set at 0

degrees and tighten the screw.

COMBI NATI ON SQUARE

5/32"' SETSCREW WRENCH

ON-OFF SWITCH

WARNING: DON'T CONNECT POWER CORD

TO ELECTRICAL OUTLET IN YOUR SHOP

UNTIL YOU ARE SURE THAT MOTOR ROTA-

"rlON IS CORRECT. (SEE PAGE 11).

The On-Off Switch has a locking feature. THIS FEATURE

IS INTENDED TO PREVENT UNAUTHORIZED AND

POSSIBLY HAZARDOUS USE BY CHILDREN AND

OTHERS.

1. Insert key into switch.

NOTE: Key is made of yellow plastic

I I I i I I

2. To turn machine on, insert finger under switch lever and

pull end of switch out.

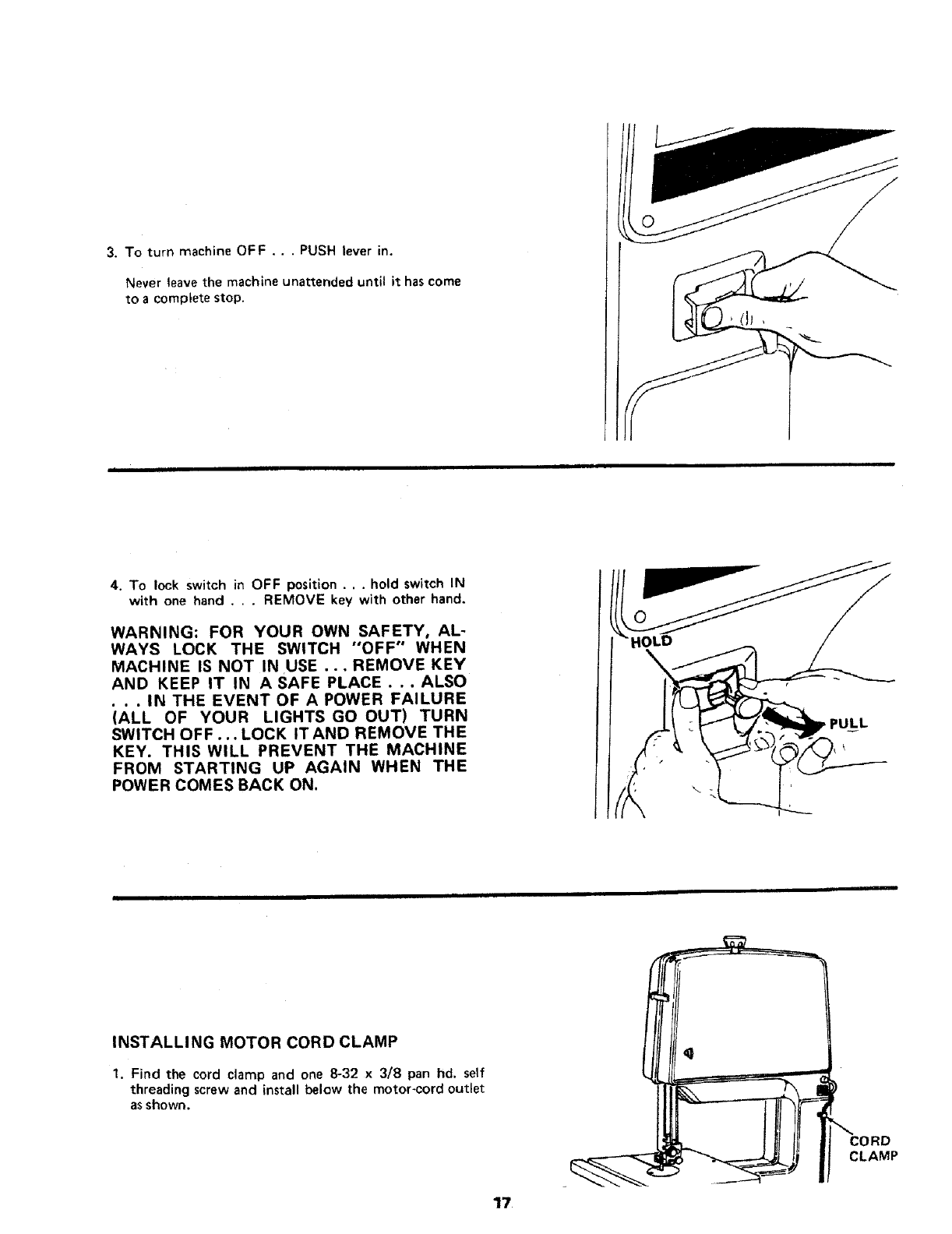

3. To turn machine OFF ... PUSH lever in.

Never leave the machine unattended until it has come

to a complete stop.

4. To lock switch in OFF position ...hold switch IN

with one hand ,. . REMOVE key with other hand.

WARNING" FOR YOUR OWN SAFETY, AL-

WAYS LOCK THE SWITCH "OFF" WHEN

MACHINE IS NOT IN USE ... REMOVE KEY

AND KEEP IT IN A SAFE PLACE... ALSO

• . . IN THE EVENT OF A POWER FAILURE

(ALL OF YOUR LIGHTS GO OUT) TURN

SWITCH OFF... LOCK ITAND REMOVE THE

KEY. THIS WILL PREVENT THE MACHINE

FROM STARTING UP AGAIN WHEN THE

POWER COMES BACK ON•

pULL

INSTALLING MOTOR CORD CLAMP

1. Find the cord clamp and one 8-32 x 3/8 pan hd. self

threading screw and install below the motor-cord outlet

as shown.

CORD

CLAMP

getting to know your band saw/sander

TENSION ADJUSTING KNOB-_

COVER RETAINING CLIP "X.

(4-Used)

1 \

ADJUSTMENT

DIAGRAMS

GUIDE BAR LOCK SCREW

TENSION SCALE'

(Inside)

ON-OFF

WORK LIGHT

GUARD

OUTLET

GUIDE BAR

COVER

SAWDUST ELBOW

LEFT FOOT /

FRONT

TABLE

TILT SCALE

TILT PC

"_"'--R IGHT FOOT

BLADE GUIDE

' ADJ. KNOB

(Lower Knob NOt Shown)

BA CK

"7THRUST

BEARING

ADJ. KNOB

(Lower Knob

Not Shown)

TI LT LOCK

HANDLE

PULLEY

1. ADJUSTMENT DIAGRAMS ...Help you to become

familiar with the adjustments.

2. TENSION ADJUSTMENT KNOB ..... Tightening the

knob will increase the tension on the blade. Loosening

it will decrease the tension.

3. TENSION SCALES... The fractional markings indicate

the correct blade tension for various widths of blades.

For example, when installing a 1/4" wide blade, tighten

the tension knob until the pointer is pointing to the 1/4

marking.

4. TABLE TILTING ... Loosen the table lock handle, tilt

the table to the desired angle and tighten the lock handle

To return the table to the 90 position, tilt it until the

90 ° stop screw rests on the frame, then tighten the lock

handle.

BLADE GUIDE ADJUSTMENT .,. Turning the knob

moves the guides in or out for various widths of blades.

LATERAL BLADE GUIDE ADJUSTMENT . . .Th_

guides can be adjusted sideways and locked in position

by the setscrews.

BLADE THRUST BEARING ADJUSTMENT... Turn-

ing the knob moves the thrust bearings in or out for

various widths of blades.

8. GUIDE BAR LOCK SCREW . ;The upper blade guides

should not be more than 1/4" above your workpiece

while cutting. Always adjust the guides before turning on

the band saw and lock the guide bar by tightening the

thumb screw.

9. GUIDE BAR

When the upper guides are raised or lowered, they must

not deflect the blade sideways. This means that the guide

bar must be parallel to the blade, or square with the

table.

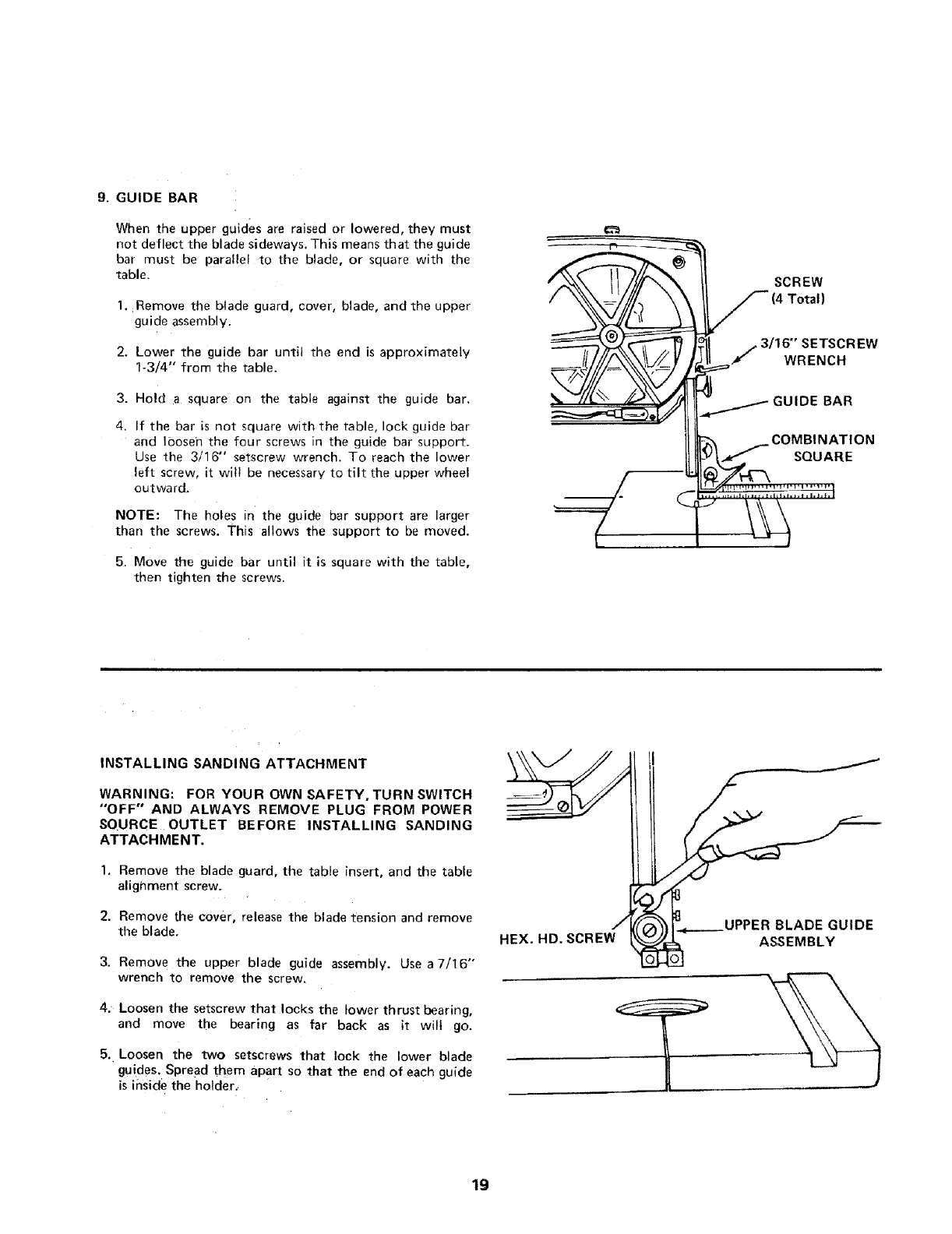

1. Remove the blade guard, cover, blade, and the upper

guide assembly.

2. Lower the guide bar until the end is approximately

1-3/4, from the table.

3. Hold a square on the table against the guide bar.

4. If the bar is not square with the table, lock guide bar

and Iooseh the four screws in the guide bar support.

Use the 3/16" setscrew wrench. To reach the lower

left screw, it will be necessary to tilt the upper wheel

outward,

NOTE: The holes in the guide bar support are larger

than the screws. This allows the support to be moved.

5. Move the guide bar until it is square with the table,

then tighten the screws.

SCREW

lljou,o.o..

INSTALLING SANDING ATTACHMENT

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND ALWAYS REMOVE PLUG FROM POWER

SOURCE OUTLET BEFORE INSTALLING SANDING

ATTACHMENT.

1. Remove the blade guard, the table insert, and the table

alignment screw.

2. Remove the cover, release the blade tension and remove

the blade.

3. Remove the upper blade guide assembly. Use a7/16""

wrench to remove the screw.

4. Loosen the setscrew that locks the lower thrust bearing,

and move the bearing as far back as it will go.

5. Loosen the two setscrews that lock the lower blade

guides. Spread them aPart so that the end of each guide

is inside the holder,

HEX. HD. SCREW _ ASSEMBLY

getting to know your band saw/sander

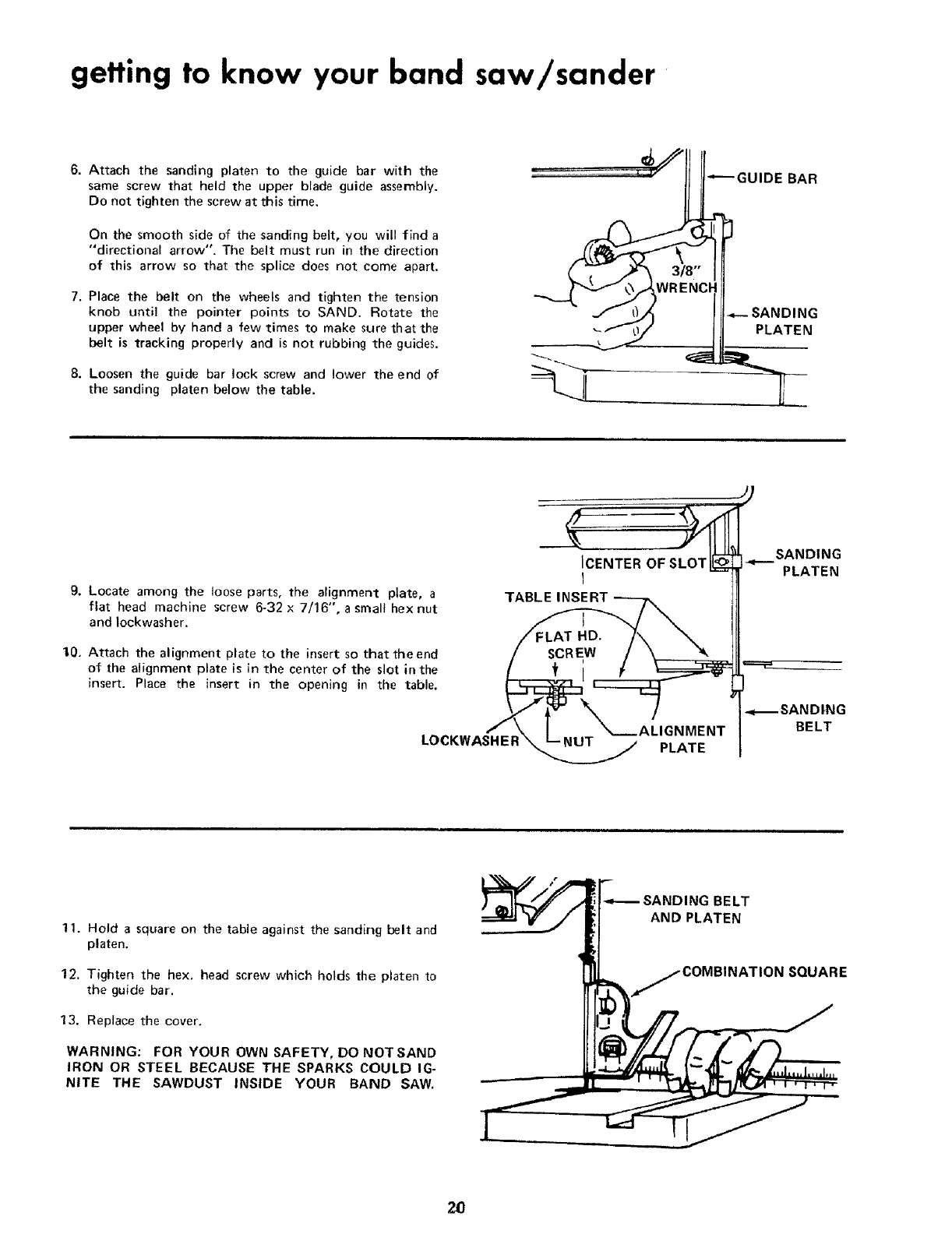

6. Attach the sanding platen to the guide bar with the

same screw that held the upper blade guide assembly.

Do not tighten the screw at this time.

On the smooth side of the sanding belt, you will find a

"directional arrow", The belt must run in the direction

of this arrow so that the splice does not come apart.

7. Place the belt on the wheels and tighten the tension

knob until the pointer points to SAND. Rotate the

upper wheel by hand a few times to make sure that the

belt is tracking properly and is not rubbing the guides.

8. Loosen the guide bar lock screw and lower the end of

the sanding platen below the table.

q;i__ GUIDE BAR

-f IJl"--SANDING

Itl

JCENTER OF SLOT

9. Locate among the loose parts, the alignment plate, a TABLE

flat head machine screw 6-32 x 7/16", a small hex nut

and lockwasher. _.

10, Attach the alignment plate to the insert so that the end /SCREW /

of the alignment plate is in the center of the slot in the (--_.-., i/

insert. Place the insert in the opening in the table. _3_C:::::::::

L/_'k _" _.__\ I ALIGNMENT

LOCKWASHER _PLATE

SANDING

PLATEN

_SANDtNG

BELT

11. Hold a square on the table against the sanding belt and

platen.

12. Tighten the hex, head screw which holds the platen to

the guide bar.

13, Replace the cover.

WARNING: FOR YOUR OWN SAFETY, DO tklOTSAND

IRON OR STEEL BECAUSE THE SPARKS COULD IG-

NITE THE SAWDUST INSIDE YOUR BAND SAW.

SANDING BELT

AND PLATEN

COMBINATION SQUARE

basic band saw/sander operation

BASIC BAND SAW/SANDER OPERATION

A band saw is basically a "curve cutting" machine. It differs

from a saw in two respects. It is capable of cutting thicker

material and it cuts faster. Unlike a saw, it is not capable

of doing inside cutting.

Your Craftsman Band Saw/Sander is not only capable of

the usual band saw operations, but it can be converted into

asander as well. You can finish wood, certain compositions

and plastics and non-ferrous metals.

SAWING

1. Adjust the upper guides not more than 1/4" above your

workpiece.

2. Use both hands while feeding the work into the blade.

Hold the workpiece firmly against the table. Use gentle

pressure, and do not force the work, but allow the blade

to cut.

3. The smallest diameter that can be cut out is determined

by the width of the blade. For example, a 1/4" wide

blade will cut aminimum diameter of approximately

1-1/2". (See Chart)

BLADE SELECTION GUIDE FOR MINIMUM CIRCLE CUTTING

BLADE 1 "3" 1" 3"

SIZE _ _ 3. 8

SANDING

The sanding belt cuts very rapidly. Practice with some

scraps of wood first before you attempt to sand your

actual workpiece.

1. Press the workpiece gently against the sanding belt,

and keep moving it until the edge is smooth.

maintenance

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE MAINTAINING OR LUBRICATING

YOUR BAND SAW.

TIRES

Pitch and sawdust that accumulate on the tires should be

removed with a stiff brush or scraped off with a piece of

wood. Do not use a sharp knife or any kind of solvent.

When the tires become worn they should be replaced. When

replacing the tires, stretch them around the wheels but do

not glue them on.

GENERAL

Keep your Band Saw/Sander clean.

Remove the sawdust from the inside.

Do not allow pitch to accumulate on the table, the insert,

the guides or the thrust bearings. Clean them with Crafts-

man Gum and Pitch Remover. CAUTION: Do not immerse

the thrust bearings.

Apply athin coat of automobile-type wax on the table so

that the wood slides easily while cutting.

MOTOR

Frequently blow out any sawdust from the motor.

If the power cord is worn or cut, or damaged in any way,

have it replaced immediately.

For motor maintenance, follow instructions furnished with

the motor.

LUBRICATION

All of the BALL BEARINGS are packed with grease at the

factory. They require no further lubrication.

For motor lubrication, follow instructions furnished with

the motor.

Periodically apply a few drops of oil to the upper wheel

guide rods.

MOTOR OUTLET

ON-OFF SWITCH

CABLACK

_"= GROUND

WIRING DIAGRAM

WHEEL NOT SHOWN

FOR PICTURE CLARITY

GUIDE RODS

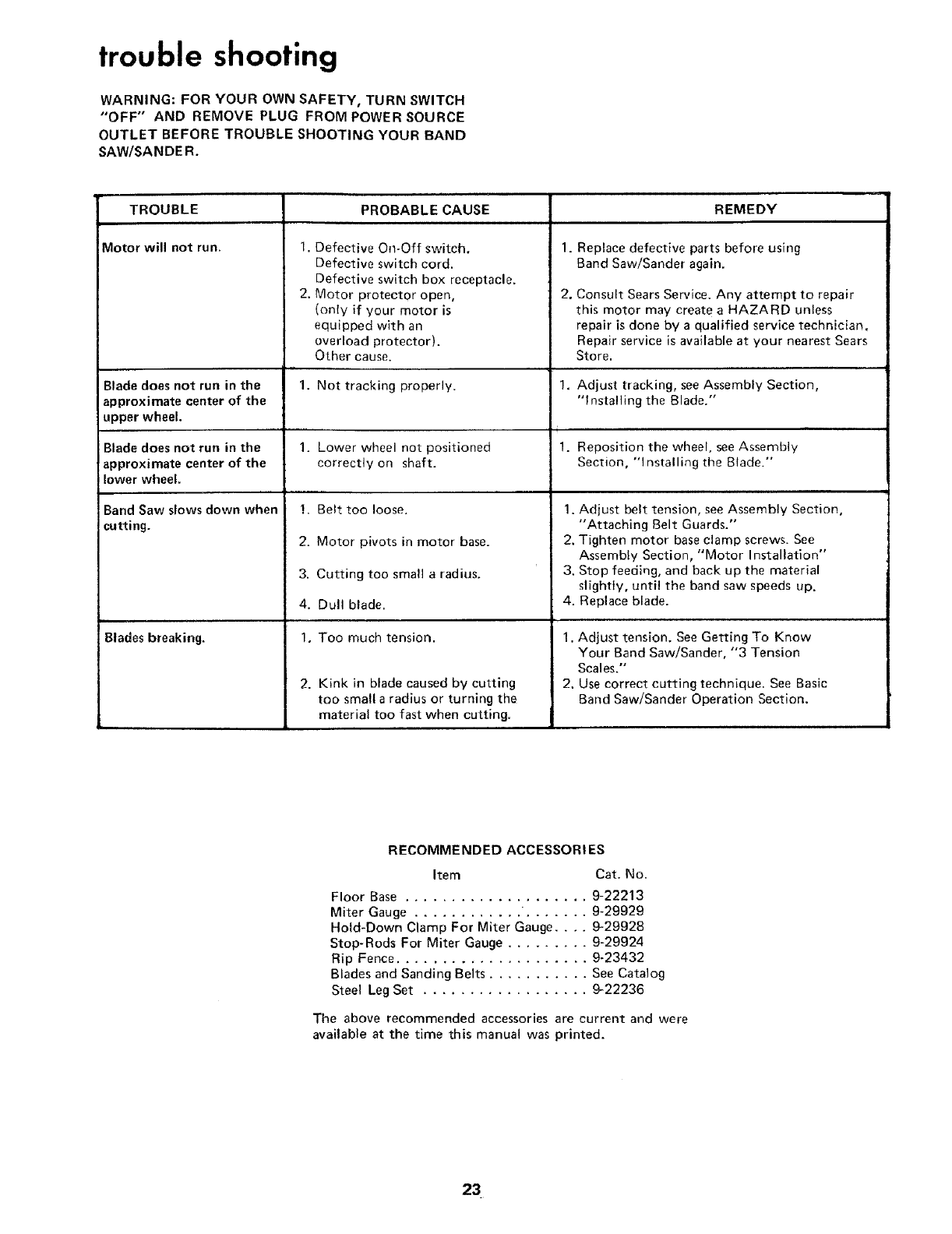

trouble shooting

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE TROUBLE SHOOTING YOUR BAND

SAW/SANDE R.

TROUBLE

Motor will not run.

Blade does not run in the

approximate center of the

upper wheel.

Blade does not run in the

approximate center of the

lower wheel.

Band Saw slowsdown when

cutting.

Blades breaking.

PROBABLE CAUSE

1. Defective On-Off switch,

Defective switch cord.

Defective switch box receptacle.

2. Motor protector open,

(only if your motor is

equipped with an

overload protector).

Other cause.

1. Not tracking properly.

1. Lower wheel not positioned

correctly on shaft.

!. Belt too loose.

2. Motor pivots in motor base.

3. Cutting too small a radius.

4. Dull blade.

1, Too much tension.

2. Kink in blade caused by cutting

too small a radius or turning the

material too fast when cutting.

REMEDY

1. Replace defective parts before using

Band Saw/Sander again.

2. Consult Sears Service. Any attempt to repair

this motor may create a HAZARD unless

repair is done by a qualified service technician.

Repair service is available at your nearest Sears

Store.

1. Adjust tracking, see Assembly Section,

'qnstalling the Blade."

1. Reposition the wheel, see Assembly

Section, "lnstalling the Blade."

1. Adjust belt tension, see Assembly Section,

"Attaching Belt Guards."

2. Tighten motor base clamp screws. See

Assembly Section, "Motor Installation"

3. Stop feeding, and back up the material

slightly, until the band saw speeds up.

4. Replace blade.

!. Adjust tension. See Getting To Know

Your Band Saw!Sander, "3 Tension

Scales.'"

2. Use correct cutting technique. See Basic

Band Saw/Sander Operation Section,

RECOMMENDED ACCESSORIES

Item Cat. No,

Floor Base .................... 9-22213

Miter Gauge ............ "....... 9-29929

Hold-Down Clamp For Miter Gauge .... 9-29928

Stop-Rods For Miter Gauge ......... 9-29924

Rip Fence ..................... 9-23432

Blades and Sanding Belts ........... See Catalog

Steel Leg Set .................. 9-22236

The above recommended accessories are current and were

available at the time this manual was printed.

CRAFTSMAN 12-INCH BAND SAW/SANDER, MODEL 113.24350

-8

"!0

14 33

\\!

11 27 I

SEE FIGURE 2

FOR

EXPLODED

VIEW

44 _39

/!!/,o

43 "_®

FIGURE I

/17

/18

CRAFTSMAN 12-INCH BAND SAW/SANDER, MODEL 113.24350

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION AS SHOWN ON THE LIST:

1. THE PART NUMBER 3. THE MODEL NUMBER 113.243_0

2. THE PART NAME 4. THE NAME OF ITEM- 12-1NCHBANDSAW/SANDER

KEY PART

NO. NO.

169069

2 41815

3 38524

4 37158

5 41711

6STD315228

769028

841812

9 60256

10 69085

11 60251

12 38884

13 STD601105

14 30789

15 STD503105

16 38450

17 60255

18 60252

19 STD304430

19 STD304520

20 30646

21 60254

22 60253

Always order by Part Number - not by Key Number

FIGURE 1 PARTS LIST

DESCRIPTION

Cover, Frame with Trim

Tire

Screw, Self-Locking

Ring, Retaining 5/8

Washer, Spring

Bearing, Ball

Wheel, Upper Drive

Ring Internal Retaining 1-3/8

Key, Switch

Clip

Bearing, Ball

Ring, Internal Retaining 1-11/16

*Screw Type 23, 10-32 x 1/2, Pan Hd.

Key, Square 3/16 x 1-1/4

*Screw, Set, 5/16-18 x 1/2, Soc. Hd.,

Cup Pt.

tPulley, 1/2 V Groove, 5" x 5/8

Bore, Keyed with Set Screw

Clip, "S"

Guard, Belt

_ tBelt, V Type, 1/2 x 43

tBelt "'V" Type, 1/2 x 52

tPulley, 1/2 V Groove, 2-1/2" x 5/8

Bore, Keyed with Set Screw

Bracket, Support

Support, Belt Guard

KEY PART

NO. NO.

23 453068

24 69084

25 STD5410311

26 STD522503

27 69023

28 65013

29 69004

30 STD601103

31 69078

32 69059

33 69O58

34 69025

35 60272

36 37887

37 60096

38 37911

39 69062

40 133427

41 69005

42 STD551106

43 STD541Q06

44 69037

69087

69086

69088

DESCRIPTION

*Screw, 5/16-18 x 3/4, Sems, Hex, Hd.

Foot, Frame

*Nut, Square, 5/16-18

*Screw Mach., 1/4-20 x 3/8, Truss

Hd., Slotted.

Spacer, Bearing

El bow

Clamp, Tube

*Screw, Mach., 10-32 x 3/8, Pan Hd.

Gasket, Foam

Wheel, Lower Drive

Shaft, Lower Wheel

Lens

fBlade, Band Saw, 1/4 x 80

tWrench, Hex., "L", I/8

tWrench, Hex., "'L", 5/32

tWrench, Hex., "'L", 3/16

Platen, Sanding

*Screw, Mach., 6-32 x 7/16, Flat Hd.

Plate, Sanding Alignment

*:Loekwasher, No. 6

*Nut, Hex., 6-32

tBelt, Sanding, 1/2 x 80

Owner's Manual (Not Illustrated)

Bag Asm. Loose Parts (Not Illustrated)

*Standard Hardware Item - May Be Purchased Locally.

tStock Item -May be secured through the Hardware Department of most Sears or Simpsons-Sears Retail Stores or Catalog Order Houses.

NOTE: Shipping and handling charges for standard hardware items (identified by *) such as nuts, screws, washers, etc., make buying

these items by mail uneconomical. To avoid shipping and handling charges, you may obtain most of these locally.

oSupplied in Canada Only,

\ \

CRAFTSMAN 12-INCH BAND SAW/SANDER, MODEL 113.24350

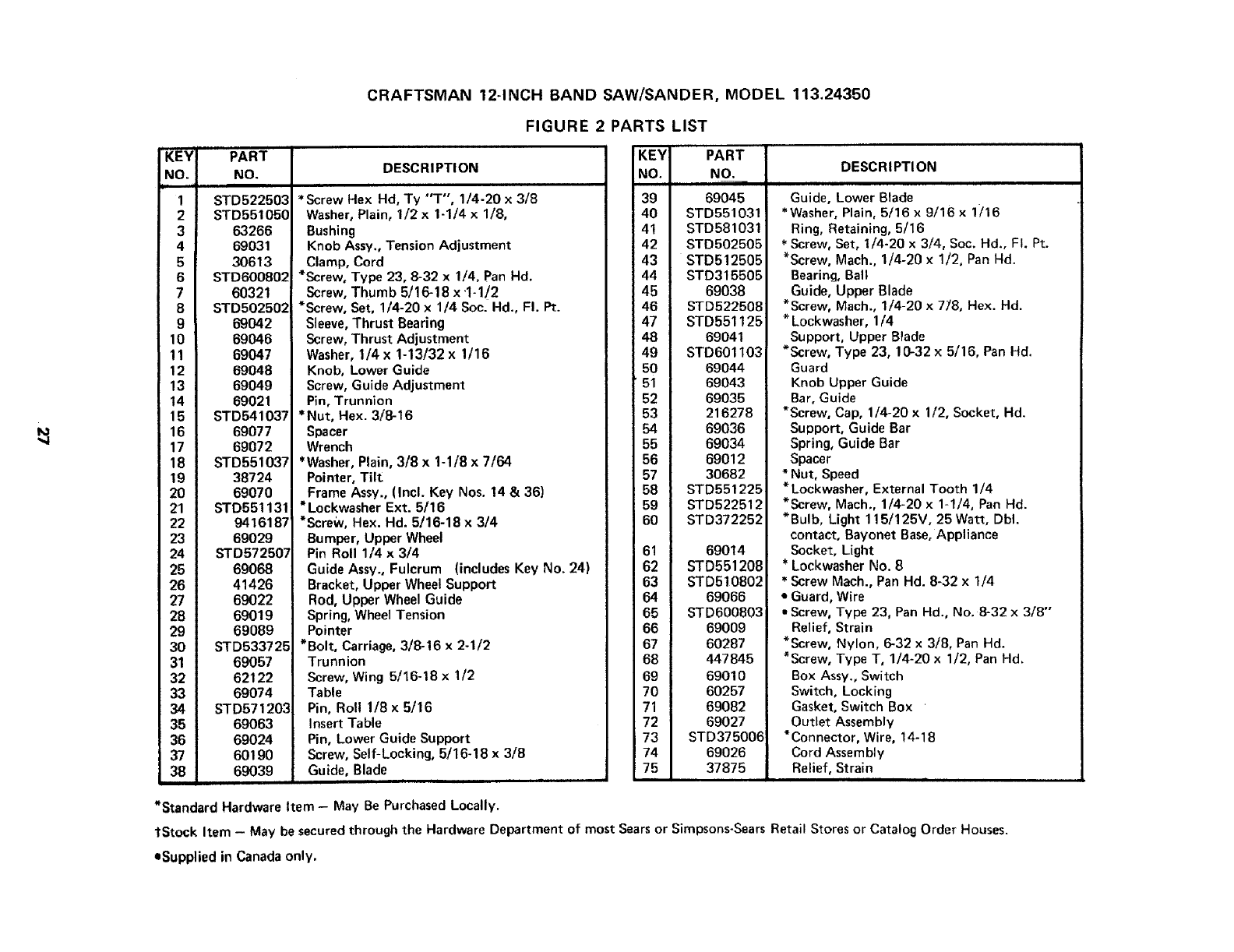

FIGURE 2 PARTS LIST

'KEY

NO.

PART

NO.

STD522503

STD55105(_

63266

69031

3O613

STD600802

60321

STD502502

69042

69046

69047

69048

69049

69021

STD541037

69077

69072

STD551037

38724

69070

STD551131

9416187'

69029

STD572507

69068

41426

69022

69019

69089

STD533725

69057

62122

69074

ST D571203

69063

69024

60190

69039

DESCRIPTION

•Screw Hex Hd, Ty "T", 1/4-20 x3/8

Washer, Plain, 1/2 x1-1/4 x 1/8,

Bushing

Knob Assy., Tension Adjustment

Clamp, Cord

• Screw, Type 23, 8-32 x 1/4, Pan Hd.

Screw, Thumb 5/16-18 x I-1/2

•Screw, Set, 1/4-20 x 1/4 Soc. Hd., FI. Pt.

Sleeve, Thrust Bearing

Screw, Thrust Adjustment

Washer, 1/4 x1-13/32 x1/16

Knob, Lower Guide

Screw, Guide Adjustment

Pin, Trunnion

• Nut, Hex. 3/8-16

Spacer

Wrench

•Washer, Plain, 3/8 x 1-1/8 x 7/64

Pointer, Tilt.

Frame Assy., (Incl. Key Nos. 14 & 36)

•Lockwasher Ext. 5/16

•SCrew, Hex. Hd. 5/16-18 x 3/4

Bumper, Upper Wheel

Pin Roll 1/4 x 3/4

Guide Assy., Fulcrum (includes Key No. 24)

Bracket, Upper Wheel Support

Rod, Upper Wheel Guide

Spring, Wheel Tension

Pointer

•Bolt, Carriage, 3/8-16 x 2-1/2

Trunnion

Screw, Wing 5/16-18 x 1/2

Table

Pin, Roll 1/8x 5/16

Insert Table

Pin, Lower Guide Support

Screw, Self-Locking, 5/16-18 x 3/8

Guide, Blade

KEY

NO.

PART

NO.

69045

STD551031

STD581031

STD502505

STD512505

STD315505

69038

STD522508

STD551125

69041

STD601103

69044

69043

69035

216278

69036

69034

69012

30682

STD551225

STD522512

STD372252

69014

STD551208

STD510802

69066

STD60O803

69009

60287

447845

69010

60257

69082

69027

STD375006

69026

37875

DESCRI PTI ON

Guide, Lower Blade

*Washer, Plain, 5/16 x 9/16 x 1_'16

Ring, Retaining, 5/16

*Screw, Set, 1/4-20 x 3/4, Soc. Hd., FI. Pt.

*Screw, Mach., 1/4-20 x 1/2, Pan Hd.

Bearing, Ball

Guide, Upper Blade

*Screw, Mach., 1/4-20 x 7/8, Hex. Hd.

* Lockwasher, 1/4

Support, Upper Blade

*Screw, Type 23, 10-32 x 5/16, Pan Hd.

Guard

Knob Upper Guide

Bar, Guide

*Screw, Cap, 1/4-20 x 1/2, Socket, Hd.

Support, Guide Bar

Spring, Guide Bar

Spacer

* Nut, Speed

*Lockwasher, External Tooth 1/4

*Screw, Mach., 1/4-20 x 1-1/4, Pan Hd.

*Bulb, Light 115/125V, 25 Watt, Dbl.

contact, Bayonet Base, Appliance

Socket, Light

* Lockwasher No. 8

* Screw Mach., Pan Hd. 8-32 x 1/4

•Guard, Wire

, Screw, Type 23, Pan Hd., No. 8-32 x 3/8"

Relief, Strain

*Screw, Nylon, 6-32 x 3/8, Pan Hd.

*Screw, Type T, 1/4-20 x 1/2, Pan Hd.

Box Assy., Switch

Switch, Locking

Gasket, Switch Box

Outlet Assembly

*Connector, Wire, 14-18

Cord Assembly

Relief, Strain

*Standard Hardware Item- May Be Purchased Locally.

_Stock Item - May be secured through the Hardware Department of most Searsor Simpsons-SearsRetail Stores or Catalog Order Houses.

=Supplied in Canada only.

]Sears I

owners

manual

SERVICE

MODEL NO.

113.24350

HOW TO ORDER

REPAIR PARTS

12-INCH BANDSAW/

SANDER

Now that you have purchased your 12-Inch Band

Saw/Sander should a need ever exist for repair

parts or service, simply contact any Sears Service

Center and most Sears, Roebuck and Co. stores.

Be sure to provide all pertinent facts when you

call or visit.

The model number of your 12-Inch Band Saw/

Sander will be found on a plate at the right-

hand side of the saw.

WHEN ORDERING REPAIR PARTS, ALWAYS

GIVE THE FOLLOWING INFORMATION:

PART NUMBER PART DESCRIPTION

MODEL NUMBER

113.24350

NAME OF ITEM

12-Inch Band Saw/Sander

All parts listed may be ordered from any Sears

Service Center and most Sears stores. If the parts

you need are not stocked locally, your order

will be electronically transmitted to a Sears Repair

Parts Distribution Center for handling.

Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.

Part No. 69087 Form No. SP4121-5 Printed in U.S.A. 12/77

Craftsman 11324350 User Manual 12 INCH BAND SAW Manuals And Guides L0802119

CRAFTSMAN Saw Band Manual L0802119 CRAFTSMAN Saw Band Owner's Manual, CRAFTSMAN Saw Band installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
