Craftsman 113244512 User Manual 10 INCH DIRECT DRIVEBAND SAW Manuals And Guides L0901656
CRAFTSMAN Saw Band Manual L0901656 CRAFTSMAN Saw Band Owner's Manual, CRAFTSMAN Saw Band installation guides
User Manual: Craftsman 113244512 113244512 CRAFTSMAN 10-INCH DIRECT DRIVEBAND SAW - Manuals and Guides View the owners manual for your CRAFTSMAN 10-INCH DIRECT DRIVEBAND SAW #113244512. Home:Tool Parts:Craftsman Parts:Craftsman 10-INCH DIRECT DRIVEBAND SAW Manual
Open the PDF directly: View PDF .
Page Count: 20
![](asset-1.png)
SAVE THIS MANUAL
FOR FUTURE
REFERENCE
_ARS
owners
manual
MODEL NO.
113.244512
Serial
Number
Model and serial
number may be found
at the right-hand side
of the frame.
You should record both
model and serial
number in a safe place
for future use.
CAUTION:
Read GENERAL and
ADDITIONAL SAFETY
INSTRUCTIONS
carefully
IO-INCH DIRECT DRIVE
BAND SA W
,, assembly
•operating
,repair parts
Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.
Part No. 69188
![](asset-2.png)

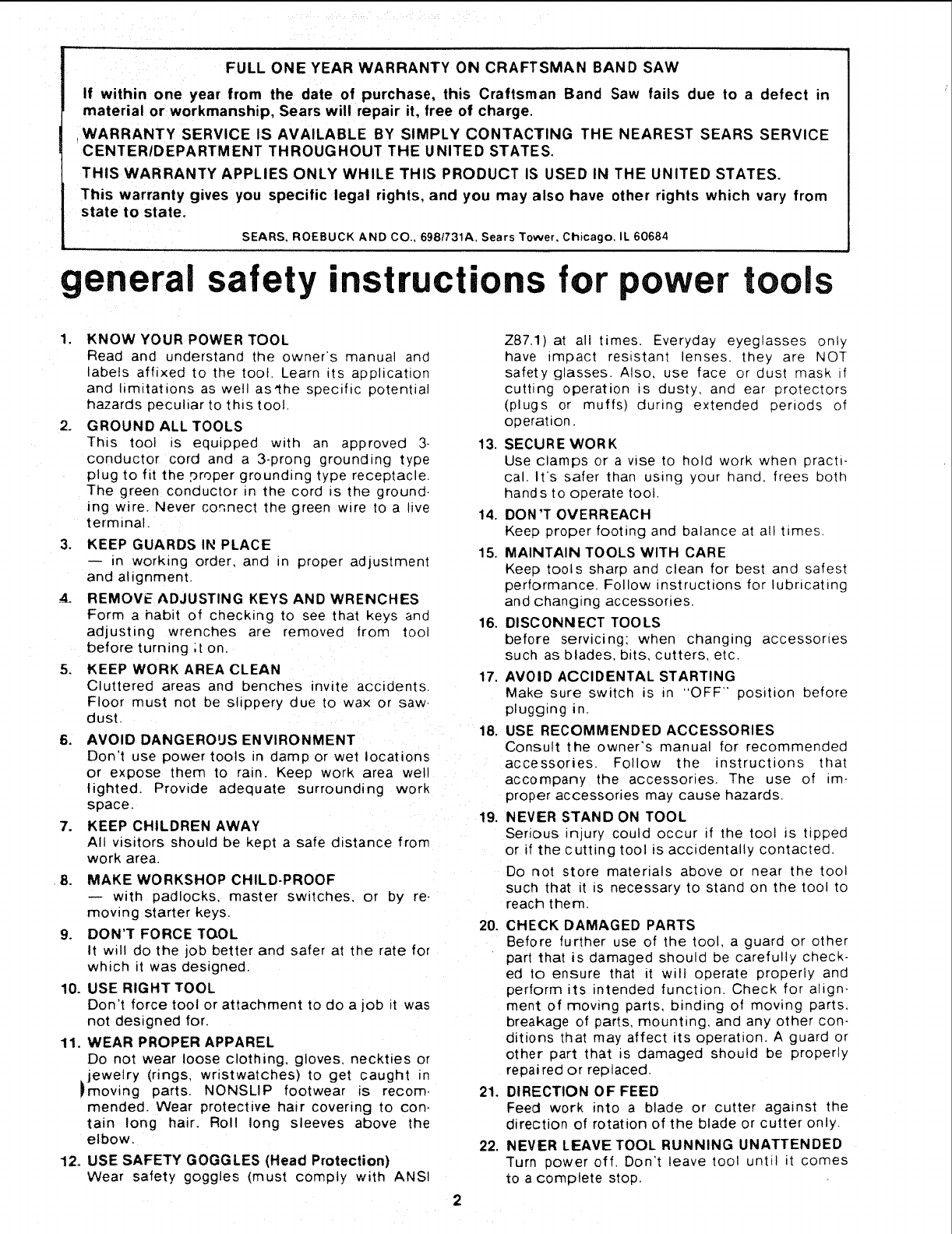

FULL ONE YEAR WARRANTY ON CRAFTSMAN BAND SAW
If within one year from the date of purchase, this Craftsman Band Saw fails due to a defect in
material or workmanship, Sears will repair it, free of charge.
,WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS SERVICE
CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.
THIS WARRANTY APPLIES ONLY WHILE THIS PRODUCT IS USED IN THE UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state,
SEARS, ROEBUCK AND CO.. 698/731A, Sears Tower, Chicago. IL 60684
general safety instructions for power tools
1. KNOW YOUR POWER TOOL
Read and understand the owner's manual and
labels affixed to the toot. Learn its application
and limitations as well as'the specific potential
hazards peculiar to this toot,
2. GROUND ALL TOOLS
This tool is equipped with an approved 3-
conductor cord and a 3+prong grounding type
plug to fit the proper grounding type receptacle
The green conductor in the cord is the grouna.
ing wire. Never connect the green wIre to a hve
terminal.
3. KEEP GUARDS IN PLACE
-- in working order, and n proper adjustment
and alignment.
_4_ REMOV=E ADJUSTING KEYS AND WRENCHES
Form a habit of checking to see that keys ane
adjusting wrenches are removed from tool
before turning ;t on.
5. KEEP WORK AREA CLEAN
Cluttered areas and benches invite accidents.
Floor must not be slippery due to wax or saw.
dust.
6. AVOID DANGEROUS ENVIRONMENT
Don't use power tools in damp or wet locations
or expose them to rain. Keep work area well
lighted. Provide adequate surrounding work
space.
7. KEEP CHILDREN AWAY
All visitors should be kept a safe distance from
work area.
8. MAKE WORKSHOP CHILD-PROOF
-- with padlocks, master switches, or by re-
moving starter keys.
9. DON'T FORCE TQOL
It will do the job better and safer at the rate for
which it was designed.
10. USE RIGHT TOOL
Don't force tool or attachment to do a job it was
not designed for.
11. WEAR PROPER APPAREL
Do not wear loose clothing, gloves, neckties or
_jewelry (rings, wristwatches) to get caught in
moving parts. NONSLIP footwear _s recom-
mended, Wear protective hair covering to con-
tain long hair, Roll long sleeves above the
elbow.
12. USE SAFETY GOGGLES (Head Protection)
Wear safety goggles (must comply with ANSI
Z87.1) at all times. Everyday eyeglasses only
have impact resistant lenses, they are NOT
safety glasses. Also, use face or dust mask if
cutting operation is dusty, and ear protectors
(plugs or muffs) during extended periods of
operation.
13. SECURE WORK
Use clamps or a v+se to hold work when practi-
cal. It's safer than using your hand, frees both
hands to operate tool.
14. DON'T OVERREACH
KeeD proper footing and balance at all times.
15. MAINTAIN TOOLS WITH CARE
Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating
and changing accessories.
16. DISCONNECT TOOLS
before servicing; when changing accessories
such as blades, bits. cutters, etc.
17. AVOID ACCIDENTAL STARTING
Make sure switch is m "OFF" position before
pluggtng in.
18. USE RECOMMENDED ACCESSORIES
Consult the owner's manual for recommended
accessories. Follow the instructions that
accompany the accessories. The use of im-
proper accessories may cause hazards.
19. NEVER STAND ON TOOL
Serious injury could occur if the tool is tipped
or if the cutting tool is accidentally contacted.
Do not store materials above or near the tool
such that it is necessary to stand on the tool to
reach them.
20. CHECK DAMAGED PARTS
Before further use of the tool, a guard or other
part that is damaged should be carefully check-
ed to ensure that it will operate properly and
perform its intended function. Check for align-
ment of moving parts, binding of moving parts.
breakage of parts, mounting, and any other con-
ditions that may affect its operation. A guard or
other part that _s damaged should be properly
repaired or replaced.
21. DIRECTION OF FEED
Feed work into ablade or cutter against the
direction of rotation of the blade or cutter only.
22. NEVER LEAVE TOOL RUNNING UNATTENDED
Turn power off. Don't leave tool until it comes
to a complete stop.
![](asset-3.png)

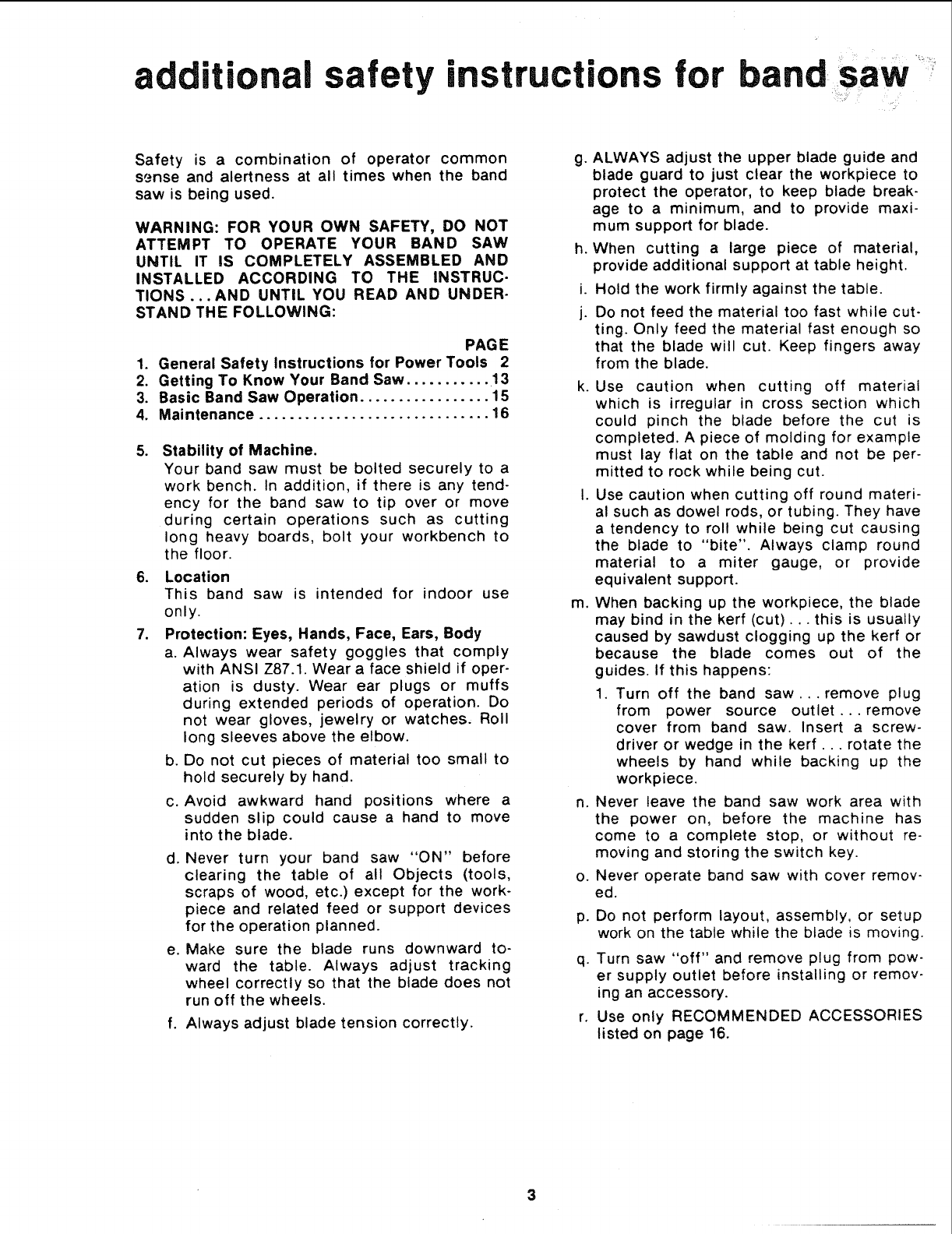

additi onal safety instructions for nsaw
Safety is a combination of operator common
sgnse and alertness at all times when the band
saw is being used.
WARNING: FOR YOUR OWN SAFETY, DO NOT
ATTEMPT TO OPERATE YOUR BAND SAW
UNTIL iT IS COMPLETELY ASSEMBLED AND
INSTALLED ACCORDING TO THE INSTRUC-
TIONS... AND UNTIL YOU READ AND UNDER-
STAND THE FOLLOWING:
PAGE
1. General Safety instructions for Power Tools 2

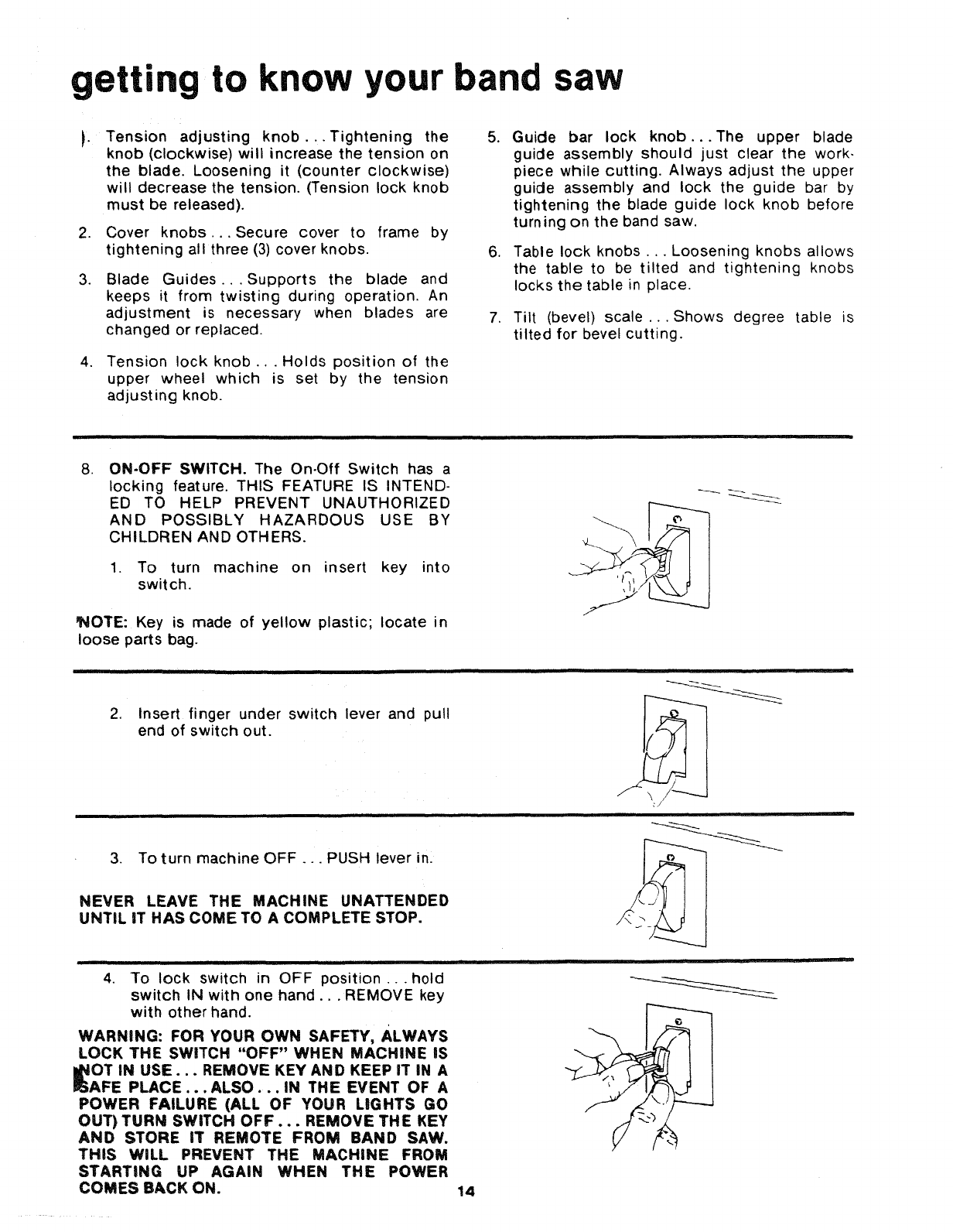

2. Getting To Know Your Band Saw ............ 13

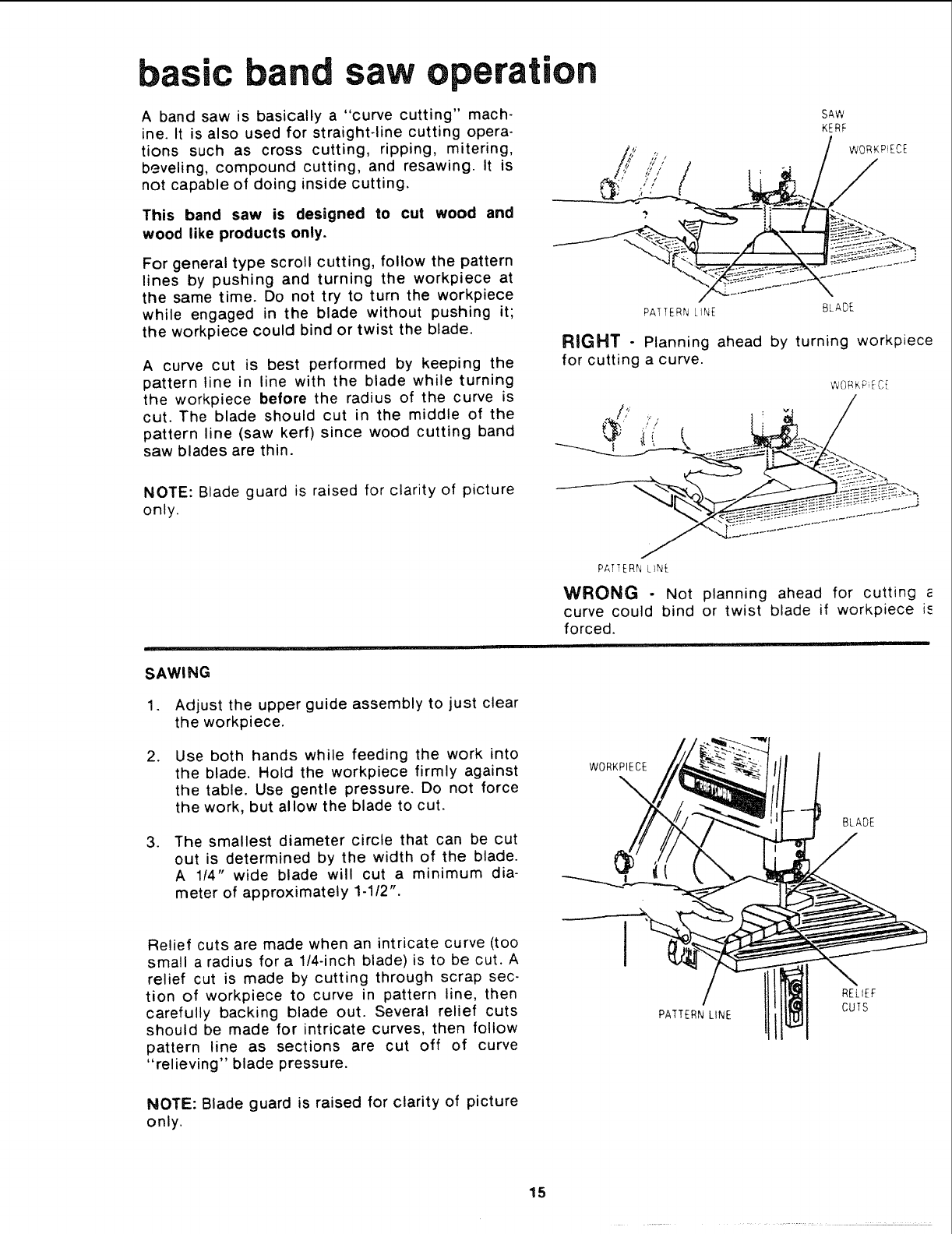

3. Basic Band Saw Operation ................. 15

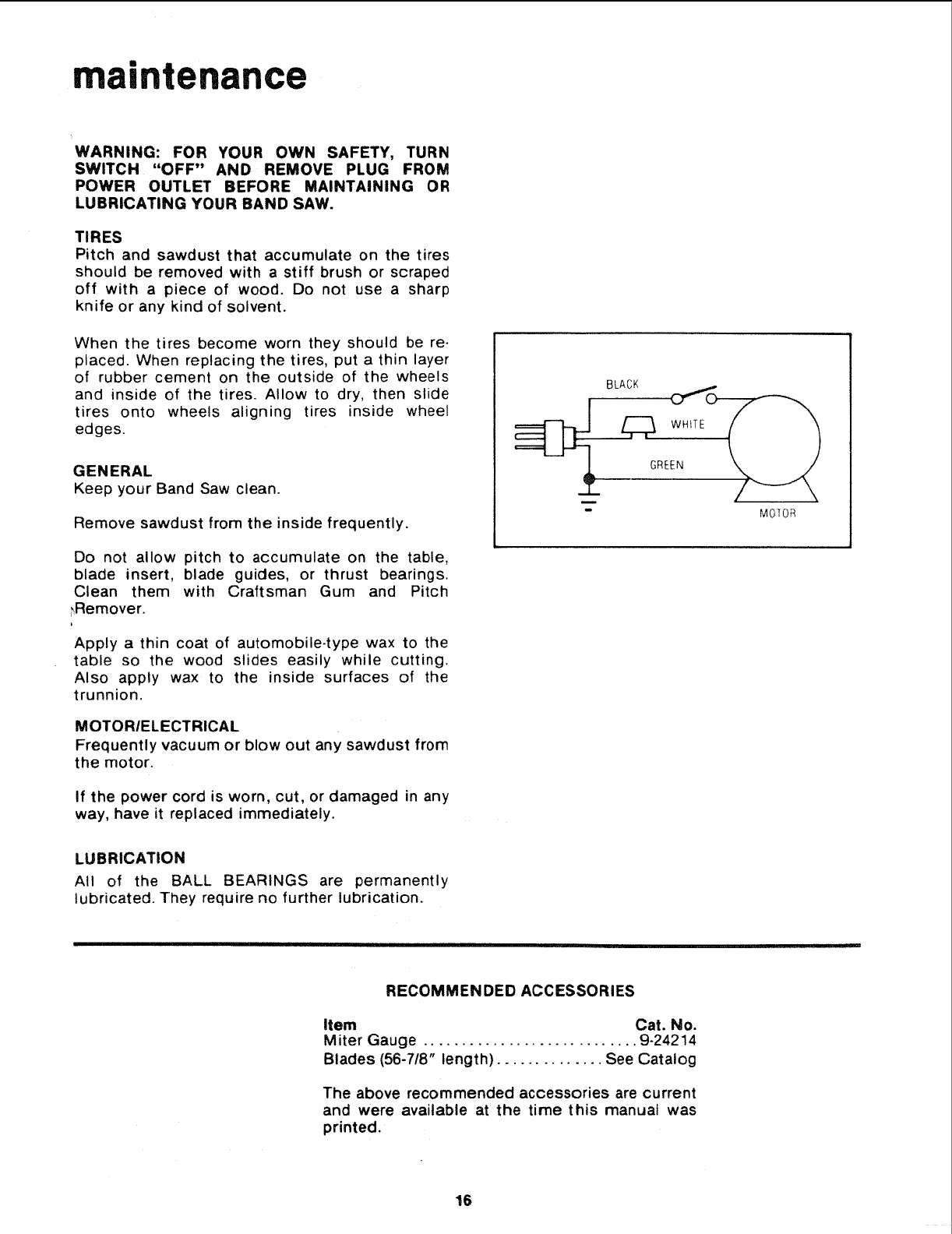

4. Maintenance .............................. 16
°
,
,
Stability of Machine.
Your band saw must be bolted securely to a
work bench. In addition, if there is any tend-
ency for the band saw to tip over or move
during certain operations such as cutting
long heavy boards, bolt your workbench to
the floor.
Location
This band saw is intended for indoor use
only.
Protection: Eyes, Hands, Face, Ears, Body
a. Always wear safety goggles that comply
with ANSI Z87.1. Wear a face shield if oper-
ation is dusty. Wear ear plugs or muffs
during extended periods of operation. Do
not wear gloves, jewelry or watches, Roll
long sleeves above the elbow.
b. Do not cut pieces of material too small to
hold securely by hand.
c. Avoid awkward hand positions where a
sudden slip could cause ahand to move
into the blade.
d. Never turn your band saw "ON" before
clearing the table of all Objects (tools,
scraps of wood, etc.) except for the work-
piece and related feed or support devices
for the operation planned.
e. Make sure the blade runs downward to-
ward the table. Always adjust tracking
wheel correctly so that the blade does not
run off the wheels.
f. Always adjust blade tension correctly.
g,
h.
i.
j.
ALWAYS adjust the upper blade guide and
blade guard to just clear the workpiece to
protect the operator, to keep blade break-
age to a minimum, and to provide maxi-
mum support for blade.
When cutting alarge piece of material,
provide additional support at table height.
Hold the work firmly against the table.
Do not feed the material too fast while cut-
ting. Only feed the material fast enough so
that the blade will cut. Keep fingers away
from the blade.
k. Use caution when cutting off material
which is irregular in cross section which
could pinch the blade before the cut is
completed. A piece of molding for example
must lay flat on the table and not be per-
mitted to rock while being cut.
I. Use caution when cutting off round materi-
al such as dowel rods, or tubing. They have
a tendency to roll while being cut causing
the blade to "bite". Always clamp round
material to a miter gauge, or provide
equivalent support.
m. When backing up the workpiece, the blade
may bind in the kerf (cut)... this is usually
caused by sawdust clogging up the kerf or
because the blade comes out of the
guides. If this happens:
1. Turn off the band saw.., remove plug
from power source outlet...remove
cover from band saw. Insert ascrew-
driver or wedge in the kerf.., rotate the
wheels by hand while backing up the
workpiece.
n.
o.
p.
q.
r.
Never leave the band saw work area with
the power on, before the machine has
come to a complete stop, or without re-
moving and storing the switch key.
Never operate band saw with cover remov-
ed.
Do not perform layout, assembly, or setup
work on the table while the blade is moving.
Turn saw "off" and remove plug from pow-
er supply outlet before installing or remov-
ing an accessory.
Use only RECOMMENDED ACCESSORIES
listed on page 16.
![](asset-4.png)
additional safety instructions for band saw
Should any part of this band saw be missing,
bend, or fail in any way, or any electrical
component fail to perform properly, shut off
power switch and remove plug from power
supply outlet. Replace damaged, missing,
and!or failed parts before resuming opera-
tion.
9. Think Safety.
Safety is a combination of operator common
sense and alertness whenever the band saw
is in operation.
10. This band saw is designed to cut wood and
wood like products only.
WARNING: DO NOT ALLOW FAMILIARITY GAINED FROM FREQUENT USE OF YOUR BAND SAW TO
BECOME COMMONPLACE. ALWAYS REMEMBER THAT A CARELESS FRACTION OF A SECOND IS
SUFFICIENT TO INFLICT SEVERE INJURY.
WEAR YOUR
The operation of any power tool can result in
foreign objects being thrown into the eyes,
which can result in severe eye damage. Always
wear safety goggles complying with ANSI Z87.1
(shown or] Package) before beginning power tool
operation. Safety Goggles are available at Sears
retail or catalog stores.
READ AND FOLLOW THE INSTRUCTIONS APPEARING ON THE INSTRUCTION PLATE ON
THE FRONT OF THE BAND SAW:
f|DIRECT DRIVE
BA D SAW
4
![](asset-5.png)

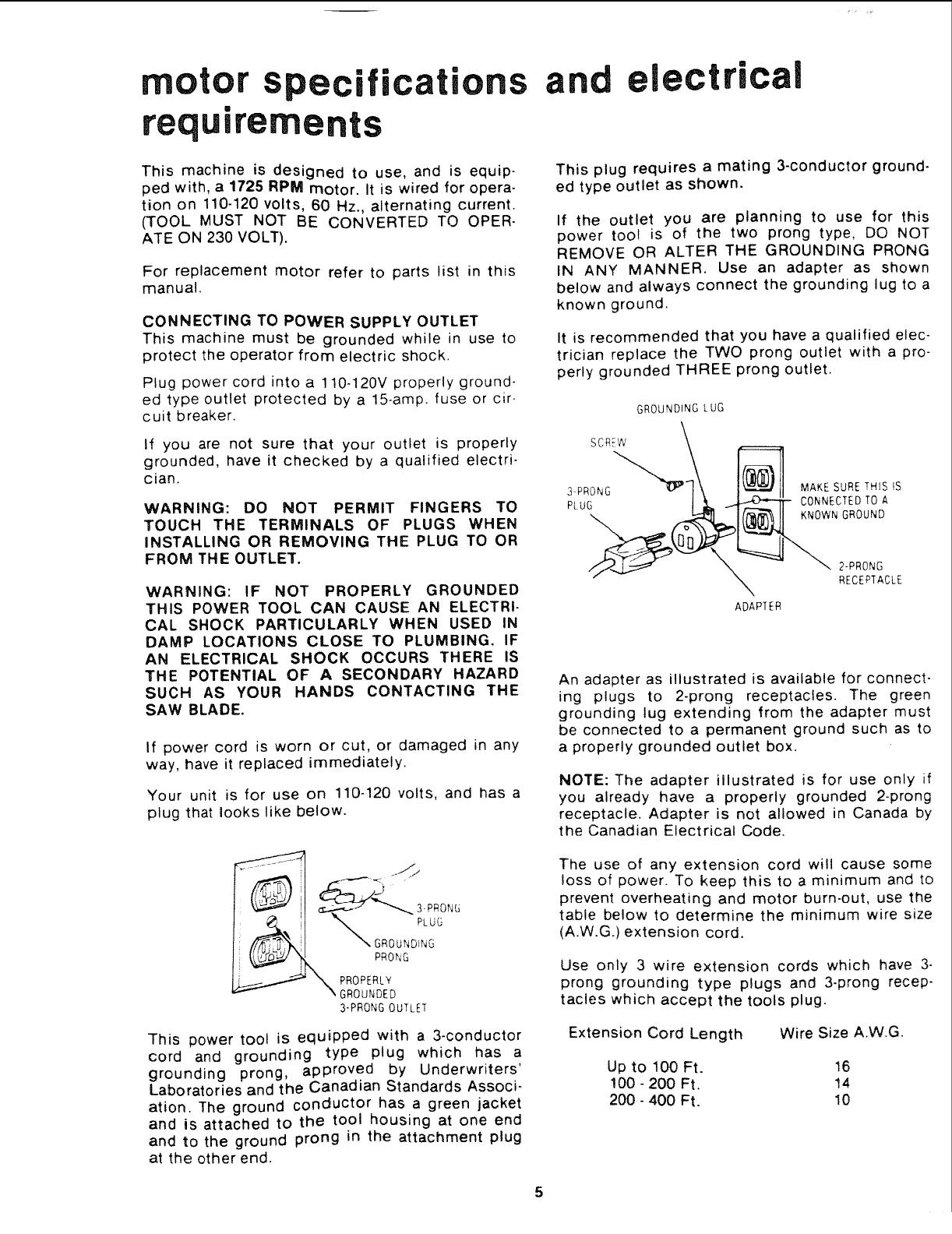

motor specifications
II
requirements
This machine is designed to use, and is equip-
ped with, a 1725 RPM motor. It is wired for opera-
tion on 110-120 volts, 60 Hz., alternating current.
(TOOL MUST NOT BE CONVERTED TO OPER-
ATE ON 230 VOLT).

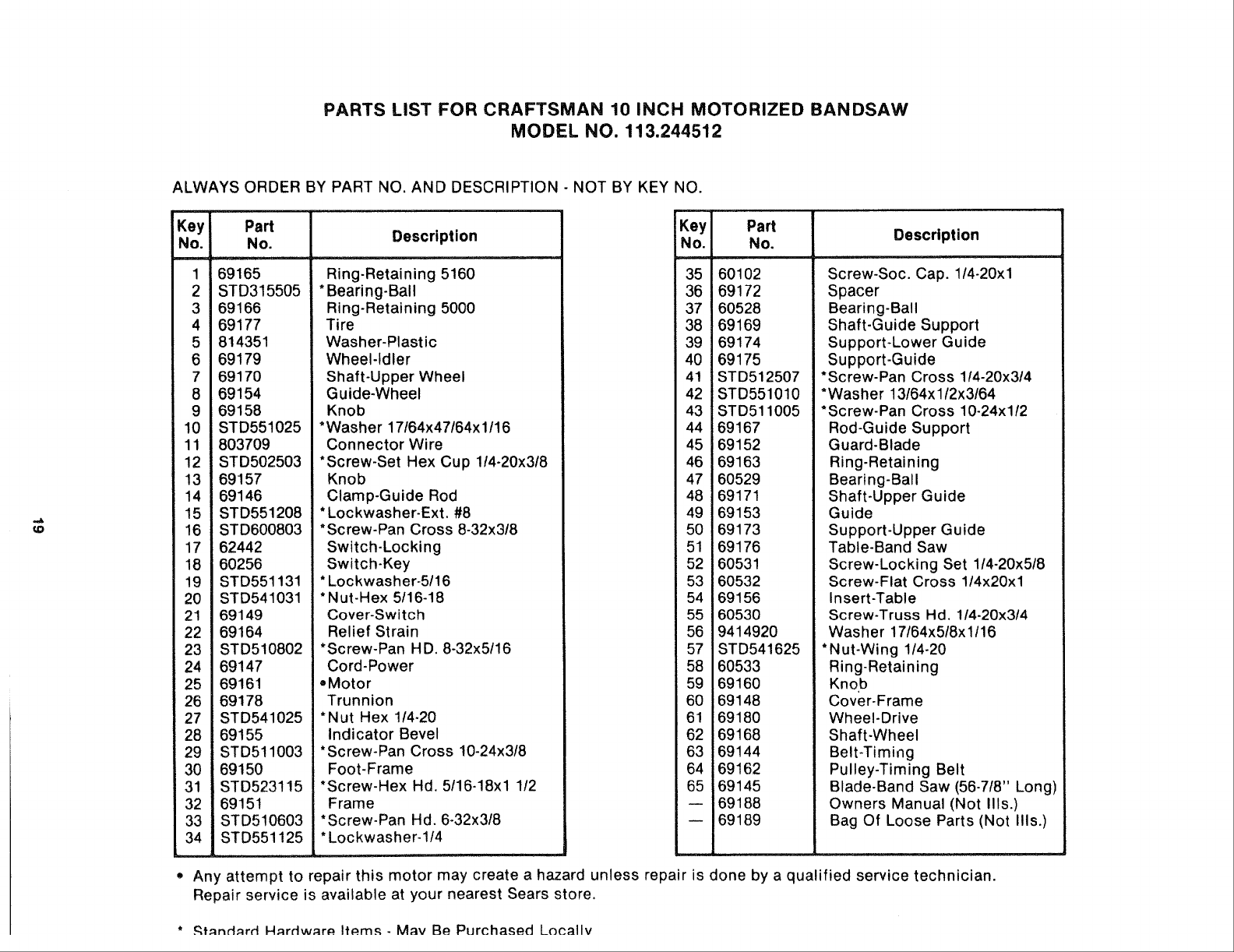

For replacement motor refer to parts list in this
manual.
CONNECTING TO POWER SUPPLY OUTLET
This machine must be grounded while in use to
protect the operator from electric shock.
Plug power cord into a 110-120V properly ground-
ed type outlet protected by a 15-amp. fuse or cir-
cuit breaker.
If you are not sure that your outlet is properly
grounded, have it checked by aqualified electri-
cian.
WARNING: DO NOT PERMIT FINGERS TO
TOUCH THE TERMINALS OF PLUGS WHEN
INSTALLING OR REMOVING THE PLUG TO OR
FROM THE OUTLET.
WARNING: IF NOT PROPERLY GROUNDED
THIS POWER TOOL CAN CAUSE AN ELECTRI-
CAL SHOCK PARTICULARLY WHEN USED IN
DAMP LOCATIONS CLOSE TO PLUMBING. IF
AN ELECTRICAL SHOCK OCCURS THERE IS
THE POTENTIAL OF A SECONDARY HAZARD
SUCH AS YOUR HANDS CONTACTING THE
SAW BLADE.
If power cord is worn or cut, or damaged in any
way, have it replaced immediately.
Your unit is for use on 110-120 volts, and has a
plug that looks like below.
GROUNDING
PRONG
_ PROPERLY
GROUNDED
3-PRONG OUTLET
This power tool is equipped with a 3-conductor
cord and grounding type plug which has a
grounding prong, approved by Underwriters'
Laboratories and the Canadian Standards Associ-
ation. The ground conductor has a green jacket
and is attached to the tool housing at one end
and to the ground prong in the attachment plug
at the other end.
electrical
This plug requires a mating 3-conductor ground-
ed type outlet as shown.
If the outlet you are planning to use for this
power tool is of the two prong type, DO NOT
REMOVE OR ALTER THE GROUNDING PRONG
IN ANY MANNER. Use an adapter as shown
below and always connect the grounding lug to a
known ground.
It is recommended that you have a qualified elec-
trician replace the TWO prong outlet with a pro-
perly grounded THREE prong outlet.
GROUNDING LUG
SCREW
3.PRONG_'_I_q\ _ MAKE SURE TH,S iS
ADAP]ER
An adapter as illustrated is available for connect-
ing plugs to 2-prong receptacles. The green
grounding lug extending from the adapter must
be connected to a permanent ground such as to
a properly grounded outlet box,
NOTE: The adapter illustrated is for use only if
you already have a properly grounded 2-prong
receptacle. Adapter is not allowed in Canada by
the Canadian Electrical Code.
The use of any extension cord wil! cause some
loss of power. To keep this to a minimum and to
prevent overheating and motor burn-out, use the
table below to determine the minimum wire size
(A.W.G.) extension cord.
Use only 3 wire extension cords which have 3-
prong grounding type plugs and 3-prong recep-
tacles which accept the tools plug.
Extension Cord Length Wire Size A.W.G.
Up to 100 Ft. 16
100 - 200 Ft. 14
200 - 400 Ft. 10
5
![](asset-6.png)

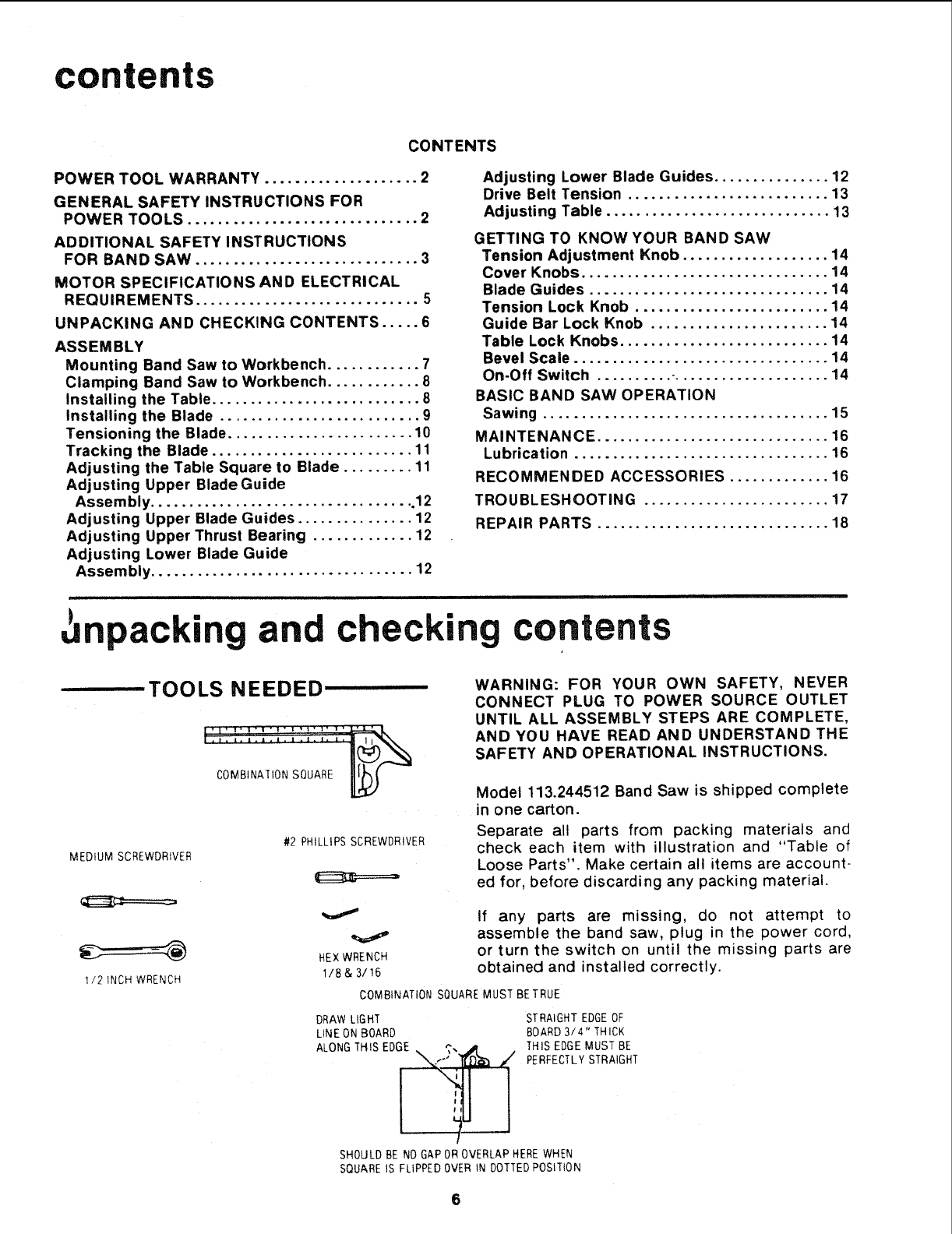

contents
CONTENTS
POWER TOOL WARRANTY .................... 2
GENERAL SAFETY INSTRUCTIONS FOR
POWER TOOLS .............................. 2
ADDITIONAL SAFETY INSTRUCTIONS
FOR BAND SAW ............................. 3
MOTOR SPECIFICATIONS AN D ELECTRICAL
REQUIREMENTS ............................. 5
UNPACKING AND CHECKING CONTENTS ..... 6
ASSEMBLY
Mounting Band Saw to Workbench ............ 7
Clamping Band Saw to Workbench ............ 8
Installing the Table ........................... 8
Installing the Blade .......................... 9
Tensioning the Blade ........................ 10

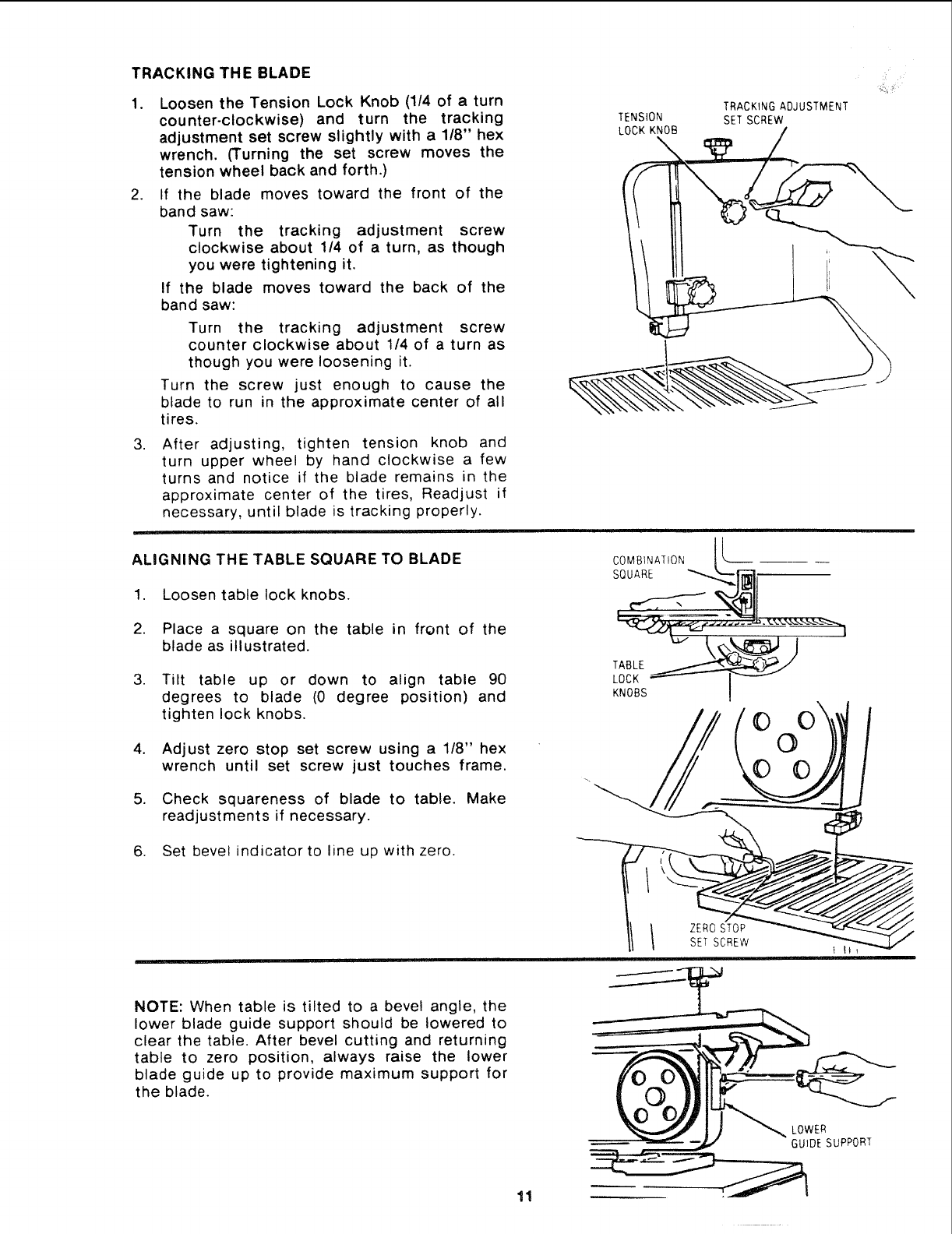

Tracking the Blade .......................... 11
Adjusting the Table Square to Blade ......... 11

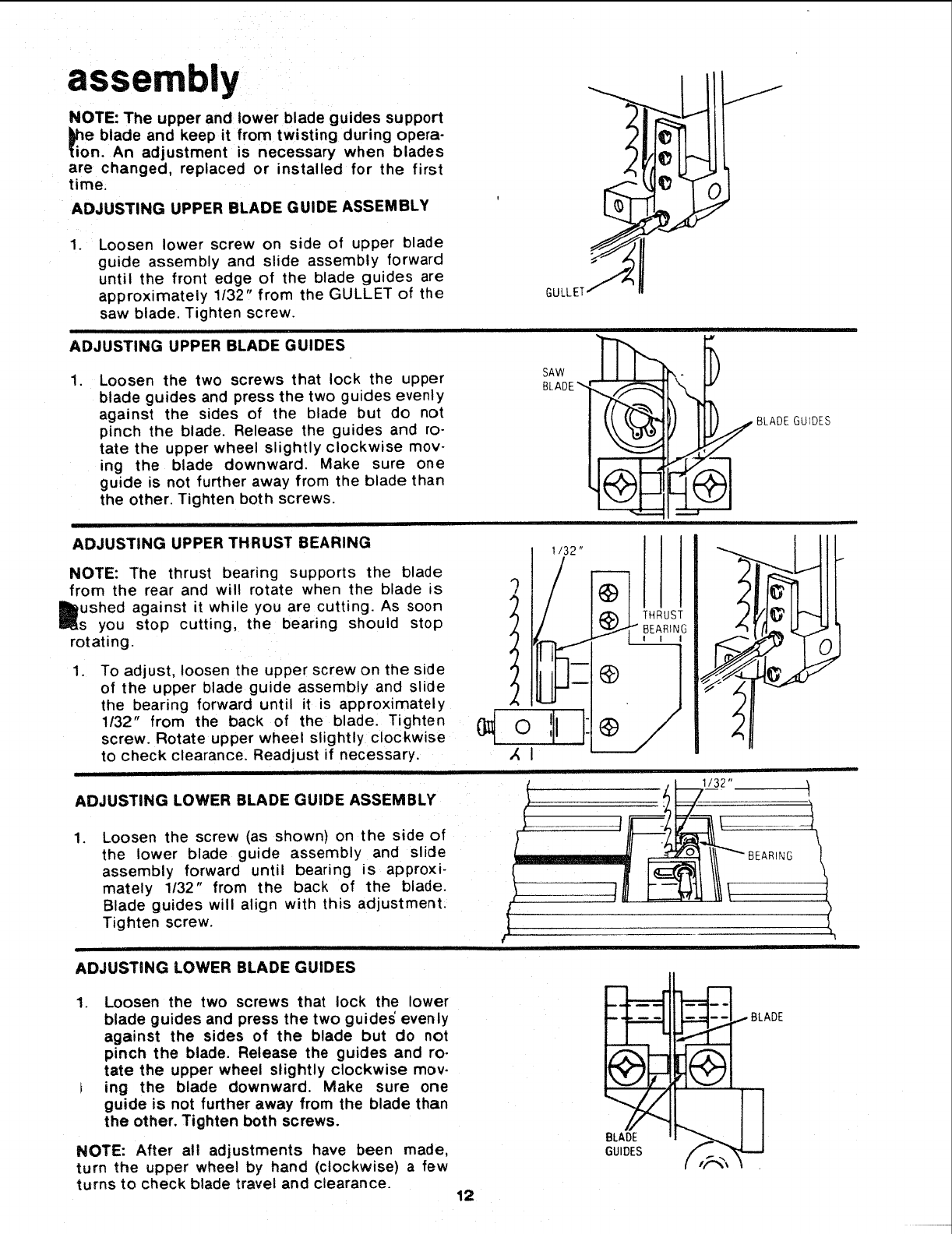

Adjusting Upper Blade Guide
Assembly .................................. .12
Adjusting Upper Blade Guides ............... 12
Adjusting Upper Thrust Bearing ............. 12
Adjusting Lower Blade Guide
Assembly .................................. 12
Adjusting Lower Blade Guides ............... 12

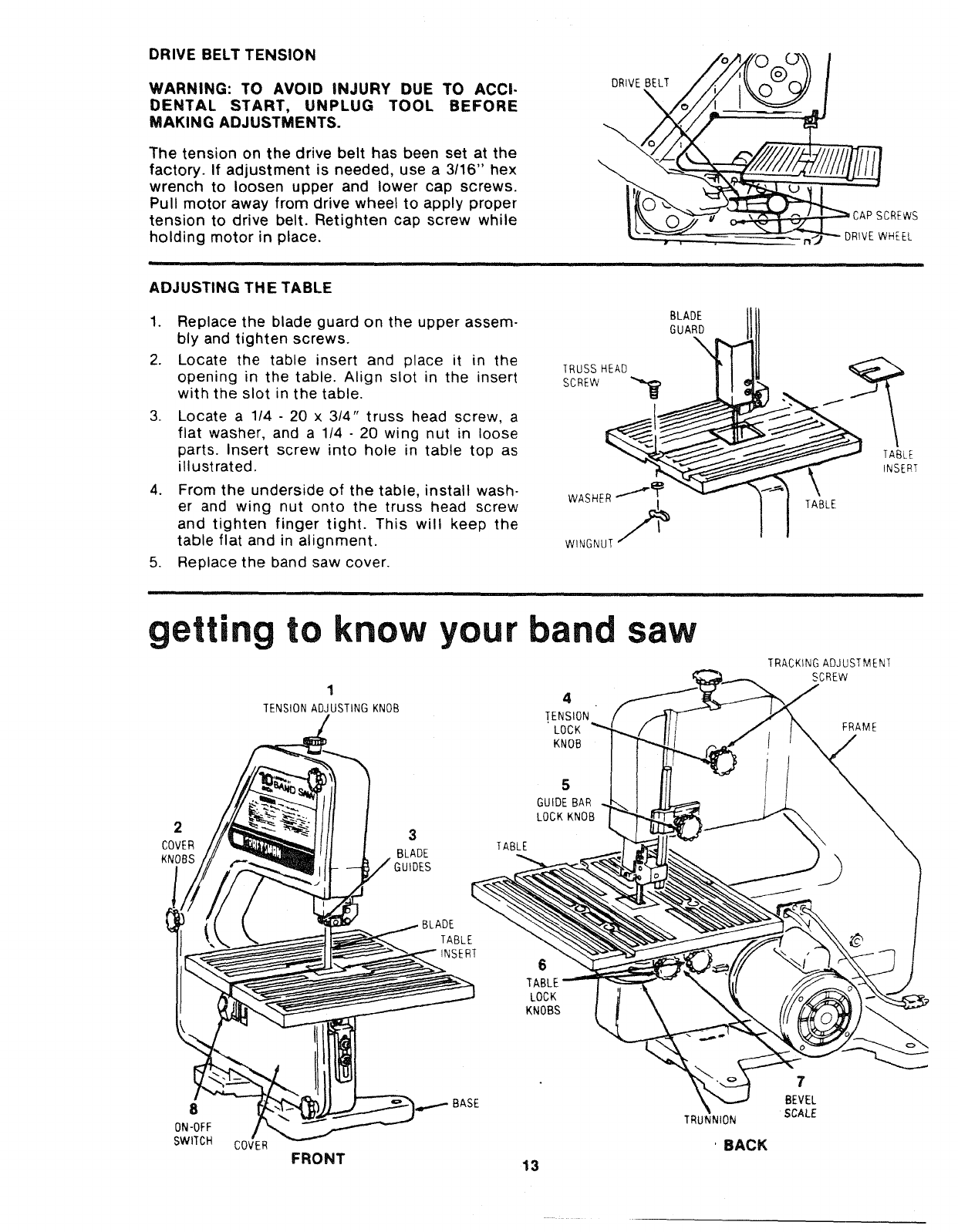

Drive Belt Tension .......................... 13
Adjusting Table ............................. 13
GETTING TO KNOW YOUR BAND SAW
Tension Adjustment Knob ................... 14
Cover Knobs ................................ 14
Blade Guides ............................... 14
Tension Lock Knob ......................... 14
Guide Bar Lock Knob ....................... 14
Table Lock Knobs ........................... 14
Bevel Scale ................................. 14
On-Off Switch .......... -.................... 14
BASIC BAND SAW OPERATION
Sawing ..................................... 15
MAINTENANCE .............................. 16
Lubrication ................................. 16
RECOMMENDED ACCESSORIES ............. 16

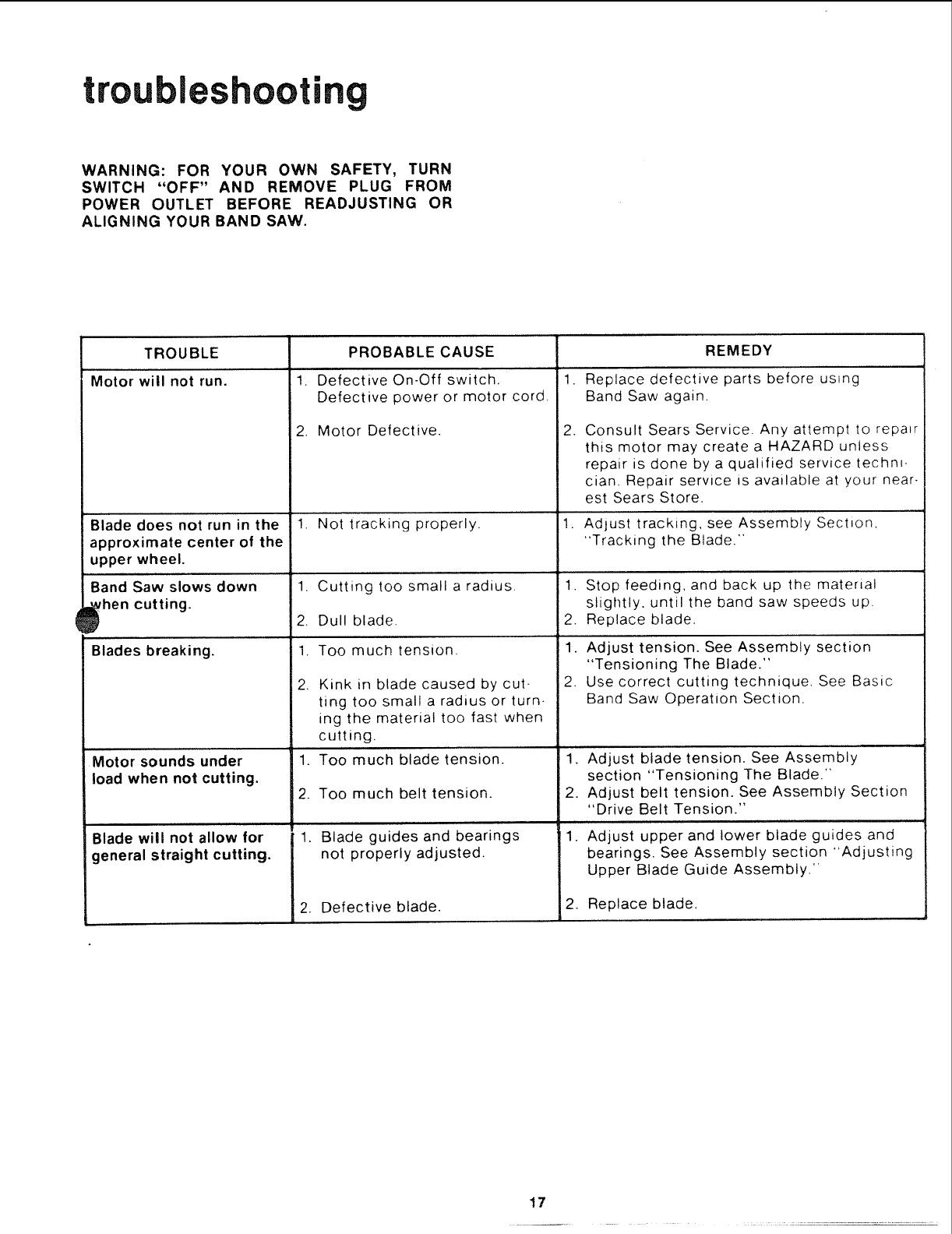

TROUBLESHOOTING ........................ 17

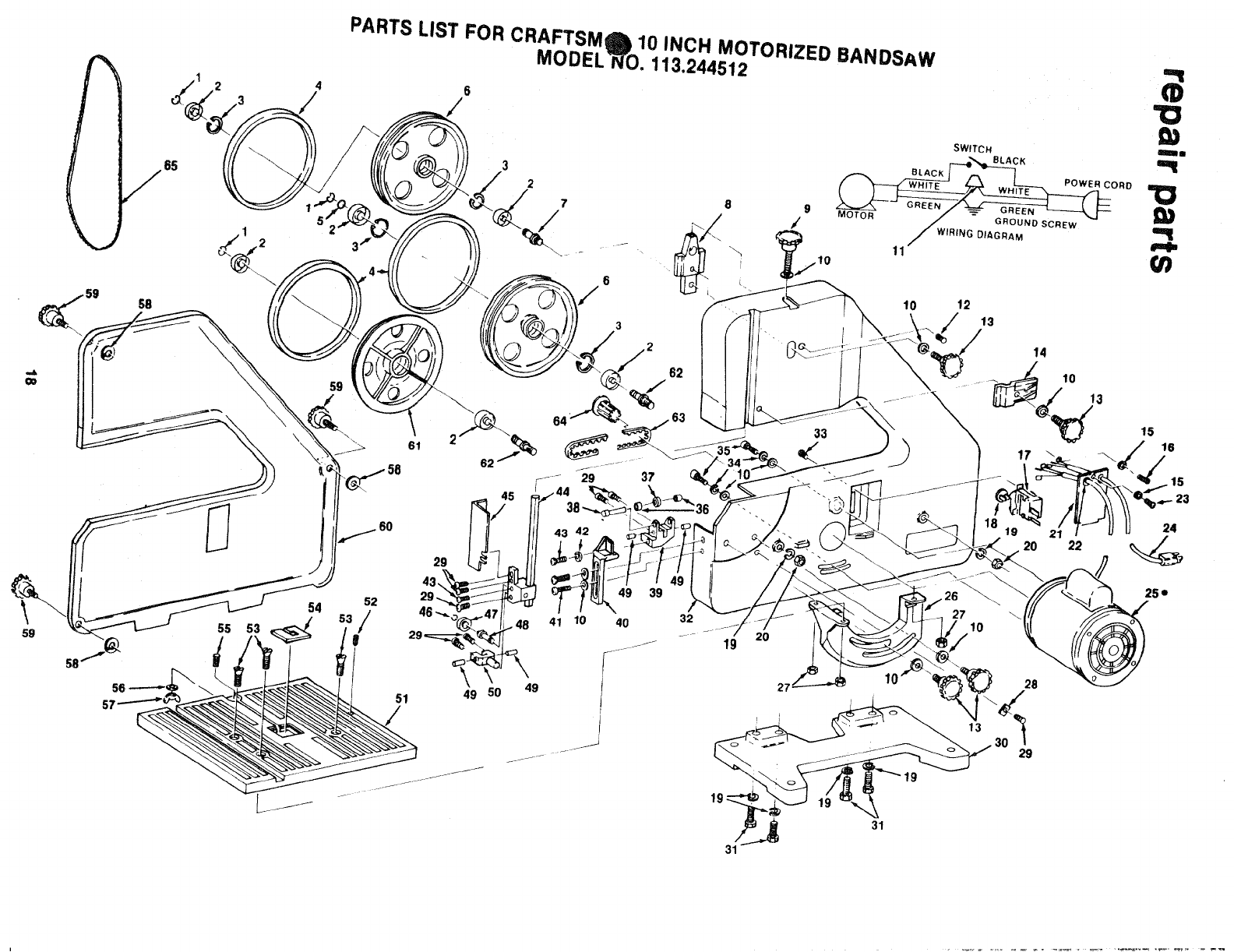

REPAIR PARTS .............................. 18
i
, npacking and checking contents
TOOLS NEEDED
, I, t, _,1 ,11 1 , I','li I =i(,_'_. _
COMBtNA-fION SQUARE
MEDIUM SCREWDRIVER
#2 PHILLIPS SCREWDRIVER
1/2 INCH WRENCH
WARNING: FOR YOUR OWN SAFETY, NEVER
CONNECT PLUG TO POWER SOURCE OUTLET
UNTIL ALL ASSEMBLY STEPS ARE COMPLETE,
AND YOU HAVE READ AND UNDERSTAND THE
SAFETY AND OPERATIONAL INSTRUCTIONS.
Model 113.244512 Band Saw is shipped complete
in one carton.
Separate all parts from packing materials and
check each item with illustration and "Table of
Loose Parts". Make certain all items are account-
ed for, before discarding any packing material.
HEX WRENCH
118& 3/16
If any parts are missing, do not attempt to
assemble the band saw, plug in the power cord,
or turn the switch on until the missing parts are
obtained and installed correctly.
COMBINATIONSQUAREMUST BETRUE
DRAW LIGHT
LINE ON BOARD
ALONG THIS EDGE _.._. _ /
l'i l
SHOULDBE NO GAPOROVERLAPHEREWHEN
SQUARE IS FLIPPED OVER tN DOTTED POSITION
STRAIGHTEDGEOF
BOARD3/4" THICK
THIS EDGEMUST BE
PERFECTLYSTRAIGHT
6
![](asset-7.png)

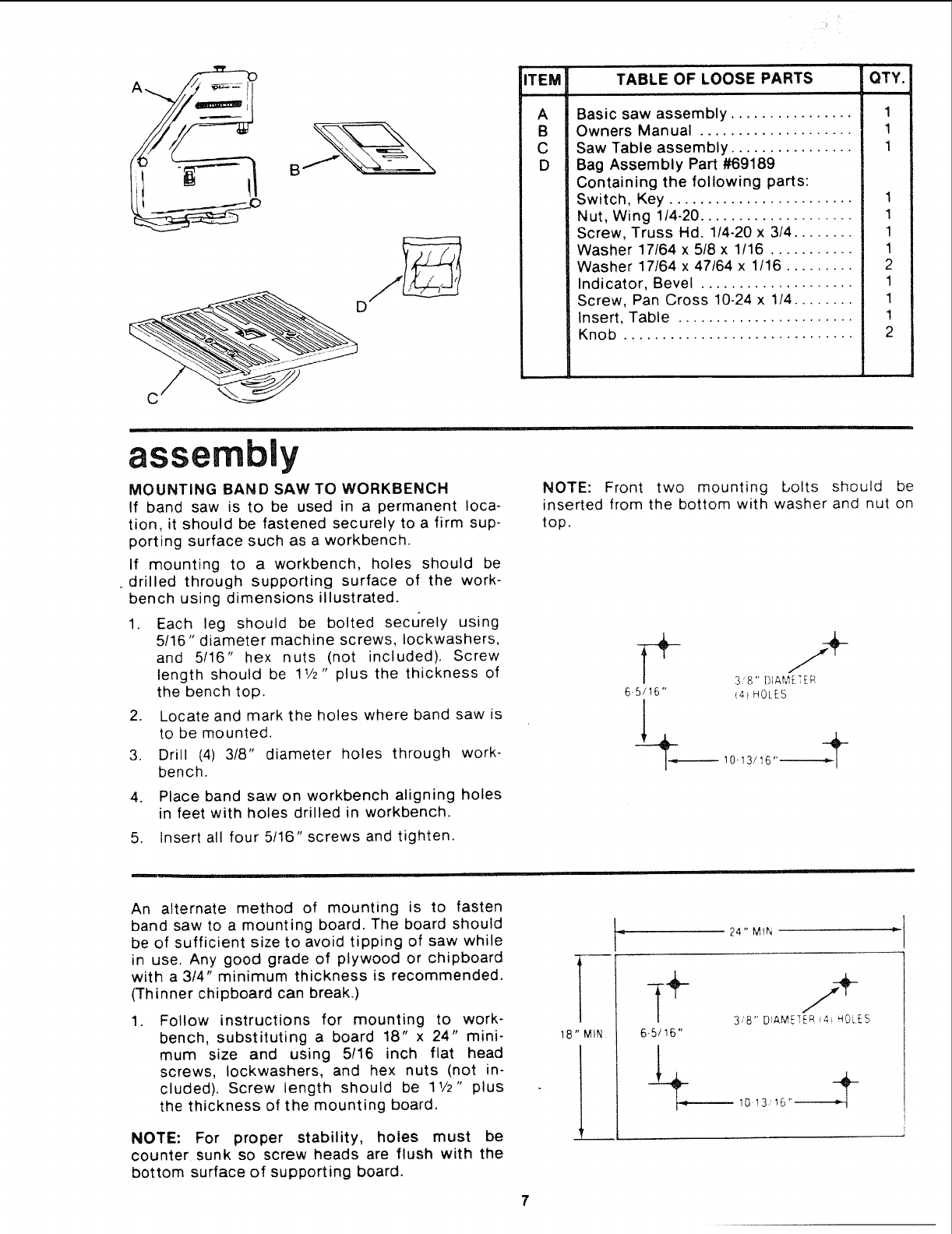

ITEM TABLEOFLOOSE PARTS QTY.
A
B
C
D
Basic saw assembly 1
Owners Manual .................... 1
Saw Table assembly ................ 1
Bag Assembly Part #69189
Containing the following parts:
Switch, Key ........................ 1
Nut, Wing 1/4-20 .................... 1
Screw, Truss Hd. 1/4-20 x 3t4 ........ 1
Washer 17!64 x 5!8 x 1/16 ........... 1
Washer 17164 x 47164 x 1/16 ......... 2
Indicator, Bevel .................... 1
Screw, Pan Cross 10-24 x 1/4 ........ 1
Insert, Table ....................... 1
Knob .............................. 2
C
assembly
MOUNTING BAND SAW TO WORKBENCH
If band saw is to be used in a permanent loca-
tion, it should be fastened securely to a firm sup-
porting surface such as a workbench.
If mounting to a workbench, holes should be
drilled through supporting surface of the work-
bench using dimensions illustrated.
1. Each leg should be bolted securely using
5/16" diameter machine screws, Iockwashers,
and 5/16" hex nuts (not included). Screw
length should be !1/2" plus the thickness of
the bench top.
2. Locate and mark the holes where band saw is
to be mounted.
3. Drill (4) 3/8" diameter holes through work-
bench.
4. Place band saw on workbench aligning holes
in feet with holes drilled in workbench.
5. Insert all four 5/16" screws and tighten.
NOTE: Front two mounting bolts should be
inserted from the bottom with washer and nut on
top.
_ 3,' 8" [)IAMETE''_ -'_
6-5/16" (4_ HOLES
__--_ 10-13/16"-._
An alternate method of mounting is to fasten
band saw to a mounting board. The board should
be of sufficient size to avoid tipping of saw while
in use. Any good grade of plywood or chipboard
with a 314" minimum thickness is recommended.
(Thinner chipboard can break.)
oFollow instructions for mounting to work-
bench, substituting a board 18" x 24" mini-
mum size and using 5/16 inch flat head
screws, Iockwashers, and hex nuts (not in-
cluded). Screw length should be 11/2'' plus
the thickness of the mounting board.
NOTE: For proper stability, holes must be
counter sunk so screw heads are flush with the
bottom surface of supporting board.
18" MIN
4
24" MtN
/*
--_+ 3/8" D_AMETER _4, HOL_S
6-5/16"
_---- 10 13,16"-_-_
"I
![](asset-8.png)
assembly

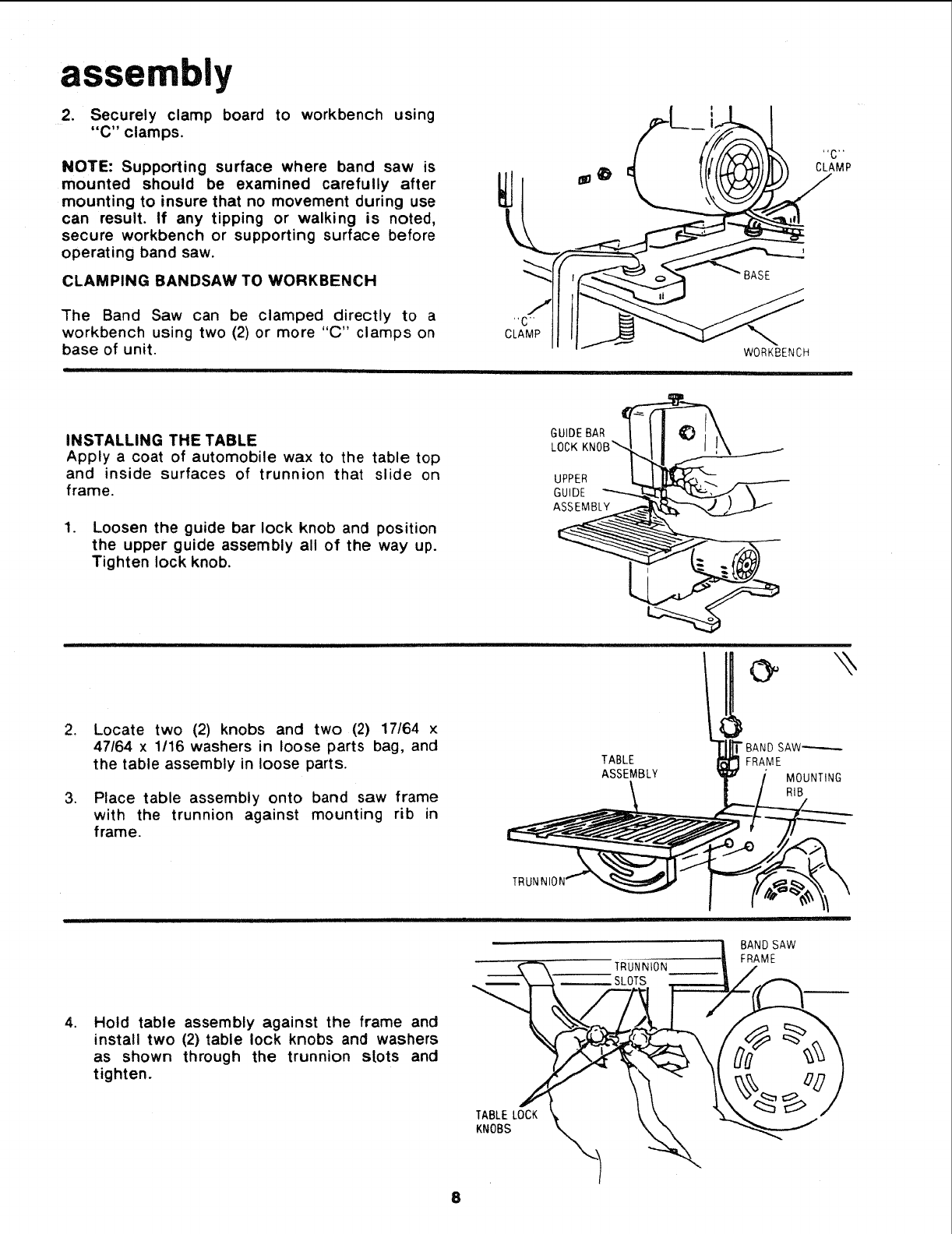

2. Securely clamp board
"C" clamps. to workbench using
NOTE: Supporting surface where band saw is
mounted should be examined carefully after
mounting to insure that no movement during use
can result. If any tipping or walking is noted,
secure workbench or supporting surface before
operating band saw.
CLAMPING BANDSAW TO WORKBENCH
The Band Saw can be clamped directly to a
workbench using two (2) or more "C" clamps on
base of unit.
BASE
WORKBENCH
"C"
CLAMP
INSTALLING THE TABLE
Apply a coat of automobile wax to the table top
and inside surfaces of trunnion that slide on
frame.
1. Loosen the guide bar lock knob and position
the upper guide assembly all of the way up.
Tighten lock knob.
GUIDEBAR
LOCK
UPPER
GUIDE
ASSEMBLY
2.
.
Locate two (2) knobs and two (2) 17/64 x
47/64 x 1/16 washers in loose parts bag, and
the table assembly in loose parts.
Place table assembly onto band saw frame
with the trunnion against mounting rib in
frame.
TABLE
ASSEMBLY
BAND SAW'--------
FRAME
MOUNTING
RIB
TRUNNION
SLOTS
BAND SAW
FRAME
.Hold table assembly against the frame and
install two (2) table lock knobs and washers
as shown through the trunnion stots and
tighten.
8
TABLELOCK
KNOBS
1
![](asset-9.png)
5. Locate bevel indicator and 10-24xl/4 pan
cross hd. screw in loose parts bag.
,Install bevel indicator and screw as shown
using a phillips screwdriver.
NOTE: This unit comes with the Band Saw blade
installed, assembly continues on p. 10, "Tension-
ing the Blade."
i i ,, i , i ,_ i,i i ,mlrll i
©GUIDE BAR
LOCK KNOB
REPLACING THE BLADE
1,
.
Loosen the guide bar lock knob and position
the upper guide assembly approximately one
inch above the table and tighten lock knob.
Loosen the two blade guard mounting screws
and remove the blade guard.
UPPERSUIOE
ASSEMBLY
.Loosen the guide bar lock knob and position
the upper guide assembly approximately two
inches above the table as shown and tighten
the lock knob.
GUIDE BAR
LOCK
4.
.
.
Remove table insert, truss head screw, wash-
er and wing nut from the table (See Assem-
bly, p. 13 - "Adjusting the Table"). Replace
these parts after the blade is installed, ten-
sioned and tracked.
Loosen the two screws in the front of the
upper blade guide assembly that secure the
blade guides and separate them about 1/8"
Loosen the two screws in the side of the
upper guide assembly and slide guides and
thrust bearing all of the way back.
7. Tighten all screws.
GUIDE
i, iiii ii i _ i
COVER
KNO
8. Loosen the three (3) cover knobs by turning
counterclockwise and remove cover. COVER
NOTE: Replace the bandsaw cover after blade is
properly installed, tensioned and tracked.
9
COVER
KNOB
,i _ wr
COVER _RA;,,T
![](asset-a.png)
assembly

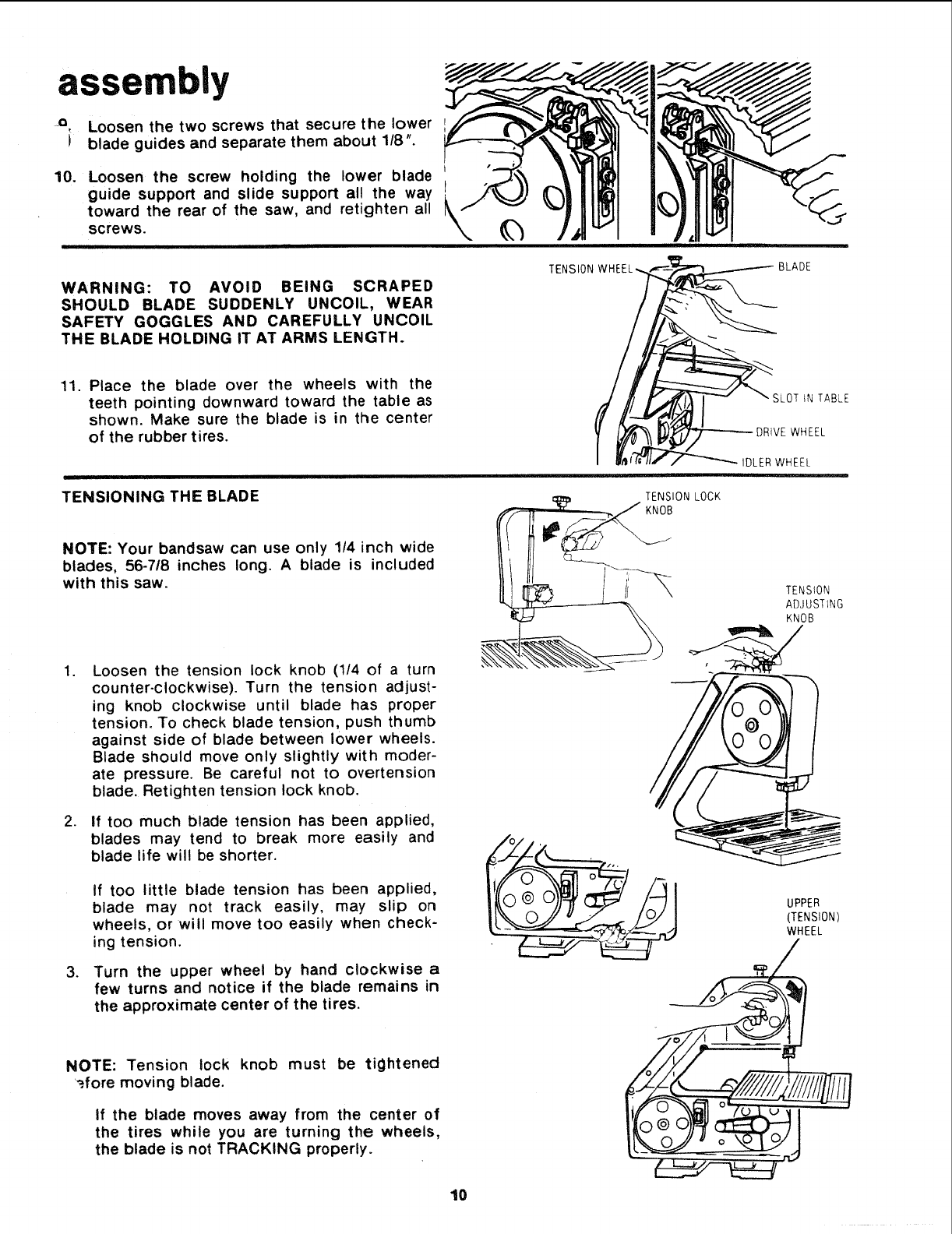

oLoosen the two screws that secure the lower
i blade guides and separate them about 1/8".
10. Loosen the screw holding the lower blade
guide support and slide support all the way L
toward the rear of the saw, and retighten all \screws.
i
WARNING: TO AVOID BEING SCRAPED
SHOULD BLADE SUDDENLY UNCOIL, WEAR
SAFETY GOGGLES AND CAREFULLY UNCOIL
THE BLADE HOLDING IT AT ARMS LENGTH.
BLADE
11. Place the blade over the wheels with the
teeth pointing downward toward the table as
shown. Make sure the blade is in the center
of the rubber tires.
SLOT iN TABLE
)RIVE WHEEL
IDLER WHEEL
TENSIONING THE BLADE TENSION LOCK
KNOB
NOTE: Your bandsaw can use only 114 inch wide
blades, 56-718 inches long. Ablade is included
with this saw.
.
.
,
Loosen the tension lock knob (1/4 of a turn
counter-clockwise). Turn the tension adjust-
ing knob clockwise until blade has proper
tension. To check blade tension, push thumb
against side of blade between lower wheels.
Blade should move only slightly with moder-
ate pressure. Be careful not to overtension
blade. Retighten tension lock knob.
If too much blade tension has been applied,
blades may tend to break more easily and
blade life will be shorter.
If too little blade tension has been applied,
blade may not track easily, may slip on
wheels, or will move too easily when check-
ing tension.
Turn the upper wheel by hand clockwise a
few turns and notice if the blade remains in
the approximate center of the tires.
NOTE: Tension lock knob must be tightened
_.fore moving blade.
if the blade moves away from the center of
the tires while you are turning the wheels,
the blade is not TRACKING properly.
10
TENSION
ADJUSTING
KNOB
![](asset-b.png)
TRACKING THE BLADE
°
.
.
Loosen the Tension Lock Knob (1/4 of a turn
counter-clockwise) and turn the tracking
adjustment set screw slightly with a 1/8" hex
wrench. (Turning the set screw moves the
tension wheel back and forth.)
If the blade moves toward the front of the
band saw:
Turn the tracking adjustment screw
clockwise about 1/4 of a turn, as though
you were tightening it.
If the blade moves toward the back of the
band saw:
Turn the tracking adjustment screw
counter clockwise about 1/4 of a turn as
though you were loosening it.
Turn the screw just enough to cause the
blade to run in the approximate center of all
tires.
After adjusting, tighten tension knob and
turn upper wheel by hand clockwise a few
turns and notice if the blade remains in the
approximate center of the tires, Readjust if
necessary, until blade is tracking properly.
ALIGNING THE TABLE SQUARE TO BLADE
1. Loosen table lock knobs.
2. Place a square on the table in front of the
blade as illustrated.
,
.
.
Tilt table up or down to align table 90
degrees to blade (0 degree position) and
tighten lock knobs.
Adjust zero stop set screw using a 1/8" hex
wrench until set screw just touches frame.
Check squareness of blade to table. Make
readjustments if necessary.
TENSION
LOCK KNOB
TRACKING ADJUSTMENT
SET SCREW
6. Set bevel indicator to line up with zero.
0
ZERO STOPSET SCREW
NOTE: When table is tilted to a bevel angle, the
lower blade guide support should be lowered to
clear the table. After bevel cutting and returning
table to zero position, always raise the lower
blade guide up to provide maximum support for
the blade.
LOWER
GWDE SUPPORT
11
![](asset-c.png)
assembly
NOTE: The upper and lower blade guides support
_he blade and keep it from twisting during opera-
tion. An adjustment is necessary when blades
are changed, replaced or installed for the first
time,
ADJUSTING UPPER BLADE GUIDE ASSEMBLY
1. Loosen lower screw on side of upper blade
guide assembly and slide assembly forward
until the front edge of the blade guides are
approximately 1/32, from the GULLET of the
saw blade. Tighten screw.
i i
ADJUSTING UPPER BLADE GUIDES
GULLET
1. Loosen the two screws that lock the upper
blade guides and press the two guides evenly
against the sides of the blade but do not
pinch the blade. Release the guides and ro-
tate the upper wheel slightly clockwise mov-
ing the blade downward. Make sure one
guide is not further away from the blade than
the other. Tighten both screws.
SAW
BLADE"-
("¢'-)LJ
v
-,.L.__
.v
b
ADJUSTING UPPER THRUST BEARING
NOTE: The thrust bearing supports the blade
from the rear and will rotate when the blade is
ushed against it while you are cutting. As soon
you stop cutting, the bearing should stop
rotating.
.To adjust, loosen the upper screw on the side
of the upper blade guide assembly and slide
the bearing forward until it is approximately
1/32" from the back of the blade. Tighten
screw. Rotate upper wheel slightly clockwise
to check clearance. Readjust if necessary.
1/32"
, BLADE GUIDES
ADJUSTING LOWER BLADE GUIDE ASSEMBLY
1. Loosen the screw (as shown) on the side of
the lower blade guide assembly and slide
assembly forward until bearing is approxi-
mately 1/32" from the back of the blade.
Blade guides will align with this adjustment.
Tighten screw. _t_
Z
X
ADJUSTING LOWER BLADE GUIDES
/__32"
BEARING
1
1. Loosen the two screws that lock the lower
blade guides and press the two guides evenly
against the sides of the blade but do not
pinch the blade. Release the guides and ro-
tate the upper wheel slightly clockwise mov-
,ing the blade downward. Make sure one
guide is not further away from the blade than
the other. Tighten both screws.
NOTE: After all adjustments have been made,
turn the upper wheel by hand (clockwise) a few
turns to check blade travel and clearance. 12
I
L..
.._BLADE
@
BLADE
GUIDES
![](asset-d.png)
DRIVE BELT TENSION
WARNING: TO AVOID INJURY DUE TO ACCI-
DENTAL START, UNPLUG TOOL BEFORE
MAKING ADJUSTMENTS.
The tension on the drive belt has been set at the
factory. If adjustment is needed, use a 3/16" hex
wrench to loosen upper and lower cap screws.
Pull motor away from drive wheel to apply proper
tension to drive belt. Retighten cap screw while
holding motor in place.
ADJUSTING THE TABLE
DRIVEBELT
CAP SCREWS
DRIVE WHEEL
1. Replace the blade guard on the upper assem-
bly and tighten screws.
2. Locate the table insert and place it in the
opening in the table. Align slot in the insert
with the slot in the table.
.Locate a 1/4 - 20 x 3/4" truss head screw, a
flat washer, and a 1/4 - 20 wing nut in loose
parts. Insert screw into hole in table top as
illustrated.
4. From the underside of the table, install wash-
er and wing nut onto the truss head screw
and tighten finger tight. This will keep the
table flat and in alignment.
5. Replace the band saw cover.
"[RUSSHEAD
SCREW
BLADE
GUARD
\
TABLE
TABLE
INSERT
erring to
2
COVER
KNOBS
now
1
TENSION ADJUSTING KNOB
3
BLADE
GUIDES
your ban
4
TENSION
LOCK
KNOB
5
GUIDE BAR
LOCK KNOB
"[ABLE
saw
TRACKING ADJUSTMENT
SCREW
FRAME
ADE
TABLE
INSERT 6
LOCK
KNOBS
8
ON-OFF
SWITCH COVER FRONT
BASE
13
TRUNNION
'BACK
7
BEVEL
SCALE
![](asset-e.png)
etting to know your band saw
.
.
.
Tension adjusting knob...Tightening the
knob (clockwise) will increase the tension on
the blade. Loosening it (counter clockwise)
will decrease the tension. (Tension lock knob
must be released).
Cover knobs... Secure cover to frame by
tightening all three (3) cover knobs.
Blade Guides...Supports the blade and
keeps it from twisting during operation. An
adjustment is necessary when blades are
changed or replaced.
Tension lock knob ... Holds position of the
upper wheel which is set by the tension
adjusting knob.
o
.
.
Guide bar lock knob...The upper blade
guide assembly should just clear the work-
piece while cutting. Always adjust the upper
guide assembly and lock the guide bar by
tightening the blade guide lock knob before
turning on the band saw.
Table lock knobs ... Loosening knobs allows
the table to be tilted and tightening knobs
locks the table in place.
Tilt (bevel) scale... Shows degree table is
tilted for bevel cutting.
,ON-OFF SWITCH. The On-Off Switch has a
locking feature. THIS FEATURE IS INTEND-
ED TO HELP PREVENT UNAUTHORIZED
AND POSSIBLY HAZARDOUS USE BY
CHILDREN AND OTHERS.
1. To turn machine on insert key into
switch.
• IOTE: Key is made of yellow plastic; locate in
loose parts bag.
2. Insert finger under switch lever and pull
end of switch out.
3. To turn machine OFF... PUSH lever in.
NEVER LEAVE THE MACHINE UNATTENDED
UNTIL IT HAS COME TO A COMPLETE STOP.
iiiii i
4. To lock switch in OFF position.., hold
switch IN with one hand ... REMOVE key
with other hand.
WARNING: FOR YOUR OWN SAFETY, ALWAYS
LOCK THE SWITCH "OFF" WHEN MACHINE iS
OT IN USE... REMOVE KEY AND KEEP IT IN A
FE PLACE .ALSO...IN THE EVENT OF A
POWER FAILURE (ALL OF YOUR LIGHTS GO
OUT) TURN SWITCH OFF... REMOVE THE KEY
AND STORE IT REMOTE FROM BAND SAW.
THIS WiLL PREVENT THE MACHINE FROM
STARTING UP AGAIN WHEN THE POWER
COMES BACK ON. 14
![](asset-f.png)
basic ban saw operation
A band saw is basically a "curve cutting" mach-
ine. It is also used for straight-line cutting opera-
tions such as cross cutting, ripping, mitering,
beveling, compound cutting, and resawing. It is
not capable of doing inside cutting.
This band saw is designed to cut wood and
wood like products only.
For general type scroll cutting, follow the pattern
lines by pushing and turning the workpiece at
the same time. Do not try to turn the workpiece
while engaged in the blade without pushing it;
the workpiece could bind or twist the blade.
A curve cut is best performed by keeping the
pattern line in line with the blade while turning
the workpiece before the radius of the curve is
cut. The blade should cut in the middle of the
pattern line (saw kerf) since wood cutting band
saw blades are thin.
NOTE: Blade guard is raised for clarity of picture
only.
SAW
KERF
WORKPIECE
PATTERN LINE BLADE
RIGHT -Planning ahead by turning workpiece
for cutting a curve.
WORKFtOE
PATTERN LiNE
WRONG -Not planning ahead for cutting a
curve could bind or twist blade if workpiece i_
forced.
SAWING
1. Adjust the upper guide assembly to just clear
the workpiece.
.
.
Use both hands while feeding the work into
the blade. Hold the workpiece firmly against
the table. Use gentle pressure. Do not force
the work, but allow the blade to cut.
The smallest diameter circle that can be cut
out is determined by the width of the blade.
A 1/4" wide blade will cut a minimum dia-
meter of approximately 1-1/2".
Relief cuts are made when an intricate curve (too
small a radius for a 1/4-inch blade) is to be cut. A
relief cut is made by cutting through scrap sec-
tion of workpiece to curve in pattern line, then
carefully backing blade out. Several relief cuts
should be made for intricate curves, then follow
pattern line as sections are cut off of curve
"relieving" blade pressure.
WORKPIECE
I
PATTERN LINE
BLADE
RELIEF
CU_S
NOTE: Blade guard is raised for clarity of picture
only.
15
![](asset-10.png)
maintenance
WARNING: FOR YOUR OWN SAFETY, TURN
SWITCH "OFF" AND REMOVE PLUG FROM
POWER OUTLET BEFORE MAINTAINING OR
LUBRICATING YOUR BAND SAW.
TIRES
Pitch and sawdust that accumulate on the tires
should be removed with a stiff brush or scraped
off with a piece of wood. Do not use a sharp
knife or any kind of solvent.
When the tires become worn they should be re-
placed. When replacing the tires, put a thin layer
of rubber cement on the outside of the wheels
and inside of the tires. Allow to dry, then slide
tires onto wheels aligning tires inside wheel
edges.
GENERAL
Keep your Band Saw clean.
Remove sawdust from the inside frequently.
Do not allow pitch to accumulate on the table,
blade insert, blade guides, or thrust bearings.
Clean them with Craftsman Gum and Pitch
_Remover.
Apply a thin coat of automobile-type wax to the
table so the wood slides easily while cutting.
Also apply wax to the inside surfaces of the
trunnion.
MOTORIELECTRICAL
Frequently vacuum or blow out any sawdust from
the motor.
If the power cord is worn, cut, or damaged in any
way, have it replaced immediately.
LUBRICATION
All of the BALL BEARINGS are permanently
lubricated. They require no further lubrication.
BLACK
-MOTOR
RECOMMENDED ACCESSORIES
Item Cat. No.
Miter Gauge ............................ 9-24214
Blades (56-7/8" iength) .............. See Catalog
The above recommended accessories are current
and were available at the time this manual was
printed.
16
![](asset-11.png)
|rou ieshooting
WARNING: FOR YOUR OWN SAFETY, TURN
SWITCH "OFF" AND REMOVE PLUG FROM
POWER OUTLET BEFORE READJUSTING OR
ALIGNING YOUR BAND SAW.
TROUBLE
Motor will not run.
Blade does not run in the
approximate center of the
upper wheel.
Band Saw slows down
hen cutting.
Blades breaking.
Motor sounds under
load when not cutting.
Blade will not allow for
general straight cutting.
PROBABLE CAUSE
1. Defective On-Off switch.
Defective power or motor cord.
2. Motor Defective.
1. Not tracking properly.
1.
2.
1.
2.
Cutting too small a radius.
Dull blade.
Too much tension,
1.
2.
1.
REMEDY
1. Replace defective parts before using
Band Saw again.
.
1,
1,
.
1.
Kink in blade caused by cut- 2.
ting too small a radius or turn-
ing the material too fast when
cutting.
Too much blade tension.
Too much belt tension.
Blade guides and bearings
not properly adjusted.
2. Defective blade.
Consult Sears Service. Any attempt to repair
this motor may create a HAZARD unless
repair is done by a qualified service technE-
clan. Repair service is available at your near-
est Sears Store.
Adjust tracking, see Assembly Section,
"Tracking the Blade."
Stop feeding, and back up the material
slightly, until the band saw speeds up.
Replace blade.
Adjust tension. See Assembly section
"Tensioning The Blade."
Use correct cutting technique. See Basic
Band Saw Operation Section.
1. Adjust blade tension. See Assembly
section "Tensioning The Blade."
2. Adjust belt tension. See Assembly Section
"Drive Belt Tension."
1. Adjust upper and lower blade guides and
bearings. See Assembly section "Adjusting
Upper Blade Guide Assembly."
2. Replace blade.
17
![](asset-12.png)
58
PARTS LIST FOR CRAFTSM
MODEL
3
2
7
59
2
62
60
10 INCH MOTORIZED BANDSP,W
113.244512
8
62
"R
"0
10 12 13
15
16
.15
19 21
20 22
24
2g
43,
52
54, 53 /
49 39
49
41 10 40
i
l_f. --j
32
19
19
2O
27
19
31
27 10
13
28
29
![](asset-13.png)
PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED BANDSAW
MODEL NO. 113.244512
$
ALWAYS ORDER BY PART NO. AND DESCRIPTION - NOT BY KEY NO.
Key Part
No. No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
69165
STD315505
69166
69177
814351
69179
69170
69154
69158
STD551025
803709
STD502503
69157
69146
STD551208
STD600803
62442
60256
STD551131
STD541031
69149
69164
STD510802
69147
69161
69178
STD54!025
69155
STD511003
69150
STD523115
69151
ST D510603
STD551125
Description
Ring-Retaining 5160
*Bearing-Ball
Ring-Retaining 5000
Tire
Washer-Plastic
Wheel-Idler
Shaft-Upper Wheel
Guide-Wheel
Knob
* Washer 17164x47164x 1/16
Connector Wire
*Screw-Set Hex Cup 1!4-20x318
Knob
Clamp-Guide Rod
* Lockwasher-Ext. #8
*Screw-Pan Cross 8-32x3/8
Switch-Locking
Switch-Key
* Lockwasher-5116
* Nut-Hex 5/16-18
Cover-Switch
Relief Strain
*Screw-Pan HD. 8-32x5/16
Cord-Power
eMotor
Trunnion
*Nut Hex 1/4-20
Indicator Bevel
*Screw-Pan Cross 10-24x3!8
Foot-Frame
*Screw-Hex Hd. 5!16-18xl 1/2
Frame
*Screw-Pan Hd. 6-32x3/8
* Lockwasher-l/4
Key Part
No. No.
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
5O
51
52
53
54
55
56
57
58
59
6O
61
62
63
64
65
60102
69172
60528
69169
69174
69175
STD512507
STD551010
STD511005
69167
69152
69163
60529
69171
69153
69173
69176
60531
60532
69156
60530
9414920
STD541625
60533
69160
69148
69180
69168
69144
69162
69145
69188
69189
Description
Screw-Soc. Cap. 1/4-20xl
Spacer
Bearing-Ball
Shaft-Guide Support
Support-Lower Guide
Support-Guide
*Screw-Pan Cross 1/4-20x3/4
*Washer 13/64x1/2x3164
*Screw-Pan Cross 10-24x1/2
Rod-Guide Support
Guard-Blade
Ring-Retaining
Bearing-Ball
Shaft-Upper Guide
Guide
Support-Upper Guide
Table-Band Saw
Screw-Locking Set 1/4-20x5/8
Screw-Flat Cross 1/4x20x1
Insert-Table
Screw-Truss Hd. 1/4-20x3/4
Washer 17164x518x1116
*Nut-Wing 1/4-20
Ring-Retaining
Knob
Cover-Frame
Wheel-Drive
Shaft-Wheel
Belt-Timing
Pulley-Timing Belt
Blade-Band Saw (56-7/8" Long)
Owners Manual (Not Ills.)
Bag Of Loose Parts (Not Ills.)
• Any attempt to repair this motor may create a hazard unless repair is done by a qualified service technician.
Repair service is available at your nearest Sears store.
* .o,t_nd_rd H_rdw_rp. Itp.m._ -Mav Be. Purchased Locally
![](asset-14.png)
owners
manual
SERVICE
MODEL NO.
113.244512
HOW TO ORDER
REPAIR PARTS
CH SA
Now that you have purchased your 10-Inch Band
Saw should a need ever exist for repair parts or
service, simply contact any Sears Service Center
and most Sears, Roebuck and Co. stores. Be sure
to provide all pertinent facts when you call or
visit.
The model number of your 10-Inch Band Saw will
be found on a plate at the right-hand side of the
saw.
WHEN ORDERING REPAIR PARTS, ALWAYS
GIVE THE FOLLOWING _, JFORMATION:
PART NUMBF D
MODEL NUMBER
113.244512
P, {T DESCRIPTION
NAME OF ITEM
10-Inch Band Saw
All parts listed may be ordered from any Sears
Service Center and most Sears stores. If the
parts you need are not stocked locally, your
order will be electronically transmitted to a Sears
Repair Parts Distribution Center for handling.
Part No. 69188
Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.
Form No. SP5031 PRINTED IN TAIWAN 3/86
