Craftsman 113247410 User Manual 12 INCH ELECTRONIC BAND SAW Manuals And Guides L0902074

CRAFTSMAN Saw Band Manual L0902074 CRAFTSMAN Saw Band Owner's Manual, CRAFTSMAN Saw Band installation guides

User Manual: Craftsman 113247410 113247410 CRAFTSMAN 12-INCH ELECTRONIC BAND SAW - Manuals and Guides View the owners manual for your CRAFTSMAN 12-INCH ELECTRONIC BAND SAW #113247410. Home:Tool Parts:Craftsman Parts:Craftsman 12-INCH ELECTRONIC BAND SAW Manual

Open the PDF directly: View PDF .
Page Count: 44

Save This Manual

For Future Reference

SEARS

owners

monuol

MODEL NO.

113.247410

ELECTRONIC BAND SAW

WITH CABINET & DOOR

S_rial

Number

Model and s_rial nunnb_rs

may b_ found at the

I_t-hand side of the bas_.

You should record both

model and s_rial number

in a safe place for future

US_.

CAUTION:

READALL

INSTRUCTIONS

CAREFULLY

CRRFTSMRN

12-1NCH ELECTRONIC

BAND SAW

• assembly

• operating

• repair pads

Sold by SEARS,ROEBUCKAND CO., Chicago, IL.60684 U.SA.

Part No. SP5085

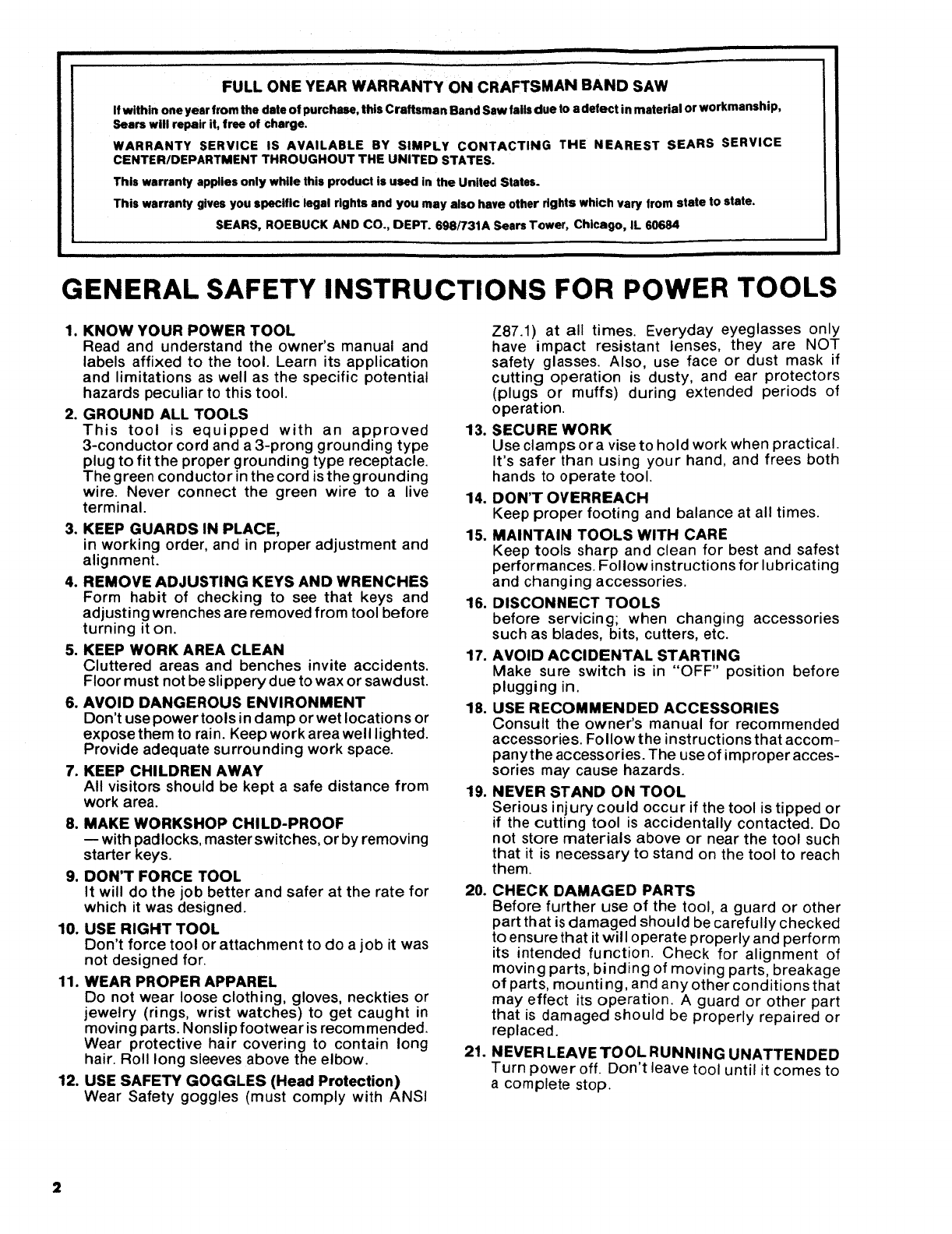

FULL ONE YEAR WARRANTY ON CRAFTSMAN BAND SAW

If within one year from the date ol purchase, this Craftsman Band Saw fails due to adefect in material or workmanship,

Sears will repair it, free of charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS SERVICE

CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.

This warranty applies only while this product is used in the United States.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

SEARS, ROEBUCK AND CO., DEPT. 698/731A Sears Tower, Chicago, IL 60684

GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS

1. KNOW YOUR POWER TOOL

Read and understand the owner's manual and

labels affixed to the tool. Learn its application

and limitations as well as the specific potential

hazards peculiar to this tool.

2. GROUND ALL TOOLS

This tool is equipped with an approved

3-conductor cord and a 3-prong grounding type

plug to fit the proper grounding type receptacle.

The green conductor in the cord is the grounding

wire. Never connect the green wire to alive

terminal.

3. KEEP GUARDS IN PLACE,

in working order, and in proper adjustment and

alignment.

4. REMOVE ADJUSTING KEYS AND WRENCHES

Form habit of checking to see that keys and

adjusting wrenches are removed from tool before

turning it on.

5. KEEP WORK AREA CLEAN

Cluttered areas and benches invite accidents.

Floor must not be slippery due to wax or sawdust.

6. AVOID DANGEROUS ENVIRONMENT

Don't use power tools in damp or wet locations or

expose them to rain. Keep work area well lighted.

Provide adequate surrounding work space.

7. KEEP CHILDREN AWAY

All visitors should be kept a safe distance from

work area.

8. MAKE WORKSHOP CHILD-PROOF

-- with padlocks, master switches, or by removing

starter keys.

9. DON'T FORCE TOOL

It will do the job better and safer at the rate for

which it was designed.

10. USE RIGHT TOOL

Don't force tool or attachment to do a job it was

not designed for

11. WEAR PROPER APPAREL

Do not wear loose clothing, gloves, neckties or

jewelry (rings, wrist watches) to get caught in

moving parts. Nonslip footwear is recommended.

Wear protective hair covering to contain long

hair. Roll long sleeves above the elbow.

12. USE SAFETY GOGGLES (Head Protection)

Wear Safety goggles (must comply with ANSI

Z87.1) at all times. Everyday eyeglasses only

have impact resistant lenses, they are NOT

safety glasses. Also, use face or dust mask if

cutting operation is dusty, and ear protectors

(plugs or muffs) during extended periods of

operation.

13. SECURE WORK

Use clamps ora vise to hold work when practical.

It's safer than using your hand, and frees both

hands to operate tool.

14. DON'T OVERREACH

Keep proper footing and balance at all times.

15. MAINTAIN TOOLS WITH CARE

Keep tools sharp and clean for best and safest

performances. Follow instructions for lubricating

and changing accessories.

16. DISCONNECT TOOLS

before servicing; when changing accessories

such as blades, bits, cutters, etc.

17. AVOID ACCIDENTAL STARTING

Make sure switch is in "OFF" position before

plugging in.

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended

accessories. Follow the instructions that accom-

pany the accessories. The use of improper acces-

sories may cause hazards.

19. NEVER STAND ON TOOL

Serious injury could occur if the tool is tipped or

if the cutting tool is accidentally contacted. Do

not store materials above or near the tool such

that it is necessary to stand on the tool to reach

them.

20. CHECK DAMAGED PARTS

Before further use of the tool, a guard or other

part that isdamaged should be carefully checked

to ensure that it will operate properly and perform

its intended function. Check for alignment of

moving parts, binding of moving parts, breakage

of parts, mounting, and any other conditions that

may effect its operation. A guard or other part

that is damaged should be properly repaired or

replaced.

21. NEVER LEAVE TOOL RUNNING UNATTENDED

Turn power off. Don't leave tool until it comes to

a complete stop.

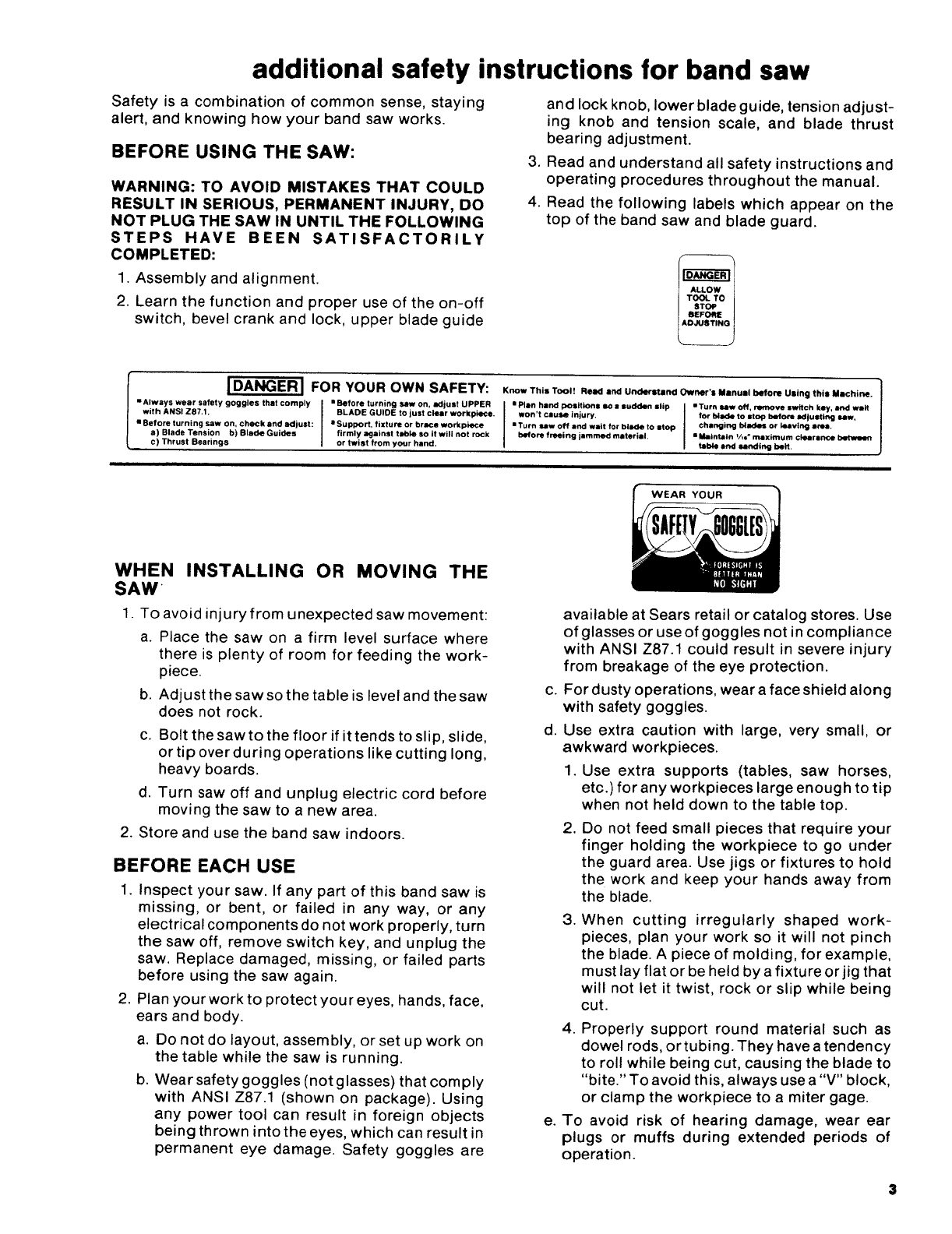

additional safety instructions for band saw

Safety is a combination of common sense, staying

alert, and knowing how your band saw works.

BEFORE USING THE SAW:

WARNING: TO AVOID MISTAKES THAT COULD

RESULT IN SERIOUS, PERMANENT INJURY, DO

NOT PLUG THE SAW IN UNTIL THE FOLLOWING

STEPS HAVE BEEN SATISFACTORILY

COMPLETED:

1. Assembly and alignment.

2. Learn the function and proper use of the on-off

switch, bevel crank and lock, upper blade guide

and lock knob, lower blade guide, tension adjust-

ing knob and tension scale, and blade thrust

bearing adjustment.

3. Read and understand all safety instructions and

operating procedures throughout the manual.

4. Read the following labels which appear on the

top of the band saw and blade guard.

IDANGERI FOR YOUR OWN SAFETY:

•Always wear safety goggles that comply • Before turning saw on, adjust UPPER

with ANSI Z87.1. BLADE GUIDE to just clear workpk_ce.

•Before turning saw on, check and adjust: •Support, fixture or brace workpi_e

a) Blade Tension b) Blade Guides firmly against tlNble so it will not rock

c) Thrust Bearings or twist from your hand,

Know This Tool! Read and Understand Owner's Manual before Using this Machine.

•Plan hand positions so a sudden slip •Turn saw off, m/hove switch key, and wait

won't cause injury, for b_lKle to Ito_ before ad_uatlt_g Mw,

•Turn saw Off and wait for bisde to stop changing b_ad_s or leaving etoe.

before freeing jammed material, •Maintain V,e" maximum ¢kmrsnce

table and sanding belt.

WHEN INSTALLING OR MOVING THE

SAW

1. To avoid injury from unexpected saw movement:

a. Place the saw on a firm level surface where

there is plenty of room for feeding the work-

piece.

b. Adjust the saw so the table is level and the saw

does not rock.

c. Bolt the saw to the floor if it tends to slip, slide,

or tip over during operations like cutting long,

heavy boards.

d. Turn saw off and unplug electric cord before

moving the saw to a new area.

2. Store and use the band saw indoors.

BEFORE EACH USE

1. Inspect your saw. If any part of this band saw is

missing, or bent, or failed in any way, or any

electrical components do not work properly, turn

the saw off, remove switch key, and unplug the

saw. Replace damaged, missing, or failed parts

before using the saw again.

2. Plan your work to protect you r eyes, hands, face,

ears and body.

a. Do not do layout, assembly, or set up work on

the table while the saw is running.

b. Wear safety goggles (not g lasses) that com ply

with ANSI Z87.1 (shown on package). Using

any power tool can result in foreign objects

being thrown into the eyes, which can result in

permanent eye damage. Safety goggles are

WEAR YOUR

available at Sears retail or catalog stores. Use

of glasses or use of goggles not in compliance

with ANSI Z87.1 could result in severe injury

from breakage of the eye protection.

For dusty operations, wear a face shield along

with safety goggles.

Use extra caution with large, very small, or

awkward workpieces.

1. Use extra supports (tables, saw horses,

etc.) for any workpieces large enough to tip

when not held down to the table top.

,Do not feed small pieces that require your

finger holding the workpiece to go under

the guard area. Use jigs or fixtures to hold

the work and keep your hands away from

the blade.

,When cutting irregularly shaped work-

pieces, plan your work so it will not pinch

the blade. A piece of molding, for example,

must lay flat or be held by a fixture or jig that

will not let it twist, rock or slip while being

cut.

.Properly support round material such as

dowel rods, or tubing. They have a tendency

to roll while being cut, causing the blade to

"bite." To avoid this, always use a "V" block,

or clamp the workpiece to a miter gage.

e. To avoid risk of hearing damage, wear ear

plugs or muffs during extended periods of

operation.

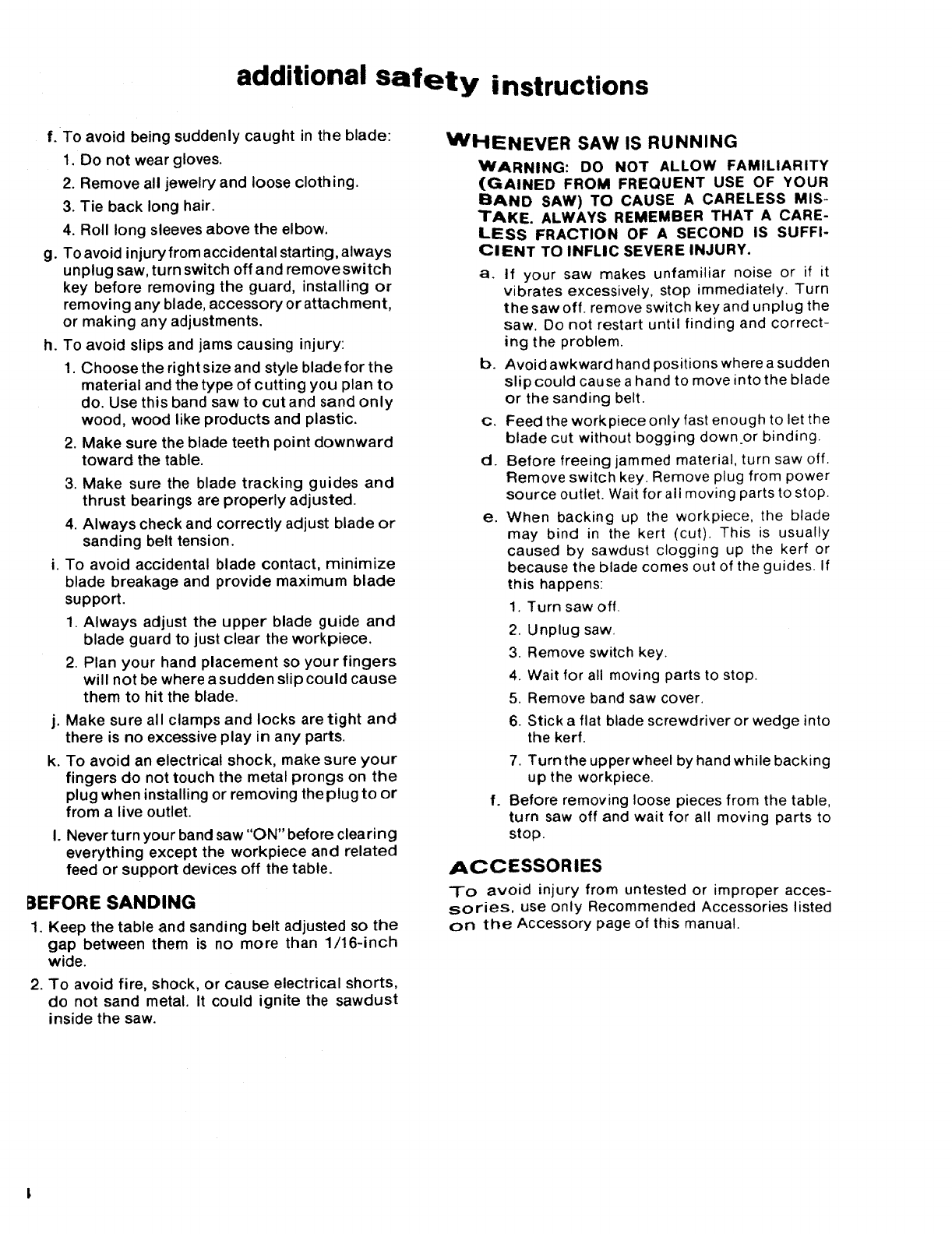

additional safety instructions

f. To avoid being suddenly caught in the blade:

1. Do not wear gloves.

2. Remove all jewelry and loose clothing.

3. Tie back long hair.

4. Roll long sleeves above the elbow.

g. To avoid injury from accidental starting, always

unplug saw, turn switch off and remove switch

key before removing the guard, installing or

removing any blade, accessory or attachment,

or making any adjustments.

h. To avoid slips and jams causing injury:

1. Choose the right size and style blade for the

material and the type of cutting you plan to

do. Use this band saw to cut and sand only

wood, wood like products and plastic.

2. Make sure the blade teeth point downward

toward the table.

3. Make sure the blade tracking guides and

thrust bearings are properly adjusted.

4. Always check and correctly adjust blade or

sanding belt tension.

i. To avoid accidental blade contact, minimize

blade breakage and provide maximum blade

support.

1. Always adjust the upper blade guide and

blade guard to just clear the workpiece.

2. Plan your hand placement so your fingers

will not be where a sudden slip could cause

them to hit the blade.

Make sure all clamps and locks are tight and

there is no excessive play in any parts.

To avoid an electrical shock, make sure your

fingers do not touch the metal prongs on the

plug when installing or removing the plug to or

from a live outlet.

I. Never turn your band saw "ON" before clearing

everything except the workpiece and related

feed or support devices off the table.

BEFORE SANDING

1. Keep the table and sanding belt adjusted so the

gap between them is no more than 1/16-inch

wide.

2. To avoid fire, shock, or cause electrical shorts,

do not sand metal. It could ignite the sawdust

inside the saw.

WHENEVER SAW IS RUNNING

WARNING: DO NOT ALLOW FAMILIARITY

(GAINED FROM FREQUENT USE OF YOUR

BAND SAW) TO CAUSE A CARELESS MIS-

TAKE. ALWAYS REMEMBER THAT A CARE-

LESS FRACTION OF A SECOND IS SUFFI-

CIENT TO INFLIC SEVERE INJURY.

a. if your saw makes unfamiliar noise or if it

vibrates excessively, stop immediately. Turn

thesaw off. remove switch key and unplug the

saw. Do not restart until finding and correct-

ing the problem.

b. Avoid awkward hand positions where a sudden

slip could cause a hand to move into the blade

or the sanding belt.

c. Feed the workpiece only fast enough to let the

blade cut without bogging down.or binding.

d. Before freeing jammed material, turn saw off.

Remove switch key. Remove plug from power

source outlet. Wait for all moving parts to stop.

e. When backing up the workpiece, the blade

may bind in the kert (cut). This is usually

caused by sawdust clogging up the kerf or

because the blade comes out of the guides. If

this happens:

f°

1. Turn saw off.

2_ Unplug saw.

3. Remove switch key.

4. Wait for all moving parts to stop.

5. Remove band saw cover.

6. Stick a flat blade screwdriver or wedge into

the kerf.

7. Turn the upperwheel by hand while backing

up the workpiece.

Before removing loose pieces from the table,

turn saw off and wait for all moving parts to

stop.

ACCESSORIES

To avoid injury from untested or improper acces-

sories, use only Recommended Accessories listed

on the Accessory page of this manual.

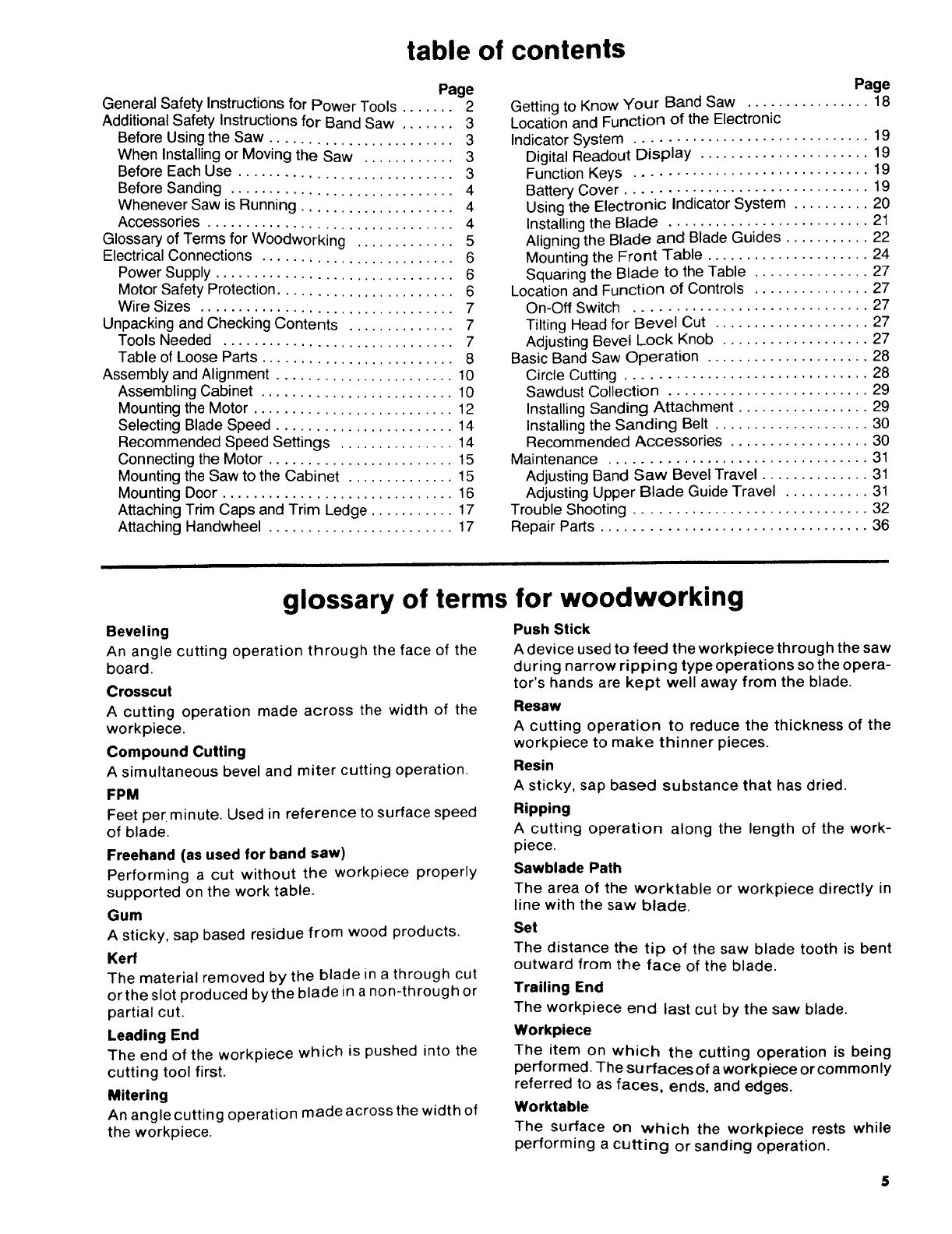

table of contents

Page

General Safety Instructions for Power Tools ....... 2

Additional Safety Instructions for Band Saw ....... 3

Before Using the Saw ........................ 3

When Installing or Moving the Saw ............ 3

Before Each Use ............................ 3

Before Sanding ............................. 4

Whenever Saw is Running .................... 4

Accessories ................................ 4

Glossary of Terms for Woodworking ............. 5

Electrical Connections ......................... 6

Power Supply ............................... 6

Motor Safety Protection ....................... 6

Wire Sizes ................................. 7

Unpacking and Checking Contents .............. 7

Tools Needed .............................. 7

Table of Loose Parts ......................... 8

Assembly and Alignment ....................... 10

Assembling Cabinet ......................... 10

Mounting the Motor .......................... 12

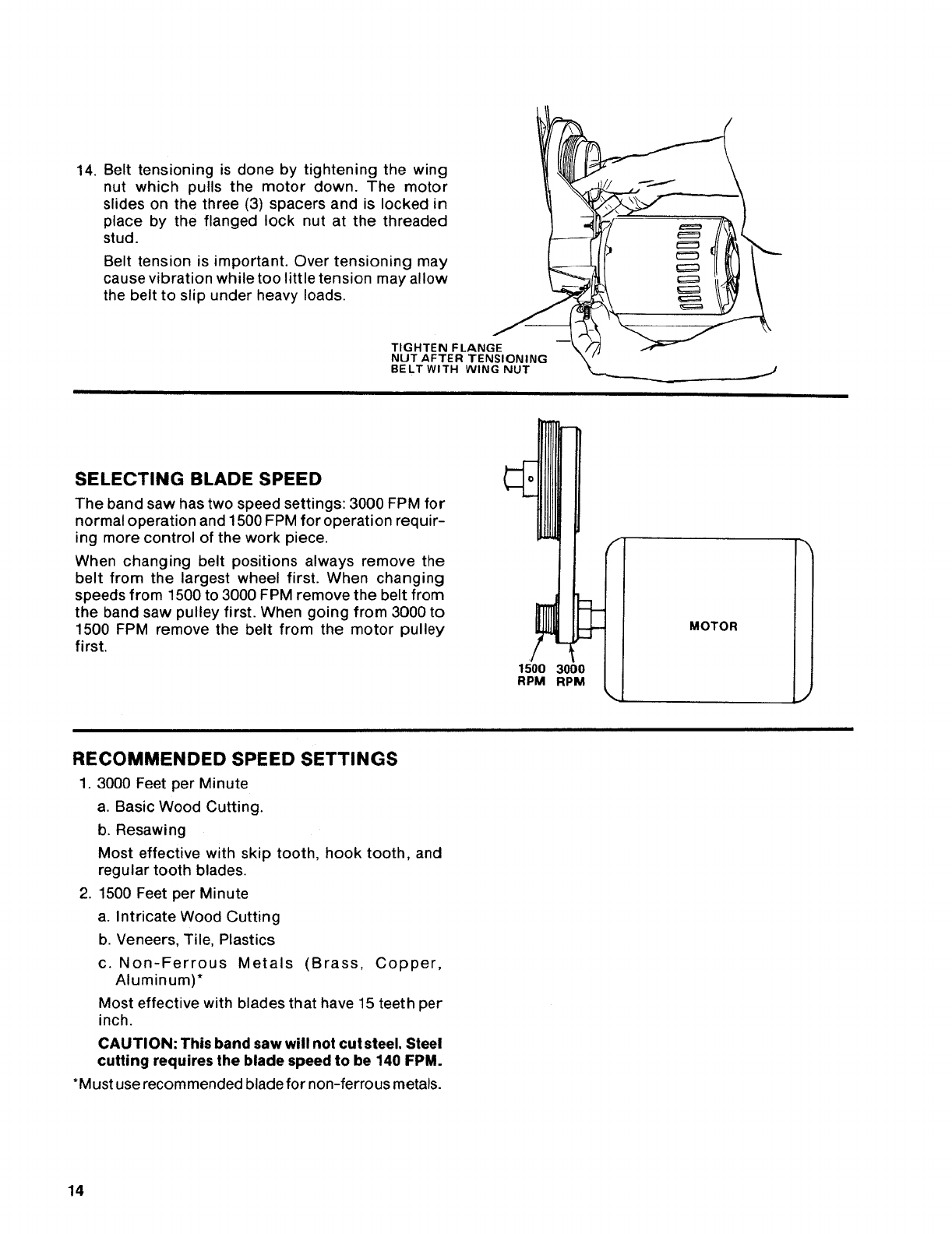

Selecting Blade Speed ....................... 14

Recommended Speed Settings ............... 14

Connecting the Motor ........................ 15

Mounting the Saw to the Cabinet .............. 15

Mounting Door .............................. 16

Attaching Trim Caps and Trim Ledge ........... 17

Attaching Handwheel ........................ 17

Page

Getting to Know Your Band Saw ................ 18

Location and Function of the Electronic

Indicator System .............................. 19

Digital Readout Display ...................... 19

Function Keys .............................. 19

Battery Cover ............................... 19

Using the Electronic Indicator System .......... 20

Installing the Blade .......................... 21

Aligning the Blade and Blade Guides ........... 22

Mounting the Front Table ..................... 24

Squaring the Blade to the Table ............... 27

Location and Function of Controls ............... 27

On-Off Switch .............................. 27

Tilting Head for Bevel Cut .................... 27

Adjusting Bevel Lock Knob ................... 27

Basic Band Saw Operation ..................... 28

Circle Cutting ............................... 28

Sawdust Collection .......................... 29

Installing Sanding Attachment ................. 29

Installing the Sanding Belt .................... 30

Recommended Accessories .................. 30

Maintenance ................................. 31

Adjusting Band Saw Bevel Travel .............. 31

Adjusting Upper Blade Guide Travel ........... 31

Trouble Shooting .............................. 32

Repair Parts .................................. 36

glossary of terms for woodworking

Beveling

An angle cutting operation through the face of the

board.

Crosscut

A cutting operation made across the width of the

workpiece.

Compound Cutting

A simultaneous bevel and miter cutting operation.

FPM

Feet per minute. Used in reference to surface speed

of blade.

Freehand (as used for band saw)

Performing a cut without the workpiece properly

supported on the work table.

Gum

A sticky, sap based residue from wood products.

Kerf

The material removed by the blade in a through cut

orthe slot produced bythe blade in a non-through or

partial cut.

Leading End

The end of the workpiece which is pushed into the

cutting tool first.

Mitering

An angle cutting operation made across the width of

the workpiece.

Push Stick

A device used to feed the workpiece through the saw

during narrow ripping type operations so the opera-

tor's hands are kept well away from the blade.

Resaw

A cutting operation to reduce the thickness of the

workpiece to make thinner pieces.

Resin

A sticky, sap based substance that has dried.

Ripping

A cutting operation along the length of the work-

piece.

Sawblade Path

The area of the worktable or workpiece directly in

line with the saw blade.

Set

The distance the tip of the saw blade tooth is bent

outward from the face of the blade.

Trailing End

The workpiece end last cut by the saw blade.

Workpiece

The item on which the cutting operation is being

performed. The surfaces of a workpiece or common ly

referred to as faces, ends, and edges.

Worktable

The surface on which the workpiece rests while

performing a cutting or sanding operation.

electrical connections

POWER SUPPLY

Motor Specifications

The AC motor used in this saw is a capacitor-start,

non-reversible type having the following specifica-

tions:

MODEL NO.

113.247410

Rated H.P.................................... 5/8

Maximum Developed H.P ................... 1-1/8

Voltage ..................................... 120

Amperes .................................... 7.9

Hertz (Cycles) ............................... 60

Phase .................................... Sing le

RPM ...................................... 1725

Rotation of Shaft ...................... Clockwise

WARNING: TO AVOID ELECTRICAL HAZARDS,

FIRE HAZARDS, OR DAMAGE TO THE TOOL, USE

PROPER CIRCUIT PROTECTION. YOUR SAW IS

WIRED AT THE FACTORY FOR 120V OPERATION.

CONNECTTO A 120V, 1S-AMP, BRANCH CIRCUIT

AND USE A 15-AMP FUSE OR CIRCUIT BREAKER.

TO AVOID SHOCK OR FIRE, IF POWER CORD IS

WORN OR CUT, OR DAMAGED IN ANY WAY,

HAVE IT REPLACED IMMEDIATELY.

IF NOT PROPERLY GROUNDED THIS POWER

TOOL CAN CAUSE ELECTRICAL SHOCK --

PARTICULARLY WHEN USED IN DAMP LOCA-

TIONS CLOSE TO PLUMBING. IF AN ELECTRICAL

SHOCK OCCURS THERE IS ALSO THE POTEN-

TIAL OF A SECONDARY HAZARD SUCH AS YOUR

HANDS CONTACTING THE SAWBLADE. NOT ALL

OUTLETS ARE PROPERLY GROUNDED. IF YOU

ARE NOT SURE THAT YOUR OUTLET IS PRO-

PERLY GROUNDED, HAVE IT CHECKED BY A

QUALIFIEO ELECTRICIAN.

Your unit has a plug that looks like the one shown

below.

3-PRONG PLUG

PROPERLY

GROUNDED

OUTLET

GROUNDING PRONG

This power tool is equipped with a 3-conductor cord

and ground type plug listed by Underwriters' Labora-

tories. The ground conductor has a green jacket and

is attached to the tool housing at one end and to the

ground prong in the attachment plug at the other

end.

This plug requires a mating 3-conductor grounded

type outlet as shown above.

WARNING: TO MAINTAIN PROPER TOOL GROUND-

ING WHENEVER THE OUTLET YOU ARE PLAN-

NING TO USE FOR THIS POWER TOOL IS OF THE

TWO PRONG TYPE, DO NOT REMOVE OR ALTER

THE GROUNDING PRONG IN ANY MANNER. USE

AN ADAPTER AS SHOWN AND ALWAYS CON-

NECT THE GROUNDING PRONG TO KNOWN

GROUND.

It is recommended that you have a qualified electri-

cian replace the two prong outlet with a properly

grounded three prong outlet.

An adapter as shown is available for connecting the

plug to 2-prong receptacles. The green grounding

lead extending from the adapter must be connected

to a permanent ground such as a properly grounded

outlet box.

GROUNDING LUG

ADAPTER

MAKE SURE THIS IS

3-PRONG CONNECTED TO A

PLUG KNOWN GROUND

2-PRONG

RECEPTACLE

WARNING: THE ADAPTER ILLUSTRATED IS FOR

USE ONLY IF YOU ALREADY HAVE A PROPERLY

GROUNOED 2-PRONG RECEPTACLE.

MOTOR SAFETY PROTECTION

CAUTION: To avoid motor damage this motor should

be blown out or vacuumed frequently to keep

sawdust from interfering with normal motor venUla-

Uon.

1. This tool should be connected to a 120V, 15 amp

branch circuit with a 15 amp fuse or circuit

breaker. Failure to use the proper size fuse can

result in damage to the motor.

2. If the motor fails to start, turn the power switch to

the "OFF" position immediately. UNPLUG THE

TOOL. Check the saw blade to make sure it turns

freely. If the blade is free, try to start the motor

again. If the motor still does not start, refer to the

"Motor Trouble-Shooting Chart."

3. If the motor suddenly stalls while cutting wood,

turn the power switch off, unplug the tool, and

free the blade from the wood. The motor may

now be restarted and the cut finished.

.Frequent "blowing" of fuses or tripping or circuit

breakers may result if:

a. MOTOR IS OVERLOADED - Overloading can

occur if you feed too rapidly.

b. LOW VOLTAGE - Although the motor is de-

signed for operation on the voltage and fre-

quency specified on the motor nameplate,

normal loads will be handled safely on voltages

not more than 10% above or below the name-

plate voltage. Heavy loads, however, require

that voltage at motor terminals equals the

voltage specified on nameplate.

5. Most motor troubles may be traced to loose or

incorrect connections, overload, reduced input

voltage (such as small size wire inthe supply

circuit) or to overly long supply circuit wire.

Always check the connections, the load and the

supply circuit whenever motor fails to perform

satisfactorily. Check wire size and length with

the Wire Size Chart below.

WIRE SIZES

The use of any extension cord will cause some loss

of power. To keep this to a minimum and to prevent

overheating and motor burn-out, use the table below

to determine the minimum wire size (A.W.G.) exten-

sion cord. Use only 3-wire extension cords which

have 3-prong grounding type plugs and 3-pole

receptacles which accepts the tools plug.

CAUTION: For circuits that are farther away from

electrical service box, the wire size must be increased

proportionately in order to deliver ample voltage to

the saw motor.

Length of the 120 Volts Wire Sizes Required

Conductor (American Wire Gage Number)

0 - 25 Ft. 14

26 - 50 Ft. 12

51 - 100 Ft. 8

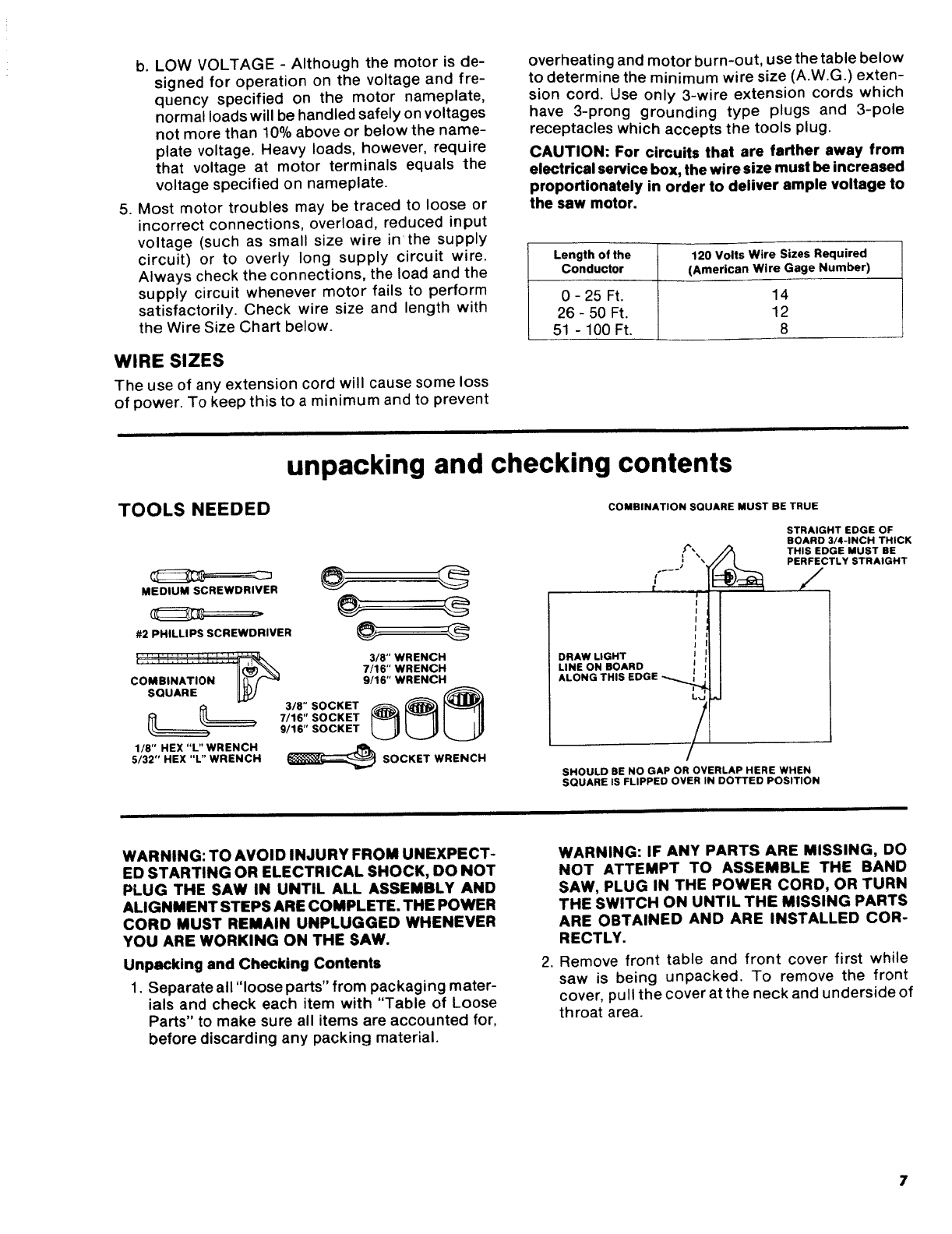

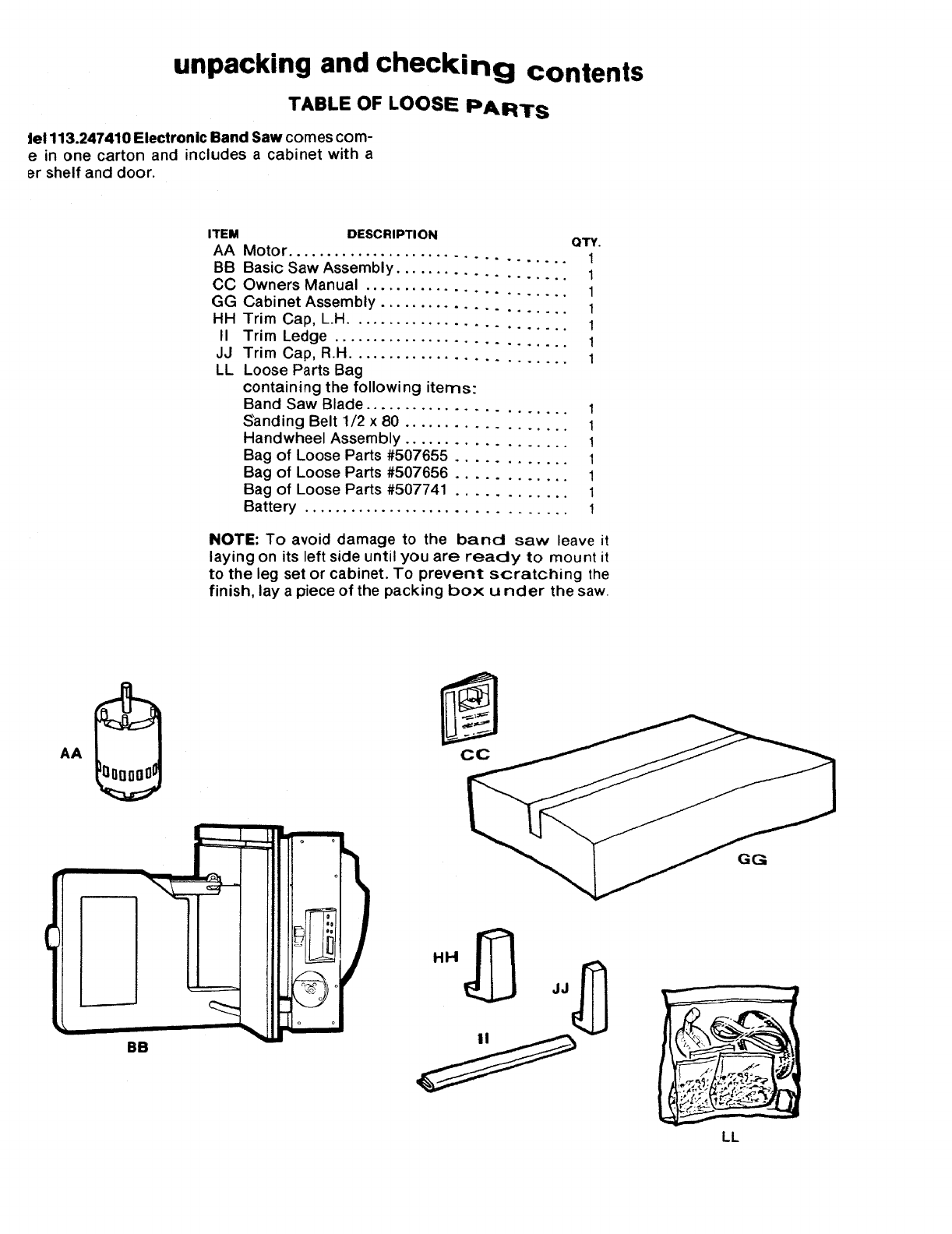

unpacking and checking contents

TOOLS NEEDED

MEDIUM SCREWDRIVER

.,PHiW.sSC.EWO.,VER

'_.:!'. ','.'_i_;',i : _iIi Ii_ 3/8" WRENCH

7/16" WRENCH

COMBINATION 9/16" WRENCH

SQUARE

7/16" SOCKET

9/16" SOCKET

1/8" HEX "L" WRENCH

5/32" HEX "L" WRENCH _SOCKET WRENCH

COMBINATION SQUARE MUST BE TRUE

f',

j ,

[.... i

DRAW LIGHT

LINE ON BOARD I

ALONG THIS EDGE J

L,_

SHOULD BE NO GAP OR OVERLAP HERE WHEN

SQUARE IS FLIPPED OVER IN DOTTED POSITION

STRAIGHT EDGE OF

BOARD 3/4-INCH THICK

THIS EDGE MUST BE

PE R_CTLY STRAIGHT

WARNING: TO AVOID INJURY FROM UNEXPECT-

ED STARTING OR ELECTRICAL SHOCK, DO NOT

PLUG THE SAW IN UNTIL ALL ASSEMBLY AND

ALIGNMENT STEPS ARE COMPLETE. THE POWER

CORD MUST REMAIN UNPLUGGED WHENEVER

YOU ARE WORKING ON THE SAW.

Unpacking and Checking Contents

1. Separate all "loose parts" from packaging mater-

ials and check each item with "Table of Loose

Parts" to make sure all items are accounted for,

before discarding any packing material.

WARNING: IF ANY PARTS ARE MISSING, DO

NOT ATTEMPT TO ASSEMBLE THE BAND

SAW, PLUG IN THE POWER CORD, OR TURN

THE SWITCH ON UNTIL THE MISSING PARTS

ARE OBTAINED AND ARE INSTALLED COR-

RECTLY.

Remove front table and front cover first while

saw is being unpacked. To remove the front

cover, pull the cover at the neck and underside of

throat area.

unpacking and checking contents

TABLE OF LOOSE PARTS

|el 113.247410 Electronic Band Saw comes com-

ein one carton and includes a cabinet with a

sr shelf and door.

ITEM

¢C

DESCRIPTION QTY.

Motor.

BasicS';w'_;,em_)i_::::::: :: .......... 1

--- • ...... 1

Owners Manual .............

Cabinet Assembly ........... _i_ ii ..... 1

..... 1

Trim Cap, L.H. •"'""'" ..... --. ...... 1

Trim Ledge

Trim Cap, R.H.'_............................................... 11

Loose Parts Bag

containing the following items:

Band Saw Blade ....................... 1

S'anding Belt 1/2 x 80 .................. 1

Handwheel Assembly .................. !

Bag of Loose Parts #507655 ............ 1

Bag of Loose Parts #507656 ............ 1

Bag of Loose Parts #507741 ............ 1

Battery ............................... 1

NOTE: To avoid damage to the band saw leave it

laying on its left side until you are ready to mount it

to the leg set or cabinet. To prevent scratching the

finish, lay a piece of the packing box u rider the saw

AA CC

o o

_lJJ_J

!HH _ JJ

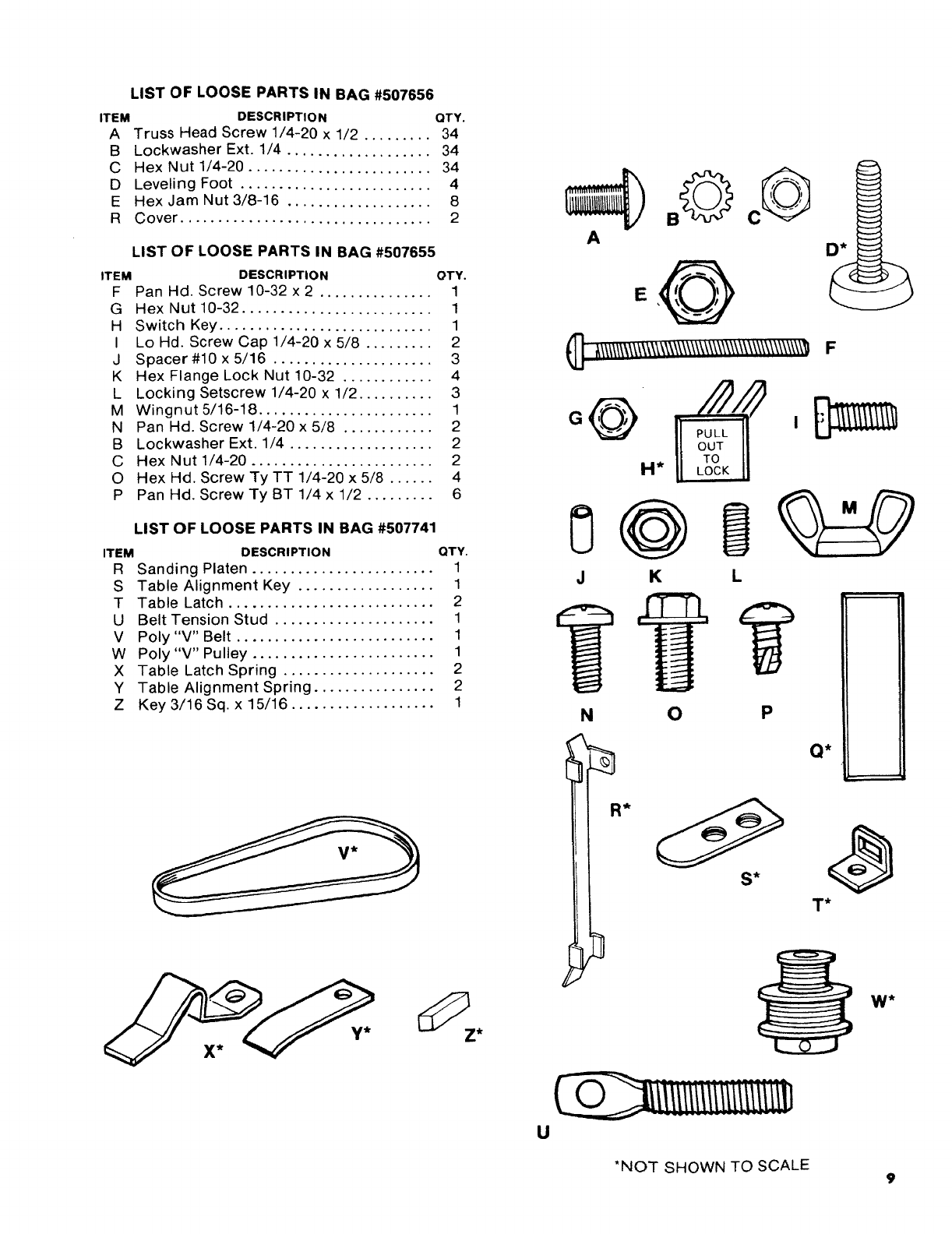

LIST OF LOOSE PARTS IN BAG #507656

ITEM DESCRIPTION QTY.

A Truss Head Screw 1/4-20 x 1/2 ......... 34

B Lockwasher Ext. 1/4 ................... 34

C Hex Nut 1/4-20 ........................ 34

D Leveling Foot ......................... 4

E Hex Jam Nut 3/8-16 ................... 8

R Cover ................................. 2

LIST OF LOOSE PARTS IN BAG #507655

ITEM

DESCRIPTION OTY.

Pan Hal. Screw 10-32 x 2 ............... 1

Hex Nut 10-32 ......................... 1

Switch Key ............................ 1

Lo Hd. Screw Cap 1/4-20 x 5/8 ......... 2

Spacer #10 x 5/16 ..................... 3

Hex Flange Lock Nut 10-32 ............ 4

Locking Setscrew 1/4-20 x 1/2 .......... 3

Wingnut 5/16-18 ....................... 1

Pan Hal. Screw I/4-20 x 5/8 ............ 2

Lockwasher Ext. 1/4 ................... 2

Hex Nut 1/4-20 ........................ 2

Hex Hal. Screw Ty TT 1/4-20 x 5/8 ...... 4

Pan Hd. Screw Ty BT 1/4 x 1/2 ......... 6

LIST OF LOOSE PARTS IN BAG #507741

ITEM DESCRIPTION QTY.

R Sanding Platen ........................ 1

S Table Alignment Key .................. 1

T Table Latch ........................... 2

U Belt Tension Stud ..................... 1

V Poly"V" Belt .......................... 1

W Poly"V" Pulley ........................ 1

X Table Latch Spring .................... 2

Y Table Alignment Spring ................ 2

Z Key 3/16 Sq. x 15/16 ................... 1

(_ _,\_\\_\\\\\_\\\\\\\\\\\\\\\\\\\\_ F

J K L

N0P

llr

"NOT SHOWN TO SCALE 9

assembly and alignment

ASSEMBLING CABINET

1. Separate all "loose" parts from packing materials

and check each item with "Parts List" to make

sure all items are accounted for before discard-

ing any packing material.

From loose parts find the following items:

ITEM

DESCRIPTION QTY.

Right Side Panel ...................... 1

Left Side Panel ........................ 1

Lower Shelf ........................... 1

Skirt .................................. 2

Shelf Stiffener ......................... 1

Corner Bracket ........................ 2

Spacer ................................ 2

Door ................................. 1

9 Bag of Loose Parts #507530

(In Cabinet Assembly)

Containing Following Items:

9A Screw, Pan Hd. #6-10 x 1/2 .......... 2

9 B Screw, Pan Hd. Ty "T" 6-32 x 3/8... 2

9 C Screw, Pan Hd. #10-10 x 1/2 ......... 4

9D Catch Magnetic ..................... 1

9E Hinge Door ......................... 2

* NOT SHOWN TO SCALE

2. After layout of cabinet parts, take the lower shelf

and turn upside down on floor. Small front flange

should be pointing upward.

3. Locate the two (2) corner brackets, four (4) 1/4-

20 x 1/2 truss head bolts, Iockwashers, and nuts.

Attach the corner brackets to the front flange in

holes as illustrated. Attach both corner brackets.

O O

LOWER

SHELF

CORNER ,_

BRACKETS 7/_

.Locate the two (2) side panels, one (1) shelf

stiffener, and six (6) 1/4-20 x 1/2 truss head bolts,

Iockwashers and hex nuts. Place the right side

panel on its back side as illustrated. Stand up the

lower shelf on the rear flange and line up the

holes on the corner bracket and shelf stiffener

with the holes in the side panel. Mount the bolts

in the three holes and tighten hex nuts with a

7/16-inch wrench or socket. Repeat procedure

for left side panel.

CORNER BRACKETS

SHELF

SHELF STIFFENER

REAR FLANGE

RIGHT SIDE

PANEL

\SKIRT

RIGHT SIDE PANEL

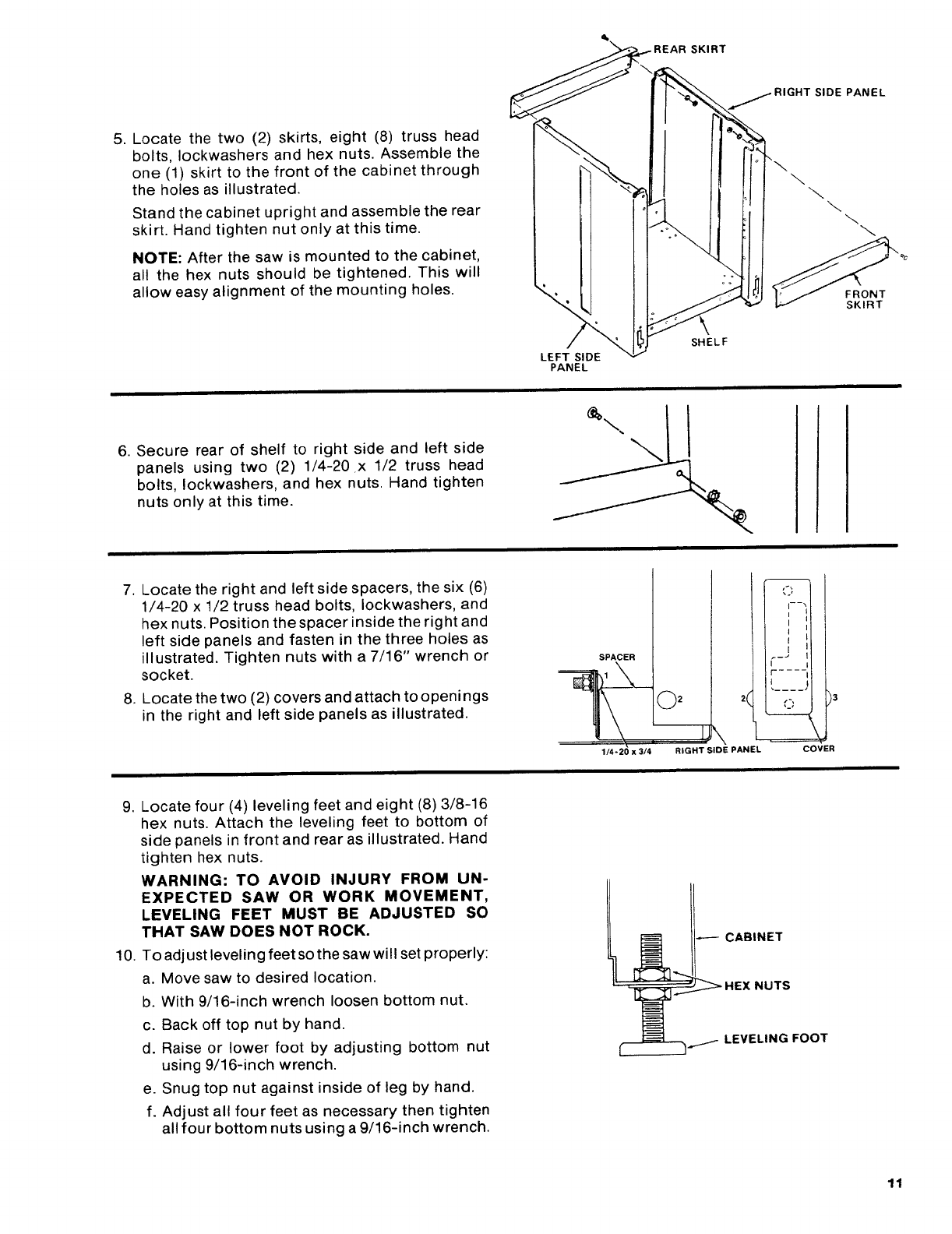

5. Locate the two (2) skirts, eight (8) truss head

bolts, Iockwashers and hex nuts. Assemble the

one (1) skirt to the front of the cabinet through

the holes as illustrated.

Stand the cabinet upright and assemble the rear

skirt. Hand tighten nut only at this time.

NOTE: After the saw is mounted to the cabinet,

all the hex nuts should be tightened. This will

allow easy alignment of the mounting holes.

SKIRT

LEFT SIDE

PANEL

SHELF

6. Secure rear of shelf to right side and left side

panels using two (2) 1/4-20 x 1/2 truss head

bolts, Iockwashers, and hex nuts. Hand tighten

nuts only at this time.

7. Locate the right and left side spacers, the six (6)

1/4-20 x 1/2 truss head bolts, Iockwashers, and

hex nuts. Position the spacer inside the right and

left side panels and fasten in the three holes as

illustrated. Tighten nuts with a 7/16" wrench or

socket.

8. Locate the two (2) covers and attach to openings

in the right and left side panels as illustrated.

SPACER

1/4 -20 x 3/4

RIGHT SIDE PANEL COVER

9. Locate four (4) leveling feet and eight (8) 3/8-16

hex nuts. Attach the leveling feet to bottom of

side panels in front and rear as illustrated. Hand

tighten hex nuts.

WARNING: TO AVOID INJURY FROM UN-

EXPECTED SAW OR WORK MOVEMENT,

LEVELING FEET MUST BE ADJUSTED SO

THAT SAW DOES NOT ROCK.

10. To adjust leveling feet so the saw will set properly:

a. Move saw to desired location.

b. With 9/16-inch wrench loosen bottom nut.

c. Back off top nut by hand.

d. Raise or lower foot by adjusting bottom nut

using 9/16-inch wrench.

e. Snug top nut against inside of leg by hand.

f. Adjust all four feet as necessary then tighten

all four bottom nuts using a 9/16-inch wrench.

CABINET

NUTS

LEVELING FOOT

MOUNTING THE MOTOR

1. Find the following parts:

ITEM DESCRIPTION QTY.

AA Motor ................................. 1

J Spacer (1/40.D. x 5/16) ............... 3

K Flanged Locknut #10-32 ............... 4

M Wing Nut 5/16-18 ...................... 1

U Belt Tension Stud .......... ........... 1

W Motor Pulleyw/Setscrew ............... 1

V Poly"V" Belt .......................... 1

X Shaft Key 3/16 ........................ 1

*NOT SHOWN TO SCALE

2. Have the band saw positioned on its left side as

unpacked. To prevent scratching the finish, lay a

piece of the packing box under the saw.

3. Place the three (3) spacers onto the three motor

studs as shown. Pay attention to where the oil

plug is located. No spacer goes on the fourth

motor stud.

4. Place the shaft key into the groove on the motor

shaft. Align the groove in the pulley with the shaft

key and install the motor pulley on the motor

shaft with the setscrew boss toward the motor.

The pulley has an internal shoulder that will

position the pulley the correct distance on the

motor shaft.

5. Place the Poly "V" belt into the motor mount as

shown on the underside of the band saw.

6. Look at the motor mount and find the slot that is

narrower than the other three. When mounting

the motor, the motor stud without a spacer goes

into this slot.

MOTOR %IOUN _ /

SLOT

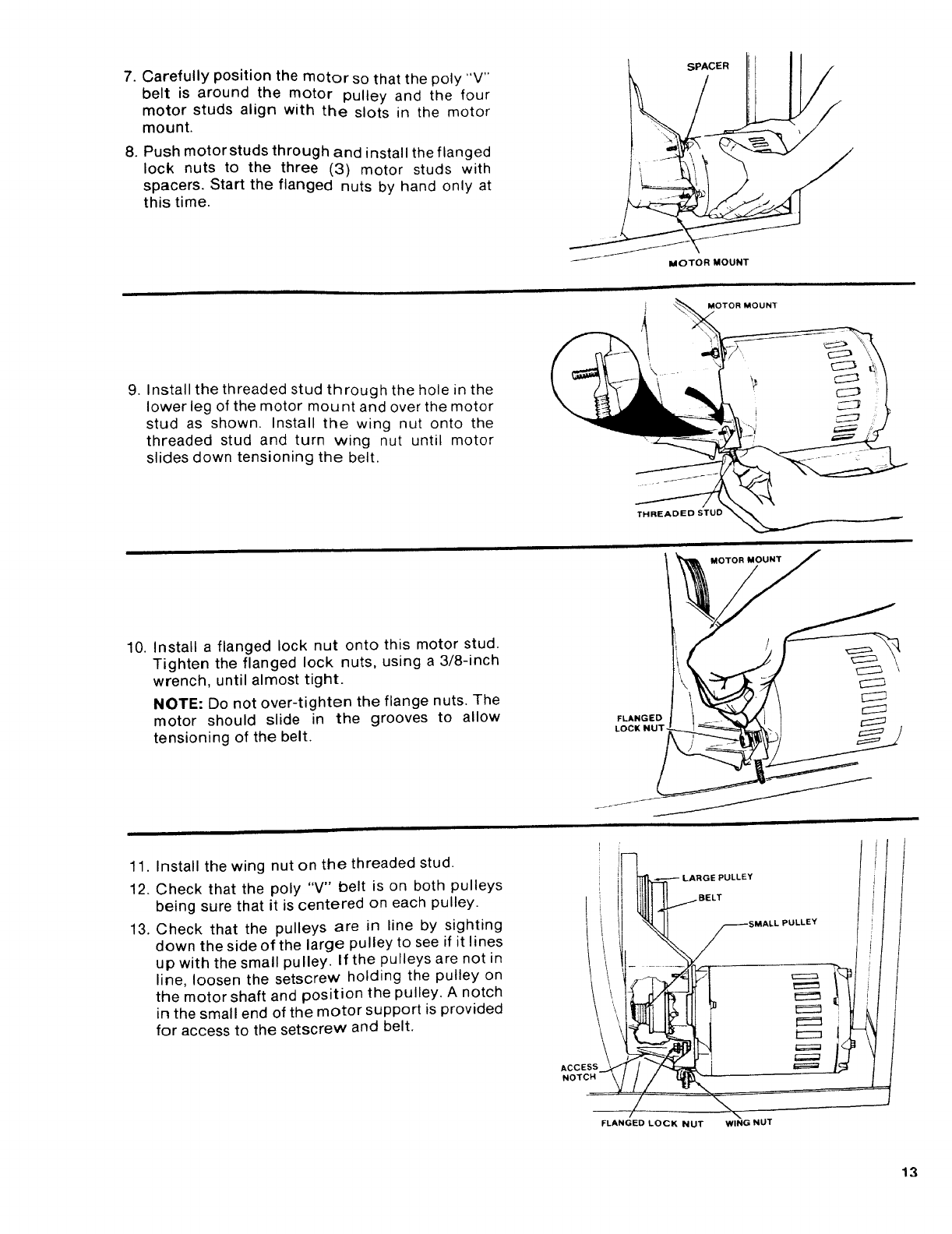

7. Carefully position the motor so that the poly "V"

belt is around the motor pulley and the four

motor studs align with the slots in the motor

mount.

8. Push motor studs through and install the flanged

lock nuts to the three (3) motor studs with

spacers. Start the flanged nuts by hand only at

this time.

| SPACE.) II

MOTOR MOUNT

9. Install the threaded stud through the hole in the

lower leg of the motor mount and over the motor

stud as shown. Install the wing nut onto the

threaded stud and turn wing nut until motor

slides down tensioning the belt.

iMOTOR MOUNT

THREADED STUD

10. Install a flanged lock nut onto this motor stud.

Tighten the flanged lock nuts, using a 3/8-inch

wrench, until almost tight.

NOTE: Do not over-tighten the flange nuts. The

motor should slide in the grooves to allow

tensioning of the belt.

ii i_, MOTO.MOUNT/

11. Install the wing nut on the threaded stud.

12. Check that the poly "V" belt is on both pulleys

being sure that it is centered on each pulley.

13. Check that the pulleys are in line by sighting

down the side of the large pulley to see if it lines

up with the small pulley. If the pulleys are not in

line, loosen the setscrew holding the pulley on

the motor shaft and position the pulley. A notch

in the small end of the motor support is provided

for access to the setscrew and belt.

i!//

FLANGED LOCK NUT WING NUT

14. Belt tensioning is done by tightening the wing

nut which pulls the motor down. The motor

slides on the three (3) spacers and is locked in

place by the flanged lock nut at the threaded

stud.

Belt tension is important. Over tensioning may

cause vibration while too little tension may allow

the belt to slip under heavy loads.

TIGHTEN FLANGE

NUT AFTER TENSIONING

BELT WITH WING NUT

SELECTING BLADE SPEED

The band saw has two speed settings: 3000 FPM for

normal operation and 1500 FPM for operation requir-

ing more control of the work piece.

When changing belt positions always remove the

belt from the largest wheel first. When changing

speeds from 1500 to 3000 FPM remove the belt from

the band saw pulley first. When going from 3000 to

1500 FPM remove the belt from the motor pulley

first.

1500 3000

RPM RPM

MOTOR

RECOMMENDED SPEED SETTINGS

1. 3000 Feet per Minute

a. Basic Wood Cutting.

b. Resawing

Most effective with skip tooth, hook tooth, and

regular tooth blades.

2. 1500 Feet per Minute

a. Intricate Wood Cutting

b. Veneers, Tile, Plastics

c. Non-Ferrous Metals (Brass, Copper,

Aluminum)*

Most effective with blades that have 15 teeth per

inch.

CAUTION: This band saw will not cut steel, Steel

cutting requires the blade speed to be 140 FPM.

*Must use recommended blade for non-ferrous metals.

CONNECTING THE MOTOR

1. Next, the motor cord needs to be wired into the

motor. Coming from the underside of the table

will be a cord with a black, white and green wire.

This is the motor cord.

WARNING: FOR YOUR OWN SAFETY, NEVER

PLUG THE SAW IN UNTIL ALL ASSEMBLY

STEPS ARE COMPLETED.

2. Loosen the two screws holding the connector

box cover on the back side of the motor. Swing

the cover open.

3. Install the green ground wire by removing the

green grounding screw and inserting it through

the round metal terminal on the green ground

wire of the motor cord. Reinstall the green screw

into the hole from which it was removed and

tighten securely.

WARNING: TO AVOID ELECTROCUTION,

NEVER CONNECT ANYTHING BUT THE

GROUND WIRE (COLORED GREEN) TO THE

GREEN SCREW.

4. Insert terminal end of WHITE wire on spade

terminal marked T4 on the motor. Push terminal

firmly until seated.

5. Insert terminal end of BLACK wire on spade

terminal marked T1 on themotor. Push terminal

firmly until seated.

6. Close motor connector box being sure that

power cord is seated in the largest strain relief

groove and tighten box cover screws.

7. DO NOT plug in power cord.

GREEN

BLACK WIRE TO

TERMINAL T1

TERMINAL

GREEN WIRE

GREEN SCREW

STRAIN RELIEF

GROOVE

WIRE TO

TERMINAL T4

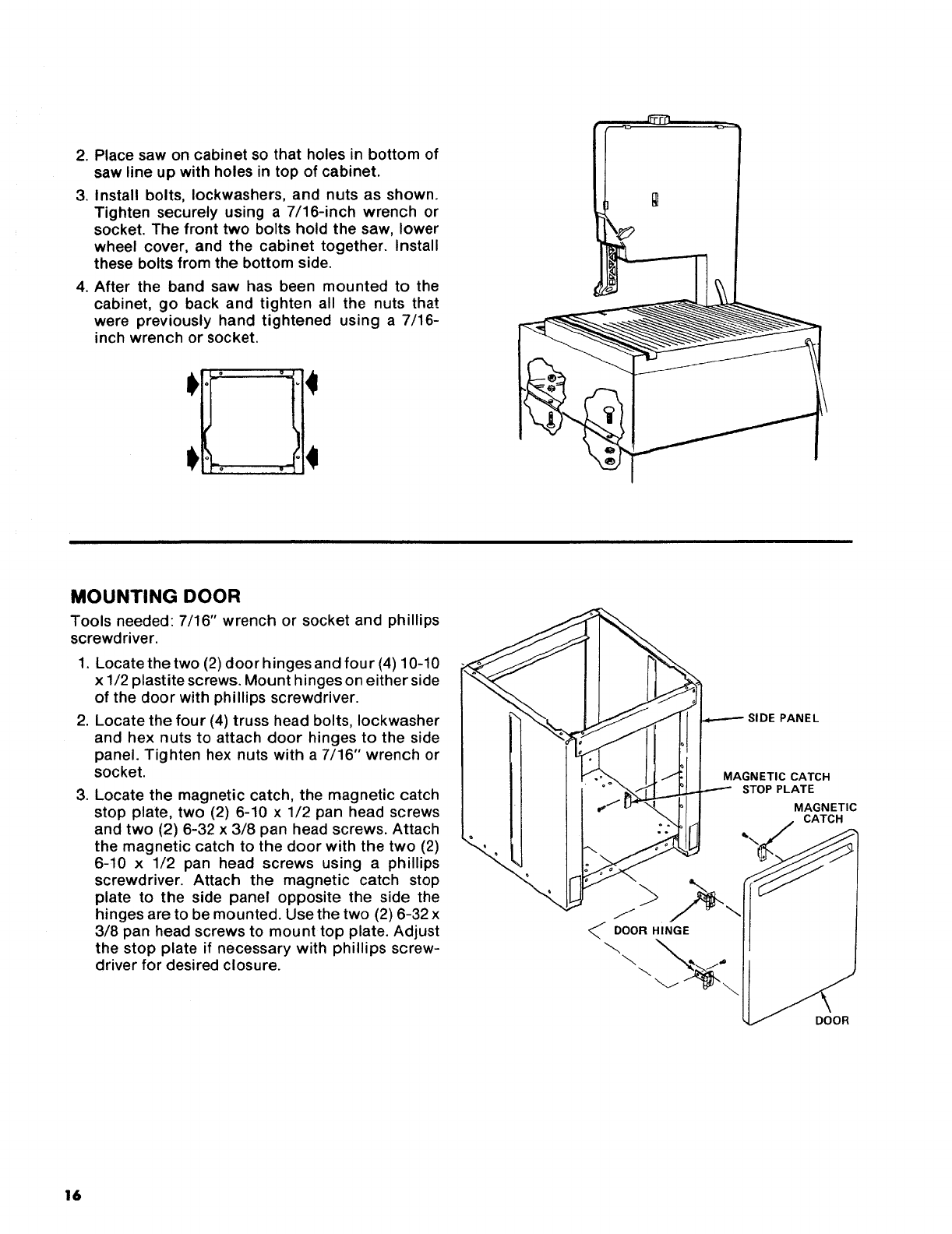

MOUNTING THE SAW TO THE CABINET

1. From loose parts bag find the following hard-

ware:

ITEM

DESCRIPTION QTY.

Truss Head Bolts 1/4-20 x 1/2 .......... 4

Lockwashers External 1/4 .............. 4

Hex Nuts 1/4-20 ....................... 4o©c©

2. Place saw on cabinet so that holes in bottom of

saw line up with holes in top of cabinet.

3. Install bolts, Iockwashers, and nuts as shown.

Tighten securely using a 7/16-inch wrench or

socket. The front two bolts hold the saw, lower

wheel cover, and the cabinet together. Install

these bolts from the bottom side.

4. After the band saw has been mounted to the

cabinet, go back and tighten all the nuts that

were previously hand tightened using a 7/16-

inch wrench or socket.

MOUNTING DOOR

Tools needed: 7/16" wrench or socket and phillips

screwdriver.

1. Locate the two (2) door hinges and four (4) 10-10

x 1/2 plastite screws. Mount hinges on either side

of the door with phillips screwdriver.

2. Locate the four (4) truss head bolts, Iockwasher

and hex nuts to attach door hinges to the side

panel. Tighten hex nuts with a 7/16" wrench or

socket.

3. Locate the magnetic catch, the magnetic catch

stop plate, two (2) 6-10 x 1/2 pan head screws

and two (2) 6-32 x 3/8 pan head screws. Attach

the magnetic catch to the door with the two (2)

6-10 x 1/2 pan head screws using a phillips

screwdriver. Attach the magnetic catch stop

plate to the side panel opposite the side the

hinges are to be mounted. Use the two (2) 6-32 x

3/8 pan head screws to mount top plate. Adjust

the stop plate if necessary with phillips screw-

driver for desired closure.

PANEL

MAGNETIC CATCH

STOP PLATE

MAGNETIC

CATCH

DOOR HINGE

DOOR

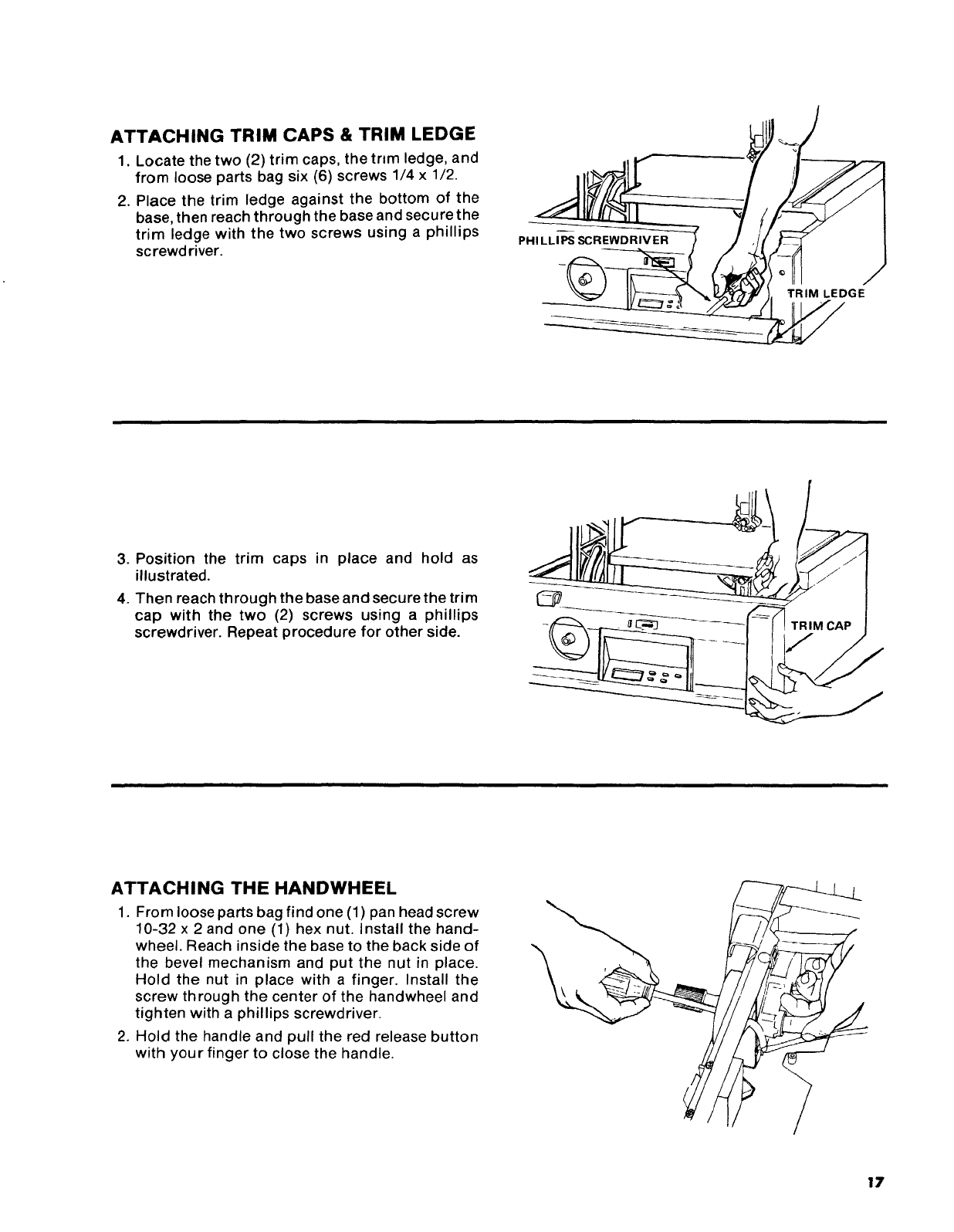

ATTACHING TRIM CAPS & TRIM LEDGE

1. Locate the two (2) trim caps, the trim ledge, and

from loose parts bag six (6) screws 1/4 x 1/2.

2. Place the trim ledge against the bottom of the

base, then reach through the base and secure the

trim ledge with the two screws using a phillips

sc rewd river.

PHI LLIPS SCREWDRIVER

TRIM LEDGE

3. Position the trim caps in place and hold as

illustrated.

4. Then reach through the base and secure the trim

cap with the two (2) screws using a phillips

screwdriver. Repeat procedure for other side.

ATTACHING THE HANDWHEEL

1. From loose parts bag find one (1) pan head screw

10-32 x 2 and one (1) hex nut. Install the hand-

wheel. Reach inside the base to the back side of

the bevel mechanism and put the nut in place.

Hold the nut in place with a finger. Install the

screw through the center of the handwheel and

tighten with a phillips screwdriver.

2. Hold the handle and pull the red release button

with your finger to close the handle.

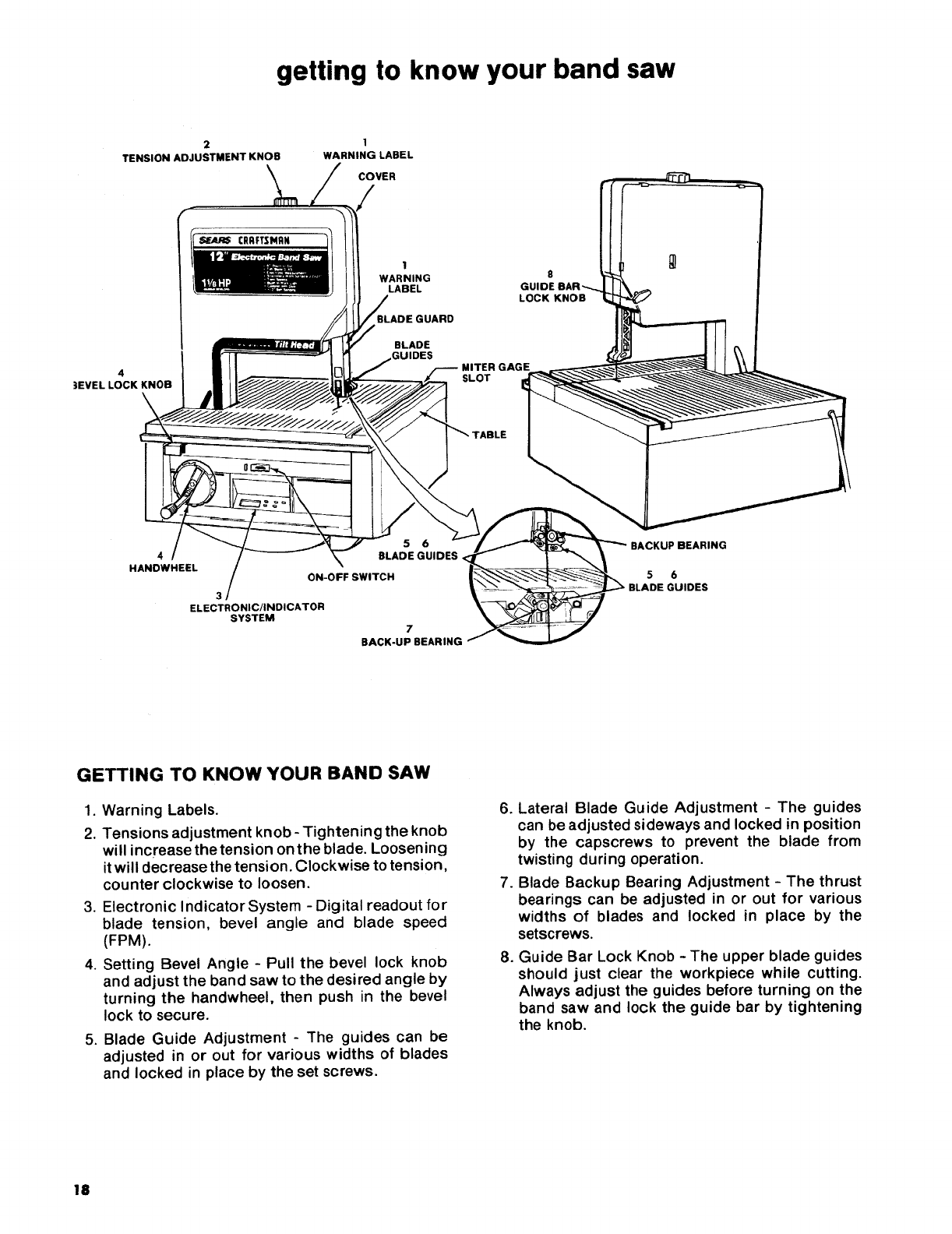

getting to know your band saw

TENSION ADJUSTMENT KNOB

WARNING LABEL

COVER

CRRFTSNRN

WARNING

LABEL GUIDE BAR

LOCK KNOB

3EVEL LOCK KNOB

BLADE

GUIDES MITER GAGE

SLOT

4 BLADE GUIDES

HANDWHEEL ON-OFF SWITCH

ELECTRONIC/INDICATOR

SYSTEM

BACK-UP BEARING

BEARING

BLADE GUIDES

GETTING TO KNOW YOUR BAND SAW

1. Warning Labels.

2. Tensions adjustment knob- Tightening the knob

will increase the tension on the blade. Loosening

it will decrease the tension. Clockwise to tension,

counter clockwise to loosen.

3. Electronic Indicator System -Digital readout for

blade tension, bevel angle and blade speed

(FPM).

4. Setting Bevel Angle - Pull the bevel lock knob

and adjust the band saw to the desired angle by

turning the handwheel, then push in the bevel

lock to secure.

5. Blade Guide Adjustment - The guides can be

adjusted in or out for various widths of blades

and locked in place by the set screws.

6. Lateral Blade Guide Adjustment -The guides

can be adjusted sideways and locked in position

by the capscrews to prevent the blade from

twisting during operation.

7. Blade Backup Bearing Adjustment - The thrust

bearings can be adjusted in or out for various

widths of blades and locked in place by the

setscrews.

.Guide Bar Lock Knob -The upper blade guides

should just clear the workpiece while cutting.

Always adjust the guides before turning on the

band saw and lock the guide bar by tightening

the knob.

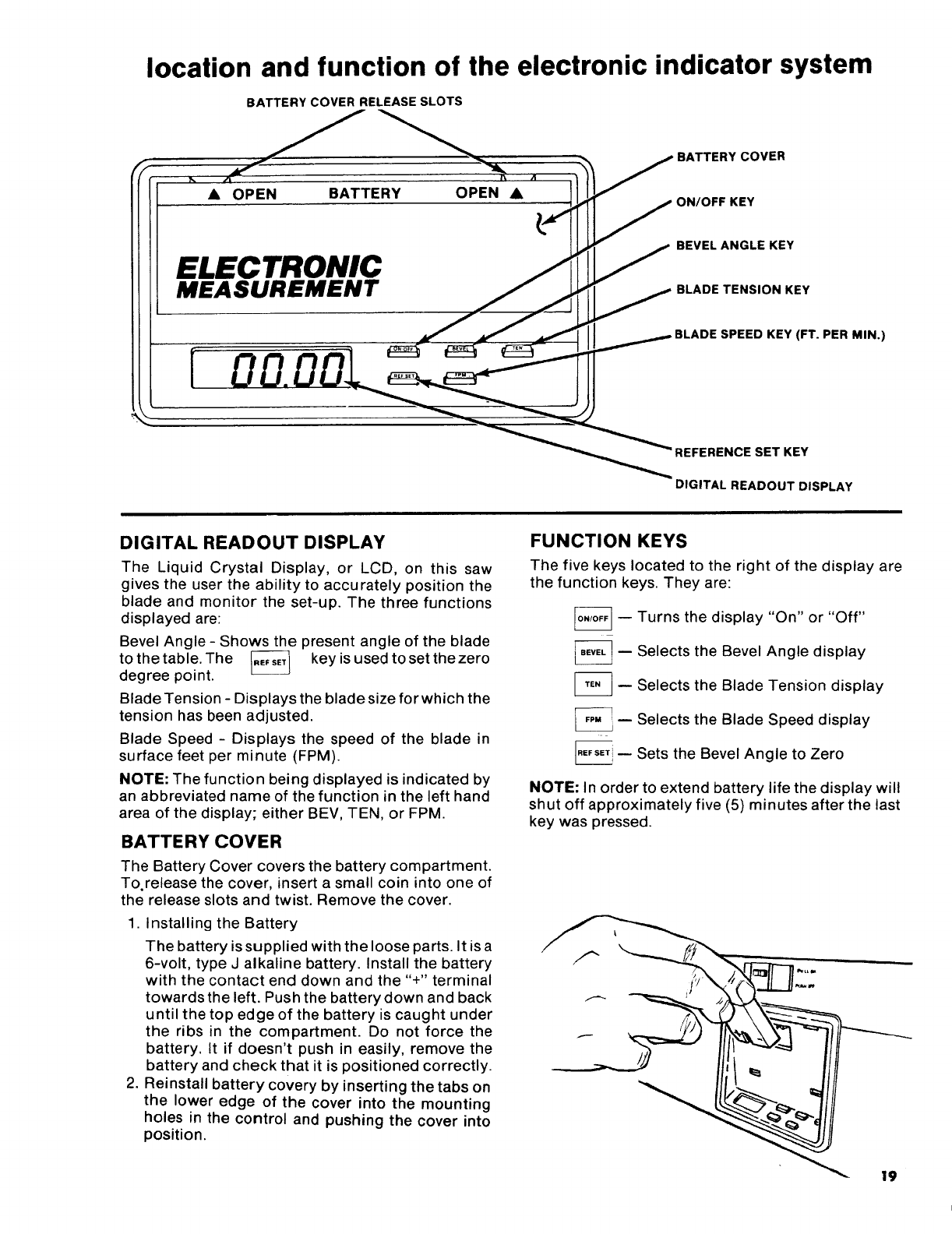

location and function of the electronic indicator system

BATTERY COVER RELEASE SLOTS

•OPEN BATTERY OPEN • _ j

ELECTRONIC

MEASUREMENT

BATTERY COVER

ON/OFF KEY

BEVEL ANGLE KEY

BLADE TENSION KEY

KEY (FT. PER MIN.)

REFERENCE SET KEY

DIGITAL READOUT DISPLAY

The Liquid Crystal Display, or LCD, on this saw

gives the user the ability to accurately position the

blade and monitor the set-up. The three functions

displayed are:

Bevel Angle - Shows the present angle of the blade

to thetable. The _ key is used to set thezero

degree point.

Blade Tension - Displays the blade size for which the

tension has been adjusted.

Blade Speed - Displays the speed of the blade in

surface feet per minute (FPM).

NOTE: The function being displayed is indicated by

an abbreviated name of the function in the left hand

area of the display; either BEV, TEN, or FPM.

BATTERY COVER

The Battery Cover covers the battery compartment.

To.release the cover, insert a small coin into one of

the release slots and twist. Remove the cover.

1. Installing the Battery

The battery is supplied with the loose parts. It is a

6-volt, type J alkaline battery. Install the battery

with the contact end down and the "+" terminal

towards the left. Push the battery down and back

until the top edge of the battery is caught under

the ribs in the compartment. Do not force the

battery. It if doesn't push in easily, remove the

battery and check that it is positioned correctly.

2. Reinstall battery covery by inserting the tabs on

the lower edge of the cover into the mounting

holes in the control and pushing the cover into

position.

FUNCTION KEYS

The five keys located to the right of the display are

the function keys. They are:

[_-- Turns the display "On" or "Off"

-- Selects the Bevel Angle display

I-_-- Selects the Blade Tension display

m Selects the Blade Speed display

["EFS'Ti -- Sets the Bevel Angle to Zero

NOTE: In order to extend battery life the display will

shut off approximately five (5) minutes after the last

key was pressed.

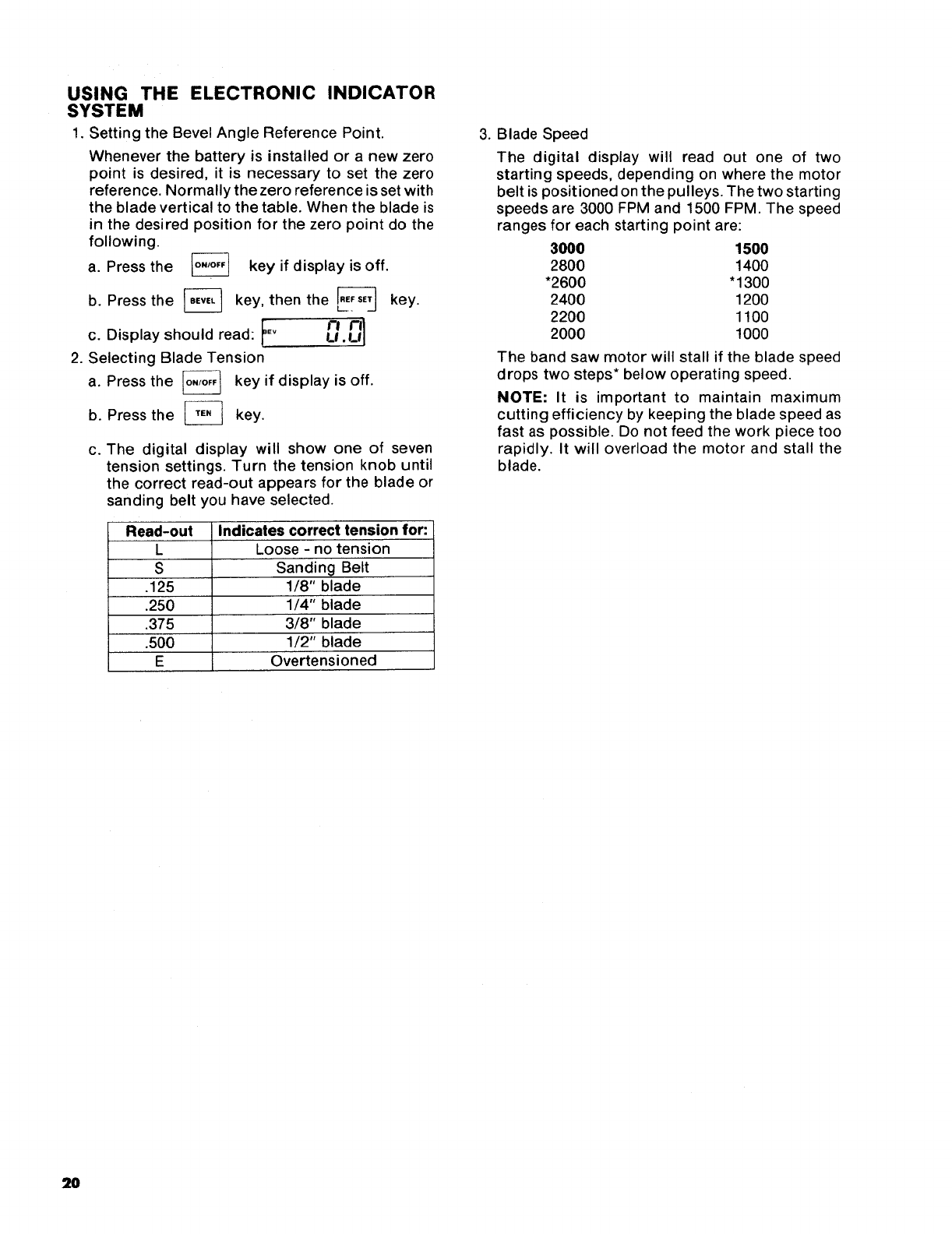

USING THE ELECTRONIC INDICATOR

SYSTEM

1. Setting the Bevel Angle Reference Point.

Whenever the battery is installed or a new zero

point is desired, it is necessary to set the zero

reference. Normally the zero reference is set with

the blade vertical to the table. When the blade is

in the desired position for the zero point do the

following.

a. Press the _ key if display is off.

b. Press the _-_ key, then the _ key.

c. Display should read: p,v F!

u .uj

2. Selecting Blade Tension

a. Press the _ key if display is off.

b. Press the _ key.

c. The digital display will show one of seven

tension settings. Turn the tension knob until

the correct read-out appears for the blade or

sanding belt you have selected.

Read-out Indicates correct tension for:

L Loose -no tension

S Sanding Belt

.125 1/8" blade

.250 1/4" blade

.375 3/8" blade

.500 1/2" blade

E Overtensioned

3. Blade Speed

The digital display will read out one of two

starting speeds, depending on where the motor

belt is positioned on the pulleys. The two starting

speeds are 3000 FPM and 1500 FPM. The speed

ranges for each starting point are:

3000 1500

2800 1400

*2600 "1300

2400 1200

2200 1100

2000 1000

The band saw motor will stall if the blade speed

drops two steps* below operating speed.

NOTE: It is important to maintain maximum

cutting efficiency by keeping the blade speed as

fast as possible. Do not feed the work piece too

rapidly. It will overload the motor and stall the

blade.

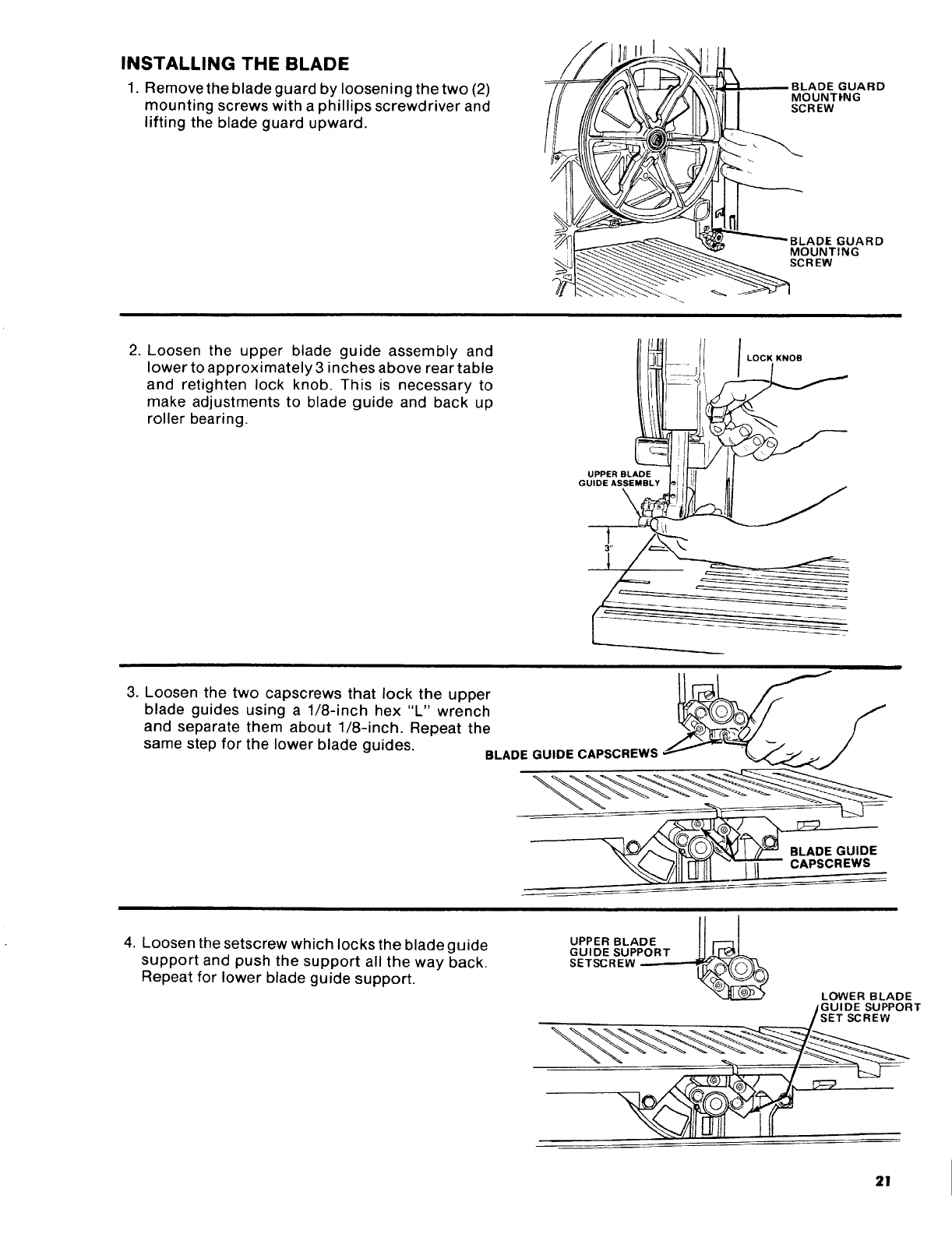

INSTALLING THE BLADE

1. Remove the blade guard by loosening the two (2)

mounting screws with a phillips screwdriver and

lifting the blade guard upward.

_UGARO

__ BLADE GUARD

"II__-_-._ MOUNTING

2. Loosen the upper blade guide assembly and

lower to approximately 3 inches above rear table

and retighten lock knob. This is necessary to

make adjustments to blade guide and back up

roller bearing.

GUIDE3"-__ _r j

3. Loosen the two capscrews that lock the upper [JJL_._ /-.--

blade guides using a 1/8-inch hex "L" wrench

and separate them about 1/8-inch. Repeat the

same step for the lower blade guides. BLADEGUIDECAPSCREWS

BLADE GUIDE

CAPSCREWS

4. Loosen the setscrew which locks the blade guide

support and push the support all the way back.

Repeat for lower blade guide support.

SETSCREW

LOWER BLADE

____ GUIDE SUPPORT

SET SCREW

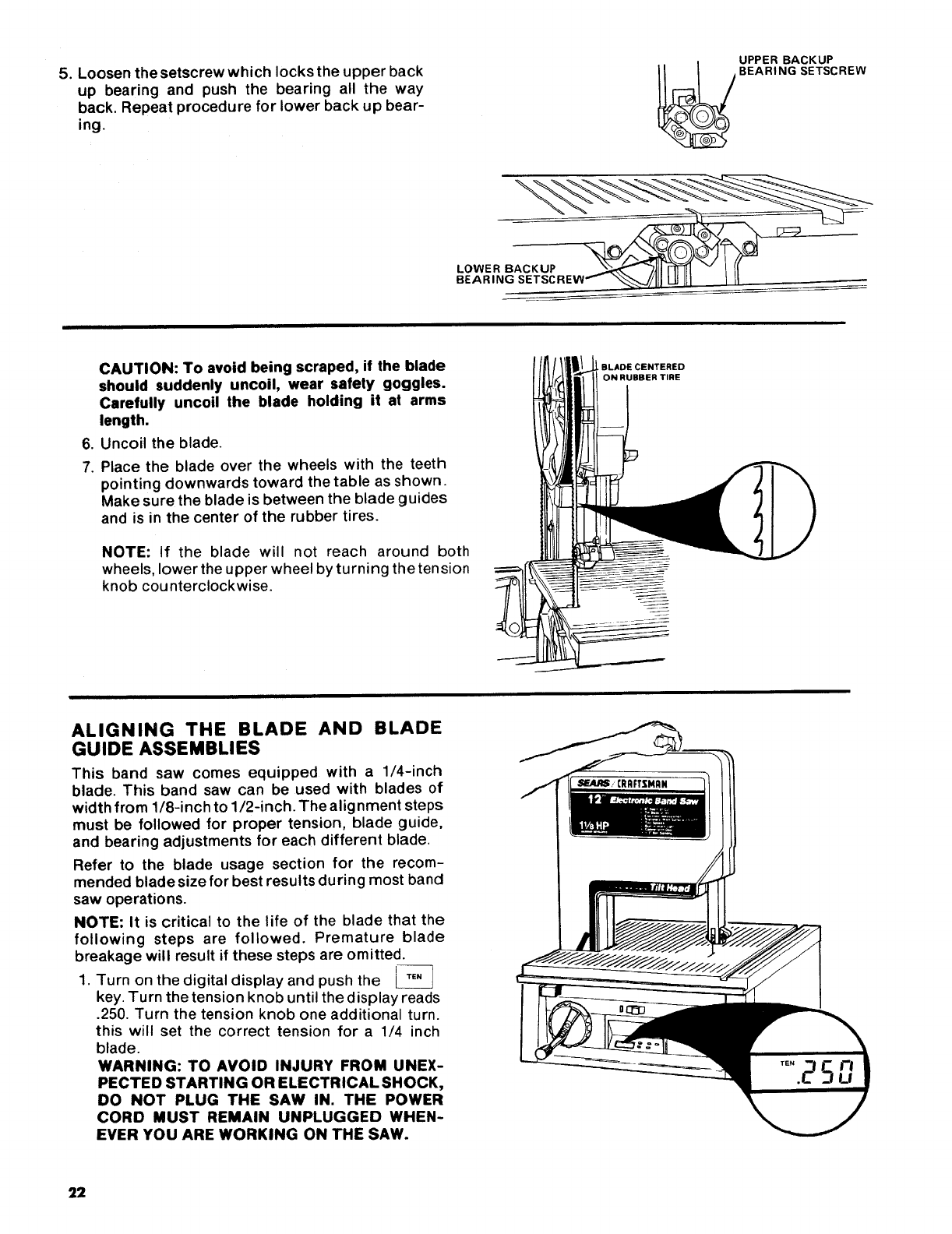

5. Loosen the setscrew which locks the upper back

up bearing and push the bearing all the way

back. Repeat procedure for lower back up bear-

ing.

UPPER BACKUP

_BEARING SETSCREW

CAUTION: To avoid being scraped, if the blade

should suddenly uncoil, wear safety goggles.

Carefully uncoil the blade holding it at arms

length.

Uncoil the blade.

Place the blade over the wheels with the teeth

pointing downwards toward the table as shown.

Make sure the blade is between the blade guides

and is in the center of the rubber tires.

NOTE: If the blade will not reach around both

wheels, lower the upper wheel by turning the tension

knob counterclockwise.

BLADE CENTERED

ON RUBBER TIRE

ALIGNING THE BLADE AND BLADE

GUIDE ASSEMBLIES

This band saw comes equipped with a 1/4-inch

blade. This band saw can be used with blades of

width from 1/8-inch to 1/2-inch. The alignment steps

must be followed for proper tension, blade guide,

and bearing adjustments for each different blade.

Refer to the blade usage section for the recom-

mended blade size for best results du ring most band

saw operations.

NOTE; It is critical to the life of the blade that the

following steps are followed. Premature blade

breakage will result if these steps are omitted.i "3

1. Turn on the digital display and push the

key. Turn the tension knob until the display reads

.250. Turn the tension knob one additional turn.

this will set the correct tension for a 1/4 inch

blade.

WARNING: TO AVOID INJURY FROM UNEX-

PECTED STARTING OR ELECTRICAL SHOCK,

DO NOT PLUG THE SAW IN. THE POWER

CORD MUST REMAIN UNPLUGGED WHEN-

EVER YOU ARE WORKING ON THE SAW.

2. Turn the upper wheel by hand a few times and

notice if the blade remains in the center of the ti re

on the top wheel.

If the blade moves away from the center of the

tire while you are turning it, the blade is not

tracking properly.

The top wheel shaft is hinged so the blade can be

tracked. Tilt the wheel by turning the tracking

adjustment screw using a medium screw driver.

(See illustration.)

a. If the bladel moves toward the front of the

band saw:

Turn the tracking adjustment screw clockwise

about 1/4 of a turn, as though you were

tightening it.

b. If the blade moves toward the back of the band

saw:

Turn the tracking adjustment screw counter-

clockwise about 1/4 of a turn as though you

were loosening it.

c. Check adjustment by turning wheel by hand.

TRACKING ADJUSTMENT SCREW

3. The upper and lower blade guides support the

blade and keep it from twisting during operation.

Adjust blade guide support whenever blades are

changed or replaced with a different width.

4. Push the blade guide support toward the blade

and adjust the blade guides so they are about

1/32-inch from the deepest part of the blade

teeth. This deep part is called a gullet. Tighten

the set screw locking the blade guide support.

Turn the upper wheel, by hand, checking the

position of the blade guide support.

NOTE: Letting the blade teeth hit the blade

guides while using the band saw will ruin the

blade. The set of the teeth and the sharpened

edge of the teeth would be damaged. Proper

adjustment of the upper and lower blade guide

assemblies will prevent this from happening.

Repeat procedure for lower blade guide support.

5. Slide the two blade guides evenly against the

sides of the blade. Do not push the blade guides

or pinch the blade guides against the blade.

Rotate the upper wheel by hand so the blade

travels downward. This leaves proper space for

blade. Make sure one guide is not further from

the blade than the other. Tighten both setscrews

with a 1/8-inch hex "L" wrench. Repeat proce-

dure for lower blade guides.

NOTE: The backup bearings support the blade

from the rear and will spin when the blade is

pushed against them while you are cutting. As

soon as you stop cutting, the bearings should

stop spinning.

LGULLET

BLADE

BLADE GUIDE

BACKUP BEARING

BLADE GUIDE

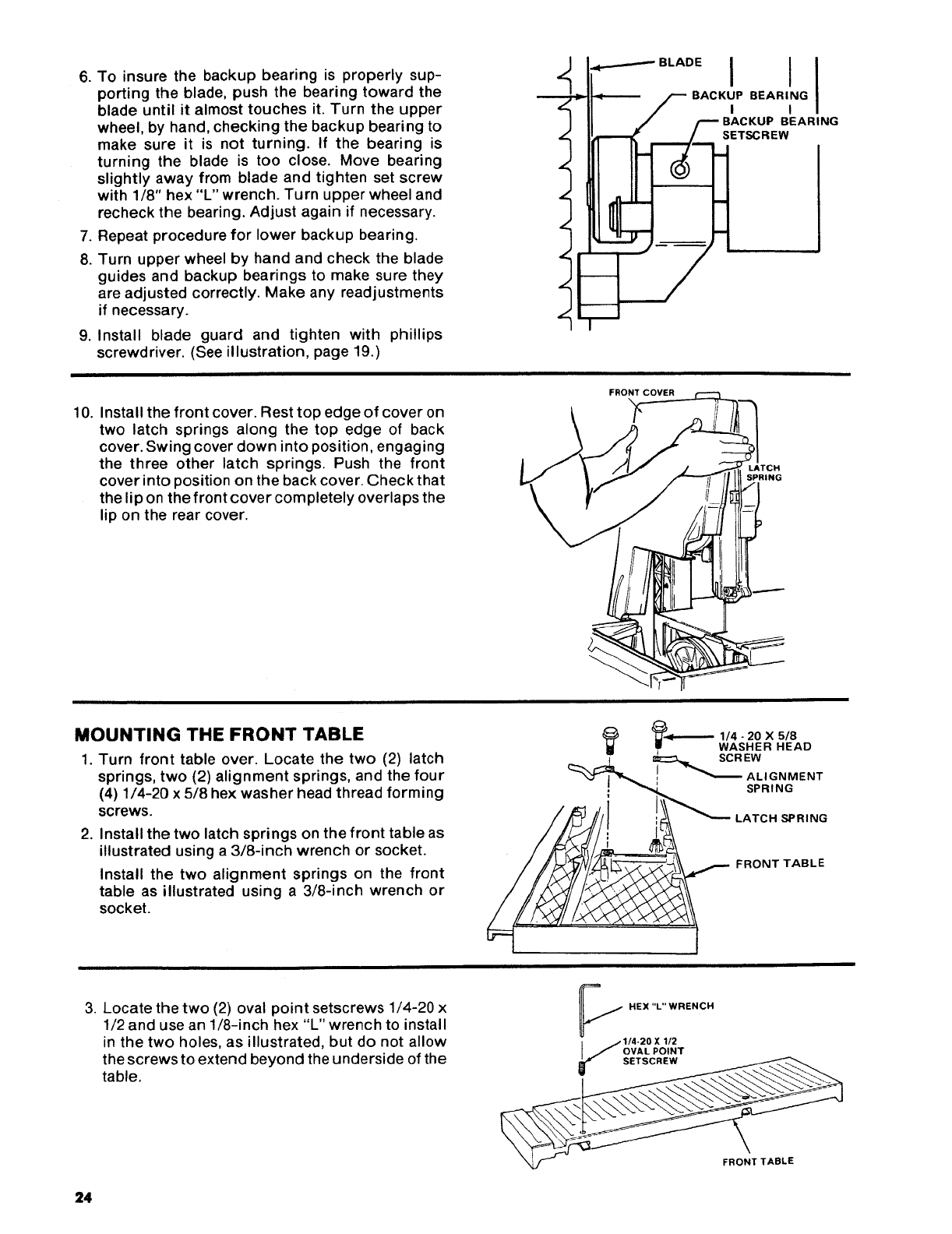

6. To insure the backup bearing is properly sup-

porting the blade, push the bearing toward the

blade until it almost touches it. Turn the upper

wheel, by hand, checking the backup bearing to

make sure it is not turning. If the bearing is

turning the blade is too close. Move bearing

slightly away from blade and tighten set screw

with 1/8" hex "L" wrench. Turn upper wheel and

recheck the bearing. Adjust again if necessary.

7. Repeat procedure for lower backup bearing.

8. Turn upper wheel by hand and check the blade

guides and backup bearings to make sure they

are adjusted correctly. Make any readjustments

if necessary.

9. Install blade guard and tighten with phillips

screwdriver. (See illustration, page 19.)

°"°EI I I

BACKUP BEARING

I I

BACKUP BEARING

SETSCREW

10. Install the front cover. Rest top edge of cover on

two latch springs along the top edge of back

cover. Swing cover down into position, engaging

the three other latch springs. Push the front

cover into position on the back cover. Check that

the lip on the front cover completely overlaps the

lip on the rear cover.

FRONT COVER

LATCH

SPRING

MOUNTING THE FRONT TABLE

1. Turn front table over. Locate the two (2) latch

springs, two (2) alignment springs, and the four

(4) 1/4-20 x 5/8 hex washer head thread forming

screws.

2. Install the two latch springs on the front table as

illustrated using a 3/8-inch wrench or socket.

Install the two alignment springs on the front

table as illustrated using a 3/8-inch wrench or

socket.

_____ _..<---_-- 1/4 -20 X5/8

' ALIGNMENT

I "_ SPRING

,FRONT TABLE

3. Locate the two (2) oval point setscrews 1/4-20 x

1/2 and use an 1/8-inch hex "L" wrench to install

in the two holes, as illustrated, but do not allow

the screws to extend beyond the underside of the

table.

HEX "L" WRENCH

j,,.1/4-20 X 112

OVAL POINT

='- SETSCREW

FRONT TABLE

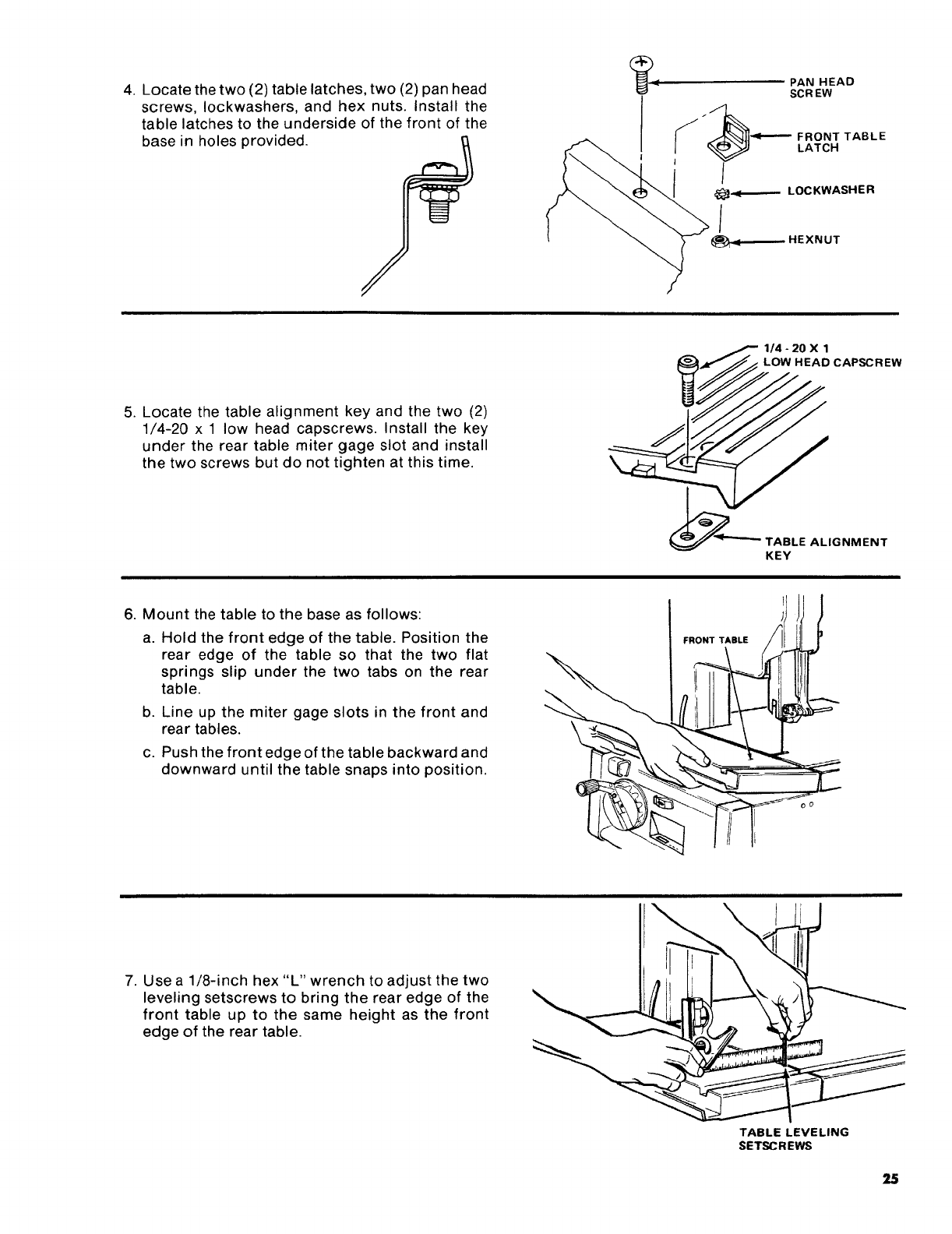

4. Locate the two (2) table latches, two (2) pan head

screws, Iockwashers, and hex nuts. Install the

table latches to the underside of the front of the

base in holes provided.

PAN HEAD

SCR EW

_FRONT TABLE

LATCH

,__ LOCKWASHE R

XNUT

5. Locate the table alignment key and the two (2)

1/4-20 x 1 low head capscrews. Install the key

under the rear table miter gage slot and install

the two screws but do not tighten at this time.

_...__ 1/4-20X 1

OW HEAD CAPSCREW

TABLE ALIGNMENT

KEY

6. Mount the table to the base as follows:

a. Hold the front edge of the table. Position the

rear edge of the table so that the two flat

springs slip under the two tabs on the rear

table.

b. Line up the miter gage slots in the front and

rear tables.

c. Push the front edge of the table backward and

downward until the table snaps into position.

FRONT TABLE

7. Use a 1/8-inch hex "L" wrench to adjust the two

leveling setscrews to bring the rear edge of the

front table up to the same height as the front

edge of the rear table.

TABLE LEVELING

SETSCREWS

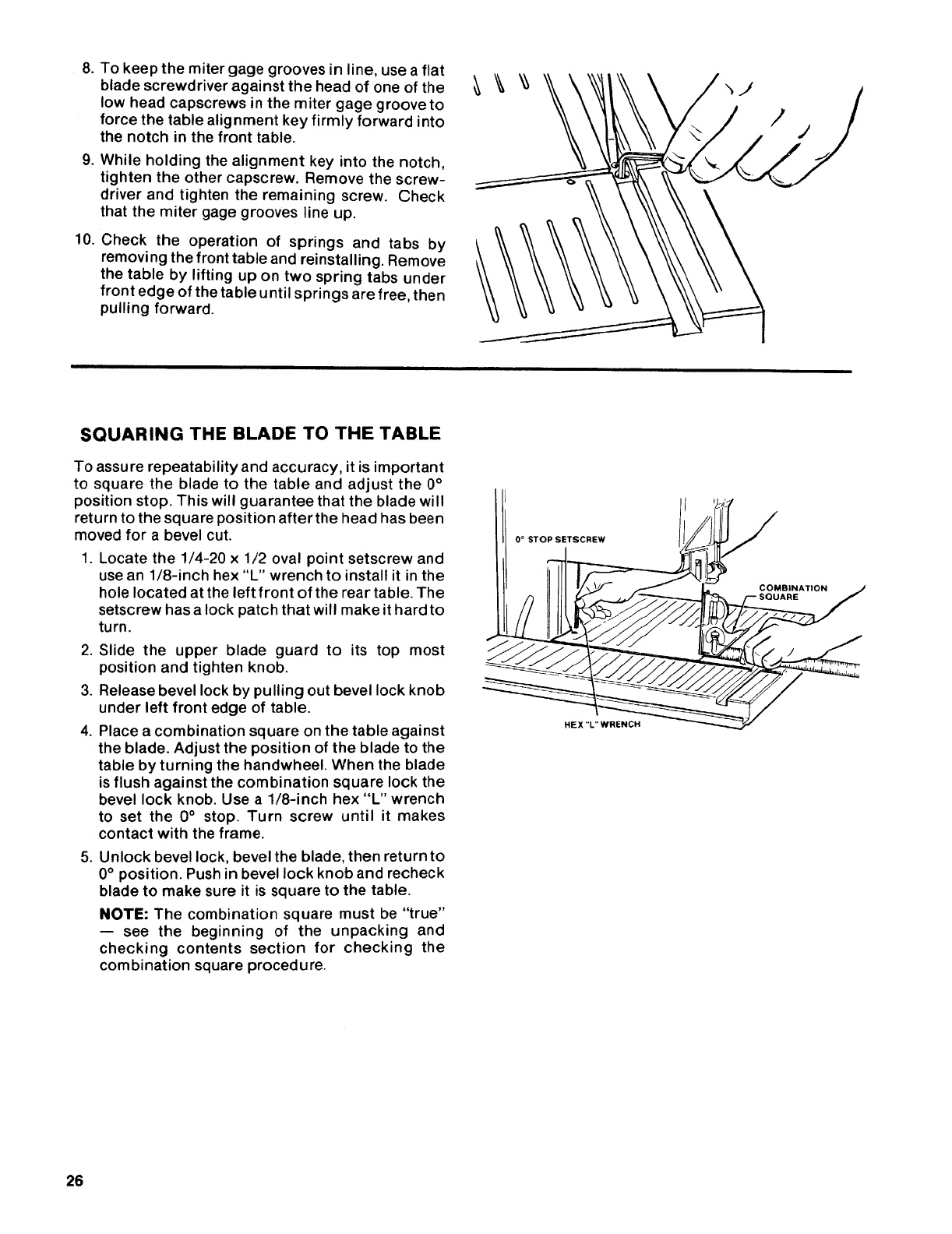

8. To keep the miter gage grooves in line, use a flat

blade screwdriver against the head of one of the

low head capscrews in the miter gage groove to

force the table alignment key firmly forward into

the notch in the front table.

9. While holding the alignment key into the notch,

tighten the other capscrew. Remove the screw-

driver and tighten the remaining screw. Check

that the miter gage grooves line up.

10. Check the operation of springs and tabs by

removing the front table and reinstalling. Remove

the table by lifting up on two spring tabs under

front edge of the table until springs are free, then

pulling forward.

SQUARING THE BLADE TO THE TABLE

To assure repeatability and accuracy, it is important

to square the blade to the table and adjust the 0°

position stop. This will guarantee that the blade will

return to the square position after the head has been

moved for a bevel cut.

1. Locate the 1/4-20 x 1/2 oval point setscrew and

use an 1/8-inch hex "L" wrench to install it in the

hole located at the left front of the rear table. The

setscrew has a lock patch that will make it hard to

turn.

2. Slide the upper blade guard to its top most

position and tighten knob.

3. Release bevel lock by pulling out bevel lock knob

under left front edge of table.

4. Place a combination square on the table against

the blade. Adjust the position of the blade to the

table by turning the handwheel. When the blade

is flush against the combination square lock the

bevel lock knob. Use a 1/8-inch hex "L" wrench

to set the 0° stop. Turn screw until it makes

contact with the frame.

5. Unlock bevel lock, bevel the blade, then return to

0°position. Push in bevel lock knob and recheck

blade to make sure it is square to the table.

NOTE: The combination square must be "true"

-- see the beginning of the unpacking and

checking contents section for checking the

combination square procedure.

ATION

HEX "L" WRENCH

location and function of controls

ON-OFF SWITCH

NOTE: The On-Off switch has a locking feature. This

feature is intended to help prevent unauthorized and

possibly hazardous use by children and others.

1. Insert yellow key into switch. ") _--

2. To turn on, insert finger under end of red switch

lever and pull end out.

3. To turn off switch, push red lever in towards the

base.

4. WARNING: The locking feature provided is to

help prevent unauthorized use of your saw.

Always remove the yellow key and keep it in a

safe place. To remove yellow key, hold thumb on

the end of red lever to keep switch in "Off"

position and pull yellow key straight out.

TILTING HEAD FOR BEVEL CUT

1. Unlock bevel lock by pulling outon knob located

under the left front edge of the table.

2. Turn handwheel counter-clockwise to increase

the tilt angle of the blade. The digital display will

read out the angle of the blade to the table.

3. Lock the bevel lock by pushing in on knob until it

is fully seated when desired bevel angle is

reached.

IMRN

BEVEL LOCK LOCK

HANDWH!

ELECTRONIC DISPLAY

PANEL

ADJUSTING BEVEL LOCK KNOB

The bevel lock knob is factory adjusted and set. If

after repeated use it becomes necessary to adjust:

1. Pull the bevel lock foward and bevel the band

saw to 25 degrees.

2. Use a 9/16-inch wrench or socket to adjust the

locking nut behind the band saw mounting

frame. Turn nut clockwise to tighten.

3. Recheck bevel lock knob and readjust if neces-

sary.

LOCKNUT

MOUNTING FRAME

/BEVEL LOCK

KNOB

I22

HANDWHEEL

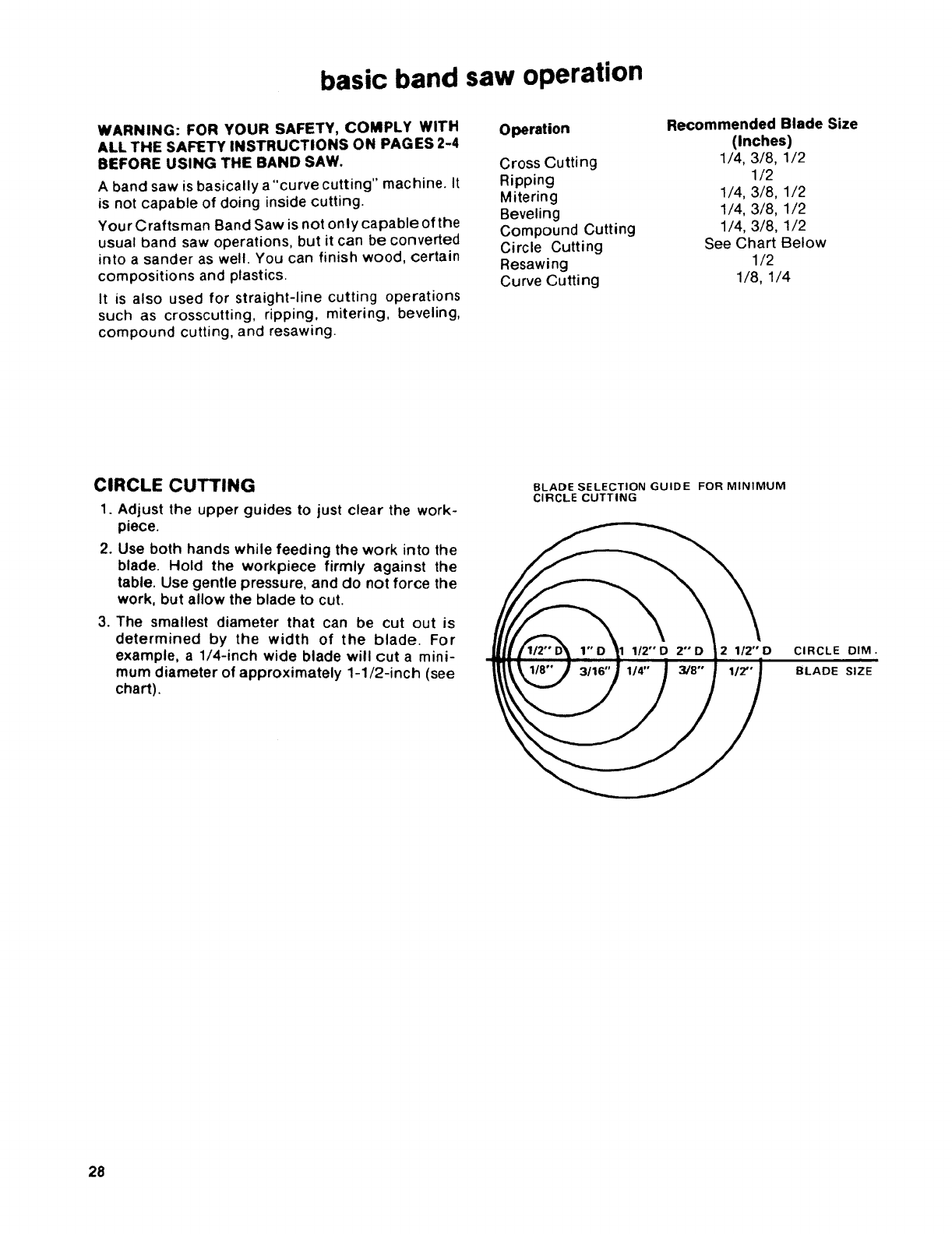

basic band saw operation

WARNING: FOR YOUR SAFETY, COMPLY WITH

ALL THE SAFETY INSTRUCTIONS ON PAGES 2-4

BEFORE USING THE BAND SAW.

Aband saw is basically a"curve cutting" machine. It

is not capable of doing inside cutting.

Your Craftsman Band Saw is not only capable of the

usual band saw operations, but it can be converted

into a sander as well. You can finish wood, certain

compositions and plastics.

It is also used for straight-line cutting operations

such as crosscutting, ripping, mitering, beveling,

compound cutting, and resawing.

Operation Recommended Blade Size

(Inches)

Cross Cutting 1/4, 3/8, 1/2

Ripping 112

Mitering 1/4, 3/8, 1/2

Beveling 1/4, 3/8, 1/2

Compound Cutting 1/4, 3/8, 1/2

Circle Cutting See Chart Below

Resawing 1/2

Curve Cutting 1/8, 1/4

CIRCLE CUTTING

1. Adjust the upper guides to just clear the work-

piece.

2. Use both hands while feeding the work into the

blade. Hold the workpiece firmly against the

table. Use gentle pressure, and do not force the

work, but allow the blade to cut.

3. The smallest diameter that can be cut out is

determined by the width of the blade. For

example, a 1/4-inch wide blade will cut a mini-

mum diameter of approximately 1-1/2-inch (see

chart),

BLADE SELECTION GUIDE FOR MINIMUM

CIRCLE CUTTING

2 1/2"D CIRCLE DIM.

BLADE SIZE

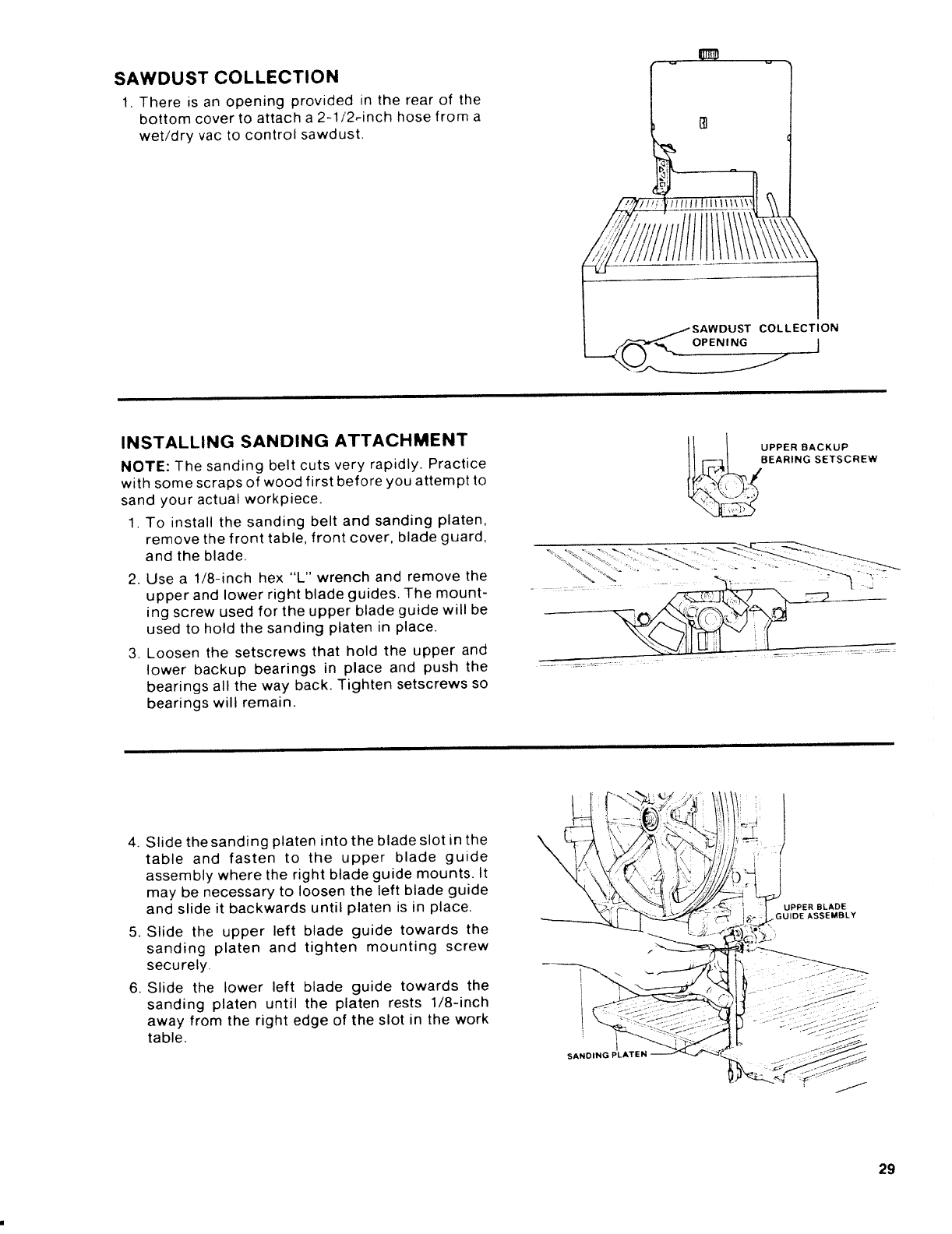

SAWDUST COLLECTION

1. There is an opening provided in the rear of the

bottom cover to attach a 2-1/2-inch hose from a

wet/dry vac to control sawdust.

OPENING

COLLECTION

INSTALLING SANDING ATTACHMENT

NOTE: The sanding belt cuts very rapidly. Practice

with some scraps of wood first before you attempt to

sand your actual workpiece.

1. To install the sanding belt and sanding platen,

remove the front table, front cover, blade guard,

and the blade,

2. Use a 1/8-inch hex "L" wrench and remove the

upper and lower right blade guides, The mount-

ing screw used for the upper blade guide will be

used to hold the sanding platen in place,

3. Loosen the setscrews that hold the upper and

lower backup bearings in place and push the

bearings all the way back. Tighten setscrews so

bearings will remain.

_, UPPER BACKUP

EARING SETSCREW

4. Slide the sanding platen into the blade slot in the

table and fasten to the upper blade guide

assembly where the right blade guide mounts, tt

may be necessary to loosen the left blade guide

and slide it backwards until platen is in place,

5. Slide the upper left blade guide towards the

sanding platen and tighten mounting screw

securely.

6. Slide the lower left blade guide towards the

sanding platen until the platen rests 1/8-inch

away from the right edge of the slot in the work

table.

UPPER BLADE

IIDE ASSEMBLY

SANDING PLATEN

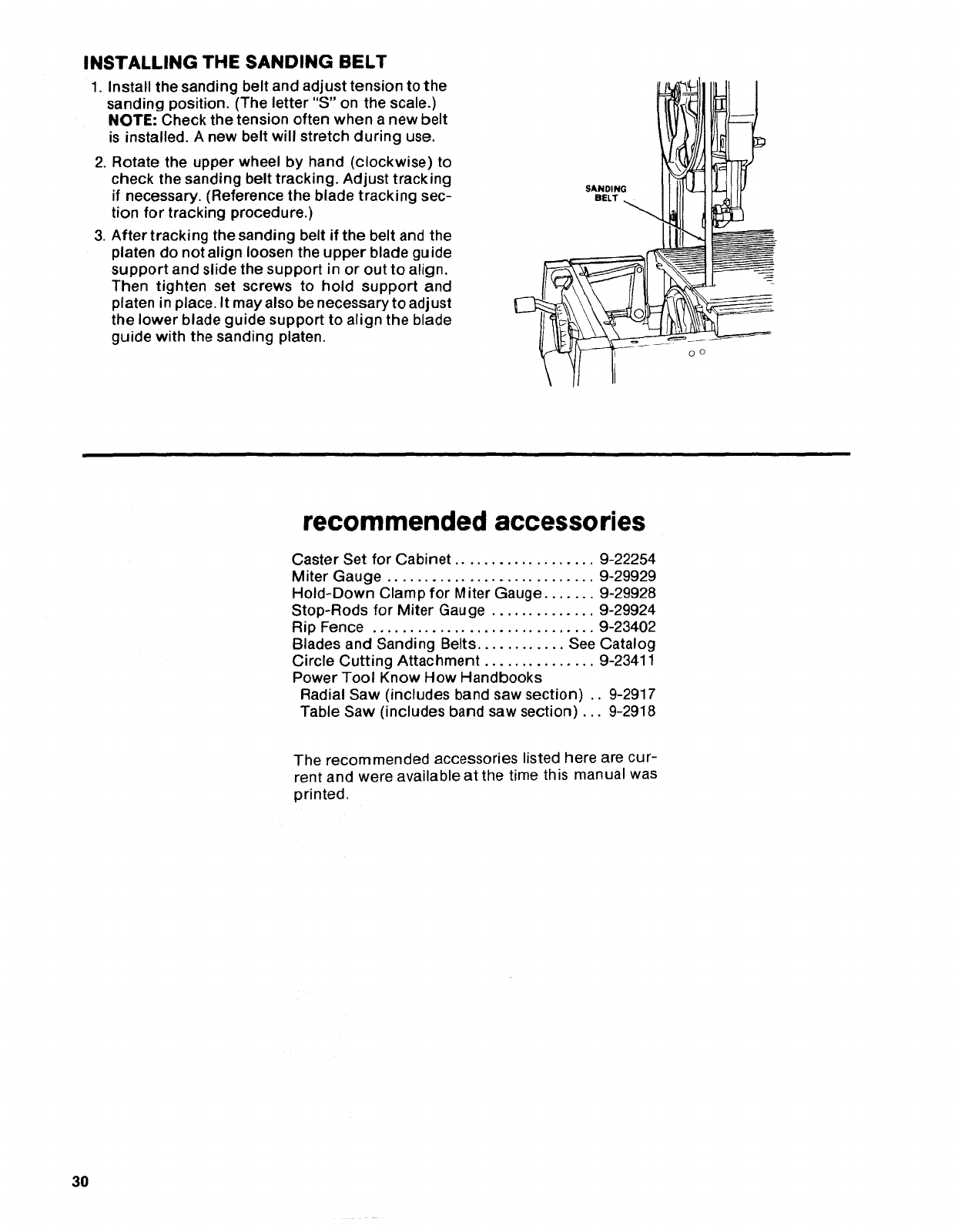

INSTALLING THE SANDING BELT

.Install the sanding belt and adjust tension to the

sanding position. (The letter "S" on the scale.)

NOTE: Check the tension often when a new belt

is installed. A new belt will stretch during use.

Rotate the upper wheel by hand (clockwise) to

check the sanding belt tracking. Adjust tracking

if necessary. (Reference the blade tracking sec-

tion for tracking procedure.)

After tracking the sanding belt if the belt and the

platen do not align loosen the upper blade guide

support and slide the support in or out to align.

Then tighten set screws to hold support and

platen in place. It may also be necessary to adjust

the lower blade guide support to align the blade

guide with the sanding platen,

SANDING

BELT

recommended accessories

Caster Set for Cabinet ................... 9-22254

Miter Gauge ............................ 9-29929

Hold-Down Clamp for Miter Gauge ....... 9-29928

Stop-Rods for Miter Gauge .............. 9-29924

Rip Fence .............................. 9-23402

Blades and Sanding Belts ............ See Catalog

Circle Cutting Attachment ............... 9-23411

Power Tool Know How Handbooks

Radial Saw (includes band saw section) .. 9-2917

Table Saw (includes band saw section) ... 9-2918

The recommended accessories listed here are cur-

rent and were available at the time this manual was

printed.

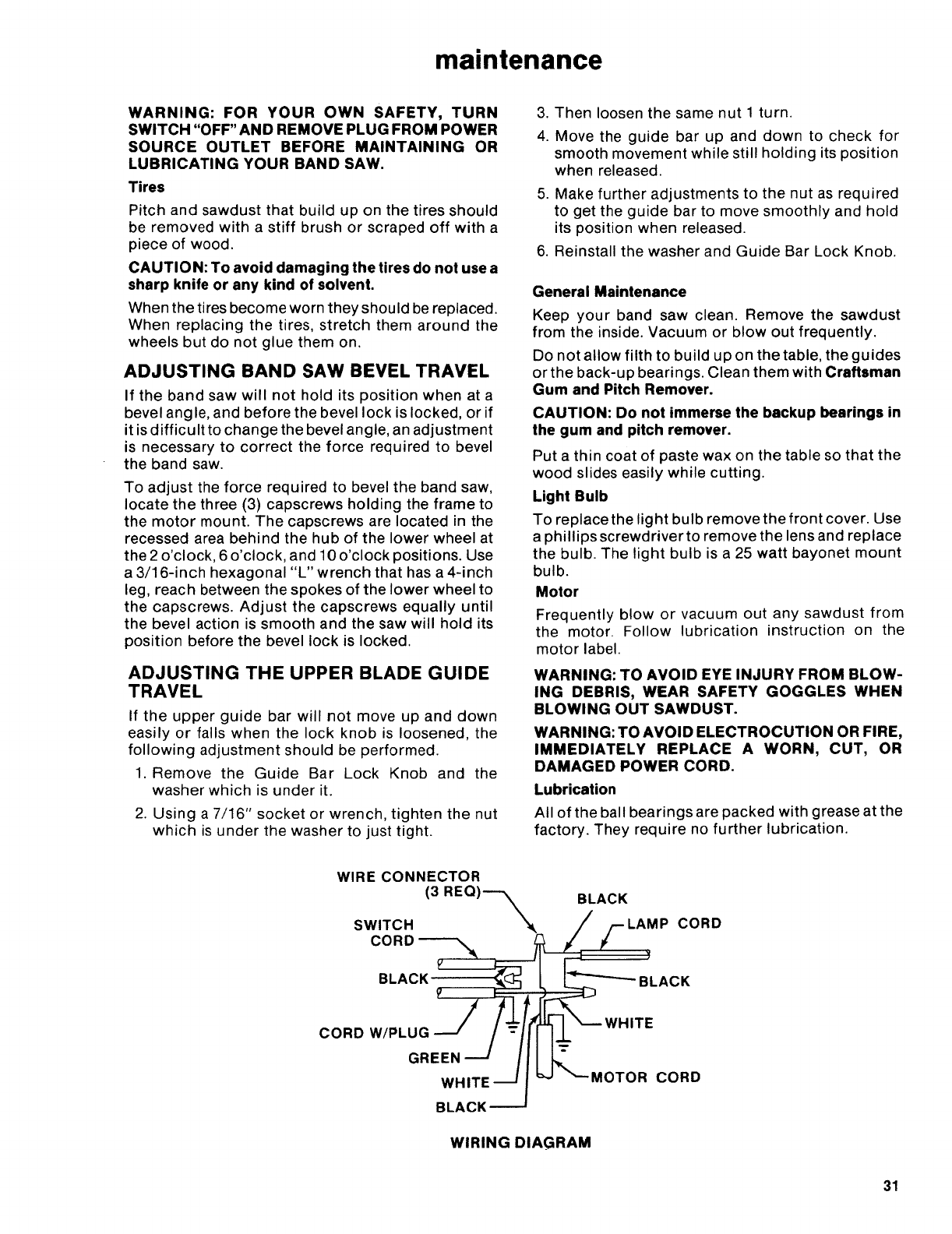

maintenance

WARNING: FOR YOUR OWN SAFETY, TURN

SWITCH "OFF" AND REMOVE PLUG FROM POWER

SOURCE OUTLET BEFORE MAINTAINING OR

LUBRICATING YOUR BAND SAW,

Tires

Pitch and sawdust that build up on the tires should

be removed with a stiff brush or scraped off with a

piece of wood.

CAUTION: To avoid damaging the tires do not use a

sharp knife or any kind of solvent.

When the tires become worn they should be replaced.

When replacing the tires, stretch them around the

wheels but do not glue them on.

ADJUSTING BAND SAW BEVEL TRAVEL

If the band saw will not hold its position when at a

bevel angle, and before the bevel lock is locked, or if

it is difficult to change the bevel angle, an adjustment

is necessary to correct the force required to bevel

the band saw.

To adjust the force required to bevel the band saw,

locate the three (3) capscrews holding the frame to

the motor mount. The capscrews are located in the

recessed area behind the hub of the lower wheel at

the 2 o'clock, 6 o'clock, and 10 o'clock positions. Use

a 3/16-inch hexagonal "L" wrench that has a 4-inch

leg, reach between the spokes of the lower wheel to

the capscrews. Adjust the capscrews equally until

the bevel action is smooth and the saw will hold its

position before the bevel lock is locked.

ADJUSTING THE UPPER BLADE GUIDE

TRAVEL

If the upper guide bar will not move up and down

easily or falls when the lock knob is loosened, the

following adjustment should be performed.

1. Remove the Guide Bar Lock Knob and the

washer which is under it.

2. Using a 7/16" socket or wrench, tighten the nut

which is under the washer to just tight.

3. Then loosen the same nut 1 turn.

4. Move the guide bar up and down to check for

smooth movement while still holding its position

when released.

5. Make further adjustments to the nut as required

to get the guide bar to move smoothly and hold

its position when released.

6. Reinstall the washer and Guide Bar Lock Knob.

General Maintenance

Keep your band saw clean. Remove the sawdust

from the inside. Vacuum or blow out frequently.

Do not allow filth to build up on the table, the guides

or the back-up bearings. Clean them with Craftsman

Gum and Pitch Remover.

CAUTION: Do not immerse the backup bearings in

the gum and pitch remover.

Put a thin coat of paste wax on the table so that the

wood slides easily while cutting.

Light Bulb

To replace the light bulb remove the front cover. Use

a phillips screwdriver to remove the lens and replace

the bulb. The light bulb is a 25 watt bayonet mount

bulb.

Motor

Frequently blow or vacuum out any sawdust from

the motor. Follow lubrication instruction on the

motor label.

WARNING: TO AVOID EYE INJURY FROM BLOW-

ING DEBRIS, WEAR SAFETY GOGGLES WHEN

BLOWING OUT SAWDUST.

WARNING: TO AVOID ELECTROCUTION OR FIRE,

IMMEDIATELY REPLACE A WORN, CUT, OR

DAMAGED POWER CORD.

Lubrication

All of the ball bearings are packed with grease at the

factory. They require no further lubrication.

WIRE CONNECTOR

(3 REQ)

SWITCH -'_ BLACK

/F LAMP CORD

BLAC K-__l_[ _BLACK

co.ow, LUO- //111;

WH,TE I"--.OTO. O"O

BLACK _

WIRING DIAGRAM

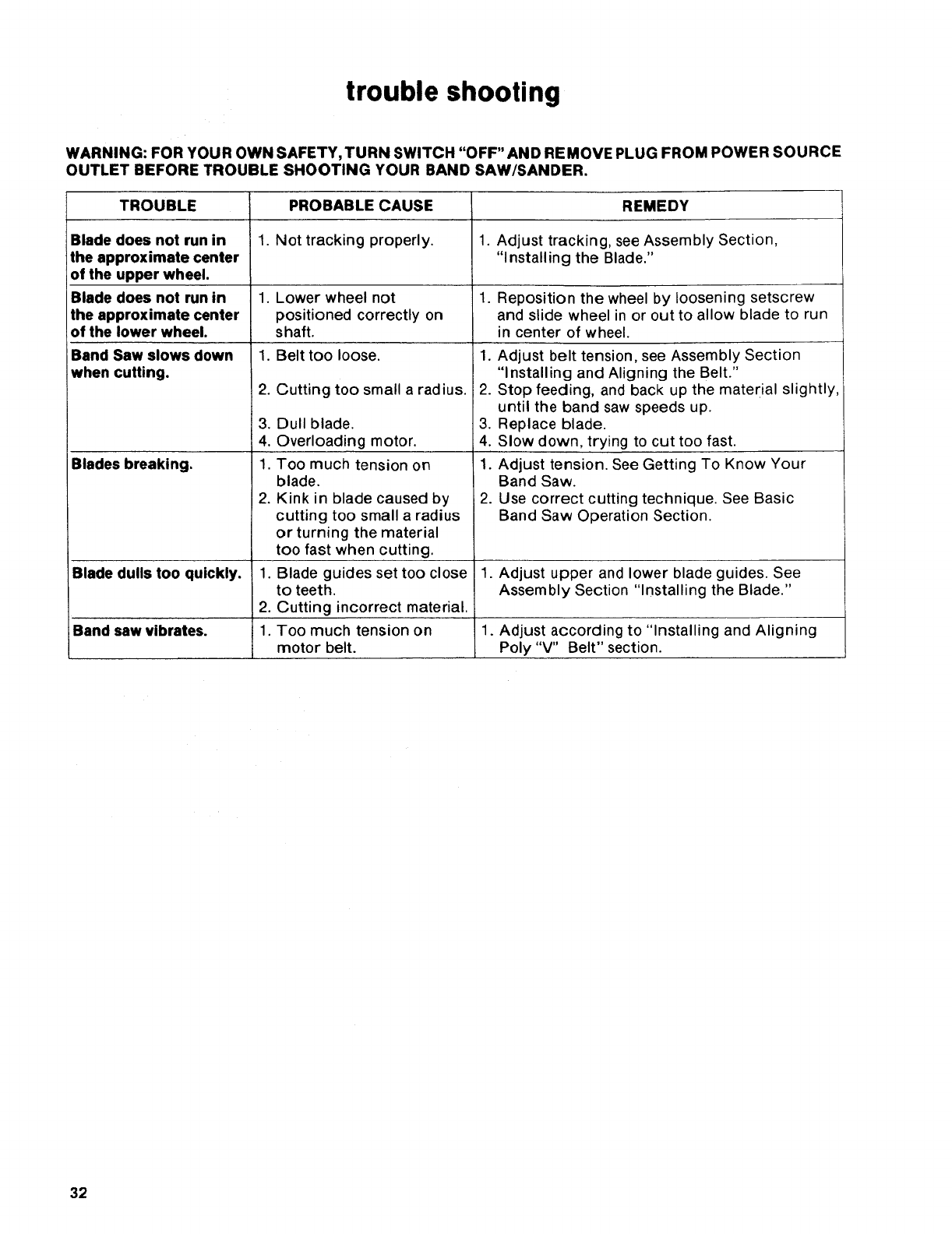

trouble shooting

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH "OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE TROUBLE SHOOTING YOUR BAND SAW/SANDER.

TROUBLE PROBABLE CAUSE REMEDY

1. Not tracking properly. 1. Adjust tracking, see Assembly Section,

"Installing the Blade."

1. Lower wheel not 1. Reposition the wheel by loosening setscrew

positioned correctly on and slide wheel in or out to allow blade to run

shaft, in center of wheel.

1. Belt too loose.

Blade does not run in

the approximate center

of the upper wheel.

Blade does not run in

the approximate center

of the lower wheel.

Band Saw slows down

when cutting.

Blades breaking.

Blade dulls too quickly.

Band saw vibrates.

2. Cutting too small a radius.

3. Dull blade.

4. Overloading motor.

1. Too much tension on

blade.

2. Kink in blade caused by

cutting too small a radius

or turning the material

too fast when cutting.

1. Blade guides set too close

to teeth.

2. Gutting incorrect material.

1. Too much tension on

motor belt.

1. Adjust belt tension, see Assembly Section

"Installing and Aligning the Belt."

2. Stop feeding, and back up the material slightly,

until the band saw speeds up.

3. Replace blade.

4. Slow down, trying to cut too fast.

1. Adjust tension. See Getting To Know Your

Band Saw.

2. Use correct cutting technique. See Basic

Band Saw Operation Section.

1. Adjust upper and lower blade guides. See

Assembly Section "Installing the Blade."

1. Adjust according to "Installing and Aligning

Poly "V" Belt" section.

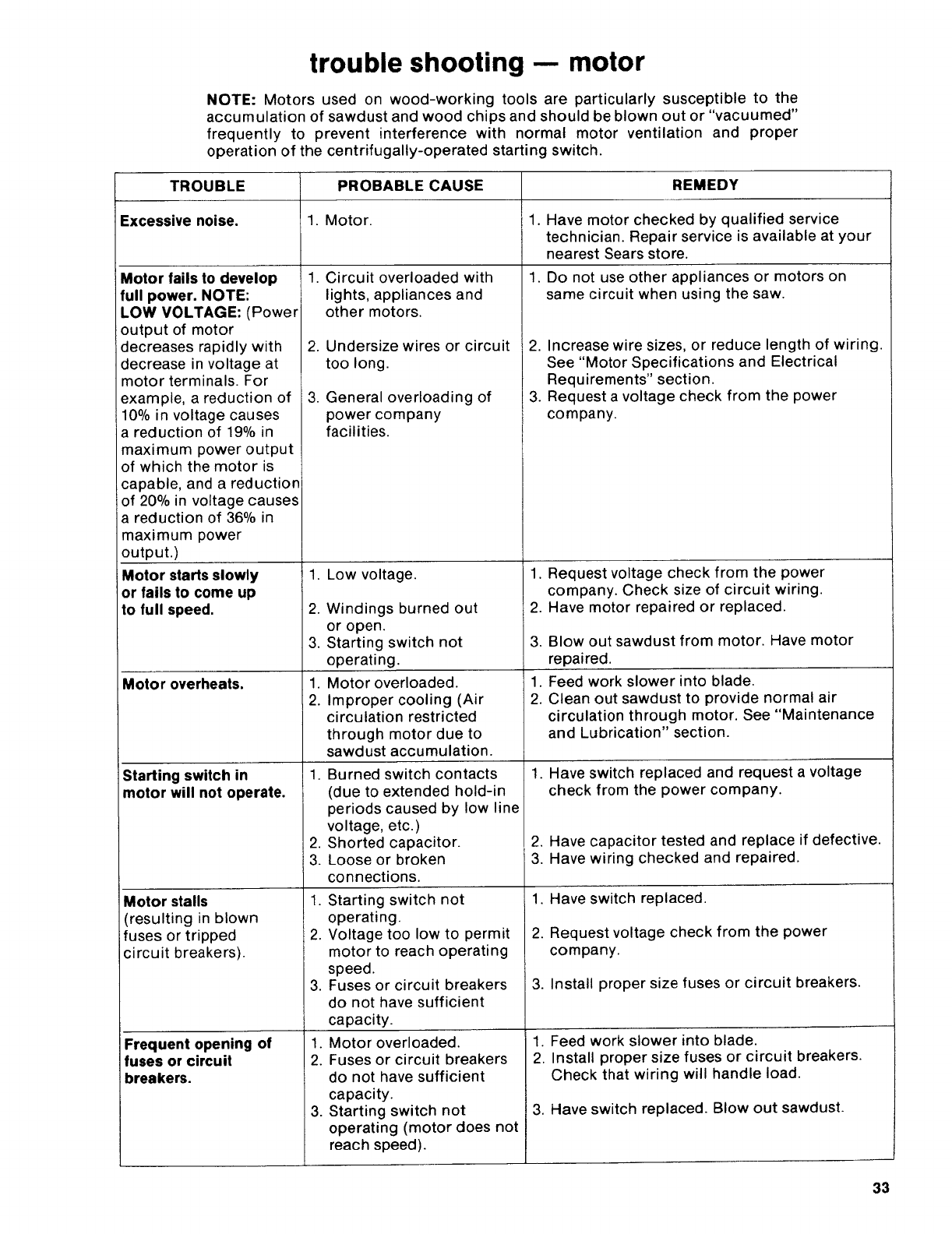

trouble shooting -- motor

NOTE: Motors used on wood-working tools are particularly susceptible to the

accumulation of sawdust and wood chips and should be blown out or "vacuumed"

frequently to prevent interference with normal motor ventilation and proper

operation of the centrifugally-operated starting switch.

TROUBLE

Excessive noise.

Motor fails to develop 1.

full power. NOTE:

LOW VOLTAGE: (Power

output of motor

decreases rapidly with 2.

decrease in voltage at

motor terminals. For

example, a reduction of 3.

10% in voltage causes

a reduction of 19% in

maximum power output

of which the motor is

capable, and a reduction

iof 20% in voltage causes

a reduction of 36% in

maximum power

output.)

Motor starts slowly 1.

or fails to come up

to full speed, 2.

Motor overheats. 1.

Starting switch in 1.

motor will not operate.

Motor stalls 1.

(resulting in blown

fuses or tripped 2.

circuit breakers).

Frequent opening of 1.

fuses or circuit 2.

breakers.

PROBABLE CAUSE REMEDY

1. Motor

Circuit overloaded with

lights, appliances and

other motors.

Undersize wires or circuit

too long.

General overloading of

power company

facilities.

Low voltage.

Windings burned out

or open.

Starting switch not

operating.

Motor overloaded.

Improper cooling (Air

circulation restricted

through motor due to

sawdust accumulation.

Burned switch contacts

(due to extended hold-in

periods caused by low line

voltage, etc.)

Shorted capacitor.

Loose or broken

connections.

Starting switch not

operating.

Voltage too low to permit

motor to reach operating

speed.

Fuses or circuit breakers

do not have sufficient

capacity.

Motor overloaded.

Fuses or circuit breakers

do not have sufficient

capacity.

Starting switch not

operating (motor does not

reach speed).

1. Have motor checked by qualified service

technician. Repair service is available at your

nearest Sears store.

1. Do not use other appliances or motors on

same circuit when using the saw.

2. Increase wire sizes, or reduce length of wiring.

See "Motor Specifications and Electrical

Requirements" section.

3. Request a voltage check from the power

company.

1. Request voltage check from the power

company. Check size of circuit wiring.

2. Have motor repaired or replaced.

3. Blow out sawdust from motor. Have motor

repaired.

1. Feed work slower into blade.

2. Clean out sawdust to provide normal air

circulation through motor. See "Maintenance

and Lubrication" section.

1. Have switch replaced and request a voltage

check from the power company.

2. Have capacitor tested and replace if defective.

3. Have wiring checked and repaired.

1. Have switch replaced.

2. Request voltage check from the power

company.

3. Install proper size fuses or circuit breakers.

1. Feed work slower into blade.

2. Install proper size fuses or circuit breakers.

Check that wiring will handle load.

3. Have switch replaced. Blow out sawdust.

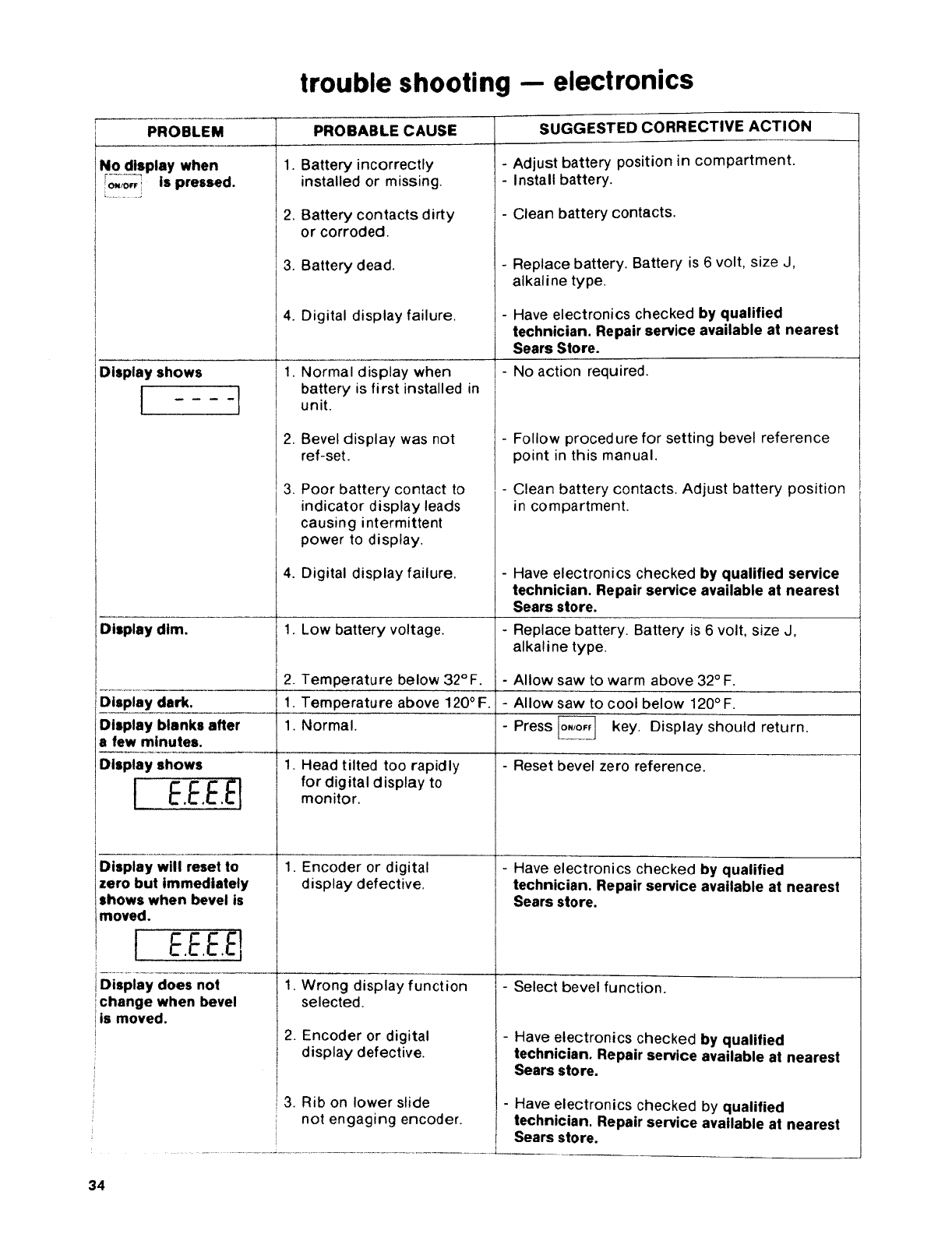

trouble shooting -- electronics

PROBLEM

No display when

!_ is pressed.

Display shows

I ----1

Display dim.

!Display dark.

Display blanks

afew minutes.

Display shows

I_ E.E.E.EI

PROBABLE CAUSE

Battery incorrectly

installed or missing.

Display will reset to

zero but immediately

shows when bevel is

moved.

jDisplay does not

llchange when bevel

!is moved.

2. Battery contacts dirty

or corroded,

3. Battery dead.

4. Digital display failure.

1. Normal display when

battery is first installed in

unit.

2. Bevel display was not

ref-set.

3. Poor battery contact to

indicator display leads

causing intermittent

power to display.

4. Digital display failure.

1. Low battery voltage.

2. Temperature below 32 °F.

1. Temperature above 120 oF.

. _ h .....

fter 1. Normal.

1. Head tilted too rapidly

for digital display to

monitor.

_. Encoder or digital

display defective.

1. Wrong display function

selected.

2. Encoder or digital

display defective.

3. Rib on lower slide

not engaging encoder.

SUGGESTED CORRECTIVE ACTION

- Adjust battery position in compartment.

- Install battery.

- Clean battery contacts.

- Replace battery. Battery is 6 volt, size J,

alkaline type.

-Have electronics checked by qualified

technician. Repair service available at nearest

Sears Store.

- No action required.

- Follow procedure for setting bevel reference

point in this manual.

- Clean battery contacts. Adjust battery position

in compartment.

-Have electronics checked by qualified service

technician. Repair service available at nearest

Sears store.

- Replace battery. Battery is 6 volt, size J,

alkaline type.

- Allow saw to warm above 32° F.

- Allow saw to cool below 120° F.

- Press _ key. Display should return.

- Reset bevel zero reference.

- Have electronics checked by qualified

technician. Repair service available at nearest

Sears store.

- Select bevel function.

- Have electronics checked by qualified

technician. Repair service available at nearest

Sears store.

- Have electronics checked by qualified

technician. Repair service available at nearest

Sears store.

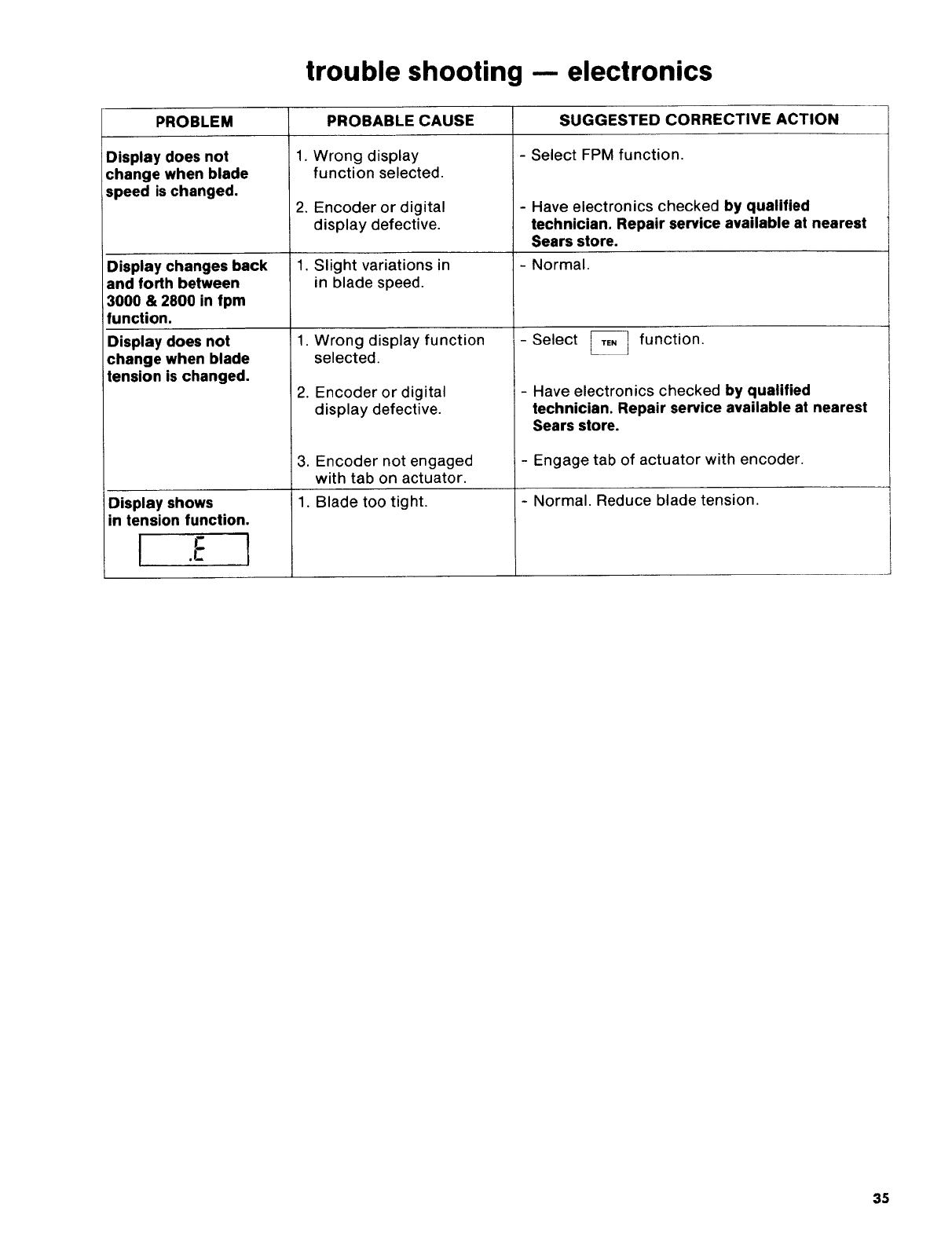

trouble shooting -- electronics

PROBLEM

Display does not

change when blade

speed is changed.

Display changes back

and forth between

3000 & 2800 in fpm

function.

Display does not

PROBABLE CAUSE

1. Wrong display

function selected.

2. Encoder or digital

display defective.

1. Slight variations in

in blade speed.

1. Wrong display function

SUGGESTED CORRECTIVE ACTION

-Select FPM function.

-Have electronics checked by qualified

technician. Repair service available at nearest

Sears store.

- Normal.

-Select _ function.

change when blade

tension is changed.

selected.

Encoder or digital

display defective.

- Have electronics checked by qualified

technician. Repair service available at nearest

Sears store.

Display shows 1.

in tension function.

.E I

Encoder not engaged

with tab on actuator.

Blade too tight.

- Engage tab of actuator with encoder.

- Normal. Reduce blade tension.

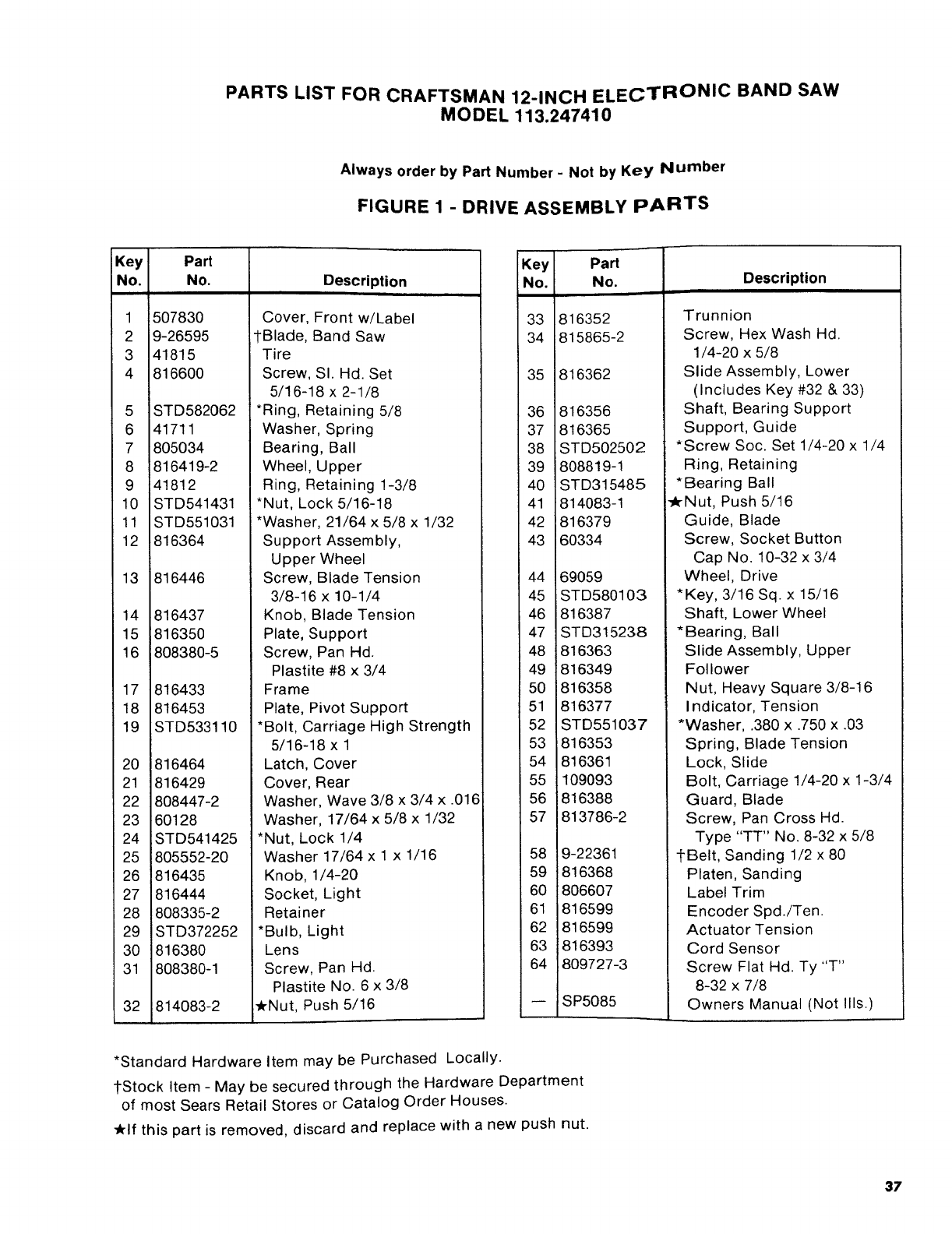

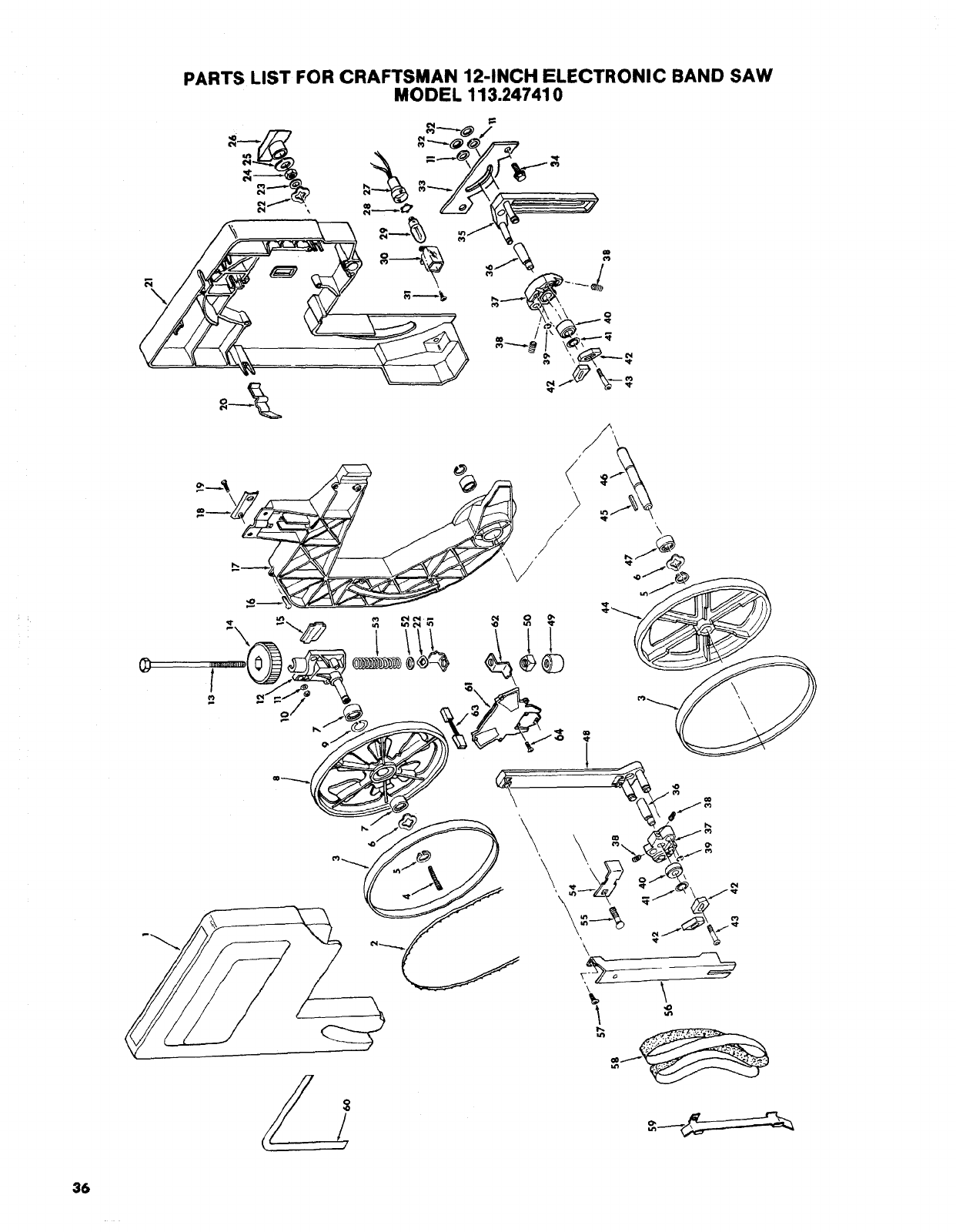

PARTS LIST FOR CRAFTSMAN 12-INCH ELECTRONIC BAND SAW

MODEL 113.247410

PARTS LIST FOR CRAFTSMAN 12-INCH ELECTRONIC BAND SAW

MODEL 113.247410

Always order by Part Number -Not by Key Number

FIGURE 1 -DRIVE ASSEMBLY PARTS

iKey

No.

Part

No.

507830

9-26595

41815

81660O

5 STD582062

6 41711

7 805034

8 816419-2

9 41812

10 STD541431

11 STD551031

12 816364

13 816446

14 816437

15 '816350

16 808380-5

17 816433

18 816453

19 STD533110

20 816464

21 816429

22 808447-2

23 60128

24 ISTD541425

25 805552-20

26 816435

27 816444

28 808335-2

29 STD372252

30 816380

31 808380-1

32 814083-2

Description

Cover, Front w/Label

tBlade, Band Saw

Tire

Screw, Sl. Hd. Set

5/16-18 x 2-1/8

*Ring, Retaining 5/8

Washer, Spring

Bearing, Ball

Wheel, Upper

Ring, Retaining 1-3/8

*Nut, Lock 5/16-18

*Washer, 21/64 x 5/8 x 1/32

Support Assembly,

Upper Wheel

Screw, Blade Tension

3/8-16 x 10-1/4

Knob, Blade Tension

Plate, Support

Screw, Pan Hd.

Plastite #8 x 3/4

Frame

Plate, Pivot Support

*Bolt, Carriage High Strength

5/16-18 x 1

Latch, Cover

Cover, Rear

Washer, Wave 3/8 x 3/4 x .016

Washer, 17/64 x 5/8 x 1/32

*Nut, Lock 1/4

Washer 17/64 x 1 x 1/16

Knob, 1/4-20

Socket, Light

Retainer

*Bulb, Light

Lens

Screw, Pan Hd.

Plastite No. 6 x 3/8

_rNut, Push 5/!6

Key Part

No. No.

33 816352

34 815865-2

35 816362

36 816356

37 816365

38 STD502502

39 808819-1

40 STD315485

41:814083-1

42 816379

43 60334

44 69059

45 STD580103

46 816387

47 STD315238

48 816363

49 816349

50 816358

51 816377

52 STD551037

53 816353

54 816361

55 109093

56 816388

57 813786-2

Description

Trunnion

Screw, Hex Wash Hd.

1/4-20 x 5/8

Slide Assembly, Lower

(Includes Key #32 & 33)

Shaft, Bearing Support

Support, Guide

*Screw Soc. Set 1/4-20 x 1/4

Ring, Retaining

*Bearing Ball

"JrNut, Push 5/16

Guide, Blade

Screw, Socket Button

Cap No. 10-32 x 3/4

Wheel, Drive

*Key, 3/16 Sq. x 15/16

Shaft, Lower Wheel

58 9-22361

59 816368

60 806607

61 816599

62 816599

63 816393

64 809727-3

SP5085

*Bearing, Ball

Slide Assembly, Upper

Follower

Nut, Heavy Square 3/8-16

I ndicator, Tension

*Washer, .380 x .750 x .03

Spring, Blade Tension

Lock, Slide

Bolt, Carriage 1/4-20 x 1-3/4

Guard, Blade

Screw, Pan Cross Hd.

Type "TT" No. 8-32 x 5/8

tBelt, Sanding 1/2 x 80

Platen, Sanding

Label Trim

Encoder Spd./Ten.

Actuator Tension

Cord Sensor

Screw Flat Hd. Ty "T"

8-32 x 7/8

Owners Manual (Not Ills.)

*Standard Hardware Item may be Purchased Locally.

tStock Item - May be secured through the Hardware Department

of most Sears Retail Stores or Catalog Order Houses.

,klf this part is removed, discard and replace with a new push nut.

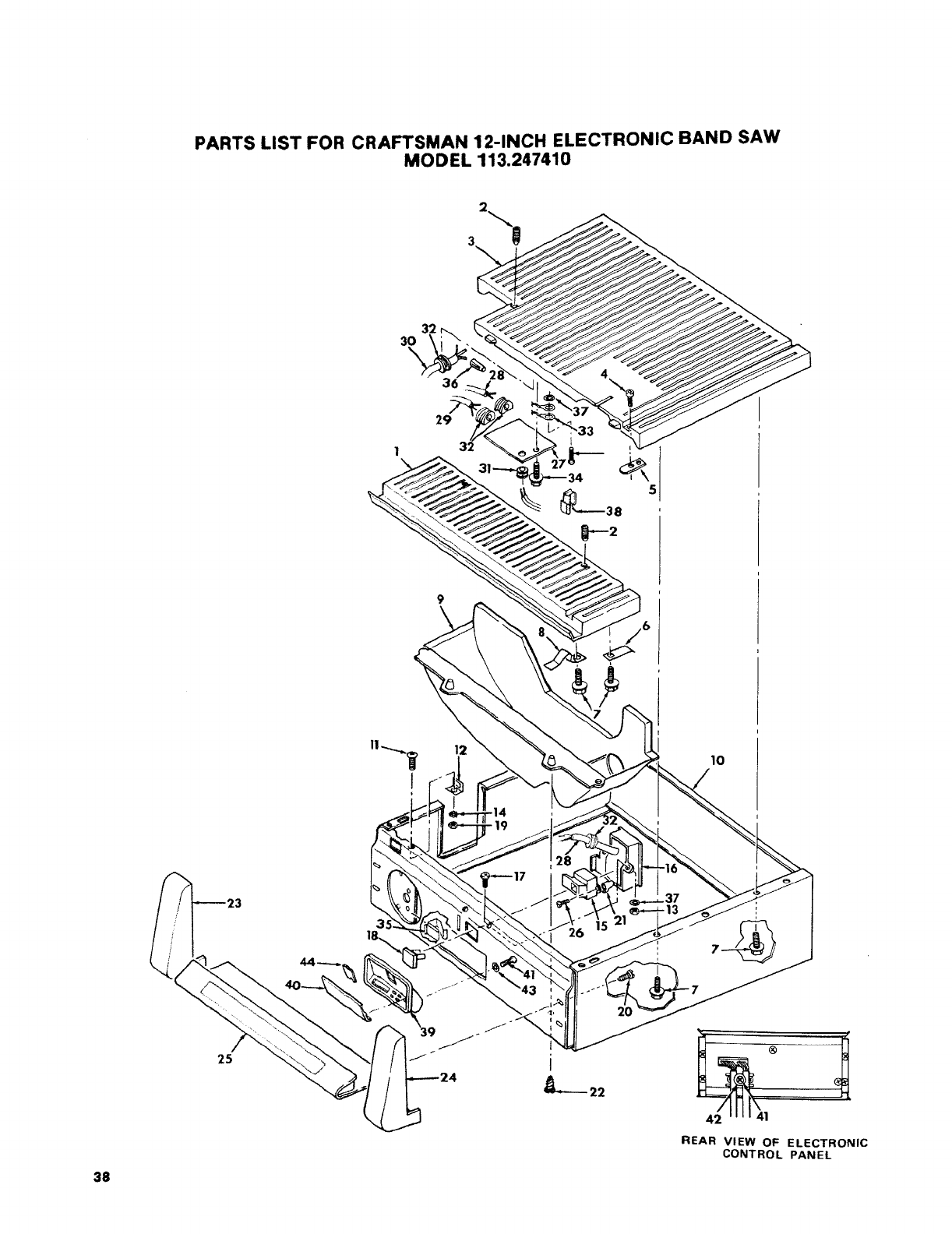

PARTS LIST FOR CRAFTSMAN 12-INCH ELECTRONIC BAND SAW

MOD EL 113.247410

3: Li

[_-----38 5

-14

_--17

• _7 r _

25 J

REAR VIEW OF ELECTRONIC

CONTROL PANEL

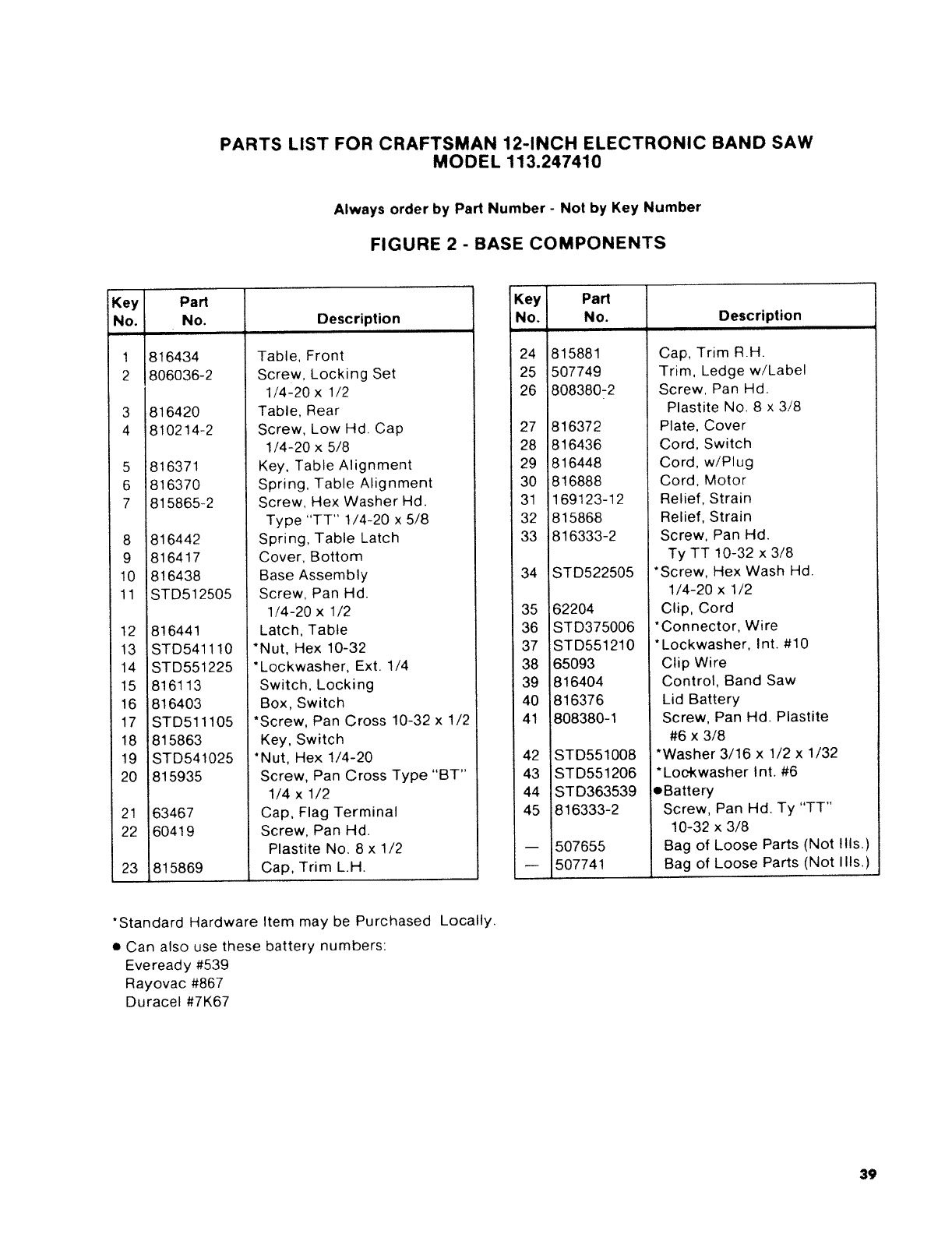

PARTS LIST FOR CRAFTSMAN 12-INCH ELECTRONIC BAND SAW

MODEL 113.247410

Always order by Part Number -Not by Key Number

FIGURE 2 -BASE COMPONENTS

Key Part

No. No. Description

816434

806O36-2

816420

810214-2

816371

816370

815865-2

816442

1816417

816438

iSTD512505

816441

STD541110

STD551225

816113

816403

STD511105

Table, Front

Screw, Locking Set

1/4-20 x 1/2

Table, Rear

Screw, Low Hd Cap

1/4-20 x 5/8

Key, Table Alignment

Spring. Table Alignment

Screw, Hex Washer Hd.

Type "TT" 1/4-20 x 5/8

Spring, Table Latch

Cover, Bottom

Base Assembly

Screw, Pan Hd.

1/4-20 x 1/2

Latch, Table

*Nut, Hex 10-32

*Lockwasher, Ext. 1/4

Switch, Locking

Box, Switch

*Screw, Pan Cross 10-32 x 1/2

815863

STD541025

815935

63467

60419

815869

Key, Switch

*Nut, Hex 1/4-20

Screw, Pan Cross Type "BT"

1/4 x 1/2

Cap, Flag Terminal

Screw, Pan Hd.

Plastite No. 8 x t/2

Cap, Trim L.H.

Key Part

No. No. Description

24 815881

25 507749

26 _808380-2

1816372

1816436

816448

816888

169123-12

815868

816333-2

STD522505

62204

STD375006

STD551210

Cap, Trim R.H.

Trim, Ledge w/Label

Screw, Pan Hd.

Plastite No. 8 x 3/8

Plate, Cover

Cord, Switch

Cord, w/Plug

Cord, Motor

Relief, Strain

Screw, Pan Hd.

Ty TT 10-32 x 3/8

*Screw, Hex Wash Hd.

1/4-20 x 1/2

Clip, Cord

*Connector, Wire

*Lockwasher, Int. #10

65093

816404

816376

808380-1

STD551008

STD551206

STD363539

816333-2

507655

507741

Clip Wire

Control, Band Saw

Lid Battery

Screw, Pan Hd. Plastite

#6 x 3/8

*Washer 3/16 x 1/2 x 1/32

*Lookwasher Int. #6

eBattery

Screw, Pan Hd. Ty "TT"

10-32 x 3/8

Bag of Loose Parts (Not Ills.)

*Standard Hardware Item may be Purchased Locally.

• Can also use these battery numbers:

Eveready #539

Rayovac #867

Duracel #7K67

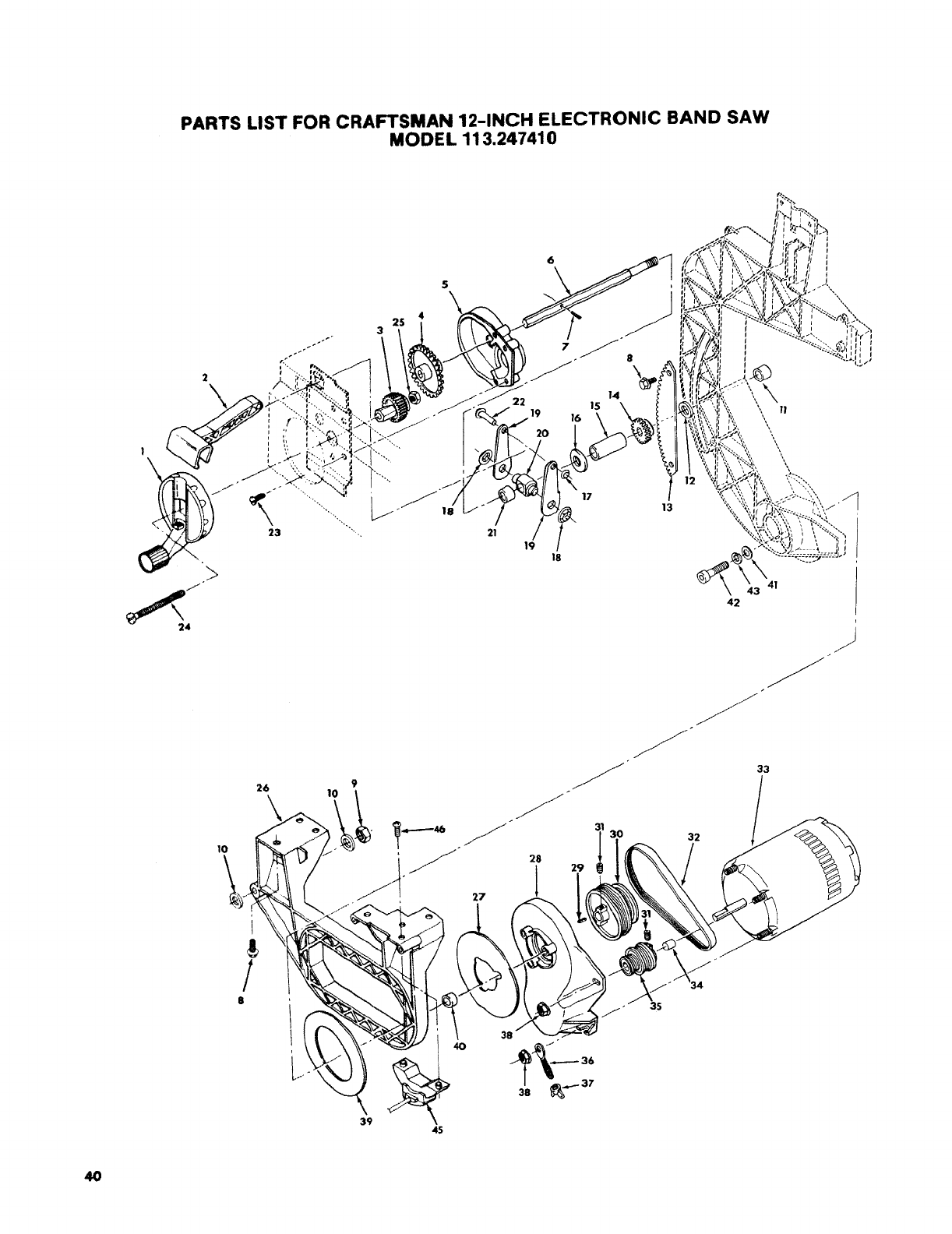

PARTS LIST FOR CRAFTSMAN 12-1NCH ELECTRONIC BAND SAW

MODEL 113.247410

19 18

17 13

31 30 32

)

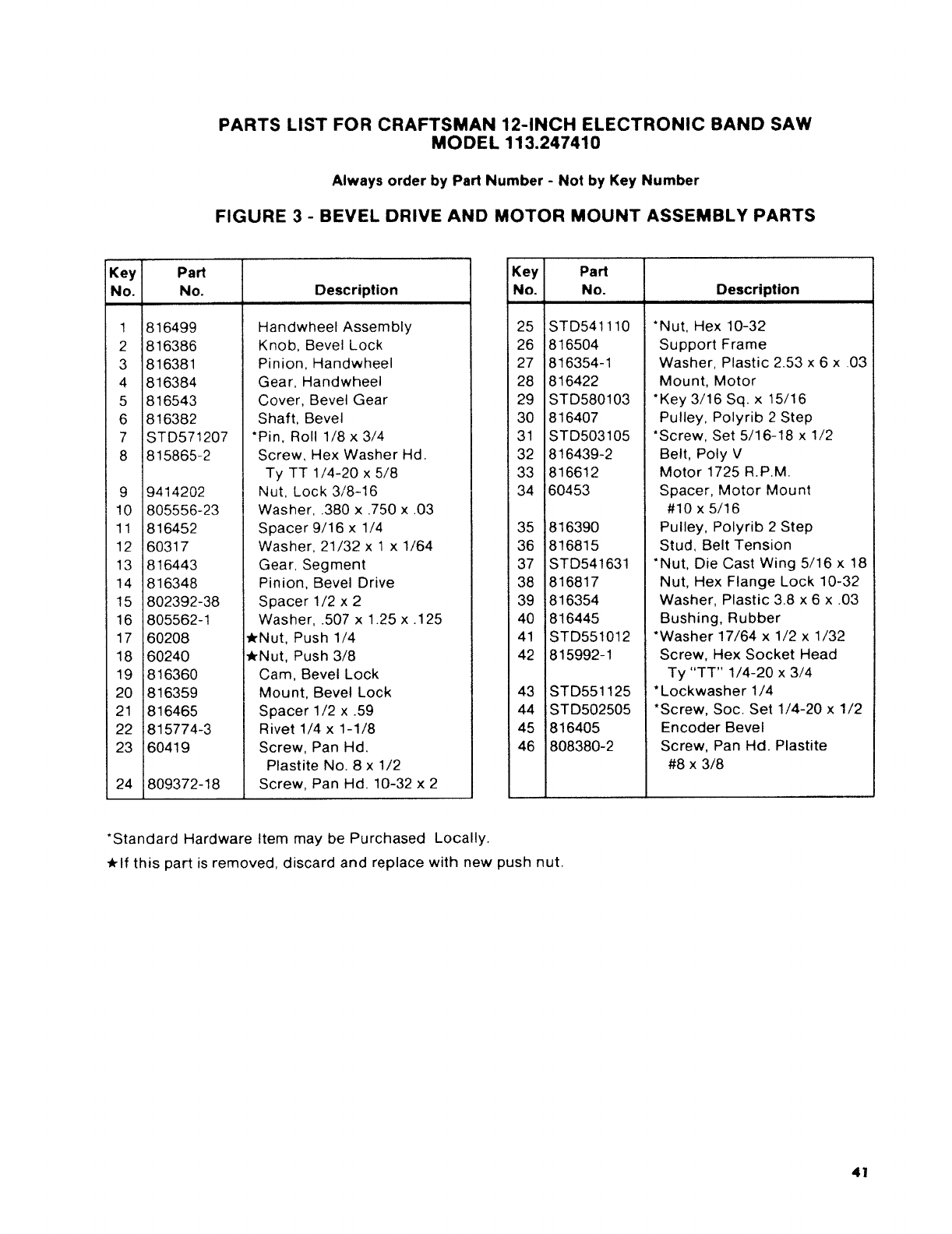

PARTS LIST FOR CRAFTSMAN 12-INCH ELECTRONIC BAND SAW

MODEL 113.247410

Always order by Part Number -Not by Key Number

FIGURE 3 -BEVEL DRIVE AND MOTOR MOUNT ASSEMBLY PARTS

Key Part

No. No. Description

1 816499

2 816386

3 816381

4 816384

5 816543

6 816382

7 STD571207

8 815865-2

9 9414202

10 805556-23

11 816452

12 60317

13 816443

14 816348

15 802392-38

16 805562-1

17 60208

18 60240

19 816360

20 816359

21 816465

22 _815774-3

23 160419

24 809372-18

Handwheel Assembly

Knob, Bevel Lock

Pinion, Handwheel

Gear, Handwheel

Cover, Bevel Gear

Shaft, Bevel

*Pin. Roll 1/8 x 3/4

Screw, Hex Washer Hd.

Ty TT 1/4-20 x 5/8

Nut, Lock 3/8-16

Washer, .380 x .750 x .03

Spacer 9/!6 x 1/4

Washer, 21/32 x 1 x 1/64

Gear, Segment

Pinion, Bevel Drive

Spacer 1/2 x 2

Washer, .507 x 1.25 x .125

*Nut, Push 1/4

*Nut, Push 3/8

Cam, Bevel Lock

Mount, Bevel Lock

Spacer 1/2 x .59

Rivet 1/4 x 1-1/8

Screw, Pan Hd.

Plastite No. 8 x !/2

Screw, Pan Hd. 10-32 x 2

Key Pad

No. No. Description

25 STD541110

26 1816504

27 !816354-1

28 !816422

29 STD580103

30 816407

31 STD503105

32 816439-2

33 1816612

34 60453

816390

816815

STD541631

816817

816354

816445

STD551012

815992-1

STD551125

STD502505

816405

808380-2

*Nut, Hex 10-32

Support Frame

Washer, Plastic 2.53 x 6 x .03

Mount, Motor

*Key 3/16 Sq. x 15/16

Pulley, Polyrib 2 Step

*Screw, Set 5/16-18 x 1/2

Belt, Poty V

Motor 1725 R.PM.

Spacer, Motor Mount

#10 x 5/16

Pulley, Polyrib 2 Step

Stud, Belt Tension

*Nut, Die Cast Wing 5/16 x 18

Nut, Hex Flange Lock 10-32

Washer, Plastic 3.8 x 6 x .03

Bushing, Rubber

*Washer 17/64 x 1/2 x 1/32

Screw, Hex Socket Head

Ty "TT" 1/4-20 x 3/4

*Lockwasher 1/4

*Screw, Soc. Set 1/4-20 x 1/2

Encoder Bevel

Screw, Pan Hd. Plastite

#8 x 3/8

*Standard Hardware Item may be Purchased Locally.

*If this part is removed, discard and replace with new push nut.

PARTS LIST FOR CRAFTSMAN 12-1NCH ELECTRONIC BAND SAW

MODEL NO. 113,247410

19 17 _

I! _7

FIGURE 4 - PARTS LIST 23" CABINET

Always order by Part Number- Not by Key Number

Key Part

No, No. Description

ii i i i

1 805589-5

2 815900

3 815887

4 817151

5 !8161 11

6 !STD541025

7 STD551225

8 817108

9 STD541237

10 803835-1

11 815993

12 816063

Screw, Truss Hd. 1/4-20 x 1/2

Skirt 23"

Shelf, Lower 23"

Panel Side R.H.

Cover

*Nut, Hex 1/4-20

*Lockwasher, Ext. 1/4

Spacer

*Nut, Hex Jam 3/8-16

Foot, Leveling

Bracket, Corner

Stiffener, Shelf

*Standard Hardware Item may be Purchased Locally.

Key Part

No. No. Description

i,i

13 817150

14 815882

15 815934

16 8t6274-1

17 815933

18 1816274

19 STD600603

507530

507656

Panel Side L.H.

Door, Cabinet

Hinge, Door

Screw, Pan Hd. Plastite

10-10 x 1/2

Catch, Magnetic

Screw, Pan Hd. Plastite

6-10 x 1/2

_*Screw, Pan Hd. Ty "T"

6-32 x 3/8

Bag of Loose Parts (Not. Ills.)

NOTES

r --_ f

owners

manual

SERVICE

MODEL NO.

113.247410

ELECTRONIC BAND SAW

WITH CABINET & DOOR

HOW TO ORDER

REPAIRPARTS

k,._ j

12-INCH ELECTRONIC

BAND SAW

Now that you have purchased your 12-Inch Electronic Band

Saw, should a need ¢,ver exist for repair parts or s_rvice, simply

contact any S_ars Service Center and most S_ars, Rc_zbuck

and Co. stores. Be sure to provide all pertinent facts when you

call or visit.

The model numperofyour 12-Inch Electronic Band Sawwill b_

found on a plate attached to your saw, at the left-hand side of

the base.

WHEN ORDERING REPAIRPARTS,ALWAYS GIVE THEFOLLOWING

INFORMATION:

PARTNUMBER

MODEL NUMBER

113.247410

PARTDESCRIPTION

NAME OF ITEM

12-Inch Electronic Band Saw

All parts listed may b_ ordered from any S_ars Sen/ice Center

and most S_ars stor_s. If the parts you need are not stocked

locally, your order will b_ electronically transmitted to aSears

Repair Parts Distribution Center for handling.

Sold by SEARS,ROEBUCKAND CO., Chicago, IL.60684 U.S.A.

Part No, SP5085 Form No, SPD085-I Printed in U.S.A 12/87

Craftsman 113247410 User Manual 12 INCH ELECTRONIC BAND SAW Manuals And Guides L0902074

CRAFTSMAN Saw Band Manual L0902074 CRAFTSMAN Saw Band Owner's Manual, CRAFTSMAN Saw Band installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
