Craftsman 113248340 User Manual 14 INCH BAND SAW Manuals And Guides L0805136

CRAFTSMAN Saw Band Manual L0805136 CRAFTSMAN Saw Band Owner's Manual, CRAFTSMAN Saw Band installation guides

User Manual: Craftsman 113248340 113248340 CRAFTSMAN 14 INCH BAND SAW - Manuals and Guides View the owners manual for your CRAFTSMAN 14 INCH BAND SAW #113248340. Home:Tool Parts:Craftsman Parts:Craftsman 14 INCH BAND SAW Manual

Open the PDF directly: View PDF PDF.
Page Count: 32

fSave This Manual
For Future Reference
ModeJ No.
113.248340
Single Speed Band Saw
with Leg Set
Serial
Number
Model and serial numbers
may be found at the rear of
the base.
You should record both
model and serial number in
a safe place for future use.
FOR YOU
SAFETY
READ ALL
INSTRUCTmONS
CAREFULLY
14 iNCH D SAW
• assembly
operating
, repair parts
1\
Sold by SEARS, ROEBUCK AND CO., Hoffman Estates, IL. 60179 U.S.A.
Part No. SP5836
Y
Printed in Taiwan
FULL ONE YEAR WARRANTY ON CRAFTSMAN BAND SAW
If within one year from the date of purchase, this Craftsman Band Saw fails due to a defect in material
or workmanship, Sears wi|I repair it, free of charge.
WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS SERVICE
CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.
This warranty applies only while this product is used in the UnitedStates.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
ROEBUCK AND CO.. WA Hoffman Estates, IL 60179
Safety instructions For Band Saw
Safety Signal Words:
DANGER: means if the safety information is not followed
someone will be seriously injured or killed.
WARNING: means if the safety information is not followed
someone could be seriously injured or killed.
CAUTION: means if the safety information is not followed
someone may be injured.
Before Using The Saw:
WARNING: to avoid mistakes that could cause seri- |
[
ous, permanent injury, do not plug the saw in until
the foliowin_ steps have been completed.
-Completely assemble and align saw (see "Assembly"
and "Alignment" section within).
* Learn the use and function of the ON-OFF switch.
bevel handwheel bevel lock knob. blade guides.
backup bearings, guide bar lock knob and blade guard.
,, Review and understand all safety instructions and
operating procedures in this manua I.
-Review the maintenance methods for this saw.
.Find and read all the warning labels found on the front
of the saw (shown below)•
oBolt the saw to the floor or work surface if it tends to
slip, walk or slide during operations like cutting long,
heavy boards.
• Turn saw off and unplug cord before moving the saw.
To avoid injury from electrical shock.
Make sure your fingers do not touch the plug's metal
prongs when plugging in or unplugging the saw.
To avoid back injury.
Get help or use recommended casters when you need
to move the saw. Always get help if you need to lift the
saw.
• Never stand on tool. Serious injury could occur if the
tool tips or you accidentally hit the cutting tool. Do not
store any items above or near the tool where anyone
might stand on the tool to reach them.
Before Each Use:
inspect your saw.
To avoid injury from accidental starting, turn the switch
off. unplug the saw, and remove the switch key before
changing the setu p, removing covers, guards or blade.
Check for alignment of moving parts, binding of moving
parts, breakage of parts, saw stability, and any other
When installing Or Moving The Saw: conditions that may affect the way the saw works.
Avoid dangerous environment. If any part is missing, bent or broken in any way, or any
o Use the saw in a dry, indoor place protected from rain. electrical part does not work properly, turn the saw off
- Keep work area well lighted, and unplug the saw.
Replace damaged or missing parts before using the
To avoid injury from unexpected saw movem ent. saw again.
-Put the saw on a firm level surface where there Is
plenty of room to handle and properly support the
workpiece.
-Support the saw so the table is level and the.saw does
not rock.
Maintain tools with care Keep the saw clean for best
and safest performance. Follow instructions for lubri-
cating.
Remove adjusting keys and wrenches. Form a habit of
checking for and removing keys and adjusting
wrenches from table top before turning it on.
I
| _oo_,poi.u.gdo*.. __,,_,. -..... |
blade, wood.
To avoid injury from jams, slips or thrown pieces or
broken blades.
Inspect your blade.
,' Choose the right blade size, style and cutting speed for
the material and the type of cutting you plan to do.
,, Use orfly recommended accessories. Consult this
owners manual for recommended accessories. Follow
the instrtJctions that come with the accessories. 7he
use of improper accessories may cause risk of injury to
persons.
Make sure the blade teeti_ point downward, toward the
table.
,, Make sure the blade guides and thrust bearings are
properly adjusted.
° Make sure the blade te_sion is properly adjusted.
,, Make sure the bevel clamp is tight and no parts have
excessive ptay.
• _[6 avoid accidental Made contact, minimize blade
breakage and provide maximum blade support, always
adjust the upper blade guide and blade guard to just
clear the workpiece.
Inspect your work area.
• Keep work area clean.
° Cluttered areas and benches invite accidents. Floor
must not be slippery from wax or sawdust.
,, fb avoid burns or other fire damage, never use the saw
near flammable liquids, vapors or gases.
PUan your work.
• Use the right tool Don't force tool or attachment to do
a job it was not designed to do.
,, Use this band saw to cut only wood, wood like prod-
ucts and plastics.
CAUTION: To avoid blade breakage, fire or other I
damage to the saw, NEVER use this band saw to I
cut metags.
-Know your saw. Read and understand the owner's
manual and labels affixed to the tool. Learn its applica-
tion and limitations as wel! as the specific potential
hazards peculiar to this tool.
° To avoid injury from accidental contact with moving
parts, don't do layout, assembly, or set up work on the
saw while any parts are moving.
° Avoid accidental starting. Make sure switch is "OFF"
before plugging saw into a power outlet.
Plan ahead to protect your eyes, hands, face
and ears.
WEAR YOUR
Dress for safety
Any power saw can throw foreign objects into the ey'es.
This can cause permanent eye damage. Wear safety
goggles (not glasses) that comply with ANSI Z87.1
(shown on package). Everyday eyeg{asses have onty
impact resistance lenses. They are not safety glasses.
Safety goggles are available at Sears retail catatog
stores. Glasses or goggles not in cornpJiance with ANS!
Z87.1 could seriously hurt you when they break.
o Do not wear loose c!othing, gloves, neckties or jewelry
(rings, wrist watches). They can get caught and draw
you into moving parts.
• Wear nonstip footwear.
°Tie back long hair.
° Roll long sleeves above the elbow.
,, Noise levels vary widely. -rb avoid possible hearing
damage, wear ear plugs or muffs when using saw for
hours at a time.
- For dusty operations, wear a dust mask aiong with the
safety goggles.
Inspect your workpiece.
Make sure there are no nails or foreign objects in the
part of the workpiece to be cut.
Use extra caution with large, very small or awkward
workpieces:
" Use extra supports (tables, saw horses, blocks, etc.)
for any workpieces large enough to tip when not held
down to the table top.
oNEVER use another person as a substitute for a table
extension, or as additional support for a workpiece that
is longer or wider than the basic saw table, or to hetp
feed, support or pull the workpiece.
oWhen cutting irregularly shaped workpieces, plan your
work so it will not slip and pinch the blade. A piece of
molding for example, must lie flat or be held by a fixture
of jig that wilt not _etit twist, rock or slip while being cut.
°Properly support round material such as dowel rods. or
tubing. They have a tendency to rot_ during a cuL
causing the blade to "bite". To avoid this. atways use a
"V" block or clamp the work to the miter gage.
oCut only one workpiece at a time.
Clear everything except the workpiece and related
support devices off the table before turning the saw on.
Plan the way you will hold the workpiece
from start to finish.
Do not hand hold pieces so small that your fingers win
go under the blade guard. Use jigs or fixtures to hold
the work and keep your hands away from the blade.
° Secure work. Use clamps to hold work when practical.
It's often safer than using your hand. and frees both
hands to operate the too!.
,, Don't overreach, Keep good footing and balance.
Safety instructions for Band Saws (continued) .........

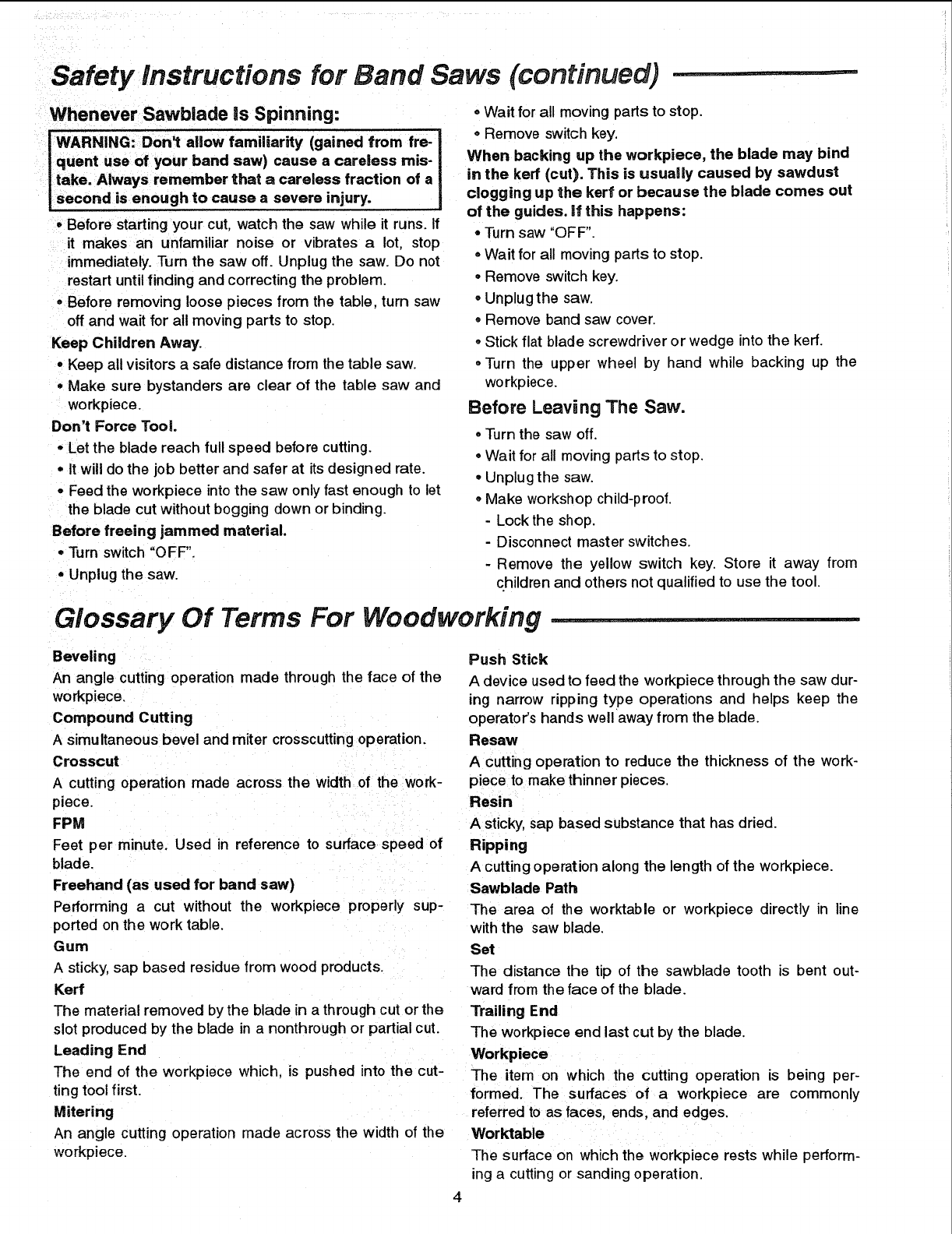

Whenever Sawbiade is Spinning:
IWARNING: Don't allow familiarity (gained from fre-
quent use of your band saw) cause a careless mis-
take, Always remember that a careless fraction of a
second is enough to cause a severe injury.
- Before starting your cut, watch the saw while it runs. If
it makes an unfamiliar noise or vibrates alot, stop
immediately. Turn the saw off. Unplug the saw. Do not
restart untilfinding and correcting the problem.
.Before removing loose pieces from the table, turn saw
off and wait for all moving parts to stop.
Keep Children Away.
Keep all visitors a safe distance from the table saw.
Make sure bystanders are clear of the table saw and
workplece.
Don't Force Tool.
Let the blade reach full speed before cutting.
-It will do the job better and safer at its designed rate.
- Feed the workpiece into the saw only fast enough to let
the blade cut without bogging down or binding.
Before freeing jammed material.
Turn switch "OFF".
° Unplug the saw.
oWait for all moving parts to stop.
-Remove switch key.
When backing up the workpiece, the blade may bind
in the kerr (cut). This is usually caused by sawdust
clogging up the kerr or because the blade comes out
of the guides, if this happens:
Turn saw "OFF".
oWait for all moving parts to stop.
°Remove switch key.
°Unplug the saw.
- Remove band saw cover.
-Stick flat blade screwdriver or wedge into the kerf.
oTurn the upper whee4 by hand while backing up the
workpiece.
Before Leaving The Saw.
° Turnthe saw off.
Wait for all moving parts to stop.
Unplug the saw.
Make workshop child-proof.
- Lockthe shop.
-Disconnect master switches.
- Remove the yellow switch key. Store it away from
children and others not qualified to use the tool.
Glossary Of Terms For Woodworking -
Beveling
An angle cutting operation made through the face of the
workpiece.
Compound Cutting
Asimultaneous bevel and miter crosscuttingoperation.
Crosscut
Acutting operation made across the width of the work-
piece.
FPM
Feet per minute. Used in reference to surface speed of
blade.
Freehand (as used for band saw)
Performing a cut without the workpiece properly sup-
ported on the work table.
Gum
A sticky, sap based residue from wood products.
Kerr
The material removed by the blade in a through cut or the
slot produced by the blade in a nonthrough or partial cut.
Leading End
The end of the workpiece which, is pushed into the cut-
ting tool first.
Mitering
An angle cutting operation made across the width of the
workpiece.
Push Stick
A device used to feed the workpiece through the saw dur-
ing narrow ripping type operations and helps keep the
operator's hands well away from the blade.
Resaw
A cutting operation to reduce the thickness of the work-
piece to make thinner pieces.
Resin
A sticky, sap based substance that has dried.
Ripping
A cutting operation along the length of the workpiece.
Sawblade Path
The area of the worktable or workpiece directly in line
with the saw blade.
Set
The distance the tip of the sawblade tooth is bent out-
ward from the face of the blade.
Trailing End
The workpiece end last cut by the blade.
Workpiece
The item on which the cutting operation is being per-
formed. The surfaces of a workpiece are commonly
referred to as faces, ends, and edges.
Worktable
The surface on which the workpiece rests while perform-
ing a cutting or sanding operation.
4

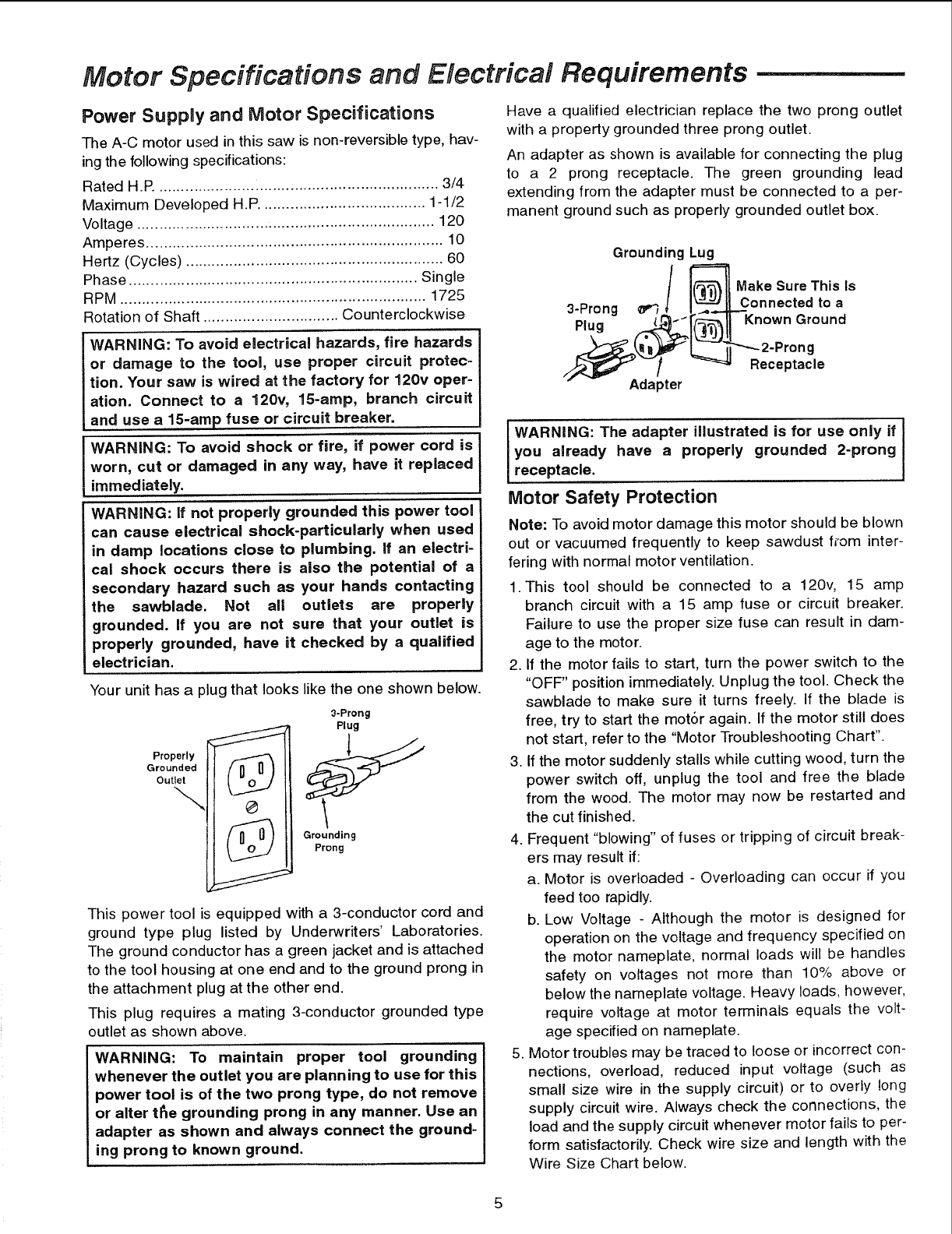

Motor Specifications and Electrical Requirements
Power Supply and Motor Specifications
The A-C motor used in this saw is non-reversible type, hav-
ing the following specifications:
Rated H.P. ................................................................ 3/4
Maximum Developed H.P...................................... 1-1/2
Voltage .................................................................... 120
Amperes .................................................................... 10
Hertz (Cycles) ........................................................... 60
Phase .................................................................. Single
RPM ...................................................................... 1725
Rotation of Shaft ............................... Counterclockwise
WARNING: To avoid electrical hazards, fire hazards
or damage to the tool, use proper circuit protec-
tion. Your saw is wired at the factory for 120v oper-
ation. Connect to a 120v, 15-amp, branch circuit
and use a 15-amp fuse or circuit breaker.
WARNING: To avoid shock or fire, if power cord is
worn, cut or damaged in any way, have it replaced
immediately.
WARNING: if not properly grounded this power toom
can cause electrical shock-particularly when used
in damp locations close to plumbing. If an electri-
cal shock occurs there is also the potential of a
secondary hazard such as your hands contacting
the sawblade. Not all outlets are properly
grounded, if you are not sure that your outlet is
properly grounded, have it checked by a qualified
electrician.
Your unit has a plug that looks like the one shown below.
Properly
Grounded
Outlet
-,.,,
3-Prong
Plug
This power tool is equipped with a 3-conductor cord and
ground type plug listed by Underwriters' Laboratories.
The ground conductor has a green jacket and is attached
to the tool housing at one end and to the ground prong in
the attachment plug at the other end,
This plug requires a mating 3-conductor grounded type
)utlet as shown above.
WARNING: To maintain proper tool grounding
whenever the outlet you are planning to use for this
power tool is of the two prong type, do not remove
or alter ti_e grounding prong in any manner. Use an
adapter as shown and always connect the ground-
ing prong to known ground.
Have a qualified electrician replace the two prong outlet
with a property grounded three prong outlet.
An adapter as shown is available for connecting the plug
to a 2 prong receptacle. The green grounding lead
extending from the adapter must be connected to a per-
manent ground such as properly grounded outlet box.
Grounding Lug
/_==_MakeSureThisls
3 Pron- _ _ I_-_11 Connected to a
oowo,,o00,
/_Receptacle
Adapter
i WARNING: The adapter illustrated is for use only if
you already have aproperly grounded 2-prong
receptacle.
Motor Safety Protection
Note: To avoid motor damage this motor should be blown
out or vacuumed frequently to keep sawdust from inter-
fering with normal motor ventilation.
1. This tool should be connected to a 120v, 15 amp
branch circuit with a 15 amp fuse or circuit breaker.
Failure to use the proper size fuse can result in dam-
age to the motor.
2. If the motor fails to start, turn the power switch to the
"OFF" position immediately. Unplug the tool. Check the
sawblade to make sure it turns freely. If the blade is
free, try to start the mot6r again. If the motor still does
not start, refer to the "Motor Troubleshooting Chart".
3. If the motor suddenly stalls while cutting wood, turn the
power switch off, unplug the tool and free the blade
from the wood. The motor may now be restarted and
the cut finished.
4. Frequent "blowing" of fuses or tripping of circuit break-
ers may result if:
a. Motor is overloaded - Overloading can occur if you
feed too rapidly.
b. Low Voltage - Although the motor is designed for
operation on the voltage and frequency specified on
the motor nameplate, normal loads will be handles
safety on voltages not more than 10% above or
below the nameplate voltage. Heavy loads, however,
require voltage at motor terminals equals the volt-
age specified on nameplate.
5. Motor troubles may be traced to loose or incorrect con-
nections, overload, reduced input voltage (such as
small size wire in the supply circuit) or to overly long
supply circuit wire. Always check the connections, the
load and the supply circuit whenever motor fails to per-
form satisfactorily. Check wire size and length with the
Wire Size Chart below.

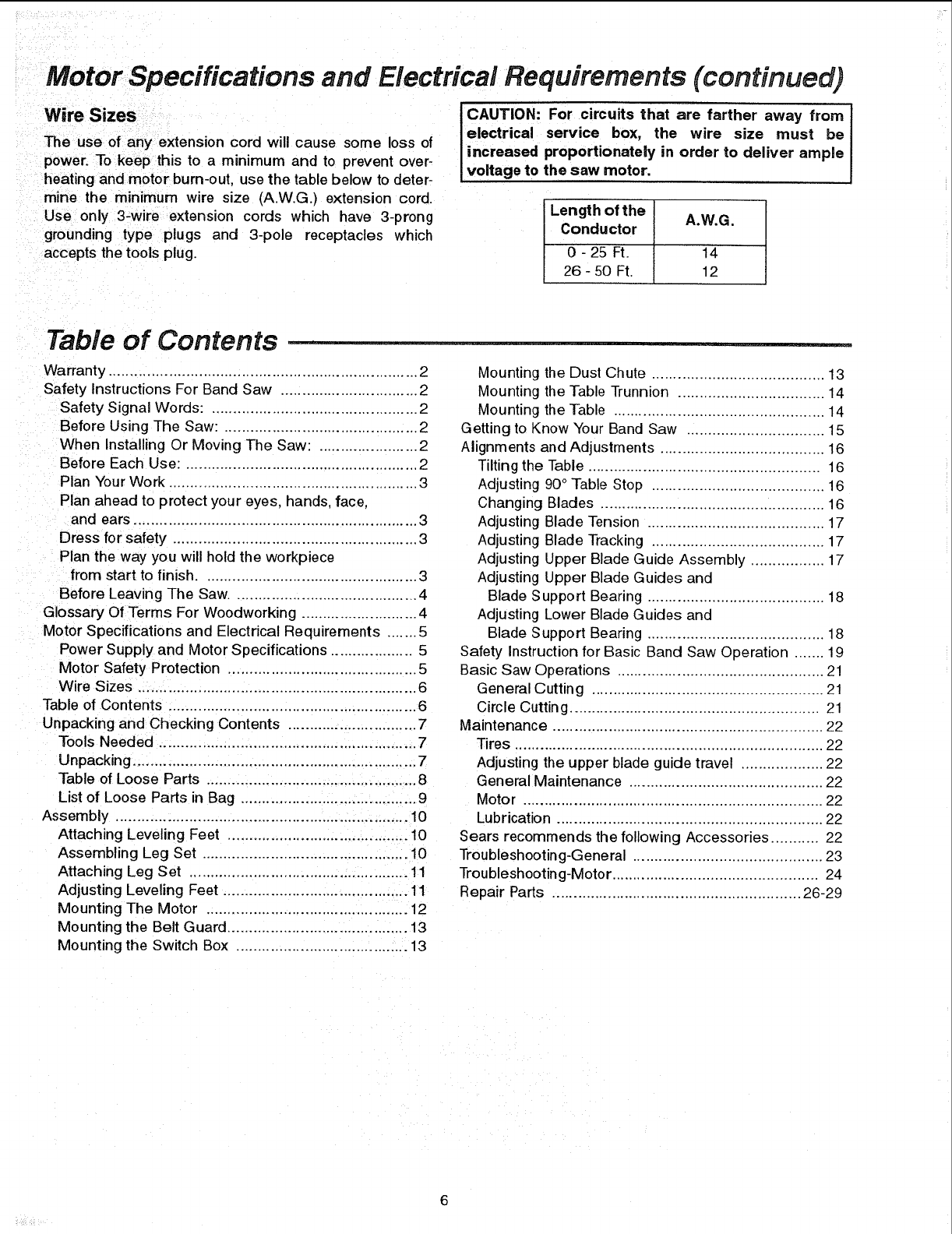

Motor Specifications and Electrical Requirements (continued)
Wire Sizes
The use of any extension cord will cause some loss of
power. To keep this to a minimum and to prevent over-
heating and motor bum-out, use the table below to deter-
mine the minimum wire size (A.W.G,) extension cord.
Use only 3-wire extension cords which have 3-prong
grounding type plugs and 3-pole receptacles which
accepts the tools plug,
CAUTION: For circuits that are farther away from I
electrical service box, the wire size must be I
increased proportionately in order to deliver ample J
voltage to the saw motor.
Length of the A.W.G.
Conductor
0 -25 Ft. 14
26 - 50 Ft. 12
Table of Contents
Warranty ........................................................................ 2
Safety Instructions For Band Saw ................................ 2
Safety Signal Words: ................................................ 2
Before Using The Saw: ............................................. 2
When Installing Or Moving The Saw: ....................... 2
Before Each Use: ...................................................... 2
Plan Your Work .......................................................... 3
Plan ahead to protect your eyes, hands, face.
and ears .................................................................. 3
Dress for safety ......................................................... 3
Plan the way you will hold the workpiece
from start to finish .................................................. 3
Before Leaving The Saw........................................... 4
Glossary Of Terms For Woodworking ........................... 4
Motor Specifications and Electrical Requirements ....... 5
Power Supply and Motor Specifications ................... 5
Motor Safety Protection ............................................ 5
Wire Sizes ................................................................. 6
Table of Contents .......................................................... 6
Unpacking and Checking Contents .............................. 7
Tools Needed ............................................................ 7
Unpacking .................................................................. 7

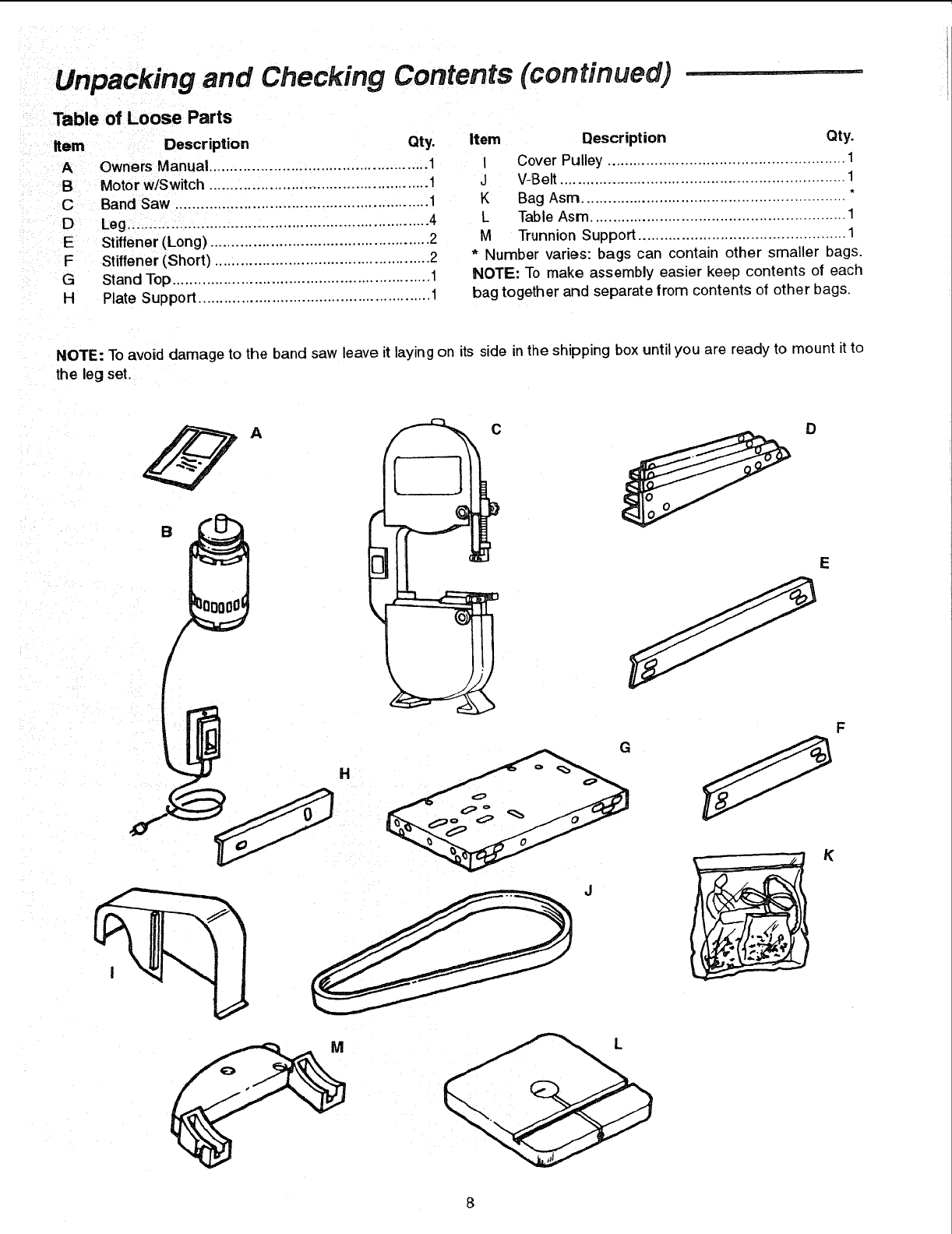

Table of Loose Parts ................................................. 8

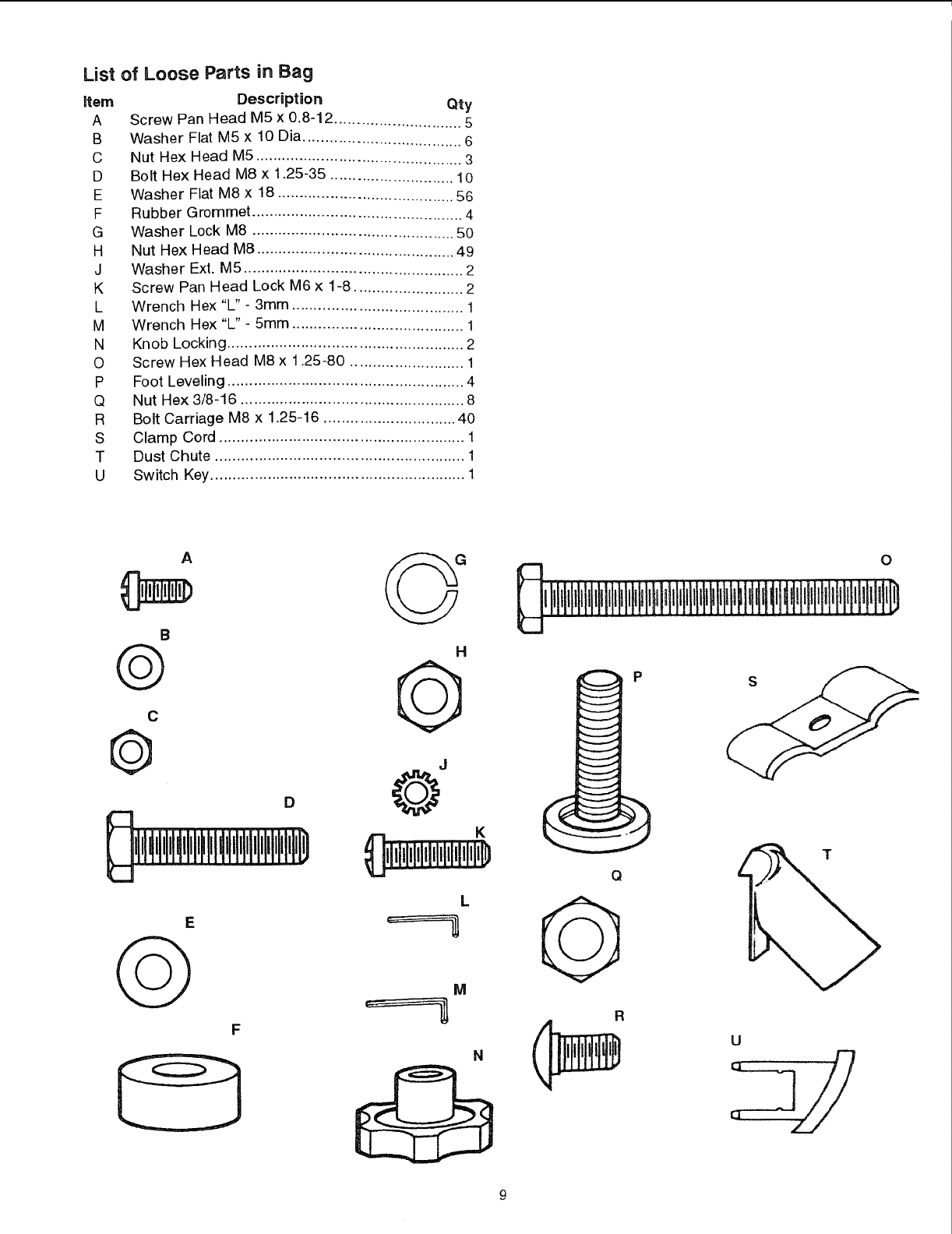

List of Loose Parts in Bag ........................................ 9

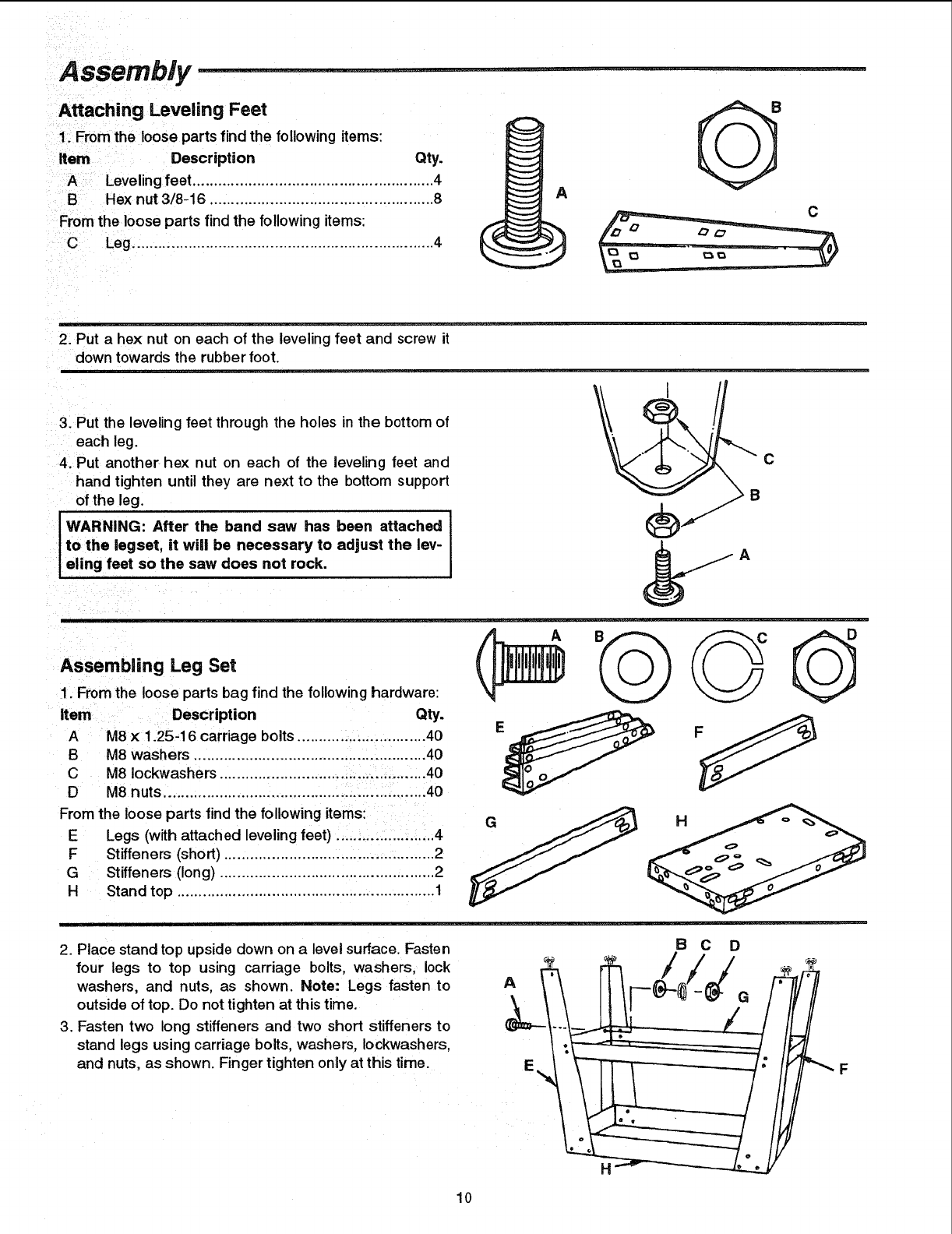

Assembly .................................................................... 10
Attaching Leveling Feet .......................................... 10
Assembling Leg Set ................................................ 10
Attaching Leg Set ................................................... 11
Adjusting Leveling Feet ........................................... 11
Mounting The Motor ............................................... 12

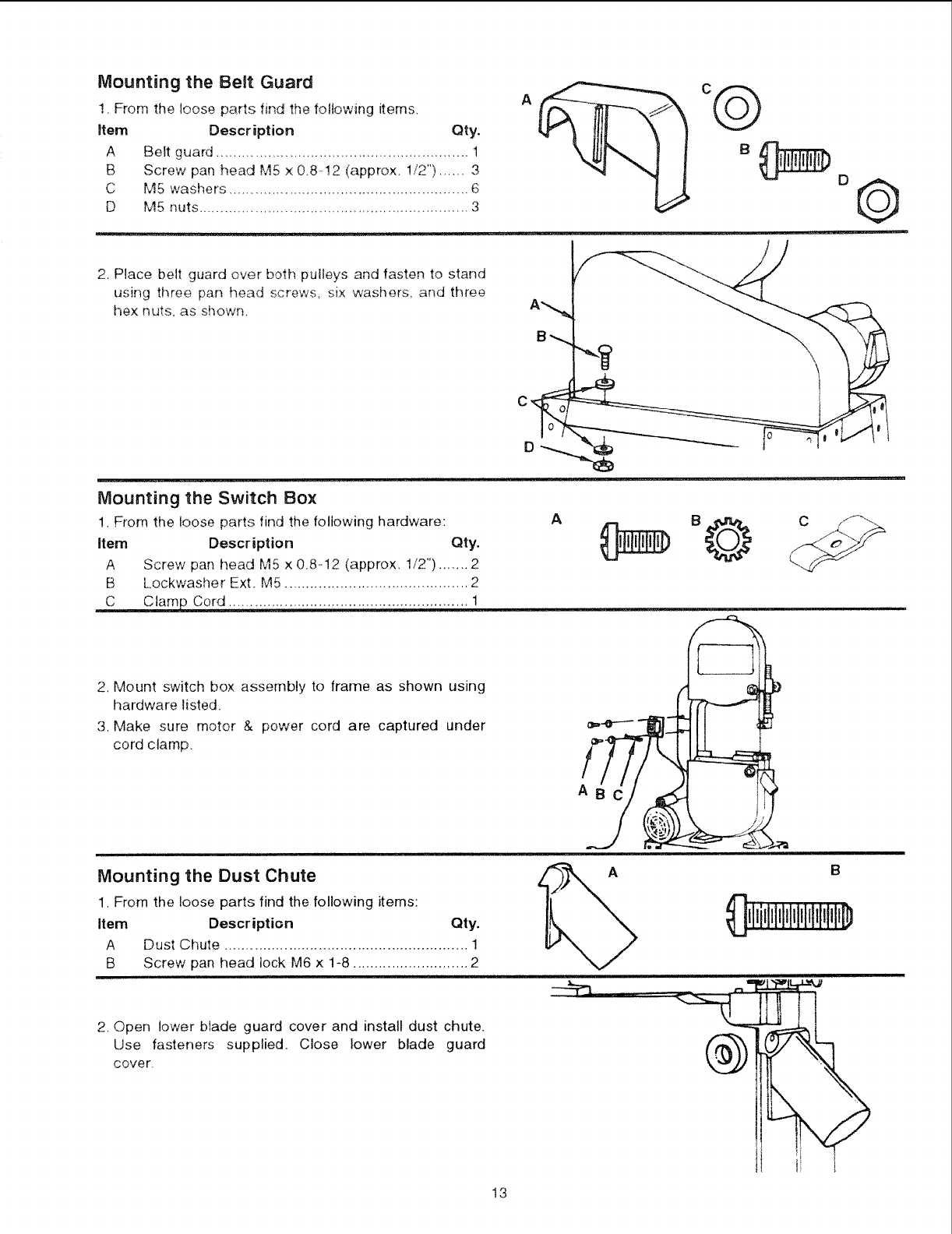

Mounting the Belt Guard ......................................... 13
Mounting the Switch Box ........................................ 13
Mounting the Dust Chute ........................................ 13
Mounting the Table Trunnion .................................. 14
Mounting the Table ................................................. 14
Getting to Know Your Band Saw ................................ 15
Alignments and Adjustments ...................................... 16
Tilting the Table ...................................................... 16
Adjusting 90 °Table Stop ........................................ 16
Changing Blades .................................................... 16
Adjusting Blade Tension ......................................... 17
Adjusting Blade Tracking ........................................ 17
Adjusting Upper Blade Guide Assembly ................. 17

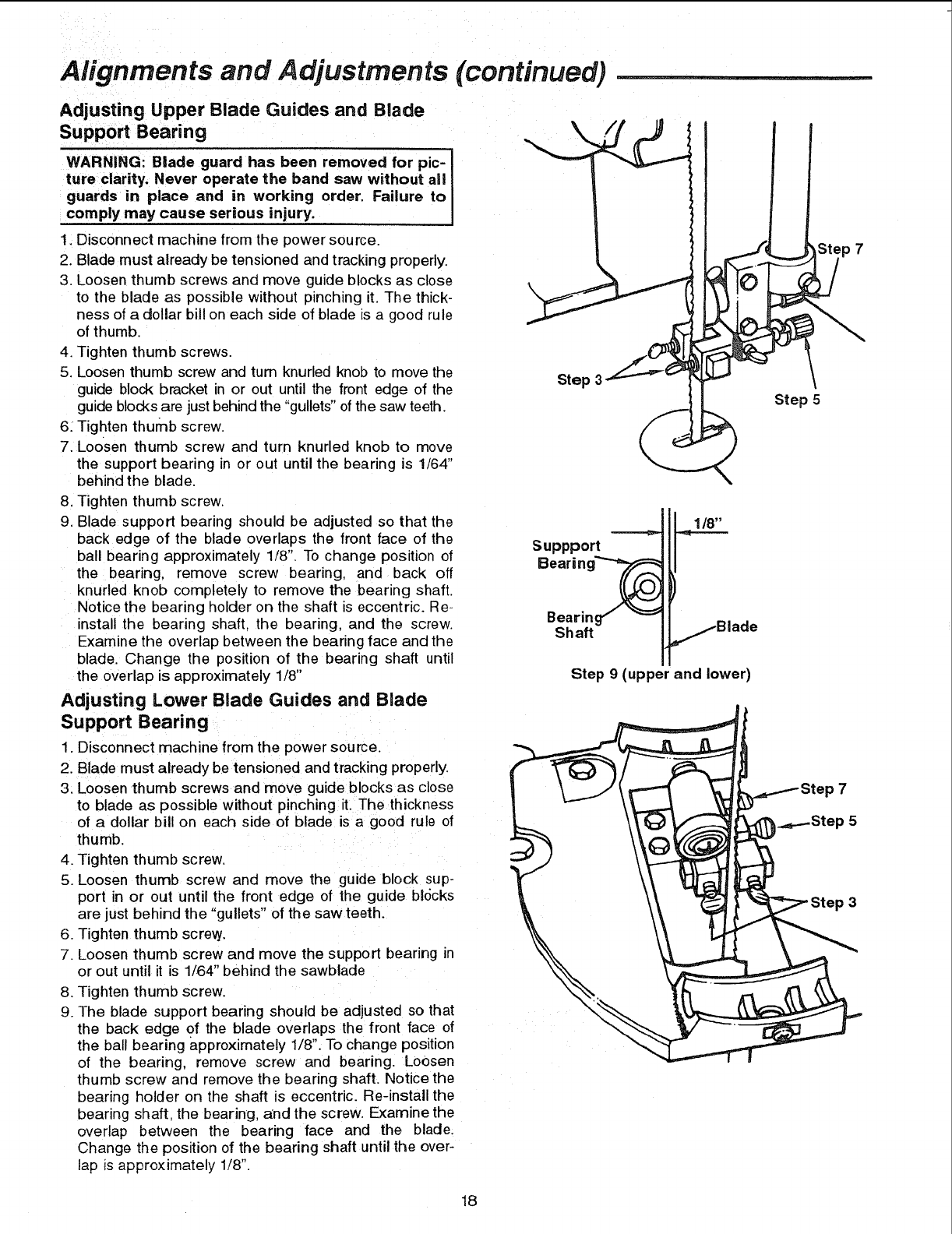

Adjusting Upper Blade Guides and
Blade Support Bearing ......................................... 18
Adjusting Lower Blade Guides and
Blade Support Bearing ......................................... 18
Safety Instruction for Basic Band Saw Operation ....... 19
Basic Saw Operations ................................................ 2!
General Cutting ...................................................... 21
Circle Cutting .......................................................... 21

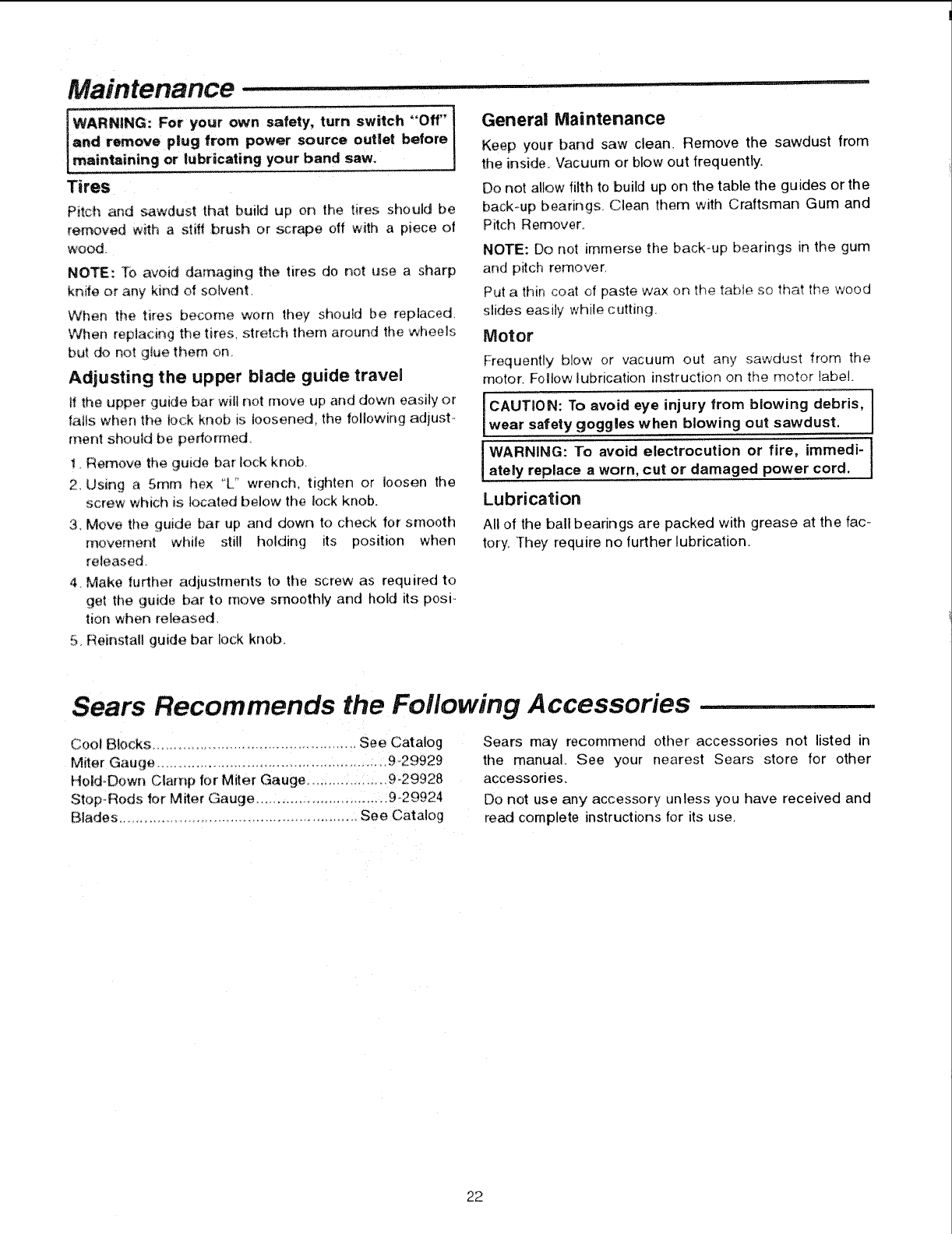

Maintenance ............................................................... 22
Tires ........................................................................ 22
Adjusting the upper blade guide travel ................... 22
General Maintenance ............................................. 22
Motor ...................................................................... 22
Lubrication .............................................................. 22
Sears recommends the following Accessories ........... 22
Troubleshooting-General ............................................ 23
Troubleshooting-Motor ................................................ 24

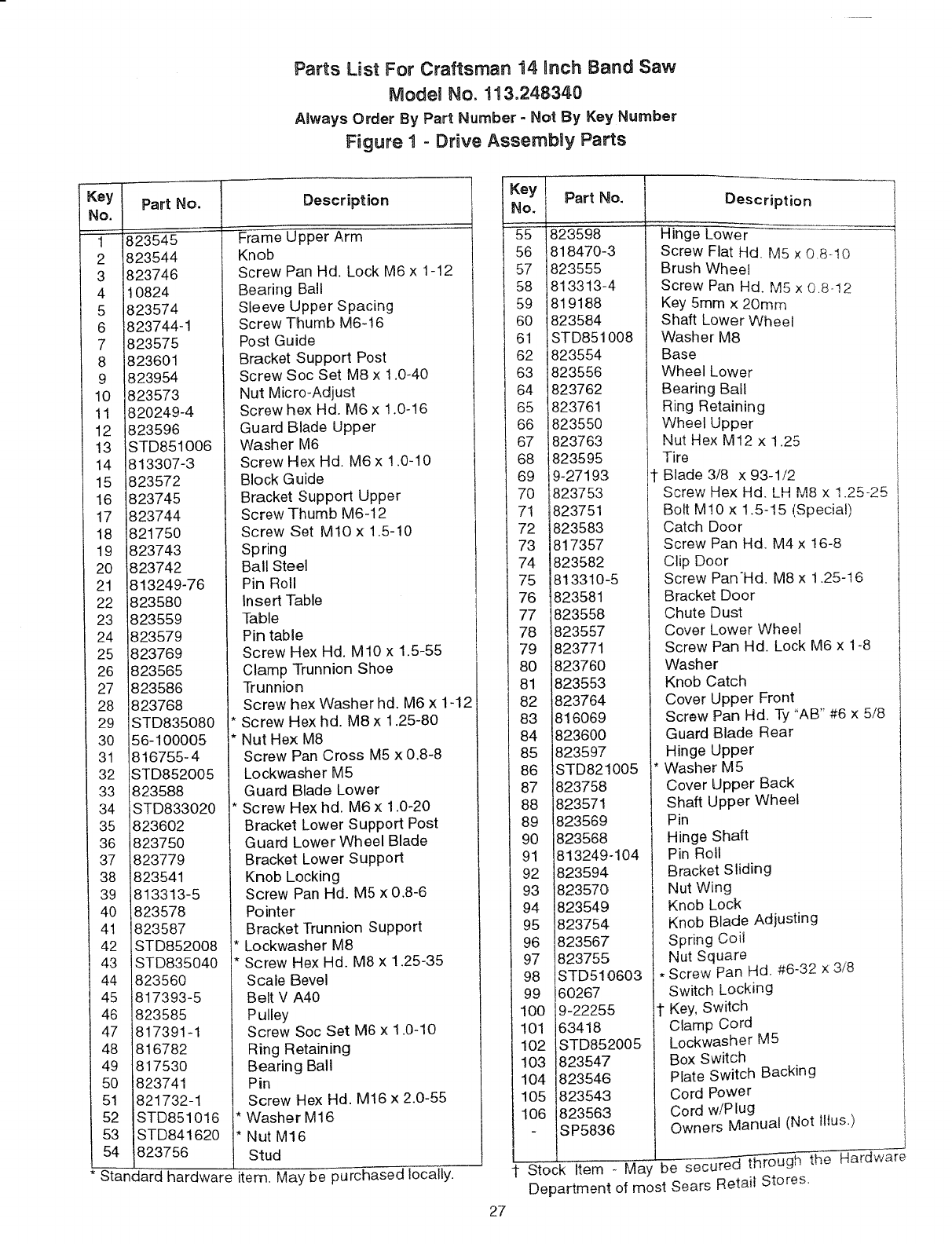

Repair Parts .......................................................... 26-29
Unpacking and Checking Contents
Tools Needed
Tools required for assembly and alignment:
oCombination Square
10ram and 14mm combination wrench
Adjustable wrench.
• #1 and #2 Phillips screwdrivers
o Straightedge Combination Square
#1 Phillips Screwdriver
Adjustable Wrench
lOmm Combination Wrench
14ram Combination Wrench
#2 Phillips Screwdriver
Combination Square Must be True
Straight Edge of
Draw Light Board 314" Thick
Line on Board This Edge Must be
Along this Edge _ _ .Perfectly Straight
Should be no Gap or Overlap when Square
is Flipped Over in Dotted Position
Unpacking
WARNING: To avoid injury from unexpected start-
ing or electrical shock, do not plug the saw in until
all assembly and alignment steps are complete.
The power cord must remain unplugged whenever
you are working on the saw.
Unpacking and Checking Contents
1Separate all "loose parts" from packaging materials
and check each item with "Table of Loose Parts" to
make sure all items are accounted for, before discard-
ing any packing material.
WARNING: if any parts are missing, do not attempt !
to assemble the band saw, plug in the power cord, I
or turn the switch on until the missing parts are I
obtained and are installed correctly. ]
2. Sometimes small parts get lost in packaging materials.
Do not throw away any packaging until your saw is put
together. If your are missing a part, check packaging
before contacting Sears.
7
Unpacking and Checking Contents (continued) --
Table of Loose Parts
Item Description Qty.
AOwners Manual ................................................... 1
B Motor w/Switch ................................................... 1
C Band Saw ........................................................... 1
D Leg...................................................................... 4
E Stiffener (Long) ................................................... 2
F Stiffener (Short) .................................................. 2
G Stand Top ............................................................ 1
H Plate Support ...................................................... 1
Item Qescription Qty.
I Cover Pulley ....................................................... 1
J V-Belt .................................................................. 1
K Bag Asm ............................................................. *
LTable Asrn ........................................................... 1
M Trunnion Support ................................................ 1
* Number varies: bags can contain other smaller bags.
NOTE: To make assembly easier keep contents of each
bag together and separate from contents of other bags.
NOTE: To avoid damage to the band saw leave it laying on its side in the shipping box untilyou are ready to mount it to
the leg set.
A C
H
G
j
M
D
E
8
List of Loose Parts in Bag
totem
A
B
C
D
E
F
G
H
J
K
L
M
N
0
P
Q
R
S
T
U
Description Qty
Screw Pan Head M5 x 0.8-12 ............................. 5
Washer Flat M5 x 10 Dia. 6
Nut Hex Head M5 ................ 3
Bolt Hex Head M8 x 1.25-35 ............................ 10
Washer Flat M8 x 18 56
Rubber Grommet ................................................ 4
Washer Lock M8 .............................................. 50
Nut Hex Head M8 ............................................. 49
Washer Ext. M5 .................................................. 2
Screw Pan Head Lock M6 x 1-8 ......................... 2
Wrench Hex "L" -3mm ....................................... 1
Wrench Hex "L"- 5ram ....................................... 1
Knob Locking ...................................................... 2
Screw Hex Head M8 x 1.25-80 .......................... !
Foot Leveling ...................................................... 4
Nut Hex 3/8-16 ................................................... 8
Bolt Carriage M8 x 1.25-16 .............................. 40
Clamp Cord ........................................................ 1
Dust Chute ......................................................... 1
Switch Key .......................................................... 1
F
L
M
N
R
O
Z
U
Assembly ......
Attaching Leveling Feet
1_From the loose parts find the following items:
Item Description Qty.
A Levelingfeet ........................................................ 4
B Hex nut 3/8-16 .................................................... 8
From the loose parts find the following items:
C Leg...................................................................... 4
2. Put a hex nut on each of the leveling feet and screw it
down towards the rubber foot.
3, Put the leveling feet through the holes in the bottom of
each leg.
4. Put another hex nut on each of the leveling feet and
hand tighten until they are next to the bottom support
of the leg.
WARNING: After the band saw has been attached
to the legset, it will be necessary to adjust the lev-
eling feet so the saw does not rock.
C
B
Assembling Leg Set
1. From the loose parts bag find the following hardware:
Item Description Qty.
A M8 x 1.25-16 carriage bolts .............................. 40
B M8 washers ...................................................... 40
C M8 Iockwashers ................................................ 40
D M8 nuts ............................................................. 40
From the loose parts find the following items:
ELegs (with attached leveling feet) ....................... 4
F Stiffeners (short) ................................................. 2
GStiffeners (long) .................................................. 2
H Stand top ............................................................ 1
G
A B
F
2. Place stand top upside down on a level surface. Fasten
four legs to top using carriage bolts, washers, lock
washers, and nuts, as shown. Note: Legs fasten to
outside of top. Do not tighten at this time.
3. Fasten two long stiffeners and two short stiffeners to
stand legs using carriage bolts, washers, Iockwashers.
and nuts, as shown. Finger tighten only at this time.
A
B C D
G
F
10
H

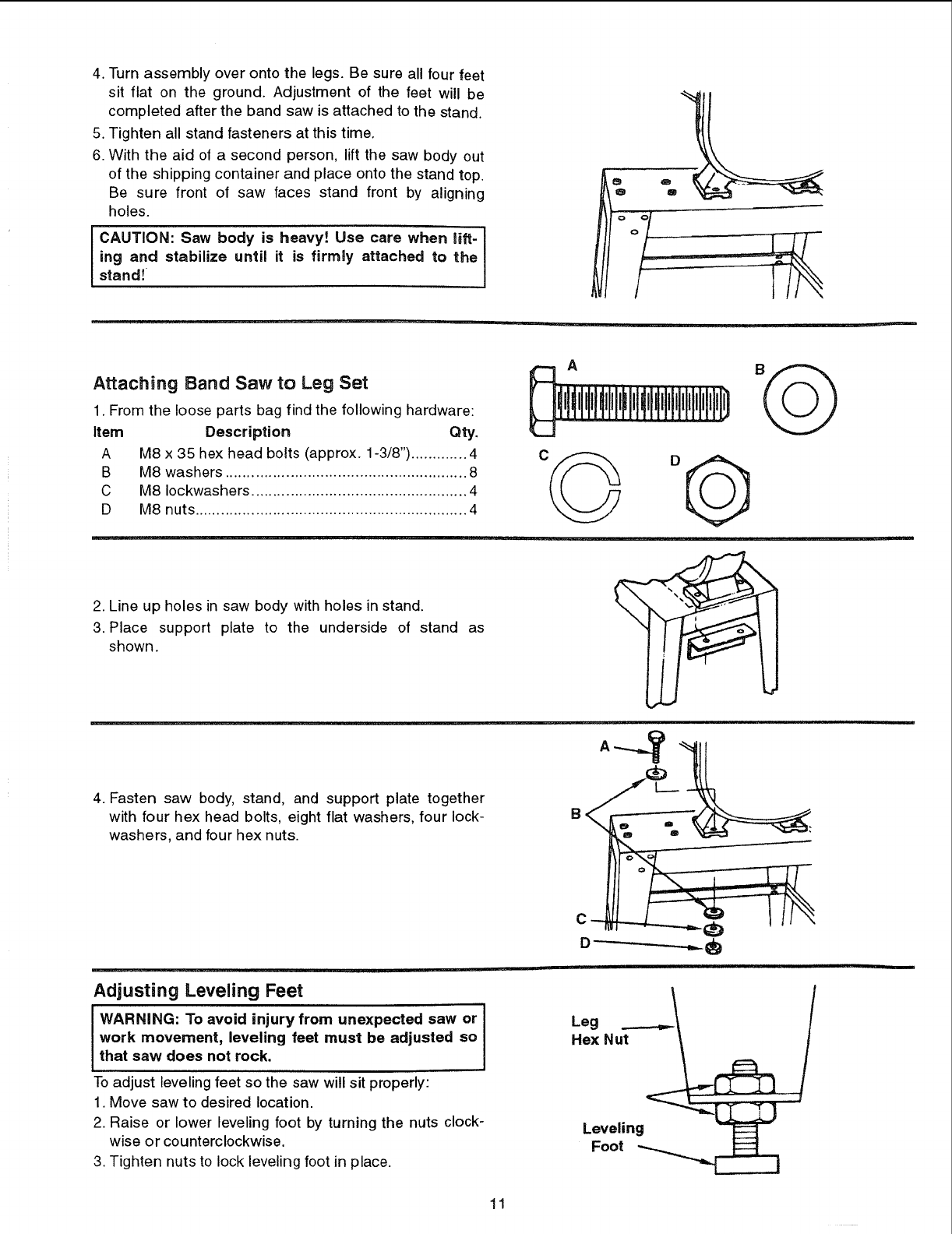

4. Turn assembly over onto the legs. Be sure all four feet
sit flat on the ground. Adjustment of the feet will be
completed after the band saw is attached to the stand.
5. Tighten all stand fasteners at this time.
6. With the aid of a second person, lift the saw body out
of the shipping container and place onto the stand top.
Be sure front of saw faces stand front by aligning
holes.
CAUTION: Saw body is heavy! Use care when lift-_
ing and stabilize until it is firmly attached to the I
stand! /
O
o
O
Attaching Band Saw to Leg Set
1. From the loose parts bag find the following hardware:
Item Description Qty.
A M8 x 35 hex head bolts (approx. 1-3/8") ............. 4
B M8 washers ........................................................ 8
C M8 Iockwashers .................................................. 4
D M8 nuts ............................................................... 4
2. Line up holes in saw body with holes in stand.
3. Place support plate to the underside of stand as
shown.
A
D
4. Fasten saw body, stand, and support plate together
with four hex head bolts, eight flat washers, four lock-
washers, and four hex nuts.
B
C
Adjusting Leveling Feet
WARNING: To avoid injury from unexpected saw or
work movement, leveling feet must be adjusted so
that saw does not rock.
To adjust leveling feet so the saw will sit properly:
1. Move saw to desired location.
2. Raise or lower leveling foot by turning the nuts clock-
wise or counterclockwise.
3. Tighten nuts to lock leveling foot in place.
11
Lo0 /
Hex Nut
B
Assembly (continued) .....................
Mounting The Motor
1, From the loose parts find the folk)w_ng l_m_v
Item Description Qty.
A Motor .................................................. 1
B M8 x 35 hex cap botts (approx 1.3/8°_ 4
C M8 Washers ................ 8
D Rubber gremrnets ............. 4
E M8 _ockwast_ers .... 4
F M8 nuts ................................ 4
G V Beit ...... 1
2]o mount motor piece four rubber grommets over
holes _r_stand top NOTE Use of rubber grommets _s
essentia! for eiirmnatinq excesswe vibrahon Place
motor over rubber grommets ahd fasten to stand top
with tour hex i_ead bolts eight washers four tockwash
ers. and _'Ou_hex nuts. as shown Do not t_ghten _d this
hme
ii _ if ,
,-. _.............i_ _,_ o _I .__i_-_-
3, ARign the tns_de edge of the motor pulley with inside
edge of the large pulley usin_;l a straight ed(,le Usinq a
3ram hex "L" wrench adlust one or botl_ pulleys by
loosening the set screw and moving the pulley(s) unhl
they Sine up with each other Tighten set screws
ri 1111 i J t , rll ill i
4 Place V belt over both pulleys
5 Tension V belt by mowng moler away from tl_e saw
body and tighten the motor mount nuts (Do not over
tighten nqotor mount bolts Tighten just enough to ten
sion belt,} Belt is p_:operly tensioned when linger
pressure between the two pulleys causes approxi
matety 1/2" deflection
12
i ii, u
1vL;
Mounting the Belt Guard
1. From the loose parts find the following items.
Item Descr iption Qty.
A Belt guard .......................................................... 1
B Screw pan head M5 x 0.8,-!2 (approx, !/2") ...... 3
C M5 washers ....................................................... 6
D M5 nuts ............................................................... 3
2. Place belt guard over both pulleys and fasten to stand
using three pan head screws, six washers_ and three
A
hex nuts, as shown,
i
B_
C
i ,HHH .....
Mounting the Switch Box
1. From the loose parts find the following hardware:
Item Description Qty.
A Screw pan head M5 x 0.8,-12 (approx. 1/2") ....... 2
B Lockwasher Ext. M5 ........................................... 2
C
A
Clam E Cord ......................................_ .................. 1 ...........
2, Mount switch box assembly to frame as shown using
hardware listed.
3, Make sure motor & power cord are captured under
cord clamp.
A
Mounting the Dust Chute
1. From the loose parts find the following items:
Item Description Qty.
A Dust Chute ......................................................... 1
B Screw pan head lock M6 x 1-8 ........................... 2
B
2. Open lower blade guard cover and install dust chute.
Use fasteners supplied. Close lower blade guard
cover. @
13
A
Assembly (continued)
Mounting the Table Trunnion Support
From lhe _eose par_s find the following items:
_om
A
B
C
D
E
Description Qty.
M8 x 35 he× head bolts (approx. t--3/8 _) .............. 2
M8 Iockwashers ................................................ 2
M8 x 80 hex cap bolt ........................................... 1
(table stop boll appro×. 3-1/8' long)
M8 nut dor table slop bolt) ................................... t
Table lrur_nlon support (shown below} ................. 1
C
I I i -- _,
2. Attach trunnion support to saw body with two hex head
bolls and two lockwashers as shown
3, Thread nut (C) onto table stop bolt (D) and attach to
trunnion support.
E ' ' ' ["!"[(!!!["' ' II I IIIIi .......
Mounting the Table
t, From the loose parts find the following items:
_em Description Qty.
A Table i
B Knobs 2
A
[1111111 !llq' I [ I I I' I IJ I I_ ' ' IIII II" ii ,I
2, To mount table, remove table insert and tat)le pin from
the tabte_ Guide sawblade through slot in table and
place table screws into trunnions,. Attach and lock with
lock knobs,
WARNING: Unit is shipped with blade in stalled.
Do not plug in or operate unit unless the blade
is adjusted and aligned per section titled
changing blades.
3 Reptace table insert and table pin,
4. Transportation and handlirtg may have caused some
fasteners to loosen. Before operating, check all
screws bolts and nuts to make sure they are snug.
Operate machine only after reading the entire manual
including blade tracking, blade guide adjustments, and
safety rules,
L
B
14

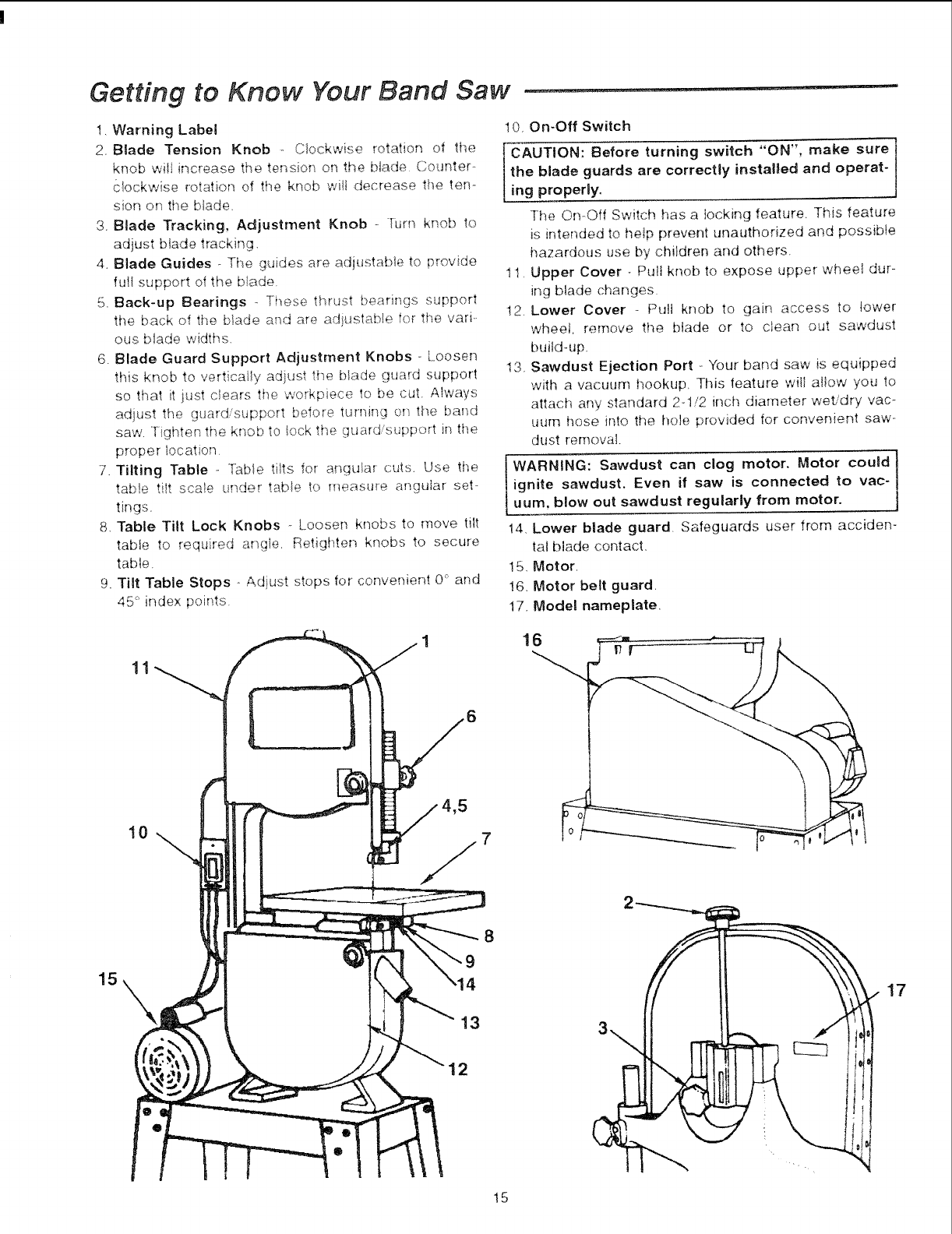

Getting to Know Your Band Saw ...........................
t, Warning Label
2. Blade Tension Knob _ Clockwise rotation of fi_e
knob wilt increase the tensior_ on the blade. Counter-
clockwise rotation of the knob wJJt decrease the ten °
sion on the bIade.
3. Blade Tracking, Adjustment Knob - RJrn knob to
adjust blade tracking.
4. Blade Guides o The guides are adiustable to provide
full support ot the blade.
5. Back-up Bearings _ These thrust bearings support
the back of the blade and are adi_stabte for the vari.
ous blade widths,
6. Blade Guard Support Adjustment Knobs o Loosen
this knob to vertically adiust the blade guard support
so that it just clears the workpiece to be cut. A!ways
adjust the guard/support belore turning ot_ the [:!aI_d
saw. Tighten the knob to lock the guard/support in the
proper location.
7. Tilting Table - Table ti_ts for angular cuts. Use the
tab!e ti!t sca!e _!nder tabie to measure angular set-
tings.
8. Table Tilt Lock Knobs --Looser_ knobs to move tilt
table to required angle. Retighten knobs to secure
table.
9. Tilt Table Stops - Adjust stops for" convenient 0 ° a_qd
45 ° index points.
10. On-Off Switch
CAUTION: Before turning switch "ON", make sure
the blade guards are correctly instaiJed and operat-
ing properly. J
The On-Off Switch has a iocking feature. This feature
is intended to help prevent unauthorized and possibte
hazardous use by children and others.
11. Upper Cover - Pull knob to expose upper whee_ dur-
ing btade changes.
12. Lower Cover -Pull knob to gain access to lower
wheel, remove the blade or to clean out sawdust
build-up.
t3. Sawdust Ejection Port - Your band saw is equipped
with a vacuurn hookup This feature witl allow you to
attach any standard 2-1/2 inch diameter wet/dry vac-
uum hose into the hole provided for convenient saw-
dust removal.
WARNING: Sawdust can clog motor. Motor could I
ignite sawdust. Even if saw is connected to vac-
uum, blow out sawdust regularly from motor.
14. Lower blade guard Safeguards user from acciden-
tat blade contact,
15_ Motor
16. Motor belt guard.
17. Model nameplate.
15
13
7
8
16
17
15

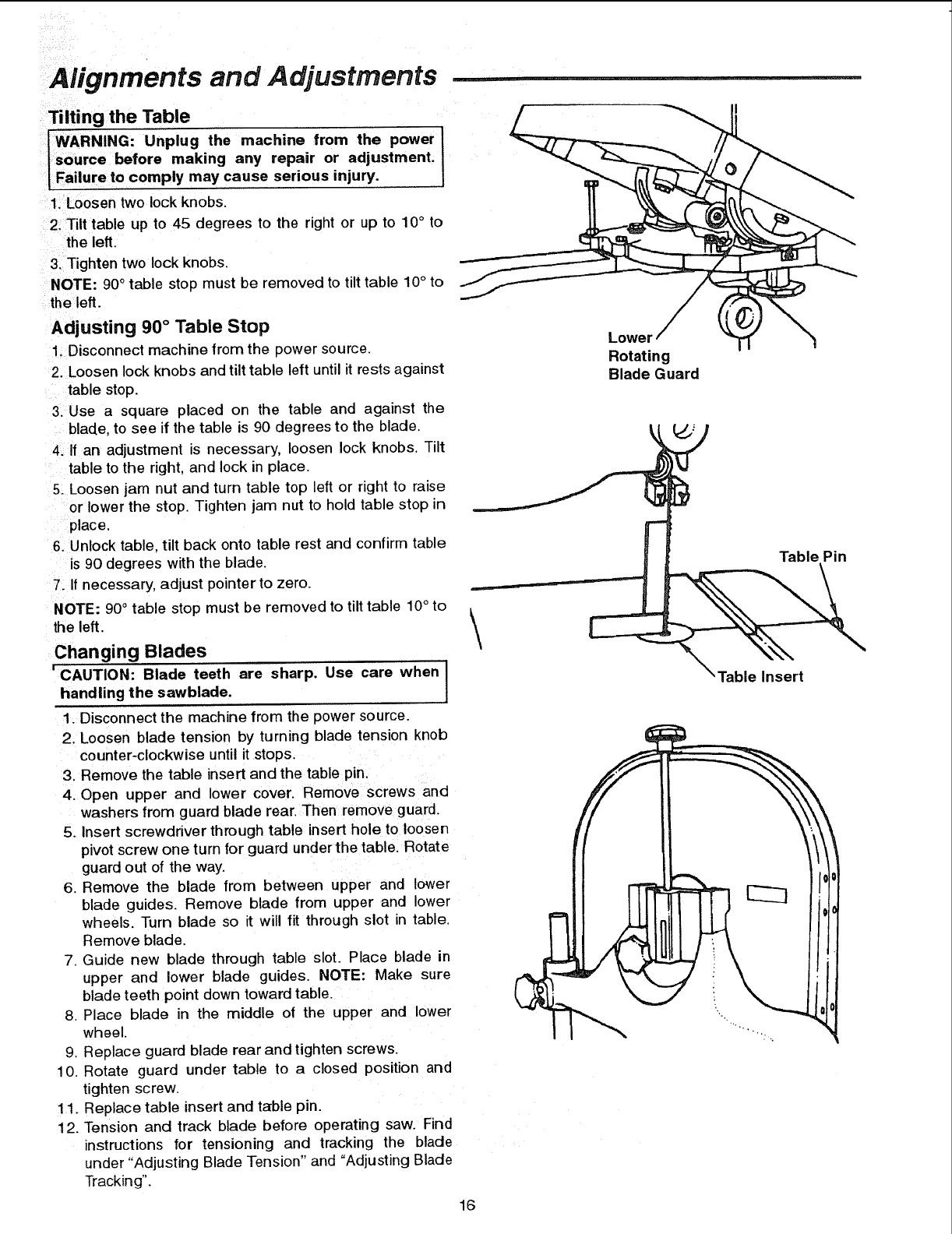

Alignments and Adjustments
Tilting the Table
IARNING: Unplug the machine from the power t
source before making any repair or adjustment.
Failure to comply may cause serious injury.
1, Loosen two lock knobs,
2. Tilt table up to 45 degrees to the right or up to 10° to
the left.
3. Tighten two lock knobs.
NOTE: 90° table stop must be removed to tilt table 10° to
the left.
Adjusting 90 ° Table Stop
1. Disconnect machine from the power source.
2. Loosen lock knobs and tilt table left until it rests against
table stop.
3. Use a square placed on the table and against the
blade to see if the table is 90 degrees to the blade.
4. If an adjustment is necessary, loosen lock knobs. Tilt
table to the right, and lock in place.
5. Loosen jam nut and turn table top left or right to raise
or lower the stop. Tighten jam nut to hold table stop n
place,
6. Unlock table, tilt back onto table rest and confirm table
is 90 degrees with the blade.
7. If necessary, adjust pointer to zero.
NOTE: 90° table stop must be removed to tilt table 10° to
the left.
Changing Blades
'CAUTION: Blade teeth are sharp. Use care when I
handling the sawblade. ]
1. Disconnect the machine from the power source.
2, Loosen blade tension by turning blade tension knob
counter-clockwise until it stops.
3. Remove the table insert and the table pin.
4. Open upper and lower cover. Remove screws and
washers from guard blade rear. Then remove guard.
5. Insert screwdriver through table insert hole to loosen
pivot screw one turn for guard under the table. Rotate
guard out of the way.
6 Remove the blade from between upper and lower
blade guides. Remove blade from upper and lower
wheels. Turn blade so it will fit through slot in table.
Remove blade.
7. Guide new blade through table slot. Place blade in
upper and lower blade guides. NOTE: Make sure
blade teeth point down toward table.
8. Place blade in the middle of the upper and lower
wheel.
9. Replace guard blade rear and tighten screws.
10. Rotate guard under table to a closed position and
tighten screw.
11. Replace table insert and table pin.
12. Tension and track blade before operating saw. Find
instructions for tensioning and tracking the blade
under "Adjusting Blade Tension" and "Adjusting Blade
Tracking".
\I
16
Lower
Rotating
Blade Guard
Table Pin
Table Insert
Adjusting Blade Tension
1. Disconnect machine from the power source.
2. Turn blade tension knob clockwise to tension blade. A
gauge on the upper wheel slide bracket indicates the
approximate tension according to the width of the
blade. Initially, set the blade tension gauge to corre-
spond with the blade width.
3, As you become familiar with the saw, you may find it
necessary to change the blade tension from the initial
setting. Changes in blade width and the type of mate-
rial being cut will have an effect on blade tension.
4. Keep in mind that too little or too much blade tension
can cause blade breakage.
Adjusting Blade Tracking
source. Never adjust blade tracking with the
machine running.
1. Blade must be properly tensioned before adjusting
blade tracking. Make sure blade guides and blade
bearings do not interfere with the blade.
2. Open upper cover. Rotate the wheel forward by hand
and observe the position of the blade on the wheel. It
should be in the center.
3. If adjustment is necessary, loosen wing nut, tighten
knob slightly to move blade toward rear of machine.
Slightly loosening the knob will cause the blade to
track toward the front of the machine.
4. Tighten nut after blade is tracking in the center of the
wheel.
Blade
Tension
Gauge
Adjusting Upper Blade Guide Assembly
1. Disconnect machine from the power source.
2. Loosen lock knob and raise or lower upper blade guide
assembly to just above the material being cut.
3. Tighten lock knob. Make sure blade guide blocks are
still flat to the blade. If adjustment is necessary, loosen
lock knob and rotate assembly until guide blocks are
flat to the blade.
4. The upper blade guide is spring loaded. To adjust the
tension on the spring, remove knob, tighten or loosen
set screw until desired tension is reached, and replace
knob.
17
Alignments and Adjustments (continued) _
Adjusting Upper Blade Guides and Blade
Support Bearing
WARNING: Blade guard has been removed for pic- I
lure clarity. Never operate the band saw without all I
guards in place and in working order, Failure to
comply may cause serious injury.
1. Disconnect machine from the power source.
2. Blade must already be tensioned and tracking properly.
3. Loosen thumb screws and move guide blocks as close
to the blade as possible without pinching it. The thick-
ness of a dollar bill on each side of blade is a good rule
of thumb.
4. Tighten thumb screws.
5. Loosen thumb screw and turn knurled knob to move the
guide block bracket in or out until the front edge of the
guideblocksare justbehindthe "gullets" of the saw teeth.
6. Tighten thumb screw.
7. Loosen thumb screw and turn knurled knob to move
the support bearing in or out until the bearing is !/64"
behind the blade.
8. Tighten thumb screw.
9, Blade support bearing should be adjusted so that the
back edge of the blade overlaps the front face of the
ball bearing approximately 1/8". To change position of
the bearing, remove screw bearing, and back of!
knurled knob completely to remove the bearing shaft.
Notice the bearing holder on the shaft is eccentric. Re-
install the bearing shaft, the bearing, and the screw.
Examine the overlap between the bearing face and the
blade. Change the position of the bearing shaft until
the overlap is approximately 1/8"
Adjusting Lower Blade Guides and Blade
Support Bearing
1. Disconnect machine from the power source.
2. Blade must already be tensioned and tracking properly.
3. Loosen thumb screws and move guide blocks as close
to blade as possible without pinching it. The thickness
of a dollar bill on each side of blade is a good rule of
thumb.
4. Tighten thumb screw,
5. Loosen thumb screw and move the guide block sup-
port in or out until the front edge of the guide blocks
are just behind the "gullets" of the saw teeth.
6Tighten thumb screvy,
7. Loosen thumb screw and move the support bearing in
or out until it is 1/64" behind the sawblade
8. Tighten thumb screw.
9. The blade support bearing should be adjusted so that
the back edge of the blade overlaps the front face of
the ball bearing approximately 1/8". To change position
of the bearing, remove screw and bearing. Loosen
thumb screw and remove the bearing shaft. Notice the
bearing holder on the shaft is eccentric. Re-install the
bearing shaft, the bearing, and the screw. Examine the
overlap between the bearing face and the blade.
Change the position of the bearing shaft until the over-
lap is approximately 1/8".
Step 3
Suppport
Shaft _Blade
Step 9 (upper and lower)
7
Step 5
18
Safety instructions for Basic Band Saw Operation --
Before Using The Saw:
IWARNING: to avoid mistakes that could cause seri- J
I
ous, permanent injury, do not plug the saw in until
the following steps have been completed.
• Completely assemble and align saw (see "Assembly"
and "Alignment" section within).
• Learn the use and function of the ON-OFF switch,
bevel handwheel, bevel lock knob, blade guides,
backup bearings, guide bar lock knob and blade guard.
• Review and understand all safety instructions and
operating procedures in this manual.
• Review the maintenance methods for this saw.
oFind and read all the warning labels found on the front
of the saw (shown below).
When Installing Or Moving The Saw:
Avoid dangerous environment.
Use the saw in adry, indoor place protected from rain.
• Keep work area well lighted.
To avoid injury from unexpected saw movement.
°Put the saw on a firm level surface where there is
plenty of room to handle and properly support the
workpiece.
• Support the saw so the table is level and the saw does
not rock.
Bolt the saw to the floor or work surface if it tends to
slip, walk or slide during operations like cutting long,
heavy boards.
• Turn saw off and unplug cord before moving the saw.
To avoid injury from electrical shock.
• Make sure your fingers do not touch the plug's metal
prongs when plugging in or unplugging the saw.
To avoid back injury.
• Get help or use recommended casters when you need
to move the saw. Always get help if you need to lift the
saw.
Never stand on tool, Serious injury could occur if the
tool tips or you accidentally hit the cutting tool. Do not
store any items above or near the tool where anyone
might stand on the tool to reach them.
Before Each Use:
Inspect your saw.
° To avoid injury from accidental starting, turn the switch
off, unplug the saw, and remove the switch key before
changing the setup, removing covers, guards or blade.
Check for alignment of moving parts, binding of moving
parts, breakage of parts, saw stability, and any other
conditions that may affect the way the saw works.
• If any part is missing, bent or broken in any way, or any
electrical part does not work properly, turn the saw off
and unplug the saw.
o Replace damaged or missing parts before using the
saw again.
Maintain tools with care. Keep the saw clean for best
and safest performance. Follow instructions for lubri-
cating.
o Remove adjusting keys and wrenches. Form a habit of
checking for and removing keys and adjusting
wrenches from table top before turning it on.
To avoid injury from jams, slips or thrown pieces or
broken blades.
Inspect your blade.
°Choose the right blade size, style and cutting speed for
the material and the type of cutting you plan to do.
Use only recommended accessories. Consult this
owners manual for recommended accessories. Follow
the instructions that come with the accessories. The
use of improper accessories may cause risk of injury to
persons.
Make sure the blade teeth point downward, toward the
table.
• Make sure the blade guides and thrust bearings are
properly adjusted.
Make sure the blade tension is properly adjusted.
oMake sure the bevel clamp is tight and no parts have
excessive play.
°To avoid accidental blade contact, minimize blade
breakage and provide maximum blade support, always
adjust the upper blade guide and blade guard to just
clear the workpiece.
Inspect your work area.
Keep work area clean.
Cluttered areas and benches invite accidents. Floor
must not be slippery from wax or sawdust.
=To avoid burns or other fire damage, never use the saw
near flammable liquids, vapors or gases.
Plan your work.
°Use the right tool. Don't force tool or attachment to do
ajob it was not designed to do.
° Use this band saw to cut only wood, wood like prod-
ucts and plastics.
CAUTION: To avoid blade breakage, fire or other
damage to the saw, NEVER use this band saw to
cut metals.
Know your saw, Read and understand the owner's
manual and labels affixed to the tool. Learn its applica-
tion and limitations as well as the specific potential
hazards peculiar to this tool.
To avoid injury from accidental contact with moving
parts, don't do layout, assembly, or set up work on the
saw while any parts are moving.
°Avoid accidental starting. Make sure switch is "OFF"
before plugging saw into a power outlet.
19
Safety instructions for Basic Band Saw Operation (continued)
Plan ahead to protect your eyes, hands, face
and ears.
WEAR YOUR
Dress for safety
Any power saw can throw foreign objects into the eyes.
This can cause permanent eye damage. Wear safety
goggles (not glasses) that comply with ANSI Z87.1
(shown on package). Everyday eyeglasses have only
impact resistance lenses. They are not safety glasses.
Safety goggles are available at Sears retail catalog
stores. Glasses or goggles not in compliance with ANSI
Z87.1 could seriously hurt you when they break.
Do not wear loose clothing, gloves, neckties or jewelry
(rings, wrist watches). They can get caught and draw
you into moving parts.
-Wear nonslip footwear.
°Tie back long hair.
° Roll long sleeves above the elbow.
Noise levels vary widely. To avoid possible hearing
damage, wear ear plugs or muffs when using saw for
hours at a time.
°For dusty operations, wear a dust mask along with the
safety goggles.
Inspect your workpiece.
Make sure there are no nails or foreign objects in the
part of the workpiece to be cut.
Use extra caution with large, very smanl or awkward
workpieces:
Use extra supports (tables, saw horses, blocks, etc.)
for any workpieces large enough to tip when not held
down to the table top.
NEVER use another person as a substitute for a table
extension, or as additional support for a workpiece that
is longer or wider than the basic saw table, or to help
feed, support or pull the workpiece.
When cutting irregularly shaped workpieces, plan your
work so it will not slip and pinch the blade. A piece of
molding for example, must lie flat or be held by a fixture
of jig that will not let it twist, rock or slip while being cut.
Properly support round material such as dowel rods, or
tubing. They have a tendency to roll during a cut,
causing the blade to "bite". To avoid this, always use a
"V" block or clamp the work to the miter gage.
Cut only one workpiece at a time.
-Clear everything except the workpiece and related
support devices off the table before turning the savJon.
Plan the way you will hold the workpiece
from start to finish.
Do not hand hold pieces so small that your fingers will
go under the blade guard. Use jigs or fixtures to hold
the work and keep your hands away from the blade.
°Secure work. Use clamps to hold work when practical.
It's often safer than using your hand, and frees both
hands to operate the tool.
Don't overreach. Keep good footing and balance.
Whenever Sawblade Is Spinning:
WARNING: Don't allow familiarity (gained from fre-
quent use of your band saw) cause a careless mis-
take. Always remember that a careless fraction of a
second is enough to cause a severe in)ury.
Before starting your cut, watch the saw while it runs. If
it makes an unfamiliar noise or vibrates a lot, stop
immediately. Turn the saw off. Unplug the saw. Do not
restart until finding and correcting the problem.
Keep Children Away,
° Keep all visitors a safe distance from the table saw.
°Make sure bystanders are clear of the table saw and
workpiece.
Don't Force Tool
°Let the blade reach full speed before cutting.
° It will do the job better and safer at its designed rate.
°Feed the workpiece into the saw only fast enough to let
the blade cut without bogging down or binding.
Before freeing jammed material.
Turnswitch "OFF".
• Unplug the saw.
Wait for all moving parts to stop.
Remove switch key.
When backing up the workpiece, the blade may bind
in the kerr (cut). This is usually caused by sawdust
clogging up the kerf or because the blade comes out
of the guides, if this happens:
Turn saw "OFF".
°Wait for all moving parts to stop.
Remove switch key.
Unplug the saw.
°Remove band saw cover.
Stick flat blade screwdriver or wedge into the kerr.
°Turn the upper wheel by hand while backing up the
workpiece.
Before removing loose pieces from the table, turn saw off
and wait for all moving parts to stop.
2O
Before Leaving The Saw.
Turn the saw off.
oWait for all moving parts to stop.
• Unplug the saw.
oMake workshop child-proof.
-Lock the shop.
- Disconnect master switches.
- Remove the yellow switch key. Store it away from
children and others not qualified to use the tool.
Basic Saw Operations
General Cutting
I CAUTION: For your safety, compay with all the
safety instructions on pages 2-5 before using the
band saw.
A band saw is basically a "curve cutting" machine. It is
not capable of doing inside cutting.
It is also used for straight-line cutting operations such as
crosscutting, ripping, mitering, beveling, compound cut-
ting and resawing.
Operation Recommended Blade Size
(Inches)
Cross Cutting 1/4, 3/8, 1/2, 3/4
Ripping 3/4
Mitering 1/4, 3/8, 1/2, 3/4
Beveling 1/4, 3/8, 1/2, 3/4
Compound Cutting 1/4, 3/8, 1/2, 3/4
Circle Cutting See Chart Below
Resawing 3/4
Curve Cutting 1/8, 1/4
Circle Cutting
1. Adjust the upper guides to vertically just clear the
workpiece.
2. Use both hands while feeding the work into the blade.
Hold the workpiece firmly against the table. Use gentle
pressure, and do not force the work, but allow the
blade to cut.
3. The smallest diameter that can be cut out is deter-
mined by the width of the blade. For example, a 1/4-
inch wide blade will cut a minimum diameter of approx-
imately 1-1/2-inch (see chart).
Blade Selection Guide for Minimum Circle Cutting
rcie
7"D
1/2"Blade 1 3f4"
21
Maintenance ----- ..........
IWARNING: For your own safety,
SW_tCh
turn
and remove plug from power source outlet before
maintaining or lubricating your band saw,
Tires
Pitch and sawdust that build up on the tires should be
removed w_h a stiff brush or scrape off with a piece of
vvood
NOTE: Td avoid damaging the tires do not use a sharp
k_'_ifeor any kind of solvent,
When the tires become worn they should be replaced,
When replacing the tires, stretch them around the wheels
but do not glue them on.
Adjusting the upper blade guide travea
if the upper guido bar will not move up and down easily or
fails when the lock knob is loosened, the following adjust-
merit shouk_J be performed.
! Remove the guide bar lock knob.
2. Using a 5ram he× "L" wrench, tighten or loosen the
screw which is tocated below the lock knob.
3, Move the guide bar up and down to check for smooth
mevement while still holding its position when
released
4. Make further adjustrnents to the screw as required to
get the guide bar to move smoothly and hold its posi-
tion when released,
5, Reinstall guide bar lock knob_
General Maintenance
Keep your band saw clean. Remove the sawdust from
the inside Vacuum or blow out frequently.
Do not allow fiSth to build up on the table the guides or the
back-up bearings. Clean them with Craftsman Gum and
Pitch Remover.
NOTE: Do not immerse the back-up bearings in the gum
and pitch remover,
Put a thin coat of paste wax on the table so that the wood
slides easily while cutting.
Motor
Frequently blew or vacuum out any sawdust from the
motor, Follow lubrication instruction on the motor label.
CAUTION: To avoid eye injury from blowing debris,
wear safety goggles when blowing out sawdust.
WARNING: To avoid electrocution or fire, immedi-
ately replace a worn, cut or damaged power cord.
Lubrication
All of the ball bearings are packed with grease at the fac-
tory, They require no further lubrication.
Sears Recommends the Following Accessories --
Cool Blocks ............................................ See Catalog
Miter Gauge ............................................... ,:. :.9_29929
Hold,-,Down Clamp for Miter Gauge. ......... :: 9-29928
Stops, Rods for Miter Gauge ............................. 9-29924
Blades ............................................................. See Catalog
Sears may recommend other accessories not listed in
the manual. See your nearest Sears store for other
accessories.
Do not use any accessory unless you have received and
read complete instructions for its use.
22
Troubleshooting-Genera! ............................
WARNING: For your own safety, turn switch "Off" and remove plug from power source outlet before trouble
shooting your band saw/sander.
T
Trouble IProbable Cause 1Remedy
+
Blade does not run in the _. Not tracking preperty. 1, Adjust tracking see Assembly Sectk)n 'Installing the
approximate center of the ,_ Blade",
upper wheel i
Band Saw slows down when i I. Belt too loose. !. Adjust belt tension, see "Assembly" section, "Install-
cutting
tBlades braking
Blade dulls too quickly.
2. Cutting too small a radius, '
13. Dull blade, 2,
{
i4. Overloading motor,
1 4,
t. ]-oo much tension on 1.
blade.
2, Kink in blade caused cut ° 2.
ting too small a radius or
turning the material too
fast when cutting.
1, Blade guides set too ck)se
! to teeth,
2. Cutting incorrect material
ing and Aligning the Belt",
Stop feeding, and back up the material sIJghtty until
the band saw speeds up.
Replace blade.
Slow down, trying to cut too fast.
Adjust tension. See "Getting to Know Your Band
Saw".
Use correct cutting technique. See "Basic Band Saw
Operation" section_
1Adjust upper and lower blades guides. See 'Assem-
bly" section "Installing the blade".
Band saw vibrates, 1 Too much tension on 1. Adjust according to "Installing and Aligning Poly "V"
motor belt Belt" section.
23
Troubleshooting-Motor
NOTE: Motors used on wood-working tools are particularly susceptible to the accumulation of sawdust and wood chips
and should be blown out or "vacuumed" frequently to prevent interference with normal motor ventilation and proper
operation of the centrifugally-operated starting switch.
Trouble
Excessive noise
Motor fails to develop full
power. Note Low Voltage:
Power output of motor
decreases rapidly with
decrease in voltage at
motor terminals. For
example, a reduction of
10% in voltage causes a
reduction of 19% in maxi-
mum power output of
which the motor is capa-
ble, and a reduction of
20% in voltage causes a
reduction of 36% in maxi-
mum power output
Motor starts slowly or
fails to come up to full
speed.
Motor overheats
Starting switch in motor
will not operate.
Motor stalls (resulting in
blown fuses or tripped cir-
cuit breakers).
Frequent opening of fuses
or circuit breakers.
Probable Cause
1. Motor
1. Circuit overloaded with light,
appliances and other motors.
2. Undersize wires or circuit too
long.
3. General overloading of power
company facilities.
1. Low voltage.
2. Windings burned out or open.
3. Starting switch not operating.
1. Motor overloaded.
2. Improper cooling (air circula-
tion restricted through motor
due to sawdust accumulation).
1. Burned switch contacts (due to
extended hold-in periods
caused by low line voltage,
etc.)
2. Shorted capacitor.
3. Loose or broken connections.
1. Starting switch not operating.
2. Voltage too lowto permit motor
to reach operating speed.
3. Fuses or circuit breakers do
not have sufficient capacity.
1. Motor overloaded.
2. Fuses or circuit breakers do
not have sufficient capacity.
3. Starting switch not operating
(motor does not reach speed).
RellNedy
1. Have motor checked by qualified service tech-
nician. Repair service is available at your near-
est Sears store.
1. Do not use other appliances or motors on
same circuit when using the saw.
2. Increase wire sizes, or reduce length of wiring.
See "Motor specifications and Electrical
Requirements" section.
3. Request a voltage check from the power com-
pany.
1. Request voltage check from the power com-
pany. Check size of circuit wiring.
2. Have motor repair or replaced.
3. Blow out sawdust from motor. Have motor
repaired.
1. Feed work slower into blade.
2. Clean out sawdust to provide normal air circu-
lation through motor. See "Maintenance and
Lubrication" section.
1. Have switch replaced and request a voltage
check from the power company.
2. Have capacitor tested and replace if defective.
3. Have wiring checked and repaired.
1. Have switch replaced.
2. Request voltage check from the power com-
pany.
3. Install proper size fuses or circuit breakers.
1. Feed work slower into blade.
2. Install proper size fuses or circuit breakers.
Check that wiring will handle load.
3. Have switch replaced. Blow out sawdust.
24
SWITCH
r
I I
I WHJTE_ WHITE I
IGREEN _1_
POWER CORD ------J I
TO SWITCH L -- j
Circuit Diagram
MOTOR
MOTOR
LEAD
BLACK _t MOTORLEAD
L--POWER CORD
SWITCH TO MOTOR
"!I
1
t
I
I
--J
25
80
83
85
\
84
\
75
) \
8O
\
83
73
\
39
58
74
79
\
87
73
74
9i
71
72
58
Parts List For Craftsman 14-inch Band Saw
Model No. 113,248-340
Figure 1
95 102
94 //
102
97 39
65
106
64 5t_-_
50
57
43j
60
51
49
30
63
68
69
20 19
81 77
78
Parts List For Craftsman 14 inch Band Saw
Model No. 113.248340
Always Order By Part Number - Not By Key Number
Figure 1 - Drive Assembly Parts
Y. Part No.
31823746
4 0824
3574
3744-1
823575
823601
823954
823573
820249-4
823596
STD851006
813307-3
823572
823745
823744
821750
823743
823742
813249-76
823580
823559
823579
823769
823565
823586
823768
STD835080
56-100005
816755-4
STD852005
823588
STD833020
823602
823750
823779
823541
813313-5
823578
823587
STD852008
STD835040
82356O
817393-5
823585
6
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
28
29
30
31
32
33
3,
3
36
37
38
39
4O
41
42
43
45
Description
Frame Upper Arm
Knob
Screw Pan Hd. Lock M6 x 1-!2
Bearing Ball
Sleeve Upper Spacing
Screw Thumb M6-16
Post Guide
Bracket Support Post
Screw Soc Set M8 x 1.0-40
Nut Micro-Adjust
Screw hex Hd. M6 x ! .0-16
Guard Blade Upper
Washer M6
Screw Hex Hd. M6x 1.0-10
Block Guide
Bracket Support Upper
Screw Thumb M6-12
Screw Set MIO x 1.5-10
Spring
Ball Steel
Pin Roll
Insert Table
Table
Pin table
Screw Hex Hd. M10 x 1.5-55
Clamp Trunnion Shoe
Trunnion
Screw hex Washer hd. M6 x 1-12
Screw Hex hd. M8 x 1.25-80
Nut Hex M8
Screw Pan Cross M5 x 0.8-8
Lockwasher M5
Guard Blade Lower
Screw Hex hd. M6 x 1.0-20
Bracket Lower Support Post
Guard Lower Wheel Blade
Bracket Lower Support
Knob Locking
Screw Pan Hd. M5 x 0.8-6
Pointer
Bracket Trunnion Support
Lockwasher M8
Screw Hex Hd. M8 x 1.25-35
Scale Bevel
Belt V A40
Pulley
47 817391-1
48 816782
49 81753O
5O 823741
51 821732-1
52 STD851016
53 STD841620
54 823756
,k
Screw Soc Set M6 x 1.0-10
Ring Retaining
Bearing Ball
Pin
Screw Hex Hal. M16 x 2.0-55
Washer M16
Nut M16
Stud
* Standard hardware item, May be purchased locally.
27
Key
No.
55
56
57
58
59
6O
61
62
63
64
65
66
67
68
69
7O
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
9O
:91
92
93
94
95
96
97
98
99
10(
!0
10;
10,'
lOz
10._
10(
Part No.
823598
818470-3
823555
813313-4
819188
823584
STD851008
823554
823556
823762
823761
823550
823763
823595
9-27193
823753
823751
823583
817357
823582
813310-5
823581
823558
823557
823771
823760
823553
823764
816069
823600
823597
STD821005
823758
823571
823569
823568
813249-104
823594
823570
823549
823754
823567
823755
STD510603
60267
9-22255
63418
STD852005
823547
823546
823543
823563
SP5836
Description
Hinge L_--
Screw Flat Hd. M5 x 0.8-10
Brush Wheel
Screw Pan Hd. M5 x 0.8-12
Key 5ram x 20ram
Shaft Lower Wheel
Washer M8
Base
Wheel Lower
Bearing Ball
Ring Retaining
Wheel Upper
Nut Hex M12 x 1.25
Tire
1 Blade 3/8 x 93-1/2
Screw Hex Hd. LH M8 x 1.25-25
Bolt M!0 x 1.5-15 (Special)
Catch Door
Screw Pan Hd. M4 x 16-8
Clip Door
Screw PanHd. M8 x 1.25-16
Bracket Door
Chute Dust
Cover Lower Wheel
Screw Pan Hd. Lock M6 x 1-8
Washer
Knob Catch
Cover Upper Front
Screw Pan Hd. Ty "AB" #6 x 5/8
Guard Blade Rear
Hinge Upper
Washer M5
Cover Upper Back
Shaft Upper Wheel
Pin
Hinge Shaft
Pin Roll
Bracket Sliding
Nut Wing
Knob Lock
Knob Blade Adjusting
Spring Coil
Nut Square
* Screw Pan Hd. #6-32 x 3/8
Switch Locking
t Key, Switch
Clamp Cord
Lockwasher M5
Box Switch
Plate Switch Backing
Cord Power
Cord w!Plug
Owners Manual (Not Illus.)
-q
1 Stock Item - May be sec_ h tile Hardware
Department of most Sears Retail Stores.
Parts List For Craftsman 14 inch Band Saws
Model No. 113.248340
Figure 2
24
23
4
_l=l I
ro
Go 16
2O
/
14
45
11
6
14
3
9
5
/
Parts List For Craftsman 14 inch Band Saw
Model No, 113.248340
Figure 2 - Base Components
Always order by Part Number - Not by Key Number
Key Part No. Description
No.
1 823592
2 813313-4
3 STD851005
4 823773
5 823590
6 823776
7 STD541237
8 803835-1
9 STD840508
10 STD840812
11 STD852008
12 STD851008
13 823593
Cover Pulley
Screw Pan Hd. M5 x 0.8-12
* Washer M5
Leg
Stiffener Long
Bolt Carriage M8 x 1.25-16
* Nut Hex 3/8-16
Foot Leveling
* Nut Hex M5
* Nut Hex M8
* Lockwasher M8
* Washer M8
Plate Support
*Standard hardware item. May be purchased locally.
Key
No. Part No. Description
14 823589
15 823774
16 823747
17 823562
18 STD835040
19 !817391-1
20 823740
21 819188
22 823576
23 823591
24 817357
25 813317-6
26 813317-7
Stiffener Short
Stand Top
Grommet Rubber
Motor
Screw Hex Hd. M8 x 1.25-35
Screw Set M6 x 1.0-10
Pulley Motor
Key 5ram x 20mm
Pad
Cover pulley Inner
Screw Pan hd. M4 x 16-8
Wrench Hex "L" 3mm
Wrench Hex "L" 5mm
29
_0
Notes .......
31
Model No,
113,248340
Single Speed Band Saw
with Leg Set
The model number of your 14
inch Band Saw will be found
on a plate attached to your
saw, on the back side of the
upper cover.
When requesting service or
ordering parts, always provide
the following information:
Product Type
Model Number
Part Number
Part Description
14 iNCH
For _herepair or replasement pat_syouneed
Call 7 am - 7 pm, 7 days a week
1-8OO-,366=PART
(1-800-365-7278)
For in-homemajor brand repair service
Call 24 hours a day, 7 days a week
t-8OO-4,.R6PAJR
(1-800-473-7247)
Farthe location of a
Sears RepairService Center in your area
Call 24 h0urs a day,7 days a week _____ =_= ]
1-800-488-t222 "" _ w=..... |
For information onpurchasinga Sears
Uaintenance Agreementor to inquire
about an existingAgreement
Call 9 am - 5 pro, Monday-Saturday
t _800-827-6655
SEARS
America's Repair Specialists
Part No. SP5836
Sears, Roebuck and Co., Chicago, IL. 60179 U.S.A.
Form No. SP5836-1 Printed in Taiwan 8/95

Navigation menu
