[Sears ]

owners

manual

CAUTION:

Read SAFETY

RULES and

INSTRUCTIONS

carefully

MODEL NO.

113.29461

IO-INCH

RADIAL SAW

assembly •operating •repair part

SEARS, ROEBUCK AP,,D CO.. (_hicago, Ill. 60607 U.S.A.

arid SIN_IPSONS-SEARS LINIITED, Toronto

Part No. 63492 Printed in U.S.A.

general safety rules for power tools

1. KNOW YOUR POWER TOOL

Read the owner's manual carefully. Learn its appli-

cation and limitations as well as the specific potential

hazards peculiar to this tool.

2. GROUND ALL TOOLS

If tool is equipped with three-prong plug, it should be

plugged into a three-hole grounded receptacle. If

adapter is used to accommodate two-prong receptacle,

the adapter wire must be attached to a known ground.

Never remove third prong.

3. KEEP GUARDS IN PLACE

and in working order.

4. REMOVE ADJUSTING KEYS

AND WRENCHES

Form habit of checking to see that keys and adjusting

wrenches are removed from tool before turning it on.

5. KEEP WORK AREA CLEAN

Cluttered areas and benche.s invite accidents.

6. AVOID DANGEROUS ENVIRONMENT

Don't use power tools in damp or wet locations. Keep

work area well lit.

7. KEEP CHILDREN AWAY

All visitors should be kept a safe distance from work

area.

8. MAKE WORKSHOP KID-PROOF

-- with padlocks, master switches, or by removing

starter keys.

9. DON'T FORCE TOOL

It will do the job better and safer at the rate for which

it was designed.

USE RIGHT TOOL

Don't force tool or attachment to do ajob it was not

designed for.

10.

11. WEAR PROPER APPAREL

No loose clothing or jewelry to get caught in moving

parts. Rubber-soled footwear is recommended for best

footing.

12. USE SAFETY GLASSES

Also use face or dust mask if cutting operation is dusty.

13. SECURE WORK

Use clamps or a vise to hold work when practical. It's

safer than using your hand, frees both hands to operate

tool.

14. DON'T OVERREACH

Keep proper footing and balance at all times.

15. MAINTAIN TOOLS WITH CARE

Keep tools sharp and clean for best and safest

performance. Follow instructions for lubricating and

changing accessories.

16. DISCONNECT TOOLS

before servicing; when changing accessories such as

blades, bits, cutters, etc.

17. AVOID ACCIDENTAL STARTING

Make sure switch is in "OFF" position before plugging

in.

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended acces-

sories. The use of improper accessories may cause

hazards.

19. NEVER STANDON TOOL

Serious injury could occur if the tool is tipped or if the

cutting tool is accidentally contacted.

20. CHECK DAMAGED PARTS

Before further use of the tool, a guard or other part

that is damaged should be carefully checked to assure

that it will operate properly and perform its intended

function -- check for alignment of moving parts,

binding of moving parts, breakage of parts, mounting

and any other conditions that may affect its operation.

A guard or other part that is damaged should be

properly repaired or replaced.

WEAR YOUR

The operation of any power tool can result in foreign objects

being thrown into the eyes, which can result in severe eye

damage. Always wear safety glasses or eye shields before

commencing power tool operation. We recommend Wide

Vision Safety Mask for use over spectacles, or standard safety

glasses.., available at Sears retail or catalog stores.

THIS SAFETY SEAL OF THE

POWER TOOL INSTITUTE ASSURES YOU...

1, That the manufacturer's power tools, including the particular tool

associated with the Seal, are produced in accordance with applicable

Standards For Safety of Underwriters' Laboratories and American

Notional Standards (ANSI).

2. That compliance with applicable safety standard| is assured by in-

dependent inspection and testing conducted by Underwriters' Labora-

tories (UL),

3 That every motorized tool is inspected under power.

4. That every tool has with it adequate instructions and a llst of safety

rules for the protection of the uter.

5. That the tool manufacturer is a member of the Power Tool Institute and

_s a sponsor of the Instltute's Consumer Safety Education Program.

unpacking and preassembly

CONTENTS

Page

Unpacking and Preassembly Instructions ....... 3

Alignment Instructions ................ 5

Electrical Connections ................. 11

Operating Controls .................. 13

Basic Saw Operations ................. 15

Page

Trouble Shooting ................... 20

Motor Trouble Shooting Chart ............ 25

Guarantee ....................... 27

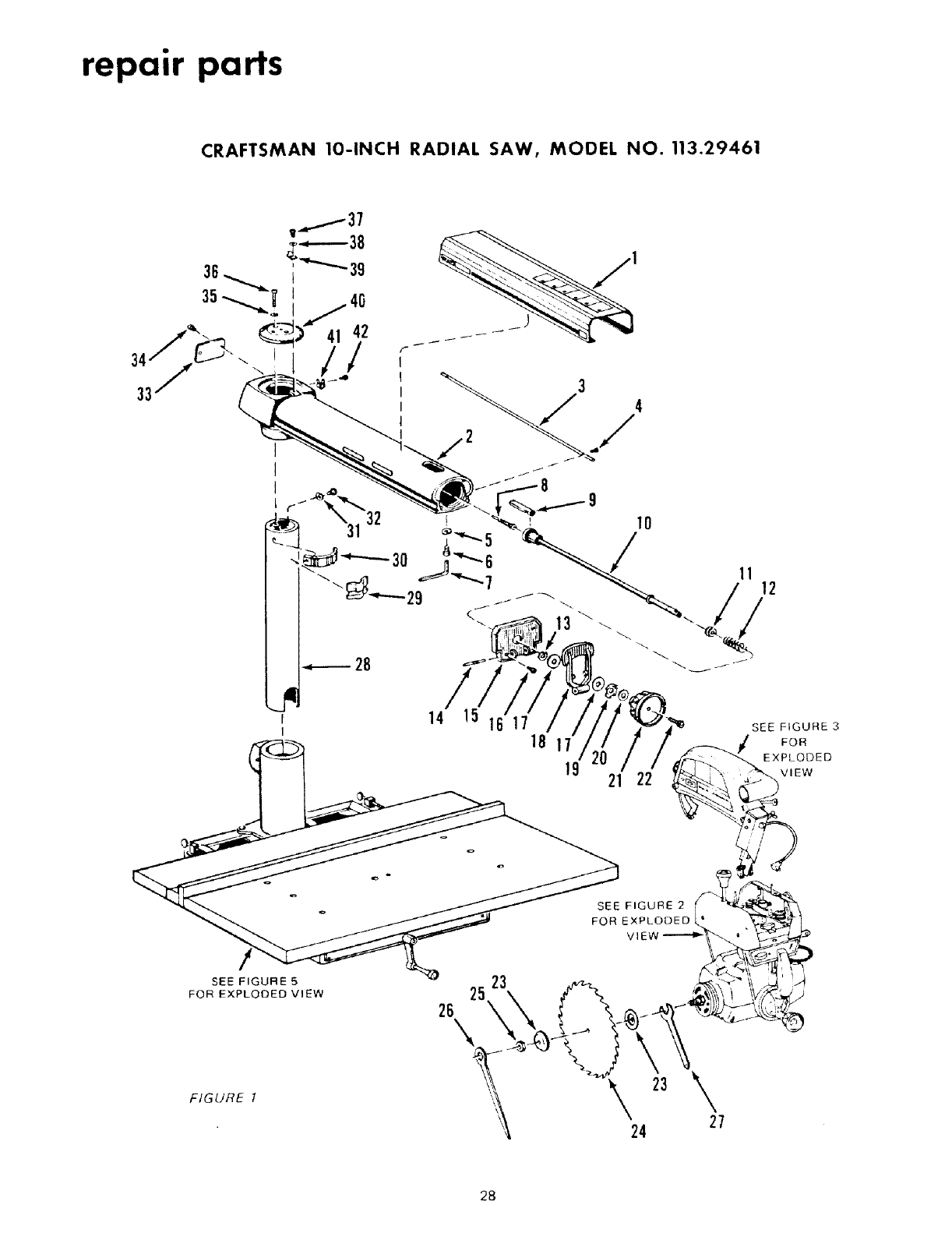

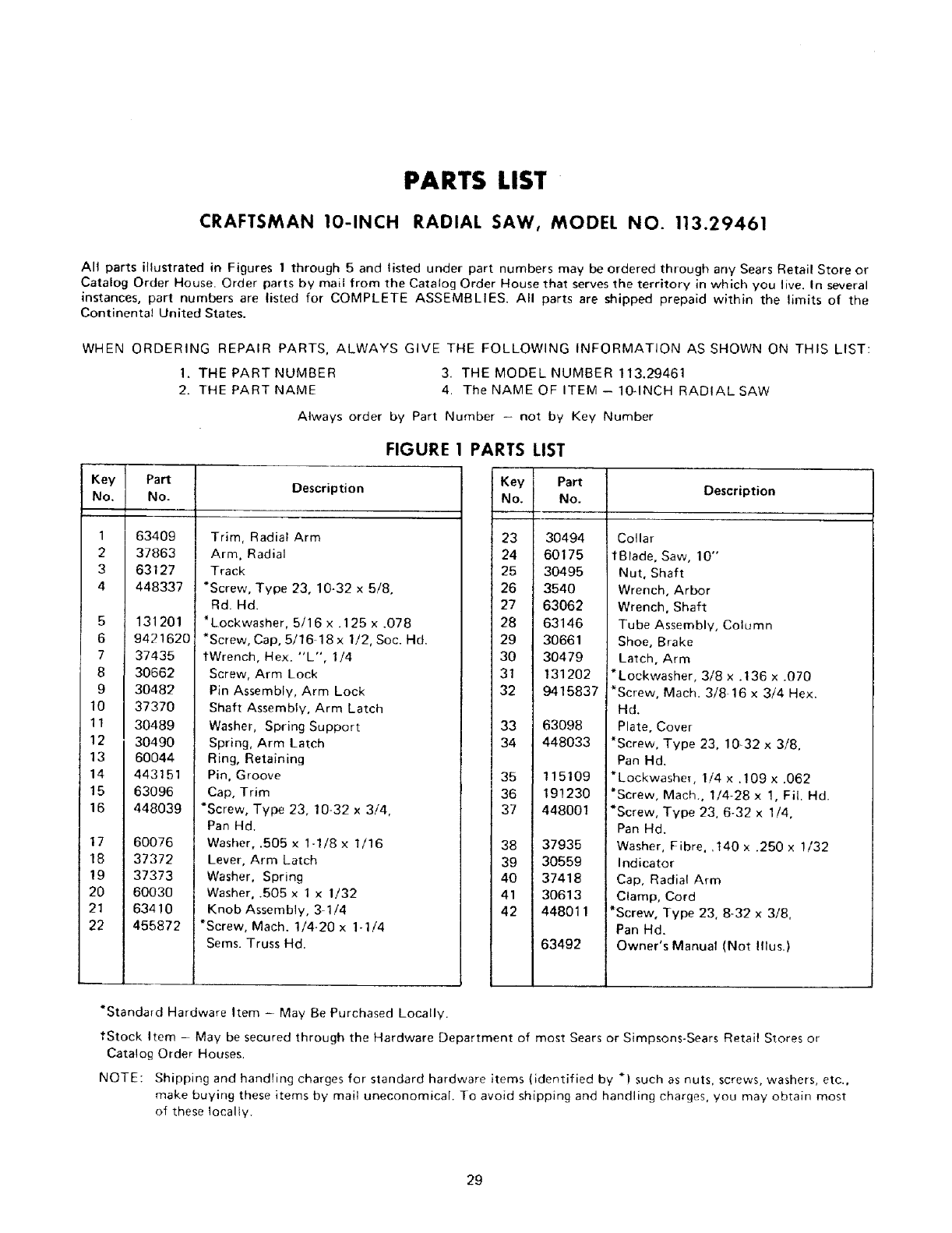

Repair Parts ...................... 28

SCREWDRIVER (MEDIUM)

SCREWDRIVER (SMALL)

PLIERS

PENCIL

TOOLS NEEDED

7116-1NCH WRENCH

1/2-INCH WRENCH

9/16-INCH WRENCH

RUBBER MALLET

UNPACKING AND PREASSEMBLY INSTRUCTIONS

1. Unpacking and Checking Contents

Separate all "loose" parts from packaging materials and

check each item with figure t and "Table of Loose

Parts" to make sure all items are accounted for, before

discarding any packing material.

NUT

i 44 USED-- DISCARD)

KeyNo.

(Fi9. 1)

TABLE OF LOOSE PARTS QW.

Basic Saw assembly ...................

Rear table .......................

Table spacer ......................

Rip fence ........................

Front table .......................

"Owner's Manual" . ..................

Loose Parts Carton (containing the following items):

Hex-'L" Wrench, 1/8" ................ 1

Hex-'L"wrench, 3/16" ............... 1

Hex-"L"wrench, 1/4" . ............... 1

Elevation crank assembly ............... 1

Knob assembly, pull ................. 1

Switch key ...................... 2

Arbor wrench ..................... 1

Table clamp ..................... 2

Rip.scale indicator .................. 2

Twin nut (for attaching rip-scale indicator} .2

Machine screw, pan-halo,1/4-20x1"' .......... G

Washer, steel (flat), t7/64x518xl!32" ........ 7

Lockwasher, medium, 114" . ............. fi

Nut, hex., 1/4-20x7/t6x3/16" ............ 6

Machine screw, pan-hd., 6-32x7/16"' ........ 4

Nut-"T" . .....................

Setscrew, eup-pt....................

Machine screw, pan-hal., 114-20x1-1/4" . ......

Shaft wrench .....................

unpacking and preassembly

2. Mounting Your Saw on a Workbench

Mount on a Craftsman Power Tool Base or a sturdy, flat

bench, in such a position that the elevation crank will be

free to rotate,

WARNING: Do not connect the power cord to

asource of power. This cord must remain un-

plugged whenever you are working on the saw.

3. Installing the Elevation Crank and Swivel Latch-Pin

Knob (Figure 2)

a. Install the elevation crank and tighten the setscrew

on the flat portion of the shaft.

Figure 2 ,_

SWIVEL LATCH-PIf CARRIAGE

KNOB -- STOP

SCREW

SHIPPING

BLOCK

CARRIAGE

ASSEMBLY

ELEVATION C

Figure 3

4. Installing the Motor and Carriage Assembly on the

Radial Arm (Figures 2 and 3)

a. Rotate tbe elevation crank clockwise several turns

and remove the shipping block from between the

carriage and the radial arrn.

b. Remove the carriage stop screw. Iockwasher and

warning tag.

c. Holding the carriage assembly with both hands,

carefully start and slide the carriage onto the

radial-arm tracks. The assembly must be held parallel

with the arm so that all four of the assembly bearings

will smoothly slide onto the two arm tracks, thus

preventing any excessive strain on the bearings and

tracks.

d. Reinstall the carriage stop screw and Iockwasher.

WARNING: Unless this is done carriage can rol!

off the arm.

e. Remove the two shipping screws from bottom of

motor, and discard. Leaving these in would limit

depth of cut.

f. Check the cord in the arm cord clip to make sure

there is 30 inches length of cord between this clip and

the cord clip on the yoke.

g. Install the swivel latch pin knob.

ARM CORE) CLIP

View above

shows R-H

indicator

installed.

Figure 4

5. Installing the Rip Scale Indicators (Figure 4)

a. Remove the carriage lock knob, then remove the

right-hand carriage cover.

b. Attach a rip-scale indicator to the top of the carriage

cover, using one twin nut and two 6 32x7/16-inch

pan-head screws. Tighten the screws lightly -- the

indicator will be adjusted, later

c, Reinstall the carriage cover and knob.

Similarly attach the remaining rip-scale indicator to

left-hand carriage cover, then reinstall this cover

Note that there is no knob on the left side; only [he

cever need be removed and reinstalled.

assembly and adjustments

ALIGNMENT INSTRUCTIONS

GUARD ASSEMBLY LOCK KNOB

GUABDCLAM_

SCREW ;HT RECEPTACLE

LATCH-PIN HANDLE

BEVEL LOCK KNOB

Figure 5

NOTE: The following instructions are pre

sented in the most logical sequence in which

they can be done to ensure accurate perform

ance of your saw.

Loosen the guard-clamp screw and remove the guard

assembly.

Place the arbor wrench on the shaft nut and the shaft

wrench on the hex portion of motor shaft just inside

the saw blade.

Hold the shaft wrench and rotate the arbor wrench

downward to loosen the shaft nut. The motor shaft

has left-hand threads.

e. Remove shaft nut, outer collar, saw blade, and inner

collar.

f. Place the saw blade, nut, collars, and guard assembty

where they will be out of your way during the

following adjustment steps.

Figure 6

1. Removing the Guard and Saw Blade (Figures 4, 5 and 6)

a, Tight_:n the carriage lock knob.

b, Disconnect the too!-tight cord.

2. Adjusting the Table Supports Parallel to the Radial Arm

(Figures 7 through 10)

IMPORTANT: Precise adjustment of the table

supports is necessary to assure consistently

true sawing operations. If the table supports-

and the table - are not precisely squared with

the saw-blade travel in all operating positions,

the blade may not produce clean, uniform

cuts.

Loosen the bevel lock knob and hold the latch-pin

handle up

Swivel the motor counterclockwise until the saw end

of the shaft is pointing straight down Tighten the

lock knob.

assembly and adjustments

LATCH-PIN

HANDLE

Figure 10

Figure 7

ARM-LATCH HANDLE

Figure 8

Figure 9

MOUNTING SCREW

-FRONT MOUNTING SCREW

L-H TABLE SUPPORT

Loosen both the arm latch handle and the carriage

lock knob so that the radial arm is free to swing right

or left as desired, and the carriage rolls freely on the

arm.

Loosen the two 5/16-inch hex-head screws that

secure the left-hand table support. Loosen them just

enough for the support to move up or down when

tapped with a rubber mallet. Tap the support to

position it with its top surface approximately 1/16-

inch above the top surface of the adjoining saw base.

Position the radial arm, and also position the carriage

on the arm, to place the bottom end of the motor

shaft directly above the rear, left-hand, table support

attaching screw.

Lay the handle end of the arbor wrench on the

mounting support and, while holding the wrench flat

on the support, carefully rotate the elevation crank

to lower the motor until the motor shaft end just

touches the wrench surface. You should be able to

slide the wrench back and forth with only slight

resistance.

IMPORTANT: The radial-arm elevation setting

must remain the same throughout the remain-

der of this table-supports adjusting procedure.

Do qot change the setting until you have

satisfactorily completed the adjustment of

both table mounting supports.

Repeat the above with the motor-shaft end no_

directly above the front, left-hand, table-mountim

support attaching screw.

Tap the front end of the table support, if necessar3

to move it up or down until the motor shaft end ju,,

touches the arbor wrench in the same manner as i

step "f", preceding.

Repeat steps "e" through "h" to make certain tha

the arbor wrench fits between the motor-shaft en(

and the mounting channel in an identical manner a

the rear and at the front.

j. Tighten the two 5/16 inch hex-head screws.

U-CLIP

BASECROSS-MEMBER Figure 1/

k. Adjust the right-hand table support in exactly the

same manner, without altering the radial-arm eleva-

tion setting.

Loosen the bevel lock knob and, while holding the

bevel latch-pin handle up, rotate the motor to a

horizontal position - then release the latch-pin

handle so that the pin bottoms in its detent, and

tighten the lock knob.

m. Move the radial arm to 0 ° (center) position and lock

it by tightening the arm-latch handle.

3. Installing the Front Table (Figures 11 through 15)

P_ace the front table (largest) board upside down on

a workbench or the floor. It is upside down when the

face in which the screw holes are counterbored is at

bottom. Note that there are two holes near the

center of the board, one smaller in diameter than the

other. Drive the T-nut (furnished with loose parts)

into the smaller of these two center holes.

Turn the front table top side up and place it on the

table supports, locating it so that the six screw holes

near the board sides are aligned with their corre-

sponding holes in the two supports.

C. In each of the six boles located above the table

supports, place one 17/64-inch flat washer and one

1i4-20xl-inch pan-head machine screw. In the larger

of the two center holes place one 17!64-inch flat

washer and one 1/4-20xl 1!4-inch pan-head machine

screw - and start the screw into the U-nut on the

front of the saw base (but do not tighten it). In the

smaller center hole {with the T-nut underneath),

barely start the cup-point set-screw.

Install one 1!4-inch Iockwasher and one 1/4 20 hex

nut on each of the six screws in the table supports,

and tighten slightly. The board should be snug

against the supports, but not held too tightly to be

moved by tapping it firmly with a rubber mallet.

Figure 12

A CROSS_SECTIONA L

VIEW THROUGH

CENTER OF T-NUT

1t4 20x 1" PAN-HD. SCREW

FF17/64" FLAT WASHER

FRONT _ _, [----;/4t_i2Cx ,1 1/4"' PAN lid

TABLE [/ "_i v, , I

1/4-LOCK °

1/4-20 I ,__

HEX NUT _ _" Figure 73

NOTE: Setscrew is shown as it will

be when tightened. For step 3c it

must not touch the saw base.

CUP-POI NT SETSCREW_

Figure 14 FRONTTABLE_______

REAR TABLE BOAR Figure 15

FRONT TABLE

e. Move the carriage to its extreme rear position, and

tighten the carriage lock knob.

f. Lay the rear table board on edge across the front

table to serve as a straightedge. Sight under this

straightedge to determine whether the front table

board is high or low at its center.

g. If the front table is high at center, first tighten the

center (1/4-20x1-1/4-inch) hold-down screw until the

table is level - then tighten the leveling screw until

this screw is snug If table is low at center, hrst

tighten the leveling screw until the table is level -

then tighten the hold down screw.

assembly and adjustments

4. Squaring the Crosscut Travel (Figures 16 through 23)

a. Loosen the carriage lock knob, move the carriage to

the approximate center of the radial arm, then

retighten the lock knob.

b. Install the saw blade, as follows:

(1) Place on the motor shaft, in this order: 1) One of

the two blade collars, flat face out; 2) The blade,

with the teeth pointing in a clockwise direction

when you are facing saw-blade end of motor; 3)

The remaining blade collar, flat face against

blade; and 4) The shaft nut.

(2) Tighten the shaft nut as shown in Figure 17.

c. Loosen the arm-latch handle 1/4 turn (counterclock-

wisel, and make sure the yoke clamp handle and the

bevel lock knob are tight.

SAW BLADE_,_,_,_,_,_ Figure 16

OUTER __

COLLAB/_ MOTOR

SHAFT L.

NUT _ INNERCOLLAR

•-1

Figure 17

ARM LATCH LEVER

ARM LATCH

HANDLE

YOKE

HANDLE

BEVEL LOCK

KNOB

Figure 18

Figure 19

Figure 20

CAUTION: WHENEVER YOU MOVE THE RADIAL

ARM BEYOND 45°LEFT OR RIGHT ALWAYS

EITHER PULL THE ARM-LATCH LEVER OUT, OR

COMPLETELY LOOSEN THE ARM-LATCH

HANDLE BY ROTATING IT COUNTERCLOCK-

WISE AS FAR AS POSSIBLE. THE ARM LOCK PIN

MUST BE RETRACTED WHENEVER THE ARM IS

ROTATED PAST 45 °LEFT OR RIGHT, OR THE

PIN WILL BE DAMAGED, REFER TO "PRECISION

INDEXING" IN THE "OPERATING CONTROLS"

SECTION FOR THE CORRECT PROCEDURE TO

FOLLOW WHEN ROTATING AND INDEXING THE

RADIAL ARM.

Hold the arm-latch lever out and move the radial arm

approximately 10 ° to the right. Release the arm-

latch lever and move the arm slowly to the left until

it indexes at the 0 ° position. Do not bump or iar

the arm. Tap the arm latch solidly with the palm of

your hand to seat the arm lock pin firmly.

Retighten the armdatch handle, !oosen the carriage

lock knob, and position the carriage to the rear of

the front table. By turning the elevation crank

counterclockwise, lower the blade until it just clears

the front table.

Place a framing square on the front table with its

short leg against the rear edge of the table and the

long leg lust contacting a tooth of the blade. Mark

this tooth ("A'" in the illustration) with a pencil,

MITER

SCALE

ATTACHING

SCREWS 0o

MARK

Figure 21 Figure 22

MITER

SCALE it'q[

MITER SCALE

INDICATOR

Figure 23

g. Now slowly move the carriage outward along the

radial arm. The tooth you have marked should just

touch the long leg of the square at all points. If it

does not, make the following adjustments:

(1) If your marked tooth moves into the square as

the carriage is moved outward, tap the left-front

edge of the table with a rubber mallet until you

can perform step "g" correctly.

(2) If the tooth movesawav from the square, tap the

right-front table edge to make the correction

(3) Recheck until you can perform step "'g" correct-

ly, then securely tighten all six of the front table

hold-down screws. Also refer to page 20, steps

'q" and "j" of Trouble Shooting Section.

h. Loosen the two miter-scale attaching screws and

rotate the scale to align its 0 ° mark with the

miter-scale indicator. Tighten the screws.

NOTE: This squaring of the crosscut travel will

simultaneously set both of the 45 ° index

positions of the radial arm.

5. Installing the Remaining Table Boards (Figure 24)

a. Position the rip fence, spacer board and rear table

board behind the front table board, as shown.

b. Install the two table clamps in the slots provided for

them at the rear of the saw base, and tighten them

securely.

NOTE: The life of your saw table will be

lengthened considerably if you will cover the

front table with a fitted piece of 1/4-inch

plywood. This should be tacked in place for

easy replacement. Use of such a cover will

allow, you to do all cutting into the cover,

rathe_ than your table top.

6. Setting the Bevel-Index Indicator (Figure 25)

a The bevel index indicator should read 0 ° on the

TABLE CLAMP

FRONTTABLE

REAR TABLE

SPACER

RIP FENCE Figure 24

__ Figure 25

_'_ k _ BEVEL INDEX

[ 0 OS,T,ON

\ tL )))Y7"----BEVEL'N°'cAT°R

BEVEL LOCK KNOB

bevel-index scale when the motor is locked (bevel

lock knob tightened) into position with the saw

blade vertical.

b. If necessary, loosen the indicator attaching screw,

adjust the indicator to theO °reading,then retighten

the attaching screw.

assembly and adjustments

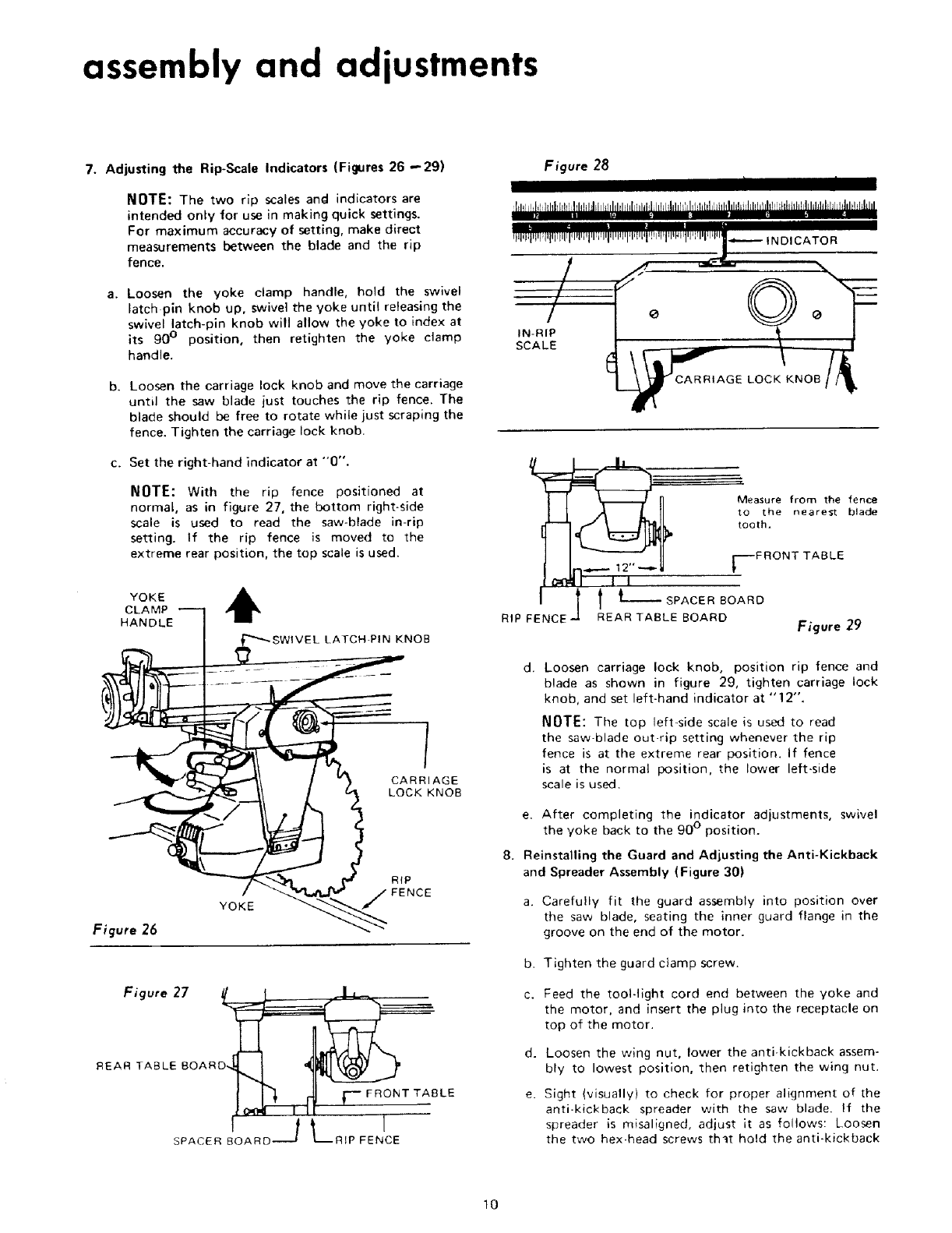

7. Adjusting the Rip-Scale Indicators (Figures 26 --29)

NOTE: The two rip scales and indicators are

intended only for use in making quick settings.

For maximum accuracy of setting, make direct

measurements between the blade and the rip

fence.

a, Loosen the yoke clamp handle, hold the swivel

latch pin knob up, swivel the yoke until releasing the

swivel latch-pin knob will allow the yoke to index at

its 90 ° position, then retighten the yoke clamp

handle.

b. Loosen the carriage lock knob and move the carriage

until the saw blade just touches the rip fence. The

blade should be free to rotate while just scraping the

fence. Tighten the carriage lock knob.

c. Set the right-hand indicator at "0".

NOTE: With the rip fence positioned at

normal, as in figure 27, the bottom right-side

scale is used to read the saw-blade in-rip

setting. If the rip fence is moved to the

extreme rear position, the top scale is used.

YOKE

CLAMP

HANDLE

;WIVEL LATCH-PIN KNOB

CARRIAGE

LOCK KNOB

Figure 26

YOKE

RIP

FENCE

Figure 27 _ _-_

REAR TABLE BOARD- I _"

_NT TABLE

FENCE

Figure 28

INDICATOR

IN-RIP

SCALE

CARRIAGE LOCK KNOB

_ _1 _

RIP FENCE J

Measure from the fence

to the nearest blade

tooth.

F--'FRONT TABLE

l _-_ SPACER BOARD

REAR TABLE BOARD Figure 29

d. Loosen carriage lock knob, position rip fence and

blade as shown in figure 29, tighten carriage lock

knob, and set left-hand indicator at "'12"'.

NOTE: The top left-side scale is used to read

the saw-blade out-rip setting whenever the rip

fence is at the extreme rear position. If fence

is at the normal position, the lower left-side

scale is used.

e. After completing the indicator adjustments, swivel

the yoke back to the 90 ° position.

8. Reinstalling the Guard and Adjusting the Anti-Kickback

and Spreader Assembly (Figure 30)

a. Carefully fit the guard assembly into position over

the saw blade, seating the inner guard flange in the

groove on the end of the motor.

b. Tighten the guard clamp screw.

c. Feed the tool-light cord end between the yoke and

the motor, and insert the plug into the receptacle on

top of the motor.

Loosen the wing nut, lower the anti-kickback assem-

bly to lowest position, then retighten the wing nut.

Sight (visually) to check for proper alignment of the

anti-kickback spreader with the saw blade. If the

spreader is misaligned, adjust it as follows: Loosen

the two hex-head screws th3t hold the anti-kickback

electrical connections

mounting bracket, shift the spreader into alignment

with the saw blade, then retighten the two screws to

hold the bracket securely. Check to make sure the

spreader is aligned throughout its travel.

NOTE: Periodically check, and maintain sharp

tips on the anti-kickback pawls.

IMPORTANT: If you experience any diffi-

culty in obtaining trouble-free sawing opera-

tions, refer to the trouble-shooting section in

this manual.

9. Preparing Rear Table for Shaping (Figure 30)

For us_ of a Molding Head Cutter (page 17) the rear

table ruquires an opening for clearance of the motor

end Ct]t this opening as shown in figure 30 inset.

POWER SUPPLY AND

MOTOR CONNECTIONS

1. Motor Specifications

The A-C motor used in this saw is a capacitor-start,

non-reversible type having the following specifications:

Horsepower .............. 2.50 (developed) @120V.

2.50 (developed) @ 240V.

Voltage ........................ 120/240

Amperes ......................... 11/5.5

Hertz (_ycies) ........................ 60

Phase .......................... Single

RPM ............................ 3450

Rotation as viewed

from saw-blade end ................ Clockwise

CAUTION: YOUR SAW IS WIRED FOR 120V

OPERATION. CONNECT TO A 120V, 15-AMP.

BRANCH CIRCUIT AND USE A 15-AMP., TIME-

DELAY FUSE OR CIRCUIT BREAKER. IF THE

MOTOR IS RECOMMENDED FOR 240V OPERA-

TION, CONNECT TO A 15-AMP, BRANCH CIRCUIT

AND USE A 1B-AMP. TIME-DELAY FUSE OR CIR

CUlT BREAKER.

ELECTRICAL CONN ECTIONS

WARNING: CHANGES IN ELECTRICAL

CONNECTIONS SHOULD BE MADE BY A

QUALIFIED ELECTRICIAN.

1, Changing Motor Connections

a. Unde_ normal home workshop usage, and if proper

(full voltage is supplied to the motor, your saw will

operate efficiently on 120V, as connected at the

factory. However, if any of the following conditions

exists, it wi!l be advisable for you to reconnect the

motor for 24OV operation - to obtain the efficiency

and I)erformance for which your saw is designed:

(1) Continuous heavy-duty operations.

GUARD CLAMP

SCREW

TOOL-LIGHT- Figure 30

CORD RECEPTACLE

EYE

ANTI-KICKBACK

MOUNTING

BRACKET

ANTI-KI CKBACK

ASSEMBLY

WING NUT

FOR

SHAPING

3"---d, I

(2) Either an undersized or an overloaded branch

circuit serving the saw motor.

(3) Low voltage supplied by the power source,

which the power company cannot correct.

Motor wiring connections for 120V (as made at the

factory) are described below. Necessary reconnec-

tions for 240V operation are also described follow-

ing. Whenever changing connections from 120V to

240V or vice-versa, make certain that a!l necessary

steps (including proper fusing of the branch circuit)

are completed.

2. Connections for 120V A.C. (Figure 31)

a. Remove nameplate cover from motor to expose

terminal board.

b. The wires inside of the motor must be connected as

follows:

(1) The orange-colored wire on number 6 terminal.

(2) The brown-colored wire on number 5 terminal.

c. Use the 120V power-cord plug furnished with your

saw.

FOR USE ON I?_OV!24-OV Figure31

_ROWN LEAD ON 5 7

BROW ORANGE

electrical connections

3. Connections for 240V A.C. (Figure 32)

a. The wires inside the motor terminal box must be

connected as fo!lows:

(1) The orange-colored wire on number 8terminal.

(21 The brown-colored wire on number 7 terminal.

b. Replace the 120V power-cord plug with a(3-blade)

240V plug, connecting the power-cord white and

black leads, respectively, to the two "hot" plug

blades - and connecting the power-cord grounding

wire to the third (neutral) plug blade.

c. Plug your saw into a 240V, 3-blade receptacle.

d. Make certain the receptacle is connected to a 240V

A-C power supply through a 240V branch circuit

having at least a 15-amp. capacity, and protected by

a 15 amp. time-delay fuse or circuit breaker.

Figure 32

As soon as the red button will snap into running

position, the saw may be started and operated normally,

by pulling out the saw switch to the "'ON" position.

Frequent opening of fuses or circuit breakers may result

if motor is overloaded, or if the motor circuit is fused

different!y from recommended. Overloading can occur if

you feed too rapidly or if your saw is misaligned so that

the blade heels. Do not use afuse of greater capacity

without consulting the power company.

Although the motor is designed for operation on the

voltage and frequency specified on motor nameplate,

normal loads will be handled safely on voltages not more

than 10% above or below the nameplate voltage. Heavy

loads, however, require that voltage at motor terminals

equals the voltage specified on nameplate.

Most motor troubles may be traced to loose or incorrect

connections, overloading, reduced input voltage Isuch as

small size wires in the supply circuit) or to an

overlylong supply circuit. Always check the connec-

tions, the load and the supply circuit, whenever the

motor fails to perform satisfactorily. Check wire sizes

and lengths with the table following.

FOR U3E ON I?-0V 240V

ORANGE LEAD ON 6 _t_

I_ROWN LEAD ON ,5 7

12345

BROW ORANGE

MOTOR SAFETY PROTECTION

NOTE: This motor should be blown out, or

"vacuumed", frequently to prevent sawdust

interference with normal motor ventilation.

Your saw motor is equipped with a manual-reset, thermal-

overload protector designed to open the power-line circuit

when the motor temperature exceeds a safe value (figure

33).

1. If the protector opens the line and stops the saw motor,

immediately press the saw switch to the "OFF" posi-

tion, and allow the motor to cool.

2. After cooling to a safe operating temperature, the

overload protector can be closed manually by pushing in

the red button on the top of the motor. If the red

button will not snap into place immediately, the motor

is still too hot and must be allowed to cool for a while

longer. (An audible click will indicate protector is

closed.)

_ ---4" \-_

,. I I_.j-T---

.L...._r

OVERLOAD PROT_ MOTOR

NAMEPLATE

Figure 33

WIRE SIZES

Length of the

Conductor

50 feet or less

100 feet or less

100 feet to 150 feet

150 feet to 200 feet

200 feet to 400 feet

The following table lists recommended wire sizes for

connecting the motor to the power source. These sizes

should be maintained for trouble-free operation of the saw.

If an extension cord is used, it should be a 120V or 240V,

3-wire type designed for ]rounding the tool.

Wire Size Required

(American Wire Gauge Number)

240 Volt Lines 120 Volt Lines

_114 NO. 12-

No. 12 No. 10

No. 10 No. 8

No. 8, No 6

No. 6 i No. 4

NOTE: For circuits of greater length, the wire

size must be increased proportionately in order

to deliver ample voltage to the saw motor.

U_,_t;_l Lt i ili_ LUlilIUI_

LOCATIONS AND FUNCTIONS OF CONTROLS

1. Arm-Latch Lever

2, Swivel Latch-Pin Knob

3. Rip Scale and Indicator

4. Miter Scale and Indicator

5. Carriage Lock Knob

6. Yoke Clamp Handle

7. Key

8. Latch-Pin Handle

9, Bevel-lnde× Scale

and Indicator

Figure 34

10. Elevation Crank

11, Bevel Lock Knob

12. Anti-Kickback and

Spreader Assembly

13. Guard Clamp Screw

14. Bevel Index Handle

15. On-Off Switch

16. Sawdust Chute

1"7. Sawdust-Chute Lock Knob

18. Arm-Latch Handle (Knob)

yo_J! _T

€

A series of six diagrams is located on the top surface of the

radial arm. These designate the controls that must be used

in basic set-ups and operating procedures. You should

become familiar with these diagrams and the operating

instructions that follow, before operating your saw.

1. Depth of Cut

a. The diagram shows the elevation crank (10, figure

34), which is used to raise and lower the saw blade.

b. Clockwise rotation raises the blade.., counter-

clockwise rotation lowers it. One complete turn of

the handle will raise or lower the saw blade 1/8-inch.

2. Angle of Cut

CAUTION: WHEN MOVING THE RADIAL ARM IN

ANY DIRECTION BEYOND 45 ° (LEFT OR RIGHT_,

ALWAYS PULL OUT THE ARM-LATCH LEVER (1,

FIGURE 34). OR LOOSEN THE LEVER BY RO-

TATING THE ARM-LATCH HANDLE (18}

COUNTERCLOCKWISE UNTIL IT STOPS, TO PRE-

VENT DAMAGING THE ARM-LOCK PIN, DAMAGE

OF THIS NATURE WOULD PREVENT PROPER IN-

DEXING OF THE RADIAL ARM AT THE 0 ° AND

45 ° POSITIONS (LEFT OR RIGHT}.

a. Two controls are involved in releasing, securing and

indexing the angle of the radial arm. These are: the

arm-latch handle (18, figure 34), and the arm-latch

lever (1).

WARNING: THE SAW SHOULD NEVER BE

OPERATED WITH THE SAW BLADE OUT-

SIDE OF THE TABLE AREA, EVEN

THOUGH THE RADIAL ARM CAN BE RO-

TATED A FULL 360 ° AND LOCKED IN ANY

POSITION.

b. The arm is unlocked from any position by a slight

counterclockwise rotation of the armlatch handle

and is locked in any desired miter position by

rotating the arm-latch handle clockwise until tight.

O O

The radial arm has positive stops at 0 and 45 left

and right, and is released from these index positions

by unlocking the arm-latch handle 1/4 turn, and

pulling out the arm-latch lever.

For the most positive and accurate settings at the

index positions, the following is recommended:

operating controls

(1) If the radial arm is already indexed, rotate the

arm-latch handle ( 18, figure 34) 1!4turn counter-

clockwise from the locked position, pull out the

arm-latch lever, and move the radial arm off the

index position_ Release the arm-latch lever.

(2) Move the radial arm into the desired index

position (do not bump or jar it) and push on the

arm-latch lever solidly with the palm of your

hand (figure 34 inset). This is very important as

it ensures proper seating of the arm lock pin in

the arm latch, thus always setting the arm at the

correct position.

(3) Lock the radial arm by rotating the arm-latch

handle clockwise until tight.

3. Yoke Pivot

a. Two controls are used in this operation. They ate:

the swivel latch-pin knob (2, figure 34) and the yoke

clamp handle (6, figure 34).

b. A swivel latch pin automatically indexes the yoke at

each 90 ° position. Lift the spring-loaded swivel

latch-pin knob to release this pin.

e. The yoke clamp handle locks the yoke to the carriage

in any position. Pull the handle forward to release

the yoke; push the handle rearward to secure the

yoke.

4. Carriage Lock

a. The carriage lock knob (5, figure 34) is rotated

clockwise to secure the carriage on the radial arm,

and counterclockwise to release it.

b. When performing a square or miter-angle crosscut,

the carriage lock knob must be rotated counterclock-

wise until the carriage is free to travel along the arm.

This knob should be tightened except when the

operator is ready to grasp the bevel index handle (14,

figure 34) and rnake a cut.

5. Blade Angle

a. The two controls used in angular positioning and

indexing of the motor, to provide the desired

saw blade (bevel) angle, are: the bevel lock knob (t 1,

figL_re 34) and the latch pin handle (8, figure 34).

b. The bevel-index scale (9, figure 34) indicates the

angular position of the motor with respect to

horizontal, from 0 ° to 90 ° in either vertical position.

c. The bevel latch pin automatically indexes the motor

at 0°, 45 ° and 90 ° up and down. Lift the spring

loaded latch-pin handle to release this pin. At any

other position, the latch pin does not engage.

d. The bevel lock knob locks the motor to the yoke

when the motor is in any position. Rotate the knob

cloekwise to lock, counterclockwise to unlock.

6. Power Switch and Key

a. This saw cannot be operated without the key, and

the key cannot be removed from the lock while the

saw motor is running.

b, To release the switch lever (15, figure 34) insert the

key (7, figure 34) in the slot and turn it counter-

clockwise until it stops. Rotate the key clockwise

to lock the switch.

c. To start the saw, engage your forefinger under the

left side of the switch lever and pull the lever

outward.

d lo stop the saw, simply push the switch lever with

finger or thumb.

WARNING: When leaving the saw unattended,

lock the ON-OFF switch and remove the key.

POSITIONING SAWDUST CHUTE, AND

ANTI-KICKBACK AND SPREADER

ASSEMBLY, FOR RIPPING

WARNING: NEVER POSITION THE GUARD

CHUTE OR ANTI-KICKBACK ASSEMBLY

WITH THE POWER ON. NEVER POSITION

THE ANTI-KICKBACK PAWLS BY GRASP-

ING THE PAWLS OR SPREADER.

For all crosscutting operations (those operations in which

the carriage is traveled along the radial arm to feed the saw

blade into the workpiece) both the sawdust chute (16,

figure 34) and the anti-kickback and spreader assembly (12,

figure 34) must be elevated to clear theworkpiece or the

fence, whichever is higher.

1. The Anti-Kickback and Spreader Assembly

The anti-kickback and spreader assembly (12, figure

34) is used during ripping operations and is adjust-

able to accommodate the thickness of the board

being ripped. A wing nut in the guard secures the

assembly.

The anti-kickback and spreader assembly is posi-

tioned by grasping the top of the light housing

assembly (23, figure 3 on p. 30), I9osening the wing

nut, and raising or lowering the assembly until the

anti-kickback pawl point nearest the saw blade rests

on the top surface of the workpiece, with the bottom

edge of the pawls angled slightly downhill to the top

surface of the workpiece. (See figure 35.) Before

making the cut, check the effectiveness of the

anti-kickback pawls by placing the workpiece under

Figure 35

WORK

_I KICKBACK

basic saw operations

the pawls and attempting to slide it in the direction

of kickback. If the pawls do not catch, further

adjustment is necessary.

When positioning the anti-kickback and spreader

assembly for bevel ripping, lower the assembly until

the Iocknut just clears the workpiece. If the pawls do

not catch, further adjustment is necessary.

Before repositioning the yoke to the crosscut posi-

tion, false the anti-kickback assembly to the upper

limit and secure.

The tips of the anti-kickback pawls should be

checked occasionally and kept sharp.

2. The Sawdust Chute

a. The sawdust chute (16, figure 34) is used to help

prope! sawdust from the cut and provide a hold-

down for boards during ripping.

b The sawdust chute is positioned by grasping the

upper tab et lower end of chute, loosening the knob

(17, figure 34) and raising or lowering it to just clear

the top surface of the board being ripl_ed_'T-_ght_'_n_

the knob secures the chute.

c. Before repositionlng the yoke to the crosscut posi-

tion, raise the chute to the upper limit and secure.

IMPORTANT: In ripping operations the work-

piece is always fed from the sawdust chute side,

never from the anti-kickback side of the guard.

(See figures 41 and 42.)

PRECISION INDEXING

Experienced operators of precision equipment, such as your

Craftsman Radial-Arm Saw, normally acquire the habit of

indexing the machine in one direction only, whenever a

new setting is made in preparation for a different operation.

For example: when moving the radial arm to a new

position, it is advisable to move it slightly past the desired

index position, then return it slowly and carefully to latch

and lock it. Figure 34 inset shows the radial arm being se-

curely indexed by "tapping" the arm latch lever with the

palm of the hand. Swivel indexing and bevel indexing can

be accomplished in a similar manner This indexing tech-

nique tends to neutralize any stresses imposed upon the saw

components, and contributes to the high degree of accuracy

the saw is capable of producing when operated expertly.

BASIC SAW OPERATIONS

REQUIREMENTS FOR CROSSCUT

(OPERATIONS 1THROUGH 4)

1. Be sure you return the carriage to the full rearward posi-

tion at the conclusion of each cut. Never remove your

hand from the bevel index handle unless the carriage is

in this position. Allow the saw blade to come to a com-

plete stop before removing the workpiece from the saw

table.

2. Arbor nut must be tight and saw blade guard installed in

a horizontal position with anti-kickback device in full up

position.

3. Arm latch handle (knob) must be tight.

4. Work must be held firmly against table and fence. For

workpieces thicker than the fence is high, it is recom-

mended that a higher fence be cut (at least workpiece

thickness) and inserted for that operation being per-

formed. Always place the fence in the most forward

position (farthest from the column support) compatible

with the workpiece being processed and the operation

being performed. With the carriage fully retracted, the

blade should not contact the workpiece when placed

against the fence, within the stated capacities of your

saw.

5. Blade should be sharp and correctly set.

6. Hands must be kept well away from saw blade.

7. Yoke clamp handle must be in locked position.

8. Bevel index knob must be tight.

9. For operations No. 3 and No. 4, observe additional in

struetions under paragraph, "Operating Controls",

"Blade A_gle".

BEVEL

LOCK KNOB

CARRIAGE LOCK KNOB

YOKE CLAMP

HANDLE

Figure 36

OPERATION NO. 1 -- CROSSCUT

Crosscutting is the process of sawing the workpiece by pull-

ing the saw blade through it and using the fence as a sup-

port for the edge of the workpiece. Never crosscut free-

hand.

WARNING: BEFORE CROSSCUTTING, MAKE

SURE THE ARM LATCH, BEVEL LOCK AND

YOKE CLAMP ARE ALL SECURED, NEVER USE

ALENGTH STOP OR A FIXED GUIDE ON THE

FREE END OR EDGE OF AWORKPIECE. (SEE

INSTRUCTION 15 UNDER "'SAFETY INBTRUC-

TIONS TO OPERATOR".) DO NOT CROSSCUT

WORKPIECES THAT PLACE YOUR HANDS

CLOSE TO THE PATH OF THE SAW BLADE.

WHEN MORE EXPERIENCE IS GAINED BY

USING THE SAW, IT WILL BE NOTICED, THAT

WHEN PULLING THE SAW TOWARD YOU DUR-

ING CROSSCUTTING, THE BLADE TENDS TO

FEED ITSELF THROUGH THE WORK DUE TO

THE ROTATION OF THE BLADE AND THE

DIRECTION OF THE FEED. THEREFORE, THE

OPERATOR SHOULD DEVELOP THE HABIT OF

HOLDING HIS RIGHT ARM STRAIGHT FROM

THE SHOULDER TO THE WRIST.

basic saw operations

RADIAL ARM

RADIAL

ARM

CARRIAGE

Figure 37

ARM

Figure 38

OPERATION NO. 2 -- MITER CROSSCUT

Miter crosscutting is the process of sawing a board at any

angle other than a 90 ° (square) cut. (See figure 37.) The

45" miter angle is a popular one, since two boards cut at

45 ° can be assembled to form a 90 ° corner for producing a

square or rectangular frame. The radial arm is set to the

desired angle of cut, and the yoke and bevel settings are

indexed at 0 (and locked), as in square crosscutting. The

board being cut is held firmly against the fence, and the

carriage is pulled forward along the radial arrn to perform

the desired cut. As in "Operation No. 1", the carriage

should be returned to full rear position, and the saw blade

allowed to come to a complete stop, before removing the

workpiece from the saw table,

OPERATION NO. 3 -- BEVEL CROSSCUT

Bevel crosscutting is the process of sawing at 90 ° (square)

across the board with the saw blade set at an angle other

than 90 ° 1o the saw table (Bee figure 38.) The radial arm

and yoke are indexed at 0 ° and locked, but the bevel _sset

'co the de<,ired angle of cut. The board is held firmly against

the fence, and the carriage is pulled forward along the radial

arm to p_oduce the cut. The carriage should be _eturned to

RADIAL ARM

CARRIAGE

YOKE

Figure 40

full rearward position, and the saw blade allowed to come

to a complete stop, before removing the workpiece from

the saw table.

OPERATION NO. 4 -- COMPOUND

CROSSCUT

Compound crosscutting is a combination of miter and bevel

crosscutting. (See figure 39) The radial arm and bevel are

set to produce the desired cut; the yoke is indexed at 0 °

and locked. The board is held firmly against the fence, and

the carriage is pulled forward along the radial arm to

produce the cut. Again, the carriage should be returned to

full rearward position, and the saw blade allowed to come

to a complete stop, before removing the workpiece from

the saw table.

REQUIREMENTS FOR RIPPING

OPERATIONS 5 AND 6

1. Carriage lock knob must be tight.

2. Radial arm must'be locked in 0 ° position.

3. Saw blade must be parallel to fence, to minimize

possibility of kickbacks.

4. Work must be held firmly against table and fence while

feeding through.

5. Guard chute and anti-kickback pawls must be properly

set. Observe instructions under "ADJUSTING GUARD

CHUTE AND ANti-KICKBACK AND SPREADER

ASSEMBLY FOR RIPPING OPERATIONS", preceding.

YOKE

Figure 42

6. Blade should be sharp and correctly set.

7. Hands must be kept wellaway from saw blade.

8. When ripping narrow or short stock, always use a push

board.

OPERATION NO. 5 -- OUT-RIPPING

AND IN-RIPPING

1. Ripping is the process of sawing the workpiece by feed

ing it into the saw blade when using the fence as a guide

and as a positioning device to obtain the desired width

of cut.

WARNING: NEVER RIP FREE-HAND. BEFORE

RIPPING, MAKE SURE THE GUARD, SPREADER

AND ANTI-KICKBACK PAWLS ARE SET UP

PROPE R LY. ALSO, MAKE SURE THE SAW

BLADE IS PARALLEl WITH THE FENCE. NEVER

RIP WORKPIECES SHORTER THAN THE SAW

BLADE DIAMETER.

2. Since the work is pushed along the fence, it must have a

reasonably straight edge in order to make sliding contact

with the fence. Also, the work must make solid contact

with the table, so that it will not wobble. Provide a

straight edge, even if this means temporary nailing of an

auxiliary straight-edged board to the work. If the work-

piece is warped, turn the hollow side down,

3. Always use the saw guard and make sure the spreader is

correctly aligned with the saw kerr. Wood cut with the

grain tends to spring the kerr closed and bind the blade

and a kickback could occur.

4. Stand a little to one side of center to avoid being

sprayed with sawdust and to be clear of work in case of

kickback.

5. When ripping short or narrow work, always use a push

stick applied to the section of the workpiece between

the blade and fence . .. push the work past the blade so

it is clear of the blade. This procedure will minimize the

possibility of kickbacks.

Out-Ripping (See figure 41.1 The bevel is indexed and

locked at 0 °. The yoke is turned 90-degrees in a counter-

clockwise direction (viewed from above), from the crosscut

position. When you are standing in front of the saw, the

blade will rotate clockwise. Before positioning the guard

chute and anti kickback pawls, lower the blade to just cut

into the table. After positioning the guard chute and

anti-kickback pawls, the workpiece is fed from the chute

(left-hand) side of the guard, as shown. The "Out Rip"

scale is on the left-hand side of the radial arm,

OPERATION NO. 6 -- BEVEL RIPPING

Bevel ripping is either in-ripping or out-ripping as de_ribed

preceding, except the saw blade is tilted out of perpendicu-

lar to the saw table surface. Figure 42 shows a typical bevel

out-ripping operation. The bevel is set to the desired bevel

angle, and the yoke is positioned for in-ripping or out

ripping, as required. All requirements and observations

applicable to normal ripping operations also apply to bevel

ripping.

RECOMMENDED ACCESSORIES

ITEM CAT. NO. ITEM CAT. NO.

Cabinet ......................... 9 10315

Stand ........................... 9 1038

Bench .......................... 9-1071

Shaper Fence ..................... 9 2954

Hold-Down Attachment ............ 9 3230

Key Chuck ...................... 9 2980

Miter Vise ....................... 9 3279

Molding Head Guard - 7-Inch ...... 9-29524

Molding Head Guard - 8-Inch ........ 9-29523

Rotary Surface Planer - Carbide lip . 9 29513

Sanding Plate - 10-Inch ............ 9 22724

The above recommended accessories are

Sanding Wheel - 8Inch ............. 9 2274

Sanding Wheel - 10-Inch ........... 9 22723

Dust Collector .................... 9 16996

Taper Jig ....................... 9 3233

Satin Cut Dado - 7-Inch ............ 9-3257

Satin Cut Dado- 8-Inch ........... 9-3253

Heavy Duty Dado- 8Inch .......... 932473

Molding Head Single Cutter. ......... 9 3215

Molding Head Three Cutter .......... 9 3221

Sanding Drum -3-Inch ........... 9 25246

Lower Ring Guard ................. 9 29008

current and were available at the time this manual was printed

safety instructions to operator

1. Be sure to read the following instructions carefully

before operating the saw.

WARNING: DO NOT CONNECT POWER

CORD UNTIL THE FOLLOWING STEPS

HAVE BEEN SATISFACTORILY COM-

PLETED.

a. Assembly and installation.

b. Examination and operating familiarity with ON-

OFF switch, elevation control, bevel control, rip

control, and miter control.

c. Review and understanding of the operating proce-

dures which follow.

CAUTION: Always disconnect the power when

changing the sat-up, or making adjustments.

Shut off motor before performing layout work

on the saw table. ALWAYS return the carriage

to the full rear position after each crosscut Wpe

operation.

2. The saw should be bolted down.

3. Set carriage lock before moving machine.

4. Position your entire saw (or saw and bench) to slope

slightly rearward, so the carriage will not roll forward

due to gravity.

5. Kickbacks can cause serious injury. A kickback occurs

when a part of the workpiece binds on the saw blade

and the rip fence or other fixed object, rises from the

table, and is thrown toward the operator. Kickbacks

are usually caused by one or more of the following

conditions:

a. Failure to use a spreader when ripping, or failure to

maintain the spreader in alignment with the saw

blade.

b. Improperly conditioned (dull) saw that permits the

material to pinch on the out-feed edge of the saw

and rise from the table.

c, Failure to determine that the rip fence and the saw

blade are parallel to each other.

d. Ripping wood that has a twisted grain, does not

have a straight edge to guide along the fence, or

wood that is twisted or not fiat (which may rock on

the table and pinch the blade).

e. Confining the cut-off piece when ripping.

10.

11.

Ripping by applying the feed force to the section of

the workpiece that will become the cut-off (free)

piece (feed force when ripping should always be

applied between the saw blade and the fence.., use

apush stick for narrow or short work),

g. Releasing workpiece before operation is complete...

not pushing the workpiece all the way past the saw

blade.

NOTE: Injury from kickbacks may be pre-

vented or minimized by:

Avoiding any of the causes noted above...

Making sure (by trial) before starting the cut

that the anti-kickback pawls will stop the kick-

back once it has started...

Keeping your face and body always out of line

of possible kickbacks, including turning the

switch ON and OFF ...

Always wearing safety goggles...

Whenever possible, perform rip, bevel rip, and plough

cuts with the saw in the out-rip position. This provides

the most stable setup (carriage bearings nearest the

column) and the greatest visibility of the sawblade.

The saw should be positioned when ripping so neither

the operator nor a casual observer is forced to stand in

line with the saw blade.

Before starting work, verify that no play exists in the

carriage and that arm, yoke, and bevel locks/clamps are

tight.

Use only accessories that are designed for this machine.

The saw work area should have adequate overhead,

non-glare light and adequate surrounding work space.

A large proportion of saw accidents is caused by dull,

badly set, improperly filed cutting tools, by gum or

resin adhering to cutting tools, and by fence misalign-

ment (out-of-parallel) with the sawblade. Such condi-

tions cause the material to stick, jam, stall the saw, or

kick-back at the operator. Cracked saw blades should

be discarded immediately. A sawblade can become

cracked if it wobbles or if it is not in balance. Never

attempt to free a statled saw blade without turning the

saw "OFF". Avoid potential injury by proper cutting

tool and machine maintenance."

CAUTION: DO NOT cycle the motor switch

ON and OFF rapidly, as this might cause the

saw blade to loosen. In the event this should

ever occur, allow the saw blade to come to a

complete stop and re-tighten the arbor nut nor-

mally, not excessively.

12. Gloves should not be worn while operating the saw.

Loose flowing garments, jewelry (rings, wrist watches,

etc.} and neckties should never be worn. Long sleeves

should be rolled to above the elbows.

13. Always wear safety goggles to protect the eyes. In addi-

tion. wear a face shield if the operation is dusty, and

ear protectors (plugs or muffs) during extended periods

of operation.

14. Provide proper support for the workpiece, based on its

size and the type of operation to be performed. Hold

the work firmly against the fence. When ripping short

workpieces (under 12-inches long) or narrow pieces

(under 6-inches wide), use a push stick applied to the

section of the workpiece between the blade and the

fence.

15. Never use a length stop on the free end or edge of the

workpiece. Never hang onto or touch the free end of

workp*ece, or a free piece that is cut off, while power

is "ON" and!or the saw blade is rotating. In short, to

guard against kickbacks or other potential accidents,

the cut-off piece in any thro-sawing operation must

never be confined -- it must be allowed to move laterally.

16. Do not leave a long board unsupported so the spring of

the board causes it to shift on the table. A support

should be used to catch the end of the board you are

supporting.

17. Make sure your fingers do not contact the terminals of

power or motor plugs when installing or removing the

plug to or from a live power source.

18. Never climb on or near the saw when power is on.

Never leave the saw with power on, or before the cut-

ting tool has come to a complete stop. Lock the motor

switch and put away the key when leaving the saw.

19. Avoid awkward hand positions, where a sudden slip

could cause a hand to move into a saw blade or other

cutting tool. Never reach in back of or around the

cutting toot with either hand to hold down the work-

piece.

CAUTION: Never reposition the GUARD

CHUTE or anti-kickback/spreader with power

ON.

20. Always position the GUARD CHUTE and the anti-

kickback and spreader assembly for rip type opera-

tions. Also make sure the cutting tool, arbor collars

and arbor nuts are installed properly. Keep guards in

place; use the proper guard.

21.

22.

Do not use any blade or other cutting tool marked for

an operating speed in excess of the design speed of the

saw. Never use a cutting tool larger in diameter than

the diameter for which the saw was designed. For

greatest safety and efficiency when ripping, use the

maximum diameter blade for which the saw is de-

signed, since under these conditions the spreader is

nearest the blade.

The use of abrasive or cut-off wheels, or wire wheels

can be dangerous and is not recommended. (Abrasive

or cut-off wheels are used to saw many different ma-

terials including metals, stone, and glass.)

23, Do not position the arm so the operation you are per-

forming permits the cutting tool to extend beyond the

edges of th_e table.

24. Never turn your radial arm saw "ON" before clearing

the table or work surface of all objects (tools, scraps of

wood, etc.) except the workpiece and related feed or

support devices for the operation planned_

25.

26.

27.

Objects can be thrown upward toward the operator by

the back of the blade if proper operating procedures

are not followed. This usually occurs when a small,

loose piece of wood or other object contacts the rear

of the revolving blade. It can be avoided by removing

all loose pieces from the table immediately after they

are made, using a long stick, and keeping the guard in

place at all times. Use extra caution when the guard

assembly is removed for molding, and replace the guard

as soon as that operation has been completed.

Never perform any operation "free hand". This term

means feeding the carriage into the workpiece or feed-

ing the workpiece into the saw blade or other cutting

tool without using the fence or some other device

which prevents rotation or twisting of the workpiece

during the operation. Never "rip" (cut with the grain)

narrow or long workpieces in the crosscut position...

feeding saw blade into the stationary workpiece. Never

make a miter cut with the arm in the 90 ° crosscut

position.

Safety is a combination of operator common sense and

alertness at all times when the saw is being used.

WARNING: DO NOT ALLOW FAMILIARITY

(GAINED FROM FREQUENT USE OF YOUR

SAW} TO BECOME COMMONPLACE" AU

WAYS REMEMBER THAT A CARELESS

FRACTION OF ASECOND IS SUFFICIENT

TO INFLICT SEVERE INJURY.

trouble shooting

TROUBLE SHOOTING

Even though the finest materials and precision workman-

ship have been incorporated into your Craftsman saw, it is

reasonable to expect some wear after long periods Gf use.

Adjustment facilities have been built into the saw to

compensate for this wear. Looseness due to wear, rough

handling, or improper adjustments will usually be indicated

by reduced accuracy or the inability of the saw to perform

as intended. The usual operating troubles are listed in the

following paragraphs, with the necessary corrections

described and illustrated.

1. LOOSENESS OF COLUMN TUBE IN COLUMN SUP-

PORT -ELEVATION CRANK OPERATES ROUGH-

LY, OR CHATTERS WHEN ROTATED

When this condition exists, square crosscuts are likely to

be difficult to make, and repeated cuts inaccurate.

Adjust the column tube key as follows:

a. Checking for Looseness of Column Tube in Column

Support (Figure 43).

ARM

Figure 43

(1) Tighten the arm-latch handle

(2) Grasp the arm-latch handle with one hand and

hold a finger of the other hand at the parting line

between the column tube and column support.

(3) Apply gentle side force to the radial art]] in

opposing directions. Any !ooseness bet_Jeen

column and column support (indicated by arrow

in figure 43) can be felt with finger.

(4) If looseness can be felt, perform the following

Jperations:

NOTE: Before attempting to adjust the

column tube key, the function of this adjust-

ment should be understood. Figure 44 shows a

sectional view through the column tube sup-

port (looking downward} at the column tube

key location By loosening the left-hand set-

screw and tightening the right-hand setscrew

the column tube key will be forced tighter into

the column tube keyway. Conversely, loosen-

ing the right-hand setscrew and tightening the

left-hand setscrew wilt retract the column key

out of the column tube keyway. The setscrew

in the outer end of the column tube key must

be loosened while adjustment is being made,

and tightened with medium firmness after the

adjustment has been completed. This screw

applies pressure on the nylon friction plug, and

provides smoother elevation movement of the

column tube ... and should be tightened to

provide maximum smoothness of operation.

References to right- and left-hand positions are

as indicated in the illustration.

b. Adjusting Column Tube Key (Figure 44)

COLUMN

SUPPORT

COLUMN TUBE

FRICTION

PLUG

INylon)

RACK-UP

(Righ t-Hd.} PLUG (Steel)

CREW

(Left-Hd.)

Figure 44

(1) Loosen the setscrew located in the center of the

column tube key (figure 44).

(2) Loosen the left-hand setscrew 1/4 turn.

(3) Tighten the right-hand setscrew.

(4) Tighten the left-hand setscrew.

(5) Rotate the elevation crank to raise and lower the

radial arm. If too tight, loosen the right-hand

setscrew slightly, and check again for smooth

operation. When correct, tighten the left-hand

setscrew.

(6) Tighten the setscrew located in the center of the

column tube key until smoothest operation is

obtained.

2. BLADE DOES NOT MAKE SQUARE CUTS, AND

ACCURATE REPEAT CUTS CANNOT BE MADE

If this condition exists the trouble might be due to any

one, or a combination of, the following conditions:

a. Looseness Between Column Tube and Column Sup-

port.

Adjust as described in preceding paragraph "1", a

and b.

b. Crosscut Travel Not Properly Adjusted.

Refer to "ALIGNMENT INSTRUCTIONS", step "4.

Squaring the Crosscut Travel", preceding. If crosscut

travel cannot be adjusted as described, refer to

paragraph "i", following.

c. Table Supports Not Properly Adjusted.

Correct adjustment of table supports can be checked

with satisfactory accuracy, without removing the

table boards, by checking at the various positions on

trouble shooting

the top surface of the table, as described under

"ALIGNMENT INSTRUCTIONS", step "2. Adjust-

ing the Table Supports Parallel to the Radial Arm".

d. Saw Blade Not Square With Table.

Adjust as described in paragraph "j", following.

e. Bearings Loose on Tracks.

Adjust carriage bearings as described in paragraph

"k", following.

f. Yoke Does Not Index Properly.

Check for proper yoke indexing by noting whether

the swivel latch pin fits into its detents properly. If

swivei latch-pin housing screws (located under left-

hand carriage cover) are loose, readjust blade for heel

as described in "3. Blade Heels to the Right or Left",

following.

g. Yoke Clamp Does Not Tighten the Yoke When in

Full Rearward Position.

Refe( to paragraph "1", following.

h. Improper Indexing of Radial Arm for Miter Cuts.

Refer to paragraph "Precision Indexing", in the

Operating Controls section.

i. Adjusting the Arm Latch to Correct Crosscut Travel

Maladjustment (Figures 45 and 46).

In some remote cases, due to rough handling, etc.,

the crosscut travel cannot be squared by the usual

method. (Refer to step "4. Squaring the Crosscut

Trave " under "ALIGNMENT INSTRUCTIONS".) If

this condition is encountered, it will be necessary to

adjust the arm latch as follows :

_/ INDICATOR ATTACH. SCREW

I t_ -,m------- INDICATOR HEX-HEAD SCREWS

_RAD.-ARM-CAP -- !

ATTACH. SCREW

LOCKWASHER _ }NCOL.

CAP TUBE

Figure 45

(1) Remove the indicator attaching screw and

radial-arm indicator. (See figure 45.)

(2) Remove two 1!4-28xl-inch screws to free the

radial-arm cap, and lift out the cap.

(3) Rotate the arm-latch handle (figure 46)one

quarter turn counterclockwise, but do not pull

the lever out.

(4)

(5}

Loosen (do not remove} two 3/8-16x3/4-inch

hex-head screws (figure 45) located inside the

column tube.

Move radial arm stight!y in the proper direction

t(_ make a saw tooth (A, figure 46) follow the

edge of a square, when the carriage is traveled

b_ck and forth along the radial arm.

RIP

FENCE

ARM-LATCH

HANDLE

SQUARE Figure 46

(6) Retighten the hex.head screws inside of the

radial arm, then tighten the arm-latch handle.

(7) Recheck travel of blade tooth A with the square

(figure 46), to make sure that tightening the

screws did not affect the adjustment.

(8) After the crosscut has been accurately squared,

reinstall the radial-arm cap with the two

1/4-28xl-inch screws and 1/4-inch Iockwashers.

Reinstall the radial-arm indicator with its attach-

ing screw tight.

(9) Set the radial-arm scale to 0 °, and tighten the

attaching screws securely.

j. Squaring the Saw Blade to the Table (Figs. 47, 48).

(1) Remove the guard.

(2) Place a framing square on the table with the

short leg against the saw blade as shown in figure

47. Do not allow the square to rest against a

"set-out" tooth; it must rest flat against the

blade side.

RIP

FENCE

BEVEL

"LOCK

KNOB

SQUAR Figure 47

(3) If the saw blade is square with tile table top, the

square will contact the blade at the points shown

by arrows in figure 47. If the square does not

touch the saw blade as shown (with square leg

held firm against the table top), perform the

following adjustments:

(a) Remove (by unscrewing) the bevel lock knob

(figure 47) to fully expose the four socket

head screws behind it.

F,gu,o,8!

SOCKET HD

SCREW

(4 Tolal)

_ BEVEL

INDEX

SCALE

)) BEVEL

INDICATOR

LOCK KNOB

(b) Using a 1/4-inch hex-L wrench, slightly

loosen the four socket-head screws (figure

48L

with the table top as shown in figure 47.

Then, while holding the square firmly

against the saw blade and table top, apply

moderate force against the lower part of the

saw blade with your thumb, until approxi-

mately 1/32 inch clearance exists between

the square and the lower edge of the blade.

This is to compensate for the possible slight

shifting of the motor while the socket-head

screws are being tightened.

(d) Tighten the four socket-head screws and

replace the bevel lock knob (figure 48). It

may be necessary to perform several trial

operations before the saw blade remains

perfectly square with the table, after tighten

ing the four screws.

(4) After completing this adjustment, set the bevel

indicator to zero.

k, Adjusting Carriage Bearings (Figs. 49 through 52).

To test for looseness between the carriage bearings

and the tracks on the radial arm, lock the yoke-clamp

handle (figure 49), grasp the motor and carriage

assembly firmly with both hands, and apply a firm

rocking motion. If looseness exists, perform the

following steps :

NOTE: Adjustment is made on lefr-hand side, onlyo

(1) Remove left-hand carriage cover (figure 50).

(2) Loosen the two nuts (figure 51) just enough to

permit the two eccentric screws to turn. (See

figure 52.)

(3) Rotate one of the eccentric screws a partial turn

(left or right) as required to take up looseness,

Hold the head of the eccentric screw (figure 51)

m the position established by this method and

t_ghten the nut. Repeat this procedure for the

other eccentric screw. Correct adjustment exists

.vhen there is no play between the carriage and

the radial arm tracks, but the carriage moves

',0ack and forth freely.

(4) Reinstall the left-hand carriage cover (figure 50).

YOKE CLAMP

HANDLE

MOTOR AND CARRIAGE

ASSEMBLY

Fiqure 49

LEET_HD,

CARRIAGE

COVER

ATTACHING

SCREW

(2 Total)

Figure 50

._r_ .,_,.._ E c CENT R I C SCREW

k II II d_'_-,_--_CAR RIAGE

BEARING

PLAIN WASHER"_k--_I IIk\\"l_'_"{'_:'k-_ R'AOE

LOCKWASH E Rt"t_w__ NUT

Figure 52

trouble shooting

YOKE CLAMP LOCKING POSITION

ASSEMBLY -, DUE TO WEAR

""__ ._ _p....NO R MA L LOCKING

POSITION

_------_'_ LOOSENED

POSITION

_.._ _. YOKE CLAMP HANDLE

Figure 53

LOCKWASHER

Figure 54

CARRIAGE STOP

SCREW

HEX WRENCH

YOKE-CLAMP

ASSEMBLY

Figure 55

\\?

YOKE-CLAMP-HANDLE

YOKECLAMPASSEMBLY

YOKE CLAMP

HANDLE

Figure 56

I. Yoke Clamp Handle Adjustment (Figures 53 -56).

The normal locking position of the yoke-clamp

handle (figure 53) is approximately midway between

the two sides of the yoke. When sufficient wear has

occurred to permit the handle to move considerably

to the rear, or to strike the yoke before locking, the

handle may be adjusted as follows:

(1) Loosen the yoke-clamp handle.

(2) Remove the carriage stop screw and Iockwasher

(figure 54} with the 1/4 inch hex-L wrench.

(3}

(4)

(5)

Grasp the motor and carriage assembly and,

holding it parallel to the radial arm until all

bearing rollers are free of their tracks, move it

carefully off the end of the arm.

Rest the motor and carriage assembly on the saw

table and remove the lock screw (figure 55).

Using a screwdriver, rotate the yoke clamp

assembly (figure 56} clockwise until the next

hole will line up with the lock screw. (See figure

55.) Usually, rotating the yoke clamp assembly

one hole will correct this adjustment. However,

in some extreme cases it may be necessary to

rotate it two holes or more.

(6)

(7)

Align, install and tighten the lock screw. (See

figure 55.)

Hold the motor and carriage assembly parallel to

the radial arm and start the rear bearings onto the

tracks. Continue to hold the assembly parallel to

the tracks until the forward bearings are on the

tracks.

18) Slide the carriage rearward on the radial arm and

reinstall the carriage stop screw and Iockwasher

(figure 54).

3. BLADE HEELS TO THE RIGHT OR LEFT

A blade is said to "'heel"whenit is out of alignment with

the direction in which it is forced to travel. Figure 57

shows a saw blade heeling to the right. The result of

even a minor degree of heeling can be detected by the

tooth marks left on the side of the saw kerf (cut edge)

of the board. When using a taper ground blade, even a

small degree of heeling will cause the wood to smoke

because of the frictional heat produced. When ripping,

heeling can cause kickbacks.

--_ - "_-_ _,, BLADE H-EELING TO RIGHT

/DIRECTION OF BLADE TRAVEL

WIDENED

KERF '--- ,- DIRECTION OF ATTEMPTED

BLADE TRAVEL

Figure 57

LEFT-HD,

COVER

RIP

FENCE

a. Evidence of Blade Heel

(1) Crosscutting

Figure 58

(a) Heeling to the right will tend to slide the

workpiece toward the right along the rip

fence, as the cut is being made, and will

make square cutting almost impossible.

(b) Heeling to the left will tend to slide the

board to the left along the fence.

(2) Miter Cutting - Same as for crosscutting, except

to a lesser or greater degree, depending upon the

angle°

(3) In-Ripping

(a) Heeling to the right will force the workpiece

against the rip fence.

(b) Heeling to the teft will force the workpiece

away from the fence.

(4} Out-Ripping - The exact reverse of in-ripping

b. Checking for Blade Heel.

(1) Loosen the guard clamp screw and remove the

g_:ard,

(2) Place asquare against the rip fence and the saw

blade, as shown in figure 58. The long leg of the

square must be held firmly against both the rip

fence and the table top, and the short leg must

not touch any of the teeth on the saw blade.

(3) If the square does not touch the blade at both of

the two points shown in figure 5B, a heel

condition exists (either to the left or right).

e. Adjusting to Eliminate Blade Heel.

(1) Remove the left-hand carriage cover (figure 58).

(2) Loosen the yoke-clamp handle (figure 56).

(3) Loosen (slightly) two hex-head screws (figure

59).

(4) R,_tate the yoke until the gap between the saw

blade and the square is eliminated.

(5) Iock the yoke with the yoke clamp handle, and

[iqhten the two he×-head screws (figure 59).

SCREWS LEFT-

HANO

SIDE

Figure 59

(6) Recheck for heel to make sure that tightening

the screws did not affect the setting,

(7) Reinstall the left-hand carriage cover.

4. WOOD SMOKES AND MOTOR SLOWS DOWN OR

STOPS, WHEN RIPPING

This can be caused by the following conditions :

a. A Dull Blade or a Warped Board.

Sharpen or replace the saw blade. Avoid the

attempted use of severely warped material.

b. Crosscut Not Properly Squared.

Adjust as described under "ALIGNMENT INSTRUC-

TIONS", step "4. Squaring the Crosscut Travel".

c. Radial Arm Not Securely Locked in 0 ° Position.

Refer to"PRECISION INDEXING" in the Operating

Controls section.

d. Blade Heels to the Right or Left.

Refer to paragraph "3. Blade Heels to the Right or

Left", preceding.

5. BOARD BINDS, OR PULLS AWAY FROM THE

FENCE, WHEN RIPPING

Refer to "Adjusting Guard Chute and Anti-Kickback

and Spreader Assembly for Ripping Operations" in the

Operating Controls section.

LUBRICATION

Your saw is precision built and should be kept clean and

properly lubricated. Before describing the various points

which may periodically require lubrication, IT IS MORE

IMPORTANT TO FIRST MENTION THE VARIOUS

POINTS WHICH SHOULD NOT BE LUBRICATED,

NO LUBRICATION REQUIRED

Do not lubricate the carriage ball bearings or the motor

bearings. These are sealed ball bearings and require no

added lubrication.

Do not lubricate between the radial arm cap and the radial

arm.

trouble shooting - motor

PERIODICALLY LUBRICATE THESE POINTS

Use SAE No. 10W-30 automotive engine oil. Refer to the

Parts Lists for locations, and lightly lubricate the following

points:

1. The rea_ bearing surface of the elevation crank shaft

assembly - and also the two meshed gears through

which this shaft drives the elevation shaft assembly.

There is an oil hole in the bracket at the rear end of the

etevatior, crank shaft, through which the rear bearing

surface can be oiled.

2. The threads of the elevation shaft assembly -- and also

the bottom bearing surface of this shaft where it is held

by the retaining plate. Use the oil hole at the center of

the radial-arm cap.

3. The bevel-latch pin.

4. The bearing surface of the swivel-latch pin in the

latch-pin housing.

5. The face of the column tube and keyway (by wiping

with alightly oiled cloth) to lubricate the surfaces that

bear against the key and the column support assembly,

ICAUTION: Excessive oil at any location will I

attract airborne dust particles and sawdust. I

TROUBLE SHOOTING CHART--MOTOR

NOTE: Motors used on wood-working tools are particularly and *-hould be blown out or "vacuumed" frequently to

susceptible _o the accumulation of sawdust and wood chips prevent interference with normal motor ventilation.

TROUBLE

Motor will not run.

Motor will not run and

fuses "BLOW".

Motor fails to develop

full power. (Power output

of motor decreases rapidly

with decrease in voltage at

motor terminals. For

example: a reduction of

10% in voltage causes a

reductior_ of 19% in

maximum power output

of which the motor is

capable, while a reduction

of 20% in voltage causes

reduction of 36% in

maximum power output.)

PROBABLE CAUSE

1. Protector open; circuit

broken.

2. Low voltage.

1. Short circuit in line, cord

or plug.

2. Short circuit in motor or

loose connections.

1. Power line overloaded with

lights, appliances and other

motors.

2. Undersize wires or circuit

too long.

3. General overloading of

power company's facitities.

(In many sections of the

country, demand for

electrical power exceeds

the capacity of existing gen-

erating and distribution

systems.)

4. h_correct fuses in power line.

REMEDY

1. Reset protector by pushing on red button, located

on top of motor (indicated by audible click).

2. Check power line for proper voltage.

1. Inspect line, cord and plug for damaged insulation

and shorted wires.

2. Inspect all terminals in motor for loose or shorted

terminals or worn insulation on wires.

1. Reduce the line load.

2. Increase wire sizes, or reduce length of wiring

3. Request a voltage check from the power company.

4. Install correct fuses.

TROUBLE SHOOTING CHART--MOTOR (Con't.

TROUBLE PROBABLE CAUSE I

Motor overheats. 1. Motor overloaded.

2. Improper cooling. (Air cir-

culation restricted through

...... motor due to sawdust, etc:)

Motor starts slowly or 1. Low Voltage - will not trip

fails to come up to full starting switch.

speed. 2. Starting switch not operat-

ing.

Starting switch in 1. Burned switch contacts

motor will not operate. (due to extended hold-in

Motor stalls (resulting in

blown fuses or tripped

circu it breakers).

Frequent opening of 1.

fusesor circuit breakers. 2.

Brake fails to work.

!3.

periods caused by low

line voltage, etc.)

Loose or broken connec-

tions in motor.

Shorted capacitor.

Starting switch not operat-

ing.

Voltage too low to permit

motor to reach operating

speed.

Fuses or circuit breakers

do not have sufficient

capacity.

Motor overloaded.

Fuses or circuit breakers

do not have sufficient

capacity.

Starting switch no_ operat-

ing (motor does not reach

normal speed.)

Worn brake lining.

REMEDY

1. Correct overload condition.

2. Clean out sawdust to provide normal air

circulation through motor.

1. Correct low voltage condition.

2. Replace the starting switch.

1. Replace switch and check line voltage.

2. Check and repair wiring.

3. Test capacitor and replace if defective.

1. Replace switch.

2. Correct the low line voltage condition.

3. Replace fuses or circuit breakers with

proper capacity units,

1. Reduce motor load.

2. Replace fuses or circuit breakers.

3. Replace switch,

Replace brake lining.

POWER TOOL GUARANTEE

Craftsman power tools (or welders) are unconditionally

guaranteed for one year to give complete satisfaction or the

tool will be repaired free of charge.

This guarantee service is available through any of our Sears

stores or service centers throughout the United States or

Canada,

SEARS ROEBUCK AND CO. •SIMPSONS-SEARS LIMITED

repair parts

CRAFTSMAN IO-INCH RADIAL SAW, MODEL NO. 113.29461

SEE FIGURE 2

FOR EXPLODED

SEE FIGURE 5 ._

FOR EXPLODED VIEW 25

FIGURE I

PARTS LIST

CRAFTSMAN IO-INCH RADIAL SAW, MODEL NO. !13.29461

All parts illustrated in Figures 1through 5 and listed under part numbers may be ordered through any Sears Retail Store or

Catalog Order House. Order parts by mail from the Catalog Order House that serves the territory in which you live. In several

instances, part numbers are listed for COMPLETE ASSEMBLIES. All parts are shipped prepaid within the limits of the

Continental United States.

WNEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION AS SHOWN ON THIS LIST:

1. THE PART NUMBER 3. THE MODEL NUMBER 113.29461

2. THE PART NAME 4. The NAME OF ITEM-- 10JNCH RADIAL SAW

Always order by Part Number - not by Key Number

Key Part

No. No. Description

FIGURE

63409

37863

63127

448337

131201

9421620

37435

30662

30482

37370

30489

30490

60044

443151

63O96

448039

6OO76

37372

37373

60030

63410

455872

Trim, Radial Arm

Arm, Radial

Track

*Screw, Type 23, 10-32 x 5/8,

Rd. Hd.

Lockwasher, 5/16 x .125 x .078

*Screw, Cap, 5/16 18 x I/2, Soc. Hd.

tWrench, Hex. "L", 1/4

Screw, Arm Lock

Pin Assembly, Arm Lock

Shaft Assembly, Arm Latch

Washer, Spring Support

Spring, Arm Latch

Ring, Retaining

Pin, Groove

Cap, Trim

*Screw, Type 23, 10-32 x 3/4,

Pan Hd.

Washer, .505 x 1-1/8 x 1/16

Lever, Arm Latch

Washer, Spring

Washer, .505 x 1 x 1/32

Knob Assembly, 3-1/4

*Screw, Mach. 1/4-20 x 1-1/4

Sems. Truss Hd.

PARTS LIST

Key Part

No. No. Description

23 30494

24 60175

25 30495

26 3540

27 63062

28 63146

29 30661

30 30479

31 131202

32 9415837

33 63098

34 448033

35 115109

36 191230

37 448001

38 37935

39 30559

4O 37418

41 30613

42 448011

63492

Collar

[tBlade, Saw, 10"

Nut, Shaft

Wrench, Arbor

Wrench, Shaft

Tube Assembly, Column

Shoe, Brake

Latch, Arm

*Lockwasher, 3/8 x .136 x.070

*Screw, Mach. 3/8 16 x 3/4 Hex.

Hd.

Plate, Cover

*Screw, Type 23, 10-32 x 3/8,

Pan Hd.

*Lockwasher, 1/4 x .109 x .062

*Screw, Mach., 1/4-28 x 1, Fil. Hd.

*Screw, Type 23, 6-32 x 1/4,

Pan Hd.

Washer, Fibre, .140 x ,250 x 1/32

Indicator

Cap, Radial Arm

Clamp, Cord

*Screw, Type 23, 8-32 x 3/8,

Pan Hd.

Owner's Manual (Not Illus.)

*Standard Hardware Item - May Be Purchased Locally.

tStock Item - May be secured through the Hardware Department of most Sears or Simpsons-Sears Retail Stores or

Catalog Order Houses.

NOTE: Shipping and handling charges for standard hardware items (identified by *) such as nuts, screws, washers, etc.,

make buying these items by mail uneconomical. To avoid shipping and handling charges, you may obtain most

of these locally.

repair parts

CRAFTSMAN IO-INCH RADIAL SAW, MODEL NO. 113.29461.1-4

v/,._

SEE FIGURE 446/"

FOil EXPLODED

v,EW 6,3 45 I

FIGURE 2

CRAFTSMAN IO-INCH RADIAL SAW, MODEL NO. 113.29461

FIGURE 2 PARTS LIST

Key Pa_

No. No.

130566

2 63120

3 3O567

4 436664

5 63215

6 63415

7 63416

8 3O530

9 9415819

I0 60040

11 37388

12 63117

13 63148

14 131201

15 124824

16 30547

17 30548

19 30689

20 115999

21 63418

22 63467

23 37568

24 63419

25 441377

26 115543

27 448001

28 453676

29 30693

30 62299

31 63304

32 37861

33 63423

Description

Yoke, Clamp Assembly

Shoe, Carriage Lock

Bumper, No. 2

*Screw, Mach., 6-32 x 7/16, Pan

Hd.

Indicator, Rip Scale

Knob, Carriage Lock, 1-1/2

Cover, R. H., Carriage

Nut, Twin

"Screw, Mach., 5/16-18 x 1-1/2,

Hex Hd.

*Washer, .328 x 3/4 x 1/16

Sleeve, Bearing

Bearing, Carriage

Carriage Assembly

*Lockwasher, 5/16 x .125 x .078

*Nut, Hex., 5/16-18 x 1/2 x 3/16

Disk

Spring, Latch Pin

Pin, Bevel Latch

*Nut, Hex., 10-32 x 3/8 x 1/8

Clamp, Cord

Cap, Insulator

etAdaptor, Plug

Cord, with Plug

*Screw, Mach., 10-32 x 3/4 Pan Hd.

Washer, Lock

*Screw, Type 23, 6-32 x 1/4, Pan Hd.

Pin, Roll 1/8x 1

Handle, Latch Pin

Switch (Off-On)

Lock Assembly, Switch

Key, Safety Lock

Indicator, Bevel

Key Part Description

No. No.

37935

6342O

9421626

63424

37403

37816

30664

3O665

30663

30558

60055

37859

63468

115109

6O021

63421

30613

448011

63118

436751

63417

30565

37387

63119

63422

30521

37494

60259

138540

Washer, Fibre, .140 x.250 x 1132

Knob, 2-1/4, Bevel Index

*Screw, Cap 5/16-18 x 1-1/2,

Socket Hd.

Handle, Bevel Index

Handle, Yoke

Washer, .630 x 1-1/8 x .093

Pad, Pressure

Shoe, Index Handle Brake

Expander

Motor (See Fig, 5)

Screw, Lock

Washer, Fibre, ,380 x 3/4 x 1/16

Ring, Hog

Support Assembly, Motor

*Lockwasher, 1/4 x .109 x .062

*Screw, Mach., 1/4-20 x 7/16,

Hex. Hd.

Yoke Assembly

Clamp, Cord

*Screw, Type 23, 8-32 x 3/8,

Pan Hd.

Housing, Latch Pin

*Screw, Type 23, 10-32 x 5/8,

Pan Hd.

Cover, LH., Carriage

Bumper, Carriage

Screw, Eccentric

Retainer, Spring

Knob Assembly

Spring, Swivel Latch

Pin, Swivel Latch

Screw, Mach. 5/16-18 x 1-1/2 Hex.

Wash. Hd.

Lockwasher, Ext. Tooth, 5/16 x 19/32

x 1/32

*Standard Hardware Item - May Be Purchased Locally.

tStock (tern - May be secured through the Hardware Department of most Sears or Simpsons-Sears Retail Stores or

Catalog Order Houses.

mNot Supplied in Canada.

repatr parts

CRAFTSMAN IO-INCH RADIAL SAW, MODEL NO. 113.29461

2O 15

22 I11

16 15 FIGURE3

FIGURE 3 PARTS LIST

Key Part

No. No. Description

163411 Guard Assembly

2 63258 Elbow, Discharge

3 63337 Shoe, Guard

4 455488 Pin, Roll, 1/4 x 5/8

563039 Screw, Guard Clamp

6 63338 Bracket, Housing

7 9414920 *Washer, 17/64xSi8x 1/16

8 63339 Nut, Wing

9 131201 * Lockwasher, 5/16x .125 x .078

10 60078 *Screw, Mach., 5/16-18 x1/2, Hex. Hd.

11 63425 Cord with Plug

12 37875 Relief, Strain

13 60243 *Screw, Mach., 10-32 x 1-1/8, Pan Hd.

14 63341 Bushing, Kickback Pawl

15 63271 Pawl, Anti-Kickback

16 60041 *Washer, .198 x 9/16 x 1/32

• Standard Hardware Item - May Be Purchased Locally.

Key!

tStock Item - May be secured through the Hardware Department of

Catalog Order Houses.

Part

No.

71046

163426

69013

i60012

111137

:60062

!63427

194O4365

94O4351

i60029

63428

i109091

!63345

!63344

Description

*Connector, Wire

Socket, Light

Bulb, Light, 115/125V, 25 Watt, Double

Contact, Bayonet Base, Appliance

Nut, Lock, 10-32

*Bolt, Carriage, 1/4-20 x 1/2 Rd. Hd.

*Washer, Plain .380 x 3/4 x 3/32

Housing, Light

*Screw, Mach., 8-32 x 5/16, Pan Hd.

*Screw, Type 23, 6-32 x 1/4, Pan Hd.

Nut, Lock, 8-32

Cap, Light Housing

*Bolt, Carriage, 1/4-20 x 1-1/4, Rd. Hd.

Chute, Guard

Knob Assembly, 1-1/2

most Sears or Simpsons-Sears Retail Stores or

repa,r parts

CRAFTSMAN IO-INCH RADIAL SAW, MODEL NO. 113.29461

FIGURE 4 PARTS LIST

Key Part

No. No.

-63490

-63491

1 448003

263437

2 63489

3 63438

4 448011

5 30613

6 63439

6 63487

7 63440

8 63441

9 63443

10 63442

11 63444

12 63445

13 63446

14 63447

15 30582

16 63448

*Standard Har

Description

Motor (Complete) (Domestic)

mMotor (Complete) (Canada)

*Screw, Type 23, 6 32 x 3/8 Pan Hd.

Nameplate W/Insulation (Domestic)

INameplate W/Insulation (Canada)

Receptacle

*Screw, Type 23, 8-32 x 3/8 Pan Hd.

Clamp Cord

Housing, Top (Domestic)

"Housing, Top (Canada)

Lead Assy., Brown

Lead Assy., Black

Lead Assy., Red

Lead, Btue

Cord Assembly

Insulation, Switch

Switch Assy., Starting (Including

Key No. 14)

Lead Assy., Red

Cap, Shaft

Plate, Instructions

ware Item -May Be Purchased Locally.

Key Part

No. No.

17 63449

18 140879

19 63450

20 63451

21 63452

22 115999

23 63453

23 63488

24 448O07

25 60248

26 63469

27 63454

28 37859

29 30573

30 448019

31 63455

32 37408

33 63456

34 133477

- 63486

tStock Item - May be secured through the Hardware Department of

Catalog Order Houses.

/_Supplied Detached Canada Only.

=Carlada Only.

Description

Fan Assembly (Includes Key Nos.

18 and 19)

Set Screw

Lining, Brake

Plate, Brake

Spring, Brake

*Nut, Hex., 10-32 x 1/8

Housing, Bottom (Domestic)

=Housing, Bottom (Canada)

*Screw, Type 23, 6-32 x 5/8 Pan Hd.

Screw, Stator

Bushing, Rubber

Panel Assembly

Ring-Hog

*Nut, Wire

*Screw, Type 23, 8-32 x 7/8 Pan Hd.

Capacitor

Protector, Manual Thermal

Washer, Dust

Screw, Mach., 8-32 x 1/4 Flat Hd.

APlug 240V (Not shown)

most Sears or Simpsons-Sears Retail Stores or

repair parts

CRAFTSMAN 10-INCH RADIAL SAW, MODEL NO. 113.29461

5 6

12 13

/14

FIGURE 5

CRAFTSMAN 10-INCH RADIAL SAW, MODEL NO. 113.29461

FIGURE 5 PARTS LIST

Key Part

No. No. Description

102718

63078

63077

63079

63431

139416

9415839

63429

60128

60057

102707

63430

63432

63433

37384

60056

37880

37879

115109

115120

60013

131201

60078

30505

102570

Screw, Set, 5/16-18 x 1/2, Slotted,

Cup Pt.

Plug, Back-Up (Steel)

Plug, Friction (Nylon)

Key, Column Tube

Support, Column

Screw, Set, 3/8-16 x 5/8, Socket

Hd., Cone Pt.

*Screw, Mach., 3/8-16 x 1-1/8,

Hex. Hd.

Spacer Board, Table

*Washer, 17/64 x 5/8 x 1/32

*Screw, Mach., 1/4-20 x 1-1/4,

Pan Hd.

Screw, Set, 1/4-20 x 1/2, Slotted,

Cup Pt.

Table, Rear

Fence, Rip

Table, Front

T-Nut

*Screw, Mach., 1/4-20 x 1, Pan Hd.

Channel, Table Mtg., Right-Hand

Channel, Table Mtg., Left-Hand

*Lockwasher, 1/4 x .109 x .062

*Nut, Hex., 1/4-20 x 7/16 x 3/16

*Washer, 11/32 x 7/8 x 1/16

* Lockwasher, 5/16 x . 125 x .078

*Screw, Mach., 5/16-18 x 1/2,

Flex. Hd.

tWrench, Hex. "L", 1/8

Screw, Set, 1/4-20 x 3/8, Socket

Hd., Cup Pt.

Key Part Description

No. No.

26 63434

28 37862

29 443507

30 60143

31 60080

32 306O4

34 63404

35 634O5

36 60201

37 423561

30509

37428

37530

37383

118615

131202

9415836

63435

63436

60246

448649

30510

30508

37911

Crank Assembly (Includes Key

No. 25)

Clamp, Table

*Screw, Mach., 1/4-20 x 1/2,

Pan Hd.

*Washer, .266 x .562 x 3/64

Washer, .515 x 7/8 x 1/32

Washer, Oil Sling

Shaft Assembly, Elevation (Includes

Key No's. 35 & 36)

Washer, Keyed

Ring, Retaining

*Screw, Mach., 5/16-18 x 7/8

Seres,, Hex. Hd.

Washer, End Play (as required)

Plate, Retaining

Nut, "U" Clip, 1/4-20

Base Assembly

*Nut, Hex., 3/8-16 x 9/16 x 21/64

*Lockwasher, 3/8 x .141 x.094

*Screw, Mach., 3/8-16 x 5/8,

Hex. Hd.

Bushing

Bracket, Bearing

Nut, Lock

*Screw, Type 23, 1/4-20 x 3/4,

Hex. Hd.

Bracket, Elevation Shaft Bearing

Shaft Assembly, Elevation Crank

tWrench, Hex. "L", 3/16

*Standard Hardware Item - May Be Purchased Locally.

tStock Item - May be secured through the Hardware Department of most Sears or Simpsons-Sears Retail Stores or

Catalog Order Houses.

Sears

o wners

manual

MODEL NO.

113.29461

Sears

SERVICE

is at

YOUR

SERVICE

wherever YOU

live or move

in the U.S.A.

How to ORDER Repair,

The Model Number will be found on a plate attached to your

saw, at the left-hand side of the base. Always mention the

Model Number when requesting service or repair parts for your

10-INCH RADIAL SAW.

All parts listed herein may be ordered through SEARS,

ROEBUCK AND CO. or SIMPSONS-SEARS LIMITED. When

ordering parts by mail, selling prices will be furnished on re-

quest or parts will be shipped at prevailing prices and you will

be billed accordingly.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION AS SHOWN IN THIS LIST.

1. The PART NUMBER

3. The MODEL NUMBER

113.29461

2. The PART DESCRIPTION

4. The NAME OF ITEM -

10-INCH RADIAL SAW

Your Sears merchandise takes on added value when you dis-

cover that Sears has over 2,000 Service Units through out the

country. Each is staffed by Sears-trained, professional tech-

nicians using Sears approved parts and methods.

SEARS, ROEBUCK AND CO., Chicago, Ill. 60607 U.S.A.

and SIMPSONS-SEARS LII_4ITED, Toronto

Form No. SP3855-2 Printed in U,S.A. 1-73

Craftsman 11329461 User Manual 10 INCH ACCRA ARM RADIAL SAW Manuals And Guides L0712531

CRAFTSMAN Saw Radial Manual L0712531 CRAFTSMAN Saw Radial Owner's Manual, CRAFTSMAN Saw Radial installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
