OWNERS

MANUAL

MODEL NO,

244288

CAUTION:

Read Rules for

Safe Operation

and Instructions

Carefully 10" BAND SAW

Introduction

Operation

Maintenance

Repair Parts

ii i,

®

SOLD BY SEARS, ROEBUCK AND CO., Chicago, IL 60684 U.S.A.

PART NO. SP4998 PRINTED IN U.S.A.

_'- FULL ONE YEAR WARRANTY ON CRAFTSMAN 10" BAND SAW

I If this CRAFTSMAN 10" BAND SAW fails due to a defect in material or workrnanshtp within one year from date of

purchase, Sears will repair it free of charge. This warranty applies only while this product is in use in the United States.

WARRANTY SERVICE IS AVA LABLE BY SIMPLY RETURNING THE TOOL TO THE NEAREST SEARS STORE

OR SERVICE CENTER THOUGHOUT THE UNITED STATES.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

_,_ SEARS, ROEBUCK AND CO., DEPT. 698/731A SEARS TOWER, CHICAGO, IL 60684

"READ ALL INSTRUCTIONS" Failure to follow the SAFETY RULES listed

BE LOW, and other basic safety precautions, may result in serious personal injury.

GENERAL SAFETY RULES

3. KEEP WORK AREAS CLEAN. Cluttered areas and

benches invite accidents.

2. AVOID DANGEROUS ENVIRONMENT. Don't use

power tools in damp or wet locations. Keep work area

well lit. Do not expose power tools to rain. Do not

use tool in presence of flammable liquids or gases.

3. KEEP CHILDREN AWAY. Do not let visitors contact

tool or extension cord. All visitors should be kept

away from work area.

4. STORE IDLE TOOLS. When not in use, tools should

be stored in dry, high or locked up place--out of the

reach of children.

5. DON'T FORCE TOOL. It will do the job better and

safer at the rate for which it was designed.

6. USE THE RIGHT TOOL. Don't force small tool or

attachment to do the job of a heavy-duty tool. Don't

use tool for purpose not intended-for example; don't

use circular saw for cutting tree limbs or logs.

7. DRESS PROPERLY. Do not wear loose clothing or

jewelry, They can be caught in moving parts. Rubber

gloves and non-skid footwear are recommended when

34. REMOVE ADJUSTING KEYS AND WRENCHES.

Form habit of checking to see that keys and adjusting

wrenches are removed from tool before turning it on.

15. AVOID ACCIDENTAL STARTING. Don't carry

plugged in tool with finger on switch. Be sure switch

is OFF when plugged in.

16.

17.

18.

OUTDOOR USE EXTENSION CORDS. When tool is

used outdoors, use only extension cords suitable for

use outdoors and marked with suffix W-A (for UL),

or W (for CSA).

AVOID GASEOUS AREAS. Do not operate portable

electric tools in gaseous or explosive atmospheres.

Motors in these tools normally spark, and the sparks

might ignite fumes.

DO NOT ALTER OR MISUSE TOOL. These tools

are precision built. Any alteration or modification

not specified is misuse and may result in a dangerous

condition.

19. GUARD AGAINST ELECTRIC SHOCK. Prevent

body contact with grounded surfaces. For example;

pipes, radiators, ranges, refrigerator enclosures.

working outdoors. Wear protective hair covering to 20. STAY

contain long hair.

8. USE SAFETY GLASSES. Also face or dust mask if

cutting operation is dusty.

9. DON'T ABUSE CORD. Never carry tool by cord or

yank it to disconnect from receptacle. Keep cord

from heat, oil, and sharp edges.

10. SECURE WORK. Use clamps or avise to hold work.

it's saferthan usingyour hand and it frees both hands

to operate tool.

11. DON'T OVERREACH. Keep proper footing and

balance at all times.

ALERT,

common sense.

12. MAINTAIN TOOLS WITH CARE. Keep tools sharp

and clean for better and safer performance. Follow

instructions for lubricating and changing accessories.

Inspect tool cords periodically and if damaged, have

repaired by authorized service facility. Inspect exten-

sion cords periodically and replace if damaged. Keep

handles dry, clean and free from oil and grease.

13. DISCONNECT TOOLS. When not in use; before

Watch what you are doing. Use

Do not operate tool when you are

tired.

21. CHECK DAMAGED PARTS. Before further use of

the tool, aguard or other part that is damaged should

be carefully checked to determine that it will operate

properly and perform its intended function. Check

for alignment of moving parts, binding of moving

parts, breakage of parts, mounting, and any other

conditions that may affect its operation. A guard or

other part that is damaged should be properly re-

paired or replaced. Have defective switches replaced.

Do not use tool if switch does not turn it on or off.

_ Before connecting the tool to a

22. power source (receptacle, outlet,

etc.) be sure the voltage supplied is the same as that

specified on the nameplate of the tool. A power

sou rce with voltage greater than that specified for the

tool can result in SERIOUS INJURY to the user-as

well as damage to the tool. If in doubt, DO NOT

PLUG _N THE TOOL. Using a power source with

voltage less than the nameplate rating is harmful to

the motor.

servicing; when changing blades, bits, cutters, etc.

_, ,°.

' "SAVE THESE INSTRUCTIONS" I

r BAND SAW SAFETY RULES -,

OFor your own safety, do not attempt

to operate your band saw until it is

completely assembled and installed according to the

instructions . . . and until you read and understand

the following:

O GENERAL SAFETY INSTRUCTIONS...See Page 2

®BAND SAW SAFETY RULES .......... See Page 3

®GETTING TO KNOW YOUR BAND SAW See Page 6

®OPERATIONS .................... See Page £

@ ADJUSTMENTS ............. See Pages 12 & 13

@ MAINTENANCE ................. See Page 10

STABaL_TY OF SAW

O YOUR BAND SAW MUST BE BOLTED SECURELY

TO A STAND OR WORK BENCH. in addition, if

there is any tendency for the band saw to tip over or

move during certain operations such as cutting long

heavy boards, bolt your band saw stand or work-

bench to the floor.

LOCATION

® This band saw is intended for indoor use only.

PROTECTION: EYES, HANDS,

FACE, EARS AND BODY

• Wear safety goggles and a face shield if operation is

dusty. Wear ear plugs or muffs during extended

periods of operation. Do not wear gloves.., roll long

sleeves above the elbow.

O Do not cut pieces of material too small to hold by

hand.

e Avoid awkward hand positions where a sudden slip

could cause a hand to move into the blade.

Q Never turn your band saw "ON" before ctearing the

table of all Objects (tools, scraps of wood, etc.)

except for the workpiece and related feed or support

devices for the operation planned.

@ Make sure the blade runs downward toward the table.

Always adjust tracking wheel correctly so that the

blade does not run off the wheels.

@ Always adjust blade tension correctly.

® ALWAYS adjust the upper blade guide and blade

guard to just clear the workpiece to protect the

operator, to keep blade breakage to a minimum, and

to provide maximum support for blade.

@

®

@

@

@

@

®

When cutting a large piece of material, make sure

it is supported at table height.

Hold the work firmly against the table.

Do not feed the material too fast while cutting. On!y

feed the material fast enough so that the blade will

cut. Keep fingers away from the blade.

Use caution when cutting off material which is irreg-

ular in cross section which could pinch the btade

before the cut is completed, A piece of molding for

example must lay flat on the table and not be

permitted to rock while being cut.

Use caution when cutting off round material such

as dowel rods, or tubing. They have a tendency to

roll while being cut causing the blade to "bite".

Always use a "V" block, or clamp round materia! to a

miter gauge.

When backing up the workpiece, the blade may bind

in the cut ... .... this is usually caused by sawdust

clogging up the cut or because the blade comes out

of the guides. If this happens:

Turn off the band saw.., remove plug from power

source outlet, o. remove cover from band saw. Insert

a screwdriver or wedge in the cut . . . rotate the

wheels by hand while backing up the workpiece.

@

O

O

@

Never leave the band saw work area with the power

on, before the machine has come to a complete stop,

or without removing and storing the switch key.

Never operate band saw with cover removed.

Do not perform layout, assembly, or setup work on

the table while the cutting tool is rotating.

Turn saw "off" and remove plug from power supply

outlet before installing or removing an accessory or

attachment.

Should any part of this band saw be missing, bent,

or fail in any way, or any electrical component fail to

perform properly, shut off power switch and remove

plug from power supply outlet. Replace damaged,

missing, and/or failed parts before resuming opera-

tion.

THINK SAFETY

® Safety is a combination of operator common sense

and alertness whenever the band saw is in operation.

Do not allow familiarity (gained

Q from frequent use of your band

saw) to become commonplace. Always remember

that a careless fraction of a second is sufficient to

inflict severe injury.

J

Page 3

DOUBLE INSULATED TOOLS WITH TWO-PRONG PLUGS

Your SEARS _ooi is equipped with a two wire cord a dielectric material. This helps protect you in case of

and two prong plug which can beUsedin standard failure of the standard functional insulation within

120 Volt A_C, outlets: the electrical system. Use only identical replacement

No grounding 0f the to01 is necessary: The housing is parts when service is required.

i

, Use of damaged cords can shock, burn or electrocute.

i

EXTENSION CORDS

Replace damaged or worn cords immediately. The

table shows the correct size to use, depending on

cord length and nameplate amperage rating of tool.

If in doubt, use the next heavier gauge. An under-

sized cord will cause a drop in line voltage, resulting

in loss of power and over-heating. NOTE: The

smaller the gauge number, the heavier the cord.

(Extension Cords are available)

Recommended Minimum Gauge for Cord Extensions

for Portable Electric Tools.

Wire GaugeChart A.W.G.

tCord Length in Feet

PlateName 120V 25 50 100 150

I

, Amps. I 240V I50 100 200 300

t 5-6 18 16 14 12

6-8 18 16 12 10

8-10 18 14 12 10

I 10-12 16 14 10 8

I

[ 12-14 16 12 10 8

The operation of any Saw can result in foreign objects being thrown into the eyes, which can

result in severe eye damage, Always wear safety glasses or eye shields before commencing power

tool operation. We recommend Wide Vision Safety Mask for use over spectacles or standard safety

glasses, available at Sears Retail or Catalog Stores.

IMPORTANT:Your Band Saw is Preset at the factory for a 1/4" woodcutting blade (included). No thrust roller or

tracking adjustment should be necessary if your inital use is with this blade,

FContents

GENERAL SAFETY RULES ..................... 2 Attaching The Blade ........................ 8

BAND SAW SAFETY RULES .................. 3 Tracking The Blade ......................... 8

DOUBLE INSULATED TOOLS & EXTENSION CORDS .. 4

UNPACKING CONTENTS ..................... 5

List of Loose Parts ......................... 5

Tools Needed ............................. 5

GETTING TO KNOW YOUR BAND SAW ........... 6

Guide Bar Lock Knob ....................... 6

Thrust Roller Adjustment ..................... 6

Table Lock Knob ......................... 6

Tilt Scale ............................... 6

Blade Guides ............................. 6

Tracking Adjustment Knob ................... 6

Vacuum Cleaner Hook-Up ................... 6

Miter Gauge &Miter Gauge Extension ............. 6

Ripping Slot & Housir)gCover Latd_es............. 7

On-Off Switch .............. •................. 7

Variable Speed Control ....................... 7

ASSEMB LY ............................... 7

Mounting Band Saw To Workbench ............. 7

Installing Upper and Lower Thrust Rollers .......... 8

Preparing The Table ......................... 9

OPERATION ............................... 9

Pre-Operation Check List ..................... 9

Using Your Band Saw ....................... 10

Sawing Tips ............................. 10

MAINTENANCE ............................. 10

ACCESSORIES ............................. 11

Trouble Shooting .................... '. .... 11

ADJUSTMENTS ............................. 12

Adjusting Lower Blade Guides ................. 12

Adjusting Lower Thrust Roller ................. 12

Adjusting Upper Blade Guide Assembly ........... 12

Adjusting Upper Blade Guides ................. 13

Adjusting Upper Thrust Roller ................. 13

Adjusting The Table Square To Blade ............. 13

Correcting The Blade ........................ 14

Parts Diagram ............................. 15

J

Page 4

fUNPACKI G CONTENTS

The Craftsman model 113.244200 Band Saw is shipped

complete in one carton.

Separate all parts from packing materials and check

each one with the illustration and the list of Loose

Parts to make certain all items are accounted for,

before discarding any packing material.

If any parts are missing, do not attempt to assemble

the band saw, plug in the power cord or turn the

switch on until the missing parts are obtained and are

installed correctly.

For your own safety, never connect

plug to power source outlet until

all assembly steps are complete, and you have read

and understand the safety and operational instruc-

tions.

7

1

Packages of miscellaneous small parts consisting of the

following:

KEY

NO. PART NAM E QTY.

1. MITER GAUGE ...................... 1

2. BLADE GUARD ...................... 1

3. BLADE INSERT ...................... 1

4. THRUST ROLLER .................... 2

5. MITER GAUGE SCREW ................ 1

6. BLADE 1/4" x 62" LONG ............... 1

7. MITER GAUGE EXTENSION ............... 1

23

J

fTOOLS NEEDED FOR ASSEMBLY

MEDIUM _MEDIUM PHILLIPS

SCREWDRIVER _SCREWDRIVER

5/32 inch HEX WRENCH f'_

I/2 inch OPEN WRENCH

_,,,,,,,,, SMALL COMBINATION SQUARE

1/2 inch SOCKET,

EXTENSION AND

RATCH ET.

COMBINATION SQUARE MUST BE TRUE

STRAIGHT EDGE OF BOARD

3/4" THICK. THIS EDGE MUST BE

DRAW LIGHT LINE ON PERFECTLY STRAIGHT.

BOARD ALONG THiS EDGE. ,_\

X

SHOULD BE NO GAP OR OVERLAP

HERE WHEN SQUARE IS FLIPPED

OVER IN DOTTED POSITION. J

Page 5

GETTING TO KNOW YOUR BAND SAW

12 1

ON/OFF GUIDE BAR

SWITCH LOCK KNOB

13

VARIABL E

D CONTROL

BLADE

HOUSING

1COVER 2

LATCH UPPER

TH RUST

ROLLER

ADJUSTMENT

5

UPPER

BLADE GUIDES TABLE

6

TRACKING

ADJUSTMENT

KNOB

COVER

RELEASE

BUTTON

5

LOWER

BLADE GUIDES

UNDER TABLE 2

LOWER THRUST

ROLLER ADJUSTMENT

UNDER TABLE

/9 MITER GAUGE

EXTENSION

TILT SCALE

MITER

GAUGE

7

VACUUM

HOOK-UP

COVER

RELEASE

BUTTON

3

TABLE LOCK

KNOB

J

,GUIDE BAR LOCK KNOB... The upper blade

guides should just clear the workpiece while

cutting. Always adjust the upper guide assembly

and lock the guide bar by tightening the guide

bar lock knob before turning on the band saw.

.THRUST ROLLER ADJUSTMENT., . Turning

the adjustment screw moves the thrust roller in

or out to support the blade from the rear while

cutting.

3. TABLE LOCK KNOB . , .Turning the knob

allows the table to be tilted and locks it in place.

4. TILT SCALE . . . Shows degree table is tilted.

5_ BLADE GUIDES ...Supports the blade and

keeps it from twisting during operation. An

adjustment is necessary when blades are changed

or replaced.

,TRACKING ADJUSTMENT KNOB ... The

blade can be tracked by turning the tracking

adjustment knob clockwise or counter-clockwise

until the blade runs in the approximate center

of the tires.

.VACUUM HOOK-UP . . .your band saw is

equipped with a vacuum hook-up for convenient

sawdust removal, {See Maintenance/Motor Page

10.)

o

.

MITER GAUGE .. , head is locked in position

at desired angle for crosscutting or mitering by

tightening the lock knob. ALWAYS LOCK IT

SECURELY WHEN IN USE.

_" AUXILIARY

FACING iSlON'

_ j

Notches are provided in the miter gauge for

attaching an AUXILIARY FACING to make it

easier to cut long pieces. Be positive facing does

not interfere with the proper operation of the

saw-blade guard.

Select a suitable piece of smooth straight wood

• . .drill two holes through it and attach it with

two No. 3 flat head screws.

NOTE: When bevel crosscutting, attach facing

so that it extends to the right of the miter gauge

and use the miter gauge in the groove to the

right of the blade,

MITER GAUGE EXTENSION . Notches

provided in the miter gaugeare also for attaching

the miter gauge extension, Place extension over

miter gauge and snap in place as shown. The

Page 6

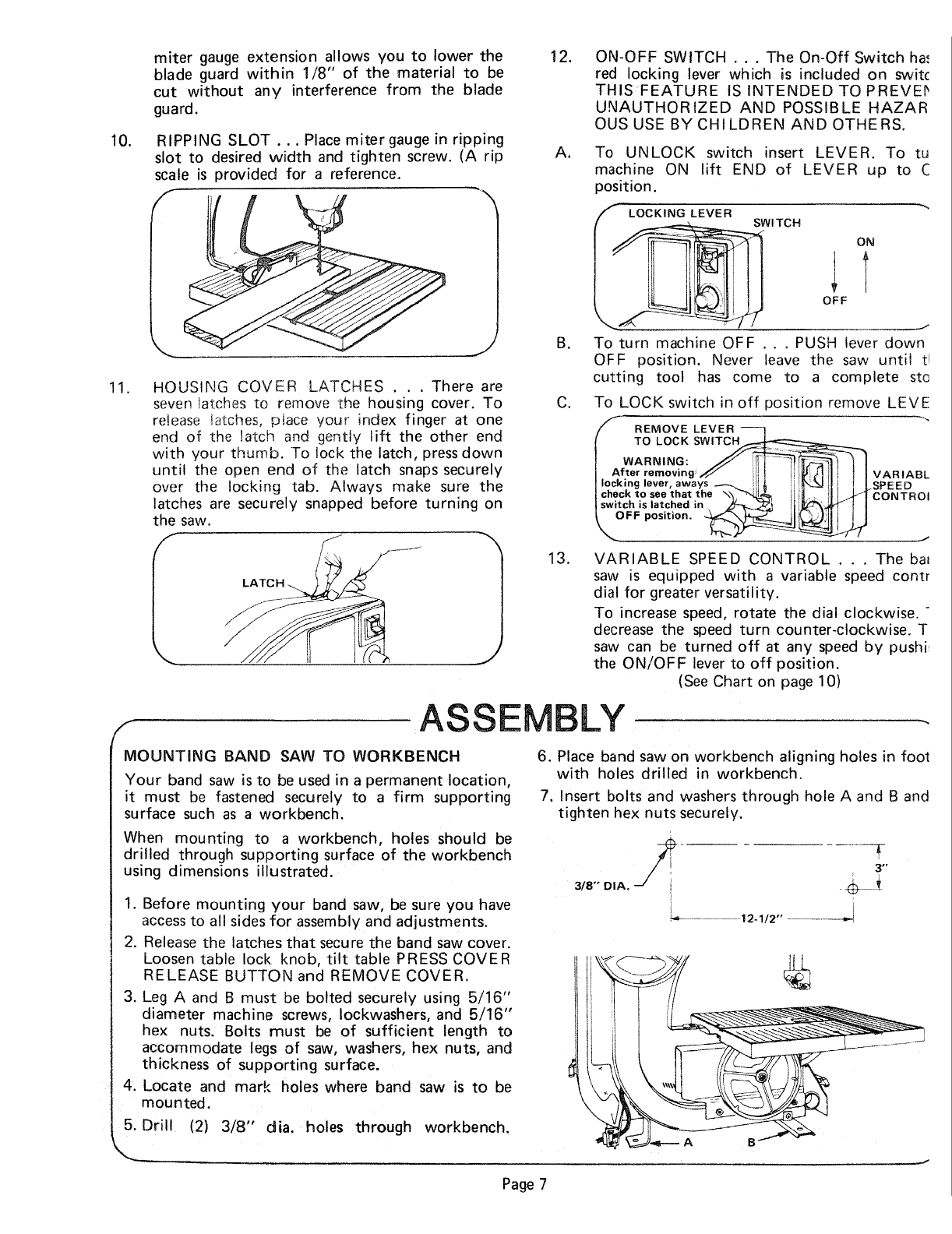

10.

11.

F

miter gauge extension allows you to lower the

blade guard within 1/8" of the material to be

cut without any interference from the blade

guard.

RIPPING SLOT .... Place miter gauge in ripping

slot to desired width and tighten screw. (A rip

scale is provided for a reference.

f L

HOUSING COVER LATCHES . . .There are

seven tatches to remove the housing cover. To

release latches, place your index finger at one

end of the latch and gently lift the other end

with your thumb. To lock the latch, press down

until the open end of the latch snaps securely

over the locking tab. Always make sure the

latches are securely snapped before turning on

the saw.

f J -_

LATCH

/

J

ASSE

12.

A,

go

C.

13.

ON-OFF SWITCH . . .The On-Off Switch ha.,

red locking lever which is included on switc

THISFEATURE tS INTENDED TO PREVE#

UNAUTHORIZED AND POSSIBLE HAZAR

OUS USE BY CHILDREN AND OTHERS.

To UNLOCK switch insert LEVER. To tu

machine ON lift END of LEVER up to C

position.

LOCKING LEVER SWITCH

ON

OFF

To turn machine OFF . . . PUSH lever down

OFF position. Never leave the saw until t!

cutting tool has come to a complete sto

To LOCK switch in off position remove LEVE

FREMOVE LEVER --]

| TOLOCKSW,TC

i After removing, // _I{_L,JIII! i I MAR ABL

Ilocking ever aways _ !!l J, t, IE,,L_ 1! i ! I _PEED

I check to see that t'he _,__ 'till._ III J_f_ONTR01

Iswitch is latched in , _..__7_ It _4_ I I

VARIABLE SPEED CONTROL . . . The ba=

saw is equipped with a variable speed contr

dial for greater versatility.

To increase speed, rotate the dial clockwise. "

decrease the speed turn counter-clockwise. T

saw can be turned off at any speed by pushi

the ON/OFF lever to off position.

(See Chart on page 10)

LY

MOUNTING BAND SAW TO WORKBENCH

Your band saw is to be used in a permanent location,

it must be fastened securely to a firm supporting

surface such as a workbench.

When mounting to a workbench, holes should be

drilled through supporting surface of the workbench

using dimensions illustrated.

1. Before mounting your band saw, be sure you have

access to all sides for assembly and adjustments.

2. Release the latches that secure the band saw cover.

Loosen table lock knob, tilt table PRESS COVER

RELEASE BUTTON and REMOVE COVER.

.

,

5.

Leg A and B must be bolted securely using 5/16"

diameter machine screws, Iockwashers, and 5/16"

hex nuts. Bolts must be of sufficient length to

accommodate legs of saw, washers, hex nuts, and

thickness of supporting surface.

Locate and mark holes where band saw is to be

mounted.

Drill (2) 3/8" dia. holes through workbench.

6. Place band saw on workbench aligning holes in foot

with holes drilled in workbench.

7. Insert bolts and washers through hole A and B and

tighten hex nuts securely.

3"

3/8" DIA. .___

._'...... 12-1/2 .......... J

Page 7

_Find a Thrusz Roller among loose parts and insert

in upper guide assembly.

UPPER J I _BLADEGUIDES

GUIDE _ I I_

PHILLIPS "_

SCREWS _

THRUST _ROLLER

ROLLER

2. Find a Thrust Roller among loose parts and insert'

in lower guide assembly.

LOWER BLADE GUIDES

PHILLIPS

SCREWS

J

FATTACHING THE BLADE

1. Remove slotted screw in table.

2. Carefully uncoil the blade holding it at arms length.

NOTE: Your band saw can be used with a 1/8",

1/4", 3/8" or 1/2" wide blades, 62" long.

3. Turn 1/2" tension adjustment nut CLOCKWISE

until the blade will fit over all three wheels.

4. Place the blade through the slot in the saw table,

with the TEETH POINTING DOWNWARD as

shown.

NOTE: In some instances the blade may uncoil

"Inside Out" and the teeth will be facing down,

but away from the operator. See page 14 for

corrective action.

5. Place the blade between upper and lower blade

guides then over WHEEL (1), (2) and (3)while

centering the blade approximately on all three

wheels.

6. Turn 112" tension adjustment nut COUNTER

CLOCKWISE until all the tension is on the blade

and tension adjustment nut is loose.

7. Turn tension adjustment nut CLOCKWISE until

nut is finger tight against the tracking bracket,

then turn tension adjustment nut CLOCKWISE

1/4TURN.

TENSION

ADJUSTM ENT

NUT

TRACKING (2)

BRACKET

UPPER

BLADE

GUIDES

SLOTTED

SCREW

LOWER

BLADE

GUIDES

(1) J

fTRACKING "rilE BLADE

To prevent personal injury, NEVER

PLUG IN TOOL with the housing

cover off, or when making adjustments. Also blades

are SHARP... HANDLE WITH CARE.

NOTE: Thrust rollers must be mounted in guide

assemblies before attempting to track the blade.

Turn WHEEL (2) by hand CLOCKWISE a few turns

and notice if the blade remains in the approximate

center of the tires.

If the blade moves away from the center of the

wheels while you are turning it, the blade is not

TRACKING properly.

just enough to keep the blade in the approximate

center of tires.

If the TEETH of the blade move AWAY from you:

b. Rotate WHEEL (2) CLOCKWISE by hand, while

turning the tracking adjustment knob COUNTER

CLOCKWISE just enough to keep the blade in the

approximate center of tires.

TRACKING

ADJUSTMENT

KNOB

If the TEETH of the blade move TOWARD you:

a. Rotate WHEEL (2) CLOCKWISE by hand, while

turning the tracking adjustment knob CLOCKWISE Clockwise

Page 8

f

PREPARING THE TABLE

.

2.

3.

4.

5.

Loosen the guide bar lock knob, and lower the blade

guide assembly.

Attach the blade guard on the upper guide assembly

and secure it with two screws.

Locate the table insert and place it in the opening in

the table.

Replace 3/8" slotted screw flush or below the table's

surface, while holding both sides flush.

The blade should be in the approximate center of

slot in insert.

SLOTT ED

SCR EW

TABLE

SCREWS

TABLE

iNSERT

If

1.

.

3.

4.

the blade runs to one side of table insert:

Loosen table lock knob and tilt table to 45°and

loosen rear 5/16" hex screw that mounts table to

trunnion.

GUIDE BAR

LOCK KNOB

Return table to 90° and loosen front 5/16" hex screw

that mounts table to trunnion. TRUNNION" 1

Shift table left or right until the blade is in the TABLE

approximate center of insert.

Securely tighten front screw, tilt table to 45°and FRONTREX SCREW

securely tighten rear screw. REARHEXSCR

TABLE LOCK KNOB

BLADE

GUIDE

ASSEM.

@

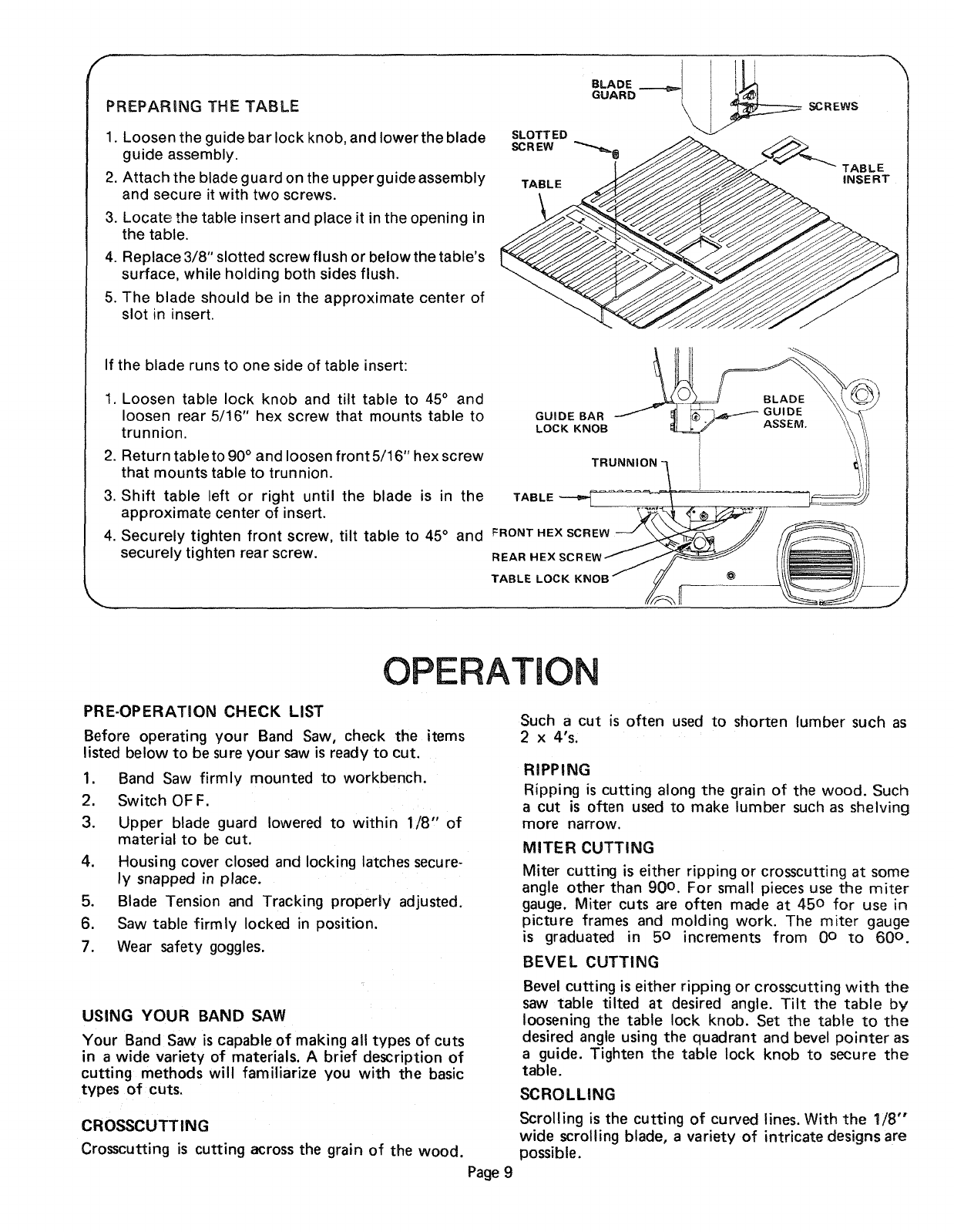

OPERATION

PRE-OPERATION CHECK LIST

Before operating your Band Saw, check the items

listed below to be sure your saw is ready to cut.

1. Band Saw firmly mounted to workbench.

2. Switch OF F.

3. Upper blade guard lowered to within 1/8" of

material to be cut.

4. Housing cover closed and locking latches secure-

ly snapped in place.

5. Blade Tension and Tracking properly adjusted.

6. Saw table firmly locked in position.

7. Wear safety goggles.

USING YOUR BAND SAW

Your Band Saw is capable of making all types of cuts

in a wide variety of materials. A brief description of

cutting methods will familiarize you with the basic

types of cuts.

CROSSCUTTING

Crosscutting is cutting across the grain of the wood.

Page 9

Such a cut is often used to shorten lumber such as

2 x 4's.

RiPPiNG

Ripping is cutting along the grain of the wood. Such

acut is often used to make lumber such as shelving

more narrow,

MITER CUTTING

Miter cutting is either ripping or crosscutting at some

angle other than 90o. For small pieces use the miter

gauge. Miter cuts are often made at 45o for use in

picture frames and molding work. The miter gauge

is graduated in 50 increments from 0o to 60 o.

BEVEL CUTTING

Bevel cutting is either ripping or crosscutting with the

saw table tilted at desired angle. Tilt the table by

loosening the table lock knob. Set the table to the

desired angle using the quadrant and bevel pointer as

a guide. Tighten the table lock knob to secure the

table.

SCROLLING

Scrolling is the cutting of curved lines. With the 1/8"

wide scrolling blade, a variety of intricate designs are

possible.

METAL CUTTING

Non-ferrous metal (without iron content)can be cut

with a general purpose blade, Ferrous sheet metal

should be cut using a metal cutting blade.

SAWING TIPS

1. Whenever possible make a few test cuts in scrap

wood to be sure that the saw is properly

adjusted.

2. When making finish cuts, position the wood so

that the finished side is up. This will prevent the

finished surface from splintering.

3. Feed wood directly into the saw teeth. Don't

side load the saw blade. This is particularly

important when scrolling.

4. If you are cutting awarped board, position it

with the concave side DOWN.

5. Never force the wood into the blade. Let the

saw do the work.

6. When cutting very small pieces, use a stick to

push the wood into the blade.

7, Do not pull material being cut, backward, to

prevent the blade from jumping OFF the rollers.

8. For maximum accuracy when using miter gauge,

"favor one side of groove in table.

SELECTION CHART

The following chart provides recommendations for

blade types, and speeds based on the type of material

you want to cut. These speeds are recommended

starting points. You should feel free to adjust the

speed up or down to find the most efficient cutting

speed. The adjusting knob is conveniently referenced

to numbers from (1) (low) to (6) (high). After you

have determined the best cutting speed for a specific

material you can record the reference number for

future use.

FBLADE

GeneralPurpose

Blade

MATERIAL t

High

Scrolling Blade Medium

Low to Medium

Metal Cutting

Blade

Wood

Plastic

Non-Ferrous

Metals

(Aluminum,Zinc)

Wood

Plastic

Sheet Metal

Non-Ferrous

Metals

DO NOT CUT

HARDENED

STE E LS

High

Medium

Medium to

Medium-High

J

MA TENA CE

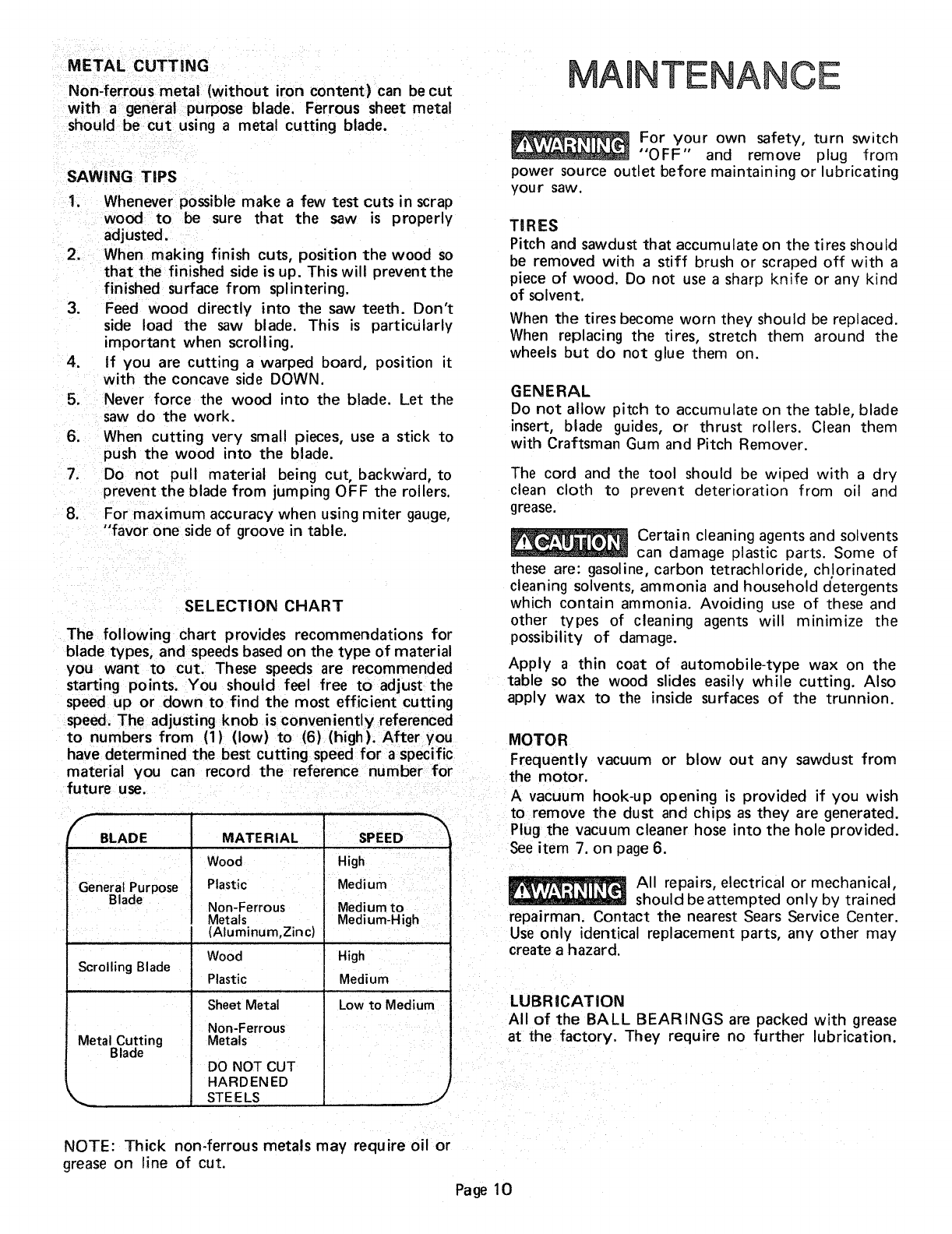

For your own safety, turn switch

"OFF" and remove plug from

power source outlet before maintaining or lubricating

you r saw.

TIRES

Pitch and sawdust that accumulate on the tires should

be removed with a stiff brush or scraped off with a

piece of wood. Do not use a sharp knife or any kind

of solvent.

When the tires become worn they should be replaced.

When replacing the tires, stretch them around the

wheels but do not glue them on.

GENERAL

Do not allow pitch to accumulate on the table, blade

insert, blade guides, or thrust rollers. Clean them

with Craftsman Gum and Pitch Remover.

The cord and the tool should be wiped with a dry

clean cloth to prevent deterioration from oil and

grease.

Certain cleaning agents and solvents

can damage plastic parts. Some of

these are: gasoline, carbon tetrachloride, ch!orinated

cleaning solvents, ammonia and household detergents

which contain ammonia. Avoiding use of these and

other types of cleaning agents will minimize the

possibility of damage.

Apply a thin coat of automobile-type wax on the

table so the wood slides easily while cutting. Also

apply wax to the inside surfaces of the trunnion.

MOTOR

Frequently vacuum or blow out any sawdust from

the motor.

Avacuum hook-up opening is provided if you wish

to remove the dust and chips as they are generated.

Plug the vacuum cleaner hose into the hole provided.

See item 7. on page 6.

All repairs, electrical or mechanical,

should be attempted only by trained

repairman. Contact the nearest Sears Service Center.

Use only identical replacement parts, any other may

create a hazard.

LUBR ICATION

All of the BALL BEARINGS are packed with grease

at the factory. They require no further lubrication.

NOTE: Thick non-ferrous metals may require oil or

grease on line of cut.

Page 10

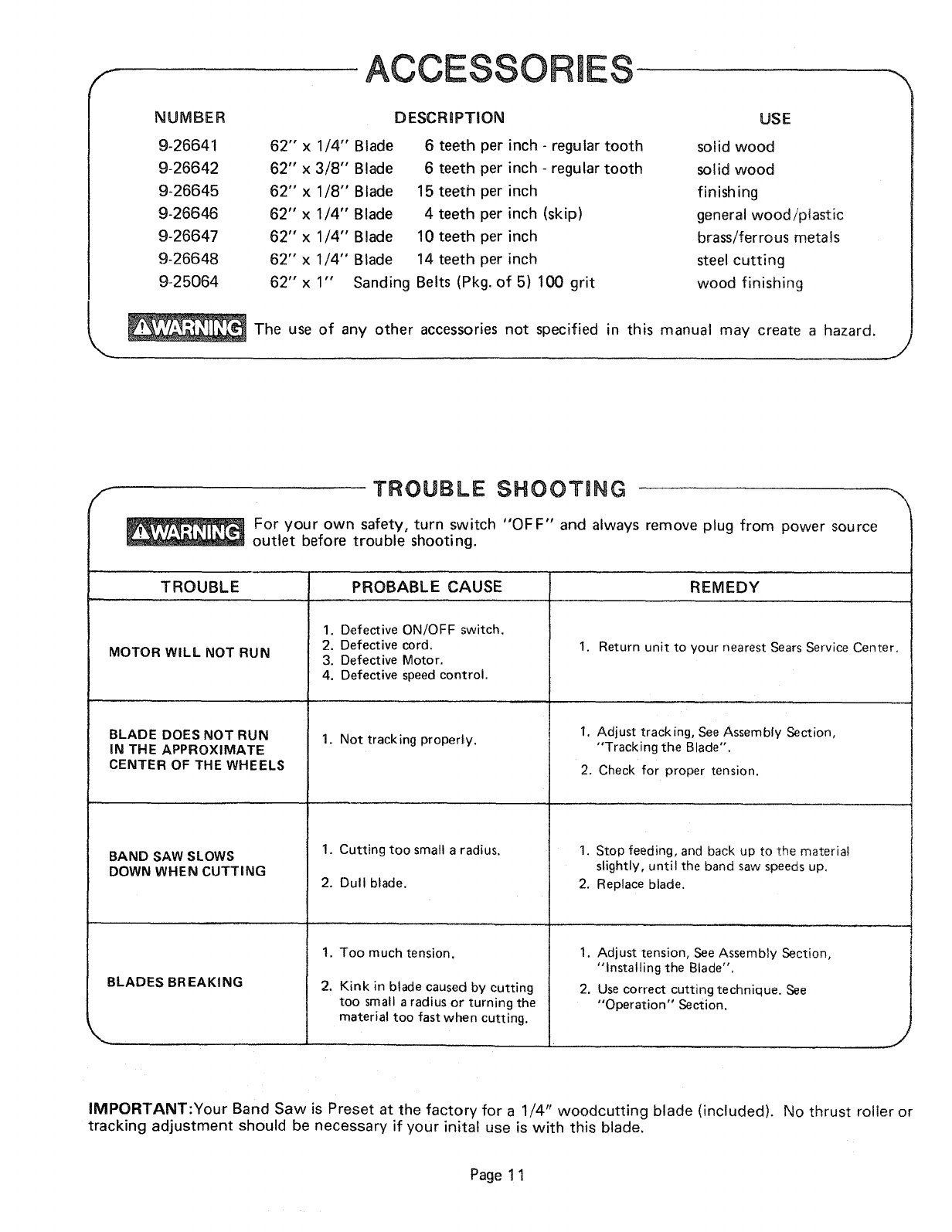

fACCESSORIES

NUMBER

9-26641

9-26642

9-26645

9-26646

9-26647

9-26848

9-25064

DESCRBPTION

62" x 1/4" Blade 6 teeth

62" x 3/8" Blade 6 teeth

62" x 1/8" Blade 15 teeth

62" x 1/4" Blade 4 teeth

62" x 1/4" Blade 10 teeth

62" x 1/4" Blade 14 teeth

62" x 1"

)er inch - regular tooth

)er inch - regular tooth

3er inch

)er inch (skip)

)er inch

)er inch

Sanding Belts (Pkg. of 5) 100 grit

USE

solid wood

solid wood

finishing

general wood/plastic

brass/ferrous metals

steel cutting

wood finishing

The use of any other accessories not specified in this manual may create a hazard.

.J

TROUBLE SHOOTING

For your own safety, turn switch "OFF" and always remove plug from power source

outlet before trouble shooting.

TROUBLE

MOTOR WILL NOT RUN

BLADE DOES NOT RUN

IN THE APPROXIMATE

CENTER OF THE WHEELS

BAND SAW SLOWS

DOWN WHEN CUTTING

BLADES BREAKING

PROBABLE CAUSE

1. Defective ON/OFF switch.

2. Defective cord.

3. Defective Motor.

4. Defective speed control.

1. Not tracking properly.

1. Cutting too small a radius.

2. Dull blade.

1. Too much tension.

2. Kink in blade caused by cutting

too small a radius or turning the

material too fast when cutting.

REMEDY

1. Return unit to your nearest Sears Service Center.

1. Adjust tracking, See Assembly Section,

"Tracking the Blade".

2. Check for proper tension.

1. Stop feeding, and back up to the material

slightly, until the band saw speeds up.

2. Replace blade.

1. Adjust tension, See Assembly Section,

"Installing the Blade",

2. Use correct cutting technique. See

"Operation" Section. J

IMPORTANT:Your Band Saw is Preset at the factory for a 1/4" woodcutting blade (included). No thrust roller or

tracking adjustment should be necessary if your inital use is with this blade.

Page 11

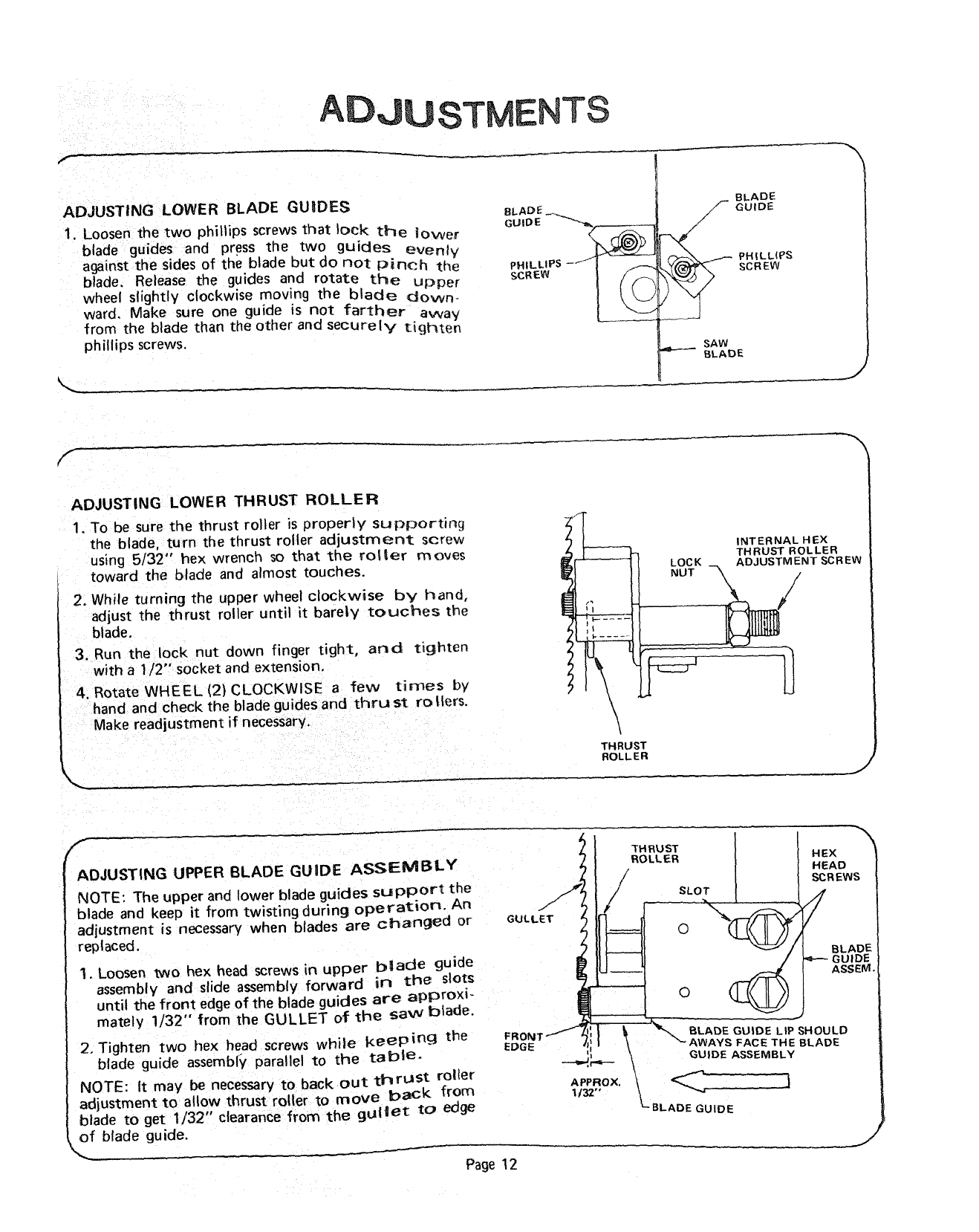

ADJUSTMENTS

F'"

ADJUSTING LOWER BLADE GUIDES

1. Loosen the two phittips screws that lock the lower

blade guides and press the two guides evenly

against the sides of the blade but do not pinch the

blade. Release the guides and rotate the upper

wheel slightly clockwise moving the blade down-

ward. Make sure one guide is not farther away

from the blade than the other and securely tighten

phillips screws.

BLADE _.

BLADE

f- GUIDE

/

I

j__ PHILLII>S

sCREW

SAW

_--_ BLAIDE

J

F

ADJUSTING LOWER THRUST ROLLER

1. To be sure the tnrust roller is property supporting

the blade, turn the thrust roller adjustment screw

using 5/32" hex wrench so that the roller moves

toward the blade and almost touches.

2. While turning the upper wheel clockwise by hand,

adjust the thrust roller until it bare|y touches the

blade,

3. Run the lock nut down finger tight, and tighten

with a 1/2" socket and extension,

4. Rotate WHEEL (2) CLOCKWISE a few tinges by

hand and check the blade guides and thrust rollers.

Make readjustment if necessary.

lINTERNAL HEX

THRUST ROLLER

LOCK ADJUSTMENT SCREW

THRUST

ROLLER J

f

ADJUSTING UPPER BLADE GUIDE ASSEMBLY

NOTE: The upper and lower blade guides support the

blade and keep it from twisting during operation. An

adjustment is necessary when blades are changed or

replaced.

1. Loosen two hex head screws in upper blade guide

assembly and slide assembly forward in the slots

until the front edge of the blade guides are approxi-

mately 1/32" from the GULLET of the saw blade.

2. Tighten two hex head screws while keeping the

blade guide assemble/ parallel to the table.

NOTE: It may be necessary to back out thrust roller

adjustment to allow thrust roller to move back from

blade to get 1/32" clearance from the gullet to edge

of blade guide.

HEX

HEAD

R EWS

BLADE

e---- GUIDE

ASSEM.

SHOULD

BLADE

Page 12

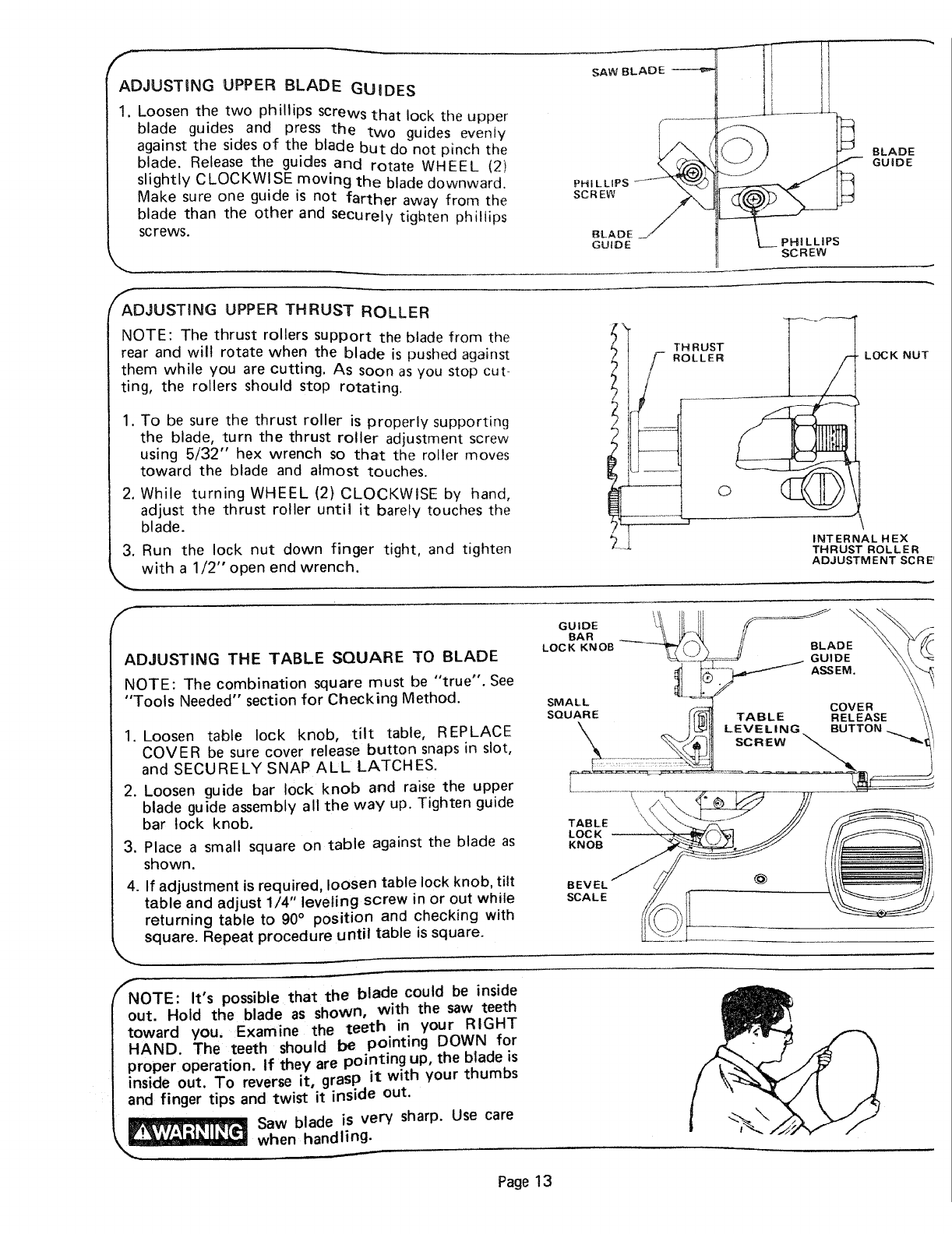

ADJUSTINGUPPERBLADE GUADES

1. Loosenthe two phillipsscrewsthat locktheupper

blade guidesand pressthe two guidesevenly

againstthe sidesof the bladebut donot pinchthe

blade.Releasethe guidesand rotate WHEEL(2)

slightlyCLOCKWISEmovingthe bladedownward.

Makesureone guideis not fartherawayfrom the

bladethanthe otherandsecurelytigLltenphillips

screws.

SAW BLADE

PHi LLIPS

SCREW

RLADE

GU4OE PHILLIPS

SCREW

BLADE

GUIDE

f

ADJUSTING UPPER THRUST ROLLER

NOTE: The thrust rollers support the blade from the

rear and will rotate when the blade is pushed against

them while you are cutting. As soon as you stop cut

ting, the rollers should stop rotating.

1. To be sure the thrust roller is properly supporting

the blade, turn the thrust roller adjustment screw

using 5/32" hex wrench so that the roller moves

toward the blade and almost touches.

2. While turning WHEEL (2) CLOCKWISE by hand,

adjust the thrust roller until it barely touches the

blade.

3. Run the lock nut down finger tight, and tighten

with a 1/2" open end wrench.

INTERNAL HEX

-_ THRUST ROLLER

ADJUSTMENT SCRE

f

ADJUSTING THE TABLE SQUARE TO BLADE

NOTE: The combination square must be "true". See

"Tools Needed" section for Checking Method.

1. Loosen table lock knob, tilt table, REPLACE

COVER be sure cover release button snaps in slot,

and SECURELY SNAP ALL LATCHES.

2. Loosen guide bar lock knob and raise the upper

blade guide assembly all the way up. Tighten guide

bar lock knob.

3. Place a small square on table against the blade as

shown.

4. If adjustment is required, loosen table lock knob. tilt

table and adjust 1/4" leveling screw in or out while

returning table to 90°position and checking with

square. Repeat procedure until table is square.

GUIDE _I\ il' /!

LOCK KNOB -

SMALL

SQUARE _'_

TABLE

LOCK

KNOB

BEVEL

SCALE

COVER

TABLE RELEASE

LEVELING BUTTON

SCREW

f' NOTE: It's possible that the blade could be inside

out. Hold the blade as shown, with the saw teeth

toward you. Examine the teeth in your RIGHT

HAND. The teeth should be pointing DOWN for

proper operation. If they are pointing up, the blade is

inside out. To reverse it, grasp it with your thumbs

and finger tips and twist it inside out.

_ Saw blade is very sharp. Use care

when handling.

Page 13

KEY PART KEY

NO. NO. PART NAME NO,

1 341452 HOUSING COVER SET 53

2 60301 SNAP RING (3) 54

3 43038 WASHER (3) 55

4328522 IDLER WHEEL ASSEMBLY (2) 56

5 326291 WHEEL (2) 57

6 27399 BEARING (4) 58

7 326296 BELT (3) 59

8 328702 PUSH NUT (4) 60

9 328761 ROD (2) 61

10 STD541031 *NUT(3) 62

11 13595 WASHER (2) 63

12 328526 SPRING (2) 64

13 326293 BRACKET ASSEMBLY 65

14 328763 CARRIAGE BOLT 66

15 STD551025 *WASHER (2) 67

16 STD581025 *SNAP RING 68

17 328753 SHAFT 69

18 328758 SPACER 70

19 328772 RIVET (20) 71

20 328516 BRACKET ASSEMBLY 72

21 17641 SPRING

22 326287 FRAME

23 4374 WASHER (8)

24 3712 SCREW (4)

25 328514 GUIDE BLOCK (4)

26 328509 SLIDE ASSEMBLY

27 328503 THRUST PLATE (2)

28 STD522505 *SCREW (5)

29 STD601103 *SCREW (2)

30 328505 GUARD

31 139377 SCREW (2)

32 813747 UPPER THRUST BUSHING

ASSEMBLY

33 328525 PINION

34 328545 HEX NUT

35 STD375004 *CONNECTOR (4)

36 64973 CORD CLAMP

37 326294 SLIDE BRACKET

38 341453 SPACER

39 346030 SCREW (5)

40 328778 COVER PLATE

41 328548 CORD

42 11811 GROMMET

43 328793 HARNESS

44 328529 CLIP (7)

45 179083 WASHER (5)

46 4158 SCREW (5)

47 328547 KNOB

48 328648 SWITCH KEY

49 326292 SWITCH

50 328532 SWITCH HOUSING

51 328507 SWITCH COVER

52 329006 NUT SPEED CONTROL

SPECIAL NOTES:

*Standard Hardware Item - May be Purchased Locally.

PART

NO. PART NAME

328539 V.S. CONTROL

328705 TERMINAL

328768 KNOB w/STUD

340179 SCR EW

328754 KNOB w/STUD

328773 SPAC ER

328538 MOTOR COVER

21917 SCREW (4)

326295 MOTOR ASSEMBLY

321413

315115

328782

328923

327712

STD503705

27034

328540

328755

329020

73

74

75

76

77

78 326288

79 328756

80 STD551031

81 328508

82 STD551231

83 STD523106

84 328779

85 109751

86 328546

87 322293

88 STD581050

89 328504

90 328751

91 10824

92 328513

93 328500

94 813748

95 328512

96 328524

97 STD541008

98 328949

99 328527

100 328792

101 328649

®102 328922

®103 328931

-- SP4998

STD551010 *WASHER (2)

CLAMP, CABLE

WASHER

TABLE (includes Key #68)

TABLE INSERT

SCALE STICKER

*SET SCREW 3/8-16xl/2

SCREW

MITER GAUGE

KNOB

MITER GAUGE EXTENSION

STD551225 *LOCKWASHER (6)

328764 SCREW

328544 GUIDE BAR

326290 GEAR CASE

STD541025 *N UT (3)

TRUNNION

KNOB

*WASHER

SUPPORT GUIDE (2)

*LOCKWASHER (2)

*SCREW (2)

WASHER

CARRIAGE BOLT

BEARING (2)

BEARING, NEEDLE (2)

*"E" RING

GEAR

SPINDLE

BEARING

PIN

GEAR & PINION

LOWER THRUST BUSHING ASSY.

BEARING RETAINER (2)

DRIVE WHEEL

*NUT (2)

COVER

FRONT FOOT

REAR FOOT

MAIN FRAME ASSEMBLY

SANDING INSERT (not shown)

BACKING PLATE (not shown)

OWNERS MANUAL (not shown)

• Parts For No. 9-24434 Sanding Kit.

Page 14

f----'x

0

0

ILl

Z

W

a

0

I

Page 15

\

<

w

W

I,m

t_

I-

<

Q.

0

J

OWNERS

MANUAL

SERVICE

MODEL NO.

113.244200

HOWTO ORDER

REPAIR PARTS

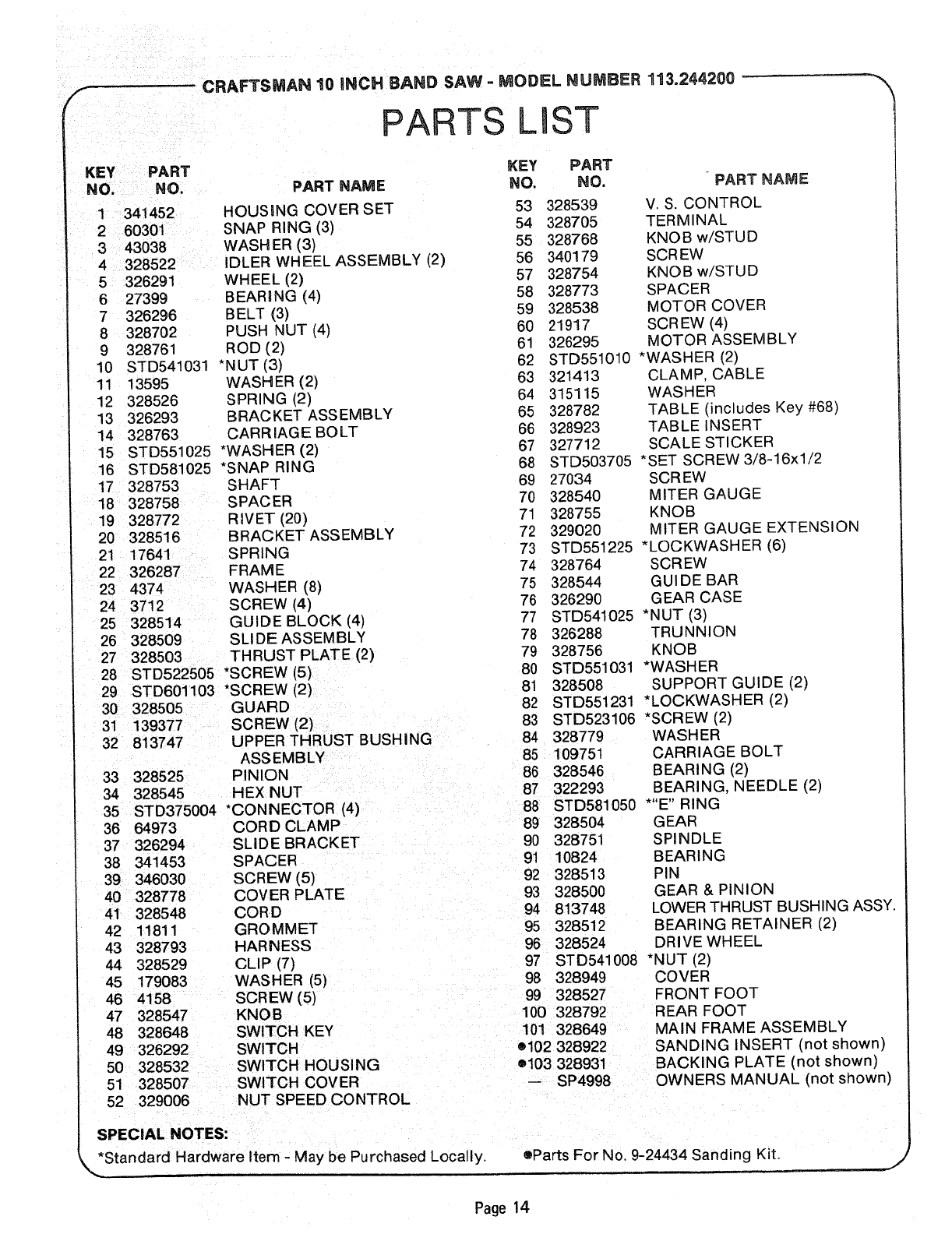

10" BAND SAW

®

The Model Number will be found on a plate attach-

ed to the motor housing. Always mention the Model

Number when requesting service or repair parts for

your BAND SAW

All parts listed may be ordered from any Sears

Service Center and most Sears stores. If the parts

you need are not stocked locally, your order will

be electronically transmitted to a Sears Repair

Parts Distribution Center for handling.

WHEN ORDERING REPAIR PARTS, ALWAYS

GIVE THE FOLLOWING INFORMATION:

1. PART NUMBER 2. PART DESCRIPTION

3. MODEL NUMBER

113.244200

4. NAME of ITEM --

10" BAND SAW

part No SP4998

SOLD BY SEARS, ROEBUCK AND CO, Chicago, IL 60684 USA

Form No. SP4998-1 Printed in U.S.A. 1/89
