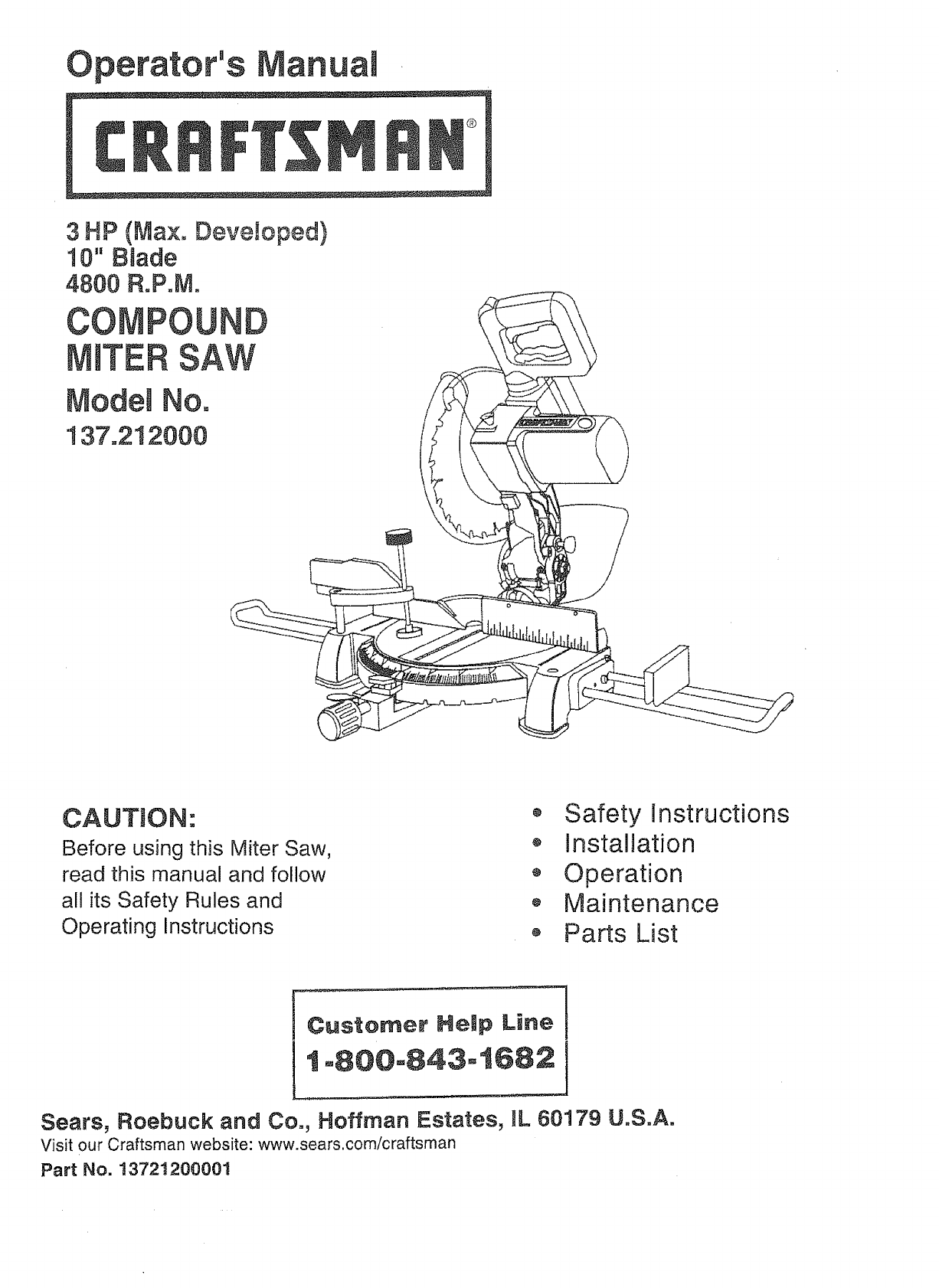

Operator's anuai

3 HP (Ma×. Developed)

10" Baade

4800 R.P,M.

CO POUND

raTERSAW

Model No.

137.212000

CAUTMON:

Before using this Miter Saw,

read this manual and follow

all its Safety Rules and

Operating Instructions

Safety Instructions

lnstalJation

•Operation

,, Maintenance

,, Parts List

Customer Help Line

1=800-843-1682

Sears, Roebuck and Co., Hoffrnan Estates, IlL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

Part No. 13721200001

SECTION PAGE

Warranty ........................................ 2

Product Specifications ....................... 2

Power Tool Safety ............................ 3

Compound Miter Saw Safety ............... 4

Electrical Requirements and Safety ...... 5

Accessories and Attachments .............. 6

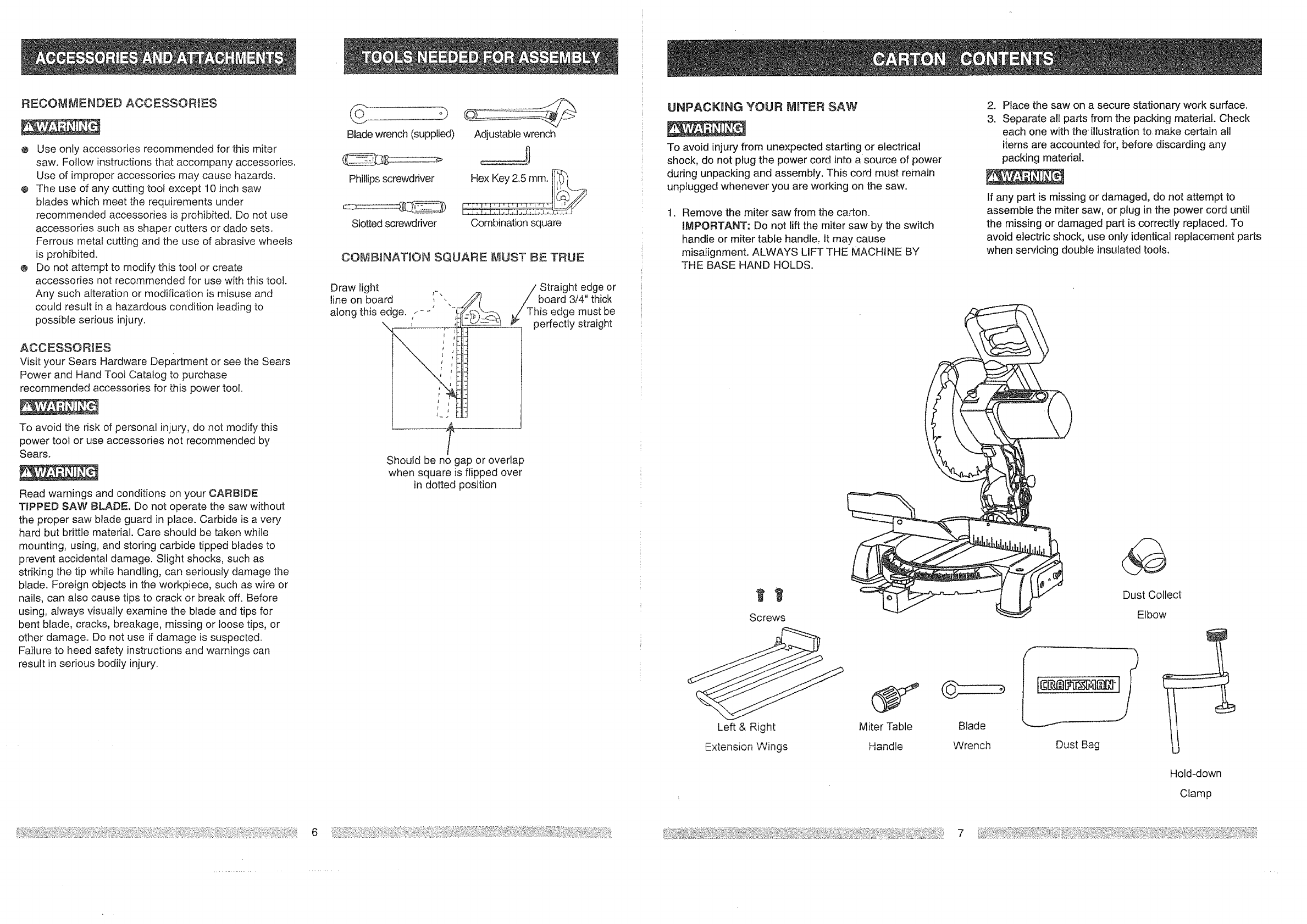

Tools Needed For Assembly ................ 6

Carton Contents .............................. 7

SECTION PAGE

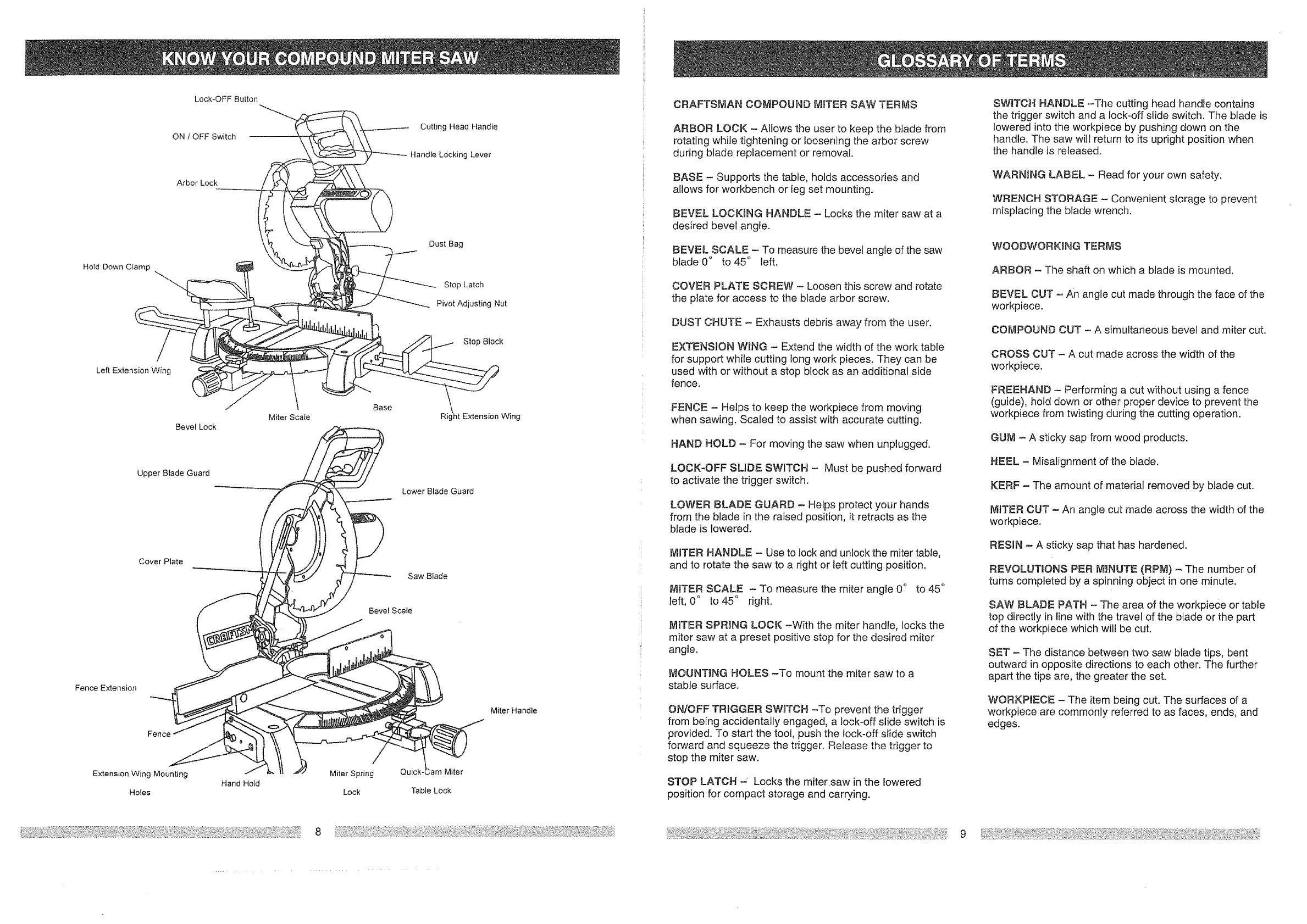

Know Your Compound Miter Saw ........ 8

G_ossary of-Terms ............................ 9

Assembly and Adjustments ................. 10

Operation ....................................... 16

Maintenance ................................... 23

Troubleshooting Guide ....................... 24

Parts List......................................... 26

FULL ONE YEAR WARRANTY

If this tool fails due to a defect in material or workmanship within one year of date of purchase, Sears will

at its option repair or replace it free of charge.

Return this tool to a Sears Service Center for repair, or to place of purchase for replacement.

This warranty gives you specific legal rights, and you may also have other rights which may vary from

state to state.

Sears, Roebuck and Co., Dept. 8-I7 WA, Hoffman Estates, fL 60179

Some dust created by power sanding, sawing, grinding, drillin_ ! and other construction activities contains

chemicals known (to the State of California) to cause cancer, birth defects or other reproductive harm. Some

examples of these chemicals are:

o Lead from lead-based paints

Crystalline silica from bricks, cement and other masonry products

• Arsenic and chromium from chemically treated lumber

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your

exposure to these chemicals, work in a wel! ventnated area and work with approved safety equipment such as dust

masks that are specially designed to filter out microscopic particles.

MOTOR

Power Source .....................

Horsepower ........................

Speed .................................

Brake .................................

Doubte insulated ....................

MITER SAW

Cutting Capacity:

Crosscut ............................

Miter 45oR.&L .....................

Bevel 45 ° L........................

45° Miter and 45° Bevel .........

120 V AC, 60HZ, 15 Amp

3HP (Max. Developed)

4800 RPM (No load)

Electric

Yes

2-518" x 5-112"

2_5/8" x 3-1/2"

1-1/2" x 5-1/2"

1_112"x 3-tt2"

Rotating Table:

Diameter .............................. 12-5/8"

Miter Detent Stops .................. 0, 15, 22-112, 3t.6,

45° R. & L

Bevel Positive Stops ............... 0, 45°

Base Dimensions .................. 19-7/8" x 16-3t8"

Dust Collection ...................... Yes

Extension Wings .................... Yes

Net Weight ........................... 27.6 Lbs

To avoid electrical hazards, fire hazards or damage to the tool, use proper circuit protection:

This tool is wired at the factory for 110-I20 Volt operation. It must be connected to a 110-120 Volt f15 Ampere time

delay fuse or circuit breaker. To avoid shock or fire, replace power cord immediately if it is worn, cut or damaged

in any way.

Before using your tool, it is critical that yo'u read and understand these safety rules. Failure to follow these rules

COH!d result in ._.rious in_u_ to you or damage to the tool.

GENERAL SAFETY mNSTRUCTMONS

BEFORE USING THE M_TER SAW

Safety is a combination of common sense, staying alert

and knowing how to use your miter saw.

To avoid mistakes that could cause serious injury, do

not plug the tool in until you have read and understood

the following.

t. READ and become familiar with the entire

Operators Manual. LEARN the tool's application,

limitations and possible hazards.

2. KEEP GUARDS IN PLACE and in working order.

.REMOVE ADJUSTING KEYS AND WRENCHES.

Form the habit of checking to see that keys and

adjusting wrenches are removed from the tool

before turning ON.

4. KEEP WORK AREA CLEAN. Cluttered areas and

benches invite accidents.

DON'T USE IN DANGEROUS ENVIRONMENT.

Don't use power tools in damp locations, or expose

them to rain or snow. Keep work area well lighted.

KEEP CHILDREN AWAY. All visitors and

bystanders should be kept a safe distance from

work area.

7. MAKE WORKSHOP CHILD PROOF with padlocks,

master switches, or by removing starter keys.

8. DON'T FORCE THE TOOL. It will do the job better

and safer at the rate for which it was designed.

9. USE THE RIGHT TOOL. Do not force tool or

attachment to do a job for which it was not designed.

1&USE PROPER EXTENSION CORD. Make sure your

extension cord is in good condition. When using an

extension cord, be sure to use one heavy enough to

carry the current your product wilt draw. An

undersized cord wilt result in a drop in line voltage

and in loss of power which will cause the toot to

overheat. The table on page 5 shows the correct

size to use depending on cord length and nameplate

ampere rating. If in doubt, use the next heavier

gauge. The smaller the gauge number, the heavier

the cord.

11.WEAR PROPER APPAREL. Do not wear loose

clothing, gloves, neckties, rings, bracelets, or other

jewelry which may get caught in moving parts.

Nonslip footwear is recommended. Wear protective

hair covering to contain long hair.

!2.ALWAYS WEAR EYE PROTECTION. Any power

toot can throw foreign objects into the eyes and

could cause permanent eye damage.

ALWAYS wear Safety Goggles {not

glasses) that comply with ANSI Safety

standard Z87.1 Everyday eyeglasses

have only impact - resistance lenses.

They ARE NOT safety glasses. Safety Goggles are

available at Sears. NOTE: Glasses or goggles not in

compliance with ANSI Z87.1 could seriously injure

you when they break.

13.WEAR A FACE MASK OR DUST MASK. Sawing

operation produces dust.

14.SECURE WORK. Use clamps or a vise to hold work

when practical, lt's safer than using your hand and it

frees both hands to operate tool.

15.DISCONNECT TOOLS before servicing, and when

changing accessories such as blades, bits and

cutters.

1&REDUCE THE RISK OF UNINTENTIONAL

STARTING. Make sure switch is in OFF position

before plugging in.

17.USE RECOMMENDED ACCESSORIES. Consult

this Operators Manual for recommended

accessories. The use of improper accessories may

cause risk of injury to yourself or others.

18.NEVER STAND ON TOOL, Serious injury could

occur if the tool is tipped or if the cutting tool is

unintentionally contacted.

1&CHECK FOR DAMAGED PARTS. Before further

use of the tool, a guard or other part that is

damaged should be carefully checked to determine

that it will operate properly and perform its intended

function - check for alignment of moving parts,

binding of moving pads, breakage of parts,

mounting, and any other conditions that may affect

its operation. A guard or other part that is damaged

should be properly repaired or replaced.

20.NEVER LEAVE TOOL RUNNING UNATTEND.

TURN POWER "OFF". Don't leave tool until it

comes to a complete stop.

21 .DON'T OVERREACH. Keep proper footing and

balance at atl times.

22.MAINTAIN TOOLS WITH CARE. Keep tools sharp

and clean for best and safest performance. Foliow

instructions for lubricating and changing

accessories.

......... , :: :: ,: ...... ......... =,::

POWER TOOL SAFETY -cont'd

1. WARNmNG: Dust generated from certain materials

can be hazardous to your health. Always operate

saw in well-ventilated area and provide for proper

dust removal,

SPEC_FUC SAFETY iNSTRUCTiONS FOR

THIS M_TER SAW

USE ONLY CROSS-CUTTING SAW BLADES.

When using carbide tipped blades, make sure they

have a negative hook angle. Do not use blades with

deep gullets they can deflect and contact guard.

DO NOT operate the miter saw until it is completely

assembled and installed according to these

instructions.

IF YOU ARE NOT thoroughly familiar with the

operation of miter saws, seek guidance from your

supervisor, instructor, or other qualified person.

ALWAYS hold the work firmly against the fence and

table. DO NOT perform any operation free hand.

KEEP HANDS out of the path of the saw blade. If

the workpiece you are cutting would cause your

hands to be within 6-1/2" inches of the saw blade,

the workpiece should be clamped in place before

making the cut.

BE SURE the blade is sharp, runs freely, and is free

of vibration.

7. ALLOW the motor to come up to full speed before

starting cut.

8. KEEP THE MOTOR AIR SLOTS CLEAN and free

of chips or dust.

9. ALWAYS MAKE SURE all handles are tight before

cutting, even if the table is positioned in one of the

positive stops.

I0. BE SURE blade and collar are clean and that the

arbor screw is tightened securely.

11. USE only blade collars specified for your saw.

I2. NEVER use blades larger or smaller in diameter

than 10-in.

I3, NEVER apply lubricants to the blade when it is

running.

14. ALWAYS check the blade for cracks or damage

before operation. Replace a cracked or damaged

blade immediately.

I5. NEVER use blades recommended for operation at

less than 4800 RPM.

18. USE the blade guards at all times.

17. ALWAYS keep the blade guards in place.

18. NEVER reach around the saw blade.

19. MAKE SURE the blade is not contacting the

workpiece before the switch is turned ON.

20. NEVER unplug the saw with the switch in the ON

position.

21. IMPORTANT: After completing ttqe cut, release the

power switch and wait for the blade to stop before

returning the saw to the raised position.

22. MAKE SURE the blade has come to a complete

stop before removing or securing the workpiece,

changing the workpiece angle, or changing the

angle of the blade.

23. NEVER cut ferrous metals or masonry with this tool.

24. NEVER cut small pieces.

25. PROVIDE adequate support to the sides of the saw

table for long work pieces.

26. NEVER use the miter saw in an area with flammable

liquids or gases.

27. NEVER use solvents to clean plastic parts. Solvents

could possibly dissolve or otherwise damage the

material,

28. SHUT OFF the power before servicing or adiusting

the tool.

29. DISCONNECT the saw from the power source and

clean the machine before leaving it,

30. MAKE SURE the work area is clean before leaving

the machine.

31. SHOULD any part of your miter saw be missing,

damaged, or fail in any way, or any electrical

component fail to perform properly, shut off the

switch and remove the plug from the power supply

outlet. Replace missing, damaged, or failed parts

before resuming operation.

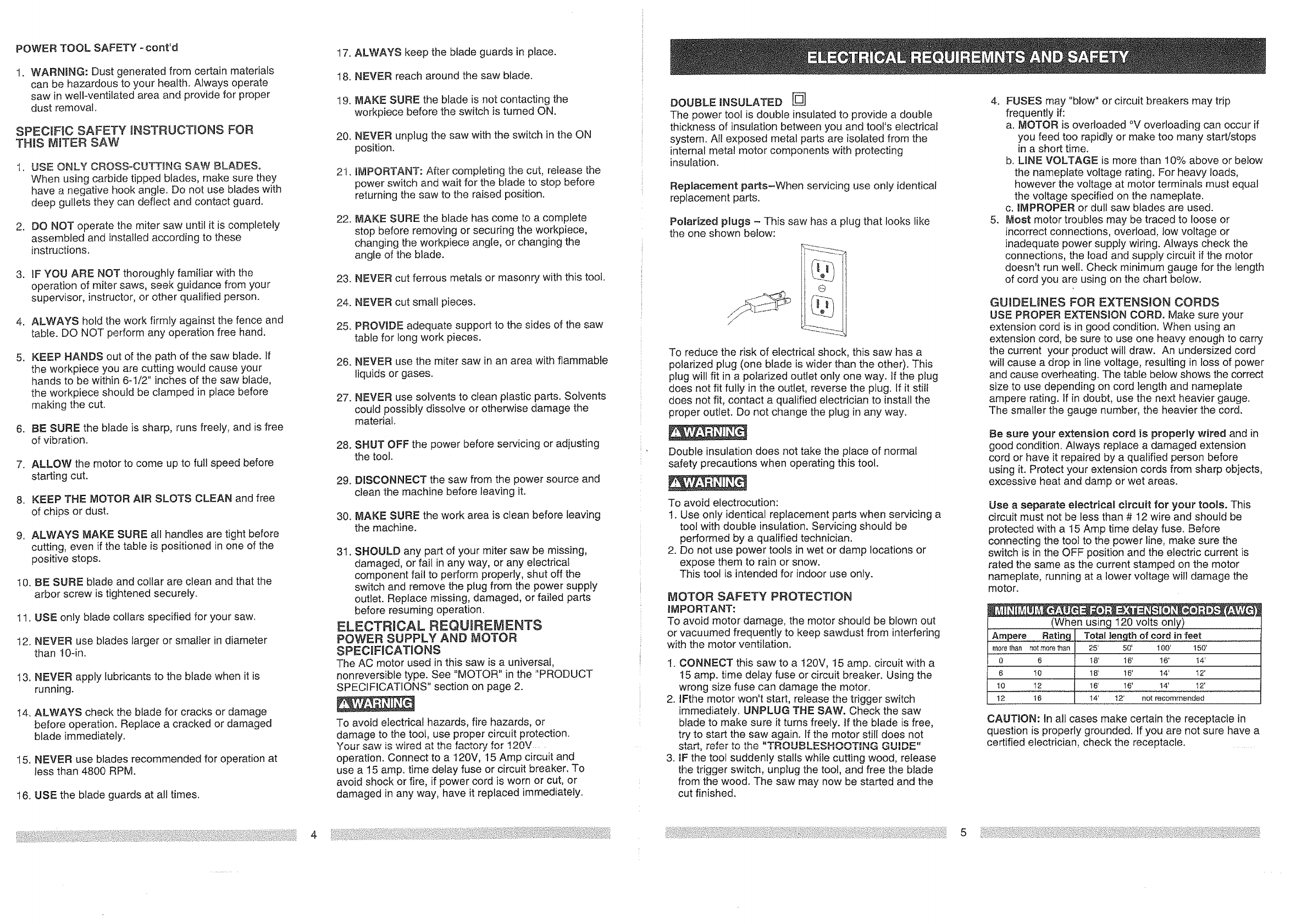

ELECTRgCAL REQUBREMENTS

POWER SUPPLY AND MOTOR

SPECiFiCATIONS

The AC motor used in this saw is a universal,

nonreversible type. See "MOTOR" in the "PRODUCT

SPECIFICATIONS" section on page 2.

To avoid electrical hazards, fire hazards, or

damage to the tool, use proper circuit protection.

Your saw is wired at the factory for 120V ....

operation. Connect to a 120V, 15 Amp circuit and

use a 15 amp. time delay fuse or circuit breaker. To

avoid shock or fire, if power cord is worn or cut, or

damaged in any way, have it replaced immediately.

DOUBLE INSULATED [_

The power tool is double insulated to provide a double

thickness of insulation between you and tool's electrical

system. Aft exposed metal parts are isolated from the

internal metal motor components with protecting

insulation.

Replacement parts-When servicing use only identical

replacement parts.

Pomarized plugs - This saw has a plug that looks like

the one shown below:

To reduce the risk of electrical shock, this saw has a

polarized plug (one blade is wider than the other). This

plug will fit in a polarized outlet only one way. tf the plug

does not fit fully in the outlet, reverse the plug. If it still

does not fit, contact a qualified electrician to install the

proper outlet. Do not change the plug in any way.

Double insulation does not take the place of normal

safety precautions when operating this tool.

To avoid electrocution:

t. Use only identical replacement parts when servicing a

too! with double insulation. Servicing should be

performed by a qualified technician.

2. Do not use power tools in wet or damp locations or

expose them to rain or snow.

This toot is intended for indoor use only.

MOTOR SAFETY PROTECTION

IMPORTANT:

To avoid motor damage, the motor should be blown out

or vacuumed frequently to keep sawdust from interfering

with the motor ventilation.

I. CONNECT this saw to a 120V, 15 amp. circuit with a

15 amp. time delay fuse or circuit breaker. Using the

wrong size fuse can damage the motor.

2. IFthe motor won't start, release the trigger switch

immediately. UNPLUG THE SAW. Check the saw

blade to make sure it turns freely. If the blade is free,

try to start the saw again. If the motor still does not

start, refer to the "TROUBLESHOOTING GUIDE"

3. IF the tool suddenly stalls while cutting wood, release

the trigger switch, unplug the tool, and free the blade

from the wood. The saw may now be started and the

cut finished.

4. FUSES may "blow" or circuit breakers may trip

frequently if:

a. ]MOTOR is overloaded °V overloading can occur if

you feed too rapidly or make too many start/stops

in a short time,

b. LINE VOLTAGE is more than 10% above or below

the nameplate voltage rating, For heavy loads,

however the voltage at motor terminals must equal

the voltage specified on the nameplate.

c. mMPROPER or dull saw blades are used.

5. Most motor troubles may be traced to loose or

incorrect connections, overload, low voltage or

inadequate power supply wiring. Always check the

connections, the load and supply circuit if the motor

doesn't run well. Check minimum gauge for the length

of cord you are using on the chart below.

GUBDEUNES FOR EXTENSION CORDS

USE PROPER EXTENSION CORD. Make sure your

extension cord is in good condition. When using an

extension cord, be sure to use one heavy enough to carry

the current your product will draw. An undersized cord

will cause a drop in line voltage, resulting in loss of power

and cause overheating. The table below shows the correct

size to use depending on cord length and nameplate

ampere rating. If in doubt, use the next heavier gauge.

The smaller the gauge number, the heavier the cord.

Be sure your extension cord ks properly wired and in

good condition. Always replace a damaged extension

cord or have it repaired by a qualified person before

using it. Protect your extension cords from sharp objects,

excessive heat and damp or wet areas.

Use a separate electrical circuit for your tools. This

circuit must not be less than # 12 wire and should be

protected with a 15 Amp time delay fuse. Before

connecting the toot to the power line, make sure the

switch is in the OFF position and the electric current is

rated the same as the current stamped on the motor

nameplate, running at a lower voltage will damage the

motor.

(When using 120 volts only)

Ampe.re R.a.ting Total length of cord in feet

more than notmore than 25' 50' 100' 150'

0 6 18' 16' !6' 14 _

6 10 18' 16' 14 _ t2'

10 12 16' 16' 14' 12'

12 16 14' 12' not recommended

CAUTION: In all cases make certain the receptacle in

question is properly grounded. If you are not sure have a

certified electrician, check the receptacle ........

RECOMMENDED A¢CESSORgES

e Use only accessories recommended for this miter

saw. Follow instructions that accompany accessories.

Use of improper accessories may cause hazards.

÷ The use of any cutting tool except 10 inch saw

blades which meet the requirements under

recommended accessories is prohibited. Do not use

accessories such as shaper cutters or dado sets.

Ferrous metal cutting and the use of abrasive wheels

is prohibited.

Do not attempt to modify this too! or create

accessories not recommended for use with this tool.

Any such alteration or modification is misuse and

could result in a hazardous condition leading to

possible serious injury.

ACCESSORIES

Visit your Sears Hardware Department or see the Sears

Power and Hand Toot Catalog to purchase

recommended accessories for this power tool.

To avoid the risk of personal injury, do not modify this

power tool or use accessories not recommended by

Sears.

Read warnings and conditions on your CARBIDE

TIPPED SAW BLADE. Do not operate the saw without

the proper saw blade guard in place. Carbide is a very

hard but brittle material. Care should be taken while

mounting, using, and storing carbide tipped blades to

prevent accidental damage. Slight shocks, such as

striking the tip while handling, can seriously damage the

blade. Foreign objects in the workpiece, such as wire or

nails, can also cause tips to crack or break off. Before

using, always visually examine the blade and tips for

bent blade, cracks, breakage, missing or loose tips, or

other damage. Do not use if damage is suspected.

Failure to heed safety instructions and warnings can

result in serious bodity injury.

Blade wrench (supplied)

Phillips screwdriver

Slotted screwdriver

Adjustable wrench

Hex Key 2.5 ram.

_',7_t I kL/X'i

Combination square

COMBINATION SQUARE MUST BE TRUE

Draw light

line on board

along this edge. / -"

li,I,1

Should be no jap or overlap

when square _sflipped over

in dotted position

hStraight edge or

board 3/4" thick

is edge must be

perfectly straight

UNPACKUNG YOUR M_TER SAW

To avoid injury from unexpected starting or electrical

shock, do not plug the power cord into a source of power

during unpacking and assembly. This cord must remain

unplugged whenever you are working on the saw.

.Remove the miter saw from the carton.

IMPORTANT: Do not lift the miter saw by the switch

handle or miter table handle, It may cause

misalignment. ALWAYS LIFT THE MACHINE BY

THE BASE HAND HOLDS.

Screws

2. Place the saw on a secure stationary work surface,

3. Separate all parts from the packing material. Check

each one with the illustration to make certain all

i{ems are accounted for, before discarding any

packing material.

If any part is missing or damaged, do not attempt to

assemble the miter saw, or plug in the power cord until

the missing or damaged part is correctly replaced. To

avoid electric shock, use only identical replacement parts

when servicing double insulated tools.

Dust Collect

Elbow

Left & Right Miter Table Blade

Extension Wings Handle Wrench Dust Bag

Hold-down

Clamp

Lock-OFF Button

ON /OFF Switch

Arbor Lock

Hold Down Cfamp

Le_ Extension Wing

Bevel Lock

Miter Scale

Upper Blade Guard

Cover Plate

Fence Extension

Fence

Extension Wing Mounting

Holes Hand Hold

Cutting Head Handle

Handle Locking Lever

Dust Bag

Stop Latch

Pivot Adjusting Nut

Stop Block

Base

Rig_ht Extension Wing

Lower Blade Guard

Saw Blade

Bevel Scale

Miter Handle

Miter Spring Q_

Lock Table Lock

CRAFTSMAN COMPOUND MITER SAW TERMS

ARBOR LOCK - Allows the user to keep the blade from

rotating while tightening or loosening the arbor screw

during blade replacement or removal.

BASE - Supports the table, holds accessories and

allows for workbench or leg set mounting.

BEVEL LOCKmNG HANDLE - Locks the miter saw at a

desired bevel angle.

BEVEL SCALE - To measure the bevel angle of the saw

blade0 ° to 45 ° left.

COVER PLATE SCREW - Loosen this screw and rotate

the plate for access to the blade arbor screw.

DUST CHUTE - Exhausts debris away from the user,

EXTENSION WING - Extend the width of the work table

for support while cutting long work pieces, They can be

used with or without a stop block as an additional side

fence.

FENCE - Helps to keep the workpiece from moving

when sawing. Scaled to assist with accurate cutting.

HAND HOLD - For moving the saw when unplugged.

LOCK-OFF SLIDE SWITCH - Must be pushed forward

to activate the trigger switch.

LOWER BLADE GUARD - Helps protect your hands

from the blade in the raised position, it retracts as the

blade is lowered.

MITER HANDLE - Use to lock and unlock the miter table,

and to rotate the saw to a right or left cutting position.

M_TER SCALE - To measure the miter angle 0 °to 45°

left, 0 ° to 45° right.

MINTERSPRING LOCK -With the miter handle, locks the

miter saw at a preset positive stop for the desired miter

angle.

MOUNTING HOLES -To mount the miter saw to a

stable surface.

ON/OFF TRIGGER SWITCH -To prevent the trigger

from being accidentally engaged, a lock-off slide switch is

provided. To start the too!, push the !ock-off slide switch

foPward and squeeze the trigger. Release the trigger to

stop the miter saw.

STOP LATCH - Locks the miter saw in the lowered

position for compact storage and carrying.

SWITCH HANDLE -The cutting head handle contains

the trigger switch and a lock-off slide switch. The blade is

lowered into the workpiece by pushing down on the

handle. The saw will return to its upright position when

the handle is released.

WARNNNG LABEL - Read for your own safety.

WRENCH STORAGE - Convenient storage to prevent

misplacing the blade wrench.

WOODWORKING TERMS

ARBOR - The shaft on which a blade is mounted.

BEVEL OUT - An angle cut made through the face of the

workpiece.

COMPOUND OUT - A simultaneous bevel and miter cut.

CROSS CUT - A cut made across the width of the

workpiece.

FREEHAND - Performing a cut without using a fence

(guide), hold down or other proper device to prevent the

workpiece from twisting during the cutting operation.

GUM - A sticky sap from wood products.

HEEL - Misatignment of the blade.

KERF - The amount of material removed by blade cut.

MITER CUT - An angle cut made across the width of the

workpiece.

RESIN - A sticky sap that has hardened.

REVOLUTIONS PER MINUTE (RPM) - The number of

turns completed by a spinning object in one minute.

SAW BLADE PATH - The area of the workpiece or table

top directly in line with the travel of the blade or the part

of the workpiece which will be cut.

SET - The distance between two saw blade tips, bent

outward in opposite directions to each other. The further

apart the tips are, the greater the set.

WORKPMECE - The kern being cut. The surfaces of a

workpiece are commonly referred to as faces, ends, and

edges.

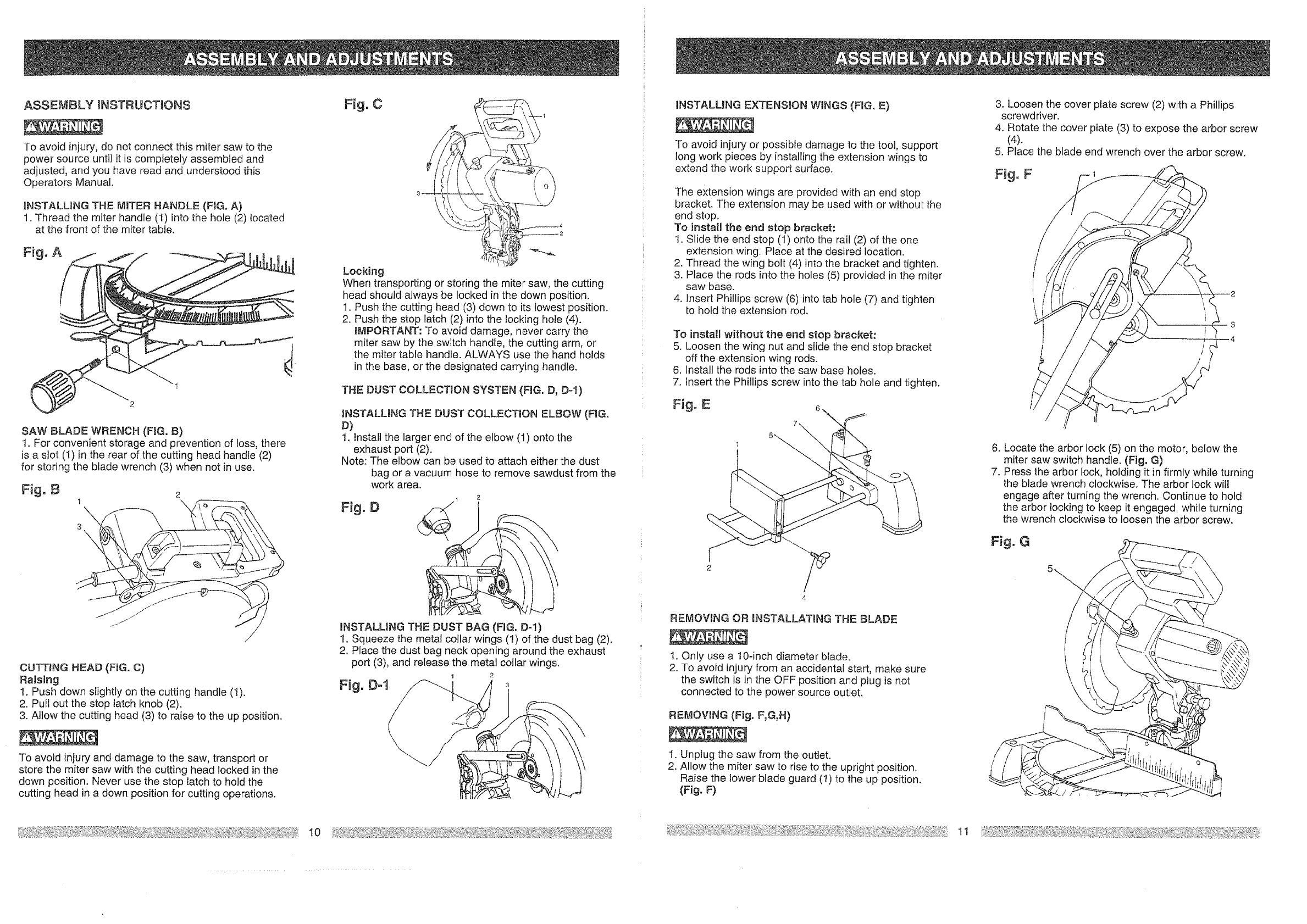

ASSEMBLY mNSTRUCT_ONS

To avoid injury, do not connect this miter saw to the

power source until it is completely assembled and

adjusted, and you have read and understood this

Operators Manual.

_NSTALLING THE M_TER HANDLE (FIG, A)

1. Thread the miter handle (t) into the hole (2) located

at the front of the miter table.

SAW BLADE WRENCH (FIG. B)

t. For convenient storage and prevention of loss, there

is a slot (1) in the rear of the cutting head handle (2)

for storing the blade wrench (3) when not in use.

CUTTING HEAD (FroG.C)

Raising

1. Push down slightly on the cutting handle (1).

2. Pull out the stop latch knob (2).

3. Allow the cutting head (3) to raise to the up position.

To avoid injury and damage to the saw, transport or

store the miter saw with the cutting head locked in the

down position. Never use the stop latch to hold the

cutting head in a down position for cutting operations.

Locking

When transporting or storing the miter saw, the cutting

head should always be locked in the down position.

1. Push the cutting head (3) down to its lowest position.

2. Push the stop latch (2) into the locking hole (4).

IMPORTANT: To avoid damage, never carry the

miter saw by the switch handle, the cutting arm, or

the miter table handle. ALWAYS use the hand holds

in the base, or the designated carrying handle.

THE DUST COLLECTION SYSTEN (FroG.D, D-I)

INSTALUNG THE DUST COLLECTION ELBOW (FIG.

1. install the larger end of the elbow (1) onto the

exhaust port (2).

Note: The elbow can be used to attach either the dust

bag or a vacuum hose to remove sawdust from the

work area.

mNSTALLING THE DUST BAG (FIG. D-l)

1. Squeeze the metal collar wings (1) of the dust bag (2).

2. Place the dust bag neck opening around the exhaust

port (3), and release the metal collar wings,

Fig= D=I

_NSTALUNG EXTENSION WINGS (F_G. E)

To avoid injury or possible damage to the toot, support

long work pieces by installing the extension wings to

extend the work suppor_ surface,

The extension wings are provided with an end stop

bracket. The extension may be used with or without the

end stop,

To install the end stop bracket:

1. Slide the end stop (1) onto the rail (2) of the one

extension wing. Place at the desired location.

2. Thread the wing bolt (4) into the bracket and tighten.

3. Place the rods into the holes (5) provided in the miter

saw base.

4. Insert Phillips screw (6) into lab hole (7) and tighten

to hold the extension rod.

To install without the end stop bracket:

5, Loosen the wing nut and slide the end stop bracket

off the extension wing rods.

6. Install the rods into the saw base holes.

7. Insert the Phillips screw into the tab hole and tighten,

Fig. E

REMOVING OR _NSTALLAT_NG THE BLADE

NNNtNN

1. Only use a !O-inch diameter blade,

2. To avoid injury from an accidental start, make sure

the switch is in the OFF position and plug is not

connected to the power source outlet,

REmOViNG (Fig. F,G,H)

I. Unplug the saw from the outlet.

2. Allow the miter saw to rise to the upright position.

Raise the lower blade guard (1) to the up position.

(Fig. F)

3. Loosen the cover plate screw (2) with a Phillips

screwdriver.

4. Rotate the cover plate (3) to expose the arbor screw

(4).

5. Place the blade end wrench over the arbor screw,

Fig, F

6. Locate the arbor lock (5) on the motor, below the

miter saw switch handle. (Fig. G)

7. Press the arbor lock, holding it in firmly while turning

the blade wrench clockwise. The arbor lock will

engage after turning the wrench, Continue to hold

the arbor locking to keep it engaged, while turning

the wrench clockwise to loosen the arbor screw.

REMOVING- cont'd

8. Remove the arbor screw and washer (4), outer blade

collar (6), and the blade (7). Do not remove the inner

blade collar. (Fig. H)

NOTE: Pay attention to the pieces removed, noting

their poskion and direction they face. Wipe the blade

collars clean of any sawdust before installing the new

blade.

INSTALLING BLADE (Fig. F, G, H)

1. lnsta{I a 10" blade, making sure the rotation arrow

on the blade matches the cloclewise rotation arrow on

the upper guard, and the blade teeth are pointing

downward.

2. Place the outer blade collar (6) on the blade and on

the arbor. Thread the arbor screw (4) into the arbor.

(Fig. H)

iMPORTANT: make sure the flats of the blade collars

are engage d with the flats on the arbor shaft.

3. Place the blade wrench on the arbor screw.

4. Press the arbor 10ck (5), holding it in firmly while

turning the blade wrench counterclockwise. When

it engages, continue to press the arbor lock in,

while tightening the arbor screw securely. (Fig. G)

5. Rotate the cover plate (3) back until the slot in the

cover plate engages with the cover plate screw

(2). Tighten the screw with a Phillips screwdriver.

6. Lower the blade guard (1). (Fig. F)

7. Be sure the arbor lock is released so the blade

turns freely.

o To avoid injury, never use the saw without thecover

plate secure in place. It keeps the arbor screw from

falling out if it accidentally loosens, and helps prevent

the spinning blade from coming off the saw.

e Make sure the collars are clean and properly

arranged. Lower the blade into the lower table and

check for any contact with the metal base or the turn

table.

INSTALLING THE HOLD-DOWN CLAMP (FroG.H-!)

Place the Hold-down Clamp (1) on the desired clamp

hole (2).

Fig. H-!

ADJUSTMENTS

To avoid injury from an accidental start, make sure the

switch is in the OFF position and the plug is not

connected to the power source outlet.

ADJUSTING FENCE SQUARENESS (Fig. I)

1. Loosen the three fence locking screws (1).

2. Using a square, lay the heel of the square against

the blade, and the rule against the fence (2) as

shown. Check to see if the fence is 90 ° to the blade.

3. Adjust the fence to be 90 ° to the blade and tighten

the two fence locking screws.

CAUTION: If the saw has not been used recently,

recheck blade squareness to the fence and readjust if

needed.

MITER SCALE (FIG. J}

The miter scale on the table has nine of the most common

angle settings with positive stops at 0 ° , 15 ° ,22.5 ° , 31.6 °

and 45 ° .These positive stops position the blade at the

desired angle quickly and accurately.

Positive Stop Miter Angle Adjustment:

i. Unlock the miter table, by pressing down on the positive

stop locking lever (1).

2. While holding the positive stop locking lever down, grasp

the miter handle (2) and move the miter table left or right

to the desired angle.

3. Release the positive stop locking lever, making sure it

engages with the positive stop. Slight movement of the

miter handle will ensure positive stop engagement.

Miter Angle Pointer Adjustment:

I. Place the miter table at the zero position.

2. Loosen the miter angle indicator screw (3) and adjust the

indicator to the "0" mark on the miter scale.

3. Tighten miter angle indicator screw.

Quick-Cam Miter TabmeLock Operation:

If miter angles required are NOT one of the nine positive

stops noted above, the miter table can be locked at any

angle between these positive stops by using the Quick-Cam

table lock.

1, Unlock the miter table by pressing down on the positive

stop locking lever (1).

2, While holding the positive stop locking lever down, grasp

the miter handle (2) and move the miter table left or right

to the desired angle,

3. Release the positive stop locking lever.

4. Press down on the Quick-Cam locking lever (4) until k

locks the miter table in place.

NOTE: Quick-Cam locking lever should lock the table

and prevent it from moving. If adjustment is needed,

adjust as required.

Quick-Cam Miter Table Lock Adjustment:

1. Release Quick-cam locking lever (4).

2. Loosen Quick-Cam lock nut (5) using a 13 mm wrench.

3. Turn adjusting screw (6) either in or out until locking

lever firmly locks the miter table in place.

4, Tighten Quick-Cam locking nut.

Fig.J

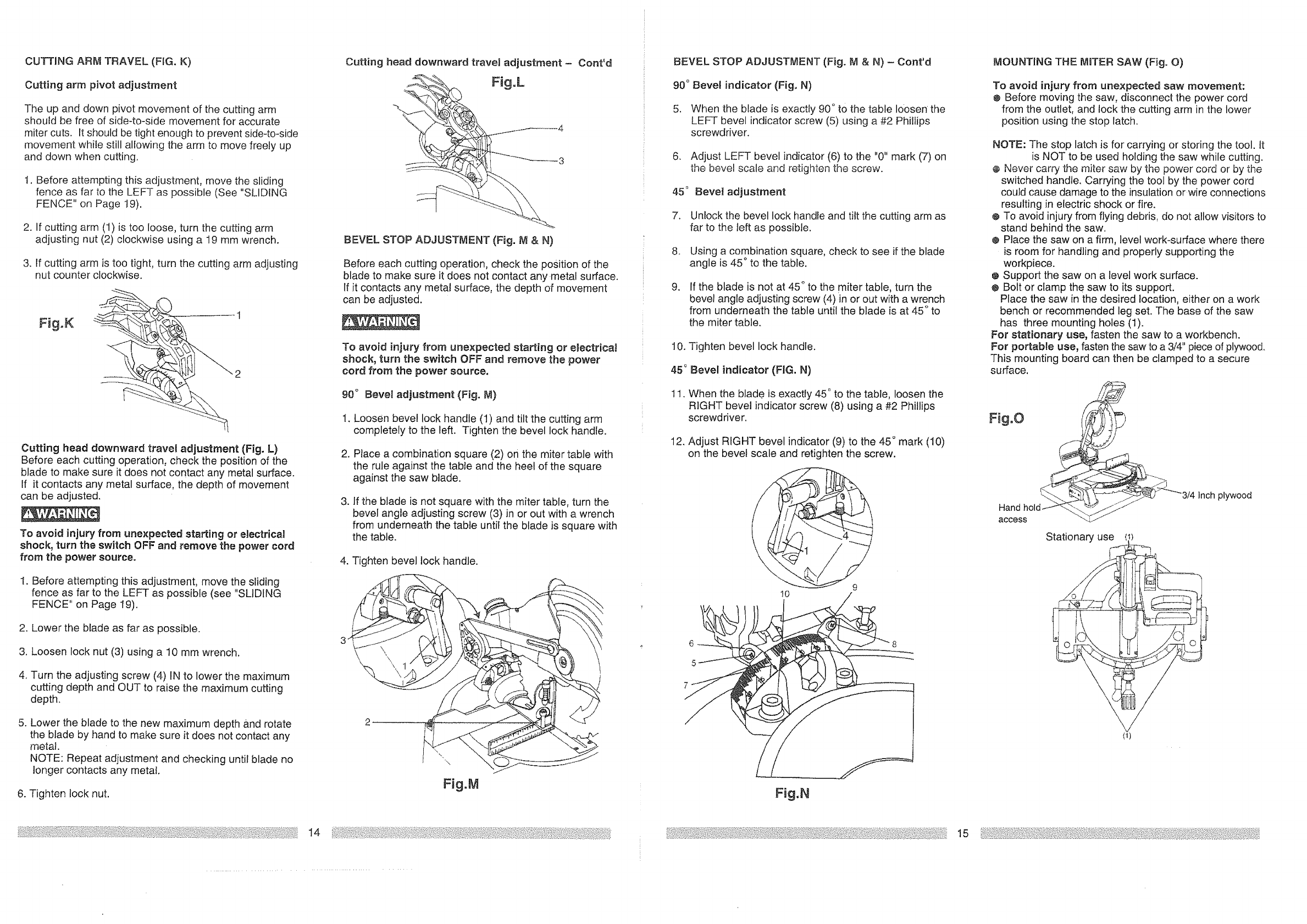

CUTTING ARM TRAVEL (F_G. K)

Cutting arm pivot adjustment

The up and down pivot movement or the cutting arm

should be free of side-to-side movement for accurate

miter cuts. It should be tight enough to prevent side-to-side

movement while still allowing the arm to move freely up

and down when cutting.

t. Before attempting this adjustment, move the sliding

fence as far to the LEFT as possible (See "SLIDING

FENCE" on Page t9).

2. If cutting arm (1) is too loose, turn the cutting arm

adjusting nut (2) clockwise using a 19 mm wrench.

3. If cutting arm is too tight, turn the cutting arm adjusting

nut counter clockwise.

FJg.K

Cutting head downward travel adjustment (Fig. L)

Before each cutting operation, check the position of the

blade to make sure it does not contact any metal surface.

If it contacts any metal surface, the depth of movement

can be adjusted.

To avoid injury from unexpected starting or electrical

shock, turn the switch OFF and remove the power cord

from the power source.

1. Before attempting this adjustment, move the sliding

fence as far to the LEFT as possible (see "SLIDING

FENCE" on Page 19).

2. Lower the blade as far as possible.

3. Loosen lock nut (3) using a 10 mm wrench.

4. Turn the adjusting screw (4) IN to lower the maximum

cutting depth and OUT to raise the maximum cutting

depth.

5. Lower the blade to the new maximum depth and rotate

the blade by hand to make sure it does not contact any

metal.

NOTE: Repeat adjustment and checking until blade no

longer contacts any metal,

6. Tighten lock nut.

Cutting head downward travel adjustment -

Fag.L

BEVEL STOP ADJUSTMENT (Fig. M & N)

Cont'd

Before each cutting operation, check the position of the

blade to make sure it does not contact any metal surface.

If it contacts any metal surface, the depth of movement

can be adjusted.

To avoid injury from unexpected starting or eJectrical

shock, turn the switch OFF and remove the power

cord from the power source,

90 ° Bevel adjustment (Fig, M)

1, Loosen bevel lock handle (1) and tilt the cutting arm

completely to the left. Tighten the bevel lock handle.

2. Place a combination square (2) on the miter table with

the rule against the table and the heel of the square

against the saw blade.

3. If the blade is not square with the miter table, turn the

bevel angle adjusting screw (3) in or out with a wrench

from underneath the table until the blade is square with

the table.

4. Tighten bevel lock handle.

FigoM

BEVEL STOP ADJUSTMENT (Fig. M& N) - Cont'd

90 ° Bevel indicator (Fig, N)

5. When the blade is exactly 90° to the table loosen the

LEFT bevel indicator screw (5) using a #2 Phillips

screwdriver.

6. Adjust LEFT bevel indicator (6) to the "0" mark (7) on

the bevel scale and retighten the screw.

45 ° Bevel adjustment

7. Unlock the bevel lock handle and tilt the cutting arm as

far to the left as possible.

8. Using a combination square, check to see if the blade

angle is 45 °to the table.

g. If the blade is not at 45 ° to the miter table, turn the

bevel angle adjusting screw (4) in or out with a wrench

from underneath the table until the blade is at 45 °to

the miter table.

10. Tighten bevel lock handle.

450 Bevel indicator (FIG. N)

11. When the blade is exactly 45° to the table, loosen the

RIGHT bevel indicator screw (8) using a #2 Phillips

screwdriver.

12. Adjust RIGHT bevel indicator (9) to the 45 ° mark (10)

on the bevel scale and retighten the screw.

Fig.N

MOUNTING THE NImTERSAW (Fig. O)

To avoid injury from unexpected saw movement:

@Before moving the saw, disconnect the power cord

from the outlet, and lock the cutting arm in the lower

position using the stop latch.

NOTE: The stop latch is for carrying or storing the tool. It

is NOT to be used holding the saw while cutting.

¢ Never carry the miter saw by the power cord or by the

switched handle. Carrying the tool by the power cord

could cause damage to the insulation or wire connections

resulting in electric shock or fire.

@To avoid injury from flying debris, do not allow visitors to

stand behind the saw,

® Place the saw on a firm, level work-surface where there

is room for handling and properly supporting the

workpiece.

e Support the saw on a level work surface.

® Bolt or clamp the saw to its support.

Place the saw in the desired location, either on a work

bench or recommended leg set. The base of the saw

has three mounting holes (1).

For stationary use, fasten the saw to a workbench.

For portable use, fasten the saw to a 3/4" piece of plywood.

This mounting board can then be clamped to a secure

surface,

Fig.O

Hand

access

Stationary use

Inch plywood

(1)

I4 15

SAFETY JNSTRUCTUONS FOR BASIC

SAW OPERATION

BEFORE USING THE MINTERSAW

To avoid mistakes that could cause serious,

permanent injury, do not plug the tool in until the

following steps are completed:

€ Completely assemble and adjust saw, following

the instructions. (ASSEMBLY AND

ADJUSTMENTS)

o Learn the use and function of the ON/OFF switch,

lock-off switch, upper and lower blade guards,

stop latch, bevel lock handle, and cover plate screws.

Review and understand all safety instructions

and operating procedures in this Operator's

ManuaI.(SAFETY & OPERATIONS)

o Review the MAINTENANCE and

TROUBLESHOOTING GUIDE for your miter

saw.

O To avoid injury or possible death from electrical shock:

Make sure your fingers do not touch the plug's

metal prongs when plugging or unplugging your

miter saw. (ELECTRICAL REQUIREMENTS

AND SAFETY)

BEFORE EACH USE

Inspect your saw.

oDisconnect the miter saw, To avoid injury from

accidental starting, unplug the saw before any

adjustments, including set-up and blade changes.

@Compare the direction of rotation arrow on

the guard to the direction arrow on the blade.

The blade teeth should always point downward

at the front of the saw.

Tighten the arbor screw,

@Tighten the cover plate screw.

O Check for damaged parts. Check for:

@Alignment of moving parts

• Damaged electric cords

o Binding of moving parts

e Mounting holes

o Function of arm return spring and lower

guard:

Push the cutting arm ati the way down,

then let it rise until it stops. The lower

guard should fully close. Follow instructions

in TROUBLESHOOTING GUIDE for

o Other conditions that may affect the way

the miter saw works.

@Keep all guards in place, in working order and

proper adjustment.

If any part of this miter saw is missing, bent

damaged or broken in any way, or any electrical

parts don't work, turn the saw off and unplug it.

Replace damaged, missing, or defective parts

before using the saw again.

@Maintain tools with care. Keep the miter saw

clean for best and safest performance. Follow

instructions for lubricating. Don't put lubricants

on the blade while it's spinning.

o Remove adjusting wrench from the tool before

turning it on.

e To avoid injury from jams, slips, or thrown pieces:

USE ONLY RECOMMENDED ACCESSORIES

@Consult the ACCESSORIES and

ATTACHMENTS section of this Operators

Manual for recommended accessories. Follow

the instructions that come with the accessory.

The use of improper accessories may cause risk

of injury to persons.

¢ Choose the correct 10 inch diameter blade for

the material and the type of cutting you plan to

do.

@Make sure the blade is sharp, undamaged and

properly aligned, With the saw unplugged, push

the cutting arm all the way down. Hand spin the

blade and check for clearance, Tilt the

power-head to a 45 ° bevel and repeat the check.

eMake sure the blade and arbor collars are clean.

€ Make sure all clamps and locks are tight and

there is no excessive play in any parts.

KEEP YOUR WORK AREA CLEAN

Cluttered areas and benches invite accidents,

To avoid burns or other fire damage, never use the

miter saw near flammable liquids, vapors, or gases.

oPlan ahead to protect your eyes, hands, face

and ears.

® Know your miter saw.

Read and understand the Operator's Manual and

labets affixed to the tool. Learn its application and

limitations as welt as the specific potential hazards

peculiar to this tool. To avoid injury from accidental

contact with moving parts, don't do layout, assembly,

or setup work on the miter saw while any parts are

moving.

e Avoid accidental starting

Make sure the switch is OFF before plugging the

miter saw into a power outlet.

PLAN YOUR WORK

¢ Use the right tool. Don't force a tool or

attachment to do a job it was not designed to do.

Use a different tool for any workpiece that can't

be held in a solidly braced, fixed position.

CAUTION: This machine is not designed for cutting

ferrous metals (steel, iron, and iron-based metals.)

Use this miter saw to cut only wood, wood-like

products, or soft metals like aluminum. Other material

may shatter, bind the blade, or create other dangers.

Remove all nails that may be in the workpiece to

prevent sparking that could cause a fire.

DRESS FOR SAFETY

Any power tool can throw foreign objects into the

eyes. This can result in permanent eye damage.

Everyday eyeglasses have only impact resistant

lenses and are not safety glasses. Glasses or

goggles not in compliance with ANSl Z87.1 could

seriously injure you when they break.

@Do not wear loose clothing, gloves, neckties or

jewelry (rings, watches). They can get caught

and draw you into moving parts.

® Wear non-slip footwear,

• Tie back tong hair.

® Roll long sleeves above the elbow.

e Noise levels vary widely. To avoid possible

hearing damage, wear ear plugs when using any

miter saw.

e For dusty operations, wear a dust mask along

with safety goggles.

INSPECT YOUR WORKPIECE

Make sure there are no nails or foreign objects in the

part of the workpiece being cut,

Plan your work to avoid small pieces that may

bind, or that are too small to clamp and get a

solid grasp on,

Plan the way you will grasp the workpiece from start

to finish. Avoid awkward operations and hand

positions. A sudden slip could cause your fingers or

hand to move into the blade.

DON'T OVER-REACH

Keep good footing and balance, Keep your face and

body to one side, out of the line of a possible

kickback. NEVER stand in the line of the blade,

Never cut freehand:

€ Brace your workpiece firmly against the fence

and table stop so it will not rock or twist during

the cut.

e Make sure there is no debris between the

workpiece and the table or fence.

e Make sure there are no gaps between the

workpiece, fence and table that will let the

workpiece shift after it is cut.

e Keep the cut off piece free to move sideways

after it is cut off. Otherwise, it could get wedged

against the blade and thrown violently.

o Only the workpiece should be on the saws table.

O Secure work. Use clamps or a vise to help hold

the work when it's practical.

USE EXTRA CAUTION WiTH LARGE OR ODD

SHAPED WORKPmECES.

e Use extra supports (tables, sawhorses, blocks,

etc.) for workpieces large enough to tip.

O Never use another person as a substitute for a

table extension, or as an additional support for a

workpiece that is longer or wider than the basic

miter saw table, or to help feed, support, or pull

the workpiece.

¢ Do not use this saw to cut small pieces. If the

workpiece being cut would cause your hand or

fingers to be within 6-1/2 inches of the saw bfade

the workpiece is too small. Keep hands and

fingers out of the "no hands zone" area marked

on the saws table.

¢ When cutting odd shaped workpieces, plan your

work so it will not bind in the blade and cause

possible injury. Molding, for example, must lie flat

or be held by a fixture or jig that will not let it

move when cut.

e Properly support round material such as dowel

rods, or tubing, which have a tendency to roll

when cut, causing the blade to "bite".

To avoid injury, follow all applicable safety instructions,

when cutting non-ferrous metals:

® Use only saw blades specifically recommended

for non-ferrous metal cutting.

O Do not cut metal workpieces that must be hand

held. Clamp workpieces securely.

e Cut non-ferrous metals only if you are under the

supervision of an experienced person.

WHEN SAW iS RUNNING

Don't allow familiarity from frequent use of your miter

saw to result in a careless mistake. A careless

fraction of a second is enough to cause a severe

injury.

Before cutting, if the saw makes an unfamiliar noise

or vibrates, stop immediately. Turn the saw OFF.

Unplug the saw. Do not restart u=_u_Jnu g and

correcting the problem.

BODYANDHANDPOSITION(FIG. O-!)

Proper positioning of your body and hands when

operating the miter saw will make cutting easier and

safer. Never place hands near the cutting area. Place

hand at least 6_1/2" away from the path of the blade.

Hold workpiece firmly against the fence to prevent

movement toward the blade. Keep hands in position

until the trigger has been released and the blade has

completely stopped. Before making a cut, with the

power switch in the OFF position bring the saw blade

down to the workpiece to see the cutting path of the

blade.

¢ Keep children away. Keep all visitors a safe

distance from the miter saw. Make sure bystanders

are clear of the miter saw and workpiece.

¢ Don't force tool. It will do the job better and safer

at its designed rate. Feed the saw into the workpiece

slowly with a firm downward motion.

¢ Before freeing jammed material:

@ Turn switch OFF.

Unplug the miter saw.

¢ Wait for all moving parts to stop.

¢After finishing a cut:

¢ Keep holding the power head down.

o Release the switch, and wait for all moving

parts to stop before moving your hands.

@ If the blade doesn't stop within 6 seconds,

unplug the saw and follow the instructions in the

TROUBLESHOOTING GUIDE section for

adjusting the blade brake before using the

saw again.

Fig.O-1

6 I/2" 6 1/2"

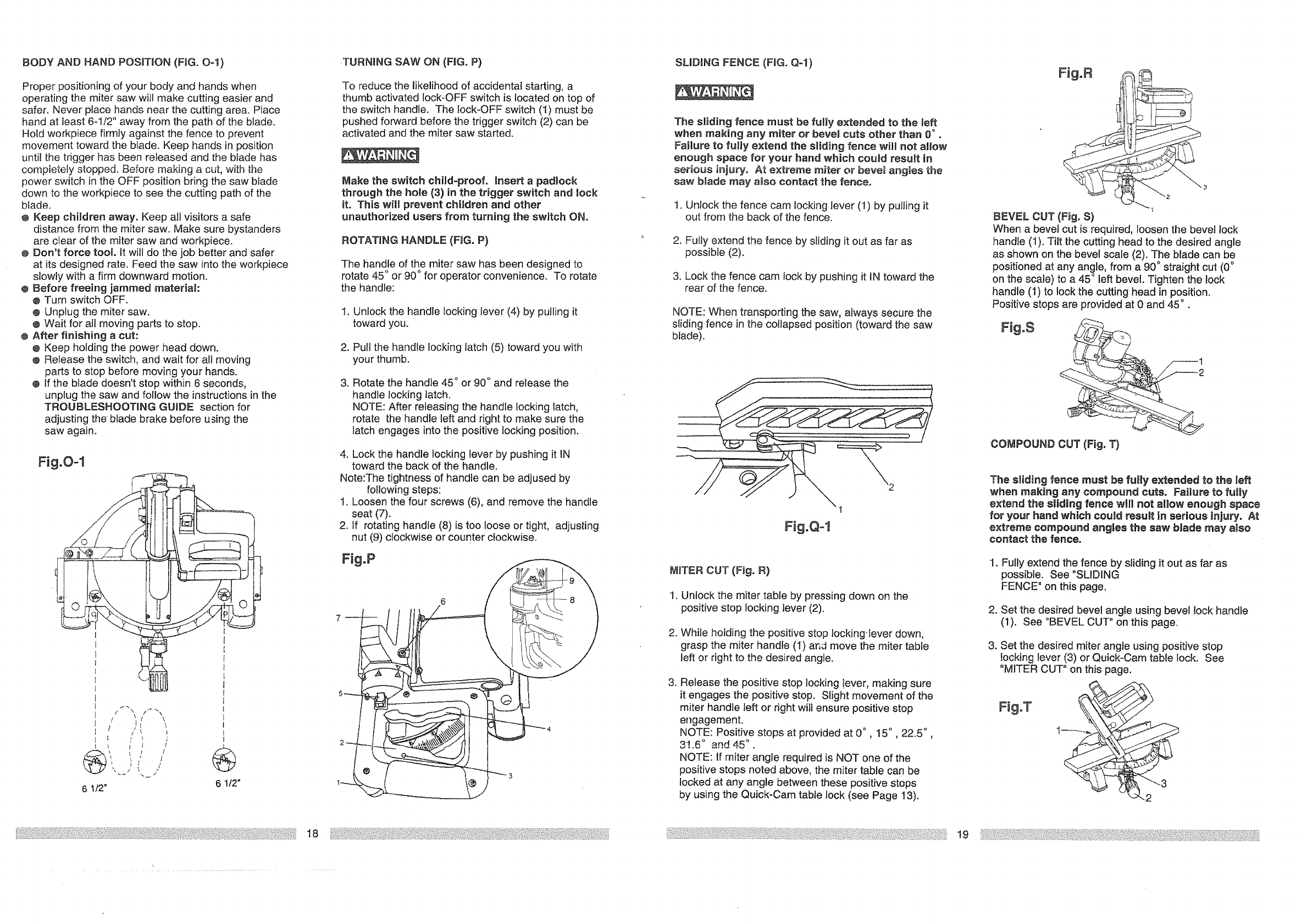

TURNING SAW ON (FIG. P)

To reduce the likelihood of accidental starting, a

thumb activated lock-OFF switch is located on top of

the switch handle. The tock-QFF switch (1) must be

pushed forward before the trigger switch (2) can be

activated and the miter saw started.

Make the switch child-proof. Inse_ a padlock

through the hole (3) in the trigger switch and mock

it. This wiU prevent children and other

unauthorized users from turning the switch ON.

ROTATING HANDLE (FBG.P)

The handle of the miter saw has been designed to

rotate 45 ° or 90° for operator convenience. To rotate

the handle:

!. Unlock the handle locking lever (4) by pulling it

toward you.

2. Pull the handle locking latch (5) toward you with

your thumb.

3. Rotate the handle 45°or 90 ° and release the

handle locking latch.

NOTE: After releasing the handle locking latch,

rotate the handle left and right to make sure the

latch engages into the positive locking position.

4. Lock the handle locking lever by pushing it IN

toward the back of the handle.

Note:The tightness of handle can be adjused by

following steps:

t. Loosen the four screws (6), and remove the handle

seat (7).

2. If rotating handle (8) is too loose or tight, adjusting

nut (9) clockwise or counter clockwise.

Fig.P

SLIDaNG FENCE (FIG, Q=I)

The sliding fence must be fully extended to the left

when making any miter or beveJ cuts other than 0 °.

Failure to fully extend the sliding fence will not al|ow

enough space for your hand which could result in

serious injury. At extreme miter or beve_ angmesthe

saw bmademay a_so contact the fence.

1. Unlock the fence cam locking lever (1) by pulling it

out from the back of the fence.

2, Fully extend the fence by sliding it out as far as

possible (2).

3. Lock the fence cam lock by pushing it IN toward the

rear of the fence.

NOTE: When transporting the saw, always secure the

sliding fence in the collapsed position (toward the saw

blade).

Fig.Q-t

MITER CUT (Fig. R)

1. Unlock the miter table by pressing down on the

positive stop locking lever (2).

2. While holding the positive stop locking.lever down,

grasp the miter handle (1) ar,d move the miter table

left or right to the desired angle.

.Release the positive stop locking !ever, making sure

it engages the positive stop. Slight movement of the

miter handle left or right wil! ensure positive stop

engagement.

NOTE: Positive stops at provided at 0 ° , 15 ° , 22.5 ° ,

3! .6° and 45 °.

NOTE: If miter angle required is NOT one of the

positive stops noted above, the miter table can be

locked at any angle between these positive stops

by using the Quick-Cam table lock (see Page 13).

Fig.R

BEVEL CUT (Fig. S)

When abevel cut is required, loosen the beret lock

handle (1). Tilt the cutting head to the desired angle

as shown on the bevel scale (2). The blade can be

positioned at any angle, from a 90 ° straight cut (0 °

on the scale) to a 45 ° left bevel. Tighten the lock

handle (1) to lock the cutting head in position,

Positive stops are provided at 0 and 45 °.

FigoS

COMPOUND CUT (Fig. T)

The sBidingfence must be fully extended to the Jeft

when making any compound cuts. Failure to fully

e_end the s_iding fence will not alIIow enough space

for your hand which could result in serious injury. At

extreme compound angles the saw blade may also

contact the fence.

1. Fully extend the fence by sliding it out as far as

possible. See "SLIDING

FENCE" on this page.

2. Set the desired bevel angle using bevel !ock handle

(1). See "BEVEL CUT" on this page;

3. Set the desired miter angle using positive stop

!ocking lever (3) or Quick-Cam table lock. See

"MITER CUT" on thi: page.

......... ! .......................................................

CUTTING BOWED MATERIAL (Fig. U)

A bowed workpiece must be positioned and cut. Do not

position workpiece incorrectly or try to cut the workpiece

without the support of the fence. This will cause the

blade to bind and could result in personal injury.

Fig=U

WORKPRECE SUPPORT (Fig. V)

Long pieces need extra support. The support should be

placed under the workpiece. Keep your hand holding the

workpiece positioned 6-1/2" or more away from the

blade. The support must let the workpiece lay flat on the

work table during the cutting operation.

NOTE: When mounted on a flat surface, the miter saw

table is 3-13/16 inches high.

Fig.V

3 13116"

AUXILARY WOOD FENCE (Fig. W)

When making multiple or repetitive cuts that result in

cut-off pieces of one inch or less, it is possibly for the

saw blade to catch the cut-off piece and throw it out of

the saw or into the blade guard and housing, possibly

causing damage or injury. To minimize this, an auxiliary

wood fence can be mounted to your saw.Holes are

provided in the saw fence to attach an auxiliary wood

fence. This fence is constructed of straight auxiliary

wood approximately 3/4 inch thick by 3 inches high by

19-1/2 inches long.

Attach the wood fence securely and make a full depth

cut to make a blade slot.

Check for interference between the wood fence and the

lower blade guard. Adjust if necessary.

NOTE: This auxiliary fence is used only with the saw

blade in the 0° bevel position (90 ° to the table). The

auxiliary wood fence must be removed when bevel

cutting.

Fig,W

slot

Cutting capacity with auxiliary fence

Crosscut 3-1/2" x 3-1/2"

Miter 45 ° R. & L 3-!/2" x 2"

Bevel 45 ° L 2" x 3-1/2"

Compound 45 ° L.,45 °R & L. 2" x 2"

CUTTING A DIMENSIONAL 4X4 WITH ONE CUT

(Fig. X)

A dimensional 4x4-in may be cut in half with one cut

by attaching an auxiliary wood fence of 3/4 inch thick.

See "AUXILIARY WOOD FENCE" above,

Fig,×

Mitre

Auxiliary fence

saw fence /k\\

i//l

3-1/2" -_1

/2"

Mitre saw table

VERTICAL _tlTER CUTTING (FIG. Y)

To make a miter cut in a 2x4 workpiece (1-5/8" x

3-1/2") in the vertical position on edge a spacer such

as the auxiliary wood fence described in the

" AUXIUARY WOOD FENCE"

section is required.

Fig.Y

Auxiliary fence _ 1_5/8"-i_

.,re. w,o ce Workpiece

3-1/2"

Mitre saw

table

]

CUTTING BASE MOLDING (FIG. Z)

Base moldings and many other moldings can be cut

on a compound miter saw. The setup of the saw

depends on molding characteristics and application,

as shown. Perform practice cuts on scrap material to

achieve best results:

1. Always make sure moldings rest firmly against

fence and table, Use hold-down or C-clamps,

whenever possible, and place tape on the area

being clamped to avoid marks.

2. Reduce splintering by taping the cut area prior to

making cut. Mark cut line directly on the tape.

3. Splintering typically happens due to wrong blade

application and thinness of the material.

Fig.Z

c ii

el'

Mitre saw table

Mitre at 45°, bevel at 0°

]I Mitre saw table

Mitre at 0°, bevel at 45_

NOTE: Always perform a dry run cut so you can

determine if the operation being attempted is possible

before power is applied to the saw.

CUTTINGCROWNMOLDING(FIG,AA, BB)

Your compound miter saw is suited for the difficult task

of cutting crown molding. To fit properly, crown molding

must be compound-mitered with extreme accuracy. The

two surfaces on a piece of crown molding that fit flat

against the ceiling and wall are at angles that, when

added together equal exactly 90 ° .

Most crown molding has a top Fear angle (the section

that fits flat against the ceiling) of 52 ° and a bottom rear

angle (the section that fits fiat against the wail) of 38 ° .

tn order to accurately cut crown molding for a 90 ° inside

or outside corrler, lay the molding with its broad back

surface flat on the saw table.

When setting the bevel and miter angles for compound

miters, remember that the settings are interdependent;

changing one changes the other, as well. Also keep in

mind that the angles from crown molding are very easy

for these angles to shift slightly, all settings should be

tested on scrap molding.

Fag.AA -

Mitre saw table

Workpiece lying flat

Fig.BB

Settings for standard crown molding gying flat on

compound miter saw table

Inside corner OR

IL \

Outside cornet

Compound cut crown motdings

Bevel/Miter Settings

KEY BEVEL MITER TYPE OF CUT

SETTING SETTING =

Bnside corner-Left side

a o il

IL 33.9 31.6 . Positiontop of moIdingagainst

fence.

Right 2. Miter table see at RIGHT 31.6 ° .

3:.L.EETside is finishedpiece.

inside corner-Right side

1R 33.9 ° 3I .6 ° 1.Positionbottomof molding

against fence.

Left 2.Miter table see at LEFT 3t.6 ° .

.......... 3.LEFT side is f.!n.!sh.ed piece.

Outside corner-Left side

OL 33.9 ° 31.6 ° 1,Positionbottomof molding

against fence,

Left 2,Mitertable see at LEFT31,6°,

&RIGHTside is finishedpiece.

Outside corner-Right side

OR 33.9 ° 131.6° l.Posiiion top of molding'"again'st

fence.

Right 2.Miter tablesee at RIGHT31.6° .

&RIGHT side is finishedpiece.

MAINTENANCE

DANGER

Never put lubricants on the blade while it is spinning.

To avoid fire or toxic reaction, never use gasoline,

naphtha acetone, lacquer thinner or similar highly

volatile solvents to clean the miter saw.

To avoid injury from unexpected starting or electrical

shock, unplug the power cord before working on the

saw.

For your safety, this saw is double-insulated. To avoid

electrical shock, fire or injury, use only parts identical

to those identified in the parts list. Reassemble

exactly as the original assembly to avoid electrical

shock.

REPLACING CARBON BRUSHES (FIG.DD)

The carbon brushes furnished will last approximately

50 hours of running time, or 10,000 ON/OFF cycles.

Replace both carbon brushes when either has less

than 1/4" length of carbon remaining, or if the spring

or wire is damaged or burned. To inspect or replace

brushes, first unplug the saw. Then remove the black

plastic cap (1) on the side of the motor (2). Remove

the cap cautiously, because it is springloaded. Then

pull out the brush and replace. Replace,for the other

side. To reassemble reverse the procedure. The ears

on the metal end of the assembly go in the same hole

the carbon part fits into. Tighten the cap snugly, but

do not overtighten.

NOTE: To reinstall the same brushes, first make sure

the brushes go back in the way they came out. This

will avoid a break-in period that reduces motor

performance and increase wear.

Fig.DD

2 1

LOWER BLADE GUARD

Do not use the saw without the lower blade guard.

The lower blade guard is attached to the saw for your

protection, Should the lower guard become damaged,

do not use the saw until the damaged guard has been

replaced, Develop a regular check to make sure the

lower guard is working properly. Clean the lower

guard of any dust or buildup with a damp cloth.

AUTION: Do not use solvents on the guard. They

could make the plastic "cloudy" and brittle.

When cleaning the lower guard, unplug the saw from

the power source receptacle to avoid unexpected

startup.

SAWDUST

Periodically, sawdust will accumulate under the work

table and base. This could cause difficulty in the

movement of the worktable when setting up a miter

cut. Frequently blow out or vacuum up the sawdust.

If blowing sawdust, wear proper eye protection to

keep debris from blowing into eyes.

LUBRICATION

All the motor bearings in this tool are lubricated with a

sufficient amount of high grade lubricant for the life of

the unit under normal operating conditions; therefore,

no further lubrication is required.

Lubrication the Following as Required:

Chop pivot: light machine oil or aerosol will penetrate

from the ends of the junction points. A qualified

service technician can remove the pivot upstop to

relieve tension, and the 2 metric set screws holding

the shaft, in order to drive the shaft about 3/4" right.

Exposed surfaces are lubricated with automotive type

oil.

Central pivotof p_astic guard: Use light household oil

(sewing machine oil) on metal-to-Vmetal or

metal-to-plastic guard contact areas as required for

smooth, quiet operation. Avoid excessive oil, to which

sawdust wil! cling,

Link: (which actuates the lower guard movement)

may be oiled at the rear pivot, greased at ball bearing

contact, and oiled where the link actuates the acety!

roller of the lower guard, if the down chop motion is

hard to start.

Toavoidinjuryfromaccidentalstarting,alwaysturnswitchOFFandunplugthetoolbeforemoving,replacingthebladeor

makingadjustments.

ConsultyourSearsServiceCenterifforanyreasonthemotorwillnotrun.

TROUBLESHOOTING GUIDE - MOTOR

PROBLEM

Brake does not

stop blade within

6 seconds.

PROBLEM CAUSE SUGGESTED CORRECTIVE ACTION

l. Motor brushes not

sealed or lightly

sticking.

2. Motor brake

overheated from use

of defective or wrong

size blade or rapid

ON/OFF cycling.

3. Arbor screw loose,

4. Other.

1, Fuse

2. Brush worn.

3. Other.

1. Fuse

2. Brush worn.

3, Other,

1. Inspect /dean /replace brushes. See

MAINTENANCE section,

2. Use a recommended blade,

Let cool down.

3. Retighten.

4. Sears Service Center.

Motor does not 1.15-Amp time delay fuse, or circuit breaker.

start 2, See MAINTENANCE section.

3. Sears Service Center.

Brush spark 1, None.

when switch

released.

TROUBLESHOOTING GUIDE - SAW OPERATION

PROBLEM PROBLEM CAUSE SUGGESTED CORRECTIVE ACTION

Blade hits table. 1. Misatignment. 1. Sears Service Center.

See ADJUSTMENT section.

Angle of cut not 1. Miter table locked. 1. Squeeze miter spring Iock up.

accurate. See OPERATION Section.

Can't adjust miter. 2. Sawdust under table, 2. Vacuum or blow out dust,

WEAR EYE PROTECTION.

1. Loose pivot points. 1. See ADJUSTMENT Section.

1. Sears Service Center.

2. Sears Service Center.

Cutting arm

wobble.

Cutting arm won't

fully raise, or

blade guard won't

fully close,

Blade binds, jams,

burns wood.

Saw vibrates or

shakes.

1. Part failure.

2, Pivot spring not

replaced properly after

service.

3. Sawdust build-up. _

1. Improper operation.

2. Dull blade.

3. Improper blade size.

4. Warped blade.

1.Saw blade not round.

2.Saw blade damaged.

3.Saw blade loose.

4.Other.

3, Clean and lubricate moving parts,

1, See BASIC SAW OPERATION section,

2, Replace or sharpen blade.

3, Replace with 10" diameter blade.

4. Replace blade.

1,Replace blade.

2.Replace blade.

3. Tighten arbor screw.

4.Sear Service Center.

CRAFTSMAN COMPOUND MITRE SAW MODEL NO. 137.212000

When servicing use only CRAFTSMAN replacement parts, Use of any other parts may create a HAZARD or cause

product damage, Any attempt to repair or replace electrical parts on this Miter Saw may create a HAZARD unless

repair is done by a quatified service technician Repair service is available at your nearest Sears Service Center,

Order by PART NUMBER, not by key number

PARTS LiST FOR SCHEMATIC A

Key Pad: No. Description Size Qty

1 2615BBDC20 HEX HD SCREW & WASHER M6X1 0-25 2

2 12700203 ARM-MITER 1

3 12700302 COtE SPRING 1

4 2663MHCK16 CA. RE. PAN HD. SCREW M5X0.8-10 4

5 2501MBDN85 FLAT WASHER ¢ 5X'16-2 4

6 12700604 TABLE 1

7 12700707Al LOCKING HANDLE ASS'Y 1

8 12700802 PLASTIC SLEEVE 1

9 2668BBDA32 CR. RE. PAN HD. SCREW M5XO.8-10 1

10 12701002 NEEDLE PO1NTER 1

'i"1'..............................._'¢'_2'_qC_:'i'_.........................O'R':'i__T_Ah"PiiS:__2€_.................................................................i_'525;_:.'_....................................:_............

12 1270t 20_'_ FOLLOWER PLATE

13 12701302 TABLE iNSERT

14 2660PECK12 OR. RE. PAN HD_ TAPPING SCREW M4XtS-10

15 t 2701505 TILTING SCALE

16 "L'22-&"_,Y=_2:.'-'_97 _!"_,__'_ BASE

17 16503601 SHAFT

t8 2617BBLB58 HEX. SOC. HD. CAP SCREW M8X1.25-35

19 12702203 SUPPQRT

20 2501 NBDN40 FLAT WASHER 1/2X1-3/64

21 2705FED112 NUT CHUCK M12Xl 75 T=12

.......................................................................................................................................................22 16505002 KNOB_HANDLE _........................................................................................................ 1 ............

23 2701 FED106 HEX, NUT M6X1.0 T=5

24 2601BBDA41 HE\. HD, BOLT M6Xt .0-20

25 2574B55R02 O-RING ROD

26 16503401 BRACKET STOP

27 12703004 FENCE

28 2617BBLD60 HEX SOC, HD, CAP SCREW M8X1 25-45

29 2601BDDA43 HEX, HD. BOLT M6X1,0-30

30 2601BZDAD4 HEX. SOC. SET SCREW MIOX1 5-75

31 2-606B,DLA32_ !i,_i t_ HEX, HD, BOLT M5XO 8-10 1

...................................................................32 12703503 ' ...................................................................BRACKET-TiLT '........................................................................................................................:1.............

33 2658MZDLI36 5_ "_ DRIVE SCREW 2.3-5

34 1270370&% SHAFT-PIVOT

35 2668BBDA32 CR, RE. PAN HD, SCREW MSX0,8-t0

36 12703902 NEEDLE POINTER

37 12704001 FLAT WASEHR 6X 13-1

38 12704101 ANGLE PEGULATOR

39 >',ToiI_l'_O,_<-__Z. 24i(_I-MSDN.t-1 FLAT WASHER t0X20-2

40 2705FED110 NUT CHUCK M10X1,5 T=10

7_'...............................2_'5:fit;1"8'6_':_........................._Ck-i"_;_'i:ii_R.....................................................................................'_O_2"(J:_.......................................i.............

42 16304201A1 LOCKING HANDLE ASS'Y

43 2617BBLD28 HEX,SOCKET HD.CAP SCREWS M8X1 25-25

44 2705FZD106 NUT CHUCK M6X1.0 T=6

45 12704901 ASSIST-FENCE

46 1270500! BLADE HOLDER

47 12705101 CUSHION

48A _,,::_2.,__,_'_ z t.._-%_52(_t-A4_ LOCKING HANDLE ASS'Y

49 2617BDLC15 HEX. SOC. HD. CAP BOLT M5X0.8-16

50 12705701 BRACKET

..........................................................................................................................................................................................5 t 12705802 SCREW STOP "...................................................................... i .............

52 12705901 LOCK NUT

53 17803601 COMPRESSION SPRING

54 2570BBN206 E-RING

55A 12706501A1 LOCKING HANDLE ASS'Y

56 12706601 PIN

57 1270670%Z CAUTION LABEL

58 __,:>%,[',,,',EO_-;ot_ ,25g'4.N_E)N06-- FLAT WASH ER

t 35 .,_O06 TOOTH WASHER

E-6

6X13-I

CRAFTSMAN COMPOUND _TRE SAW

schematic A

_ODEL:137.212000

CRAFTSMAN COMPOUND MUTRE SAW MODEL:137,212000

Parts iist for schematic B

Key Part No. Description Size Qt_

5g 18_40_ WRE.CHNEX. 1

60 2607BBLW55 HEX, WASHER HD. BOLT M8X1.25-20 1

61 16930402 ARBOR COLLAR 2

62 14930201 BLADE 1

83 !2710461 SHAFT SLEEVE 1

64 16510501 TORSION SPRING 1

65 8595829125 MOTOR t

66 2642BZDA69 CR. RE. TRUSS HD, ROUND NECK SCREW M6X1.0 14 1

67 165'1080t LEVER 1

68 2501MBDNO6 FC&T WASEHR 8X13-1 1

69 263686DA40 CR. RE. COUNT HD, SCREW M6X1 0-15 1

=;'_..................................i'__i%{ ......................................_'5'L'_................................................................................................................................................._.......

71 165 _t 204A2 Pc_GUARD ASS'Y t

72 16513001 CAUTION LABEL 1

73 2701FRDI86 HEX NUT MBX1.0 T=5 1

74 16821601 SPRING GUARD 1

75 2636BBDA24 CR, RE. COUNT HD. SCREW 1

76 1651D601A2 HOUSING ASS'Y 1

77 2660PBCK14 CR. RE. PAN HD. TAPPING SCREW M4X18-16 3

78 256888DA{37 CR. RE. PAN HD. SCREW M4X0 7-8 2

79 16513201 CHIP PLATE 1

81 26426ZDAB9 CR. RE. TRUSS HD. ROUND NECK SCREW MBX!.0-14 1

82 127125!;6" ZT_ TRADE-MAR K F--AB EK I

83 2705F_kBD106 NUT CHUCK MBX1.0 T=6 t

84 26066DLA38 HEX SOC. SET SCREW M6X1.O-lO 2

85 16323204A1 BAG-DUST ASS'Y 1

86 16512201 SHIM 1

87 1651230! ANCHOR RLOCK 1

88 260266LA40 HEX. SOC, HD, CAP BOLT MBXl.0-18 1

89 127 132 _-6 ;b'_: LABEL t

9t 16203661 SPRING

92 2856055309 LiMiTS SWITCH

£3 2680PBCK57 CR. RE, PAN HD. TAPPING SCREW

94 12713707 HANDLE

95 12713807 BUTTON SWITC H

86 12713901 SPRING

97 12714t01 CLAMP-CORD

98 83990141 GUARD-CORD

M4X18-28

2680PBCK_. %k!_

.£g CR. RE. PAN HD. SCREW M4X18-25 2

181 2807BSOaZ3 POWER CABLE

102 2£_881_DA4-2 Z_t:Z1 [_ 5_'_,_r, CR, RE. PAN HD SCREW

103 2660PBCK20 CR.RE PAN HD. TAPPING SCREW

104 16221901 SPRING WIRE

t05 12715207 HANDLE

106 t2717901 HANDLE SEAT

107 12718001 RAN DLE SEAT

108 12718102 C LAMP HAN DLE

109 2535MN0619 PiN

M6X1.0-25 3

MSX16.25 4

"1i"0 ............................................................................................................................................................................................................................................................12718301 BOLT 1

CUSHION 112718401

NiA

2506MBN614

12718701

2765FBDt05

1271900_ b

2660MBCE16

280255H506

12719401

11t

1t2

113 WAVE WASHER ,,,_8.2Xl 8-2 "_

114 SET PLATE 1

1 t5 NUT CHUCK 1

1 t6 SPR;NG PLATE 1

t17 CR. RE. TRUSS HD, TAPPING SCREW MSX12-t0 1

118 CABLE CLAMP t

_19 LOCK HANDLE 1

120 2538MBE669 SPRING PIN 1

121 12719602 COMPRESSION £PRING 1

122 257088N20_ C-RING 1

123 12719801 BRACKET STOP 1

124 1271990_.,2, TILTING SCALE 1

125 280655545Y LEAD WtRE ASS'Y 1

126 16211001 BUMPER "_

127 t 272070q_2o TRADE-MAR K LABEL l

128 2501MBDNS0 FLAT VCASHER _,,82X18 20 1

129 12720901 EBLOW 1

"'1'3()............................................................................................................................................................................................................................................................1_861501 EXTENSION WING 2

131 2668BBDA26 CR. RE. PAN HD SCREW MSXO 8-18 2

t 32 16961202A1 STOP BLOCK !

133 ..Z674-QZDK_36- _C_'b_J_'_'o_ WING BOLT 1

134 16231701A_ V_SE ASS'Y I

CRAFTSMAN CO_POUND MITRE

Schematic B

'-.,O

SAW

_ODEL:137,2t 2800

CRAFTSMAN COMPOUND MITRE SAW

Parts list for schematic C

MODEL:137.212000

MOTOR

Key Part No. Description Size Qty

0t 83965011 ARBOR SHAFT t

02 2571 MNC311 PARALLEL KEY t

03 2641BBDA24 CR.-RE ROUND HD. WASHER SCREW MSx0b-10 3

04 83965041 BEARING COVER 5 1

05 2001ZZ6204 BALL BEARING 6204ZZ !

06 2570BBN120 C-RING A-20 1

07 83965071 HELIX GEAR 1

08 2570BBN 114 C_RING A-14 t

09 2004AH1010 NEEDLE BEARING HK-t010 1

10 83920172 COMPRESSION SPRING t

_] .................................__8___ ................................;_fii_0_Ei_ ....................................................................................................................................1.....

12 2536MBE607 SPRING PIN 1

13 83965131 BRACKET STOP 1

14A 83966141A1 ARMATURE 1

15 280655563Y LEAD WiRE ASS'Y 1

!6 83990331 BEARING BUSHING t

17 83750081 FLOW GUIDE 1

18A 85968181A2 FIELD ASS'Y 1

19 2662MZDE61 CR._RE.PAN HD.TAPPING M5× 12-55 2

20 83968201 PROTECTOR WIRE t

21 83965261 PLASTIC CAP !

22 83968221 MOTOR HOUSING I

23 2620BBDB26 CR.-RE.PAN HDTAPPING SCREW & WASHER M5x I6-30 4

24 2603BBLA20 HEX.-SOC SET SCREW M5x0.8-6 2

26A 83990282A1 BRUSH HOLDER ASS'Y 2

27A 83990291A1 RUBBER BUSHING 2

28 83990301 BRUSH COVER 2

CRAFTSMAN

Schematic C

COMPOUND MITRE SAW

J \

MODEL:137,212000

30 31

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

1-800-4-_Y-HO_ Es_Aoyti_,,,dayornight

(1-800-469-4S63)

www, sears.cor_

To bring in products such as vacuums, lawn equipment and electronics iiii!i;ill

for repair, call for the location of your nearest Sears Parts & Repair Center. !i!iii_illi

ii!i!iii_:il

1=800-488-!222 Anytime, day or night

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDlrectS_!

1-800-366-PART 6a.m.-_ _.m.CST,

{1-800-366-7278) 7 days a week

www.sears.cern/par_sdirect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a.m. - 5 p.m. CST, Mon. - Sat.

Para pedir servicio de reparaci6n a domicilio,

y para ordenar piezas con entrega a domicilio:

1-888-SU-HOGAR s,,

(1-888-784-6427)

® Regislered T_m_nark tTM Trademarkof Sears, Rc_buckand Co,

® Marca Registra(ta/r_ Marcade F_ibricade Sears, Roebuck and Co.

8/200!

Craftsman 137212000 User Manual MITTER SAW Manuals And Guides L0905372

CRAFTSMAN Miter Saw Manual L0905372 CRAFTSMAN Miter Saw Owner's Manual, CRAFTSMAN Miter Saw installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
