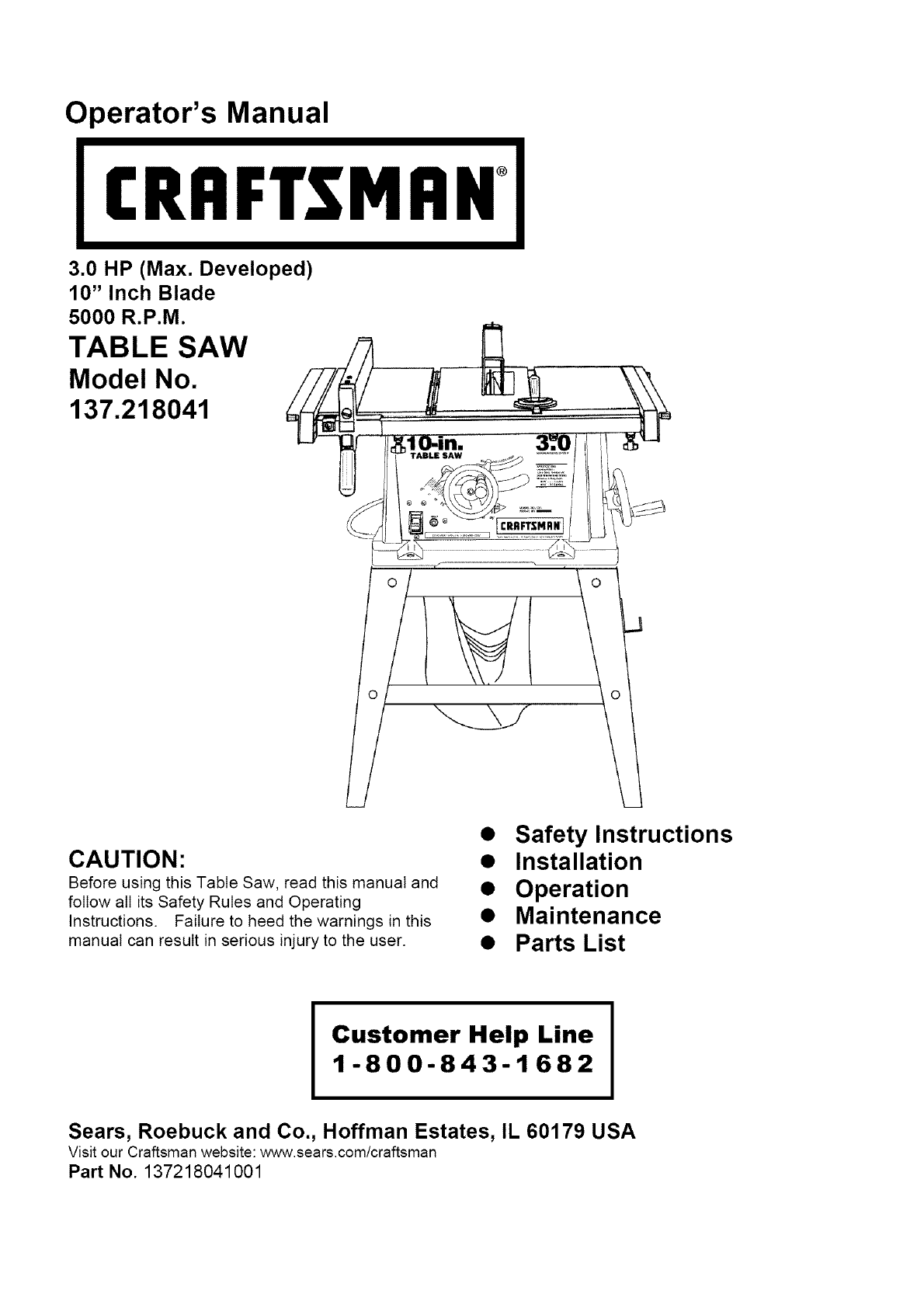

Operator's Manual

(RRFTSMRH

3.0 HP (Max. Developed)

10" Inch Blade

5000 R.P.M.

TABLE SAW

Model No.

137.218041

CAUTION:

Before using this Table Saw, read this manual and

follow all its Safety Rules and Operating

Instructions. Failure to heed the warnings in this

manual can result in serious injury to the user.

• Safety Instructions

•Installation

•Operation

•Maintenance

•Parts List

Customer Help Line

1-800-843-1682

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

Visit our Craftsman website: www.sears.com/craftsman

Part No. 137218041001

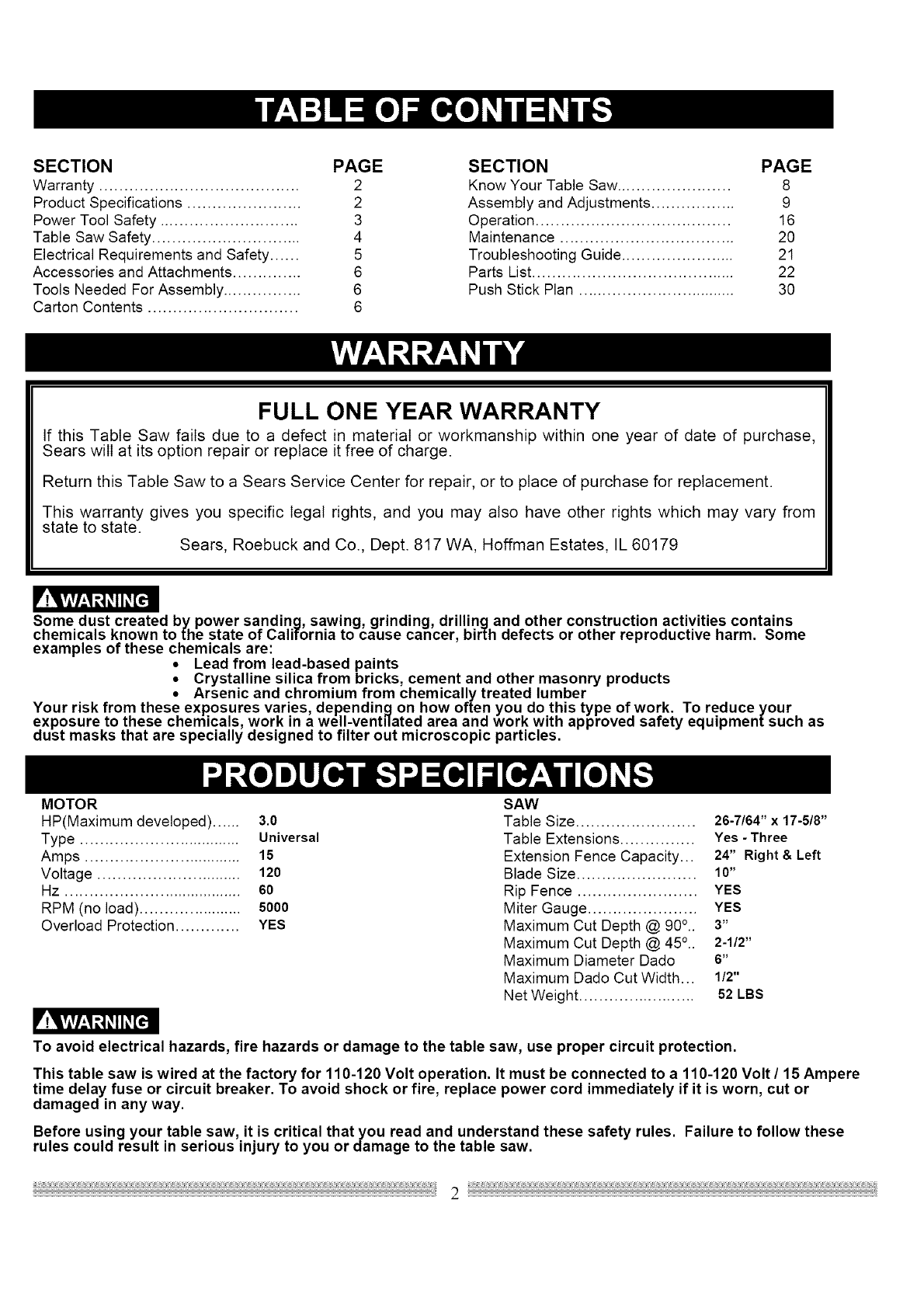

SECTION PAGE

Warranty ........................................ 2

Product Specifications ....................... 2

Power Tool Safety ............................ 3

Table Saw Safety .............................. 4

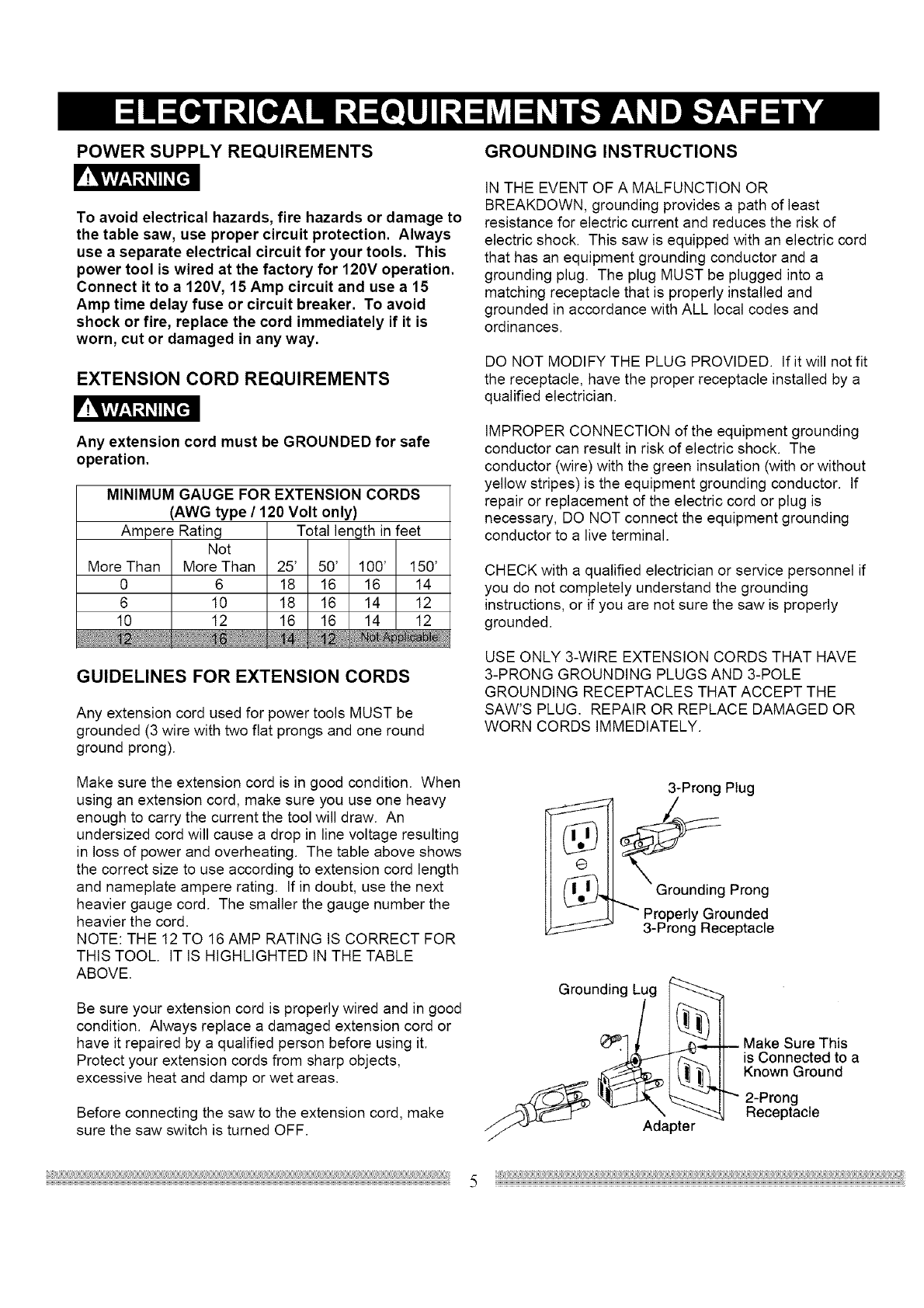

Electrical Requirements and Safety ...... 5

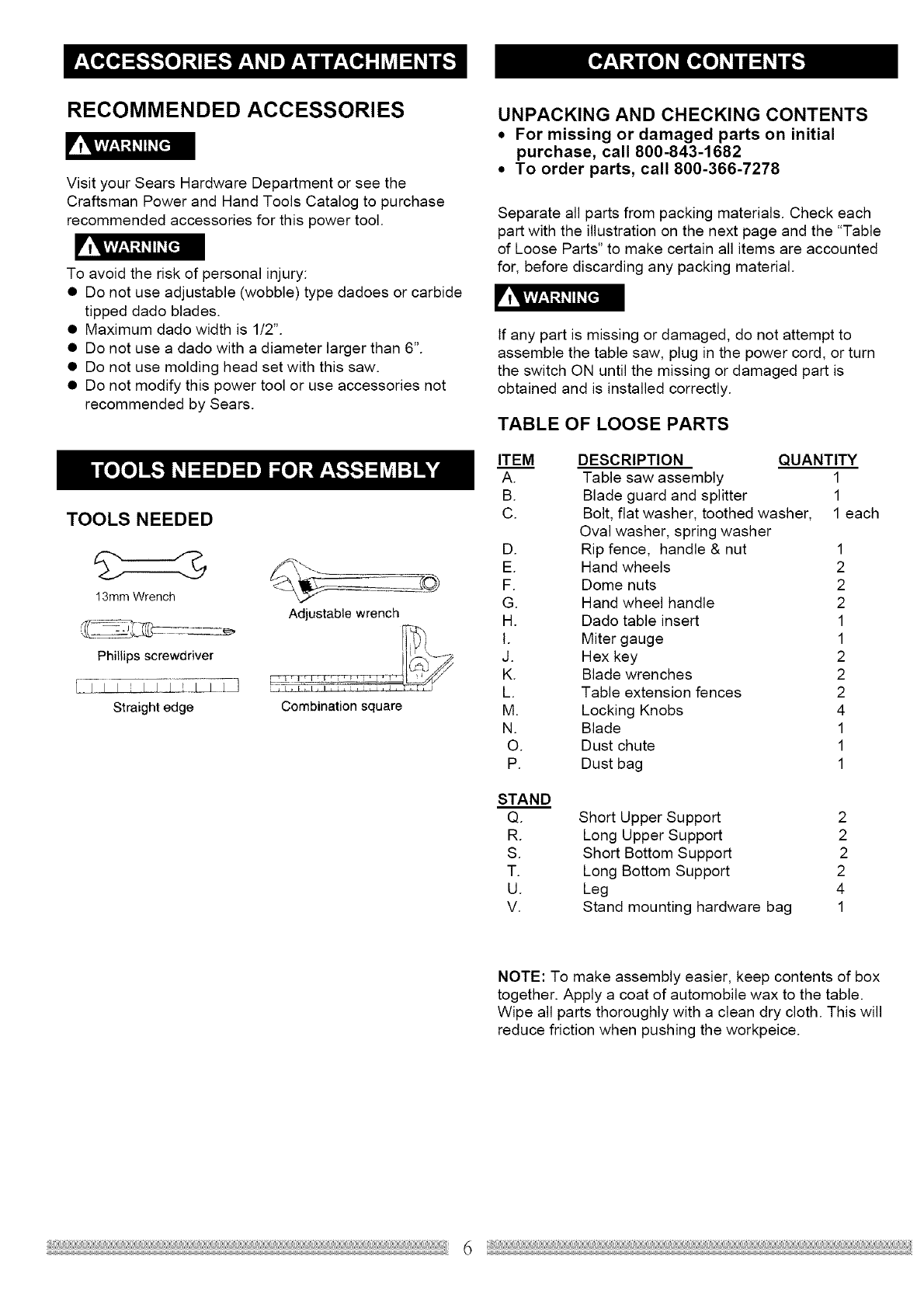

Accessories and Attachments .............. 6

Tools Needed For Assembly ................ 6

Carton Contents .............................. 6

SECTION PAGE

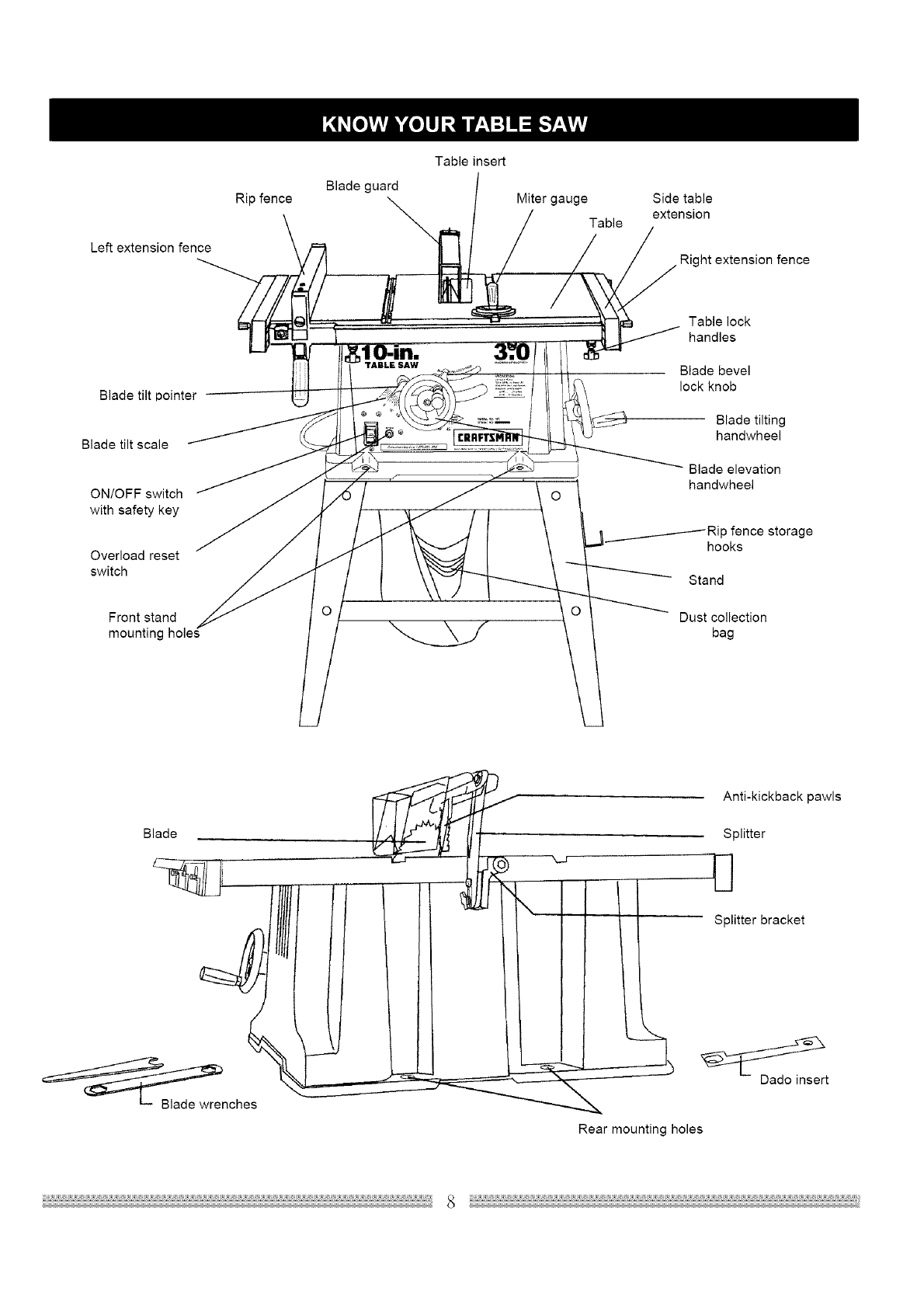

Know Your Table Saw ....................... 8

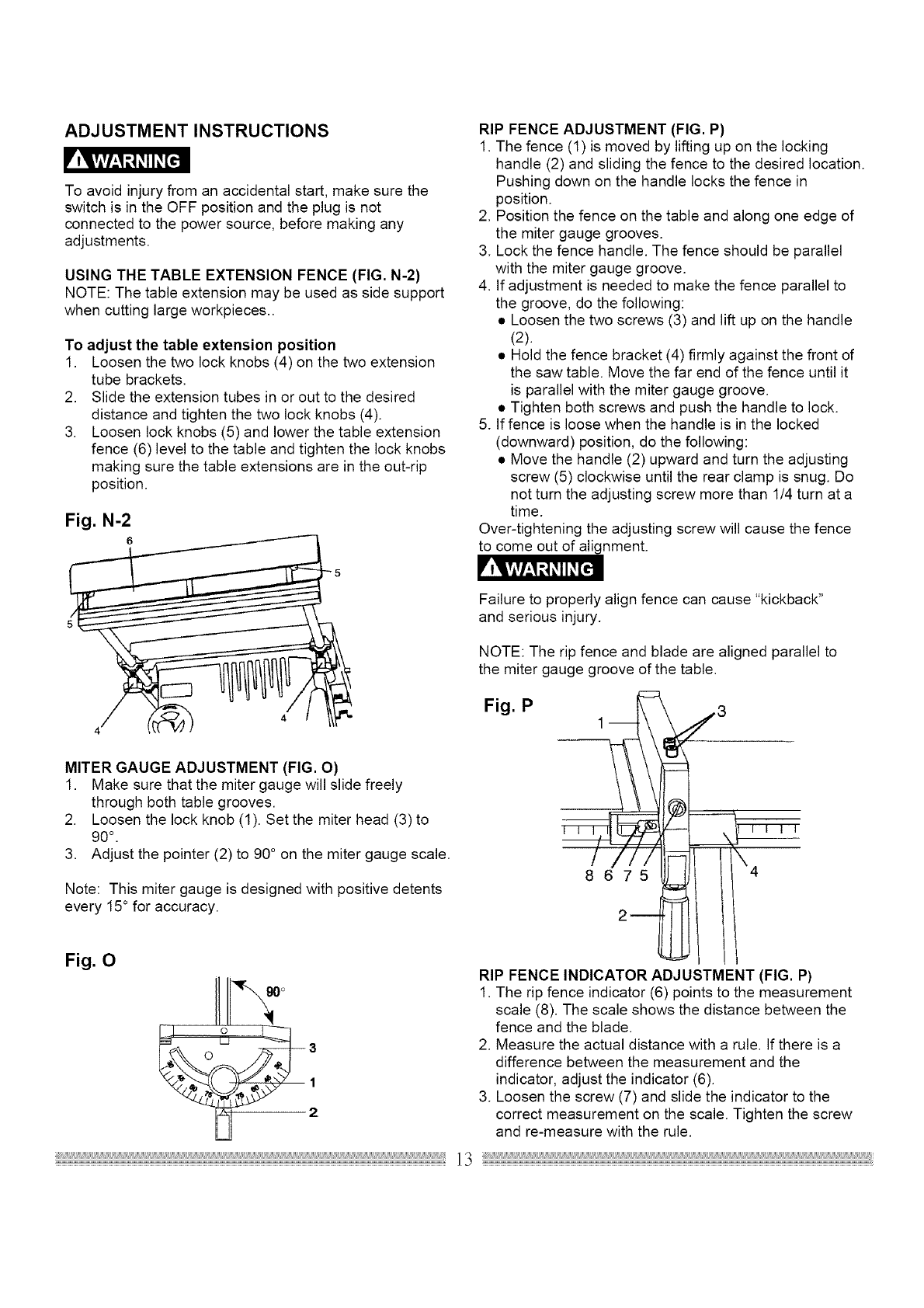

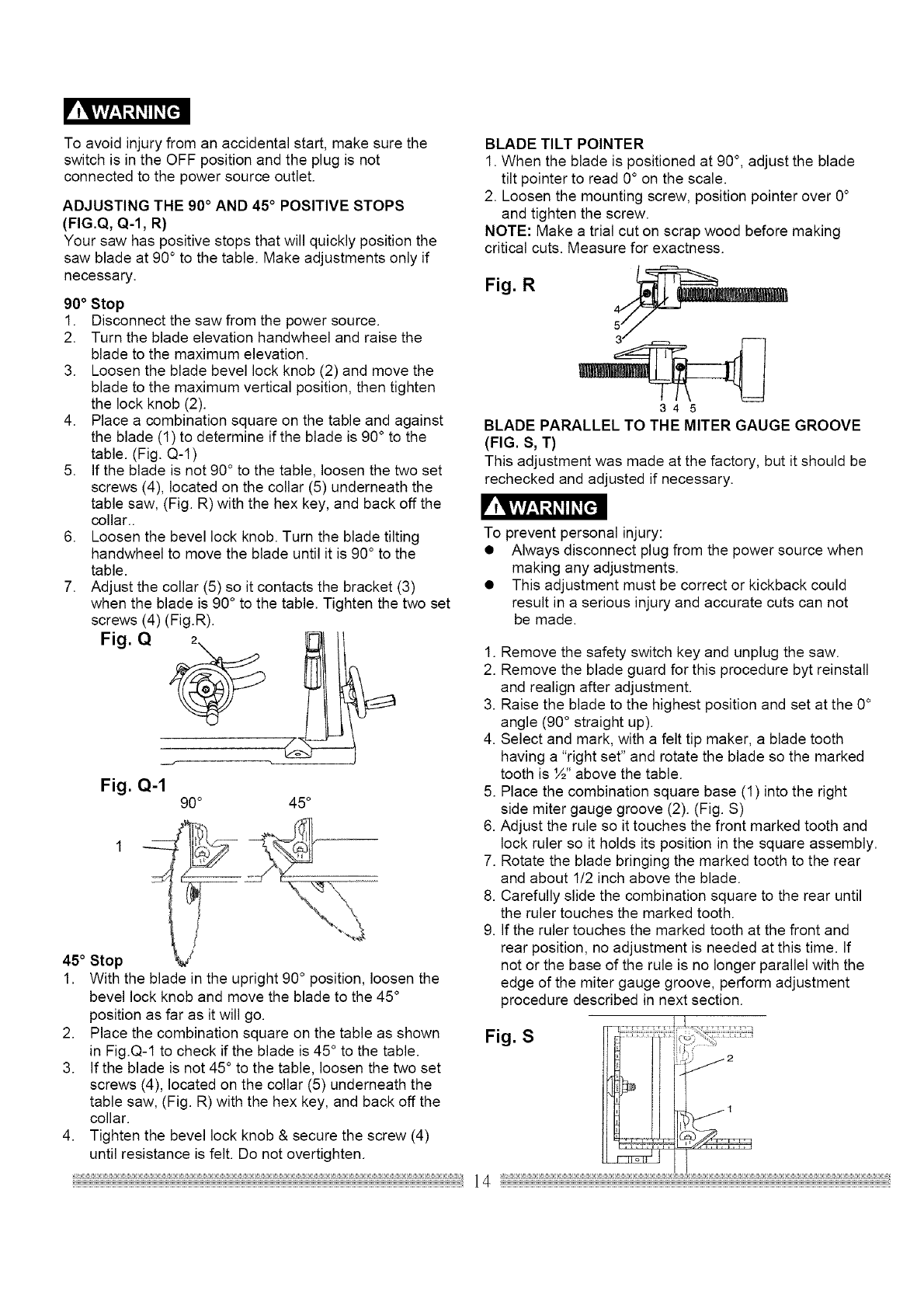

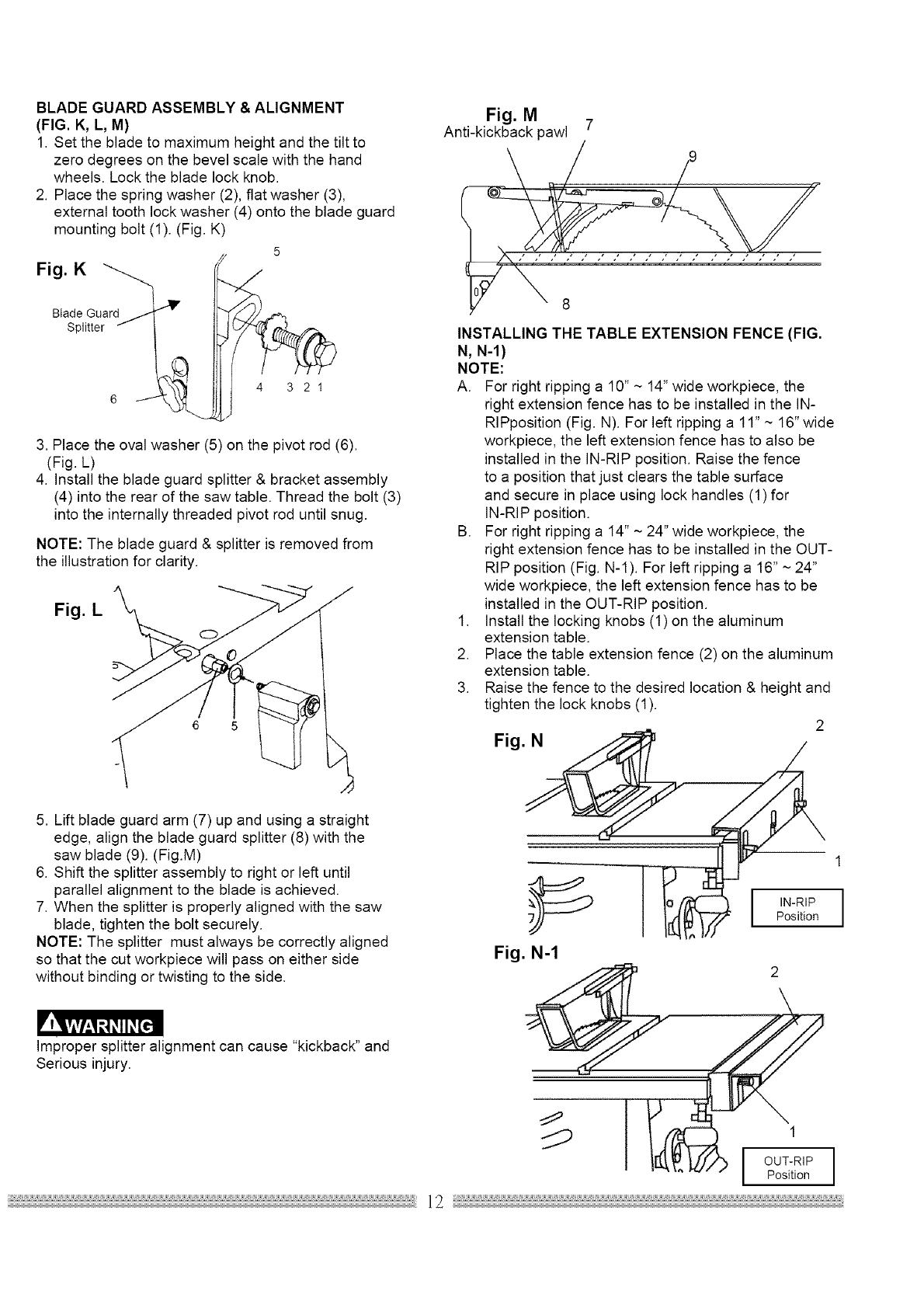

Assembly and Adjustments ................. 9

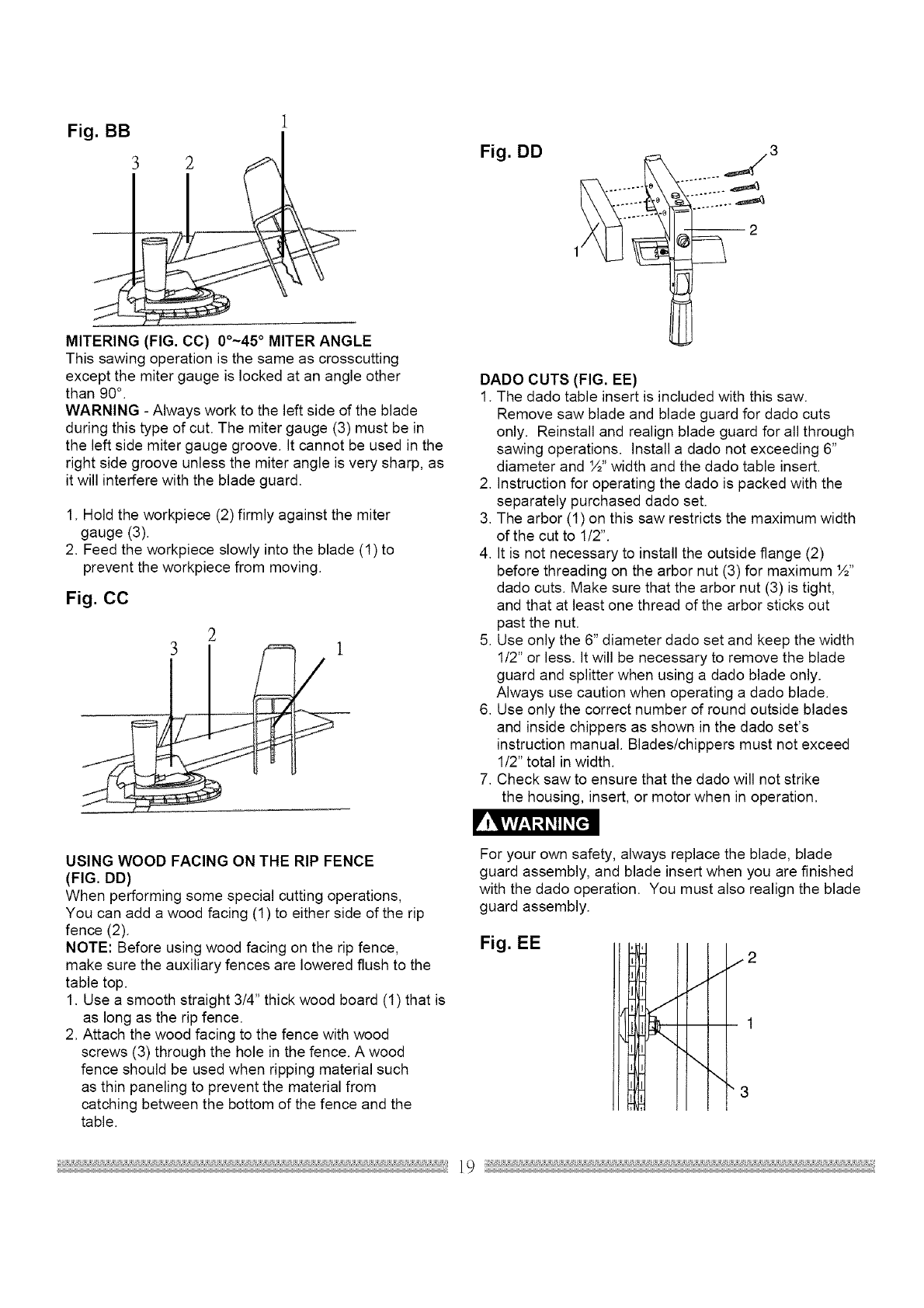

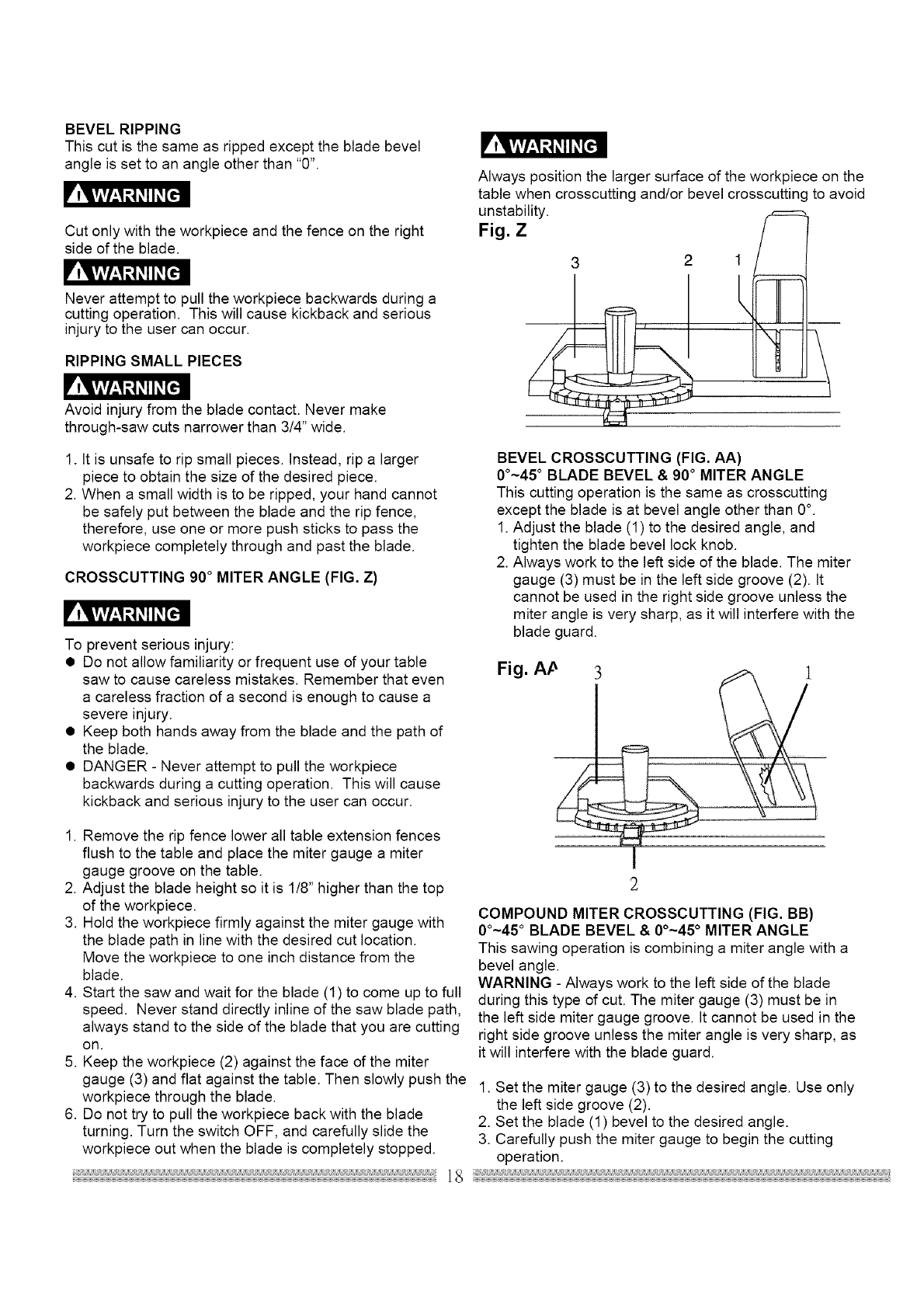

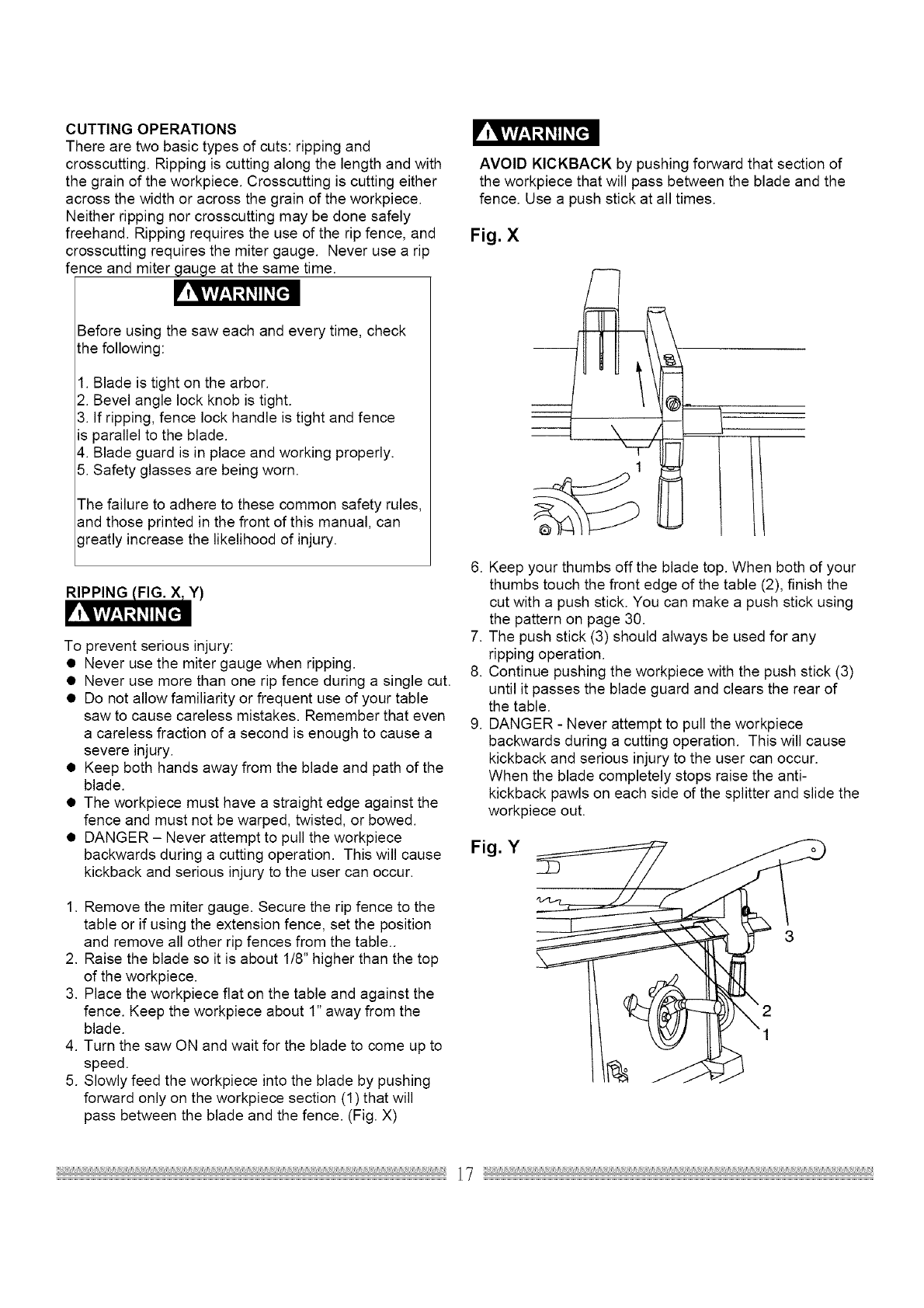

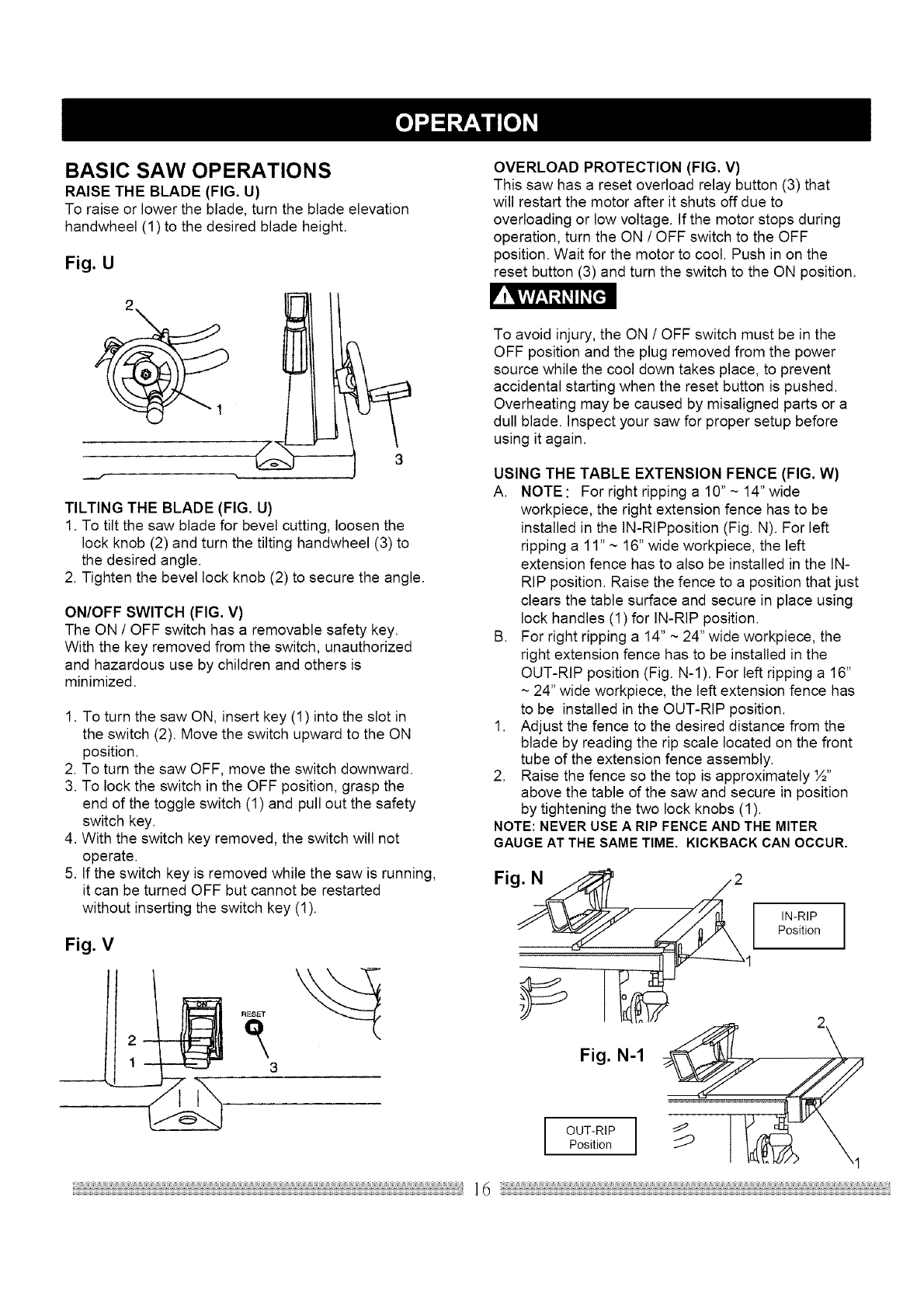

Operation ....................................... 16

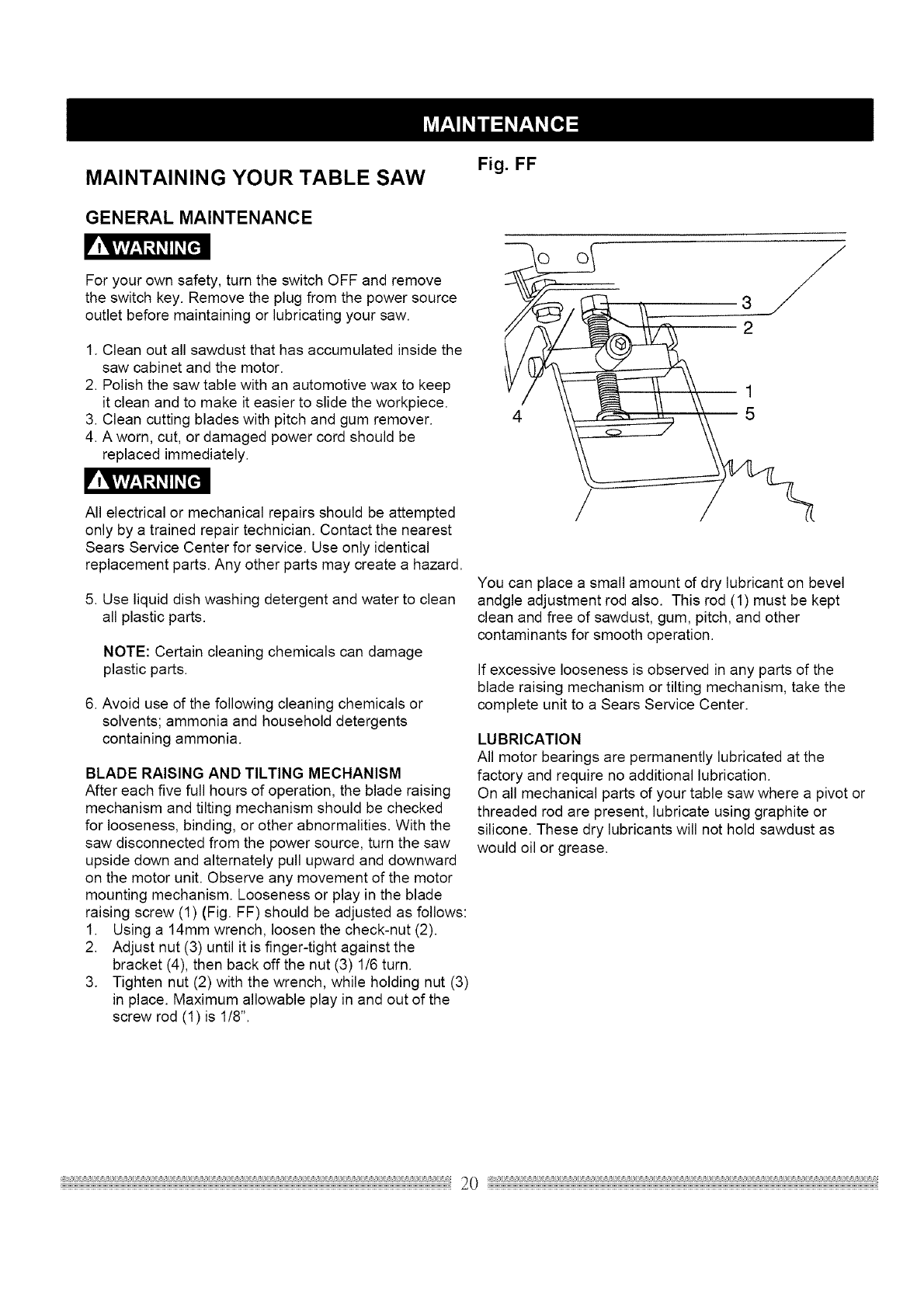

Maintenance ................................... 20

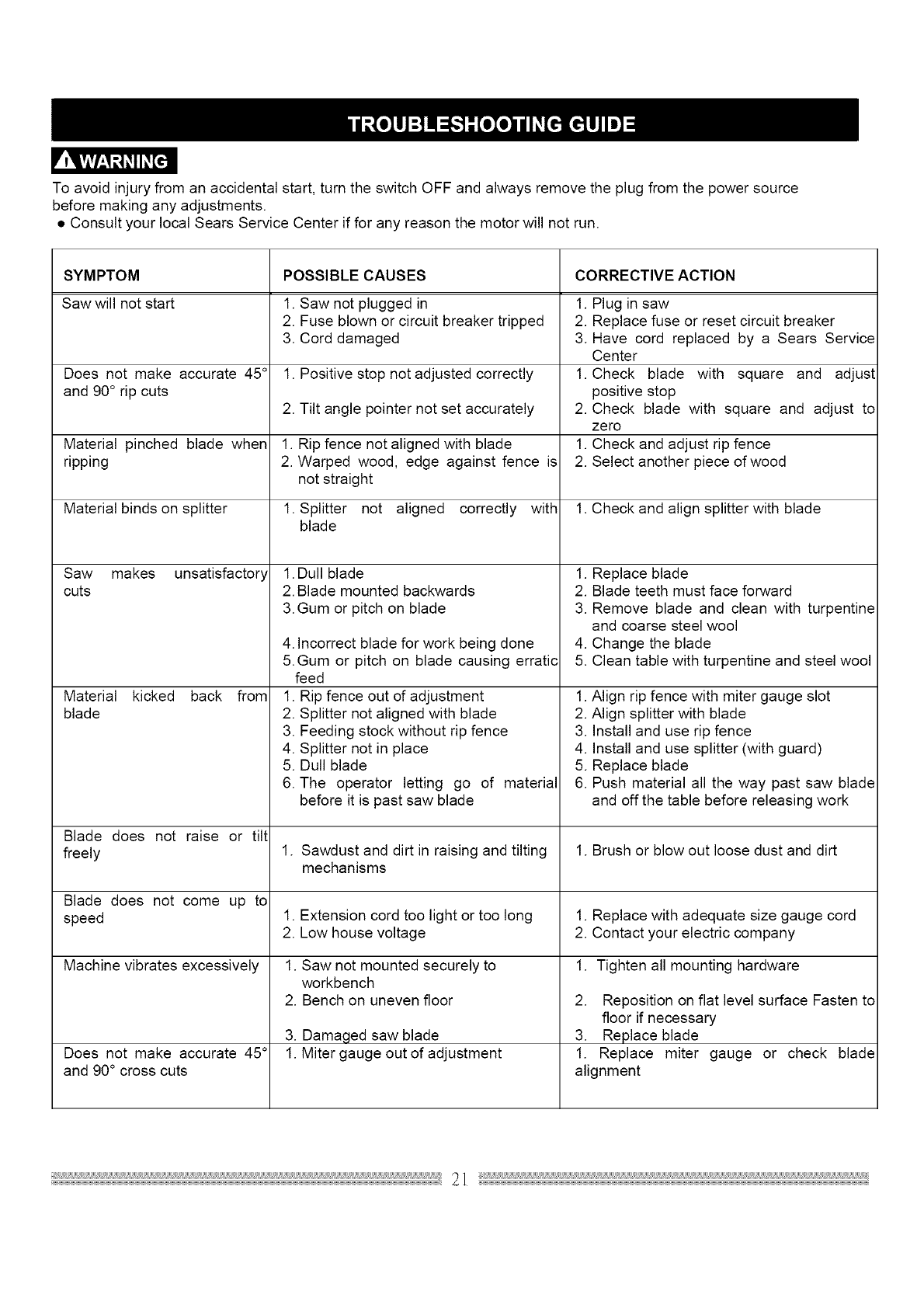

Troubleshooting Guide ....................... 21

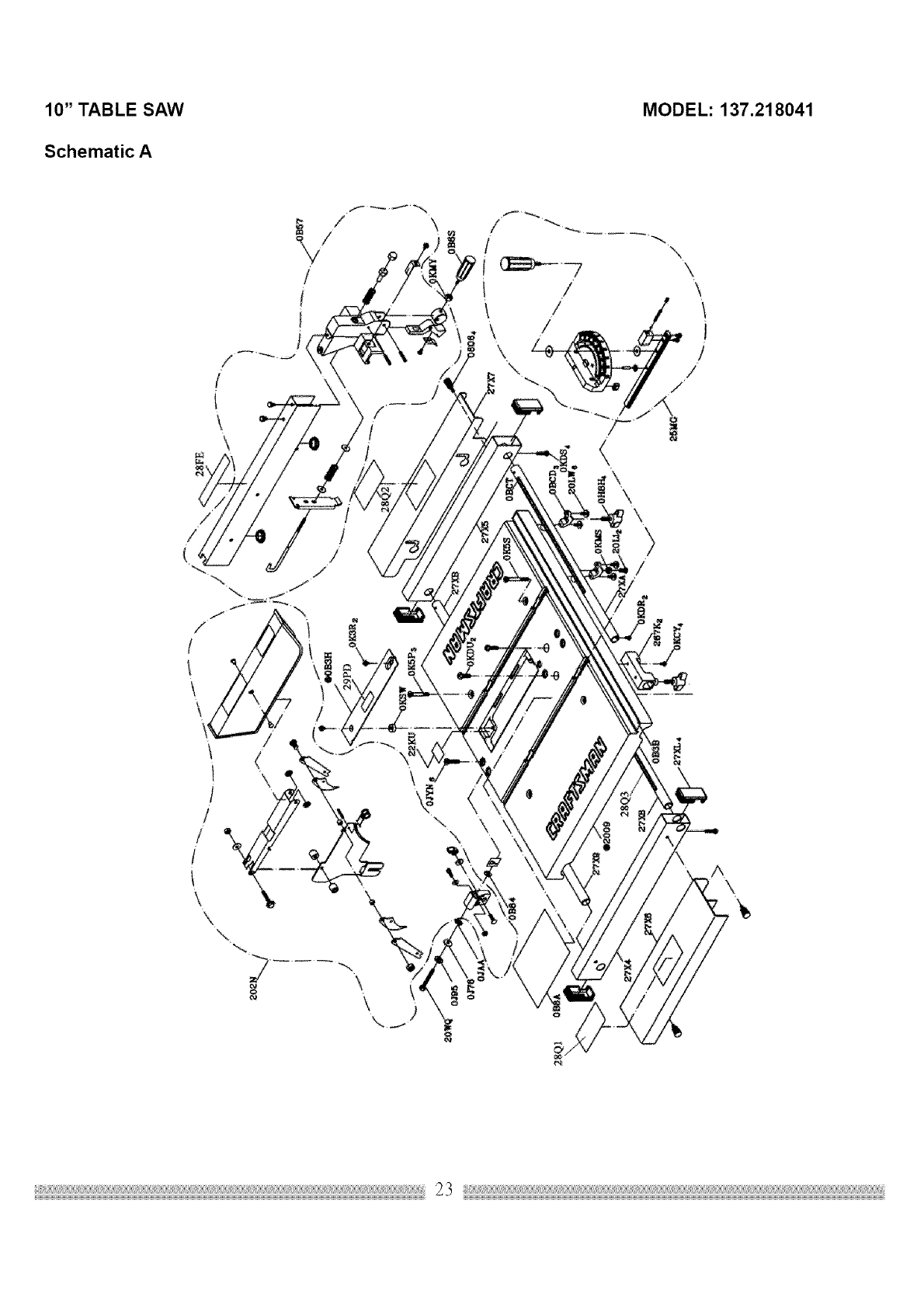

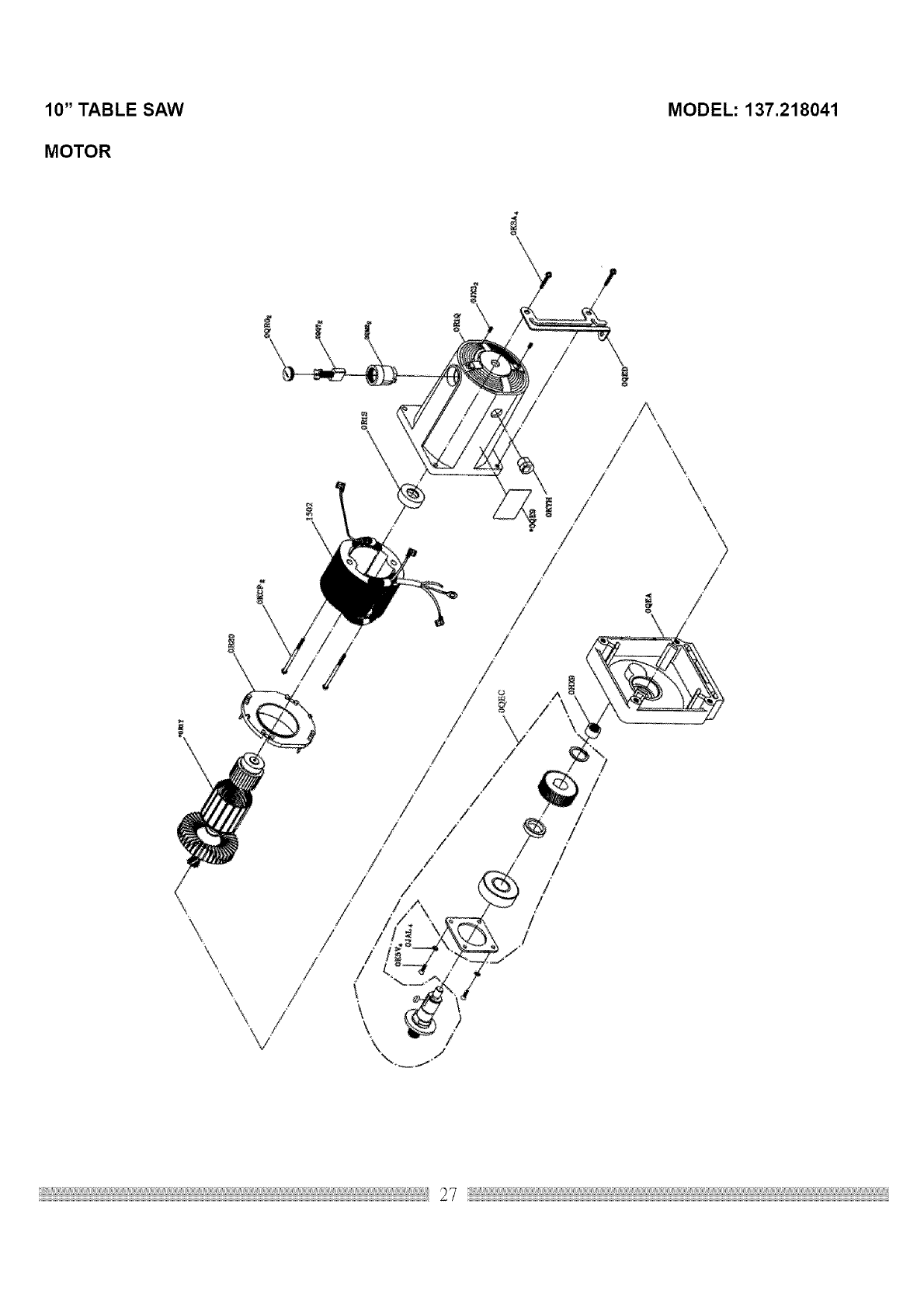

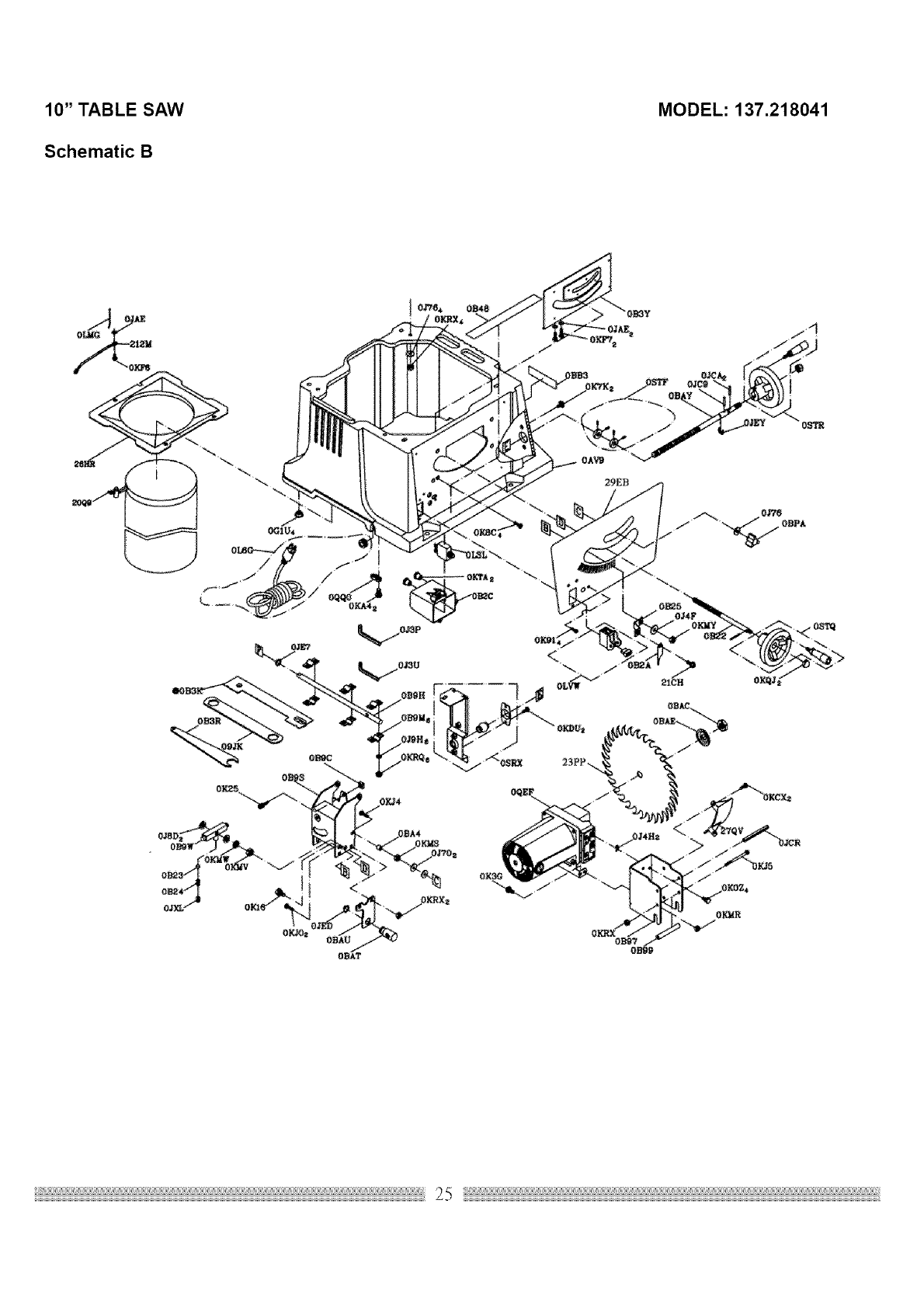

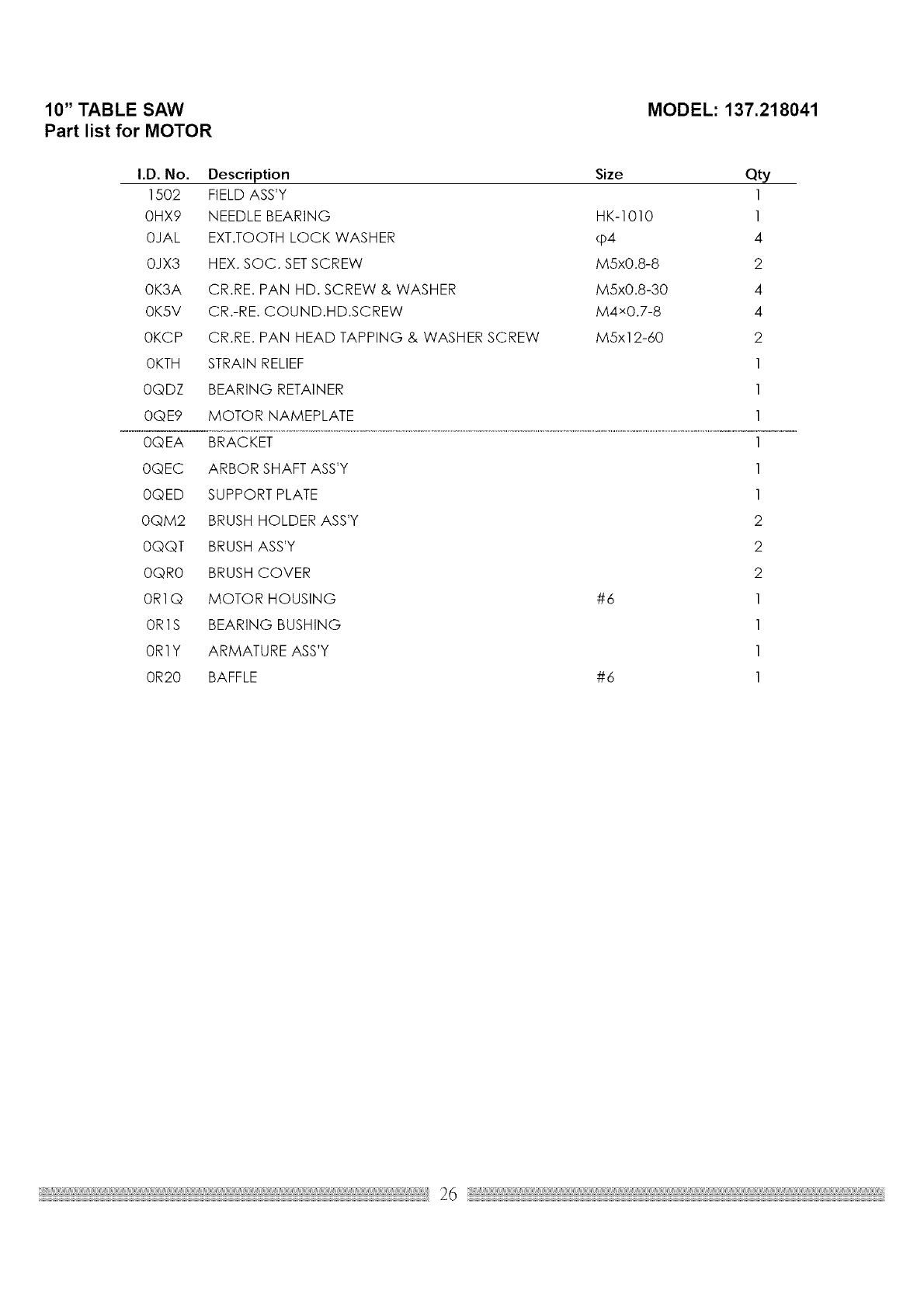

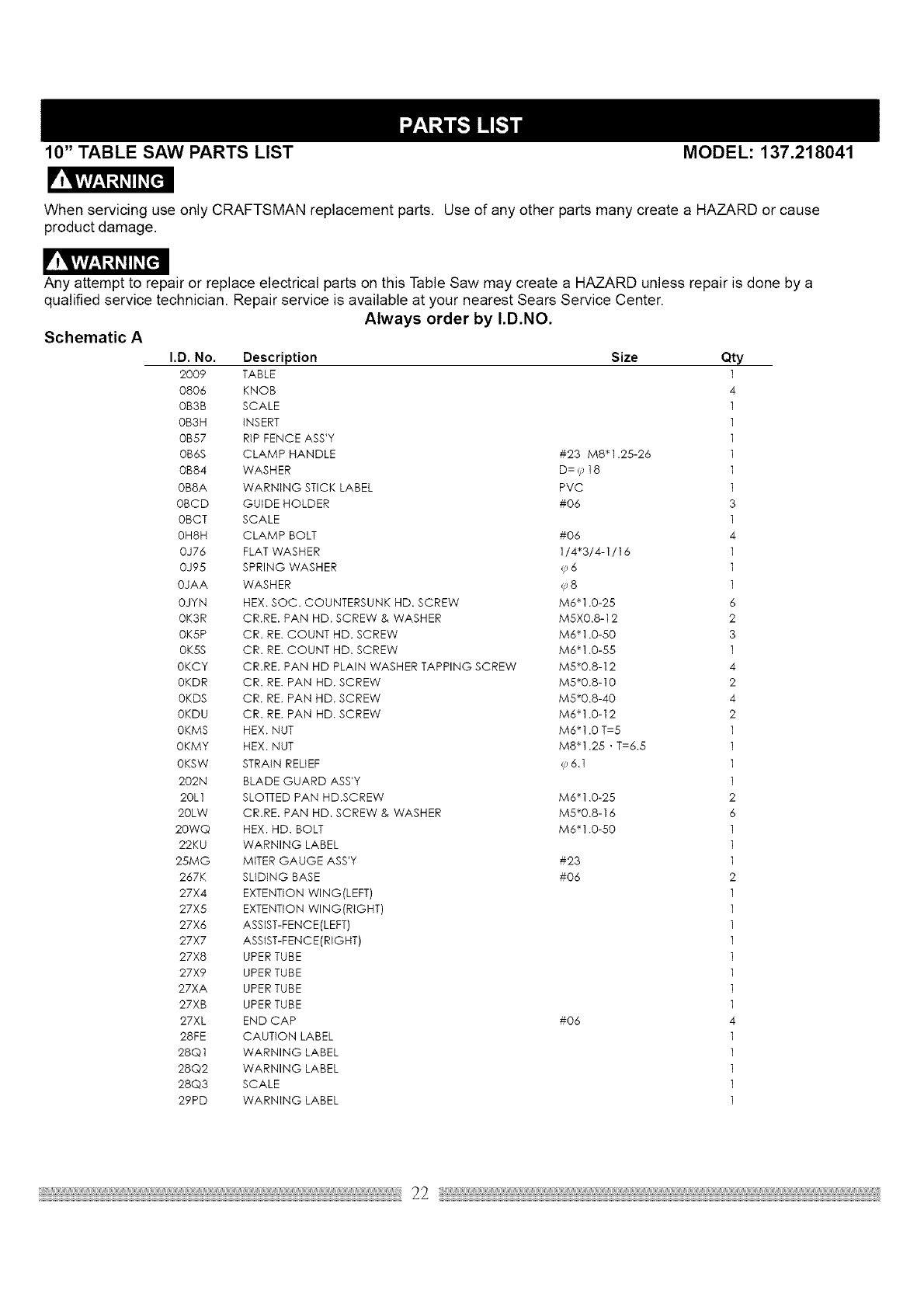

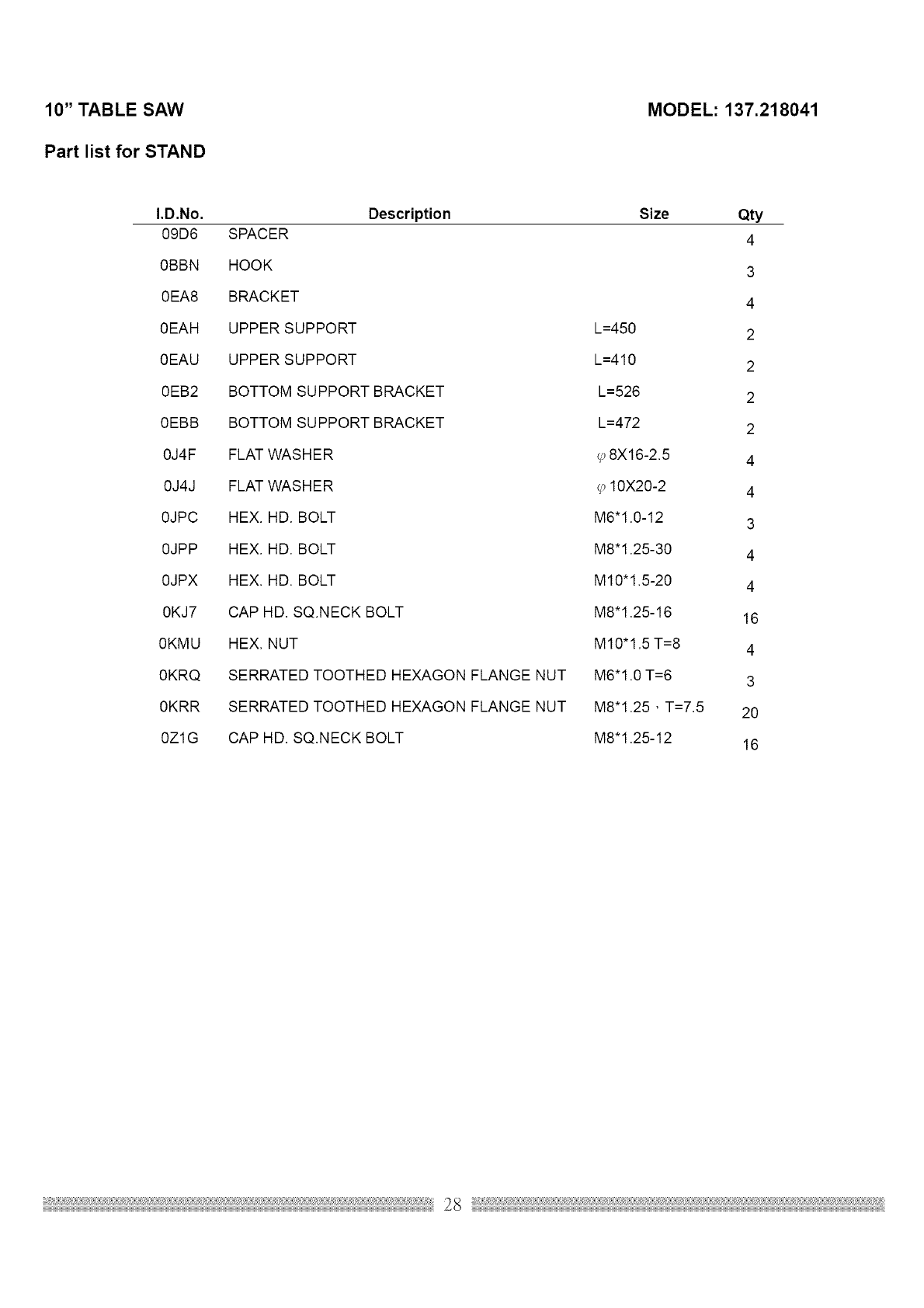

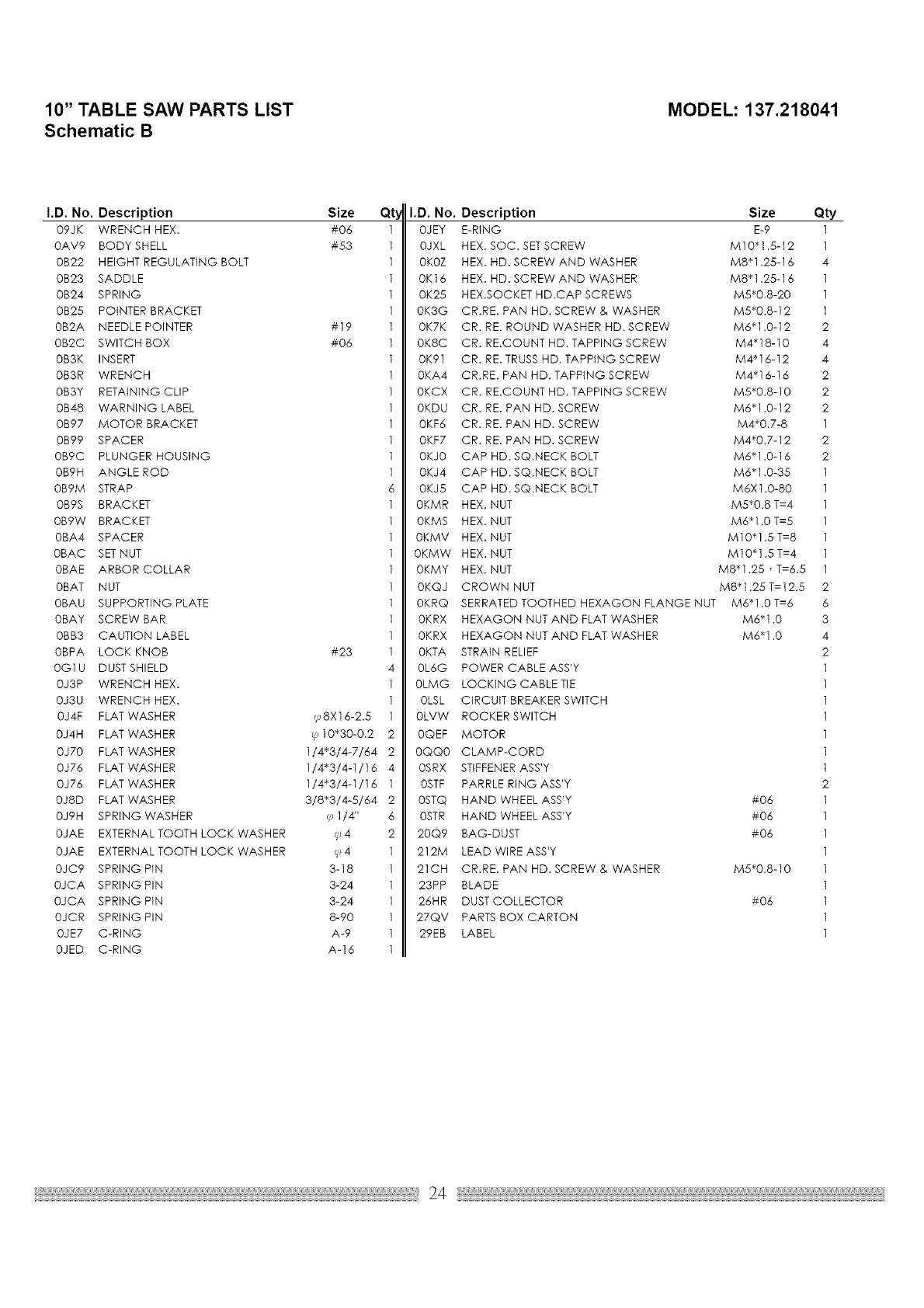

Parts List......................................... 22

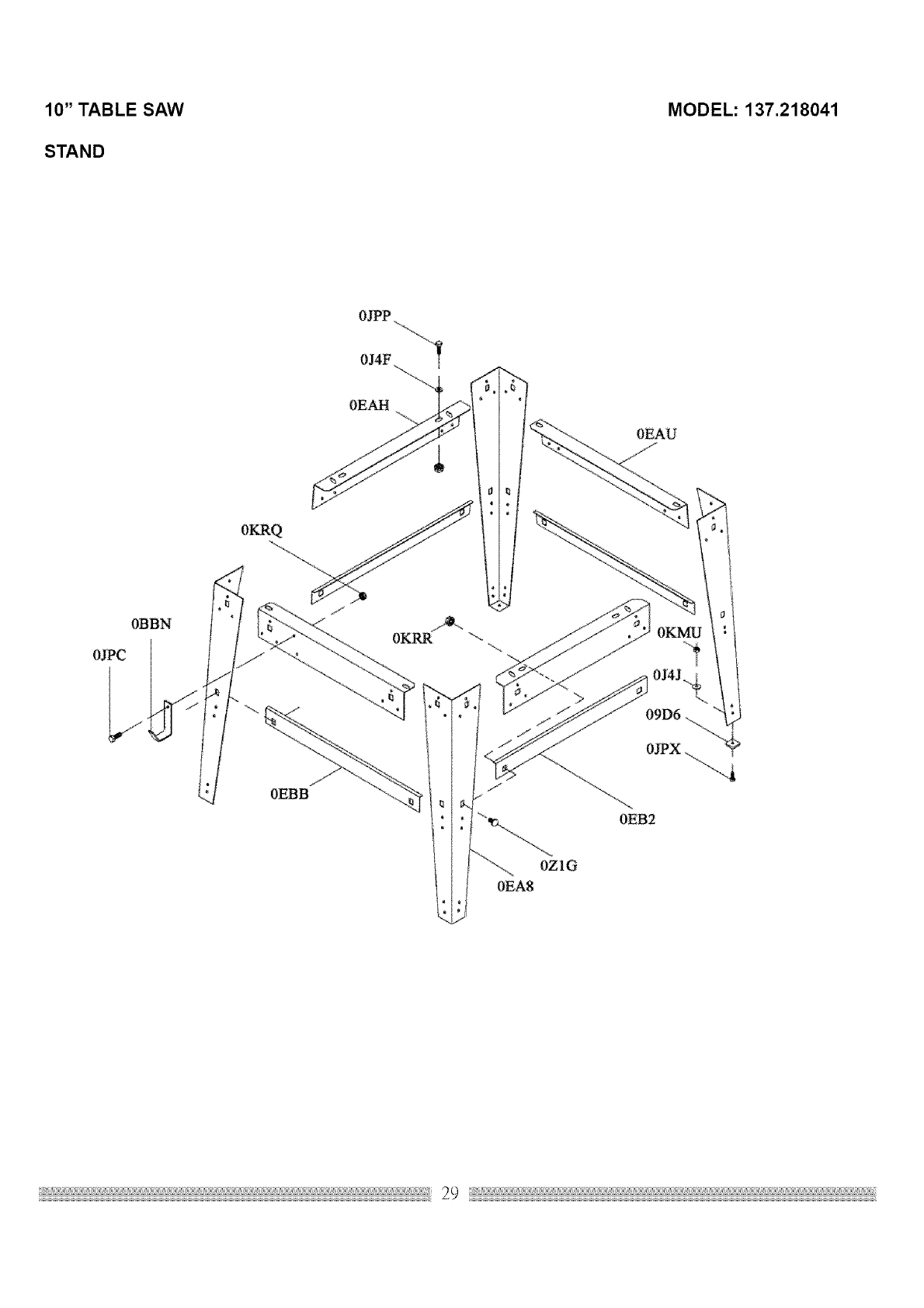

Push Stick Plan ................................. 30

FULL ONE YEAR WARRANTY

If this Table Saw fails due to a defect in material or workmanship within one year of date of purchase,

Sears will at its option repair or replace it free of charge.

Return this Table Saw to a Sears Service Center for repair, or to place of purchase for replacement.

This warranty gives you specific legal rights, and you may also have other rights which may vary from

state to state.

Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179

Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains

chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some

examples of these chemicals are:

•Lead from lead-based paints

• Crystalline silica from bricks, cement and other masonry products

°Arsenic and chromium from chemically treated lumber

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your

exposure to these chemicals work in a well-ventilated area and work with approved safety equipmentsuch as

dust masks that are spec a y des gned to f ter out m croscop c part c es.

MOTOR

HP(Maximum developed) ...... 3.0

Type .................................. Universal

Amps ................................. 15

Voltage .............................. 120

Hz ...................................... 60

RPM (no load) ...................... 5000

Overload Protection ............. YES

SAW

Table Size ........................ 26-7/64" x 17-5/8"

Table Extensions ............... Yes -Three

Extension Fence Capacity... 24" Right & Left

Blade Size ........................ 10"

Rip Fence ........................ YES

Miter Gauge ...................... YES

Maximum Cut Depth @ 90°.. 3"

Maximum Cut Depth @ 45°.. 2-1/2"

Maximum Diameter Dado 6"

Maximum Dado Cut Width... 1/2"

Net Weight ........................ 52 LBS

r_w_,1 tJ_ll_[€]

To avoid electrical hazards, fire hazards or damage to the table saw, use proper circuit protection.

This table saw is wired at the factory for 110-120 Volt operation. It must be connected to a 110-120 Volt /15 Ampere

time delay fuse or circuit breaker. To avoid shock or fire, replace power cord immediately if it is worn, cut or

damaged in any way.

Before using your table saw, it is critical that you read and understand these safety rules. Failure to follow these

rules could result in serious injury to you or damage to the table saw.

r!_vlv/_,1r,__11_[€.]

safety rules.

Before using your table saw, it is critical that you read and understand these

Failure to follow these rules could result in serious injury or damage to the table saw.

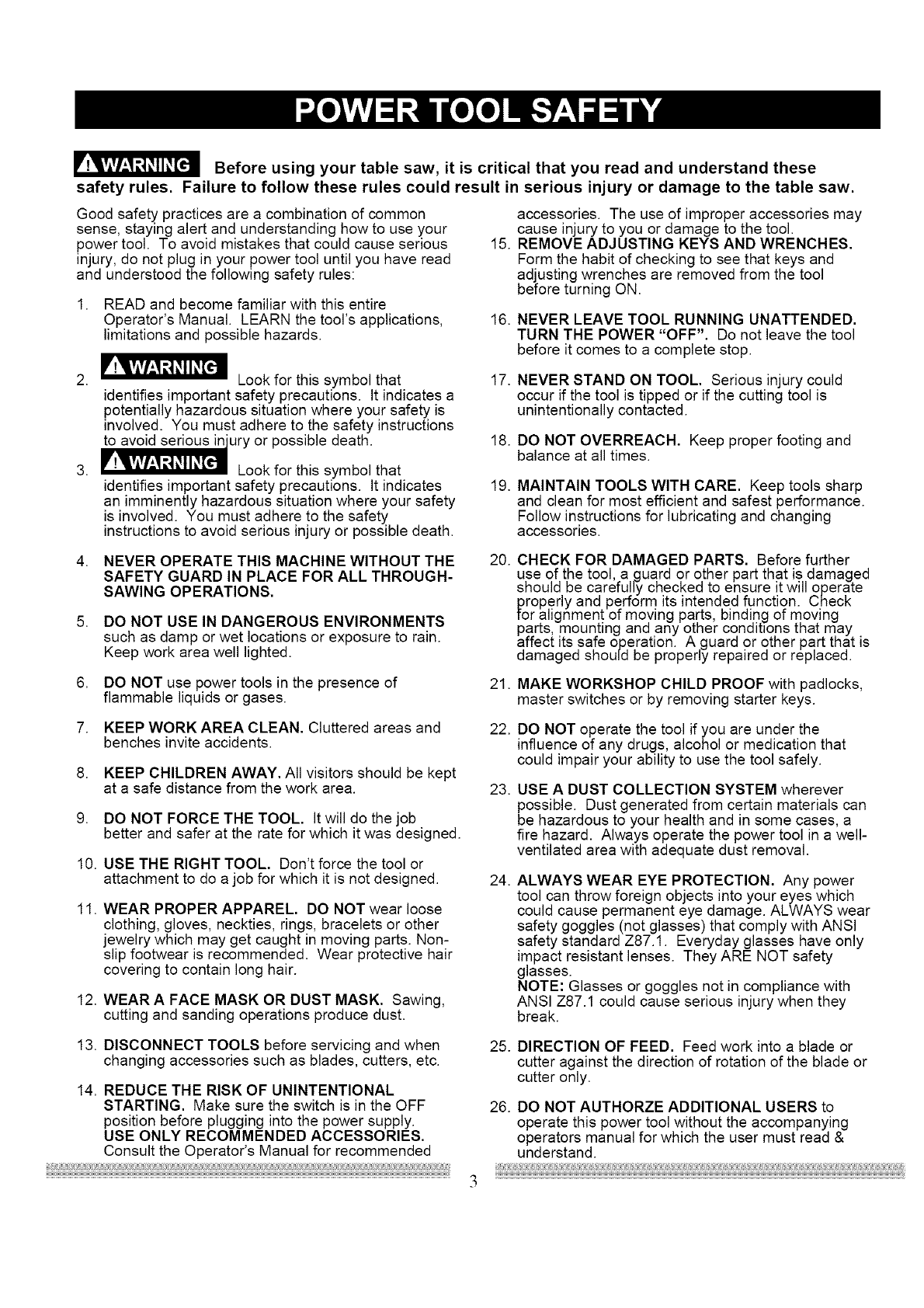

Good safety practices are a combination of common

sense, staying alert and understanding how to use your

power tool. To avoid mistakes that could cause serious

injury, do not plug in your power tool until you have read

and understood the following safety rules:

1. READ and become familiar with this entire

Operator's Manual. LEARN the tool's applications,

limitations and possible hazards.

2. _ Look for this symbol that

identifies important safety precautions. It indicates a

potentially hazardous situation where your safety is

involved. You must adhere to the safety instructions

to avoid serious inury or possible death.

Look for this symbol that

identifies important safety precautions. It indicates

an imminently hazardous situation where your safety

is involved. You must adhere to the safety

instructions to avoid serious injury or possible death.

accessories. The use of improper accessories may

cause injury to you or damage to the tool.

15. REMOVE ADJUSTING KEYS AND WRENCHES.

Form the habit of checking to see that keys and

adjusting wrenches are removed from the tool

before turning ON.

16. NEVER LEAVE TOOL RUNNING UNATTENDED.

TURN THE POWER "OFF". Do not leave the tool

before it comes to acomplete stop.

17. NEVER STAND ON TOOL. Serious injury could

occur if the tool is tipped or if the cutting tool is

unintentionally contacted.

18. DO NOT OVERREACH. Keep proper footing and

balance at all times.

19. MAINTAIN TOOLS WITH CARE. Keep tools sharp

and clean for most efficient and safest performance.

Follow instructions for lubricating and changing

accessories.

NEVER OPERATE THIS MACHINE WITHOUT THE

SAFETY GUARD IN PLACE FOR ALL THROUGH-

SAWING OPERATIONS.

DO NOT USE IN DANGEROUS ENVIRONMENTS

such as damp or wet locations or exposure to rain.

Keep work area well lighted.

DO NOT use power tools in the presence of

flammable liquids or gases.

20.

21.

CHECK FOR DAMAGED PARTS. Before further

use of the tool, a guard or other part that is damaged

should be carefully/checked to ensure it will operate

properly and perform its intended function. Check

for alignment of moving parts binding of moving

parts, mounting and any other conditions that may

affect its safe operation. A guard or other part that is

damaged shou[d be properly repaired or replaced.

MAKE WORKSHOP CHILD PROOF with padlocks,

master switches or by removing starter keys.

10.

11.

12.

KEEP WORK AREA CLEAN. Cluttered areas and

benches invite accidents.

KEEP CHILDREN AWAY. All visitors should be kept

at a safe distance from the work area.

DO NOT FORCE THE TOOL. It will do the job

better and safer at the rate for which it was designed.

USE THE RIGHT TOOL. Don't force the tool or

attachment to do a job for which it is not designed.

WEAR PROPER APPAREL. DO NOT wear loose

clothing, gloves, neckties, rings, bracelets or other

jewelry which may get caught in moving parts. Non-

slip footwear is recommended. Wear protective hair

covering to contain long hair.

WEAR A FACE MASK OR DUST MASK. Sawing,

cutting and sanding operations produce dust.

22.

23.

24.

DO NOT operate the tool if you are under the

influence of any drugs, alcohol or medication that

could impair your ability to use the tool safely.

USE A DUST COLLECTION SYSTEM wherever

possible. Dust generated from certain materials can

be hazardous to your health and in some cases, a

fire hazard. Always operate the power tool in a well-

ventilated area with adequate dust removal.

ALWAYS WEAR EYE PROTECTION. Any power

tool can throw foreign objects into your eyes which

could cause permanent eye damage. ALWAYS wear

safety goggles (not glasses) that comply with ANSI

safety standard Z87.1. Everyday glasses have only

impact resistant lenses. They ARE NOT safety

glasses.

NOTE: Glasses or goggles not in compliance with

ANSI Z87.1 could cause serious injury when they

break.

13. DISCONNECT TOOLS before servicing and when

changing accessories such as blades, cutters, etc.

14. REDUCE THE RISK OF UNINTENTIONAL

STARTING. Make sure the switch is in the OFF

position before plugging into the power supply.

USE ONLY RECOMMENDED ACCESSORIES.

Consult the Operator's Manual for recommended

25. DIRECTION OF FEED. Feed work into a blade or

cutter against the direction of rotation of the blade or

cutter only.

26. DO NOT AUTHORZE ADDITIONAL USERS to

operate this power tool without the accompanying

operators manual for which the user must read &

understand.

10.

11.

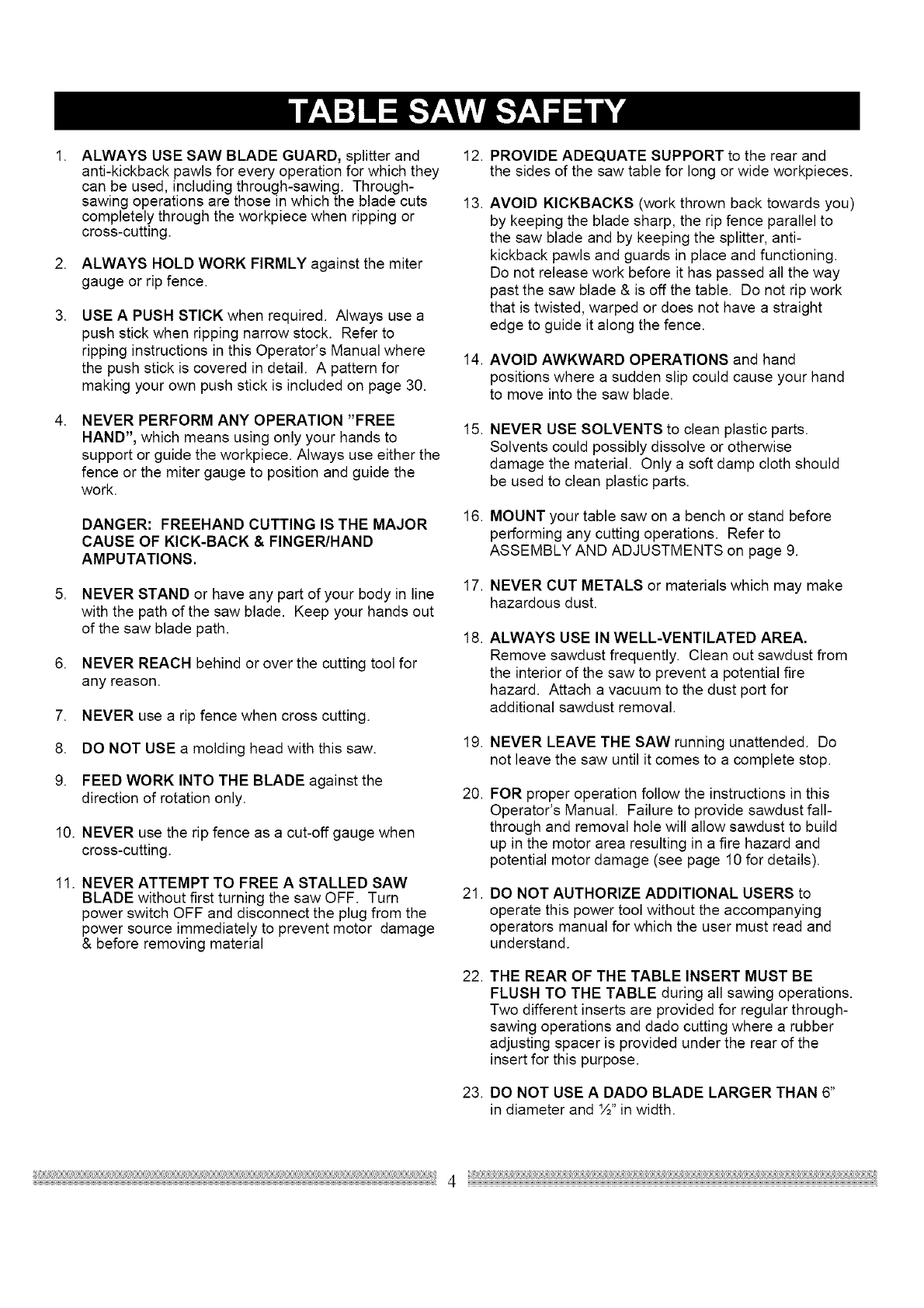

ALWAYS USE SAW BLADE GUARD, splitter and 12.

anti-kickback pawls for every operation for which they

can be used, including through-sawing. Through-

sawing operations are those in which the blade cuts 13.

completely through the workpiece when ripping or

cross-cutting.

ALWAYS HOLD WORK FIRMLY against the miter

gauge or rip fence.

USE A PUSH STICK when required. Always use a

push stick when ripping narrow stock. Refer to

ripping instructions in this Operator's Manual where

the push stick is covered in detail. A pattern for

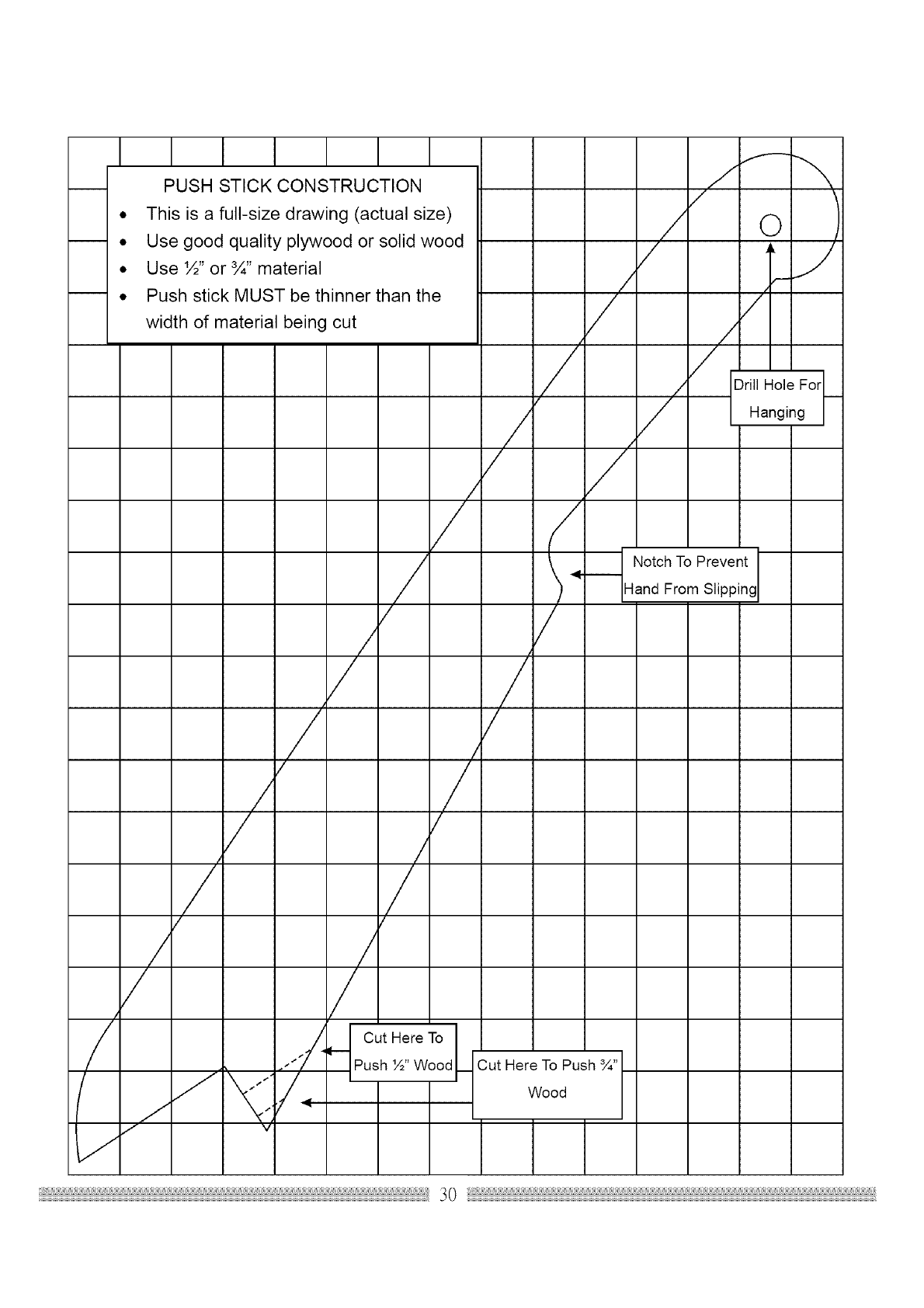

making your own push stick is included on page 30.

NEVER PERFORM ANY OPERATION "FREE

HAND", which means using only your hands to

support or guide the workpiece. Always use either the

fence or the miter gauge to position and guide the

work.

DANGER: FREEHAND CUTTING IS THE MAJOR

CAUSE OF KICK-BACK & FINGER/HAND

AMPUTATIONS.

NEVER STAND or have any part of your body in line

with the path of the saw blade. Keep your hands out

of the saw blade path,

NEVER REACH behind or over the cutting tool for

any reason.

NEVER use a rip fence when cross cutting.

DO NOT USE a molding head with this saw.

FEED WORK INTO THE BLADE against the

direction of rotation only.

NEVER use the rip fence as a cut-off gauge when

cross-cutting.

NEVER ATTEMPT TO FREE A STALLED SAW

BLADE without first turning the saw OFF. Turn

power switch OFF and disconnect the plug from the

power source immediately to prevent motor damage

& before removing material

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

PROVIDE ADEQUATE SUPPORT to the rear and

the sides of the saw table for long or wide workpieces.

AVOID KICKBACKS (work thrown back towards you)

by keeping the blade sharp, the rip fence parallel to

the saw blade and by keeping the splitter, anti-

kickback pawls and guards in place and functioning.

Do not release work before it has passed all the way

past the saw blade & is off the table. Do not rip work

that is twisted, warped or does not have astraight

edge to guide it along the fence.

AVOID AWKWARD OPERATIONS and hand

positions where a sudden slip could cause your hand

to move into the saw blade.

NEVER USE SOLVENTS to clean plastic parts.

Solvents could possibly dissolve or otherwise

damage the material. Only a soft damp cloth should

be used to clean plastic parts,

MOUNT your table saw on a bench or stand before

performing any cutting operations. Refer to

ASSEMBLY AND ADJUSTMENTS on page 9.

NEVER CUT METALS or materials which may make

hazardous dust.

ALWAYS USE IN WELL-VENTILATED AREA.

Remove sawdust frequently. Clean out sawdust from

the interior of the saw to prevent apotential fire

hazard. Attach a vacuum to the dust port for

additional sawdust removal.

NEVER LEAVE THE SAW running unattended. Do

not leave the saw until it comes to a complete stop.

FOR proper operation follow the instructions in this

Operator's Manual. Failure to provide sawdust fall-

through and removal hole will allow sawdust to build

up in the motor area resulting in a fire hazard and

potential motor damage (see page 10 for details).

DO NOT AUTHORIZE ADDITIONAL USERS to

operate this power tool without the accompanying

operators manual for which the user must read and

understand.

THE REAR OF THE TABLE INSERT MUST BE

FLUSH TO THE TABLE during all sawing operations.

Two different inserts are provided for regular through-

sawing operations and dado cutting where arubber

adjusting spacer is provided under the rear of the

insert for this purpose.

DO NOT USE A DADO BLADE LARGER THAN 6"

in diameter and ½" in width.

POWER SUPPLY REQUIREMENTS

To avoid electrical hazards, fire hazards or damage to

the table saw, use proper circuit protection. Always

use a separate electrical circuit for your tools. This

power tool is wired at the factory for 120V operation.

Connect it to a 120V, 15 Amp circuit and use a 15

Amp time delay fuse or circuit breaker. To avoid

shock or fire, replace the cord immediately if it is

worn, cut or damaged in any way.

EXTENSION CORD REQUIREMENTS

Any extension cord must be GROUNDED for safe

operation.

MINIMUM GAUGE FOR EXTENSION CORDS

(AWG type /120 Volt only)

Ampere Rating

Not

More Than More Than

0 6

6 10

10 12

Total length in feet

25' 50' 100' 150'

18 16 16 14

18 16 14 12

16 16 14 12

GUIDELINES FOR EXTENSION CORDS

Any extension cord used for power tools MUST be

grounded (3 wire with two flat prongs and one round

ground prong).

Make sure the extension cord is in good condition. When

using an extension cord, make sure you use one heavy

enough to carry the current the tool will draw. An

undersized cord will cause a drop in line voltage resulting

in loss of power and overheating. The table above shows

the correct size to use according to extension cord length

and nameplate ampere rating. If in doubt, use the next

heavier gauge cord. The smaller the gauge number the

heavier the cord.

NOTE: THE 12 TO 16 AMP RATING IS CORRECT FOR

THIS TOOL. IT IS HIGHLIGHTED IN THE TABLE

ABOVE.

Be sure your extension cord is properly wired and in good

condition. Always replace a damaged extension cord or

have it repaired by a qualified person before using it.

Protect your extension cords from sharp objects,

excessive heat and damp or wet areas.

Before connecting the saw to the extension cord, make

sure the saw switch is turned OFF.

GROUNDING INSTRUCTIONS

IN THE EVENT OF A MALFUNCTION OR

BREAKDOWN, grounding provides a path of least

resistance for electric current and reduces the risk of

electric shock. This saw is equipped with an electric cord

that has an equipment grounding conductor and a

grounding plug. The plug MUST be plugged into a

matching receptacle that is properly installed and

grounded in accordance with ALL local codes and

ordinances.

DO NOT MODIFY THE PLUG PROVIDED. If it will not fit

the receptacle, have the proper receptacle installed by a

qualified electrician.

IMPROPER CONNECTION of the equipment grounding

conductor can result in risk of electric shock. The

conductor (wire) with the green insulation (with or without

yellow stripes) is the equipment grounding conductor. If

repair or replacement of the electric cord or plug is

necessary, DO NOT connect the equipment grounding

conductor to a live terminal.

CHECK with a qualified electrician or service personnel if

you do not completely understand the grounding

instructions, or if you are not sure the saw is properly

grounded.

USE ONLY 3-WIRE EXTENSION CORDS THAT HAVE

3-PRONG GROUNDING PLUGS AND 3-POLE

GROUNDING RECEPTACLES THAT ACCEPT THE

SAW'S PLUG. REPAIR OR REPLACE DAMAGED OR

WORN CORDS IMMEDIATELY.

3-Prong Plug

Grounding Prong

"_" Properly Grounded

3-Prong Receptacle

Grounding Lug

_l _L Make Sure This

_-'YI'l_P4-__ II is Connected to a

_1 I_)_J_ Known Ground

_t_jJ,, _--__- II-_ 2-Prong

.)q_ -_N _ Receptacle

Adapter

RECOMMENDED ACCESSORIES

Visit your Sears Hardware Department or see the

Craftsman Power and Hand Tools Catalog to purchase

recommended accessories for this power tool.

To avoid the risk of personal injury:

• Do not use adjustable (wobble) type dadoes or carbide

tipped dado blades.

• Maximum dado width is 1/2".

• Do not use a dado with a diameter larger than 6".

• Do not use molding head set with this saw.

• Do not modify this power tool or use accessories not

recommended by Sears.

TOOLS NEEDED

13mm Wrench

Adjustable wrench

Phitlips screwdriver

Straight edge Combination square

UNPACKING AND CHECKING CONTENTS

• For missing or damaged parts on initial

purchase, call 800-843-1682

•To order parts, call 800-366-7278

Separate all parts from packing materials. Check each

part with the illustration on the next page and the "Table

of Loose Parts" to make certain all items are accounted

for, before discarding any packing material.

If any part is missing or damaged, do not attempt to

assemble the table saw, plug in the power cord, or turn

the switch ON until the missing or damaged part is

obtained and is installed correctly.

TABLE OF LOOSE PARTS

ITEM DESCRIPTION QUANTITY

A. Table saw assembly 1

B. Blade guard and splitter 1

C. Bolt, flat washer, toothed washer, 1 each

Oval washer, spring washer

D. Rip fence, handle & nut 1

E. Hand wheels 2

F. Dome nuts 2

G. Hand wheel handle 2

H. Dado table insert 1

I. Miter gauge 1

J. Hex key 2

K. Blade wrenches 2

L. Table extension fences 2

M Locking Knobs 4

N. Blade 1

O. Dust chute 1

P. Dust bag 1

STAND

Short Upper Support 2

Long Upper Support 2

Short Bottom Support 2

Long Bottom Support 2

Leg 4

Stand mounting hardware bag 1

NOTE: To make assembly easier, keep contents of box

together. Apply a coat of automobile wax to the table.

Wipe all parts thoroughly with a clean dry cloth. This will

reduce friction when pushing the workpeice.

UNPACKING YOUR TALBE SAW:

A N

B D

m m

0 0

0 o

--I

Q R S T U V

Left extension fence

Blade tilt pointer

Blade tilt scale

ON/OFF switch

with safety key

Overload reset

switch

Front stand

mounting hole_,

Rip fence

Table insert

Blade guard

Miter gauge

// Table

o,;

Side table

extension

Right extension fence

Table lock

handles

Blade bevel

lock knob

Blade tilting

handwheel

Blade elevation

handwheel

p fence storage

hooks

Stand

Dust collection

bag

Blade

Anti-kickback pawls

Splitter

Splitter bracket

_nches

Rear mounting holes

Assemble stand (Fig. A)

1. Unpack all parts and group by type and size (Fig. A).

Refer to parts list for quantities.

2. Attach one long upper support (12) to top of leg (1) using

one square neck bolt (2) and nut (8).

NOTE: Snug bolts until stand is properly aligned (see

step #9 before tightening).

3. Attach other end of long upper support to top of another

leg using one square neck bolt and nut.

4. Attach one long bottom support (3) to center of each leg

using square neck bolts and nuts. This completes the

front frame section.

5. Assemble rear frame section in exactly the same way.

6. Join front and rear frame assemblies using two short

upper supports (9) and two short bottom supports (t3),

square neck bolts and nuts.

7. Insert large hex head bolt (4) into rubber foot (5) and

insert into bottom of leg. Fasten with washer (6) and nut

(7). Repeat for each leg.

8. Attach one hook (14) to the left of the stand. Attach two

hooks to the right of the stand for the rip fence storage.

9. Place stand on level surface and adjust so all legs are

contacting the floor and are at similar angles to the floor.

Tighten all bolts.

NOTE: Stand should not rock after all bolts are tightened.

Fig. A

12 \

h//

Assemble table saw to stand (Fig. A, B)

1. Place protective corrugated cardboard or old

blanket on floor to protect the saw table surface.

2. Place the saw up-side down on the protective

material (Fig. B).

3. Position the dust chute between the stand and saw.

4. Position the stand up-side down on the saw base.

NOTE: Make sure front of stand and front of saw

are facing the same direction.

5. Line up the four holes in saw base, dust chute and

stand.

6. Fasten saw to dust chute to stand using four bolts

(10), washers (t 1) and nuts (8).

NOTE: Place washer on each bolt before inserting

into saw base and through the support. Nut must

be flush against the bracket (see Fig. A).

7. Tighten all four nuts.

NOTE: DO NOT OVER TIGHTEN NUTS HOLDING

SAW TO STAND. THIS MAY DAMAGE THE SAW

BASE.

8. Carefully set the saw in its upright position on a

clean level surface.

Fig. B

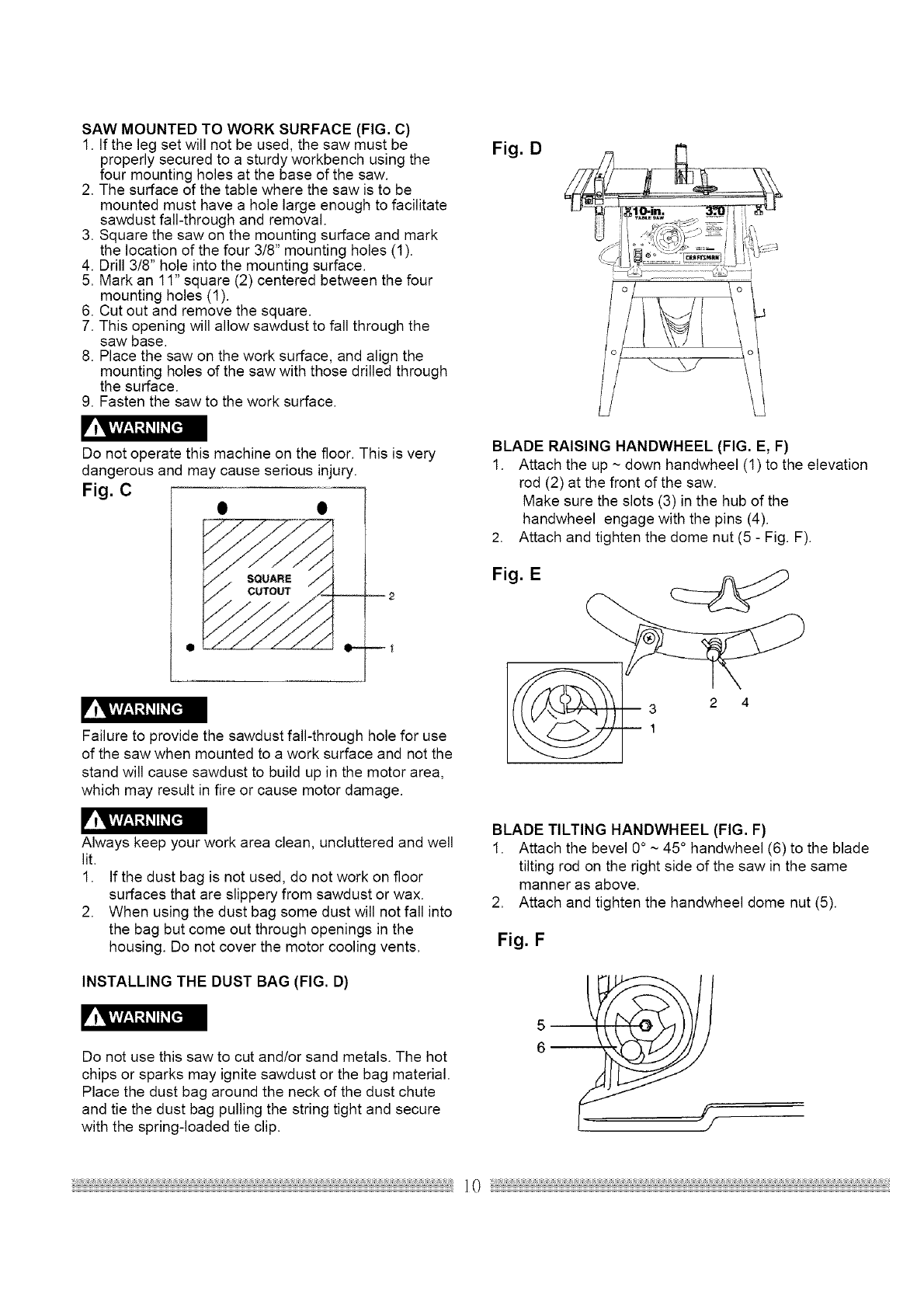

SAW MOUNTED TO WORK SURFACE (FIG. C)

1. If the leg set will not be used, the saw must be

properly secured to a sturdy workbench using the

four mounting holes at the base of the saw.

2. The surface of the table where the saw is to be

mounted must have a hole large enough to facilitate

sawdust fall-through and removal.

3. Square the saw on the mounting surface and mark

the location of the four 3/8" mounting holes (1).

4. Drill 3/8" hole into the mounting surface.

5. Mark an 11" square (2) centered between the four

mounting holes (t).

6. Cut out and remove the square.

7. This opening will allow sawdust to fall through the

saw base.

8. Place the saw on the work surface, and align the

mounting holes of the saw with those drilled through

the surface.

9. Fasten the saw to the work surface.

Fig. D

Do not operate this machine on the floor. This is very

dangerous and may cause serious injury.

Fig. C

__ ----2

BLADE RAISING HANDWHEEL (FIG. E, F)

1. Attach the up ~ down handwheel (t) to the elevation

rod (2) at the front of the saw.

Make sure the slots (3) in the hub of the

handwheel engage with the pins (4).

2. Attach and tighten the dome nut (5 - Fig. F).

Fig. E

Failure to provide the sawdust fall-through hole for use

of the saw when mounted to a work surface and not the

stand will cause sawdust to build up in the motor area,

which may result in fire or cause motor damage.

Always keep your work area clean, uncluttered and well

lit.

1. If the dust bag is not used, do not work on floor

surfaces that are slippery from sawdust or wax.

2. When using the dust bag some dust will not fall into

the bag but come out through openings in the

housing. Do not cover the motor cooling vents.

INSTALLING THE DUST BAG (FIG. D)

Do not use this saw to cut and/or sand metals. The hot

chips or sparks may ignite sawdust or the bag material.

Place the dust bag around the neck of the dust chute

and tie the dust bag pulling the string tight and secure

with the spring-loaded tie clip.

3 2 4

BLADE TILTING HANDWHEEL (FIG. F)

1. Attach the bevel 0° ~ 45 ° handwheel (6) to the blade

tilting rod on the right side of the saw in the same

manner as above.

2. Attach and tighten the handwheel dome nut (5).

Fig. F

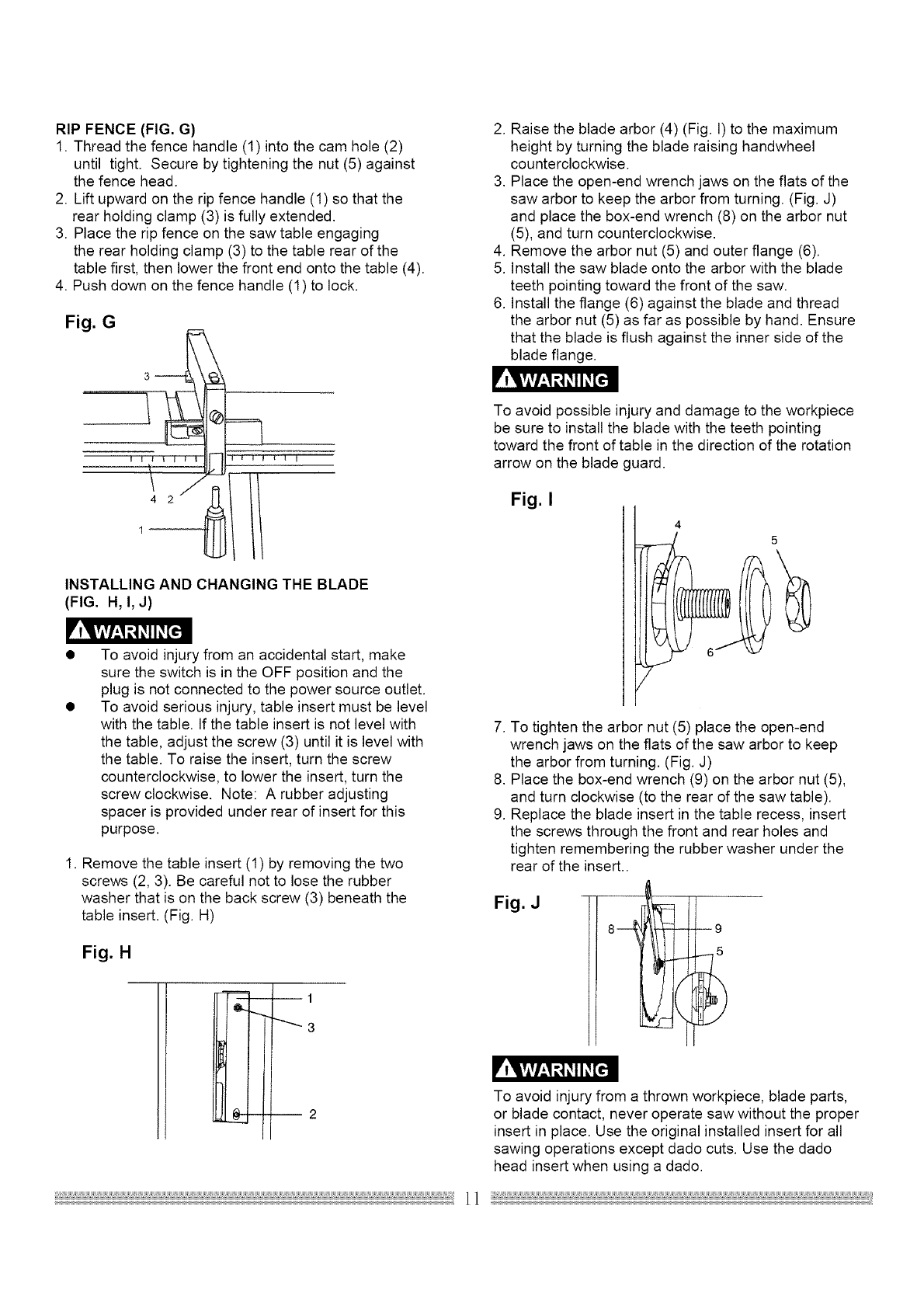

RIP FENCE (FIG. G)

1. Thread the fence handle (1) into the cam hole (2)

until tight. Secure by tightening the nut (5) against

the fence head.

2. Lift upward on the rip fence handle (1) so that the

rear holding clamp (3) is fully extended.

3. Place the rip fence on the saw table engaging

the rear holding clamp (3) to the table rear of the

table first, then lower the front end onto the table (4).

4. Push down on the fence handle (1) to lock.

Fig. G

INSTALLING AND CHANGING THE BLADE

(FIG. H, I, J)

To avoid injury from an accidental start, make

sure the switch is in the OFF position and the

plug is not connected to the power source outlet.

To avoid serious injury, table insert must be level

with the table. If the table insert is not level with

the table, adjust the screw (3) until it is level with

the table. To raise the insert, turn the screw

counterclockwise, to lower the insert, turn the

screw clockwise. Note: A rubber adjusting

spacer is provided under rear of insert for this

purpose.

1. Remove the table insert (1) by removing the two

screws (2, 3). Be careful not to lose the rubber

washer that is on the back screw (3) beneath the

table insert. (Fig. H)

Fig. H

--1

&d---2

2. Raise the blade arbor (4) (Fig. I) to the maximum

height by turning the blade raising handwheel

counterclockwise.

3. Place the open-end wrench jaws on the flats of the

saw arbor to keep the arbor from turning. (Fig. J)

and place the box-end wrench (8) on the arbor nut

(5), and turn counterclockwise.

4. Remove the arbor nut (5) and outer flange (6).

5. Install the saw blade onto the arbor with the blade

teeth pointing toward the front of the saw.

6. Install the flange (6) against the blade and thread

the arbor nut (5) as far as possible by hand. Ensure

that the blade is flush against the inner side of the

blade flange.

To avoid possible injury and damage to the workpiece

be sure to install the blade with the teeth pointing

toward the front of table in the direction of the rotation

arrow on the blade guard.

Fig. I

7. To tighten the arbor nut (5) place the open-end

wrench jaws on the flats of the saw arbor to keep

the arbor from turning. (Fig. J)

8. Place the box-end wrench (9) on the arbor nut (5),

and turn clockwise (to the rear of the saw table).

9. Replace the blade insert in the table recess, insert

the screws through the front and rear holes and

tighten remembering the rubber washer under the

Fig. J

rear of the insert..

rw_vlv/_,1r,__11_[e]

To avoid injury from a thrown workpiece, blade parts,

or blade contact, never operate saw without the proper

insert in place. Use the original installed insert for all

sawing operations except dado cuts. Use the dado

head insert when using a dado.

BLADE GUARD ASSEMBLY & ALIGNMENT

(FIG. K, L, M)

1. Set the blade to maximum height and the tilt to

zero degrees on the bevel scale with the hand

wheels. Lock the blade lock knob.

2. Place the spring washer (2), flat washer (3),

external tooth lock washer (4) onto the blade guard

mounting bolt (t). (Fig. K)

Fig. K _

Blade Guard_

Splitter

6 J

4 321

3. Place the oval washer (5) on the pivot rod (6).

(Fig. L)

4. Install the blade guard splitter & bracket assembly

(4) into the rear of the saw table. Thread the bolt (3)

into the internally threaded pivot rod until snug.

NOTE: The blade guard & splitter is removed from

the illustration for clarity.

Fig. L

6 5

5. Lift blade guard arm (7) up and using a straight

edge, align the blade guard splitter (8) with the

saw blade (9). (Fig.M)

6. Shift the splitter assembly to right or left until

parallel alignment to the blade is achieved.

7. When the splitter is properly aligned with the saw

blade, tighten the bolt securely.

NOTE: The splitter must always be correctly aligned

so that the cut workpiece will pass on either side

without binding or twisting to the side.

Improper splitter alignment can cause "kickback" and

Serious injury.

Fig. M

Anti-kickback pawl 7

INSTALLING THE TABLE EXTENSION FENCE (FIG.

N, N-l)

NOTE:

A. For right ripping a 10" ~ 14" wide workpiece, the

right extension fence has to be installed in the IN-

RIPposition (Fig. N). For left ripping a 11" ~ 16" wide

workpiece, the left extension fence has to also be

installed in the IN-RIP position. Raise the fence

to a position that just clears the table surface

and secure in place using lock handles (t)for

IN-RIP position.

B. For right ripping a 14" ~ 24" wide workpiece, the

right extension fence has to be installed in the OUT-

RIP position (Fig. N-l). For left ripping a 16" ~ 24"

wide workpiece, the left extension fence has to be

installed in the OUT-RIP position.

1. Install the locking knobs (t) on the aluminum

extension table.

2. Place the table extension fence (2) on the aluminum

extension table.

3. Raise the fence to the desired location & height and

tighten the lock knobs (t).

IIN-RIP

Position

Fig. N-1

OUT-RIP

ADJUSTMENT INSTRUCTIONS

To avoid injury from an accidental start, make sure the

switch is in the OFF position and the plug is not

connected to the power source, before making any

adjustments.

USING THE TABLE EXTENSION FENCE (FIG. N-2)

NOTE: The table extension may be used as side support

when cutting large workpieces..

To adjust the table extension position

1. Loosen the two lock knobs (4) on the two extension

tube brackets.

2. Slide the extension tubes in or out to the desired

distance and tighten the two lock knobs (4).

3. Loosen lock knobs (5) and lower the table extension

fence (6) level to the table and tighten the lock knobs

making sure the table extensions are in the out-rip

position.

Fig. N-2

5 5

MITER GAUGE ADJUSTMENT (FIG. O)

1. Make sure that the miter gauge will slide freely

through both table grooves.

2. Loosen the lock knob (1). Set the miter head (3) to

90°

3. Adjust the pointer (2) to 90° on the miter gauge scale.

Note: This miter gauge is designed with positive detents

every 15° for accuracy.

Fig. O

RIP FENCE ADJUSTMENT (FIG. P)

1. The fence (1) is moved by lifting up on the locking

handle (2) and sliding the fence to the desired location.

Pushing down on the handle locks the fence in

position.

2. Position the fence on the table and along one edge of

the miter gauge grooves.

3. Lock the fence handle. The fence should be parallel

with the miter gauge groove.

4. If adjustment is needed to make the fence parallel to

the groove, do the following:

•Loosen the two screws (3) and lift up on the handle

(2).

• Hold the fence bracket (4) firmly against the front of

the saw table. Move the far end of the fence until it

is parallel with the miter gauge groove.

• Tighten both screws and push the handle to lock.

5. If fence is loose when the handle is in the locked

(downward) position, do the following:

• Move the handle (2) upward and turn the adjusting

screw (5) clockwise until the rear clamp is snug. Do

not turn the adjusting screw more than 1/4 turn at a

time.

Over-tightening the adjusting screw will cause the fence

to come out of alignment.

Failure to properly align fence can cause "kickback"

and serious injury.

NOTE: The rip fence and blade are aligned parallel to

the miter gauge groove of the table.

Fig. P

8675

RIP FENCE INDICATOR ADJUSTMENT (FIG. P)

1. The rip fence indicator (6) points to the measurement

scale (8). The scale shows the distance between the

fence and the blade.

2. Measure the actual distance with a rule. If there is a

difference between the measurement and the

indicator, adjust the indicator (6).

3. Loosen the screw (7) and slide the indicator to the

correct measurement on the scale. Tighten the screw

and re-measure with the rule.

] 3

Toavoidinjuryfromanaccidentalstart,makesurethe

switchisintheOFFpositionand the plug is not

connected to the power source outlet.

ADJUSTING THE 90° AND 45° POSITIVE STOPS

(FIG.Q, Q-l, R)

Your saw has positive stops that will quickly position the

saw blade at 90° to the table. Make adjustments only if

necessary.

90°Stop

1. Disconnect the saw from the power source.

2. Turn the blade elevation handwheel and raise the

blade to the maximum elevation.

3. Loosen the blade bevel lock knob (2) and move the

blade to the maximum vertical position, then tighten

the lock knob (2).

4. Place a combination square on the table and against

the blade (t) to determine if the blade is 90° to the

table. (Fig. Q-l)

5. If the blade is not 90° to the table, loosen the two set

screws (4), located on the collar (5) underneath the

table saw, (Fig. R) with the hex key, and back off the

collar..

6. Loosen the bevel lock knob. Turn the blade tilting

handwheel to move the blade until it is 90° to the

table.

7. Adjust the collar (5) so it contacts the bracket (3)

when the blade is 90 ° to the table. Tighten the two set

screws (4) (Fig.R).

Fig. Q

45° Stop

Fig. Q-1 90° 45°

With the blade in the upright 90° position, loosen the

bevel lock knob and move the blade to the 45°

position as far as it will go.

2. Place the combination square on the table as shown

in Fig.Q-1 to check if the blade is 45 ° to the table.

3. If the blade is not 45° to the table, loosen the two set

screws (4), located on the collar (5) underneath the

table saw, (Fig. R) with the hex key, and back off the

collar.

4. Tighten the bevel lock knob & secure the screw (4)

until resistance is felt. Do not overtighten.

BLADE TILT POINTER

1. When the blade is positioned at 90°, adjust the blade

tilt pointer to read 0° on the scale.

2. Loosen the mounting screw, position pointer over 0°

and tighten the screw.

NOTE: Make a trial cut on scrap wood before making

critical cuts. Measure for exactness.

Fig. R _s

345

BLADE PARALLEL TO THE MITER GAUGE GROOVE

(FIG. S, T)

This adjustment was made at the factory, but it should be

rechecked and adjusted if necessary.

To prevent personal injury:

• Always disconnect plug from the power source when

making any adjustments.

• This adjustment must be correct or kickback could

result in a serious injury and accurate cuts can not

be made.

1. Remove the safety switch key and unplug the saw.

2. Remove the blade guard for this procedure byt reinstall

and realign after adjustment.

3. Raise the blade to the highest position and set at the 0°

angle (90° straight up).

4. Select and mark, with a felt tip maker, a blade tooth

having a "right set" and rotate the blade so the marked

tooth is ½" above the table.

5. Place the combination square base (1) into the right

side miter gauge groove (2). (Fig. S)

6. Adjust the rule so it touches the front marked tooth and

lock ruler so it holds its position in the square assembly.

7. Rotate the blade bringing the marked tooth to the rear

and about 1/2 inch above the blade.

8. Carefully slide the combination square to the rear until

the ruler touches the marked tooth.

9. If the ruler touches the marked tooth at the front and

rear position, no adjustment is needed at this time. If

not or the base of the rule is no longer parallel with the

edge of the miter gauge groove, perform adjustment

procedure described in next section.

Fig. S

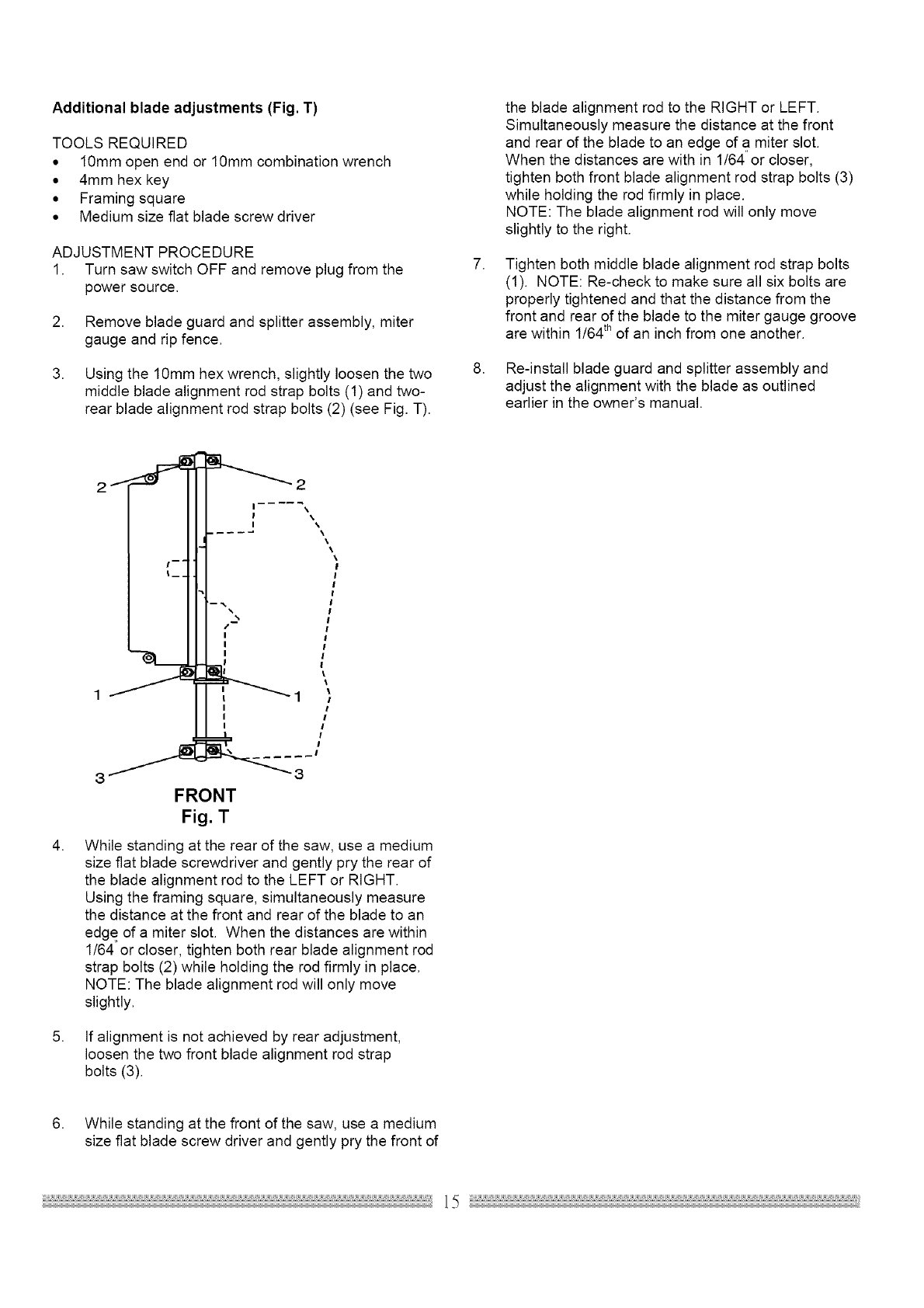

Additional blade adjustments (Fig. T)

TOOLS REQUIRED

• 10mm open end or 10mm combination wrench

• 4mm hex key

• Framing square

• Medium size flat blade screw driver

ADJUSTMENT PROCEDURE

1. Turn saw switch OFF and remove plug from the

power source.

2. Remove blade guard and splitter assembly, miter

gauge and rip fence,

3. Using the 10mm hex wrench, slightly loosen the two

middle blade alignment rod strap bolts (1) and two-

rear blade alignment rod strap bolts (2) (see Fig. T).

the blade alignment rod to the RIGHT or LEFT.

Simultaneously measure the distance at the front

and rear of the blade to an edge of a miter slot.

When the distances are with in 1/64"or closer,

tighten both front blade alignment rod strap bolts (3)

while holding the rod firmly in place.

NOTE: The blade alignment rod will only move

slightly to the right.

Tighten both middle blade alignment rod strap bolts

(1). NOTE: Re-check to make sure all six bolts are

properly tightened and that the distance from the

front and rear of the blade to the miter gauge groove

are within 1/64thof an inch from one another.

Re-install blade guard and splitter assembly and

adjust the alignment with the blade as outlined

earlier in the owner's manual.

\\\\\\\I

3'3

FRONT

Fig. T

While standing at the rear of the saw, use a medium

size flat blade screwdriver and gently pry the rear of

the blade alignment rod to the LEFT or RIGHT.

Using the framing square, simultaneously measure

the distance at the front and rear of the blade to an

edge of a miter slot. When the distances are within

1/64 or closer, tighten both rear blade alignment rod

strap bolts (2) while holding the rod firmly in place.

NOTE: The blade alignment rod will only move

slightly.

If alignment is not achieved by rear adjustment,

loosen the two front blade alignment rod strap

bolts (3).

6. While standing at the front of the saw, use a medium

size flat blade screw driver and gently pry the front of

BASIC SAW OPERATIONS

RAISE THE BLADE (FIG. U)

To raise or lower the blade, turn the blade elevation

handwheel (1)to the desired blade height.

Fig. U

OVERLOAD PROTECTION (FIG. V)

This saw has a reset overload relay button (3) that

will restart the motor after it shuts off due to

overloading or low voltage. If the motor stops during

operation, turn the ON /OFF switch to the OFF

position. Wait for the motor to cool. Push in on the

reset button (3) and turn the switch to the ON position.

V_vlVl_,1tJ_11_[e]

_._j*-

TILTING THE BLADE (FIG. U)

1. To tilt the saw blade for bevel cutting, loosen the

lock knob (2) and turn the tilting handwheel (3) to

the desired angle.

2. Tighten the bevel lock knob (2) to secure the angle.

ON/OFF SWITCH (FIG. V)

The ON /OFF switch has a removable safety key.

With the key removed from the switch, unauthorized

and hazardous use by children and others is

minimized.

1. To turn the saw ON, insert key (1) into the slot in

the switch (2). Move the switch upward to the ON

position.

2. To turn the saw OFF, move the switch downward.

3. To lock the switch in the OFF position, grasp the

end of the toggle switch (1) and pull out the safety

switch key.

4. With the switch key removed, the switch will not

operate.

5. If the switch key is removed while the saw is running,

it can be turned OFF but cannot be restarted

without inserting the switch key (1).

Fig. V

To avoid injury, the ON /OFF switch must be in the

OFF position and the plug removed from the power

source while the cool down takes place, to prevent

accidental starting when the reset button is pushed.

Overheating may be caused by misaligned parts or a

dull blade. Inspect your saw for proper setup before

using it again.

USING THE TABLE EXTENSION FENCE (FIG. W)

A. NOTE: For right ripping a 10" ~ 14" wide

workpiece, the right extension fence has to be

installed in the IN-RIPposition (Fig. N). For left

ripping a 11" ~ 16" wide workpiece, the left

extension fence has to also be installed in the IN-

RIP position. Raise the fence to a position that just

clears the table surface and secure in place using

lock handles (1) for IN-RIP position.

B. For right ripping a 14" ~ 24" wide workpiece, the

right extension fence has to be installed in the

OUT-RIP position (Fig. N-l). For left ripping a 16"

~ 24" wide workpiece, the left extension fence has

to be installed in the OUT-RIP position.

1. Adjust the fence to the desired distance from the

blade by reading the rip scale located on the front

tube of the extension fence assembly.

2. Raise the fence so the top is approximately ½"

above the table of the saw and secure in position

by tightening the two lock knobs (t).

NOTE: NEVER USE A RIP FENCEAND THE MITER

GAUGEAT THE SAMETIME. KICKBACKCAN OCCUR.

Fig_,

Fig. N-1

IN-RIP

Position

OUT-RIP

Position

CUTTING OPERATIONS

There are two basic types of cuts: ripping and

crosscutting. Ripping is cutting along the length and with

the grain of the workpiece. Crosscutting is cutting either

across the width or across the grain of the workpiece.

Neither ripping nor crosscutting may be done safely

freehand. Ripping requires the use of the rip fence, and

crosscutting requires the miter gauge. Never use a rip

fence and miter gauge at the same time.

Before using the saw each and every time, check

the following:

1. Blade is tight on the arbor.

2. Bevel angle lock knob is tight.

3. If ripping, fence lock handle is tight and fence

is parallel to the blade.

4. Blade guard is in place and working properly.

5. Safety glasses are being worn.

The failure to adhere to these common safety rules,

and those printed in the front of this manual, can

greatly increase the likelihood of injury.

RIPPING

To prevent serious injury:

•Never use the miter gauge when ripping.

• Never use more than one rip fence during a single cut.

• Do not allow familiarity or frequent use of your table

saw to cause careless mistakes. Remember that even

a careless fraction of a second is enough to cause a

severe injury.

• Keep both hands away from the blade and path of the

blade.

• The workpiece must have a straight edge against the

fence and must not be warped, twisted, or bowed.

• DANGER - Never attempt to pull the workpiece

backwards during a cutting operation. This will cause

kickback and serious injury to the user can occur.

1. Remove the miter gauge. Secure the rip fence to the

table or if using the extension fence, set the position

and remove all other rip fences from the table..

2. Raise the blade so it is about 1/8" higher than the top

of the workpiece.

3. Place the workpiece flat on the table and against the

fence. Keep the workpiece about 1" away from the

blade.

4. Turn the saw ON and wait for the blade to come up to

speed.

5. Slowly feed the workpiece into the blade by pushing

forward only on the workpiece section (1) that will

pass between the blade and the fence. (Fig. X)

AVOID KICKBACK by pushing forward that section of

the workpiece that will pass between the blade and the

fence. Use a push stick at all times.

Fig. X

6. Keep your thumbs off the blade top. When both of your

thumbs touch the front edge of the table (2), finish the

cut with a push stick. You can make a push stick using

the pattern on page 30.

7. The push stick (3) should always be used for any

ripping operation.

8. Continue pushing the workpiece with the push stick (3)

until it passes the blade guard and clears the rear of

the table.

9. DANGER - Never attempt to pull the workpiece

backwards during a cutting operation. This will cause

kickback and serious injury to the user can occur.

When the blade completely stops raise the anti-

kickback pawls on each side of the splitter and slide the

workpiece out.

Fig. Y

BEVEL RIPPING

This cut is the same as ripped except the blade bevel

angle is set to an angle other than "0".

Cut only with the workpiece and the fence on the right

side of the blade.

Never attempt to pull the workpiece backwards during a

cutting operation. This will cause kickback and serious

injury to the user can occur.

RIPPING SMALL PIECES

Avoid injury from the blade contact. Never make

through-saw cuts narrower than 3/4" wide.

Always position the larger surface of the workpiece on the

table when crosscutting and/or bevel crosscutting to avoid

unstability.

Fig. Z

3 2

1. It is unsafe to rip small pieces. Instead, rip a larger

piece to obtain the size of the desired piece.

2. When a small width is to be ripped, your hand cannot

be safely put between the blade and the rip fence,

therefore, use one or more push sticks to pass the

workpiece completely through and past the blade.

CROSSCUTTING 90° MITER ANGLE (FIG. Z)

To prevent serious injury:

•Do not allow familiarity or frequent use of your table

saw to cause careless mistakes. Remember that even

a careless fraction of a second is enough to cause a

severe injury.

• Keep both hands away from the blade and the path of

the blade.

• DANGER - Never attempt to pull the workpiece

backwards during a cutting operation. This will cause

kickback and serious injury to the user can occur.

1. Remove the rip fence lower all table extension fences

flush to the table and place the miter gauge a miter

gauge groove on the table.

2. Adjust the blade height so it is 1/8" higher than the top

of the workpiece.

3. Hold the workpiece firmly against the miter gauge with

the blade path in line with the desired cut location.

Move the workpiece to one inch distance from the

blade.

4. Start the saw and wait for the blade (1) to come up to full

speed. Never stand directly inline of the saw blade path,

always stand to the side of the blade that you are cutting

on.

5. Keep the workpiece (2) against the face of the miter

gauge (3) and flat against the table. Then slowly push the

workpiece through the blade.

6. Do not try to pull the workpiece back with the blade

turning. Turn the switch OFF, and carefully slide the

workpiece out when the blade is completely stopped.

BEVEL CROSSCUTTING (FIG. AA)

0°-45 °BLADE BEVEL & 90 ° MITER ANGLE

This cutting operation is the same as crosscutting

except the blade is at bevel angle other than 0°.

1. Adjust the blade (1) to the desired angle, and

tighten the blade bevel lock knob.

2. Always work to the left side of the blade. The miter

gauge (3) must be in the left side groove (2). It

cannot be used in the right side groove unless the

miter angle is very sharp, as it will interfere with the

blade guard.

Fig. AP

COMPOUND MITER CROSSCUTTING (FIG. BB)

0o-45 °BLADE BEVEL & 00-45 ° MITER ANGLE

This sawing operation is combining a miter angle with a

bevel angle.

WARNING - Always work to the left side of the blade

during this type of cut. The miter gauge (3) must be in

the left side miter gauge groove. It cannot be used in the

right side groove unless the miter angle is very sharp, as

it will interfere with the blade guard.

1. Set the miter gauge (3) to the desired angle. Use only

the left side groove (2).

2. Set the blade (1) bevel to the desired angle.

3. Carefully push the miter gauge to begin the cutting

operation.

Fig. BB

MITERING (FIG. CC) 0°~45 ° MITER ANGLE

This sawing operation is the same as crosscutting

except the miter gauge is locked at an angle other

than 90°.

WARNING - Always work to the left side of the blade

during this type of cut. The miter gauge (3) must be in

the left side miter gauge groove. It cannot be used in the

right side groove unless the miter angle is very sharp, as

it will interfere with the blade guard.

1. Hold the workpiece (2) firmly against the miter

gauge (3).

2. Feed the workpiece slowly into the blade (1) to

prevent the workpiece from moving.

Fig. CC

Fig. DD j3

DADO CUTS (FIG. EE)

1. The dado table insert is included with this saw.

Remove saw blade and blade guard for dado cuts

only. Reinstall and realign blade guard for all through

sawing operations. Install a dado not exceeding 6"

diameter and ½" width and the dado table insert.

2. Instruction for operating the dado is packed with the

separately purchased dado set.

3. The arbor (1) on this saw restricts the maximum width

of the cut to 1/2".

4. It is not necessary to install the outside flange (2)

before threading on the arbor nut (3) for maximum ½"

dado cuts. Make sure that the arbor nut (3) is tight,

and that at least one thread of the arbor sticks out

past the nut.

5. Use only the 6" diameter dado set and keep the width

1/2" or less. It will be necessary to remove the blade

guard and splitter when using a dado blade only.

Always use caution when operating a dado blade.

6. Use only the correct number of round outside blades

and inside chippers as shown in the dado set's

instruction manual. Blades/chippers must not exceed

1/2" total in width.

7. Check saw to ensure that the dado will not strike

the housing, insert, or motor when in operation.

USING WOOD FACING ON THE RIP FENCE

(FIG. DO)

When performing some special cutting operations,

You can add a wood facing (1) to either side of the rip

fence (2).

NOTE: Before using wood facing on the rip fence,

make sure the auxiliary fences are lowered flush to the

table top.

1. Use a smooth straight 3/4" thick wood board (1) that is

as long as the rip fence.

2. Attach the wood facing to the fence with wood

screws (3) through the hole in the fence. A wood

fence should be used when ripping material such

as thin paneling to prevent the material from

catching between the bottom of the fence and the

table.

For your own safety, always replace the blade, blade

guard assembly, and blade insert when you are finished

with the dado operation. You must also realign the blade

guard assembly.

Fig. EE

\\I

MAINTAINING YOUR TABLE SAW

GENERAL MAINTENANCE

V_VAVl.,1r,]_II_let

For your own safety, turn the switch OFF and remove

the switch key. Remove the plug from the power source

outlet before maintaining or lubricating your saw.

1. Clean out all sawdust that has accumulated inside the

saw cabinet and the motor.

2. Polish the saw table with an automotive wax to keep

it clean and to make it easier to slide the workpiece.

3. Clean cutting blades with pitch and gum remover.

4. A worn, cut, or damaged power cord should be

replaced immediately.

All electrical or mechanical repairs should be attempted

only by a trained repair technician. Contact the nearest

Sears Service Center for service. Use only identical

replacement parts. Any other parts may create a hazard.

5. Use liquid dish washing detergent and water to clean

all plastic parts,

NOTE: Certain cleaning chemicals can damage

plastic parts.

6. Avoid use of the following cleaning chemicals or

solvents; ammonia and household detergents

containing ammonia.

BLADE RAISING AND TILTING MECHANISM

After each five full hours of operation, the blade raising

mechanism and tilting mechanism should be checked

for looseness, binding, or other abnormalities. With the

saw disconnected from the power source, turn the saw

upside down and alternately pull upward and downward

on the motor unit. Observe any movement of the motor

mounting mechanism. Looseness or play in the blade

raising screw (1) (Fig. FF) should be adjusted as follows:

1. Using a 14mm wrench, loosen the check-nut (2).

2. Adjust nut (3) until it is finger-tight against the

bracket (4), then back off the nut (3) 1/6 turn.

3. Tighten nut (2) with the wrench, while holding nut (3)

in place. Maximum allowable play in and out of the

screw rod (1) is 1/8".

Fig. FF

You can place a small amount of dry lubricant on bevel

andgle adjustment rod also. This rod (1) must be kept

clean and free of sawdust, gum, pitch, and other

contaminants for smooth operation.

If excessive looseness is observed in any parts of the

blade raising mechanism or tilting mechanism, take the

complete unit to a Sears Service Center.

LUBRICATION

All motor bearings are permanently lubricated at the

factory and require no additional lubrication.

On all mechanical parts of your table saw where a pivot or

threaded rod are present, lubricate using graphite or

silicone. These dry lubricants will not hold sawdust as

would oil or grease.

Toavoidinjuryfromanaccidentalstart,turntheswitchOFFandalwaysremovetheplugfromthepowersource

beforemakinganyadjustments.

• ConsultyourlocalSearsServiceCenterifforanyreasonthemotorwillnotrun.

SYMPTOM POSSIBLECAUSES CORRECTIVEACTION

Sawwillnotstart 1.Sawnotpluggedin 1.Pluginsaw

2.Fuseblownorcircuitbreakertripped 2.Replacefuseorresetcircuitbreaker

3.Corddamaged 3.Havecordreplacedby a SearsService

Center

Doesnotmakeaccurate45° 1. Check bladewith squareand adjust

and90° ripcuts positivestop

2. Checkbladewith squareand adjustto

zero

Materialpinchedbladewhen 1. Checkandadjustripfence

ripping 2. Selectanotherpieceofwood

Materialbindsonsplitter 1. Checkandalignsplitterwithblade

Saw makes unsatisfactory

cuts

Materialkicked back from

blade

Bladedoes not raiseor tilt

freely

Bladedoesnot comeup to

speed

Machinevibratesexcessively

Doesnotmakeaccurate45°

and90° crosscuts

5.feed

1. Rip fence out of adjustment

2. Splitter not aligned with blade

3. Feeding stock without rip fence

4. Splitter not in place

5. Dull blade

Positive stop not adjusted correctly 1.

Tilt angle pointer not set accurately 2.

Rip fence not aligned with blade 1.

Warped wood, edge against fence is 2.

not straight

Splitter not aligned correctly with 1.

blade

Dull blade 1.

Blade mounted backwards 2.

Gum or pitch on blade 3.

Incorrect blade for work being done 4.

Gum or pitch on blade causing erratic 5.

The operator letting go of material 6.

before it is past saw blade

Sawdust and dirt in raising and tilting 1.

mechanisms

1. Extension cord too light or too long

2. Low house voltage

1. Saw not mounted securely to

workbench

2. Bench on uneven floor

3. Damaged saw blade

1. Miter gauge out of adjustment

Replace blade

Blade teeth must face forward

Remove blade and clean with turpentine

and coarse steel wool

Change the blade

Clean table with turpentine and steel wool

Align rip fence with miter gauge slot

Align splitter with blade

Install and use rip fence

Install and use splitter (with guard)

Replace blade

Push material all the way past saw blade

and off the table before releasing work

Brush or blow out loose dust and dirt

1. Replace with adequate size gauge cord

2. Contact your electric company

1. Tighten all mounting hardware

2. Reposition on flat level surface Fasten to

floor if necessary

3. Replace blade

1. Replace miter gauge or check blade

alignment

10" TABLE SAW PARTS LIST MODEL: 137.218041

When servicing use only CRAFTSMAN replacement parts. Use of any other parts many create a HAZARD or cause

product damage.

Any attempt to repair or replace electrical parts on this Table Saw may create a HAZARD unless repair is done by a

qualified service technician. Repair service is available at your nearest Sears Service Center.

Always order by I.D.NO.

Schematic A

I.D. No. Description Size

2009 TABLE

0806 KNOB

0B3B SCALE

0B3H INSERT

0B57 RIP FENCE ASS'Y

OBCS CLAMP HANDLE #23 M8_1.25-26

0B84 WASHER D= _/_18

0B8A WARNING STICK LABEL PVC

0BCD GUIDE HOLDER #06

0BCT SCALE

0H8H CLAMP BOLT #06

0J76 FLAT WASHER ]/4"3/4-1/16

0J95 SPRING WASHER (/_6

OJAA WASHER (/_8

OJYN HEX. SOC. COUNTERSUNK HD. SCREW M6'1.0-25

OK3R CR,RE. PAN HD. SCREW & WASHER M5XO.8-12

0K5P CR. RE. COUNT HD, SCREW M6'1.0-50

0K5S CR. RE. COUNT HD. SCREW M6'1.0-55

0KCY CR.RE, PAN HD PLAIN WASHER TAPPING SCREW M5"0,8-12

0KDR CR. RE. PAN HD, SCREW M5'0,8-10

OKDS CR, RE, PAN HD, SCREW M5'0.8-40

OKDU CR. RE, PAN HD. SCREW M6_1.0-12

0KMS HEX. NUT M6'1.0 T=5

OKMY HEX. NUT M8"1.25 , T=6.5

OKSW STRAIN RELIEF (/_6.1

202N BLADE GUARD ASS'Y

20L1 SLOTTED PAN HD.SCREW M6'1,0-25

20LW CR.RE. PAN HD. SCREW & WASHER M5'0.8-16

20WQ HEX. HD, BOLT M6'1.0-50

22KU WARNING LABEL

25MG MITER GAUGE ASS'Y #23

267K SLIDING BASE #06

27X4 EXTENTION WING(LEFT)

27X5 EXTENTION WING(RIGHT)

27X6 ASSIST-FENCE(LEFT)

27X7 ASSIST-FENCE(RIGHT)

27X8 UPER TUBE

27X9 UPER TUBE

27XA UPER TUBE

27XB UPER TUBE

27XL END CAP #06

28FE CAUTION LABEL

28Q1 WARNING LABEL

28Q2 WARNING LABEL

28Q3 SCALE

29PD WARNING LABEL

Qty

10" TABLE SAW MODEL: 137.218041

Schematic A

10" TABLE SAW PARTS LIST MODEL: 137.218041

Schematic B

I,D. No, Description

09JK WRENCHHEX.

0AV9 BODY SHELL

0B22 HEIGHT REGULATING BOLT

0B23 SADDLE

0B24 SPRING

0B25 POINTER BRACKET

0B2A NEEDLE POINTER

0B2C SWITCH BOX

0B3K INSERT

0B3R WRENCH

0B3Y RETAINING CLIP

0B48 WARNING LABEL

0B97 MOTOR BRACKET

0B99 SPACER

0B9C PLUNGER HOUSING

0B9H ANGLE ROD

0B9M STRAP

OB9S BRACKET

OB9W BRACKET

0BA4 SPACER

0BAC SET NUT

OBAE ARBOR COLLAR

0BAT NUT

0BAU SUPPORTING PLATE

OBAY SCREW BAR

OBB3 CAUTION LABEL

OBPA LOCK KNOB

OG1U DUST SHIELD

og3P WRENCH HEX.

OJ3U WRENCH HEX.

0J4F FLAT WASHER

0J4H FLAT WASHER

0J70 FLAT WASHER

0J76 FLAT WASHER

Og8D FLAT WASHER

0g9H SPRING WASHER

OJAE EXTERNAL TOOTH LOCK WASHER

OJC9 SPRING PIN

0JCA SPRING PIN

OJCR SPRING PIN

OJE7 C-RING

OJED C-RING

Size

#04

#53

#19

#06

Qty

#23 1

_i,8x 16-2.5 1

?_lO'3O-O.2 2

1/4'3/4-7/64 2

1/4'3/4-1/16 4

1/4'3/4-1/16 ]

3/8'3/4-5/64 2

?_1I4" 6

_'_4 2

_'_4 1

3-18 1

3-24 1

8-90 1

A-9 1

A-16 1

I.D. No. Description Size Qty

0JEY E-RING E-9 1

0JXL HEX. SOC. SETSCREW M10'1.5-12 1

0KOZ HEX. HD. SCREW AND WASHER M8'1.25-16 4

OK16 HEX. HD. SCREW AND WASHER M8"1.25-16 1

0K25 HEX.SOCKET HD.CAP SCREWS M5'0.8-20 1

OK3G CR.RE. PANHD. SCREW & WASHER M5'0.8-12 1

OK7K CR. RE. ROUND WASHER HD. SCREW M6'1.0-12 2

0K8C CR. RE.COUNT HD. TAPPING SCREW M4'18-10 4

0K91 CR. RE. TRUSS HD. TAPPING SCREW M4"16-12 4

0KA4 CR.RE. PANHD. TAPPING SCREW M4"16-16 2

OKCX CR. RE.COUNT HD. TAPPING SCREW M5'0.8-10 2

0KDU CR. RE. PANHD. SCREW M6'1.0-12 2

OKF6 CR. RE. PAN HD. SCREW M4_'0.7-8 1

0KF7 CR. RE. PANHD. SCREW M4'0.7-12 2

0K J0 CAPHD. SQ.NECKBOLT M6'1.0-16 2

0K J4 CAPHD. SQ.NECKBOLT M6'1.0-35 1

0K J5 CAP HD. SQ.NECK BOLT M6X1.0-80 1

0KMR HEX. NUT M5_'0.ST=4 1

OKMS HEX. NUT M6_'1.0 T=5 1

0KMV HEX. NUT M10*1.5T=8 1

OKMW HEX. NUT M10*1.5T=4 1

OKMY HEX. NUT M8'1.25 , T=6.5 1

OKQJ CROWN NUT M8*].25T=12.5 2

0KRQ SERRATED TOOTHED HEXAGON FLANGE NUT M6*I.0T=& 6

OKRX HEXAGON NUT AND FLAT WASHER M6'1.0 3

OKRX HEXAGON NUT AND FLAT WASHER M6'1.0 4

0KTA STRAIN RELIEF 2

0L6G POWER CABLE ASS'Y 1

0LMG LOCKING CABLE TIE 1

OLSL CIRCUIT BREAKER SWITCH 1

0LVW ROCKER SWITCH 1

0QEF MOTOR 1

0QQ0 CLAMP-CORD 1

OSRX STIFFENER ASS'Y 1

OSTF PARRLE RING ASS'Y 2

OSTQ HAND WHEEL ASS'Y #06 1

0STR HAND WHEEL ASS'Y #06 1

20Q9 BAG-DUST #06 1

212M LEAD WIRE ASS'Y 1

2]CH CR.RE. PANHD. SCREW & WASHER M5'0.8-10 1

23PP BLADE 1

26HR DUST COLLECTOR #06 1

27QV PARTS BOX CARTON 1

29EB LABEL 1

10" TABLE SAW MODEL: 137.218041

Schematic B

10" TABLE SAW MODEL: 137.218041

Part list for MOTOR

I.D. No. Description Size Qty

1502 FIELD ASS'Y 1

0HX9 NEEDLE BEARING HK-1010 1

0JAL EXT.TOOTH LOCK WASHER cp4 4

0JX3 HEX. SOC. SET SCREW M5x0.8-8 2

0K3A CR.RE. PAN HD. SCREW & WASHER M5x0.8-30 4

0K5V CR.-RE. COUND.HD.SCREW M4x0.7-8 4

0KCP CR.RE. PAN HEAD TAPPING & WASHER SCREW M5xl 2-60 2

0KTH STRAIN RELIEF 1

0QDZ BEARING RETAINER 1

0QE9 MOTOR NAMEPLATE 1

0QEA BRACKET 1

0QEC ARBOR SHAFT ASS'Y

0QED SUPPORT PLATE

0QM2 BRUSH HOLDER ASS'Y

0QQT BRUSH ASS'Y

0QR0 BRUSH COVER

0R1Q MOTOR HOUSING

0R1S BEARING BUSHING

0R1Y ARMATURE ASS'Y

0R20 BAFFLE

10" TABLE SAW MODEL: 137.218041

MOTOR

/ //

/ /

/ //

/ / /

\/ / /

. /

,/ /

10" TABLE SAW

Part list for STAND

MODEL: 137.218041

I.D.No. Description Size Qty

09D6 SPACER 4

0BBN HOOK 3

0EA8 BRACKET 4

0EAH UPPER SUPPORT L=450 2

0EAU UPPER SUPPORT L=410 2

0EB2 BOTTOM SUPPORT BRACKET L=526 2

0EBB BOTTOM SUPPORT BRACKET L=472 2

0J4F FLAT WASHER _,_8X16-2.5 4

0J4J FLAT WASHER _,,_10X20-2 4

0JPC HEX. HD. BOLT M6"1.0-12 3

0JPP HEX. HD. BOLT M8"1.25-30 4

0JPX HEX. HD. BOLT M10"1.5-20 4

0KJ7 CAP HD. SQ.NECK BOLT M8"1.25-16 16

0KMU HEX. NUT M10"1.5 T=8 4

0KRQ SERRATED TOOTHED HEXAGON FLANGE NUT M6"1.0 T=6 3

0KRR SERRATED TOOTHED HEXAGON FLANGE NUT M8"1.25, T=7.5 20

0Z1G CAP HD. SQ.NECK BOLT M8"1.25-12 16

10" TABLE SAW MODEL: 137.218041

STAND

OKA_Q

OEAU

OEBB

0EA8

0ZIG

0EB2

PUSH STICK CONSTRUCTION

This is a full-size drawing (actual size)

Use good quality plywood or solid wood

Use ½" or ¾" material

Push stick MUST be thinner than the

width of material being cut

F...{ Cut Here To

Push ½ Wood __ Cut Here To Push ¾"

Wood

Drill Hole For

Hanging

j\..-. 4_

Notch To Prevent

Hand From Slipping

Your Home

For repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

Operator's Manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en fran(_ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears, ca

6 ARS

® Registered Trademark /Trademark /s_,TService Mark of Sears, Roebuck and Co.

® Marca Registrada /Marca de Fabrica /sM Marca de Servicio de Sears, Roebuck and Co.

_TD

MCMarque de commerce /' Marque depos6e de Sears, Roebuck and Co. ® Sears, Roebuck and Co.

Craftsman 137218041 User Manual TABLE SAW Manuals And Guides L0606543

CRAFTSMAN Saw Table Manual L0606543 CRAFTSMAN Saw Table Owner's Manual, CRAFTSMAN Saw Table installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
