Owner's Manual
CRRFTSMRNo
2.7 HP (Maximum Developed)
10" Inch Blade
5000 R.P.M.
TABLE SAW
Model No.
137,218250
E82443
USED 37J2
CAUTION:
Before using this Table Saw,
read this manual and follow
all its Safety Rules and
Operating Instructions.
•Safety Instructions
•Installation
•Operation
•Maintenance
• Parts List
• EspaSol
Customer Help Line
1-800-843-1682
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
Part No. 137218250001

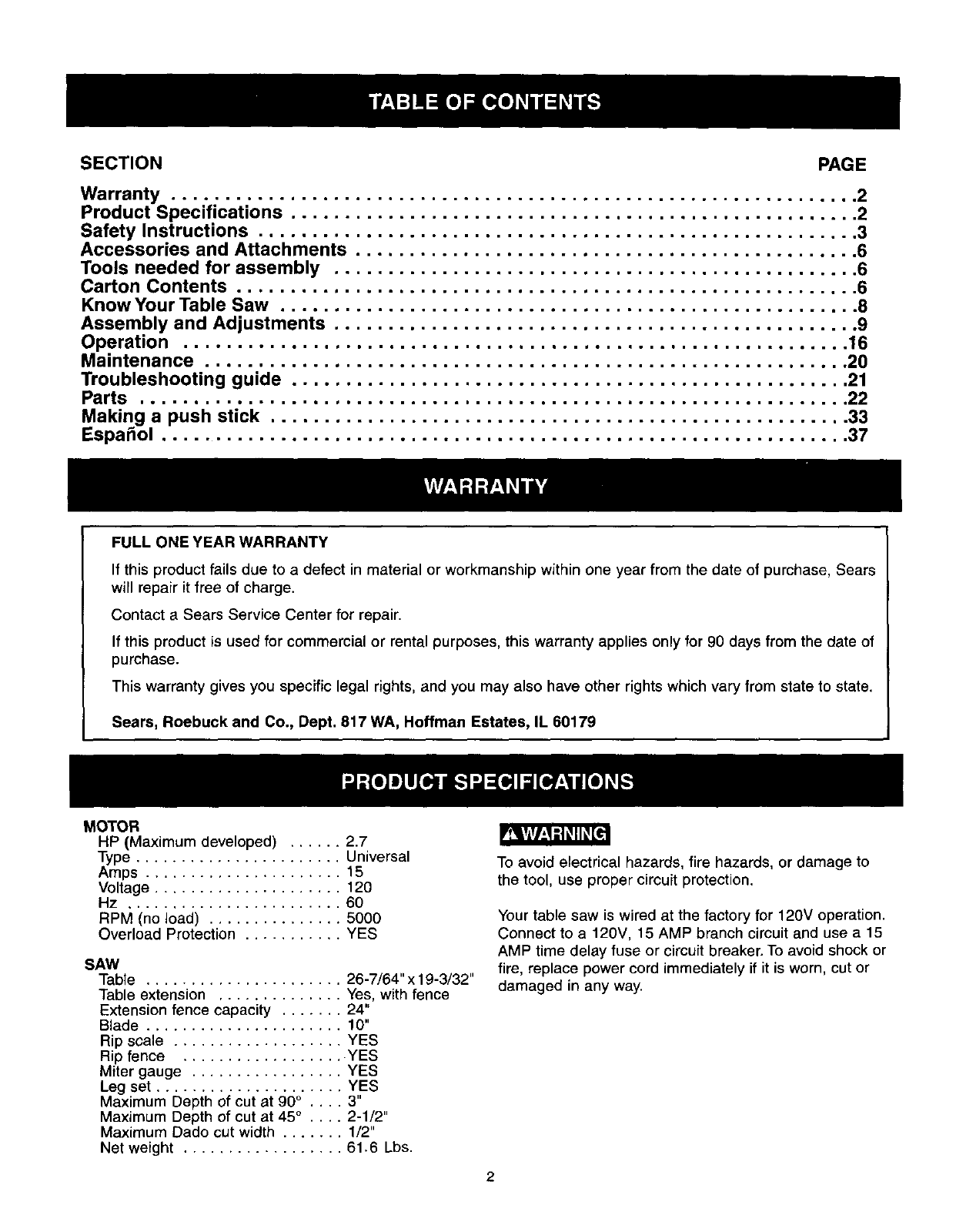

SECTION
Warranty .................
Product Specifications ......
Safety Instructions .........
Accessories and Attachments
Tools needed for assembly ..
Carton Contents ...........
Know Your Table Saw .....................
Assembly and Adjustments ...............
Operation ...........................
Maintenance ........................
Troubleshooting guide .. ..............
Parts ............................. _i
Making a push stick .................
Espanol ...........................
,e,,,oo,e==
=,.,,,,o=.,
,o=.,oe.,,o
°=,,°.o,e,.
q.°=,..=,..
.°e..e,...,
°.°,lw,
=°,,e,°
,,o°,ow
e,°,lw,
.o,l.,,
,e,w,°w
.o.e..
.o.,i.,
• ,..eo.
.we=.le.
,,,,,°,=,e,,,e
,°e°,e,,*=.,e.
=,°,l,w,.°,e°,
..=,.oee..*..e
.*o°.._..=,.=e
*.o.e.w.,o.e,.
,..,.o.e..,.,°
.*l=..*,..,..e
e.=q°.°o... ..
el=.ei.°e=, e°
weg,,w,°J,w,°,.,q°,,
,Iwoe,°,l°,,*g,=*w,=
*..e...*,w.eJw,e..e.
e.,e.wee..e,=.e.w.e°
PAGE
we °,,°,e°2
,e e°l.°=,2
°, ,e°,.°e3
w= e,,*,,° 6
• e e=.w°., 6
°. .w..e..6
e°e=.*.°6
• e =.°..e9
....... 16
........ 20
.......... 21
.......... 22
......... 33
........... 37
FULL ONE YEAR WARRANTY
If this product fails due to a defect in material or workmanship within one year from the date of purchase, Sears
will repair it free of charge.
Contact aSears Service Center for repair.
If this product is used for commercial or rental purposes, this warranty applies only for 90 days from the date of
purchase.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179
MOTOR
HP (Maximum developed) ...... 2.7
Type ....................... Universal
Amps ...................... 15
Voltage ..................... 120
Hz ........................ 60
RPM (no load) ............... 5000
Overload Protection ........... YES
SAW
Table ...................... 26-7/64" x 19-3/32"
Table extension .............. Yes, with fence
Extension fence capacity ....... 24"
Blade ...................... 10"
Rip scale ................... YES
Rip fence .................. YES
Miter gauge ................. YES
Leg set ..................... YES
Maximum Depth of cut at 90 ° .... 3"
Maximum Depth of cut at 45 °.... 2-1/2"
Maximum Dado cut width ....... 1/2"
Net weight .................. 61.6 Lbs.
To avoid electrical hazards, fire hazards, or damage to
the tool, use proper circuit protection.
Your table saw is wired at the factory for 120V operation.
Connect to a 120V, 15 AMP branch circuit and use a 15
AMP time delay fuse or circuit breaker. To avoid shock or
fire, replace power cord immediately if it is worn, cut or
damaged in any way.
2

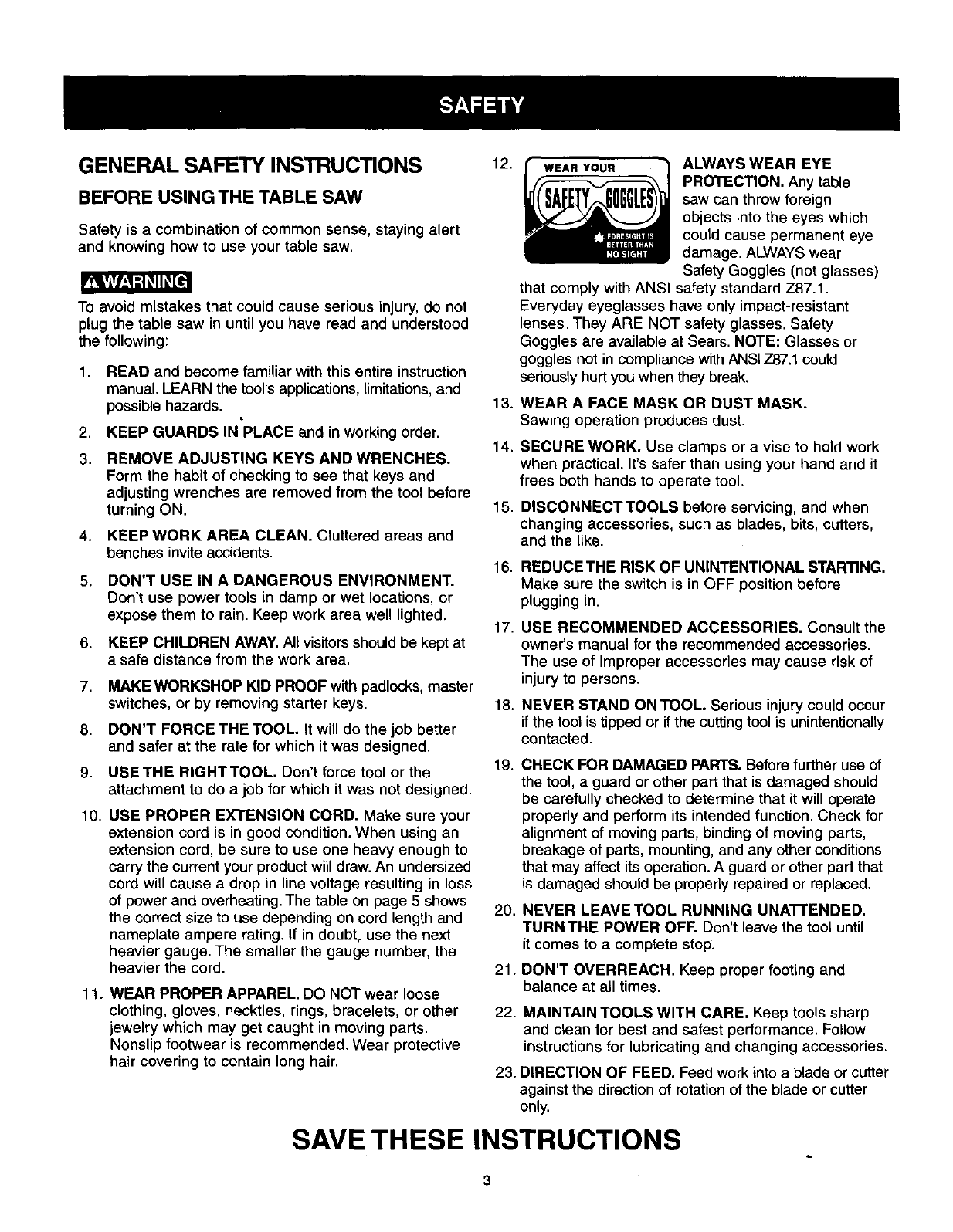

GENERAL SAFETY INSTRUCTIONS
BEFORE USING THE TABLE SAW
Safety is a combination of common sense, staying alert
and knowing how to use your table saw.
To avoid mistakes that could cause serious injury, do not
plug the table saw in until you have read and understood
the following:
.
.
3.
12.
READ and become familiar with this entire instruction
manual. LEARN the tool's applications, limitations, and
possible hazards. 13.
KEEP GUARDS IN PLACE and in working order. 14.
REMOVE ADJUSTING KEYS AND WRENCHES.
Form the habit of checking to see that keys and
adjusting wrenches are removed from the tool before
turning ON.
4. KEEP WORK AREA CLEAN. Cluttered areas and
5.
.
benches invite accidents.
DON'T USE IN A DANGEROUS ENVIRONMENT.
Don't use power tools in damp or wet locations, or
expose them to rain. Keep work area well lighted.
7,
8.
9.
KEEP CHILDREN AWAY. All visitors should be kept at
asafe distance from the work area.
MAKE WORKSHOP KID PROOF with padlocks, master
switches, or by removing starter keys.
DON'T FORCE THE TOOL. It will do the job better
and safer at the rate for which it was designed.
USE THE RIGHT TOOL. Don't force tool or the
attachment to do a job for which it was not designed.
10. USE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to
carry the current your product will draw. An undersized
cord will cause a drop in line voltage resulting in loss
of power and overheating.The table on page 5 shows
the correct size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next
heavier gauge. The smaller the gauge number, the
heavier the cord.
11. WEAR PROPER APPAREL, DO NOT wear loose
clothing, gloves, neckties, rings, bracelets, or other
jewelry which may get caught in moving parts.
Nonslip footwear is recommended. Wear protective
hair covering to contain long hair.
ALWAYS WEAR EYE
PROTECTION. Any table
saw can throw foreign
objects into the eyes which
could cause permanent eye
damage. ALWAYS wear
Safety Goggles (not glasses)
that comply with ANSI safety standard Z87.1.
Everyday eyeglasses have only impact-resistant
lenses. They ARE NOT safety glasses. Safety
Goggles are available at Sears. NOTE: Glasses or
goggles not in compliance with ANSI Z87.1 could
seriouslyhurt you when they break.
WEAR A FACE MASK OR DUST MASK.
Sawing operation produces dust.
SECURE WORK. Use clamps or a vise to hold work
when practical. It's safer than using your hand and it
frees both hands to operate tool.
15. DISCONNECT TOOLS before servicing, and when
changing accessories, such as blades, bits, cutters,
and the like.
16.
17.
18.
REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure the switch is in OFF position before
plugging in.
USE RECOMMENDED ACCESSORIES. Consult the
owner's manual for the recommended accessories.
The use of improper accessories may cause risk of
injury to persons.
NEVER STAND ON TOOL. Serious injury could occur
ifthe tool is tipped or if the cuttingtool is unintentionally
contacted.
19.
20.
21.
CHECK FOR DAMAGED PARTS. Before further use of
the tool, a guard or other part that is damaged should
be carefully checked to determine that it will operate
properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other conditions
that may affect its operation. Aguard or other part that
is damaged should be properly repaired or replaced.
NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN THE POWER OFF. Don't leave the tool until
it comes to a complete stop:
DON'T OVERREACH. Keep proper footing and
balance at all times.
22. MAINTAIN TOOLS WITH CARE. Keep tools sharp
and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
23. DIRECTION OF FEED. Feed work into ablade or cutter
against the direction of rotationof the blade or cutter
only.
SAVE THESE INSTRUCTIONS
3

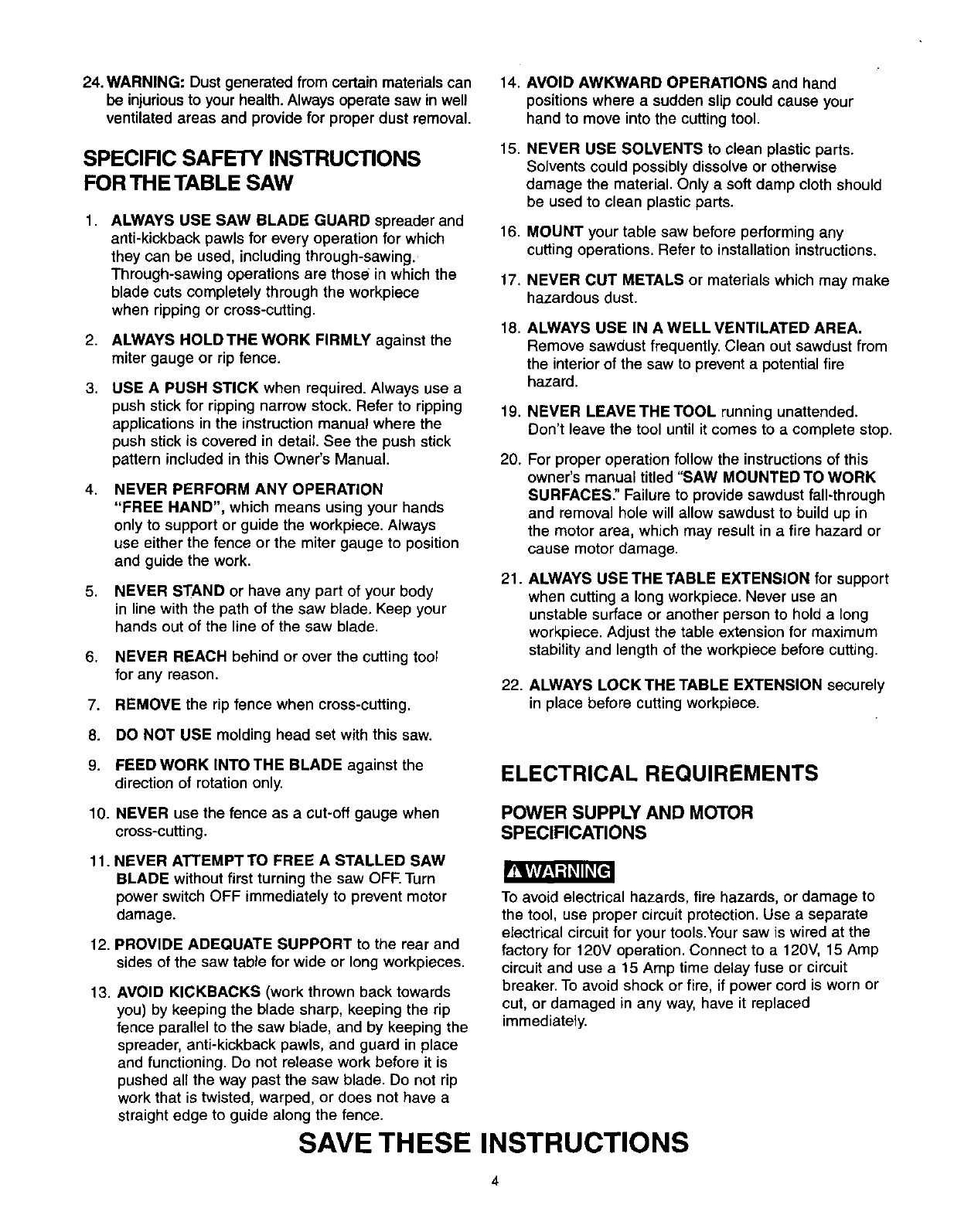

24. WARNING: Dust generated from certain materials can
be injurious to your health. Always operate saw in well
ventilated areas and provide for proper dust removal.
14. AVOID AWKWARD OPERATIONS and hand
positions where a sudden slip could cause your
hand to move into the cuffing tool.
SPECIFIC SAFETY INSTRUCTIONS
FOR THE TABLE SAW
1.
2.
3.
4.
5.
ALWAYS USE SAW BLADE GUARD spreader and
anti-kickback pawls for every operation for which
they can be used, including through-sawing.
Through-sawing operations are those in which the
blade cuts completely through the workpiece
when ripping or cross-cutting.
ALWAYS HOLDTHE WORK FIRMLY against the
miter gauge or rip fence.
USE A PUSH STICK when required. Always use a
push stick for ripping narrow stock. Refer to ripping
applications in the instruction manual where the
push stick is covered in detail. See the push stick
pattern included in this Owner's Manual.
NEVER PERFORM ANY OPERATION
"FREE HAND", which means using your hands
only to support or guide the workpiece. Always
use either the fence or the miter gauge to position
and guide the work.
NEVER STAND or have any part of your body
in line with the path of the saw blade, Keep your
hands out of the line of the saw blade.
6. NEVER REACH behind or over the cutting tool
for any reason.
7. REMOVE the rip fence when cross-cutting.
15.
16.
17.
NEVER USE SOLVENTS to clean plastic parts.
Solvents could possibly dissolve or otherwise
damage the material. Only a soft damp cloth should
be used to clean plastic parts.
MOUNT your table saw before performing any
cuffing operations. Refer to installation instructions.
NEVER CUT METALS or materials which may make
hazardous dust.
18. ALWAYS USE IN A WELL VENTILATED AREA.
Remove sawdust frequently. Clean out sawdust from
the interior of the saw to prevent a potential fire
hazard.
19. NEVER LEAVE THE TOOL running unattended.
Don't leave the tool until it comes to a complete stop.
20. For proper operation follow the instructions of this
owner's manual titled "SAW MOUNTED TO WORK
SURFACES" Failure to provide sawdust fall-through
and removal hole will allow sawdust to build up in
the motor area, which may result in a fire hazard or
cause motor damage.
21. ALWAYS USE THE TABLE EXTENSION for support
when cutting a long workpiece. Never use an
unstable surface or another person to hold a long
workpiece. Adjust the table extension for maximum
stability and length of the workpiece before cutting.
22. ALWAYS LOCKTHETABLE EXTENSION securely
in place before cutting workpiece.
8. DO NOT USE molding head set with this saw.
9. FEEDWORK INTOTHE BLADE against the
direction of rotation only. ELECTRICAL REQUIREMENTS
10. NEVER use the fence as a cut-off gauge when
cross-cutting.
POWER SUPPLY AND MOTOR
SPECIFICATIONS
11. NEVER ATTEMPT TO FREE A STALLED SAW
BLADE without first turning the saw OFF. Turn
power switch OFF immediately to prevent motor
damage.
12. PROVIDE ADEQUATE SUPPORT to the rear and
sides of the saw table for wide or long workpieces.
13. AVOID KICKBACKS (work thrown back towards
you) by keeping the blade sharp, keeping the rip
fence parallel to the saw btade, and by keeping the
spreader, anti-kickback pawls, and guard in place
and functioning. Do not release work before it is
pushed all the way past the saw blade. Do not rip
work that is twisted, warped, or does not have a
straight edge to guide along the fence.
SAVE THESE INSTRUCTIONS
To avoid electrical hazards, fire hazards, or damage to
the tool, use proper circuit protection. Use a separate
electrical circuit for your tools.Your saw is wired at the
factory for 120V operation. Connect to a 120V, 15 Amp
circuit and use a 15 Amp time delay fuse or circuit
breaker. To avoid shock or fire, if power cord is worn or
cut, or damaged in any way, have it replaced
immediately.

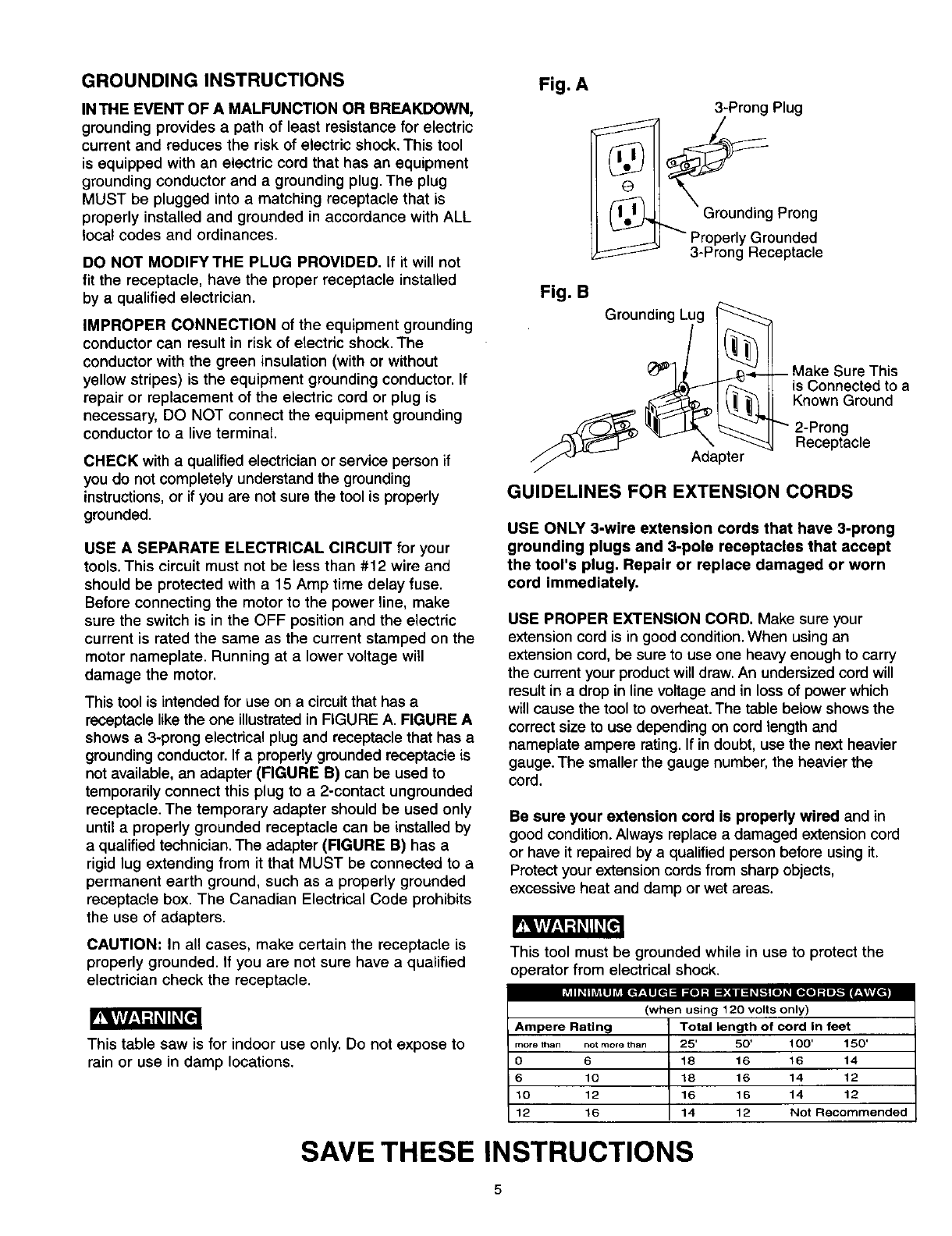

GROUNDING INSTRUCTIONS
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN,
grounding provides a path of least resistance for electric
current and reduces the risk of electric shock, This tool
is equipped with an electric cord that has an equipment
grounding conductor and a grounding plug, The plug
MUST be plugged into a matching receptacle that is
properly installed and grounded in accordance with ALL
local codes and ordinances.
DO NOT MODIFYTHE PLUG PROVIDED. If it will not
fit the receptacle, have the proper receptacle installed
by a qualified electrician.
IMPROPER CONNECTION of the equipment grounding
conductor can result in risk of electric shock. The
conductor with the green insulation (with or without
yellow stripes) is the equipment grounding conductor. If
repair or replacement of the electric cord or plug is
necessary, DO NOT connect the equipment grounding
conductor to a live terminal.
CHECK with a qualified electrician or service person if
you do not completety understand the grounding
instructions, or if you are not sure the tool is properly
grounded.
USE A SEPARATE ELECTRICAL CIRCUIT for your
tools. This circuit must not be less than #12 wire and
should be protected with a 15 Amp time delay fuse.
Before connecting the motor to the power line, make
sure the switch is in the OFF position and the electric
current is rated the same as the current stamped on the
motor nameplate. Running at a lower voltage witl
damage the motor.
This tool is intended for use on a circuit that has a
receptacle like the one illustrated in FIGURE A. FIGURE A
shows a 3-preng electrical plug and receptacle that has a
grounding conductor. If a properly grounded receptacle is
not available, an adapter (FIGURE B) can be used to
temporarily connect this plug to a 2-contact ungrounded
receptacle. The temporary adapter should be used only
until a properly grounded receptacle can be installed by
a qualified technician.The adapter (FIGURE B) has a
rigid lug extending from it that MUST be connected to a
permanent earth ground, such as a properly grounded
receptacle box. The Canadian Electrical Code prohibits
the use of adapters.
CAUTION: In all cases, make certain the receptacle is
properly grounded. If you are not sure have a qualified
electrician check the receptacle. : [IKI] =111_._ !q_-VAtLJ.
lJI I_ I1LTJ|| JkT_l[14r-'l | [L_IOil _[O] ?,]=1_4111I b?I,."_[el _.
This table saw is for indoor use only. Do not expose to
rain or use in damp locations.
Fig. A
r
f
3-Prong Plug
II g Pronn
bJ_ B_
J _ Properly Grounded
/ 3-Prong Receptacle
Fig. B
Grounding Lug
-- Make Sure This
is Connected to a
Known Ground
"_ 2-Preng
Receptacle
GUIDELINES FOR EXTENSION CORDS
USE ONLY 3-wire extension cords that have 3-prong
grounding plugs and 3-pole receptacles that accept
the tool's plug. Repair or replace damaged or worn
cord immediately.
USE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to carry
the current your product will draw. An undersized cord will
result in a drop in line voltage and in loss of power which
will cause the tool to overheat. The table below shows the
correct size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next heavier
gauge. The smaller the gauge number, the heavier the
cord.
Be sure your extension cord is properly wired and in
good condition.Always replace a damaged extension cord
or have it repaired by a qualifiedperson before using it.
Protect your extension cords from sharp objects,
excessive heat and damp or wet areas.
This tool must be grounded while in use to protect the
operator from electrical shock.
(when using 120 volts only)
iAmpere Rating Total length of cord in feet
more than not more than 25' 50* 100' 1 SO'
O6 18 16 16 14
610 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended
SAVE THESE INSTRUCTIONS
RECOMMENDED ACCESSORIES
Visit your Sears Hardware Department or see the
Craftsman Power and Hand Tools Catalog to purchase
recommended accessories for this power tool.
UNPACKING AND CHECKING CONTENTS
Separate all parts from packing material. Check each one
with the illustration and the list of loose parts to make
certain all items are accounted for, before discarding any
packing material.
,P_l,vlvl_,1r,|_,II_[e
To avoid the risk of personal injury:
•Do not use adjustable (wobble) type dadoes or
carbide tipped dado blades, maximum dado width
is 1/2".
• Do not use a dado with a diameter larger than 6".
• Do not use molding head set with this saw.
• Do not modify this power tool or use accessories not
recommended by Sears.
TOOLS NEEDED
Mediumscrewdriver
#2 Phillips screwdriver
I-Illllllll Ill
Straight edge
Adjustable wrench
LI','_"'""''':',I '_
Combination square
To avoid personal injury, if any parts are missing, do not
attempt to assemble the table saw, plug in the power
cord, or turn the switch on until the missing parts are
obtained and are installed correctly.

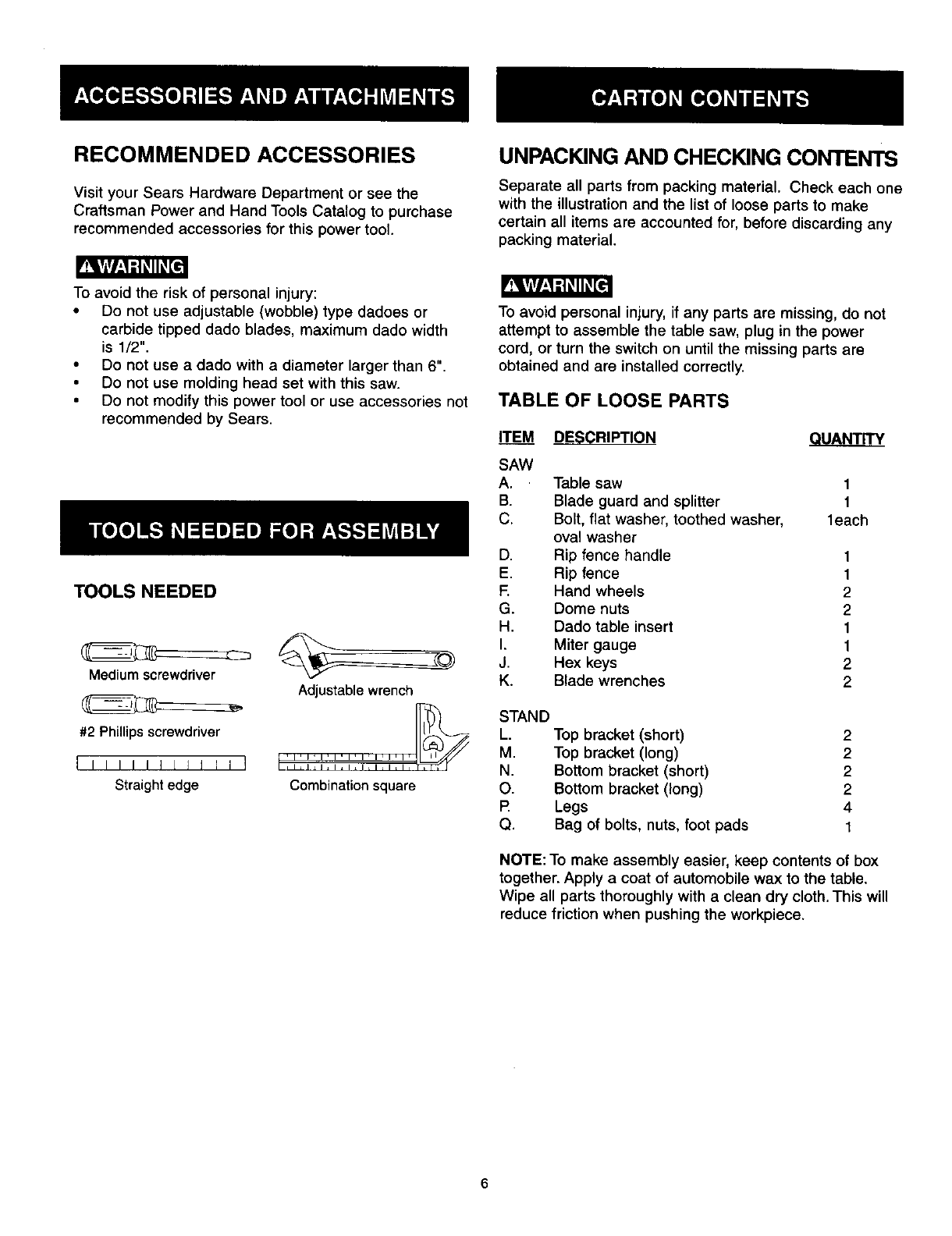

TABLE OF LOOSE PARTS
ITEM DESCRIPTION A_
SAW
A.
B.
C.
D,
E.
F.
G.
H.
I.
J.
K.
Table saw 1
Blade guard and splitter 1
Bolt, flat washer, toothed washer, leach
oval washer
Rip fence handle 1
Rip fence 1
Hand wheels 2
Dome nuts 2
Dado table insert 1
Miter gauge 1
Hex keys 2
Blade wrenches 2
STAND
L. Top bracket (short)
M. Top bracket (long)
N. Bottom bracket (short)
O. Bottom bracket (long)
RLegs
Q. Bag of bolts, nuts, foot pads
2
2
2
2
4
1
NOTE: To make assembly easier, keep contents of box
together. Apply a coat of automobile wax to the table.
Wipe all parts thoroughly with a clean dry cloth. This will
reduce friction when pushing the workpiece.

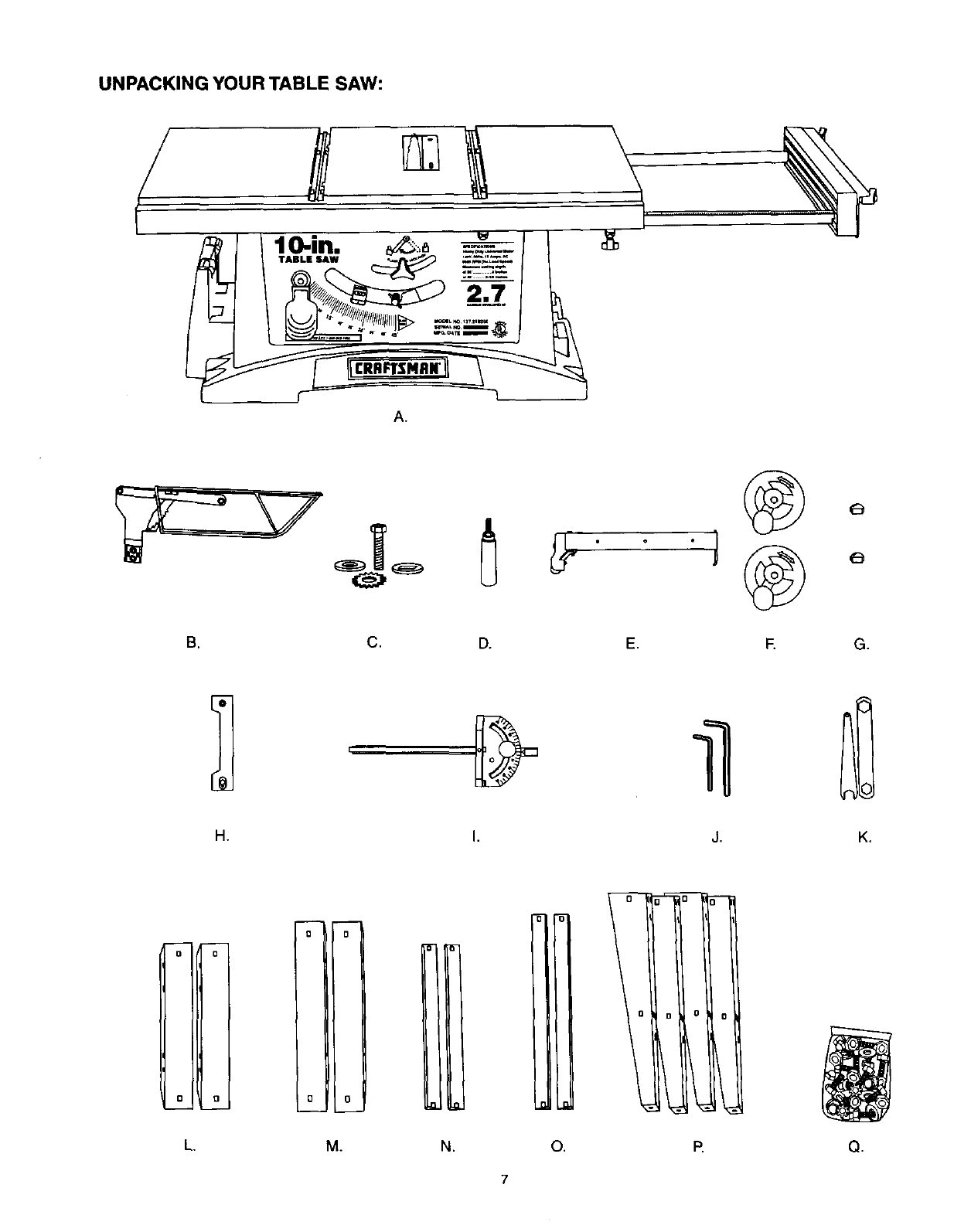

UNPACKING YOUR TABLE SAW:
A.
6
B. C. D. E. G.
H. J. K,
o l
i
0
o
13
o _-_
I
o o
L. M. N, O, Ra.
Blade Gl
Rip Fence
Miter gauge
Extension table
Rip
gauge
storage
Blade bevel scale
Blade tilting handwheel
Kickback pawls Splitter
Leg stand
Blade
Table
Blade
insert
Splitter
bracket
Extension fence
Blade bevel
lock knob
Blade tilt pointer
Overload
reset switch
ON/OFF switch
with safety key
Blade elevation
handwheel
Power¢
Blade wrenches
lock
handle
wrench
storage
holes
ASSEMBLY INSTRUCTIONS
For your own safety, never connect plug to power source
outlet until all assembly steps are complete, and you have
read and understood the safety and operating instructions.
LEG SET (FIG. A)
1. Separate all parts and group by size and style.
NOTE: Finger tighten bolts and nuts when joining
parts.
2. Use bolts (1), washers (2), and nuts (3) to assemble
the leg set parts.
3. Attach a leg (4) to the long top bracket (5). Attach the
next leg to the opposite end of the top bracket.
4. Repeat this assembly for the opposite side of the
leg set.
5. Attach the completed leg set assemblies to the short
top brackets (6). Repeat on the opposite side.
6. Insert bolt (7) Lntothe recessed hole of the foot pad (8).
7. Insert into the leg flange hole and tighten, using
washer (9) and nut (10). Repeat for the three other
legs.
8. Attach the bottom brackets (11) between each leg.
9. Place the leg set on a level surface and tighten all
nuts and bolts. 1
Fig. A 2
SAW TO LEG SET (FIG. B)
1. Before mounting the blade guard, the rip fence and
miter gauge to the saw top, invert the saw table so that
it is facing the floor.
2. Position the leg set upside down on the saw base.
3. Match the holes of the stand to the holes on the
bottom flange of the saw base.
4. Secure the leg set to the saw base using bolts,
washers, and nuts.
5. When all bolts and nuts are tightened, carefully set the
saw in its upright position.
6. Position the saw on a clean, level surface.
Fig. B
Leg set
mounting hole
Saw base
hole
9

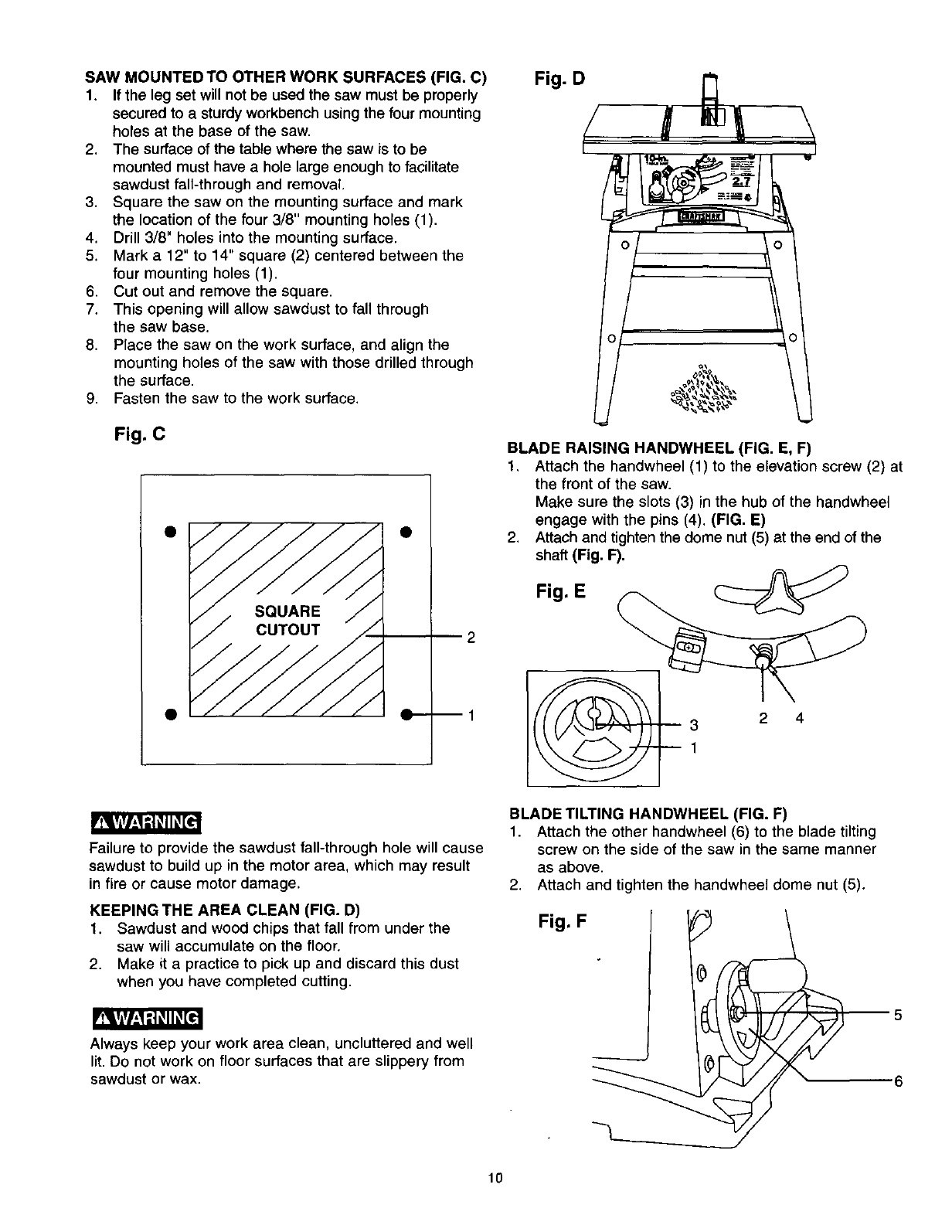

SAW MOUNTEDTO OTHER WORK SURFACES (FIG. C)
1. If the leg set will not be used the saw must be properly
secured to a sturdy workbench using the four mounting
holes at the base of the saw.
2. The surface of the table where the saw is to be
mounted must have a hole large enough to facilitate
sawdust fall-through and removal
3. Square the saw on the mounting surface and mark
the location of the four 3/8" mounting holes (1).
4. Drill 3/8" holes into the mounting surface.
5. Mark a 12" to 14" square (2) centered between the
four mounting holes (1).
6. Cut out and remove the square.
7. This opening will allow sawdust to fall through
the saw base.
8. Place the saw on the work surface, and align the
mounting holes of the saw with those drilled through
the surface.
9. Fasten the saw to the work surface.
Fig. C
2
Q--.m 1
Fig. D
BLADE RAISING HANDWHEEL (FIG. E, F)
1. Attach the handwheel (1) to the elevation screw (2) at
the front of the saw.
Make sure the slots (3) in the hub of the handwheel
engage with the pins (4). (FIG. E)
2. Attach and tightenthe dome nut (5) at the end of the
shaft (Fig. F).
Fig. E (__
32 4
1
Failure to provide the sawdust fall-through hole will cause
sawdust to build up in the motor area, which may result
in fire or cause motor damage.
KEEPING THE AREA CLEAN (FIG. D)
1. Sawdust and wood chips that fall from under the
saw will accumulate on the floor.
2. Make it a practice to pick up and discard this dust
when you have completed cutting.
Always keep your work area clean, uncluttered and well
lit. Do net work on floor surfaces that are slippery from
sawdust or wax.
BLADE TILTING HANDWHEEL (FIG. F)
1. Attach the other handwheel (6) to the blade tilting
screw on the side of the saw in the same manner
as above.
2. Attach and tighten the handwheel dome nut (5).
Fig. F
--5
6
10

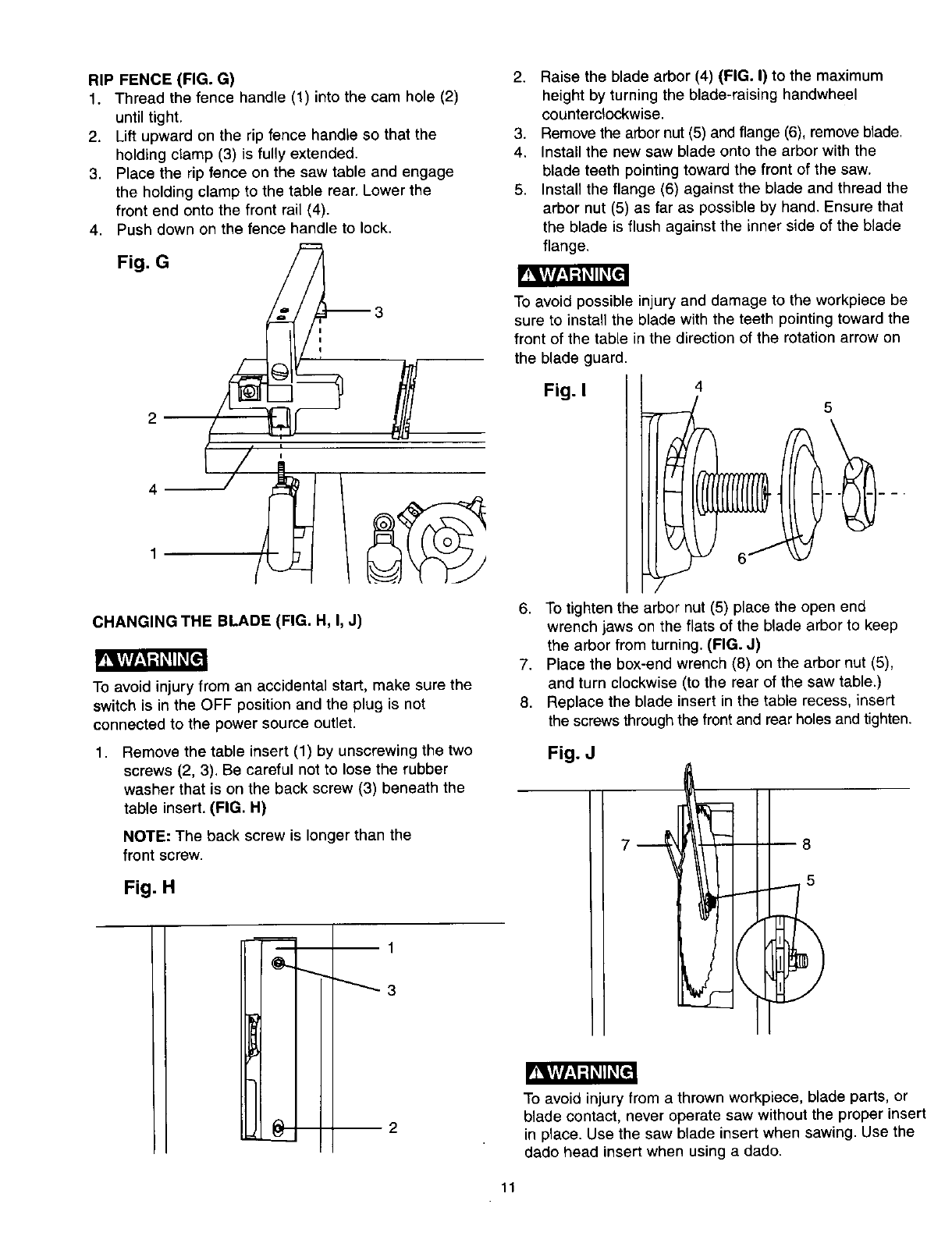

RIP FENCE (FIG. G)
1. Thread the fence handle (1) into the cam hole (2)
until tight.
2. Lift upward on the rip fence handle so that the
holding clamp (3) is fully extended.
3. Place the rip fence on the saw table and engage
the holding clamp to the table rear. Lower the
front end onto the front rail (4).
4. Push down on the fence handle to lock.
CHANGING THE BLADE (FIG. H, I, J)
To avoid injury from an accidental start, make sure the
switch is in the OFF position and the plug is not
connected to the power source outlet.
1. Remove the table insert (1) by unscrewing the two
screws (2, 3). Be careful not to lose the rubber
washer that is on the back screw (3) beneath the
table insert. (FIG. H)
NOTE: The back screw is longer than the
front screw.
Fig. H
3
2
2. Raise the blade arbor (4) (FIG. I) to the maximum
height by turning the blade-raising handwheel
counterclockwise.
3. Remove the arbor nut (5) and flange (6), remove blade.
4. Install the new saw blade onto the arbor with the
blade teeth pointing toward the front of the saw.
5. Install the flange (6) against the blade and thread the
arbor nut (5) as far as possible by hand. Ensure that
the blade is flush against the inner side of the blade
flange.
To avoid possible injury and damage to the workpiece be
sure to install the blade with the teeth pointing toward the
front of the table in the direction of the rotation arrow on
the blade guard.
4
Fig. I
6. To tighten the arbor nut (5) place the open end
wrench jaws on the flats of the blade arbor to keep
the arbor from turning. (FIG. J)
7. Place the box-end wrench (8) on the arbor nut (5),
and turn clockwise (to the rear of the saw table.)
8. Replace the blade insert in the table recess, insert
the screws through the front and rear holes and tighten.
Fig. J
•8
To avoid injury from a thrown workpiece, blade parts, or
blade contact, never operate saw without the proper insert
in place. Use the saw blade insert when sawing. Use the
dado head insert when using a dado.
11

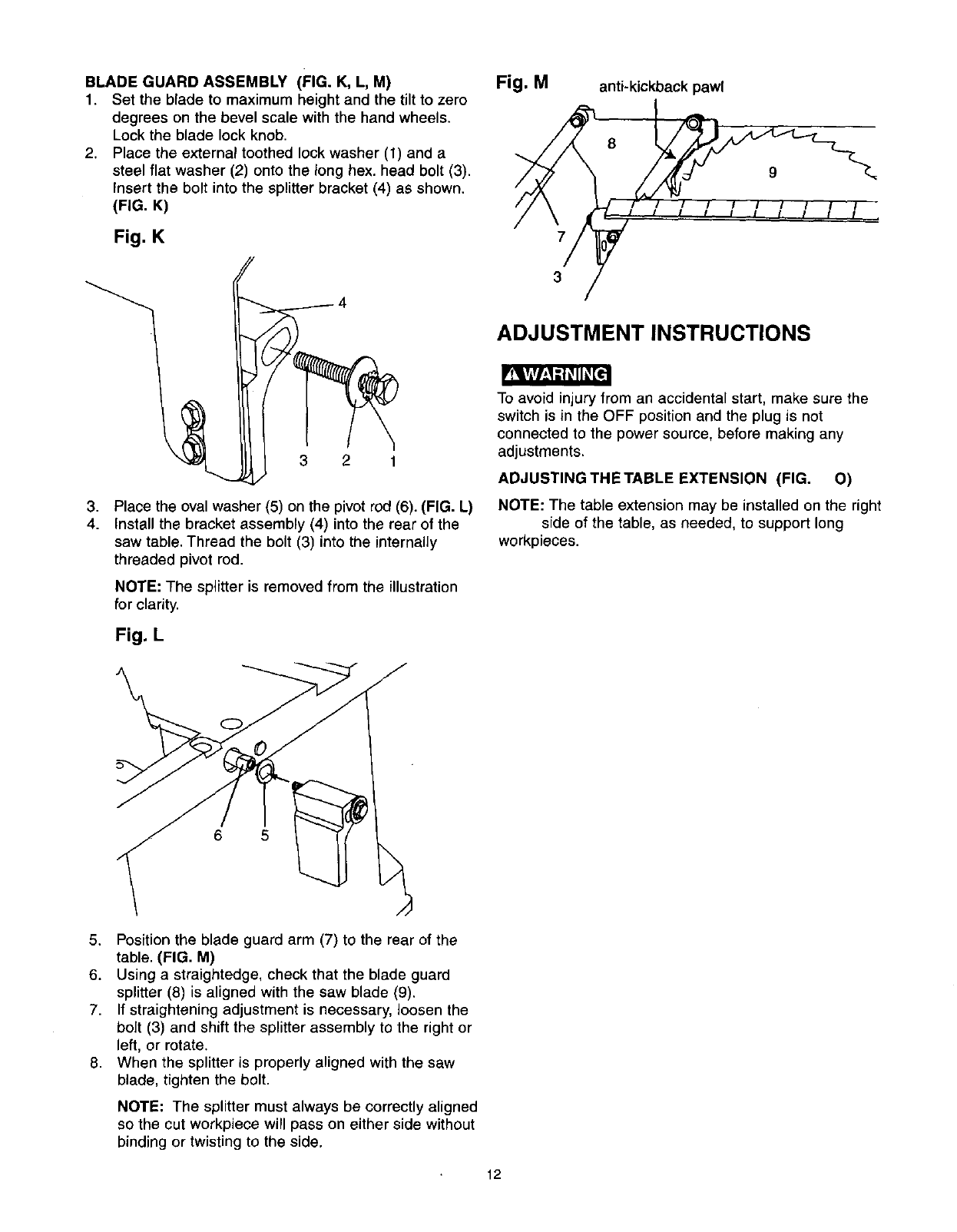

BLADE GUARD ASSEMBLY (FIG. K, L, M)
1. Set the blade to maximum height and the tilt to zero
degrees on the bevel scale with the hand wheels.
Lock the blade lock knob.
2. Place the external toothed lock washer (1) and a
steel flat washer (2) onto the long hex. head bolt (3).
Insert the bolt into the splitter bracket (4) as shown.
(FIG. K)
Fig. K
3 2 1
3. Place the oval washer (5) on the pivot rod (6). (FIG. L)
4. Install the bracket assembly (4) into the rear of the
saw table. Thread the bolt (3) into the internally
threaded pivot rod.
NOTE: The splitter is removed from the illustration
for clarity.
Fig. L
Fig. M
S
,/
3
anti-kickback pawl
8
-tfl I IIII/II
, i
ADJUSTMENT INSTRUCTIONS
To avoid injury from an accidental start, make sure the
switch is in the OFF position and the plug is not
connected to the power source, before making any
adjustments.
ADJUSTING THE TABLE EXTENSION (FIG. O)
NOTE: The table extension may be installed on the right
side of the table, as needed, to support long
workpieces.
6 5
5. Position the blade guard arm (7) to the rear of the
table. (FIG. M)
6. Using a straightedge, check that the blade guard
splitter (8) is aligned with the saw blade (9).
7. If straightening adjustment is necessary, loosen the
bolt (3) and shift the splitter assembly to the right or
left, or rotate.
8. When the splitter is properly aligned with the saw
blade, tighten the bolt.
NOTE: The splitter must always be correctly aligned
so the cut workpiece will pass on either side without
binding or twisting to the side.
12

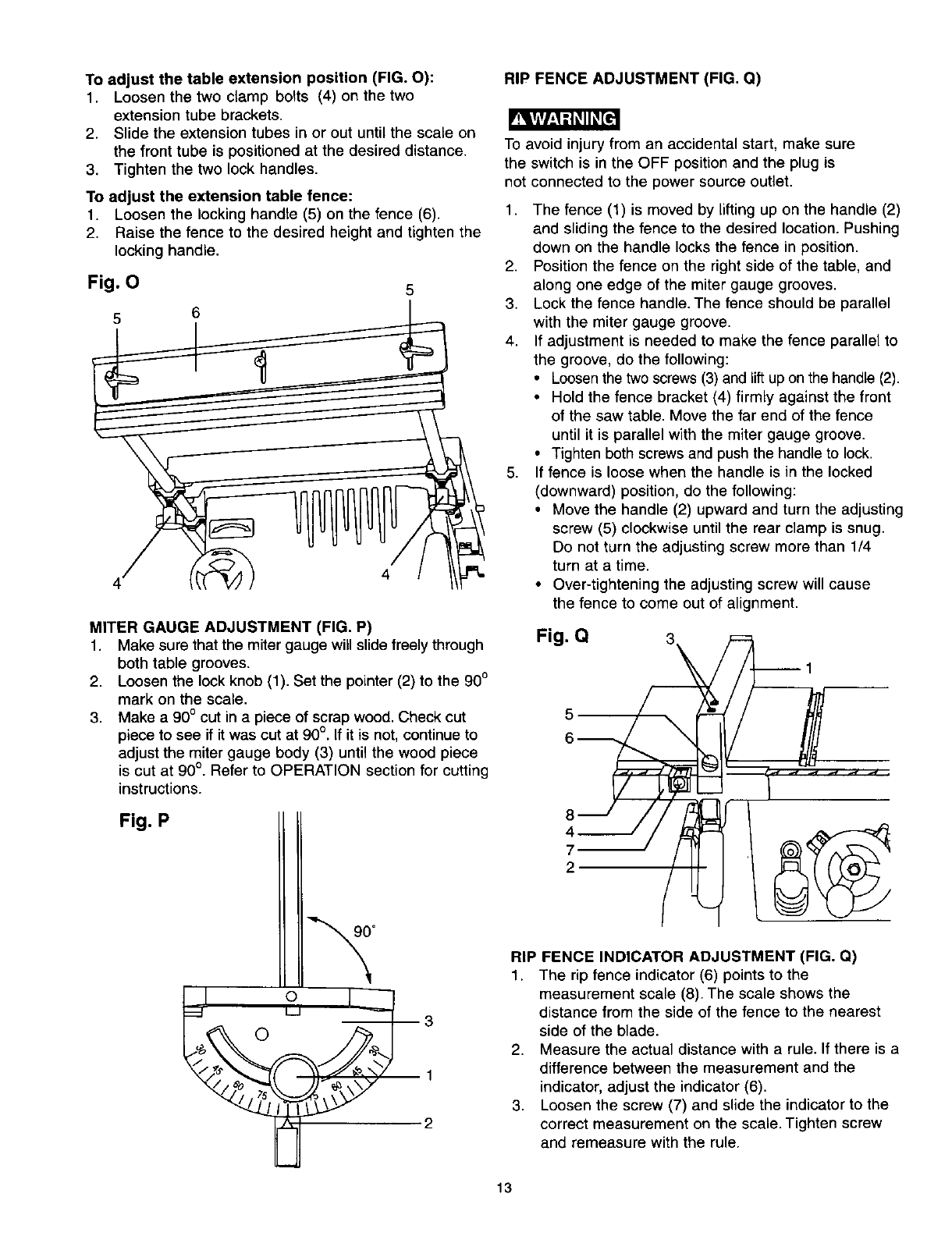

To adjust the table extension position (FIG. O):
1. Loosen the two clamp bolts (4) on the two
extension tube brackets.
2. Slide the extension tubes in or out until the scale on
the front tube is positioned at the desired distance.
3. Tighten the two lock handles.
,_lqllll[_
To adjust the extension table fence:
1. Loosen the locking handle (5) on the fence (6).
2. Raise the fence to the desired height and tighten the
locking handle.
Fig, O
5 6
4
MITER GAUGE ADJUSTMENT (FIG. P)
1. Make sure that the miter gauge will slide freely through
both table grooves.
2. Loosen the lock knob (1). Set the pointer (2) to the 900
mark on the scale.
3. Make a 900 cut in a piece of scrap wood. Check cut
piece to see if it was cut at 90°. If it is not, continue to
adjust the miter gauge body (3) until the wood piece
is cut at 90°. Refer to OPERATION section for cutting
instructions.
Fig. P
o
©
2
RIP FENCE ADJUSTMENT (FIG. Q)
To avoid injury from an accidental start, make sure
the switch is in the OFF position and the plug is
not connected to the power source outlet.
1. The fence (1) is moved by lifting up on the handle (2)
and sliding the fence to the desired location. Pushing
down on the handle locks the fence in position.
2. Position the fence on the right side of the table, and
along one edge of the miter gauge grooves.
3. Lock the fence handle. The fence should be parallel
with the miter gauge groove.
4. If adjustment is needed to make the fence parallel to
the groove, do the following:
• Loosen the two screws (3) and lift up on the handle (2).
• Hold the fence bracket (4) firmly against the front
of the saw table. Move the far end of the fence
until it is parallel with the miter gauge groove.
• Tighten both screws and push the handle to lock.
5. If fence is loose when the handle is in the locked
(downward) position, do the following:
• Move the handle (2) upward and turn the adjusting
screw (5) clockwise until the rear clamp is snug.
Do not turn the adjusting screw more than 1/4
turn at a time.
• Over-tightening the adjusting screw will cause
the fence to come out of alignment.
Fig. Q _ il
RIP FENCE INDICATOR ADJUSTMENT (FIG, Q)
1. The rip fence indicator (6) points to the
measurement scale (8). The scale shows the
distance from the side of the fence to the nearest
side of the blade.
2. Measure the actual distance with a rule. If there is a
difference between the measurement and the
indicator, adjust the indicator (6).
3. Loosen the screw (7) and slide the indicator to the
correct measurement on the scale. Tighten screw
and remeasure with the rule.
13
To avoid injury from an accidental start, make sure the
switch is in the OFF position and the plug is not
connected to the power source outlet.

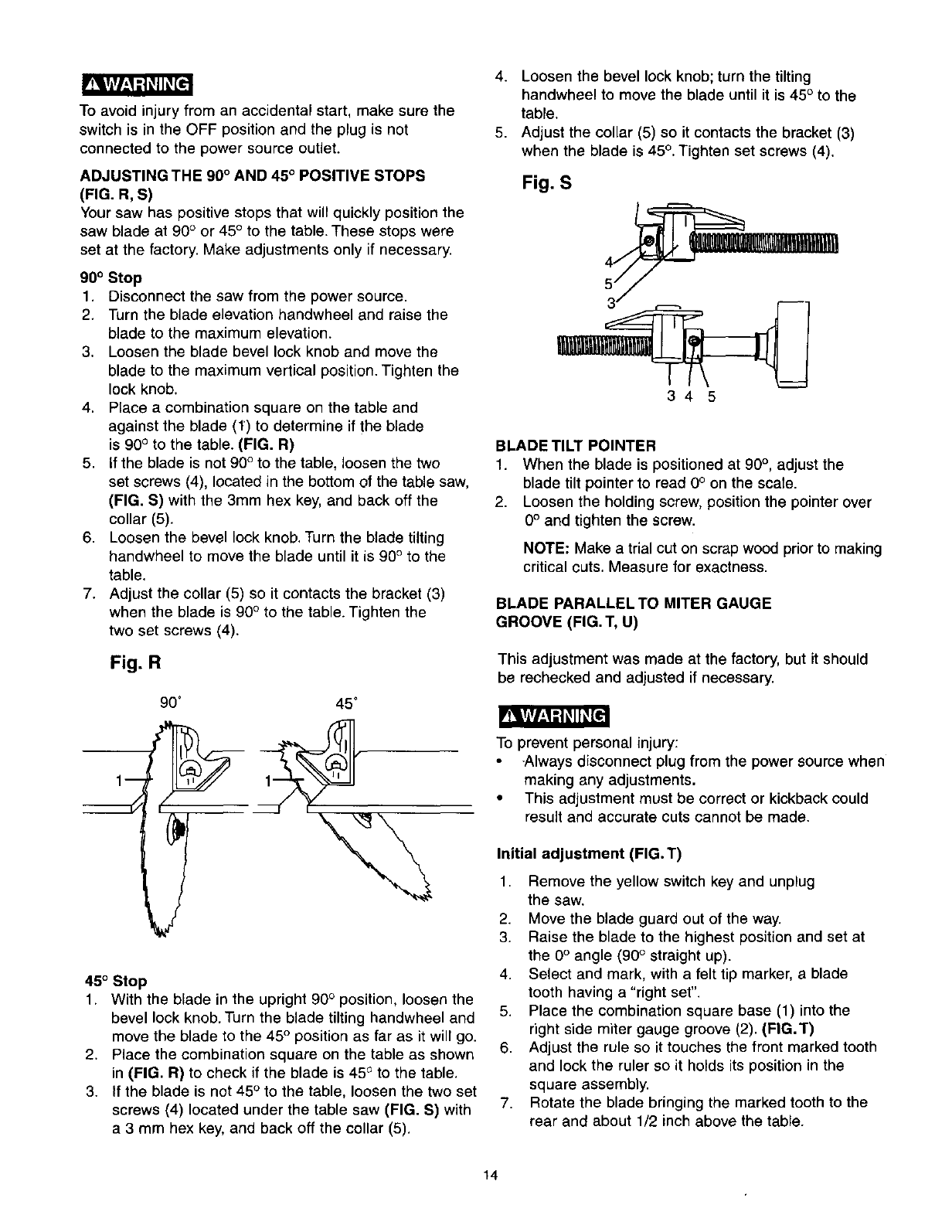

ADJUSTING THE 90° AND 45°POSITIVE STOPS
(FIG. R, S)
Your saw has positive stops that will quickly position the
saw blade at 90° or 45° to the table. These stops were
set at the factory. Make adjustments only if necessary.
900 Stop
1. Disconnect the saw from the power source.
2. Turn the blade elevation handwheel and raise the
blade to the maximum elevation.
3. Loosen the blade bevel lock knob and move the
blade to the maximum vertical position. Tighten the
lock knob.
4. Place a combination square on the table and
against the blade (1') to determine if the blade
is 90° to the table. (FIG. R)
5. If the blade is not 90° to the table, loosen the two
set screws (4), located in the bottom of the table saw,
(FIG. S) with the 3mm hex key, and back off the
collar (5).
6. Loosen the bevel lock knob. Turn the blade tilting
handwheel to move the blade until it is 90° to the
table.
7. Adjust the collar (5) so it contacts the bracket (3)
when the blade is 90° to the table. Tighten the
two set screws (4).
Fig. R
1 m
90 ° 45°
45°Stop
1. With the blade in the upright 90° position, loosen the
bevel lock knob. Turn the blade tilting handwheel and
move the blade to the 45° position as far as it will go.
2. Place the combination square on the table as shown
in (FIG. R) to check if the blade is 45 o to the table.
3. If the blade is not 45°to the table, loosen the two set
screws (4) located under the table saw (FIG. S) with
a 3 mm hex key, and back off the collar (5).
4. Loosen the bevel lock knob; turn the tilting
handwheel to move the blade until it is 45° to the
table.
5. Adjust the collar (5) so it contacts the bracket (3)
when the blade is 45°. Tighten set screws (4).
Fig. S
345
BLADE TILT POINTER
1. When the blade is positioned at 90°, adjust the
blade tilt pointer to read 0°on the scare.
2. Loosen the holding screw, position the pointer over
0°and tighten the screw.
NOTE: Make a trial cut on scrap wood prior to making
critical cuts. Measure for exactness.
BLADE PARALLEL TO MITER GAUGE
GROOVE (FIG. T, U)
This adjustment was made at the factory, but it should
be rechecked and adjusted if necessary.
To prevent personal injury:
.Always disconnect plug from the power source when
making any adjustments.
• This adjustment must be correct or kickback could
result and accurate cuts cannot be made.
Initial adjustment (FIG.T)
1. Remove the yellow switch key and unplug
the saw.
2. Move the blade guard out of the way.
3. Raise the blade to the highest position and set at
the 0° angle (90° straight up).
4. Select and mark, with a felt tip marker, a blade
tooth having a "right set".
5. Place the combination square base (1) into the
right side miter gauge groove (2). (FIG.T)
6. Adjust the rule so it touches the front marked tooth
and lock the ruler so it holds its position in the
square assembly.
7. Rotate the blade bringing the marked tooth to the
rear and about 1/2 inch above the table.
14
.

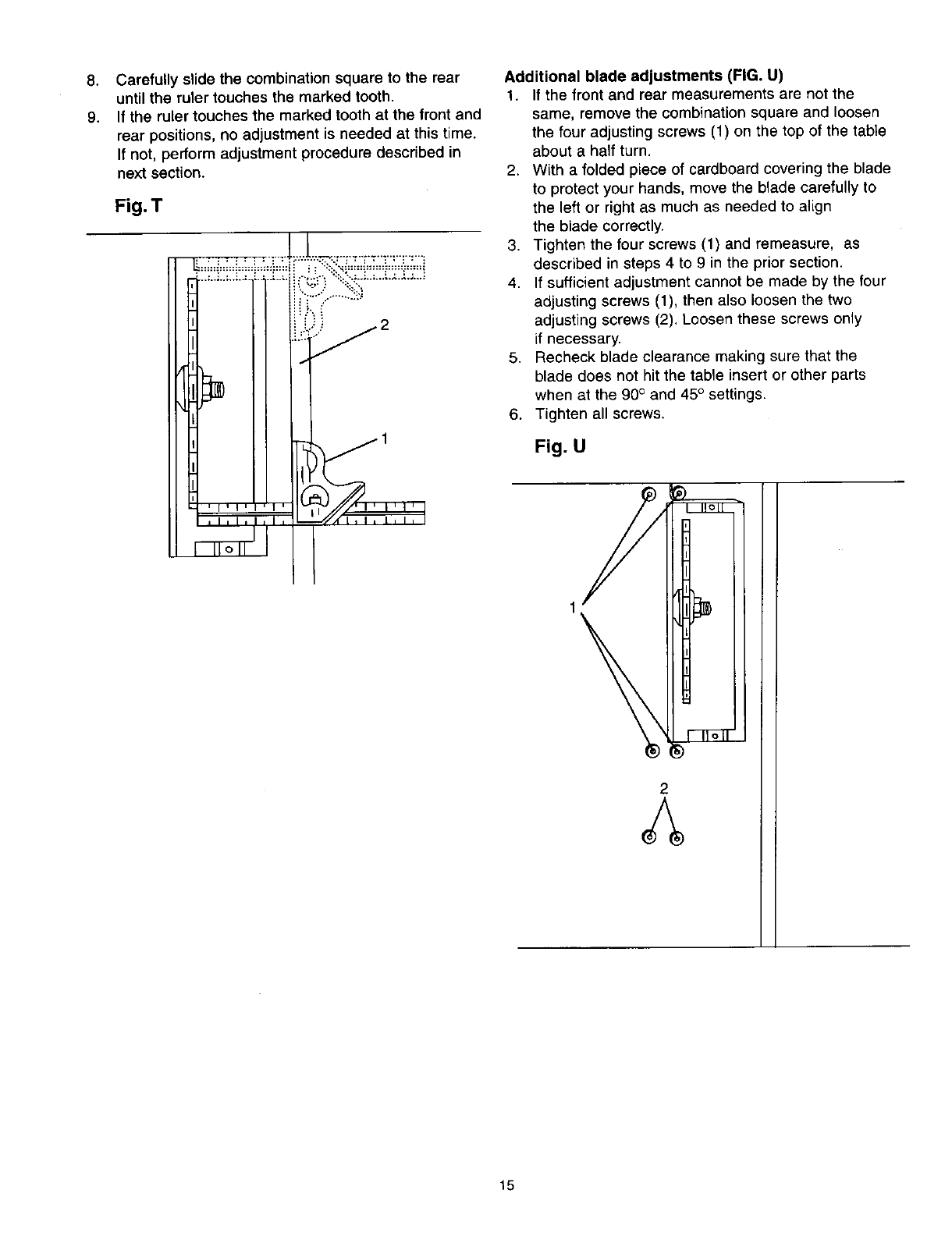

9.
Carefully slide the combination square to the rear
untilthe ruler touches the marked tooth.
If the ruler touches the marked tooth at the front and
rear positions, no adjustment is needed at this time.
If not, perform adjustment procedure described in
next section.
Fig. T
Additional blade adjustments (FIG. U)
1. If the front and rear measurements are not the
same, remove the combination square and loosen
the four adjusting screws (1) on the top of the table
about a half turn.
2. With a folded piece of cardboard covering the blade
to protect your hands, move the blade careful{y to
the left or right as much as needed to align
the blade correctly.
3. Tighten the four screws (1) and remeasure, as
described in steps 4 to 9 in the prior section.
4. If sufficient adjustment cannot be made by the four
adjusting screws (1), then also loosen the two
adjusting screws (2). Loosen these screws only
if necessary.
5. Recheck blade clearance making sure that the
blade does not hit the table insert or other parts
when at the 90° and 45° settings.
6. Tighten all screws.
Fig. U
15

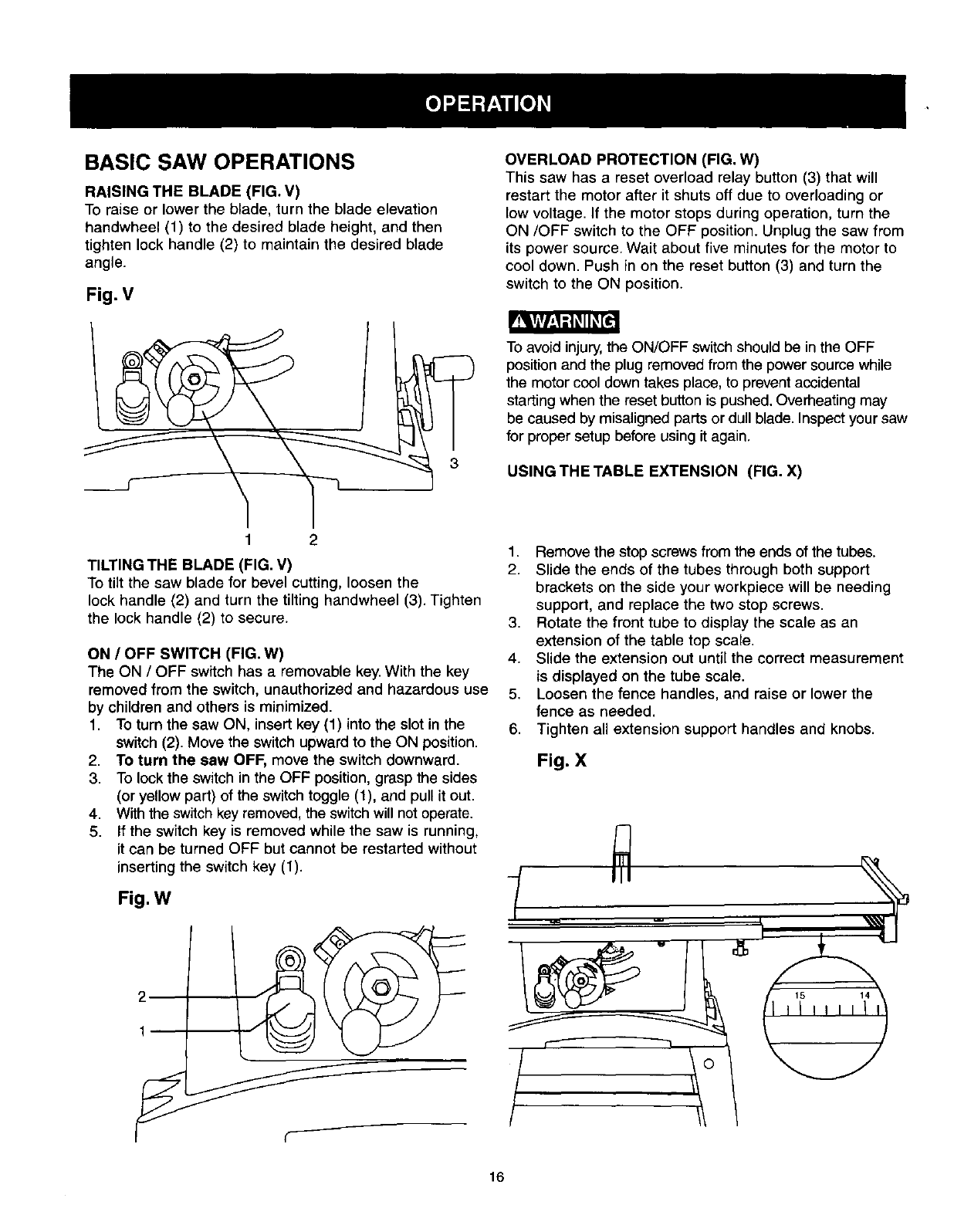

BASIC SAW OPERATIONS
RAISING THE BLADE (FIG. V)
To raise or lower the blade, turn the blade elevation
handwheel (1) to the desired blade height, and then
tighten lock handle (2) to maintain the desired blade
angle.
Fig. V
OVERLOAD PROTECTION (FIG. W)
This saw has a reset overload relay button (3) that will
restart the motor after it shuts off due to overloading or
low voltage. If the motor stops during operation, turn the
ON/OFF switch to the OFF position. Unplug the saw from
its power source. Wait about five minutes for the motor to
cool down. Push in on the reset button (3) and turn the
switch to the ON position.
To avoid injury, the ON/OFF switch should be in the OFF
position and the plug removed from the power source while
the motor cool down takes place, to prevent accidental
starting when the reset button is pushed. Overheating may
be caused by misaligned parts or dull blade. Inspect your saw
for proper setup before using it again.
USINGTHETABLE EXTENSION (FIG. X)
12
TILTING THE BLADE (FIG. V)
To tilt the saw blade for bevel cutting, loosen the
lock handle (2) and turn the tilting handwheel (3). Tighten
the lock handle (2) to secure.
ON /OFF SWITCH (FIG. W)
The ON /OFF switch has a removable key. With the key
removed from the switch, unauthorized and hazardous use
by children and others is minimized.
1. To turn the saw ON, insert key (1) into the slot in the
switch (2). Move the switch upward to the ON position.
2. To turn the saw OFF, move the switch downward.
3. To lock the switch in the OFF position, grasp the sides
(or yellow part) of the switchtoggle (1), and pull it out.
4. With the switchkey removed,the switchwill not operate.
5. If the switch key is removed while the saw is running,
it can be turned OFF but cannot be restarted without
inserting the switch key (1).
Fig. W
I
2
1. Remove the stopscrews from the ends of the tubes.
2. Slide the ends of the tubes through both support
brackets on the side your workpiece will be needing
support, and replace the two stop screws.
3. Rotate the front tube to display the scale as an
extension of the table top scale.
4. Slide the extension out until the correct measurement
is displayed on the tube scale.
5. Loosen the fence handles, and raise or lower the
fence as needed.
6. Tighten all extension support handles and knobs.
Fig. X
16

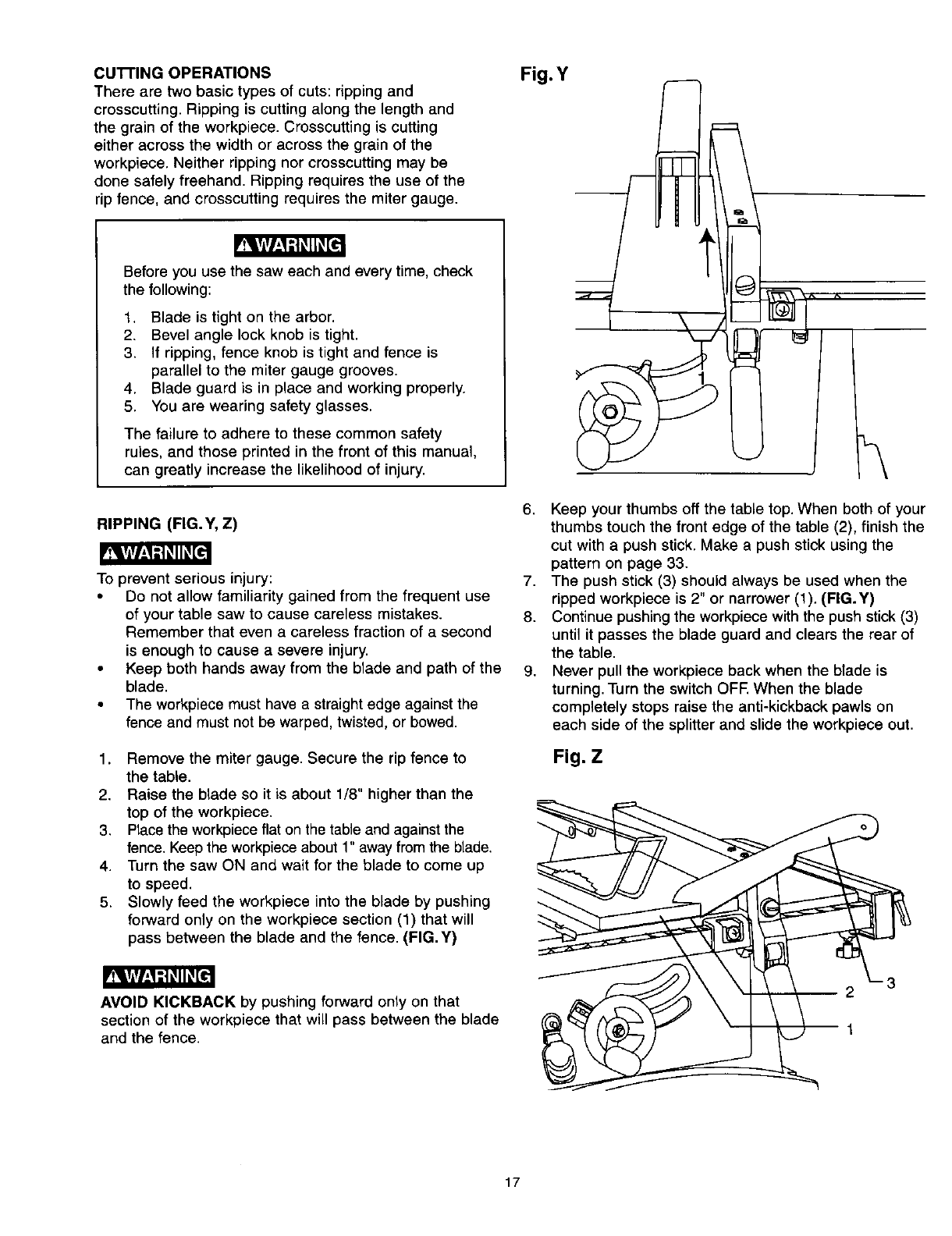

CU'B'ING OPERATIONS
There are two basic types of cuts: ripping and
crosscutting. Ripping is cutting along the length and
the grain of the workpiece. Crosscutting is cutting
either across the width or across the grain of the
workpiece. Neither ripping nor crosscutting may be
done safely freehand. Ripping requires the use of the
rip fence, and crosscutting requires the miter gauge.
Before you use the saw each and every time, check
the following:
1. Blade is tight on the arbor.
2. Bevel angle lock knob is tight.
3. If ripping, fence knob is tight and fence is
parallel to the miter gauge grooves.
4. Blade guard is in place and working properly.
5. You are wearing safety glasses.
The failure to adhere to these common safety
rules, and those printed in the front of this manual,
can greatly increase the likelihood of injury.
RIPPING (FIG.Y,Z)
To prevent serious injury:
• Do not allow familiarity gained from the frequent use
of your table saw to cause careless mistakes.
Remember that even a careless fraction of a second
is enough to cause a severe injury.
• Keep both hands away from the blade and path of the
blade.
• The workpiece must have a straight edge against the
fence and must not be warped, twisted, or bowed.
1. Remove the miter gauge. Secure the rip fence to
the table.
2. Raise the blade so it is about 1/8" higher than the
top of the workpiece.
3. Place the workpiece flat on the table and against the
fence. Keep the workpiece about 1" away from the blade.
4. Turn the saw ON and wait for the blade to come up
to speed.
5. Slowly feed the workpiece into the blade by pushing
forward only on the workpiece section (1) that will
pass between the blade and the fence. (FIG.Y)
F_k_Vg-'_l_II_[€
AVOID KICKBACK by pushing forward only on that
section of the workpiece that will pass between the blade
and the fence.
Fig.Y
6. Keep your thumbs off the table top. When both of your
thumbs touch the front edge of the table (2), finish the
cut with a push stick. Make a push stick using the

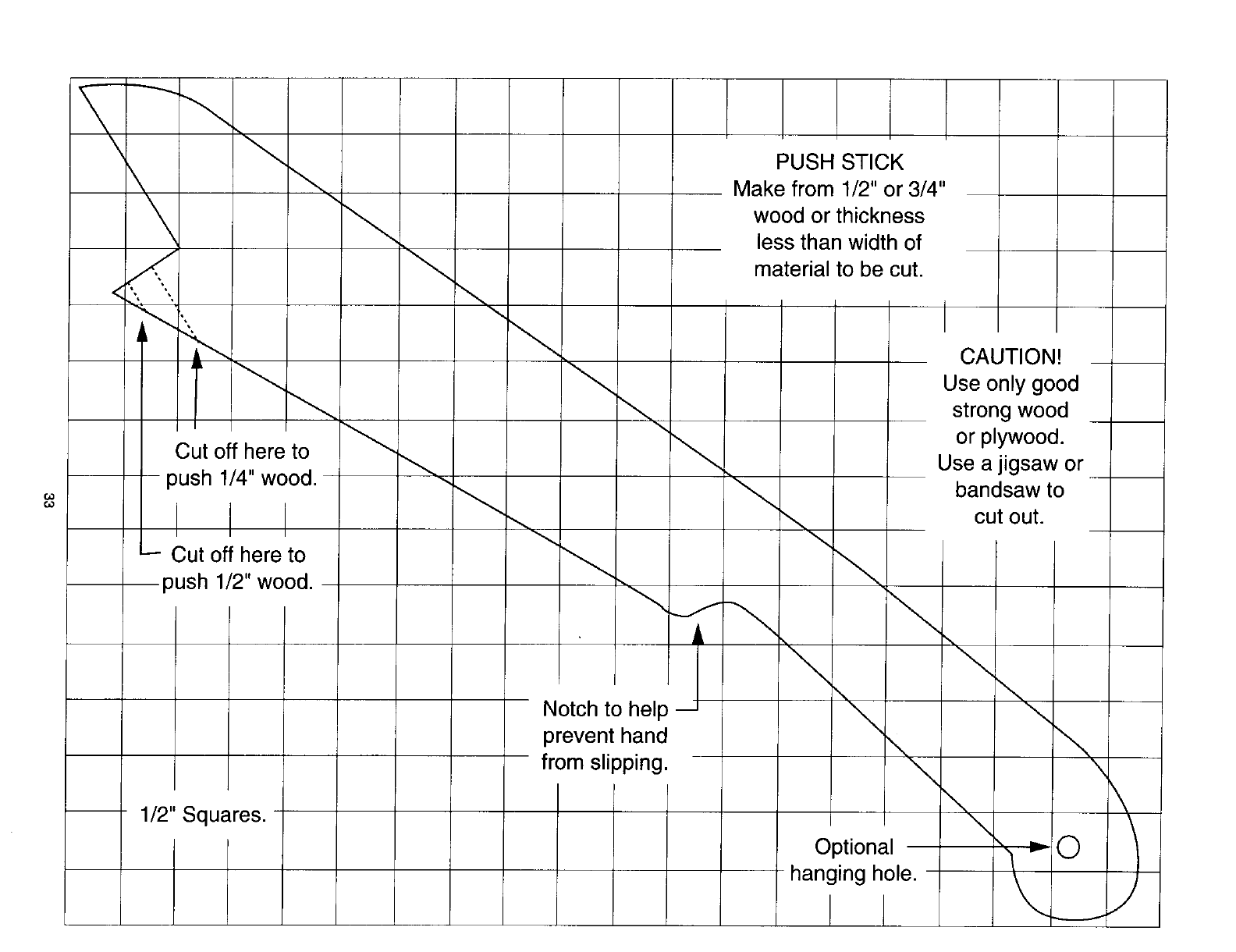

pattern on page 33.
7. The push stick (3) should always be used when the
ripped workpiece is 2" or narrower (1). (FIG. Y)
8. Continue pushing the workpiece with the push stick (3)
until it passes the blade guard and clears the rear of
the table.
9. Never pull the workpiece back when the blade is
turning. Turn the switch OFF. When the blade
completely stops raise the anti-kickback pawls on
each side of the splitter and slide the workpiece out.
Fig. Z
17
BEVEL RIPPING
This cut is the same as ripping except the blade bevel
angle is set to an angle other than 0°.
r,._kVlV/_,1d _,II_,[_
Cut only with the workpiece and the fence on the right
side of the blade.
RIPPING SMALL PIECES
Avoid injury from blade contact. Never make through-saw
cuts narrower than 1/2" wide.
1.
2.
It is unsafe to rip small pieces. Instead, rip a larger
piece to obtain the size of the desired piece.
When a small width is to be ripped and your hand
cannot be safely put between the blade and the
rip fence, use one or more push sticks to move
the workpiece,

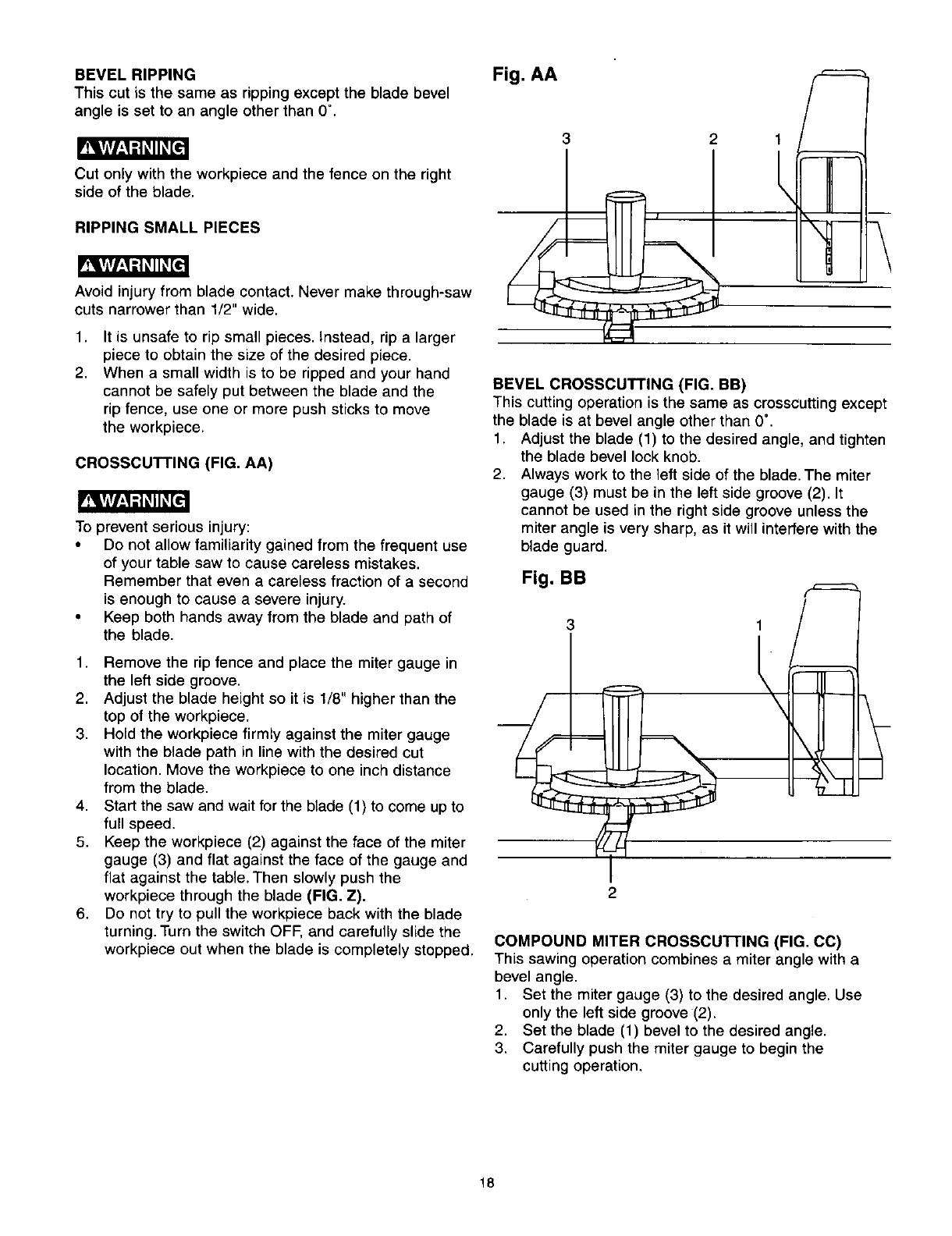

CROSSCUTTING (FIG. AA)
To prevent serious injury:
•Do not allow familiarity gained from the frequent use
of your table saw to cause careless mistakes.
Remember that even a careless fraction of a second
is enough to cause a severe injury.
• Keep both hands away from the blade and path of
the blade.
1
2.
3.
4,
5.
6.
Remove the rip fence and place the miter gauge in
the left side groove.
Adjust the blade height so it is 1/8" higher than the
top of the workpiece.
Hold the workpiece firmly against the miter gauge
with the blade path in line with the desired cut
location. Move the workpiece to one inch distance
from the blade.
Start the saw and wait for the blade (1) to come up to
full speed.
Keep the workpiece (2) against the face of the miter
gauge (3) and flat against the face of the gauge and
flat against the table. Then slowly push the
workpiece through the blade (FIG. Z).
Do not try to pull the workpiece back with the blade
turning. Turn the switch OFF, and carefully slide the
workpiece out when the blade is completely stopped.
Fig. AA
2
BEVEL CROSSCUTTING (FIG. BB)
This cutting operation is the same as crosscutting except
the blade is at bevel angle other than 0°.
1. Adjust the blade (1) to the desired angle, and tighten
the blade bevel lock knob.
2. Always work to the left side of the blade. The miter
gauge (3) must be in the left side groove (2). It
cannot be used in the right side groove unless the
miter angle is very sharp, as it will interfere with the
blade guard.
Fig. BB
2
1
,J/-------
\Pt
I.V.
]\ _-r"
h
COMPOUND MITER CROSSCUTTING (FIG. CC)
This sawing operation combines a miter angle with a
bevel angle.
1. Set the miter gauge (3) to the desired angle. Use
only the left side groove (2).
2. Set the blade (1) bevel to the desired angle.
3, Carefully push the miter gauge to begin the
cutting operation,
18
Fig. CC
3 2
Fig. EE

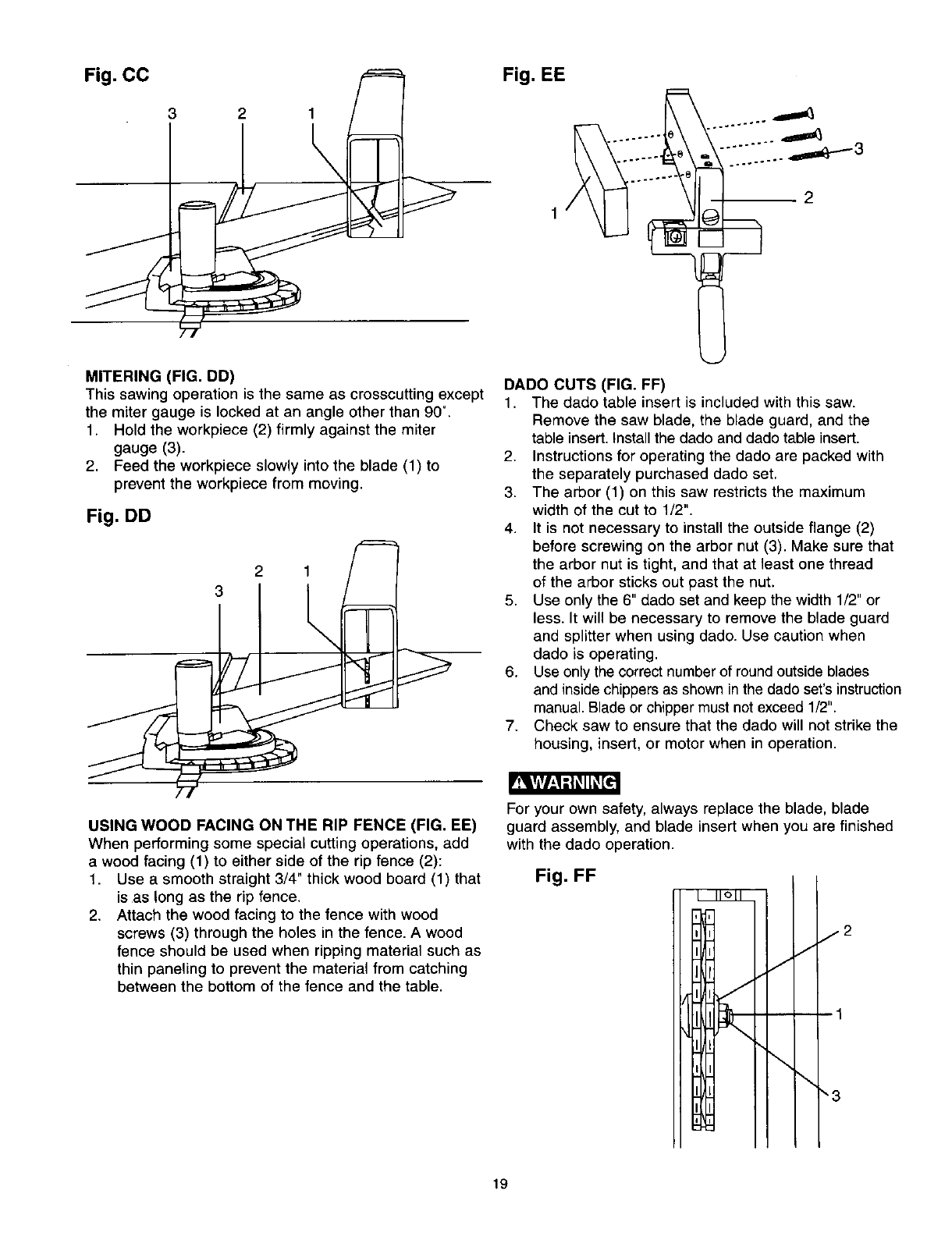

MITERING (FIG. DD)
This sawing operation is the same as crosscutting except
the miter gauge is locked at an angle other than 90°.
1. Hold the workpiece (2) firmly against the miter
gauge (3).
2. Feed the workpiece slowly into the blade (1) to
prevent the workpiece from moving.
Fig. DD
2 1
3
DADO CUTS (FIG. FF)
1. The dado table insert is included with this saw.
Remove the saw blade, the blade guard, and the
table insert.Install the dado and dado table insert.
2. Instructions for operating the dado are packed with
the separately purchased dado set.
3. The arbor (1) on this saw restricts the maximum
width of the cut to 1/2".
4. It is not necessary to install the outside flange (2)
before screwing on the arbor nut (3). Make sure that
the arbor nut is tight, and that at least one thread
of the arbor sticks out past the nut.
5. Use only the 6" dado set and keep the width 1/2" or
less. It will be necessary to remove the blade guard
and splitter when using dado. Use caution when
dado is operating.
6. Use onlythe correctnumber of roundoutsideblades
and inside chippersas showninthe dado set'sinstruction
manual.Blade or chippermust notexceed 1/2".
7. Check saw to ensure that the dado will not strike the
housing, insert, or motor when in operation.
USING WOOD FACING ON THE RIP FENCE (FIG. EE)
When performing some special cutting operations, add
a wood facing (1) to either side of the rip fence (2):
1. Use a smooth straight 3/4" thick wood board (1) that
is as long as the rip fence.
2. Attach the wood facing to the fence with wood
screws (3) through the boles in the fence. A wood
fence should be used when ripping material such as
thin paneling to prevent the material from catching
between the bottom of the fence and the table.
For your own safety, always replace the blade, blade
guard assembly, and blade insert when you are finished
with the dado operation.
Fig. FF Iiloll
J
J
\\
/2
"3
19

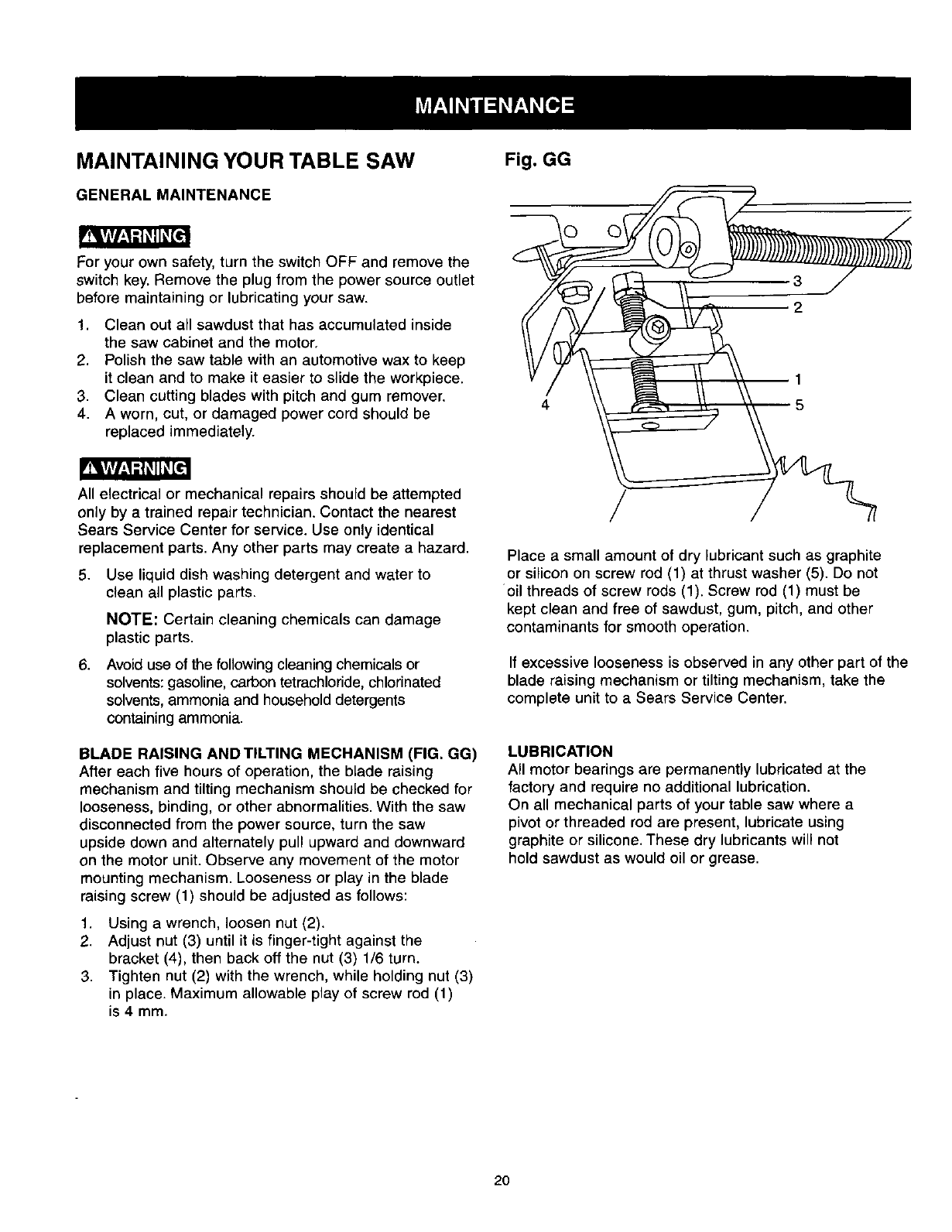

MAINTAINING YOUR TABLE SAW
GENERAL MAINTENANCE
For your own safety, turn the switch OFF and remove the
switch key. Remove the plug from the power source outlet
before maintaining or lubricating your saw.
!. Clean out all sawdust that has accumulated inside
the saw cabinet and the motor.
2. Polish the saw table with an automotive wax to keep
it clean and to make it easier to slide the workpiece.
3. Clean cutting blades with pitch and gum remover.
4. A worn, cut, or damaged power cord should be
replaced immediately.
All electrical or mechanical repairs should be attempted
only by a trained repair technician. Contact the nearest
Sears Service Center for service. Use only identical
replacement parts. Any other parts may create a hazard.
5. Use liquid dish washing detergent and water to
clean all plastic parts.
NOTE: Certain cleaning chemicals can damage
plastic parts.
6. Avoid use of the following cleaning chemicals or
solvents: gasoline, carbon tetrachloride, chlorinated
solvents, ammonia and household detergents
containing ammonia.
BLADE RAISING ANDTILTING MECHANISM (FIG. GG)
After each five hours of operation, the blade raising
mechanism and tilting mechanism should be checked for
looseness, binding, or other abnormalities. With the saw
disconnected from the power source, turn the saw
upside down and alternately pull upward and downward
on the motor unit. Observe any movement of the motor
mounting mechanism. Looseness or play in the blade
raising screw (1) should be adjusted as follows:
1. Using a wrench, loosen nut (2).
2. Adjust nut (3) until it is finger-tight against the
bracket (4), then back off the nut (3) 1/6 turn.
3. Tighten nut (2) with the wrench, while holding nut (3)
in place. Maximum allowable play of screw rod (1)
is 4 mm.
Fig. GG
4
Place a small amount of dry lubricant such as graphite
or silicon on screw rod (1) at thrust washer (5). Do not
oil threads of screw rods (1). Screw rod (1) must be
kept clean and free of sawdust, gum, pitch, and other
contaminants for smooth operation.
If excessive looseness is observed in any other part of the
blade raising mechanism or tilting mechanism, take the
complete unit to a Sears Service Center.
LUBRICATION
All motor bearings are permanently lubricated at the
factory and require no additional lubrication.
On all mechanical parts of your table saw where a
pivot or threaded rod are present, lubricate using
graphite or silicone. These dry lubricants will not
hold sawdust as would oil or grease.
20

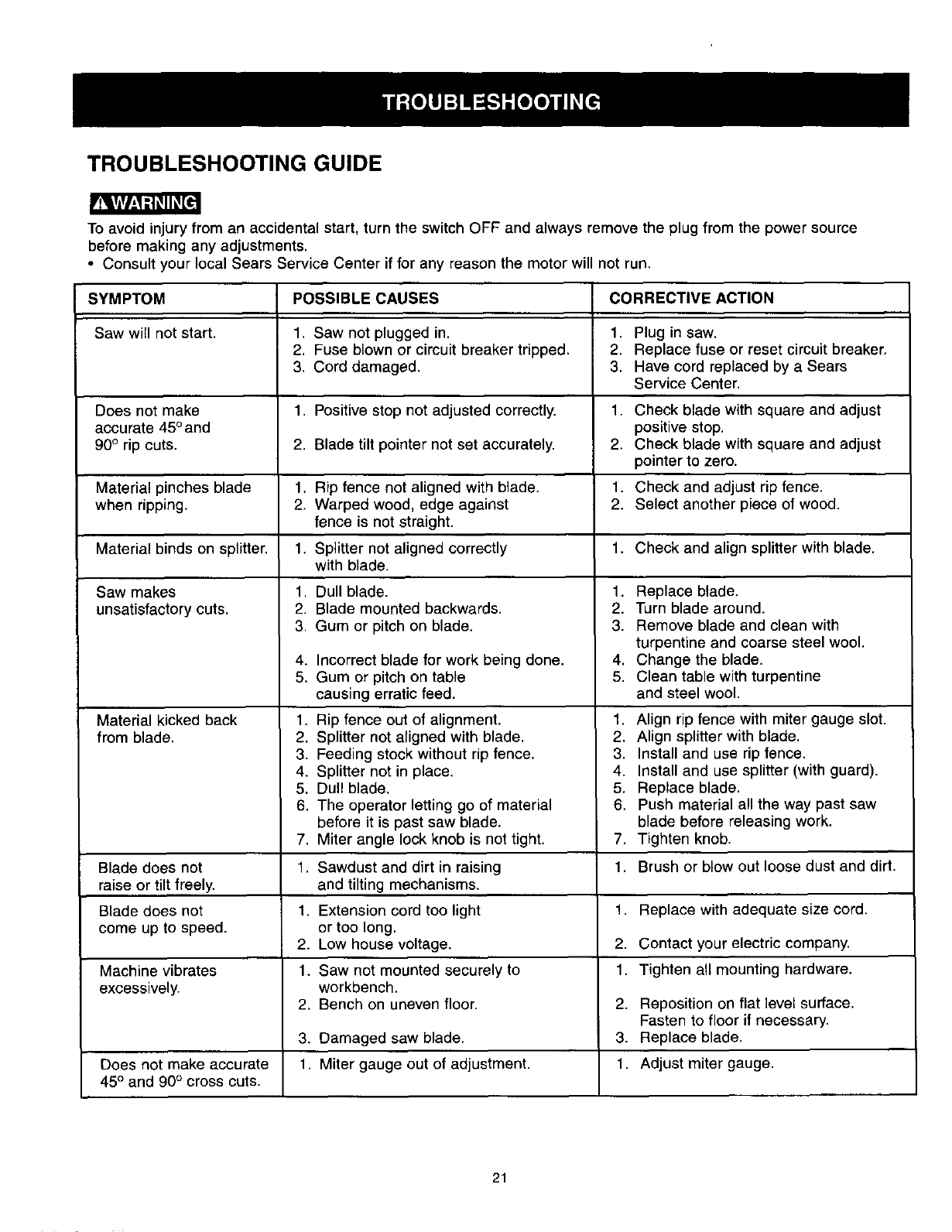

TROUBLESHOOTING GUIDE
To avoid injury from an accidental start, turn the switch OFF and always remove the plug from the power source
before making any adjustments.
• Consult your local Sears Service Center if for any reason the motor will not run.
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
Saw will not start. 1. Saw not plugged in. 1. Plug in saw.
2. Fuse blown or circuit breaker tripped. 2. Replace fuse or reset circuit breaker,
3. Cord damaged. 3. Have cord replaced by a Sears
Service Center.
1. Positive stop not adjusted correctly. 1. Check blade with square and adjust
positive stop.
2. Blade tilt pointer not set accurately. 2. Check blade with square and adjust
pointer to zero.
1. Rip fence not aligned with blade. 1. Check and adjust rip fence.
2. Warped wood, edge against 2. Select another piece of wood.
fence is not straight.
1. Splitter not aligned correctly 1. Check and align splitter with blade.
with blade.
Does not make
accurate 45° and
90° rip cuts.
Material pinches blade
when ripping.
Material binds on splitter.
Saw makes
unsatisfactory cuts.
Material kicked back
from blade.
1, Dull blade.
2. Blade mounted backwards.
3. Gum or pitch on blade.
4. Incorrect blade for work being done.
5. Gum or pitch on table
causing erratic feed.
1,
2.
3.
4.
5.
6.
1. Replace blade.
2. Turn blade around.
3. Remove blade and clean with
turpentine and coarse steel wool.
4. Change the blade.
5. Clean table with turpentine
and steel wool.
Rip fence out of alignment. 1.
Splitter not aligned with blade. 2.
Feeding stock without rip fence. 3.
Splitter not in place. 4.
Dull blade. 5.
The operator letting go of material 6.
before it is past saw blade.
Miter angle lock knob is not tight. 7.
Align rip fence with miter gauge slot.
Align splitter with blade.
Install and use rip fence.
Install and use splitter (with guard).
Replace blade.
Push material all the way past saw
blade before releasing work.
Tighten knob.
7,
Blade does not 1. Sawdust and dirt in raising 1. Brush or blow out loose dust and dirt.
raise or tilt freely, and tilting mechanisms.
Blade does not 1. Extension cord too light 1. Replace with adequate size cord.
come up to speed, or too long.
2. Low house voltage. 2. Contact your electric company.
Machine vibrates 1. Saw not mounted securely to 1. Tighten all mounting hardware.
excessively, workbench.
2. Bench on uneven floor. 2. Reposition on flat level surface.
Fasten to floor if necessary.
3. Damaged saw blade. 3. Replace blade.
Does not make accurate 1. Miter gauge out of adjustment. 1. Adjust miter gauge.
45° and 90° cross cuts.
21

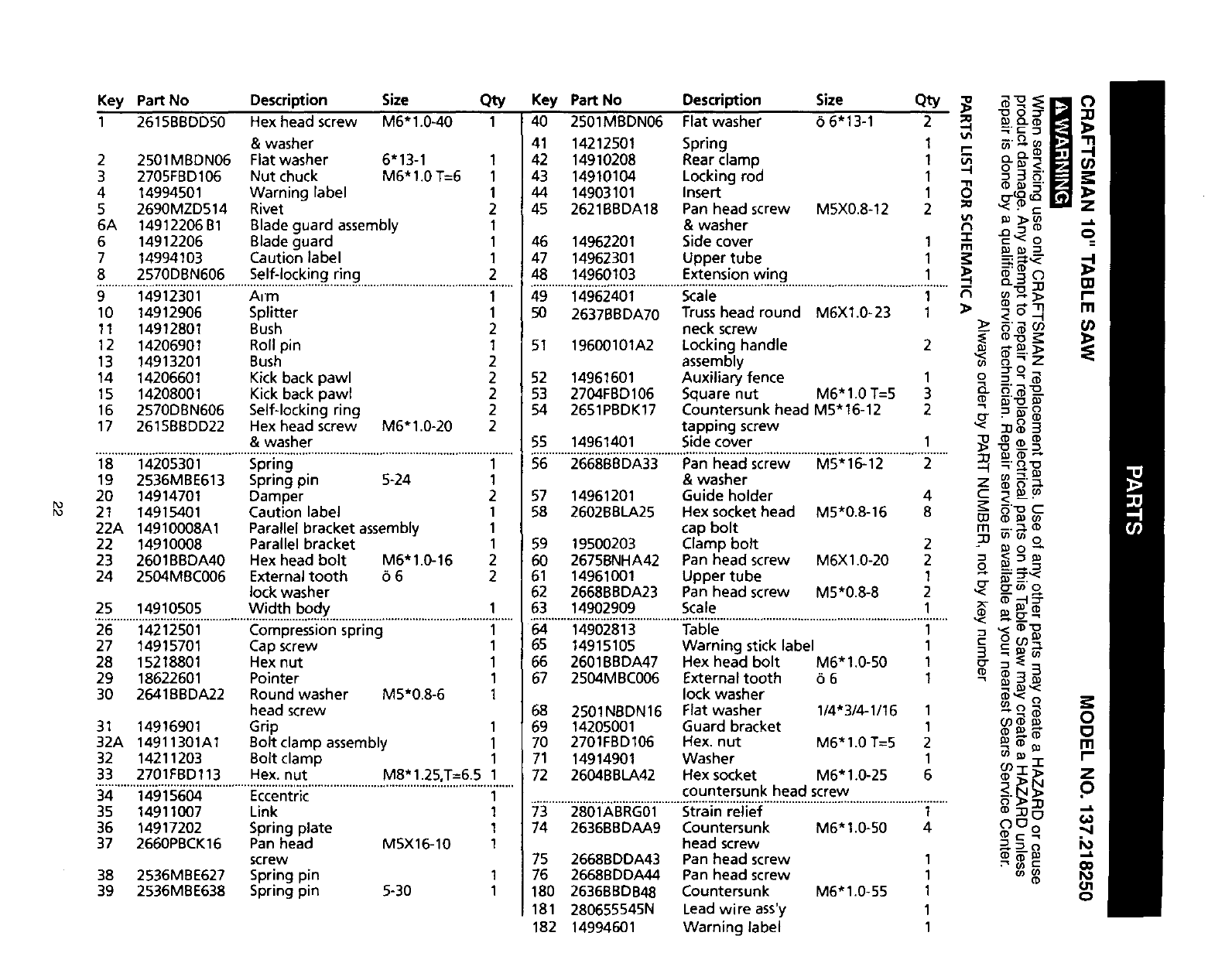

Key aONoOescr, ,,onS,z. K.,P.oNo S'z. 2
1 2615BBDDS0 Hex head screw M6"1.0-40 1 40 2501MBDN06 Flat washer 6 6"13-1 _ .
& washer 41 14212501 Spring _ _. o _ _1 _-I_11
I r- Q._
2 2501MBDN06 Fiat washer 6"13-1 1 42 14910208 Rear clamp "_ _ _ _ _1
3 2705FBD106 Nut chuck M6"I.0 T=6 I 43 14910104 Lockingrod ! o 3 5"
4 14994501 Warning label 1 44 14903101 Insert 1 _ _ _r-_l ,p
5 2690MZD514 Rivet 2 45 26218BDA18 Pan head screw M5X0.8-12 2_o or_ = Z
6A 14912206 B1 Blade guard assembly 1 & washer r_ .Q _
6 14912206 Blade guard 146 14962201 Side cover 1 -r c'< o =
7 14994103 Caution label 1 47 14962301 Upper tube 1 _ --.._,<
8 2570DBN606 Self-locking ring 2 ,48 14960103 Extension wing 1_ _'_ O
9 14912301 Arm 1 49 14962401 Scale 1t_ _ _ _, r'
10 14912906 Splitter 1 50 26378BDA70 Truss head round M6X1.0-23 1 _ <__-I-n Ill
11 14912801 Bush 2 neck screw _ 5"_ Go (D
12 14206901 Roll pin 1 51 19600101A2 Locking handle 2 _ ___>_'mE
13 14913201 Bush 2 assembly _ _ z
14 14206601 Kick back pawl 2 52 14961601 Auxiliary fence 1 o -_'_:-_
15 14208001 Kick back pawl 2 53 2704FBD106 Square nut M6"1.0 T=5 3 a, _[__
16 2570DBN606 Self-locking ring 2 54 2651PBDK17 Countersunk head M5"16-12 2 cr_ PE_m"m
17 2615BBDD22 Hex head screw M6"1.0-20 2 tapping screw "< _D 3
& washer 55 14961401 Side cover 1_ .ocD_¢0
................ ................................................................i....... .............2.....
19 2536MBE613 Spring pin 5-24 1 & washer z _ _
20 14914701 Damper 2 57 14961201 Guide holder 4 c
21 14915401 Caution label 1 58 26028BLA25 Hex socket head M5"0.8-16 8 E5"-_ c
cb_(n
22A 14910008A1 Parallel bracket assembly 1cap bolt m -.: ¢D
22 14910008 Parallel bracket 1 59 19500203 Clamp bolt 2 _ _ _ o
_O--_
23 2601BBDA40 Hex head bolt M6"1.0-16 2 60 2675BNHA42 Pan head screw M6X1.0-20 2 _ _ _ m
24 2504MBC006 External tooth 66 2 61 14961001 Upper tube 1 o m=-.-_
lock washer 62 2668BBDA23 Pan head screw M5"0.8-8 2 "< E_--I._
25 14910505 Width body 1 63 14902909 Scale 1
26 14212501 Compression spring 1 64 14902813 Table 1 R ,< _-o
27 14915701 Cap screw 1 65 14915105 Warning stick label 1 _ o o_
-_(_
28 15218801 Hex nut 1 66 2601BBDA47 Hex head bolt M6"1.0-50 1 m
29 18622601 Pointer 167 2504MBC006 External tooth 66 1 _ 3
30 2641BBDA22 Round washer M5"0.8-6 1 lock washer _ ,< Q
head screw 68 2501NBDN16 Fiat washer 114"314-1116 1 _ o._(D r_
Gg_b_
31 14916901 Grip 1 69 14205001 Guard bracket 1 _ _ _ {:_
32A 14911301A1 Bolt clamp assembly 1 70 2701FBD106 Hex. nut M6"1.0 T=5 2 _ • m
32 14211203 Bolt clamp 1 71 14914901 Washer 1 ,^-r_m 1-
33 2701FBD113 Hex. nut M8*1.25,T=6.5 1 72 2604BBLA42 Hex socket M6"1.0-25 6 _"__'_N _)
............... ................................................................................................................... ................................
35 14911007 Link 1 73 2801ABRG01 Strain relief 1 _D:_u .._
36 14917202 Spring plate 1 74 2636BBDAA9 Countersunk M6* 1.0-50 4 e_._(_C_o _lCa
37 2660PBCK16 Pan head MSX16-10 1 head screw _ _ o1,o
screw 75 2668BDDA43 Pan head screw 1 _ =
38 2536MBE627 Spring pin 1 76 2668BDDA44 Pan head screw 1 _ ,_ _1_
39 2536MBE638 Spring pin 5-30 1 180 2636BBDB48 Countersunk M6"1.0-55 1
181 280655545N Lead wire ass'y 1
182 14994601 Warning label 1

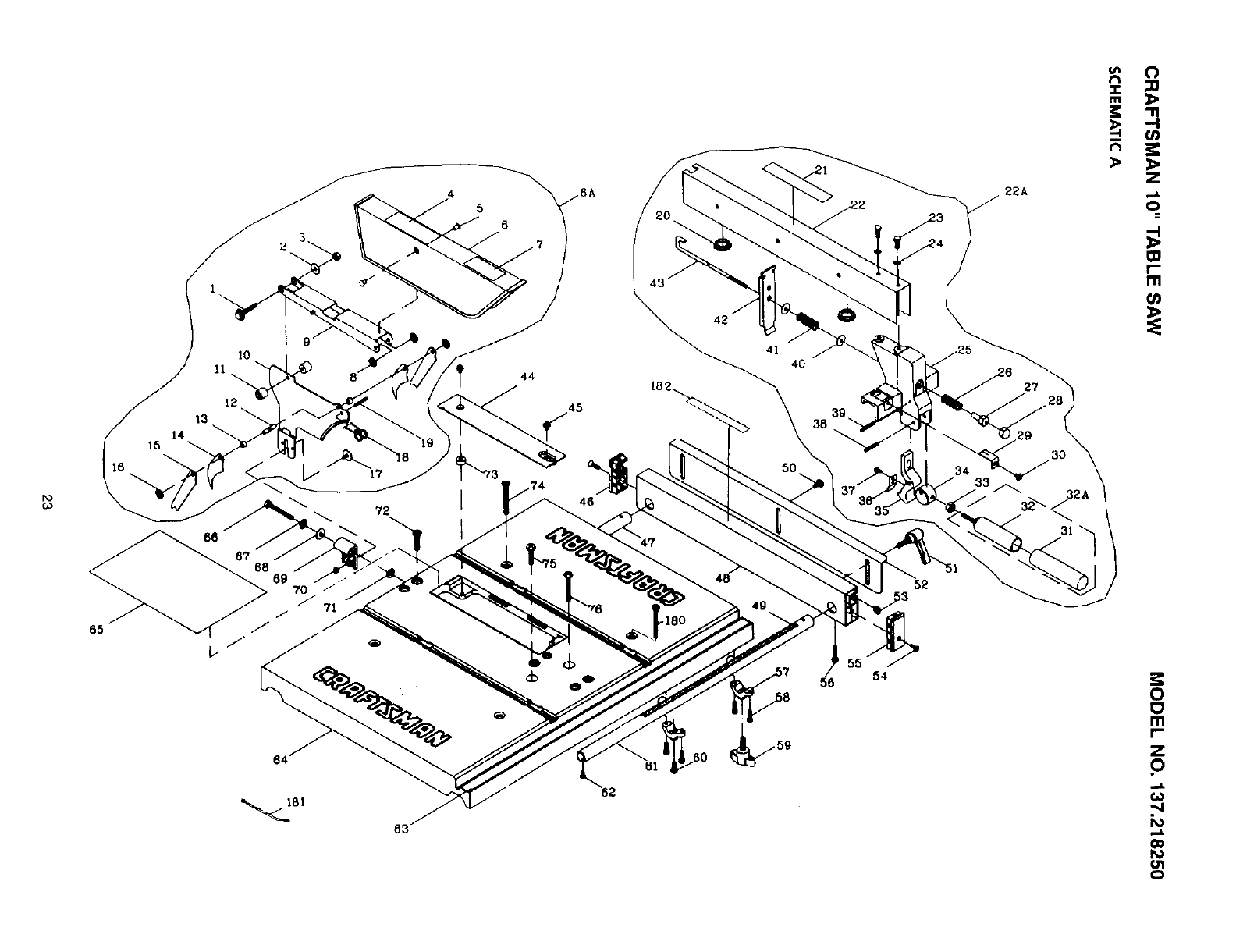

PJ
2
12
13
15
64
44
48
43
61
42
41
40
5O
4g
56
52
54
22A
27
32A
Z
0
r-
m
o_
_n
0
t_

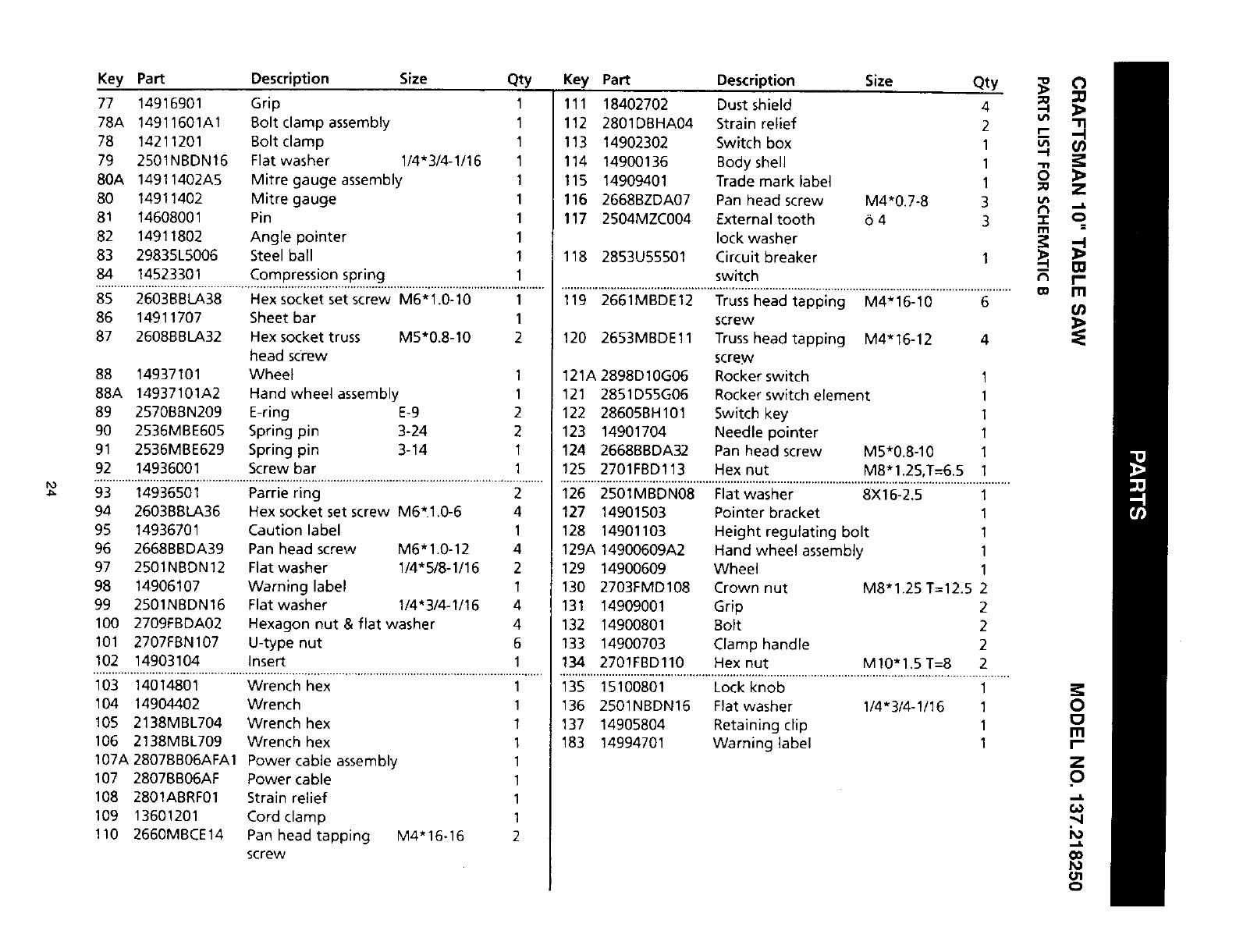

Key Part Description
77 14916901 Grip
78A 14911601A1 8olt clamp assembly
78 14211201 Bolt clamp
79 2501NBDN16 Flat washer
80A 14911402A5 Mitre gauge assembly
80 14911402 Mitre gauge
81 14608001 Pin
82 14911802 Angle pointer
83 29835L5006 Steel ball
84 14523301 Com# spring
SS 260388LA38 Hex socket set
86 14911707 Sheet bar
87 260888LA32 Hex socket truss
he ad so'few
Size
114"3/4-1116
M6 0-10
Qty
1
1
1
1
1
1
1
1
2
2
1
1
I
1
1
1
1
1
2
88 14937101 Wheel
88A 14937101A2 Hand wheel assembly
89 257088N209 E-ring E-9
90 2536MBE605 Spring pin 3-24
91 2536MBE629 Spring pin 3-14
92 bar 2
93 14936501 Parrie ring
94 2603BBLA36 Hex socket set screw M6"1.0-6 4
95 14936701 Caution label 1
96 2668BBDA39 Pan head screw M6"1.0-12 4
97 2501NBDN12 Flat washer 114"518-1116 2
98 14906107 Warning label 1
99 2501NBDN16 Flat washer 1/4"314-1/16 4
100 2709FBDA02 Hexagon nut & flat washer 4
6
101 2707FBN107 U-type nut
102 14903104 insert .............................................
................ ...................... 11
104 14904402 Wrench 1
105 2138MBL704 Wrench hex 1
106 2138MBL709 Wrench hex
107A 28078806AFA1 Power cable assembly 1
107 28078B06AF Power cable
108 2801ABRF01 Strain relief 1
109 13601201 Cord clamp
110 2660MBCE14 Pan head tapping M4"16-16 2
screw
Key Part Description Size Qty
111 18402702 Dust shield 4
112 2801DBHA04 Strain relief 2
113 14902302 Switch box 1
114 14900136 Body shell 1
115 14909401 Trade mark label 1
116 26688ZDA07 Pan head screw M4"0,7-8 3
117 2504MZC004 External tooth 6 4 3
lock washer
118 2853U55501 Circuit breaker 1
120 2653MBDE11 screw
121A 2898D10G06 Rocker switch 1
121 2851D55G06 Rocker switch element 1
1
122 286058H101 Switch key 1
123 14901704 Needle pointer
124 2668BBDA32 Pan head screw M5"0.8-10 1
M8*1.25,T=6.5 1
125 2701FBD113 Hex nut ..............................
"126"'"250"i"MBDNO8 Flat washer 8X16-2.5 1
127 14901503 Pointer bracket 1
128 14901103 Height regulating bolt 1
129A 14900609A2 Hand wheel assembly 1
1
129 14900609 Whee_
130 2703FMD108 Crown nut MS*l.25T=12-5 2
2
131 14909001 Grip 2
132. 14900801 Bolt 2
133 14900703 Clamp handle M10"1.5 T=8 2
134 2701FBD110 Hex nut ......................
.....................................................................•_.................................... 1
135 15100801 Lock kno
136 2501NBDN16 Flat washer 114.314-1116 1
137 14905804 Retaining clip 1
183 14994701 Warning label 1
r
m
Ol
104
105
_106
109
111
116/_
117 118
112
113
93
B9
\
136
135
lZ9A
k_
.,A
01
0

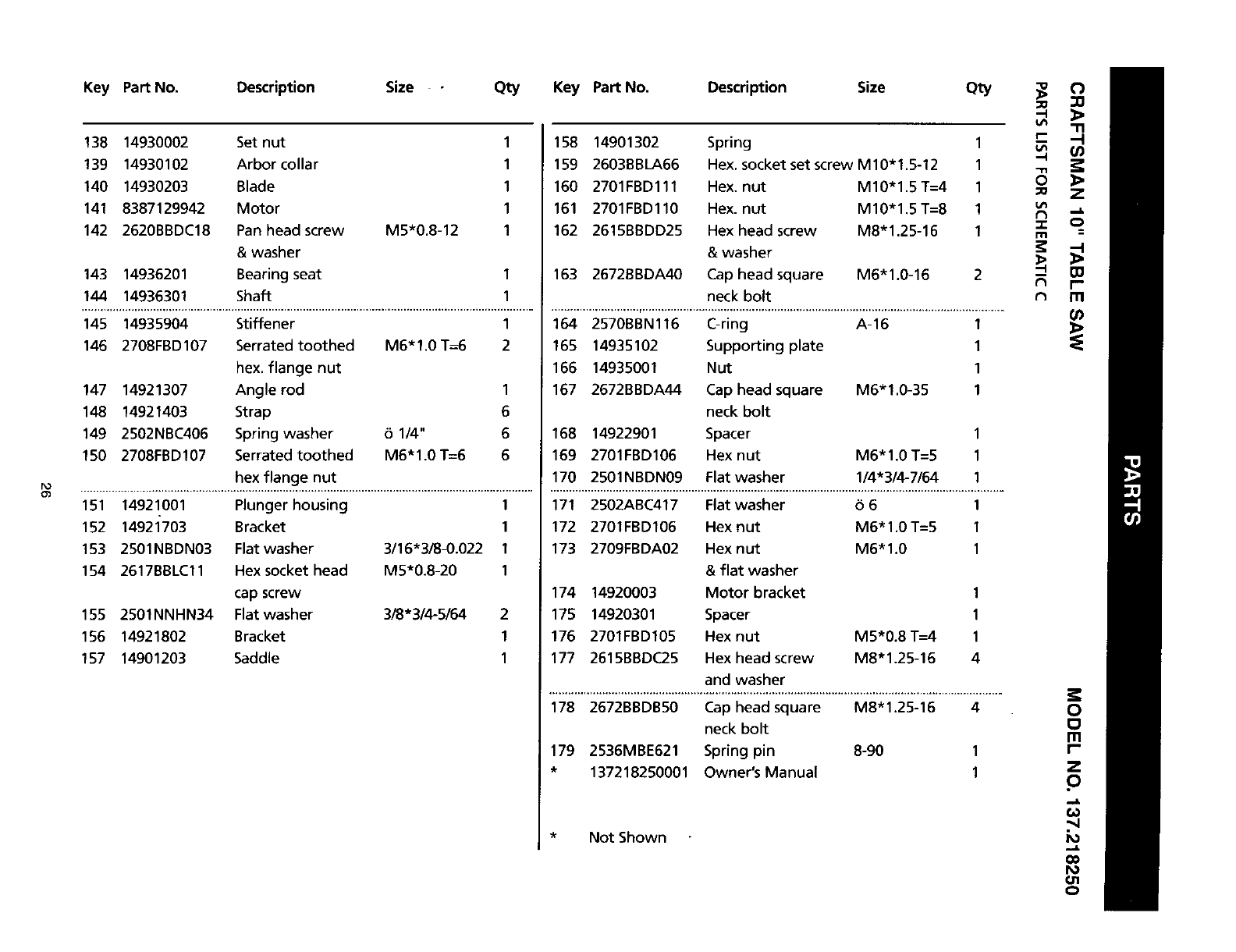

Key Part No. Description Size Qty Key Part No. Description Size Qty
ro
138 14930002 Set nut
139 14930102 Arbor collar
140 14930203 Blade
141 8387129942 Motor
142 2620BBDC18 Pan head screw
& washer
143 14936201 Bearing seat
144 14936301 Shaft
M5"0.8-12
1 158 14901302
1 159 2603BBLA66
1 160 2701FBD111
1 161 2701FBD110
1 162 2615BBDD25
I 163 2672BBDA40
1
Spring
Hex. socketsetscrewM10*l.5-12
Hex. nut M10"1.5 T=4
Hex. nut M10"1.5 T=8
Hex head screw M8"1.25-16
& washer
Cap head square M6"1.0-16
neck bolt
I
I
I
I
I
2
.............................................................................................................................................................................. r...................................................................................................................
145 14935904 Stiffener 1 164 2570BBN116 C-ring A-16 1
146 2708FBD107 Serrated toothed M6"1.0 T=6
hex. flange nut
147 14921307 Angle rod
148 14921403 Strap
149 2502NBC406 Spring washer 6 1/4"
150 2708FBD107 Serrated toothed M6"1.0 T=6
hex flange nut
2 165 14935102
166 14935001
1 167 2672BBDA44
6
6 168 14922901
6 169 2701FBD106
170 2501NBDN09
Supporting plate
Nut
Cap head square M6"1.0-35
neck bolt
Spacer
Hex nut M6"1.0 T=5
Flat washer 1/4"3/4-7/64
1
1
1
1
1
1
151 14921001 Plunger housing 1
152 14921703 Bracket 1
153 2501NBDN03 Flat washer 3/16"3/8-0.022 1
154 2617BBLC11 Hex socket head M5"0.8-20 1
cap screw
155 2501NNHN34 Flat washer 3/8"314-5/64 2
156 14921802 Bracket 1
157 14901203 Saddle 1
171 2502ABC417 Flat washer 66
172 2701FBD106 Hex nut M6"1.0 T=5
173 2709FBDA02 Hex nut M6"1.0
& flat washer
174 14920003 Motor bracket
175 14920301 Spacer
176 2701FBD105 Hex nut MS*0.8T=4
177 2615BBDC25 Hex head screw M8"1.25-16
and washer
1
1
1
1
1
1
4
178 2672BBDB50 Cap head square M8"1.25-16 4
neck bolt
179 2536MBE621 Spring pin 8-90 1
* 137218250001 Owner's Manual 1
* Not Shown
r-
m
0_
o
¢O
Fo
QO
fo
¢n
O
147
/
148
/
149
/150
/
m
r-
m
(/)
r_
--4
155
156
153
164
165
166
167
169
171
172
141
140
138
139 "_

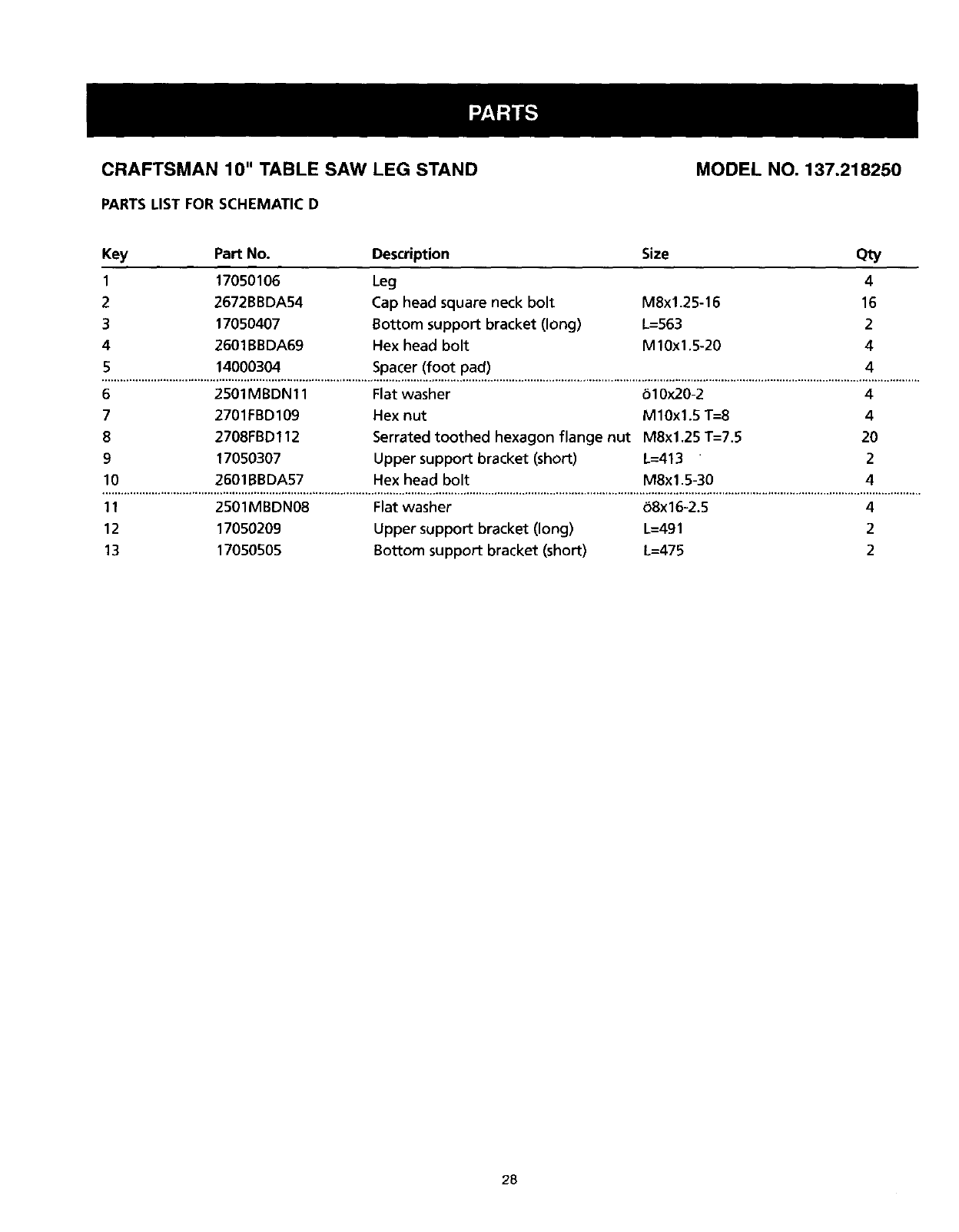

CRAFTSMAN 10" TABLE SAW
SCHEMATIC D
MODEL NO. 137.218250
13
12
<
2
10
11
3
7
6
5
4
9
29
CO

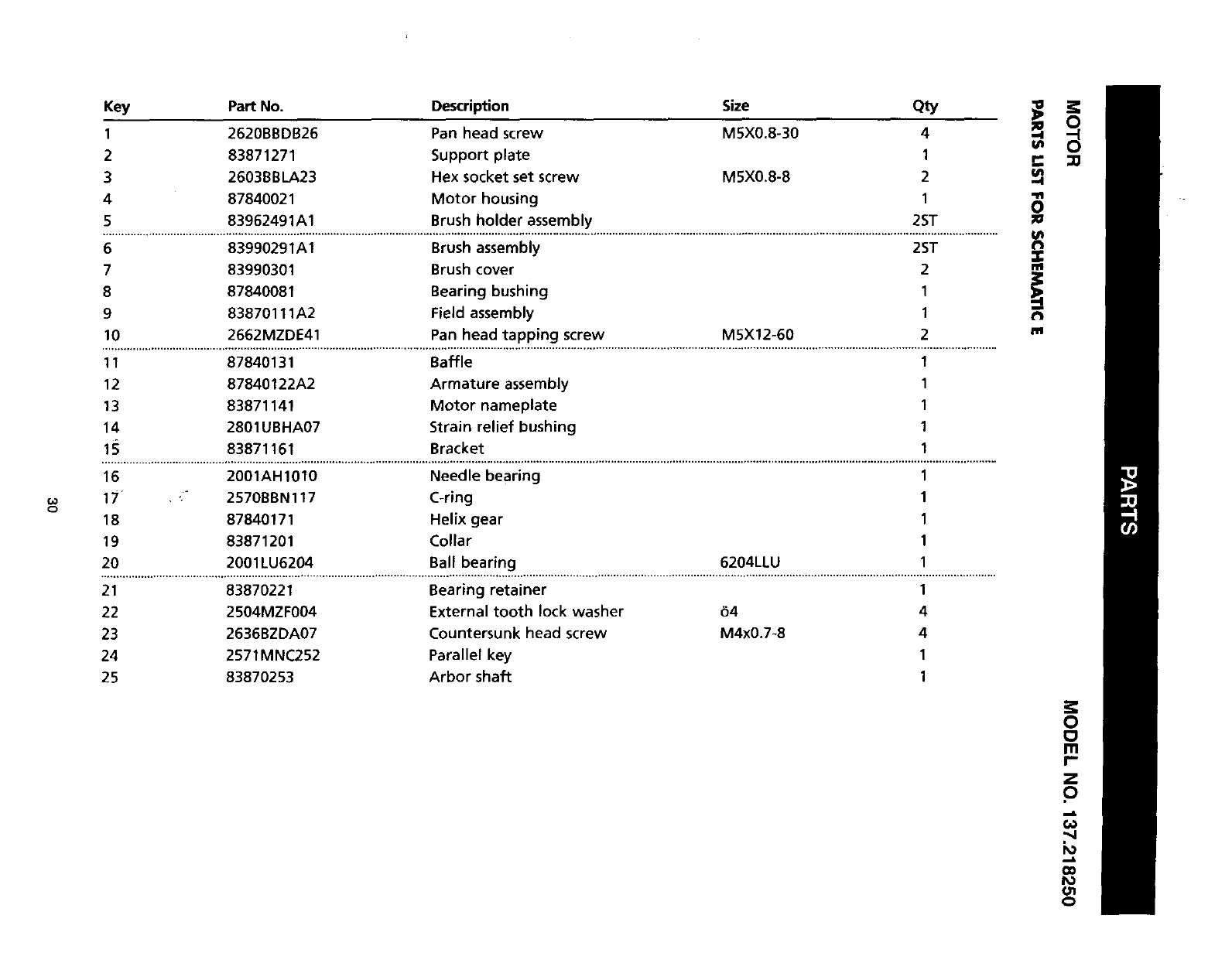

Key Part No. Description Size Qty
1 2620B8DB26 Pan head screw MSX0.8-30 4
283871271 Support plate 1
3 2603BBLA23 Hex socket set screw M5X0.8-8 2
4 87840021 Motor housing 1
5 83962491A1 Brush holder assembly 2ST
6 83990291A1 Brush assembly 2ST
7 83990301 Brush cover 2
8 87840081 Bearing bushing 1
9 83870111A2 Field assembly 1
10 2662MZDE41 Pan head tapping screw M5X12-60 2
11 87840131 Baffle
12 87840122A2 Armature assembly
13 83871141 Motor nameplate
14 2801UBHA07 Strain relief bushing
15 83871161 Bracket
1
1
1
1
1
16 2001AH1010 Needle bearing 1
17 , ,.- 2570BBN117 C-ring 1
18 87840171 Helix gear 1
19 83871201 Collar 1
20 2001 LU6204 Ball bearing 6204LLU 1
21 83870221 Bearing retainer
22 2504MZF004 External tooth lock washer 64
23 2636BZDA07 Countersunk head screw M4x0.7-8
24 2571MNC252 Parallel key
25 83870253 Arbor shaft
1
4
4
1
1

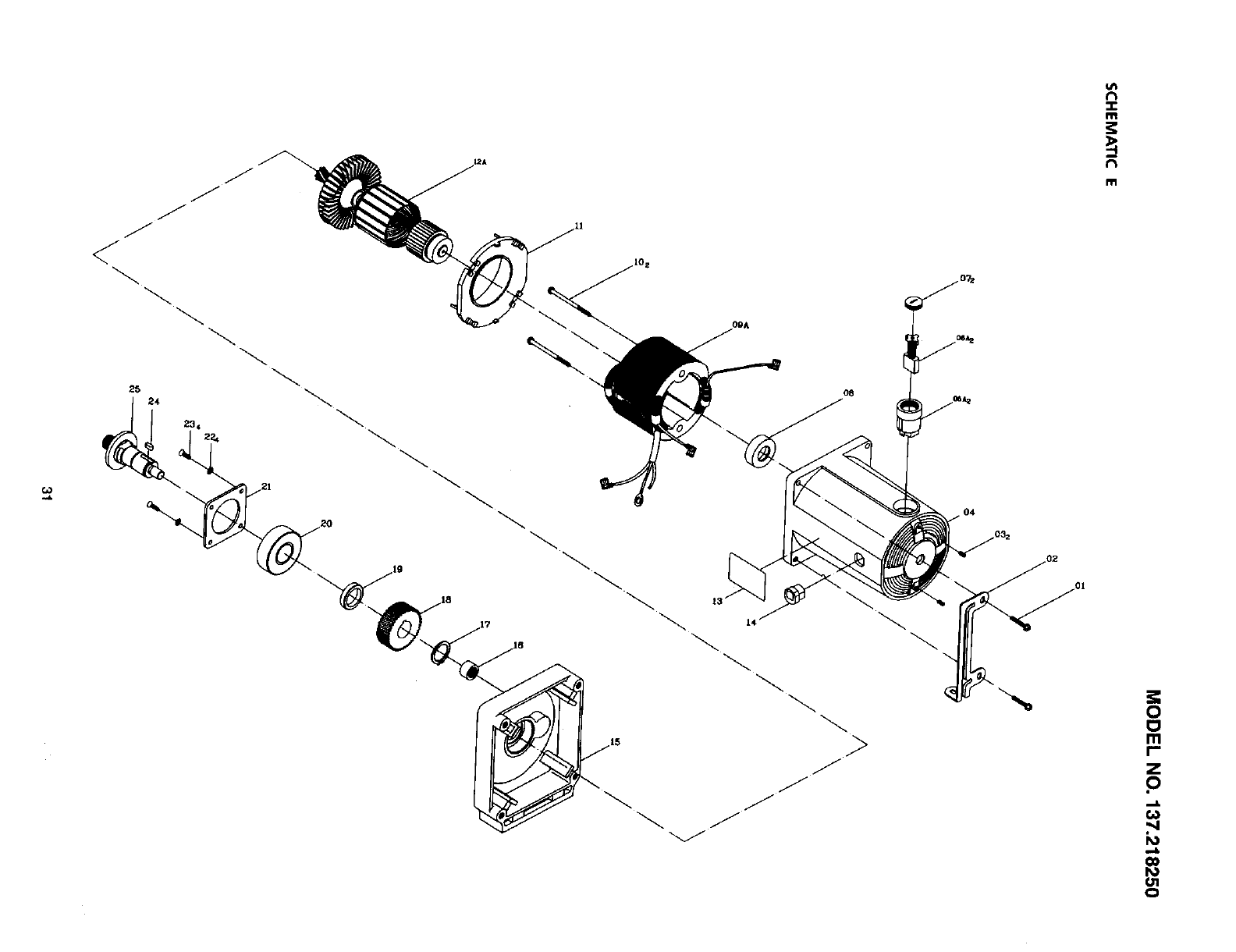

23
.=
!
III
io
CO
01
o
08
O0
01
0
32
o_
i
\
c!tof
push 1/4 wood.
Cut off here to
PUSH STICK
Make from 1/2" or 3/4"
wood or thickness
less than width of
material to be cut.
push 1/2" wood.
1/2" Squares.
J
Notch to help
prevent hand
from slipping.
\\
Optional
hanging hole.
CAUTION!
Use only good
strong wood
or plywood.
Use a jigsaw or
bandsaw to
cut out.
For repair of major brand appliances in your own home...
no matter who made it, no matter who sold it!
1-800-4-MY-HOME sMAnytime, day or night
(1-800-469-4663)
www.sears.com
ii_ii
To bring in products such as vacuums, lawn equipment and electronics _:_:_:_!!iiii!_i
for repair, call for the location of your nearest Sears Parts & Repair Center. !!!!_!i!i!!
......
1-800-488-1222 Anytime, day or night
www.sears.com
For the replacement parts, accessories and owner's manuals
that you need to do-it-yourself, call Sears PartsDirect "_ !
1-800-366-PART 6am- 11pmCST,
(1-800-366-7278) 7 days a week
www.sears.com/partsdirect
To purchase or inquire about a Sears Service Agreement:
1-800-827-6655
7 a.m. - 5 p.m. CST, Men. - Sat.
Para pedir servicio de reparacibn a dornicilio,
y para ordenar piezas con entrega a domicilio:
1-888-SU-HOGAR s.
(1-888-784-6427)
.... [°°'°°!
HomeCentral"
::::::::_:::
r:::::::_:::::
:.:*:.:.:.:.:.:
_.::_::::::::,:
iii!i!iiiill
ii!iiiiiiiiiiil
:,:4:,:::
iiiiiiiiiiii_
:.:.7:.:,:,:,:
:,::::::
:._:*:.>_:,:
::_:::::::t:_:
:::+:,::,
_:_::::::::::::
:::::::_
Au Canada pour service en franc_ais: _:_:_:_:_:_............
:::::::
1 877 LE FOYER _" .............
::.:::.:.:
(1 877 533-6937) ...............
:ii_;!_!:!
::_:,:::*:
.::.:.:::.:
::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
© Se_rs, Roobuck and Co.
®Regislered T_ademark I"Trademark o€ Seam. Roebuck and Co.
®Marca Registrada ITM Marca de F&bnca de Sears, Roebu_:k and CO.
3/2000

Navigation menu
