'S MA
NANUAL DEL OPERADOR
®
15-.inch STRING TRIMMER
15-pulgadas RECORTADORA DE HILO
MODEL NO.
138.98982
NOMERO DE MODELO
138.98982
WARNING: To reduce the risk
of injury, the user must read and
understand the operator's manual
before using this product.
ADVERTENOIA: Para reducir el
desgo de lesiones, el usuado debe Beer
y comprender el manual del operador
antes de usar este producto.
Customer Help Line: 1-888-266-7096
Tel6fono de atenci6n al consumidor: 1-888-266-7096
Sears Brands Management Corporation, Hoffman Estates, IL 60179 USA
Visit the Craftsman web page: www.craftsman.com
Visite el sitio web de Craftsman:www.craftsman.com
Save this manual for future reference
Guarde este manual para futuras consulta
218549
ENGLISH ESPAI_IOL

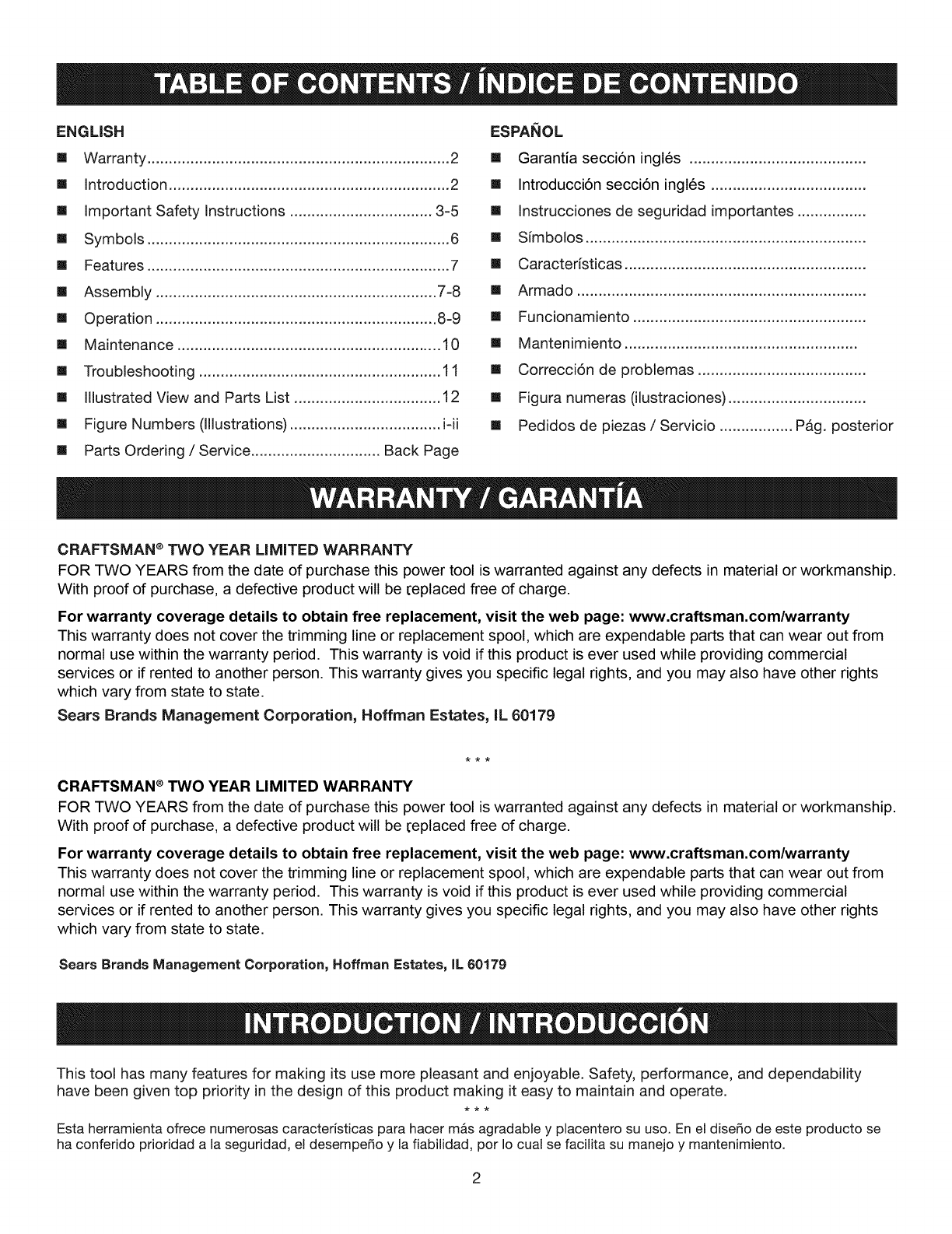

[] Warranty ...................................................................... 2
[] Introduction ................................................................. 2
[] Important Safety Instructions ................................. 3-5
[] Symbols ...................................................................... 6
[] Features ...................................................................... 7
[] Assembly ................................................................. 7-8
[] Operation ................................................................. 8-9
[] Maintenance ............................................................. 10
[] Troubleshooting ........................................................ 11

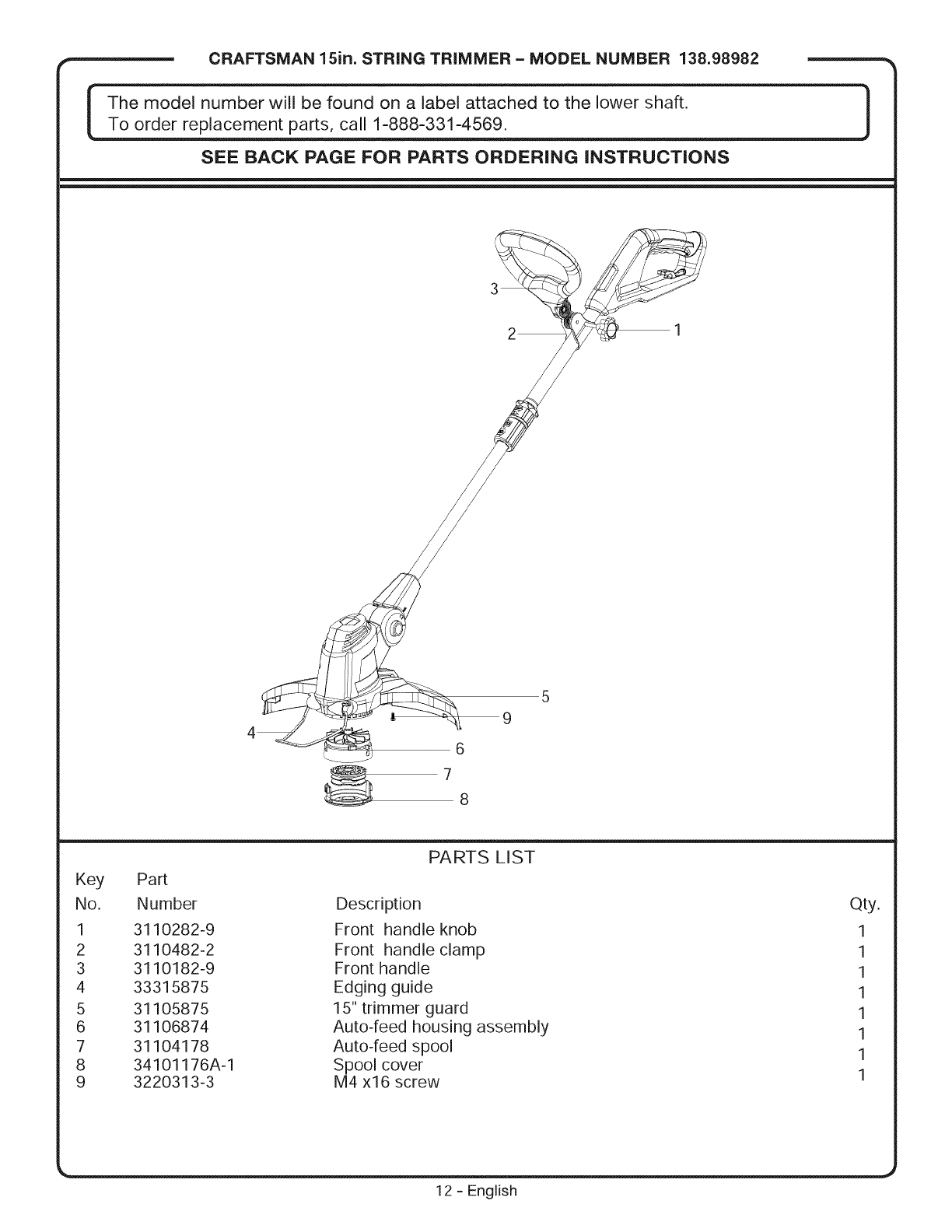

[] Illustrated View and Parts List .................................. 12
[] Figure Numbers (Illustrations) ................................... i-ii
[] Parts Ordering /Service .............................. Back Page
[] Garantia secci6n ingl6s .........................................
[] Introducci6n secci6n ingl6s ....................................
[] Instrucciones de seguridad importantes ................
[] Simbolos .................................................................
[] Caracteristicas ........................................................
[] Armado ...................................................................
[] Funcionamiento ......................................................
[] Mantenimiento ......................................................
[] Correcci6n de problemas .......................................
[] Figura numeras (ilustraciones) ................................
[] Pedidos de piezas /Servicio ................. P_g. posterior
CRAFTSMAN ®TWO YEAR LIMITED WARRANTY
FOR TWO YEARS from the date of purchase this power tool is warranted against any defects in material or workmanship.
With proof of purchase, a defective product will be replaced free of charge.
For warranty coverage details to obtain free replacement, visit the web page: www.craftsman.com/warranty
This warranty does not cover the trimming line or replacement spool, which are expendable parts that can wear out from
normal use within the warranty period. This warranty is void if this product is ever used while providing commercial
services or if rented to another person. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
CRAFTSMAN ®TWO YEAR LIMITED WARRANTY
FOR TWO YEARS from the date of purchase this power tool is warranted against any defects in material or workmanship.
With proof of purchase, a defective product will be replaced free of charge.
For warranty coverage details to obtain free replacement, visit the web page: www.craftsman.com/warranty
This warranty does not cover the trimming line or replacement spool, which are expendable parts that can wear out from
normal use within the warranty period. This warranty is void if this product is ever used while providing commercial
services or if rented to another person. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product making it easy to maintain and operate.
Esta herramienta ofrece numerosas caracteristicas para hacer m&s agradable y placentero su uso. En el diseSo de este producto se
ha conferido prioridad a la seguridad, el desempeSo y la fiabilidad, por Io cual se facilita su manejo y mantenimiento.

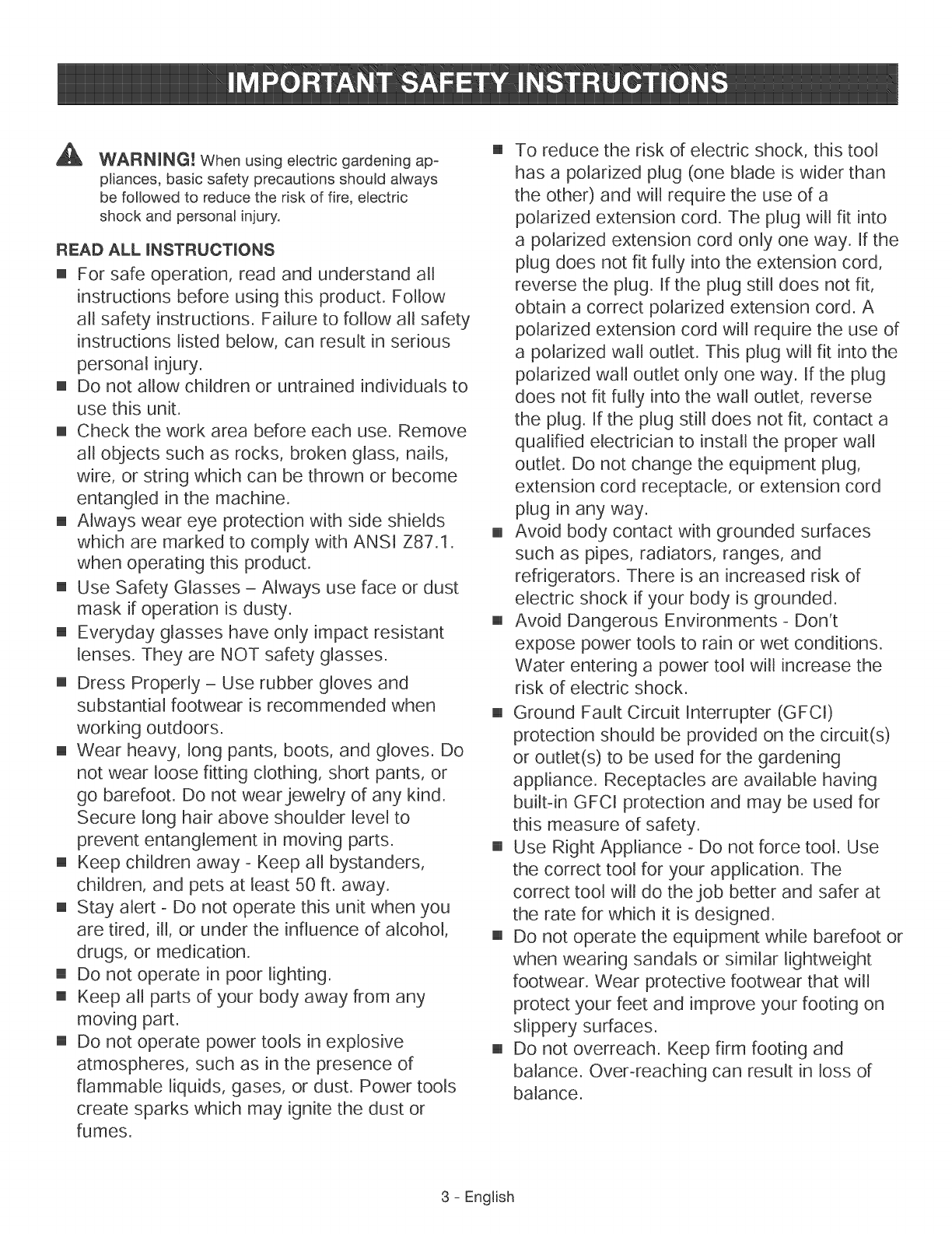

WARNING! When using electric gardening ap-
pliances, basic safety precautions should always
be followed to reduce the risk of fire, electric
shock and personal injury,
READ ALL INSTRUCTIONS
[] For safe operation, read and understand all
instructions before using this product. Follow
all safety instructions. Failure to follow all safety
instructions listed below, can result in serious
personal injury.
[] Do not allow children or untrained individuals to
use this unit.
[] Check the work area before each use. Remove
all objects such as rocks, broken glass, nails,
wire, or string which can be thrown or become
entangled in the machine.
[] Always wear eye protection with side shields
which are marked to comply with ANSI Z87.1.
when operating this product.
[] Use Safety Glasses - Always use face or dust
mask if operation is dusty.
[] Everyday glasses have only impact resistant
lenses. They are NOT safety glasses.
[] Dress Properly - Use rubber gloves and
substantial footwear is recommended when
working outdoors.
[] Wear heavy, long pants, boots, and gloves. Do
not wear loose fitting clothing, short pants, or
go barefoot. Do not wear jewelry of any kind.
Secure long hair above shoulder level to
prevent entanglement in moving parts.
[] Keep children away - Keep all bystanders,
children, and pets at least 50 ft. away.
[] Stay alert - Do not operate this unit when you
are tired, ill, or under the influence of alcohol,
drugs, or medication.
[] Do not operate in poor lighting.
[] Keep all parts of your body away from any
moving part.
[] Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools
create sparks which may ignite the dust or
fumes.
[] To reduce the risk of electric shock, this tool
has a polarized plug (one blade is wider than
the other) and wilt require the use of a
polarized extension cord. The plug wilt fit into
a polarized extension cord only one way. If the
plug does not fit fully into the extension cord,
reverse the plug. If the plug still does not fit,
obtain a correct polarized extension cord. A
polarized extension cord will require the use of
a polarized wall outlet. This plug wilt fit into the
polarized wall outlet only one way. If the plug
does not fit fully into the wall outlet, reverse
the plug. If the plug still does not fit, contact a
qualified electrician to install the proper wall
outlet. Do not change the equipment plug,
extension cord receptacle, or extension cord
plug in any way.
[] Avoid body contact with grounded surfaces
such as pipes, radiators, ranges, and
refrigerators. There is an increased risk of
electric shock if your body is grounded.
[] Avoid Dangerous Environments - Don't
expose power tools to rain or wet conditions.
Water entering a power tool wilt increase the
risk of electric shock.
[] Ground Fault Circuit Interrupter (GFCI)
protection should be provided on the circuit(s)
or outlet(s) to be used for the gardening
appliance. Receptacles are available having
built-in GFCI protection and may be used for
this measure of safety.
[] Use Right Appliance - Do not force tool. Use
the correct tool for your application. The
correct toot will do the job better and safer at
the rate for which it is designed.
[] Do not operate the equipment while barefoot or
when wearing sandals or similar lightweight
footwear. Wear protective footwear that will
protect your feet and improve your footing on
slippery surfaces.
[] Do not overreach. Keep firm footing and
balance. Over-reaching can result in loss of
balance.
3 - English

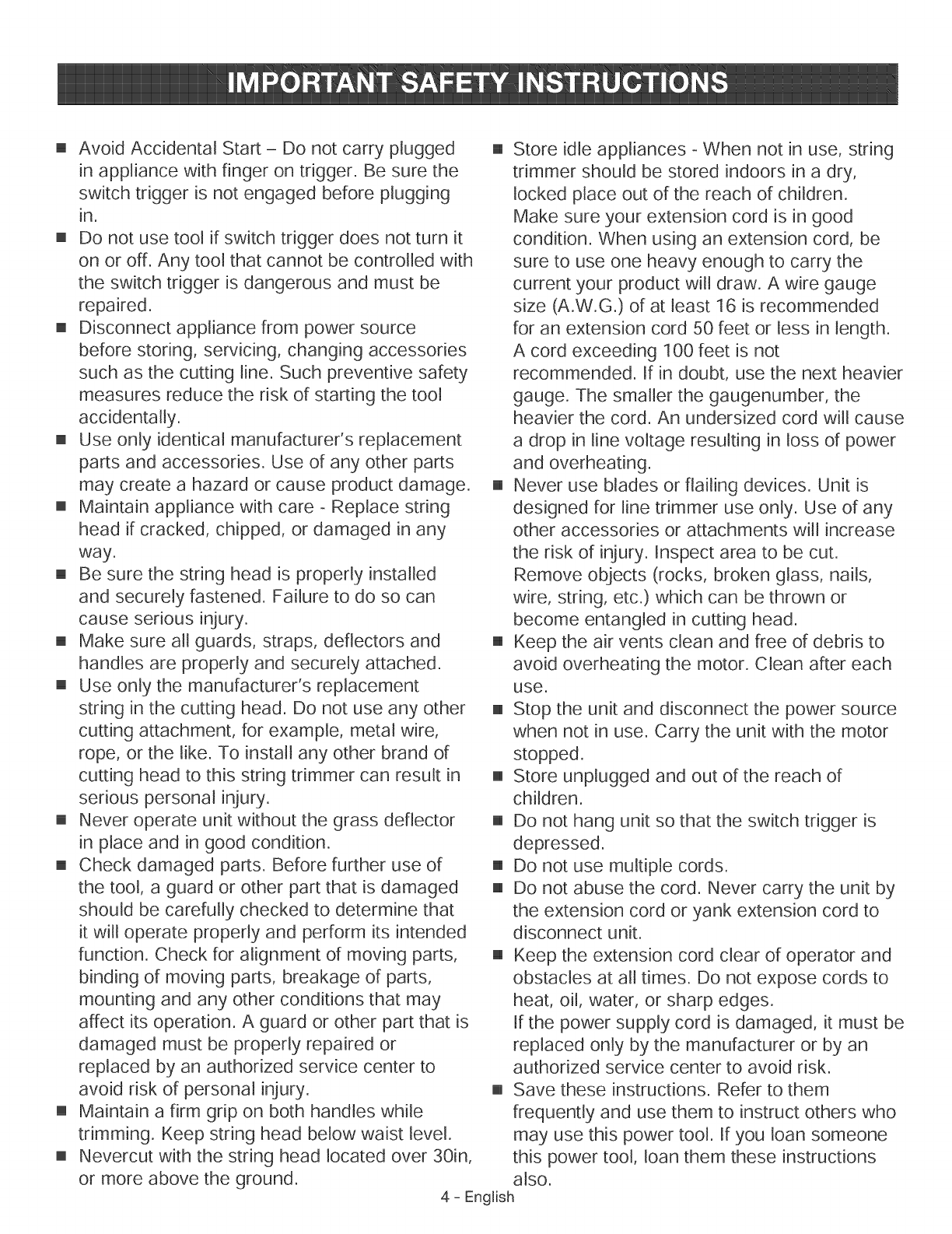

[] Avoid Accidental Start - Do not carry plugged
in appliance with finger on trigger. Be sure the
switch trigger is not engaged before plugging
in.
[] Do not use tool if switch trigger does not turn it
on or off. Any tool that cannot be controlled with
the switch trigger is dangerous and must be
repaired.
[] Disconnect appliance from power source
before storing, servicing, changing accessories
such as the cutting line. Such preventive safety
measures reduce the risk of starting the tool
accidentally.
[] Use only identical manufacturer's replacement
parts and accessories. Use of any other parts
may create a hazard or cause product damage.
[] Maintain appliance with care - Replace string
head if cracked, chipped, or damaged in any
way.
[] Be sure the string head is properly installed
and securely fastened. Failure to do so can
cause serious injury.
[] Make sure alt guards, straps, deflectors and
handles are properly and securely attached.
[] Use only the manufacturer's replacement
string in the cutting head. Do not use any other
cutting attachment, for example, metal wire,
rope, or the like. To install any other brand of
cutting head to this string trimmer can result in
serious personal injury.
[] Never operate unit without the grass deflector
in place and in good condition.
[] Check damaged parts. Before further use of
the toot, a guard or other part that is damaged
should be carefully checked to determine that
it will operate properly and perform its intended
function. Check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting and any other conditions that may
affect its operation. A guard or other part that is
damaged must be properly repaired or
replaced by an authorized service center to
avoid risk of personal injury.
[] Maintain a firm grip on both handles while
trimming. Keep string head below waist level.
[] Nevercut with the string head located over 30in,
or more above the ground.
[] Store idle appliances ° When not in use, string
trimmer should be stored indoors in a dry,
locked place out of the reach of children.
Make sure your extension cord is in good
condition. When using an extension cord, be
sure to use one heavy enough to carry the
current your product wilt draw. A wire gauge
size (A.W.G.) of at least 16 is recommended
for an extension cord 50 feet or less in length.
A cord exceeding 100 feet is not
recommended. If in doubt, use the next heavier
gauge. The smaller the gaugenumber, the
heavier the cord. An undersized cord wilt cause
a drop in line voltage resulting in loss of power
and overheating.
[] Never use blades or flailing devices. Unit is
designed for line trimmer use only. Use of any
other accessories or attachments will increase
the risk of injury. Inspect area to be cut.
Remove objects (rocks, broken glass, nails,
wire, string, etc.) which can be thrown or
become entangled in cutting head.
[] Keep the air vents clean and free of debris to
avoid overheating the motor. Clean after each
use.
[] Stop the unit and disconnect the power source
when not in use. Carry the unit with the motor
stopped.
[] Store unplugged and out of the reach of
children.
[] Do not hang unit so that the switch trigger is
depressed.
[] Do not use multiple cords.
[] Do not abuse the cord. Never carry the unit by
the extension cord or yank extension cord to
disconnect unit.
[] Keep the extension cord clear of operator and
obstacles at alt times. Do not expose cords to
heat, oil, water, or sharp edges.
If the power supply cord is damaged, it must be
replaced only by the manufacturer or by an
authorized service center to avoid risk.
[] Save these instructions. Refer to them
frequently and use them to instruct others who
may use this power tool. If you loan someone
this power tool, loan them these instructions
also.
4 - English

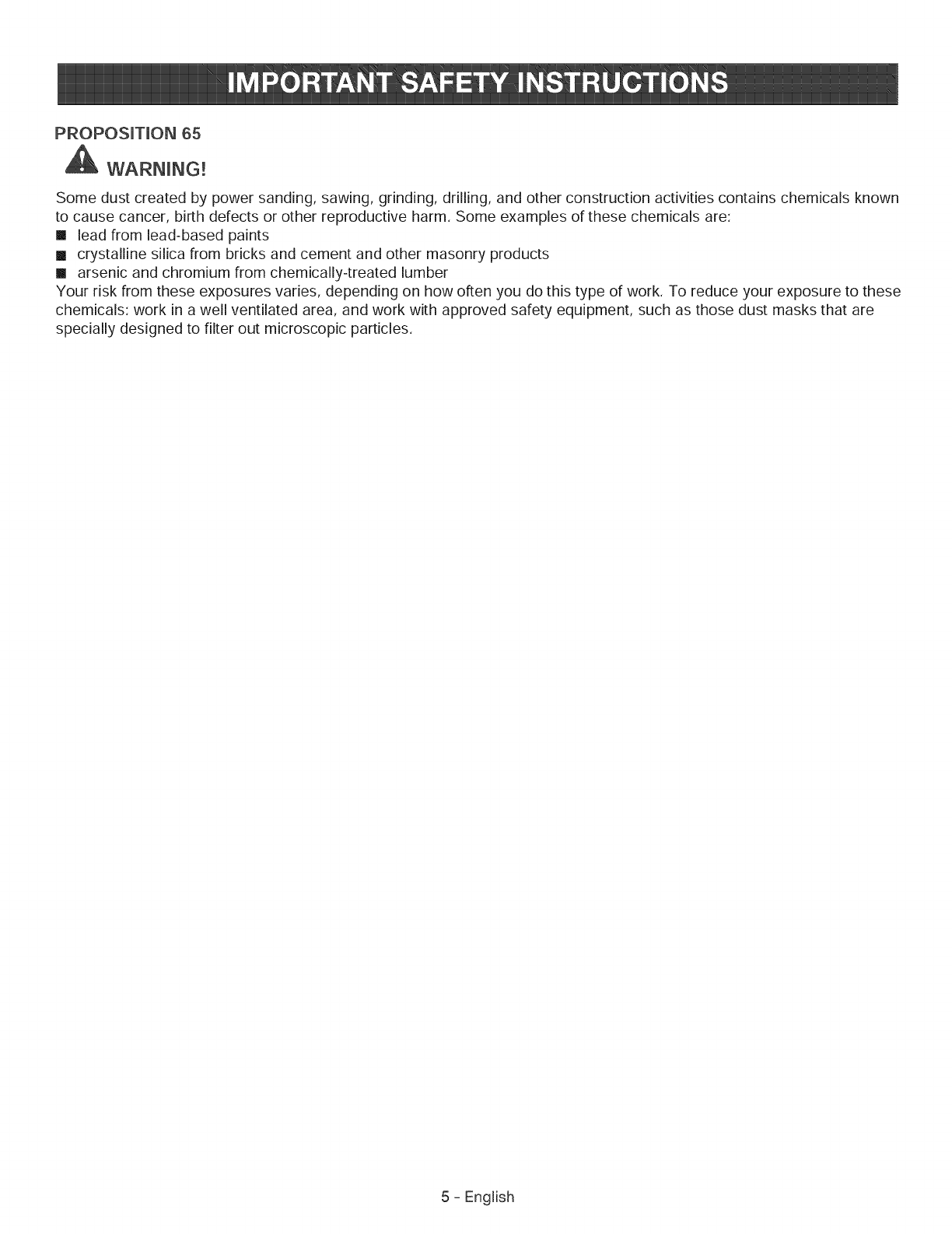

PROPOSUTUON 65
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known
to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
[] lead from lead-based paints
[] crystalline silica from bricks and cement and other masonry products
[] arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these
chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles.
5 - English
Thefollowingsignalwordsandmeaningsareintendedto explainthelevelsof riskassociatedwiththisproduct.
SYMBOL SIGNAL MEANING
,l_ DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
_, WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
ACAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
'%, Alternating Current Type of current
-----, Direct Current Type or a characteristic of current
Class II Construction Double-insulated construction
Wet Conditions Alert Do not expose to rain or use in damp locations
[]
®
Read The Operator's Manual To reduce the risk of injury user must read and
understand operator's manual before using this
product.
ASafety Alert Precautions that involve your safety.
Keep Bystanders Away
Eye ProtectionO
Keep all bystanders at least 50 ft. away.
Always wear safety goggles or safety glasses
with side shields and, as necessary, a full face
shield when operating this product.
6-English

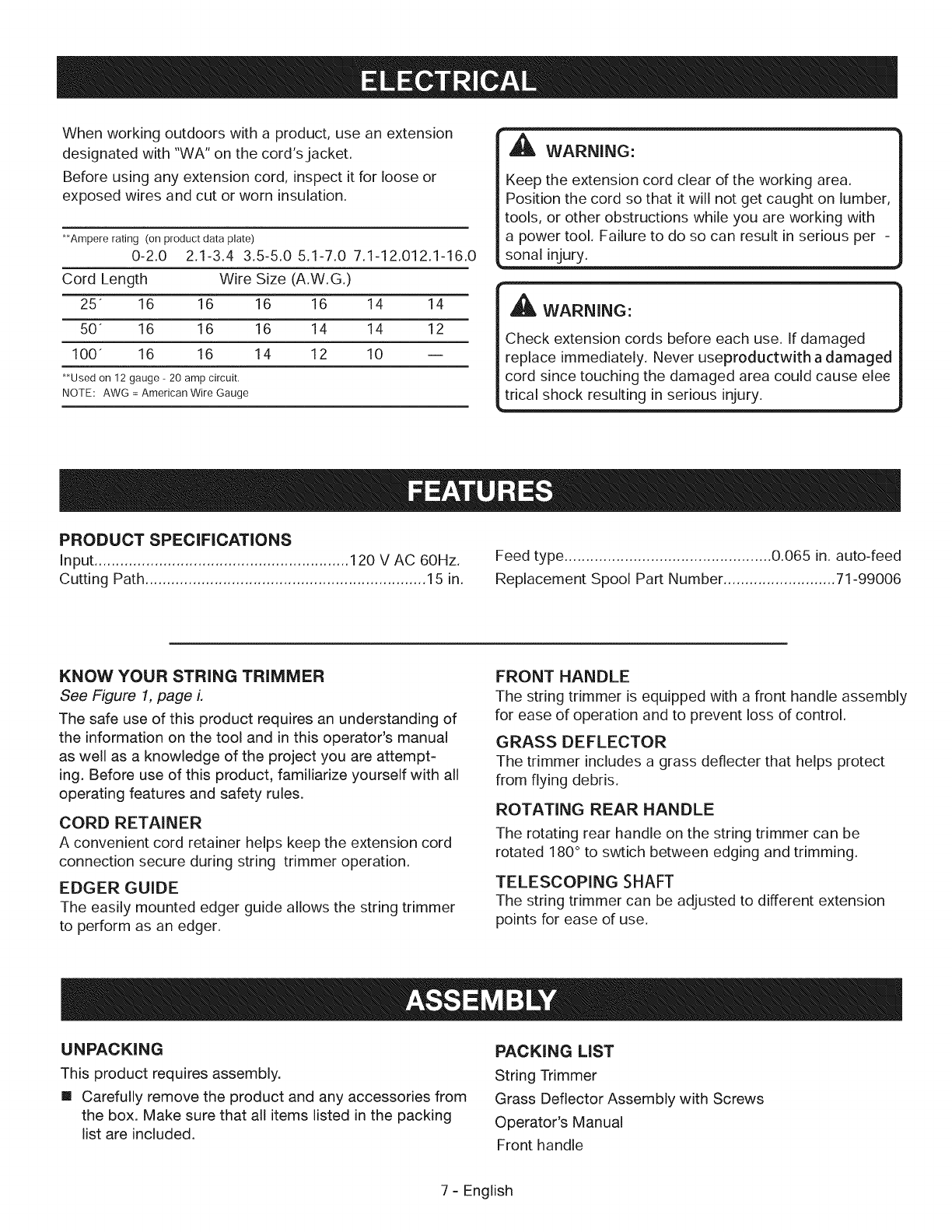

Whenworkingoutdoorswitha product,useanextension
designatedwith"WA"onthecord'sjacket.
Beforeusinganyextensioncord,inspectitforlooseor
exposedwiresandcutorworninsulation.
_Ampere rating (on product data plate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.012.1-16.0
Cord Length Wire Size (A.W.G.)
25 16 16 16 16 14 14
50 16 16 16 14 14 12
100 16 16 14 12 10 --
_Used on 12 gauge - 20 amp circuit.
NOTE: AWG = American Wire Gauge
_h, WARNING:
Keep the extension cord clear of the working area.
Position the cord so that it will not get caught on lumber,
tools, or other obstructions while you are working with
a power tool. Failure to do so can result in serious per -
sonal injury.
WARNING:
Check extension cords before each use. If damaged
replace immediately. Never useproductwith a damaged
cord since touching the damaged area could cause elee
trical shock resulting in serious injury.
PRODUCT SPECIFICATIONS
Input ........................................................... 120 V AC 60Hz.
Cutting Path ................................................................. 15 in.
Feed type ................................................ 0.065 in. auto-feed
Replacement Spool Part Number .......................... 71-99006
KNOW YOUR STRING TRIMMER
See Figure 1, page L
The safe use of this product requires an understanding of
the information on the tool and in this operator's manual
as well as a knowledge of the project you are attempt-
ing. Before use of this product, familiarize yourself with all
operating features and safety rules.
CORD RETAINER
A convenient cord retainer helps keep the extension cord
connection secure during string trimmer operation.
EDGER GUIDE
The easily mounted edger guide allows the string trimmer
to perform as an edger.
FRONT HANDLE
The string trimmer is equipped with a front handle assembly
for ease of operation and to prevent loss of control.
GRASS DEFLECTOR
The trimmer includes a grass deflecter that helps protect
from flying debris.
ROTATING REAR HANDLE
The rotating rear handle on the string trimmer can be
rotated 180° to swtich between edging and trimming.
TELESCOPING SHAFT
The string trimmer can be adjusted to different extension
points for ease of use.
UNPACKING
This product requires assembly.
[] Carefully remove the product and any accessories from
the box. Make sure that all items listed in the packing
list are included.
PACKING LIST
String Trimmer
Grass Deflector Assembly with Screws
Operator's Manual
Front handle
7- English
_WARNING: Do not use this product if it is not
completely assembled or if any parts appear to be
missing or damaged. Use of a product that is not
properly and completely assembled could result in
serious personal injury.
[] Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
[] Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
[] If any parts are damaged or missing, please call
1-888-266-7096 for assistance.
,_, WARNING: If any parts are damaged or missing do
not operate this product until the parts are replaced. Use
of this product with damaged or missing parts could result
in serious personal injury.
,_1_ WARNING: Do not attempt to modify this product
or create accessories not recommended for use with
this product. Any such alteration or modification is
misuse and could result in a hazardous condition leading
to possible serious personal injury.
ATTACHING GRASS DEFLECTOR
See Figure 2 -3, page L
,_ WARNING: The line cut-off blade on the grass
deflector is sharp. Avoid contact with the blade.
Failure to avoid contact can result in serious per-
sonal injury,
[] Remove supplied screw with a phillips screwdriver from
the trimmer head.
[] Fit the grass deflector into the slots on the trimmer housing.
[] Line up the screw hole in the grass deflector with the
center hole in the trimmer head.
[] Install supplied screw and tighten by turning clockwise
with a phillips screwdriver.
ADJUSTING THE FRONT HANDLE
See Figure 4, page i
[] Loosen and remove the knob from the handle.
[] Install the handle on the rear handle pole in the area
indicated by the illustration.
[] Adjust handle up or down, if necessary, to desired
operating position.
[] Reinstall the knob. Tighten it to secure.
_ WARNING: If any parts are damaged or missing,
do not operate this product until the parts are
replaced. Failure to heed this warning could result in
serious personal injury.
,_lt, WARNING: Do not attempt to modify this product
or create accessories not recommended for use with
this product. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
_ WARNING: Do not connect to power supply until
assembly is complete. Failure to comply could result
in accidental starting and possible serious personal
injury.
STARTING/STOPPING THE TRIMMER
See Figure 4 -5, page i.
NOTE: Use only approved outdoor extension cords.
[] Attach the outlet end of an extension cord to the
plug on the rear of the string trimmer.
[] Route the extension cord through the slot located on
the rear of the string trimmer housing and place
underneath the cord retainer.
[] To start the string trimmer, press the switch trigger.
[] To stop the string trimmer, release the switch trigger.
OPERATING THE TRIMMER
See Figure 6, page i.
Folow these tips when using the string trimmer:
[] Hold the trimmer with your right hand on the rear
handle and your left hand on the front handle.
[] Keep a firm grip with both hands while in operation.
[] Trimmer should be held at a comfortable position with
the rear handle about hip height.
[] Cut tall grass from the top down. This will prevent
grass from wrapping around the shaft housing and
string head.
If grass becomes wrapped around the string head:
[] Stop the trimmer.
[] Unplug the string trimmer.
[] Removethe grass.
8 - English

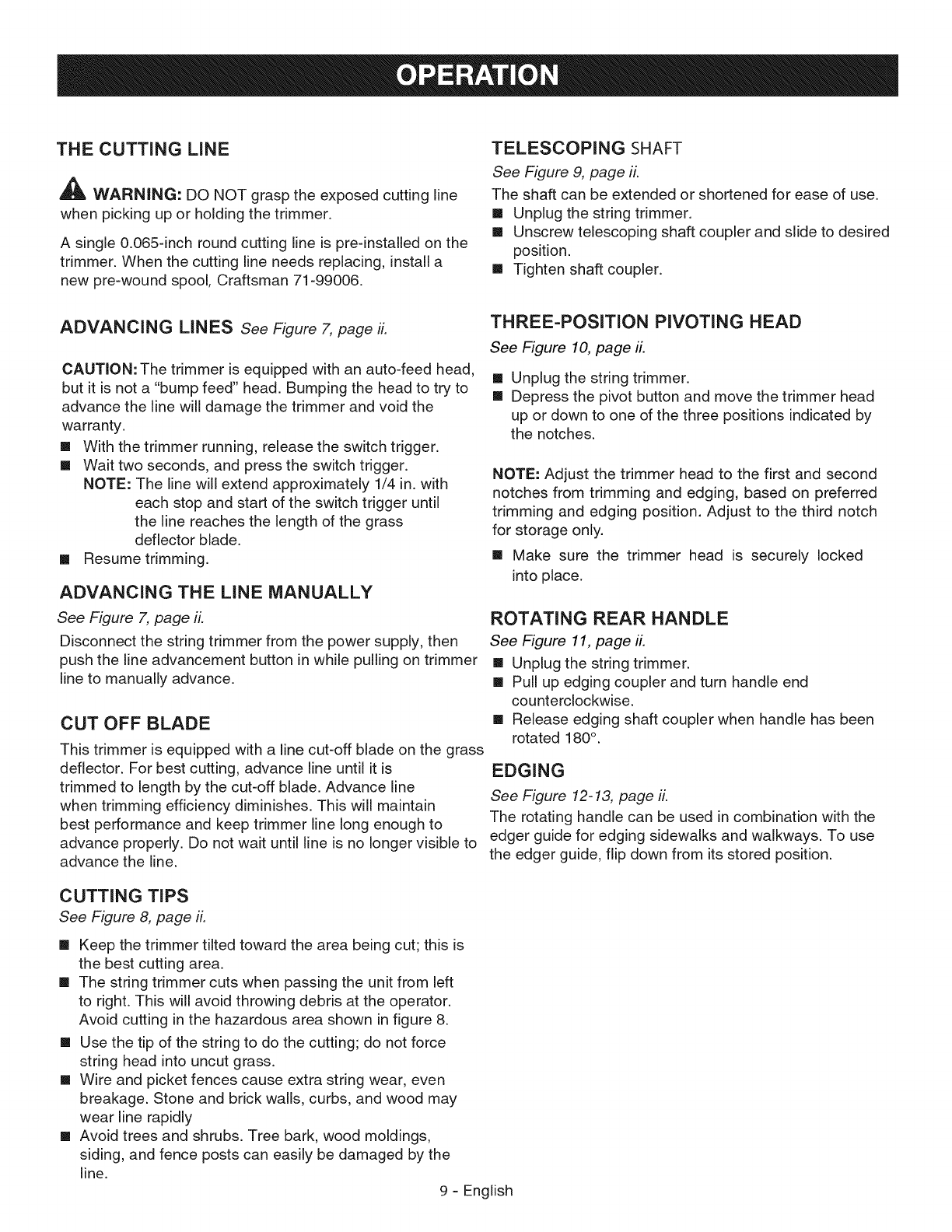

THE CUTTING LiNE
_, WARNING: DO NOT grasp the exposed cutting line
when picking up or holding the trimmer.
A single 0.065-inch round cutting line is pre-installed on the
trimmer. When the cutting line needs replacing, installa
new pre-wound spool, Craftsman 71-99006.
TELESCOPING SHAFT
See Figure 9, page ii.
The shaft can be extended or shortened for ease of use.
[] Unplug the string trimmer.
[] Unscrew telescoping shaft coupler and slide to desired
position.
[] Tighten shaft coupler.
ADVANCING LINES See Figure 7, page ii.
CAUTION: The trimmer is equipped with an auto-feed head,
but it is not a "bump feed" head. Bumping the head to try to
advance the line will damage the trimmer and void the
warranty.
[] With the trimmer running, release the switch trigger.
[] Wait two seconds, and press the switch trigger.
NOTE: The line will extend approximately 1/4 in. with
each stop and start of the switch trigger until
the line reaches the length of the grass
deflector blade.
[] Resume trimming.
ADVANCING THE LINE MANUALLY
See Figure 7, page ii.
Disconnect the string trimmer from the power supply, then
push the line advancement button in while pulling on trimmer
line to manually advance.
CUT OFF BLADE
This trimmer is equipped with a line cut-off blade on the grass
deflector. For best cutting, advance line until it is
trimmed to length by the cut-off blade. Advance line
when trimming efficiency diminishes. This will maintain
best performance and keep trimmer line long enough to
advance properly. Do not wait until line is no longer visible to
advance the line.
THREE=POSITION PIVOTING HEAD

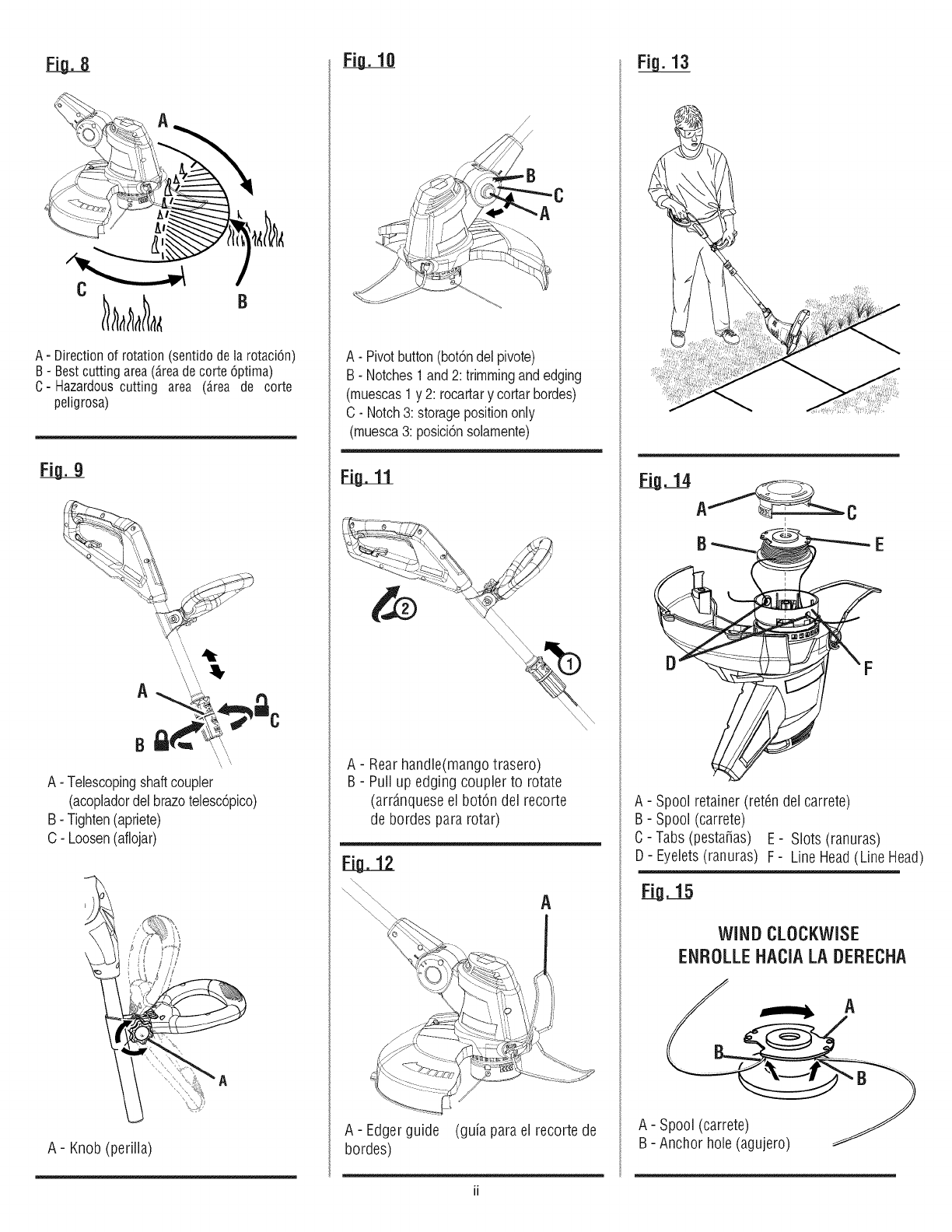

See Figure 10, page ii.
[]
[]
Unplug the string trimmer.
Depress the pivot button and move the trimmer head
up or down to one of the three positions indicated by
the notches.
NOTE: Adjust the trimmer head to the first and second
notches from trimming and edging, based on preferred
trimming and edging position. Adjust to the third notch
for storage only.
[] Make sure the trimmer head is securely locked
into place.
ROTATING REAR HANDLE
See Figure 11, page ii.
[] Unplug the string trimmer.
[] Pull up edging coupler and turn handle end
counterclockwise.
[] Release edging shaft coupler when handle has been
rotated 180°.
EDGING
See Figure 12-t3, page ii.
The rotating handle can be used in combination with the
edger guide for edging sidewa(ks and wa(kways. To use
the edger guide, flip down from its stored position.
CUTT(NG TiPS
See Figure 8, page ii.
[] Keep the trimmer tilted toward the area being cut; this is
the best cutting area.
[] The string trimmer cuts when passing the unit from left
to right. This will avoid throwing debris at the operator.
Avoid cutting in the hazardous area shown in figure 8.
[] Use the tip of the string to do the cutting; do not force
string head into uncut grass.
[] Wire and picket fences cause extra string wear, even
breakage. Stone and brick walls, curbs, and wood may
wear line rapidly
[] Avoid trees and shrubs. Tree bark, wood moldings,
siding, and fence posts can easily be damaged by the
line.
9 - English
A

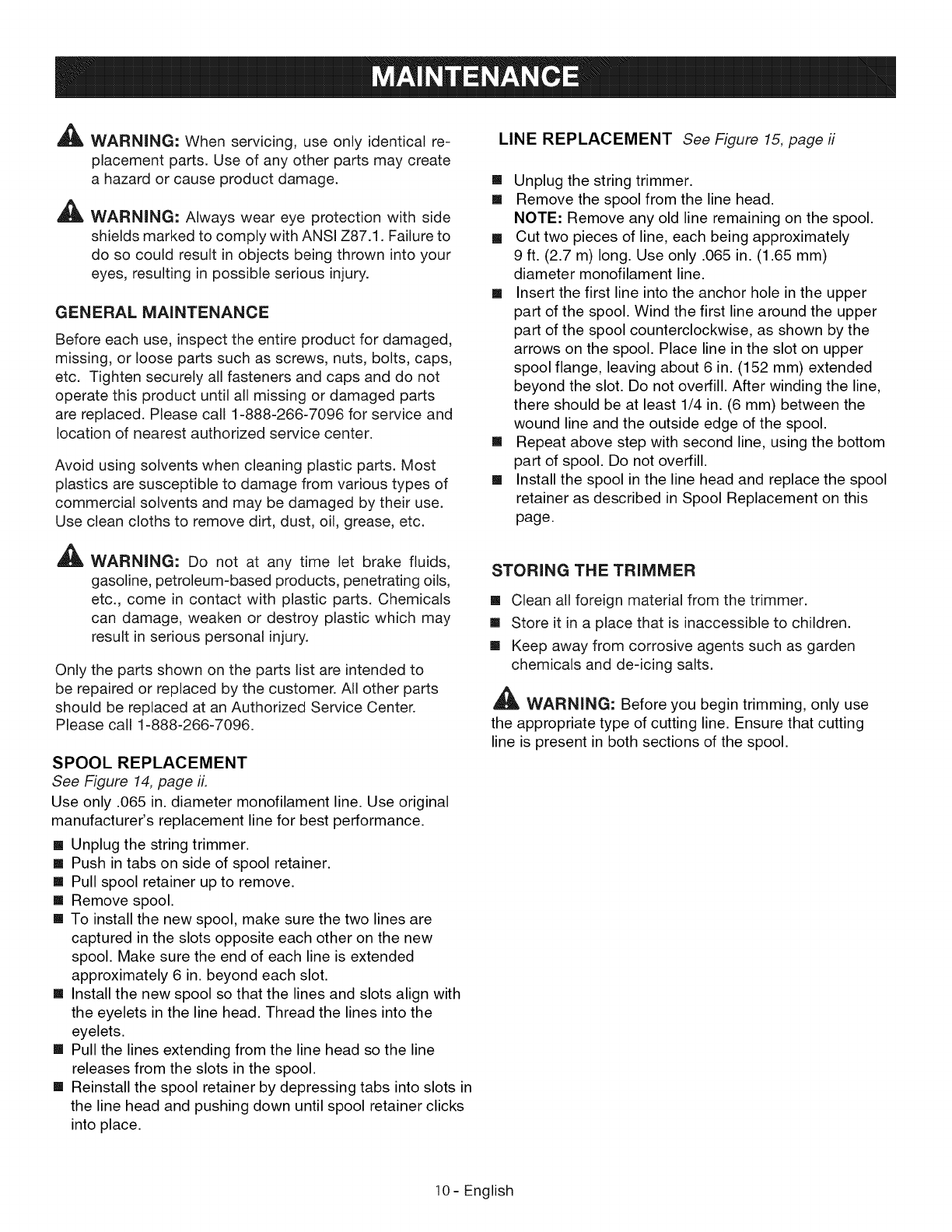

WARNING: When servicing, use only identical re-
placement parts. Use of any other parts may create
a hazard or cause product damage.
WARNING: Always wear eye protection with side
shields marked to comply with ANSI Z87.1. Failure to
do so could result in objects being thrown into your
eyes, resulting in possible serious injury.
GENERAL MAINTENANCE
Before each use, inspect the entire product for damaged,
missing, or loose parts such as screws, nuts, bolts, caps,
etc. Tighten securely all fasteners and caps and do not
operate this product until all missing or damaged parts
are replaced. Please call 1-888-266-7096 for service and
location of nearest authorized service center.
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
AWARNING: Do not at any time let brake fluids,
gasoline, petroleum-based products, penetrating oils,
etc., come in contact with plastic parts. Chemicals
can damage, weaken or destroy plastic which may
result in serious personal injury.
Only the parts shown on the parts list are intended to
be repaired or replaced by the customer. All other parts
should be replaced at an Authorized Service Center.
Please call 1-888-266-7096.
SPOOL REPLACEMENT
See Figure 14, page iL
Use only .065 in. diameter monofilament line. Use original
manufacturer's replacement line for best performance.
[] Unplug the string trimmer.
[] Push in tabs on side of spool retainer.
[] Pull spool retainer up to remove.
[] Remove spool.
[] To install the new spool, make sure the two lines are
captured in the slots opposite each other on the new
spool. Make sure the end of each line is extended
approximately 6 in. beyond each slot.
[] Install the new spool so that the lines and slots align with
the eyelets in the line head. Thread the lines into the
eyelets.
== Pull the lines extending from the line head so the line
releases from the slots in the spool.
[] Reinstall the spool retainer by depressing tabs into slots in
the line head and pushing down until spool retainer clicks
into place.
LINE REPLACEMENT See Figure 15, page fi
[] Unplug the string trimmer.
[] Remove the spool from the line head.
NOTE: Remove any old line remaining on the spool.
m Cut two pieces of line, each being approximately
9 ft. (2.7 m) long. Use only .065 in. (1.65 mm)
diameter monofilament line.
[] Insert the first line into the anchor hole in the upper
part of the spool. Wind the first line around the upper
part of the spool counterclockwise, as shown by the
arrows on the spool. Place line in the slot on upper
spool flange, leaving about 6 in. (152 mm) extended
beyond the slot. Do not overfill. After winding the line,
there should be at least 1/4 in. (6 ram) between the
wound line and the outside edge of the spool.
[] Repeat above step with second line, using the bottom
part of spool. Do not overfill.
[] Install the spool in the line head and replace the spool
retainer as described in Spool Replacement on this
page.
STORING THE TRIMMER
[] Clean all foreign material from the trimmer.
[] Store it in a place that is inaccessible to children.
[] Keep away from corrosive agents such as garden
chemicals and de-icing salts.
_IL WARNING: Before you begin trimming, only use
the appropriate type of cutting line. Ensure that cutting
line is present in both sections of the spool.
10- English
PROBLEM POSSIBLE CAUSE SOLUTION
Strings will not feed when
use as per instructions:
1. Strings have become
stuck together due to heat
or storage time.
2. Not enough string
present in spool.
1. Unplug trimmer. Open spool
retainer. Remove spool, unwind line
and then rewind onto spool housing.
2. Unplug trimmer. Open spool
retainer. Remove spool and replace
with new line or new spool
assembly as per instructions in this
manual.
3. Strings are tangled
on spool
3. Unplug trimmer. Open spool
cover. Remove spool. Unwind and
remove tangled line. Rewind line
as per instructions in this manual.
Grass wraps around drive
shaft housing and string
head.
1. Cutting tall grass at
ground level.
1. Cut tall grass from the top
down to prevent wrapping.
Motor fails to start when
switch trigger is depressed.
1. Power cord is not plugged
in or connection is loose.
2. Household circuit breaker
is tripped.
3. Extension cord may be
faulty.
1. Plug in the power cord.
2. Check circuit breaker.
3. Try another extension cord or
connect into another wall
receptacle socket on a different
circuit.
11 - English
fCRAFTSMAN 15in. STRING TRIMMER - MODEL NUMBER 138.98982
to the lowersha_'-'---_t, i .............................. i
To order replacement parts, call 1-888-331-4569. J
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
6
7
PARTS LIST
Key Part
No. Number Description Qty.
1 3110282-9 Front handle knob
2 3110482-2 Front handle clamp
3 3110182-9 Front handle
4 33315875 Edging guide
5 31105875 15" trimmer guard
6 31106874 Auto-feed housing assembly
7 31104178 Auto-feed spool
8 34101176A-1 Spool cover
9 3220313-3 M4 x16 screw
1
1
1
1
1
1
1
1
12 - English
See this section for all the figures referenced
in the operator's manual.
Vea esta secci6n de Ja p_gina para todas
Jas figuras mencion6 en eJ rnanuaJ del operadoro
j
A- Cord retainer (reten parael cable)
B - Switch trigger (gatillo del interruptor)
C - Rotating rear handle(c6mo rotar el
mango trasero)
D- Front handle(mango delantero)
E- Telescoping shaft (brazo telesc6pico)
F- Grassdeflector (deflector de hierba)
G - Edgerguide (guia parael recorte de
bordes)
A- Grass deflector (deflector de hierba)
B- Slide over head (Slide over head)
A
A- Screw(tornillo)
B- Screw hole(orificio del tornillo)
A
A - Switch trigger (gati% del interruptor
B Attach outlet end of extension cord
(acpple aq,u[extremo del enchufe del cable de
ex_ensBon_
i
B
A
A- Cord retainer (para enro%r el cable)
B- Outlet end (extremo del enchufe)
B
A oLineAdvancementButton B- LineCuttingBlade
(LineAdvancementButton) ( LineCuttingBlade)
B
A = Direction of rotation (sentido de ta rotaci6n)
B - Best cutting area (dreade corte 6ptima)
C= Hazardous cutting area (_.rea de corte
peligrosa)
A- Telescopingshaftcoupler
(acopladordelbrazotelesc6pico)
B- Tighten(apriete)
C- Loosen(aflojar)
A- Knob (perilla)
/
/
A- Pivotbutton(bot6ndelpivote)
B- Notches1and2: trimmingandedging
(muescas1 y 2: rocartary cortarhordes)
C- Notch3: storagepositiononly
(muesca3: posici6nsolamente)
A- Rear handle(mangotrasero)
B - Pull up edging coupler to rotate
(arr_nquese el bot6n del recorte
de bordes para rotar)
A
A- Edgerguide (guia parael recorte de
bordes)
Af _C
A - Spool retainer (ret_n delcarrete)
B- Spool (carrete)
C- Tabs(pesta_as) E- Slots (ranuras)
D- Eyelets(ranuras) F- Line Head(Line Head)
FjLg.15
WINDCLOCKWISE
ENROLLEHACIALADERECNA
A
A- Spool (carrete)
B- Anchor hole (agujero)

Navigation menu
