SEARS

OWNER'S

MANUAL

Model No.

139.53491SRT

For Residential Use

Only

Caution:

Read and follow all

safety rules and

operating instructions

before first use of this

product.

Fasten the manual

near the garage door

after installation.

Complies withUL325 /'1111 _

regulations effective

January 1, 1993

CRRFTSMRN

1/2 HP

GARAGE DOOR OPENER

•Safety Precautions

•Assembly

•Installation

•Adjustment

•Care and Maintenance

•Operation

•Troubleshooting

•Parts List

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Contents

Safety alert symbol review ............................................ 2

Safety information, precautions, tools .......................... 3

Testing your garage door for binding & balance .......... 3

Carton inventory ........................................................... 4

Hardware inventory ....................................................... 5

Illustration of sectional door installation ..................... 6

Illustration of one-piece door installation ..................... 7

Assembly section - pages 8 - 11

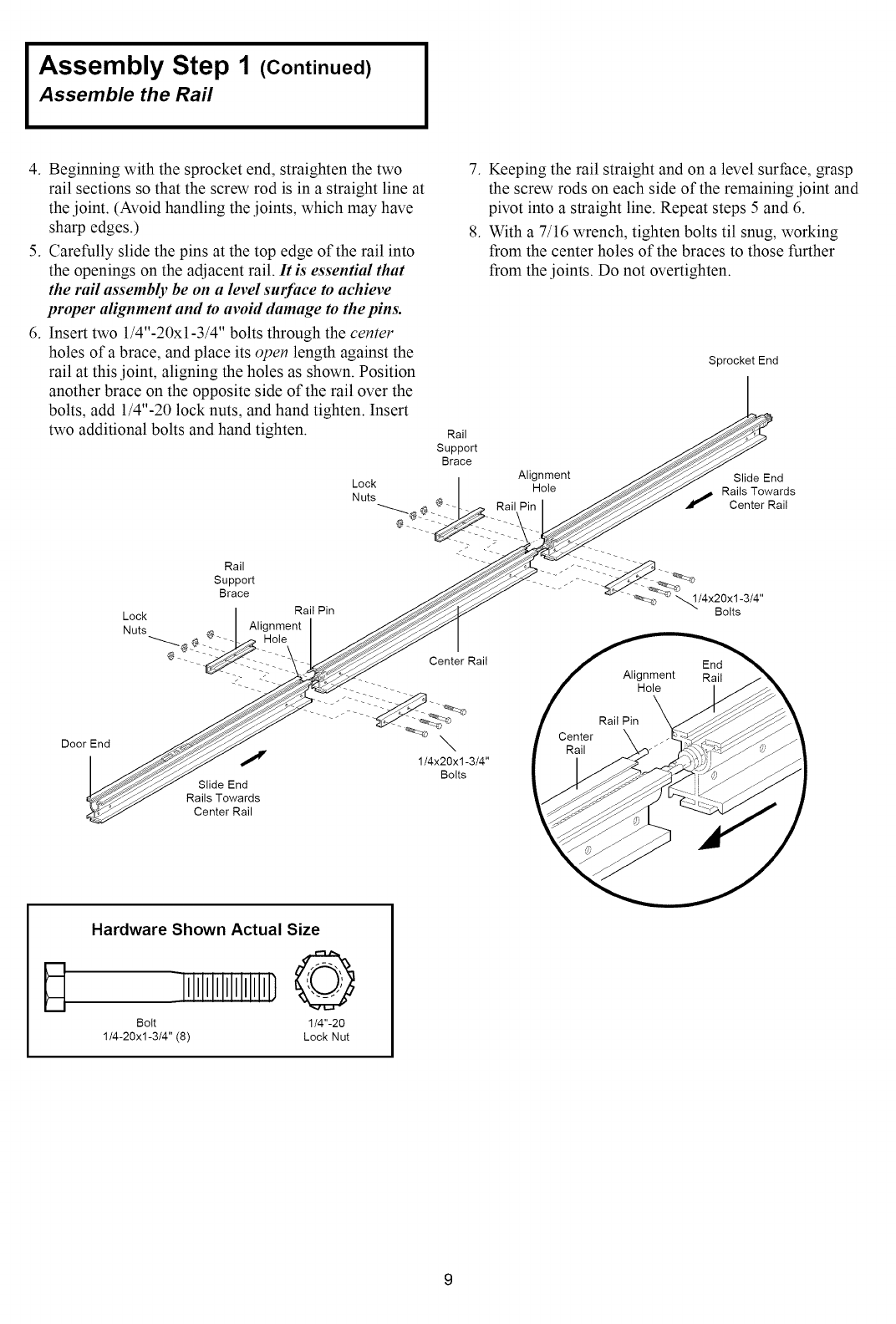

Assemble the rail ........................................................ 8

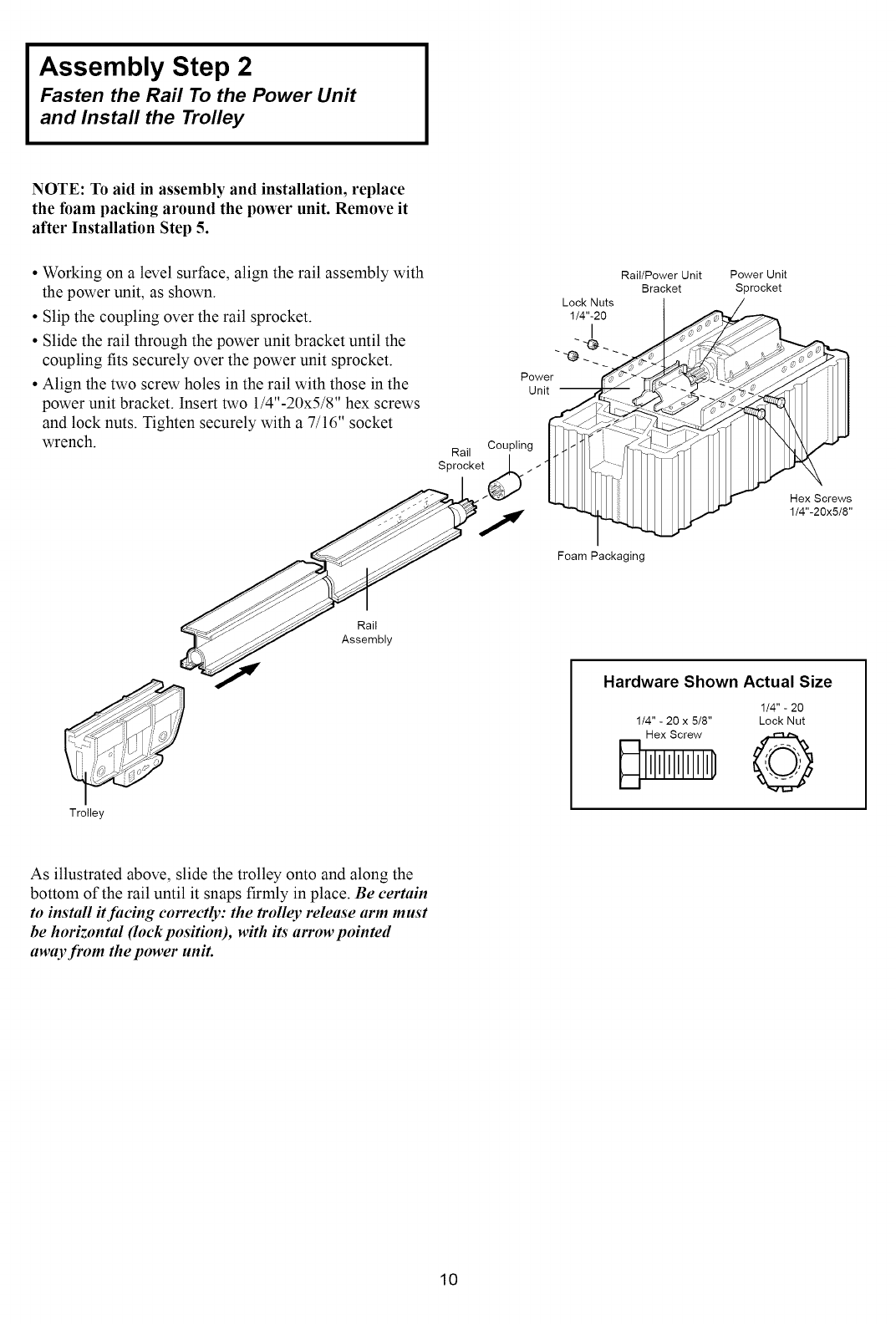

Fasten rail to power unit ............................................ 10

Install the trolley ....................................................... 10

Attach the rail brackets ............................................. 11

Installation section -pages 12 - 27

Installation safety instructions .................................. 11

Determine the header bracket location

Sectional door ......................................................... 12

One-piece door ........................................................ 13

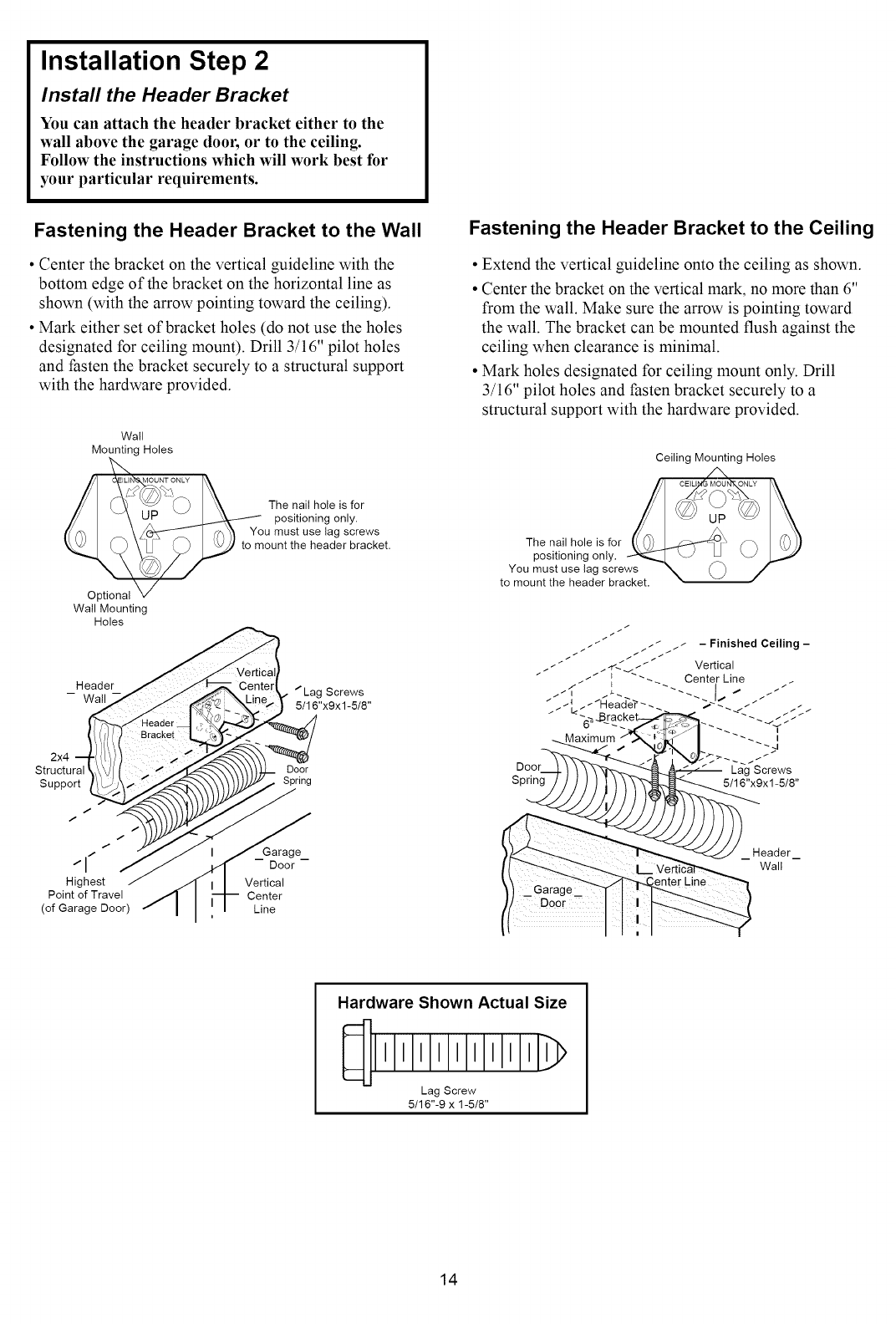

Install the header bracket .......................................... 14

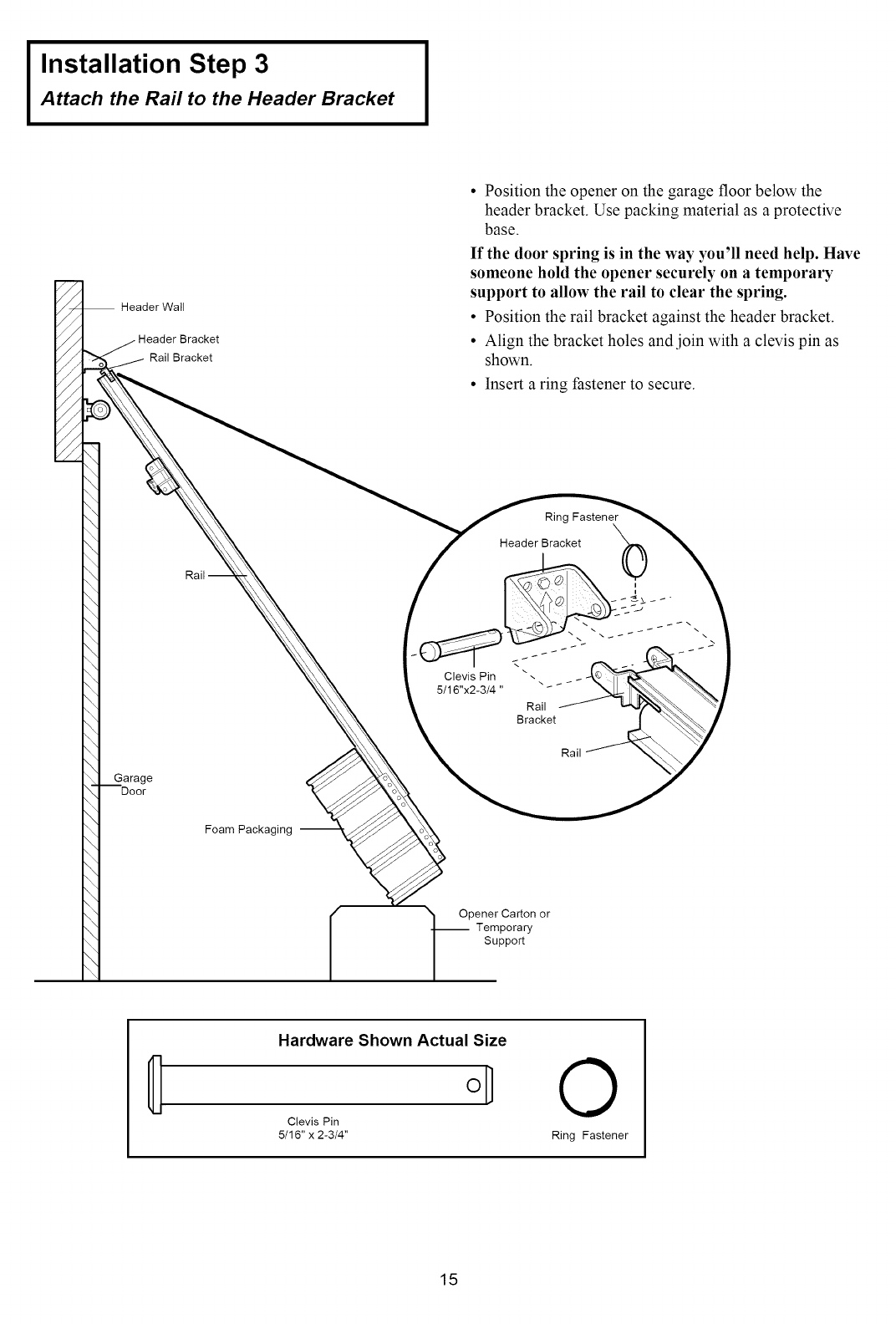

Attach the rail to the header bracket ......................... 15

Safety reversing sensor information ......................... 16

Install the safety reversing sensor ............................. 17

Position the opener .................................................... 19

Hang the opener ........................................................ 20

Install the door control and connect all wires ........... 21

Electrical requirements ............................................. 22

Complete the safety reversing sensor installation .....22

Install the lights and lens .......................................... 23

Attach the emergency release rope and handle ......... 23

Fasten the door bracket (sectional door) ................... 24

Fasten the door bracket (one-piece door) .................. 25

Connect door arm to trolley (sectional door) ............ 26

Connect door arm to trolley (one-piece door) ........... 27

Adjustment section -pages 28 - 30

Travel limit adjustments ............................................ 28

Force adjustments ..................................................... 29

Test the safety reversing sensor ................................ 30

Test the safety reverse system .................................. 30

Operation safety instructions ...................................... 31

Care of your opener .................................................... 31

Maintenance schedule ................................................. 31

Operation of your opener ............................................ 32

Receiver & remote control programming ................... 33

Troubleshooting .......................................................... 34

Repair parts, rail assembly .......................................... 36

Repair parts, installation ............................................. 36

Repair parts, power unit .............................................. 37

Accessories ................................................................. 38

Index ........................................................................... 39

How to order repair parts ............................................ 40

Warranty ...................................................................... 40

Start by reviewing these important safety alert symbols:

When you see these Safety Symbols on the following pages, they will alert you to the possibility of serious injury

or death if you do not comply with the corresponding instructions. The hazard may come from something

mechanical or from electric shock. Read the instructions carefully.

Mechanical Electrical

When you see this Safety Symbol on the following pages, it will alert you to the possibility of damage to your

garage door and/or the garage door opener if you do not comply with the corresponding instructions. Read the

instructions carefully.

iiii iiiiiiii iiii

This garage door opener is designed and tested to offer safe service provided it is installed, operated, maintained

and tested in strict accordance with the safety instructions contained in this manual.

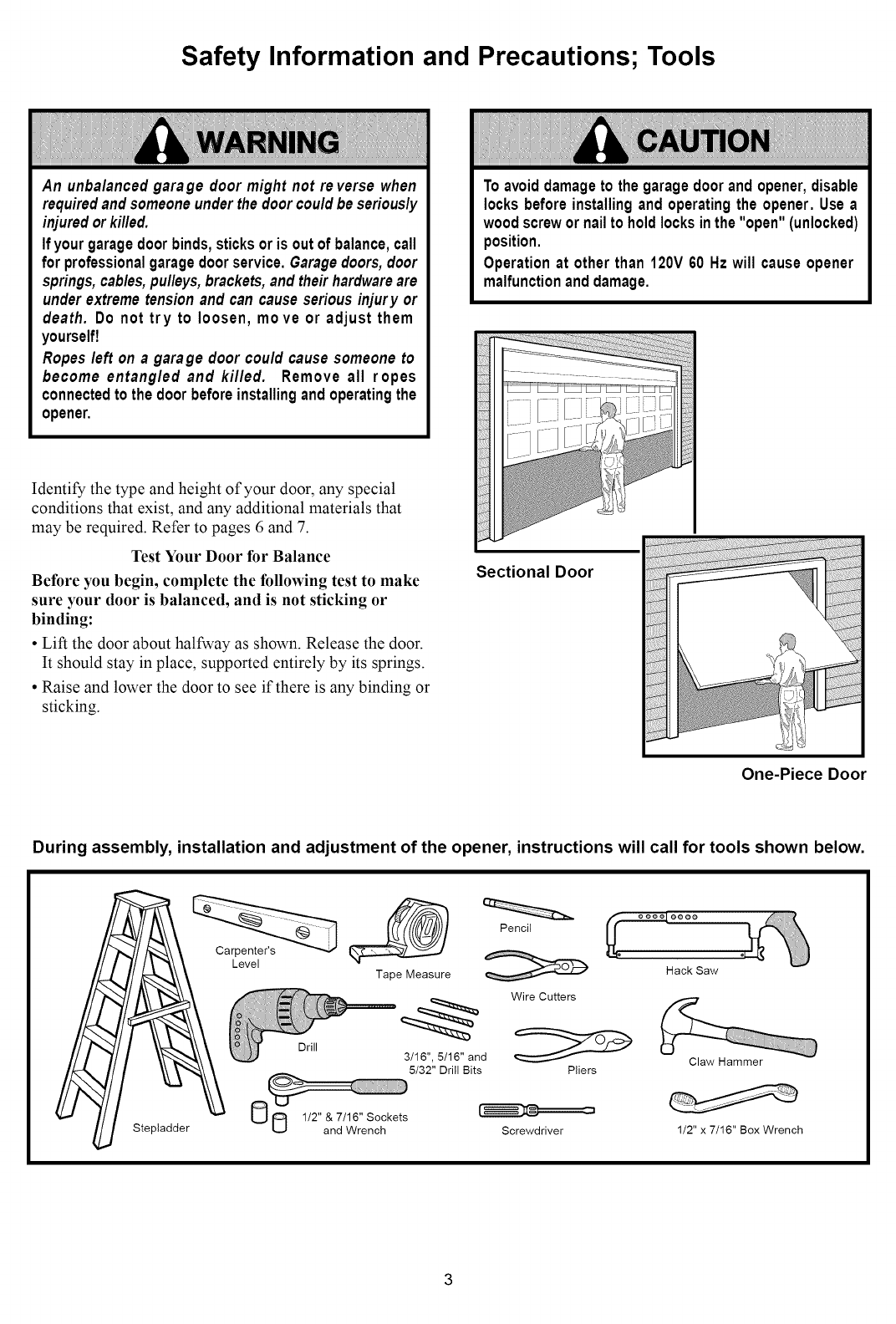

Safety Information and Precautions; Tools

An unbalancedgarage door might not re verse when

requiredand someoneunderthedoorcouldbe seriously

injuredorkilled.

If yourgaragedoorbinds,sticksor is outof balance,call

for professionalgaragedoorservice.Garagedoors,door

springs,cables,pulleys,brackets,and theirhardwareare

underextreme tensionand can cause seriousinjury or

death. Do not try to loosen, move or adjust them

yourself!

Ropes left on agarage door could cause someone to

become entangled and killed. Remove all ropes

connectedto the doorbeforeinstallingand operatingthe

opener.

Toavoiddamageto the garagedoorand opener,disable

locksbefore installingand operatingthe opener. Use a

woodscrewornail to holdlocksinthe "open" (unlocked)

position.

Operationat other than 120V 60 Hz will cause opener

malfunctionanddamage.

Identify the type and height of your door, any special

conditions that exist, and any additional materials that

may be required. Refer to pages 6 and 7.

Test Your Door for Balance

Before you begin, complete the following test to make

sure your door is balanced, and is not sticking or

binding:

•Lift the door about halfway as shown. Release the door.

It should stay in place, supported entirely by its springs.

• Raise and lower the door to see if there is any binding or

sticking.

Sectional Door

One-Piece Door

During assembly, installation and adjustment of the opener, instructions will call for tools shown below.

Stepladder

Level

Drill

Tape Measure

3/16", 5/16" and

5/32" Drill Bits

Pencil

Wire Cutters

Pliers

Screwdriver

Hack Saw

Claw Hammer

1/2" x 7/16" Box Wrench

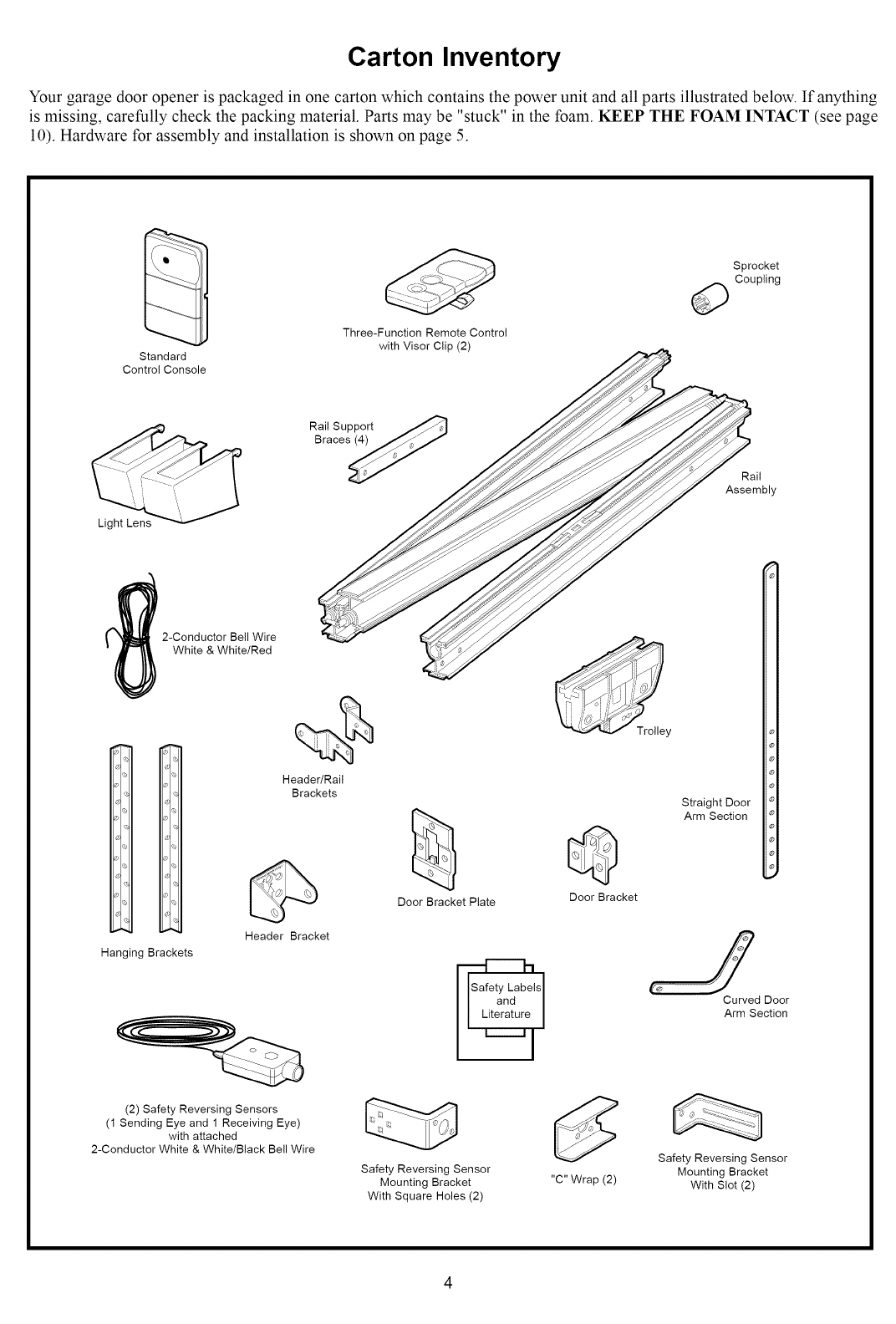

Carton Inventory

Your garage door opener is packaged in one carton which contains the power unit and all parts illustrated below. If anything

is missing, carefully check the packing material. Parts may be "stuck" in the foam. KEEP THE FOAM INTACT (see page

10). Hardware for assembly and installation is shown on page 5.

Standard

Control Console

Three-Function Remote Control

with Visor Clip (2)

Sprocket

Coupling

Light Lens

Rail Support

Braces_ Rail

Assembly

I__) I_

0._ 6/

_1_

iq? iq,

Hanging Brackets

2-Conductor Bell Wire

White & White/Red

Header/Rail

Brackets

Header Bracket

Door Bracket Plate

Door Bracket

Straight Door

Arm Section

Curved Door

Arm Section

(2) Safety Reversing Sensors

(1 Sending Eye and 1 Receiving Eye)

with attached

2-Conductor White & White/Black Bell Wire

Safety Reversing Sensor

Mounting Bracket

With Square Holes (2)

"C" Wrap (2)

Safety Reversing Sensor

Mounting Bracket

With Slot (2)

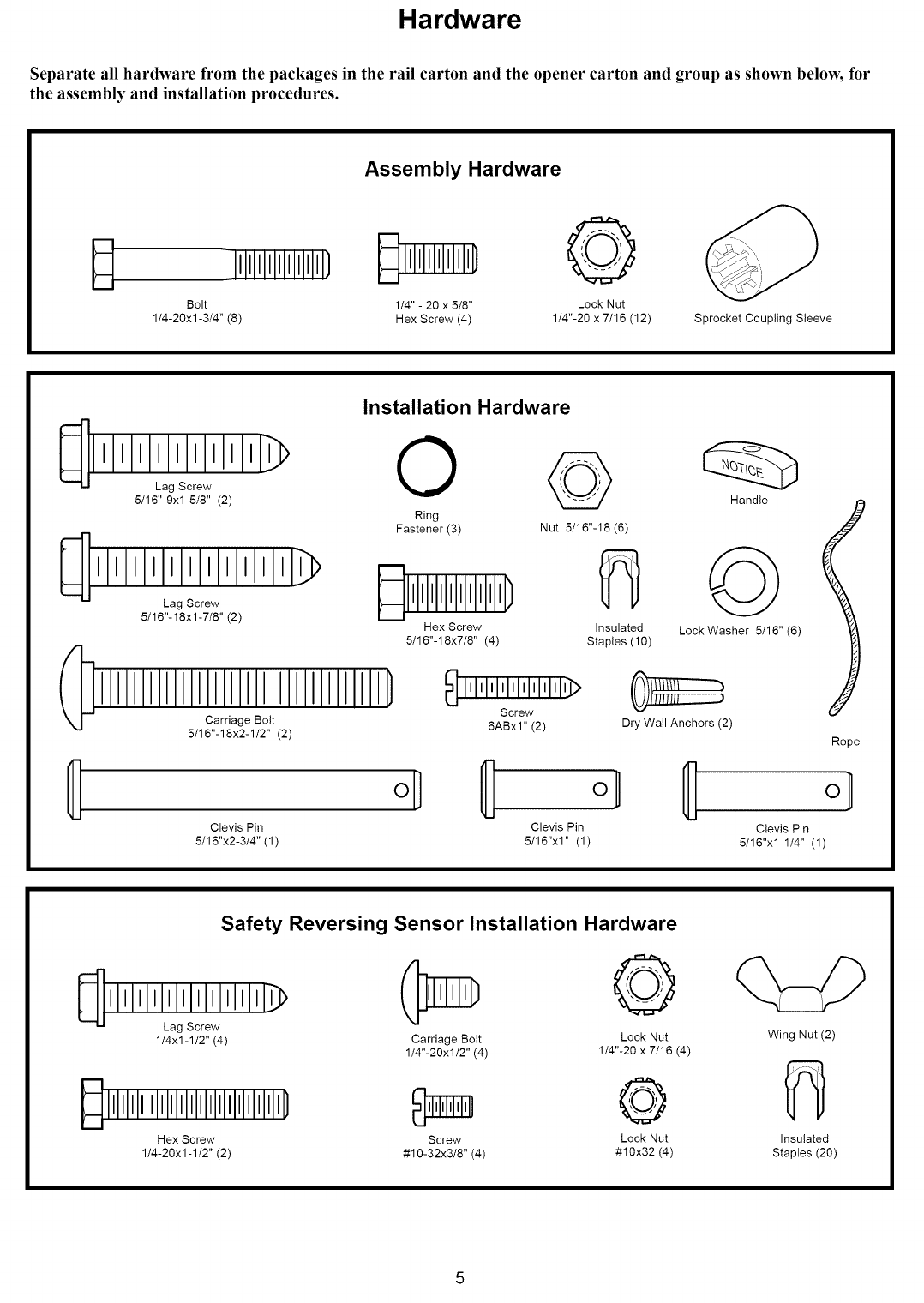

Hardware

Separate all hardware from the packages in the rail carton and the opener carton and group as shown below, for

the assembly and installation procedures.

Assembly Hardware

lllllllll/ RllllllID

Bolt 1/4" - 20 x 5/8"

1/4-20xl-3/4" (8) Hex Screw (4)

Lock Nut

1/4"-20 x 7/16 (12) Sprocket Coupling Sleeve

Installation Hardware

_ ] ] ] laglSclew] ] I _ O

5/16"-9xl-5/8" (2)

111111111111 >

Lag Screw

5/16"-18xl-7/8" (2)

Ring

Fastener (3) Nut 5/16"-18 (6)

Hex Screw

5/16"-18x7/8" (4)

Insulated

Staples (10)

Handle

Lock Washer 5/16" (6)

Carriage Bolt 6ABxl" (2) Dry Wall Anchors (2)

5/16"-18x2-1/2" (2)

o] oH

Clevis Pin Clevis Pin

5/16"x2-3/4" (1) 5/16"x1" (1)

Rope

Clevis Pin

5/16"x1-1/4" (1)

Safety Reversing Sensor Installation Hardware

Lag Screw

1/4x1-1/2" (4)

Carriage Bolt Lock Nut

1/4"-20xl/2" (4) 1/4"-20 x 7/16 (4)

Hex Screw Screw Lock Nut

1/4-20xl -1/2" (2) #10-32x3/8" (4) #10x32 (4)

Wing Nut (2)

Insulated

Staples (20)

SECTIONAL Door Installation

Before you begin, survey your garage area to

see whether any of the conditions below apply

to your installation.

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum, door with glass panels, etc.).

See page 24 for details.

FINISHED CEILING

Support bracket &

fastening hardware

is required.

See page 20.

Header Wall

Extension Spring

Torsion Spring

Safety

Reversing

Sensor

Access Door

Safety Reversing Sensor

Floor must be level

across width of door

Based on your particular requirements, there are several

installation steps which might call for materials and/or

hardware not included in the carton.

• Step 1, page 12 - Look at the wall or ceiling above the

garage door. The header bracket must be securely

fastened to structural supports.

• Safety reversing sensor, page 16 - Depending upon

garage construction, wood blocks may need to be

fastened to mounting locations before sensors are

installed.

• Step 4, page 17 - Alternate floor mounting of the safety

reversing sensor will require hardware not provided.

• Step 6, page 20 - Do you have a finished ceiling in your

garage'? If so, a support bracket and additional fastening

hardware may be required.

• Step 12, page 24 - Do you have a steel, aluminum,

fiberglass or glass panel door'? If so, horizontal and

vertical reinforcement is required.

• Look at the garage door where it meets the floor. It

must close on the floor all the way across. Otherwise,

the safety reverse system may not work properly. See

page 30. Floor or door should be repaired.

Header

Wall

Garage --

Door

Closed Position

Header

Bracket Rail Rail Assembly

_/ Bracket ................................

Garage Trolley

_'(o3Y"Door / /

SpringlJ I

Straight /?/ IEmergency

Door __._7/ I_ Fpe&Han--oReleasedle

_ Curve_--

_1 Door "Door

_ Bracket Arm

• The opener can be installed within 2 feet of the left or

right of the door center if there is a torsion spring or

center bearing plate in the way of the header bracket or

door bracket area. [[):our door has extension springs',

the opener must be installed in the center of the dooe

See pages 12 and 24.

• Do you have an access door in addition to the garage

door'? If not, Model 53702 Emergency Key Release is

required. See page 38.

You may find it helpful to refer back to this page as

you proceed with the installation of your opener.

ONE-PIECE Door Installation

Before you begin, survey your garage area to

see whether any of the conditions below apply

to your installation.

FINISHED CEILING

Support bracket

& fastening

hardware is required.

See page 20.

Header

Wall One-Piece Door without Track

Access Door

Safety Reversing

Sensor

Ga _ between floor and bottom of

door must not exceed 1/4",

Safety Reversing Sensor

Based on your particular requirements, there are several

installation steps which might call for materials and/or

hardware not included in the carton.

• Step 1, page 13 - Look at the wall or ceiling above the

garage door. The header bracket must be securely

fastened to structural supports.

• Step 6, page 20 - Do you have a finished ceiling in your

garage'? If so, a support bracket and additional fastening

hardware (not supplied) may be required.

• Safety reversing sensor, page 16 - Depending on garage

construction, wood blocks may need to be securely

fastened to mounting locations before sensors are

installed.

• Step 14, page 17 - Alternate floor mounting of the

safety reversing sensor will require hardware that is not

provided.

• Step 12, page 25 - Generally, a one-piece door does not

require reinforcement. If your door is lightweight, you

can refer to the information relating to sectional doors

on page 24.

• Step 12, page 25 - Depending on your door's

construction, you might need additional mounting

hardware for the door bracket.

• Do you have an access door in addition to the garage

door'? If not, Model 53702 Emergency Key Release is

required. See page 38.

• The gap between the bottom of the garage door and

the floor cannot exceed 1/4". Otherwise, the safety

reverse system may not work properly. See page 30.

The floor or the door should be repaired.

Closed Position

Rail

Bracket

Rail Assembly

Garage Door

Door Arm

Header

Wall

Reversing

:_if__ust be level Reversing

Sensor

_ _dih ofdoor Sensor

Reversing Sensor

Closed Position

Rail Trolley

Header _ o z.-,_..._-,,-Curved I

Bracket _/_ Rail Assembly

-- O000000lO000

- Door °°::;j:°°°'J I EmergencyReleasel

Bracket _ralgm I--

Door I-- Rope & Handle

Door Arm

You may find it helpful to refer back to this page as

you proceed with the installation of your opener.

ASSEMBLY SECTION" PAGES 8 - 11

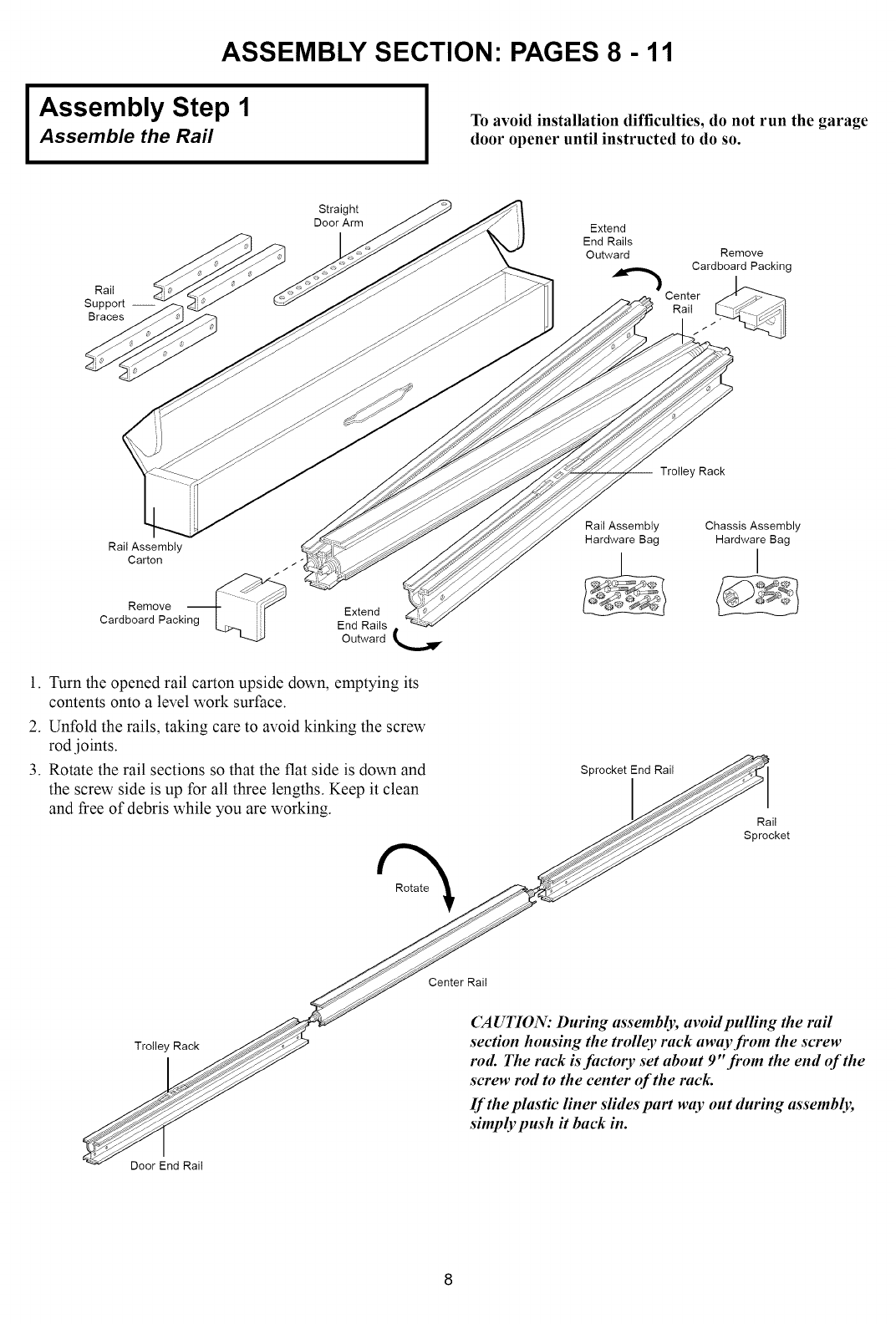

Assembly Step 1

Assemble the Rail To avoid installation difficulties, do not run the garage

door opener until instructed to do so.

Rail

Support --

Braces

Straight

Door Arm Extend

End Rails

Outward Remove

Cardboard Packing

Center

Rail

Trolley Rack

Rail Assembly (

Carton _ _"

Remove

Cardboard Packing Extend

End Rails

Outward

1. Turn the opened rail carton upside down, emptying its

contents onto a level work surface.

2. Unfold the rails, taking care to avoid kinking the screw

rod joints.

3. Rotate the rail sections so that the flat side is down and

the screw side is up for all three lengths. Keep it clean

and free of debris while you are working.

Rail Assembly

Hardware Bag

Sprocket End Rail

Chassis Assembly

Hardware Bag

Rail

Sprocket

Trolley Rack

DoorEnd Rail

Center Rail

CAUTION: During assembly, awdd pulling the rail

section housing the trolley rack away from the screw

rod. The rack is facto1T set about 9"from the end of the

screw rod to the center of the rack.

If the plastic liner slides part way out during assembly,

simply push it back in.

Assembly Step 1 (Continued)

Assemble the Rail

4. Beginning with the sprocket end, straighten the two

rail sections so that the screw rod is in a straight line at

the joint. (Avoid handling the joints, which may have

sharp edges.)

5. Carefully slide the pins at the top edge of the rail into

the openings on the adjacent rail. It is essential that

the rail assembly be on a level smfaee to achieve

proper alignment and to aw_id damage to the pins.

6. Insert two 1/4"-20xl-3/4" bolts through the center

holes of a brace, and place its open length against the

rail at this joint, aligning the holes as shown. Position

another brace on the opposite side of the rail over the

bolts, add 1/4"-20 lock nuts, and hand tighten. Insert

two additional bolts and hand tighten. Rail

Support

Brace

7. Keeping the rail straight and on a level surface, grasp

the screw rods on each side of the remaining joint and

pivot into a straight line. Repeat steps 5 and 6.

8. With a 7/16 wrench, tighten bolts til snug, working

from the center holes of the braces to those further

from the joints. Do not overtighten.

Sprocket End

Alignment Slide End

Lock Hole Rails Towards

Nuts Center Rail

Door End

Rail )__ _ _--_'---_

Support

Brace 1/4x2Ox1-3/4"

Lock Rail Pin Bolts

Nuts Alignment

@- - - - - Center Rail

_ _" 1/4x20x 1-3/4"

Bolts

Slide End

Rails Towards

Center Rail

Hardware Shown Actual Size

illllllll} @

Bolt 1/4"-20

1/4-20xl-3/4" (8) Lock Nut

Assembly Step 2

Fasten the Rail To the Power Unit

and Install the Trolley

NOTE: To aid in assembly and installation, replace

the foam packing around the power unit. Remove it

after Installation Step 5.

•Working on a level surface, align the rail assembly with

the power unit, as shown.

• Slip the coupling over the rail sprocket.

• Slide the rail through the power unit bracket until the

coupling fits securely over the power unit sprocket.

• Align the two screw holes in the rail with those in the

power unit bracket. Insert two 1/4"-20x5/8" hex screws

and lock nuts. Tighten securely with a 7/16" socket

wrench.

Rail

Assembly

Trolley

Lock Nuts

1/4"-20

Foam Packaging

Rail/Power Unit

Bracket

Power Unit

Sprocket

_" Hex Screws

1/4"-20x5/8"

Hardware Shown Actual Size

1/4"- 20

1/4" - 20 x 5/8" Lock Nut

D;Ix,sI:;,D@

As illustrated above, slide the trolley onto and along the

bottom of the rail until it snaps firmly in place. Be certain

to install #facing correctly: the trolley release arm must

be horizontal (lock position), with its arrow pointed

away from the power unit.

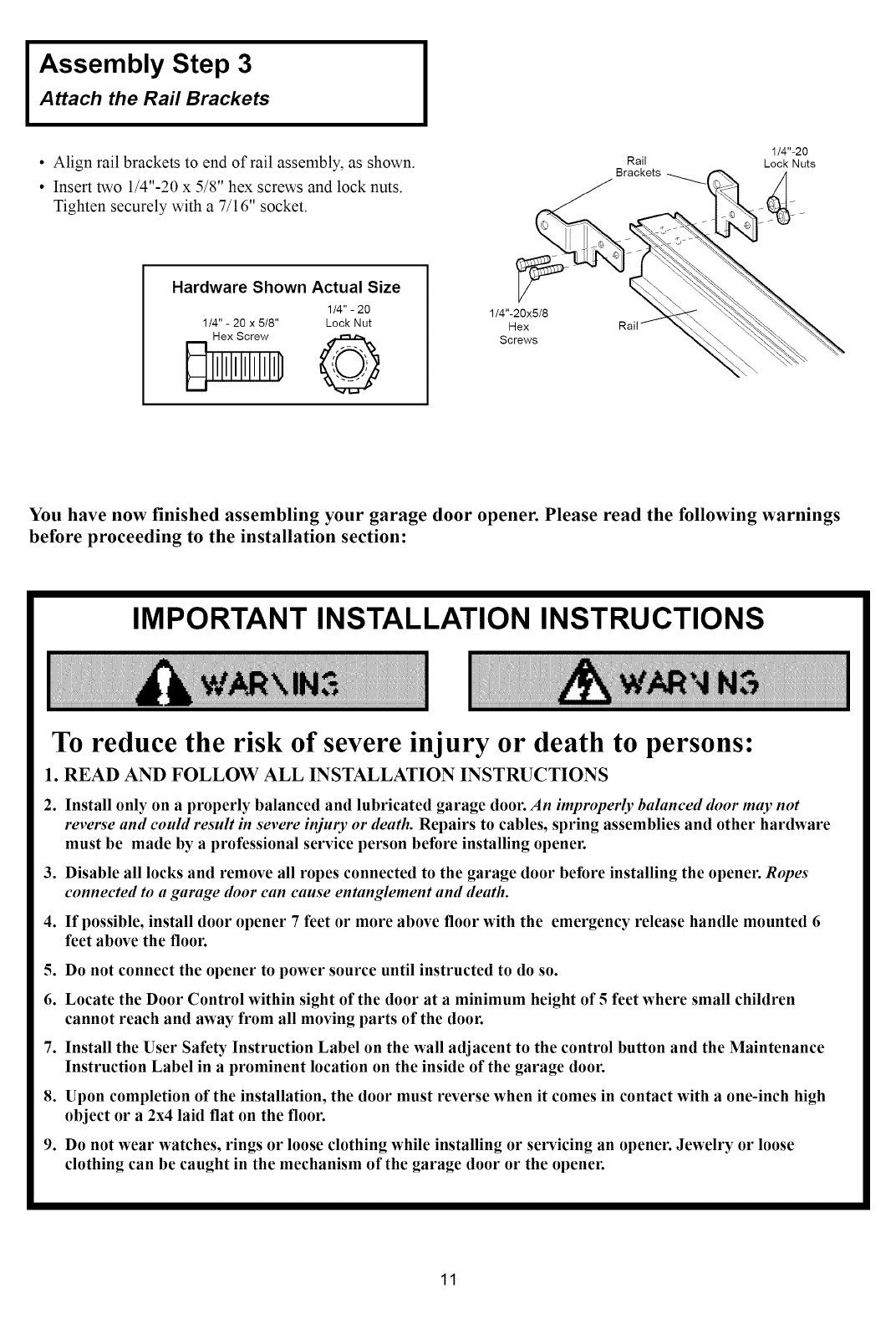

Assembly Step 3

Attach the Rail Brackets

• Align rail brackets to end of rail assembly, as shown.

• Insert two 1/4"-20 x 5/8" hex screws and lock nuts.

Tighten securely with a 7/16" socket.

Rail

Brackets

1/4"-20

Lock Nuts

Hardware Shown Actual Size

1/4" - 20

1/4" - 20 x 5/8" Lock Nut 1/4"-20x5/8

Hex

Screws

You have now finished assembling your garage door opener. Please read the following warnings

before proceeding to the installation section:

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS

2. Install only on aproperly balanced and lubricated garage door. An improperly balanced door may not

reverse and could result in severe injuly or death. Repairs to cables, spring assemblies and other hardware

must be made by a professional service person before installing opener.

3. Disable all locks and remove all ropes connected to the garage door before installing the opener. Ropes

connected to a garage door can cause entanglement and death.

4. If possible, install door opener 7 feet or more above floor with the emergency release handle mounted 6

feet above the floor.

5. Do not connect the opener to power source until instructed to do so.

6. Locate the Door Control within sight of the door at a minimum height of 5 feet where small children

cannot reach and away from all moving parts of the door.

7. Install the User Safety Instruction Label on the wall adjacent to the control button and the Maintenance

Instruction Label in a prominent location on the inside of the garage door.

8. Upon completion of the installation, the door must reverse when it comes in contact with a one-inch high

object or a 2x4 laid flat on the floor.

9. Do not wear watches, rings or loose clothing while installing or servicing an opener. Jewelry or loose

clothing can be caught in the mechanism of the garage door or the opener.

INSTALLATION SECTION" PAGES 12- 27

Installation Step 1

Determine Header Bracket Location

Installation procedures vary according to garage

door types. Follow the instructions which apply to

your door.

Header

Wall

Vertical Finished

Guideline Ceiling

2x4 Structural

If the header bracket is not rigidly fastened to a

structural support on the header wall or ceiling, the

safety reverse system may not work properly (see

page30). The doormightnotreversewhenrequired,and

couldcauseseriousinjuryordeath.

The garagedoor springs,cables,pulleys,bracketsand

theirhardwareareunderextremetension.Do notattempt

to loosen, move or adjust them yourself. Serious

personal injury or death could result. Call for

professionalgaragedoorservice.

SECTIONAL Door or

ONE PIECE Door with Track

Ceiling

Header

Wall

,,............3" Track

Highest Point

of Travel

Door

Highest Point

of Travel

• Close the door and mark the inside

vertical centerline of the garage door.

• Extend the line onto the header wall

above the door.

Remember, you can fasten the header

bracket within 2 feet of the left or right

of the door center only if a torsion

spring or center bearing plate is in the

way; or you can attach it to the ceiling

(refer to page 14) when clearance is

minimal. (It may be mounted on the

wall upside down if necessary, to gain

approximately 1/2".)

If you need to install the header bracket on

a2x4 (on waft or ceiling), use lag screws

(not supplied) m securelyJasten the 2x4 m

structural supports as shown here and on

page 13.

• Open your door to the highest point of

travel as shown. Draw an intersecting

horizontal line on the header wall 3"

above the high point. This height will

provide travel clearance for the top edge

of the door.

Door clearance brackets are available

for sectional doors when headroom

clearance is less than 2". See accessory

page 38.

Proceed to Step 2, page 14.

Sectional door

with curved track One-piece door

with horizontal track

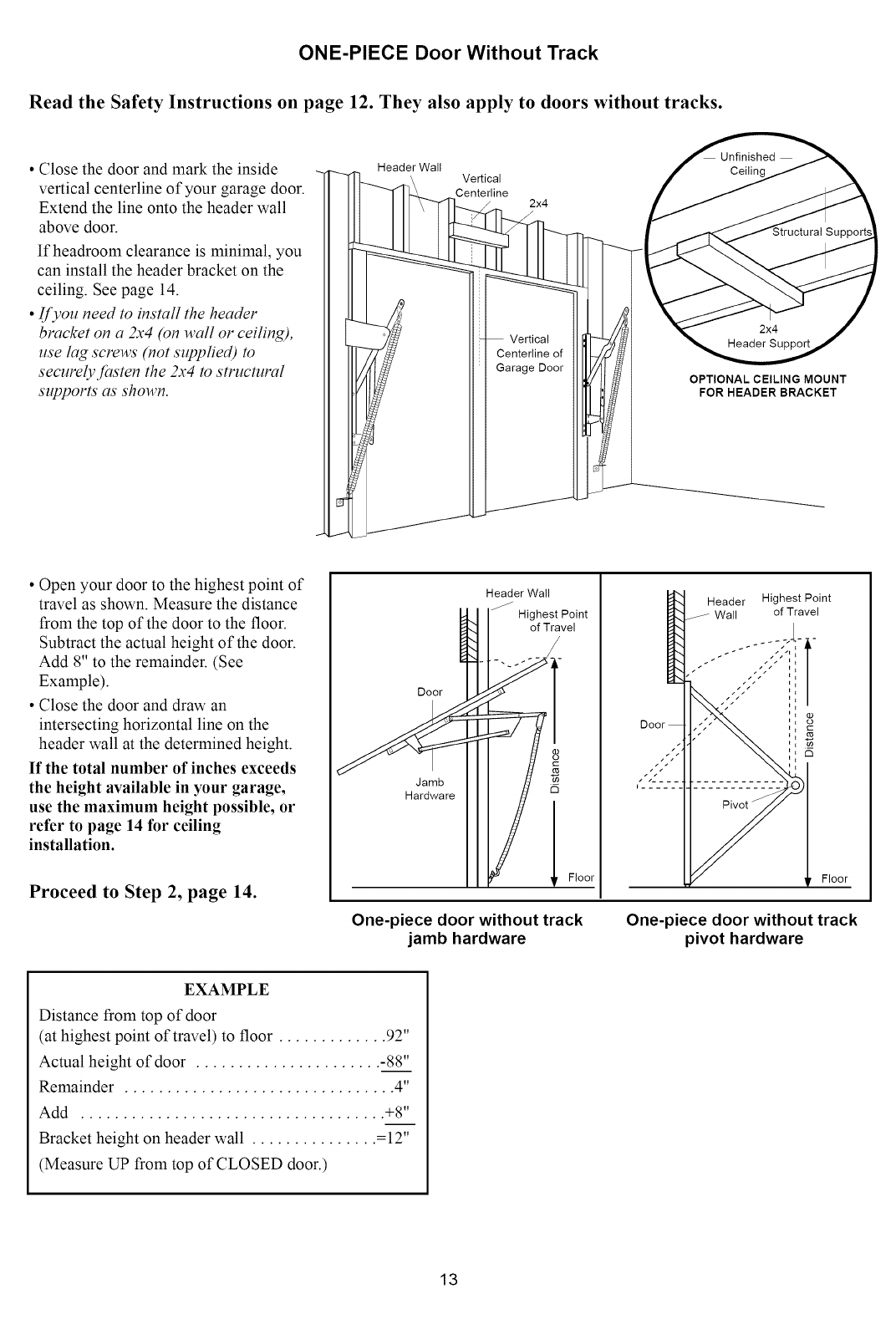

ONE-PIECE Door Without Track

Read the Safety Instructions on page 12. They also apply to doors without tracks.

•Close the door and mark the inside

vertical centerline of your garage door.

Extend the line onto the header wall

above door.

If headroom clearance is minimal, you

can install the header bracket on the

ceiling. See page 14.

•IJ_vou need to install the header

bracket on a 2x4 (on wall or ceiling),

use lag screws (not supplied) to

securely fi_sten the 2x4 m structural

supports as shown.

Header Wall Vertical

Centerline 2x4

Vertical

Centerline of

Garage Door

Unfinished

Ceiling

2x4

Header Su

OPTIONAL CEILING MOUNT

FOR HEADER BRACKET

• Open your door to the highest point of

travel as shown. Measure the distance

from the top of the door to the floor.

Subtract the actual height of the door.

Add 8" to the remainder. (See

Example).

• Close the door and draw an

intersecting horizontal line on the

header wall at the determined height.

If the total number of inches exceeds

the height available in your garage,

use the maximum height possible, or

refer to page 14 for ceiling

installation.

Proceed to Step 2, page 14.

Door

Jamb

Hardware

Header Wall

Highest Point

of Travel

Header Highest Point

Wall of Travel

E_,g

t C3

One-piece door without track

jamb hardware One-piece door without track

pivot hardware

EXAMPLE

Distance from top of door

(at highest point of travel) to floor ............. 92"

Actual height of door ...................... -88"

Remainder ................................ 4"

Add .................................... +8"

Bracket height on header wall ............... =12"

(Measure UP from top of CLOSED door.)

Installation Step 2

Install the Header Bracket

You can attach the header bracket either to the

wall above the garage door, or to the ceiling.

Follow the instructions which will work best for

your particular requirements.

Fastening the Header Bracket to the Wall

•Center the bracket on the vertical guideline with the

bottom edge of the bracket on the horizontal line as

shown (with the arrow pointing toward the ceiling).

• Mark either set of bracket holes (do not use the holes

designated for ceiling mount). Drill 3/16" pilot holes

and fasten the bracket securely to a structural support

with the hardware provided.

Wall

Mounting Holes

The nail hole is for

positioning only.

You must use lag screws

to mount the header bracket.

Optional

Wall Mounting

Holes

_Header _ Lag Screws

Wall 5/16"x9x1-5/8"

2x4

Structural Door

Support Spring

Fastening the Header Bracket to the Ceiling

•Extend the vertical guideline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than 6"

from the wall. Make sure the arrow is pointing toward

the wall. The bracket can be mounted flush against the

ceiling when clearance is minimal.

• Mark holes designated for ceiling mount only. Drill

3/16" pilot holes and fasten bracket securely to a

structural support with the hardware provided.

Ceiling Mounting Holes

The nail hole is for _0_'@ S _, @))

You P°s2tti°7_lggn_Y;ew_ \j :/_, \J Y

to mount the header bracket. _ \J "/

_- Garage

I-Door --

Highest Vertical

Point of Travel Center

(of Garage Door) Line

Header

Wall

Hardware Shown Actual Size

Lag Screw

5/16"-9 x 1-5/8"

Installation Step 3

Attach the Rail to the Header Bracket

Header Wall

Bracket

Rail Bracket

•Position the opener on the garage floor below the

header bracket. Use packing material as a protective

base.

If the door spring is in the way you'll need help. Have

someone hold the opener securely on a temporary

support to allow the rail to clear the spring.

•Position the rail bracket against the header bracket.

•Align the bracket holes and join with aclevis pin as

shown.

• Insert a ring fastener to secure.

Ring Fastener

Header Bracket

Garage

Door

Clevis Pin

5/16"x2-3/4 "

Rail

Bracket

Rail

Foam Packaging --

Opener Carton or

-- Temporary

Support

Hardware Shown Actual Size

°1

Clevis Pin

5/16" x 2-3/4"

Ring Fastener

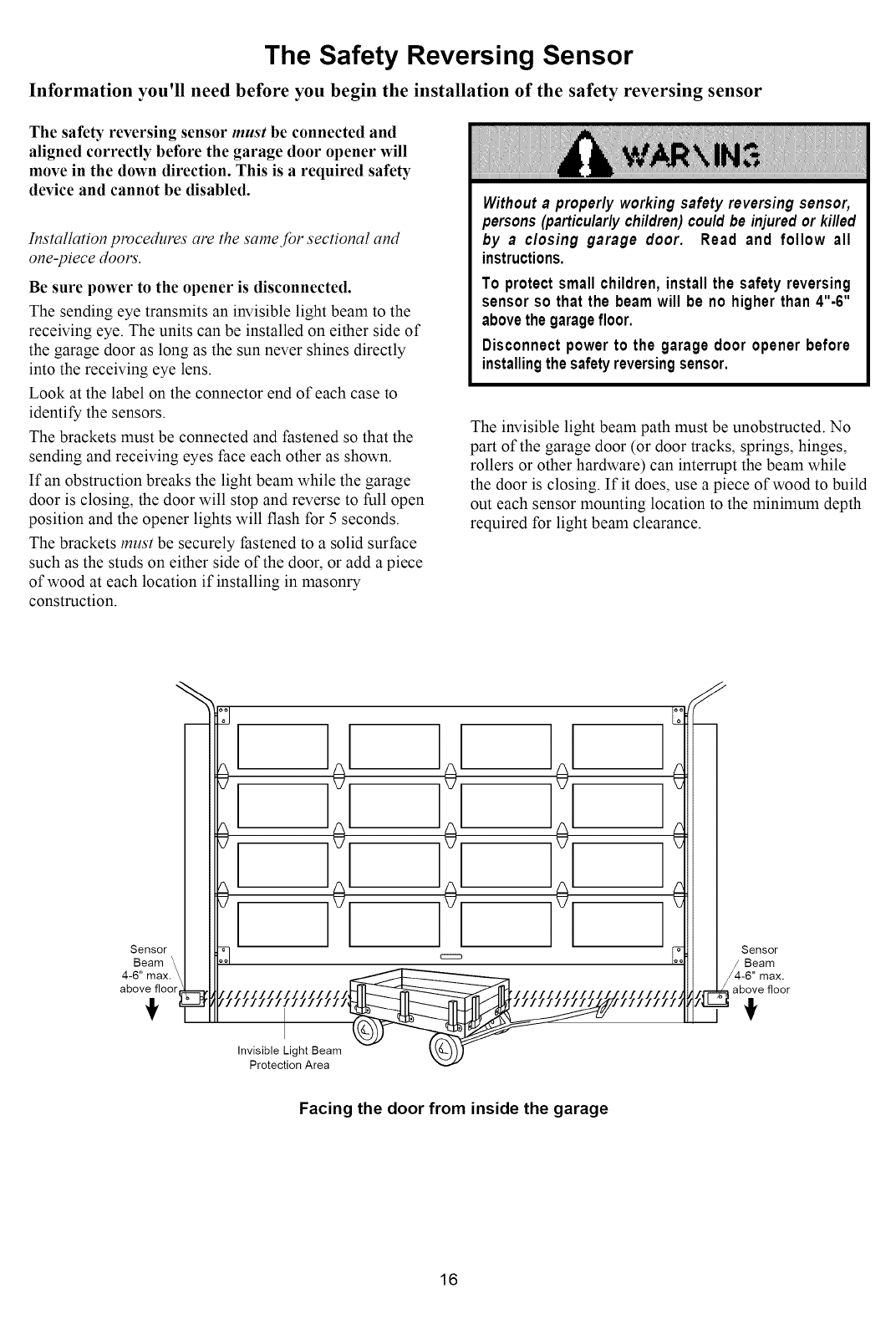

The Safety Reversing Sensor

Information you'll need before you begin the installation of the safety reversing sensor

The safety reversing sensor must be connected and

aligned correctly before the garage door opener will

move in the down direction. This is a required safety

device and cannot be disabled.

Installation procedures are the same Jbr sectional and

one-piece doors.

Be sure power to the opener is disconnected.

The sending eye transmits an invisible light beam to the

receiving eye. The units can be installed on either side of

the garage door as long as the sun never shines directly

into the receiving eye lens.

Look at the label on the connector end of each case to

identify the sensors.

The brackets must be connected and fastened so that the

sending and receiving eyes face each other as shown.

If an obstruction breaks the light beam while the garage

door is closing, the door will stop and reverse to full open

position and the opener lights will flash for 5 seconds.

The brackets must be securely fastened to a solid surface

such as the studs on either side of the door, or add a piece

of wood at each location if installing in masonry

construction.

Without aproper/y working safety reversing sensor,

persons(particu/ar/ychildren)cou/dbe injuredor ki//ed

by ac/osing garage door. Read and follow all

instructions.

To protect small children, install the safety reversing

sensor so that the beamwill be no higher than 4"-6"

abovethegaragefloor.

Disconnect power to the garage door opener before

installingthe safetyreversingsensor.

The invisible light beam path must be unobstructed. No

part of the garage door (or door tracks, springs, hinges,

rollers or other hardware) can interrupt the beam while

the door is closing. If it does, use a piece of wood to build

out each sensor mounting location to the minimum depth

required for light beam clearance.

Sensor

|/Beam

I/4-6" max.

i_ above floor

Facing the door from inside the garage

Installation Step 4

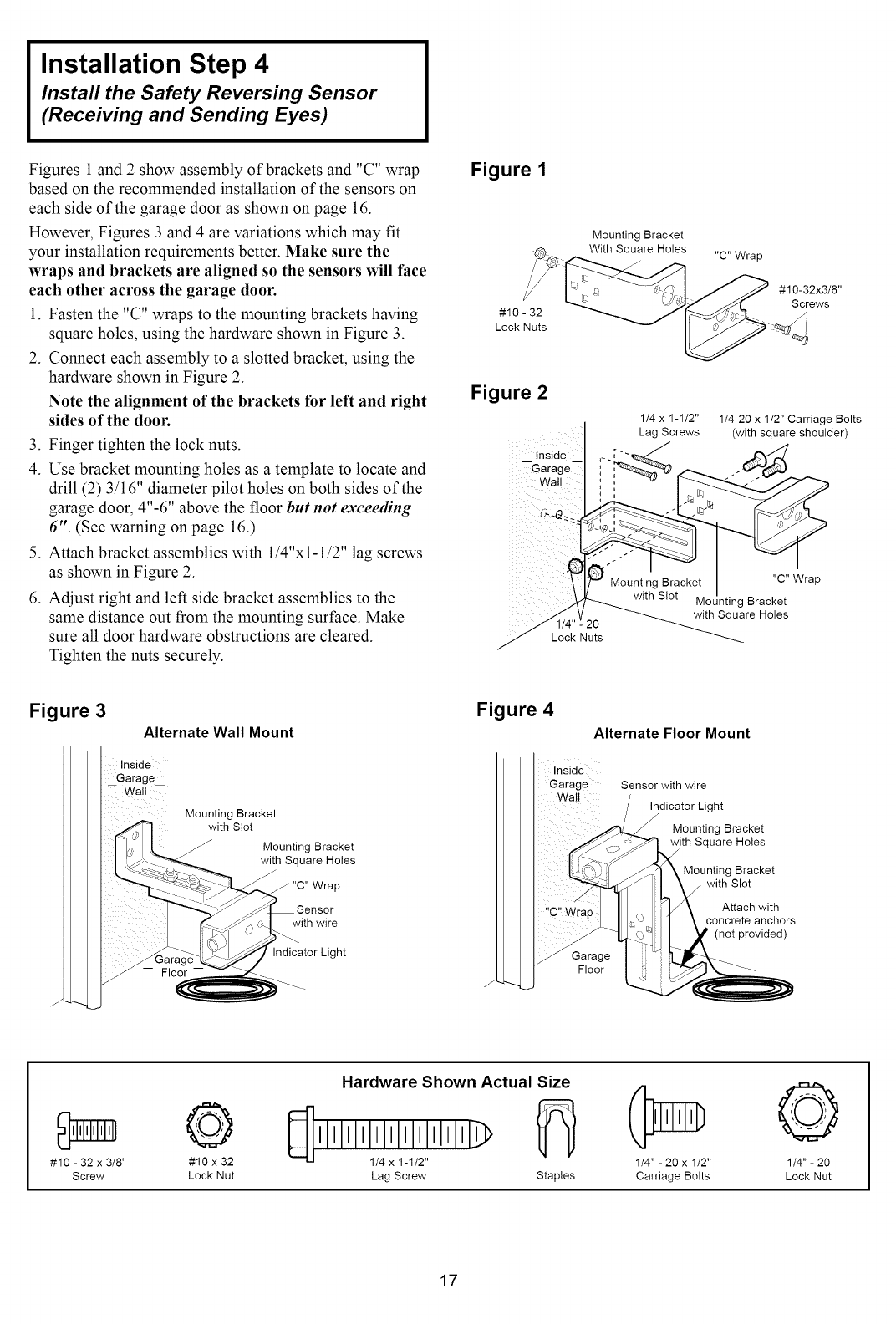

Install the Safety Reversing Sensor

(Receiving and Sending Eyes)

Figures 1 and 2 show assembly of brackets and "C" wrap

based on the recommended installation of the sensors on

each side of the garage door as shown on page 16.

However, Figures 3 and 4 are variations which may fit

your installation requirements better. Make sure the

wraps and brackets are aligned so the sensors will face

each other across the garage door.

1. Fasten the "C" wraps to the mounting brackets having

square holes, using the hardware shown in Figure 3.

2. Connect each assembly to a slotted bracket, using the

hardware shown in Figure 2.

Note the alignment of the brackets for left and right

sides of the door.

3. Finger tighten the lock nuts.

4. Use bracket mounting holes as a template to locate and

drill (2) 3/16" diameter pilot holes on both sides of the

garage door, 4"-6" above the floor but not exceeding

6". (See warning on page 16.)

5. Attach bracket assemblies with 1/4"x1-1/2" lag screws

as shown in Figure 2.

6. Adjust right and left side bracket assemblies to the

same distance out from the mounting surface. Make

sure all door hardware obstructions are cleared.

Tighten the nuts securely.

Figure 1

#10 - 32

Lock Nuts

Mounting Bracket

With Square Holes "C" Wrap

#10-32x3/8"

Screws

Figure 2

1/4 x 1-1/2" 1/4-20 x 1/2" Carriage Bolts

Lag Screws (with square shoulder)

Inside ,.., --

_arage

Wall

*" _ Mounting Bracket ]"C" Wrap

._. Slot Mounting Bracket

.with Square Holes

J Lock Nuts20

Figure 3

Alternate Wall Mount

Inside

Garage

Wall T

Mounting Bracket

with Slot

Mounting Bracket

with Square Holes

"C" Wrap

with wire

Indicator Light

Figure 4

Alternate Floor Mount

InSide

Garage

Wall

Floor

Sensor with wire

Indicator Light

Mounting Bracket

with Square Holes

Mounting Bracket

/with Slot

Attach with

._ (oncrete anchors

not provided)

#10 - 32 x 3/8"

Screw

#10 x 32

Lock Nut

Hardware Shown Actual Size

Lag Screw Staples

1/4" - 20 x 1/2"

Carriage Bolts

1/4" - 20

Lock Nut

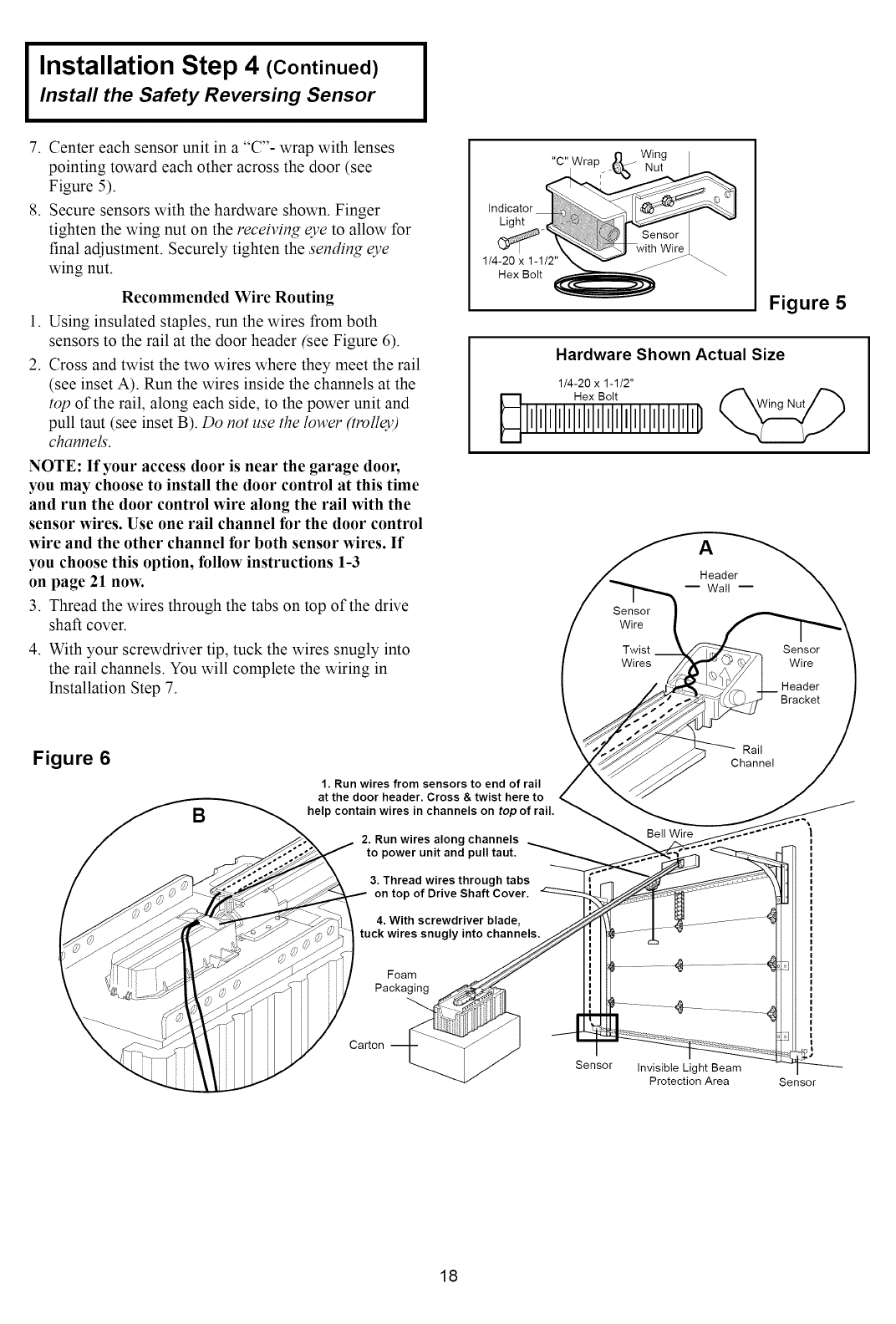

Installation Step 4 (Continued)

Install the Safety Reversing Sensor

7. Center each sensor unit in a "C"- wrap with lenses

pointing toward each other across the door (see

Figure 5).

8. Secure sensors with the hardware shown. Finger

tighten the wing nut on the receiving eve to allow for

final adjustment. Securely tighten the semting eye

wing nut.

Recommended Wire Routing

1. Using insulated staples, run the wires from both

sensors to the rail at the door header (see Figure 6).

2. Cross and twist the two wires where they meet the rail

(see inset A). Run the wires inside the channels at the

top of the rail, along each side, to the power unit and

pull taut (see inset B). Do not use the lower (trolley)

channels.

NOTE: If your access door is near the garage door,

you may choose to install the door control at this time

and run the door control wire along the rail with the

sensor wires. Use one rail channel for the door control

wire and the other channel for both sensor wires. If

you choose this option, follow instructions 1-3

on page 21 now.

3. Thread the wires through the tabs on top of the drive

shaft cover.

4. With your screwdriver tip, tuck the wires snugly into

the rail channels. You will complete the wiring in

Installation Step 7.

"C" Wrap

Indicator

Light

1/4-20 x 1-1/2"

Hex Bolt

Figure 5

Hardware Shown Actual Size

1/4-20 x 1-1/2"

Sensor

Wire

Twist

Wires

Header

-- Wall --

Sensor

Wire

Header

Bracket

Figure 6

1. Run wires from sensors to end of rail

at the door header. Cross & twist here to

help contain wires in channels on tof

2. Run wires along channels

to power unit and pull taut.

3. Thread wires through tabs

on top of Drive Shaft Cover.

4. With screwdriver blade

tuck wires snugly into channels.

Foam

Packaging

Carton

Sensor

Bell Wire

Invisible Light Beam

Protection Area

Rail

Channel

Sensor

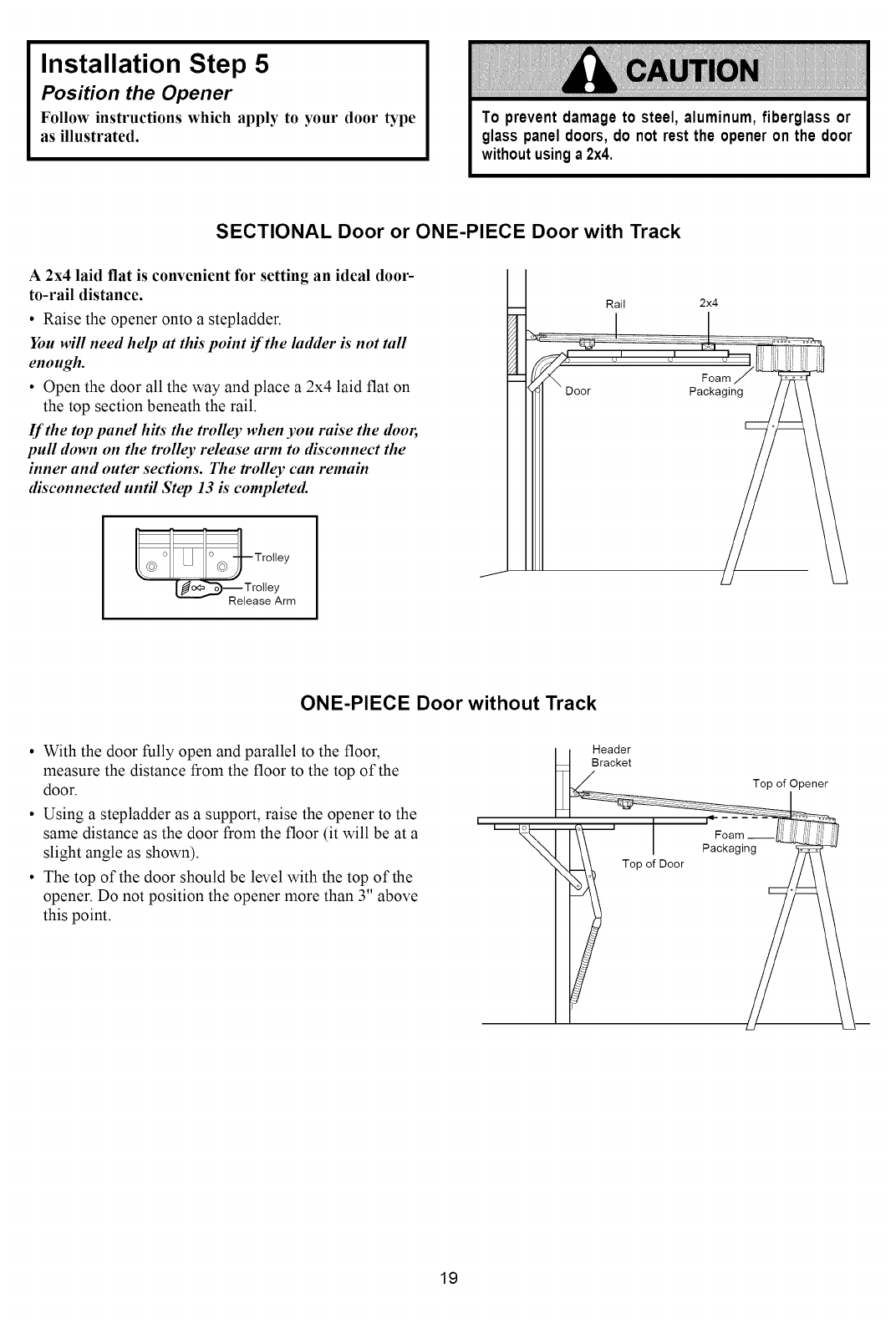

Installation Step 5

Position the Opener

Follow instructions which apply to your door type

as illustrated. To prevent damage to steel, aluminum,fiberglass or

glass paneldoors, do not rest the openeron the door

withoutusinga2x4.

SECTIONAL Door or ONE-PIECE Door with Track

A 2x4 laid flat is convenient for setting an ideal door-

to-rail distance.

• Raise the opener onto a stepladder.

You will need help at this point if the ladder is not tall

enough.

• Open the door all the way and place a 2x4 laid flat on

the top section beneath the rail.

If the top panel hits the trolley when you raise the dooB

pull down on the trolley release arm to disconnect the

inner and outer sections. The trolley can remain

disconnected until Step 13 is completed.

o o ---Trolley

_L_--_ Trolley

Release Arm

Door

Rail 2x4

ONE-PIECE Door without Track

• With the door fully open and parallel to the floor,

measure the distance from the floor to the top of the

door.

• Using a stepladder as a support, raise the opener to the

same distance as the door from the floor (it will be at a

slight angle as shown).

• The top of the door should be level with the top of the

opener. Do not position the opener more than 3" above

this point.

Header

Bracket

Top of Door

Top of Opener

Foam __

Packaging

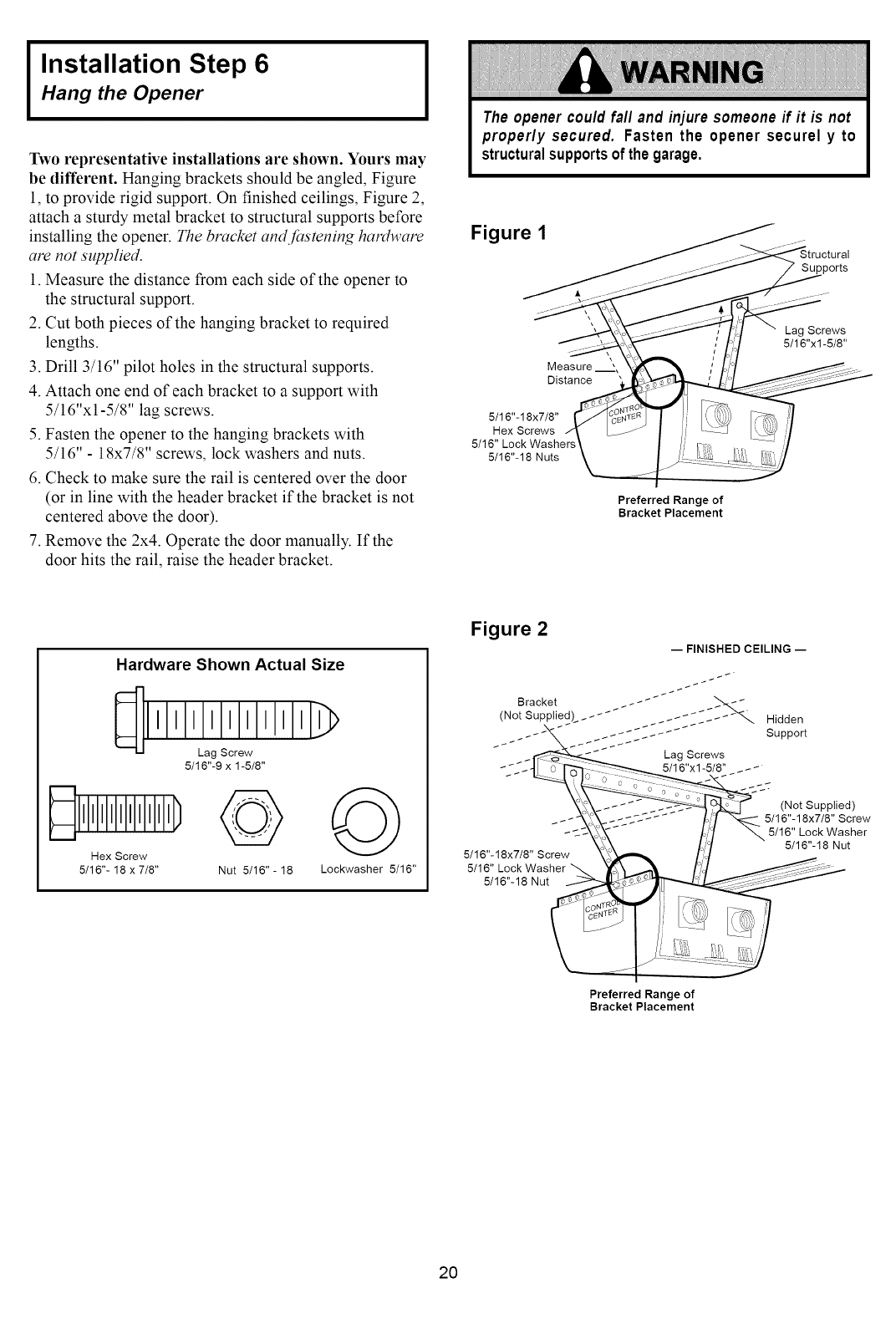

Installation Step 6

Hang the Opener

Two representative installations are shown. Yours may

be different. Hanging brackets should be angled, Figure

1, to provide rigid support. On finished ceilings, Figure 2,

attach a sturdy metal bracket to structural supports before

installing the opener. The bracket and f_stening hardware

are not supplied.

1. Measure the distance from each side of the opener to

the structural support.

2. Cut both pieces of the hanging bracket to required

lengths.

3. Drill 3/16" pilot holes in the structural supports.

4. Attach one end of each bracket to a support with

5/16"xl-5/8" lag screws.

5. Fasten the opener to the hanging brackets with

5/16"- 18x7/8" screws, lock washers and nuts.

6. Check to make sure the rail is centered over the door

(or in line with the header bracket if the bracket is not

centered above the door).

7. Remove the 2x4. Operate the door manually. If the

door hits the rail, raise the header bracket.

The opener could fall and injure someone if it is not

properly secured. Fasten the opener securel y to

structuralsupportsof the garage.

Figur

Measure ",

Distance

5/16"-18x7/8"

Hex Screws

5/16" Lock Washers

5/16"-18 Nuts

Supports

Lag Screws

5/16"xl -5/8"

Preferred Range of

Bracket Placement

Hardware Shown Actual Size

5/16"-9 x 1-5/8"

R,,,,,,,,,,D@

Hex Screw

5/16"- 18 x 7/8" Nut 5/16" - 18 Lockwasher 5/16"

Figure 2

-- FINISHED CEILING --

(Not Supplied)... _

Lag Screws

_ _ - 5/16"xl -5/8"

Hidden

Support

5/16"-18x7/8" Screw

5/16"

5/16"-18 Nut

(Not Supplied)

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

Preferred Range of

Bracket Placement

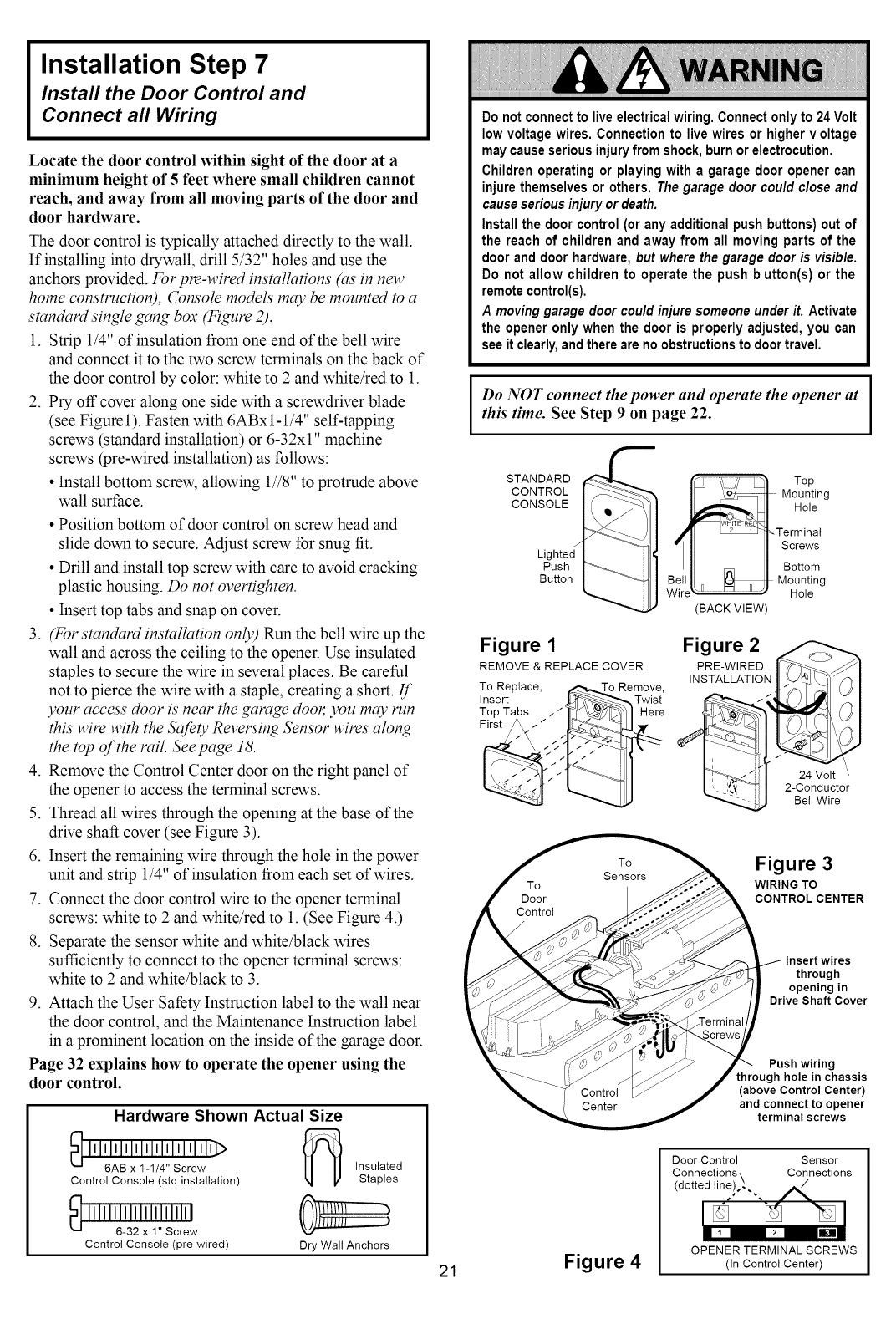

Installation Step 7

Install the Door Control and

Connect all Wiring

Locate the door control within sight of the door at a

minimum height of 5 feet where small children cannot

reach, and away from all moving parts of the door and

door hardware.

The door control is typically attached directly to the wall.

If installing into drywall, drill 5/32" holes and use the

anchors provided. For pre-wired installations (as in new

home construction), Console models" may be mounted to a

standard single gang boa"(Figure 2).

1. Strip 1/4" of insulation from one end of the bell wire

and connect it to the two screw terminals on the back of

the door control by color: white to 2 and white/red to 1.

2. Pry off cover along one side with a screwdriver blade

(see Figurel). Fasten with 6ABxl-1/4" self-tapping

screws (standard installation) or 6-32x1" machine

screws _re-wired installation) as follows:

• Install bottom screw, allowing 1//8" to protrude above

wall surface.

• Position bottom of door control on screw head and

slide down to secure. Adjust screw for snug fit.

• Drill and install top screw with care to avoid cracking

plastic housing. Do not overtighten.

• Insert top tabs and snap on cover.

3. (For standard installation only) Run the bell wire up the

wall and across the ceiling to the opener. Use insulated

staples to secure the wire in several places. Be careful

not to pierce the wire with a staple, creating a short. If

your access door is near the garage dooz you may run

this wire with the SaJoty Reversing Sensor wires along

the top of the rail. Seepage 18.

4. Remove the Control Center door on the right panel of

the opener to access the terminal screws.

5. Thread all wires through the opening at the base of the

drive shaft cover (see Figure 3).

6. Insert the remaining wire through the hole in the power

unit and strip 1/4" of insulation from each set of wires.

7. Connect the door control wire to the opener terminal

screws: white to 2 and white/red to 1. (See Figure 4.)

8. Separate the sensor white and white/black wires

sufficiently to connect to the opener terminal screws:

white to 2 and white/black to 3.

9. Attach the User Safety Instruction label to the wall near

the door control, and the Maintenance Instruction label

in a prominent location on the inside of the garage door.

Page 32 explains how to operate the opener using the

door control.

Hardware Shown Actual Size

Control Console (std installation)

Control Console (pre-wired)

Insulated

Staples

Dry Wall Anchors

Do not connectto live electricalwiring.Connect onlyto 24Volt

low voltage wires. Connectionto live wires or higherv oltage

may causeseriousinjuryfrom shock,burnorelectrocution.

Childrenoperatingor playingwith agarage door opener can

injurethemselvesor others. The garagedoor oou/do/ose and

causeseriousinjuryordeath.

Install thedoor control(or any additionalpushbuttons)outof

the reach of childrenand away from all moving parts of the

doorand door hardware,but where thegarage door is visible.

Do not allow children to operate the push button(s) or the

remotecontrol(s).

A movinggarage doorcouldinjuresomeoneunderit. Activate

the opener only when the door is properly adjusted,you can

seeit clearly,andthere areno obstructionsto doortravel.

Do NOT connect the power and operate the opener at

this time. See Step 9on page 22.

STANDARD

CONTROL

CONSOLE

Lighted

Push

Button

Figure 1

REMOVE & REPLACE COVER

To Replace, _-----.....,_o Remove,

Inse rt _1_'_ Twist

Top Tabs _ _ ]]_ff[_' IHere

•//

'BACK VIEW

Figure 2

PRE-WIRED

INSTALLATION

Top

Mounting

Hole

Terminal

Screws

Bottom

Mounting

Hole

24 Volt

2-Conductor

Bell Wire

Figure 3

WIRING TO

CONTROLCENTER

Insert wires

through

opening in

Drive Shaft Cover

Push wiring

through hole in chassis

(above Control Center)

and connect to opener

terminal screws

Figure 4

Door Control Sensor

OPENER TERMINAL SCREWS

(In Control Center)

Installation Step 8

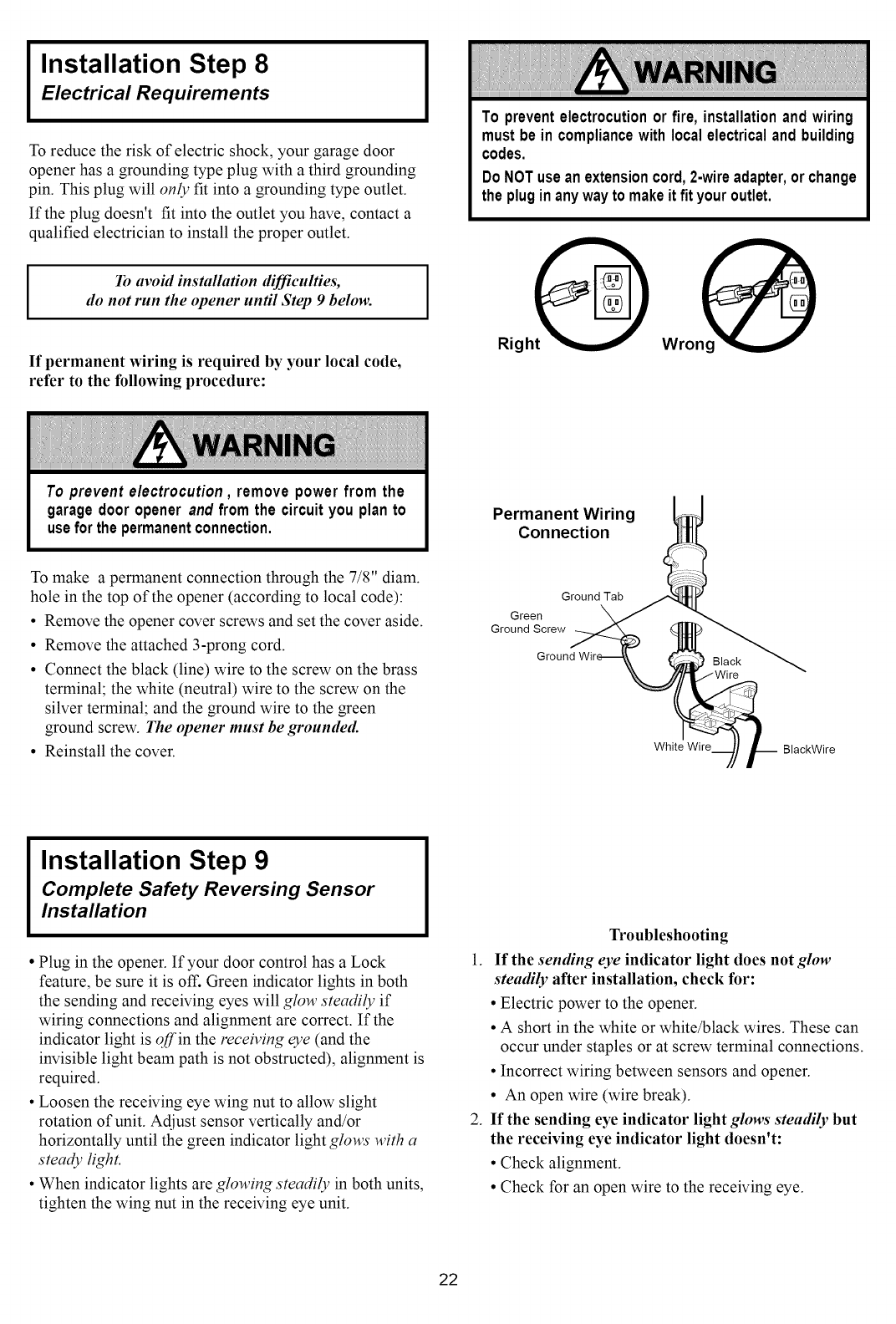

Electrical Requirements

To reduce the risk of electric shock, your garage door

opener has a grounding type plug with a third grounding

pin. This plug will only fit into a grounding type outlet.

If the plug doesn't fit into the outlet you have, contact a

qualified electrician to install the proper outlet.

To awdd installation th'fficulties,

do not run the opener until Step 9below.

If permanent wiring is required by your local code,

refer to the following procedure:

To preventelectrocutionor fire, installationand wiring

must be in compliancewith localelectricaland building

codes.

DoNOTusean extensioncord,2-wireadapter,or change

the pluginany wayto makeit fit youroutlet.

To prevent electrocution, remove power from the

garagedoor opener and from the circuityou plan to

usefor the permanentconnection. Permanent Wiring

Connection

To make a permanent connection through the 7/8" diam.

hole in the top of the opener (according to local code):

• Remove the opener cover screws and set the cover aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the brass

terminal; the white (neutral) wire to the screw on the

silver terminal; and the ground wire to the green

ground screw. The opener must be grounded.

• Reinstall the cover.

Ground Tab

Green

Ground Screw

Ground

White Wire BlackWire

Installation Step 9

Complete Safety Reversing Sensor

Installation

•Plug in the opener. If your door control has a Lock

feature, be sure it is off. Green indicator lights in both

the sending and receiving eyes will glow swadily if

wiring connections and alignment are correct. If the

indicator light is offin the receiving eye (and the

invisible light beam path is not obstructed), alignment is

required.

• Loosen the receiving eye wing nut to allow slight

rotation of unit. Adjust sensor vertically and/or

horizontally until the green indicator light glows with a

steady light.

• When indicator lights are glowing steadily in both units,

tighten the wing nut in the receiving eye unit.

Troubleshooting

1. If the semling eye indicator light does not glow

steadily after installation, check for:

• Electric power to the opener.

• A short in the white or white/black wires. These can

occur under staples or at screw terminal connections.

• Incorrect wiring between sensors and opener.

• An open wire (wire break).

2. If the sending eye indicator light glows steadily but

the receiving eye indicator light doesn't:

• Check alignment.

• Check for an open wire to the receiving eye.

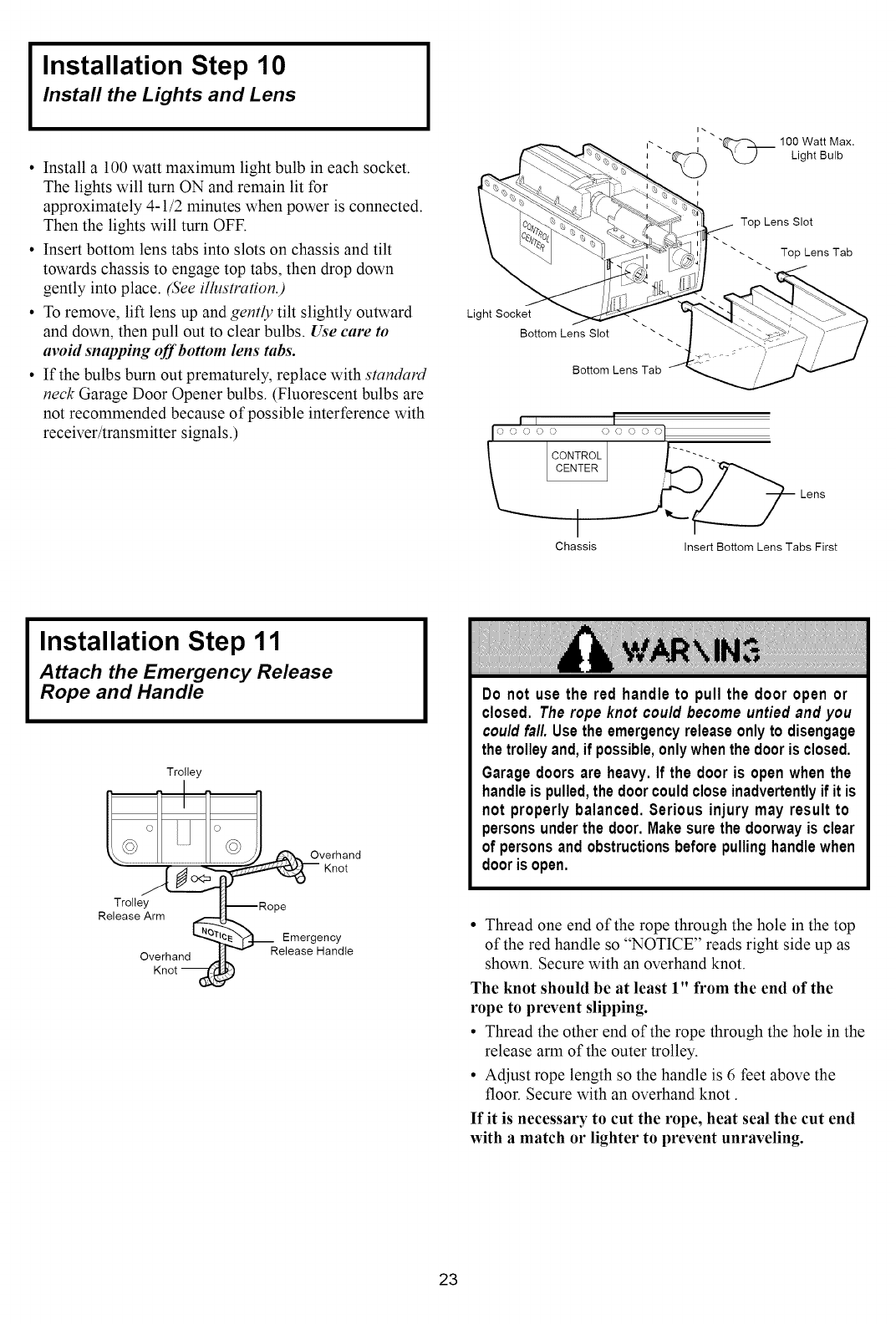

Installation Step 10

Install the Lights and Lens

• Install a 100 watt maximum light bulb in each socket.

The lights will turn ON and remain lit for

approximately 4-1/2 minutes when power is connected.

Then the lights will turn OFF.

• Insert bottom lens tabs into slots on chassis and tilt

towards chassis to engage top tabs, then drop down

gently into place. (See illustration.)

• To remove, lift lens up and gently tilt slightly outward

and down, then pull out to clear bulbs. Use care to

avoid snapping off bottom lens tabs.

• If the bulbs burn out prematurely, replace with standard

neck Garage Door Opener bulbs. (Fluorescent bulbs are

not recommended because of possible interference with

receiver/transmitter signals.)

Top Lens Slot

Top Lens Tab

Light Socket

Bottom Lens Slot "..

Bottom Lens Tab

Lens

Insert Bottom Lens Tabs First

Installation Step 11

Attach the Emergency Release

Rope and Handle

Trolley

Release Arm

Overhand

Knot _-_,

Overhand

Knot

--Rope

_REem:rg Hn2L ,e

)

Do not use the red handle to pull the door open or

closed. The rope knot could become untied and you

couldfail. Use the emergencyreleaseonly to disengage

thetrolleyand, if possible,onlywhenthedooris closed.

Garagedoors are heavy.If the door is open when the

handleis pulled,the doorcouldcloseinadvertentlyif it is

not properly balanced. Serious injury may result to

personsunderthe door. Makesurethe doorwayis clear

of personsand obstructionsbeforepullinghandlewhen

dooris open.

• Thread one end of the rope through the hole in the top

of the red handle so "NOTICE" reads right side up as

shown. Secure with an overhand knot.

The knot should be at least 1" from the end of the

rope to prevent slipping.

• Thread the other end of the rope through the hole in the

release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet above the

floor. Secure with an overhand knot.

If it is necessary to cut the rope, heat seal the cut end

with a match or lighter to prevent unraveling.

Installation Step 12

Fasten Door Bracket

Follow instructions which apply to your door type

as illustrated below or on page 25.

To prevent damage to steel, alumin urn, fiberglass or

glasspaneldoors,alwaysreinforcethe insideof thedoor

bothverticallyand horizontallywithan angleiron.

A horizontal brace should be long enough to be secured to 2 vertical supports. A vertical brace should cover the

height of the top panel.

The illustration shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of angle iron

are used to create a U-shaped support. The best solution is to check with your garage door manufacturer for an

opener installation door reinforcement kit.

SECTIONAL Door Installation Procedure

Header

Bracket

Door

Bracket

Location

• Center the door bracket on the previously marked

vertical guideline used for the header bracket

installation. Note the correct UP placement, as

stamped inside the bracket.

• Position the bracket on the face of the door within the

following limits:

A) The top edge of the bracket 2-4" below the top edge

of the door.

B) The top edge of the bracket directly below any

structural support across the top of the door.

• Mark and drill 5/16" left and right fastening holes.

Secure the bracket as shown in Figure 1 if there is

vertical reinforcement.

If your installation doesn't require vertical reinforcement

but does need top and bottom fastening holes for the door

bracket, fasten as shown in Figure 2.

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, aluminum, steel,

doors with glass panel, etc).

Vertical

Reinforcement

Carriage Bolt

5/16"-18x2-1/2"

Figure 1

Vertical

Guideline

, UP

Door

Bracket Lock

Washer I

5/16" Nut

5/16"-18

Figure 2

Inside Edge

of Door or

einforcement Board

"" "@G.

Door Bracket

Hardware Shown Actual Size

Nut 5/16"-18 Lockwasher 5/16"

Carriage Bolt

5/16"-18 x 2-1/2"

All ONE-PIECE Door Installation Procedure

Please read and comply with the warnings and reinforcement instructions on page 24. They apply

to one-piece doors also.

Header Wall

2x4 Support

Header

Bracket

Optional

Placement

of Door

Bracket

--Finished Ceiling--

Door

Bracket

Vertical

Centerline of

Garage Door

Horizontal and vertical

reinforcement is needed for

lightweight garage doors

(fiberglass, aluminum, steel,

door with glass panel, etc.).

Nut_ _Lock

5/16"-18 ¢ 5/16"

, Top of Door

i t

(Inside Garage)

i i

Top Edge

_j of Door

Door

Bracket

__ Optional

Placement

For a door with no _ _ Carriage Bolt

exposed framing or for i g 5/16"-18x2-1/2"

the optional installation,

use 5/16"x1-1/2" lag

screws (not supplied)

to fasten door

• Center the bracket on the top of the door, in line with

the header bracket as shown. Mark holes.

• Drill 5/16" pilot holes and fasten the door bracket with

hardware supplied.

If the door has no exposed framing, drill 3/16" pilot holes

and fasten the bracket with 5/16"x1-1/2" lag screws (not

supplied) to the top of the door.

The door bracket may be installed on the top edge of

the door if required for your installation. (Refer to the

dotted line optional placement drawing.) Drill 3/16"

pilot holes and substitute 5/16"x1-1/2" lag screws (not

supplied) to fasten the bracket to the door.

Hardware Shown Actual Size

Nut 5/16"-18 Lockwasher 5/16"

Carriage Bolt

5/16"-18 x 2-1/2"

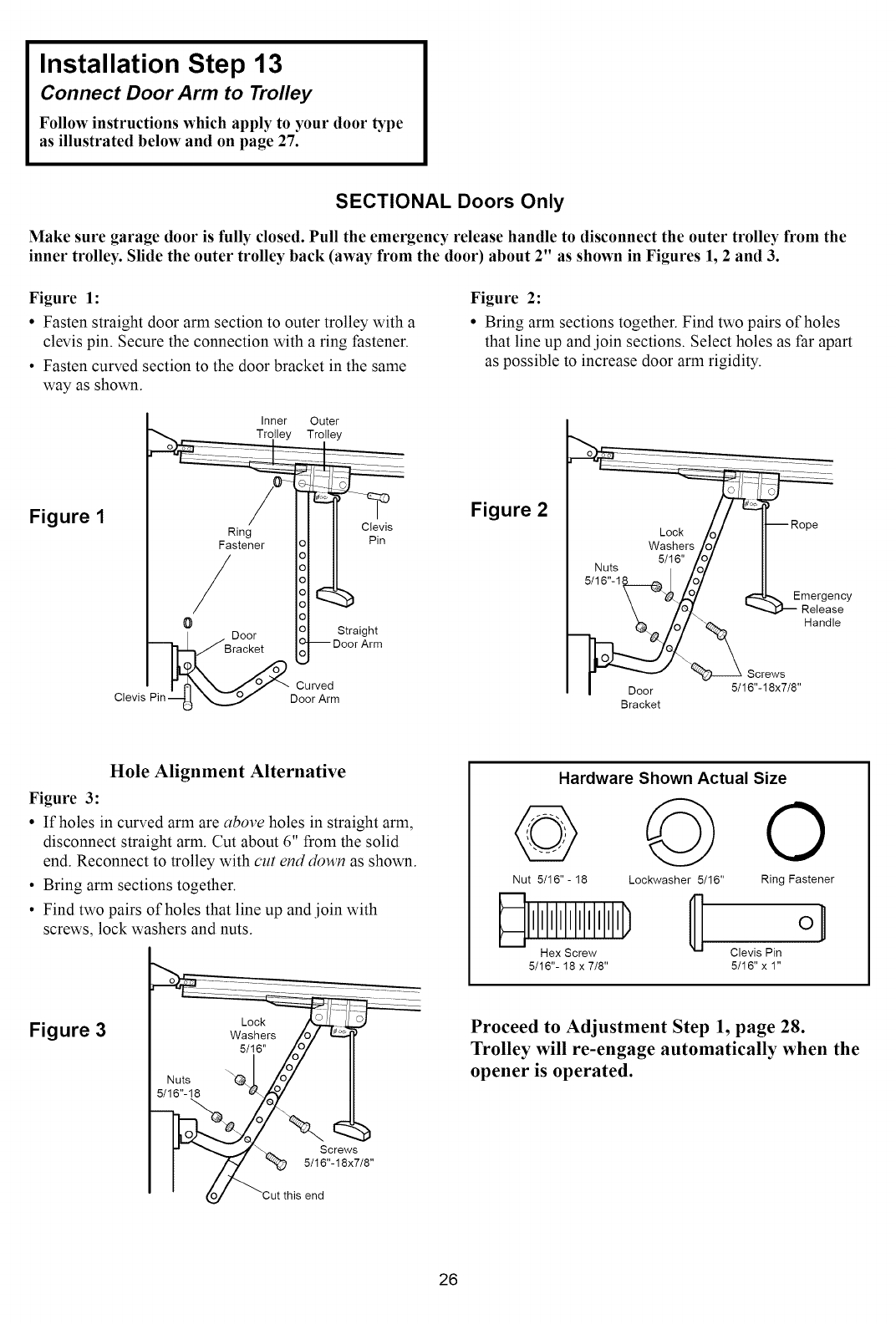

Installation Step 13

Connect Door Arm to Trolley

Follow instructions which apply to your door type

as illustrated below and on page 27.

SECTIONAL Doors Only

Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the

inner trolley. Slide the outer trolley back (away from the door) about 2" as shown in Figures 1, 2 and 3.

Figure 1:

• Fasten straight door arm section to outer trolley with a

clevis pin. Secure the connection with a ring fastener.

• Fasten curved section to the door bracket in the same

way as shown.

Figure 2:

• Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far apart

as possible to increase door arm rigidity.

Figure 1

Inner Outer

Trolley Trolley

Straight

Curved

Door Arm

Clevis

Figure 2

Door

Bracket

Emergency

Handle

Screws

5/16"-18x7/8"

Hole Alignment Alternative

Figure 3:

• If holes in curved arm are above holes in straight arm,

disconnect straight arm. Cut about 6" from the solid

end. Reconnect to trolley with cut end down as shown.

• Bring arm sections together.

• Find two pairs of holes that line up and join with

screws, lock washers and nuts.

Figure 3

Screws

5/16"-18x7/8"

end

Hardware Shown Actual Size

@@o

Nut 5/16"- 18 Lockwasher 5/16" Ring Fastener

7!,,,,,,,,,,,D{ oD

Hex Screw Clevis Pin

5/16"- 18 x 7/8" 5/16" x 1"

Proceed to Adjustment Step 1, page 28.

Trolley will re-engage automatically when the

opener is operated.

All ONE-PIECE Doors

Assemble the Door Arm:

• Fasten the straight and curved door arm sections

together to the longest possible length (with a 2 or 3

hole overlap).

• With the door closed, connect the straight door arm

section to the door bracket with a clevis pin.

• Secure with a ring fastener.

Door Ring

Bracket 1_ Fastener Lock Nuts

._.,.G:_'_\ '_-"'---._ Straight Washers 5/16"-18

Dk \ _ _ Arm 5/16" I

Screws -- _ __ Curved

5/1;c-r_s7/8" _ _"" _DCo;r Arm

Adjustment Procedures for One-Piece Doors

On one-piece doors, before connecting the door arm to the trolley the travel limits must be adjusted. Limit adjustment

screws are located on the right side panel as shown on page 28. Follow adjustment procedures below.

Closed

_ Door Open Door Door with

1 Backward Slant

Open Door Adjustment:

Decrease UP Travel Limit

• Turn the UP limit adjustment screw counter-clockwise

5 1/2 turns.

• Press the Door Control push button. The trolley will

travel to the fully open position.

• Manually raise the door to the open position (parallel

to the floor), and lift the door arm to the trolley. The

arm should touch the trolley just in back of the door

arm connector hole. Refer to the fully open

trolley/door arm positions in the illustration. If the arm

does not extend far enough, adjust the limit further.

One full turn equals 2" of trolley travel.

Door Arm

Closed Door Adjustment:

Decrease DOWN Travel Limit

Turn the DOWN limit adjustment screw clockwise

5 complete turns.

Press the Door Control push button. The trolley will

travel to the fully closed position.

Manually close the door and lift the door arm to the

trolley. The arm should touch the trolley just ahead of

the door arm connector hole. Refer to the fully closed

trolley/door arm positions in the illustration. If the arm

is behind the connector hole, adjust the limit further.

One full turn equals 2" of trolley travel.

Connect the Door Arm to the Trolley:

• Close the door and.join the curved arm to the connector hole in the trolley with the remaining clevis pin. It may be

necessary to lift the door slightly to make the connection.

• Secure with a ring fastener.

• Run the opener through a complete travel cycle. If the door has a slight "backward" slant in full open position as shown

in the illustration, decrease the UP limit until the door is parallel to the floor.

ADJUSTMENT SECTION: PAGES 28- 30

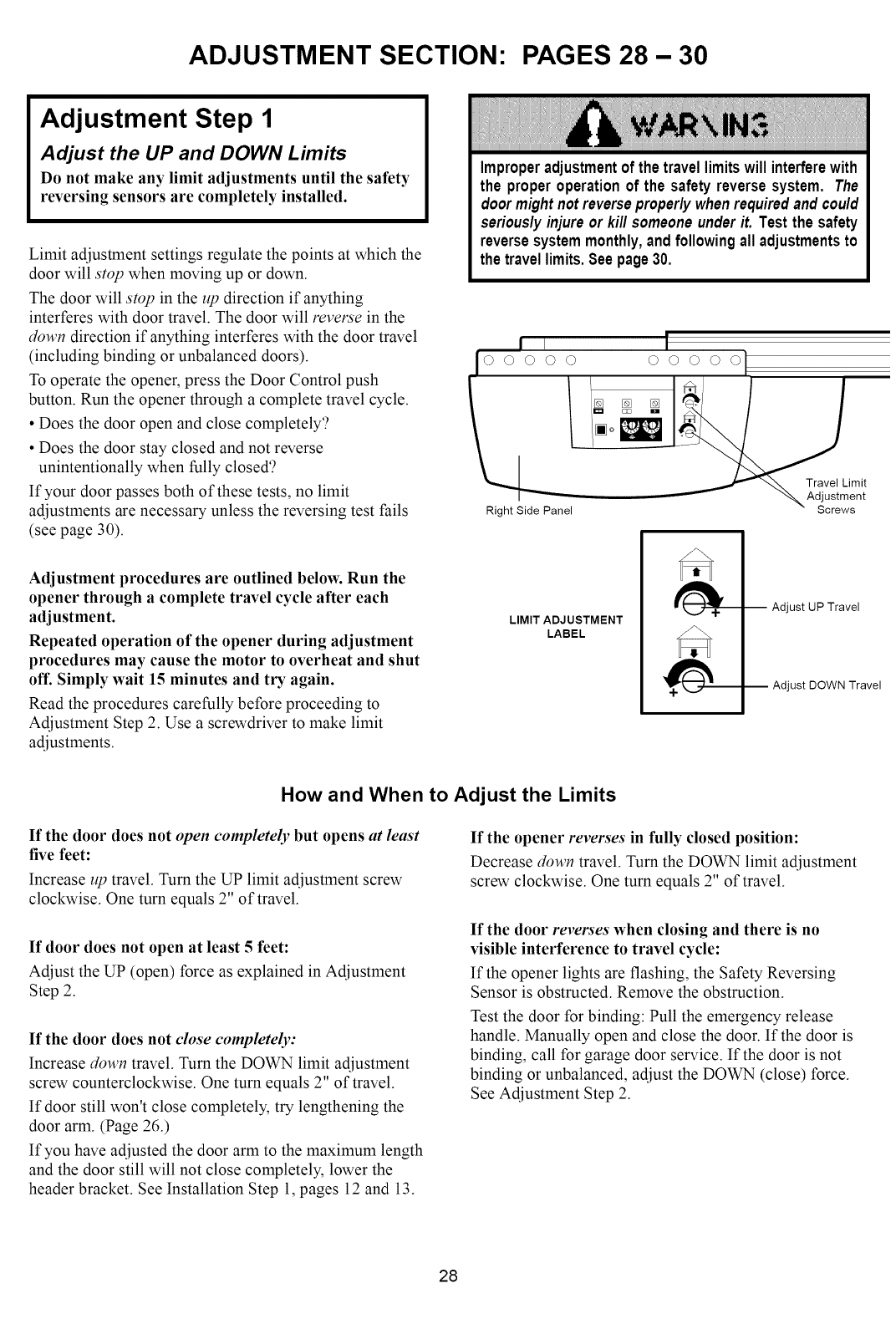

Adjustment Step 1

Adjust the UP and DOWN Limits

Do not make any limit adjustments until the safety

reversing sensors are completely installed.

Limit adjustment settings regulate the points at which the

door will stop when moving up or down.

The door will stop in the zip direction if anything

interferes with door travel. The door will reverse in the

down direction if anything interferes with the door travel

(including binding or unbalanced doors).

To operate the opener, press the Door Control push

button. Run the opener through a complete travel cycle.

• Does the door open and close completely'?

• Does the door stay closed and not reverse

unintentionally when fully closed'?

If your door passes both of these tests, no limit

adjustments are necessary unless the reversing test fails

(see page 30).

Improperadjustment of the travellimitswill interferewith

the properoperationof the safetyreversesystem. The

doormightnotreverseproper/ywhenrequiredand cou/d

serious/yinjure or ki// someoneunderit. Test the safety

reversesystemmonthly,and following all adjustmentsto

thetravellimits.See page30.

i i I

0 0 0 0 0 0 0 0 00I

Right Side Panel i_

Adjustment procedures are outlined below. Run the

opener through a complete travel cycle after each

adjustment.

Repeated operation of the opener during adjustment

procedures may cause the motor to overheat and shut

off. Simply wait 15 minutes and try again.

Read the procedures carefully before proceeding to

Adjustment Step 2. Use a screwdriver to make limit

adjustments.

LIMIT ADJUSTMENT

LABEL

i Adjust UP Travel

_@ Adjust DOWN Travel

How and When to Adjust the Limits

If the door does not open completely but opens at least

five feet:

Increase up travel. Turn the UP limit adjustment screw

clockwise. One turn equals 2" of travel.

If door does not open at least 5 feet:

Adjust the UP (open) force as explained in Adjustment

Step 2.

If the door does not close completely:

Increase down travel. Turn the DOWN limit adjustment

screw counterclockwise. One turn equals 2" of travel.

If door still won't close completely, try lengthening the

door arm. (Page 26.)

If you have adjusted the door arm to the maximum length

and the door still will not close completely, lower the

header bracket. See Installation Step 1, pages 12 and 13.

If the opener reverses in fully closed position:

Decrease down travel. Turn the DOWN limit adjustment

screw clockwise. One turn equals 2" of travel.

If the door reverses when closing and there is no

visible interference to travel cycle:

If the opener lights are flashing, the Safety Reversing

Sensor is obstructed. Remove the obstruction.

Test the door for binding: Pull the emergency release

handle. Manually open and close the door. If the door is

binding, call for garage door service If the door is not

binding or unbalanced, adjust the DOWN (close) force.

See Adjustment Step 2.

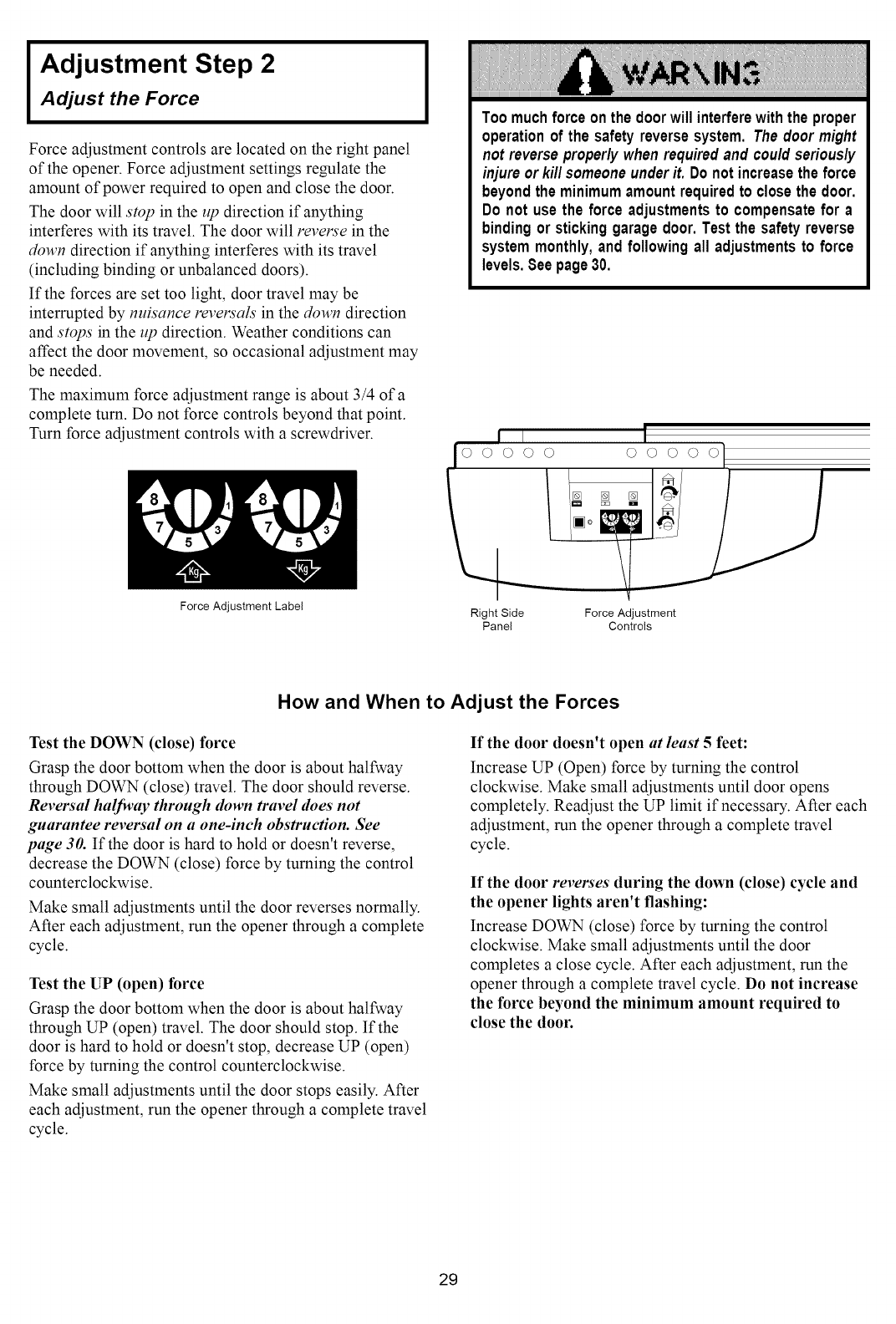

Adjustment Step 2

Adjust the Force

Force adjustment controls are located on the right panel

of the opener. Force adjustment settings regulate the

amount of power required to open and close the door.

The door will stop in the zip direction if anything

interferes with its travel. The door will reverse in the

down direction if anything interferes with its travel

(including binding or unbalanced doors).

If the forces are set too light, door travel may be

interrupted by nuisance reversals in the down direction

and stops in the zip direction. Weather conditions can

affect the door movement, so occasional adjustment may

be needed.

The maximum force adjustment range is about 3/4 of a

complete turn. Do not force controls beyond that point.

Turn force adjustment controls with a screwdriver.

Too muchforce on the doorwill interferewiththe proper

operationof the safetyreversesystem. The doormight

not reverseproper/ywhenrequiredand cou/dserious/y

injureor ki// someoneunderit. Do notincreasethe force

beyondthe minimumamountrequiredto closethe door.

Do not use the force adjustmentsto compensatefor a

bindingor stickinggaragedoor.Test the safetyreverse

systemmonthly,and following all adjustmentsto force

levels.Seepage30.

©©©©

Force Adjustment Label Right Side Force Adjustment

Panel Controls

How and When to Adjust the Forces

Test the DOWN (close) force

Grasp the door bottom when the door is about halfway

through DOWN (close) travel. The door should reverse.

Reversal halfway through down travel does not

guarantee reversal on a one-inch obstruction. See

page 30. If the door is hard to hold or doesn't reverse,

decrease the DOWN (close) force by turning the control

counterclockwise.

Make small adjustments until the door reverses normally.

After each adjustment, run the opener through a complete

cycle.

Test the UP (open) force

Grasp the door bottom when the door is about halfway

through UP (open) travel. The door should stop. If the

door is hard to hold or doesn't stop, decrease UP (open)

force by turning the control counterclockwise.

Make small adjustments until the door stops easily. After

each adjustment, run the opener through a complete travel

cycle.

If the door doesn't open at least 5 feet:

Increase UP (Open) force by turning the control

clockwise. Make small adjustments until door opens

completely. Readjust the UP limit if necessary. After each

adjustment, run the opener through a complete travel

cycle.

If the door reverses during the down (close) cycle and

the opener lights aren't flashing:

Increase DOWN (close) force by turning the control

clockwise. Make small adjustments until the door

completes a close cycle. After each adjustment, run the

opener through a complete travel cycle. Do not increase

the force beyond the minimum amount required to

close the door.

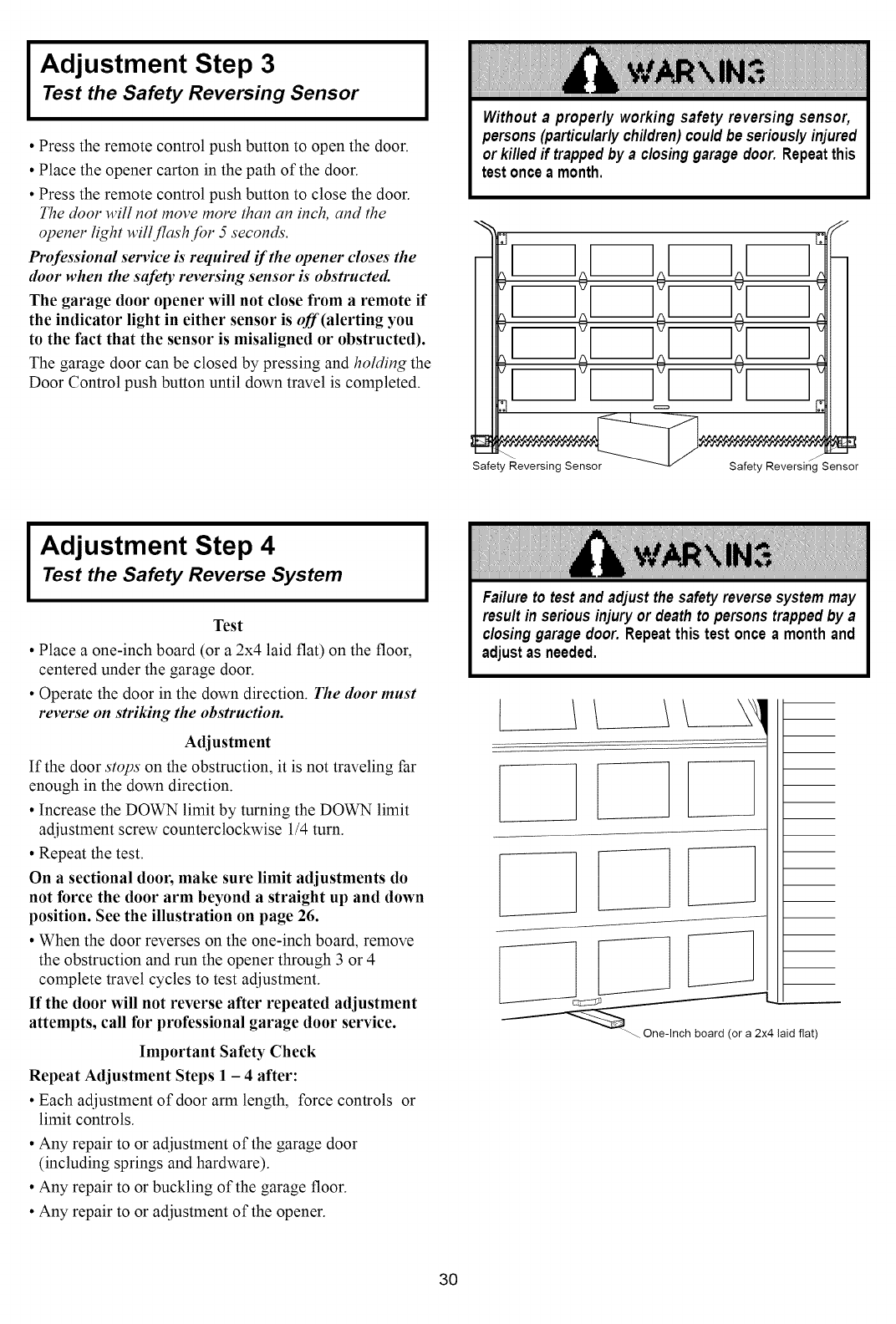

Adjustment Step 3

Test the Safety Reversing Sensor

•Press the remote control push button to open the door.

• Place the opener carton in the path of the door.

• Press the remote control push button to close the door.

The door will not move more than an inch, and the

opener light will flash Jbr 5 seconds

Professional service is required if the opener closes the

door when the safety reversing sensor is obstructed.

The garage door opener will not close from a remote if

the indicator light in either sensor is off(alerting you

to the fact that the sensor is misaligned or obstructed).

The garage door can be closed by pressing and holding the

Door Control push button until down travel is completed.

Without aproperly working safety reversing sensor,

persons(particularly children)couldbe seriously injured

or killedif trappedby ac/osinggaragedoor. Repeatthis

testonceamonth.

{

.£

Safety Reversing Sensor

Adjustment Step 4

Test the Safety Reverse System

Test

• Place a one-inch board (or a 2x4 laid flat) on the floor,

centered under the garage door.

• Operate the door in the down direction. The door must

reverse on striking the obstruction.

Adjustment

If the door stops on the obstruction, it is not traveling far

enough in the down direction.

• Increase the DOWN limit by turning the DOWN limit

adjustment screw counterclockwise 1/4 turn.

• Repeat the test.

On a sectional door, make sure limit adjustments do

not force the door arm beyond a straight up and down

position. See the illustration on page 26.

• When the door reverses on the one-inch board, remove

the obstruction and run the opener through 3 or 4

complete travel cycles to test adjustment.

If the door will not reverse after repeated adjustment

attempts, call for professional garage door service.

Important Safety Check

Repeat Adjustment Steps 1- 4 after:

• Each adjustment of door arm length, force controls or

limit controls.

• Any repair to or adjustment of the garage door

(including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

Failureto testand adjust the safety reversesystem may

resultin serious injuryor deathto personstrappedby a

closinggarage door. Repeatthis test onceamonthand

adjustas needed.

_laid flat)

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. Do not permit children either to operate or to play with the opener. Keep remote control in a location

inaccessible to children.

3. Operate opener only when the door is in full view and free from any obstruction. Keep the door in sight until

it is completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

4. Check safety reversal system monthly. See page 30. The garage door MUST reverse on contact with a one

inch object (or a 2x4 board laid flat) placed on the floor. If an adjustment is made to one of the controls

(either force or limits of travel), the other control may need to be adjusted also, and the safety reversal system

must be checked. Failure to properly adjust the opener may result in severe injuly or death.

5. If possible, use the emergency release only when the door is in a closed position. Caution should be taken

whenever the disconnect cord is actuated with the door open. Weak or broken springs may cause the door to

fall rapidly, causing injury or death to persons.

6. KEEP GARAGE DOORS PROPERLY BALANCED. See page 3. An improperly balanced door may not

reverse when required, and couhl result in severe injuly or death. Repairs to cables, spring assemblies and

other hardware must be made by a professional garage door person.

7. Disconnect the electric power to the garage door opener before making any repairs or removing the covers.

SAVE THESE INSTRUCTIONS

Care of Your Opener

The remote control

Force and Limit Adjustment Controls

FORCECONTROLS LIMIT CONTROLS

The lithium batteries should

produce power for up to 5 years.

To replace batteries, use the visor

clip or screwdriver blade to pry

open the case, as shown. ("Open"

location is stamped on back of

transmitter case.) Insert batteries

positive side down.

Weather conditions may cause some minor changes in

door operation requiring some re-adjustments,

particularly during the first year of operation.

Pages 28 and 29 refer to the limit and force adjustments.

Only a screwdriver is required. Follow the instructions

carefully.

Repeat the safety reverse test (page 30) after any

adjustment of limits or force.

3-FUNCTION

Open this end

first to avoid

cracking

housing

Replace cover as follows. 3-Fzmcaon remote." Insert the 3

tabs at the opposite end and snap shut. Compact

3-Fzmction remote." Snap shut along both sides.

Dispose of old batteries properly.

Keep batteries away from small children. If

swallowed, promptly notify doctor.

Maintenance Schedule

Once a Month

Manually operate door. If it is unbalanced or binding,

call for professional garage door service.

Check to be sure door opens & closes fully. Adjust

limits and/or force if necessary. (See pages 28 & 29.)

Repeat the safety reverse test. Make any necessary

adjustments (See page 30).

Once a Year

Oil door rollers, bearings and hinges. The opener does

not require additional lubrication. Do not grease the door

tracks.

Operation of Your Opener

Activate the opener with any of the following:

•The Remote Control: Hold push button down until

the door starts to move.

• The Door Control: Hold push bar or button down

until the door starts to move.

• The Outdoor Key Switch or Keyless Entry: (See

Accessories)

When the opener is activated with the safety reversing

sensor installed and correctly aligned:

1. If open, the door will close. If closed, the door will

open.

2. If closing, the door will reverse.

3. If opening, the door will stop (allowing space for entry

and exit of pets and for fresh air).

4. If the door has been stopped in a partially open

position, it will close.

5. If obstructed while closing, the door will reverse.

6. If obstructed while opening, the door will stop.

7. The garage door will reverse in the closing cycle when

the invisible beam is broken. If fully open, the door

will not close when the beam is broken. The sensor

has no effect in the opening cycle.

If the sensor is not installed, or is not aligned correctly,

the door won't close from any remote control. You can

close the door with the Door Control, the Outdoor Key

Switch, or Keyless Entry, however, if you activate them

until down travel is complete. If you release them too

soon, the door will reverse.

The opener lights will blinkJor 5 seconds" when the safety

reversing sensor causes the door to reverse.

Opener Lights will turn on under the following

conditions: When the opener is initially plugged in; when

the power is interrupted; when the opener is activated.

They will turn off automatically after 4-1/2 minutes or

provide constant light when the Light feature is activated.

Bulb size is 100 watts maximum.

Weakorbrokenspringscouldallow an open doorto fall

(either rapidly or unexpectedly), resulting in serious

injury, deathor property damage. If possible, use the

manualreleaserope and handle only when the door is

fully closed.

Trolley

Position)

Lockout position

(Manual disconnect)

To open the door

manually:

The door should be fully

closed if possible. Pull down

on the emergency release

handle (so that the trolley

release arm snaps into a

vertical position) and lift the

door manually. The lockout

feature prevents the trolley

from reconnecting auto-

matically, and the door can

be raised and lowered

manually as often as

necessary.

To reengage the trolley:

Pull the emergency release

handle toward the opener at

a 45° degree angle so that

the trolley release arm is

horizontal. The trolley will

reconnect on the next UP or

DOWN operation, either

manually or by pressing the

Door Control push button.

o - --Trolley

Trolley

_, _Release Arm

Emergency

Release _

Handle _

(Pull at 45 ° angle)

To reconnect

Operation of the Door Controls (see page 21)

(all may not be included with your model)

Press the lighted push button to open or close the door.

Press again to reverse the door during the closing cycle

or to stop the door while it's opening.

Premium Console:

LightJeamre." Press the large round Light button. If the

opener light is of/, it will turn on. If the opener light is

on, (even in the 4-1/2 minute automatic cycle) it will

turn off.

But if you use the Light button to turn the lights on and

then activate the opener, the lights will turn offafter 4-

1/2 minutes.

The Light button will not control the opener lights when

the door is in motion.

Premium Console (cont.):

LockJeamre." The Lock feature is designed to prevent

operation of the door from remote controls. However,

the door will open and close from the Door Control, the

Outdoor Key Switch and the Keyless Entry Accessories.

To activate." Press and hold the small round Lock

button for 2 seconds. The push button light will flash

as long as the Lock feature is on.

To turn oJf" Press and hold the Lock button again for

2 seconds.The push button light will stop flashing. The

Lock feature will also turn off whenever the SRT

button on the opener panel is activated.

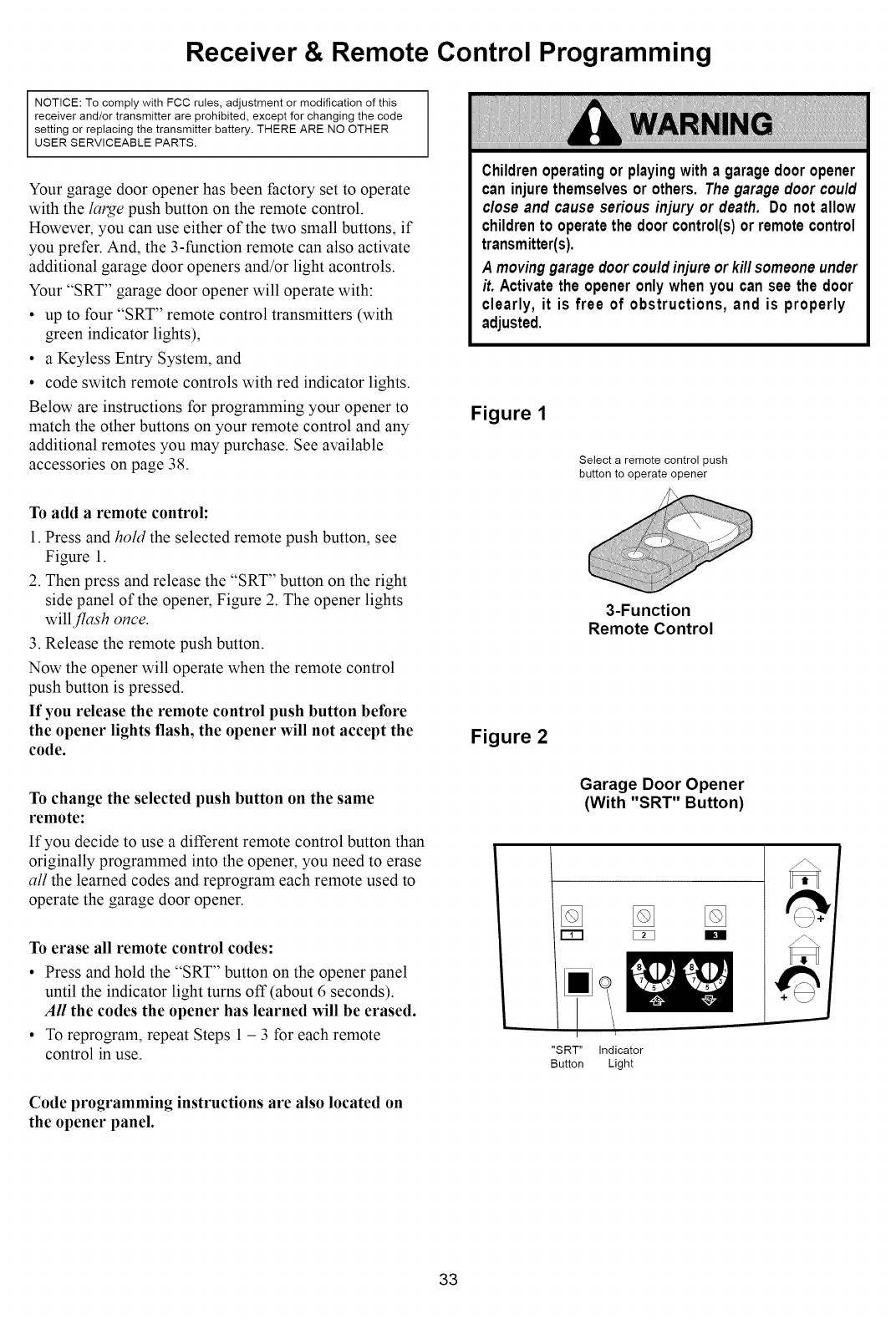

Receiver & Remote Control Programming

NOTICE: To comply with FCC rules, adjustment or modification of this

receiver and/or transmitter are prohibited, except for changing the code

setting or replacing the transmitter battery. THERE ARE NO OTHER

USER SERVICEABLE PARTS.

Your garage door opener has been factory set to operate

with the large push button on the remote control.

However, you can use either of the two small buttons, if

you prefer. And, the 3-function remote can also activate

additional garage door openers and/or light acontrols.

Your "SRT" garage door opener will operate with:

• up to four "SRT" remote control transmitters (with

green indicator lights),

• a Keyless Entry System, and

• code switch remote controls with red indicator lights.

Below are instructions for programming your opener to

match the other buttons on your remote control and any

additional remotes you may purchase. See available

accessories on page 38.

To add a remote control:

1. Press and hold the selected remote push button, see

Figure 1.

2. Then press and release the "SRT" button on the right

side panel of the opener, Figure 2. The opener lights

will flash once.

3. Release the remote push button.

Now the opener will operate when the remote control

push button is pressed.

If yon release the remote control push button before

the opener lights flash, the opener will not accept the

code.

To change the selected push button on the same

remote:

If you decide to use a different remote control button than

originally programmed into the opener, you need to erase

all the learned codes and reprogram each remote used to

operate the garage door opener.

To erase all remote control codes:

• Press and hold the "SRT" button on the opener panel

until the indicator light turns off (about 6 seconds).

All the codes the opener has learned will be erased.

• To reprogram, repeat Steps 1 -3 for each remote

control in use.

Code programming instructions are also located on

the opener panel.

Childrenoperatingor playingwith agaragedoor opener

can injurethemselvesor others. The garagedoor could

c/ose and cause seriousinjury or death. Do not allow

childrento operatethe door control(s)or remotecontrol

transmitter(s).

A movinggaragedoorcou/dinjureorki//someoneunder

it. Activatethe openeronlywhen you can see the door

clearly, it is free of obstructions, and is properly

adjusted.

Figure 1

Select a remote control push

button to operate opener

3-Function

Remote Control

Figure 2

Garage Door Opener

(With "SRT" Button)

"SRT" Indicator

Button Light

Situation

Troubleshooting

Probable Cause & Solution

The opener doesn't

operate from either

the door control or

the remote control:

Opener operates from

the remote control, but

not from the door

control:

1. Does the opener have electric power'? Plug a lamp into the outlet. If it doesn't light, check the

fuse box or the circuit breaker. (Some outlets are controlled by a wall switch.)

2. Have you disabled all door locks'? Review installation instruction warnings on Page 11.

3. Is there a build-up of ice or snow under the door'? The door may be frozen to the ground.

Remove any restriction.

4. The garage door spring may be broken. Have it replaced.

5. Repeated operation may have tripped the overload protector in the motor. Wait

15 minutes. Try again.

1. Is the door control push bar lit'? If not, Remove the bell wire from the opener terminal

screws. Short the red and white terminals by touching both terminals at the same time with

a piece of wire. If the opener runs, check for a faulty wire connection at the door control, a

short under the staples, or a broken wire.

2. Are the wiring connections correct'? Review Installation Step 7, page 21.

The door operates from

the door control, but not

from the remote

control:

1. If your model has the Lock feature, turn it off.

2. Is the door push button flashing'? Your opener needs to re-learn a remote control code.

Refer to instructions on the opener panel.

3. Does the battery test light glow when the remote control push button is pressed'? If not,

replace the battery.

4. Program the receiver to match the remote control code.

5. Repeat the receiver programming procedure with all remote controls.

The remote control has

short range:

1. Check the battery test light. If the light is dim, replace the battery.

2. Change the location of the remote control in your car.

3. Check to be sure the antenna on the right side panel of opener extends fully.

4. Some installations may have shorter range due to a metal door, foil backed insulation, or

metal garage siding.

Opener noise is

disturbing in living

quarters of home:

If operational noise is a problem because of proximity of the opener to the living quarters, the

Vibration Isolator Kit 41A3263 can be installed. This kit was designed to minimize vibration

to the house and is easy to install.

The garage door

opens and closes by

itself."

Be sure that all remote control push buttons and battery indicator lights are off.

Remove the bell wire from the door control terminals and operate from the remote control

only. If this solves the problem, the door control is faulty (replace), or there is an

intermittent short on the wire between the door control and the opener.

The door doesn't open

completely:

1. If the door has been working properly but now doesn't open all the way, increase the zip

Jorce. See page 29.

2. Is something obstructing the door'? Remove the obstruction or repair the door.

3. If door opens at least 5 feet, the travel limits may need to be increased. One turn equals

2 inches of travel. See page 28.

Repeat the safety reverse test after the adjustment is complete.

The door stops but

doesn't close

completely:

Review the travel limits adjustment procedures on page 28.

Repeat the safety reverse test after any adjustment of door arm length, close fi_rce or down

limit.

Situation

Troubleshooting (continued)

Probable Cause & Solution

The door opens but

won't close: 1. If the opener lights blink, check the safety reversing sensor. See page 22.

2. If the opener lights do not blink and it is a new installation, check the down force. See

Adjustment Step 2, page 29. For an existing installation, see below.

Repeat the safety reverse test after the adjustment is complete.

The door reverses fi_r no

apparent reason and

opener lights don't

blink:

1. Is something obstructing the door'? Pull the emergency release handle. Operate the door

manually. If it is unbalanced or binding, call for professional garage door service.

2. Clear any ice or snow from the garage floor area where the door closes.

3. Review the force adjustment procedures on page 29.

4. If door reverses in theJidly closed position, decrease the travel limits (page 28).

Repeat the safety reverse test after adjustments to fi_rce or travel limits. The need fi_r

occasional adjustment of the fi_rce and lim# settings is normal. Weather comh'tions in

particular can affect door travel.

The door reverses fi_r no

apparent reason and

opener lights blink fi_r

5 secomls after

reversing:

Check the safety reversing sensor. Remove any obstruction or align the receiving eye. See

pages 12 and 22.

The opener lights... don't turn on:

Replace the light bulb(s) (100 watts maximum). Use a stamlard neck garage door opener bulb

if regular bulb burns out.

don't turn off"

Is the Light feature on').Turn it q[[.

The opener strains or

maximum force is

needed to operate door:

The door may be out of balance or the springs are broken. Close the door and use the

emergency release handle to disconnect the trolley. Open and close the door manually. A

properly balanced door will stay in any point of travel while being supported entirely by its

springs. If it does not, disconnect the opener and call for professional garage door service.

Do not increase the fi_rce to operate the opene_

The opener motor

hums briefly, then

won't work:

1. The garage door springs are broken. See above.

2. If the problem occurs on the first operation of the opener, door may be locked. Disable the

door lock.

Repeat the safety reverse test after the adjustment is complete.

The opener won't

operate due to power

failure:

1. Use the emergency release handle to disconnect the trolley. The door can be opened and

closed manually. When power is restored, press the Door Control push button and trolley

will automatically reconnect (unless trolley is in lockout position.) See page 32.

2. The Emergency Key Release accessory (for use on garages with no service door)

disconnects the trolley from outside the garage in case of power failure.

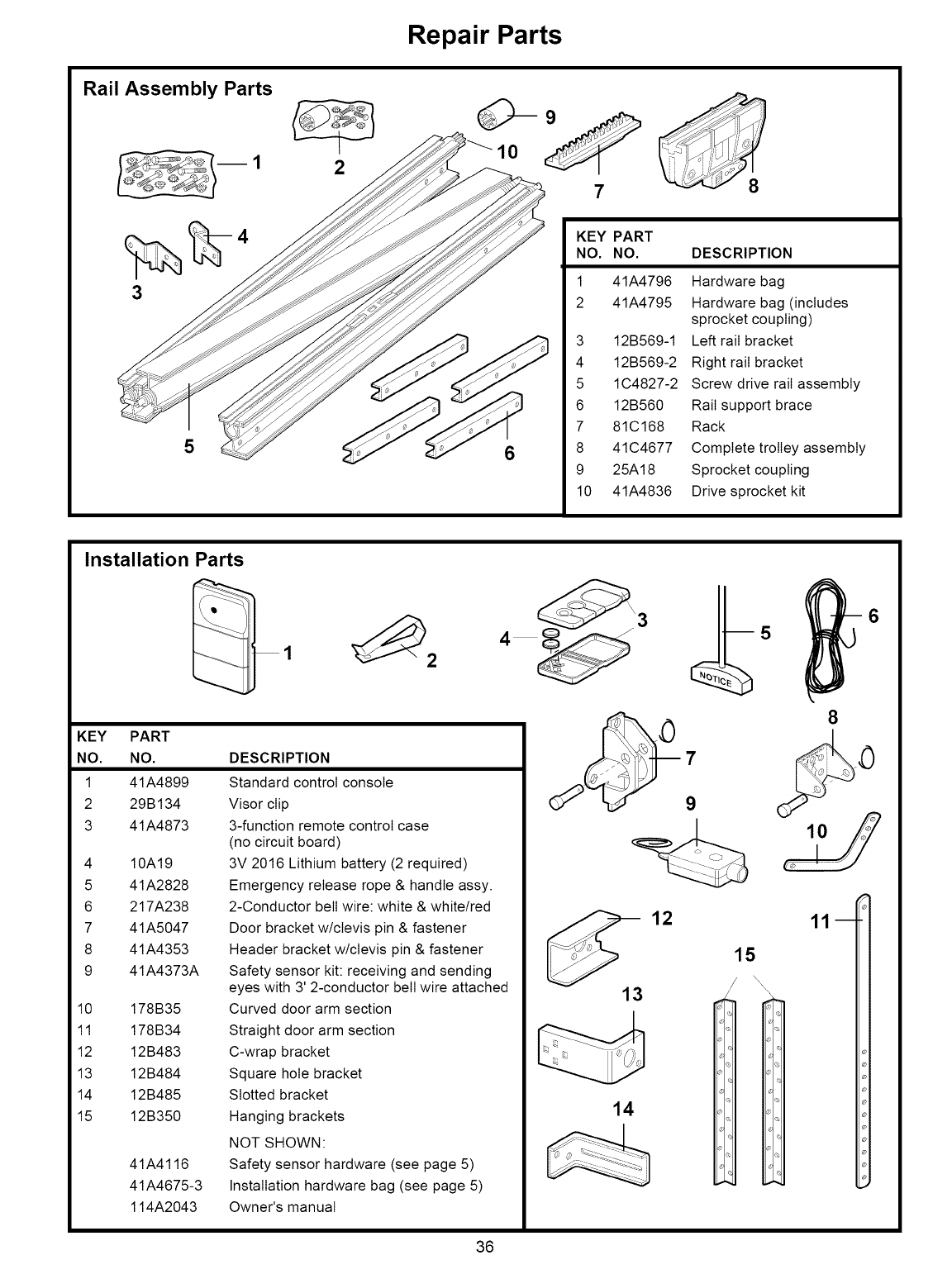

Repair Parts

Rail Assembly Parts

210

KEY PART

NO. NO. DESCRIPTION

1 41A4796

2 41A4795

3 12B569-1

4 12B569-2

5 1C4827-2

6 12B560

7 81C168

8 41C4677

9 25A18

10 41A4836

Hardware bag

Hardware bag (includes

sprocket coupling)

Left rail bracket

Right rail bracket

Screw drive rail assembly

Rail support brace

Rack

Complete trolley assembly

Sprocket coupling

Drive sprocket kit

Installation Parts

KEY PART

NO. NO.

1 41A4899

2 29B134

3 41A4873

10A19

41A2828

217A238

41A5047

41A4353

41A4373A

178B35

178B34

12B483

12B484

12B485

12B350

41A4116

41A4675-3

114A2043

DESCRIPTION

Standard control console

Visor clip

3-function remote control case

(no circuit board)

3V 2016 Lithium battery (2 required)

Emergency release rope & handle assy.

2-Conductor bell wire: white & white/red

Door bracket w/clevis pin & fastener

Header bracket w/clevis pin & fastener

Safety sensor kit: receiving and sending

eyes with 3' 2-conductor bell wire attached

Curved door arm section

Straight door arm section

C-wrap bracket

Square hole bracket

Slotted bracket

Hanging brackets

NOT SHOWN:

Safety sensor hardware (see page 5)

Installation hardware bag (see page 5)

Owner's manual

11 1

- I

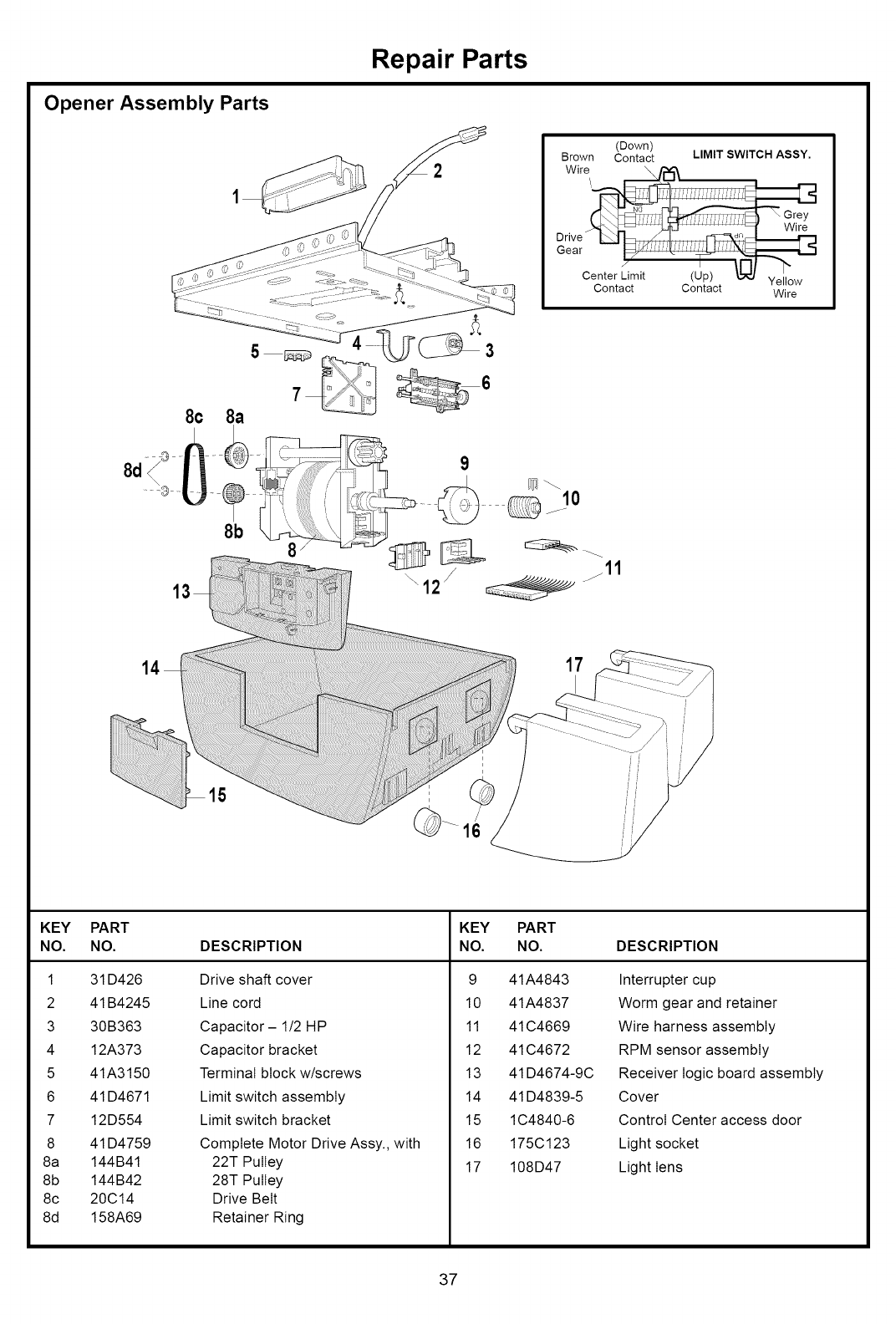

Opener Assembly Parts

Repair Parts

8¢ 8a

(Down)

Brown Contact LIMIT SWITCH ASSY,

Wire _ Pr_

Drive_ = /I d,

Center Limit (Up) _ Yellow

Contact Contact Wire

_Ui_10

14 17

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 31D426 Drive shaft cover

2 41 B4245 Line cord

3 30B363 Capacitor- 1/2 HP

4 12A373 Capacitor bracket

5 41A3150 Terminal block w/screws

6 41 D4671 Limit switch assembly

7 12D554 Limit switch bracket

8 41 D4759 Complete Motor Drive Assy., with

8a 144B41 22T Pulley

8b 144B42 28T Pulley

8c 20C14 Drive Belt

8d 158A69 Retainer Ring

9 41A4843

10 41A4837

11 41C4669

12 41C4672

13 41D4674-9C

14 41D4839-5

15 lC4840-6

16 175C123

17 108D47

Interrupter cup

Worm gear and retainer

Wire harness assembly

RPM sensor assembly

Receiver logic board assembly

Cover

Control Center access door

Light socket

Light lens

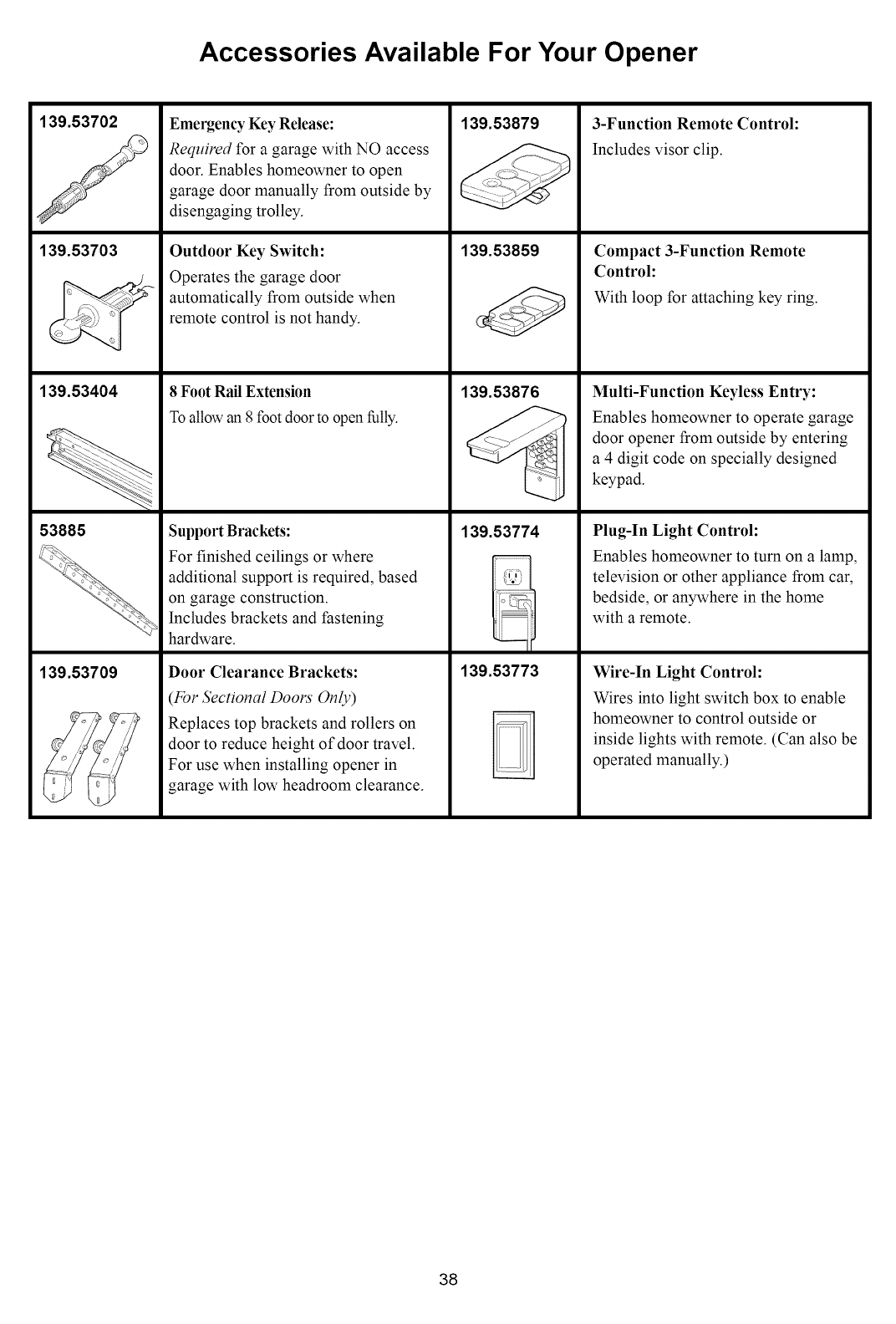

Accessories Available For Your Opener

139.53702

139.53703

139.53404

53885

139.53709

Emergency Key Release:

Required for a garage with NO access

door. Enables homeowner to open

garage door manually from outside by

disengaging trolley.

Outdoor Key Switch:

Operates the garage door

automatically from outside when

remote control is not handy.

139.53879

8Foot Rail Extension

To allow an 8 foot door to open fully.

Support Brackets:

For finished ceilings or where

additional support is required, based

on garage construction.

Includes brackets and fastening

hardware.

Door Clearance Brackets:

(For Sectional Doors" Only)

139.53859

139.53876

139.53774

139.53773

3-Function Remote Control:

Includes visor clip.

Compact 3-Function Remote

Control:

With loop for attaching key ring.

Multi-Function Keyless Entry:

Enables homeowner to operate garage

door opener from outside by entering

a 4 digit code on specially designed

keypad.

Plug-In Light Control:

Enables homeowner to turn on a lamp,

television or other appliance from car,

bedside, or anywhere in the home

with a remote.

Wire-In Light Control:

Wires into light switch box to enable

Replaces top brackets and rollers on

door to reduce height of door travel.

For use when installing opener in

garage with low headroom clearance.

homeowner to control outside or

inside lights with remote. (Can also be

operated manually.)

Index

Access Door/Emergency Key Release Accessory ............................................................................................... 6, 7, 35, 36

Electrical Safety Warnings ...................................................................................................................................... 2, 22, 31

Garage Door

Testing for balance, binding and sticking ................................................................................................................. 3, 28, 31

Determining high point of travel:

Sectional door .................................................................................................................................................................. 12

One-piece door ................................................................................................................................................................ 13

Disabling existing locks ................................................................................................................................................. 3, 11

Force controls

Adjustment procedures .................................................................................................................................................... 29

Problems that might require force adjustments ......................................................................................................... 34, 35

Safety warnings ......................................................................................................................................................... 29, 31

Door hardware .............................................................................................................................................. 3, 11, 12, 31, 32

Maintenance ........................................................................................................................................................... 11, 28-31

Reinforcement requirements .................................................................................................................................... 4, 24, 25

Removing of all ropes .................................................................................................................................................... 3, 11

Possible door damage ............................................................................................................................................... 3, 19, 24

Travel limits

Adjustment procedures .............................................................................................................................................. 27, 28

Problems that might require limit adjustments ......................................................................................................... 34, 35

Safety warnings ......................................................................................................................................................... 28, 31

Emergency Release Rope & Handle

Lockout feature ................................................................................................................................................................. 32

Manual disconnect ....................................................................................................................................................... 32, 35

Safety warnings ............................................................................................................................................... 11, 23, 31, 32

Opener Terminals

Door control connections .................................................................................................................................................. 21

Safety reversing sensor connections ............................................................................................................................ 21, 22

Receiver &Remote Controls

Programming the receiver ................................................................................................................................................. 33

Erasing all codes ................................................................................................................................................................ 33

Safety warning ................................................................................................................................................................... 33

Problems with remote control transmitter operation ......................................................................................................... 34

Safety Reversing Sensor ........................................................................................................................................ 16-18, 30

Safety Reverse Test Procedure .......................................................................................................................................... 30

Testing required ............................................................................................................................................... 11, 30, 34, 35

Safety reverse system problems

Securing header bracket to wall ...................................................................................................................................... 12

Adjusting travel limits ..................................................................................................................................................... 28

Applying excessive force on the door ............................................................................................................................. 29

Buckling or uneven floor ............................................................................................................................................... 4, 5

Safety Warnings ...................................................................... 2, 3, 11, 12, 16, 19, 20, 21, 22, 23, 24, 28, 29, 30, 31, 32, 33

Troubleshooting ............................................................................................................................................................ 34, 35

User Instruction Label for Garage Wall .................................................................................................................... 11, 21

Vibration Noise (isolator kit) ............................................................................................................................................. 34

SEARS

OWNER'S

MANUAL

Model No.

139.53491SRT

The model number

label is located on the

back of your opener.

When requesting

service or ordering

parts, always provide

the following

information:

;/:_r/;l,_:;jr/[_]._

•Product Type

• Model Number

• Part Number

• Part Description

I:RRFTSMRN,

GARAGE DOOR OPENER

For the repair or replacement parts you need

Call 7 am -7 pm, 7 days a week

1-800-366-PART

(1-800-366-7278)

For in-home major brand repair service

Call 24 hours a day, 7 days a week

1-800-4-R E PAl R

(1-800-473-7247)

For the location of a

Sears Repair Service Center in your area

Call 24 hours a day, 7 days a week

1-800-488-1 222

For information on purchasing a Sears

Maintenance Agreement or to inquire

about an existing Agreement

Call 9 am - 5 pm, Monday-Saturday

1-800-827-6655

SEARS

America's Repair Specialists

SEARS WARRANTY

FULL 90-DAY WARRANTY ON GARAGE DOOR OPENER

For 90 days from the date of purchase, Sears will repair any defect in material or

workmanship at no charge.

LIMITED WARRANTY

From the 91 st day until one year from the date of purchase, Sears will furnish

replacement parts for any defective parts, free of charge. You pay for labor.

LIMITED WARRANTY ON 1/2 HP MOTORS FOR CRAFTSMAN OPENERS

After 1 year and through 5 years, Sears will furnish replacement parts for any

defective parts in motor, free of charge. You pay for labor.

LIMITATION ON LIABILITY

Sears will not be liable for loss or damage to property or any incidental or

consequential loss or expense from property damage due directly or indirectly

from the use of this product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitation or exclusion may not apply to you.

This warranty does not cover repairs necessary because of operator abuse or

negligence, including failure to install, adjust and operate the opener according to

instructions contained in the owner's manual.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST

SEARS STORE OR SERVICE CENTER IN THE UNITED STATES.

This warranty gives you specific legal rights, and you may also have other rights

which vary from state to state.

SEARS ROEBUCK AND COMPANY, Dept. 817WA, Hoffman Estates, IL 60179

[]

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Craftsman 13953491SRT User Manual GARAGE DOOR OPENER Manuals And Guides L0912316

CRAFTSMAN Garage Door Opener Manual L0912316 CRAFTSMAN Garage Door Opener Owner's Manual, CRAFTSMAN Garage Door Opener installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
