Owners ManuaR

°° _ O/l/ °

Garage Door Opener

Modem 1 39.535t 3

CAUTION: READ INSTRUCTIONS AND RULES

FOR SAFE OPERATION CAREFULLY_

FASTEN THIS MANUAL NEAR THE GARAGE

DOOR AFTER INSTALLATIOH. PERIODIC

CHECKS OF OPENER ARE REQUIRED

TO INSURE SATISFACTORY OPERATIOH.

mNDIEX

Page

Features of Your Opener .............. 2

Specifications ........................ 2

You'll Need Tools ................... 2

Safety Rules ........................ 3

Carton Check List .................... 4

Accessories ......................... 5

Identify Your Door Type ............. 5

Assembly ............................. 6

Installation .......................... 10

Adjustment ........................... 18

Operation of Your Opener .......... 21

Radio Controls ....................... 22

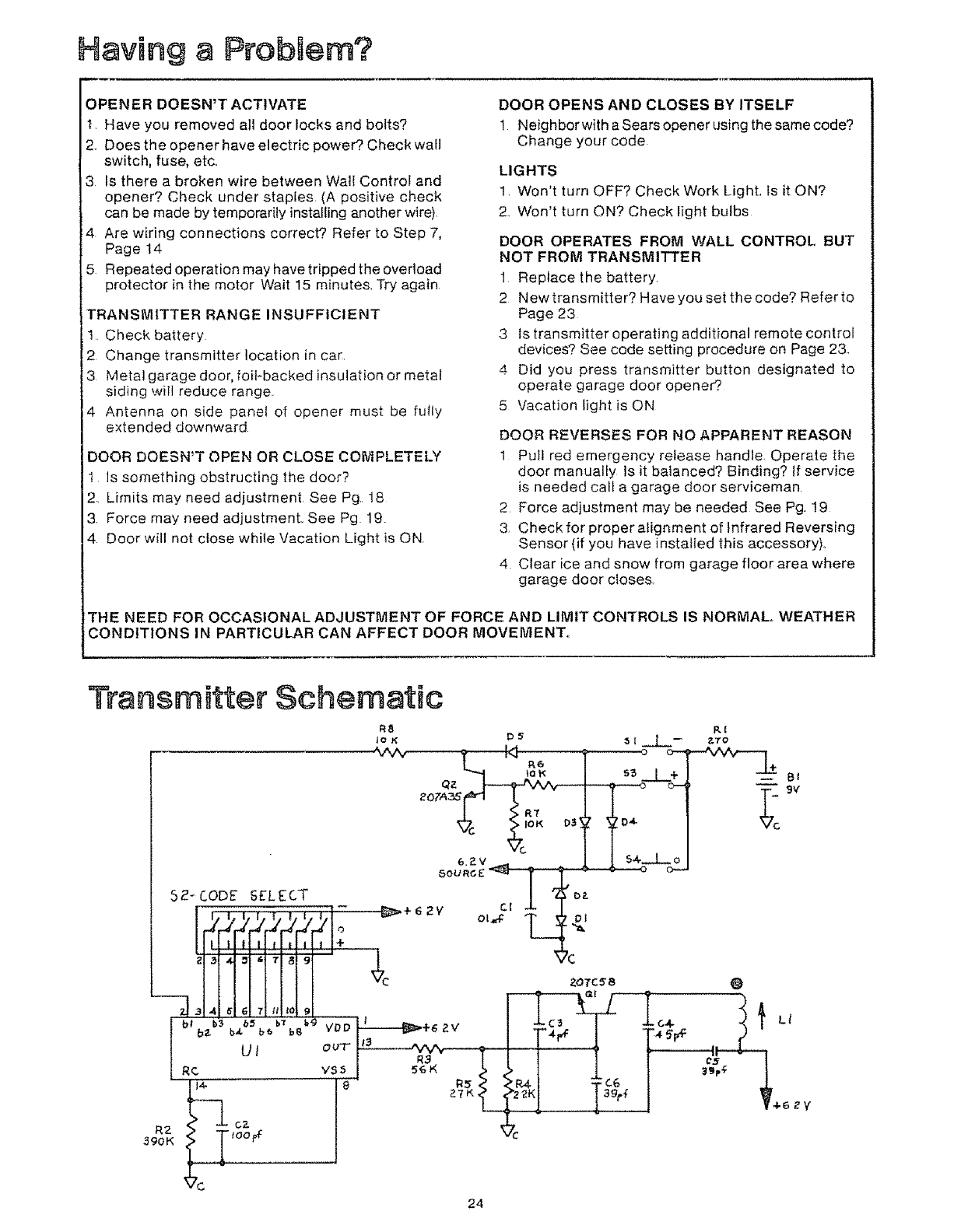

Having aProblem? ..................... 24

Transmitter Schematic .............. 24

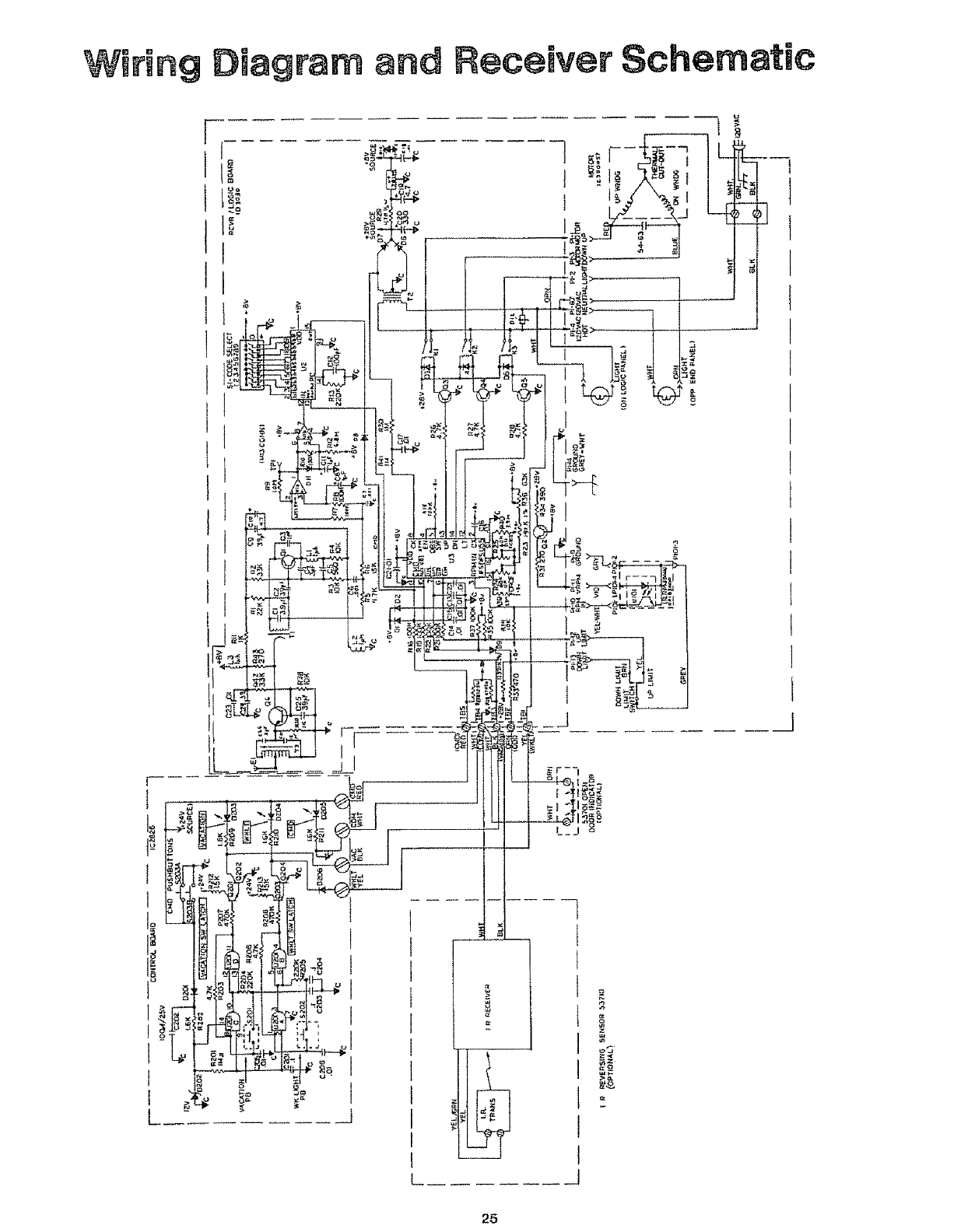

Wiring Diagram ...................... 25

Receiver Schematic .................. 25

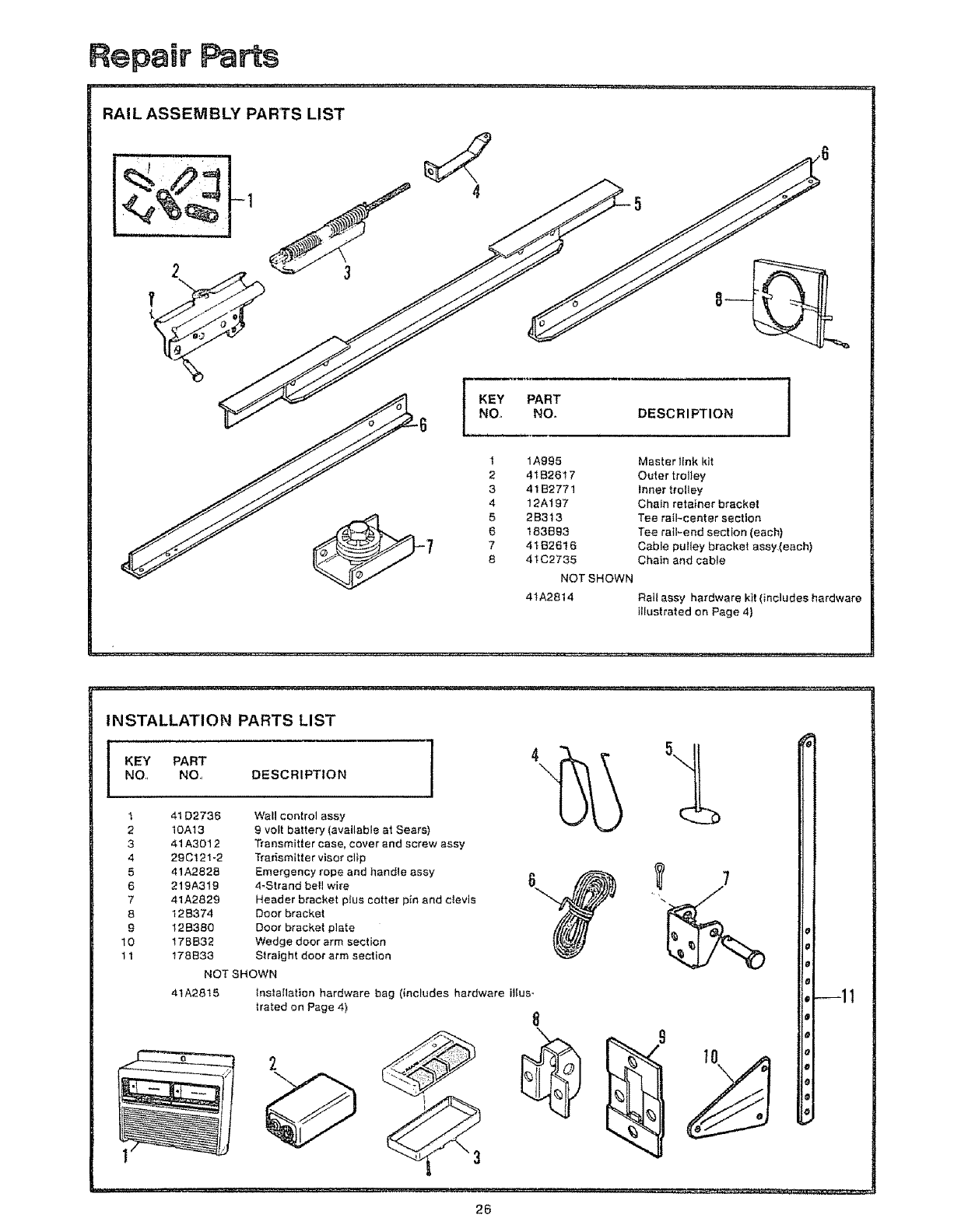

Repair Parts, Rail Assembly .......... 26

Repair Parts, Installation ........... 26

Repair Parts, Chassis Assembly .... 27

How to Order Repair Parts ............. 28

• ]aintenance Agreements ........... 28

Sears Warranty ...................... 28

FEATURES OF YOUR OPENER

1. Opener Lights: Turn on and off automaticaflywith

4-1/2 minute illumination for your safety and con-

venience Provide constant light when Work Light

control button is pressed

2. Safety System: Independent up and down force

adjustment Door reverses automatically when ob-

structed in DOWN direction Door STOPS when

obstructed in UP direction.

3o Emergency Disconnect: Pull cord disconnect

permits manual door operation,

4_ Automatic Reconnect: Trolley halves reconnect

for automatic operation when opener is energized

after emergency discon nect.

5, Motor Power, 1/2 horsepower permanently lubri-

cated motor with automatic reseL

6. Digital Radio Controls: 19,683 codes from which to

choose Can be changed easily by the owner

7.3-Channel Transmitter: Three push buttons, Each

button can activate one or more remote control

devices, The large transmitter button is factory

preset to operate the garage door opener_

8. Easy Limit Adjustment: Limits of door opening

and closing adjusted by turning screws without re-

moving chassis cover

9. Vacation Push Button: When the Vacation Push

Button is ON, the opener will not operate from the

transmitter The door will operate in the UP direc-

tion ONLY from the Wall Control (or optional Key

Switch accessory, Page 5).

SPECIFICATIONS

Type .....

Speed

Volts

Current

Gear reduction

Drive

Lubrication

Length of Travel

Travel rate

Lamp

Door linkage

MOTOR SAFETY

1t2 horsepower, permanent split capacitor

1500 rpm

120 Volts AC- 60 Hz Only

4 5 amperes

DRIVE MECHANISM

!6:1

Chain & cable with two-piece trolley on

steel Tee rail

Motor is self-lubricated, Drive shaft bronze

oil-fit e bearings

Adjustable to 7-1/2 feet

6 to 8 inches per second

On when door starts in travel, oft 4-t/2

minutes after stop, Also separate Work

Light push button

Adjuslable doer arm Pull cord Irotley

release

Electronic

Electrical

Limit device .

Limit adjustment

Start circuit

Persona! Push button & automalic reversal in down

direction Push button & automatic step tn

up direction

Independent up & down force adjustment

screws

Motor overload protector and low voltage

push button wiring

Circuil actuated by limit nut

Screwdriver adjustment on side panel

Low voltage push button or radio control

DIMENSIONS

Length (overall) . 12!-t/2 inches

Headroom required 2 inches

Shipping Weight 43 pounds

YOU' LL N EED TOOLS

During assembly and installation of your opener, the instruction will call for use of various hand tools. Have a

stepladder handy, and those tools illustrated below: Hammer, electric drill (also 3/16" and 5/16" drill bits), screw-

driver, adjustable end wrench or socket wrench kit, wire cutters, tape measure, pliers and hack saw.

Tape Measure

Stepladder Electric Drill Socket Wrench

Pliers

Wire Cutters

Screwdriver

Hack Saw

Claw Hammer

Adlustable End Wrench

THIS SAFETY ALERT SYMBOL MEANS CAUTION -- PERSONAL SAFETY OR PROPERTY DAMAGE IN"

STRUCTION,, READ THESE INSTRUCTIONS CAREFULLY,

THIS GARAGE DOOR OPENER IS DESIGNED AND TESTED TO OFFER REASONABLY SAFE SERVICE

PROVIDED IT IS INSTALLED AND OPERATED tN STRICT ACCORDANCE WITH THE FOLLOWING

SAFETY INSTRUCTIONS,

FAILURE TO COMPLY WITH THE FOLLOWING INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL

INJURY OR PROPERTY DAMAGE

KEEP GARAGE DOOR BALANCED. STICKING

OR BINDING DOORS MUST BE REPAIRED.

GARAGE DOORS, DOOR SPRINGS, CABLES,

PULLEYS, BRACKETS AND THEIR HARDWARE

MAY BE UNDER EXTREME TENSION AND CAN

CAUSE SERIOUS PERSONAL INJURYo DO NOT

ATTEMPT ADJUSTMENTS.. CALL A GARAGE

DOOR SERVICEMAN TO MOVE, LOOSEN OR

ADJUST DOOR SPRINGS OR HARDWARE..

DO NOT WEAR RINGS, WATCHES OR LOOSE

CLOTHING WHILE INSTALLING OR SERVICING

A GARAGE DOOR OPENER°

DO NOT USE FORCE ADJUSTME NTS TO COM-

PENSATE FOR A BINDING OR STICKING

GARAGE DOOR. EXCESSIVE FORCE WILLtN-

TERFERE WITH THE PROPER OPERATION OF

.THE SAFETY REVERSE SYSTEM OR DAMAGE

THE GARAGE DOOR° (SEE PAGE 19)o

FASTEN THE CAUTION LABEL ON TH E WALL

NEAR THE WALL CONTROL AS AREMINDER

OF SAFE OPERATING PROCEDURES.

TO AVOID SERIOUS PERSONAL INJURY FROM

ENTANGLEMENT, REMOVE ALL ROPES CON"

NECTED TO THE GARAGE DOOR BEFORE IN-

STALLING THE GARAGE DOOR OPENER.

DISENGAGE ALL EXISTING GARAGE DOOR

LOCKS TO AVOID DAMAGE TO GARAGE DOOR

INSTALL THE WALL CONTROL (OR ADDITION-

AL PUSH BUTTONS) OUT OF THE REACH OF

CHILDREN, DO NOT ALLOW CHILDREN TO

OPERATE WALL CONTROL OR TRANSMITTER,

SERIOUS PERSONAL INJURY FROM A CLOS-

ING GARAGE DOOR MAY RESULT FROM ANY

MISUSE OF THE OPENER.

INSTALLATION AND WIRING MUST BE IN COM-

PLIANCE WITH LOCAL BUILDING AND ELEC-

TRICAL CODES.

LIGHTWEIGHT DOORS REQUIRE SUBSTAN-

TIAL REINFORCEMENT TO AVOID DOOR

DAMAGE° (SEE PAGE 10)o

THE SAFETY REVERSE SYSTEM TEST IS tM-

PORTANT (SEE PAGE 20),, THE GARAGE DOOR

MUST REVERSE ON CONTACT WITH A ONE-

INCH OBSTACLE PLACED ON THE FLOOR,

FAI LUR E TO PROPERLY ADJ UST THE OPE N E R

MAY RESULT IN SERIOUS PERSONAL INJURY

FROM A CLOSING GARAGE DOOR. REPEAT

TH E TEST AT LEAST ONC E A YEAR AN D MAKE

ANY NEEDED ADJUSTMENTS°

CAUTION: ACTIVATE OPENER ONLY WHEN

THE DOOR IS IN FULL VIEW, FREE OF OB-

STRUCTION AND OPENER IS PROPERLY AD _

JUSTED, NO ONE SHOULD ENTER OR LEAVE

THE GARAGE WHILE DOOR 1S tN MOTION.

DO NOT ALLOW CHILDREN TO PLAY NEAR

DOOR.

USE EMERGENCY RELEASE ONLY TO DIS"

ENGAGE TROLLEY. DO NOT USE RED EMER-

GENCY RE LEASE ROPE AND HANDLE TO PULL

DOOR OPEN OR CLOSED°

DISCONNECT ELECTRIC POWER TO GARAGE

DOOR OPENER BEFORE MAKING REPAIRS

OR REMOVING COVERS°

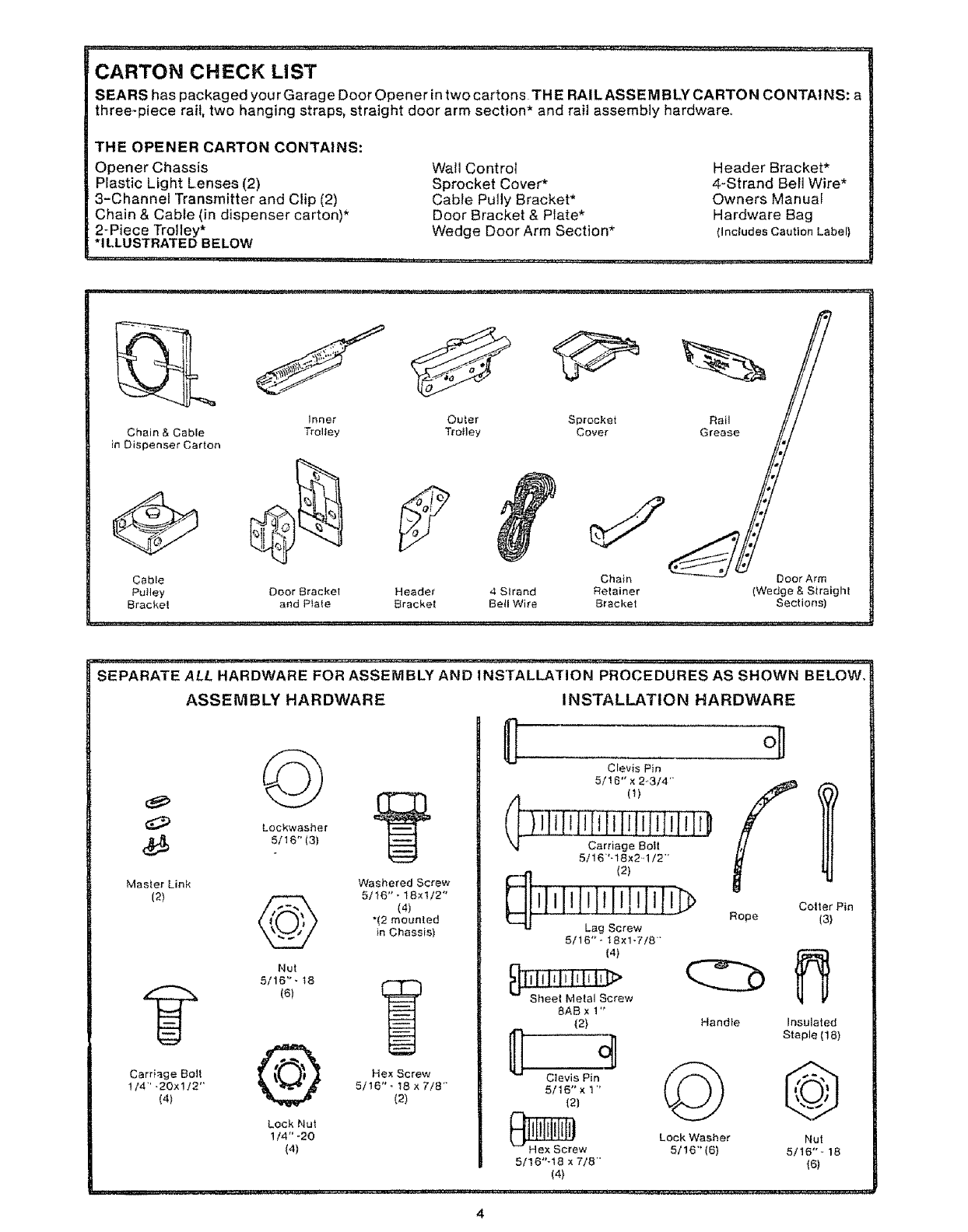

CARTON CHECK LiST

SEARS has packaged your Garage Door Opener in two cartons THE RAILASSEMBLY CARTON CONTAINS: a

three-piece rail, two hanging straps, straight door arm section* and rail assembly hardware

THE OPENER CARTON CONTAINS:

Opener Chassis

Plastic Light Lenses (2)

3-Channel Transmitter and Clip (2)

Chain & Cable (in dispenser carton)*

2-Piece Trolley*

*ILLUSTRATED BELOW

Wall Control

Sprocket Cover*

Cable Pully Bracket*

Door Bracket & Plate*

Wedge Door Arm Section*

Header Bracket*

4-Strand Bell Wire*

Owners Manual

Hardware Bag

(Inetudes Caution Label)

Inner

Chain & Cable Trolley

in Dispenser Carton

Cable

Pulley Door Bracket

Bracket and Plate

Outer

Trolley

Header 4 S_rand

Bracket Bell Wire

Sprocket

Cover

Chain Door Arm

Retainer (Wedge & Straight

Bracket Sections)

SEPARATE ALL HARDWARE FOR ASSEMBLY AND INSTALLATION PROCEDURES AS SHOWN BELOW,

ASSEMBLY HARDWARE

Lockwasher

(_ 5/16" (3)

Master Link

(2)

Carriage Bolt

1/4"-20xl/2"

(4)

INSTALLATION HARDWARE

Nut

5/16" - 18

(e)

Lock Nut

1/4"-20

(4)

Washered Screw

5/16" -18xl/2"

(4)

"(2 mounted

in Chassis)

Hex Screw

5/16 "_ 18 x 7/8'

(2)

Clevis Pin

5/16" x 2,3/4"

(1)

]lqTF[iiilili illD

"%,[ Carriage Bolt

5/16'-18x2,1/2""

(2)

5/16 "° 18xl-7/8"

(4)

BAB x 1"

(2)

Clevis Pin

5/16" x 1 "

(2)

5/16"-18 × 7/8'"

(4)

Coller Pin

Rope (3)

Handle Insulated

Staple (18)

Lock Washer Nut

5/16"(6) 5/16"- 18

(6)

Acc÷ssGries

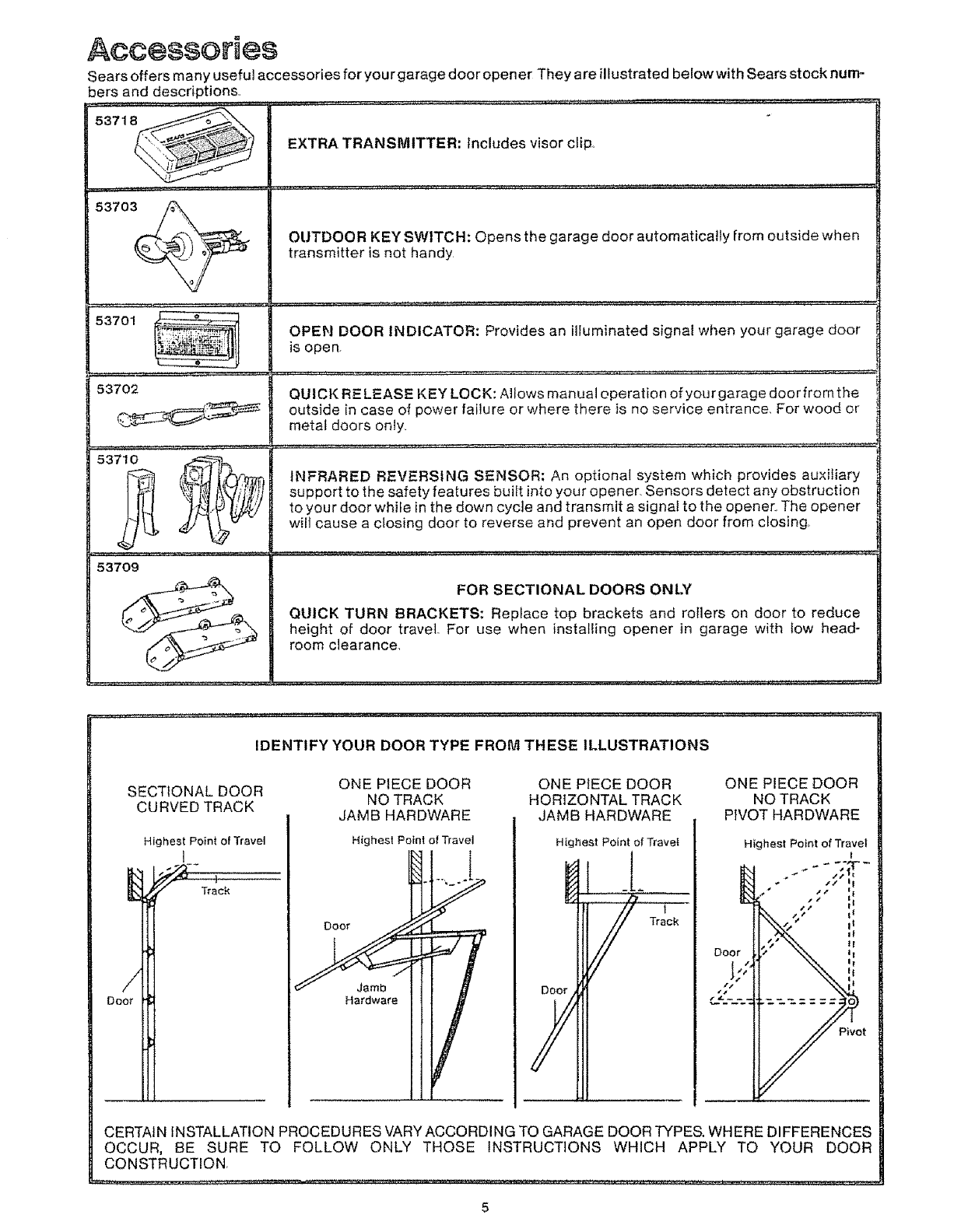

Sears offers many useful accessories for your garage door open er They are illustrated below with Sears stock num-

bers and descriptions.,

5371

5370_/C.__r_/_ OUTDOOR KEY SWITCH: Opens the garage door automatically from outside when

transmitter is not handy

53701 _--

....... , ,z. _..........

53702

53709

....... , ,,,,,,,........

EXTRA TRANSMITTER: Includes visor clip

OPEN DOOR INDICATOR: Provides an illuminated signal when your garage door

is open,

QUICK RELEASE KEY LOCK: Allows manual operation of your garage door fromthe

outside in case of power failure or where there is no service entrance, For wood or

metal doors only,

INFRARED REVERSING SENSOR: An optional system which provides auxiliary

support to the safety features built into your opener, Sensors detect any obstruction

to your door whi_e in the down cycle and transmit a signal to the opener, The opener

wilt cause a closing door to reverse and prevent an open door from closing,

FOR SECTIONAL DOORS ONI.Y

QUICK TURN BRACKETS: Replace top brackets and rollers on door to reduce

height of door travel, For use when installing opener in garage with Iow head-

room clearance,

IDENTIFY YOUR DOOR TYPE FROM THESE ILLUSTRATIONS

SECTIONAL DOOR

CURVED TRACK

Highest Point of Travel

ONE PIECE DOOR

NO TRACK

JAMB HARDWARE

Highest Point of Travel

Hardware

ONE PIECE DOOR

HORIZONTAL TRACK

JAMB HARDWARE

Highest Point of Travet

/,Track

Door

ONE PIECE DOOR

NO TRACK

PIVOT HARDWARE

CERTAIN iNSTALLATION PROCEDURES VARY ACCORDING TO GARAGE DOOR TYPES. WHERE DIFFERENCES

OCCUR, BE SURE TO FOLLOW ONLY THOSE INSTRUCTIONS WHICH APPLY TO YOUR DOOR

CONSTRUCTION,

AssembUy

TO AVOID INSTALLATION DIFFICULTIES, DO NOT RUN THE GARAGE DOOR OPENER UNTIL YOU HAVE

COMPLETED STEP 8, PAGE ! 5.

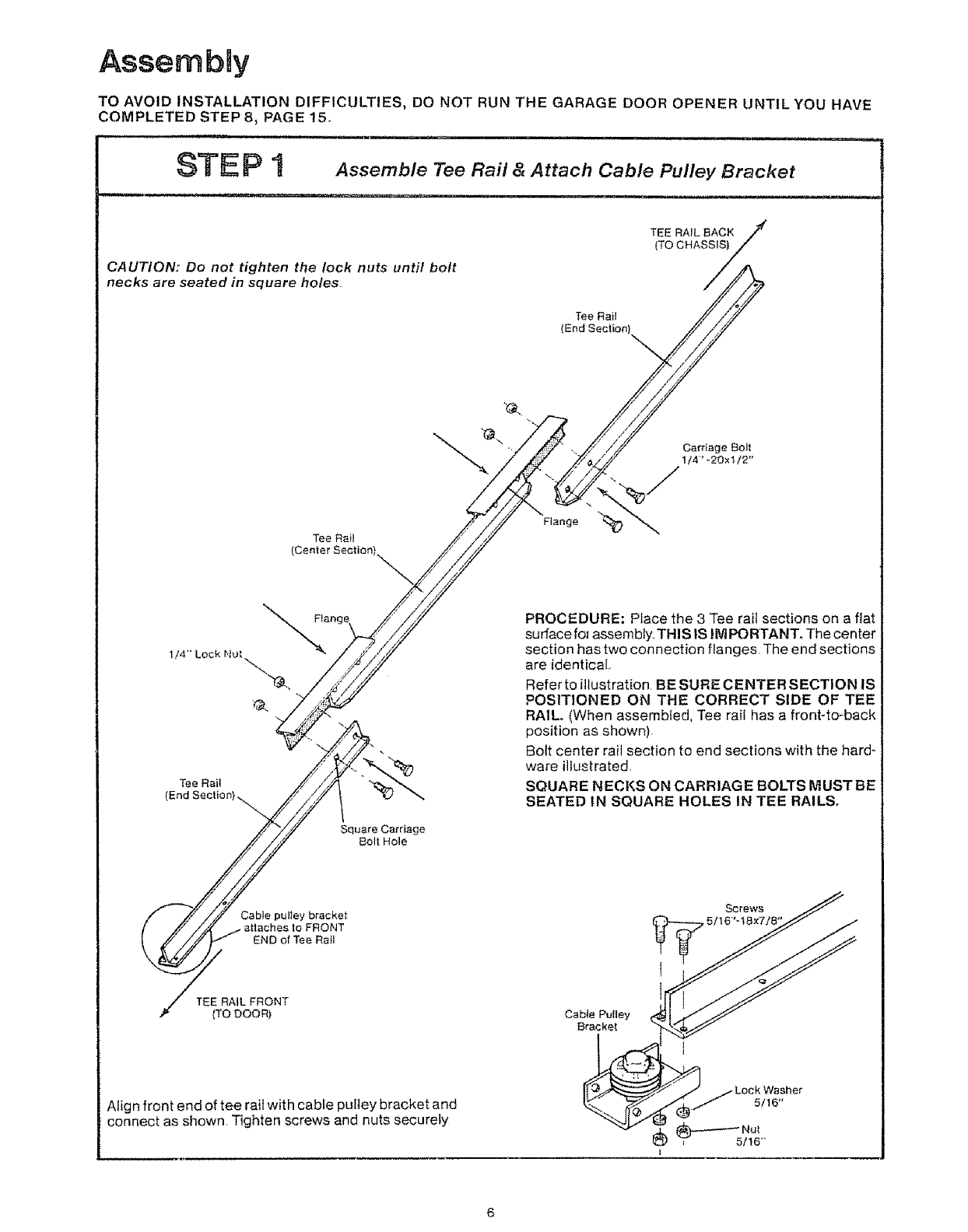

STE P 1 AssemblereoRa,_AttachCabl_P.,_yBr_okot

, ,=_==,,,,,= ,=, ,,,= .... =,,

CA UTtON: Do not tighten the lock nuts until bolt

necks are seated in square holes.

TeaRail

(End Section) \

TEE RAIL BACK

(TO CHASSIS)

Tee Rail

(Center

Flange

Carriage Bolt

!/4" -20×1/2"

I14""Lock Nut

Tee Rail

(End Sectior

Square Carriage

Bolt Hole

PROCEDURE: Ptace the 3 Tee rail sections on a flat

surface fol assembly.. THIS lS IMPORTANT. The center

section has two connection flanges. The end sections

are identical.

Refer to illustration BE SURE CENTER SECTION IS

POSITIONED ON THE CORRECT SIDE OF TEE

RAIL. (When assembled, Tee rail has a front-to-back

position as shown)

Bott center rail section to end sections with the hard-

ware illustrated,

SQUARE NECKS ON CARRIAG E BOLTS MUST BE

SEATED IN SQUARE HOLES IN TEE RAILS,

Cable pulley bracket

attaches to FRONT

END of Tee Rail

Screws

TEE RAIL FRONT

(TO DOOR) Cabie Pulley

Bracket

Align front end of tee rait with cable puItey bracket and

connect as shown Tighten screws and nuts securely

Assembmy

STE P 2 connect Trolley &Attach Chain Retainer Bracket

,..... ,_,_,,u,,

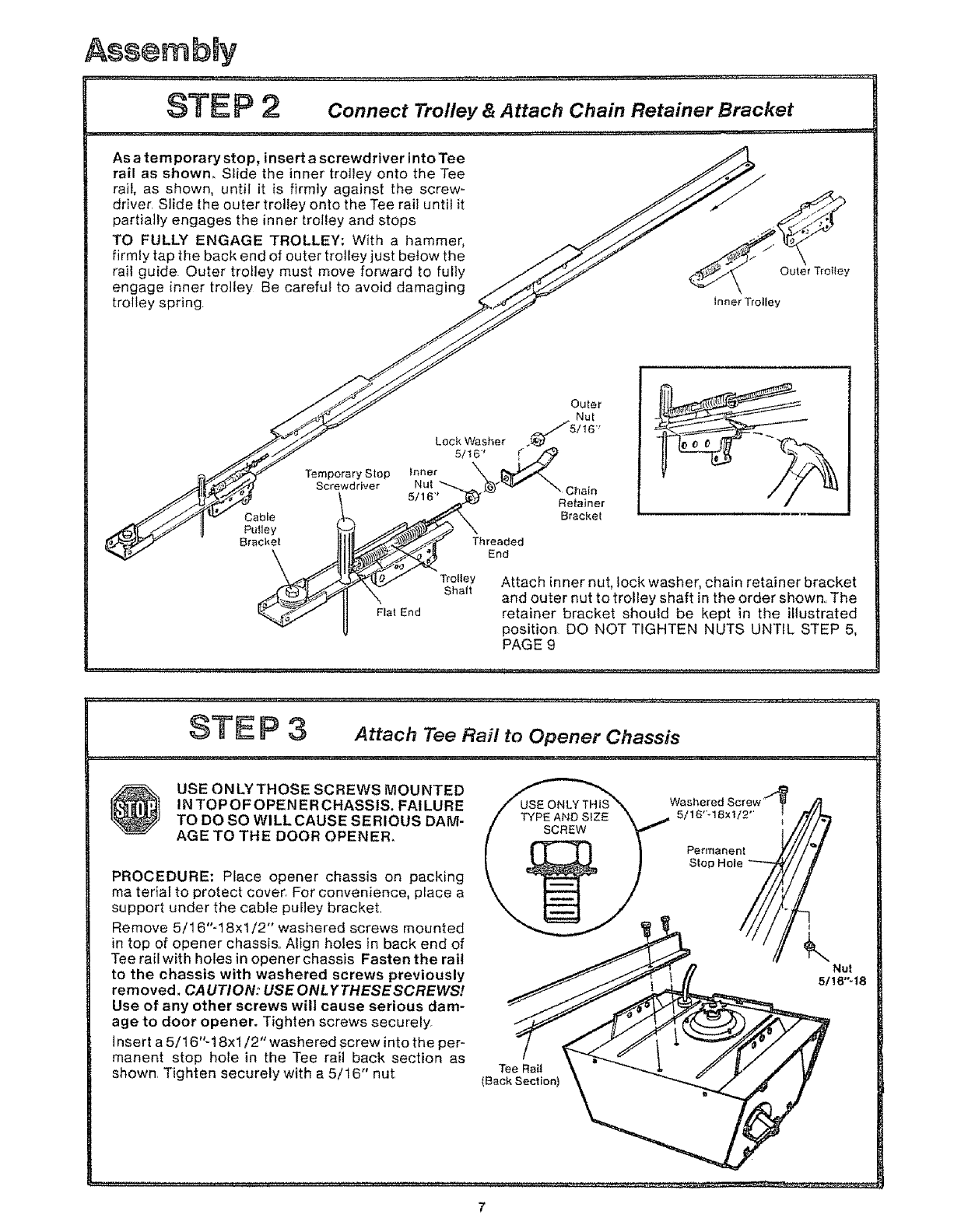

As a temporary stop, insert a screwdriver into Tee

rail as shown° Siide the inner trolley onto the Tee

rail, as shown, until it is firmly against the screw-

driver Slide the outer trolley onto the Tee rail until it

partially engages the inner trolley and stops

TO FULLY ENGAGE TROLLEY; With a hammer,

firmly tap the back end of outer trolley just below the

rail guide Outer trolley must move forward to fully

engage inner trolley Be careful to avoid damaging

trolley spring

_ Outer TrotleY

_nner Trolley

Temporary Stop

Screwdriver

Cable

PuIley

Bracket\

Flat End

Outer

Nut

Lock Washer ._//5/16"

Inner 5/1_

Nut _ Chain

Retainer

Bracket

Threaded

End

Trolley

Shaft Attach inner nut, lock washer, chain retainer bracket

and outer nut to trolley shaft in the order shown.. The

retainer bracket should be kept in the illustrated

position DO NOT TIGHTEN NUTS UNTIL STEP 5,

PAGE 9

@USE ON LY THOSE SCREWS MOUNTED

IN TOPOF OPENER CHASSIS. FAILURE

TO DO SO WiLL CAUSE SERIOUS DAM-

AGE TO THE DOOR OPENEE

PROCEDURE: Place opener chassis on packing

ma terial to protect cover, For convenience, place a

support under the cable pu[]ey bracket.

Remove 5/16"-t 8xt/2" washered screws mounted

in top of opener chassis. Align hotes in back end of

Tee rail with holes in opener chassis Fasten the rail

to the chassis with washered screws previously

rein eve& CA UTION: USE ONLY THESESCREWS!

Use of any other screws will cause serious dam-

age to door opener. Tighten screws securely_

insert a 5/16"-18xl/2" washered screw into the per-

manent stop hole in the Tee rail back section as

shown Tighten securely with a 5/16" nut Tee Rail

(Back Section)

Washered Screw 4

5/16"d 8xt/2" _

Permanent _/

Slop Hole_

Nut

5/16"-18

AssembBy

Masle_

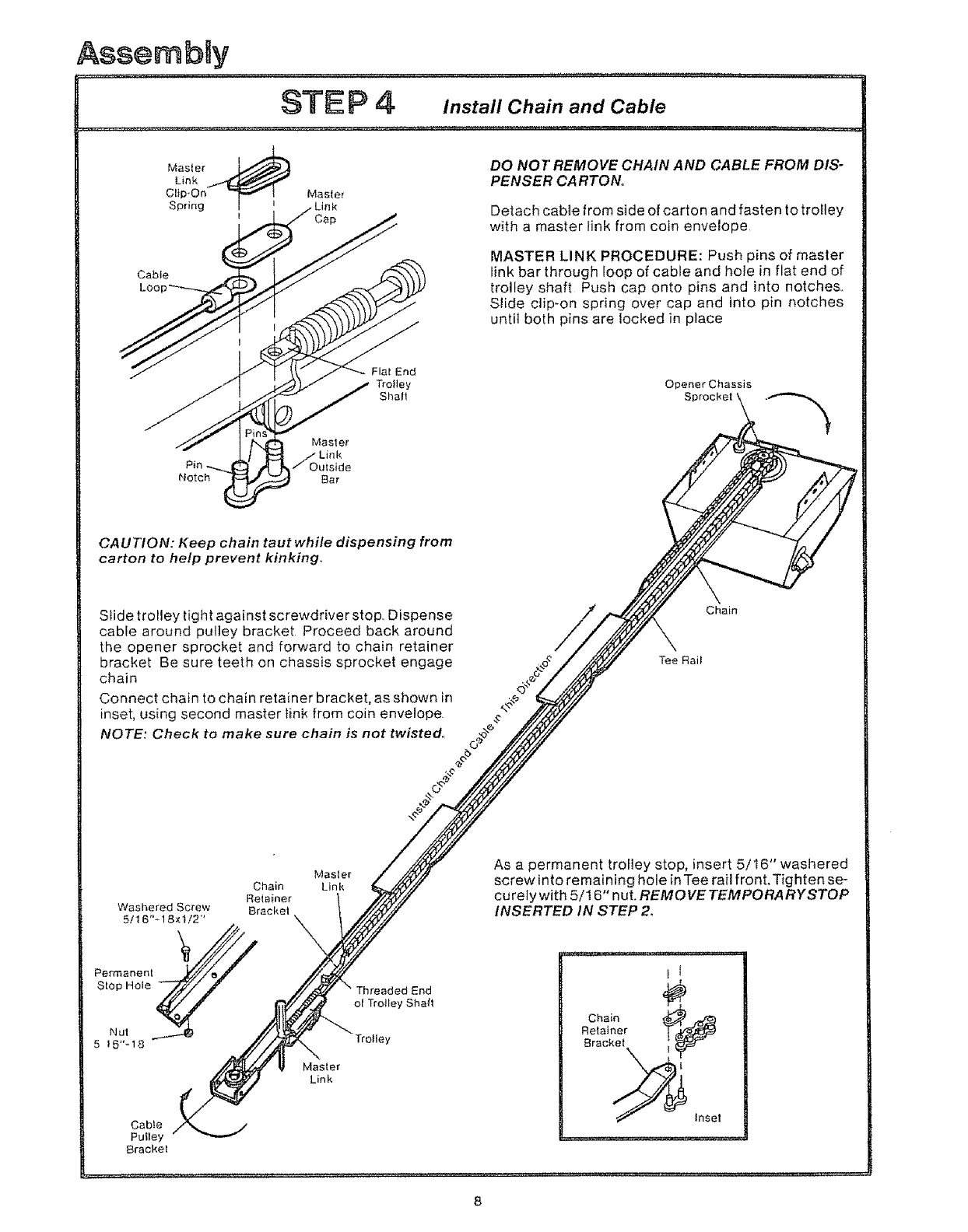

DO NOT REMOVE CHAIN AND CABLE FROM DIS-

PENSER CA RTON.

Detach cable from side of carton and fasten to tro!ley

with a master link from coin envelope

Cable

LOOl

MASTER LINK PROCEDURE: Push pins of master

link bar through loop of cable and hole in flat end of

trolley shaft Push cap onto pins and into notches,

Slide clip-on spring over cap and into pin notches

until both pins are locked in place

Notch

Master

Outside

B,3r

Flat End

Trofley

ShaN Opener Chassis

Sprocket

CAUTION: Keep chain taut while dispensing from

carton to help prevent kinking,

Stide trolley tight against screwdriver stop. Dispense

cable around pulley bracket Proceed back around

the opener sprocket and forward to chain retainer

bracket Be sure teeth on chassis sprocket engage

chain

Connect chain to chain retainer bracket, as shown in

inset, using second master link from coin envelope.

NOTE: Check to make sure chain is not twisted.

Chain

Tee Rail

Chain

Retainer

Washered Screw Bracket

5/16"_18×1/2"'

5 t 6"_18

Cable

Pulley

Bracket

Masler

Link

Master

Link

Threaded ;End

of Trolley Shaft

Trolley

As a permanent trolley stop, insert 5/16" washered

screw into remaining hole in Tee rail front, Tighten se-

curely with 5/16" nut. REMOVE TEMPORARYSTOP

INSERTED IN STEP 2_

AssembRy

STEP 5 tightenthe Chain and Cable

CAUTION: Keep chain from twisting as nuts are

turned,

Inner Outer

-T

_ Bracket

Trolley

Chain

-,*------ 1/2 Inch

Base of Tee Rail

PROCEDURE: Thread inner nut along shaft toward

trolley Tighten chain and cable by turning outer nut

in the same direction as shown,

Chain is properly tightened when it is approximately

1/2" above the base of Tee rail midway between

cable pulley bracket and chassis

When chain tension is correct, turn inner nut toward

chain retainer bracket until tight, If chain begins to

sag below Tee rail after repeated door opener

operations:

1, Loosen inner nut (thread toward trolley).

2. Tighten outer nut (thread toward trolley).

3, Retighten inner nut (thread toward chain re-

tainer bracket)°

,r ,, , ,, ,,, ,'_' h/, ' '"'" '"'*"_'"'"""' *H' ............. n'

STE P6Attach Sprocket Cover to Opener Chassis

Sprocket

Cover _-_

PROCEDURE: Attach sprocket cover to chassis as

shown in Illustrations (A) and (B). Insert back tab in

chassis slot,, Then bend cover forward and insert

front tab in slot provided on mounting plate

Mounting

Plate

ASSEMBLY OF YOUR GARAGE" DOOR OPENER IS NOW COMPLETE°

CERTAIN INSTALLATION PROCEDURES VARY ACCORDING TO GARAGE DOOR TYPES. WHERE DIFFER _

ENCES OCCUR, BE SURE TO FOLLOW ONLY THOSE INSTRUCTIONS WHICH APPLY TO YOUR DOOR

CONSTRUCTION°

DO NOT WEAR WATCHES, RINGS OR LOOSE CLOTHING WHILE INSTALLING OR SERVICING A DOOR OPENER.

KEEP GARAGE DOOR BALANCED. STICKING OR BINDING DOORS MUST BE REPAIRED. GARAGE DOORS,

DOOR SPRINGS, CABLES, PULLEYS, BRACKETS AND THEIR HARDWARE MAY BE UNDER EXTREME TEN-

S|ON AND CAN CAUSE SERIOUS PERSONAL INJURY. DO NOT ATTEMPT ADJUSTMENTS° CALL A GARAGE

DOOR SERVICEMAN TO MOVE, LOOSEN OR ADJUST DOOR SPRINGS OR HARDWARE.

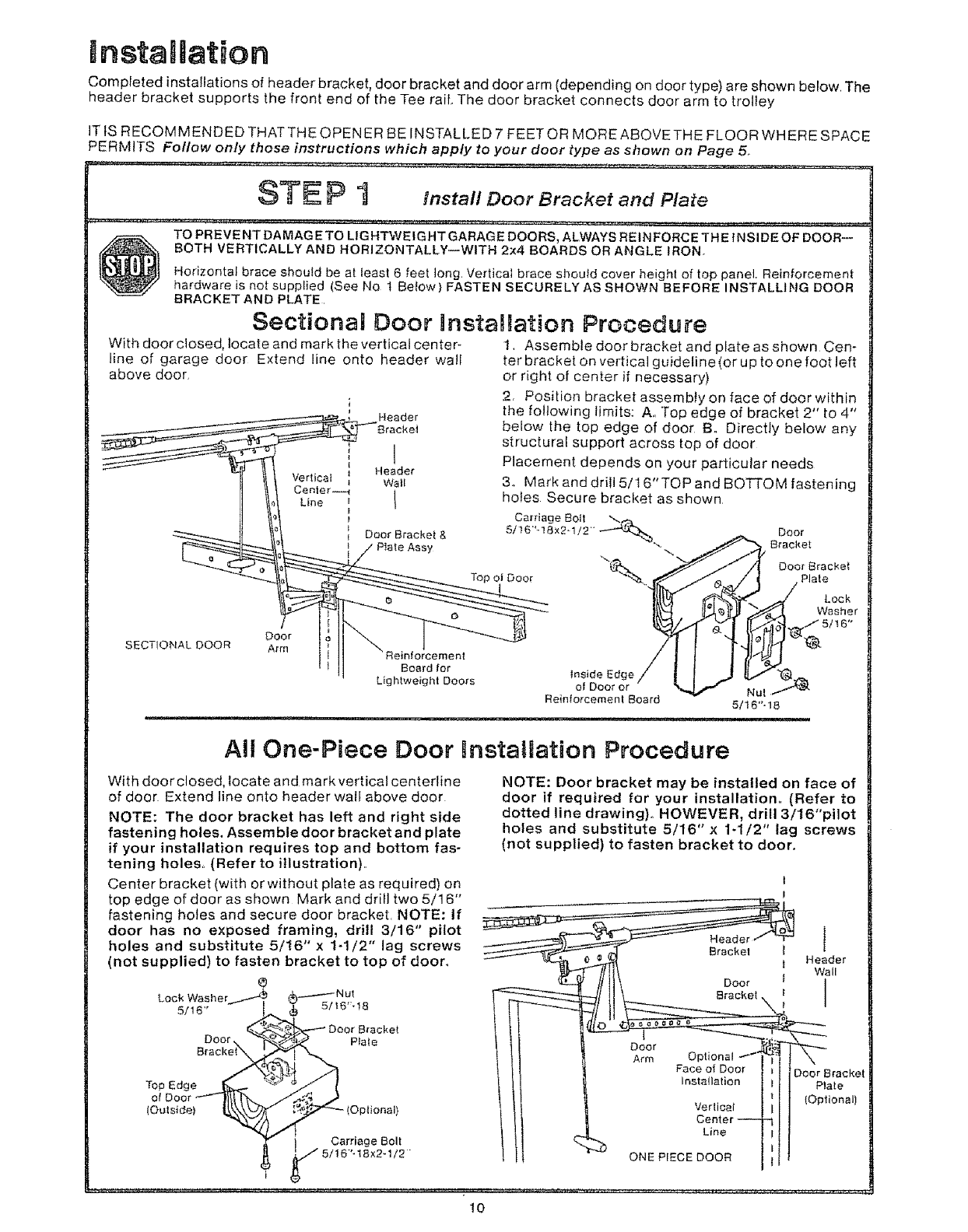

installation

Completed installations of header bracket, door bracket and door arm (depending on door type) are shown below, The

header bracket supports the front end of the Tee rail. The door bracket connects door arm to trolley

IT iS RECOMMENDED THAT THE OPENER BE INSTALLED 7 FEET OR MORE ABOVE THE FLOOR WHERE SPACE

PERMITS Follow only those instructions which appty to your door type as shown on Page 5.

STE P! t.sta. oorBraoket Plate

TO PREVE NT'DAM'AGE'TOL|G HTWEIGHT GARAGE DOORS','ALwAYS REINFoRcETHEINsiDE O'FDOOR_

BOTH VERTICALLY AND HORIZONTALLY--WITH 2x4 BOARDS OR ANGLE IRON,

Horizontal brace should be at least 6 feet long, Vertical brace should cover height of top panel. Reinforcement

hardware is not supplied (See No t Below) FASTEN SECURELY AS SHOWN BEFORE INSTALLING DOOR

BRACKET AND PLATE.

Sectional Door installation Procedure

With door closed, locate and mark the vertical center-

line of garage door Extend line onto header wall

above door

Header

8rackel

Header

Vertical Wall

Center--

Line t

Door Bracket &

Plate Assy

DOOr

Arm

Board for

Lightweight Doors

SECTIONAL DOOR

t, Assemble door bracket and plate as shown Cen-

ter bracket on vertical guideline (or u p to one foot left

or right of center if necessary)

2. Position bracket assembly on face of door within

the following limits: A,, Top edge of bracket 2" to 4"

below the top edge of door B.. Directly below any

structural support across top of door

Placement depends on your particular needs

3o Mark and drill 5/16" TOP and BOTTOM fastening

holes Secure bracket as shown

Inside Edge

of Door or Nul ,--"

Reinforcement Board 5/16"-18

All One-Piece Door Bnstailation Procedure

With door closed, locate and mark vertical centeriine

of door Extend line onto header walt above door

NOTE: The door bracket has left and right side

fastening holes. Assemble door bracket and plate

if your installation requires top and bottom fas-

tening holes,, (Refer to illustration).,

Center bracket (with or without plate as required) on

top edge of door as shown Mark and driti two 5/16"

fastening holes and secure door bracket, NOTE: If

door has no exposed framing, drill 3/16" pilot

holes and substitute 5/16" x 1-1/2" lag screws

(not supplied) to fasten bracket to top of door.

Lock Washer _/NuI

5/16" _ 5/16"-18

Top Edge

(Outside) -(Optional)

ICarriage Bolt

i F 5116'-18x2-1/2 "

NOTE: Door bracket may be installed on face of

door if required for your installation, (Refer to

dotted line drawing). HOWEVER, drill 3/16"pilot

holes and substitute 5/16"× 1-1/2" lag screws

(not supplied) to fasten bracket to door.

Header

Bracket

Door

8racket

Door

Arm Face of Door

Installation

Vertical

Cen

Line

ONE PIECE DOOR

Header

Wall

Door Braeke

Plate

(Optional)

nsta ation

THE HEADER BRACKET MUST BE RIGIDLY FASTENED TO THE HEADER WALL OR CEILING. REINFORCE

WALL OR CEILING WiTH 2x4 IF NECESSARY,

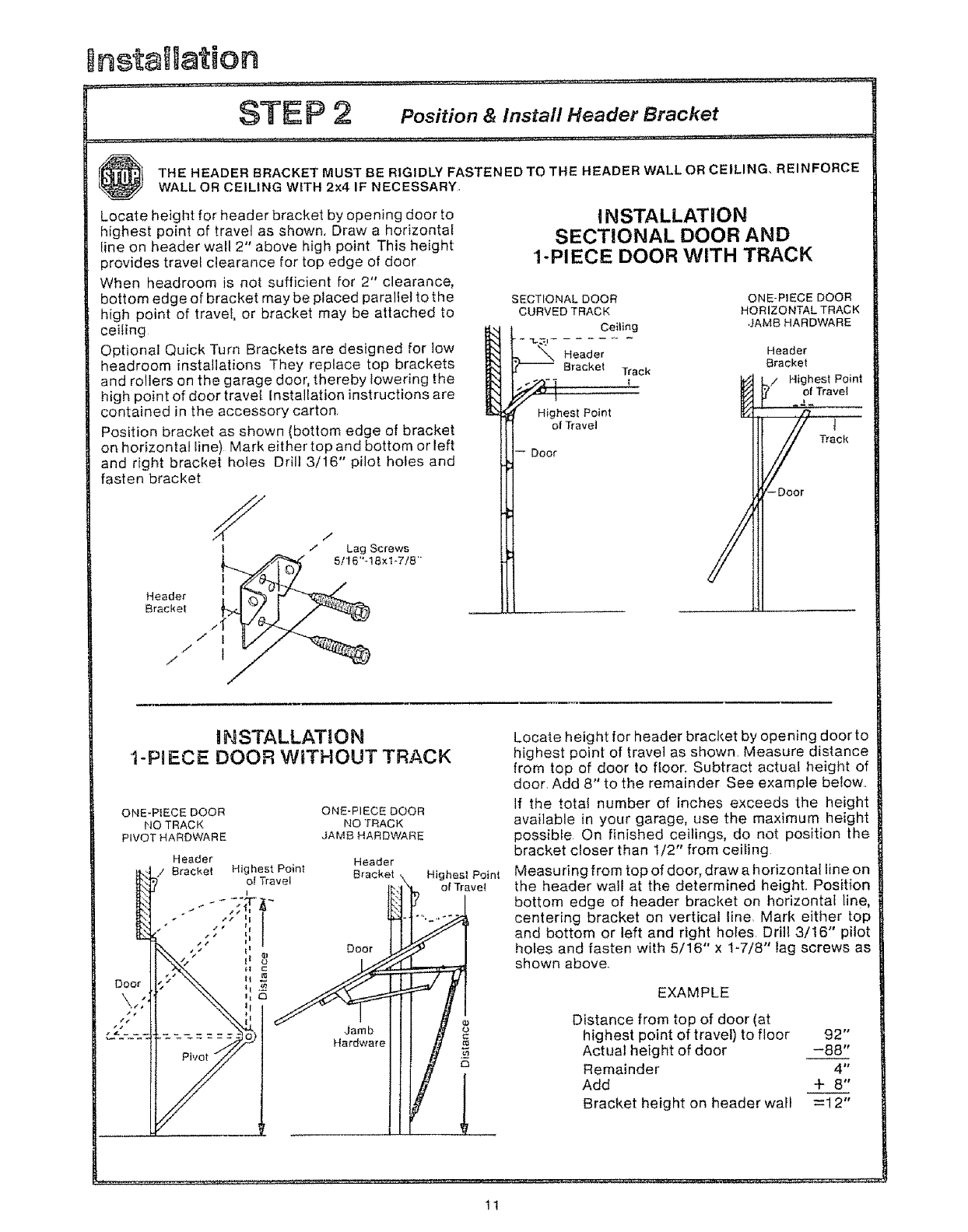

Locate height for header bracket by opening door to

highest point of travel as shown. Draw a horizontal

line on header wall 2" above high point This height

provides travel clearance for top edge of door

When headroom is not sufficient for 2" clearance,

bottom edge of bracket may be placed parallel to the

high point of travel, or bracket may be attached to

ceiling

Optional Quick Turn Brackets are designed for tow

headroom installations They replace top brackets

and rollers on the garage door, thereby lowering the

high point of door travel Installation instructions are

contained in the accessory carton

Position bracket as shown (bottom edge of bracket

on horizontal line) Mark either top and bottom or left

and right bracket holes Drill 3/16" pilot holes and

fasten bracket

,/ Lag Screws

5/16"-18xt-7/8'"

Header t

Bracket

I NSTALLATION

SECTIONAL DOOR AND

1-PIECE DOOR WITH TRACK

SECTIONAL DOOR

CURVED TRACK

Ceiling

"*L_I ........

_ Header

Bracket Track

Highest Point

of Travel

-- Door

ONE-PIECE DOOR

HORIZONTAL TRACK

.JAMB HARDWARE

Header

Bracket

I _/ Highest Point

of Trove{

Track

INSTALLATION

I-Pi ECE DOOR WITHOUT TRACK

ONE-PIECE DOOR

NO TRACK

PIVOT HARDWARE

ONE-PIECE DOOR

NO TRACK

JAMB HARDWARE

Header Header

Bracket H ghest Point _r ......

• - I t_ acket _ H_gnest Point

O_ irave I_,]X&., Of Travet

5¢" 'p Door

Pwot i

Locate height for header bracket by opening door to

highest point of travel as shown. Measure distance

from top of door to floor. Subtract actua! height of

door. Add 8" to the remainder See example be!ow

If the total number of inches exceeds the height

available in your garage, use the maximum height

possible On finished ceilings, do not position the

bracket closer than t/2" from ceiling

Measuring from top of door, draw a horizontal line on

the header wall at the determined height. Position

bottom edge of header bracket on horizontal line,

centering bracket on vertical line, Mark either top

and bottom or left and right holes Drill 3/16" pilot

holes and fasten with 5/16" x 1-7/8" lag screws as

shown above

EXAMPLE

Distance from top of door (at

highest point of travel) to floor 92"

Actual height of door -88"

Remainder 4"

Add + 8"

Bracket height on header wall =12"

Installation

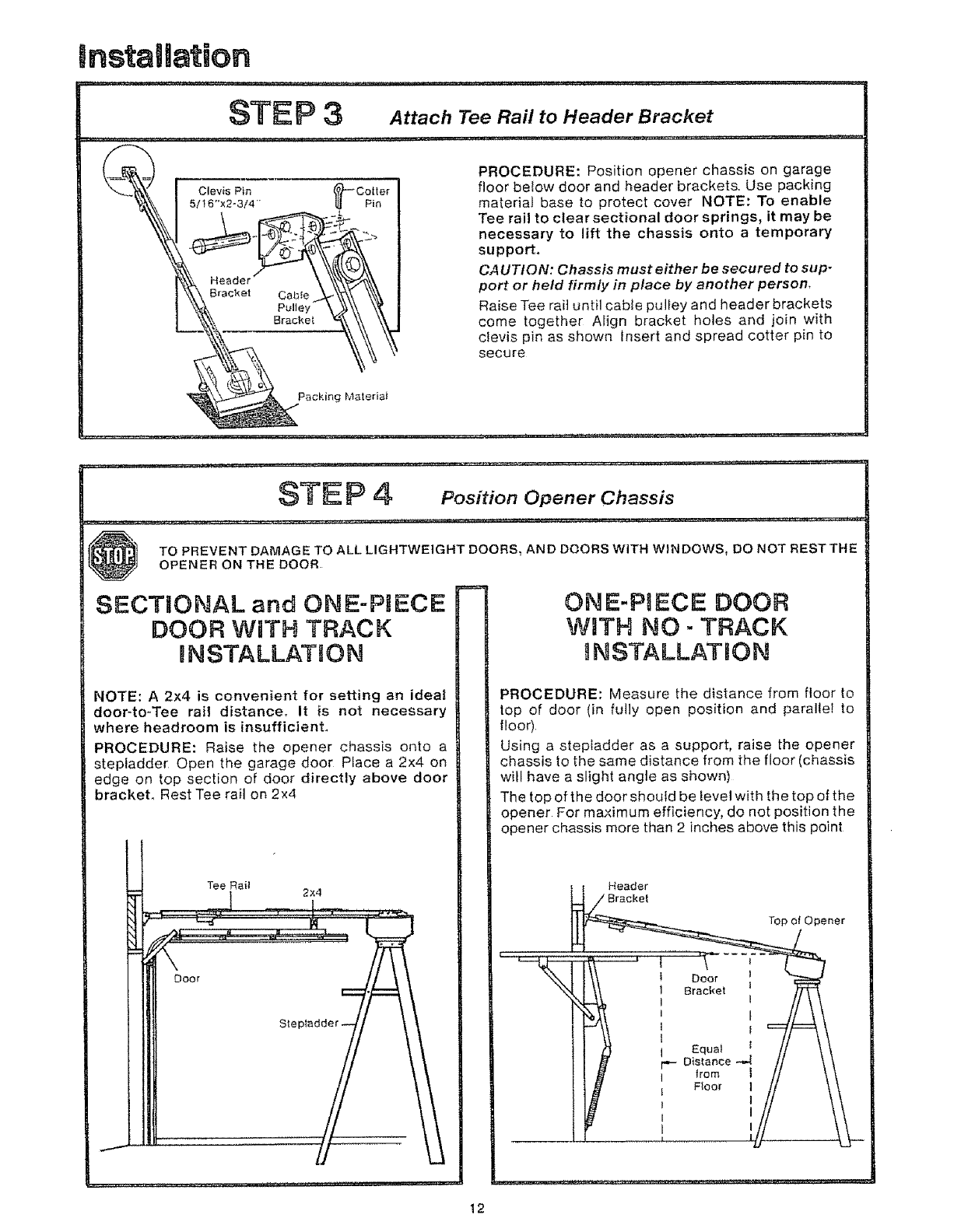

STE P 3 Attach Tee Rail to Header Bracket

Packing Material

PROCEDURE: Position opener chassis on garage

floor below door and header brackets. Use packing

material base to protect cover NOTE: To enable

Tee rail to clear sectional door springs, it may be

necessary to lift the chassis onto a temporary

support.

CAUTION: Chassis must either be secured to sup-

port or held firmly in place by another person,

Raise Tee rai] until cable pulley and header brackets

come together Align bracket hotes and join with

clevis pin as shown insert and spread cotter pin to

secure

STEP 4 posit onOpener Chassis

TO PREVENT DAMAGE TO ALL LIGHTWEIGHT DOORS_ AND DOORS WITH WINDOWS, DO NOT REST THE

OPENER ON THE DOOR

SECTaONAL and ONE-PIECE

DOOR WiTH TRACK

INSTALLATION

NOTE: A 2x4 is convenient for setting an ideal

door-to-Tee rail distance, It is not necessary

where headroom is insufficient.

PROCEDURE: Raise the opener chassis onto a

stepladder Open the garage door Place a 2x4 on

edge on top section of door directly above door

bracket° Rest Tee rail on 2x4

Door

Tee Rai! 2x4

Ste

.......... _: _ _M, ¸¸ ::: ...........

ONE-PaECE DOOR

WiTH NO - TRACK

INSTALLATION

PROCEDURE: Measure the distance from floor to

top of door (in fully open position and parallel to

floor),

Using a stepladder as a support, raise the opener

chassis to the same distance from the floor (chassis

will have a slight angte as shown)

The top of the door should be level with the top of the

opener For maximum efficiency, do not position the

opener chassis more than 2 inches above this point

t ! Header

p_pener

.............' ° '

il ' IBI

Equal

11 g_ee_ /1 \\

I! fl l f,or. i II \\

tIM ! FIoo, I ti \\

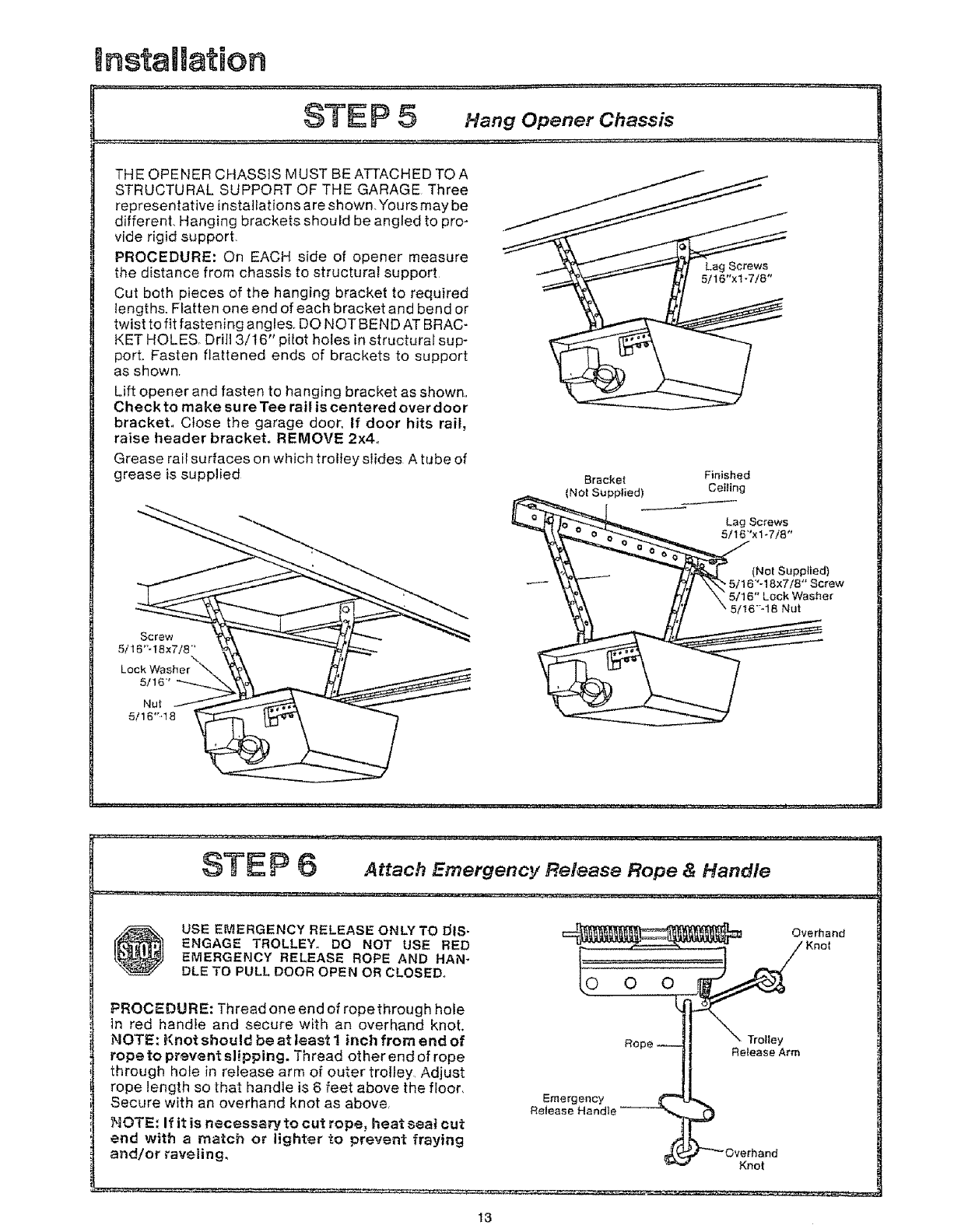

THE OPENER CHASSIS MUST BE ATTACHED TO A

STRUCTURAL SUPPORT OF THE GARAGE Three

representative installations are shown. Yours may be

different. Hanging brackets should be angled to pro-

vide rigid support.

PROCEDURE: On EACH side of opener measure

the distance from chassis to structural support

Cut both pieces of the hanging bracket to required

lengths. Flatten one end of each bracket and bend or

twist to fit fastening angles.. DO NOT BEND AT BRAC-

KET HOLES. Drill 3/16" pilot holes in structural sup-

port, Fasten flattened ends of brackets to support

as shown.

Lift opener and fasten to hanging bracket as shown..

Check to make su re Tee rail is centered over door

bracket., Close the garage door, If door hits rail,

raise header bracket, REMOVE 2x4o

Grease rail surfaces on which trolley slides A tube of

grease is supplied Bracket Finished

(Not Supplied) Ceiling

Screw

5/16"_18×7/8"'

5/16"

Nut

5/16",18

STE P 6 Att.oh Emergency Release Rope & Handle

@USE EMERGENCY RELEASE ONLY TO £JlS-

ENGAGE TROLLEY° DO NOT USE RED

EMERGENCY RELEASE ROPE AND HAN-

DLE TO PULL DOOR OPEN OR CLOSED°

PROCEDURE: Thread one end of ropethrough hole

in red handle and secure with an overhand knot.

NOTE: Knot should be at least I inch from end of

rope to prevent slipping. Thread other end of rope

through hole in release arm of outer trolley Adjust

rope length so that handle is 6 feet above the floor,

Secure with an overhand knot as above,

NOTE: If it is necessa_to cut rope, heat seat cut

end with a match or lighter to prevent fraying

and/or raveling,

Overhand

Release Arm

Emergency

Release Handle

_"_Overhand

Knot

Top

Installation

Flange

INSTALL WALL CONTROL (OR ADDITIONAL

PUSH BUTTONS) OUT OFTH E REACH OF CHIL_

DREN, DO NOT ALLOW CHILDREN TO OPER-

ATE WALL CONTROL OR TRANSMITTER°

SERIOUS PERSONAL INJURY FROM A CLOS-

iNG GARAGE DOOR MAY RESULT FROM ANY

MISUSE OF OPENER°

FASTEN THE CAUTION LABEL ON THE WALL

NEAR THE WALL CONTROL AS A REMINDER

OF SAFE OPERATING PROCEDURES

Bottom

Installation

PJange

Right Side

Panel

Opener

Terminals

Antenna

Opener

PROCEDURE: There are 4 screw terminals on the

back of the Walt Control Connect the bell wire by

color; yellow to yellow, white to white, red to red and

black to black

Fasten Walt Control to a n inside garage wall, as shown,

with the 8ABx I "sheet metal screws provided. A con-

venient place is beside the service door and OUT OF

THE REACH OF CHILDREN

Run the belt wire up the wall and across the ceiling to

the garage door opener Use insulated staples.

The receiver terminals as well as the antenna are

located on the right side panel of the opener Bend

antenna wire down until it is parallel to chassis panel

Then connect the wire by color to the red, white,

black and yellow opener terminal screws

WIRING INSTRUCTIONS FOR ACCESSORIES

Infrared Reversing System:

To white & black opener terminals

Open Door indicator:

To white & orange opener terminals

Key Switch:

To red & white opener terminals

Vacation

Push Button

Wall Control

Push Button

Work Light

Push Button

OPERATION OF WALL CONTROL

WALL CONTROL PUSH BUTTON

Press and release to open or close doer

Press and release again to REVERSE door during CLOSING cycle

or to STOP doer during OPENING cycle

VACATION PUSH BUTTON

Activate Vacation feature only when door is in closed position.

Press and release Push button tight wii turn ON The Vacation fen*

tore was designed to prevent operation of door from the transmitter

and attow door to travel in the UP direction ONLY from the Walt Con-

trol push button (press and release) and Key Switch accessory

Press and release again Push button light will turn OFF Opener will

return to normat operation

Apower faiiure of more than 30 seconds wil! ca use the vacation

feature to turn OFF

WORK LIGHT PUSH BUTTON

Press and retease Opener light wilt turn on and remain on

Press and retease again Opener tigh t will return to normal operation

and ture off after 4-1/2 minutes

. .. , ,, ,,,, L,, ,,,,_, ,..............................................................

Bnstantation

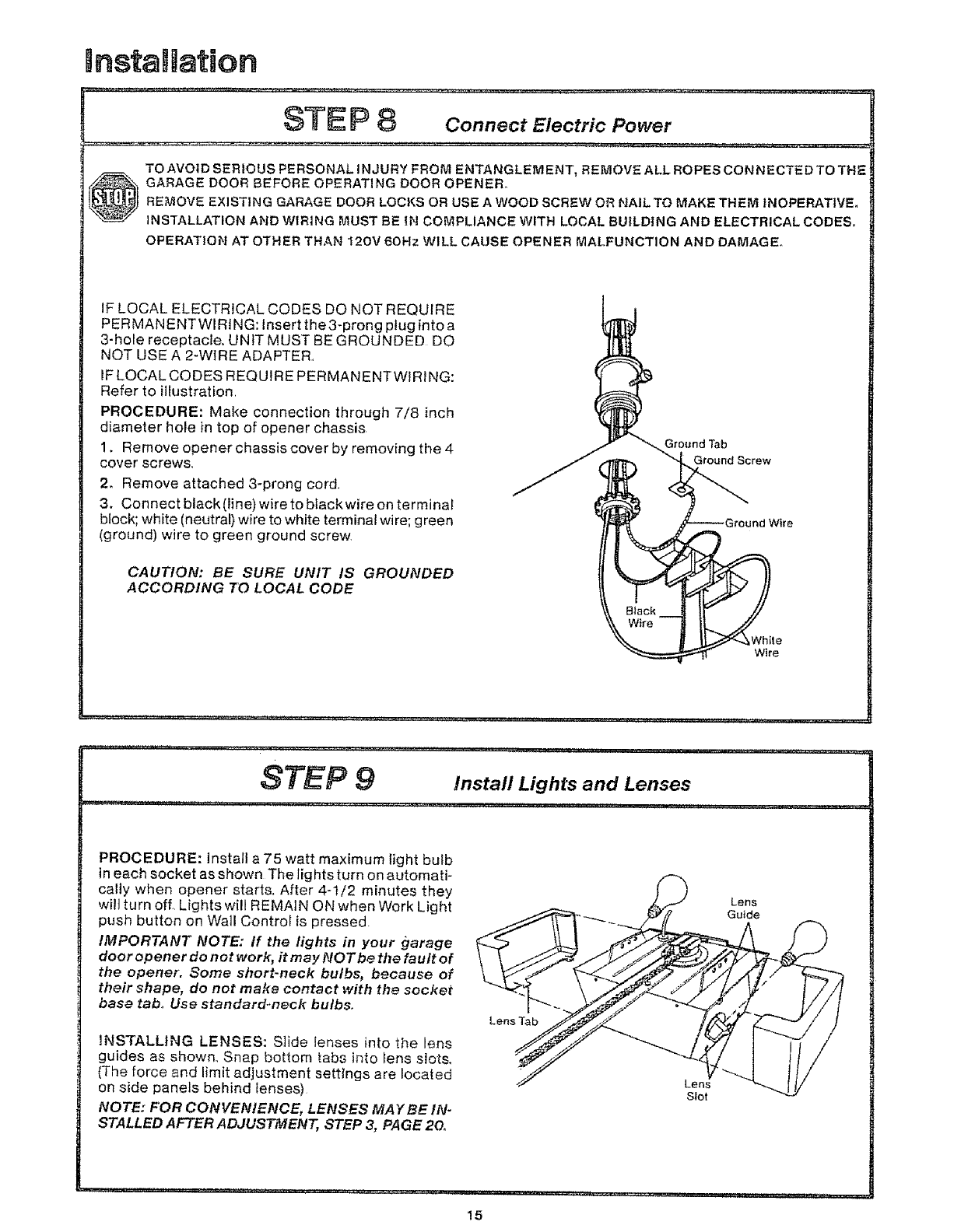

TO AVOID SERIOUS PERSONAL IN JURY FROM ENTANGLEM ENT, REMOVE ALL ROPES CON NECTED TO THE

GARAGE DOOR BEFORE OPERATING DOOR OPENER°

REMOVE EXISTING GARAGE DOOR LOCKS OR USE A WOOD SCREW OR NAIL TO MAKE THEM |NOPERATIME.

INSTALLATION AND WIRING MUST BE IN COMPLIANCE WITH LOCAL BUILDING AND ELECTRICAL CODES°

OPERATION AT OTHER THAN 120V 6OHz WILL CAUSE OPENER MALFUNCTION AND DAMAGE.

IF LOCAL ELECTRICAL CODES DO NOT REQUIRE

PERMANENTWIRING: Insert the 3-prong plug into a

3-hole receptacle. UNIT MUST BE GROUNDED DO

NOT USE A 2-WIRE ADAPTER.,

IF LOCAL CODES REQUIRE PERMANENTWlRING:

Refer to illustration,

PROCEDURE: Make connection through 7/8 inch

diameter hole in top of opener chassis

1. Remove opener chassis cover by removing the 4

cover screws,

2, Remove attached 3-prong cord.

3. Connect black (line) wire to black wire on terminal

block; white (neutral) wire to white terminal wire; green

(ground) wire to green ground screw.

CAUTION: BE SURE UNIT IS GROUNDED

ACCORDING TO LOCAL CODE

Ground Tab

Ground Screw

While

Wire

STEP 9 l.sta, Lights andLenses

PROCEDURE: Install a 75 watt maximum light bulb

in each socket as shown The iights turn on automati-

cally when opener starts. After 4-t/2 minutes they

wilt turn off, Lights will REMAIN ON when Work Light

push button on Wail Control is pressed.

IMPORTANT NOTE: if the lights in your _tarage

door opener do not work_ it may NOT be the fault of

the opener. Some short-neck bulbs, because of

their shape, do not make contact with the socket

base tab,, Use standard-neck bulbs,

INSTALLING LENSES: Slide lenses into the lens

guides as shown_ Snap bottom tabs into tens slots.

(The force and limit adjustment settings are located

on side panels behind lenses)

NOTE: FOR CONVENtENCE_ LENSES MAYBE IN-

STALLED AFTER ADJUSTMENT, STEP 3, PAGE 20.

Lens Tab

Lens

Slot

Lens

Guide

lnstaHmation

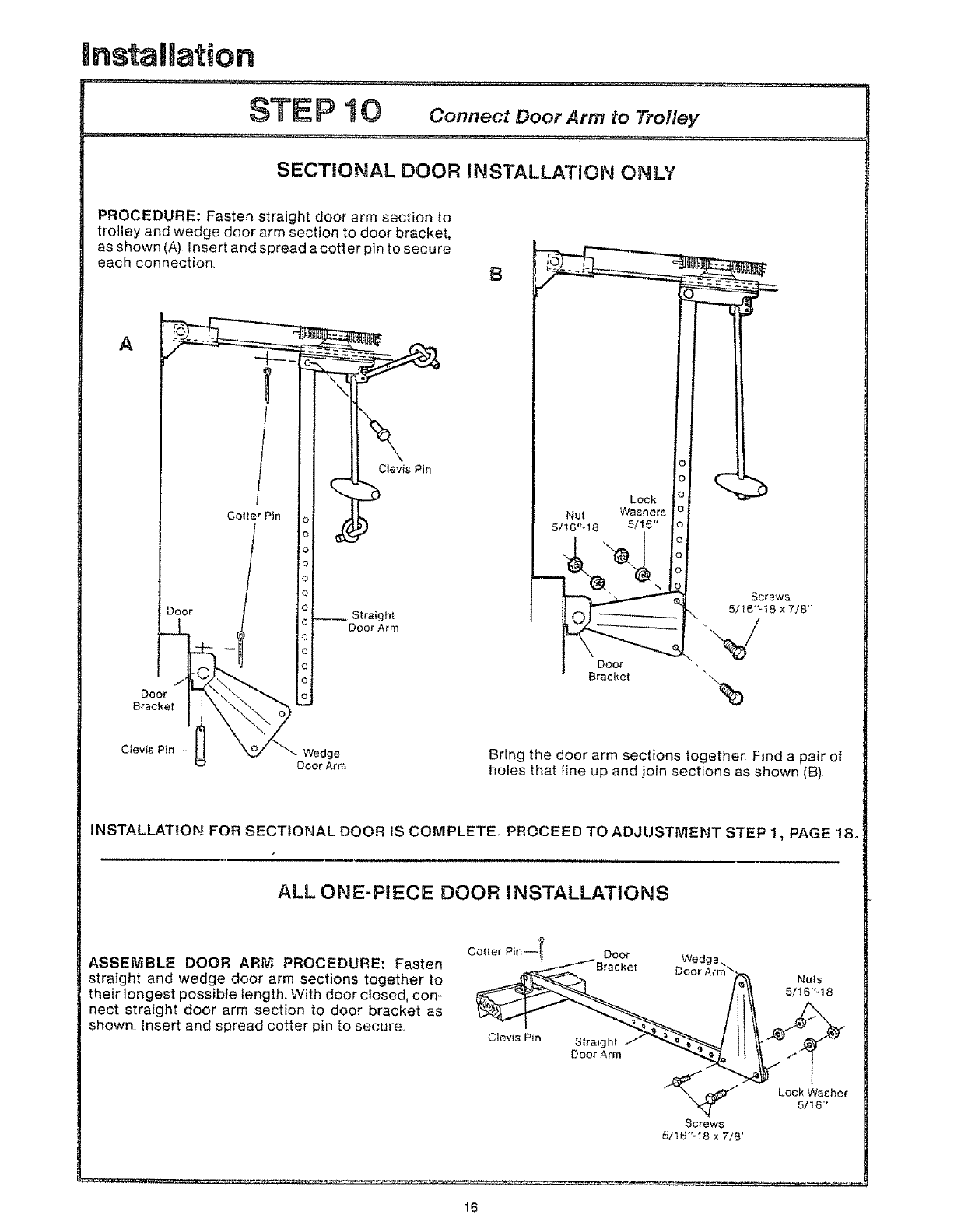

STE P! O co....ect_oo..4.'r,.to"rro.ey

'"" '"'" ' _ ,: ............... ,:_,i,,.,,_,, ............... ,_ , _ _:, r: _ _ J=========

SECTIONAL DOOR INSTALLATION ONLY

PROCEDURE: Fasten straight door arm section to

trolley and wedge door arm section to door bracket,

as shown (A) Insert and spread acotter pin to secure

each connection

Straight

Door Arm

Door

Bracket

Lock

Nut Washers

5/16"-18 5/16"

Door

Bracket

Screws

5/16"-18 × 7/8"

Wedge

Door Arm Bring the door arm sections together Find a pair of

holes that line up and join sections as shown (B)

INSTALLATION FOR SECTIONAL DOOR IS COMPLETE. PROCEED TO ADJUSTMENT STEP 1, PAGE 18o

ALL ONE-PgECE DOOR INSTALLATIONS

ASSEMBLE DOOR ARM PROCEDURE: Fasten

straight and wedge door arm sections together to

their longest possible length. With door closed, con-

nect straight door arm section to door bracket as

shown Insert and spread cotter pin to secure.

Cotter Pin--I

Clevis Pin

Door

Straight

Door Arm

Screws

5/16"-18 x 7/8"

Nuts

1! 6"',,18

Lock Washer

5/16"

nstaSiation

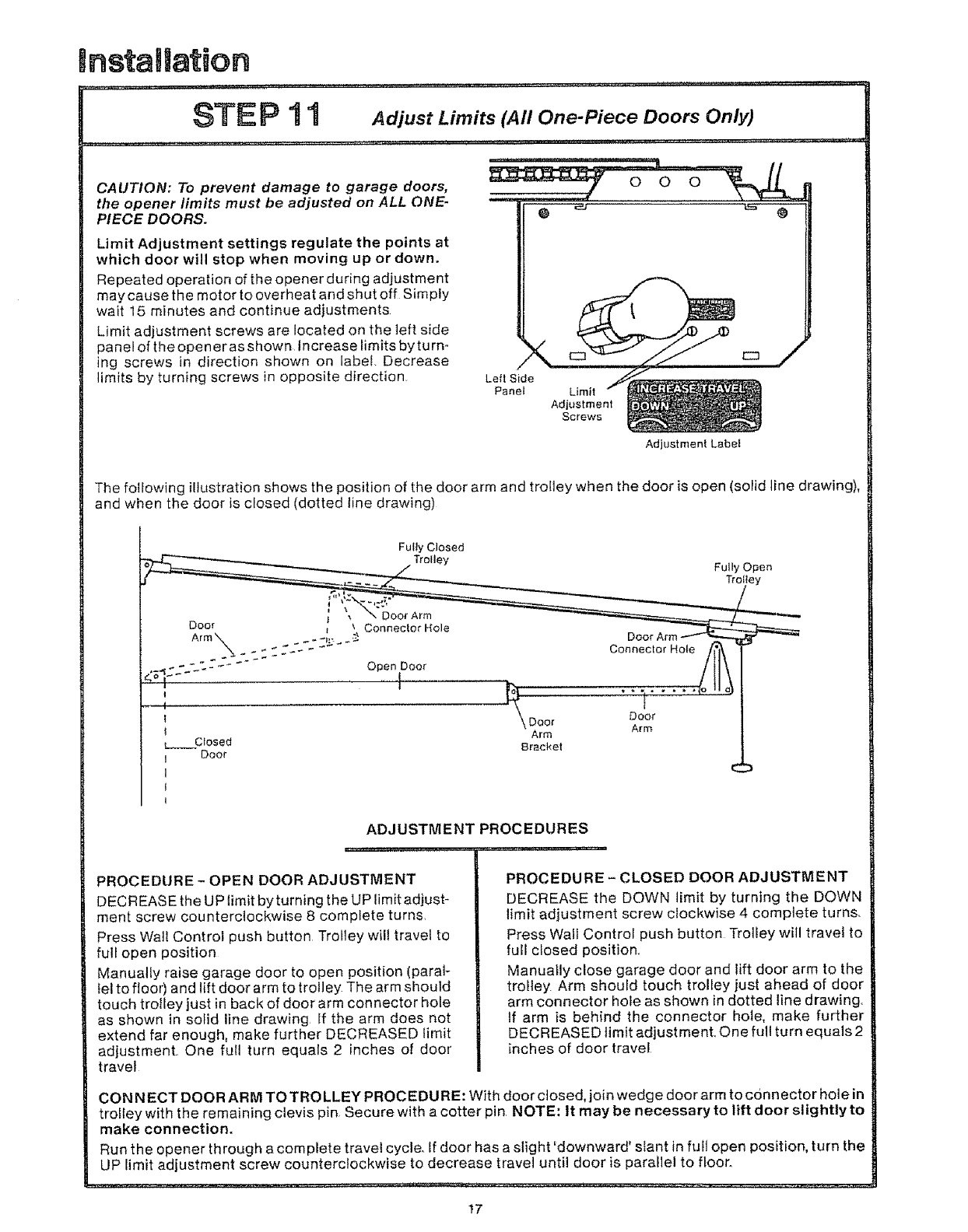

STE P 11 AdjustLimits(All One-PieceDoorsOnly)

CAUTION: To prevent damage to garage doors,

the opener limits must be adjusted on ALL ONE-

PIECE DOORS.

Limit Adjustment settings regulate the points at

which door will stop when moving up or down.

Repeated operation of the opener during adjustment

may cause the motor to overheat and shut off Simply

wait 15 minutes and continue adjustments

Limit adjustment screws are located on the ]eft side

panel of the opener as shown increase limits byturn-

ing screws in direction shown on tabel, Decrease

limits by turning screws in opposite direction

OOO

Left Side

Pane_ Limit

Adjustment

Screws

Adjustment Label

The following illustration shows the position of the door arm and trolley when the door is open (solid line drawing),

and when the door is closed (dotted line drawing)

Fully Closed

I Door

1 Arm

L___Closed Bracket

I Door

Door

Arm

ADJUSTMENT PROCEDURES

PROCEDURE - OPEN DOOR ADJUSTMENT

DECREASE the U P limit by turning the UP limit adjust-

ment screw counterclockwise 8 complete turns

Press Wall Control push button Trolley will travel to

full open position

Manually raise garage door to open position (paral-

fel to floor) and lift door arm to trolley The arm should

touch trot{ey just in back of door arm connector hole

as shown in solid line drawing if the arm does not

extend far enough, make further DECREASED limit

adjustment. One full turn equals 2 inches of door

travel

PROCEDURE - CLOSED DOOR ADJUSTMENT

DECREASE the DOWN limit by turning the DOWN

limit adjustment screw clockwise 4 complete turns.

Press Wall Control push button Trolley will travel to

full ciosed position.,

Manually close garage door and lift door arm to the

trolley Arm should touch trolley iust ahead of door

arm connector hole as shown in dotted line drawing

If arm is behind the connector hole, make further

DECREASED limit adjustment., One full turn equals 2

inches of door travel

CON NECT DOOR ARM TO TROLLEY PROCEDURE: With door closed, join wedge door arm to connector hole in

trolley with the remaining clevis pin, Secure with a cotter pin NOTE: It may be necessary to lift door slightly to

make connection.

Run the opener through a complete travel cycle, if door has a slight 'downward' slant in full open position, turn the

UP limit adjustment screw counterclockwise to decrease travel until door is parallel to floor°

Adjustment

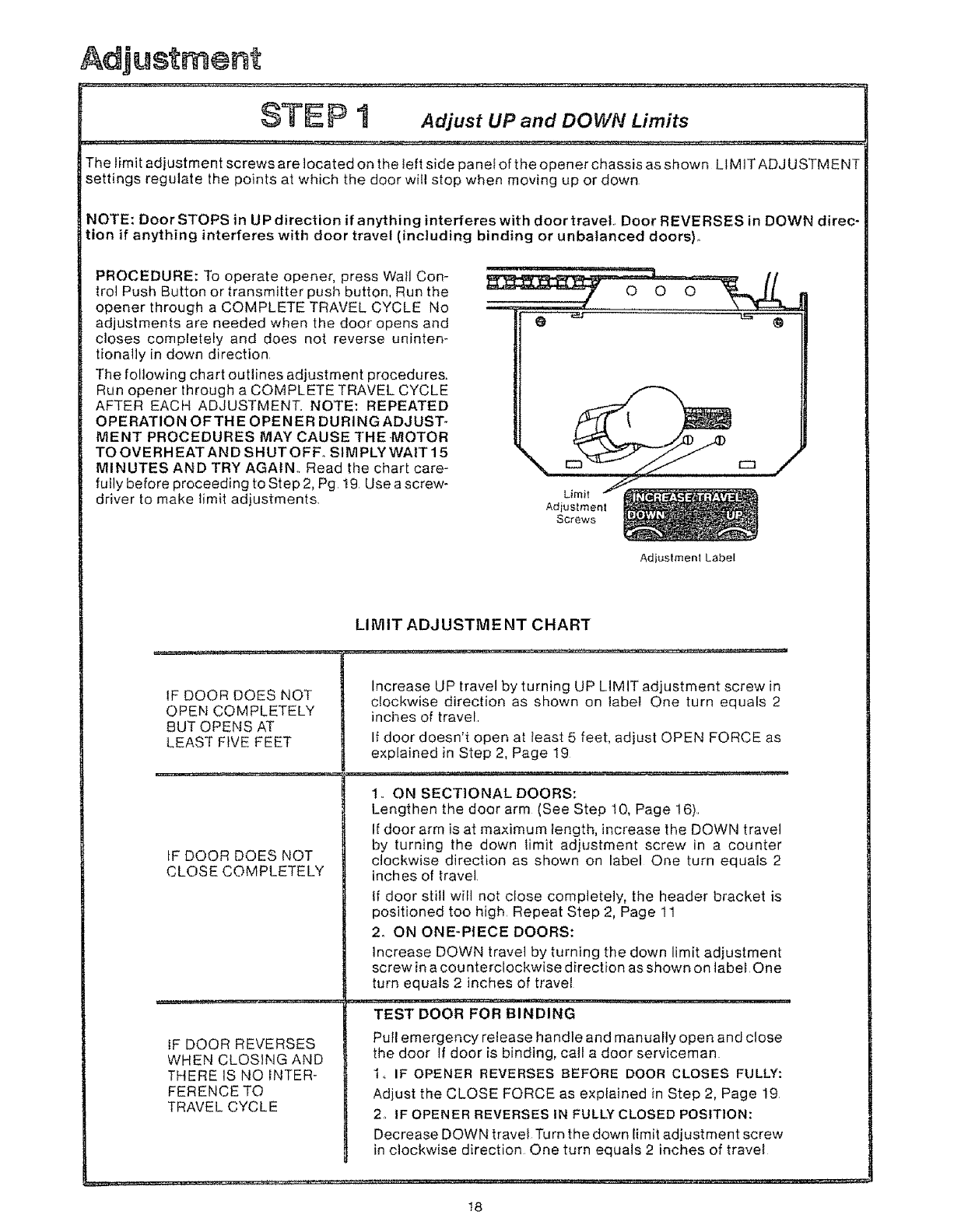

ST'E PIAdjust UP and DOWN Limits

The limit adjustment screws are located on the left side panel of the opener chassis as shown LIMIT ADJ USTMENT

settings regulate the points at which the door will stop when moving up or down

NOTE: DoorSTOPS in UP direction if anything interferes with door travel Door REVERSES in DOWN direc-

tion if anything interferes with door travel (including binding or unbalanced doors),,

PROCEDURE: To operate opener, press Wall Con-

trol Push Button or transmitter push button, Run the

opener through a COMPLETE TRAVEL CYCLE No

adjustments are needed when the door opens and

closes completely and does not reverse uninten*

tionally in down direction

The following chart outlines adjustment procedures.

Run opener through a COMPLETE TRAVEL CYCLE

AFTER EACH ADJUSTMENT. NOTE: REPEATED

OPERATION OFTHE OPENER DURING ADJUST-

MENT PROCEDURES MAY CAUSE THE ,MOTOR

TO OVERHEATAND SHUTOFFo SIMPLYWAIT 15

MINUTES AND TRY AGAIN,, Read the chart care-

fully before proceeding to Step 2, Pg t9 Use a screw-

driver to make limit adjustments Limit

Adiustment

Screws

Adjustmen_ Label

LliVIlT ADJUSTMENT CHART

IF DOOR DOES NOT

OPEN COMPLETELY

BUT OPENS AT

LEAST FIVE FEET

tF DOOR DOES NOT

CLOSE COMPLETELY

IF DOOR REVERSES

WHEN CLOSING AND

THERE IS NO INTER-

FERENCE TO

TRAVEL CYCLE

Increase UP travel by turning UP LIMIT adjustment screw in

clockwise direction as shown on labe! One turn equals 2

inches of travel,

If door doesn't open at least 5 feet, adjust OPEN FORCE as

explained in Step 2, Page 19

1,, ON SECTIONAL DOORS:

Lengthen the door arm (See Step t0, Page 16)

If door arm is at maximum length, increase the DOWN travel

by turning the down limit adjustment screw in a counter

clockwise direction as shown on label One turn equals 2

inches of travel,

If door still will not close completely, the header bracket is

positioned too high Repeat Step 2, Page 11

2o ON ONE-PIECE DOORS:

Increase DOWN travel by turning the down limit adiustment

screw in a cou nterclockwise direction as shown on label One

turn equals 2 inches of travel

TEST DOOR FOR BINDING

Pull emergency release handle and manually open and close

the door If door is binding, call a door serviceman

t,. IF OPENER REVERSES BEFORE DOOR CLOSES FULLY:

Adjust the CLOSE FORCE as explained in Step 2, Page 19

2, IF OPENER REVERSES IN FULLY CLOSED POSITION:

Decrease DOWN travel Turn the down limit adjustment screw

in clockwise direction One turn equals 2 inches of travel

Adjustment

$TgP 2 AajustForce o

DO NOT USE FORCE ADJUSTMENTS TO COMPENSATE FOR A BINDING OR STICKING GARAGE DOOR.

EXCESSIVE FORCE WILL INTERFERE WITH THE PROPER OPERATION OF TH ESAFETY REVERSE SYSTEM

OR DAMAGE THE GARAGE DOOR_

Force Adjustment Controls are tocated on right side

panel of the opener chassis, FORCE ADJUSTMENT

settings regulate the amount of power required to

open and close the door

NOTE: Door STOPS in UP direction if anything

interferes with door travel° Door REVERSES in

DOWN direction if anything interferes with door

travel (including binding or unbalanced doors)°

If force adjustments are set too light, door travel may

be interrupted by nuisance reversals in the DOWN

direction and stops in the UP direction As weather

conditions can affect door movement, occasional

adjustment may be needed.

The maximum force adjustment range is 260 degrees,

about 3/4 of a complete turn. Do not force controls

beyond that point, Turn force adjustment controls

with a screwdriver

Controls

Adjustment

Label

FORCE ADJUSTMENT CHART

IF DOOR DOESN'T

OPEN AT LEAST 5 FT:

IF DOOR REVERSES

DURING THE DOWN

(CLOSE) CYCLE:

TEST DOWN

(CLOSE) FORCE:

Increase UP (OPEN) FORCE by turning control in a clock-

wise direction as shown on label Make 10 degree turn adjust-

ments until door opens completely° Readjust UP LIMIT if

necessary, After each adjustment, run the opener through a

complete travel cycle

increase DOWN (CLOSE) FORCE by turning control in a

clockwise direction as shown on label° Make 10 degree turn

adjustments until door completes the close cycle. After each

adjustment, run opener through a complete travel cycle.

Grasp the door handle or door bottom when door is about

halfway through DOWN (CLOSE) TRAVEL. The door should

reverse If the door is hard to hold or doesn't reverse, de-

crease the DOWN (CLOSE) FORCE by turning the cont[ol in.a

counter clockwise direction. Make 10 degree turn adjust-

ments until the door reverses normally. After each adjust-

ment, run the opener through a complete travel cycle,

Adjustment

STEP 3Test Safety Reverse System

....................... " '" -

THE SAFETY REVERSE SYSTEM TEST IS IMPORTANT, THE GARAGE DOOR MUSTREVERSE ON CONTACT

WITH A ON E INCH OBSTACLE PLACED ON THE FLOOR, FAILURE TO PROPERLY ADJ UST TH E OPENER MAY

RESULT IN SERIOUS PERSONAL INJURY FROM A CLOSING GARAGE DOOR, REPEAT TH E TEST AT LEAST

ONCE A YEAR AND MAKE ANY NEEDED ADJUSTMENTS.,

PROCEDURE: Place a tqnch obstacle on the floor under the garage door Operate the door in the DOWN

direction, The door must reverse on the obstruction

If a SECTIONAL door STOPS on the obstruction,

lenghthen door arm (Step 10, Page 16) until the door

reverses in DOWN direction

If a ONE-PIECE door stops on obstruction, door is

not traveling far enough in DOWN direction Increase

the DOWN limit by turning the DOWN limit adjust-

ment screw counter-clockwise t/4 turn REPEATTEST

When the door reverses on the lqnch obstruction,

remove obstruction and run opener through a com-

plete travel cycle Door must not reverse in closed

position If it does, repeat Adjustment Steps 2 and 3

ONE-PIECE DOOR

SECTIONAL DOOR

@REPEAT ADJUSTMENT STEP 3AFTER:

1 EACH ADJUSTMENTOF DOOR ARM LENGTH, CLOSE FORCE OR DOWN LIMIT

2, ANY REPAIR OR ADJUSTMENT OF THE GARAGE DOOR (INCLUDING SPRINGS AND HARDWARE)

3, ANY REPAIR OR BUCKLING OFTHE GARAGE FLOOR

4, ANY REPAIR OR ADJUSTMENT OF THE GARAGE DOOR OPENER

,,, ,i ......... ,........ , ......... ,: ............

(Optional) STEP 4 Install Infrared Reversing System

The INFRARED REVERSING SENSOR provides an

ADDITIONAL measure of safety against small child-

ren being caught undera garage door It uses an invis-

ible beam which, when broken by an obstruction,

causes a closing door to open or prevents an open

door from closing

After the garage door opener has been completely

installed and adjusted, the INFRARED REVERSING

SENSOR accessory can be installed Instructions are

included with this optional device

ff////J///I//_,F/////////I//#F/_

/z////_z//,//,;/////#,///////,//z_

CA UTION: The Infrared Reversing Sensor will not

be in effect when Vacation Light is ON.

Operation of Your Opener

CAUTION:

eSTARTBY READING THESAFETYRULES ON PAGE3.

eREAD THE OPERATING INSTRUCTIONS ON THIS PAGE CAREFULLY.

oDO NOT PERMIT CHILDREN TO PLA Y IN AREA OF DOOR.

eOPERATE ONLY WHEN OPENER IS PROPERLYADJUSTED AND DOOR tS tN SIGHTAND FREE OF OBSTRUCTION.

THE SAFETY REVERSE SYSTEM IS IMPORTANT (SEE PAGE 20). GARAGE DOOR MUST REVERSE ON CON-

TACTWlTH A ONE-INCH OBSTACLE PLACEDON THE FLOOR° FAILURETO PROPERLYADJUSTOPENER MAY

RESULT IN SERIOUS PERSONAL INJURY FROM A CLOSING GARAGE DOOR. REPEAT THE TEST AT LEAST

ONCE A YEAR AND MAKE NEEDED ADJUSTMENTS°

USING THE OPENER

Your garage door opener can be activated by any of the following methods:

1 Pressing the transmitter push button. Hotd the button down until door starts to move,

2. Pressing the Wall Control push button,

3. By turning the Key Switch (if you have installed this accessory),

WHEN EITHER THE WALL CONTROL OR TRANSMITTER PUSH BUTTONS ARE PRESSED, ONE OF THE

FOLLOWING WILL OCCUR (Vacation Light OFF):

1 If open, the door will close tf closed, the door will open

2 If closing, the door will reverse

3 If opening, the door will stop (allowing space for entry and exit of pets and for fresh air).

4. If the door has been stopped in a partially open position (refer to 3 above), it will close

5If an obstruction is encountered while closing, the door wilt reverse

6 If an obstruction is encountered while opening, the door will stop

7 The optional Infrared Reversing Sensor, if installed, wiif si! tnal the opener to reverse the door in the closing cycle

when the lR beam is obstructed and prevent an open door from closing It has no effect in the opening cycle..

THE LIGHTS

When the opener is activated, lights wiiI turn on They will turn off automatically after 4-1/2 minutes BULB SIZE-75

watts maximum When Work Light is ON, the lights will remain on

OPENING THE DOOR MANUALLY

The door can be operated manually by disconnecting it from the opener Simply pull down sharply on the red

emergency retease handle. The door may now be lifted manually DO NOT USE EMERGENCY ROPE AN D HAN DLE

TO PULLTHE DOOR OPEN OR CLOSED_ To automaticalIy reconnect the door to the opener, press the Wall Control

push button.

CARE OF THE OPENER

When properly installed, your opener will perform efficiently with a minimu m of maintenance. You will be required to

replace a light bulb or change a transmitter battery from time to time A 9-Volt AIkaline battery is the most reliable, and

is available at Sears

The opener does not require additional lubrication - HOWEVER - the door rollers, bearings and hinges should be

oiled yearly.

Most complaints of unsatisfactory opener operation can be traced to problems with the door itself The opener is not

intended to correct problems caused by an unbalanced or binding door, broken door springs or faulty door hardware.

When operating the door manually, a propedy balanced door will stay in any point of travel while being supported

soley by its springs. If you encounter any difficulty when operating door manually, call a garage door serviceman..

RADIO CONTROLS

Refer to pages 22 and 23 for complete details.

OPENER ADJUSTMENTS

Refer to pages I8 and 19 for limit and force adjustments. These adjustments must be checked and property set when opener

is installed, Weather conditions may cause minor changes in door operation requiring some change in adjustments,

particularly during the first year of operation Only a screwdriver is required Follow instructions carefully.

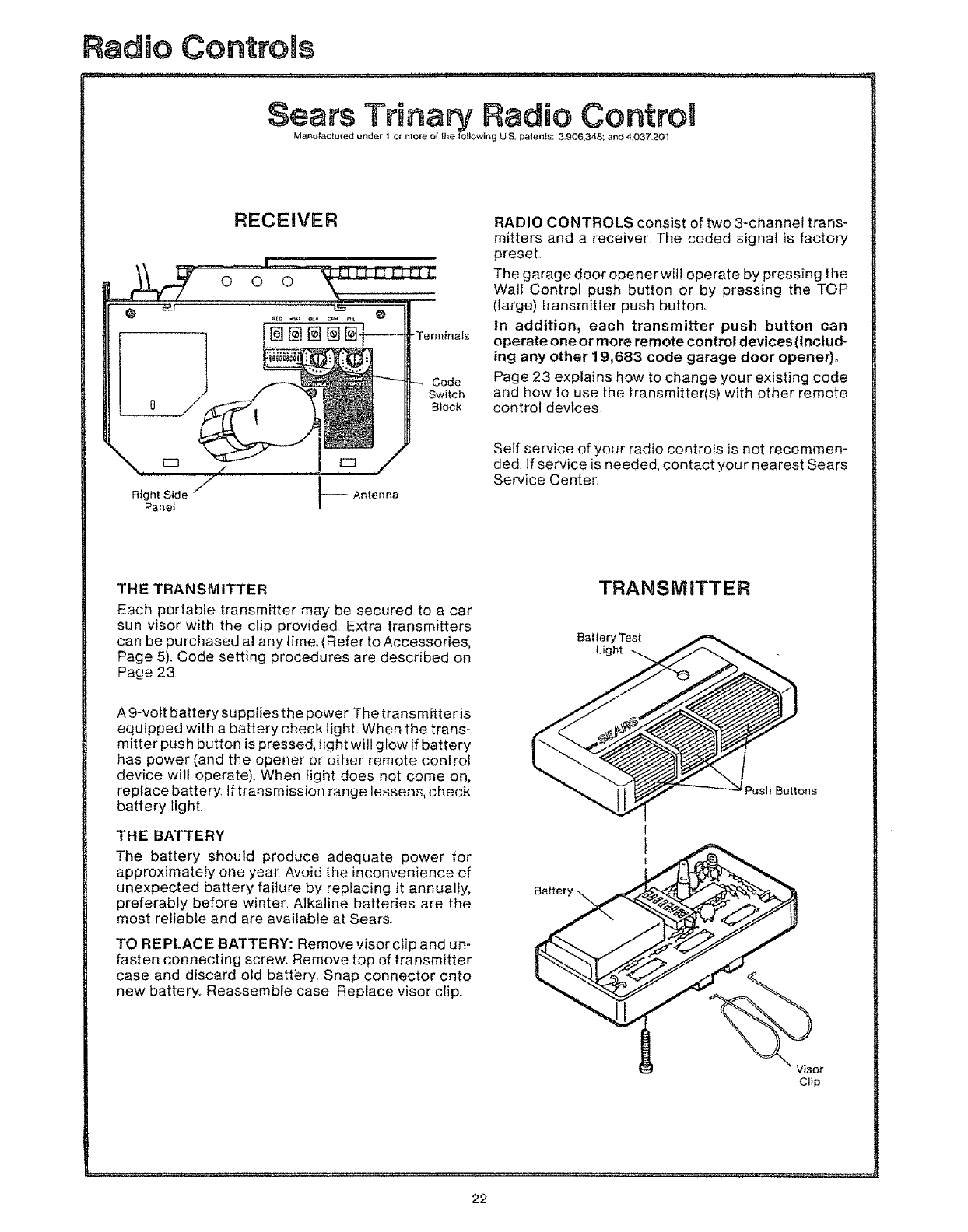

Rad6o Controls

RECEIVER

Code

Switch

Block

RADIO CONTROLS consist of two 3-channel trans _

mitters and a receiver The coded signal is factory

preset

The garage door openerwitl operate by pressing the

Wail Control push button or by pressing the TOP

(large) transmitter push button

tn addition, each transmitter push button can

operate one or rno re remote control devices (includ-

ing any other 19,683 code garage door opener)=

Page 23 explains how to change your existing code

and how to use the transmitter(s) with other remote

control devices

R_ght Side

Panel Antenna

Self service of your radio controls is not recommen-

ded If service is needed, contact your nearest Sears

Service Center,

THE TRANSMITTER

Each portable transmitter may be secured to a car

sun visor with the clip provided Extra transmitters

can be purchased at any time, (Refer to Accessories,

Page 5). Code setting procedures are described on

Page 23

A 9-volt battery supplies the power The transmitter is

equipped with a battery check light.. When the trans-

mitter push button is pressed, tight will glow if battery

has power (and the opener or other remote control

device will operate),. When Iight does not come on,

replace battery, If transmission range lessens, check

battery light,,

THE BATTERY

The battery should produce adequate power for

approximately one year Avoid the inconvenience of

unexpected battery failure by replacing it annually,

preferably before winter Alkaline batteries are the

most retiabte and are available at Sears

TO RE PLACE BATTERY: Remove visor clip and un-

fasten connecting screw, Remove top of transmitter

case and discard old battery. Snap connector onto

new battery° Reassemble case Replace visor clip.

TRANSMITTER

Battery Test

Light

Batte_

Push Buttons

Visor

Clip

......... • ...-:.........

Radio Controls

The position (% - orO) of RECEIVER code switch No. t sets the transmitter to operate from ONE of its push

buttons. The positions of RECEIVER and TRANSMITTER code switches 2 through 9 set the signal code.

Changing the position of only one switch makes a new code.

instructions are given below for changing codes and/or using the transmitter(s) with additional receivers.

NOTE: If you change the code in one receiver, you must set transmitter(s) and ALL other remote control

receivers to the same code°

SETTING/CHANGING YOUR CODE IN RECEIVER(S) AND TRANSMITTER(S)

DtSCONN ECT POWER TO OPEN ER (OR OTHER

DEVICES) BEFORE SETTING OR CHANGING

THE CODE IN THE RECEIVER(S),.

IMPORTANT." THE POSITION OF CODE SWITCH

NO,. 1 ON THE RECEIVER MUST BESET TO MATCH

TRANSMITTER PUSH BUTTON SELECTED.

t Select a transmitter push button to operate the

receiver_ Large push button is recommended

for use with a garage door opener and has

been factory preset°

2 Remove screw on backoftransmitter(s) Carefully

turn case over (push button side up),

3 Remove case top, CAUTION: Be careful not to

move circuit board components.

4 Locate the RECEIVER code switch block

® FOR TOP (LARGE} TRANSMITTER PUSH BUTTON:

Set RECEIVER code switch 1 to minus (-)

@ FOR CENTER TRANSMITTER PUSH BUTTON: Set

RECEIVER code switch 1 to neutrai (0).

FOR BOTTOMTRANSMITTER PUSH BUTTON: Set

RECEIVER code switch 1 to plus (+)

To complete the code setting, use a pen or screw-

driver. Beginning with code switch 2 on the receiver,

slide one or more of the switches to plus, minus or

neutral (0).

Hold transmitter(s) alongside receiver code switch,

Set code switches in transmitter(s) to match receiver

switch positions.

NOTE: Code switches 2 through 9 on ALL the

receivers operated by the transmitter(s) must

MATCH switches 2 through 9 in transmitter(s).

CAUTION: If you press more than ONE push but-

ton at the same time, transmitter will not operate.

TRANSMITTER

TOP (Large)

Push Button

CENTER

Push Button

BOTTOM

Push Button

RECEIVER

Code Switch No. I1

Transmitter

Bottom Push Button

Transmitter 0

Center Push Button

Transmitter ===

TOP Push Button

Code

Switches

,,_ 123456789

RECEIVER TRANSMITTER

PLEASE KEEP THIS INSTRUCTION MANUAL HANDY FOR FUTURE REFERENCE.

Having a PtoNem?

OPENER DOESN'T ACTIVATE

1, Have you removed all door locks and bolts?

2,, Does the opener have electric power?. Check wati

switch, fuse, etc,

3 is there a broken wire between Wali Control and

opener? Check under staples (A positive check

can be made by temporarily installing another wire),

4 Are wiring connections correct?. Refer to Step 7,

Page 14

5 Repeated operation may have tripped the ovedoad

protector in the motor Wait 15 minutes, Try again

TRANSMITTER RANGE INSUFFICIENT

1 Check battery

2 Change transmitter location in car.

3 Metal garage door, foiFbacked insulation or metal

siding will reduce range

4 Antenna on side panel of opener must be fully

extended downward

DOOR DOESN'T OPEN OR CLOSE COMPLETELY

1 ls something obstructing the door?

2, Limits may need adjustment See Pg, 18

3 Force may need adjustment,, See Pg 19

4 Doer will not close while Vacation Light is ON

DOOR OPENS AND CLOSES BY ITSELF

I Neighbor with a Sears opener using the same code?

Change your code

LIGHTS

1, Won't turn OFF? Check Work Light., Is it ON?

2, Won't turn ON? Check light bulbs

DOOR OPERATES FROM WALL CONTROL BUT

NOT FROM TRANSMITTER

1 Replace the battery,

2 New transmitter? H ave you set the code? Refer to

Page 23

3 Is transmitter operating additional remote control

devices? See code setting procedure on Page 23.

4 Did you press transmitter button designated to

operate garage door opener?.

5 Vacation light is ON

DOOR REVERSES FOR NO APPARENT REASON

1 Pull red emergency release handle. Operate the

door manually Is it balanced? Binding? if service

is needed call a garage door serviceman

2 Force adjustment may be needed See Pg 19

3. Check for proper alignment of Infrared Reversing

Sensor (if you have installed this accessory)..

4 Clear ice and snow from garage floor area where

garage door closes.

THE NEED FOR OCCASIONAL ADJUSTMENT OF FORCE AND LIMIT CONTROLS IS NORMAL° WEATHER

CONDITIONS IN PARTICULAR CAN AFFECT DOOR MOVEMENT..

Transmitter Schematic

I° =

RAIL ASSEMBLY PARTS LIST

1 IA995 Master link kit

2 41B26!7 Outer trolley

341B2771 Inner trolley

4 12A197 Chain retainer brackel

_7 5 2B3t3 Tee rail-center section

6 t 83B93 Tee rail-end section (each)

74t B2616 Cable pulley bracket assy (each)

8 41C2735 Chain and cable

NOT SHOWN

41A2814 Rail assy hardware kit (includes hardware

iIlustrated on Page 4)

Repair Parts

Chassis AssembRy Parts List

18 i 15 13

m m_

KEY PART

NO, NO., DESCRIPTION I

3tC290

41 A2827

41A2817

41 B2991

41C2725

41 A3063

41 A3073

175B88

Sprocket cover

Gear and sprocket assy

Complete with:

Spring washer

Thrust washer

Retaining ring

Bearing ptate

Rol! pins (2)

Drive gear"

Worm gear

Helical gear w/retainer

Grease

Drive/worm gear kit w/grease

Ro!l pins (2)

Line cord

Wire harness aasy w/plug

Receiver logic board assy

Legic board

End pane! w/all labels

Light socket (t)

End panel w/a!_ labels

Light socket (each)

I KEY

NO,

PA RT I

NO, DESCRIPTION

108D30-1 Lens (each)

30B363 Capacitor

t 2A373 Capacitor bracket

1A2510 Terminai btock w/screws

41 A2821 Motor asay w/roll pin

41 C2740 Cover w/a_l Iabeis

41A2818 Heltcal gear and retainer w/grease

41 D30t3 Limit switch assembly

41 A3020 RPM sensor retainer

41 B3000 RPM sensor

41 A3027 Motor bracket and bearing assy

4tA2826 Shaft beating kit

41A2822 Interrupter cup assy,

41 A3074 End panel

12 B350 Hanging brackets

NOT SHOWN

114A866 Owners manual

41 A2825 Chaa_Eseasy, hardWare kit (includes screws

not designated by number in illustration)

Garage

Door

Opener

ModeB

139.5351 3

Owners Manua

HOW TO ORDER REPAIR PARTS

Now that you have purchased your Sears Garage Door Opener, should a

need ever exist for repair parts or service, simply contact any Sears Service

Center &nd most Sears, Roebuck and Co stores Be sure to provide at!

pertinent facts when you call or visit

The MODEL NUMBER of your garage door opener is printed on a label

located on the right side paneI of the opener chassis

All parts listed may be ordered from any service center and most Sears

stores

WHEN ORDERING REPAIR PARTS, ALWAYS GiVE THE FOLLOWING

fNFORMATION:

e PART NUMBER ePART DESCRIPTION

e MODEL NUMBER eNAME OF ITEM

if the parts you need are not stocked locally, your order will be electroni-

cally transmitted to a Sears Repair Parts Distribution Center for handling.

IMPORTANT NOTE: If you suspect radio malfunction, contact your near-

est SEARS Service Center,

MAI NTENANCE AGREEMENTS... YOUR WAY TO BUY TOMORROW'S SERVICE

AT TODAY'S PRICE ... With nationwide service and the benefits of a Sears warranty plus a Sears Mainte-

nance Agreement, you don't have to worry about costly repairs resulting from normal use,

The Maintenance Agreement does not cover installation or re-installation of the product or damage resulting from

external causes such as: acts of abuse, fire, flood, wind, lightning, freezing, etc.,

To Purchase aSears Maintenance Agreement -Ask Any Salesperson or Call Sears Service Today.

SEARSWARRAN=rY H

GARAGE DOOR OPENER MODEL 139.53513 lltt

FULL 90 DAY WARRANTY ON GARAGE DOOR OPENER

For 90 days from the date of purchase, Sears will repair this Garage Door Opener, free of charge, if defective in _1

material or workmanship I]

LIMITED WARRANTY

From the 91st day until one year from the date of purchase, Sears wilt furnish replacement parts for any defective parts, M

free of charge You pay for tabor. {I

LIMITED WARRANTY ON MOTOR

After 1 year and through 5 years, if the motor on this Garage Door Opener is defective, Sears will furnish a replacement _

motor, free of charge You pay for labor {I

LIMITATION ON LIABILITY U

Sears will not be liable for loss o¢ damage to property or any incidental or consequential loss or _[_

expense from property damage due directly or indirectly from the use of this product. {I

Some states do not ailow the exclusion or limitation of incidental or consequential damages, so the above limitation or _J

exclusion may not apply to you _'_

This warranty does not cover repairs necessary because of operator abuse or negligence, including the failure to install, II

adjust and operate this garage door opener according to the instructions tontained in the owners manual _j

WARRANTY SERVICE IS AVAILABLE B (SIMPLY CONTACTING THE NEAREST SEARS SERVICE CENTER/DEPART- _,_

MENT IN THE UNITED STATES, This warranty applies only while the product is in use in _he United States II

This warranty gives you specific legal rights, and you may aiso __ave other rights which vary from state to state _j [3

SEARS ROEBUCK AND COMPANY, Dept_ 898/731A Sea;'_ Tower,, Ch,cago, ,L 60684 _

114A866 Printed in Mexico

Craftsman 13953513 User Manual SEARS ELECTRONIC GARAGE DOOR OPENER Manuals And Guides L0710018

CRAFTSMAN Garage Door Opener Manual L0710018 CRAFTSMAN Garage Door Opener Owner's Manual, CRAFTSMAN Garage Door Opener installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
