Owner's

Manual

Model No.

139.53662SRT2

139.53670SRT1

139.53675SRT2

For Residential Use

Only

Caution:

Read and follow all

safety rules and

operating instructions

before first use of this

product.

Fasten the manual

near the garage door

after installation.

Complies with UL 325 fllll _

regulations effective

January 1, 1993

CRRFTSMRN

GARAGE DOOR OPENER

1/2 HP

[] Safety Precautions

[] Assembly

[] Installation

[] Adjustment

[] Care and Maintenance

[] Operation

[] Troubleshooting

[] Parts List

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

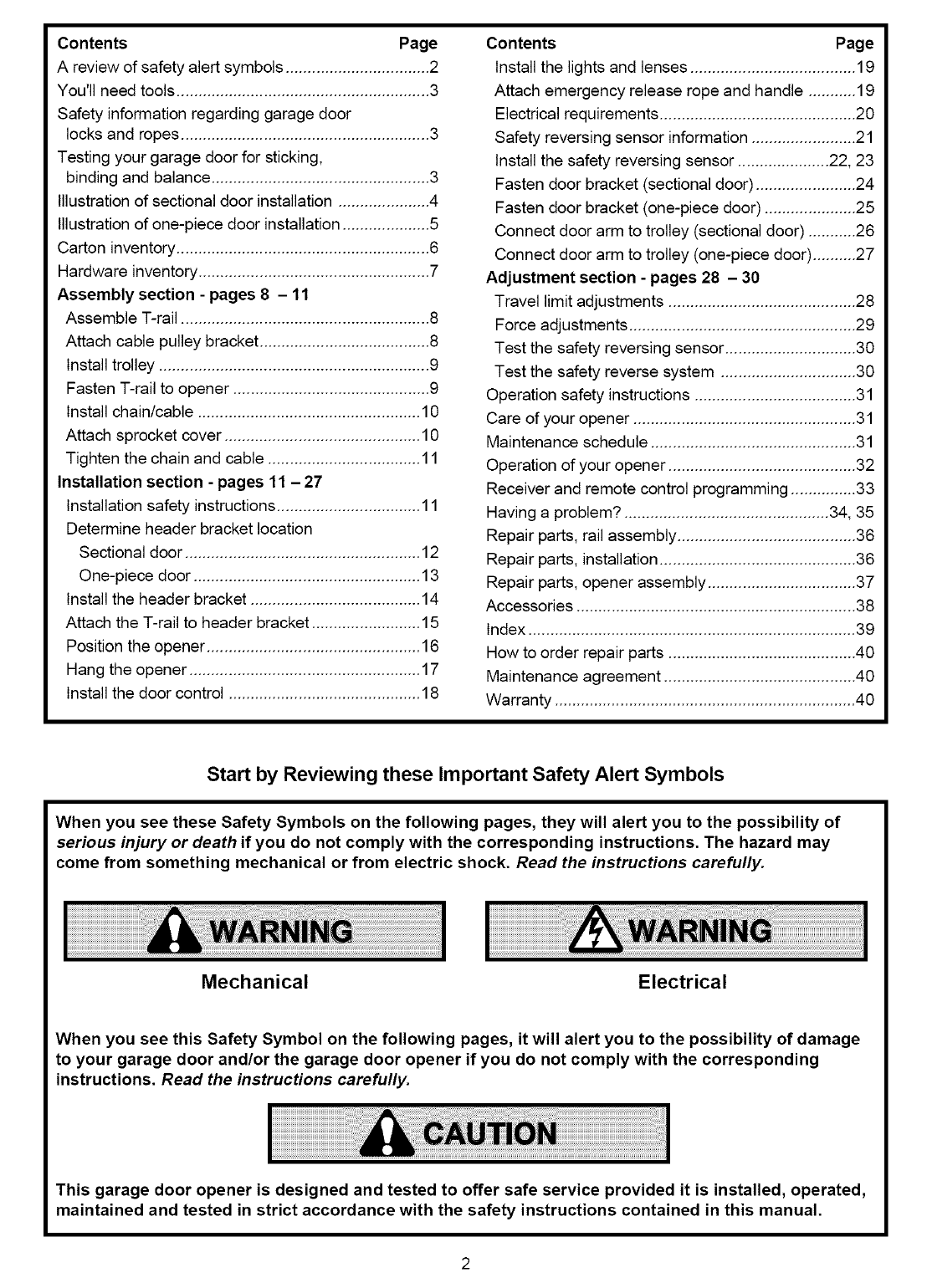

Contents Page

A review of safety alert symbols ................................. 2

You'll need tools .......................................................... 3

Safety information regarding garage door

locks and ropes ......................................................... 3

Testing your garage door for sticking,

binding and balance .................................................. 3

Illustration of sectional door installation ..................... 4

Illustration of one-piece door installation ....................5

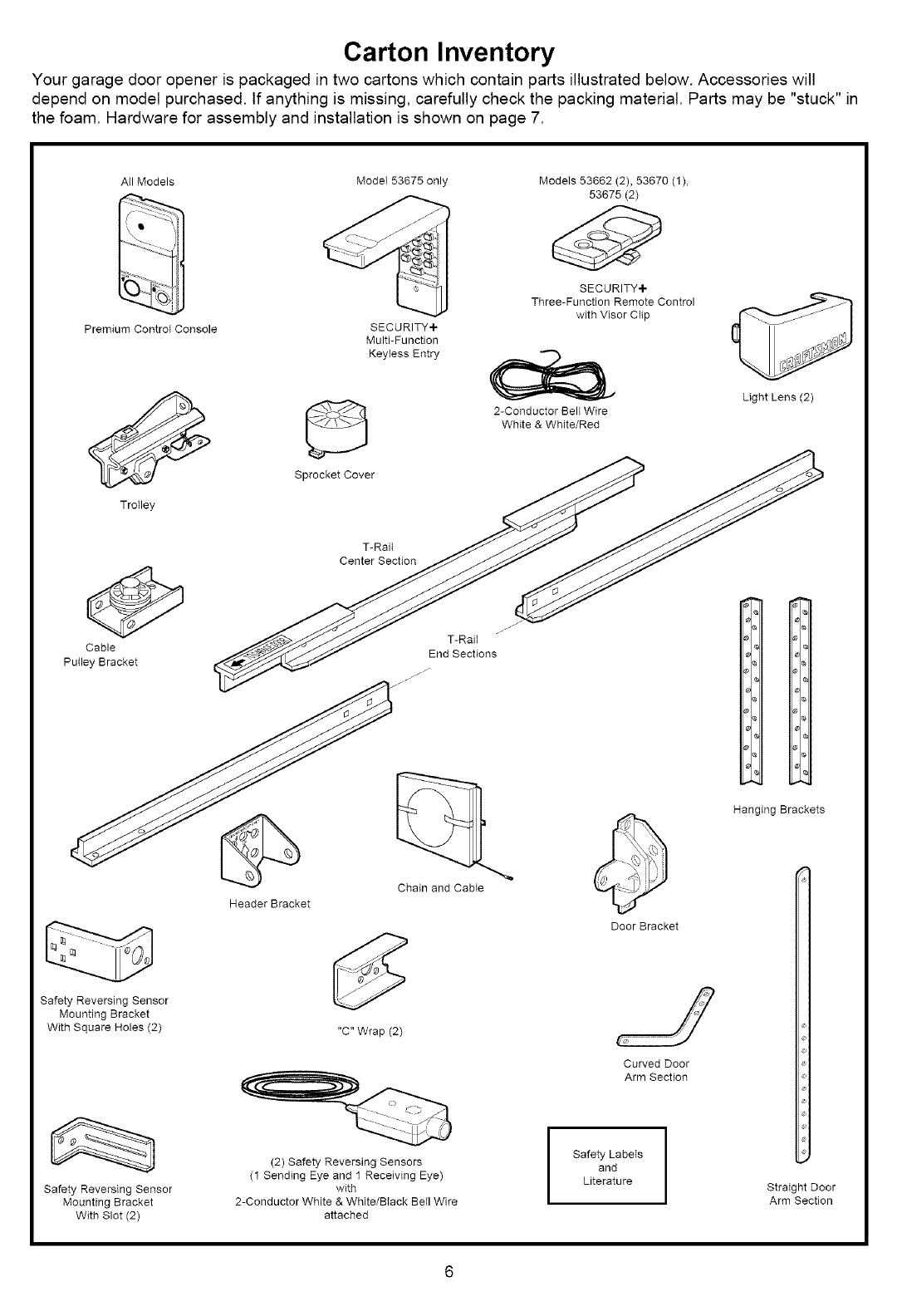

Carton inventory .......................................................... 6

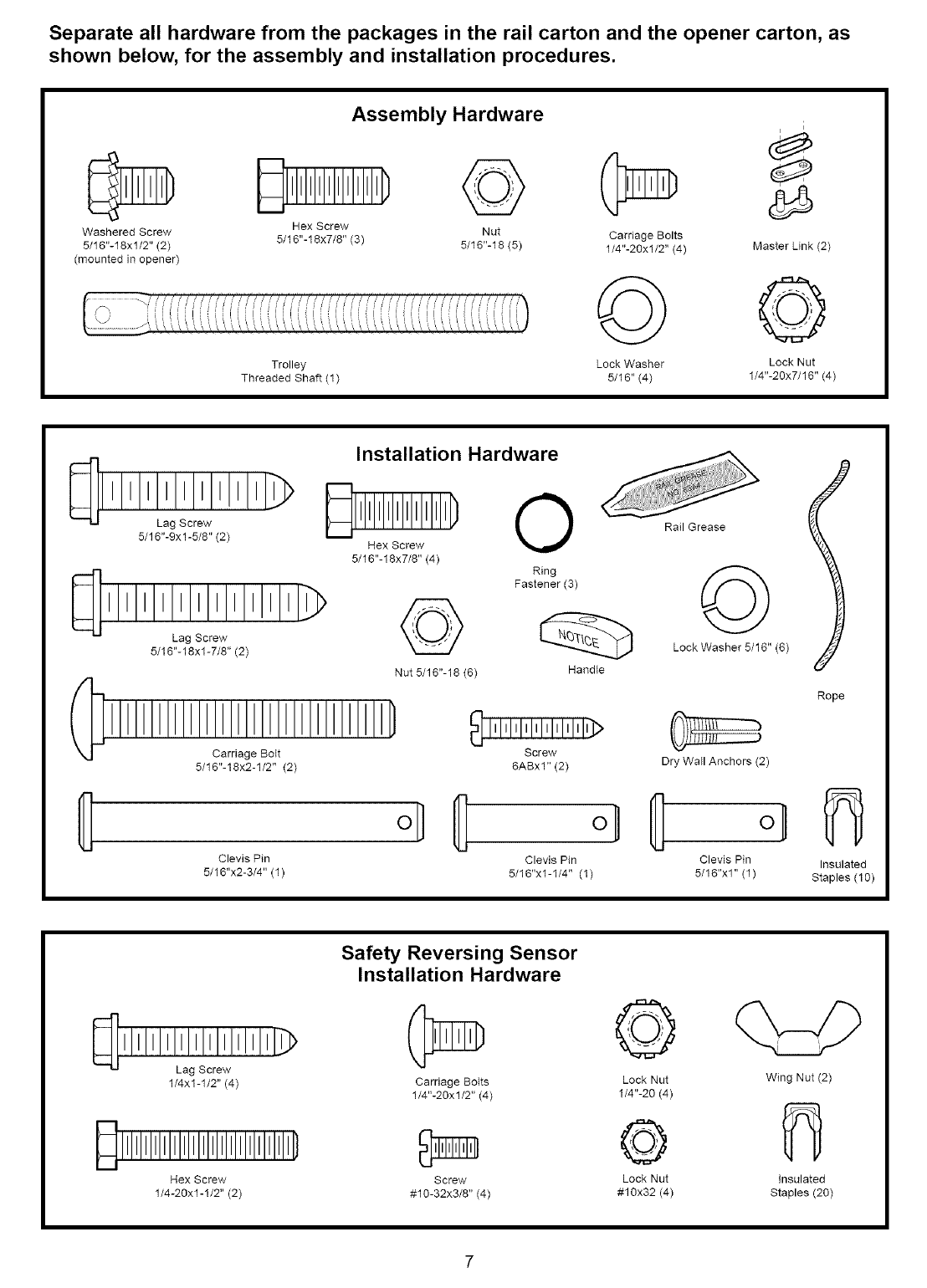

Hardware inventory ..................................................... 7

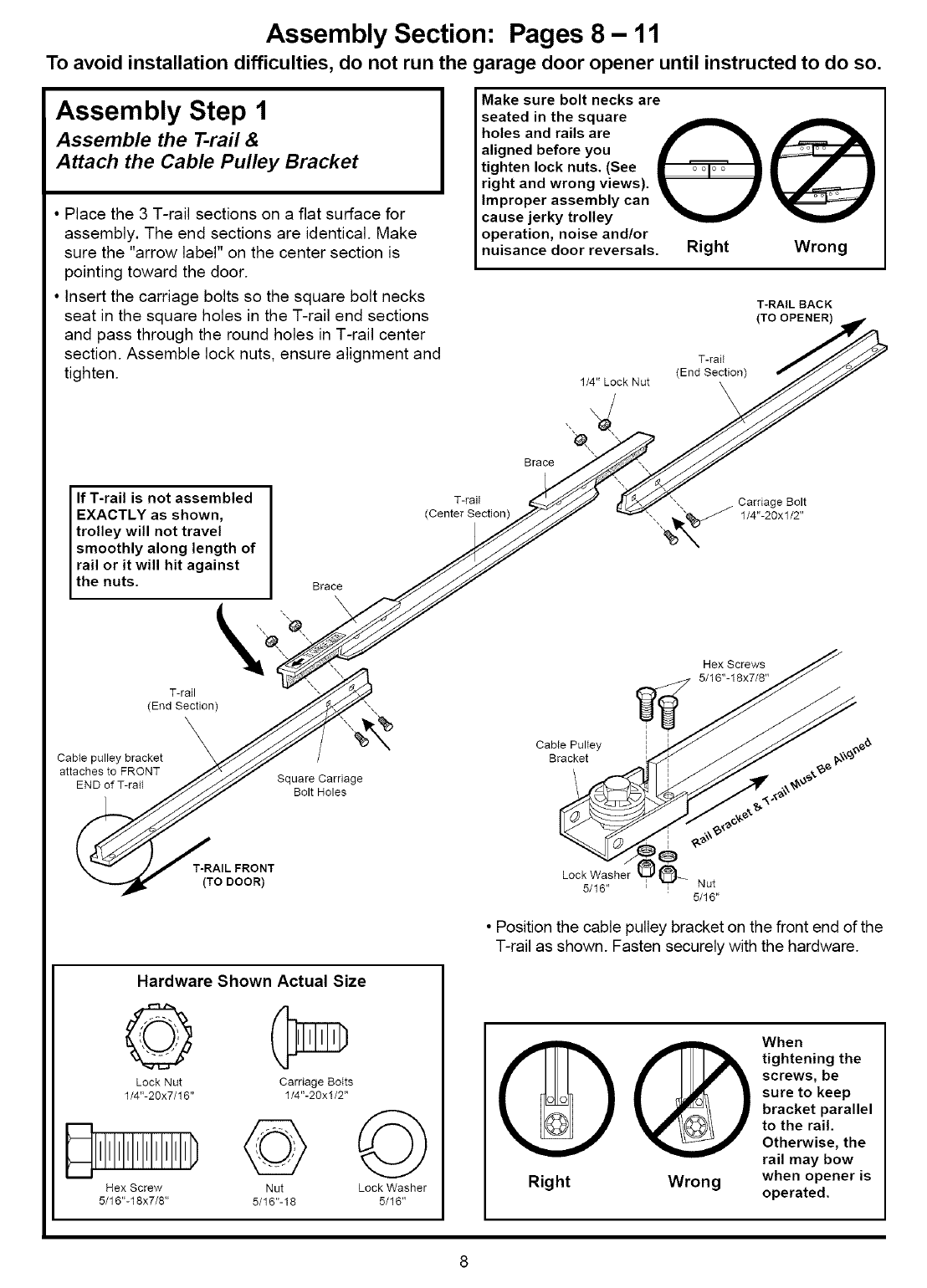

Assembly section - pages 8 - 11

Assemble T-rail ......................................................... 8

Attach cable pulley bracket ....................................... 8

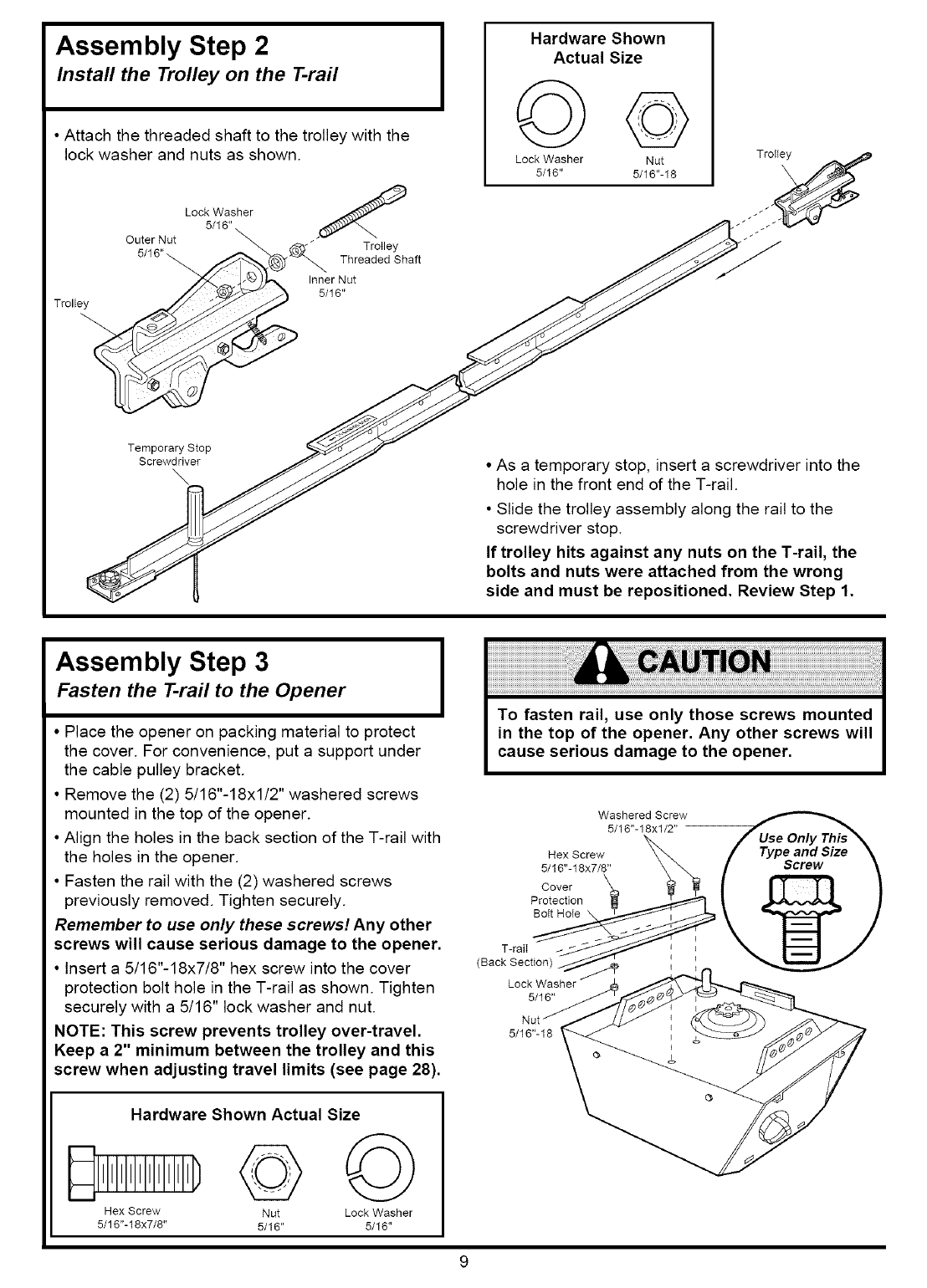

Install trolley .............................................................. 9

Fasten T-rail to opener ............................................. 9

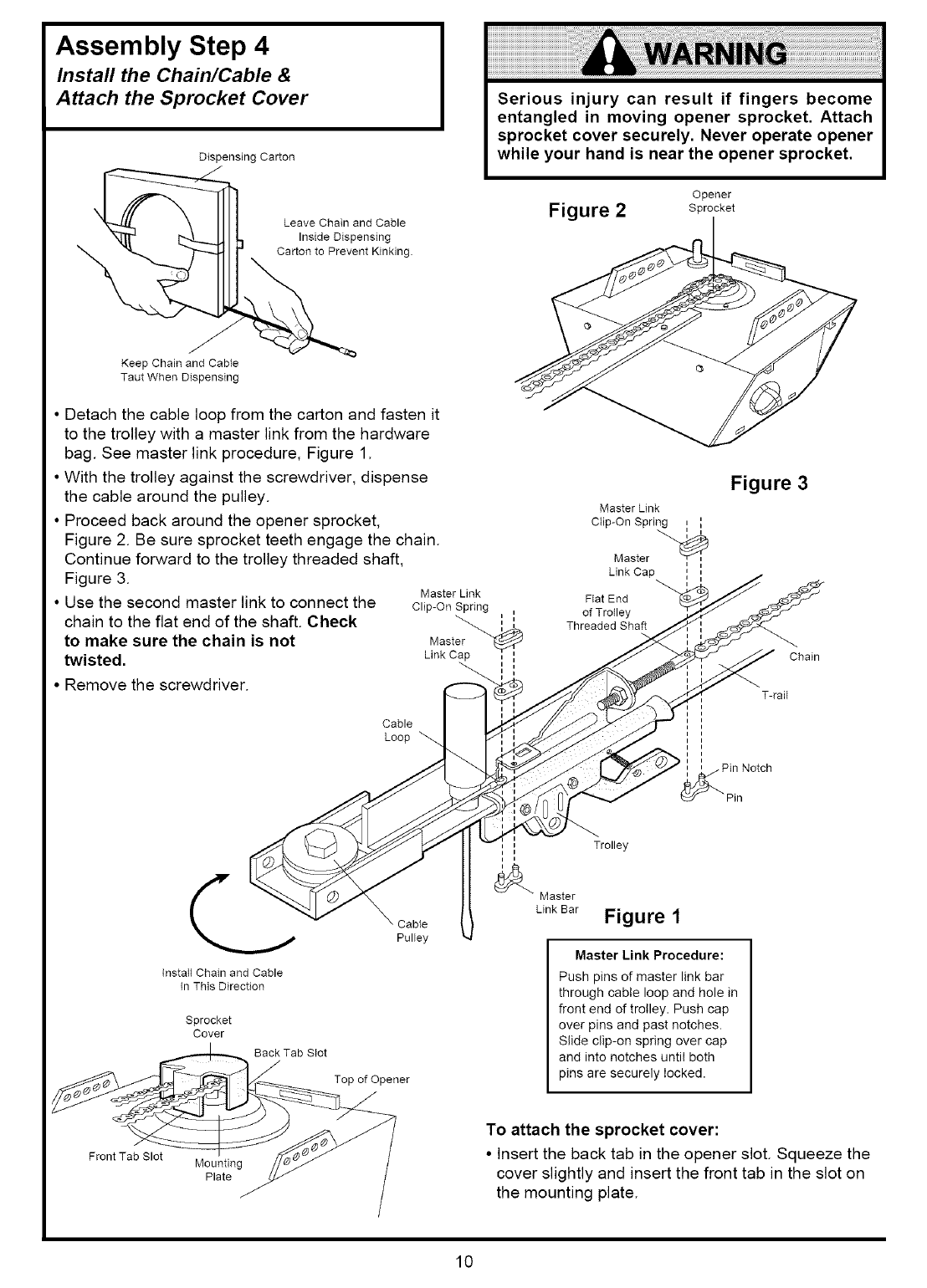

Install chain/cable ................................................... 10

Attach sprocket cover ............................................. 10

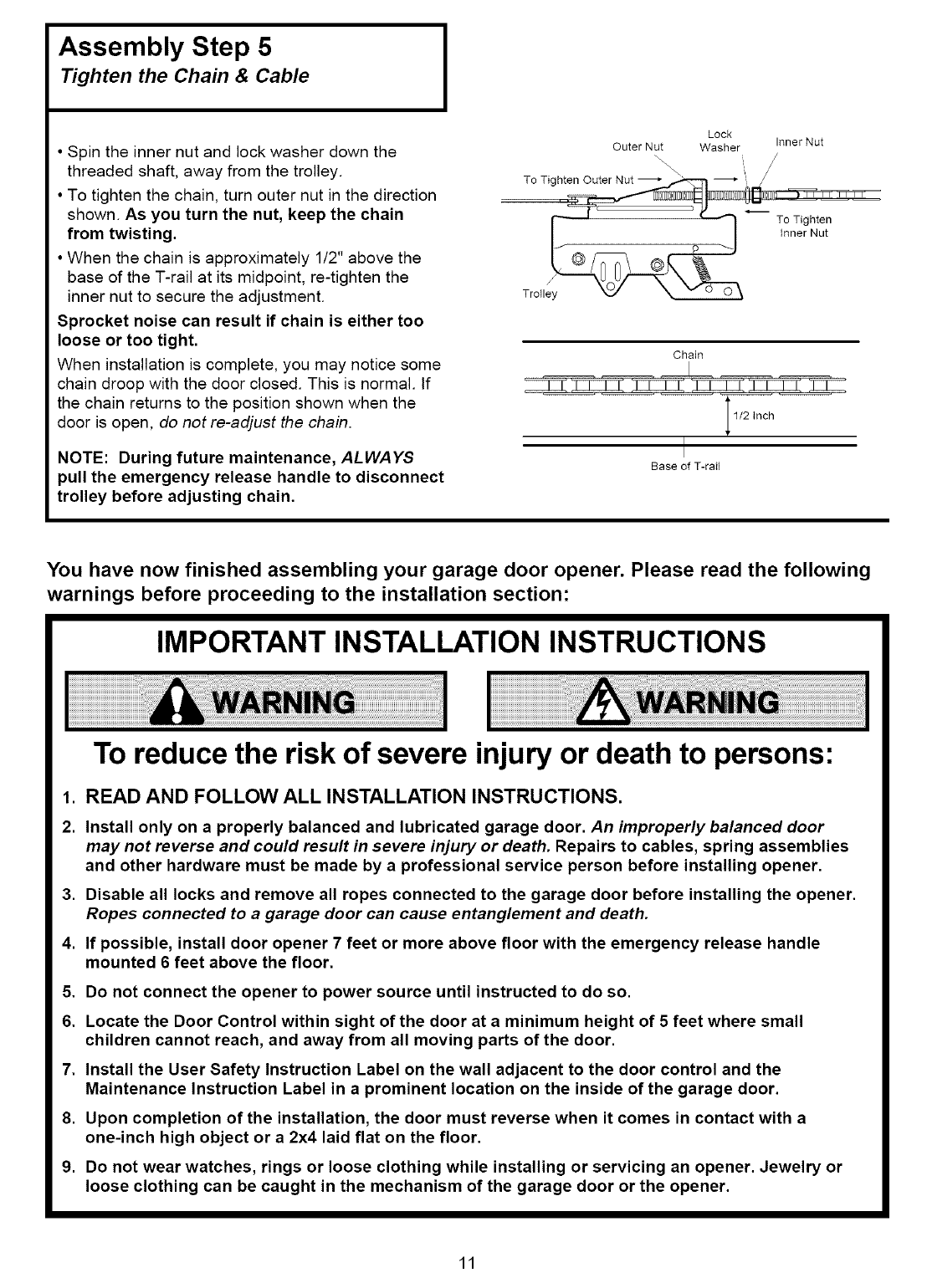

Tighten the chain and cable ................................... 11

Installation section - pages 11 - 27

Installation safety instructions ................................. 11

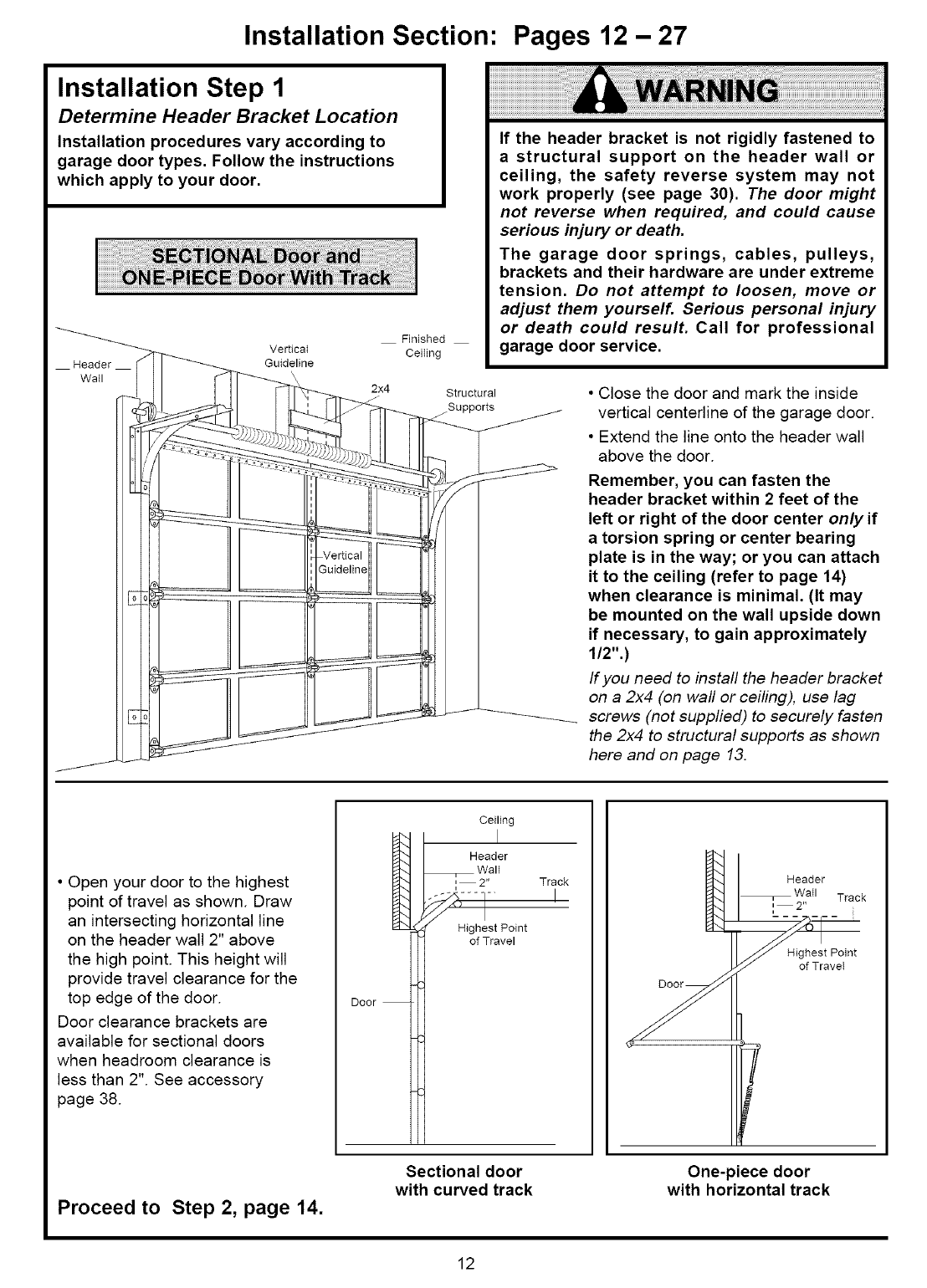

Determine header bracket location

Sectional door ...................................................... 12

One-piece door .................................................... 13

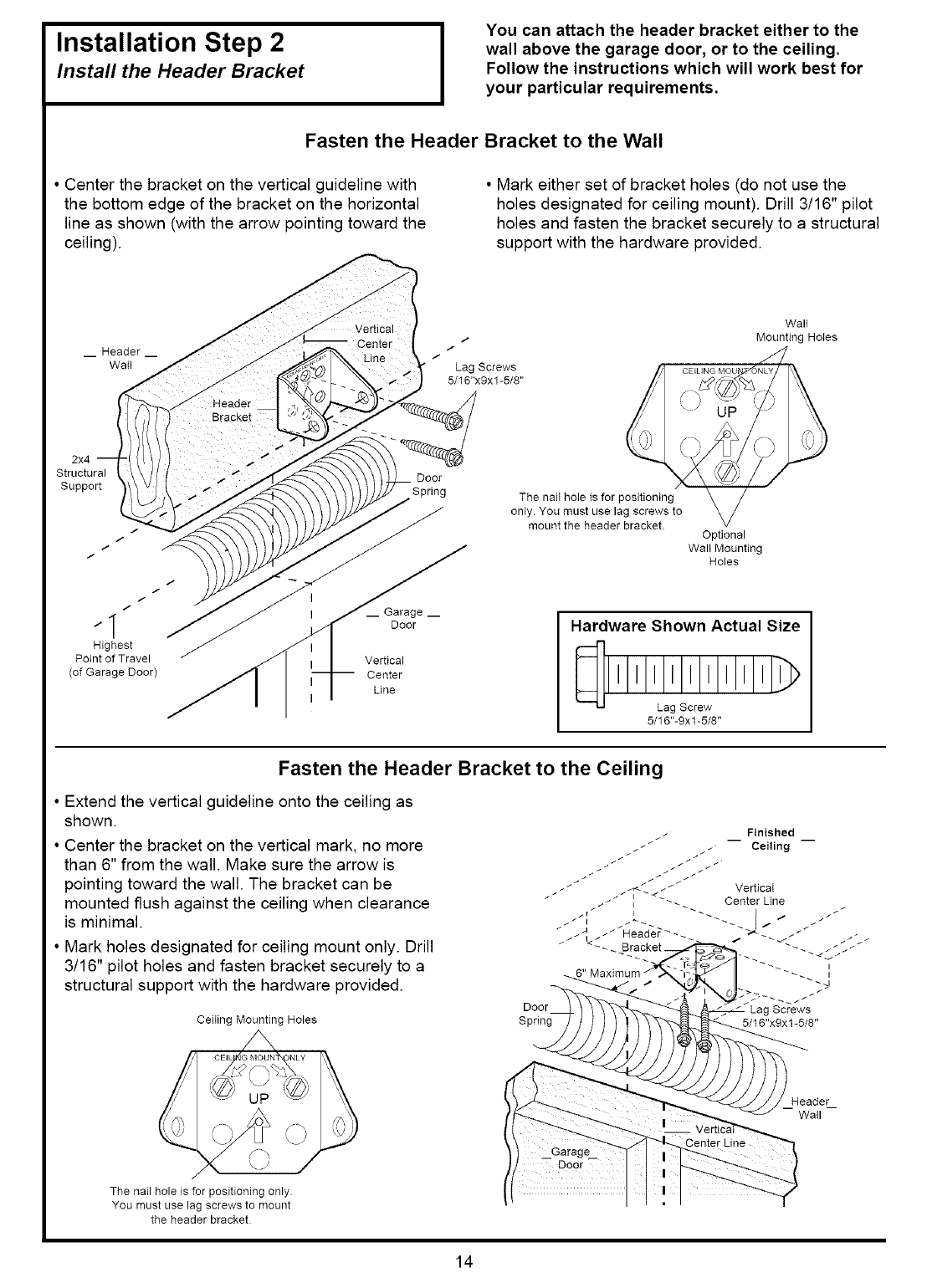

Install the header bracket ....................................... 14

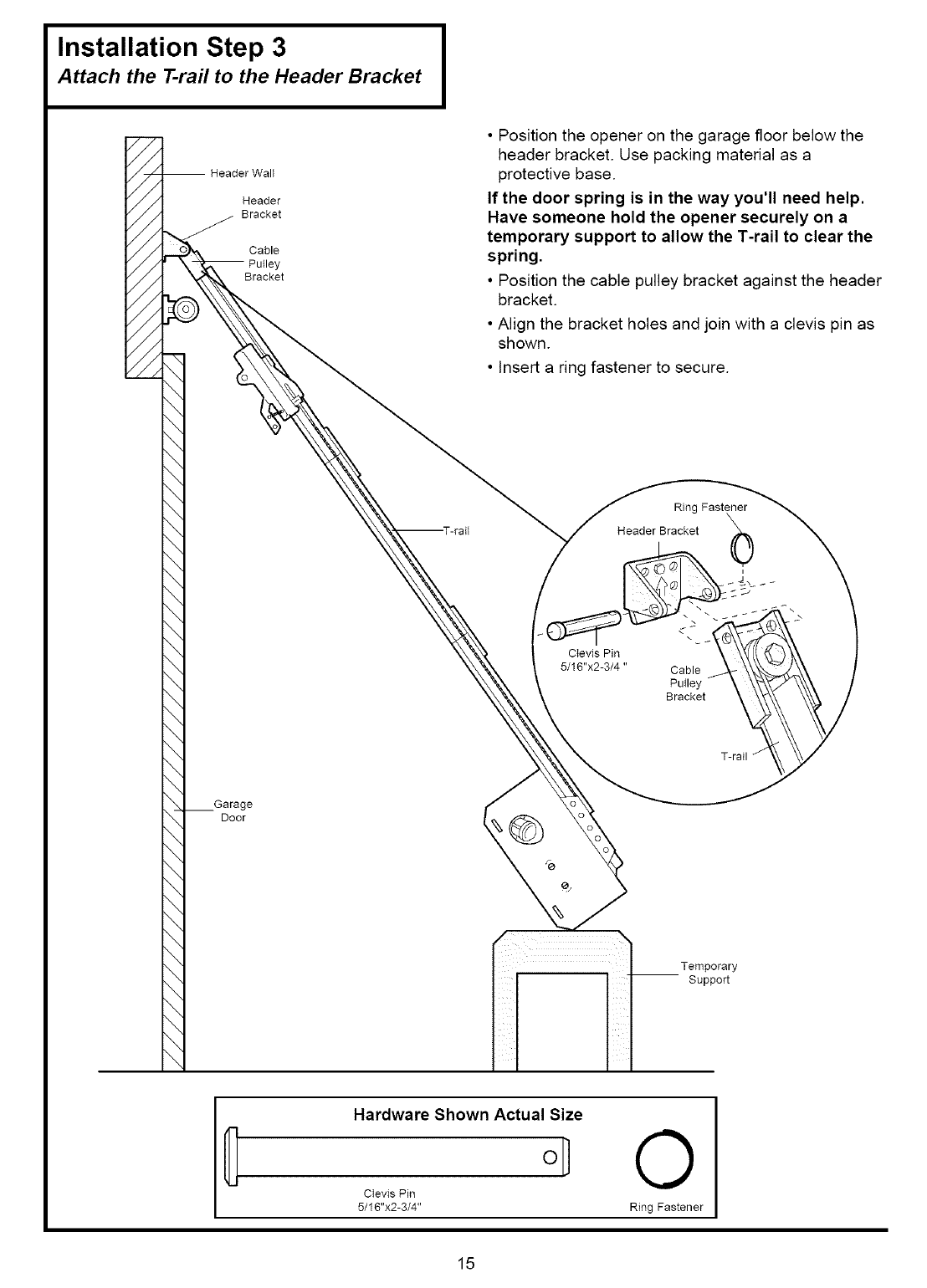

Attach the T-rail to header bracket ......................... 15

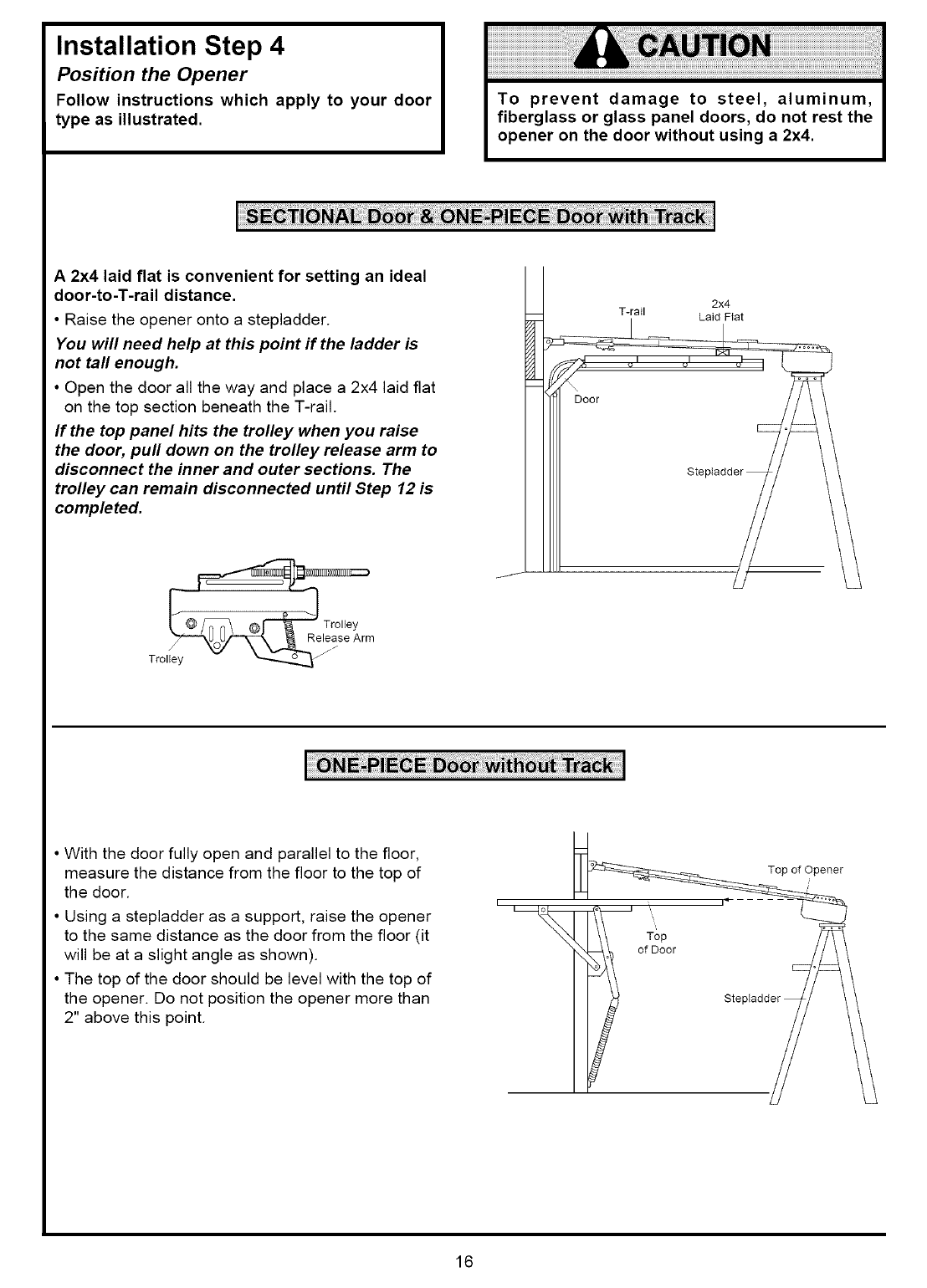

Position the opener ................................................. 16

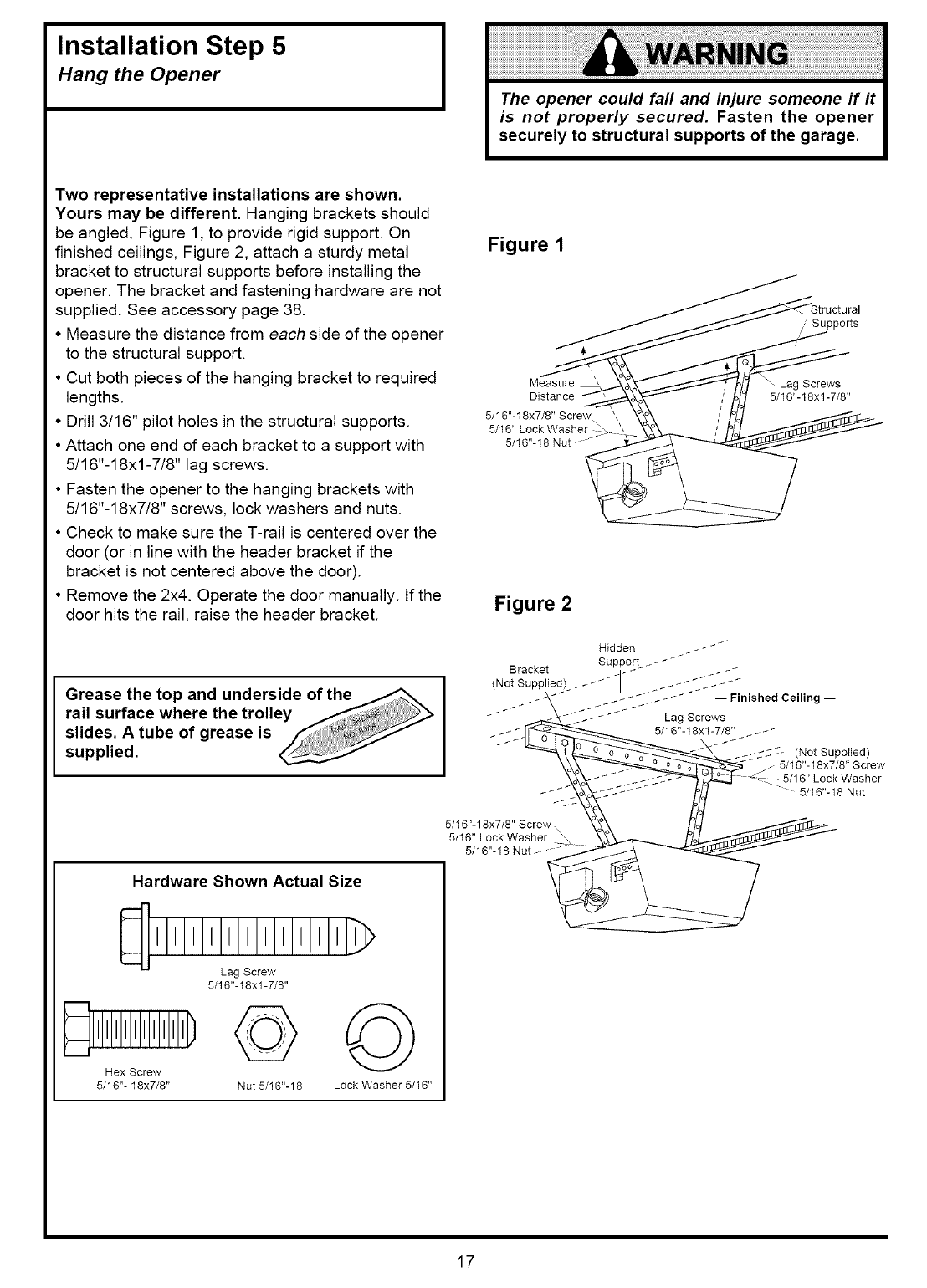

Hang the opener ..................................................... 17

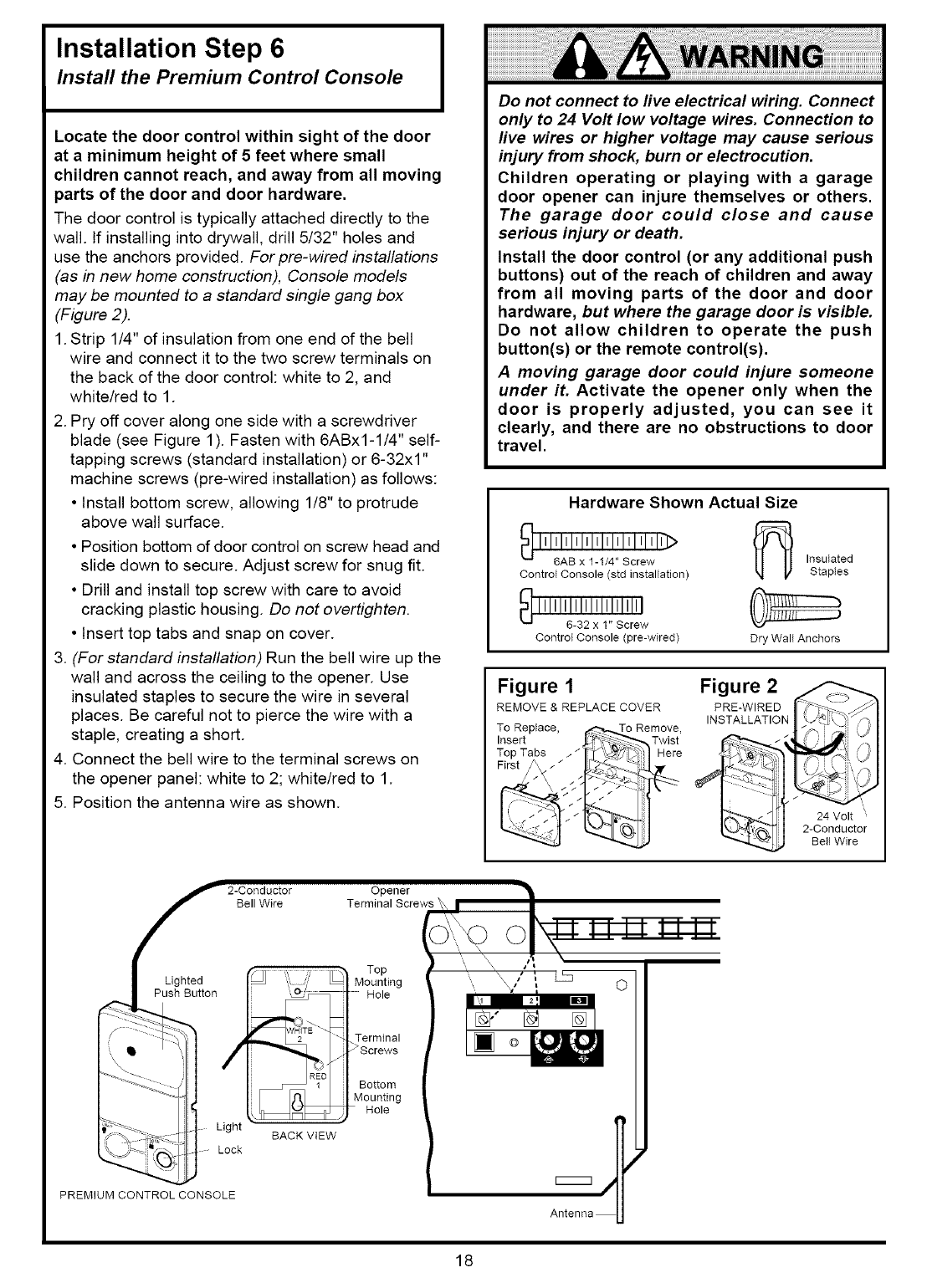

Install the door control ............................................ 18

Contents Page

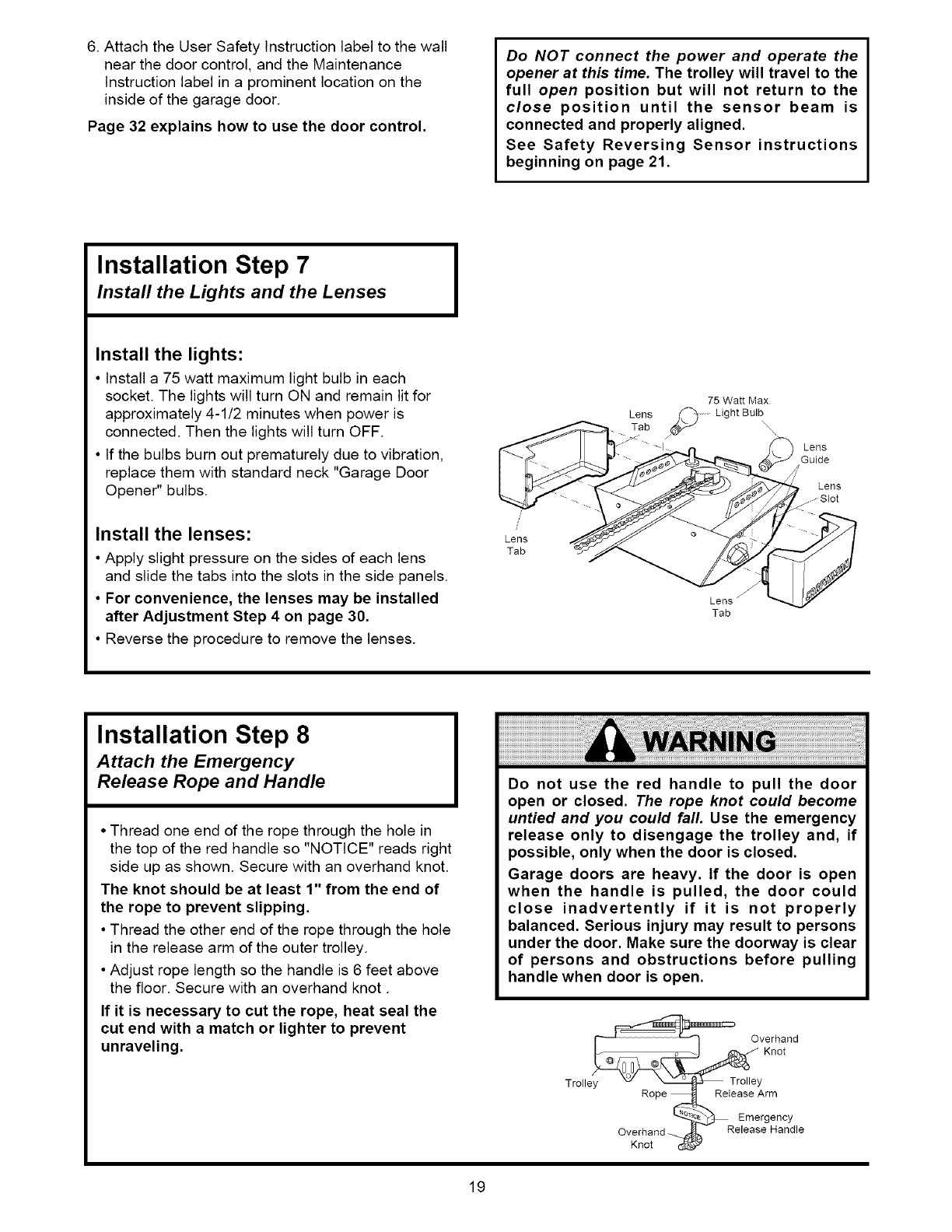

Install the lights and lenses ...................................... 19

Attach emergency release rope and handle ........... 19

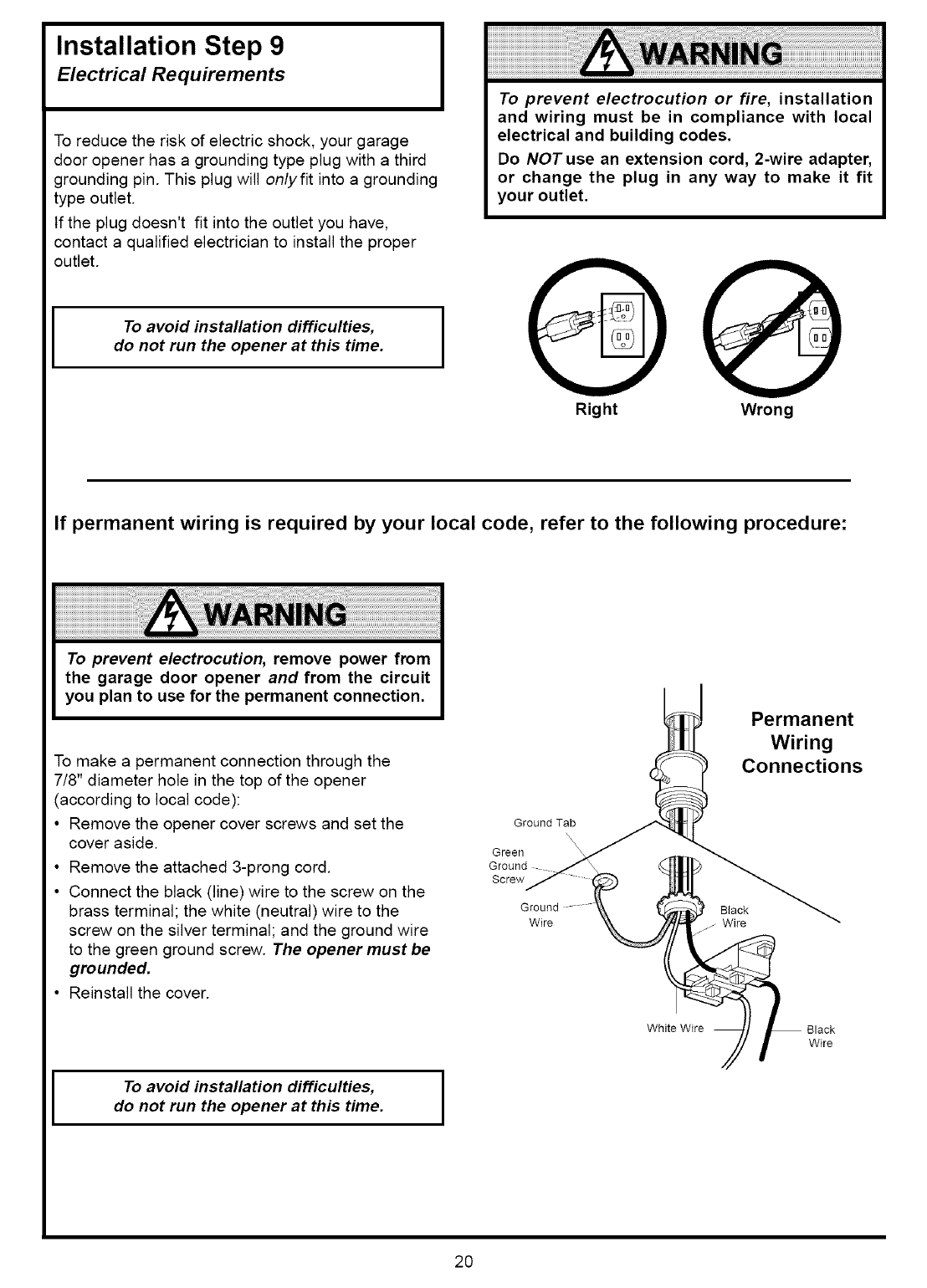

Electrical requirements ............................................. 20

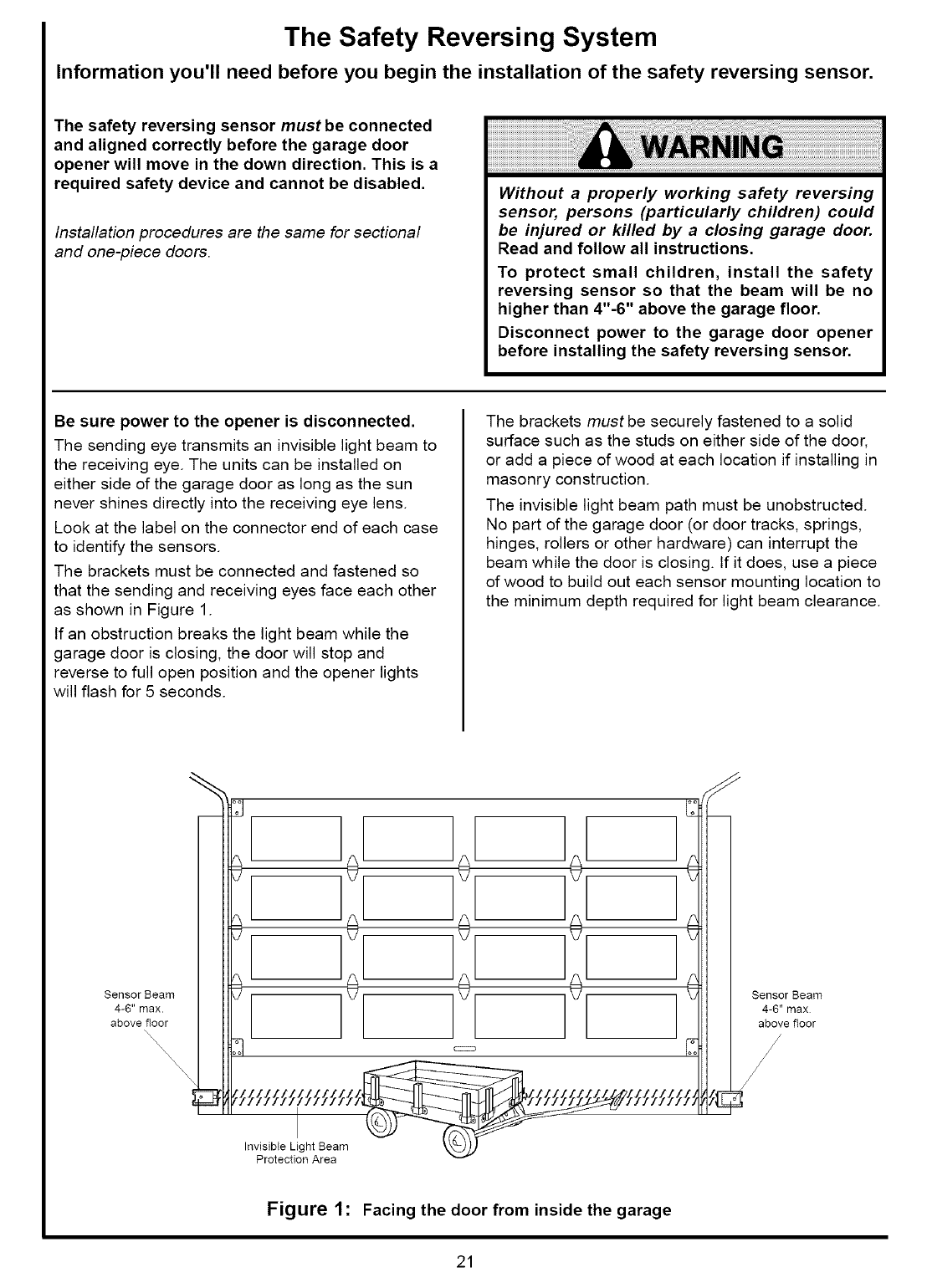

Safety reversing sensor information ........................ 21

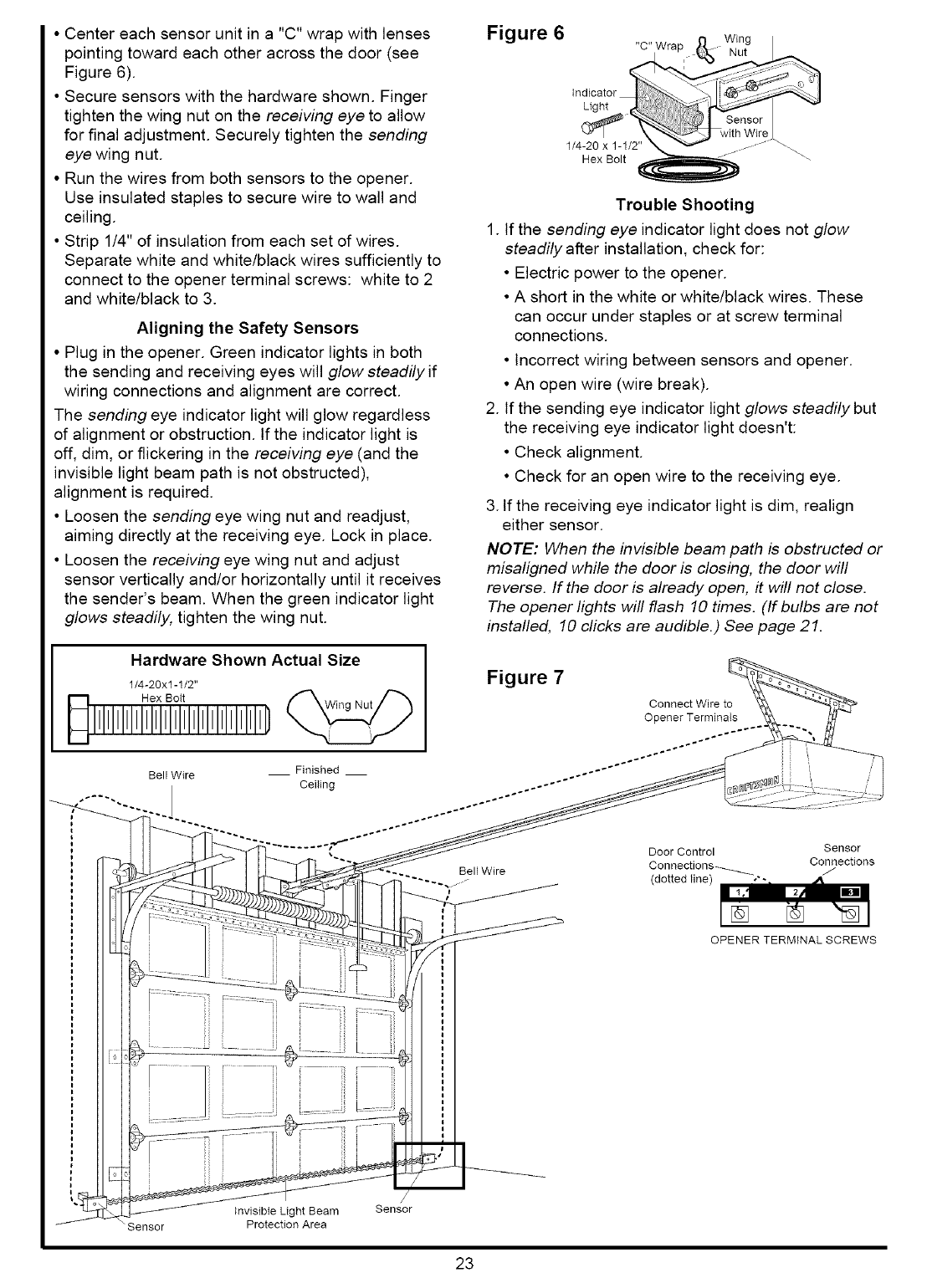

Install the safety reversing sensor ..................... 22, 23

Fasten door bracket (sectional door) ....................... 24

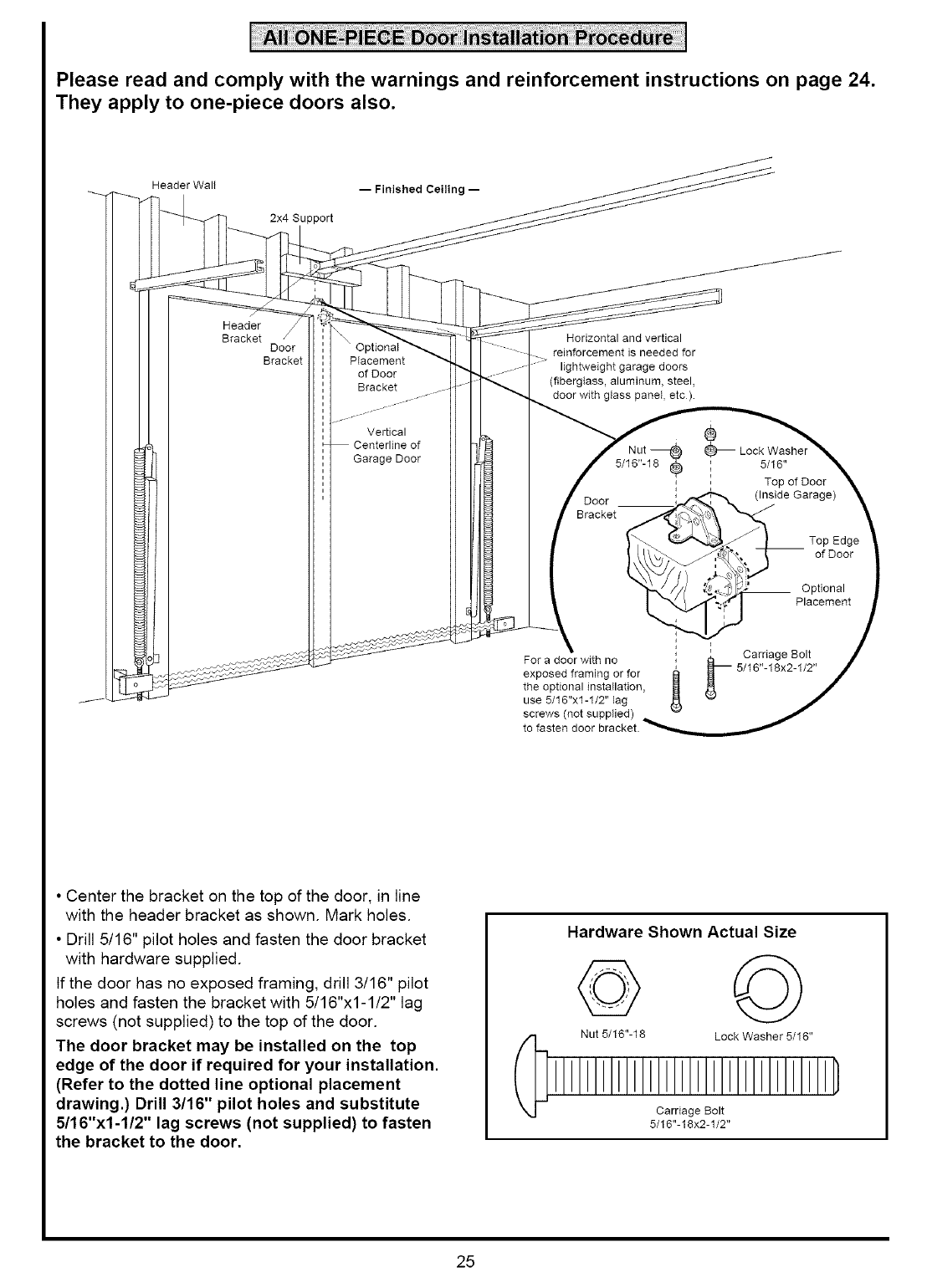

Fasten door bracket (one-piece door) ..................... 25

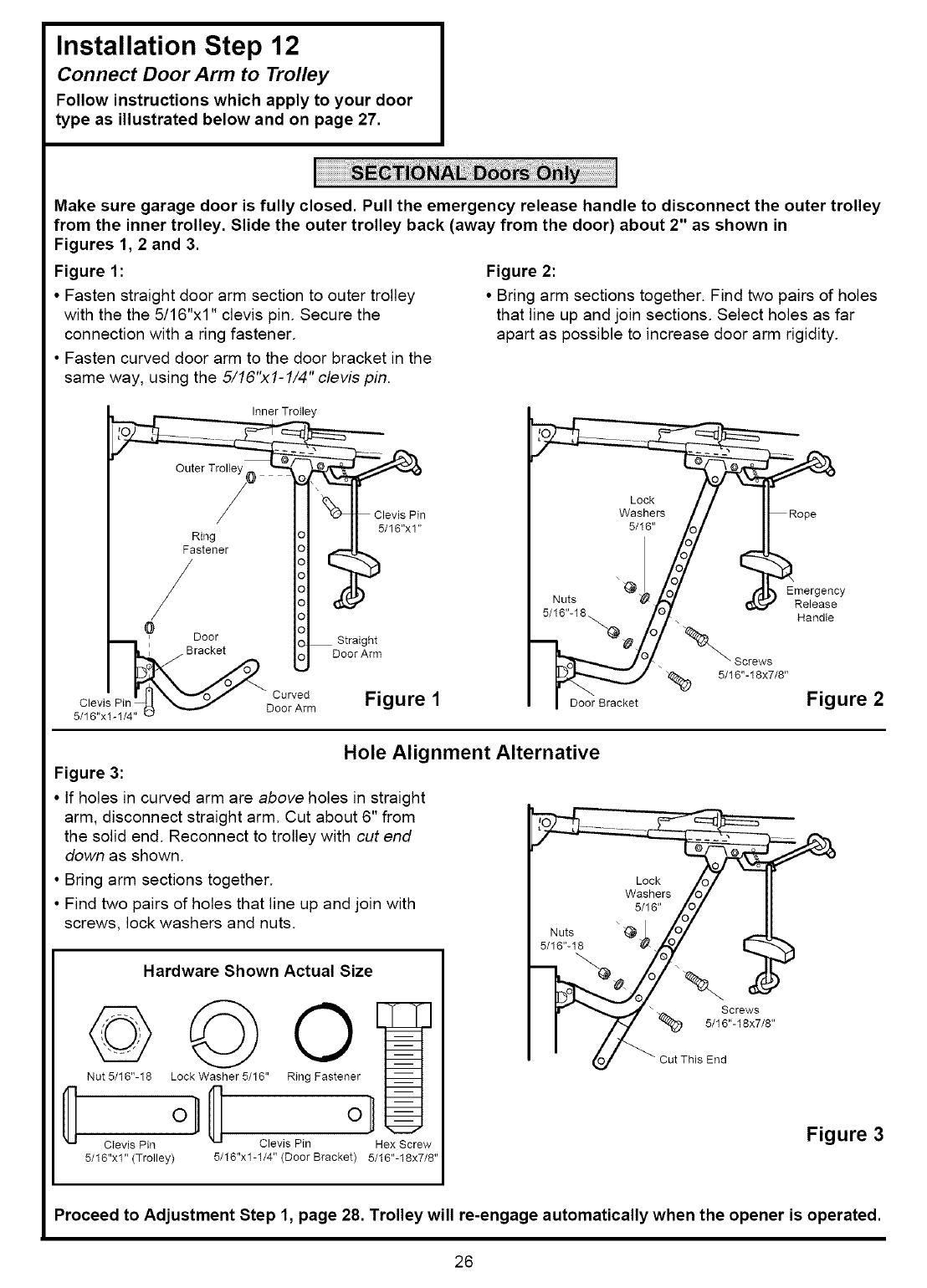

Connect door arm to trolley (sectional door) ...........26

Connect door arm to trolley (one-piece door) ..........27

Adjustment section - pages 28 - 30

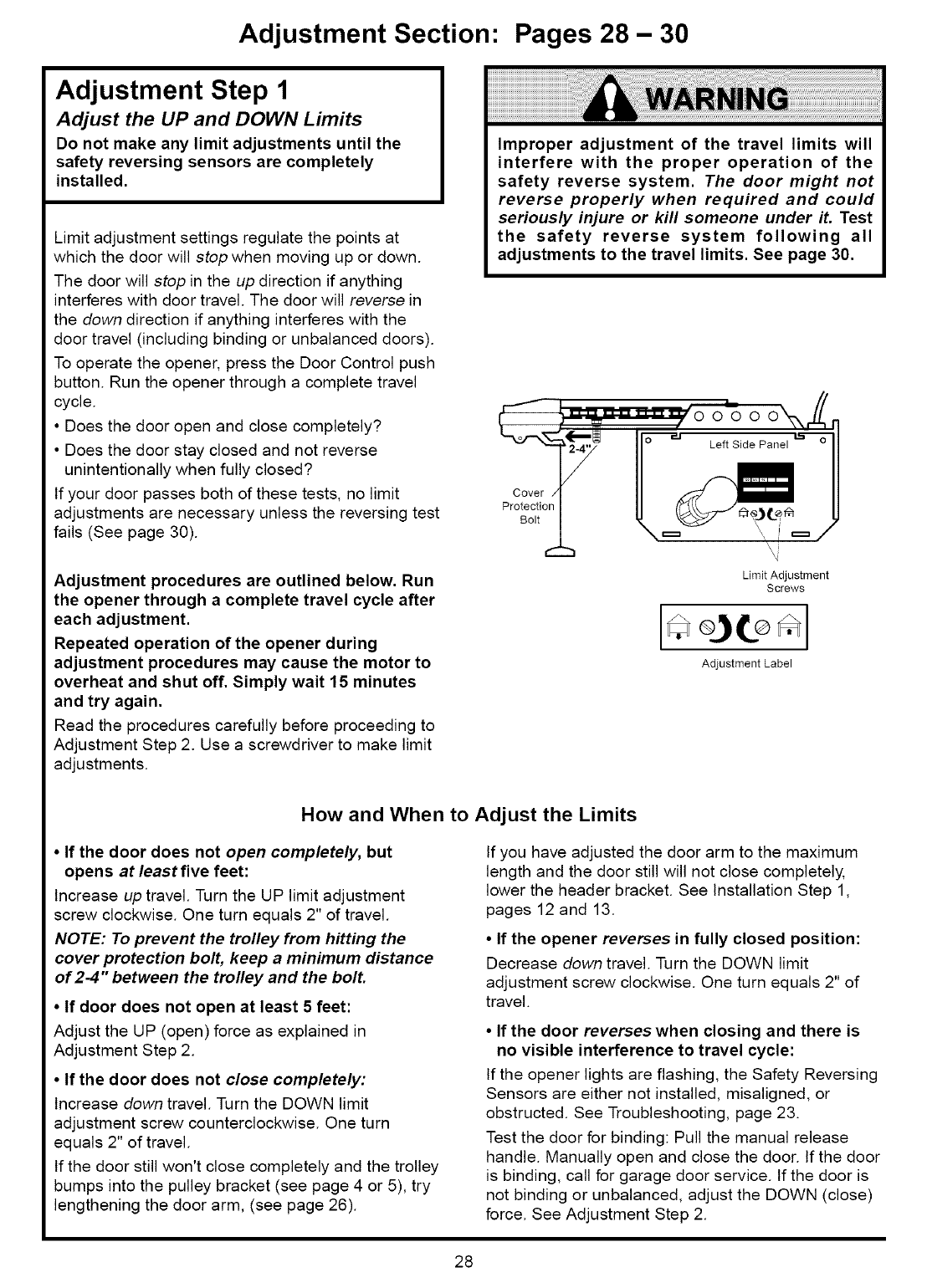

Travel limit adjustments ........................................... 28

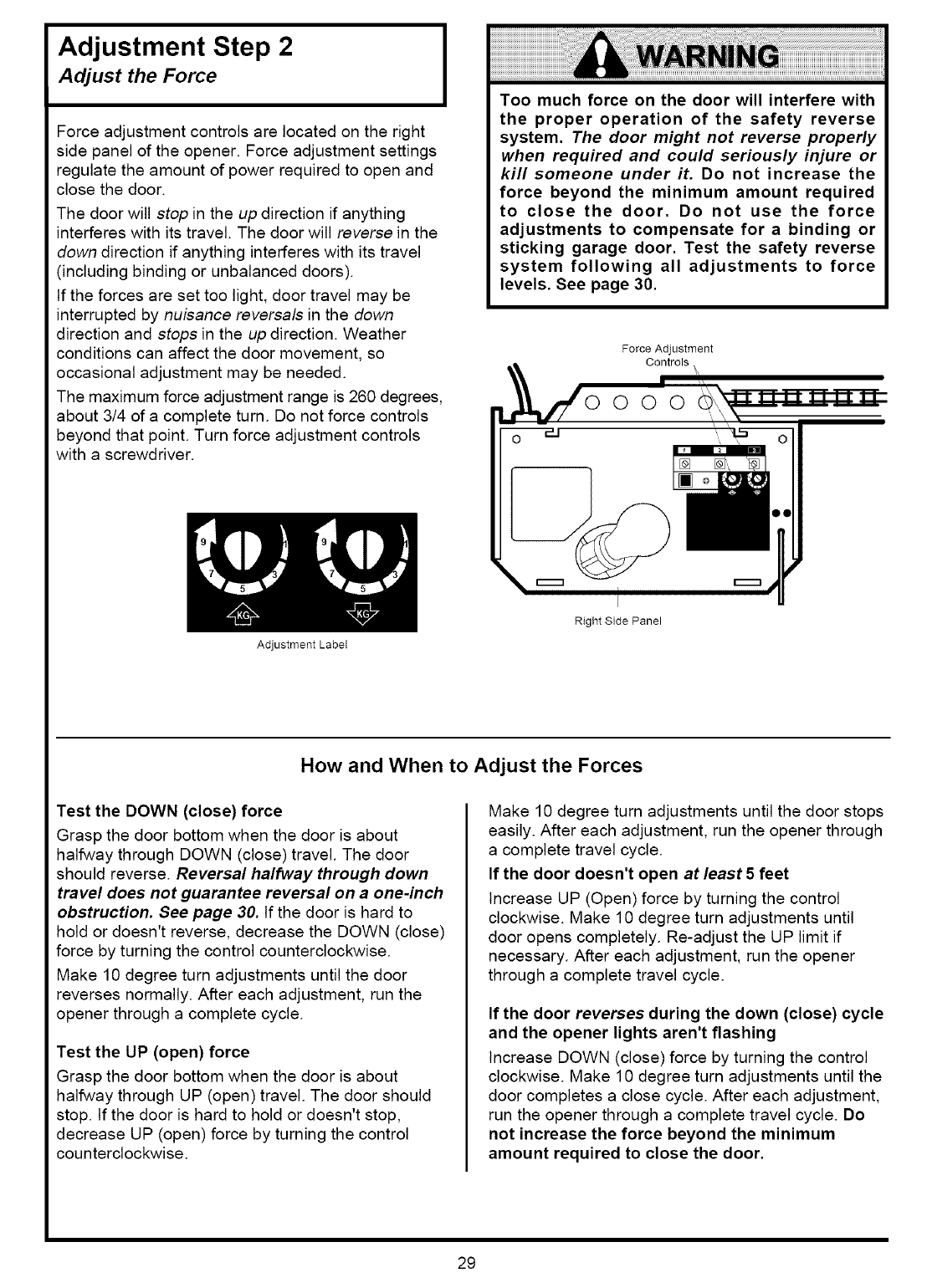

Force adjustments .................................................... 29

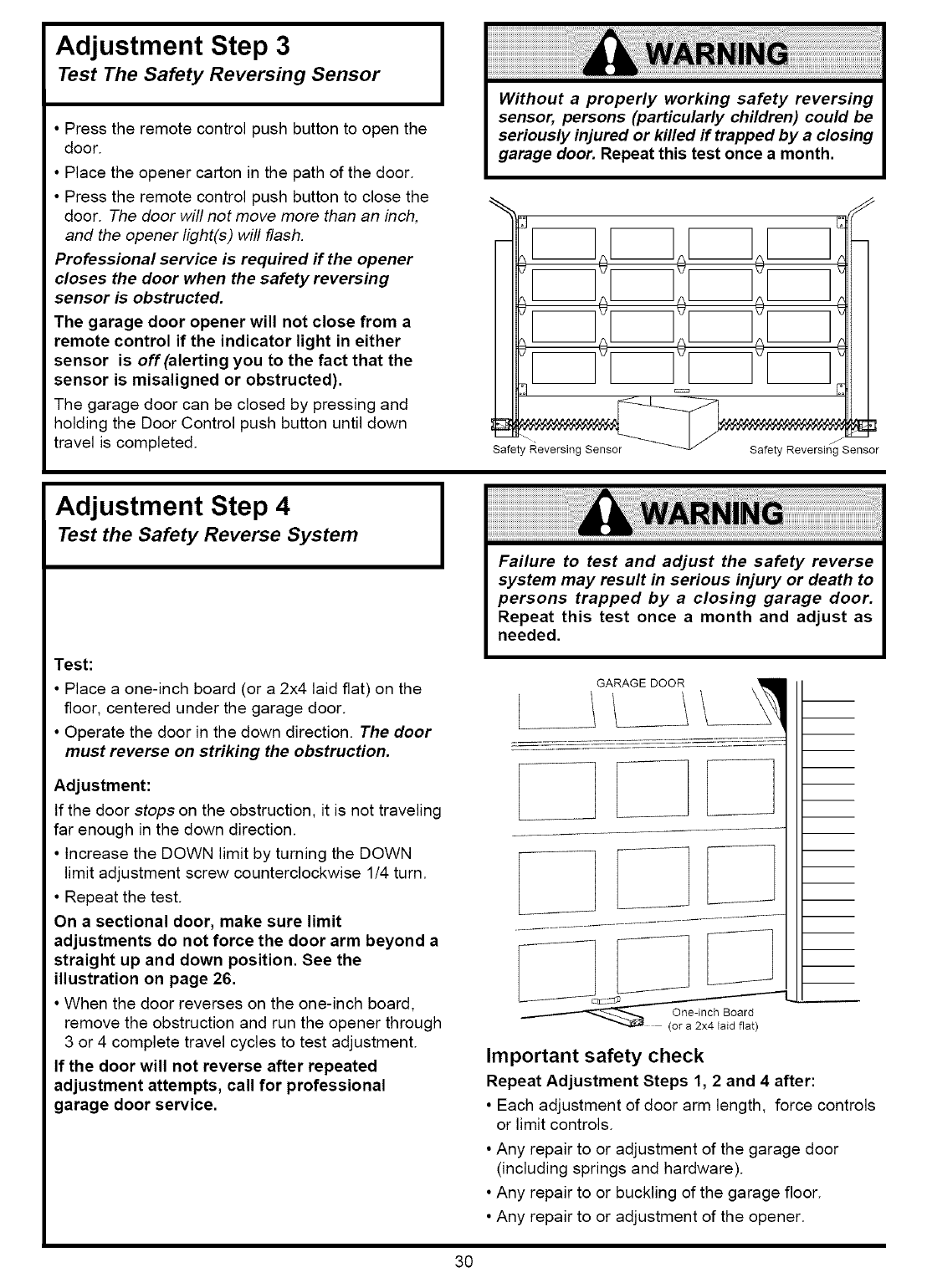

Test the safety reversing sensor .............................. 30

Test the safety reverse system ............................... 30

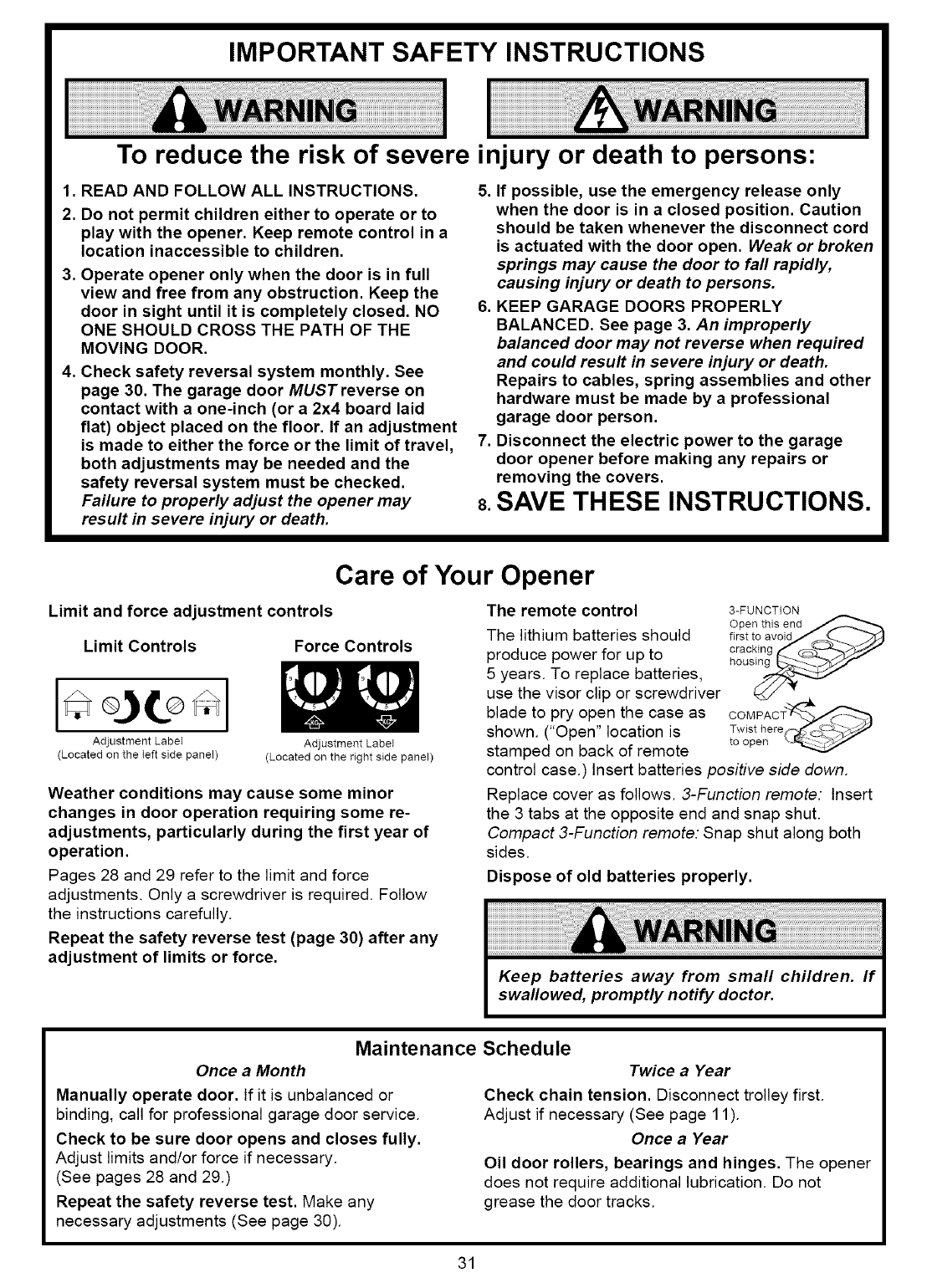

Operation safety instructions ..................................... 31

Care of your opener ................................................... 31

Maintenance schedule ............................................... 31

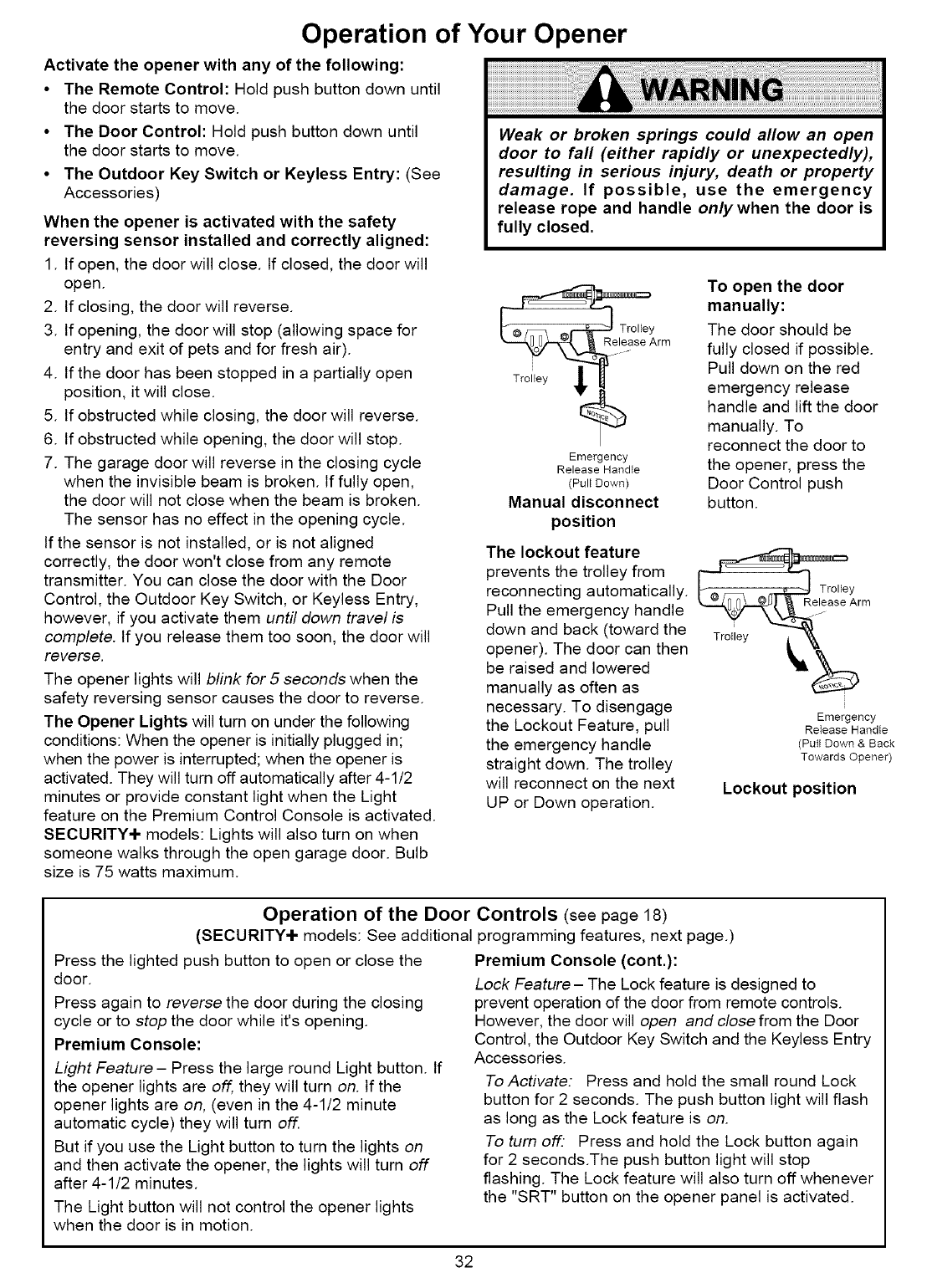

Operation of your opener ........................................... 32

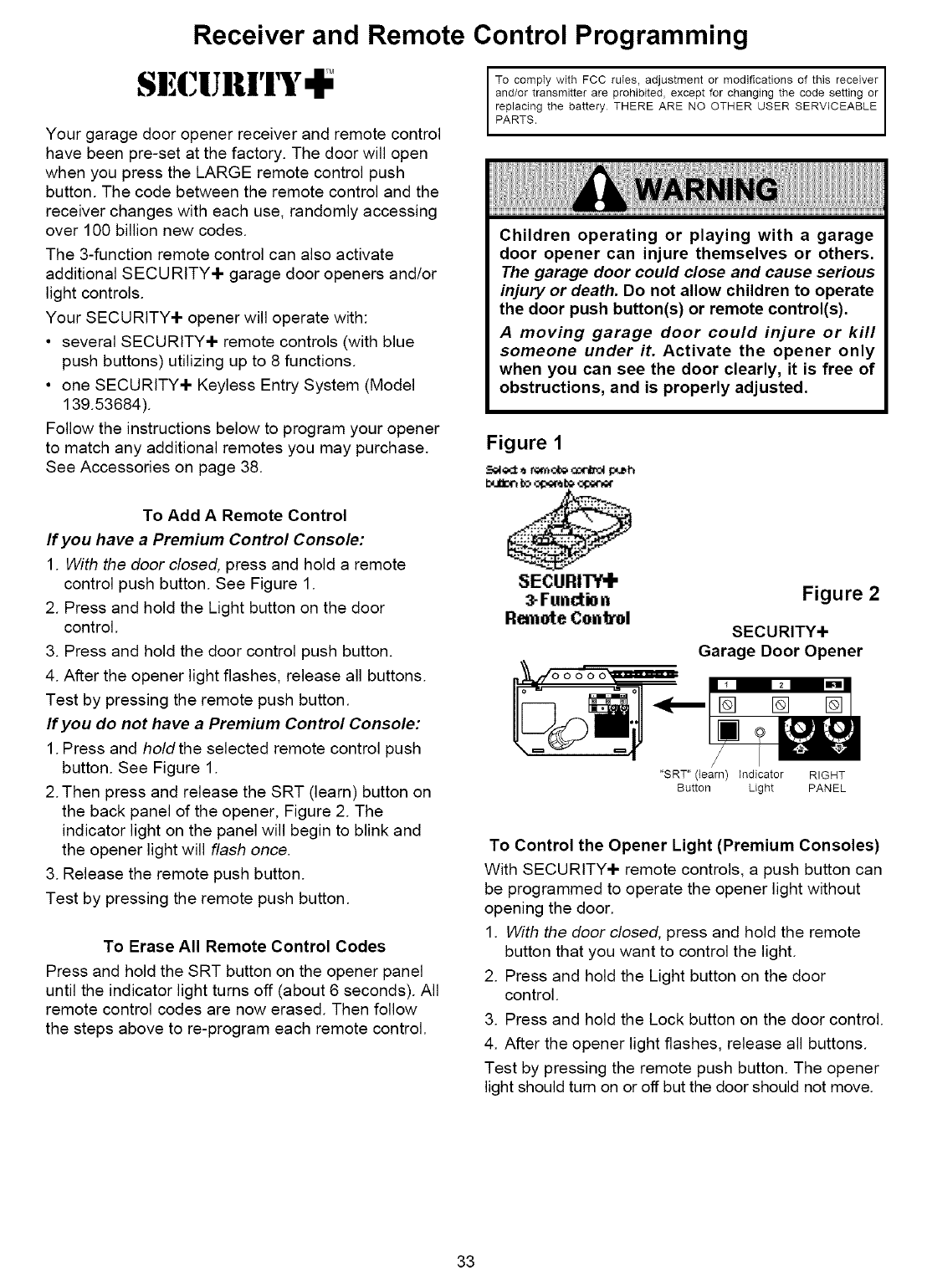

Receiver and remote control programming ............... 33

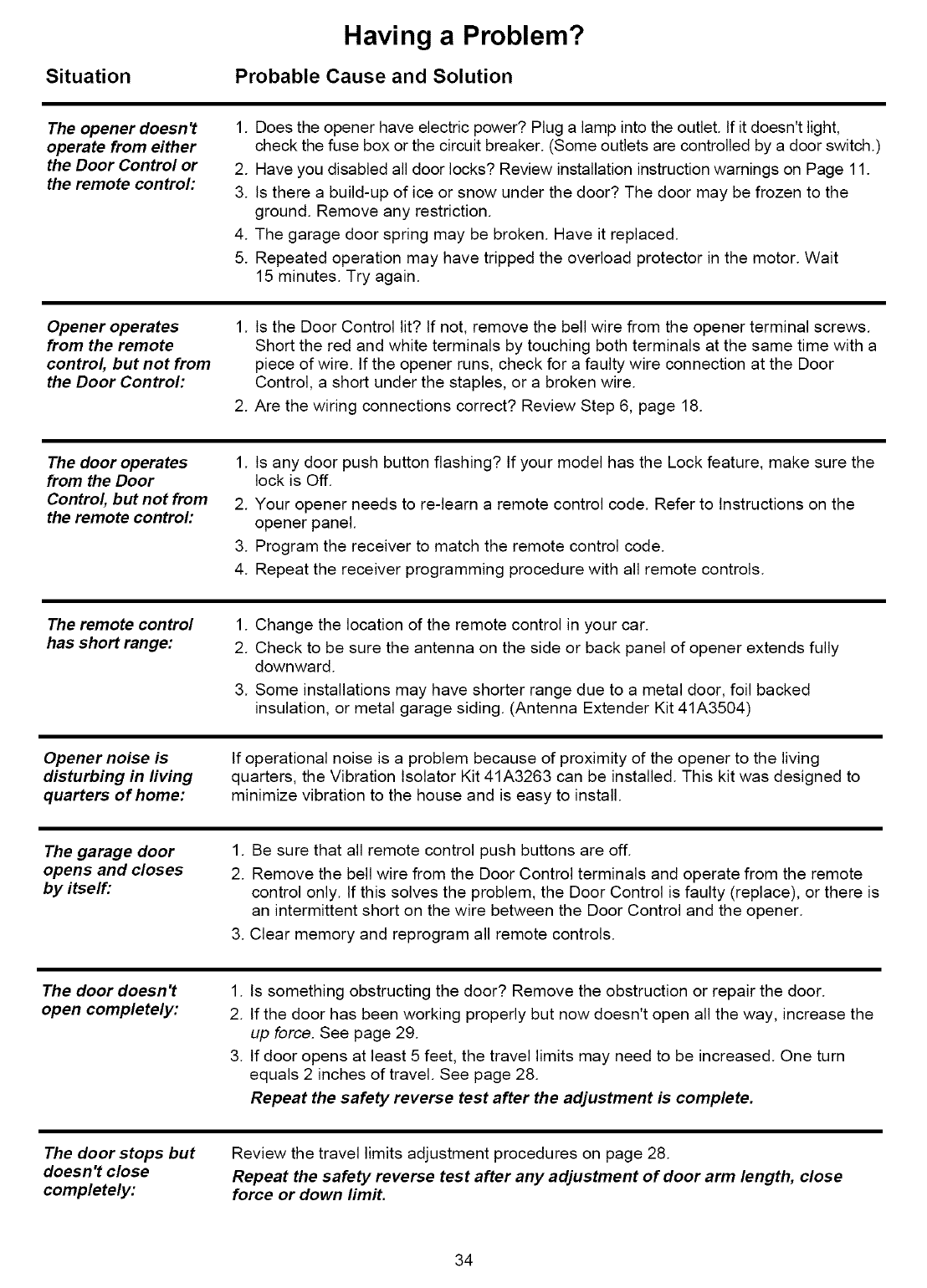

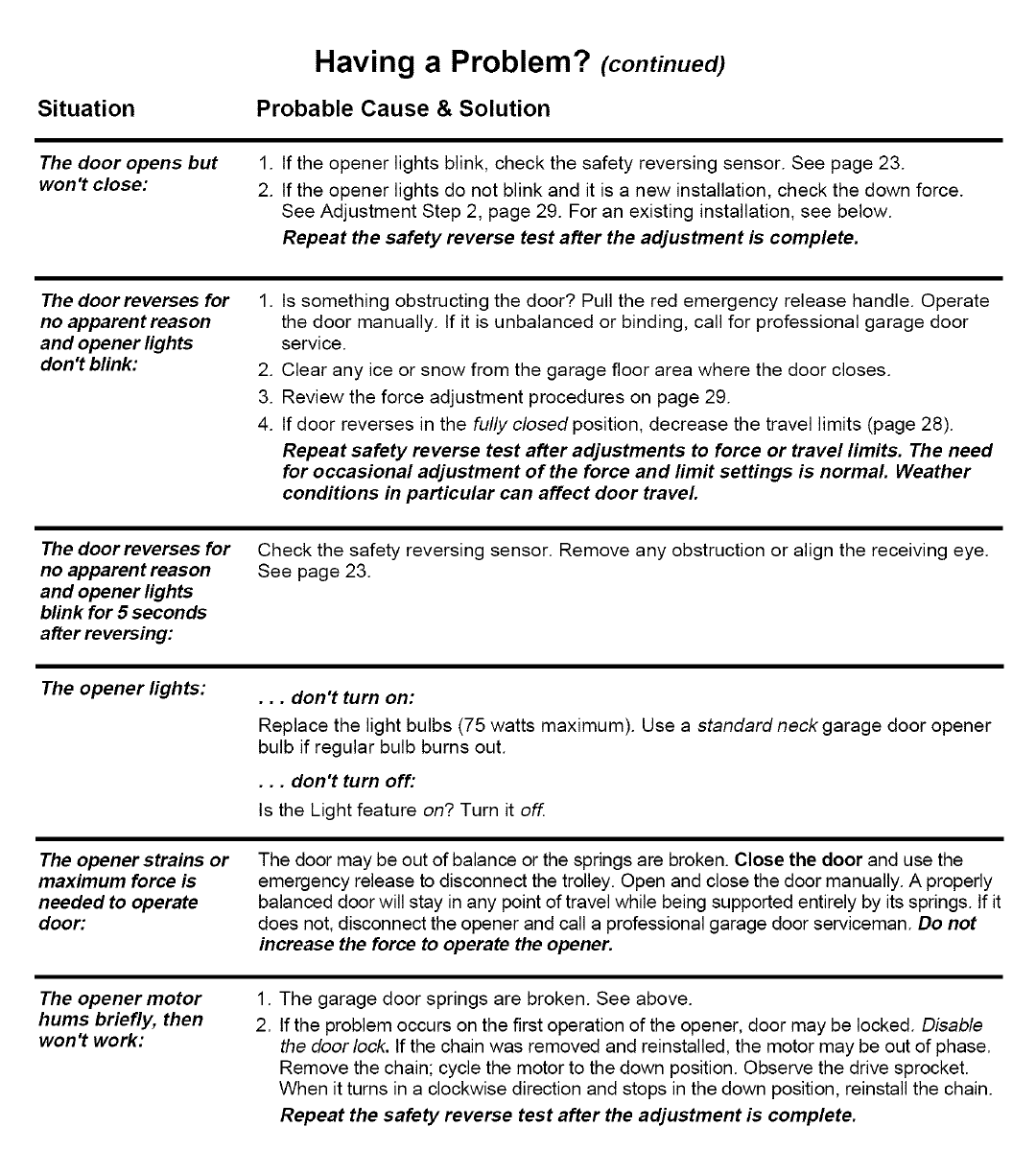

Having a problem? ............................................... 34, 35

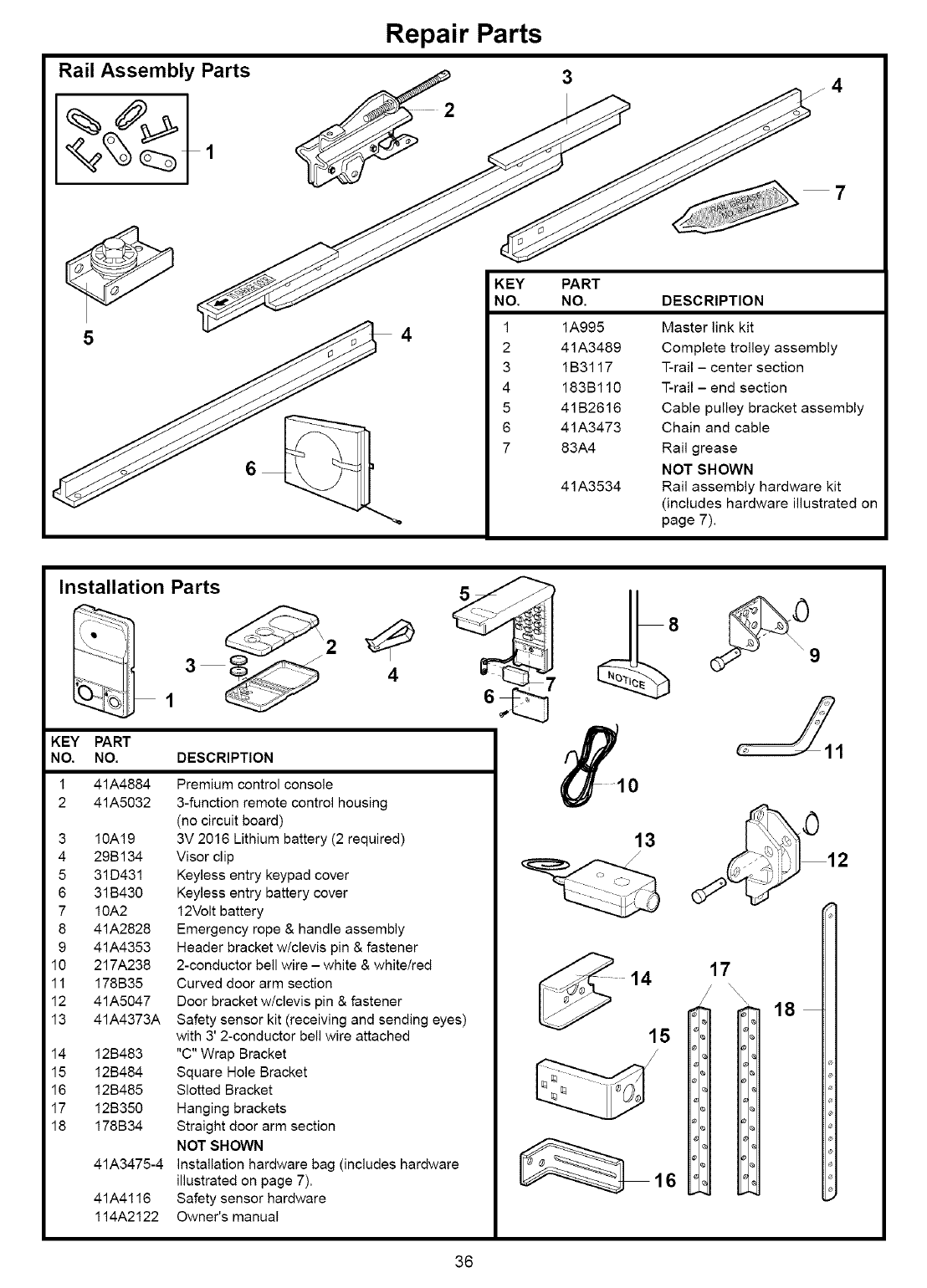

Repair parts, rail assembly ......................................... 36

Repair parts, installation ............................................. 36

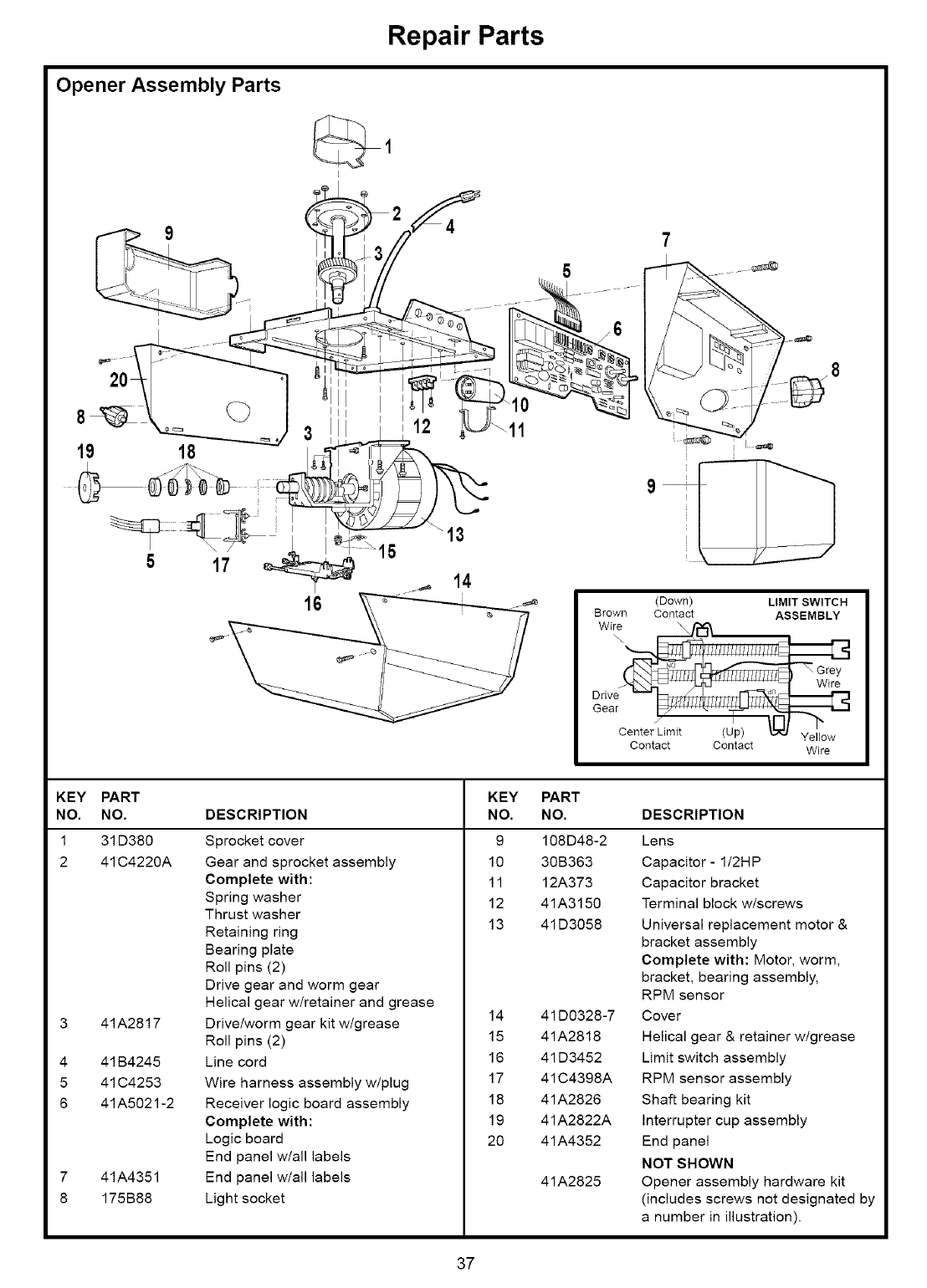

Repair parts, opener assembly .................................. 37

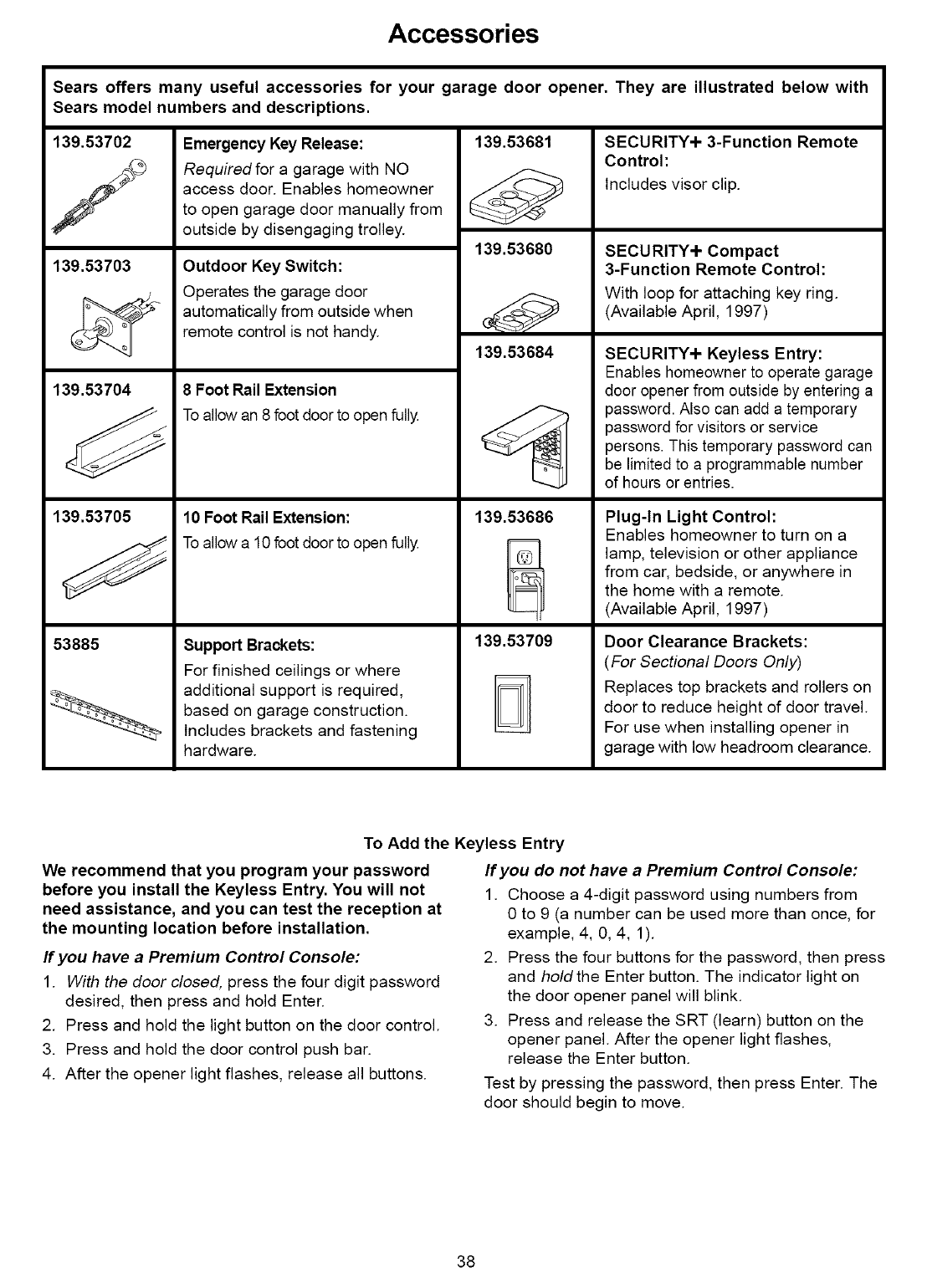

Accessories ................................................................ 38

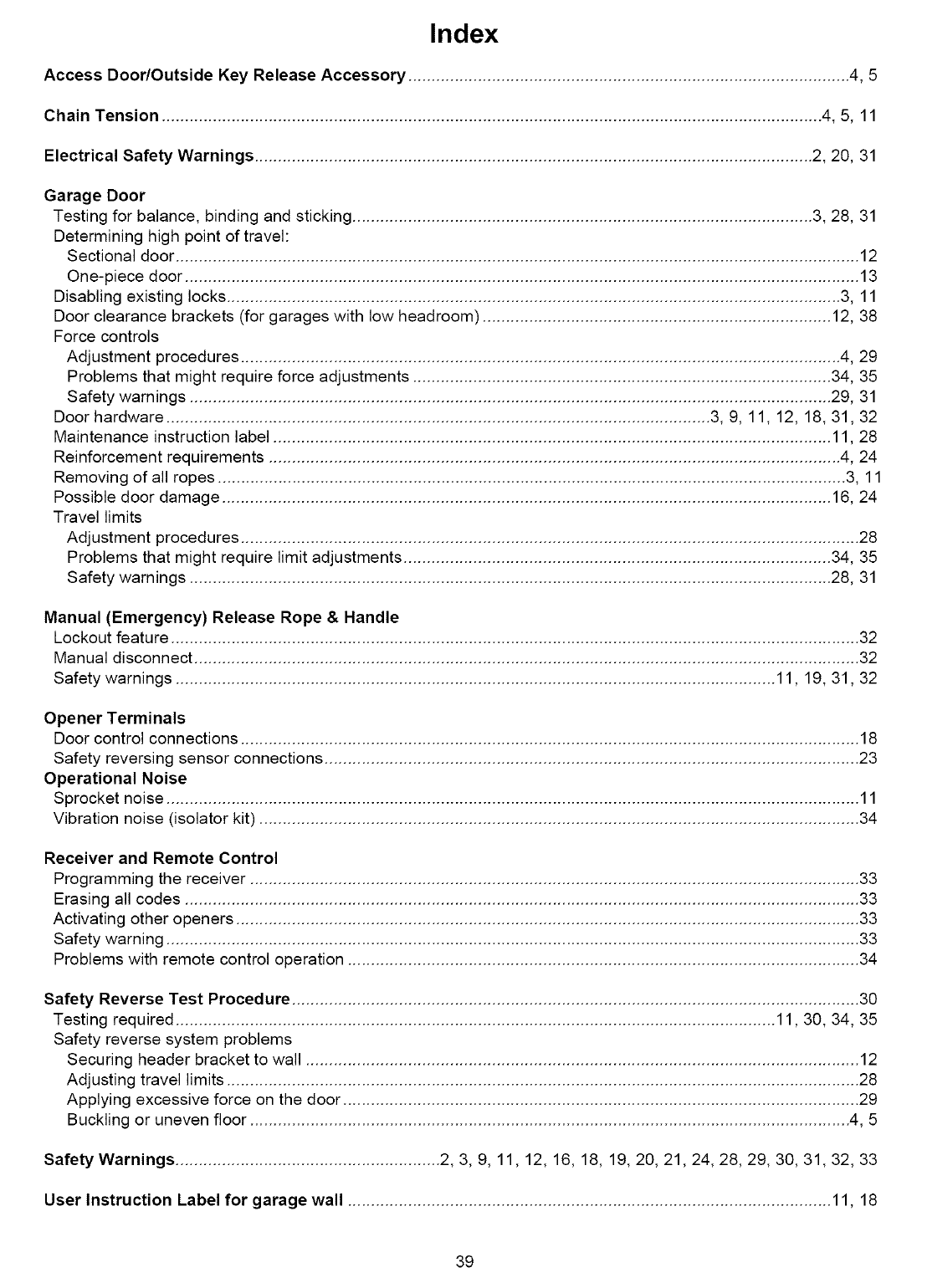

Index ........................................................................... 39

How to order repair parts ........................................... 40

Maintenance agreement ............................................ 40

Warranty ..................................................................... 40

Start by Reviewing these Important Safety Alert Symbols

When you see these Safety Symbols on the following pages, they will alert you to the possibility of

serious injury or death if you do not comply with the corresponding instructions. The hazard may

come from something mechanical or from electric shock. Read the instructions carefully.

Mechanical Electrical

When you see this Safety Symbol on the following pages, it will alert you to the possibility of damage

to your garage door and/or the garage door opener if you do not comply with the corresponding

instructions. Read the instructions carefully.

This garage door opener is designed and tested to offer safe service provided it is installed, operated,

maintained and tested in strict accordance with the safety instructions contained in this manual.

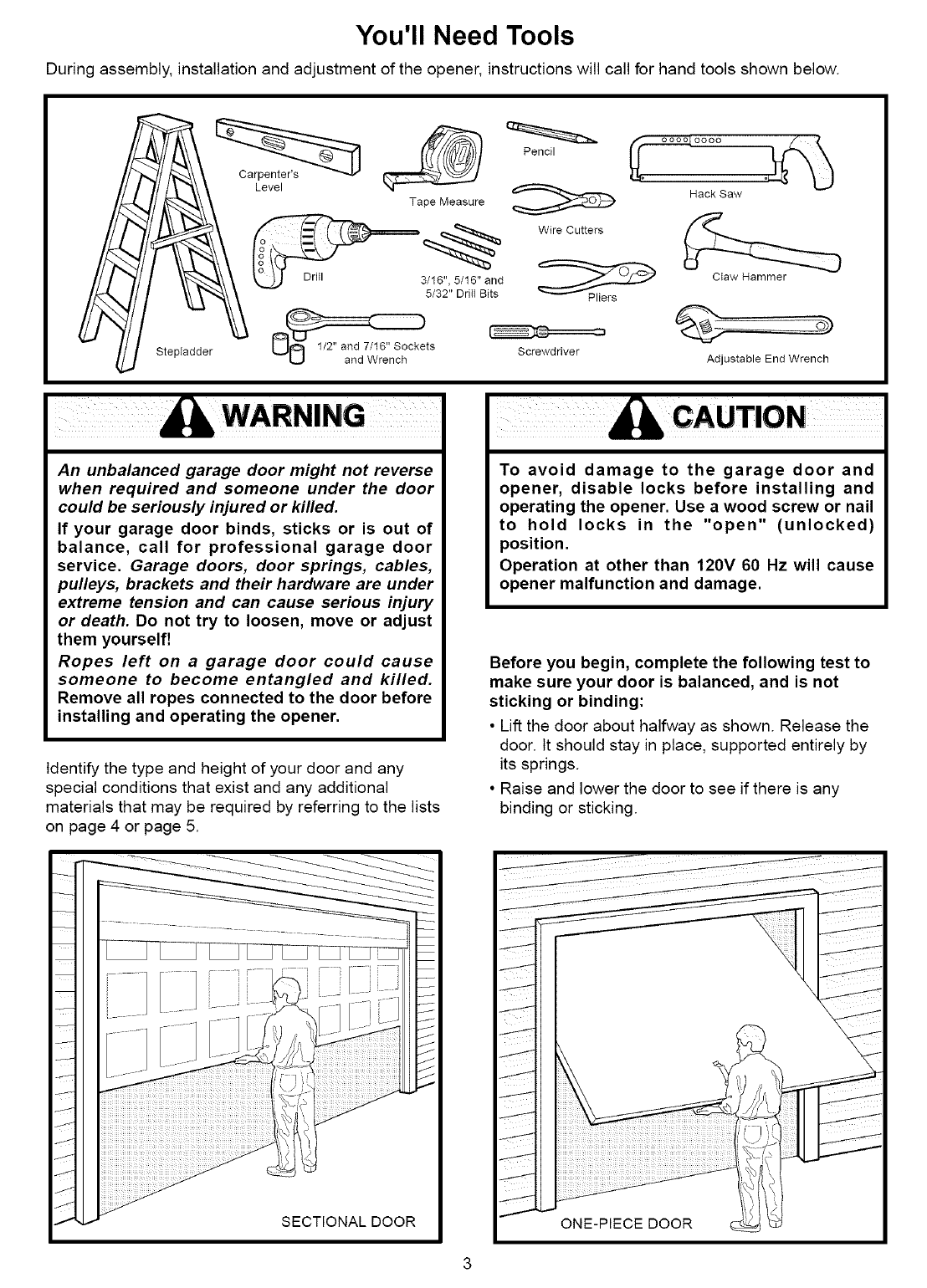

You'll Need Tools

During assembly, installation and adjustment of the opener, instructions will call for hand tools shown below.

Stepladder

Level

Pencil

_oooo o I_

Hack Saw

Tape Measure

Ctaw Hammer

_3/16", 5/16" and

Wire Cutters

5/32" DritI Bits

==0 07)

ts Screwdriver Adjustable End Wrench

An unbalanced garage door might not reverse

when required and someone under the door

could be seriously injured or killed.

If your garage door binds, sticks or is out of

balance, call for professional garage door

service. Garage doors, door springs, cables,

pulleys, brackets and their hardware are under

extreme tension and can cause serious injury

or death. Do not try to loosen, move or adjust

them yourself!

Ropes left on a garage door could cause

someone to become entangled and killed.

Remove all ropes connected to the door before

installing and operating the opener.

Identify the type and height of your door and any

special conditions that exist and any additional

materials that may be required by referring to the lists

on page 4 or page 5.

To avoid damage to the garage door and

opener, disable locks before installing and

operating the opener. Use a wood screw or nail

to hold locks in the "open" (unlocked)

position.

Operation at other than 120V 60 Hz will cause

opener malfunction and damage.

Before you begin, complete the following test to

make sure your door is balanced, and is not

sticking or binding:

• Lift the door about halfway as shown. Release the

door. It should stay in place, supported entirely by

its springs.

• Raise and lower the door to see if there is any

binding or sticking.

ONE-PIECE DOOR

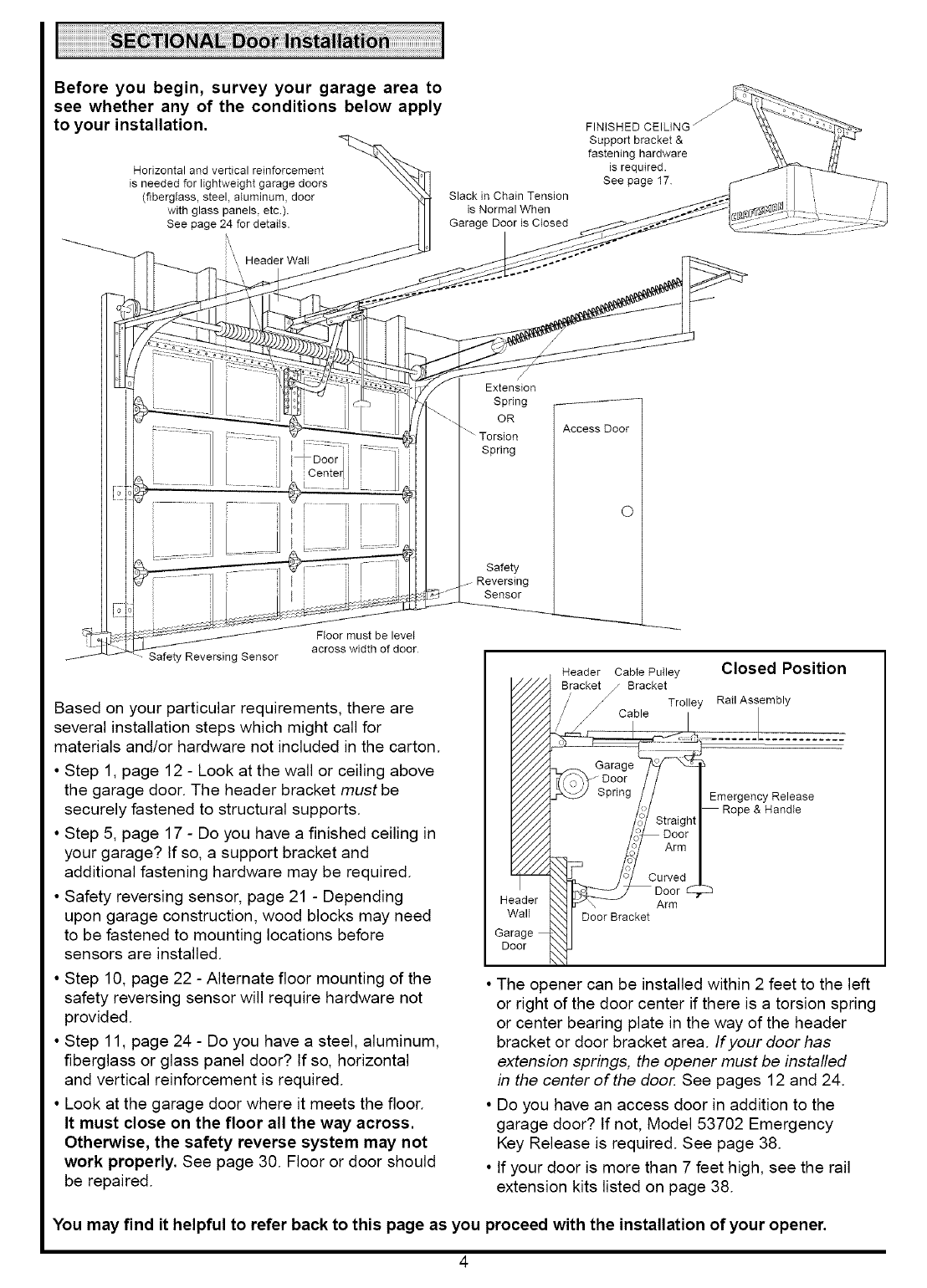

Before you begin, survey your garage area to

see whether any of the conditions below apply

to your installation.

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum, door

with glass panels, etc).

See page 24 for detaits.

Header Walt

Slack in Chain Tension

is Normal When

Garage Door is Ctosed

FINISHED CEILING

Support bracket &

fastening hardware

is required.

See page 17

Extension

Spring

OR

"_ Torsion

Spring

Safety

Sensor

Access Door

0

Safety Reversing Sensor

Ftoor must be level

across width of door

Based on your particular requirements, there are

several installation steps which might call for

materials and/or hardware not included in the carton.

• Step 1, page 12 - Look at the wall or ceiling above

the garage door. The header bracket must be

securely fastened to structural supports.

• Step 5, page 17 - Do you have a finished ceiling in

your garage? If so, a support bracket and

additional fastening hardware may be required.

• Safety reversing sensor, page 21 - Depending

upon garage construction, wood blocks may need

to be fastened to mounting locations before

sensors are installed.

• Step 10, page 22 - Alternate floor mounting of the

safety reversing sensor will require hardware not

provided.

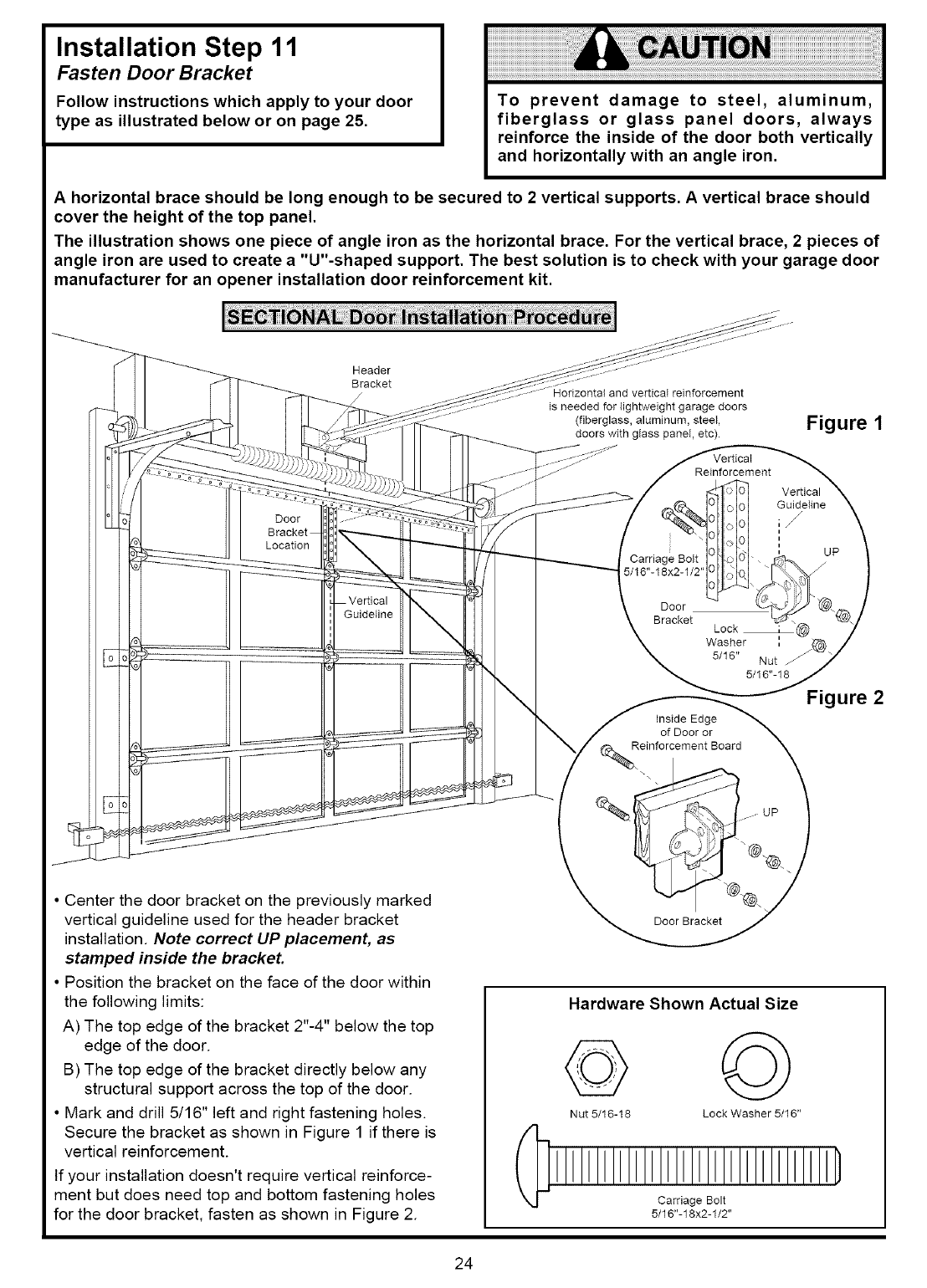

• Step 11, page 24 - Do you have a steel, aluminum,

fiberglass or glass panel door? If so, horizontal

and vertical reinforcement is required.

• Look at the garage door where it meets the floor.

It must close on the floor all the way across.

Otherwise, the safety reverse system may not

work properly. See page 30. Floor or door should

be repaired.

Header Cable Pulley Closed Position

B[acket f Bracket

/' _ Trolley Rail Assembly

,,/_ Cable I J

'_O_Y" Door / /

Spring / / EmRorgen_YRae_as e

/i;J Straight P

/_/Door

,_ /_Curved

LJ_ Doorc

DXccorBracket Arm

• The opener can be installed within 2 feet to the left

or right of the door center if there is a torsion spring

or center bearing plate in the way of the header

bracket or door bracket area. If your door has

extension springs, the opener must be installed

in the center of the door. See pages 12 and 24.

• Do you have an access door in addition to the

garage door? If not, Model 53702 Emergency

Key Release is required. See page 38.

• If your door is more than 7 feet high, see the rail

extension kits listed on page 38.

You may find it helpful to refer back to this page as you proceed with the installation of your opener.

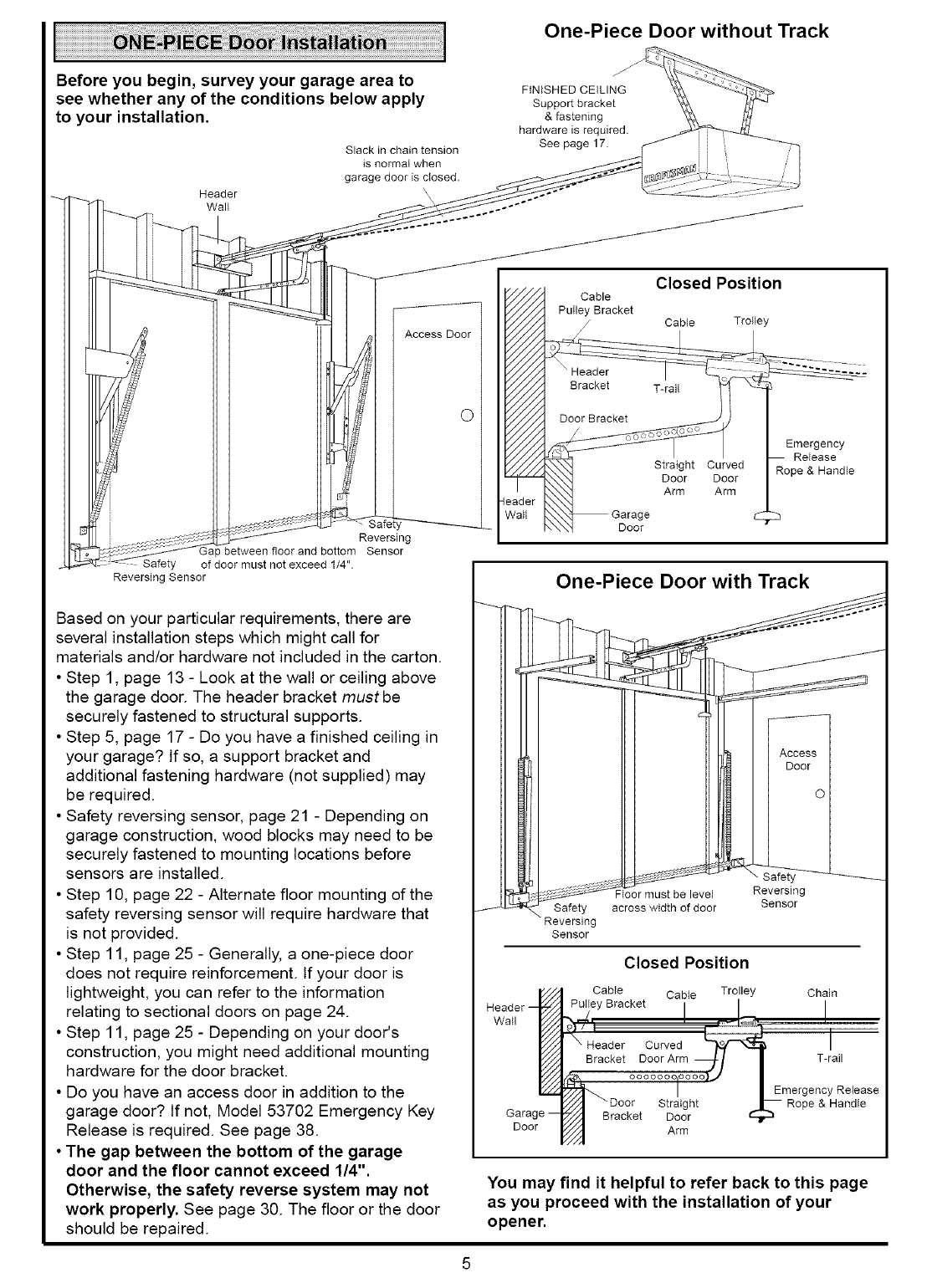

One-Piece Door without Track

Before you begin, survey your garage area to

see whether any of the conditions below apply

to your installation.

Slack in chain tension

is normal when

garage door is closed,

Header

Wall

Reversing

between floor and bottom Sensor

Safety of door must not exceed 1/4".

Reversing Sensor

FINISHED CEILING

Support bracket

& fastening

hardware is required.

See page 17.

Access Door

0

Based on your particular requirements, there are

several installation steps which might call for

materials and/or hardware not included in the carton.

• Step 1, page 13 - Look at the wall or ceiling above

the garage door. The header bracket must be

securely fastened to structural supports.

• Step 5, page 17 - Do you have a finished ceiling in

your garage? tf so, a support bracket and

additional fastening hardware (not supplied) may

be required.

• Safety reversing sensor, page 21 - Depending on

garage construction, wood blocks may need to be

securely fastened to mounting locations before

sensors are installed.

• Step 10, page 22 - Alternate floor mounting of the

safety reversing sensor will require hardware that

is not provided.

• Step 11, page 25 - Generally, a one-piece door

does not require reinforcement. If your door is

lightweight, you can refer to the information

relating to sectional doors on page 24.

• Step 11, page 25 - Depending on your door's

construction, you might need additional mounting

hardware for the door bracket.

• Do you have an access door in addition to the

garage door? If not, Model 53702 Emergency Key

Release is required. See page 38.

•The gap between the bottom of the garage

door and the floor cannot exceed 1/4".

Otherwise, the safety reverse system may not

work properly. See page 30. The floor or the door

should be repaired.

Closed Position

Cable

Putley Bracket

Cable Trottey

eader

Wall

Door

Door Door

Arm Arm

Emergency

Release

Rope & Handle

Hwa 'r

Garage --

Door

One-Piece Door with Track

across width of door

Reversing

Sensor

g

Sensor

Closed Position

Cabie Cable Trolley Chain

Pulley Bracket I I

eoderCurved I

BracketUoorArm / IT-r i,

_% °°°°°°°l°°°°_J I

IIEmergencyRelease

Y/"//I _ Door Straight _ Rope & Handle

_//'_ Bracket Door

Arm

You may find it helpful to refer back to this page

as you proceed with the installation of your

opener.

Carton Inventory

Your garage door opener is packaged in two cartons which contain parts illustrated below. Accessories will

depend on model purchased. If anything is missing, carefully check the packing material. Parts may be "stuck" in

the foam. Hardware for assembly and installation is shown on page 7.

AII Models

Premium Controt Console

ModeI 53675 only

SECURITY+

Multi-Function

Keytess Entry

ModeIs 53662 (2), 53670 (1),

53675 (2)

SECURITY+

Three-Function Remote Control

with Visor Clip

Light Lens (2)

2-Conductor Bell Wire

White & White/Red

Trotley

Cable

Putley Bracket

Safety Reversing Sensor

Mounting Bracket

With Square Holes (2)

Chain and Cable

"C" Wrap (2)

Header Bracket

Safety Reversing Sensor

Mounting Bracket

With Slot (2)

(2) Safety Reversing Sensors

(1 Sending Eye and 1 Receiving Eye)

with

2-Conductor White & White/Black Betl Wire

attached

Hanging Brackets

I

Door Bracket

Curved Door

Arm Section

Safety LabeIs

and

Literature

ol

ol

J

Straight Door

Arm Section

Separate all hardware from the packages in the rail carton and the opener carton, as

shown below, for the assembly and installation procedures.

Assembly Hardware

Washered Screw Hex Screw Nut

5/161-18xl/2" (2) 5/16"-18x7/8" (3) 5/16"-18 (5) Master Link (2)

(mounted in opener)

Trolley

Threaded Shaft (1)

Carriage Bolts

1/4"-20xl/2"(4)

©

Lock Washer

5/16" (4)

©

Lock Nut

1/4"-20x7/16" (4)

Installation Hardware

_ IIH:xlLl_elwlI I_ 0

5/16"-18x7/8" (4)

1 I I I I I I I I I I I_

Lag Screw

5/16"-18xl-7/8" (2)

Carriage Bott

5/16"-18x2-1/2" (2)

Clevis Pin

5/16"x2-3/4"(1)

©

Nut 5/16"-18 (6)

Ring

Fastener (3)

Handle

_lll,l,llllllllllllll>

Screw

6ABxl" (2)

oD Clevis Pin

5/16"x1-1/4" (1)

Rail Grease

©

Lock Washer 5/16" (6)

Dry Wall Anchors (2)

Rope

ol

Clevis Pin Insulated

5/16"xl" (1) Staples (10)

1/4x1-1/2" (4)

Hex Screw

1/4-20x1-1/2" (2)

Safety Reversing Sensor

Installation Hardware

Carriage BoIts

1/4"-20xl/2"(4)

Screw

#10-32x3/8" (4)

©

Lock Nut

1/4"-20 (4)

©

Lock Nut

:#10x32 (4)

Wing Nut (2)

insulated

Staples (20)

Assembly Section: Pages 8 - 11

To avoid installation difficulties, do not run the garage door opener until instructed to do so.

Assembly Step 1

Assemble the T-rail &

Attach the Cable Pulley Bracket

• Place the 3 T-rail sections on a flat surface for

assembly. The end sections are identical. Make

sure the "arrow label" on the center section is

pointing toward the door.

• Insert the carriage bolts so the square bolt necks

seat in the square holes in the T-rail end sections

and pass through the round holes in T-rail center

section. Assemble lock nuts, ensure alignment and

tighten.

Make sure bolt necks are

seated in the square

holes and rails are

aligned before you

tighten lock nuts. (See

right and wrong views).

Improper assembly can

cause jerky trolley

operation, noise and/or

nuisance door reversals.

@

Right

T-rait

(End Section)

1/4" Lock Nut

Wrong

T-RAIL BACK

(TO OPENER)

\

\@

Brace

If T-rail is not assembled

EXACTLY as shown,

trolley will not travel

smoothly along length of

rail or it will hit against

the nuts.

T-rail

(End Section)

\

Cable pulley bracket X

attaches to FRONT

END of T-rail

Brace

Square Carriage

Bolt Holes

T-rait

(Center Section)

%

Hex Screws

5/16"-18x7/8"

T-RAIL FRONT

(TO DOOR)

Hardware Shown Actual Size

©

Lock Nut Carriage BoIts

1/4"-20x7/16" 1/4"-20xl/2"

Hex Screw Nut Lock Washer

5/16"-18x7/8" 5/16"-18 5/16"

O

Lock Washer

5/16" Nut

5/16"

• Position the cable pulley bracket on the front end of the

T-rail as shown. Fasten securely with the hardware.

Right Wrong

When

tightening the

screws, be

sure to keep

bracket parallel

to the rail.

Otherwise, the

rail may bow

when opener is

operated.

Assembly Step 2

Install the Trolley on the T-rail

• Attach the threaded shaft to the trolley with the

lock washer and nuts as shown.

Trolley

Outer Nat

Lock Washer

r _ Trotley

Threaded Shaft

Inner Nut

5/16"

Hardware Shown

Actual Size

Lock Washer

5/16"

©

Nut

5/16"-18

Temporary Stop

Screwdriver

\• As a temporary stop, insert a screwdriver into the

hole in the front end of the T-rail.

• Slide the trolley assembly along the rail to the

screwdriver stop.

If trolley hits against any nuts on the T-rail, the

bolts and nuts were attached from the wrong

side and must be repositioned. Review Step 1.

Assembly Step 3

Fasten the T-rail to the Opener

• Place the opener on packing material to protect

the cover. For convenience, put a support under

the cable pulley bracket.

• Remove the (2) 5/16"-18x1/2" washered screws

mounted in the top of the opener.

• Align the holes in the back section of the T-rail with

the holes in the opener.

• Fasten the rail with the (2) washered screws

previously removed. Tighten securely.

Remember to use only these screws! Any other

screws will cause serious damage to the opener.

• Insert a 5/16"-18x7/8" hex screw into the cover

protection bolt hole in the T-rail as shown. Tighten

securely with a 5/16" lock washer and nut.

NOTE: This screw prevents trolley over-travel.

Keep a 2" minimum between the trolley and this

screw when adjusting travel limits (see page 28).

Hardware Shown Actual Size

Hex Screw Nut Lock Washer

5/16"- 18x7/8" 5/16" 5/16"

I

Washered Screw

5/16"-18xl/2"

T-raiI

(Back Section

Hex Screw

5/16"- 18x7/8"

Cover

Protection

Bott Hole

Assembly Step 4

Install the Chain/Cable &

Attach the Sprocket Cover

Dispensing Carton

Leave Chain and Cable

Inside Dispensing

Carton to Prevent Kinking.

Serious injury can result if fingers become

entangled in moving opener sprocket. Attach

sprocket cover securely. Never operate opener

while your hand is near the opener sprocket.

Opener

Figure 2 Sprocket

Keep Chain and Cable

Taut When Dispensing

• Detach the cable loop from the carton and fasten it

to the trolley with a master link from the hardware

bag. See master link procedure, Figure 1.

• With the trolley against the screwdriver, dispense

the cable around the pulley.

• Proceed back around the opener sprocket,

Figure 2. Be sure sprocket teeth engage the chain.

Continue forward to the trolley threaded shaft,

Figure 3.

• Use the second master link to connect the

chain to the flat end of the shaft. Check

to make sure the chain is not

twisted.

• Remove the screwdriver.

Master Link

Clip-On Spring

i

Mast

Link Cap ;_

Cable

Loop

Master Link

Ctip-On Spring _ '_

i

Master

Link Cap _

Flat End

of Trolley

Threaded Shaft

Figure 3

Chain

T-rail

Install Chain and Cable

In This Direction

Sprocket

Cover

Back Tab Slot

Cable

Pulley

Top of Opener

Master

Link Bar

Trolley

Figure 1

Master Link Procedure:

Push pins of master link bar

through cable loop and hole in

front end of trolley. Push cap

over pins and past notches.

Slide clip-on spring over cap

and into notches until both

pins are securely locked.

Front Tab Slot Mounting

Plate

To attach the sprocket cover:

• Insert the back tab in the opener slot. Squeeze the

cover slightly and insert the front tab in the slot on

the mounting plate.

10

Assembly Step 5

Tighten the Chain & Cable

• Spin the inner nut and lock washer down the

threaded shaft, away from the trolley.

• To tighten the chain, turn outer nut in the direction

shown. As you turn the nut, keep the chain

from twisting.

• When the chain is approximately 1/2" above the

base of the T-rail at its midpoint, re-tighten the

inner nut to secure the adjustment.

Sprocket noise can result if chain is either too

loose or too tight.

When installation is complete, you may notice some

chain droop with the door closed. This is normal. If

the chain returns to the position shown when the

door is open, do not re-adjust the chain.

NOTE: During future maintenance, ALWAYS

pull the emergency release handle to disconnect

trolley before adjusting chain.

Lock

Outer Nut Washer Inner Nut

\/

4\ /

To Tighten Outer Nut _ _-"-_ _ _, /

°2r htet

Chain

I/2 Inch

Base of T-rail

You have now finished assembling your garage door opener. Please read the following

warnings before proceeding to the installation section:

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.

2. Install only on a properly balanced and lubricated garage door. An improperly balanced door

may not reverse and could result in severe injury or death. Repairs to cables, spring assemblies

and other hardware must be made by a professional service person before installing opener.

3. Disable all locks and remove all ropes connected to the garage door before installing the opener.

Ropes connected to a garage door can cause entanglement and death.

4. If possible, install door opener 7 feet or more above floor with the emergency release handle

mounted 6 feet above the floor.

5. Do not connect the opener to power source until instructed to do so.

6. Locate the Door Control within sight of the door at a minimum height of 5 feet where small

children cannot reach, and away from all moving parts of the door.

7. Install the User Safety Instruction Label on the wall adjacent to the door control and the

Maintenance Instruction Label in a prominent location on the inside of the garage door.

8. Upon completion of the installation, the door must reverse when it comes in contact with a

one-inch high object or a 2x4 laid fiat on the floor.

9. Do not wear watches, rings or loose clothing while installing or servicing an opener. Jewelry or

loose clothing can be caught in the mechanism of the garage door or the opener.

11

Installation Section: Pages 12 - 27

Installation Step 1

Determine Header Bracket Location

Installation procedures vary according to

garage door types. Follow the instructions

which apply to your door.

Header

Wall

Vertical

Guideline

Finished

Ceiting

2x4

If the header bracket is not rigidly fastened to

a structural support on the header wall or

ceiling, the safety reverse system may not

work properly (see page 30). The door might

not reverse when required, and could cause

serious injury or death.

The garage door springs, cables, pulleys,

brackets and their hardware are under extreme

tension. Do not attempt to loosen, move or

adjust them yourself. Serious personal injury

or death could result. Call for professional

garage door service.

Structural

Supports

• Close the door and mark the inside

vertical centerline of the garage door.

• Extend the line onto the header wall

above the door.

Remember, you can fasten the

header bracket within 2 feet of the

left or right of the door center only if

a torsion spring or center bearing

plate is in the way; or you can attach

it to the ceiling (refer to page 14)

when clearance is minimal. (It may

be mounted on the wall upside down

if necessary, to gain approximately

1/2".)

If you need to install the header bracket

on a 2x4 (on wall or ceiling), use lag

screws (not supplied) to securely fasten

the 2x4 to structural supports as shown

here and on page 13.

• Open your door to the highest

point of travel as shown. Draw

an intersecting horizontal line

on the header wall 2" above

the high point. This height will

provide travel clearance for the

top edge of the door.

Door clearance brackets are

available for sectional doors

when headroom clearance is

less than 2". See accessory

page 38.

Door

Ceiling

Header

Wall

,, 2" Track

Highest Point

of Travel

Header

_WaII Track

1 2'' i

Highest Point

of TraveI

Proceed to Step 2, page 14.

Sectional door

with curved track One-piece door

with horizontal track

12

Read the Safety instructions on page 12. They also apply to doors without tracks.

• Close the door and mark the

inside vertical centerline of

your garage door. Extend the

line onto the header wall

above door.

If headroom clearance is

minimal, you can install the

header bracket on the ceiling.

See page 14.

•If you need to instafl the

header bracket on a 2x4 (on

wall or ceiling), use lag screws

(not supplied) to securely

fasten the 2x4 to structural

supports as shown.

Header Wall Vertical

Centedine 2x4

Unfinished

OPTIONAL CEILING MOUNT

FOR HEADER BRACKET

_jamb III /

Hardware

Header Wall

.... ---

Highest Point

of Travel

c

c_

One-piece door without track

jamb hardware

i

Header Highest Point

Wall of TraveI

One-piece door without track

pivot hardware

• Open your door to the highest point of travel as

shown. Measure the distance from the top of the

door to the floor. Subtract the actual height of the

door. Add 8" to the remainder. (See Example).

• Close the door and draw an intersecting horizontal

line on the header wall at the determined height.

If the total number of inches exceeds the height

available in your garage, use the maximum

height possible, or refer to page 14 for ceiling

installation.

EXAMPLE

Distance from top of door

(at highest point of travel) to floor ........................... 92"

Actual height of door ............................................. -88"

Remainder ................................................................ 4"

Add ......................................................................... +8"

Bracket height on header wall .............................. =12"

(Measure UP from top of CLOSED door.)

Proceed to Step 2, page 14.

13

Installation Step 2

Install the Header Bracket

You can attach the header bracket either to the

wall above the garage door, or to the ceiling,

Follow the instructions which will work best for

your particular requirements.

Fasten the Header Bracket to the Wall

• Center the bracket on the vertical guideline with

the bottom edge of the bracket on the horizontal

line as shown (with the arrow pointing toward the

ceiling).

• Mark either set of bracket holes (do not use the

holes designated for ceiling mount). Drill 3/16" pilot

holes and fasten the bracket securely to a structural

support with the hardware provided.

Header

Wall

2x4

Structural

Support

/

/

/

/

-1

Highest

Point of Travel

(of Garage Door)

/ /

/

Lag Screws

5/16"x9x1-5/8"

Door

Spring

em

Door

Vertical

Center

Line

Wall

Mounting Holes

The nail hole is for positioning

only. You must use lag screws to

mount the header bracket Optional

Wall Mounting

Holes

Hardware Shown Actual Size

">

5/16"-9xl -5/8"

Fasten the Header Bracket to the Ceiling

• Extend the vertical guideline onto the ceiling as

shown.

• Center the bracket on the vertical mark, no more

than 6" from the wall. Make sure the arrow is

pointing toward the wall. The bracket can be

mounted flush against the ceiling when clearance

is minimal.

• Mark holes designated for ceiling mount only. Drill

3/16" pilot holes and fasten bracket securely to a

structural support with the hardware provided.

Ceiting Mounting Holes

Door

Spring

Header

Wall

The nail hole is for positioning only

You must use lag screws to mount

the header bracket

14

Installation Step 3

Attach the T-rail to the Header Bracket

Header

Bracket

Cable

Bracket

• Position the opener on the garage floor below the

header bracket. Use packing material as a

protective base.

If the door spring is in the way you'll need help.

Have someone hold the opener securely on a

temporary support to allow the T-rail to clear the

spring,

• Position the cable pulley bracket against the header

bracket.

• Align the bracket holes and join with a clevis pin as

shown.

• Insert a ring fastener to secure.

Ring Fastener

Header Bracket '0

i

J

Ctevis Pin

5/16"x2-3/4 " Cable

Putley

Bracket

Door

Temporary

Support

Hardware Shown Actual Size

o]

Clevis Pin

5/16"x2-3/4"

O

Ring Fastener

15

Installation Step 4

Position the Opener

Follow instructions which apply to your door

type as illustrated.

A 2x4 laid fiat is convenient for setting an ideal

door-to-T-rail distance.

•Raise the opener onto a stepladder.

You will need help at this point if the ladder is

not tall enough.

• Open the door all the way and place a 2x4 laid fiat

on the top section beneath the T-rail.

If the top panel hits the trolley when you raise

the door, pull down on the trolley release arm to

disconnect the inner and outer sections. The

trolley can remain disconnected until Step 12 is

completed.

Door

2x4

Laid Fiat

_[_'-_@'/_ @_ Trolley

Trol_ase Arm

• With the door fully open and parallel to the floor,

measure the distance from the floor to the top of

the door.

• Using a stepladder as a support, raise the opener

to the same distance as the door from the floor (it

will be at a slight angle as shown).

• The top of the door should be level with the top of

the opener. Do not position the opener more than

2" above this point.

Top

i of Door

Top of Opener

1I .....

16

Installation Step 5

Hang the Opener

Two representative installations are shown.

Yours may be different. Hanging brackets should

be angled, Figure 1, to provide rigid support. On

finished ceilings, Figure 2, attach a sturdy metal

bracket to structural supports before installing the

opener. The bracket and fastening hardware are not

supplied. See accessory page 38.

•Measure the distance from each side of the opener

to the structural support.

•Cut both pieces of the hanging bracket to required

lengths.

• Drill 3/18" pilot holes in the structural supports.

• Attach one end of each bracket to a support with

5/18"-18xl-7/8" lag screws.

• Fasten the opener to the hanging brackets with

5/16"-18x7/8" screws, lock washers and nuts.

• Check to make sure the T-rail is centered over the

door (or in line with the header bracket if the

bracket is not centered above the door).

• Remove the 2x4. Operate the door manually. If the

door hits the rail, raise the header bracket.

Hardware Shown Actual Size

Lag Screw

5/16"-18xl -7/8"

O,,,,,,,,,,D© ©

Hex Screw

5/16"- 18x7/8" Nut 5/16"-18 Lock Washer 5/16"

Figure 1

i/' Supports

Measure Lag Screws

Distance 5/16"-18xl-7/8"

5/16"-18x7/8" Screw

Figure 2

5/16"-18x7/8" Screw \

5/16" Lock Washer \

5/16"-18

17

Installation Step 6

Install the Premium Control Console

Locate the door control within sight of the door

at a minimum height of 5 feet where small

children cannot reach, and away from all moving

parts of the door and door hardware.

The door control is typically attached directly to the

wall. If installing into drywall, drill 5/32" holes and

use the anchors provided. For pre-wired installations

(as in new home construction), Console models

may be mounted to a standard single gang box

(Figure 2).

1. Strip 1/4" of insulation from one end of the bell

wire and connect it to the two screw terminals on

the back of the door control: white to 2, and

white/red to 1.

2. Pry off cover along one side with a screwdriver

blade (see Figure 1). Fasten with 6ABx1-1/4" self-

tapping screws (standard installation) or 6-32x1"

machine screws (pre-wired installation) as follows:

• Install bottom screw, allowing 1/8" to protrude

above wall surface.

• Position bottom of door control on screw head and

slide down to secure. Adjust screw for snug fit.

• Drill and install top screw with care to avoid

cracking plastic housing. Do not overtighten.

• Insert top tabs and snap on cover.

3. (For standard installation) Run the bell wire up the

wall and across the ceiling to the opener. Use

insulated staples to secure the wire in several

places. Be careful not to pierce the wire with a

staple, creating a short.

4. Connect the bell wire to the terminal screws on

the opener panel: white to 2; white/red to 1.

5. Position the antenna wire as shown.

Do not connect to five electrical wiring. Connect

only to 24 Volt low voltage wires. Connection to

five wires or higher voltage may cause serious

injury from shock, burn or electrocution.

Children operating or playing with a garage

door opener can injure themselves or others.

The garage door could close and cause

serious injury or death.

Install the door control (or any additional push

buttons) out of the reach of children and away

from all moving parts of the door and door

hardware, but where the garage door is visible.

Do not allow children to operate the push

button(s) or the remote control(s).

A moving garage door could injure someone

under it. Activate the opener only when the

door is properly adjusted, you can see it

clearly, and there are no obstructions to door

travel.

Hardware Shown Actual Size

_] II1161AI_I!II! I i_,1,Is!rl! IvII]_

Control Console (std installation)

Control Console (pre-wired)

Insulated

Staptes

Dry Wall Anchors

Figure 1

REMOVE & REPLACE COVER

To Replace, To Remove,

Insert Twist

Top Tabs Here

Figure 2

PRE-WIRED

INSTALLATION

24 Volt '

2-Conductor

Belt Wire

Lighted

Push Button

/

Lig

Lock

PREMIUM CONTROL CONSOLE

2-Conductor Opener

Bell Wire

Top

Mounting

Hole

-erminal

_>Screws

Bottom

Mounting

Hole

BACK VIEW

O

[]

18

6.AttachtheUserSafetyInstructionlabeltothewall

nearthedoorcontrol,andtheMaintenance

Instructionlabelina prominentlocationonthe

insideof thegaragedoor.

Page 32 explains how to use the door control.

Do NOT connect the power and operate the

opener at this time. The trolley will travel to the

full open position but will not return to the

close position until the sensor beam is

connected and properly aligned.

See Safety Reversing Sensor instructions

beginning on page 21.

Installation Step 7

Install the Lights and the Lenses I

Install the lights:

• Install a 75 watt maximum light bulb in each

socket. The lights will turn ON and remain lit for

approximately 4-1/2 minutes when power is

connected. Then the lights will turn OFF.

• If the bulbs burn out prematurely due to vibration,

replace them with standard neck "Garage Door

Opener" bulbs.

Install the lenses:

• Apply slight pressure on the sides of each lens

and slide the tabs into the slots in the side panels.

•For convenience, the lenses may be installed

after Adjustment Step 4 on page 30.

• Reverse the procedure to remove the lenses.

Lens

Tab

75 Watt Max

Lens Light Bulb

Tab

Lens f

Tab

Lens

Guide

Lens

Slot

Installation Step 8

Attach the Emergency

Release Rope and Handle

• Thread one end of the rope through the hole in

the top of the red handle so "NOTICE" reads right

side up as shown. Secure with an overhand knot.

The knot should be at least 1" from the end of

the rope to prevent slipping.

• Thread the other end of the rope through the hole

in the release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet above

the floor. Secure with an overhand knot.

If it is necessary to cut the rope, heat seal the

cut end with a match or lighter to prevent

unraveling.

Do not use the red handle to pull the door

open or closed. The rope knot could become

untied and you could fall. Use the emergency

release only to disengage the trolley and, if

possible, only when the door is closed.

Garage doors are heavy. If the door is open

when the handle is pulled, the door could

close inadvertently if it is not properly

balanced. Serious injury may result to persons

under the door. Make sure the doorway is clear

of persons and obstructions before pulling

handle when door is open.

Overhand

Knot

Trotle_ _T_olley

Rope Release Arm

_Release Handle

_" Emergency

Overhand

Knot

19

Installation Step 9

Electrical Requirements

To reduce the risk of electric shock, your garage

door opener has a grounding type plug with a third

grounding pin. This plug will onlyfit into a grounding

type outlet.

If the plug doesn't fit into the outlet you have,

contact a qualified electrician to install the proper

outlet.

I

To avoid installation difficulties, I

do not run the opener at this time. I

To prevent electrocution or fire, installation

and wiring must be in compliance with local

electrical and building codes.

Do NOT use an extension cord, 2-wire adapter,

or change the plug in any way to make it fit

your outlet.

Right Wrong

If permanent wiring is required by your local code, refer to the following procedure:

To make a permanent connection through the

7/8" diameter hole in the top of the opener

(according to local code):

• Remove the opener cover screws and set the

cover aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the

brass terminal; the white (neutral) wire to the

screw on the silver terminal; and the ground wire

to the green ground screw. The opener must be

grounded.

• Reinstall the cover.

I

To avoid installation difficulties, I

do not run the opener at this time. I

Ground Tab

Green

Ground

Screw

Wire

Permanent

Wiring

Connections

Black

Wire

White Wire Black

Wire

2O

The Safety Reversing System

Information you'll need before you begin the installation of the safety reversing sensor.

The safety reversing sensor must be connected

and aligned correctly before the garage door

opener will move in the down direction. This is a

required safety device and cannot be disabled.

Installation procedures are the same for sectional

and one-piece doors.

Without a properly working safety reversing

sensor, persons (particularly children) could

be injured or killed by a closing garage door.

Read and follow all instructions.

To protect small children, install the safety

reversing sensor so that the beam will be no

higher than 4"-6" above the garage floor.

Disconnect power to the garage door opener

before installing the safety reversing sensor.

Be sure power to the opener is disconnected.

The sending eye transmits an invisible light beam to

the receiving eye. The units can be installed on

either side of the garage door as long as the sun

never shines directly into the receiving eye lens.

Look at the label on the connector end of each case

to identify the sensors.

The brackets must be connected and fastened so

that the sending and receiving eyes face each other

as shown in Figure 1.

If an obstruction breaks the light beam while the

garage door is closing, the door will stop and

reverse to full open position and the opener lights

will flash for 5 seconds.

The brackets must be securely fastened to a solid

surface such as the studs on either side of the door,

or add a piece of wood at each location if installing in

masonry construction.

The invisible light beam path must be unobstructed.

No part of the garage door (or door tracks, springs,

hinges, rollers or other hardware) can interrupt the

beam while the door is closing. If it does, use a piece

of wood to build out each sensor mounting location to

the minimum depth required for light beam clearance.

Sensor Beam

4-6" max

above floor

/

Figure 1: Facing the door from inside the garage

21

Installation Step 10

Install the Safety Reversing Sensor

Figures 2 and 3 show assembly of brackets and

"C" wrap based on the recommended installation of

the sensors as shown on page 21.

However, Figures 4 and 5 are variations which may

fit your installation requirements better. Make sure

the wraps and brackets are aligned so the

sensors will face each other across the garage

door.

• Fasten the "C" wraps to the mounting brackets

having square holes, using the hardware shown

in Figure 2.

• Connect each assembly to a slotted bracket, using

the hardware shown in Figure 3.

Note the alignment of the brackets for left and

right sides of the door.

• Finger tighten the lock nuts.

• Use bracket mounting holes as a template to

locate and drill (2) 3/16" diameter pilot holes on

both sides of the garage door, 4"-6" above the

floor but not exceeding 6': (See warning on

page 21 .)

• Attach bracket assemblies with 1/4"x1-1/2" lag

screws as shown in Figure 3.

• Adjust right and left side bracket assemblies to the

same distance out from the mounting surface.

Make sure all door hardware obstructions are

cleared. Tighten the nuts securely.

I

Figure 2

i/,

ii

#10-32

Lock Nuts

Mounting Bracket

With Square Holes

.J "C" Wrap

#10-32x3/8"

Screws

Figure 3

1/4-20xl/2" Carriage Bolts

(with square shoulder)

Jj Bracket

with Slot

/_ M.ounting Bracket

f_/1/4"-20 _uare Holes

_OCKNuts

"C" Wrap

©

#10-32x3/8" #10x32

Screw Lock Nut

Hardware Shown Actual Size

Lag Screw Staples

1/4"-20xl/2"

Carriage Bolts

©

1/4"-20

Lock Nut

Figure 4

Alternate Wall Mount

Inside

Garage

Wall

Mounting Bracket

with Slot

_ Mounting Bracket

with Square Holes

with wire

indicator Light

Figure 5

Alternate Floor Mount

Inside

Garage Sensor with wire

T Wall

,/Indicat°r Light

Mounting Bracket

with Square Holes

Garage

Floor

Mounting Bracket

j with Stot

Attach with

concrete anchors

(not provided)

22

•Centereachsensorunitina"C"wrapwithlenses

pointingtowardeachotheracrossthedoor(see

Figure6).

•Securesensorswiththehardwareshown.Finger

tightenthewingnutonthereceiving eye to allow

for final adjustment. Securely tighten the sending

eye wing nut.

• Run the wires from both sensors to the opener.

Use insulated staples to secure wire to wall and

ceiling.

• Strip 1/4" of insulation from each set of wires.

Separate white and white/black wires sufficiently to

connect to the opener terminal screws: white to 2

and white/black to 3.

Aligning the Safety Sensors

• Plug in the opener. Green indicator lights in both

the sending and receiving eyes will glow steadily if

wiring connections and alignment are correct.

The sending eye indicator light will glow regardless

of alignment or obstruction. If the indicator light is

off, dim, or flickering in the receiving eye (and the

invisible light beam path is not obstructed),

alignment is required.

• Loosen the sending eye wing nut and readjust,

aiming directly at the receiving eye. Lock in place.

• Loosen the receiving eye wing nut and adjust

sensor vertically and/or horizontally until it receives

the sender's beam. When the green indicator light

glows steadily, tighten the wing nut.

Hardware Shown Actual Size

1/4-20x1-1/2"

Hex Bott

Figure 6 "c"wrap__ W_ntg

Indicator _ :

Light _

1/4_20/_X 1_ 1/_ ith W!re _

Hex Bolt I_

Trouble Shooting

1. If the sending eye indicator light does not glow

steadily after installation, check for:

• Electric power to the opener.

• A short in the white or white/black wires. These

can occur under staples or at screw terminal

connections.

• Incorrect wiring between sensors and opener.

• An open wire (wire break).

2. If the sending eye indicator light glows steadily but

the receiving eye indicator light doesn't:

• Check alignment.

• Check for an open wire to the receiving eye.

3. If the receiving eye indicator light is dim, realign

either sensor.

NOTE: When the invisible beam path is obstructed or

misaligned while the door is dosing, the door will

reverse. If the door is already open, it will not close.

The opener lights will flash 10 times. (ff bulbs are not

installed, 10 clicks are audible.) See page 21.

Figure 7

Connect Wire to

Opener TerminaIs

Bell Wire

._ Bell Wire

Door Control Sensor

Connections--__. Connections

(dotted line)

OPENER TERMINAL SCREWS

Invisible Light Beam

Sensor Protection Area

/

Sensor

23

Installation Step 11

Fasten Door Bracket

Follow instructions which apply to your door

type as illustrated below or on page 25.

To prevent damage to steel, aluminum,

fiberglass or glass panel doors, always

reinforce the inside of the door both vertically

and horizontally with an angle iron.

A horizontal brace should be long enough to be secured to 2 vertical supports. A vertical brace should

cover the height of the top panel.

The illustration shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of

angle iron are used to create a "U"-shaped support. The best solution is to check with your garage door

manufacturer for an opener installation door reinforcement kit.

Header

Bracket

Door

Location

• Center the door bracket on the previously marked

vertical guideline used for the header bracket

installation. Note correct UP placement, as

stamped inside the bracket.

• Position the bracket on the face of the door within

the following limits:

A) The top edge of the bracket 2"-4" below the top

edge of the door.

B) The top edge of the bracket directly below any

structural support across the top of the door.

• Mark and drill 5/16" left and right fastening holes.

Secure the bracket as shown in Figure 1 if there is

vertical reinforcement.

If your installation doesn't require vertical reinforce-

ment but does need top and bottom fastening holes

for the door bracket, fasten as shown in Figure 2.

is needed for lightweight garage doors

(fiberglass, aluminum, steeI,

doors with glass panel, etc). Figure 1

Reinforcement

Carriage Bolt

5/16 'L18x21/2'

Vertical

GuideIine

e /

/

uP

Door

Bracket

Washer

5/16" Nut

5/16"-18

Inside Edge

of Door or

Reinforcement Board

_ UP

.....

Door Bracket

Figure 2

Hardware Shown Actual Size

© ©

Nut 5/16-18 Lock Washer 5/16"

Carriage Bolt

5/16'L18X2-1/2"

24

Please read and comply with the warnings and reinforcement instructions on page 24.

They apply to one-piece doors also.

Header Walt

Header

Bracket

2x4 Support

Door

Bracket

-- Finished Ceiling --

Placement

of Door

Bracket __

_ _---- --

Vertical

Garage Door

Horizontal and vertical

reinforcement is needed for

lightweight garage doors

(fiberglass, aluminum, steel,

door with glass panet, etc)

Nut

5/16"-18

Door

Bracket

®

5/16"

Top of Door

(Inside Garage)

Top Edge

of Door

__ Optional

Placement

For a door with no _ Carriage Bolt

exposed framing or for _ _- 5/16"-18x2-1/2"

the optional instaIlation,

use 5/16"xl-1/2" lag

screws (not supplied)

to fasten

• Center the bracket on the top of the door, in line

with the header bracket as shown. Mark holes.

• Drill 5/16" pilot holes and fasten the door bracket

with hardware supplied.

If the door has no exposed framing, drill 3/16" pilot

holes and fasten the bracket with 5/16"x1-1/2" lag

screws (not supplied) to the top of the door.

The door bracket may be installed on the top

edge of the door if required for your installation.

(Refer to the dotted line optional placement

drawing.) Drill 3/16" pilot holes and substitute

5/16"x1-1/2" lag screws (not supplied) to fasten

the bracket to the door.

Hardware Shown Actual Size

© ©

Nut 5/16"-18 Lock Washer 5/16"

Carriage Bolt

5/16"-18x2-1/2"

25

Installation Step 12

Connect Door Arm to Trolley

Follow instructions which apply to your door

type as illustrated below and on page 27.

Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley

from the inner trolley. Slide the outer trolley back (away from the door) about 2" as shown in

Figures 1, 2 and 3.

Figure 1:

• Fasten straight door arm section to outer trolley

with the the 5/16"xl" clevis pin. Secure the

connection with a ring fastener.

• Fasten curved door arm to the door bracket in the

same way, using the 5/16"x1-1/4" clevis pin.

Inner Trotley

/ Outer Tro

I I _ clevisP_n

_.,° Ooor Straioht

;rr% Figure1

Figure 2:

• Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far

apart as possible to increase door arm rigidity.

Lock / / II

... _,,,, Iol ,-,IkEmergency

r_u[s _ _ _ Release

5/16"-18\ /_/ v-- Handte

_,\oo/o/

I Do_ Bracket Figure 2

Hole Alignment Alternative

Figure 3:

• If holes in curved arm are above holes in straight

arm, disconnect straight arm. Cut about 6" from

the solid end. Reconnect to trolley with cut end

down as shown.

• Bring arm sections together.

• Find two pairs of holes that line up and join with

screws, lock washers and nuts.

Hardware Shown Actual Size

©©

Nut 5/16"-18 Lock Washer 5/16"

Clevis Pin

5/16"xl" (Trolley)

O

]

Ring Fastener

O

Clevis Pin Hex Screw

5/16"x1-1/4" (Door Bracket) 5/16"-18x7/8"

Screws

% 5/16"-18x7/8"

Cut This End

Figure 3

Proceed to Adjustment Step 1, page 28. Trolley will re-engage automatically when the opener is operated.

26

Assemble the Door Arm:

• Fasten the straight and curved door arm sections

together to the longest possible length, with a 2 or 3

hole overlap.

• With the door closed, connect the straight door arm

section to the door bracket with the 5-16" x 1-1/4"

clevis pin.

• Secure with a ring fastener.

Door Ring

Bracket _1_---- Fastener Nuts

Lock ,,

__" _"'_,_- _ W ashe rs 5/16-18

'5/16,, I

ClevisPin Straight %e- I I ,'1

Screws /'a_ ._._-_>_4] _v j \

5/16,L18x7/8 z_ _ Curved

Door Arm

On one-piece doors, before connecting the door arm to the trolley the travel limits must be adjusted. Limit adjust-

ment screws are located on the left side panel as shown on page 28. Follow adjustment procedures below.

FullyClosed

Trolley

IClosed

I Door Open Door Door with

I

IBackward Slant

Door Arm

Adjustment Procedures for One-Piece Doors

Open Door Adjustment:

Decrease UP limit

• Turn the UP limit adjustment screw counter-

clockwise 5-1/2 turns.

• Press the Wall Control push bar. The trolley will

travel to the fully open position.

• Manually raise the door to the open position

(parallel to the floor), and lift the door arm to the

trolley. The arm should touch the trolley just in

back of the door arm connector hole. Refer to the

fully open trolley/door arm positions in the

illustration. If the arm does not extend far enough,

adjust the limit further. One full turn equals 2" of

trolley travel.

Closed Door Adjustment:

Decrease DOWN limit

• Turn the DOWN limit adjustment screw clockwise

5 complete turns.

• Press the Wall Control push bar. The trolley will

travel to the fully closed position.

• Manually close the door and lift the door arm to the

trolley. The arm should touch the trolley just ahead

of the door arm connector hole. Refer to the fully

closed trolley/door arm positions in the illustration. If

the arm is behind the connector hole, adjust the limit

further. One full turn equals 2" of trolley travel.

Connect the door arm to the trolley.

• Close the door and join the curved arm to the connector hole in the trolley with the remaining clevis pin. It may

be necessary to lift the door slightly to make the connection.

• Secure with a ring fastener.

• Run the opener through a complete travel cycle. If the door has a slight "backward" slant in full open position

as shown in the illustration, decrease the UP limit until the door is parallel to the floor.

27

Adjustment Section: Pages 28 - 30

Adjustment Step 1

Adjust the UP and DOWN Limits

Do not make any limit adjustments until the

safety reversing sensors are completely

installed.

Limit adjustment settings regulate the points at

which the door will stop when moving up or down.

The door will stop in the up direction if anything

interferes with door travel. The door will reverse in

the down direction if anything interferes with the

door travel (including binding or unbalanced doors).

To operate the opener, press the Door Control push

button. Run the opener through a complete travel

cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse

unintentionally when fully closed?

If your door passes both of these tests, no limit

adjustments are necessary unless the reversing test

fails (See page 30).

Adjustment procedures are outlined below. Run

the opener through a complete travel cycle after

each adjustment.

Repeated operation of the opener during

adjustment procedures may cause the motor to

overheat and shut off. Simply wait 15 minutes

and try again.

Read the procedures carefully before proceeding to

Adjustment Step 2. Use a screwdriver to make limit

adjustments.

Improper adjustment of the travel limits will

interfere with the proper operation of the

safety reverse system. The door might not

reverse properly when required and could

seriously injure or kill someone under it. Test

the safety reverse system following all

adjustments to the travel limits. See page 30.

Cover /

Protection

Bolt

_; .... i __" O Le%tS_ideC)iaOil_l

Limit Adjustment

Screws

Adjustment Label

How and When to Adjust the Limits

•If the door does not open completely, but

opens at least five feet:

Increase up travel. Turn the UP limit adjustment

screw clockwise. One turn equals 2" of travel.

NOTE: To prevent the trolley from hitting the

cover protection bolt, keep a minimum distance

of 2-4" between the trolley and the bolt.

• If door does not open at least 5 feet:

Adjust the UP (open) force as explained in

Adjustment Step 2.

• If the door does not close completely:

Increase down travel. Turn the DOWN limit

adjustment screw counterclockwise. One turn

equals 2" of travel.

If the door still won't close completely and the trolley

bumps into the pulley bracket (see page 4 or 5), try

lengthening the door arm, (see page 26).

If you have adjusted the door arm to the maximum

length and the door still will not close completely,

lower the header bracket. See Installation Step 1,

pages 12 and 13.

•If the opener reverses in fully closed position:

Decrease down travel. Turn the DOWN limit

adjustment screw clockwise. One turn equals 2" of

travel.

•If the door reverses when closing and there is

no visible interference to travel cycle:

If the opener lights are flashing, the Safety Reversing

Sensors are either not installed, misaligned, or

obstructed. See Troubleshooting, page 23.

Test the door for binding: Pull the manual release

handle. Manually open and close the door. If the door

is binding, call for garage door service. If the door is

not binding or unbalanced, adjust the DOWN (close)

force. See Adjustment Step 2.

28

Adjustment Step 2

Adjust the Force

Force adjustment controls are located on the right

side panel of the opener. Force adjustment settings

regulate the amount of power required to open and

close the door.

The door will stop in the up direction if anything

interferes with its travel. The door will reverse in the

down direction if anything interferes with its travel

(including binding or unbalanced doors).

If the forces are set too light, door travel may be

interrupted by nuisance reversals in the down

direction and stops in the up direction. Weather

conditions can affect the door movement, so

occasional adjustment may be needed.

The maximum force adjustment range is 260 degrees,

about 3/4 of a complete turn. Do not force controls

beyond that point. Turn force adjustment controls

with a screwdriver.

Adjustment Labet

Too much force on the door will interfere with

the proper operation of the safety reverse

system. The door might not reverse properly

when required and could seriously injure or

kill someone under it. Do not increase the

force beyond the minimum amount required

to close the door. Do not use the force

adjustments to compensate for a binding or

sticking garage door. Test the safety reverse

system following all adjustments to force

levels. See page 30.

Force Adjustment

Controls

000

Right Side Panel

How and When to Adjust the Forces

Test the DOWN (close) force

Grasp the door bottom when the door is about

halfway through DOWN (close) travel. The door

should reverse. Reversal halfway through down

travel does not guarantee reversal on a one-inch

obstruction. See page 30. tf the door is hard to

hold or doesn't reverse, decrease the DOWN (close)

force by turning the control counterclockwise.

Make 10 degree turn adjustments until the door

reverses normally. After each adjustment, run the

opener through a complete cycle.

Test the UP (open) force

Grasp the door bottom when the door is about

halfway through UP (open) travel. The door should

stop. If the door is hard to hold or doesn't stop,

decrease UP (open) force by turning the control

counterclockwise.

Make 10 degree turn adjustments until the door stops

easily. After each adjustment, run the opener through

a complete travel cycle.

If the door doesn't open at least 5 feet

Increase UP (Open) force by turning the control

clockwise. Make 10 degree turn adjustments until

door opens completely. Re-adjust the UP limit if

necessary. After each adjustment, run the opener

through a complete travel cycle.

If the door reverses during the down (close) cycle

and the opener lights aren't flashing

Increase DOWN (close) force by turning the control

clockwise. Make 10 degree turn adjustments until the

door completes a close cycle. After each adjustment,

run the opener through a complete travel cycle. Do

not increase the force beyond the minimum

amount required to close the door.

29

Adjustment Step 3

Test The Safety Reversing Sensor

• Press the remote control push button to open the

door.

• Place the opener carton in the path of the door.

• Press the remote control push button to close the

door. The door will not move more than an inch,

and the opener light(s) will flash.

Professional service is required if the opener

closes the door when the safety reversing

sensor is obstructed.

The garage door opener will not close from a

remote control if the indicator light in either

sensor is off(alerting you to the fact that the

sensor is misaligned or obstructed),

The garage door can be closed by pressing and

holding the Door Control push button until down

travel is completed.

Without a properly working safety reversing

sensor, persons (particularly children) could be

seriously injured or killed if trapped by a closing

garage door. Repeat this test once a month,

f

Safety Reversing Sensor Safety Reversing Sensor

Adjustment Step 4

Test the Safety Reverse System

Test:

• Place a one-inch board (or a 2x4 laid flat) on the

floor, centered under the garage door.

• Operate the door in the down direction. The door

must reverse on striking the obstruction.

Adjustment:

If the door stops on the obstruction, it is not traveling

far enough in the down direction.

• Increase the DOWN limit by turning the DOWN

limit adjustment screw counterclockwise 1/4 turn.

• Repeat the test.

On a sectional door, make sure limit

adjustments do not force the door arm beyond a

straight up and down position. See the

illustration on page 26.

• When the door reverses on the one-inch board,

remove the obstruction and run the opener through

3 or 4 complete travel cycles to test adjustment.

If the door will not reverse after repeated

adjustment attempts, call for professional

garage door service.

Failure to test and adjust the safety reverse

system may result in serious injury or death to

persons trapped by a closing garage door.

Repeat this test once a month and adjust as

needed.

GARAGE DOOR

Important safety check

Repeat Adjustment Steps 1, 2 and 4 after:

• Each adjustment of door arm length, force controls

or limit controls.

• Any repair to or adjustment of the garage door

(including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

30

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. Do not permit children either to operate or to

play with the opener. Keep remote control in a

location inaccessible to children.

3. Operate opener only when the door is in full

view and free from any obstruction. Keep the

door in sight until it is completely closed. NO

ONE SHOULD CROSS THE PATH OF THE

MOVING DOOR.

4. Check safety reversal system monthly. See

page 30. The garage door MUST reverse on

contact with a one-inch (or a 2x4 board laid

fiat) object placed on the floor. If an adjustment

is made to either the force or the limit of travel,

both adjustments may be needed and the

safety reversal system must be checked.

Failure to properly adjust the opener may

result in severe injury or death.

5. If possible, use the emergency release only

when the door is in a closed position. Caution

should be taken whenever the disconnect cord

is actuated with the door open. Weak or broken

springs may cause the door to fall rapidly,

causing injury or death to persons.

6. KEEP GARAGE DOORS PROPERLY

BALANCED. See page 3. An improperly

balanced door may not reverse when required

and could result in severe injury or death.

Repairs to cables, spring assemblies and other

hardware must be made by a professional

garage door person.

7. Disconnect the electric power to the garage

door opener before making any repairs or

removing the covers.

8.SAVE THESE INSTRUCTIONS.

Care of Your Opener

Limit and force adjustment controls

Limit Controls

Adjustment Labet

(Located on the teft side panel)

Force Controls

Adjustment Label

(Located on the right side panel)

Weather conditions may cause some minor

changes in door operation requiring some re-

adjustments, particularly during the first year of

operation.

Pages 28 and 29 refer to the limit and force

adjustments. Only a screwdriver is required. Follow

the instructions carefully.

Repeat the safety reverse test (page 30) after any

adjustment of limits or force.

The remote control

The lithium batteries should

produce power for up to

5 years. To replace batteries,

use the visor clip or screwdriver

blade to pry open the case as

shown. ("Open" location is

stamped on back of remote

3-FUNCTION

Open this end

first to avoid/_L.._ _._j¢-_

cracking_" _=_-_-_/

hous_

COMPACT_

Twist tier e _,7'___C>_ 7

to open _--_

control case.) Insert batteries positive side down.

Replace cover as follows. 3-Function remote: Insert

the 3 tabs at the opposite end and snap shut.

Compact 3-Function remote: Snap shut along both

sides.

Dispose of old batteries properly.

Maintenance Schedule

Once a Month

Manually operate door. If it is unbalanced or

binding, call for professional garage door service.

Check to be sure door opens and closes fully.

Adjust limits and/or force if necessary.

(See pages 28 and 29.)

Repeat the safety reverse test. Make any

necessary adjustments (See page 30).

Twice a Year

Check chain tension. Disconnect trolley first.

Adjust if necessary (See page 11).

Once a Year

Oil door rollers, bearings and hinges. The opener

does not require additional lubrication. Do not

grease the door tracks.

31

Operation of Your Opener

Activate the opener with any of the following:

•The Remote Control: Hold push button down until

the door starts to move.

•The Door Control: Hold push button down until

the door starts to move.

• The Outdoor Key Switch or Keyless Entry: (See

Accessories)

When the opener is activated with the safety

reversing sensor installed and correctly aligned:

1. If open, the door will close, tf closed, the door will

open.

2. If closing, the door will reverse.

3. If opening, the door will stop (allowing space for

entry and exit of pets and for fresh air).

4. If the door has been stopped in a partially open

position, it will close.

5. If obstructed while closing, the door will reverse.

6. If obstructed while opening, the door will stop.

7. The garage door will reverse in the closing cycle

when the invisible beam is broken, tf fully open,

the door will not close when the beam is broken.

The sensor has no effect in the opening cycle.

If the sensor is not installed, or is not aligned

correctly, the door won't close from any remote

transmitter. You can close the door with the Door

Control, the Outdoor Key Switch, or Keyless Entry,

however, if you activate them until down travel is

complete. If you release them too soon, the door will

reverse.

The opener lights will blink for 5 seconds when the

safety reversing sensor causes the door to reverse.

The Opener Lights will turn on under the following

conditions: When the opener is initially plugged in;

when the power is interrupted; when the opener is

activated. They will turn off automatically after 4-1/2

minutes or provide constant light when the Light

feature on the Premium Control Console is activated.

SECURITY+ models: Lights will also turn on when

someone walks through the open garage door. Bulb

size is 75 watts maximum.

Weak or broken springs could allow an open

door to fall (either rapidly or unexpectedly),

resulting in serious injury, death or property

damage. If possible, use the emergency

release rope and handle only when the door is

fully closed.

k Troley

,easeArm

Trolley !

Emergency

Release Handte

(Pull Down)

Manual disconnect

position

To open the door

manually:

The door should be

fully closed if possible.

Pull down on the red

emergency release

handle and lift the door

manually. To

reconnect the door to

the opener, press the

Door Control push

button.

The lockout feature

prevents the trolley from _F' "q

reconnecting automatically. - y

Pull the emergency handle /e_ase Arm

down and back (toward the

opener). The door can then TroIley j, '_

be raised and lowered _11,__.,,_'

manually as often as

necessary. To disengage

the Lockout Feature, pull

the emergency handle

straight down. The trolley

will reconnect on the next

UP or Down operation.

Emergency

ReIease Handte

(Putt Down & Back

Towards Opener)

Lockout position

Operation of the Door Controls (see page 18)

(SECURITY+ models: See additional programming features, next page.)

Press the lighted push button to open or close the

door.

Press again to reverse the door during the closing

cycle or to stop the door while it's opening.

Premium Console:

Light Feature -Press the large round Light button. If

the opener lights are off, they will turn on. If the

opener lights are on, (even in the 4-1/2 minute

automatic cycle) they will turn off

But if you use the Light button to turn the lights on

and then activate the opener, the lights will turn off

after 4-1/2 minutes.

The Light button will not control the opener lights

when the door is in motion.

Premium Console (cont.):

Lock Feature - The Lock feature is designed to

prevent operation of the door from remote controls.

However, the door will open and close from the Door

Control, the Outdoor Key Switch and the Keyless Entry

Accessories.

To Activate: Press and hold the small round Lock

button for 2 seconds. The push button light will flash

as long as the Lock feature is on.

To turn off. Press and hold the Lock button again

for 2 seconds.The push button light will stop

flashing. The Lock feature will also turn off whenever

the "SRT" button on the opener panel is activated.

32

Receiver and Remote Control Programming

SEI IJRll

Your garage door opener receiver and remote control

have been pre-set at the factory. The door will open

when you press the LARGE remote control push

button. The code between the remote control and the

receiver changes with each use, randomly accessing

over 100 billion new codes.

The 3-function remote control can also activate

additional SECURITY+ garage door openers and/or

light controls.

Your SECURITY+ opener will operate with:

• several SECURITY+ remote controls (with blue

push buttons) utilizing up to 8 functions.

• one SECURITY+ Keyless Entry System (Model

139.53684).

Follow the instructions below to program your opener

to match any additional remotes you may purchase.

See Accessories on page 38.

To Add A Remote Control

If you have a Premium Control Console:

1. With the door closed, press and hold a remote

control push button. See Figure 1.

2. Press and hold the Light button on the door

control.

3. Press and hold the door control push button.

4. After the opener light flashes, release all buttons.

Test by pressing the remote push button.

If you do not have a Premium Control Console:

1. Press and hold the selected remote control push

button. See Figure 1.

2. Then press and release the SRT (learn) button on

the back panel of the opener, Figure 2. The

indicator light on the panel will begin to blink and

the opener light will flash once.

3. Release the remote push button.

Test by pressing the remote push button.

To Erase All Remote Control Codes

Press and hold the SRT button on the opener panel

until the indicator light turns off (about 6 seconds). All

remote control codes are now erased. Then follow

the steps above to re-program each remote control.

To comply with FCC rules, adjustment or modifications of this receiver

and/or transmitter are prohibited, except for changing the code setting or

replacing the battery THERE ARE NO OTHER USER SERVICEABLE

PARTS.

Children operating or playing with a garage

door opener can injure themselves or others.

The garage door could close and cause serious

injury or death. Do not allow children to operate

the door push button(s) or remote control(s).

A moving garage door could injure or kill

someone under it. Activate the opener only

when you can see the door clearly, it is free of

obstructions, and is properly adjusted.

Figure 1

_l_<t _ rewrotecont_ puH'_

8ECURI'IY"I"

3-Functien

Remote ¢onb'ol

Figure 2

SECURITY+

Garage Door Opener

"SRT" (learn) indicator RIGHT

Button Light PANEL

To Control the Opener Light (Premium Consoles)

With SECURITY+ remote controls, a push button can

be programmed to operate the opener light without

opening the door.

1. With the door dosed, press and hold the remote

button that you want to control the light.

2. Press and hold the Light button on the door

control.

3. Press and hold the Lock button on the door control.

4. After the opener light flashes, release all buttons.

Test by pressing the remote push button. The opener

light should turn on or off but the door should not move.

33

Situation

Having a Problem?

Probable Cause and Solution

The opener doesn't

operate from either

the Door Control or

the remote control:

1. Does the opener have electric power? Plug a lamp into the outlet. If it doesn't light,

check the fuse box or the circuit breaker. (Some outlets are controlled by a door switch.)

2. Have you disabled all door locks? Review installation instruction warnings on Page 11.

3. Is there a build-up of ice or snow under the door? The door may be frozen to the

ground. Remove any restriction.

4. The garage door spring may be broken. Have it replaced.

5. Repeated operation may have tripped the overload protector in the motor. Wait

15 minutes. Try again.

Opener operates

from the remote

control, but not from

the Door Control:

1. Is the Door Control lit? If not, remove the bell wire from the opener terminal screws.

Short the red and white terminals by touching both terminals at the same time with a

piece of wire. If the opener runs, check for a faulty wire connection at the Door

Control, a short under the staples, or a broken wire.

2. Are the wiring connections correct? Review Step 6, page 18.

The door operates

from the Door

Control, but not from

the remote control:

.

2.

3.

4.

Is any door push button flashing? If your model has the Lock feature, make sure the

lock is Off.

Your opener needs to re-learn a remote control code. Refer to Instructions on the

opener panel.

Program the receiver to match the remote control code.

Repeat the receiver programming procedure with all remote controls.

The remote control

has short range: 1. Change the location of the remote control in your car.

2. Check to be sure the antenna on the side or back panel of opener extends fully

downward.

3. Some installations may have shorter range due to a metal door, foil backed

insulation, or metal garage siding. (Antenna Extender Kit 41A3504)

Opener noise is

disturbing in riving

quarters of home:

If operational noise is a problem because of proximity of the opener to the living

quarters, the Vibration Isolator Kit 41A3263 can be installed. This kit was designed to

minimize vibration to the house and is easy to install.

The garage door

opens and closes

by itself:

1. Be sure that all remote control push buttons are off.

2. Remove the bell wire from the Door Control terminals and operate from the remote

control only. If this solves the problem, the Door Control is faulty (replace), or there is

an intermittent short on the wire between the Door Control and the opener.

3. Clear memory and reprogram all remote controls.

The door doesn't

open completely: 1. Is something obstructing the door? Remove the obstruction or repair the door.

2. If the door has been working properly but now doesn't open all the way, increase the

up force. See page 29.

3. If door opens at least 5 feet, the travel limits may need to be increased. One turn

equals 2 inches of travel. See page 28.

Repeat the safety reverse test after the adjustment is complete.

The door stops but

doesn't close

completely:

Review the travel limits adjustment procedures on page 28.

Repeat the safety reverse test after any adjustment of door arm length, close

force or down limit.

34

Situation

Having a Problem? (continued)

Probable Cause & Solution

The door opens but 1.

won't close: 2.

If the opener lights blink, check the safety reversing sensor. See page 23.

If the opener lights do not blink and it is a new installation, check the down force.

See Adjustment Step 2, page 29. For an existing installation, see below.

Repeat the safety reverse test after the adjustment is complete•

The door reverses for

no apparent reason

and opener lights

don't blink:

1. Is something obstructing the door? Pull the red emergency release handle. Operate

the door manually. If it is unbalanced or binding, call for professional garage door

service.

2. Clear any ice or snow from the garage floor area where the door closes.

3. Review the force adjustment procedures on page 29.

4. If door reverses in the fully closed position, decrease the travel limits (page 28).

Repeat safety reverse test after adjustments to force or travel limits• The need

for occasional adjustment of the force and limit settings is normal Weather

conditions in particular can affect door travel

The door reverses for

no apparent reason

and opener lights

blink for 5 seconds

after reversing:

Check the safety reversing sensor. Remove any obstruction or align the receiving eye.

See page 23.

The opener lights:

The opener strains or

maximum force is

needed to operate

door:

•.. don't turn on:

Replace the light bulbs (75 watts maximum). Use a standard neck garage door opener

bulb if regular bulb burns out.

•.. don't turn off:

Is the Light feature on? Turn it off

The door may be out of balance or the springs are broken. Close the door and use the

emergency release to disconnect the trolley. Open and close the door manually. A properly

balanced door will stay in any point of travel while being supported entirely by its springs, tf it

does not, disconnect the opener and call a professional garage door serviceman. Do not

increase the force to operate the opener.

The opener motor

hums briefly, then

won't work:

1. The garage door springs are broken. See above.

2. If the problem occurs on the first operation of the opener, door may be locked. Disable

the doorlock. If the chain was removed and reinstalled, the motor may be out of phase.

Remove the chain; cycle the motor to the down position. Observe the drive sprocket.

When it turns in a clockwise direction and stops in the down position, reinstall the chain.

Repeat the safety reverse test after the adjustment is complete•

Repair Parts

7

DESCRIPTION

Master link kit

2

3

4

5

6

7

41A3489

1B3117

183Bl10

41B2616

41A3473

83A4

41A3534

Complete trolley assembly

T-rail -center section

T-rail - end section

Cable pulley bracket assembly

Chain and cable

Rail grease

NOT SHOWN

Rail assembly hardware kit

(includes hardware illustrated on

page 7).

Installation_ 1Parts _) _ _8 /_0

3/9

4

i

KEY PART _1

NO, NO. DESCRIPTION 1

1 41A4884 Premium control console

2 41A5032 3-function remote control housing

(no circuit board) __-_\ _X O1

2

3 10A19 3V 2016 Lithium battery (2 required) 1 3

4 29B134 Visor clip /

5 31D431 Keyless entry keypad cover

6 31B430 Keyless entry battery cover

7 10A2 12Volt battery

8 41A2828 Emergency rope & handle assembly

9 41A4353 Header bracket w/clevis pin & fastener

10 217A238 2-conductor bell wire - white & white/red

11 178B35 Curved door arm section 14

12 41A5047 Door bracket w/clevis pin & fastener

13 41A4373A Safety sensor kit (receiving and sending eyes)

with 3' 2-conductor bell wire attached 1 5

14 12B483 "C" Wrap Bracket _.._ /

15 12B484 Square Hole Bracket

16 12B485 Slotted Bracket

17 12B350 Hanging brackets

18 178B34 Straight door arm section

NOT SHOWN

41A3475-4 Installation hardware bag (includes hardware

illustrated on page 7). 16

41A4116 Safety sensor hardware

114A2122 Owner's manual

17

18

J

36

Opener Assembly Parts

Repair Parts

I

5

8

19

20

18

5 17 __

16

13

14

Btown

(Down) LIMIT SWITCH

Contact ASSEMBLY

Contact Contact Wire

KEY PART

NO. NO. DESCRIPTION

1

2

4

5

6

7

8

31D380

41 C4220A

41A2817

41 B4245

41C4253

41A5021-2

41A4351

175B88

Sprocket cover

Gear and sprocket assembly

Complete with:

Spring washer

Thrust washer

Retaining ring

Bearing plate

Roll pins (2)

Drive gear and worm gear

Helical gear w/retainer and grease

Drive/worm gear kit w/grease

Roll pins (2)

Line cord

Wire harness assembly w/plug

Receiver logic board assembly

Complete with:

Logic board

End panel w/all labels

End panel w/all labels

Light socket

KEY

NO.

9

10

11

12

13

14

15

16

17

18

19

20

PART

NO.

108D48-2

30B363

12A373

41A3150

41D3058

41D0328-7

41A2818

41D3452

41C4398A

41A2826

41A2822A

41A4352

41A2825

DESCRIPTION

Lens

Capacitor- 1/2HP

Capacitor bracket

Terminal block w/screws

Universal replacement motor &

bracket assembly

Complete with: Motor, worm,

bracket, bearing assembly,

RPM sensor

Cover

Helical gear & retainer w/grease

Limit switch assembly

RPM sensor assembly

Shaft bearing kit

Interrupter cup assembly

End panel

NOT SHOWN

Opener assembly hardware kit

(includes screws not designated by

a number in illustration).

37

Accessories

Sears offers many useful accessories for your garage door opener. They are illustrated below with

Sears model numbers and descriptions.

139.53702

/

139.53703

Emergency Key Release:

Required for a garage with NO

access door. Enables homeowner

to open garage door manually from

outside by disengaging trolley.

139.53704

Outdoor Key Switch:

Operates the garage door

automatically from outside when

remote control is not handy.

139.53705

53885

8 Foot Rail Extension

To allow an 8 foot door to open fully

10 Foot Rail Extension:

To allow a 10foot door to open fully.

Support Brackets:

For finished ceilings or where

additional support is required,

based on garage construction.

Includes brackets and fastening

hardware.

139.53681

139.53680

139.53684

139.53686

139.53709

SECURITY+ 3-Function Remote

Control:

Includes visor clip.

SECURITY+ Compact

3-Function Remote Control:

With loop for attaching key ring.

(Available April, 1997)

SECURITY+ Keyless Entry:

Enables homeowner to operate garage

door opener from outside by entering a

password. Also can add a temporary

password for visitors or service

persons. This temporary password can

be limited to a programmable number

of hours or entries.

Plug-In Light Control:

Enables homeowner to turn on a

lamp, television or other appliance

from car, bedside, or anywhere in

the home with a remote.

(Available April, 1997)

Door Clearance Brackets:

(For Sectional Doors Only)

Replaces top brackets and rollers on

door to reduce height of door travel.

For use when installing opener in

garage with low headroom clearance.

To Add the Keyless Entry

We recommend that you program your password

before you install the Keyless Entry. You will not

need assistance, and you can test the reception at

the mounting location before installation.

If you have a Premium Control Console:

1. With the door closed, press the four digit password

desired, then press and hold Enter.

2. Press and hold the light button on the door control.

3. Press and hold the door control push bar.

4. After the opener light flashes, release all buttons.

If you do not have aPremium Control Console:

1. Choose a 4-digit password using numbers from

0 to 9 (a number can be used more than once, for

example, 4, 0, 4, 1).

2. Press the four buttons for the password, then press

and hold the Enter button. The indicator light on

the door opener panel will blink.

3. Press and release the SRT (learn) button on the

opener panel. After the opener light flashes,

release the Enter button.

Test by pressing the password, then press Enter. The

door should begin to move.

38

Index

Chain Tension .............................................................................................................................................. 4, 5, 11

Electrical Safety Warnings ........................................................................................................................ 2, 20, 31

Garage Door

Testing for balance, binding and sticking ................................................................................................... 3, 28, 31

Determining high point of travel:

Sectional door ................................................................................................................................................... 12

One-piece door ................................................................................................................................................. 13

Disabling existing locks .................................................................................................................................... 3, 11

Door clearance brackets (for garages with low headroom) .............................................................................. 38

Force controls

Adjustment procedures ................................................................................................................................. 4, 29

Problems that might require force adjustments .......................................................................................... 34, 35

Safety warnings .......................................................................................................................................... 29, 31

Door hardware ..................................................................................................................... 3, 9, 11, 12, 18, 31,32

Maintenance instruction label ........................................................................................................................ 11, 28

Reinforcement requirements ........................................................................................................................... 4, 24

Removing of all ropes ....................................................................................................................................... 3, 11

Possible door damage ................................................................................................................................... 16, 24

Travel limits

Adjustment procedures ..................................................................................................................................... 28

Problems that might require limit adjustments ............................................................................................ 34, 35

Safety warnings .......................................................................................................................................... 28, 31

Manual (Emergency) Release Rope & Handle

Lockout feature .................................................................................................................................................... 32

Manual disconnect ............................................................................................................................................... 32

Safety warnings ................................................................................................................................. 11, 19, 31,32

Opener Terminals

Door control connections ..................................................................................................................................... 18

Safety reversing sensor connections ................................................................................................................... 23

Operational Noise

Sprocket noise ..................................................................................................................................................... 11

Vibration noise (isolator kit) ................................................................................................................................. 34

Receiver and Remote Control

Programming the receiver ................................................................................................................................... 33

Erasing all codes ................................................................................................................................................. 33

Activating other openers ...................................................................................................................................... 33

Safety warning ..................................................................................................................................................... 33

Problems with remote control operation .............................................................................................................. 34

Safety Reverse Test Procedure .......................................................................................................................... 30

Testing required ................................................................................................................................. 11,30, 34, 35

Safety reverse system problems

Securing header bracket to wall ....................................................................................................................... 12

Adjusting travel limits ........................................................................................................................................ 28

Applying excessive force on the door ............................................................................................................... 29

Buckling or uneven floor ................................................................................................................................. 4, 5

Safety Warnings ......................................................... 2, 3, 9, 11, 12, 16, 18, 19, 20, 21, 24, 28, 29, 30, 31, 32, 33

User Instruction Label for garage wall ........................................................................................................ 11, 18

39

For professional installation

Call 24 hours a day, 7 days a week

1-800-865-6500

For the repair or replacement parts you need

Call 7 am - 7 pm, 7 days a week

1-8OO-366-PART

(1-800-366-7278)

For in-home major brand repair service

Call 24 hours a day, 7 days a week

1-800-4-REPAI R

(1-800-473-7247)

For the location of a Sears Repair Service Center in your area

Call 24 hours a day, 7 days a week

1-800-488-1 222

For information on purchasing aSears Maintenance Agreement

or to inquire about an existing Agreement

Call 9 am - 5 pm, Monday-Saturday

1-800-827-6655

The model number label is located under the light lens on the

front end panel of your opener. When requesting service or

ordering parts, always give the following information:

* Product Type

*Model Number

* Part Number

*Part Description

America's Repair Specialists

SEARS WARRANTY

FULL 90-DAY WARRANTY ON GARAGE DOOR OPENER

For 90 days from the date of purchase, Sears will repair this Garage Door Opener, free of charge, if defective in material or

workmanship.

LIMITED WARRANTY

From the 91 st day until one year from the date of purchase, Sears wilt furnish replacement parts for any defective parts, free of charge.

You pay for labor.

LIMITED WARRANTY ON MOTOR

I/2HP MOTOR: After 1 year and through 5 years, if the motor on this Garage Door Opener is defective, Sears wilt furnish a replacement

motor, free of charge. You pay for labor.

LIMITATION ON LIABILITY

SEARS WILL NOT BE LIABLE FOR LOSS OR DAMAGE TO PROPERTY OR ANY INCIDENTAL OR CONSEQUENTIAL LOSS OR

EXPENSE FROM PROPERTY DAMAGE DUE DIRECTLY OR INDIRECTLY FROM THE USE OF THIS PRODUCT. Some states do

not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty does not cover light bulbs or repair parts necessary because of operator abuse or negligence, including the failure to

install, adjust and operate this garage door opener according to instructions contained in the owner's manual.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS CENTER/DEPARTMENT IN THE UNITED

STATES.

This warranty applies only while this product is in use in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

114A2122D ©1997, All Rights Reserved Printed in Mexico
