Model No.

139.53800SRT

For Residential Use

Only

Caution:

Read and follow all

safety rules and

operating instructions

before first use of this

product.

Fasten the manual

near the garage door

after installation.

Complieswith UL 325

regulationseffective

January 1, 1993

OPENER

a Safety Precautions

a Assembly

a_nstallation

a Adjustment

a Care and Maintenance

a Operation

wTroubleshooting

a Parts List

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A°

Contents Page

A review of safety alert symbols...o................................2

You II need tools .................................................................... 3

Safety information regarding garage door

locks and ropes .................................................................3

Testing your garage door for sticking,

binding and balance ......................................................3

Illustration of sectional door installation ..........................4

illustration of one-piece door installation .....................5

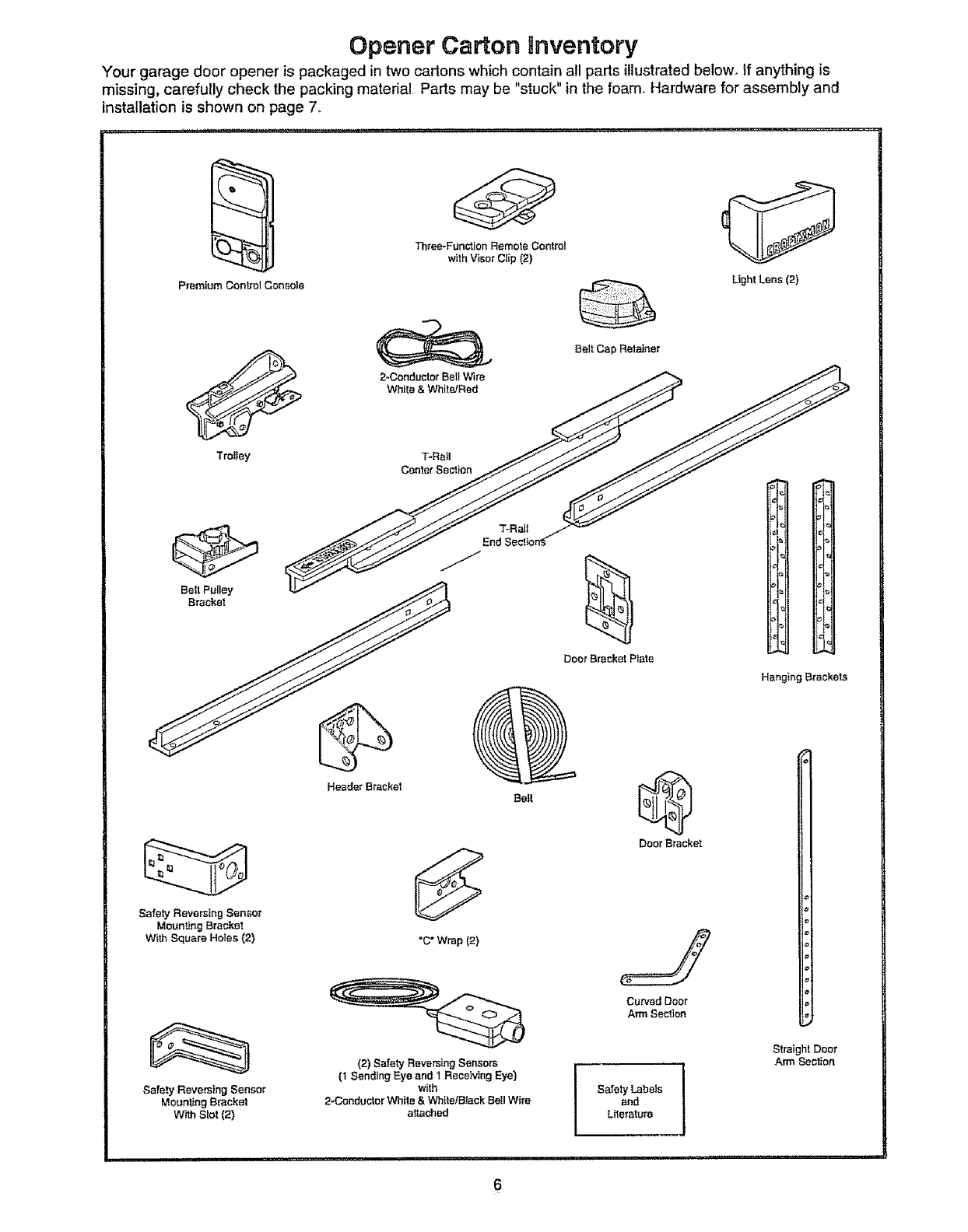

Carton inventory ................................................................6

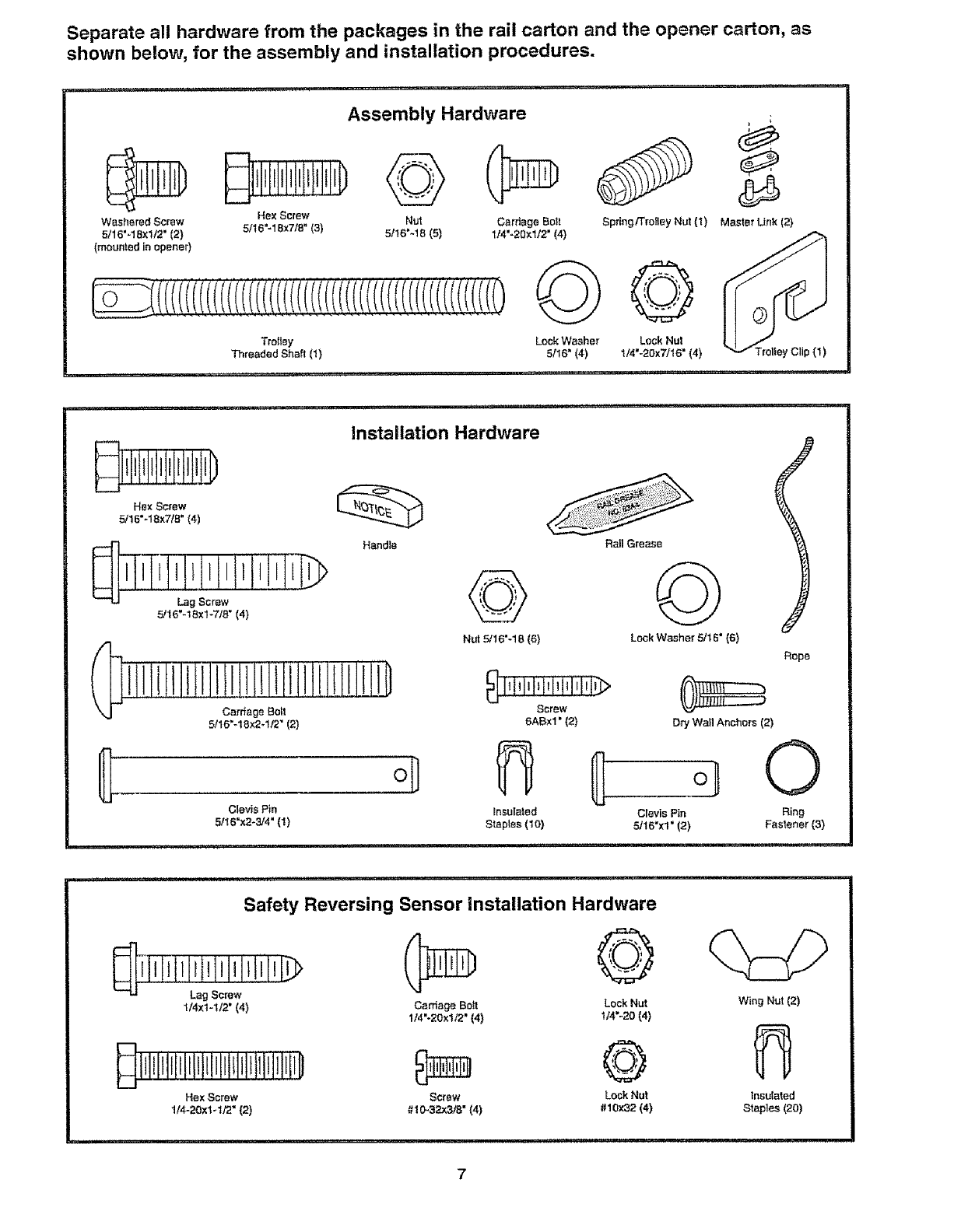

Hardware inventory ..........................................................7

Assembly section - pages 8 - 11

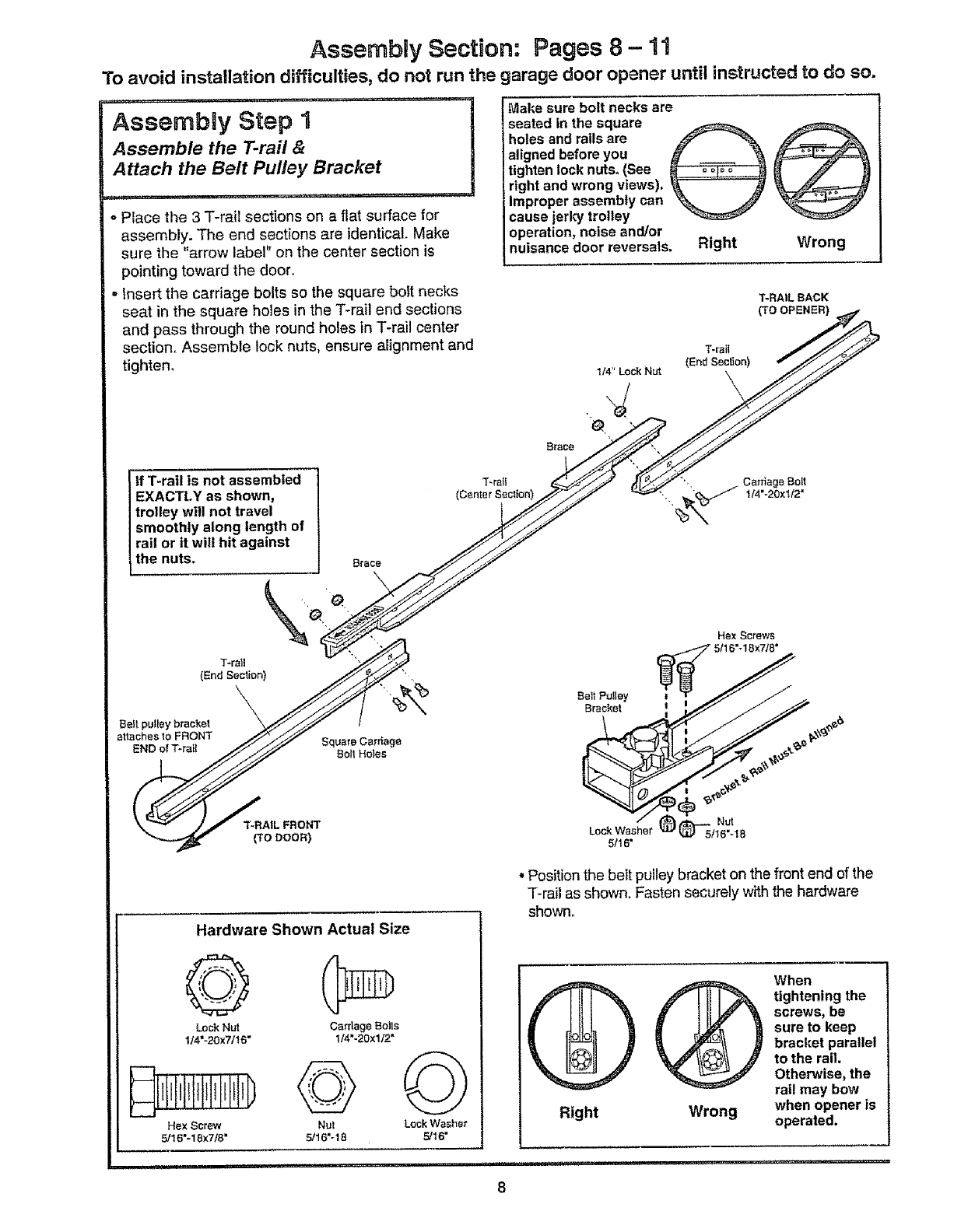

Assemble T-rait .................................................................8

Attach belt pulley bracket ......................................................8

Install trolley ...........................................................................9

Fasten T-rail to opener .................................................9

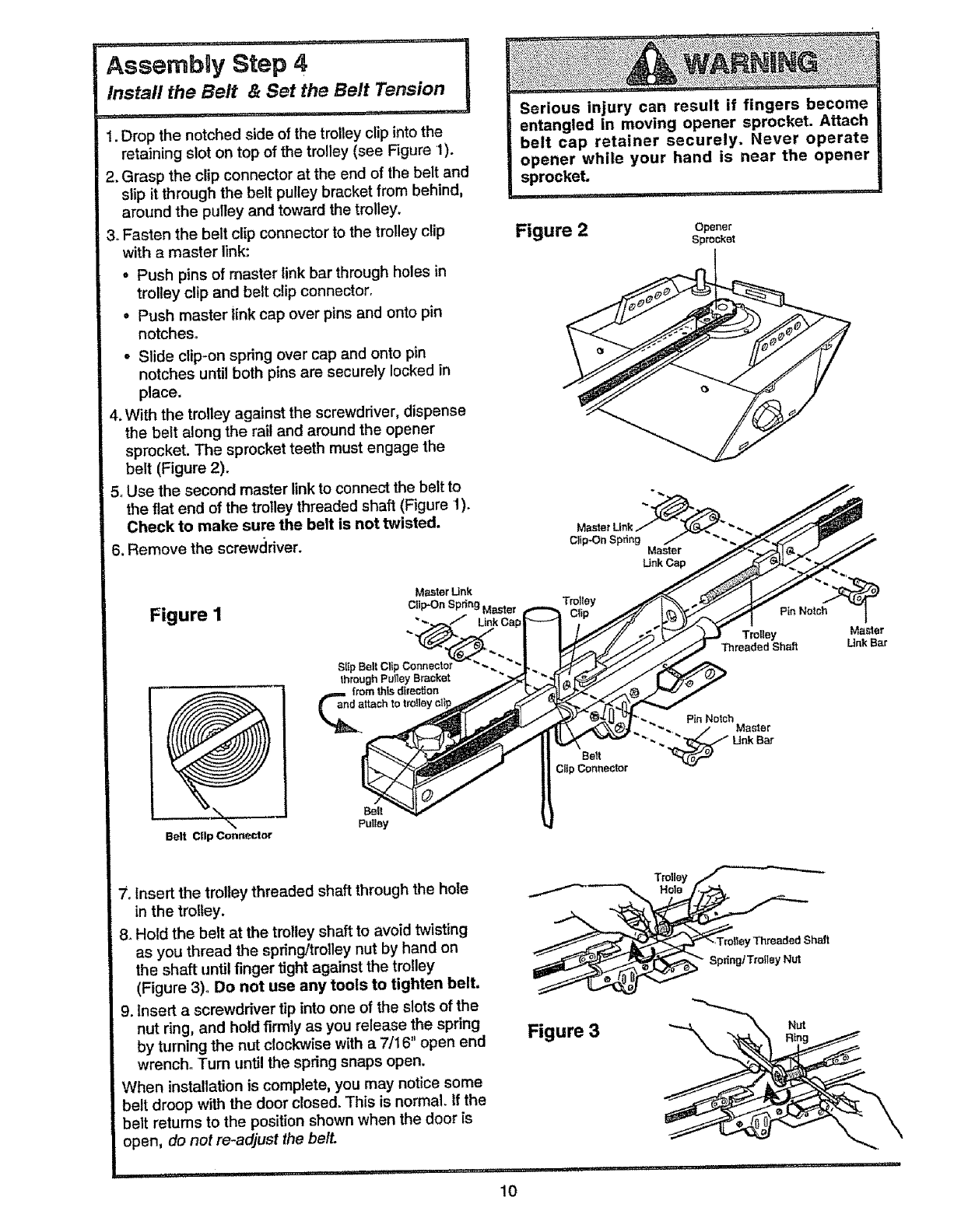

Install belt ................................................................................10

Set the belt tension ...........................................................t0

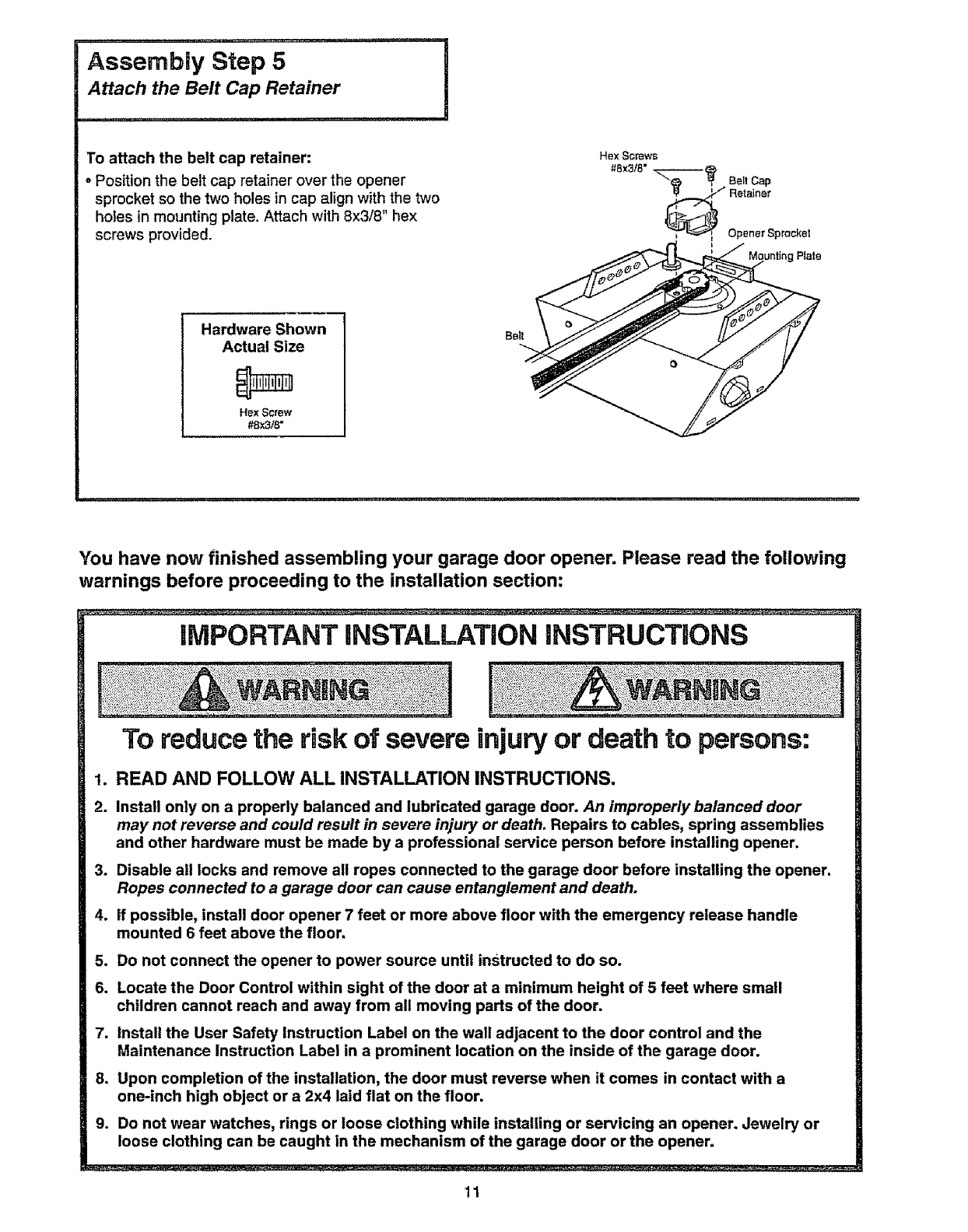

Attach belt cap retainer ...................................................1t

installation section -.pages 11 -27

installation safety instructions ..................................11

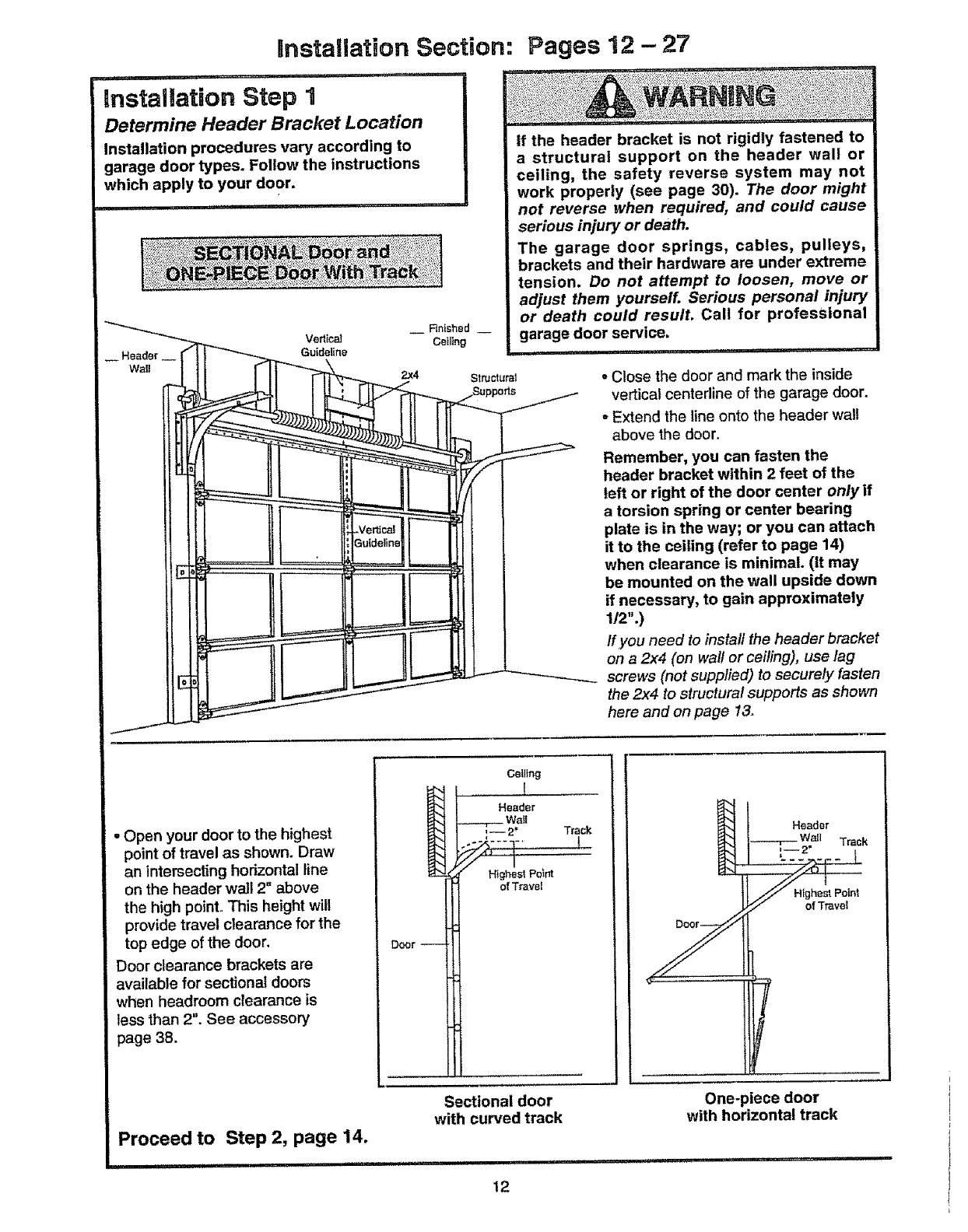

Determine header bracket location

Sectional door ................................................................12

One-piece door ...................................................................13

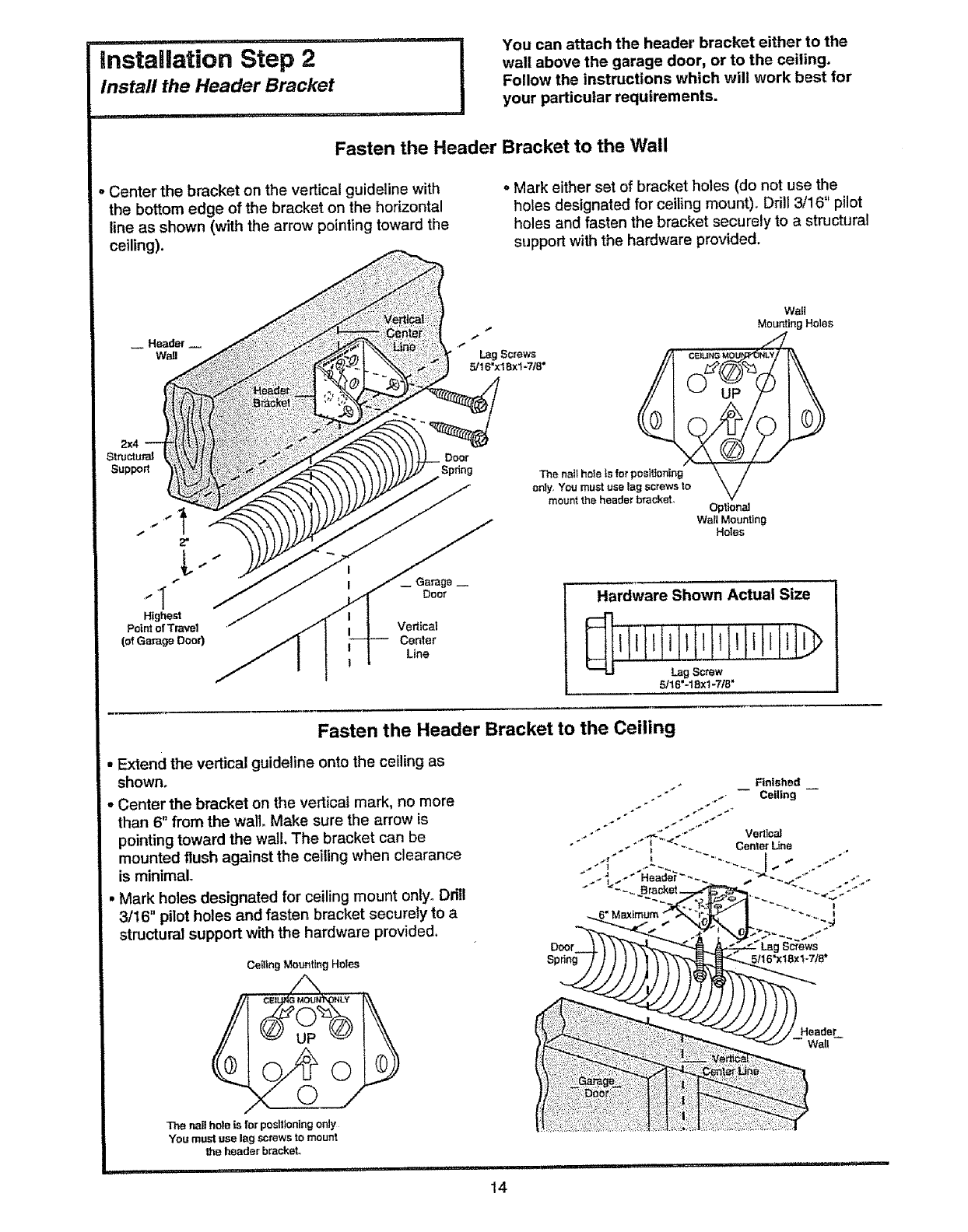

Install the header bracket ................................................14

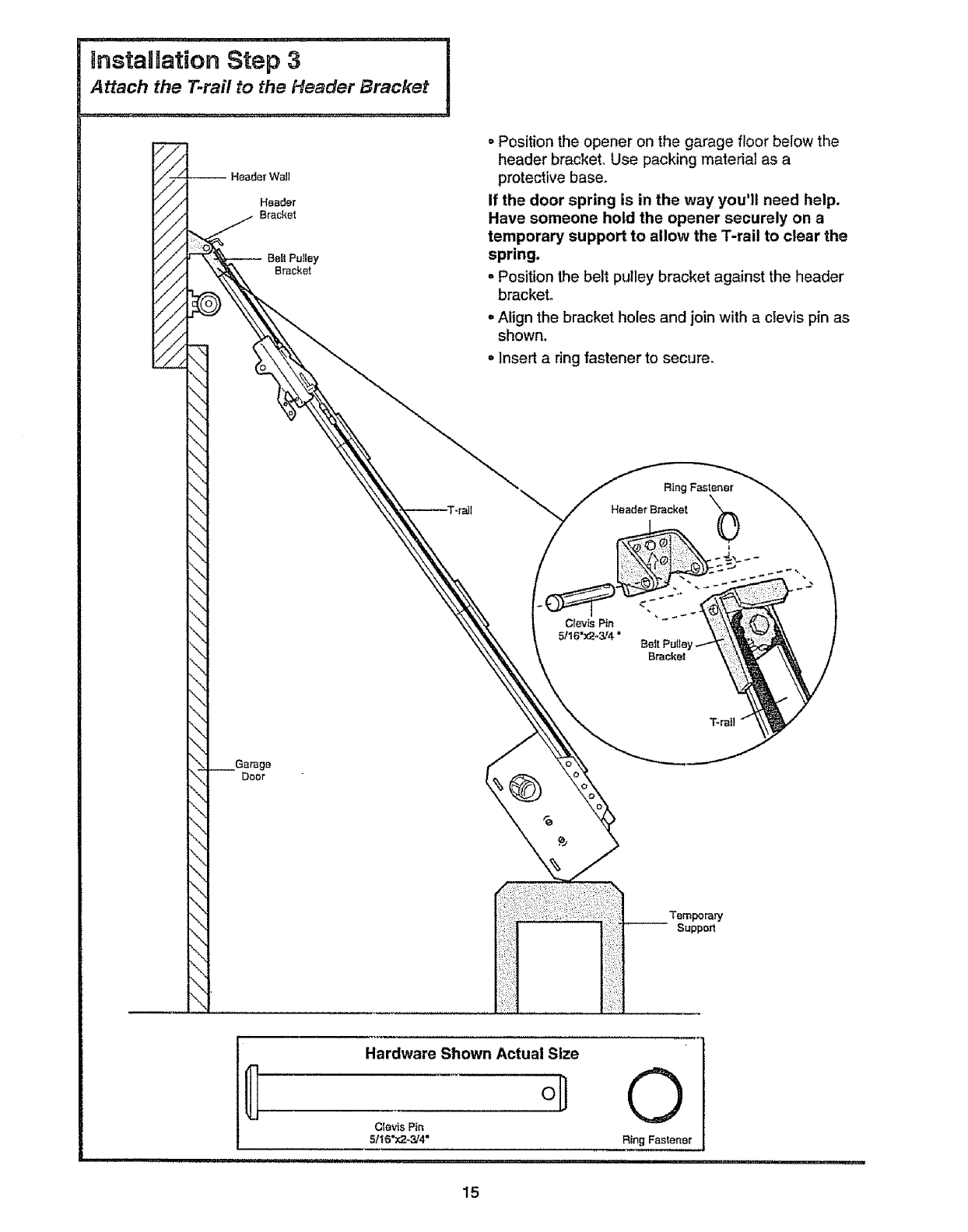

Attach the T-rail to header bracket ..............................15

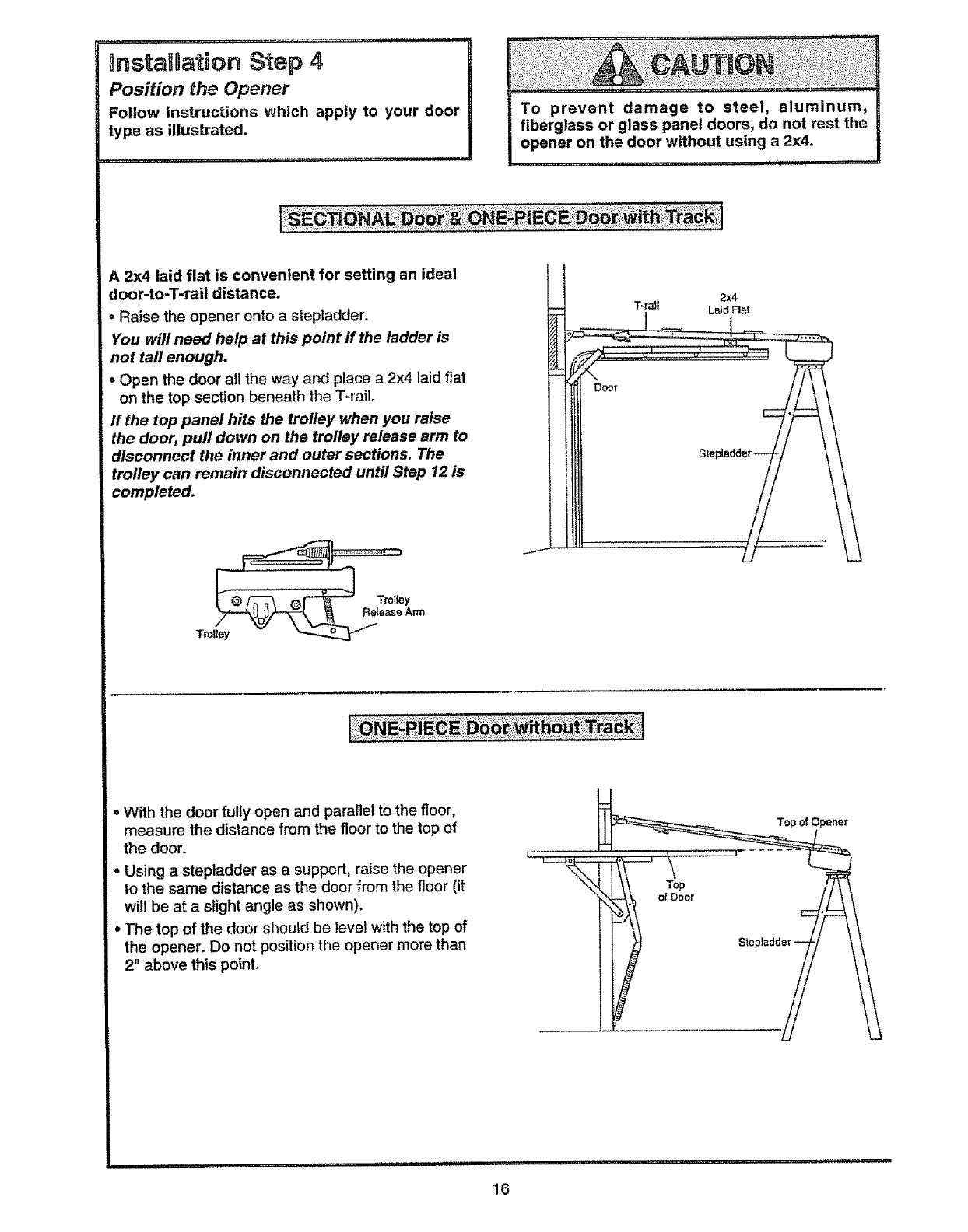

Position the opener ................................................................16

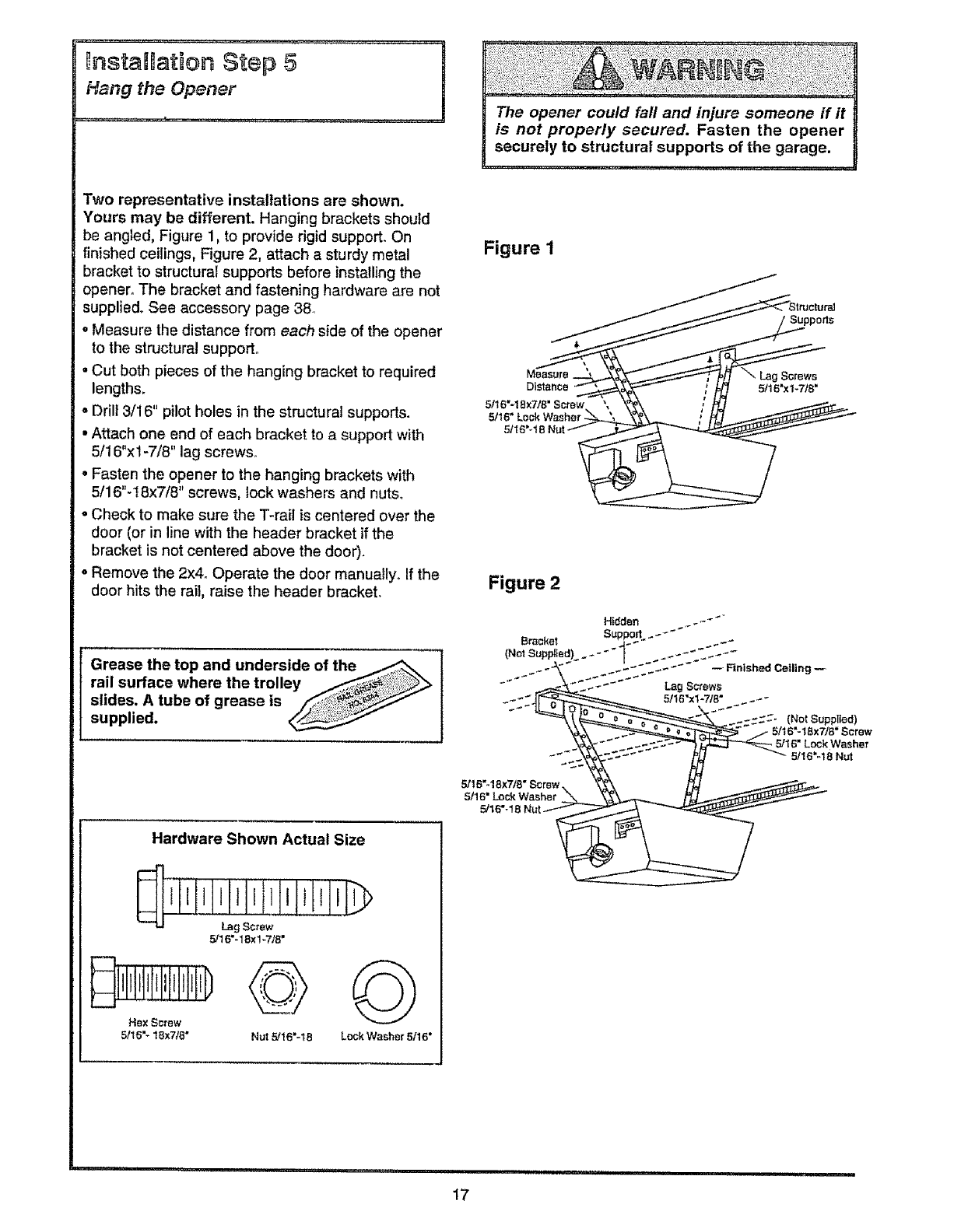

Hang the opener ................................................................17

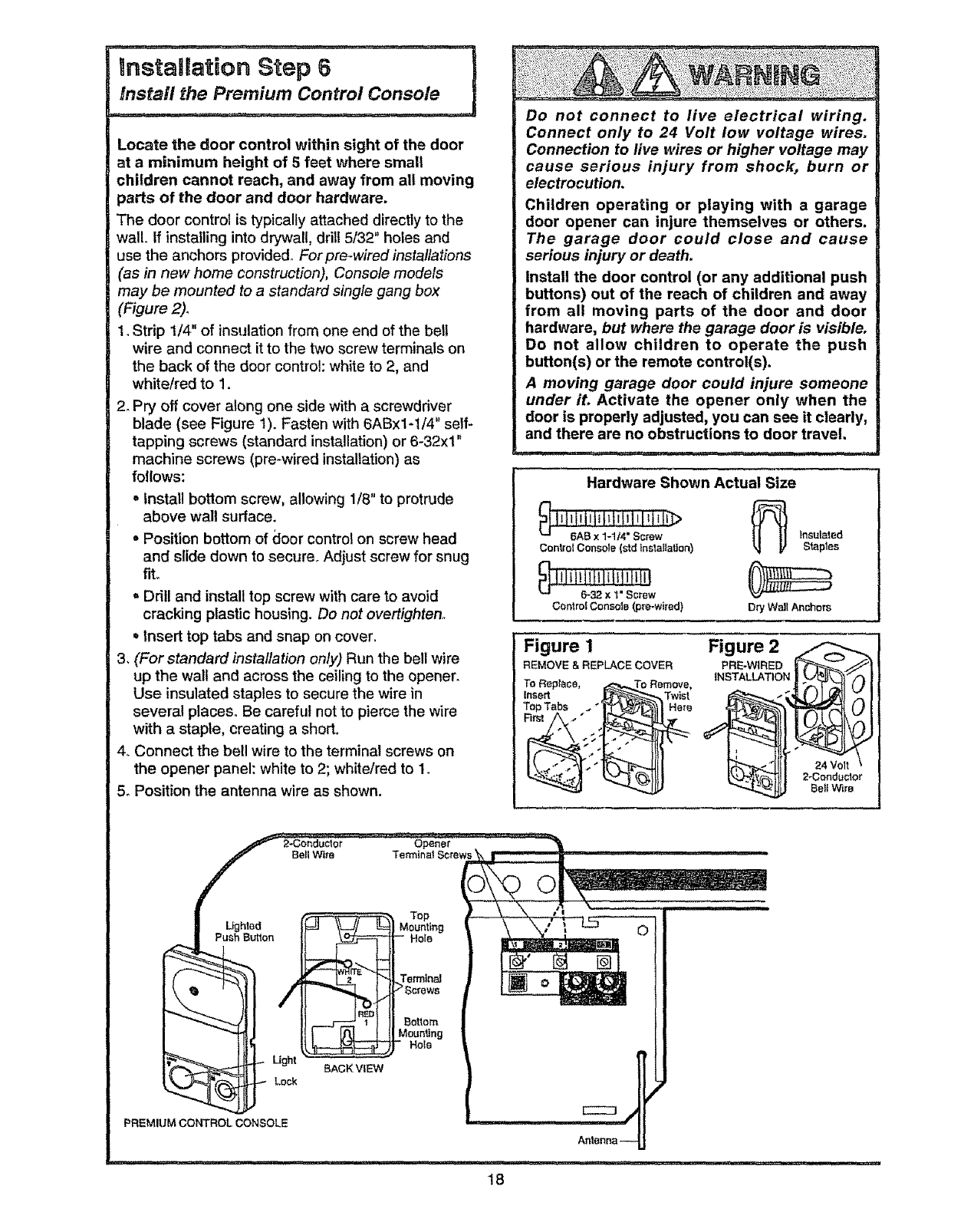

Installthe door control ................................................... t8

Contents Page

Install the lights and lenses ........................................19

Attach emergency release rope and handle .............19

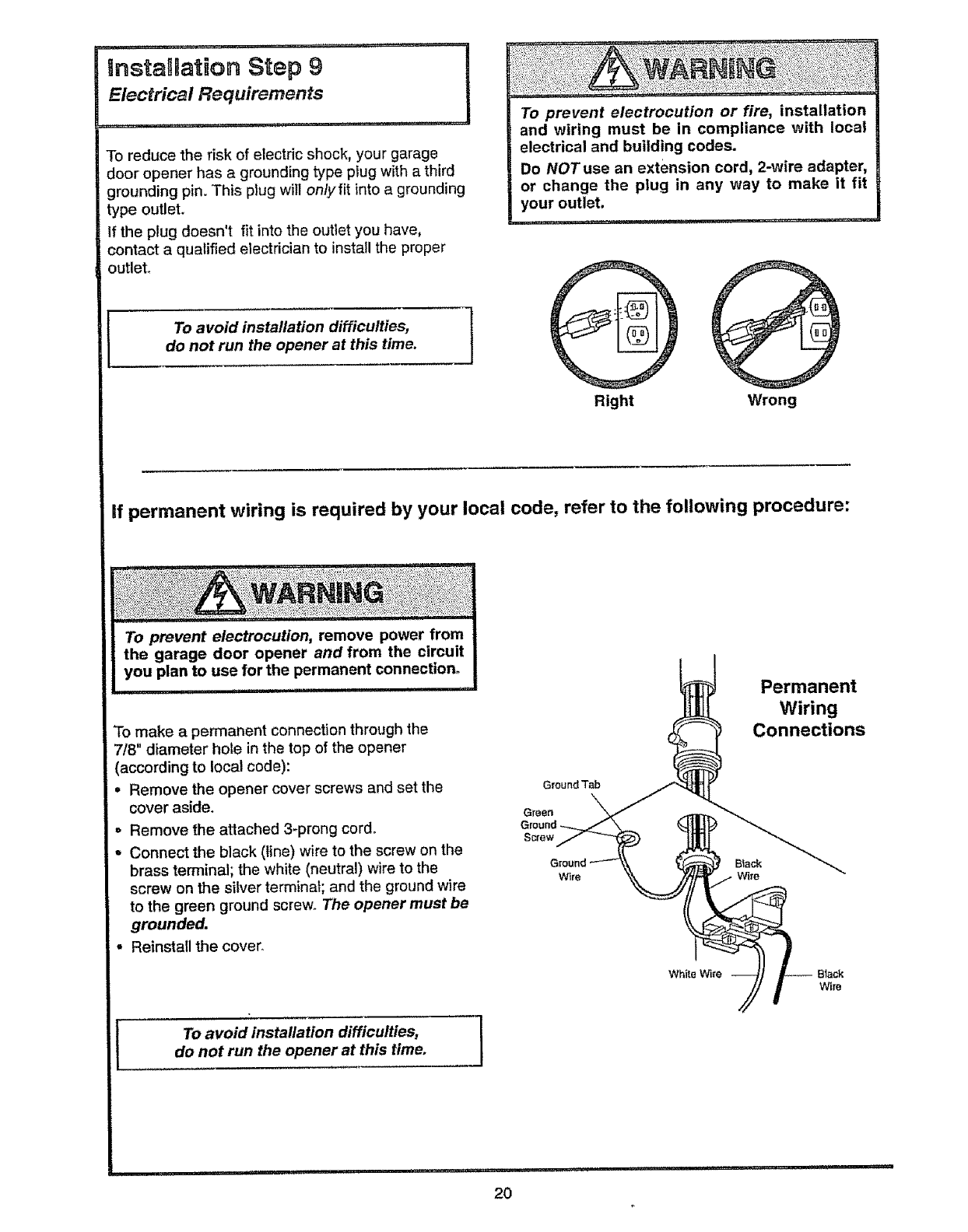

Electrical requirements .................................................20

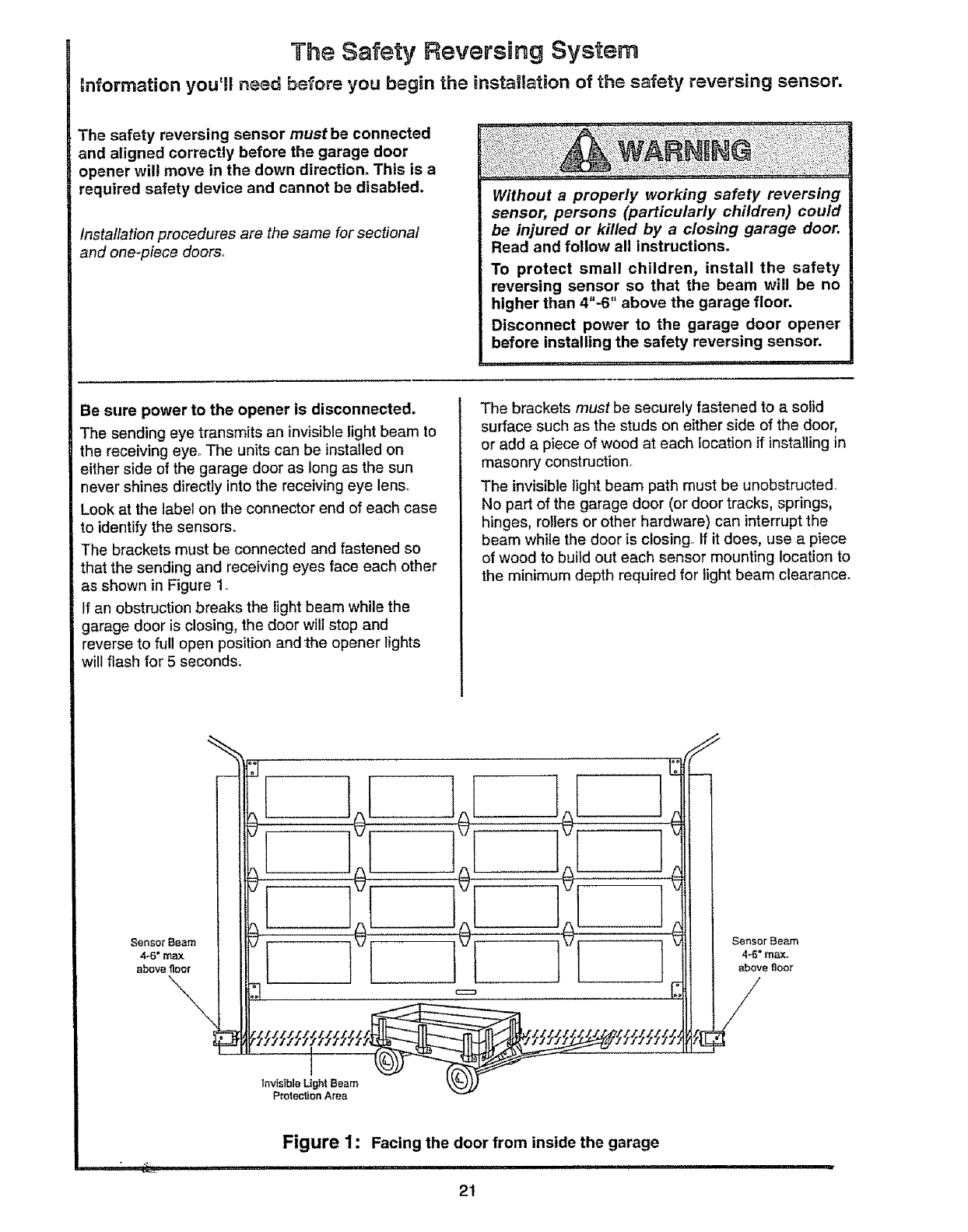

Safety reversing sensor information .........................21

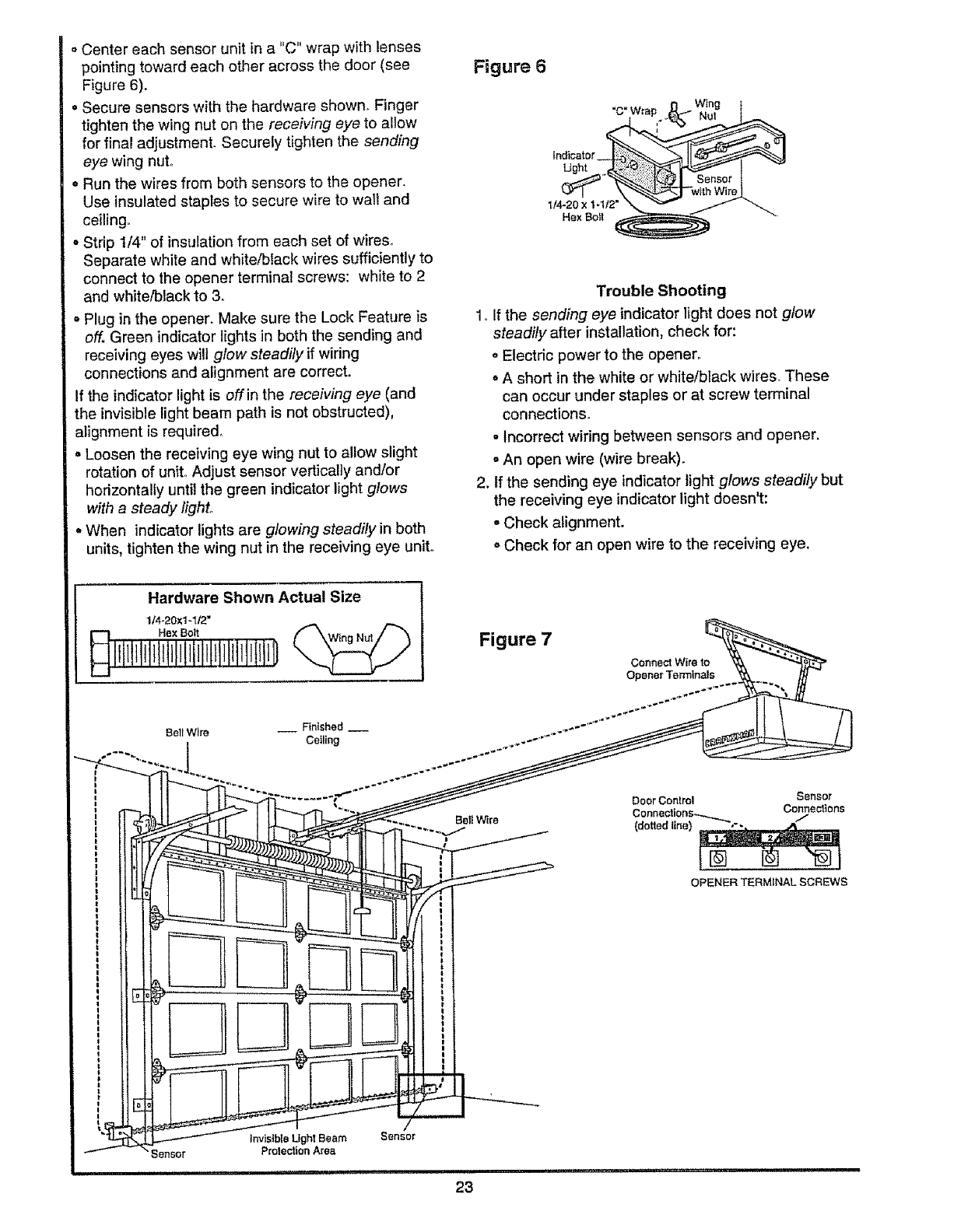

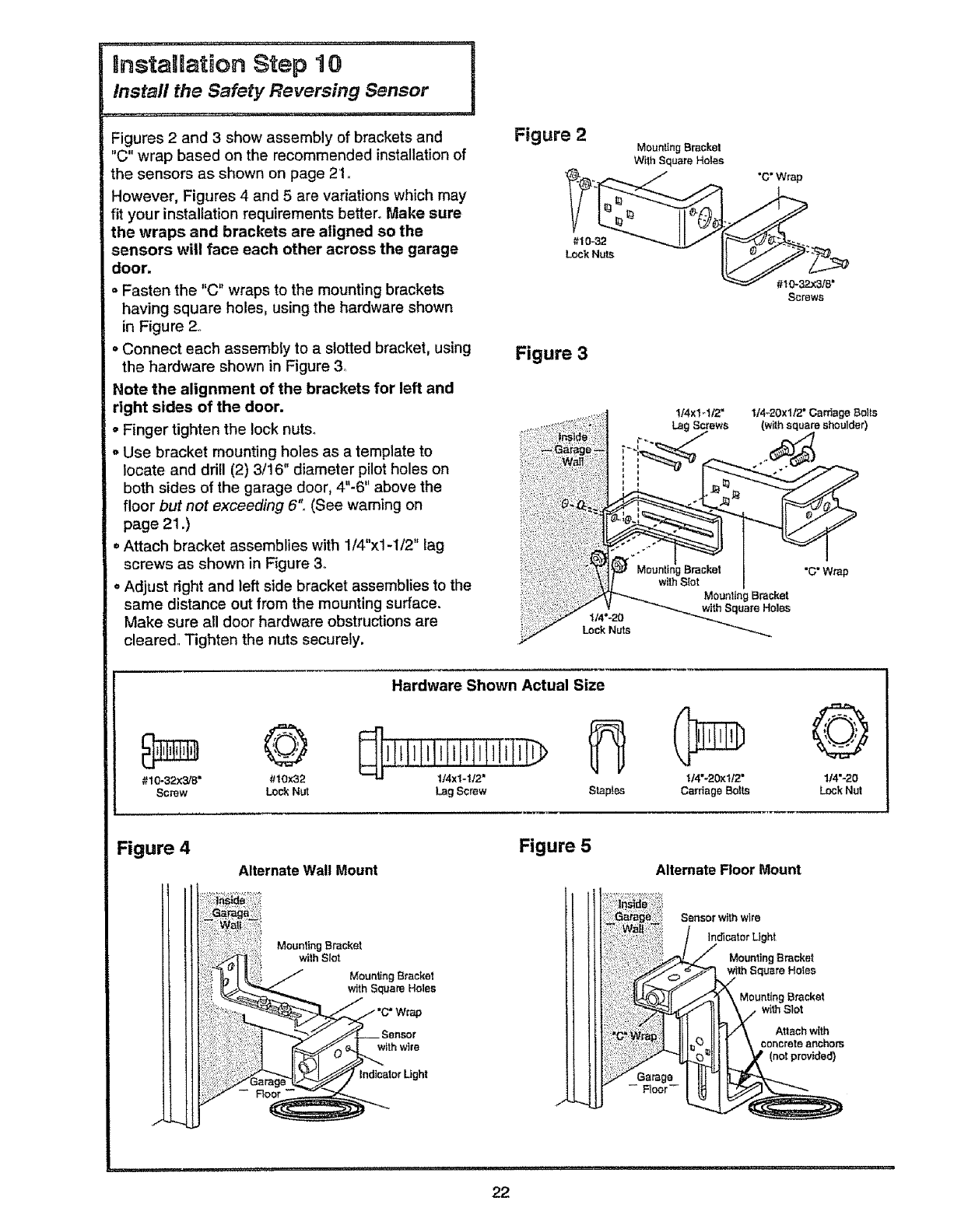

Install the safety reversing sensor ........................22, 23

Fasten door bracket (sectional door) ........................24

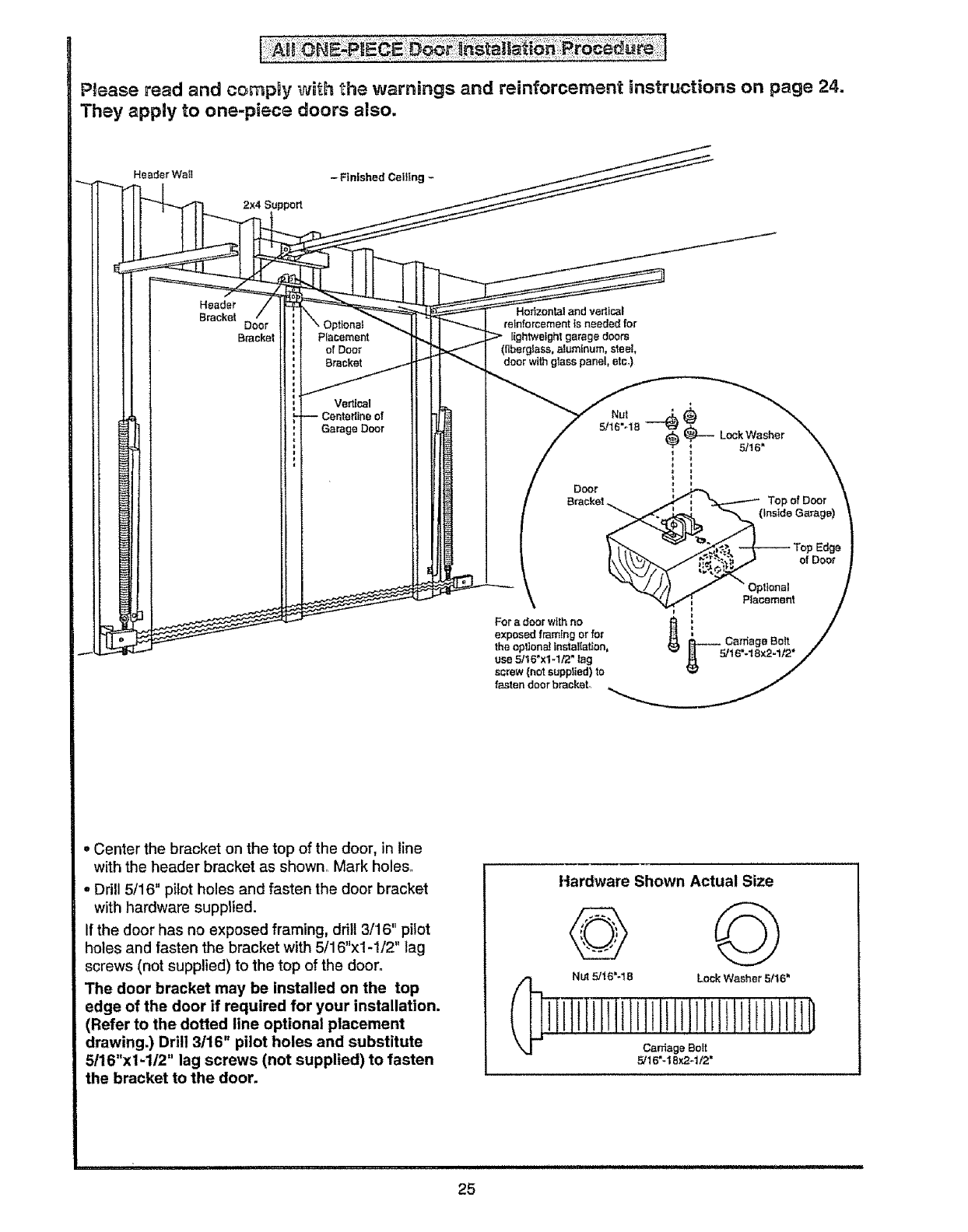

Fasten door bracket (one-piece door) ..........................25

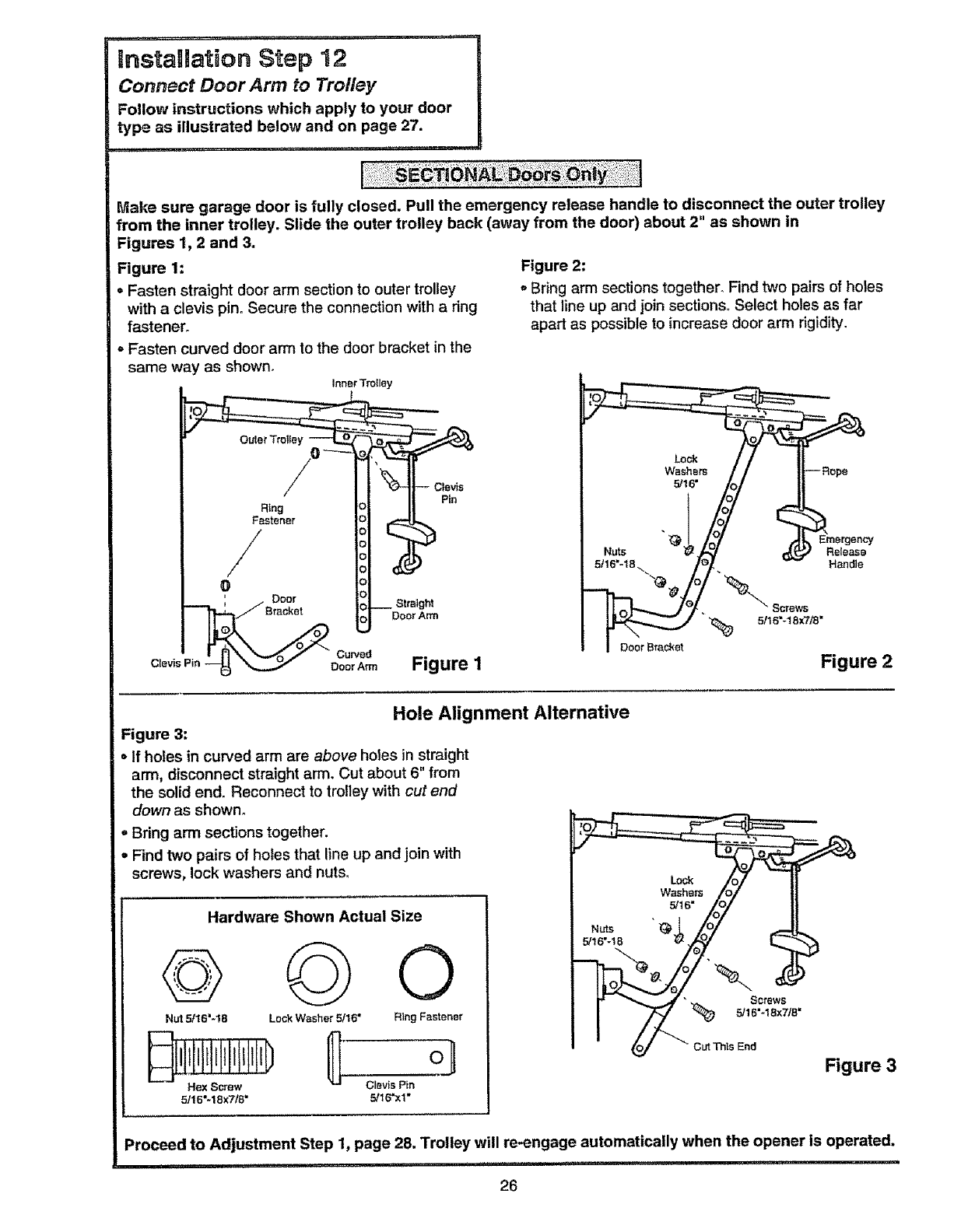

Connect door arm to trolley (sectional door) ............26

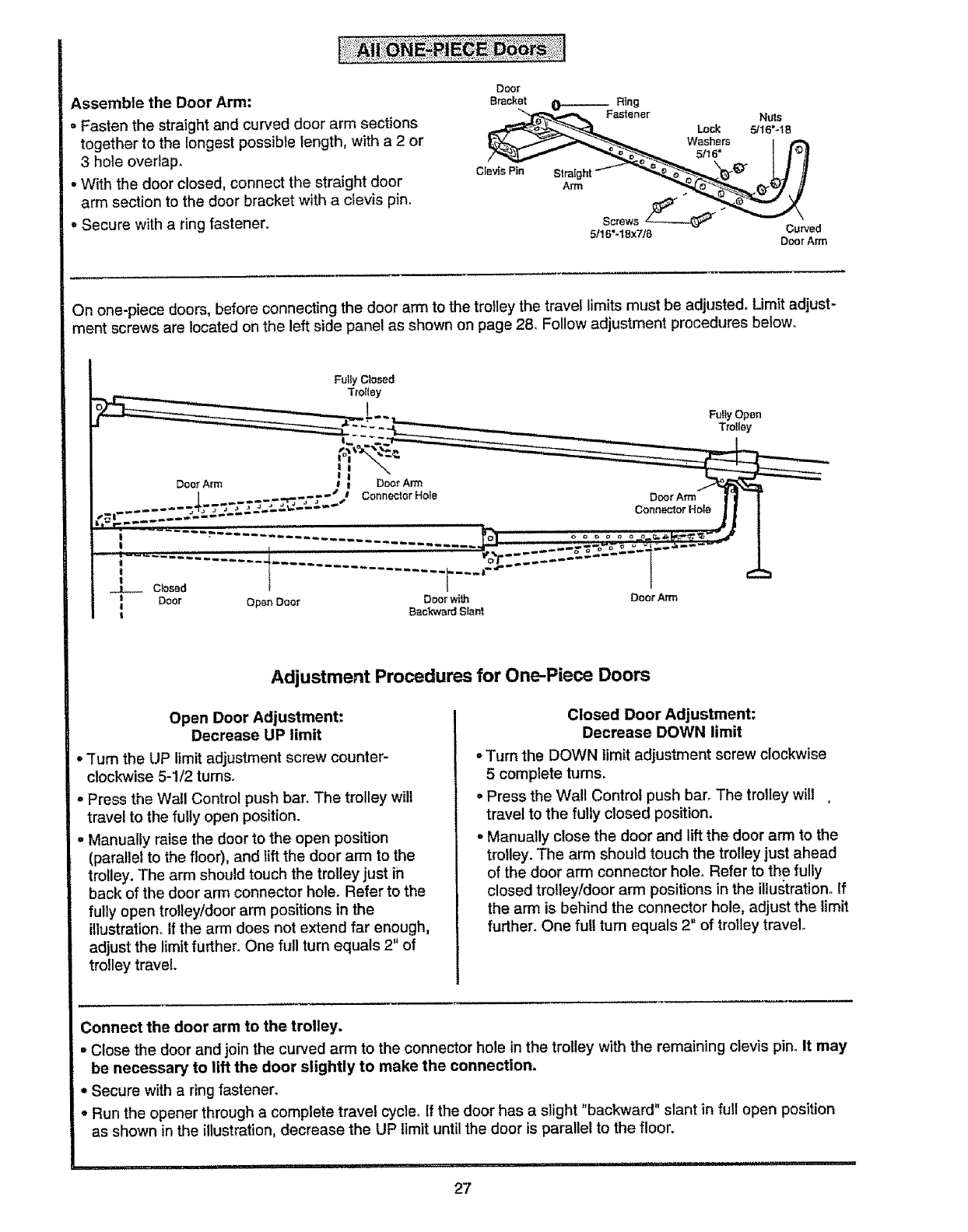

Connect door arm to trolley (one-piece door) ..........27

Adjustment section - pages 28 - 30

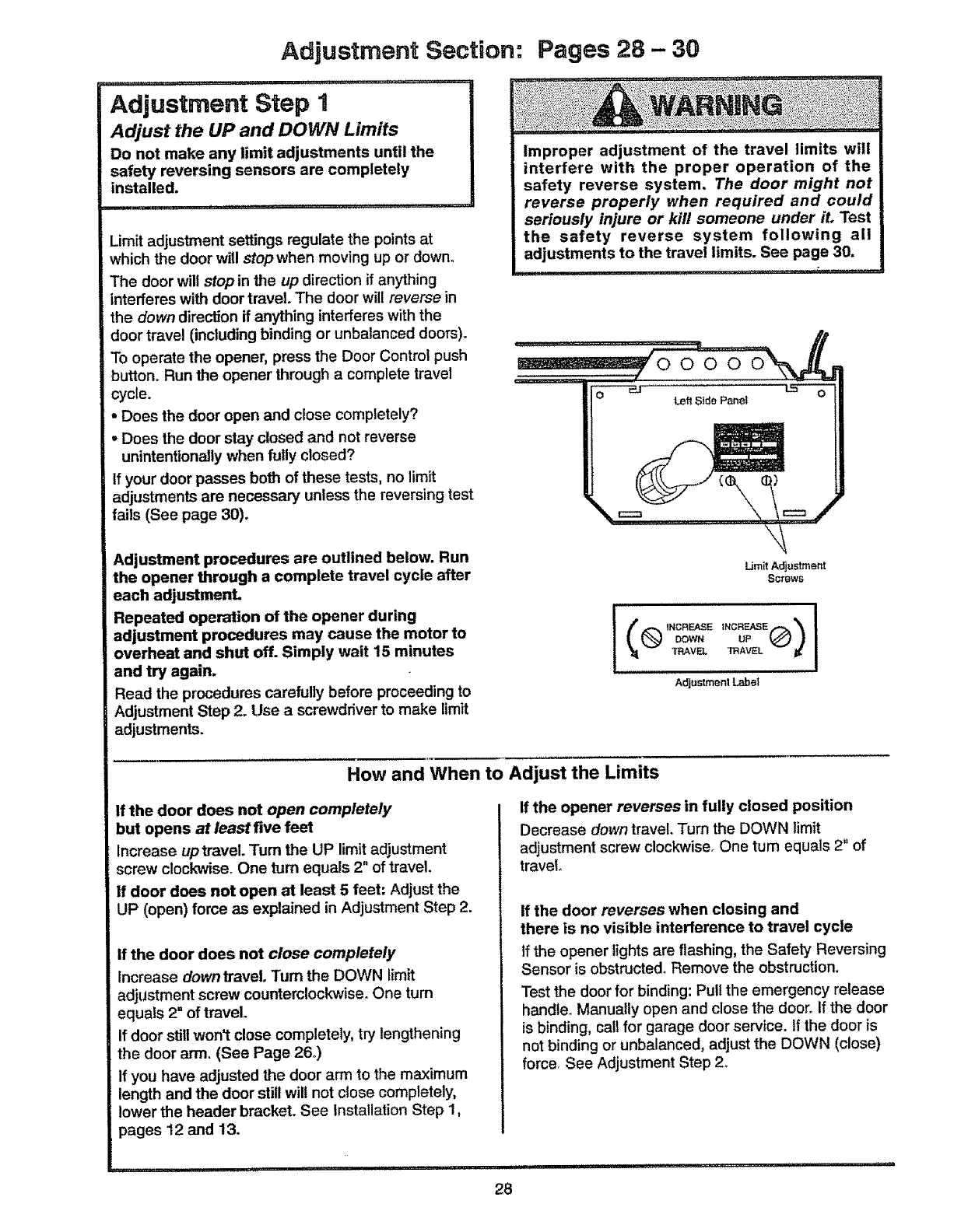

Travel limit adjustments .................................................28

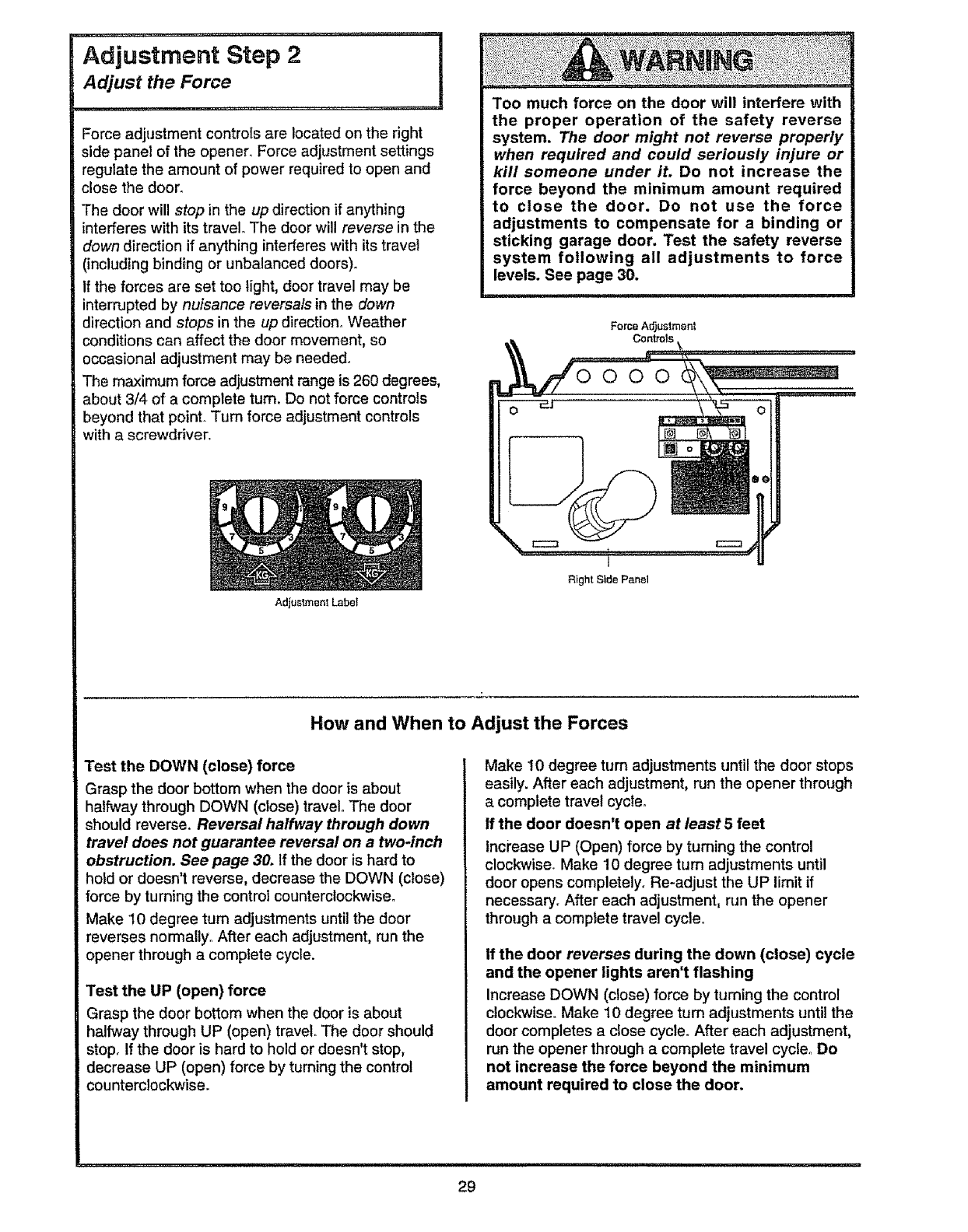

Force adjustments ..............................................................29

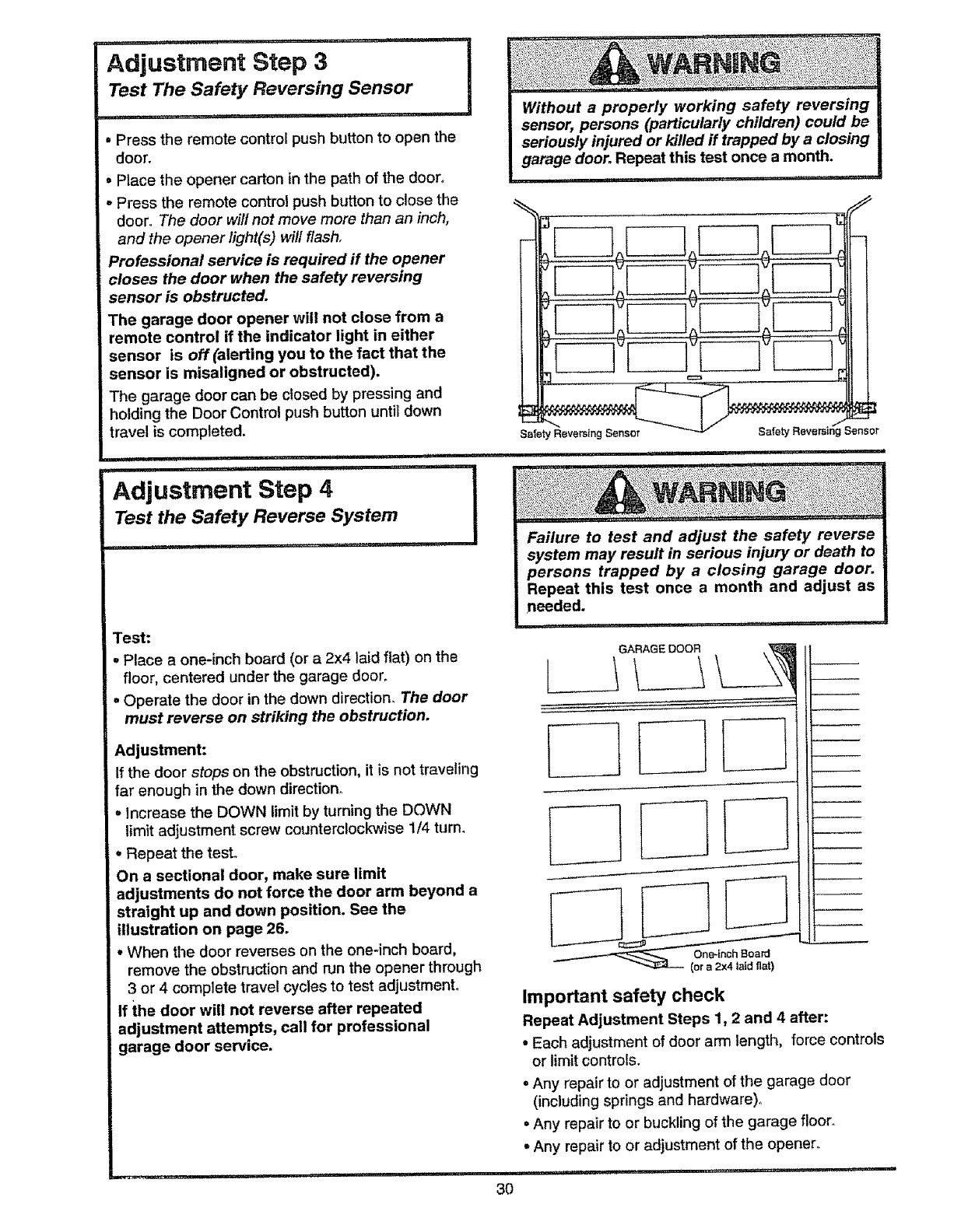

Test the safety reversing sensor ...............................30

Test the safety reverse system ..................................30

Operation safety instructions ...........................................3t

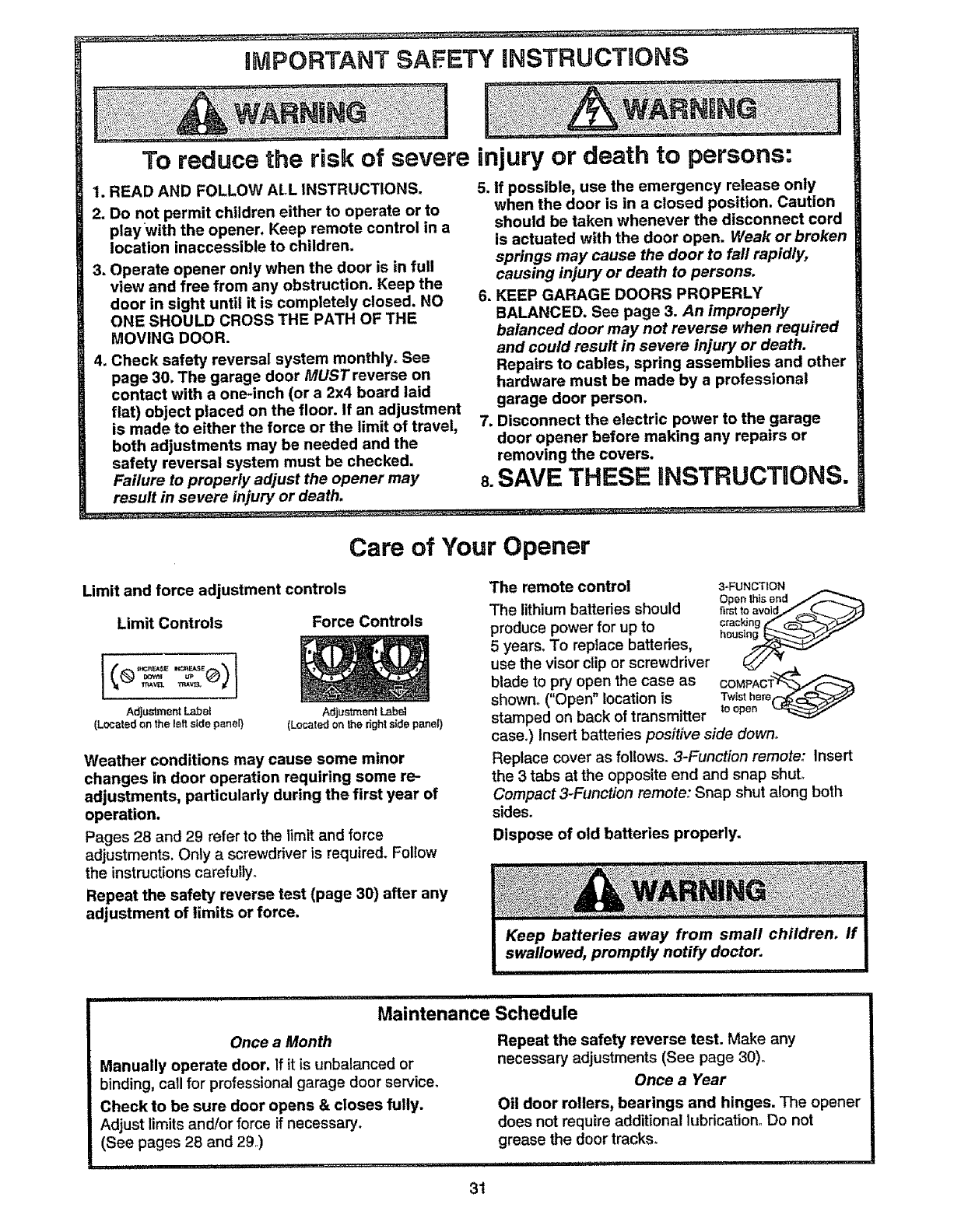

Care of your opener ............................................................31

Maintenance schedule .........................................................3I

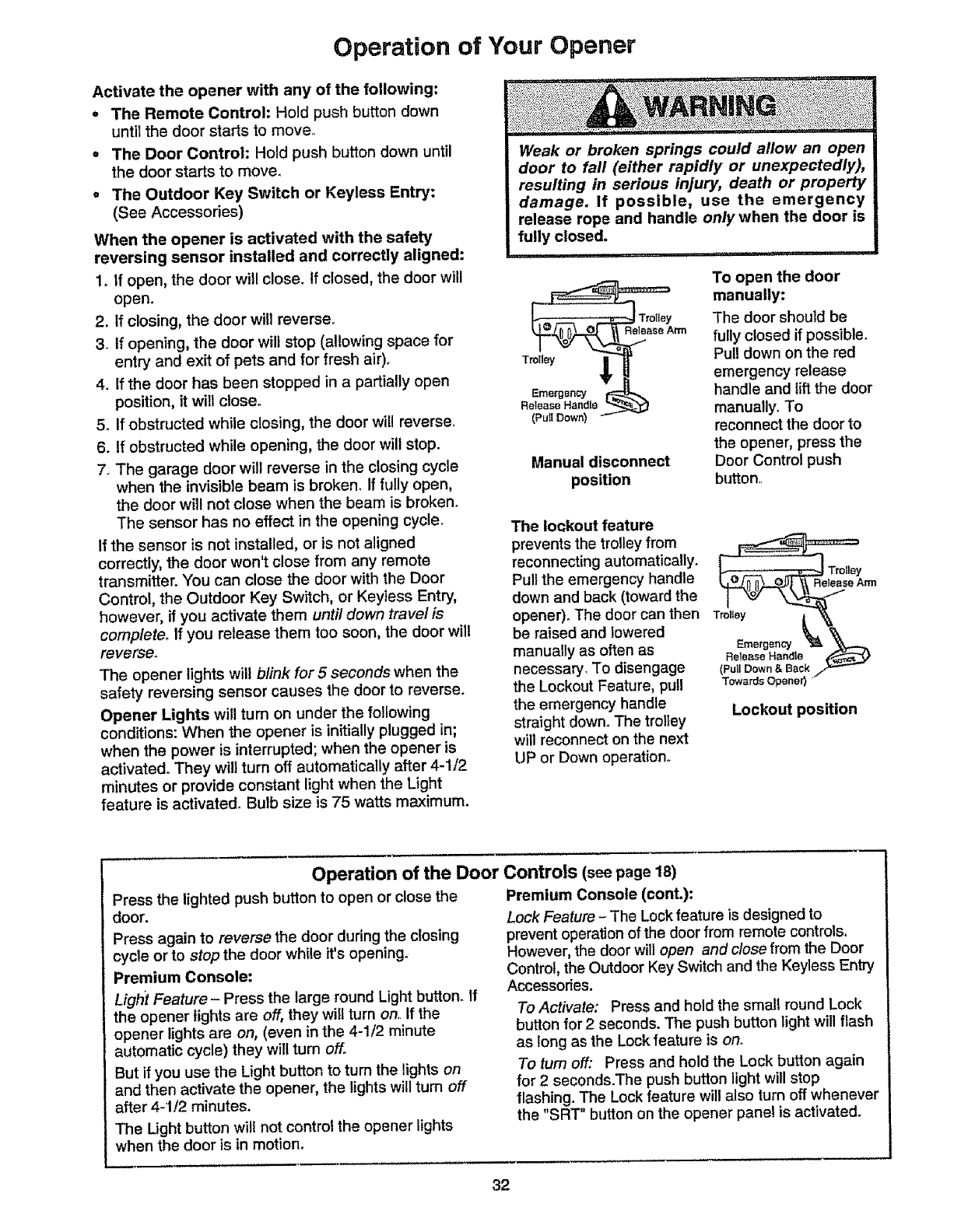

Operation of your opener ...................................................32

Receiver and remote control programming ..................33

Having a problem? .......................................................34, 35

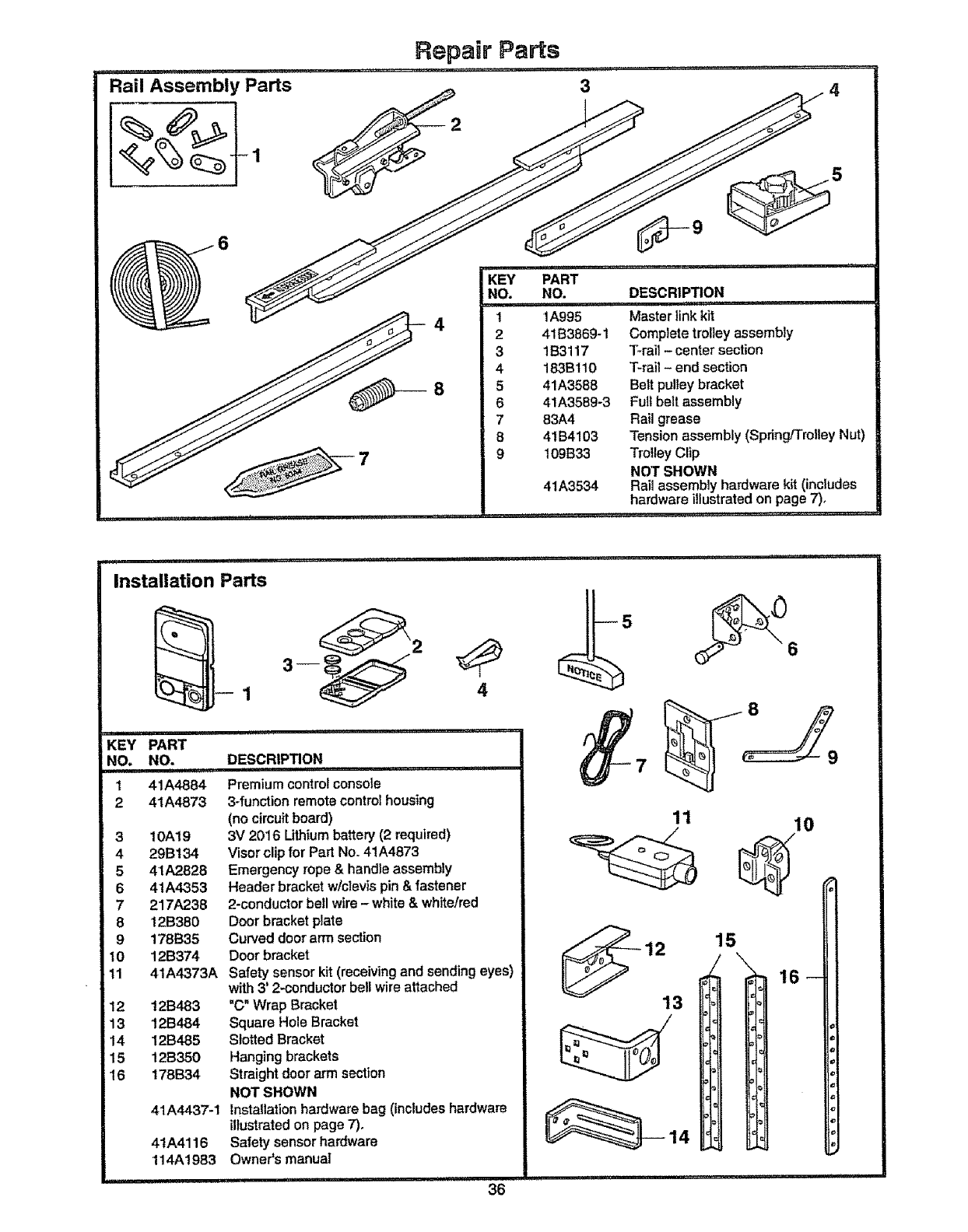

Repair parts, rail assembly ................................................36

Repair parts, installation .....................................................36

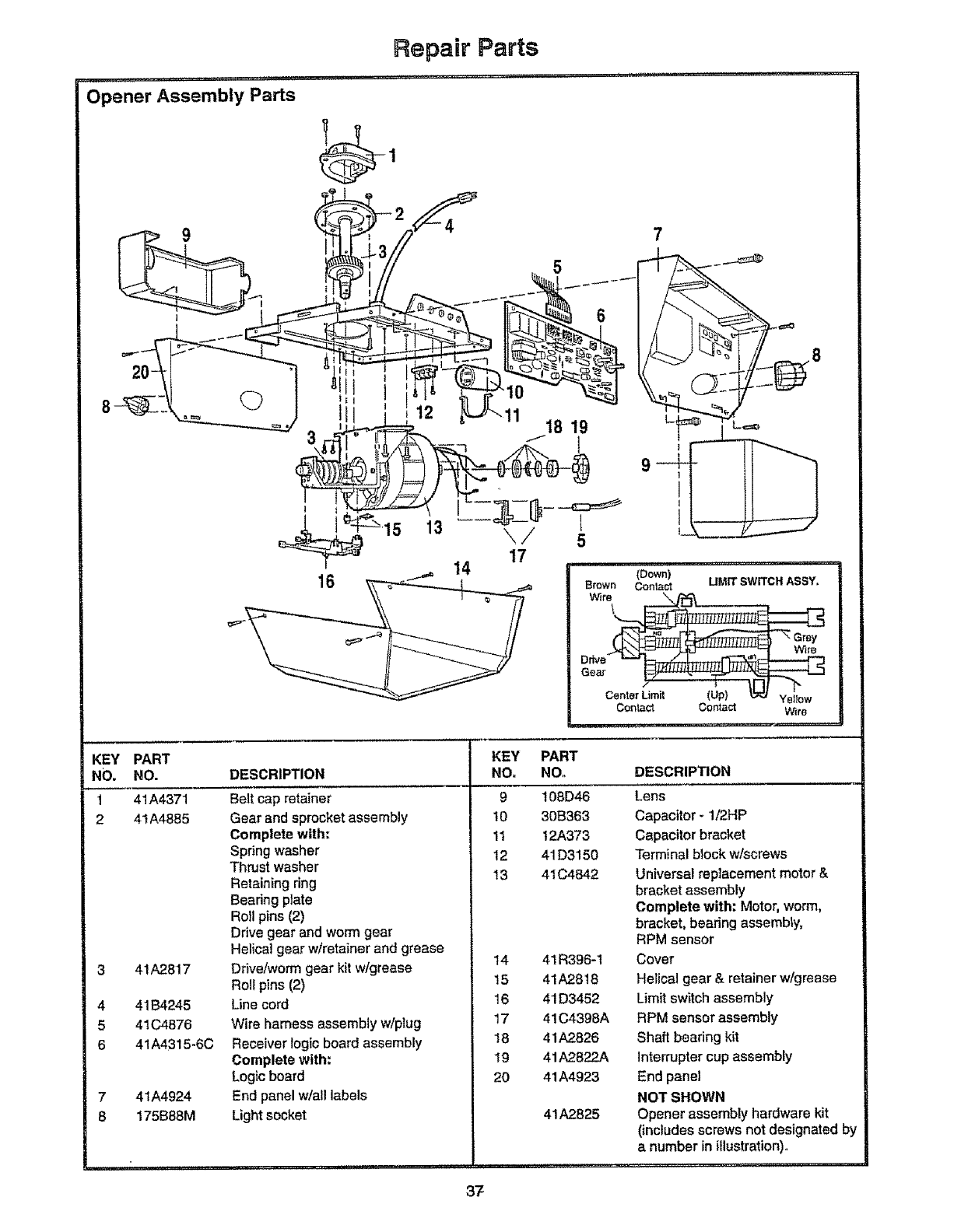

Repair parts, opener assembly ........................................37

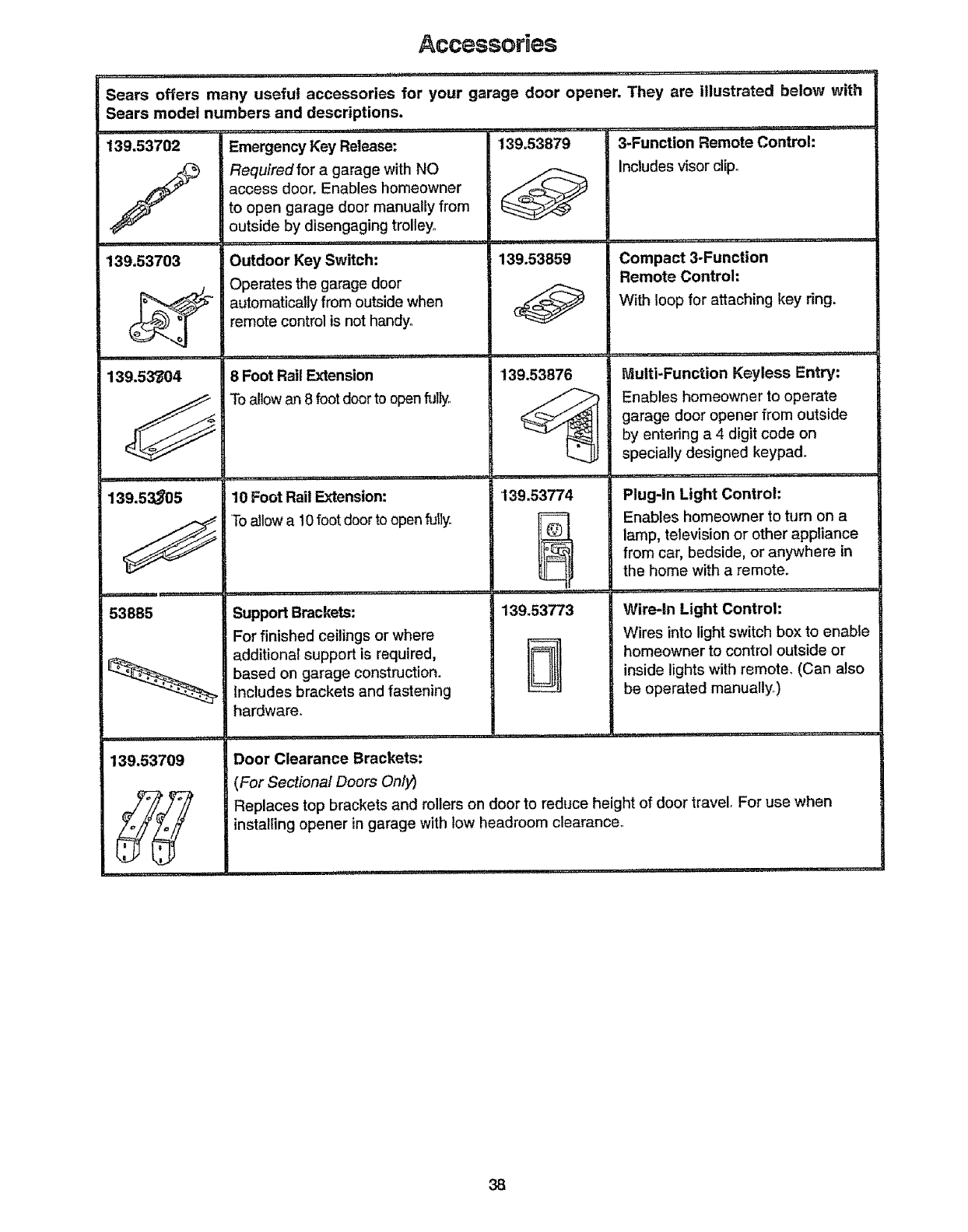

Accessories ..........................................................................38

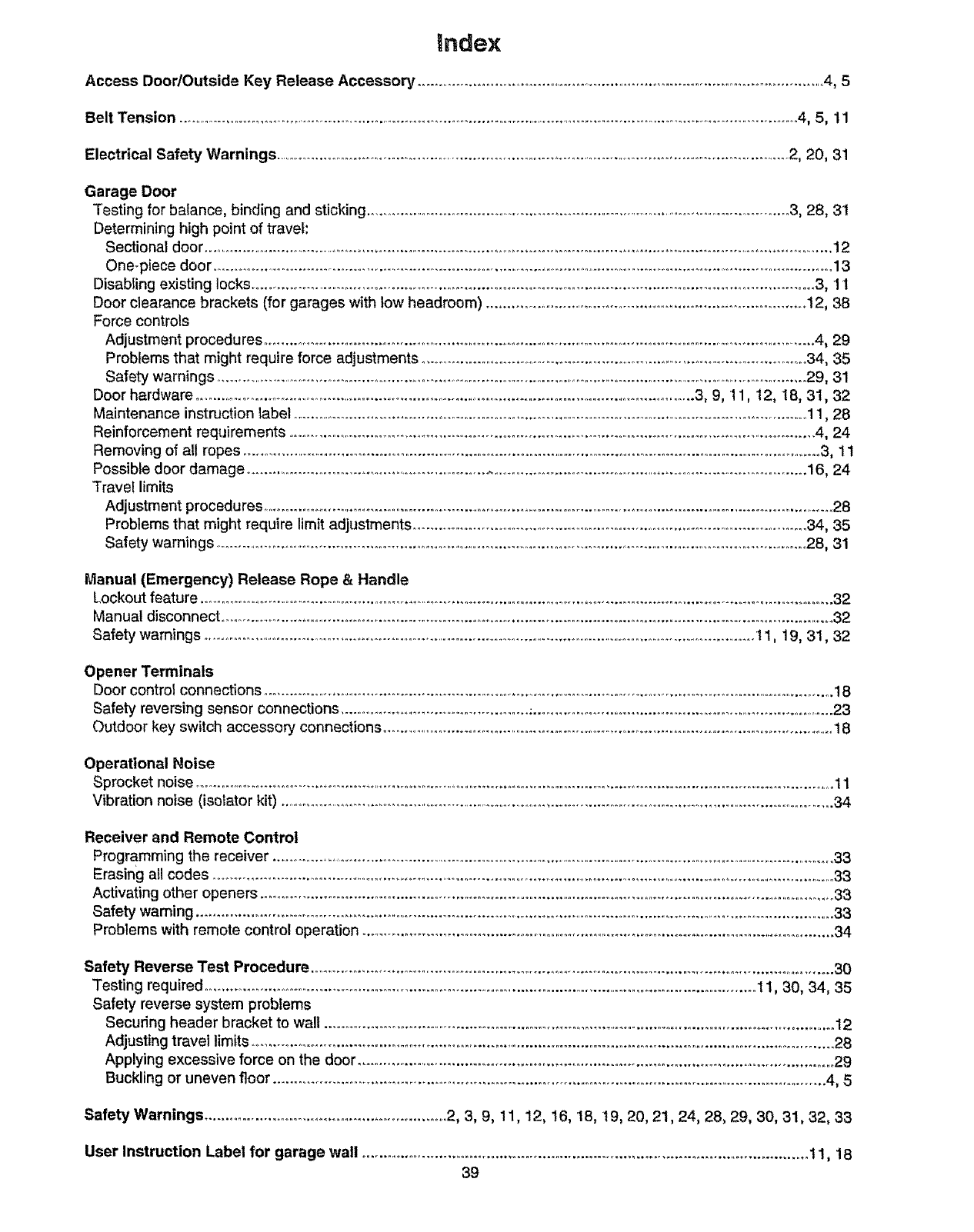

Index ................................................................................................39

How to order repair parts ....................................................40

Maintenance agreement ....................................................40

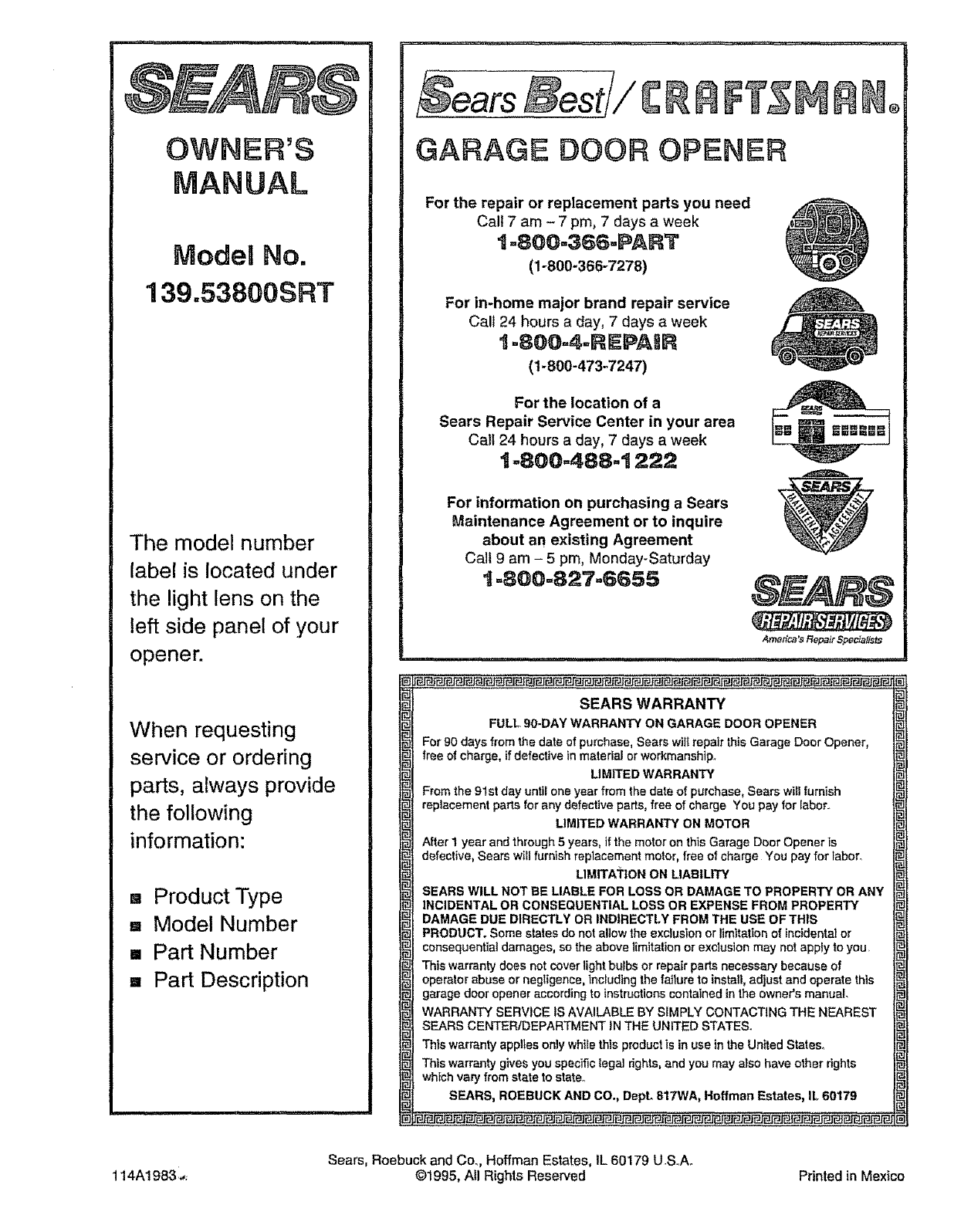

Warranty .....................................................................................40

Start by Reviewing these important Safety Alert Symbols

,=,,,,=, ,, iii i,,=,,,=,,,,= = ==,1==r_,,,i .... =,,_lr ,i,m, i...............................

When you see these Safety Symbols on the following pages, they will alert you to the possibility of

serious injury or death if you do not comply with the corresponding instructions. The hazard may

come from something mechanical or from electric shock. Read the instructions carefully.

Mechanical Electrical

When you see this Safety Symbol on the following pages, it will alert you to the possibility of damage

to your garage door and/or the garage door opener if you do not comply with the corresponding

instructions. Read the instructions carefully.

This garage door opener is designed and tested to offer safe service provided it is installed, operated,

maintained and tested in strict accordance with the safety instructions contained in this manual.

i;::............................ = ', H=, i '"'=,'=...... , ......................

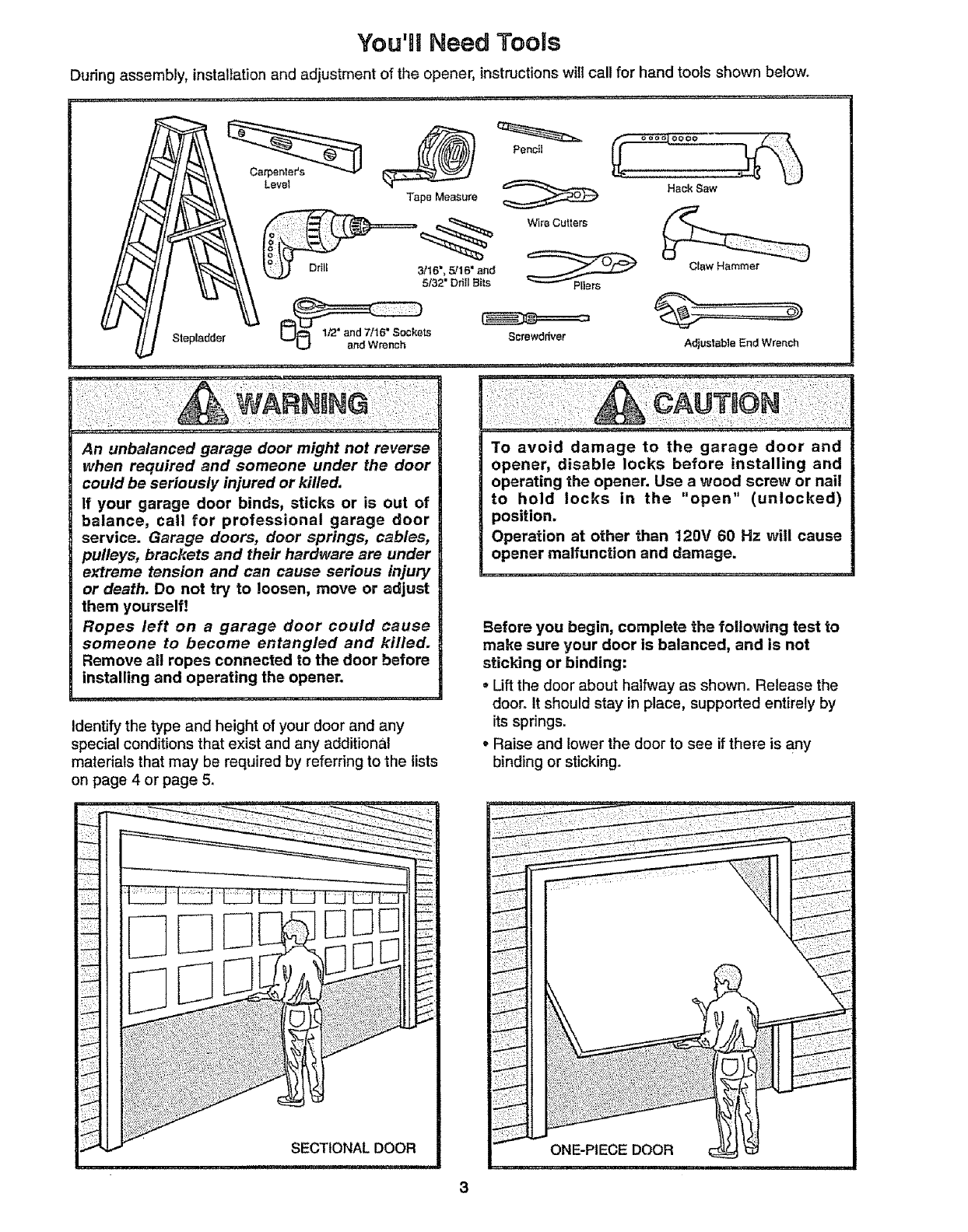

You'gWNeed Tools

Dudng assembly, instalfationand adjustment of the opener, instructions will call for hand tools shown below.

....,........... ,........ ' ,,,=1 .......

Tape Measure

Pencil

Hack Saw

Wire Cutters

Stepladder

3/16", 5/16" and

5t32" Dri!l Bits

ts Screwdriver

C{aw Hammer

Adjustable End Wrench

An unbalanced garage door might not reverse

when required and someone under the door

could be seriously injured or killed.

If your garage door binds, sticks or is out of

balance, call for professional garage door

service. Garage doors, door springs, cables,

pulleys, brackets and their hardware are under

extreme tension and can cause serious injury

or death. Do not try to loosen, move or adjust

them yourself!

Ropes left on a garage door could cause

someone to become entangled and killed.

Remove all ropes connected to the door before

installing and operating the opener.

Identify the type and height of your door and any

special conditions that exist and any additional

materials that may be required by referring to the lists

on page 4 or page 5,

To avoid damage to the garage door and

opener, disable locks before installing and

operating the opener. Use a wood screw or nail

to hold locks in the "open" (unlocked)

position.

Operation at other than 120V 60 Hz will cause

opener malfunction and damage.

Before you begin, complete the following test to

make sure your door is balanced, and is not

sticking or binding:

oLift the door about halfway as shown° Release the

door. It should stay in place, supported entirely by

its springs°

• Raise and lower the door to see if there is any

binding or sticking,

SECTIONAL DOOR ONE-PIECE DOOR

Before you begin, survey your garage area to

see whether any of the conditions below apply

to your installation.

Horizontal and ve_cal reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum, door

with glass panels, etc)

See page 24 for details

Header Walt

Slack in Belt Tensten

is Non'nat When

Garage Door t$ Closed

FINISHED CEIUNG

Supper1 bracket &

fastening hardware

is required.

See page 17

Sp_ng

Safety

Sensor

Access Door

Floor must be level

edross width of doer

Safety Reversing Sensor

Based on your particular requirements, there are

several installation steps which might call for

materials and/or hardware not included in the carton,

• Step 1, page 12 - Look at the wall or ceiling above

the garage door. The header bracket must be

securely fastened to structural supports.

=Step 5, page 17 - Do you have a finished ceiling in

your garage? If so, a support bracket and

additional fastening hardware may be required°

.Safety reversing sensor, page 21 - Depending

upon garage construction, wood blocks may need

to be fastened to mounting locations before

sensors are installed.

=Step 10, page 22 -Alternate floor mounting of the

safety reversing sensor wilt require hardware not

provided_

• Step 11, page 24 - Do you have a steel, aluminum,

fiberglass or glass panel door? If so, horizontal

and vertical reinforcement is required.

• Look at the garage door where it meets the floor.

It must close on the floor all the way across.

Otherwise, the safety reverse system may not

work properly. See page 30. Floor or door should

be repaired.

•If your door is more than 7 feet high, see the

longer rails available on page 38.

%oer!

Closed Position

Header Belt Pulley

Bracket /Bracket

/J 7'°,

._. Garaga_ I

ty-&'_yDoor // Batl

spring//

/o/ -- Emergency Release

[_/ Stratghl Rope & Handle

- racke,

• The opener can be installed within 2 feet to the left

or right of the door center if there is a torsion spring

or center beadng plate in the way of the header

bracket or door bracket area. ffyour door has

extension springs, the opener must be installed

in the center of the door. See pages t2 and 24.

•Do you have an access door in addition to the

garage door?. If not, Model 53702 Emergency

Key Release is required. See page 38.

You may find it helpful to refer back to this page as

you proceed with the installation of your opener.

i,,,,1111,1,, 4 ,,,i ...............................

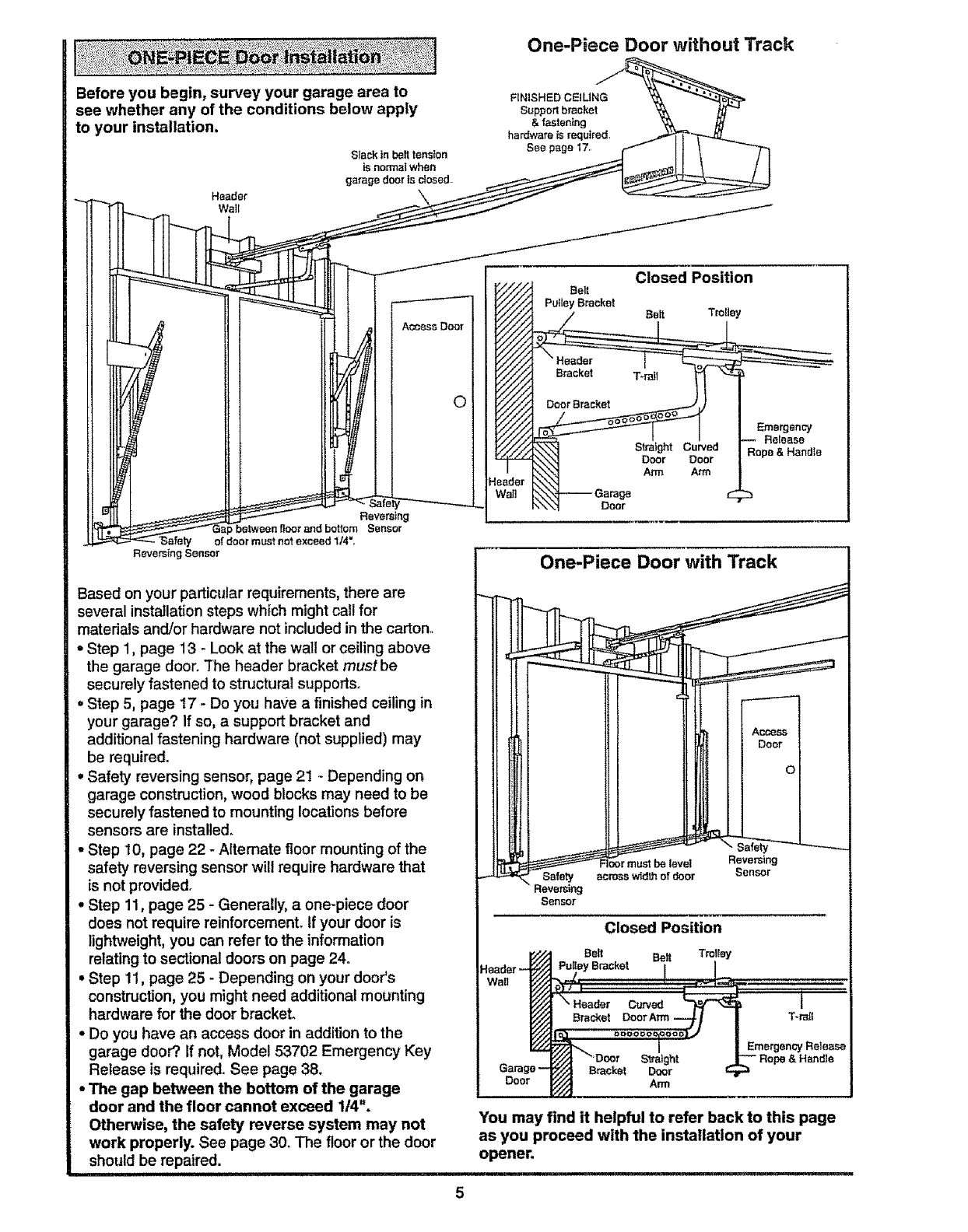

One-Piece Door without Track

Before you begin, survey your garage area to

see whether any of the conditions below apply

to your installation.

Slack inbelttension

isnormal when

garage dooris dosed

FINISHED CEILING

Supportbracket

&fastening

hardwareis required,

Sea page 17,

Access Door

Reversing

between floor and bottom Sensor

Safety of door must no1 exceed 1/4",,

Reversing Sensor

Based on your particular requirements, there are

several installation steps which might call for

materials and/or hardware not included in the carton°

=Step 1, page 13 - Look at the wall or ceiling above

the garage door° The header bracket must be

securely fastened to structural supports.

. Step 5, page t7 -Do you have a finished ceiling in

your garage? If so, a support bracket and

additional fastening hardware (not supplied) may

be required,.

• Safety reversing sensor, page 21 - Depending on

garage construction, wood blocks may need to be

securely fastened to mounting locations before

sensors are installed°

• Step 10, page 22 - Alternate floor mounting of the

safety reversing sensor will require hardware that

is not provided.

.Step 11, page 25 - Generally, a one-piece door

does not require reinforcement° If your door is

lightweight, you can refer to the information

relating to sectional doors on page 24°

•Step 11, page 25 - Depending on your door's

construction, you might need additional mounting

hardware for the door bracket.

• Do you have an access door in addition to the

garage door?. If not, Model 53702 Emergency Key

Release is required. See page 38.

• The gap between the bottom of the garage

door and the floor cannot exceed 1/4".

Otherwise, the safety reverse system may not

work properly. See page 30. The floor or the door

should be repaired.

ii i

Closed Position

Belt

Pulley Bracket Belt Trolley

Emergency

-- Release

Rope & Handie

One-Piece Door with Track

Sensor

Closed Position

Garage--

Door

Belt Belt Trolley

Pu{[ey Bracket I I

\,eade, c_,ed %_ I

I! EmergencyRelease

y/i_J Afro

You may find it helpful to refer back to this page

as you proceed with the installation of your

opener.

Opener Carton Inventory

Your garage door opener is packaged in two cartons which contain all parts illustrated below_ If anything is

missing, carefully check the packing material Parts may be "stuck" in the foam. Hardware for assembly and

installation is shown on page 7o

Three-Function Remote Control

with Visor Clip (2)

Premium Conlrel Consols Light Lens (2}

_ Belt Cap Retaloer

2-Conductor Bell Wire _

Door Bracket Ptate Hanging Brackets

Header Bracket Bait

Safety Reversing Sensor

Mounting Bracket

With Square Holes (2) "C" Wrap (2)

Door Bracket

Curved Door

Am_Section

Safety Reversing Sensor

Mounting Bracket

With Slot (2)

(2) Safety Reversing Sensors

(1 Sending Eye and 1 Receiving Eye)

with

2-Conductor White & WbftetBlack Bell WEre

attached

Safety Labels

and

Literature

Straight Door

Arm Section

Separate all hardware from the packages in the rail carton and the opener carton, as

shown below, for the assembly and installation procedures.

Assembly Hardware

Washered Screw Hex Screw Nut

5/16"-1Bxl/2" (2) 5/16=-1Bx7/8" (3) 5/16"-18 (5)

(mounted in opener)

Trolley

Threaded Shaft (1)

Carriage Bolt

114'-20xl/2' (4)

Lock Washer

5/16" (4)

.... I,,I,,,,n,,,=H,In

Spring/Trolley Nut (1) Master Link (2)

Lock Nat

1/4"-20x7/16" (4) Troltey Clip (1)

Hex Screw

5/16"ol 8xTtB" (4)

_S_rew

5/16"-18xl -7/8" (4}

Installation Hardware

Handle Rail Grease

Nut 5/16"-18 (6) Lock Washer 5/16" (6)

Carriage Bolt

5/16"-!8x2-1t2" (2)

Clevis Pin

5/16"x2-3/4" (1)

6ABxl '(2) Dry Wall Anchors (2)

Rope

fil

Insulated Clevis Pin Ring

Staples (10) 5/16"x1" (2) Fastener (3)

Safety Reversing Sensor installation Hardware

Carriage Bob

1/4"-20xl/2' (4)

Lock Nut Wing Nut (2)

114"-20 (4)

Lock Nut InsUlated

#10x32 (4) Staples (20)

Hex Screw Screw

114-20x1-1/2" (2) #10-32x318" (4)

Assembly Section: Pages 8 - 11

To avoid installation difficulties, do not run the garage door opener until instructed to do so.

.................. i

Assembly Step 1

Assemble the T-rail &

Attach the Belt Pulley Bracket

- Place the 3 T-rail sections on a flat surface for

assembly. The end sections are identical. Make

sure the "arrow label" on the center section is

pointing toward the door.

• Insert the carriage bolts so the square bolt necks

seat in the square holes in the T-rail end sections

and pass through the round holes in T-rail center

section. Assemble lock nuts, ensure alignment and

tighten.

Make sure bolt necks are

seated in the square

holes and rails are

aligned before you

tighten lock nuts. (See

right and wrong views).

Improper assembly can

cause jerky trolley

operation, noise and/or

nuisance door reversals. Right Wrong

1/4_'Lock Nut

T-rait

(End Sec_on)

T-RAIL BACK

(TO OPENER)

'tf T-ratl is not assembled

EXACTLY as shown,

trolley will not travel

Jsmoothly along length of

Jrail or it wilt hit against

tthe nuts.

T-raB

(Center Section)

• Caniage Bott

, _,_ t/4"-20x!12'

T-tall

(End Section)

Belt pulley bracke!

attaches to FRONT

END of T-rail

T-RAIL FRONT

(TODOOR)

Square Carriage

Bolt Holes

Hardware Shown Actual Size

Lock Nut

1t4"-20x71!6 =

Hex Screw

5/16"-18x7/8'

Carriage Bolls

1/4"-20xlt2"

Nut Lock Washer

5/16"-18 5/16"

•Pos_ion the belt pulley bracket on the front end of the

T-rail as shown. Fasten securely with the hardware

shown.

When

O _ tighteningthe

screws, be

sure to keep

bracket parallel

to the rail.

Otherwise, the

rail may bow

Right Wrong when opener ts

operated.

,,,i,,i i,,,i,,i

Assembly Step 2 I

Install the Trolley on the T-rail !

........... Ill ...... Trell_ ._ s_v .,,.

• As a temporary stop, insert a screwdriver into the _,,_

hole in the front end of the T-railo ._,_._

Slide the trolley assembly along the rail to the _'..-'"

screwd,verstop

.,.o,,°...°".°'n°'°".n°'s°""°"°",'"°

bolts and nuts were attached from thewronch g .,,"-_Y/

side and must be repositioned. Review Step 1, JJ/_i f/,_

-,_ _/5t16"-1B

•Insert a 5/16"-t8x7/8" hex screw into the trolley

stop hole in the T-rail as shown° 'Tighten securely

with a 5/16" lock washer and nut, This screw limits

trolley travel in the DOWN direction,

ii ,i i HI,I i

i,,

Assembly Step 3

Fasten the T-rail to the Opener

o Place the opener on packing material to protect

the cover. For convenience, put a support under

the belt pulley bracket.

• Remove the (2) 5/16"-I 8xl/2" washered screws

mounted in the top of the opener°

• Align the holes in the back section of the T-rail with

the holes in the opener.

• Fasten the rail with the (2) washered screws

previously removed. Tighten securely°

Remember to use only these screws! Any other

screws will cause serious damage to the opener.

• Insert a 5116"-18x7/8" hex screw into the trolley

stop hole in the T-rail as shown. Tighten securely

with a 5/16" lock washer and nut. This screw limits

trolley travel in the UP direction,

Washered Screw

5/16"-18xli2"

5116"

51t 6"-18

Trolley

Hardware Shown Actual Size

Hex Screw Nut Lock Washer

5116"-18x718" 5116" 5/1 6'

i iiii ¸IIII/II/HN'IHNH' I '"1 'I'III'IH _11',

AssombRYJstoP4

1. Drop the notched side of the trolley clip into the

retaining slot on top of the trolley (see Figure 1).

2. Grasp the clip connector at the end of the belt and

slip it through the belt pulley bracket from behind,

around the pulley and toward the trolley.

3. Fasten the belt clip connector to the trolley clip

with a master link:

oPush pins of master link bar through holes in

trolley clip and belt clip connector.

•Push master link cap over pins and onto pin

notches,

o Slide clip-on spring over cap and onto pin

notches until both pins are securely locked in

place.

4. With the trolley against the screwdriver, dispense

the belt along the rail and around the opener

sprocket. The sprocket teeth must engage the

belt (Figure 2).

5. Use the second master link to connect the belt to

the flat end of the trolley threaded shaft (Figure 1)o

Check to make sure the belt is not twisted.

6. Remove the screwclriver.

MasterLink

Figure I c,p-o,sp,og

Slip Belt Clip Connector

through Pulley Bracket

from thts direction

attach to troflo

Serious injury can result if become

fingers

entangled in moving opener sprocket. Attach

belt cap retainer securely. Never operate

opener while your hand is near the opener

sPr°cke.t,_....................

Figure 2 op_.er

Sprocket

MasterLink

Clip-OnSpring Master

Unk Cap

Trolley

Pin Notch

Trolley

Threaded Shaft

Belt

CItpConnector

Belt Clip Connector

Belt

Pulley

7. Insert the trolley threaded shaft through the hole

in the trolley.

8. Hold the belt at the trolley shaft to avoid twisting

as you thread the spring/trolley nut by hand on

the shaft until finger tight against the trolley

(Figure 3). Do not use any tools to tighten belt,

9. Insert a screwdriver tip into one of the slots of the

nut ring, and hold firmly as you release the spring

by turning the nut clockwise with a 7/16" open end

wrench. Turn until the spring snaps open,

When installation is complete, you may notice some

belt droop with the door closed. This is normal, tf the

belt returns to the position shown when the door is

open, do not re-adjust the belt.

Figure 3

Nut

H'H'= '" I' =1 ''= ....

Assembly Step 5

Attach the Belt Cap Retainer

To attach the belt cap retainer:

•Position the belt cap retainer over the opener

sprocket so the two holes in cap align with the two

hoIes in mounting plate. Attach with 8x3/8" hex

screws provided.

Hardware Shown

Actual Size

Hex Screw

#8x318"

Belt

You have now finished assembling your garage door opener. Please read the following

warnings before proceeding to the installation section:

iMPORTANT iNSTALLATiON iNSTRUCTiONS

To reduce the risk of severe injuryor death to persons:

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.

2. Install only on a properly balanced and lubricated garage door. An improperly balanced door

may not reverse and could result in severe injury or death. Repairs to cables, spring assemblies

and other hardware must be made by a professional service person before installing opener.

3. Disable all locks and remove all ropes connected to the garage door before installing the opener.

Ropes connected to a garage door can cause entanglement and death.

4. If possible, install door opener 7 feet or more above floor with the emergency release handle

mounted 6 feet above the floor.

5. Do not connect the opener to power source until instructed to do so.

6. Locate the Door Control within sight of the door at a minimum height of 5 feet where small

children cannot reach and away from all moving parts of the door.

7. Install the User Safety Instruction Label on the wall adjacent to the door control and the

Maintenance Instruction Label in a prominent location on the inside of the garage door.

8. Upon completion of the installation, the door must reverse when it comes in contact with a

one-inch high object or a 2x4 laid flat on the floor.

9. Do not wear watches, rings or loose clothing while installing or servicing an opener. Jewelry or

loose clothing can be caught in the mechanism of the garage door or the opener.

Rnstallatien Section: Pages 12- 27

Installation Step 1

Determine Header Bracket Location

Installation procedures vary according to

garage door types. Follow the instructions

which apply to your door.

.... H=, ,= ..................

VedicaJ

Guideline

Finished

Ceiling

If the header bracket is not rigidly fastened to

a structural support on the header wall or

ceiling, the safety reverse system may not

work properly (see page 30). The door might

not reverse when required, and could cause

serious injury or death.

The garage door springs, cables, pulleys,

brackets and their hardware are under extreme

tension. Do not attempt to loosen, move or

adjust them yourself. Serious personal injury

or death could result. Call for professional

garage door service.

Structural •Close the door and mark the inside

vertical centerline of the garage door.

° Extend the line onto the header wall

above the door.

Remember, you can fasten the

header bracket within 2 feet of the

left or right of the door center only if

a torsion spring or center bearing

plate is in the way; or you can attach

it to the ceiling (refer to page 14)

when clearance is minimal. (It may

be mounted on the wall upside down

if necessary, to gain approximately

1/2".)

If,you need to install the header bracket

on a 2x4 (on wall or ceiling), use lag

screws (not suppfied) to securely fasten

the 2x4 to structural supports as shown

here and on page 1&

•Open your door to the highest

point of travel as shown, Draw

an intersecUng horizontal line

on the header wall 2" above

the high point. This height will

provide travel clearance for the

top edge of the door,

Door clearance brackets are

available for sectional doors

when headroom clearance is

less than 2". See accessory

page 38.

DOOr

Ceiling

Header

Wail

_2" Track

Highest Point

of Travst

Header

Track

Highest Point

of Travel

Sectional door

with curved track One-piece door

with horizontal track

Proceed to Step 2, page 14.

Read the Safety instructions on page 12. They also apply to doors without tracks.

- Close the door and mark the H Ill

inside vertical centerline of fl I;_

your garage door. Extend the l! I{

line onto the header wall I[ 1t

abovedoor. I1H

If headroom clearance is 1! [_"

minimal, you can install the H I_

header bracket on the ceiling, tl ]H/

See page 14. 11 II_'

•If you need to install the ]! I11

header bracket on a 2x4 (on II I_

wall or ceiling), use lag screws ]1 IN

(not supplied) to securely H I_

fasten the 2x4 to structural t]

supports as shown_ I] _It

_JuL

Header Wail

__Verlical

enter,line 2x4

fl lli Conte_Ineefllr!OPTIONAL CEILING MOUNT

FOR HEADER BRACKET

Doer I

Jamb

Ha_ware

Header Wall

Highest Point

of Travel

One-piece door without track

jamb hardware

Header HighestPoint

of Travel

',10

One-piece door without track

pivot hardware

• Open your door to the highest point of travel as

shown. Measure the distance from the top of the

door to the floor, Subtract the actual height of the

door, Add 8" to the remainder. (See Example).

- Close the door and draw an intersecting horizontal

line on the header wall at the determined height.

If the total number of inches exceeds the height

available in your garage, use the maximum

height possible, or refer to page 14 for ceiling

installation.

EXAMPLE

Distance from top of door

(at highest point of travel) to floor ........................... 92"

Actual height of door ............................................. -88"

Remainder .................................................................. 4"

Add ......................................................................... +8"

Bracket height on header wall ............................... 12"

(Measure UP from top of CLOSED door.)

Proceed to Step 2, page 14.

uii ir_11_ ...........

installation Step 2

Install the Header Bracket !You can attach the header bracket either to the

wall above the garage door, or to the ceiling.

Follow the instructions which will work best for

your particular requirements.

Fasten the Header Bracket to the Wall

• Center the bracket on the vertical guideline with

the bottom edge of the bracket on the horizontal

line as shown (with the arrow pointing toward the

ceiling).

=Mark either set of bracket holes (do not use the

holes designated for ceiling mount) Odll 3/16" pilot

holes and fasten the bracket securely to a structural

support with the hardware provided

Header

W_l

"_" "T

Highest

Point or Travel

(of Garage Door)

Door

Spring

Lag Screws

5/16"xl 8xl=7/8" 4

The nail hole ts for positioning

only.You must use lag screws to

mount the header bracket Optioned

Wall Mounting

Holes

Wall

Mounting Holes

Garage _

Door

Vertical

Center

Line

Hardware Shown Actual Size

IiIl1IitIt)

Lagsa;ew

_16.-,8,,-71_.

Fasten the Header Bracket to the Ceiling

•Extend the vertical guideline onto the ceiling as

shown.

- Center the bracket on the vertical mark, no more

than 6" from the wall Make sure the arrow is

pointing toward the wall. The bracket can be

mounted flush against the ceiling when clearance

is minimal

• Mark holes designated for ceiling mount only Drill

3/16" pilot holes and fasten bracket securely to a

structural support with the hardware provided

Ceiling Mounting Holes

The r,aJl ho_ ts for positioning only

You must use lag screws to mount

Me header bracket.,

Header

Wall

Wnsta nationStep3 I

-- Header Wall

Header

Bracket

Bell Pulley

Brecket

°Position the opener on the garage floor below the

header bracket. Use packing material as a

protective base.

If the door spring is in the way you'll need help.

Have someone hold the opener securely on a

temporary support to allow the T-rail to clear the

spring.

-Position the belt pulley bracket against the header

bracket°

,Align the bracket holes and join with a clevis pin as

shown.

.Insert a ring fastener to secure°

Ring Fastener

Header Bracket

Bracket

Tempora_

Support

Hardware Shown Actual Size @

Clevis Pln

5116"x2-374" Ring Fastener

nstaUBation Step 4

Position the Opener

Follow instructions which apply to your door

type as illustrated.

To prevent damage to steel, aluminum,

fiberglass or glass panel doors, do not rest the

opener on the door without using a 2x4°

A 2x4 laid flat is convenient for setting an ideal

door-to-T-rail distance.

•Raise the opener onto astepladder.

You will need help at this point ff the ladder is

not taft enough.

,Open the door all the way and place a2x4 laid fiat

on the top section beneath the T-rail.

If the top panel hits the trolley when you raise

the door, pull down on the trolley release arm to

disconnect the inner and outer sections. The

trolley can remain disconnected until Step 12 is

completed.

oWith the door fully open and parallel to the floor,

measure the distance from the floor to the top of

the door.

=Using a stepladder as a support, raise the opener

to the same distance as the door from the floor (it

wifl be at a slight angle as shown).

•The top of the door should be level with the top of

the opener. Do not position the opener more than

2" above this point.

nstaHation Step 5

Hang the Opener

Two representative installations are shown.

Yours may be different. Hanging brackets should

be angled, Figure 1, to provide rigid support. On

finished ceilings, Figure 2, attach a sturdy metal

bracket to structural supports before installing the

opener. The bracket and fastening hardware are not

supplied. See accessory page 38.

oMeasure the distance from each side of the opener

to the structural support.

•Cut both pieces of the hanging bracket to required

lengths.

-Drill 3/16" pilot holes in the structural supports.

•Attach one end of each bracket to a support with

5/16"xt-7/8" lag screws°

°Fasten the opener to the hanging brackets with

5/16"-t8x7/8" screws, lock washers and nuts_

•Check to make sure the T-rail is centered over the

door (or in line with the header bracket if the

bracket is not centered above the door).

oRemove the 2x4o Operate the door manually° If the

door hits the rail, raise the header bracket.

Hardware Shown Actual Size

L gSc,e'

5/16"- 18xl -7,t8"

,,,,D© ©

Hex Screw

5/16"- 18x7t8" Nut 5./16"-18 Lock Washer 5/16"

Figure I

nstalwatn0nStep6 I

lnstafl _he Premium Control Consoie_

Locate the door control within sight of the door

at a minimum height of 5 feet where small

children cannot reach, and away from al! moving

parts of the door and door hardware.

The door control is typically attached directly to the

wall. If installing into drywall, drill 5/32" holes and

use the anchors provided° Forpre-wired installations

(as in new home construction), Console models

may be mounted to a standard single gang box

(Figure 2),

t_ Strip t/4" of insulation from one end of the bell

wire and connect it to the two screw terminals on

the back of the door control: white to 2, and

white/red to 1.

2. Pry off cover along one side with a screwdriver

blade (see Figure 1). Fasten with 6ABx1-1/4" self-

tapping screws (standard installation) or 6-32xl"

machine screws (pre-wired installation) as

follows:

• Install bottom screw, allowing 1/8" to protrude

above walt surface.

° Position bottom of door control on screw head

and slide down to secure° Adjust screw for snug

rrL

Drill and install top screw with care to avoid

cracking plastic housing. Do not overtighten.

• Insert top tabs and snap on cover,

3, (For standard installation only) Run the bell wire

up the wall and across the ceiling to the opener.

Use insulated staples to secure the wire in

several places. Be careful not to pierce the wire

with a staple, creating a short.

4, Connect the bell wire to the terminal screws on

the opener panel: white to 2; white/red to 1.

5. Position the antenna wire as shown.

Do not connect to live electrical wiring.

Connect only to 24 Volt low voltage wires.

Connection to live wires or higher voltage may

cause serious injury from shock, burn or

electrocution.

Children operating or playing with a garage

door opener can injure themselves or others.

The garage door could close and cause

serious injury or death.

Install the door control (or any additional push

buttons) out of the reach of children and away

from all moving parts of the door and door

hardware, but where the garage door is visible.

Do not allow children to operate the push

button(s) or the remote control(s).

A moving garage door could injure someone

under it. Activate the opener only when the

door is properly adjusted, you can see it clearly,

and there are no obstructions to door travel.

Hardware Shown Actual Size

_] Imlmlitiiiiiiiiiiq_

6ABX1-114"S_w

Control Console (std installation)

iiiLiUiiiiiitili

6-32x_"s_rsw

Control Consote (pre-wired)

Insulated

Staples

Dry WNI Anshors

Figure 1

REMOVE &REPLACE COVER

To Replace, _--.._.T{ Remove,

Insert ._ Twist

Top Tabs .. "'_ Here

Figure 2

PRE-WtRED

INSTALLATION

24 Volt

2-Condu_.lor

Bell Wire

2-Conductor Opener

BeltWire Terminal :

Ltghtecl

Push Bullon

Light BACK VIEW

Lock

PREMIUM CONTROLCONSOLE

Top

Mounting

-- Hole

Terminat

>Screws

Sodom

Moun_ng

-Hole

6oAttach the User Safety instnJction label to the wall

near the door control, and the Maintenance

Instruction label in a prominent location on the

inside of the garage door,

Page 32 explains how to use the door control.

Do NOT connect the power and operate the

opener at this time. The trolley will travel to the

fut! open position but will not return to the

close position until the sensor beam is

connected and properly aligned.

See Safety Reversing Sensor instructions

beginning on page 21,

Install the Lights and the Lenses I

install the lights:

oInstall a 75 watt maximum light bulb in each

socket. The lights will turn ON and remain lit for

approximately 4-1/2 minutes when power is

connected. Then the lights wil! turn OFF°

• If the bulbs burn out prematurely due to vibration,

replace them with standard neck "Garage Door

Opener" bulbs.

install the lenses:

. Apply slight presstire on the sides of each lens

and slide the tabs into the slots in the side panels.

•For convenience, the lenses may be installed

after Adjustment Step 4 on page 30.

•Reverse the procedure to remove the lenses,

lnstaiaation Step 8

Attach the Emergency

Release Rope and Handle

*Thread one end of the rope through the hole in

the top of the red handle so "NOTICE" reads dght

side up as shown. Secure with an overhand knot.

The knot should be at least 1" from the end of

the rope to prevent slipping,

oThread the other end of the rope through the hole

in the release arm of the outer trolley.

-Adjust rope length so the handle is 6 feet above

the floor. Secure with an overhand knot.

If it is necessary to cut the rope, heat seal the

cut end with a match or lighter to prevent

unraveling.

75 Watt Max

Lens _ Ught Bulb

Tab

Lens

Guide

Lens

Tab

Lens

Tab

Do not use the red handle to pull the door

open or closed. The rope knot could become

untied and you could fall. Use the emergency

release only to disengage the trolley and, if

possible, only when the door is closed.

Garage doors are heavy. If the door is open

when the handle is pulled, the door could

close inadvertently if it is not properly

balanced. Serious injury may result to persons

under the door. Make sure the doorway is clear

of persons and obstructions before pulling

handle when door is open.

Overt_nd

Knot

,iii

Electrical Requirements j

To reduce the risk of electric shock, your garage

door opener has a grounding type plug with a third

grounding pin. This plug will only fit into a grounding

type outlet.

If the plug doesn't fit into the outlet you have,

contact a qualified electrician to install the proper

outlet.

tTo avoid installation difficulties,

do not run the opener at this time.

To prevent electrocution or fire, installation

and wiring must be in compliance with local

electrical and building codes.

Do NOT use an extension cord, 2-wire adapter,

or change the plug in any way to make it fit

your outlet.

Right Wrong

If permanent wiring is required by your local code, refer to the following procedure:

To make a permanent connection through the

7/8" diameter hole in the top of the opener

(according to local code):

• Remove the opener cover screws and set the

cover aside.

=Remove the attached 3-prong cord.

=Connect the black (line) wire to the screw on the

brass terminal; the white (neutral) wire to the

screw on the silver terminal; and the ground wire

to the green ground screw_ The opener must be

grounded.

•Reinstall the cover_

ITo avoid installation difficulties, 1do not run the opener at this time.

Ground Tab

Green

Ground

Screw

Black

Wire -Wire

WhiteWim

Permanent

Wiring

Connections

i I"HH H,,='=',,'= ' I

The Safety Reversing System

Information you'll need before you begin the installation of the safety reversing sensor.

The safety reversing sensor must be connected

and aligned correctly before the garage door

opener wilt move in the down direction. This is a

required safety device and cannot be disabled.

installation procedures are the same for sectional

and one-piece doors_

Without a properly working safety reversing

sensor, persons (particularly children.) could

be injured or killed by a closing garage door.

Read and follow all instructions.

To protect small children, install the safety

reversing sensor so that the beam will be no

higher than 4"-6" above the garage floor.

Disconnect power to the garage door opener

before installing the safety reversing sensor.

Be sure power to the opener is disconnected.

The sending eye transmits an invisible light beam to

the receiving eye.. The units can be installed on

either side of the garage door as long as the sun

never shines directly into the receiving eye lens.

Look at the label on the connector end of each case

to identify the sensors.

The brackets must be connected and fastened so

that the sending and receiving eyes face each other

as shown in Figure '1.

If an obstruction breaks the light beam while the

garage door is closing, the door will stop and

reverse to ful! open position and the opener lights

will flash for 5 seconds.

The brackets must be securely fastened to a solid

surface such as the studs on either side of the door,

or add a piece of wood at each location if installing in

masonry construction.

The invisible light beam path must be unobstructed_

No part of the garage door (or door tracks, springs,

hinges, rollers or other hardware) can interrupt the

beam white the door is closing, if it does, use a piece

of wood to build out each sensor mounting location to

the minimum depth required for light beam clearance.

Sensor Beam

4-6" max.

above floor

• ..__ ......

Figure 1: Facing the door from inside the garage

nnsta. tuo stop1o !

Install the Sa!ety Reversing Sensor ........ I

Figures 2 and 3 show assembly of brackets and

"C" wrap based on the recommended installation of

the sensors as shown on page 21.,

However, Figures 4 and 5 are variations which may

fit your installation requirements better. Make sure

the wraps and brackets are aligned so the

sensors will face each other across the garage

door.

= Fasten the "C" wraps to the mounting brackets

having square holes, using the hardware shown

in Figure 2_

•Connect each assembly to a slotted bracket, using

the hardware shown in Figure 3o

Note the alignment of the brackets for left and

right sides of the door.

oFinger tighten the lock nuts.

o Use bracket mounting holes as a template to

locate and drill (2) 3/16" diameter pilot holes on

both sides of the garage door, 4"-6" above the

floor but not exceeding 6" (See waming on

page 21 .)

• Attach bracket assemblies with 1/4"x1-1/2" lag

screws as shown in Figure 3o

•Adjust right and left side bracket assemblies to the

same distance out from the mounting surface.

Make sure all door hardware obstructions are

cleared Tighten the nuts securely.

Figure 2Mounting Bracket

With Square HoIes

//_._,..,_j _ "c"Wry

Screws

1t4"-20

Lock Nuts

Figure 3

1/4x1_t/2" 114-20xii2" CarriageBO_ts

Lag Screws (with square shoulder)

"C" Wrap

Mounting Bracket

with Square Holes

#10-32x3/B = #10x32

Screw Lock Nut

Hardware Shown Actual Size

114x1-1f2' 114"-20xlt2" 1/4"-20

Lag Screw Staples Carriage Bolts Lack Nut

Figure 4

Alternate Wall Mount

Wat_::_i Me°erie0Braokot

_;:?i withSto,

_-'_ with Square Holes

_._'C rap

Figure 5

Alternate Floor Mount

Sensor with wire

indicator Light

Mounting Bracket

with Square Holes

MountingBracket

with Slot

Attach with

concreteenchors

(notprovided)

oCentereachsensorunitina "C"wrapwithlenses

pointingtowardeach other across the door (see

Figure 6).

• Secure sensors with the hardware shown. Finger

tighten the wing nut on the receiving eye to allow

for final adjustment. Securely tighten the sending

eye wing nut.,

• Run the wires from both sensors to the opener.

Use insulated staples to secure wire to wall and

ceiling,,

- Strip 1/4" of insulation from each set of wires°

Separate white and white!black wires sufficiently to

connect to the opener terminal screws: white to 2

and white/black to 3.

o Plug in the opener. Make sure the Lock Feature is

off. Green indicator lights in both the sending and

receiving eyes wilt glow steadily if wiring

connections and alignment are correct.

f the indicator light is offin the receiving eye (and

the invisible light beam path is not obstructed),

alignment is required°

. Loosen the receiving eye wing nut to allow slight

rotation of unit° Adjust sensor vertically and/or

horizontally until the green indicator light glows

with a steady light,.

.When indicator lights are glowing steadily in both

units, tighten the wing nut in the receiving eye unit.

Figure 6

Indicator

Hex Bolt _

Trouble Shooting

1oIf the sending eye indicator light does not glow

steadily after installation, check for:

o Electric power to the opener°

oA short in the white or white/black wires, These

can occur under staples or at screw terminal

connections,

= Incorrect wiring between sensors and opener.

° An open wire (wire break).

2, If the sending eye indicator light glows steadily but

the receiving eye indicator light doesn't:

- Check alignment.

oCheck for an open wire to the receiving eye.

Hardware Shown Actual Size

114-20xl _112"

Figure 7 Connect Wireto_

OpenerTerminals

__ Finished __

Ceiling

Door Control Sensor

Cennecltons

Conr}e_lo ns...,...._.....,.= /

(doffed line) _

OPENER TERMINAL SCREWS

/invisible Light Beam

Sensor ProtectionArea

Sensor

ii, iii ,111111111 ii,

0nstaU ation Step 11

Fasten Door Bracket

Follow instructions which apply to your door

type as illustrated below or on page 25.

A horizontal brace should be long enough to be secured to 2 vertical supports. A vertical brace should

cover the height of the top panel.

The illustration shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of

angle iron are used to create a "U"-shaped support. The best solution is to check with your garage door

manufacturer for an opener installation door reinforcement kit.

Door

Bracket

Location

oCenter the door bracket on the previously marked

vertical guideline used for the header bracket

installation°

•Position the bracket on the face of the door within

the following limits:

A) The top edge of the bracket 2"-4" below the top

edge of the door.

B) The top edge of the bracket directly below any

structural support across the top of the door,

•Mark and ddll 5/16" left and right fastening holes.

Secure the bracket as shown in Figure 1 if there is

vertical reinforcement,,

If your installation doesn't require vertical reinforce-

ment but does need top and bottom fastening holes

for the door bracket, position the door plate over the

door bracket as shown in Figure 2o Fasten securely

with hardware shown in Figure 1o

|and vertical reinforcement

is needed for lightweight garage doors

(liberglass, aluminum, steel,

doors with gTass panel, etc} Figure I

ire

Carriage Bott

5/16"-18x2-1t2'

LookWasher

5/16"

Door

Bracket

Vertical /N16"-18

Guideline

Figure 2

Inside

of Door or

Reinforcement Board

Door

Plate

Hardware Shown Actual Size

Nut 5/16-18 Lock Washer 5/16"

'24

Please read and compty with the warnings and reinforcement nnstructions on page 24.

They apply to one-piece doors also.

Header

Bracket

2x4 Suppo_

Bracket

Vertical

Garage Door

Horizontal and verlical

reinforcement is needed for

[{ghtwetght garage doors

(fiberglass, aluminum, steel,

door with glass panel, etc,)

Door

Bracket .,._ Top of Door

(inside Garage)

of Doer

PJacement j

oradoorwIthno n :/

exposed framing or for H , ,/

{ " Carnage Bolt

use 5116"x1-1_" lag ,_ ='=" ...... _"

screw (not supplied) to _,' ../

fasten door bracket, _ _J'_

, Center the bracket on the top of the door, in line

with the header bracket as shown° Mark holes°

° Drill 5/16" pilot holes and fasten the door bracket

with hardware supplied.

If the door has no exposed framing, drill 3/16" pilot

holes and fasten the bracket with 5/16"x1-1/2" lag

screws (not supplied) to the top of the door°

The door bracket may be installed on the top

edge of the door if required for your installation.

(Refer to the dotted line optional placement

drawing.) Drill 3116" pilot holes and substitute

5/16"x1-1/2" lag screws (not supplied)to fasten

the bracket to the door.

Hardware Shown Actual Size

Nut 5/16"-18 Lock Washer 5116_

Installation Step 12

Connect Door Arm to Trolley

Follow instructions which apply to your door

type as illustrated below and on page 27.

,=,,=,= ,,=,,,,,= =,1

Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley

from the inner trolley. Slide the outer trolley back (away from the door) about 2" as shown in

Figures 1, 2 and 3.

Figure 1:

• Fasten straight door arm section to outer trolley

with a clevis pin° Secure the connection with a ring

fastener.

oFasten curved door arm to the door bracket in the

same way as shown.

Inner Trolley

Ring

Fastener

,, Door

Clevis Pin -_ _ Door Arm

|OI---- Straight

UDoorArm

Curved Figure I

Figure 2:

* Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far

apart as possible to increase door arm rigidity.

"_JL /_"/ /_K Emergency

_?ol ,crews

Figure 2

Hole Alignment Alternative

Figure 3:

, If holes in curved arm are above holes in straight

arm, disconnect straight arm, Cut about 6" from

the solid end° Reconnect to trolley with cut end

down as shown°

°Bring arm sections together.

* Find two pairs of holes that line up and join with

screws, lock washers and nuts,

Hardware Shown Actual Size

©:-----,,© o

Nut 5116"-18 Lock Washer 5116" Ring Fastener

Hex Screw Clevis Pin

5/t 6"-18x7/8" 5]16"xl"

Lock

_,Io"/_?/ II

ol lq\o.w¢

O_ "Cut This End

Figure 3

Proceed to Adjustment Step 1, page 28. Trolley will re-engage automatically when the opener is operated.

=,,==,=,= H ,= , ,=, _l,,,,,,t_ =

Assemble the Door Arm:

• Fasten the straight and curved door arm sections

together to the longest possible length, with a 2 or

3 hole overlap,

• With the door closed, connect the straight door

arm section to the door bracket with a clevis pin.

° Secure with a ring fastener.

Door

Bracket 0-- Ring

Fastener Nuts

__,.=_--_ Washers I

Cl_StAra_h t 5116"

5/16"-18x7/8 Curved

Door Arm

On one-piece doors, before connecting the door arm to the trolley the travel limits must be adjusted, Limit adjust-

ment screws are located on the left side panel as shown on page 28. Follow adjustment procedures below.

j_,,,_ Closed

! Door Open Door Doer wilh

I Backward Slant

Door Arm

Adjustment Procedures for One-Piece Doors

Open Door Adjustment:

Decrease UP limit

-'rum the UP limit adjustment screw counter-

clockwise 5-1/2 turns.

-Press the Wall Control push bar. The trolley will

travel to the fully open position.

• Manually raise the door to the open position

(parallel to the floor), and lift the door arm to the

trolley. The arm should touch the trolley just in

back of the door arm connector hole. Refer to the

fully open trolley/door arm positions in the

illustration. If the arm does not extend far enough,

adjust the limit further_ One full turn equals 2" of

trolley travel.

Closed Door Adjustment:

Decrease DOWN limit

•Turn the DOWN limit adjustment screw clockwise

5 complete turns.

oPress the Walt Control push bar. The trolley will

travel to the fully closed position.

, Manually close the door and liftthe door arm to the

trolley. The arm should touch the trolley just ahead

of the door arm connector holeoRefer to the fully

closed trolley/door arm positions in the illustrationoIf

the arm is behind the connector hole, adjust the limit

fudher. One full turn equals 2" of trolley travel°

Connect the door arm to the trolley.

• Close the door and join the curved arm to the connector hole in the trolley with the remaining clevis pin. It may

be necessary to lift the door slightly to make the connection.

• Secure with a ring fastener,

• Run the opener through a complete travel cycle. If the door has a slight "backward" slant in full open position

as shown in the illustration, decrease the UP limit until the door is parallel to the floor.

Adjustment Section: Pages 28 - 30

Adjustment Step 1

Adjust the UP and DOWN Limits

Do not make any limit adjustments until the

safety reversing sensors are completely

installed.

, IH ..... ==,1=......................

Limit adjustment settings regulate the points at

which the door will stop when moving up or down.

The door will stop in the up direction if anything

interferes with door travel. The door will reverse in

the down direction if anything interferes with the

door travel (including binding or unbalanced doors).

To operate the opener, press the Door Control push

button. Run the opener through a complete travel

cycle.

•Does the door open and close completely?

•Does the door stay closed and not reverse

unintentionally when fully closed?

tf your door passes both of these tests, no limit

adjustments are necessary unless the reversing test

fails (See page 30).

Adjustment procedures are outlined below. Run

the opener through a complete travel cycle after

each adjustment.

Repeated operation of the opener during

adjustment procedures may cause the motor to

overheat and shut off. Simply wait 15 minutes

and try again.

Read the procedures carefully before proceeding to

Adjustment Step 2. Use a screwdriver to make limit

adjustments.

Improper adjustment of the travel limits will

interfere with the proper operation of the

safety reverse system. The door might not

reverse properly when required and could

seriously injure or kill someone under it. Test

the safety reverse system following all

adjustments to the travel limits. See page 30.

Left Side Panel

Limit A_ustment

S_ews

(® 'IL "®)I

It-- TRAVm.

Adjustment L.t_o!

How and When to Adjust the Limits

If the door does not open completely

but opens at least five feet

Increase up travel Turn the UP limit adjustment

screw clockwise. One turn equals 2" of travel.

If door does not open at least 5 feet: Adjust the

UP (open) force as explained in Adjustment Step 2.

If the door does not close completely

Increase down travel. Turn the DOWN limit

adjustment screw counterclockwise. One turn

equals 2" of travel.

If door still won't close completely, try lengthening

the door arm. (See Page 26°)

If you have adjusted the door arm to the maximum

length and the door still wilt not close completely,

lower the header bracket. See Installation Step t,

pages 12 and 13.

If the opener reverses in fully closed position

Decrease down travel. Turn the DOWN limit

adjustment screw clockwise. One turn equals 2" of

travel

If the door reverses when closing and

there is no visible interference to travel cycle

If the opener lights are flashing, the Safety Reversing

Sensor is obstructed° Remove the obstruction.

Test the door for binding: Pull the emergency release

handle_Manually open and close the door. If the door

is binding, call for garage door service, tf the door is

not binding or unbalanced, adjust the DOWN (close)

force. See Adjustment Step 2o

., ' ' i,,= ........... ,....................;.......

Adjustment Step 2

Adjust the Force

Force adjustment controls are located on the right

side panel of the opener° Force adjustment settings

regulate the amount of power required to open and

close the door.

The door will stop in the up direction if anything

interferes with its travel The door will reverse in the

down direction if anything interferes with its travel

(including binding or unbalanced doors)°

If the forces are set too light, door travel may be

interrupted by nuisance reversals in the down

direction and stops in the up direction° Weather

conditions can affect the door movement, so

occasional adjustment may be needed.

The maximum force adjustment range is 260 degrees,

about 3/4 of a complete tum. Do not force controls

beyond that point. Turn force adjustment controls

with a screwdriver,

Adjustmen! Label

Too much force on the door will interfere with

the proper operation of the safety reverse

system. The door might not reverse properly

when required and could seriously injure or

kill someone under it. Do not increase the

force beyond the minimum amount required

to close the door. Do not use the force

adjustments to compensate for a binding or

sticking garage door. Test the safety reverse

system following all adjustments to force

levels. See page 30.

ForceA_ustment

Controts

Fight Side Panel

How and When to Adjust the Forces

Test the DOWN (close) force

Grasp the door bottom when the door is about

halfway through DOWN (dose) travel° The door

should reverse. Reversal halfway through clown

travel does not guarantee reversal on a two-inch

obstruction. See page 30. If the door is hard to

hold or doesn't reverse, decrease the DOWN (close)

force by turning the control counterclockwise.

Make 10 degree turn adjustments until the door

reverses normally° After each adjustment, run the

opener through a complete cycle.

Test the UP (open) force

Grasp the door bottom when the door is about

halfway through UP (open) travel°The door should

stop, If the door is hard to hold or doesn't stop,

decrease UP (open) force by turning the control

counterclockwise.

Make 10 degree turn adjustments until the door stops

easily. After each adjustment, run the opener through

a complete travel cycle.

If the door doesn't open at least 5feet

Increase UP (Open) force by tuming the control

clockwise. Make 10 degree tum adjustments until

door opens completely. Re-adjust the UP limit if

necessary. After each adjustment, run the opener

through a complete travel cycle.

If the door reverses during the down (close) cycle

and the opener lights aren't flashing

Increase DOWN (close) force by turning the control

clockwise° Make 10 degree tum adjustments until the

door completes a close cycle° After each adjustment,

run the opener through acomplete travel cycle° Do

not increase the force beyond the minimum

amount required to close the door.

, ,,=

Adjustment Step 3

Test The Safety Reversing Sensor

° Press the remote control push button to open the

door.

•Place the opener carton in the path of the door.

°Press the remote control push button to close the

door. The door will not move more than an inch,

and the opener light(s) will flash°

Professional service is required if the opener

closes the door when the safety reversing

sensor is obstructed.

The garage door opener will not close from a

remote control if the indicator light in either

sensor is off (alerting you to the fact that the

sensor is misaligned or obstructed).

The garage door can be closed by pressing and

holding the Door Control push button until down

travel is completed.

i= =,= = ,=, ,,IHir

i........ iH,I H

Adjustment Step 4 I

Test the Safety Reverse System

= ,,,H,

Test:

.Place a one-inch board (or a 2x4 laid flat) on the

floor, centered under the garage door.

•Operate the door in the down direction° The door

must reverse on striking the obstruction,

Adjustment:

If the door stops on the obstruction, it is not traveling

far enough in the down direction°

• Increase the DOWN limit by turning the DOWN

limit adjustment screw counterclockwise 1/4 tum_

•Repeat the tesL

On a sectional door, make sure limit

adjustments do not force the door arm beyond a

straight up and down position. See the

illustration on page 26.

•When the door reverses on the one-inch board,

remove the obstruction and run the opener through

3 or 4 complete travel cycles to test adjustment.

If the door will not reverse after repeated

adjustment attempts, call for professional

garage door service.

Safer,ReversingSensor_ Safety RBversi_Sensor

H=, i'='HM

IFailure to test and adjust the safety reverse I

system may result in serious injury or death to R

persons trapped by a closing garage door. |

Repeat this test once a month and adjust as

needed. ........

GARAGE DOOR

Important safety check

Repeat Adjustment Steps 1, 2 and 4 after:

•Each adjustment of door arm length, force controls

or limit controls.

° Any repair to or adjustment of the garage door

(including springs and hardware)°

°Any repair to or buckling of the garage floor

•Any repair to or adjustment of the opener.

"i,= ' '=..... T=I=

IMPORTANT SAFETY iNSTRUCTiONS

To reduce the risk of severe injury or death to persons:

t. READ AND FOLLOW ALL INSTRUCTIONS. 5. if possible, use the emergency release only

2. Do not permit children either to operate or to

playwith the opener. Keep remote control in a

location inaccessible to children.

3. Operate opener only when the door is in full

view and free from any obstruction. Keep the

door in sight until it is completely closed. NO

ONE SHOULD CROSS THE PATH OF THE

MOVING DOOR.

4. Check safety reversal system monthly. See

page 30. The garage door MUSTreverse on

contact with a one-inch (or a 2x4 board laid

flat) object placed on the floor. If an adjustment

is made to either the force or the limit of travel,

both adjustments may be needed and the

safety reversal system must be checked.

Failure to properly adjust the opener may

result in severe injury or death.

when the door is in a closed position. Caution

should be taken whenever the disconnect cord

is actuated with the door open. Weak or broken

springs may cause the door to fail rapidly,

causing injury or death to persons.

6. KEEP GARAGE DOORS PROPERLY

BALANCED. See page 3. An improperly

balanced door may not reverse when required

and could result in severe injury or death.

Repairs to cables, spring assemblies and other

hardware must be made by a professional

garage door person.

7. Disconnect the electric power to the garage

door opener before making any repairs or

removing the covers.

8.SAVE THESE NSTRUCTUONS.

Care of Your Opener

Limit and force adjustment controls

Limit Controls Force Controls

Adjuslment Label

(Located on the left side panel} Adjustment L_bel

(Located on the dght side pane|)

Weather conditions may cause some minor

changes in door operation requiring some re-

adjustments, particularly during the first year of

operation.

Pages 28 and 29 refer to the limit and force

adjustments. Only a screwdriver is required. Follow

the instructions carefully°

Repeat the safety reverse test (page 30) after any

adjustment of limits or force.

The remote control 3-FUNCTtON

Openthisend

The lithium batteries should _ toavold/.___

produce power for up to heu"

5years. To replace batteries, s.___k_-_-'-_ _J._

use the visor clip or screwdriver

blade to pry open the case as COMPAO_

shown_ ("Open" location is Twist hem___

stamped on back of transmitter toopen '_

case.) Insert batteries positive side down°

Replace cover as follows. 3-Function remote: Insert

the 3 tabs at the opposite end and snap shut°

Compact 3-Function remote: Snap shut along both

sides.

Dispose of old batteries properly.

Maintenance

Once a Month

Manually operate door. If it is unbalanced or

binding, call for professional garage door service_

Check to be sure door opens & closes fully.

Adjust limits and/or force if necessary.

(See pages 28 and 29r,)

,,,,,,,,,,,,, , ........................

Schedule

Repeat the safety reverse test. Make any

necessary adjustments (See page 30),,

Once a Year

Oil door rollers, bearings and hinges. The opener

does not require additional lubrication Do not

grease the door tracks.

iiii ii ii ,1111111 ......................

Operation of Your Opener

Activate the opener with any of the following:

•The Remote Control: Hold push button down

until the door starts to move.

=The Door Control: Hold push button down until

the door starts to move.

°The Outdoor Key Switch or Keyless Entry:

(See Accessories)

When the opener is activated with the safety

reversing sensor installed and correctly aligned:

1_ If open, the door will close. If closed, the door will

open,

2. ff closing, the door will reverse,

3o tf opening, the door wilt stop (allowing space for

entry and exit of pets and for fresh air),

4. If the door has been stopped in a partially open

position, it will close°

5. If obstructed while closing, the door wil! reverse.

6. If obstructed while opening, the door will stop.

7. The garage door will reverse in the closing cycle

when the invisible beam is broken. If fully open,

the door will not close when the beam is broken.

The sensor has no effect in the opening cycle.

if the sensor is not installed, or is not aligned

correctly, the door won't close from any remote

transmitter. You can close the door with the Door

Control, the Outdoor Key Switch, or Keytess Entry,

however, if you activate them until down travel is

complete. If you release them too soon, the door will

reverse.

The opener lights will blink for 5 seconds when the

safety reversing sensor causes the door to reverse.

Opener Lights will turn on under the following

conditions: When the opener is initially plugged in;

when the power is interrupted; when the opener is

activated. They will turn off automatically after 4-1/2

minutes or provide constant light when the Light

feature is activated° Bulb size is 75 watts maximum.

Weak or broken springs could allow an open

door to fall (either rapidly or unexpectedly),

resulting in serious injury, death or property

damage. If possible, use the emergency

release rope and handle only when the door is

fully closed.

=1 H=,,,

ase Arm

Emergent] _._

Relaase Handle _-----'_,,_

(Putt Down} i T

Manual disconnect

position

To open the door

manually:

The door should be

fully closed if possible.

Pul! down on the red

emergency release

handle and lift the door

manually. To

reconnect the door to

the opener, press the

Door Control push

button..

The lockout feature

prevents the trolley from

reconnecting automatically.

Pull the emergency handle

down and back (toward the

opener). The door can then

be raised and lowered

manually as often as

necessary. To disengage

the Lockout Feature, pull

the emergency handle

straight down° The trolley

will reconnect on the next

UP or Down operation°

[, o"-] Trolley

se Arm

FlalBaseHandle _

(Pull Down &Back

Towards Opener) --

Lockout position

Operation of the Door Controls (seepage18)

Press the lighted push button to open or close the

door.

Press again to reverse the door during the closing

cycle or to stop the door while it's opening.

Premium Console:

Ligl_t Feature- Press the large round Light button_If

the opener lights are off, they will turn on. If the

opener lights are on, (even in the 4-1/2 minute

automatic cycle) they will turn off..

But if you use the Light button to tum the lights on

and then activate the opener, the lights will tum off

after 4-t/2 minutes.

The Light button will not contro_ the opener lights

when the door is in motion,

Premium Console (cont.):

Lock Feature -The Lock feature is designed to

prevent operation of the door from remote controls.

However, the door will open and close from the Door

Control, the Outdoor Key Switch and the Keyless Entry

Accessories.

To Activate: Press and hold the small round Lock

button for 2 seconds. The push button light will flash

as tong as the Lock feature is on.

To turn off: Press and hold the Lock button again

for 2 seconds.The push button light will stop

flashing. The Lock feature wil! also turn off whenever

the "SRT" button on the opener panel is activated.

Receive and Remote ControR Programming

To cornply v;ilh FCC rules, ad{uS{meni or modi_oa{ions Of i_

andior transmitter are prohibited, except for changing the code setting or 1

replacing the batlery THERE ARE NO OTHER USER SERVICEABLE I

PARTS J

Models with 3-function remote controls: The

remote controls have been factory set to operate

with the large push button on the remote control.

However, you can use either of the two small

buttons, if you prefer. And, the 3-function remote

control can also activate additional garage door

openers and/or light controls..

Below are instructions for programming your opener

to match the other buttons on your remote controls

and any additional remote controls you may

purchase. See available accessories on page 38_.

Children operating or playing with a garage

door opener can injure themselves or others,

The garage door could close and cause

serious injury or death. Do not allow children

to operate the door push button(s) or remote

control(s).

A moving garage door could injure or kill

someone under it. Activate the opener only

when you can see the door clearly, it is free of

obstructions, and is properly adjusted.

53000SRT Series Garage Door Openers

(With "SRT" Button)

Your "SRT" garage door opener will operate with as

many as four "SRT" portable remote controls and

one Multi-Function Key]ess Entry,

To Add A Remote Control

1, Press and holdthe seiected remote control push

button, see Figure 1..

2..Then press and release the "SRT" button on the

right side panel of the opener, Figure 2. The

opener lights will flash once..

3. Release the remote push button.

Now the opener will operate when the remote

control push button is pressed.

If you release the remote control push button

before the opener lights flash, the opener will

not accept the code.

To Change the Selected Push Button

On the Same Remote control

If you decide to use a different remote control button

than originally programmed into the opener, you

must erase all the learned codes and reprogram

each remote control used to operate the garage

door opener..

To Erase All Remote control Codes

- Press and hold the "8RT" button on the opener

panel until the indicator light turns off (about 6

seconds). A//the codes the opener has learned

will be erased.

=To reprogram, repeat Steps 1,2 and 3 for each

remote control in use..

Code programming instructions are also located

on the opener panel.

Figure I

Figure 2

Select a remole control push

button !o operate opener

3-Function

Remote Control

Garage Door Opener

(With "SRT" Button)

"SRT" Indicator

Butlon Ugh!

END PANEL

Having aProbUem?

Situation Probable Cause and Solution

The opener doesn't

operate from either

the Door Control or

the remote control:

1. Does the opener have electric power?. Plug a lamp into the outlet. If it doesn't light,

check the fuse box or the circuit breaker. (Some outlets are controlled by a door switch.)

2. Have you disabled all door locks? Review instaltation instruction wamings on Page 11.

& Is there a build-up of ice or snow under the door? The door may be frozen to the

ground° Remove any restriction,.

4o The garage door spring may be broken° Have it replaced°

5o Repeated operation may have tripped the overload protector in the motor. Wait

15 minutes. Try again.

Opener operates

from the remote

control, but not from

the Door Control:

I. Is the Door Control lit? if not, remove the bell wire from the opener terminal screws.

Short the red and white terminals by touching both terminals at the same time with a

piece of wire. If the opener runs, check for a faulty wire connection at the Door

Control, a short under the staples, or a broken wire._

2. Are the wiring connections correct? Review Step 6, page 18.

i,m i, ,n , ,,n,n,,,,=-,,=...... ="'"u"

The door operates 1. If your model has the Lock feature, make sure the lock is Off.

from the Door 2o Is any door push button flashing? Your opener needs to re-learn a remote control

Control, but not from code. Refer to Instructions on the opener panel.

the remote control: 3. Program the receiver to match the remote control code.

4o Repeat the receiver programming procedure with all remote controls,

= =,=,,n,

The remote control

has short range:

..... =='''"'""n'="nHH' ="

!. Change the location of the remote controt in your car°

2, Check to be sure the antenna on the side or back panel of opener extends fully

downward°

3. Some installations may have shorter range due to a metal door, foil backed

insulation, or metal garage siding.

Opener noise is

disturbing in living

quarters of home:

If operational noise is a problem because of proximity of the opener to the living

quarters, the Vibration Isolator Kit 4tA3263 can be installed° This kit was designed to

minimize vibration to the house and is easy to install,

The garage door 1.

opens and closes 2.

by itself:

Be sure that all remote control push buttons are off,

Remove the bell wire from the Door Control terminals and operate from the remote

control only if this solves the problem, the Door Control is faulty (replace), or there is

an intermittent short on the wire between the Door Control and the opener,

i1,=,,,

The door doesn't

open completely:

, =,=,,,,,=......................

1. tf the door has been working properly but now doesn't open all the way, increase the

up force See page 29.

2. ts something obstructing the door?. Remove the obstruction or repair the door.

3,, If door opens at least 5 feet, the travel limits may need to be increased° One turn

equals 2 inches of travel. See page 28.

Repeat the safety reverse test after the adjustment is complete.

i,=,=,,u, ,'

The door stops but

doesn°t close

completely:

" ,i i= ,,=,,,=

Review the travel limits adjustment procedures on page 28,

Repeat the safety reverse test after any adjustment of door arm length, close

force or down limiL

Having aProbaem? (continued)

Situation Probable Cause &Solution

The door opens but

won't close:

........... M,, ' "1I'"'_ ..... " I'1'11'11.... I'_ ....

1. If the opener lights blink, check the safety reversing sensor., See page 23.

2.. If the opener lights do not blink and it is a new installation, check the down force°

See Adjustment Step 2, page 29. For an existing installation, see below.

Repeat the safety reverse test after the adjustment is complete.

The door reverses for

no apparent reason

and opener lights

don't blink:

,,,i, ,,,i,i.... ' ........ , ,,,,i ...............

1o Is something obstructing the door? Pull the red emergency release handle, Operate

the door manually° If it is unbalanced or binding, call for professional garage door

service.

2o Clear any ice or snow from the garage floor area where the door closes.

3. Review the force adjustment procedures on page 29°

4. If door reverses in the fully closed position decrease the travel limits (page 28)°

Repeat safety reverse test after adjustments to force or travel limits. The need

for occasional adjustment of the force and limit settings is normal Weather

conditions in particular can affect door travel

i...... i,,,.,_,_,....... ii, , ,,i,,,llr i,,11....... i, i....... , ,,i

The door reverses for Check the safety reversing sensor. Remove any obstruction or align the receiving eye°

no apparent reason See page 23.

and opener lights

blink for 5 seconds

after reversing:

i i ........... i

The opener lights:

,i,11, , , ,,,,,11,,,,,,,i.......... _'_"

•.. don't turn on:

Replace the light bulbs (75 watts maximum), Use astandard neck garage door opener

bulb if regular bulb burns out°

•.. don't turn off:

i, ,,

The opener strains or

maximum force is

needed to operate

door:

ts the Light feature on? Turn it off.

The door may be out of balance or the springs are broken. Close the door and use the

emergency release to disconnect the trolley, Open and close the doormanually. A propedy

balanced door will stay in any point of travel while being supported entirely by its springs. If it

does not, disconnect the opener and call a professional garage door serviceman. Do not

increase the force to operate the opener.

., ,i,

The opener motor 1.

hums briefly, then 2.

won't work:

i .....iii,

The garage door springs are broken_ See above.

If the problem occurs on the f_rstoperation of the opener, door may be locked. Disable

the door lock. If the belt was removed and reinstalled, the motor may be out of phase.

Remove the belt; cycle the motor to the down position.. Observe the drive sprocket.

When itturns in a clockwise direction and stops in the down position, reinstall the belt.

Repeat the safety reverse test after the adjustment is complete.

, , , ii1,,i,

The opener won't

operate due to

power failure:

1. Use the emergency release to disconnect the trolley_The door can be opened and closed

manually. When the power is restored, press the Door Control push button and troIley will

automatically reconnect (unless troIley is in lockout position.) See page 32.

2. The Emergency Key Release accessory (for use on garages with no service door)

disconnects the trolley from outside the garage in case of power failure.

Rail Assembly Parts

i, = F

Repair Parts

KEY

NO.

=,1=,,= i=

PART

NO.

1A995

41B3869-1

1B3117

183Bl10

41A35B8

41A3589-3

83A4

41B4103

109B33

41A3534

DESCRIPTION

,, ,i,i1,,11,,i, i

Master link kit

Complete trolley assembly

T-rail - center section

T-rail - end section

Belt pulley bracket

Full belt assembly

Rail grease

Tension assembly (Spring/Trolley Nut)

Trolley Clip

NOT SHOWN

Rail assembly hardware kit (includes

hardware illustrated on page 7).

.... i

Installation Parts

K'I=Y PART

NO. NO.

1 41A4884

241A4873

310A19

429Bt34

5 4"1A2828

641A4353

7 217A238

812B380

9 178B35

I 0 12B374

11 41A4373A

12B483

13 12B484

14 12B485

15 12B350

16 178B34

41A4437-1

41A4116

114A1983

DESCRIPTION

iii iii

Premium control console

3-function remote control housing

(no circuit board)

3V 2016 Uthium battery (2 required)

Visor clipfor Part No. 41A4873

Emergency rope & handle assembly

Header bracket w/clevis pin & fastener

2-conductor bell wire -white & whitelred

Door bracket plate

Curved door arm section

Door bracket

Safety sensor kit (receiving and sending eyes)

with 3' 2*conductor bell wire attached

=C"Wrap Bracket

Square Hole Bracket

Slotted Bracket

Hanging brackets

Straight door arm section

NOT SHOWN

Installation hardware bag (includes hardware

illustrated on page "f),

Safety sensor hardware

Owner's manual

11 10

16--

,, ,,,

Opener Assembly Parts

Repair Parts

.... ,i ...... i,,,

20-

KEY PART

NO. NO. DESCRIPTION

1 41A4371

2 4t A4885

41A2817

41 B4245

41 CA876

41 A4315-6C

4IA4924

175B88M

15 13 \/ 5

17 .................

14 (Down)

Brown Contact UMIT SWITCH ASSY,

Drive_

Center Limit (Up) L'_dJ Yei!ow

Contact Contact Wire

,, i .......... ,....

Belt cap retainer

Gear and sprocket assembly

Complete with:

Spring washer

Thrust washer

Retaining ring

Beadng plate

Roll pins (2)

Drive gear and worm gear

Helical gear w/retainer and grease

Drive/worm gear kit w/grease

Roll pins (2)

Line cord

Wire harness assembly w/plug

Receiver logic board assembly

Complete with:

Logic board

End panel w/all labels

Light socket

KEY PART

NO. NO. DESCRIPTION

9 108D46 Lens

t0 30B363 Capacitor - 1/2HP

1t t2A373 Capacitor bracket

12 41D3150 Terminal biock w/screws

13 41C4842 Universal replacement motor &

bracket assembly

Complete with: Motor, worm,

bracket, bearing assembly,

RPM sensor

14 41R396-1 Cover

15 41A2818 Helical gear & retainer w/grease

16 41D3452 Limit switch assembly

17 41C4398A RPM sensor assembly

18 41A2826 Shaft bearing kit

19 41A2822A Interrupter cup assembly

20 41A4923 End panel

NOT SHOWN

41A2825 Opener assembly hardware kit

(includes screws not designated by

a number in illustration).

Accessories

.............. ,, ,i.................i, ,,,, :_

,,,,,,,,, ,,, ,

Sears offers many useful accessories for your garage door opener. They are illustrated below with

Sears model numbers and descriptions.

........ I I _*ii. I.......... I i I IIIIIII=III i ........ III

139.53879 3-Function Remote Control:

Includes visor clipo

139.53702

139.53703

139.53_04

139.5 05

53885

..... ,i,,,

13933709

ii1,,i,

Emergency Key Release:

Required for a garage with NO

access door. Enables homeowner

i to open garage door manually from

outside by disengaging trolley.

.......... i,i .......

Outdoor Key Switch:

Operates the garage door

automatically from outside when

remote control is not handy.

..... i, ,,i,=,,

8 Foot Rail Extension

To allow an 8 foot door to open flJlty.

............ ,.,,,........

10 Foot Rail Extension:

Toallow a t0 foot doortoopen fully.

.,,,,

Support Brackets:

For finished ceilings or where

additional support is required,

based on garage construction.

Includes brackets and fastening

hardware.

139.53859

t39.53876

139.53774

139.53773

Compact 3-Function

Remote Control:

With loop for attaching key ring.

i,,,i....... ,.................... '.....

Multi-Function Keyless Entry:

Enables homeowner to operate

garage door opener from outside

by entering a 4 digit code on

specially designed keypad.

Door Clearance Brackets:

(For Sectional Doors Only)

Plug-in Light Control:

Enables homeowner to turn on a

lamp, television or other appliance

from car, bedside, or anywhere in

the home with a remote.

Wire-in Light Control:

Wires into light switch box to enable

homeowner to control outside or

inside lights with remote. (Can also

be operated manually.)

Replaces top brackets and rollers on door to reduce height of door travel For use when

installing opener in garage with low headroom clearance°

i1,11,

index

Manual (Emergency) Release Rope &Handle

Lockout feature .................................................................................................................................................................................32

Manual disconnect .........................................................................................................................................................................32

Safety warnings ......................................................................................................................................................11, 19, 31, 32

Opener Terminals

Door contro_ connections ...........................................................................................................................................................18

Safety reversing sensor connections ..................................................:............................................................................. 23

Outdoor key switch accessory connections ..........................................................................................................................18

Safety Reverse Test Procedure ...................................................................................................................................... 30

Testing required ........................................................................................................................................... 11, 30, 34, 35

Safety reverse system problems

Secudng header bracket to wall .................................................................................................................................... 12

Adjusting travel limits .............................................................................................................................................. 28

Applying excessive force on the door ..................................................................................................................... 29

Buckling or uneven floor ..................................................................................................................................... 4, 5

Safety Warnings ............................................................ 2, 3, 9, 11, 12, 16, 18, 19, 20, 21, 24, 28, 29, 30, 31, 32, 33

User Instruction Label for garage wall ........................................................................................................... 11, 18

Model No.

139.53800SRT

The model number

label is located under

the light lens on the

left side panel of your

opener.

When requesting

service or ordering

parts, always provide

the following

information:

® Product Type

•, Model Number

,. Part Number

,, Part Description

For the repair or replacement parts you need

Call 7 am - 7 pm, 7 days a week

t -8OO=366=PART

(1-800-366-7278)

For in-home major brand repair service

Call 24 hours a day, 7 days a week

1-SOO-4=REPAIR

(1-800-473-7247)

For the location of a

Sears Repair Service Center in your area

Ca}l 24 hours a day, 7 days a week

t =8OO=488=1222

For information on purchasing a Sears

Maintenance Agreement or to inquire

about an existing Agreement

Call 9 am - 5 pro, Monday-Saturday

t =S00=827=6655

America's Repair Specialists

SEARS WARRANTY

FULL 90-DAY WARRANTY ON GARAGE DOOR OPENER

For 90 days from the date of purchase, Sears wiII repair this Garage Door Opener,

free of charge, if defective in material or workmanship,,

LIMITED WARRANTY

From the 9let day until one year from the date of purchase, Sears wiil furnish

replacement parts for any defective parts, free of charge You pay for labor.

LIMITED WARRANTY ON MOTOR

After t year and through 5 years, if the motor on this Garage Door Opener is

defective, Sears wiil furnish replacement motor, free of charge You pay for labor_

LIMITAI"tON ON LIABILITY

SEARS WILL NOT BE LIABLE FOR LOSS OR DAMAGE TO PROPERTY OR ANY

INCIDENTAL OR CONSEQUENTIAL LOSS OR EXPENSE FROM PROPERTY

DAMAGE DUE DIRECTLY OR INDIRECTLY FROM THE USE OFTHIS

PRODUCT. Some states do not allow the exclusion or limitation of incidental or

consequential damages, so the above limitation or exclusion may not apply to you,

This warranty does not cover light bulbs or repair parts necessary because of

operator abuse or negligence, including the failure to instal, adjust and operate this

garage door opener according to instructions contained in the owner's manual.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST

SEARS CENTER/DEPARTMENT IN THE UNITED STATES.

This warranty applies only whi_ethis product is in use in the United States.

This warranty gives you specific iegal rights, and you may a}so have other rights

which vary from state to state.

SEARS, ROEBUCK AND CO., DepL 817WA, Hoffmen Estates, IL 60179

Sears, Roebuck and Co,, Hoffman Estates, IL 60179 USoA=

Craftsman 13953800SRT User Manual 1/2 HP GARAGE DOOR OPENER Manuals And Guides L0804477

CRAFTSMAN Garage Door Opener Manual L0804477 CRAFTSMAN Garage Door Opener Owner's Manual, CRAFTSMAN Garage Door Opener installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
