Owner's Manual/Manual del Propietario

GARAGE DOOR OPENER

ABRIDOR DE PUERTA DE COCHERA

For Residential Use Only/Sblo para uso residencial

Model/Modelo 139.53990

Z_

O

I-"

Read and follow all safety rules

and operating instructions before

first use of this product.

Lea y siga todas las reglas de

seguridad y las instrucciones de

operaci6n antes de usar este

producto por primera vezo

Fasten the manual near the garage

door after installation. Guarde este manual cerca de la

puerta de la cochera.

Periodic checks of the opener are

required to ensure safe operation. Se deben realizar revisiones

peribdicas del abridor de puertas

para asegurar su operaci6n

segura.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

www.sears.com/craftsman

TABLE OF CONTENTS

Introduction 2. 7

Safety symbol and signalword review........................ 2

Prepadng your garage door........................................ 3

Toolsneeded ............................................................... 3

Planning .................................................................. 4-5

Carton inventory.......................................................... 6

Hardware inventory..................................................... 7

Assembly 8.11

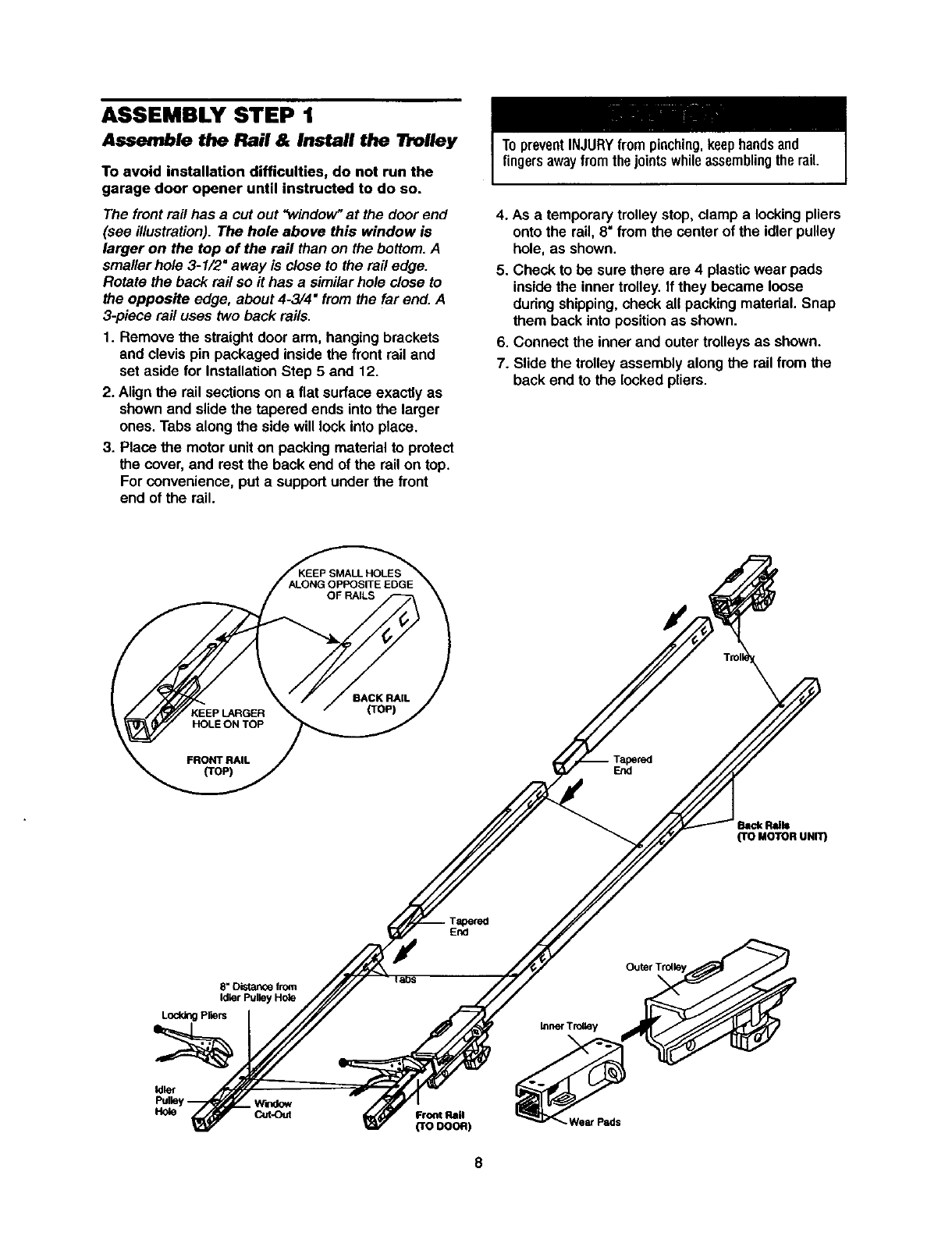

Assemble the rail and installtrolley............................. 8

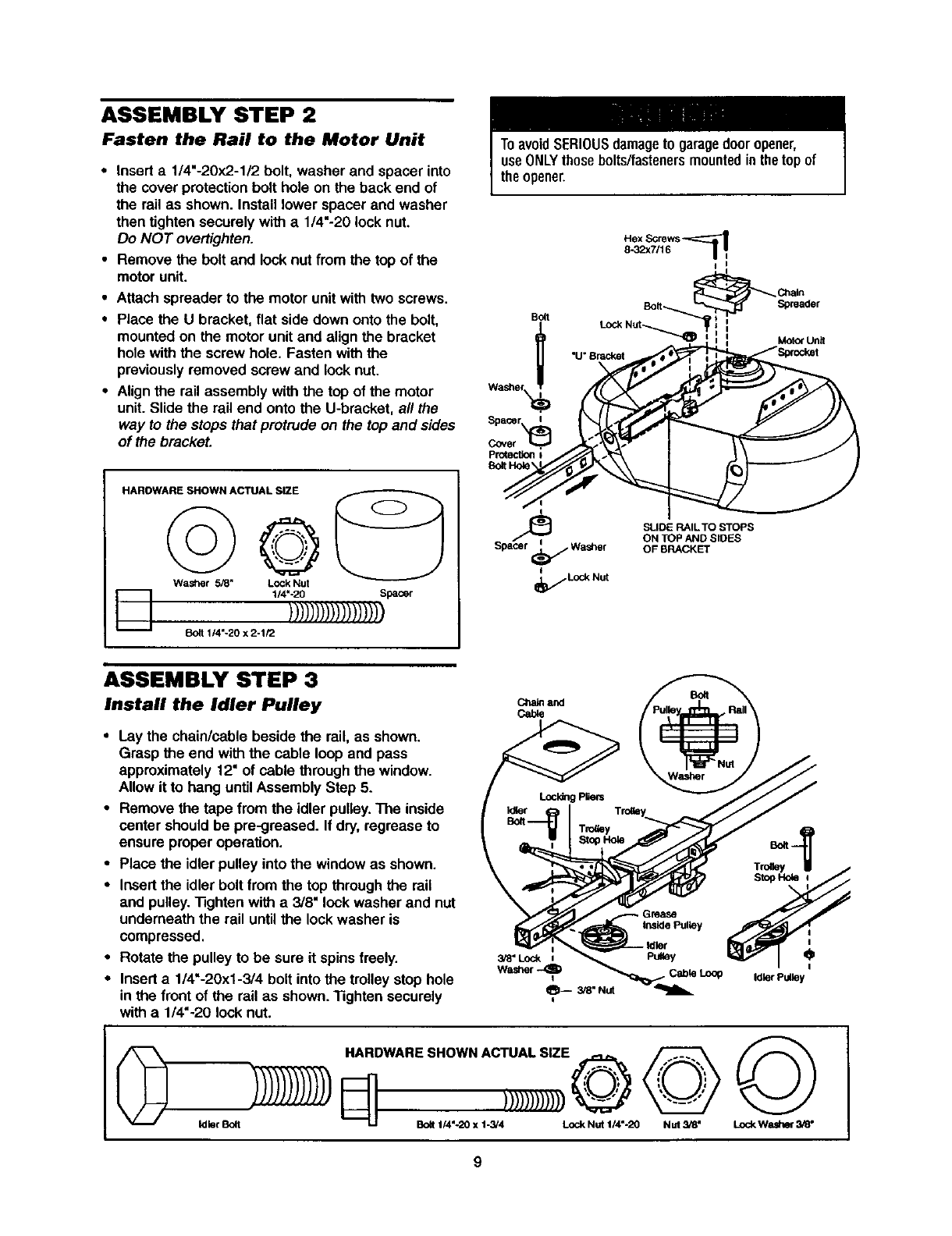

Fasten rail to motor unit and installidler pulley..........9

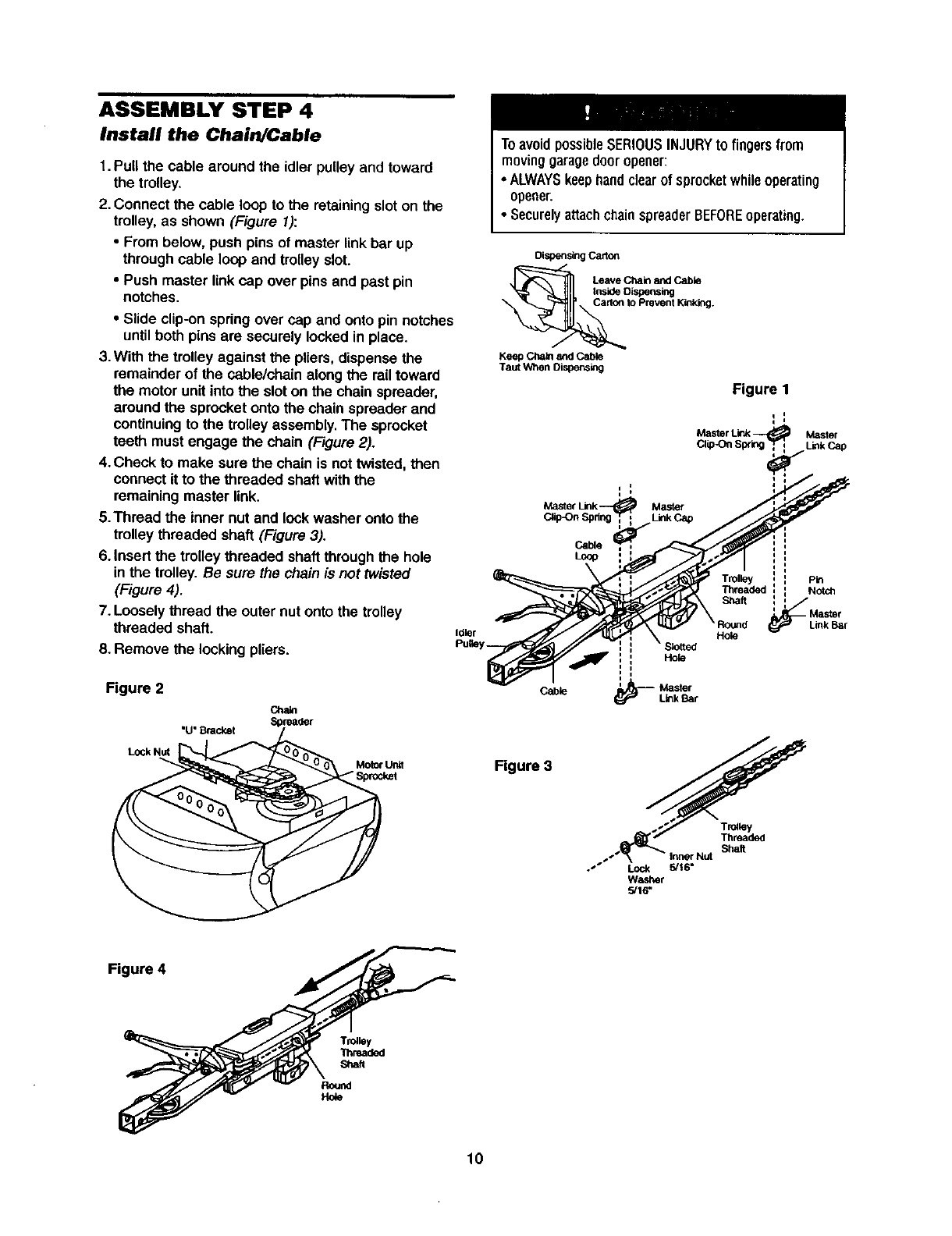

Install chain/cable...................................................... 10

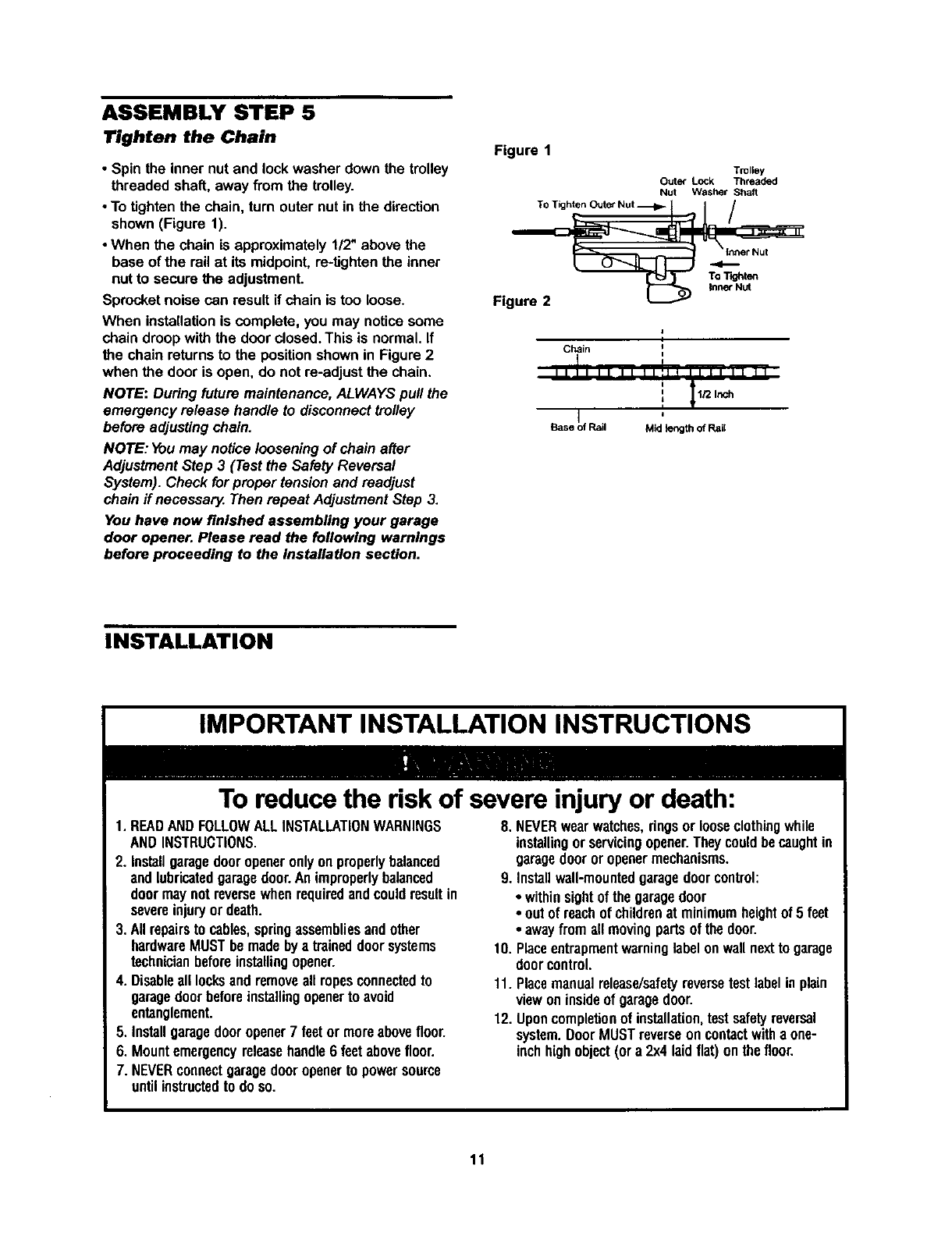

"nghtenthe chain ....................................................... 11

Installation 11.27

Installationsafety instructions.................................... 11

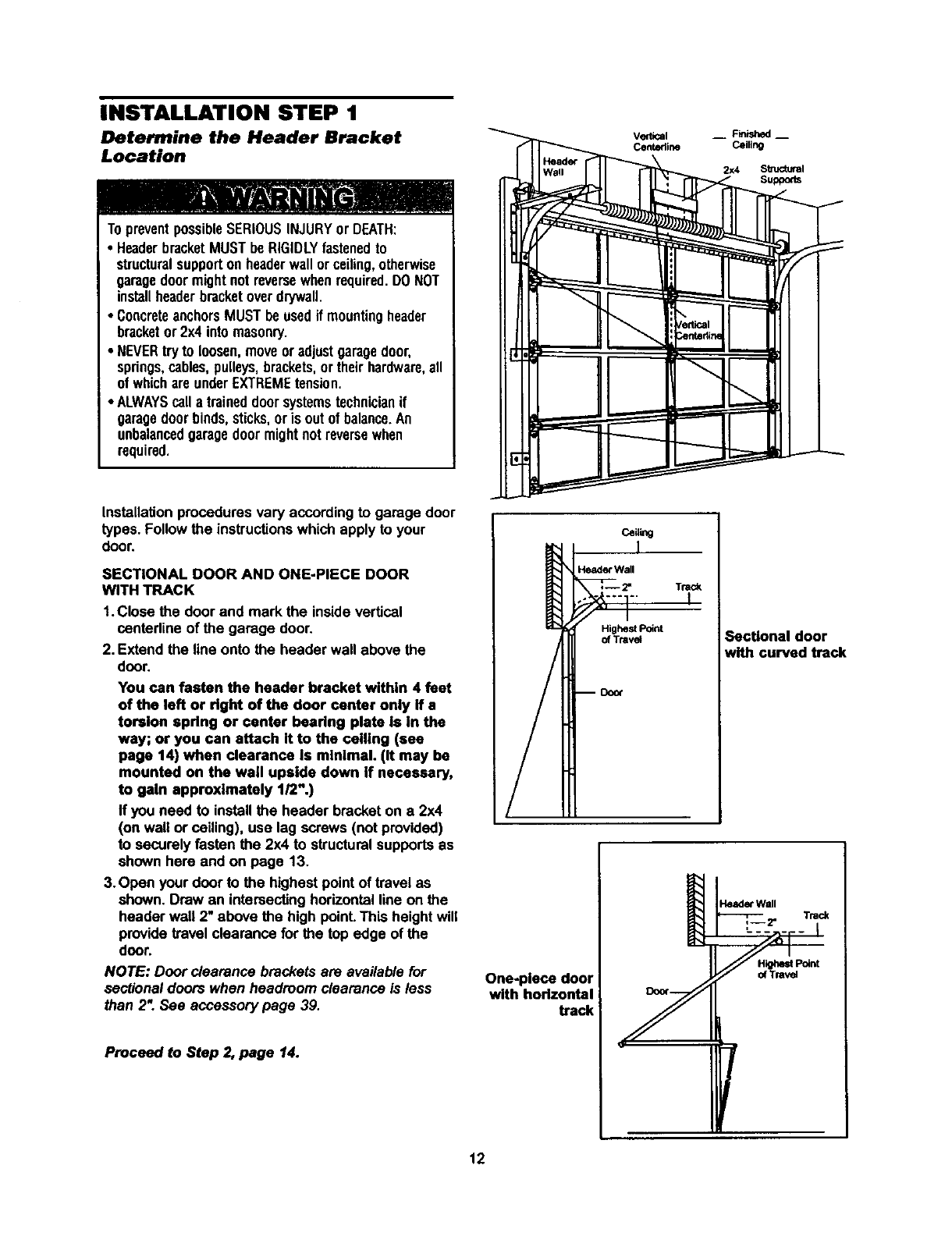

Determine the header bracket location................12-13

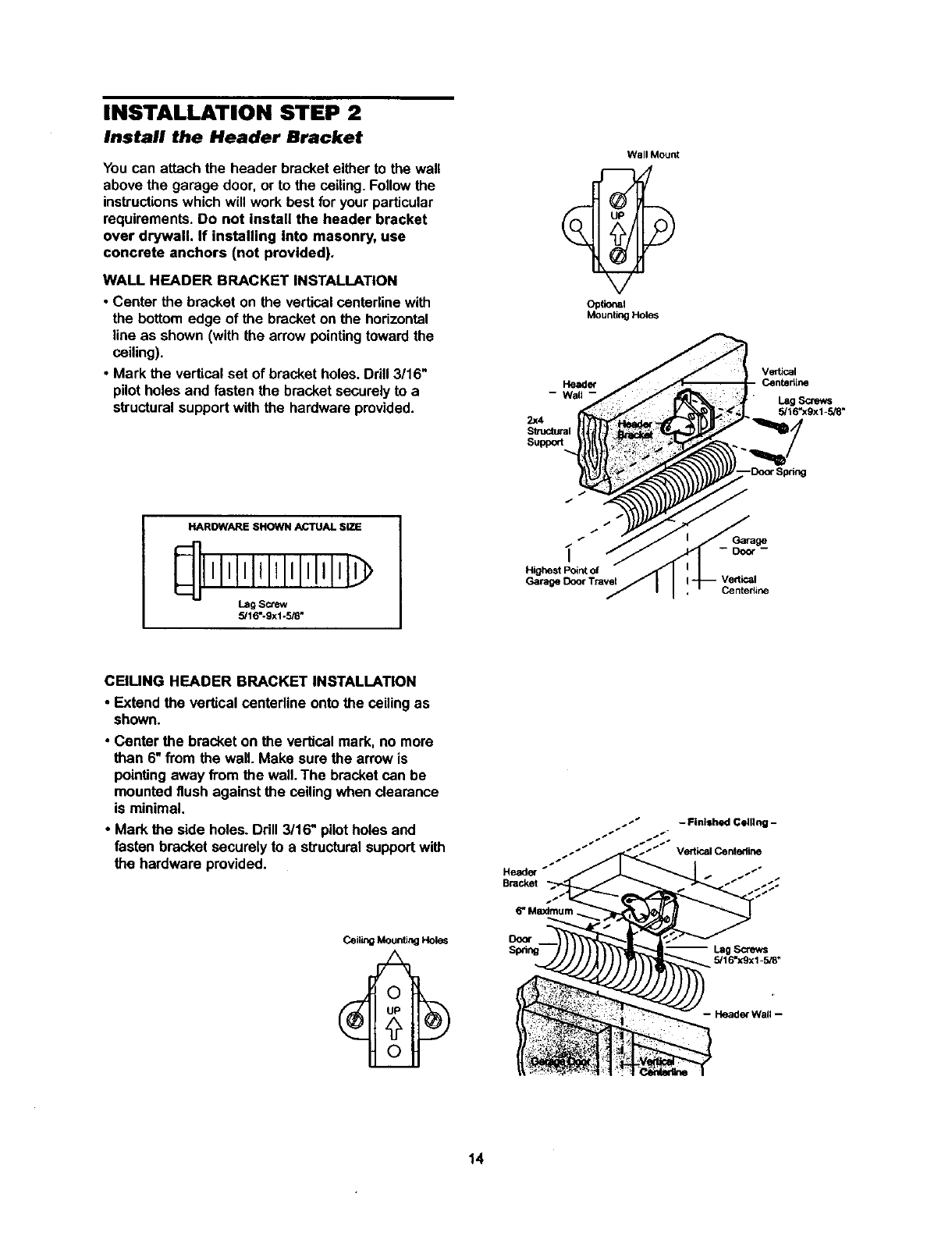

Installthe header bracket.......................................... 14

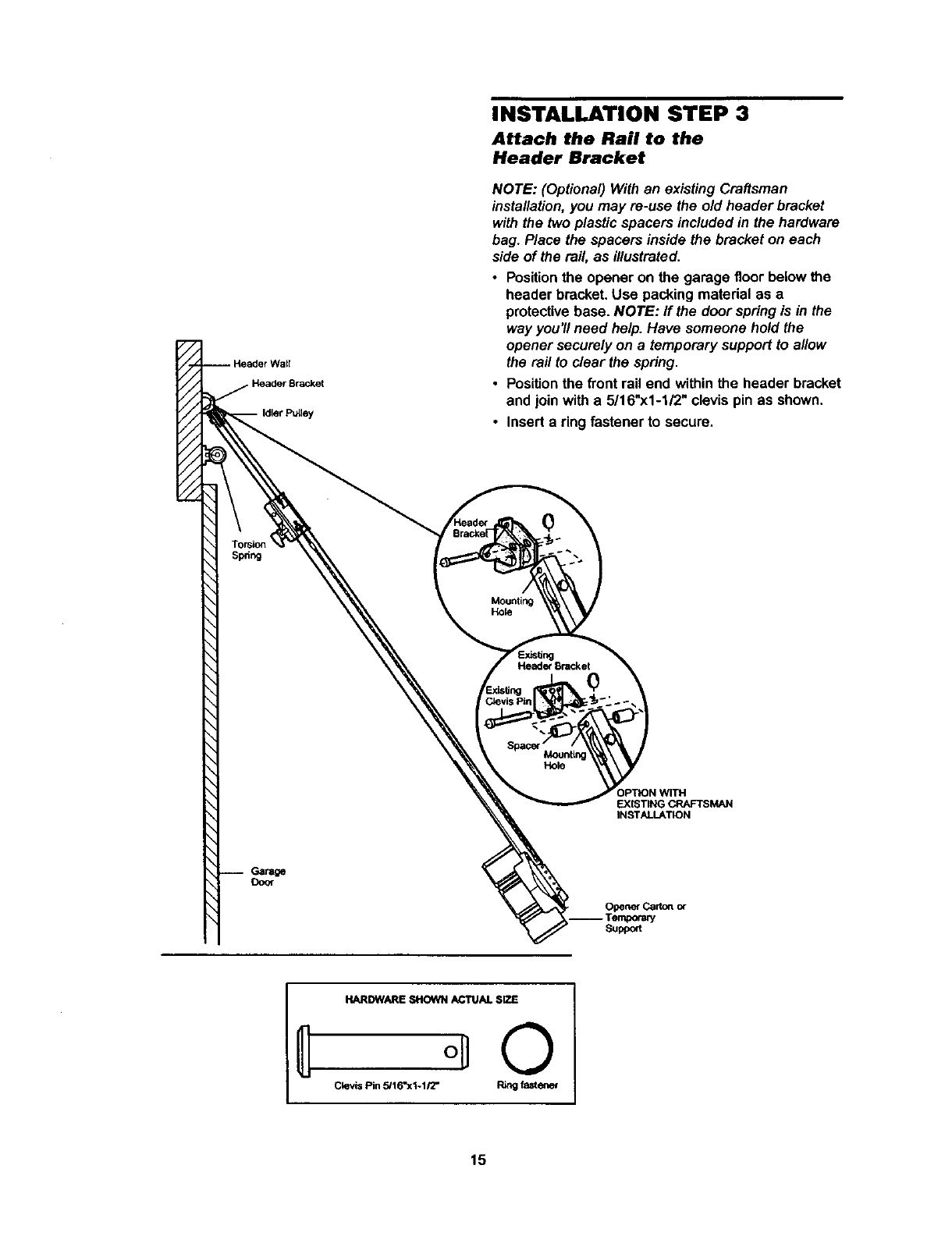

Attach the rail to the header bracket......................... 15

Positionthe opener ................................................... 16

Hang the opener ....................................................... 17

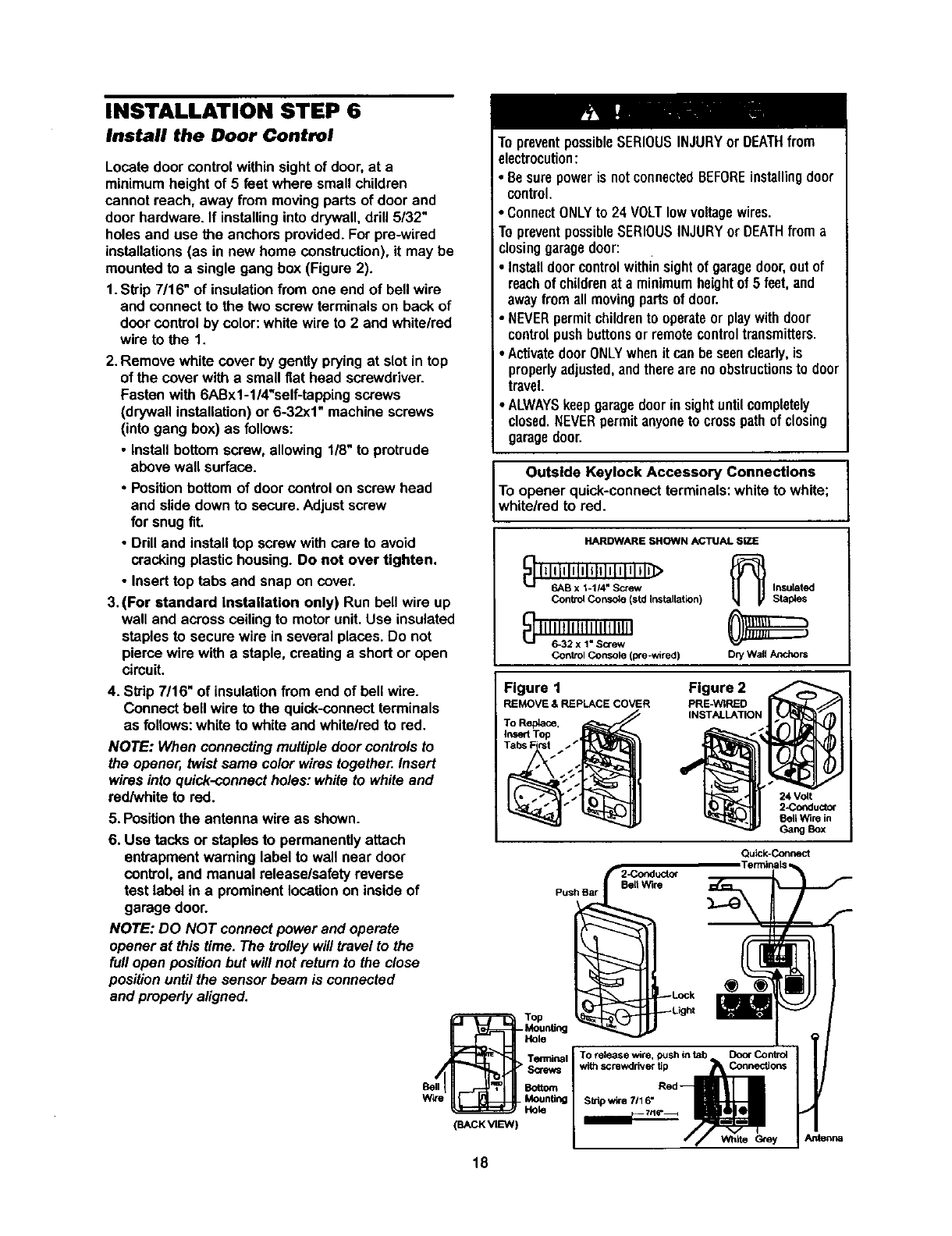

Installthe door control............................................... 18

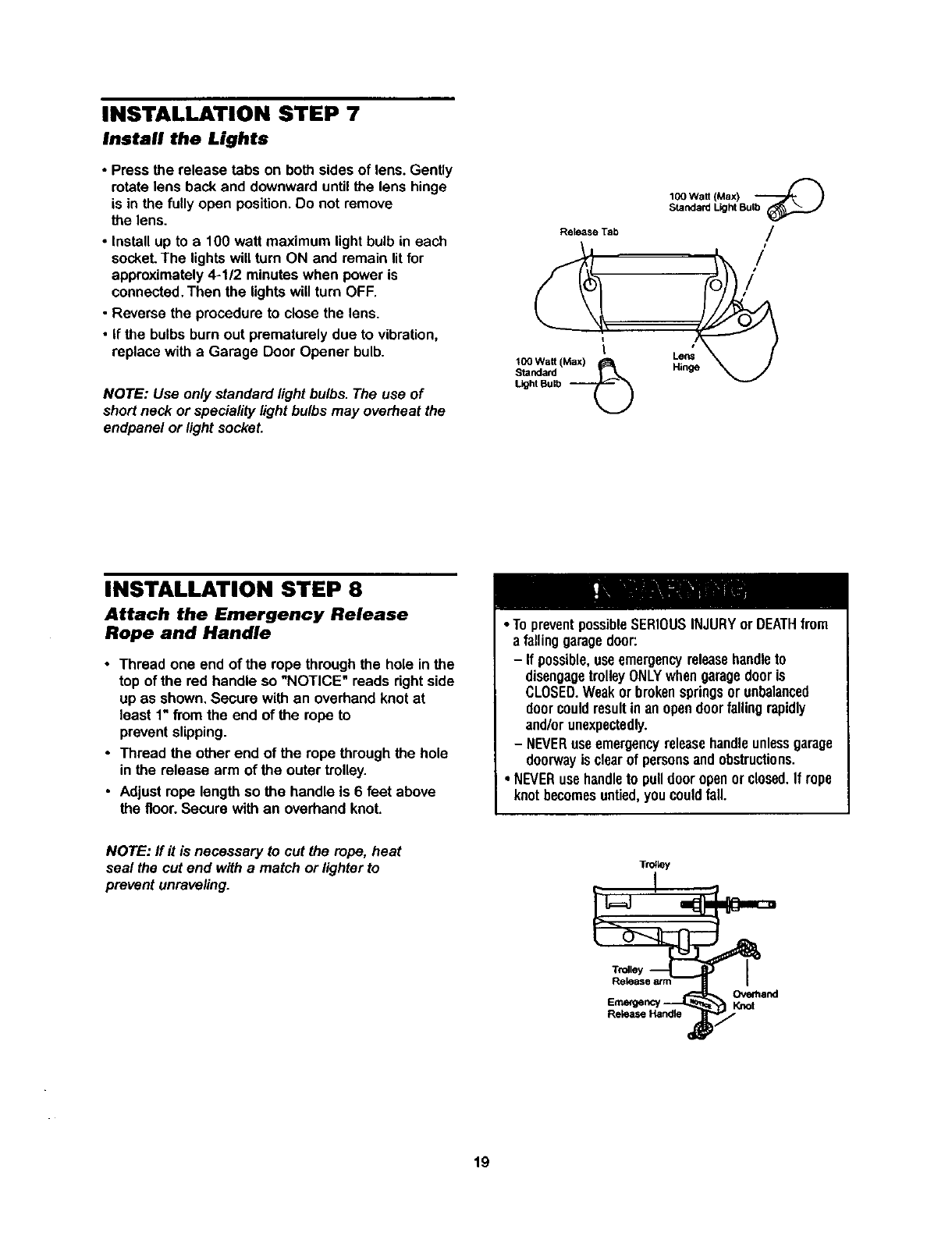

Installthe lightsand lens........................................... 19

Attach the emergency release rope and handle.......19

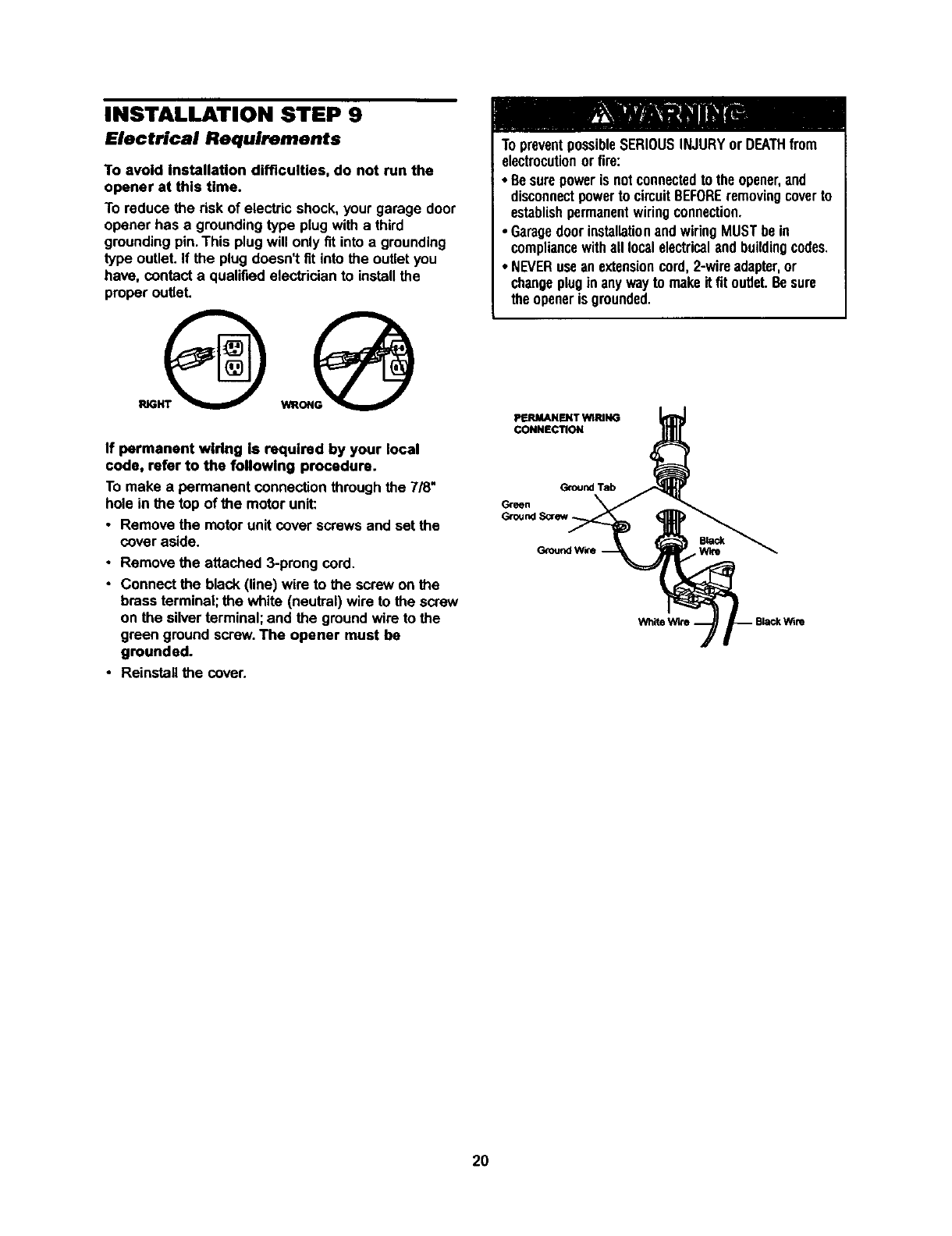

Electricalrequirements.............................................. 20

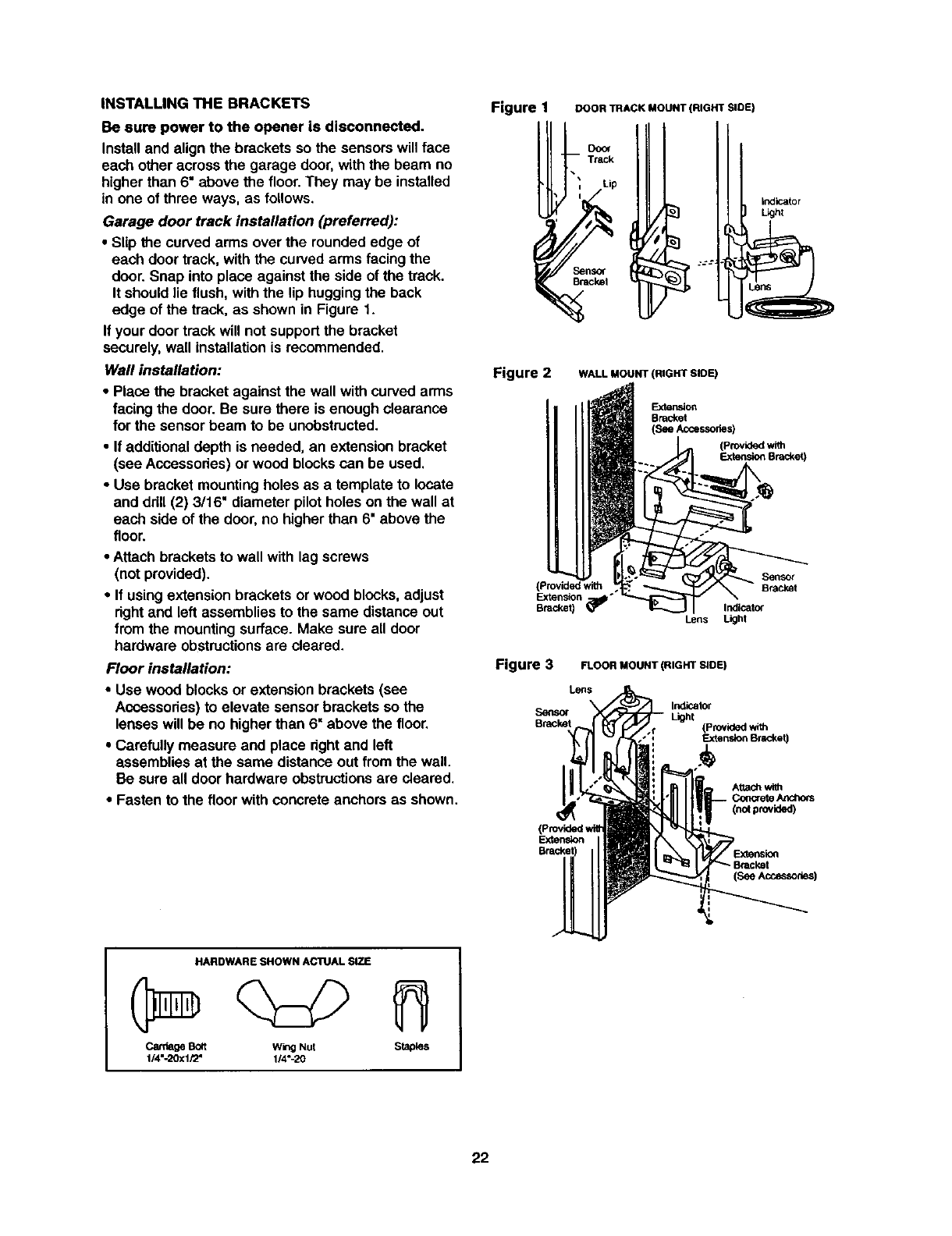

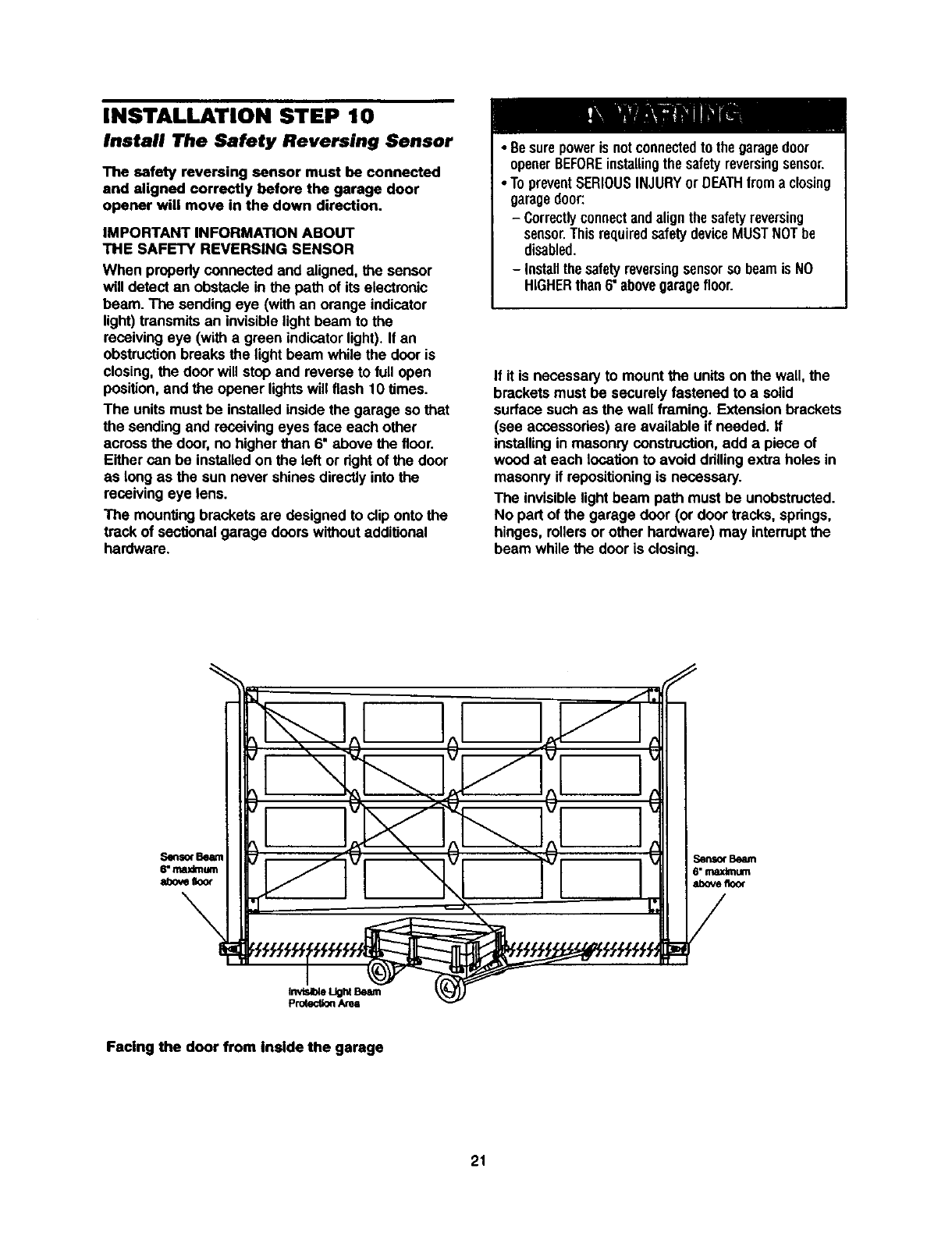

Installthe safety reversingsensor ....................... 21-23

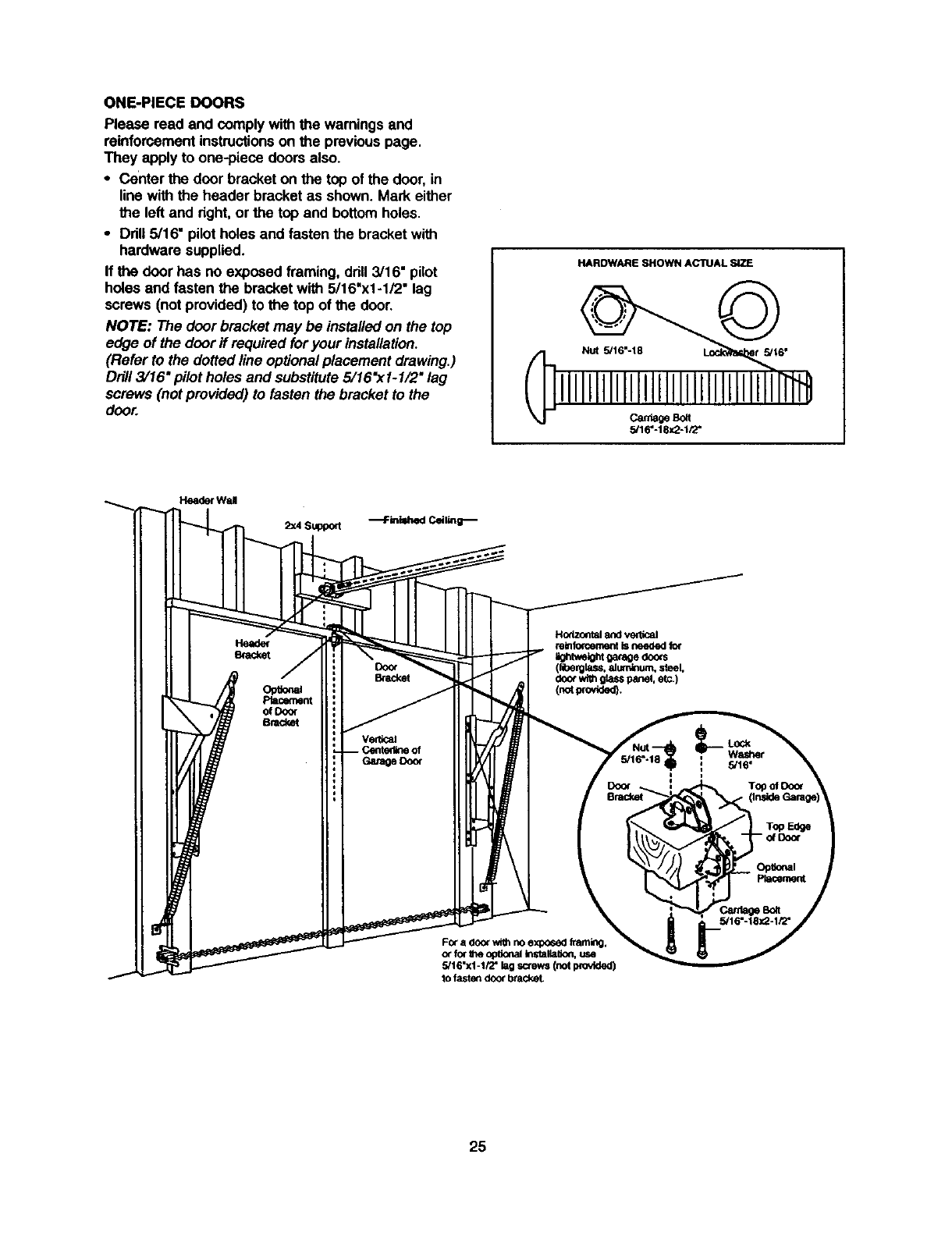

Fasten the door bracket....................................... 24-25

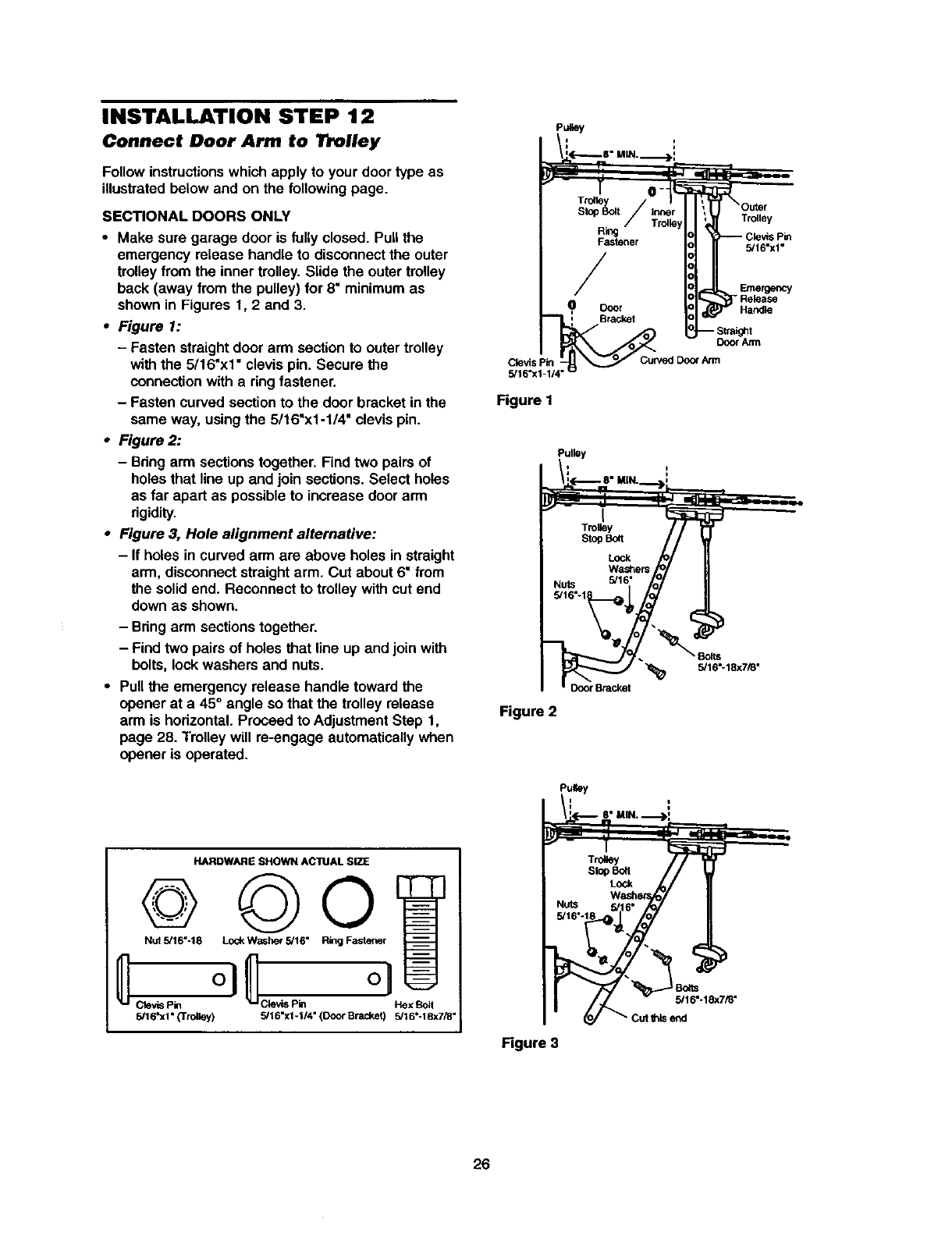

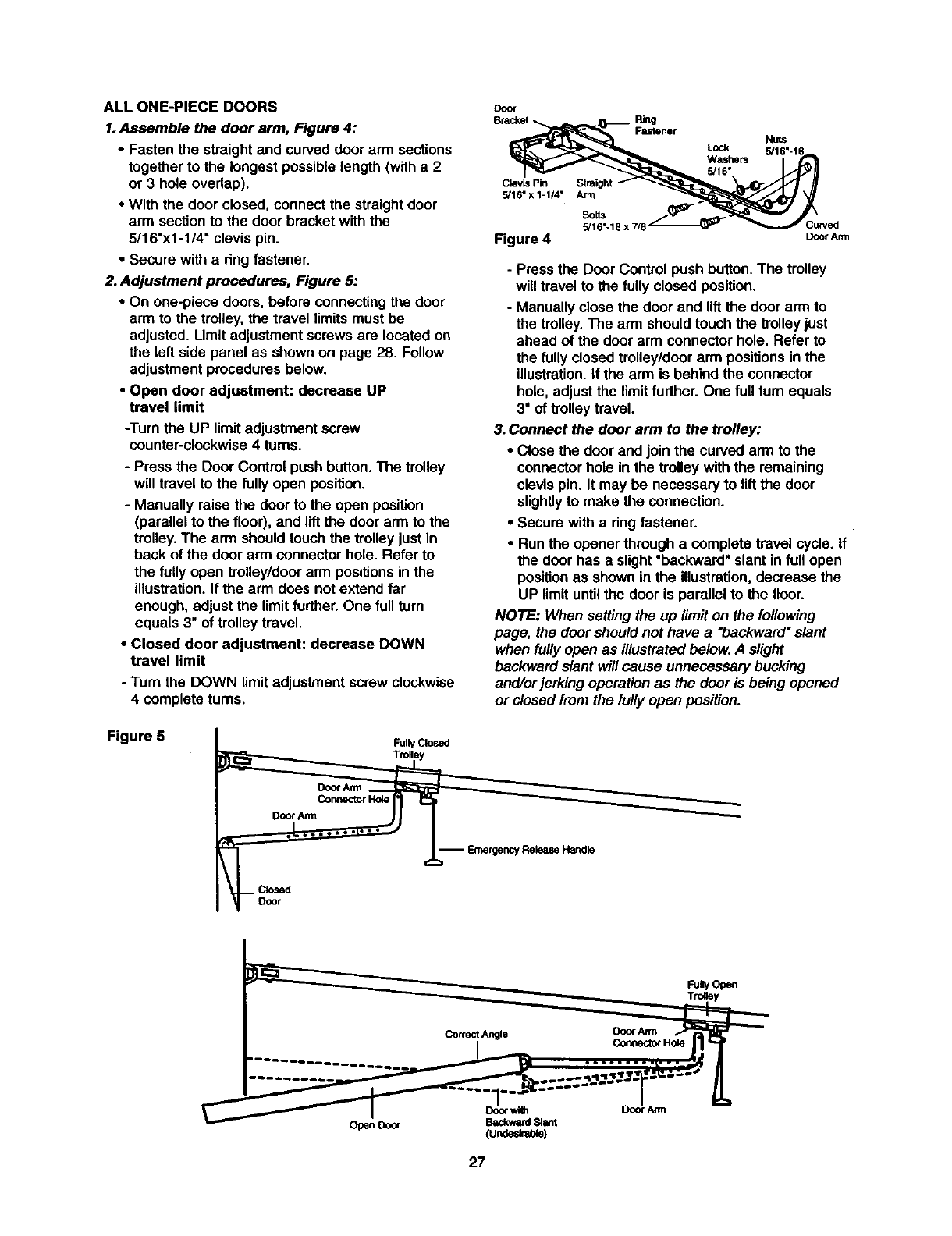

Connect the door arm to the trolley..................... 26-27

Adjustment 28-30

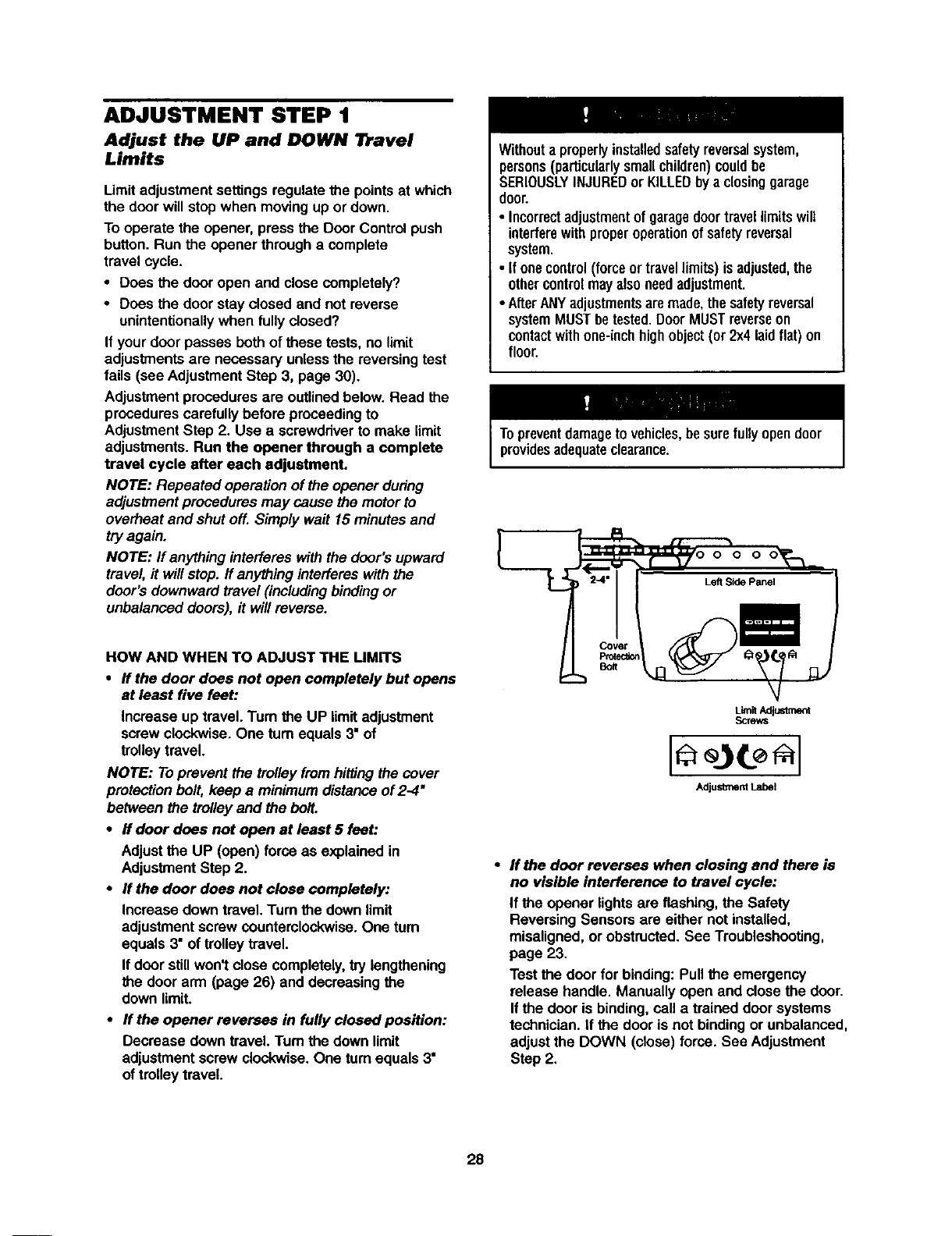

Adjustthe travel limits............................................... 28

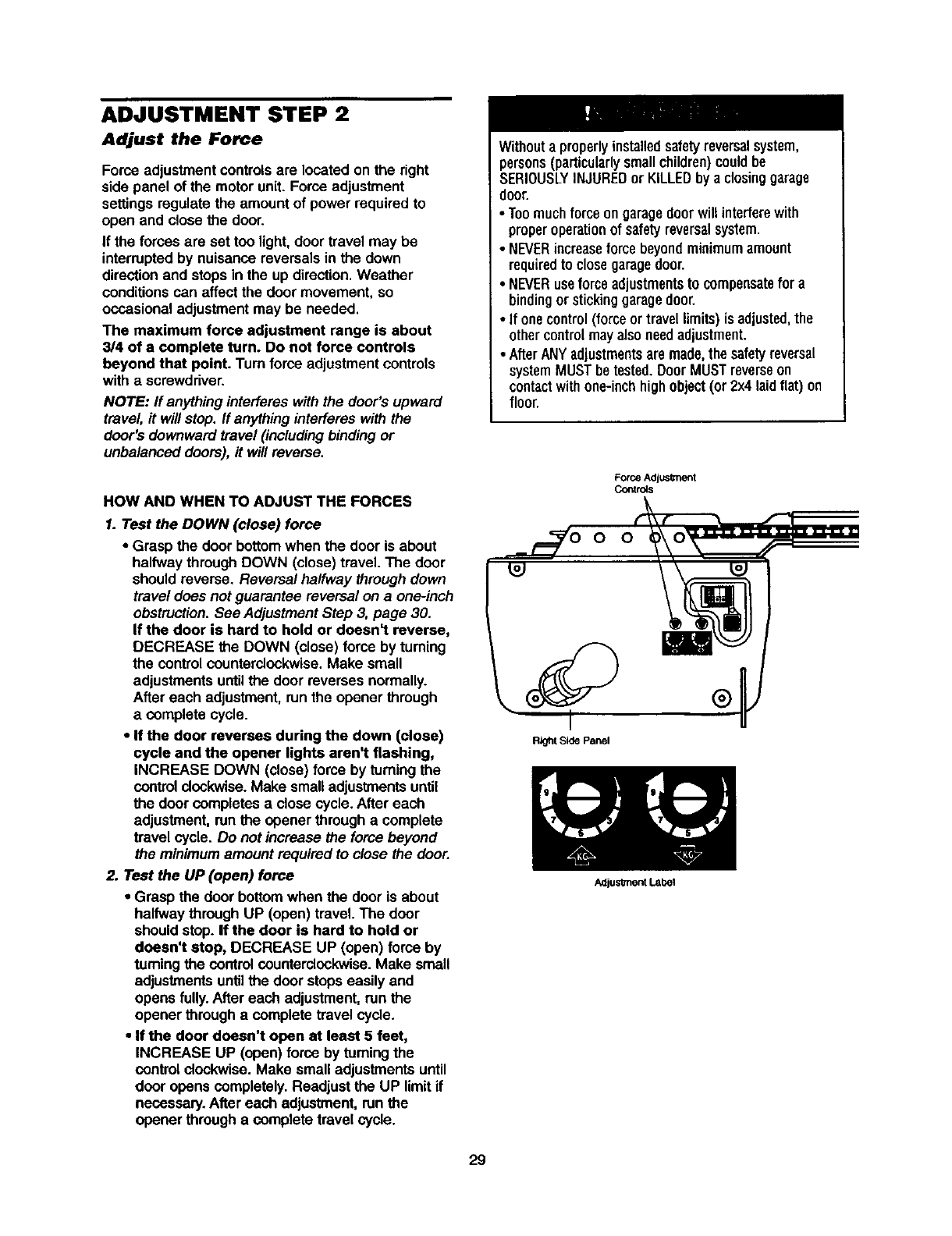

Adjustthe force......................................................... 29

Test the safety reversal system................................. 30

Test the safety reversingsensor ............................... 30

Operation 31.34

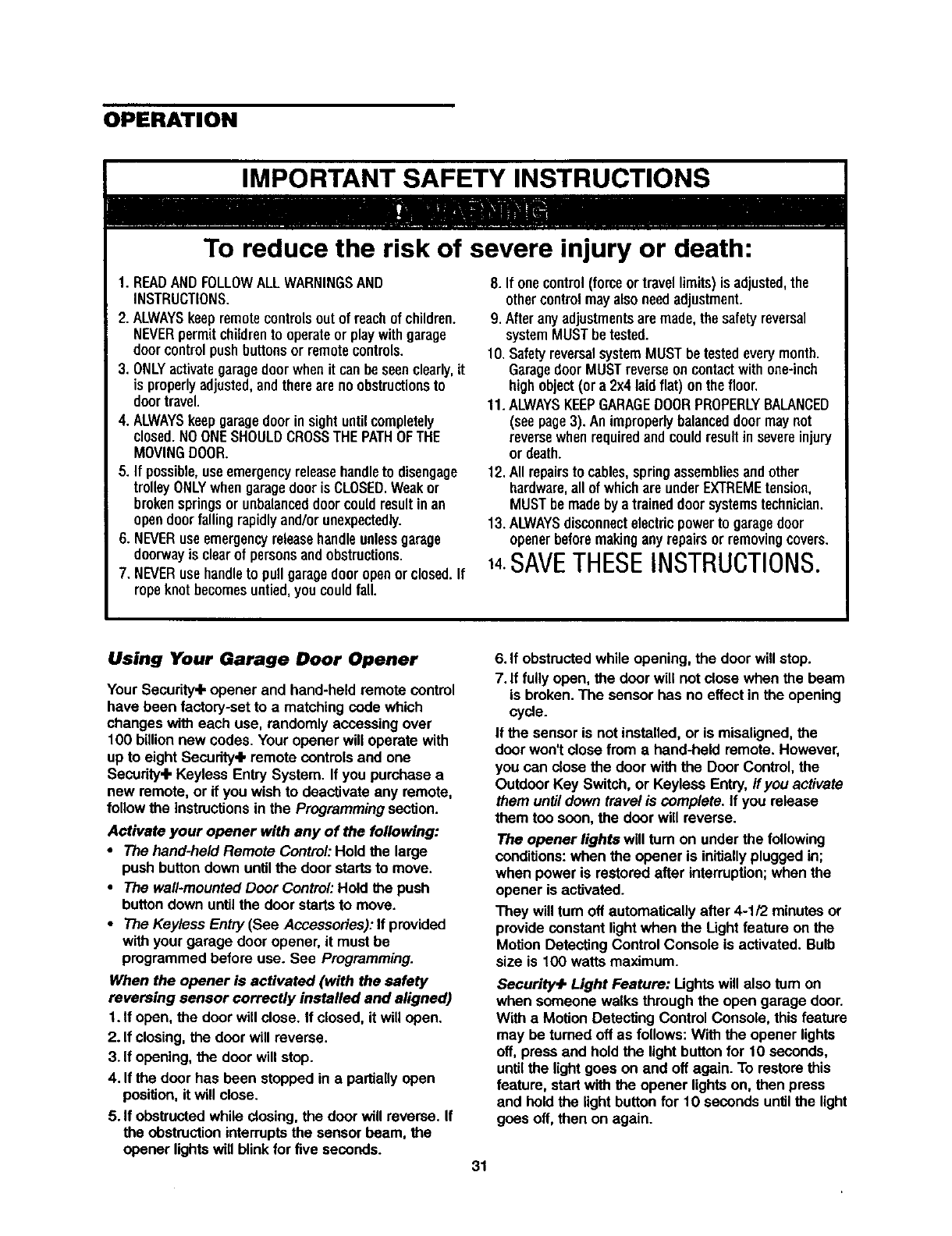

Operation safety instructions..................................... 31

Using your garage door opener ................................ 31

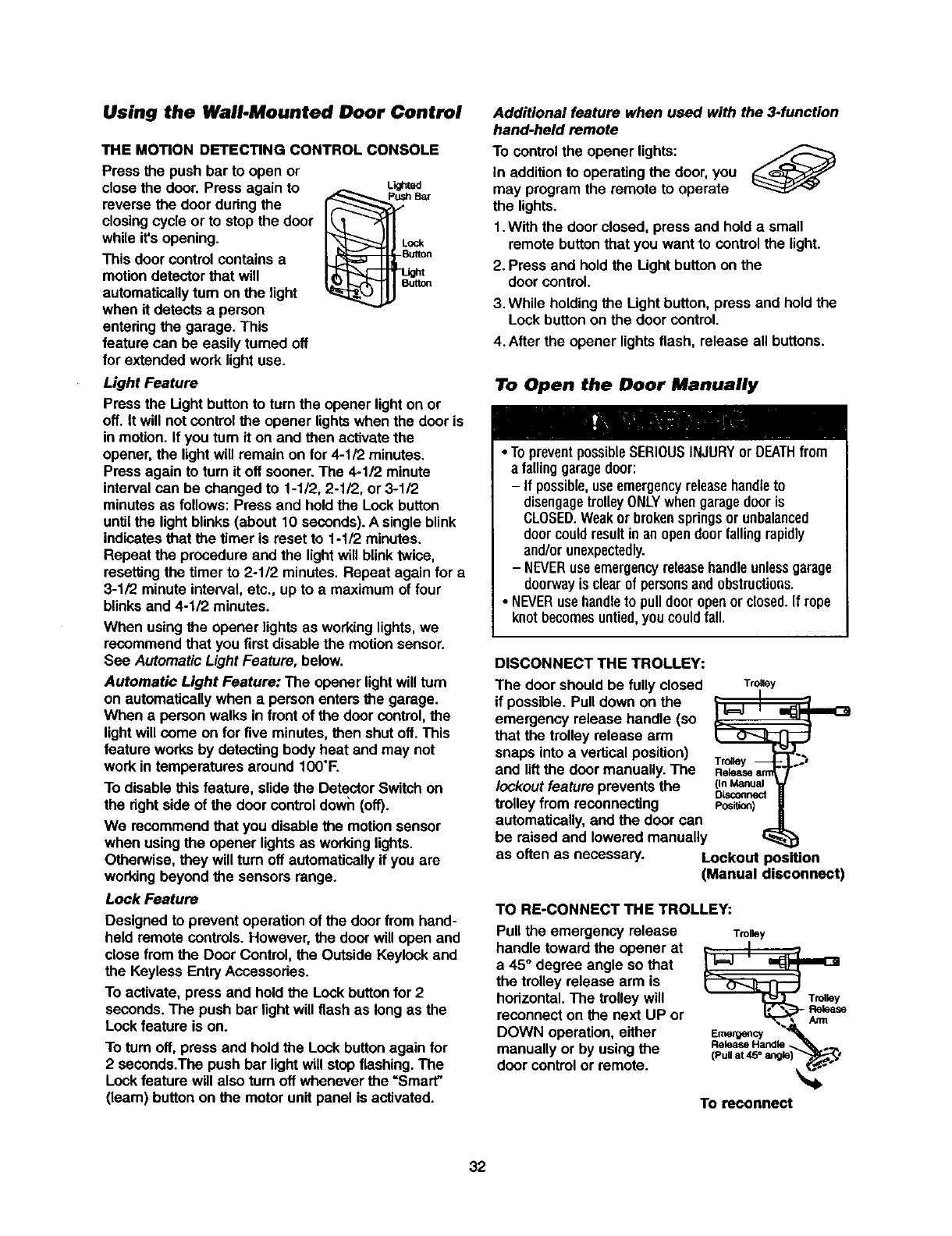

Using the wall-mountedDoor Control....................... 32

To open the door manually........................................ 32

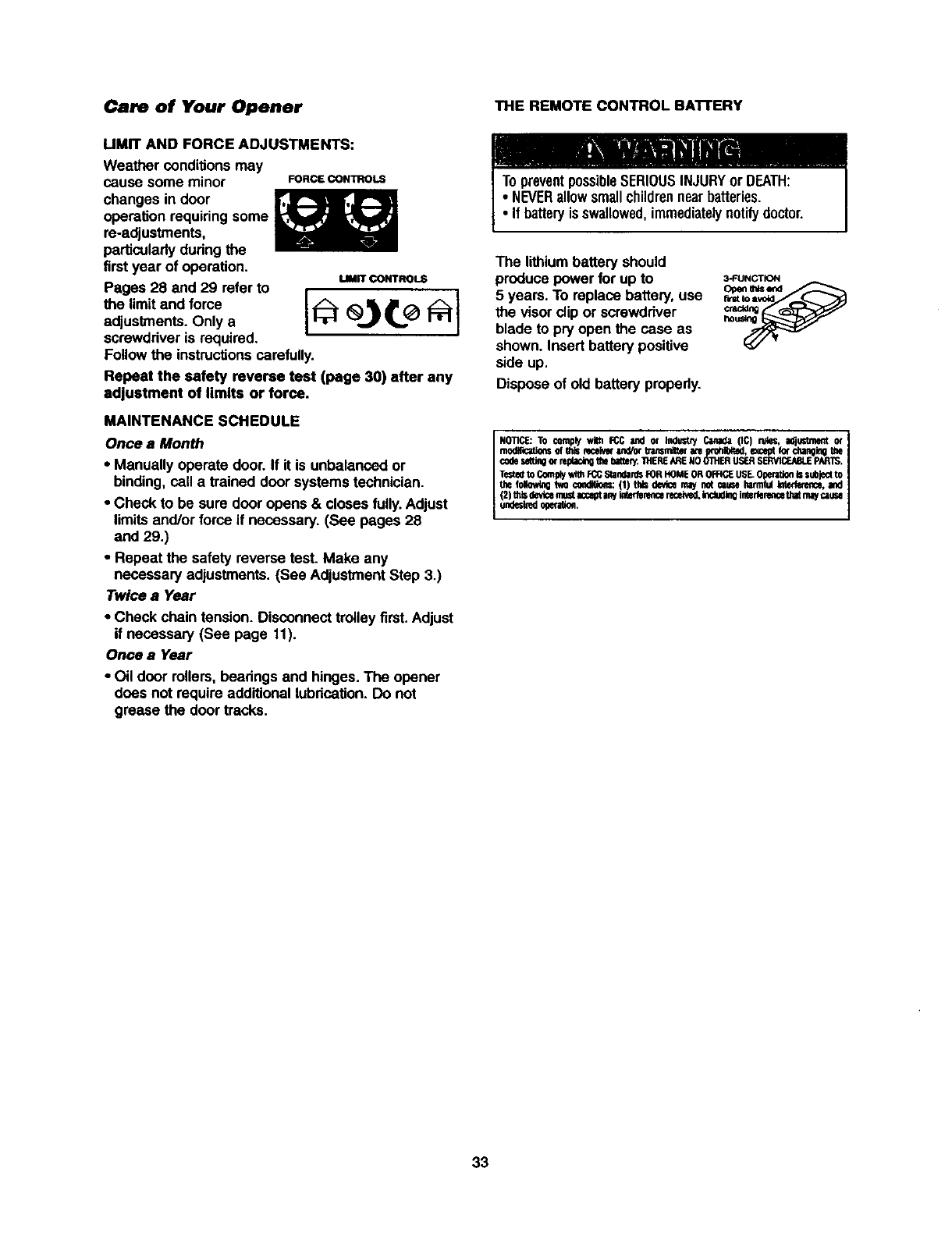

Care of your garage door opener.............................. 33

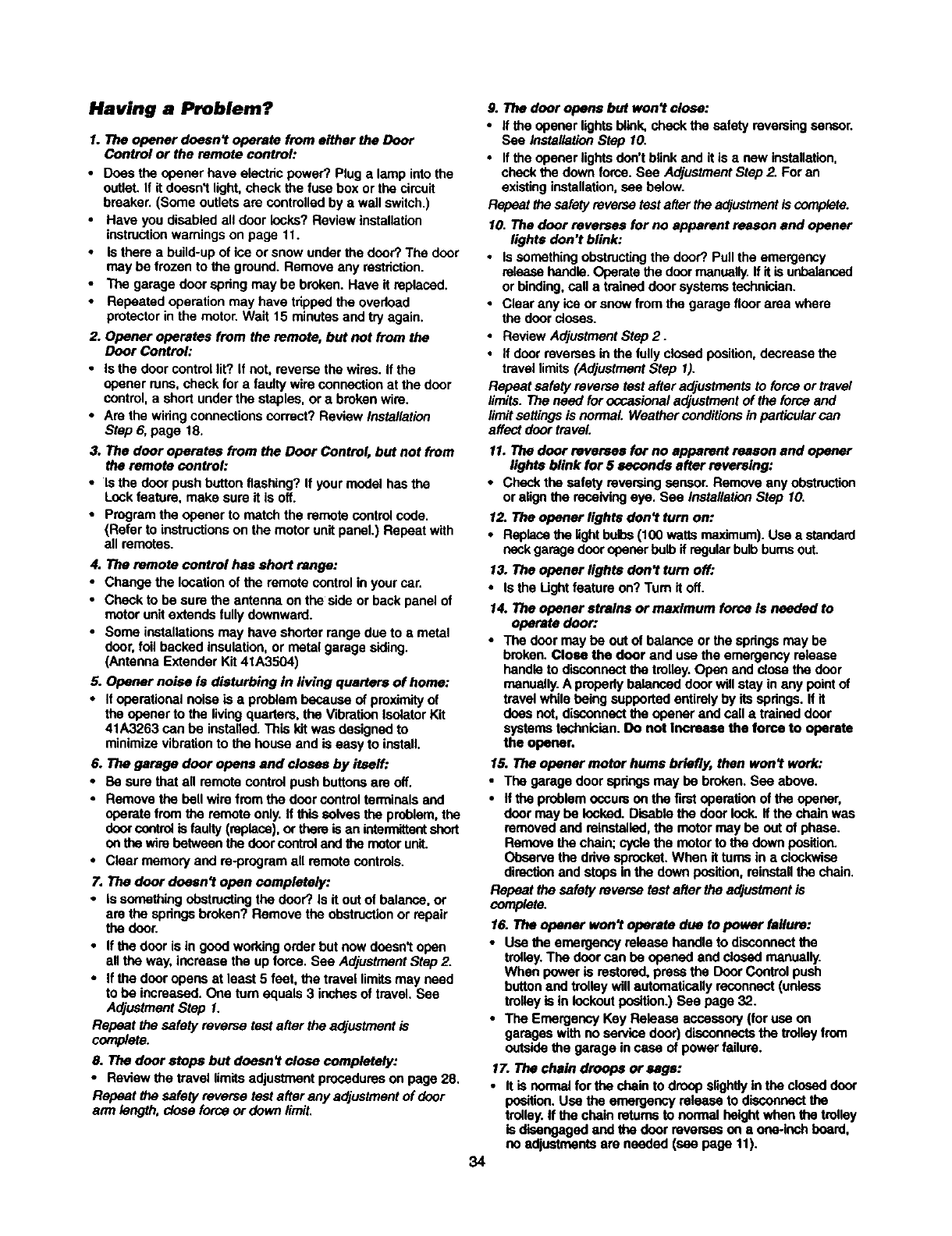

Havinga problem?.................................................... 34

Programming 3.5-36

To add a hand-held remote control........................... 35

To erase all codes..................................................... 35

3-Function Remotes.................................................. 35

To add or change a Keyless Entry PIN ..................... 36

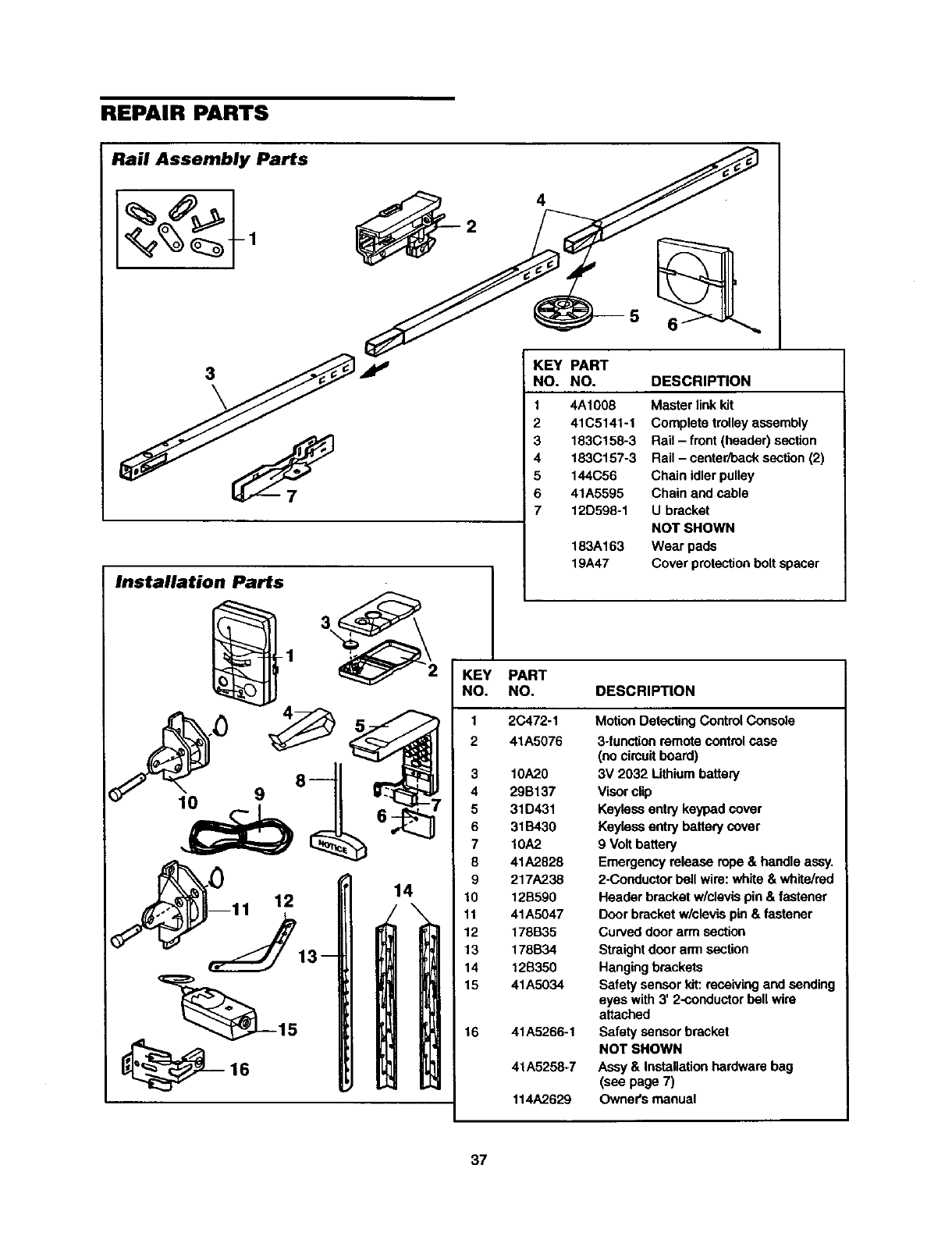

Repair Parts 37-38

Rail assembly parts................................................... 37

Installationparts........................................................ 37

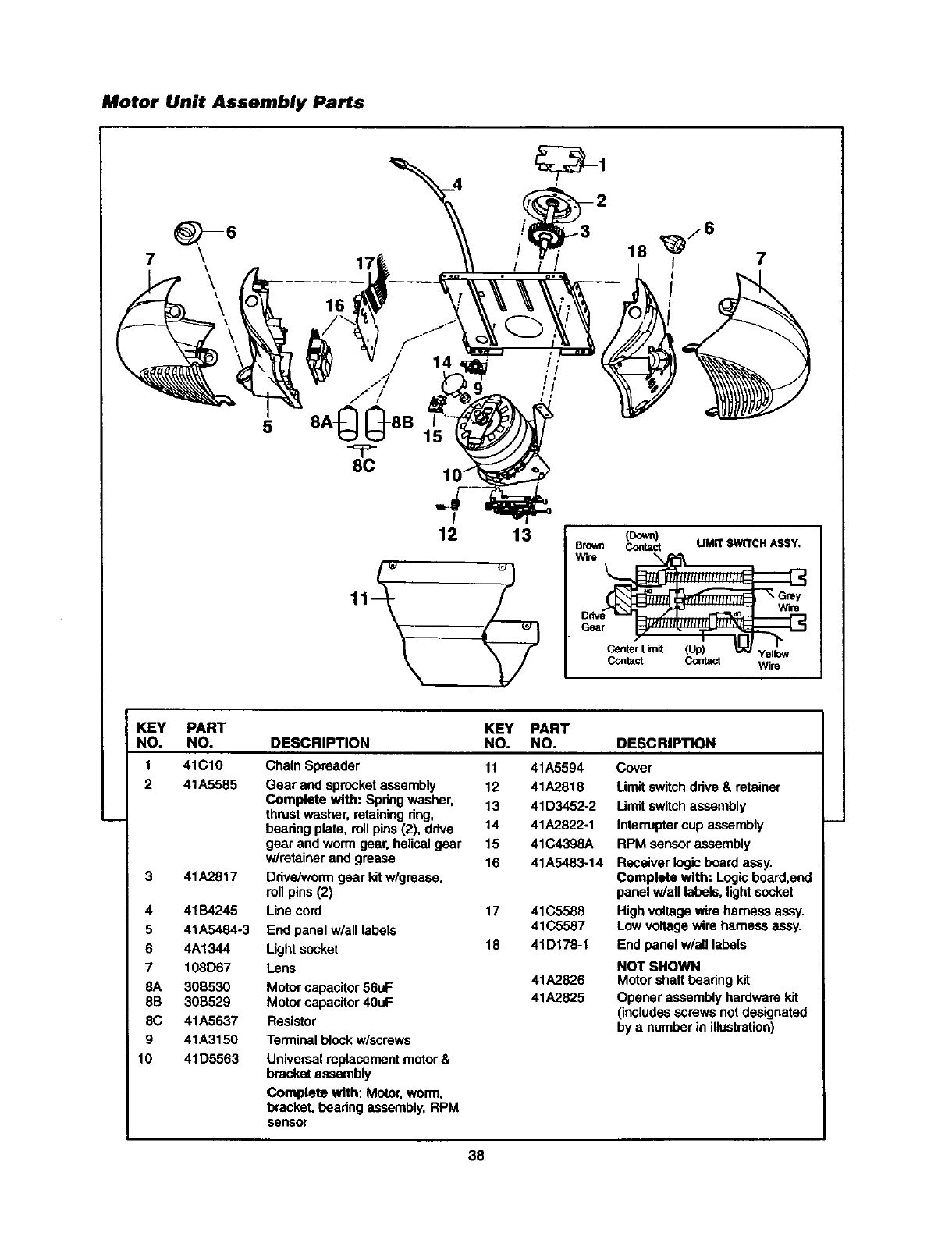

Motor unitassembly parts......................................... 38

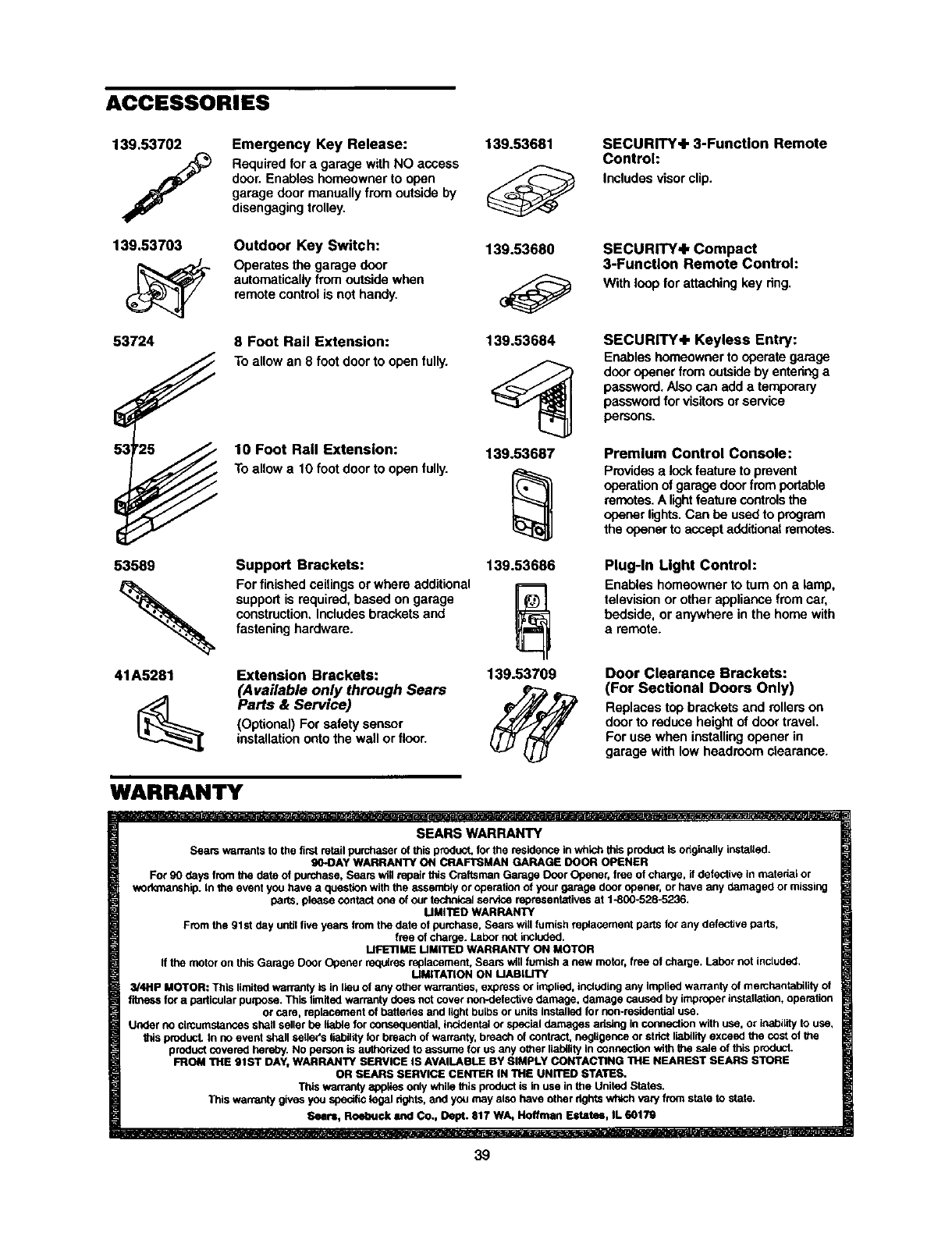

Accessories 39

Warranty

Service Numbers

39

Back Cover

INTRODUCTION

Safety Symbol

and Signal Word Review

This garage door opener has been designed and tested to offer safe serviceprovided it is installed,operated,

maintained and tested in strictaccordancewith the instructionsand warningscontainedin this manual.

Mechanical

Electrical

When you see these Safety Symbols and Signal

Words on the followingpages, they will alert you to

the possibilityof serious injury or death if you do

not comply with the warnings that accompany them.

The hazard may come from something mechanical

or from alectdc shock. Read the warnings carefully.

When you see this Signal Word on the following

pages, it will alert you to the possibility of damage to

your garage door and/or the garage dooropener if

you do not comply with the cautionary statements

that accompany it. Read them carefully.

2

Preparing your Garage Door

Before you begin:

•Disable locks.

•Remove any ropes connectedto garage door.

• Complete the following test to make sure your

garage door is balanced and is not stickingor

binding:

1. Liftthe door about halfwayas shown. Release

the door. If balanced, it should stay in place

supportedentirelyby its spdngs.

2. Raise and lower the door to see if there is any

bindingor sticking.

If your door binds, sticks,or is out of balance, cell

a trained door systemstechnician.

TopreventpossibleSERIOUSINJURYORDEATH:

•ALWAYScalla traineddoorsystemstechnicianif

garagedoorbinds,sticks,or is outof balance.An

unbalancedgaragedoormaynotreversewhen

required.

•NEVERtryto loosen,moveoradjust garagedoor,door

springs,cables,pulleys,bracketsor theirhardware,all

of whichareunderEXTREMEtension.

•DisableALLlocksandremoveALLropesconnectedto

garagedoorbeforeinstallingandoperatinggarage

dooropenerto avoidentanglement.

Topreventdamageto garagedoorandopener:

•ALWAYSdisablelocksbeforeinstallingandoperating

the opener.

•ONLYoperategaragedooropenerat 120V,60 Hzto

avoidmalfunctionanddamage.

Sectional Door

One-Piece Door

Tools Needed

During assembly, installationand adjustmentof the

opener, instructionswill call for hand tools as

illustratedbelow.

Level

Tape Measure

Drill Bits

Dda 3/16", 5/16"

and 5/32"

1/2", 5/8", 7/16", 9/16" end

LJ_ 1/4" Sockets and Wrench

PencJ

Wk'e Cutters

Screwdriver

Adjustable End Wrench

Planning

Identifythe type and height of your garage door.

Survey your garage area to see if any of the

conditionsbelow apply to your installation.Additional

materials may be required. You may find it helpful to

refer back to thispage and the accompanying

illustrationsas you proceedwith the installationof

your opener.

Depending on your requirements,there are several

installationsteps which may call for materialsor

hardware not includedin the carton.

• InstallationStep 1 - Look at the wall or ceiling

above the garage door.The header bracket must

be securely fastened to structuralsupports.

•InstallationStep 5 - Do you have a finished ceiling

in your garage? If so, a supportbracket and

additionalfastening hardware may be required.

•InstallationStep 10- Depending upongarage

construction,extensionbrackets or wood blocks

may be needed to installsensors.

•InstallationStep 10 -Alternate floor mountingof

the safety reversing sensor will require hardware

not provided.

Do you have an access door in additionto the

garage door? If not, Model 53702 Emergency Key

Release is required. See Acoessodes page.

Look at the garage door where it meets the floor.

Any gap between the floor and the bottom of the

door must notexceed 1/4". Otherwise, the safety

reversal system may notwork properly. See

Adjustment Step 3. Floor or door should be

repaired.

SECTIONAL DOOR INSTALLATIONS

• Do you have a steel, aluminum, fiberglass or glass

panel door? If so, horizontaland vertical reinforce-

ment is required (InstallationStep tl).

•The opener should be installed above the center of

the door. If there is a torsion spdng or center

beadng plate in the way of the header bracket, it

may be installed within4 feet to the left or rightof

the door center. See Installation Steps 1 and 11.

•If your door is more than 7feet high, see rail

extensionkits listed on Accessories page.

SECTIONAL DOOR INSTALLATION

Hodz.ordalendverticalreinforcement

isneededforI_htweightgaragedoors

(fiberglass,steel,aluminum,doorwith

glasspanels,etc.).Seepage24 fordetails. Slack in chain fension

ISnormal when

garage door is closed.

FINISHED CEILING

Suppod Ixacket &

fastening hardware

is requ_ed,

See page 17.

Rail

Wall-

mounted

Door

Control V

Gap between floo_

aed bottomof door

Safety Reve_g Sensor must not exceed I/4"

Safety

Reversing

Sensor

Header CLOSED POSITION

Bracket

Trolley

Stop Bolt Trolley

Chale

Emergency

Release

Rope & Handle

_Door

Arm

Door

Bracket

Planning (continued)

ONE-PIECE DOOR INSTALLATIONS

• Generally, a one-piece door does not require

reinforcement. If your door is lightweight,refer to

the informationrelating to sectional doorsin

InstallationStep 11.

•Depending on your door's construction,you may

need additional mountinghardware for the door

bracket (Step 11).

Withouta properlyworkingsafetyreversalsystem,

persons(particularlysmallchildren)couldbe

SERIOUSLYINJUREDor KILLEDbya closinggarage

door

•Thegapbetweenthebottomof thegaragedoor and

the floor MUSTNOTexceed1/4".Otherwise,thesafety

reversalsystemmaynotworkproperly.

•Thefloor orthe garagedoorMUSTberepairedto

eliminatethe gap.

ONE-PIECE DOOR WITHOUT TRACK

Rail

Header Wail

FINISHED CEILING

Support bracket

& fastening

hardware is requk'ab.

See page 17

Slack inchain ter_sinn

is normal when garage

door is closed Motor Unit

Wall-mounted

Door Control

,cc.s

DOOr

o

Safety Reversing Sensor

.----.__.__

Safety Reversing

Gap between floor Sensor

and bottom of door must not exceed 1/4"

ONE-PIECE DOOR WITH TRACK

eDd_r

/all

CLOSED POSITION

Trolley Stop Bolt

I Cable Trolley

Emergency

. Release

Curved R_oe & HaiKIle

Door

Arm

CLOSED POSITION

Trolley Stop Bolt Cable Chain

ReversingSensor

%

Reversing

Gap betwee_floor Sensor

and boBom o_doo_

must not exceed 1/4"

Curved

Dracket Rail

Bracket Straight

Co<x

Door

Emmgency

Rek_se

Handle

5

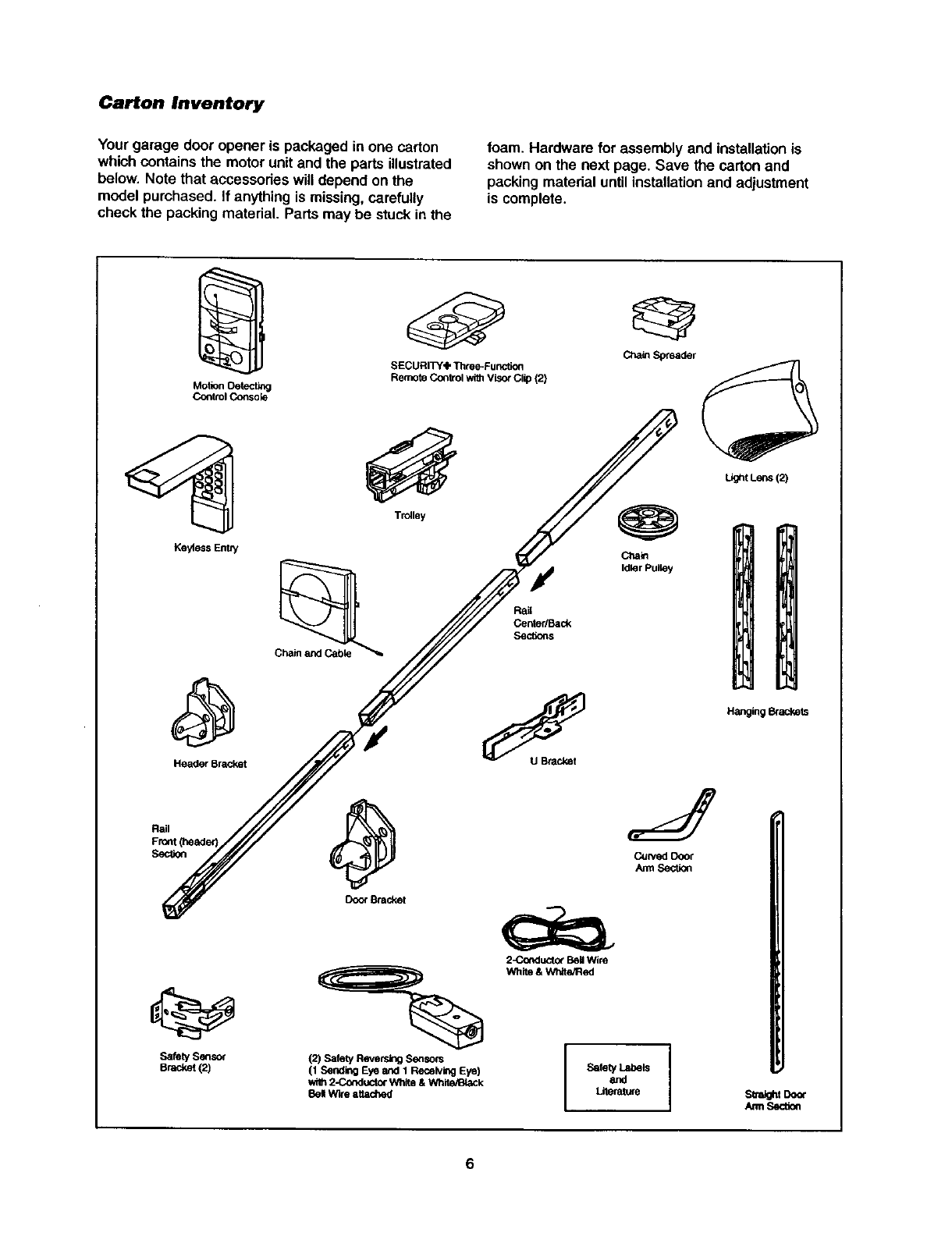

Carton Inventory

Yourgarage door opener is packaged in one carton

which containsthe motor unit and the parts illustrated

below. Note that accessodes will depend on the

model purchased. If anything is missing, carefully

check the packing material. Parts may be stuck inthe

foam. Hardware for assembly and installationis

shown on the next page. Save the carton and

packing material until installationand adjustment

is complete.

Motion Oetectl_l

Co_trol Consok3

Ke_ess EnW

Header Bracket

SafetySensor

Bracket{2)

SECURITY'IP Three-Func6on

Remote Control with Visor Clip (2)

Trolley

Ctlaio

Idler Pulley

Door Bracket

=%

(2) Safety Reversing S6_sors

(1 Sending Eye and 1 Receiving Eye)

wi_ 2-Co_luctor Wllite& White/IBiaCk

8el Wire attached

2_rKlucto_ Bell Wire

White & White/Red

SafetyandLabels I

LJtenMure

Light Lens (2)

Hanging _ackets

sua_t Door

/um Sectk_

6

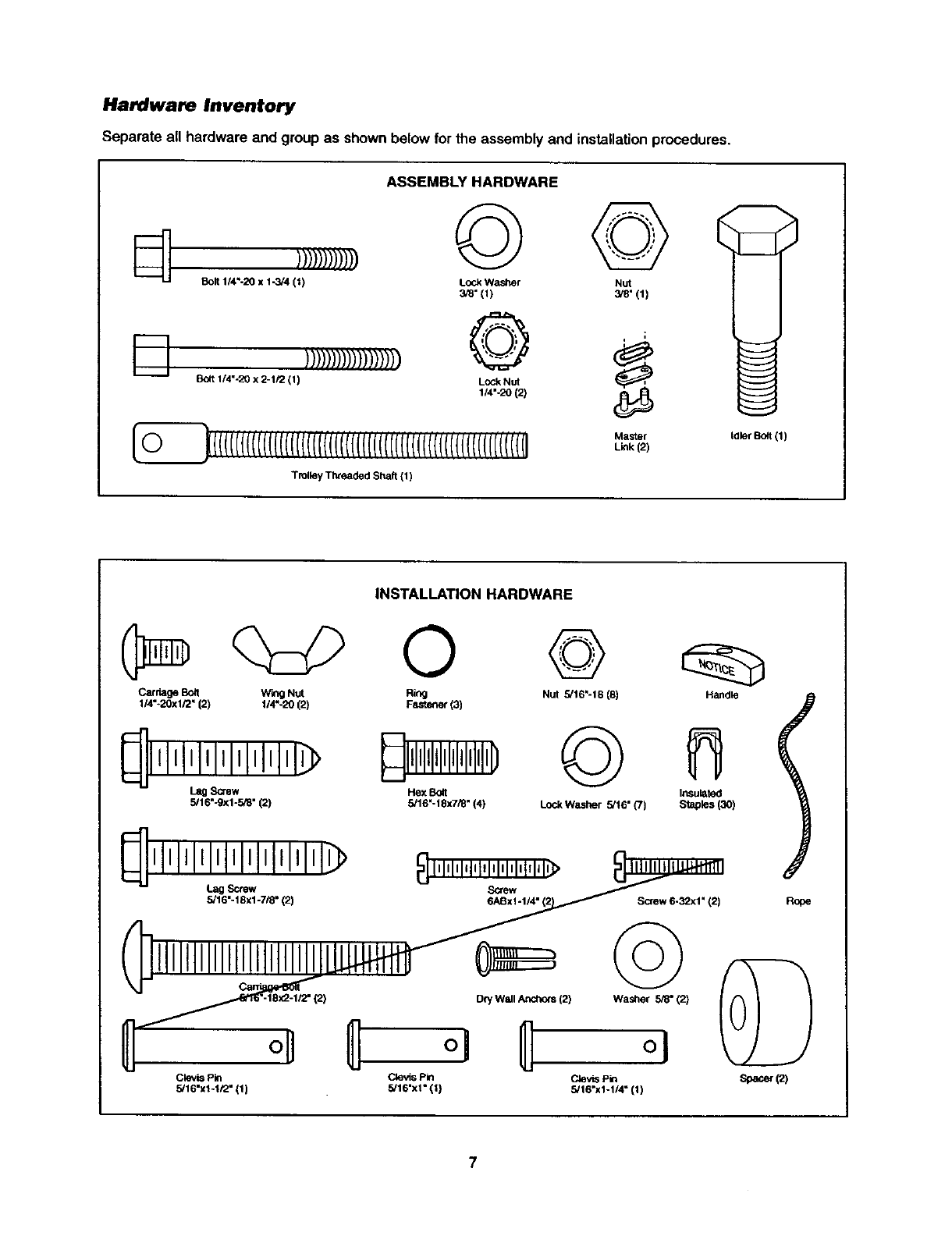

Hardware Inventory

Separate all hardware and group as shown below forthe assembly and installationprocedures.

I---!, ))))))))))))))))))

Bolt 1/4%20 x2-1/2 (1)

ASSEMBLY HARDWARE

© ©

Lock Washer Nut

3/8" (1) 3/8"(1)

o

Lock Nut

1/4"-20 (2)

_(((((((((((((((((((((('('('('((((((((((('('('('('('('(('((l(((((r('('('('(i

Trolley Threaded Shaft (1)

Master

Link (2) tdler Bolt (1)

INSTALLATION HARDWARE

0 @

Carriage Boit Wing Nut Ring Nut 5/16"-18 (8)

114"-20xl/2" (2) 114"-20 (2) FaStener (3)

_lllllllllllllllllll_

L_ Screw

5,'16"-9xi-5/8" (2) Hex Bo4t

5/16"- 18x7/_" (4)

©

LockWashar 5/16" (7)

Handle

Insulated

Staples (3O)

Screw 6-32xl" (2)

I

Rooe

oU

Clevis Pin

5/16"x1-1/2" (1)

[2) Dry Wall Anchors (2) Washer ,5_" (2)

Clevis Pin Clevis Pin

5,'16"xl" 111 5/16"x1-1/4" (11

ASSEMBLY STEP 1

Assemble the Rail & Install the Trolley

To avoid installation difficulties, do not run the

garage door opener until instructed to do so.

The front rail has a cut out "window"at the door end

(see illustration).The hole above this window is

larger on the top of the rail than on the bottom.A

smaller hole 3-1/2" away is close to the rail edge.

Rotate the back rail so it has asimilarhole close to

the opposite edge, about 4-3/4" from the far end. A

3-piece rail uses two back rails.

1. Remove the straightdoor arm, hangingbrackets

and clevispin packaged inside the front rail and

set aside for InstallationStep 5 and 12.

2. Align the rail sections on a flat surfaceexactly as

shown and slide the tapered ends intothe larger

ones. Tabs along the side will lock into place.

3. Place the motor unit on packing material to protect

the cover, and rest the back end of the rail on top.

For convenience, put a support under the front

end of the rail.

TopreventINJURYfrompinching,keephandsand

fingersawayfromthejointswhileassemblingtherail.

4. As a temporarytrolley stop, clamp a lookingpliers

onto the rail, 8" from the center of the idler pulley

hole, as shown.

5. Check to be sure there are 4 plastic wear pads

insidethe inner trolley.If they became loose

during shipping,check all packing material. Snap

them back into positionas shown.

6. Connect the inner and outer trolleysas shown.

7. Slide the trolleyassembly along the rail from the

back end to the locked pliers.

End

hick R'=I=

(TO MOTOR UNIT)

Tapered

End

e, Distance from

Ididr Pulley H(_e

Lodd_ P,ars

Idler

_lrtdow

Hole Cut-Out Front Rail

(re oooR) Wear Pads

8

ASSEMBLY STEP 2

Fasten the Rail to the Motor Unit

• Insert a 1/4"-20x2-1/2 bolt, washer and spacer into

the cover protection bolt hole on the back end of

the rail as shown. Install lower spacer and washer

then tighten securely with a 1/4"-20 lock nut.

Do NOT overtighten.

•Remove the bolt and lock nut from the top of the

motor unit.

•Attach spreader to the motor unit with two screws.

•Place the U bracket, flat side down onto the bolt,

mountedon the motor unit and align the bracket

hole with the screw hole. Fasten with the

previouslyremoved screw and lock nut.

•Align the rail assembly with the top of the motor

unit. Slide the rail end onto the U-bracket, al/the

way to the stops that protrude on the topand sides

of the bracket.

HAROWARE SHOWN ACTUAL SIZE

D©

Washer 5_" Lock Nut

1/4"-20 Spacer

)))1))))))))))))))

1/4"-20 x 2-1/2

ToavoidSERIOUSdamageto garagedooropener,

useONLYthosebolts/fastenersmountedinthetopof

theopener.

Bo_I

I

I

_Ctnain

Bolt-.._ Spreader

=

_r_)_ LOCkNut -......,_ : MOtOrUnit

__Spacer Ii

SLIDE RAIL TO STOPS

ON TOP AND SIDES

Spacer _Wasi3er OF BRACKET

I

_f Lod_ Nut

ASSEMBLY STEP 3

Install the Idler Pulley

•Lay the chain/cable beside the rail, as shown.

Grasp the end with the cable loop and pass

approximately 12" of cable through the window.

Allow it to hang untilAssembly Step 5.

•Remove the tape from the idler pulley.The inside

center should be pre-greased. If dry, regrease to

ensure proper operation.

• Place the idler pulley into the windowas shown.

•Insertthe idler bolt from the top throughthe rail

and pulley."13ghtenwitha 3/8" lockwasher and nut

underneath the rail until the lock washer is

compressed.

•Rotate the pulley to be sure it spins freely.

•Insert a 1/4"-20xl-3/4 bolt into the trolley stop hole

in the front of the rail as shown."Rghten securely

with a 1/4"-20 lock nut.

C_aleand

Cable

Grease

Inside Pulley

3/8" Lock i PuUey O

Washer Idler Pulley

©Idler Bolt

HARDWARESHOWNACTUALSIZE -- _ / _--_ _

LJ BOlt1/4 -20 X 1-3/4 Lock Nut 114"-20 NUt 3/8" Lock Washer 3/8"

9

ASSEMBLY STEP 4

Install the Chain/Cable

1. Pull the cable around the idler pulley and toward

the trolley.

2. Connect the cable loop to the retainingsloton the

trolley, as shown (Figure 1):

• From below, push pins of master link bar up

through cable loopand trolleyslot.

• Push master link cap over pins and past pin

notches.

• Slide clip-on spring over cap and onto pin notches

until both pins are securely locked in place.

3. With the trolley against the pliers, dispense the

remainder of the cable/chain along the rail toward

the motor unit into the slot on the chain spreader,

around the sprocket onto the chain spreader and

continuing to the trolley assembly. The sprocket

teeth must engage the chain (Figure 2).

4. Check to make sure the chain is not twisted, then

connect it to the threaded shaft with the

remaining master link.

5.Thread the inner nut and lock washer onto the

trolley threaded shaft (Figure 3).

6. Insert the trolley threaded shaft through the hole

in the trolley. Be sure the chain is not twisted

(Figure 4).

7. Loosely thread the outer nut onto the trolley

threaded shaft.

8. Remove the locking pliers.

Idler

Figure 2

"U" Bracket

Cha_

Motorunit

"Sprocket

Toavoid possibleSERIOUSINJURYto fingers from

moving garagedooropener:

•ALWAYSkeephandclear of sprocketwhileoperating

opener.

• Securelyattach chainspreaderBEFOREoperating.

Dispensing Carton

Leave Chain and Cable

Inside OLspens_g

te Prevent Kinking.

Keep Chain and Cable

Taut When Dispensing

Master

Clip-On S Link Cap

Cable

Loop

Hole

i

Cable ' Master

Link Bar

Figure 1

iI

q I

Master Link_ Master

CiipOn 8p¢ LinkCap

i

: Pin

Threaded : Notch

Shaft l_ Master

Link Bar

Hole

Figure 3

_._ Threaded

_.-"_ \ - InnerNut Shaft

.'" Lock 5/16*

Washer

.5/16"

Figure 4

Trolley

Thruded

Shaft

10

ASSEMBLY STEP 5

Tighten the Chain

• Spin the inner nut and lockwasher down the trolley

threaded shat_,away from the trolley.

•To tighten the chain, turn outer nut in the direction

shown (Figure 1).

•When the chain is approximately112"above the

base of the rail at its midpoint, re-tightenthe inner

nut to secure the adjustment.

Sprocket noise can result if chain is too loose.

When installationis complete, you may notice some

chain droop withthe door closed.This is normal. If

the chain returnsto the positionshown in Figure 2

when the door is open, do not re-adjust the chain.

NOTE: Duringfuture maintenance, ALWAYSpull the

emergency release handle to disconnecttrolley

before adjustingchain.

NOTE: Youmay notice loosening of chain after

Adjustment Step 3 (Test the Safety Reversal

System). Check forproper tension and readjust

chain if necossary.Then repeat Adjustment Step 3.

You have now finished assembling your garage

door opener. Please read the following warnings

before proceeding to the Installation section.

Figure 1

Trolley

Outer Lock Threaded

Nut Washer Shaft

Figure 2

Chain i

II ]1 II II Ilill II II II

:_1/2 Inch

f

I

,

Base Rail Mid length of Rail

I I

INSTALLATION

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of severe injury or death:

1. READANDFOLLOWALLINSTALLATIONWARNINGS

ANDINSTRUCTIONS.

2. Installgaragedooropeneronlyon properlybalanced

and lubricatedgaragedoor.Animproperlybalanced

doormaynotreversewhenrequiredandcouldresultin

severeinjuryor death.

3. All repairsto cables,springassembliesandother

hardwareMUSTbe madebya traineddoorsystems

technicianbeforeinstallingopener.

4. Disableall locksandremoveallropesconnectedto

garagedoorbeforeinstallingopenerto avoid

entanglement.

5. Installgaragedooropener7feetor moreabovefloor.

6. Mountemergencyreleasehandle6 feetabovefloor.

7. NEVERconnectgaragedooropenerto power source

untilinstructedto doso.

8. NEVERwearwatches,ringsor looseclothingwhile

installingor servicingopener.Theycouldbecaughtin

garagedooror openermechanisms.

9. Installwall-mountedgaragedoorcontrol:

• withinsightof thegaragedoor

•outof reachof childrenat minimumheightof 5 feet

•awayfrom all movingparts ofthe door.

10. Placeentrapmentwarninglabelonwallnextto garage

doorcontrol.

11. Placemanualrelease/safetyreversetestlabelinplain

viewoninsideofgaragedoor.

12. Uponcompletionof installation,testsafetyreversal

system.DoorMUSTreverseoncontactwitha one-

inchhighobject(or a 2x4laid flat)onthefloor.

11

INSTALLATION STEP 1

Determine the Header Bracket

Location

TopreventpossibleSERIOUSINJURYor DEATH:

• HeaderbracketMUSTbe RIGIDLYfastenedto

structuralsupportonheaderwallorceiling,otherwise

garagedoormightnotreversewhenrequired.DONOT

installheaderbracketoverdrywall.

•ConcreteanchorsMUSTbeusedif mounting header

bracketor2x4 intomasonry.

•NEVERtryto loosen,moveoradjustgaragedoor,

springs,cables,pulleys,brackets,or theirhardware,all

of whichare underEXTREMEtension.

• ALWAYScallatraineddoorsystemstechnicianif

garagedoorbinds,sticks,oris outof balance.An

unbalancedgaragedoormightnot reversewhen

required.

Installation procedures vary according to garage door

types. Follow the instructions which apply to your

door.

SECTIONAL DOOR AND ONE-PIECE DOOR

WITH TRACK

1.Close the door and mark the insidevertical

centerline of the garage door.

2. Extend the line onto the header wall above the

door.

You can fasten the header bracket within 4 feet

of the left or right of the door center only If a

torsion spdng or center bearing plate is in the

way; or you can attach It to the ceiling (see

page 14) when clearance is minimal. (It may be

mounted on the wall upside down if necessary,

to gain approximately 1/2".)

If you need to installthe header bracketon a 2x4

(on wall or ceiling), use lag screws (not provided)

to securely fasten the 2x4 to structuralsupportsas

shown here and on page 13.

3. Open your door to the highest pointof travel as

shown. Draw an intersectinghorizontal line on the

header wall 2" above the high point.This heightwill

providetravel clearance for the top edge of the

door.

NOTE: Door clearance brackets are availablefor

sectionaldoors when headroom clearance is less

than 2". See accessory page 39.

Proceed to Step 2, page 14.

Header Wall

Highest Point

of Ttavst

Trac_

Sectional door

with curved track

One-piece door

with horlzontal

track

12

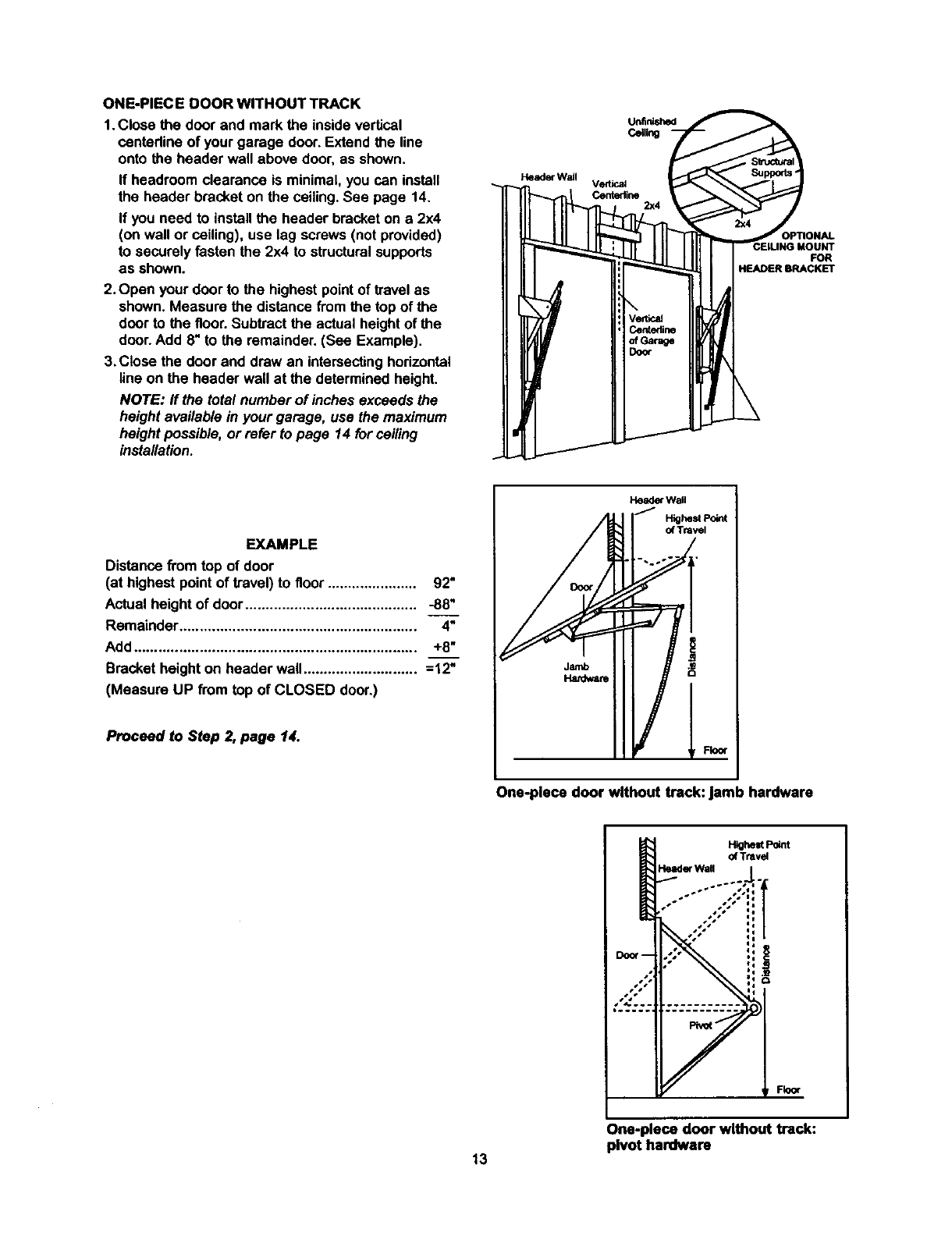

ONE-PIECEDOORWITHOUTTRACK

1.Closethedoorandmarkthe insidevertical

centadine of your garage door. Extend the line

onto the header wall above door, as shown.

If headroom clearance is minimal, you can install

the header bracket on the ceiling. See page 14.

If you need to install the header bracket on a 2x4

(on wall or ceiling), use lag screws (not provided)

to securely fasten the 2x4 to structural supports

as shown.

2. Open your door to the highest point of travel as

shown. Measure the distance from the top of the

door to the floor. Subtract the actual height of the

door. Add 8" to the remainder. (See Example).

3.Close the door and draw an intersecting horizontal

line on the header wall at the determined height.

NOTE: ff the total number of inches exceeds the

height available in your garage, use the maximum

height possible, or refer to page 14 for ceiling

installation.

VerUcst

Centedine 2x4

FOR

HEADER BRACKET

EXAMPLE

Distance from top of door

(at highest pointof travel)to floor...................... 92"

Actual height of door.......................................... -88"

Remainder.......................................................... 4"

Add ..................................................................... +8"

Bracketheight on header wall............................ =12"

(Measure UP from top of CLOSED door.)

Proceed to Step 2, page 14.

Header Wall

JHighestPoint

of Tr=vst

One-piece door without track: jamb hardware

Highest Point

of Travel

Header Wall

Fkxx

One-piece door without track:

pivot hardware

13

INSTALLATION STEP 2

Install the Header Bracket

You can attach the header bracket either to the wall

above the garage door, or to the ceiling. Follow the

instructions which will work best for your particular

requirements. Do not install the header bracket

over drywall. If installing into masonry, use

concrete anchors (not provided).

WALL HEADER BRACKET INSTALLATION

•Center the bracket on the vertical centadinewith

the bottom edge of the bracketon the horizontal

line as shown (with the arrow pointingtowardthe

ceiling).

•Mark the vertical set of bracketholes. Ddll 3/16"

pilotholes and fasten the bracket securelyto a

structuralsupport with the hardware provided.

Wall Mount

Optional

Mounting Hole_

2)(4

Sb_mturai

Suppo_

Vedk_l

Centedlne

Lag Screws

5/16"xgx1-SJS"

HAROWARE SHOWN ACTUAL SiZE

lll IIIIIlllllIJl

Lag Screw

5/16"-9x1-518"

/

/

Highest Point of

Garage Door Travel

Garage

Centedine

CEIUNG HEADER BRACKET INSTALLATION

•Extend the vertical centerline ontothe ceilingas

shown.

• Center the bracket on the vertical mark, no more

than 6" from the wall. Make sure the arrow is

pointing away from the wall. The bracket can be

mounted flush against the ceiling when clearance

is minimal.

• Mark the side holes. Drill 3/16" pilotholes and

fasten bracket securely to a structuralsupportwith

the hardware provided. I

Heade_ _

Bracket

Door

Sp_ng

- Finished Celllng -

5/16"xgx1-5/8"

14

Header Bracket

INSTALLATION STEP 3

Attach the Rail to the

Header Bracket

NOTE: (Optional) With an existing Craftsman

installation,you may re-use the old header bracket

withthe twoplastic spacers includedin the hardware

bag. Place the spacers inside the bracket on each

side of the rail, as illustrated.

• Positionthe opener on the garage floor below the

header bracket. Use packing material as a

protectivebase. NOTE: If the door spring is in the

way you'llneed help. Have someone hold the

opener securely on a temporary support to allow

the raft to clear the spring.

• Positionthe front rail end withinthe header bracket

and join with a 5/16"x1-1/2" clevispin as shown.

•Insert a ring fastener to secure.

Mounting

Hole

Header Bracket

Mounting

Hole

EXISTING CRAFTSMAN

INSTALLATION

Door

OpenerCart_ of

Suppeft

HARDWARE SHOWN ACTUAL SIZE

Clevis Pin 5/16"x1-1/2" Ring fastener

15

INSTALLATION STEP 4

Position the Opener

Follow instructions which apply to your door type as

illustrated.

SECTIONAL DOOR OR ONE-PIECE DOOR WITH

TRACK

A2x4 laid flat is convenientfor setting an ideal door-

to-rail distance.

• Raise the opener onto a stepladder You will need

help at this point if the ladder is not tall enough.

•Open the door all the way and place a 2x4 laid flat

on the top section beneath the rail.

•If the top section or panel hits the trolley when you

raise the door, pull down on the trolley release arm

to disconnect inner and outer sections. Slide the

outer trolley toward the motor unit. The trolley can

remain disconnected until Installation Step 12

is completed

Topreventdamageto garagedoor,restgaragedoor

openerrailon2x4placedontopsectionof door

ONE-PIECE DOOR WITHOUT TRACK

• With the door fully open and parallelto the floor,

measure the distance from the floorto the top of

the door.

• Using a stepladder as a support,raise the top of

the opener to this height.

•The top of the door should be levelwith the top of

the motor unit. Do not positionthe opener more

than 2" above this point.

Header

Top of Door

Top of Motor

16

INSTALLATION STEP 5

Hang the Opener

Two representative installations are shown. Yours

may be different. Hanging brackets should be angled

(Figure 1) to provide rigid support. On finished

ceilings (Figure 2), attach a sturdy metal bracket to

structural supports before installing the opener. This

bracket and fastening hardware are not provided.

(See Accessories).

ToavoidpossibleSERIOUSINJURYfroma falling

garagedooropener,fasten it SECURELYto structural

supportsof thegarage.ConcreteanchorsMUSTbe used

if installinganybracketsintomasonry.

Figure 1

1. Measure the distance from each side of the motor

unit to the structuralsupport.

2. Cut both pieces of the hanging bracketto required

lengths.

3. Drill 3/16" pilot holes in the structuralsupports.

4. Attach one end of each bracketto a supportwith

5/16"-18xl -7/8" lag screws.

5. Fasten the opener to the hangingbrackets with

5/16"-18x7/8" hex bolts,lock washers and nuts.

6. Check to make sure the rail is centered overthe

door(or in line withthe header bracketif the

bracketis not centered above the door).

7. Remove the 2x4. Operate the door manually.If the

door hitsthe rail, raise the header bracket.

NOTE: DO NOT connect power to opener at this

time.

Bolt 5,'16"-18x718"

Nut 5/16"-18

•Lag Screws

5/16"-18xl-7/8"

Figure 2

-- Finished Ceiling --

Lag Screws

__.+ 5/16=*18xl-718 - _._"

Nut 5/16"-18

HARDWARE SHOWN ACTUAL SIZE

5/16"-18xl-7/8"

Hex Bolt

5/16"- 18X7/8" Nut 5/16%18 ©

Lock Washer 5/16"

17

INSTALLATION STEP 6

Install the Door Control

Locate door control within sight of door, at a

minimum height of 5 feet where small children

cannot reach, away from moving parts of door and

door hardware. If installing into drywall, drill 5/32"

holes and use the anchors provided. For pre-wired

installations (as in new home construction), it may be

mounted to a single gang box (Figure 2).

1. Skip 7/16" of insulation from one end of bell wire

and connect to the two screw terminals on back of

door control by color: white wire to 2and white/red

wire to the 1.

2. Remove white cover by gently prying at slot in top

of the cover with a small fiat head screwdriver.

Fasten with 6ABx1-l/4%elf-tapping screws

(drywall installation)or 6-32x1" machine screws

(into gang box) as follows:

• Installbottomscrew, allowing 1/8"to protrude

above wall surface.

• Positionbottom of door control on screw head

and slide down to secure. Adjust screw

for snug fit.

• Ddll and installtop screw with care to avoid

cracking plastichousing. Do not over tighten.

•Insert top tabs and snap on cover.

3. (For standard Installation only) Run bell wire up

wall and across ceiling to motor unit.Use insulated

staplesto secure wire in several places. Do not

pierce wire with a staple, creating a short or open

circuit.

4. Skip 7/16" of insulationfrom end of bell wire.

Connect bell wire to the quick-connect terminals

as follows: white to white and white/red to red.

NOTE: When connecting multiple door controls to

the opener, twist same color wires together. Insert

wires into quick-connect holes: white to white and

redhNhite to red.

5. Positionthe antenna wire as shown.

6. Use tacks or staples to permanently attach

entrapment warning label to wall near door

control, and manual release/safety reverse

test label in a prominentlocationon inside of

garage door.

NOTE: DO NOT connect power and operate

opener at thistime. The trolleywill travelto the

fullopen positionbut will not returnto the close

positionuntil the sensor beam is connected

and properly aligned.

To preventpossibleSERIOUSINJURYor DEATHfrom

electrocution:

• Besurepower is notconnectedBEFOREinstallingdoor

•control.

ConnectONLYto 24 VOLTlowvoltagewires.

TopreventpossibleSERIOUSINJURYor DEATHfroma

closinggaragedoor:

Installdoorcontrolwithinsightof garagedoor,outof

reachof childrenat a minimumheightof 5 feet, and

awayfromall movingpartsof door.

• NEVERpermit childrento operateor playwithdoor

controlpushbuttonsorremotecontroltransmitters.

•ActivatedoorONLYwhenit canbe seenclearly,is

properlyadjusted,andthereareno obstructionsto door

travel.

• ALWAYSkeepgaragedoorinsightuntilcompletely

closed,NEVERpermitanyoneto crosspathof closing

garagedoor.

Outside Keylock Accessory Connections

To opener quick-connectterminals:white to white;

white/red to red.

HARDWARE SHOWN ACTUAL SiZE

{_ I_lillltltllltltlt Ill,Ill>

6AB x1-114"Screw Insulated

Control Console (std Installation) Staples

ContrOl Console (pre-wired) Dry Wall Anchors

Figure 1

REMOVE & REPLACE COVER

To Replace,

Insefl Top

Figure 2

PRE-WIRED

INSTALLATION

24 Volt

2-Coeductor

Sell Wire in

Gang Box

Qu_Connect

TerminaLs

2-Conducto_

Push Bar Bert Wire

-_ur_dng

To release wire, push intab Door Control

with screwdriver tip Connections

Red

Strip wire 7116"

(BACK VIEW)

// White Grey J Antenna

18

INSTALLATION STEP 7

Install the Lights

•Press the release tabs on both sides of lens. Gently

rotate lens back and downward until the lens hinge

is in the fully open position. Do not remove

the lens.

•install up to a 100 watt maximum light bulb in each

socket. The lights will turn ON and remain lit for

approximately 4-1/2 minutes when power is

connected. Then the lights will turn OFF.

•Reverse the procedure to close the lens.

• If the bulbs burn out prematurely due to vibration,

replace with a Garage Door Opener bulb.

NOTE: Use only standard light bulbs. The use of

short neck or speciality light bulbs may overheat the

endpanel or light socket.

Release Tab

100 Watt (Max)

Standard

Light Bulb

IC0 Watt (Max) "--_-_ )

Standard Light Bulb /

/

/

Lens

Hinge

INSTALLATION STEP 8

Attach the Emergency Release

Rope and Handle

•Thread one end of the rope through the hole inthe

top of the red handle so "NOTICE" reads rightside

up as shown. Secure with an overhand knot at

least 1"from the end of the rope to

preventslipping.

•Thread the other end of the rope through the hole

inthe release arm of the outer trolley.

•Adjust rope lengthso the handle is 6 feet above

the floor. Secure with an overhand knot.

• TopreventpossibleSERIOUSINJURYorDEATHfrom

afalling garagedoor:

- If possible,useemergencyreleasehandleto

disengagetrolleyONLYwhengaragedooris

CLOSED.Weakor brokenspringsor unbalanced

doorcouldresultin anopendoorfalling rapidly

and/orunexpectedly.

-NEVERusaemergencyreleasehandleunlessgarage

doorwayisclearof personsandobstructions.

•NEVERusehandleto pulldooropenorclosed.If rope

knotbecomesuntied,youcouldfall.

NOTE: flit is necessary to cut the rope, heat

seal the cut end with amatch or lighter to

prevent unraveling.

T_y

Ove_and

Emergency' Knot

19

INSTALLATION STEP 9

Electrical Requirements

To avoid installation difficulties, do not run the

opener at this time.

To reduce the risk of electric shock, your garage door

opener has a grounding type plug with a third

grounding pin. This plug will only fit into a grounding

type outlet. If the plug doesn't fit into the outlet you

have, contact a qualified electrician to install the

proper outlet.

If permanent wiring Is required by your local

code, refer to the following procedure.

To make a permanent connection through the 7/8"

hole in the top of the motor unit:

• Remove the motor unit cover screws and set the

cover aside.

•Remove the attached 3-prong cord

• Connect the black (line) wire to the screw on the

brass terminal;the white (neutral) wire to the screw

on the silver terminal; and the groundwire to the

green ground screw The opener must be

grounded.

•Reinstall the cover.

TopreventpossibleSERIOUSINJURYor DEATHfrom

electrocutionor fire:

• Besurepoweris notconnectedto theopener,and

disconnectpowerto circuitBEFOREremovingcoverto

establishpermanentwiringconnection.

• GaragedoorinstallationandwiringMUSTbe in

compliancewithall localelectricalandbuildingcodes

• NEVERuseanextensioncord,2-wireadapter,or

changeplugin anywayto makeit fit outlet Besure

the openeris grounded

PERMANENT WIRING

CONNECTION

GroundTab

Green

2O

INSTALLATION STEP 10

Install The Safety Reversing Sensor

The safety reversing sensor must be connected

and aligned correctly before the garage door

opener will move in the down direction.

IMPORTANT INFORMATION ABOUT

THE SAFETY REVERSING SENSOR

When properlyconnected and aligned, the sensor

will detect an obstacle in the path of its electronic

beam. The sending eye (withan orange indicator

light)transmits an invisiblelightbeam to the

receiving eye (with a green indicatorlight). If an

obstructionbreaks the lightbeam while the door is

closing,the door will stop and reverse to full open

position,and the opener lightswill flash 10 times.

The units must be installed insidethe garage so that

the sending and receiving eyes face each other

acrossthe door, no higher than 6" above the floor.

Either can be installedon the left or dght of the door

as long as the sun never shines directlyinto the

receiving eye lens.

The mountingbrackets are designed to clip onto the

track of sectionalgarage doors withoutadditional

hardware.

•Besurepower is notconnectedto thegaragedoor

openerBEFOREinstallingthe safetyreversingsensor.

•TopreventSERIOUSINJURYor DEATHfroma closing

garagedoor:

- Correctlyconnectandalignthesafetyreversing

sensor.ThisrequiredsafetydeviceMUSTNOTbe

disabled.

- Installthesafetyreversingsensorso beamis NO

HIGHERthan6"abovegaragefloor.

If it is necessaryto mount the units on the wall, the

bracketsmust be securely fastened to a solid

surface suchas the wall framing. Extensionbrackets

(see accessories) are available if needed, ff

installingin masonry construction,add a piece of

wood at each locationto avoid ddlling extra holes in

masonry if ropositioningis necessary.

The invisiblelightbeam path must be unobstructed.

No part of the garage door (or door tracks, springs,

hinges, rollersor other hardware) may interruptthe

beam while the door is closing.

Senso(Beam

6"maximum

abovefloor

Facing the door from Inside the garage

21

INSTALLINGTHEBRACKETS

Besurepowerto theopeneris disconnected.

Installandalignthebracketssothe sensors will face

each other acrossthe garage door, with the beam no

higher than 6" above the floor.They may be installed

in one of three ways, as follows.

Garage door track installation (preferred):

• Slip the curved arms overthe rounded edge of

each door track, with the curved arms facing the

door. Snap into place against the side of the track.

It should lie flush,with the lip hugging the back

edge of the track, as shown in Figure 1.

If your door track will not supportthe bracket

securely, wall installationis recommended.

Wall installation:

• Place the bracket against the wall withcurved arms

facing the door. Be sure there is enough clearance

for the sensor beam to be unobstructed.

•If additional depth is needed, an extension bracket

(see Accessodes) or wood blocks can be used.

•Use bracket mountingholes as a template to locate

and ddll (2) 3/16" diameter pilotholes on the wall at

each side of the door, no higher than 6" above the

floor.

•Attach brackets to wall with lag screws

(not provided).

•If usingextension brackets or wood blocks,adjust

rightand left assemblies to the same distance out

from the mountingsurface. Make sure all door

hardware obstructionsare cleared.

Floor installation:

•Use wood blocks or extension brackets (see

Accessories) to elevate sensor bracketsso the

lenses will be no higher than 6" above the floor,

•Carefully measure and place dght and left

assemblies at the same distance out fromthe wall.

Be sure all door hardware obstructionsare cleared.

•Fasten to the floorwith concrete anchors as shown.

Figure 1 DOOR TRACK MOUNT (RIGHT SIDE)

, Track

Lip

_n_

Bme_l

indicator

Llghl

Figure 2 WALL MOUNT (RIGHT SLOE)

Exte_on

Bracket

(See Accessories)

d with

Bracket)

(Provided with

Extension '

Bracket)

Lens

Figure 3 FLOOR MOUNT (RIGHT SLOE)

Logs

Senso_

Bracket

Indicator

Light (Providedwith

Extem_on Bracket)

(no_provided)

Extension

(SeeAccesso_s)

HARDWARE SHOWN AC1UAL SIZE

CardageBolt wingNut Staples

1/4"-20xl/2" 1/4"-20

22

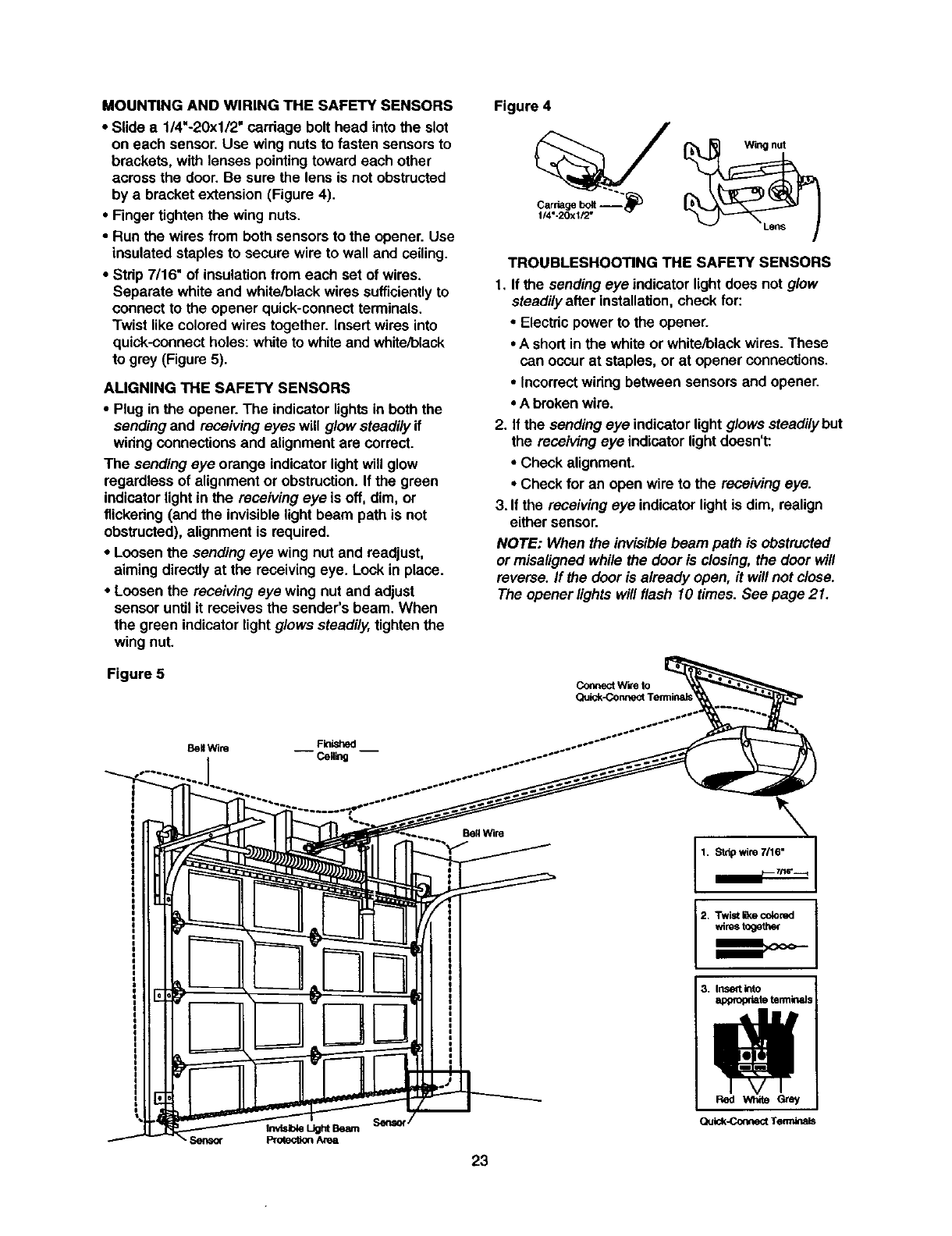

MOUNTINGANDWIRINGTHESAFETYSENSORS

•Slide a 114"-20x112"carriage bolt head into the slot

on each sensor, Use wing nuts to fasten sensors to

brackets, with lenses pointingtoward each other

across the door. Be sure the lens is not obstructed

by a bracket extension (Figure 4).

•Finger tighten the wing nuts.

•Run the wires from both sensors to the opener. Use

insulated staplesto secure wire to wall and ceiling.

•Strip 7/16" of insulationfrom each set of wires.

Separate white and white/black wires sufficientlyto

connect to the opener quick-connectterminals.

Twist like coloredwires together. Insert wires into

quick-connectholes: whiteto whiteand white/black

to grey (Figure 5).

AUGNING THE SAFETY SENSORS

•Plug in the opener. The indicator lightsin both the

sending and receiving eyes will glow steadily if

winng connectionsand alignment are correct.

The sending eye orange indicatorlight will glow

regardless of alignment or obstruction.If the green

indicatorlight in the receiving eye is off, dim, or

flickering (and the invisiblelightbeam path is not

obstructed),alignment is required.

•Loosenthe sending eye wing nut and readjust,

aimingdirectly at the receiving eye. Lock in place.

•Loosen the receiving eye wing nut and adjust

sensor until it receives the sender's beam. When

the green indicatorlight glows steadily,tightenthe

wing nut.

Figure 5

Figure 4

Carnagebolt "_"

1/4"-20xl/2"

TROUBLESHOOTING THE SAFETY SENSORS

1. If the sending eye indicatorlightdoes not glow

steadily after installation,check for:

• Electdcpower to the opener.

•A short in the white or white/black wires. These

can occur at staples, or at opener connections.

•Incorrectwiring between sensors and opener.

•A brokenwire.

2. If the sending eye indicatorlight glows steadilybut

the receivingeye indicatorlightdoesn't:

•Check alignment.

•Check for an open wire to the receivingeye.

3. If the receivingeye indicatorlightis dim, realign

either sensor.

NOTE: When the invisiblebeam path is obstructed

or misalignedwhile the door is closing,the door will

reverse. If the dooris already open, it willnot close.

The opener lightswill flash 10 times. See page 21.

Coflnect w'we to

Bell Wire Finished

-- Ceg_g --

1. Stdp wire 7n6"

2+ Twist _e colored

wirestogether

23

3. Inset into

appropriate terminals

Quk:k-ConnectTerrrdna_

INSTALLATION STEP 11

Fasten the Door Bracket

Follow instructionswhich apply to your door type

as illustratedbelow or on the following page.

A horizontal reinforcement brace should be long

enough to be secured to two vertical supports. A

vertical reinforcement brace should cover the

height of the top panel.

The illustrationshowsone piece of angle ironas the

hodzontal brace. For the vertical brace, two pieces of

angle ironare used to create a "U'-shaped support

(Figure 1). The best solutionis to check with your

garage door manufacturer for an opener installation

door reinforcementkit.

NOTE: Many vertical brace installationsprovide for

direct attachment of the clevis pin and door ann. In

this case you willnot need the doorbracket;proceed

to Installation Step 12.

SECTIONAL DOORS

• Center the door bracket on the previouslymarked

vertical centedine used for the header bracket

installation.Note correct UP placement, as

stamped insidethe bracket (Figure 2).

•Positionthe bracket on the face of the door within

the followinglimits:

A) The top edge of the bracket 2"-4" below the top

edge of the door.

B) The top edge of the bracket directlybelow any

structural supportacross the top of the door.

Topreventdamageto garagedoor,reinforceinsideof

doorwithangleironbothverticallyandhorizontally.

HAROWARE SHOWN ACTUAL SIZE

CantleSot

5/16"-18X2-1/2"

•Mark and ddll 5/16" left and rightfasteningholes.

Secure the bracketas shown in Figure 1 ifthere is

vertical reinforcement.

If your installationdoesn't require vertical reinforce-

ment but does need top and bottom fasteningholes

for the doer bracket, fasten as shown in Figure 2.

Head_ Bnv:ket

Hodzontala_l vetticalminfomement

Is neededfo(_*e_ht gaffe doors

doorswlm

Figure I

24

ONE-PIECEDOORS

Pleasereadandcomplywiththewarningsand

reinforcementinstructionsonthe previouspage.

They apply to one-piece doors also.

• Center the door bracket on the top of the door, in

line with the header bracket as shown. Mark either

the left and right,or the top and bottomholes.

•Ddll 5/16" pilotholes and fasten the bracket with

hardware supplied.

If the door has no exposed framing, drill 3/16" pilot

holes and fasten the bracket with 5/16"xl -1,"2"lag

screws (notprovided) to the top of the door.

NOTE: The door bracketmay be installedon the top

edge of the door if required for your installation.

(Refer to the dotted line optionalplacement drawing.)

Drill 3/16" pilot holes and substitute5/16"x1-1/2" lag

screws (notprovided) to fasten the bracket to the

door.

HARDWARE SHOWN ACTUAL SiZE

CantageBolt

5/16"-18x2-tPZ'

He_ Wall

2:<4Support

Horizontal and vertical

relnfo_ement is needed for

_tv,eight 0aragedocxs

(lit_ rglass,81um_um, steel,

doorwithglasspanel,etc.)

(notwovtde_.

FOra door with no exposed 1taming.

or for Ihe opUonal installa6on, use

5/16"xl -1/2" lag screws (not provided)

to fasten door brackeL

25

INSTALLATION STEP 12 P.,ey

Connect Door Arm to Trolley

Follow instructionswhich apply to your door type as

illustratedbelow and on the following page.

SECTIONAL DOORS ONLY

• Make sure garage door is fully closed. Pull the

emergency release handle to disconnectthe outer

trolleyfrom the inner trolley.Slide the outer trolley

back (away from the pulley) for 8" minimumas

shown in Figures 1, 2 and 3.

•Figure 1:

- Fasten straightdoor arm section to outer trolley

withthe 5/16"xl" clevis pin. Secure the

connectionwith a ringfastener.

- Fasten curved section to the doorbracket in the

same way, usingthe 5/16"x1-1/4" clevis pin.

• Figure 2:

- Bring arm sections together. Find two pairs of

holes that line up and join sections. Select holes

as far apart as possibleto increase doorarm

rigidity.

•Figure 3, Hole alignment alternative:

- If holes in curved arm are above holes in straight

arm, disconnect straightarm. Cut about 6" from

the solidend. Reconnect to trolleywith cut end

down as shown.

- Bring arm sectionstogether.

- Find two pairs of holes that line up and join with

bolts, lock washers and nuts.

• Pull the emergency release handle toward the

opener at a 45° angle so that the trolley release

arm is horizontal. Proceed to Adjustment Step 1,

page 28. Trolley will re-engage automaticallywhen

opener is operated.

HARDWARE SHOWN ACTUAL SIZE

Nut 5/16"-18 Lock Washer 5/16" Ring Fastener

5/16'xl" {'Trolley) 5/16"xl -I/4" (Door Bracket) 5/16"-18x7/8"

Trolley

5/16"x1"

Clevis pin

5/16"x1-1/4'

Figure I

Emergency

-Release

Handle

Door Atrn

Cuwed Door Ann

Pulley

/L(-.-.--_ 8" MIN.__])'

- n

j

I

Trolley

s_ _

W_

Nuts 5/16" fo_

_Bolts

5/16_18x7_"

Figure 2

i_'i_ 8" MIN, "_>i

__ rf _,- __ _

Figure 3

26

ALLONE-PIECEDOORS

1.Assemble the door arm, Figure 4:

•Fasten the straight and curved door arm sections

together to the longest possible length (with a 2

or 3 hole overlap).

•With the door closed, connect the straight door

arm section to the door bracket with the

5/16"x1-1/4" clevis pin.

•Secure with adng fastener.

2. Adjustment procedures, Figure 5:

• On one-piece doors, before connecting the door

arm to the trolley, the travel limits must be

adjusted. Limit adjustment screws are located on

the left side panel as shown on page 28. Follow

adjustment procedures below.

• Open door adjustment: decrease UP

travel limit

-Turn the UP limitadjustmentscrew

counter-clockwise4 turns.

- Press the Door Control push button.The trolley

will travel to the fullyopen position.

- Manually raise the door to the open position

(parallel to the floor), and liftthe door arm to the

trolley.The arm should touch the trolleyjust in

back of the door arm connectorhole. Refer to

the fully open trolley/doorarm positionsinthe

illustration.If the arm does not extend far

enough, adjust the limitfurther. One full turn

equals 3" of trolleytravel.

•Closed door adjustment: decrease DOWN

travel limit

- Turn the DOWN limitadjustment screw clockwise

4 complete turns.

Door

Ring

Fastener

CtevLsPin

5/16" x 1-1/4" Arm

Lock

Washers

5/16"

Nuts

5/16"-1_

Botts

5/16"-18 x 7/8 Curved

Figure 4 DoorArm

- Press the Door Control push button.The trolley

will travel to the fully closed position.

- Manually close the door and liftthe door arm to

the trolley.The arm should touch the trolleyjust

ahead of the door arm connector hole. Refer to

the fully closed trolley/doorarm positionsin the

illustration.If the arm is behind the connector

hole, adjust the limitfurther. One full turn equals

3" of trolleytravel.

3. Connect the door arm to the trolley:

•Close the door and join the curved arm to the

connectorhole in the trolleywith the remaining

clevispin. It may be necessaryto lift the door

slightlyto make the connection.

•Secure with a ringfastener.

•Run the opener through a complete travel cycle. If

the door has aslight"backward"slant in full open

positionas shown in the illustration,decrease the

UP limit untilthe door is parallel to the floor.

NOTE: When setting the up limit on the following

page, the doorshould not have a "backward"slant

when fullyopen as illustratedbelow.A slight

backward slant will cause unnecessary bucking

and/orjerking operation as the door is being opened

or closed from the futiyopen position.

Figure 5 Fully Closed

Trolley

Door An'n

Connector Hole

-- EmergencyReleaseHandle

FuayOp_

27

ADJUSTMENT STEP 1

Adjust the UP and DOWN lr_avel

Limits

Limit adjustmentsettings regulatethe points at which

the door will stop when movingup or down.

To operate the opener, press the Door Controlpush

button. Run the opener through a complete

travel cycle.

•Does the door open and close completely?

•Does the doer stay closed and not reverse

unintentionallywhen fully closed?

If your door passes both of these tests, no limit

adjustmentsare necessary unless the reversingtest

fails (sea Adjustment Step 3, page 30).

Adjustment proceduresare outlinedbelow. Read the

procedures carefullybefore proceedingto

Adjustment Step 2. Use a screwdriverto make limit

adjustments. Run the opener through a complete

travel cycle after each adjustment.

NOTE: Repeated operationof the opener dudng

adjustmentprocedures may cause the motor to

overheat and shut off. Simply wa# 15 minutes and

try again.

NOTE: If anything interferes with the door'supward

travel, it will stop. ff anything interfereswith the

door'sdownward travel (includingbindingor

unbalanceddoors), it will reverse.

HOW AND WHEN TO ADJUST THE UMrFS

•If the door does not open completely but opens

at least five feet:

Increase up travel. Tum the UP limitadjustment

screw clockwise. One turn equals 3" of

trolleytravel.

NOTE: Toprevent the trolleyfromhitting the cover

protectionbolt, keep a minimumdistance of 2-4"

between the trolleyand the bolt.

•If door does not open at least 5 feet:

Adjustthe UP (open) forceas explained in

Adjustment Step 2.

•If the door does not close completely:

Increase down travel. Turnthe down limit

adjustmentscrew countemlockwise.One tum

equals 3" of trolleytravel.

If door stillwon't close completely,try lengthening

the door arm (page 26) and decreasing the

down limit.

•If the opener reverses in fully closed position:

Decrease down travel. Turn the down limit

adjustmentscrew clockwise,One turn equals 3"

of trolley travel.

Withouta properlyinstalledsafetyreversalsystem,

persons(particularlysmallchildren)couldbe

SERIOUSLYINJUREDor KILLEDbya closinggarage

door.

• Incorrectadjustmentof garagedoortravellimitswill

interferewithproperoperationof safetyreversal

system.

• If onecontrol(forceortravellimits)is adjusted,the

othercontrolmayalsoneedadjustment.

•AfterANYadjustmentsare made,the safetyreversal

systemMUSTbetested.DoorMUSTreverseon

contactwithone-inchhighobject(or 2x4laidflat)on

floor.

Topreventdamageto vehicles,be surefullyopendoor

providesadequateclearance.

Im

Covet

PIO_eC_O_

Bolt

•If the door reverses when closing and there is

no visible interference to travel cycle:

If the opener lightsare flashing, the Safety

Reversing Sensors are either not installed,

misaligned, or obstructed.See Troubleshooting,

page 23.

Test the door for binding: Pull the emergency

release handle. Manually open and closethe door.

If the dooris binding,cell a trained doer systems

technician. If the door is not bindingor unbalanced,

adjust the DOWN (close) force. See Adjustment

Step 2,

28

ADJUSTMENT STEP 2

Adjust the Force

Force adjustmentcontrolsare located on the right

side panel of the motor unit. Force adjustment

settings regulatethe amount of power requiredto

open and closethe door.

If the forces are set too light, door travel may be

interruptedby nuisance reversals in the down

directionand stops in the up direction,Weather

conditionscan affectthe doormovement, so

occasional adjustmentmay be needed,

The maximum force adjustment range is about

3/4 of a complete turn. Do not force controls

beyond that point. Turn force adjustmentcontrols

with ascrewdriver.

NOTE: ff anything interfereswith the door's upward

travel, ff will stop. If anything interferes withthe

door's downward travel (includingbindingor

unbalanced doors), it will reverse.

HOW AND WHEN TO ADJUST THE FORCES

1. Test the DOWN (close) force

• Grasp the door bottomwhen the door is about

halfway throughDOWN (close) travel. The door

should reverse. Reversal halfway through down

travel does not guarantee reversal on a one-inch

obstruction.See Adjustment Step 3, page 30.

If the door is hard to hold or doesn't reverse,

DECREASE the DOWN (close)force by turning

the controlcounterclockwise.Make small

adjustmentsuntilthe door reverses normally.

After each adjustment, run the opener through

a complete cycle.

•If the door reverses during the down (close)

cycle end the opener lights aren't flashing,

INCREASE DOWN (close) force by turningthe

controlclock'wise.Make smalladjustmentsuntil

the door completes aclosecycle. After each

adjustment, run the opener through a complete

travel cycle. Do notincrease the force beyond

the minimumamount required to close the door.

2. Test the UP (open) force

•Grasp the door bottom when the door is about

halfwaythrough UP (open) travel. The door

should stop. If the door is hard to hold or

doesn't stop, DECREASE UP (open) force by

turningthe control counterclockwise. Make small

adjustmentsuntilthe door stops easily and

opens fully. After each adjustment, run the

opener through a completetravel cycle.

•If the door doesn't open at least 5 feet,

INCREASE UP (open) force by tuming the

control clockwise. Make small adjustments until

door opens completely. Readjust the UP limit if

necessary.After each adjustment, run the

opener through acomplete travel cycle.

Withouta properlyinstalledsafetyreversalsystem,

persons(particularlysmallchildren)couldbe

SERIOUSLYINJUREDor KILLEDbya closinggarage

door.

•Toomuchforceongaragedoorwillinterferewith

properoperationof safetyreversalsystem.

• NEVERincreaseforce beyondminimumamount

requiredto closegaragedoor.

•NEVERuseforceadjustmentsto compensatefor a

bindingorstickinggaragedoor.

•If onecontrol(forceor travellimits)is adjusted,the

othercontrolmayalsoneedadjustment.

•AfterANYadjustmentsaremade,the safetyreversal

systemMUSTbe tested.DoorMUSTreverseon

contactwithone-inchhighobject(or 2x4laidflat)on

floor,

Force Adjusknent

Co_tr_s

O O

Right Side Panel

29

Adjus_nent Label

ADJUSTMENT STEP 3

Test the Safety Reversal System

TEST

• With the doorfully open, place a one-inch board

(or a2x4 laid fiat) on the floor, centered under the

garage door.

• Operate the door in the down direction.The door

must reverse on stdkingthe obstruction.

ADJUST

•If the door stops on the obstruction,it is not

traveling far enough in the down direction.

Increase the DOWN limitby turningthe DOWN

limit adjustmentscrew counterclockwise1/4 turn.

NOTE: On a sectional door,make sure limit

adjustments do not cause the trolleyto move

within2-1/2" of the trolleystop bolt. If necessary

lengthen straightdoor arm to maintain this

minimumdistance.

•Repeat the test.

•When the door reverses on the one-inch board,

remove the obstructionand run the opener through

3 or 4 complete travel cycles to test adjustment.

IMPORTANT SAFETY CHECK:

Repeat Adjustment Steps 1, 2 and 3 after.-

•Each adjustment of door arm length, limits,or

force controls.

•Any repair to or adjustment of the garage door

(includingspdngs and hardware).

•Any repairto or bucklingof the garage floor.

•Any repair to or adjustment of the opener.

Withouta properlyinstalledsafetyreversalsystem,

persons(particularlysmallchildren)couldbe

SERIOUSLYINJUREDor KILLEDbya closinggarage

door.

•SafetyreversalsystemMUSTbe testedeverymonth.

•If onecontrol(forceortravellimits)is adjusted,the

othercontrolmayalsoneedadjustment.

•AfterANYadjustmentsare made,thesafetyreversal

systemMUSTbe tested.DoorMUSTreverseon

contactwithone-inchhighobject(or 2x4laidflat) on

thefloor.

ADJUSTMENT STEP 4

Test the Safety Reversing Sensor

•Press the remote controlpush buttonto open

the door.

• Place the opener carton inthe path of the door.

•Press the remote control push buttonto close the

door.The doorwill not move more than an inch,

and the opener lightswill flash.

The garage door opener will not close from a remote

if the indicatorlightin either sensor is off (alerting

you to the fact that the sensor is misaligned

or obstructed).

If the opener closes the door when the safety

reversing sensor is obstructed (and the sensors

are no more than 6" above the floor), call for a

trained door systems technician.

persons(particularlysmallchildren)couldbe

SERIOUSLYINJUREDorKILLEDbya dosinggarage

door.

oIo[ IJ _J,Ih

3O

OPERATION

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of severe injury or death:

1. READANDFOLLOWALLWARNINGSAND

INSTRUCTIONS.

2. ALWAYSkeepremotecontrolsoutof reachofchildren.

NEVERpermitchildrento operateor playwithgarage

doorcontrolpush buttonsor remotecontrols.

3. ONLYactivategaragedoorwhenit canbeseenclearly,it

is properlyadjusted,andtherearenoobstructionsto

doortravel.

4. ALWAYSkeepgaragedoorin sightuntilcompletely

closed.NOONESHOULDCROSSTHEPATHOFTHE

MOVINGDOOR.

5. If possible,useemergencyreleasehandleto disengage

trolleyONLYwhengaragedooris CLOSED.Weakor

brokenspringsor unbalanceddoorcouldresultinan

opendoorfalling rapidlyand/orunexpectedly.

6. NEVERuseemergencyreleasehandleunlessgarage

doorwayis clearof personsandobstructions.

7. NEVERusehandleto pullgaragedooropenorclosed.If

ropeknotbecomesuntied,youcouldfall.

8. If onecontrol(forceortravellimits)is adjusted,the

othercontrolmayalsoneedadjustment.

9. Afteranyadjustmentsare made,thesafetyreversal

systemMUSTbetested.

10. SafetyreversalsystemMUSTbe testedeverymonth.

GaragedoorMUSTreverseoncontactwithone-inch

highobject(ora 2x4 laidflat) onthefloor.

11. ALWAYSKEEPGARAGEDOORPROPERLYBALANCED

(seepage3). Animproperlybalanceddoormaynot

reversewhenrequiredandcouldresultin severeinjury

or death.

12. Allrepairsto cables,springassembliesandother

hardware,allof whichare underEXTREMEtension,

MUSTbe madebya traineddoorsystemstechnician.

13. ALWAYSdisconnectelectricpowerto garagedoor

openerbeforemakinganyrepairsor removingcovers.

t4.SAVETHESEINSTRUCTIONS.

Using Your Garage Door Opener

Your Security.I.opener and hand-held remote control

have been factory-set to a matchingcode which

changes with each use, randomly accessingover

100 billionnew codes. Your opener will operate with

up to eight Security,l.remote controls and one

Secudty.l. Keyless Entry System. If you purchase a

new remote, or if you wish to deactivate any remote,

follow the instructionsin the Programmingsection.

Activate your opener with any of the following:

• The hand-held Remote Control:Hold the large

push button down untilthe door starts to move.

•The wall-mounted Door Control:Hold the push

buttondown untilthe door starts to move.

•TheKeylessEntry(SeeAcceasodea):lfprevided

with your garage door opener, it must be

programmed before use. See Programming.

When the opener is activated (with the safety

reversing sensor correctly installed and aligned)

1. If open, the door will close. If closed, it will open.

2. If closing,the door will reverse.

3. If opening, the door will stop.

4. If the door has been stopped in a partially open

position, it will close.

5. If obstructedwhile dosing, the door will reverse. If

the obstructioninterruptsthe sensor beam, the

opener lights will blinkfor five seconds.

6. If obstructedwhile opening, the door will stop.

7. If fully open, the door will not close when the beam

is broken. The sensor has no effect in the opening

cycle.

If the sensor is not installed, or is misaligned,the

door won'tclose from a hand-held remote. However,

you can close the door with the Door Control,the

Outdoor Key Switch, or Keyless Entry, if you activate

them untildown travel is complete. If you release

them too soon, the door will reverse.

The opener lights will turn on underthe following

conditions: when the opener is initiallyplugged in;

when power is restored after interruption;when the

opener is activated.

They will turn off automatically after 4-1_ minutesor

provide constant lightwhen the Ught feature on the

Motion Detecting ControlConsole is activated. Bulb

size is 100 watts maximum.

Security,P Light Feature: Ughts will also turn on

when someone walks through the open garage door.

With a Motion Detecting Control Console, thisfeature

may be turnedoff as follows:With the opener lights

off, press and hold the light buttonfor 10 seconds,

untilthe lightgoes on and off again. To restorethis

feature, start with the opener lightson, then press

and holdthe light buttonfor 10 seconds untilthe light

goes off, then on again.

31

Using the Wall.Mounted Door Control

THE MOTION DETECTING CONTROL CONSOLE

Press the push bar to open or

close the door. Press again to

reverse the door during the

closingcycle or to stop the door

while it'sopening.

This door controlcontains a

motiondetector that will

automaticallyturn on the light

when it detects a person

entering the garage. This

feature can be easily turned off

for extended work light use.

Light Feature

Lighted

Press the Ught button to turn the opener lighton or

off. It will not controlthe opener lightswhen the door is

in motion. If you turn it on and then activate the

opener, the lightwill remain on for 4-1/2 minutes.

Press again to turn it off sooner. The 4-1/2 minute

intervalcan be changed to 1-1/2, 2-112, or 3-112

minutes as follows: Press and hold the Lock button

untilthe lightblinks (about 10 seconds).A singleblink

indicatesthat the timer is reset to 1-112minutes.

Repeat the procedure and the lightwill blinktwice,

resettingthe timer to 2-1/2 minutes.Repeat again for a

3-1/2 minute interval, etc., up to a maximumof four

blinksand 4-1/2 minutes.

When usingthe opener lightsas workinglights,we

recommend that youfirst disable the motionsensor.

See AutomaticLight Feature, below.

Automatic Light Feature: The opener lightwill turn

on automatically when a person entersthe garage.

When aperson walks in front of the door control,the

lightwill come on for five minutes,then shutoff. This

feature worksby detecting body heat and may not

work in temperatures around IO0"F.

To disable this feature, slide the Detector Switch on

the dght side of the door controldown (off).

We recommendthat you disable the motionsensor

when using the opener lightsas working lights.

Otherwise, they willturn off automaticallyif you are

working beyond the sensors range.

Lock Feature

Designed to prevent operation of the doorfrom hand-

held remote controls.However, the door will open and

close from the Door Control, the Outside Keylock and

the Keyless Entry Accessories.

To activate, press and hold the Lock buttonfor 2

seconds. The push bar lightwill flashas long as the

Lock feature is on.

To turn off, press and hold the Lockbuttonagain for

2seconds.The push bar light will stop flashing. The

Lockfeature will also turn off whenever the =Smart"

(leam) button on the motor unit panel is activated.

Additional feature when used with the 3-function

hand-held remote

To controlthe opener lights:

In additionto operating the door, you

may program the remote to operate

the lights.

1. With the door closed, press and holda small

remote buttonthat you want to controlthe light.

2. Press and held the Light buttonon the

door control.

3. While holding the Lightbutton, press and hold the

Lockbutton on the door control.

4. After the opener lightsflash, release all buttons.

To Open the Door Manually

• TopreventpossibleSERIOUSINJURYor DEATHfrom

afalling garagedoor:

- If possible,useemergencyreleasehandleto

disengagetrolleyONLYwhengaragedooris

CLOSED.Weakor brokenspringsorunbalanced

doorcouldresultin an opendoorfalling rapidly

and/orunexpectedly.

-NEVERuseemergencyreleasehandleunlessgarage

doorwayisclearof personsandobstructions.

•NEVERusehandleto pulldooropenorclosed.If rope

knotbecomesuntied,youcouldfall.

DISCONNECT THE TROLLEY:

The door should be fully closed

if possible.Pull down on the

emergency release handle (so

that the trolleyrelease arm

snaps into a vertical position)

and liftthe door manually. The

lockout feature prevents the

trolleyfrom reconnecting

automatically,and the door can

Trolley

_ I

Retease ann

(In Manual

DLsconnect

Posi_on)

be raised and lowered manually

as often as necessary. Lockout )osition

(Manual disconnect)

TO RE-CONNECT THE TROLLEY:

Pull the emergency release

handle toward the opener at

a45° degree angle so that

the trolleyrelease arm is

horizontal.The trolley will

reconnecton the next UP or

DOWN operation, either

manually or by using the

door control or remote.

Trolley

To reconnect

32

Care of Your Opener

UMIT AND FORCE ADJUSTMENTS:

Weather conditions may

cause some minor FORCECONTROLS

changes in door

operation requiringsome

re-adjustments,

particularlydudng the

firstyear of operation. uMrr CONTROLS

Pages 28 and 29 refer to

the limit and fome

adjustments. Only a

screwdriver is required.

Follow the instructionscarefully.

Repeat the safety reverse test (page 30) after any

adjustment of limits or force.

MAINTENANCE SCHEDULE

Once a Month

• Manually operate door. If it is unbalanced or

binding,call a trained door systems technician.

•Check to be sure door opens & closes fully.Adjust

limitsand/or force if necessary. (See pages 28

and 29.)

•Repeat the safety reverse test. Make any

necessary adjustments. (See Adjustment Step 3.)

Twice a Year

• Check chain tension. Disconnecttrolley first. Adjust

if necessary (See page 11).

Once a Year

•Oil door rollers,beadngs and hinges. The opener

does not require additional lubdcafion.Do not

grease the door tracks.

THE REMOTE CONTROL BAI-rERY

The lithiumbattery should

produce power for up to

5 years. To replace battery, use

the visor (dipor screwdriver

blade to pry open the case as

shown. Insert batterypositive

side up.

Disposeof old battery properly.

3-FUNCTION

Openmlsend

NOTICE:TO complywith FCCand or Indue.,'./Canada(IC) ru_;, _or

modlllcatiorlsof thiseeceivefand/orb'ansmitMrate _xohl_4ted,exceptIo_ckangin0the

codesegingor rep_ackqthe bzge¢/.THERE_RENOOIHERLIS_ S_ PARTS.

Te:Stedto Contplywithrcc StandardsF0RHOME0R 0R:IC:EUSE_0perRioe_subjectto

the _W,Ocondition: (1) ridsdevicemay notcsuseharmfulm, and

(2)thisde_cem_stacceptanyimderencereceive0,k_ inletfenmcethatmaycause

endesbedogeration.

33

Having a Problem?

1. The opener doesn't operate from either the Door

Control or the remote control:

• Does the opener have electricpower? Plug a lamp into the

outlet. If it doesn't light, check the fuse box or the circuit

breaker, (Some outlets are controlledby a wall switch.)

• Have you disabled all door locks? Review installation

instructionwarnings on page 11.

•Is there a build-up of ice or snow under the door? The door

may be frozen to the ground. Remove any restriction.

• The garage door spring may be broken. Have it replaced,

•Repeated operation may have tripped the overload

protector in the motor. Wait 15 minutes and try again,

2. Opener operates from the remote, but not from the

Door Control:

•Is the door controllit? If not, reverse the wires. If the

opener runs, check for a faulty wire connection at the door

control, a short under the staples, or abroken wire.

•Are the wiring connectionscorrect? Review Instal/atioo

Step 6, page 18,

3. The door operates from the Door Control, but not from

the remote control:

• Is the door push button flashing? If your model has the

Lock feature, make sure it is off.

•Programthe opener to match the remote control code.

(Refer to instructionson the motor unit panel.) Repeat with

all remotes.

4. The remote control has short range:

•Change the location of the remote controlin your car.

•Check to he sure the antenna on the side or back panel of

mater unit extends fully downward.

•Some installationsmay have shorter range due to ametal

dour,foil backed insulation, or metal garage siding.

(Antenna Extender Kit 41A3504)

5. Opener noise is disturbing in living quarters of home:

•If operational noise is a problem because of proximityof

the opener to the livingquarters, the Vibration IsolatorKit

41A3263 can be installed. This kit was designed to

minimize vibrationto the house and is easy to install.

6. The garage door opens and closes by itself:

•Be sure that all remote cootrolpush buttonsare off.

•Remove the bell wire from the door control terminals and

operate fromthe remote only. If this selves the problem,the

doorcnnt_ is faulty(replace), or there is an intermittentshort

on the wirebetween the doorcontroland the motorunit.

• Clear memory and re-program all remote controls.

7. The door doesn't open completely:

• Is something obstructingthe door? Is it out of balance, or

are the springsbroken? Remove the obstruction or repair

tha door.

•If the door is in good working order but now doesn't open

allthe way, increase the up force. See AdjustmentStep 2.

•If the dooropens at least 5 font, the travel limitsmay need

to be increased. One turn equals 3 inches oftravel. See

AdjustmentStep 1.

Repeat the safety reverse test after the adjustment is

complete.

8. The door stops but doosn_ close completely:

•Review the travel limitsadjustment procedureson page 28,

Repeat the safety reverse test after any adjustment of door

ann length, close force or down limit,

9. Tim door opens but won't close:

• If the opener lightsblink, check the safety reversing sensor.

See InstallationStep 10.

•Ifthe opener lightsdon't blink and it isanew installation,

check the down force. See Adjustment Step 2. For an

existing installation,see below.

Repeat the safety reverse test after theadjustmentis c_vnplete.

10. The door reverses for no apparent reason and opener

lights don't blink:

•Is something obstructingthe door? Pull the emergency

release handle.Operate the doormanually.If it is unbalanced

or binding,call a trained door systems technician.

•Clear any ice or snow from the garage floor area where

the doorcloses.

•Review AdjustmentStep 2.

• If dour reverses in the fully closed position, decrease the

travel limits(Adjustment Step 1).

Repeat safety reverse test after adjustments to force or travel

limits. The need for occasional adjustment of the force and

limit settings is normal Weather conditionsinparticular can

affect door travel.

11. The door reverses for no apparent reason and opener

lights blink for 5 seconds after reversing:

•Check the safety reversing sensor. Remove any obstruction

or align the receivingeye, See InstallationStep 10.

12. 7he opener lights don't turn on:

• Replace the lightbulbs(100 watts maximum).Use a standard

neck garage dooropener bulbif regularbulbbumsout.

13. The opener lights don't turn off:

•Is the Lightfeature on? Turn it off.

14. The opener strains or maximum force is needed to

operate door:.

•The door may be out of balance or the springsmay be

broken. Close the door and usa the emergency release

handle to disconnectthe trolley.Open and close the door

manually.A properlybalanced door will stay in any point of

travel while being supportnd entirely by its springs. If it

does not, disconnectthe opener and call a trained door

systems technician.Do not Increase the force to operate

the opener.

15. The opener motor hums briefly, then won't work:

•The garage doorspdngs may he broken.Son above.

•If the problem occurson the firstoperation of the opener,

door may be locked. Disable the door lock. if the chain was

removed and reinstalled, the motor may be out of phase.

Remove the chain; cyclethe motor to the down po_;ition.

Observe the drive sprocket. When it turnsin aclockwise

direction and stops in the down position,reinstall the chain,

Repeat the safety reverse test after the adjustment is

complete.

16. The opener won't operate due to power failure:

•Use the emergency release handle to disconnectthe

troiisy.The door can be opened and closed manually.

When power is restored, press the Door Control push

buttonand trolleywill automatically reconnect(unless

trolleyis in lockout potion.) See page 32.

•The Emergency Key Release accessory (for use on

garages with no service door) disconnects the trolley from

outside the garage in case of power failure.

17. The chain droops or sags:

•It is nermai for the chain to droop slightly in the oioned door

position.Use the emergency release to disconnectthe

trolley, if the chain returnsto normal heightwhen the trolley

is disengaged and the door reverses on a ona-inch board,

no adjustments are needed (see page 11).

34

PROGRAMMING

Your garage door opener has already been programmed at the factory to operate withyour hand-held remote

control.The door will open and closewhen you press the large push button.

Below are instructionsfor programmingyour opener to operate withadditional Security+ remote controls.

To Add an Additional Hand-held Remote Control

USING THE "LEARN" BUTrON USING THE MOTION DETECTING

CONTROL CONSOLE

1. Press and release the =learn"

button on the motor unit. The

learn indicator light will glow

steadily for 30 seconds.

2. Within 30 seconds, press and

hold the button on the hand-held

remote* that you wish to operate

your garage door.

3. Release the button when the

motor unit lights blink, It has

learned the code. it light bulbs

are not installed, two clicks will

be heard.

\1 /

1. Press and hold the button on the

hand-held remote* that you wish

to operate your garage door.

2. While holding the remote button,

press and hold the LIGHT button

on the Motion Detecting Control

Console.

3. Continue holding both buttons

while you press the push bar on

the Motion Detecting Control

Console (all three buttons are

held).

4. Release buttons when the motor

unit lights blink. It has learned the

code. If light bulbs are not

installed, two clicks will be heard.

To Erase All Codes From Motor

Unit Memory

To deactivate any unwanted

remote, first erase all codes:

Press and hold the "learn" button

on motor unit until the learn

indicator light goes out (approximately 6 seconds). All

previous codes are now erased. Reprogram each

remote or keyless entry you wish to use.

*3.Function Remotes

If provided with your garage door opener, the large

button is factory programmed to operate it. Additional

buttons on any

Security.lk 3-function F _

remote or compact / _--/'_

remote can be /.,...._f_ _

programmedto operate/1L /,D', ,I

other Secudty'lk garage / II II II I1

door openers. L" " " _

35

To Add or Change a Keyless Entry PIN

NOTE: Yournew Keyless Entry must be programmed to operate your garage door opener.

USING THE "LEARN" BUTTON USING THE MOTION DETECTING

CONTROL CONSOLE

1. Press and release the =learn"

button on motor unit. The learn

indicator light will glow steadily for

30 seconds.

2. Within 30 seconds, enter a four

digit personal identification

number (PIN) of your choice on

the keypad. Then press and hold

the ENTER button.

3. Release the button when the motor

unit lights blink. It has learned the

code. If light bulbs are not

installed, two clicks will be heard.

...I/

To change an existing, known PIN

If the existing PIN is known, it may be changed by one

person without using a ladder.

1. Press the four buttons for the present PiN, then

press and hold the #button.

The opener light will blink twice. Release the #

button.

2. Press the new 4-digit PIN you have chosen, then

press Enter.

The motor unit lights will blink once when the PIN has

been learned.

Test by pressing the new PIN, then press Enter. The

door should move.

To set a temporary PIN

You may authorize access by visitors or service people

with a temporary 4-digit PIN. After a programmed

number of hours or number of accesses, this temporary

PIN expires and will no longer open the door. It can be

used to close the door even after it has expired. To set

a temporary PIN:

1. Press the four buttons for your personal entry PIN

(not the last temporary PIN), then press and hold the

button.

The opener light will blink three times. Release the

button.

NOTE: This method requires two people if the Keyless

Entry is already mounted outside the garage.

36

1. Enter afour digit personal

identification number (PIN) of your

choice on the keypad. Then press

and hold ENTER.

2. While holding the ENTER button,

press and hold the LIGHT button

on the Motion Detecting Control

Console.

3. Continue holding the ENTER and

LIGHT buttons while you press the

push bar on the Motion Detecting

Control Console (all three buttons

are held).

4. Release buttons when the motor

unit lights blink. It has learned the

code. If light bulbs are not

installed, two clicks will be heard.

\1 /

2. Press the temporary 4-digit PIN you have chosen,

then press Enter.

The opener light will blink four times.

3. To set the number of hours this temporary PIN will

work, press the number of hours (up to 255), then

press _. OR

3. To set the number of times this temporary PIN will

work, press the number of times (up to 255), then

press #.

The opener light will blink once when the temporary PIN

has been learned.

Test by pressing the four buttons for the temporary PIN,

then press Enter. The door should move. If the

temporary PIN was set to a certain number of openings,

remember that the test has used up one opening.To

clear the temporary password, repeat stops 1-3, setting

the number of hours or times to 0 in step 3.

REPAIR PARTS

Rail Assembly Parts

4

5

3

Installation Parts

KEY PART

NO. NO. DESCRIPTION

1

2

3

4

5

6

7

1

KEY PART

NO. NO.

2 41A5076

_3 10A20

9 8 4 29B137

5 31D431

6 31B430

7 10A2

8 41A2828

__) 9 217A238

11 12 14 10 12B590

\11 41A5047

12 178B35

13 178B34

14 12B350

15 41A5034

15 16 41A5266-1

16 41A5258-7

114A2629

4A1008 Master link kit

41C5141-1 Complete trolley assembly

183(3158-3 Rail - front(header) section

183C157-3 Rail - center/back section (2)

144C56 Chain idler pulley

41A5595 Chain and cable

12D598-1 U bracket

NOT SHOWN

183A163 Wear pads

19A47 Cover protectionbolt spacer

DESCRIPTION

Motion Detecting Control Console

3-function remote controlcase

(no circuitboard)

3V 2032 Lithiumbattery

Visorclip

Keyless entry keypad cover

Keyioss entry battery cover

9 Volt battery

Emergency release rope & handle assy.

2-Conductor bell wire: white & white/red

Header bracket w/clevis pin& fastener

Door bracket w/clevis pin & fastener

Curved door arm section

Straight door arrn section

Hangingbrackets

Safety sensor kit: receivingand sending

eyes with 3' 2-conductorbell wire

attached

Safety sensor bracket

NOT SHOWN

Assy & Installation hardware bag

(see page 7)

Owner's manual

37

Motor Unit Assembly Parts

7

8C

15

I

12 13 (Down)

Brown Contact LIMITSWITCHASSY,

W_re

Wlr8

G6ar

Center Limit (Up) Yellow

Contact Contact Wire

KEY PART

NO. NO.

1 41C10

241A5585

3 41A2817

4 41134245

5 41A5484-3

6 4A1344

7 108D67

8A 3013530

8B 30B529

8C 41A5637

9 41A3150

10 41D5563

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Chain Spreader

Gear and sprocket assembly

Complete with: Spdng washer,

thrust washer, retaining dng,

bearing plate, roll pins (2), drive

gear and worm gear, helicalgear

w/retainer and grease

Drive/worm gear kitw/grease,

roll pins (2)

Use cord

End panel w/all labels

Lightsocket

Lens

Motor capacitor 56uF

Motor capacitor 40uF

Resistor

Terminal block w/screws

11 41A5594

12 41A2818

13 41D3452-2

14 41A2822-1

15 41C4398A

16 41A5483-14

17 41C5588

41C5587

18 41D178-1

41A2826

41A2825

Cover

Umit switch drive & retainer

Limitswitch assembly

Interruptercup assembly

RPM sensor assembly

Receiver logic board assy.

Complete with: Logic board,end

panel w/all labels, lightsocket

High voltage wire harness assy.

Low voltage wire harness assy.

End panel w/all labels

NOT SHOWN

Motor shaft bearingkit

Opener assembly hardware kit

(includesscrews not designated

by a number in illustration)

Universal replacement motor &

bracket assembly

Complete with: Motor, worm,

bracket, hearing assembly, RPM

sensor

38

ACCESSORIES

139.53702

139.53703

53724

0s

53 2_

53589

41A5281

Emergency Key Release:

Required for a garage with NO access

door. Enables homeowner to open

garage door manually from outside by

disengagingtrolley.

Outdoor Key Switch:

Operates the garage door

automatically from outside when

remote control is not handy.

8 Foot Rail Extension:

Toallow an 8 font door to open fully.

10 Foot Rail Extension:

Toallow a 10 footdoor to open fully.

Support Brackets:

For finished ceilings or where additional

supportis required, based on garage

construction,Includes brackets and

fastening hardware.

Extension Brackets:

(Available only through Sears

Parts & Service)

(Optional) For safety sensor

installationonto the wall or floor.

139.53681

139.53680

139.53684

139,53687

139.53686

139.53709

SECURITY+ 3-Function Remote

Control:

Includes visor clip.

SECURITY+ Compact

3-Function Remote Control:

With loop for attaching key dng.

SECURITY+ Keyless Entry:

Enables homeowner to operate garage

door opener from outsideby enteringa

password.Also san add a temporary

passwordfor visitorsor service

persons.

Premium Control Console:

Providesa lockfeature to prevent

operationof garage doorfrom portable

remetes. A lightfeature controlsthe

opener lights.Can be used to program

the opener to accept additionalremetes.

Plug-In Light Control:

Enables homeowner to turn on a lamp,

televisionor other appliance from car,

bedside, or anywhere in the home with

a remote.

Door Clearance Brackets:

(For Sectional Doors Only)

Replaces top brackets and rollers on

doorto reduce height of doortravel.

For usa when installingopener in

garage with low headroom clearance.

WARRANTY

SEARS WARRANTY

Sears warrants to the first retail purchaser of this product, for the residence in whk_ this product is originally instatied,

gO-DAY WARRANTY ON CRAFTSMAN GARAGE DOOR OPENER

For 90 days from the date of purchase, Sears will repair this Craftsman Garage Door Opener, tree of charge, if defective in matedai or

wod_manship, in the event you have a question with the a_ssembiy or operation of your garage door opener, or have any damaged or missing

darts, please contact one of our iedmioal service representatives at 1-800-528-5236.

MMt'I1ED WARRANTY

From the 91 st day until five years from the date of purchase, Sears will furnish replacement parts for any defective parts,

free of charge. Labor not included.

MFETIME LIMITED WARRANTY ON MOTOR

if the motor on this Garage Door Opener redalres replacement, Sears wig furnish a new motor, free of charge. Labor not included.

MMITA'FION ON MABILITY

3/4Hp MOTOR: This limited warranty is in lieu of any other warranties, express or implied, including any implied warranty of merchantability of

fitness for a particular purpose. This limited warranty does not cover non-datectise damage, damage caused by improper installation, operation

or care, replacement of batteries and light balbs or units Installed for non-resideatiel use.

Under no circumstances shall seller be liable for consequential, incidental or special damages aristhg In connection with use, Or inability to use,

_ds product. In no event shall setieifs liability for breach of warranty, breach of contract, negligence or strict liability exceed the cost of the

product covered hereby. NO person is authorized to assume for us any other liability in connection with the sale of this product.

FROM THE 91ST DAY, WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS STORE

OR SEARS SERVICE CENTER IN THE UNITED STATES,

This warranty applies only while this product is in use in the United States.

This warranty gives you specific legal fights, and you may also have other rights which ,taP/from state to state.

Sears, Roebuck and Co., Dept. 817 WA, Hoeman Estatu, IL 60179

39
