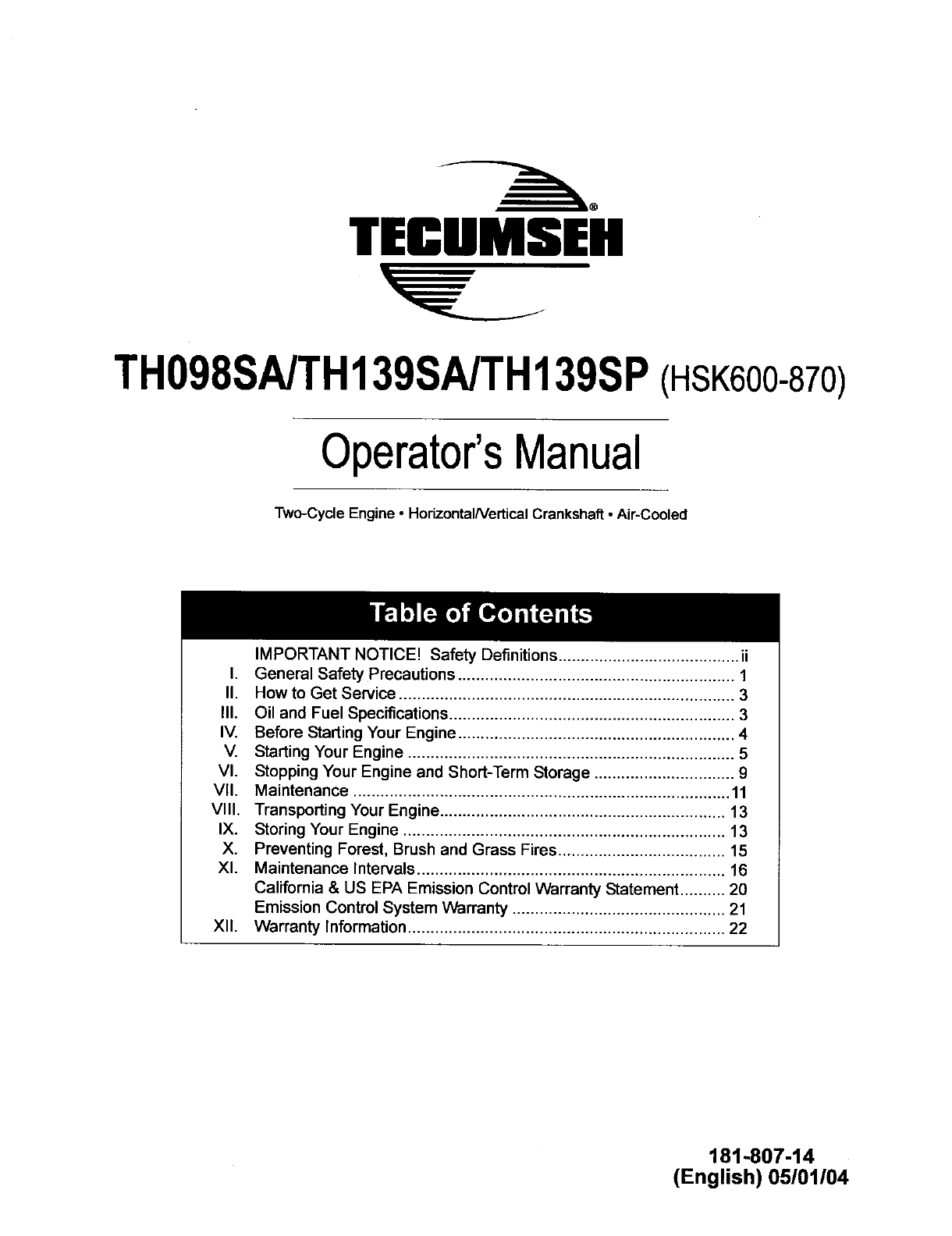

TECUMSEH

TH098SA/TH139SNTH139SP(HSK600-870)

Operator'sManual

Two-Cycle Engine • HorizontalNertical Crankshaf_ • Air-Cooled

IMPORTANT NOTICE! Safety Definitions ........................................ ii

I. General Safety Precautions ............................................................. 1

II. Howto Get Service .......................................................................... 3

Ill. Oil and Fuel Specifications ............................................................... 3

IV. Before Starting Your Engine ............................................................. 4

V. Starting Your Engine ........................................................................ 5

VI. Stopping Your Engine and Short-Term Storage ............................... 9

VII. Maintenance ................................................................................... 11

VIII. Transporting Your Engine ............................................................... 13

IX. Storing Your Engine ....................................................................... 13

X. Preventing Forest, Brush and Grass Fires ..................................... 15

XI. Maintenance Intervals .................................................................... 16

California & US EPA Emission Control Warranty Statement .......... 20

Emission Control System Warranty ............................................... 21

XlI. Warranty Information ...................................................................... 22

181-807-14

(English) 05/01/04

IMPORTANT NOTICE!

Safety Definitions

Statements inthis manual preceded by the followingwords

and graphics are of special significance:

WARNING indicatesa potentiallyhazardous situation

which if notavoided, could result in death or seriousinjury.

NOTE

Refers to important information and is placed in italic type.

It is recommended that you take special notice of all items

discussedon the next two pages and wear the apprepdate

safety equipment.

Before operatingthisengine # is your responsibility to read

this Operator's Manual. Followthese basic rules for your

personal safety:

• Keep this manual handy at all times for future

reference.

•Read it carefully and familiarize yourselfwith

operating, maintenance, componentsand safety

instructions.

Notice Regarding Emissions

NOTE

Engines which are certifiedto comply with California and

U.S. EPA emission regulations for SORE (Small Off Road

Equipment), are certified to operate on regular unleaded

gasoline, and may include the following emission control

systems: (EM) Engine Modification and (TWC) Three-Way

Catalyst (if so equipped).

Tecumseh Contact Information

For engine adjustments, repairsor warranty service not

covered in this manual, contact your nearestAuthorized

Tecumseh Servicing Dealer. Findthem on our website at

www.TecumsahPower.com or call Tecumseh Power

Company at 1-800-558-5402.

_:)Copydght 2004

Tecumseh Power Company

Page ii Two-Cycle Engine •HodzontaYVertical Crankshaft •Air-Cooled 181-807-14

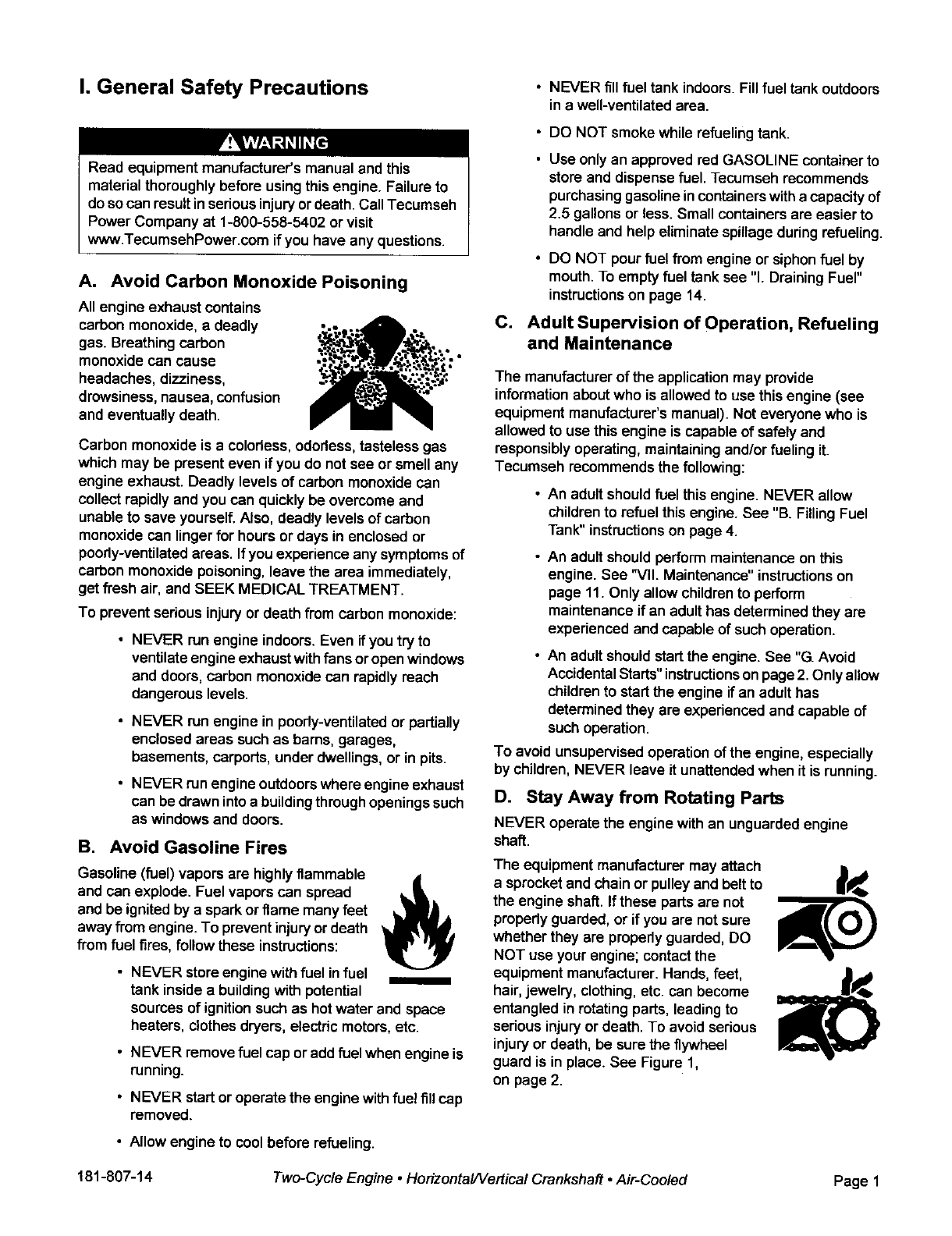

I, General Safety Precautions • NEVER fillfuel tank indoors.Fillfuel tank outdoors

in a well-ventilated area.

Read equipment manufacturer's manual and this

material thoroughly before usingthis engine. Failure to

do so can result inseriousinjuryordeath. Call Tecumseh

Power Company at 1-800-558-5402 or visit

www.TecumsehPower.com if you have any questions.

A. Avoid Carbon Monoxide Poisoning

All engine exhaust contains

carbon monoxide, a deadly

gas. Breathingcarbon

monoxide can cause

headaches, dizziness,

drowsiness,nausea, confusion

and eventuallydeath.

Carbon monoxide is a colorless,odorless, tasteless gas

which may be present even if you do not see or smell any

engine exhaust. Deadly levels of carbon monoxidecan

collect rapidly and you can quickly be overcome and

unable to save yourself. Also, deadly levels of carbon

monoxide can linger for hours or days in enclosed or

poorly-ventilated areas. If you experience any symptomsof

carbon monoxide poisoning, leave the area immediately,

get fresh air, and SEEK MEDICAL TREATMENT.

To prevent serious injuryor death from carbon monoxide:

NEVER runengine indoors. Even if you try to

ventilate engine exhaustwithfans or open windows

and doors, carbon monoxide can rapidly reach

dangerous levels.

NEVER run engine in poorly-ventilated or partially

enclosed areas suchas barns, garages,

basements, carports, under dwellings,or in pits.

NEVER run engineoutdoorswhere engine exhaust

can be drawn intoa buildingthroughopeningssuch

as windows and doors.

B. Avoid Gasoline Fires

Gasoline (fuel) vapors are highly flammable

and can explode. Fuel vapors can spread

and be ignitedby a spark or flame many feet

away from engine. To prevent injuryordeath

from fuel fires, follow these instructions:

•NEVER storeengine withfuel infuel

tank inside a building with potential

sources of ignition such as hot water and space

heaters, clothes dryers, electric motors,etc.

NEVER removefuel cap oradd fuel when engine is

running.

NEVER start oroperate the engine withfuel fill cap

removed.

• Allow engine to cool before refueling.

• DO NOT smoke while refueling tank.

Use only an approved red GASOLINE container to

storeand dispense fuel. Tecumseh recommends

purchasinggasoline incontainerswitha capacityof

2.5 gallons or less. Small containersare easier to

handle and help eliminatespillage during refueling.

•DO NOT pour fuel from engine or siphonfuel by

mouth. To empty fuel tank see "1. Draining Fuel"

instructions on page 14.

Adult Supervision of Operation, Refueling

and Maintenance

The manufacturerof the applicationmay provide

informationabout who is allowedto use this engine (see

equipment manufacturer's manual). Not everyone who is

allowed to use this engine is capable of safely and

responsibly operating, maintaining and/or fueling it.

Tecumseh recommends the following:

• An adult shouldfuel this engine. NEVER allow

childrento refuel this engine. See "B. Filling Fuel

Tank" instructionson page 4.

•An adult should performmaintenance on this

engine. See "VII. Maintenance"instructionson

page 11. Only allow childrento perform

maintenance if an adult has determined they are

experienced and capable of such operation.

•An adult should start the engine. See "G Avoid

AccidentalStarts" instructionson page 2. Only allow

children to start the engine if an adult has

determined they are experienced and capable of

such operation.

To avoid unsupervisedoperationof the engine, especially

by children, NEVER leave it unattended when it is running.

D. Stay Away from Rotating Parts

NEVER operate the engine with an unguarded engine

shaft.

The equipment manufacturer may attach

a sprocketand chain or pulley and belt to

the engine shaft. If these parts are not

properlyguarded, or if you are not sure

whether they are preperlyguarded, DO

NOT use your engine; contactthe

equipment manufacturer. Hands, feet,

hair,jewelry, clothing,etc. can become

entangled inrotating parts, leadingto

sedous injuryor death. To avoid serious

injuryor death, be sure the flywheel

guard is in place. See Figure 1,

on page 2.

181-807-14 Two-Cycle Engine •HorizontalA/ertical Crankshaft •Air-Cooled Page 1

E. Do Not Modify Engine

To avoid serious injury or death, DO NOT modify engine in

any way. Tampering with the governor setting can lead to a

runaway engine and cause it to operate at unsafe speeds.

NEVER tamper with factory setting of engine governor.

Use of thisengine on fun-carts, go-karts or mini-bikes

could result in serious injury or death. Tecumseh

manufactures the Power Sport line of engines for use in

such applications. Consult your local Authorized

Tecumseh Servicing Dealer, call 1-800-558-5402, or go

to www.TecumsehPower.com for additional information.

F. Avoid Burns and Fire from Hot Surfaces

The mufflerand other engine parts become

extremely hotduring operationand remain

hotafter the engine has stopped.

To avoid severe bums on contact,

NEVER operate the engine without

the mufflerguard inplace and avoid

hot areas of the engine. m

To reduce the riskof fire keep all materials that can

burn, includinggrassand leaves, away from muffler

and rest of engine. DO NOT operate, idle or park

the engine application in long dry grass or other dry

ground cover.

G, Avoid Accidental Starts

To prevent accidental starting when working on equipment

always:

• Disconnect sparkplug wire and keep it away from

spark plug. See Figures 2 and 3.

• Keep the disconnected spark plug wire

securely away from metal parts where arcing

couldoccur.

•Attach the sparkplug wire to the grounding

post, if provided.

•Disconnect batteryat negative terminal first, if

engine is equipped with an electric starter.

•Turn off all engine switches.

•Remove ignitionkey, if provided.

H. Use Hearing Protection

Engine noise may cause hearing damage. Always wear

hearing protection when operating an engine.

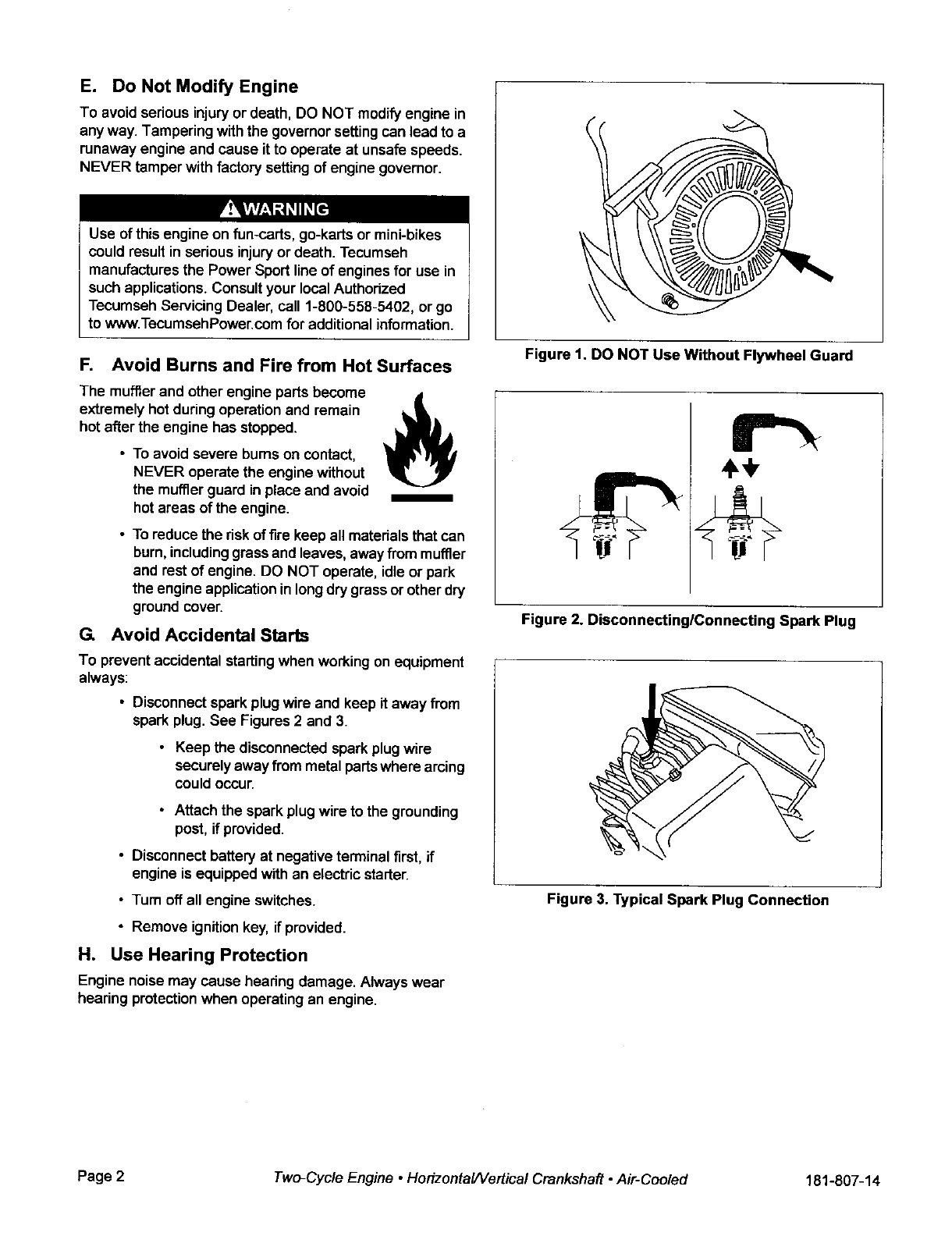

Figure 1. DO NOT Use Without Flywheel Guard

4=+

Figure 2. Disconnecting/Connecting Spark Plug

Figure 3. Typical Spark Plug Connection

Page 2Two-Cycle Engine •Horizontal/Vertical Crankshaft •Air-Cooled 181-807-14

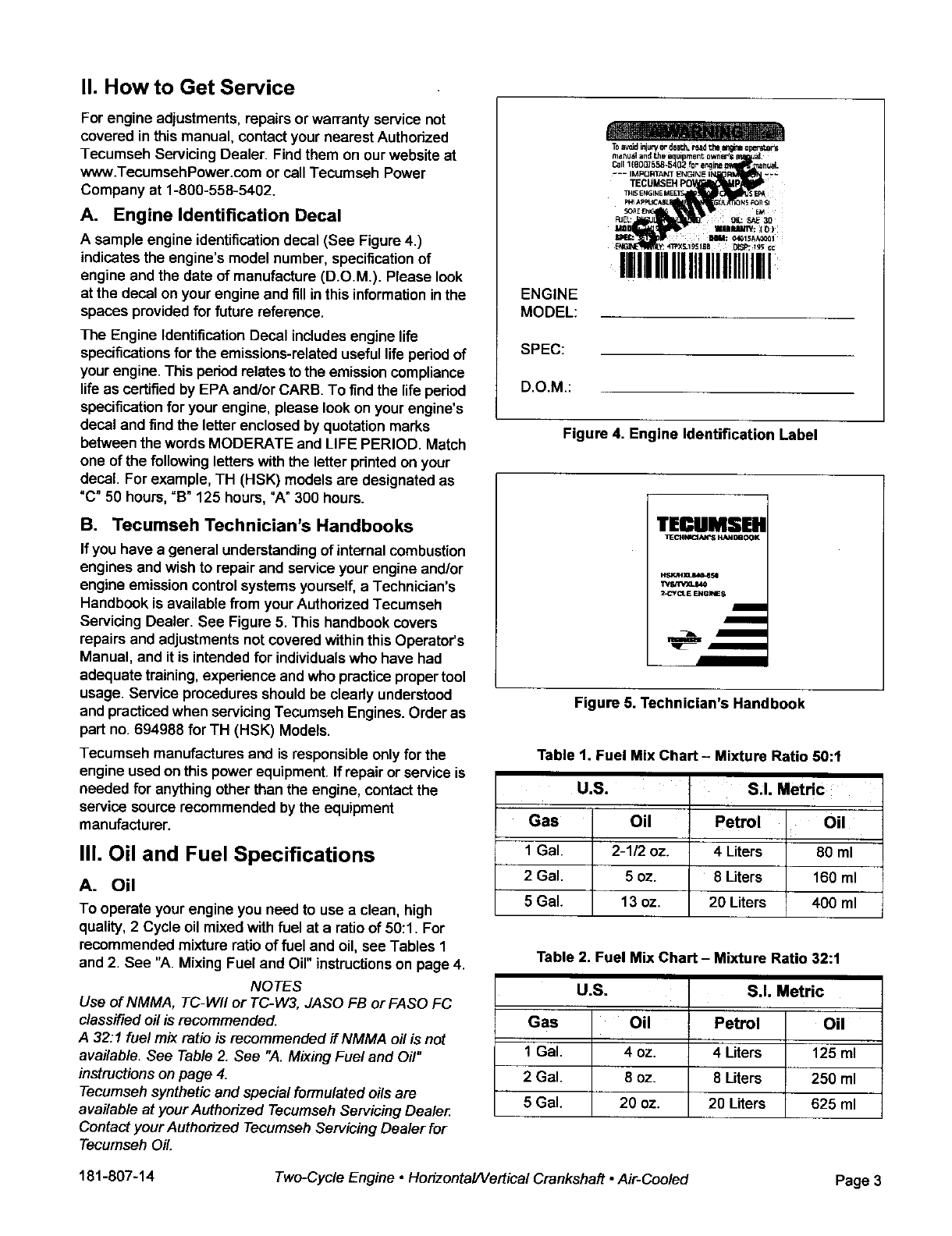

II. How to Get Service

For engine adjustments, repairs orwarranty service not

covered in this manual, contactyour nearest Authorized

Tecumseh Servicing Dealer. Findthem on our website at

www.TecumsehPower.com or call Tecumseh Power

Company at 1-800-558-5402.

A. Engine Identification Decal

A sample engine identification decal (See Figure 4.)

indicates the engine's model number, specificationof

engine and the date of manufacture (D.O.M.). Please look

at the decal on your engine and fill inthis informationinthe

spaces providedfor future reference.

The Engine Identification Decal includesengine life

specificationsfor the emissions-relateduseful life period of

your engine. This periodrelates to the emissioncompliance

life as certified by EPA and/or CARB. To find the life period

specificationfor your engine, please look on your engine's

decal and find the letter enclosed by quotationmarks

between the words MODERATE and LIFE PERIOD. Match

one of the following letters with the letter printedon your

decal. For example, TH (HSK) models are designated as

"C" 50 hours,=B" 125 hours, =A" 300 hours.

B. Tecumseh Technician's Handbooks

If you have a general understanding of internal combustion

engines and wish to repair and service your engine and/or

engine emission controlsystems yourself, a Technician's

Handbook is available from your Authorized Tecumseh

Servicing Dealer. See Figure 5. This handbookcovers

repairs and adjustments not covered withinthis Operator's

Manual, and it is intended for individualswho have had

adequate training,experience and who practice propertool

usage. Service proceduresshould be clearly understood

and practicedwhen servicingTecumseh Engines. Order as

part no. 694988 for TH (HSK) Models.

Tecumseh manufactures and is responsibleonly for the

engine used onthis power equipment.If repair orservice is

needed for anything other than the engine, contact the

service source recommended by the equipment

manufacturer.

II1.Oil and Fuel Specifications

A. Oil

To operate your engine you need to use a clean, high

quality, 2 Cycle oil mixed with fuel at a ratio of 50:1. For

recommended mixture ratio of fuel and oil, see Tables 1

and 2. See "A. Mixing Fuel and Oil"instructionson page 4.

NOTES

Use of NMMA, TC-W/I or TC-W3, JASO FB or FASO FC

classifiedoil is recommended.

A 32:1 fuel mix ratio is recommended ifNMMA oil is not

available. See Table 2. See '_A.Mixing Fuel and Oil"

instructionson page 4.

Tecumseh synthetic and special formulated oils are

available at your Authodzed TecumsehServicing Deale_

Contact your Authorized TecumsehServicing Dealer for

Tecumseh OiL

ENGINE

MODEL:

SPEC:

Toav=di_u+-_ordsatl_r_adthe_ ._s

martu_ and the equipment 0_r$

CallIIB00)5_-5402 forer+_ine n_.

--- IMPC]RTAN T ENGINE I _--

TECUMSEHP p

T}_5_NGINE _EpA

PJEL_ 01_ SAE 30

I/_ WnlLIIkllk (0)

_m:_: _ 04_15AAO001

I111111111111111111111111111

D.O.M.:

Figure 4. Engine Identification Label

TECUMSEII

11ECNNICI_CS I,;AND_OOK

HSK_)BJW_04L_

TVSffV_J4O

2_:yCJ.E ENGiI_E S

tomb

Figure 5. Technician's Handbook

Table 1. Fuel Mix Chart - Mixture Ratio 50:1

U.S. S.I. Metric

Gas Oil Petrol Oil

1 Gal. 2-1/2 oz. 4 Liters 80 ml

2 Gal. 5 oz. 8 Liters 160 ml

5 Gal. 13 oz. 20 Liters 400 ml

Table 2. Fuel Mix Chart - Mixture Ratio 32:1

U.S. S.I. Metric

Gas Oil Petrol Oil

1Gal. 4 oz. 4 Liters 125 ml

2 Gal. 8 oz. 8 Liters 250 ml

5 Gal. 20 oz. 20 Liters 625 ml

181-807-14 Two-Cycle Engine •Horizontal/Vertical Crankshaft •Air-Cooled Page 3

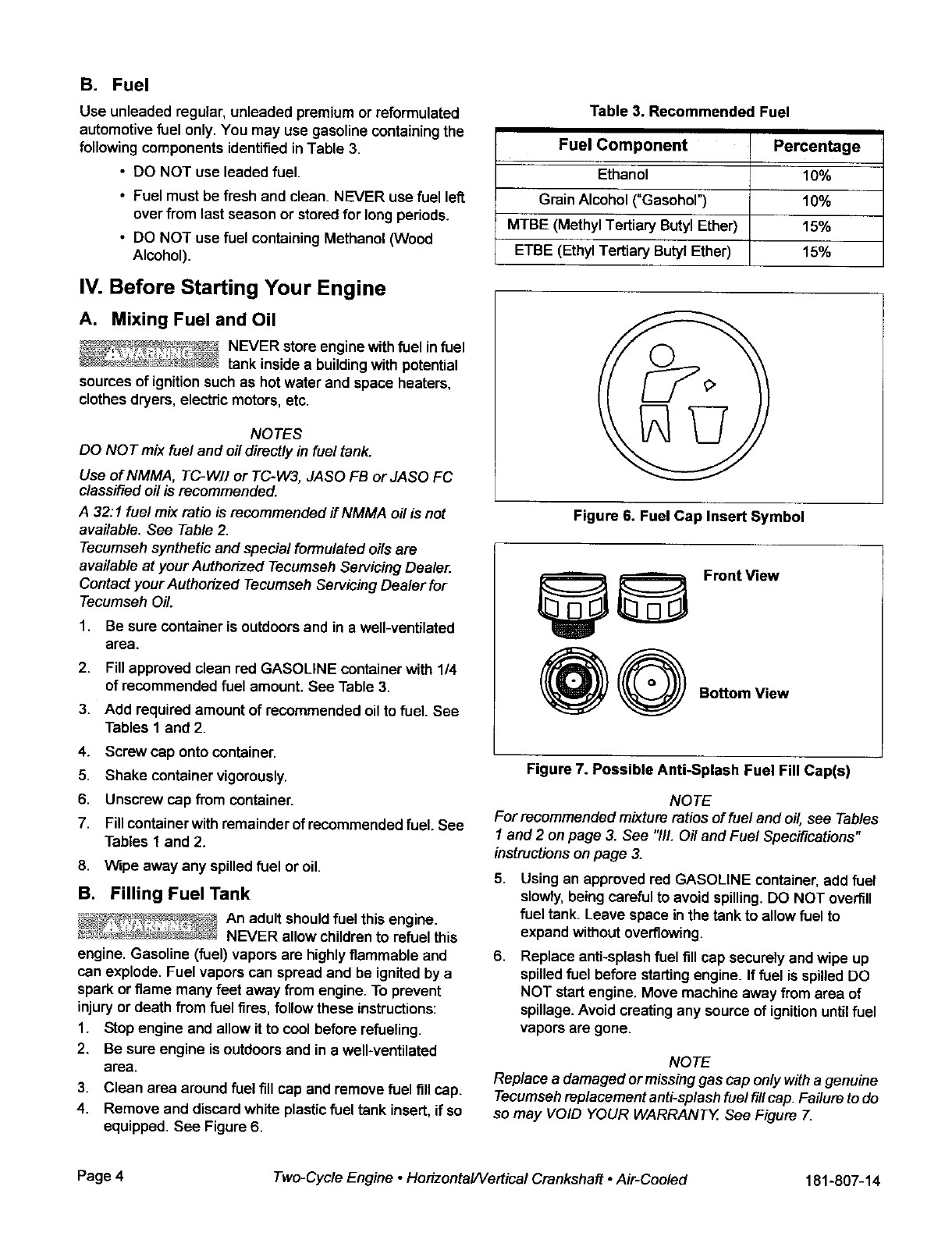

B. Fuel

Use unleaded regular,unleaded premium or reformulated

automotivefuel only. You may use gasoline containingthe

following components identifiedinTable 3.

• DO NOT use leaded fuel.

•Fuel must be fresh and clean. NEVER use fuel lefl

over from last season or stored for long periods.

• DO NOT use fuel containing Methanol (Wood

Alcohol).

IV. Before Starting Your Engine

A. Mixing Fuel and Oil

_ _ NEVER store enginewithfuel infuel

.% tank insidea buildingwith potential

sources of ignitionsuch as hot water and space heaters,

clothes dryers, electdc motors, etc.

NOTES

DO NOT mix fuel and oil directly in fuel tank.

Use of NMMA, TC-W]! or TC-W3, JASO FB or JASO FC

classified oil is recommended.

A 32:1 fuel mix ratio is recommended if NMMA oil is not

available. See Table 2.

Tecumseh synthetic and special formulated oils are

available at your Authorized Tecumseh Servicing Dealer.

Contact your Authodzed Tecumseh Servicing Dealer for

Tecumseh Oil.

1. Be sure container is outdoorsand in a well-ventilated

2•

area.

Fill approved clean red GASOLINE container with 1/4

of recommended fuel amount. See Table 3.

3. Add requiredamount of recommended oilto fuel• See

Tables 1and 2.

4. Screw cap onto container.

5. Shake container vigorously•

6. Unscrew cap from container.

7. Fillcontainerwith remainder of recommended fuel. See

Tables 1and 2.

8. Wipe away any spilledfuel or oil.

B. Filling Fuel Tank

An adult shouldfuel this engine•

NEVER allow childrento refuel this

engine• Gasoline (fuel) vapors are highlyflammable and

can explode• Fuel vapors can spread and be ignited by a

spark or flame many feet away from engine•To prevent

injury or death from fuel fires, followthese instructions:

1. Stop engine and allow it to cool before refueling.

2. Be sure engine is outdoorsand in a well-ventilated

area.

3. Clean area around fuel fill cap and remove fuel fill cap.

4. Remove and discard white plastic fuel tank insert, if so

equipped. See Figure 6.

Table 3. Recommended Fuel

Fuel Component Percentage

Ethanol 10%

Grain Alcohol ("Gasohol") 10%

MTBE (Methyl Tertiary Butyl Ether) 15%

ETBE (EthylTertiary Butyl Ether) 15%

Figure 6. Fuel Cap Insert Symbol

Front View

Bottom View

Figure 7. Possible Anti-Splash Fuel Fill Cap(s)

NOTE

For recommended mixture ratios of fuel and oil, see Tables

1and 2on page 3. See "111.Oil and Fuel Specifications"

instructions on page 3.

5. Usingan approved red GASOLINE container,add fuel

slowly,being careful to avoid spilling•DO NOT overfill

fuel tank• Leave space in the tank to allow fuel to

expand without overflowing.

6. Replace anti-splashfuel fill cap securely and wipe up

spilled fuel before starting engine. If fuel is spilledDO

NOT start engine. Move machine away from area of

spillage. Avoid creating any source of ignition until fuel

vapors are gone.

NOTE

Replace a damaged or missing gas cap only with a genuine

Tecumseh replacement anti-splash fuel fill cap. Failure to do

so may VOID YOUR WARRANTY See Figure 7.

Page 4Two-Cycle Engine •HodzontaWertical Crankshaft •Air-Cooled 181-807-14

C. Check the Following Equipment

NOTE

Be sure equipment is in neutral before attempting to start

(see equipment manufacturer's instructions).

1. Be sure ignitionswitchon engine or equipment is in

"ON', =RUN" or "START" position,if present (see

equipment manufacturer'sinstructions).

2. Be sure air vent on fuel cap, if present (see equipment

manufacturer's instructions)is free of debris. Be sure

airvent screw,if present (see equipmentmanufacturer's

instructions)on fuel cap is open.

V. Starting Your Engine

,An adult should start the engine.

Only allow childrento start engine if

an adult has determined they are experienced and capable

of such operation.

If you are unable to start this engine

after following instructionsinthis

manual, contact your Authorized Tecumseh Servicing

Dealer. To avoid serious bum injuriesor damage to your

engine, DO NOT attempt to start or troubleshootthis

engine inany other way. For example:

• DO NOT use startingfluid.

• DO NOT spray flammable vapors intocarburetoror

onto air cleaner.

•DO NOT put flammable liquids intocarburetor or

onto air cleaner.

•DO NOT operate engine or pull on starterrope with

sparkplug removed.Fuel can sprayfrom sparkplug

hole and ignite.

NOTE

ff engine is remotely controlled, (see equipment

manufacturer's instructions)your equipmentmay have one

or more of the following engine symbols. See Figure 8.

This section contains starting instructionsfor several

differenttypes of engines. In orderto locate the instructions

that apply to your engine, firstdetermine what type of

starteryou have. If you have an electric starter see

"A. Engines with Electric Starters" instrections on page 6. If

you have a manual recoilstarter see "B. Engines with

Recoil Starters" instructionson page 8.

I""

STOP SLOW RUN FAST CHOKE PRIMER

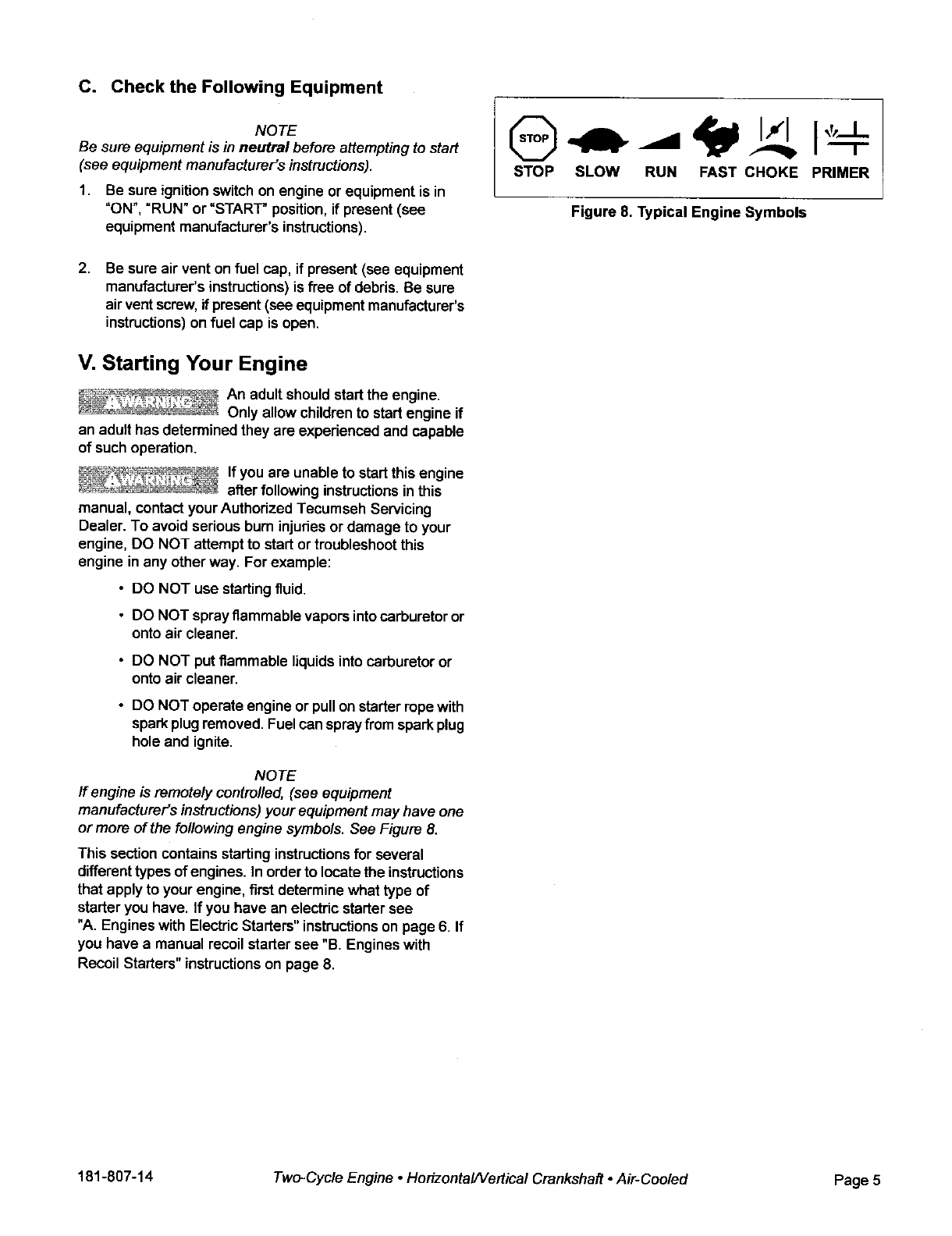

Figure 8. Typical Engine Symbols

181-807-14 Two-Cycle Engine •HortzontaYVertical Crankshaft •Air-Cooled Page 5

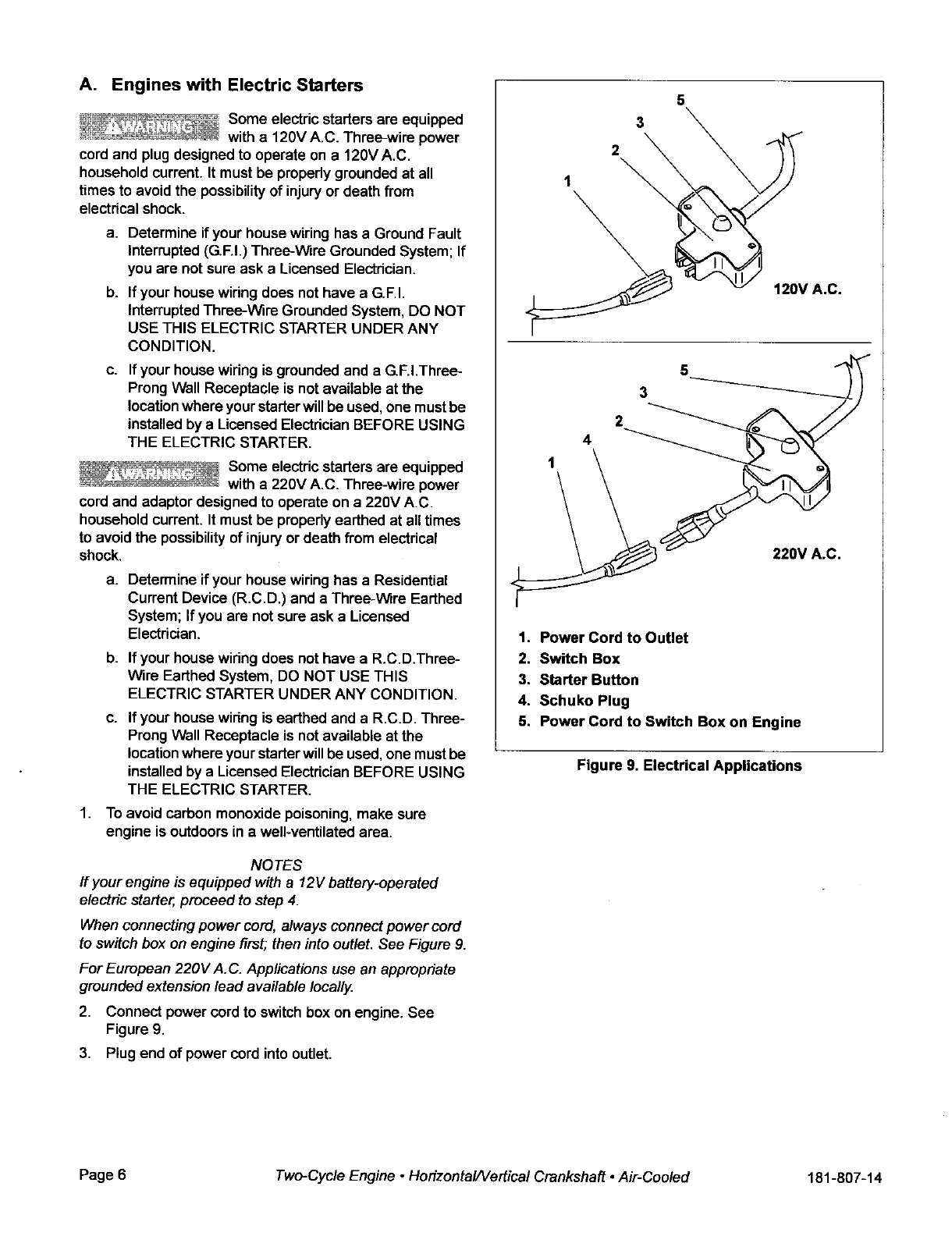

A. Engines with Electric Starters

__ Some electric startersare equipped

_i_ with a 120VA.C. Thrae-wira power

cord and plug designed to operate on a 120V A.C.

household current. It must be properly grounded at all

times to avoid the possibility of injury or death from

electdcal shock.

a. Determine if your house wiring has aGround Fault

Interrupted (GEl.) Three-Wire Grounded System; If

you are not sure ask aLicensed Electrician.

b. If your house wiring does not have a G.EI.

Interrupted Three-Wire Grounded System, DO NOT

USE THIS ELECTRIC STARTER UNDER ANY

CONDITION.

c. If your house wiring is grounded and aG.F.I.Three-

Prong Wall Receptacle is not available at the

location where your starter will be used, one must be

installed by a Licensed Electrician BEFORE USING

THE ELECTRIC STARTER.

;, Some electdc startersare equipped

__ with a220VA.C. Three-wire power

cord and adaptor designed to operate on a220V A.C.

household current. It must be properly earthed at all times

to avoid the possibility of injury or death from electrical

shock.

a. Determine if your house wiring has a Residential

Current Device (R.C.D.) and a Three-Wire Earthed

System; If you are notsure ask a Licensed

Electrician.

b. If your house widng does not have a R.C.D.Three-

Wire Earthed System, DO NOT USE THIS

ELECTRIC STARTER UNDER ANY CONDITION.

c. If your house widng is earthed and a R.C.D. Three-

Prong Wall Receptacle is not available at the

location where your starter will be used, one must be

installed by a Licensed Electrician BEFORE USING

THE ELECTRIC STARTER.

1. To avoid carbon monoxide poisoning, make sure

engine is outdoorsin a well-ventilated area.

NOTES

ff your engine is equipped with a12V battery-opereted

electdcstarter, proceed to step 4.

When connecting power cord, always connect power cord

to switchbox on engine first;then into outlet. See Figure 9.

For European 220V A.C. Applications use an appropdate

grounded extension lead available locally.

2. Connect power cord to switchbox on engine. See

Figure 9.

3. Plug end of power cord into outlet.

__ 120V A.C.

2 3 5

1. Power Cord to Outlet

2. Switch Box

3. Starter Button

4. Schuko Plug

5. Power Cord to Switch Box on Engine

Figure 9. Electrical Applications

Page 6Two-Cycle Engine •HodzontalA/edical Crankshaft •Air-Cooled 181-807-14

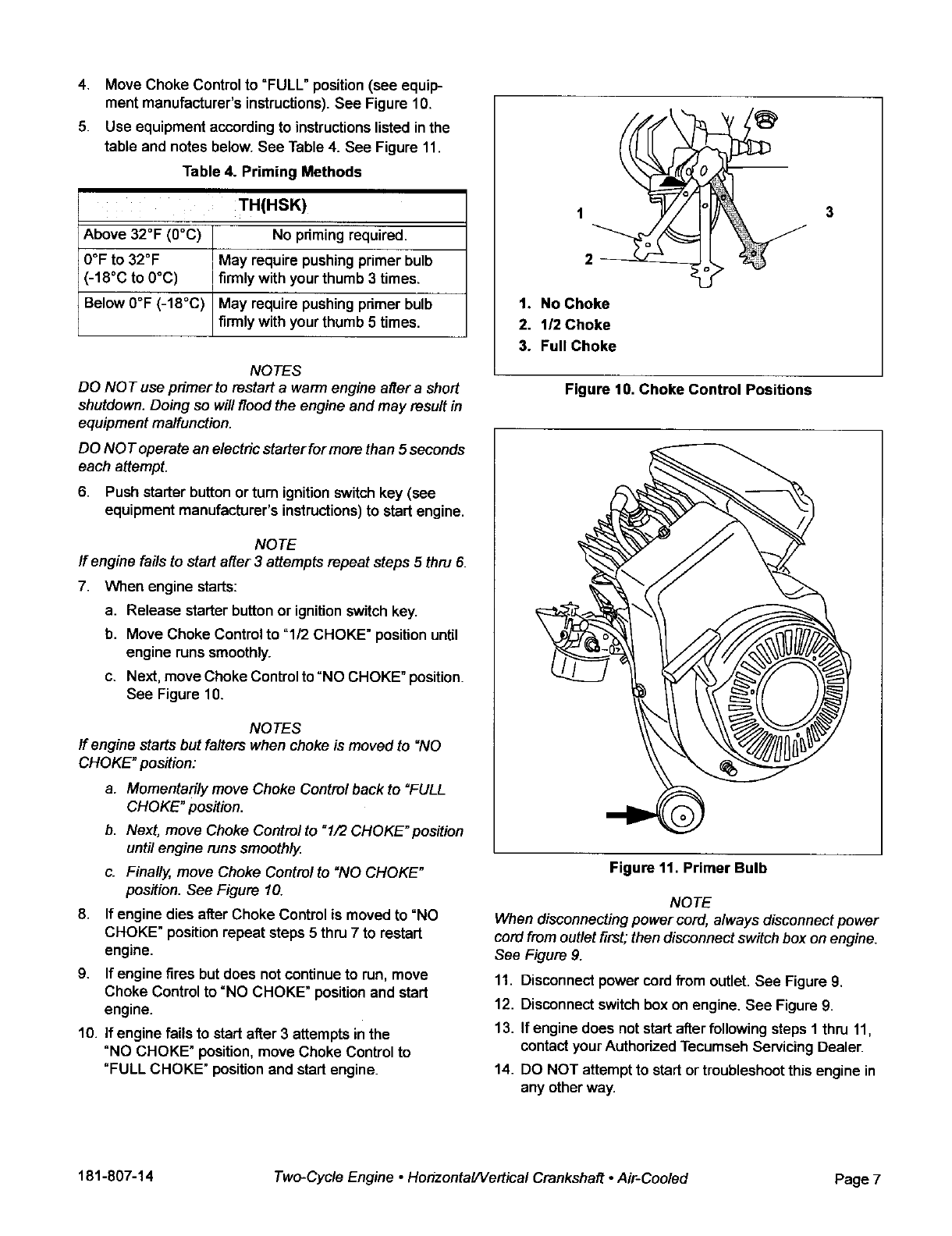

4. Move Choke Control to =FULL° position (see equip-

ment manufacturer'sinstructions).See Figure 10.

5. Use equipment accordingto instructionslisted in the

table and notes below. See Table 4. See Figure 11.

Table 4. Priming Methods

TH(HSK)

Above 32°F (0°C) No primingrequired.

0°F to 32°F May require pushingprimer bulb

(-18°C to O°C) firmlywith your thumb 3 times.

Below 0°F (-18°C) May require pushing primer bulb

firmlywith your thumb 5 times.

NOTES

DO NO Tuse prtmer to restart a warm engine after a short

shutdown.Doing so will flood the engine and may result in

equipment malfunction.

DO NOT operate an electric starterform.re than 5 seconds

each attempt.

6. Push starter button or tum ignitionswitchkey (see

equipment manufacturer's instructions)to start engine.

NOTE

ff engine fails to start after 3 attempts repeat steps 5 thru 6.

7. When engine starts:

a. Release starter button or ignition switch key.

b. Move Choke Control to "1/2 CHOKE" position until

engine runs smoothly.

c. Next, move Choke Control to =NOCHOKE" position.

See Figure 10.

NOTES

If engine starts but falters when choke is moved to =NO

CHOKE" position:

a. Momentarily move Choke Control back to =FULL

CHOKE" position.

b. Next, move Choke Control to "1/2 CHOKE" position

until engine runs smoothly.

c. Finally, move Choke Control to "NO CHOKE"

position. See Figure 10.

If engine dies after Choke Control is moved to =NO

CHOKE" positionrepeat steps 5 thru 7to restart

engine.

If engine fires but does not continue to run, move

Choke Control to "NO CHOKE" position and start

engine.

10. If engine fails to start after 3 attempts in the

"NO CHOKE" position,move Choke Control to

"FULL CHOKE" positionand start engine.

1. No Choke

2. 1/2 Choke

3. Full Choke

Figure 10. Choke Control Positions

Figure 11. Primer Bulb

NOTE

When disconnecting power cord, always disconnect power

cord from outlet first; then disconnect switch box on engine.

See Figure 9.

11. Disconnectpower cord from outlet.See Figure 9.

12. Disconnectswitchbox on engine. See Figure 9.

13. If engine does not start after following steps 1 thru 11,

contact your Authorized Tecumseh Servicing Dealer.

14. DO NOT attempt to start or troubleshoot this engine in

any other way.

181-807-14 Two-Cycle Engine •Horizontal/Vertical Crankshaft •Air-Cooled Page 7

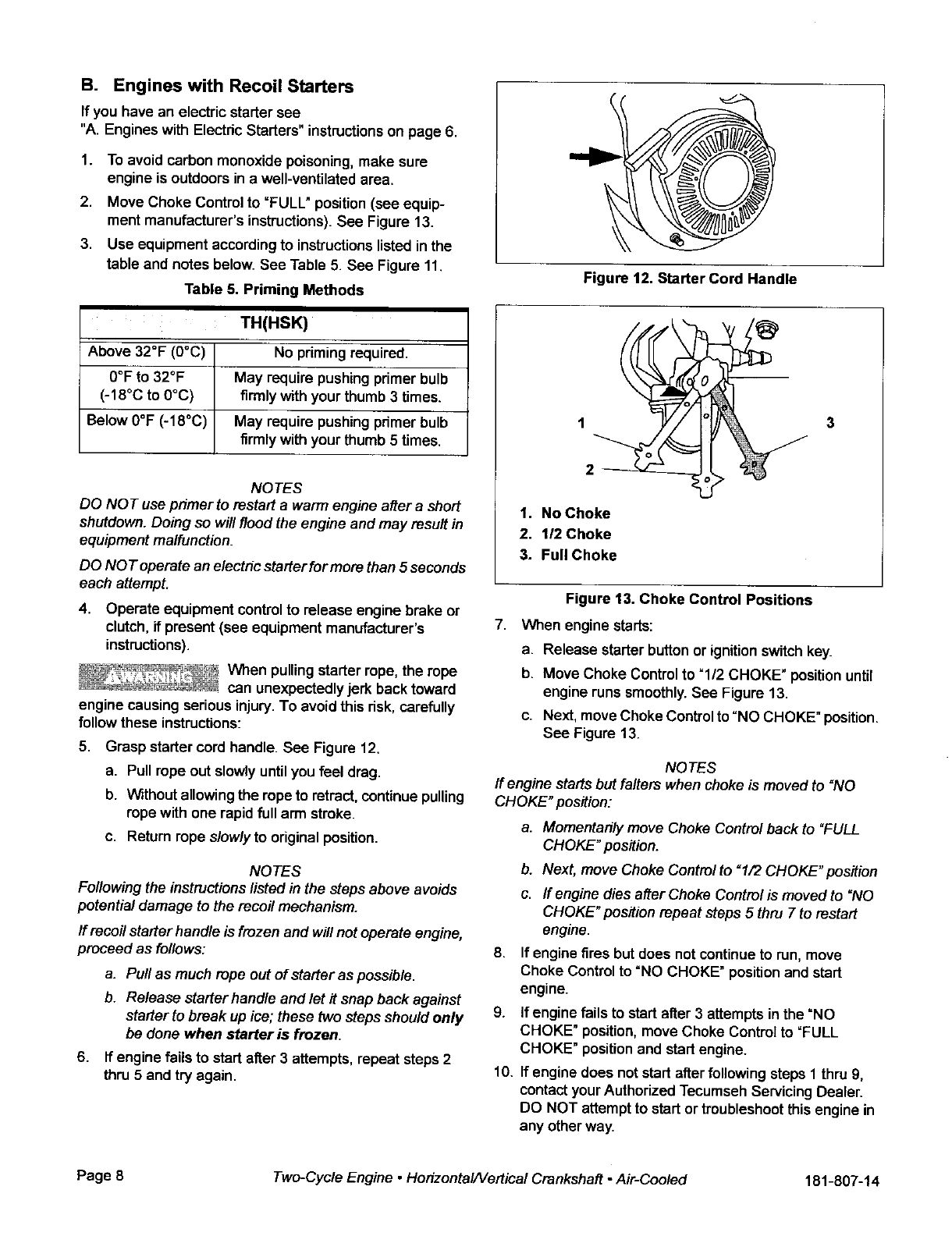

B. Engines with Recoil Starters

If you have an electric starter see

"A, Engineswith Electdc Starters"instructionson page 6,

1. To avoid carbon monoxide poisoning, make sure

engine is outdoorsin a well-ventilated area.

2. Move Choke Controlto =FULL" position(see equip-

ment manufacturer's instructions).See Figure 13.

3. Use equipment accordingto instructionslisted in the

table and notes below. See Table 5. See Figure 11.

Table 5. Priming Methods

TH(HSK)

Above 32°F (0°C)

0°F to 32°F

(-18°C to O°C)

Below O°F (-18°0)

No priming required.

May require pushingprimer bulb

firmly with your thumb 3 times.

May require pushing pdmer bulb

firmlywith your thumb 5 times.

NOTES

DO NOT use palmer to restart a warm engine after a short

shutdown. Doing so will flood the engine and may result in

equipment malfunction.

DO NOT operate an electric staderfor more than 5 seconds

each attempt.

4. Operate equipment controlto release engine brake or

clutch,if present (see equipment manufacturer's

instructions).

When pulling starter rope,the rope

can unexpectedlyjerk back toward

engine causing serious injury.To avoid this dsk, carefully

follow these instructions:

5. Grasp starter cord handle. See Figure 12.

a. Pull rope out slowly untilyou feel drag.

b. W_thoutallowingthe rope to retract,continue pulling

rope with one rapidfull arm stroke.

c. Retum rope slowlyto original position.

NOTES

Following the instructions listed in the steps above avoids

potential damage to the recoil mechanism.

ff recoil starter handle is frozen and willnot operate engine,

proceed as follows:

a. Pull as much rope out of starter as possible.

b. Release starterhandle and let it snap back against

starter to break up ice; these two steps should only

be done when starter is frozen.

6. If engine fails to start after 3 attempts, repeat steps 2

thru 5 and try again.

Figure 12. Starter Cord Handle

1. No Choke

2. 1/2 Choke

3. Full Choke

Figure 13. Choke Control Positions

When engine starts:

a. Release starter buttonor ignitionswitchkey.

b. Move Choke Controlto =1/2 CHOKE" positionuntil

engine runs smoothly.See Figure 13.

c. Next, move Choke Controlto =NOCHOKE" position.

See Figure 13.

NO TES

If engine starts but falters when choke is moved to =NO

CHOKE" position:

a. Momentadly move Choke Control back to "FULL

CHOKE" position.

b. Next, move Choke Control to "1/2 CHOKE"position

c. If engine dies after Choke Control is moved to =NO

CHOKE" position repeat steps 5 thru 7 to restart

engine.

8. If engine fires but does not continueto run, move

Choke Controlto =NOCHOKE" positionand start

engine.

9. If engine fails to start after 3 attempts inthe =NO

CHOKE" position, move Choke Control to =FULL

CHOKE" position and start engine.

10. if engine does notstart after following steps 1thru 9,

contactyour Authorized Tecumseh Servicing Dealer.

DO NOT attempt to start or troubleshootthis engine in

any other way.

Page 8Two-Cycle Engine •Horizontal/Vertical Crankshaft °Air-Cooled 181-807-14

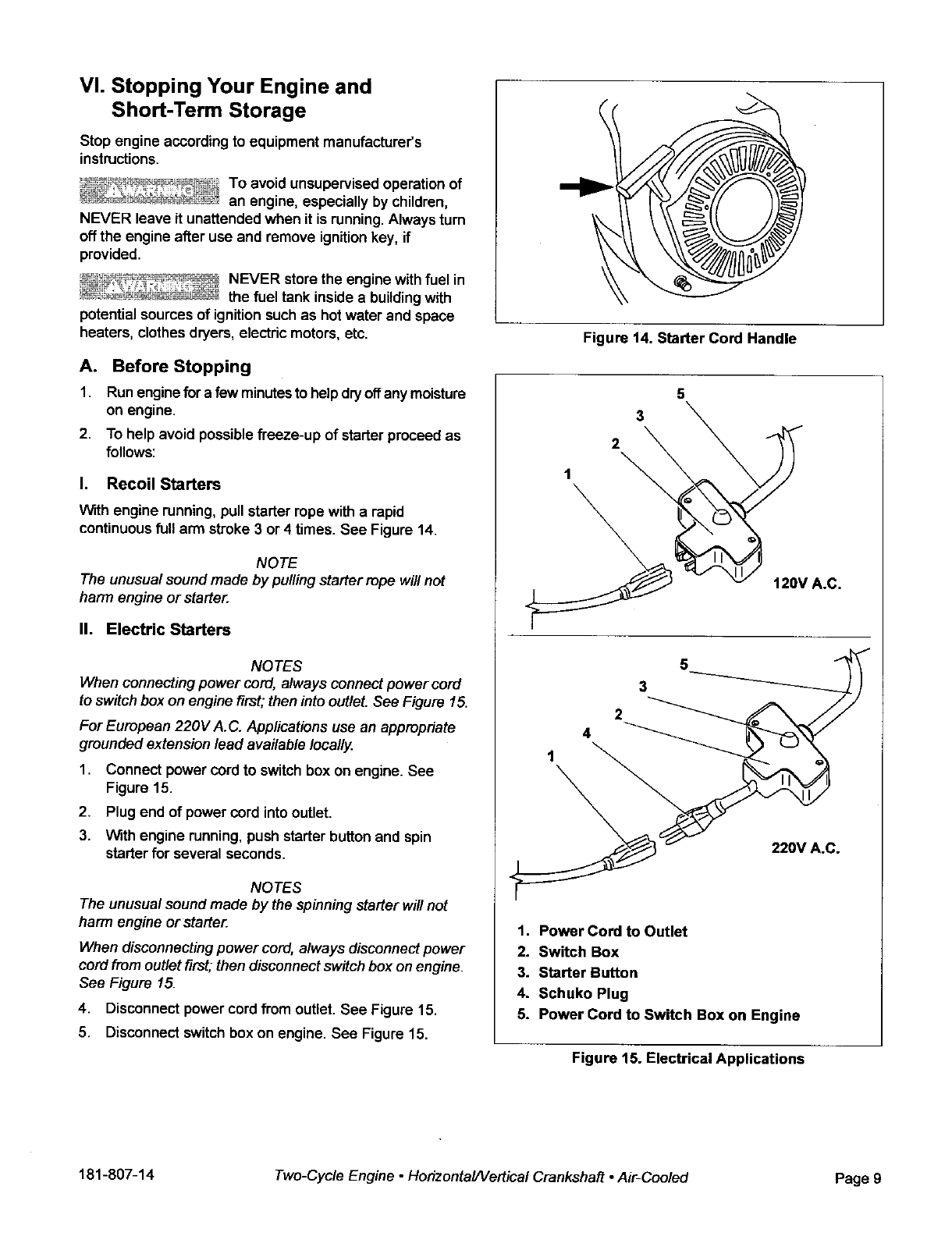

Vl. Stopping Your Engine and

Short-Term Storage

Stop engine accordingto equipment manufacturer's

instructions.

_ _ To avoid unsupervised operation of

_an engine, especially by children,

NEVER leave it unattended when it is running.Always turn

off the engine after use and remove ignitionkey, if

provided.

NEVER storethe engine withfuel in

the fuel tank inside a buildingwith

potential sources of ignitionsuchas hot water and space

heaters, clothes dryers, electric motors, etc.

A. Before Stopping

1. Run enginefora few minutesto helpdryoffany moisture

on engine

2. To help avoid possiblefreeze-up of starter proceed as

follows:

I. Recoil Starters

With engine running,pull starter rope with a rapid

continuousfull arm stroke 3 or4 times See Figure 14

NOTE

The unusual sound made by pulling staffer rope will not

harm engine or staffer.

II. Electric Starters

NO TES

When connecting power cord, always connectpower cord

to switch box on engine first; then into outlet. See Figure 15.

For European 220V A. C. Applications use an appropdate

grounded extension lead available locally

1. Connect power cordto switchbox on engine. See

Figure 15.

2. Plug end of power cord intooutlet.

3. With engine running,push starter buttonand spin

starterfor several seconds.

NOTES

The unusual sound made by the spinning staffer will not

harm engine or startet:

When disconnecting power cord, always disconnect power

cord from outlet first; then disconnect switch box on engine.

See Figure 15.

4. Disconnect power cord from outlet. See Figure 15.

5. Disconnectswitch box on engine. See Figure 15.

Figure 14. Starter Cord Handle

2 3

A.C.

220V A.C.

1. Power Cord to Outlet

2. Switch Box

3. Starter Button

4. Schuko Plug

5. Power Cord to Switch Box on Engine

Figure 18. Electrical Applications

181-807-14 Two-Cycle Engine. Hot_zontal/Veffical Crankshaft •Air-Cooled Page 9

B. Stop Engine

1. Move equipment control, if present (see manufacturer's

instructions)engine control lever or ignitionswitchto

=STOP"or "OFF" position.

2. Remove ignitionkey, if present (see manufacturer's

instructions).

NOTE

Removing key will reduce the possibility of unauthorized

staffing of the engine while equipment is not in use.

_NEVER store the engine with fuel in

_the fuel tank insidea building with

potentialsources of ignitionsuch as hotwater and space

heaters, clothes dryers, electric motors,etc.

C. After Engine is Stopped

_? To prevent possible freeze-up of

engine controlsfollowinstructions

listedbelow.

1. Wipe all snow and moisturefrom enginearea of control

lever and choke.

Move equipment control, if present (see manufacturer's

instructions)engine controllever or ignitionswitchback

and forth several times and leave controlin =STOP" or

"OFF" position.

Move engine choke back and forth several times and

leave inthe =Full_ position.See Figure 16.

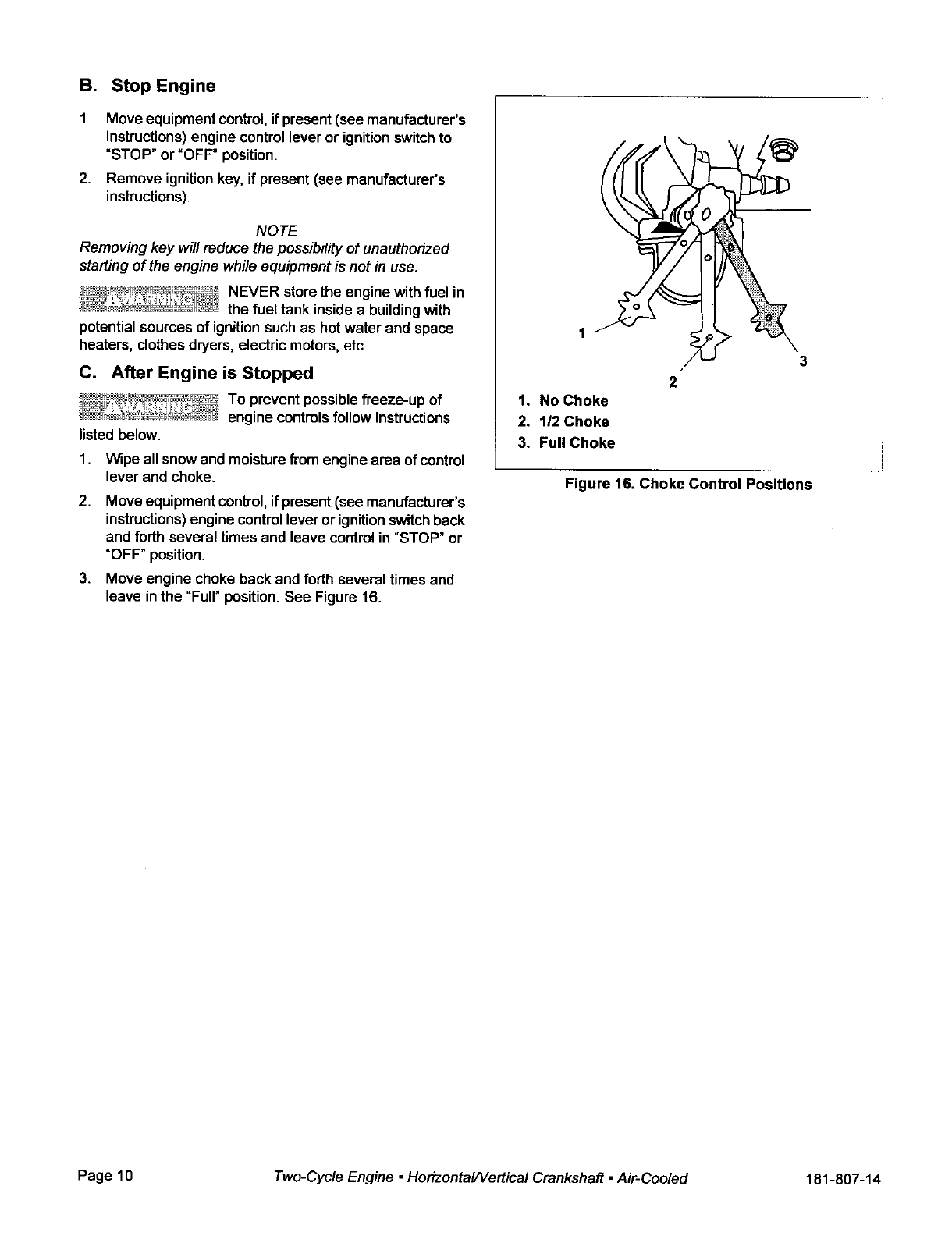

1. No Choke

2. 1/2 Choke

3. Full Choke

Figure 16. Choke Control Positions

Page 10 Two-Cycle Engine. Honzontal/Vertical Crankshaft. Air-Cooled 181-807-14

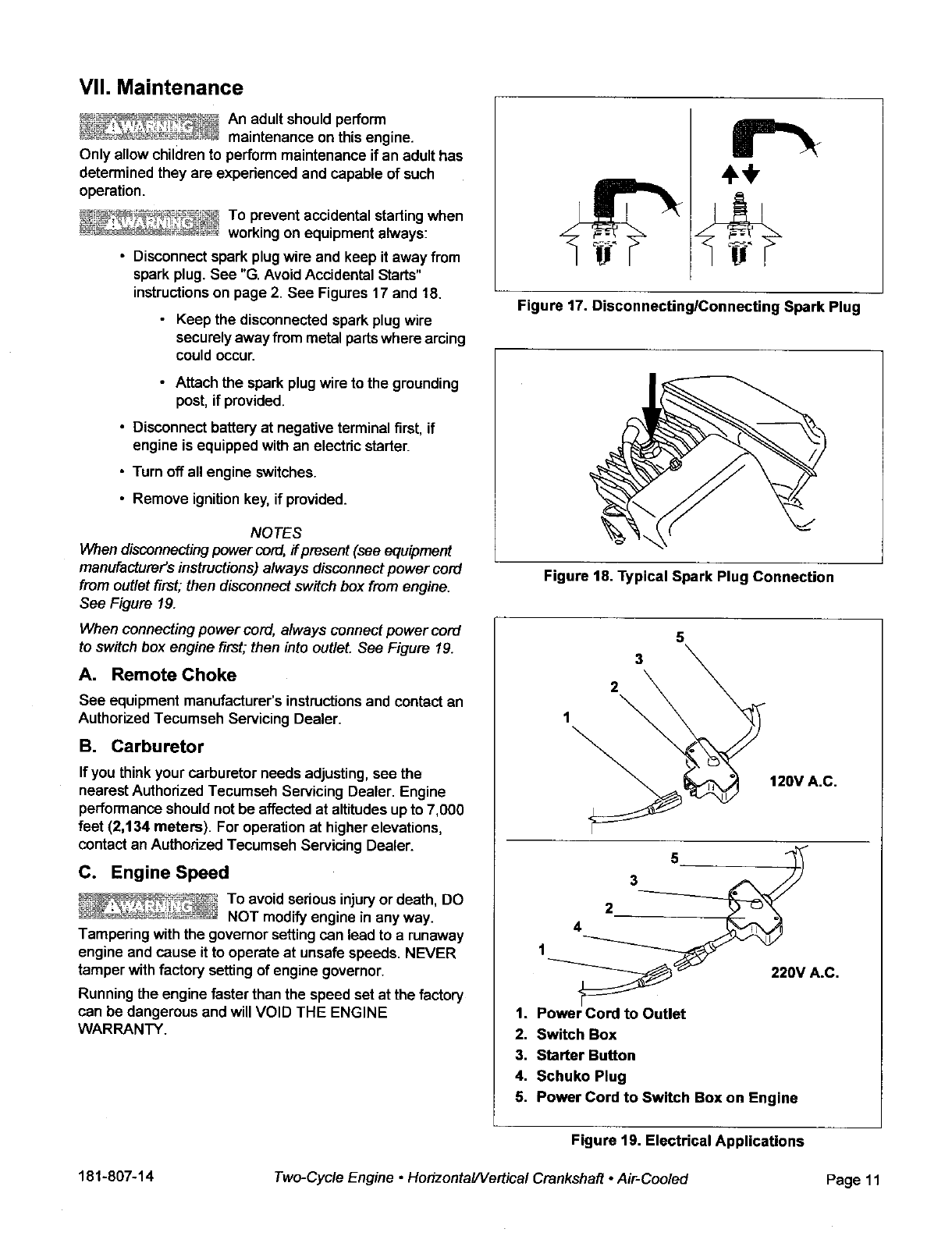

VII. Maintenance

An adult should perform

maintenance on this engine.

Only allow children to perform maintenance if an adult has

determined they are expedenced and capable of such

operation.

To prevent accidental startingwhen

workingon equipment always:

•Disconnect spark plug wire and keep it away from

spark plug. See "G. Avoid Accidental Starts"

instructions on page 2. See Figures 17 and 18.

• Keep the disconnected sparkplug wire

securelyaway from metal partswhere arcing

could occur.

•Attach the spark plug wire to the grounding

post, if provided.

•Disconnect battery at negative terminal first, if

engine is equippedwith an electdc starter.

• Turn off all engine switches.

• Remove ignition key, if provided.

NOTES

When disconnecting power cord, if present (see equipment

manufacturer's instructions) always disconnect power cord

from outlet first; then disconnect switch box from engine.

See Figure 19.

When connecting power cord, always connect power cord

to switch box engine first; then into outlet. See Figure 19.

A. Remote Choke

See equipment manufacturer'sinstructionsand contactan

Authorized Tecumseh Servicing Dealer.

B. Carburetor

If you think your carburetor needs adjusting, see the

nearest Authorized Tecumseh Servicing Dealer. Engine

performance should not be affected at altitudes up to 7,000

feet (2,134 meters). For operation at higher elevations,

contact an Authodzed Tecumseh Servicing Dealer.

C. Engine Speed

_ . _!_ To avoid serious injury or death, DO

NOT modify engine in any way.

Tampering withthe governor settingcan lead to a runaway

engine and cause it to operate at unsafe speeds. NEVER

tamper withfactory setting of engine governor.

Running the engine faster than the speed set at the factory

can be dangerous and will VOID THE ENGINE

WARRANTY.

+÷

Figure 17. Disconnecting/Connecting Spark Plug

Figure 18. Typical Spark Plug Connection

" 120V A.C.

4 2

A.C.

1. Power Cord to Outlet

2. Switch Box

3. Starter Button

4. Schuko Plug

5. Power Cord to Switch Box on Engine

181-807-14

Figure 19. Electrical Applications

Two-Cycle Engine •Horizontal/Vertical Crankshaft •Air-Cooled Page 11

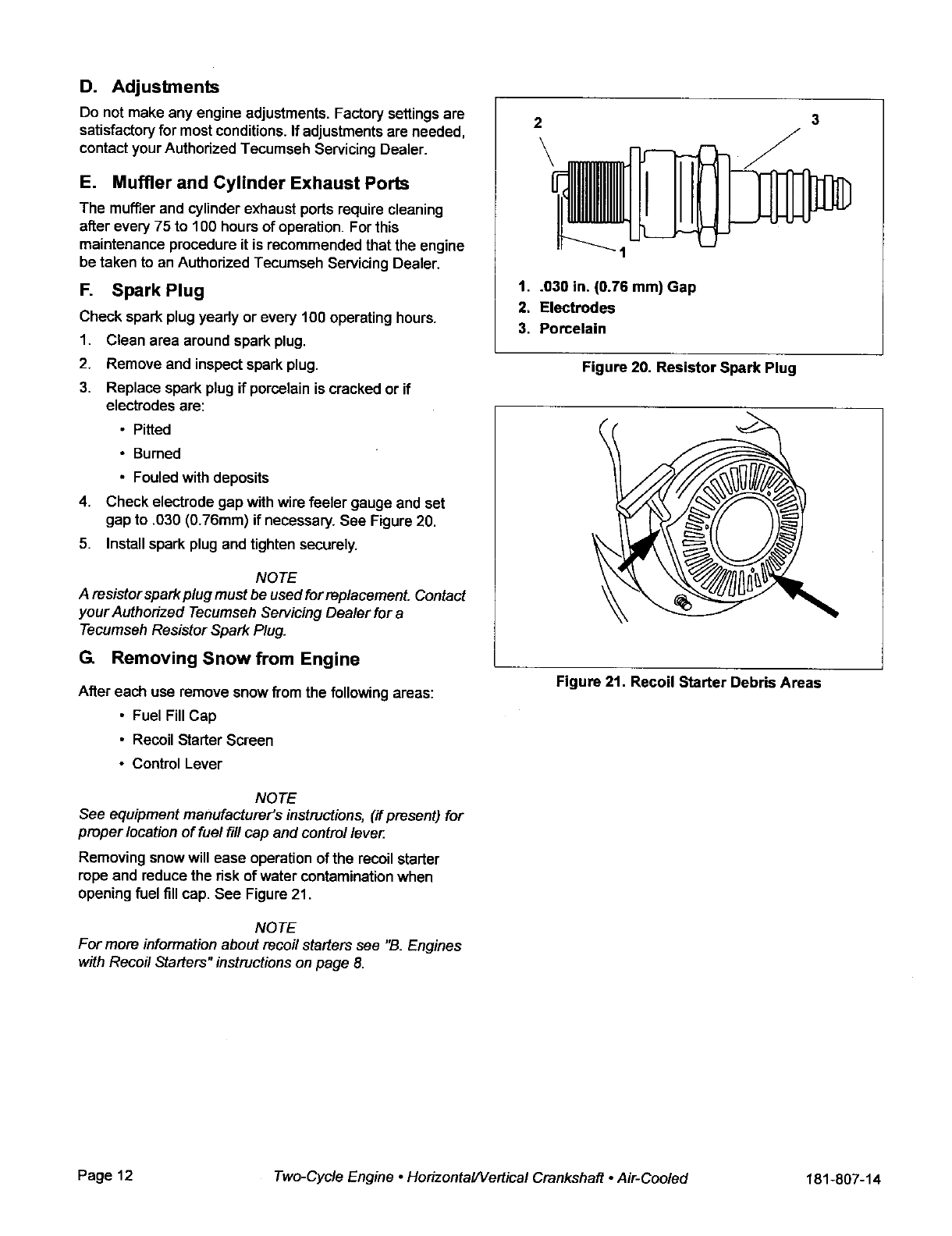

D. Adjustments

Do not make any engine adjustments. Factory settings are

satisfactoryfor most conditions.If adjustmentsare needed,

contactyour Authodzed Tecumseh Servicing Dealer.

E. Muffler and Cylinder Exhaust Ports

The muffler and cylinder exhaust ports require cleaning

after every 75 to 100 hours of operation. For this

maintenance procedure it is recommended that the engine

be taken to an Authodzed Tecumseh Servicing Dealer.

F. Spark Plug

Check sparkplug yeady or every 100 operating hours.

1. Clean area around spark plug,

2. Remove and inspect sparkplug.

3. Replace spark plugif porcelainis cracked or if

electrodesare:

•Pitted

• Burned

•Fouled with deposits

4. Check electrode gap withwire feeler gauge and set

gap to ,030 (0.76ram) if necessary. See Figure 20,

5. Installspark plug and tightensecurely.

NOTE

Aresistorsparkplug must be used forreplacement. Contact

your Authorized Tecumseh Servicing Dealer for a

Tecumseh Resistor Spark Plug.

G. Removing Snow from Engine

After each use remove snow from the followingareas:

• Fuel Fill Cap

•Recoil Starter Screen

• Control Lever

NOTE

See equipment manufacturer's instructions,(if present) for

proper location of fuel ill/cap and controlleveK

Removing snowwill ease operationof the recoilstarter

rope and reduce the risk of water contaminationwhen

openingfuel fill cap. See Figure 21.

NOTE

For more information about recoilstarters see "B. Engines

with Recoil Starters" instructions on page 8.

-1

1..030 in. (0.76 mm) Gap

2. Electrodes

3. Porcelain

Figure 20. Resistor Spark Plug

Figure 21. Recoil Starter Debris Areas

Page 12 Two-Cycle Engine •HorizontaL/Vertical Crankshaft •Air-Cooled 181-807-14

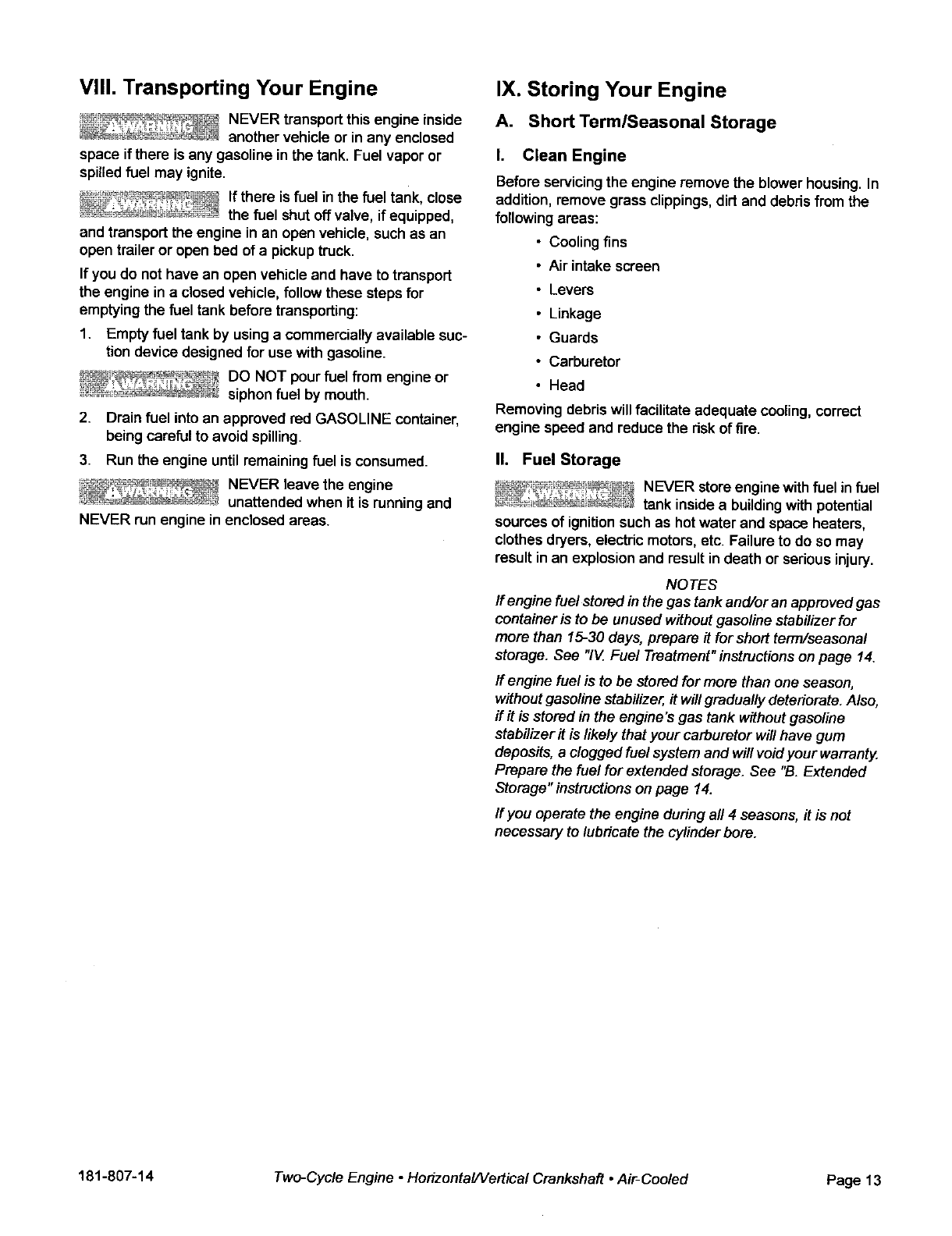

VIII. Transporting Your Engine

NEVER transport this engine inside

another vehicle or in any enclosed

space if there is any gasoline in the tank. Fuel vapor or

spilled fuel may ignite.

If there is fuel in the fuel tank, close

the fuel shut off valve, if equipped,

and transport the engine in an open vehicle, such as an

open trailer or open bed of a pickup truck.

If you do not have an open vehicle and have to transport

the engine in a closed vehicle, followthese steps for

emptyingthe fuel tank before transporting:

1. Empty fuel tank by usinga commemiallyavailable suc-

tion device designed for use with gasoline.

DO NOT pour fuel from engine or

siphonfuel by mouth.

2. Drain fuel into an approved red GASOLINE container,

being careful to avoid spilling.

3. Run the engine untilremaining fuel is consumed.

NEVER leave the engine

unattended when it is running and

NEVER runengine inencfosed areas.

IX. Storing Your Engine

A. Short TermlSeasonal Storage

I. Clean Engine

Before servicingthe engine remove the blower housing, tn

addition, remove grass clippings,dirt and debrisfrom the

followingareas:

• Coolingfins

Air intake screen

Levers

Linkage

Guards

Carburetor

Head

Removing debris will facilitate adequate cooling, correct

engine speed and reduce the risk of fire.

II. Fuel Storage

NEVER storeengine withfuel in fuel

tank inside abuilding with potential

sources of ignition such as hot water and space heaters,

clothes dryers, electdc motors, etc. Failure to do so may

result in an explosion and result in death or serious injury.

NOTES

If engine fuel stored in the gas tank and/or an approved gas

container is to be unused without gasoline stabilizerfor

more than 15-30 days, prepare it for short term/seasenal

storage. See 'YV Fuel Treatment" instructionson page 14.

If engine fuel is to be stored for more than one season,

without gasoline stabilizer,it will gradually deteriorate. Also,

if it is stored in the engine's gas tank without gasoline

stabilizer it is likely that your carburetor will have gum

deposits,a clogged fuel system and will voidyour warranty.

Prepare the fuel for extended storage. See "B. Extended

Storage" instructions on page 14.

If you operate the engine during all 4 seasons, it is not

necessary to lubricate the cylinder bore.

181-807-14 Two-Cycle Engine. Horizontal/Vertical Crankshaft • Air-Cooled Page 13

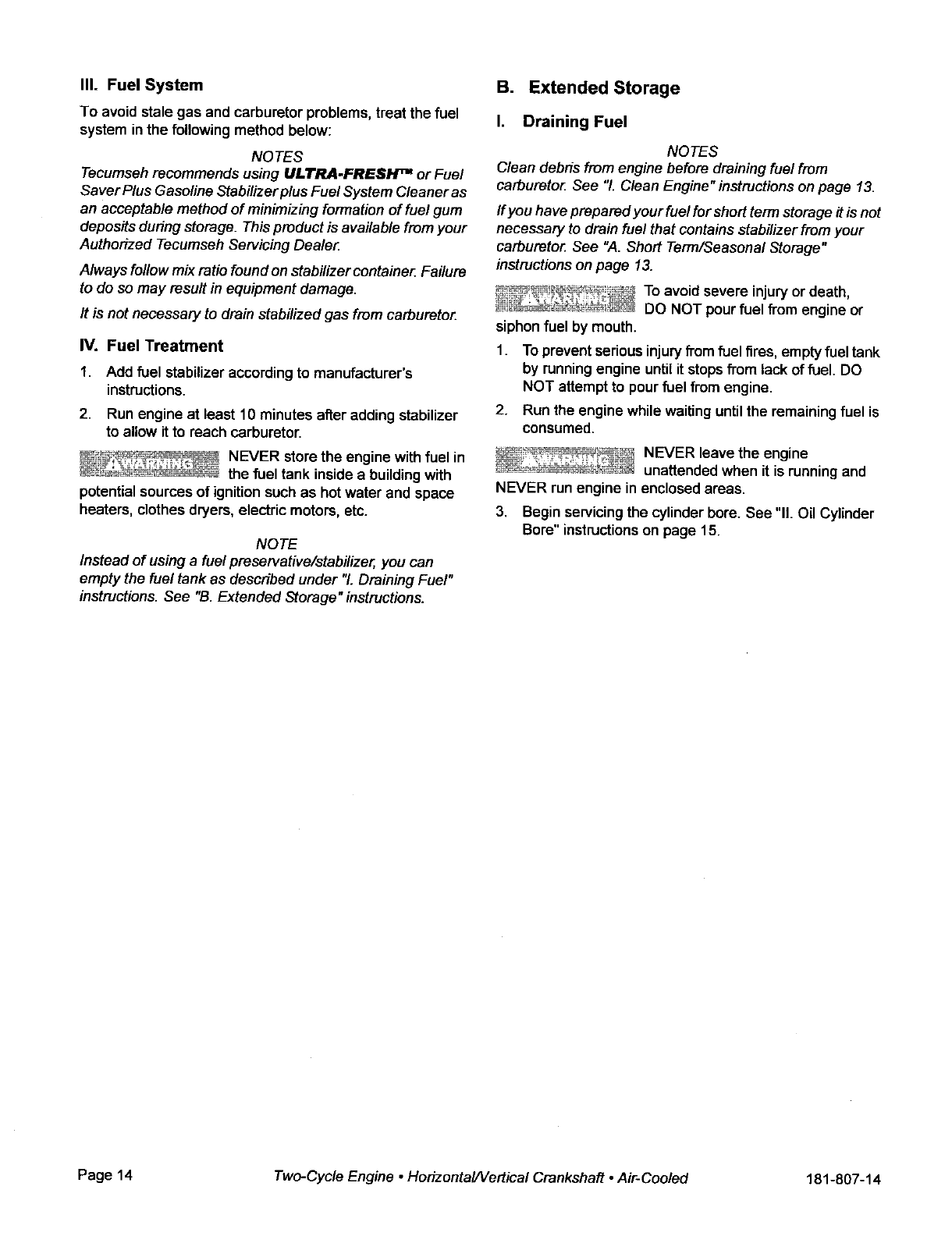

III. FueISystem B. Extended Storage

To avoid stale gas and carburetorproblems,treat the fuel

system inthe followingmethod below:

NOTES

Tecumseh recommends using ULTRA-FRESH TM or Fuel

Saver Plus Gasoline Stabilizer plus Fuel System Cleaner as

an acceptable method of minimizing formation of fuel gum

deposits during storage. This product is available from your

Authorized Tecumseh Servicing Deale_

Always follow mix ratio found on stabilizer container. Failure

to do so may result in equipment damage.

It is not necessary to drain stabilized gas from carburetor.

IV. Fuel Treatment

1. Add fuel stabilizeraccordingto manufacturer's

instructions.

2. Run engine at least 10 minutes after adding stabilizer

to allow it to reach carburetor.

reii NEVER storethe engine with fuel in

the fuel tank insidea building with

potentialsources of ignitionsuch as hot water and space

heaters, clothes dryers, electric motors,etc.

NOTE

Instead of using a fuelpreservative/stabilizer, you can

empty the fuel tank as described under "1.Draining Fuel"

instructions. See "B. Extended Storage" instructions.

I. Draining Fuel

NOTES

Clean debris from engine before draining fuel from

carburetor See "1.Clean Engine" instructions on page 13.

If you have prepared your fuel for shortterm storage it is not

necessary to drain fuel that contains stabilizerfrom your

carburetor. See "A. Short Term/Seasonal Storage"

instructions on page 13.

siphon fuel by mouth.

To avoid severe injuryor death,

DO NOT pour fuel from engine or

To prevent seriousinjuryfrom fuel fires, empty fuel tank

by running engine until it stopsfrom lack of fuel. DO

NOT attempt to pourfuel from engine.

Run the engine while waitinguntilthe remainingfuel is

consumed.

_'_Y NEVER leave the engine

unattended when it is runningand

NEVER run engine inenclosed areas.

3. Begin servicingthe cylinder bore. See '11.Oil Cylinder

Bore" instructions on page 15.

Page 14 Two-Cycle Engine •Horizontal/Vertical Crankshaft • Air-Cooled 181-807-14

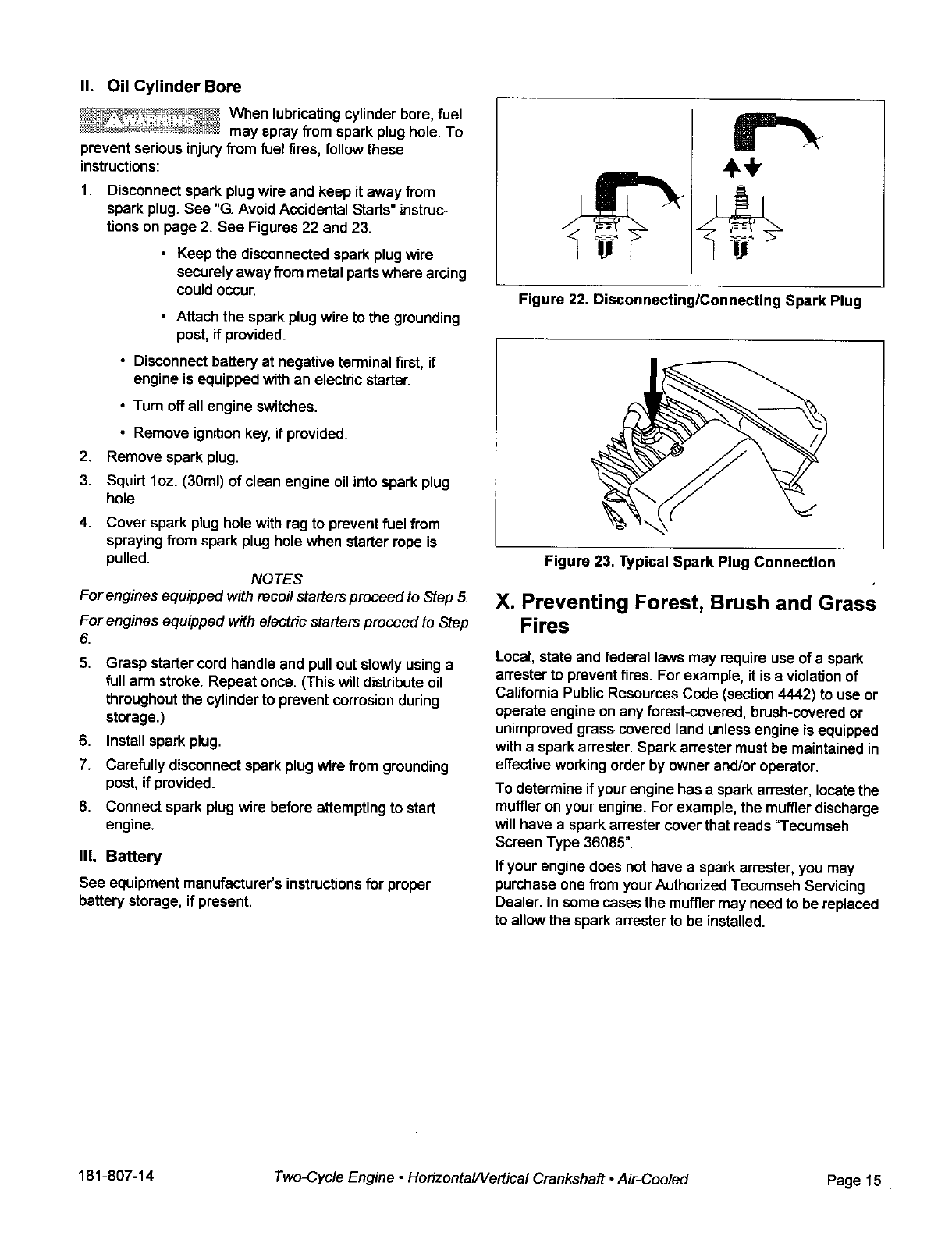

II. Oil Cylinder Bore

When lubricatingcylinder bore, fuel

may sprayfrom spark plug hole. To

prevent seriousinjury from fuel fires, follow these

instructions:

1. Disconnectspark plugwire and keep it away from

spark plug. See "G. AvoidAccidental Starts"instruc-

tions on page 2. See Figures 22 and 23.

• Keep the disconnected spark plug wire

securely away from metal parts where arcing

couldoccur.

•Attachthe spark plugwire to the grounding

post, if provided.

•Disconnectbattery at negative terminalfirst, if

engine is equipped with an electdc starter.

•Turn offall engine switches•

•Remove ignitionkey, if provided.

2. Remove spark plug.

3. Squirt 1oz. (30ml) of clean engine oil into spark plug

hole.

4. Cover spark plug hole with rag to prevent fuelfrom

sprayingfrom spark plug hole when starterrope is

pulled.

NOTES

For engines equipped with recoil startersproceed to Step 5.

For engines equipped with electric starters proceed to Step

Grasp starter cord handle and pull out slowly usinga

full arm stroke. Repeat once. (This will distributeoil

throughout the cylinder to prevent corrosionduring

storage•)

Installspark plug•

Carefully disconnectspark plug wire from grounding

post, if provided.

Connect spark plug wire before attemptingto start

engine.

III. Battery

See equipment manufacturer's instructionsfor proper

battery storage, if present.

,F÷

Figure 22. Disconnecting/Connecting Spark Plug

Figure 23. Typical Spark Plug Connection

X. Preventing Forest, Brush and Grass

Fires

Local, state and federal laws may require use of a spark

arrester to prevent fires. For example, it is a violationof

California PublicResources Code (section 4442) to use or

operate engine on any forest-covered, brush-ceveredor

unimproved grass-cevered land unless engine is equipped

witha spark attester. Spark attester must be maintained in

effective working order by owner and/or operator.

To determine if your engine has a spark arrester, locatethe

muffler on your engine. For example, the mufflerdischarge

will have a spark arrester cover that reads "Tecumseh

Screen Type 36085".

If your engine does not have a sparkarrester, you may

purchase one from your Authorized Tecumseh Servicing

Dealer• In some cases the mufflermay need to be replaced

to allow the spark arrester to be installed•

181-807-14 Two-Cycle Engine oHorizontal/Vertical Crankshaft •Air-Cooled Page 15

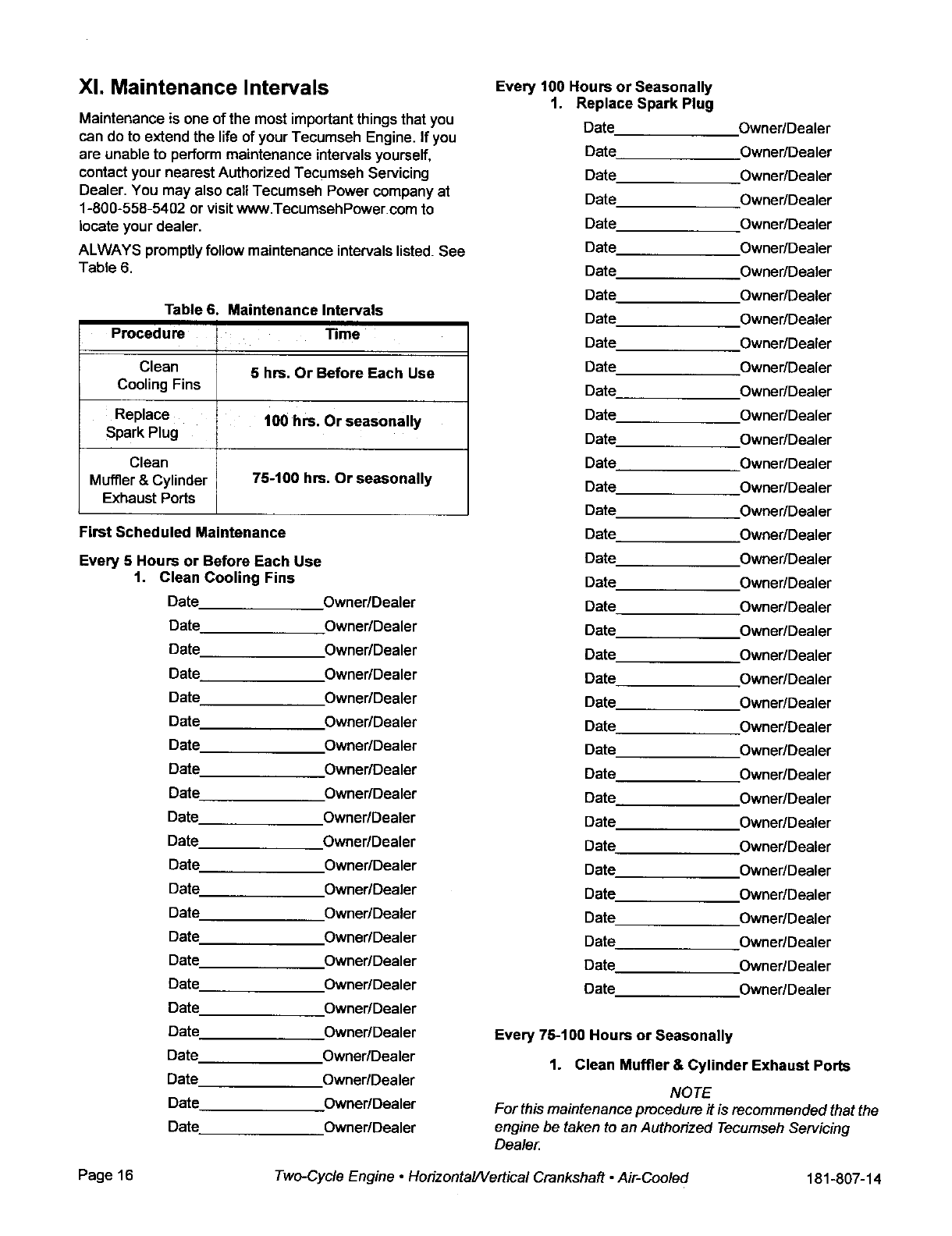

XI. Maintenance Intervals

Maintenance is one of the most important things that you

can do to extend the life of your Tecumseh Engine. if you

are unable to perform maintenance intervalsyourself,

contact your nearest Authorized Tecumseh Servicing

Dealer. You may also callTecumseh Power company at

1-800-558-5402 or visitwww,TecumsehPower.cem to

locate your dealer.

ALWAYS promptly follow maintenance intervalslisted.See

Table 6.

Table 6. Maintenance Intervals

Procedure Time

Clean 5 hrs. Or Before Each Use

Cooling Fins

Replace 100 hrs. Or seasonally

Spark Plug

Clean

Muffler& Cylinder 75-100 hrs. Or seasonally

Exhaust Ports

First Scheduled Maintenance

Every 5 Hours or Before Each Use

1. Clean Cooling Fins

Date

Owner/Dealer

Every 100 Hours or Seasonally

1. Replace Spark Plug

Date Owner/Dealer

Every 75-100 Hours or Seasonally

1. Clean Muffler & Cylinder Exhaust Ports

NOTE

For thismaintenance procedureit is recommended that the

engine be taken to an Authorized TecumsehServicing

Deale_

Page 16 Two-Cycle Engine •HorizontaL/Vertical Crankshaft •Air-Cooled 181-807-14

NOTES

181-807-14 Two-Cycle Engine •Ho#zontal/Vertical Crankshaft •Air-Cooled Page 17

Page 18 Two-Cycle Engine •Hodz ontal/Vertical Crankshaft °Air-Cooled 181-807-14

NOTES

181-807-14 Two-Cycle Engine •Horizontal/Vertical Crankshaft °Air-Cooled Page 19

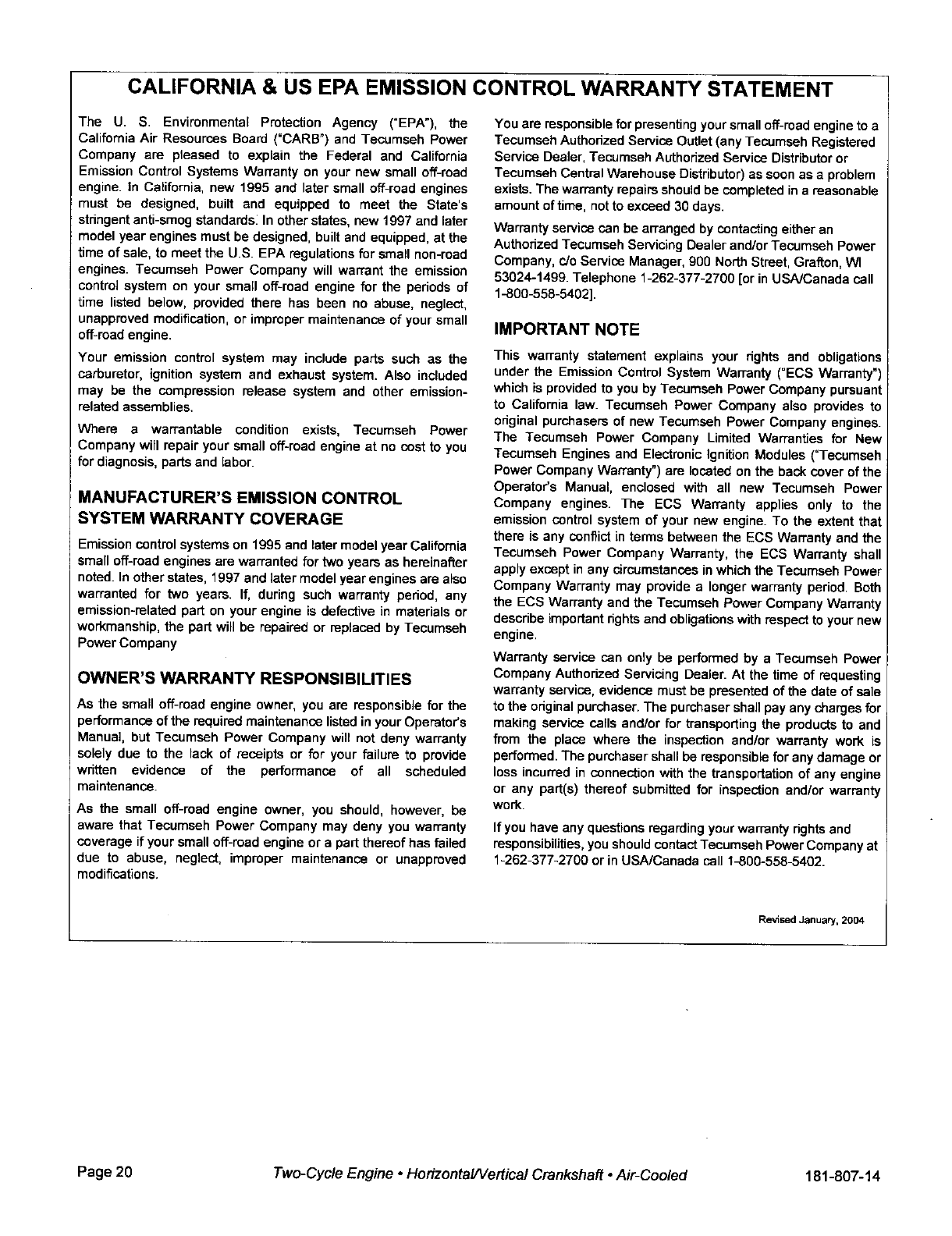

CALIFORNIA & US EPA EMISSION CONTROL WARRANTY STATEMENT

The U. S. Environmental Protection Agency (=EPA'), the

California Air Resources Board (=CARB") and Tecumseh Power

Company are pleased to explain the Federal and California

Emission Control Systems Warranty on your new small off-road

engine. In California, new 1995 and later small off-road engines

must be designed, built and equipped to meet the State's

stringent anti-smog standards_ In other states, new 1997 and later

model year engines must be designed, built and equipped, at the

time of sale, to meet the U.S. EPA regulations for small non-road

engines. Tecumseh Power Company will warrant the emission

control system on your smaEI off-road engine for the pedods of

time listed below, provided there has been no abuse, neglect,

unapproved modification, or improper maintenance of your small

off-road engine.

Your emission control system may include parts such as the

carburetor, ignition system and exhaust system. Also included

may be the compression release system and other emission-

related assemblies.

Where a warrantable condition exists, Tecumseh Power

Company will repair your small off-road engine at no cost to you

for diagnosis, parts and labor.

MANUFACTURER'S EMISSION CONTROL

SYSTEM WARRANTY COVERAGE

Emission control systems on 1995 and later model year California

small off-road engines are warranted for two years as hereinafter

noted. In other states, 1997 and later model year engines are also

warranted for two years. If, during such warranty pedod, any

emission-related part on your engine is defective in materials or

workmanship, the part will be repaired or replaced by Tecumseh

Power Company

OWNER'S WARRANTY RESPONSIBILITIES

As the small off-road engine owner, you are responsible for the

)erformance of the required maintenance listed in your Operator's

Manual, but Tecumseh Power Company will not deny warranty

solely due to the lack of receipts or for your failure to provide

written evidence of the performance of all scheduled

maintenance.

As the small off-road engine owner, you should, however, be

aware that Teoumseh Power Company may deny you warranty

coverage if your small off-read engine or a part thereof has failed

due to abuse, neglect, improper maintenance or unapproved

modifications.

You are responsiblefor presenting your small off-roed engine to a

Tecumseh Authodzed Service Outlet (any Tecumseh Registered

Service Dealer, Tecumseh Authorized Service Distributoror

Tecumseh Central Warehouse Distributor)as soonas a problem

exists. The warranty repairs should be completed ina reasonable

amount of time, not to exceed 30 days.

Warranty service can be arranged by contacting either an

Authorized Tecumseh Servicing Dealer and/or Tecamseh Power

Company, cJoService Manager, 900 North Street, Grafton, Wl

53024-1499. Telephone 1-262-377-2700 [or in USA/Canada call

1-809-558-5402].

IMPORTANT NOTE

This warranty statement explains your rights and obligations

under the Emission Control System Warranty (°ECS Warranty")

which is provided to you by Tecemseh Power Company pursuant

to California law. Tecumseh Power Company also provides to

odginal purchasers of new Tecomseh Power Company engines.

The Tecumseh Power Company Limited Warranties for New

Tecumseh Engines and Electronic Ignition Modules (=Tecomseh

Power Company Warranty") are located on the back cover of the

Operator's Manual, enclosed with all new Tecumseh Power

Company engines. The ECS Warranty applies only to the

emission control system of your new engine. To the extent that

there is any conflict in terms between the ECS Warranty and the

Tecumseh Power Company Warranty, the ECS Warranty shall

apply except in any circumstances in which the Tecomseh Power

Company Warranty may provide a longer warranty period. Both

the ECS Warranty and the Tecumseh Power Company Warranty

desedbe important bghts and obligations with respect to your new

engine.

Warranty service can only be performed by a Tecamseh Power

Company Authodzed Servicing Dealer. At the time of requesting

warranty service, evidence must be presented of the date of sale

to the onginal purchaser. The purchaser shah pay any charges for

making service calls and/or for transporting the products to and

from the place where the inspection and/or warranty work is

performed.The purchaser shall be responsiblefor any damage or

loss incurred in connection with the transportationof any engine

or any part(s) thereof submitted for inspection aod/or warranty

work.

If you have any questions regarding your warranty dghts and

responsibilities, you shouldcontact Teeumseh Power Company at

1-262-377_2700 or in USA/Canada call 1400-558-5492.

Revised January, 2004

Page 20 Two-Cycle Engine •Horizontal/Vertical Crankshaft • Air-Cooled 181-807-14

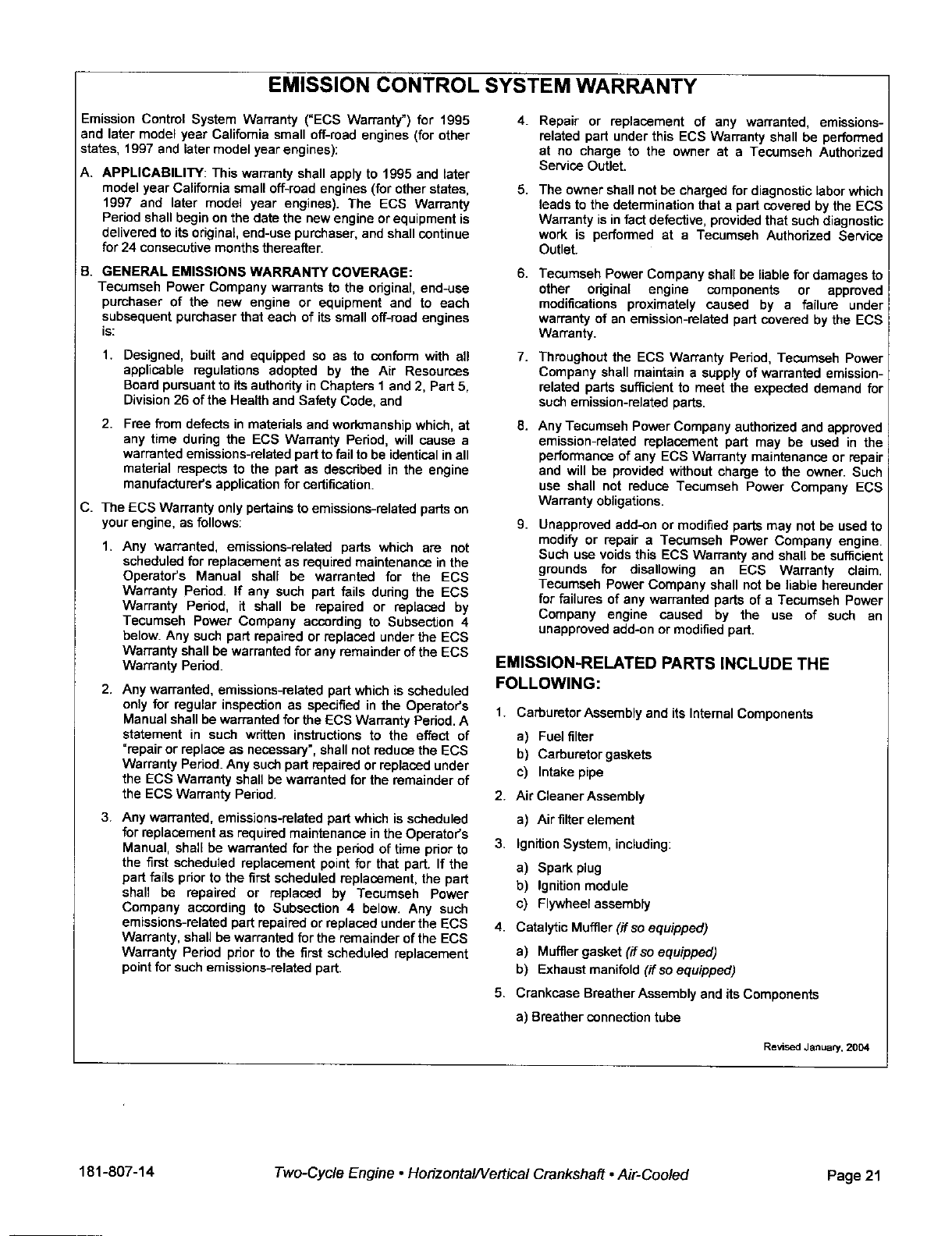

EMISSION CONTROL SYSTEM WARRANTY

Emission Control System Warranty ("ECS Warranty") for 1995

and later model year California small off-road engines (for other

states, 1997 and later model year engines):

A. APPLICABILITY: This warranty shall apply to 1995 and later

model year California small off-read engines (for other states,

1997 and later model year engines). The ECS Warranty

Period shall begin onthe date the new engine or equipment is

delivered to its original,end-use purchaser, and shall continue

for 24 consecutive months thereafter.

B. GENERAL EMISSIONS WARRANTY COVERAGE:

Tecumseh Power Company warrants to the original, end-use

purchaser of the new engine or equipment and to each

subsequent purchaser that each of its small off-read engines

is:

1. Designed, built and equipped so as to conform with all

applicable regulations adopted by the Air Resources

Board pursuant to itsauthority in Chapters 1 and 2, Part 5,

Division26 of the Health and Safety Code, and

2. Free from defects in materials and workmanship which, at

any time during the ECS Warranty Period, will cause a

warranted emissions-ralated partto fail to be identical inall

material respects to the part as described in the engine

manufacturer's applicationfor certification.

C. The ECS Warranty only pertains to emissions-related parts on

your engine, as follows:

1. Any warranted, emissions-related parts which are not

scheduled for replacement as required maintenance in the

Operator's Manual shall be warranted for the ECS

Warranty Period. If any such part fails during the ECS

Warranty Period, it shall be repaired or replaced by

Tecumseh Power Company according to SubsectJon 4

below. Any such part repaired or replaced under the ECS

Warranty shall be warranted for any remainder of the ECS

Warranty Period.

2. Any warranted, emissions-related part which is scheduled

only for regular inspection as specified in the Operator's

Manual shall be warranted for the ECS Warranty Period. A

statement in such written instructions to the effect of

=repair or replace as necessary", shall not reduce the ECS

Warranty Period.Any such part repaired or replaced under

the ECS Warranty shall be warranted for the remainder of

the ECS Warranty Period.

3. Any warranted, emissions-related part which is scheduled

for replacement as required maintenance in the Operator's

Manual, shall be warranted for the pedod of time pdor to

the first scheduled replacement point for that part. If the

part fails prior to the first scheduled replacement, the part

shall be repaired or replaced by Tecumseh Power

Company according to Subsection 4 below. Any such

emissions-related part repaired or replaced under the ECS

Warranty, shall be warranted for the remainder of the ECS

Warranty Period prior to the first scheduled replacement

point for such emissions-related part.

Repair or replacement of any warranted, emiseions-

related part under this ECS Warranty shall be performed

at no charge to the owner at a Tecumseh Authorized

Service Outlet.

The owner shall not be charged for diagnostic labor which

leads to the determination that a part covered by the ECS

Warranty is in fact defective, provided that such diagnostic

work is performed at aTecumseh Authorized Service

Outlet.

Tecureseh Power Company shall be liable for damages to

other original engine components or approved

modifications proximately caused by afailure under

warranty of an emission-related part covered by the ECS

Warranty.

Throughout the ECS Warranty Period, Tecomseh Power

Company shall maintain a supply of warranted emission-

related parts sufficient to meet the expected demand for

such emission-related parts.

Any Tecumseh Power Company authorized and approved

emission-related replacement part may be used in the

performance of any ECS Warranty maintenance or repair

and will be provided without charge to the owner. Such

use shall not reduce Tecumseh Power Company ECS

Warranty obligations.

Unapproved add-on or modified parts may not be used to

modify or repair a Tecumseh Power Company engine.

Such use voids this ECS Warranty and shall be sufficient

grounds for disallowing an ECS Warranty claim.

Tecumseh Power Company shall not be liable hereunder

for failures of any warranted parts of a Tecumseh Power

Company engine caused by the use of such an

unappreved add-on or modifiedpart.

EMISSION-RELATED PARTS INCLUDE THE

FOLLOWING:

1. Carburetor Assembly and its InternalComponents

a) Fuel filter

b) Carburetor gaskets

c) Intake pipe

2. Air Cleaner Assembly

a) Air filter element

3. Ignition System, including:

a) Spark plug

b) Ignitionmodule

c) Flywheel assembly

4. Catalytic Muffler (if so equipped)

a) Muffiergasket (ffse equipped)

b) Exhaust manifold(if se equipped)

5. Crankcese BreatherAssembly and its Components

a) Breather connection tube

Revised January, 2004

181-807-14 Two-Cycle Engine •Horizontal/Vertical Crankshaft •Air-Cooled Page 21

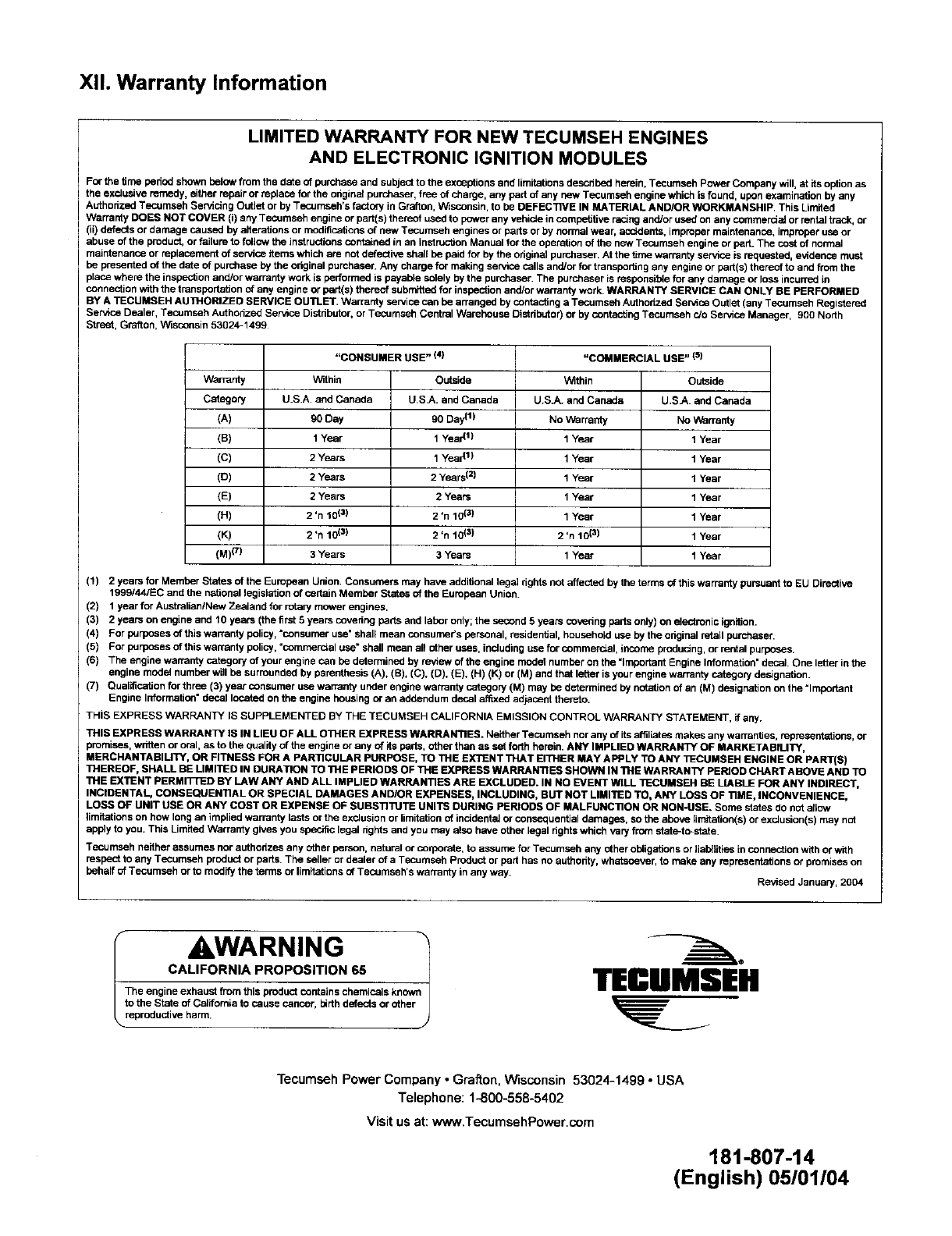

Xll. Warranty Information

LIMITED WARRANTY FOR NEW TECUMSEH ENGINES

AND ELECTRONIC IGNITION MODULES

For the time period shown below from the date of purchase and subject to the exceptions and limitations descnbed herein, Tecumseh Power Company will, at its optionas

the exclusive remedy, either repair or replace for the odginal purchaser, free of charge, any pod of any new Tecur_seh engine which is found, upon examination by any

Authorized Tecurr_seh Servicing Ouitof or by Tecumseh's factoPJ in Grafton, Wisconsin, to be DEFECTIVE IN MATERIAL ANDIOR WORKMANSHIP, This Limited

Warranty DOES NOT COVER (i) any Tecumseh engine or part(s) thereof used to power any veblde in competitive racing and/or used on any commercial or rental track, or

(ii) defects or dan_ge caused by alterations or modifications of new Tecumseh engines or parts or by normal wear, accidents improper maintenance, improper use or

abuse of the product, or failure to follow the instructions contained in an Instr_c_JonManual for the operation of the new Tecumseh engine or pad. The cost of normal

maintenance or replacement of service items which are nat defective shall be paid for bythe original purchaser. At the time wan-anty service is requested, evidence must

be presented of the date of purchase by the odginal purchaser, Any charge for making service calls and/or for transporting any engine or pod(s) thereof to and from the

)laCewhere the inspection and/or warranty work is performed is payable solely by the purchaser, The purchaser is responsible for any damage or loss incun_d in

connection with the transportation of any engine or pad(s) thereof submitted for inspection and/or warranty work, WARRANTY SERVICE CAN ONLY BE PERFORMED

BY A TECUMSEH AUTHORIZED SERVICE OUTLET, Warranty service can be arranged by contacting a Tecumseh Aathodzed Service Outlet (any Tecumseh Registered

Service Dealer, Tecumseh Authorized Service Distributor, orTecumseh Central Warehouse Distdbutor) or by contacting Tecumseh c,/oService Manager, 900 North

Street, G_lton, Wiscoflsin 53024-1499

Warranty

Craftsman 143015071 User Manual ENGINE Manuals And Guides L0601034

TECUMSEH Engine Manual L0601034 TECUMSEH Engine Owner's Manual, TECUMSEH Engine installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
