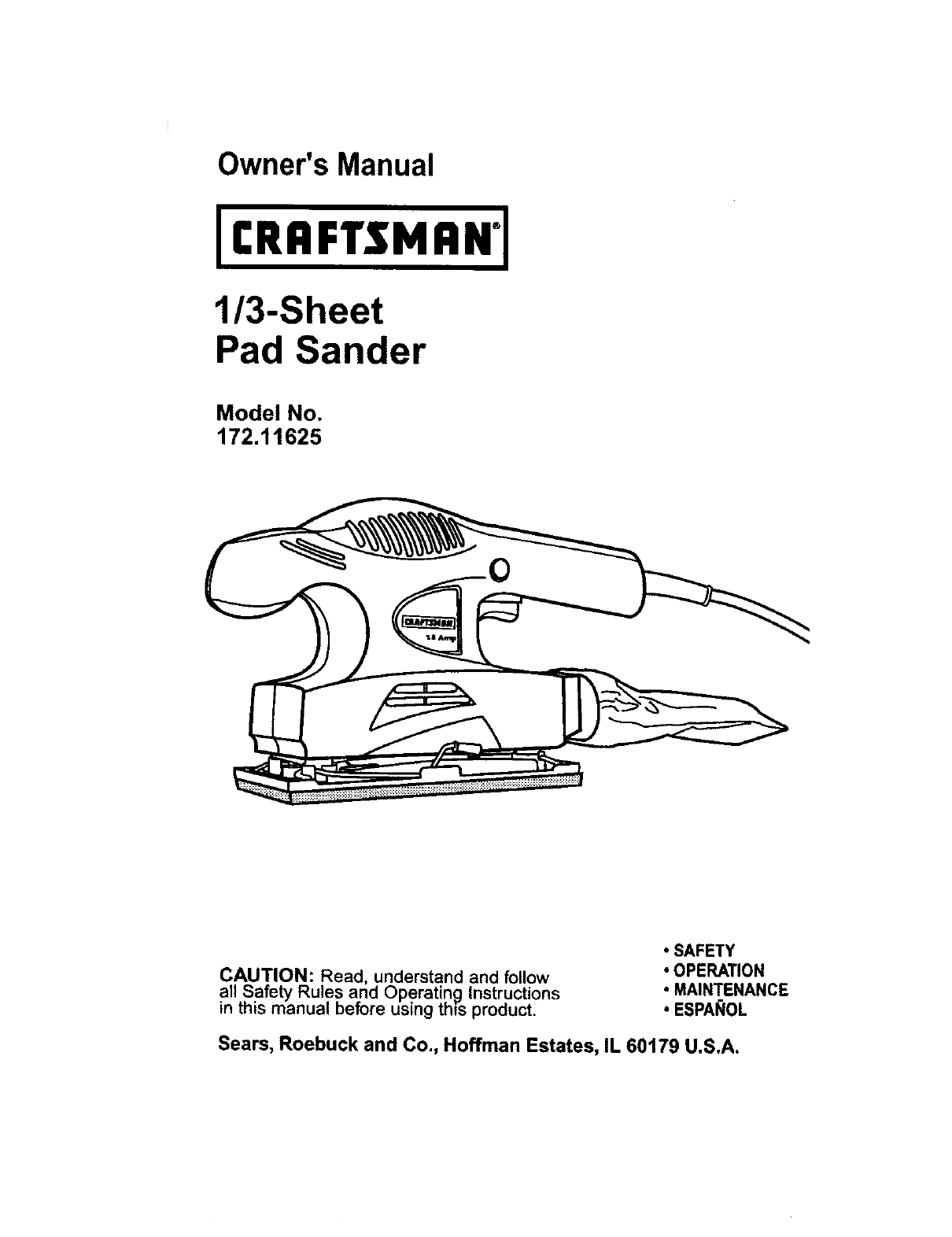

Owner's Manual

1/3-Sheet

Pad Sander

Model No.

172.11625

CAUTION: Read, understand and follow

all Safety Rules and Operating Instructions

in this manual before using th=s product.

,SAFETY

,OPERATION

,MAINTENANCE

,ESPA_OL

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

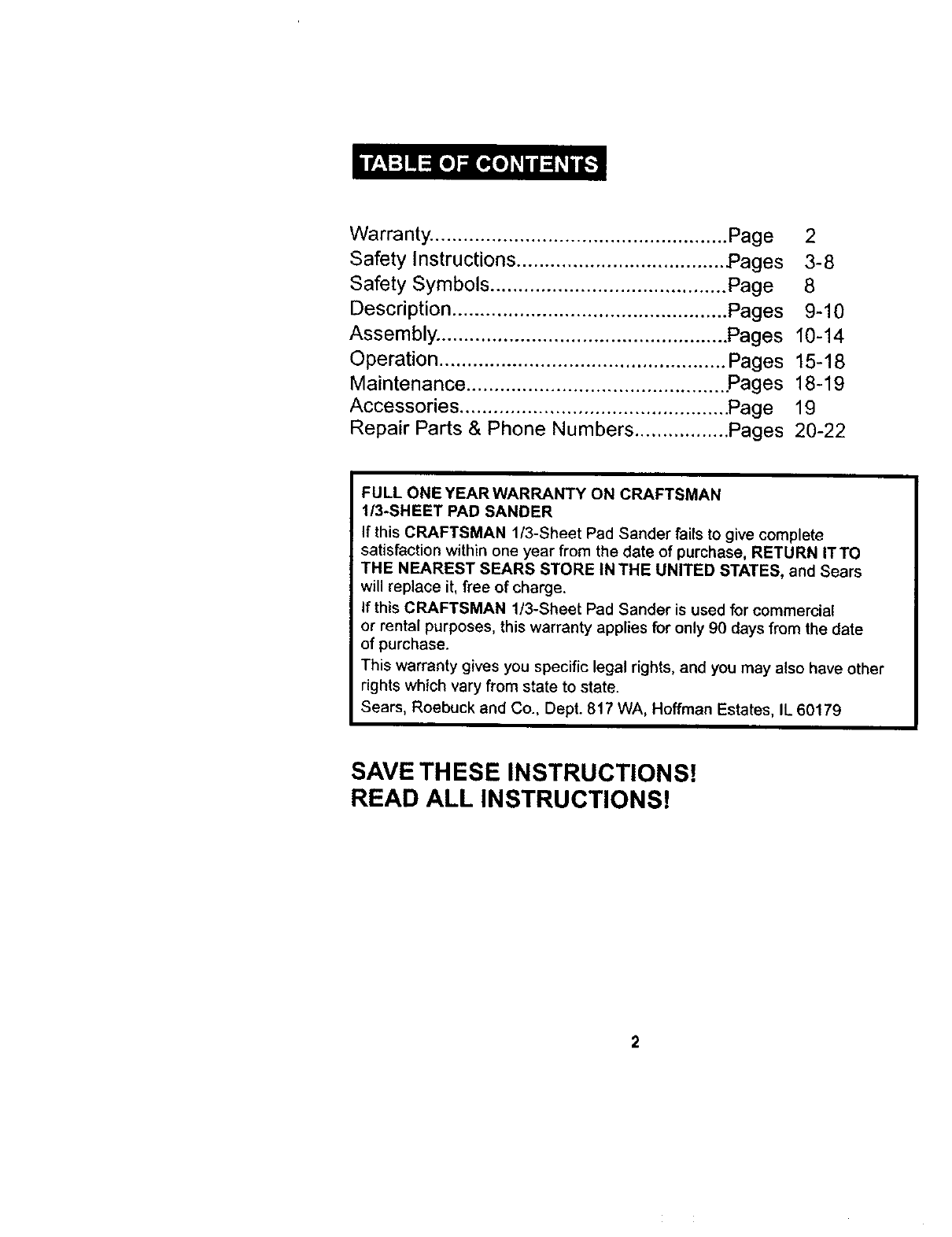

Warranty. .................................................... Page 2

Safety Instructions ..................................... Pages 3-8

Safety Symbols .......................................... Page 8

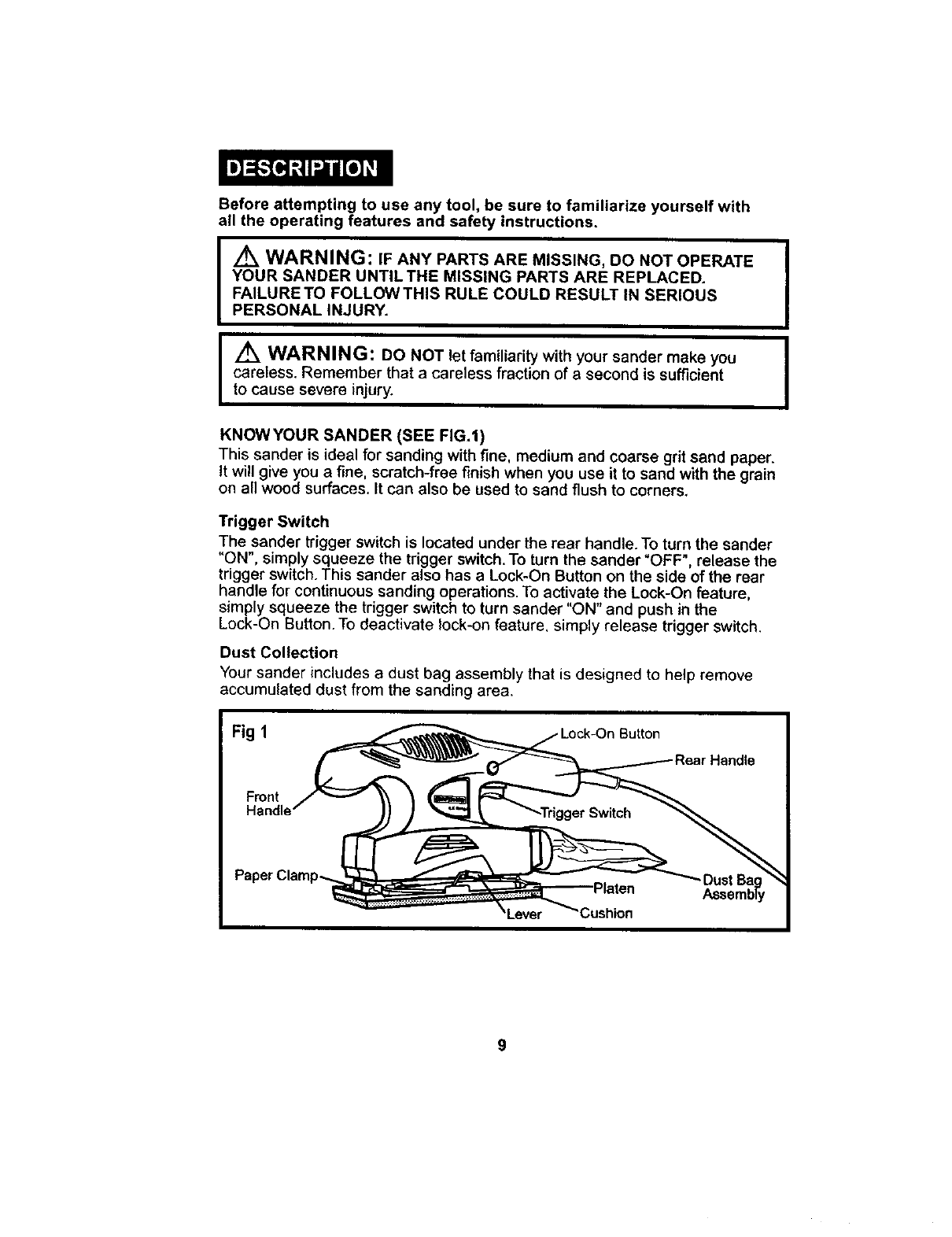

Description ................................................. Pages 9-10

Assembly. ................................................... Pages 10-14

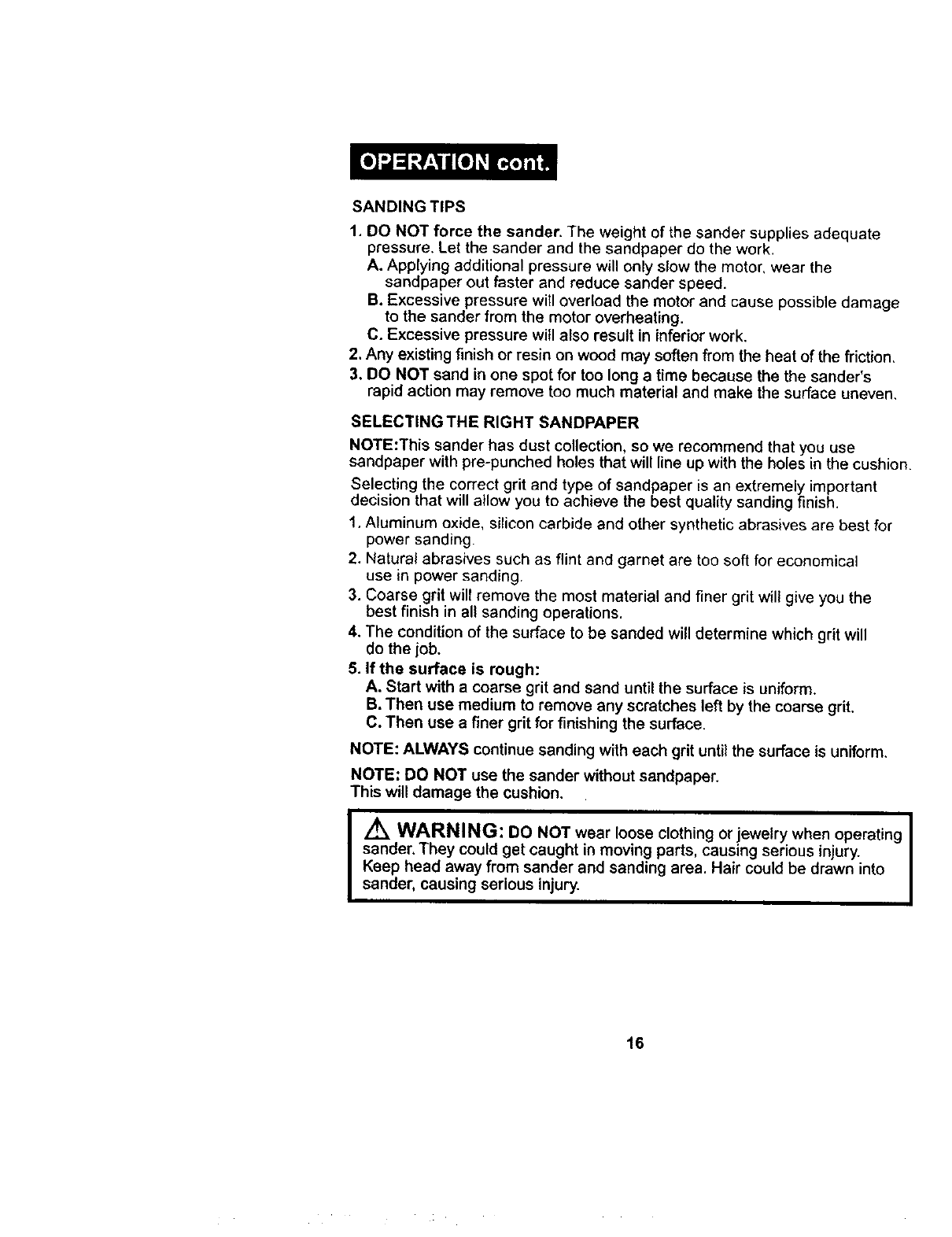

Operation ................................................... Pages 15-18

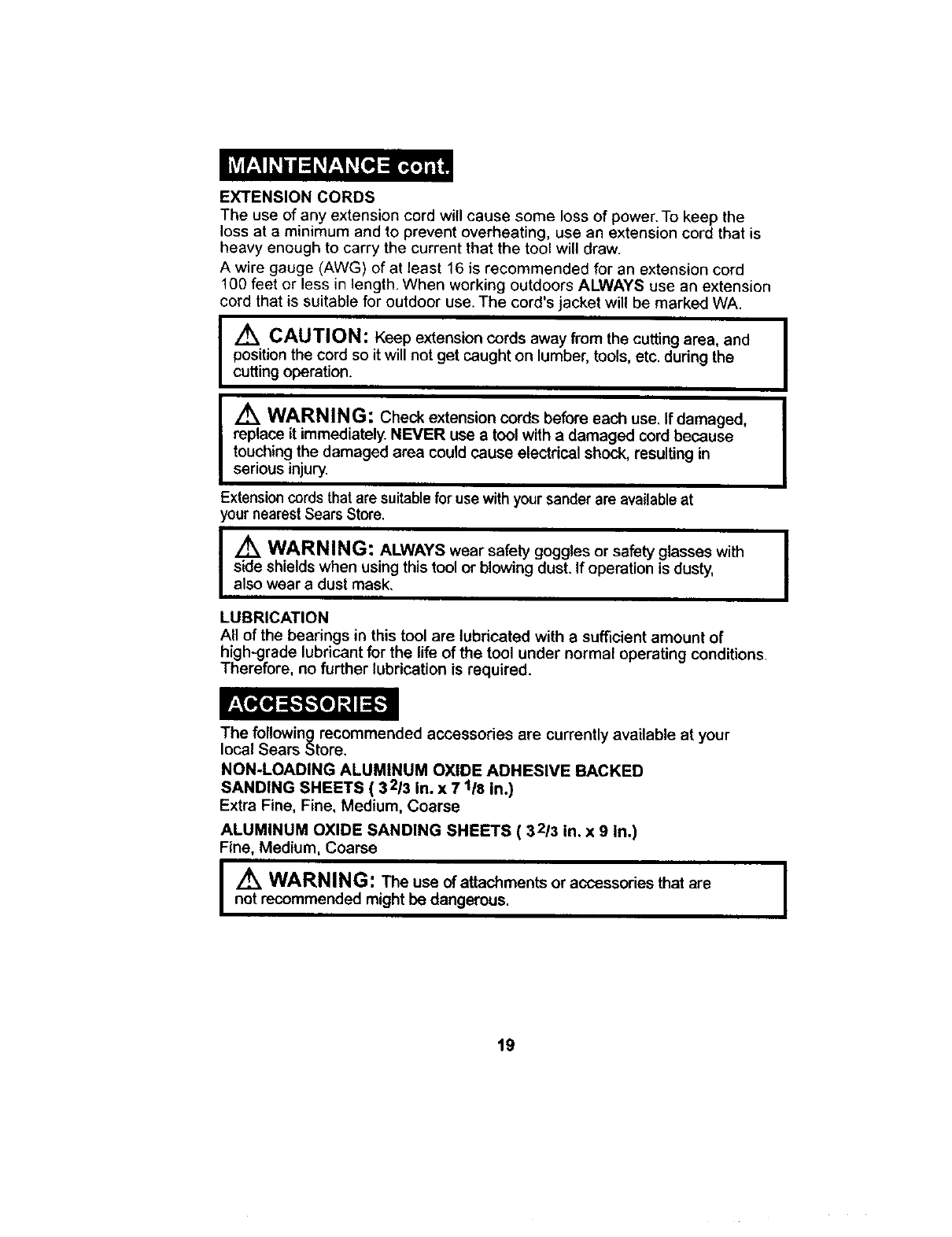

Maintenance .............................................. .Pages 18-19

Accessories ................................................ Page 19

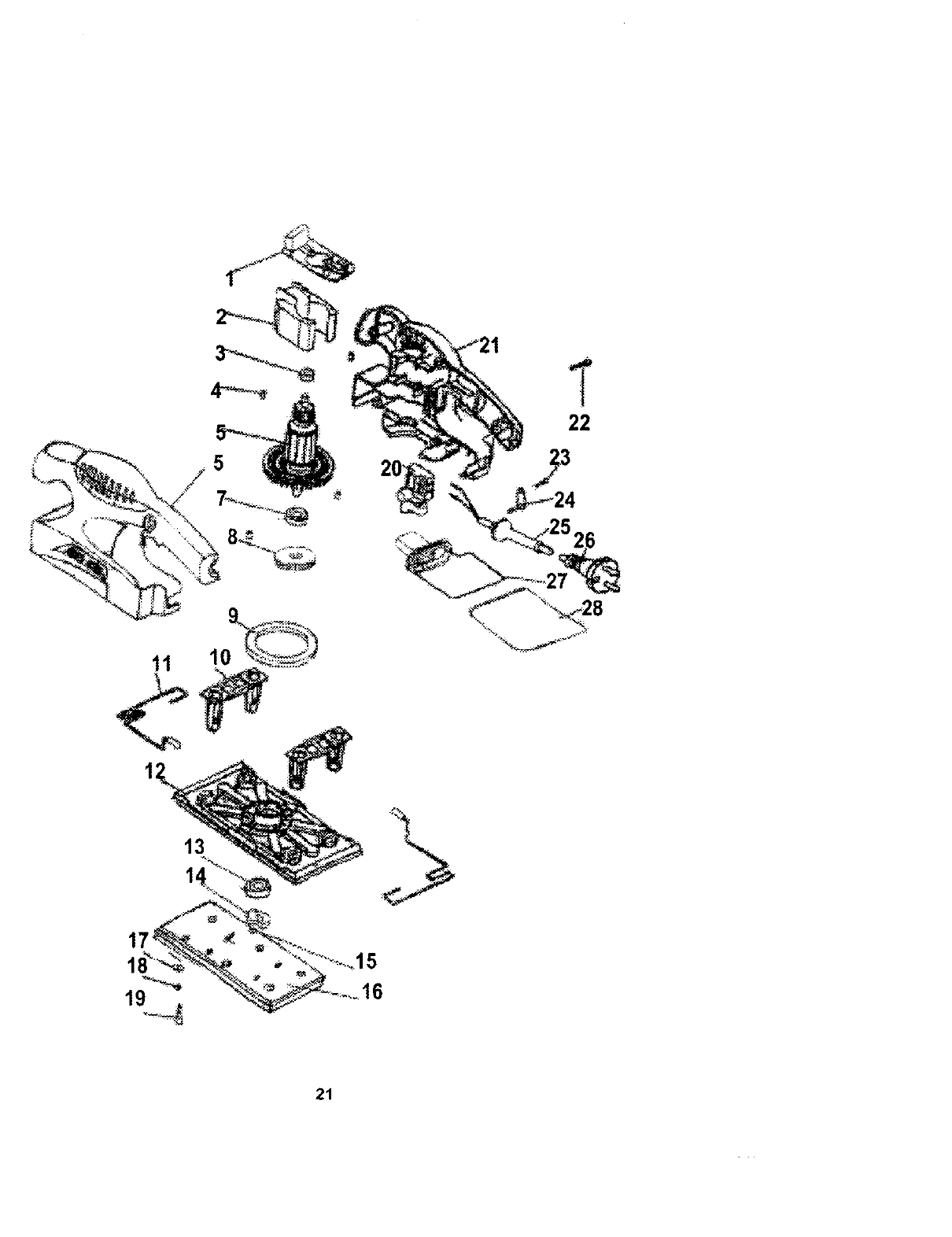

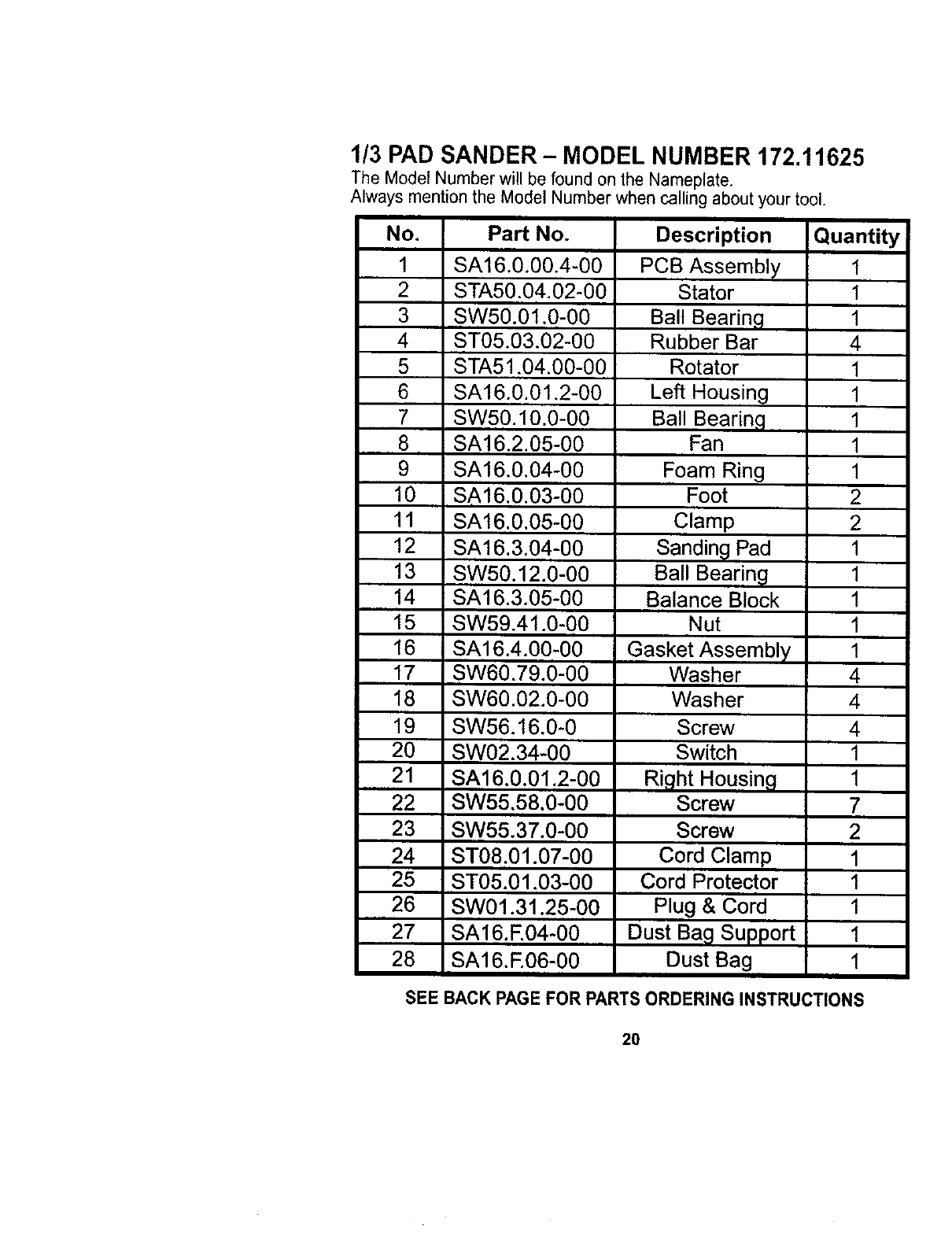

Repair Parts & Phone Numbers ................. Pages 20-22

FULL ONE YEAR WARRANTY ON CRAFTSMAN

1/3-SHEET PAD SANDER

If this CRAFTSMAN 1/3-Sheet Pad Sander fails to give complete

satisfaction within one year from the date of purchase, RETURN IT TO

THE NEAREST SEARS STORE INTHE UNITED STATES, and Sears

will replace it, free of charge.

If this CRAFTSMAN lt3-Sheet Pad Sander is used for commercial

or rental purposes, this warranty applies for only 90 days from the date

of purchase.

This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179

SAVE THESE INSTRUCTIONS]

READ ALL INSTRUCTIONS!

IZ_ WARNING: BE SURE to read and understand all instructions, I

Failure to follow all instructions listed below may result in electric I

shock, fire and/or serious personal injury.

WORK AREA SAFETY

1. ALWAYS keep your work area clean and well lit. Cluttered benches and

dark areas invite accidents.

2. DO NOT operate power tools tn explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Power tools create sparks

which may ignite the dust or fumes.

3. ALWAYS keep bystanders, children, and visitors away while operating

a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

1. Double insulated tools are equipped with a polarized plug (one blade

is wider than the other.) This plug will fit in a polarized outlet only one

way. If the plug does not fit fully in the outlet, reverse the plug. If it still

does not fit, contact a qualified electrician to install a polarized outlet.

DO NOT change the plug in any way.

2. Double insulation [] eliminates the need for the three wire grounded power

cord and grounded power supply system. Applicable only to Class II

(double insulated) tools.

3. Before plugging in the tool, BE SURE that the outlet voltage supplied is

within the voltage marked on the tool's data plate. DO NOT use "AC only"

rated tools with a DC power supply.

4. ALWAYS avoid body contact with grounded surfaces such as pipes,

radiators, ranges and refrigerators. There is an increased risk of electric

shock if your body is grounded.

5. If operating the power tool In damp locations is unavoidable, ALWAYS

use a Ground Fault Circuit Interrupter to supply power to your tool.

ALWAYS wear electrician's rubber gloves and footwear in

damp conditions.

6. DO NOT expose power tools to rain or wet conditions. Water entering

apower too! will increase the risk of electric shock.

7. DO NOT abuse the cord. NEVER use the cord to carry the tools or pull

the plug from the outlet. Keep cord away from heat, oil, sharp edges

or moving parts. Replace damaged cords immediately. Damaged cords

increase the risk of electric shook.

8. When operating a power tool outside, ALWAYS use an outdoor

extension cord marked "W-A" or "W'. These cords are rated for outdoor

use and reduce the risk of electric shook.

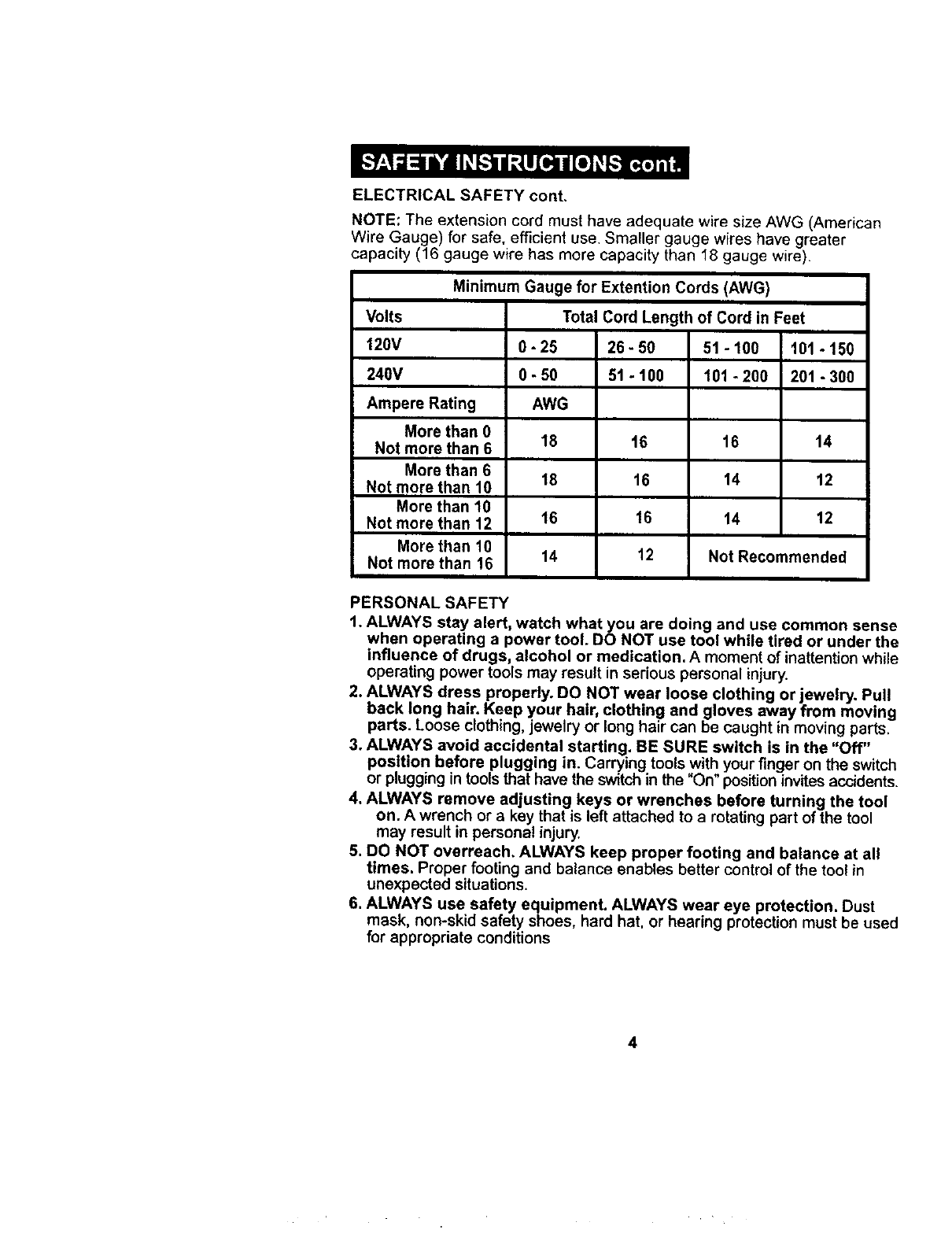

ELECTRICAL SAFETY cont.

NOTE: The extension cord must have adequate wire size AWG (American

Wire Gauge) for safe, efficient use, Smaller gauge wires have greater

capacity (16 gauge wire has more capacity than I8 gauge wire).

Minimum Gauge for Extention Cords (AWG)

Volts

120V

240v

Ampere Rating

More than 0

Not more than 6

More than 6

Not more than 10

More than 10

Not more than 12

More than 10

Not more than 16

Total Cord Length of Cord in Feet

0-25

0-5O

AWG

26 - 50

51 - 100

51 -100 101 -150

101-200 201-300

16 14

14 12

Not Recommended

PERSONAL SAFETY

1, ALWAYS stay alert, watch what you are doing and use common sense

when operating a power tool. DO NOT use tool while tired or under the

influence of drugs, alcohol or medication. Amoment of inattention while

operating power tools may result in serious personal injury.

2. ALWAYS dress properly. DO NOT wear loose clothing or jewelry, Pull

back long hair. Keep your hair, clothing and gloves away from moving

parts. Loose clothing, jewelry or long hair can be caught in moving parts.

3. ALWAYS avoid accidental starting. BE SURE switch is in the "Off"

position before plugging in. Carrying tools with your finger on the switch

or plugging in tools that have the switch in the "On" position invites accidents.

4. ALWAYS remove adjusting keys or wrenches before turning the tool

on. Awrench or akey that is left attached to a rotating part of the tool

may result in personal injury.

5. DO NOT overreach. ALWAYS keep proper footing and balance at all

times. Proper footing and balance enables better control of the too! in

unexpected situations.

6. ALWAYS use safety equipment. ALWAYS wear eye protection. Dust

mask, non-skid safety shoes, hard hat, or hearing protection must be used

for appropriate conditions

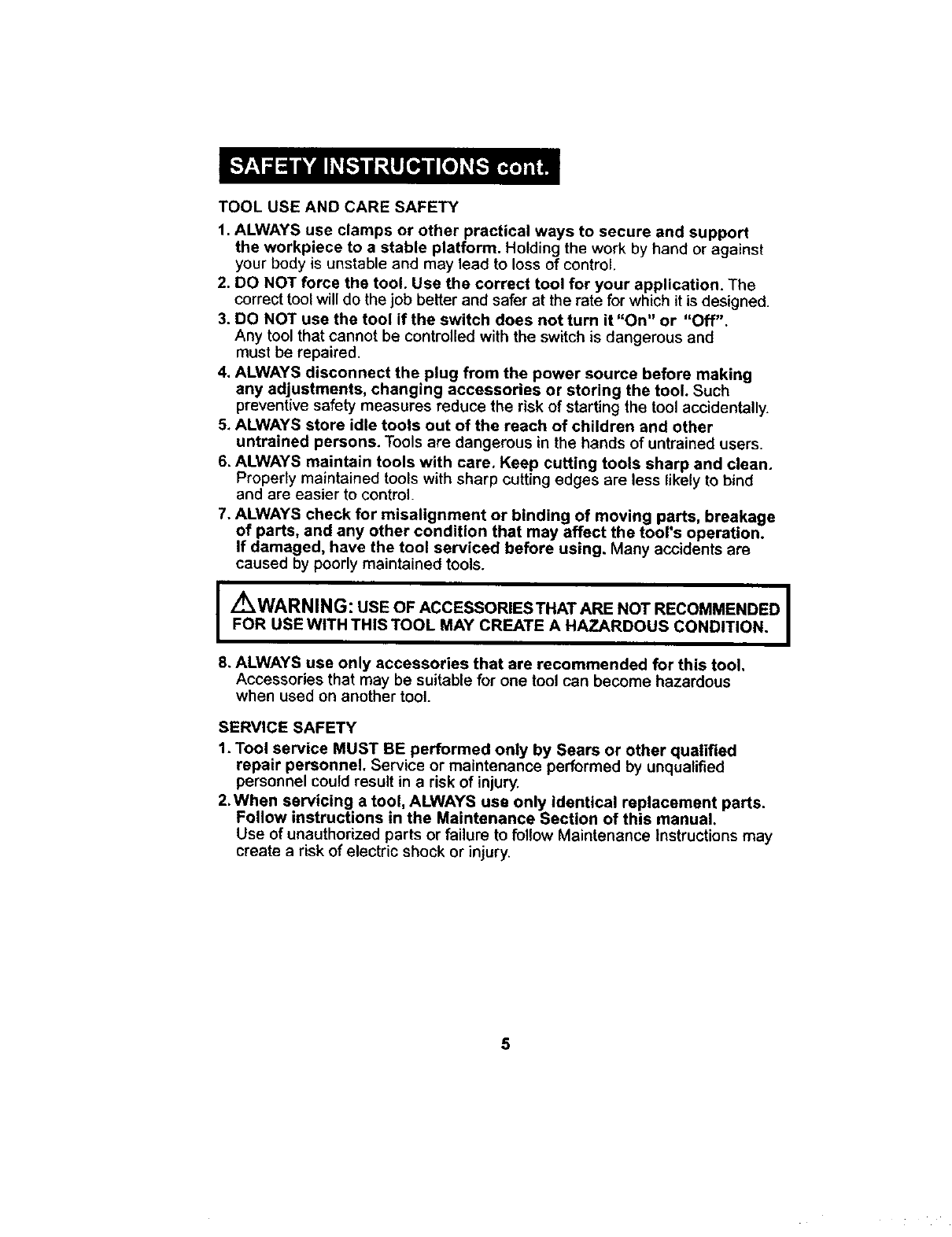

TOOL USE AND CARE SAFETY

1. ALWAYS use clamps or other practical ways to secure and support

the workpiece to a stable platform. Holding the work by hand or against

your body is unstable and may lead to loss of control.

2. DO NOT force the tool. Use the correct tool for your application. The

correct tool will do the job better and safer at the rate for which it is designed.

3. DO NOT use the tool if the switch does not turn it "On" or "Off".

Any tool that cannot be controlled with the switch is dangerous and

must be repaired.

4. ALWAYS disconnect the plug from the power source before making

any adjustments, changing accessories or storing the tool. Such

preventive safety measures reduce the risk of starting the tool accidentally.

5, ALWAYS store idle tools out of the reach of children and other

untrained persons. Tools are dangerous in the hands of untrained users.

6. ALWAYS maintain tools with care, Keep cutting tools sharp and clean.

Properly maintained tools with sharp cutting edges are less likely to bind

and are easier to control

7. ALWAYS check for misalignment or binding of moving parts, breakage

of parts, and any other condition that may affect the tool's operation.

If damaged, have the tool serviced before using. Many accidents are

caused by poorly maintained tools.

IZ_WARNING: USE OF ACCESSORIES THAT ARE NOT RECOMMENDED I

FOR USE WITH THIS TOOL MAY CREATE A HAZARDOUS CONDITION, I

8. ALWAYS use only accessories that are recommended for this tool,

Accessories that may be suitable for one tool can become hazardous

when used on another tool.

SERVICE SAFETY

1. Tool service MUST BE performed only by Sears or other qualified

repair personnel. Service or maintenance performed by unqualified

personnel could result in a risk of injury.

2.When servicing a tool, ALWAYS use only Identical replacement parts.

Follow instructions in the Maintenance Section of this manual.

Use of unauthorized parts or failure to follow Maintenance Instructions may

create a risk of electric shock or injury.

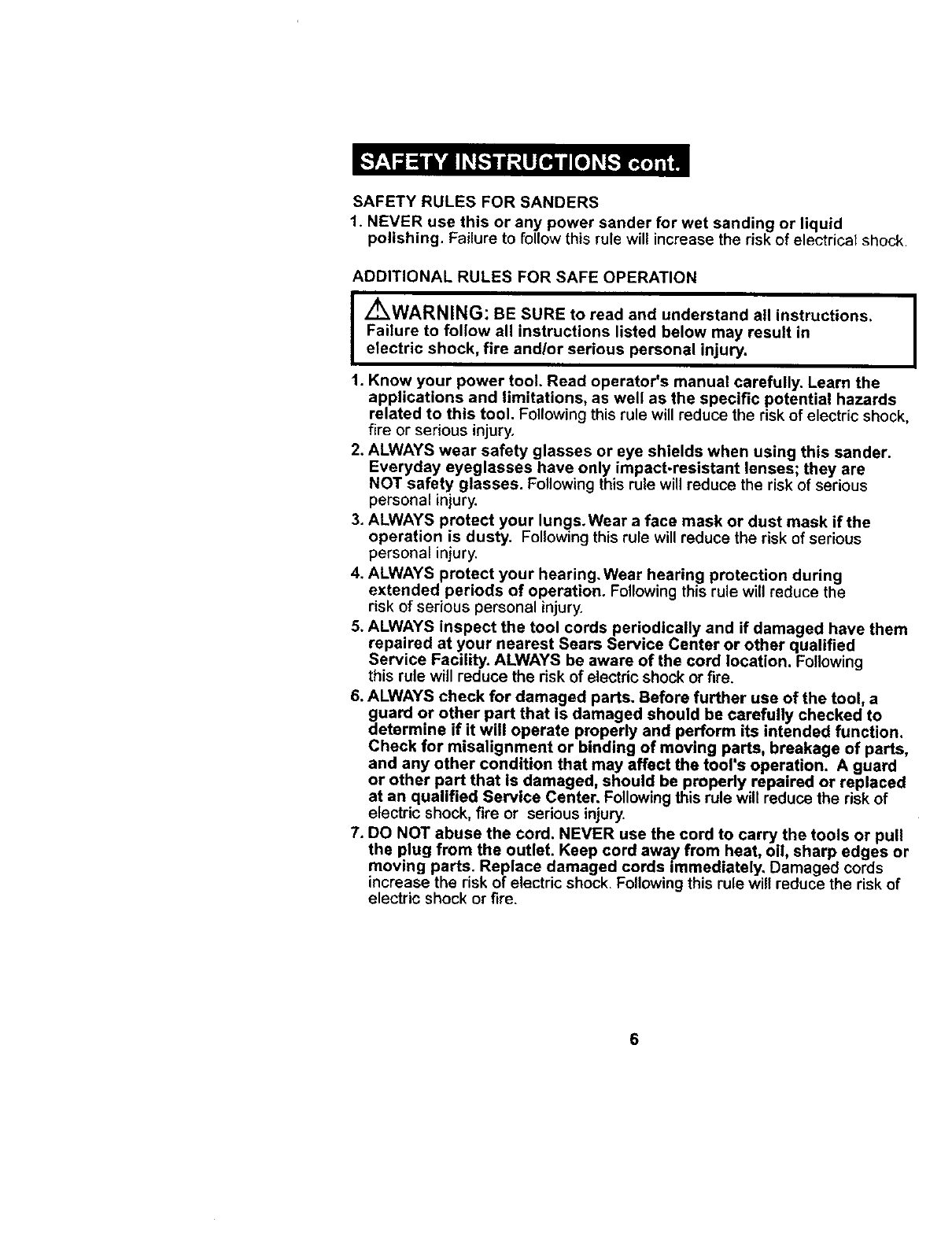

SAFETY RULES FOR SANDERS

1. NEVER use this or any power sander for wet sanding or liquid

polishing. Failure to follow this rule will increase the risk of electrical shock

ADDITIONAL RULES FOR SAFE OPERATION

Z_WARNING: BE SURE to read and understand all instructions.

Failure to follow all instructions listed below may result in

electric shock, fire and/or serious personal injury.

1. Know your power tool. Read operator's manual carefully. Learn the

applications and limitations, as well as the specific potential hazards

related to this tool. Following this rule will reduce the risk of electric shock,

fire or serious injury,

2. ALWAYS wear safety glasses or eye shields when using this sander.

Everyday eyeglasses have only impact-resistant lenses; they are

NOT safety glasses. Following this rule will reduce the risk of serious

personal injury.

3. ALWAYS protect your lungs.Wear a face mask or dust mask if the

operation is dusty. Following this rule will reduce the risk of serious

personal injury.

4. ALWAYS protect your hearing, Wear hearing protection during

extended periods of operation. Following this rule will reduce the

risk of serious personal injury.

5. ALWAYS inspect the tool cords periodically and if damaged have them

repaired at your nearest Sears Service Center or other qualified

Service Facility. ALWAYS be aware of the cord location. Following

this rule will reduce the risk of electric shock or fire.

6. ALWAYS check for damaged parts. Before further use of the tool, a

guard or other part that is damaged should be carefully checked to

determine if it will operate properly and perform its intended function.

Check for misalignment or binding of moving parts, breakage of parts,

and any other condition that may affect the tool's operation. A guard

or other part that Is damaged, should be properly repaired or replaced

at an qualified Service Center. Following this rule will reduce the risk of

electric shock, fire or serious injury.

7. DO NOT abuse the cord. NEVER use the cord to carry the tools or pull

the plug from the outlet. Keep cord away from heat, oil, sharp edges or

moving parts. Replace damaged cords immediately. Damaged cords

increase the risk of electric shock. Following this rule will reduce the risk of

electric shock or fire.

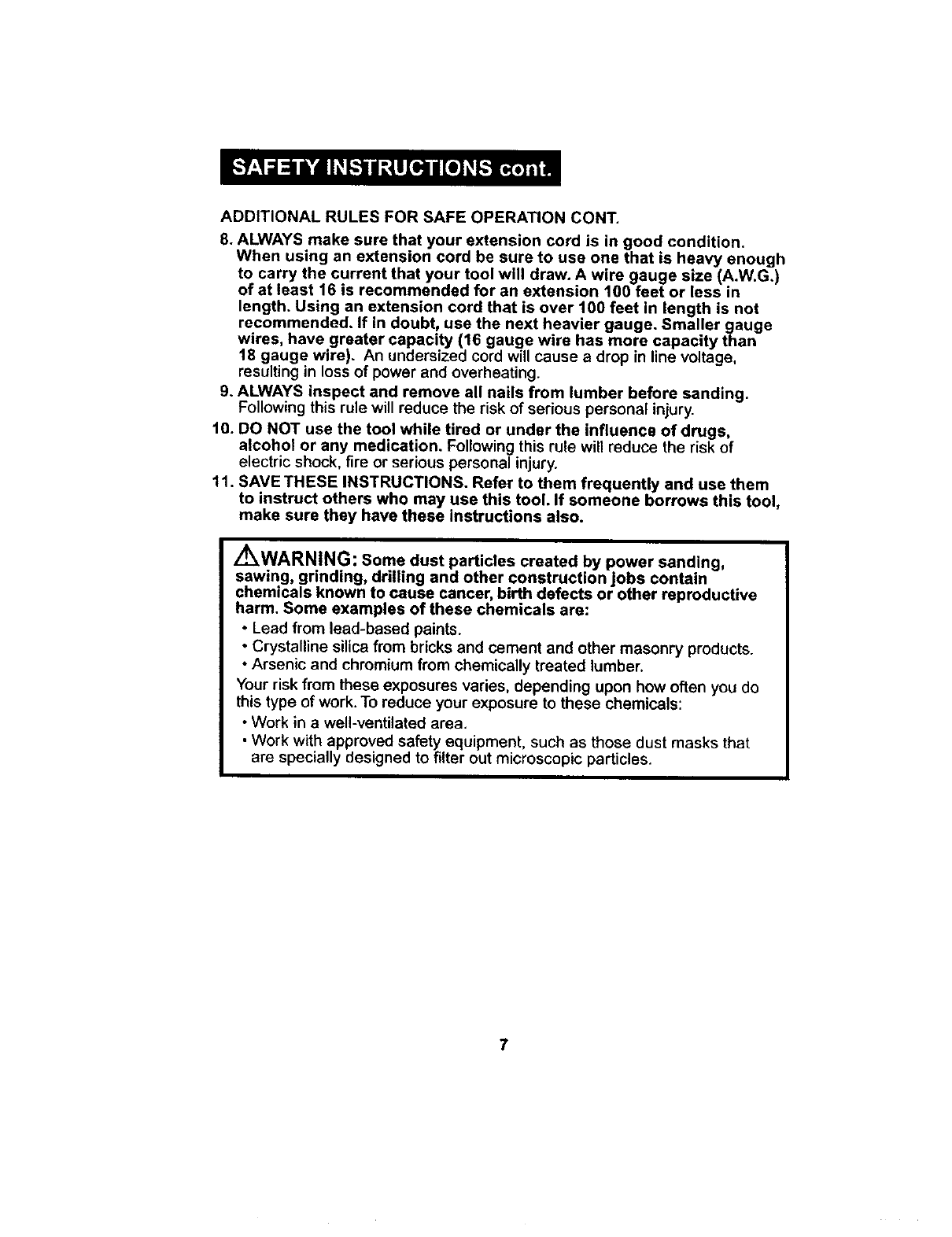

ADDITIONAL RULES FOR SAFE OPERATION CONT.

8. ALWAYS make sure that your extension cord is in good condition.

When using an extension cord be sure to use one that is heavy enough

to carry the current that your tool will draw. A wire gauge size (A.W.G,)

of at least 16 is recommended for an extension 100 feet or less in

length, Using an extension cord that is over 100 feet in length is not

recommended, If in doubt, use the next heavier gauge. Smaller gauge

wires, have greater capacity (16 gauge wire has more capacity than

18 gauge wire), An undersized cord will cause a drop in line voltage,

resulting in loss of power and overheating.

9, ALWAYS inspect and remove all nails from lumber before sanding.

Following this rule will reduce the risk of serious personal injury.

10. DO NOT use the tool while tired or under the influence of drugs,

alcohol or any medication. Following this rule will reduce the risk of

electric shock, fire or serious personal injury.

11. SAVE THESE INSTRUCTIONS. Refer to them frequently and use them

to instruct others who may use this tool. If someone borrows this tool,

make sure they have these instructions also.

Z_WARNING: Some dust particles created by power sanding,

sawing, grinding, drilling and other construction jobs contain

chemicals known to cause cancer, birth defects or other reproductive

harm. Some examples of these chemicals are:

• Lead from lead-based paints.

•Crystalline silica from bricks and cement and other masonry products.

•Arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending upon how often you do

this type of work. To reduce your exposure to these chemicals:

• Work in a well-ventilated area.

• Work with approved safety equipment, such as those dust masks that

are specially designed to filter out microscopic particles.

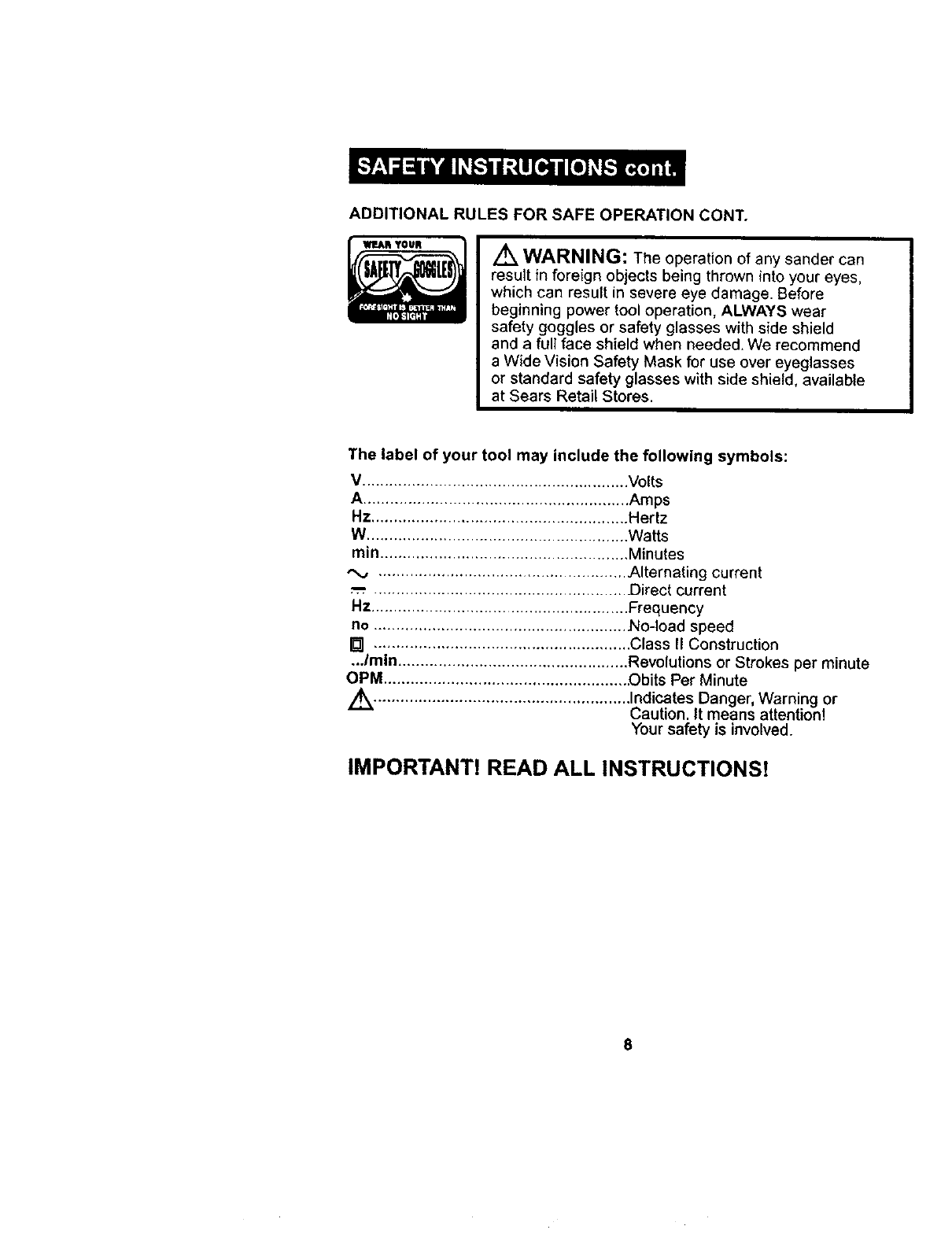

ADDITIONAL RULES FOR SAFE OPERATION CONT.

Z_ WARNING: The operation of any sander can

result in foreign objects being thrown into your eyes,

which can result in severe eye damage. Before

beginning power tool operation, ALWAYS wear

safety goggles or safety glasses with side shield

and a full face shield when needed, We recommend

a Wide Vision Safety Mask for use over eyeglasses

or standard safety glasses with side shield, available

at Sears Retail Stores.

The label of your tool may include the following symbols:

V........................................................... Volts

A ........................................................... Amps

Hz ......................................................... Hertz

W .......................................................... Watts

rain ....................................................... Minutes

....................................................... Alternating current

........................................................ .Direct current

Hz ......................................................... Frequency

no ........................................................ .No-load speed

[] ......................................................... Class II Construction

,.Jmln ................................................... Revolutions or Strokes per minute

OPM ...................................................... Obits Per Minute

,_ ......................................................... Indicates Danger, Warning or

Caution. It means attention!

Your safety is involved.

IMPORTANT! READ ALL INSTRUCTIONSI

Before attempting to use any tool, be sure to familiarize yourself with

an the operating features and safety instructions.

Z_ WARNING: IF ANY PARTS ARE MISSING, DO NOT OPERATE

YOUR SANDER UNTIL THE MISSING PARTS ARE REPLACED.

FAILURE TO FOLLOW THIS RULE COULD RESULT IN SERIOUS

PERSONAL INJURY.

Z_ WARNING: DO NOT let familiarity with your sander make you

careless. Remember that acareless fraction of a second is sufficient

to cause severe injury.

KNOWYOUR SANDER (SEE FIG.l)

This sander is ideal for sanding with fine, medium and coarse grit sand paper.

It will give you a fine, scratch-free finish when you use it to sand with the grain

on all wood surfaces. It can also be used to sand flush to corners.

Trigger Switch

The sander trigger switch is located under the rear handle. To turn the sander

"ON", simply squeeze the trigger switch. To turn the sander "OFF", release the

trigger switch. This sander also has a Lock-On Button on the side of the rear

handle for continuous sanding operations. To activate the Lock-On feature,

simply squeeze the trigger switch to turn sander "ON" and push in the

Lock-On Button. To deactivate lock-on feature, simply release trigger switch.

Dust Collection

Your sander includes adust bag assembly that is designed to help remove

accumulated dust from the sanding area.

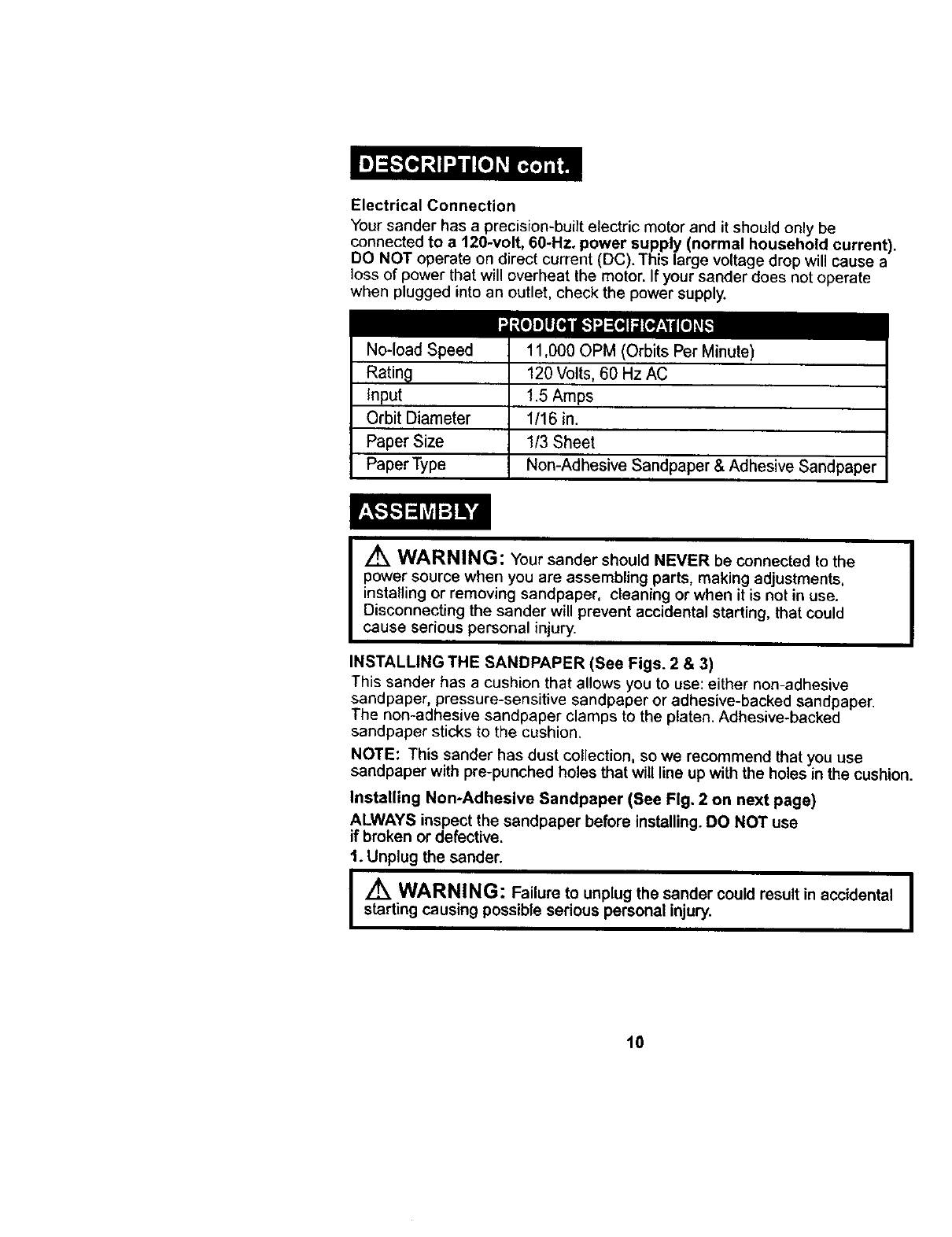

Electrical Connection

Your sander has a precision-buiR electric motor and it should only be

connected to a 120-volt, 60-Hz. power supply (normal household current).

DO NOT operate on direct current (DC). This large voltage drop will cause a

loss of power that will overheat the motor. If your sander does not operate

when plugged into an outlet, check the power supply.

No-load Speed

Rating

Input

Orbit Diameter

Paper Size

Paper Type

11,000 OPM (Orbits Per Minute)

120 Volts, 60 Hz AC

1.5 Amps

1/16 in.

1/3 Sheet

Non-Adhesive Sandpaper & Adhesive Sandpaper

Z_ WARNING: Your sander should NEVER be connected to the

power source when you are assembling parts, making adjustments,

installing or removing sandpaper, cleaning or when it is not in use.

Disconnecting the sander will prevent accidental starting, that could

cause serious personal injury.

INSTALLING THE SANDPAPER (See Figs. 2 & 3)

This sander has a cushion that allows you to use: either non-adhesive

sandpaper, pressure-sensitive sandpaper or adhesive-backed sandpaper.

The non-adhesive sandpaper clamps to the platen. Adhesive-backed

sandpaper sticks to the cushion.

NOTE: This sander has dust collection, so we recommend that you use

sandpaper with pre-punched holes that will line up with the holes in the cushion.

Installing Non-Adhesive Sandpaper (See Fig, 2 on next page)

ALWAYS inspect the sandpaper before installing. DO NOT use

if broken or defective.

1. Unplug the sander.

IZ_ WARNING: Failure to unplug the sander could result in accidental

starting causing possible serious personal injury. I

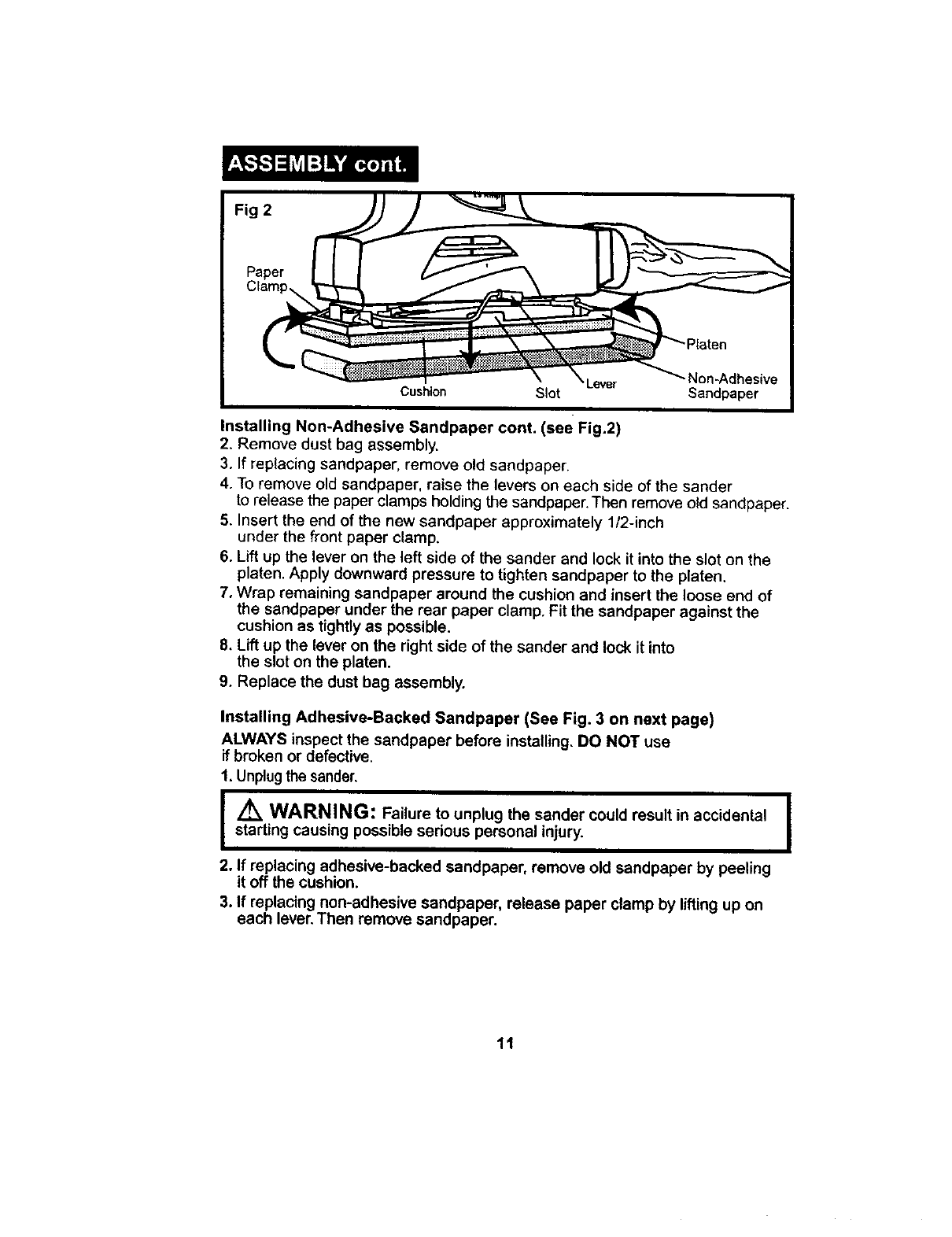

Installing Non-Adhesive Sandpaper cont. (see Fig.2)

2. Remove dust bag assembly,

3. If replacing sandpaper, remove old sandpaper.

4. To remove old sandpaper, raise the levers on each side of the sander

to release the paper clamps holding the sandpaper. Then remove old sandpaper.

5. Insert the end of the new sandpaper approximately 1/2-inch

under the front paper clamp,

6. Lift up the lever on the left side of the sander and lock it into the slot on the

platen. Apply downward pressure to tighten sandpaper to the platen.

7. Wrap remaining sandpaper around the cushion and insert the loose end of

the sandpaper under the rear paper clamp. Fit the sandpaper against the

cushion as tightly as possible.

8. Lift up the lever on the right side of the sander and lock it into

the slot on the platen.

9. Replace the dust bag assembly.

Installing Adhesive-Backed Sandpaper (See Fig. 3 on next page)

ALWAYS inspect the sandpaper before installing. DO NOT use

if broken or defective.

1, Unplugthe sander.

IZ_ WARNING: Failure to unplug the sander could result in accidental

starting causing possible serious personal injury.

2, If replacing adhesive-backed sandpaper, remove old sandpaper by peeling

it off the cushion.

3. If replacing non-adhesive sandpaper, release paper clamp by lifting up on

each lever. Then remove sandpaper.

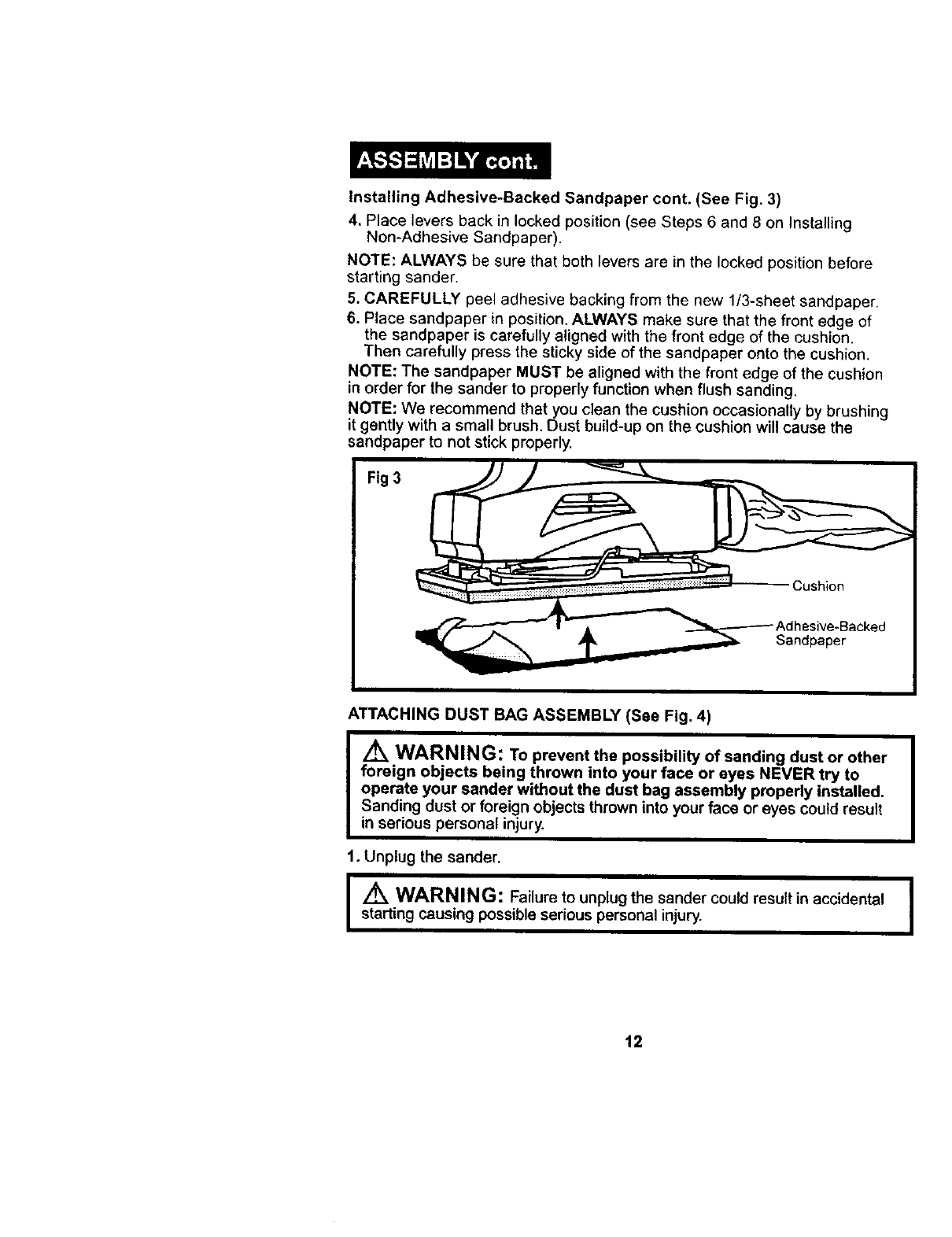

Installing Adhesive-Backed Sandpaper cont. (See Fig. 3)

4, Place levers back in locked position (see Steps 6 and 8 on Installing

Non-Adhesive Sandpaper).

NOTE: ALWAYS be sure that both levers are in the locked position before

starting sander.

5. CAREFULLY peel adhesive backing from the new 1/3-sheet sandpaper,

6. Place sandpaper in position. ALWAYS make sure that the front edge of

the sandpaper is carefully aligned with the front edge of the cushion.

Then carefully press the sticky side of the sandpaper onto the cushion.

NOTE: The sandpaper MUST be aligned with the front edge of the cushion

in order for the sander to properly function when flush sanding.

NOTE: We recommend that you clean the cushion occasionally by brushing

it gently with a small brush. Dust build-up on the cushion will cause the

sandpaper to not stick properly,

ATTACHING DUST BAG ASSEMBLY (See Fig. 4)

I _ WARNING: To prevent the possibility of sanding dust or other

foreign objects being thrown into your face or eyes NEVER try to

operate your sander without the dust bag assembly properly installed.

Sanding dust or foreign objects thrown into your face or eyes could result

in serious personal injury.

1. Unplug the sander.

IZ_ WARNING: Failure to unplug the sander could result in accidental

starting causing possible serious personal injury. I

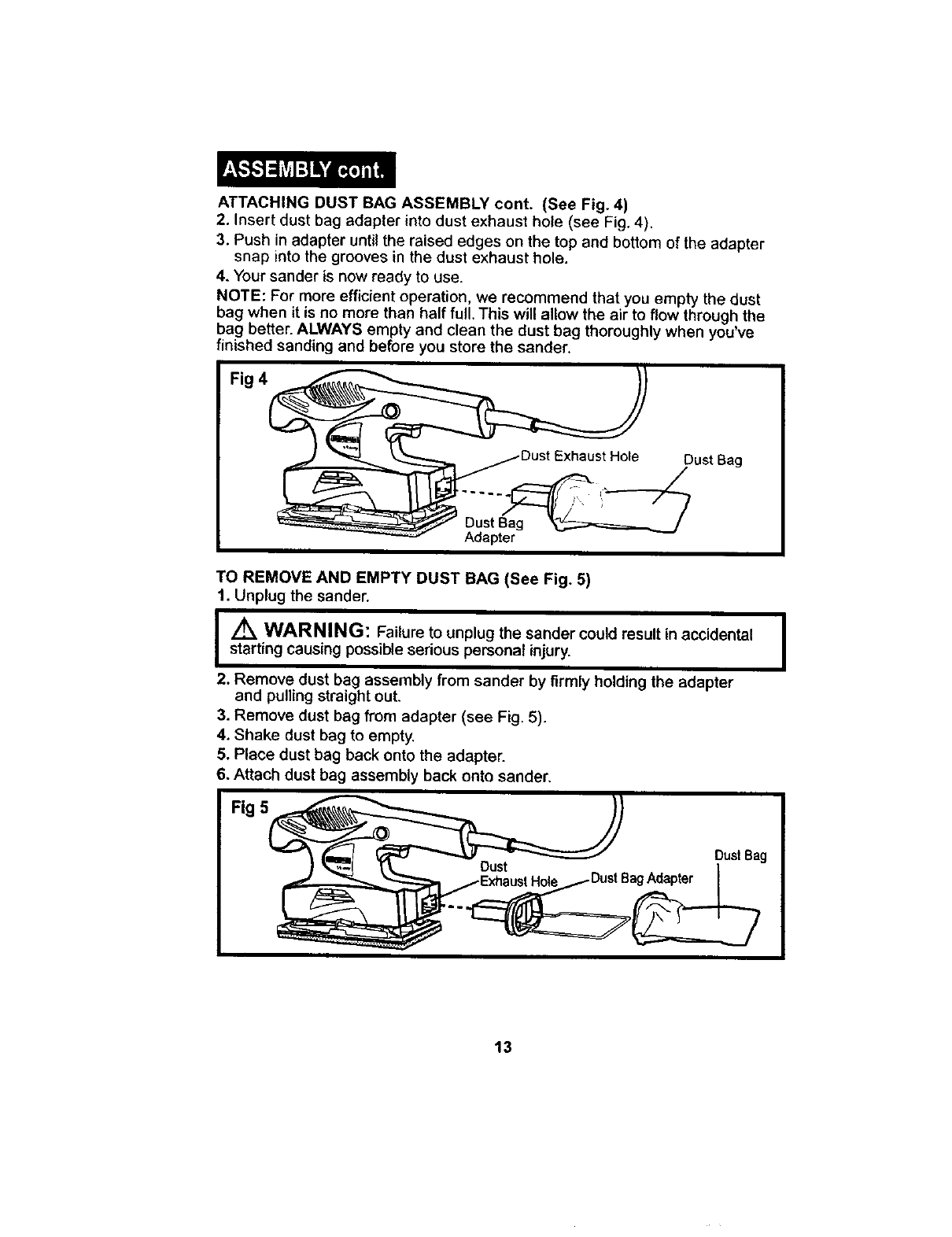

ATTACHING DUST BAG ASSEMBLY cont. (See Fig. 4)

2. Insert dust bag adapter into dust exhaust hole (see Fig. 4).

3. Push in adapter until the raised edges on the top and bottom of the adapter

snap into the grooves in the dust exhaust hole.

4. Your sander is now ready to use.

NOTE: For more efficient operation, we recommend that you empty the dust

bag when it is no more than half full. This will allow the air to flow through the

bag better. ALWAYS empty and clean the dust bag thoroughly when you've

finished sanding and before you store the sander.

Fig 4_

......

TO REMOVE AND EMPTY DUST BAG (See Fig. 5)

1. Unplug the sander.

I Z_ WARNING: Failure to unplug the sander could result in accidental

starting causing possible serious personal injury.

2. Remove dust bag assembly from sander by firmly holding the adapter

and pulling straight out.

3. Remove dust bag from adapter (see Fig. 5).

4. Shake dust bag to empty.

5. Place dust bag back onto the adapter.

6. Attach dust bag assembly back onto sander,

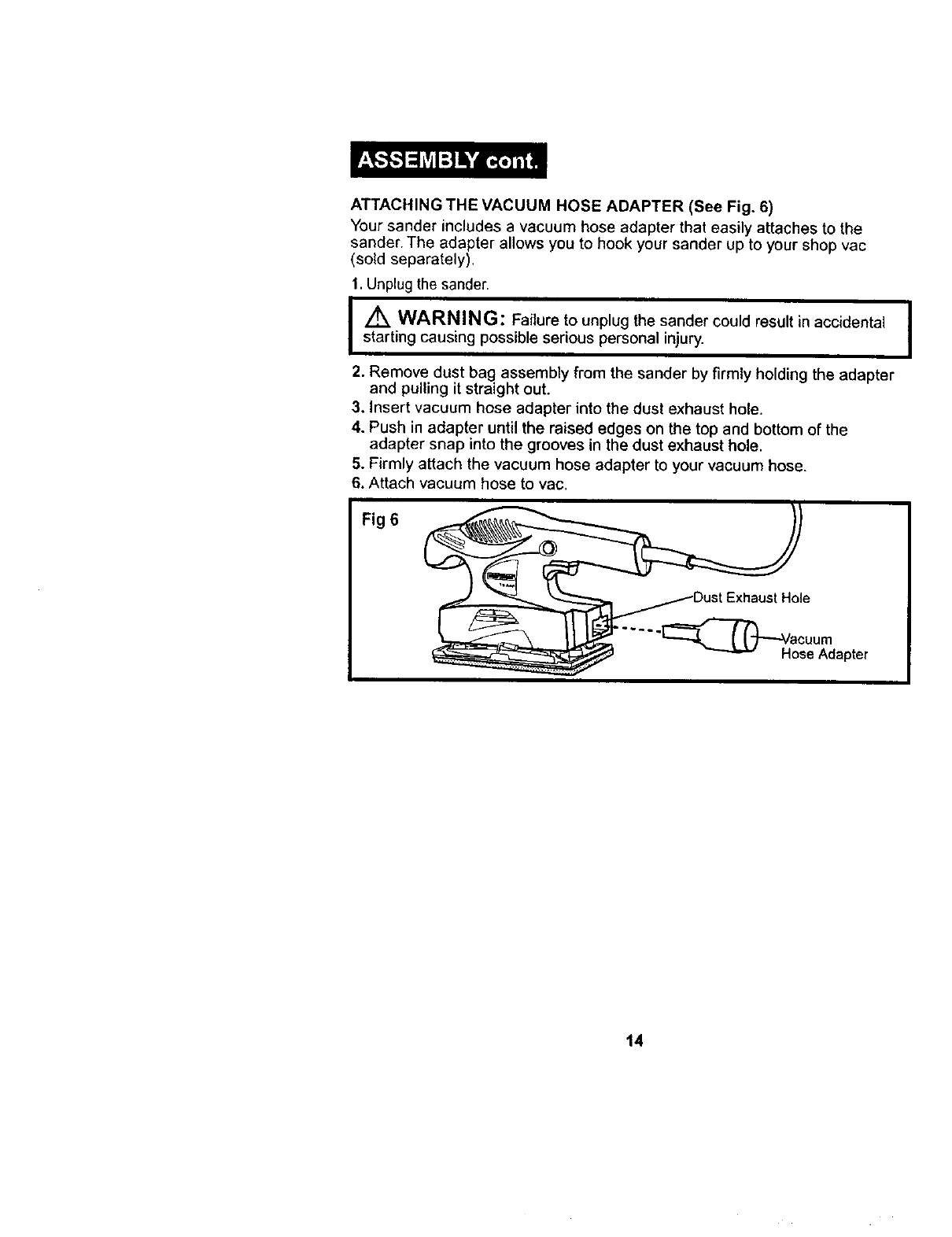

ATTACHING THE VACUUM HOSE ADAPTER (See Fig, 6)

Your sander includes a vacuum hose adapter that easily attaches to the

sander. The adapter allows you to hook your sander up to your shop vac

(sold separately),

I. Unplug the sander.

I/_ WARNING: Failure to unplug the sander could result in accidental Istarting causing possible serious personal injury.

2. Remove dust bag assembly from the sander by firmly holding the adapter

and pulling it straight out.

3. Insert vacuum hose adapter into the dust exhaust hole.

4. Push in adapter until the raised edges on the top and bottom of the

adapter snap into the grooves in the dust exhaust hole.

5. Firmly attach the vacuum hose adapter to your vacuum hose.

6. Attach vacuum hose to vac.

Fig 6

Dust Exhaust Hole

""" acuum

e Adapter

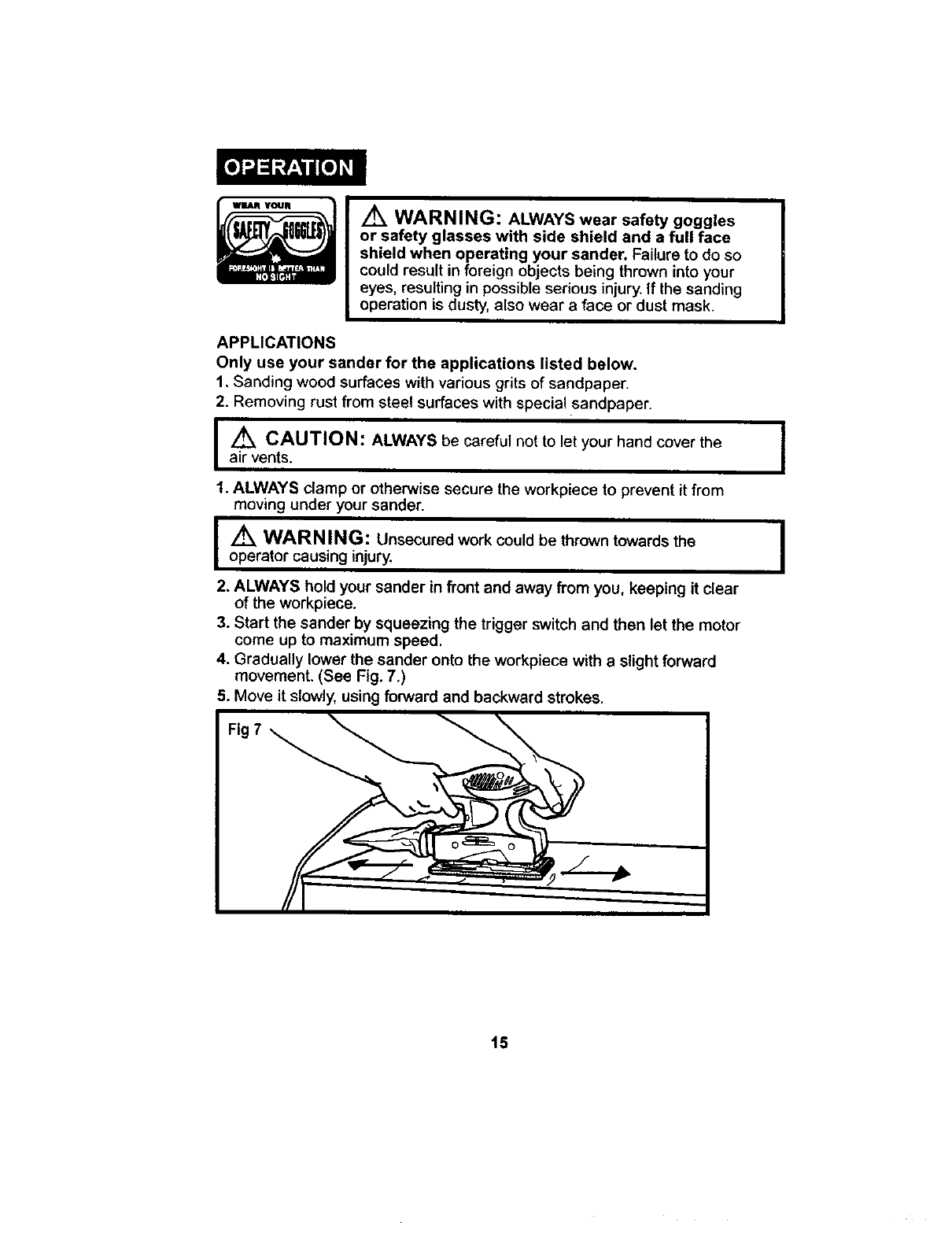

Z_ WARNING: ALWAYS wear safety goggles

or safety glasses with side shield and a full face

shield when operating your sander. Failure to do so

could result in foreign objects being thrown into your

eyes, resulting in possible serious injury.If the sanding

operation is dusty, also wear a face or dust mask.

APPLICATIONS

Only use your sander for the applications listed below.

1, Sanding wood surfaces with various grits of sandpaper,

2. Removing rust from steel surfaces with special sandpaper.

Z_ CAUTION: ALWAYS be careful not to let your hand cover the

air vents.

1. ALWAYS clamp or otherwise secure the workpiece to prevent it from

moving under your sander.

I Z_ WARNING: Unsecured work could be thrown towards the

operator causing injury.

2. ALWAYS hold your sander in front and away from you, keeping it clear

of the workpiece.

3. Start the sander by squeezing the trigger switch and then let the motor

come up to maximum speed.

4. Gradually lower the sander onto the workpiece with a slight forward

movement. (See Fig. 7.)

5. Move it slowly, using forward and backward strokes.

SANDING TIPS

1. DO NOT force the sander. The weight of the sander supplies adequate

pressure. Let the sander and the sandpaper do the work.

A. Applying additional pressure will only slow the motor, wear the

sandpaper out faster and reduce sander speed.

B. Excessive pressure will overload the motor and cause possible damage

to the sander from the motor overheating.

C. Excessive pressure will also result in inferior work.

2. Any existing finish or resin on wood may soften from the heat of the friction,

3. DO NOT sand in one spot for too long a time because the the sander's

rapid action may remove too much material and make the surface uneven.

SELECTING THE RIGHT SANDPAPER

NOTE:This sander has dust collection, so we recommend that you use

sandpaper with pre-punched holes that will line up with the holes in the cushion.

Selecting the correct grit and type of sandpaper is an extremely important

decision that will allow you to achieve the best quality sanding finish,

1. Aluminum oxide, silicon carbide and other synthetic abrasives are best for

power sanding.

2. Natural abrasives such as flint and garnet are too soft for economical

use in power sanding.

3. Coarse grit will remove the most material and finer grit will give you the

best finish in all sanding operations.

4. The condition of the surface to be sanded will determine which grit will

do the job.

5. If the surface is rough:

A, Start with a coarse grit and sand until the surface is uniform.

B, Then use medium to remove any scratches left by the coarse grit.

C. Then use a finer grit for finishing the surface.

NOTE: ALWAYS continue sanding with each grit until the surface is uniform,

NOTE: DO NOT use the sander without sandpaper.

This will damage the cushion.

IZ_ WARNING: DO NOT wear loose clothing or jewelry when operating I

sander, They could get caught in moving parts, causing serious injury. I

Keep head away from sander and sanding area. Hair could be drawn into

sander, causing serious injury.

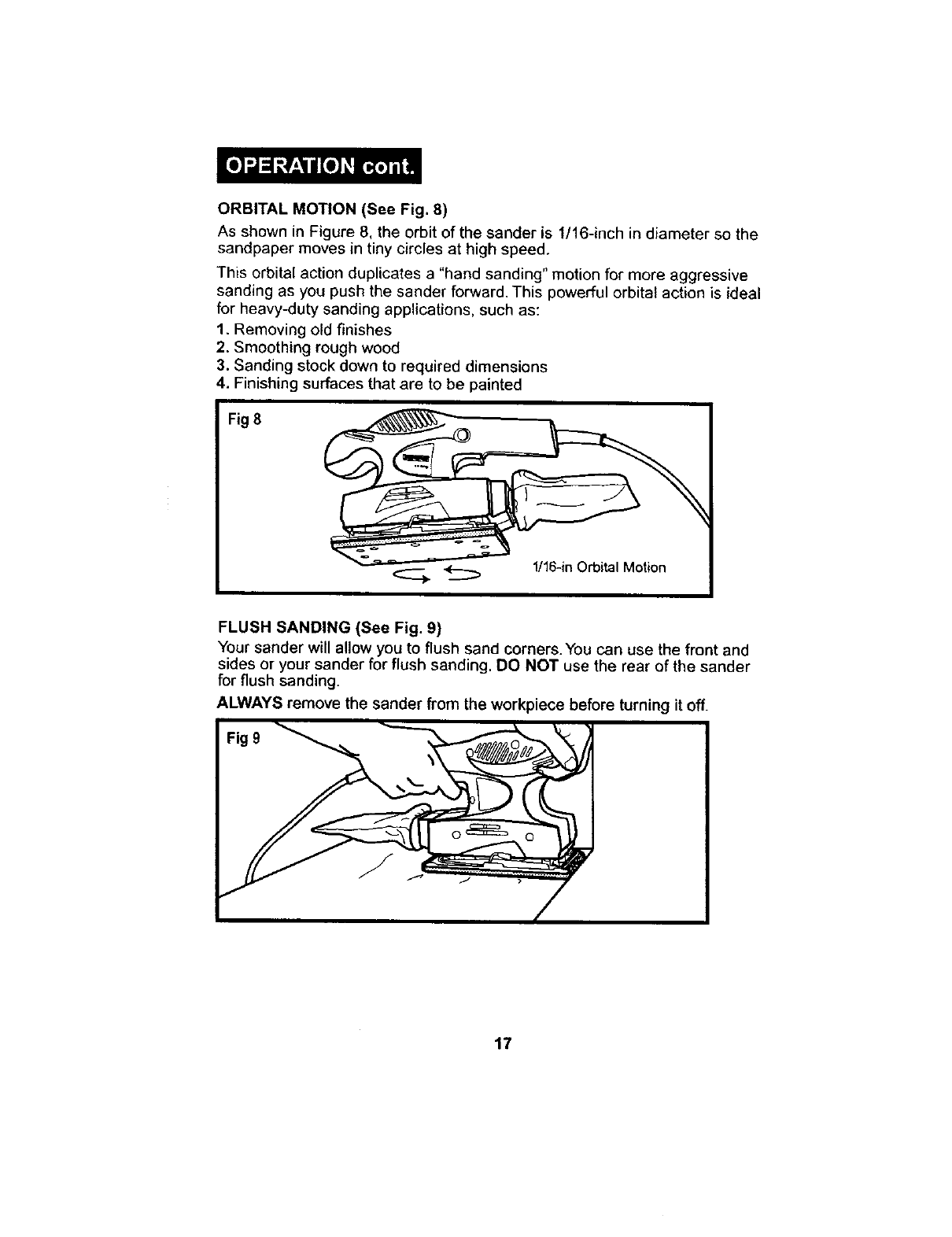

ORBITAL MOTION (See Fig. 8)

As shown in Figure 8, the orbit of the sander is 1/16-inch in diameter so the

sandpaper moves in tiny circles at high speed.

This orbital action duplicates a "hand sanding" motion for more aggressive

sanding as you push the sander forward. This powerful orbital action is ideal

for heavy-duty sanding applications, such as:

1. Removing old finishes

2. Smoothing rough wood

3. Sanding stock down to required dimensions

4. Finishing surfaces that are to be painted

FLUSH SANDING (See Fig. 9)

Your sander will allow you to flush sand corners. You can use the front and

sides or your sander for flush sanding. DO NOT use the rear of the sander

for flush sanding.

ALWAYS remove the sander from the workpiece before turning it off.

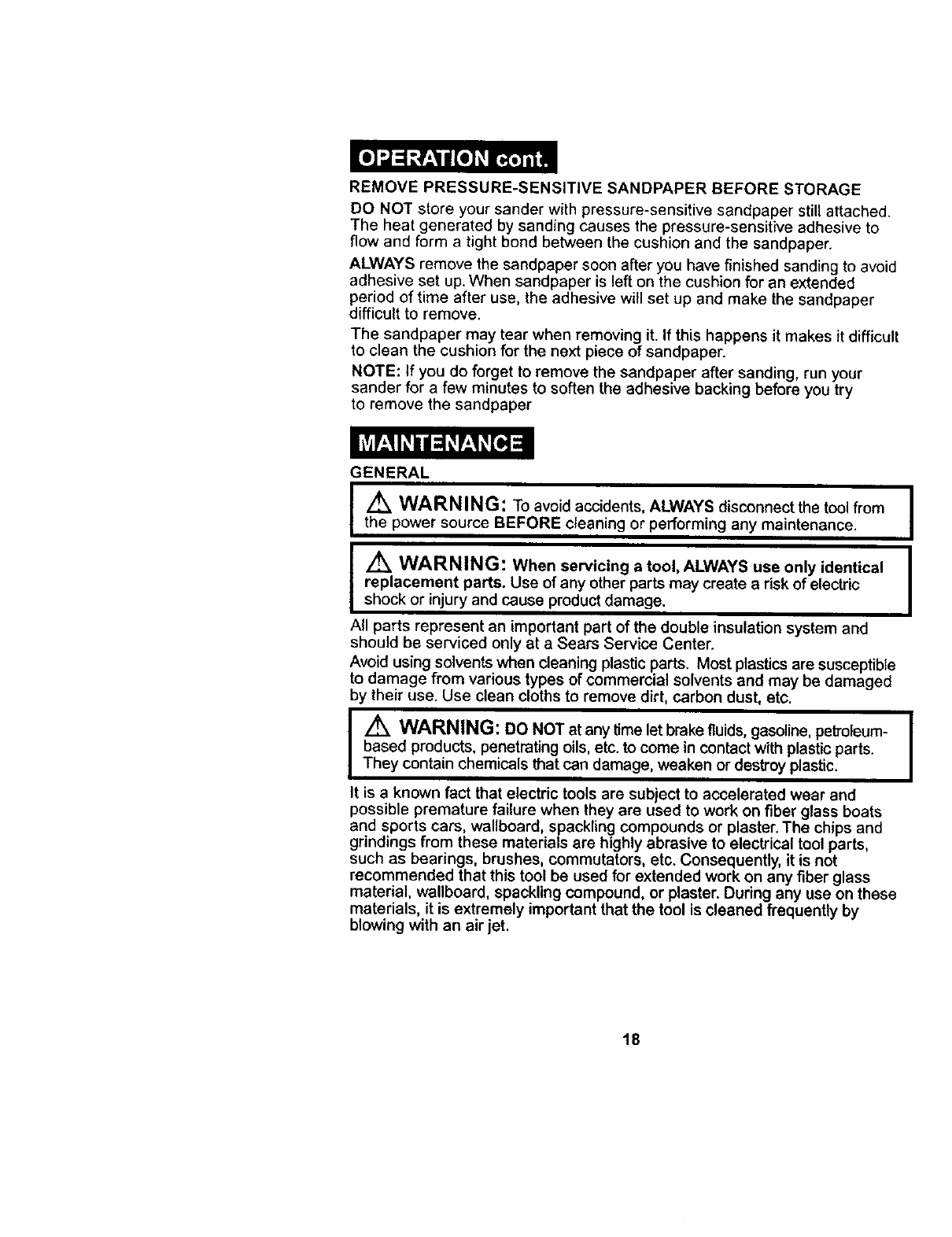

REMOVE PRESSURE-SENSITIVE SANDPAPER BEFORE STORAGE

DO NOT store your sander with pressure-sensitive sandpaper still attached.

The heat generated by sanding causes the pressure-sensitive adhesive to

flow and form a tight bond between the cushion and the sandpaper.

ALWAYS remove the sandpaper soon after you have finished sanding to avoid

adhesive set up. When sandpaper is left on the cushion for an extended

period of time after use, the adhesive will set up and make the sandpaper

difficult to remove.

The sandpaper may tear when removing it. If this happens it makes it difficult

to clean the cushion for the next piece of sandpaper,

NOTE: If you do forget to remove the sandpaper after sanding, run your

sander for a few minutes to soften the adhesive backing before you try

to remove the sandpaper

GENERAL

Z_, WARNIN G: To avoid accidents, ALWAYS disconnect the tool from

the power source BEFORE cleaning or performing any maintenance.

IZ_ WARNING: When servicing a tool, ALWAYS use only identical

replacement parts. Use of any other parts may create arisk of electric

shock or injury and cause product damage,

All parts represent an important part of the double insulation system and

should be serviced only at a Sears Service Center.

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible

to damage from various types of commercial solvents and may be damaged

by their use. Use clean cloths to remove dirt, carbon dust, etc.

Z_ WARNING: DO NOT at any time let brake fluids, gasoline, petroleum-

based products, penetrating oils, etc. to come in contact with plastic parts.

They contain chemicals that can damage, weaken or destroy plastic.

It is a known fact that electric tools are subject to accelerated wear and

possible premature failure when they are used to work on fiber glass boats

and sports cars, wallboard, spackling compounds or plaster. The chips and

grindings from these materials are highly abrasive to electrical tool parts,

such as bearings, brushes, commutators, etc. Consequently, it is not

recommended that this tool be used for extended work on any fiber glass

material, wallboard, spackling compound, or plaster. During any use on these

materials, it is extremely important that the tool is cleaned frequently by

blowing with an air jet.

EXTENSION CORDS

The use of any extension cord will cause some loss of power. To keep the

loss at a minimum and to prevent overheating, use an extension cord that is

heavy enough to carry the current that the tool will draw.

A wire gauge (AWG) of at least 16 is recommended for an extension cord

100 feet or less in length. When working outdoors ALWAYS use an extension

cord that is suitable for outdoor use. The cord's jacket will be marked WA.

Z_ CAUTION: Keep extension cords away from the cutting area, and

position the cord so it will not get caught on lumber, tools, etc. during the

cutting operation.

Z_ WARNING: Check extension cords before each use. If damaged,

replace it immediately. NEVER use a tool with a damaged cord because

touching the damaged area could cause electrical shock, resulting in

serious injury.

Extension cords that are suitablefor use with yoursander are availableat

'ournearest Sears Store.

WARNING: ALWAYS wear safety goggles or safety glasses with

side shields when using this tool or blowing dust, If operation is dusty,

also wear a dust mask,

LUBRICATION

All of the bearings in this tool are lubricated with a sufficient amount of

high-grade lubricant for the life of the tool under normal operating conditions.

Therefore, no further lubrication is required.

The following recommended accessories are currently available at your

local Sears Store.

NON-LOADING ALUMINUM OXIDE ADHESIVE BACKED

SANDING SHEETS ( 3213 in. x 7 tl8 in.)

Extra Fine, Fine, Medium, Coarse

ALUMINUM OXIDE SANDING SHEETS ( 3213 in, x 9 In.)

Fine, Medium, Coarse

IZ_ WARNING: The use of attachments or accessories that are

not recommended might be dangerous. I

1/3 PAD SANDER- MODEL NUMBER 172.11625

The Model Number will be found on the Nameplate.

Always mention the Model Number when calling about your tool.

No. Part No. Description Quantity

SA16.0,00.4-00

STA50.04.02-00

SW50.01.0-00

ST05.03.02-00

STA51.04.00-00

SA16,0.01,2-00

SW50.10.0-00

SA16.2.05-00

SA16.0.04-00

SA16.0.03-00

SAt6.0,05-00

SA16.3.04-00

SW50.12.0-00

SA16,3.05-00

SW59.41.0-00

SA16.4.00-00

SW60.79.0-00

SW60.02.0-00

SW56.16.0-0

SW02.34-00

SA16.0.01.2-00

SW55.58.0-00

SW55.37.0-00

ST08.01.07-00

ST05.01.03-00

SW01.31.25-00

SA16.E04-00

SA16,F,06-00

PCB Assembly

Stator

Ball Bearing

Rubber Bar

Rotator

Left Housing

Ball Bearing

Fan

Foam Ring

Foot

Clamp

Sanding Pad

Ball Bearing

Balance Block

Nut

Gasket Assembly

Washer

Screw

Switch

Right Housing

Screw

Cord Clamp

Cord Protector

Plug & Cord

Dust Ba9 Support

Dust Bag

SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS

+:,:+:*:*:

+::+:.:,:

i,_i_!ii'i

"iiii!i!i!i!iiiii_i,_,

....... %iiiiiii i!i iliiiiiiiiii!i!i!ii

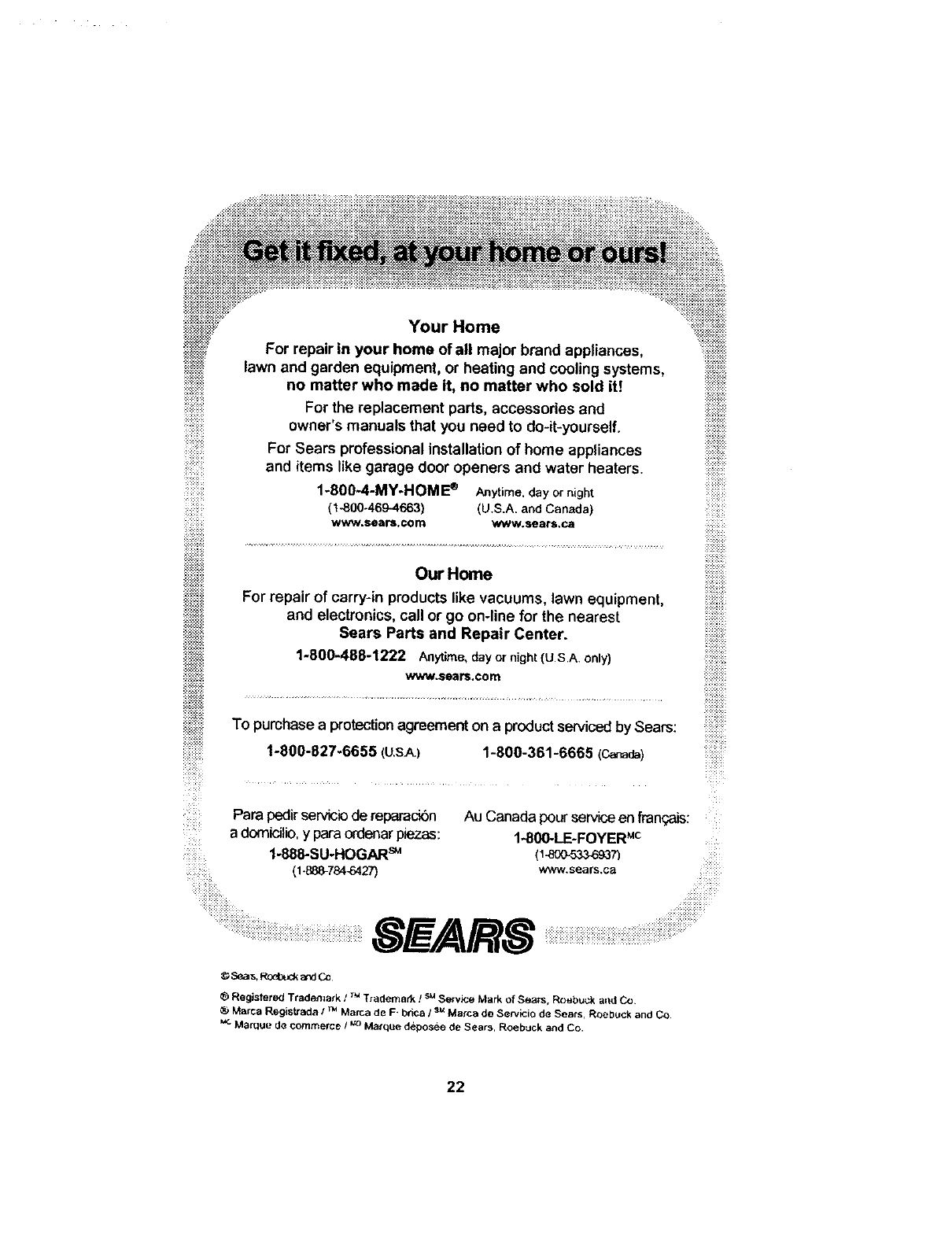

Your Home

For repair in your home of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®Anytime, day or night

(1-800o469-4663) (U.S.A. and Canada)

www,sears,com www.sears,ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800.,488-1222 Anytime, dayor nigh_ (U.S.A. only)

www.sears.com

To purchase a protection agreement on a product servicedby Sears:

1-800-827-6655 (U.S._.) 1-800-361-6665 (C,ar_da)

Para pedir servicio de reparacibn

a domicilio, y paraordanar p}ezas:

1-888-SU-HOGARsu

(1.888-784-6427)

i:iiiiiiiil

::::::

i!iiiii!ili

Au Canada pour service en franqais:

1-800-LE-FOYER_c

(1-800-533-6937) :iiii;i

www, sears.ca

Registered Trademark /TM T_ademad{ ]su Service Mark of Sears, Roebuck a_d Co

@Marca Registrada ,' TM Marca de F. bd_:a/s_ Marca de Servicio de Sears. Roebuck and Co

MarQue de commerce !_o Ma_que deposee de Sears, Roebuck and Co.

Craftsman 17211625 User Manual SANDER Manuals And Guides L0408145

CRAFTSMAN Sander Manual L0408145 CRAFTSMAN Sander Owner's Manual, CRAFTSMAN Sander installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
