YaRD-MaN.)//

Operator's Manual

Riding Mower

Internal Bagging System

27.5" Cutting Deck

Model 247.270190

Factory No. 13A-328-402

IMPORTANT: Read safety rules and instructions carefully before operating equipment.

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-

covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting

applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have

similar laws, Federal laws apply on federal lands, A spark arrester for the muffler is available through your nearest engine authorized

service dealer or contact the service department, FtO. Box 368022 Cleveland, Ohio 44136-9722,

MTD PRODUCTS INC. P.O. BOX 368022 CLEVELAND, OHIO 44136-9722

PRINTED IN U,S.A. FORM NO, 770-10201A

(11/99)

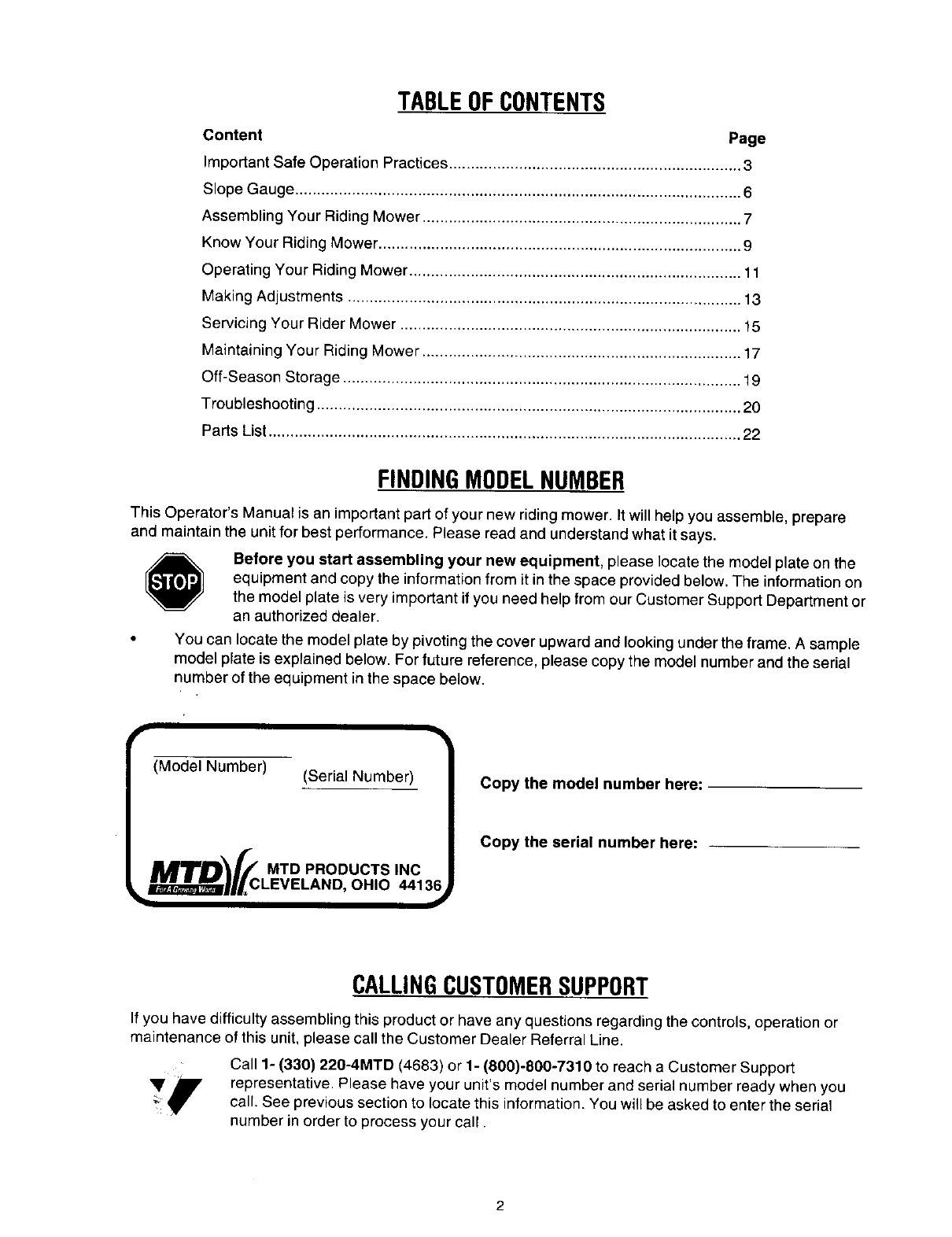

TABLEOFCONTENTS

Content Page

Important Safe Operation Practices ................................................................... 3

Slope Gauge ...................................................................................................... 6

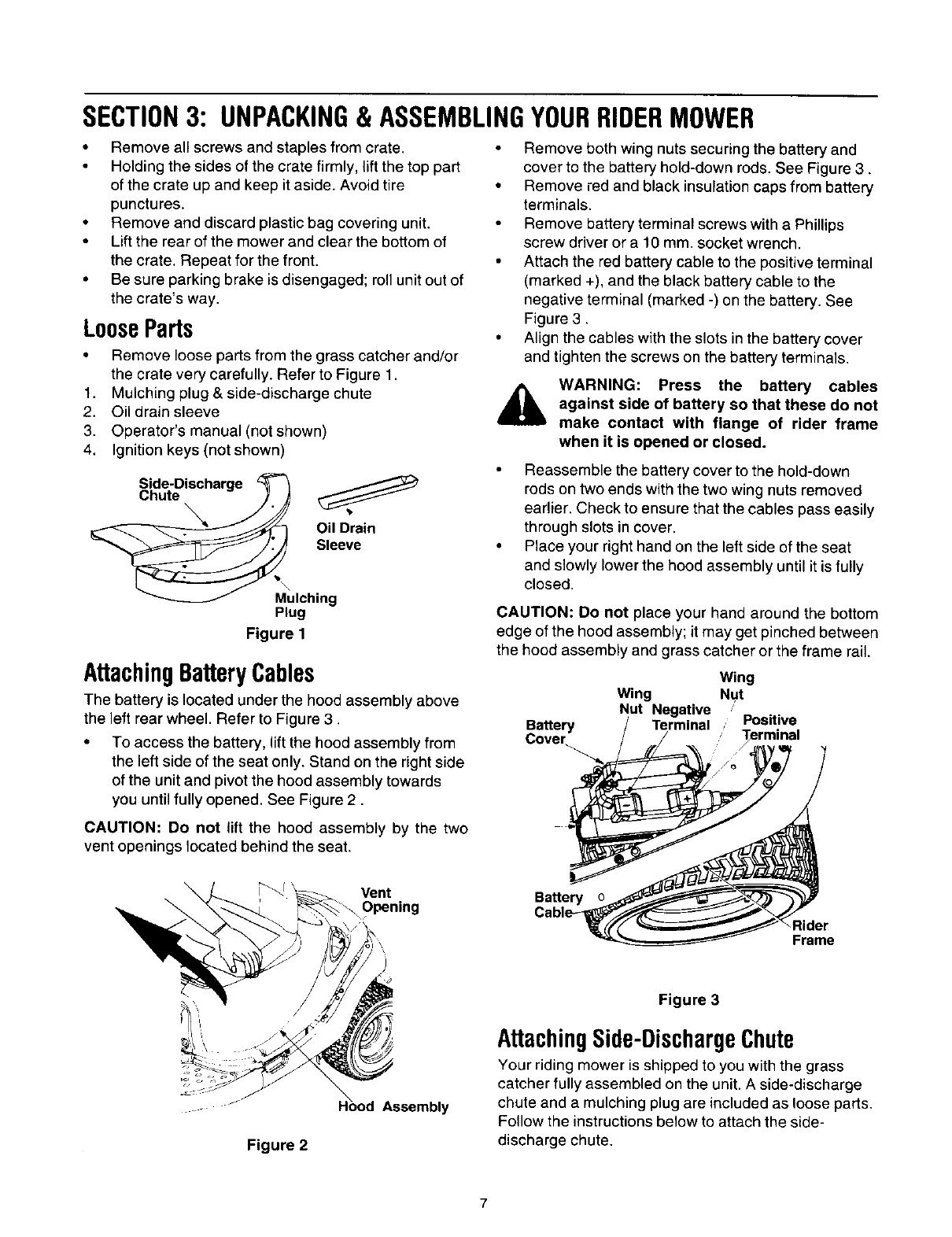

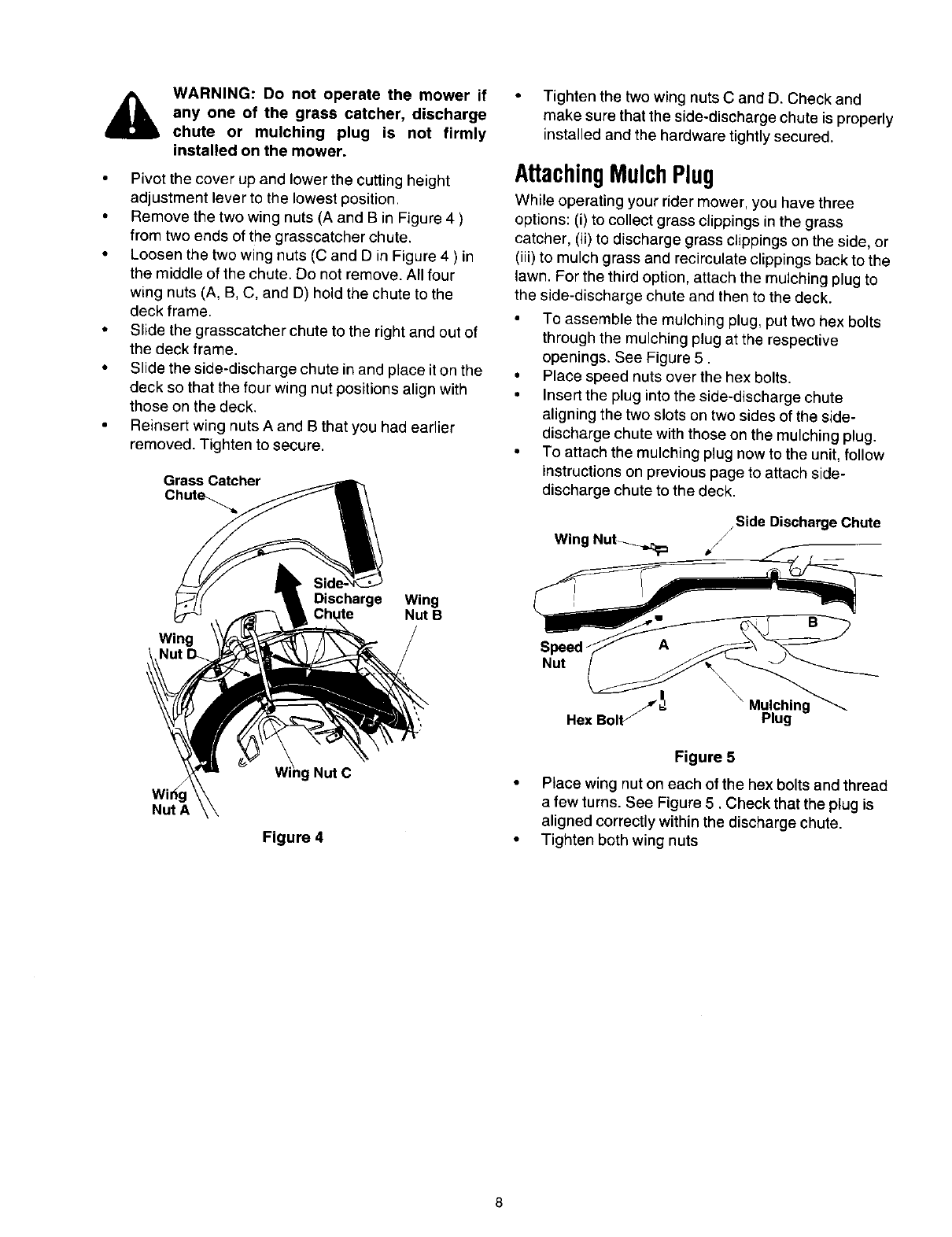

Assembling Your Riding Mower ......................................................................... 7

Know Your Riding Mower ................................................................................... 9

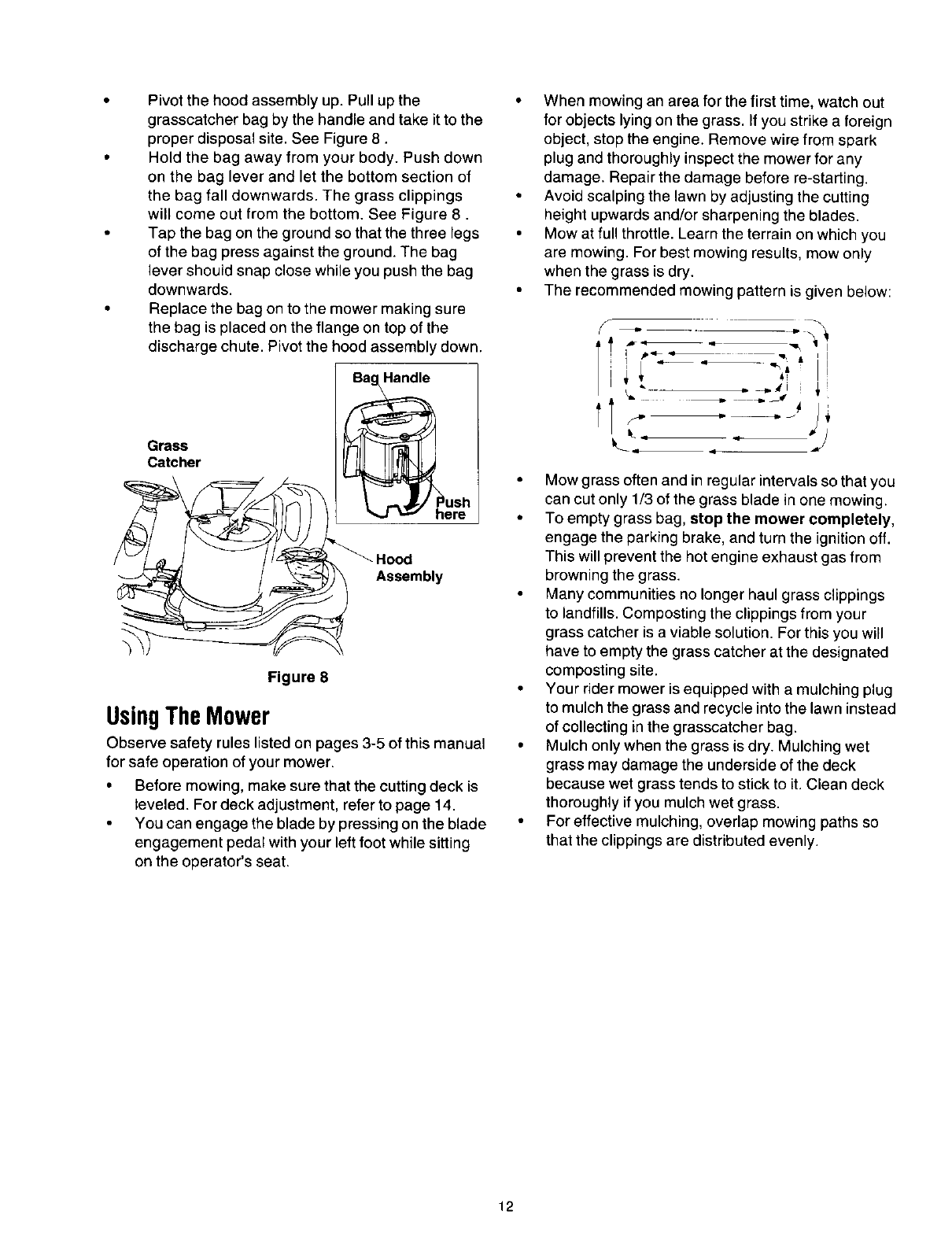

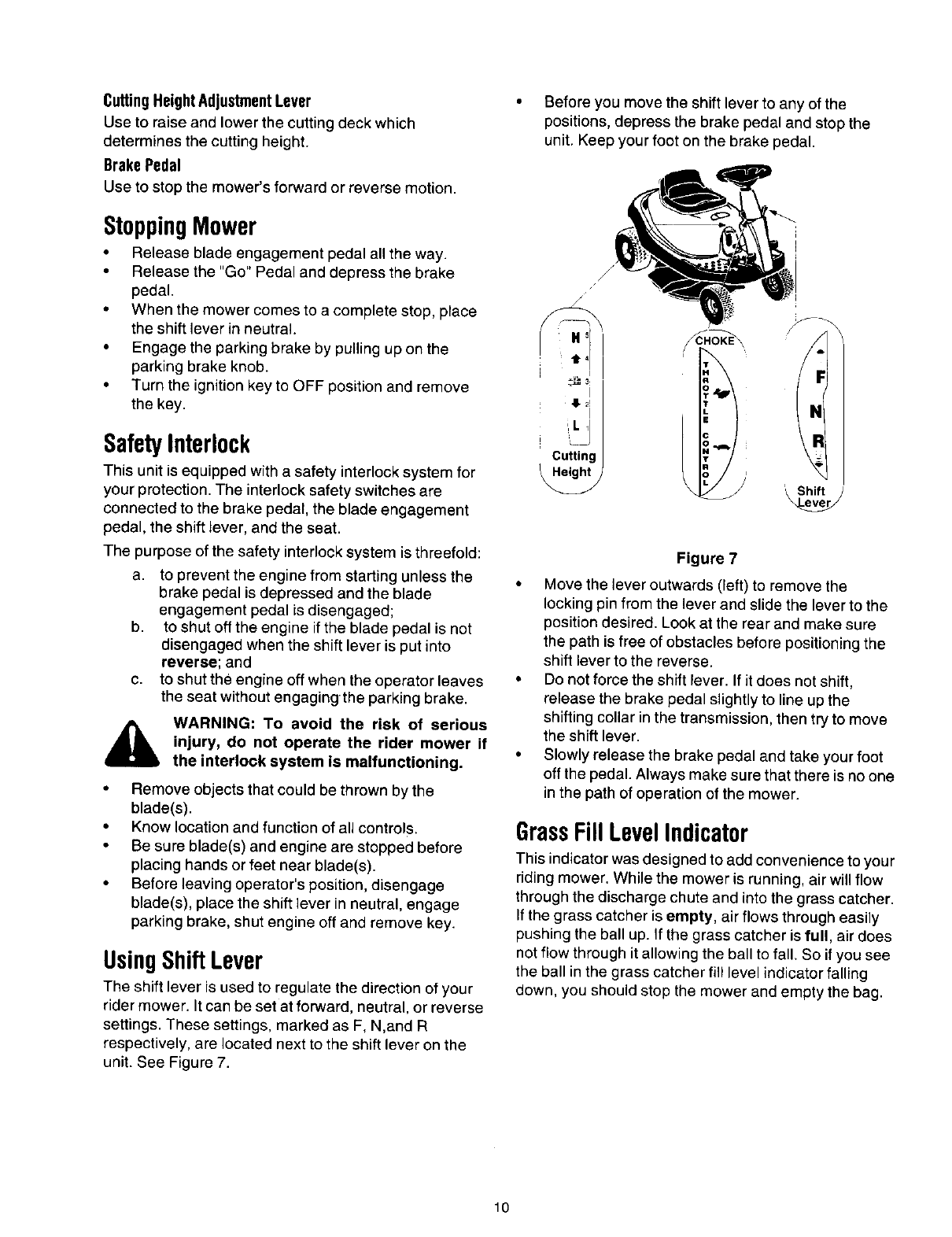

Operating Your Riding Mower ............................................................................ 11

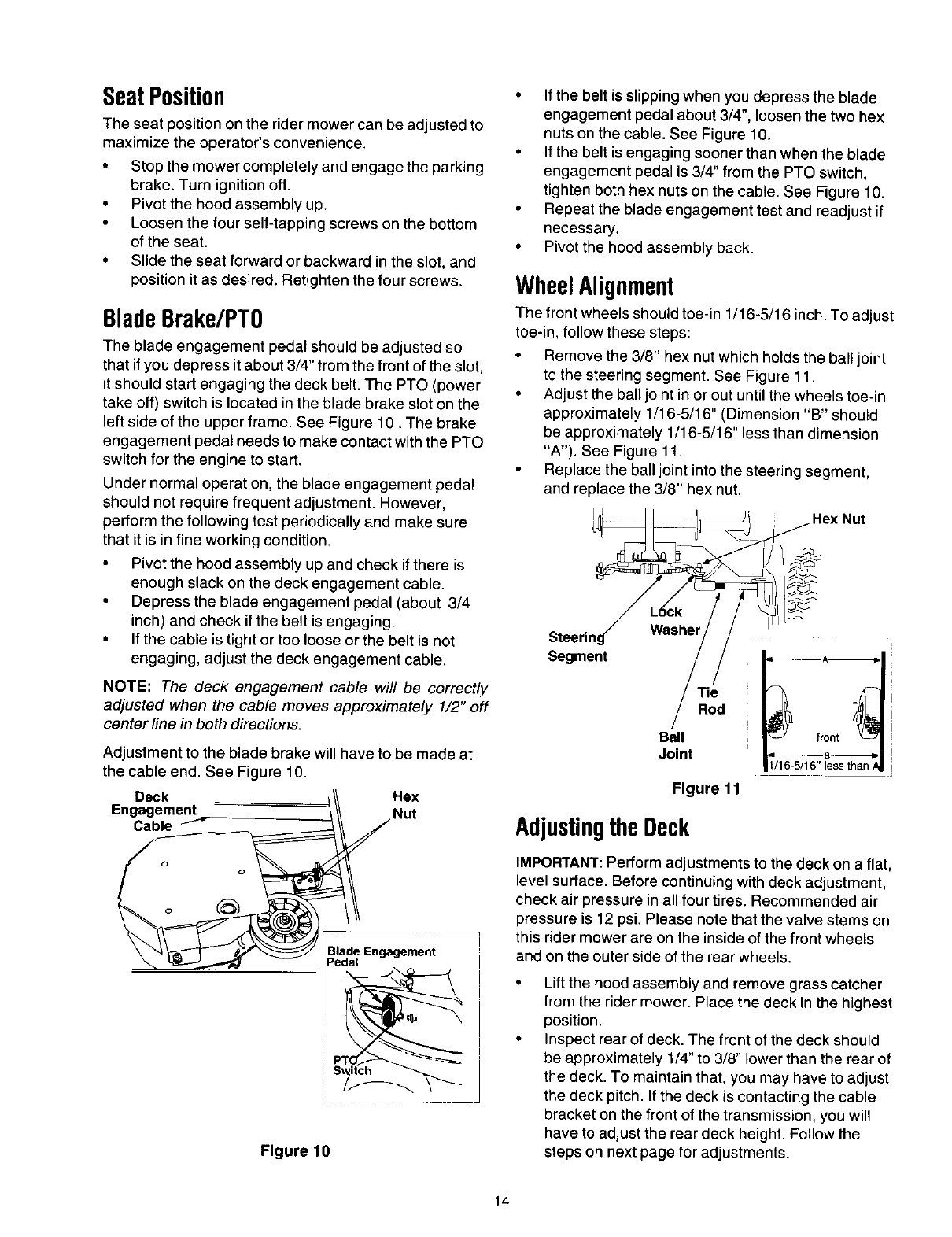

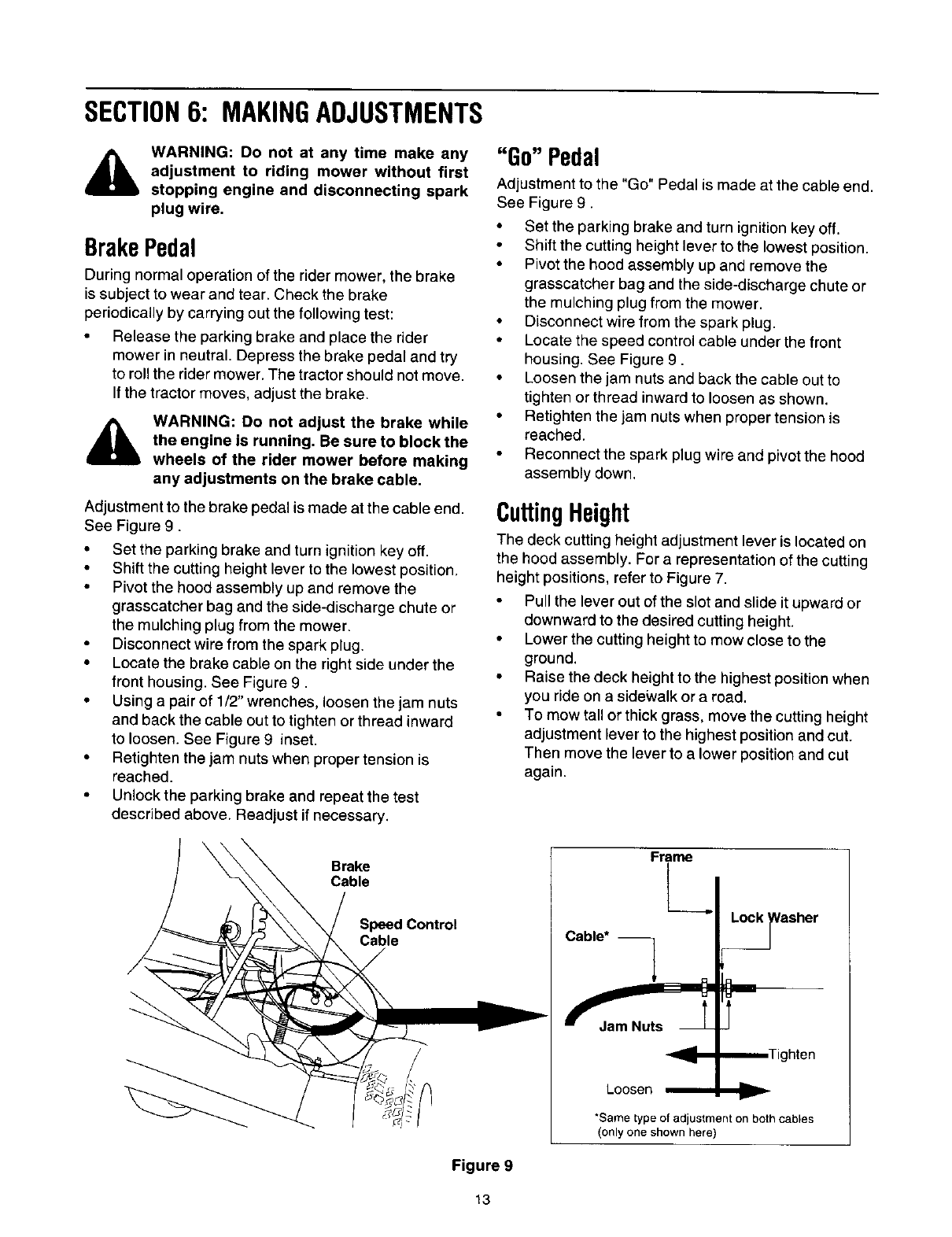

Making Adjustments .......................................................................................... 13

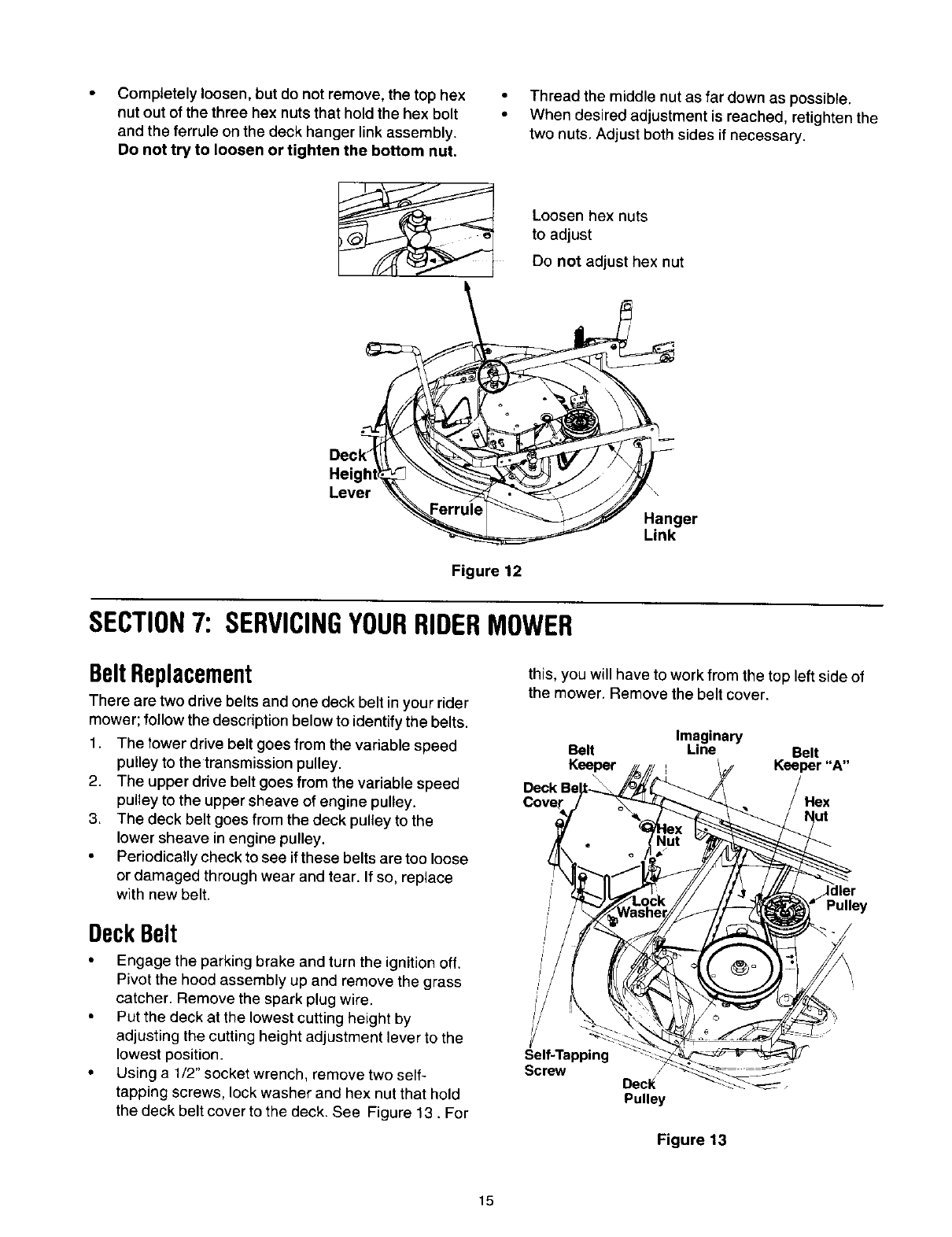

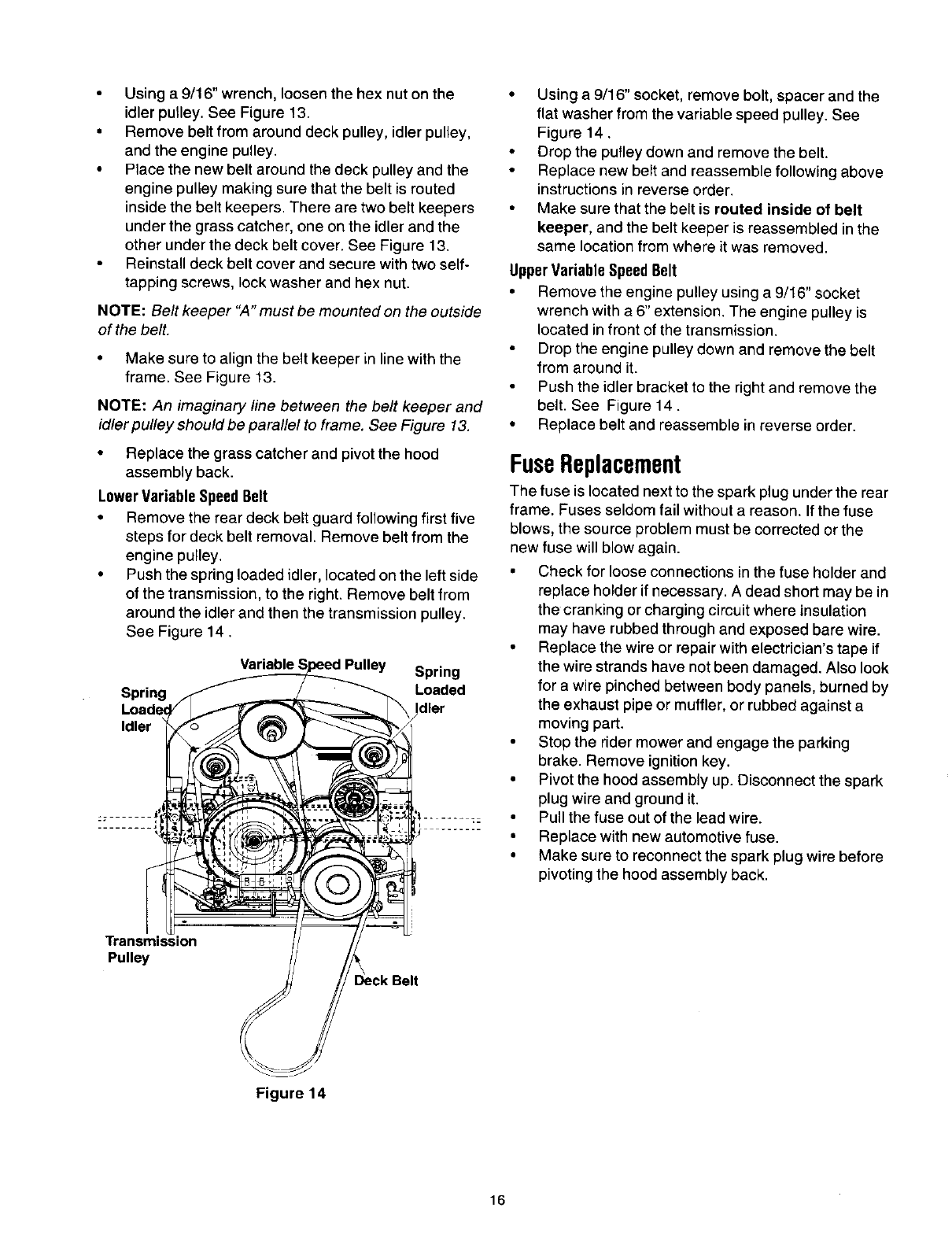

Servicing Your Rider Mower .............................................................................. 15

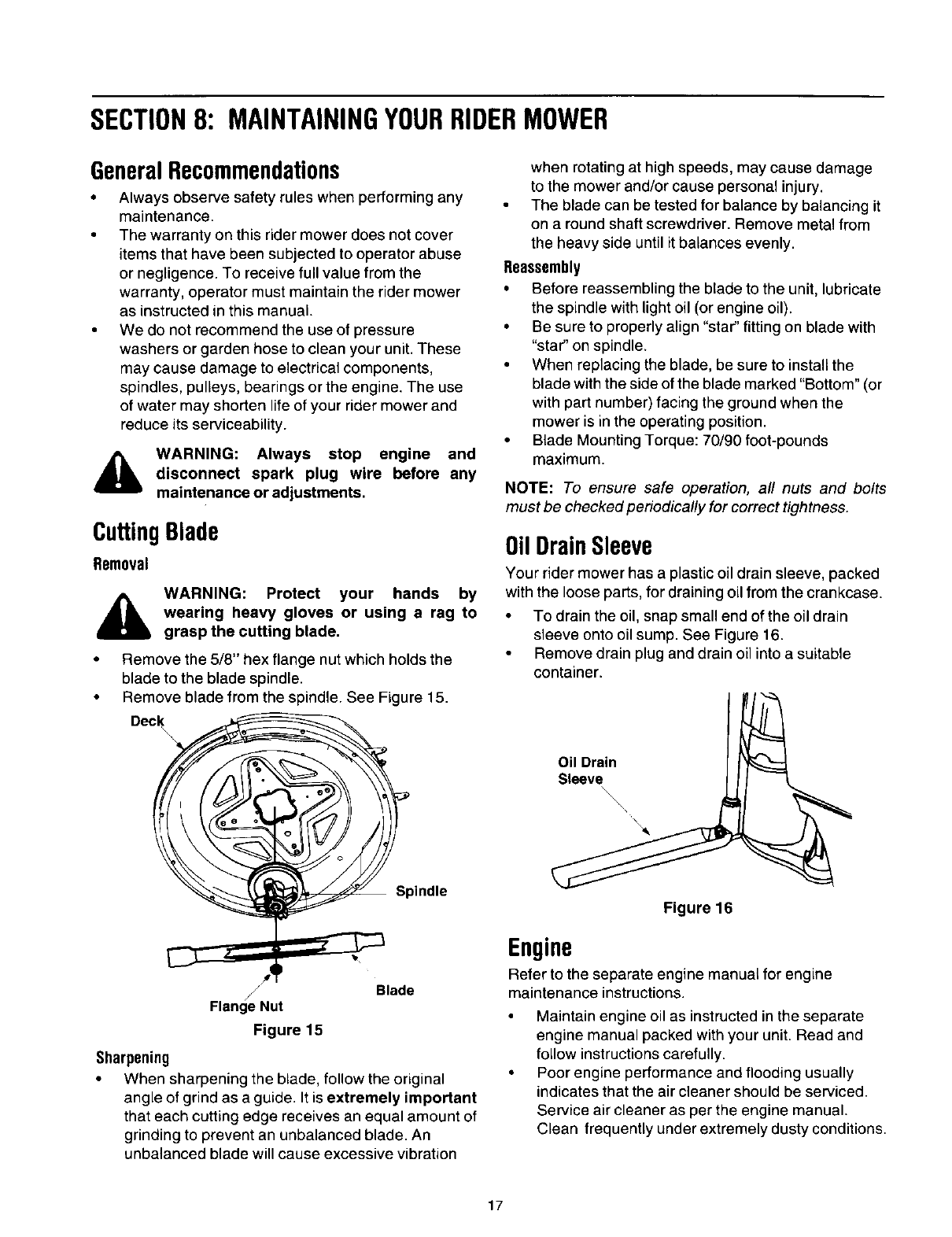

Maintaining Your Riding Mower ......................................................................... 17

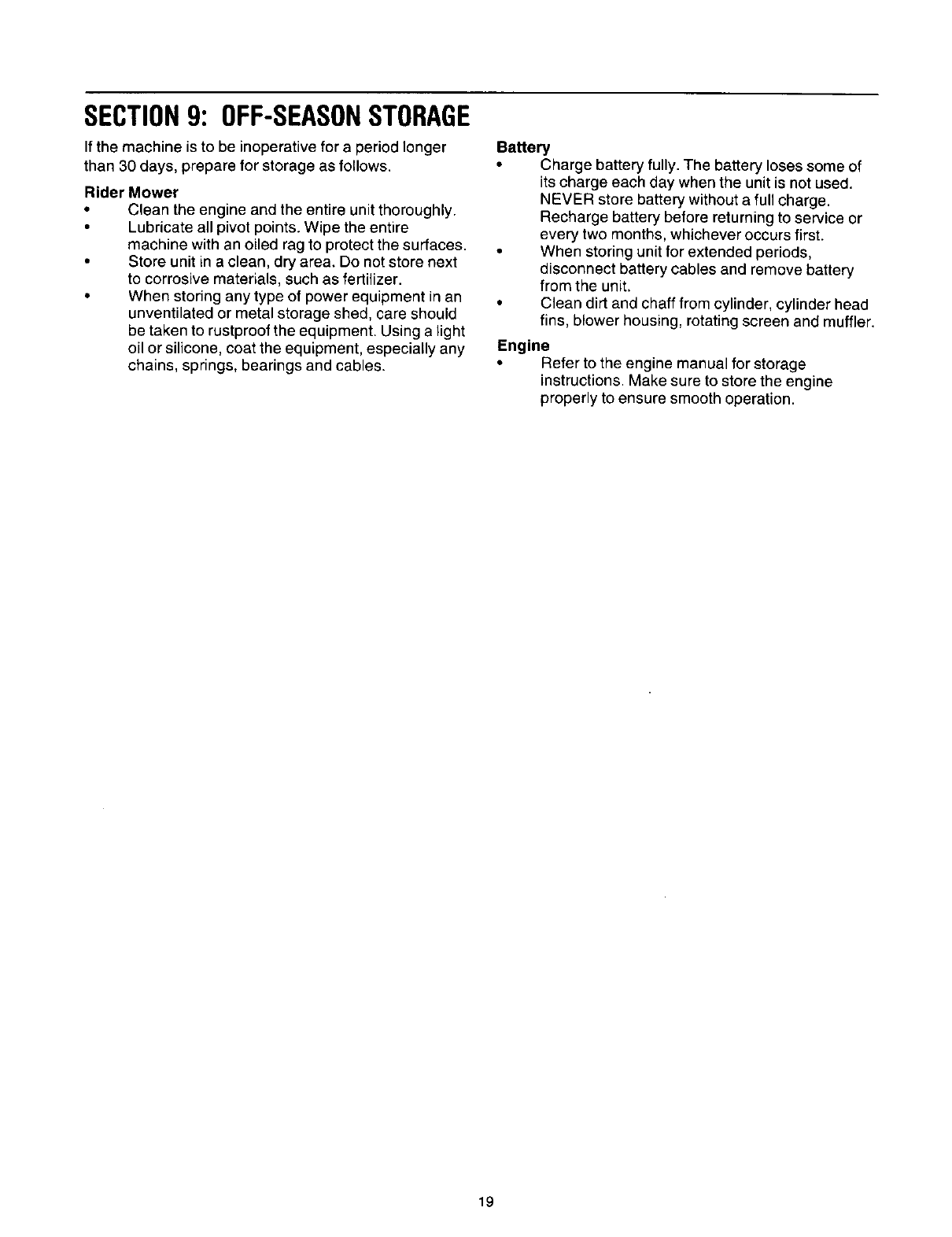

Off-Season Storage ........................................................................................... 19

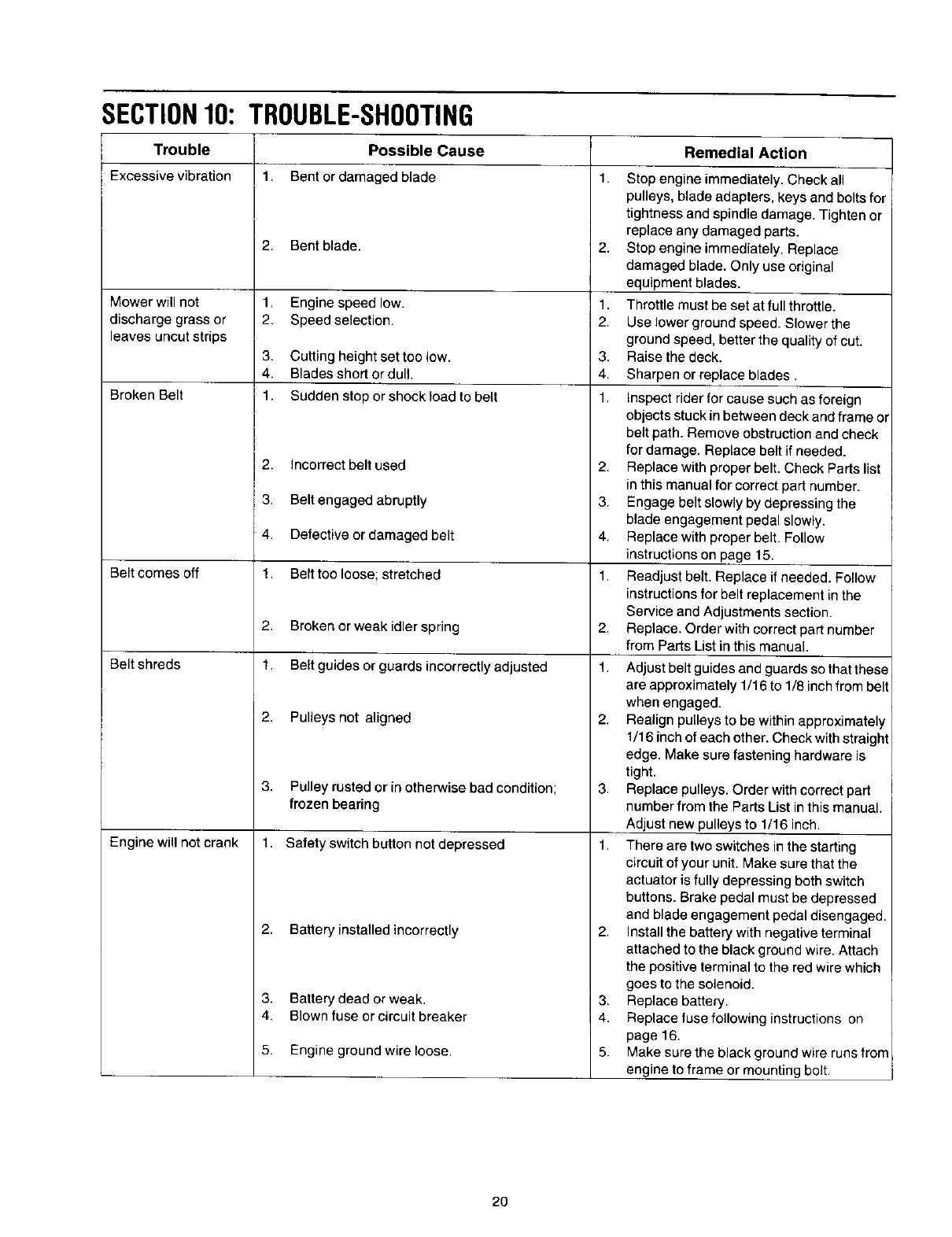

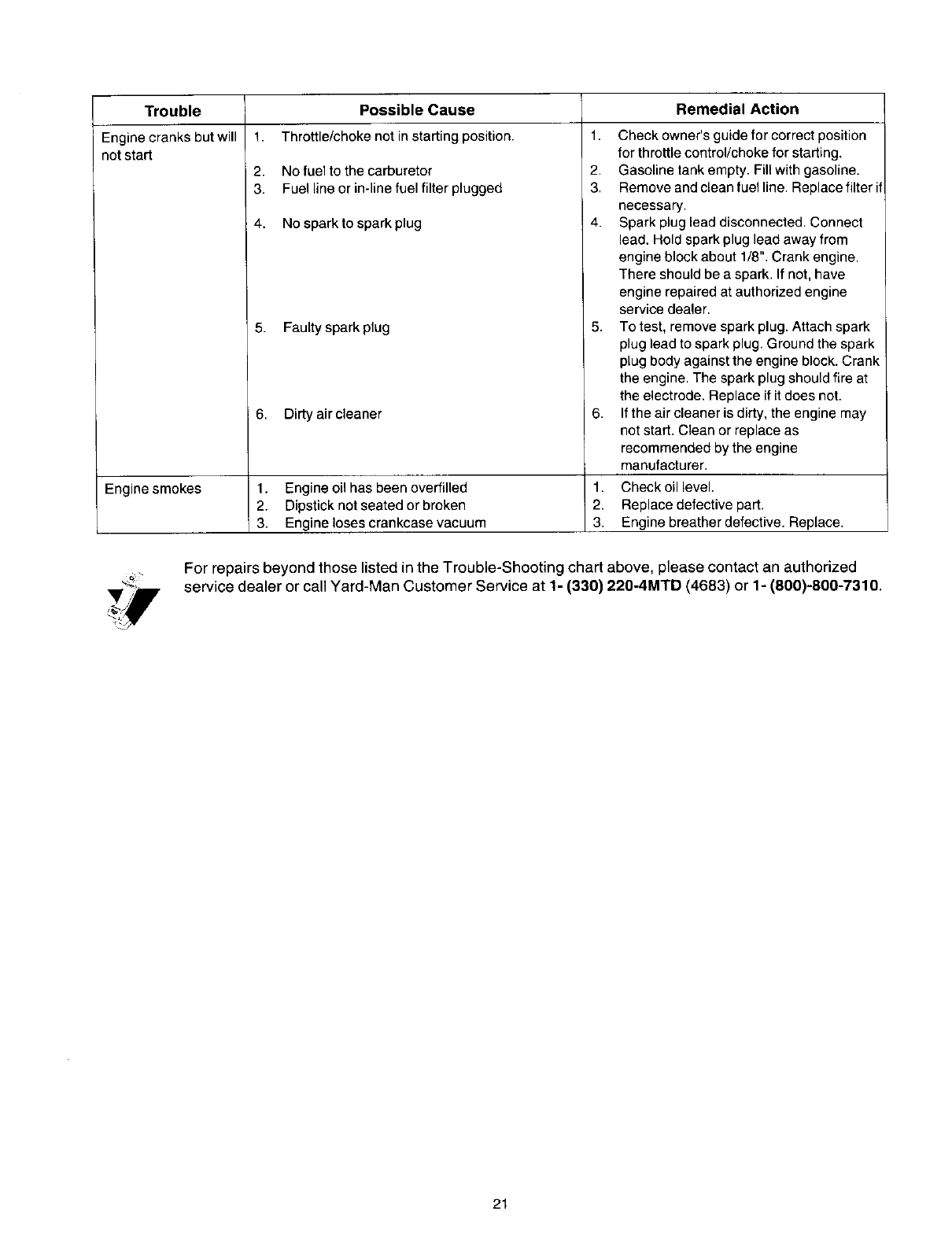

Troubleshooting ................................................................................................. 20

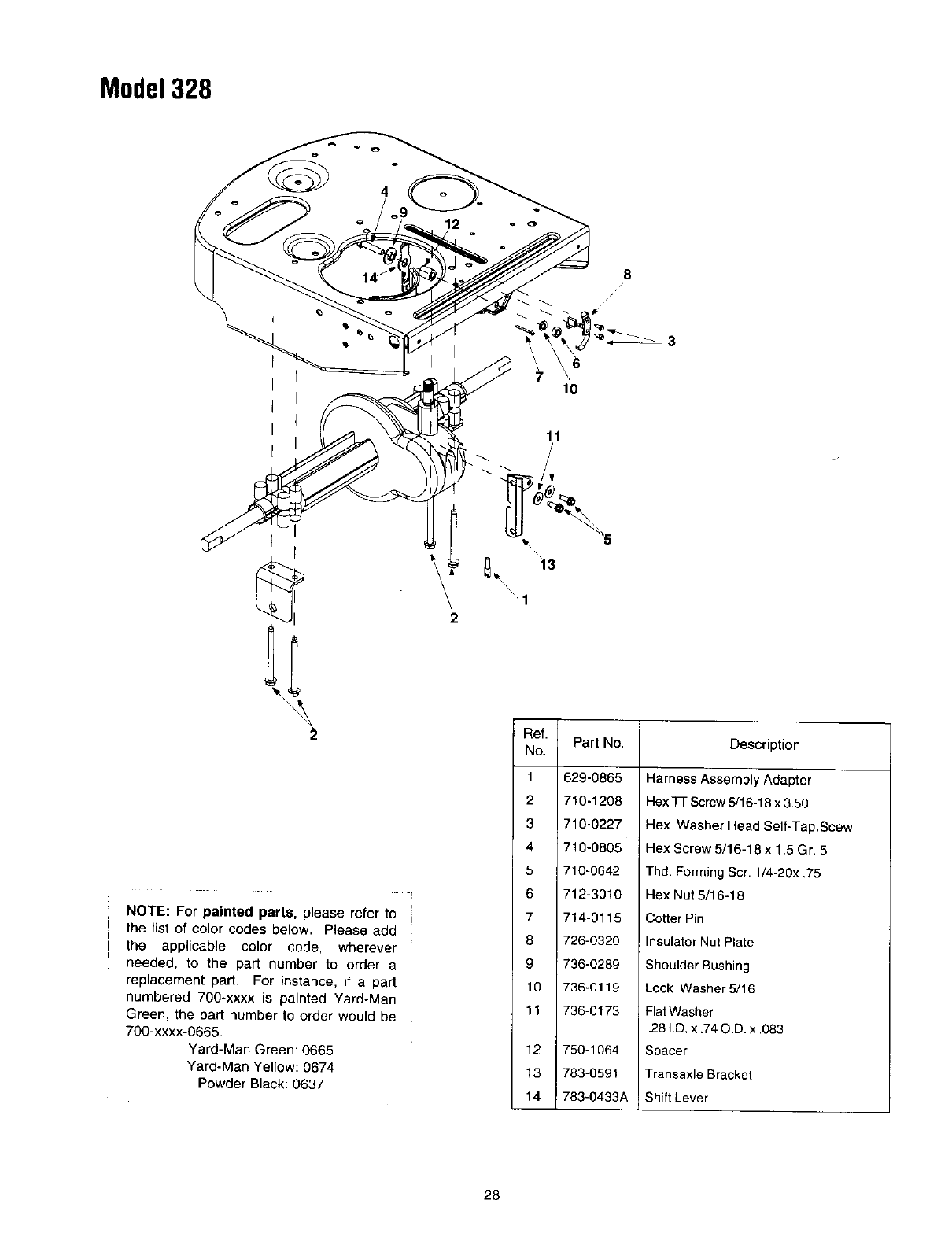

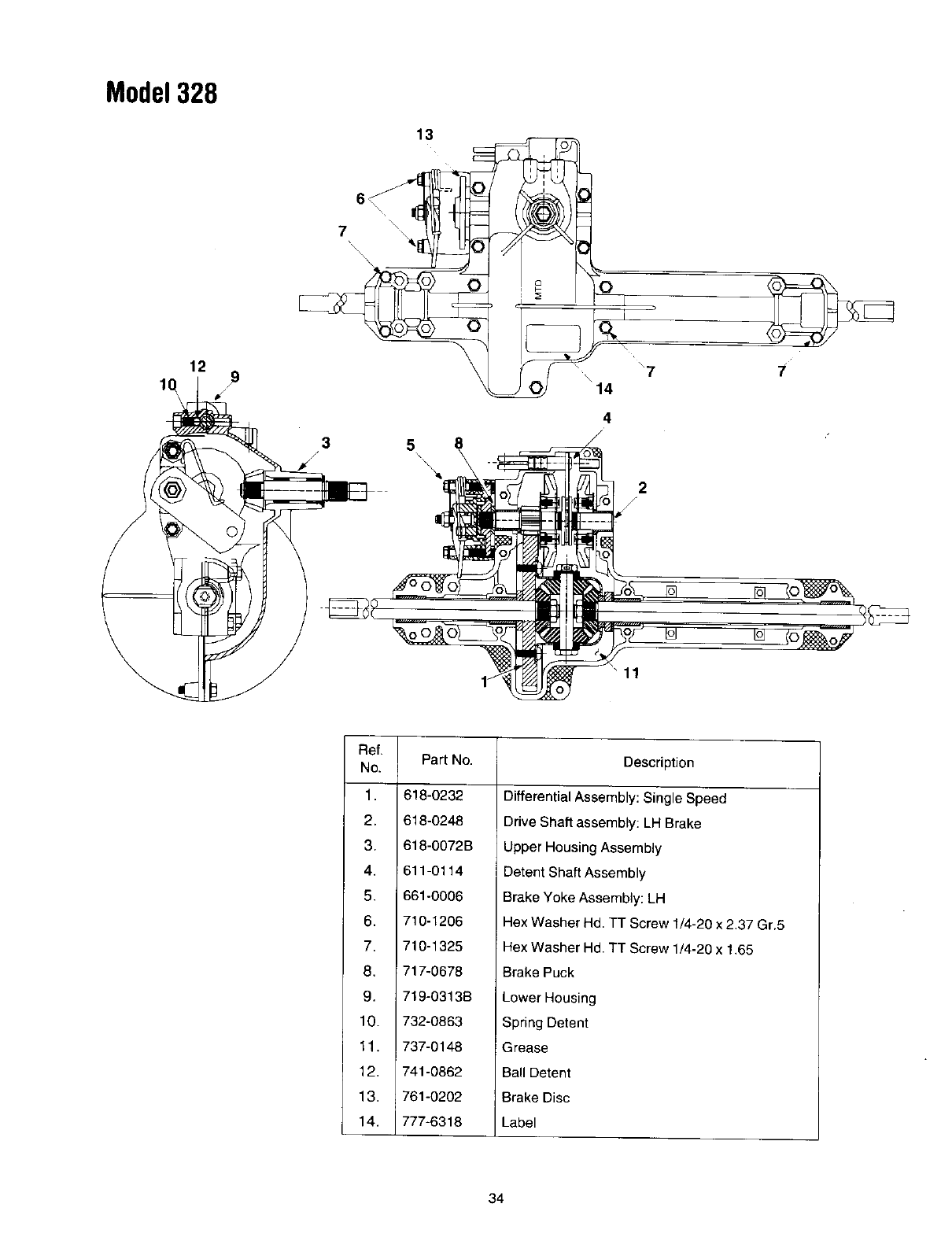

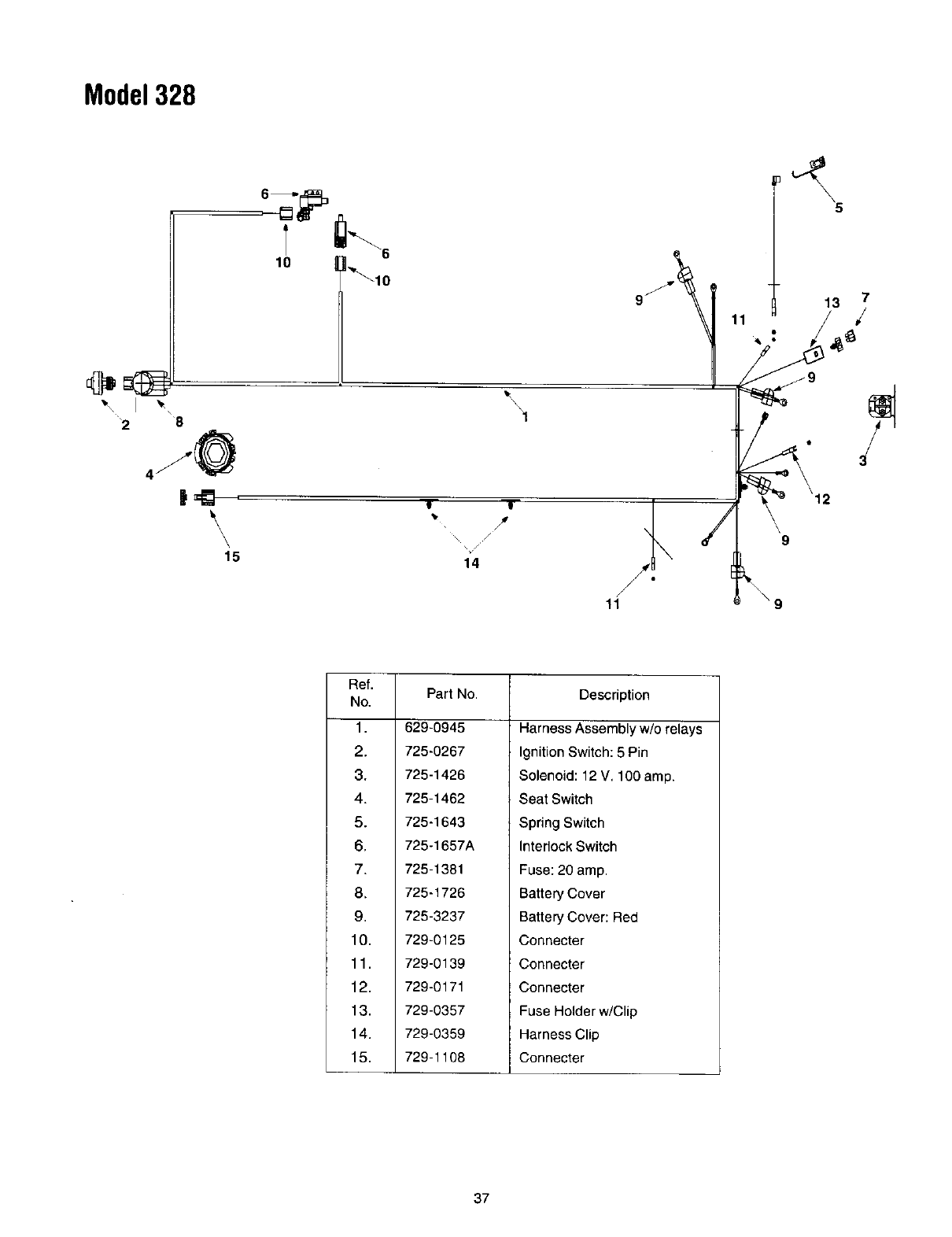

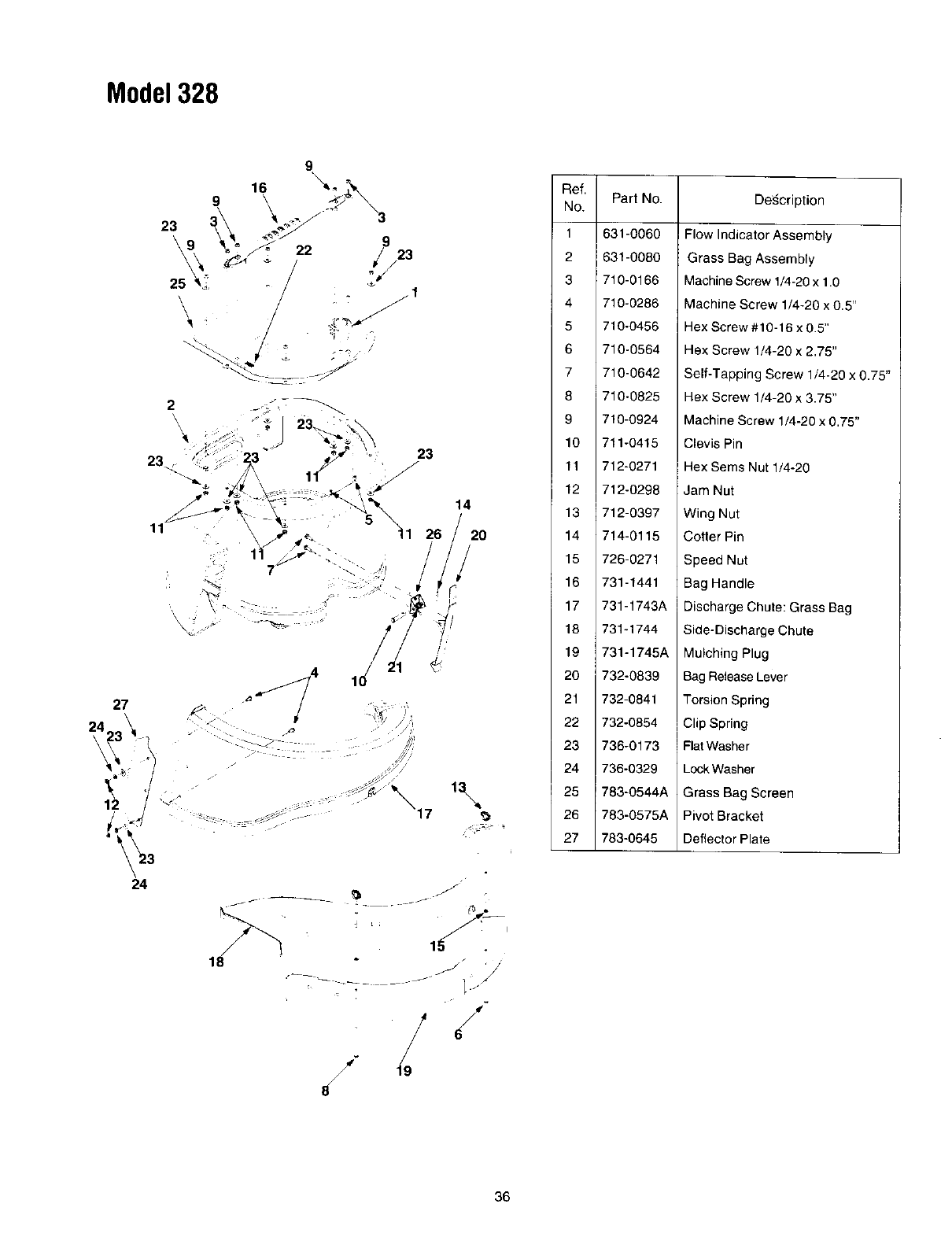

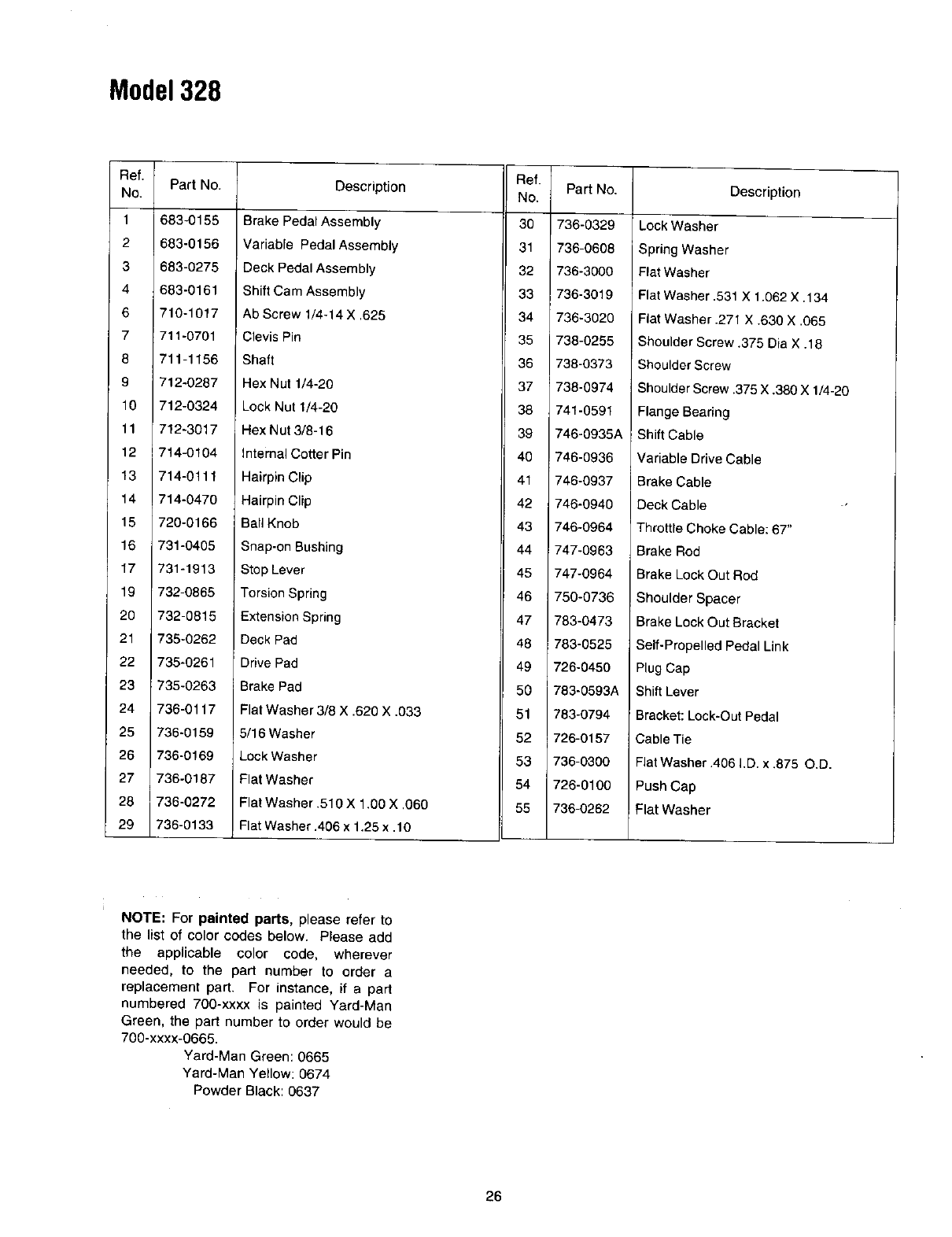

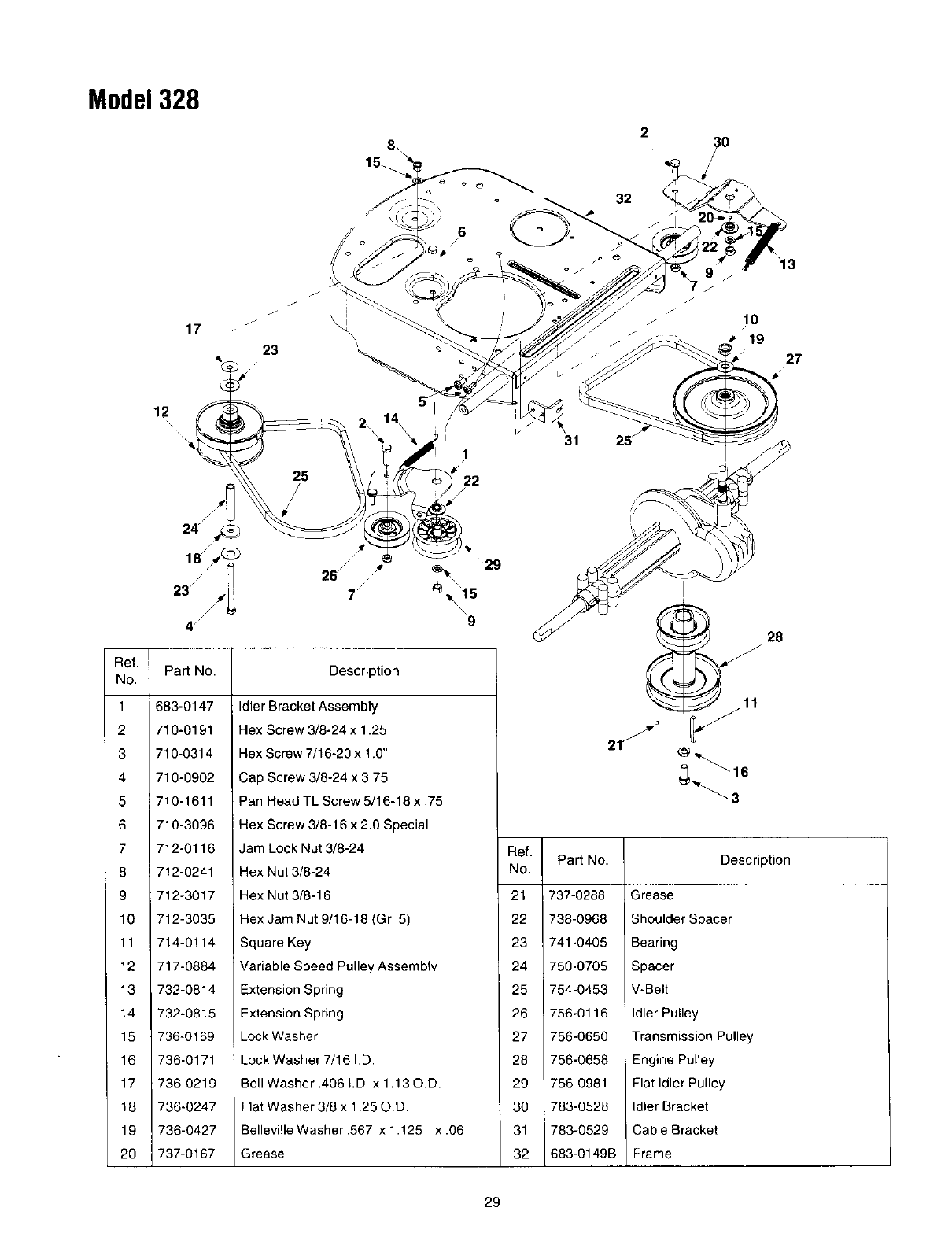

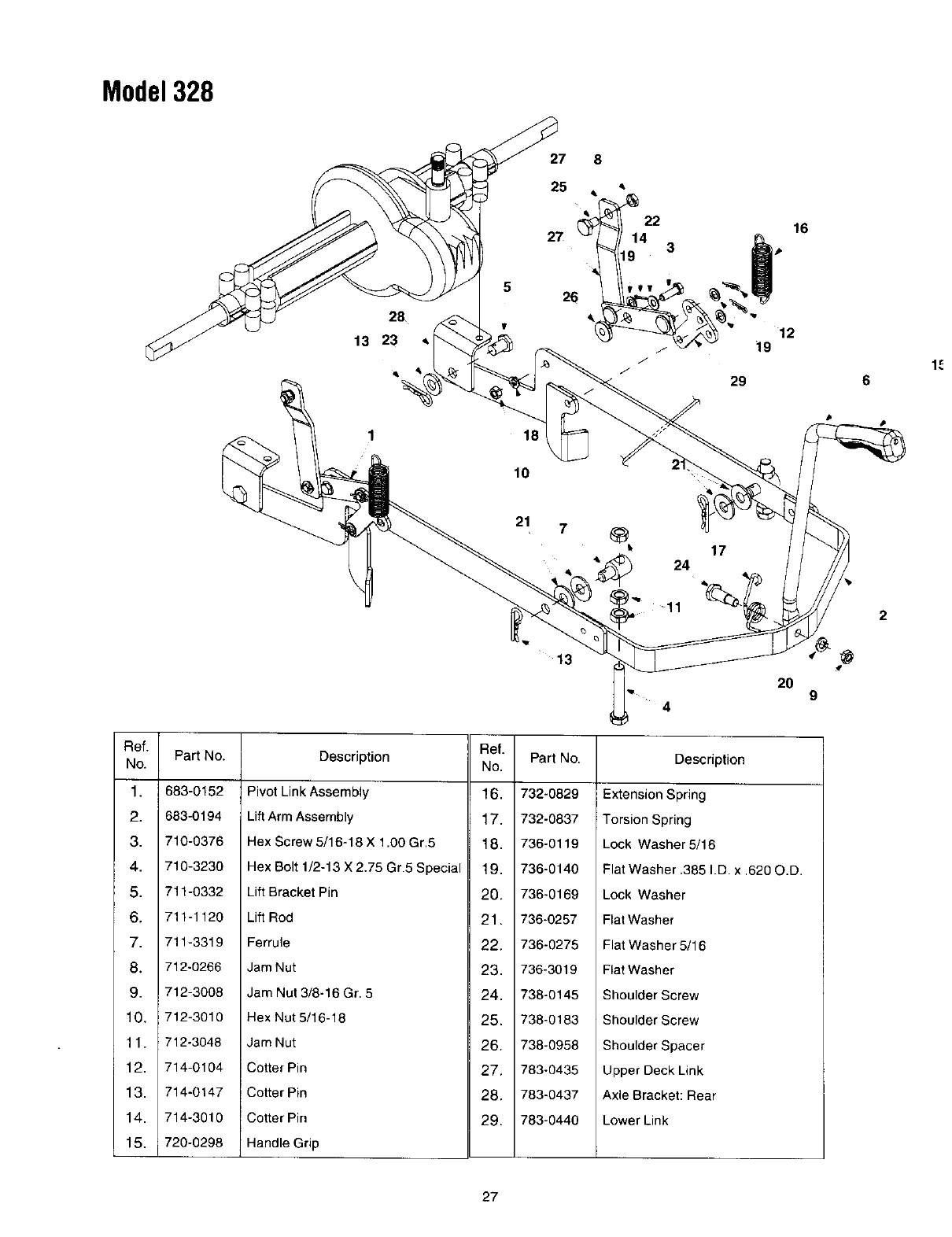

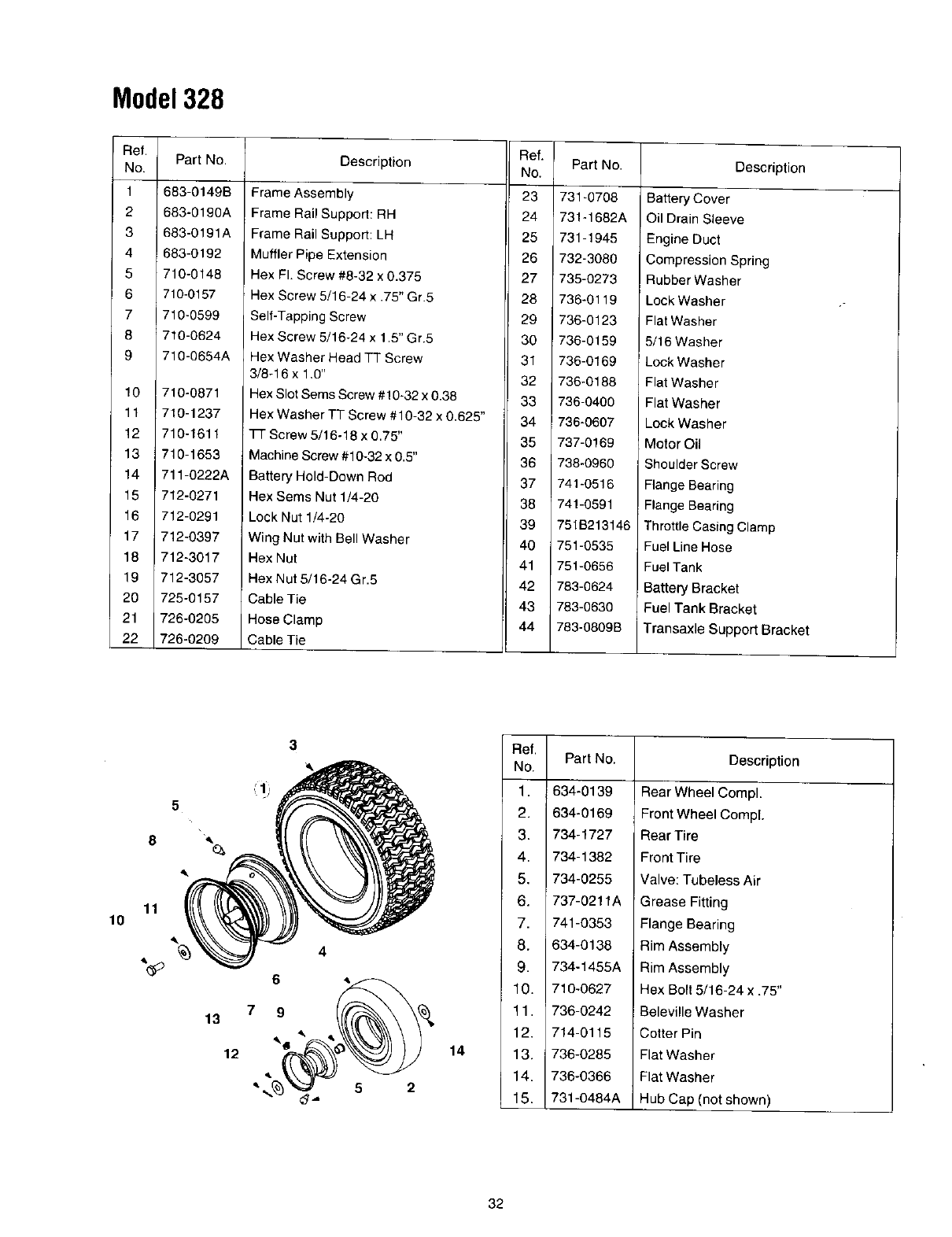

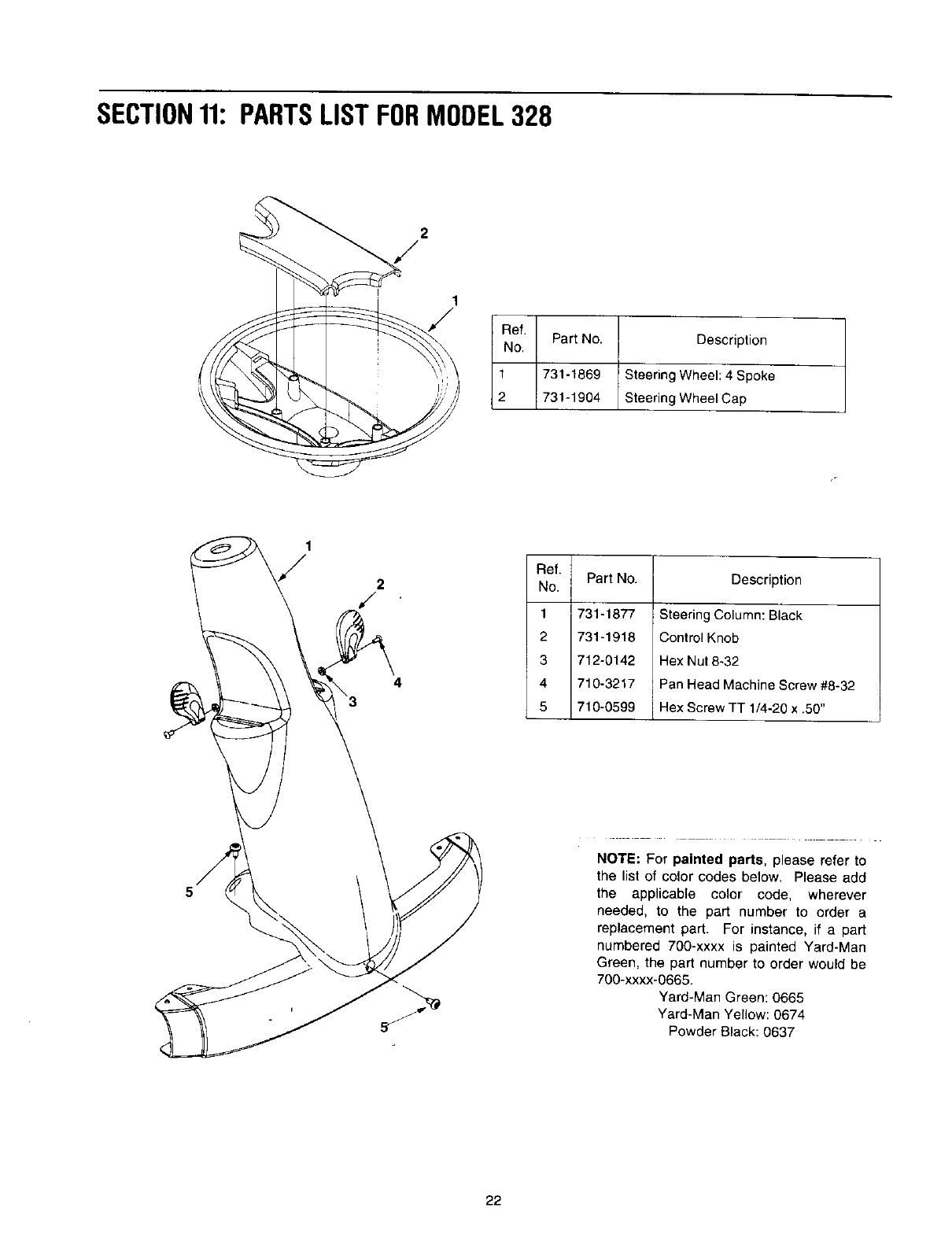

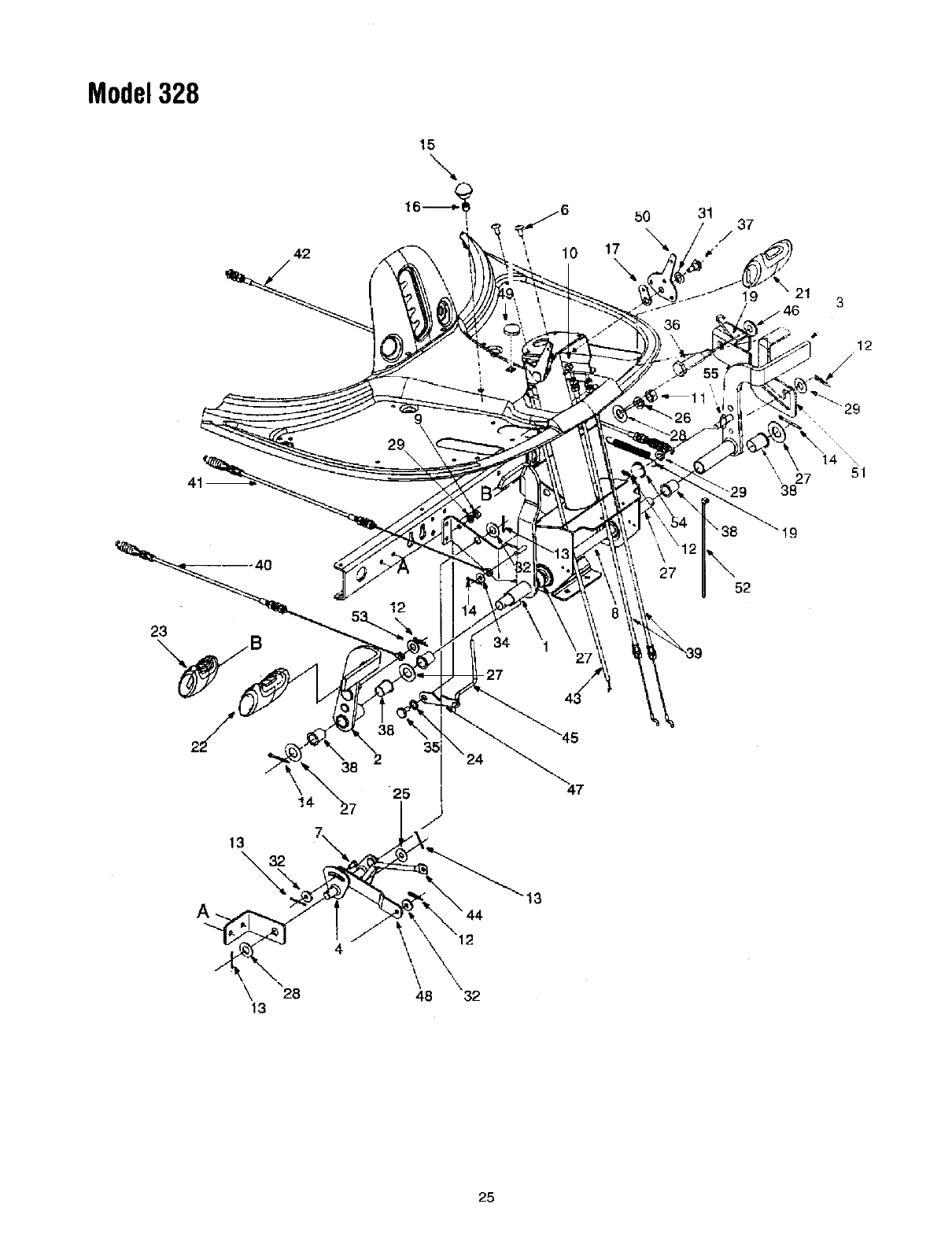

Parts List ............................................................................................................ 22

FINDINGMODELNUMBER

This Operator's Manual is an important part of your new riding mower. It will help you assemble, prepare

and maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the

equipment and copy the information from it in the space provided below. The information on

the model plate is very important if you need help from our Customer Support Department or

an authorized dealer.

You can locate the model plate by pivoting the cover upward and looking under the frame. A sample

model plate is explained below. For future reference, please copy the model number and the serial

number of the equipment in the space below.

(Model Number) (Serial Number)

.TOP°OOOC.,,,c

LEVELAND, OHIO 44136

Copy the model number here:

Copy the serial number here:

CALLINGCUSTOMERSUPPORT

If you have difficulty assembling this product or have any questions regarding the controls, operation or

maintenance of this unit, please call the Customer Dealer Referral Line.

Call 1- (330) 220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support

representative. Please have your unit's model number and serial number ready when you

call. See previous section to locate this information. You will be asked to enter the serial

number in order to process your call.

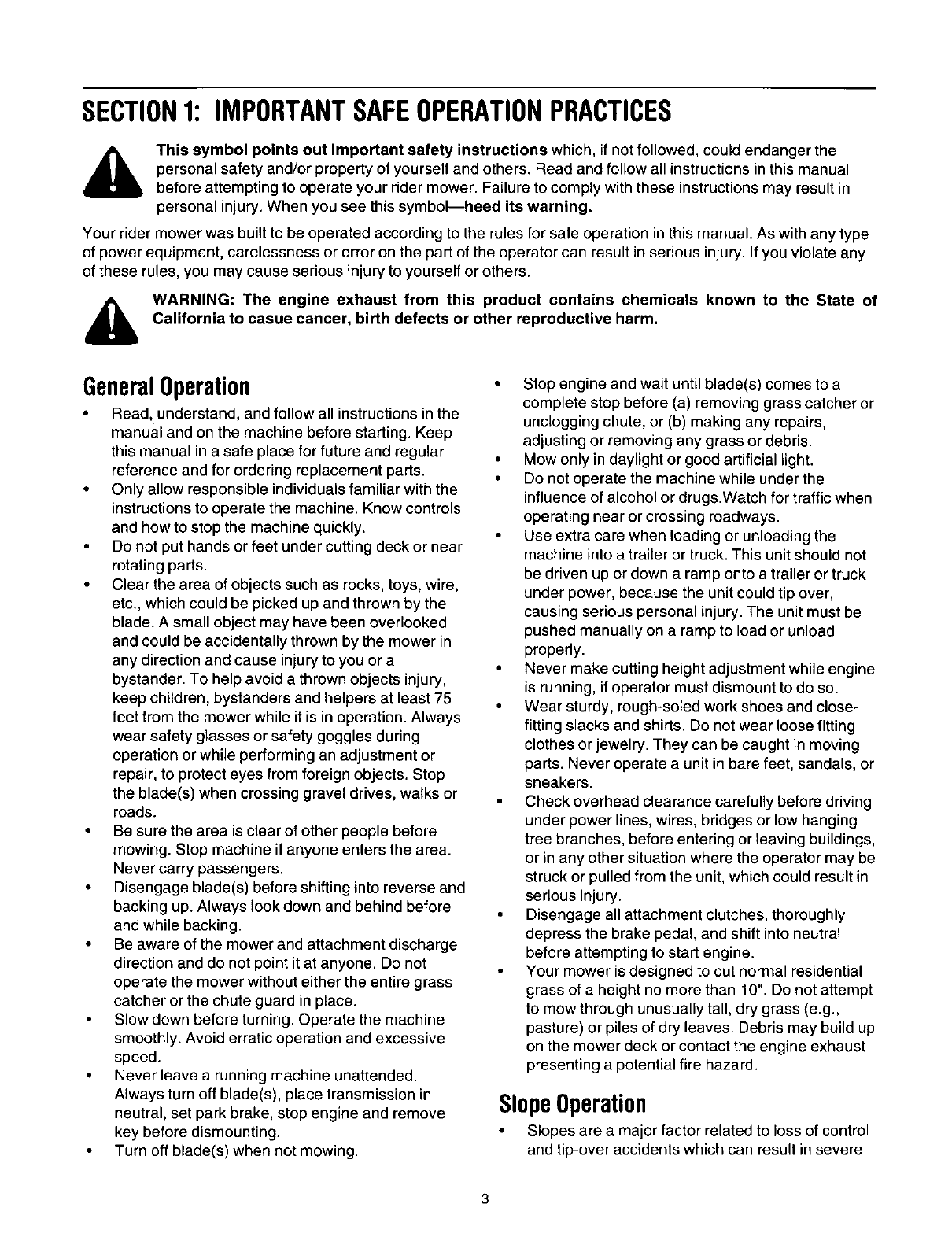

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES

This symbol points out important safety instructions which, if not followed, could endanger the

personal safety and/or property of yourself and others. Read and follow all instructions inthis manual

before attempting to operate your rider mower. Failure to comply with these instructions may result in

personal injury. When you see this symbol--heed its warning.

Your rider mower was built to be operated according to the rules for safe operation inthis manual. As with any type

of power equipment, carelessness or error on the part of the operator can result in serious injury. If you violate any

of these rules, you may cause serious injury to yourself or others.

WARNING: The engine exhaust from this product contains chemicals known to the State of

California to casue cancer, birth defects or other reproductive harm.

GeneralOperation

• Read, understand, and follow all instructions inthe

manual and on the machine before starting. Keep

this manual in a safe place for future and regular

reference and for ordering replacement parts.

• Only allow responsible individuals familiar with the

instructions to operate the machine. Know controls

and how to stop the machine quickly.

• De not put hands or feet under cutting deck or near

rotating parts.

• Clear the area of objects such as rocks, toys, wire,

etc., which could be picked up and thrown by the

blade. A small object may have been overlooked

and could be accidentally thrown by the mower in

any direction and cause injury to you or a

bystander. To help avoid a thrown objects injury,

keep children, bystanders and helpers at least 75

feet from the mower while it is in operation. Always

wear safety glasses or safety goggles during

operation or while performing an adjustment or

repair, to protect eyes from foreign objects. Stop

the blade(s) when crossing gravel drives, walks or

roads.

• Be sure the area is clear of other people before

mowing. Stop machine if anyone enters the area.

Never carry passengers.

• Disengage blade(s) before shifting into reverse and

backing up. Always look down and behind before

and while backing.

• Be aware of the mower and attachment discharge

direction and do not point it at anyone. Do not

operate the mower without either the entire grass

catcher or the chute guard in place.

• Slow down before turning. Operate the machine

smoothly. Avoid erratic operation and excessive

speed.

• Never leave a running machine unattended.

Always turn off blade(s), place transmission in

neutral, set park brake, stop engine and remove

key before dismounting.

Turn off blade(s) when not mowing.

• Stop engine and wait until blade(s) comes to a

complete stop before (a) removing grass catcher or

unclogging chute, or (b) making any repairs,

adjusting or removing any grass or debris.

• Mow only in daylight or good artificial bight.

• Do net operate the machine while under the

influence of alcohol or drugs.Watch for traffic when

operating near or crossing roadways.

Use extra care when loading or unloading the

machine into atrailer or truck. This unit should not

be driven up or down a ramp onto a trailer or truck

under power, because the unit could tip over,

causing serious personal injury. The unit must be

pushed manually on a ramp to load or unload

properly.

• Never make cutting height adjustment while engine

is running, if operator must dismount to do so.

• Wear sturdy, rough-soled work shoes and close-

fitting slacks and shirts. De not wear loose fitting

clothes or jewelry. They can be caught in moving

parts. Never operate a unit in bare feet, sandals, or

sneakers.

• Check overhead clearance carefully before driving

under power lines, wires, bridges or low hanging

tree branches, before entering or leaving buildings,

or in any other situation where the operator may be

struck or pulled from the unit, which could result in

serious injury.

• Disengage all attachment clutches, thoroughly

depress the brake pedal, and shift into neutral

before attempting to start engine.

Your mower is designed to cut normal residential

grass of a height no more than 10". Do not attempt

to mow through unusually tall, dry grass (e.g.,

pasture) or piles of dry leaves. Debris may build up

on the mower deck or contact the engine exhaust

presenting a potential fire hazard.

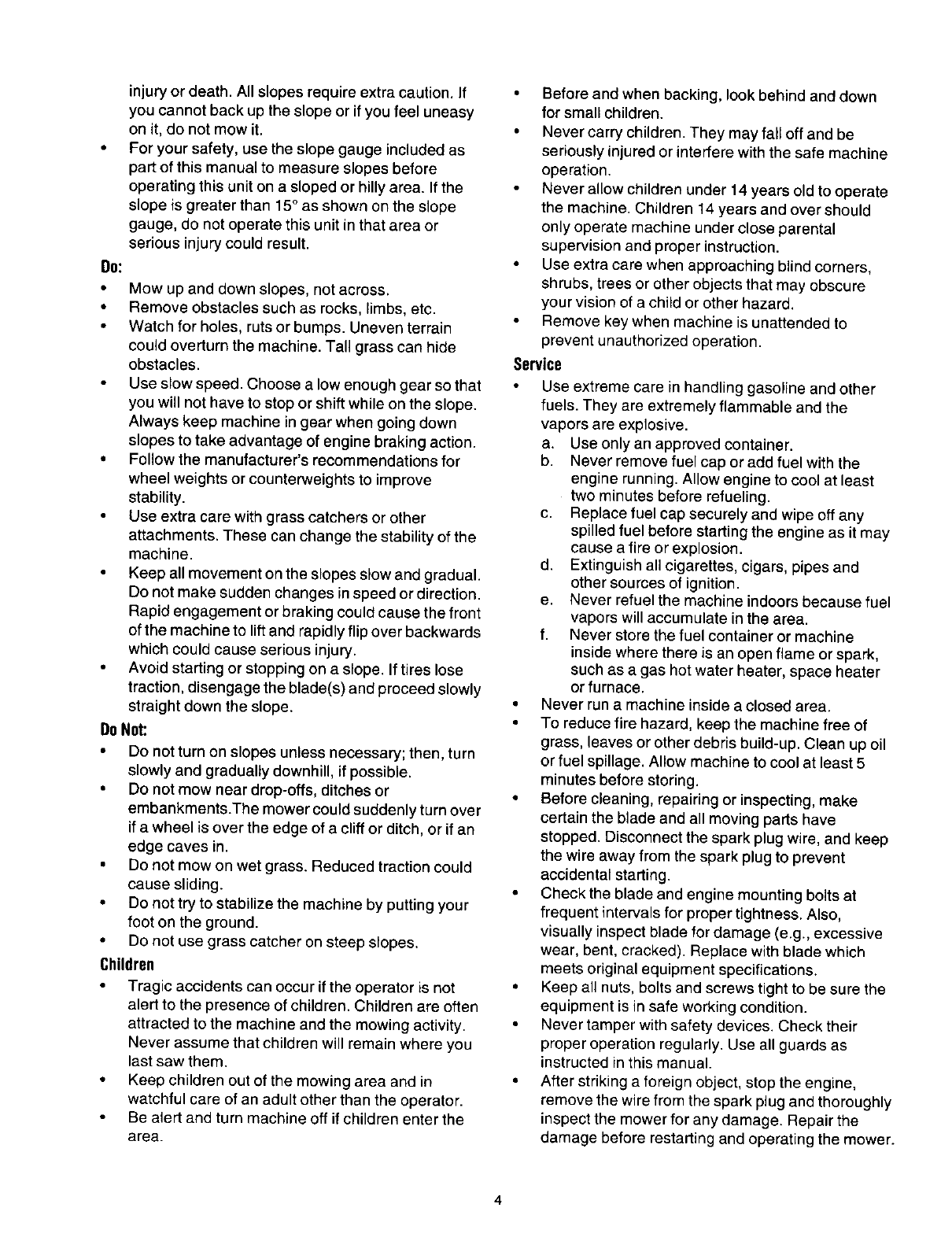

SlopeOperation

• Slopes are a major factor related to loss of control

and tip-over accidents which can result in severe

injuryordeath.All slopes require extra caution. If

you cannot back up the slope or if you feel uneasy

on it, do not mow it.

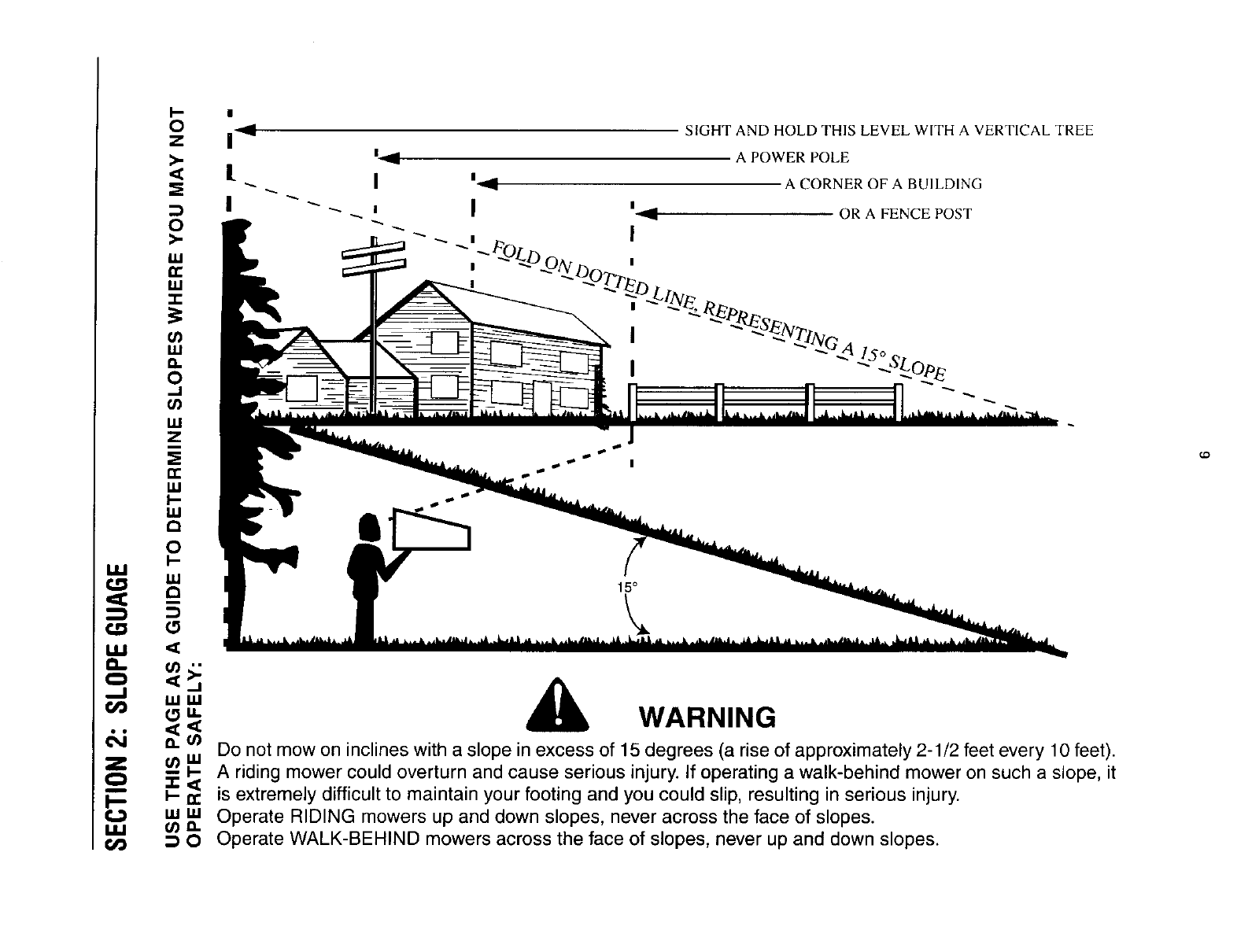

For your safety, use the slope gauge included as

part of this manual to measure slopes before

operating this unit on a sloped or hilly area. If the

slope is greater than 15° as shown on the slope

gauge, do not operate this unit in that area or

serious injury could result.

O0:

Mow up and down slopes, not across.

Remove obstacles such as rocks, limbs, etc.

Watch for holes, ruts or bumps. Uneven terrain

could overturn the machine. Tall grass can hide

obstacles.

Use slow speed. Choose a low enough gear so that

you will not have to stop or shift while on the slope.

Always keep machine in gear when going down

slopes to take advantage of engine braking action.

Follow the manufacturer's recommendations for

wheel weights or counterweights to improve

stability.

Use extra care with grass catchers or other

attachments. These can change the stability of the

machine.

Keep all movement on the slopes slow and gradual.

Do not make sudden changes in speed or direction.

Rapid engagement or braking could cause the front

of the machine to lift and rapidly flip over backwards

which could cause serious injury.

Avoid starting or stopping on a slope. If tires lose

traction, disengage the blade(s) and proceed slowly

straight down the slope,

DoNot:

• Do not turn on slopes unless necessary; then, turn

slowly and gradually downhill, if possible.

• Do not mow near dropooffs, ditches or

embankments.The mower could suddenly turn over

if a wheel is over the edge of a cliff or ditch, or if an

edge caves in.

• Do not mow on wet grass. Reduced traction could

cause sliding.

• Do not try to stabilize the machine by putting your

foot on the ground.

• Do not use grass catcher on steep slopes.

Children

• Tragic accidents can occur if the operator is not

alert to the presence of children. Children are often

attracted to the machine and the mowing activity.

Never assume that children will remain where you

last saw them.

• Keep children out of the mowing area and in

watchful care of an adult other than the operator.

Be alert and turn machine off if children enter the

area.

•Before and when backing, look behind and down

for small children.

• Never carry children. They may fa_loff and be

seriously injured or interfere with the safe machine

operation.

Never allow children under 14 years old to operate

the machine. Children 14 years and over should

only operate machine under close parental

supervision and proper instruction.

• Use extra care when approaching blind corners,

shrubs, trees or other objects that may obscure

your vision of a child or other hazard.

Remove key when machine is unattended to

prevent unauthorized operation.

Service

Use extreme care in handling gasoline and other

fuels. They are extremely flammable and the

vapors are explosive.

a. Use only an approved container.

b. Never remove fuel cap or add fuel with the

engine running. Allow engine to cool at least

two minutes before refueling.

c. Replace fuel cap securely and wipe off any

spilled fuel before starting the engine as it may

cause a fire or explosion.

d. Extinguish all cigarettes, cigars, pipes and

other sources of ignition.

e. Never refuel the machine indoors because fuel

vapors will accumulate in the area.

f. Never store the fuel container or machine

inside where there is an open flame or spark,

such as a gas hot water heater, space heater

or furnace.

• Never run a machine inside a closed area.

• To reduce fire hazard, keep the machine free of

grass, leaves or other debris build-up. Clean up oil

or fuel spillage. Allow machine to cool at least 5

minutes before storing.

• Before cleaning, repairing or inspecting, make

certain the blade and all moving pads have

stopped. Disconnect the spark plug wire, and keep

the wire away from the spark plug to prevent

accidental stading.

• Check the blade and engine mounting bolts at

frequent intervals for proper tightness. Also,

visually inspect blade for damage (e.g., excessive

wear, bent, cracked). Replace with blade which

meets original equipment specifications.

• Keep all nuts, bolts and screws tight to be sure the

equipment is in safe working condition.

Never tamper with safety devices. Check their

proper operation regularly. Use all guards as

instructed in this manual.

• After striking a foreign object, stop the engine,

remove the wire from the spark plug and thoroughly

inspect the mower for any damage. Repair the

damage before restarting and operating the mower.

Grasscatchercomponentsaresubjecttowear,

damageand deterioration, which could expose

moving parts or allow objects to be thrown. For your

safety protection, frequently check components

and replace with manufacturer's recommended

parts when necessary.

Mower blades are sharp and can cut. Wrap the

blade(s) or wear gloves and use extra caution when

servicing blade(s).

Check brake operation frequently. Adjust and

service as required.

Muffler, engine and belt guards become hot during

operation and can cause a burn. Allow to cool down

before touching.

Do not change the engine governor settings or

overspeed the engine. Excessive engine speeds

are dangerous.

Observe proper disposal laws and regulations.

Improper disposal of fluids and materials can harm

the environment and the ecology.

a. Prior to disposal, determine the proper method

to dispose of waste from your local office of

Environmental Protection Agency. Recycling

centers are established to properly dispose of

materials in an environmentally safe fashion.

b. Use proper containers when draining fluids. Do

not use food or beverage containers that may

mislead someone into drinking from them.

Properly dispose of the containers immediately

following the draining of fluids.

c. DO NOT pour oil or other fluids into the ground,

down a drain or into a stream, pond, lake or

other body of water. Observe Environmental

Protection Agency regulations when disposing

of oil, fuel, coolant, brake fluid, filters, batteries,

tires and other harmful waste.

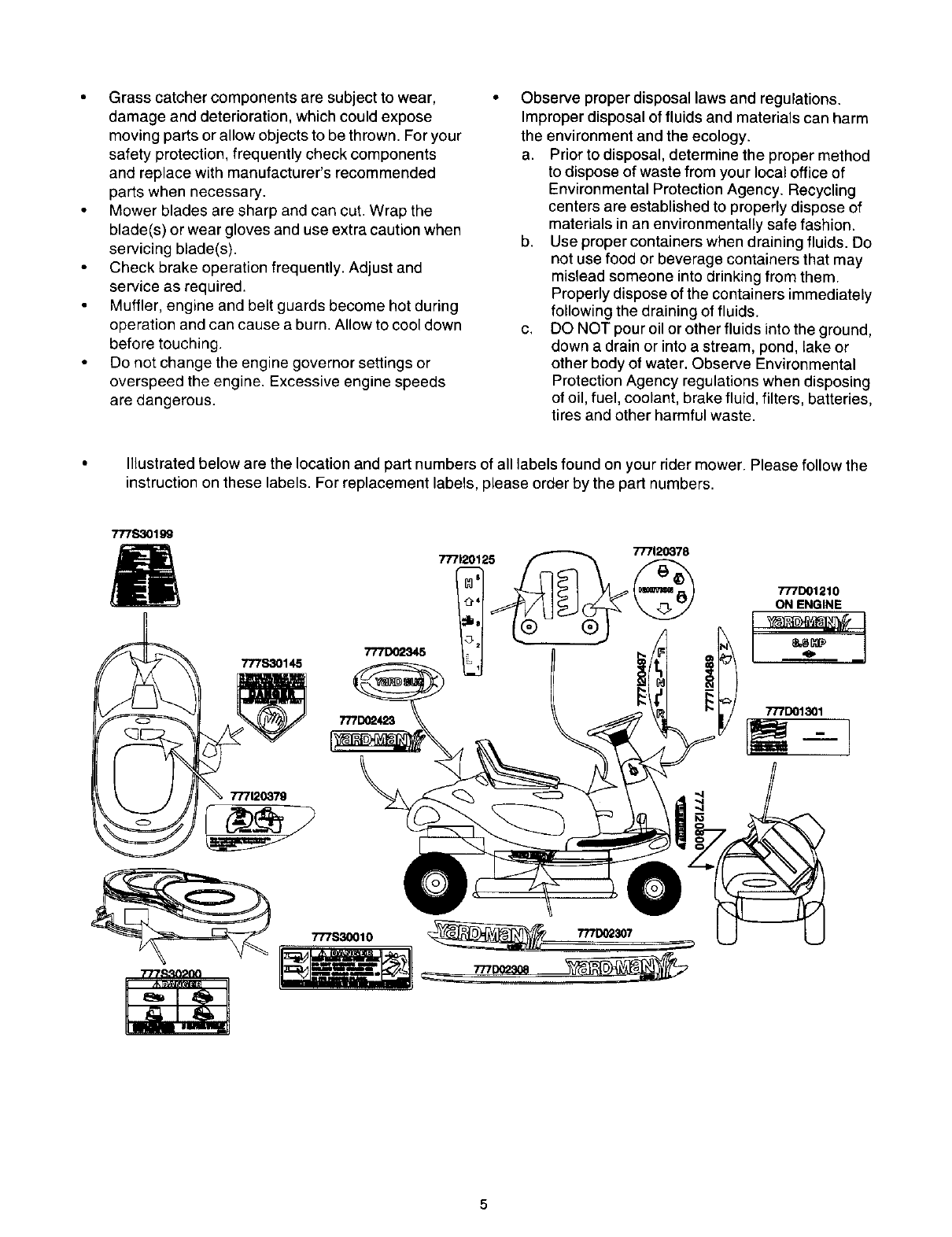

Illustrated below are the location and part numbers of all labels found on your rider mower. Please follow the

instruction on these labels. For replacement labels, please order by the part numbers.

/77880199

777D01210

ON ENGINE

777D01301

SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE

A POWER POLE

A CORNER OF A BUILDING

WARNING

Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet).

A riding mower could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it

is extremely difficult to maintain your footing and you could slip, resulting in serious injury.

Operate RIDING mowers up and down slopes, never across the face of slopes.

Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.

(.O

SECTION3: UNPACKING& ASSEMBLINGYOURRIDERMOWER

• Remove all screws and staples from crate.

Holding the sides of the crate firmly, lift the top part

of the crate up and keep it aside. Avoid tire

punctures.

• Remove and discard plastic bag covering unit.

• Lift the rear of the mower and clear the bottom of

the crate. Repeat for the front.

• Be sure parking brake is disengaged; roll unit out of

the crate's way.

LooseParts

•Remove loose parts from the grass catcher and/or

the crate very carefully. Refer to Figure 1.

1. Mulching plug & side-discharge chute

2. Oil drain sleeve

3. Operator's manual (not shown)

4. Ignition keys (not shown)

Plug

Figure 1

AttachingBatteryCables

The battery is located under the hood assembly above

the left rear wheel. Refer to Figure 3.

To access the battery, lift the hood assembly from

the left side of the seat only. Stand on the right side

of the unit and pivot the hood assembly towards

you until fully opened. See Figure 2.

CAUTION: Do not lift the hood assembly by the two

vent openings located behind the seat.

• Remove both wing nuts securing the battery and

cover to the battery hold-down rods. See Figure 3.

• Remove red and black insulation caps from battery

terminals.

Remove battery terminal screws with a Phillips

screw driver or a 10 mm. socket wrench.

Attach the red battery cable to the positive terminal

(marked +), and the black battery cable to the

negative terminal (marked -) on the battery. See

Figure 3.

• Align the cables with the slots in the battery cover

and tighten the screws on the battery terminals.

WARNING: Press the battery cables

against side of battery so that these do not

make contact with flange of rider frame

when it is opened or closed.

Reassemble the battery cover to the hold-down

rods on two ends with the two wing nuts removed

earlier. Check to ensure that the cables pass easily

through slots in cover.

Place your right hand on the left side of the seat

and slowly lower the hood assembly until it is fully

closed.

CAUTION: Do not place your hand around the bottom

edge of the hood assembly; it may get pinched between

the hood assembly and grass catcher or the frame rail.

Battery

Cover

Wing

Wing Nut

Nut Negative /

Terminal ,' Positive

\Vent

Opening Battery

Rider

Frame

Figure 2

Hood Assembly

Figure 3

AttachingSide-DischargeChute

Your riding mower is shipped to you with the grass

catcher fully assembled on the unit. A side-discharge

chute and a mulching plug are included as loose parts.

Follow the instructions below to attach the side-

discharge chute.

WARNING: Do not operate the mower if

any one of the grass catcher, discharge

chute or mulching plug is not firmly

installed on the mower.

•Pivot the cover up and lower the cutting height

adjustment lever to the lowest position.

• Remove the two wing nuts (A and B in Figure 4 )

from two ends of the grasscatcher chute.

•Loosen the two wing nuts (C and D in Figure 4 ) in

the middle of the chute. Do not remove. All four

wing nuts (A, B, C, and D) hold the chute to the

deck frame.

• Slide the grasscatcher chute to the right and out of

the deck frame.

• Slide the side-discharge chute in and place it on the

deck so that the four wing nut positions align with

those on the deck.

•Reinsert wing nuts A and B that you had earlier

removed. Tighten to secure.

Grass Catcher

Chute._

• Tighten the two wing nuts C and D. Check and

make sure that the side-discharge chute is properly

installed and the hardware tightly secured.

AttachingMulchPlug

While operating your rider mower, you have three

options: (i) to collect grass clippings in the grass

catcher, (ii) to discharge grass clippings on the side, or

(iii) to mulch grass and recirculate clippings back to the

lawn. For the third option, attach the mulching plug to

the side-discharge chute and then to the deck.

To assemble the mulching plug, put two hex bolts

through the mulching plug at the respective

openings. See Figure 5.

• Place speed nuts over the hex bolts.

• Insert the plug into the side-discharge chute

aligning the two slots on two sides of the side-

discharge chute with those on the mulching plug.

• To attach the mulching plug now to the unit, follow

instructions on previous page to attach side-

discharge chute to the deck.

Side Discharge Chute

Wing

Nut A

Discharge Wing

Nut B

Nut C

Figure 4

Speed

Nut

Hex BoltF_ Mulching

Plug

Figure 5

• Place wing nut on each of the hex bolts and thread

a few turns. See Figure 5. Check that the plug is

aligned correctly within the discharge chute.

• Tighten both wing nuts

SECTION4: KNOWYOURRIDERMOWER

Compare the illustrations in Figure 6 with your rider mower to familiarize yourself with the location of various

controls and adjustments. The operation of any rider mower can result in foreign objects being thrown into the

operator's eyes, causing severe eye damage. Always wear safety glasses before operating the mower, or while

performing any adjustments or repairs on it.

Seat Throttle/Choke Steering Wheel

Control /

Grass Fill

Indicator

Shift Lever

-- Cutting Height

Adjustment Lever

Blade Engagement

Pedal

Switch

Side Discharge

Chute Pedal

Cutting

Deck

Brake

Pedal

Hood

Assembly

Parking

Brake

Blade

Engagement

Pedal

Blade "_

Lock

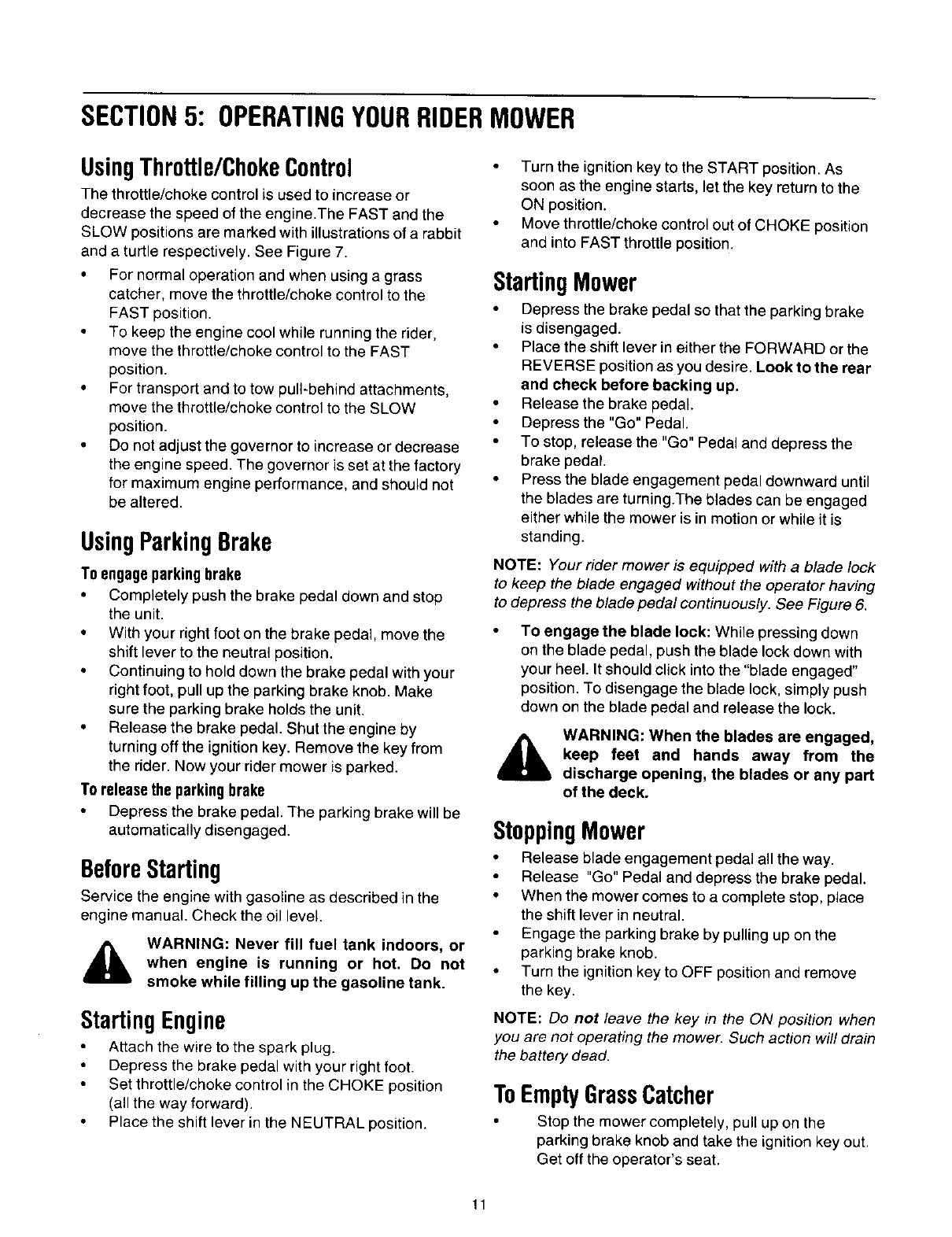

Throttle/ChokeControl

Use to regulate the engine speed and to start the

engine.

"Go" Pedal

Use to regulate the ground speed of the rider mower.

Ignition Switch

Use to turn the engine ON or OFF.

ShiftLever

Use to change direction of the mower.

Figure 6

GrassFill LevelIndicator

Use to determine the level of grass clipping inthe bag

and when to stop and empty it.

ParkingBrake

Use to stop the mower from moving while parked.

BladeEngagementPedal

Use to engage or disengage the blade.

BladeLock

Use to lock blade at the engaged position.

CuttingHeightAdjustmentLever

Use to raise and lower the cutting deck which

determines the cutting height.

BrakePedal

Use to stop the mower's forward or reverse motion.

StoppingMower

• Release blade engagement pedal all the way.

• Release the "Go" Pedal and depress the brake

pedal.

• When the mower comes to a complete stop, place

the shift lever in neutral.

•Engage the parking brake by puUing up on the

perking brake knob.

• Turn the ignition key to OFF position and remove

the key.

SafetyInterlock

This unit is equipped with a safety interlock system for

your protection. The interlock safety switches are

connected to the brake pedal, the blade engagement

pedal, the shift lever, and the seat.

The purpose of the safety interlock system is threefold:

a. to prevent the engine from starting unless the

brake pedal is depressed and the blade

engagement pedal is disengaged;

b. to shut off the engine if the blade pedal is not

disengaged when the shift lever is put into

reverse; and

c. to shut the engine off when the operator leaves

the seat without engaging the parking brake.

WARNING: To avoid the risk of serious

injury, do not operate the rider mower if

the interlock system is malfunctioning.

• Remove objects that could be thrown by the

blade(s).

• Know location and function of all controls.

• Be sure blade(s) and engine are stopped before

placing hands or feet near blade(s).

• Before leaving operator's position, disengage

blade(s), place the shift lever in neutral, engage

parking brake, shut engine off and remove key.

UsingShiftLever

The shift lever is used to regulate the direction of your

rider mower. It can be set at forward, neutral, or reverse

settings. These settings, marked as F, N,and R

respectively, are located next to the shift lever on the

unit. See Figure 7.

Before you move the shift lever to any of the

positions, depress the brake pedal and stop the

unit. Keep your foot on the brake pedal.

'\Shift

Figure 7

Move the _ever outwards (left) to remove the

locking pin from the lever and slide the lever to the

position desired. Look at the rear and make sure

the path is free of obstacles before positioning the

shift lever to the reverse.

Do not force the shift lever. If it does not shift,

release the brake pedal slightly to line up the

shifting collar in the transmission, then try to move

the shift lever.

Slowly release the brake pedal and take your foot

off the pedal. Always make sure that there is no one

in the path of operation of the mower.

GrassFillLevelIndicator

This indicator was designed to add convenience to your

riding mower. While the mower is running, air will flow

through the discharge chute and into the grass catcher.

If the grass catcher is empty, air flows through easily

pushing the ball up. ff the grass catcher is full air does

not flow through it allowing the ball to fall. So if you see

the ball in the grass catcher fill level indicator falling

down, you should stop the mower and empty the bag.

SECTION5: OPERATINGYOURRIDERMOWER

UsingThrottle/ChokeControl

The throttle/choke control is used to increase or

decrease the speed of the engine.The FAST and the

SLOW positions are marked with illustrations of a rabbit

and a turtle respectively. See Figure 7.

• For normal operation and when using a grass

catcher, move the throttle/choke control to the

FAST position.

To keep the engine cool while running the rider,

move the throttle/choke control to the FAST

position.

•For transport and to tow pull-behind attachments,

move the throttle/choke control to the SLOW

position.

• Do not adjust the governor to increase or decrease

the engine speed. The governor is set at the factory

for maximum engine performance, and should not

be altered.

UsingParkingBrake

To engageparking brake

• Completely push the brake pedal down and stop

the unit.

• With your right foot on the brake pedal, move the

shift lever to the neutral position.

• Continuing to hold down the brake pedal with your

right foot, pull up the parking brake knob. Make

sure the parking brake holds the unit.

• Release the brake pedal. Shut the engine by

turning off the ignition key. Remove the key from

the rider. Now your rider mower is parked.

To releasethe parking brake

Depress the brake pedal. The parking brake will be

automatically disengaged.

BeforeStarting

Service the engine with gasoline as described in the

engine manual. Check the oil level.

WARNING: Never fill fuel tank indoors, or

when engine is running or hot. Do not

smoke while filling up the gasoline tank.

StartingEngine

Attach the wire to the spark plug.

Depress the brake pedal with your right foot.

Set throttle/choke control in the CHOKE position

(all the way forward).

• Place the shift lever in the NEUTRAL position.

• Turn the ignition key to the START position. As

soon as the engine starts, let the key return to the

ON position.

• Move throttle/choke control out of CHOKE position

and into FAST throttle position.

StartingMower

• Depress the brake pedal so that the parking brake

is disengaged.

Place the shift lever in either the FORWARD or the

REVERSE position as you desire. Look to the rear

and check before backing up.

• Release the brake pedal.

• Depress the "Go" Pedal.

• To stop, release the "Go" Pedal and depress the

brake pedal.

• Press the blade engagement pedal downward until

the blades are turning.The blades can be engaged

either while the mower is in motion or while it is

standing.

NOTE: Your rider mower is equipped with a blade lock

to keep the blade engaged without the operator having

to depress the blade pedal continuously. See Figure 6.

To engage the blade lock: While pressing down

on the blade pedal, push the blade lock down with

your heel. It should click into the "blade engaged"

position. To disengage the blade lock, simply push

down on the blade pedal and release the lock.

WARNING: When the blades are engaged,

keep feet and hands away from the

discharge opening, the blades or any part

of the deck.

StoppingMower

• Release blade engagement pedal all the way.

• Release "Go" Pedal and depress the brake pedal.

• When the mower comes to a complete stop, place

the shift lever in neutral.

Engage the parking brake by pulling up on the

parking brake knob.

• Turn the ignition key to OFF position and remove

the key.

NOTE: Do not leave the key in the ON position when

you are not operating the mower. Such action will drain

the battery dead.

ToEmptyGrassCatcher

• Stop the mower completely, pull up on the

parking brake knob and take the ignition key out.

Get off the operator's seat.

• Pivot the hood assembly up. Pull up the

grasscatcher bag by the handle and take it to the

proper disposal site. See Figure 8.

• Hold the bag away from your body. Push down

on the bag lever and let the bottom section of

the bag fall downwards. The grass clippings

will come out from the bottom. See Figure 8.

• Tap the bag on the ground so that the three legs

of the bag press against the ground. The bag

lever should snap close while you push the bag

downwards.

• Replace the bag on to the mower making sure

the bag is placed on the flange on top of the

discharge chute. Pivot the hood assembly down.

Grass

Catcher

Ba Handle

_'_ AHOOdmb,y

Figure 8

UsingThe Mower

Observe safety rules listed on pages 3-5 of this manual

for safe operation of your mower.

Before mowing, make sure that the cutting deck is

leveled. For deck adjustment, refer to page 14.

You can engage the blade by pressing on the blade

engagement pedal with your left foot while sitting

on the operator's seat.

• When mowing an area for the first time, watch out

for objects lying on the grass. If you strike a foreign

object, stop the engine. Remove wire from spark

plug and thoroughly inspect the mower for any

damage. Repair the damage before re-starting.

• Avoid scalping the lawn by adjusting the cutting

height upwards and/or sharpening the blades.

• Mow at full throttle. Learn the terrain on which you

are mowing. For best mowing results, mow only

when the grass is dry.

• The recommended mowing pattern is given below:

r '11_ 'e_

i '

_-_ ,_ __._ i ,'

• Mow grass often and in regular intervals so that you

can cut only 1/3 of the grass blade in one mowing.

• To empty grass bag, stop the mower completely,

engage the parking brake, and turn the ignition off.

This will prevent the hot engine exhaust gas from

browning the grass.

Many communities no longer haul grass clippings

to landfills. Composting the clippings from your

grass catcher is a viable solution. For this you will

have to empty the grass catcher at the designated

composting site.

• Your rider mower is equipped with a mulching plug

to mulch the grass and recycle into the lawn instead

of collecting in the grasscatcher bag.

• Mulch only when the grass is dry. Mulching wet

grass may damage the underside of the deck

because wet grass tends to stick to it. Clean deck

thoroughly if you mulch wet grass.

• For effective mulching, overlap mowing paths so

that the clippings are distributed evenly.

SECTION6: MAKINGADJUSTMENTS

WARNING: Do not at any time make any

adjustment to riding mower without first

stopping engine and disconnecting spark

plug wire,

BrakePedal

During normal operation of the rider mower, the brake

is subject to wear and tear. Check the brake

periodically by carrying out the following test:

• Release the parking brake and place the rider

mower in neutral. Depress the brake pedal and try

to roll the rider mower. The tractor should not move.

If the tractor moves, adjust the brake.

WARNING: Do not adjust the brake while

the engine is running. Be sure to block the

wheels of the rider mower before making

any adjustments on the brake cable,

Adjustment to the brake pedal is made at the cable end.

See Figure 9.

• Set the parking brake and turn ignition key off.

• Shift the cutting height lever to the lowest position.

• Pivot the hood assembly up and remove the

grasscatcher bag and the side-discharge chute or

the mulching plug from the mower.

• Disconnect wire from the spark plug.

• Locate the brake cable on the right side under the

front housing. See Figure 9.

• Using a pair of 1/2" wrenches, loosen the jam nuts

and back the cable out to tighten or thread inward

to loosen. See Figure 9 inset.

• Retighten the jam nuts when proper tension is

reached.

• Unlock the parking brake and repeat the test

described above. Readjust if necessary.

"Go" Pedal

Adjustment to the "Go" Pedal is made at the cable end.

See Figure 9.

• Set the parking brake and turn ignition key off.

• Shift the cutting height lever to the lowest position.

• Pivot the hood assembly up and remove the

grasscatcher bag and the side-discharge chute or

the mulching plug from the mower.

• Disconnect wire from the spark plug.

• Locate the speed control cable under the front

housing. See Figure 9.

• Loosen the jam nuts and back the cable out to

tighten or thread inward to loosen as shown.

• Retighten the jam nuts when proper tension is

reached.

• Reconnect the spark plug wire and pivot the hood

assembly down.

CuttingHeight

The deck cutting height adjustment lever is located on

the hood assembly. For a representation of the cutting

height positions, refer to Figure 7.

Pull the lever out of the slot and slide it upward or

downward to the desired cutting height.

• Lower the cutting height to mew close to the

ground.

• Raise the deck height to the highest position when

you ride on a sidewalk or a road.

• To mow tall or thick grass, move the cutting height

adjustment lever to the highest position and cut.

Then move the lever to a lower position and cut

again.

Brake

Cable

Figure 9

Frame

Cable* --

_Jam Nuts

Loosen

Nasher

Lo__

_Tighten

*Same type of adjustment on both cables

(only one shown here)

SeatPosition

The seat position on the rider mower can be adjusted to

maximize the operator's convenience.

• Stop the mower completely and engage the parking

brake. Turn ignition off.

• Pivot the hood assembly up.

Loosen the four self-tapping screws on the bottom

of the seat.

• Slide the seat forward or backward in the slot, and

position it as desired. Retighten the four screws.

BladeBrake/PTO

The blade engagement pedal should be adjusted so

that if you depress it about 3/4" from the front of the slot,

it should start engaging the deck belt. The PTO (power

take off) switch is located in the blade brake slot on the

left side of the upper frame. See Figure 10. The brake

engagement pedal needs to make contact with the PTO

switch for the engine to start.

Under normal operation, the blade engagement pedal

should net require frequent adjustment. However,

perform the following test periodically and make sure

that it is in fine working condition.

Pivot the hood assembly up and check if there is

enough slack on the deck engagement cable.

Depress the blade engagement pedal (about 3/4

inch) and check if the belt is engaging.

If the cable is tight or too loose or the belt is not

engaging, adjust the deck engagement cable.

NOTE: The deck engagement cable will be correctly

adjusted when the cable moves approximately 1/2" off

center fine in both directions.

Adjustment to the blade brake will have to be made at

the cable end. See Figure 10.

Deck .. _II Hex

Engagement /\/ Nut

Figure 10

• If the belt is slipping when you depress the blade

engagement pedal about 3/4", loosen the two hex

nuts on the cable. See Figure 10.

• If the belt is engaging sooner than when the blade

engagement pedal is 3/4" from the PTO switch,

tighten both hex nuts on the cable. See Figure 10.

Repeat the blade engagement test and readjust if

necessary.

• Pivot the hood assembly back.

WheelAlignment

The front wheels should toe-in 1/16-5/16 inch. To adjust

toe-in, follow these steps:

Remove the 3/8" hex nut which holds the ball joint

to the steering segment. See Figure 11.

• Adjust the ball joint in or out until the wheels toe-in

approximately 1/16-5/16" (Dimension "B" should

be approximately 1/16-5/16" less than dimension

"A"). See Figure 11.

Replace the ball joint into the steering segment,

and replace the 3/8" hex nut.

Hex Nut

Steeri_

Segment

Tie

Rod

Ball

Joint

Figure 11

front

L/16-5/16" less than J

Adjustingthe Deck

IMPORTANT: Perform adjustments to the deck on a flat,

level surface. Before continuing with deck adjustment,

check air pressure in all four tires. Recommended air

pressure is 12 psi. Please note that the valve stems on

this rider mower are on the inside of the front wheels

and on the outer side of the rear wheels.

Lift the hood assembly and remove grass catcher

from the rider mower. Place the deck in the highest

position.

Inspect rear of deck. The front of the deck should

be approximately 1/4" to 3/8" lower than the rear of

the deck. To maintain that, you may have to adjust

the deck pitch. If the deck is contacting the cable

bracket on the front of the transmission, you will

have to adjust the rear deck height. Follow the

steps on next page for adjustments.

Completely loosen, but do not remove, the top hex

nut out of the three hex nuts that hold the hex bolt

and the ferrule on the deck hanger link assembly.

Do not try to loosen or tighten the bottom nut.

Thread the middle nut as far down as possible.

When desired adjustment is reached, retighten the

two nuts. Adjust both sides if necessary.

Loosen hex nuts

to adjust

[30 not adjust hex nut

Hei_

Lever

Figure 12

Hanger

Link

SECTION7: SERVICINGYOURRIDERMOWER

BeltReplacement

There are two drive belts and one deck belt in your rider

mower; follow the description below to identify the belts.

1. The lower drive belt goes from the variable speed

pulley to the transmission pulley.

2. The upper drive belt goes from the variable speed

pulley to the upper sheave of engine pulley.

3. The deck belt goes from the deck pulley to the

lower sheave in engine pulley.

•Periodically check to see if these belts are too loose

or damaged through wear and tear. If so, replace

with new belt.

DeckBelt

• Engage the parking brake and turn the ignition off.

Pivot the hood assembly up and remove the grass

catcher. Remove the spark plug wire.

Put the deck at the lowest cutting height by

adjusting the cuttingheight adjustment lever to the

lowest position.

• Using a 1/2" socket wrench, remove two self-

tapping screws, lock washer and hex nut that hold

the deck belt cover to the deck. See Figure 13. For

this, you will have to work from the top left side of

the mower, Remove the belt cover.

Imaginary

Belt Line Belt

Keeper "A"

Deck Be

Self-Tapping

Screw /

Decl_

Pulley

Figure 13

Using a 9/16" wrench, loosen the hex nut on the

idler pulley. See Figure 13.

Remove belt from around deck pulley, idler pulley,

and the engine pulley.

Place the new belt around the deck pulley and the

engine pulley making sure that the belt is routed

inside the belt keepers. There are two belt keepers

under the grass catcher, one on the idler and the

other under the deck belt cover. See Figure 13.

Reinstall deck belt cover and secure with two self-

tapping screws, lock washer and hex nut.

NOTE: Belt keeper "A" must be mounted on the outside

of the belt,

• Make sure to align the belt keeper in line with the

frame. See Figure 13.

NOTE: An imaginary line between the belt keeper and

idler pulley should be parallel to frame. See Figure 13.

• Replace the grass catcher and pivot the hood

assembly back.

Lower VariableSpeedBelt

• Remove the rear deck belt guard following first five

steps for deck belt removal. Remove belt from the

engine pulley.

• Push the spring loaded idler, located on the left side

of the transmission, to the right. Remove belt from

around the idler and then the transmission pulley.

See Figure 14.

Sprin!

Load(

Idler

Variable !Pulley Spring

Loaded

Idler

Transmission

Pulley

Deck Belt

Using a 9/16" socket, remove bolt, spacer and the

flat washer from the variable speed pulley. See

Figure 14.

Drop the pulley down and remove the belt.

Replace new belt and reassemble following above

instructions in reverse order.

Make sure that the belt is routed inside of belt

keeper, and the belt keeper is reassembled in the

same location from where it was removed.

UpperVariableSpeedBelt

• Remove the engine pulley using a 9/16" socket

wrench with a 6" extension. The engine pulley is

located in front of the transmission.

• Drop the engine pulley down and remove the belt

from around it.

Push the idler bracket to the right and remove the

belt. See Figure 14.

• Replace belt and reassemble in reverse order.

FuseReplacement

The fuse is located next to the spark plug under the rear

frame. Fuses seldom fail without a reason. If the fuse

blows, the source problem must be corrected or the

new fuse will blow again.

• Check for loose connections inthe fuse holder and

replace holder if necessary. A dead short may be in

the cranking or charging circuit where insulation

may have rubbed through and exposed bare wire.

• Replace the wire or repair with electrician's tape if

the wire strands have not been damaged. Also look

for a wire pinched between body panels, burned by

the exhaust pipe or muffler, or rubbed against a

moving part.

Stop the rider mower and engage the parking

brake. Remove ignition key.

• Pivot the hood assembly up. Disconnect the spark

plug wire and ground it.

• Pull the fuse out of the lead wire.

• Replace with new automotive fuse.

• Make sure to reconnect the spark plug wire before

pivoting the hood assembly back.

Figure 14

SECTION8: MAINTAININGYOURRIDERMOWER

GeneralRecommendations

•Always observe safety rules when performing any

maintenance.

•The warranty on this rider mower does not cover

items that have been subjected to operator abuse

or negligence. To receive full value from the

warranty, operator must maintain the rider mower

as instructed in this manual.

• We do not recommend the use of pressure

washers or garden hose to clean your unit. These

may cause damage to electrical components,

spindles, pulleys, bearings or the engine. The use

of water may shorten life of your rider mower and

reduce its serviceability.

WARNING: Always stop engine and

disconnect spark plug wire before any

maintenance or adjustments.

CuttingBlade

Removal

when rotating at high speeds, may cause damage

to the mower and/or cause personal injury.

The blade can be tested for balance by balancing it

on a round shaft screwdriver. Remove metal from

the heavy side until it balances evenly.

Reassembly

• Before reassembling the blade to the unit, lubricate

the spindle with light oil (or engine oil).

• Be sure to properly align "star" fitting on blade with

"star" on spindle.

• When replacing the blade, be sure to install the

blade with the side of the blade marked "Bottom" (or

with part number) facing the ground when the

mower is in the operating position.

• Blade Mounting Torque: 70/90 foot-pounds

maximum.

NOTE: To ensure safe operation, all nuts and bolts

must be checked periodically for correct tightness.

OilDrainSleeve

Your rider mower has a plastic oil drain sleeve, packed

WARNING: Protect your hands by with the loose parts, for draining oil from the crankcase.

wearing heavy gloves or using a rag to •To drain the oil, snap small end of the oil drain

grasp the cutting blade. •sleeve onto oil sump. See Figure 16.

Remove the 5/8" hex flange nutwhich holds the Remove drain plug and drain oil into a suitable

blade to the blade spindle, container.

Remove blade from the spindle. See Figure 15. J_/_'_

Deck

Oil Drain

Spindle Figure 16

, Engine

JBlade

Flange Nut

Figure 15

Sharpening

• When sharpening the blade, follow the original

angle of grind as a guide. It is extremely important

that each cutting edge receives an equal amount of

grinding to prevent an unbalanced blade. An

Refer to the separate engine manual for engine

maintenance instructions.

Maintain engine oil as instructed in the separate

engine manual packed with your unit. Read and

follow instructions carefully.

• Poor engine performance and flooding usually

indicates that the air cleaner should be serviced.

Service air cleaner as per the engine manual.

Clean frequently under extremely dusty conditions.

unbalanced blade will cause excessive vibration

The spark plug should be cleaned and the gap

reset once a season. Spark plug replacement is

recommended at the start of each mowing season.

Check engine manual for correct plug type and gap

specifications.

NOTE: Your rider engine is equipped with aresistor

spark plug, When replacing plug, make sure to use the

resistor type.

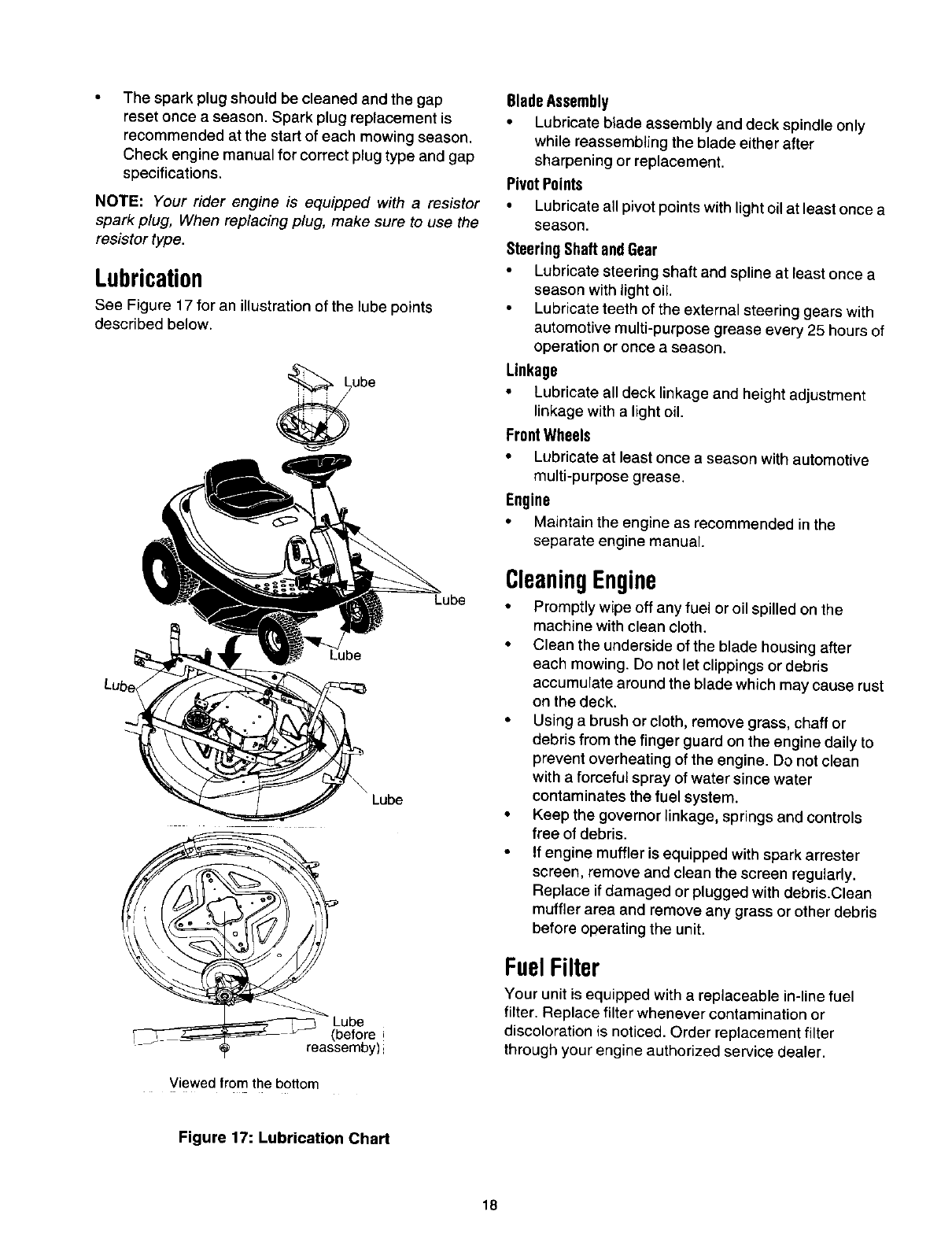

Lubrication

See Figure 17 for an illustration of the lube points

described below.

ube

Lube

Lube ,

_ _ (before

- reassemby) i

Viewed from the bosom

Lube

Blade Assembly

• Lubricate blade assembly and deck spindle only

while reassembling the blade either after

sharpening or replacement.

PivotPoints

• Lubricate all pivot points with light oil at least once a

season.

SteeringShaftandGear

• Lubricate steering shaft and spline at least once a

season with light oil.

• Lubricate teeth of the external steering gears with

automotive multi-purpose grease every 25 hours of

operation or once a season.

Linkage

• Lubricate all deck linkage and height adjustment

linkage with a light oil.

FrontWheels

• Lubricate at least once a season with automotive

multi-purpose grease.

Engine

• Maintain the engine as recommended in the

separate engine manual.

CleaningEngine

•Promptly wipe off any fuel or oil spilled on the

machine with clean cloth.

• Clean the underside of the blade housing after

each mowing. Do not let clippings or debris

accumulate around the blade which may cause rust

on the deck.

• Using a brush or cloth, remove grass, chaff or

debris from the finger guard on the engine daily to

prevent overheating of the engine. Do not clean

with a forceful spray of water since water

contaminates the fuel system.

• Keep the governor linkage, springs and controls

free of debris.

•If engine muffler is equipped with spark arrestor

screen, remove end clean the screen regularly.

Replace if damaged or plugged with debris.Clean

muffler area and remove any grass or other debris

before operating the unit.

FuelFilter

Your unit is equipped with a replaceable in-line fuel

filter. Replace filter whenever contamination or

discoloration is noticed. Order replacement filter

through your engine authorized service dealer.

Figure 17: Lubrication Chart

SECTION9: OFF-SEASONSTORAGE

If the machine is to be inoperative for a period longer

than 30 days, prepare for storage as follows.

Rider Mower

•Clean the engine and the entire unit thoroughly.

• Lubricate all pivot points. Wipe the entire

machine with an oiled rag to protect the surfaces.

• Store unit in a clean, dry area. Do not store next

to corrosive materials, such as fertilizer.

• When storing any type of power equipment in an

unventilated or metal storage shed, care should

be taken to rustproof the equipment. Using a light

oil or silicone, coat the equipment, especially any

chains, springs, bearings and cables.

Battery

• Charge battery fully. The battery loses some of

its charge each day when the unit is not used.

NEVER store battery without a full charge.

Recharge battery before returning to service or

every two months, whichever occurs first.

• When storing unit for extended periods,

disconnect battery cables and remove battery

from the unit.

• Clean dirt and chaff from cylinder, cylinder head

fins, blower housing, rotating screen and muffler.

Engine

• Refer to the engine manual for storage

instructions. Make sure to store the engine

properly to ensure smooth operation.

SECTION10: TROUBLE-SHOOTING

Trouble Possible Cause Remedial Action

Excessive vibration 1. Bent or damaged blade 1. Stop engine immediately. Check all

pulleys, blade adapters, keys and bolts for

tightness and spindle damage. Tighten or

replace any damaged parts.

2. Bent blade. 2. Stop engine immediately. Replace

damaged blade. Only use original

equipment blades.

Mower will not 1. Engine speed low. 1. Throttle must be set at full throttle.

discharge grass or 2. Speed selection. 2. Use lower ground speed. Slower the

leaves uncut strips ground speed, better the quality of cut.

3. Cutting height settoolow. 3. Raisethe deck.

4. Blades short or dull. 4. Sharpen or replace blades,

Broken Belt 1. Sudden stop or shock load to belt 1.

Belt comes off

Belt shreds

Engine will not crank

I 2. Incorrect belt used

3. Belt engaged abruptly

4. Defective or damaged belt

1. Belt too loose; stretched

2. Broken or weak idler spring

1. Belt guides or guards incorrectly adjusted

2. Pulleys not aligned

Pulley rusted or in otherwise bad condition;

frozen bearing

Safety switch button not depressed

2. Battery installed incorrectly

3. Battery dead or weak.

4. Blown fuse or circuit breaker

5. Engine ground wire loose.

Inspect rider for cause such as foreign

objects stuck in between deck and frame or

belt path. Remove obstruction and check

for damage. Replace belt if needed.

Replace with proper belt. Check Parts list

in this manual for correct part number.

Engage belt slowly by depressing the

blade engagement pedal slowly.

Replace with proper belt. Follow

instructions on page 15.

Readjust belt. Replace if needed. Follow

instructions for belt replacement in the

Service and Adjustments section.

Replace. Order with correct part number

from Parts List in this manual.

Adjust belt guides and guards so that these

are approximately 1/16 to 1/8 inch from belt

when engaged.

2. Realign pulleys to be within approximately

1/16 inch of each other. Check with straight

edge. Make sure fastening hardware is

tight.

3. Replace pulleys. Order with correct part

number from the Parts List in this manual.

Adjust new pulleys to 1/16 inch.

1. There are two switches in the starting

circuit of your unit. Make sure that the

actuator is fully depressing both switch

buttons. Brake pedal must be depressed

and blade engagement pedal disengaged.

2. Install the battery with negative terminal

attached to the black ground wire. Attach

the positive terminal to the red wire which

goes to the solenoid.

3. Replace battery.

4. Replace fuse following instructions on

page 16.

5. Make sure the black ground wire runs from

engine to frame or mounting bolt.

Trouble

Engine cranks but will

not start

Possible Cause

1. Throttle/choke not instarting position.

2. No fuelto the carburetor

3. Fuel line or in-line fuel filter plugged

4. No spark to spark plug

5. Faulty spark plug

6. Dirty air cleaner

Engine smokes 1. Engine oil has been overfilled 1.

2. Dipstick not seated or broken 2.

3. Engine loses crankcase vacuum 3.

Remedial Action

1. Check owner's guide for correct position

for throttle control/choke for starting.

2. Gasoline tank empty. Fill with gasoline.

3. Remove and clean fuel line. Replace filter if

necessary.

4. Spark plug lead disconnected. Connect

lead. Hold spark plug lead away from

engine block about 1/8". Crank engine.

There should be a spark. If not, have

engine repaired at authorized engine

service dealer.

5. To test, remove spark plug. Attach spark

plug lead to spark plug. Ground the spark

plug body against the engine block. Crank

the engine. The spark plug should fire at

the electrode. Replace if it does not.

6. If the air cleaner is dirty, the engine may

not starL Clean or replace as

recommended by the engine

manufacturer.

Check oil level.

Replace defective part.

Engine breather defective. Replace.

For repairs beyond those listed in the Trouble-Shooting chart above, please contact an authorized

"_w_ service dealer or call Yard-Man Customer Service at 1- (330) 220-4MTD (4683) or 1- (800)-800-7310.

SECTION11: PARTSLISTFORMODEL328

Ref. Part No. Description

No.

1 731-1869 Steering Wheel: 4 Spoke

2 731-1904 Steering Wheel Cap

Ref.

No. Part No. Description

1 731-1877 Steering Column: Black

2731-1918 Control Knob

3 712-0142 Hex Nut 8-32

4 710-3217 Pan Head Machine Screw #8-32

5 710-0599 Hex Screw TT 1/4-20 x .50"

NOTE: For painted parts, please refer to

the list of color codes below. Please add

the applicable color code, wherever

needed, to the part number to order a

replacement part. For instance, if a part

numbered 700-xxxx is painted Yard-Man

Green, the part number to order would be

700-xxxx-0665.

Yard-Man Green: 0665

Yard-Man Yellow: 0674

Powder Black: 0637

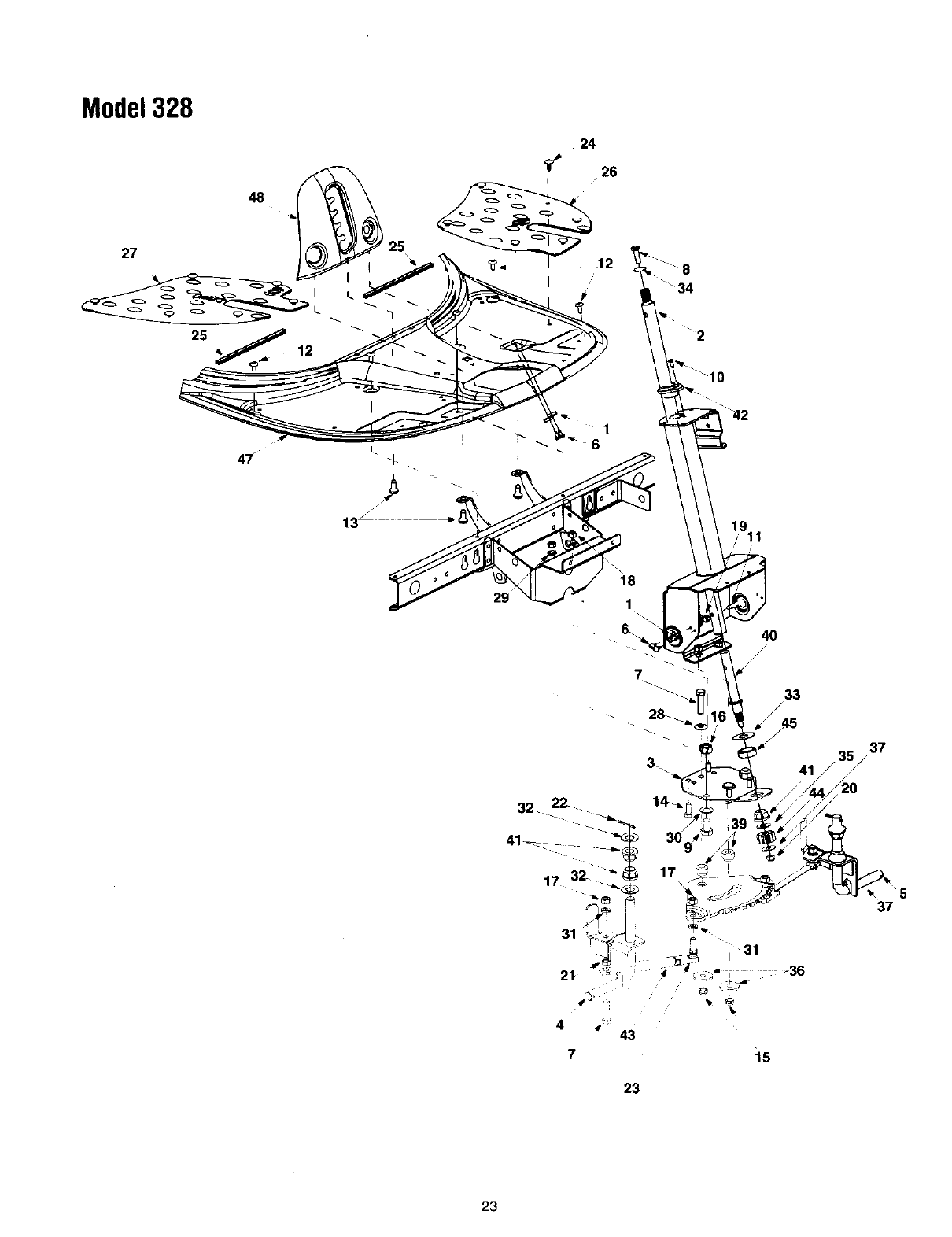

Model328

47_

_12

I....... 8

"_ 34

•43

715

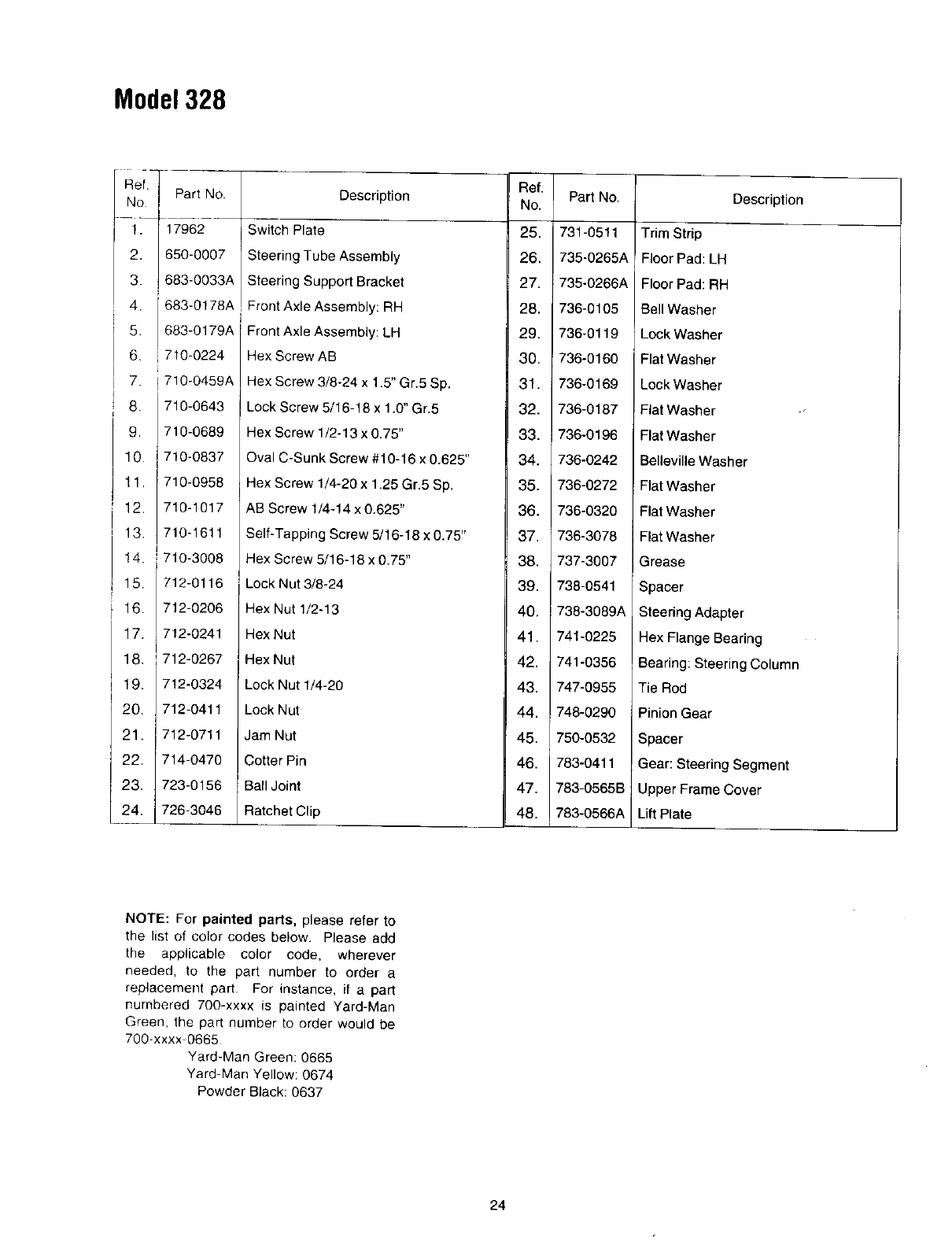

Model328

_ef.

10.

11,

12.

13.

14,

16.

17.

16.

19.

20.

21.

22.

23.

24.

Part No.

17962

650-OOO7

683-0033A

683-0178A

683-0179A

i710-0224

[710-0459A

710-0643

710-0689

710-0837

710-0958

710-1017

710-1811

!710-3008

712-0116

712-0205

712-0241

712-0267

712-0324

712-0411

712-0711

714-0470

723-0156

726-3046

Description

Switch Plate

Steering Tube Assembly

Steering Support Bracket

Front Axle Assembly: RH

Front Axle Assembly: LH

Hex Screw AB

Hex Screw 3/8-24 x 1.5" Gr.5 Sp.

Lock Screw 5/16-18 x 1.0" Gr.5

Hex Screw 1/2-13 x 0.75"

Oval C-Sunk Screw #10-16 x 0.625"

Hex Screw 1/4-20 x 1,25 Gr.5 Sp.

AB Screw 1/4-14 x 0.625"

Self-Tapping Screw 5/16-18 x 0.75"

Hex Screw 5/16-18 x 0.75"

Lock Nut 3/8-24

Hex Nut 1/2-13

Hex Nut

Lock Nut 1/4-20

Ref. Description

Lock Nut

Jam Nut

Cotter Pin

Ball Joint

Ratchet Clip

Part No.

No.

25. 731-0511

26. 735-0265A

27. 735-0266A

28. 736-0105

29. 736-0119

30. 736-0160

31. 736-0169

32. 736-0187

33. 736-0196

34. 736-0242

35. 736-0272

36. 736-O32O

37. 736-3076

38. 737-3007

39. 738-0541

40. 738-3089A

41. 741-0225

42. 741-0356

43. 747-0955

Trim Strip

Floor Pad: LH

Floor Pad: RH

Bell Washer

Lock Washer

Flat Washer

Lock Washer

F_atWasher •

Flat Washer

Belleville Washer

Flat Washer

Grease

Spacer

Steering Adapter

Hex Flange Bearing

Bearing: Steering Column

Tie Rod

44. 748-0290

45. 750-0532

46. 783-0411

47. 783-0565B

48. 783-0566A

Pinion Gear

Spacer

Gear: Steering Segment

Upper Frame Cover

Lift Plate

NOTE: For painted parts, please refer to

the list of color codes below. Please add

the applicable color code, wherever

needed, to the part number to order a

replacement part For instance, it a part

numbered 700-xxxx is painted Yard-Man

Green, the part number to order would be

700-xxxx 0665

Yard-Man Green: 0665

Yard Man Yellow: 0674

Powder Black: 0637

Model328

!4 27

-\13

Model328

Ref. I

No. I

2 I

3 L

4 I

6 L

8 _

9 I

10 I

11 I

12 I

13 I

14 I

15 I

16 i

17 I

Part No. Description

683-0156

_83-0156

683-0275

683-0161

710-1017

711-0701

711-1156

712-0287

712-0324

712-3017

714-0104

714-0111

714-0470

720-0166

731-0405

731-1913

732-0865

732-0815

735-0262

735-0261

735-0263

736-0117

736-0159

736-0169

736-0187

736-0272

736-0133

Brake Pedal Assembly

Variable Pedal Assembly

Deck Pedal Assembly

Shift Cam Assembly

I Ab Screw 1/4-14 X .625

Clevis Pin

Shaft

Hex Nut 1/4-20

Lock Nut 1/4-20

Hex Nut 3/8-16

Internal Cotter Pin

Hairpin Clip

Ball Knob

Snap-on Bushing

Stop Lever

Torsion Spring

Extension Spring

Deck Pad

Drive Pad

Brake Pad

Flat Washer 3/8 X .620 X .033

5/16 Washer

Lock Washer

Flat Washer

Flat Washer .510 X 1.00 X .060

Flat Washer .406 x 1.25 x .10

Ref

No. Part No.

30 ! 736-0329

31 J736-0606

32 I 736-3000

33 I 736-3019

34 736-3020

35 I 738-0255

35 ! 738-0373

37 r 738.0974

38 / 741.0591

39 / 746-0935A

40 / 746-0938

41 / 746-0937

42 / 746-0940

43 / 746-0964

44 / 747-o963

45 / 747-0964

46 / 750-0736

47 _ 783-0473

48 / 783-0525

49 _ 726-6450

50 _ 783-0593A

51 _ 763-0794

164/726-OLOO

156173°-02°2

Description

Lock Washer

Spring Washer

Flat Washer

Flat Washer .531 X 1.062 X .134

Flat Washer .271 X .630 X .065

Shoulder Screw .375 Dia X .18

Shoulder Screw

Shoulder Screw .375 X .380 X 1/4-20

Flange Bearing

Shift Cable

Variable Drive Cable

Brake Cable

Deck Cable

Throttle Choke Cable: 67"

Brake Rod

Brake Lock Out Rod

Shoulder Spacer

Brake Lock Out Bracket

Self-Propelled Pedal Link

Plug Cap

Shift Lever

Bracket: Lock-Out Pedal

Cable Tie

Flat Washer .406 I.D. x .875 O.D,

Push Cap

,Flet Washer

NOTE: For painted parts, please refer to

the list of color codes below. Please add

the applicable color code, wherever

needed, to the part number to order a

replacement part. For instance, if a part

numbered 700-xxxx is painted Yard-Man

Green, the part number to order would be

700-xxxx-0665.

Yard-Man Green: 0665

Yard-Man Yellow: 0674

Powder Black: 0637

Model328

13 23

27 8

25 ,,

20 9

1.=

Ref. Part No.

No.

1, 683-0152

2. 683-0194

3. 710-0376

4. 710-3230

5. 711-0332

6. 711-1120

7. 711-3319

8. 712-0266

9. 712-3008

10. 712-3010

11. 712-3048

12. 714-0104

13. 714-0147

14. 714-3010

15. 720-0298

Description

Pivot Link Assembly

Lift Arm Assembly

Hex Screw 5/16-18 X 1.00 Gr.5

Hex Bolt 1/2-13 X 2.75 Gr.5 Special

Ref.

No.

16.

17.

18.

19.

Part No.

732-0829

732-0837

736-0119

736-0140

Description

Extension Spring

Torsion Spring

Lock Washer 5/16

Flat Washer .385 I.D. x .620 O.D.

Lift Bracket Pin

Lift Rod

Ferrule

Jam Nut

Jam Nut 3/8-16 Gr. 5

Hex Nut 5/16-18

Jam Nut

Cotter Pin

iCotter Pin

Cotter Pin

Handle Grip

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

736-0169

736-0257

736-0275

736-3019

738-0145

738-0183

738-0958

783-0435

783-0437

783-0440

Lock Washer

Flat Washer

Flat Washer 5/16

Flat Washer

Shoulder Screw

Shoulder Spacer

Upper Deck Link

Axle Bracket: Rear

Lower Link

Model328

..... ]

NOTE: For painted parts, please refer to i

the list of color codes below. Please add

the applicable color code, wherever

needed, to the part number to order a

replacement part. For instance, if e part

numbered 700-xxxx is painted Yard-Man

Green, the part number to order would be

700-xxxx-0665.

Yard-Man Green: 0665

Yard-Man Yellow: 0674

Powder Black: 0637

Ref.

No.

Part No. Description

629-0865

710-1208

710-0227

710-0605

710-0642

712-3010

714-0115

726-0320

736-0289

736-o119

736-0173

750-1064

783-0591

783-0433A

Harness Assembly Adapter

HexTr Screw 5/16-18 x 3.50

Hex Washer Head Self-Tap.Scew

Hex Screw 5/16-18 x 1.5 Gr. 5

Thd. Forming Scr. 1/4-20x .75

Hex Nut 5/16-18

Cotter Pin

Insulator Nut Plate

Shoulder Bushing

Lock Washer 5/16

Flat Washer

.28 I.D. x .74O.D. x .083

Spacer

"[ransaxleBracket

ShiftLever

Model328

Ref.

No.

24/

/26/,

23_

4 j

Part No. Description

683-0147

710-0191

710-0314

710-0902

710-1611

710-3096

712-0116

712-0241

712-3017

712-3035

714-0114

717-0884

732-0814

732-0815

736-0169

736-0171

736-0219

736-0247

736-0427

737-0167

Idler Bracket Assembly

Hex Screw 3/8-24 x 1.25

Hex Screw 7/16-20 x 1.0"

Cap Screw 3/8-24 x 3.75

Pan Head TL Screw 5/16-18 x .75

Hex Screw 3/8-16 x 2.0 Special

Jam Lock Nut 3/8-24

Hex Nut 3/8-24

Hex Nut 3/8-16

Hex Jam Nut 9/16-18 (Gr. 5)

Square Key

Variable Speed Pulley Assembly

Extension Spring

Lock Washer

Lock Washer 7/16 I.D,

Bell Washer .406 I.D. x 1.13 O.D.

Flat Washer 3/8 x 1.25 O.D.

Belleville Washer .567 x 1.125 x .06

Grease

Ref.

NO.

32 l

X7 9

Part No. Description

737-0288

738-0968

741-0405

750-0705

754-0453

756-0116

756-0650

756-0658

756-0981

783-0528

783-0529

683-0149B

Grease

Shoulder Spacer

Bearing

Spacer

V-Belt

Idler Pulley

Transmission Pulley

Engine Pulley

Flat Idler Pulley

Idler Bracket

Cable Bracket

Frame

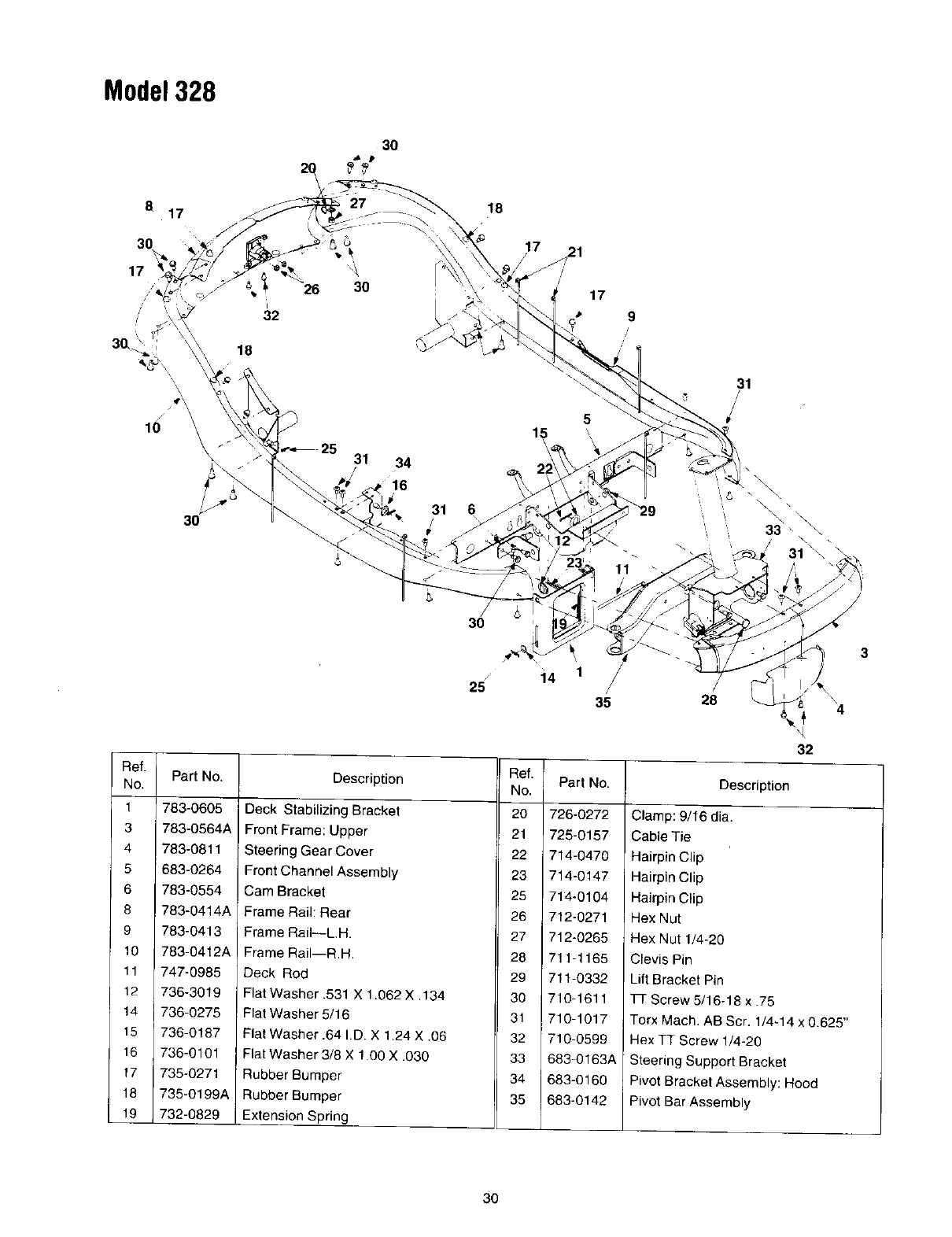

Model328

16¸

26 30

31 34

31 \\

Ref.

No.

Part No. Description

783-0605

783-0564A

783-0811

683-O264

783-0554

783-0414A

783-0413

783-0412A

747-0985

736-3019

736-0275

736-0187

736-0101

735-0271

735-0199A

732-0829

Deck Stabilizing Bracket

Front Frame: Upper

Steering Gear Cover

Front Channel Assembly

Cam Bracket

Frame Rail: Rear

Frame Rail--LH.

Frame RaiI--R.H

Deck Rod

Flat Washer ,531 X 1.062 X .134

Flat Washer 5/16

Flat Washer .64 I.D X 1.24 X .06

Flat Washer 3/8 X 100 X .030

Rubber Bumper

Extension Spring

25ji4

35 28

Ref. I Part No.

No, I

20 I 726-0272

21 I

22 I

23 I

25 P

26 I

27 I

26 I

29 I

Description

Clamp: 9/16 dia.

725-0157 Cable Tie

714-0470 Hairpin Clip

714-0147 Hairpin Clip

714-0104 Hairpin Clip

712-0271 Hex Nut

712-0265 Hex Nut 1/4-20

711-1165 Clevis Pin

711-0332 Lift Bracket Pin

30 1710-1611

31 1710-1017

32 1710-0599

33 1683-0163A

34 1683-0160

35 !683-0142

Tr Screw 5/16-18 x .75

Torx Mach. AB Scr. 1/4-14 x 0.625"

Hex TT Screw 1/4-20

Steering Support Bracket

Pivot Bracket Assembly: Hood

Pivot Bar Assembly

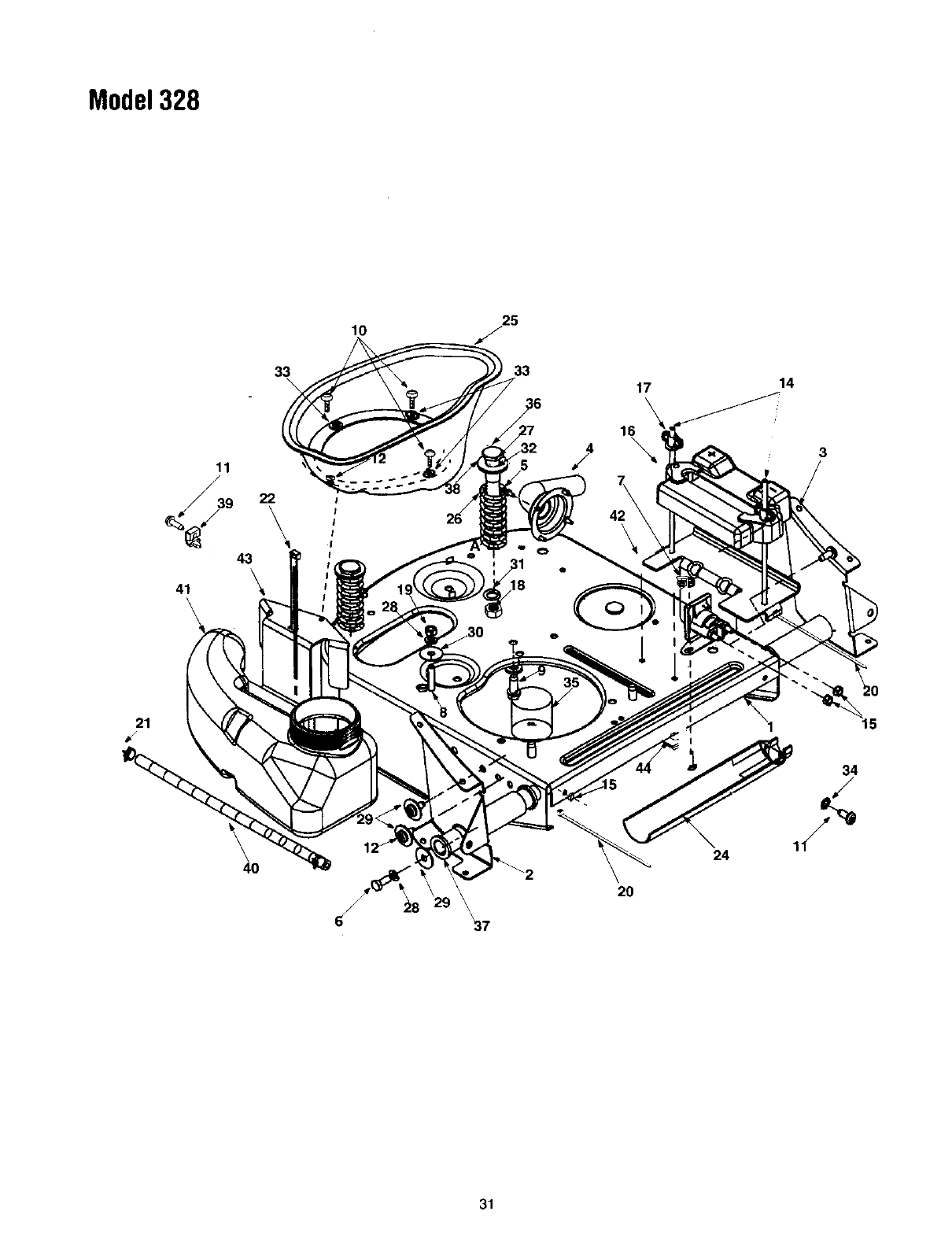

Model328

17 14

Model328

Ref.

No.

1 683-0149B

2 683-0190A

3 683-0191A

4 683-0192

5 710-0148

6 710-0157

7 710-0599

8 710-0624

9 710-0654A

10 710-0871

11 710-1237

12 710-1611

13 710-1653

14 711-0222A

15 712-0271

16 712-0291

17 712-0397

18 712-3017

19 712-3057

20 725-0157

21 726-0205

22 726-0209

Ref.

Part No. Description No.

Frame Assembly 23

Frame Rail Support: RH 24

Frame Rail Support: LH 25

Muffler Pipe Extension 26

Hex FI. Screw #8-32 x 0.375 27

Flex Screw 5/16-24 x .75" Gr.5 28

Self-Tapping Screw 29

Hex Screw 5/16-24 x 1.5" Gr.5 30

Hex Washer Head TT Screw 31

3/8-16 x 1.0" 32

Hex Slot Seres Screw #10-32 x 0.38 33

Hex Washer TT Screw #10-32 x 0.625" 34

T1-Screw 5/16-18 x 0.75" 35

Machine Screw #10-32 x 0.5" 36

Battery Hold-Down Rod 37

HexSems Nu 1/4-20 38

Lock Nut 1/4-20 39

Wing Nut with Bell Washer 40

Hex Nut 41

Hex Nut 5/16-24 Gr.5 42

Cable Tie 43

Hose Clamp 44

Cable Tie

Part No. Description

731-0708

731-1682A

731-1945

732-3080

735-0273

736-0119

736-0123

736-0159

736-0169

736-0188

736-0400

736-0607

737-0169

788-0960

741-0516

;741-0591

751B213146

751-0535

751-0656

763-0624

763-0630

783-080gB

Battery Cover

Oil Drain S_eeve

Engine Duct

Compression Spring

Rubber Washer

Lock Washer

Flat Washer

5/16 Washer

! Lock Washer

Flat Washer

Lock Washer

Motor Oil

Shoulder Screw

Flange Bearing

F_angeBearing

Throttle Casing Clamp

Fue_Line Hose

Fuel Tank

Battery Bracket

Fuel Tank Bracket

Transaxle Support Bracket

Ref,

No.

5• ,_1; 2.1"

8 3.

10 7.

• 8.

_6 *10.

13 7 9 /_--_( _ 11.

12.

12 14 13.

14.

• _ 15.

Part No, Description

634-0139

634-0169

734-1727

734-1382

734-0255

737-0211A

741-0353

634-0138

734-1455A

710-0627

736-0242

714-0115

736-0285

736-0366

731-0484A

Rear Wheel Compl.

Front Wheel CompL

Rear Tire

Front Tire

Valve: Tubeless Air

Grease Fitting

Flange Bearing

Rim Assembly

Hex Bolt 5/16-24 x .75"

Beleville Washer

Dotter Pin

Flat Washer

Hub Cap (not shown)

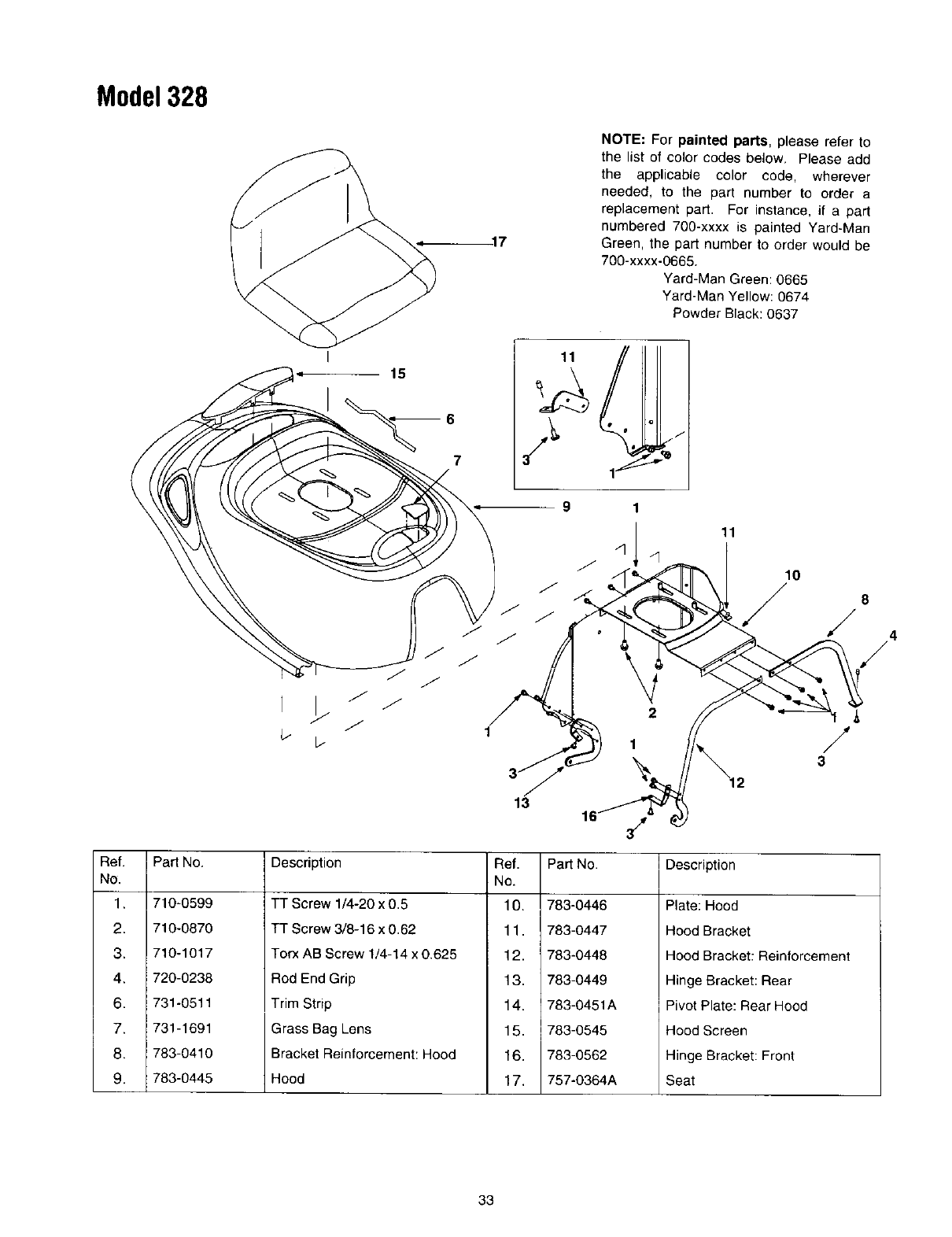

Model328

NOTE: For painted parts, please refer to

the list of color codes below. Please add

the applicable color code, wherever

needed, to the part number to order a

replacement part. For instance, if a part

numbered 700-xxxx is painted Yard-Man

Green, the part number to order would be

700-xxxx-0665.

Yard-Man Green: 0665

Yard-Man Yellow: 0674

Powder Black: 0637

Ref. Part No.

No.

1. 710-0599

2. 710-0870

3. 710-1017

4. 720-0238

6. 731-0511

7. 731-1691

8. 783-0410

9. 783-0445

Description

TT Screw 1/4-20 x 0.5

TT Screw 3/8-16 x 0.62

Torx AB Screw 1/4-14 x 0.625

Rod End Grip

Trim Strip

Grass Bag Lens

Bracket Reinforcement: Hood

Hood

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

17.

Part No.

783-0446

783-0447

783-0448

783-0449

783-0451A

783-0545

783-0562

757-0364A

Description

Plate: Hood

Hood Bracket

Hood Bracket: Reinforcement

Hinge Bracket: Rear

Pivot Plate: Rear Hood

Hood Screen

Hinge Bracket: Front

Seat

Model328

\\\

Fief.

No.

10.

11.

12.

13.

14.

Part No.

618-0232

618-0248

618-0072B

611-0114

661-0006

710-1206

710-1325

717-0676

719-0313B

732-0863

737-0148

741-0662

761-0202

777-6318

Description

Differential Assembly: Single Speed

Drive Shaft assembly: LH Brake

Upper Housing Assembly

Detent Shaft Assembly

Brake Yoke Assembly: LH

Hex Washer Hd. TT Screw 1/4-20 x 2.37 Gr .5

Hex Washer Hd. TT Screw 1/4-20 x 1.65

Brake Puck

Lower Housing

Spring Detent

Grease

Ball Detent

Brake Disc

Label

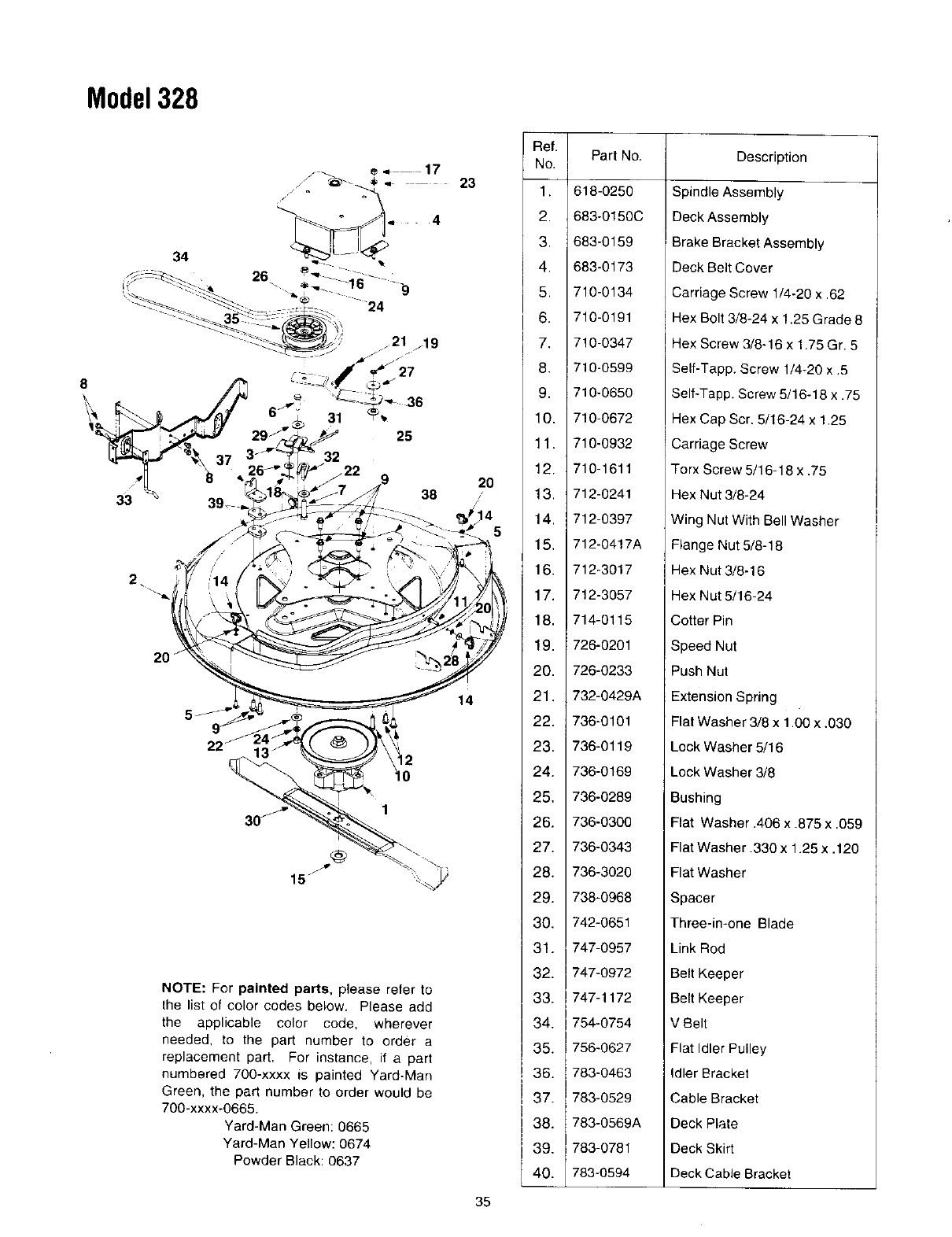

Model328

.21 j19

38 2O

3O_

NOTE: For painted parts, please refer to

the list of color codes below. Please add

the applicable color code, wherever

needed, to the part number to order a

replacement part. For instance, if a part

numbered 700-xxxx =s painted Yard-Man

Green, the part number to order would be

700-xxxx-0665.

Yard-Man Green: 0665

Yard-Man Yellow: 0674

Powder Black: 0637

{ef.

40.

10.

11.

12.

13.

14,

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25,

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

Part No.

618-0250

683-0150C

683-0159

683-0173

710-0134

710-0191

710-0347

710-0599

710-0650

710-0672

710-0932

710-1611

712-0241

712-0397

712-0417A

712-3017

712-3057

714-0115

726-0201

726-O233

732-0429A

736-0101

736-0119

736-0169

736-O289

736-0300

736-0343

736-3020

738-0968

742-0651

747-0957

747-0972

747-1172

754-0754

756-0627

783-0463

783-0529

783-0569A

783-0781

783-0594

Description

Spindle Assembly

Deck Assembly

Brake Bracket Assembly

Deck Belt Cover

Carriage Screw 1/4-20 x .62

Hex Bolt 3/8-24 x 1.25 Grade 8

Hex Screw 3/8-16 x 1.75 Gr. 5

Self-Tapp. Screw 1/4-20 x .5

Self-Tapp. Screw 5/16-18 x .75

Hex Cap Scr. 5/16-24 x 1.25

Carriage Screw

Torx Screw 5/16-18 x .75

Hex Nut 3/8-24

Wing Nut With Bell Washer

Flange Nut 5/8-18

Hex Nut 3/8-16

Hex Nut 5/16-24

Cotter Pin

Speed Nut

Push Nut

Extension Spring

Flat Washer 3/8 x 1.00 x .030

Lock Washer 5/16

Lock Washer 3/8

Bushing

Flat Washer .406 x .875 x .059

Fiat Washer .330 x 1.25 x .120

Flat Washer

Spacer

Three-in-one Blade

Link Rod

Belt Keeper

V Belt

Flat Idler Pulley

Idler Bracket

Cable Bracket

Deck Plate

Deck Skirt

Deck Cable Bracket

Model328

Ref.

No.

Part No. DeScription

631-0060

131-0080

710-0166

710-0286

710-0456

710-0564

710-0642

710-0825

710-0924

711-0415

712-0271

712-0298

1712-0397

714-0115

726-0271

731-1441

731-1743A

731-1744

73t-1745A

732-0839

732-0641

732-0854

736-0173

736-0329

783-0544A

783-0575A

783-0645

Flow Indicator Assembly

Grass Bag Assembly

Machine Screw 1/4-20 x 1.0

Machine Screw 1/4-20 x 0.5"

Hex Screw #10-16 x 0.5"

Hex Screw 1/4-20 x 2.75"

Self-Tapping Screw 1/4-20 x 0.75"

Hex Screw 1/4-20 x 3.75"

Machine Screw 1/4-20 x 0.75"

Clevis Pin

Hex Sems Nut 1/4-20

Jam Nut

Wing Nut

Cotter Pin

Speed Nut

Bag Handle

Discharge Chute: Grass Bag

Side-Discharge Chute

Mulching Plug

Bag ReleaseLever

Torsion Spring

Clip Spring

Fla'_Washer

LockWasher

Grass Bag Screen

Pivot Bracket

Deflector Plate

Model328

"2 \8

,sO

'l_•\\ 1

13 7

Ref.

No.

10.

11.

12.

13.

14.

15.

Part No. Description

629-0945

725-0267

725-1426

725-1462

725-1643

725-1657A

725-1381

725-1726

725-3237

729-0125

729-0139

729-0171

729-0357

729-0359

729-1108

Harness Assembly w/o relays

Ignition Switch: 5 Pin

Solenoid: 12 V, 100 amp.

Seat Switch

Spring Switch

Interlock Switch

Fuse: 20 amp.

Battery Cover

Battery Cover: Red

Connecter

Fuse Holder w/Clip

Harness Clip

Connecter

YourNotes

Date Comments

YourNotes

Date Comments

MANUFACTURER'S LIMITED WARRANTY FOR:

YaRD-MaN

,J'#7,e/n

The limited warranty set forth below is given by MTD

PRODUCTS INC ("MTD") with respect to new merchandise

purchased and used in the United States, its possessions

and territories.

MTD warrants this product against defects in material and

workmanship for a period of two (2) years commencing on

the date of original purchase and wil_, at its option, repair or

replace, free of charge, any part found to be defective in

material or workmanship. This limited warranty shall only

apply if this product has been operated and maintained in

accordance with the Operator's Manual furnished with the

product, and has not been subject to misuse, abuse, com-

mercial use, neglect, accident, improper maintenance,

alteration, vandalism, theft, fire, water or damage because

of other peril or natural disaster. Damage resulting from the

installation or use of any accessory or attachment not

approved by MTD Products Inc. for use with the product(s)

covered by this manual will void your warranty as to any

resulting damages.

Normal wear parts or components thereof are subject to

separate terms as follows: All normal wear part or compo-

nent failures will be covered on the product for a period of

90 days regardless of cause. After 90 days, but within the

two year period, normal wear part failures will be covered

ONLY IF caused by defects in material or workmanship of

OTHER component parts. Normal wear parts and compo-

nents include, but are not limited to, belts, blades, blade

adapters, grass bags, rider deck wheels, seats, snow

thrower skid shoes, shave plates and tires. Batteries are

covered by a 90-day limited replacement warranty.

HOW TO OBTAIN SERVICE: Warranty service is available,

WITH PROOF OF PURCHASE THROUGH YOUR LOCAL

AUTHORIZED SERVICE DEALER. To locate the dealer in

your area, please check for a listing in the Yellow Pages or

contact the Customer Service Department of MTD PROD-

UCTS INC by calling 1-800-800-7310 or writing to RO. Box

368022, Cleveland, Ohio 44136-9722.

This limited warranty does not provide coverage in the

following cases:

a. The engine or component parts thereof. These items

carry a separate manufacturer's warranty. Please refer

to the applicable manufacturer's warranty on these

items.

b. Log splitter pumps, valves and cylinders have a sepa-

rate one year warranty.

c. Routine maintenance items such as lubricants, filters,

blade sharpening and tune-ups, or adjustments such

as brake adjustments, clutch adjustments or deck

adjustments; and normal deterioration of the exterior

finish due to use or exposure,

d. MTD does not extend any warranty for products sold

or exported outside of the United States of America,

its possessions and territories, except those sold

through MTD's authorized channels of export distribu-

tion.

No implied warranty, including any implied warranty of

merchantability or fitness for a particular purpose,

applies after the applicable period of express written

warranty above as to the parts as identified. No other

express warranty or guaranty, whether written or oral,

except as mentioned above, given by any person or

entity, including a dealer or retailer, with respect to any

product shall bind MTD. During the period of the War-

ranty, the exclusive remedy is repair or replacement of

the product as set forth above. (Some states do not

allow limitations on how long an implied warranty lasts, so

the above limitation may not apply to you.)

The provisions as set forth in this Warranty provide the

sole and exclusive remedy arising from the sales. MTD

shall not be liable for incidental or consequential loss

or damages including, without limitation, expenses

incurred for substitute or replacement lawn care ser-

vices, for transportation or for related expenses, or for

rental expenses to temporarily replace e warranted

product. (Some states do not allow the exclusion or limita-

tion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you.)

In no event shall recovery of any kind be greater than the

amount of the purchase price of the product sold. Alteration

of the safety features of the product shall void this War-

ranty. You assume the risk and liability for _oas, damage, or

injury to you and your property and/or to others and their

property arising out of the use or misuse or inability to use

the product,

This limited warranty shall not extend to anyone other than

the original purchaser, original lessee or the person for

whom it was purchased as a gift.

How State Law Relates to this Warranty: This limited

warranty gives you specific _ega_rights, and you may a_so

have other rights which vary from state to state.

Craftsman 247270190 User Manual RIDING MOWER Manuals And Guides L0030081

MTD Lawn, Tractor Manual L0030081 MTD Lawn, Tractor Owner's Manual, MTD Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
