CAUTION:

ReQd _FETY

RULES and

BNSTR_TaONS

c=refullv

CRRFT_MRN_

ETiLL

,, AssembBy

O_rating

oMaintenance

,RepOt Par_s

ROEBLrC"K AND CO., Chl_U. (_0684 U_

PART NO. 770-7764 PRINTED IN US.A,

'rrr_'_:r_ -... ° ' ._-_'rrr_r_'_r_r___-_qr_rr_

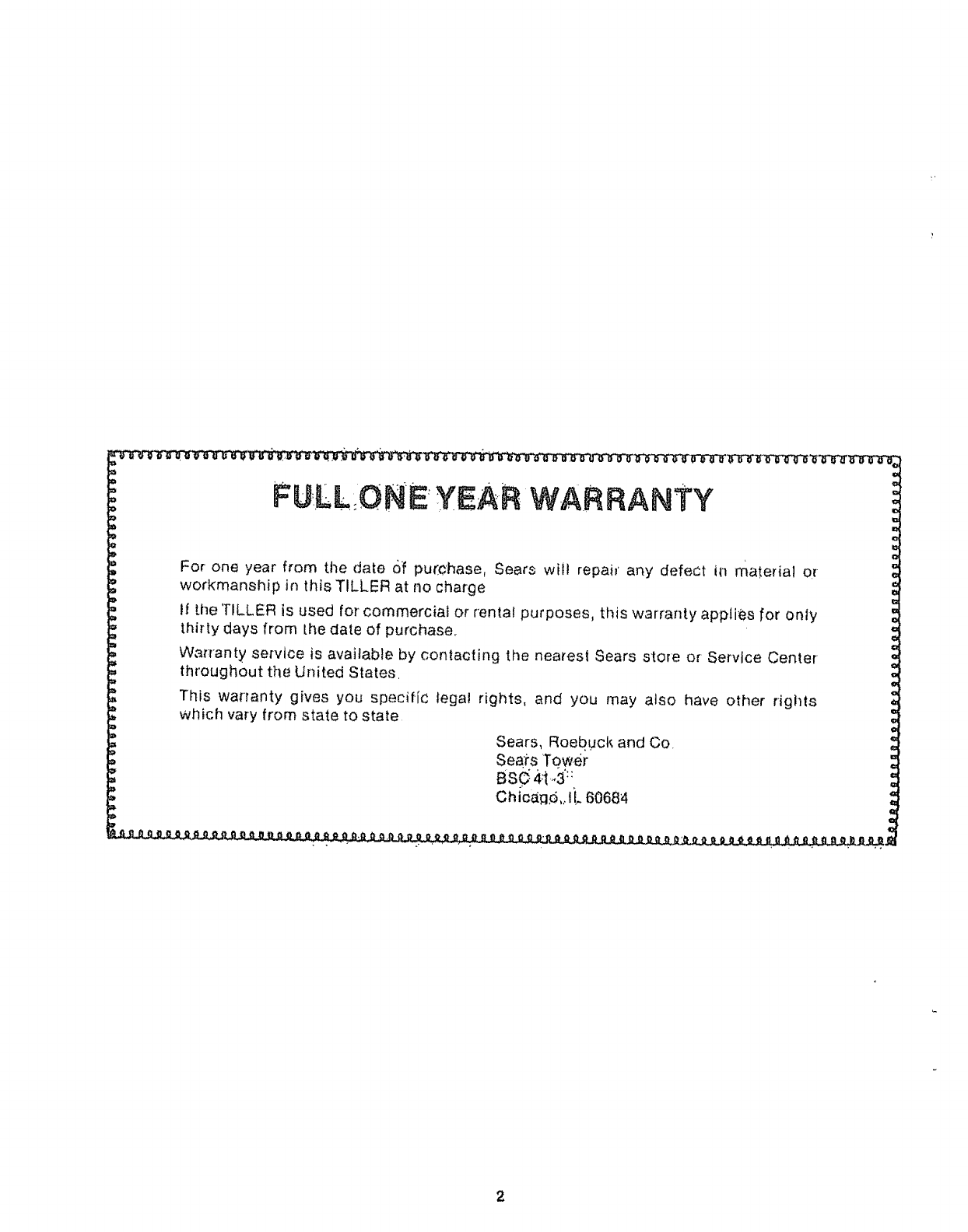

FULL:ONE YEAR WARRANTY !

or one year from tile date (_f pur.chase, Sears will repair any defect i_ material or- ,,

orkmanship in this TILLER at no charge '

the TILLER is used for commercial or rental purposes, this warranty applies for only i

thirty days from [he date of purchase,

Warranty service is available by contacting the nearesi Sears store or Service Center i

throughout the United States.

This warranty gives you specific legal rights, and you may also have other rights _,

Which vary from state to state

Sears, Roebuck and Co."

_. Sea_s Tower _,

I_ BSC-4.14:: ==

_. C hie,.,-i_l.d,,IL 60684

MPORTANT

It is suggested that this manual be read in its entirety before attempting to assemble or operate. Keep this

manual in a safe place for future reference and for ordering replacement parts.

This unit is shipped WITHOUT GASOLINE or OIL. After assembly, see operating section of thts manual

for proper fuel and amount.

Your tiller is a precision piece of power equipmei!.t, not a play thing. Therefore, exercise extreme caution

at all times.

SAFE OPERATION PRACTICES FOR T LLERS

1, Read the Ope[ating and Service Ownerts

Manual carefully. Be thoroughly familiar with

the controls and the proper use of the

equipment.

2.. Never allow chltdren to operate a power tilter.

Only persons well acquainted with these rules

of safe operation shou}d be allowed to use

your til ler.i

tl.

13,

Do not fill gasoline tank while engine is

running. Spilling gasoline on hot engine may

cause a fire or explosion.

Do not run the engine while indoors. Exhaust

gases are deadly poisonous.

Be careful not to touch the muffler after the

engine has been rupning, tt is hot°

3, Keep the area of operation clear of all 14,

persons, particularly small children and pets,

4, Do not operate equipment when barefoot or

wearing open sandals_ Always wear substan-

tial footwear,

5. Do not wear loose fitting clothing that could

get caught on the tiller,

6, Do not start the engine unless the shift lever

is in the neutral iN) position,

7, Do n,ot stand tn fi'ont of the tiller while

starttng the :eilgtne.

!5_

16_

I 7,

8, Do not blac_ feet and ha.nd.S,o,n or..near thi_

tines _vhen st_arttng the engine' 5r white {he 18.

eng'lne is i'U_rilng,

9, Do not leave thetll"lar una{t.ended with the

e6gtne running, 19.

l& I)o not.walk :in front of the tiller wh{te the

engine is ru.nntng,

Before any maintenance work iS performed or

adjustments are made, remove the spark plug

wire and ground it on the engine block for

added safety,

Use caution when ti'lling near buildings arid

fences, rotating tines can cause damage oi'

injury.

Before attempting to remove rooks, bricks

and other objects from tines, stop the engine

and be sure the tines have stopped

completely. DisconneCt the spark plug wire

and ground to prevent accidenta! starting.

Check the fine and engine mouhttng bolts at

frequent Intervals for proper tightness.

Keep all nuts, bolts and screws tight to be

sure ,the equipment ts in safe working

condition,

Never store the equlpmetlt with gasoline in

the tank tnstde of a building where fumes may

reach an open flame or spark_ Allow the

engine to cool before storing tn any

enclosure,

A spark arrest muffler is available as an accessory part, "Thepart number is listed in the parts section Of this

mendel. Check muffler legal requirements in your area

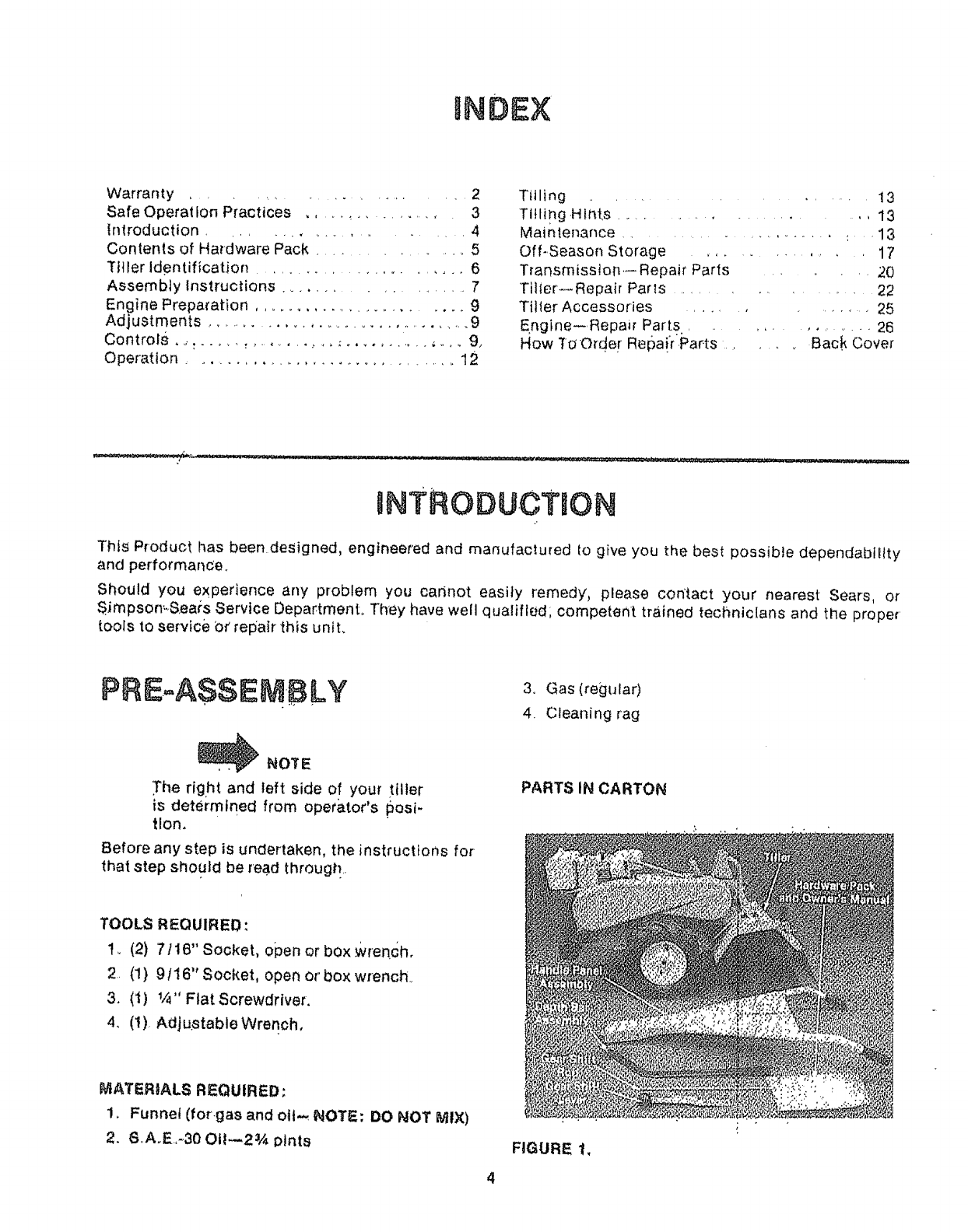

INDEX

Warranty ................. 2

Safe Operat ion Practices ................ 3

Introduction .................. 4

Contents of Hardware Pack ............... 5

Tiller Identificat.ion ..................... 6

Assembly instructions ..................... 7

Engine Preparation ......................... 9

Adjustments .................................... 9

Controls. _.;...... :............ ,................. 9_

Operation ................................. 12

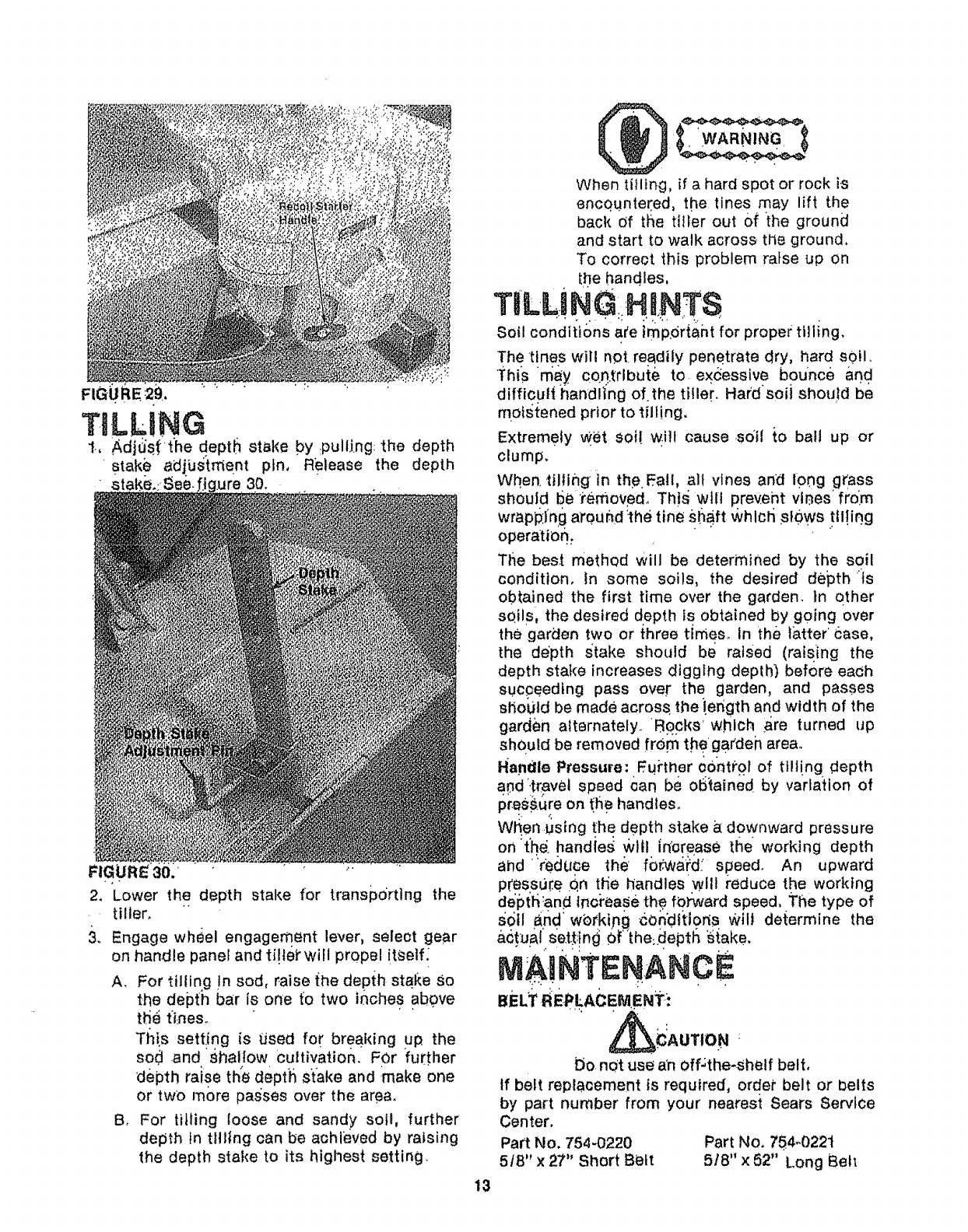

Tilling ................. 13

Titling Hlttts ......................... 13

Maintenance ................................. 13

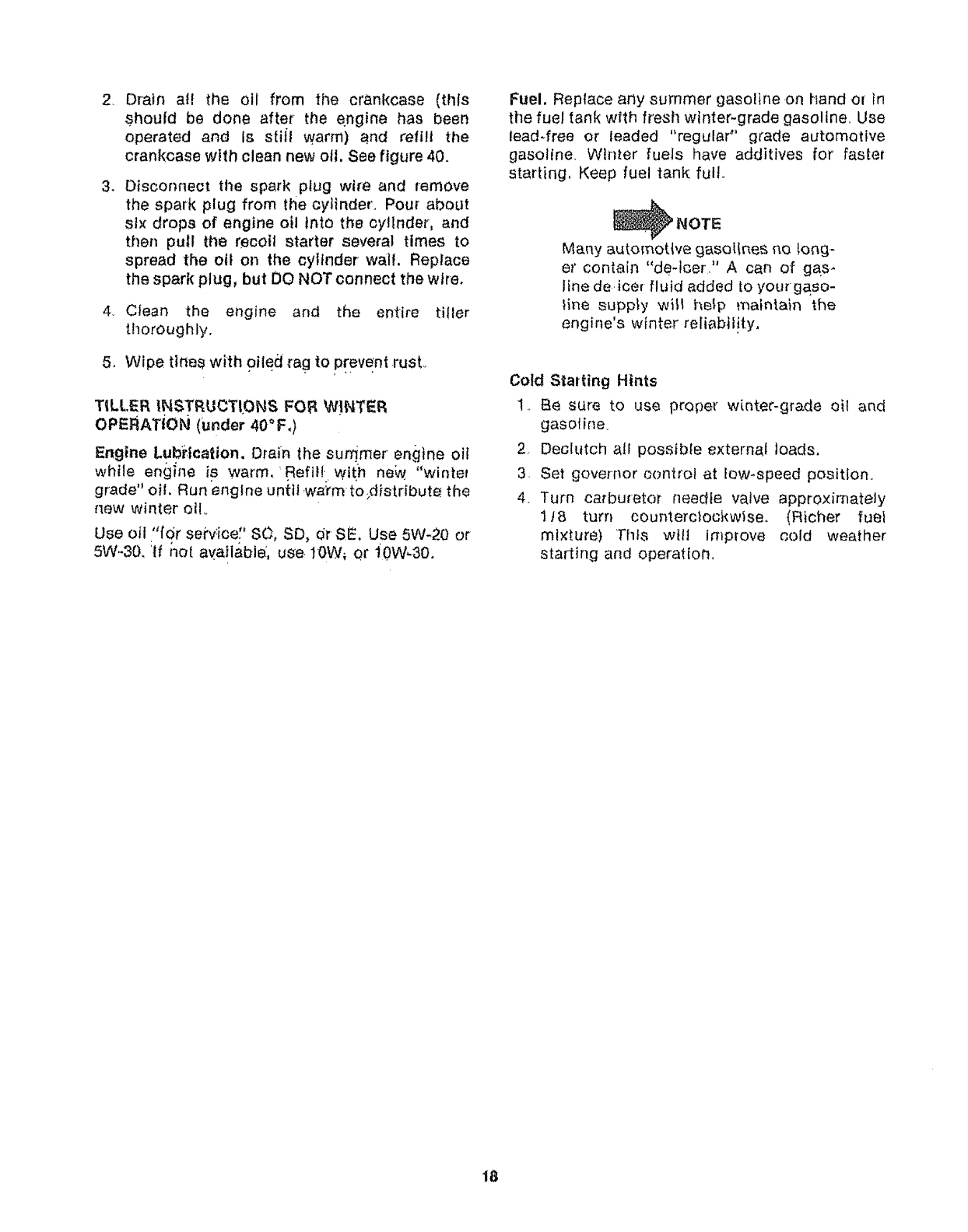

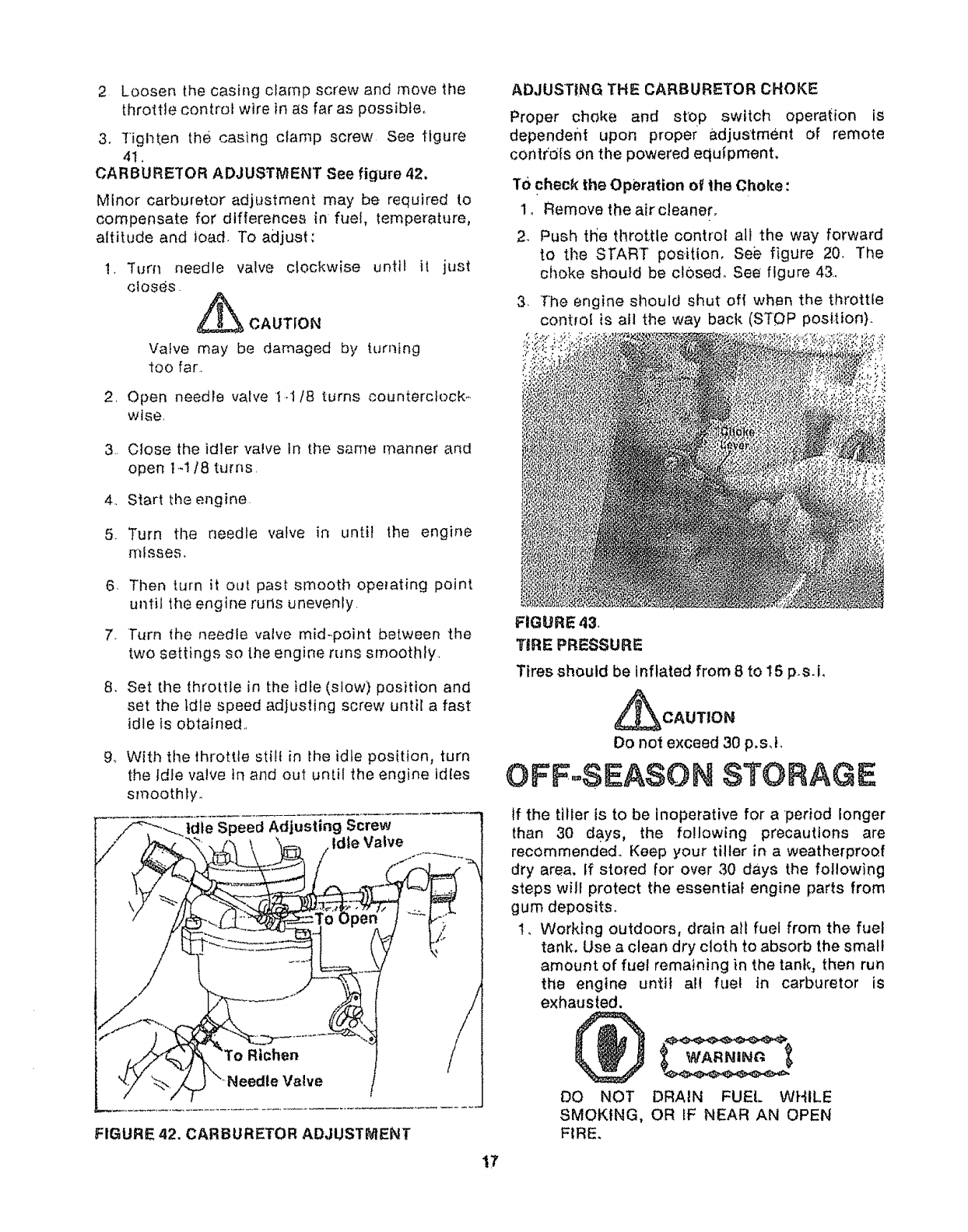

Off-Season Storage ............... 17

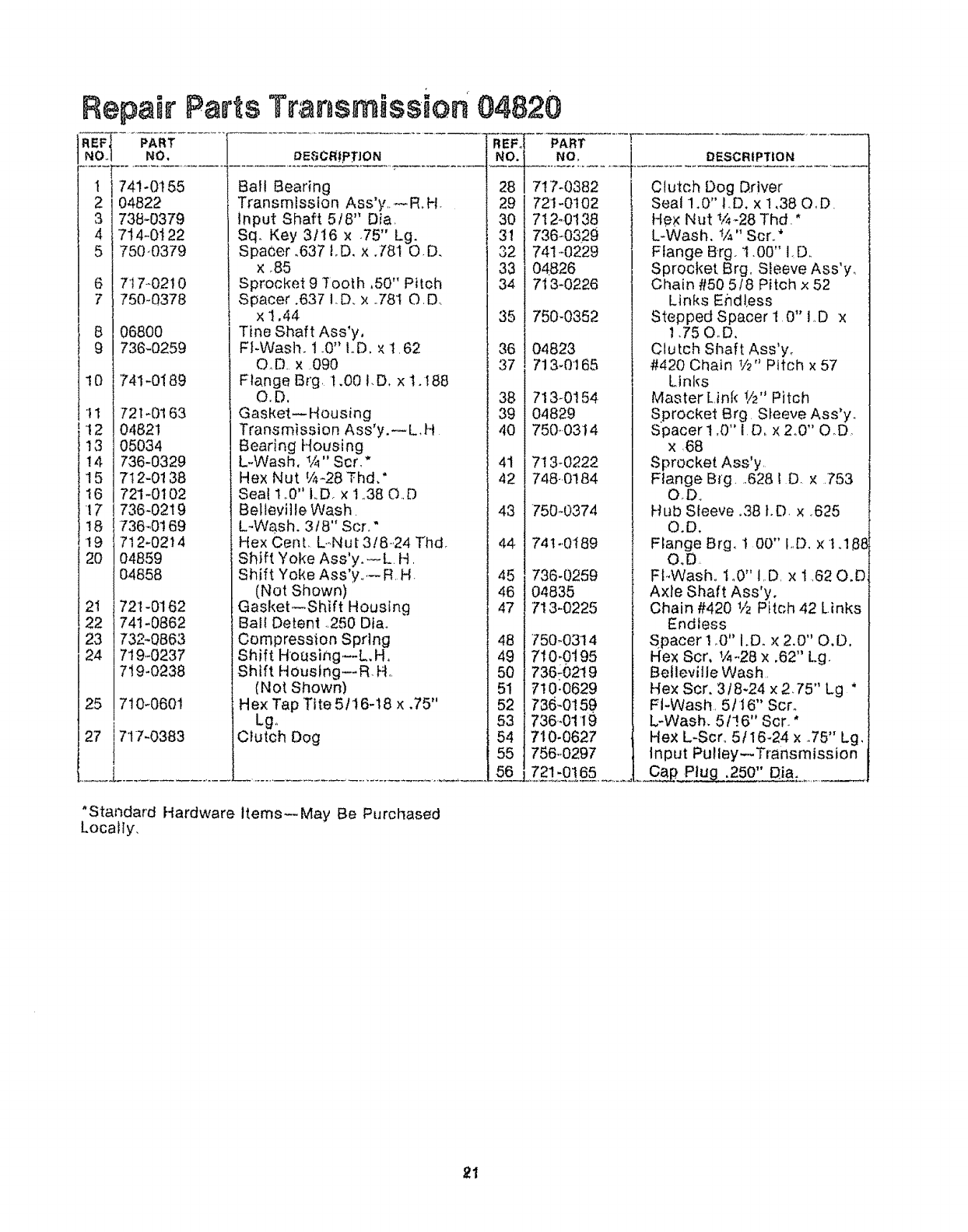

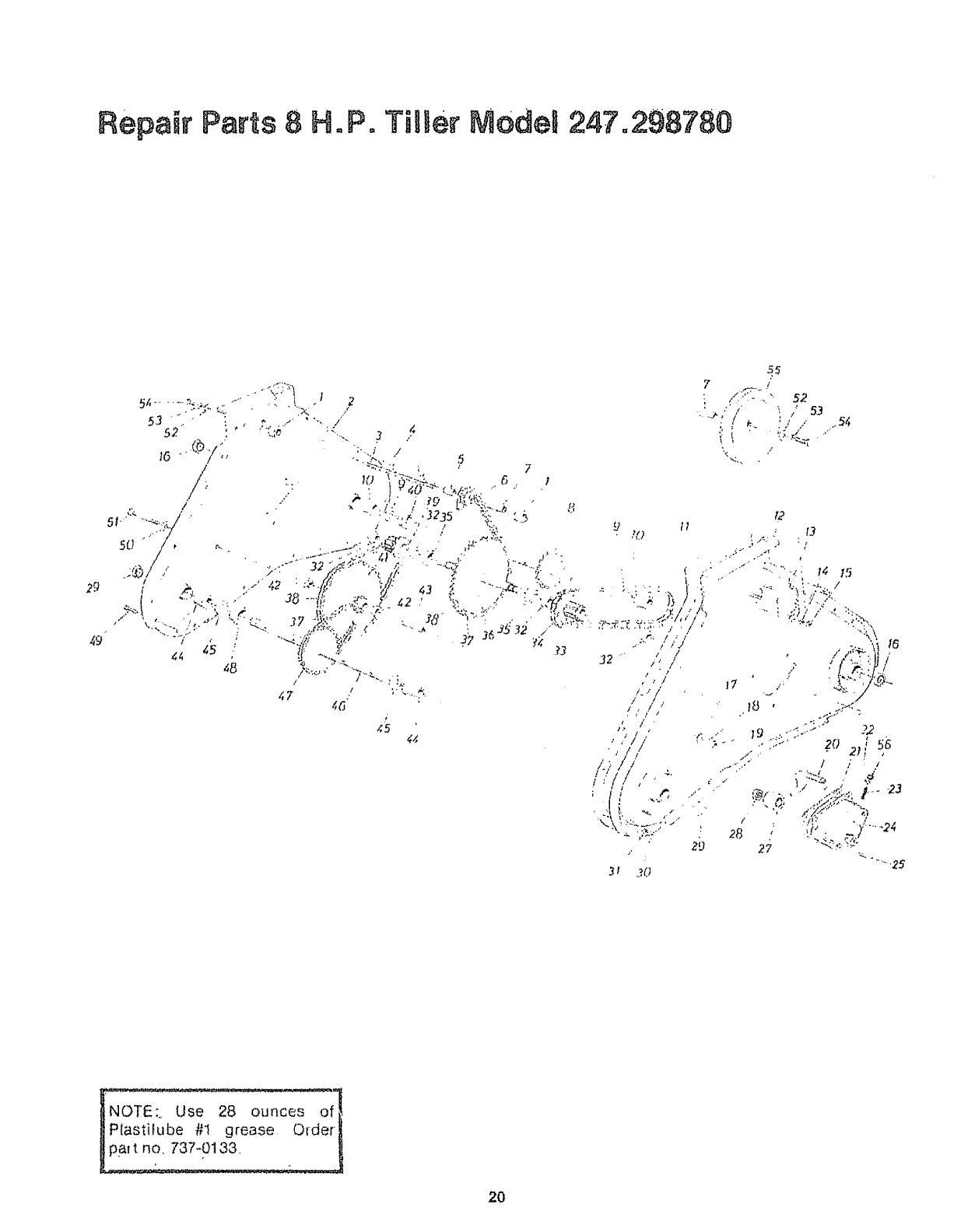

Transmisstor_,.- Repair Pads .... 20

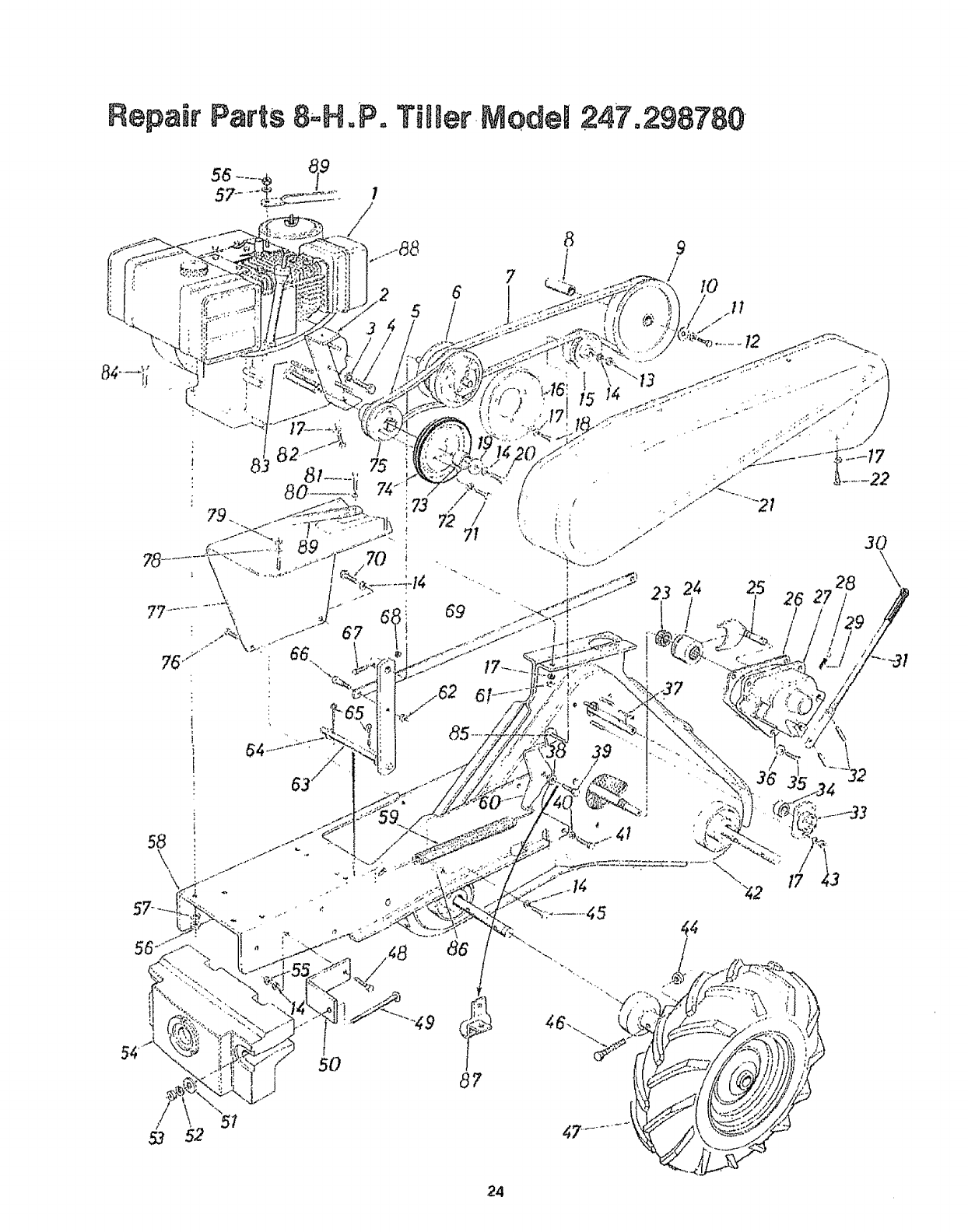

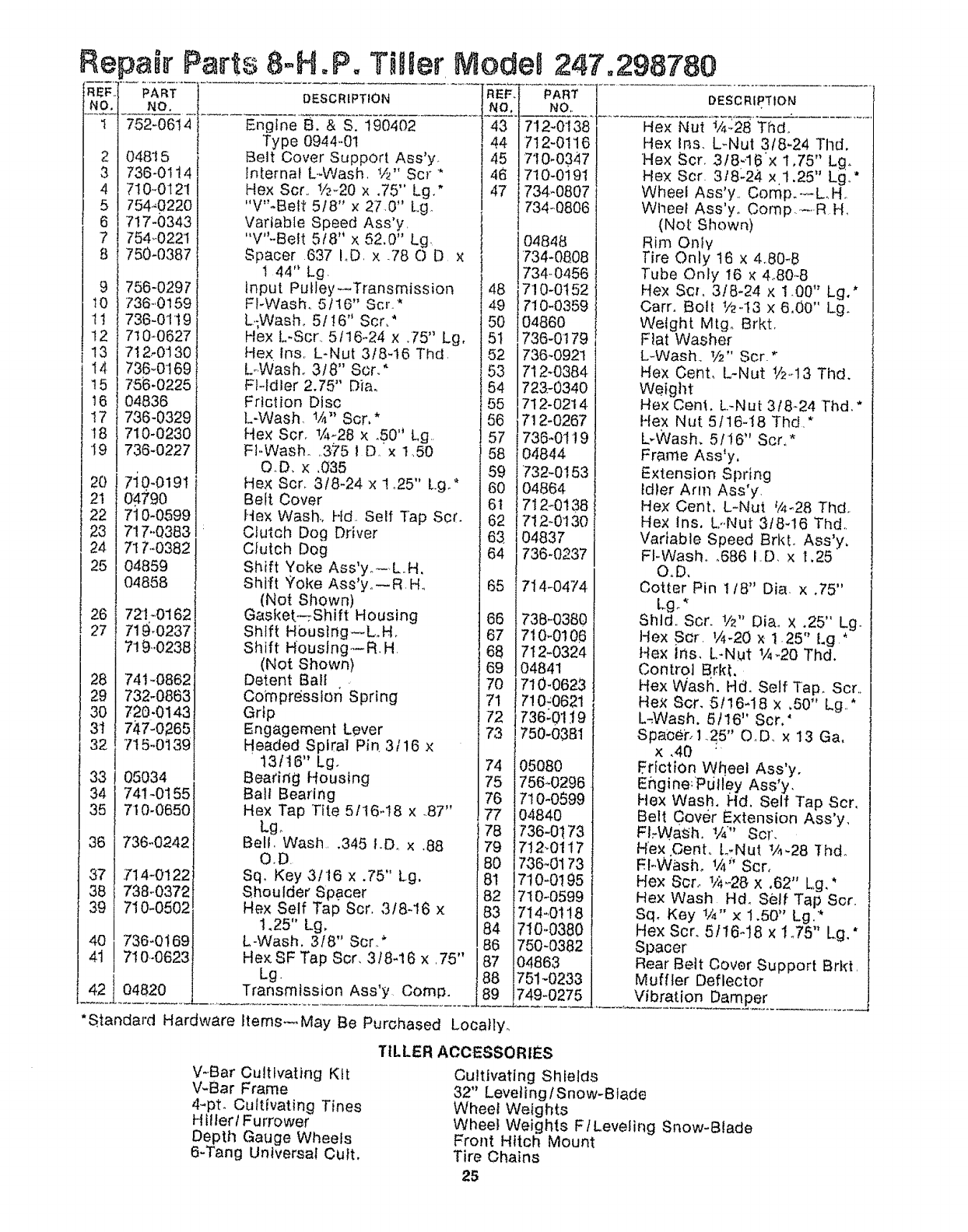

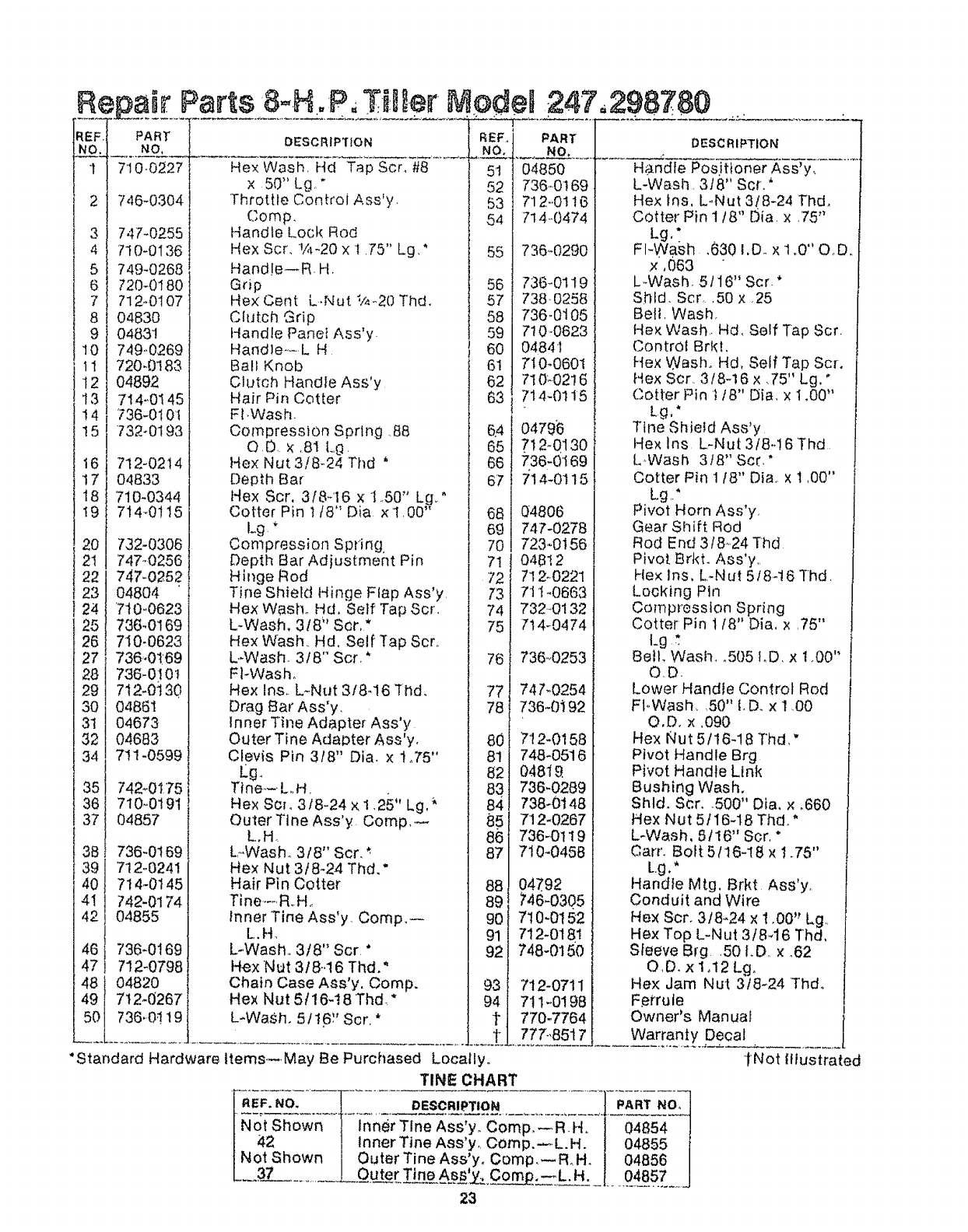

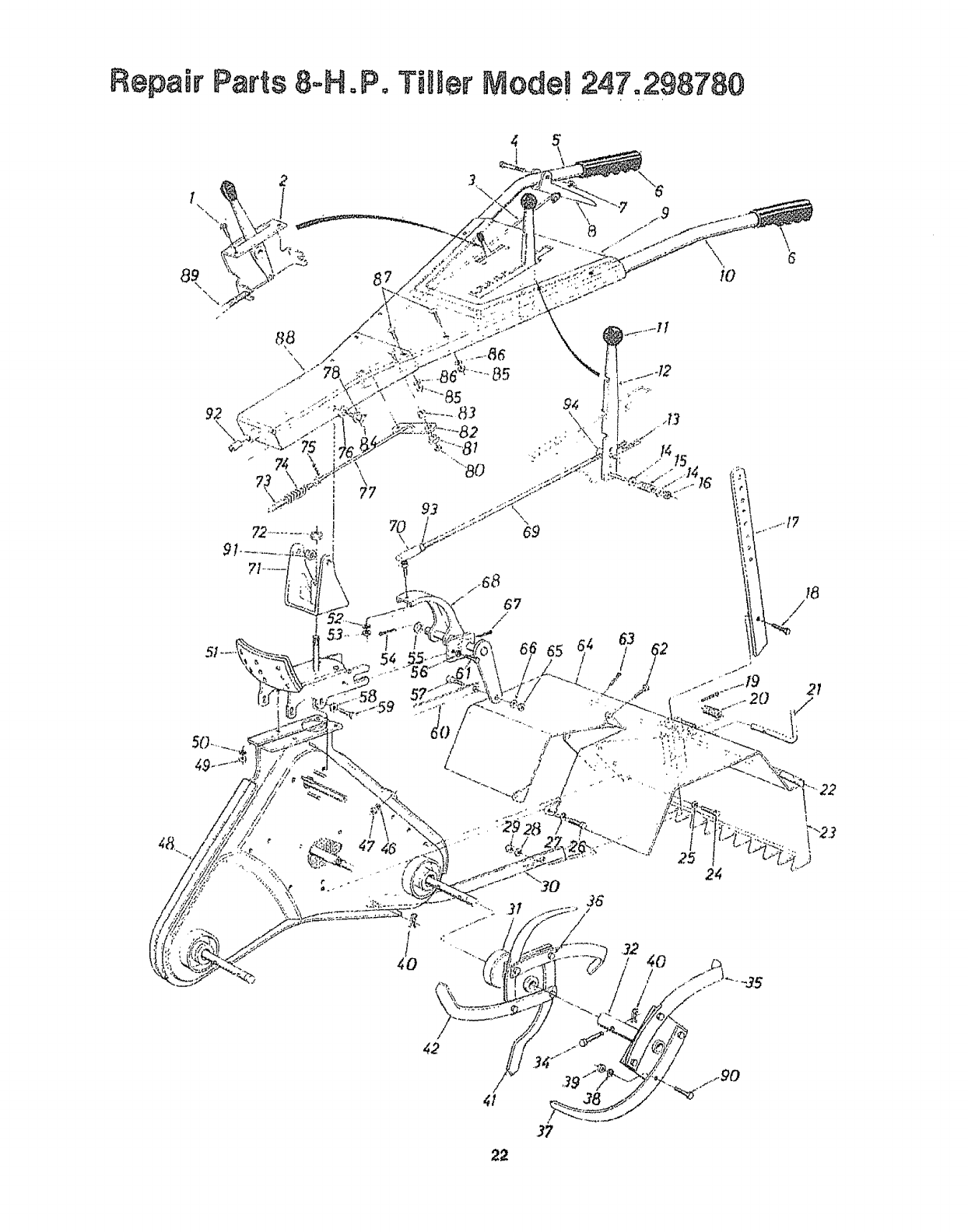

Tilter--Repair Parts .................... 22

Tiller Accessories .............. 25

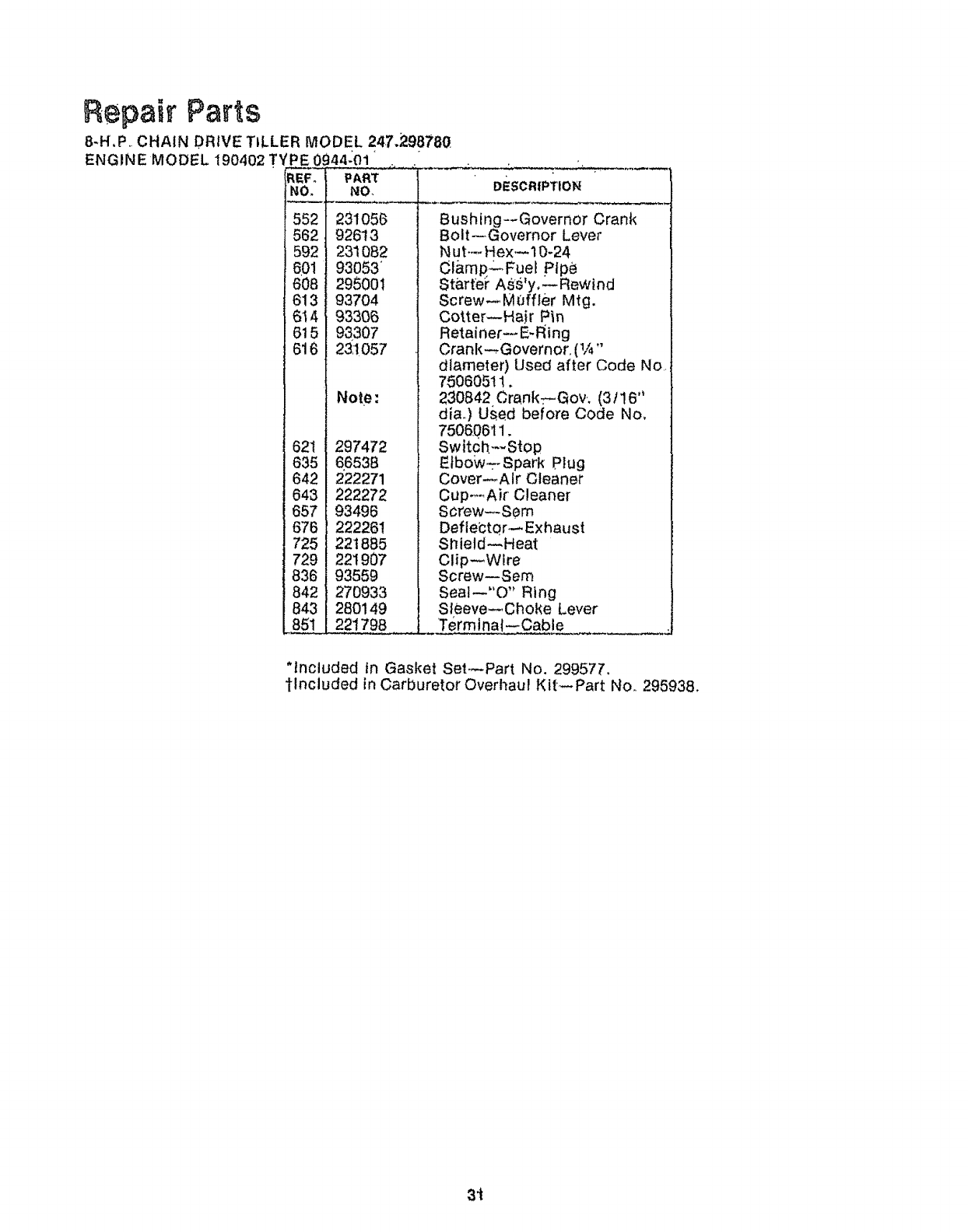

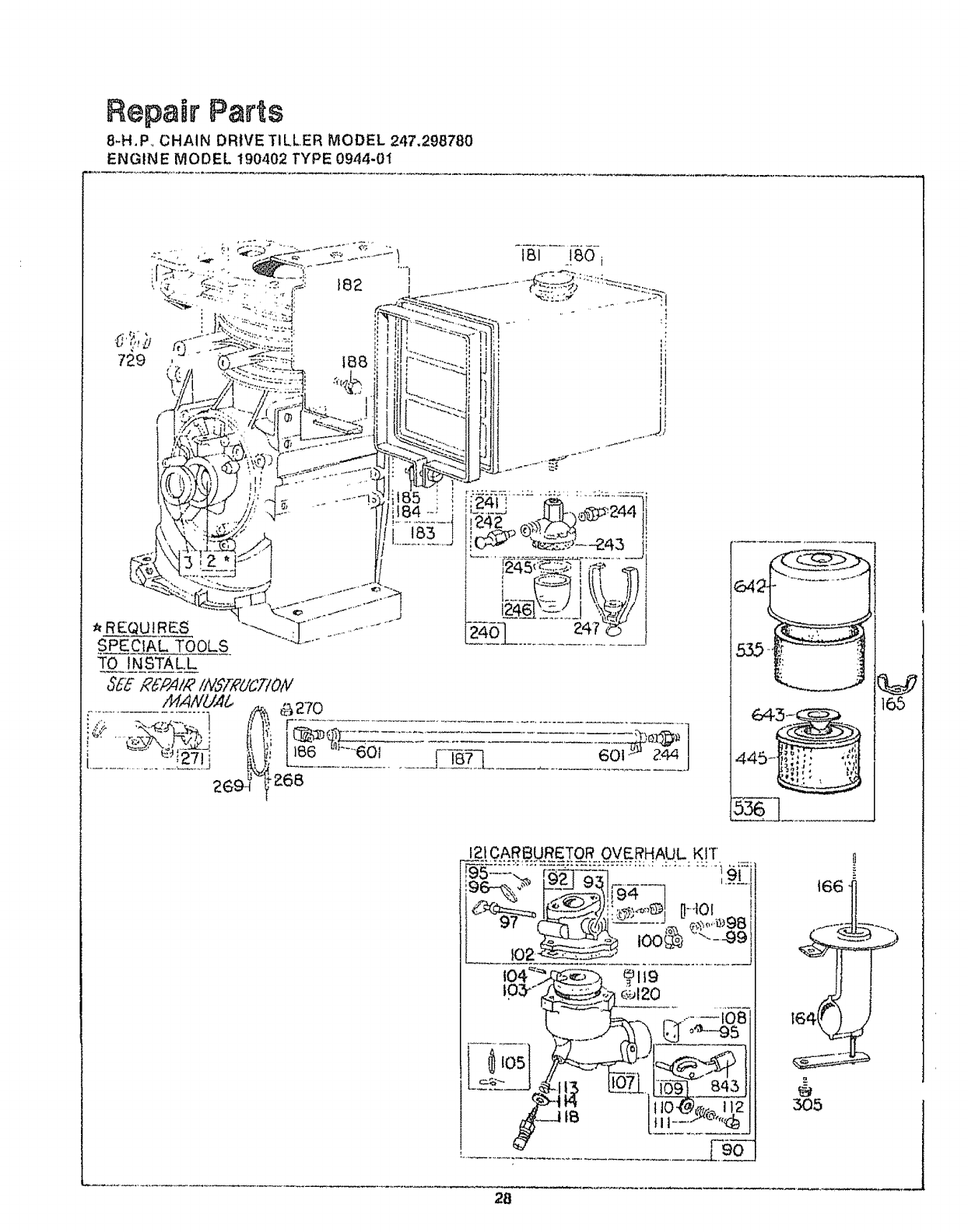

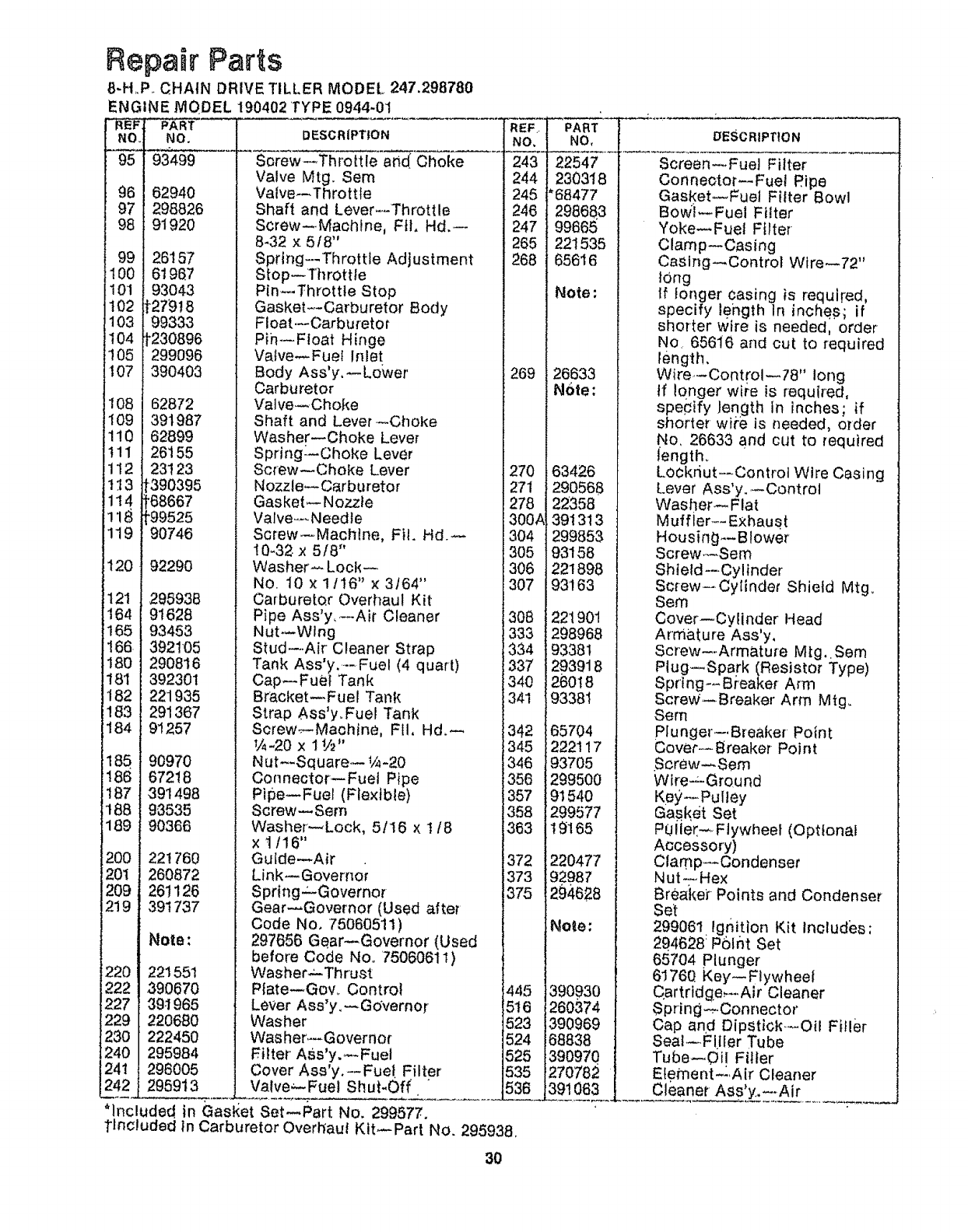

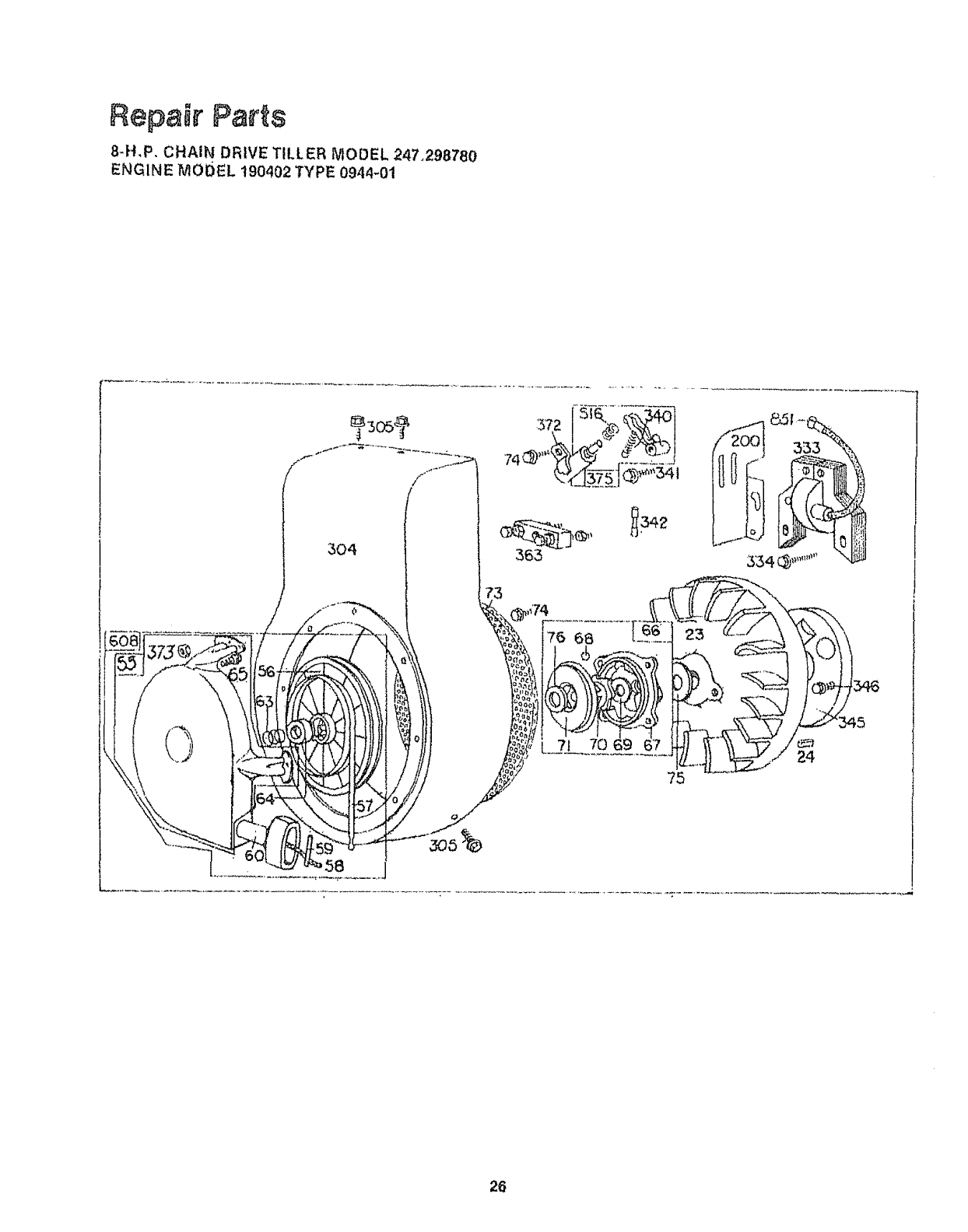

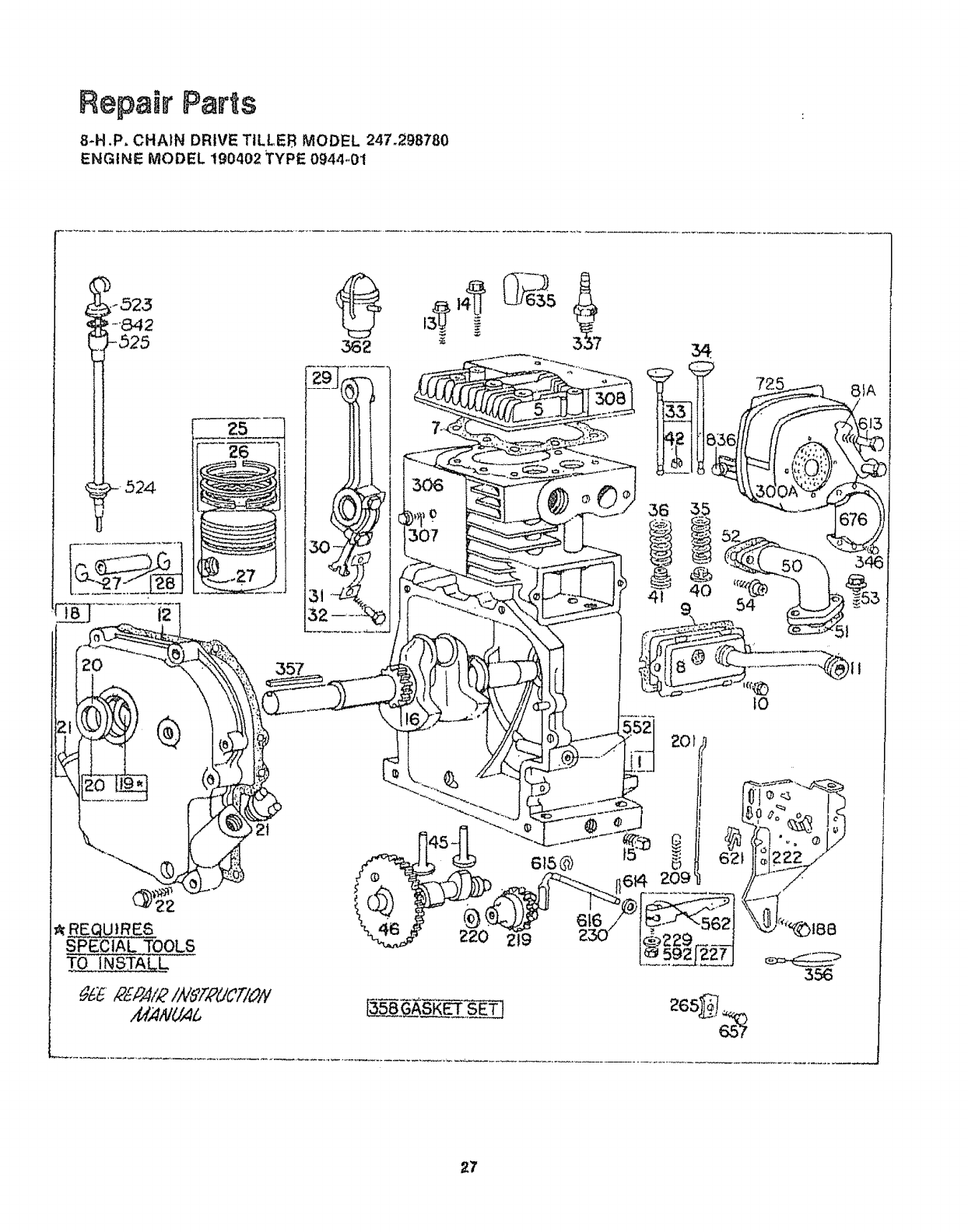

Engine--.Repair Parts .................... 26

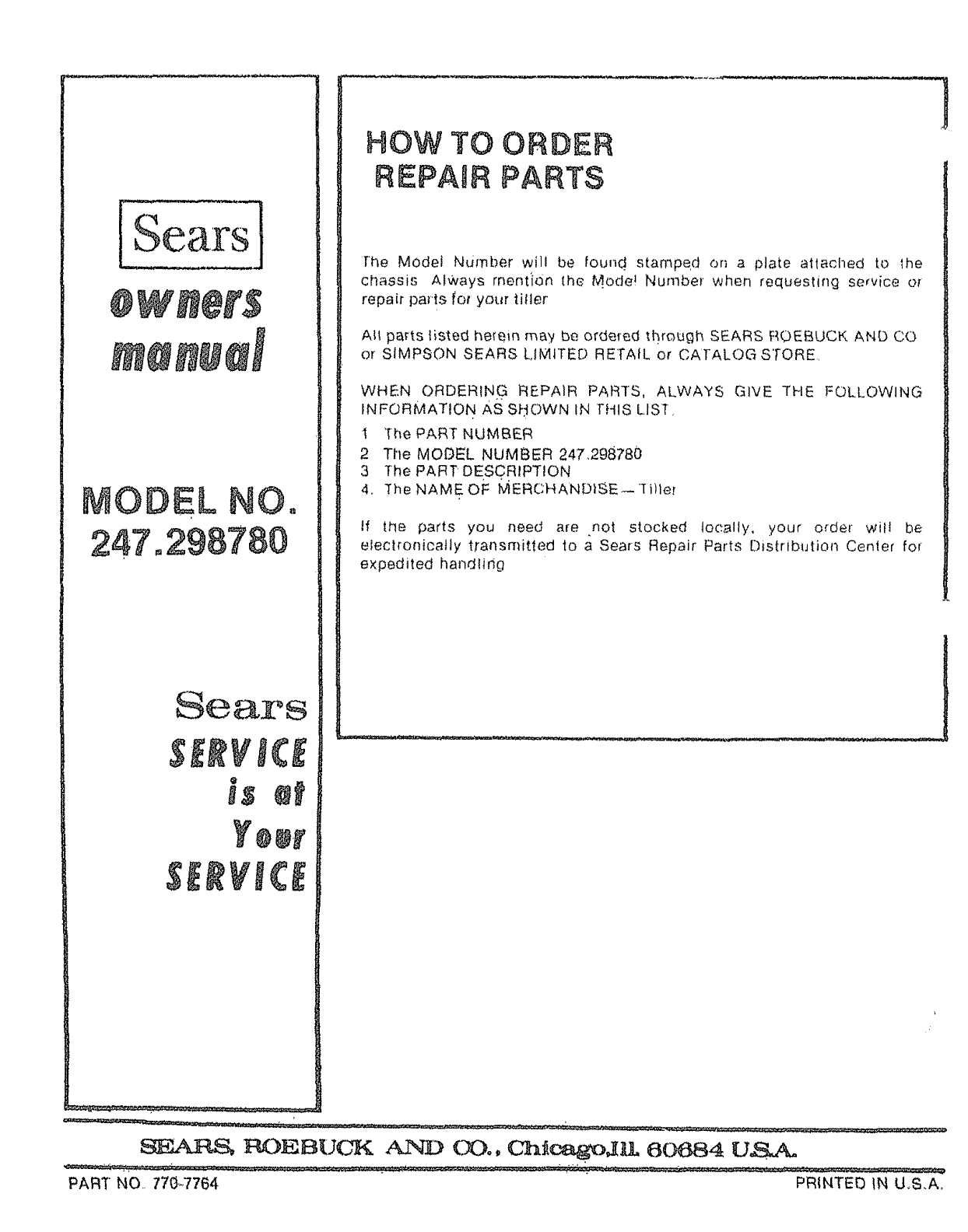

How "fo Orde.r Repa!'r.Par_ts ...... Back Cover

INTRODUCTION

This Product has been designed, engineered and manufactured to give you the best possible dependability

and performance.

Should you experience any problem you carinot easily remedy, please con'tact your nearest Sears, or

SimpsomSears Service Department° They have well qualified; competent trained technicians and the proper

tools to service Or repair this unit.

PRE...A.SSEMBLY

_ NOlrE

The right and left side of your tiller

is determined from operator's posi-

tion.

Before any step is undertaken, the instructions for

that step should be read through..

TOOLS REQUIRED:

to (2) 7116" Socket, open or bOx Wrench,

2. (1) 9116" Socket, open or box wrench..

3. (1) V4" Flat Screwdriver,

4. (t) AdjustableWrenoh,

MATERIALS REQUIRED:

1. Funnel (for-gas and olt,-_ NOTE: DO NOT MIX)

2. S..A_E.,-30 OtI_2% pints

3. Gas (regular)

4. Cleaning rag

PARTS IN CARTON

FIGURE !,

G j

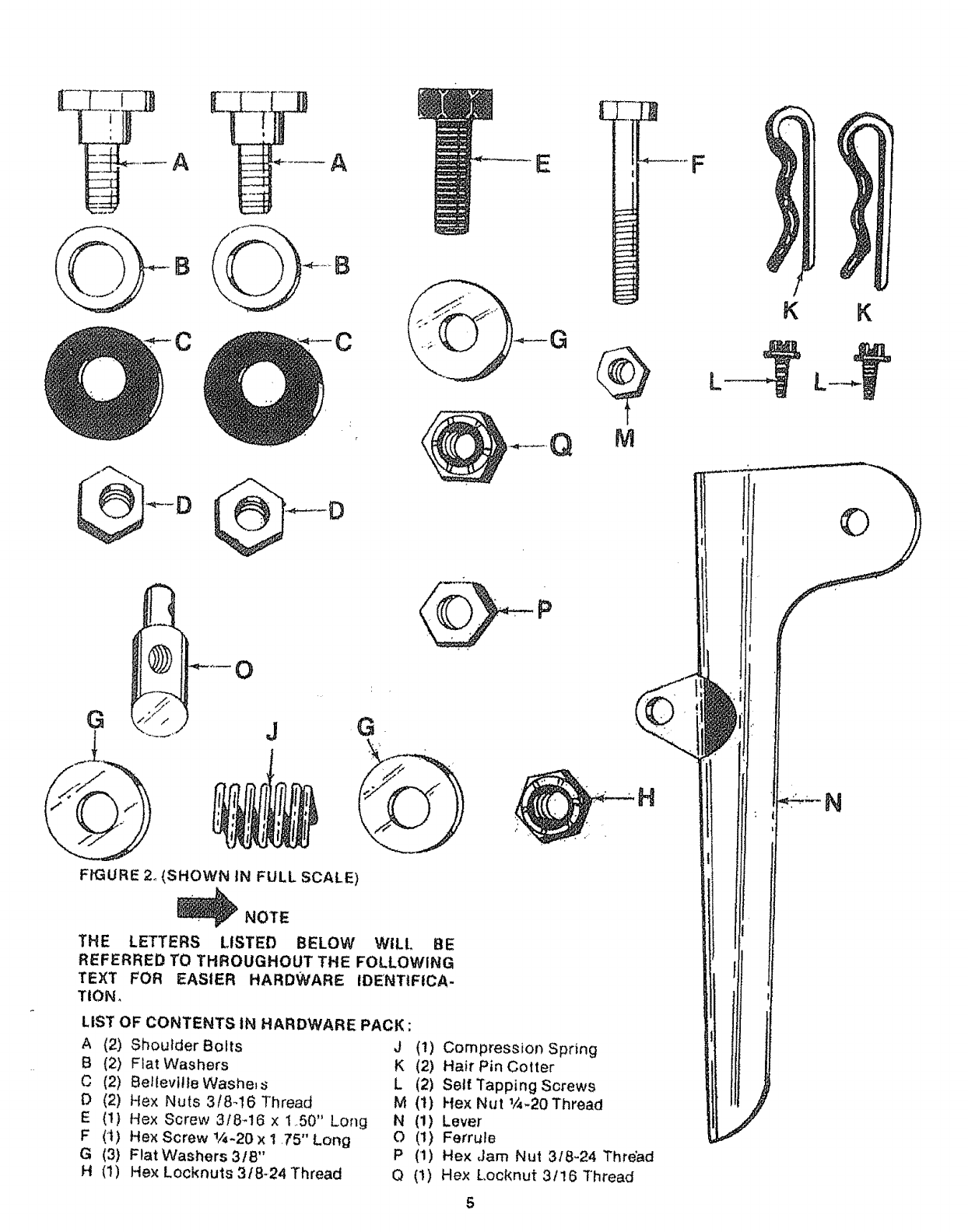

FIGURE 24{SHOWN IN FULL SCALE)

_NOTE

THE LETTERS LISTED BELOW

WILt, BE

REFERRED TO THROUGHOUT THE FOLLOWING

TEXT FOR EASIER HARDWARE IDENTIFtCA-

TION,

LiST OF CONTENTS IN HARDWARE PACK :

A (2) Shoulder Bolts J (!) Compression Spring

B (2) Fiat Washers K (2) Hair Pin Cotter

C(2) Bellevilte Washe, s L(2) Self Tapping Sorews

P (2) Hex Nuts 3/8-16 Thread M (t) Hex Nut 1/4-20Thread

E(!) Hex Screw 3f8_t6 x 1..50" Lo_g N (1) Lever

F (1) HexScrewl/4.20xl.75"Long O (1) Ferrule

G (3) Flat Washers 31B" P (1) Hex ,Jam Nut 318-24 Thread

H (1) Hex Locknuts3t8-24Thread Q (1) Hex Locknut 3/16 Thread

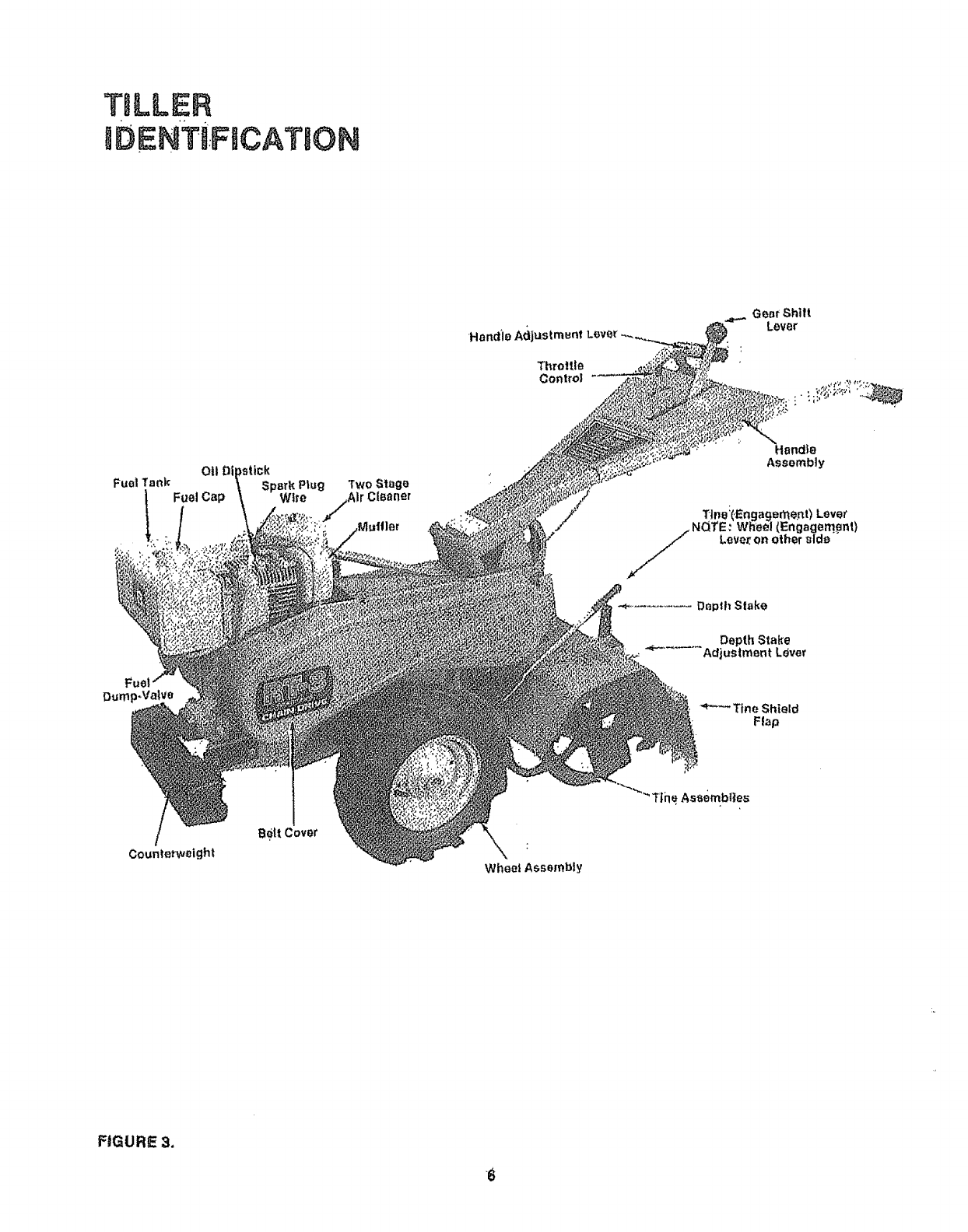

TBLLER

mDENTi:F6CAT ON

GearShill

Lover

011Di

Fuel Tank

Fuel Cap

.=-

Dum

Counterweight

Spsrk Plug

Wire

B_|t Cover

," ,die

Assembly

Tine:(,Enga_er_e.nt) Lever

iNQTE: Wheel (Engagempn_)

Lever on other sld_

*'_........... Depth Stake

Depth Stake

.... Adjustment Lever

Tine Shield

Flap

FIGURE 3,

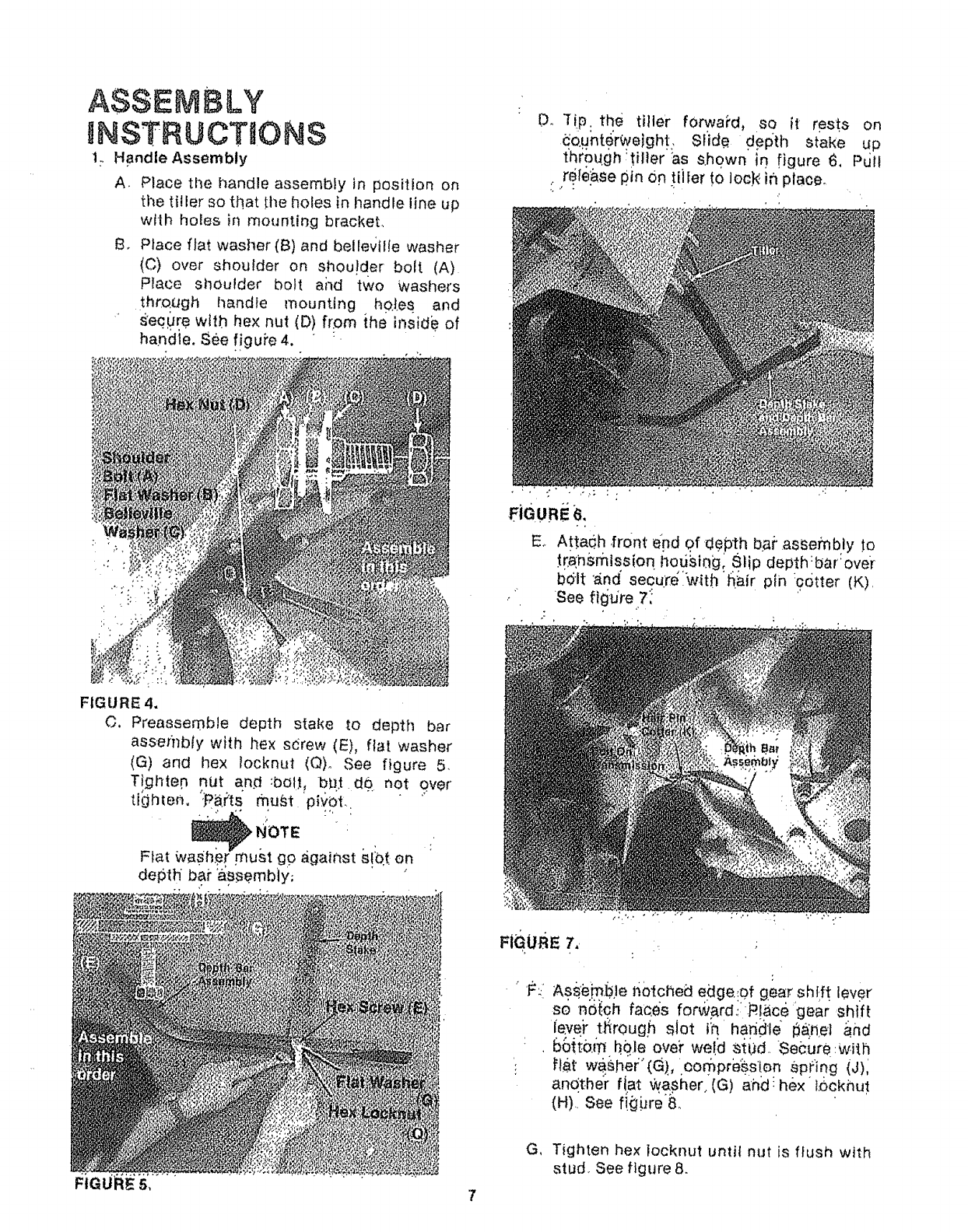

ASSEMBLY

INSTRUCTIONS

1. Handle Assembly

A. Place the handle assembty tn position on

the tiller so that tile holes in Ilandle line up

with holes in nqounting bracket..

B. Place flat washer (B) and belleviIte washer

Place sl]oufder bolt ai_d two Washers

thro, ugh handle mounting hot.es and

s'eq.Ure wH.h he× nut (D) from ihe inside of

handle. See !!guPe 4. :

Dr "l!p. the tilte'r fOrwa?d, so it rests on

_o.unter_ejghl, $Iide d.ePth stake up

thrpughUl}er as s.ho,wn in, .figure 6, Pdll

rele&se #in On tiJier to loc_4 in place.

,+FJOURE6,

FIGURE 4.

C. Preassemble depth stake .to depth bar

assembly with hex sdrew (E), flat washer

(G) and hex locknut (Q)o See figure 5.

T_gl_tep nut an.d :boU, b_J.t d0. net over

tlOhtem ':P_,i.hsmu_t 'pivOt.

Flat W_Sh.er must go against s!:qt on

depth bai" assembly,

E. At.ta_.h ,front epd of d@pt.h bai" .assembly !o

tr_ni_mlssion hodsiag: Slip depth:bar:over

bolt _,nd secu_te w.fth hair ptn :9otter (K).

See l.0.re,7:

" 'I_::Ass..i_mB.ler_0tched edge:of gear shi-.ft lever

so n0(o.h faces forwa[d._:: P.!ac6gear shift

ie.vej" tl_rough slot th handle #An.el a.nd

66{t0._ h0.,leove_"we!d s{bd,-Secure:Wiih

: t=l_t w_,ller'(G)., oompre_s!e n .Sp(iog (J)i

andt.her fiat washer,(G) ahd: hex IOckhui

(H). See f!Ljbre'8.

G, Tighten hex tocknut until nut is Mush with

stud. See figure 8.

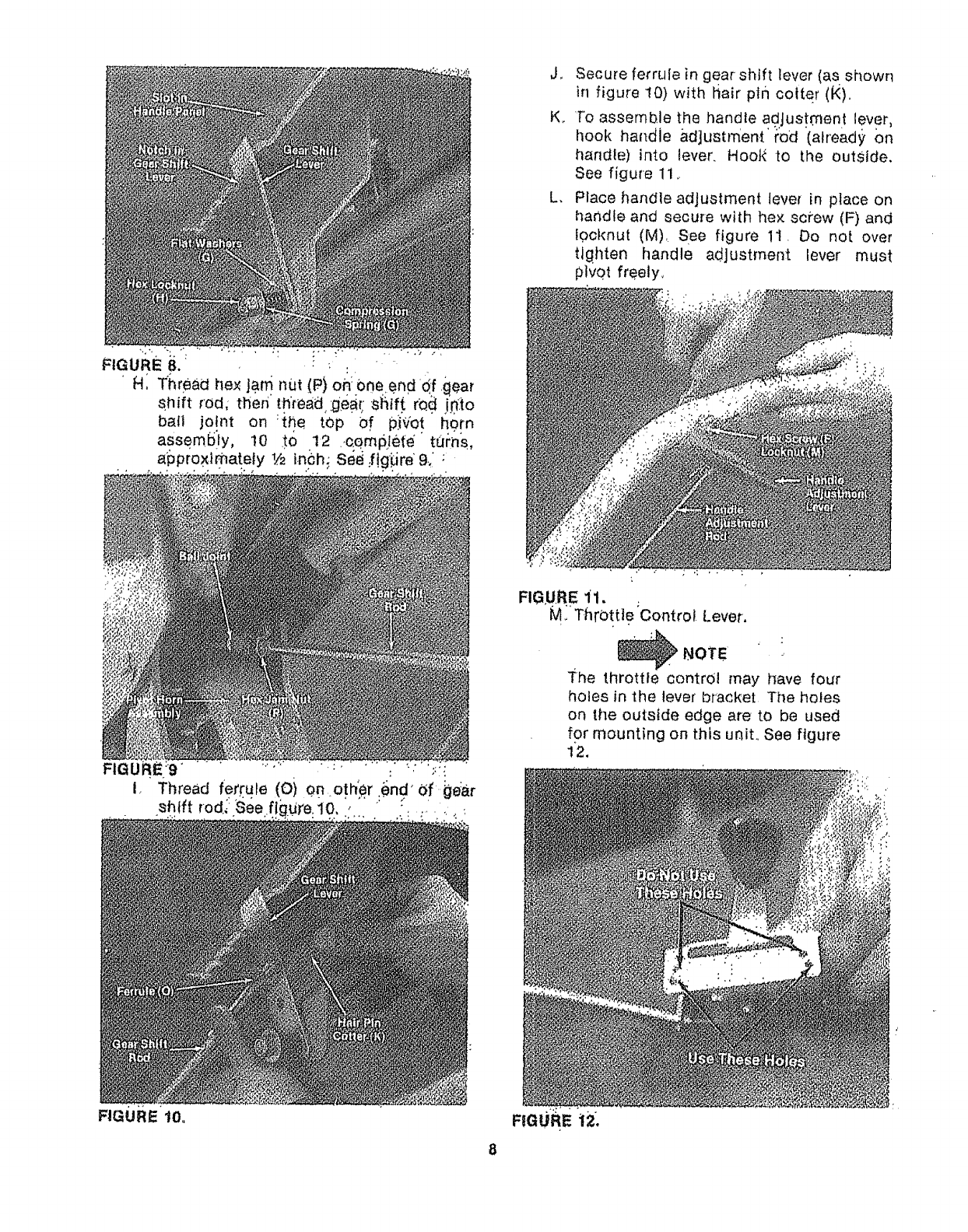

Secure ferrule in gear shift lever (as shown

in figure 10) with hair p_n cotter (_),

To assemble the handle adjustment lever,

hook handle ad]ustmen.t' t:od '(already on

handle) into lever, Hoot_ to the outside.

See figure 11,.

Place handle adjustment tevet in place on

handle and secure with he× sci'ew (F) and

f0cl{nut (M), See figure 1t. Do not over

ttgilten handle adjustment lever must

pivot freely,

FIGURE 10.

F GU.REi1.

M., ThrOttl e Control [.ever,

NOTE -,

]_he throttle control may have four

holes in the lever bracket The holes

on the outside edge are to be used

for mounting on this unit., See figure

12.

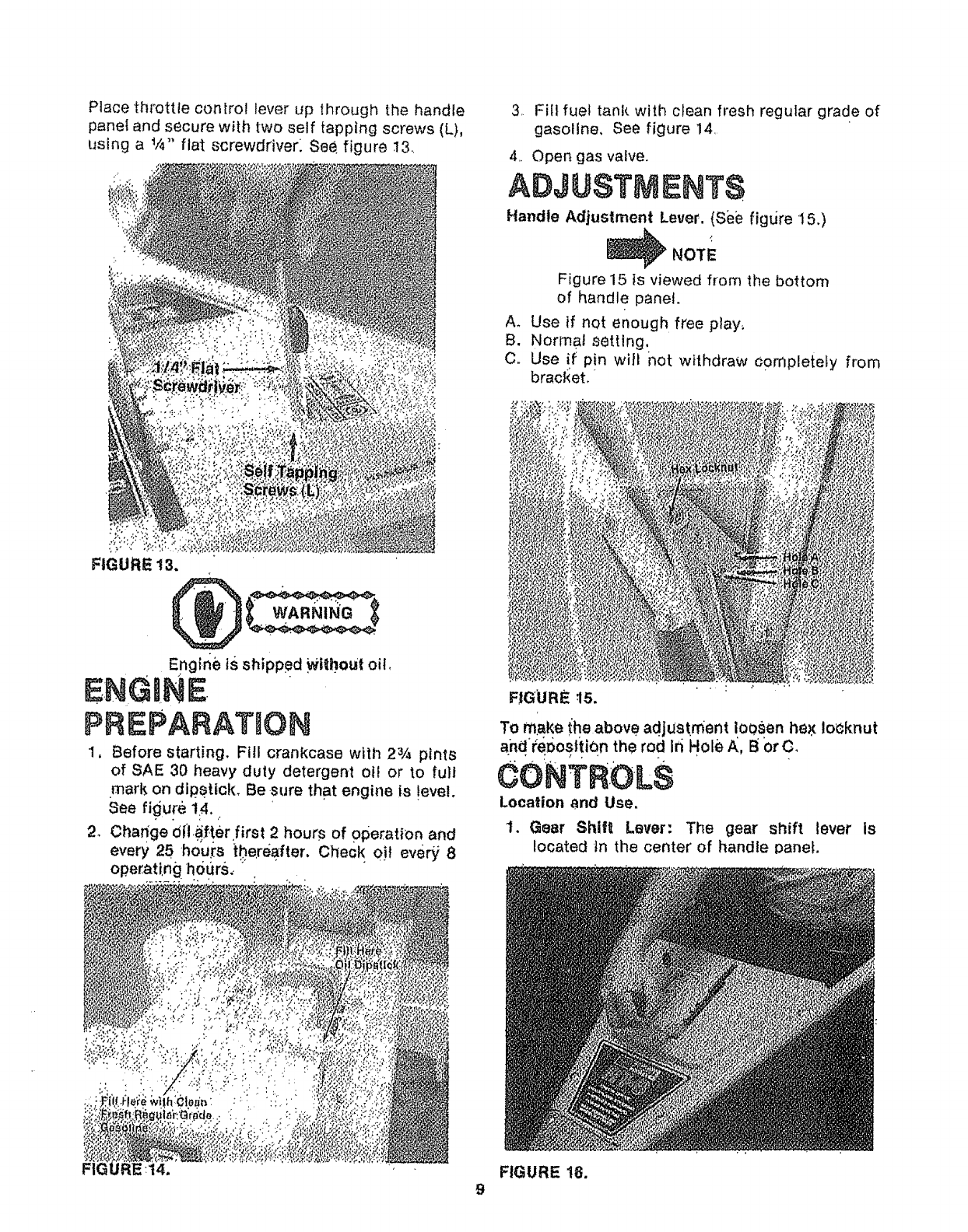

Placethrottle control leverup throughthe handle

panelandsecurewith two self tappingscrews(L),

usinga t/4" flat screwdriver: See figure !3

FIGURE 13,

Engine ts shipped Wi{bout oil,

ENGINE

PREPARATION

1, Before starting. Fill crankcase with 23/4 pints

of SAE 30 heavy duty detergent oit or to full

mark on dipstick, Be sure that engine is !evet,

See figure 14, ..

2. Change 0(l._ter first 2 hours of operation and

every 25 hours the.re_ter, CheGk 0)_ eve_ 8

operati.ng h0grs, _ •

3Fill fuel tank with c_ean fresh regular grade of

gasoline, see figure 14

4 Open gas valve.

ADJUSTNgNTS

Handle Adjustment Lever. (See figure 15.)

NOTE

Figure 15 is viewed from the bottom

of handle panet.

A. Use if not enough free play;

B. Normal setting.

C. Use _f pin wi{t not withdraw c0mpletely from

bracl<et_ *

FIGURE .15.

To make the above adjustment !o0sen he x io_knut

a_nd'_e_os|!iOn the rod Ifi Hole A, B Or C,

CONTROLS

Location and Use.

1. Gear Shilt Lever: The gear shift lever is

located in the center of handle panel,

FIG FIGURE 16.

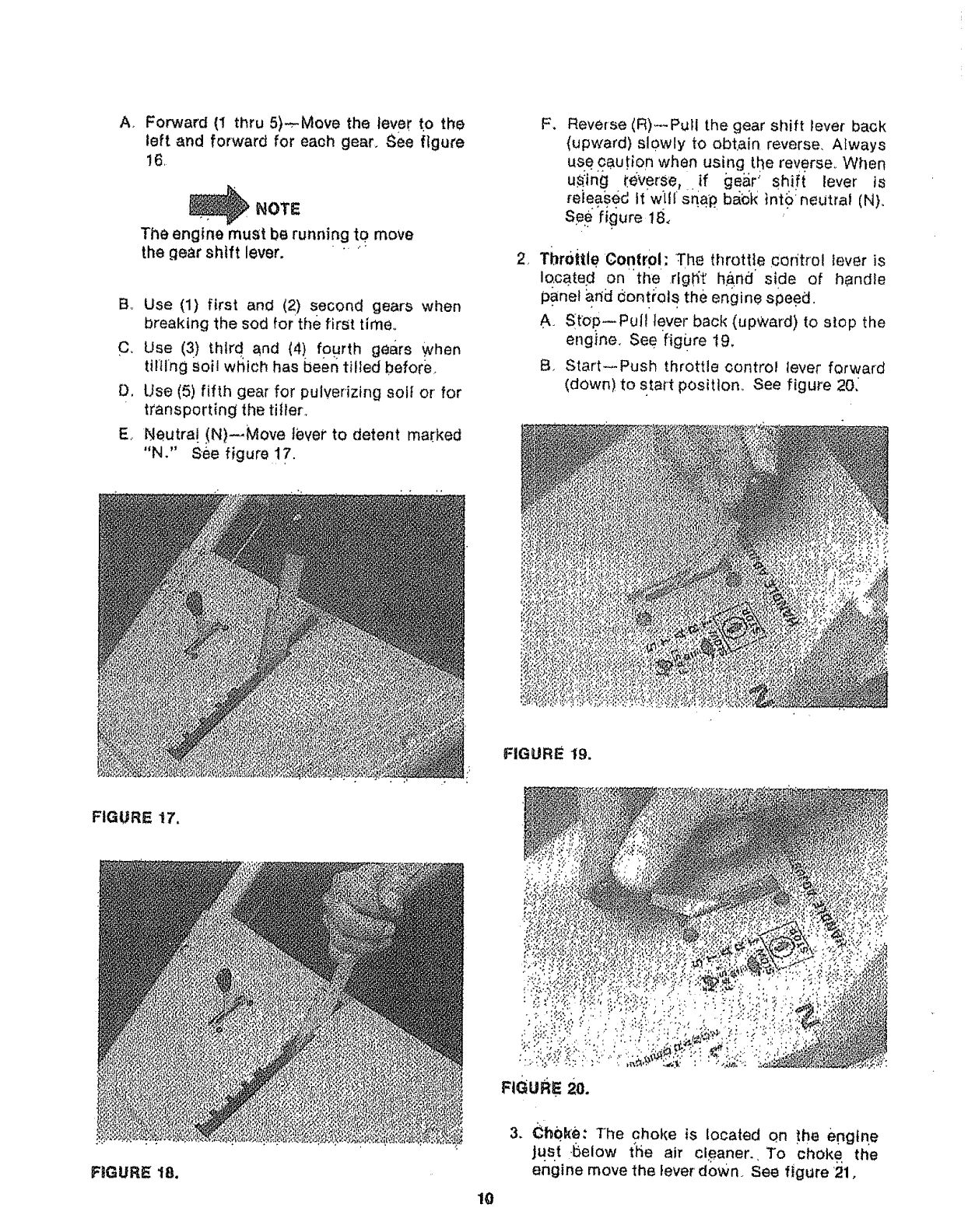

A. Forward (1 thru 5)--. Move the lever t.o the

left and forward for each gear, See figure

16,

_NOTE

The engine must be running tO move

the gear shift lever, ".....

Use (1) first and (2) second gears when

breaking the sod for the first time_

Use (3) third and (4! f0,urth gears when

till!ng soil which has been tilled before_

Use (5) fifth gear for pulverizing solt or for

transporting the tiller,

Neutra! ,(N)_Move lever to detent marked

"N," See figure 17.

F, Reverse (R) ....Pull the gear shift lever back

(upward) slowly to obtain, reverse, Always

use caution when using the reverse_ When

u_tng {:everSe, .if gear' shift lever is

re}eased It'w[tl sqap. ba_k int_: neutral (N),

Se_'figure 18,

2Throttle Control: The throttle con'trol iever is

IQcated on the right' h_nd side of handle

panel arid _ontrels the engine speed,

A. St_op--Pull lever back (upWard) to stop the

engine, See fig0re 19,

B, Start_Push throttle oontrol lever forward

(down) to start position.. See figure 20,

FIGURE t7,

FIGURE 18.

FIGURE 19.

3. Ch0ke: The choke is located on the e.ng{qe

Jus.t .l_elow t'tle air cleaner. To choke the

engine move the lever down, See figure '21,

FIGURE 21.

4,, Handle Adjustment: The hand!e adjus{ment

release is located, on the right har_d handle

bar, See figure 22° FIGURE 23.

,::-:;.-

FIGURE 24.

FIGURE 22.

A. Squeeze up on handle adjustment lever

and place the handle in One Of nine (9)

positions See figures 23, 24, 25 and 26.

_NOTE

Figure 23 is viewed from the front of

tiller for clarity. FIGURE 25,

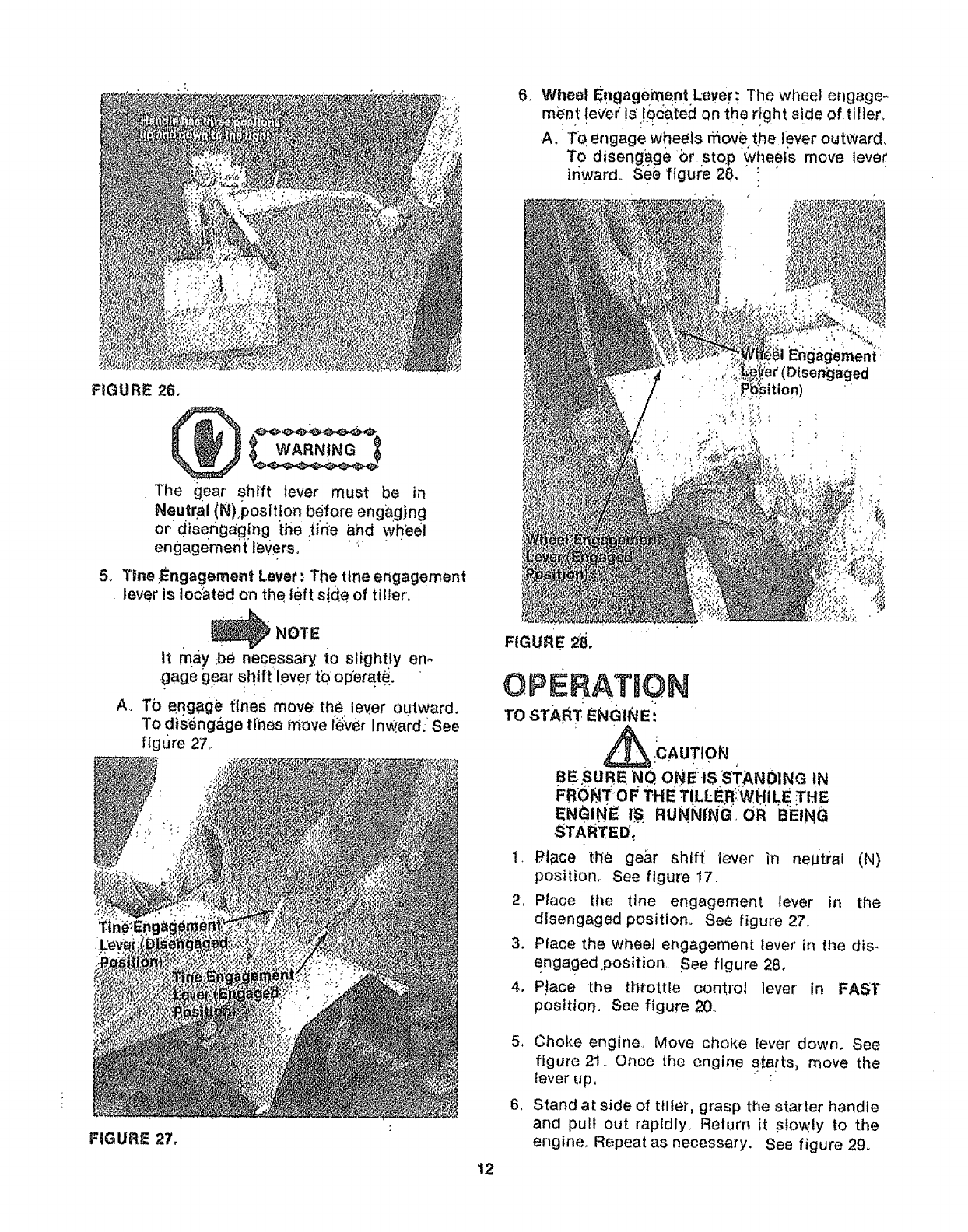

6, Wheel Engagement Lever; The wheel engage-

ment feverl_ lb(_ted on the right side of tilier_

A. T0 engage wheels hiov_, the lever out_vard,

To disengage or stop W!_eeis move lever

iriWard.. See figure 28, ,

RGURE 26.

WARNING

The gear shift lever must be in

Neutral (N),posltton befQre engaging

or. diseligag!ng tJte .tir_e ahd wheel

engagement levers. .....

5. Ttne :Engagement Levet: The ttne engagement

lever is located on the left side of tiller.

NOTE

It may :be necessary io slightly en-

gage gear shiftlever tb opemtb.

A. TO e_ngage tines move the lever outward.

To diseng&ge tlnes rdove (_ver Inward; See

ffgL_re 27,.

FIGURE 27,

FIGURE _8.

OPEBAT{O.N

TO START ENG|N E:

BE.SURE NQ ONE.IS STANDING IN

FR0NT oF THE TiLt=ER!.WHiLE .'THE

ENGINE: IL.SRUNNING", OR BEING

STARTED'.

1. Place t,he gear shift lever in neutrat (N)

position, See figure 17

2. Plaae the tine engagement lever in the

disengaged position. See figure 27_

3. Place the wheel er_gagement lever in the dis_

engaged .position, See figure 28.

P!ace the throttle control lever in FAST

position. See figure 20,

Choke engine. Move choke tever down. See

figure 2t_ Once the engine starts, move the

lever up,

Stand atside of tiller, grasp the starter handle

and pul! out rapidly, Return it .slowly to the

engine_ Repeat as necessary. See figure 29,,

,'y :

FIGURE 29. ':'

TILL!NrG

1., Adj_is.{the depth stat<e bY pullJ.ng: the depth

stake atJjiJstment pin, Release the depth

30.

2, Lower the depth stake for transpdrtlng the

tiller,

3. Engage wheel engagement lever, select gear

on handle panel and ti!let will propel itself:

A, For tilling !n sod, raise the depth stalke so

the depth bar is one to two inches above

tt_e ti:nes.

Ti_is sett!ng {s _ised for breaking up the

sod .and shallow Cultivation. For further

depth ra}se theedepth stake and -make one

or two more passes over the area,

B_ For fitting loose and sandy soil, further

depth tn tilling can be achieved by raising

the depth stake to its higllest setting.

When tilling, if a hard spot or rock is

encountered, the tines may lift the

back Of the tiller out Of the ground

and start to walk across tlle ground,

To correct this problem raise up on

the handles,

TiLL:iNG:Hg NTS

Soil conditions a_e imp.ortaht for proper tilling.

The t!nes will not. readily penetrate dry, hard s0tl,

This may con.tribute to ex6essive bounce and

dill!out| handling of.the tiflei. Hard'soii should be

moistened prior to tilling,

ExtremelY Wet soi! wilt cause .soil 1o ball up or

clump,

When tilllhg in the Fall, all vines and long gt_ass

should be removedo This will preveht vibes from

wrapl_:lng around _he fine s h_ft Whlcl_ slows ttl!ing

operation,

The best method will be determined by the soil

condition, In some soils, the desired depth "is

obtained the first time over the garden, tn other

so.ils, the desired depth Is obtained by going over

the garclen two or three times_ In the latter' t_ase,

the depth stake should be raised (raising the

depth stake increases diggliqg depth) before each

suc.oeeding pass over the garden, and passes

st'io!jtd be made across the ierigth and width of the

garden alternately,. Rocks' which Are turned up

should be removed from thega¢dei_ area.

Handle Pressure: Eurther O0nt#ol of ttll!ng depth

and,t_:avet speed can be ol_tained by variation of

p_es_.ure on t_he handles.

When .using the depth stake e(downward pressure

onthe, handles Will increase the working depth

ahd 're.duce the' f0cwai'd_ speed. An upward

ptes.sti.r.e o,n tlie handleswill reduce the working

deistic:and tncrease the fo_ard speed, The type of

sotl arid wi_kt_qg conditioris Wilt determine the

actual se.t.t;!ng Ofthe;.deptl_ _J!ake,

tVlAINTENANCE

BELT RE,PLACEMENT:

_o not use a'n off:the-shelf belt.

If belt replacemer_t is required, ordei" belt or belts

by part number from your nearest Sears Service

Center.

Part No. 754-0220 Part No. 754-022t

5/8" x27" Short Belt 5/8" x52" Long Beh

Your tiller has been engineerea with the above

belts and Should not be replaced with an

off-the-shelf belt. The above belts are made of

special material (Kevtar Tensfl.e) for longer life and

better petformance.

REMOVING AND REPLACING BELTS.

t. Remove belt cover; remove two bolts, two

nuts and four flat washers. See figure 31.

._ NOTE

Upon reassembly make sure the belt

is inside the guide ptn s. See .figure

34.

2, To remove th e front belt (short) pui! gear shift

lever back to reverse (R) position. S!]p the belt

off ehglne pulley towards the engine, See

figure 32.

Engine

FIIGURE 33._

FIGURE 32.

3_ Slip the belt off variable speed pu!|ey, remove

and replace with new bert. See figure 3.3,,

FIGURE 34,

4, To remove the rear. belt (long). Remove the

small belt first, follow steps t, 2 and 3 on

pages 14 and 15.

Move gear shift lever to the second (2) speed

position. Stip tl_e belt off the transmission pulley.

Pull the idler pulley down and remove the belle

See figure 35

5_ To clean foam element, wash in detergent and

sotution by squeezing similar to a sponge.

Wrap foam in cloth and squeeze dry. Coat

element with two tablespoons of engtne oil,

Squeeze to distribute and remove excess oil,

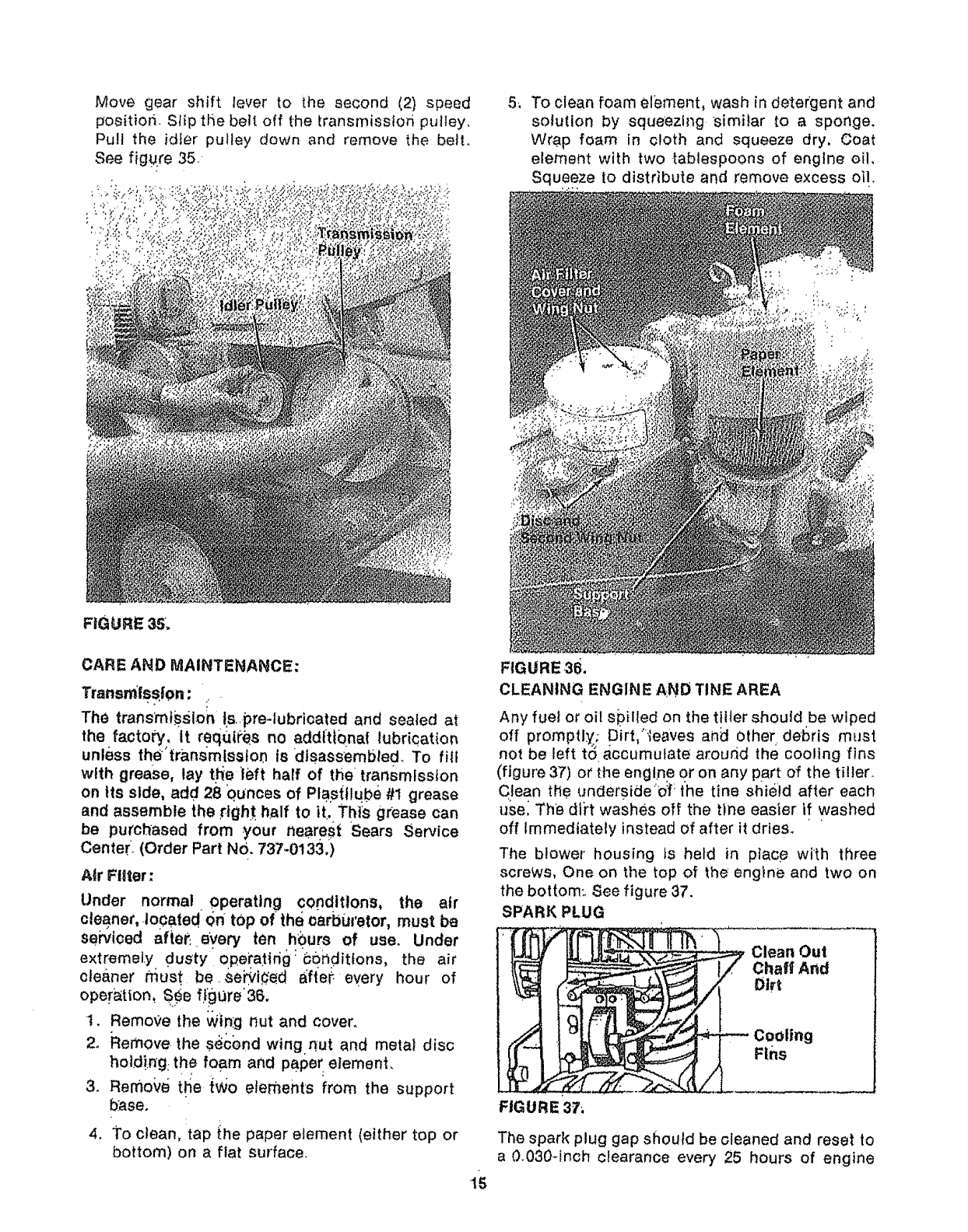

FIGURE 35,

CARE AND MAINTENANCE:

Transm|SsJon: :,

The transmt_,_lonts.pre-tubrtcated and sealed at

the factory, it requires no addfttona( lubrication

unless the"transmisslo8 t8 dtSassembte& To fitl

with grease, lay t#e left half of the transmfsston

on Its stde, add 28 Qunces of Pta.s{tlube #1 grease

and assemble the rtgh_ half to it. Thfs grease can

be purctfased from your nearest Sears Service

Center,. (Order Part NO. 737,-0133,)

Adr Fitter:

Under normal operating conditions, the air

cleaner, .located on top of the earbUretor, must be

sei'viced ariel; everj ten hburs of use. Under

extremely dusty opeta.tirig:'b0tldit!ons, the air

eleanor tfiust be.,sei_i¢ed dfter eyery hour of

operatton, See fjlgtJre36.

t. Remove the _iing nut and cover.

2. Remove the S{_cend wing n,ut and metal disc

hotd[ng: the foam and paper element.

3. Remove t!_e {We elements from the support

b:ase.

4. To clean, tap the paper element (either top or

bottom) on a flat surface.

FIGURE 36.

CLEANING ENGINE AND TINE AREA

Any fuel or oil spilled on the tiller should be wiped

off promptly, Dirt,:'_eaves anct other debris must

not be left t_ accumulate around the cooling fins

(figure 37) or the eng[ne o.r on any part of the tiller.

C!ean t!le underside"'df: the tine shield after each

use, The dti't washes off the line easier if washed

off immediately instead of after it dries.

Tt_e blower housing is held in place with three

screws, One on the top of the engine and two on

the bottom:, See figure 37.

SPARK PLUG

Dirt

The spark plug gap shouid be cleaned and reset to

a &030-inch clearance every 25 hours of engine

operat!on.Seefigure38, Sparkplug replacement

is recommendedat thestar!of eachttlferseason;

checkengine,pal;tslistfor correctplug'type,

2, After the elf has been drained completely

from the crankcase,replacethe drain plug

andtighten.

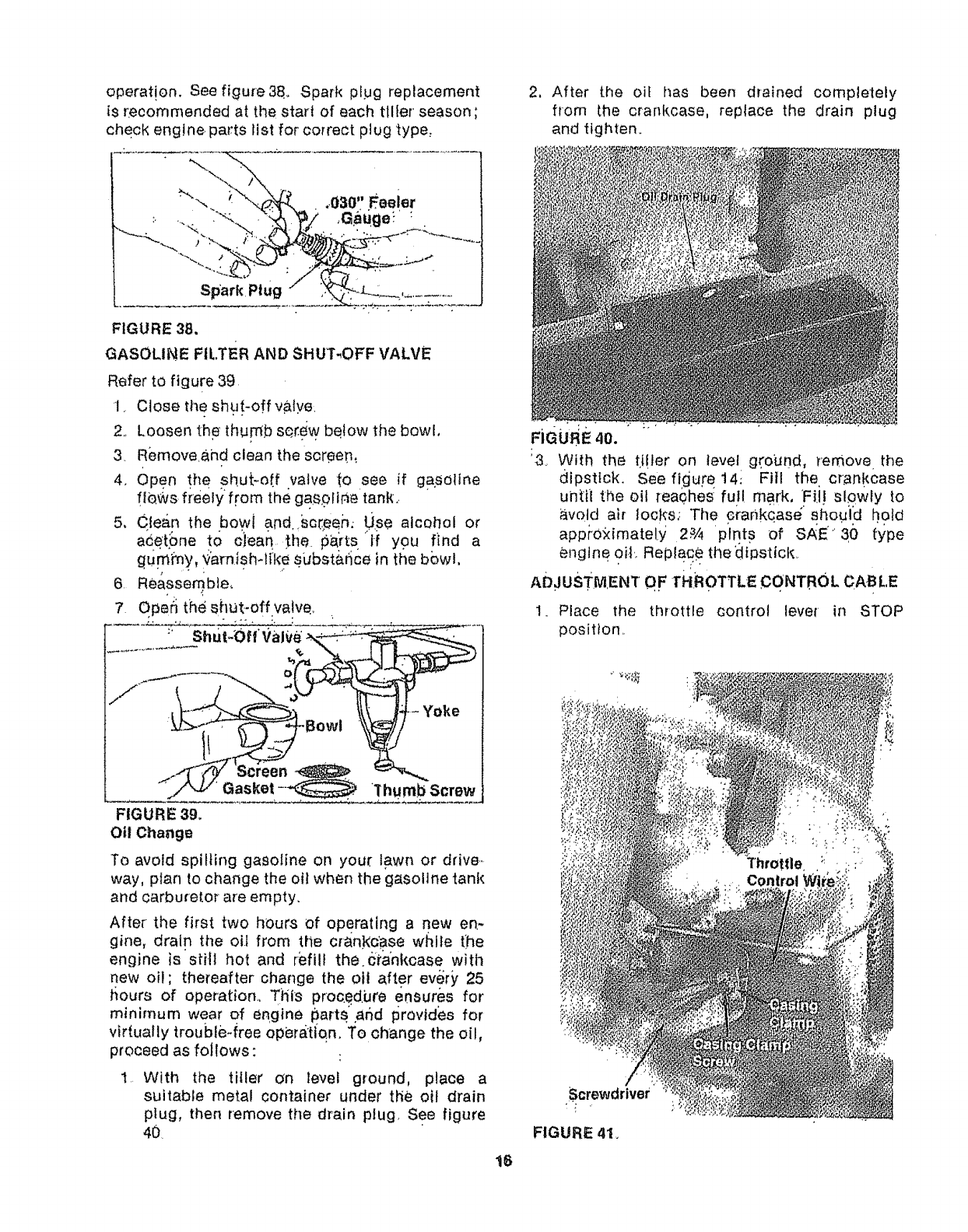

FIGURE 38,

GASOLINE FILTER AND SHUT,OFF VALVE

Refer to figure 39

1_ Close the shut-offvaf.ve.

2., Loosen the thumb se.r._w be.tow the bowl,

3. Remove.ahd clean the scr_een;

4. Open the §hut-o!f valve to see if gasoline

ft_ws freely from the gas,91tne tank._

5, Qle_.n the bowl and,.scr.,eeh. Use alcohol or

acetone to c)ean ttie pa,lrts" "ii you find a

gumf-ny, v'arnlsh-ltke sL{bstadce in the bowl,

6. Reassemble,

7 Qpet_ the sh'at-off valve.,

:Shut-Off'Valw

FIGURE 39.

Oil Change

To avoid spilling gasoline on your lawn or drive..

way, plan to change the oil when the gasoline tank

and carburetor are empty.

After the first two hours of operating a new en~

gine, drain the oil from the crankc_ase while the

engine is still hot and refill the.crankcase with

new oil; thereafter change the ott after ev&;r_,,25

tiours of operation., THis proc.edbre ensures for

minimum wear of engine parts and provides for

virtually trouble-flee opera'ti'Qn. To change the oil,

proceed as follows:

t. With the tiller on level ground, place a

suitable metal container under the oil drain

ptug, then remove the drain plug. See figure

FiGUre40."

;& With the ti!ler on level ground, remove, the

clipsttck. See figure t4: Fill the cranf_case

uiqtil the oil reaches full mark, Fi.l! sl£wly to

avotd air locks: The crankqase should hold

apprO'kimate[y 2,_/4 pints of SAE"30 type

engine oi.L Replace thedipstick.

ADJUSTMENT OF THROTTLE CONTROL CABLE

1. Place the throttle cor_trol lever in STOP

position..

Screwdriver

FIGURE 41.

2 Loosen the casing clamp screw and move the

thro!fle control wire in as far as possible,

3. Tigl_ten the casing clamp screw See tlgure

41,

CARBURETOR ADJUSTMENT See figure 42,

Minor carburetor adjustment may be required to

compensate for differences in fuel, temperature,

altitude and load, To adjust:

1. Turn needle valve clockwise until it

closes.

_ CAUTION

Valve may be damaged by turning

1oo far._

just

2. Open needle valve 1.118 turns counterctock-.

wise,

3.. Close the idler valve in the same manner and

open 1-1 18 turns.

4. Start timeengine

5. Turn the needle valve in until the engine

misses.

6. Tl_en turn it out past smooth opetating point

until the engine runs unevenly.

7. Turn the needle valve mid-point between the

two Settings so the engine runs smoothly.

8. Set the throttle in the idle (slow) position and

set the Idle speed adjusting screw until a fast

idle is obtained,

9. With the throttle still in the idle position, turn

the idle valve tn and out until the engine idles

smoothly.

Idle Speed Adjusting Screw

Idle Valve

eedle Valve

FIGURE 42. CARBURETOR ADJUSTMENT

ADJUSTING THE CARBURETOR CHOKE

Proper choke and stop switch operation is

dependent upon proper adjustment of remote

contfols on the powered equipment.

TO check the Opi_ration o_ the Choke:

1. Remove the air cleaner,

2. Push the throttle control all the way forward

to the START position, See figure 20. The

choke should be closed_ See figure 43,

3. T'he engine sllould shut of_ whBn the tt_rottle

control is all the way back (STOP position).

.'r

FIGURE 43.

TIRE PRESSURE

Tires should be Inflated from 8 to 15 p.s.i,

_CAUTION

Do not exceed 30 p.sJ,

OFF°SEASON STONAGE

tf the tiller is to be inoperative for a period longer

than 30 days, the following precautions are

recommended. Keep your tiller in a weatherproof

dry area. If stored for over 30 days the following

steps will protect the essential engine parts from

gum deposits.

1. Working outdoors, drain all fuel from the fuel

tank. Use a clean dry cloth to absorb the small

amount of fuel remaining in the tank, then run

the engine until all fuel in carburetor is

exhausted.

, ,

DO NOT DRAIN FUEl. WHILE

SMOKING, OR IF NEAR AN OPEN

FIRE.

2 Drain all the oit from tile crankcase(this

should be done after the engine has been

operatedand Is still warm) and refill the

crankcasewith clean new oft, See figure 40.

3. Disconnect the spark plug wire and remove

the spark plug from the cylinder'. Pour about

six drops of engine oil Into the cylinder, and

then pull the recoil starter several times to

spread the otl on the cylinder wal!, Replace

the spark plug, but DO NOT connect the wire.

4, Clean the engine and the entire tiller

thoroughly.

5. Wipe tines with oiled rag to prevent-rust,,

TtLLER INSTRUCTIONS FOR W1NTER

OPERATION (under 40°F,)

Engine Lubrication. Drain the sur_mer engine oil

while engine is warm. =Refitl.._wit[h new "winter

grade" oil, Run 'engine until wa'rmto_istribute the

new winter oi!..

Use oil "fdr sei'v:ice? 80, SD, dr SE, Use 5W-20 or

5W-30. 'If not available;, use. tOW; o.r t'0W,-30.

Fuel, Replace any summer gasoline-on hand or in

the fuel tank with fresh winter-grade gasoline. Use

lead*free or leaded "regular"' grade automotive

gasoline. Winter fuels have additives for faster

starting, Keep fuel tank full,,

NOTE

Many automotive gasolines rio long-

er contain "deqcer." A can of gas*

line de, icer fluid added to your gaso-

line supply wi_{ h_tp maintain the

engine's winter reliabll!ty,

Cold Starting Hints

1. Be sure to use proper winter-grade oil and

gasoline.

2. Declutch all possible external loads.

3, Set governor control at low-speed position.,

4. Turn carburetor needle valve approximately

1J8 turn counterclockwise, (Richer fuel

mixture) This will improve cold weather

starting and operatiol_,

Repair Parts 8H=P. Tigter Mode! 247°2!t8780

!: ,{

Repair Parts Transmission 04820

_F_ PART R'_! PART

........ .......... oE C,.,P:JON .....................

i 741-0t55 Bal! Bearing 28 1717-0382 Clutch

2 04822 Transmission Ass'y,,,.-,R,H. 29 72'I-0102

3 738-0379 Input Shaft 518" D!a, 30 712o0138

4 714-0122 Sq.. Key 3116 x -75 Lg. 3, 736-,0329

5 750-0379 Spacer.637,.D, x.781 O.D. o2 741_0229

x 85 343 04826

6 7t 7-0210 Sprocket 9 looth ,50" Pitch 713-0226

7 750-0378 Spacer .637 I.D, x .78t O.D_

x 1,44 35 750-0352

8 06800 Tine Shaft Ass'y,

9 736_0259 FI-Wash. 1.0 t_D, x 1.62 36 04823

CoD x 090 37 713-0165

t0 741-0189 Flange Brg, !.001,D, x 1.188

O.D. 38 713-0154.

!I 72t-01 63 Gasket--Housing 39 04829

12 04821 Transmission Ass'y.--L,H 40 750-O314

13 05034 Bearing Housing

14 736-0329 L-Wash, _/_ Scr.* 41 713-0222

15 712-0!38 Hex Nut l/4-28Thd,* 42 748-,0!84

16 721-0102 Seal 1.0" LD. x I.,38 O.,D

!7 736-0219 Beltevi]leWash. 43 750-0374

18 736_0169 L-Wash. 318"Scr,"

19 7t2-0214 HexCenL L._Nut3f8-24Thd_ 44 74t-O189

20 04859 Shift Yoke Ass'yo_L. H.

04858 Shift Yoke Ass'y..._R. H_ 45 736-0259

(Not Shown) 46 04835

21 721-0162 Gasket_Shift Housing 47 7t3-.0225

22 741-0862 Ball Detent 250 Dtao

23 732,-0863 Compression Spr!ng 48 750..0314

24 719-0237 Shift Housing--L.H_ 49 710.Ot95

7!9-0238 Shift Housfng--RH., 50 736-02t9

(r,,Iot Shown) ,, 51 7!0:0629

25 7!0-0601 HexTap Tite5116-18 x .75 52 736-0159

Lg 53 736-01 19

27 7t7-0383 Ctutc°h Dog 54 710-0627

55 756-0297

.... j........................................................... 65......

DESCRIPTION

Dog Driver

Seal 1.0" I.D. x 1,38 O,D,

Hex Nut %_28 Thd.*

L-Wash. %" Scr,,"

Ffange Brg. 1.00" I. D_

Sprocket Brg, Sieeve Ass'y.

Chain #50 518 Pitch x 52

. Links Endt,ess

Stepped Spacer 10" I,D x

I ,75 O_D,

Clutch Shaft Ass'y_

#420 Chain V2" Pitch x 57

Links ,,

MasterLink V2 Pitch ,

Sprocket Brg Sleeve Ass y,,

Spacer 1,0" t D, x 2.,0" O.D.

x .68

Sprocket Ass'y,

Flange Big, ,,628 ID. x ,753

O,D_

Hub Sleeve .38 t.D, x ,625

O.D,

Flange Brgo 1 00" I,,D, x t ,,1_8

O.D

Ft-Wash,, t o0" I,.D x 1,62 O.D

Axle Shaft Ass'y.

Chain #420 V2 Pitch 42 Links

Endless

Spacer 1,0" I.D. x 2.,0" O,D,

Hex Scr, %-28 x.62 Lg.

Betleville Wash,

Hex Scr. 3/8-24 x 2.75' Lg*

Ft-Wash, 5tt6' Scro

L-Wash. 5/!6" Scr. * ,

Hex L-Scr,, 5t16-24 x .,75' Lg,

Input Pulley--Transmission

_ P!ug ,25o"D.ia.

*Startdard Hardware items--May Be Purchased

Loca!ly.

Repair Parts 8=HoPoTilBer Moden 247o298780

REF. PART

NO. NO_

-_ 7! 0°022?

2 746-0304

3 747-0255

4 7t0-0136

749-0268

720-0180

7 712-0t07

I 4830

04831

10 749-0269

11 720-0183

t2 04892

t3 714-,0t 45

!4 '736-0t01

15 732-0!93

16 712-0214

! 7 04833

18 710-0344

19 7t4-0!15

20 732-0306

2t 747-0256

22 747-0252

23 04804

24 '710-,0623

25 736.0169

26 710-0623

27 736,.0t;69

28 736-0 ! 0 !

29 7t2-0;t 30

30 04861

31 04673

32 04683

34 711-0599

35 742-0175

36 710-.019t

37 04857

38 73640169

39 712-0241

40 714-0145

41 742-0174

42 04855

46 736-0I 69

47 712-0798

48t 04820

49 I 712-0267

501 736.0,1.t 9

"Standard Hardware

Re#a![. parts 8-H.P, Tiler ModeU

DESCRIPIION

Hex Wash, Hd Tap Scr0 #8

x 50" Lg,*

Throttle Control Ass'y.

Comp.

t4andte Lock. Rod

Hex Scr. V4-20 x 1.75" Lg.*

Hand!e--R. H.

Grip

Hex Cent L.Nut I/4-2(:}Thd.

Clufch Grip

Handle Panel Ass'y.

Handle ....L H

Ball Knob

Clutch Handle Ass'y

Hair Pin Cotter

FI.Wash.

CompressiOn Spring .88

O,D x,81 Lg.

Hex Nut 3/8-24 Thd *

Depth Bar

Hex Scr, 3/8:16 x 1.50" Lg,.*

Cotter Pin 1t8" Dia x!,00"

Lg *

Compression Spring.

Depth Bar Adjustment Pin

Hinge Rod

Wine Shield Hinge Flap Ass'y,

Hex Wash° Hd, Self Tap Scr.

L-Wash. 3t8" Scr,*

Hex Wash. Hd, Self Yap Scro

L-Wash. 3/8" Scr. *

FFWash.

Hex Ins.. L-Nut 318-16 "fhd.

Drag Bar Ass'y,,

Inner Wine Adapter Ass'y

Outer Wine Adapter Ass'y.

Clevis Pin 3!8" Dia. x 1.75"

Eg_

TIne..-.L,.H.

Hex Scr, 3f8-24 x ! ,25" Lg, _

Outer Ttne Ass'y. Comp,._

L.H.

L,-,Wash. 318" Scr. *

Hex Nut 318-24 Thd."

Hair Pin Cotter

Tine.-,R..H_

Inner Wine Ass'y. Comp,--

L, H.,

L-Wash° 3t8" Scr. *

Hex Nut 318.,t6 Thd. _

Chain Case Ass'y. Comp.

Hex Nut 51t6-!8 Thd *

L_WaBh. 5t!6!' Sor. *

247,298280

fEFo PART

51 04850

52 736.O! 69

53 712-01t6

54 '714.-0474

55 736-0290

56 736_01t9

57 738- 0258

58 736-0105

59 7! 0-0623

60 0484t

61 710-0601

62 710:-02!6

63 714-01 t5

6.4 04796

65 712-0130

66 736-0I 69

67 714-0115

68 04806

69 747-0278

70 723o0156

71 04812

72 7t 2o0221

73 7t I _0663

74 732.,0132

75 7t4-0474

t6 736.,_0253

_7 747-0254

_8 736-0i92

_0 712-0158

31 748-0516

3'2 0.4819

33 736-0289

34 738-0148

851 712-0267

861 736-0119

871 710-0458

88 t 047.92

89 i46-0305

90 7I 0-0152

91 I 712-0181

921 748-0150

93 I "712-0711

94 I 711-0198

t j 770°7764

........t_L..7_TZ-,Bsj7

Items-May Be Purchased Locally.

WINE CHART

REF. NO. DESCRIPTION

42 Inner Wine Ass'y,, Comp. _-L. H.

Not Shown Outer Wine Ass'y, Comp._RoH.

__3!___............ Outer Tine Ass'_., C_, _L. H.

DESCRIPTION

Handle Posjttoner Ass'y,

L-Wa,sll, 318" Scr,*

Hex Ins, LoNut 3/.8-24 Thd,

COtter Pin 1t8" Dia. x ,75"

Lg, T

FI-Wash .630 I.D. x 1.0" O,D.

x ,063

L-Wash, 5t 16" Scr. +

Shid. Scr, .50 x .25

Bell, Wash.

He× Wash. Hd, Self Tap Scr.

Control Brkt.

Hex Wash. Hd, Self Tap Scr.

[-flex Scr. 3t8-16 x .75" Lg, *

(]otter Pin t t8" Dia. x 1.00"

Lg,*

Ttne Shield Ass'y

Hexlns L-NuI3t8-16Thd

L,.Wash 3t8" Scr,*

Cotter Pin 1 f8" Dia,, x t ,00"

Lg.*

Pivot Horn Ass'y.

Gear Sl_ift Rod

Rod End 3t8_24 Thd

Pivot Brkt. Ass'y,,

Hex ins, [,.-Nut 518-16 Thd.

Locking Pin

Compression Spring

Cotter Pin t !8" Dia, x ,75"

Lg *

Bell. Wash_ °505 IoD, x 1_00"

O.D,

Lower Handle Control Rod

Fl.,Wash, 50" f.D. x 1.00

O,D. x ,090

Hex Nut 5/16_18 Thd,"

Pivot Handle Brg

F_ivot Handle Link

Bushing Wash.

Shld. Scr, .500" Dia. x _660

Hex Nut 5t16-t8 Thd."

L-Wash, 5/16" Scr, *

Cam Bolt 5t16-18 x 1.75"

Lgo*

Handle Mtg. Brkt Ass'y.

Conduit and Wire

Hex Scr. 3t8..24 x 1.00" Lg,

Hex Top L-Nut 31846 Thd,

Sleeve Brg .50 I.D, x .62

O,D. x 1.12 Lg.

Hex Jam Nut 3t8-24 Thdo

F,errule

Owner's Manual

Warranty Decal

lNot illustrated

PART NO,

04854

04855

04856

04857

.48 4_6 "-...,

23 24

2/5 2:27 28/

.....41

....14

¢5

R__ep ,.!LParts8°H

_EF

PART DESCRIPTION

NO,

752-06! 4

048! 5

736-0114

7t0.-0121

754-.0220

717-0343

754_0221

750-0387

756-0297

736-,0159

736-0119

7101.0627

712.-0! 30

736_0169

756-0225

04836

736-0329

710-0230

736-0227

71o-o191

o.4i9o

710-0599

717-0383

71T-0382

04859

04858

72"t-0162

719-0237

7'19-.0238

74t -0862

732-0863

720.0143

7117-0265

7t 5-0139

05034

741-0!55 !

710-0650l

Y14_0122i

738..0372

710-0502

736-0t69

7tO-0623

42j 04820

*Standard Hardware

Engine B. & S. 190402

Type 0944,-01

Belt Cover Support Ass'y.

internal U-Wash. 1/_,,Scr*

Hex Scr., t/2_20 x .75" Lg.*

"V"-Beit 518" x 27,0" Lg.

Variable Speed Ass'y,

"V"-Belt 5t8" x 52.0" Lg,

Spacer 6371_D, x.780 D x

1 44" Lg.

Input Pulley _-Transmission

Fl-Wash. 5t16" Scr.*

U;Washo 5/t6" Scr,*

Flex L-Scr., 5/16_24 x .75" Lg,

Hex Ins. L-Nut 318-16 Thd,

L-Wash,, 3f8" Sor.*

Ft-.ldler 2.75" Din.

Friction Disc

L-Wash-, 1A', Scr, *

Fiex Scr. 1/,_28 x o50" Lg,

FI-Wash. ,.375 I D.'x 1,,50

O,D, x ,035

Hex Scr, 3t8-24 x ! _25" Lg,*

Belt Cover

Hex Wash., Hd. Self Tap Sc_o

Clutch Dog Driver

Cfutch Dog

Shift Yoke Ass'yo_,L.H,

Shift Yoke Ass'y°_R. H_

(Not Shown)

Gasket-r, Shift Housing

Shift Houslng--L,H,

Shift Housfng--R, H.

(Not Shown)

Detent Ball

Compresstor_ Spring

Grip

Engagement Lever

Headed Spiral Pin 3/16 x

13/t6" Lg.

Bearing Housing

Bal! Bearing

Hex Tap Ttte 51!6..18 x .87"

Lg.

Bell, Wash .345 I.Do x .88

O,D

Sq, Key 3116 x .75" Lg,

.P. TiWgerMode 247

NO,,

1_43- 7!2-0138

44 7t2-0116

45 710-03217

46 710-0191

47 734,"0807

734-0806

Shoulder Spacer

Hex Self Tap Scr. 318-16 x

1.25" Lg.

L-Wash, 3/8" Scr,*

He× SF Tap Scr, 3f8-16 x ,75"

Lg.

Transmission Ass'y Comp.

6c_

ltems_May Be Purchased Locally,

04848

734-0808

734.,0456

7!0-0t52

710-0359

04860

736-Ot79

736-0921

712-0384

723.-0340

712-02t 4

712-0267

736-01 ! 9

04844

732-OI53

04864

712.-0138

712-0130

04837

736-0237

714-0474

738_0380

710_0106

7t 2-0324

04841

710-0623

710_0621

736L01.t9

750-0381

05080

756..0296

710-0599

04840

736-0! 73

712-0117

736-0173

7! 0-0t 95

7t 0-0599

714,.0! 18

710-0380

750-0382

!04863

751-0233

749-0275

298780

#ESCP.IPT!ON

Hex ins. L_Nut 3t8-24 Thd.

Hex Scr. 3f8-'16'x 1,75" Lgo

Hex Scr. 3t8L24 x l .25" L_,,

Wheel Ass'y., Comp.._L.H.

Wlleel Ass'y. Comp..-,R H,

(Not Sllown)

Rim Only

]'ire Only t6 x 4.80_8

Tube Only 16 × 4°80-8

He× Scro 3t8-24 x 100" Lg.*

Cam Bolt V2-,I3 x 6,00" Lg.

Weigh[ Mtgo Brkt.

Flat Washer

L-Wash.. V2" Scr. *

Hex Cent, L-Nut V2,-13 Thd,

We.ight

Hex Cent. L.-Nut 3/8-24 Thd. *

Flex Nut 5t16.-i8 Thd,*

L-Wash. 5f16" Scr,,*

Frame Ass'y,

Extension Spring

Idler Arm Ass'y.

Hex Gent, L-Nut _/_-28 Thd,.

Hex Ins, L,.Nut 3t8-16 Thd..

Variable Speed Brkt. Ass'y,

FI-Wash..686 I.D, x 1.25

O.D.

Cotter Pin t18" Din. x .75"

Lg_*

Shld,, Sor. 1/_,, Din. x .25" Lg.

Hex Scr, V4-20 x 1.25" Lg*

Hex Ins, L-Nut 1/4_.20Thd.

Control Br.kt.

Hex Wash. H_foSelf Tap. Scr,,

Hex Scr. 5/16-18 x .50" Lg,,*

L_Wash. 5t16" Scr.'

Spaoe'r,l.25" O,D, x 13 Ga,

x ,40 '

Friction Wheel Ass'y,

Eilgine.Pdtley Ass'y,

Hex Wash, Hd, Self Tap Scr,

Belt cover Extension Ass'y,

FL-Wa_h, %"' Scr,

Nex.Gent, L-Nut 1/4-28 lhdo

EI-Wash, 1/4;' Scr,

Hex Scr, _/;_,-28x ,62" Lg, *

Hex Wash Hdo Self Tap Scr.

Sq, Key V4" x 1,50" Lg,*

Hex Scro 5/t6-18 x 1o75" L.g, *

Spacer

Rear Belt Cover Support Brkt,

Muffler Deflector

Vibration Damper

TILLER ACCESSORIES

V-Bar Cultivating Kit

V-Bar Frame

4-pt. Cultivating Tines

Hiller/Furrower

Depth Gauge Wheels

6-Tang Universal Cult,

Cultivating Sh letds

32" Leveling fSnow-Blade

Wheel Weights

Wheel Weights F tLeveling Snow-Blade

Front Hitch Mount

Tire Chains

Repair Parts

8-H,P. CHAIN DRIVE TILLER MODEL 247,298780

ENGINE MODEL 190402 TYPE 0944-01

304

_-I_,_ _

363 • 334_,""' ....

RepaBr Parts

8-H.P, CHAIN DRIVE TILLER MODEL 247,298780

ENGINE MODEL 190402 TYPE 0944.,01

"F8_3....................iS"

_EQU IRE,S

SPECIAL TOOL,S

g_'E"#EPAIRIN_T#UCTIO#

AAAWUA8

\Z20 616

2!9

209

356

Repair Parts

8-H.P_ CHAIN DRIVE TILLER MODEL 247.298780

ENGINE MODEL 190402 TYPE 0944-01

729

TO INSTALL

SE_R_',P,4/RiHS,zRUCZiON

,4NU,4_ _ _ 270

_i:_......._iL_ _ _- ...........................................................

64.3:-__..

445-_

121CARBURETOR OVERHAUL KIT

_o_,_ _oo®""--,_,

,tz;,.=_a_

104 i.

_119

__.......yO-@

t66

3O5

=.=,

Repair Parts

8-H_Po CHA!N DRIVE TILLER MODEL 247.298780

ENGINE MODEL 1.90402 TYPE 0944-0!

NO, DF_SCRtPTtON

295962

Note:

294606

21 I7_'8

"270430

39032"t

'27803

93536

Note:

"27750

*27876

*27877

93113

93211

91084

261149

391010

295964

Note:

298453

66768

93585

298260

61760

391673

391674

391675

391676

Cyiinder Assembly

B.ushlng--Cylinder

Requires special tools for

instaflati.on

Seal--Oil

He'ad_C_,linder

Gasket--Cylinder Hd

Breather Ass'y

Gasket.-.Vafve Cover

Screw.-:_ Sere

93535 ScrewU-Sem Used to

mount Output Bracket :.

Ri_tainer on type No. 0800,

Tube_ Br(_ather

3907.69 Tube--Breather Used

ontype Nos, 0638, 0694, 0803,

0810, 08I 4, 0825.

Gasket--Crankcase Cover.---

1164" thick

Gasket-_C, rankcase Cover--

,005" thick

Gasket _-Crankcase Cover-.

.009" thick

Screw-..,Cytinder Head

(2:-5f16 _'long)

Screw--,Cytinder Head

(2-9/16" long)

Plug--Oil Drain

Crankshaft

CoverAssembly-.Crankdase

Bushing--.Crankcase Co.ver

Requires special tootsfor

instatlatlonL

Seal--Oil

Plug :O!1 Filler

Screw---Crankcase

FI ywheet.':- Mag nero

Key,.--FlYwheel

Piston AS'S'y. L-Std,

Piston Ass'y,_,010" O,S,

Piston Ass'y _,020" O.S_

Pis:ton Ass"y, _.030" O. S

MODEL 190400 SE'RIE_; PISTON RING SETS;

Note: i=or.Cl_r'orneRing se{_-Std.

Si.ze--order Noo 299743°

26 3,9.1669 Ring Set-*Piiston,--Std

391670 RiOg Set--Piston .... 010" O.,S,

391671 Rlng Set,;--.,Piston--.020" O,S.

391672 Ring' Set--Piston--.030" O_So

27 68546' Lock--Pfston Pin

28 295840 Pin As,_'y.._Piston.--Std, :

295841 Piln Ass'y,--Piston--.

,005" O:.s,

29 390401 Rod Ass'y, :--Connectfng

Note: FoP Con,necgr_g Rod wi.th

,020" dn,dersfze Crankptn

Bo're--O'rdei' No. 390773.

30 222,1t3 Dlpper_Oonnecttng Rod

'Included in Gasket Set--Part No, 299577, •

1"Included in Carburetor Overhaul Kit_Part No, 295938::

32. 92659

33 390419

34 261055

35 65906

36 26828

40 221596

41 292260

42 93630

45 260933

46 210728

50 211812

5I '270684

Note:

52 '27828

53 93128

54 93208

55 295272

56 295871

Note:

57 294303

58 66884

59 230228

60 66728

63 260414

64 230543

65 93067

66 298198

67 211383

68 63T?0

69 66718

70 298799

71 221653

73 221796

74 93042

75 220865

76 _8238

81A222263

90 390323

91 390404

92 3905Q3

93 231-08

94 "292681

[JESCRIPTION

Lock .--Connecting Rod Screw

Screw--Con necting Rod

Valve.-_ Exhaust

Valve_fnlake

Spring--tn take Valve

Spring,- Exhaust Valve

Retai ner--t ntake Valve

Rotocoit-- Exhaust Valve

Retainer_ Exl_aust Valve

Rotbcoit (2)

Tappet--Valve

Gear .-_-Gam

Elbow _ Intake

Gasket.--Carb Mtg.

270824 Gasket--,-Oarb, Mtg,

Used on. type Nos, 0800, 0877,

0878..

Gasket-- Intake Elbow Mtg,.

Screw,-Carburetor Mtgo Sam

Screw_lntake Elbow Mtg,

Sere

Hous.ing--Rewind Starter

Pultey_RewJnd Starter

Includes 63" rope; if longer

rope is required, order rope

No..66894 and cut tc_required

length

Spring-,--Rewind Starter

Rope_ Rewind StaFter _63"

tdng

Pin ,-,Starter Grip

GripeS:tarter Rope

Spring-- Ratchet

Adapter_-Ratchet Sl_ring

Screw-.Stamped Steel

Ele_Jind Star_er HousJhg Mtg,

Sam

Clutch Ass'y.,--,Rewind Starter

Housing_ Rewind Starter

Clutch

Ball--Clutch

Washer.-- Starter Clutch.

Thrust

Ratchet.-. Rewind Starter

ClutCh

Washer--Retainer

S.creen-,, Rewind Starter

Screw--Sere

Wasber--Spring

Washer--Ratchet Sealtag

Lpck-,Muffler Mtg, Screw

Carb..ureto[ Ass'y, (Manual

Choke)

Body Ass'y, _Upper

Carburetor

Body_Upper Carb,

Bushlhg--Throttje Shaft

Valve Ass'y._.Carb, Idle

Repair Parts

8-H,.P. CHAIN DRIVE TILLER MODEL 247.298780

ENGINE MODEL 190402 TYPE 0944-01

NOJ NO.

_' 93499

96 62940

97 298826

98 91920

99 26157

100 61967

1O1 93043

f02 f279!8

103 99333

!04 t230896

! 05 299096

107 390403

I08 62872

109 391987

t10 62899

tll 26155

112 23123

t.13 390395

1t4 68667

! 18 ,}9525

119 90746

t 20 92290

t21 298938

164 91628

165 93453

166. 392105

180 290816

181 392301

I82 221935

183 291367

184 91257

185 90970

186 67218

187 39t498

188 93535

189 90366

200 221760

20t 260872

209 261126

219 391737

Note:

220 221551

222 390670

227 39,1965

229 220680

230 222450

240 295984

241 296005

242 295913

"Included in

DESCRIPTION

Sorew-=,Throttle arid Choke

Valve Mtg. Sere

Valve--Throttle

Shaft and Lever--Throttle

Screw--Machine, FH. Hd.--

8-32 x 5f8"

Spring--Throttle Adjustment

S[op--.Throttle

Pin_Throttte Stop

Gasket--Carburetor Body

Float--Carburetor

Pih--Ftoat Hinge

Valve_Fuet Inlet

Body Ass'y,_Lower

Carburetor

Valve_Choke

Shaft and Lever--Choke

Washer--Choke Lever

Spring--Choke Lever

Screw--Choke Lever

Nozzle--Carburetor

Gasket_ Nozzle

Valve...--Needle

Screw.-Machtne, Fil. Hd,._

t0_32 x 518"

Washer_ Loci{--,

NO. 10 x 1/16" x 3/64"

Carburetor Overhau! Kit

Pipe Ass'y,,_Air Cleaner

Nub--Wtng

Stud--.Air Cleaner Strap

Tank Ass'y..,--Fuel (4 quart)

Cap_Fue! Tank

Bracket--.Fuel Tank

Strap Ass'y.Fuel Tank

Screw.--Machine, Ffl, Hdo_

V4-20 x 1_./2_'

Nut--Square.-- V4-20

Connector--Fuel Pipe

Pipe--Fuel (Flexible)

Screw_Sem

Washer-_Lock, 51t6 x t/8

x t f16"

Gulde_Air

Link--Governoi

Spring--Governor

Gear--,-Governor (Used afte_

Code No, 75060511)

297656 Gear--Governor (Used

before Code No. 75060611 )

Washer-_-Thrust

PIate--Gov.. Control

Lever Ass'y, _Gdvernor

Washer

Washer--Governor

E{lter Ass'y,._Fuel

Cover Ass'y.--Fue[ Filter

Valve_Fuet Shut-Off

Gasket Set--Part No. 299,577,

1"Included in

|EF._ PART

_o. NO,

243 22547

244 230318

245 "68477

246 298683

247 99665

265 221535

268 65616

Note:

269 26633

Note:

270 63426

271 290568

278 22358

300J 3913t3

304 299853

305 93158

306 221898

307 93'163

308 221901

333 298968

334 93381

337 293918

340 26018

341 93381

342 65704

345 222t17

346 93705

356 299500

357 91540

358 299577

363 1_j165

372 220477

373 92987

375 294628

Note:

445 390930

516 260374

523 ,390969

524 68838

525 390970

535 270782

Carburetor Overh'au! Kit_Part No. 295938.

DESCRIPTION

Screen_Fuel Filter

Conneotor_Fuel Pipe

Gasket_Fuel Filter Bowl

Bowi-- Fuet Filter

Yoke--Fuel Filter

Clamp--Casing

Caslng_Control Wtre_72"

tong

ff longer Casing is required,

specify lehgth In inches; f

shorter wire is needed, order

No. 656_6 and cut to required

length,

Wire.-Control--,78" long

if longer wire is requh"ed,

specify }ength in inches; if

shorter wire is needed, o_der

No, 26633 and cut to required

(ength_

Lockriut--Control Wire Casing

Lever Ass'y.,--Control

Wash er_ Flat

Muffler--Exhaust

Housings-Blower

Screw.-.Sem

Shield ---Cylinder

Screw--Cylinder Shield Mtg_

Sem

Cover--Cylinder Head

Armature Ass'y,

Screw--Armature Mlg.. Sem

Plug_Spark (Resistor Type)

Spring-- Breaker Arm

Screw--Breaker Arm Mtg.

Sere

plunger-, Breaker Point

Cover--Breaker Point

.Screw--Sere

Wire--Ground

Key--Pulley

Ga#ket Set

P011er_-.Flywheef (Optional

Accessory)

Clamp_Gondenser

NutTHex

Breaker" Points and Condenser

Set

299061 Ignition Kit Includes;

294628: Polht Set

65704 plunger

6176(} Key--Flywheel

Cartddge.---.Air Cleaner

Spring--Connector

Cap and Dipstick--Oil Filler

Seal--.Fl.tler Tube

Tube--Oi! Filler

Element--Air Cleaner

Cleaner AS_SS'y_c:_A'_r............

Repair Parts

8-H,P. CHAIN DRIVE TbLLER MODEL 24.7.298780

ENGINE MODEL 190402 TYPE 0944_O1 '

REF.

NO.

552

562

592

601

608

613

614

615

616

621

635

642

643

657

676

725

729

836

842

843

PART

NO,

231056

92613

231082

93053'

295001

93704

93306

93307

23:1057

Note:

297472

66538

222271

222272

93496

222261

221885

221907

93559

270933

280149

221798

DESCRIPTION

Bushing--Governor Crank

Bolt--Governor Lever

Nut.--,-Hex,--10-24

ClampZ-Fuel pipe

starfe_; Ass'y,--Rewind

Screw.- Muffler Mtg.

Cotter--Hair Pin

Retainer--E-F(ing

Crank-., Governor, (1,¢"

diameter) Used after Code No,.

75060511.

230842 Crank,--Coy. (3t 16"

alia,,) Used before Code No,

75060611.

Switch-*-Stop

Elbow-- Spark Plug

Cover_AIr Cleaner

Cup.-,Air Cleaner

Screw_Sem

Deflebter.-- Exhaust

Shield_Heat

Clip_Wlre

Screw--Sere

Seal_"O" Ring

Sleeve--Choke Lever

*included in Gasket Set---Part No. 299577,

"[Included in Carburetor Overhaul Klt_Part No,, 295938.

m #U l

ODEL NO.

247.298780

HOW TO ORDER

REPAaR PARTS

f'he Model Number will be found, stamped on a plate atlached to lhe

chassis Always rnent]dn the Mode! Number when requesting service o_

repair parts for your tiller

Ati parts listed here_n may be ordered through SEARS ROEBUCK AND CO

or SIMPSON SEARS LIMITED RETAIL or CATALOG STORE,

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

INFORMATION AS SHOWN IN THIS LIST,

1 The PART NUMBER

2 The MODEL NUMBER 247,298780

3 The PART DESCRIPTION

4, The NAME OF MERCHANDISE--Tiller

FOLLOWING

If the parts you need are not stocked locally, your order Wilt be

electronically t,ransmitied to a Sears Repair Parts Distribution Center for

expedited handlirig

ROEBUCK AND (30., Cht_J1L (}0684 U,_A.

PART NO.. 77_7764 PRINTED _t"4U_S,A_

Craftsman 247298780 User Manual TILLER Manuals And Guides L0810294

CRAFTSMAN Front Tine, Gas Tiller Manual L0810294 CRAFTSMAN Front Tine, Gas Tiller Owner's Manual, CRAFTSMAN Front Tine, Gas Tiller installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
