Operator's Manual

MRN°I

6.0 Horse Power

YARD VACUUM

Model No. 247.770550

CAUTION: Before using

this product, read this

manual and follow all

Safety Rules and

Operating Instructions.

• Safety

•Assembly

•Operation

•Maintenance

•Parts

•Espahol, p, 39

Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.

Visit our Sears website: www.sears.com/craftsman

Printed in U.S.A. FORM NO. 769-00407D

(8/4/2004)

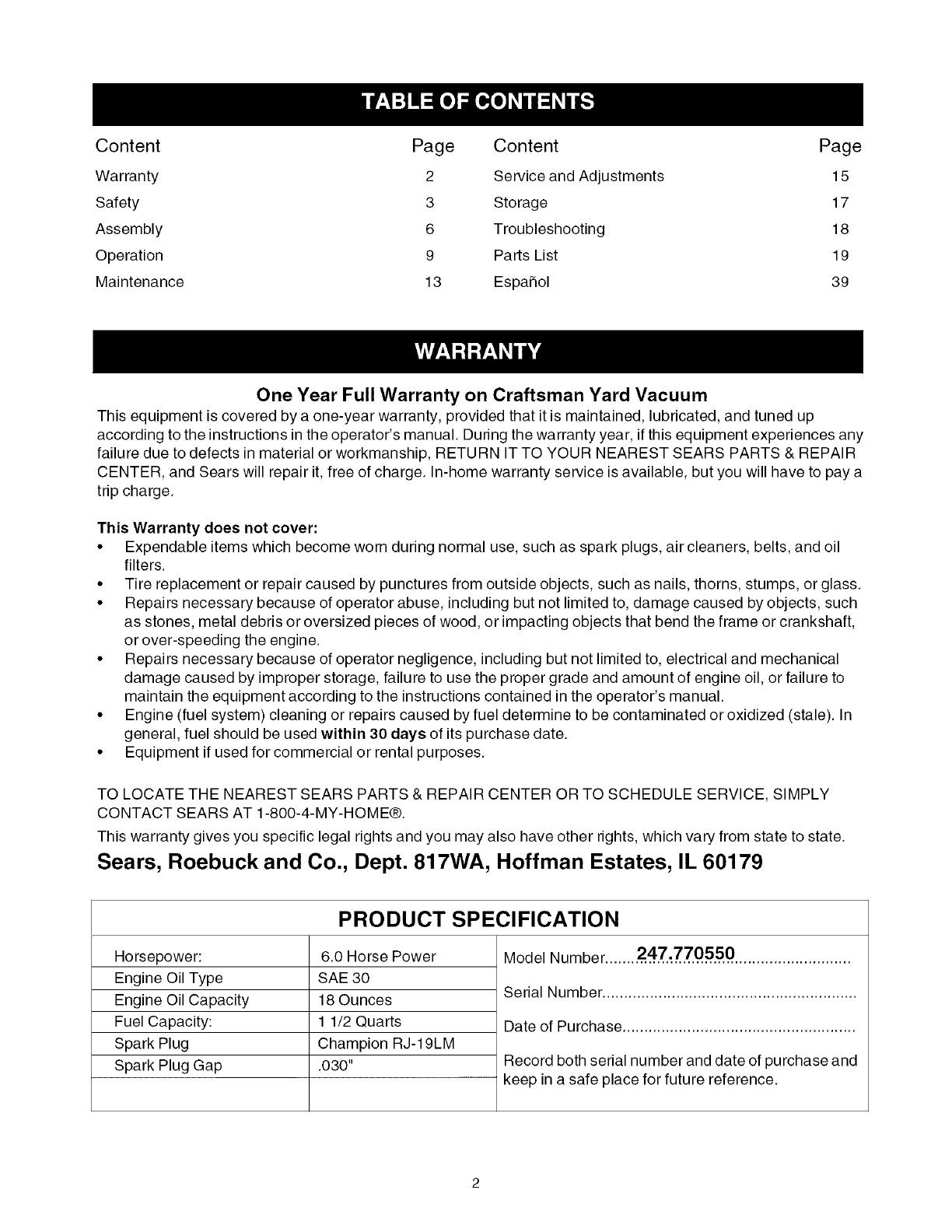

Content Page Content Page

Warranty 2 Service and Adjustments 15

Safety 3 Storage 17

Assembly 6 Troubleshooting 18

Operation 9 Parts List 19

Maintenance 13 Espa5ol 39

One Year Full Warranty on Craftsman Yard Vacuum

This equipment is covered by a one-year warranty, provided that it is maintained, lubricated, and tuned up

according to the instructions in the operator's manual. During the warranty year, if this equipment experiences any

failure due to defects in material or workmanship, RETURN IT TO YOUR NEAREST SEARS PARTS & REPAIR

CENTER, and Sears will repair it, free of charge. In-home warranty service is available, but you will have to pay a

trip charge.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as spark plugs, air cleaners, belts, and oil

filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage caused by objects, such

as stones, metal debris or oversized pieces of wood, or impacting objects that bend the frame or crankshaft,

or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, electrical and mechanical

damage caused by improper storage, failure to use the proper grade and amount of engine oil, or failure to

maintain the equipment according to the instructions contained in the operator's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determine to be contaminated or oxidized (stale). In

general, fuel should be used within 30 days of its purchase date.

• Equipment if used for commercial or rental purposes.

TO LOCATE THE NEAREST SEARS PARTS & REPAIR CENTER OR TO SCHEDULE SERVICE, SIMPLY

CONTACT SEARS AT 1-800-4-MY-HOME®.

This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

PRODUCT SPECIFICATION

Horsepower:

Engine Oil Type

Engine Oil Capacity

Fuel Capacity:

Spark Plug

Spark Plug Gap

6.0 Horse Power

SAE 30

18 Ounces

1 1/2 Quarts

Champion RJ-19LM

.030"

Model Number ....... ..2..4..7....7..7...0..5...5..0............................

Serial Number ...........................................................

Date of Purchase ......................................................

Record both serial number and date of purchase and

keep in a safe place for future reference.

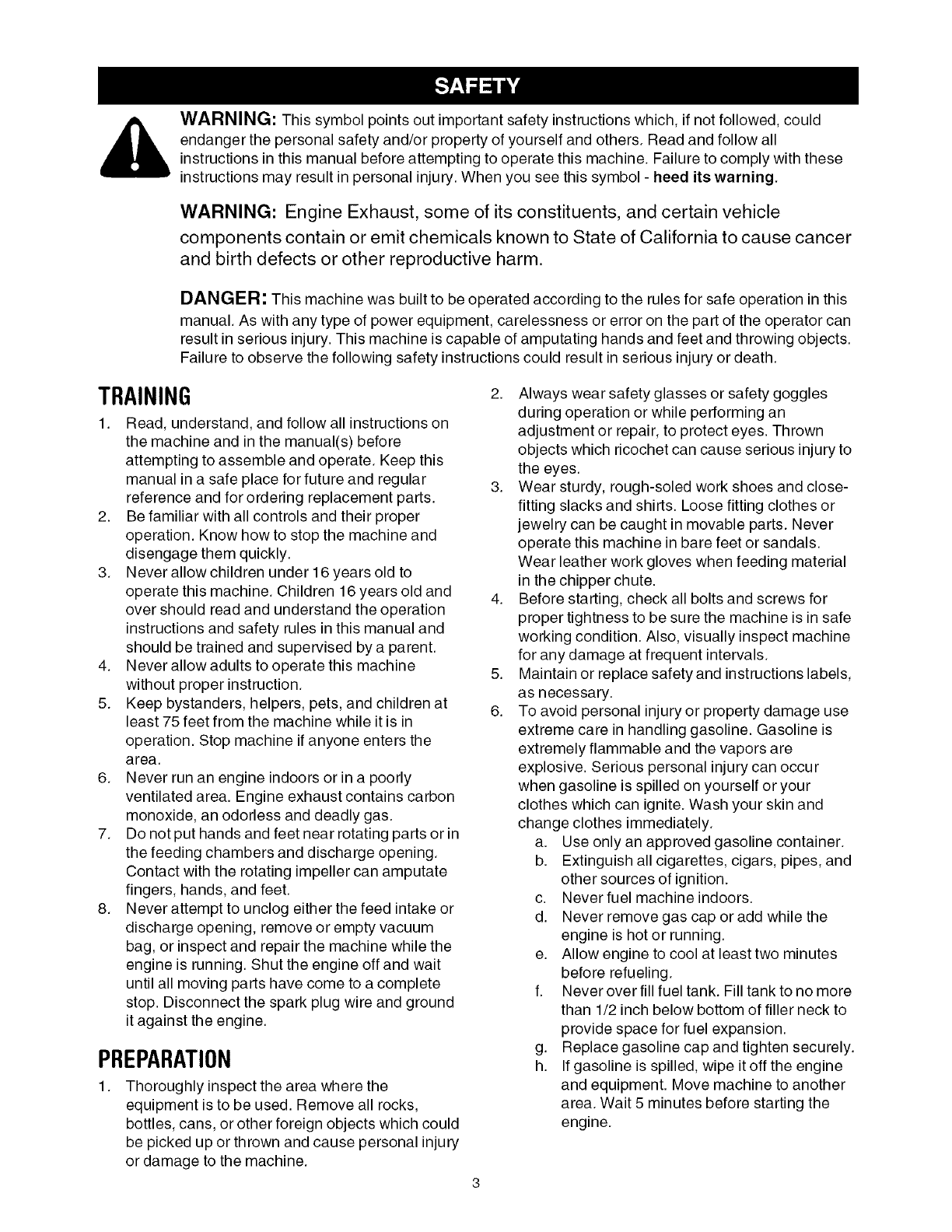

WARNING: This symbol points out important safety instructions which, if not followed, could

endanger the personal safety and/or property of yourself and others. Read and follow all

instructions in this manual before attempting to operate this machine. Failure to comply with these

instructions may result in personal injury. When you see this symbol - heed its warning.

WARNING: Engine Exhaust, some of its constituents, and certain vehicle

components contain or emit chemicals known to State of California to cause cancer

and birth defects or other reproductive harm.

DANGER: This machine was built to be operated according to the rules for safe operation in this

manual. As with any type of power equipment, carelessness or error on the part of the operator can

result in serious injury. This machine is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury or death.

TRAINING 2.

1. Read, understand, and follow all instructions on

the machine and in the manual(s) before

attempting to assemble and operate. Keep this

manual in a safe place for future and regular 3.

reference and for ordering replacement parts.

2. Be familiar with all controls and their proper

operation. Know how to stop the machine and

disengage them quickly.

3. Never allow children under 16 years old to

operate this machine. Children 16 years old and 4.

over should read and understand the operation

instructions and safety rules in this manual and

should be trained and supervised by a parent.

4. Never allow adults to operate this machine 5.

without proper instruction.

5. Keep bystanders, helpers, pets, and children at 6.

least 75 feet from the machine while it is in

operation. Stop machine if anyone enters the

area.

6. Never run an engine indoors or in a poorly

ventilated area. Engine exhaust contains carbon

monoxide, an odorless and deadly gas.

7. Do not put hands and feet near rotating parts or in

the feeding chambers and discharge opening.

Contact with the rotating impeller can amputate

fingers, hands, and feet.

8. Never attempt to unclog either the feed intake or

discharge opening, remove or empty vacuum

bag, or inspect and repair the machine while the

engine is running. Shut the engine off and wait

until all moving parts have come to a complete

stop. Disconnect the spark plug wire and ground

it against the engine.

PREPARATION

1. Thoroughly inspect the area where the

equipment is to be used. Remove all rocks,

bottles, cans, or other foreign objects which could

be picked up or thrown and cause personal injury

or damage to the machine.

Always wear safety glasses or safety goggles

during operation or while performing an

adjustment or repair, to protect eyes. Thrown

objects which ricochet can cause serious injury to

the eyes.

Wear sturdy, rough-soled work shoes and close-

fitting slacks and shirts. Loose fitting clothes or

jewelry can be caught in movable parts. Never

operate this machine in bare feet or sandals.

Wear leather work gloves when feeding material

in the chipper chute.

Before starting, check all bolts and screws for

proper tightness to be sure the machine is in safe

working condition. Also, visually inspect machine

for any damage at frequent intervals.

Maintain or replace safety and instructions labels,

as necessary.

To avoid personal injury or property damage use

extreme care in handling gasoline. Gasoline is

extremely flammable and the vapors are

explosive. Serious personal injury can occur

when gasoline is spilled on yourself or your

clothes which can ignite. Wash your skin and

change clothes immediately.

a. Use only an approved gasoline container.

b. Extinguish all cigarettes, cigars, pipes, and

other sources of ignition.

c. Neverfuel machine indoors.

d. Never remove gas cap or add while the

engine is hot or running.

e. Allow engine to cool at least two minutes

before refueling.

f. Never over fill fuel tank. Fill tank to no more

than 1/2 inch below bottom of filler neck to

provide space for fuel expansion.

g. Replace gasoline cap and tighten securely.

h. If gasoline is spilled, wipe it off the engine

and equipment. Move machine to another

area. Wait 5 minutes before starting the

engine.

i. Neverstorethemachineorfuelcontainer

insidewherethereisanopenflame,spark,

orpilotlight(e.g.furnace,waterheater,

spaceheater,clothesdryer,etc.)

j. Toreduceafirehazard,keepmachinefree

ofgrass,leaves,orotherdebrisbuild-up.

Cleanupoilfuelspillageandremoveanyfuel

soakeddebris.

k. Allowmachinetocoolatleast5minutes

beforestoring.

OPERATION

1. Do not put hands and feet near rotating parts or in

the feeding chambers and discharge opening.

Contact with the rotating impeller can amputate

fingers, hands, and feet.

2. Before starting the machine, make sure the chipper

chute, feed intake, and cutting chamber are empty

and free of all debris.

3. Thoroughly inspect all material to be shredded and

remove any metal, rocks, bottles, cans, or other

foreign objects which could cause personal injury

or damage to the machine.

4. If the impeller strikes a foreign object or if your

machine should start making an unusual noise or

vibration, immediately shut the engine off. Allow the

impeller to come to a complete stop. Disconnect

the spark plug wire, ground it against the engine

and perform the following steps:

a. Inspect fordamage.

b. Repair or replace any damaged parts.

c. Check for any loose parts and tighten to

assure continued safe operation.

5. Do not allow an accumulation of processed

material to build up in the discharge area. This can

prevent proper discharge and result in kickback of

material through the feed opening.

6. Do not attempt to shred or chip material larger than

specified on the machine or in this manual.

Personal injury or machine damage could result.

7. Never attempt to unclog either the feed intake or

discharge opening while the engine is running.

Shut the engine off, wait until all moving parts have

stopped, disconnect the spark plug wire and

ground it against the engine before clearing debris.

8. Never operate without vacuum bag and discharge

chute properly attached to the machine. Never

empty or change vacuum bag while the engine is

running. Rear end of vacuum bag must be kept

closed at all times during operation.

9. Never operate without either the inlet nozzle or

optional hose attachment properly attached to the

machine. Never attempt to attach or change either

attachment while the engine is running.

10. Keep all guards, deflectors and safety devices in

place and operating properly.

11. Keep your face and body back and to the side of

the chipper chute while feeding material into the

machine to avoid accidental kickback injuries.

12. Never operate this machine without good visibility

or light. Always be sure of your footing and keep a

firm hold on the handles.

13. Do not operate this machine on a gravel surface.

14. Do not operate this machine while under the

influence of alcohol or drugs.

15. Muffler and engine become hot and can cause a

burn. Do not touch.

16. Never pick up or carry machine while the engine is

running.

MAINTENANCEANDSTORAGE

1. Never tamper with safety devices. Check their

proper operation regularly.

2. Check bolts and screws for proper tightness at

frequent intervals to keep the machine in safe

working condition. Also, visually inspect machine

for any damage and repair, if needed.

3. Before cleaning, repairing, or inspecting, stop the

engine and make certain the impeller and all

moving parts have stopped. Disconnect the spark

plug wire and ground it against the engine to

prevent unintended starting.

4. Do not change the engine governor settings or

overspeed the engine. The governor controls the

maximum safe operating speed of the engine.

5. Maintain or replace safety and instruction labels, as

necessary.

6. Follow this manual for safe loading, unloading,

transporting, and storage of this machine.

7. Never store the machine or fuel container inside

where there is an open flame, spark or pilot light

such as a water heater, furnace, clothes dryer, etc.

8. Always refer to the operator's manual for proper

instructions on off-season storage.

9. If the fuel tank has to be drained, do this outdoors.

10. Observe proper disposal laws and regulations for

gas, oil, etc. to protect the environment.

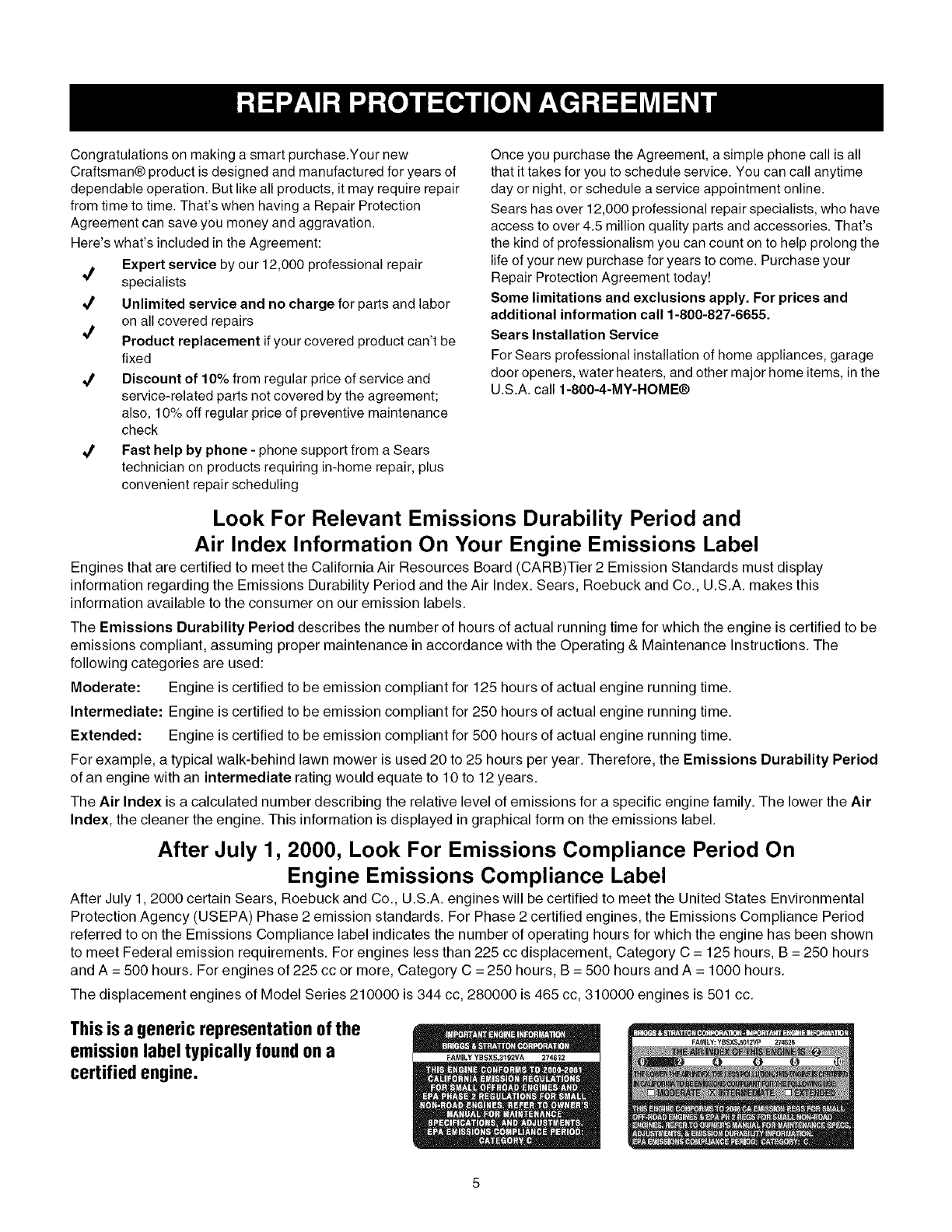

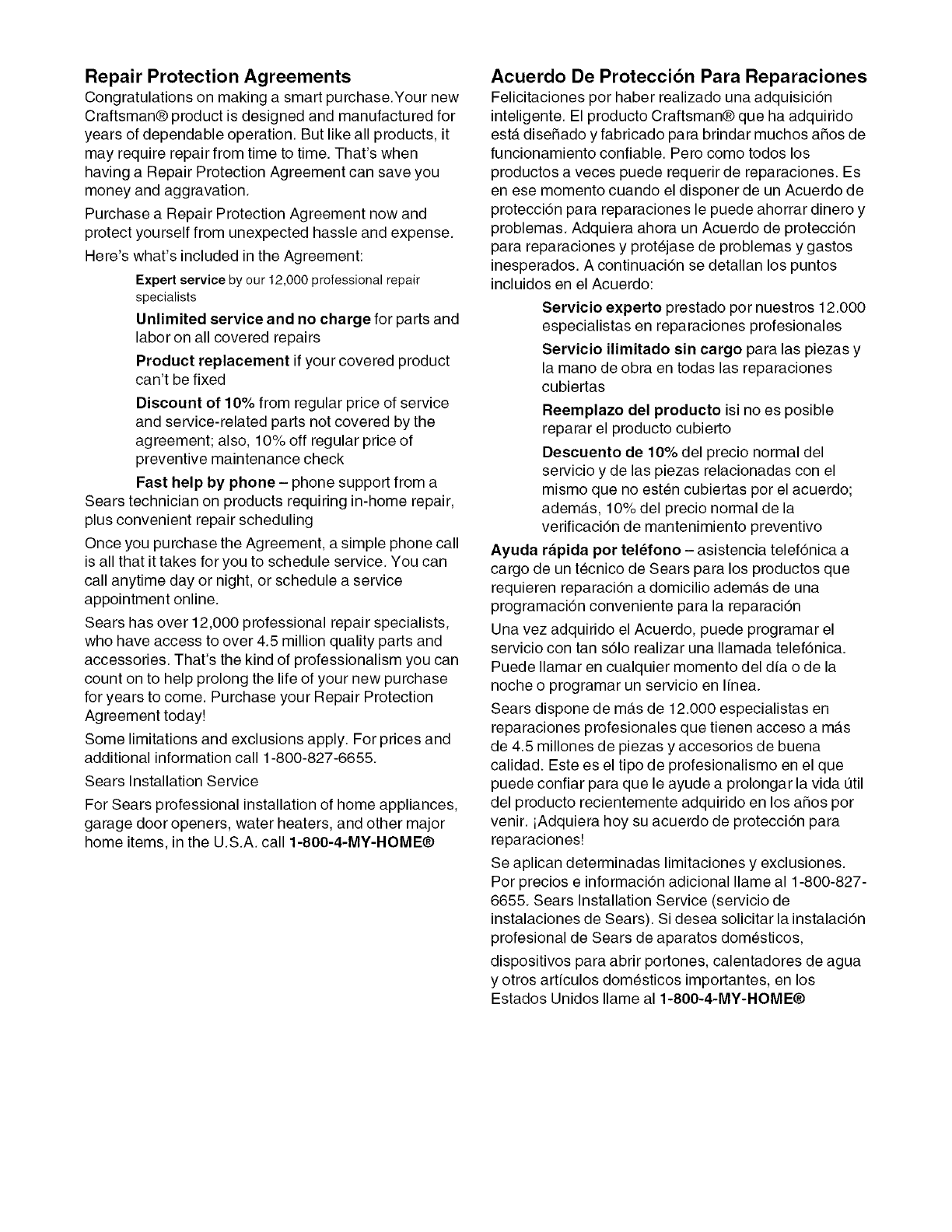

Congratulations on making a smart purchase.Your new

Craftsman® product is designed and manufactured for years of

dependable operation. But like all products, it may require repair

from time to time. That's when having a Repair Protection

Agreement can save you money and aggravation.

Here's what's included in the Agreement:

Expert service by our 12,000 professional repair

specialists

Unlimited service and no charge for parts and labor

on all covered repairs

Product replacement if your covered product can't be

fixed

,_ Discount of 10% from regular price of service and

service-related parts not covered by the agreement;

also, 10% off regular price of preventive maintenance

check

Fast help by phone - phone support from a Sears

technician on products requiring in-home repair, plus

convenient repair scheduling

Once you purchase the Agreement, a simple phone call is all

that it takes for you to schedule service. You can call anytime

day or night, or schedule a service appointment online.

Sears has over 12,000 professional repair specialists, who have

access to over 4.5 million quality parts and accessories. That's

the kind of professionalism you can count on to help prolong the

life of your new purchase for years to come. Purchase your

Repair Protection Agreement today!

Some limitations and exclusions apply. For prices and

additional information call 1-800-827-6655.

Sears Installation Service

For Sears professional installation of home appliances, garage

door openers, water heaters, and other major home items, in the

U.S.A. call 1-800-4-MY-HOME®

Look For Relevant Emissions Durability Period and

Air Index Information On Your Engine Emissions Label

Engines that are certified to meet the California Air Resources Board (CARB)Tier 2 Emission Standards must display

information regarding the Emissions Durability Period and the Air Index. Sears, Roebuck and Co., U.S.A. makes this

information available to the consumer on our emission labels.

The Emissions Durability Period describes the number of hours of actual running time for which the engine is certified to be

emissions compliant, assuming proper maintenance in accordance with the Operating & Maintenance Instructions. The

following categories are used:

Moderate: Engine is certified to be emission compliant for 125 hours of actual engine running time.

Intermediate: Engine is certified to be emission compliant for 250 hours of actual engine running time.

Extended: Engine is certified to be emission compliant for 500 hours of actual engine running time.

For example, a typical walk-behind lawn mower is used 20 to 25 hours per year. Therefore, the Emissions Durability Period

of an engine with an intermediate rating would equate to 10 to 12 years.

The Air Index is a calculated number describing the relative level of emissions for a specific engine family. The lower the Air

Index, the cleaner the engine. This information is displayed in graphical form on the emissions label.

After July 1, 2000, Look For Emissions Compliance Period On

Engine Emissions Compliance Label

After July 1,2000 certain Sears, Roebuck and Co., U.S.A. engines will be certified to meet the United States Environmental

Protection Agency (USEPA) Phase 2 emission standards. For Phase 2 certified engines, the Emissions Compliance Period

referred to on the Emissions Compliance label indicates the number of operating hours for which the engine has been shown

to meet Federal emission requirements. For engines less than 225 cc displacement, Category C = 125 hours, B = 250 hours

and A = 500 hours. For engines of 225 cc or more, Category C = 250 hours, B = 500 hours and A = 1000 hours.

The displacement engines of Model Series 210000 is 344 cc, 280000 is 465 cc, 310000 engines is 501 cc.

This is a generic representation of the

emission label typically found on a

certified engine.

FAMJLYYBSXS.3192VA 274_12

Upper

Hose

Handle _--__,_

Bracket

Wing

Nut

Low/er

Hose

Handle

Bracket

Rope

Guide

Safety Glasses

Lower

Handle

Knobs

Carriage

Screw

Blower Chute

Wing

Nuts

Hose

Assembly

Bottle of

Engine Oil

Bag

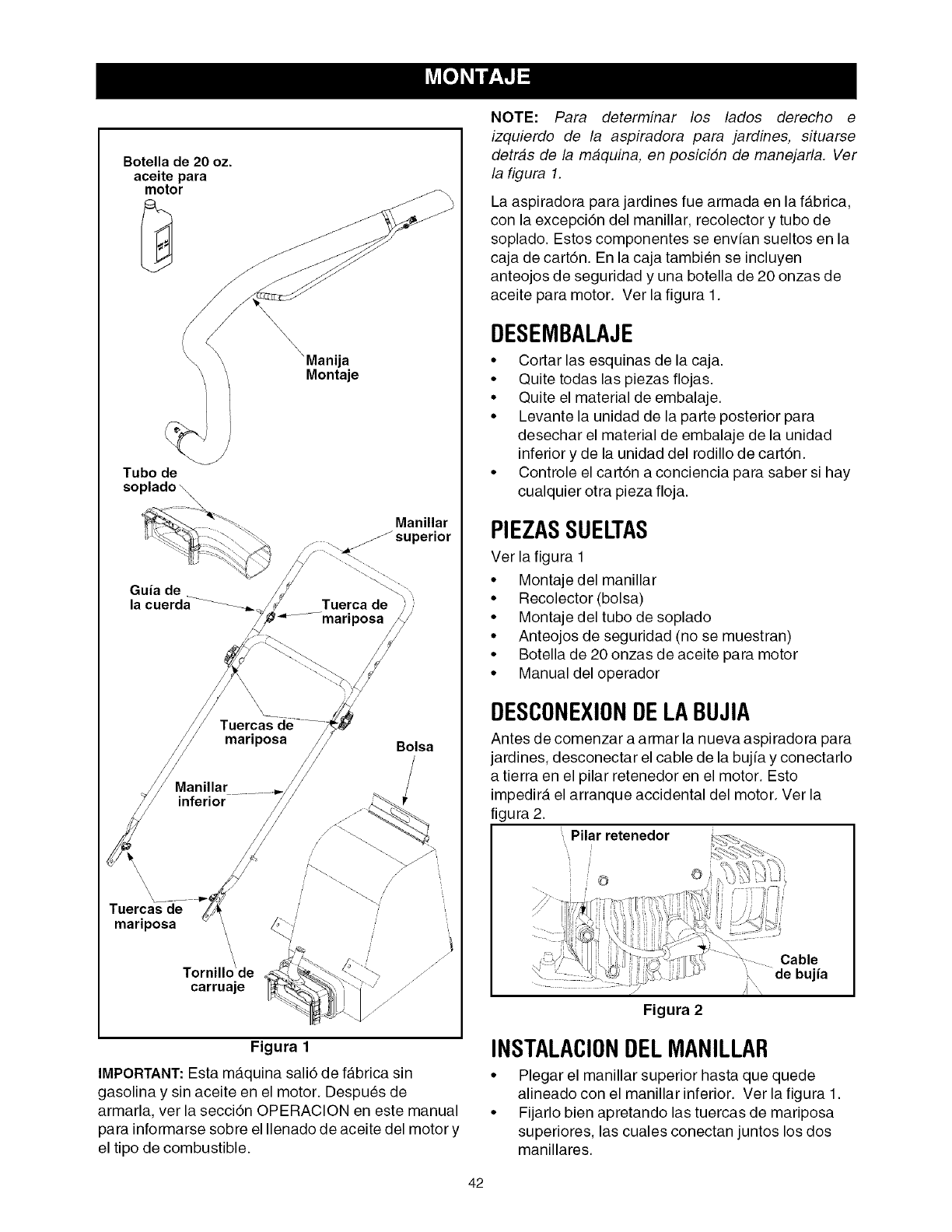

Figure 1

IMPORTANT:This unit is shipped without gasoline or

oil in the engine. After assembly, see OPERATION

section of this manual for proper fuel and engine oil

fill-up.

NOTE: Reference to right and left hand side of the

Yard Vacuum is observed from the operating

position.

This Yard Vacuum has been completely assembled

at the factory, except for the handle, bag, and blower

chute. These parts are shipped loose in the carton.

A pair of safety glasses, a bottle of engine oil, and

the operator's manual are also included in the car-

ton. See Figure 1.

OPENINGCARTON

•Cut each corner of the carton vertically from top

to bottom.

• Remove all loose parts.

• Remove loose packing material.

REMOVINGUNITFROMCARTON

• Lift unit from the rear to detach it from underlying

carton material and roll unit out of carton.

• Check carton thoroughly for any other loose

parts.

NOTE: Make sure not to crimp cables while

removing loose parts or the entire unit from the

carton.

LOOSEPARTSIN CARTON(SeeFigure1)

• Upper and Lower Handle

• Hose Assembly

• Bag

• Blower Chute

• Safety Glasses

• A Bottle of Engine Oil (may be located in bag)

• Operator's Manual

DISCONNECTINGSPARKPLUG

Before proceeding with assembly of your new Yard

Vacuum, disconnect the spark plug wire from the

spark plug and ground onto the retaining post on the

engine. This will prevent accidental starting of the

engine. See Figure 2.

/\ Retaining Post

Figure 2

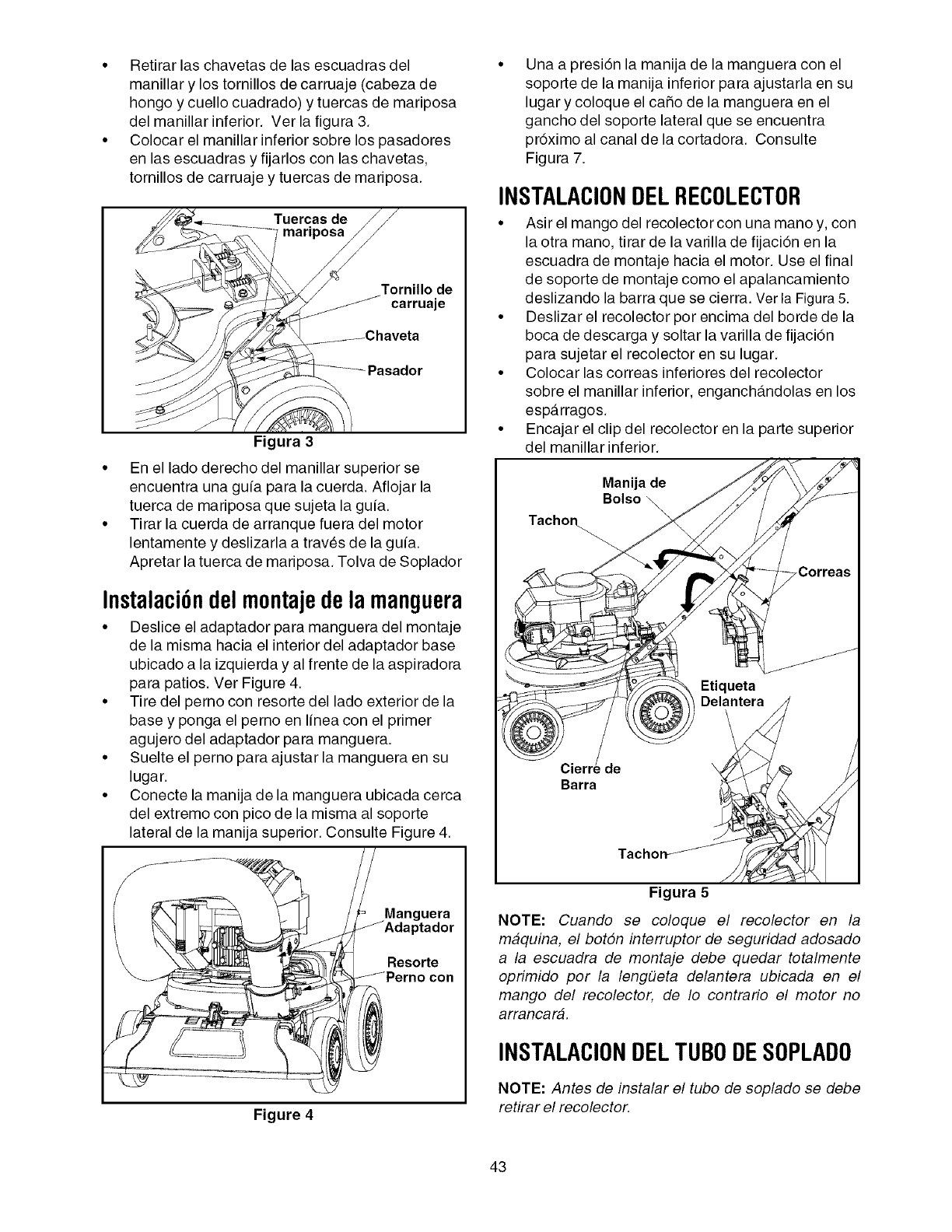

ATTACHINGTHEHANDLE

•Remove the hairpin clips from the handle

brackets and remove the carriage screws and

wing nuts from the lower handle. See Figure 3A.

Nuts

Bracket

-Carriage Bolt

•pin Clip

Wing

Nut

Lower

Handle

Knobs

Figure 3

• Place the bottom holes in lower handle over the

pins on the handle brackets and secure with

hairpin clips.

• Insert carriage screws through upper hole in

lower handle from the inside and secure with

wing nuts.

• Unfold the upper handle until it aligns with lower

handle. Make sure the rope guide is on the right

side of upper handle. See Figure 3B.

IMPORTANT:Make sure the cables are routed outside

the lower handle. Also, do not crimp the cables while

lifting up the handles.

• Secure the two handles by tightening the handle

knobs (carriage bolts must be seated properly

into the handle). See Figure 3B.

• Pull the two cable ties attached to the cables tight

approximately 8 inches from each cable end and

place the cables into the cable guide. See Figure

3A and B.

• Loosen the wing nut that secures the rope guide

to the right side of upper handle.

• Pull the starter rope out of the engine slowly and

slip the starter rope into the rope guide. Tighten

the wing nut. See Figure 5A.

AttachingTheHoseAssembly

• Slide hose adapter of hose assembly into the

base adapter located on the left front of the Yard

Vacuum. See Figure 4.

Hose

Adplp_r

Loaded Pin

Figure 4

Pull spring loaded pin out on the base and align

pin with the first hole (closest to the end of the

tube) in the hose adapter.

Release the pin to lock the hose in place.

Snap the hose handle first into the upper hose

handle bracket and then into the lower hose

handle bracket. Refer to Figure 5A.

Starter

Handle

Bracket

Handle

Chipper

Chute

Bracket

Figure 5

Lay hose tubing on hanger bracket next to

chipper chute. Refer to Figure 5B.

ATTACHINGTHEBAG

•Grasp bag handle with one hand and slide locking

rod on mounting bracket with other hand toward

engine. Use the end of mounting bracket as

leverage when sliding the locking rod. See Figure 6.

Bag Handle

Stud

Figure 6

• Slip bag over the rim of the discharge opening and

release locking rod to secure bag in place.

• Snap bag clip to the top of the lower handle.

• Place the lower straps on the bag over the top of

lower handle, hooking them on the studs.

NOTE: The bag/chute switch button attached to the

mounting bracket must be fully depressed by the tip of

front tab on bag handle when securing the bag or

engine will not start.

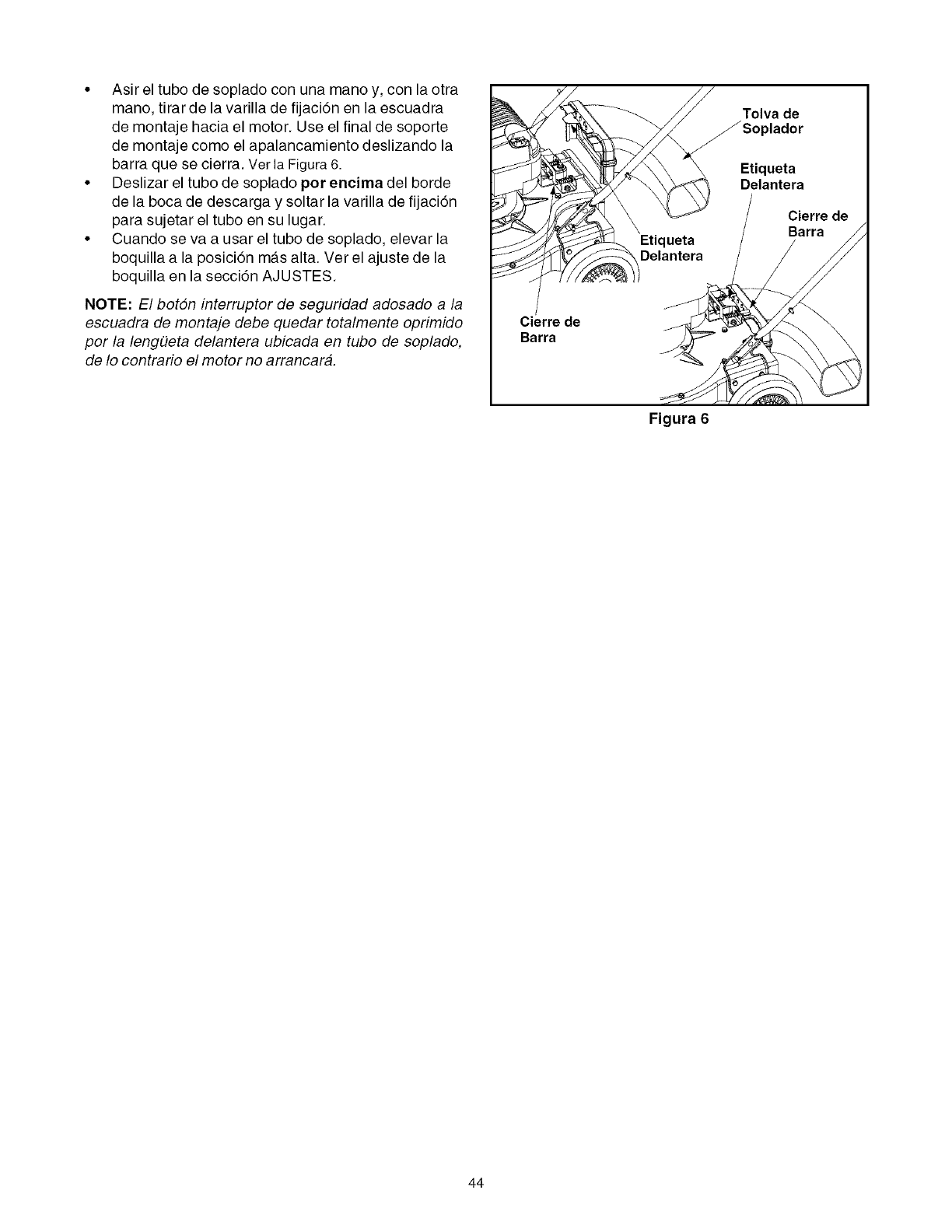

ATTACHINGTHEBLOWERCHUTE

NOTE: The bag must be removed before installing the

blower chute.

• Grasp blower chute with one hand and slide lock-

ing rod on mounting bracket with other hand

toward engine. Use the end of mounting bracket

as leverage when sliding the locking rod.

See Figure 7.

• Slip blower chute over rim of discharge opening

and release locking rod to secure chute in place.

• Raise the nozzle height to the highest setting

when using the blower chute. Refer to nozzle

height adjustment in the ADJUSTMENT section

on page 15.

NOTE: The bag/chute switch button attached to the

mounting bracket must be fully depressed by the tip of

front tab on the blower chute or engine will not start.

Blower

JChute

Front

Tab Locking

Rod

Figure 7

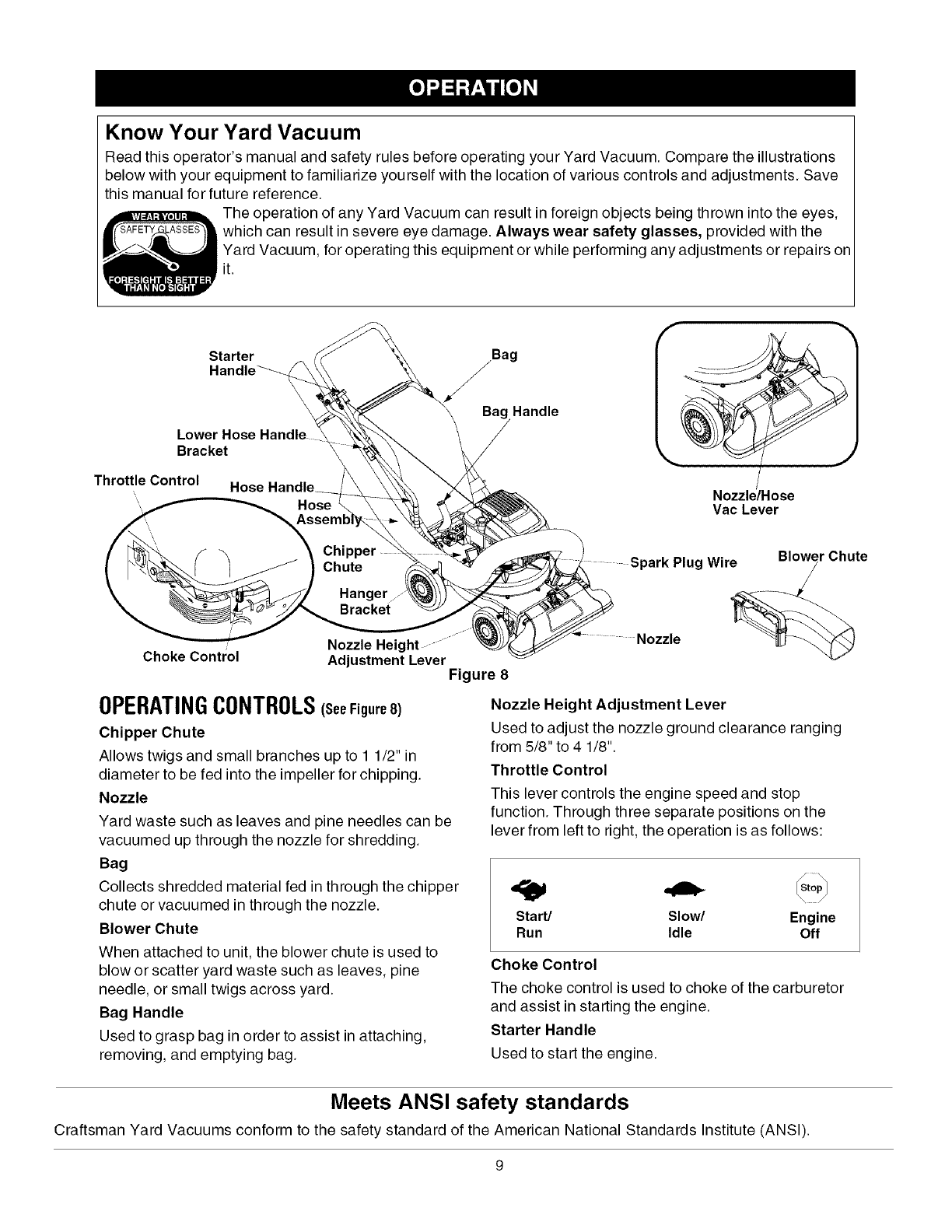

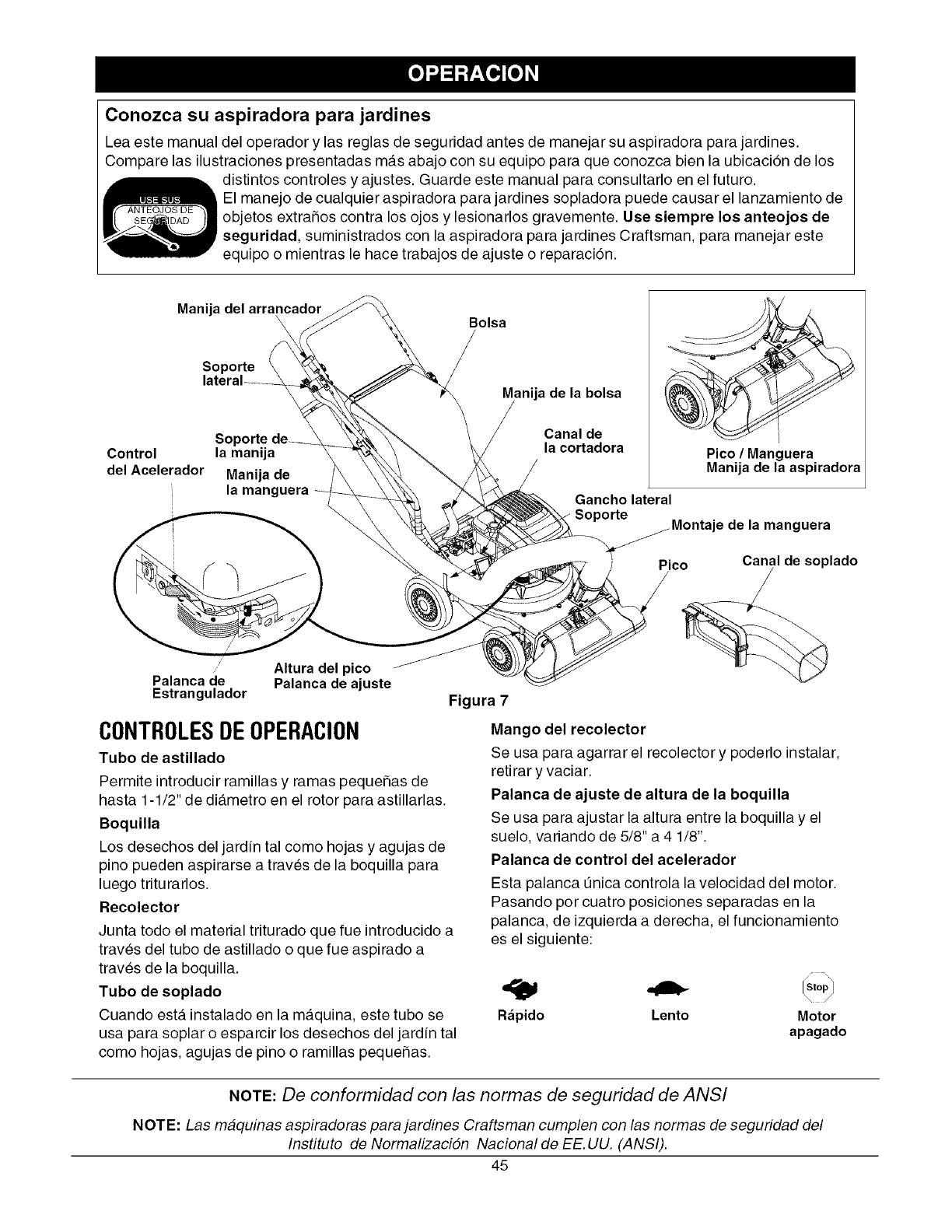

Know Your Yard Vacuum

Read this operator's manual and safety rules before operating your Yard Vacuum. Compare the illustrations

below with your equipment to familiarize yourself with the location of various controls and adjustments. Save

this manual for future reference.

The operation of any Yard Vacuum can result in foreign objects being thrown into the eyes,

which can result in severe eye damage. Always wear safety glasses, provided with the

Yard Vacuum, for operating this equipment or while performing any adjustments or repairs on

it.

Starter

Lower Hose Handle

Bracket

Throttle Control

Bag

Handle

Nozzle/Hose

Vac Lever

Wire Blower Chute

.... Nozzle Height .........

Choke Control Adjustment Lever Figure 8

Nozzle

OPERATINGCONTROLS(seeFigure8)

Chipper Chute

Allows twigs and small branches up to 1 1/2" in

diameter to be fed into the impeller for chipping.

Nozzle

Yard waste such as leaves and pine needles can be

vacuumed up through the nozzle for shredding.

Bag

Collects shredded material fed in through the chipper

chute or vacuumed in through the nozzle.

Blower Chute

When attached to unit, the blower chute is used to

blow or scatter yard waste such as leaves, pine

needle, or small twigs across yard.

Bag Handle

Used to grasp bag in order to assist in attaching,

removing, and emptying bag.

Nozzle Height Adjustment Lever

Used to adjust the nozzle ground clearance ranging

from 5/8" to 4 1/8".

Throttle Control

This lever controls the engine speed and stop

function. Through three separate positions on the

lever from left to right, the operation is as follows:

Start/ Slow/ Engine

Run Idle Off

Choke Control

The choke control is used to choke of the carburetor

and assist in starting the engine.

Starter Handle

Used to start the engine.

Meets ANSI safety standards

Craftsman Yard Vacuums conform to the safety standard of the American National Standards Institute (ANSI).

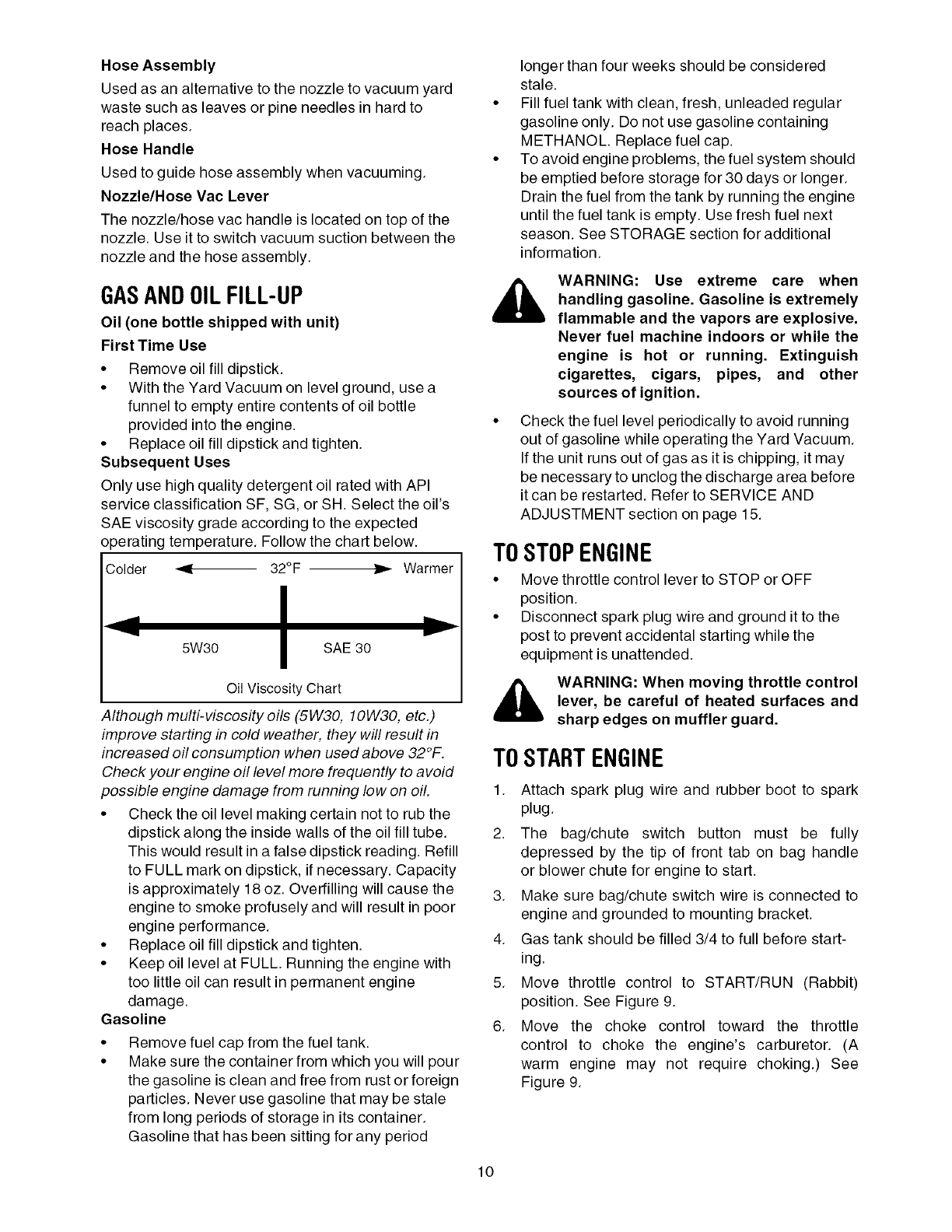

HoseAssembly

Usedasanalternativetothenozzletovacuumyard

wastesuchasleavesorpineneedlesinhardto

reachplaces.

HoseHandle

Usedtoguidehoseassemblywhenvacuuming.

Nozzle/I-loseVacLever

Thenozzle/hosevachandleislocatedontopofthe

nozzle.Useittoswitchvacuumsuctionbetweenthe

nozzleandthehoseassembly.

GASANDOILFILL-UP

Oil (one bottle shipped with unit)

First Time Use

• Remove oil fill dipstick.

• With the Yard Vacuum on level ground, use a

funnel to empty entire contents of oil bottle

provided into the engine.

• Replace oil fill dipstick and tighten.

Subsequent Uses

Only use high quality detergent oil rated with API

service classification SF, SG, or SH. Select the oil's

SAE viscosity grade according to the expected

operating temperature. Follow the chart below.

Colder _, 32°F ,..-"--Warmer

5W30 SAE 30

Oil Viscosity Chart

Although multi-viscosity oils (5W30, 10W30, etc.)

improve starting in cold weather, they will result in

increased oil consumption when used above 32°F.

Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

• Check the oil level making certain not to rub the

dipstick along the inside walls of the oil fill tube.

This would result in a false dipstick reading. Refill

to FULL mark on dipstick, if necessary. Capacity

is approximately 18 oz. Overfilling will cause the

engine to smoke profusely and will result in poor

engine performance.

• Replace oil fill dipstick and tighten.

• Keep oil level at FULL. Running the engine with

too little oil can result in permanent engine

damage.

Gasoline

• Remove fuel cap from the fuel tank.

• Make sure the container from which you will pour

the gasoline is clean and free from rust or foreign

particles. Never use gasoline that may be stale

from long periods of storage in its container.

Gasoline that has been sitting for any period

longer than four weeks should be considered

stale.

Fill fuel tank with clean, fresh, unleaded regular

gasoline only. Do not use gasoline containing

METHANOL. Replace fuel cap.

To avoid engine problems, the fuel system should

be emptied before storage for 30 days or longer.

Drain the fuel from the tank by running the engine

until the fuel tank is empty. Use fresh fuel next

season. See STORAGE section for additional

information.

WARNING: Use extreme care when

handling gasoline. Gasoline is extremely

flammable and the vapors are explosive.

Never fuel machine indoors or while the

engine is hot or running. Extinguish

cigarettes, cigars, pipes, and other

sources of ignition.

Check the fuel level periodically to avoid running

out of gasoline while operating the Yard Vacuum.

If the unit runs out of gas as it is chipping, it may

be necessary to unclog the discharge area before

it can be restarted. Refer to SERVICE AND

ADJUSTMENT section on page 15.

TOSTOPENGINE

• Move throttle control lever to STOP or OFF

position.

• Disconnect spark plug wire and ground it to the

post to prevent accidental starting while the

equipment is unattended.

WARNING: When moving throttle control

lever, be careful of heated surfaces and

sharp edges on muffler guard.

STARTENGINETO

1. Attach spark plug wire and rubber boot to spark

plug.

2. The bag/chute switch button must be fully

depressed by the tip of front tab on bag handle

or blower chute for engine to start.

3. Make sure bag/chute switch wire is connected to

engine and grounded to mounting bracket.

4. Gas tank should be filled 3/4 to full before start-

ing.

5. Move throttle control to START/RUN (Rabbit)

position. See Figure 9.

6. Move the choke control toward the throttle

control to choke the engine's carburetor. (A

warm engine may not require choking.) See

Figure 9.

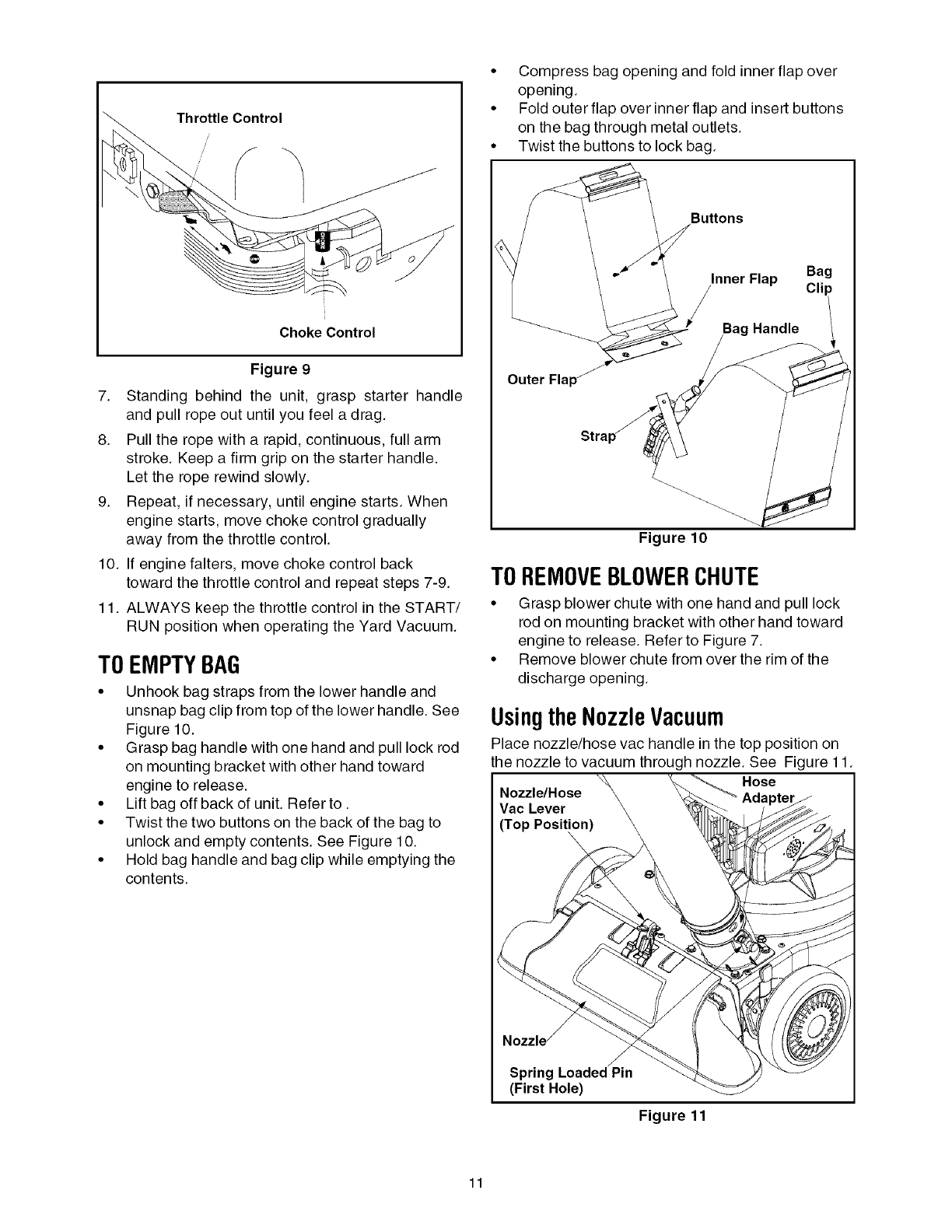

Throttle Control

[

Choke Control

Figure 9

7. Standing behind the unit, grasp starter handle

and pull rope out until you feel a drag.

8. Pull the rope with a rapid, continuous, full arm

stroke. Keep a firm grip on the starter handle.

Let the rope rewind slowly.

9. Repeat, if necessary, until engine starts. When

engine starts, move choke control gradually

away from the throttle control.

10. If engine falters, move choke control back

toward the throttle control and repeat steps 7-9.

11. ALWAYS keep the throttle control in the START/

RUN position when operating the Yard Vacuum.

TOEMPTYBAG

• Unhook bag straps from the lower handle and

unsnap bag clip from top of the lower handle. See

Figure 10.

• Grasp bag handle with one hand and pull lock rod

on mounting bracket with other hand toward

engine to release.

• Lift bag off back of unit. Refer to.

• Twist the two buttons on the back of the bag to

unlock and empty contents. See Figure 10.

• Hold bag handle and bag clip while emptying the

contents.

• Compress bag opening and fold inner flap over

opening.

• Fold outer flap over inner flap and insert buttons

on the bag through metal outlets.

• Twist the buttons to lock bag.

Buttons

Outer Flap j

Stra

Inner Flap Bag

Clip

Bag Handle

Figure 10

TOREMOVEBLOWERCHUTE

• Grasp blower chute with one hand and pull lock

rod on mounting bracket with other hand toward

engine to release. Refer to Figure 7.

• Remove blower chute from over the rim of the

discharge opening.

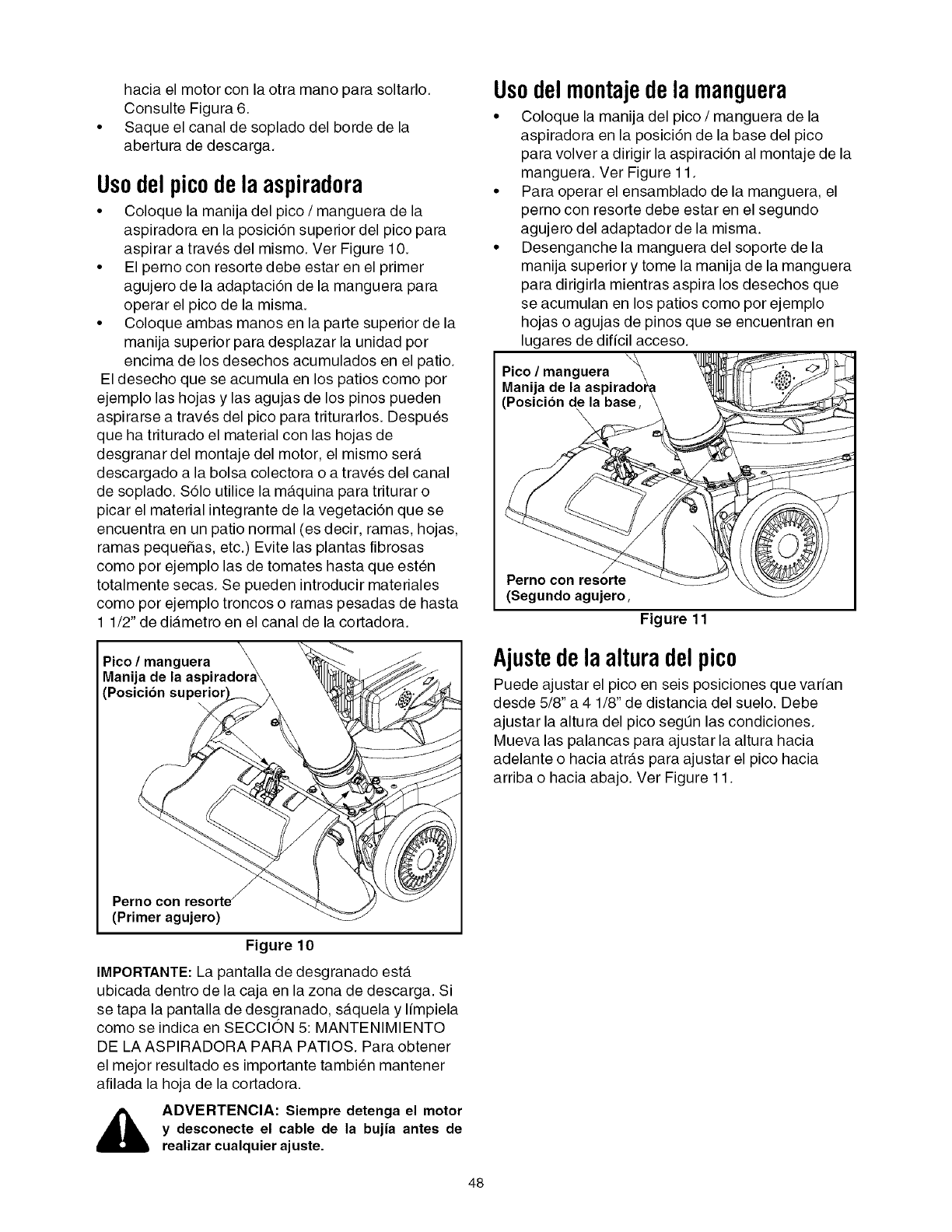

UsingtheNozzleVacuum

Place nozzle/hose vac handle in the top position on

the nozzle to vacuum through nozzle. See Figure 11.

Hose

Nozzle/Hose

Vae Lever

(Top Posit!on)

Nozzle /

Spring Loaded Pin

(First Hole)

Figure 11

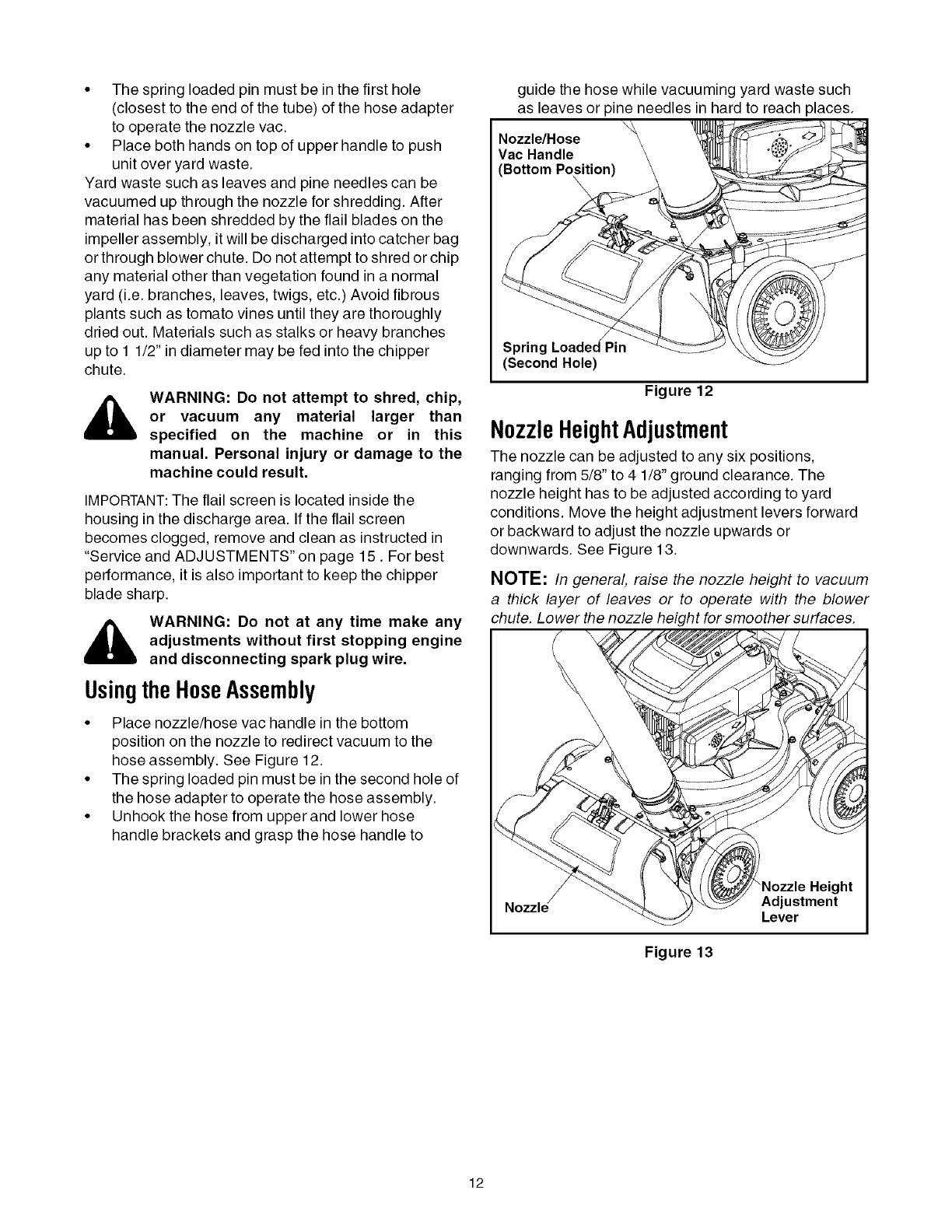

• The spring loaded pin must be in the first hole

(closest to the end of the tube) of the hose adapter

to operate the nozzle vac.

• Place both hands on top of upper handle to push

unit over yard waste.

Yard waste such as leaves and pine needles can be

vacuumed up through the nozzle for shredding. After

material has been shredded by the flail blades on the

impeller assembly, it will be discharged into catcher bag

or through blower chute. Do not attempt to shred or chip

any material other than vegetation found in a normal

yard (i.e. branches, leaves, twigs, etc.) Avoid fibrous

plants such as tomato vines until they are thoroughly

dried out. Materials such as stalks or heavy branches

up to 1 1/2" in diameter may be fed into the chipper

chute.

WARNING: Do not attempt to shred, chip,

or vacuum any material larger than

specified on the machine or in this

manual. Personal injury or damage to the

machine could result.

IMPORTANT:The flail screen is located inside the

housing in the discharge area. If the flail screen

becomes clogged, remove and clean as instructed in

"Service and ADJUSTMENTS" on page 15. For best

performance, it is also important to keep the chipper

blade sharp.

,_ WARNING: Do not at any time make any

adjustments without first stopping engine

and disconnecting spark plug wire.

Usingthe Hose Assembly

• Place nozzle/hose vac handle in the bottom

position on the nozzle to redirect vacuum to the

hose assembly. See Figure 12.

• The spring loaded pin must be in the second hole of

the hose adapter to operate the hose assembly.

• Unhook the hose from upper and lower hose

handle brackets and grasp the hose handle to

guide the hose while vacuuming yard waste such

as leaves or pine needles in hard to reach places.

Nozzle/Hose

Vac Handle

(Bottom Position)

Spring Loaded Pin

(Second Hole)

Figure 12

NozzleHeightAdjustment

The nozzle can be adjusted to any six positions,

ranging from 5/8" to 4 1/8" ground clearance. The

nozzle height has to be adjusted according to yard

conditions. Move the height adjustment levers forward

or backward to adjust the nozzle upwards or

downwards. See Figure 13.

NOTE: In general, raise the nozzle height to vacuum

a thick layer of leaves or to operate with the blower

chute. Lower the nozzle height for smoother surfaces.

Nozzle

ight

Adjustment

Lever

Figure 13

Maint. Tasks

Product:

Lubrication

Clean Equipment

Engine:

Check engine oil

Change engine oil

Service Air Cleaner

Service spark plug

Service Muffler

Clean Engine

Maintenance Schedule

Every 25

hours

operation

4 4

Service Dates

GENERALRECOMMENDATIONS

•Always observe safety rules when performing any

maintenance.

• The warranty on this Yard Vacuum does not

cover items that have been subjected to operator

abuse or negligence. To receive full value from

the warranty, operator must maintain the

equipment as instructed in this manual.

• Some adjustments will need to be made

periodically to maintain your equipment properly.

• Follow the maintenance schedule.

• Periodically check all fasteners and make sure

they are tight.

WARNING: Always stop the engine and

disconnect and ground the spark plug

wire before performing any maintenance

or adjustments.

LUBRICATION

•Wheels- Place a few drops of SAE 30 oil on each

shoulder screw once a season. Refer to Figure 19

on page 16.

• Nozzle height adjustment levers- Lubricate

nozzle height adjustment levers with light oil.

Refer to Figure 8.

• Locking Rod- Lubricate the lock rod and

compression springs which attach to the

mounting bracket. Refer to Figure 7.

CLEANEQUIPMENT

• Clean the Yard Vacuum thoroughly after each

use.

• Wash the bag periodically with water. Allow to

dry thoroughly in the shade.

• If the flail screen becomes clogged, remove and

clean as instructed in the SERVICE AND

ADJUSTMENT section.

NOTE: Cleaning with a forceful spray of water is not

recommended as it could contaminate the fuel

system.

CHECKENGINEOIL

• Stop engine and wait several minutes before

checking oil level. With engine on level ground,

the oil must be to FULL mark on dipstick.

• Remove oil fill dipstick.

• Check oil level on dipstick. Level should be at

FULL mark. (If not, see "Subsequent Uses" on

page 10).

• Replace oil fill dipstick and tighten.

CHANGEENGINEOIL

• Only use high quality detergent oil rated with API

service classification SF, SG, or SH. Select the

oil's SAE viscosity grade according to the

expected operating temperature. Refer to

operation section for viscosity chart.

• Change engine oil after the first five hours of

operation, and every twenty-five hours thereafter.

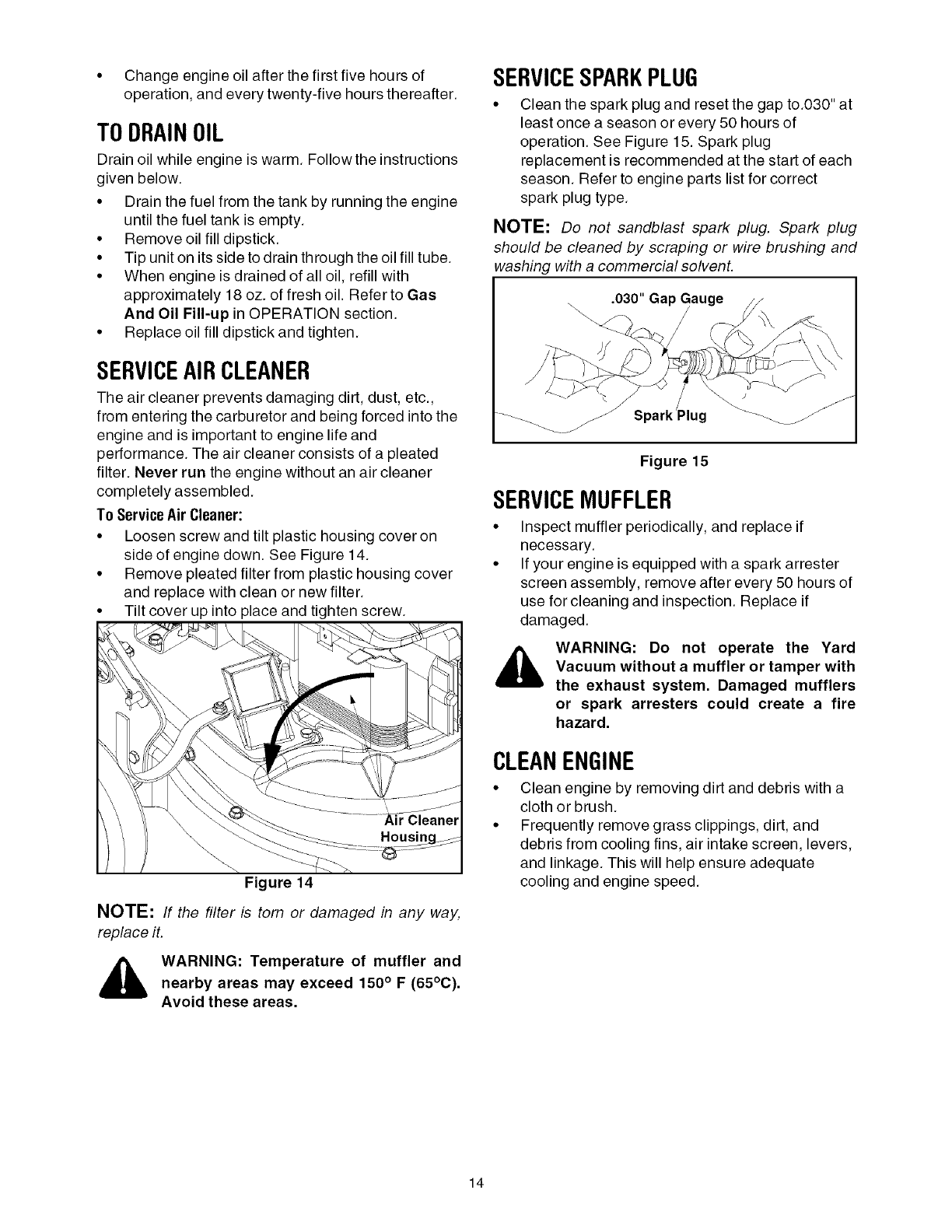

TODRAINOIL

Drain oil while engine is warm. Followthe instructions

given below.

• Drain the fuel from the tank by running the engine

until the fuel tank is empty.

• Remove oil fill dipstick.

• Tip unit on its side to drain through the oil fill tube.

• When engine is drained of all oil, refill with

approximately 18 oz. of fresh oil. Refer to Gas

And Oil Fill-up in OPERATION section.

• Replace oil fill dipstick and tighten.

SERVICEAIRCLEANER

The air cleaner prevents damaging dirt, dust, etc.,

from entering the carburetor and being forced into the

engine and is important to engine life and

performance. The air cleaner consists of a pleated

filter. Never run the engine without an air cleaner

completely assembled.

To ServiceAir Cleaner:

• Loosen screw and tilt plastic housing cover on

side of engine down. See Figure 14.

• Remove pleated filter from plastic housing cover

and replace with clean or new filter.

• Tilt cover up into place and tighten screw.

Figure 14

NOTE: If the filter is tom or damaged in any way,

replace it.

WARNING: Temperature of muffler andnearby areas may exceed 150 °F(65°0).

Avoid these areas.

SERVICESPARKPLUG

• Clean the spark plug and reset the gap to.030" at

least once a season or every 50 hours of

operation. See Figure 15. Spark plug

replacement is recommended at the start of each

season. Refer to engine parts list for correct

spark plug type.

NOTE: Do not sandblast spark plug. Spark plug

should be cleaned by scraping or wire brushing and

washing with a commercial solvent.

.030" Gap Gauge

Figure 15

SERVICEMUFFLER

• Inspect muffler periodically, and replace if

necessary.

• If your engine is equipped with a spark arrester

screen assembly, remove after every 50 hours of

use for cleaning and inspection. Replace if

damaged.

WARNING: Do not operate the Yard

Vacuum without a muffler or tamper with

the exhaust system. Damaged mufflers

or spark arresters could create a fire

hazard.

CLEANENGINE

• Clean engine by removing dirt and debris with a

cloth or brush.

• Frequently remove grass clippings, dirt, and

debris from cooling fins, air intake screen, levers,

and linkage. This will help ensure adequate

cooling and engine speed.

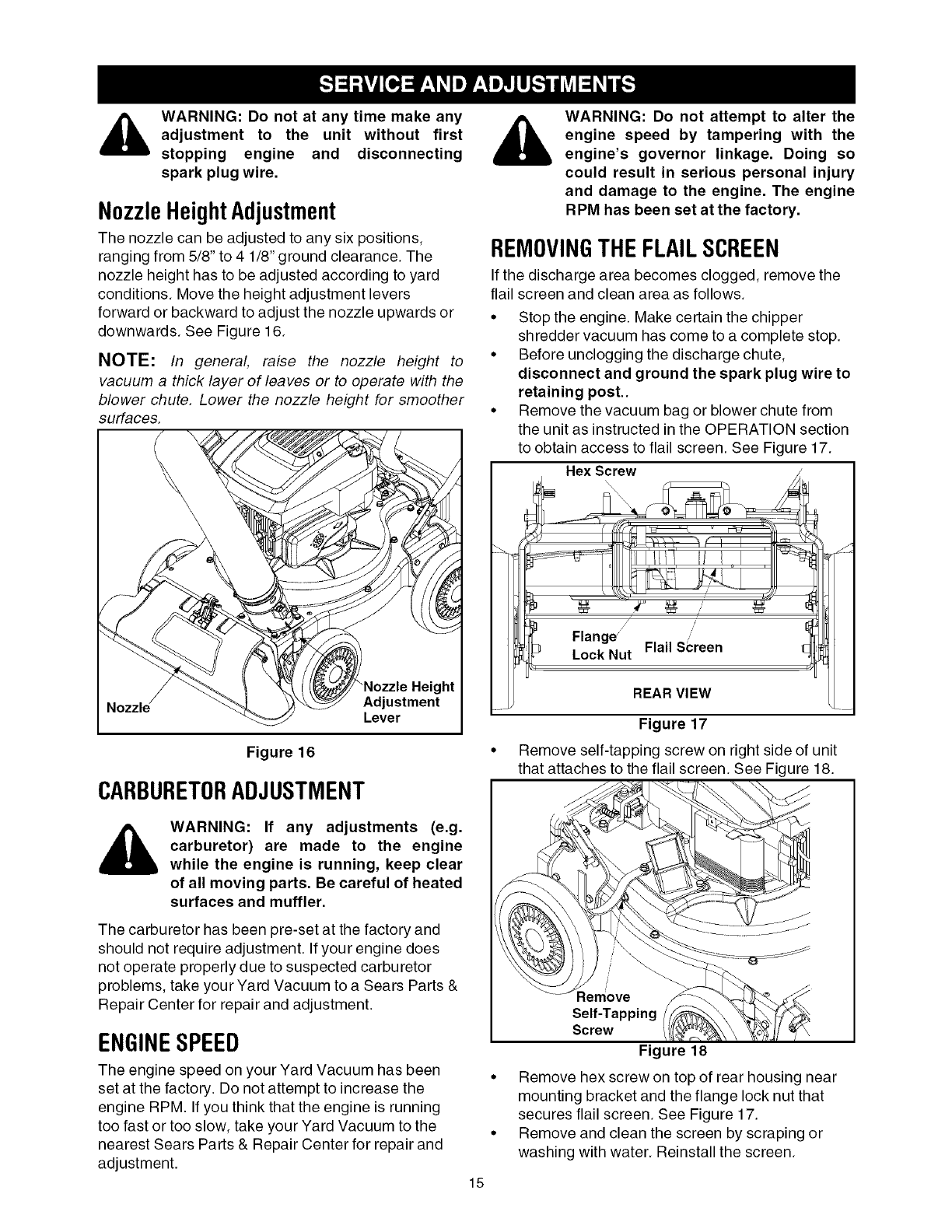

,_ WARNING: Do not at any time make any

adjustment to the unit without first

stopping engine and disconnecting

spark plug wire.

NozzleHeightAdjustment

The nozzle can be adjusted to any six positions,

ranging from 5/8" to 4 1/8" ground clearance. The

nozzle height has to be adjusted according to yard

conditions. Move the height adjustment levers

forward or backward to adjust the nozzle upwards or

downwards. See Figure 16.

NOTE: In general, raise the nozzle height to

vacuum a thick layer of leaves or to operate with the

blower chute. Lower the nozzle height for smoother

surfaces.

Nozzle

ight

Adjustment

Lever

Figure 16

CARBURETORADJUSTMENT

,_ WARNING: If any adjustments (e.g.

carburetor) are made to the engine

while the engine is running, keep clear

of all moving parts. Be careful of heated

surfaces and muffler.

The carburetor has been pre-set at the factory and

should not require adjustment. If your engine does

not operate properly due to suspected carburetor

problems, take your Yard Vacuum to a Sears Parts &

Repair Center for repair and adjustment.

ENGINESPEED

The engine speed on your Yard Vacuum has been

set at the factory. Do not attempt to increase the

engine RPM. If you think that the engine is running

too fast or too slow, take your Yard Vacuum to the

nearest Sears Parts & Repair Center for repair and

adjustment.

WARNING: Do not attempt to alter the

engine speed by tampering with the

engine's governor linkage. Doing so

could result in serious personal injury

and damage to the engine. The engine

RPM has been set at the factory.

REMOVINGTHEFLAILSCREEN

If the discharge area becomes clogged, remove the

flail screen and clean area as follows.

• Stop the engine. Make certain the chipper

shredder vacuum has come to a complete stop.

• Before unclogging the discharge chute,

disconnect and ground the spark plug wire to

retaining post..

• Remove the vacuum bag or blower chute from

the unit as instructed in the OPERATION section

to obtain access to flail screen. See Figure 17.

Hex Screw

REAR VIEW

Figure 17

Remove self-tapping screw on right side of unit

that attaches to the flail screen. See Figure 18.

Remove

Self-Tapping

Screw

Figure 18

Remove hex screw on top of rear housing near

mounting bracket and the flange lock nut that

secures flail screen. See Figure 17.

Remove and clean the screen by scraping or

washing with water. Reinstall the screen.

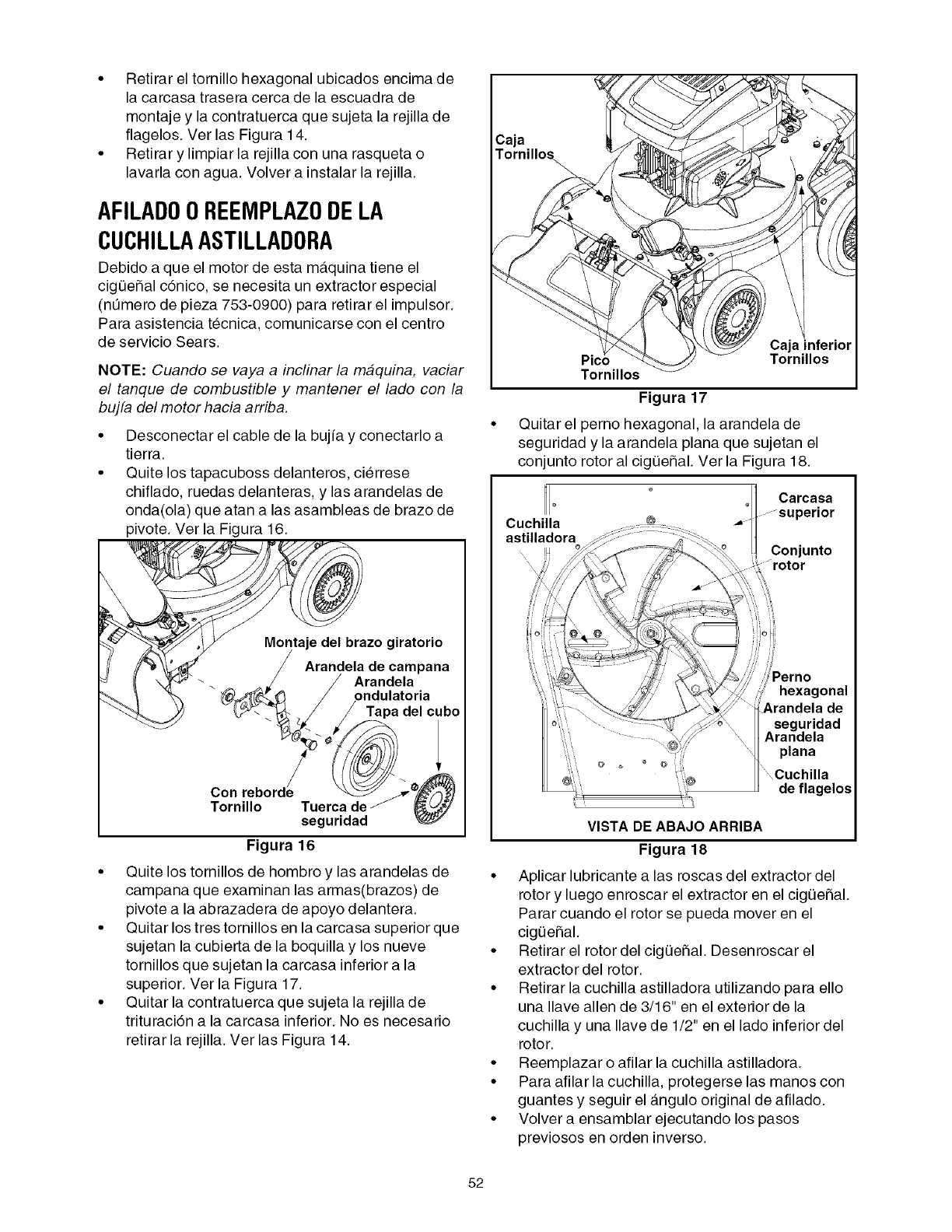

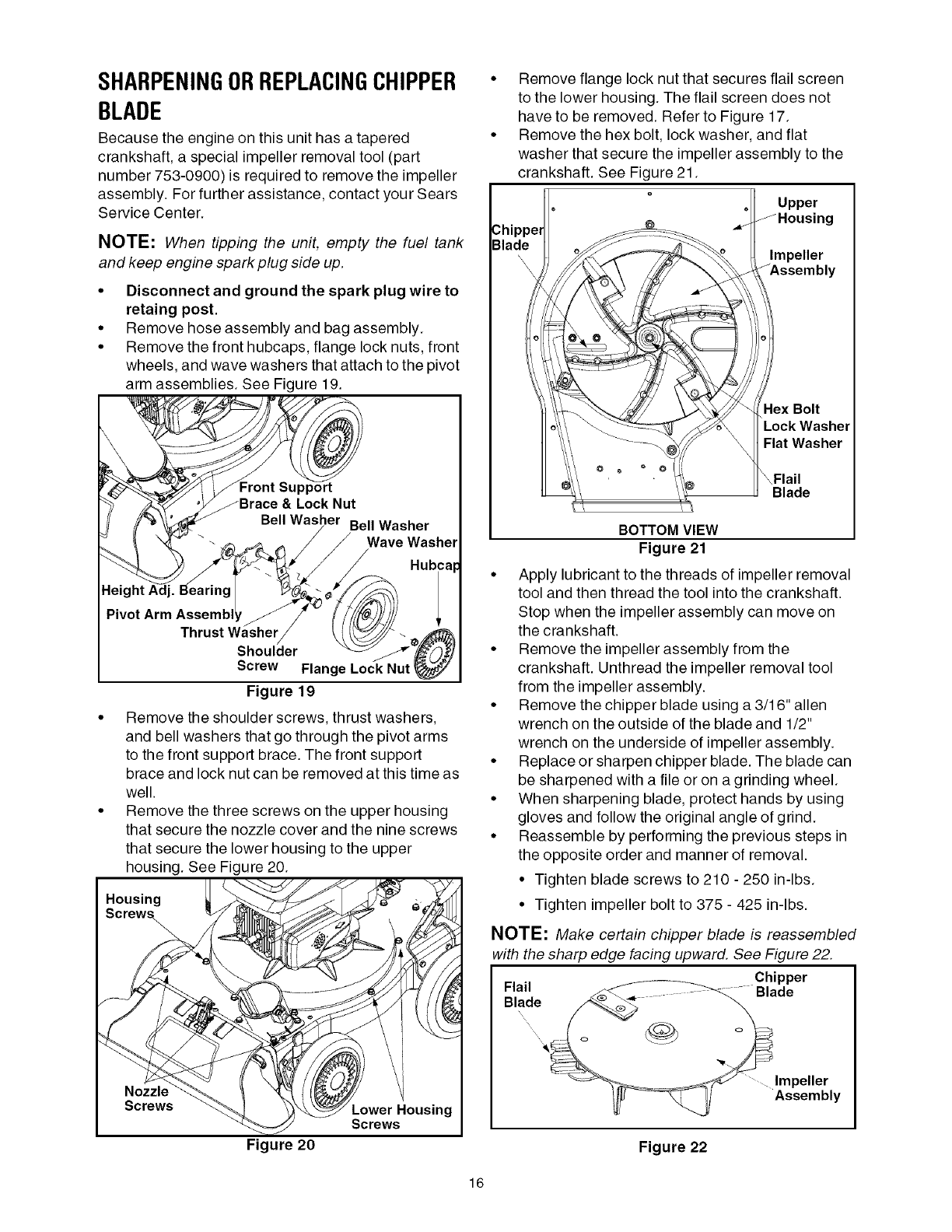

SHARPENINGORREPLACINGCHIPPER

BLADE

Because the engine on this unit has a tapered

crankshaft, a special impeller removal tool (part

number 753-0900) is required to remove the impeller

assembly. For further assistance, contact your Sears

Service Center.

NOTE: When tipping the unit, empty the fuel tank

and keep engine spark plug side up.

•Disconnect and ground the spark plug wire to

retaing post.

• Remove hose assembly and bag assembly.

• Remove the front hubcaps, flange lock nuts, front

wheels, and wave washers that attach to the pivot

arm assemblies. See Figure 19.

Hubca

Height Adj.

Pivot Arm Assembly

Thrust Washer

Shoulder

Screw Flange Lock Nut

Figure 19

• Remove the shoulder screws, thrust washers,

and bell washers that go through the pivot arms

to the front support brace. The front support

brace and lock nut can be removed at this time as

well.

• Remove the three screws on the upper housing

that secure the nozzle cover and the nine screws

that secure the lower housing to the upper

housing. See Figure 20.

Housing

Nozzle

Screws

Figure 20

Lower Housing

Screws

Remove flange lock nut that secures flail screen

to the lower housing. The flail screen does not

have to be removed. Refer to Figure 17.

Remove the hex bolt, lock washer, and flat

washer that secure the impeller assembly to the

crankshaft. See Figure 21.

o_Upper

_Housing

Impeller

JAssembly

Hex Bolt

Lock Washer

Flat Washer

_Flail

Blade

BOTTOM VIEW

Figure 21

• Apply lubricant to the threads of impeller removal

tool and then thread the tool into the crankshaft.

Stop when the impeller assembly can move on

the crankshaft.

• Remove the impeller assembly from the

crankshaft. Unthread the impeller removal tool

from the impeller assembly.

• Remove the chipper blade using a 3/16" allen

wrench on the outside of the blade and 1/2"

wrench on the underside of impeller assembly.

• Replace or sharpen chipper blade. The blade can

be sharpened with a file or on a grinding wheel.

• When sharpening blade, protect hands by using

gloves and follow the original angle of grind.

• Reassemble by performing the previous steps in

the opposite order and manner of removal.

• Tighten blade screws to 210 - 250 in-lbs.

• Tighten impeller bolt to 375 - 425 in-lbs.

NOTE: Make certain chipper blade is reassembled

with the sharp edge facing upward. See Figure 22.

Chipper

Flail .... Blade

Blade

Impeller

Assembly

Figure 22

Prepare your Craftsman Yard Vacuum for storage at

the end of the season or if the unit will not be used for

30 days or longer. A yearly check-up by your local

Sears Parts & Repair Center is a good way to ensure

that the unit runs properly next season.

YardVacuum

• Clean the equipment thoroughly.

• Wipe equipment with an oiled rag to prevent rust.

Use a light oil or silicone to wipe.

• Service the engine following instructions below.

• Store unit in a clean, dry area. Do not store next to

corrosive materials such as fertilizer.

Engine

IMPORTANT:It is important to prevent gum deposits

from forming in essential fuel system parts such as

the carburetor, fuel filter, fuel hose, or tank during

storage. Also, alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract moisture which

leads to separation and formation of acids during

storage. Acidic gas can damage the fuel system of an

engine while in storage.

NOTE: Fuel stabilizer is an acceptable alternative to

emptying the tank of fuel in minimizing the formation

of fuel gum deposits during storage.

• Add stabilizer to gasoline in fuel tank or storage

container.

• Do not drain the gas tank and carburetor if using

fuel stabilizer.

In all cases, drain all the oil from the crankcase (this

should be done after the engine has been operated

and is still warm) and refill the crankcase with fresh

oil.

If you do not use a fuel stabilizer, follow these

instructions:

• Drain the fuel from the tank by running the

engine until the fuel tank is empty.

• Remove spark plug, pour approximately 1/2

ounce (approximately one tablespoon) of engine

oil into cylinder and crank slowly to distribute oil.

• Replace spark plug.

Other

• Do not store gasoline from one season to

another.

• Replace the gasoline can if it starts to rust. Rust

and/or dirt in the gasoline will cause problems.

• Store unit in a clean, dry area. Do not store next

to corrosive materials, such as fertilizer.

NOTE: If storing in an unventilated or metal storage

shed, be certain to rustproof the equipment by coat-

ing with a light oil or silicone.

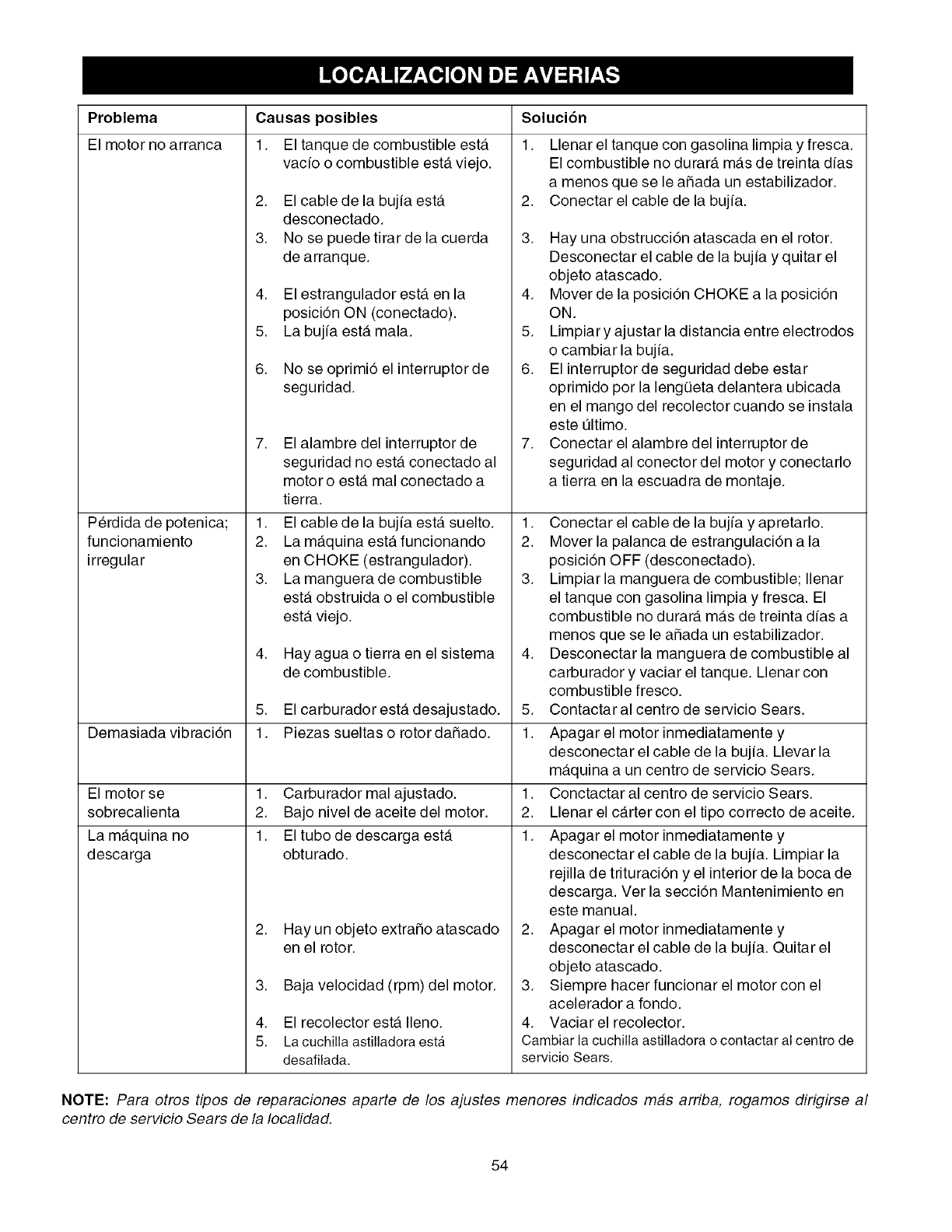

Problem Possible Cause(s) Corrective Action

Engine fails to start 1. Fuel tank empty or stale fuel. 1.

Loss of power;

operation erratic

2. Spark plug wire disconnected.

3. Cannot pull recoil cord.

Engine overheats

Unit does not

discharge

4. Choke not in ON position.

5. Faulty spark plug.

6. Safety switch not depressed.

7. Safety switch wire is not

connected to engine or not

properly grounded.

1. Spark plug wire loose.

2. Unit running on CHOKE.

3. Blocked fuel line or stale fuel.

4. Water or dirt in fuel system.

5. Carburetor out of adjustment.

6. Lowengine RPM.

1. Loose parts or damaged

impeller.

Too much vibration

1. Carburetor not adjusted 1.

2. Engine oil level low 2.

1. Discharge area clogged. 1.

Rate of discharge

slows considerably or

composition of

discharged material

changes

2. Foreign object lodged in

impeller.

3. Lowengine RPM.

4. Vacuum bag is full.

1. Lowengine RPM.

2. Chipper blade dull.

Fill tank with clean, fresh gasoline. Fuel will not

last over thirty days unless a fuel stabilizer is

added.

2. Connect wire to spark plug.

3. Obstruction lodged in impeller. Disconnect

spark plug wire and remove lodged object.

4. Move CHOKE to ON position.

5. Clean, adjust gap or replace.

6. Safety switch must be depressed by the front

tab on the bag handle when securing the bag.

7. Connect safety switch wire to engine connector

and ground to mounting bracket.

1. Connect and tighten spark plug wire.

2. Move choke lever to OFF position.

3. Disconnect fuel line at carburetor to drain fuel

tank; fill tank with clean fresh gasoline. Fuel will

not last over thirty days unless a fuel stabilizer is

used.

4. Disconnect fuel line at carburetor to drain fuel

tank. Refill with fresh fuel.

5. Contact your Sears Parts & Repair Center.

6. Always run engine at full throttle.

1. Stop engine immediately and disconnect spark

plug wire. Have unit serviced by a Sears Parts &

Repair Center.

Contact your Sears Parts & Repair Center.

Fill crankcase with proper selection of oil.

Stop engine immediately and disconnect spark

plug wire. Clean flail screen and inside of

discharge opening. See Maintenance section of

this manual.

2. Stop engine immediately and disconnect spark

plug wire. Remove lodged object.

3. Always run engine at full throttle.

4. Empty bag.

1. Always run engine at full throttle.

2. Replace chipper blade or see your Sears Parts

& Repair Center.

NOTE: For repairs beyond the minor adjustments listed above, please contact your local Sears Parts & Repair

Center.

Sears Craftsman 6.0 H.P. Yard Vacuum Model 247.770550

48 47 46

-5O

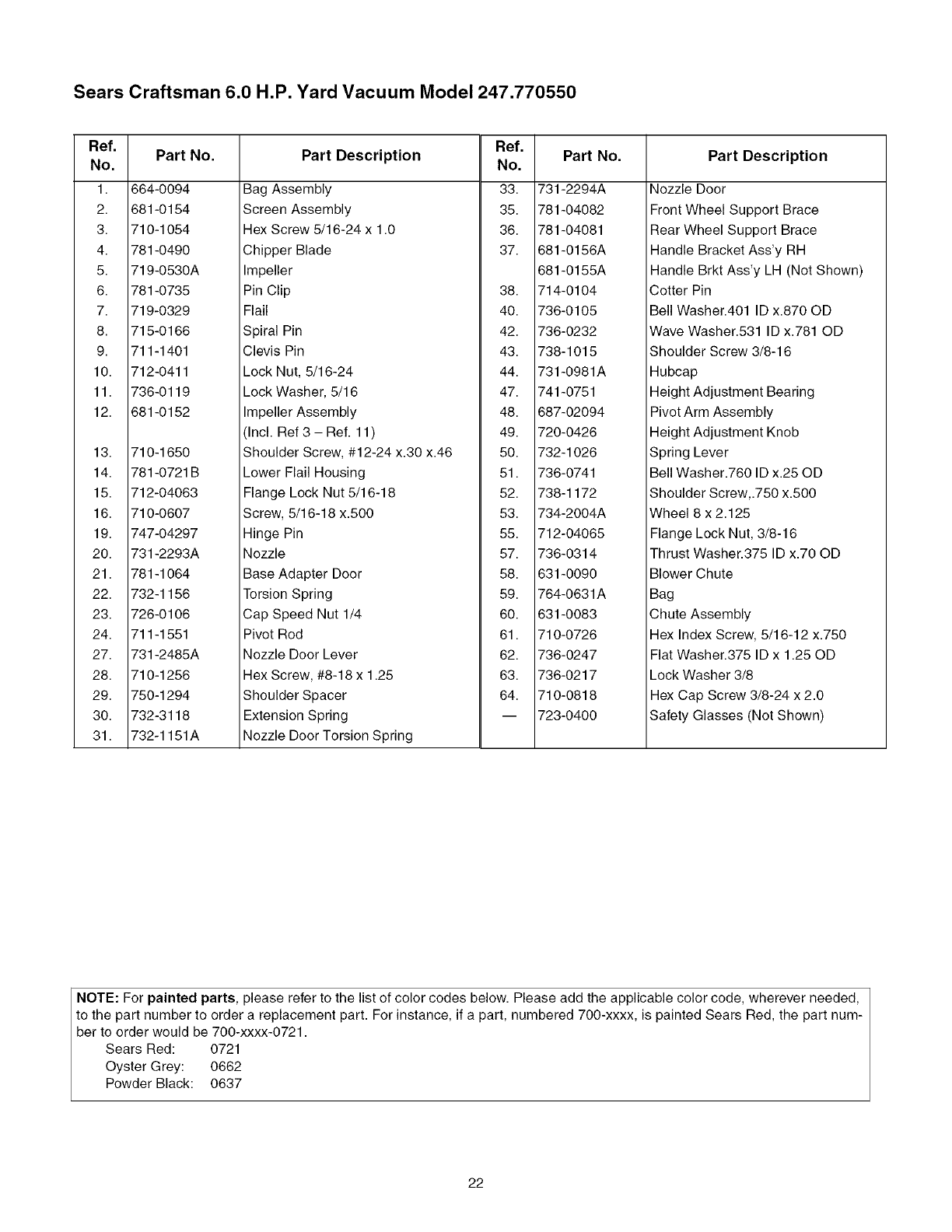

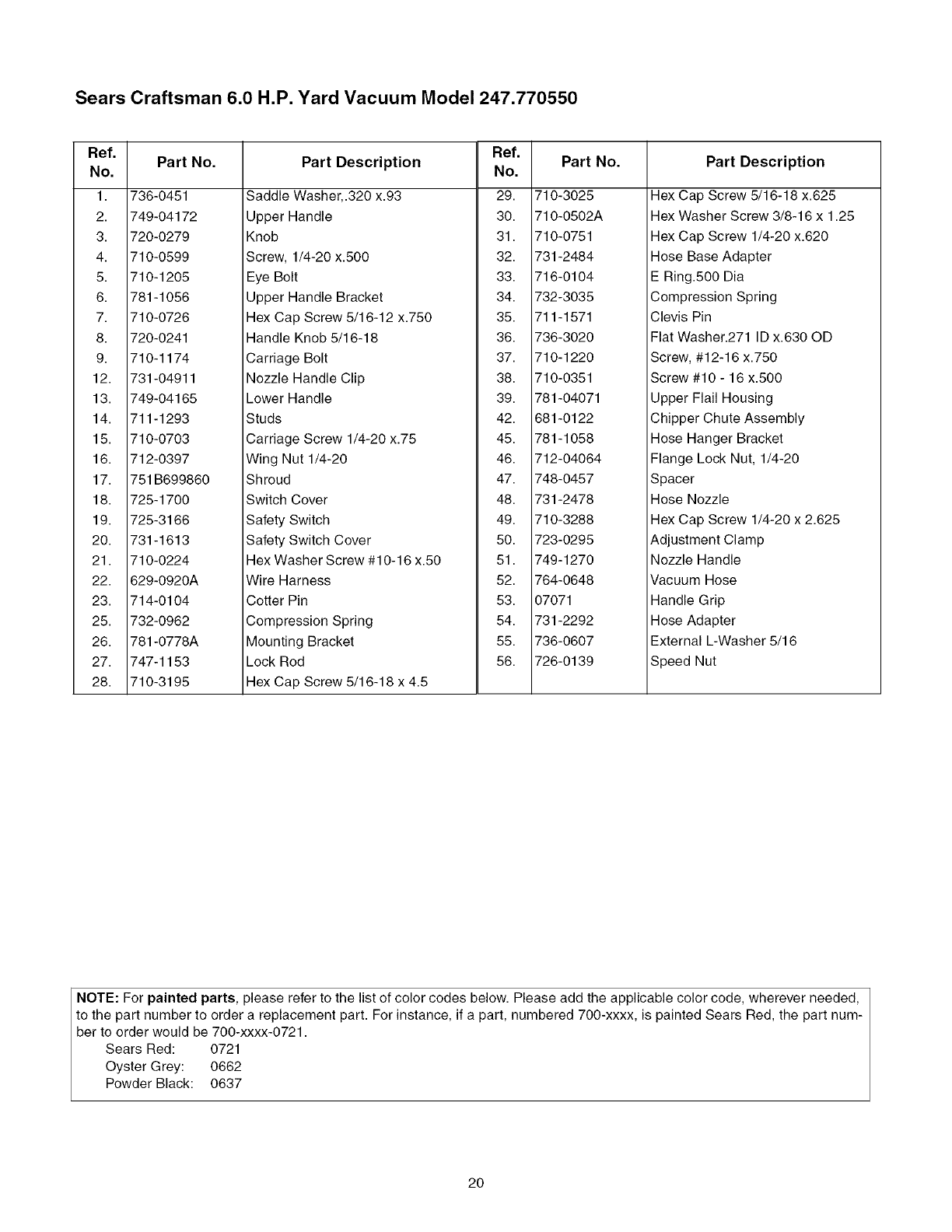

Sears Craftsman 6.0 H.P. Yard Vacuum Model 247.770550

Ref.

No.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

25.

26.

27.

28.

Part No.

736-0451

749-04172

720-0279

710-0599

710-1205

781-1056

710-0726

720-0241

710-1174

731-04911

749-04165

711-1293

710-0703

712-0397

751B699860

725-1700

725-3166

731-1613

710-0224

629-0920A

714-0104

732-0962

781-0778A

747-1153

710-3195

Ref.

Part Description No. Part No.

Saddle Washer,.320 x.93 29. 710-3025

Upper Handle 30. 710-0502A

Knob 31. 710-0751

Screw, 1/4-20 x.500 32. 731-2484

Eye Bolt 33. 716-0104

Upper Handle Bracket 34. 732-3035

Hex Cap Screw 5/16-12 x.750 35. 711-1571

Handle Knob 5/16-18 36. 736-3020

Carriage Bolt 37. 710-1220

Nozzle Handle Clip 38. 710-0351

Lower Handle 39. 781-04071

Studs 42. 681-0122

Carriage Screw 1/4-20 x.75 45. 781-1058

Wing Nut 1/4-20 46. 712-04064

Shroud 47. 748-0457

Switch Cover 48. 731-2478

Safety Switch 49. 710-3288

Safety Switch Cover 50. 723-0295

Hex Washer Screw #10-16 x.50 51. 749-1270

Wire Harness 52. 764-0648

Cotter Pin 53. 07071

Compression Spring 54. 731-2292

Mounting Bracket 55. 736-0607

Lock Rod 56. 726-0139

Hex Cap Screw 5/16-18 x 4.5

Part Description

Hex Cap Screw 5/16-18 x.625

Hex Washer Screw 3/8-16 x 1.25

Hex Cap Screw 1/4-20 x.620

Hose Base Adapter

E Ring.500 Dia

Compression Spring

Clevis Pin

Flat Washer.271 ID x.630 OD

Screw, #12-16 x.750

Screw #10 - 16 x.500

Upper Flail Housing

Chipper Chute Assembly

Hose Hanger Bracket

Flange Lock Nut, 1/4-20

Spacer

Hose Nozzle

Hex Cap Screw 1/4-20 x 2.625

Adjustment Clamp

Nozzle Handle

Vacuum Hose

Handle Grip

Hose Adapter

External L-Washer 5/16

Speed Nut

NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code, wherever needed,

to the part number to order a replacement part. For instance, if a part, numbered 700-xxxx, is painted Sears Red, the part num-

ber to order would be 700-xxxx-0721.

Sears Red: 0721

Oyster Grey: 0662

Powder Black: 0637

Sears Craftsman 6.0 H.P. Yard Vacuum Model 247.770550

11_

42 51

19 L\

Sears Craftsman 6.0 H.P. Yard Vacuum Model 247.770550

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

19.

20.

21.

22.

23.

24.

27.

28.

29.

30.

31.

Part No.

664-0094

681-0154

710-1054

781-0490

719-0530A

781-0735

719-0329

715-0166

711-1401

712-0411

736-0119

681-0152

710-1650

781-0721B

712-04063

710-0607

747-04297

731-2293A

781-1064

732-1156

726-0106

711-1551

731-2485A

710-1256

750-1294

732-3118

732-1151A

Ref.

Part Description No. Part No.

Bag Assembly 33. 731-2294A

Screen Assembly 35. 781-04082

Hex Screw 5/16-24 x 1.0 36. 781-04081

Chipper Blade 37. 681-0156A

Impeller 681-0155A

Pin Clip 38. 714-0104

Flail 40. 736-0105

Spiral Pin 42. 736-0232

Clevis Pin 43. 738-1015

Lock Nut, 5/16-24 44. 731-0981A

Lock Washer, 5/16 47. 741-0751

Impeller Assembly 48. 687-02094

(Incl. Ref 3- Ref. 11) 49. 720-0426

Shoulder Screw, #12-24 x.30 x.46 50. 732-1026

Lower Flail Housing 51. 736-0741

Flange Lock Nut 5/16-18 52. 738-1172

Screw, 5/16-18 x.500 53. 734-2004A

Hinge Pin 55. 712-04065

Nozzle 57. 736-0314

Base Adapter Door 58. 631-0090

Torsion Spring 59. 764-0631A

Cap Speed Nut 1/4 60. 631-0083

Pivot Rod 61. 710-0726

Nozzle Door Lever 62. 736-0247

Hex Screw, #8-18 x 1.25 63. 736-0217

Shoulder Spacer 64. 710-0818

Extension Spring -- 723-0400

Nozzle Door Torsion Spring

Part Description

Nozzle Door

Front Wheel Support Brace

Rear Wheel Support Brace

Handle Bracket Ass'y RH

Handle Brkt Ass'y LH (Not Shown)

Cotter Pin

Bell Washer.401 ID x.870 OD

Wave Washer.531 ID x.781 OD

Shoulder Screw 3/8-16

Hubcap

Height Adjustment Bearing

Pivot Arm Assembly

Height Adjustment Knob

Spring Lever

Bell Washer.760 ID x.25 OD

Shoulder Screw,.750 x.500

Wheel 8 x 2.125

Flange Lock Nut, 3/8-16

Thrust Washer.375 ID x.70 OD

Blower Chute

Bag

Chute Assembly

Hex Index Screw, 5/16-12 x.750

Flat Washer.375 ID x 1.25 OD

Lock Washer 3/8

Hex Cap Screw 3/8-24 x 2.0

Safety Glasses (Not Shown)

NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code, wherever needed,

to the part number to order a replacement part. For instance, if a part, numbered 700-xxxx, is painted Sears Red, the part num-

ber to order would be 700-xxxx-0721.

Sears Red: 0721

Oyster Grey: 0662

Powder Black: 0637

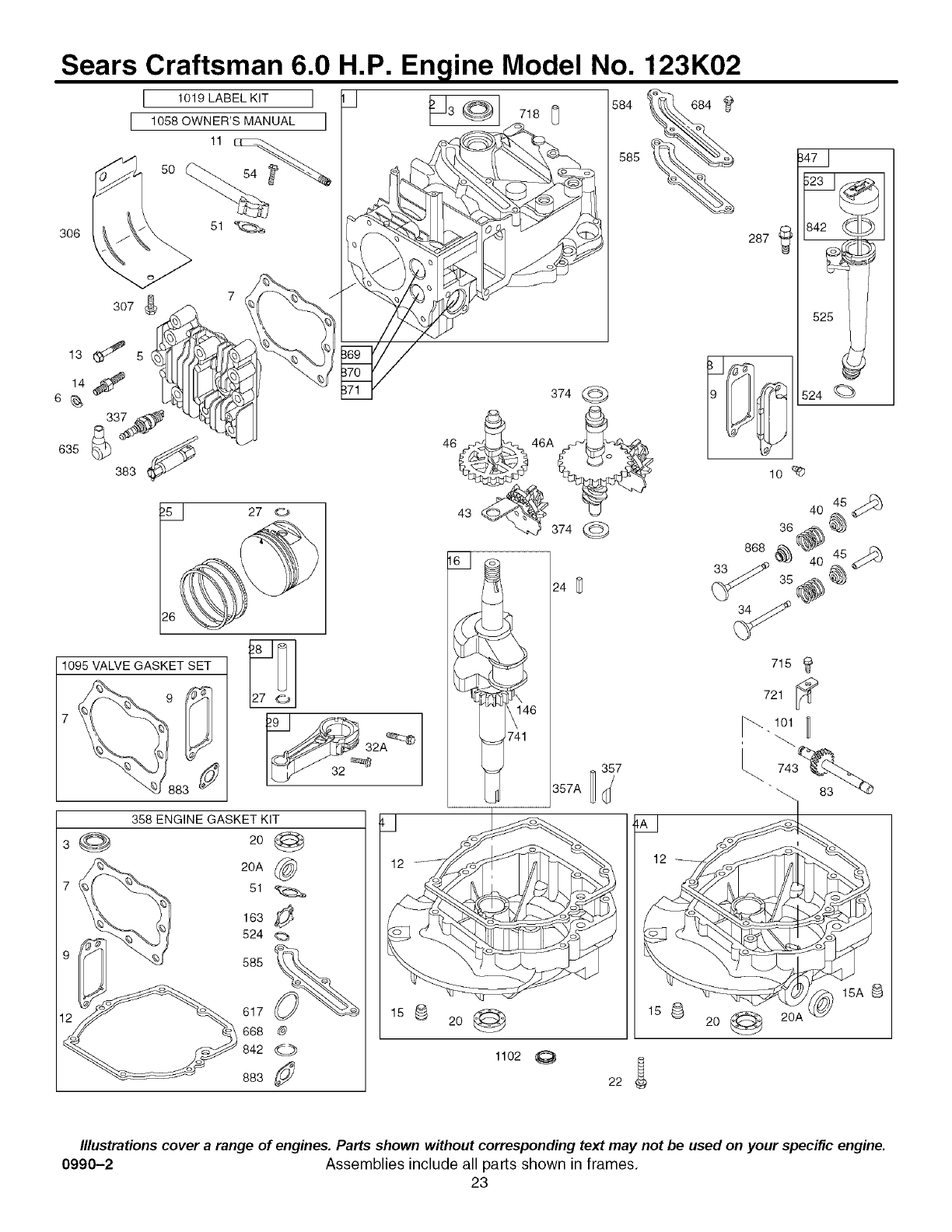

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

306

307

13 _:_ 5

635

I 1010LABELK,T I _ 584_ i'

[ 1058OWNER'SMANOAL] .8

585

5oQ_F

1095 VALVE GASKET SET

287

358 ENGINE GASKET KIT

20 @

20A _

183 _

524 _

585

617

668 @

883 J

158

374 @

1099

20@

1102

357

357A

524

88@40

868

33 :¢_ 35

34 ;;_

20 @ 20A

15A

Illustrations cover arange of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-2 Assemblies include all parts shown in frames.

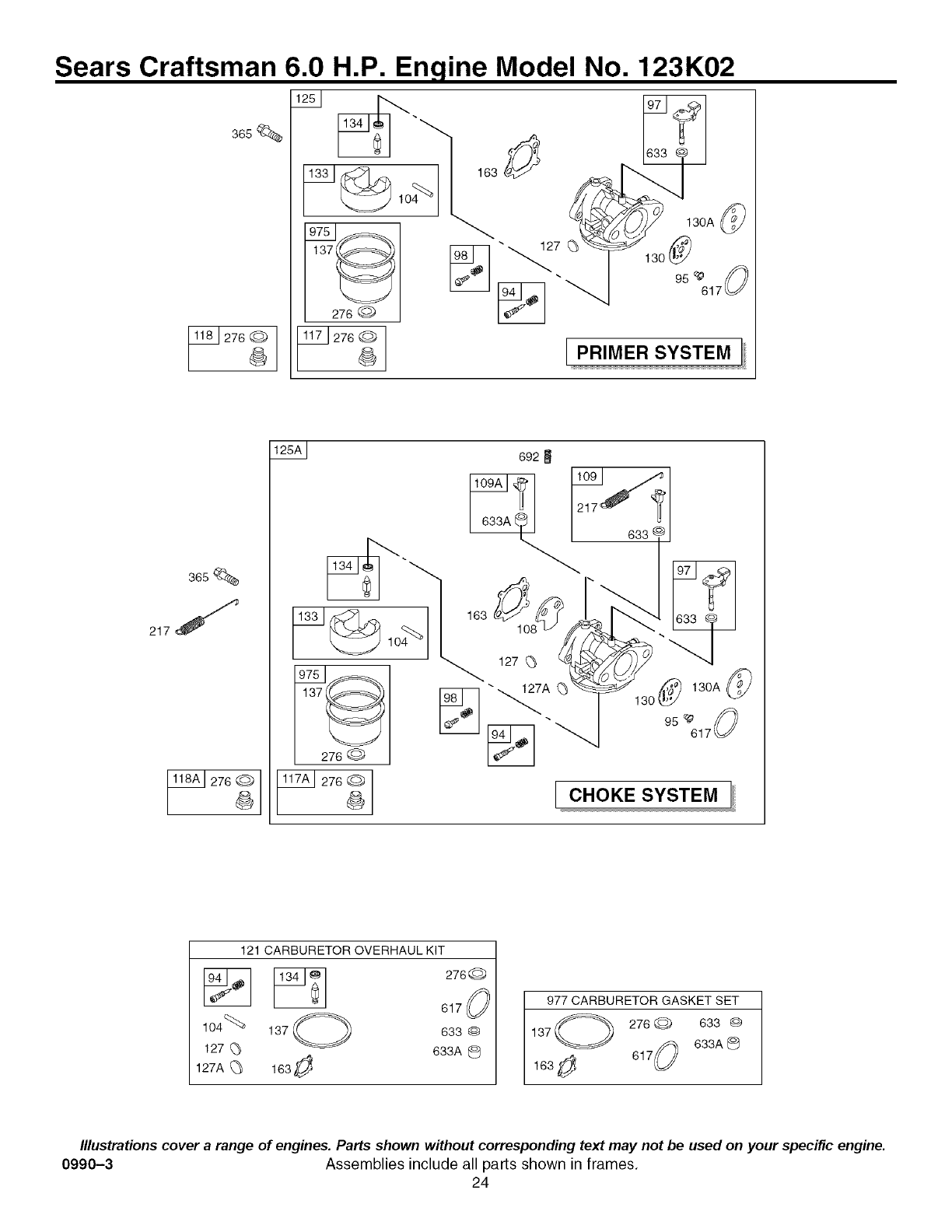

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

365

276 @

130A

3o_

95_617_

PRIMER SYSTEM ]

276 @

CHOKE SYSTEM ],

121 CARBURETOR OVERHAUL KIT

_] 276@

617 0

104q_ 137_ 633@

127_ 633A(_

127A_ 163_

977 CARBURETOR GASKET SET

276 @ 633 @

163_ 617(_ 633A@

Illustrationscover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-3 Assemblies include all parts shown in frames.

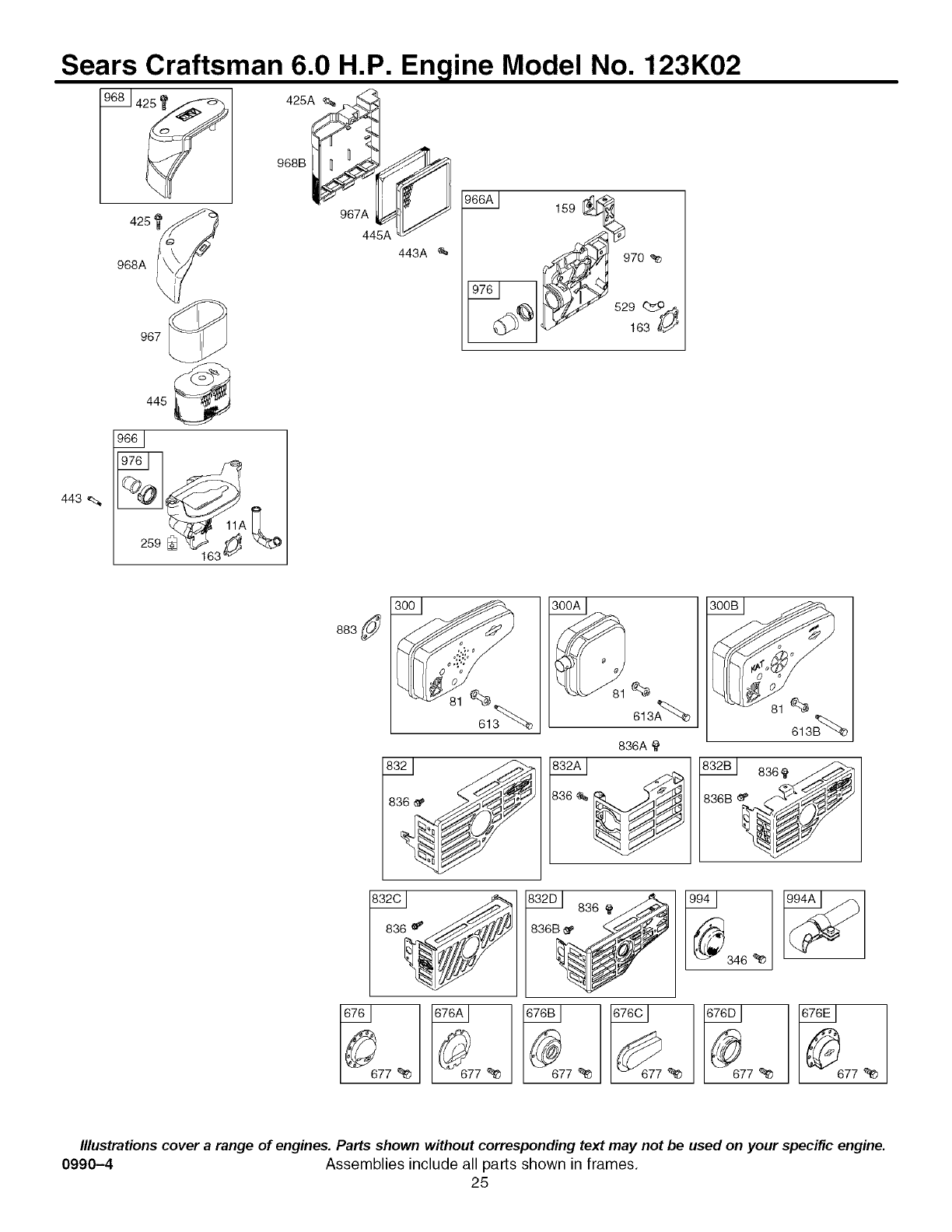

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

967

968A

968B _

443A _

966AI 159

_ 970 '_

443_:_

883J

77 _;_ 7_

613A_

836A 9

836

836_

Illustrations cover arange of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-4 Assemblies include all parts shown in frames.

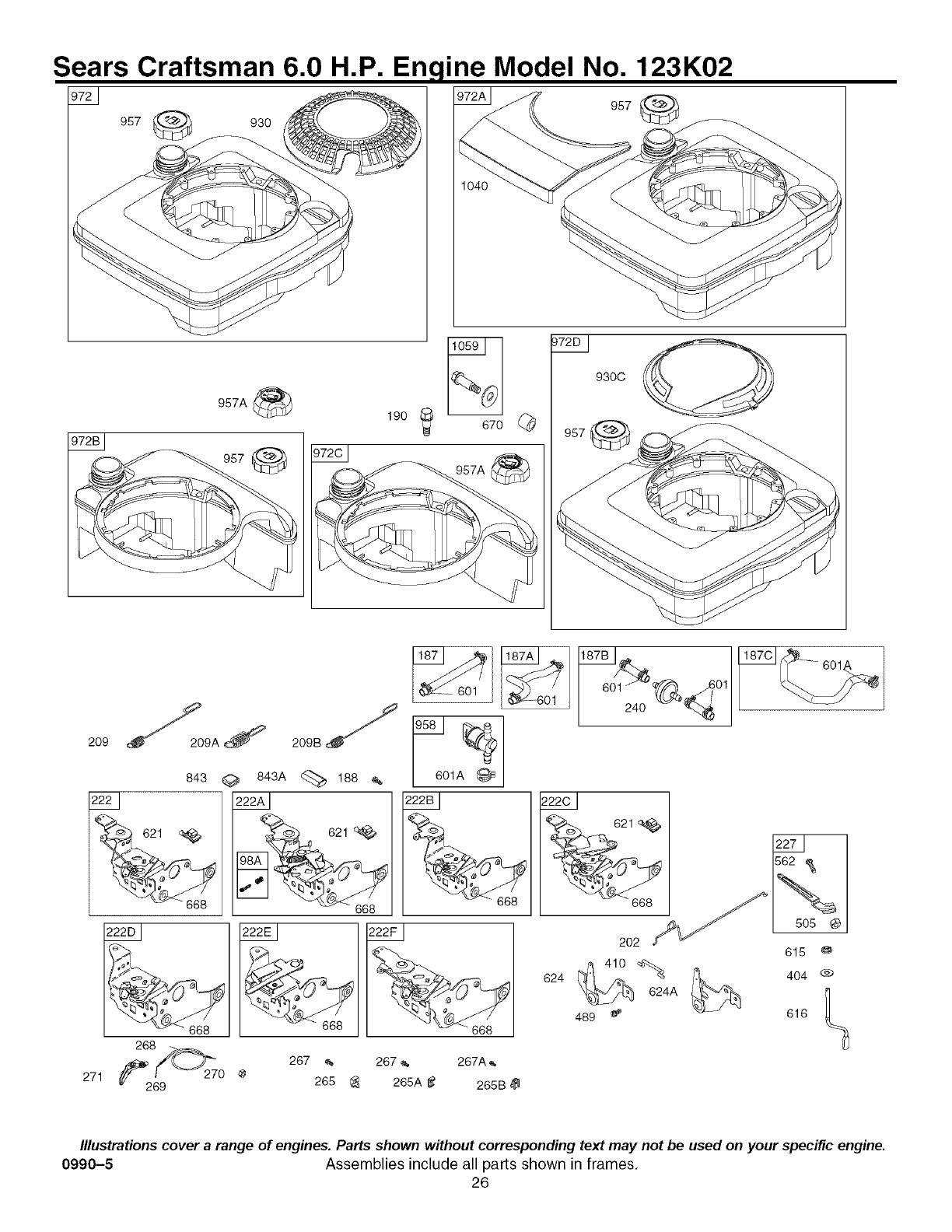

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

972_ 957 @

957 @ 930

957A_ 19o 670 (_ 957

930C

209 __209A_ _:_ 209B,

843 @ 843A _ 188

621

268

_26_9 _270 ®

_ _1187AI

I _-- 601

601A _e

621

267 _ 267 _ 267A

271 265 _ 265A _ 265B

624

2O2

624A

489 _

562 ,_

505

615

404 @

616

Illustrations cover arange of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-5 Assemblies include all parts shown in frames.

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

604

564 _ t

921

604A

564A_

969A

921D

921C

969

921E

930A

930

921F

78 304A

304

305

1036 EMISSION LABEL I

1229

Illustrationscover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-6 Assemblies include all parts shown in frames.

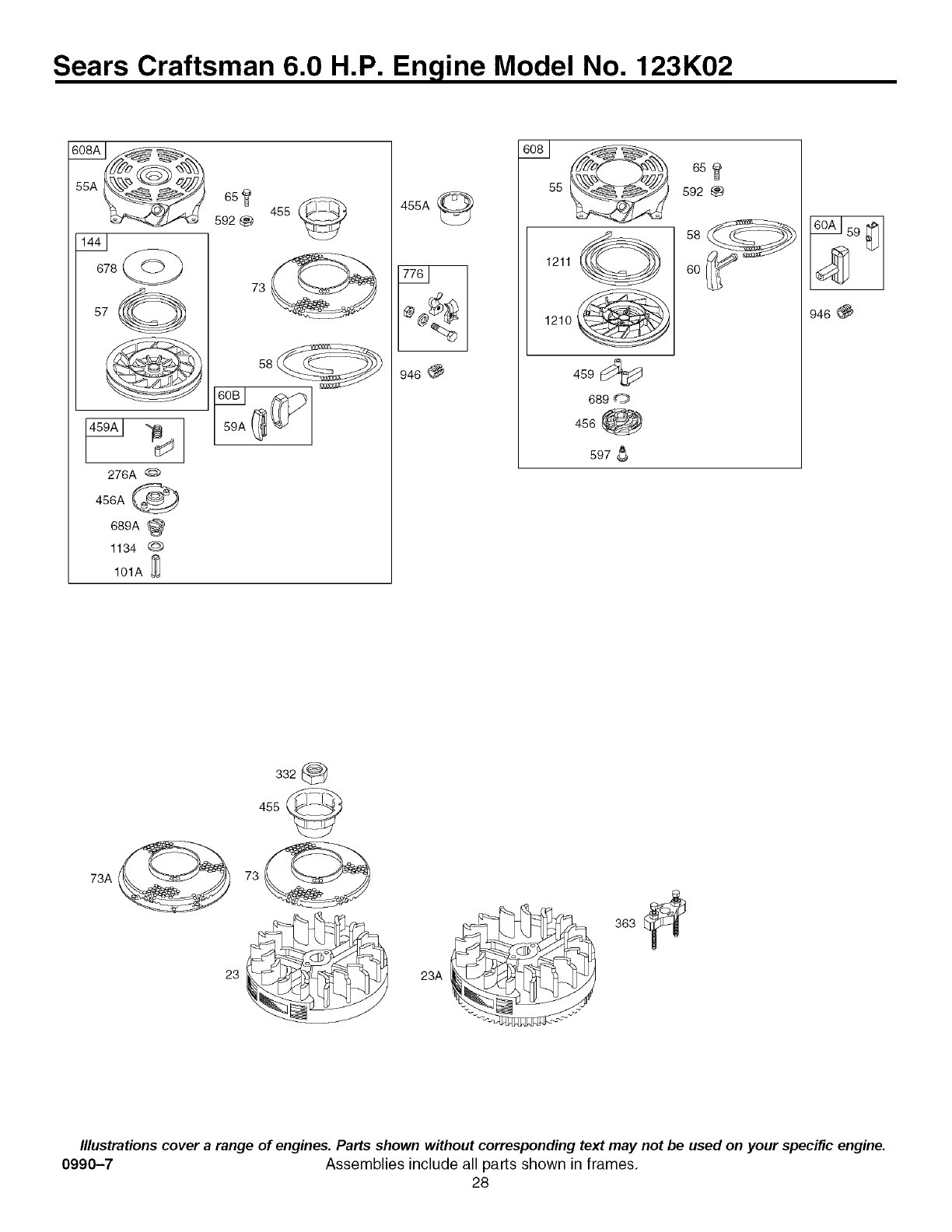

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

678

276A @

456A

689A _

1134 @

101A

455

592

59A

455A (@

946 (_

55 592 6_

1211

1210_

459_

689¢'_

456

597 ,_

946

73A

332

455

_73_

363

Illustrations cover arange of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-7 Assemblies include all parts shown in frames.

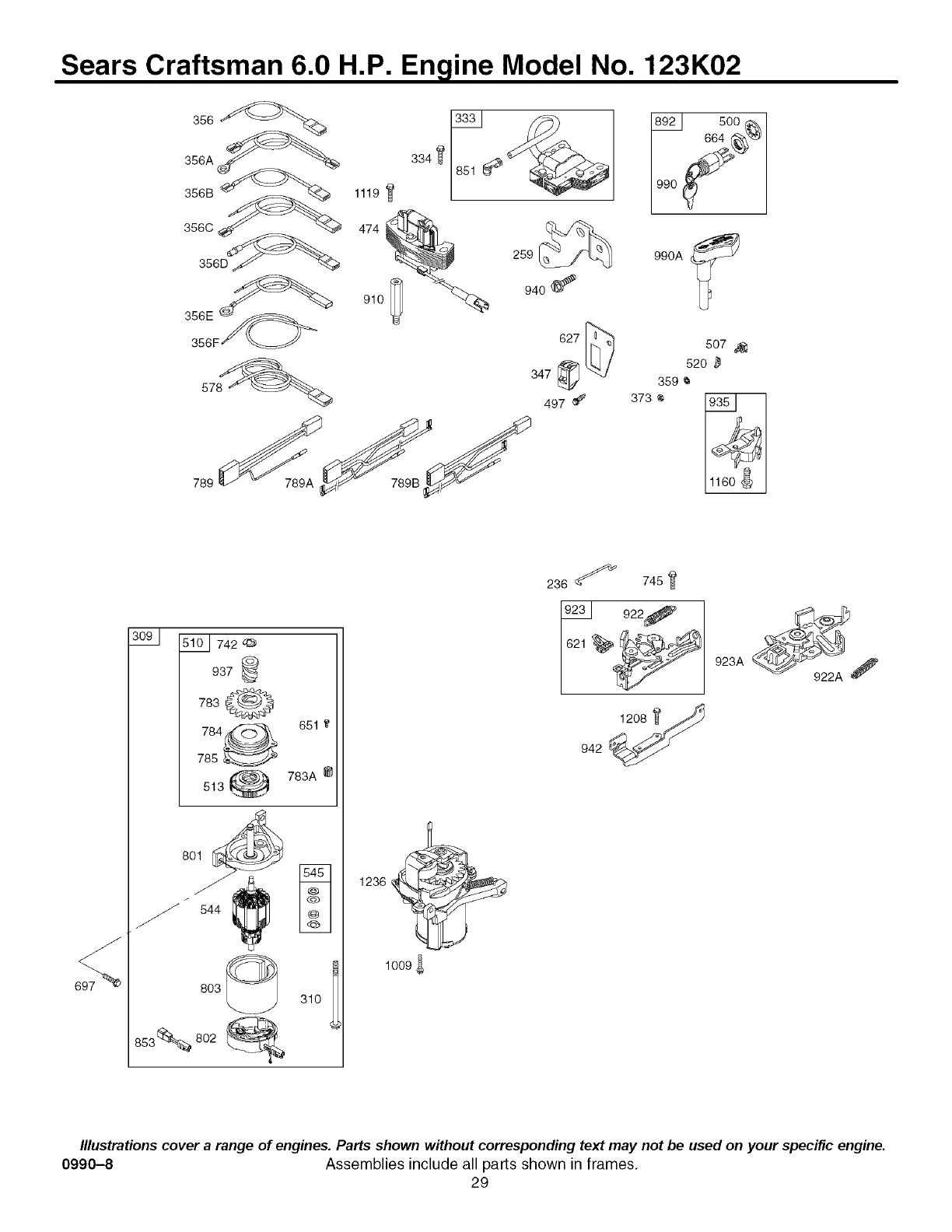

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

356_

356A__,"'_

356B_

3563_6D'D'__

578_

789

334 1'

1119 1'

474

910

789A

259

940'_

627

347

497

5oo

990A _

507

520

359

373 _

697

742@

937

783

651

784_

78s_

513@ 783A 8

801

310 I

1236

1009

236_ 74_i'

__J 922_

12o8i'

942

923A

Illustrationscover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-8 Assemblies include all parts shown in frames.

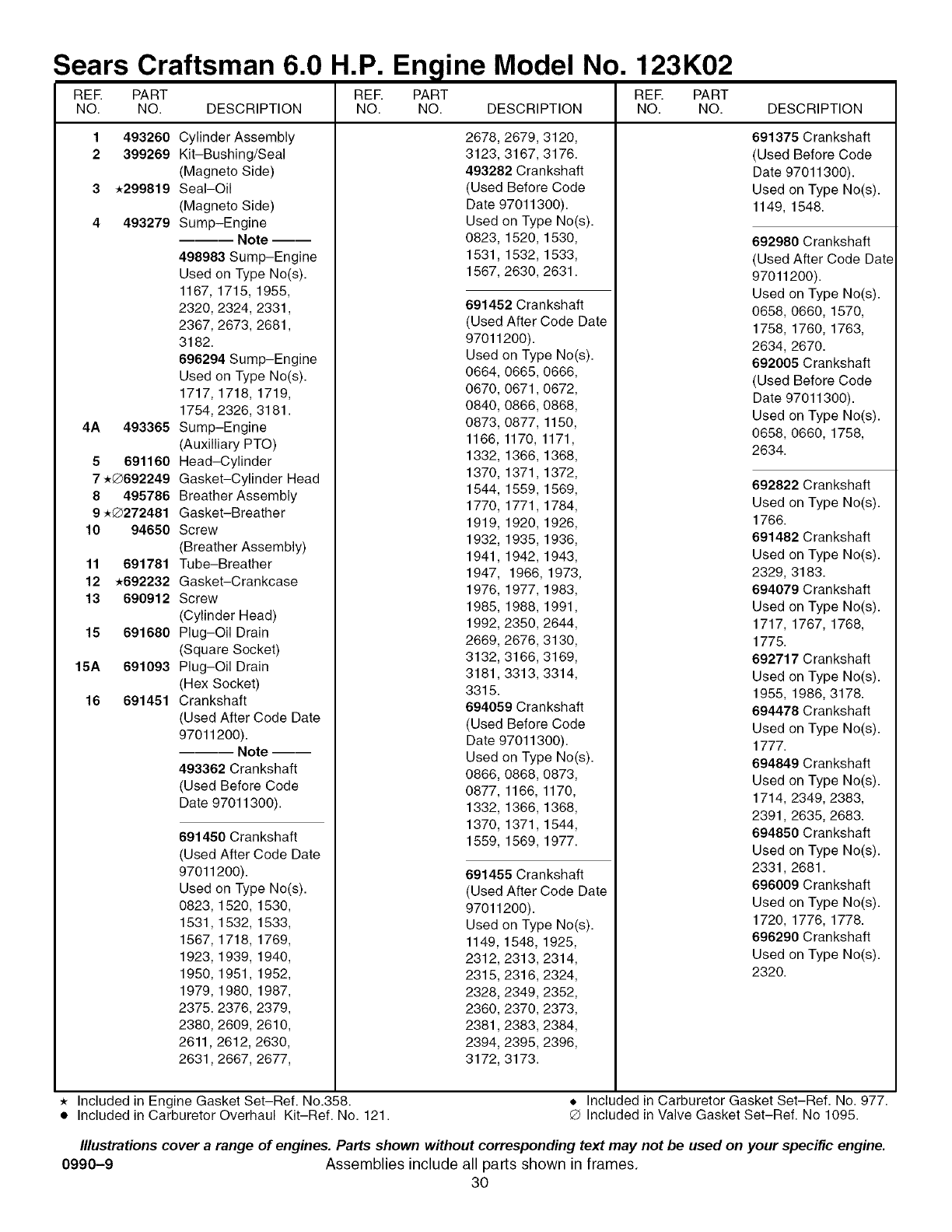

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

RER PART

NO. NO. DESCRIPTION

1493260 Cylinder Assembly

2 399269 Kit-Bushing/Seal

(Magneto Side)

3 *299819 Seal-Oil

(Magneto Side)

4 493279 Sump-Engine

Note ----

498983 Sump-Engine

Used on Type No(s).

1167, 1715, 1955,

2320, 2324, 2331,

2367, 2673, 2681,

3182.

696294 Sump-Engine

Used on Type No(s).

1717, 1718, 1719,

1754, 2326, 3181.

4A 493365 Sump-Engine

(Auxilliary PTO)

5 691160 Head-Cylinder

7,®692249 Gasket-Cylinder Head

8 495786 Breather Assembly

9 *®272481 Gasket-Breather

10 94650 Screw

(Breather Assembly)

11 691781 Tube-Breather

12 *692232 Gasket-Crankcase

13 690912 Screw

(Cylinder Head)

15 691680 Plug-Oil Drain

(Square Socket)

15A 691093 Plug-Oil Drain

(Hex Socket)

16 691451 Crankshaft

(Used After Code Date

97011200).

Note ----

493362 Crankshaft

(Used Before Code

Date 97011300).

REF. PART REE PART

691450 Crankshaft

(Used After Code Date

97011200).

Used on Type No(s).

0823,1520,1530,

1531,1532,1533,

1567,1718,1769,

1923,1939,1940,

1950,1951,1952,

1979,1980,1987,

2375.2376,2379,

2380,2609,2610,

2611,2612,2630,

2631,2667,2677,

NO. NO. DESCRIPTION

2678,2679,3120,

3123,3167,3176.

493282 Crankshaft

(Used Before Code

Date 97011300).

Used on Type No(s).

0823,1520,1530,

1531,1532,1533,

1567,2630,2631.

691452 Crankshaft

(Used After Code Date

97011200).

Used on Type No(s).

0664,0665,0666,

0670,0671,0672,

0840,0866,0868,

0873,0877,1150,

1166,1170,1171,

1332,1366,1368,

1370,1371,1372,

1544,1559,1569,

1770,1771,1784,

1919,1920,1926,

1932,1935,1936,

1941,1942,1943,

1947, 1966,1973,

1976,1977,1983,

1985,1988,1991,

1992,2350,2644,

2669,2676,3130,

3132,3166,3169,

3181,3313,3314,

3315.

694059 Crankshaft

(Used Before Code

Date 97011300).

Used on Type No(s).

0866,0868,0873,

0877,1166,1170,

1332,1366,1368,

1370,1371,1544,

1559,1569,1977.

691455 Crankshaft

(Used After Code Date

97011200).

Used on Type No(s).

1149,1548,1925,

2312,2313,2314,

2315,2316,2324,

2328,2349,2352,

2360,2370,2373,

2381,2383,2384,

2394,2395,2396,

3172,3173.

NO. NO. DESCRIPTION

691375 Crankshaft

(Used Before Code

Date 97011300).

Used on Type No(s).

1149, 1548.

692980 Crankshaft

(Used After Code Date

97011200).

Used on Type No(s).

0658, 0660, 1570,

1758, 1760, 1763,

2634, 2670.

692005 Crankshaft

(Used Before Code

Date 97011300).

Used on Type No(s).

0658, 0660, 1758,

2634.

692822 Crankshaft

Used on Type No(s).

1766.

691482 Crankshaft

Used on Type No(s).

2329, 3183.

694079 Crankshaft

Used on Type No(s).

1717, 1767, 1768,

1775.

692717 Crankshaft

Used on Type No(s).

1955, 1986, 3178.

694478 Crankshaft

Used on Type No(s).

1777.

694849 Crankshaft

Used on Type No(s).

1714, 2349, 2383,

2391,2635, 2683.

694850 Crankshaft

Used on Type No(s).

2331,2681.

696009 Crankshaft

Used on Type No(s).

1720, 1776, 1778.

696290 Crankshaft

Used on Type No(s).

2320.

* Included in Engine Gasket Set-Ref. No.358.

• Included in Carburetor Overhaul Kit-Ref. No. 121. _, Included in Carburetor Gasket Set-Ref. No. 977.

@ Included in Valve Gasket Set-Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-9 Assemblies include all parts shown in frames.

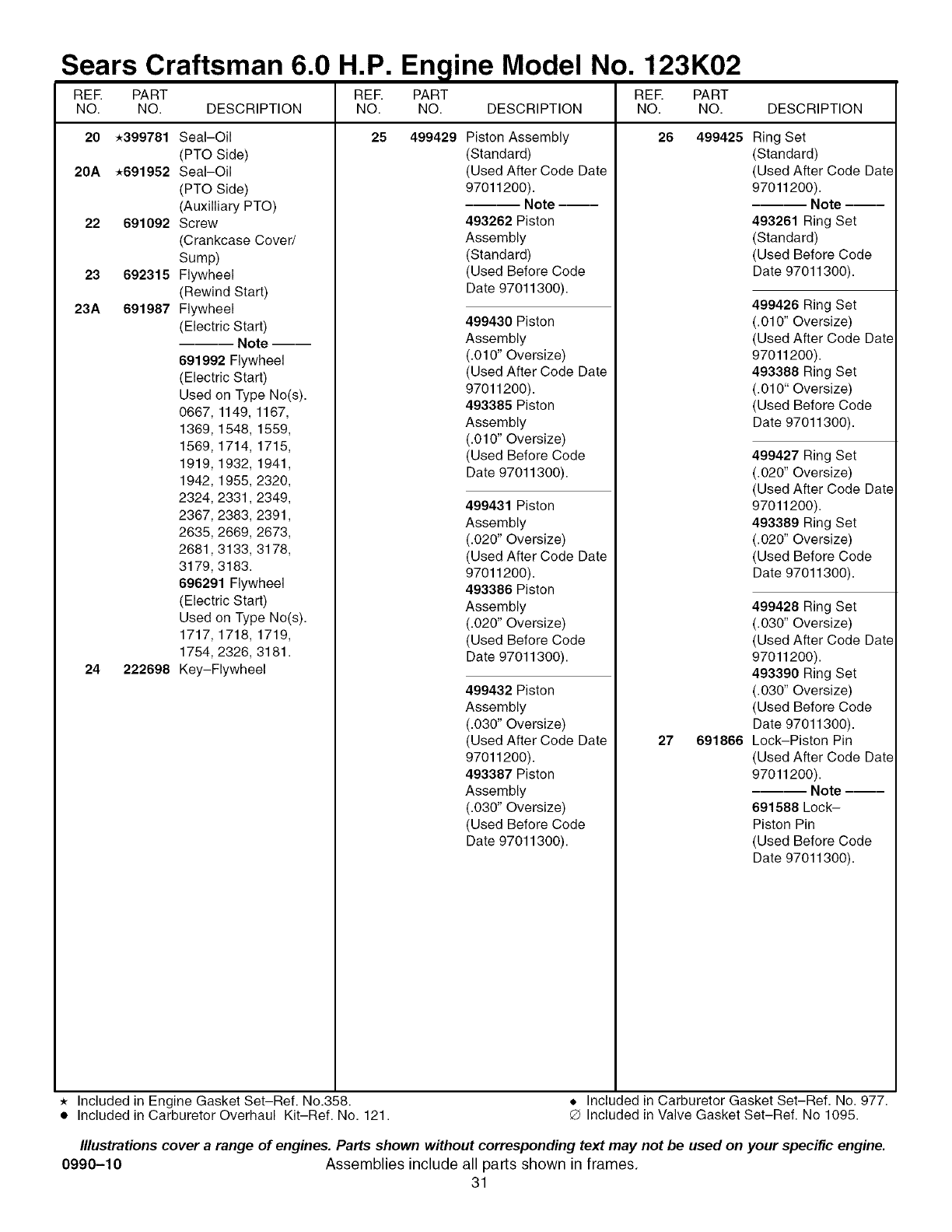

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

REE

NO.

2OA

23A

PART

NO. DESCRIPTION

,399781 Seal-Oil

(PTO Side)

*691952 Seal-Oil

(PTO Side)

(Auxilliary PTO)

691092 Screw

(Crankcase Cover/

Sump)

692315 Flywheel

(Rewind Start)

691987 Flywheel

(Electric Start)

Note ----

691992 Flywheel

(Electric Start)

Used on Type No(s).

0667, 1149, 1167,

1369, 1548, 1559,

1569, 1714, 1715,

1919, 1932, 1941,

1942, 1955, 2320,

2324, 2331,2349,

2367, 2383, 2391,

2635, 2669, 2673,

2681,3133, 3178,

3179, 3183.

24 222698

696291 Flywheel

(Electric Start)

Used enType No(s).

1717,1718,1719,

1754,2326,3181.

Key-Flywheel

REF. PART

NO. NO.

25 499429

REE

DESCRIPTION NO.

Piston Assembly

(Standard)

(Used After Code Date

97011200).

Note ----

493262 Piston

Assembly

(Standard)

(Used Before Code

Date 97011300).

499430 Piston

Assembly

(.010" Oversize)

(Used After Code Date

97011200).

493385 Piston

Assembly

(.010" Oversize)

(Used Before Code

Date 97011300).

499431 Piston

Assembly

(.020" Oversize)

(Used After Code Date

97011200).

493386 Piston

Assembly

(.020" Oversize)

(Used Before Code

Date 97011300).

499432 Piston

Assembly

(.030" Oversize)

(Used After Code Date

97011200).

493387 Piston

Assembly

(.030" Oversize)

(Used Before Code

Date 97011300).

PART

NO.

26 499425

27 691866

DESCRIPTION

Ring Set

(Standard)

(Used After Code Date

97011200).

Note

493261 Ring Set

(Standard)

(Used Before Code

Date 97011300).

499426 Ring Set

(.010" Oversize)

(Used After Code Date

97011200).

493388 Ring Set

(.010" Oversize)

(Used Before Code

Date 97011300).

499427 Ring Set

(.020" Oversize)

(Used After Code Date

97011200).

493389 Ring Set

(.020" Oversize)

(Used Before Code

Date 97011300).

499428 Ring Set

(.030" Oversize)

(Used After Code Date

97011200).

493390 Ring Set

(.030" Oversize)

(Used Before Code

Date 97011300).

Lock-Piston Pin

(Used After Code Date

97011200).

Note ----

691588 Lock-

Piston Pin

(Used Before Code

Date 97011300).

* Included in Engine Gasket Set-Ref. No.358.

• Included in Carburetor Overhaul Kit-Ref. No. 121. Included in Carburetor Gasket Set-Ref. No. 977.

Q Included in Valve Gasket Set-Ref. No 1095.

Illustrationscover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-10 Assemblies include all parts shown in frames.

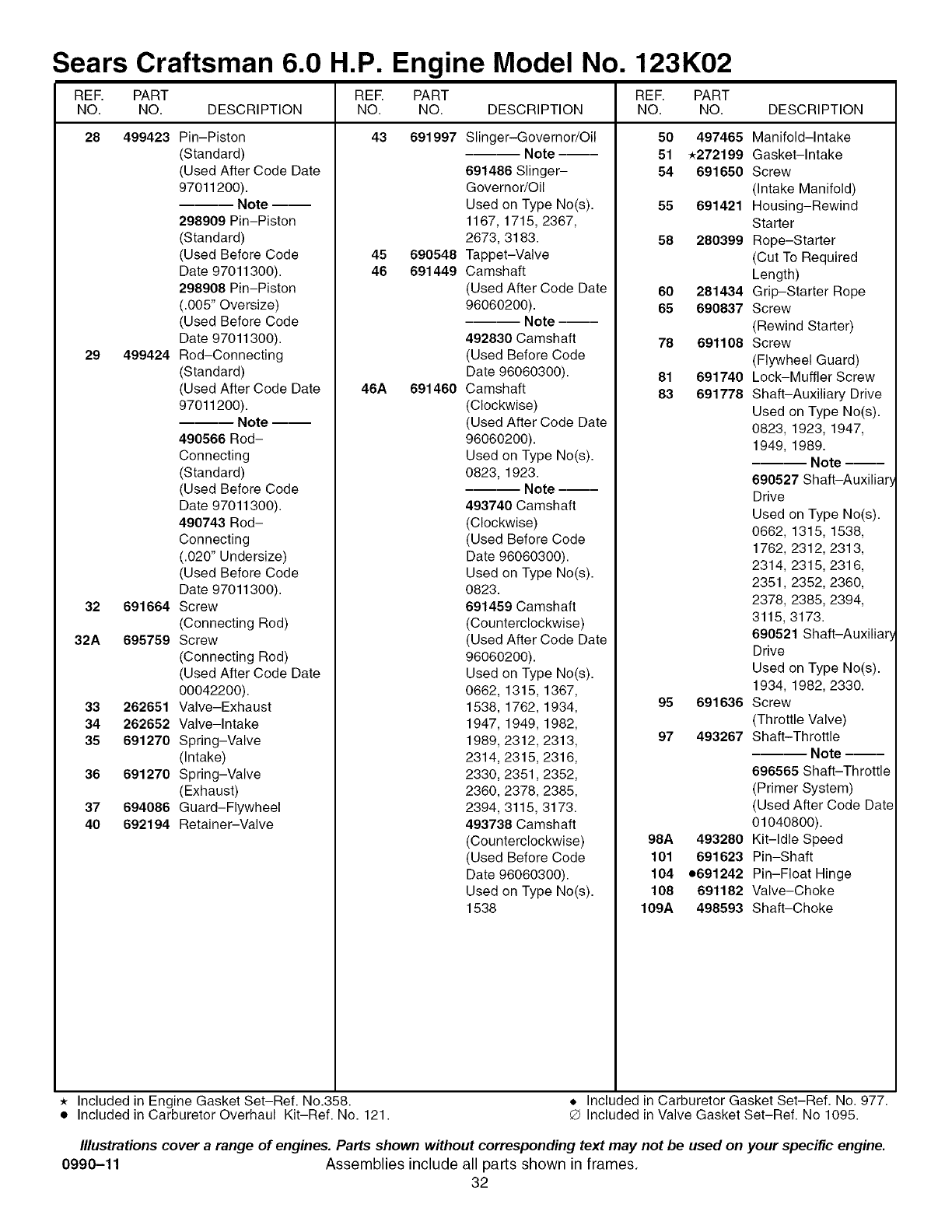

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

28 499423 43 691997

29 499424

32 691664

32A 695759

Pin-Piston

(Standard)

(Used After Code Date

97011200).

Note ----

298909 Pin-Piston

(Standard)

(Used Before Code

Date 97011300).

298908 Pin-Piston

(.005" Oversize)

(Used Before Code

Date 97011300).

Rod-Connecting

(Standard)

(Used After Code Date

97011200).

Note ----

490566 Rod-

Connecting

(Standard)

(Used Before Code

Date 97011300).

490743 Rod-

Connecting

(.020" Undersize)

(Used Before Code

Date 97011300).

Screw

(Connecting Rod)

Screw

(Connecting Rod)

(Used After Code Date

00042200).

33 262651 Valve-Exhaust

34 262652 Valve-Intake

35 691270 Spring-Valve

(Intake)

36 691270 Spring-Valve

(Exhaust)

37 694086 Guard-Flywheel

40 692194 Retainer-Valve

45 690548

46 691449

46A 691460

Slinger-Governor/Oil

Note ----

691486 Slinger-

Governor/Oil

Used on Type No(s).

1167, 1715, 2367,

2673, 3183.

Tappet-Valve

Camshaft

(Used After Code Date

96060200).

Note ----

492830 Camshaft

(Used Before Code

Date 96060300).

Camshaft

(Clockwise)

(Used After Code Date

96060200).

Used on Type No(s).

0823, 1923.

Note ----

493740 Camshaft

(Clockwise)

(Used Before Code

Date 96060300).

Used on Type No(s).

0823.

691459 Camshaft

(Counterclockwise)

(Used After Code Date

96060200).

Used on Type No(s).

0662, 1315, 1367,

1538, 1762, 1934,

1947, 1949, 1982,

1989, 2312, 2313,

2314, 2315, 2316,

2330, 2351,2352,

2360, 2378, 2385,

2394, 3115, 3173.

493738 Camshaft

(Counterclockwise)

(Used Before Code

Date 96060300).

Used on Type No(s).

1538

50 497465

51 *272199

54 691650

55 691421

58 280399

60 281434

65 690837

78 691108

81 691740

83 691778

95 691636

97 493267

98A 493280

101 691623

104 e691242

108 691182

109A 498593

Manifold-Intake

Gasket-Intake

Screw

(Intake Manifold)

Housing-Rewind

Starter

Rope-Starter

(Cut To Required

Length)

Grip-Starter Rope

Screw

(Rewind Starter)

Screw

(Flywheel Guard)

Lock-Muffler Screw

Shaft-Auxiliary Drive

Used on Type No(s).

0823, 1923, 1947,

1949, 1989.

Note ----

690527 Shaft-Auxiliar

Drive

Used on Type No(s).

0662, 1315, 1538,

1762, 2312, 2313,

2314, 2315, 2316,

2351,2352, 2360,

2378, 2385, 2394,

3115, 3173.

690521 Shaft-Auxiliar

Drive

Used on Type No(s).

1934, 1982, 2330.

Screw

(Throttle Valve)

Shaft-Throttle

Note

696565 Shaft-Throttle

(Primer System)

(Used After Code Date

01040800).

Kit-Idle Speed

Pin-Shaft

Pin-Float Hinge

Valve-Choke

Shaft-Choke

* Included in Engine Gasket Set-Ref. No.358.

• Included in Carburetor Overhaul Kit-Ref. No. 121. _, Included in Carburetor Gasket Set-Ref. No. 977.

Q Included in Valve Gasket Set-Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-11 Assemblies include all parts shown in frames.

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

117 494870 125 498170Jet-Main

(Standard)

Note ----

497466 Jet-Main

(Standard)

Used on Type No(s).

1538.

498977 Jet-Main

(Standard)

Used on Type No(s).

0664, 0665, 0666,

0667, 0671,0672,

1149, 1167, 1170,

1368, 1369, 1370,

1373, 1548.

117A 498978 Jet-Main

(Standard)

118 497315 Jet-Main

(High Altitude)

496495 Jet-Main

(High Altitude)

118A 498975

121 498260

Used on Type No(s).

1538.

498978 Jet-Main

(High Altitude)

Used on Type No(s).

0664, 0665, 0666,

0667, 0671,0672,

1149, 1167, 1170,

1368, 1369, 1370,

1373, 1548.

Jet-Main

(High Altitude)

Kit-Carburetor

Overhaul

125A 499059

127 e694468

130 691203

REE PART

DESCRIPTION NO. NO.

Carburetor

(Primer System)

(Used After Code Date

95102900).

Note ----

498254 Carburetor

(Primer System)

Used on Type No(s).

1538.

Carburetor

(Choke System)

Used on Type No(s). 187A

1714, 1715, 1777,

1926, 1932, 1942, 187B

1955, 2329, 2331,

2349, 2367, 2383,

2391,2635, 2673,

2681,3178, 3183.

Note ----

498965 Carburetor 187C

(Choke System)

Used on Type No(s).

0664, 0665, 0666,

0667, 0671,0672,

1149, 1167, 1170, 188

1368, 1369, 1370,

1373, 1548. 190

Plug-Welch

Valve-Throttle 202

Note ----

696564 Valve-Throttle

(Primer System)

(Used After Code Date

01040800).

133 398187

134 e398188

137 et693981

146 690979

159 691753

163.e,272653

187 691050

691371

692042

696292

690877

690940

691829

Float-Carburetor

Kit-Needle/Seat

Gasket-Float Bowl

Key-Timing

Bracket-Air Cleaner

Primer

Gasket-Air Cleaner

Line-Fuel

(15" Long)

(Cut to Required

Length)

Line-Fuel

(Molded)

Line-Fuel

(Included Filter)

(1 1/3" And 4 5/8"

Long) (Cut to Required

Length)

Line-Fuel

(Molded)

Used on Type No(s).

1717, 1718, 1719,

1754, 2326, 3181.

Screw

(Control Bracket)

Screw

(Fuel Tank)

Link-Mechanical

Governor

* Included in Engine Gasket Set-Ref. No.358.

•Included in Carburetor Overhaul Kit-Ref. No. 121. Included in Carburetor Gasket Set-Ref. No. 977.

Q Included in Valve Gasket Set-Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-12 Assemblies include all parts shown in frames.

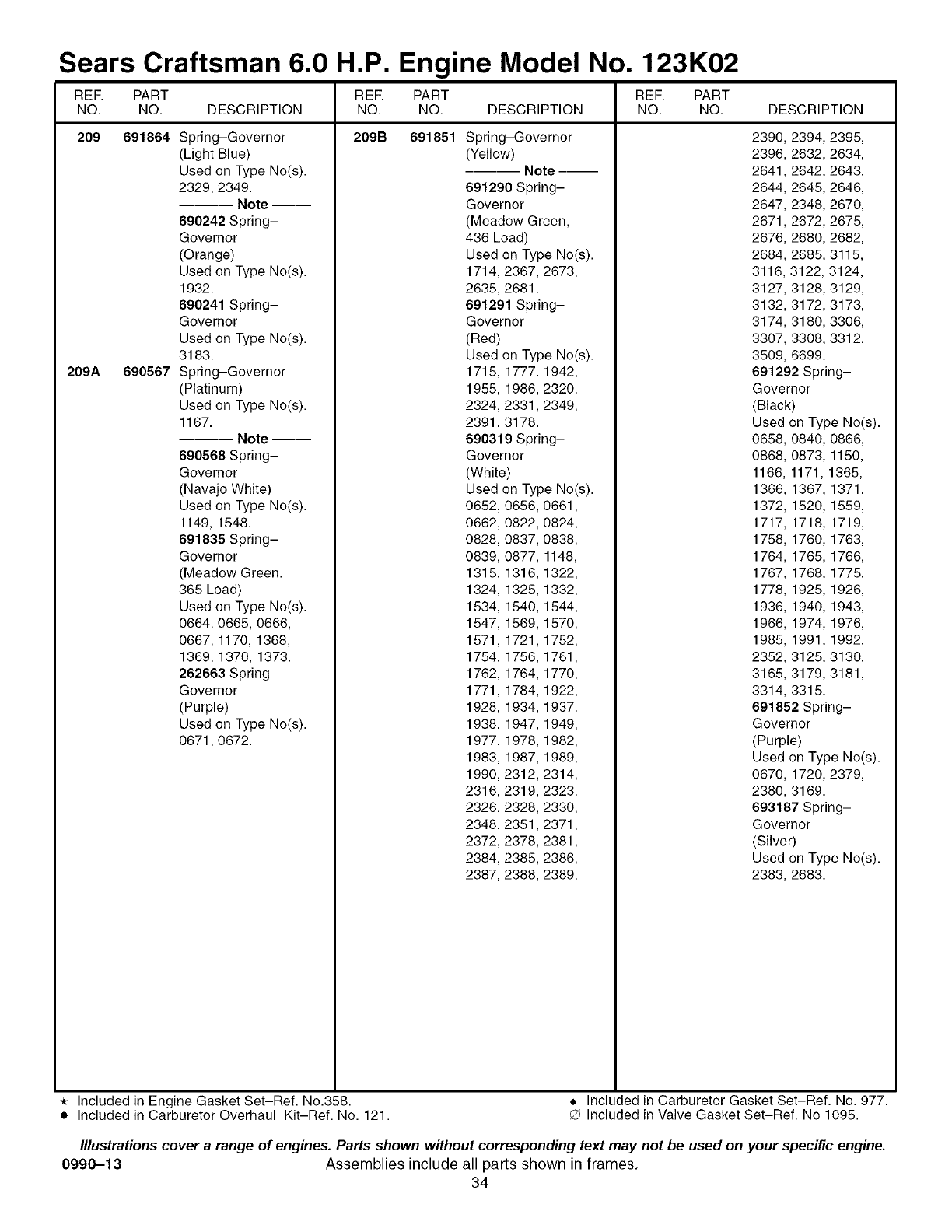

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

209 691864 209B 691851

209A 690567

Spring-Governor

(Light Blue)

Used on Type No(s).

2329, 2349.

Note ----

690242 Spring-

Governor

(Orange)

Used on Type No(s).

1932.

690241 Spring-

Governor

Used on Type No(s).

3183.

Spring-Governor

(Platinum)

Used on Type No(s).

1167.

Note ----

690568 Spring-

Governor

(Navajo White)

Used on Type No(s).

1149, 1548.

691835 Spring-

Governor

(Meadow Green,

365 Load)

Used on Type No(s).

0664, 0665, 0666,

0667, 1170, 1368,

1369, 1370, 1373.

262663 Spring-

Governor

(Purple)

Used on Type No(s).

0671,0672.

Spring-Governor

(Yellow) Note ----

691290 Spring-

Governor

(Meadow Green,

436 Load)

Used on Type No(s).

1714, 2367, 2673,

2635, 2681.

691291 Spring-

Governor

(Red)

Used on Type No(s).

1715, 1777. 1942,

1955, 1986, 2320,

2324, 2331,2349,

2391,3178.

690319 Spring-

Governor

(White)

Used on Type No(s).

0652, 0656, 0661,

0662,0822,0824,

0828,0837,0838,

0839,0877,1148,

1315,1316,1322,

1324,1325,1332,

1534,1540,1544,

1547,1569,1570,

1571,1721,1752,

1754,1756,1761,

1762,1764,1770,

1771,1784,1922,

1928,1934,1937,

1938,1947,1949,

1977,1978,1982,

1983,1987,1989,

1990,2312,2314,

2316,2319,2323,

2326,2328,2330,

2348,2351,2371,

2372,2378,2381,

2384,2385,2386,

2387,2388,2389,

2390,2394,2395,

2396,2632,2634,

2641,2642,2643,

2644,2645,2646,

2647,2348,2670,

2671,2672,2675,

2676,2680,2682,

2684,2685,3115,

3116,3122,3124,

3127,3128,3129,

3132,3172,3173,

3174,3180,3306,

3307,3308,3312,

3509,6699.

691292 Spring-

Governor

(Black)

Used on Type No(s).

0658,0840,0866,

0868,0873,1150,

1166,1171,1365,

1366,1367,1371,

1372,1520,1559,

1717,1718,1719,

1758,1760,1763,

1764,1765,1766,

1767,1768,1775,

1778,1925,1926,

1936,1940,1943,

1966,1974,1976,

1985,1991,1992,

2352,3125,3130,

3165,3179,3181,

3314,3315.

691852 Spring-

Governor

(Purple)

Used on Type No(s).

0670,1720,2379,

2380,3169.

693187 Spring-

Governor

(Silver)

Used on Type No(s).

2383,2683.

* Included in Engine Gasket Set-Ref. No.358.

• Included in Carburetor Overhaul Kit-Ref. No. 121. • Included in Carburetor Gasket Set-Ref. No. 977.

Q Included in Valve Gasket Set-Ref. No 1095.

Illustrationscover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-13 Assemblies include all parts shown in frames.

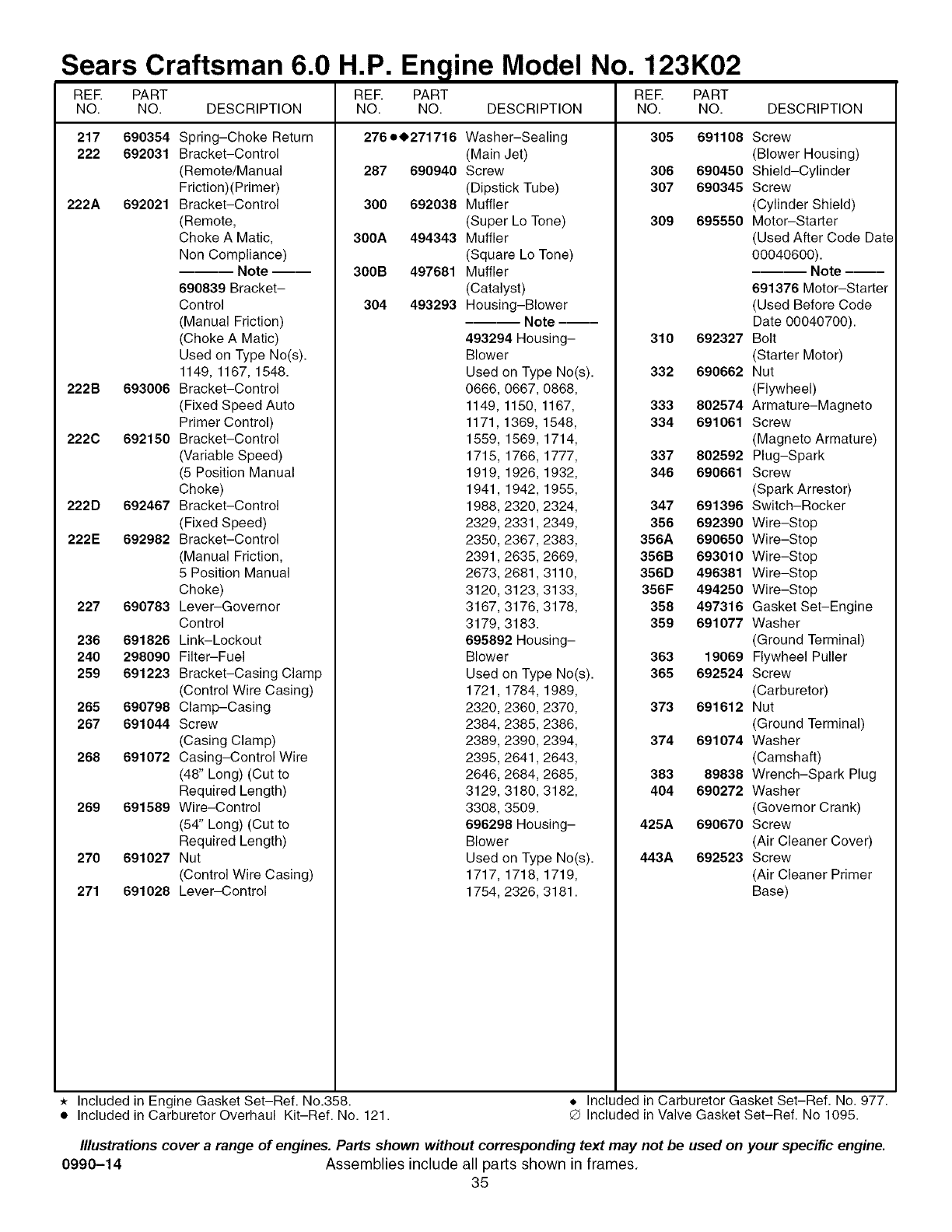

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

PART REF. PART

NO. DESCRIPTION NO. NO. DESCRIPTION DESCRIPTION

RER

NO.

217 690354 Spring-Choke Return

222 692031 Bracket-Control

(Remote/Manual

Friction)(Primer)

222A 692021 Bracket-Control

(Remote,

Choke A Matic,

Non Compliance)

Note

690839 Bracket-

Control

(Manual Friction)

(Choke A Matic)

Used on Type No(s).

1149, 1167, 1548.

222B 693006 Bracket-Control

(Fixed Speed Auto

Primer Control)

222C 692150 Bracket-Control

(Variable Speed)

(5 Position Manual

Choke)

222D 692467 Bracket-Control

(Fixed Speed)

222E 692982 Bracket-Control

(Manual Friction,

5 Position Manual

Choke)

227 690783 Lever-Governor

Control

236 691826 Link-Lockout

240 298090 Filter-Fuel

259 691223 Bracket-Casing Clamp

(Control Wire Casing)

265 690798 Clamp-Casing

267 691044 Screw

(Casing Clamp)

268 691072 Casing-Control Wire

(48" Long) (Cut to

Required Length)

269 691589 Wire-Control

(54" Long) (Cut to

Required Length)

270 691027 Nut

(Control Wire Casing)

271 691028 Lever-Control

276 et271716

287 690940

300 692038

300A 494343

300B 497681

304 493293

Washer-Sealing

(Main Jet)

Screw

(Dipstick Tube)

Muffler

(Super Lo Tone)

Muffler

(Square Lo Tone)

Muffler

(Catalyst)

Housing-Blower

Note

493294 Housing-

Blower

Used on Type No(s).

0666,0667,0868,

1149,1150,1167,

1171,1369,1548,

1559,1569,1714,

1715,1766,1777,

1919,1926,1932,

1941,1942,1955,

1988,2320,2324,

2329,2331,2349,

2350,2367,2383,

2391,2635,2669,

2673,2681,3110,

3120,3123,3133,

3167,3176,3178,

3179,3183.

695892 Housing-

Blower

Used on Type No(s).

1721,1784,1989,

2320,2360,2370,

2384,2385,2386,

2389,2390,2394,

2395,2641,2643,

2646,2684,2685,

3129,3180,3182,

3308,3509.

696298 Housing-

Blower

Used on Type No(s).

1717,1718,1719,

1754,2326,3181.

REE PART

NO. NO.

305 691108

306 690450

307 690345

309 695550

310 692327

332 690662

333 802574

334 691061

337 802592

346 690661

347 691396

356 692390

356A 690650

356B 693010

356D 496381

356F 494250

358 497316

359 691077

363 19069

365 692524

373 691612

374 691074

383 89838

404 690272

425A 690670

443A 692523

Screw

(Blower Housing)

Shield-Cylinder

Screw

(Cylinder Shield)

Motor-Starter

(Used After Code Date

00040600).

Note ----

691376 Motor-Starter

(Used Before Code

Date 00040700).

Bolt

(Starter Motor)

Nut

(Flywheel)

Armature-Magneto

Screw

(Magneto Armature)

Plug-Spark

Screw

(Spark Arrestor)

Switch-Rocker

Wire-Stop

Gasket Set-Engine

Washer

(Ground Terminal)

Flywheel Puller

Screw

(Carburetor)

Nut

(Ground Terminal)

Washer

(Camshaft)

Wrench-Spark Plug

Washer

(Governor Crank)

Screw

(Air Cleaner Cover)

Screw

(Air Cleaner Primer

Base)

* Included in Engine Gasket Set-Ref. No.358.

•Included in Carburetor Overhaul Kit-Ref. No. 121. _, Included in Carburetor Gasket Set-Ref. No. 977.

Q Included in Valve Gasket Set-Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-14 Assemblies include all parts shown in frames.

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. NO. NO. DESCRIPTION

445A 491588

455 695161

456 692299

459 281505

474 691991

497 690664

500 691086

505 691251

Filter-Air Cleaner

Cartridge

Cup-Flywheel

Plate-Pawl Friction

Plate-Ratchet

Alternator

Screw

(Stop Switch Bracket)

Washer

(Key Switch)

Nut

(Governor Control

Lever)

507 691972 Insulator

510 494147 Drive-Starter

513 692358 Clutch-Drive

520 691084 Terminal-Ground

523 495264 Dipstick

Note ----

499621 Dipstick

Used on Type No(s).

1720.

524 *692296 Seal-Dipstick Tube

525 495265 Tube-Dipstick

529 691923 Grommet

544 690786 Armature-Starter

545 492919 Washer Set

(Starter Motor)

562 92613 Bolt

(Governor Control

Lever)

564 690664 Screw

(Control Cover)

Note ----

691132 Screw

(Control Cover)

564A 691142 Screw

(Control Cover)

584 692342 Cover-Breather

Passage

585 *691879 Gasket-Breather

Passage

592 690800 Nut

(Rewind Starter)

597 691696 Screw

(Pawl Friction Plate)

DESCRIPTION

601 95162 Clamp-Hose

604 691757 Cover-Control

604A 691344 Cover-Control

608 497680 Starter-Rewind

613 691340 Screw

(Muffler)

613A 691653 Screw

(Muffler)

613B 691114 Screw

(Muffler)

689 691855

692 690572

697 691127

715 691693

615 690340 Retainer-Governor

Shaft

616 691308 Crank-Governor

617,et270344 SeaI-O Ring

(Intake Manifold)

718 690959

721 690449

741 691830

742 93941

743 691772

621 692310 Switch-Stop

627 692872 Bracket-Stop Switch

633 e,691321 Seal-Choke/Throttle

Shaft

(Throttle)

633A et693867 Seal-Choke/Throttle

Shaft

(Choke)

635 66538 Boot-Spark Plug

651 93490 Screw

(Starter Gear Cover)

664 691087 Nut

(Key Switch)

668 *493823 Spacer

(Includes 2)

670 692294 Spacer-Fuel Tank

676 396548 Deflector-Muffler

(Louvered)

676A 393756 Deflector-Muffler

(Side Out)

676B 397931 Deflector-Muffler

(Direct Out)

676C 493871 Deflector-Muffler

(Side Out) (Extended)

677 690661 Screw

(Muffler Deflector)

684 690345 Screw

(Breather Passage

Cover)

745 691648

783 691918

783A 691269

784 692341

785 692352

789 695551

789A 695552

789B 696547

Spring-Friction

Spring-Detent

Screw

(Drive Cap)

Screw

(Shaft Stop)

Pin-Locating

Stop-Shaft

Gear-Timing

Retainer-E Ring

Gear-Drive

(Counterclockwise)

Note ----

690516 Gear-Drive

(Clockwise)

Used on Type No(s).

0823.

Screw

(Brake)

Gear-Pinion

(19 Teeth)

(Starter Drive)

Gear-Pinion

(12 Teeth)

Cover-Starter Gear

Gasket-Starter Cover

Harness-Wiring

Used on Type No(s).

3179.

Harness-Wiring

(Used After Code Date

00040600).

Note ----

691372 Harness-

Wiring

(Used Before Code

Date 00040700).

Harness-Wiring

Used on Type No(s).

0665, 0672, 1373,

1936, 1990, 1991,

2388, 2396, 2648,

3127, 3130, 3312,

3315.

* Included in Engine Gasket Set-Ref. No.358.

•Included in Carburetor Overhaul Kit-Ref. No. 121. _, Included in Carburetor Gasket Set-Ref. No. 977.

Q Included in Valve Gasket Set-Ref. No 1095.

Illustrations cover arange of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-15 Assemblies include all parts shown in frames.

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

PART REF. PART PART

NO. DESCRIPTION NO. NO. NO. DESCRIPTION

870 690380

REE

NO.

801 690782

802 695267

803 695266

Cap-Drive

Cap-End

(Used After Code Date

00040600).

Note ----

695975 Cap-End

(Used Before Code

Date 00040700).

Housing-Starter

(Used After Code Date

00040600).

Note ----

695975 Housing-

Starter

(Used Before Code

Date 00040700).

832 499034 Guard-Muffler

832A 691424 Guard-Muffler

832B 497683 Guard-Muffler

836 690664 Screw

(Muffler Guard)

836A 690661 Screw

(Muffler Guard)

836B 691147 Screw

(Muffler Guard)

842 *691031 SeaI-O Ring

(Dipstick Tube)

843 691884 Sleeve-Lever

(Speed Control)

843A 691895 Sleeve-Lever

(Choke)

847 692017 Dipstick/Tube

Assembly

851 493880

853 695268

869 691155

Note ----

692047 Dipstick/Tube

Assembly

Used on Type No(s).

1720.

Terminal-Spark Plug

Adapter-Wire

Seat-Valve

(Intake)

871 262001

883 *0691881

892 690646

910 691094

921 497233

921A 695886

921B 692931

921C 695889

921E 696262

921F 697343

922 691831

922A 692135

RER

DESCRIPTION NO.

Seat-Valve

(Exhaust)

Bushing-Valve Guide

(Exhaust) Note ----

63709 Bushing-Valve

Guide

(Intake)

Gasket-Exhaust

Switch-Key

Stud

(Alternator)

Cover-Blower Housing

(Static Guard) (5.5)

Note ----

692933 Cover-Blower

Housing

Used on Type No(s).

1520, 1530, 1531,

1567, 2611,2612,

2630, 2631,2667,

2678.

Cover-Blower Housing

(Black)

Cover-Blower Housing

(Static Guard) (XTE)

Used on Type No(s).

2320, 2331,2626,

2391,2396.

Cover-Blower Housing

(Static Guard)

(Satin Black)

Used on Type No(s).

2324, 2384, 2385,

2386, 2387, 2388,

2389, 2390, 2394,

2395.

Cover-Blower Housing

Spring-Brake

923 691994

923A 695891

925 690595

930 691919

930A 691345

935 499421

937 691325

940 690664

957 397974

957A 692046

966A 496116

967A 493537

968B 692298

969 690700

969A 691138

Brake

Cover-Linkage

Guard-Rewind

(Round)

Guard-Rewind

(Teardrop)

Switch-Interlock

(Used After Code Date

92100600).

Note ----

398758 Switch-

Interlock

(Used Before Code

Date 92100700).

Spline-Starter

Screw

(Casing Clamp

Bracket)

Cap-Fuel Tank

(Plastic)

(Black) Note ----

692662 Cap-Fuel

Tank

(Plastic)

(Red)

Used on Type No(s).

2384, 3312.

Cap-Fuel Tank

(Plastic)

Base-Air Cleaner

Primer

Filter-Pre Cleaner

Cover-Air Cleaner

Screw

(Blower Housing

Cover)

Screw

(Blower Housing

Cover)

* Included in Engine Gasket Set-Ref. No.358.

• Included in Carburetor Overhaul Kit-Ref. No. 121. _, Included in Carburetor Gasket Set-Ref. No. 977.

Q Included in Valve Gasket Set-Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-16 Assemblies include all parts shown in frames.

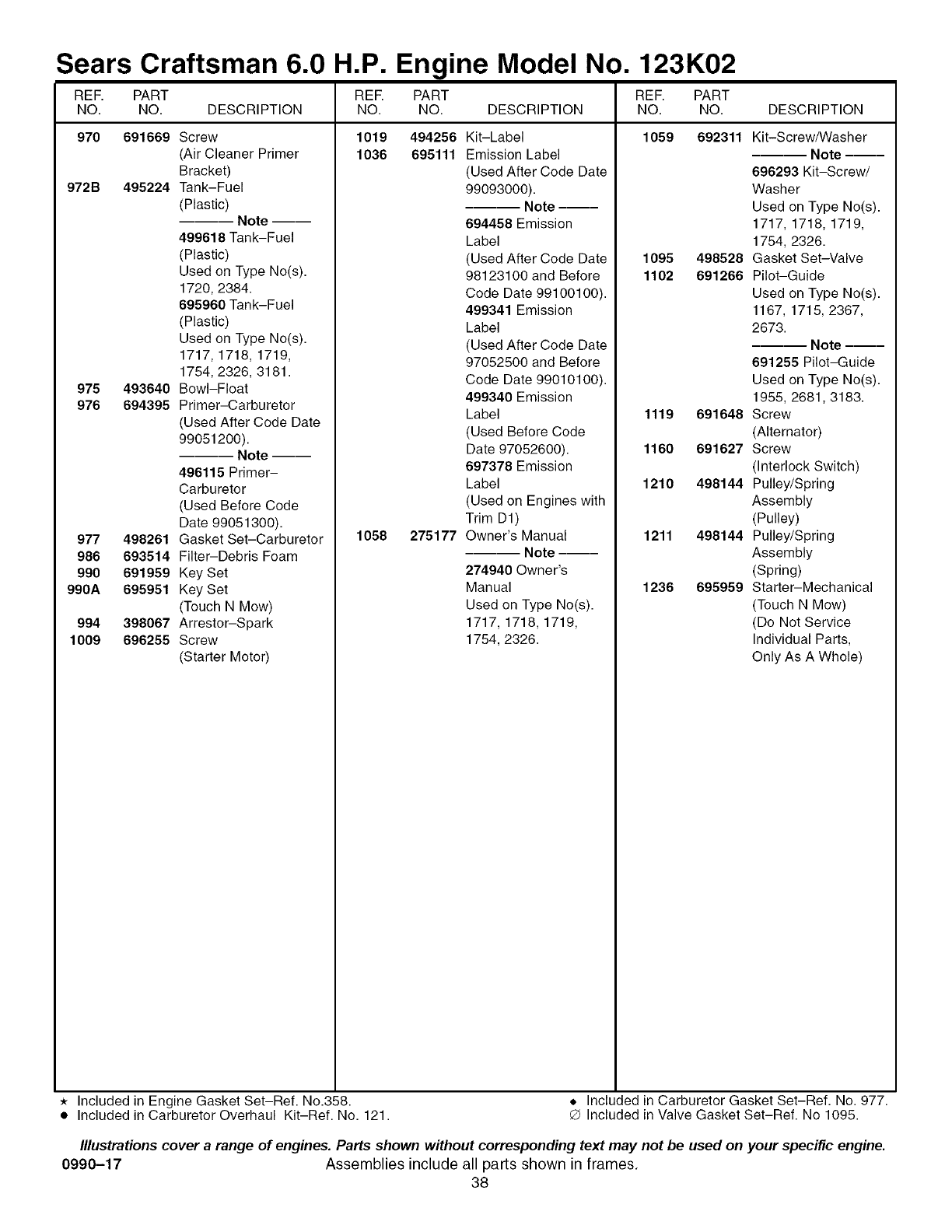

Sears Craftsman 6.0 H.P. Engine Model No. 123K02

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

970 691669 1059 692311Screw

(Air Cleaner Primer

Bracket)

972B 495224 Tank-Fuel

(Plastic)

Note ----

499618 Tank-Fuel

(Plastic)

Used on Type No(s).

1720, 2384.

695960 Tank-Fuel

(Plastic)

Used on Type No(s).

1717, 1718, 1719,

1754, 2326, 3181.

975 493640 Bowl-Float

976 694395 Primer-Carburetor

(Used After Code Date

99051200).

Note ----

496115 Primer-

Carburetor

(Used Before Code

Date 99051300).

977 498261 Gasket Set-Carburetor

986 693514 Filter-Debris Foam

990 691959 Key Set

990A 695951 Key Set

(Touch N Mow)

994 398067 Arrestor-Spark

1009 696255 Screw

(Starter Motor)

NO.

1019

1036

1058

NO. DESCRIPTION

494256 Kit-Label

695111 Emission Label

(Used After Code Date

99093000).

Note ----

694458 Emission

Label

(Used After Code Date

98123100 and Before

Code Date 99100100).

499341 Emission

Label

(Used After Code Date

97052500 and Before

Code Date 99010100).

499340 Emission

Label

(Used Before Code

Date 97052600).

697378 Emission

Label

(Used on Engines with

Trim D1)

275177 Owner's Manual

Note ----

274940 Owner's

Manual

Used on Type No(s).

1717, 1718, 1719,

1754, 2326.

1095 498528

1102 691266

1119 691648

1160 691627

1210 498144

1211 498144

1236 695959

Kit-Screw/Washer

Note ----

696293 Kit-Screw/

Washer

Used on Type No(s).

1717, 1718, 1719,

1754, 2326.

Gasket Set-Valve

Pilot-Guide

Used on Type No(s).

1167, 1715, 2367,

2673.

Note ----

691255 Pilot-Guide

Used on Type No(s).

1955, 2681,3183.

Screw

(Alternator)

Screw

(Interlock Switch)

Pulley/Spring

Assembly

(Pulley)

Pulley/Spring

Assembly

(Spring)

Starter-Mechanical

(Touch N Mow)

(Do Not Service

Individual Parts,

Only As A Whole)

* Included in Engine Gasket Set-Ref. No.358.

• Included in Carburetor Overhaul Kit-Ref. No. 121. _, Included in Carburetor Gasket Set-Ref. No. 977.

Q Included in Valve Gasket Set-Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0990-17 Assemblies include all parts shown in frames.

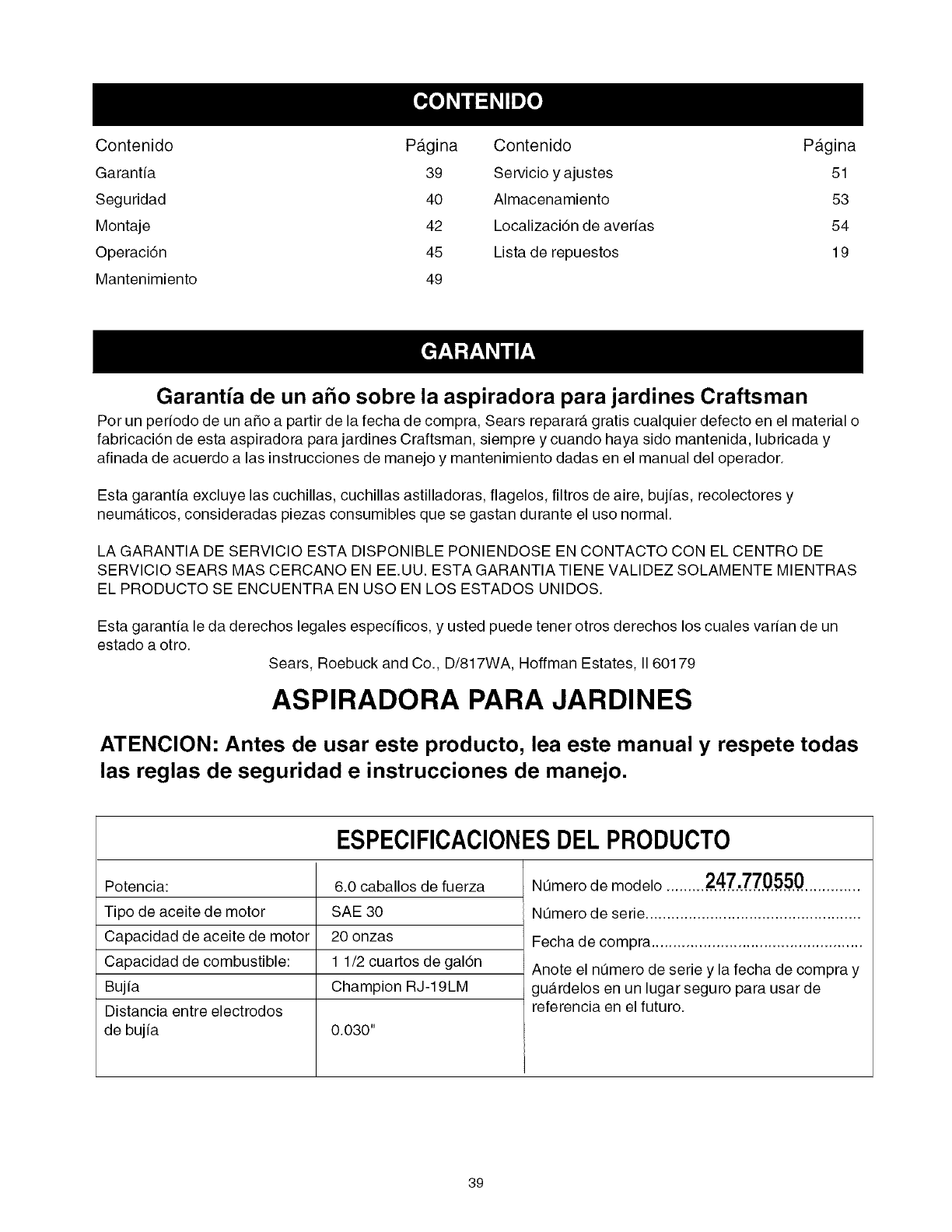

Contenido Pagina Contenido Pagina

Garantfa 39 Servicioyajustes 51

Seguridad 40 Almacenamiento 53

Montaje 42 Localizaci6ndeaverfas 54

Operaci6n 45 Listaderepuestos 19

Mantenimiento 49

Garantia de un a_o sobre la aspiradora para jardines Craftsman

Por un perfodo de un a_o a partir de la fecha de compra, Sears reparara gratis cualquier defecto en el material o

fabricaci6n de esta aspiradora para jardines Craftsman, siempre y cuando haya sido mantenida, lubricada y

afinada de acuerdo alas instrucciones de manejo y mantenimiento dadas en el manual del operador.

Esta garantia excluye las cuchillas, cuchillas astilladoras, flagelos, filtros de aire, bujfas, recolectores y

neumaticos, consideradas piezas consumibles que se gastan durante el uso normal.

LA GARANTIA DE SERVICIO ESTA DISPONIBLE PONIENDOSE EN CONTACTO CON EL CENTRO DE

SERVICIO SEARS MAS CERCANO EN EE.UU. ESTA GARANTIATIENE VALIDEZ SOLAMENTE MIENTRAS

EL PRODUCTO SE ENCUENTRA EN USO EN LOS ESTADOS UNIDOS.

Esta garantfa le da derechos legales especificos, y usted puede tener otros derechos los cuales varfan de un

estado a otro.

Sears, Roebuck and Co., D/817WA, Hoffman Estates, II 60179

ASPIRADORA PARA JARDINES

ATENCION: Antes de usar este producto, lea este manual y respete todas

las reglas de seguridad e instrucciones de manejo.

ESPECIFICACIONESDELPRODUCTO

Potencia:

Tipo de aceite de motor

Capacidad de aceite de motor

Capacidad de combustible:

Buj fa

Distancia entre electrodos

de bujfa

6.0 caballos de fuerza

SAE 30

20 onzas

1 1/2 cuartos de gal6n

Champion RJ-19LM

0.030"

NQmero de modelo ......... 2.47.77..0..5..5...0..............

NQmero de serie ..................................................

Fecha de compra .................................................

Anote el nQmero de serie y la fecha de compra y

guardelos en un lugar seguro para usar de

referencia en el futuro.

ADVERTENCIA: Este sfmbolo indica instrucciones de seguridad muy importantes las que, si no

se siguen, podrian poner en peligro la seguridad personal y/o causar dafios fisicos. Antes de

intentar manejar esta aspiradora para jardines, se debe leer y seguir todas las instrucciones que

aparecen en este manual. Si no se cumplen estas instrucciones se corre el riesgo de sufrir lesiones.

Cuando en el manual aparece este simbolo, respetar su advertencia.

ADVERTENCIA: El gas de escape emitido por el motor de esta maquina contiene componentes

qufmicos que en el Estado de California son considerados como causantes de cancer, defectos de

nacimiento u otros dares a los organos de la reproduccion.

ADVERTENCIA: La aspiradora para jardines fue fabricada para ser manejada de acuerdo alas reglas

de seguridad descritas en este manual. Come sucede con cualquier tipo de equipo motorizado, el descuido

o error de parte del operador puede tenet come resultado graves lesiones. Esta maquina es capaz de

amputar dedos y manes y lanzar objetos con fuerza. Si no se siguen las instrucciones de seguridad

siguientes se esta. expuesto a sufrir graves lesiones o la muerte.

OPERACIONENGENERAL

• Leer todo este manual del operador

cuidadosamente antes de intentar armar la

maquina. Leer, comprender y seguir todas las

instrucciones que se encuentran en la maquina y

en el manual (manuales) antes de manejarla.

Aprender completamente el manejo de los

controles y el uso correcto de la m&quina antes de

manejarla. Guardar este manual en un lugar

seguro para usarlo como un libro de consulta en el

future y cuando sea necesario pedir piezas de

repuesto.

• La aspiradora para jardines es una herramienta

muy potente, no es un juguete. Per Io tanto, actuar

con sumo cuidado en todo momento. La maquina

fue disehada para astillar, triturar, aspirar y soplar

(cuando estA equipada con el accesorio) la

vegetaci6n encontrada en un jardin o patio normal.

No se debe usar para ningQn otro prop6sito.

• No dejar nunca que nihos menores de 16 ares de

edad manejen esta mAquina. Los niSos mayores

de 16 ares siempre deben manejarla bajo la

supervisi6n de un adulto. Solamente debe

permitirseles manejar esta m&quina alas personas

responsables que conozcan bien estas reglas de

seguriclad de manejo.

• Mantener el lugar de trabajo despejado de

personas, especialmente nihos pequehos. Apagar

el motor cuando se encuentren cerca de la

maquina.

• Cuando se este introduciendo material a este

equipo, tenet mucho cuidado de no incluir pedazos

de metal, rocas, botellas, latas u otros objetos

extrahos. Se podrfa causar lesiones personales o

daSar la maquina.

• Siempre usar anteojos o gafas de seguridad,

durante el manejo y mientras se hacen ajustes o

reparaciones, para protegerse los ojos contra

objetos extrahos que puedan ser lanzados por la

maquina.

• Usar zapatos de trabajo gruesos y con suela

aspera, y pantalones y camisa bien ceSidos. Se

recomienda usar camisas y pantalones que cubran

los brazos y las piernas, y zapatos con puntas de

acero. No usar ropa suelta o joyas, y atarse el

cabello mas arriba de los hombres. Pueden quedar

atrapados en las piezas en movimiento. Nunca

manejar la ma.quina descalzo, con sandalias o

zapatillas. Ponerse guantes para introducir el

material en el tube de triturado.

• No manejar la mAquina si se ha ingerido alcohol o

drogas.

• No tratar de alcanzar mas lejos de Io normal.

Mantener bien apoyado los pies y buen equilibrio

en todo momento.

• No porter nunca las manes ni ninguna parte del

cuerpo o indumentaria cerca de las piezas que

estan girando. Siempre mantenerse alejado de las

bocas de descarga. Nunca meter las manes ni

ninguna parte del cuero o indumentaria en la

boquilla, tubo de triturar o boca de descarga, pues

el rotor giratorio puede causar graves lesiones.

• Si per cualquier razon es necesario desatascar la

toma de alimentaci6n o la boca de descarga o

inspeccionar o reparar alguna pieza de la maquina

en una parte donde una pieza en movimiento

podrfa quedar en contacto con el cuerpo o

indumentaria, apagar el motor, esperar hasta que

se enfrfe, desconectar el cable de la bujia y

apartarlo de la bujia antes de intentar desatascar,

inspeccionar o reparar.

• Nunca manejar la maquina sin que tenga instalado

el recolector de la aspiradora o, siesta equipada

con tube soplador, bien conectado a la maquina. El

extreme abierto grande del recolector (bolsa) debe

estar cerrado para impedir que salgan objetos

soplados por la parte trasera del recolector.

• Cuando se trabaje con la funci6n de soplador (esta

maquina puede tener incluido el accesorio de tube

de soplado opcional):

• No situarse ni caminar delante de la boca de

descarga del soplador ni apuntarsela alas

personas, animales, vehiculos, etc. que se

encuentren cerca. Los objetos que salen

lanzados per la boca de descarga puede

causar lesiones personales o daSos a la

propiedad.

• No dirigir la descarga del soplador contra una

pared u otra obstrucci6n vertical. El material

descargado puede rebotar hacia el operador.

• Ajustar la altura de la boquilla de aspiraci6n a

la posici6n mas alta para reducir la posibilidad

de que aspiren objetos mas pesados (per ej.,

piedras,pedazosdevidrioodemetal)y sean

lanzadosporlabocadedescarga.AIelevarla

boquillaa la posici6nmasalta tambien

incrementala admisi6nde aireparaIograr

mejorfuncionamientodelsoplador.

• No intentarnuncaretiraro vaciarel recolector

mientrasel motorestafuncionando.Apagarel

motory esperarhastaqueel rotorestedetenido

antesde retirarel recolector(bolsa).El rotor

contint]agirandoperalgunossegundosdespues

deapagarelmotor.Nuncaacercarningunaparte

delcuerpoalAreadelrotorsinantesasegurarse

dequehaparadedegirar.

• Mantenertodoslosprotectoresy dispositivosde

seguridaden su lugaryen buenestadode

funcionamiento.

• Nodejarquese acumulematerialtratadoenel

Areade descarga,puesimpedirala descarga

adecuada.

• Cuandoseintroduzcamaterialenlaastilladora,no

situarseconla carao el cuerpodirectamente

delantedeltubedelaastilladora.Situarsea un

lade.Elmaterialqueseesta.introduciendopuede

rebotarfueradeltubo.

• Siel mecanismodecortechequeconunobjeto

extrafioosilamaquinaempiezaahacerunruidoo

vibracioninusual,apagarinmediatamenteelmotor,

desconectarelcabledelabujiay apartarlodela

bujia.Dejarquelamaquinaseparey precederde

lamanerasiguiente:

• Buscarsihaydafio

• Repararocambiarlaspiezasdafiadas.

• Buscarpiezasflojasy apretarlasparaasegurar

unbuenfuncionamiento.

• El silenciadory el motorse calientany puede

causarquemaduras.Notocarlos.

• No dejarquelas hojasu otrosdesechosse

acumulenenelsilenciadordelmotor.Losdesechos

puedenencenderseycausarunincendio.

• Nohacerfuncionarelmotorsielfiltrodeaireo la

tapaencimadelatomadeairedelcarburadorno

estacolocada.El retirede dichaspiezaspuede

crearunpeligrodeincendio.

NII OS

Pueden ocurrir accidentes de tragicas consecuencias si el

operador no esta alerta a la presencia de nifios pequefios.

Los nifios son frecuentemente atraidos a los lugares

donde se esta astillando y aspirando hojas, ramas, etc.

Nunca suponer que los nifios van a permanecer en el

lugar donde se les viola t]ltima vez.

• No dejar que los nifios se acerquen al lugar de

trabajo y mantenerlos vigilados por un adulto

aparte del operador.

• Estar alerta y apagar el motor si un nifio se

aproxima al lugar.

• Nunca permitir que nifios menores de 16 aries de

edad manejen la aspiradora para jardines.

SERVlCIO

• Tener sumo cuidado cuando se maneje gasolina y

otros combustibles. Son muy inflamables y sus

vapores son explosives.

• Guardar el combustible y el aceite en

contenedores aprobados, lejos del calory

llamas expuestas, y lejos del alcance de los

nifios.

• Revisar el nivel y cargar combustible antes de

arrancar el motor. Nunca quitar la tapa del

tanque de combustible ni afiadir combustible

mientras el motor esta funcionando. Siempre

dejar que el motor se enfrie por Io menos

durante dos minutes antes de cargar

combustible.

• Antes de arrancar el motor, colocar la tapa del

tanque de gasolina bien apretada y limpiar con

un trapo la gasolina que pueda haberse

derramado ya que podrfa causar un incendio o

explosion.

• Apagar los cigarrillos, cigarros, pipas y otras

fuentes de ignici6n.

• Nunca cargar combustible en el interior de

edificios porque pueden acumularse vapores

inflamables en el Area.

• Nunca guardar la maquina o el contenedor de

combustible en interiores donde haya una

llama expuesta o chispas, come per ejemplo,

un calentador de agua caliente, secadora de

ropa o un calefactor de gas.

• No hacer funcionar nunca la maquina en un lugar

cerrado pues el gas de escape del motor contiene

mon6xido de carbono, el cual es un gas inodoro,

insipido y mortalmente venenoso.

• Para reducir el peligro de incendio, mantener el

motor y el silenciador libres de hojas, paste y otra

acumulaci6n de desechos. Limpiar el combustible y

aceite derramado. Dejar que la maquina se enfrfe

durante per Io menos 5 minutes antes de guardarla.

• Antes de limpiar reparar o inspeccionar, cerciorarse

de que el rotor y todas las piezas m6viles se hayan

detenido. Desconectar el cable de la bujia y

apartarlo de la bujia para impedir el arranque

accidental del motor. No usar soluciones

inflamables para limpiar el filtro de aire.

• Mantener todas las tuercas, pernos y tomillos

apretados para asegurar que el equipo este en

buenas condiciones de funcionamiento.

• Nunca estorbar los dispositivos de seguridad.

Probar su funcionamiento periodicamente.

• Despues de chocar con un objeto extrafio, apagar

inmediatamente el motor, desconectar el cable de

la bujia y hacer una inspeccion minuciosa de la

maquina en busca de algt]n dafio. Reparar el dafio

antes de arrancar el motor y manejar la maquina.

• No alterar ni estorbar el ajuste del gobernador del

motor. El gobernador controla la velocidad maxima

segura del motor. El hacer funcionar el motor a

sobrevelocidad es peligroso y se dafiara el motor y

las otras piezas m6viles de la ma.quina.

• Revisar el recolector (bolsa) de la aspiradora

frecuentemente. Cambiarlo siesta desgastado o

dafiado.

• Mantener el recolector sin desechos cuando no

este en uso.

Botella de 20 oz.

aceite para

motor

Tubo de

soplado \\

Guia de

Manillar

inferior

Tuercas de

mariposa \\

Tornillo\de

carruaje

_\\\\

"Manija

Montaje

Tuerca de

mariposa

Tuercas

mariposa

Manillar

/superior

Bolsa

NOTE: Para determinar los lados derecho e

izquierdo de la aspiradora para jardines, situarse

detras de la maquina, en posicidn de manejarla. Ver

la flgura 1.

La aspiradora para jardines fue armada en la fabrica,

con la excepci6n del manillar, recolector y tubo de

soplado. Estos componentes se envfan sueltos en la

caja de cart6n. En la caja tambien se incluyen

anteojos de seguridad y una botella de 20 onzas de

aceite para motor. Ver la figura 1.

DESEMBALAJE

•Cortar las esquinas de la caja.

• Quite todas las piezas flojas.

• Quite el material de embalaje.

• Levante la unidad de la parte posterior para

desechar el material de embalaje de la unidad

inferior y de la unidad del rodillo de cart6n.

• Controle el cart6n a conciencia para saber si hay

cualquier otra pieza floja.

PIEZASSUELTAS

Ver la figura 1

• Montaje del manillar

• Recolector (bolsa)

• Montaje del tubo de soplado

• Anteojos de seguridad (no se muestran)

• Botella de 20 onzas de aceite para motor

• Manual del operador

DESCONEXIONDELABUJIA

Antes de comenzar a armar la nueva aspiradora para

jardines, desconectar el cable de la bujfa y conectarlo

a tierra en el pilar retenedor en el motor. Esto

impedira el arranque accidental del motor. Ver la

figura 2.

Pilaf retenedor

Figura 2

Figura 1

IMPORTANT: Esta maquina sali6 de fabrica sin

gasolina y sin aceite en el motor. Despues de

armada, ver la secci6n OPERACION en este manual

para informarse sobre el Ilenado de aceite del motor y

el tipo de combustible.

INSTALACIONDELMANILLAR

• Plegar el manillar superior hasta que quede

alineado con el manillar inferior. Ver la figura 1.

• Fijarlo bien apretando las tuercas de mariposa

superiores, las cuales conectan juntos los dos

manillares.

• Retirar las chavetas de las escuadras del

manillar y los tornillos de carruaje (cabeza de

hongo y cuello cuadrado) y tuercas de mariposa

del manillar inferior. Ver la figura 3.

• Colocar el manillar inferior sobre los pasadores

en las escuadras y fijarlos con las chavetas,

tornillos de carruaje y tuercas de mariposa.

Tuercas de

mariposa

Figura 3

En el lado derecho del manillar superior se

encuentra una gufa para la cuerda. Aflojar la

tuerca de mariposa que sujeta la gufa.

Tirar la cuerda de arranque fuera del motor

lentamente y deslizarla a traves de la gufa.

Apretar la tuerca de mariposa. Tolva de Soplador

Instalaci6ndelm0ntajedela manguera

• Deslice el adaptador para manguera del montaje

de la misma hacia el interior del adaptador base

ubicado a la izquierda y al frente de la aspiradora

para patios. Ver Figure 4.

• Tire del perno con resorte del lado exterior de la

base y ponga el perno en Ifnea con el primer

agujero del adaptador para manguera.

• Suelte el perno para ajustar la manguera en su

lugar.

• Conecte la manija de la manguera ubicada cerca

del extremo con pico de la misma al soporte

lateral de la manija superior. Consulte Figure 4.

Manguera

Resorte

Figure 4

Una a presi6n la manija de la manguera con el

soporte de la manija inferior para ajustarla en su

lugar y coloque el caSo de la manguera en el

gancho del soporte lateral que se encuentra

pr6ximo al canal de la cortadora. Consulte

Figura 7.

INSTALACIONDELRECOLECTOR

• Asir el mango del recolector con una mano y, con

la otra mano, tirar de la varilla de fijaci6n en la

escuadra de montaje hacia el motor. Use el final

de soporte de montaje como el apalancamiento

deslizando la barra que se cierra. Ver la Figura 5.

• Deslizar el recolector por encima del borde de la

boca de descarga y soltar la varilla de fijaci6n

para sujetar el recolector en su lugar.

• Colocar las correas inferiores del recolector

sobre el manillar inferior, enganchb.ndolas en los

esparragos.

• Encajar el clip del recolector en la parte superior

del manillar inferior.

Manija de

Bolso \\

Tachor

Figura 5

NOTE: Cuando se coloque el recolector en la

maquina, el boton interruptor de seguridad adosado

a la escuadra de montaje debe quedar totalmente

oprimido por la lengfJeta delantera ubicada en el

mango del recolector, de Io contrario el motor no

arrancara.

INSTALACIONDELTUBODESOPLADO

NOTE: Antes de instalar el tubo de soplado se debe

retirar el recolector.

• Asireltubodesopladoconunamanoy,conlaotra

mano,tirardelavarilladefijaci6nenlaescuadra

demontajehaciaelmotor.Useelfinaldesoporte

demontajecomoelapalancamientodeslizandola

barraquesecierra.VerlaFigura6.

• Deslizareltubodesopladopotencimadelborde

delabocadedescargay soltarlavarilladefijaci6n

parasujetareltuboensulugar.

• Cuandosevaausareltubodesoplado,elevarla

boquillaalaposici6nmasalta.Verelajustedela

boquillaenlasecci6nAJUSTES.

NOTE:El boron interruptor de seguridad adosado a la

escuadra de montaje debe quedar totalmente oprimido

por la lengdeta delantera ubicada en tubo de soplado,

de Io contrario el motor no arrancara.

Cierre de

Barra

Tolva de

_Soplador

Etiqueta

Delantera

Cierre de

Barra

Figura 6

Conozca su aspiradora para jardines

Lea este manual del operador y las reglas de seguridad antes de manejar su aspiradora para jardines.

Compare las ilustraciones presentadas mas abajo con su equipo para que conozca bien la ubicaci6n de los

distintos controles y ajustes. Guarde este manual para consultarlo en el futuro.

El manejo de cualquier aspiradora para jardines sopladora puede causar el lanzamiento de

objetos extraSos contra los ojos y lesionarlos gravemente. Use siempre los anteojos de

seguridad, suministrados con la aspiradora para jardines Craftsman, para manejar este

equipo o mientras le hace trabajos de ajuste o reparaci6n.

Manija del arrancador

Soporte

Soporte de .....

Control la manija

del Acelerador Manija de

Bolsa

Manija de la bolsa

Canal de

la cortadora Pico /Manguera

Manija de la aspiradora

Gancho lateral

Montaje de la manguera

_PPico Canal de soplado

Palanca de

Estrangulador

Altura del pico

Palanca de ajuste

Figura 7

CONTROLESDEOPERACION

Tubo de astillado

Permite introducir ramillas y ramas peque_as de

hasta 1-1/2" de diametro en el rotor para astillarlas.

Boquilla

Los desechos del jardfn tal como hojas y agujas de

pino pueden aspirarse a traves de la boquilla para

luego triturarlos.

Recolector

Junta todo el material triturado que rue introducido a

traves del tubo de astillado o que fue aspirado a

traves de la boquilla.

Tubo de soplado

Cuando esta instalado en la m_.quina, este tubo se

usa para soplar o esparcir los desechos del jardfn tal

como hods, agujas de pino o ramillas pequeSas.

Mango del recolector

Se usa para agarrar el recolector y poderlo instalar,

retirar y vaciar.

Palanca de ajuste de altura de la boquilla

Se usa para ajustar la altura entre la boquilla y el

suelo, variando de 5/8" a 4 1/8".

Palanca de control del acelerador

Esta palanca enica controla la velocidad del motor.

Pasando por cuatro posiciones separadas en la

palanca, de izquierda a derecha, el funcionamiento

es el siguiente:

Rapido Lento Motor

apagado

NOTE: De conformidad con las normas de seguridad de ANSI

NOTE: Las maquinas aspiradoras para jardines Craftsman cumplen con las normas de seguridad del

Instituto de Normalizaci6n Nacional de EE.UU. (ANSI).

M0ntajede la manguera

Se usa como alternativa del uso del pico para aspirar

los desechos que se acumulan en los patios como

por ejemplo las hojas o las agujas de los pinos que

se encuentran en lugares de diffcil acceso.

Manija de la manguera

Se utiliza para guiar el montaje de la manguera

mientras se aspira.

Manija delpic0/manguerade la aspirad0ra

La manija del pico /manguera de la aspiradora se

encuentra en la parte superior del pico y se utiliza

para regular la aspiraci6n entre el pico y el montaje

de la manguera.

Mango de arranque

Se usa para arrancar el motor.

LLENADODEGASOLINAYACEITE

Aceite (una botella de 20 onzas enviada

con la maquina)

Usar Qnicamente aceite detergente de buena calidad

clasificado con la clasificaci6n de servicio SF, SG o

SH de la API. Escoger el grado de viscosidad SAE

del aceite de acuerdo con la temperatura de trabajo

anticipada. Guiarse por el grafico siguiente.

M_.s _ Mas

frio _ 32°F _-_ caluroso

5W30 SAE 30

Grafico de viscosidad

NOTE: Aunque los aceites de mdltiple viscosidad

(5W30, 10W30, etc.) mejoran el arranque del motor

en climas frfos, causaran un mayor consumo de

aceite cuando se usan a temperaturas sobre 32°F.

(O°C). Revisar el nivel de aceite del motor

frecuentemente para evitar el posible da#o del motor

en caso de funcionar con muy poco aceite.

• Retirar la varilla de medici6n de aceite.

• Con la aspiradora para jardines en suelo piano,

usar un embudo para Ilenar el motor con aceite

hasta la marca FULL (LLENO) en la varilla. La

capacidad es de aproximadamente 20 onzas.

Tener cuidado de no Ilenar demasiado. El

exceso de aceite puede hacer humear el motor y

reducir su buen funcionamiento. La botella de

aceite incluida con la aspiradora para jardines

contiene 20 onzas de aceite.

• Revisar el nivel de aceite asegurandose de no

frotar la varilla a Io largo de las paredes interiores

del tubo de Ilenado de aceite. Esto producirfa

una indicaci6n err6nea del nivel en la varilla.

Llenar hasta la marca FULL, si es necesario.

Volver a colocar la varilla de medici6n y apretarla.

Revisar el nivel de aceite tres veces antes de

arrancar el motor para cerciorarse de que se

obtiene una indicaci6n correcta en la varilla. Si se

hace funcionar el motor con muy poco aceite se

puede daSar para siempre.

Gasolina

• Quitar la tapa del tanque de gasolina.

• Asegurarse de que el contenedor del cual se

vertera gasolina este limpio y sin 6xido o

particulas extraSas. Nunca usar gasolina vieja

que haya estado mucho tiempo guardada en el

contenedor. La gasolina que ha estado en el

contenedor por mb.s de cuatro semanas debera

considerarse vieja.

• Llenar el tanque enicamente con gasolina para

autom6viles regular sin plomo, superior sin

plomo o reformulada. NO usar etilo o gasolina de

alto octanaje. No usar gasolina que contenga

METANOL. Volver a colocar la tapa.

• Para evitar problemas en el motor, vaciar el

sistema de combustible antes de guardar la

maquina por 30 dfas o mas tiempo. Vaciar el

tanque de gasolina, arrancar el motor y dejar que

funcione hasta que la tuberfa de combustible y el

carburador esten vacios. En la pr6xima

temporada, usar combustible fresco. Para mas

informaci6n, ver la secci6n ALMACENAMIENTO.

• Nunca usar productos limpiadores del motor o

carburador en el tanque de combustible, se

puede causar da5o permanente.

ADVERTENCIA: Nunca Ilenar el tanque

de gasolina en el interior de un edificio,

con el motor funcionando o mientras el

motor esta caliente. No fumar mientras

se Ilena el tanque de gasolina. Para

evitar derrames y permitir la expansibn

del combustible, Ilenar solamente hasta

112 pulgada de la parte superior del

tanque de gasolina.

Revisar el nivel de combustible peri6dicamente

para evitar que se acabe la gasolina mientras la

aspiradora para jardines esta funcionando. Si a la

maquina se le agota el combustible mientras esta

astillando, sera necesario desatascar la maquina

antes de volver a arrancar el motor. Ver la

secci6n SERVICIO Y AJUSTES.

PARAAPAGARELMOTOR

• Mover la palanca de control del acelerador a la

posici6n STOP (APAGAR).

Desconectarelcabledelabujfayconectarloa

tierraenelpilarretenedorparaimpedirel

arranqueaccidentalmientraslamaquinaesta

sol&

ADVERTENCIA: AI mover la palanca de

mando de valvula reguladora, tenga

cuidado de superficies calentadas y de

bordes sostenidos del silenciador

guarde.

PARAARRANCARELMOTOR

1. Asocie el cargador del programa inicial del

alambre y del caucho del enchufe de chispa al

enchufe de chispa.

2. El bot6n del interruptor de bag/chute se debe

presionar completamente por la extremidad de la

tabulaci6n delantera en la manija del bolso o el

canal inclinado del soplador para que el motor

comience.

3. Cerci6rese de que alambre del interruptor de

bag/chute este conectado con el motor y que

puesto a tierra al corchete de montaje.

4. El dep6sito de gasolina se debe Ilenar 3/4 por

completo antes a empezar.

5. Mover la palanca de control del acelerador a la

posici6n RAPIDO.

6. Mover la palanca de estrangulador a la palanca

de control del acelerador. Vease El Cuadro 8.

Palanca de

control del acelerador

estrangulador

Figura 8

Estando parado detras de la unidad, agarre la

manija del arrancador y saque la cuerda hasta

que usted siente una fricci6n.

Tire de la cuerda con un movimiento rapido,

continuo, completo del brazo. Guarde un

apret6n firme en la manija del arrancador. Deje

la cuerda rebobinar lentamente.

Repetici6n, en caso de necesidad, hasta que el

motor comienza. Cuando el motor comienza,

mueva la palanca de la valvula reguladora /de

la estrangulaci6n gradualmente a la posici6n de

START/run.

10. Si el motor vacila, mueva la palanca de mando a

la posici6n de la ESTRANGULACIOn, entonces

de nuevo a la posici6n de START/run.

11. Mantenga SIEMPRE el control de valvula

reguladora la posici6n de START/run al

funcionar el vacfo de la yarda.

Descargadela b01sa

• Desenganche las tiras de la bolsa de la manija

inferior y desabroche el broche de la bolsa de la

parte superior de la manija inferior. Ver Figure 9.

• Tome la manija de la bolsa con una mano y tire

de la varilla de seguridad del soporte de montaje

hacia el motor con la otra mano para soltarla.

• Saque la bolsa del borde de la abertura de

descarga. Consulte Figura 4.

• Gire los dos botones de la parte posterior de la

bolsa para abrirla y vaciar el contenido. Ver

Figure 9.

Botones

Broche de

la bolsa

Aleta interior

Manija de

la bolsa

Aleta exterior

Figure 9

• Sostenga la manija y el broche de la bolsa

mientras vacfa el contenido.

• Comprima la abertura de la bolsa y doble la aleta

interior sobre la abertura.

• Doble la aleta exterior sobre la aleta interior e

inserte los botones de la bolsa a traves de las

salidas metalicas,

• Gire los botones para cerrar la bolsa.

Extracci6ndelcanaldes0plad0

• Tome el canal de soplado con una mano y tire de

la varilla de seguridad del soporte de montaje

hacia el motor con la otra mano para soltarlo.

Consulte Figura 6.

Saque el canal de soplado del borde de la

abertura de descarga.

Us0 del pic0 de la aspirad0ra

•Coloque la manija del pico /manguera de la

aspiradora en la posici6n superior del pico para

aspirar a traves del mismo. Ver Figure 10.

• El perno con resorte debe estar en el primer

agujero de la adaptaci6n de la manguera para

operar el pico de la misma.

• Coloque ambas manos en la parte superior de la

manija superior para desplazar la unidad por

encima de los desechos acumulados en el patio.

El desecho que se acumula en los patios como por

ejemplo las hojas y las agujas de los pinos pueden

aspirarse a traves del pico para triturarlos. Despues

clue ha triturado el material con las hojas de

desgranar del montaje del motor, el mismo sera

descargado a la bolsa colectora o a traves del canal

de soplado. $61o utilice la maquina para triturar o

picar el material integrante de la vegetaci6n que se

encuentra en un patio normal (es decir, ramas, hojas,

ramas pequeSas, etc.) Evite las plantas fibrosas

como por ejemplo las de tomates hasta que esten

totalmente secas. Se pueden introducir materiales

como por ejemplo troncos o ramas pesadas de hasta

1 1/2" de diametro en el canal de la cortadora.

Pico /manguera

Manija de la aspirador

Posicion superior

Us0 del m0ntajede la manguera

• Coloque la manija del pico /manguera de la

aspiradora en la posici6n de la base del pico

para volver a dirigir la aspiraci6n al montaje de la

manguera. Ver Figure 11.

• Para operar el ensamblado de la manguera, el

perno con resorte debe estar en el segundo

agujero del adaptador de la misma.

• Desenganche la manguera del soporte de la

manija superior y tome la manija de la manguera

para dirigirla mientras aspira los desechos que

se acumulan en los patios como por ejemplo

hojas o agujas de pinos que se encuentran en

lugares de diffcil acceso.

Pico /manguera

Manija de la as

(Posicion de la base,

Perno con resorte

(Segundo agujero,

Figure 11

Ajustedela alturadelpic0

Puede ajustar el pico en seis posiciones que vafian

desde 5/8" a 4 1/8" de distancia del suelo. Debe

ajustar la altura del pico segen las condiciones.

Mueva las palancas para ajustar la altura hacia

adelante o hacia atras para ajustar el pico hacia

arriba o hacia abajo. Ver Figure 11.

Perno con resorte j

(Primer agujero)

Figure 10

IMPORTANTE: La pantalla de desgranado esta

ubicada dentro de la caja en la zona de descarga. Si

se tapa la pantalla de desgranado, saquela y Ifmpiela

como se indica en SECCION 5: MANTENIMIENTO

DE LA ASPIRADORA PARA PATIOS. Para obtener

el mejor resultado es importante tambien mantener

afilada la hoja de la cortadora.

,_ ADVERTENClA: Siempre detenga el motor

y desconecte el cable de la bujia antes de

realizar cualquier ajuste.

PROGRAMA DE

MANTENIMIENTO S

_ Lubricaci6n

o Limpiar el equipo

Revisar nivel aceite

Campiar aceite motor

t¢

_ Limpiar filtro de aire

Limpiar la bujia

Limpiar el silenciador

Limpiar el motor _,,:._

REC01VlENDACIONESGENERALES

• Siempre respetar las reglas de seguridad durante

los trabajos de mantenimiento.

• La garantia de esta maquina no cubre los

componentes que han estado sujetos a maltrato o

descuido. Para recibir todo el valor de la garantia,

el operador debe conservar el equipo tal como se

indica en este manual.

• Serb. necesario hacer algunos ajustes

peri6dicamente para mantener el equipo en buen

estado.

• Seguir el programa de mantenimiento.

• Revisar peri6dicamente todos los pernos, tornillos,

tuercas, etc. y asegurarse que esten bien

apretados.

ADVERTENCIA: Siempre apagar el motor,

desconectar el cable de la bateria y

conectarlo a tierra antes de ejecutar el

mantenimiento o los ajustes.

LUBRICACION

•Ruedas - Una vez en la temporada, colocar unas

pocas gotas de aceite SAE 30 en cada tornillo de

reborde. Ver la Figura 7.

• Palancas de ajuste de altura de la boquilla -

Lubricar estas palancas con aceite ligero. Ver la

Figura 7.

• Varilla de fijaci6n - Lubricar la varilla y los resortes

de compresi6n que se encuentra fijados a la

escuadra de montaje. Ver la Figura 5.

LIMPIEZADELEQUIPO

• Limpiar a rondo la aspiradora para jardines

despues de cada uso.

• Lavar el recolector peri6dicamente con agua. Dejar

secar a la sombra.

• Si la rejilla se obstruye, retirarla y limpiarla como se

indica en la secci6n SERVlClO Y AJUSTES.

NOTE: No se recomienda limpiar la maquina con un

chorro fuerte de agua ya que se podrfa contaminar el

sistema de combustible.

REVISIONDELACEITEDELMIOTOR

• Retirar la varilla de medici6n de nivel de aceite.

• Revisar el nivel de aceite en la varilla. Debe estar

hasta la marca FULL (LLENO).

• Volver a colocar la varilla y apretarla.

CAIVlBI0DEACEITEDELMIOTOR

• Usar Qnicamente aceite detergente de buena

calidad clasificado con la clasificaci6n de servicio

SF, SG o SH de la API. Escoger el grado de

viscosidad SAE del aceite de acuerdo con la

temperatura de trabajo anticipada. Guiarse por el

grb.fico de viscosidad.

• Apagar el motor y dejar pasar varios minutos antes

de revisar el nivel de aceite. Con la maquina en

suelo nivelado, el aceite debe estar en la marca

FULL (LLENO) en la varilla de medici6n.

• Cambiar el aceite despues de las primeras cinco

horas de funcionamiento, y de alli en adelante

hacerlo cada veinticinco horas.

PARAVACIARELACEITE

Vaciar el aceite mientras el motor est,. caliente.

Seguir las instrucciones siguientes.

• Vaciar el tanque de gasolina, arrancar el motor y

dejarlo funcionando hasta que la tuberfa de

combustible y el carburador esten vacfos.

• Retirar la varilla de medici6n de Ilenado de

aceite.

• Inclinar la maquina sobre su costado para vaciar

el aceite por el tubo de Ilenado.

• Una vez que se ha vaciado todo el aceite del

motor, volver a Ilenar con aproximadamente 20

onzas de aceite fresco. Ver el parrafo sobre

Llenado de gasolina y aceite en la secci6n

OPERACION.

• Volver a colocar la varilla de medici6n.

SERVlCIODELFILTRODEAIRE

El filtro de aire impide la tierra, polvo, etc. dafiinos

entren al carburador y sean empujados al interior del

motor, yes importante para la duraci6n y

funcionamiento del motor. El filtro de aire es un filtro

de espuma de uretano. Nunca hacer funcionar el

motor sin tener el filtro de aire totalmente armado.

Paralimpiarelfiltr0 deaire:

• Retirar el filtro de espuma de la caja de plastico

ubicada encima del motor.

• Lavar en una soluci6n de agua y detergente, y

exprimirlo (sin estrujarlo) hasta quitarle todas las

impurezas.

• Enjuagar completamente en agua limpia.

• Envolverlo en un patio limpio y exprimirlo (sin

estrujar) hasta que este completamente seco, o

dejar secar al aire.

• Saturar con aceite para motor y exprimirlo para

distribuir el aceite y eliminar el aceite sobrante.

• Colocar el filtro de espuma dentro de la caja de

plastico.

NOTE: Si el filtro de espuma esta desgarrado o tiene

cualquier da#o, cambiarlo.

ADVERTENCIA: La temperatura del

silenciador y las areas cercanas puede

sobrepasar de 150°F (65°C). Evitar tocar

esas areas.

SERVlCIODELABUJIA

• Limpiar la bujfa y ajustar la distancia entre

electrodos a 0.030 pulgada por Io menos una vez

en la temporada o cada 50 horas de

funcionamiento. Ver la Figura 12. Se recomienda

cambiar la bujfa al comienzo de cada temporada

o estaci6n. Consultar la lista de repuestos del

motor para determinar el tipo correcto de bujfa.

NOTE: No limpiar la bujfa con un chorro de arena.

Hacerlo con un cepillo de alambre o una rasqueta y

lavarla con un solvente comercial.

Calibrador de separaciones _e 0.030"

Bujfa

Figura 12

SERVlCIODELSILENCIADOR

• Inspeccionar el silenciador peri6dicamente y

reemplazarlo cuando sea necesario.

• Si el motor tiene un chispero, retirarlo cada 50

horas de uso para limpieza e inspecci6n.

Reemplazarlo si esta dafiado.

WARNING: No manejar la aspiradora

para jardines sin que tenga instalado el

silenciador. No estorbar el sistema de

escape. El silenciador o chispero dafiado

puede crear un peligro de incendio.

LIIVlPIEZADELMIOTOR

• Para limpiar el motor, quitarle la tierra y residuos

con un patio o cepillo.

• Quitar frecuentemente los restos de pasto, tierra

y residuos de las aletas de enfriamiento, tamiz de

la toma de aire, palancas y varillaje. Esto

ayudara a asegurar el enfriamiento adecuado y

la velocidad del motor.

_ADVERTENCIA: Nunca hacer ningdn

ajuste a la maquina sin primero apagar el

motor y desconectar el cable de la bujia.

Ajustedela alturadelpico

Puede ajustar el pico en seis posiciones que varian

desde 5/8" a 4 1/8" de distancia del suelo. Debe

ajustar la altura del pico segQn las condiciones.

Mueva las palancas para ajustar la altura hacia

adelante o hacia atras para ajustar el pico hacia

arriba o hacia abajo. Ver Figure 13.

pico

maquina a un centro de servicio Sears para

reparacidn y ajuste.

,_ WARNING: No intentar alterar la

velocidad del motor moviendo el

varillaje del gobernador del motor. El

hacerlo podria resultar en graves

lesiones personales y dafio al motor.

La velocidad (rpm) del motor fue

ajustada en la fabrica.

ADVERTENCIA: Si al motor se le hace

cualquier ajuste (por ej., carburador)

mientras esta funcionando, mantenerse

movimiento. Tener cuidado de no tocar

el silenciador y todas las superficies

RETIR0DELA REJILLADEFLAGELOS

En el caso de que el Area de descarga esta obstruida,

retirar la rejilla de flagelos y limpiar el Area de la

manera siguiente.

• Apagar el motor. Asegurarse que la maquina

esta totalmente detenida.

•Desconectar el cable de la bujia y conectarlo

atierra antes de desatascar el tubo de descarga.

• Ver tener acceso a la rejilla de trituraci6n, retirar

el recolector o el tubo de soplado de la maquina

como se indica en la secci6n OPERACION. Ver

la Figura 14.

Ajuste

Pic Palanca

Figure 13 m m

AJUSTEDELCARBURADOR

ITENC _.:Si _ not 's,

ier aj ;te (p ej. ca

_sest runcio ndc m_

alejado de todas las piezas en

movimien

el silenci;

calientes, j'

El carburador rue preajustado en la fabrica y no

deberia necesitar ningQn ajuste. Si el motor no

funciona debidamente debido a posibles problemas

en el carburador, Ilevar la mb.quina a un centro de

servicio Sears para reparacidn y ajuste.

NOTE: El filtro de aire sucio causara el

funcionamiento irregular del motor. Asegurarse de

Iimpiar el filtro de aire y que est# conectado al

carburador antes de proceder a ajustar el carburador.

VELOCIDADDELMOTOR

La velocidad del motor de la aspiradora para

jardinesaspiradora para jardines rue ajustada en la

fabric& No intentar aumentar las revoluciones por

minuto del motor. En el caso de que el motor este

funcionando demasiado rapido o lento, Ilevar la

onal

Contratuerca Rejilla de flagelos

VISTA POSTERIOR

Figura 14

En el lado derecho de la maquina, quitar el

tornillo hexagonal que sujeta la rejilla de flagelos.

Verla Figura 15.

Tornillo

hexag,

Figura 15

• Retirar el tornillo hexagonal ubicados encima de

la carcasa trasera cerca de la escuadra de

montaje y la contratuerca que sujeta la rejilla de

flagelos. Ver las Figura 14.

• Retirar y limpiar la rejilla con una rasqueta o

lavarla con agua. Volver a instalar la rejilla.

AFILADO0REEMPLAZODELA

CUCHILLAASTILLADORA

Debido a que el motor de esta m_.quina tiene el

cigQefial c6nico, se necesita un extractor especial

(nQmero de pieza 753-0900) para retirar el impulsor.

Para asistencia tecnica, comunicarse con el centro

de servicio Sears.

NOTE: Cuando se vaya a inclinar la maquina, vaciar

el tanque de combustible y mantener el lado con la

bujfa del motor hacia arriba.

• Desconectar el cable de la bujfa y conectarlo a

tierra.

• Quite los tapacuboss delanteros, cierrese

chiflado, ruedas delanteras, y las arandelas de

onda(ola) que atan alas asambleas de brazo de

pivote. Ver la Figura 16.

Montaje giratorio

del brazo

Arandela de campana

Arandela

ondulatoria

bTapa del cubo

Con

Tornillo seguridad

Figura 16

• Quite los tornillos de hombro y las arandelas de

campana que examinan las armas(brazos) de

pivote a la abrazadera de apoyo delantera.

• Quitar los tres tornillos en la carcasa superior que

sujetan la cubierta de la boquilla y los nueve

tornillos que sujetan la carcasa inferior a la

superior. Ver la Figura 17.

• Quitar la contratuerca que sujeta la rejilla de

trituraci6n a la carcasa inferior. No es necesario

retirar la rejilla. Ver las Figura 14.

Caja

Caja inferior

Pic Tornillos

Tornillos

Figura 17

Quitar el perno hexagonal, la arandela de

seguridad y la arandela plana que sujetan el

conjunto rotor al cigQefial. Ver la Figura 18.

o1 Carcasa

Cuchilla "t " super or

astilladora HConjunto

hexagonal

seguridad

Arandela

plana

,Cuchilla

de flagelos

VISTA DE ABAJO ARRIBA

Figura 18

• Aplicar lubricante alas roscas del extractor del

rotor y luego enroscar el extractor en el cigQefial.

Parar cuando el rotor se pueda mover en el

cigQeSal.

• Retirar el rotor del cigQeSal. Desenroscar el

extractor del rotor.

• Retirar la cuchilla astilladora utilizando para ello

una Ilave allen de 3/16" en el exterior de la

cuchilla y una Ilave de 1/2" en el lado inferior del

rotor.

• Reemplazar o afilar la cuchilla astilladora.

• Para afilar la cuchilla, protegerse las manos con

guantes y seguir el _.ngulo original de afilado.

• Volver a ensamblar ejecutando los pasos

previosos en orden inverso.

Cuchilla de

flagelos

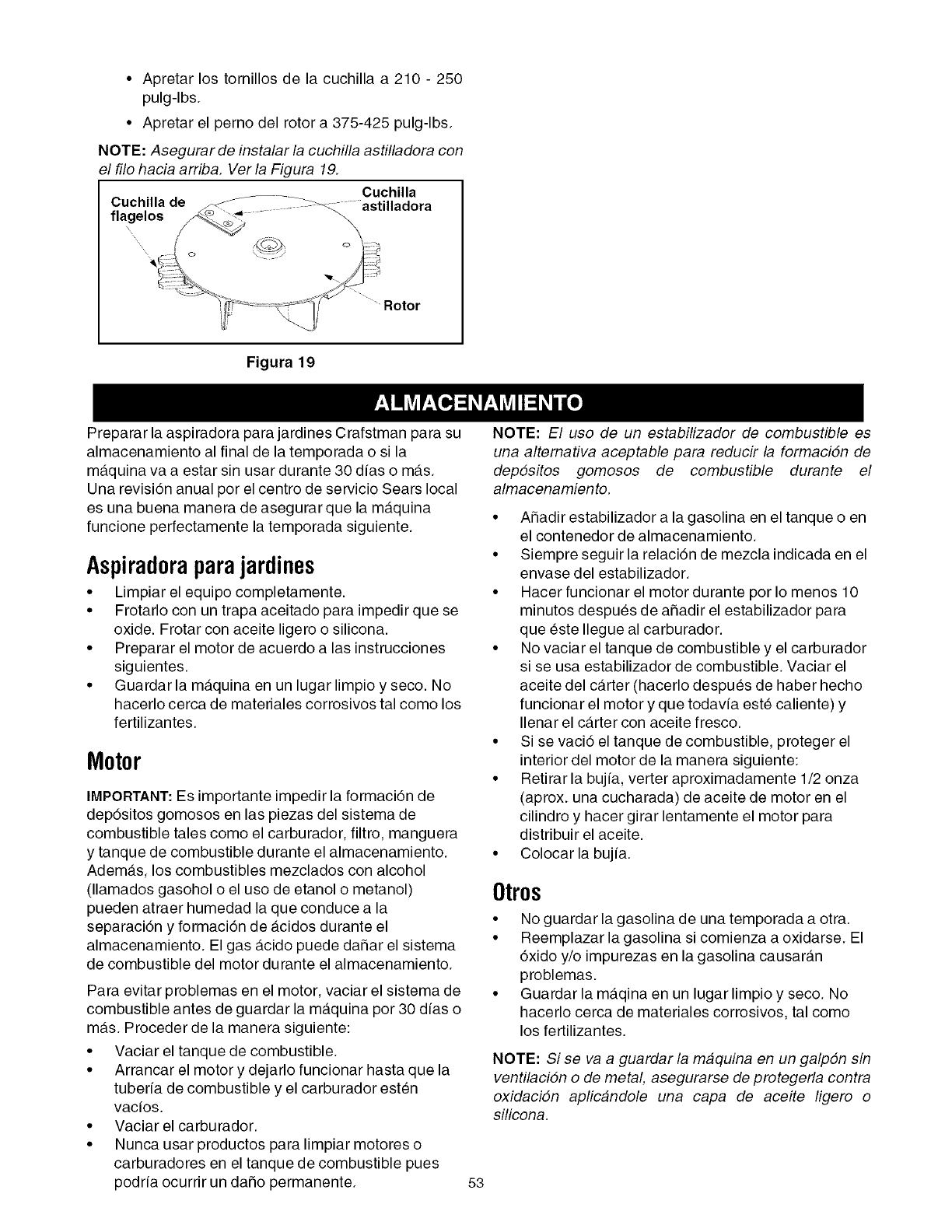

• Apretar los tornillos de la cuchilla a 210 - 250

pulg-lbs.

• Apretar el perno del rotor a 375-425 pulg-lbs.

NOTE: Asegurar de instalar la cuchflla astilladora con

el fllo hacia arriba. Ver la Figura 19.

J_ ............ Cuchilla

__ astilladora

Rotor

Figura 19

Preparar la aspiradora para jardines Crafstman para su

almacenamiento al final de la temporada o si la

maquina va a estar sin usar durante 30 dfas o mas.

Una revisi6n anual por el centro de servicio Sears local

es una buena manera de asegurar que la maquina

funcione perfectamente la temporada siguiente.

Aspirad0rapara jardines

• Limpiar el equipo completamente.

• Frotarlo con un trapa aceitado para impedir que se

oxide. Frotar con aceite ligero o silicona.

• Preparar el motor de acuerdo alas instrucciones

siguientes.

• Guardar la maquina en un lugar limpio y seco. No

hacerlo cerca de materiales corrosivos tal como los

fertilizantes.

Motor

IMPORTANT:Es importante impedir la formaci6n de

dep6sitos gomosos en las piezas del sistema de

combustible tales como el carburador, filtro, manguera

y tanque de combustible durante el almacenamiento.

Ademas, los combustibles mezclados con alcohol

(llamados gasohol o el uso de etanol o metanol)

pueden atraer humedad la que conduce a la

separaci6n y formaci6n de acidos durante el

almacenamiento. El gas acido puede daSar el sistema

de combustible del motor durante el almacenamiento.

Para evitar problemas en el motor, vaciar el sistema de

combustible antes de guardar la maquina por 30 dias o

mas. Proceder de la manera siguiente:

• Vaciar el tanque de combustible.

• Arrancar el motor y dejarlo funcionar hasta que la

tuberia de combustible y el carburador esten

vacios.

• Vaciar el carburador.

• Nunca usar productos para limpiar motores o

carburadores en el tanque de combustible pues

podria ocurrir un da_o permanente.

NOTE: El uso de un estabilizador de combustible es

una altemativa aceptable para reducir la formacidn de

depositos gomosos de combustible durante el

almacenamiento.

• A_adir estabilizador a la gasolina en el tanque o en

el contenedor de almacenamiento.

• Siempre seguir la relaci6n de mezcla indicada en el

envase del estabilizador.

• Hacer funcionar el motor durante por Io menos 10

minutos despues de a_adir el estabilizador para

que este Ilegue al carburador.

• No vaciar el tanque de combustible y el carburador

si se usa estabilizador de combustible. Vaciar el

aceite del carter (hacerlo despues de haber hecho

funcionar el motor y que todavia este caliente) y

Ilenar el carter con aceite fresco.

• Si se vaci6 el tanque de combustible, proteger el

interior del motor de la manera siguiente:

• Retirar la bujia, verter aproximadamente 1/2 onza

(aprox. una cucharada) de aceite de motor en el

cilindro y hacer girar lentamente el motor para

distribuir el aceite.

• Colocar la bujia.

Otr0s

• No guardar la gasolina de una temporada a otra.

• Reemplazar la gasolina si comienza a oxidarse. El

6xido y/o impurezas en la gasolina causaran

problemas.

• Guardar la maqina en un lugar limpio y seco. No

hacerlo cerca de materiales corrosivos, tal como

los fertilizantes.

NOTE: Si se va a guardar la maquina en un galpdn sin

ventilacion o de metal, asegurarse de protegerla contra

oxidacidn aplicandole una capa de aceite Iigero o

silicon&

Problema Soluci6n

El motor no arranca 1.

Perdida de potenica;

funcionamiento

irregular

Causas posibles

1. El tanque de combustible est,,

vacfo o combustible esta viejo.

El motor se

sobrecalienta

La maquina no

descarga

2. El cable de la bujfa esta

desconectado.

3. No se puede tirar de la cuerda

de arranque.

4. El estrangulador esta en la

posici6n ON (conectado).

5. La bujfa est_,mala.

6. No se oprimi6 el interruptor de

seguridad.

7. El alambre del interruptor de

seguridad no esta conectado al

motor o est,, mal conectado a

tierra.

1. El cable de la bujfa esta suelto.

2. La maquina estafuncionando

en CHOKE (estrangulador).

3. La manguera de combustible

esta obstruida o el combustible

esta viejo.

4. Hay agua o tierra en el sistema

de combustible.

5. El carburador esta desajustado.

Demasiada vibraci6n 1. Piezas sueltas o rotor dafiado.

1. Carburador mal ajustado.

2. Bajo nivel de aceite del motor.

1. El tubo de descarga esta

obturado.

Hay un objeto extrafio atascado

en el rotor.

Baja velocidad (rpm) del motor.

El recolector esta Ileno.

La cuchilla astilladora est,.

desafilada.

Llenar el tanque con gasolina limpia y fresca.

El combustible no durara mas de treinta dfas

a menos que se le afiada un estabilizador.

Conectar el cable de la bujfa.

3. Hay una obstrucci6n atascada en el rotor.

Desconectar el cable de la bujfa y quitar el

objeto atascado.

4. Mover de la posici6n CHOKE a la posici6n

ON.

5. Limpiar y ajustar la distancia entre electrodos

o cambiar la bujfa.

6. El interruptor de seguridad debe estar

oprimido por la leng0eta delantera ubicada

en el mango del recolector cuando se instala

este tJltimo.

7. Conectar el alambre del interruptor de

seguridad al conector del motor y conectarlo

a tierra en la escuadra de montaje.

1. Conectar el cable de la bujfa y apretarlo.

2. Mover la palanca de estrangulaci6n a la

posici6n OFF (desconectado).

3. Limpiar la manguera de combustible; Ilenar

el tanque con gasolina limpia y fresca. El

combustible no durara mas de treinta dfas a

menos que se le afiada un estabilizador.

4. Desconectar la manguera de combustible al

carburador y vaciar el tanque. Llenar con

combustible fresco.

5. Contactar al centro de servicio Sears.

1. Apagar el motor inmediatamente y

desconectar el cable de la bujfa. Llevar la

maquina a un centro de servicio Sears.

1. Conctactar al centro de servicio Sears.

2. Llenar el carter con el tipo correcto de aceite.

1. Apagar el motor inmediatamente y

desconectar el cable de la bujfa. Limpiar la

rejilla de trituraci6n y el interior de la boca de

descarga. Ver la secci6n Mantenimiento en

este manual.

2. Apagar el motor inmediatamente y

desconectar el cable de la bujfa. Quitar el

objeto atascado.

3. Siempre hacer funcionar el motor con el

acelerador a fondo.

4. Vaciarel recolector.

Cambiar la cuchilla astilladora o contactar al centre de

servicio Sears.

NOTE: Para otros tipos de reparaciones aparte de los ajustes menores indicados mas arriba, rogamos dirigirse al

centro de servicio Sears de la Iocalidad.

Repair Protection Agreements

Congratulations on making a smart purchase.Your new

Craftsman® product is designed and manufactured for

years of dependable operation. But like all products, it

may require repair from time to time. That's when

having a Repair Protection Agreement can save you

money and aggravation.

Purchase a Repair Protection Agreement now and

protect yourself from unexpected hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12,000 professional repair

specialists

Unlimited service and no charge for parts and

labor on all covered repairs

Product replacement if your covered product

can't be fixed

Discount of 10% from regular price of service

and service-related parts not covered by the

agreement; also, 10% off regular price of

preventive maintenance check

Fast help by phone- phone support from a

Sears technician on products requiring in-home repair,

plus convenient repair scheduling

Once you purchase the Agreement, a simple phone call

is all that it takes for you to schedule service. You can

call anytime day or night, or schedule a service

appointment online.

Sears has over 12,000 professional repair specialists,

who have access to over 4.5 million quality parts and

accessories. That's the kind of professionalism you can

count on to help prolong the life of your new purchase

for years to come. Purchase your Repair Protection

Agreement today!

Some limitations and exclusions apply. For prices and

additional information call 1-800-827-6655.

Sears Installation Service

For Sears professional installation of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. call 1-800-4-MY-HOME®

Acuerdo De Proteccibn Para Reparaciones

Felicitaciones por haber realizado una adquisici6n

inteligente. El producto Craftsman® que ha adquirido

esta diseSado y fabricado para brindar muchos aSos de

funcionamiento confiable. Pero como todos los

productos a veces puede requerir de reparaciones. Es

en ese momento cuando el disponer de un Acuerdo de

protecci6n para reparaciones le puede ahorrar dinero y

problemas. Adquiera ahora un Acuerdo de protecci6n

para reparaciones y protejase de problemas y gastos

inesperados. A continuaci6n se detallan los puntos

incluidos en el Acuerdo:

Servicio experto prestado por nuestros 12.000

especialistas en reparaciones profesionales

Servicio ilimitado sin cargo para las piezas y

la mano de obra en todas las reparaciones

cubiertas

Reemplazo del producto isi no es posible

reparar el producto cubierto

Descuento de 10% del precio normal del

servicio y de las piezas relacionadas con el

mismo que no esten cubiertas por el acuerdo;

ademas, 10% del precio normal de la

verificaci6n de mantenimiento preventivo

Ayuda rapida por tel_fono -asistencia telef6nica a

cargo de un tecnico de Sears para los productos que

requieren reparaci6n a domicilio ademas de una

programaci6n conveniente para la reparaci6n

Una vez adquirido el Acuerdo, puede programar el

servicio con tan s61o realizar una Ilamada telef6nica.

Puede Ilamar en cualquier momento del dfa o de la

noche o programar un servicio en Ifnea.

Sears dispone de mas de 12.000 especialistas en

reparaciones profesionales que tienen acceso a mas

de 4.5 millones de piezas y accesorios de buena

calidad. Este es el tipo de profesionalismo en el que

puede confiar para que le ayude a prolongar la vida Qtil

del producto recientemente adquirido en los aSos por

venir, iAdquiera hoy su acuerdo de protecci6n para

reparaciones!

Se aplican determinadas limitaciones y exclusiones.

Por precios e informaci6n adicional Ilame al 1-800-827-

6655. Sears Installation Service (servicio de

instalaciones de Sears). Si desea solicitar la instalaci6n

profesional de Sears de aparatos domesticos,

dispositivos para abrir portones, calentadores de agua

y otros artfculos domesticos importantes, en los

Estados Unidos Ilame al 1-800-4-MY-HOME®

Your Home

For repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en frangais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

, E/.4R,g

TM SM

® Registered Trademark /Trademark /Service Mark of Sears, Roebuck and Co.

® Marca Registrada /TM Marca de F&brica /Marca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce /Marque d6pos6e de Sears, Roebuck and Co. ® Sears, Roebuck and Co.

Craftsman 247770550 User Manual YARD VACUUM Manuals And Guides L0712130

CRAFTSMAN Lawn Vacuum Manual L0712130 CRAFTSMAN Lawn Vacuum Owner's Manual, CRAFTSMAN Lawn Vacuum installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
