Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
OPER roR's L
Chipper/Shredder Vacuum

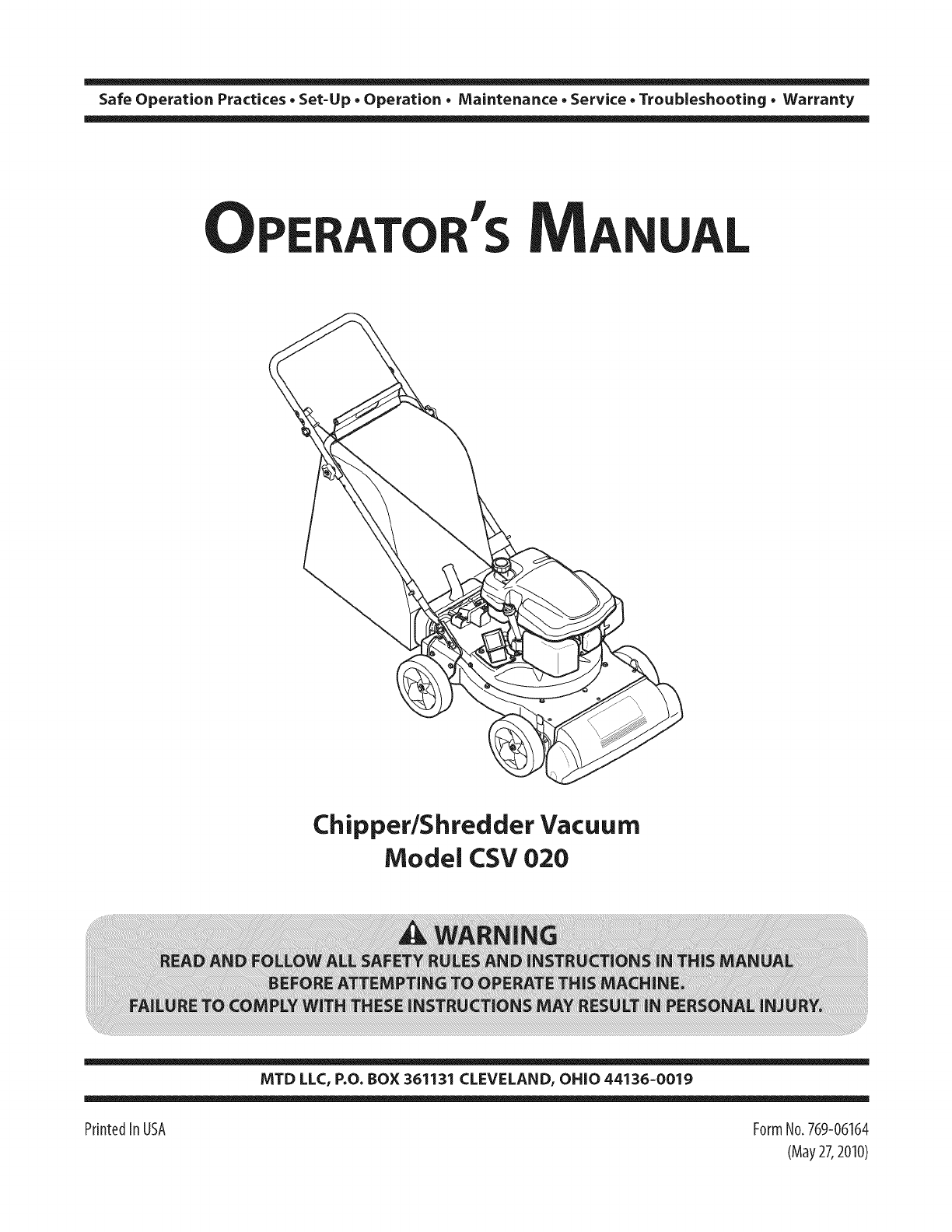

Model CSV 020
MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136-0019
PrintedIn USA FormNo.769-06164
(May27,2010)
ToTheOwner 1
Thank¥ou
Thank you for purchasing a Chipper/Shredder Vacuum
manufactured by MTD. It was carefully engineered to provide
excellent performance when properly operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
its features and operation. Please be aware that this Operator's
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. We reserve
the right to change product specifications, designs and
equipment without notice and without incurring obligation.
If you have any problems or questions concerning the machine,
phone your local authorized MTD service dealer or contact us
directly. MTD's Customer Support telephone numbers, website
address and mailing address can be found on this page. We want
to ensure your complete satisfaction at all times.
Throughout this manual, all references to fightand left side of the
machine are observed from the operating position
The engine manufacturer is responsible for all engine-related
issues with regards to performance, power-rating, specifications,
warranty and service. Please refer to the engine manufacturer's
Owner's/Operator's Manual, packed separately with your
machine, for more information.

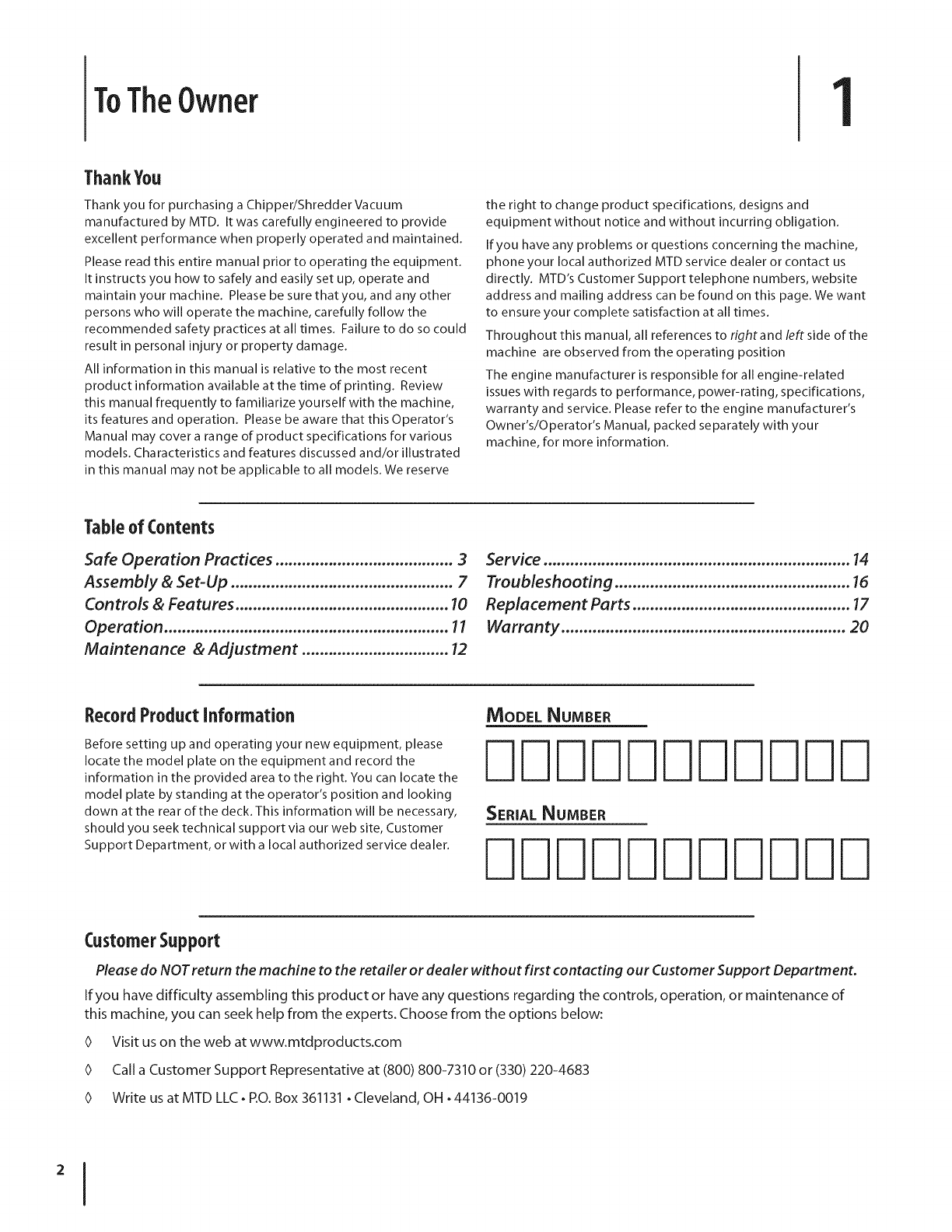

Tableof Contents
Safe Operation Practices ........................................ 3
Assembly &Set-Up .................................................. 7
Controls &Features ................................................ 10
Opera tion ................................................................ 11
Maintenance &Adjustment ................................. 12
Service ..................................................................... 14
Troubleshooting ..................................................... 16
Replacement Parts ................................................. 17
Warranty ................................................................ 20
RecordProductinformation
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by standing at the operator's position and looking
down at the rear of the deck. This information will be necessary,
should you seek technical support via our web site, Customer
Support Department, or with a local authorized service dealer.
MODEL NUMBER
NNDNDNDNDND
SERIAL NUMBER
NDDDDDDDDDD
CustomerSupport
Please do NOT return the machine to the retailer or dealer without first contacting our Customer Support Department.
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
0 Visit us on the web at www.mtdproducts.com
0 Call a Customer Support Representative at (800) 800-7310 or (330) 220-4683
0 Write us at MTD LLC • RO. Box 361131 • Cleveland, OH • 44136-0019

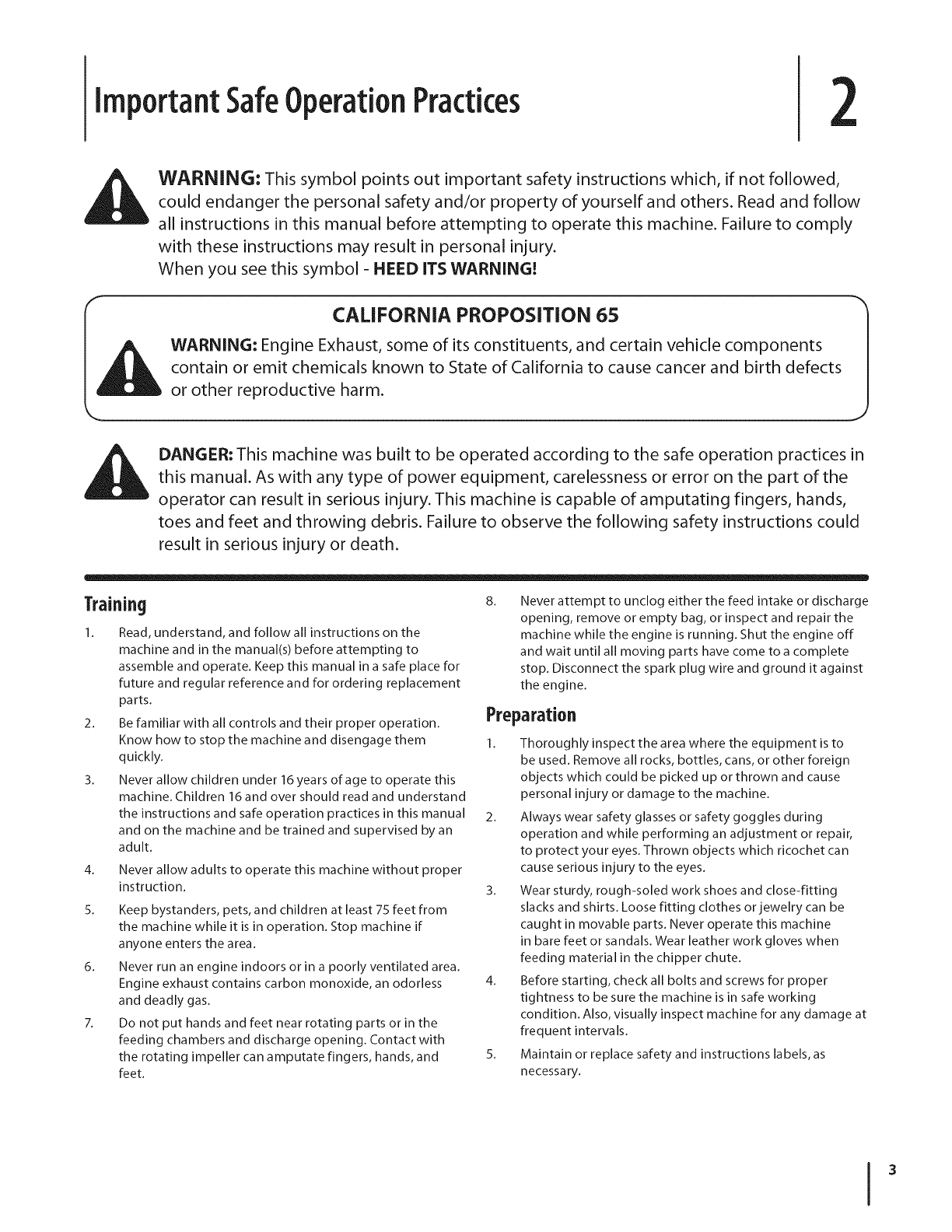

ImportantSafeOperationPractices 2
WARNING: This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol - NEED ITS WARNING!
CALIFORNIA PROPOSITION 65
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.
DANGER: This machine was built to be operated according to the safe operation practices in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating fingers, hands,
toes and feet and throwing debris. Failure to observe the following safety instructions could
result in serious injury or death.
Training 8.
1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.
3. Never allow children under 16 years of age to operate this
machine. Children 16 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and be trained and supervised by an
adult.
4. Never allow adults to operate this machine without proper
instruction.
5. Keep bystanders, pets, and children at least 75 feet from
the machine while it is in operation. Stop machine if
anyone enters the area.
6. Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
7. Do not put hands and feet near rotating parts or in the
feeding chambers and discharge opening. Contact with
the rotating impeller can amputate fingers, hands, and
feet.
Never attempt to unclog either the feed intake or discharge
opening, remove or empty bag, or inspect and repair the
machine while the engine is running. Shut the engine off
and wait until all moving parts have come to a complete
stop. Disconnect the spark plug wire and ground it against
the engine.
Preparation
1. Thoroughly inspect the area where the equipment is to
be used. Remove all rocks, bottles, cans, or other foreign
objects which could be picked up or thrown and cause
personal injury or damage to the machine.
2. Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair,
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
3. Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Loose fitting clothes or jewelry can be
caught in movable parts. Never operate this machine
in bare feet or sandals. Wear leather work gloves when
feeding material in the chipper chute.
4. Before starting, check all bolts and screws for proper
tightness to be sure the machine is in safe working
condition. Also, visually inspect machine for any damage at
frequent intervals.
5. Maintain or replace safety and instructions labels, as
necessary.
SafeHandlingof Gasoline:
To avoid personal injury or property damage use extreme care
in handling gasoline. Gasoline is extremely flammable and the
vapors are explosive. Serious personal injury can occur when
gasoline is spilled on yourself or your clothes which can ignite.
Wash your skin and change clothes immediately.
1. Use only an approved gasoline container.
2. Never fill containers inside a vehicle or on a truck or trailer
bed with a plastic liner. Always place containers on the
ground away from your vehicle before filling.
3. When practical, remove gas-powered equipment from
the truck or trailer and refuel it on the ground. If this is not
possible, then refuel such equipment on a trailer with a
portable container, rather than from a gasoline dispenser
nozzle.
4.
5.
6.
7.
Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
Extinguish all cigarettes, cigars, pipes and other sources of
ignition.
Never fuel machine indoors.
Never remove gas cap or add fuel while the engine is hot or
running. Allow engine to cool at least two minutes before
refueling.
8. Never over fill fuel tank. Fill tank to no more than 1/2
inch below bottom of filler neck to allow space for fuel
expansion.
9. Replace gasoline cap and tighten securely.
10. If gasoline is spilled, wipe it off the engine and equipment.
Move unit to another area. Wait 5 minutes before starting
the engine.
11. To reduce fire hazards, keep machine free of grass, leaves,
or other debris build-up. Clean up oil or fuel spillage and
remove any fuel soaked debris.
12. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light as on a water
heater, space heater, furnace, clothes dryer or other gas
appliances.
Operation
1.
2.
3.
Do not put hands and feet near rotating parts or in the
feeding chambers and discharge opening. Contact with
the rotating impeller can amputate fingers, hands, and
feet.
Before starting the machine, make sure the chipper chute,
feed intake, and cutting chamber are empty and free of all
debris.
Thoroughly inspect all material to be shredded and remove
any metal, rocks, bottles, cans, or other foreign objects
which could cause personal injury or damage to the
machine.
4. If the impeller strikes a foreign object or if your machine
should start making an unusual noise or vibration,
immediately shut the engine off. Allow the impeller to
come to a complete stop. Disconnect the spark plug wire,
ground it against the engine and perform the following
steps:
a. Inspect for damage.
b. Repair or replace any damaged parts.
c. Check for any loose parts and tighten to assure
continued safe operation.
5. Do not allow an accumulation of processed material to
build up in the discharge area. This can prevent proper
discharge and result in kickback of material through the
feed opening.
6. Do not attempt to shred or chip material larger than
specified on the machine or in this manual. Personal injury
or machine damage could result.
7. Never attempt to unclog either the feed intake or discharge
opening while the engine is running. Shut the engine off,
wait until all moving parts have stopped, disconnect the
spark plug wire and ground it against the engine before
clearing debris.
8. Never operate without vacuum bag and discharge chute
properly attached to the machine. Never empty or change
vacuum bag while the engine is running.Vacuum bag must
be kept closed at all times during operation.
9. Never operate without either the inlet nozzle or optional
hose attachment (if applicable) properly attached to
the machine. Never attempt to attach or change either
attachment while the engine is running.
10. Keep all guards, deflectors and safety devices in place and
operating properly.
11. Keep your face and body back and to the side of the
chipper chute while feeding material into the machine to
avoid accidental kickback injuries.
12. Never operate this machine without good visibility or light.
Always be sure of your footing and keep a firm hold on the
handles.
13.
14.
15.
16.
17.
Do not operate this machine on a paved, gravel or non-
level surface.
Do not operate this machine while under the influence of
alcohol or drugs.
Muffler and engine become hot and can cause a burn. Do
not touch.
Never pick up or carry machine while the engine is running.
If situations occur which are not covered in this manual, use
care and good judgement. Contact Customer Support for
assistance and the name of the nearest service dealer.
4 J SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES

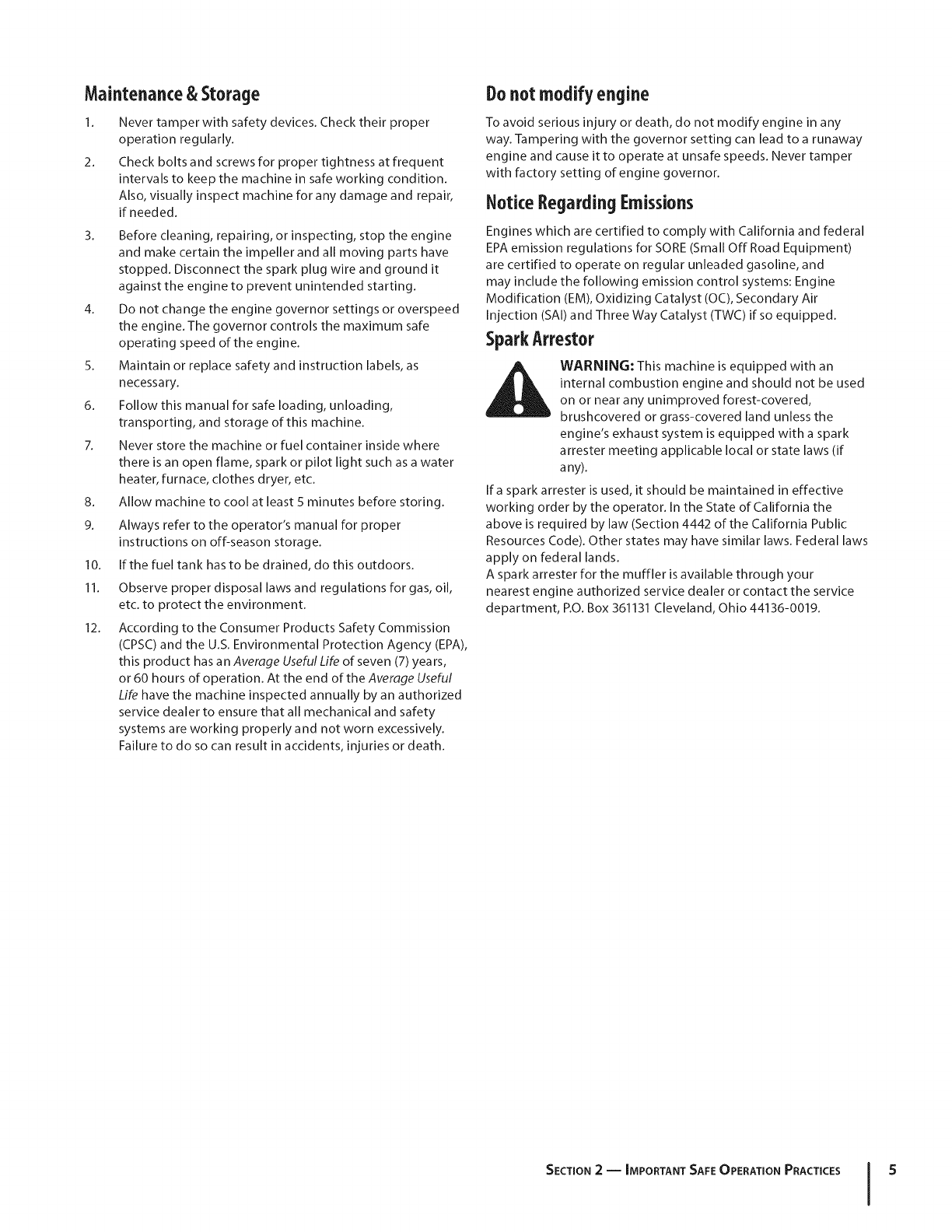

Maintenance & Storage
2.
Never tamper with safety devices. Check their proper
operation regularly.
Check bolts and screws for proper tightness at frequent
intervals to keep the machine in safe working condition.
Also, visually inspect machine for any damage and repair,
if needed.
3. Before cleaning, repairing, or inspecting, stop the engine
and make certain the impeller and all moving parts have
stopped. Disconnect the spark plug wire and ground it
against the engine to prevent unintended starting.
4. Do not change the engine governor settings or overspeed
the engine. The governor controls the maximum safe
operating speed of the engine.
5. Maintain or replace safety and instruction labels, as
necessary.
6. Follow this manual for safe loading, unloading,
transporting, and storage of this machine.
7. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light such as a water
heater, furnace, clothes dryer, etc.
8. Allow machine to cool at least 5 minutes before storing.
9. Always refer to the operator's manual for proper
instructions on off-season storage.
10. If the fuel tank has to be drained, do this outdoors.
11. Observe proper disposal laws and regulations for gas, oil,
etc. to protect the environment.
12. According to the Consumer Products Safety Commission
(CPSC) and the U.S. Environmental Protection Agency (EPA),
this product has an Average Useful Life of seven (7) years,
or 60 hours of operation. At the end of the Average Useful
Life have the machine inspected annually by an authorized
service dealer to ensure that all mechanical and safety
systems are working properly and not worn excessively.
Failure to do so can result in accidents, injuries or death.
Do not modify engine
To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
Notice Regarding Emissions
Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)
are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine
Modification (EM), Oxidizing Catalyst (OC), Secondary Air
Injection (SAI) and Three Way Catalyst (TWC) if so equipped.
SparkArrestor
_ARNING: This machine is equipped with an
internal combustion engine and should not be used
on or near any unimproved forest-covered,
brushcovered or grass-covered land unless the
engine's exhaust system is equipped with a spark
attester meeting applicable local or state laws (if
any).
Ira spark arrester is used, it should be maintained in effective
working order by the operator. In the State of California the
above is required by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws
apply on federal lands.
A spark attester for the muffler is available through your
nearest engine authorized service dealer or contact the service
department, P.O.Box 361131 Cleveland, Ohio 44136-0019.
SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES S
Safety Symbols
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
o ®
READ THE OPERATOR'S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
WARNING-- ROTATING BLADES
Keep hands out of inlet and discharge openings while machine is running. There are rotating
blades inside
BYSTANDERS
Keep bystanders, pets, and children at least 75 feet from the machine while it is in operation.
Stop machine if anyone enters the area.
WARNING-- THROWN OBJECTS
This machine may pick up and throw and objects which can ricochet.
EYEPROTECTION
Always wear safety glasses or safety goggles when operating this machine.
WARNING-- GASOLINE IS FLAMMABLE
Allow the engine to cool at least two minutes before refueling.
WARNING-- CARBON MONOXIDE
Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon
monoxide, an odorless and deadly gas.
WARNING: Your Responsibility--Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVETHESEINSTRUCTIONS!
6ISECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES
Assembly& Set-Up 3

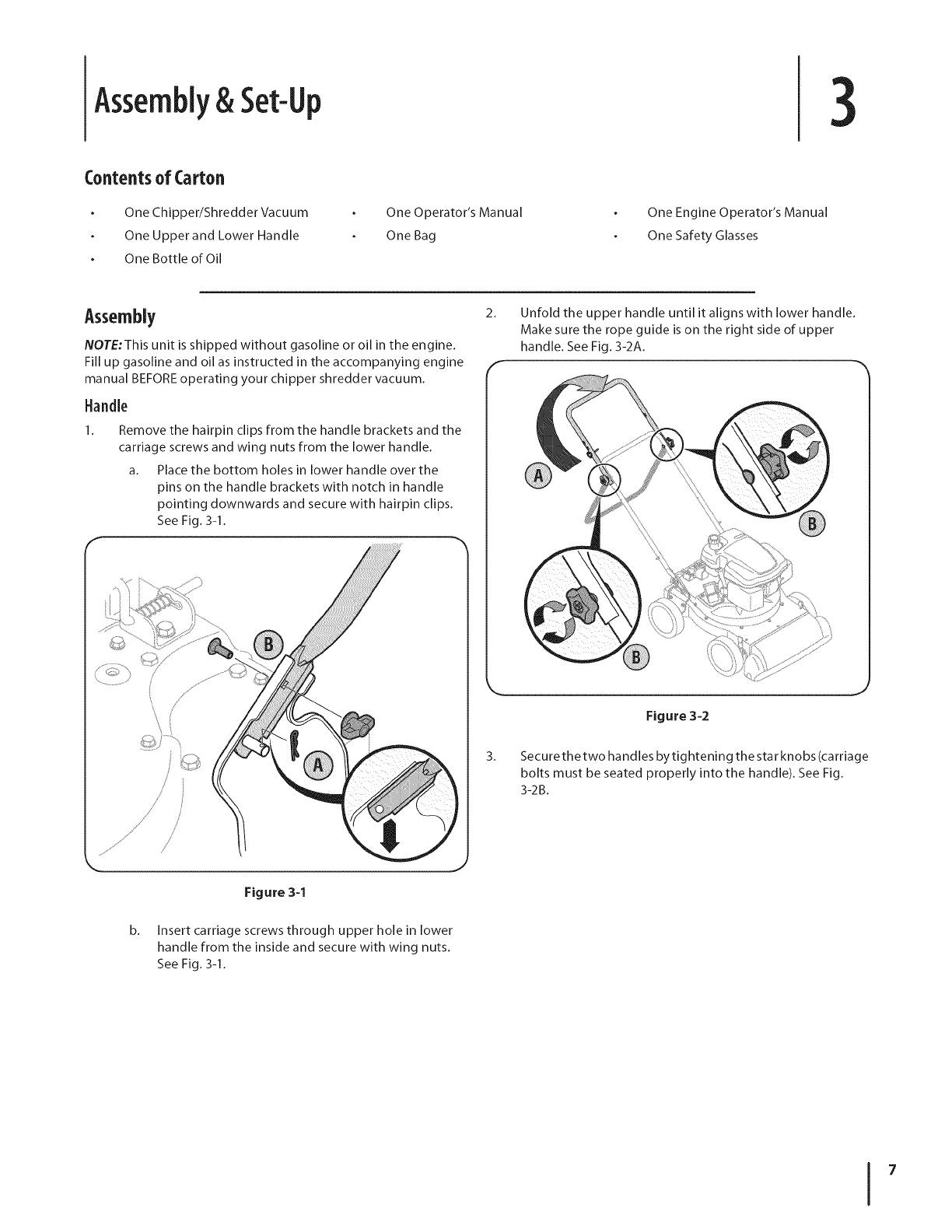

Contentsof Carton
One Chipper/Shredder Vacuum
One Upper and Lower Handle
One Bottle of Oil
One Operator's Manual
One Bac
One Engine Operator's Manual
One Safety Glasses
Assembly
NOTE:This unit is shipped without gasoline or oil in the engine.
Fill up gasoline and oil as instructed in the accompanying engine
manual BEFORE operating your chipper shredder vacuum.
Handle
1. Remove the hairpin clips from the handle brackets and the
carriage screws and wing nuts from the lower handle.
a. Place the bottom holes in lower handle over the
pins on the handle brackets with notch in handle
pointing downwards and secure with hairpin clips.
See Fig. 3-1.
/
b.
/
/
/
/
Figure 34
Insert carriage screws through upper hole in lower
handle from the inside and secure with wing nuts.
See Fig. 3-1.
2.
f
Unfold the upper handle until it aligns with lower handle.
Make sure the rope guide is on the right side of upper
handle. See Fig. 3-2A.
Figure 3=2
3. Secure the two handles bytightening the star knobs (carriage
bolts must be seated properly into the handle). See Fig.
3-2B.
4_ Loosen the wing nut that secures the rope guide to the
right side of upper handle.
a. Slowly pull starter rope out of engine.
b. Slip the starter rope into the rope guide.
c. Tighten the wing nut. See Fig. 3-3.
Figure 3-3
Bag
1.
2_
3.
4.
Grasp bag handle with one hand and slide locking rod on
mounting bracket with other hand toward engine. Use
the end of mounting bracket as leverage when sliding the
locking rod. See Fig. 3-4.
Figure 3-4
Slip bag over the rim of the discharge opening and release
locking rod to secure bag in place.
Snap bag clip to the top of the lower handle.
Place the lower straps on the bag over the top of lower
handle, hooking them on the studs. See Fig. 3-4.
NOTE:The bag/chute switch button attached to the
mounting bracket must be fully depressed by the tip of
front tab on bag handle when securing the bag or engine
will not start.
8ISECTION3 -- ASSEMBLY& SET-UP
Adjustments
NozzleHeight

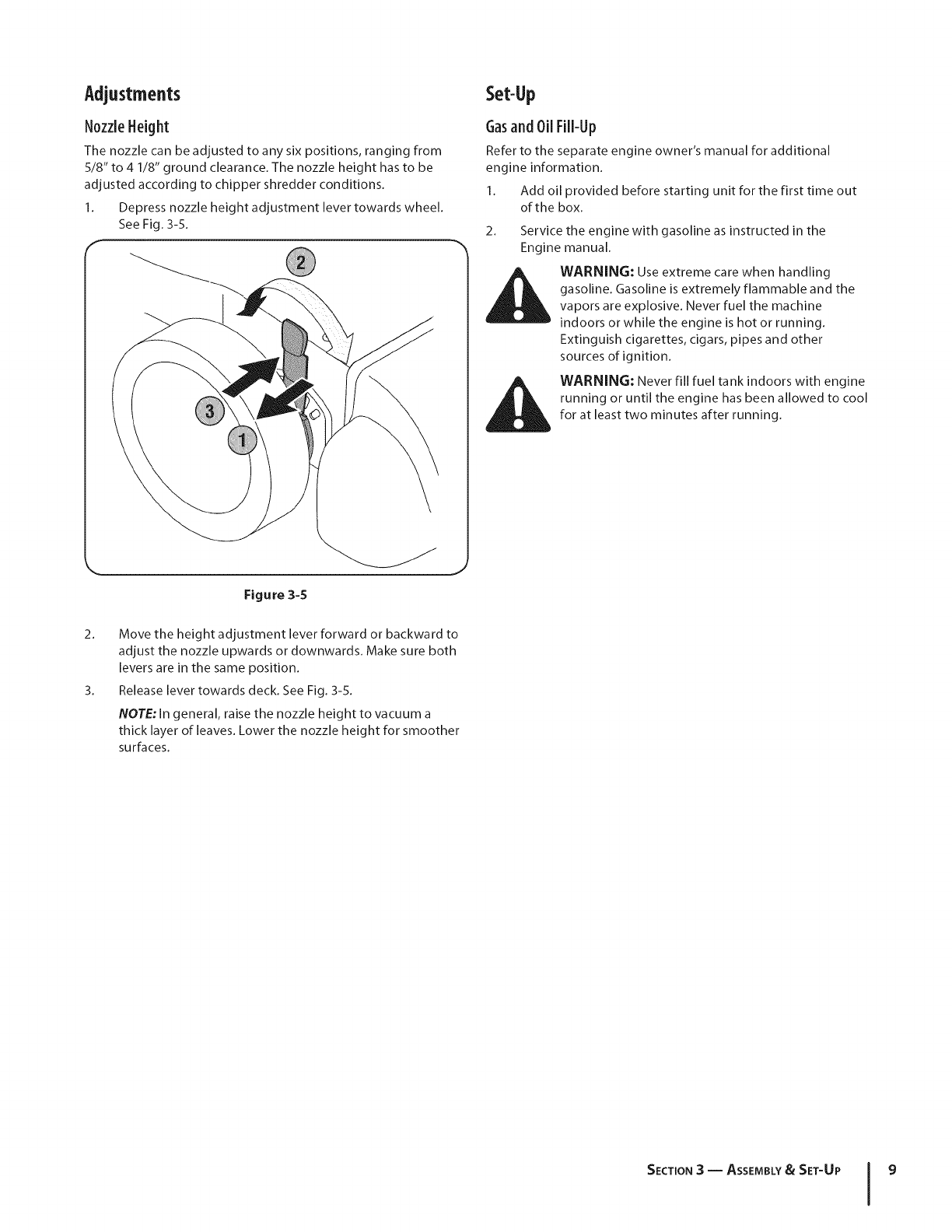

The nozzle can be adjusted to any six positions, ranging from
5/8" to 4 1/8" ground clearance. The nozzle height has to be
adjusted according to chipper shredder conditions.
1. Depress nozzle height adjustment lever towards wheel.
See Fig. 3-5.
Set-Up
GasandOilFill-Up
Refer to the separate engine owner's manual for additional
engine information.
1. Add oil provided before starting unit for the first time out
of the box.
2. Service the engine with gasoline as instructed in the
Engine manual.
_WARNING: Use extreme care when handling
gasoline. Gasoline is extremely flammable and the
vapors are explosive. Never fuel the machine
indoors or while the engine is hot or running.
Extinguish cigarettes, cigars, pipes and other
sources of ignition.
_WARNING: Never fill fuel tank indoors with engine
running or until the engine has been allowed to cool
for at least two minutes after running.
Figure 3-5
2. Move the height adjustment lever forward or backward to
adjust the nozzle upwards or downwards. Make sure both
levers are in the same position.
3. Release lever towards deck. See Fig. 3-5.
NOTE: In general, raise the nozzle height to vacuum a
thick layer of leaves. Lower the nozzle height for smoother
surfaces.
SECTION3 -- ASSEMBLY & SET-UP 9

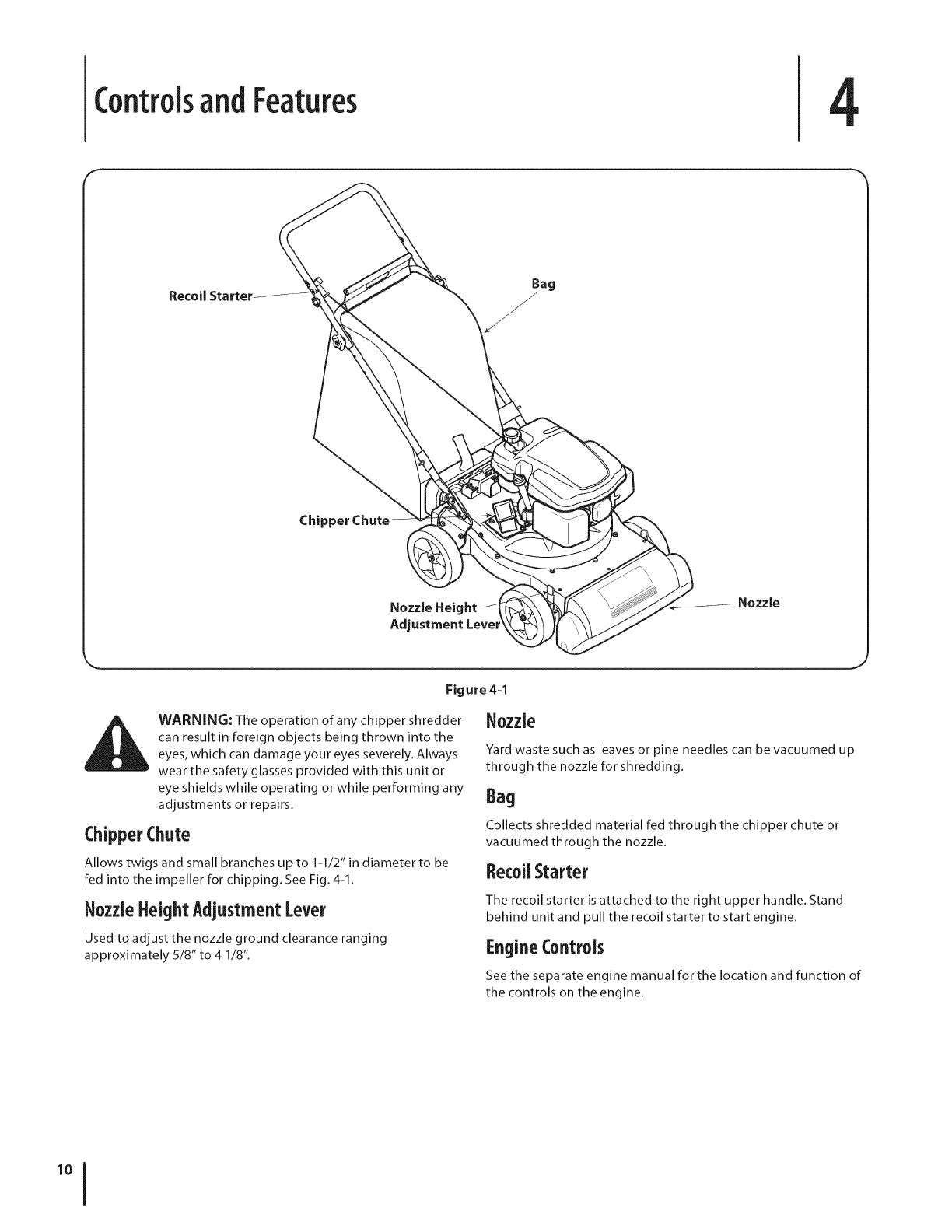

Controlsand Features 4
Recoil Bag
Chip|
Nozzle Height
Adjustment Lever
J
Figure 44
WARNING: The operation of any chipper shredder
can result in foreign objects being thrown into the
eyes, which can damage your eyes severely. Always
wear the safety glasses provided with this unit or
eye shields while operating or while performing any
adjustments or repairs.
ChipperChute
Allows twigs and small branches up to 1-1/2" in diameter to be
fed into the impeller for chipping. See Fig. 4-1.
NozzleHeight AdjustmentLever
Used to adjust the nozzle ground clearance ranging
approximately 5/8" to 4 1/8".
Nozzle
Yard waste such as leaves or pine needles can be vacuumed up
through the nozzle for shredding.
Bag
Collects shredded material fed through the chipper chute or
vacuumed through the nozzle.
RecoilStarter
The recoil starter is attached to the right upper handle. Stand
behind unit and pull the recoil starter to start engine.
EngineControls
See the separate engine manual for the location and function of
the controls on the engine.

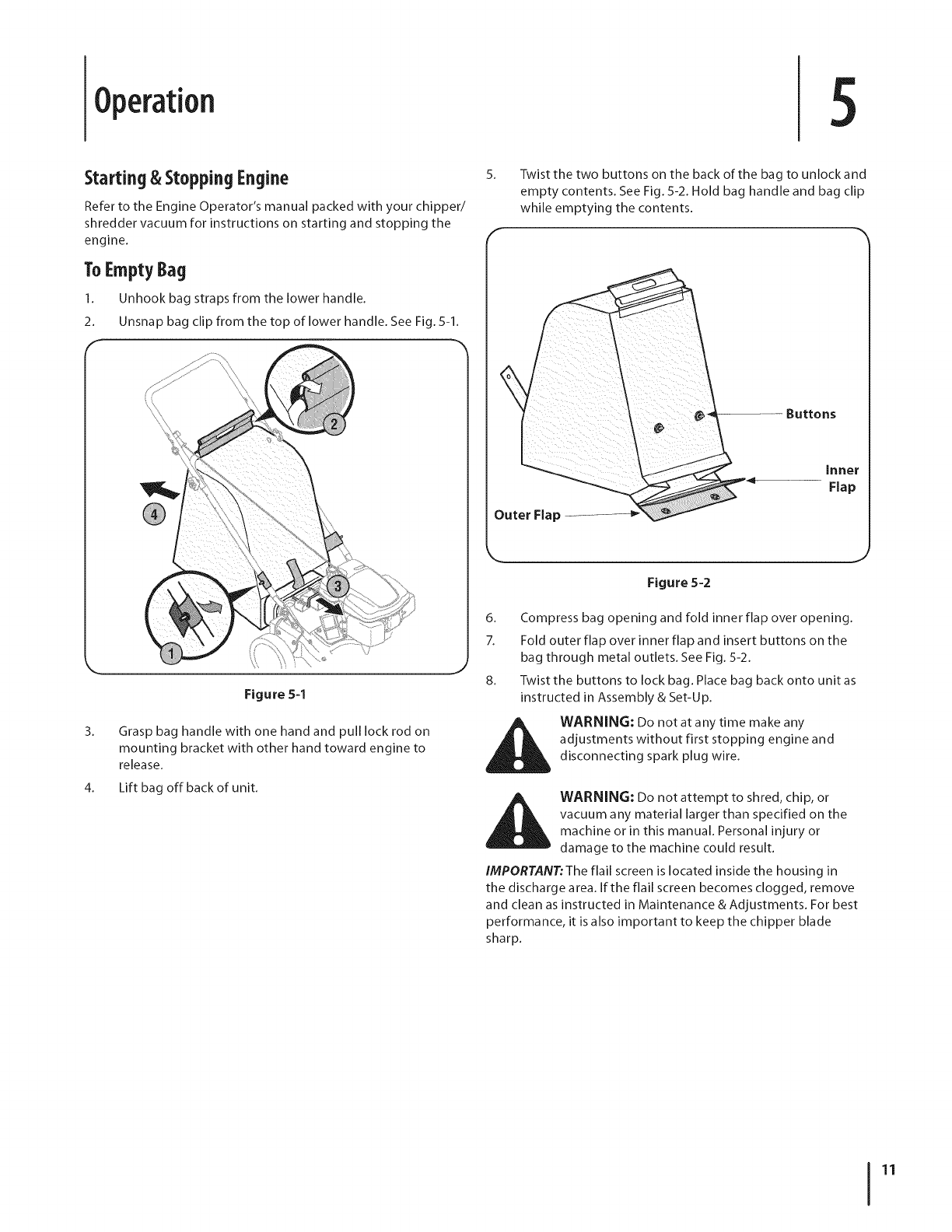

Operation
Starting &Stopping Engine
Refer to the Engine Operator's manual packed with your chipper/
shredder vacuum for instructions on starting and stopping the
engine.
1"oEmptyBag
1. Unhook bag straps from the lower handle.
2. Unsnap bag clip from the top of lower handle. See Fig. 5-1.
5_
F
Twist the two buttons on the back of the bag to unlock and
empty contents. See Fig. 5-2. Hold bag handle and bag clip
while emptying the contents.
3_
Figure 5-1
Grasp bag handle with one hand and pull lock rod on
mounting bracket with other hand toward engine to
release.
4. Lift bag off back of unit.
J
Figure 5-2
6. Compress bag opening and fold inner flap over opening.
7. Fold outer flap over inner flap and insert buttons on the
bag through metal outlets. See Fig. 5-2.
8. Twist the buttons to lock bag. Place bag back onto unit as
instructed in Assembly & Set-Up.
_ARNING: Do not at any time make any
adjustments without first stopping engine and
disconnecting spark plug wire.
WARNING: Do not attempt to shred, chip, or
vacuum any material larger than specified on the
machine or in this manual. Personal injury or
damage to the machine could result.
IMPORTANT:The flail screen is located inside the housing in
the discharge area. If the flail screen becomes clogged, remove
and clean as instructed in Maintenance & Adjustments. For best
performance, it is also important to keep the chipper blade
sharp.
11
Maintenance& Adjustments 6
Maintenance
GeneralRecommendations
Always observe safety rules when performing any
maintenance.
The warranty on this chipper/shredder vacuum does not
cover items that have been subjected to operator abuse or
negligence. To receive full value from warranty, operator
must maintain the equipment as instructed here.
Changing of engine-governed speed will void engine
wa rra nty.
All adjustments should be checked at least once each
season.
Periodically check all fasteners and make sure these are
tight.
Lubrication
WARNING: Always stop engine, disconnect spark
plug, and ground against engine before performing
any type of maintenance on your machine.
1. Lubricate each wheel shoulder screw (rear wheel) and pivot
arm axle (front wheel) once a season with light oil.
2. Lubricate the pivot points of the nozzle height adjustment
levers once a season with light oil. See Fig. 6-1.
Equipment Care
Clean the chipper/shredder vacuum thoroughly after each
use.
Wash bag periodically with water. Allow to dry thoroughly
in shade.
If the flail screen becomes clogged, remove and clean as
instructed below.
NOTE:Cleaning with a forceful spray of water is not
recommended as it could contaminate the fuel system.
EngineCare
Refer to the Engine Operator's Manual packed with your chipper/
shredder vacuum for all engine maintenance.
il_llii_li WARNING: Before performing any type of
maintenance on the machine, wait for all parts to
stop moving and disconnect the spark plug wire.
Failure to follow this instruction could result in
personal injury or property damage.
Figure 6-1
3. Lubricate the locking rod with light oil to ease the
application of attaching on or removing bag.
4. Follow the separate engine manual packed with your unit
for lubrication instructions.

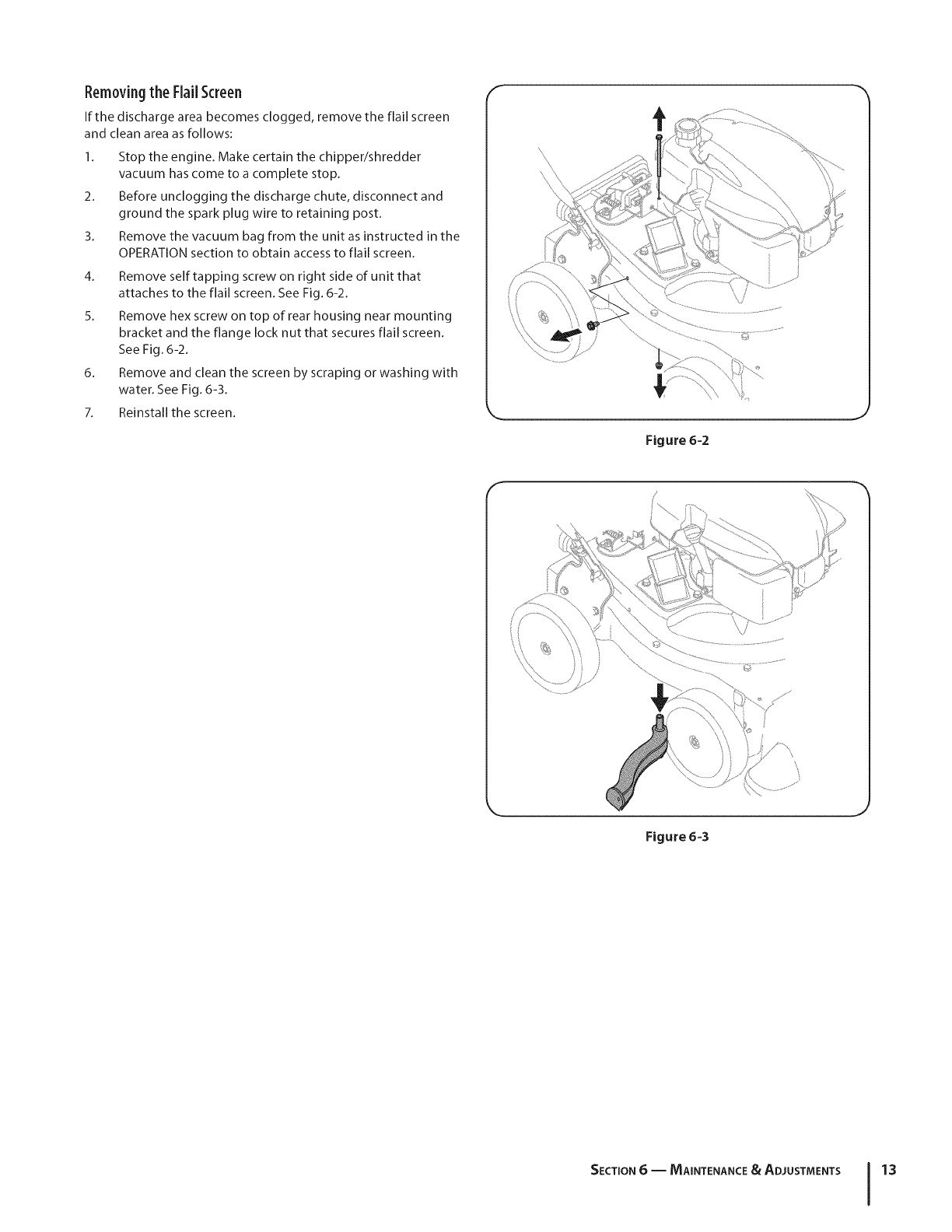

Removing the FlailScreen
If the discharge area becomes clogged, remove the flail screen
and clean area as follows:
1. Stop the engine. Make certain the chipper/shredder
vacuum has come to a complete stop.
2. Before unclogging the discharge chute, disconnect and
ground the spark plug wire to retaining post.
3. Remove the vacuum bag from the unit as instructed in the
OPERATION section to obtain access to flail screen.
4. Remove self tapping screw on right side of unit that
attaches to the flail screen. See Fig. 6-2.
5. Remove hex screw on top of rear housing near mounting
bracket and the flange lock nut that secures flail screen.
See Fig. 6-2.
6. Remove and clean the screen by scraping or washing with
water. See Fig. 6-3.
7. Reinstall the screen.
F
Figure 6-2
Figure 6=3
\
SECTION 6 -- MAINTENANCE &ADJUSTMENTS 13
Service 7

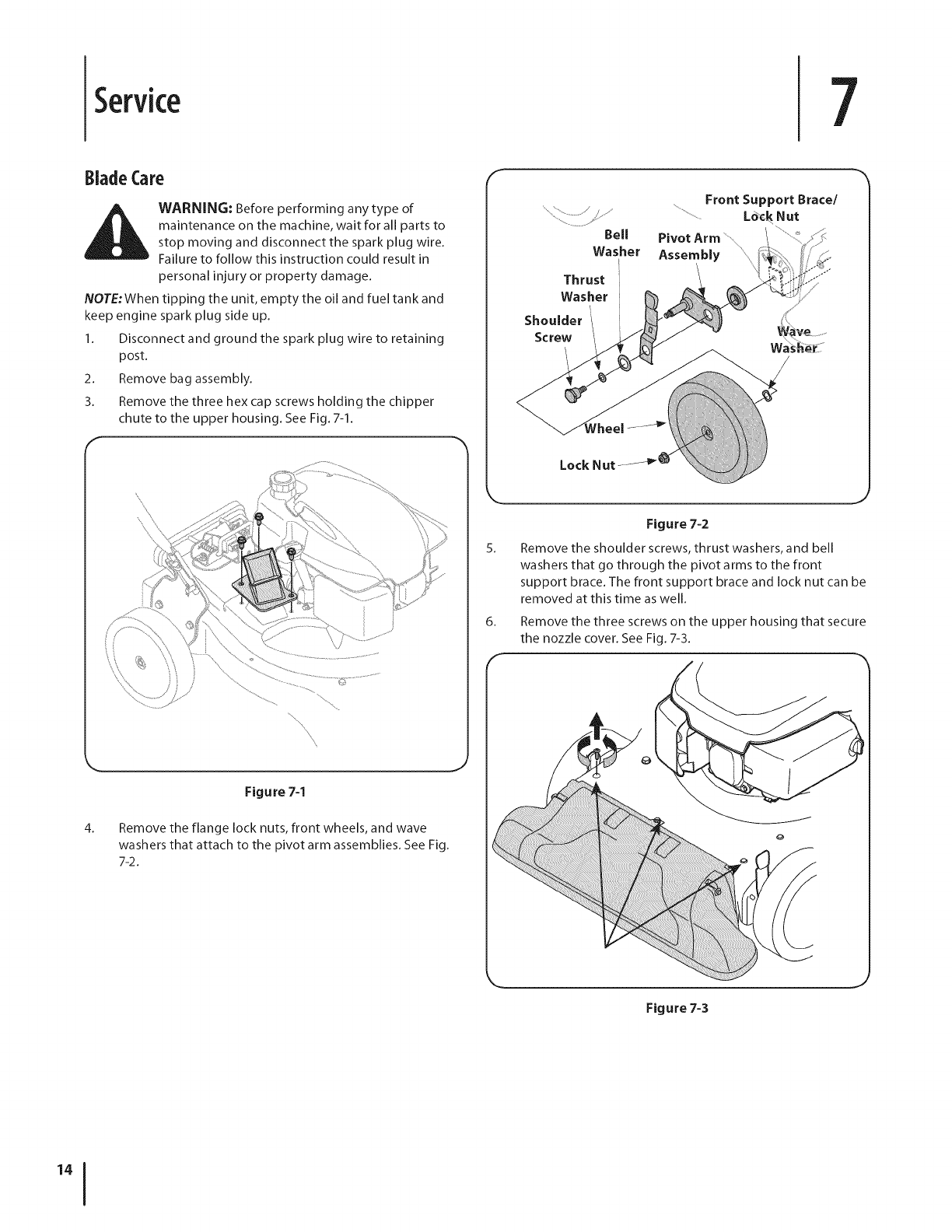

BladeCare
_kk ARNING: Before performing any type of
maintenance on the machine, wait for all parts to
stop moving and disconnect the spark plug wire.
Failure to follow this instruction could result in
personal injury or property damage.
NOTE: When tipping the unit, empty the oil and fuel tank and
keep engine spark plug side up.
1. Disconnect and ground the spark plug wire to retaining
post.
2. Remove bag assembly.
3. Remove the three hex cap screws holding the chipper
chute to the upper housing. See Fig. 7-1.
Figure 7-1
4. Remove the flange lock nuts, front wheels, and wave
washers that attach to the pivot arm assemblies. See Fig.
7-2.
F
Bell
Washer
Front Support Bracel
L6ck N ut
Pivot Arm
Assembly
Thrust
Washer /
Shoulder
Screw
Lock Nut
Figure 7-2
5. Remove the shoulder screws, thrust washers, and bell
washers that go through the pivot arms to the front
support brace. The front support brace and lock nut can be
removed at this time as well.
6.
F
Remove the three screws on the upper housing that secure
the nozzle cover. See Fig. 7-3.
\
Figure 7-3
J
8_
9.

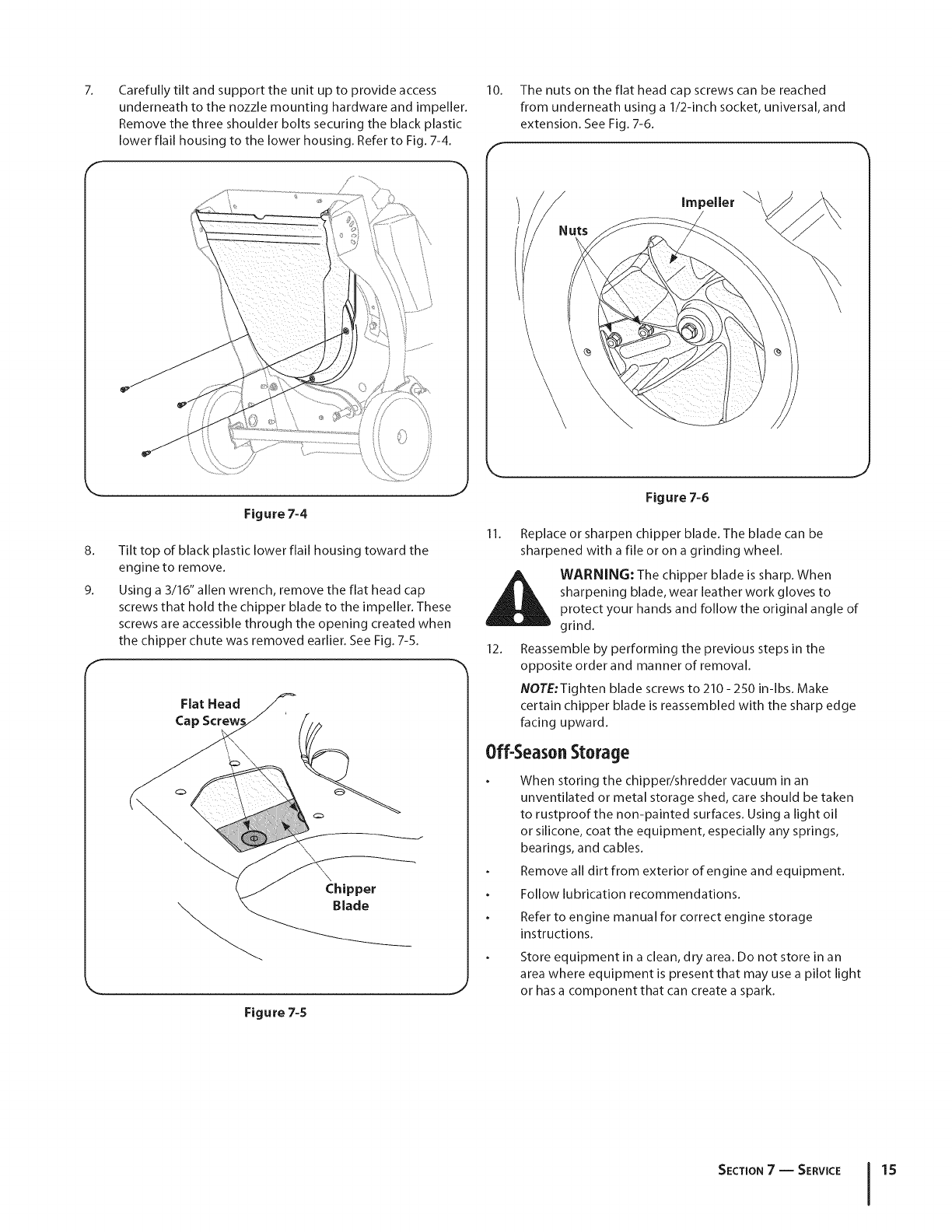

Carefully tilt and support the unit up to provide access 10.
underneath to the nozzle mounting hardware and impeller.
Remove the three shoulder bolts securing the black plastic
lower flail housing to the lower housing. Refer to Fig. 7-4. ,_
/..................,
Figure 7-4
Tilt top of black plastic lower flail housing toward the
engine to remove.
Using a 3/16" allen wrench, remove the flat head cap
screws that hold the chipper blade to the impeller. These
screws are accessible through the opening created when
the chipper chute was removed earlier. See Fig. 7-5.
Flat Head
Ca
Chipper
Blade
Figure 7-5
The nuts on the flat head cap screws can be reached
from underneath using a 1/2-inch socket, universal, and
extension. See Fig. 7-6.
/
Nuts
Impeller
Figure 7-6
,J
11. Replace or sharpen chipper blade. The blade can be
sharpened with a file or on a grinding wheel.
_ ARNING: The chipper blade is sharp. When
sharpening blade, wear leather work gloves to
protect your hands and follow the original angle of
grind.
12. Reassemble by performing the previous steps in the
opposite order and manner of removal.
NOTE:Tighten blade screws to 210 - 250 in-lbs. Make
certain chipper blade is reassembled with the sharp edge
facing upward.
Off-SeasonStorage
When storing the chipper/shredder vacuum in an
unventilated or metal storage shed, care should be taken
to rustproof the non-painted surfaces. Using a light oil
or silicone, coat the equipment, especially any springs,
bearings, and cables.
Remove all dirt from exterior of engine and equipment.
Follow lubrication recommendations.
Refer to engine manual for correct engine storage
instructions.
Store equipment in a clean, dry area. Do not store in an
area where equipment is present that may use a pilot light
or has a component that can create a spark.
SECTION7 -- SERVICE 15

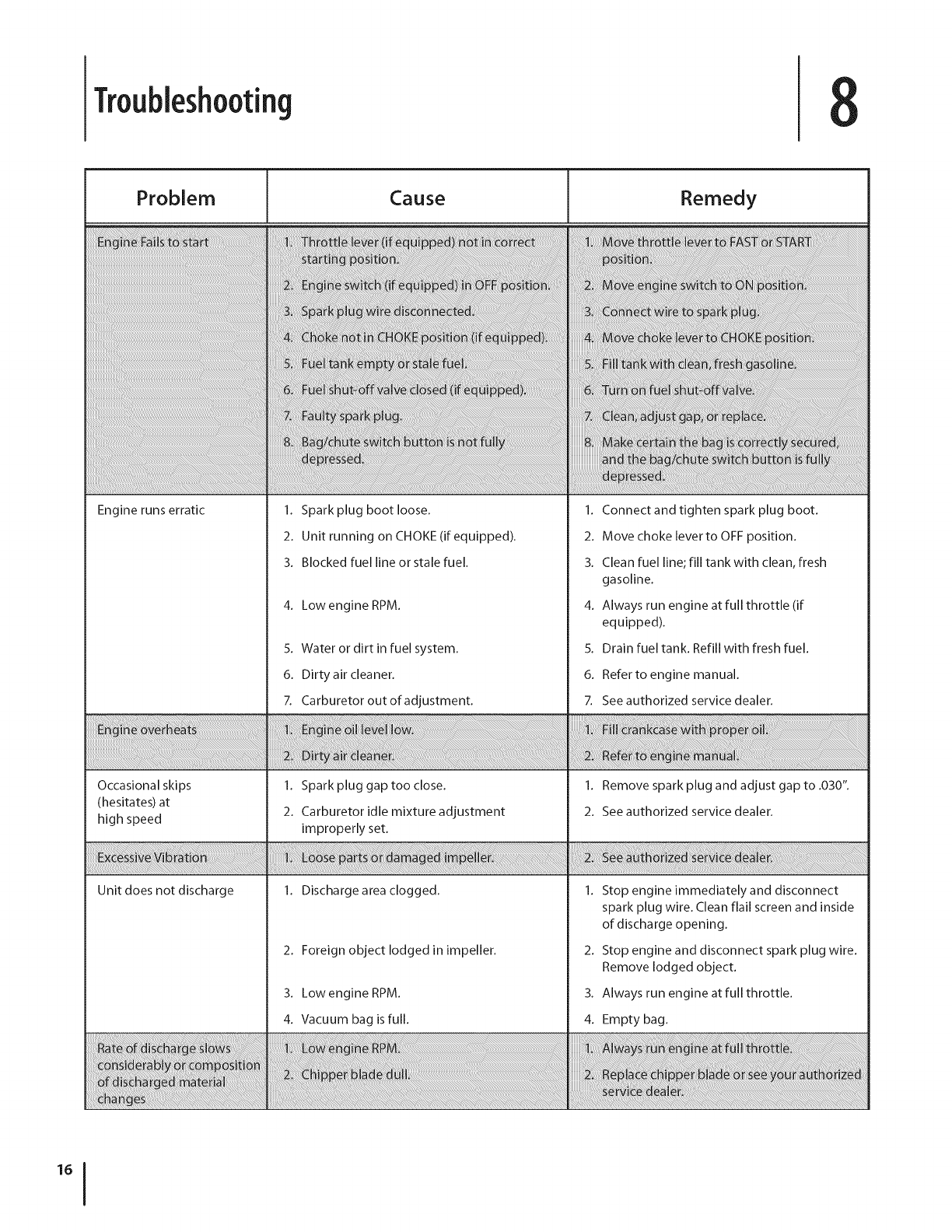

Troubleshooting
Problem Cause ! Remedy
Engine runs erratic
Occasional skips
(hesitates) at
high speed
Unit does not discharge
1. Spark plug boot loose.
2. Unit running on CHOKE (if equipped).
3. Blocked fuel line or stale fuel.
4. Lowengine RPM.
5. Water or dirt in fuel system.
6. Dirty air cleaner.
7. Carburetor out of adjustment.
1. Spark plug gap too close.
2. Carburetor idle mixture adjustment
improperly set.
1. Discharge area clogged.
2. Foreign object lodged in impeller.
3. Lowengine RPM.
4. Vacuum bag is full.
1. Connect and tighten spark plug boot.
2. Move choke lever to OFF position.
3. Clean fuel line; fill tank with clean, fresh
gasoline.
4. Always run engine at full throttle (if
equipped).
5. Drain fuel tank. Refill with fresh fuel.
6. Referto engine manual.
7. See authorized service dealer.
1. Remove spark plug and adjust gap to .030".
2. See authorized service dealer.
2_
Stop engine immediately and disconnect
spark plug wire. Clean flail screen and inside
of discharge opening.
Stop engine and disconnect spark plug wire.
Remove lodged object.
3_
4. Empty bag.
Always run engine at full throttle.

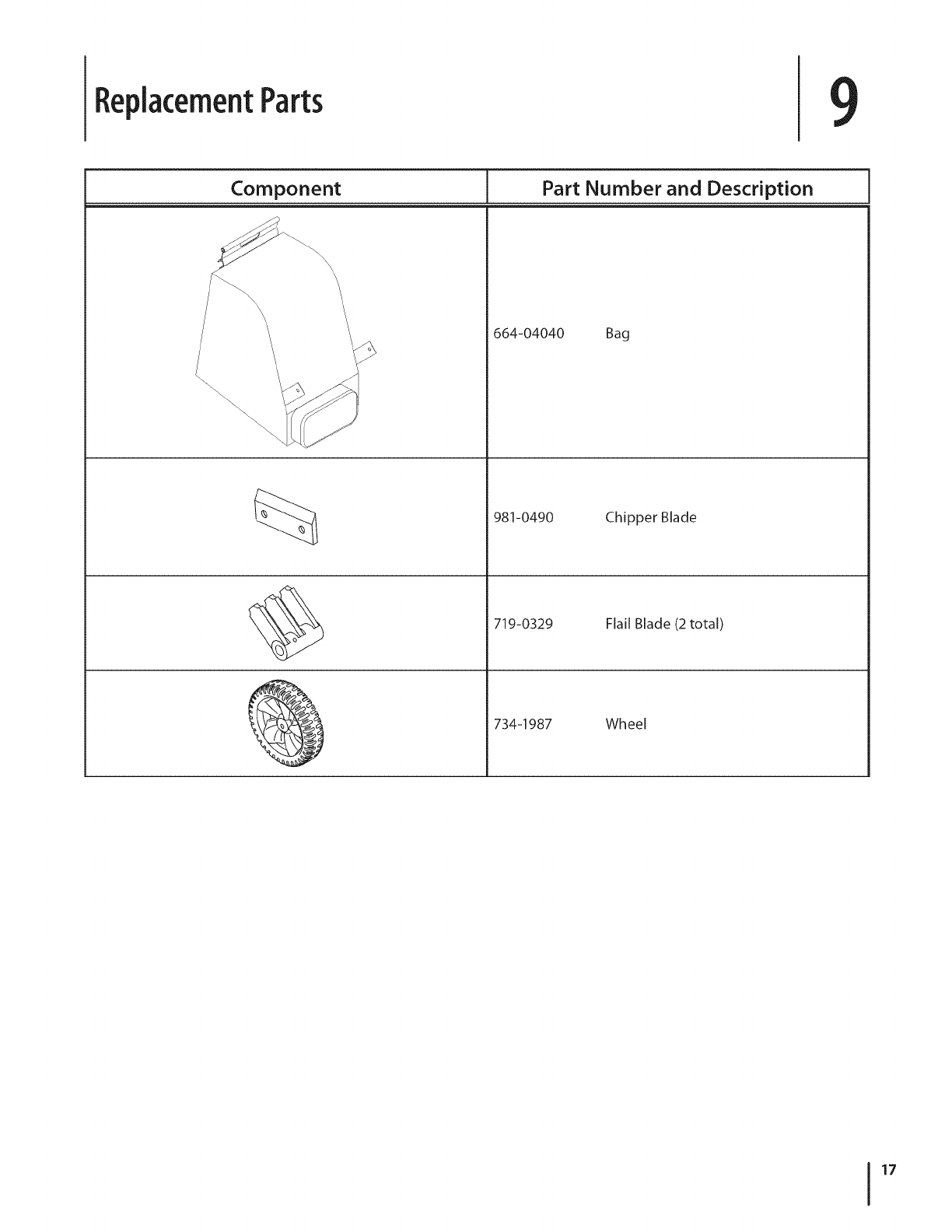

ReplacementParts 9
Component 1Part Number and Description
664-04040 Bag
981-0490
719-0329
734-1987 Wheel
Chipper Blade
Flail Blade (2 total)
17
19

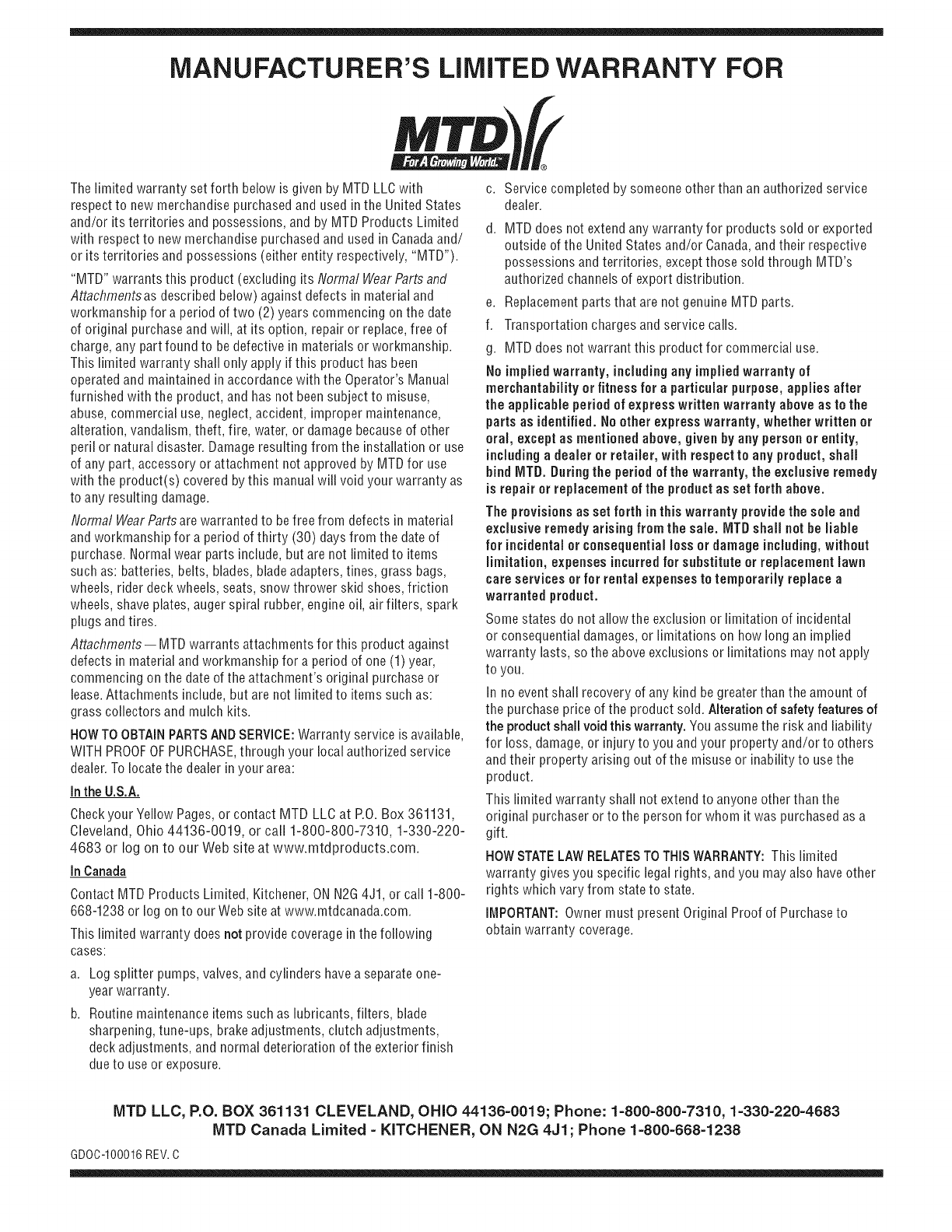

MANUFACTURER'S LiMiTED WARRANTY FOR
The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased and used in the United States
and/or its territories and possessions, and by MTD Products Limited
with respect to new merchandise purchased and used in Canadaand/
or its territories and possessions (either entity respectively, "MTD").
"MTD" warrants this product (excluding its Normal WearParts and
Attachments as described below) against defects in material and
workmanship for a period of two (2) years commencing on the date
of original purchase and will, at its option, repair or replace, free of
charge, any part found to be defective in materials or workmanship.
This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator's Manual
furnished with the product, and has not been subject to misuse,
abuse, commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of other
peril or natural disaster. Damage resulting from the installation or use
of any part, accessory or attachment not approved by MTD for use
with the product(s) covered by this manual will void your warranty as
to any resulting damage.
Normal WearParts are warranted to be free from defects in material
and workmanship for a period of thirty (30) days from the date of
purchase. Normal wear parts include, but are not limited to items
such as: batteries, belts, blades, blade adapters, tines, grass bags,
wheels, rider deck wheels, seats, snow thrower skid shoes, friction
wheels, shave plates, auger spiral rubber, engine oil, air filters, spark
plugs and tires.
Attachments-- MTD warrants attachments for this product against
defects in material and workmanship for a period of one (1) year,
commencing on the date of the attachment's original purchase or
lease. Attachments include, but are not limited to items such as:
grass collectors and mulch kits.
HOWTO OBTAINPARTSANDSERVICE:Warranty service is available,
WITH PROOFOFPURCHASE,through your local authorized service
dealer. To locate the dealer in your area:
In the U.S.A.
Check your Yellow Pages,or contact MTD LLC at RO. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-800-800-7310, 1-330-220-
4683 or log on to our Web site at www.mtdproducts.com.
In Canada
Contact MTD Products Limited, Kitchener, ON N2G4J1, or call 1-800-
668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following
cases:
a.
b.
Log splitter pumps, valves, and cylinders havea separate one-
year warranty.
Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior finish
due to use or exposure.
c. Service completed by someone other than an authorized service
dealer.
d. MTD does not extend any warranty for products sold or exported
outside of the United States and/or Canada, and their respective
possessions and territories, except those sold through MTD's
authorized channels of export distribution.
e. Replacement parts that are not genuine MTD parts.
f. Transportation charges and service calls.
g. MTD does not warrant this product for commercial use.
No implied warranty, including any implied warranty of
merchantability or fitness for a particular purpose,applies after
the applicable period of express written warranty above as to the
parts as identified. No other express warranty, whether written or
oral, except as mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product,shall
bind MTD. Duringthe period of the warranty, the exclusive remedy
is repair or replacement of the productas set forth above.
The provisions as set forth inthis warranty provide the sole and
exclusive remedy arising from the sale. MTD shall not be liable
for incidental orconsequential loss or damage including, without
limitation, expenses incurred for substitute or replacement lawn
care services or for rental expenses to temporarily replace a
warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply
to you.
In no event shall recovery of any kind be greater than the amount of
the purchase price of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the risk and liability
for loss, damage, or injury to you and your property and/or to others
and their property arising out of the misuse or inability to use the
product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.
HOWSTATELAW RELATESTOTHIS WARRANTY: This limited
warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
IMPORTANT: Owner must present Original Proof of Purchase to
obtain warranty coverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1=800=800=7310, 1=330=220-4683
MTD Canada Limited - KITCHENER, ON N2G 4J1; Phone 1-800-668-1238
GDOC-100016 REV. C

Navigation menu
