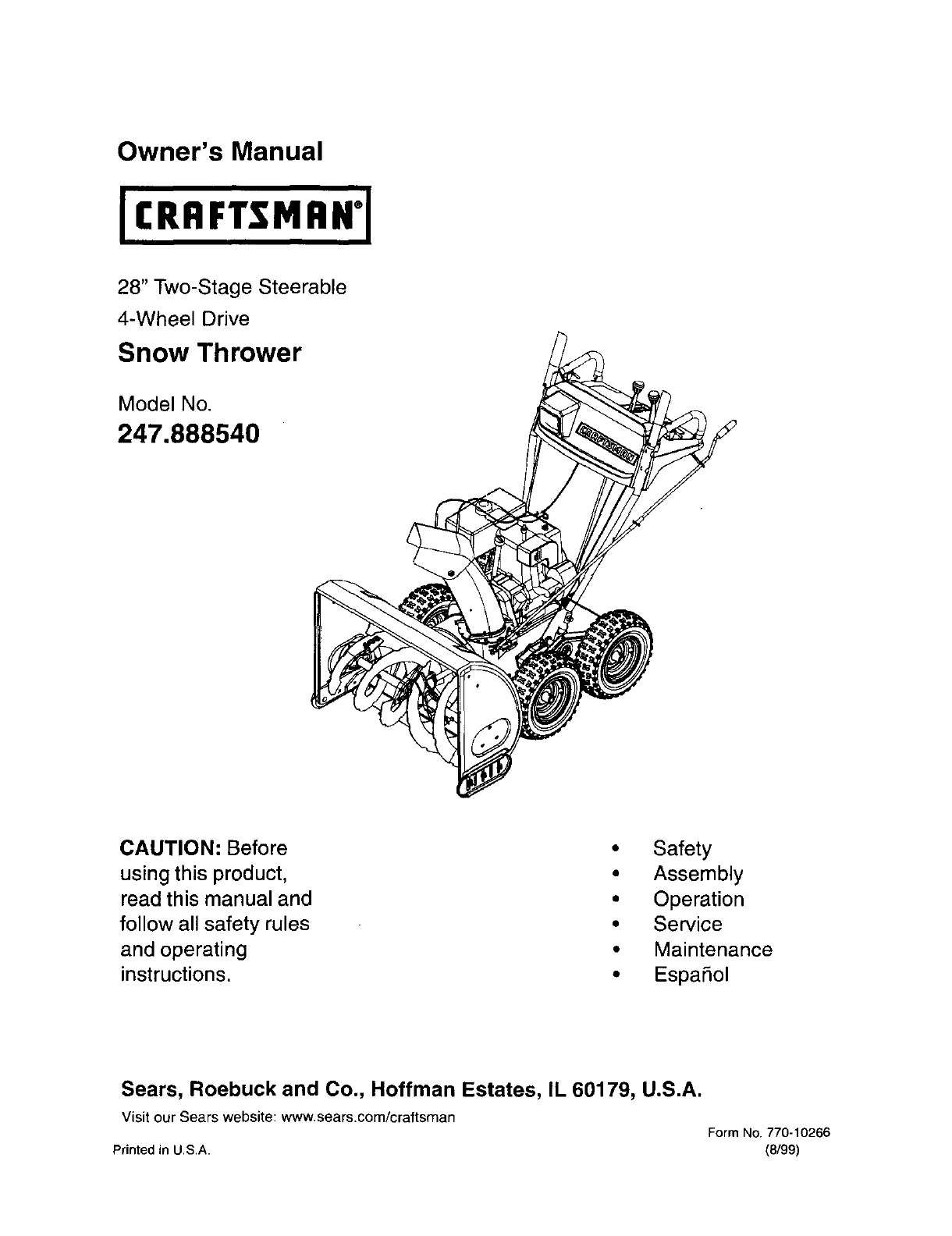

Owner's Manual

28" Two-Stage Steerable

4-Wheel Drive

Snow Thrower

Model No.

247.888540

CAUTION: Before

using this product,

read this manual and

follow all safety rules

and operating

instructions.

•Safety

• Assembly

• Operation

• Service

• Maintenance

• EspaSol

Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.

Visitour Sears website: www.sears.com/craftsman

Form No. 770-10266

Printed in U.S.A (8/99)

Content Page

Warranty Information ......................................... 2

Safe Operation Practices................................... 3

Assembly ........................................................... 6

Operation ........................................................... 12

Maintenance ...................................................... 17

Content Page

Service & Adjustment ......................................... 20

Off-Season Storage ........................................... 25

Trouble-Shooting ............................................... 26

Parts List ............................................................ 28

Espanbl .............................................................. 40

Two -Year Warranty on Craftsman Snow Thrower

For two years from the date of purchase, when this Craftsman Snow Thrower is maintained, lubricated and tuned

up according to the instructions in the owner's manual, Sears will repair, free of charge, any defect in material

and workmanship.

If this Craftsman snow thrower is used for commercial or rental purposes, this warranty applies for only 30 days

from the date of purchase.

This warranty does not cover:

Expendable items which become worn during normal use, such as skid shoes, shave plate and spark

plugs.

Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to

maintain the equipment according to the instructions contained in the owner's manual.

WARRANTY SERVICE ISAVAILABLEBY RETURNING THE CRAFTSMAN SNOW THROWER TO THE NEAREST

SEARS SERVICE CENTER/DEPARTMENT INTHE UNITED STATES.

This warranty applies only while this product is in use in the United States.

Thiswarrantygives youspecific legal rightsand youmayalsohaveotherrightswhichmay varyfrom state to state.

Sears, RoebuckandCo., D/817WA, HoffmanEstates,IL60 f 79

Horsepower: ......................... 9

Engine Oil ............................. SAE 5W30 oil

Fuel Capacity: ....................... 1gallon

Spark Plug: ........................... RJ-19LM

Engine: .................................. 143.999005

Model Number 247.888540

Serial Number ...........................................................

Date of Purchase ......................................................

Record both serial number and date of purchase and

keep in a safe place for future reference.

2

This symbol points out important safety instructions which,if not followed, could endanger the

personal safety and/or propertyof yourself and others. Read and follow all instructionsinthismanual

before attemptingto operate your snow thrower. Failure to comply withthese instructionsmay resultin

personal injury.When yousee thissymbol--heed its warning.

Your snow thrower was built to be operated according to the rules for safe operation inthis

manual. As with any type of power equipment, carelessness or error on the part of the

,_ DANGER:operator can result in serious injury. If you violate any of these rules, you cause serious

may

injury to yourself or others.

,a, This unit is equipped with an internal combustion engine and should not be used on or near any unimproved

forest-covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a

spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be

maintained in effective working order by the operator.

In the State of California the above is required by law (Section 4442 of the California Public Resources

Code), Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the

muffler is available through your nearest Sears Authorized Service Center (See the REPAIR PARTS section

of this manual.)

The engine exhaust from this product contains chemicals known to the state of California to cause cancer,

birth defects or other reproductive harm.

TRAINING

Read this owner's guide carefully in its entirety before

attempting to assemble or operate this machine. Be

completely familiar with the controls and the proper

use of this machine before operating it. Keep this

manual in a safe place for future and regular

reference and for ordering replacement parts.

Never allow children under 14 years old to operate a

snow thrower. Children 14 years old and over should

only operate a snow thrower under close parental

supervision. Only persons well acquainted with these

rules of safe operation should be allowed to use your

snow thrower.

No one should operate this unit while intoxicated or

while taking medication that impairs the senses or

reactions.

Keep the area of operation clear of all persons,

especially small children and pets.

Exercise caution to avoid slipping or falling, especially

when operating in reverse.

PREPARATION

Thoroughly inspect the area where the equipment is

to be used and remove all door mats, sleds, boards,

wires and other foreign objects.

Do not operate equipment without wearing adequate

outer garments for winter. Do not wear jewelry, long

scads or other loose clothing which could become

entangled in moving parts, Wear footwear which will

improve footing on slippery surfaces.

Before working with gasoline, extinguish all cigarettes

and other sources of ignition. Check the fuel before

starting the engine. Gasoline is an extremely

flammable fuel. Do net fill the gasoline tank indoors,

while the engine is running, or until engine has been

allowed to cool at least two minutes. Replace

gasoline cap securely and wipe offany spilled

gasoline before starting the engine as it may cause a

fire or explosion.

Use a grounded three wire plug-in for all units with

electric drive motors or e)ectdc starting motors.

Adjust collector housing height to clear gravel or

crushed rock surface.

Never attempt to make any adjustments while engine

is running (except where specifically recommended

by manufacturer).

Let engine and machine adjust to outdoor

temperature before starting to clear snow.

Always wear safety glasses or eye shields during

operation or while performing an adjustment or repair,

to protect eyes from foreign objects that may be

thrown from the machine in any direction.

OPERATION

Do not put hands or feet near or under rotating parts.

Keep clear of discharge opening and auger at all

times.

Exercise extreme caution when operating on or

crossing gravel drives, walks, or roads. Stay alert for

hidden hazards or traffic,

Do not carry passengers.

After striking a foreign object, stop the engine, remove

wire from the spark plug and thoroughly inspect the

snow thrower for any damage. Repair the damage

before restarting and operating the snow thrower.

If the snow thrower starts to vibrate abnormally, stop

the engine and check immediately for the cause.

Vibration is generally a warning of trouble.

Stop the engine whenever you leave the operating

position,before unclogging the colFector/impeller

housing or discharge guide and before making any

repairs, adjustments, or inspections. Never place your

handinthedischargeor collector openings. Use a

stick or wooden broom handle to unclog the

discharge opening.

Take all possible precautions when leaving the unit

unattended. Disengage the collector/impeller, stop

the engine and remove the key.

When cleaning, repairing, or inspecting, make certain

collector/impeller and all moving parts have stopped.

Disconnect spark plug wire and keep away from plug

to prevent accidental starting.

Do not run the engine indoors, except when starting it

and/or transporting the snow thrower in or out of

building. Open doors before starting the engine in that

case. Exhaust fumes are dangerous.

Do not clear snow across the face of slopes. Exercise

extreme caution when changing direction on slopes.

Do not attempt to clear steep slopes.

Never operate the snow thrower without guards,

plates or other safety protection devices in place.

Never operate the snow thrower near glass

enclosure, automobiles, window wells, drop off, etc.,

without proper adjustments of snow thrower

discharge angle. Keep,children and pets away.

Do not overload machine capacity by attempting to

clear snow at too fast a rate. Never operate the

machine at high transport speeds on slippery

surfaces. Look behind and use care when backing.

Never direct discharge at bystanders or allow anyone

in front of unit while throwing snow.

Disengage powerto collector/impellerof the snow

thrower when transporting itor when the unit is not in use.

Use only attachments and accessories (such as

wheel weights, counter weights, cabs, etc.) approved

by the snow thrower manufacturer.

Never operate the snow thrower without good

visibility or light. Always be sure of your footing and

keep a firm hold on the handles. Walk, never run.

Muffler and engine become hot and can cause severe

burn injury. Do net touch the muffler or the engine

while starting or operating the snow thrower.

MAINTENANCE AND STORAGE

Check shear bolts, engine mounting bolts, etc., at

frequent intervals for proper tightness, thus ensuring

that the equipment is in safe working condition.

Never store the machine with fuel in the fuel tank

inside abuilding where ignition sources are present,

such as hot water heaters, space heaters, clothes

dryers and the like. Allow engine to cool before storing

in any enclosure.

Always refer to owner's guide instructions for

important details if the snow thrower is to be stored for

an extended period.

Run machine a few minutes after throwing snow to

prevent freeze-up of the collector/impeller.

Check clutch controls periodically to varify that these

engage and disengage properly and readjust if

necessary. Refer to Service and Adjustments section

page of this owner's guide.

YOUR RESPONSIBILITY

Restrict the use of this power machine to persons who

read, understand and follow the warnings and

instructions in this manual and on the machine.

We do not recommend the use of pressure washers

or garden hose to clean your unit. They may cause

damage to electric components, spindles, pulleys,

bearings or the engine. The use of water will result in

shortened life and reduce serviceability.

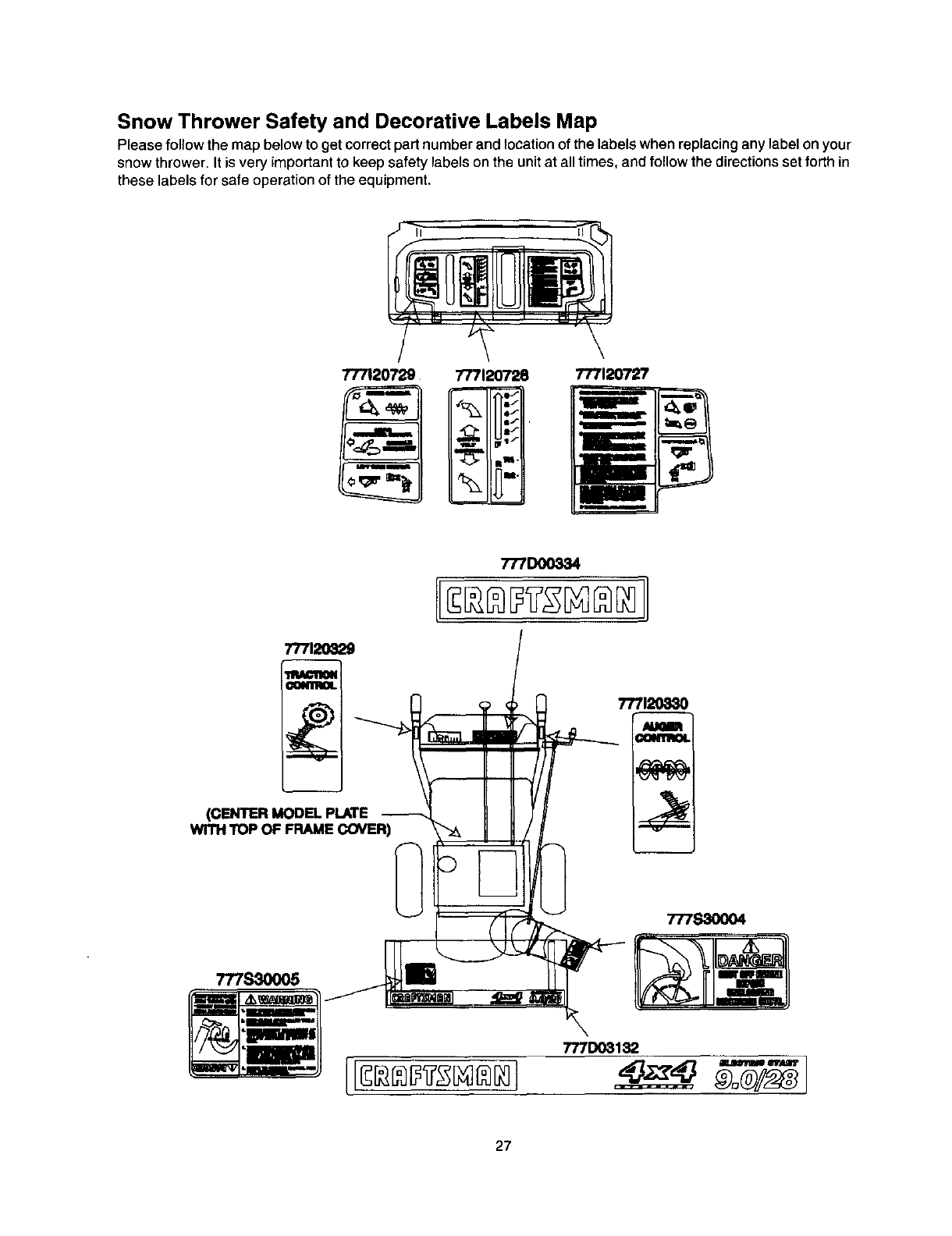

Following are representations of some of the safety labels on your Craftsman snowthrower. Please follow the

instruction on these labels and maintain safety while using or servicing the equipment, explanation of engine

labels is given on Page 12,

I,A,WARNING I

]kDANGER

Lay the hardware pieces from the hardware pack on the figure here and you will have automatically sorted these

according to the steps of the assembly procedure described later. (Only one unit of each hardware has been shown per group.

The number in parenthesis indicates the total number of the hardware needed in that group.)

Lock Washer (4)

Hex Bolt (2)

\

Ha°d,,Tab(2)

5/16-18 x 1.75 /

,/

EFlanged

Hex Bolt (6) x_, f/Nut (6)

1/4-20

Hex Bolt (2)

B Cupped Washer (4)

5/1 Nut (4)

Chute Flange Keeper (3)

Hex Bolt(2)

HexxNut(2)

Bele_vile Washel(2)

1/4..20

-.,--- arriage

Bolt (4)

C

./

Hairpin Clip (1)

Hairpin Clip (2)

Flat

Washer (2)

5/16 Ferru

(t)

Spare Parts Lo_c k Hex

_She_ Nut (2)**

Nut (2)*

G

0 frFFiiiiiiHirlllllllll!lllrflllllll/rtlll

/,

Phinps Screw (2)

Turn

* Used on auger; ** used on clutch lever

Chute

/Flange

/Bracket

(not shown

in actual

size)

Flat

_ jasher(2)

3/8

Cable Tie (2)

F_at Weld

Nut (2)

5

Chute

J

Crank

Handle

Panel

Handles

Shift

Rod

Right

Fron

_Electric

Start Cord

Rear

Figure I

IMPORTANT: This unit is shipped with engine oil in

the engine, but withoutgasoline.After assembly, see

OPERATION sectionof thismanual for fuel selection

and fill-up.

NOTE: To determine right and lefthand sides ofyour

snow thrower,stand behind the unit in the operating

position. See Figure I inset.

Your snow thrower has been assembled at the

factory except the handles and the handle panel, the

discharge chute assembly, the chutecrank assembly

andthe shift rod.These partsare shipped loose inthe

carton.

Removing From Carton

Cut the corners of the carton and lay the sides

flat on the ground. Remove all packing inserts.

Remove all loose parts. For a complete list of

the loose parts, refer to the following section.

Move the snow thrower out of the carton.

• Make certain all parts and literature have been

removed before discarding the carton.

Loose Parts

(See Figure 1.)

a. Handle Panel and Chute Assembly

b. Right Hand & Left Hand Handles

c. Electric Start Cord

d. Two-piece Chute Crank Assembly

e. Shift Rod

f. Hardware Pack

Assembly Tips: For easier assembly purposes,

remove the chute from the carton and lay it on top of

the engine. Do not unwrap the chute till you have

installedthe handle panel and the clutch cables.

Tools Required

1. 1/2", 7/16", 3/8" wrenches or a set of adjustable

wrenches

2. Set of pliers

3. Set of philips head screw drivers

4. Funnel to fill up gasoline

WARNING: Make certainthespark plug wire

is disconnected and moved away from the

spark plug before assembling the snow thrower.

Attaching Handle Assembly

Stretch out controlcables and place onthe floor.

Place the right handle inposition withthe flat

side against the snow thrower. Youcan identify

the right handle by the traction drivecontrollabel

on it and the left handle by the auger clutch

control label on it.

6

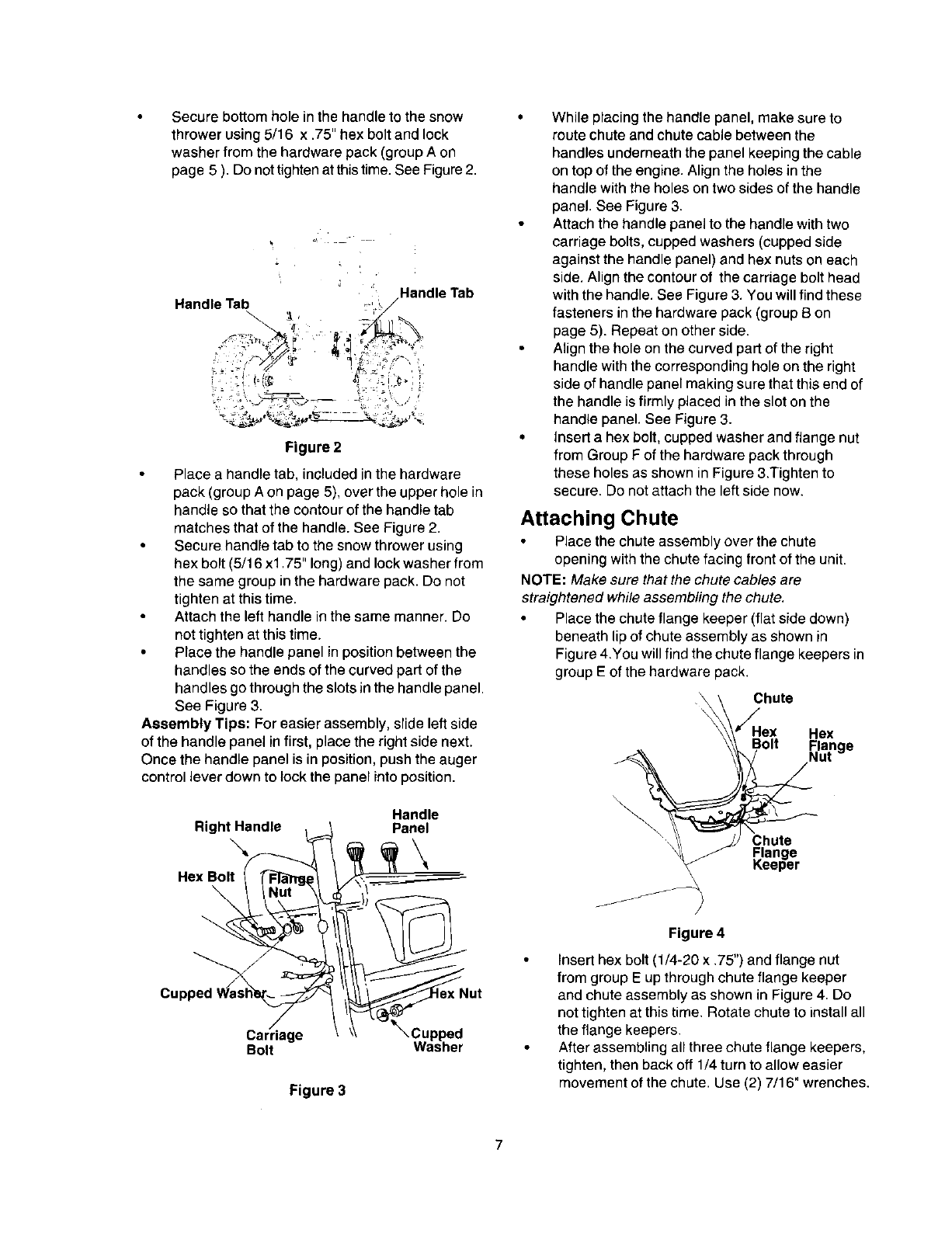

Secure bottom hole in the handle to the snow

thrower using 5/16 x .75" hex bolt and lock

washer from the hardware pack (group A on

page 5 ). Do not tighten at thistime. See Figure 2.

Handle Tab

Handle Tab , P'_/

Figure 2

Place a handle tab, included in the hardware

pack (group A on page 5), over the upper hole in

handle so that the contour of the handle tab

matches that of the handle. See Figure 2.

Secure handle tab to the snow thrower using

hex bolt (5/16 x1.75" long) and lock washer from

the same group in the hardware pack. Do not

tighten at this time.

Attach the left handle in the same manner. Do

not tighten at this time.

Place the handle panel in position between the

handles so the ends of the curved part of the

handles go through the slots in the handle panel.

See Figure 3.

Assembly Tips: For easier assembly, slide left side

of the handle panel infirst, place the right side next.

Once the handle panel is in position, push the auger

control lever down to lock the panel into position.

Handle

Right Handle Panel

\

Hex Bolt

Cup

Carriage Cupped

Bolt Washer

Figure 3

While placing the handle panel, make sure to

route chute and chute cable between the

handles underneath the panel keeping the cable

on top of the engine. Align the holes in the

handle with the holes on two sides of the handle

panel. See Figure 3.

Attach the handle panel to the handle with two

carriage bolts, cupped washers (cupped side

against the handle panel) and hex nuts on each

side. Align the contour of the carriage bolt head

with the handle. See Figure 3. You will find these

fasteners in the hardware pack (group B on

page 5). Repeat on other side.

Align the hole on the curved part of the right

handle with the corresponding hole on the right

side of handle panel making sure that this end of

the handle is firmly placed in the slot on the

handle panel. See Figure 3.

insert a hex bolt, cupped washer and flange nut

from Group F of the hardware pack through

these holes as shown in Figure 3.Tighten to

secure. Do not attach the left side now.

Attaching Chute

Place the chute assembly over the chute

opening with the chute facing front of the unit.

NOTE: Make sure that the chute cables are

straightened while assembling the chute.

•Place the chute flange keeper (flat side down)

beneath lip of chute assembly as shown in

Figure 4.You will find the chute flange keepers in

group E of the hardware pack,

\

Chute

/

Hex Hex

Bolt F,la.nge

Chute

Flange

Keeper

Figure 4

Insert hex bolt (1/4-20 x .75") and flange nut

from group E up through chute flange keeper

and chute assembly as shown in Figure 4. Do

not tighten at this time. Rotate chute to install all

the flange keepers.

After assembling all three chute flange keepers,

tighten, then back off 1/4 turn to allow easier

movement of the chute. Use (2) 7/16" wrenches.

7

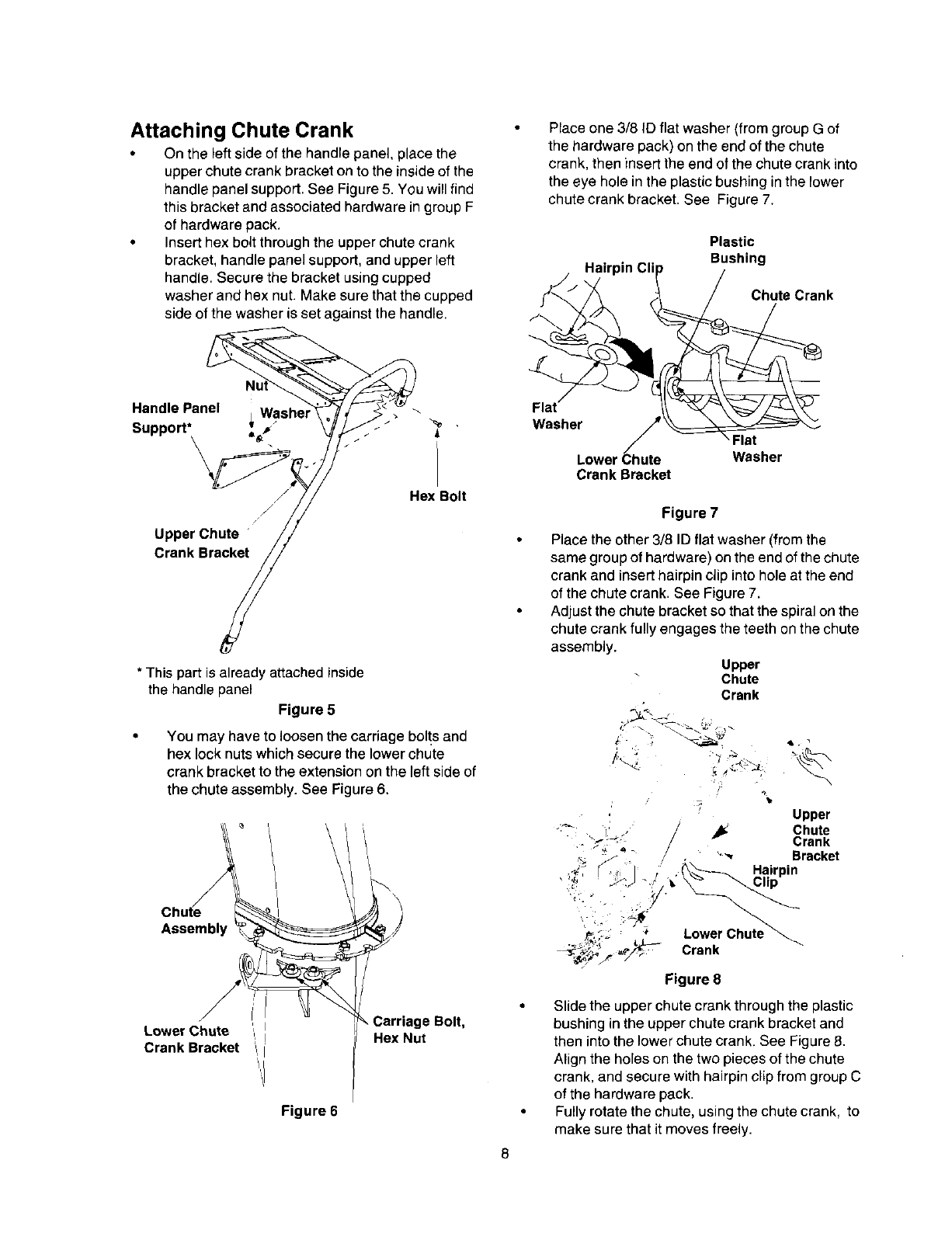

Attaching Chute Crank

•On the left side of the handle panel, place the

upper chute crank bracket on to the inside of the

handle panel support. See Figure 5. You will find

this bracket and associated hardware in group F

of hardware pack.

• Insert hex bolt through the upper chute crank

bracket, handle panel support, and upper left

handle. Secure the bracket using cupped

washer and hex nut. Make sure that the cupped

side of the washer is set against the handle.

Handle Panel _Washer

Support _,_

Upper Chute j//

Crank Brai

Hex Bolt

* This part is already attached inside

the handle panel

Figure 5

• You may have to loosen the carriage bolts and

hex lock nuts which secure the lower chute

crank bracket to the extension on the left side of

the chute assembly. See Figure 6.

Assembly

Lower Chute ', I•Carriage Bolt,

',,! Hex Nut

Crank Bracket ",I

'/I

Figure 6

Place one 3/8 ID flat washer (from group G of

the hardware pack) on the end of the chute

crank, then insert the end of the chute crank into

the eye hole in the plastic bushing in the lower

chute crank bracket. See Figure 7.

Hairpin Cli

Plastic

Bushing

Chute Crank

F

Washer h_ute Flat

Lower Washer

Crank Bracket

Figure 7

Place the other 3/8 ID flat washer (from the

same group of hardware) on the end of the chute

crank and insert hairpin clip into hole at the end

of the chute crank. See Figure 7.

Adjust the chute bracket so that the spiral on the

chute crank fully engages the teeth on the chute

assembly•

Upper

Chute

Crank

Upper

Chute

Crank

Bracket

Slide the upper chute crank through the plastic

bushing in the upper chute crank bracket and

then into the lower chute crank• See Figure 8.

Align the holes on the two pieces of the chute

crank, and secure with hairpin clip from group C

of the hardware pack.

Fully rotate the chute, using the chute crank, to

make sure that it moves freely•

Usingawrench, tighten the hex bolt and the hex

nut on the upper chute crank bracket.

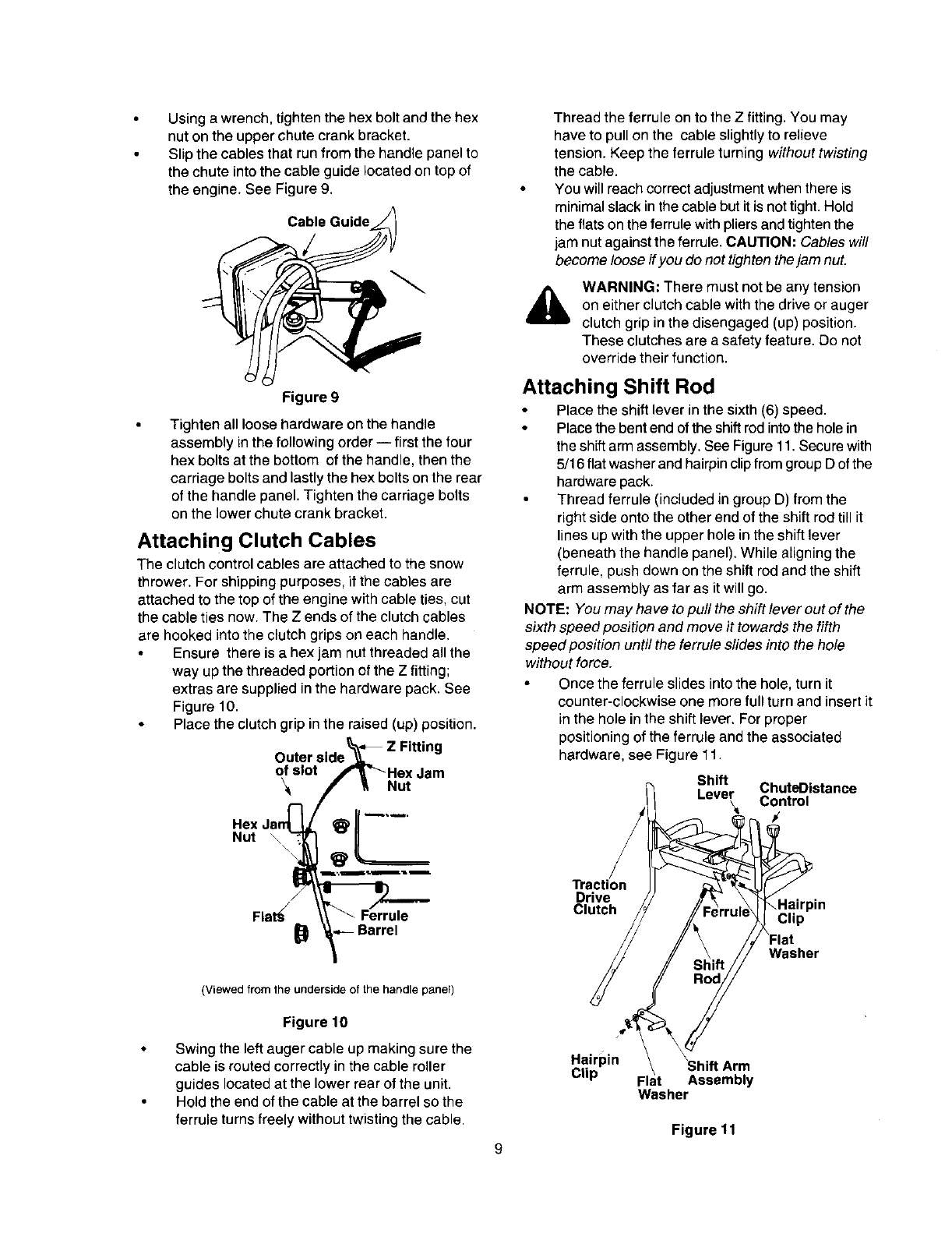

Slip the cables that run from the handle panel to

the chute into the cable guide located on top of

the engine. See Figure 9.

Cable Guide

Figure 9

Tighten all loose hardware on the handle

assembly inthe following order-- first the four

hex bolts at the bottom of the handle, then the

carriage bolts and lastly the hex bolts on the rear

of the handle panel. Tighten the carriage bolts

on the lower chute crank bracket.

Attaching Clutch Cables

The clutch control cables are attached to the snow

thrower. For shipping purposes, if the cables are

attached to the top of the engine with cable ties, cut

the cable ties now. The Z ends of the clutch cables

are hooked into the clutch grips on each handle.

•Ensure there is a hex jam nut threaded all the

way up the threaded portion of the Z fitting;

extras are supplied in the hardware pack. See

Figure 10.

Place the clutch grip in the raised (up) position.

slde_ ZF tting

Outer

of slot ,_"_Hex Jam

_" _Nut

....

Nut \\ ::

Thread the ferrule on to the Z fitting. You may

have to pull on the cable slightly to relieve

tension. Keep the ferrule turning without twisting

the cable.

You will reach correct adjustment when there is

minimal slack in the cable but it is not tight. Hold

the flats on the ferrule with pliers and tighten the

jam nut against the ferrule. CAUTION: Cables will

become loose if you do not tighten thejam nut.

WARNING: There must not be any tension

on either clutch cable with the drive or auger

clutch grip in the disengaged (up) position.

These clutches are a safety feature. Do not

override their function.

Attaching Shift Rod

Place the shift lever in the sixth (6) speed.

Place the bent end of the shift rod into the hole in

the shift arm assembly. See Figure 11. Secure with

5/16 flat washer and hairpin clip from group D of the

hardware pack.

Thread ferrule (included in group D) from the

right side onto the other end of the shift rod till it

lines up with the upper hole in the shift lever

(beneath the handle panel). While aligning the

ferrule, push down on the shift rod and the shift

arm assembly as far as it will go.

NOTE: You may have topull the shift lever out of the

sixth speed position and move it towards the fifth

speed position until the ferrule slides into the hole

without force.

Once the ferrule slides into the hole, turn it

counter-clockwise one more full turn and insert it

in the hole in the shift lever. For proper

positioning of the ferrule and the associated

hardware, see Figure 11.

Shift

Lever ChuteDistance

Control

Traction

Drive

Clutch Hairpin

Clip

Washer

(Viewed from the underside of the handle panel)

Figure 10

• Swing the left auger cable up making sure the

cable is routed correctly in the cable roller

guides located at the lower rear of the unit.

• Hold the end of the cable at the barrel so the

ferrule turns freely without twisting the cable.

Hairpin Arm

Clip Flat Assembly

Washer

Figure 11

•Secure the ferrule to the shift lever with another

5/16 flat washer and hairpin clip from group D of

the hardware pack. See Figure 11.

Make certain to check for correct adjustment of

the shift rod as instructed in the Adjustment

section before operating the snow thrower.

Attaching Turn Triggers

Check and make sure that the righthand trigger

cable is routedinfront of the tractiondrive cable,

•Feedthetriggercableupthroughtheoutersideof

the slotinthe handlepanel.See Figure12. Do not

feed the cable through the same side of theslotas

the Z fitting.

Cable

and weld nut from group H of the hardware pack.

See Figure 14. Use a phillips screwdriver for

tightening the screw. Repeat on left side. Be

careful not to drop the weld nut before securing it

in position.

Secure with screw

Trigger

Trigger

Figure 14

Secure the right turn trigger cable to the right

lower handle using cable tie provided in the

hardware pack. Make sure not to wrap the drive

cable. See Figure 15.

Feed the trigger

cable through this slot

Cable

Figure 12

Place the cable barrel riftinginto the hole in the

trigger. You can find the triggers and associated

hardware in group H of the hardware pack. See

Figure 13.

inher Cab:Trlgg_b_

,;e.

_/ Trigger

jousing

Slot Cable snaps in at

this end

Figure 13

• Pull on the cable and rotate it around the bottom

of the trigger, with the inner cable in the slot, until

the cable end can be pushed into the trigger

housing and snapped tight. See Figure 13.

NOTE: When the cable is installed correctly, you

should not be able to pull the cable out of the trigger

housing.

Place the right turn trigger in position

underneath the right handle. Secure with screw

Figure 15

Secure the left turn trigger cable to the lower

handle using the other cable tie. Make sure to

route the cable tie below the auger drive cable

so that when the trigger cable is secured by the

cable tie, the auger drive cable is left outside the

cable tie. Trim excess ends from each cable tie.

NOTE: The right side cable tie must be used to keep

cable from coming in contact with the moving shift

arm from the transmission.

Lamp Wiring

Wrap the wirefrom the lamp down the right

handle as shown in Figure 15,

Plug wireintothe alternator leadwire underthe

fuel tank. See Figure 16.

Alternator Lead

Alternator

Lead

Lamp Wire

(Wheelsnotshownfor clarity)

Figure 16

10

IMPORTANT: Assemble your snow thrower, then

check the adjustments as instructed and make any

final adjustments necessarybefore operating the unit.

Failure to follow these instructions may cause

damage to the snow thrower.

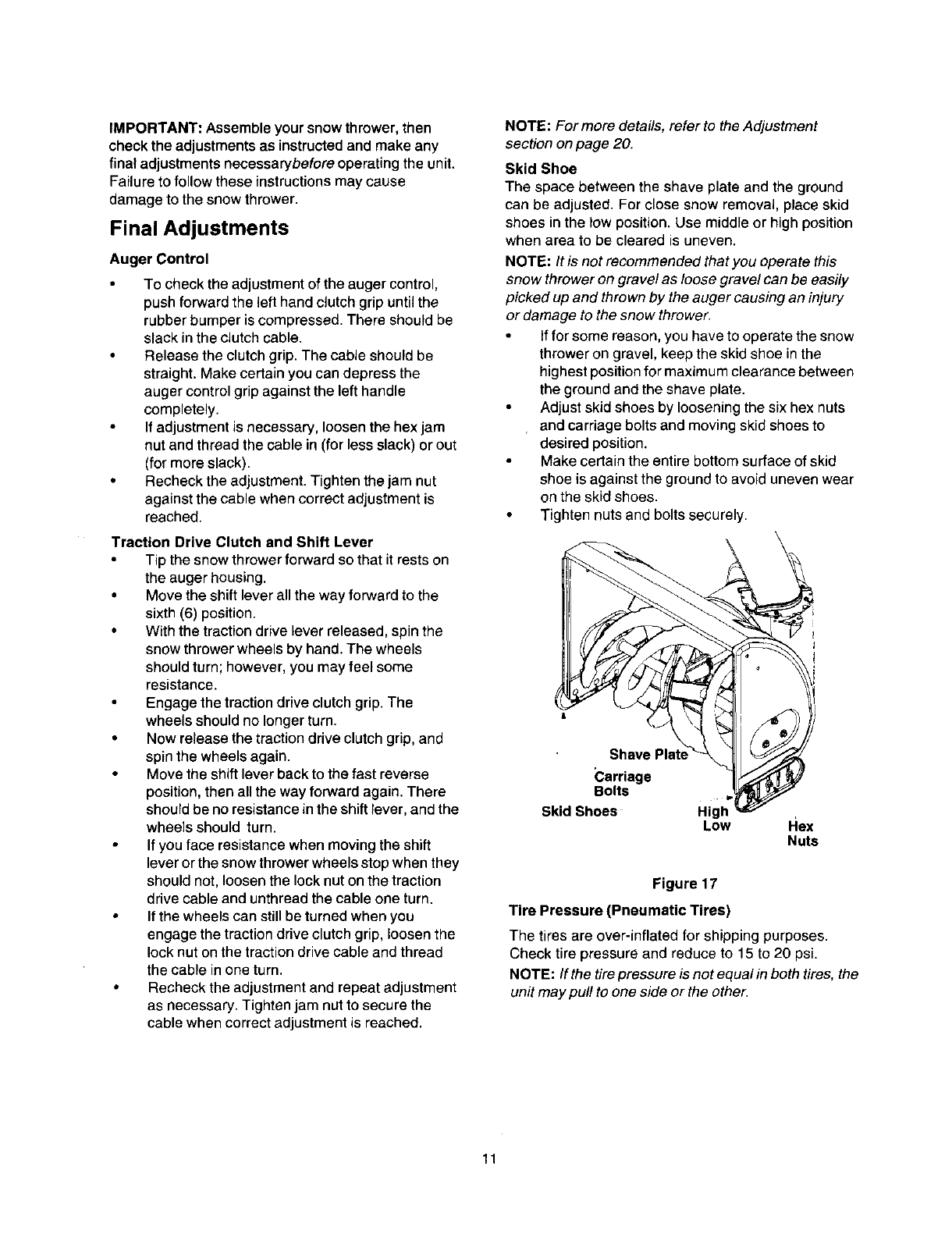

Final Adjustments

Auger Control

To check the adjustment of the auger control,

push forward the left hand clutch grip until the

rubber bumper is compressed. There should be

slack in the clutch cable.

Release the clutch grip. The cable should be

straight. Make certain you can depress the

auger control grip against the left handle

completely.

If adjustment is necessary, loosen the hex jam

nut and thread the cable in (for less slack) or out

(for more slack).

Recheck the adjustment. Tighten the jam nut

against the cable when correct adjustment is

reached.

Traction Drive Clutch and Shift Lever

Tip the snow throwerforward so that it rests on

the auger housing.

•Move the shift lever all the way forward to the

sixth(6) position.

•With the tractiondrive lever released, spin the

snow throwerwheels by hand. The wheels

shouldturn; however, you may feel some

resistance.

Engage the tractiondrive clutchgrip. The

wheels shouldno longer turn.

•Now release the tractiondrive clutch grip,and

spin the wheels again.

Move the shift leverback to the fast reverse

position,then allthe way forward again. There

shouldbe no resistancein the shift lever, and the

wheels should turn.

If you face resistancewhen moving the shift

leveror the snow throwerwheels stopwhen they

shouldnot, loosenthe locknut onthe traction

drive cable and unthreadthe cable one turn.

Ifthe wheels can stillbe turned when you

engage the traction drive clutch grip, loosen the

lock nut on the traction drive cable and thread

the cable in one turn.

• Recheck the adjustment and repeat adjustment

as necessary. Tighten jam nut to secure the

cable when correct adjustment is reached.

NOTE: For more details, refer to the Adjustment

section on page 20.

Skid Shoe

The space between the shave plate and the ground

can be adjusted. For close snow removal, place skid

shoes in the low position. Use middleor high position

when area to be cleared is uneven.

NOTE: It is not recommended that you operate this

snow thrower on gravel as loose gravel can be easily

picked up and thrown by the auger causing an injury

or damage to the snow thrower.

Iffor some reason, you have to operate the snow

thrower on gravel, keep the skid shoe in the

highest position for maximum clearance between

the ground and the shave plate.

Adjust skid shoes by loosening the six hex nuts

. and carriage bolts and moving skid shoes to

desired position.

• Make certain the entire bottom surface of skid

shoe is against the ground to avoid uneven wear

on the skid shoes.

• Tighten nuts and bolts securely.

Shave Platq

Carriage

Bolts

Skid Shoes High

Low Hex

Nuts

Figure 17

Tire Pressure (Pneumatic Tires)

The tires are over-inflated for shipping purposes.

Check tire pressureand reduce to 15 to 20 psi.

NOTE:/f the tirepressure is not equal in both tires,the

unitmay puff to one side or the other.

11

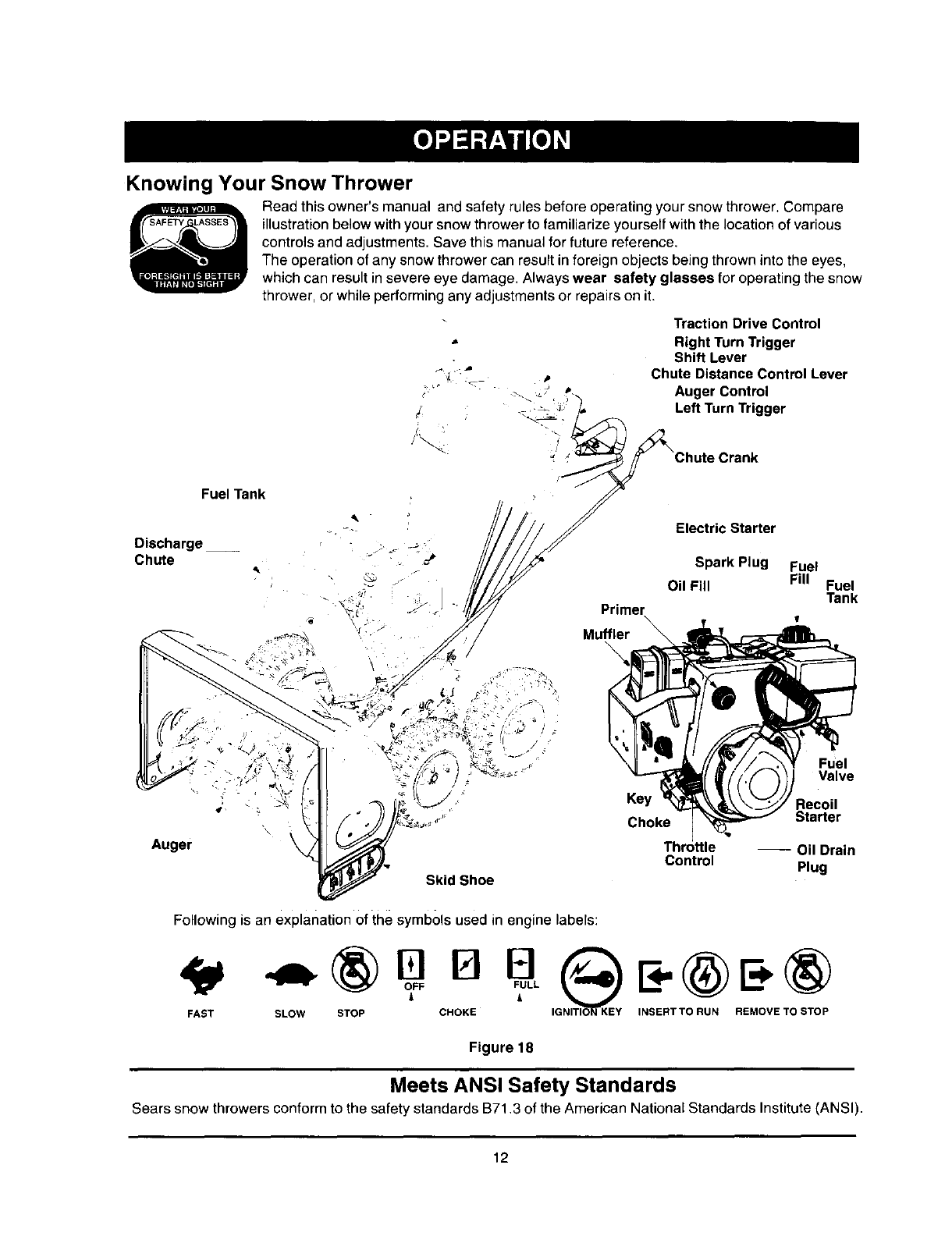

Knowing Your Snow Thrower

Read this owner's manual and safety rules before operating your snow thrower. Compare

illustration below with your snow thrower to familiarize yourself with the location of various

controls and adjustments• Save this manual for future reference.

The operation of any snow thrower can result in foreign objects being thrown into the eyes.

which can result in severe eye damage. Always wear safety glasses for operating the snow

thrower, or while performing any adjustments or repairs on it.

/

Traction Drive Control

Right Turn Trigger

Shift Lever

Chute Distance Control Lever

Auger Control

Left Turn Trigger

Crank

Fuel Tank

Discharge

Chute

SPrimer

Muffler

Electric Starter

Spark Plug Fuel

Oil Fill Fill Fuel

Tank

Auger \

Skid Shoe

Key

Choke

Control

Fuel

Valve

Starter

-- Oil Drain

Plug

Following is an explanation Ofthe symbols used in engine labels:

FAST SLOW STOP CHOKE I INSERT TO RUN REMOVE TO STOP

Figure 18

Meets ANSI Safety Standards

Sears snow throwers conform to the safety standards B71.3 of the American National Standards Institute (ANSI).

12

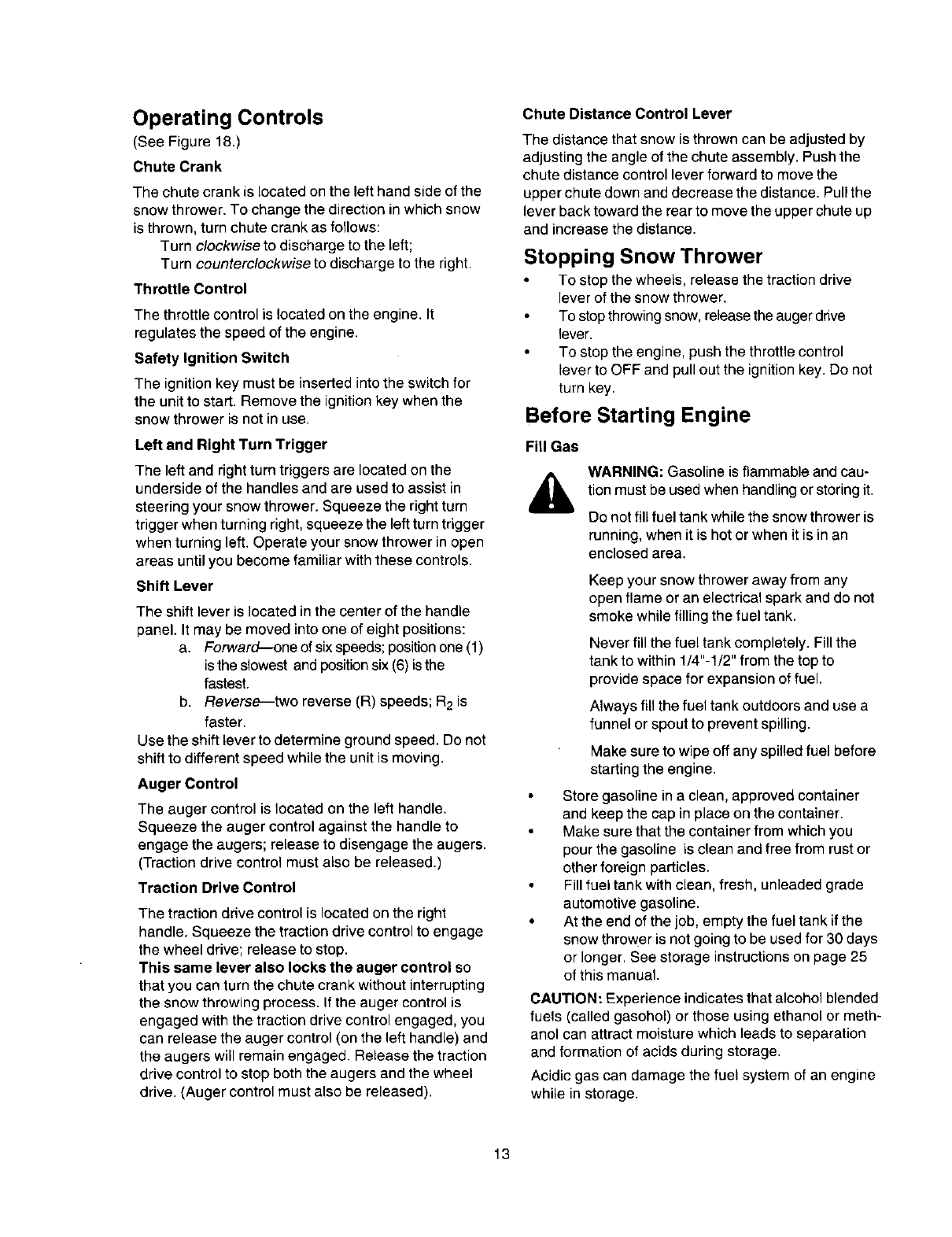

Operating Controls

(See Figure 18.)

Chute Crank

The chute crank is located on the lefthand side of the

snow thrower. To change the direction in which snow

is thrown, turn chute crank as follows:

Turn clockwise to discharge to the left;

Turn counterclockwise to discharge to the right.

Throttle Control

The throttle control is located on the engine. It

regulates the speed of the engine.

Safety Ignition Switch

The ignition key must be inserted into the switch for

the unit to start. Remove the ignition key when the

snow thrower is not in use.

Left and Right Turn Trigger

The left and right turn triggers are located on the

underside of the handles and are used to assist in

steering your snow thrower. Squeeze the right turn

trigger when turning right, squeeze the left turn trigger

when turning left. Operate your snow thrower in open

areas until you become familiar with these controls.

Shift Lever

The shift lever is located in the center of the handle

panel. It may be moved into one of eight positions:

a. Forward--one of six speeds; position one (1)

is the slowest and position six (6) isthe

fastest.

b. Reverse--two reverse (R) speeds; R 2 is

faster.

Use the shift lever to determine ground speed. Do not

shift to different speed while the unit is moving.

Auger Control

The auger control is located on the left handle.

Squeeze the auger control against the handle to

engage the augers; release to disengage the augers.

(Traction drive control must also be released.)

Traction Drive Control

The traction drive control is located on the right

handle. Squeeze the traction drive control to engage

the wheel drive; release to stop.

This same lever also locks the auger control so

that you can turn the chute crank without interrupting

the snow throwing process. If the auger control is

engaged with the traction drive control engaged, you

can release the auger control (on the left handle) and

the augers will remain engaged. Release the traction

drive control to stop both the augers and the wheel

drive. (Auger control must also be released).

Chute Distance Control Lever

The distance that snow is thrown can be adjusted by

adjusting the angle of the chute assembly. Push the

chute distance control lever forward to move the

upper chute down and decrease the distance. Pull the

lever back toward the rear to move the upper chute up

and increase the distance.

Stopping Snow Thrower

•To stop the wheels, release the traction drive

lever of the snow thrower.

To stop throwing snow. release the auger drive

lever.

• To stop the engine, push the throttle control

lever to OFF and pull out the ignition key. Do not

turn key.

Before Starting Engine

Fill Gas

&WARNING: Gasoline is flammable and cau-

tion must be used when handling or storing it.

Do not fill fuel tank while the snow thrower is

running, when it is hot or when it is in an

enclosed area.

Keep your snow thrower away from any

open flame or an electrical spark and do not

smoke while filling the fuel tank.

Never fill the fuel tank completely. Fill the

tank to within 1/4"-1/2" from the top to

provide space for expansion of fuel.

Always fill the fuel tank outdoors and use a

funnel or spout to prevent spilling.

Make sure to wipe off any spilled fuel before

starting the engine.

Store gasoline in a clean, approved container

and keep the cap in place on the container.

Make sure that the container from which you

pour the gasoline is clean and free from rust or

other foreign particles.

Fill fuel tank with clean, fresh, unleaded grade

automotive gasoline.

At the end of the job, empty the fuel tank if the

snow thrower is not going to be used for 30 days

or longer. See storage instructions on page 25

of this manual.

CAUTION: Experience indicates that alcohol blended

fuels (called gasohol) or those using ethanol or meth-

anol can attract moisture which leads to separation

and formation of acids during storage.

Acidic gas can damage the fuel system of an engine

while in storage.

13

Toavoidengineproblems,thefuelsystemshouldbe

emptiedbeforestoragefor30daysorlonger.Drainthe

gastank, start the engine and let it run until the fuel

lines and carburetor are empty. Use fresh fuel next

season. See storage Instructions for more information.

Never use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

To Start Engine

AWARNING: Be sure no one other than

the operator is standing near the snow

thrower while starting or operating. Do not

operate this snow thrower unless the

discharge chute assembly has been

properly installed and is secured.

A. Electric Starter

For location of all the engine controls and settings

referred to in this section, see Figure 18 inset.

Before starting, make sure that the engine has suffi-

cient oil The snow thrower engine is equipped with a

120 volt A.C. electric starter and recoil starter. The

electric starter is equipped with a three-wire power

cord and plug and is designed to operate on 120 volt

AC householdcurrent. Followallinstructionscarefully.

Cold Start

NOTE: If the unit shows any sign of motion (drive or

augers) with the clutch grips disengaged, shut the

engine off immediately. Readjust as instructed in the

"FinalAdjustments" section of the Assembly

Instructions.

WARNING: The electric starter must be

properly grounded at all times to avoid the

possibility of electric shock which may be

injurious to the operator.

• Determine whether your house wiring is a three-

wire grounded system. Ask a licensed

electrician if you are not certain.

WARNING: If your house wiring system is

not athree-wire grounded system, do not use

this electric starter under any conditions.

If your house wiring system is grounded and a

three-hole receptacle is not avaitable at the point

the snow thrower starter will normally be used,

one should be installed by a licensed electrician.

When connecting the power cord, always

connect cord to starter on engine first, then plug

the other end into a three-hole grounded

receptacle.

•When disconnecting the power cord, always

unplug the end from the three-hole, grounded

receptacle first.

Attach spark plug wire to spark plug.

Make sure that the auger drive and the traction

drive levers are in the disengaged RELEASED

position.

• Move throttle control lever to FAST position.

• Remove the keys from the plastic bag. Push key

into the ignition slot. Make sure it snaps into

place. Do not turn key. Keep the second key in a

safe place.

Rotate the choke knob to FULL choke position.

Connect the power cord to the switch box on the

engine.

• Plug the other end of the power cord into a

three-hole, grounded 120 volt A.C. receptacle.

WARNING: Do not use primer while

starting the engine with an electric starter.

Push down on the starter button until the engine

starts. Do not crank for more than 10seconds at

a time. This electric starter is thermally

protected. If overheated, it will stop

automatically and can be restarted only when it

has cooled to a safe temperature (a wait of

about 5 to 10 minutes is required).

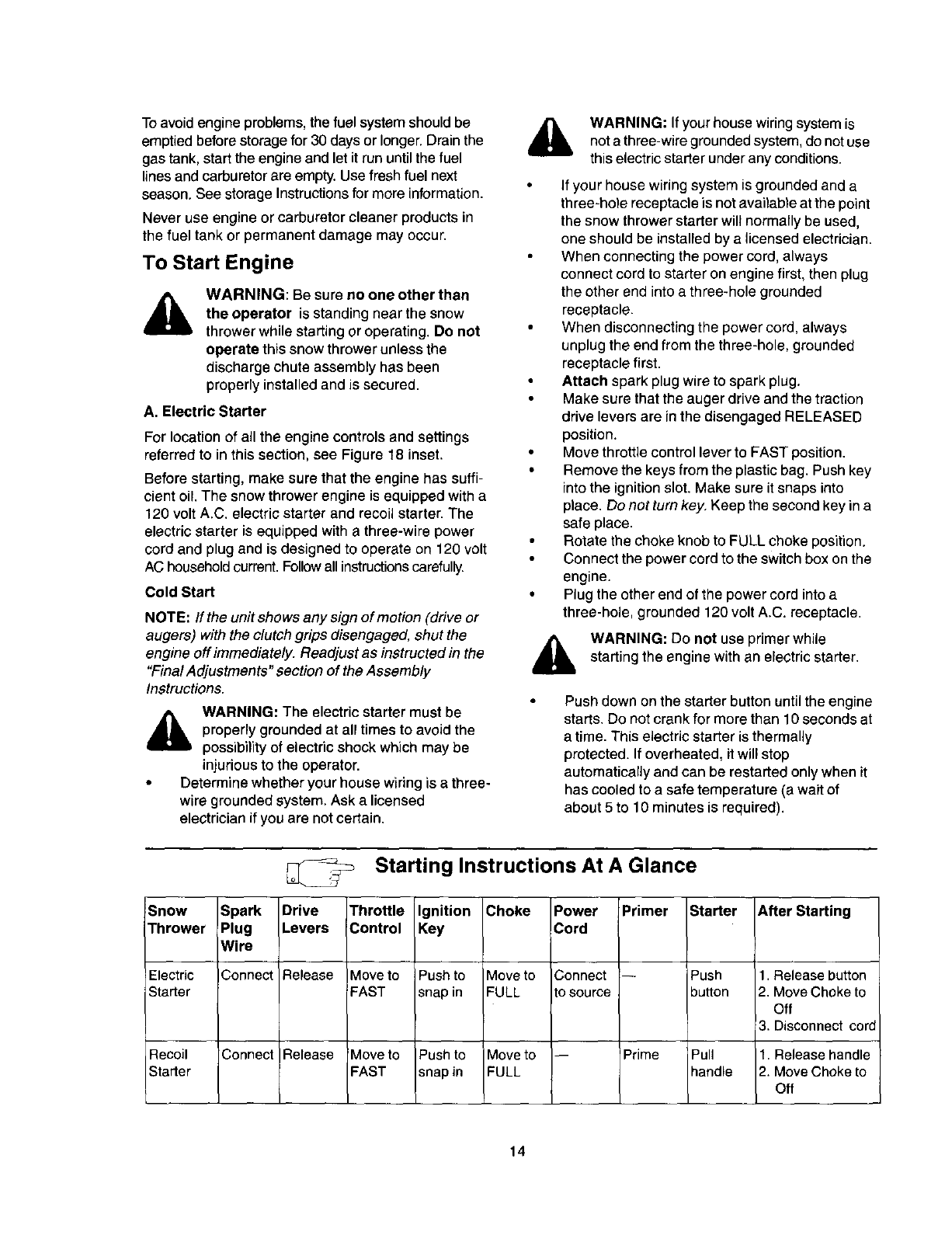

Starting Instructions At A Glance

Snow Spark Drive

Thrower Plug Levers

Wire

Electric Connect Release

Starter

Recoil Connect Release

Starter

Throttle

Control

Move to

FAST

Move to

FAST

Ignition

Key

Push to

snap in

Push to

snap in

Choke

Move to

FULL

Move to

FULL

Power

Cord

Connect

tO source

Primer

Prime

Starter

Push

button

Pull

handle

After Starting

1. Release button

2, Move Choke to

Off

!3. Disconnect cord

1. Release handle

2. Move Choke to

Off

14

•When the engine starts, release the starter

button and slowly rotate the choke to OFF

position. Ifthe engine falters, rotate the choke to

FULL and then gradually to OFF.

Disconnect the power cord from the receptacle

first and then from the switch box on the engine.

• Allow the engine to warm up for a few minutes

because the engine will not develop full power

until it reaches operating temperature.

Operate the engine at full throttle (FAST) when

throwing snow.

Warm Start

If restarting a warm engine after a shut down,

rotate choke to OFF instead of FULL and press

the starter button.

B. Recoil Starter

Make sure that the engine has sufficient oil and the

auger drive and the traction drive levers are released.

Attach spark plug wire to spark plug.

Move throttle control to FAST position.

Push key into the ignition slot so that it snaps

into place. Do not turn key. Remove plastic bag

and keep the second key in a safe place.

Rotate choke control to FULL choke position.

• Push the primer button while covering the vent

hole. Remove your finger from the primer between

primes. Do not prime if temperature is above

50oF; prime two times between 50° F and 15° F;

and prime four times below 15o F.

Pull the starter handle rapidly. Do not allow the

handle to snap back, but allow it to rewind slowly

while keeping a firm hold on the starter handle.

•As the engine warms up and begins to operate

evenly, rotate the choke knob slowly to OFF

position. If the engine falters, return to FULL

choke, then slowly move to OFF choke position.

• Allow the engine to warm up for a few minutes

because the engine will not develop full power

until it reaches operating temperature. Operate

engine at full throttle (FAST) when throwing snow.

Warm Start

• If restarting a warm engine after a temporary

shut down, rotate choke to OFF instead of FULL

and do notpfime. Press the starter button.

Frozen Recoil Starter

Pull as much rope out of the starter as possible.

Release the starter handle and let it snap back

against the starter.

If the engine still fails to start, repeat the first two

steps. If continued attempts do not free starter,

follow the electric starter procedures to start.

Avoid possible freezing of recoil starter and the

engine controls.

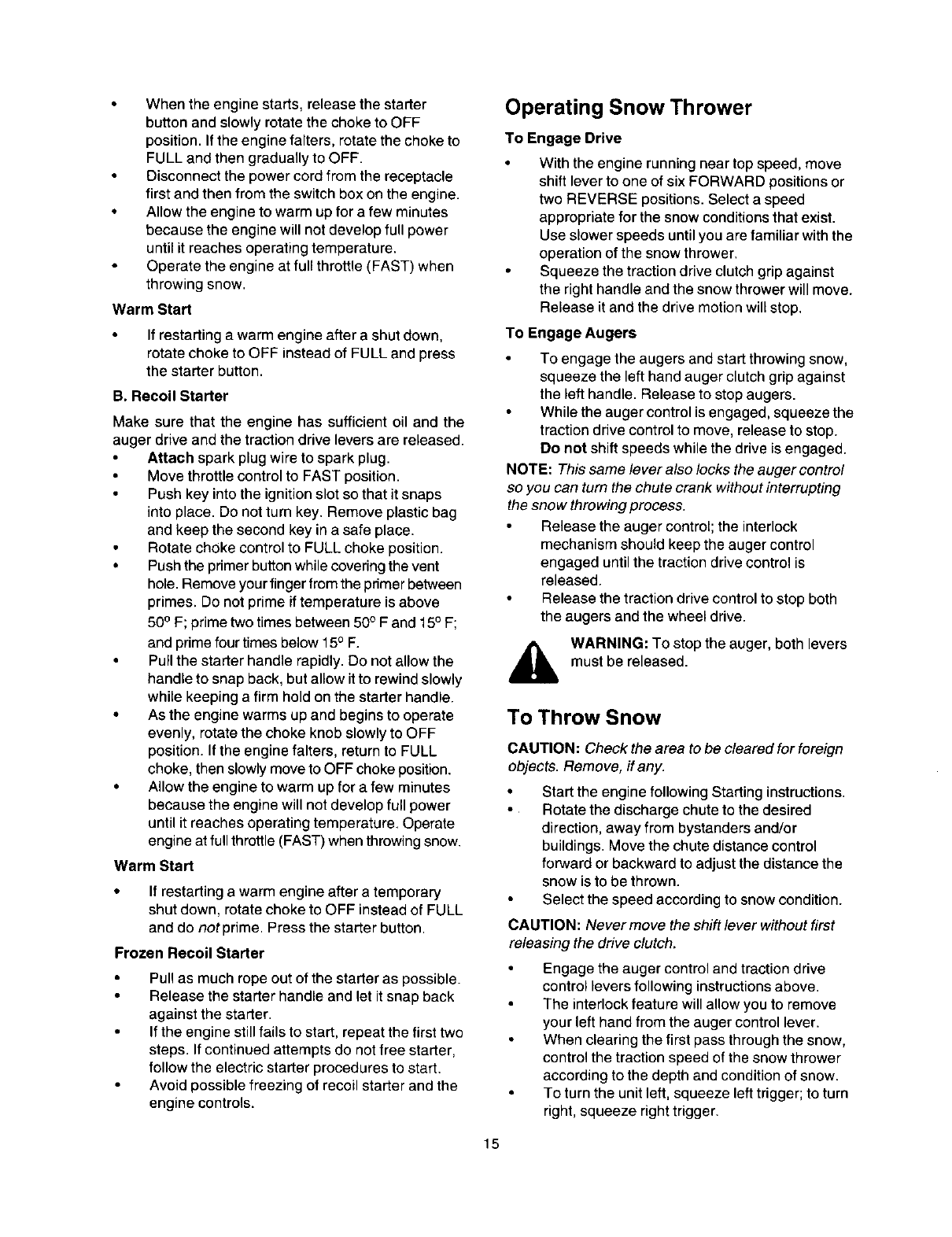

Operating Snow Thrower

To Engage Drive

With the engine running near top speed, move

shift lever to one of six FORWARD positions or

two REVERSE positions. Select a speed

appropriate for the snow conditions that exist.

Use slower speeds until you are familiar with the

operation of the snow thrower.

Squeeze the traction drive clutch grip against

the right handle and the snow thrower will move.

Release it and the drive motion will stop.

To Engage Augers

To engage the augers and start throwing snow,

squeeze the left hand auger clutch grip against

the left handle. Release to stop augers.

While the auger control is engaged, squeeze the

traction drive control to move, release to stop.

Do not shift speeds while the drive is engaged.

NOTE: This same lever also locks the auger control

so you can turn the chute crank without interrupting

the snow throwing process.

Release the auger control; the interlock

mechanism should keep the auger control

engaged until the traction drive control is

released.

Release the traction drive control to stop both

the augers and the wheel drive.

,_ WARNING: To stop the auger, both levers

must be released.

To Throw Snow

CAUTION: Check the area to be cleared for foreign

objects. Remove, if any.

Start the engine following Starting instructions.

Rotate the discharge chute to the desired

direction, away from bystanders and/or

buildings. Move the chute distance control

forward or backward to adjust the distance the

snow is to be thrown.

Select the speed according to snow condition.

CAUTION: Never move the shift lever without first

releasing the drive clutch.

Engage the auger control and traction drive

control levers following instructions above.

The interlock feature will allow you to remove

your left hand from the auger control lever.

When clearing the first pass through the snow,

control the traction speed of the snow thrower

according to the depth and condition of snow.

To turn the unit left, squeeze left trigger; to turn

right, squeeze right trigger.

15

Oneachsucceedingpass,readjustthechute

deflectortothedesiredpositionandslightly

ovedapthepreviouslyclearedpath.

• Aftertheareaiscleared,stopthesnowthrower

followinginstructionsgivenbelow.

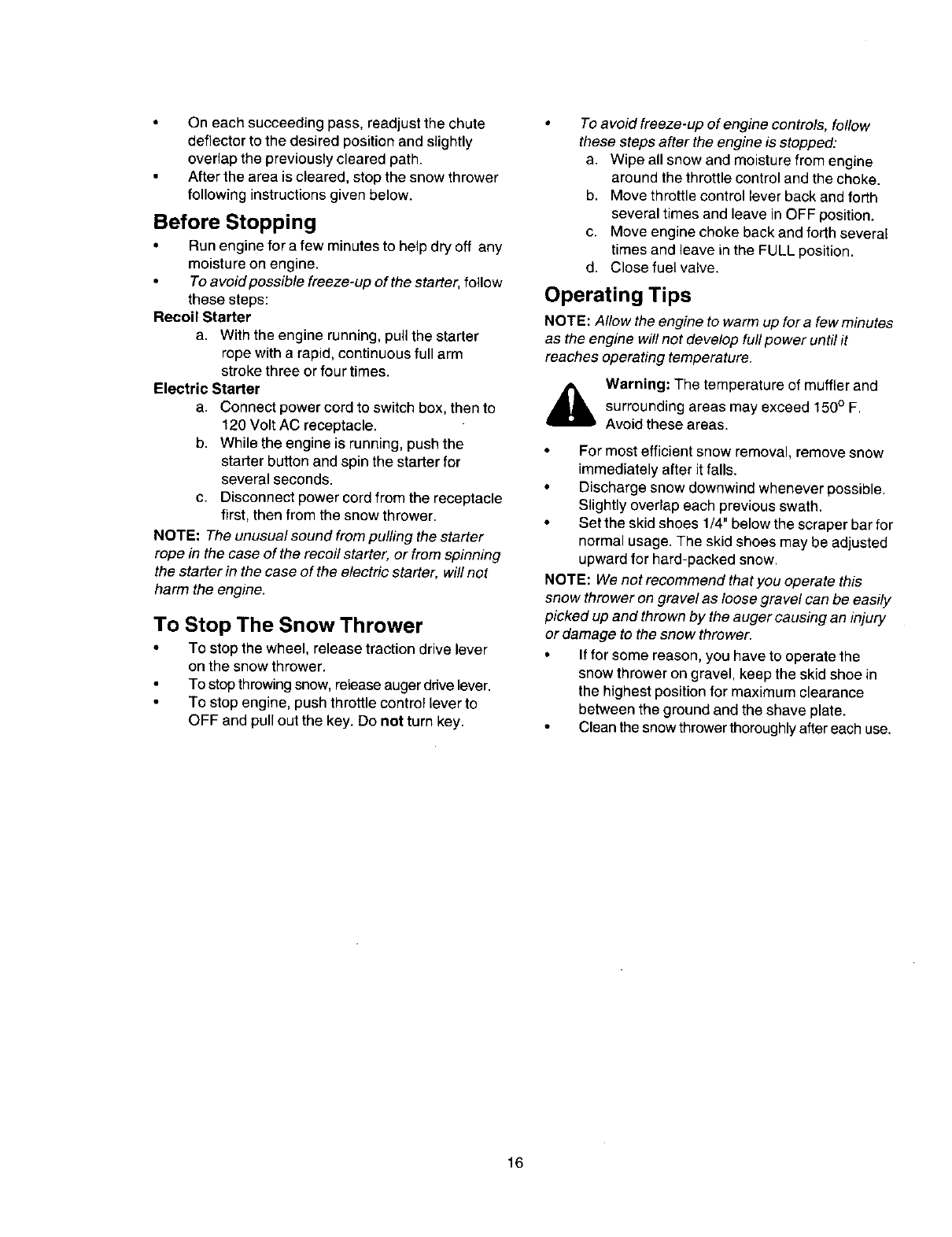

Before Stopping

•Run engine for a few minutes to help dry off any

moisture on engine.

•To avoidpossible freeze-up of the starter, follow

these steps:

Recoil Starter

a. With the engine running, pull the starter

rope with a rapid, continuous full arm

stroke three or four times.

Electric Starter

a. Connect power cord to switch box, then to

120 Volt AC receptacle.

b. While the engine is running, push the

starter button and spin the starter for

several seconds.

c. Disconnect power cord from the receptacle

first, then from the snow thrower.

NOTE: The unusual sound from pulling the starter

rope in the case of the recoil starter, or from spinning

the starter in the case of the electric starter, will not

harm the engine.

To Stop The Snow Thrower

• To stop the wheel, release traction drive lever

on the snow thrower.

To stopthrowing snow, release auger drive lever.

To stop engine, push throttle control lever to

OFF and pull out the key. Do net turn key.

To avoid freeze-up of engine controls, follow

these steps after the engine is stopped:

a. Wipe all snow and moisture from engine

around the throttle control and the choke.

b. Move throttle control lever back and forth

several times and leave inOFF position.

c. Move engine choke back and forth several

times and leave in the FULL position.

d. Close fuelvalve.

Operating Tips

NOTE: Allow the engine to warm up for a few minutes

as the engine will not develop full power until it

reaches operating temperature.

l_ Warning: The temperature of muffler and

surrounding areas may exceed 150° F.

Avoid these areas.

• For most efficient snow removal, remove snow

immediately after it falls.

• Discharge snow downwind whenever possible.

Slightly overlap each previous swath.

• Set the skid shoes 1/4" below the scraper bar for

normal usage. The skid shoes may be adjusted

upward for hard-packed snow.

NOTE: We not recommend that you operate this

snow thrower on gravel as loose gravel can be easily

picked up and thrown by the auger causing an injury

or damage to the snow thrower.

• If for some reason, you have to operate the

snow thrower on gravel, keep the skid shoe in

the highest position for maximum clearance

between the ground and the shave plate.

Clean the snow thrower thoroughly after each use.

16

General Recommendations

The warranty on this snow thrower does not

cover items that have been subjected to

operator abuse or negligence. To receive full

value from the warranty, operator must maintain

the snow thrower as instructed in this manual.

Some adjustments will have to be made

periodically to maintain your unit properly.

Follow the maintenance schedule given below.

Periodically check all fasteners and make sure

these are tight.

We do not recommend the use of pressure

washers or garden hose to clean your unit. They

may cause damage to electric components,

spindles, pulleys, bearings or the engine. The

use of water will result in shortened life and

reduce serviceability.

a, WARNING: Always stop engine and

disconnect the spark plug wire before

performing any maintenance or adjustment

on your snow thrower.

Lubrication

For a view of the lubrication points on the snow

thrower, see Figure 19.

Sprocket Shaft

Lubricatethe sprocket shaft with grease at least

once a season or every 25 hours of operation.

IMPORTANT: Keep all grease and oil off ofthe

friction wheel and the drive plate.

Shifting Mechanism

Lubricate the shifting mechanism and pivot

points on the shift rod with engine oil at least

once a season or after every 25 hours of

operation.

Traction Drive Control

Lubricate cams on the ends of the control rods,

which interlock the traction drive and auger

controls, at least once a season or every 25

hours of operation with grease. The cams can be

accessed beneath the handle panel.

Customer Responsibilities

MAINTENANCE SCHEDULE _ #_'*'_ _," O_® SERVICE DATES"

Lubricate pivot points

Clean snow thrower

I.- Clean shave plate

tj

Clean skid shoes

O

_ Check V-belts

Check friction wheel

rubber

Check engine oil

,,, Change engine oil

ZCheck spark plug

Z

'" Check muffler

Empty fuel system

* Fill in dates as you complete regular service

,_ Check; service if needed

17

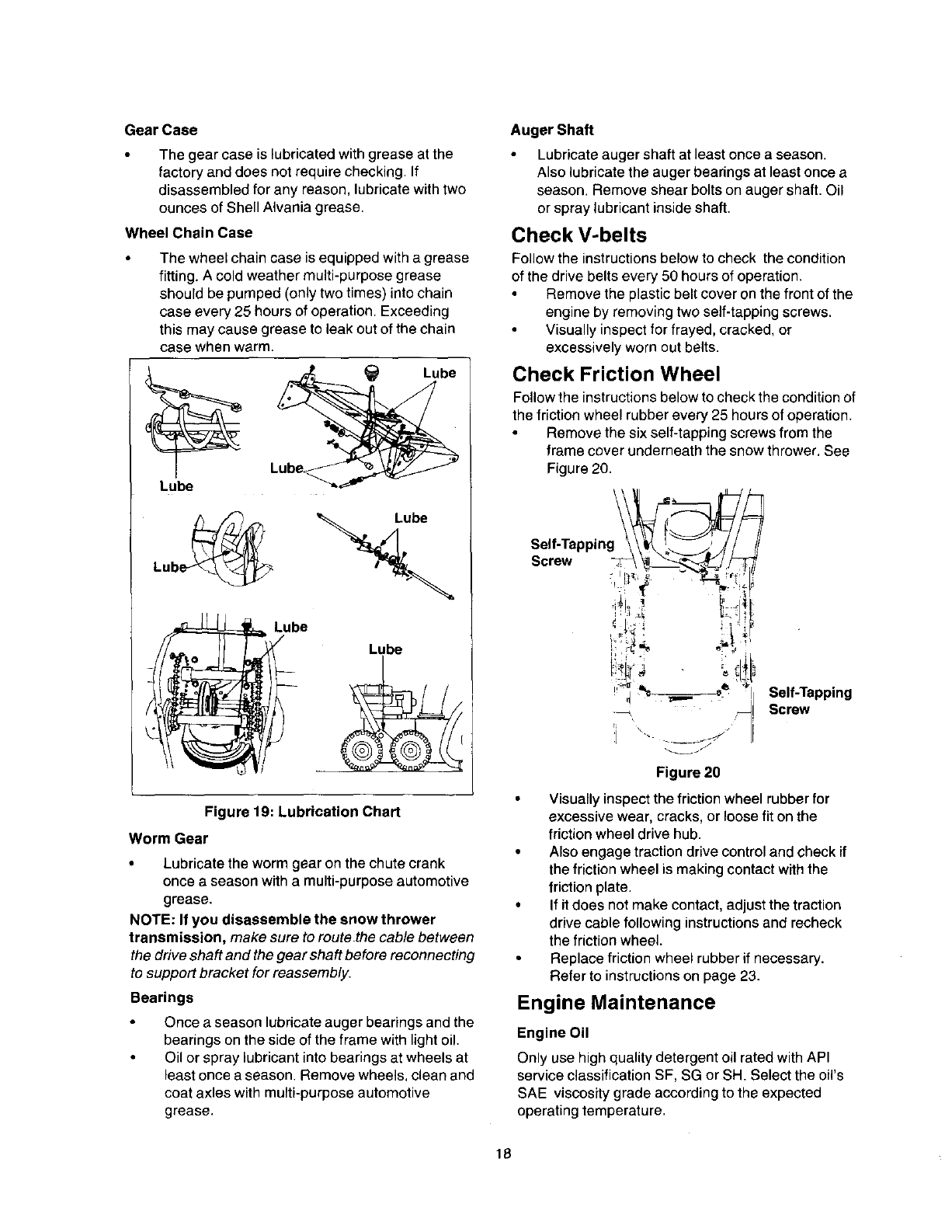

Gear Case

The gear case is lubricated with grease at the

factory and does not require checking. If

disassembled for any reason, lubricate with two

ounces of Shell Alvania grease.

Wheel Chain Case

The wheel chain case is equipped with a grease

fitting. A cold weather multi-purpose grease

should be pumped (only two times) into chain

case every 25 hours of operation. Exceeding

this may cause grease to leak out of the chain

case when warm.

Lube_

Lube

Lube

Figure 19: Lubrication Chart

Worm Gear

• Lubricatethe worm gear on the chute crank

once a season with a multi-purpose automotive

grease.

NOTE: If you disassemble the snow thrower

transmission, make sure toroute the cable between

the drive shaft and the gear shaft before reconnecting

to support bracket for reassembly.

Bearings

Once a season lubricate auger bearings and the

bearings on the side of the frame with light oil.

Oil or spray lubricant into bearings at wheels at

least once a season. Remove wheels, clean and

coat axles with multi-purpose automotive

grease.

Auger Shaft

Lubricate auger shaft at least once a season.

Also lubricate the auger bearings at least once a

season. Remove shear bolts on auger shaft. Oil

or spray lubricant inside shaft.

Check V-belts

Follow the instructions below to check the condition

of the drive belts every 50 hours of operation.

• Remove the plastic belt cover on the front of the

engine by removing two self-tapping screws.

• Visually inspect for frayed, cracked, or

excessively worn out belts.

Check Friction Wheel

Follow the instructions below to check the condition of

the friction wheel rubber every 25 hours of operation.

Remove the six self-tapping screws from the

frame cover underneath the snow thrower. See

Figure 20.

Self-Tapping

Screw

Self-Tapping

Screw

Figure 20

• Visually inspect the friction wheel rubber for

excessive wear, cracks, or loose fit on the

friction wheel drive hub.

•Also engage traction drive control and check if

the friction wheel is making contact with the

friction plate.

• If it does not make contact, adjust the traction

drive cable following instructions and recheck

the friction wheel.

Replace friction wheel rubber if necessary.

Refer to instructions on page 23.

Engine Maintenance

Engine Oil

Only use high quality detergent oil rated with API

service classification SF, SG or SH. Select the oil's

SAE viscosity grade according to the expected

operating temperature.

18

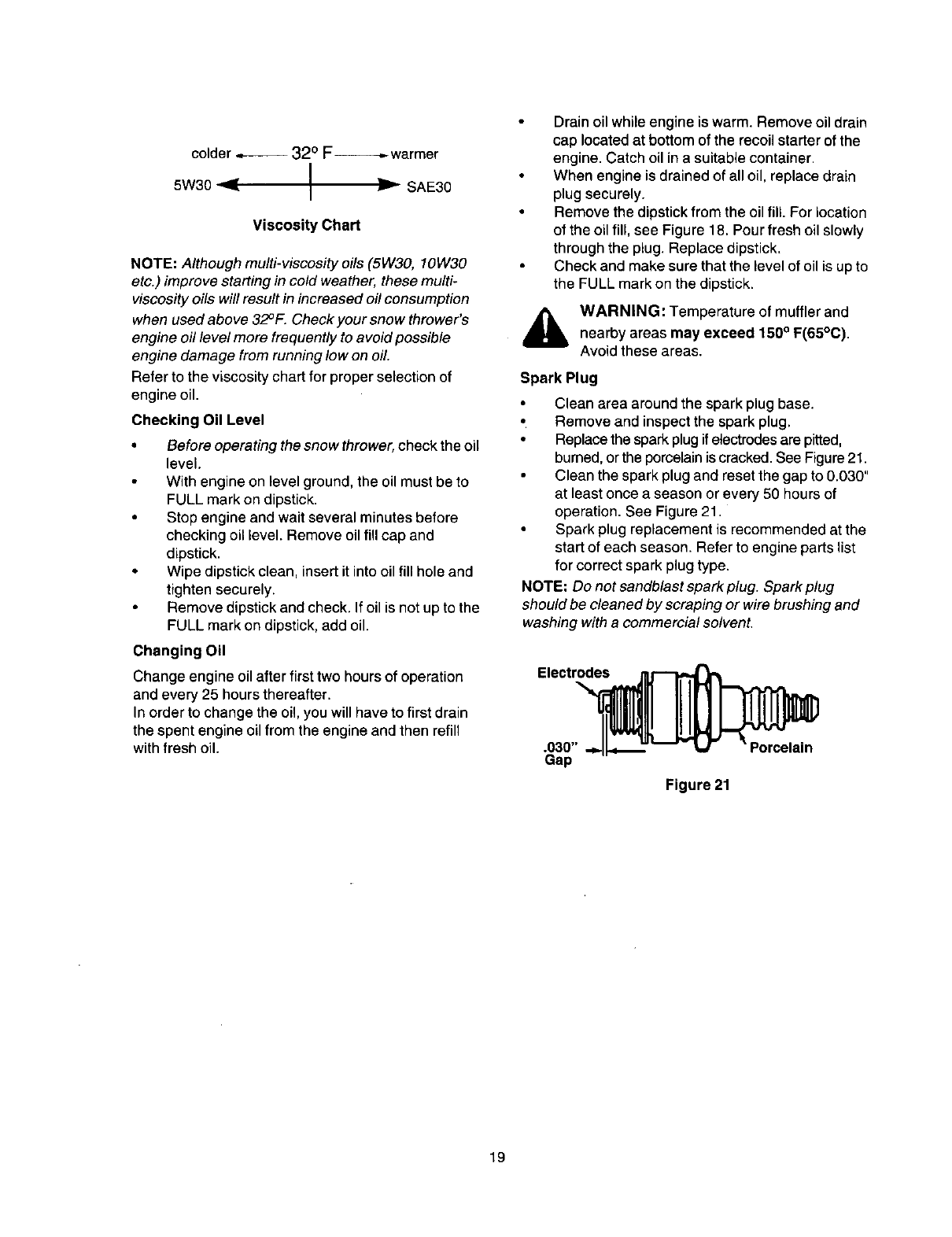

colder_ 32° F-------_warmer

5W30_I_ SAE30

I

Viscosity Chart

NOTE: Although multi-viscosity oils (5W30, 10W30

etc.) improve startingin cold weather, these multi-

viscosity oils will result in increased oil consumption

when used above 32°F. Check your snow thrower's

engine oil level more frequently to avoid possible

engine damage from running low on oil.

Refer to the viscosity chart for proper selection of

engine oil.

Checking Oil Level

•Before operating the snow thrower, check the oil

level.

With engine on level ground, the oil must be to

FULL mark on dipstick.

Stop engine and wait several minutes before

checking oil level. Remove oil fill cap and

dipstick.

• Wipe dipstick clean, insert it into oil fill hole and

tighten securely.

Remove dipstick and check. If oil is not up to the

FULL mark on dipstick, add oil.

Changing Oil

Change engine oilafter firsttwo hoursof operation

and every 25 hours thereafter.

In order to change the oil, you will have to first drain

the spent engine oil from the engine and then refill

with fresh oil.

Drain oil while engine is warm. Remove oil drain

cap located at bottom of the recoil starter of the

engine. Catch oil in a suitable container.

When engine is drained of all oil, replace drain

plug securely.

Remove the dipstick from the oil fill. For location

of the oil fill, see Figure 18. Pour fresh oil slowly

through the plug. Replace dipstick.

Check and make sure that the level of oil is up to

the FULL mark on the dipstick.

,_ WARNING: Temperature of muffler andnearby areas may exceed 150° F(65°C).

Avoid these areas.

Spark Plug

Clean area around the spark plug base.

• Remove and inspect the spark plug.

• Replacethe spark plug if electrodes are pitted,

burned, orthe porcelain is cracked. See Figure 21.

Clean the spark plug and reset the gap to 0.030"

at least once a season or every 50 hours of

operation. See Figure 21.

Spark plug replacement is recommended at the

start of each season. Refer to engine parts list

for correct spark plug type.

NOTE: Do not sandblast spark plug. Spark plug

should be cleaned by scraping or wire brushing and

washing with a commercial solvent.

Gap

Figure 21

19

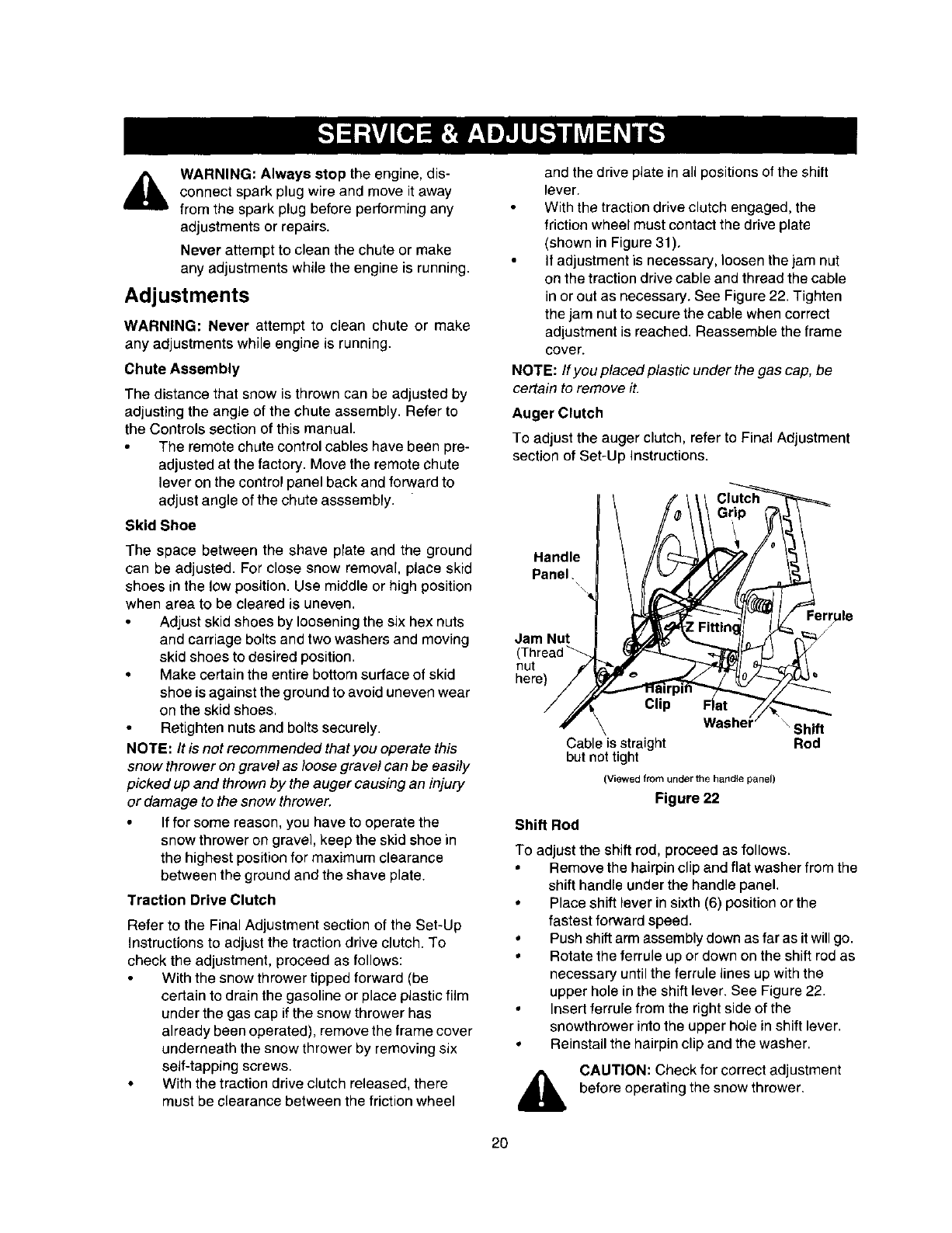

,a,WARNING: Always stop the engine, dis-

connect spark plug wire and move it away

from the spark plug before performingany

adjustmentsor repairs.

Never attempt to clean the chute or make

any adjustments while the engine is running.

Adjustments

WARNING: Never attempt to clean chute or make

any adjustments while engine is running.

Chute Assembly

The distance that snow is thrown can be adjusted by

adjusting the angle of the chute assembly. Refer to

the Controls section of this manual.

The remote chute control cables have been pre-

adjusted at the factory. Move the remote chute

lever on the control panel back and forward to

adjust angle of the chute asssembly.

Skid Shoe

The space between the shave prate and the ground

can be adjusted. For close snow removal, place skid

shoes in the low position. Use middle or high position

when area to be cleared is uneven.

Adjust skid shoes by loosening the six hex nuts

and carriage bolts and two washers and moving

skid shoes to desired position.

• Make certain the entire bottom surface of skid

shoe is against the ground to avoid uneven wear

on the skid shoes.

• Retighten nuts and bolts securely.

NOTE:/t is not recommended that you operate this

snow thrower on gravel as loose gravel can be easily

picked up and thrown by the auger causing an injury

or damage to the snow thrower.

If for some reason, you have to operate the

snow thrower on gravel, keep the skid shoe in

the highest position for maximum clearance

between the ground and the shave plate.

Traction Drive Clutch

Refer to the Final Adjustment section of the Set-Up

Instructions to adjust the traction drive clutch. To

check the adjustment, proceed as follows:

With the snow thrower tipped forward (be

certain to drain the gasoline or place plastic film

under the gas cap if the snow thrower has

already been operated), remove the frame cover

underneath the snow thrower by removing six

self-tapping screws.

• With the traction drive clutch released, there

must be clearance between the friction wheel

and the drive plate in all positions of the shift

lever.

With the traction drive clutch engaged, the

friction wheel must contact the drive plate

(shown inFigure 31).

If adjustment is necessary, loosen the jam nut

on the traction drive cable and thread the cable

in or out as necessary. See Figure 22. Tighten

the jam nut to secure the cable when correct

adjustment is reached. Reassemble the frame

cover.

NOTE: If you placed plastic under the gas cap, be

certain to remove it.

Auger Clutch

To adjust the auger clutch, refer to Final Adjustment

section of Set-Up Instructions.

Handle

Panel,

Jam Nut

Ferr/ule

nut

here)

Clip

Cable is straight

but not tight

Was \Shift

Rod

(Viewed from under the handle panel)

Figure 22

Shift Rod

To adjust the shift rod, proceed as follows.

• Remove the hairpin clip and flat washer from the

shift handle under the handle panel.

•Place shift lever in sixth (6) position or the

fastest forward speed.

•Push shift arm assembly down as far as it will go.

• Rotate the ferrule up or down on the shift rod as

necessary until the ferrule lines up with the

upper hole in the shift lever. See Figure 22.

• Insert ferrule from the right side of the

snowthrower into the upper hole in shift lever.

• Reinstall the hairpin clip and the washer.

CAUTION: Check for correct adjustment

before operating the snow thrower.

20

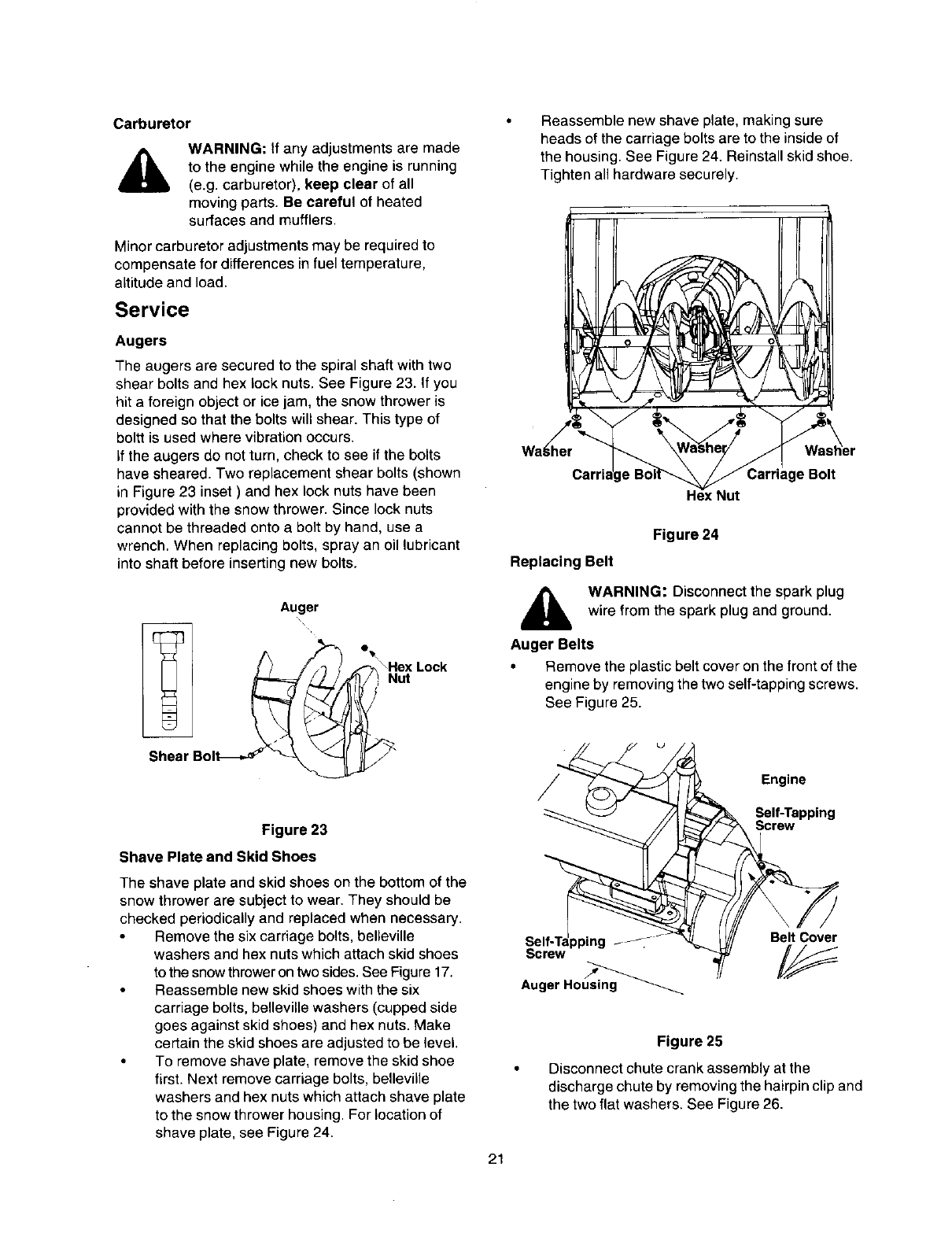

Carburetor

WARNING: If any adjustments are made

to the engine while the engine is running

(e.g. carburetor), keep clear of all

moving parts. Be careful of heated

surfaces and mufflers.

Minor carburetor adjustments may be required to

compensate for differences in fuel temperature,

altitude and load.

Service

Augers

The augers are secured to the spiral shaft withtwo

shear bolts and hex lock nuts. See Figure 23. If you

hit a foreign object or ice jam, the snow thrower is

designed so that the bolts will shear. This type of

boltt is used where vibration occurs.

If the augers do not turn, check to see if the bolts

have sheared. Two replacement shear bolts (shown

in Figure 23 inset ) and hex lock nuts have been

provided with the snow thrower. Since lock nuts

cannot be threaded onto a bolt by hand, use a

wrench, When replacing bolts, spray an oil lubricant

into shaft before inserting new bolts.

Auger

Bol

Reassemble new shave plate, making sure

heads of the carriage bolts are to the inside of

the housing. See Figure 24. Reinstall skid shoe.

Tighten all hardware securely.

Bolt

Nut

Figure 24

Replacing Belt

WARNING: Disconnect the spark plug

wire from the spark plug and ground.

Auger Belts

•Remove the plastic belt cover on the front of the

engine by removing the two self-tapping screws.

See Figure 25.

Engine

Figure 23

Shave Plate and Skid Shoes

The shave plate and skid shoes on the bottom of the

snow thrower are subject to wear. They should be

checked periodically and replaced when necessary.

Remove the six carriage bolts, belleville

washers and hex nuts which attach skid shoes

to the snow thrower on two sides. See Figure 17.

Reassemble new skid shoes with the six

carriage bolts, belleville washers (cupped side

goes against skid shoes) and hex nuts. Make

certain the skid shoes are adjusted to be level.

• To remove shave plate, remove the skid shoe

first. Next remove carriage bolts, belleville

washers and hex nuts which attach shave plate

to the snow thrower housing. For location of

shave plate, see Figure 24.

Self-Tapping

Screw

;_ping-J- - BeltCover

Screw

Figure 25

Disconnect chute crank assembly at the

discharge chute by removing the hairpin clip and

the two flat washers. See Figure 26.

21

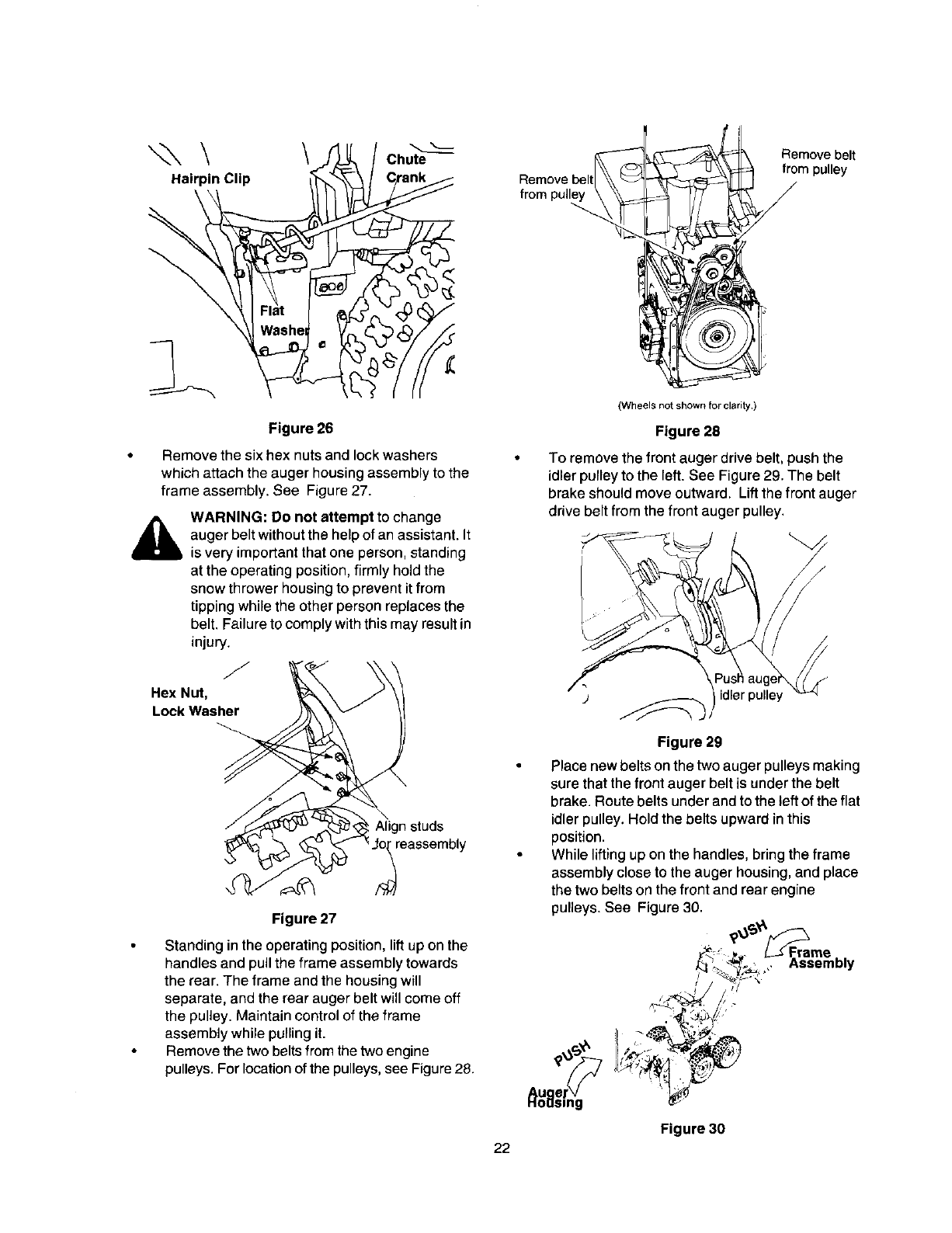

\\ \ \_X 4/

Figure 26

Remove the six hex nuts and lock washers

which attach the auger housing assembly to the

frame assembly, See Figure 27.

WARNING: Do not attempt to change

auger belt without the help of an assistant. It

is very important that one person, standing

at the operating position, firmly hold the

snow thrower housing to prevent it from

tipping while the other person replaces the

belt. Failure to comply with this may result in

injury.

J

Hex Nut,

Lock Washer

"reassembly

Figure 27

Standing in the operating position, lift up on the

handles and pull the frame assembly towards

the rear. The frame and the housing will

separate, and the rear auger belt will come off

the pulley. Maintain control of the frame

assembly while pulling it.

Remove the two belts from the two engine

pulleys. For location of the pulleys, see Figure 28.

22

I

Removebelt__ _ frompulley

frompulley _._ !_ Removebelt

(Wheels not shown for clarity,)

Figure 28

To remove the front auger drive belt, push the

idler pulley to the left. See Figure 29. The belt

brake should move outward. Lift the front auger

drive belt from the front auger pulley.

/.

j_)) idlerpulley

Figure 29

Place new belts on the two auger pulleys making

sure that the front auger belt is under the belt

brake. Route belts under and to the left of the flat

idler pulley. Hold the belts upward in this

position.

While lifting up on the handles, bring the frame

assembly close to the auger housing, and place

the two belts on the front and rear engine

pulleys.See Figure 30.

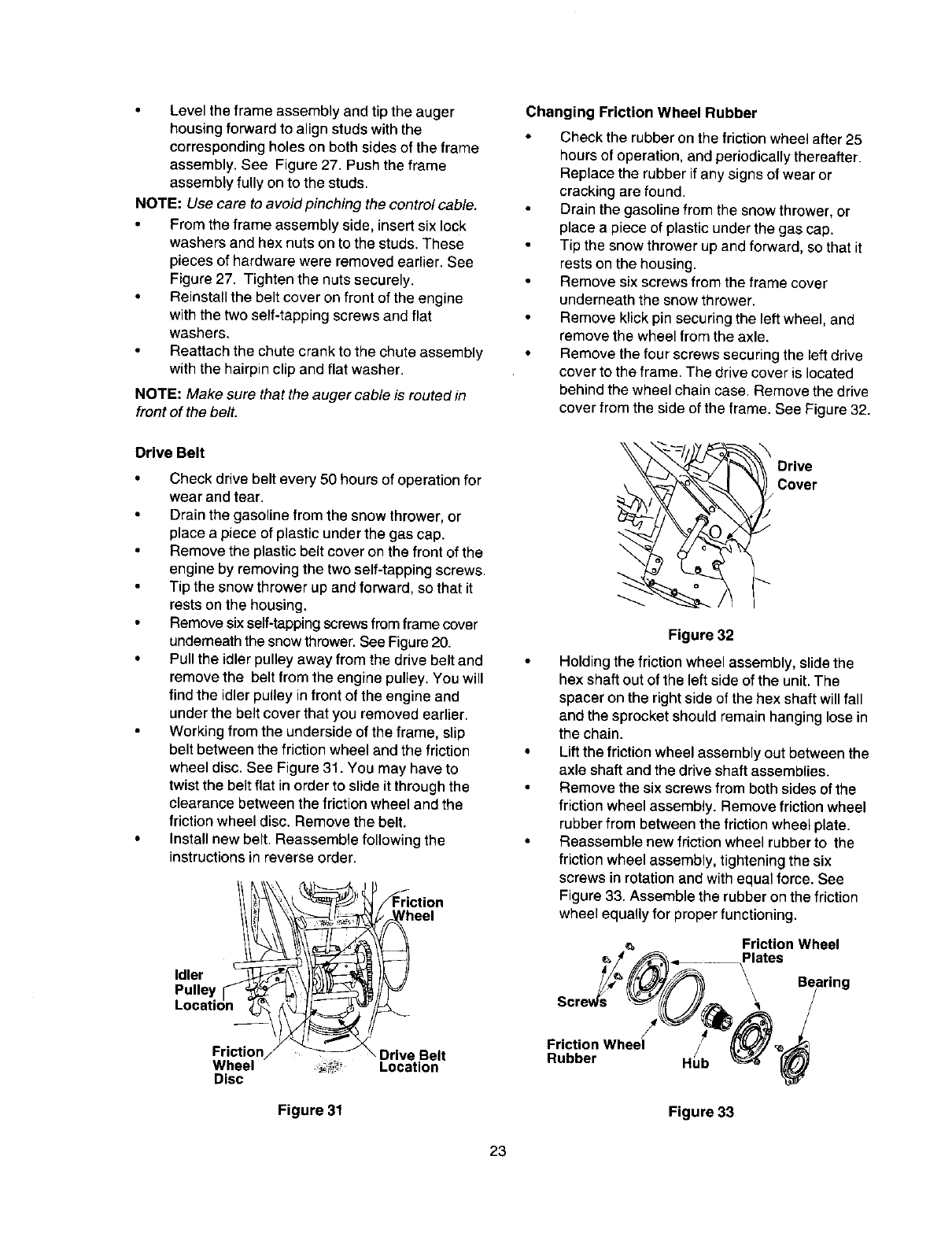

• Leveltheframeassemblyandtiptheauger

housingforwardtoalignstudswiththe

correspondingholesonbothsidesoftheframe

assembly.SeeFigure27.Pushtheframe

assemblyfullyontothestuds.

NOTE:Use care to avoid pinching the control cable.

From the frame assembly side, insert six lock

washers and hex nuts on to the studs. These

pieces of hardware were removed earlier. See

Figure 27. Tighten the nuts securely.

•Reinstall the belt cover on front of the engine

with the two self-tapping screws and flat

washers.

Reattach the chute crank to the chute assembly

with the hairpin clip and flat washer.

NOTE: Make sure that the auger cable is routed in

front of the belt.

Changing Friction Wheel Rubber

Check the rubber on the friction wheel after 25

hours of operation, and periodically thereafter.

Replace the rubber if any signs of wear or

cracking are found.

Drain the gasoline from the snow thrower, or

place a piece of plastic under the gas cap.

Tip the snow thrower up and forward, so that it

rests on the housing.

Remove six screws from the frame cover

underneath the snow thrower.

Remove klick pin securing the left wheel, and

remove the wheel from the axle.

Remove the four screws securing the left drive

cover to the frame. The drive cover is located

behind the wheel chain case. Remove the drive

cover from the side of the frame. See Figure 32.

Drive Belt

• Check drive belt every 50 hours of operation for

wear and tear.

• Drain the gasoline from the snow thrower, or

place a piece of plastic under the gas cap.

• Remove the plastic belt cover on the front of the

engine by removing the two self-tapping screws.

Tip the snow thrower up and forward, so that it

rests on the housing.

• Remove sixself-tapping screws from frame cover

undemeath the snow thrower. See Figure 20.

• Pull the idler pulley away from the drive belt and

remove the belt from the engine pulley. You will

find the idler pulley in front of the engine and

under the belt cover that you removed earlier.

Working from the underside of the frame, slip

belt between the friction wheel and the friction

wheel disc. See Figure 31. You may have to

twist the belt flat in order to slide it through the

clearance between the friction wheel and the

friction wheel disc. Remove the belt.

• Install new belt. Reassemble following the

instructions in reverse order.

Idler _

Pulley [/

Location

Friction

Wheel

Disc

ction

_heel

_/_ Drive Belt

Location

Or,vo

_j Cover

Figure 32

Holding the friction wheel assembly, slide the

hex shaft out of the left side of the unit. The

spacer on the right side of the hex shaft will fall

and the sprocket should remain hanging lose in

the chain.

Lift the friction wheel assembly out between the

axle shaft and the drive shaft assemblies.

Remove the six screws from both sides of the

friction wheel assembly. Remove friction wheel

rubber from between the friction wheel plate.

Reassemble new friction wheel rubber to the

friction wheel assembly, tightening the six

screws in rotation and with equal force. See

Figure 33. Assemble the rubber on the friction

wheel equally for proper functioning.

Friction Wheel

Plates

Bearing

Friction Wheel

Rubber Hu_b

Figure 31 Figure 33

23

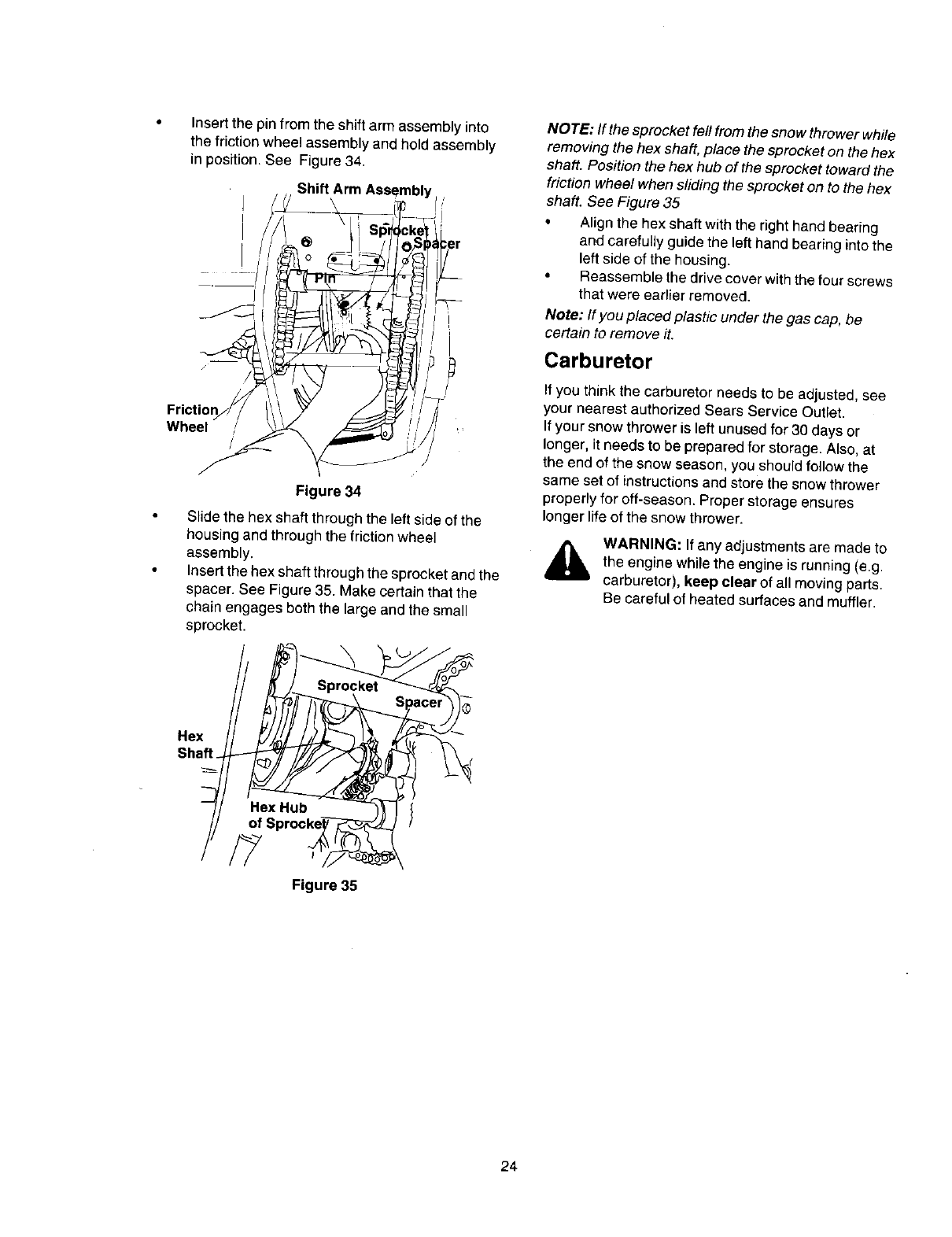

Insert the pin from the shift arm assembly into

the friction wheel assembly and hold assembly

in position. See Figure 34.

Shift Arm Assembly

Friction

Wheel

Figure 34

Slide the hex shaft throughthe left side of the

housing and throughthe friction wheel

assembly.

Insert the hex shaft through the sprocket and the

spacer. See Figure 35. Make certain that the

chain engages both the large and the small

sprocket.

NOTE: If the sprocket fell from the snow thrower while

removing the hex shaft, place the sprocket on the hex

shaft. Position the hex hub of the sprocket toward the

friction wheel when sliding the sprocket on to the hex

shaft. See Figure 35

• Align the hex shaft withthe righthand bearing

and carefully guide the left hand bearing intothe

left side of the housing.

• Reassemble the drive cover with the four screws

that were earlier removed.

Note: If you placed plastic under the gas cap, be

certain to remove it.

Carburetor

If you think the carburetor needs to be adjusted, see

your nearest authorized Sears Service Outlet.

If your snow thrower is left unused for 30 days or

tonger,it needs to be prepared for storage. Atso, at

the end of the snow season, you should follow the

same set of instructionsand store the snow thrower

properly for off-season. Proper storage ensures

longer life of the snow thrower.

AWARNING: If any adjustments are made to

the engine while the engine is running (e.g.

carburetor), keep clear of all moving parts.

Be careful of heated surfaces and muffler.

Hex

Shaft

Figure 35

24

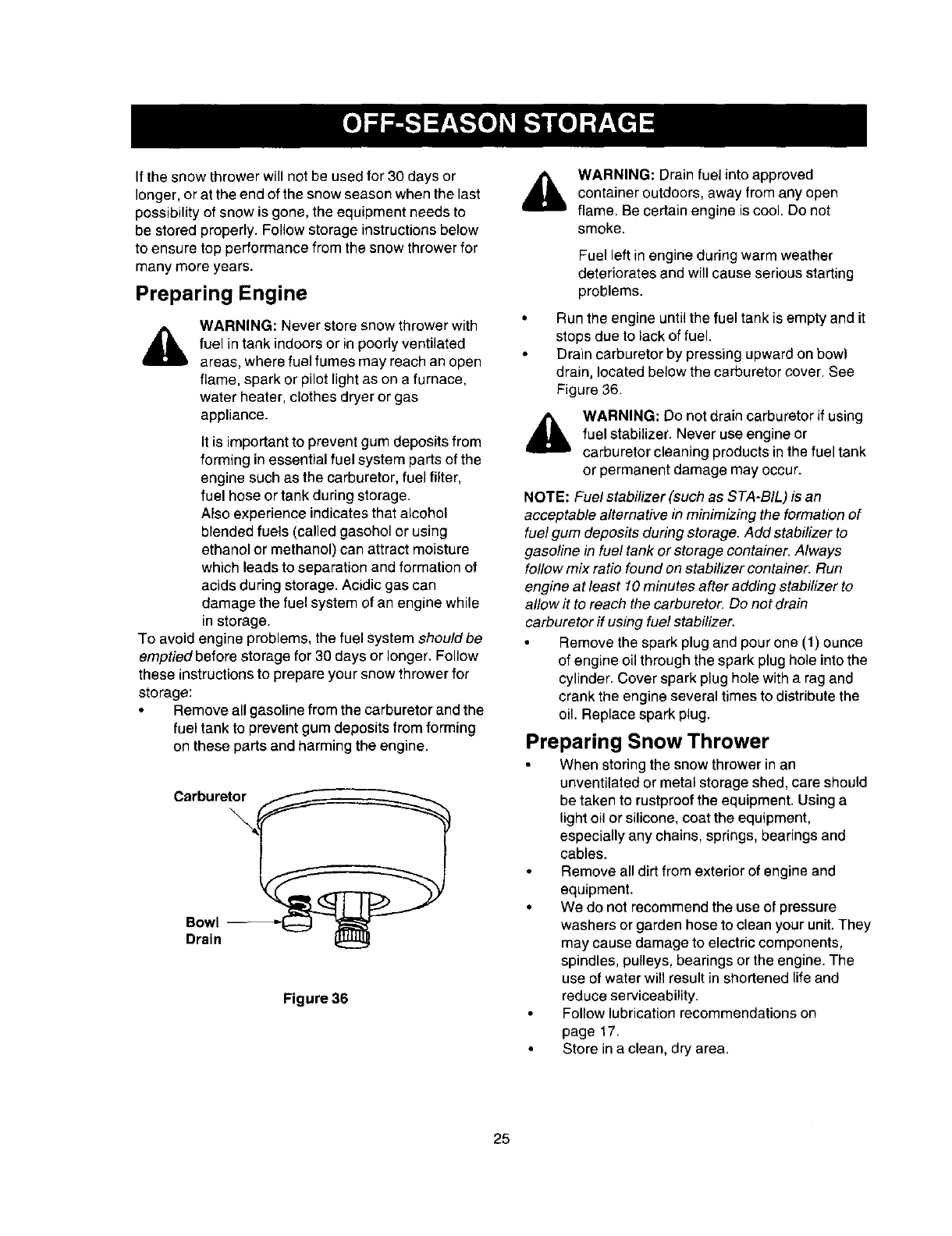

If the snow thrower will not be used for 30 days or

longer, or at the end of the snow season when the last

possibility of snow is gone, the equipment needs to

be stored properly. Follow storage instructionsbelow

to ensure top performance from the snow thrower for

many more years.

Preparing Engine

AWARNING: Never store snow thrower with

fuel in tank indoorsor inpoorlyventilated

areas, where fuel fumes may reach an open

flame, spark or pilot light as on a furnace,

water heater, clothes dryer or gas

appliance.

It is importantto prevent gum deposits from

forming inessential fuel system parts of the

engine such as the carburetor, fuel filter,

fuel hose or tank during storage.

Also experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can

damage the fuel system of an engine while

in storage.

To avoid engine problems, the fuel system should be

emptiedbefore storage for 30 days or longer. Follow

these instructions to prepare your snow thrower for

storage:

Remove all gasoline from the carburetor and the

fuel tank to prevent gum deposits from forming

on these parts and harming the engine.

Carburetor

B°_i'n _Ii_

Figure 36

WARNING: Drain fuel into approved

container outdoors,away from any open

flame. Be certain engine iscool. Do not

smoke.

Fuel left in engine during warm weather

deteriorates and will cause serious starting

problems.

Run the engine until the fuel tank is empty and it

stops due to lack of fuel.

Drain carburetor by pressing upward on bowl

drain, located below the carburetor cover. See

Figure 36.

&WARNING: Do notdrain carburetor if using

fuel stabilizer. Never use engine or

carburetor cleaning products in the fuel tank

or permanent damage may occur.

NOTE: Fuel stabilizer (such as STA-BIL) is an

acceptable alternative in minimizing the formation of

fuel gum deposits during storage. Add stabilizer to

gasoline in fuel tank or storage container. Always

follow mix ratio found on stabilizer container. Run

engine at least 10minutes after adding stabilizer to

allow it to reach the carburetor. Do not drain

carburetor if using fuel stabilizer.

Remove the spark plug and pour one (1) ounce

of engine oil through the spark plug hole into the

cylinder. Cover spark plug hole with a rag and

crank the engine several times to distribute the

oil. Replace spark plug.

Preparing Snow Thrower

When storing the snowthrowerin an

unventilatedor metal storage shed, care should

be taken to rustproofthe equipment.Usinga

lightoil or silicone,coat the equipment,

especiallyany chains,springs, bearings and

cables.

Remove alldirt from exteriorof engine and

equipment.

•We do not recommendthe use of pressure

washers orgarden hose to clean your unit.They

may cause damage to electriccomponents,

spindles, pulleys, bearings or the engine. The

use of water will result in shortened lifeand

reduce serviceability.

Followlubrication recommendationson

page 17.

Store ina clean, dry area.

25

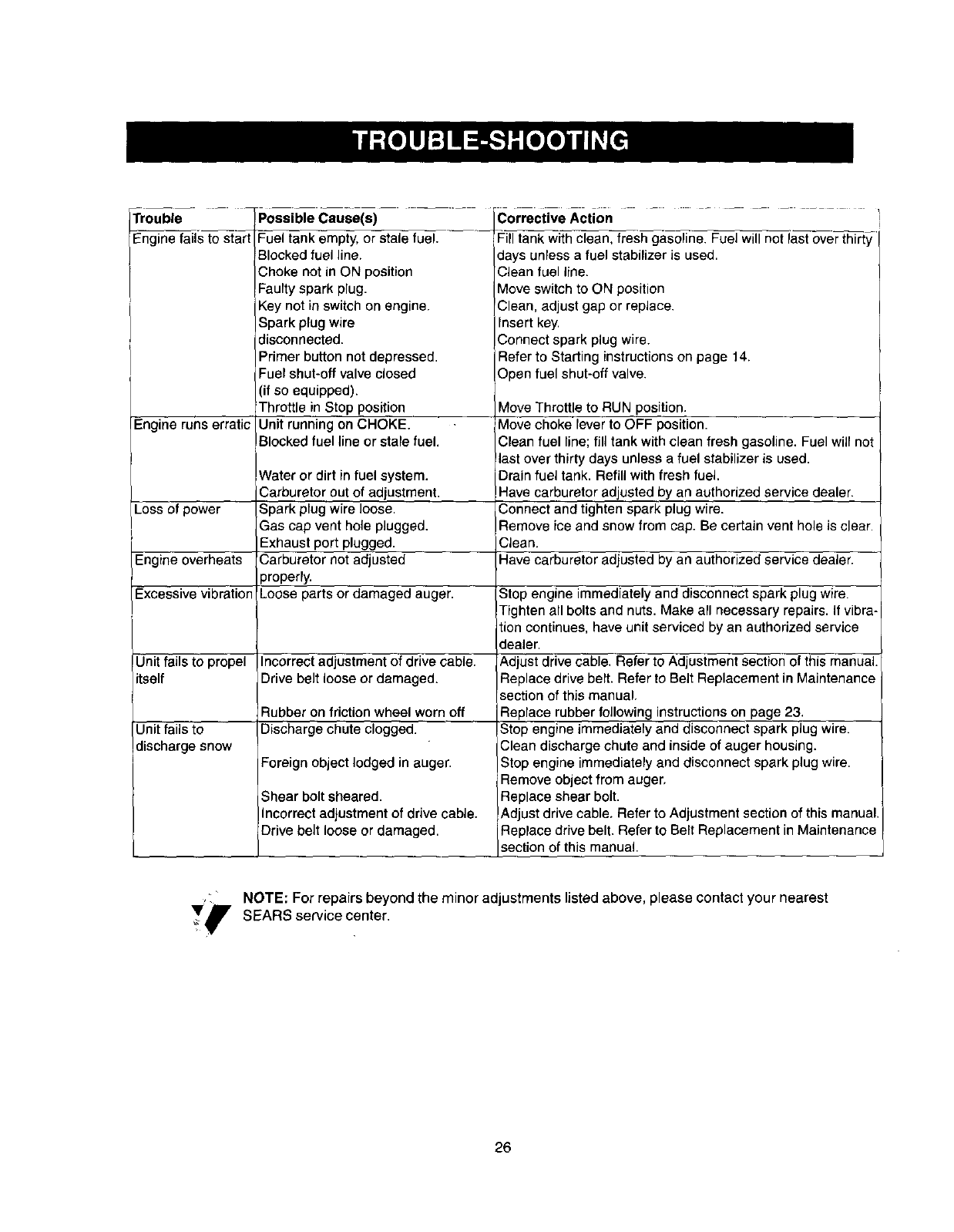

s to start Fuel tank empty, or stale fuel. Fill tank with clean, fresh gasoline. Fuel will not lastove_ty I

Blocked fuel line. days unless a fuel stabilizer is used.

Choke not in ON position Clean fuel line.

Faulty spark plug. Move switch to ON position

Key not in switch on engine.

Spark plug wire

disconnected.

Primer button not depressed.

Fuel shut-off valve closed

(if so equipped).

Throttle in Stop position

Unit running on CHOKE.

Blocked fuel line or stale fuel.

Clean, adjust gap or replace.

Insert key.

Connect spark plug wire.

Refer to Starting instructions on page 14.

Open fuel shut-off valve.

Move Throttle to RUN position.

Engine runs erratic Move choke lever to OFF position.

Clean fuel line; fill tank with clean fresh gasoline. Fuel will not

last over thirty days unless a fuel stabilizer is used.

Water or dirt in fuel system. Drain fuel tank. Refill with fresh fuel

Carburetor out of adjustment. Have carburetor adjusted by an authorized service dealer.

Loss of power Spark plug wire loose. Connect and tighten spark plug wire.

Gas cap vent hole plugged. Remove ice and snow from cap. Be certain vent hole is clear.

Exhaust port plugged. Clean.

Engine overheats Carburetor not adjusted Have carburetor adjusted by an authorized service dealer.

properly.

Excessive vibration Loose parts or damaged auger.

Incorrect adjustment of drive cable.

Drive belt loose or damaged.

'Rubber on friction wheel worn off

Discharge chute clogged.

Foreign object lodged in auger.

Shear bolt sheared.

Incorrect adjustment of drive cable.

Drive belt loose or damaged.

Unit fails to propel

itself

Unit fails to

discharge snow

Stop engine immediately and disconnect spark plug wire.

Tighten all bolts and nuts. Make all necessary repairs. If vibra-

tion continues, have unit serviced by an authorized service

dealer.

Adjust drive cable. Refer to Adjustment section of this manual

Replace drive belt. Refer to Belt Replacement in Maintenance

section of this manual.

Replace rubber following instructions on page 23.

Stop engine immediately and disconnect spark plug wire.

Clean discharge chute and inside of auger housing.

IStop engine immediately and disconnect spark plug wire.

Remove object from auger,

Replace shear bolt.

Adjust drive cable, Refer to Adjustment section of this manual.

Replace drive belt. Refer to Belt Replacement in Maintenance

section of this manual.

NOTE: For repairs beyond the minor adjustments listed above, please contact your nearest

_I'_F" SEARS service center.

26

Snow Thrower Safety and Decorative Labels Map

Please followthe map below to get correctpart number and location of the labels when replacing any label on your

snow thrower. It is very important to keep safety labels on the unit at all times, and follow the directions set forth in

these labels for safe operation of the equipment.

777120729 77712O728

SJ

Tr/12O_7

TrlI_0_4

(CENTER MODEL PLATE --

WITH TOP OF FRAME COVER)

777S30005

77/120830

777S2O004

7771)03182

27

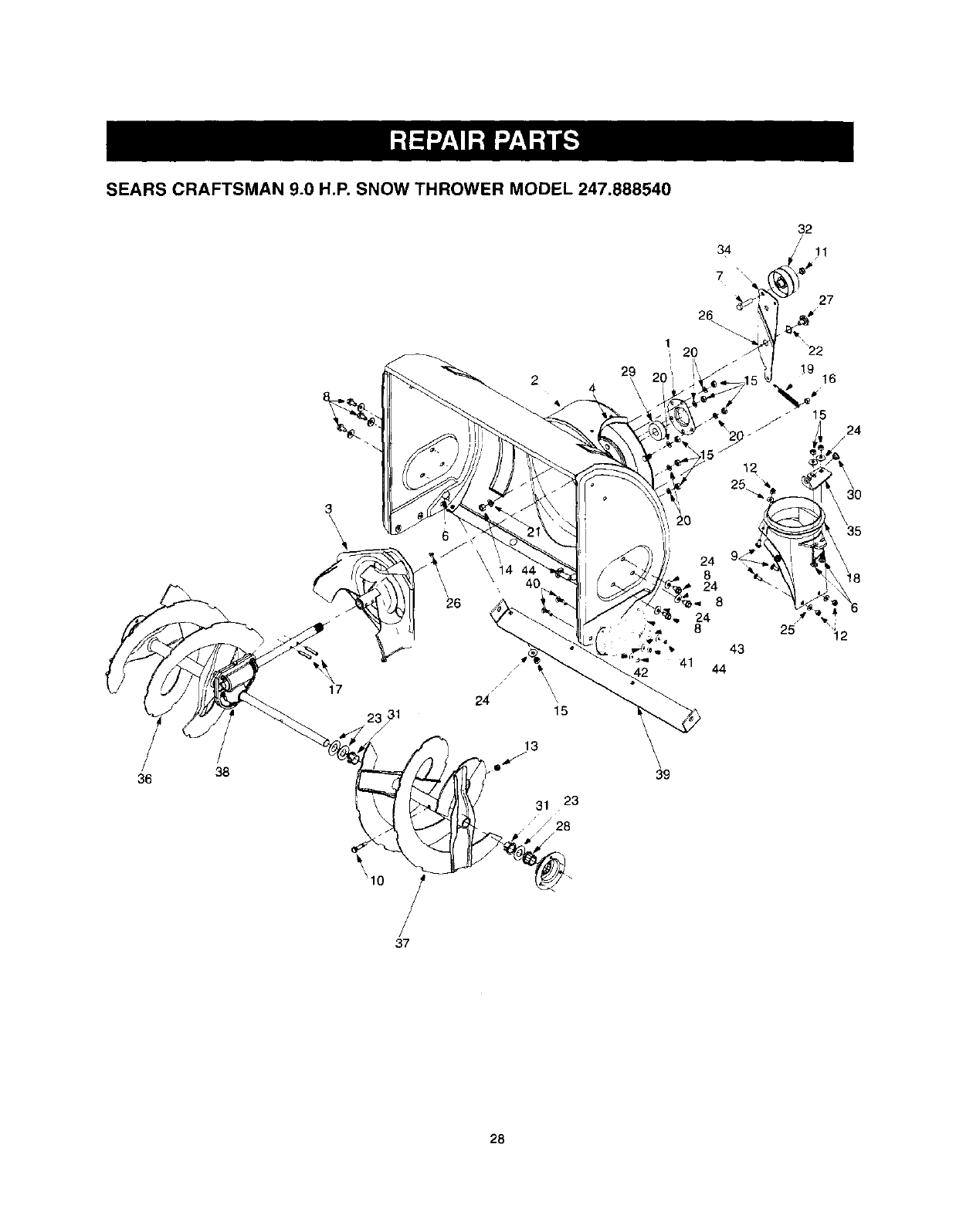

SEARS CRAFTSMAN 9.0 H.P. SNOW THROWER MODEL 247.888540

36 38

\

17

29

24

31 23

/28

32

/

34 J1

7 \

27

1

,20 "22

'_ :i9

20 , 16

15

8

24

8 25_ _'_12

43

4,1 44

37

28

SEARS CRAFTSMAN 9.0 H.P. SNOW THROWER MODEL 247.888540

Key. No. Part No.

1. 05931

2. 684-0041C-0689

3. 684-0065

4. 705-5226-0689

6, 710-6451

7. 710-0459A

8. 710-0604

9. 710-0703

10. 710-0890A

11. 712-0116

12. 712-0324

13. 712-0429

14. 712-0798

15. 712-3010

16. 712-3068

17. 715-0114

18. 731-1379A

t9. 732o0611

20. 736-0119

21. 736-0169

22. 736-0174

23. 736-0188

Description

Bearing Housing

Auger Housing Assy. 28" Polo Green

Impeller Assy. 12" dia,

Chute Reinforcement: Polo Green

Carriage Bolt 5/16-18 x .75" Gr.2

Hex Screw 3/8-24 x 1.5" Gr.5

Hex Washer Head Self-Tapping

Screw 5/16-18 x .62"

Carriage Screw 1/4-20 x .75"

Ke_ No. Part No.

24. 736-0242

25. 736-0463

26. 737-3007

27. 738-0281

28. 741-0245

29, 741-0309

30. 741-0475

31. 741-0493A

32. 766-0178

Description

Belleville Washer

Flat Washer

Grease

Shoulder Screw

Hex Flange Bearing

Flange Ball Bearing

Bushing

Flange Bushing

Flat Idler

Shear Bolt 5/16-18 x 1.5"

Jam Nut 3/8-24

Hex Lock Nut 1/4-20

Hex Lock Nut 5/16-18

Hex Nut 3/8-16 Gr.2

Hex Nut 5/16-18 Gr.5

Hex Patch Nut 5/16-18

Spiral Pin

Chute Adapter

Extension Spring

Lock Washer

Lock Washer

Wave Washer

Flat Washer

34. 784-5632A

35: 784-5647

36. 605-5196A-0637

37. 605-5197A-0637

38. 618-0122

39. 784-5582A

40. 710-0451

41. 712-3010

42. 736-0242

43. 784-5038B-0689

44. 710-0276

Auger idler Arm

Chute Crank Bracket

Spiral Assembly: RH 28" Powder

Black

Spiral Assembly: LH 28" Powder

Black

Gear Assembly: Auger 28"

Shave Plate: Auger 28"

Carr. Bolt: 5/16-18 x 0,75

Hex Nut: 5/16-18 Gr,5

Belleville Washer

Slide Shoe: Polo Green

Carriage Screw: 5/16-18 x 1.0"

29

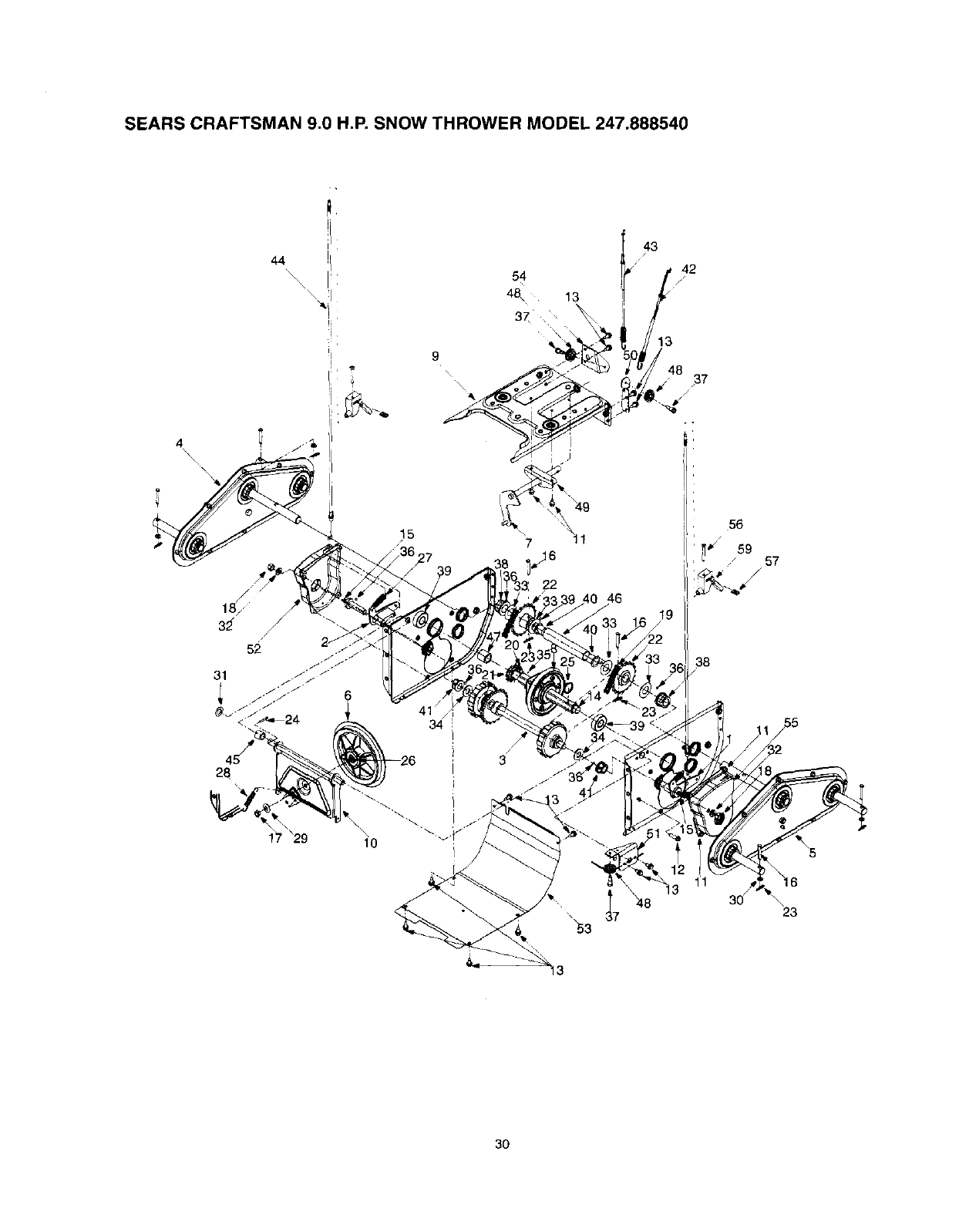

SEARS CRAFTSMAN 9.0 H.P. SNOW THROWER MODEL 247.888540

44 h

• i!:

\\\\

i

t

I!;

!i

\

17 \29

15

41

34,

i

54

\

48\ 13

37_

\\

42

37

/

56

/

' _ 59

/

38

57

I7

_3

30

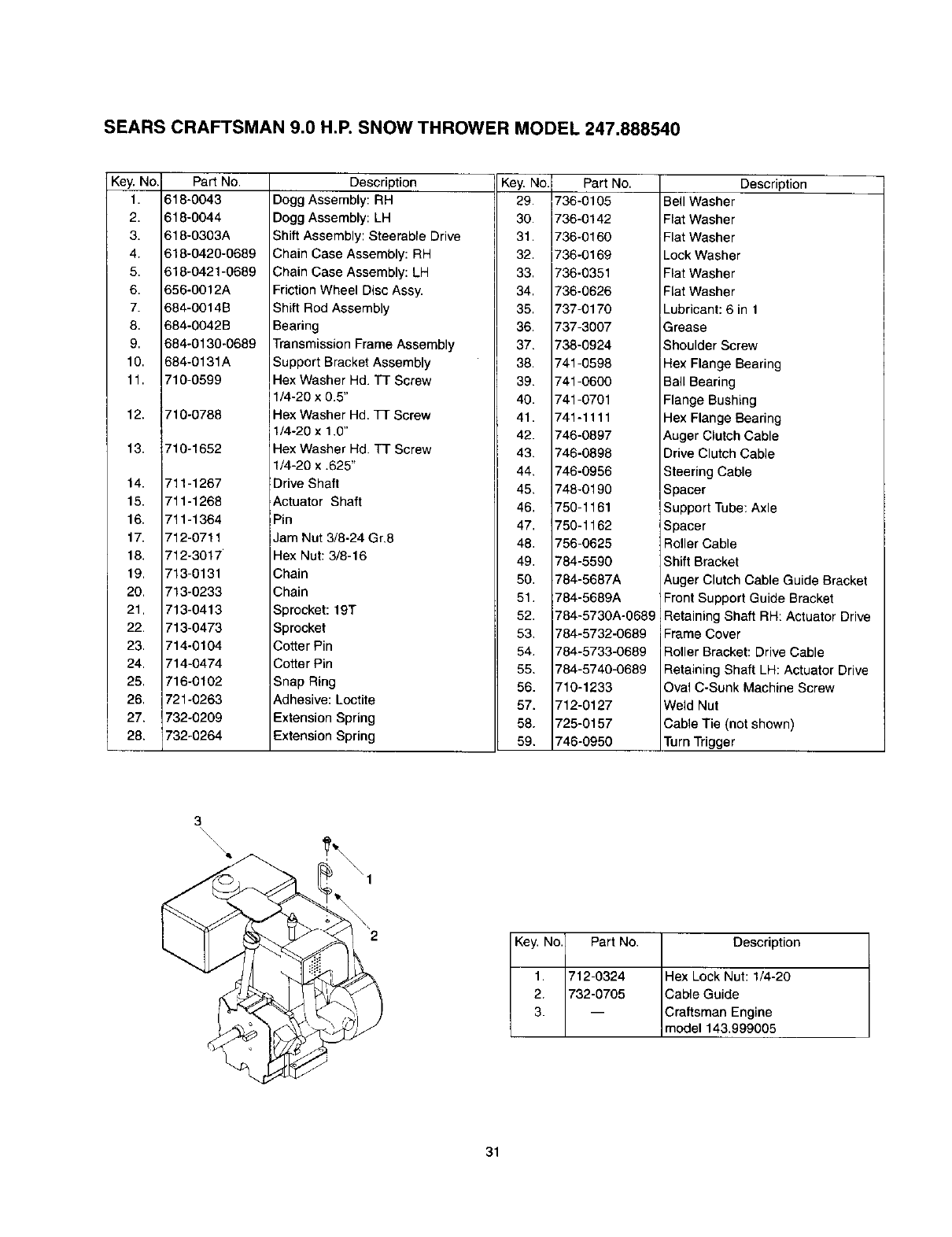

SEARS CRAFTSMAN 9.0 H.P. SNOW THROWER MODEL 247.888540

Key No. Part No.

1. 618-0043

2. 618-0044

3. 618-0303A

4. 618-0420-0689

5. 618-0421-0689

6. 656-0012A

7. 684-0014B

8. 684-0042B

9. 684-0130-0689

10. 684-0131A

11. 710-0599

12. 710-0788

13. 710-1652

14. 711-1267

15. 711-1268

16. 711-1364

17. 712-0711

18. 712-3017

19. 713-0131

20. 713-0233

21. 713-0413

22. 713-0473

23. 714-0104

24. 714-0474

25. 716-0102

26. 721-0263

27. 732-0209

28. 732-0264

Description

Dogg Assembly: RH

Dogg Assembly: LH

Shift Assembly: Steerable Drive

Chain Case Assembly: RH

Chain Case Assembly: LH

Friction Wheel Disc Assy.

Shift Rod Assembly

Bearing

Transmission Frame Assembly

Support Bracket Assembly

Hex Washer Hd. TT Screw

1/4-20 x 0.5"

Hex Washer Hd. 77- Screw

1/4-20 x 1.0"

Hex Washer Hd. TT Screw

1/4-20 x .625"

Drive Shaft

Actuator Shaft

Pin

Jam Nut 3/8-24 Gr,8

Hex Nut: 3/8-16

Chain

Chain

Sprocket: 19T

Sprocket

Cotter Pin

Cotter Pin

Snap Ring

Adhesive: Loctite

Extension Spring

Extension Spring

Key No. Part No.

29. 736-0105

30. 736-0142

31. 736-0160

32. 736-0169

33. 736-0351

34. 736-0626

35. 737-0170

36. 737-3007

37, 738-0924

38. 741-0598

39. 741-0600

40. 741-0701

41. 741-1111

42. 746-0897

43. 746-0898

44. 746-0956

45. 748-0190

46. 750-1161

47. 750-1162

48. 756-0625

49. 784-5590

50. 784-5687A

51, 784-5689A

52. 784-5730A-0689

53, 784-5732-0689

54, 784-5733-0689

55. 784-5740-0689

56. 710-1233

57. 712-0127

58. 725-0157

59. 746-0950

Description

Bell Washer

Flat Washer

Flat Washer

Lock Washer

Flat Washer

Flat Washer

Lubricant: 6 in 1

Grease

Shoulder Screw

Hex Flange Bearing

Ball Bearing

Flange Bushing

Hex Flange Bearing

Auger Clutch Cable

Drive Clutch Cable

Steering Cable

Spacer

Support Tube: Axle

Spacer

Roller Cable

Shift Bracket

Auger Clutch Cable Guide Bracket

Front Support Guide Bracket

Retaining Shaft RH: Actuator Drive

Frame Cover

Roller Bracket: Drive Cable

Retaining Shaft LH: Actuator Drive

Oval C-Sunk Machine Screw

Weld Nut

Cable Tie (not shown)

Turn Trigger

\\\\

Key. No. Part No. Description

1. 712-0324 Hex Lock Nut: 1/4-20

2. 732-0705 Cable Guide

3. -- Craftsman Engine

model 143.999005

31

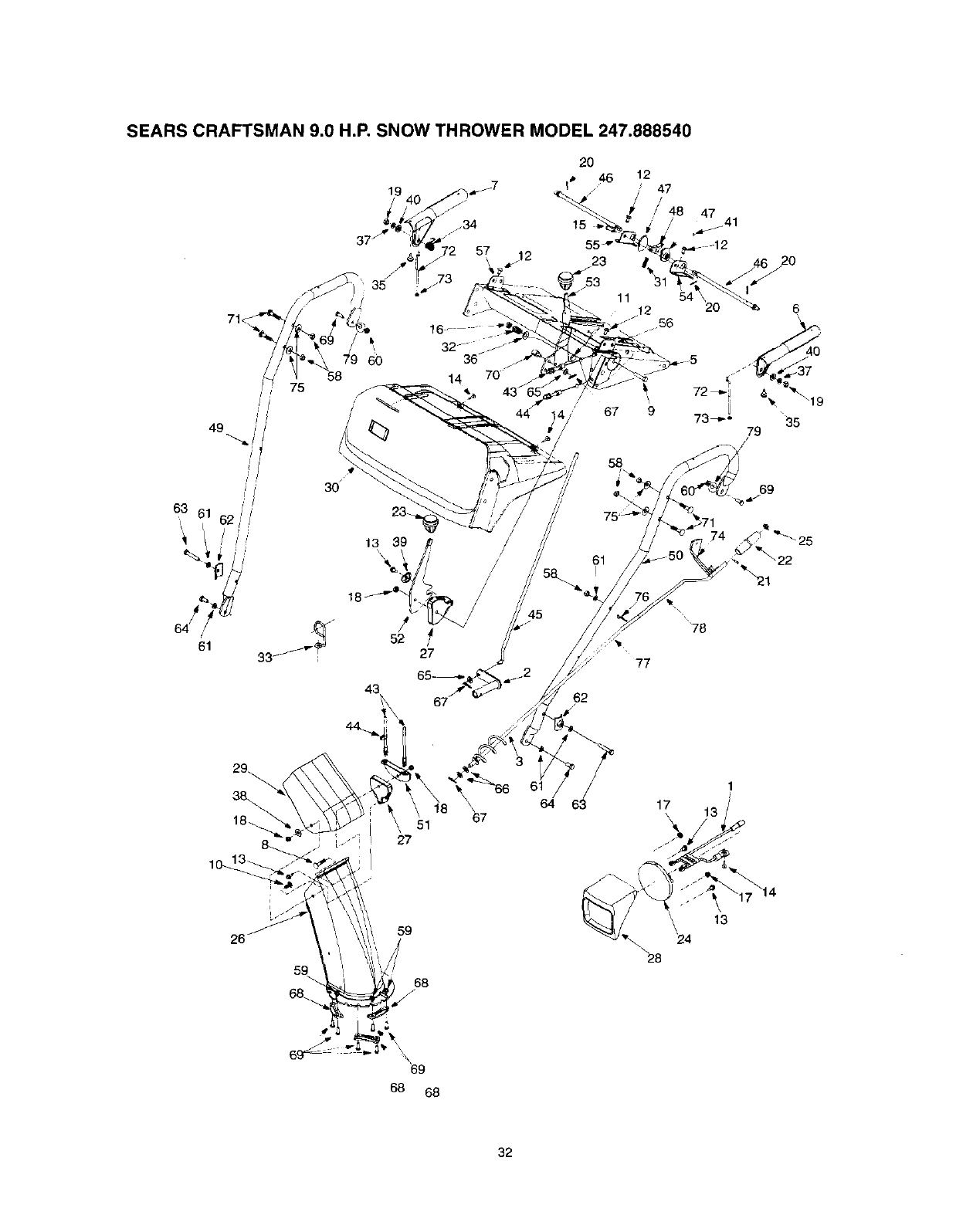

SEARS CRAFTSMAN 9.0 H.P. SNOW THROWER MODEL 247.888540

49

63 61 ,"'

',, / 62 I"

/

61

19

13 39

\

43

58 j

69

_J

!

52

27

61

62

\ 51

27

59

\'69

68 68

61 /

64

1

17

_24 13

"28

32

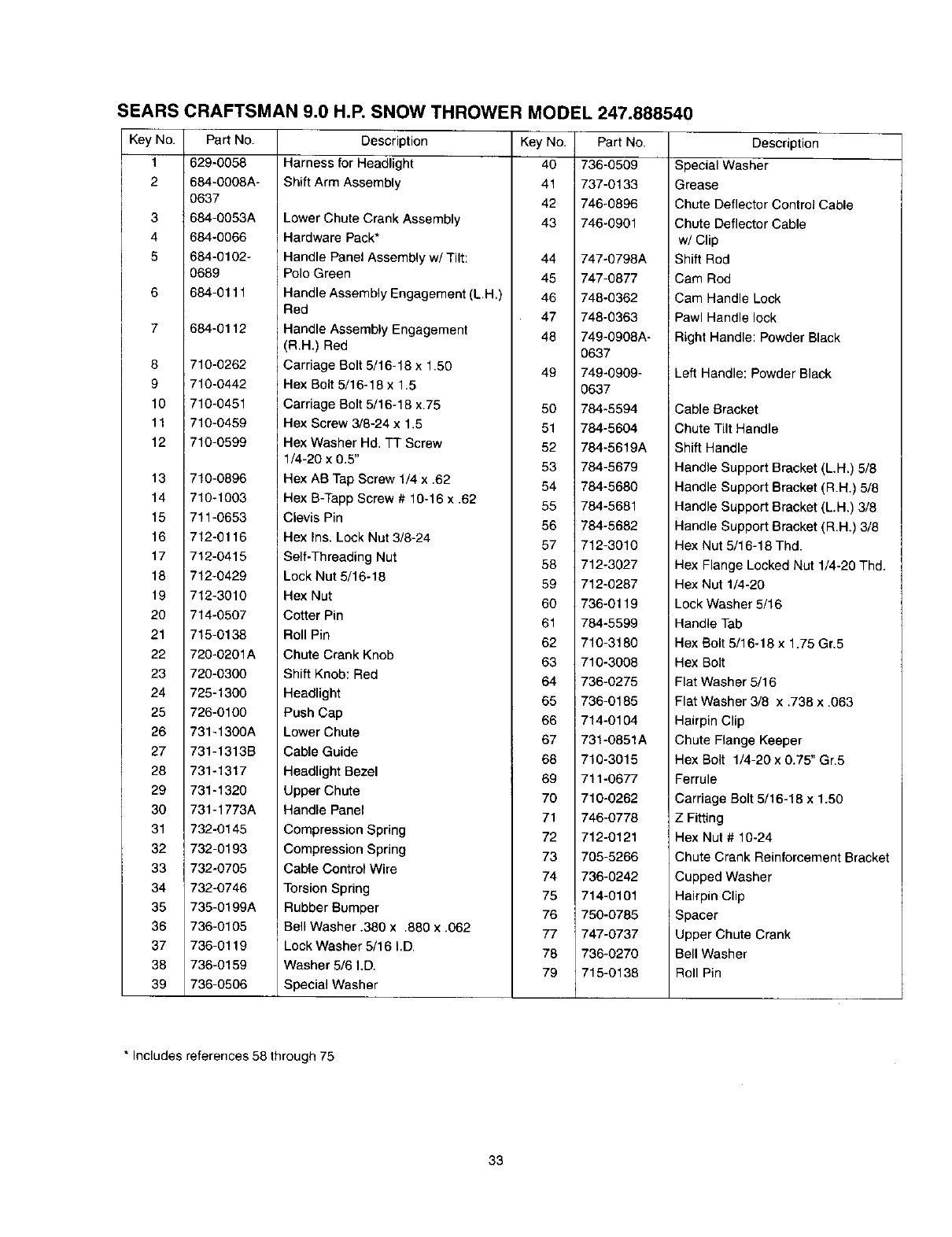

SEARS CRAFTSMAN 9.0 H.P. SNOW THROWER MODEL 247.888540

Key No.

1

2

3

4

5

6

7

Part No.

629-0058

684-0008A-

0637

684-0053A

684-0066

684-0102-

0689

684-0111

684-0112

8 710-0262

9 710-0442

10 710-0451

11 710-0459

12 710-0599

13 710-0896

14 710-1003

15 711-0653

16 712-0116

17 712-0415

18 712-0429

19 712-3010

20 714-0507

21 715-0138

22 720-0201A

23 720-0300

24 725-1300

25 726-0100

26 731-1300A

27 731-1313B

28 731-1317

29 731-1320

30 731-1773A

31 732-0145

32 732-0193

33 732-0705

34 732-0746

35 735-0199A

36 736-0105

37 736-0119

38 736-0159

39 736-0506

Description Key No. Part No,

Harness for Headlight 40 736-0509

Shift Arm Assembly 41 737-0133

42 746-0896

Lower Chute Crank Assembly 43 746-0901

Hardware Pack*

Handle Panel Assembly w/Tilt: 44 747-0798A

Polo Green 45 747-0877

Handle Assembly Engagement (L.H.) 46 748-0362

Red 47 748-0363

Handle Assembly Engagement 48 749-0908A-

(RH.) Red 0637

Carriage Bolt 5/16-18 x 1.50 49 749-0909-

Hex Bolt 5/16-18 x 1,5 0637

Carriage Bolt 5/16-18 x.75 50 784-5594

Hex Screw 3/8-24 x 1.5 51 784-5604

Hex Washer Hd. TT Screw 52 784-5619A

1/4-20 x 0.5" 53 784-5679

Hex AB Tap Screw 1/4 x .62 54 784-5680

Hex B-Tapp Screw # 10-16 x .62 55 784-5681

Clevis Pin 56 784-5682

Hex Ins.Lock Nut 3/8-24 57 712-3010

Self-Threading Nut 58 712-3027

Lock Nut 5/16-18 59 712-0287

Hex Nut 60 736-0119

Cotter Pin 61 784-5599

Roll Pin 62 710-3180

Chute Crank Knob 63 710-3008

Shift Knob: Red 64 736-0275

Headlight 65 736-0185

Push Cap 66 714-0104

Lower Chute 67 731-0851A

Cable Guide 68 710-3015

Headlight Bezel 69 711-0677

Upper Chute 70 710-0262

Handle Panel 71 746-0778

Compression Spring 72 712-0121

Compression Spring 73 705-5266

Cable Control Wire 74 736-0242

Torsion Spring 75 714-0101

Rubber Bumper 76 750-0785

Bell Washer .380 x .880 x.062 77 747-0737

Lock Washer 5/16 I.D. 78 736-0270

Washer 5/6 I,D. 79 715-0138

Special Washer

Description

Special Washer

Grease

Chute Deflector Control Cable

Chute Deflector Cable

w/Clip

Shift Rod

Cam Rod

Cam Handle Lock

Pawl Handle lock

Right Handle: Powder Black

Left Handle: Powder Black

Cable Bracket

Chute Tilt Handle

Shift Handle

Handle Support Bracket (L.H.) 5/8

Handle Support Bracket (R.H.) 5/8

Handle Support Bracket (LH.) 3/8

Handle Support Bracket (RH.) 3/8

Hex Nut 5/16-18 Thd.

Hex Flange Locked Nut 1/4-20 Thd.

Hex Nut 1/4-20

Lock Washer 5/16

Handle Tab

Hex Bolt5/16-18 x 1.75 Gr,5

Hex Bolt

Flat Washer 5/16

Flat Washer 3/8 x .738 x.063

Hairpin Clip

Chute Flange Keeper

Hex Bolt 1/4-20 x 0.75" Gr.5

Ferrule

Carriage Bolt 5/16-18 x 1.50

Z Fitting

Hex Nut # 10-24

Chute Crank Reinforcement Bracket

Cupped Washer

Hairpin Clip

Spacer

Upper Chute Crank

Bell Washer

Roll Pin

* Includes references 58 through 75

33

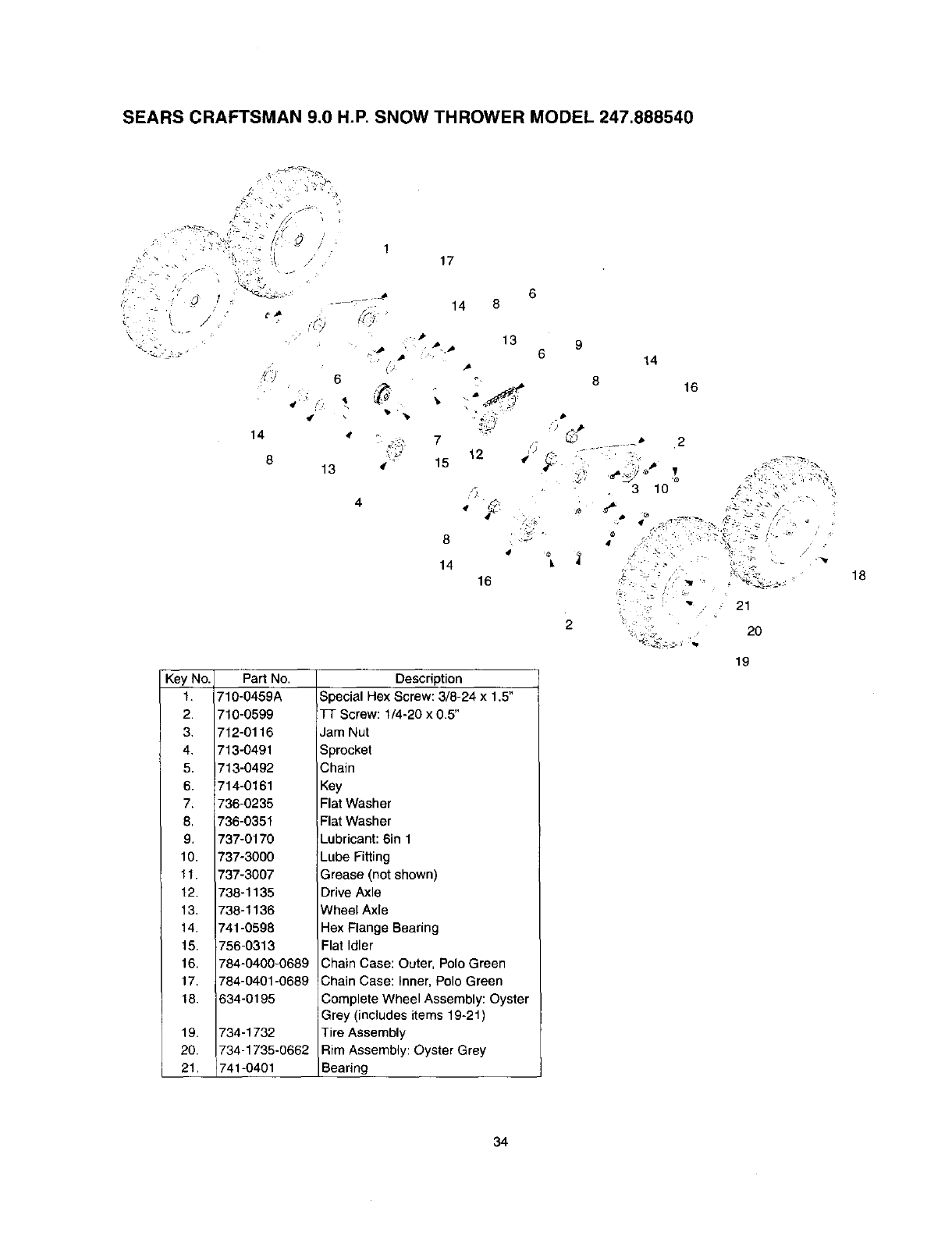

SEARS CRAFTSMAN 9,0 H.P. SNOW THROWER MODEL 247.888540

14

117

6

--'- 14 8

• • 13

6

7

15

813 •

8

14

9

6 14

8 16

19

Key No. Part No.

1. 710-0459A

2. 710-0599

3. 712-0116

4, 713-0491

5. 713-0492

6. 714-0161

7. 736-0235

8. 736-0351

9. 737-0170

10, 737-3000

11. 737-3007

12. 738-1135

13. /738-1136

14. /741-0598

15. _756-0313

/18. /7_-0400-0689

/17. /784-0401-0689

/18. i 34-ot95

/19. 1734-1732

20. 1734-1735-0662

i 21. 741"0401

Description

Special Hex Screw: 3/8-24 x 1,5"

TT Screw: 1/4-20 x 0.5"

Jam Nut

Sprocket

Chain

Key

Flat Washer

Flat Washer

Lubricant: 6in 1

Lube Fitting

Grease (not shown)

Drive Axle

Wheel Axle

Hex Flange Bearing

Flat Idler

Chain Case: Outer, Polo Green

Chain Case: Inner, Polo Green

Complete Wheel Assembly: Oyster

Grey (includes items 19-21)

Tire Assembly

Rim Assembly: Oyster Grey

Bearing

34

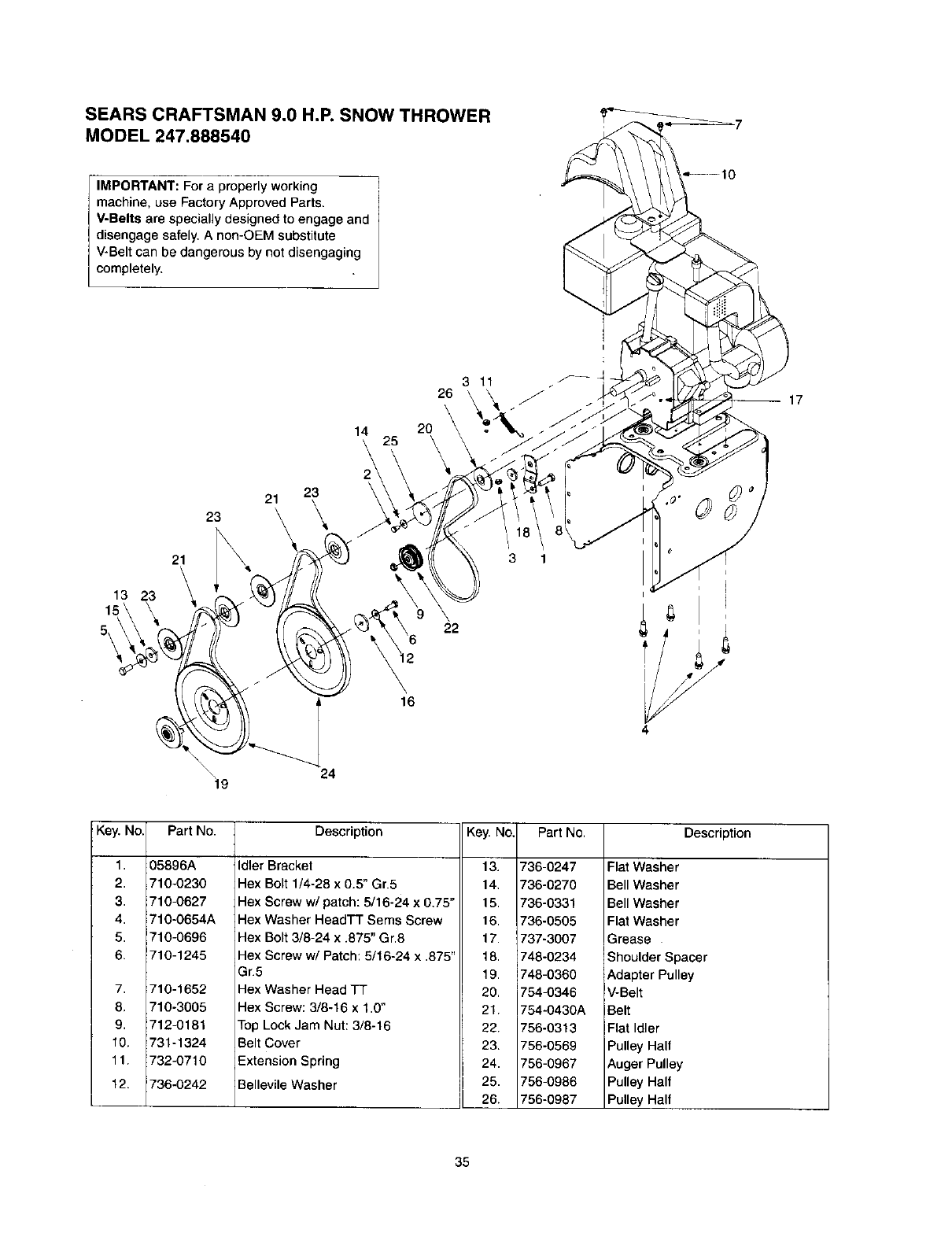

SEARS CRAFTSMAN 9.0 H.P. SNOW THROWER _--_-

MODEL 247.888540

IMPORTANT: For a properly working !

machine, use Factory Approved Parts. Ei

V-Belts are specially designed to engage and

disengage safely. A non-OEM substitute 1

V-Belt can be dangerous by not disengaging

completely,

14

\

26

20

25

3 11

,\

23

21

21 23

24

19

22

\16

ii 18

3 1

4

KeN No.

1.

2.

3.

4.

5.

6.

7,

8,

9.

10.

11.

12.

Part No.

05896A

710-0230

710-0627

710-0654A

710-0696

710-1245

710-1652

710-3005

712-0181

731-1324

732-0710

736-0242

Description Key No Part No.

Idler Bracket 13.

Hex Bolt 1/4-28 x 0.5" Gr.5 14.

Hex Screw w/patch: 5/16-24 x 0.75" 15.

Hex Washer HeadTT Sems Screw 16.

Hex Bolt 3/8-24 x .875" Gr.8 17.

Hex Screw w/Patch: 5/16-24 x .875" 18.

Gr.5 19.

Hex Washer Head TT 20.

Hex Screw: 3/8-16 x 1.0" 21.

Top Lock Jam Nut: 3/8-16 22,

Belt Cover 23.

Extension Spring 24.

Bellevile Washer 25.

26.

736-0247

736-0270

736-0331

736-0505

737-3007

!748-0234

748-0360

754-0346

754-0430A

756-0313

756-0569

756-0967

756-0986

756-0987

Description

Flat Washer

Bell Washer

Bell Washer

Flat Washer

Grease

Shoulder Spacer

Adapter Pulley

V-Belt

Belt

Flat Idler

Pulley Half

Auger Pulley

Pulley Half

Pulley Half

35

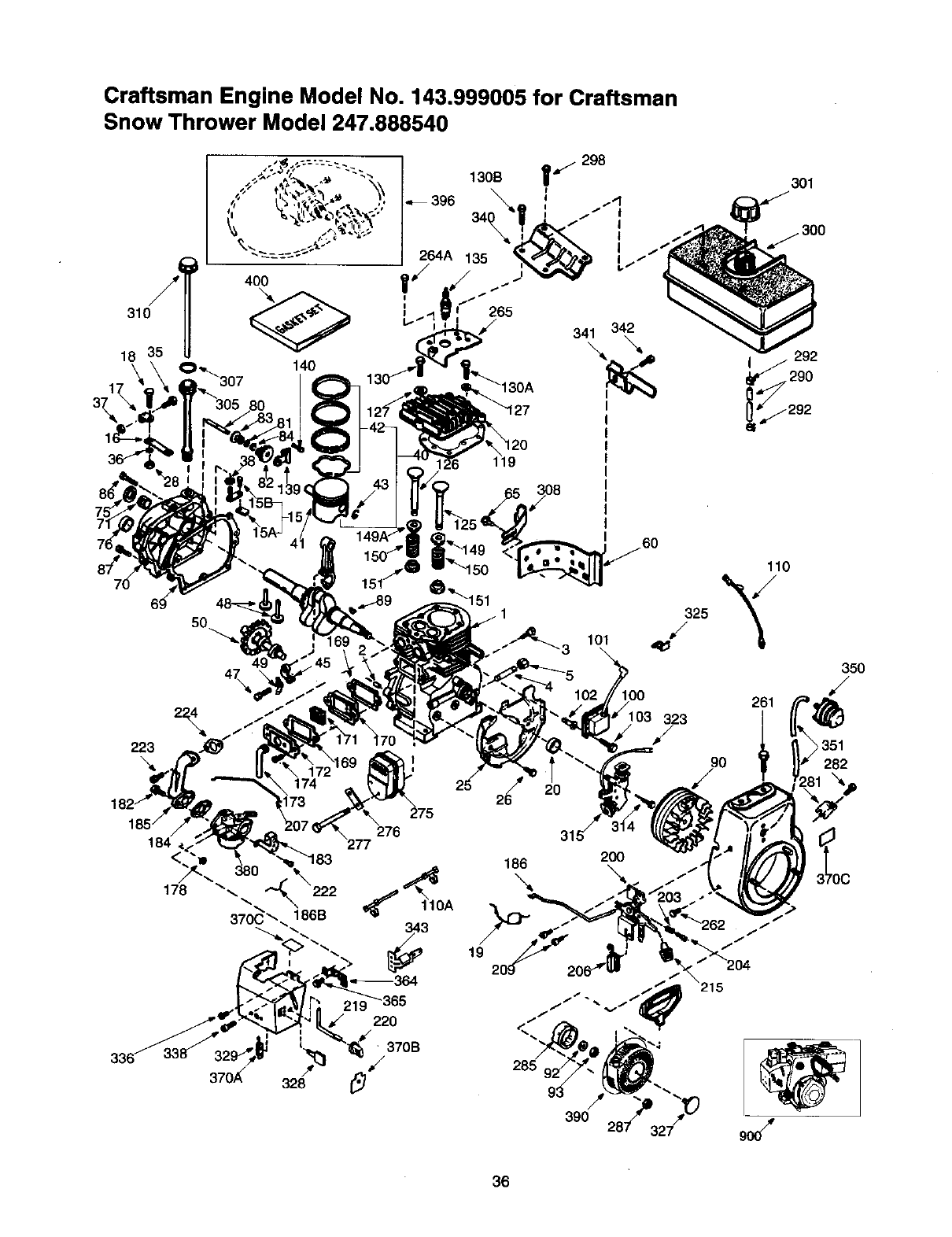

Craftsman Engine Model No. 143.999005 for Craftsman

Snow Thrower Model 247.888540

310

18 35

_"307

301

300

I 292

_290

5O

223

49

4\

101

110

261

323 i

/

350

,/

_351

282

184

178

328

220

370B

285

390

36

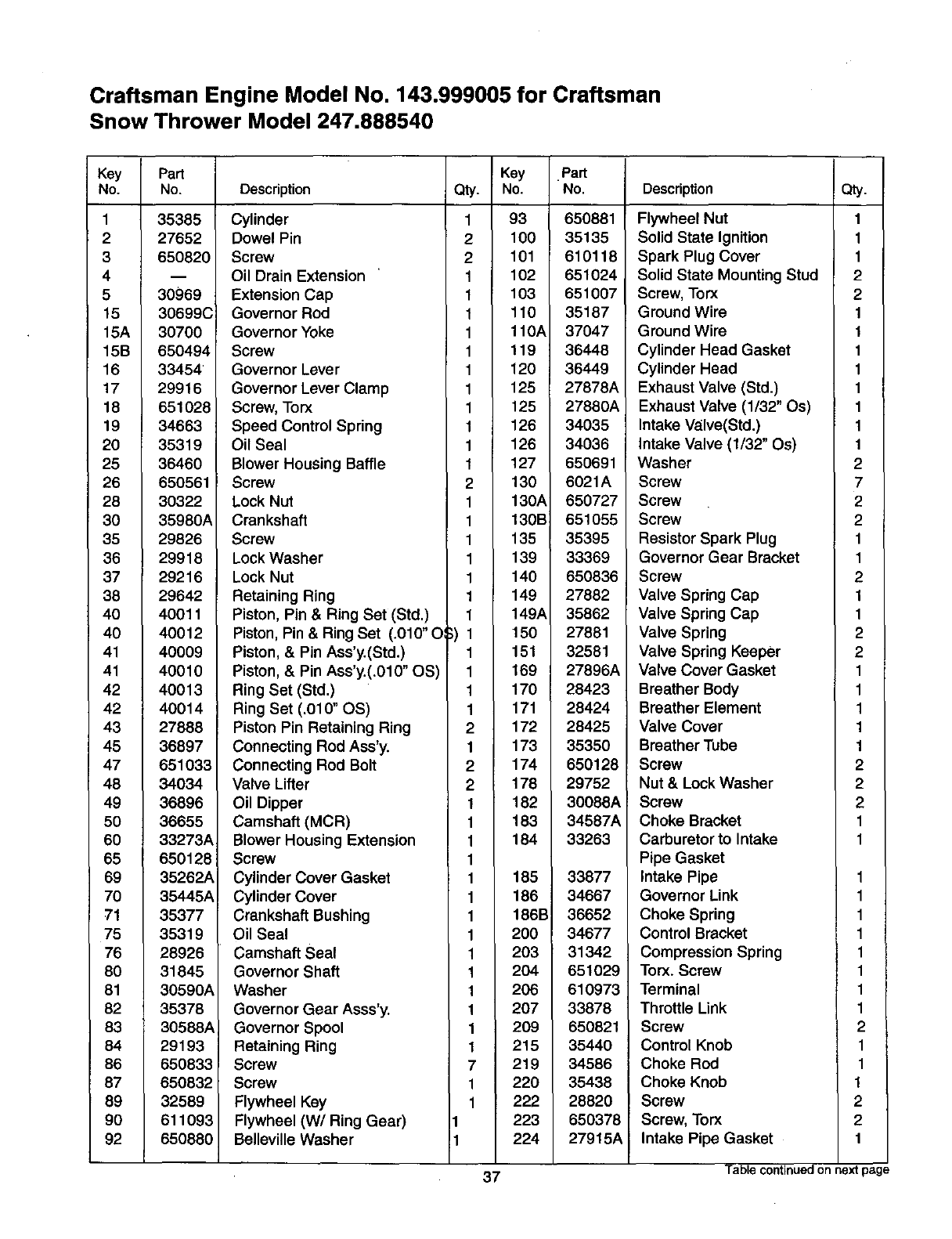

Craftsman Engine Model No. 143.999005 for Craftsman

Snow Thrower Model 247.888540

Key

No.

1

2

3

4

5

15

15A

15B

16

17

18

19

20

25

26

28

3O

35

36

37

38

40

40

41

41

42

42

43

45

47

48

49

5O

60

65

69

70

71

75

76

80

81

82

83

84

86

87

89

90

92

Part

No.

35385

27652

650820

m

30969

30699C

30700

650494

33454

29916

651028

34663

35319

36460

650561

30322

35980A

29826

29918

29216

29642

40011

40012

40009

40010

40013

40014

27888

36897

681033

34034

36896

36655

33273A

650128

35262A

35445A

35377

35319

28926

31845

30590A

35378

30588A

29193

650833

650832

32589

611093

650880

Key Pad

Description Q_. No. No.

Cylinder 1

Dowel Pin 2

Screw 2

Oil Drain Extension 1

Extension Cap 1

Governor Rod 1

Governor Yoke 1

Screw 1

Governor Lever 1

Governor Lever Clamp 1

Screw, Torx 1

Speed Control Spring 1

Oil Seal 1

Blower Housing Baffle 1

Screw 2

Lock Nut 1

Crankshaft 1

Screw 1

Lock Washer 1

Lock Nut 1

Retaining Ring 1

Piston, Pin & Ring Set (Std.) 1

Piston,Pin & Ring Set (.010"O i) 1

Piston, & Pin Ass'y.(Std.) 1

Piston, & Pin Ass'y.(.010" OS) 1

Ring Set (Std.) 1

Ring Set (.010" OS) 1

Piston Pin Retaining Ring 2

Connecting Rod Ass'y. 1

Connecting Rod Bolt 2

Valve Lifter 2

Oil Dipper 1

Camshaft (MCR) 1

Blower Housing Extension 1

Screw 1

Cylinder Cover Gasket 1

Cylinder Cover 1

Crankshaft Bushing 1

Oil Sea! 1

Camshaft Seal 1

Governor Shaft 1

Washer 1

Governor Gear Asss'y. 1

Governor Spool 1

Retaining Ring 1

Screw 7

Screw 1

Flywheel Key 1

Flywheel (W/Ring Gear) 1

Belleville Washer 1

93 650881

100 35135

101 610118

102 651024

103 651007

110 35187

110A 37047

119 36448

120 36449

125 27878A

125 27880A

126 34035

126 34036

127 650691

130 6021A

130A 650727

130B 651055

135 35395

139 33369

140 650836

149 27882

149A 35862

150 27881

151 32581

169 27896A

170 28423

171 28424

172 28425

173 35350

174 650128

178 29752

182 30088A

183 34587A

184 33263

185 33877

186 34667

186B 36652

200 34677

203 31342

204 651029

206 610973

207 33878

209 650821

215 35440

219 34586

220 35438

222 28820

223 650378

224 27915A

Description

Flywheel Nut

Solid State Ignition

Spark Plug Cover

Solid State Mounting Stud

Screw, Torx

Ground Wire

Ground Wire

Cylinder Head Gasket

Cylinder Head

Exhaust Valve (Std.)

Exhaust Valve (1/32" Os)

Intake Valve(Std.)

Intake Valve (1/32" Os)

Washer

Screw

Screw

Screw

Resistor Spark Plug

Governor Gear Bracket

Screw

Valve Spring Cap

Valve Spring Cap

Valve Spring

Valve Spring Keeper

Valve Cover Gasket

Breather Body

Breather Element

Valve Cover

Breather Tube

Screw

Nut & Lock Washer

Screw

Choke Bracket

Carburetor to Intake

Pipe Gasket

Intake Pipe

Governor Link

Choke Spring

Control Bracket

Compression Spring

Torx. Screw

Terminal

Throttle Link

Screw

Control Knob

Choke Rod

Choke Knob

Screw

Screw, Torx

Intake Pipe Gasket

Qty.

1

1

1

2

2

1

1

1

1

1

1

1

1

2

7

2

2

1

1

2

1

1

2

2

1

1

1

1

1

2

2

2

1

1

1

1

1

1

1

1

1

1

2

1

1

1

2

2

1

37 Table continued on next page

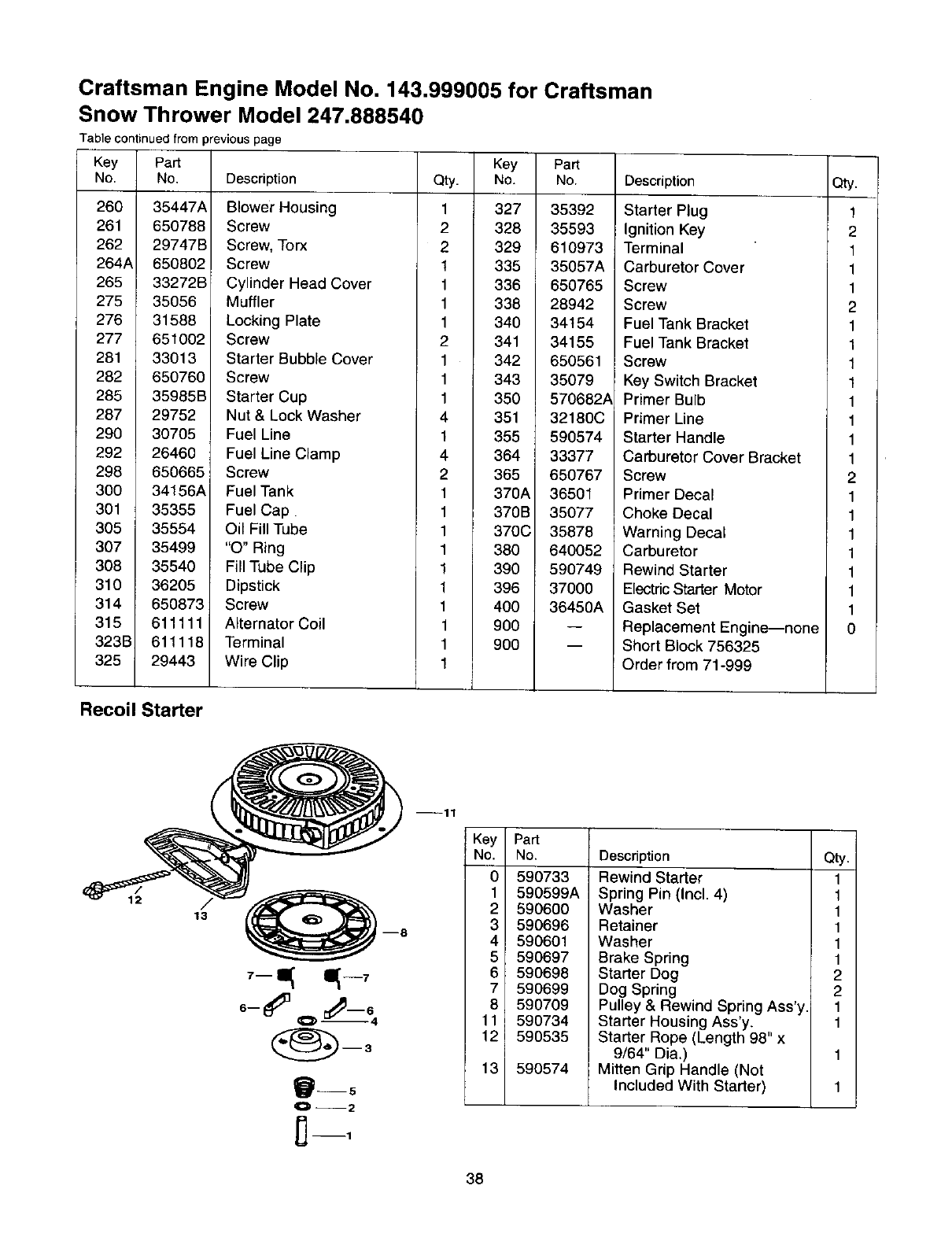

Craftsman Engine Model No. 143.999005 for Craftsman

Snow Thrower Model 247,888540

Table continued from previous page

Key

No.

260

261

262

264A

265

275

276

277

281

282

285

287

290

292

298

3OO

301

305

307

308

310

314

315

323B

325

Part

No,

35447A

650788

29747B

650802

33272B

35056

31588

651002

33013

650760

35985B

29752

30705

26460

650665

34156A

35355

35554

35499

35540

36205

650873

611111

611118

29443

Key

Description Qty. No.

Blower Housing 1 327

Screw 2 328

Screw, Torx 2 329

Screw 1 335

Cylinder Head Cover 1 336

Muffler 1 338

Locking Plate 1 340

Screw 2 341

Starter Bubble Cover 1 342

Screw 1 343

Starter Cup 1 350

Nut & Lock Washer 4 351

Fuel Line 1 355

Fuel Line Clamp 4 364

Screw 2 365

Fuel Tank 1 370A

Fuel Cap. 1 370B

Oil Fill Tube 1 370C

"O" Ring 1 380

Fill Tube Clip 1 390

Dipstick 1 396

Screw 1 400

Alternator Coil 1 900

Terminal 1 900

Wire Clip 1

Part

No.

35392

35593

610973

35057A

650765

28942

34154

34155

65O561

35079

570682A

32180C

590574

33377

650767

36501

35077

35878

64OO52

590749

37000

36450A

Description

Starter Plug

Ignition Key

Terminal

Carburetor Cover

Screw

Screw

Fuel Tank Bracket

Fuel Tank Bracket

Screw

Key Switch Bracket

Primer Bulb

Primer Line

Starter Handle

Carburetor Cover Bracket

Screw

Primer Decal

Choke Decal

Warning Decal

Carburetor

Rewind Starter

Electric Starter Motor

Gasket Set

Replacement Engine--none

Short Block 756325

Order from 71-999

Qty.

1

2

1

1

1

2

1

1

1

1

1

1

1

1

2

1

1

1

1

1

1

1

0

Recoil Starter

12

13

--8

--11

Key

No.

0

1

2

3

4

5

6

7

8

11

12

13

Part

No.

590733

590599A

590600

590696

590601

590697

590698

590699

590709

590734

590535

590574

Description Qty.

Rewind Starter 1

Spring Pin (Incl. 4) 1

Washer 1

Retainer 1

Washer 1

Brake Spring 1

Starter Dog 2

Dog Spring 2

Pulley & Rewind Spring Ass'y. 1

Starter Housing Ass'y. 1

Starter Rope (Length 98" x

9/64" Dia.) 1

Mitten Grip Handle (Not

Included With Starter) 1

38

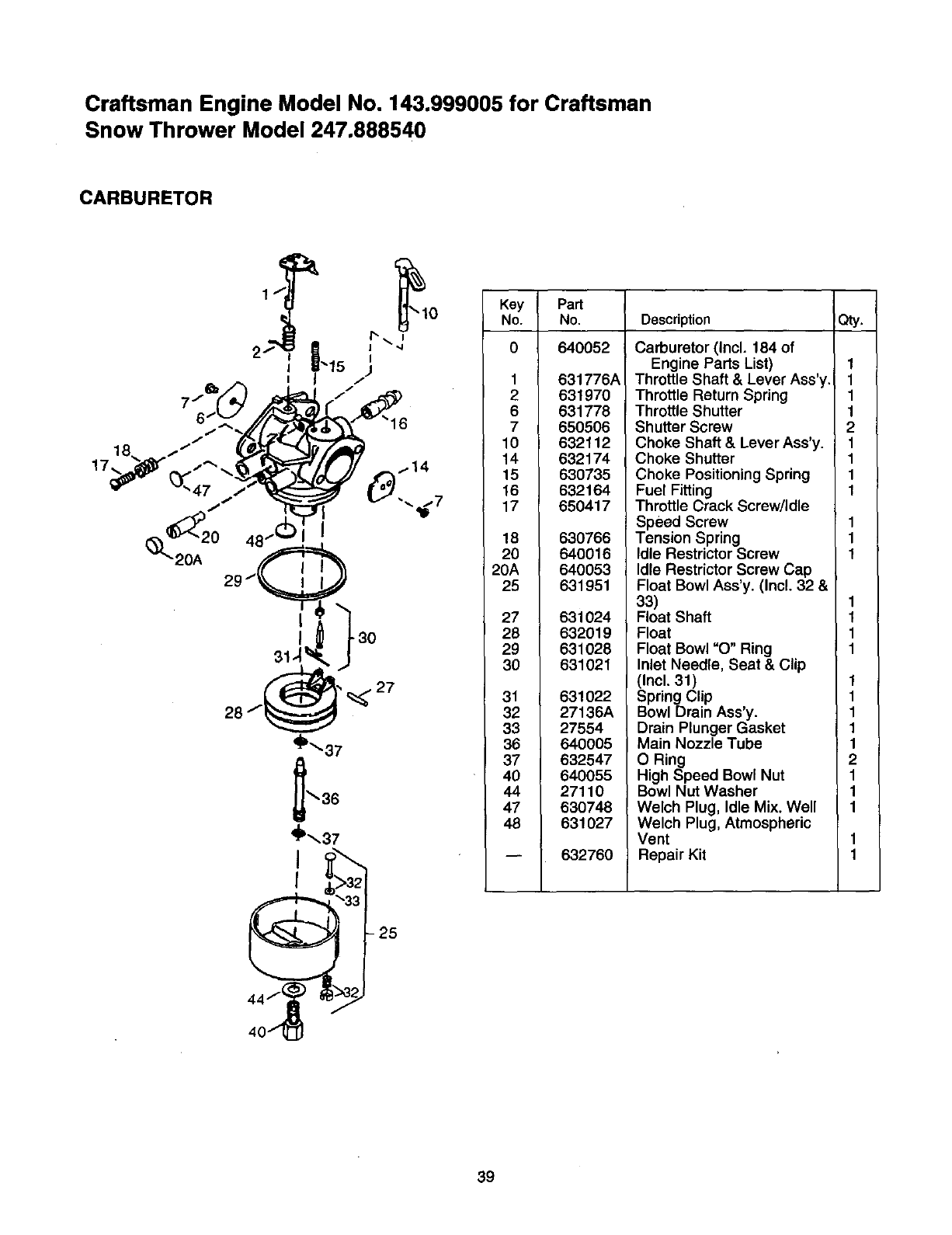

Craftsman Engine Model No. 143.999005 for Craftsman

Snow Thrower Model 247.888540

CARBURETOR

°

17.

$7

_)'_20A

I

I.3o

_tb_37

_\37

I \

I>3

'3: - 25

/"

Key Pa_

No. No. Description Qty.

0 640052

1631776A

2631970

6 631778

7650506

10 632112

14 632174

15 630735

16 632164

17 650417

18 630766

20 640016

20A 640053

25 631951

27 631024

26 632019

29 631028

30 631021

31 631022

32 27136A

33 27554

36 640005

37 632547

40 640055

44 27110

47 630748

48 631027

632760

Carburetor (Incl. 184 of

Engine Parts List) 1

Throttle Shaft & Lever Ass'y. 1

Throttle Return Spring 1

Throttle Shutter 1

Shutter Screw 2

Choke Shaft & Lever Ass'y. 1

Choke Shutter 1

Choke Positioning Spring 1

Fuel Fitting 1

Throttle Crack Screw/Idle

Speed Screw 1

Tension Spring 1

Idle Restrictor Screw 1

Idle Restrictor Screw Cap

Float Bowl Ass'y. (Incl. 32 &

33) 1

Float Shaft 1

Float 1

Float Bowl "O" Ring 1

Inlet Needle, Seat & Clip

(Incl. 31) 1

Spring Clip 1

Bowl Drain Ass'y. 1

Drain Plunger Gasket 1

Main Nozzle Tube 1

O Ring 2

High Speed Bowl Nut 1

Bowl Nut Washer 1

Welch Plug, Idle Mix. Well 1

Welch Plug, Atmospheric

Vent 1

Repair Kit 1

39

In U.S.A. or Canada

for in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOM EsM(1-800-469-4663)

Para pedir servicio de reparaci6n a domicillio -- 1-800-676-5811

Au Canada pour tout le service ou les pieces -- 1-800-469-4663

For the repair or replacement parts you need:

Call 6 a.m. -- 11 pm CST, 7 days a week

PartsDirects"

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicillio -- 1-800-659-7084

For the location of a Sears Service Center in your area:

Call 24 hours a day, 7 days a week

1-800-488-1222

To purchase or inquire about a Sears Maintenance Agreement:

Call 7 a.rn. -- 5 p.m. CST, Monday -- Saturday

1-800-827-6655

r

SEARS

HomeCentrals"
