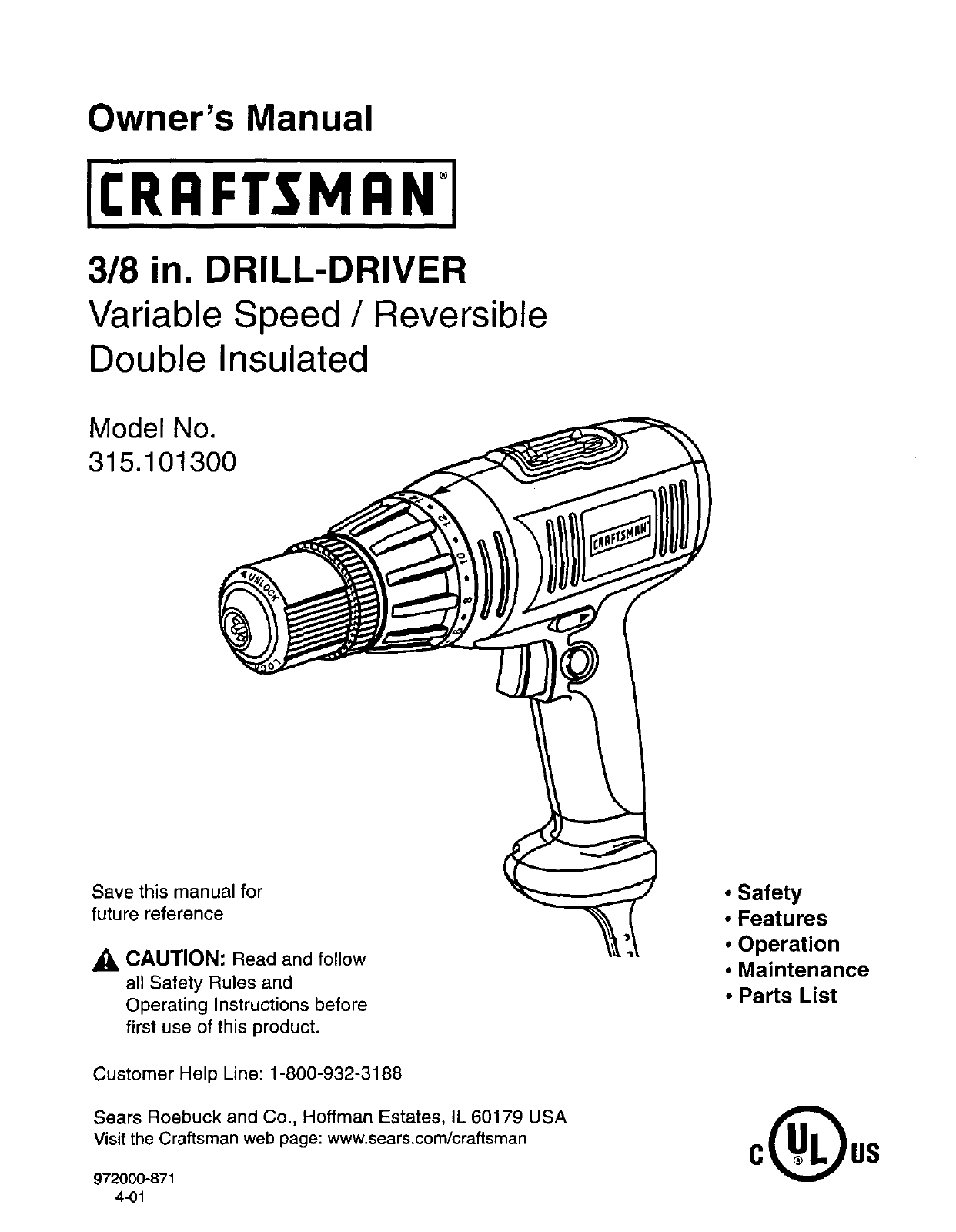

Owner's Manual
ICRRFTSMI:IN [
318 in. DRILL-DRIVER
Variable Speed /Reversible
Double Insulated
Model No.
315.101300
Save this manual for
future reference
,_ CAUTION: Read and follow
all Safety Rules and
Operating Instructions before
first use of this product.
Safety
Features
Operation
Maintenance
• Parts List
Customer Help Line: 1-800-932-3188
Sears Roebuck and Co., Hoffman Estates, IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
972000-871
4-01
0( 0s

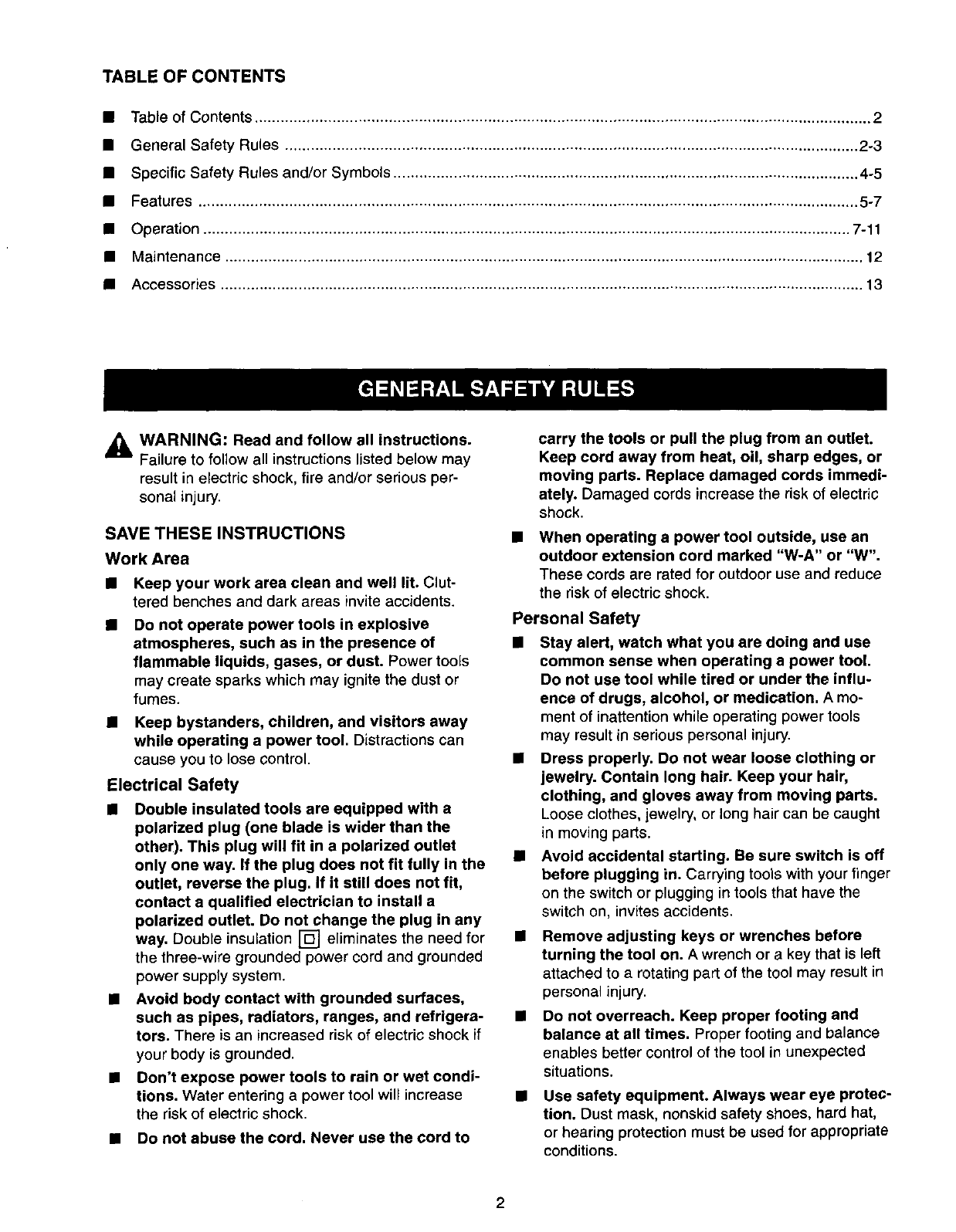

TABLE OF CONTENTS
Table of Contents ............................................................................................................................................... 2
General Safety Rules ..................................................................................................................................... 2-3
Specific Safety Rules and/or Symbols ............................................................................................................ 4-5
Features ......................................................................................................................................................... 5-7
Operation ...................................................................................................................................................... 7-11
Maintenance .................................................................................................................................................... 12
Accessories ..................................................................................................................................................... 13
_1 WARNING: Read and follow all instructions.
Failure to follow all instructions listed below may
result in electric shock, fire and/or serious per-
sonal injury.
SAVE THESE INSTRUCTIONS
Work Area
Keep your work area clean and well lit. Clut-
tered benches and dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools
may create sparks which may ignite the dust or
fumes.
Keep bystanders, children, and visitors away
while operating a power tool. Distractions can
cause you to lose control.
Electrical Safety
Double insulated tools are equipped with a
polarized plug (one blade is wider than the
other). This plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install a
polarized outlet. Do not change the plug in any
way. Double insulation [] eliminates the need for
the three-wire grounded power cord and grounded
power supply system.
Avoid body contact with grounded surfaces,
such as pipes, radiators, ranges, and refrigera-
tors. There is an increased risk of electric shock if
your body is grounded.
Don't expose power tools to rain or wet condi-
tions. Water entering a power tool will increase
the risk of electric shock.
Do not abuse the cord. Never use the cord to
carry the tools or pull the plug from an outlet.
Keep cord away from heat, oil, sharp edges, or
moving pads. Replace damaged cords immedi-
ately. Damaged cords increase the risk of electric
shock.
When operating a power tool outside, use an
outdoor extension cord marked "W-A" or "W".
These cords are rated for outdoor use and reduce
the risk of electric shock.
Personal Safety
Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use tool while tired or under the influ-
ence of drugs, alcohol, or medication. Amo-
ment of inattention while operating power tools
may result in serious personal injury.
Dress properly. Do not wear loose clothing or
jewelry. Contain long hair. Keep your hair,
clothing, and gloves away from moving parts.
Loose clothes, jewelry, or long hair can be caught
in moving parts.
Avoid accidental starting. Be sure switch is off
before plugging in. Carrying tools with your finger
on the switch or plugging in tools that have the
switch on, invites accidents.
Remove adjusting keys or wrenches before
turning the tool on. A wrench or a key that is left
attached to a rotating part of the tool may result in
personal injury.
Do not overreach. Keep proper footing and
balance at all times. Proper footing and balance
enables better control of the tool in unexpected
situations.
Use safety equipment. Always wear eye protec-
tion. Dust mask, nonskid safety shoes, hard hat,
or hearing protection must be used for appropriate
conditions.
2

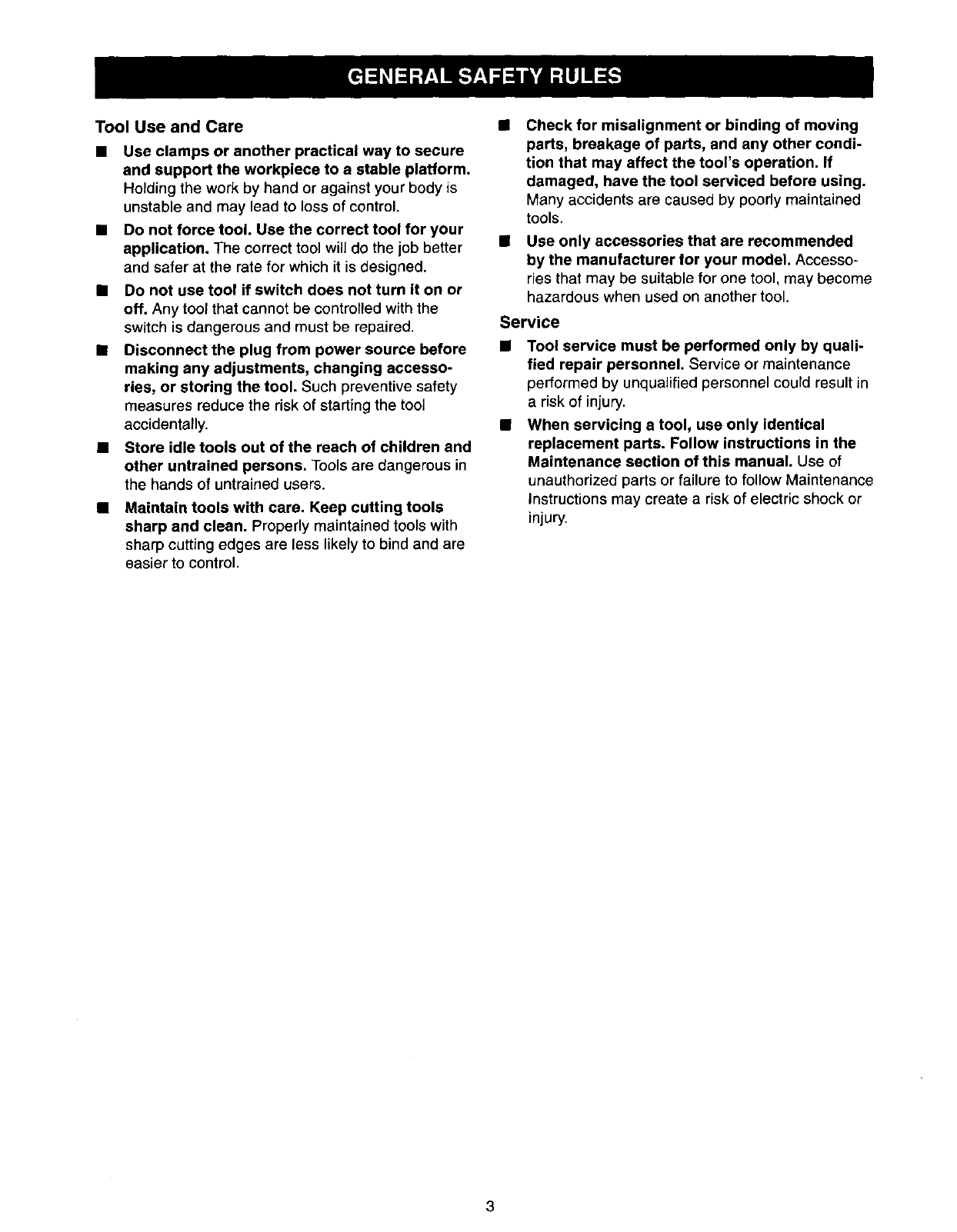

Tool Use and Care
Use clamps or another practical way to secure
and support the workpiece to a stable platform.
Holding the work by hand or against your body is
unstable and may lead to loss of control.
Do not force tool. Use the correct tool for your
application. The correct tool will do the job better
and safer at the rate for which it is designed.
Do not use tool if switch does not turn it on or
off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired,
Disconnect the plug from power source before
making any adjustments, changing accesso-
ries, or storing the tool. Such preventive safety
measures reduce the risk of starting the tool
accidentally.
Store idle tools out of the reach of children and
other untrained persons. Tools are dangerous in
the hands of untrained users.
Maintain tools with care. Keep cutting tools
sharp and clean. Properly maintained tools with
sharp cutting edges are less likely to bind and are
easier to control.
Check for misalignment or binding of moving
parts, breakage of parts, and any other condi-
tion that may affect the tool's operation. If
damaged, have the tool serviced before using.
Many accidents are caused by poorly maintained
tools.
Use only accessories that are recommended
by the manufacturer for your model. Accesso-
ries that may be suitable for one tool, may become
hazardous when used on another tool.
Service
Tool service must be performed only by quali-
fied repair personnel. Service or maintenance
performed by unqualified personnel could result in
a risk of injury.
When servicing a tool, use only identical
replacement parts. Follow instructions in the
Maintenance section of this manual. Use of
unauthorized parts or failure to follow Maintenance
Instructions may create a risk of electric shock or
injury.
3

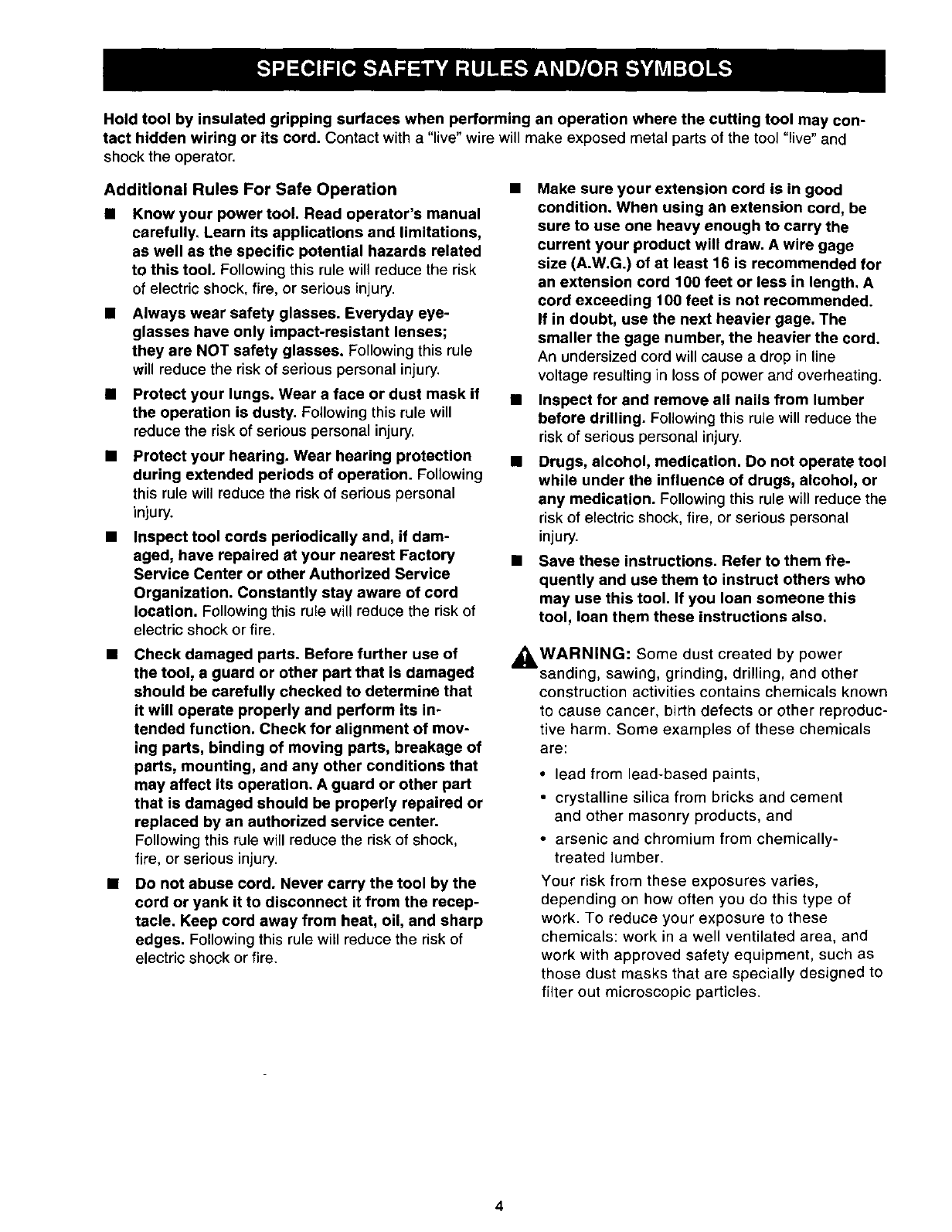

Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may con-
tact hidden wiring or its cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and
shock the operator.
Additional Rules For Safe Operation
Know your power tool. Read operator's manual
carefully. Learn its applications and limitations,
as well as the specific potential hazards related
to this tool. Following this rule will reduce the risk
of electric shock, fire, or serious injury.
Always wear safety glasses. Everyday eye-
glasses have only impact-resistant lenses;
they are NOT safety glasses. Following this rule
will reduce the risk of serious personal injury.
Protect your lungs. Wear a face or dust mask if
the operation is dusty. Following this rule will
reduce the risk of serious personal injury.
Protect your hearing. Wear hearing protection
during extended periods of operation. Following
this rule will reduce the risk of serious personal
injury.
Inspect tool cords periodically and, if dam-
aged, have repaired at your nearest Factory
Service Center or other Authorized Service
Organization. Constantly stay aware of cord
location. Following this rule will reduce the risk of
electric shock or fire.
Check damaged parts. Before further use of
the tool, a guard or other part that is damaged
should be carefully checked to determine that
it will operate properly and perform its in-
tended function. Check for alignment of mov-
ing parts, binding of moving parts, breakage of
parts, mounting, and any other conditions that
may affect its operation. A guard or other part
that is damaged should be properly repaired or
replaced by an authorized service center.
Following this rule will reduce the risk of shock,
fire, or serious injury.
Do not abuse cord. Never carry the tool by the
cord or yank it to disconnect it from the recep-
tacle. Keep cord away from heat, oil, and sharp
edges. Following this rule will reduce the risk of
electric shock or fire.
Make sure your extension cord is in good
condition. When using an extension cord, be
sure to use one heavy enough to carry the
current your product will draw. A wire gage
size (A.W.G.) of at least 16 is recommended for
an extension cord 100 feet or less in length. A
cord exceeding 100 feet is not recommended.
If in doubt, use the next heavier gage. The
smaller the gage number, the heavier the cord.
An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating.
Inspect for and remove all nails from lumber
before drilling. Following this rule will reduce the
risk of serious personal injury.
Drugs, alcohol, medication. Do not operate tool
while under the influence of drugs, alcohol, or
any medication. Following this rule will reduce the
risk of electric shock, fire, or serious personal
injury.
Save these instructions. Refer to them #e-
quently and use them to instruct others who
may use this tool. If you loan someone this
tool, loan them these instructions also.
_LWARNING: Some dust created by power
sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known
to cause cancer, birth defects or other reproduc-
tive harm. Some examples of these chemicals
are:
lead from lead-based paints,
crystalline silica from bricks and cement
and other masonry products, and
arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies,
depending on how often you do this type of
work. To reduce your exposure to these
chemicals: work in a well ventilated area, and
work with approved safety equipment, such as
those dust masks that are specially designed to
filter out microscopic particles.

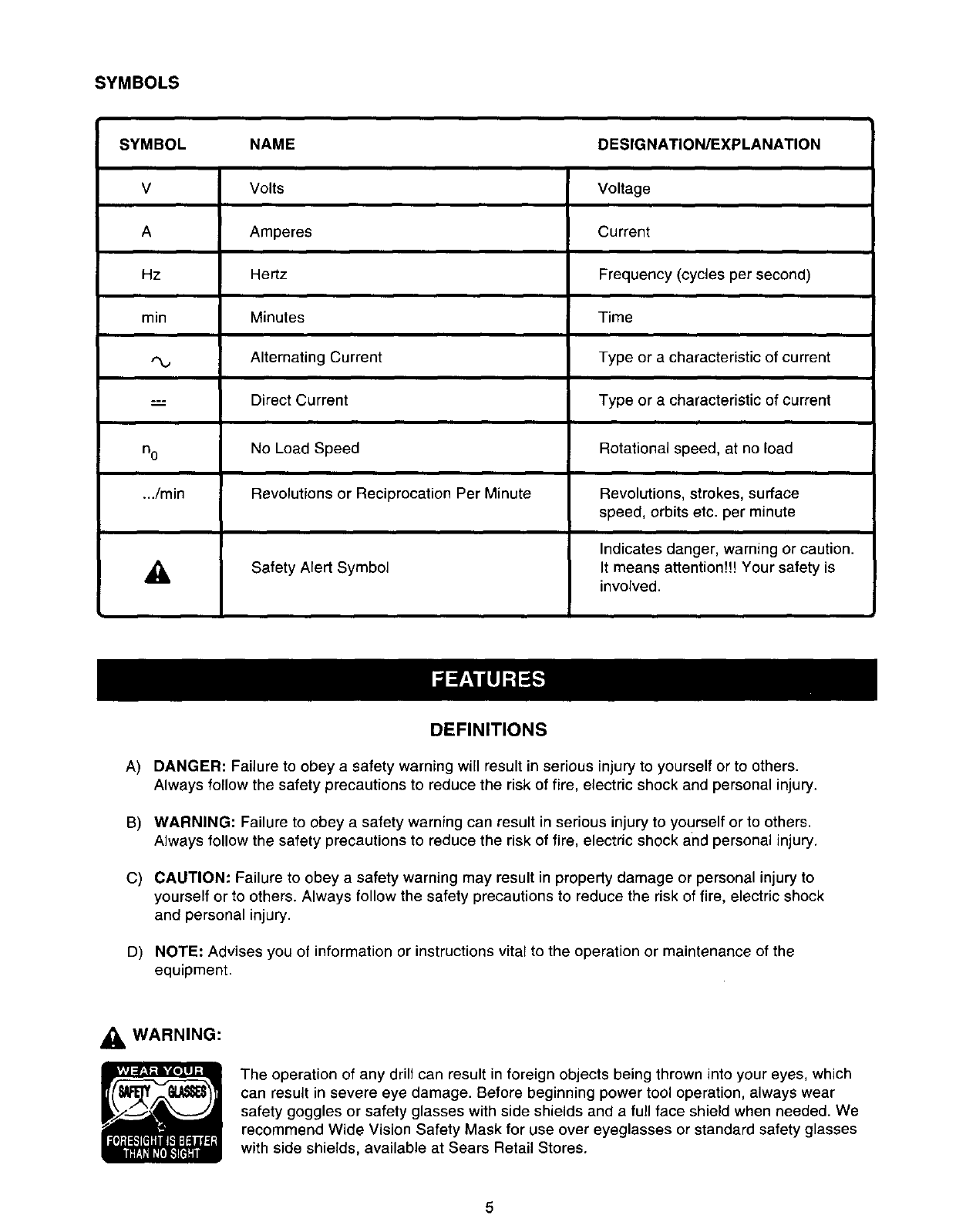

SYMBOLS
SYMBOL NAME DESIG NATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
min Minutes Time
,-_ Alternating Current Type or a characteristic of current
== Direct Current Type or a characteristic of current
no No Load Speed Rotational speed, at no load
.../min Revolutions or Reciprocation Per Minute Revolutions, strokes, surface
speed, orbits etc. per minute
Indicates danger, warning or caution.
,_ Safety Alert Symbol It means attention!!! Your safety is
involved.
DEFINITIONS
A) DANGER: Failure to obey a safety warning will result in serious injury to yourself or to others.
Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.
B) WARNING: Failure to obey asafety warning can result in serious injury to yourself or to others.
Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.
C) CAUTION: Failure to obey a safety warning may result in property damage or personal injury to
yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock
and personal injury.
D) NOTE: Advises you of information or instructions vital to the operation or maintenance of the
equipment.
_k, WARNING:
The operation of any drill can result in foreign objects being thrown into your eyes, which
can result in severe eye damage. Before beginning power tool operation, always wear
safety goggles or safety glasses with side shields and a full face shield when needed. We
recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses
with side shields, available at Sears Retail Stores.
KNOW YOUR DRILL-DRIVER
See Figure 1.
Before attempting to operate your drill-driver, familiar-
ize yourself with all operating features and safety
requirements.
_L WARNING: Carefully read through this entire
owner's manual before using your new drill-driver.
Pay close attention to the Rules For Safe Opera-
tion, Warnings and Cautions. If you use your drill-
driver properly and only for what it is intended, you
will enjoy years of safe, reliable service.
ELECTRICAL CONNECTION
Your drill-driver has a precision built electric motor. It
should be connected to a power supply that is 120
volts, 60 Hz, AC only (normal household current).
Do not operate this tool on direct current (DC). A
substantial voltage drop will cause a loss of power
and the motor will overheat. If your drill-driver does
not operate when plugged into an outlet, double-
check the power supply.
_i, WARNING: Do not allow familiarity with your drill-
driver to make you careless. Remember that a
careless fraction of a second is sufficient to inflict
severe injury.
KEYLESS CHUCK
Your drill-driverhas a keyless chuck that allows you to
hand tighten or release drill bit inthe chuck jaws.
SWITCH
To turn your drill-driver ON, depress the switch trigger.
Release switch trigger to turn your drill-driver OFF.
SWITCH LOCK
The switch trigger can be locked in the OFF position.
This feature helps reduce the possibility of acciden-
tally starting the tool when not in use.
FORWARD/REVERSE SELECTOR
(DIRECTION OF ROTATION SELECTOR)
Your drill-driver has a forward/reverse selector located
above the switch trigger.
VARIABLE SPEED
This toot has a variable speed switch that delivers
higher speed with increased trigger pressure. Speed is
controlled by the amount of switch tdgger depression.
BIT STORAGE
When not in use, bits provided with your drill-driver
can be placed in the storage area located on the top
of the motor housing.
BITSTORAGEAREA
TORQUE
ADJUSTMENT
RING
KEYLESS
SWlTC
TRIGGER
DIRECTIONOF
ROTATIONSELECTOR
FORWARD/REVERSE)
LOCK-ON
BUTTON
SCREWDRIVERBITS
_WARNING: If any parts are missing, do not operate your drill-driveruntilthe missing parts
to do so could result in possible serious personal injury.
6
Fig. 1
are replaced. Failure

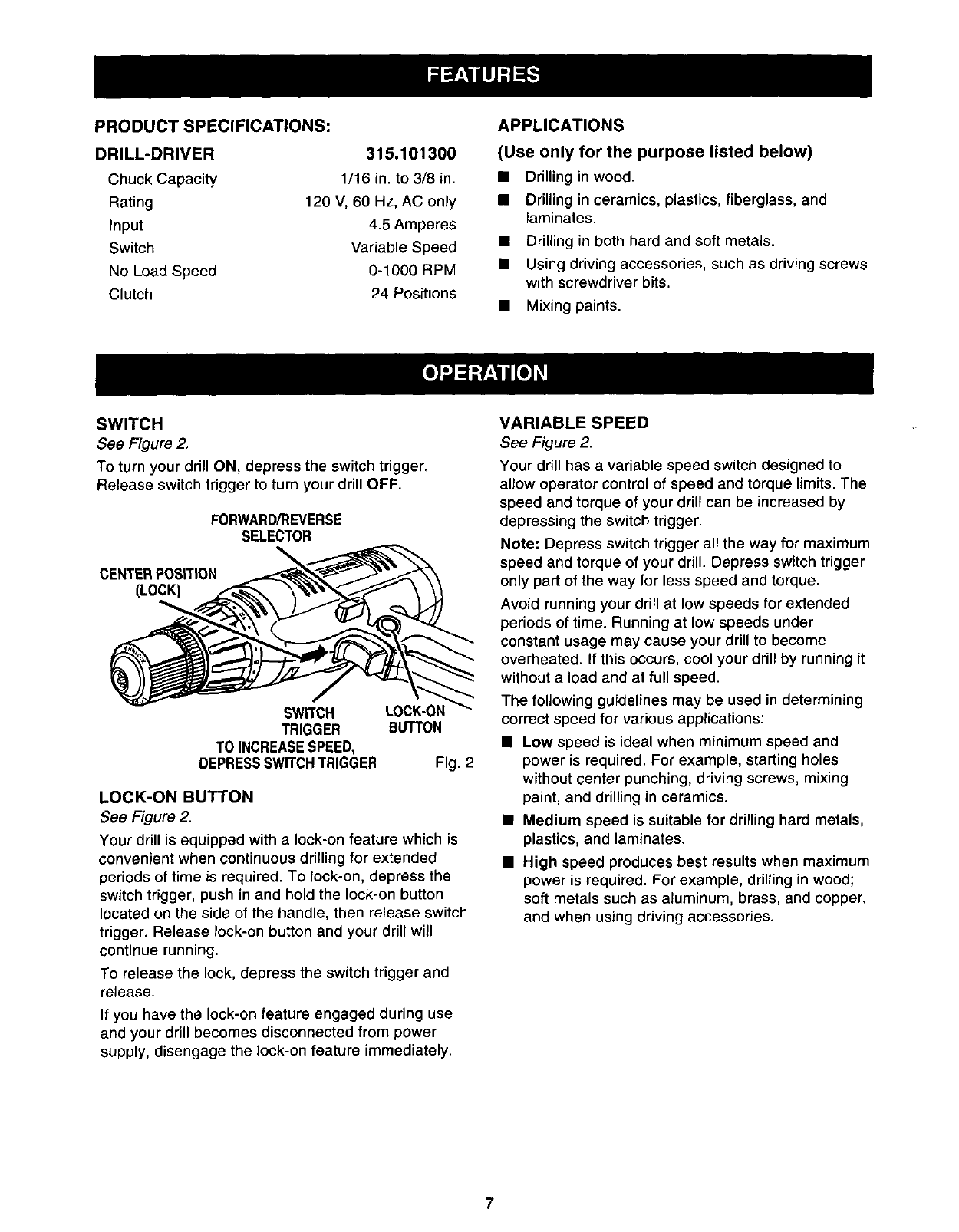

PRODUCT SPECIFICATIONS:
DRILL-DRIVER
Chuck Capacity
Rating
Input
Switch
No Load Speed
Clutch
315.101300
1/16 in. to 3/8 in.
120 V, 60 Hz, AC only
4.5 Amperes
Variable Speed
0-1000 RPM
24 Positions
APPLICATIONS
(Use only for the purpose listed below)
Drilling in wood.
Drilling in ceramics, plastics, fiberglass, and
laminates.
Drilling in both hard and soft metals.
Using driving accessories, such as driving screws
with screwdriver bits.
Mixing paints.
SWITCH
See Figure 2.
To turn your drill ON, depress the switch trigger,
Release switch trigger to turn your drill OFF.
FORWARD/REVERSE
SELECTOR
CENTERPOSITION
(LOCK)
SWITCH
TRIGGER
TO INCREASESPEED,
DEPRESSSWITCHTRIGGER
LOCK-ON
BUTTON
Fig. 2
LOCK-ON BUTTON
See Figure 2.
Your drill is equipped with a lock-on feature which is
convenient when continuous drilling for extended
periods of time is required. To lock-on, depress the
switch trigger, push in and hold the lock-on button
located on the side of the handle, then release switch
trigger. Release lock-on button and your drill will
continue running.
To release the lock, depress the switch trigger and
release.
If you have the lock-on feature engaged during use
and your drill becomes disconnected from power
supply, disengage the lock-on feature immediately.
VARIABLE SPEED
See Figure 2.
Your drill has a variable speed switch designed to
allow operator control of speed and torque limits. The
speed and torque of your drill can be increased by
depressing the switch trigger.
Note: Depress switch trigger all the way for maximum
speed and torque of your drill. Depress switch trigger
only part of the way for less speed and torque.
Avoid running your drill at low speeds for extended
periods of time. Running at low speeds under
constant usage may cause your drill to become
overheated. If this occurs, cool your drill by running it
without a load and at full speed.
The following guidelines may be used in determining
correct speed for various applications:
Low speed is ideal when minimum speed and
power is required. For example, starting holes
without center punching, driving screws, mixing
paint, and drilling in ceramics.
Medium speed is suitable for drilling hard metals,
plastics, and laminates.
High speed produces best results when maximum
power is required. For example, drilling in wood;
soft metals such as aluminum, brass, and copper,
and when using driving accessories.
7
SWITCHLOCK
See Figure 3.
The switch trigger can be locked in the OFF position.
This feature can be used to prevent the possibility of
accidental starting when not in use. To lock switch
trigger, place the direction of rotation selector in
center position.
SELECTOR
CENTERPOSITION
(LOCK)
LOCK (tighten) or UNLOCK (release) the chuck jaws.
Grasp and hold the collar of the chuck with one hand.
Rotate the chuck body with your other hand. Insert
drill bit straight into the chuck the full length of the
jaws, and tighten securely by rotating the chuck body
in a clockwise direction.
UNLOCK
(Release)
CHUCK CHUCKBODY
JAWS
DRILLBIT
FORWARD
Fig. 3
REVERSIBLE
See Figure 3.
This toot has the feature of being reversible. The
direction of rotation is controlled by a selector located
above the switch trigger. With the drill held in normal
operating position, the direction of rotation selector
should be positioned to the left of the switch for
drilling. The drilling direction is reversed when the
selector is to the right of the switch. When the selector
is in center position, the switch trigger is locked.
,_i, CAUTION: To prevent gear damage, always
allow chuck to come to acomplete stop before
changing the direction of rotation.
To stop, release switch trigger and allow the chuck to
come to a complete stop.
k WARNING: Your drill should never be
nconnected to power supply when you are
assembling parts, making adjustments, installing
or removing drill bits, cleaning, or when not in
use. Disconnecting your drill will prevent
accidental starting that could cause serious
personal injury.
KEYLESS CHUCK
See Figure 4.
A keyless chuck has been provided with your drill to
allow for easy installation and removal of bits. As the
name implies, you can hand tighten or release drill
bits in the chuck jaws. Arrows on the chuck indicate
which direction to rotate the chuck body in order to
LOCK
(Tighten) CHUCK
COLLAR
RIGHT Fig. 4
,_ WARNING" Do not hold chuck body with one
hand and use power of the drill to tighten chuck
jaws on drill bit. Chuck body could slip in your
hand or your hand could slip and come in contact
with rotating drill bit. This could cause an
accident resulting in serious personal injury.
INSTALLING BITS
See Figure 4.
Unplug your drill.
,_ WARNING: Failure to unplug your drill could
result in accidental starting causing serious
injury.
Open or close the chuck jaws to a point where the
opening is slightly larger than the bit size you
intend to use. Also, raise the front of your drill
slightly to keep the bit from falling out of the chuck
jaws.
Insert drill bit straight into chuck the full length of
the jaws as shown in figure 4.
Tighten the chuck jaws on drill bit.
To tighten the chuck jaws on drill bit; grasp and
hold the collar of the chuck with one hand, while
rotating the chuck body with your other hand.
Note: Rotate the chuck body in the direction of
the arrow marked LOCK to tighten chuck jaws.
Do not use a wrench to tighten or loosen the
chuck jaws.
8
,_, WARNING: Make sure to insert drill bit straight
into chuck jaws. Do not insert drill bit into chuck
jaws at an angle and then tighten, as shown in
Figure 5. This could cause drill bit to be thrown
from drill, resulting in possible serious personal
injury or damage to the chuck.
Fig. 5
REMOVING BITS
See Figure 4.
Unplug your drill.
,_lh WARNING: Failure to unplug your drill could
result in accidental starting causing serious
injury.
Loosen the chuck jaws from drill bit.
To loosen: grasp and hold the collar of the chuck
with one hand, while rotating chuck body with your
other hand.
Note: Rotate chuck body in the direction of the
arrow marked UNLOCK to loosen chuck jaws.
Do not use a wrench to tighten or loosen the
chuck jaws.
Remove drill bit from chuck jaws.
ADJUSTABLE TORQUE CLUTCH
Your drill is equipped with an adjustable torque clutch
for driving different types of screws into different
materials. The proper setting depends on the type of
material and the size of screw you are using.
TO ADJUST TORQUE
Identify the twenty four torque indicator settings
located on the front of your drill. See Figure 6.
Rotate adjusting ring to the desired setting.
1 - 4 For driving small screws.
5 - 8 For driving screws into soft
material.
9 - 12 For driving screws into soft and
hard materials.
13 - 16 For driving screws in hard wood.
17 - 20 For driving large screws.
21 - ,l_l For heavy drilling.
TO DECREASE ADJUSTING
TORQUE RING
TO INCREASE
TORQUE
Fig. 6
9

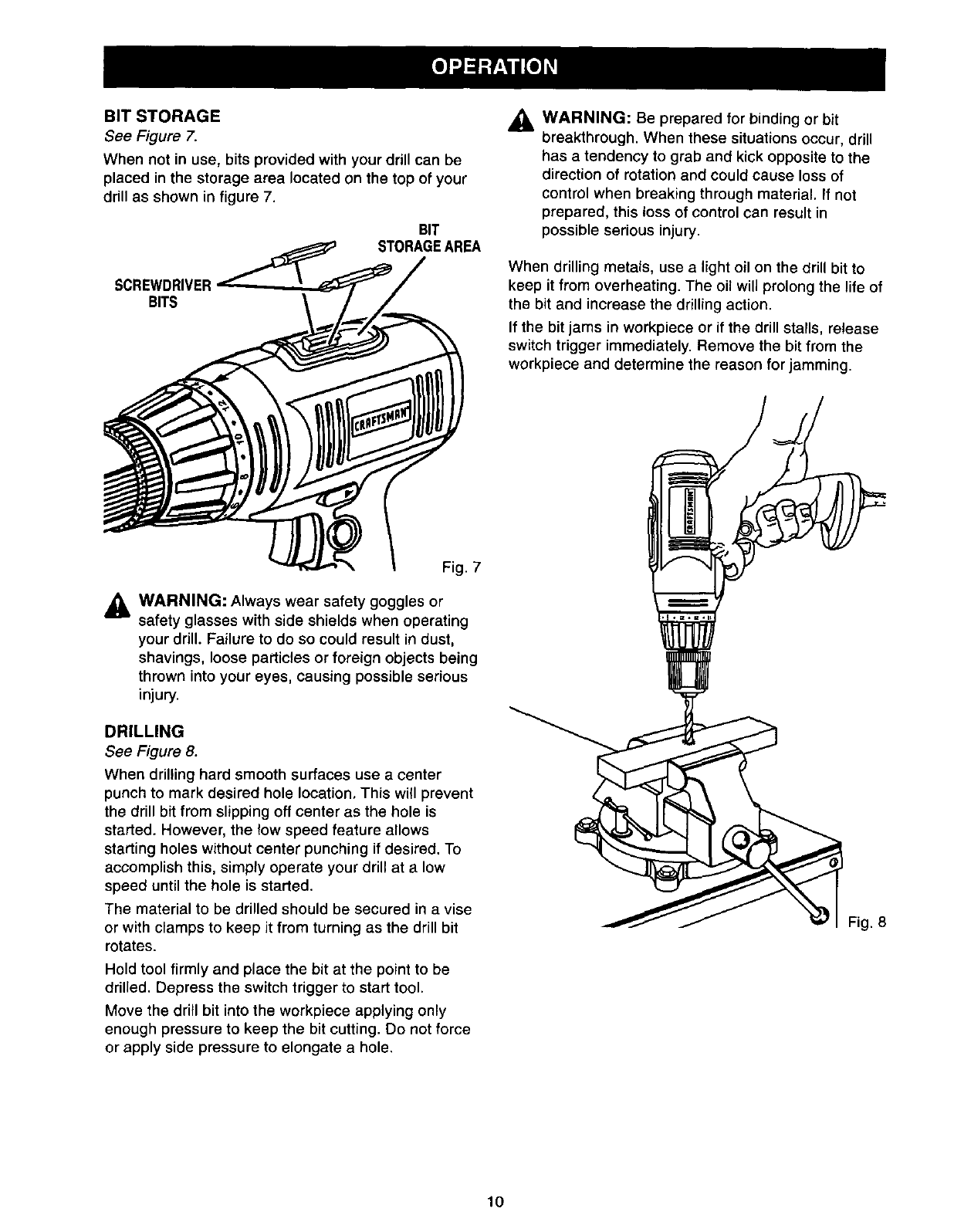

BIT STORAGE
See Figure 7.
When not in use, bits provided with your drill can be
placed in the storage area located on the top of your
drill as shown in figure 7.
BIT
STORAGEAREA
SCREWDRIVER
BITS
,_i WARNING: Be prepared for bit
binding or
breakthrough. When these situations occur, drill
has a tendency to grab and kick opposite to the
direction of rotation and could cause loss of
control when breaking through material. If not
prepared, this toss of control can result in
possible serious injury.
When drilling metals, use a light oil on the drill bit to
keep it from overheating. The oil will prolong the life of
the bit and increase the drilling action.
If the bit jams in workpiece or if the drill stalls, release
switch trigger immediately. Remove the bit from the
workpiece and determine the reason for jamming.
Fig. 7
_L WARNING: Always wear safety goggles or
safety glasses with side shields when operating
your drill. Failure to do so could result in dust,
shavings, loose particles or foreign objects being
thrown into your eyes, causing possible serious
injury.
DRILLING
See Figure 8.
When drilling hard smooth surfaces use a center
punch to mark desired hole location, This will prevent
the drill bit from slipping off center as the hole is
started. However, the low speed feature allows
starting holes without center punching if desired. To
accomplish this, simply operate your drill at a low
speed until the hole is started.
The material to be drilled should be secured in a vise
or with clamps to keep it from turning as the drill bit
rotates.
Hold tool firmly and place the bit at the point to be
drilled. Depress the switch trigger to start tool.
Move the drill bit into the workpiece applying only
enough pressure to keep the bit cutting. Do not force
or apply side pressure to elongate a hole.
Fig. 8
10

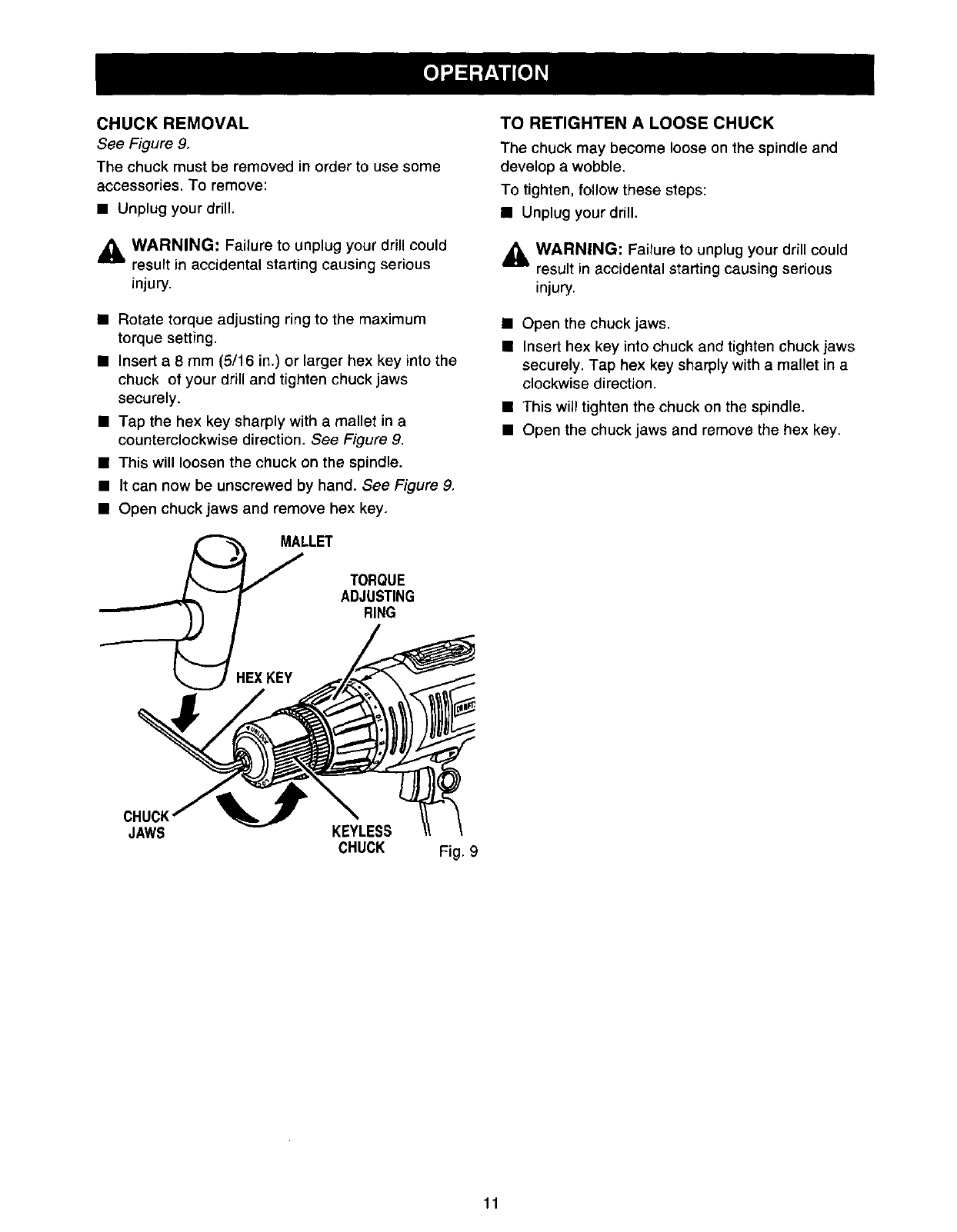

CHUCK REMOVAL
See Figure 9,
The chuck must be removed in order to use some
accessories. To remove:
Unplug your drill,
,_k WARNING: Failure to unplug your drill could
result in accidental starting causing serious
injury.
Rotate torque adjusting ring to the maximum
torque setting.
Insert a 8 mm (5/16 in,) or larger hex key into the
chuck of your drill and tighten chuck jaws
securely.
Tap the hex key sharply with a mallet in a
counterclockwise direction, See Figure 9.
This will loosen the chuck on the spindle.
It can now be unscrewed by hand. See Figure 9,
Open chuck jaws and remove hex key.
LLET
TORQUE
ADJUSTING
RING
TO RETIGHTEN A LOOSE CHUCK
The chuck may become loose on the spindle and
develop a wobble,
To tighten, follow these steps:
Unplug your drill,
,_IL WARNING: Failure to unplug your drill could
result in accidental starting causing serious
injury.
Open the chuck jaws.
Insert hex key into chuck and tighten chuck jaws
securely. Tap hex key sharply with a mallet in a
clockwise direction.
This will tighten the chuck on the spindle.
Open the chuck jaws and remove the hex key.
CHUCK
JAWS KEYLESS
CHUCK Fig. 9
11

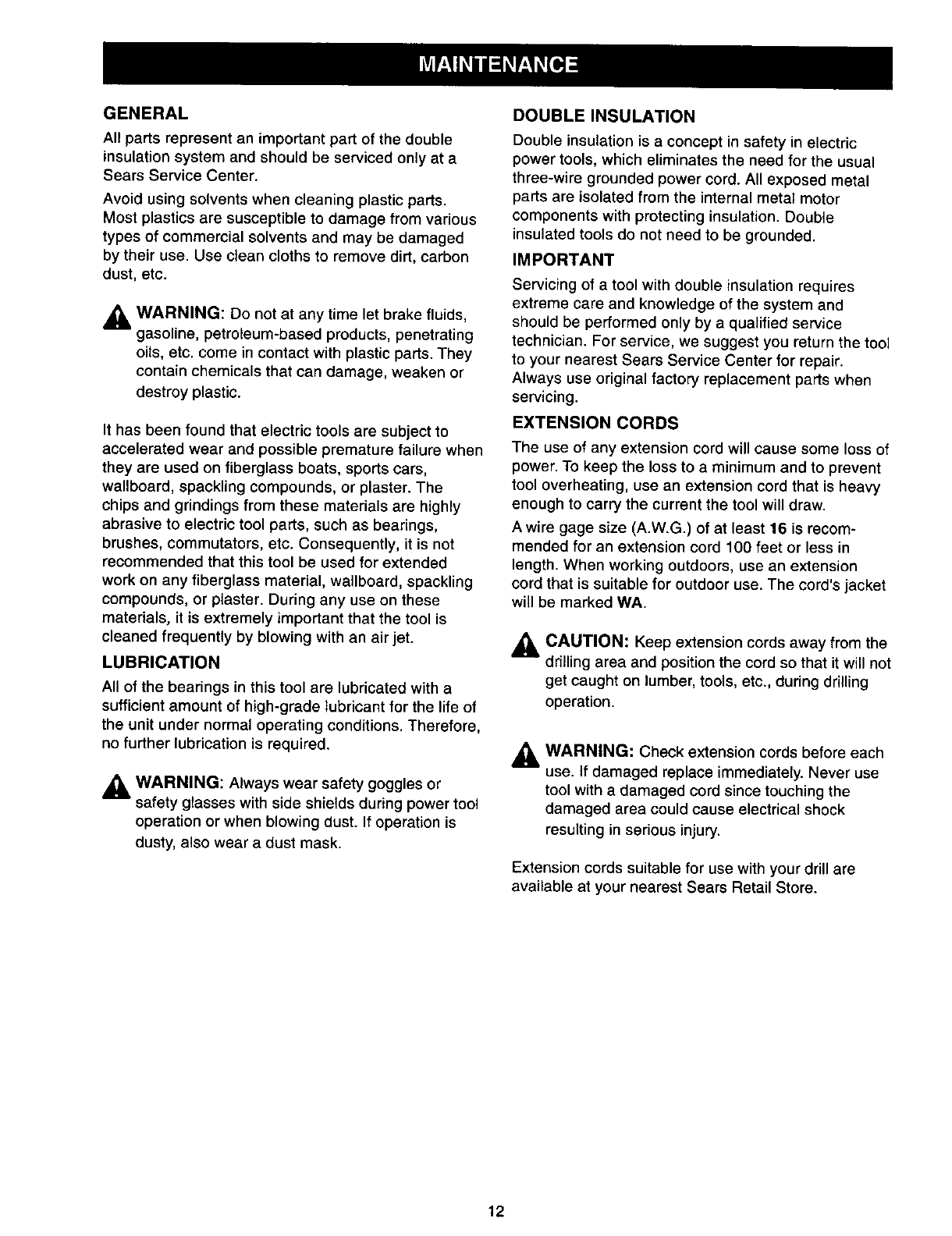

GENERAL
All parts represent an important part of the double
insulation system and should be serviced only at a
Sears Service Center.
Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from various
types of commercial solvents and may be damaged
by their use. Use clean cloths to remove dirt, carbon
dust, etc.
_i, WARNING: Do not at any time let brake fluids,
gasoline, petroleum-based products, penetrating
oils, etc. come in contact with plastic parts. They
contain chemicals that can damage, weaken or
destroy plastic.
It has been found that electric tools are subject to
accelerated wear and possible premature failure when
they are used on fiberglass boats, sports cars,
wallboard, spackling compounds, or plaster. The
chips and grindings from these materials are highly
abrasive to electric tool parts, such as bearings,
brushes, commutators, etc. Consequently, it is not
recommended that this tool be used for extended
work on any fiberglass material, wallboard, spackling
compounds, or piaster. During any use on these
materials, it is extremely important that the tool is
cleaned frequently by blowing with an air jet.
LUBRICATION
All of the bearings in this tool are lubricated with a
sufficient amount of high-grade lubricant for the life of
the unit under normal operating conditions. Therefore,
no further lubrication is required.
,_ll WARNING: Always wear safety goggles or
safety glasses with side shields during power tool
operation or when blowing dust. If operation is
dusty, also wear a dust mask.
DOUBLE INSULATION
Double insulation is a concept in safety in electric
power tools, which eliminates the need for the usual
three-wire grounded power cord. All exposed metal
parts are isolated from the internal metal motor
components with protecting insulation. Double
insulated tools do not need to be grounded.
IMPORTANT
Servicing of a tool with double insulation requires
extreme care and knowledge of the system and
should be performed only by a qualified service
technician. For service, we suggest you return the tool
to your nearest Sears Service Center for repair.
Always use original factory replacement parts when
servicing.
EXTENSION CORDS
The use of any extension cord will cause some loss of
power. To keep the loss to a minimum and to prevent
tool overheating, use an extension cord that is heavy
enough to carry the current the tool will draw.
Awire gage size (A.W.G.) of at least 16 is recom-
mended for an extension cord 100 feet or less in
length. When working outdoors, use an extension
cord that is suitable for outdoor use. The cord's jacket
will be marked WA.
_IL CAUTION: Keep extension cords from the
away
drilling area and position the cord so that it will not
get caught on lumber, tools, etc., during drilling
operation.
,_i WARNING: Check extension cords before each
use. If damaged replace immediately. Never use
tool with a damaged cord since touching the
damaged area could cause electrical shock
resulting in serious injury.
Extension cords suitable for use with your drill are
available at your nearest Sears Retail Store.
12

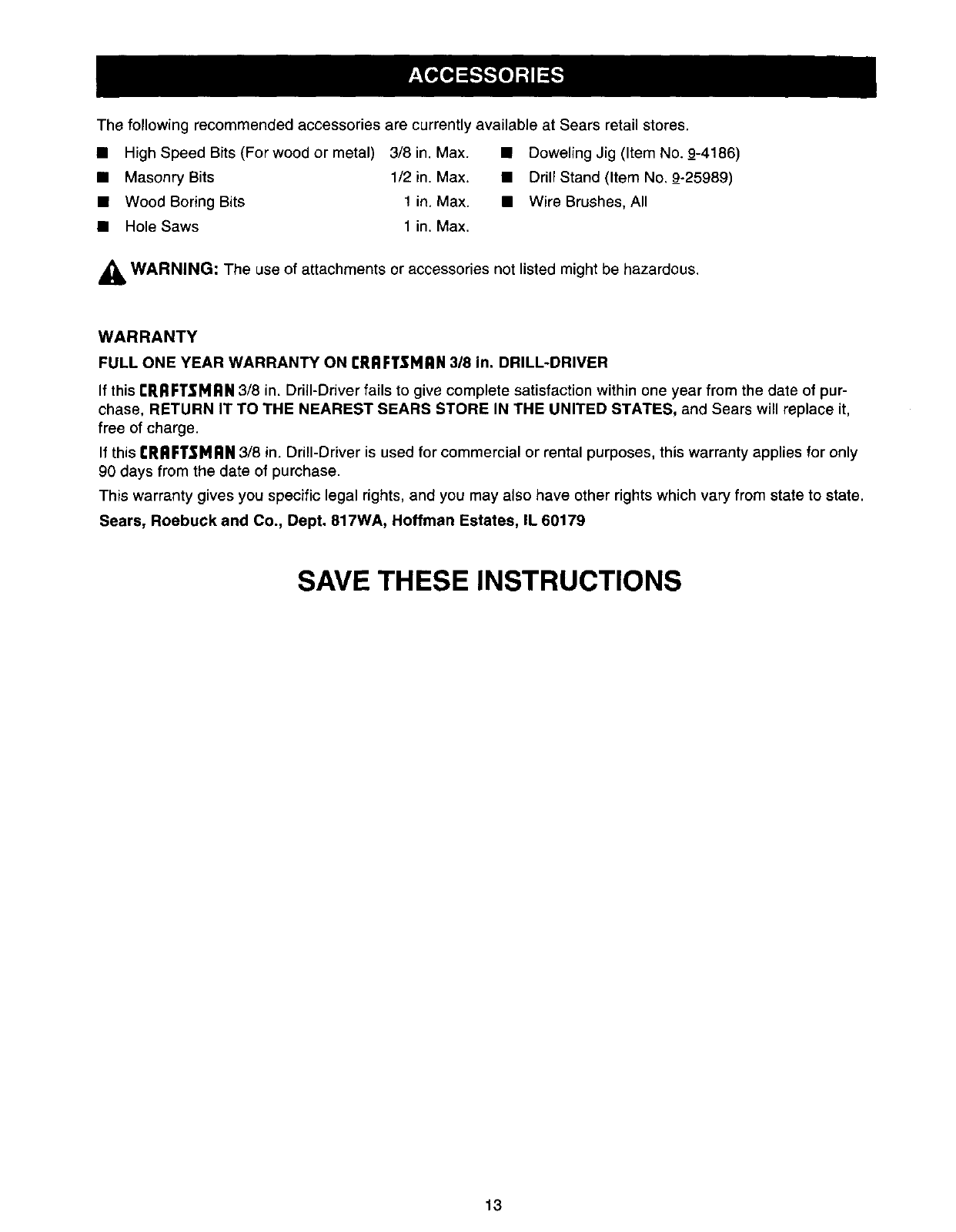

ThefollowingrecommendedaccessoriesarecurrentlyavailableatSearsretailstores.
• HighSpeedBits(Forwoodor metal) 3/8 in. Max. Doweling Jig (Item No._9-4186)
Masonry Bits 1/2 in. Max. Drill Stand (Item No. _9-25989)
• Wood Boring Bits 1 in. Max. • Wire Brushes, All
Hole Saws 1 in. Max.
,_ WARNING: The use of attachments or accessories not listed might be hazardous.
WARRANTY
FULL ONE YEAR WARRANTY ON rP.RFTSMRN 3/8 in. DRILL-DRIVER
If this rRRFTSHRN 3/8 in. Drill-Driver fails to give complete satisfaction within one year from the clare of pur-
chase, RETURN IT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will replace it,
free of charge.
If this I:RRFTSHRN 3/8 in. Drill-Driver is used for commercial or rental purposes, this warranty applies for only
90 days from the date of purchase.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
SAVE THESE INSTRUCTIONS
13
14

Navigation menu
