OPERATOR'S MANUAL
ICRRFTSMRN°I

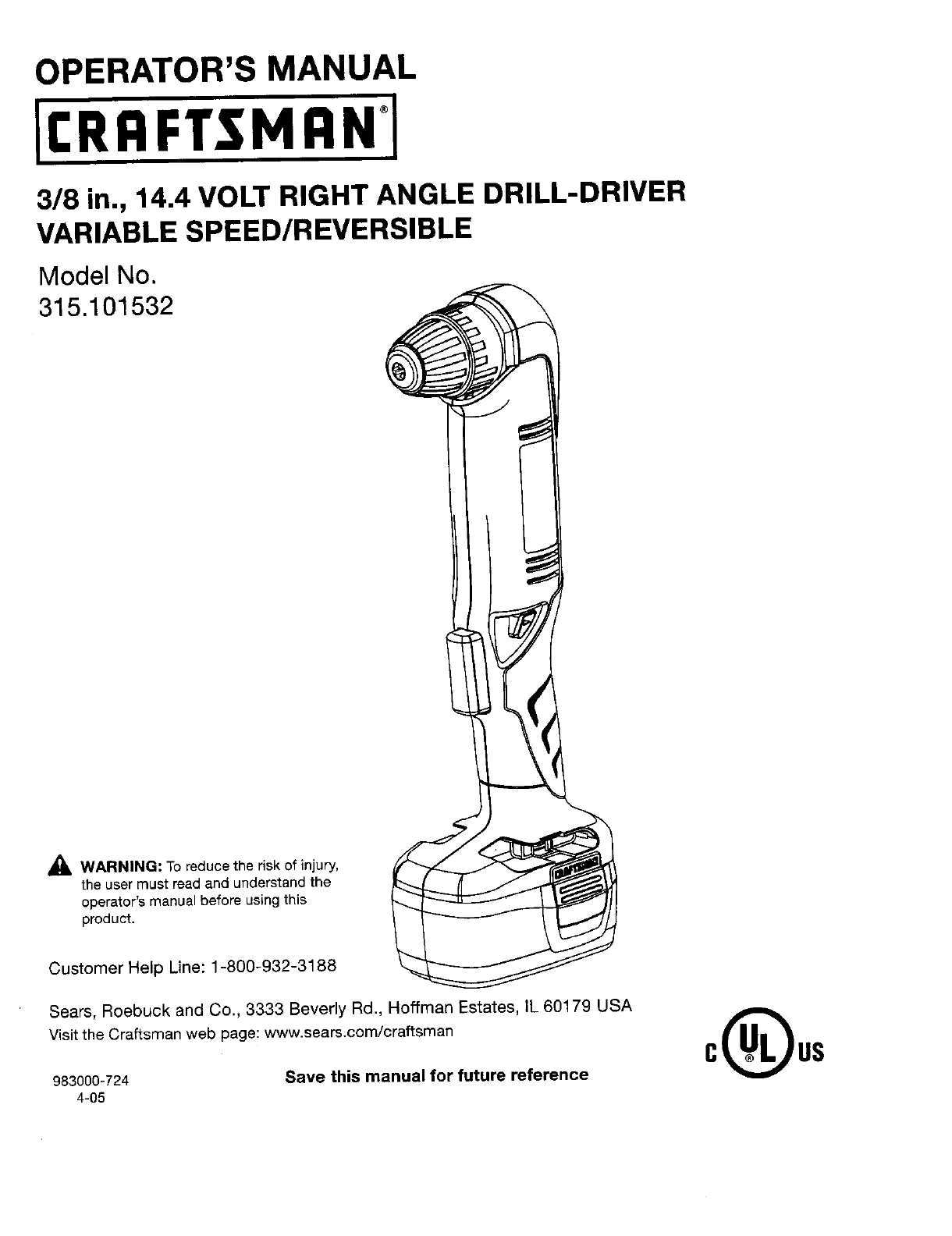

3/8 in,, 14.4 VOLT RIGHT ANGLE DRILL-DRIVER
VARIABLE SPEED/REVERSIBLE
Model No.
315.101532
_, WARNING: To reduce the risk of injury,
the user must read and understand the
operator's manual before using this
product.
Customer Help Line: 1-800-932-3188
Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
983000-724
4-05
Save this manual for future reference 0( us

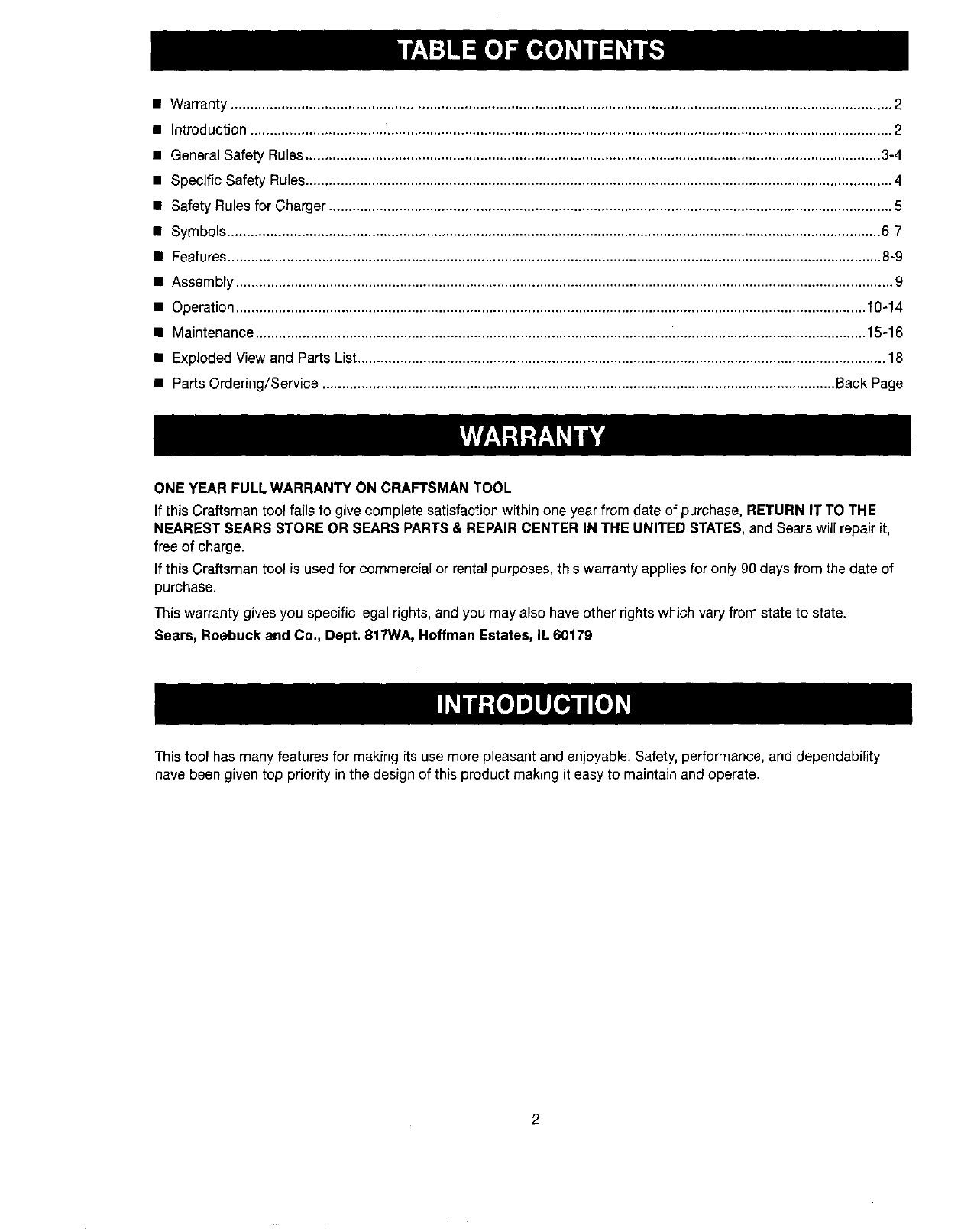

•Warranty .......................................................................................................................................................................... 2
• Introduction ..................................................................................................................................................................... 2
• General Safety Rules.................................................................................................................................................... 3-4
• Specific Safety Rules....................................................................................................................................................... 4
• Safety Rules for Charger ................................................................................................................................................. 5
• Symbols ........................................................................................................................................................................ 6-7
• Features........................................................................................................................................................................ 8-9
• Assembly ......................................................................................................................................................................... 9
• Operation .................................................................................................................................................................. 10-14
•Maintenance ............................................................................................................................................................. 15-16

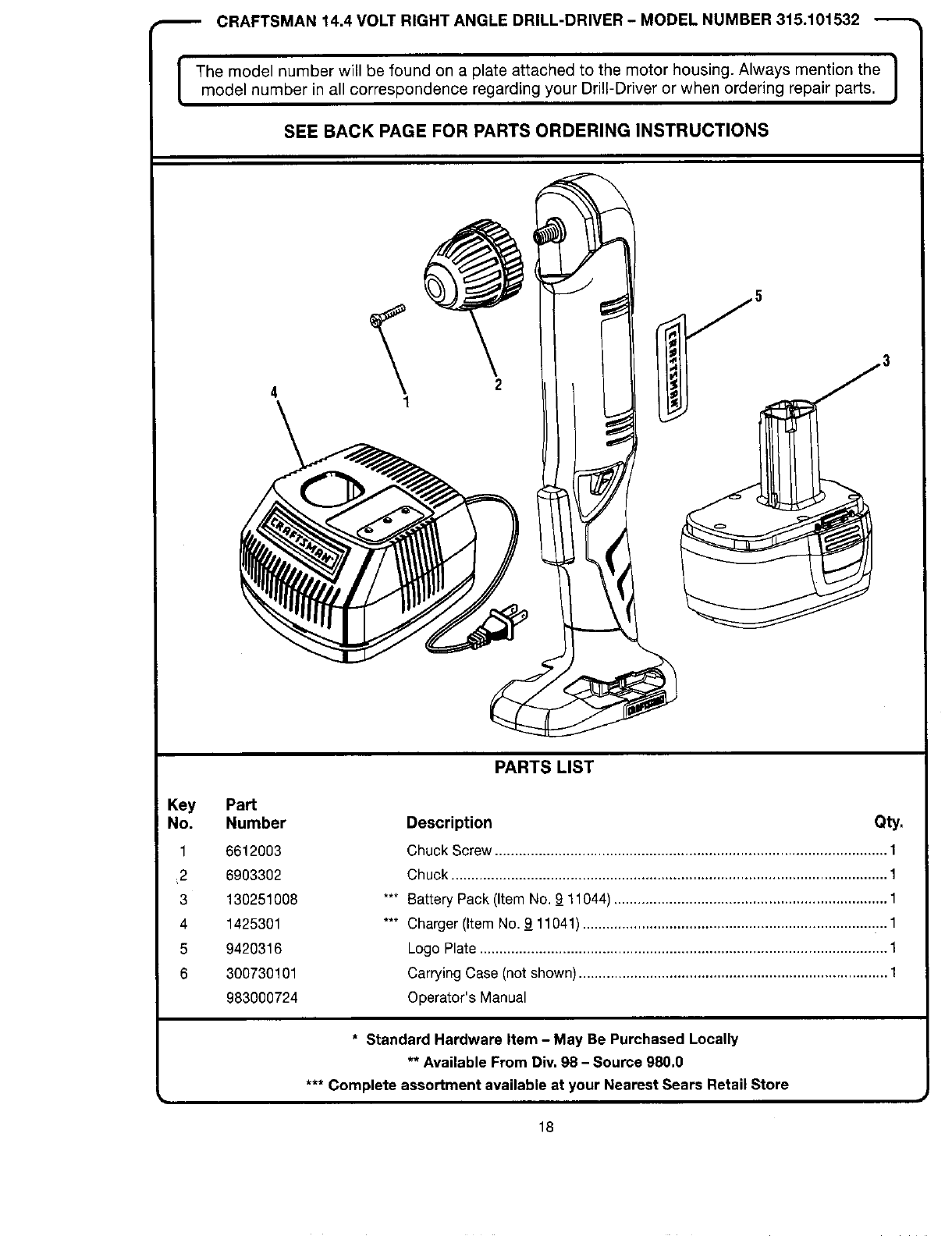

• Exploded View and Parts List........................................................................................................................................ 18
• Parts Ordering/Service .................................................................................................................................... Back Page
ONE YEAR FULL WARRANTY ON CRAFTSMAN TOOL
If this Craftsman tool fails to give complete satisfactionwithinone year from date of purchase,RETURN IT TO THE
NEAREST SEARS STORE OR SEARS PARTS & REPAIR CENTER IN THE UNITED STATES,and Searswill repairit,
free of charge.
If this Craftsman tool is used for commercial or rental purposes, this warranty applies for only 90 days from the date of
purchase.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Thistool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product making it easy to maintain and operate.
2

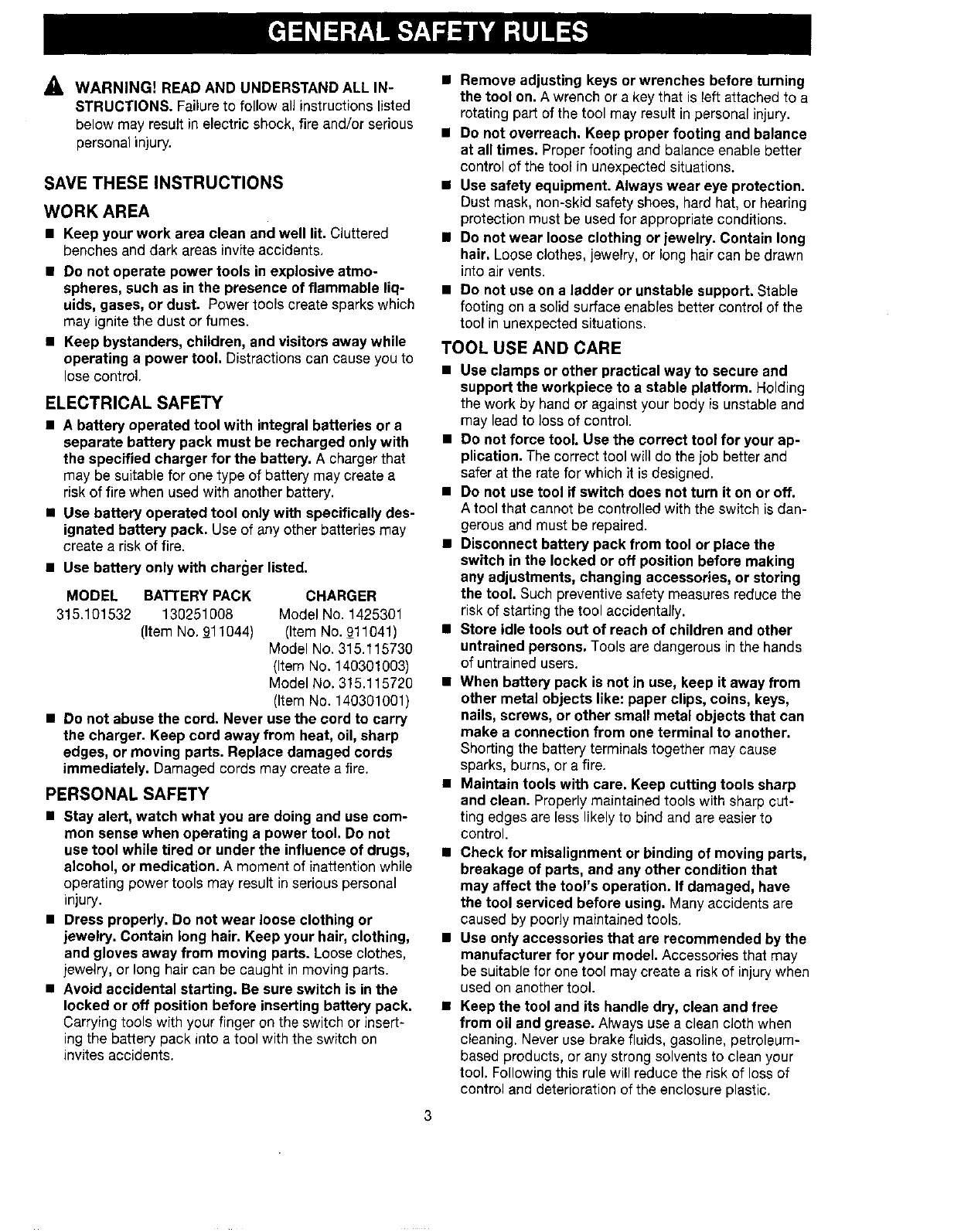

WARNING! READ AND UNDERSTAND ALL IN-
STRUCTIONS. Failure to follow all instructionslisted
below may resultin electricshock, fire and/or serious
personal injury.
SAVE THESE INSTRUCTIONS
WORK AREA
•Keep your work area clean and well lit. Cluttered
benches and dark areas inviteaccidents,
• Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liq-
uids, gases, or dust. Power tools create sparks which
may ignitethe dust or fumes.
•Keep bystanders, children, and visitors away while
operating a power tool. Distractions can cause you to
lose control.
ELECTRICAL SAFETY
•A battery operated tool with integral batteries or a
separate battery pack must be recharged only with
the specified charger for the battery. A charger that
may be suitable for one type of battery may create a
risk of fire when used with another battery.
•Use battery operated tool only with specifically des-
ignated battery pack. Use of any other batteries may
create a risk of fire.
•Use battery only with charger listed.
MODEL BATTERY PACK
315.101532 130251008
(Item No. 911044)
CHARGER
Model No. 1425301
(Item No. 911041)
Model No. 315.115730
(Item No. 140301003)
Model No. 315.115720
(Item No. 140301001)
•Do not abuse the cord. Never use the cord to carry
the charger. Keep cord away from heat, oil, sharp
edges, or moving parts. Replace damaged cords
immediately. Damaged cords may create a fire.
PERSONAL SAFETY
•Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not
use tool while tired or under the influence of drugs,
alcohol, or medication. A moment of inattention while
operating power tools may result in serious personal
injury.
•Dress properly. Do not wear loose clothing or
jewelry. Contain long hair. Keep your hair, clothing,
and gloves away from moving parts. Looseclothes,
jewelry,or long hair can be caught in moving parts.
•Avoid accidental starting. Be sure switch is in the
locked or off position before inserting battery pack.
Carrying tools with your finger on the switch or insert-
ing the battery pack into a tool with the switch on
invites accidents.
•Remove adjusting keys or wrenches before turning
the tool on. A wrench or a key that is left attached to a
rotating part of the tool may result in personalinjury.
•Do not overreach. Keep proper footing and balance
at all times. Proper footing and balance enable better
control of the tool in unexpected situations.
•Use safety equipment. Always wear eye protection.
Dust mask, non-skid safety shoes, hard hat, or hearing
protection must be used for appropriate conditions.
•Do not wear loose clothing or jewelry. Contain long
hair. Loose clothes, jewelry, or long hair can be drawn
into air vents.
•Do not use on aladder or unstable support. Stable
footing on a solid surface enables better control of the
tool in unexpected situations.
TOOLUSEAND CARE
•Use clamps or other practical way to secure and
support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable and
may lead to lossof control.
•Do not force tool. Use the correct tool for your ap-
plication. The correct tool will do the job better and
safer at the rate for which it is designed.
•Do not use tool if switch does not turn it on or off.
Atool that cannot be controlled with the switch is dan-
gerous and must be repaired.
•Disconnect battery pack from tool or place the
switch in the locked or off position before making
any adjustments, changing accessories, or storing
the tool. Such preventive safety measures reduce the
risk of starting the tool accidentally.
•Store idle tools out of reach of children and other
untrained persons. Tools are dangerous in the hands
of untrained users.
•When battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys,
nails, screws, or other small metal objects that can
make aconnection from one terminal to another.
Shorting the battery terminals together may cause
sparks, burns, or a fire.
•Maintain tools with care. Keep cutting tools sharp
and clean. Properly maintained tools with sharp cut-
ting edges are less likely to bind and are easier to
control.
•Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that
may affect the tool's operation. If damaged, have
the tool serviced before using. Manyaccidents are
caused by poorly maintained tools.
•Use only accessories that are recommended by the
manufacturer for your model. Accessoriesthat may
be suitable for one tool may create a risk of injury when
used on another tool.
• Keep the tool and its handle dry, clean and free
from oil and grease. Always use a clean cloth when
cleaning. Never use brake fluids, gasoline, petroleum-
based products, or any strong solvents to clean your
tool. Following this rule will reduce the risk of loss of
control and deterioration of the enclosure plastic.

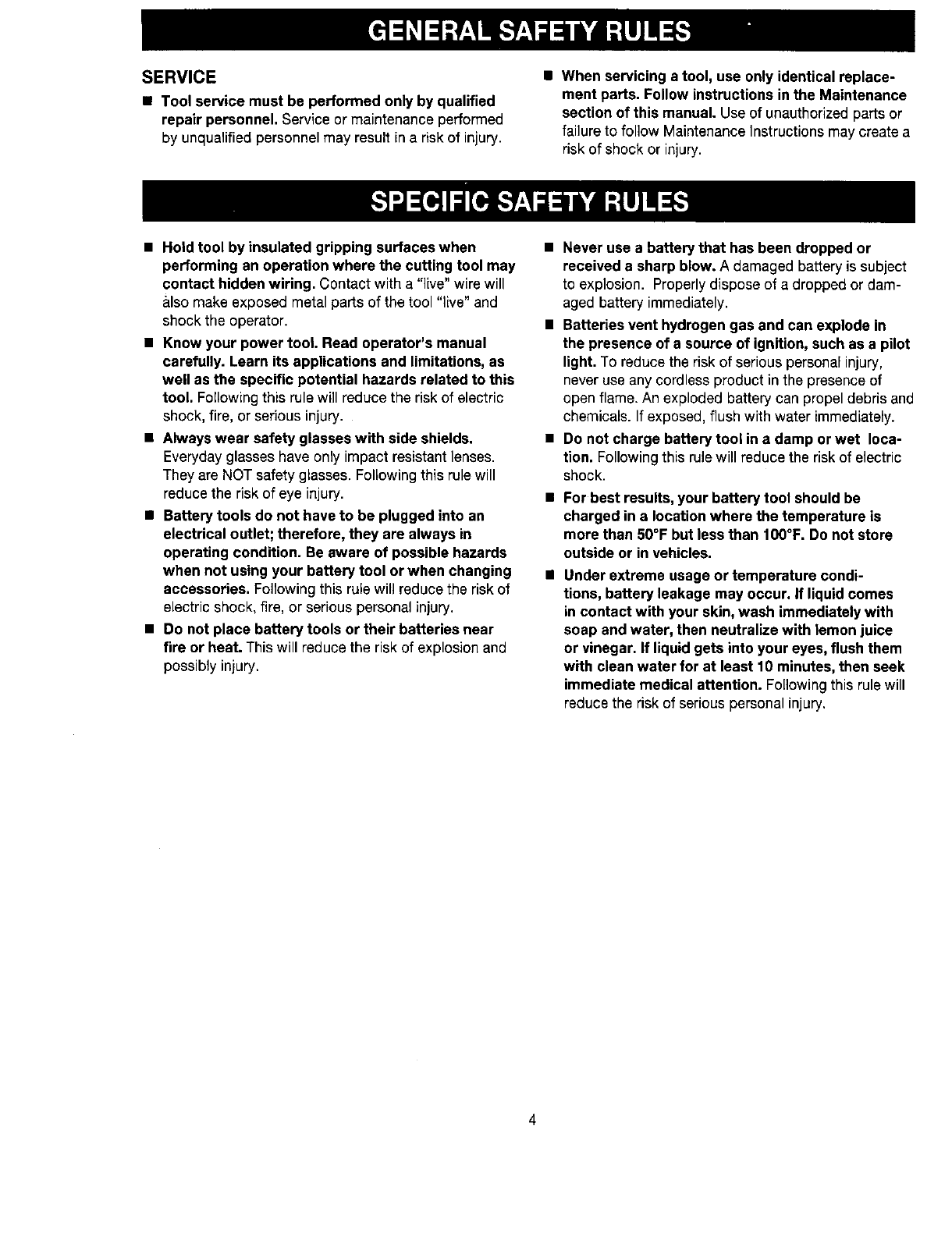

SERVICE
•Tool service must be performed only by qualified
repair personnel. Service or maintenance performed
by unqualifiedpersonnelmay result ina riskof injury.
•When servicing a tool, use only identical replace-
ment parts. Follow instructions in the Maintenance
section of this manual. Use of unauthorizedparts or
failure to follow Maintenance Instructionsmay create a
risk of shock or injury.
•Hold tool by insulated gripping surfaces when
performing an operation where the cutting tool may
contact hidden wiring. Contact witha "live" wire will
alsomake exposed metal partsof the tool "live" and
shockthe operator.
•Know your power tool. Read operator's manual
carefully. Learn its applications and limitations, as
well as the specific potential hazards related to this
tool. Followingthis rule will reduce the risk of electric
shock, fire, or serious injury.
•Always wear safety glasses with side shields.
Everyday glasses have only impactresistant lenses.
They are NOT safety glasses. Following this rule will
reduce the risk of eye injury.
•Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards
when not using your battery tool or when changing
accessories. Following this rule will reduce the risk of
electricshock, fire, or serious personalinjury.
•Do not place battery tools or their batteries near
fire or heat. This will reduce the risk of explosionand
possiblyinjury.
•Never use a battery that has been dropped or
received a sharp blow. A damaged battery is subject
to explosion. Properlydisposeof a dropped ordam-
aged battery immediately.
•Batteries vent hydrogen gas and can explode in
the presence of a source of ignition, such as a pilot
light. To reducethe riskof serious personalinjury,
neveruse any cordlessproduct inthe presenceof
open flame. An exploded battery can propel debris and
chemicals. If exposed, flush with water immediately.
•Do not charge battery tool in a damp or wet loca-
tion. Following this rule will reduce the risk of electric
shock.
•For best results, your battery tool should be
charged in a location where the temperature is
more than 50°F but less than 100°F. Do not store
outside or in vehicles.
•Under extreme usage or temperature condi-
tions, battery leakage may occur. If liquid comes
in contact with your skin, wash immediately with
soap and water, then neutralize with lemon juice
or vinegar. If liquidgets into your eyes, flush them
with clean water for at least 10 minutes, then seek
immediate medical attention. Following this rule will
reduce the risk of serious personal injury.
4
_, WARNING! READ AND UNDERSTAND ALL
INSTRUCTIONS. Failure to follow all instructions
listed below, may result in electric shock, fire
and/or serious personal injury.

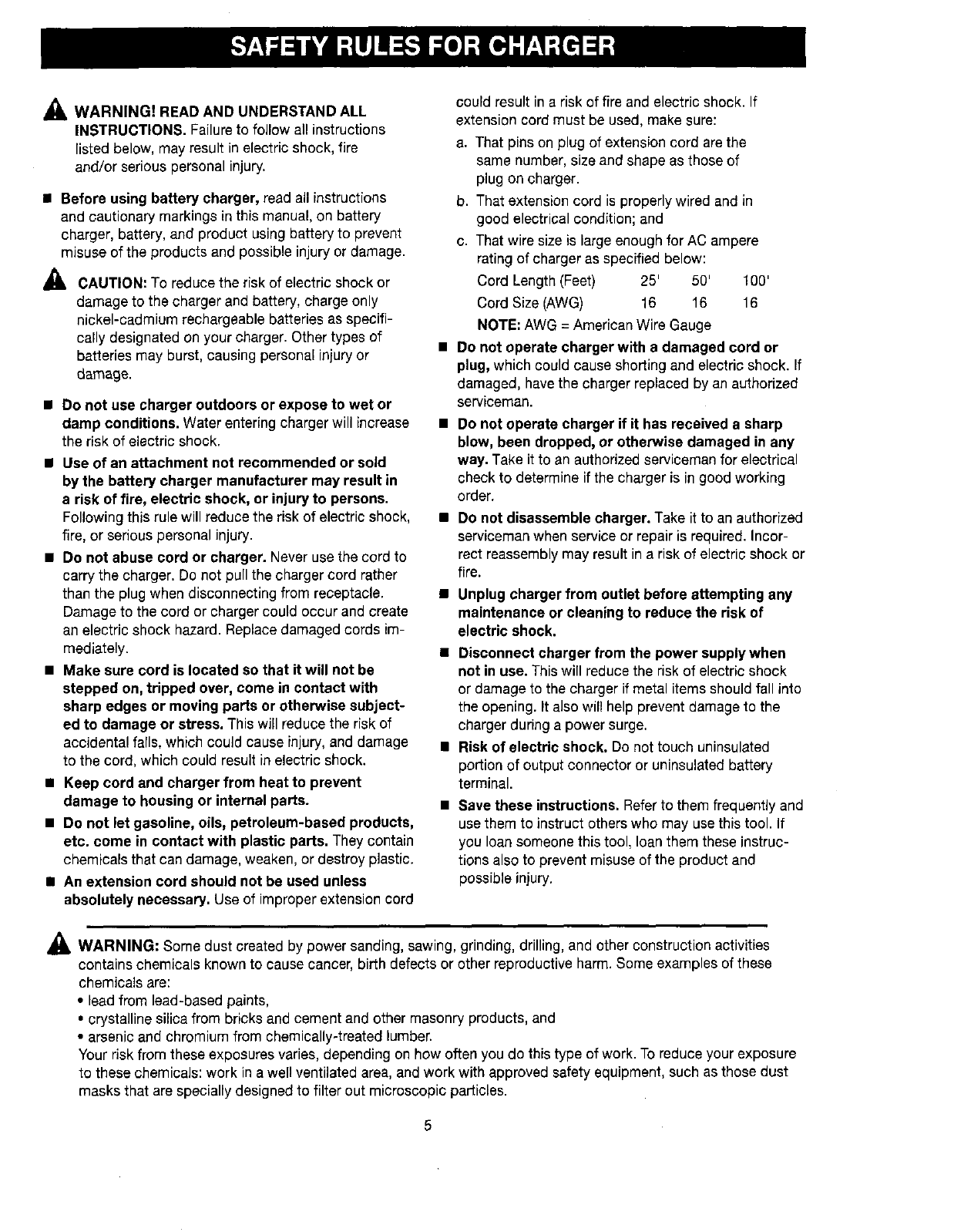

•Before using battery charger, read all instructions
and cautionary markings in this manual, on battery
charger, battery, and product using battery to prevent
misuse of the products and possible injury or damage.
_1, CAUTION: To reduce the riskof electric shock or
damage to the charger and battery, charge only
nickel-cadmium rechargeable batteries as specifi-
cally designated on your charger. Other types of
batteries may burst, causing personal injury or
damage.
•Do not use charger outdoors or expose to wet or
damp conditions. Water entering charger will increase
the risk of electric shock.
•Use of an attachment not recommended or sold
by the battery charger manufacturer may result in
arisk of fire, electric shock, or injury to persons.
Following this rule will reduce the risk of electric shock,
fire, or serious personal injury.
•Do not abuse cord or charger. Never use the cord to
carry the charger. Do not pull the charger cord rather
than the plug when disconnecting from receptacle.
Damage to the cord or charger could occur and create
an electric shock hazard. Replace damaged cords im-
mediately.
•Make sure cord is located so that it will not be
stepped on, tripped over, come in contact with
sharp edges or moving parts or otherwise subject-
ed to damage or stress. This will reduce the riskof
accidental falls, which could cause injury,and damage
to the cord, which could result in electric shock.
• Keep cord and charger from heat to prevent
damage to housing or internal parts.
•Do not let gasoline, oils, petroleum-based products,
etc. come in contact with plastic parts. They contain
chemicals that can damage, weaken, or destroy plastic.
•An extension cord should not be used unless
absolutely necessary. Use of improper extension cord
could result in a risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pins on plug of extension cord are the
same number, size and shape as those of
plug on charger.
b. That extension cord is properly wired and in
good electrical condition; and
c. That wire size is large enough for AC ampere
rating of charger as specified below:
Cord Length (Feet) 25' 50' 100'
Cord Size (AWG) 16 16 16
NOTE: AWG = American Wire Gauge
•Do not operate charger with a damaged cord or
plug, which could cause shorting and electric shock. If
damaged, have the charger replaced by an authorized
serviceman.
•Do not operate charger if it has received a sharp
blow, been dropped, or otherwise damaged in any
way. Take it to an authorized serviceman for electrical
check to determine if the charger is in good working
order.
•Do not disassemble charger. Take it to an authorized
serviceman when service or repair is required. Incor-
rect reassembly may result in a risk of electric shock or
fire.
•Unplug charger from outlet before attempting any
maintenance or cleaning to reduce the risk of
electric shock.
•Disconnect charger from the power supply when
not in use. This will reduce the risk of electric shock
or damage to the charger if metal items should fall into
the opening. It also wilt help prevent damage to the
charger during a power surge.
• Risk of electric shock. Do not touch uninsulated
portion of output connector or uninsulated battery
terminal.
•Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If
you loan someone this tool, loan them these instruc-
tions also to prevent misuse of the product and
possible injury.
_i, WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
•lead from lead-based paints,
•crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure
to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust
masks that are specially designed to filter out microscopic particles.
5

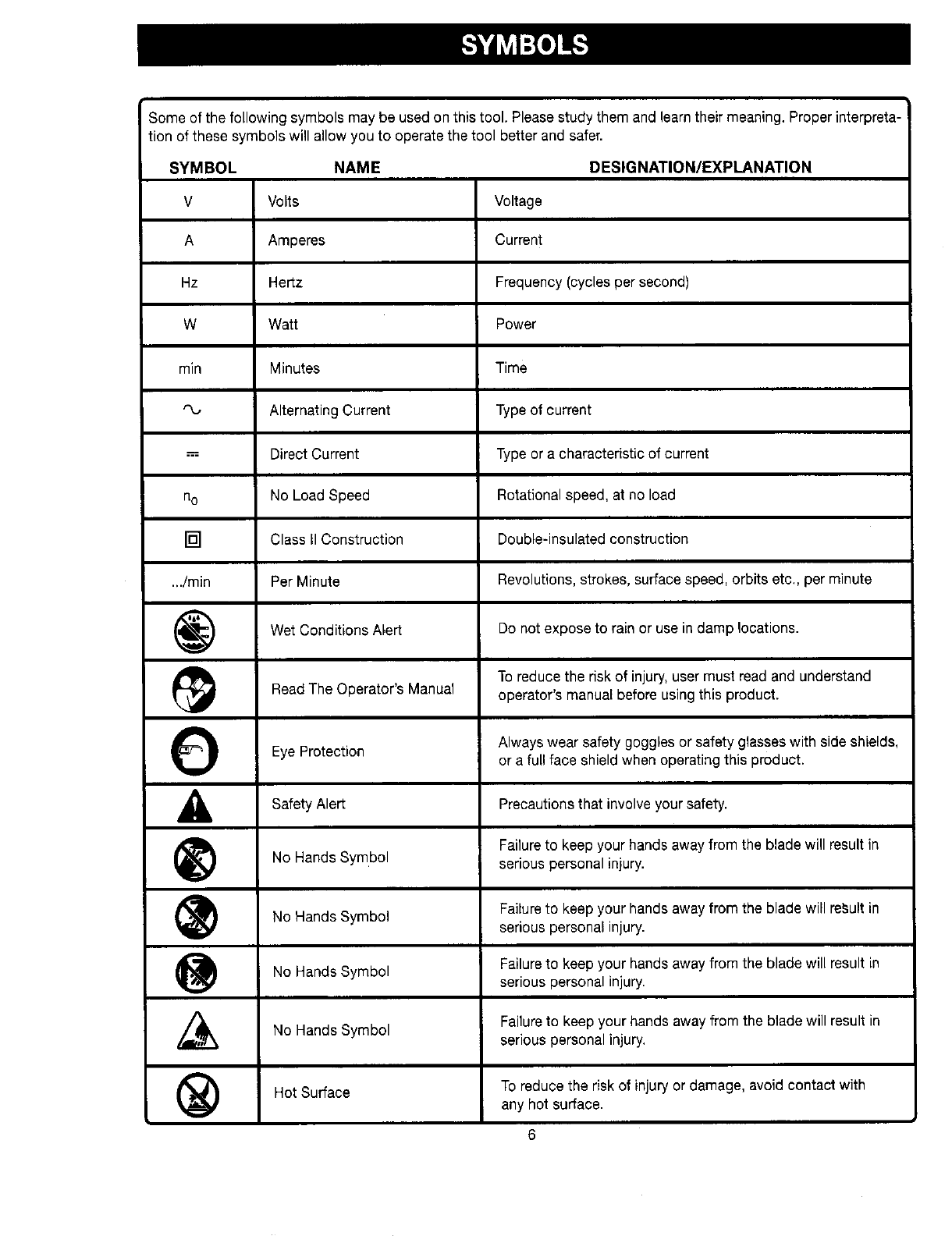

Someofthefollowingsymbolsmaybeusedonthistool.Pleasestudythemandlearntheirmeaning.Properinterpreta-
tionofthesesymbolswillallowyoutooperatethetoolbetterandsafer.
SYMBOL NAME DESIG NATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
---= Direct Current Type or a characteristic of current
no No Load Speed Rotational speed, at no load
[] Class IIConstruction Double-insulated construction
.../rain Per Minute Revolutions, strokes, surface speed, orbits etc., per minute
Wet Conditions Alert Do not expose to rain or use in damp locations.
i_ To reduce the risk of injury,user must read and understand
Read The Operator's Manual operator's manual before using this product.
Q Protection Always wear safety goggles or safety glasses with side shields,
Eye or a full face shield when operating this product.
_1_ Safety Alert Precautions that involve safety.
your
Failure to keep your hands away from the blade will result in
No Hands Symbol serious personal injury.
_1 No Hands Failure to keep your hands away from the blade will result in
Symbol serious personal injury.
No Hands Symbol Failure to keep your hands away from the blade will result in
serious personal injury.
Failureto keep your hands away from the blade will result in
No Hands Symbol serious personal injury.
Hot Surface To reduce the risk of injury or damage, avoid contact with
any hot surface.
6

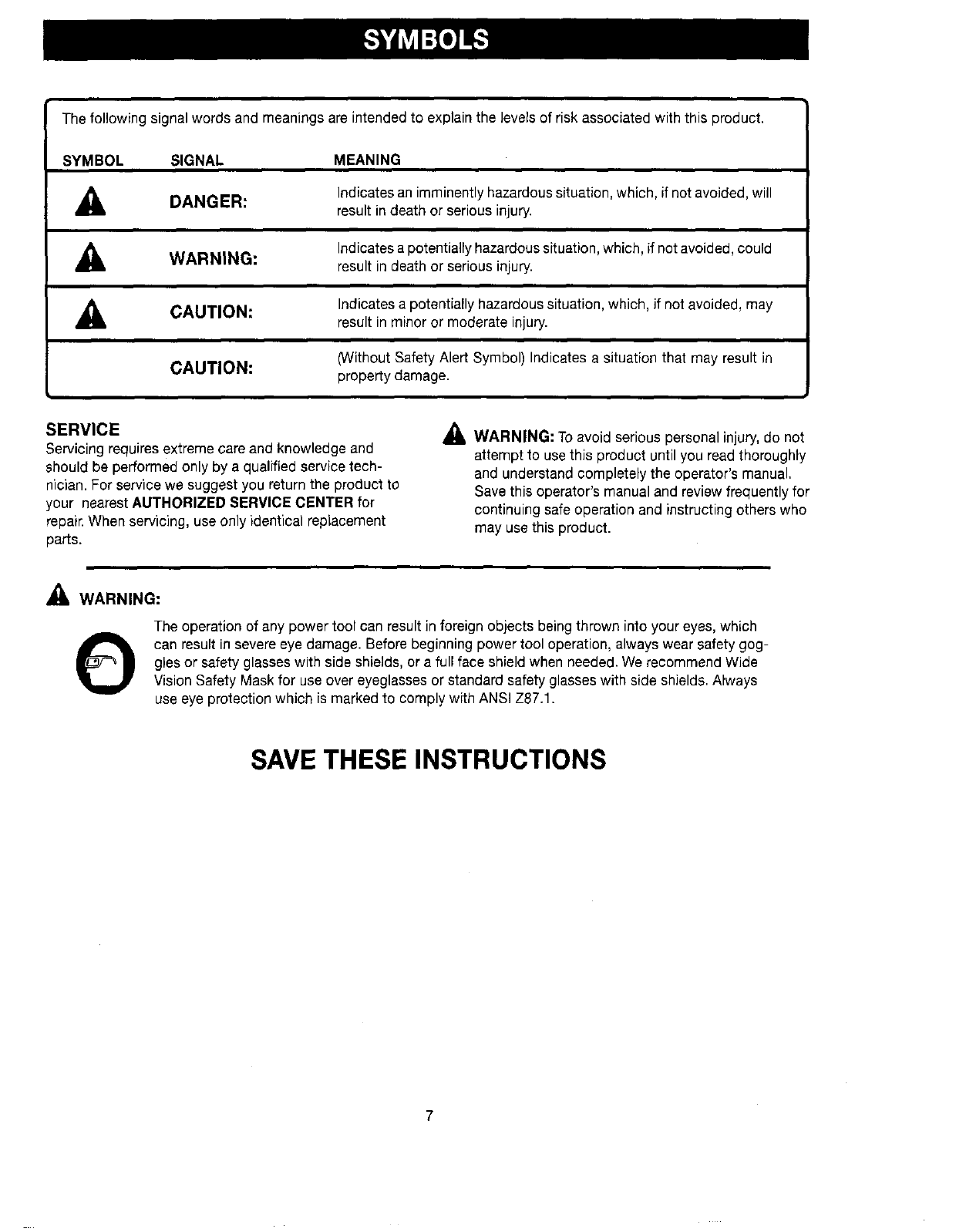

Thefollowingsignalwordsandmeaningsareintendedtoexplainthelevelsofriskassociatedwiththisproduct.
SYMBOL SIGNAL
_i_ DANGER:
WARNING:
,_ CAUTION:
CAUTION:
MEANING
Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
SERVICE
Servicing requires extreme care and knowledge and
should be performed only by a qualified service tech-
nician. For service we suggest you return the product to
your nearest AUTHORIZED SERVICE CENTER for
repair.When servicing, use only identical replacement
parts.
& WARNING: Toavoid serious personal injury,do not
attempt to use this product until you read thoroughly
and understand completely the operator's manual.
Save this operator's manual and review frequently for
continuing safe operation and instructing others who
may use this product.
WARNING:
OThe operation of any power tool can result in foreign objects being thrown into your eyes, which
can result in severe eye damage. Before beginning power tool operation, always wear safety gog-
gles or safety glasses with side shields, or a full face shield when needed. We recommend Wide
Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always
use eye protection which is marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS

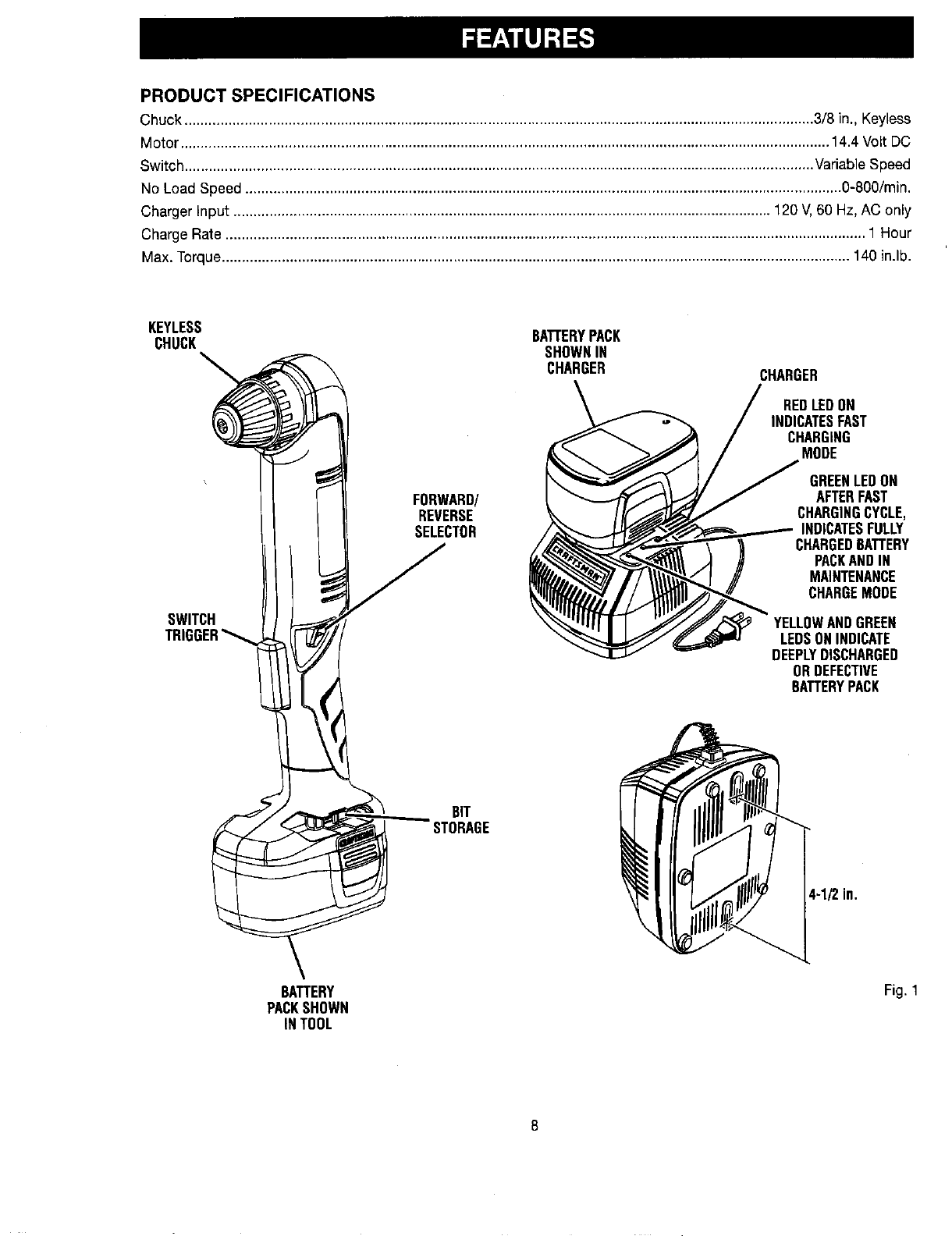

PRODUCT SPECIFICATIONS
Chuck .............................................................................................................................................................. 3/8 in., Keyless
Motor................................................................................................................................................................... 14.4 Volt DC
Switch.............................................................................................................................................................. VariableSpeed
No Load Speed ...................................................................................................................................................... 0-8O0/min.
Charger Input ....................................................................................................................................... 120 V, 60 Hz, AC only
Charge Rate ................................................................................................................................................................. 1 Hour
Max. Torque.............................................................................................................................................................. 140 in.lb.
KEYLESS
CHUCK BATTERYPACK
SHOWNIN
CHARGER
SWITCH
FORWARD/'
REVERSE
SELECTOR
CHARGER
REDLEDOH
INDICATESFAST
CHARGING
MODE
GREENLEDON
AFTERFAST
CHARGINGCYCLE,
INDICATESFULLY
CHARGEDBATTERY
PACKANDIN
MAINTENANCE
CHARGEMODE
YELLOWANDGREEN
LEDSONINDICATE
DEEPLYDISCHARGED
ORDEFECTIVE
BATTERYPACK
__ BIT
STORAGE
BATTERY
PACKSHOWN
INTOOL
2in.
Fig. 1

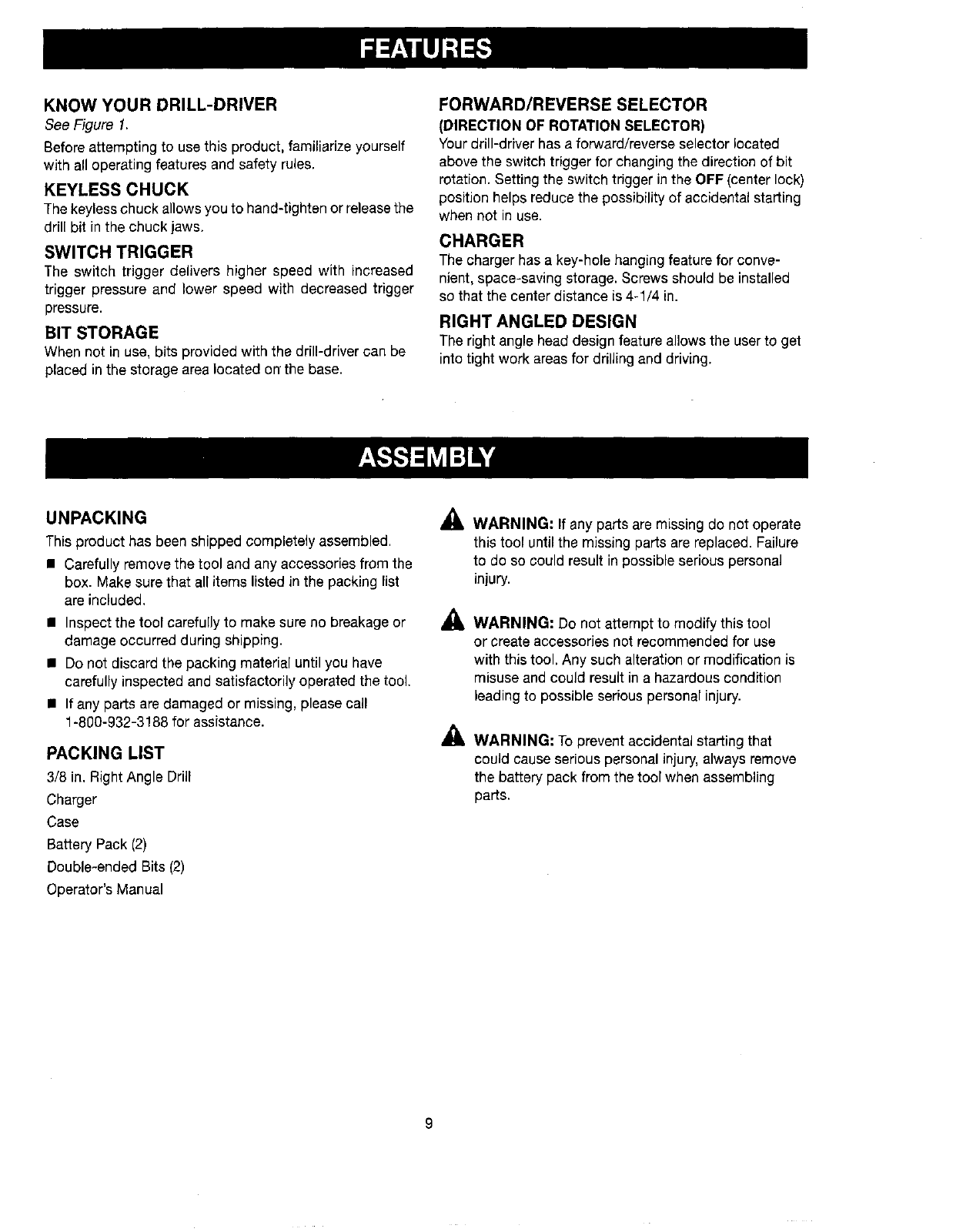

KNOW YOUR DRILL-DRIVER
See Figure 1.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
KEYLESS CHUCK
The keyless chuck allows you to hand-tighten or releasethe
drill bit in the chuck jaws.
SWITCH TRIGGER
The switch trigger delivers higher speed with increased
trigger pressure and lower speed with decreased trigger
pressure.
BIT STORAGE
When not in use, bits provided with the drill-driver can be
placed in the storage area located on the base.
FORWARD/REVERSE SELECTOR
(DIRECTION OF ROTATION SELECTOR)
Your drill-driver has aforward/reverse selector located
above the switch trigger for changing the direction of bit
rotation. Setting the switch trigger in the OFF (center lock)
position helps reduce the possibility of accidental starting
when not in use.
CHARGER
The charger has a key-hole hanging feature for conve-
nient, space-saving storage. Screws should be installed
so that the center distance is 4-1/4 in.
RIGHT ANGLED DESIGN
The right angle head design feature allows the user to get
into tight work areas for drilling and driving.
UNPACKING
This product has been shipped completely assembled.
•Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list
are included.
• Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
• Do not discard the packing material until you have
carefully inspected and satisfactorily operated the tool.
•If any parts are damaged or missing, please call
1-800-932-3188 for assistance.
PACKING LIST
3/8 in. Right Angle Drill
Charger
Case
Battery Pack (2)
Double-ended Bits (2)
Operator's Manual
A
WARNING: If any parts are missing do not operate
this tool until the missing parts are replaced. Failure
to do so could result in possible serious personal
injury.
WARNING: Do not attempt to modify this tool
or create accessories not recommended for use
with this tool. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious persona[ injury.
WARNING: To prevent accidental starting that
could cause serious personal injury, always remove
the battery pack from the tool when assembling
parts.
9
_L WARNING: Do not allow familiarity with tools to
make you careless. Remember that a careless
fraction of a second is sufficient to inflict serious
injury.
_1_ WARNING: Always wear safety goggles or safety
glasses with side shields when operating tools.
Failure to do so could result in objects being thrown
into your eyes, resulting in possible serious injury.
_1, WARNING: Do not use any attachments or acces-
sories not recommended by the manufacturer of
this tool. The use of attachments or accessories not
recommended can result in serious personal injury.

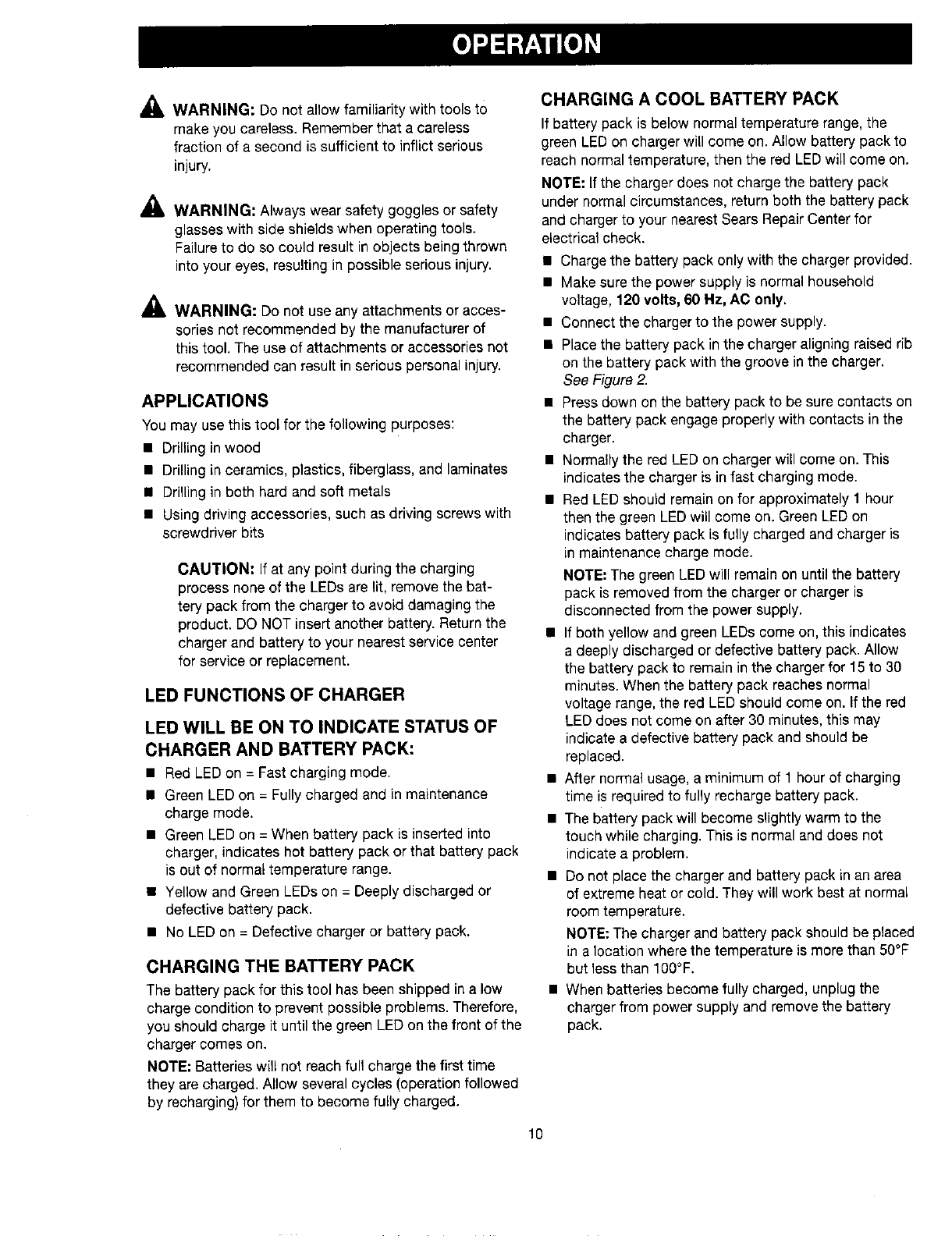

APPLICATIONS
You may use this tool for the following purposes:
•Drilling in wood
• Drilling in ceramics, plastics, fiberglass, and laminates
• Drilling in both hard and soft metals
• Using driving accessories, such as driving screws with
screwdriver bits
CAUTION: If at any point during the charging
process none of the LEDs are lit, remove the bat-
tery pack from the charger to avoid damaging the
product. DO NOT insert another battery. Return the
charger and battery to your nearest service center
for service or replacement.
LED FUNCTIONS OF CHARGER
LED WILL BE ON TO INDICATE STATUS OF
CHARGER AND BATTERY PACK:
• Red LED on = Fast charging mode.
• Green LED on = Fully charged and in maintenance
charge mode.
• Green LED on = When battery pack is inserted into
charger, indicates hot battery pack or that battery pack
is out of normal temperature range.
• Yellow and Green LEDs on = Deeply discharged or
defective battery pack.
• No LED on = Defective charger or battery pack.
CHARGING THE BATTERY PACK
The battery pack for this tool has been shipped in a low
charge condition to prevent possible problems. Therefore,
you should charge it until the green LED on the front of the
charger comes on.
NOTE: Batteries will not reach full charge the first time
they are charged. Allow several cycles (operation followed
by recharging) for them to become fully charged.
CHARGING A COOL BATTERY PACK
If battery pack is below normal temperature range, the
green LED on charger will come on. Allow battery pack to
reach normal temperature, then the red LED will come on.
NOTE: Ifthe charger does not charge the battery pack
under normal circumstances, return both the battery pack
and charger to your nearest Sears Repair Center for
electrical check.
• Charge the battery pack only with the charger provided.
• Make sure the power supply is normal household
voltage, 120 volts, 60 Hz, AC only.
• Connect the charger to the power supply.
• Place the battery pack in the charger aligning raised rib
on the battery pack with the groove in the charger.
See Figure 2.
• Press down on the battery pack to be sure contacts on
the battery pack engage properly with contacts in the
charger.
• Normally the red LED on charger will come on. This
indicates the charger is in fast charging mode.
• Red LED should remain on for approximately 1 hour
then the green LED will come on. Green LED on
indicates battery pack is fully charged and charger is
in maintenance charge mode.
NOTE: The green LED will remain on until the battery
pack is removed from the charger or charger is
disconnected from the power supply.
• If both yellow and green LEDs come on, this indicates
a deeply discharged or defective battery pack. Allow
the battery pack to remain in the charger for 15to 30
minutes. When the battery pack reaches normal
voltage range, the red LED should come on. if the red
LED does not come on after 30 minutes, this may
indicate a defective battery pack and should be
replaced.
• After normal usage, a minimum of 1 hour of charging
time is required to fully recharge battery pack.
•The battery pack will become slightly warm to the
touch while charging. This is normal and does not
indicate a problem.
• Do not place the charger and battery pack in an area
of extreme heat or cold. They will work best at normal
room temperature.
NOTE: The charger and battery pack should be placed
in a location where the temperature is more than 50°F
but less than 100°F.
• When batteries become fully charged, unplug the
charger from power supply and remove the battery
pack.
10
CHARGING A HOT BATTERY PACK
When using the tool continuously, the batteries in the
battery pack will become hot. You should let a hot bat-
tery pack cool down for approximately 30 minutes before
attempting to recharge. When the battery pack becomes
discharged and is hot, this will cause the green LED to
come on instead of the red LED.After 30 minutes, reinsert
the battery pack in the charger. If the green LED continues
to remain on, return battery pack to your nearest Sears
Repair Center for checking or replacing.
NOTE=This situation only occurs when continuous use of
the tool causes the batteries to become hot. It does not
occur under normal circumstances. Refer to "CHARG-
ING A COOL BATTERY PACK" fornormal recharging
of batteries. If the charger does not charge your battery
pack under normal circumstances, return both the battery
pack and charger to your nearest Sears Repair Center for
electrical check.

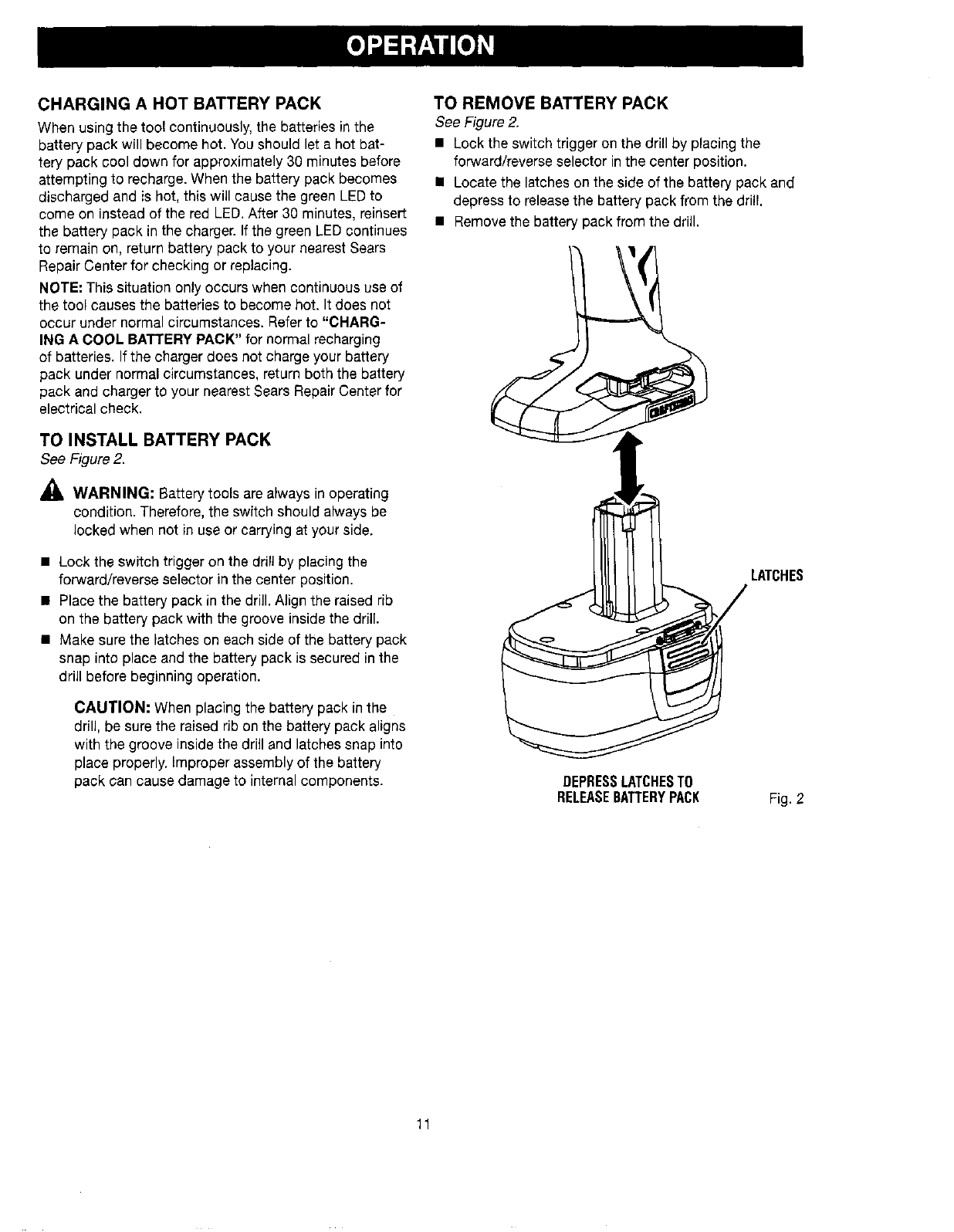

TO INSTALL BATTERY PACK
See Figure2.
_1, WARNING: Battery tools are always in operating
condition. Therefore, the switch should always be
locked when not in use or carrying at your side,
•Lock the switch trigger on the drill by placing the
forward/reverse selector in the center position.
• Place the battery pack in the drill. Align the raised rib
on the battery pack with the groove inside the drill.
• Make sure the latches on each side of the battery pack
snap into place and the battery pack is secured in the
drill before beginning operation.
CAUTION: When placing the battery pack in the
drill, be sure the raised rib on the battery pack aligns
with the groove inside the drill and latches snap into
place properly. Improper assembly of the battery
pack can cause damage to internal components.
TO REMOVE BATTERY PACK
See Figure 2,
• Lock the switch trigger on the drill by placing the
forward/reverse selector in the center position.
• Locate the latches on the side of the battery pack and
depress to release the battery pack from the drill.
• Remove the battery pack from the drill.
LATCHES
DEPRESSLATCHESTO
RELEASEBATTERYPACK Fig. 2
11

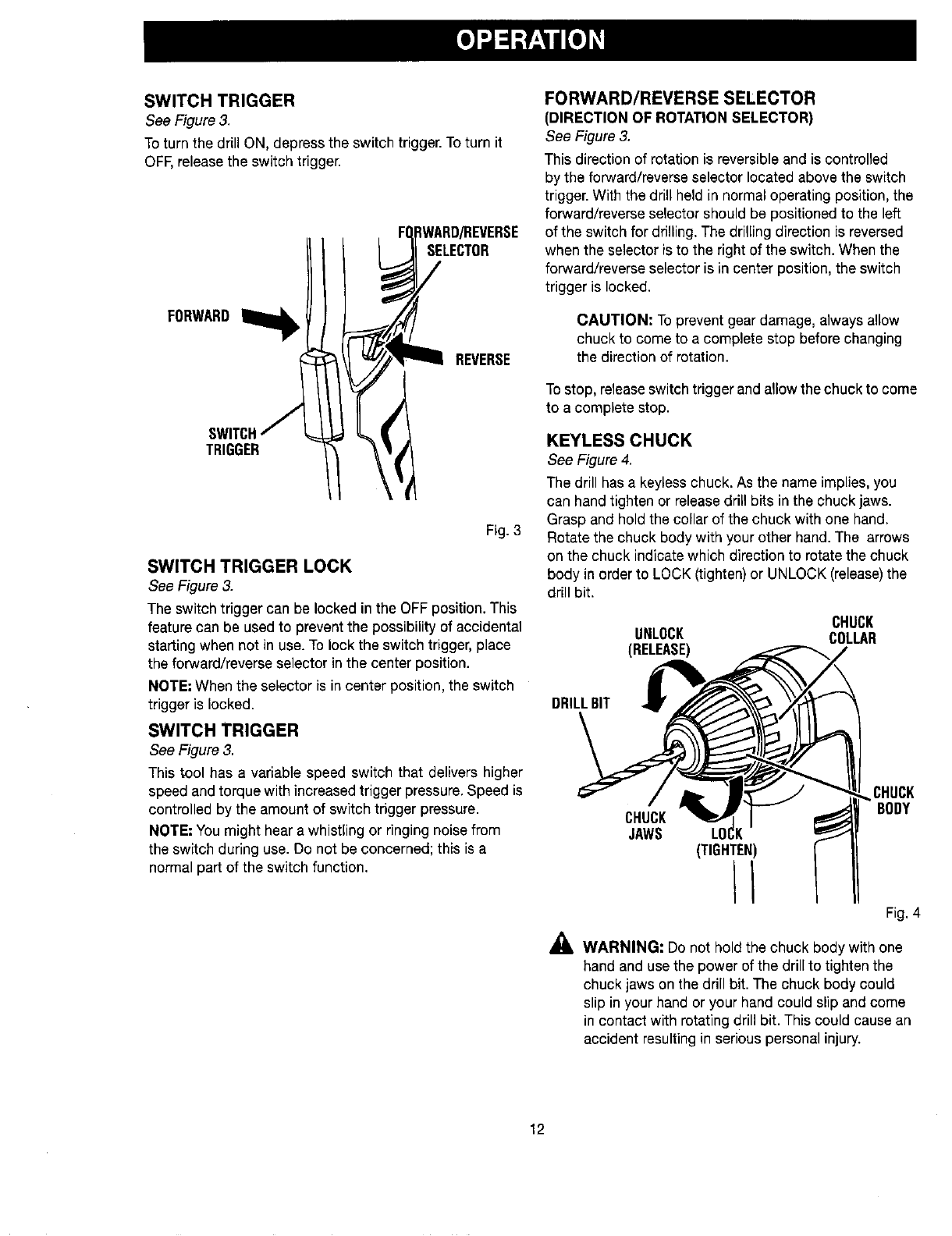

SWITCH TRIGGER
See Figure 3.
Toturn the drill ON, depress the switchtrigger.To turn it
OFF, releasethe switchtrigger.
SELECTOR
FORWARD
REVERSE
TRIGGER
Fig. 3
SWITCH TRIGGER LOCK
See Figure 3.
The switch trigger can be locked inthe OFF position.This
feature can be usedto preventthe possibilityof accidental
startingwhen notin use. Tolockthe switchtrigger,place
the forward/reverse selector inthe center position.
NOTE:When the selector is incenter position,the switch
trigger is looked.
SWITCH TRIGGER
See Figure3.
This tool has a variable speed switch that delivers higher
speedand torquewithincreased triggerpressure. Speed is
controlledby the amountof switchtriggerpressure.
NOTE: You might hear a whistlingor ringingnoise from
the switch during use. Do not be concerned;this is a
normalpart of the switch function.
FORWARD/REVERSE SELECTOR
(DIRECTION OF ROTATION SELECTOR)
See Figure3.
This direction of rotationis reversibleand is controlled
by the forward/reverse selector located abovethe switch
trigger. With the drill held in normal operatingposition, the
forward/reverse selector should be positionedto the left
of the switch for drilling. The drillingdirection is reversed
when the selector is to the right of the switch.When the
forward/reverse selector is in center position,the switch
trigger is locked.
CAUTION: To prevent gear damage, always allow
chuck to come to a complete stop before changing
the direction of rotation.
To stop, release switch trigger and allow the chuck to come
to a complete stop.
KEYLESS CHUCK
See Figure 4.
The drill has a keyless chuck. As the name implies, you
can hand tighten or release drill bits in the chuck jaws.
Grasp and hold the collar of the chuck with one hand.
Rotate the chuck body with your other hand. The arrows
on the chuck indicate which direction to rotate the chuck
body in order to LOCK (tighten) or UNLOCK (release)the
drill bit.
UNLOCK
(RELEASE)
CHUCK
COLLAR
DRILLBIT
CHUCK
JAWS
CHUCK
BODY
LOC
(TIGHTEN)
Fig. 4
_1, WARNING: Do not hold the chuck body with one
hand and use the power of the drill to tighten the
chuck jaws on the drill bit. The chuck body could
slip in your hand or your hand could slip and come
in contact with rotating drill bit. This could cause an
accident resulting in serious personal injury.
12

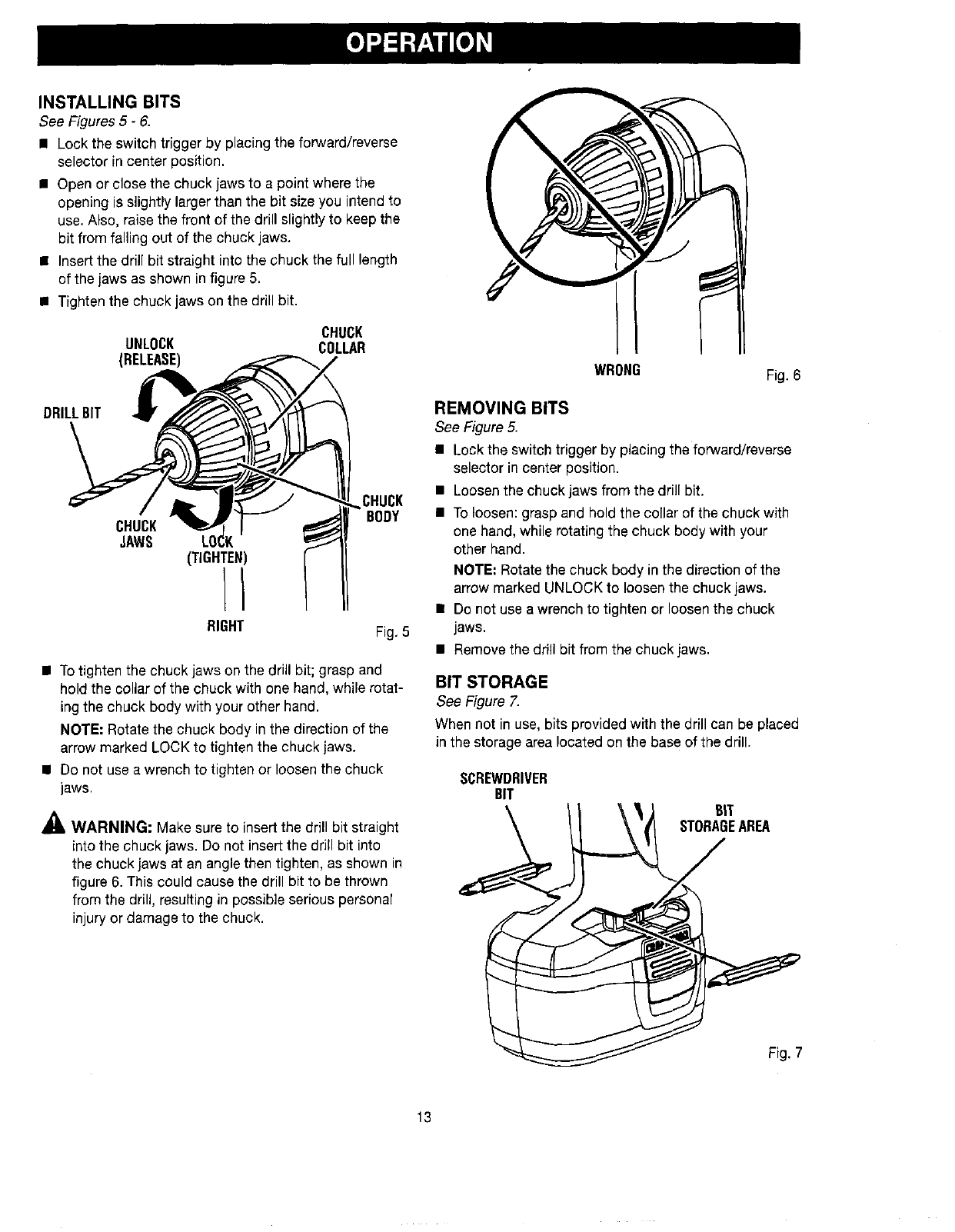

INSTALLINGBITS
See Figures 5 -6.
•Lock the switch trigger by placing the forward/reverse
selector in center position.
• Open or close the chuck jaws to a point where the
opening is slightly larger than the bit size you intend to
use. Also, raise the front of the drill slightly to keep the
bit from falling out of the chuck jaws.
• Insert the drill bit straight into the chuck the full length
of the jaws as shown in figure 5.
• Tighten the chuck jaws on the drill bit.
UNLOCK
(RELEASE)
CHUCK
COLLAR
DRILLBIT
CHUCK
JAWS
(TIGHTEN)
RIGHT
.CHUCK
BODY
Fig. 5
•To tighten the chuck jaws on the drill bit; grasp and
hold the collar of the chuck with one hand, while rotat-
ing the chuck body with your other hand.
NOTE; Rotate the chuck body in the direction of the
arrow marked LOCK to tighten the chuck jaws.
• Do not use a wrench to tighten or loosen the chuck
jaws.
_L WARNING: Make sure to insert the drill bit straight
into the chuck jaws. Do not insert the drill bit into
the chuck jaws at an angle then tighten, as shown in
figure 6. This could cause the drill bit to be thrown
from the drill, resulting in possib]e serious personal
injury or damage to the chuck.
WRONG Fig. 6
REMOVING BITS
See Figure 5.
• Lock the switch trigger by placing the forward/reverse
selector in center position.
• Loosen the chuck jaws from the drill bit.
• To loosen: grasp and hold the collar of the chuck with
one hand, while rotating the chuck body with your
other hand.
NOTE=Rotate the chuck body in the direction of the
arrow marked UNLOCK to loosen the chuck jaws.
• Do not use a wrench to tighten or loosen the chuck
jaws.
• Remove the drill bit from the chuck jaws.
BIT STORAGE
See Figure 7.
When not in use, bits provided with the drill can be placed
Jnthe storage area located on the base of the drill.
SCREWDRIVER
BIT BIT
STORAGEAREA
Fig. 7
13

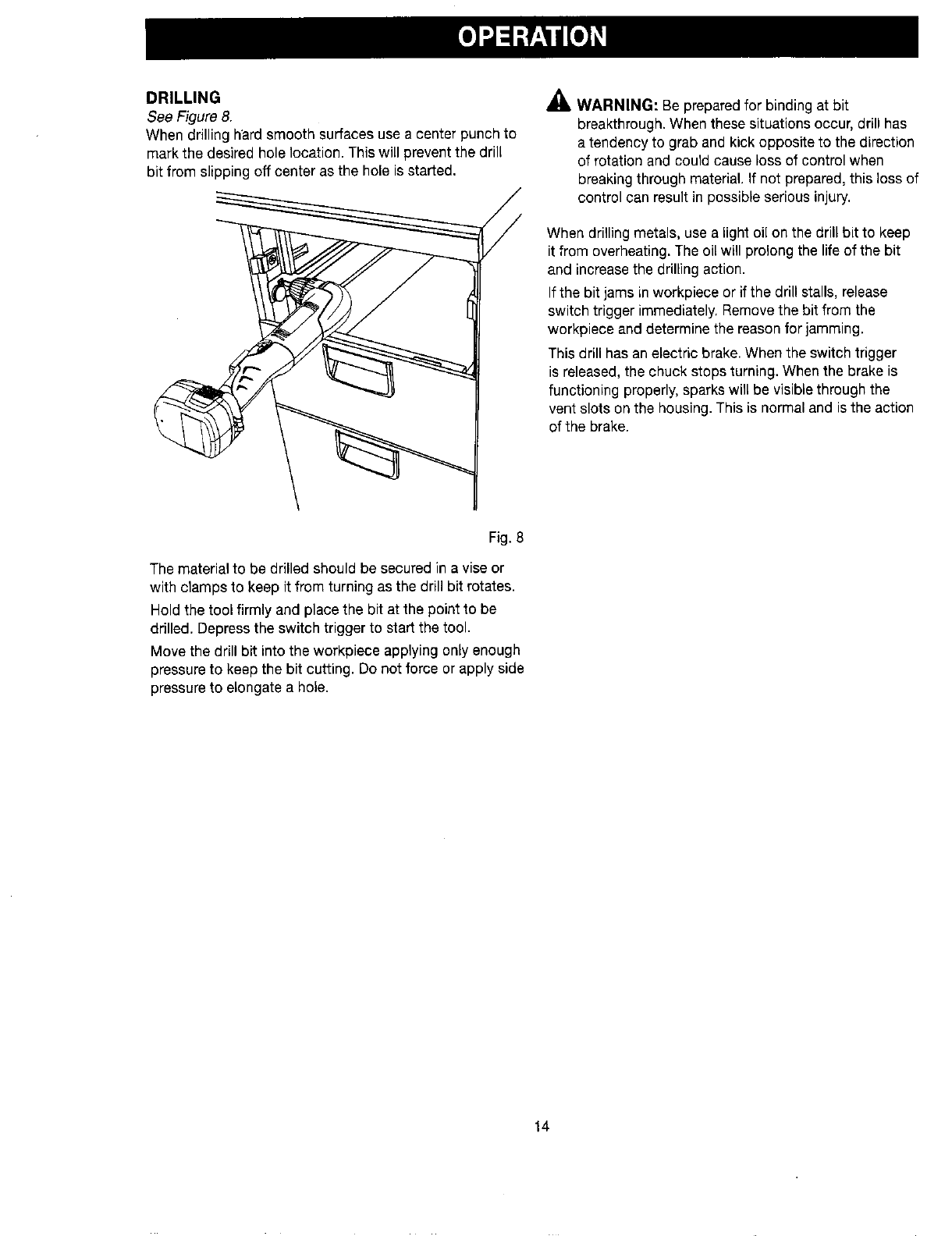

DRILLING
See Figure8.
When drilling h'ard smooth surfaces use a center punch to
mark the desired hole location. This will prevent the drill
bit from slipping off center as the hole is started.
_I, WARNING: Be prepared for binding at bit
breakthrough. When these situations occur, drill has
a tendency to grab and kick opposite to the direction
of rotation and could cause loss of control when
breaking through material. If not prepared, this loss of
control can result in possible serious injury.
When drilling metals, use a light oil on the drill bit to keep
it from overheating. The oil will prolong the life of the bit
and increase the drilling action.
If the bit jams in workpiece or if the drill stalls, release
switch trigger immediately. Remove the bit from the
workpiece and determine the reason for jamming.
This drill has an electric brake. When the switch trigger
is released, the chuck stops turning. When the brake is
functioning properly, sparks will be visible through the
vent slots on the housing. This is normal and is the action
ofthe brake.
Fig. 8
The material to be drilled should be secured in a vise or
with clamps to keep it from turning as the drill bit rotates.
Hold the tool firmly and place the bit at the point to be
drilled. Depress the switch trigger to start the tool.
Move the drill bit into the workpiece applying only enough
pressure to keep the bit cutting. Do not force or apply side
pressure to elongate a hole.
14
AWARNING: When servicing, use only identical
Craftsman replacement parts. Use of any other part
may create a hazard or cause product damage.
_i, WARNING: Always wear safety goggles or safety
glasses with side shields when using compressed air
to clean tools. If the operation is dusty, also wear a
dust mask.
_. WARNING: To avoid serious personal injury,always
remove the battery pack from the tool when cleaning
or performing any maintenance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
_', WARNING: Do not at any time let brake fluids,
gasoline, petroleum-based products, penetrating
oils, etc. come in contact with plastic parts. Chemi-
cals can damage, weaken or destroy plastic which
may result in serious personal injury.
Only the parts shown on the parts list are intended to be
repaired or replaced by the customer. All other parts
should be replaced at a Sears Service Center.

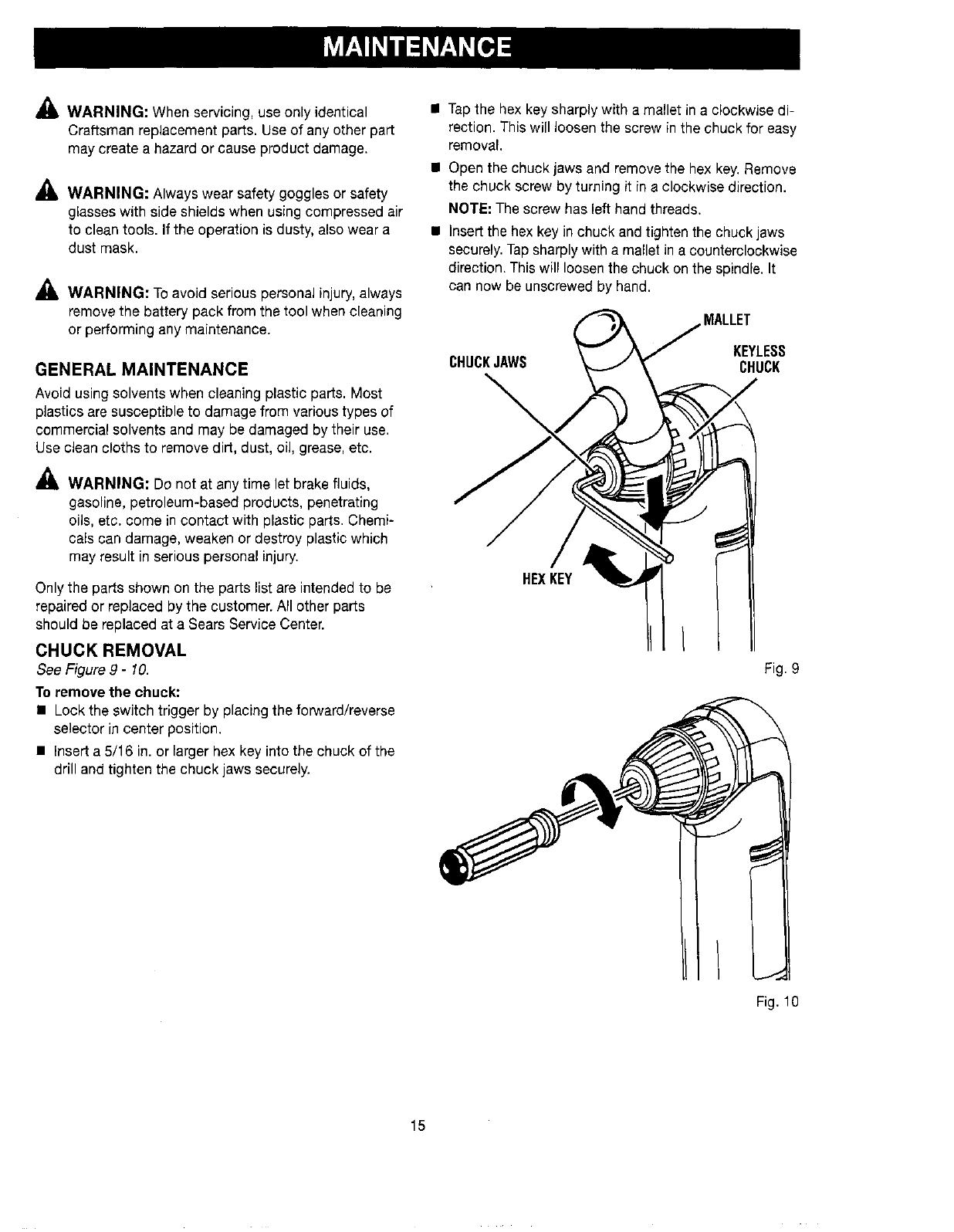

CHUCK REMOVAL
See Figure 9 -10.
To remove the chuck;
•Lock the switch trigger by placing the forward/reverse
selector in center position.
• Insert a 5/16 in. or larger hex key into the chuck of the
drill and tighten the chuck jaws securely.
Tap the hex key sharply with a mallet in a clockwise di-
rection. This will loosen the screw in the chuck for easy
removal.
Open the chuck jaws and remove the hex key. Remove
the chuck screw by turning it in a clockwise direction.
NOTE: The screw has left hand threads.
Insert the hex key in chuck and tighten the chuck jaws
securely. Tap sharply with a mallet in a counterclockwise
direction. This will loosen the chuck on the spindle. It
can now be unscrewed by hand.
MALLET
CHUCKJAWS KEYLESS
CHUCK
HEXKEY
Fig. 9
Fig. 10
15

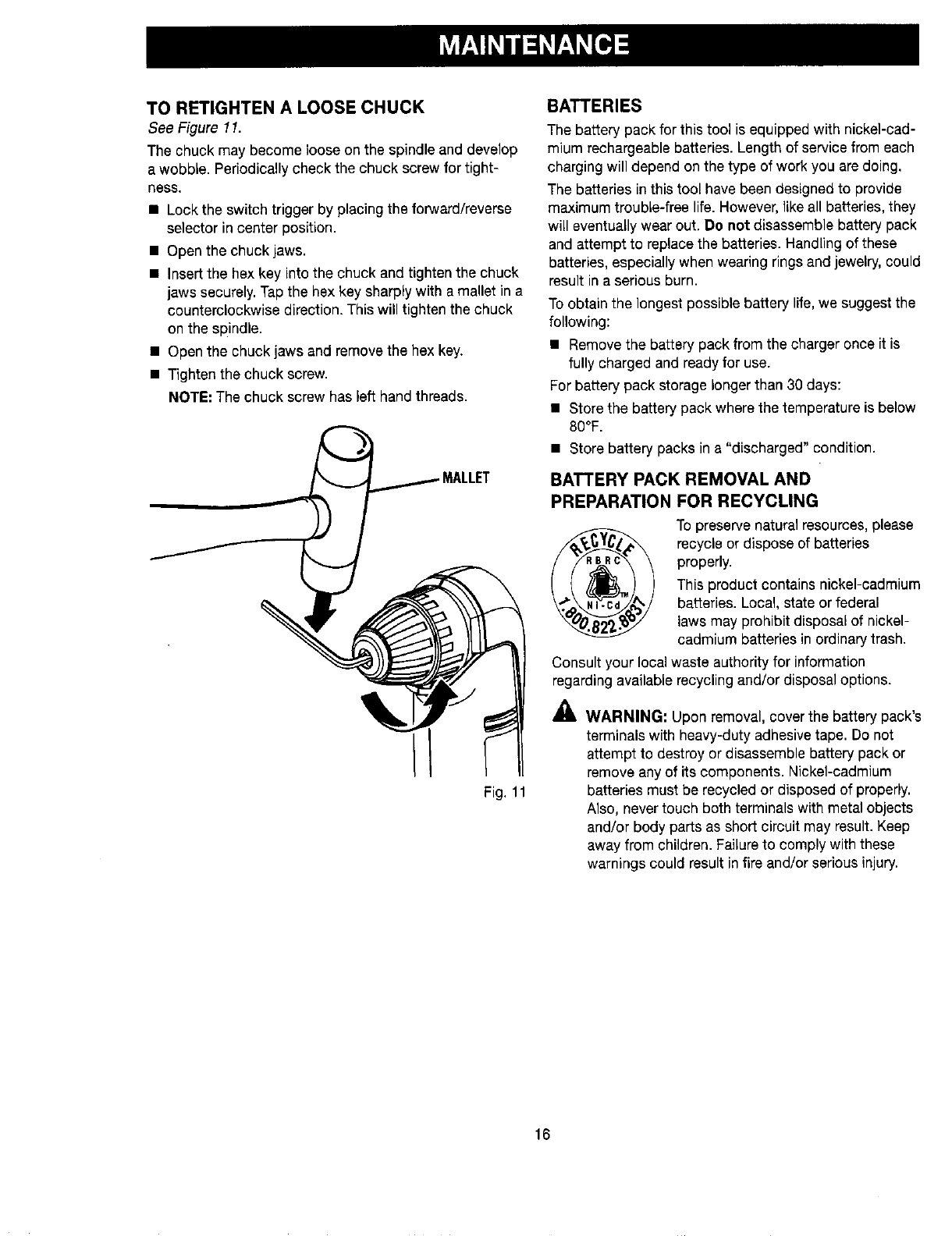

TO RETIGHTEN A LOOSE CHUCK
See Figure 11.
The chuck may become loose on the spindle and develop
a wobble. Periodically check the chuck screw for tight-
hess,
• Lock the switch trigger by placing the forward/reverse
selector in center position.
• Open the chuck jaws.
• Insert the hex key into the chuck and tighten the chuck
jaws securely. Tap the hex key sharply with a mallet in a
counterclockwise direction. This will tighten the chuck
on the spindle.
• Open the chuck jaws and remove the hex key.
• Tighten the chuck screw.
NOTE=The chuck screw has left hand threads.
Fig. 11
BATTERIES
The battery pack for this tool is equipped with nickel-cad-
mium rechargeable batteries. Length of service from each
charging will depend on the type of work you are doing.
The batteries in this tool have been designed to provide
maximum trouble-free life. However, like all batteries, they
will eventually wear out. Do not disassemble battery pack
and attempt to replace the batteries. Handling of these
batteries, especially when wearing rings and jewelry, could
result in a serious burn.
To obtain the longest possible battery life, we suggest the
following:
• Remove the battery pack from the charger once it is
fully charged and ready for use.
For battery pack storage longer than 30 days:
• Store the battery pack where the temperature is below
80°F.
• Store battery packs in a "discharged" condition.
BATTERY PACK REMOVAL AND
PREPARATION FOR RECYCLING
To preserve natural resources, please
recycle or dispose of batteries
properly.
This product contains nickel-cadmium
batteries. Local, state or federal
laws may prohibit disposal of nickel-
cadmium batteries in ordinary trash.
Consult your local waste authority for information
regarding available recycling and/or disposal options.
A
AlL WARNING: Upon removal, cover the battery pack's
terminals with heavy-duty adhesive tape. Do not
attempt to destroy or disassemble battery pack or
remove any of its components. Nickel-cadmium
batteries must be recycled or disposed of properly.
Also, never touch both terminals with metal objects
and/or body parts as short circuit may result. Keep
away from children. Failure to comply with these
warnings could result in fire and/or serious injury.
16
17
CRAFTSMAN 14.4 VOLT RIGHT ANGLE DRILL-DRIVER -MODEL NUMBER 315.101532
The model number will be found on a plate attached to the motor housing. Always mention the I
model number in all correspondence regarding your DrilFDriver or when ordering repair parts. J
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
Key Pa_
No. Number
1 6612003
,2 6903302
3 130251008
4 1425301
5 9420316
6 300730101
983000724
1
PARTS LIST
Description Qty,
Chuck Screw ................................................................................................... 1
Chuck .............................................................................................................. 1
Battery Pack (Item No. 9 11044) ..................................................................... 1
Charger (Item No. 9 11041)............................................................................. 1
Logo Plate ....................................................................................................... 1
Carrying Case (not shown) .............................................................................. 1
Operator's Manual
* Standard Hardware Item - May Be Purchased Locally
** Available From Div, 98 -Source 980.0
*** Complete assortment available at your Nearest Sears Retail Store
18
Getit fixed,atyourhomeorours!
Your Home
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ®(1-800-469.4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears,ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-linefor the locationof your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (uS.A.) 1-800-361-6665 (Canada)
Para pedir servic_o de reparaci6n
a domlcdio, y pare ordenar plezas'
1-888-SU'HOGAR _M
(1-888-784-6427)
Au Canada pour service en fran_als:
1-800-LE-FOYER Mc
(1-800-533-6937)
www.sears ca
SesT-$
Registered Trademark /TMTradema_ /s_ Service Mar_ of Sears, Roebuck end Co
® Marca Reglstrada IT_ Marca de Fabrlca !SMMarca de ServLciO de Sears, Roebuck and Co
Mc MD
Marque de commerce /Marque d6posee de Sears, Roebur.k and Co © Sea_, Roebuck and Co
960933013-01(C)

Navigation menu
