OPERATOR'S MANUAL
II:RRFTSMRN I
19.2 VOLT RECIPROCATING SAW
VARIABLE SPEED
Model No.
315.115740
,_ WARNING: To reduce the risk of injury,
the user must read and understand the
operator's manual before using this
product.
Customer Help Line: 1-800-932-3188
Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
983000-518
5-05 Save this manual for future reference

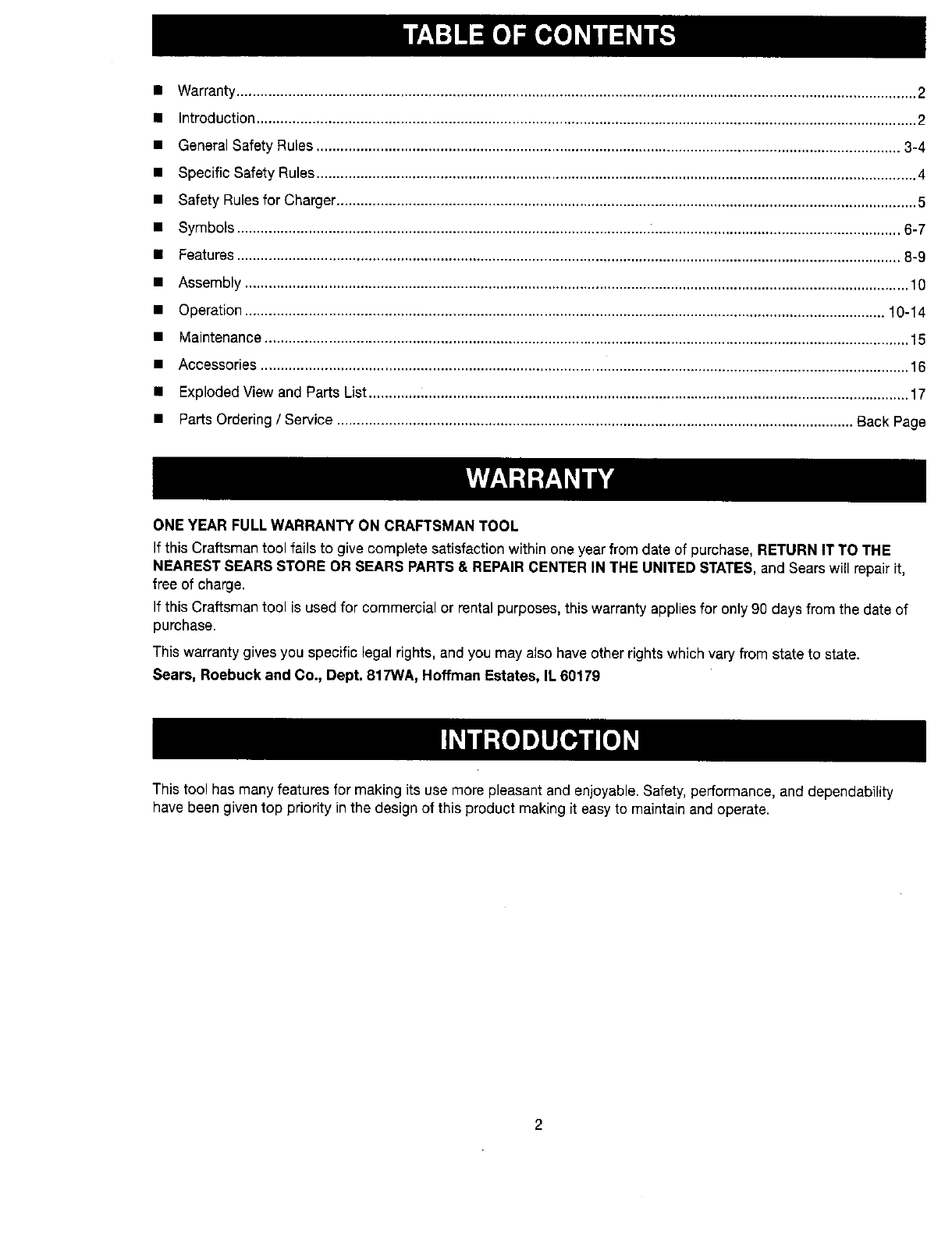

•Warranty........................................................................................................................................................................... 2
• Introduction ...................................................................................................................................................................... 2
• General Safety Rules ................................................................................................................................................... 3-4
• Specific Safety Rules ....................................................................................................................................................... 4
• Safety Rules for Charger .................................................................................................................................................. 5
• Symbols ....................................................................................................................................................................... 6-7
• Features ....................................................................................................................................................................... 8-9
• Assembly ....................................................................................................................................................................... 10
• Operation ................................................................................................................................................................. 10-14
• Maintenance .................................................................................................................................................................. 15
• Accessories ................................................................................................................................................................... 16
• Exploded View and Parts List ............. ........................................................................................................................... 17
• Parts Ordering/Service .................................................................................................................................. Back Page
ONE YEAR FULL WARRANTY ON CRAFTSMAN TOOL
If this Craftsman tool fails to give complete satisfaction within one year from date of purchase, RETURN IT TO THE
NEAREST SEARS STORE OR SEARS PARTS & REPAIR CENTER IN THE UNITED STATES, and Sears will repair it,
free of charge.
If this Craftsman tool is used for commercial or rental purposes, this warranty applies for only 90 days from the date of
purchase.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Heffman Estates, IL 60179
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product making it easy to maintain and operate.

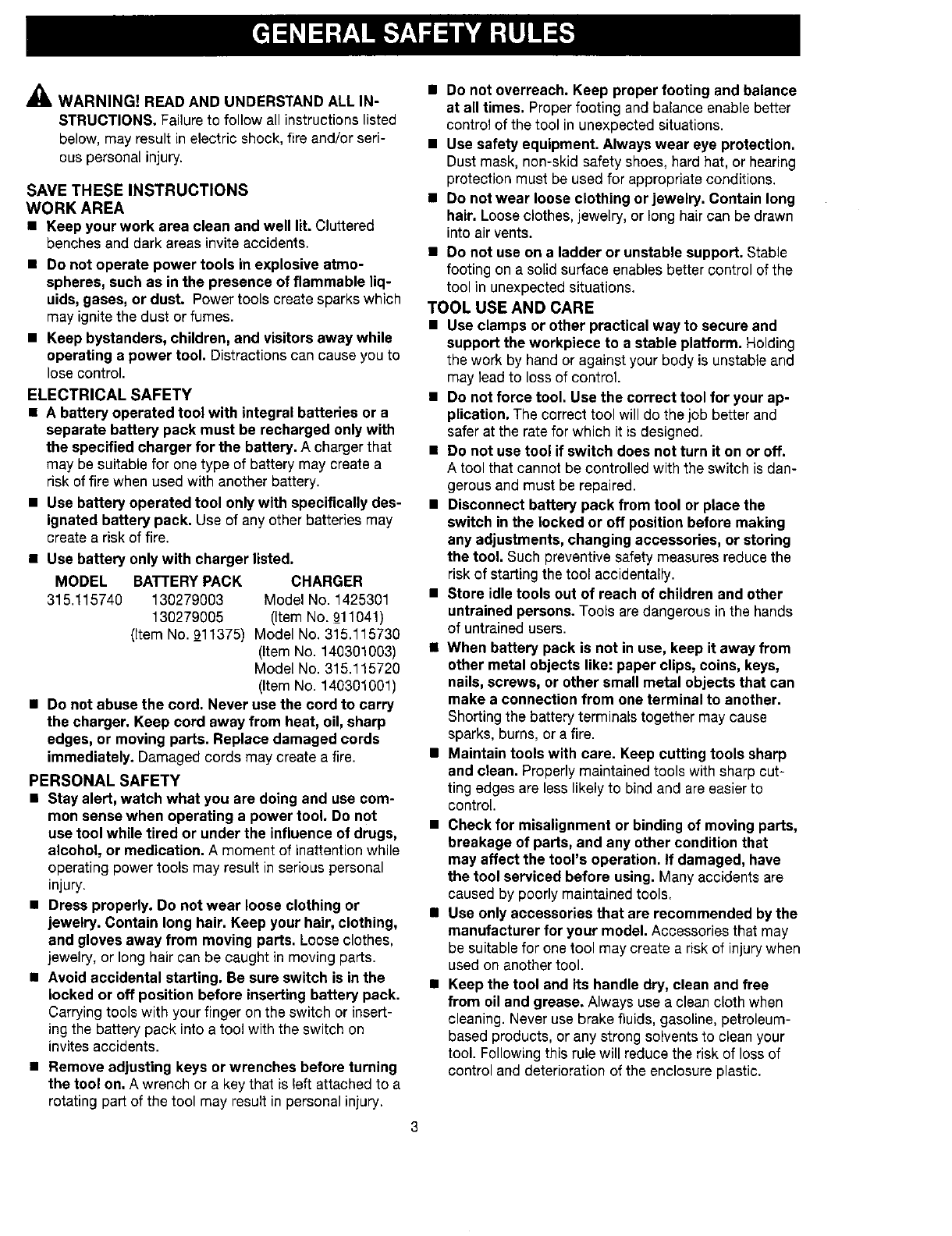

_i, WARNING] READ AND UNDERSTAND ALL IN-
STRUCTIONS. Failure to follow all instructions listed
below, may result in electric shock, fire and/or seri-
ous personal injury.
SAVE THESE INSTRUCTIONS
WORK AREA
•Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
•Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liq-
uids, gases, or dust. Power tools create sparkswhich
may ignitethe dust or fumes.
•Keep bystanders, children, and visitors away while
operating a power tool. Distractions can cause you to
lose control.
ELECTRICAL SAFETY
•A battery operated tool with integral batteries or a
separate battery pack must be recharged only with
the specified charger for the battery. A chargerthat
may be suitable for one type of battery may create a
risk of fire when used with another battery.
•Use battery operated tool only with specifically des-
ignated battery pack. Use of any other batteries may
create a risk of fire.
•Use battery only with charger listed.
MODEL BATTERY PACK CHARGER
315.115740 130279003 Model No. 1425301
130279005 (Item No. 9_11041)
(Item No. _911375) Model No. 315.115730
(Item No. 140301003)
Model No. 315.115720
(Item No. 140301001)
•Do not abuse the cord. Never use the cord to carry
the charger. Keep cord away from heat, oil, sharp
edges, or moving parts. Replace damaged cords
immediately. Damaged cords may create a fire.
PERSONAL SAFETY
•Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not
use tool while tired or under the influence of drugs,
alcohol, or medication. A moment of inattentionwhile
operating power tools may result in serious personal
injury.
•Dress properly. Do net wear loose clothing or
jewelry. Contain long hair. Keep your hair, clothing,
and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
•Avoid accidental starting. Be sure switch is in the
locked or off position before inserting battery pack.
Carrying tools with your finger on the switch or insert-
ing the battery pack into a tool with the switch on
invites accidents.
•Remove adjusting keys or wrenches before turning
the tool on. A wrench or a key that is left attached to a
rotating part of the tool may result in personal injury.
•Do not overreach. Keep proper footing and balance
at all times. Proper footing and balance enable better
control of the tool in unexpected situations.
•Use safety equipment. Always wear eye protection.
Dust mask, non-skid safety shoes, hard hat, or hearing
protection must be used for appropriate conditions.
•Do not wear loose clothing or jewelry. Contain long
hair. Looseclothes,jewelry,or longhair can be drawn
into airvents.
•Do not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of the
tool in unexpected situations.
TOOL USE AND CARE
•Use clamps or other practical way to secure and
support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable and
may lead to loss of control.
•Do not force tool. Use the correct tool for your ap-
plication. The correcttool will do the job better and
safer at the rate for which it is designed.
•Do not use tool if switch does not turn it on or off.
A tool that cannot be controlled with the switch is dan-
gerous and must be repaired.
•Disconnect battery pack from tool or place the
switch in the locked or off position before making
any adjustments, changing accessories, or storing
the tool. Such preventive safety measures reduce the
risk of starting the tool accidentally.
•Store idle tools out of reach of children and other
untrained persons. Tools aredangerous in the hands
of untrained users.
•When battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys,
nails, screws, or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
sparks, burns, or a fire.
•Maintain tools with care. Keep cutting tools sharp
and clean. Properly maintained tools with sharp cut-
ting edges are less likely to bind and are easier to
control.
•Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that
may affect the tool's operation. If damaged, have
the tool serviced before using. Many accidentsare
caused by poorly maintained tools.
•Use only accessories that are recommended by the
manufacturer for your model. Accessories that may
be suitable for one tool may create a risk of injurywhen
used on another tool.
• Keep the tool and its handle dry, clean and free
from oil and grease. Always use a clean cloth when
cleaning. Never use brake fluids, gasoline, petroleum-
based products, or any strong solvents to clean your
tool. Following this rule will reduce the risk of loss of
control and deterioration of the enclosure plastic.

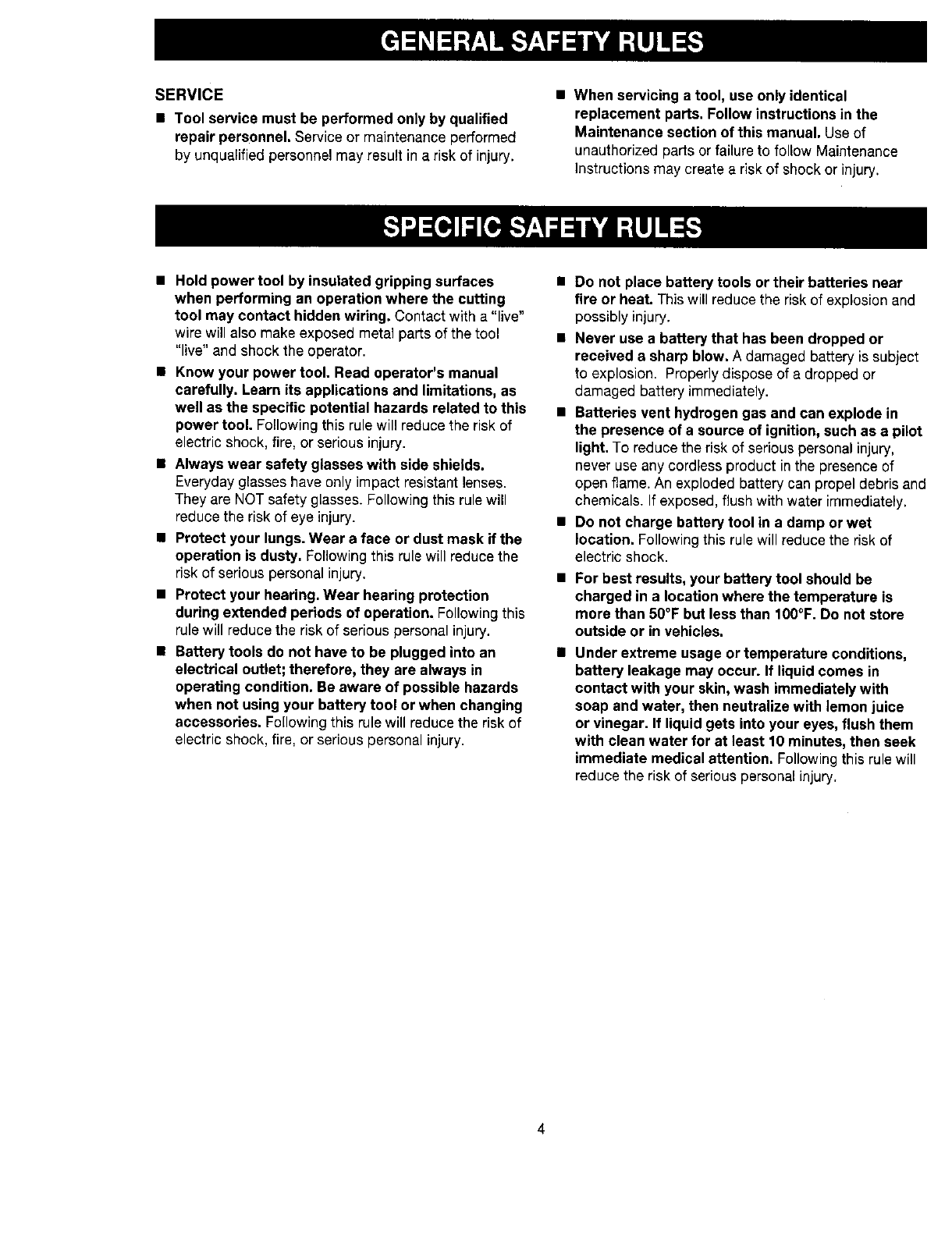

SERVICE
• Tool service must be performed only by qualified
repair personnel. Service or maintenance performed
by unqualified personnel may result in a risk of injury.
•When servicing a tool, use only identical
replacement parts. Follow instructions in the
Maintenance section of this manual. Use of
unauthorizedparts or failure to follow Maintenance
Instructions may create a risk of shock or injury.
•Hold power tool by insulated gripping surfaces
when performing an operation where the cutting
tool may contact hidden wiring. Contact witha "live"
wire will also makeexposed metal partsof the tool
"live" and shock the operator.
•Know your power tool. Read operator's manual
carefully. Learn its applications and limitations, as
well as the specific potential hazards related to this
power tool. Followingthisrule will reduce the riskof
electric shock, fire, or serious injury.
• Always wear safety glasses with side shields.
Everyday glasses have only impact resistant lenses.
They are NOT safety glasses. Following this rule will
reduce the risk of eye injury.
• Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the
risk of serious personal injury.
•Protect your hearing. Wear hearing protection
during extended periods of operation. Following this
rule will reduce the risk of serious personal injury.
•Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards
when not using your battery tool or when changing
accessories. Following this rule will reduce the risk of
electric shock, fire, or serious personal injury.
• Do not place battery tools or their batteries near
fire or heat. Thiswill reduce the risk of explosion and
possibly injury.
• Never use a battery that has been dropped or
received a sharp blow. A damaged battery is subject
to explosion. Properly dispose of a dropped or
damaged battery immediately.
•Batteries vent hydrogen gas and can explode in
the presence of a source of ignition, such as apilot
light. To reduce the risk of serious personal injury,
never use any cordless product in the presence of
open flame. An exploded battery can propel debris and
chemicals. If exposed, flush with water immediately.
•Do not charge battery tool in a damp or wet
location. Following this rule will reduce the risk of
electric shock.
For best results, your battery tool should be
charged in a location where the temperature is
more than 50°F but less than 10O°F.Do not store
outside or in vehicles,
•Under extreme usage or temperature conditions,
battery leakage may occur. If liquid comes in
contact with your skin, wash immediately with
soap and water, then neutralize with lemon juice
or vinegar. If liquid gets into your eyes, flush them
with clean water for at least 10 minutes, then seek
immediate medical attention. Following this rule will
reduce the risk of serious personal injury.
4
_" WARNING! READ AND UNDERSTAND ALL
INSTRUCTIONS. Failure to follow aLlinstructions
listed below, may result in electric shock, fire
and/or serious personal injury.

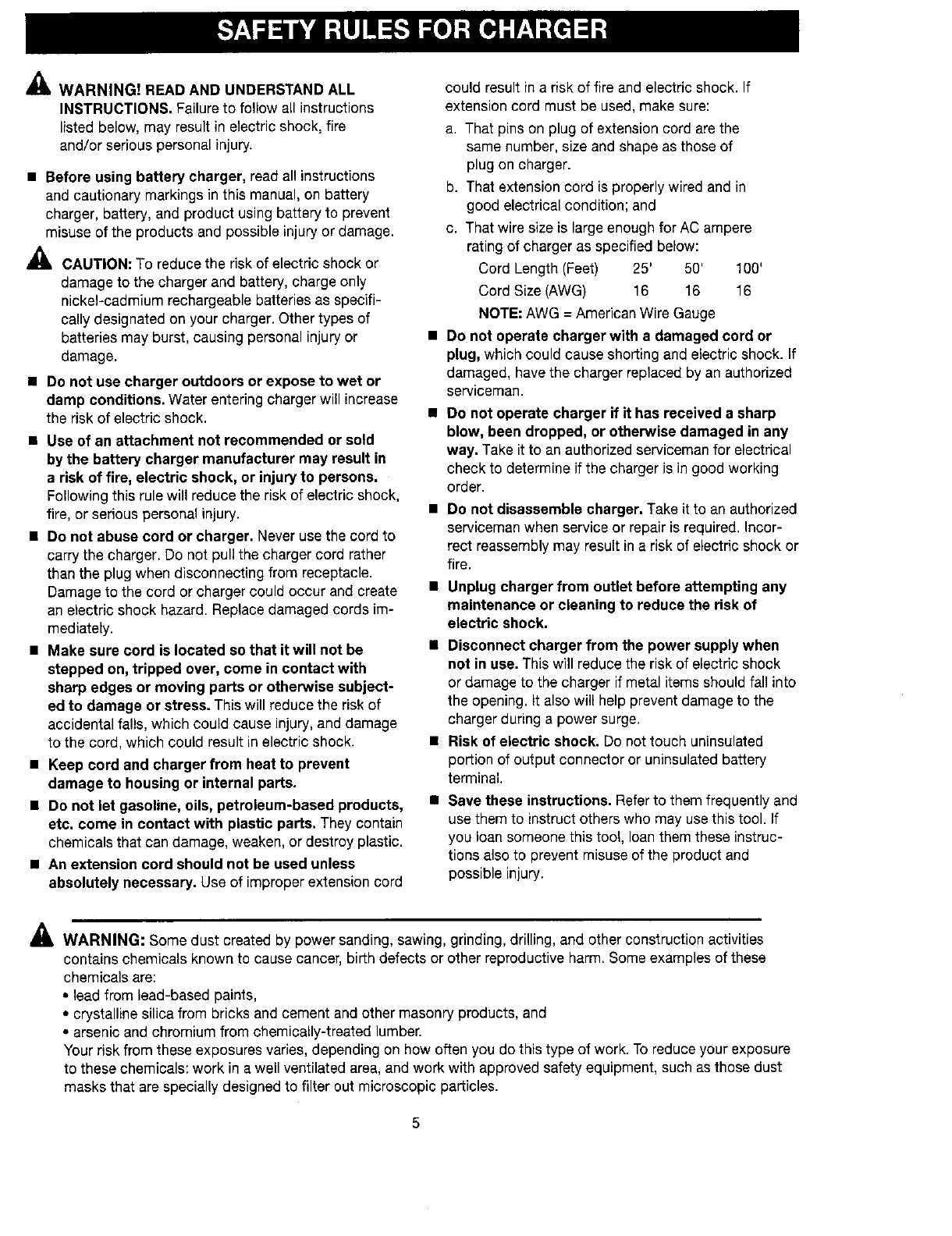

• Before using battery charger, read all instructions
and cautionary markings in this manual, on battery
charger, battery, and product using battery to prevent
misuse of the products and possible injury or damage.
_. CAUTION: To reduce the risk of electric shock or
damage to the charger and battery, charge only
nickel-cadmium rechargeable batteries as specifi-
cally designated on your charger. Other types of
batteries may burst, causing personal injury or
damage.
•Do not use charger outdoors or expose to wet or
damp conditions. Water enteringchargerwill increase
the risk of electricshock.
•Use of an attachment not recommended or sold
by the battery charger manufacturer may result in
a risk of fire, electric shock, or injury to persons.
Followingthis rule will reduce the risk of electric shock,
fire, or serious personal injury.
•Do not abuse cord or charger. Never use the cord to
carry the charger. Do not pull the charger cord rather
than the plug when disconnecting from receptacle.
Damage to the cord or charger could occur and create
an electric shock hazard. Replace damaged cords im-
mediately.
•Make sure cord is located so that it will not be
stepped on, tripped over, come in contact with
sharp edges or moving parts or otherwise subject-
ed to damage or stress. This will reduce the risk of
accidental falls, which could cause injury, and damage
to the cord, which could result in electric shock.
• Keep cord and charger from heat to prevent
damage to housing or internal parts.
•Do not let gasoline, oils, petroleum-based products,
etc. come in contact with plastic parts. They contain
chemicals that can damage, weaken, or destroy plastic.
• An extension cord should not be used unless
absolutely necessary. Use of improperextension cord
could result in a risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pins on plug of extension cord arethe
same number, size and shape as those of
plug on charger.
b. That extension cord is properly wired and in
good electrical condition; and
c. That wire size is large enough for AC ampere
rating of charger as specified below:
Cord Length (Feet) 25' 50' 100'
Cord Size (AWG) 16 16 16
NOTE: AWG = American Wire Gauge
•Do not operate charger with a damaged cord or
plug, which could cause shorting and electric shock. If
damaged, have the charger replaced by an authorized
serviceman.
•Do not operate charger if it has received asharp
blow, been dropped, or otherwise damaged in any
way. Take it to an authorized serviceman for electrical
check to determine if the charger is in good working
order.
•Do not disassemble charger. Take it to an authorized
serviceman when service or repair is required. Incor-
rect reassembly may result in a risk of electric shock or
fire.
•Unplug charger from outlet before attempting any
maintenance or cleaning to reduce the risk of
electric shock.
•Disconnect charger from the power supply when
not in use. This will reduce the risk of electric shock
or damage to the charger if metal items should fall into
the opening, it also will help prevent damage to the
charger during a power surge.
•Risk of electric shock. Do not touch uninsulated
portion of output connector or uninsulated battery
terminal.
•Save these instructions. Refer to them frequently and
use them to instructothers who may use this tool. If
you loan someone this tool, loan them these instruc-
tions also to prevent misuse of the product and
possible injury.
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
•lead from lead-based paints,
•crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure
to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust
masks that are specially designed to filter out microscopic particles.
5

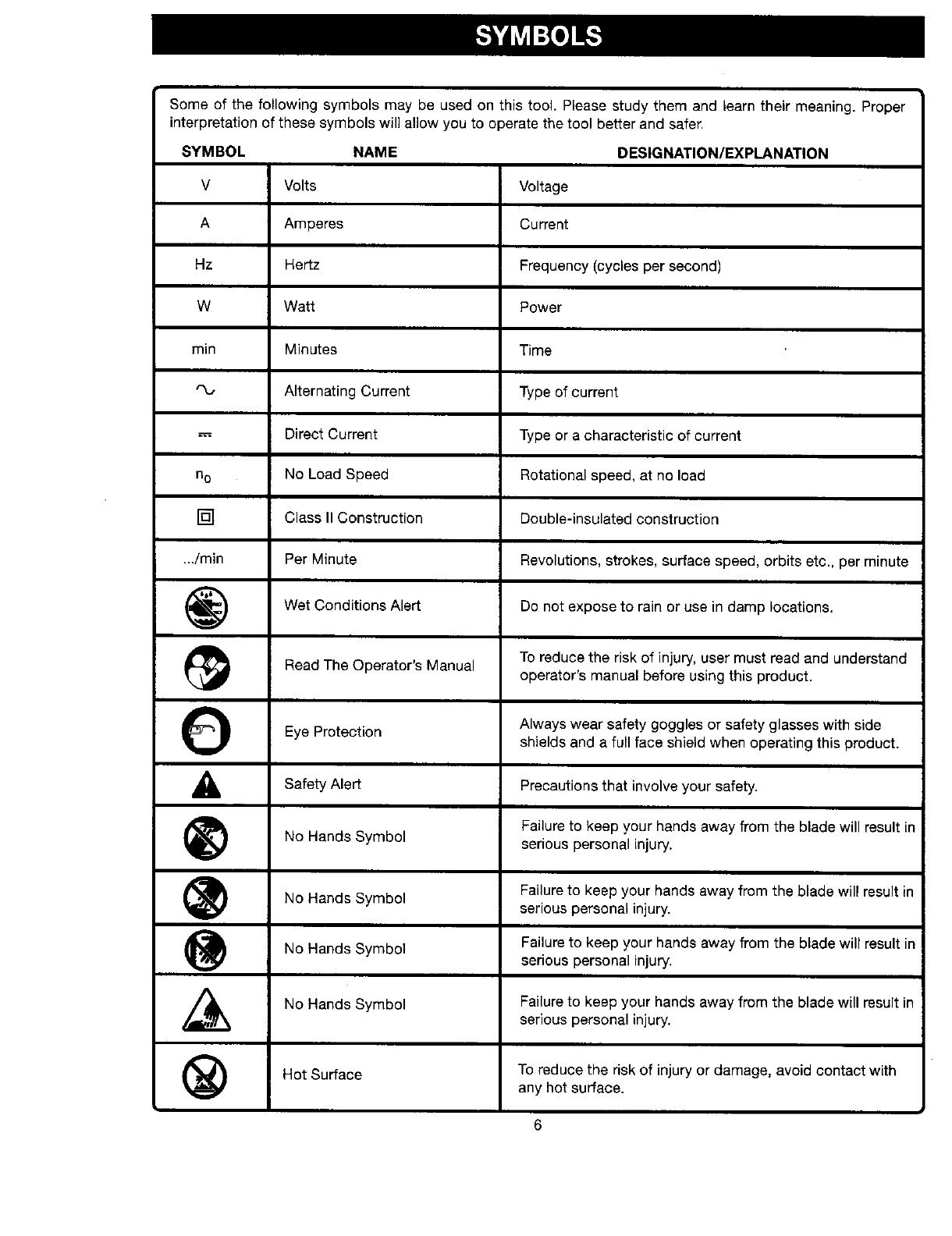

Someofthefollowingsymbolsmaybeusedonthistool.Pleasestudythemandlearntheirmeaning.Proper
interpretationofthesesymbolswillallowyouto operatethetoolbetterandsafer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
"%" Alternating Current Type of current
Direct Current Type or a characteristic of current
no No Load Speed Rotational speed, at no load
[] Class II Construction Double-insulated construction
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute
Wet Conditions Alert Do not to rain in locations.
expose or use damp
Read The Operator's Manual To reduce the risk of injury, user must read and understand
operator's manual before using this product.
OAlways wear safety goggles or safety glasses with side
Eye Protection shields and a full face shield when operating this product.
_, Safety Precautions that involve your safety.
Alert
Failure to keep your hands away from the blade will result in
No Hands Symbol serious personal injury.
No Hands Failure to keep your hands away from the blade will result in
Symbol serious personal injury.
No Hands Symbol Failure to keep your hands away from the blade will result in
serious personal injury.
No Hands Symbol Failure to keep your hands away from the blade will result in
serious personal injury.
Hot Surface To reduce the risk of injury or damage, avoid contact with
any hot surface.
6

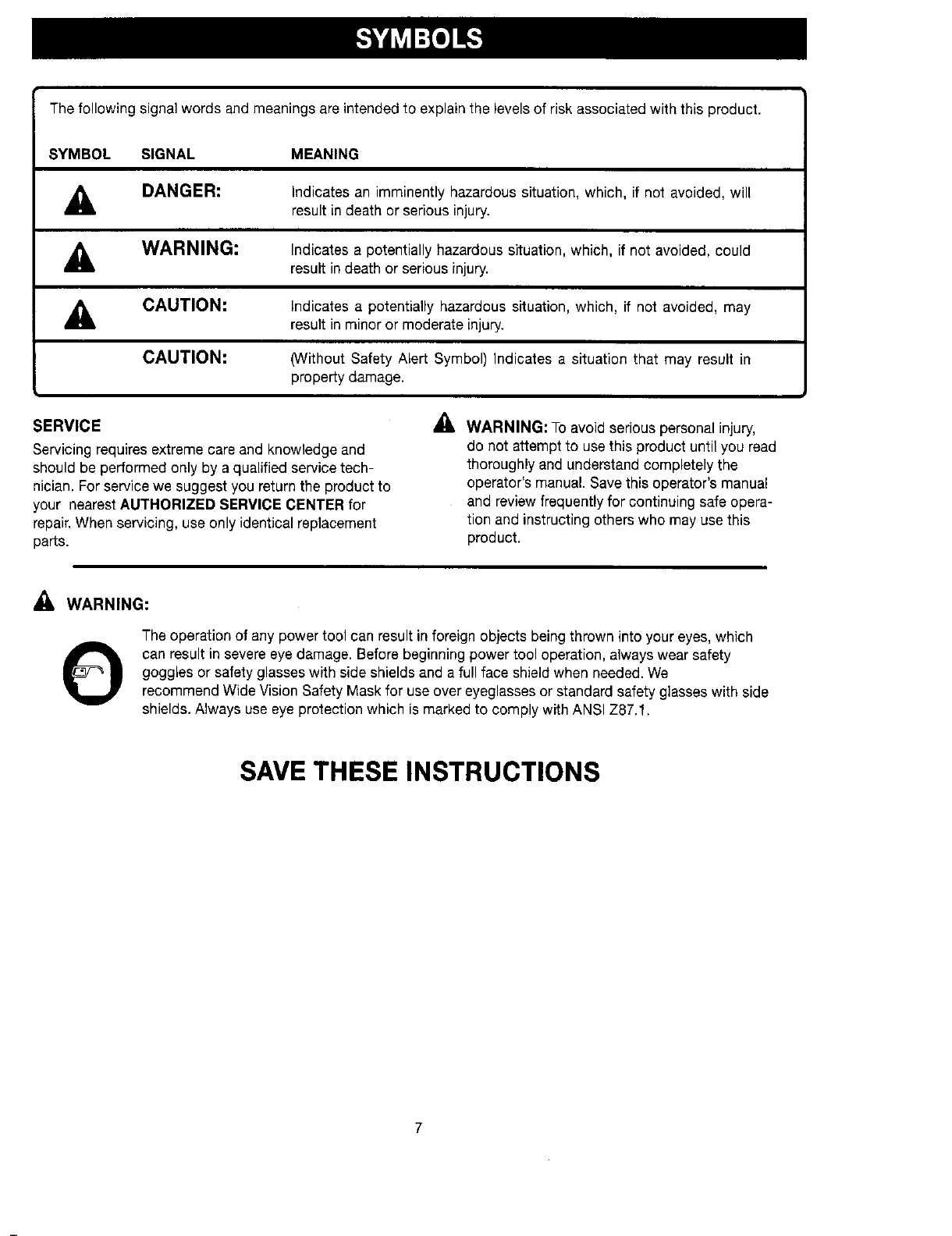

Thefollowingsignalwordsandmeaningsareintendedtoexplainthelevelsofriskassociatedwiththisproduct.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING: Indicates apotentially hazardous situation, which, if not avoided, could
result in death or serious injury.
,_, CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
SERVICE
Servicing requires extreme care and knowledge and
should be performed only by a qualified service tech-
nician. For service we suggest you return the product to
your nearest AUTHORIZED SERVICE CENTER for
repair. When servicing, use only identical replacement
parts.
_, WARNING: To avoid serious personal injury,
do not attempt to use this product until you read
thoroughly and understand completely the
operator's manual. Save this operator's manual
and review frequently for continuing safe opera-
tion and instructing others who may use this
product.
_, WARNING:
OThe operation of any power tool can result in foreign objects being thrown into your eyes, which
can result in severe eye damage. Before beginning power tool operation, always wear safety
goggles or safety glasses with side shields and a full face shield when needed. We
recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side
shields. Always use eye protection which is marked to comply with ANSI Z87.1.
SAVETHESE INSTRUCTIONS
PRODUCT SPECIFICATIONS
Motor................................................................................................................................................................... 19.2 Volt DC
Switch.............................................................................................................................................................. Variab]eSpeed
No Load Speed .................................................................................................................................................. 0-3,100/rain.
Charger Input....................................................................................................................................... 120 V,60 Hz, AC only
Charge Rate .................................................................................................................................................................. 1hour
Stroke Length................................................................................................................................................................ 7/8 in.
BASE(SHOE)
ASSEMBLY
SAWBLADE
LOCK-OFF
BUTTON
BATI'ERY
PACK
LED
WORKLIGHTS
SWITCH
TRIGGER
BLADECLAMP
LEVER
LOCK-OFF
BUTTON
HEXKEY
STORAGE
BATTERY
HEXKEY
CHARGER
\
4-1/2 in.
Fig. 1
8

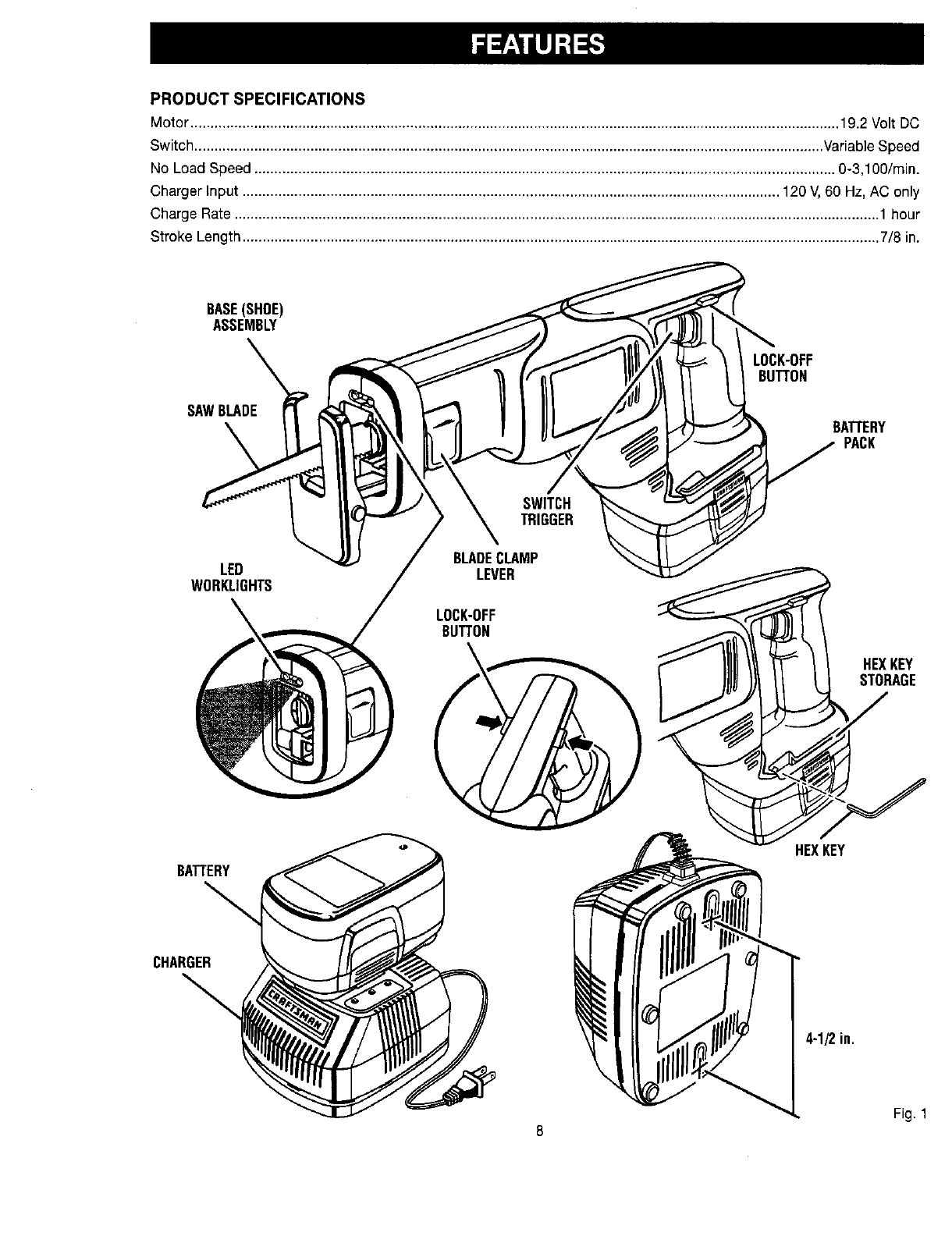

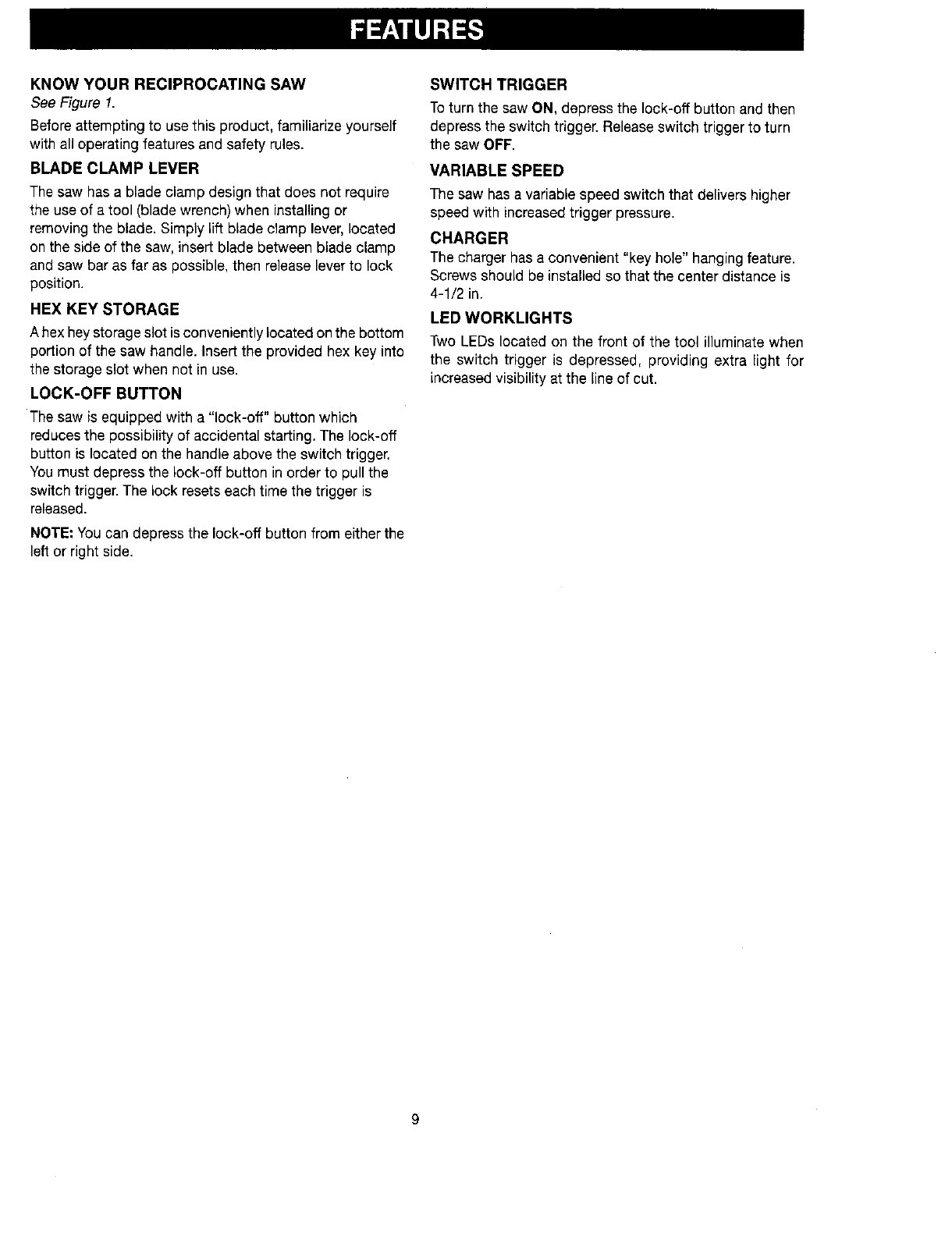

KNOW YOUR RECIPROCATING SAW
See Figure 1.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
BLADE CLAMP LEVER
The saw has a blade clamp design that does not require
the use of a tool (blade wrench) when installing or
removing the blade. Simply lift blade clamp lever, located
on the side of the saw, insert blade between blade clamp
and saw bar as far as possible, then release lever to lock
position.
HEX KEY STORAGE
A hex hey storage slot is conveniently located on the bottom
portion of the saw handle. Insert the provided hex key into
the storage slot when not in use.
LOCK-OFF BUTTON
The saw is equipped with a "lock-off" button which
reduces the possibility of accidental starting. The lock-off
button is located on the handle above the switch trigger.
You must depress the lock-off button in order to pull the
switch trigger. The lock resets each time the trigger is
released.
NOTE: You can depress the lock-off button from either the
left or right side.
SWITCH TRIGGER
To turn the saw ON, depress the lock-offbutton and then
depress the switch trigger. Release switch trigger to turn
the saw OFF.
VARIABLE SPEED
The saw has a variable speed switch that delivers higher
speed with increased trigger pressure.
CHARGER
The chargerhas a convenient"key hole"hanging feature.
Screws should be installed so that the center distance is
4-1/2 in.
LED WORKMGHTS
Two LEDs located on the front of the tool illuminate when
the switch trigger is depressed, providing extra light for
increased visibility at the line of cut.
9

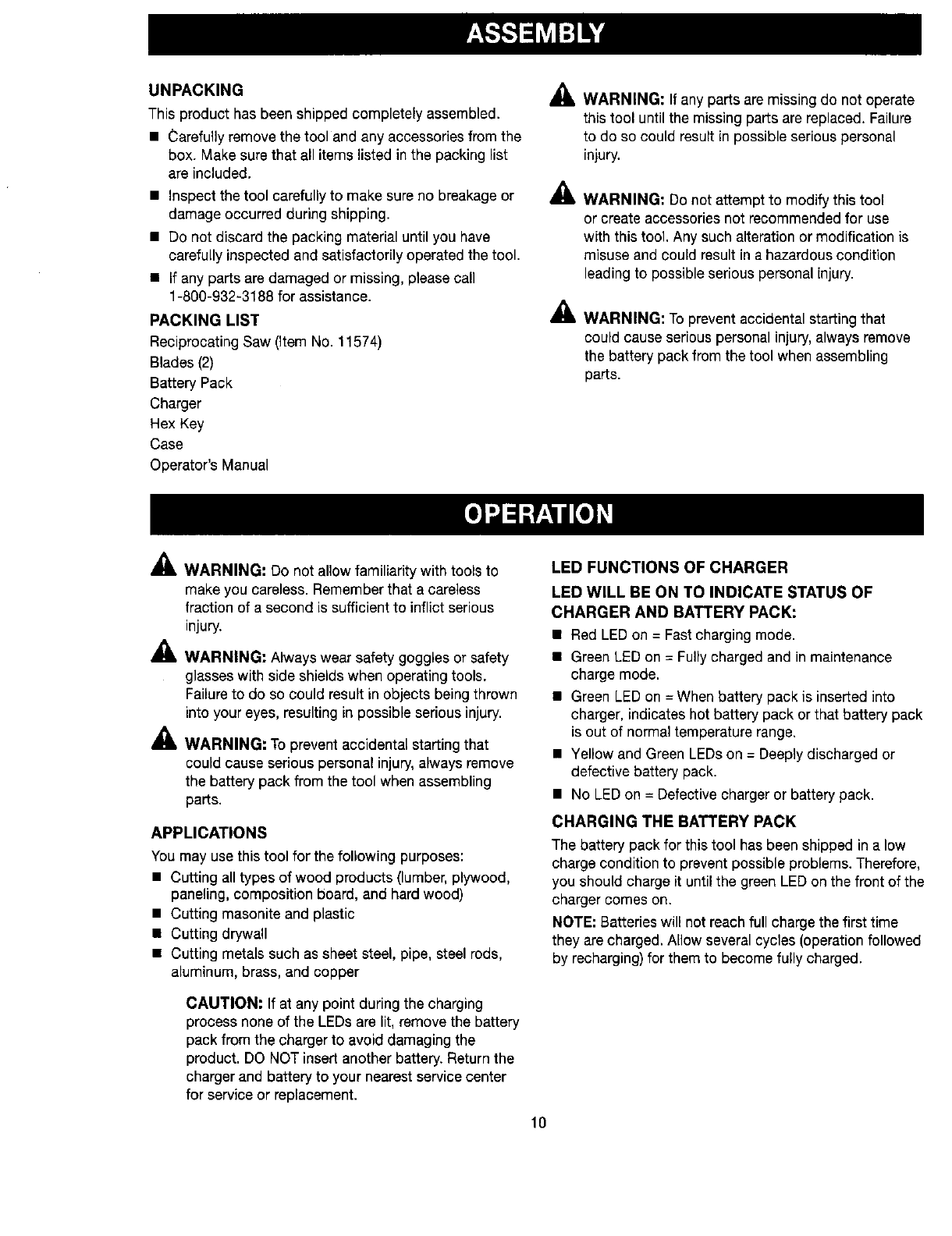

UNPACKING
This product has been shipped completely assembled.
•Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list
are included.
• Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
• Do not discard the packing material until you have
carefully inspected and satisfactorily operated the tool.
• If any parts are damaged or missing, please call
1-800-932-3188 for assistance.
PACKING LIST

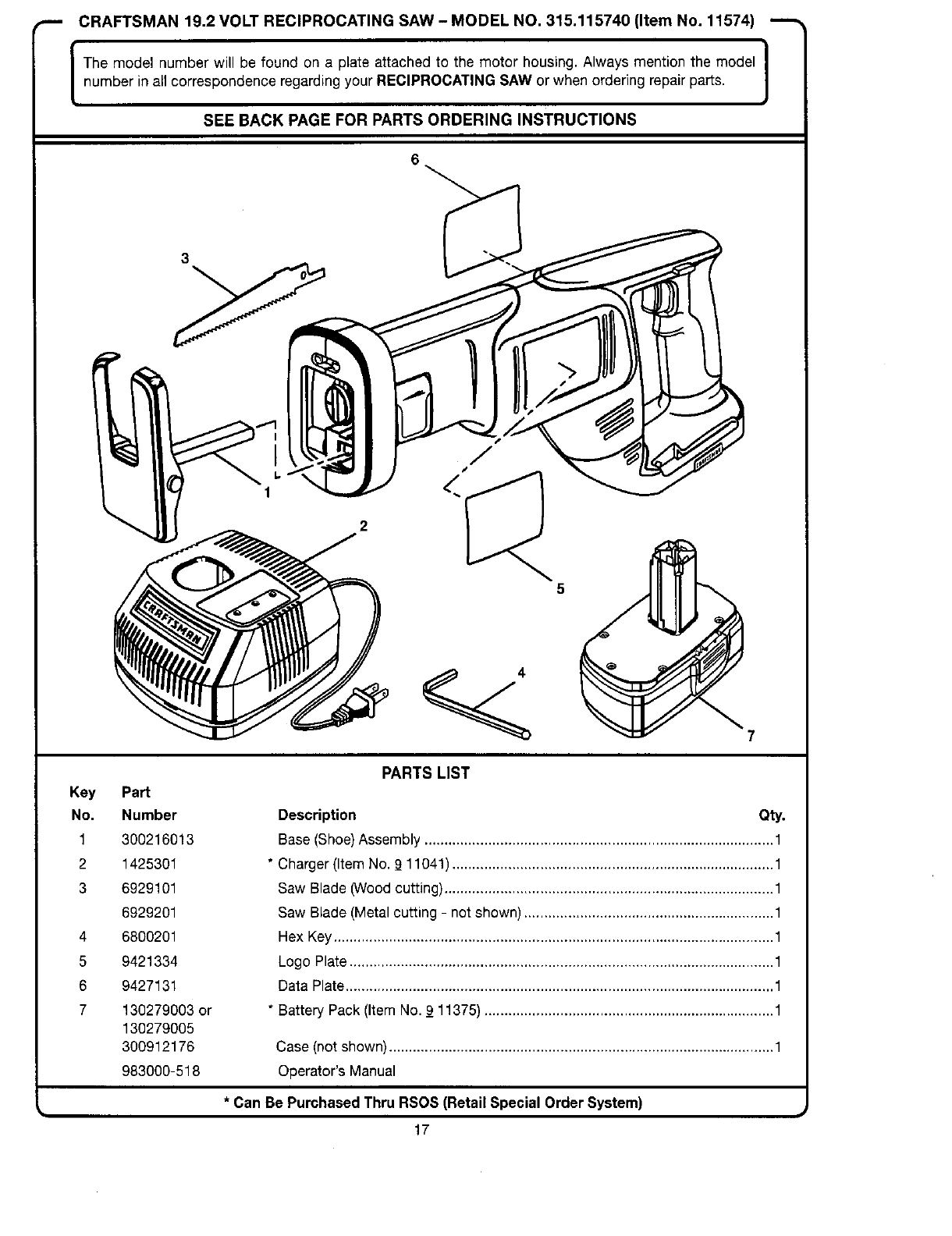

Reciprocating Saw (Item No. 11574)
Blades (2)
Battery Pack
Charger
Hex Key
Case
Operator's Manual
_, WARNING: If any parts are missing do not operate
this tool until the missing parts are replaced. Failure
to do so could result in possible serious personal
injury.
AWARNING: Do not attempt to modify this tool
or create accessories not recommended for use
with this tool. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
_IL WARNING: To prevent accidental starting that
could cause serious personal injury, always remove
the battery pack from the tool when assembling
parts.
_, WARNING: Do not allow familiarity with tools to
make you careless. Remember that a careless
fraction of a second is sufficient to inflict serious
injury.
_1= WARNING: Always wear safety goggles or safety
glasses with side shields when operating tools.
Failure to do so could result in objects being thrown
into your eyes, resulting in possible serious injury.
_, WARNING: To prevent accidental starting that
could cause serious personal injury, always remove
the battery pack from the tool when assembling
parts.
APPLICATIONS
You may use this tool for the following purposes:
• Cutting all types of wood products (lumber, plywood,
paneling, composition board, and hard wood)
• Cutting masonite and plastic
•Cutting drywall
• Cutting metals such as sheet steel, pipe, steel rods,
aluminum, brass, and copper
CAUTION: If at any point during the charging
process none of the LEDs are lit, remove the battery
pack from the charger to avoid damaging the
product. DO NOT insert another battery. Return the
charger and battery to your nearest service center
for service or replacement.

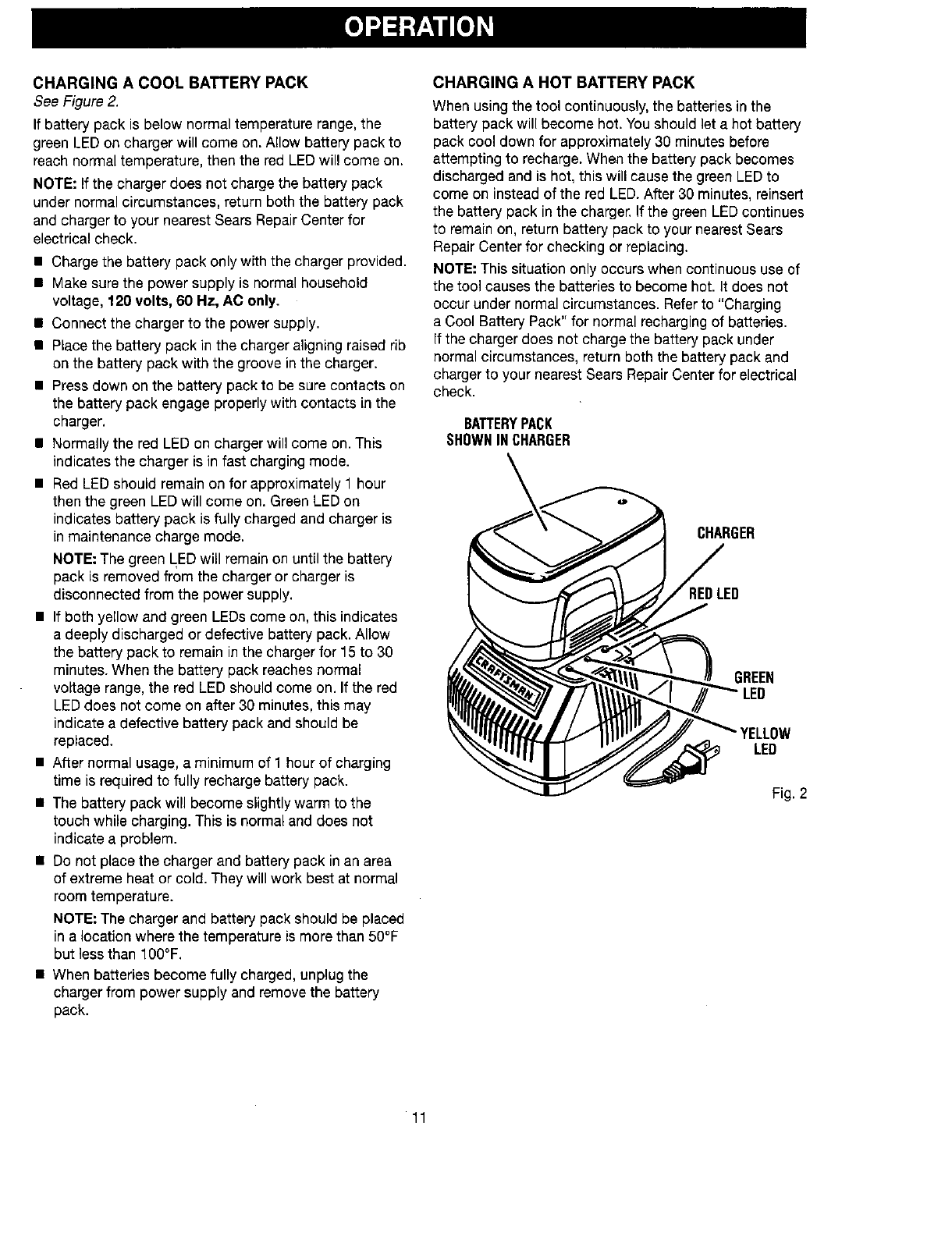

LED FUNCTIONS OF CHARGER
LED WILL BE ON TO INDICATE STATUS OF
CHARGER AND BATTERY PACK:
• Red LED on = Fast charging mode.
• Green LED on = Fully charged and in maintenance
charge mode.
• Green LED on = When battery pack is inserted into
charger, indicates hot battery pack or that battery pack
is out of normal temperature range.
• Yellow and Green LEDs on =Deeply discharged or
defective battery pack.
• No LED on = Defective charger or battery pack.
CHARGING THE BATTERY PACK
The battery pack for this tool has been shipped in a low
charge condition to prevent possible problems. Therefore,
you should charge it until the green LEDon the front of the
charger comes on.
NOTE: Batteries will not reach full charge the first time
they are charged. Allow several cycles (operation followed
by recharging) for them to become fully charged.
10
CHARGING A COOL BATTERY PACK
See Figure2,
If battery pack is below normaltemperaturerange,the
green LEDon chargerwill come on. Allowbatterypack to
reachnormaltemperature,then the red LEDwill come on.
NOTE: If the charger does net charge the battery pack
under normal circumstances, return both the battery pack
and charger to your nearest Sears Repair Center for
electrical check.
• Charge the battery pack only with the charger provided.
• Make sure the power supply is normal household
voltage, 120 volts, 60 Hz, AC only.
• Connect the charger to the power supply.
• Place the battery pack in the charger aligning raised rib
on the battery pack with the groove in the charger.
• Press down on the battery pack to be sure contacts on
the battery pack engage properly with contacts in the
charger.
• Normally the red LED on charger will come on. This
indicates the charger is in fast charging mode.
• Red LED should remain on for approximately 1 hour
then the green LED will come on. Green LED on
indicates battery pack is fully charged and charger is
in maintenance charge mode.
NOTE: The green LED will remain on until the battery
pack is removed from the charger or charger is
disconnected from the power supply.
• If both yellow and green LEDs come on, this indicates
a deeply discharged or defective battery pack. Allow
the battery pack to remain in the charger for 15 to 30
minutes. When the battery pack reaches normal
voltage range, the red LED should come on. If the red
LED does not come on after 30 minutes, this may
indicate a defective battery pack and should be
replaced.
• After normal usage, a minimum of 1 hour of charging
time is required to fully recharge battery pack.
• The battery pack will become slightly warm to the
touch while charging. This is normal and does not
indicate a problem.
• Do not place the charger and battery pack in an area
of extreme heat or cold. They will work best at normal
room temperature.
NOTE: The charger and battery pack should be placed
in a location where the temperature is more than 50°F
but less than 100°F.
• When batteries become fully charged, unplug the
charger from power supply and remove the battery
pack.
CHARGING A HOT BATTERY PACK
When using the tool continuously, the batteries in the
battery pack will become hot. You should let a hot battery
pack cool down for approximately 30 minutes before
attempting to recharge. When the battery pack becomes
discharged and is hot, this will cause the green LED to
come on instead of the red LED. After 30 minutes, reinsert
the battery pack in the charger. If the green LEDcontinues
to remain on, return battery pack to your nearest Sears
Repair Center for checking or replacing.
NOTE; This situation only occurs when continuous use of
the tool causes the batteries to become hot. It does not
occur under normal circumstances. Refer to "Charging
a Cool Battery Pack" for normal recharging of batteries.
If the charger does not charge the battery pack under
normal circumstances, return both the battery pack and
charger to your nearest Sears Repair Center for electrical
check.
BATTERYPACK
SHOWNINCHARGER
CHARGER
GREEN
LED
Fig. 2
11

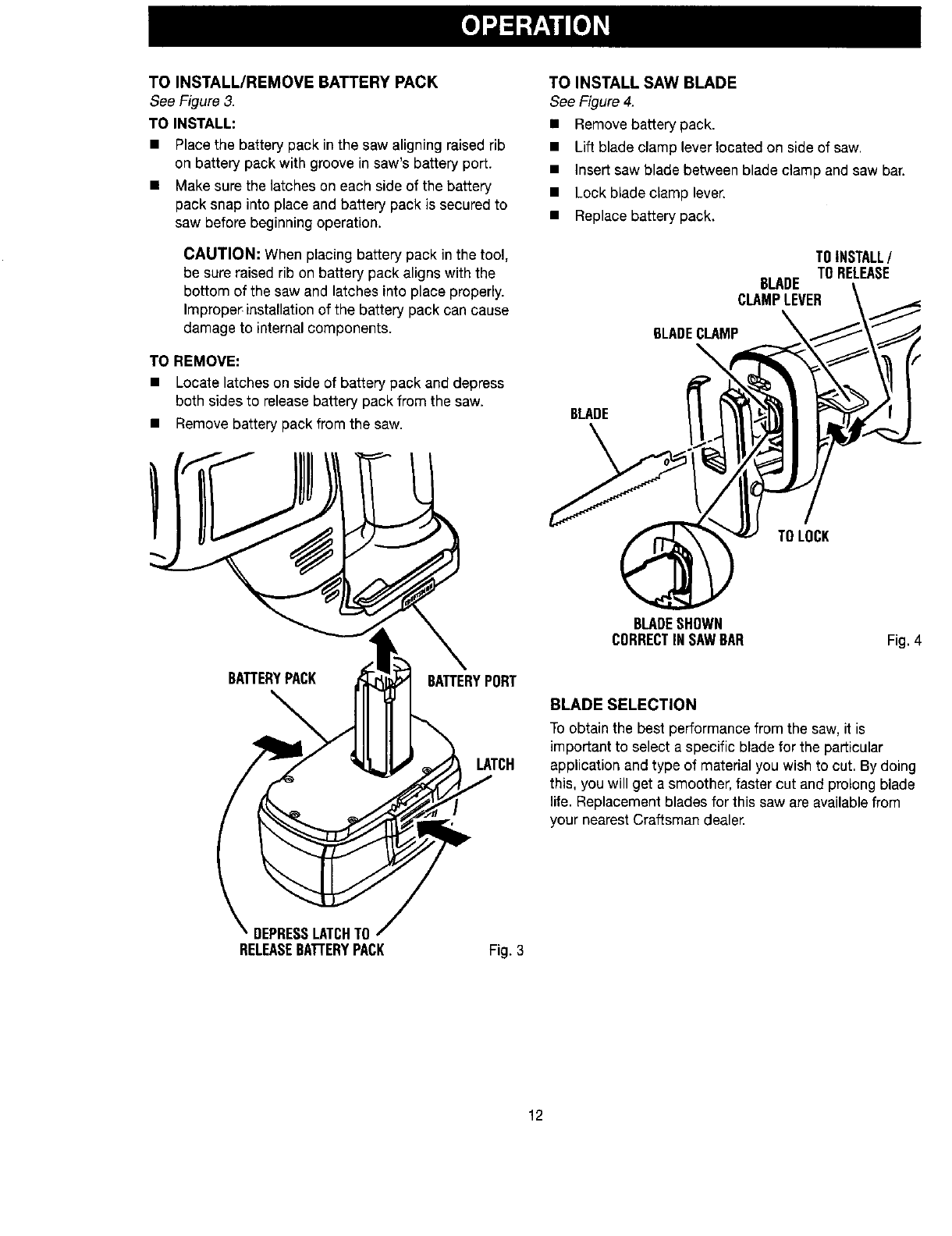

TO INSTALL/REMOVE BATTERY PACK
See Figure 3.
TO INSTALL:
• Place the battery pack inthe saw aligning raised rib
on battery pack with groove in saw's battery port.
• Make sure the latches on each side of the battery
pack snap into place and battery pack is secured to
saw before beginning operation,
CAUTION: When placing battery pack in the tool,
be sure raised rib on battery pack aligns with the
bottom of the saw and latches into place properly.
Improper installation of the battery pack can cause
damage to internal components,
TO REMOVE:
• Locate latches on side of battery pack and depress
both sides to release battery pack from the saw,
• Remove battery pack from the saw.
TO INSTALL SAW BLADE
See Figure4.
•Removebattery pack.
•Liftblade clamp lever locatedon side of saw.
• Insert saw blade between blade clamp and saw bar.
• Lock bladeclamp lever,
• Replace battery pack,
TOINSTALL/
TORELEASE
BLADE
CLAMPLEVER
BLADECLAMP
BLADE
TOLOCK
BATTERYPACK BATTERYPORT
LATCH
BLADESHOWN
CORRECTINSAWBAR Fig. 4
BLADE SELECTION
Toobtainthe best performance from the saw, it is
important to select aspecific blade for the particular
applicationand type of material you wishto cut. By doing
this, you will get a smoother, faster cut and prolong blade
life. Replacement blades for thissaw are available from
your nearestCraftsman dealer.
RELEASEBA'n'ERYPACK Fig. 3
12

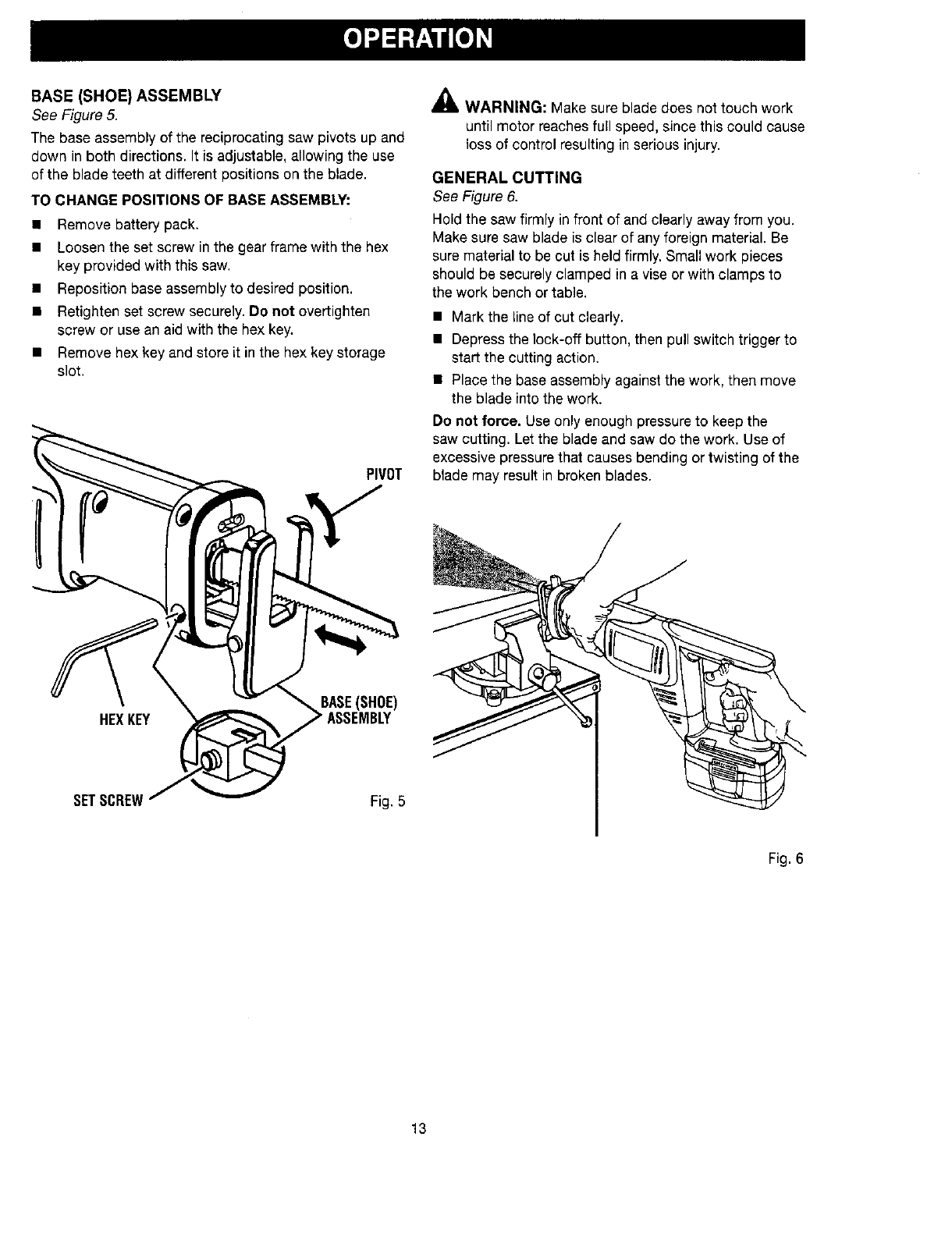

BASE (SHOE) ASSEMBLY
See Figure 5.
The base assembly of the reciprocating saw pivots up and
down in both directions. It is adjustable, allowing the use
of the blade teeth at different positions on the blade.
TO CHANGE POSITIONS OF BASEASSEMBLY:
•Remove battery pack.
• Loosen the set screw in the gear frame with the hex
key provided with this saw.
• Reposition base assembly to desired position.
• Retighten set screw securely. Do not overtighten
screw or use an aid with the hex key.
• Remove hex key and store it in the hex key storage
slot.
PIVOT
_L WARNING: Make sure blade does not touch work
until motor reaches full speed, since this could cause
loss of control resulting in serious injury.
GENERAL CUTTING
See Figure 6.
Hold the saw firmly in front of and clearly away from you.
Make sure saw blade is clear of any foreign material. Be
sure material to be cut is held firmly. Small work pieces
should be securely clamped in a vise or with clamps to
the work bench or table.
• Mark the line of cut clearly.
• Depress the lock-off button, then pull switch trigger to
start the cutting action.
• Place the base assembly against the work, then move
the blade into the work.
De net force. Use only enough pressure to keep the
saw cutting. Let the blade and saw do the work. Use of
excessive pressure that causes bending or twisting of the
blade may result in broken blades.
HEXKEY BASE(SHOE)
SETSCREW Fig. 5
Fig. 6
13

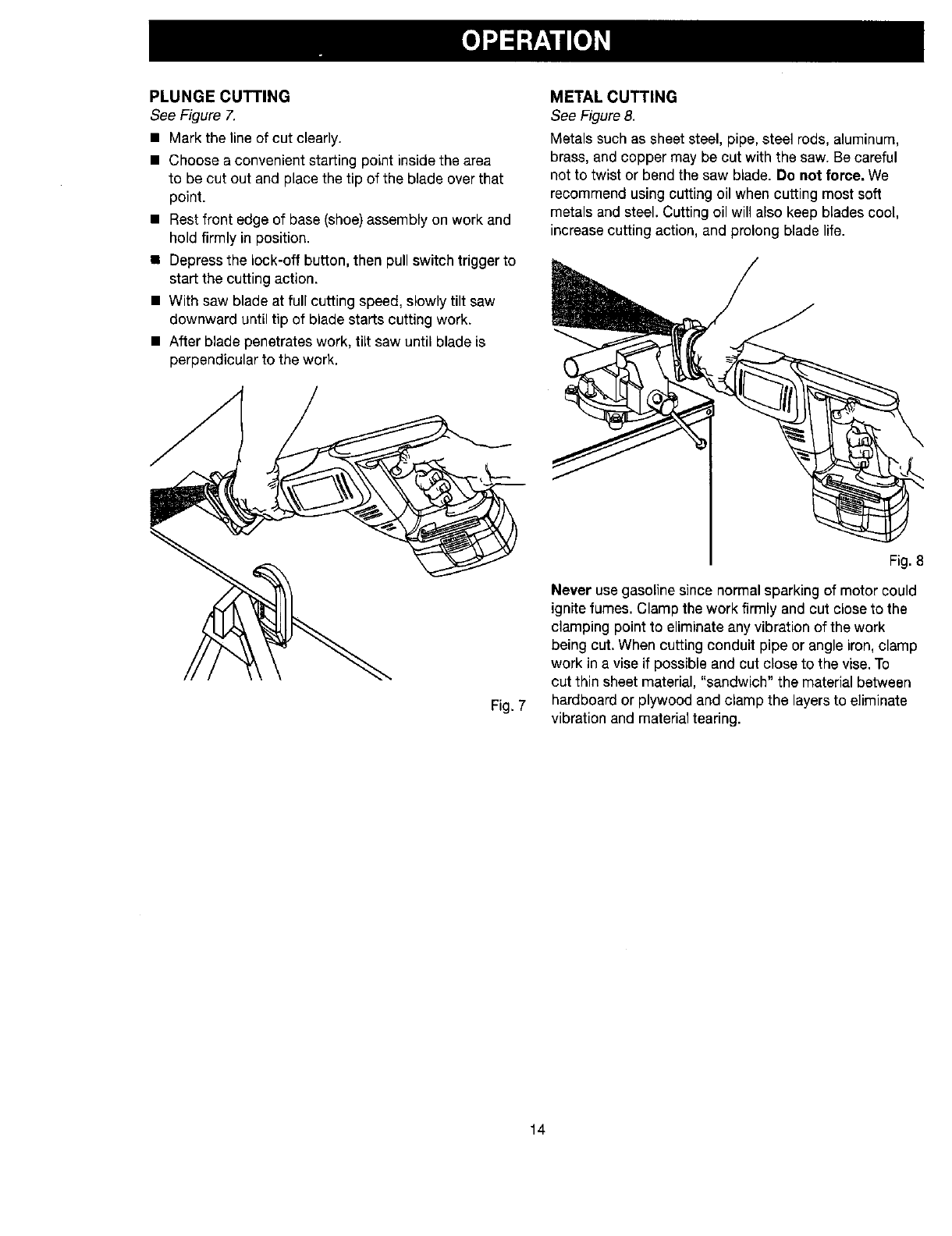

PLUNGE CUTTING
See Figure 7.
•Mark the line of cut clearly.
• Choose a convenientstarting point insidethe area
to be cut out and place the tip of the blade overthat
point.
•Restfront edge of base (shoe)assembly on work and
hold firmly in position.
• Depress the lock-oft button, then pull switchtriggerto
start the cuttingaction.
• With saw blade at full cutting speed, slowly tilt saw
downward until tip of blade starts cutting work.
• After blade penetrates work, tilt saw until blade is
perpendicular to the work.
METAL CUTTING
See Figure 8.
Metals such as sheet steel, pipe, steel rods, aluminum,
brass, and copper may be cut with the saw. Be careful
not to twist or bend the saw blade. Do not force. We
recommend using cutting oil when cutting most soft
metals and steel. Cutting oil will also keep blades cool,
increase cutting action, and prolong blade life.
Fig. 7
Fig. 8
Never use gasoUnesince normal sparking of motor could
ignite fumes. Clamp the work firmly and cut close to the
clamping point to eliminate any vibration of the work
being cut. When cutting conduit pipe or angle iron, clamp
work in a vise if possible and cut close to the vise. To
cut thin sheet material, "sandwich" the material between
hardboard or plywood and clamp the layers to eliminate
vibration and material tearing.
14

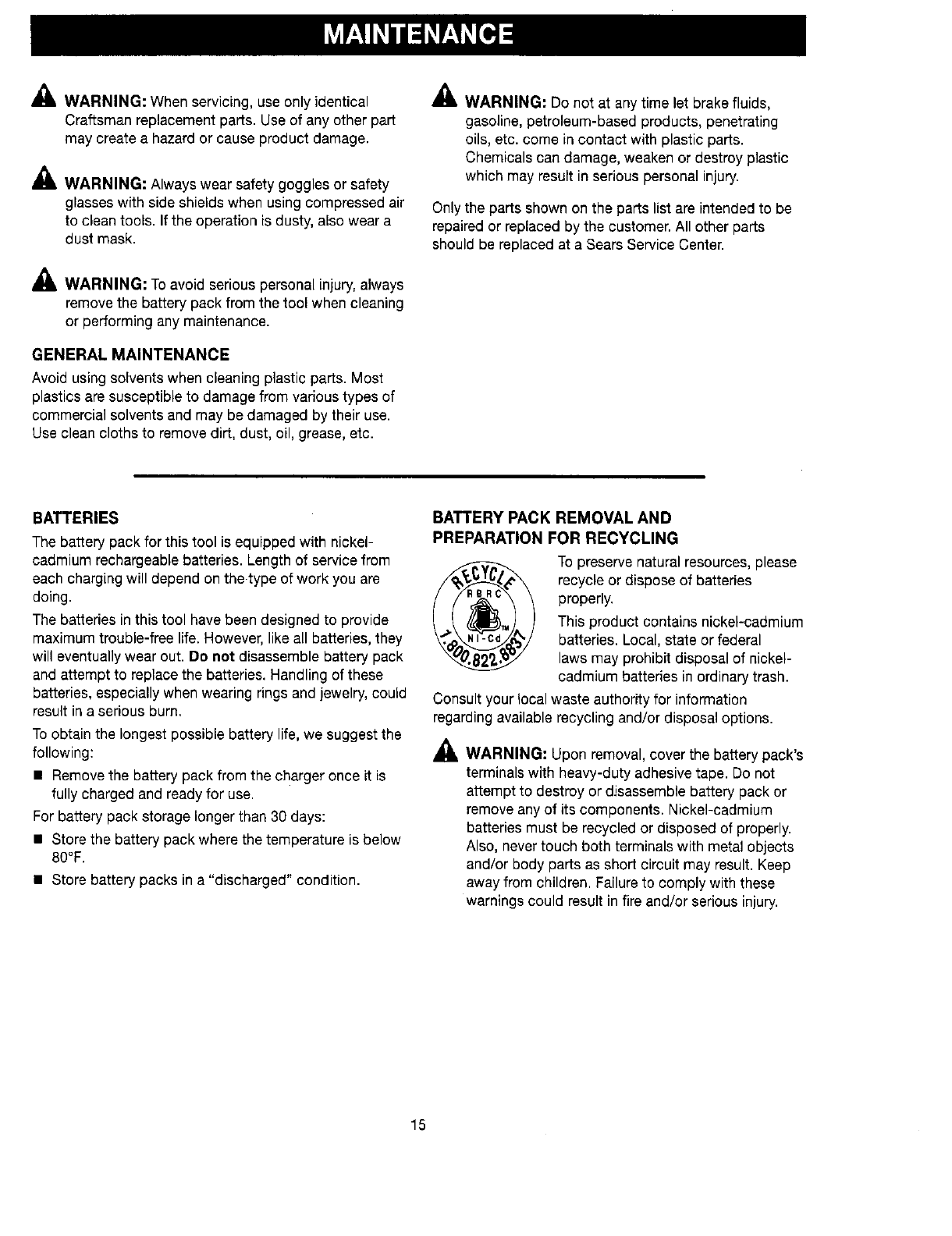

,_ WARNING: When servicing, use only identical
Craftsman replacement parts. Use of any other part
may create a hazard or cause product damage.
_k WARNING: Always wear safety goggles or safety
glasses with side shields when using compressed air
to clean tools. If the operation is dusty, also wear a
dust mask.
WARNING: To avoid serious personal injury, always
remove the battery pack from the tool when cleaning
or performing any maintenance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
_, WARNING: Do not at any time let brake fluids,
gasoline, petroleum-based products, penetrating
oils, etc. come in contact with plastic parts.
Chemicals can damage, weaken or destroy plastic
which may result in serious personal injury.
Only the parts shown on the parts list are intended to be
repaired or replaced by the customer. All other parts
should be replaced at a Sears Service Center.
BATTERIES
The battery pack for this tool is equipped with nickel-
cadmium rechargeable batteries. Length of service from
each charging will depend on the-type of work you are
doing.
The batteries in this tool have been designed to provide
maximum trouble-free life. However, like all batteries, they
will eventually wear out. De not disassemble battery pack
and attempt to replace the batteries. Handling of these
batteries, especially when wearing rings and jewelry,could
result in a serious burn.
To obtain the longest possible battery life, we suggest the
following:
•Remove the battery pack from the charger once it is
fully charged and ready for use.
For battery pack storage longer than 30 days:
• Store the battery pack where the temperature is below
80°F.
• Store battery packs ina "discharged" condition.
BATTERY PACK REMOVAL AND
PREPARATION FOR RECYCLING
To preserve natural resources, please
recycle or dispose of batteries
properly.
This product contains nickel-cadmium
batteries. Local, state or federal
laws may prohibit disposal of nickel-
cadmium batteries in ordinary trash.
Consult your local waste authority for information
regarding available recycling and/or disposal options.
_1= WARNING: Upon removal, cover the battery pack's
terminals with heavy-duty adhesive tape. Do not
attempt to destroy or disassemble battery pack or
remove any of its components. Nickel-cadmium
batteries must be recycled or disposed of properly.
Also, never touch both terminals with metal objects
and/or body parts as short circuit may result. Keep
away from children. Failure to comply with these
warnings could result in fire and/or serious injury.
15

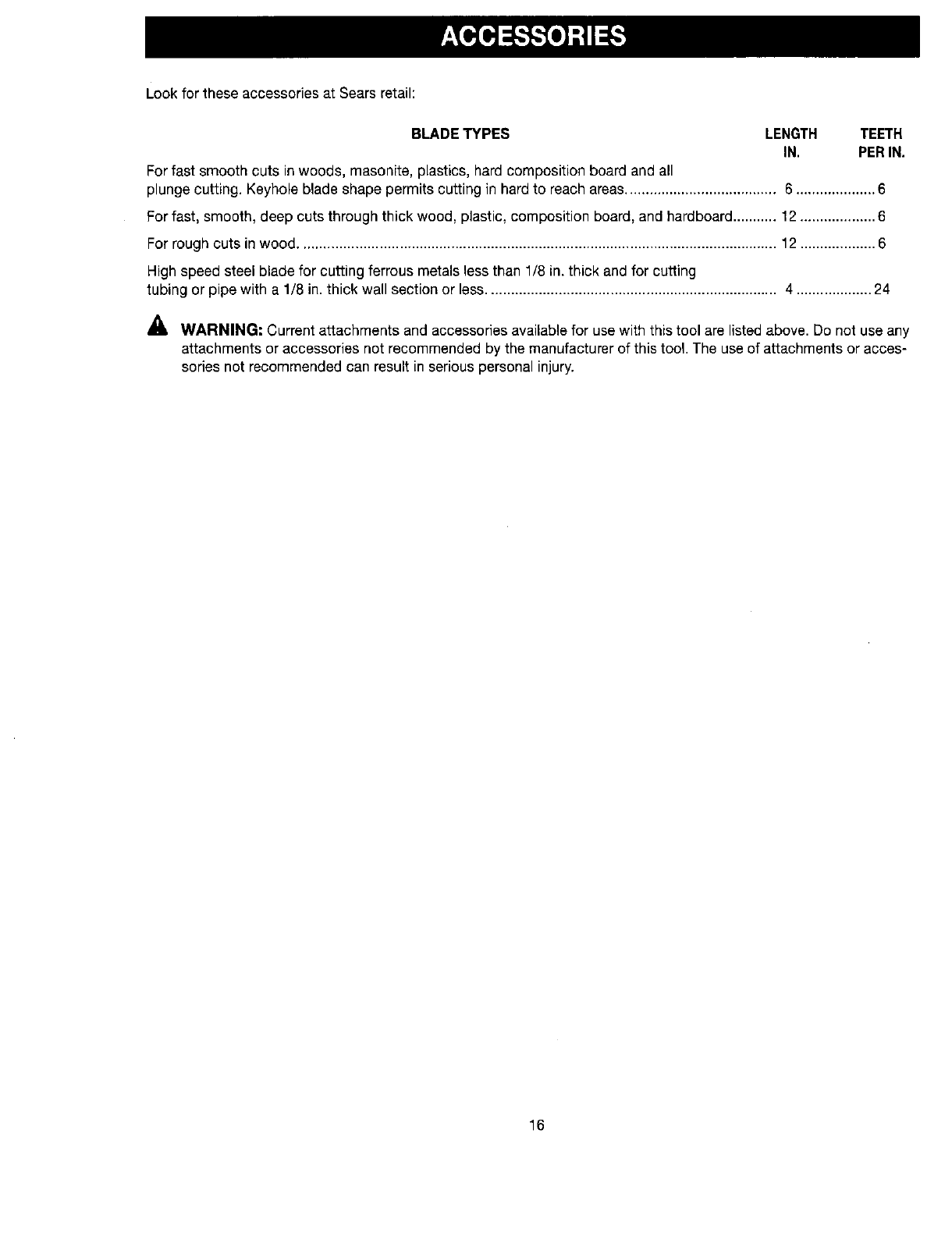

LookfortheseaccessoriesatSearsretail:
BLADE TYPES LENGTH TEETH
IN. PERIN.
For fast smooth cuts in woods, masonite, plastics, hard composition board and all
plunge cutting. Keyhole blade shape permits cutting in hard to reach areas...................................... 6 .................... 6
For fast, smooth, deep cuts through thick wood, plastic, composition board, and hardboard ........... 12 ................... 6
For rough cuts in wood ........................................................................................................................ 12 ................... 6
High speed steel blade for cutting ferrous metals less than 1/8 in. thick and for cutting
tubing or pipe with a 1/8 in. thick wall section or less......................................................................... 4 ................... 24
_1_ WARNING: Current attachments and accessories available for use with this tool are listed above. Do not use any
attachments or accessories not recommended by the manufacturer of this tool. The use of attachments or acces-
sories not recommended can result in serious personal injury.
16
CRAFTSMAN 19.2 VOLT RECIPROCATING SAW - MODEL NO. 315.115740 (Item No. 11574) ----
The model number will be found on a plate attached to the motor housing. Always mention the model !
number in all correspondence regarding your RECIPROCATING SAW or when ordering repair parts. J
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
6
Key Pa_
No. Number
1 300216013
2 1425301
3 6929101
6929201
4 6800201
5 9421334
6 9427131
7 130279003 or
130279005
300912176
983000-518
PARTS LIST
Description Qty.
Base (Shoe)Assembly ........................................................................................ 1
* Charger (Item No. 9 11041) ................................................................................. 1
Saw Blade (Wood cutting) ................................................................................... 1
Saw Blade (Metal cutting - not shown) ............................................................... 1
Hex Key ............................................................................................................... 1
Logo Plate ........................................................................................................... 1
Data Plate............................................................................................................ 1
* Battery Pack (Item No. _911375) ......................................................................... 1
Case (not shown) ................................................................................................. 1
Operator's Manual
* Can Be Purchased Thru RSOS (Retail Special Order System)
17

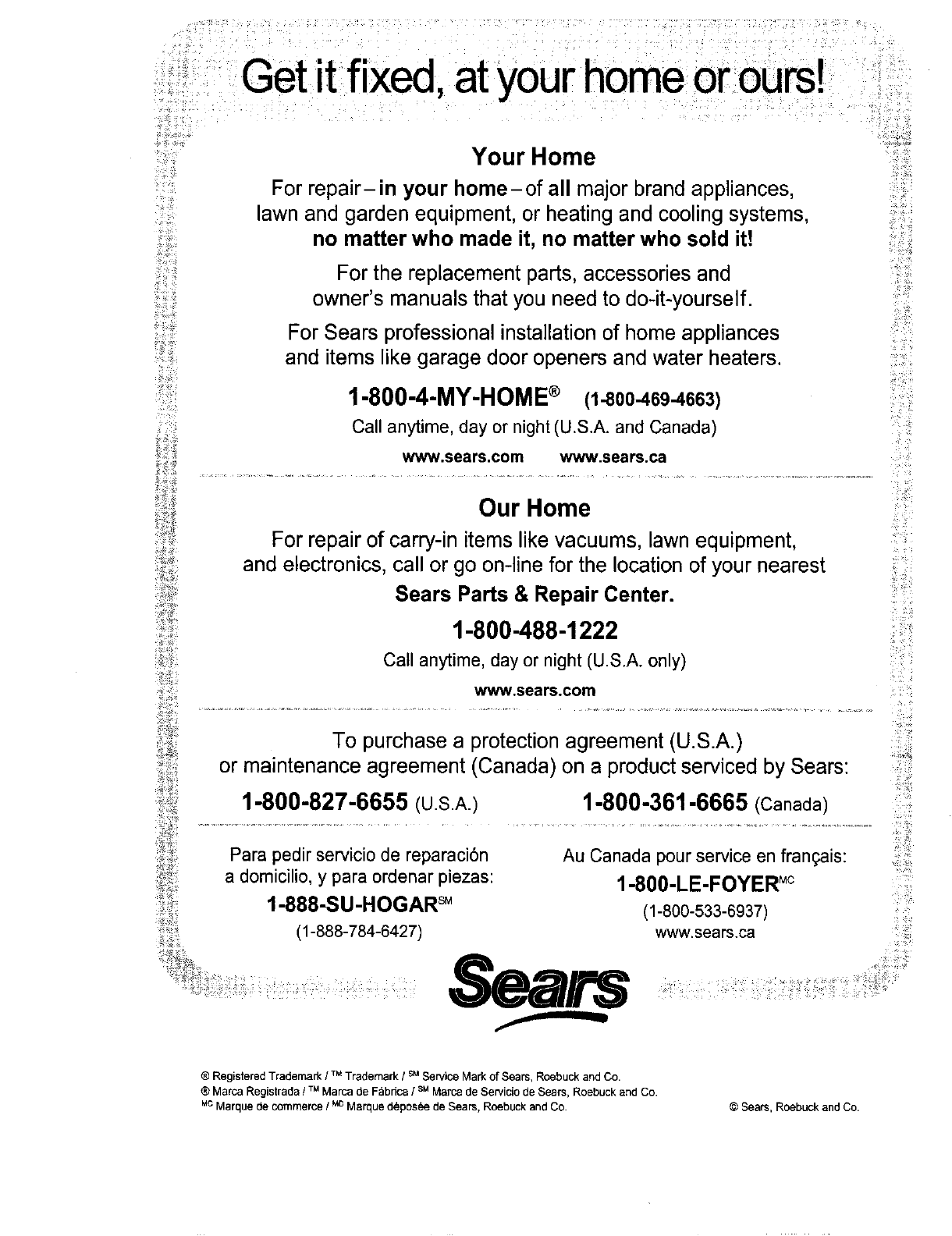

Get it fixed, at yourhomeor ours!
!
_L
Your Home
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1 800 4 MY HOME®(1-800-469-4663)
:=l == =l ==
Call anytime, day or night (U.S.A. and Canada) ,
,_ www.sears.com www.sears,ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (US.A. only)
-_ www.sears.com
To purchase a protection agreement (U.S.A.) _ k¸
or maintenance agreement (Canada) on a product serviced by Sears: _"_;;
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
NP p icio de epa aci6 C p (;ais
_; ara edirserv r r n Au anada ourservice en fran :
a domicilio, y para ordenar piezas: 1 800 LE FOYER Mc
_1-888 SU HOGARSM
../t_Rn__c;,__RQ_7_
(1-888-784-6427) www.sears.ca
4_
TM SM
@RegisteredTrademark /Trademark /Service Mark of Sears, Roebuckand Co.
TM SM
® Marca Registrada /Marca de Fabdca IMarcade Servicio de Sears, Roebuck and Co.
uc Marque de commerce /_D Marque d_posee de Sears, Roebuck and Co. © Sears, Roebuckand Co.

Navigation menu
