Owner's Manual

I:RRFTSMRN°

4 in. DUSTLESS

BELT SANDER

Double Insulated

Model No.

315.117921

Save this manual for

future reference

,AL CAUTION: Read and follow

all Safety Rules and Operating

Instructions before first use of

this product.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

972000-492

11-00

•Table Of Contents .......................................................................................................................................... 2

•Warranty and introduction ...................................................................................................................... 2

• Rules For Safe Operation ........................................................................................................................... 3-5

• Product Specifications, Unpacking, and Accessories .................................................................................... 5

• Features ......................................................................................................................................................... 6

• Adjustments ................................................................................................................................................. 7-9

• Operation ................................................................................................................................................. 10-11

• Maintenance ............................................................................................................................................ 12-15

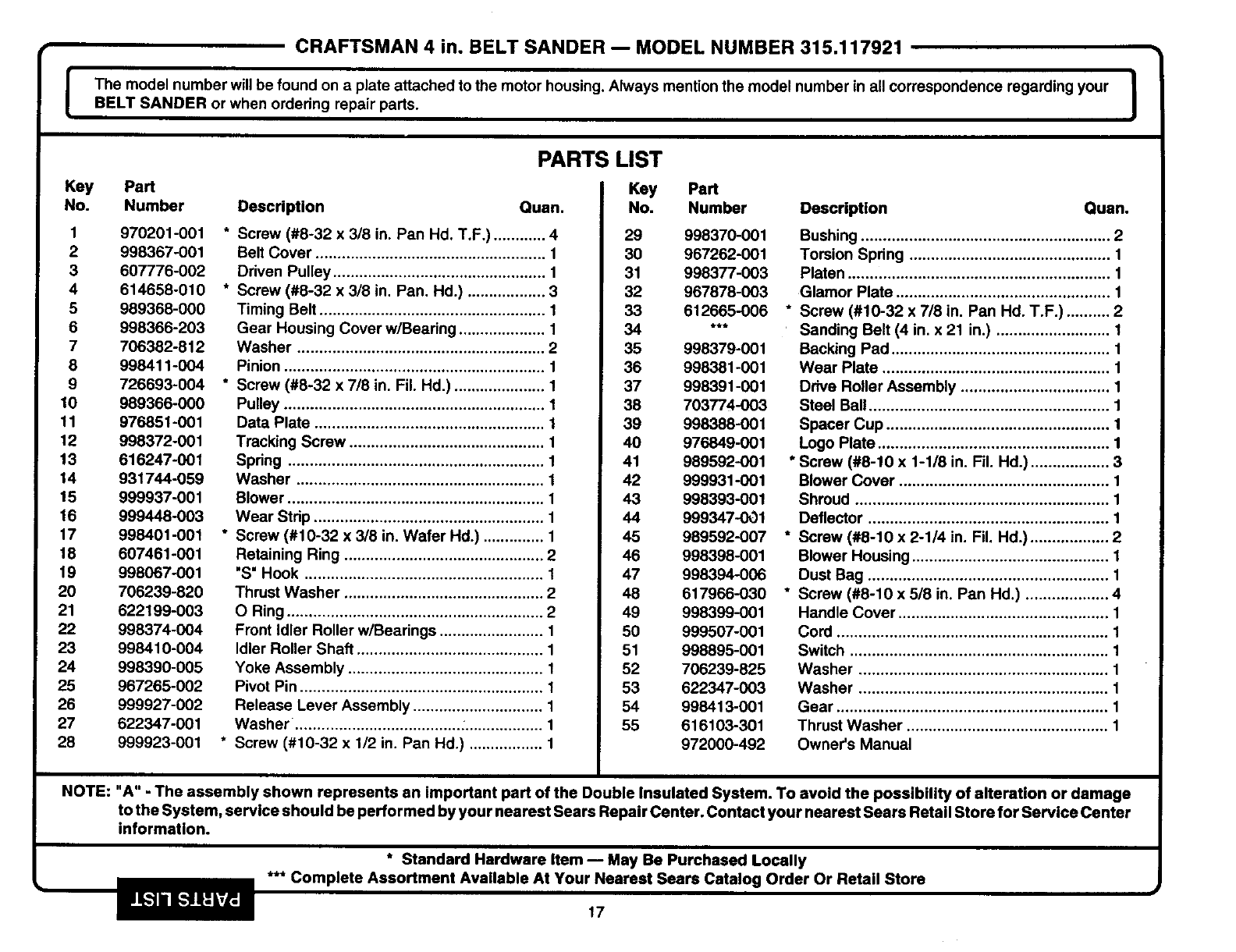

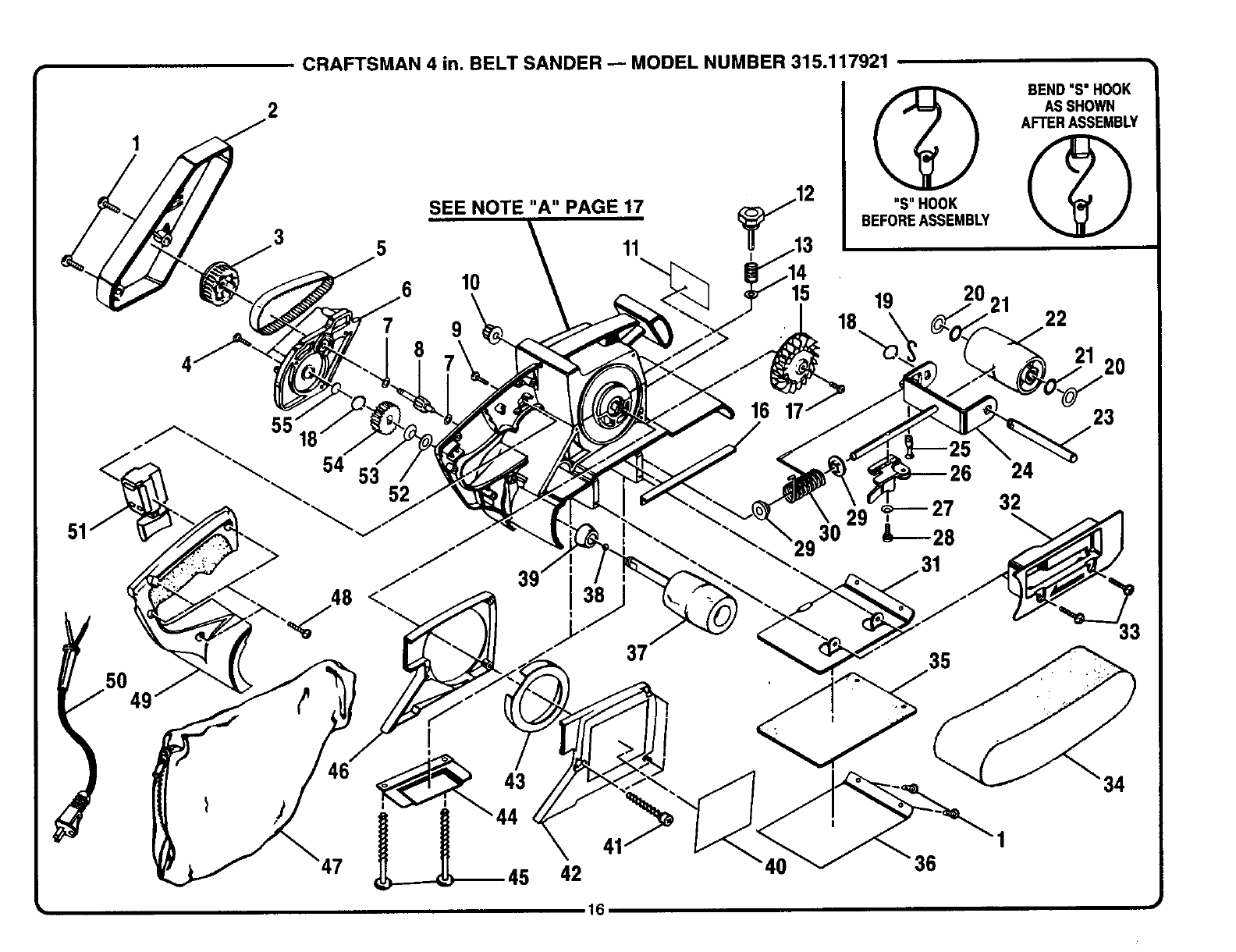

• Exploded View and Repair Parts List ...................................................................................................... 16-17

• Parts Ordering /Service ............................................................................................................................... 18

FULL ONE YEAR WARRANTY ON CRAFTSMAN BELT SANDER

If this rRRFTSMRN Sander fails to give complete satisfaction within one year from the date of purchase, RE-

TURN IT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will repair it, free of charge.

If this Craftsman Sander is used for commercial or rental purposes, this warranty applies for only 90 days from

the date of purchase.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Your belt sander has many features for making

sanding operations more pleasant and enjoyable.

Safety, performance and dependability have been

given top priority in the design of this sander making it

easy to maintain and operate.

_. CAUTION: Carefully read through this entire

owner's manual before using your new belt

sander. Pay close attention' to the Rules For Safe

Operation, Warnings and Cautions. If you use

your belt sander properly and only for what it is

intended, you will enjoy years of safe, reliable

service.

GENERAL

Your Craftsman Belt Sander is suitable for coarse, medium and fine sanding of wood, metals, plastics, and other

materials. It is ideal when used for smoothing rough boards, chamfering, rounding edges and many other

general sanding applications. It is also an excellent tool for removing paint, varnishes, and stains. Its balanced

design makes it easy to use.

,_ Look for this symbol to point out important safety precautions. It means attentionH! Your

safety is involved.

,_WARNING:

The operation of any belt sander can result in foreign objects being thrown into your eyes,

which can result in severe eye damage. Before beginning power tool operation, always wear

safety goggles or safety glasses with side shields and a full face shield when needed. We

recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses

with side shields, available at Sears Retail Stores.

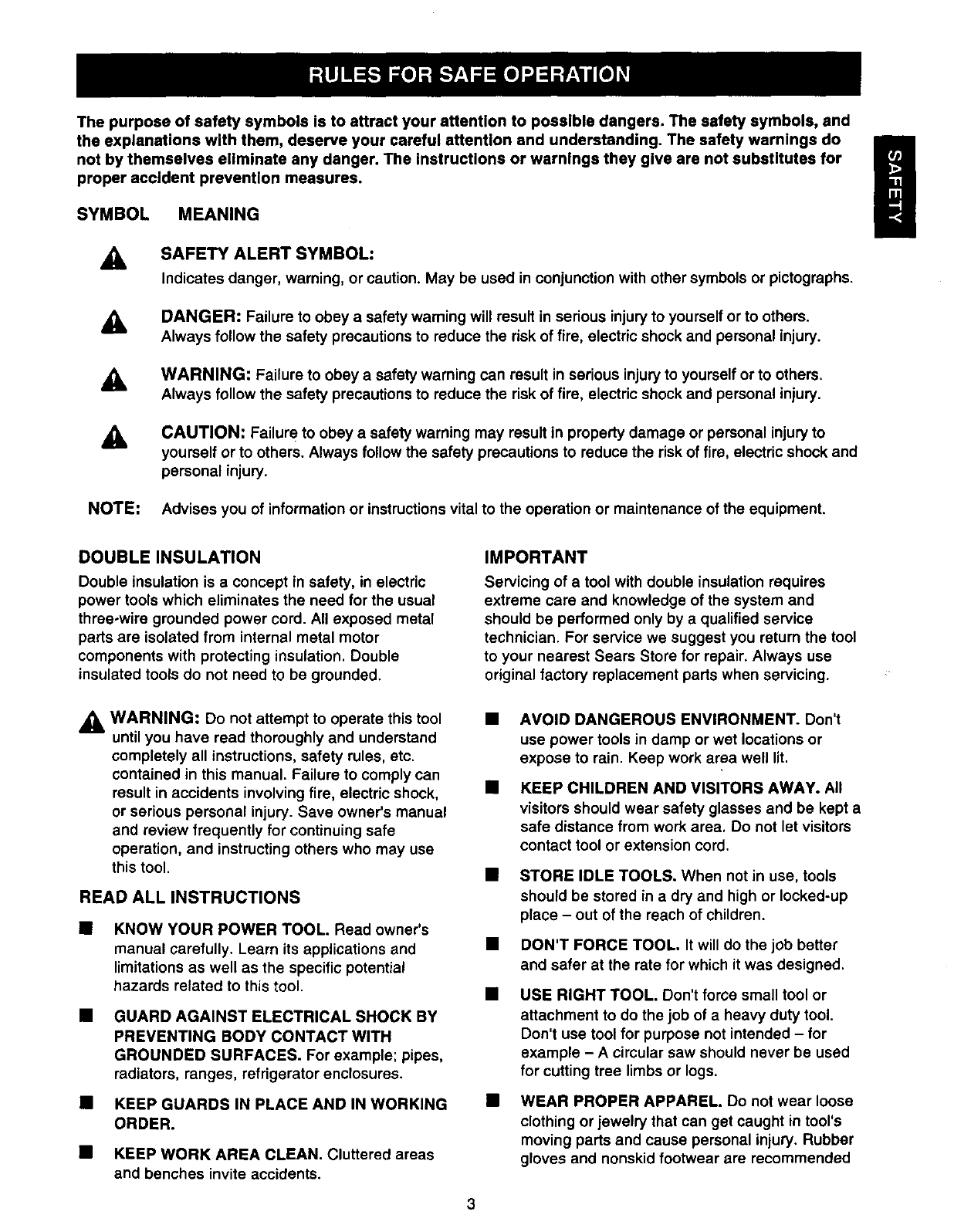

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, end

the explanations with them, deserve your careful attenUon and understanding. The safety warnings do

not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for

proper accident prevention measures.

SYMBOL MEANING

SAFETY ALERTSYMBOL:

_ndicatesdanger_warning_rcauti_n_Maybeusedinc_njuncti_nwith_thersymb_s_rpict_gmphs_

ADANGER: Failure to obey a safety waming will result in serious injury to yourself or to others.

Always follow the safety precautions to reduce the dsk of fire, electric shock and personal injury.

AWARNING: Failure to obey a safety warning can result in serious injury to yourself or to others.

Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

ACAUTION: Failure to obey a safety warning may result in properly damage or personal injury to

yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and

personal injury.

NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment,

DOUBLE INSULATION

Double insulation is a concept in safety, in electric

power tools which eliminates the need for the usual

three-wire grounded power cord. All exposed metal

parts are isolated from internal metal motor

components with protecting insulation. Double

insulated tools do not need to be grounded.

IMPORTANT

Servicing of a tool with double insulation requires

extreme care and knowledge of the system and

should be performed only by a qualified service

technician. For service we suggest you return the tool

to your nearest Sears Store for repair. Always use

original factory replacement parts when servicing.

WARNING: Do not attempt to operate this tool

until you have read thoroughly and understand

completely all instructions, safety rules, etc.

contained in this manual. Failure to comply can

result in accidents involving fire, electric shock,

or serious personal injury. Save owner's manual

and review frequently for continuing safe

operation, and instructing others who may use

this tool.

READ ALL INSTRUCTIONS

KNOW YOUR POWER TOOL. Read owner's

manual carefully. Learn its applications and

limitations as well as the specific potential

hazards related to this tool.

GUARD AGAINST ELECTRICAL SHOCK BY

PREVENTING BODY CONTACT WITH

GROUNDED SURFACES. For example; pipes,

radiators, ranges, refrigerator enclosures.

KEEP GUARDS IN PLACE AND IN WORKING

ORDER.

KEEP WORK AREA CLEAN. Cluttered areas

and benches invite accidents.

AVOID DANGEROUS ENVIRONMENT. Don't

use power tools in damp or wet locations or

expose to rain. Keep work area well lit.

KEEP CHILDREN AND VISITORS AWAY. All

visitors should wear safety glasses and be kept a

safe distance from work area. Do not let visitors

contact tool or extension cord.

STORE IDLE TOOLS. When not in use, tools

should be stored in a dry and high or locked-up

place - out of the reach of children.

DON'T FORCE TOOL. It will do the job better

and safer at the rate for which it was designed.

USE RIGHT TOOL. Don't force small tool or

attachment to do the job of a heavy duty tool.

Don't use tool for purpose not intended - for

example - A circular saw should never be used

for cutting tree limbs or logs.

WEAR PROPER APPAREL. Do not wear loose

clothing or jewelry that can get caught in tool's

moving parts and cause personal injury. Rubber

gloves and nonskid footwear are recommended

RULES FOR SAFE OPERATION (Continued)

when working outdoors. Wear protective hair

covering to contain long hair and keep it from

being drawn into nearby air vents.

ALWAYS WEAR SAFETY GLASSES. Everyday

eyeglasses have only impact-resistant lenses;

they are not safety glasses.

PROTECT YOUR LUNGS. Wear a face or dust

mask if the operation is dusty.

PROTECT YOUR HEARING. Wear hearing

protection during extended periods of operation.

DON'T ABUSE CORD. Never carry tool by cord

or yank it to disconnect from receptacle. Keep

cord from heat, oil, and sharp edges.

•SECURE WORK. Use clamps or a vise to hold

work. It's safer than using your hand and it frees

both hands to operate tool.

•DON'T OVERREACH. Keep proper footing and

balance at all times. Do not use while standing

on a ladder or unstable support. Secure tools

when working at elevated positions.

MAINTAIN TOOLS WITH CARE. Keep tools

sharp and clean for best and safest performance.

Follow instructions for lubricating and changing

accessories.

DISCONNECT TOOLS. When not in use, before

servicing, or when changing or adjusting sanding

belt, attachments, blades, bits, cutters, etc., all

tools should be disconnected from power supply.

REMOVE ADJUSTING KEYS AND

WRENCHES. Form habit of checking to see that

keys and adjusting wrenches are removed from

tool before turning it on.

AVOID ACCIDENTAL STARTING. Don't carry

plugged-in tool with finger on switch. Be sure

switch is off when plugging in.

MAKE SURE YOUR EXTENSION CORD IS IN

GOOD CONDITION. When using an extension

cord, be sure to use one heavy enough to carry

the current your product will draw. An undersized •

cord will cause a drop in line voltage resulting in

loss of power and overheating. A wire gage size

(A.W.G.) of at least 14 is recommended for an •

extension cord 100 feet or less in length. A cord

exceeding 100 feet is not recommended. If in

doubt, use the next heavier gage. The smaller •

the gage number, the heavier the cord.

OUTDOOR USE EXTENSION CORDS. When

tool is used outdoors, use only extension cords

suitable for use outdoors. Outdoor approved

cords are marked with the suffix W-A, for ex-

ample -SJ'FW-A or SJOW-A.

NEVER USE THIS OR ANY POWER SANDER

FOR WET SANDING. Failure to comply can

result in electrical shock causing serious injury or

worse,

KEEP HANDS AWAY FROM SANDING AREA.

NEVER USE IN AN EXPLOSIVE ATMO-

SPHERE. Normal sparking of the motor could

ignite fumes.

INSPECT TOOL CORDS PERIODICALLY and if

damaged, have repaired at your nearest Sears

Repair Center. Stay constantly aware of cord

location and keep it well away from the sanding

area.

INSPECT EXTENSION CORDS PERIODI-

CALLY and replace if damaged.

KEEP HANDLES DRY, CLEAN, AND FREE

FROM OIL AND GREASE. Always use a clean

cloth when cleaning, Never use brake fluids,

gasoline, petroleum-based products, or any

strong solvents to clean your tool.

STAY ALERT AND EXERCISE CONTROL.

Watch what you are doing and use common

sense. Do not operate tool when you are tired.

Do not rush.

CHECK DAMAGED PARTS. Before further use

of the tool, a guard or other part that is damaged

should be carefully checked to determine that it

will operate properly and perform its intended

function. Check for alignment of moving parts,

binding of moving parts, breakage of parts,

mounting and any other conditions that may

affect its operation. A guard or other part that is

damaged should be properly repaired or re-

placed by an authorized service center.

DO NOT USE TOOL IF SWITCH DOES NOT

TURN IT ON AND OFF. Have defective switches

replaced by an authorized service center.

INSPECT FOR and remove all nails from lumber

before sanding.

DO NOT operate this tool while under the

influence of drugs, alcohol, or any medication.

DO NOT USE THIS SANDER FOR OVERHEAD

SANDING. Overhead sanding could result in

dropping sander or loss of control. These situa-

tions could result in an accident resulting in

possible serious injury.

RULES FOR SAFE OPERATION (Continued)

POLARIZED PLUGS. To reduce the risk of

electric shock, this tool has a polarized plug (one

blade is wider than the other). This plug will fit in

a polarized outlet only one way. If the plug does

not fit fully in the outlet, reverse the plug. If it still

does not fit, contact a qualified electrician to

install the proper outlet. Do not change the plug

in any way.

WHEN SERVICING USE ONLY IDENTICAL

CRAFTSMAN REPLACEMENT PARTS.

SAVE THESE INSTRUCTIONS. Refer to them

frequently and use them to instruct others who

may use this tool, If you loan someone this tool,

loan them these instructions also.

AWARNING: Some dust created by power

sanding, sawing, grinding, drilling, and other

construction activities contains chemicals

known to cause cancer, birth defects or other

reproductive harm. Some examples of these

chemicals are:

•lead from lead-based paints,

•crystalline silica from bricks and cement

and other masonry products, and

•arsenic and chromium from chemically-

treated lumber.

Your risk from these exposures varies,

depending on how often you do this type of

work. To reduce your exposure to these

chemicals: work in a well ventilated area, and

work with approved safety equipment, such as

those dust masks that are specially designed

to filter out microscopic particles.

SAVE THESEINSTRUCTIONS

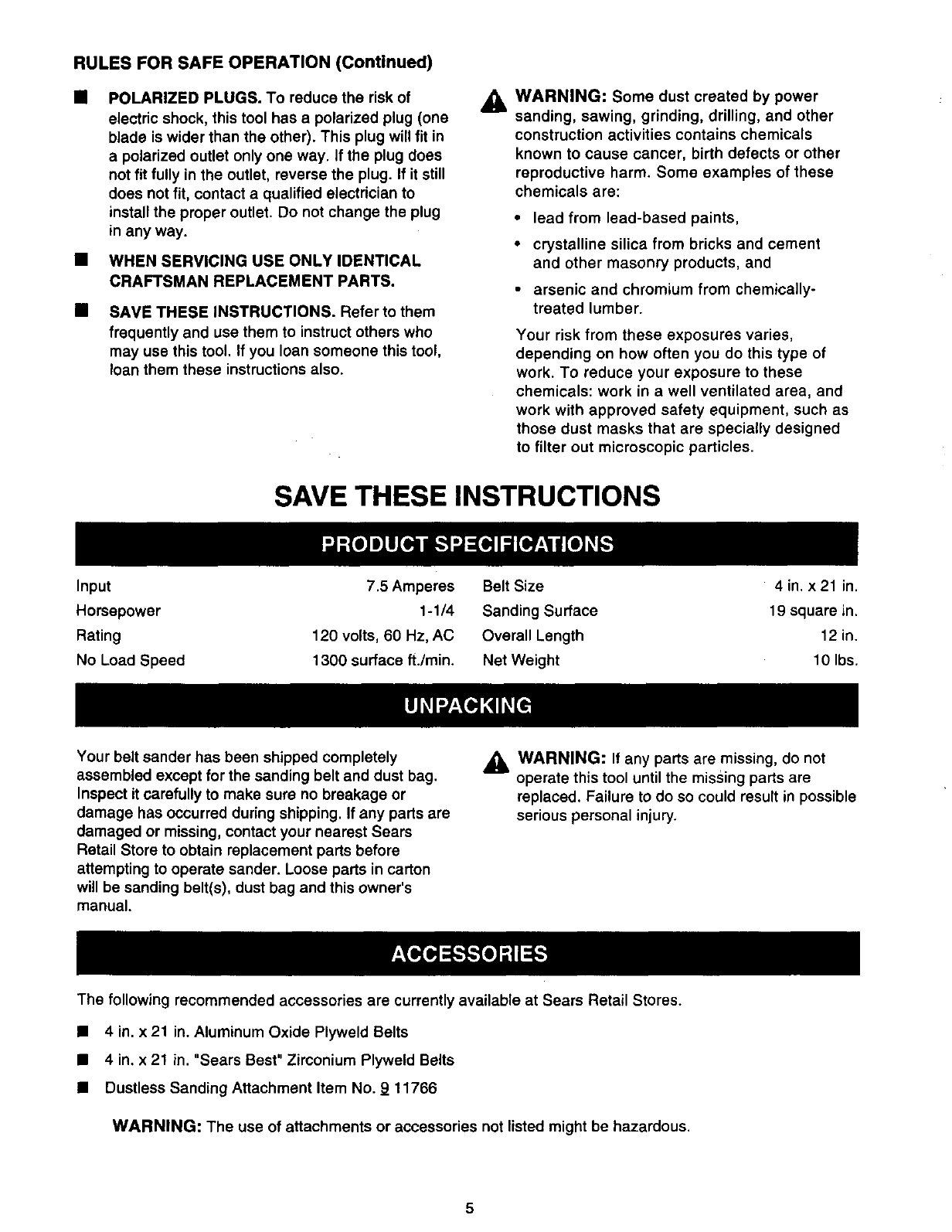

Input 7.5 Amperes

Horsepower 1-1/4

Rating 120 volts, 60 Hz, AC

No Load Speed 1300 surface ft./rain.

Belt Size 4 in. x 21 in.

Sanding Surface 19 square in.

Overall Length 12 in.

Net Weight 10 Ibs.

Your belt sander has been shipped completely

assembled except for the sanding belt and dust bag.

Inspect it carefully to make sure no breakage or

damage has occurred during shipping. If any parts are

damaged or missing, contact your nearest Sears

Retail Store to obtain replacement parts before

attempting to operate sander. Loose parts in carton

will be sanding belt(s), dust bag and this owner's

manual.

WARNING: If any parts are missing, do not

operate this tool until the missing parts are

replaced. Failure to do so could result in possible

serious personal injury.

The following recommended accessories are currently available at Sears Retail Stores.

•4 in. x 21 in. Aluminum Oxide Plyweld Belts

•4 in, x 21 in. "Sears Best" Zirconium Plyweld Belts

•Dustless Sanding Attachment Item No. 9 11766

WARNING: The use of attachments or accessories not listed might be hazardous.

KNOWYOURBELT SANDER

See Figure 1.

Before attempting to use any tool, familiarize yourself

with all operating features and safety requirements.

Features include easily operated lock-on button, and

a dust bag for dustless sanding.

SWITCH

To turn your sander ON, depress the switch trigger.

Release switch trigger to turn your sander OFF.

LOCK- ON Bu'rroN

The switch of your sander is equipped with a lock-on

feature which is convenient when operating for

extended periods of time. To lock-on, depress the

trigger, push in the lock button located on the side of

the handle, then while holding the lock button pushed

in, release the trigger. To release the lock, depress

the trigger and release.

DUST BAG

A dust bag is included with your sander to allow

dustless sanding. Its use will help keep the work area

clean.

POWER CORD

An extra long, 10 ft. power cord that stays soft and

flexible in cold weather has been provided on your

sander. The plug design is shaped so that it won't

snag on your work during use. A molded cord clip on

the plug makes cord storage easier.

FRONT

HANDLE

TRACKING

DUSTBAG

DRIVE

ROLLERASSEMBLY

TENSION

RELEASELEVER

LOCK-ON REAR

Bu'rroN HANDLE FRONT

IDLERROLLER

SANDING

BELT

MOLDED

CORDCLIP

SWITCH

TRIGGER 1Off,

POWERCORD

Fig. 1

,_ WARNING: Do not allow familiarity with your sander to make you careless. Remember that a careless

fraction of asecond is sufficient to inflict severe injury.

,_. WARNING: Your sander should never be

connected to apower supply when you are

assembling parts, changing belts, making adjust-

ments, cleaning, or when not in use. Disconnect-

ing your sander will prevent accidental starting

that could cause serious personal injury.

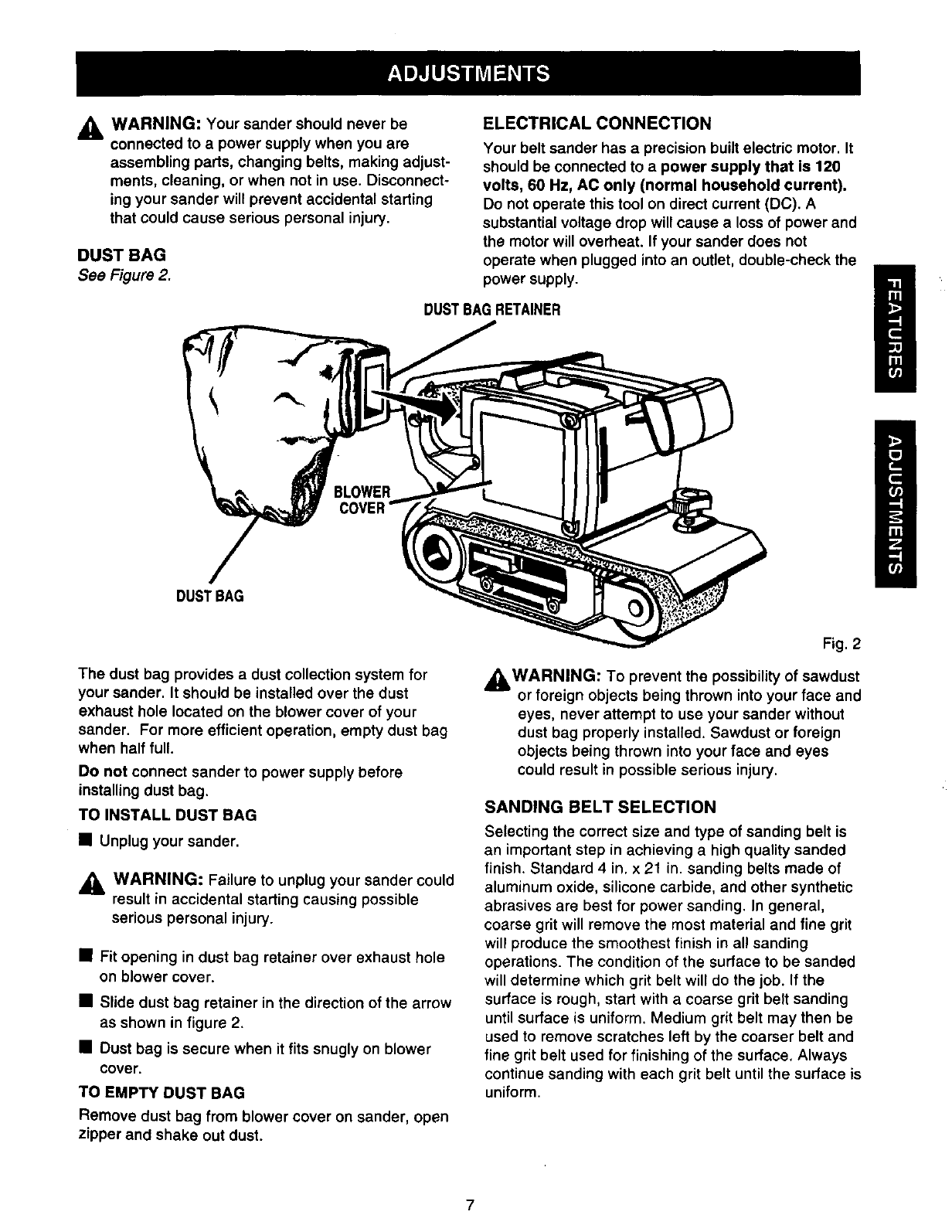

DUST BAG

See Figure2.

ELECTRICAL CONNECTION

Your belt sander has aprecision built electric motor. It

should be connected to a power supply that Is 120

volts, 60 Hz, AC only (normal household current).

Do not operate this tool on direct current (DC). A

substantial voltage drop will cause a loss of power and

the motor will overheat. If your sander does not

operate when plugged into an outlet, double-check the

power supply.

DUSTBAGRETAINER

DUSTBAG

The dust bag provides a dust collection system for

your sander. It should be installed over the dust

exhaust hole located on the blower cover of your

sander. For more efficient operation, empty dust bag

when half full.

Do not connect sander to power supply before

installing dust bag.

TO INSTALL DUST BAG

•Unplug your sander.

,_, WARNING: Failure to unplug your sander could

result in accidental starting causing possible

serious personal injury.

•Fit opening in dust bag retainer over exhaust hole

on blower cover.

• Slide dust bag retainer in the direction of the arrow

as shown in figure 2.

• Dust bag is secure when it fits snugly on blower

cover.

TO EMPTY DUST BAG

Remove dust bag from blower cover on sander, open

zipper and shake out dust.

Fig. 2

,_WARNING: To prevent the possibility of sawdust

or foreign objects being thrown into your face and

eyes, never attempt to use your sander without

dust bag properly installed. Sawdust or foreign

objects being thrown into your face and eyes

could result in possible serious injury.

SANDING BELT SELECTION

Selecting the correct size and type of sanding belt is

an important step in achieving a high quality sanded

finish. Standard 4 in. x 21 in. sanding belts made of

aluminum oxide, silicone carbide, and other synthetic

abrasives are best for power sanding. In general,

coarse grit will remove the most material and fine grit

will produce the smoothest finish in all sanding

operations. The condition of the surface to be sanded

will determine which grit belt will do the job. If the

surface is rough, start with a coarse grit belt sanding

until surface is uniform. Medium grit belt may then be

used to remove scratches left by the coarser belt and

fine grit belt used for finishing of the surface. Always

continue sanding with each grit belt until the surface is

uniform.

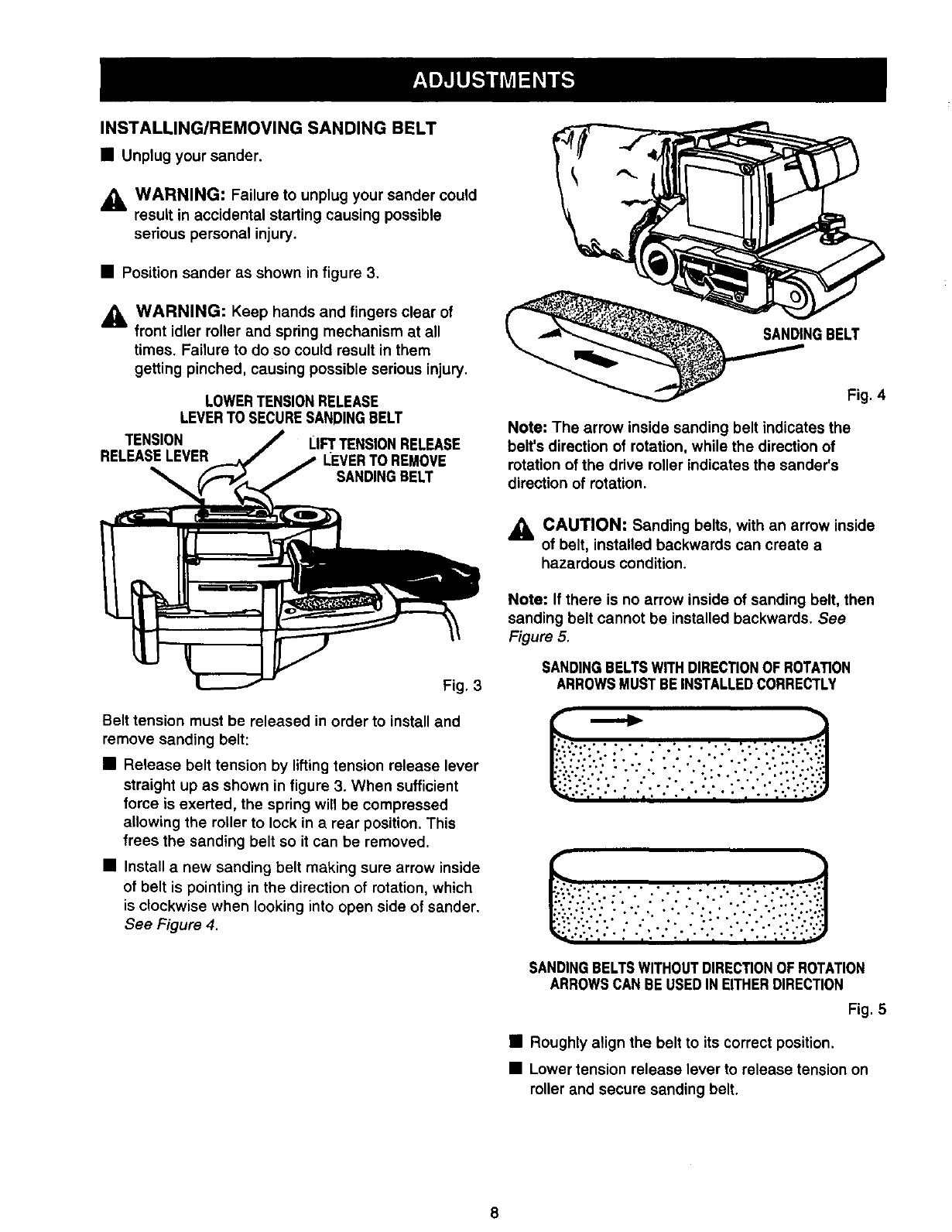

INSTALLING/REMOVING SANDING BELT

• Unplug your sander.

_. WARNING: Failure to unplug your sander could

result in accidental starting causing possible

serious personal injury.

• Position sander as shown in figure 3.

_1= WARNING: Keep hands and fingers clear of

front idler roller and spring mechanism at all

times. Failure to do so could result in them

getting pinched, causing possible serious injury.

LOWERTENSIONRELEASE

LEVERTO SECURESANDINGBELT

TENSION LIFTTENSIONRELEASE

RELEASELEVER LEVERTO REMOVE

SANDINGBELT

Fig. 3

Belt tension must be released in order to install and

remove sanding belt:

• Release belt tension by lifting tension release lever

straight up as shown in figure 3. When sufficient

force is exerted, the spring will be compressed

allowing the roller to lock in a rear position. This

frees the sanding belt so it can be removed.

• Install a new sanding belt making sure arrow inside

of belt is pointing in the direction of rotation, which

is clockwise when looking into open side of sander.

See Figure 4.

SANDINGBELT

Fig. 4

Note: The arrow inside sanding belt indicates the

belt's direction of rotation, while the direction of

rotation of the drive roller indicates the sander's

direction of rotation.

_k CAUTION: Sanding belts, with an arrow inside

of belt, installed backwards can create a

hazardous condition.

Note: If there is no arrow inside of sanding belt, then

sanding belt cannot be installed backwards. See

Figure 5.

SANDINGBELTSWITHDIRECTIONOF ROTATION

ARROWSMUSTBE INSTALLEDCORRECTLY

SANDINGBELTSWITHOUTDIRECTIONOF ROTATION

ARROWSCANBE USEDINEITHERDIRECTION

Fig. 5

•Roughly align the belt to its correct position.

•Lower tension release lever to release tension on

roller and secure sanding belt.

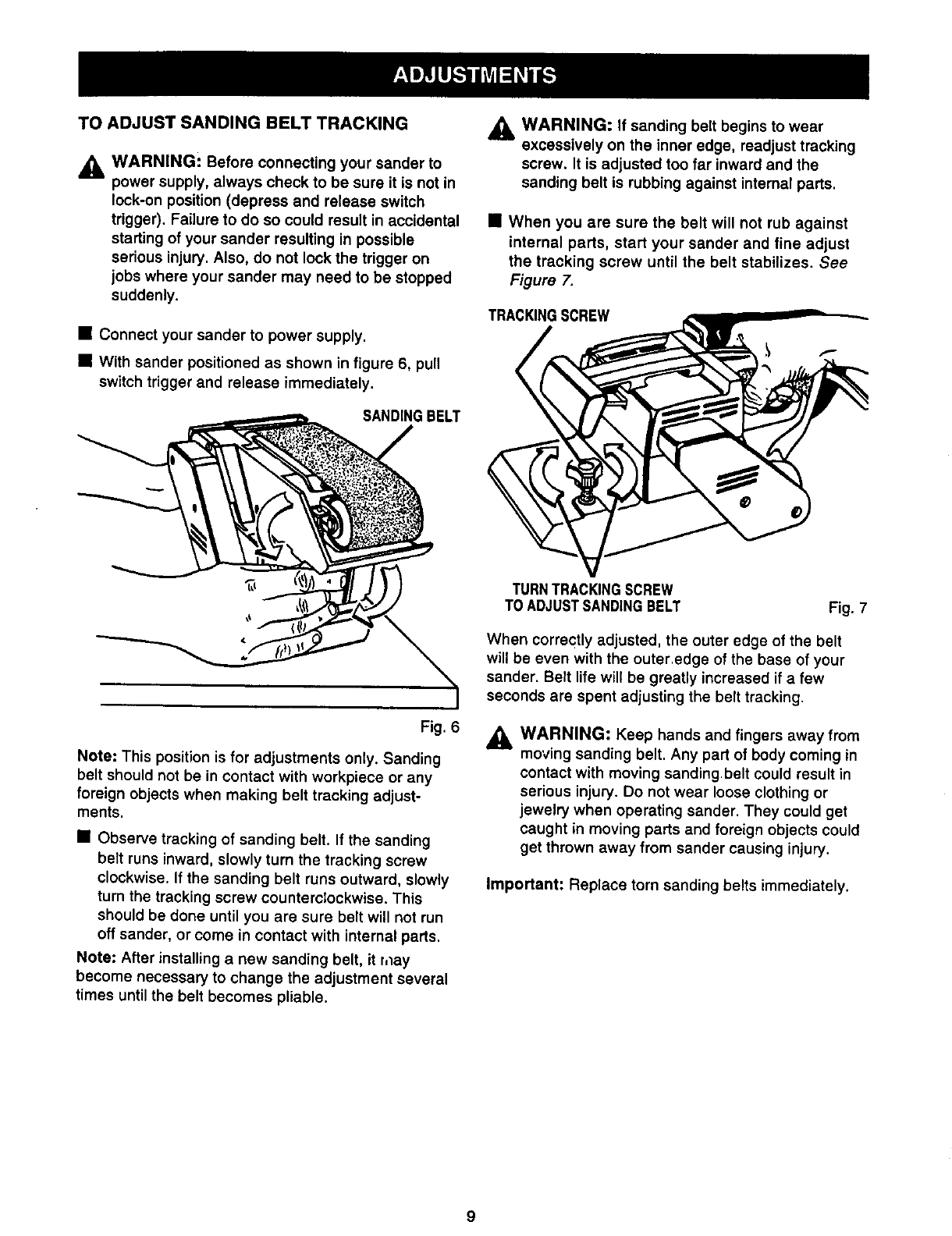

TO ADJUST SANDING BELT TRACKING

_i, WARNING: Before connecting your sander to

power supply, always check to be sure it is not in

lock-on position (depress and release switch

trigger). Failure to do so could result in accidental

starting of your sander resulting in possible

serious injury. Also, do not lock the trigger on

jobs where your sander may need to be stopped

suddenly.

• Connect your sander to power supply.

• With sander positioned as shown in figure 6, pull

switch trigger and release immediately.

SANDINGBELT

Fig. 6

Note: This position is for adjustments only. Sanding

belt should not be in contact with workpiece or any

foreign objects when making belt tracking adjust-

ments.

• Observe tracking of sanding belt. If the sanding

belt runs inward, slowly turn the tracking screw

clockwise. If the sanding belt runs outward, slowly

turn the tracking screw counterclockwise. This

should be done until you are sure belt will not run

off sander, or come in contact with internal pads.

Note: After installing a new sanding belt, it raay

become necessary to change the adjustment several

times until the belt becomes pliable.

_k WARNING: If sanding belt begins to wear

excessively on the inner edge, readjust tracking

screw. It is adjusted too far inward and the

sanding belt is rubbing against internal pads.

•When you are sure the belt will not rub against

internal parts, start your sander and fine adjust

the tracking screw until the belt stabilizes. See

Figure 7.

TRACKINGSCREW

TURNTRACKINGSCREW

TO ADJUSTSANDINGBELT Fig. 7

When correctly adjusted, the outer edge of the belt

will be even with the outer.edge of the base of your

sander. Belt life will be greatly increased if a few

seconds are spent adjusting the belt tracking.

,_, WARNING: Keep hands and fingers away from

moving sanding belt. Any part of body coming in

contact with moving sanding belt could result in

serious injury. Do not wear loose clothing or

jewelry when operating sander. They could get

caught in moving parts and foreign objects could

get thrown away from sander causing injury.

Important: Replace torn sanding belts immediately.

A WARNING: Always wear safety goggles or

safety glasses with side shields when operating

your sander. Failure to do so could result in

objects being thrown into your eyes, resulting in

possible serious injury. If the sanding operation is

dusty, also wear a face or dust mask.

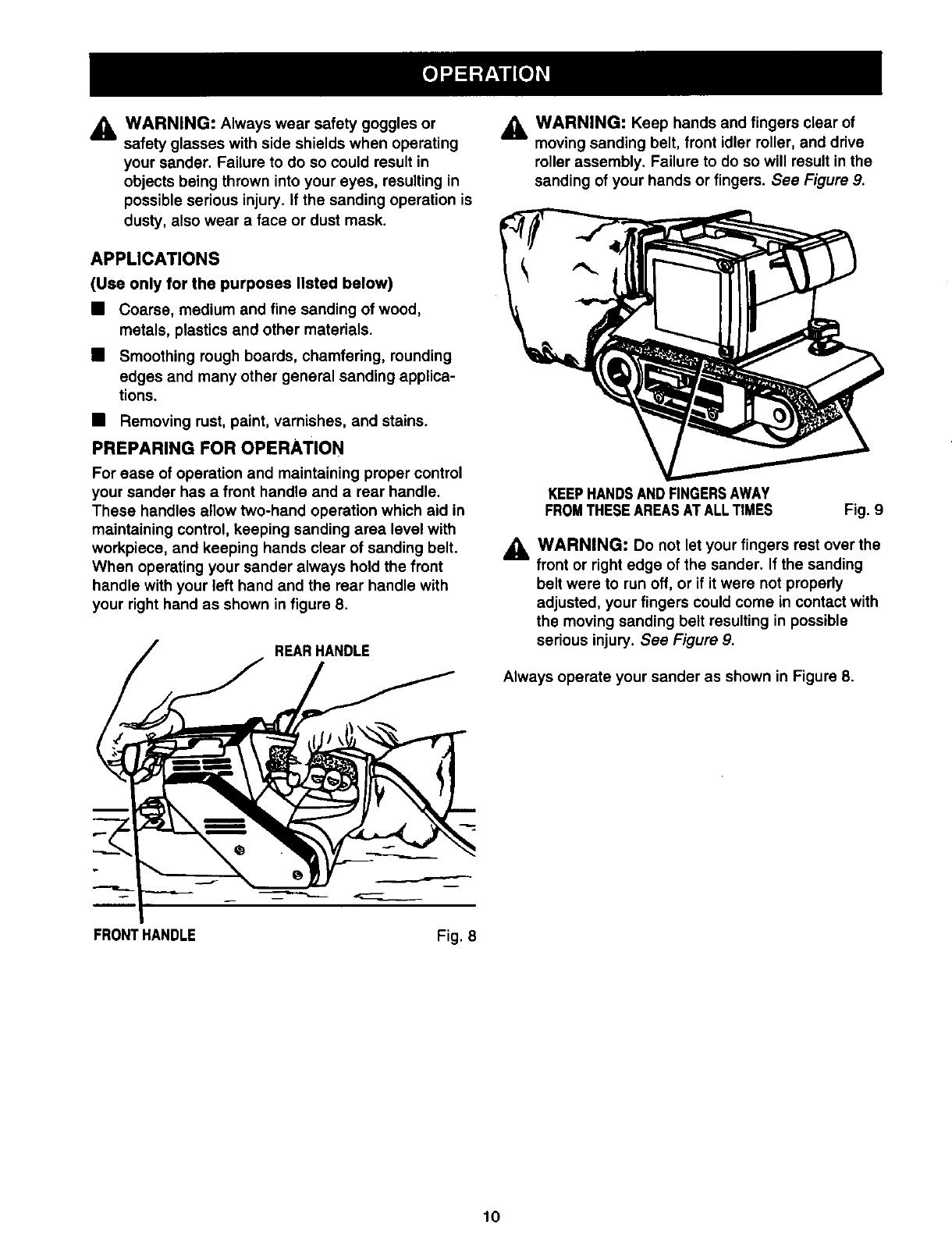

APPLICATIONS

(Use only for the purposes llsted below)

• Coarse, medium and fine sanding of wood,

metals, plastics and other materials.

•Smoothing rough boards, chamfering, rounding

edges and many other general sanding applica-

tions.

•Removingrust,paint,varnishes,and stains.

PREPARING FOR OPERATION

For ease of operation and maintaining proper control

your sander has a front handle and a rear handle.

These handles allow two-hand operation which aid in

maintaining control, keeping sanding area level with

workpiece, and keeping hands clear of sanding belt.

When operating your sander always hold the front

handle with your left hand and the rear handle with

your right hand as shown in figure 8.

REARHANDLE

A WARNING: Keep hands and fingers clear of

moving sanding belt, front idler roller, and drive

roller assembly. Failure to do so will result in the

sanding of your hands or fingers. See Figure 9.

KEEPHANDSAND FINGERSAWAY

FROMTHESEAREASAT ALLTIMES Fig. 9

_k, WARNING: Do not let your fingers rest over the

front or right edge of the sander. If the sanding

belt were to run off, or if it were not properly

adjusted, your fingers could come in contact with

the moving sanding belt resulting in possible

serious injury. See Figure 9.

Always operate your sander as shown in Figure 8.

FRONTHANDLE Fig. 8

SANDING

See Figure 10.

___._..._.,,,-------

Fig, 10

Clamp or otherwise secure the work to prevent it from

moving under your sander.

,_ WARNING: Unsecured work could be thrown

back toward operator causing injury.

Before placing sander on work surface, squeeze the

switch trigger and let the motor reach its maximum

speed, then lower your sander to the work surface

with a slight forward motion. Using the rear handle to

control your sander and the front handle only to guide

it, move it slowly over the work. Allowing your sander

to remain in one place will result in an uneven sur-

face.

,_ WARNING: Keep a firm grip on sander with

both hands at all times. Failure to do so could

result in loss of control leading to possible

serious injury.

Your sander was designed to provide the proper

weight on the sanding belt.

Excessive pressure will result In the following:

•Uneven work.

• Clogged sanding belts.

• Premature sanding belt wear. Removal rate will

not increase.

•Possible motor burnout.

•Irregular sanding belt tracking.

Note: If the sanding belt moves while sanding, you

may be applying too much pressure. When this

occurs remove sander from workpiece. If belt tracking

is properly adjusted, sanding belt will return to its

normal and correct position on the drive roller and

front roller.

Use a coarser belt when heavy sanding is desired, not

heavy pressure. The importance of this cannot be

overemphasized. Weight has been built into the tool

to give the most efficient pressure at the proper

location.

Note: The front roller of your sander was not de-

signed for contour sanding. Sanding on the front roller

could cause irregularity in sanding belt tracking. H

_lh WARNING: When servicing, use only identical

Craftsman replacement parts. Use of any other

part may create a hazard or cause product

damage.

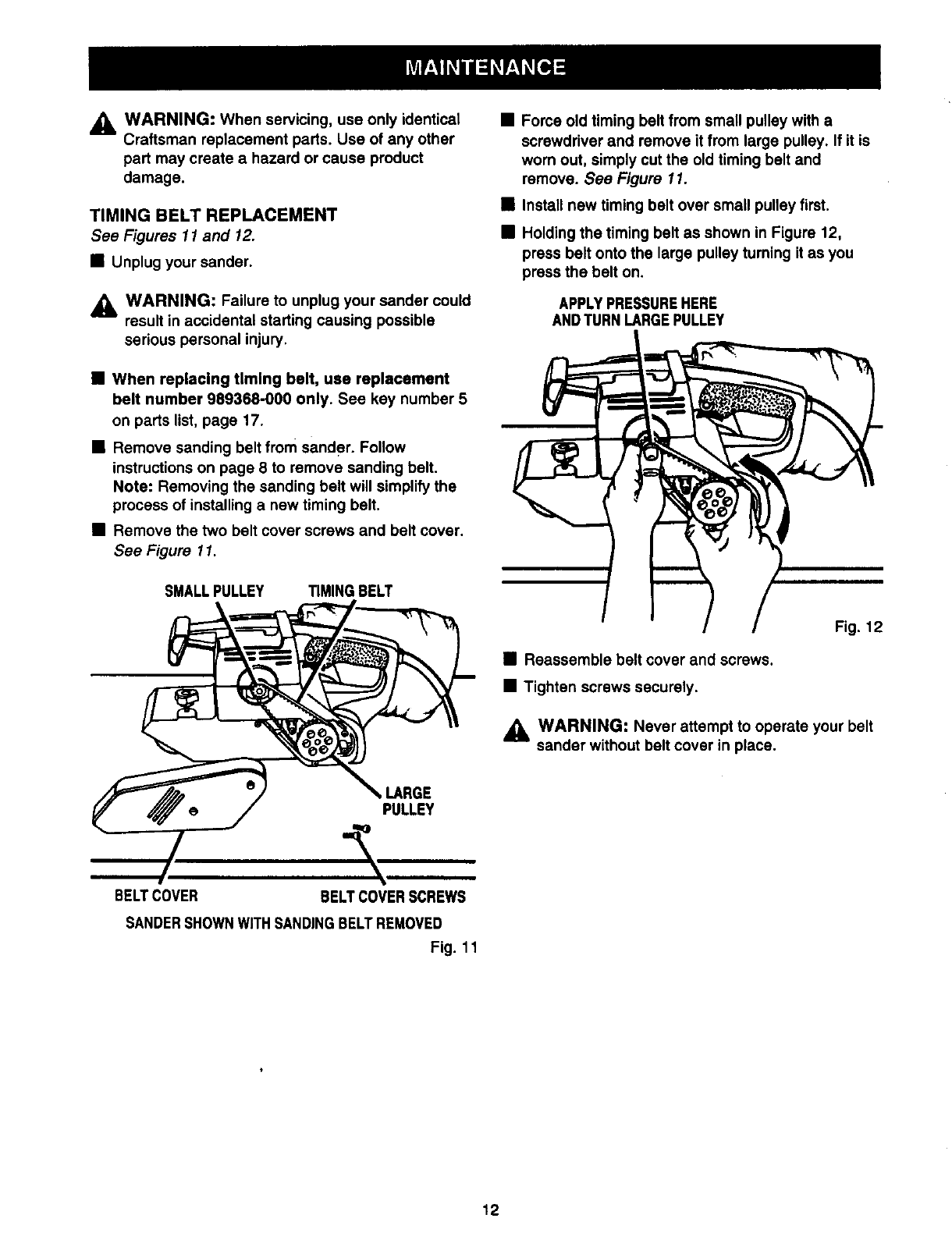

TIMING BELT REPLACEMENT

See Figures 11 and 12.

• Unplug your sander.

_k WARNING: Failure to unplug your sander could

result in accidental starting causing possible

serious personal injury.

•When replacing timing belt, use replacement

belt number 989368-000 only. See key number 5

on parts list, page 17.

•Remove sanding belt from sander. Follow

instructions on page 8 to remove sanding belt.

Note: Removing the sanding belt will simplify the

process of installing a new timing belt.

•Remove the two belt cover screws and belt cover.

See Figure 11.

SMALLPULLEY TIMINGBELT

PULLEY

•Force old timing belt from small pulley with a

screwdriver and remove it from large pulley. If it is

worn out, simply cut the old timing belt and

remove. See Figure 11.

•Install new timing belt over small pulley first.

•Holding the timing belt as shown in Figure 12,

press belt onto the large pulley turning it as you

press the belt on.

APPLYPRESSUREHERE

ANDTURNLARGEPULLEY

Fig. 12

•Reassemble belt cover and screws.

•Tighten screws securely.

,_k WARNING: Never attempt to operate your belt

sander without belt cover in place.

BELTCOVER BELTCOVERSCREWS

SANDERSHOWNWITHSANDINGBELTREMOVED

Fig. 11

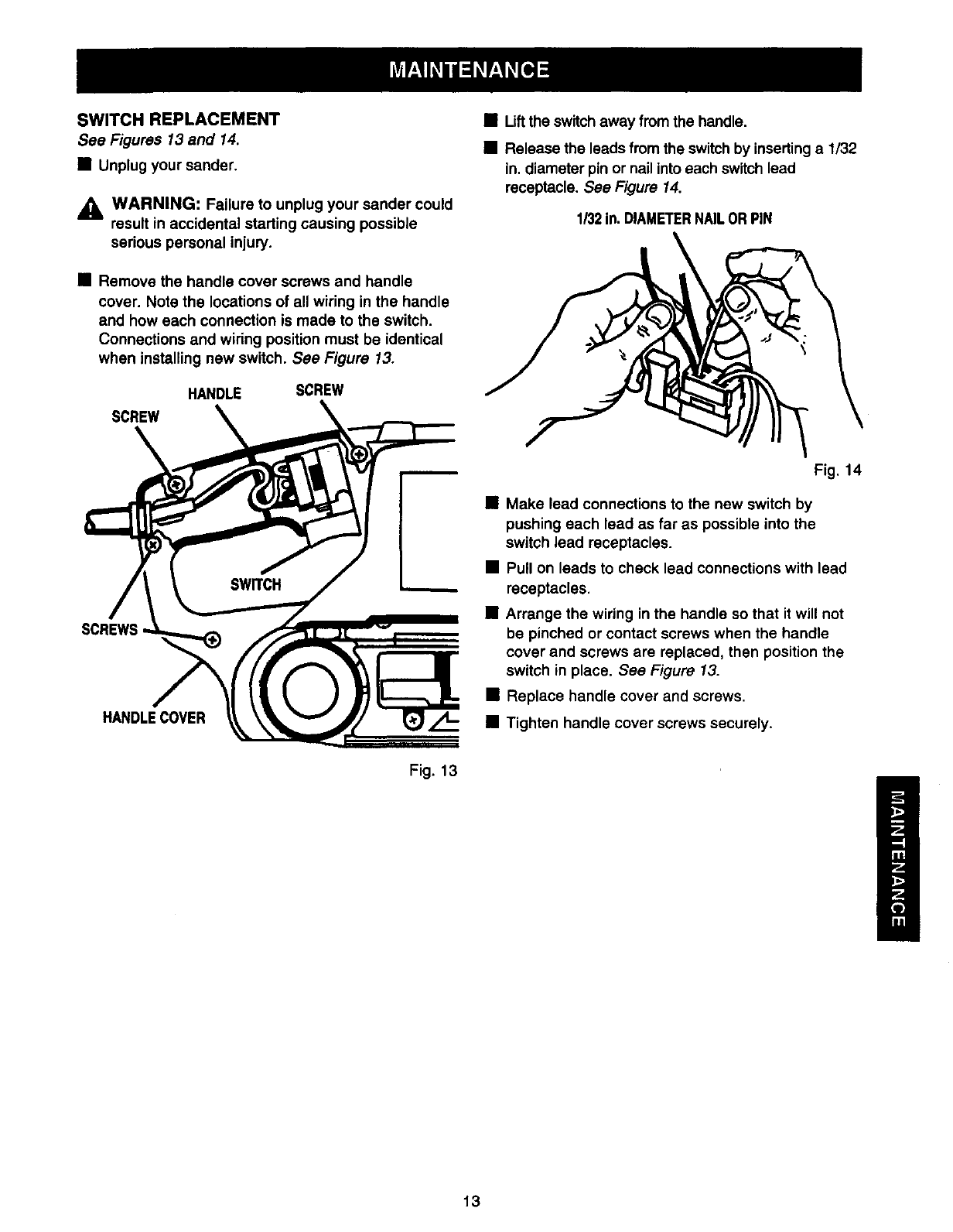

SWITCHREPLACEMENT

See Figures 13 and 14.

•Unplug your sander,

_k WARNING: Failure to unplug your sander could

result in accidental starting causing possible

serious personal injury.

•Remove the handle cover screws and handle

cover. Note the locations of all wiring in the handle

and how each connection is made to the switch.

Connections and wiring position must be identical

when installing new switch. See Figure 13,

HANDLE SCREW

SCREW

•Liftthe switch away from the handle.

•Release the leads from the switch by insertinga 1/32

in. diameter pin or nail into each switch lead

receptacle. See Figure 14.

1/32 In. DIAMETERNAILOR PIN

SCREWS

HANDLECOVER

Fig. 14

•Make lead connections to the new switch by

pushing each lead as far as possible into the

switch lead receptacles.

•Pull on leads to check lead connections with lead

receptacles.

•Arrange the wiring in the handle so that it will not

be pinched or contact screws when the handle

cover and screws are replaced, then position the

switch in place. See Figure 13.

•Replace handle cover and screws.

•Tighten handle cover screws securely.

Fig. 13

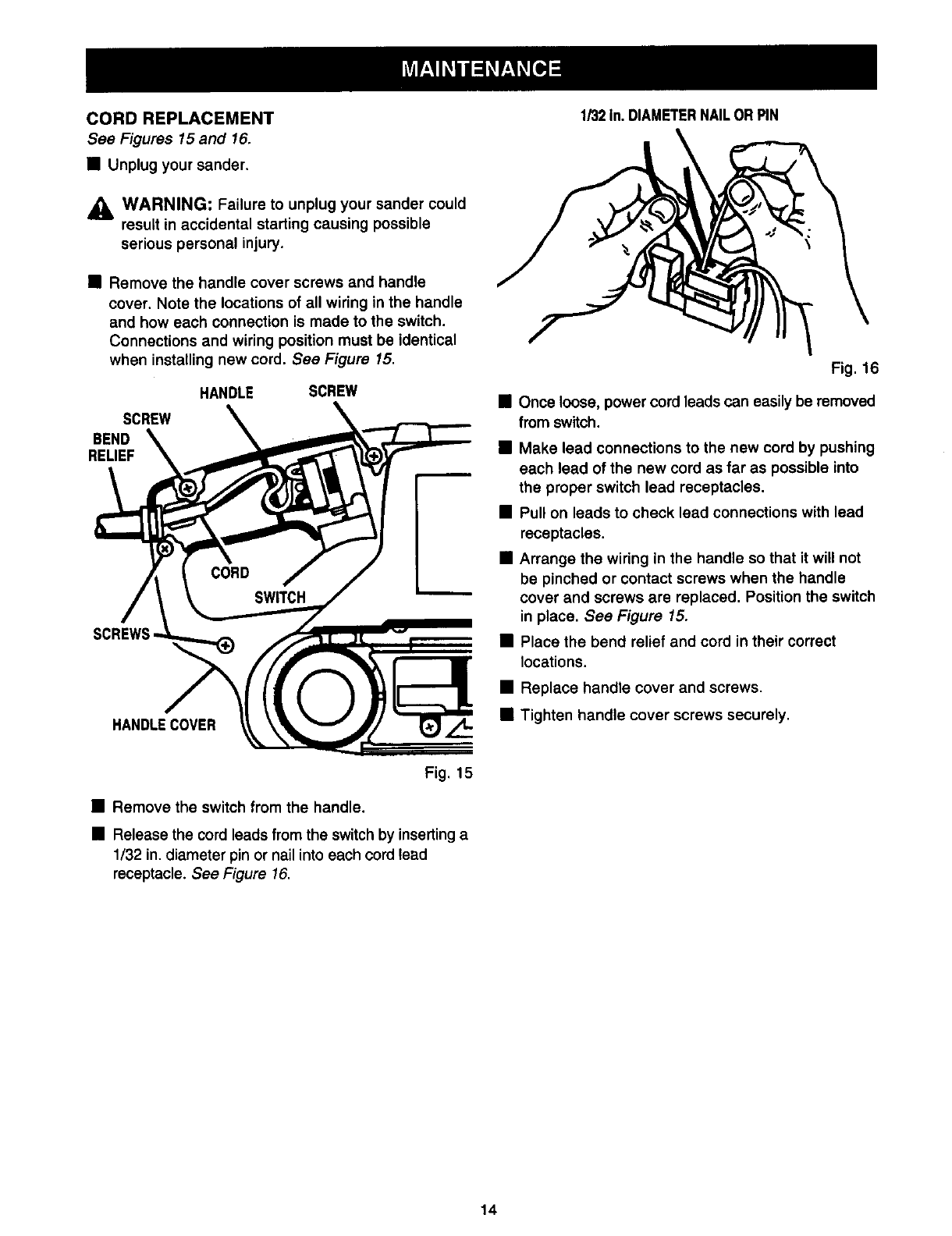

CORDREPLACEMENT

See Figures 15 and 16.

• Unplug your sander.

_, WARNING; Failure to unplug your sander could

result in accidental starting causing possible

serious personal injury.

•Remove the handle cover screws and handle

cover. Note the locations of all wiring in the handle

and how each connection is made to the switch.

Connections and wiring position must be identical

when installing new cord. See Figure 15.

HANDLE SCREW

SCREW

BEND

RELIEF

HANDLECOVER

Fig. 15

•Remove the switch from the handle.

•Release the cord leads from the switch by insertinga

1/32 in. diameter pin or nail into each cord lead

receptacle. See Figure 16.

1/32 In. DIAMETERNAILOR PIN

Fig. 16

•Once loose, power cord leads can easily be removed

from switch.

•Make lead connections to the new cord by pushing

each lead of the new cord as far as possible into

the proper switch lead receptacles.

•Pull on leads to check lead connections with lead

receptacles.

•Arrange the wiring in the handle so that it will not

be pinched or contact screws when the handle

cover and screws are replaced. Position the switch

in place. See Figure 15.

•Place the bend relief and cord in their correct

locations.

•Replace handle cover and screws.

•Tighten handle cover screws securely.

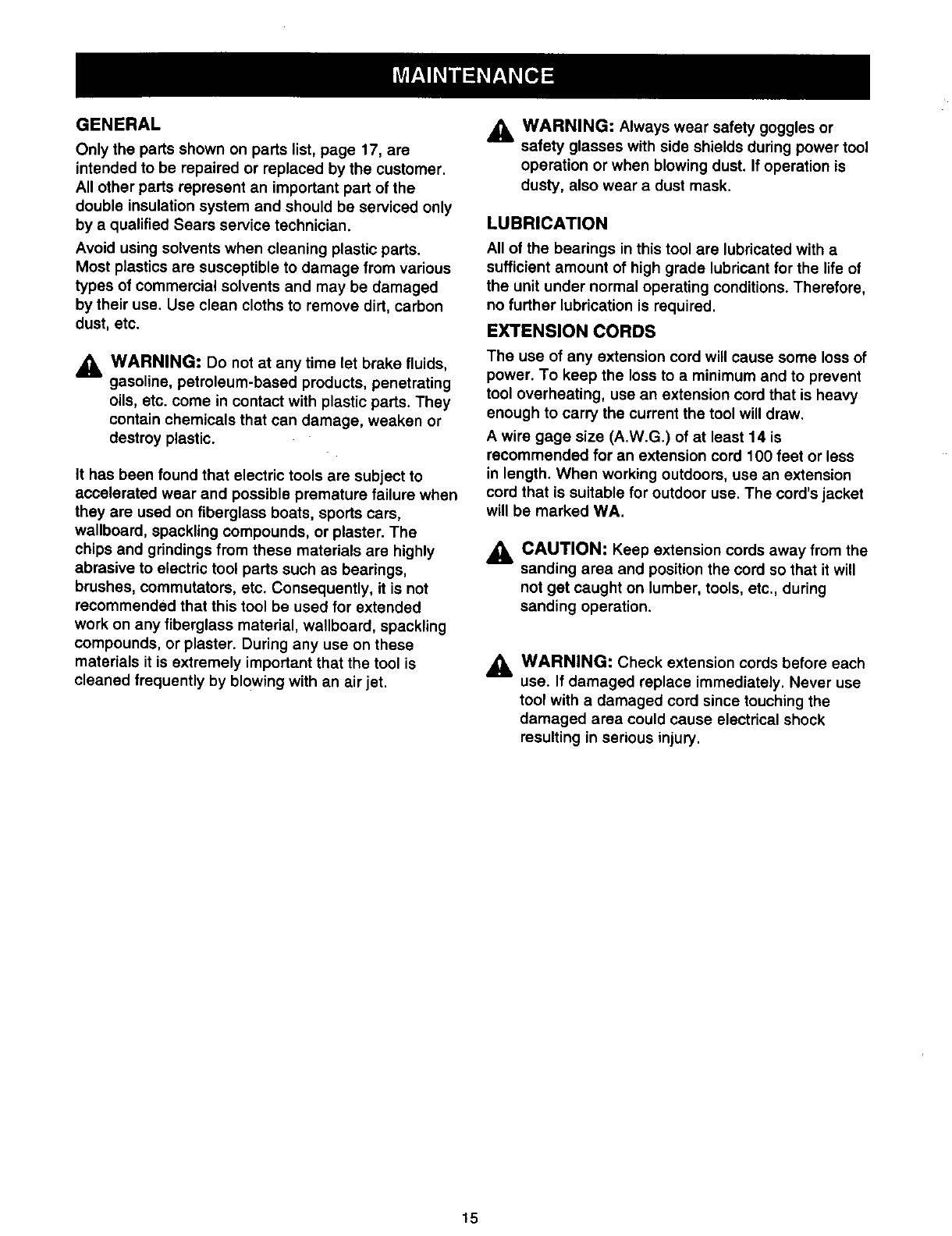

GENERAL

Only the parts shown on parts list, page 17, are

intended to be repaired or replaced by the customer.

All other parts represent an important part of the

double insulation system and should be serviced only

by a qualified Sears service technician.

Avoid using solvents when cleaning plastic pads.

Most plastics are susceptible to damage from various

types of commemial solvents and may be damaged

by their use. Use clean cloths to remove dirt, carbon

dust, etc.

,_ WARNING: Do not at any time let brake fluids,

gasoline, petroleum-based products, penetrating

oils, etc. come in contact with plastic pads. They

contain chemicals that can damage, weaken or

destroy plastic.

It has been found that electric tools are subject to

accelerated wear and possible premature failure when

they are used on fiberglass boats, sports cars,

wallboard, spackling compounds, or plaster. The

chips and gdndings from these materials are highly

abrasive to electric tool parts such as bearings,

brushes, commutators, etc. Consequently, it is not

recommended that this tool be used for extended

work on any fiberglass material, wallboard, spackling

compounds, or plaster. During any use on these

materials it is extremely important that the tool is

cleaned frequently by blowing with an air jet.

_i, WARNING: Always wear safety goggles or

safety glasses with side shields during power tool

operation or when blowing dust. If operation is

dusty, also wear a dust mask.

LUBRICATION

All of the bearings in this tool are lubricated with a

sufficient amount of high grade lubricant for the life of

the unit under normal operating conditions. Therefore,

no further lubrication is required.

EXTENSION CORDS

The use of any extension cord will cause some loss of

power. To keep the loss to aminimum and to prevent

tool overheating, use an extension cord that is heavy

enough to carry the current the tool will draw.

A wire gage size (A.W.G.) of at least 14 is

recommended for an extension cord 100 feet or less

in length. When working outdoors, use an extension

cord that is suitable for outdoor use. The cord's jacket

will be marked WA,

_1= CAUTION; Keep extension cords away from the

sanding area and position the cord so that it will

not get caught on lumber, tools, etc., during

sanding operation.

AWARNING: Check extension cords before each

use. If damaged replace immediately. Never use

tool with a damaged cord since touching the

damaged area could cause electrical shock

resulting in serious injury.

CRAFTSMAN 4 in. BELT SANDER -- MODEL NUMBER 315.117921

SEE NOTE "A" PAGE 17

7 9

Io ++moo

AS SHOWN

"S" HOOK

BEFOREASSEMBLY

19 20 21

18 22

5049

46 _4|3 4

47 ,_45 42

27 32

CRAFTSMAN 4 in. BELT SANDER -- MODEL NUMBER 315.117921

The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your !

BELT SANDER or when ordedng repair parts. I

PARTS LIST

Key Part

No. Number Description Quart.

1 970201-001 *

2 998367-001

3 607776-002

4 614658-010 *

5 989368-000

6 998366-203

7 706382-812

8 998411-004

9 726693-004 *

10 989366-000

11 976851-001

12 998372-001

13 616247-001

14 931744-059

15 999937-001

16 999448-003

17 998401-001 *

18 607461-001

19 998067-001

20 706239-820

21 622199-003

22 998374-004

23 998410-004

24 998390-005

25 967265-002

26 999927-002

27 622347-001

28 999923-001 *

Screw (#8-32 x 3/8 in. Pan Hd. T.F.) ............ 4

Belt Cover ..................................................... 1

Ddven Pulley ................................................. 1

Screw (#8-32 x 3/8 in. Pan. Hd.) .................. 3

Timing Belt .................................................... 1

Gear Housing Cover w/Beadng .................... 1

Washer ......................................................... 2

Pinion ............................................................ 1

Screw (#8-32 x 7/8 in. Fil. Hd.) ..................... 1

Pulley ............................................................ f

Data Plate ..................................................... 1

Tracking Screw ............................................. 1

Spdng ........................................................... 1

Washer ......................................................... 1

Blower ........................................................... 1

Wear Strip ..................................................... 1

Screw (#10-32 x 3/8 in. Wafer Hd.) .............. 1

Retaining Ring .............................................. 2

"S" Hook ....................................................... 1

Thrust Washer .............................................. 2

O Ring ........................................................... 2

Front Idler Roller w/Bearings ........................ 1

Idler Roller Shaft ........................................... 1

Yoke Assembly ............................................. 1

Pivot Pin ........................................................ 1

Release Lever Assembly .............................. 1

Washer. ..................................... :.................. 1

Screw (#10-32 x 1/2 in. Pan Hd.) ................. 1

Key Part

No. Number

29 998370-001

30 967262-001

31 998377-003

32 967878-003

33 612665-006

41-*

35 998379-001

36 998381-001

37 998391-001

38 703774-003

39 998388-001

40 976849-001

41 989592-001

42 999931-001

43 996393-O01

44 999347-001

45 989592-007

46 998398-001

47 998394-006

48 617966-030

49 998399-001

50 999507-001

51 998895-001

52 706239-825

53 622347-003

54 998413-001

55 616103-301

972000-492

Description Quan.

Bushing ......................................................... 2

Torsion Spdng .............................................. 1

Platen ....... ..................................................... 1

Glamor Plate ................................................. 1

* Screw (#10-32 x 7/8 in, Pan Hd. T.F.) .......... 2

Sanding Belt (4 in. x 21 in.) .......................... 1

Backing Pad .................................................. 1

Wear Plate .................................................... 1

Drive Roller Assembly .................................. 1

Steel Ball ....................................................... 1

Spacer Cup ................................................... 1

Logo Plate ..................................................... 1

* Screw (#8-10 x 1-1/8 in. Fil. Hd.) .................. 3

Blower Cover ................................................ 1

Shroud .......................................................... 1

Deflector ....................................................... 1

* Screw (#8-10 x 2-1/4 in. Fil. Hd.) .................. 2

Blower Housing ............................................. 1

Dust Bag ....................................................... 1

* Screw (#8-10 x 5/8 in. Pan Hd.) ................... 4

Handle Cover ................................................ 1

Cord .............................................................. 1

Switch ........................................................... 1

Washer ......................................................... 1

Gear .............................................................. 1

Thrust Washer .............................................. 1

Owner's Manual

NOTE: "A" - The assembly shown represents an important part of the Double Insulated System. To avoid the possibility of alteration or damage

to the System, service should be performed by your nearest Sears Repair Center. Contact your nearest Sears Retail Store for Service Center

information.

* Standard Hardware Item -- May Be Purchased Locally

*** Complete Assortment Available At Your Nearest Se__rs Catalog Order Or Retail Store

I .'lllJ I 17

For repair of major brand appliances in your own home..,

no matter who made it, no matter who sold it!

1-800-4-MY-HOME sMAnytime, day or night

(1-800-469-4663)

www.sears.com

To bring in products such as vacuums, lawn equipment and electronics

for repair, call for the location of your nearest Sears Parts & Repair Center.

1-800-488-1222 Anytime, day or night

www.sears.com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirect SMT

1-800-366-PART 6a.m. -11 p.m. CST,

(1-800-366-7278) 7 days a week

www.sears.conVpartsdirect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a.m. - 5 p.m. CST, Mon. - Sat.

Para pedir servicio de reparacibn a domicilio,

y para ordenar piezas con entrega a domicilio:

1-888-SU'HOGAR s.

(1-888-784-6427)

Au Canada pour service en fran(;ais:

1-877-LE-FOYER s"

ISEARS 1

HomeCentral'u

(1-877-533-6937)

®Registered Trademark !TM Trademark of Sears, Roebuck and CO.

Craftsman 315117921 User Manual 4 DUSTLESS BELT SANDER Manuals And Guides L0012022

CRAFTSMAN Sander Manual L0012022 CRAFTSMAN Sander Owner's Manual, CRAFTSMAN Sander installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
