OPERATOR'S MANUAL

I:RAF¥$MAN

iP R 0 ESSIONAL i

10 in. SLIDING COMPOUND MITER SAW WITH LASER

DOUBLE INSULATED

Model No.

315.212010

©©

AWARNING: To reduce the risk of injury, the

user must read and understand the operator's

manual before using this product.

Customer Help Line: 1-800-932-3188

Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 USA

Visit the Craftsman web page: www.sears.com/craftsman

983000-982

2-14-07 (REV:02) Save this manual for future reference

[] Warranty ............................................................................................................................................................................ 2

[] Introduction ....................................................................................................................................................................... 2

[] General Safety Rules ..................................................................................................................................................... 3-4

[] Specific Safety Rules ..................................................................................................................................................... 4-5

[] Symbols ......................................................................................................................................................................... 6-7

[] Electrical ............................................................................................................................................................................ 8

[] Glossary of Terms .............................................................................................................................................................. 9

[] Features ..................................................................................................................................................................... 10-12

[] Tools Needed ................................................................................................................................................................. 12

[] Loose Parts .................................................................................................................................................................... 13

[] Assembly ................................................................................................................................................................... 14-24

[] Operation ................................................................................................................................................................... 24-33

[] Maintenance .............................................................................................................................................................. 34-37

[] Exploded View ........................................................................................................................................................... 38-51

[] Parts Ordering/Service ...................................................................................................................................... Back Page

ONE YEAR FULL WARRANTY ON CRAFTSMAN TOOL

If this Craftsman tool fails due to a defect in material or workmanship within one year from the date of purchase,

CONTACT THE NEAREST SEARS PARTS &REPAIR CENTER at 1-800-4-MY-HOME ® and Sears will repair it, free of

charge. This warranty applies only while this product is in the United States.

If this tool is used for commercial or rental purposes, this warranty will apply for only ninety days from the date of

purchase.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability

have been given top priority in the design of this product making it easy to maintain and operate.

_IL WARNING:Readand understand all instruc-

tions. Failure to follow all instructions listed below,

may result in electric shock, fire and/or serious

personal injury.

READ ALL iNSTRUCTIONS

[] KNOW YOUR POWER TOOL. Read the operator's

manual carefully. Learn the applications and limitations

as well as the specific potential hazards related to this

tool.

[] GUARD AGAINST ELECTRICAL SHOCK BY PRE-

VENTING BODY CONTACT WITH GROUNDED

SURFACES. For example: pipes, radiators, ranges,

refrigerator enclosures.

[] KEEP GUARDS IN PLACE and in good working order.

[] REMOVE ADJUSTING KEYS AND WRENCHES.

Form habit of checking to see that keys and adjusting

wrenches are removed from tool before turning it on.

[] KEEP WORK AREA CLEAN. Cluttered areas and

benches invite accidents. DO NOT leave tools or

pieces of wood on the tool while it is in operation.

[] DO NOT USE IN DANGEROUS ENVIRONMENTS.

Do not use power tools in damp or wet locations or

expose to rain. Keep the work area well lit.

[] KEEP CHILDREN AND VISITORS AWAY. All visitors

should wear safety glasses and be kept a safe dis-

tance from work area. Do not let visitors contact tool or

extension cord while operating.

[] MAKE WORKSHOP CHILDPROOF with padlocks,

master switches, or by removing starter keys.

[] DON'T FORCE THE TOOL. It will do the job better and

safer at the feed rate for which it was designed.

[] USE THE RIGHT TOOL. Do not force the tool or at-

tachment to do a job for which it was not designed.

[] USE THE PROPER EXTENSION CORD. Make sure

your extension cord is in good condition. Use only a

cord heavy enough to carry the current your product

will draw. An undersized cord will cause a drop in line

voltage resulting in loss of power and overheating. A

wire gauge size (A.W.G.) of at least 14 is recommended

for an extension cord 25 feet or less in length. If in

doubt, use the next heavier gauge. The smaller the

gauge number, the heavier the cord.

[] DRESS PROPERLY. Do not wear loose clothing, neck-

ties, or jewelry that can get caught and draw you into

moving parts. Rubber gloves and nonskid footwear

are recommended when working outdoors. Also wear

protective hair covering to contain long hair.

[] ALWAYS WEAR SAFETY GLASSES WITH SIDE

SHIELDS. Everyday eyeglasses have only impact-

resistant lenses, they are NOT safety glasses.

[] SECURE WORK. Use clamps or a vise to hold work

when practical, it is safer than using your hand and

frees both hands to operate the tool.

[] DO NOT OVERREACH. Keep proper footing and bal-

ance at all times.

[] MAINTAIN TOOLS WITH CARE. Keep tools sharp and

clean for better and safer performance. Follow instruc-

tions for lubricating and changing accessories.

[] DISCONNECT TOOLS. When not in use, before ser-

vicing, or when changing attachments, blades, bits,

cutters, etc., all tools should be disconnected from

power source.

[] AVOID ACCIDENTAL STARTING. Be sure switch is off

when plugging in any tool.

[] USE RECOMMENDED ACCESSORIES. Consult the

operator's manual for recommended accessories. The

use of improper accessories may result in injury.

[] NEVER STAND ON TOOL. Serious injury could occur

if the tool is tipped.

[] CHECK DAMAGED PARTS. Before further use of

the tool, a guard or other part that is damaged should

be carefully checked to determine that it will operate

properly and perform its intended function. Check for

alignment of moving parts, binding of moving parts,

breakage of parts, mounting and any other conditions

that may affect its operation. A guard or other part that

is damaged must be properly repaired or replaced by

an authorized service center to avoid risk of personal

injury.

[] USE THE RIGHT DIRECTION OF FEED. Feed work

into a blade, cutter, or sanding spindle against the

direction or rotation of the blade, cutter, or sanding

spindle only.

[] NEVER LEAVE TOOL RUNNING UNATTENDED.

TURN THE POWER OFF. Don't leave tool until it

comes to a complete stop.

[] PROTECT YOUR LUNGS. Wear a face or dust mask if

the cutting operation is dusty.

[] PROTECT YOUR HEARING. Wear hearing protection

during extended periods of operation.

[] DO NOT ABUSE CORD. Never carry tool by the cord

or yank it to disconnect from receptacle. Keep cord

from heat, oil, and sharp edges.

[] USE OUTDOOR EXTENSION CORDS. When tool is

used outdoors, use only extension cords with ap-

proved ground connection that are intended for use

outdoors and so marked.

[] KEEP BLADES CLEAN, SHARP, AND WITH SUF-

FICIENT SET. Sharp blades minimize stalling and

kickback.

[] BLADE COASTS AFTER BEING TURNED OFF.

[]

NEVER USE IN AN EXPLOSIVE ATMOSPHERE. Nor-

mal sparking of the motor could ignite fumes.

INSPECT TOOL CORDS PERIODICALLY. If damaged,

have repaired by a qualified service technician at an

authorized service facility. The conductor with insula-

tion having an outer surface that is green with or with-

out yellow stripes is the equipment-grounding conduc-

tor. If repair or replacement of the electric cord or plug

is necessary, do not connect the equipment-grounding

conductor to a live terminal. Repair or replace a dam-

aged or worn cord immediately. Stay constantly aware

of cord location and keep it well away from the rotating

blade.

[]

INSPECT EXTENSION CORDS PERIODICALLY and

replace if damaged.

POLARIZED PLUGS. To reduce the risk of electric

shock, this tool has a polarized plug (one blade is

wider than the other). This plug will fit in a polarized

outlet only one way. If the plug does not fit fully in the

outlet, reverse the plug. If it still does not fit, contact a

qualified electrician to install the proper outlet. Do not

change the plug in any way.

KEEP TOOL DRY, CLEAN, AND FREE FROM OIL

AND GREASE. Always use a clean cloth when clean-

ing. Never use brake fluids, gasoline, petroleum-based

products, or any solvents to clean tool.

[] STAY ALERT AND EXERCISE CONTROL. Watch

what you are doing and use common sense. Do not

operate tool when you are tired. Do not rush.

[] DO NOT USE TOOL IF SWITCH DOES NOT TURN IT

ON AND OFF. Have defective switches replaced by an

authorized service center.

[] USE ONLY CORRECT BLADES. Do not use blades

with incorrect size holes. Never use blade washers or

blade bolts that are defective or incorrect. The maxi-

mum blade capacity of the saw is 10 in.

[] BEFORE MAKING A CUT, BE SURE ALL ADJUST=

MENTS ARE SECURE.

[] BE SURE BLADE PATH iS FREE OF NAILS. Inspect

for and remove all nails from lumber before cutting.

[] NEVER TOUCH BLADE or other moving parts during

use.

[] NEVER START A TOOL WHEN ANY ROTATING

COMPONENT iS iN CONTACT WiTH THE

WORKPIECE.

[] DO NOT OPERATE A TOOL WHILE UNDER THE

INFLUENCE OF DRUGS, ALCOHOL, OR ANY

MEDiCATiON.

[] WHEN SERVICING use only identical replacement

parts. Use of any other parts may create a hazard or

cause product damage.

[] USE ONLY RECOMMENDED ACCESSORIES listed

in this manual or addendums. Use of accessories

that are not listed may cause the risk of personal

injury. Instructions for safe use of accessories are

included with the accessory.

[] DOUBLE CHECK ALL SETUPS. Make sure blade is

tight and not making contact with saw or workpiece

before connecting to power supply.

[] FIRMLY CLAMP OR BOLT the tool to a workbench or

table at approximately hip height.

[] KEEP HANDS AWAY FROM CUTTING AREA. Do not

reach underneath work or in blade cutting path with your

hands and fingers for any reason. Always turn the power off.

[] ALWAYS SUPPORT LONG WORKPIECES while cut-

ting to minimize risk of blade pinching and kickback.

Saw may slip, walk, or slide while cutting long or heavy

boards.

[] ALWAYS USE ACLAMP to secure the workpiece

when possible.

[] BE SURE THE BLADE CLEARS THE WORKPIECE.

Never start the saw with the blade touching the

workpiece. Allow motor to come up to full speed be-

fore starting cut.

[] MAKE SURE THE MITER TABLE AND SAW ARM

BEVEL FUNCTION} ARE LOCKED iN POSiTiON

BEFORE OPERATING YOUR SAW. Lock the miter table

[]

by securely tightening the miter lock lever. Lock the saw

arm (bevel function) by securely tightening the bevel

lock lever.

USE THIS SAW TO CUT WOOD, WOOD PRODUCTS,

AND SOME PLASTICS ONLY. DO NOT CUT METALS,

CERAMICS OR MASONRY PRODUCTS.

[] BEFORE MOVING THE SAW, unplug the saw then

lock the miter, bevel, slide, and power head positions.

[] NEVER USE A LENGTH STOP ON THE FREE SCRAP

END OF A CLAMPED WORKPIECE. NEVER hold

onto or bind the free scrap end of the workpiece in any

operation. If a work clamp and length stop are used

together, they must both be installed on the same side

of the saw table to prevent the saw from catching the

loose end and kicking up.

[] NEVER cut more than one piece at a time. DO NOT

STACK more than one workpiece on the saw table at a

time.

[] NEVERPERFORM ANY OPERATION FREEHAND.

Always place the workpiece to be cut on the miter

table and position it firmly against the fence as a back-

stop. Always use the fence.

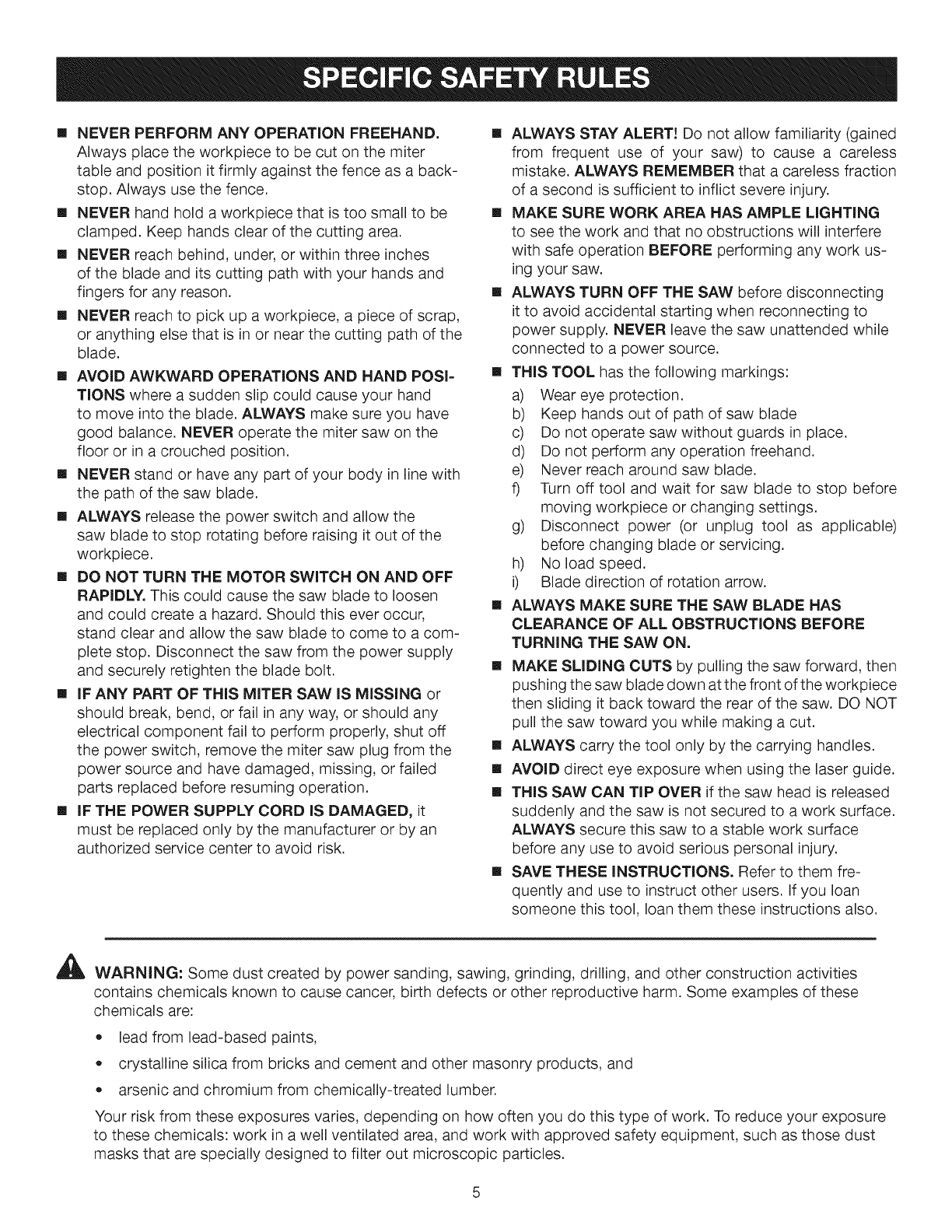

[] NEVER hand hold a workpiece that is too small to be

clamped. Keep hands clear of the cutting area.

[] NEVER reach behind, under, or within three inches

of the blade and its cutting path with your hands and

fingers for any reason.

[] NEVER reach to pick up a workpiece, a piece of scrap,

or anything else that is in or near the cutting path of the

blade.

[] AVOID AWKWARD OPERATIONS AND HAND POSI-

TIONS where a sudden sup could cause your hand

to move into the blade. ALWAYS make sure you have

good balance. NEVER operate the miter saw on the

floor or in a crouched position.

[] NEVER stand or have any part of your body in line with

the path of the saw blade.

[] ALWAYS release the power switch and allow the

saw blade to stop rotating before raising it out of the

workpiece.

[] DO NOT TURN THE MOTOR SWITCH ON AND OFF

RAPIDLY. This could cause the saw blade to loosen

and could create a hazard. Should this ever occur,

stand clear and allow the saw blade to come to a com-

plete stop. Disconnect the saw from the power supply

and securely retighten the blade bolt.

[] IF ANY PART OF THIS MITER SAW IS MISSING or

should break, bend, or fail in any way, or should any

electrical component fail to perform properly, shut off

the power switch, remove the miter saw plug from the

power source and have damaged, missing, or failed

parts replaced before resuming operation.

[] IF THE POWER SUPPLY CORD IS DAMAGED, it

must be replaced only by the manufacturer or by an

authorized service center to avoid risk.

[] ALWAYS STAY ALERT! Do not allow familiarity (gained

from frequent use of your saw) to cause a careless

mistake. ALWAYS REMEMBER that a careless fraction

of a second is sufficient to inflict severe injury.

[] MAKE SURE WORK AREA HAS AMPLE LIGHTING

to see the work and that no obstructions will interfere

with safe operation BEFORE performing any work us-

ing your saw.

[] ALWAYS TURN OFF THE SAW before disconnecting

it to avoid accidental starting when reconnecting to

power supply. NEVER leave the saw unattended while

connected to a power source.

[] THIS TOOL has the following markings:

a) Wear eye protection.

b) Keep hands out of path of saw blade

c) Do not operate saw without guards in place.

d) Do not perform any operation freehand.

e) Never reach around saw blade.

f) Turn off tool and wait for saw blade to stop before

moving workpiece or changing settings.

g) Disconnect power (or unplug tool as applicable)

before changing blade or servicing.

h) No load speed.

i) Blade direction of rotation arrow.

[] ALWAYS MAKE SURE THE SAW BLADE HAS

CLEARANCE OF ALL OBSTRUCTIONS BEFORE

TURNING THE SAW ON.

[] MAKE SLIDING CUTS by pulling the saw forward, then

pushing the saw blade down atthe front of the workpiece

then sliding it back toward the rear of the saw. DO NOT

pull the saw toward you while making a cut.

[] ALWAYS carry the tool only by the carrying handles.

[] AVOID direct eye exposure when using the laser guide.

[] THIS SAW CAN TIP OVER if the saw head is released

suddenly and the saw is not secured to a work surface.

ALWAYS secure this saw to a stable work surface

before any use to avoid serious personal injury.

[] SAVE THESE INSTRUCTIONS. Refer to them fre-

quently and use to instruct other users. If you loan

someone this tool, loan them these instructions also.

_ WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities

contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these

chemicals are:

• lead from lead-based paints,

crystalline silica from bricks and cement and other masonry products, and

arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure

to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust

masks that are specially designed to filter out microscopic particles.

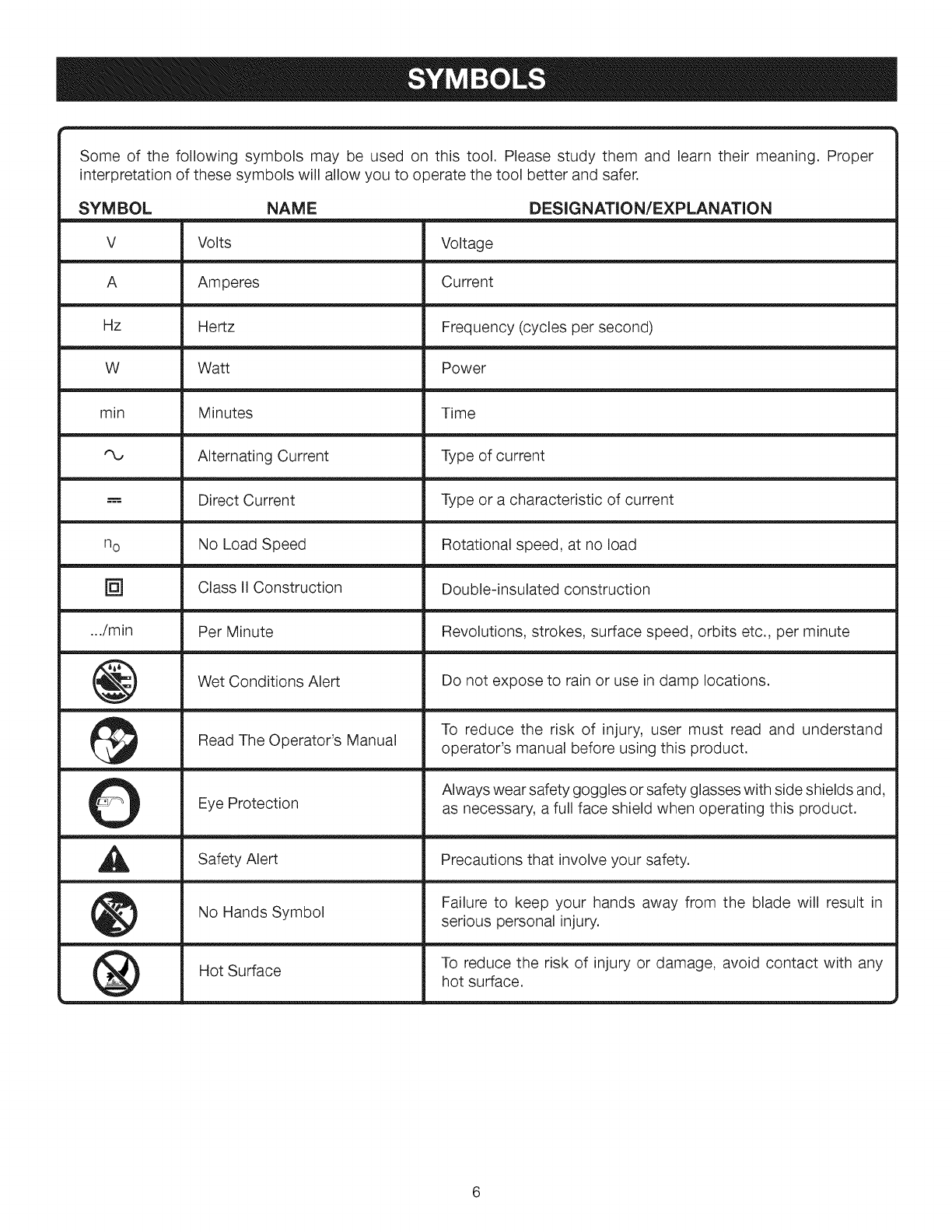

Someof the followingsymbolsmaybe usedonthistool. Pleasestudythemandlearntheirmeaning.Proper

interpretationofthesesymbolswillallowyouto operatethetoolbetterandsafer.

SYMBOL

min

n o

[]

.../min

NAME

Volts

Am pe res

Hertz

Watt

Minutes

Alternating Current

Direct Current

No Load Speed

Class II Construction

Per Minute

Wet Conditions Alert

Read The Operator's Manual

Eye Protection

Safety Alert

No Hands Symbol

Hot Surface

DESIGNATION/EXPLANATION

Voltage

Current

Frequency (cycles per second)

Power

Time

Type of current

Type or a characteristic of current

Rotational speed, at no load

Double-insulated construction

Revolutions, strokes, surface speed, orbits etc., per minute

Do not expose to rain or use in damp locations.

To reduce the risk of injury, user must read and understand

operator's manual before using this product.

Always wear safety goggles or safety glasses with side shields and,

as necessary, a full face shield when operating this product.

Precautions that involve your safety.

Failure to keep your hands away from the blade will result in

serious personal injury.

To reduce the risk of injury or damage, avoid contact with any

hot surface.

Thefollowingsignalwordsandmeaningsareintendedto explainthelevelsof riskassociatedwiththisproduct.

SYMBOL SIGNAL MEANING

DANGER: Indicates an imminently hazardous situation, which, if not avoided, will

result in death or serious injury.

WARNING: Indicates a potentially hazardous situation, which, if not avoided, could

result in death or serious injury.

,_ CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may

result in minor or moderate injury.

CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in

property damage.

SERVICE

Servicing requires extreme care and knowledge and

should be performed only by a qualified service techni-

cian. For service we suggest you return the product to

your nearest SEARS PARTS AND REPAIR SERVICE

CENTER for repair. When servicing, use only identical

replacement parts.

_ WARNING: To avoid serious personal injury, do

not attempt to use this product until you read thor-

oughly and understand completely the operator's

manual. If you do not understand the warnings and

instructions in the operator's manual, do not use this

product. Call the Craftsman Consumer Helpline at

1-800-932-3188 for assistance.

411_ILWARNING:

The operation of any power tool can result in foreign objects being thrown into your eyes, which can

result in severe eye damage. Before beginning power tool operation, always wear safety goggles or

safety glasses with side shields and, when needed, a full face shield. We recommend Wide Vision

Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye

protection which is marked to comply with ANSI Z87.1.

SAVE THESE INSTRUCTIONS

DOUBLE INSULATION

Double insulation is a concept in safety in electric power

tools, which eliminates the need for the usual three-wire

grounded power cord. All exposed metal parts are

isolated from the internal metal motor components with

protecting insulation. Double insulated tools do not need

to be grounded.

AWARNING: The double insulated system is

intended to protect the user from shock resulting

from a break in the tool's internal insulation. Observe

all normal safety precautions to avoid electrical

shock.

NOTE: Servicing of a product with double insulation

requires extreme care and knowledge of the system and

should be performed only by a qualified service techni-

cian. For service, we suggest you return the product to

your nearest Sears or other qualified service center for

repair. Always use original factory replacement parts when

servicing.

ELECTRICAL CONNECTION

This product has a precision-built electric motor. It should

be connected to a power supply that is 120 volts, 60 Hz,

AC only (normal household current). Do not operate this

product on direct current (DC). A substantial voltage drop

will cause a loss of power and the motor will overheat. If

the product does not operate when plugged into an outlet,

double-check the power supply.

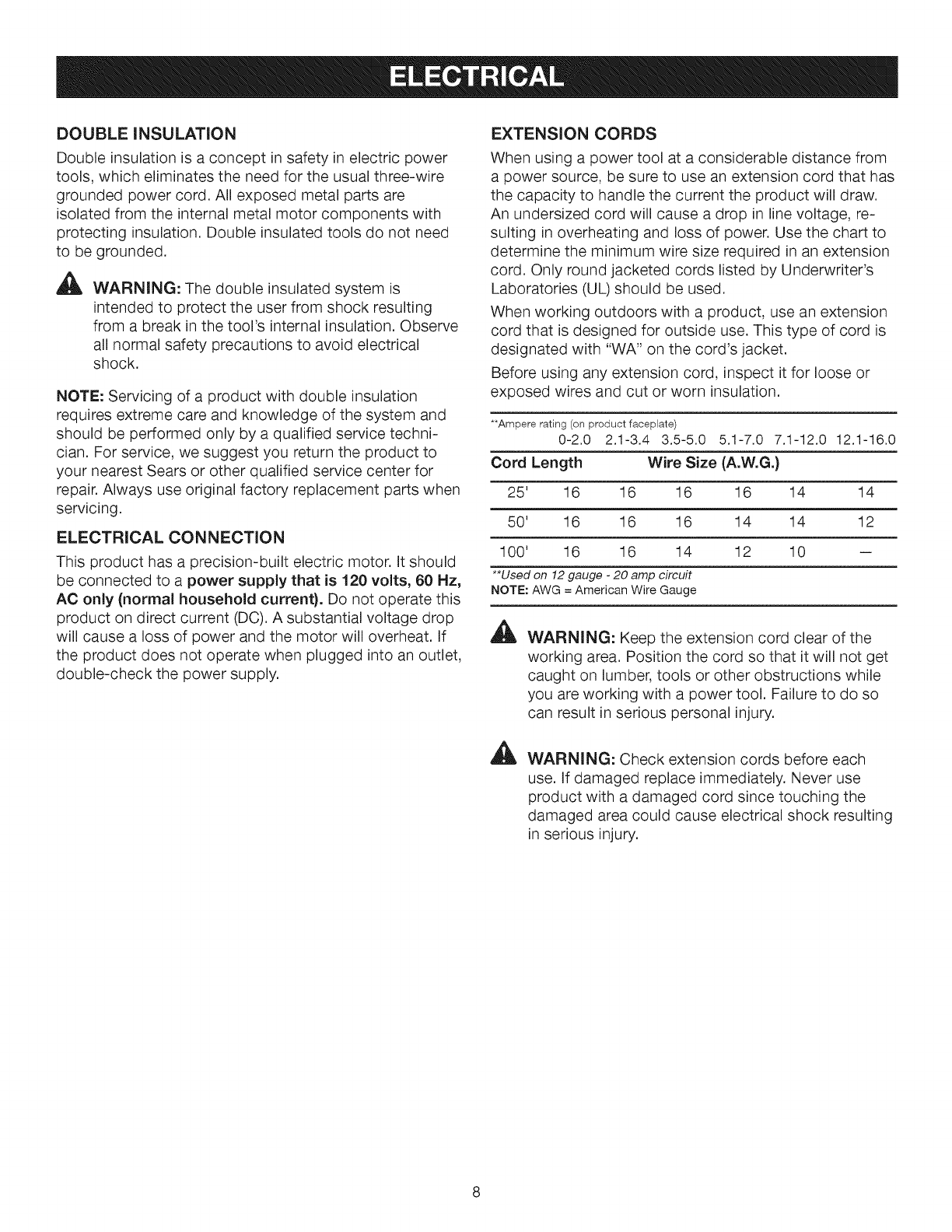

EXTENSION CORDS

When using a power tool at a considerable distance from

a power source, be sure to use an extension cord that has

the capacity to handle the current the product will draw.

An undersized cord will cause a drop in line voltage, re-

sulting in overheating and loss of power. Use the chart to

determine the minimum wire size required in an extension

cord. Only round jacketed cords listed by Underwriter's

Laboratories (UL) should be used.

When working outdoors with a product, use an extension

cord that is designed for outside use. This type of cord is

designated with "WA" on the cord's jacket.

Before using any extension cord, inspect it for loose or

exposed wires and cut or worn insulation.

**Ampere rating (on product faceplate)

0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0

Cord Length Wire Size (A.W.G.)

25' 16 16 16 16 14 14

50' 16 16 16 14 14 12

100' 16 16 14 12 10 --

**Used on 12 gauge -20 amp circuit

NOTE: AWG = American Wire Gauge

AWARNING: Keep the extension cord clear of the

working area. Position the cord so that it will not get

caught on lumber, tools or other obstructions while

you are working with a power tool. Failure to do so

can result in serious personal injury.

AWARNING: Check extension cords before each

use. If damaged replace immediately. Never use

product with a damaged cord since touching the

damaged area could cause electrical shock resulting

in serious injury.

Anti-KickbackPawls (radial arm and table saws)

A device which, when properly installed and maintained,

is designed to stop the workpiece from being kicked back

toward the front of the saw during a ripping operation.

Arbor

The shaft on which a blade or cutting tool is mounted.

Bevel Cut

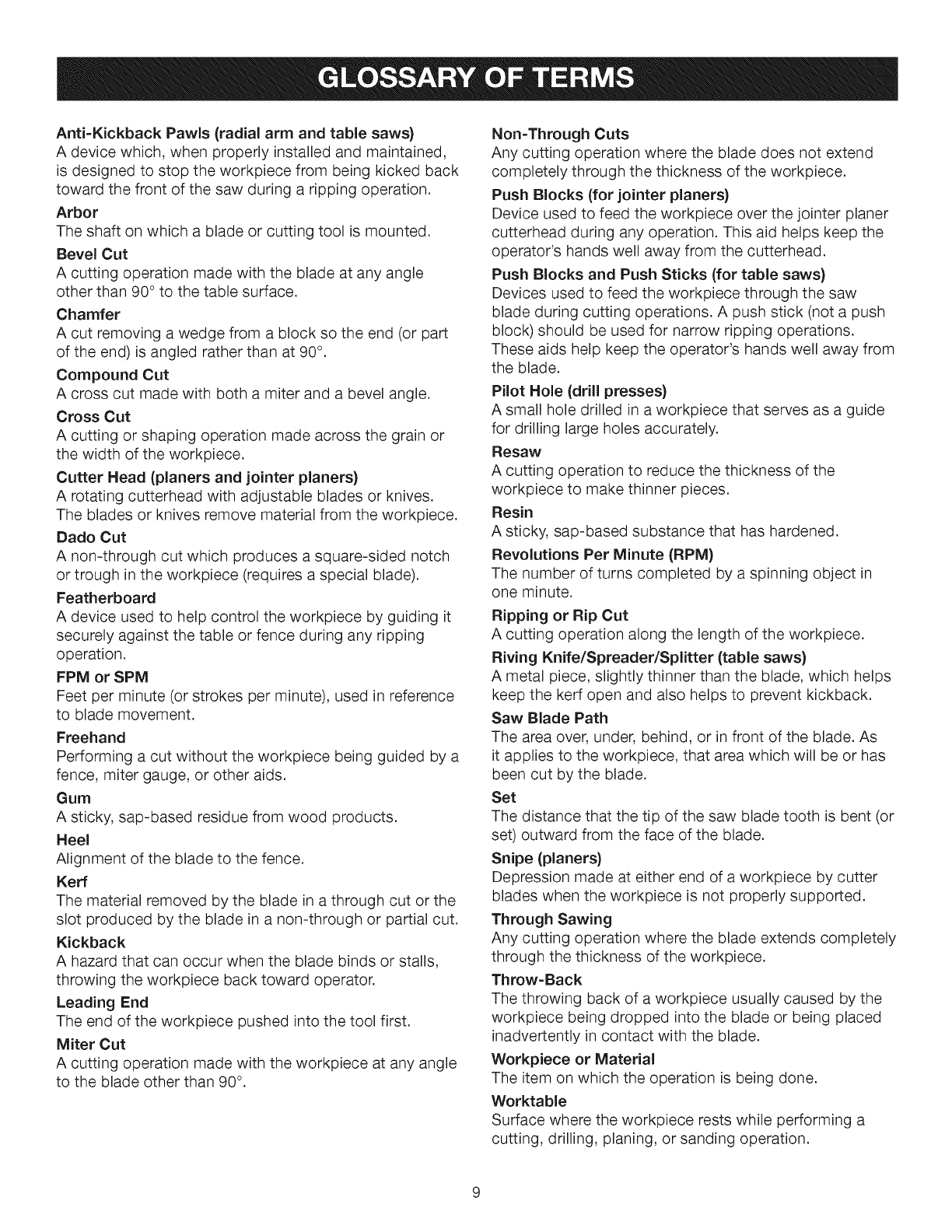

A cutting operation made with the blade at any angle

other than 90 ° to the table surface.

Chamfer

A cut removing a wedge from a block so the end (or part

of the end) is angled rather than at 90° .

Compound Cut

A cross cut made with both a miter and a bevel angle.

Cross Cut

A cutting or shaping operation made across the grain or

the width of the workpiece.

Cutter Head (planers and jointer planers)

A rotating cutterhead with adjustable blades or knives.

The blades or knives remove material from the workpiece.

Dado Cut

A non-through cut which produces a square-sided notch

or trough in the workpiece (requires a special blade).

Featherboard

A device used to help control the workpiece by guiding it

securely against the table or fence during any ripping

operation.

FPM or SPM

Feet per minute (or strokes per minute), used in reference

to blade movement.

Freehand

Performing a cut without the workpiece being guided by a

fence, miter gauge, or other aids.

Gum

A sticky, sap-based residue from wood products.

Heel

Alignment of the blade to the fence.

Kerr

The material removed by the blade in a through cut or the

slot produced by the blade in a non-through or partial cut.

Kickback

A hazard that can occur when the blade binds or stalls,

throwing the workpiece back toward operator.

Leading End

The end of the workpiece pushed into the tool first.

Miter Cut

A cutting operation made with the workpiece at any angle

to the blade other than 90 °.

Non-Through Cuts

Any cutting operation where the blade does not extend

completely through the thickness of the workpiece.

Push Blocks (for jointer planers)

Device used to feed the workpiece over the jointer planer

cutterhead during any operation. This aid helps keep the

operator's hands well away from the cutterhead.

Push Blocks and Push Sticks (for table saws)

Devices used to feed the workpiece through the saw

blade during cutting operations. A push stick (not a push

block) should be used for narrow ripping operations.

These aids help keep the operator's hands well away from

the blade.

Pilot Hole (drill presses)

A small hole drilled in a workpiece that serves as a guide

for drilling large holes accurately.

Resaw

A cutting operation to reduce the thickness of the

workpiece to make thinner pieces.

Resin

A sticky, sap-based substance that has hardened.

Revolutions Per Minute (RPM)

The number of turns completed by a spinning object in

one minute.

Ripping or Rip Cut

A cutting operation along the length of the workpiece.

Riving Knife/Spreader/Splitter (table saws)

A metal piece, slightly thinner than the blade, which helps

keep the kerf open and also helps to prevent kickback.

Saw Blade Path

The area over, under, behind, or in front of the blade. As

it applies to the workpiece, that area which will be or has

been cut by the blade.

Set

The distance that the tip of the saw blade tooth is bent (or

set) outward from the face of the blade.

Snipe (planers)

Depression made at either end of a workpiece by cutter

blades when the workpiece is not properly supported.

Through Sawing

Any cutting operation where the blade extends completely

through the thickness of the workpiece.

Throw-Back

The throwing back of a workpiece usually caused by the

workpiece being dropped into the blade or being 9laced

inadvertently in contact with the blade.

Workpiece or Material

The item on which the operation is being done.

Worktable

Surface where the workpiece rests while performing a

cutting, drilling, planing, or sanding operation.

PRODUCT SPECiFICATiONS

Blade Diameter ............................. 10 in. Cutting Capacity with Miter at 0°/Bevel 0°:

Arbor ..................................... 5/8 in. Maximum nominal lumber sizes ................... 2 x 12, 4 x 4

No Load Speed .................. 5,000 r/rain. (RPM) Cutting Capacity with Miter at 45°/Bevel 0°:

Input ................ 120 V, 60 Hz, AC Only, 15 Amps. Maximum nominal lumber sizes ............................ 2 x 10

Cutting Capacity with Miter at 0°/Bevel 45°:

,- ,,,,L ,,_ DEPTHCONTROL Maximum nominal lumber sizeS.o............... '_........... 2 x 12

_/_ r-_ )/KNOB Cutting Capacity with Miter at 45/Bevel 45 :

/f__ / /Maximum nominal lumber sizes ............................ 2 x 10

LOCKKNOB

\ [

"D" HANDLE{

SWITCH

SCALE GUARD

DUST LOWERBLADE

GUIDE GUARD

DUST "NO HANDS"

BAG LABEL

CROWN

MOLDING

STOP

BEVEL "NO HANDS"

STOPPiN BOUNDARYLINE

SLIDINGMITER

FENCE

FENCE RELEASE

LEVER

THROAT

PLATE

CONTROLARM

MICRO-

BLADEWRENCH ADJUST

STORAGE KNOB

MITER POSITIVE MITERLOCK

BASE SCALE STOP(S) HANDLE

STOP RELEASE

BLOCK MITER KNOB

TABLE WORK MITERLOCK

ROLLER CLAMP PLATE

TABLE SUPPORT

EXTENSION Fig. 1

KNOWYOUR COMPOUND MITER SAW

See Figure 1.

The safe use of this product requires an understanding of

the information on the tool and in this operator's manual

as well as a knowledge of the project you are attempting.

Before use of this product, familiarize yourself with all

operating features and safety rules.

10 in. BLADE

A 10 in. blade is included with your compound miter saw.

It will cut materials up to11-1/2 in. wide, depending upon

the angle at which the cut is being made.

15 AMP MOTOR

Your saw has a powerful 15 amp belt-driven motor with

sufficient power to handle tough cutting jobs. It is made with

all ball bearings, and has externally accessible brushes for

ease of servicing.

BEVEL LOCK KNOB

The bevel lock knob securely locks your compound miter

saw at desired bevel angles. A positive stop adjustment

screw has been provided on each side of the saw arm.

These adjustment screws are for making fine adjustments

at 0° and 45°.

BEVEL STOP PIN

The bevel stop pin has several positions:

1. Override (pin pulled completely out)

2. The 0° - 48 ° position for crown molding (pin pushed in)

3. Stops at 33.9 ° and 45°

CARRYING HANDLE

See Figure 2.

For convenience when carrying or transporting the miter

saw, a carrying handle has been provided on top of the

saw arm. To transport, turn off and unplug the saw, then

lower the saw arm and lock it in the down position. Lock

saw arm by pushing the lock pin to the left. Lock bevel

and miter lock levers; lock slide lock knob.

NOTE: DO NOT perform any cutting operation with the

saw in the locked position.

CROWN MOLDING STOP

The crown molding stop makes positioning crown molding

vertically against the fence easier.

ELECTRIC BRAKE

An electric brake has been provided to quickly stop blade

rotation after the switch is released.

LASER GUIDE

For more accurate cuts, a laser guide is included with your

miter saw. When used properly, the laser guide makes

accurate, precision cutting simple and easy.

LOWER BLADE GUARD

The lower blade guard is made of shock-resistant, see-

through plastic that provides protection from each side

of the blade. It retracts over the upper blade guard as the

saw is lowered into the workpiece.

CARRYING

HANDLE_ LOCK

RELEASE_J_ _ (/ ., LOCK

Nj MICR0"\ °

MITERLOCK BEVEL

PLATE STOPPiN

MITERLOCK

HANDLE

SAWARM LOCKEDIN DOWN POSiTiON

Fig. 2

MICRO-ADJUST KNOB

The micro-adjust feature allows rotation of the miter table

in small increments for the most accurate cuts. With the

miter lock handle unlocked, lift and hold the miter lock

plate then push the micro-adjust knob in while giving the

knob a slight turn. Once set to the desired position,

retighten the miter lock handle then cancel the micro-

adjust feature by pulling out the side release knob.

MITER LOCK HANDLE

See Figure 2.

The miter lock handle securely locks your saw at desired

miter angles.

POSITIVE STOPS ON MITER TABLE

Positive stops have been provided at 0°, 15°, 22.5 °, 31.6 °,

and 45 ° on both the left and right side of the miter table.

ROLLER SUPPORT

With the roller support installed, the workpiece will glide

smoothly over the table extensions.

SLIDE BAR

When unlocked, the saw arm will glide forward and

backward the length of the slide bar for cutting various

workpiece widths.

SLIDING MITER FENCE

Hold the workpiece securely against the miter fence when

making all cuts. The sliding feature allows both fences (left

and right) to be moved when making bevel or compound

CutS.

Slide the miter fences by pushing and holding the fence

release levers. Once the desired position of the fence is

determined, release the lever to secure the fence.

SPINDLELOCK BUTTON

See Figure 3.

A spindle lock button has been provided for locking the

spindle which keeps the blade from rotating. Depress and

hold the lock button while installing, changing, or remov-

ing blade.

SPINDLE

LOCKBUTTON

Fig. 3

SWITCH TRIGGER

See Figure 4.

The saw will not start until you depress the switch lock

with your thumb then squeeze the switch trigger. To

prevent unauthorized use of the compound miter saw,

disconnect it from the power supply and lock the switch

in the OFF position. To lock the switch, install a padlock

(not included) through the hole in the switch trigger. A lock

with a long shackle up to 9/32 in. diameter may be used.

When the lock is installed and locked, the switch is

inoperable. Store the padlock key in another location.

SWITCH

TRIGGER ItlPADLOCK

Fig. 4

The following tools (not included) are needed for making adjustments or installing the blade:

PHiLLiPSSCREWDRIVER

FRAMINGSQUARE

Fig. 5

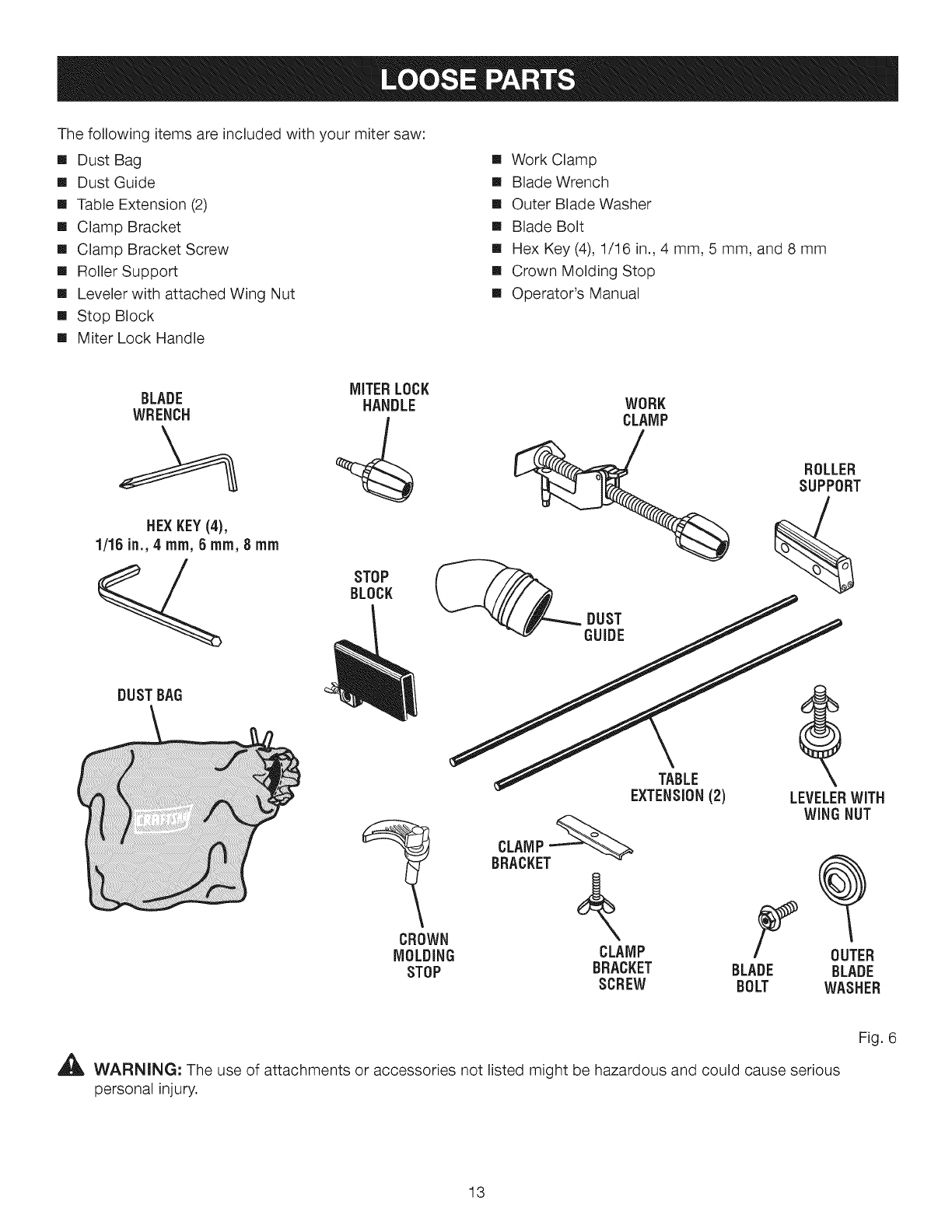

Thefollowingitemsareincludedwithyourmitersaw:

[] DustBag [] WorkClamp

[] DustGuide [] BladeWrench

[] TableExtension(2) [] OuterBladeWasher

[] ClampBracket [] BladeBolt

[] ClampBracketScrew [] HexKey(4),1/16in.,4 mm,5 mm,and8mm

[] RollerSupport [] CrownMoldingStop

[] LevelerwithattachedWingNut [] Operator'sManual

[] StopBlock

[] MiterLockHandle

BLADE WORK

WRENCH CLAMP

HEXKEY(4),

1/16 in., 4ram, 6ram, 8 mm

DUSTBAG

MITERLOCK

HANDLE

STOP

BLOCK

TABLE

EXTENSION (2)

CROWN \

MOLDING CLAMP

STOP BRACKET

SCREW

ROLLER

SUPPORT

BLADE

BOLT

LEVELERWiTH

WING NUT

OUTER

BLADE

WASHER

,_ WARNING: The use of attachments or accessories not listed might be hazardous and could cause serious

personal injury.

Fig. 6

UNPACKING

Thisproductrequiresassembly.

[] Carefullyliftsawfromthecartonbythecarryinghandle

andthesawbase,andplaceit onalevelworksurface.

NOTE:Thissawisheavy.Toavoidbackinjury,liftwith

yourlegs,notyourback,andgethelpwhenneeded.

[] Thissawhasbeenshippedwiththesawarmsecured

inthedownposition.Toreleasethesawarm,push

downonthetopofthesawarm,cutthetie-wrap,and

pulloutonthelockpin.

[] Liftthesawarmbythehandle.Handpressureshould

remainonthesawarmto preventsuddenriseupon

releaseofthetiewrap.

[] Inspectthetoolcarefullyto makesurenobreakageor

damageoccurredduringshipping.

[] Donotdiscardthepackingmaterialuntilyouhave

carefullyinspectedandsatisfactorilyoperatedthetool.

[] Thesawisfactorysetforaccuratecutting.After

assemblingit, checkforaccuracy.Ifshippinghas

influencedthesettings,referto specificprocedures

explainedinthismanual.

Ifanypartsaredamagedormissing,pleasecall

1-800-932-3188forassistance.

[]

WARNING: If any parts are damaged or missing

do not operate this tool until the parts are replaced.

Failure to heed this warning could result in serious

personal injury.

WARNING: Do not attempt to modify this tool

or create accessories not recommended for use

with this tool. Any such alteration or modification is

misuse and could result in a hazardous condition

leading to possible serious personal injury.

WARNING: Do not connect to power supply until

assembly is complete. Failure to comply could result

in accidental starting and possible serious personal

injury.

WARNING: Do not start the miter saw without

checking for interference between the saw blade and

the sliding miter fences. Damage could result to the

blade if it strikes the miter fence during operation of

the saw.

WARNING: Always make sure the compound miter

saw is securely mounted to a workbench. Failure

to heed this warning can result in serious personal

injury.

MOUNTING HOLES

See Figure 7.

The compound miter saw should be permanently mount-

ed to a firm supporting surface such as a workbench.

Four bolt holes have been provided in the saw base for

this purpose. Each of the four mounting holes should be

bolted securely using 3/8 in. machine bolts, lock washers,

and hex nuts (not included). Bolts should be of sufficient

length to accommodate the saw base, lock washers, hex

nuts, and the thickness of the workbench. Tighten all four

bolts or screws securely. Do not use screws if mounting to

a leg stand.

The hole pattern for mounting to a workbench is shown in

figure 7. Carefully check the workbench after mounting to

make sure that no movement can occur during use. If any

tipping, sliding, or walking is noted, secure the workbench

to the floor before operating.

TRACEHOLES

ATTHESELOCATIONSFOR

HOLEPATTERN

BASE

TRACEHOLES

ATTHESELOCATIONSFOR

HOLEPATTERN

MOUNTINGSURFACE

Fig. 7

NOTE:Manyoftheillustrationsinthismanualshowonly

portionsofthecompoundmitersaw.Thisisintentionalso

thatwecanclearlyshowpointsbeingmadeinthe

illustrations.Neveroperatethesawwithoutall guards

securelyin place and in good operating condition.

LOCKING /UNLOCKING THE SAW ARM

See Figure 8.

When locking and unlocking the saw arm, it is not

necessary to loosen the depth control knob.

To unlock and raise the saw arm:

[] Firmly grasp the "D" handle and apply downward pres-

sure while at the same time pulling the lock pin out and

away from the saw housing.

[] Release the lock pin and slowly raise the saw arm.

To relock the saw arm:

[] Firmly grasp the "D" handle and apply downward pres-

sure while at the same time pulling the lock pin out and

away from the saw housing.

[] Release the lock pin allowing it to lock the saw into

place.

USING THE DEPTH STOP

See Figure 9.

When used, the depth stop limits the downward travel of

the blade when cutting dadoes and other non-through

CutS.

To use the depth stop:

[] If the saw is in storage or transport position, unlock the

saw arm.

[] Turn the depth stop to the left position.

[] With the depth control knob touching the depth stop,

adjust the depth control knob by turning the knob until

the desired depth of cut is attained.

NOTE: The depth stop must be pushed to the right before

locking /unlocking the saw arm.

"D" HANDLE

DEPTHCONTROL DEPTH

KNOB STOP

LOCK

Fig. 8

Fig. 9

DUST GUIDE

See Figure 10.

Slide the end of the dust guide into the exhaust port in the

upper blade guard. Turn the guide so that the open end is

facing down or toward the rear of the saw.

EXHAUST

PORT

DUST BAG

See Figure 11.

A dust bag is provided for use on this miter saw. It fits

over the dust guide on the upper blade guard.

To install:

[] Squeeze the two metal clips to open the mouth of the

bag and slide it on to the dust guide.

[] Release the clips. The metal ring in the bag should lock

in between the grooves on the dust guide.

To remove the dust bag for emptying:

[] Reverse the above procedure.

DUST

GUIDE

Fig. 10 DUST

BAG

DUST

GUIDE

Fig. 11

TABLEEXTENS(ONS

See Figures 12- 13.

Table extensions can be installed on either the left or the

right side of the base.

To instal(:

[] Insert the ends of the table extensions into the holes in

the side of the base and adjust the extensions to the

desired length.

[] Secure extensions in place by positioning the clamp

bracket under the extension beneath the base. Orient

the clamp bracket as shown in figure 13.

[] Using the clamp bracket screw, secure the clamp

bracket in place.

NOTE: The clamp bracket screw threads through the

clamp bracket and tightens against bracket support on

bottom of base, securing clamp bracket against table

extensions.

ROLLER SUPPORT

See Figure 14,

[] Turn the roller support upside down.

[] Spin the wing nut on the leveler clockwise until the

wing nut is positioned in the middle of the threads.

[] Screw the leveler into the center brace of the roller

support.

[] Turn the roller support upright.

[] With the table extensions secured in the saw's base,

slide the roller support onto the extensions.

[] Tighten the wing nut on the back of the roller support

securing it to the table extensions.

[] The leveler must sit firmly on the surface the saw is

mounted to. Adjust the leveler up or down as needed.

[] Once the leveler is in the proper position, turn the lever

wing nut until the wing nut is tight against the center

brace.

TABLE

EXTENSION

CLAMP

BRACKET

CLAMP

BRACKETSCREW

SAWVIEWEDFROMBOTTOM

WING NUT

TABLE

EXTENSION

ROLLER

SUPPORT

BASE

Fig. 13

WING NUT

LEVELER

TABLE

EXTENSION

BASE

Fig. 12

Fig. 14

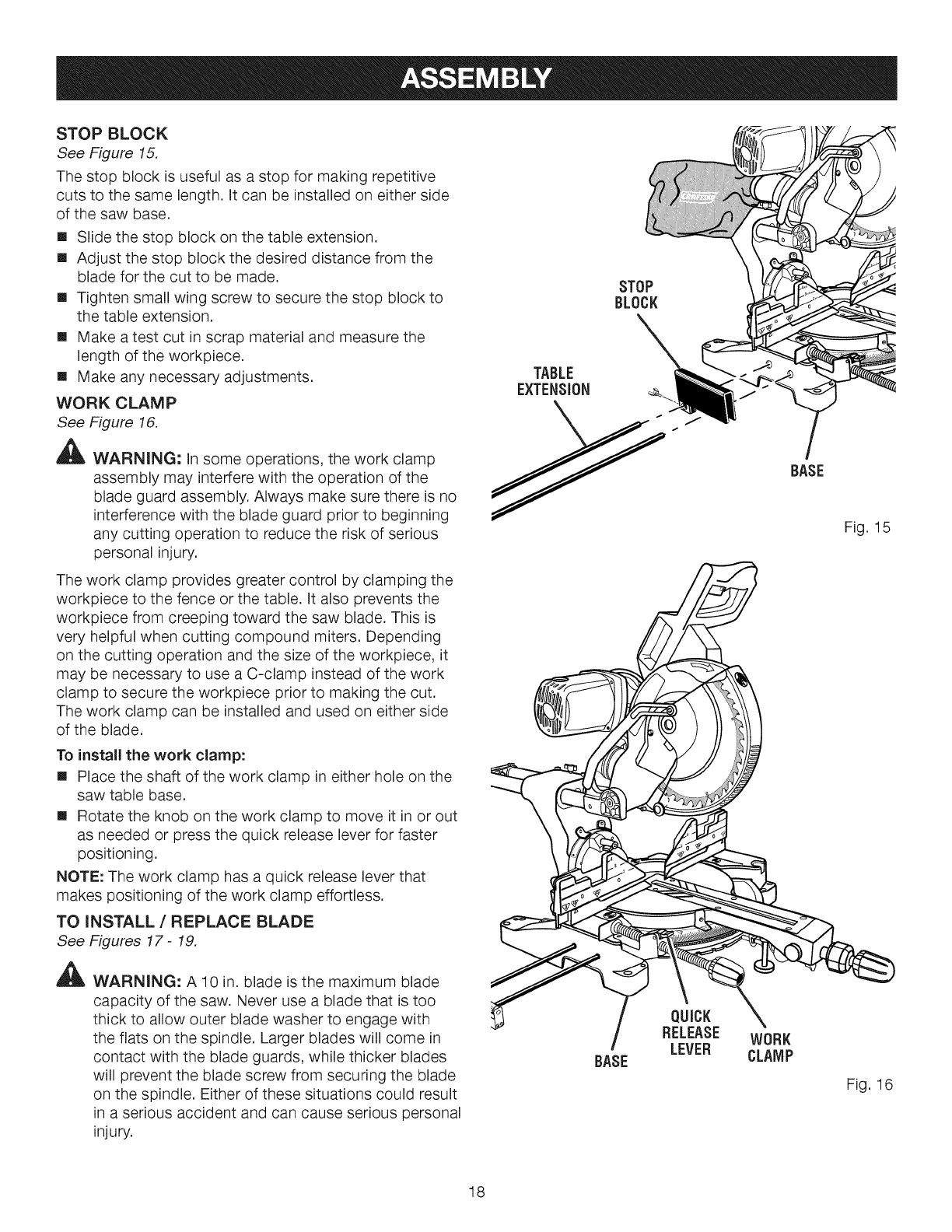

STOPBLOCK

See Figure 15,

The stop block is useful as a stop for making repetitive

cuts to the same length. It can be installed on either side

of the saw base.

[] Slide the stop block on the table extension.

[] Adjust the stop block the desired distance from the

blade for the cut to be made.

[] Tighten small wing screw to secure the stop block to

the table extension.

[] Make a test cut in scrap material and measure the

length of the workpiece.

[] Make any necessary adjustments.

WORK CLAMP

See Figure 16.

_11_ WARNING: In some operations, the work clamp

assembly may interfere with the operation of the

blade guard assembly. Always make sure there is no

interference with the blade guard prior to beginning

any cutting operation to reduce the risk of serious

personal injury.

The work clamp provides greater control by clamping the

workpiece to the fence or the table. It also prevents the

workpiece from creeping toward the saw blade. This is

very helpful when cutting compound miters. Depending

on the cutting operation and the size of the workpiece, it

may be necessary to use a C-clamp instead of the work

clamp to secure the workpiece prior to making the cut.

The work clamp can be installed and used on either side

of the blade.

To instal( the work clamp:

[] Place the shaft of the work clamp in either hole on the

saw table base.

[] Rotate the knob on the work clamp to move it in or out

as needed or press the quick release lever for faster

positioning.

NOTE: The work clamp has a quick release lever that

makes positioning of the work clamp effortless.

TO INSTALL /REPLACE BLADE

See Figures 17- 19.

AWARNING: A 10 in. blade is the maximum blade

capacity of the saw. Never use a blade that is too

thick to allow outer blade washer to engage with

the flats on the spindle. Larger blades will come in

contact with the blade guards, while thicker blades

will prevent the blade screw from securing the blade

on the spindle. Either of these situations could result

in a serious accident and can cause serious personal

injury.

STOP

BLOCK

TABLE

EXTENSION

BASE

QUICK

RELEASE

LEVER

BASE

Fig. 15

WORK

CLAMP

Fig. 16

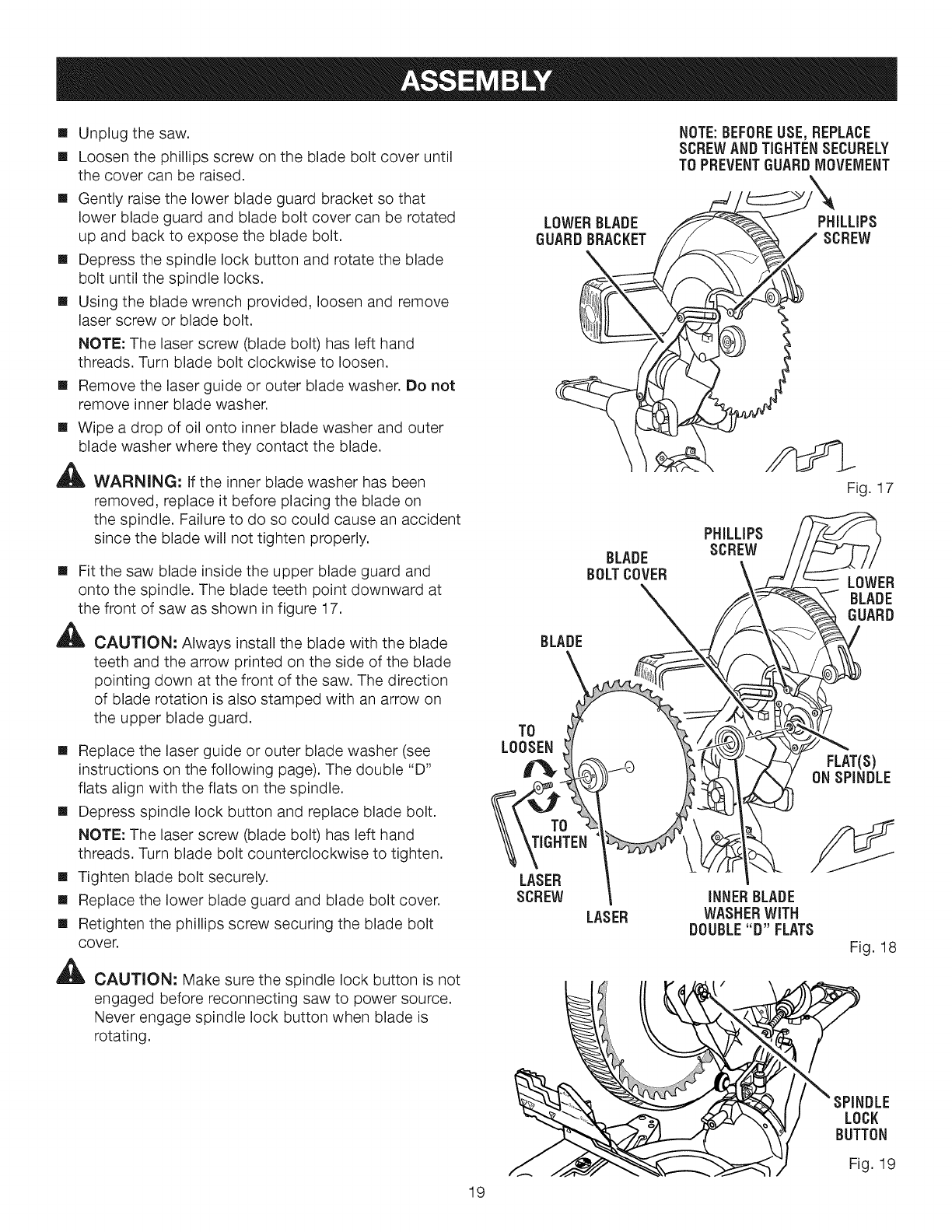

[] Unplugthesaw.

[] Loosenthephillipsscrewonthebladeboltcoveruntil

thecovercanberaised.

[] Gentlyraisethelowerbladeguardbracketsothat

lowerbladeguardandbladeboltcovercanberotated

upandbackto exposethebladebolt.

[] Depressthespindlelockbuttonandrotatetheblade

boltuntilthespindlelocks.

[] Usingthebladewrenchprovided,loosenandremove

laserscreworbladebolt.

NOTE:Thelaserscrew(bladebolt)haslefthand

threads.Turnbladeboltclockwiseto loosen.

[] Removethelaserguideorouterbladewasher.Donot

removeinnerbladewasher.

[] Wipeadropof oilontoinnerbladewasherandouter

bladewasherwheretheycontacttheblade.

,_ WARN(NG: If the inner blade washer has been

removed, replace it before placing the blade on

the spindle. Failure to do so could cause an accident

since the blade will not tighten properly.

[] Fit the saw blade inside the upper blade guard and

onto the spindle. The blade teeth point downward at

the front of saw as shown in figure 17.

,_ CAUTION: Always install the blade with the blade

teeth and the arrow printed on the side of the blade

pointing down at the front of the saw. The direction

of blade rotation is also stamped with an arrow on

the upper blade guard.

[] Replace the laser guide or outer blade washer (see

instructions on the following page). The double "D"

flats align with the flats on the spindle.

[] Depress spindle lock button and replace blade bolt.

NOTE: The laser screw (blade bolt) has left hand

threads. Turn blade bolt counterclockwise to tighten.

[] Tighten blade bolt securely.

[] Replace the lower blade guard and blade bolt cover.

[] Retighten the phillips screw securing the blade bolt

cover.

,_ CAUT(ON: Make sure the spindle lock button is not

engaged before reconnecting saw to power source.

Never engage spindle lock button when blade is

rotating.

BLADE

BOLTCOVER

BLADE

LOOSEN

LASER

SCREW

LASER

NOTE:BEFOREUSE, REPLACE

SCREWANDTIGHTENSECURELY

TO PREVENTGUARDMOVElVlENT

\PHiLLiPS

SCREW

Fig. 17

PHILLIPS

SCREW

LOWER

BLADE

GUARD

FLAT(S)

ONSPINDLE

INNERBLADE

WASHERWiTH

DOUBLE"D" FLATS

Fig. 18

SPINDLE

LOCK

BUTTON

Fig. 19

_DANGER: Laser radiation. Avoid direct eye contact

with light source.

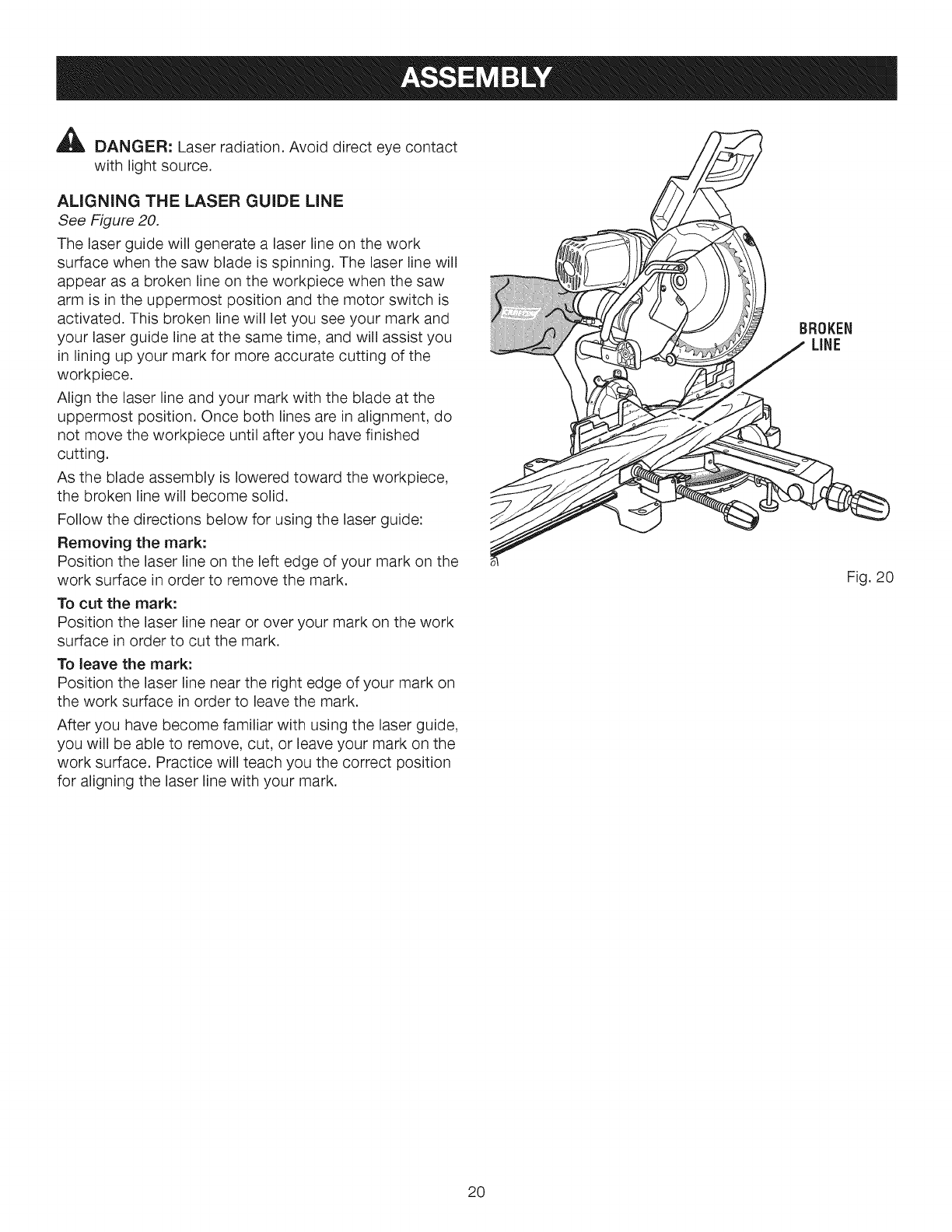

ALIGNING THE LASER GUIDE LINE

See Figure 20.

The laser guide will generate a laser line on the work

surface when the saw blade is spinning. The laser line will

appear as a broken line on the workpiece when the saw

arm is in the uppermost position and the motor switch is

activated. This broken line will let you see your mark and

your laser guide line at the same time, and will assist you

in lining up your mark for more accurate cutting of the

workpiece.

Align the laser line and your mark with the blade at the

uppermost position. Once both lines are in alignment, do

not move the workpiece until after you have finished

cutting.

As the blade assembly is lowered toward the workpiece,

the broken line will become solid.

Follow the directions below for using the laser guide:

Removing the mark:

Position the laser line on the left edge of your mark on the

work surface in order to remove the mark.

To cut the mark:

Position the laser line near or over your mark on the work

surface in order to cut the mark.

To leave the mark:

Position the laser line near the right edge of your mark on

the work surface in order to leave the mark.

After you have become familiar with using the laser guide,

you will be able to remove, cut, or leave your mark on the

work surface. Practice will teach you the correct position

for aligning the laser line with your mark.

Fig. 20

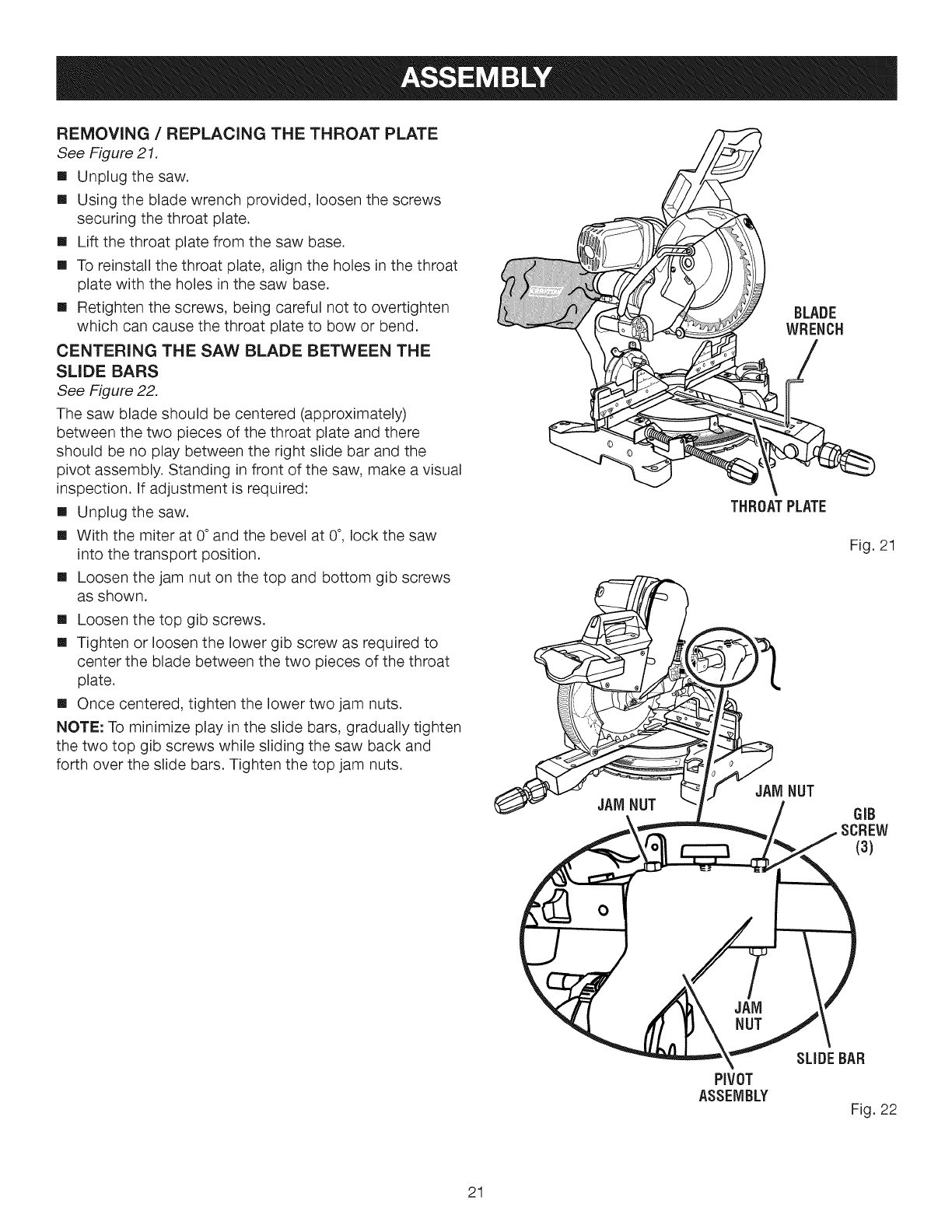

REMOVING/REPLACING THE THROAT PLATE

See Figure 21.

[] Unplug the saw.

[] Using the blade wrench provided, loosen the screws

securing the throat plate.

[] Lift the throat plate from the saw base.

[] To reinstall the throat plate, align the holes in the throat

plate with the holes in the saw base.

[] Retighten the screws, being careful not to overtighten

which can cause the throat plate to bow or bend.

CENTERING THE SAW BLADE BETWEEN THE

SLIDE BARS

See Figure 22.

The saw blade should be centered (approximately)

between the two pieces of the throat plate and there

should be no play between the right slide bar and the

pivot assembly. Standing in front of the saw, make a visual

inspection. If adjustment is required:

[] Unplug the saw.

[] With the miter at 0° and the bevel at 0°, lock the saw

into the transport position.

[] Loosen the jam nut on the top and bottom gib screws

as shown.

[] Loosen the top gib screws.

[] Tighten or loosen the lower gib screw as required to

center the blade between the two pieces of the throat

plate.

[] Once centered, tighten the lower two jam nuts.

NOTE: To minimize play in the slide bars, gradually tighten

the two top gib screws while sliding the saw back and

forth over the slide bars. Tighten the top jam nuts.

BLADE

WRENCH

THROATPLATE

Fig. 21

JAM NUT

GIB

SCREW

(3)

PIVOT

ASSEMBLY

SLIDE BAR

Fig. 22

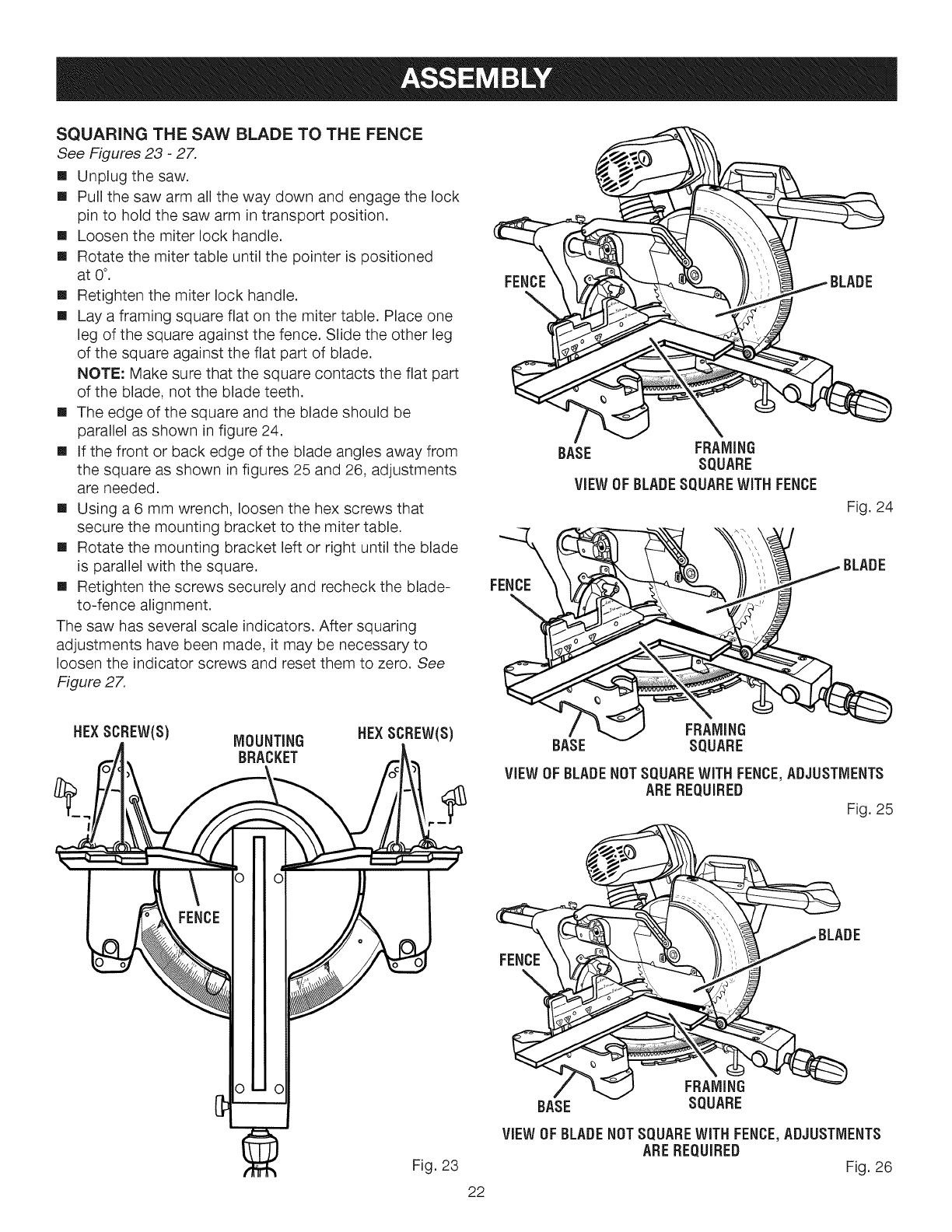

SQUARINGTHE SAW BLADE TO THE FENCE

See Figures 23 -27.

[] Unplug the saw.

[] Pull the saw arm all the way down and engage the lock

pin to hold the saw arm in transport position.

[] Loosen the miter lock handle.

[] Rotate the miter table until the pointer is positioned

at 0°. FENCE

[] Retighten the miter lock handle.

[] Lay a framing square flat on the miter table. Place one

leg of the square against the fence. Slide the other leg

of the square against the flat part of blade.

NOTE: Make sure that the square contacts the flat part

of the blade, not the blade teeth.

[] The edge of the square and the blade should be

parallel as shown in figure 24.

[] If the front or back edge of the blade angles away from

the square as shown in figures 25 and 26, adjustments

are needed.

[] Using a 6 mm wrench, loosen the hex screws that

secure the mounting bracket to the miter table.

[] Rotate the mounting bracket left or right until the blade

is parallel with the square.

[] Retighten the screws securely and recheck the blade-

to-fence alignment.

The saw has several scale indicators. After squaring

adjustments have been made, it may be necessary to

loosen the indicator screws and reset them to zero. See

Figure 27,

HEXSCREW(S) MOUNTING

BRACKET

HEXSCREW(S)

Fig. 23

BASE FRAMING

SQUARE

ViEWOF BLADESQUAREWiTH FENCE

Fig. 24

BASE SQUARE

VIEWOF BLADENOTSQUAREWiTH FENCE,ADJUSTMENTS

AREREQUIRED

Fig. 25

FENCE \ "_,_j_'---__

/FRAMING

BASE SQUARE

VIEW OFBLADENOTSQUAREWITH FENCE,ADJUSTMENTS

AREREQUIRED Fig. 26

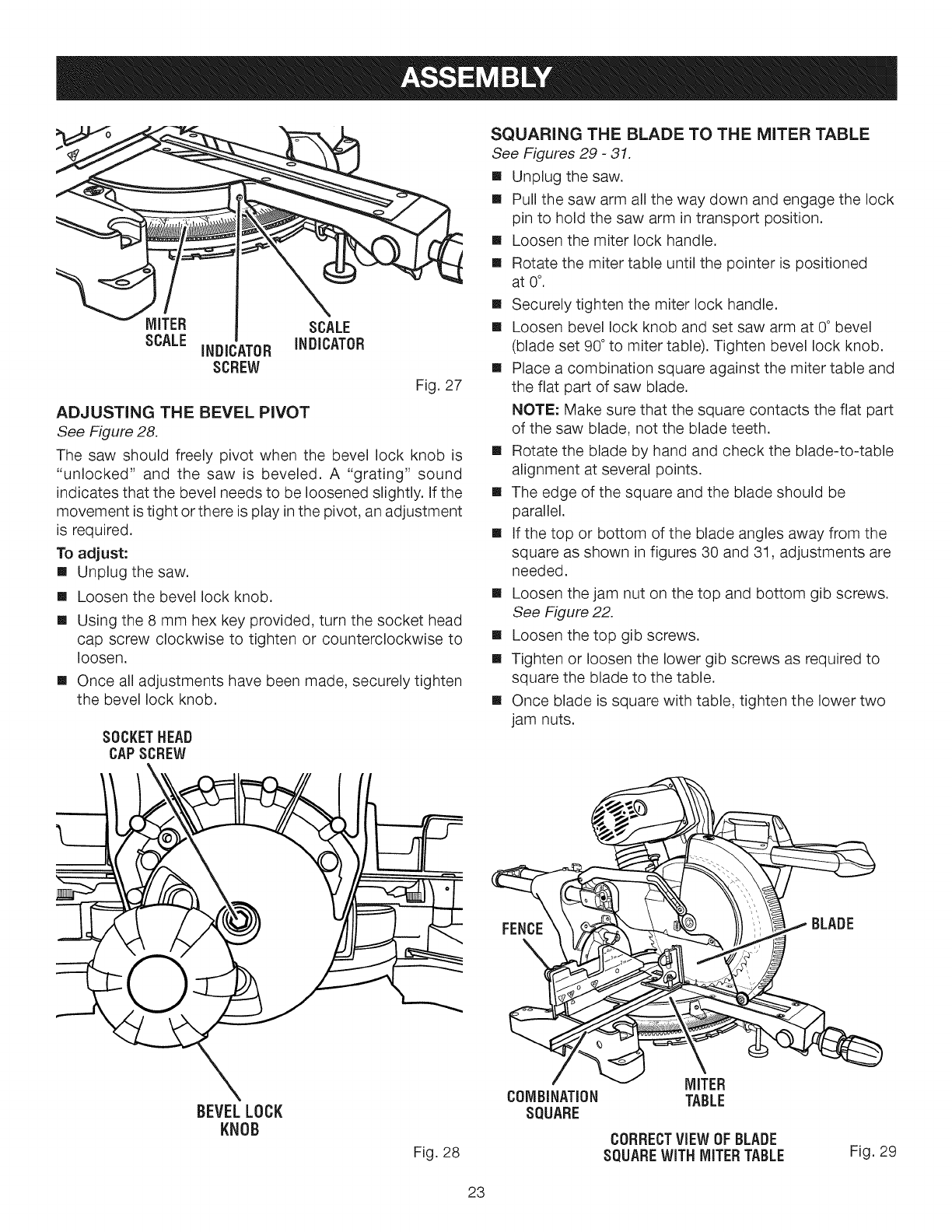

MITER SCALE

SCALEiNDiCATOR iNDiCATOR

SCREW

Fig. 27

ADJUSTING THE BEVEL PIVOT

See Figure 28.

The saw should freely pivot when the bevel lock knob is

"unlocked" and the saw is beveled. A "grating" sound

indicates that the bevel needs to be loosened slightly. If the

movement is tight or there is play in the pivot, an adjustment

is required.

To adjust:

[] Unplug the saw.

[] Loosen the bevel lock knob.

[] Using the 8 mm hex key provided, turn the socket head

cap screw clockwise to tighten or counterclockwise to

loosen.

[] Once all adjustments have been made, securely tighten

the bevel lock knob.

SOCKETHEAD

CAPSCREW

BEVELLOCK

KNOB

Fig. 28

SQUARING THE BLADE TO THE MITER TABLE

See Figures 29 -31.

[] Unplug the saw.

[] Pull the saw arm all the way down and engage the lock

pin to hold the saw arm in transport position.

[] Loosen the miter lock handle.

[] Rotate the miter table until the pointer is positioned

at 0°.

[] Securely tighten the miter lock handle.

[] Loosen bevel lock knob and set saw arm at 0° bevel

(blade set 90° to miter table). Tighten bevel lock knob.

[] Place a combination square against the miter table and

the flat part of saw blade.

NOTE: Make sure that the square contacts the flat part

of the saw blade, not the blade teeth.

[] Rotate the blade by hand and check the blade-to-table

alignment at several points.

[] The edge of the square and the blade should be

parallel.

[] If the top or bottom of the blade angles away from the

square as shown in figures 30 and 31, adjustments are

needed.

[] Loosen the jam nut on the top and bottom gib screws.

See Figure 22.

[] Loosen the top gib screws.

[] Tighten or loosen the lower gib screws as required to

square the blade to the table.

[] Once blade is square with table, tighten the lower two

jam nuts.

COMBINATION TABLE

SQUARE

CORRECTViEWOF BLADE

SQUAREWiTH MITERTABLE Fig. 29

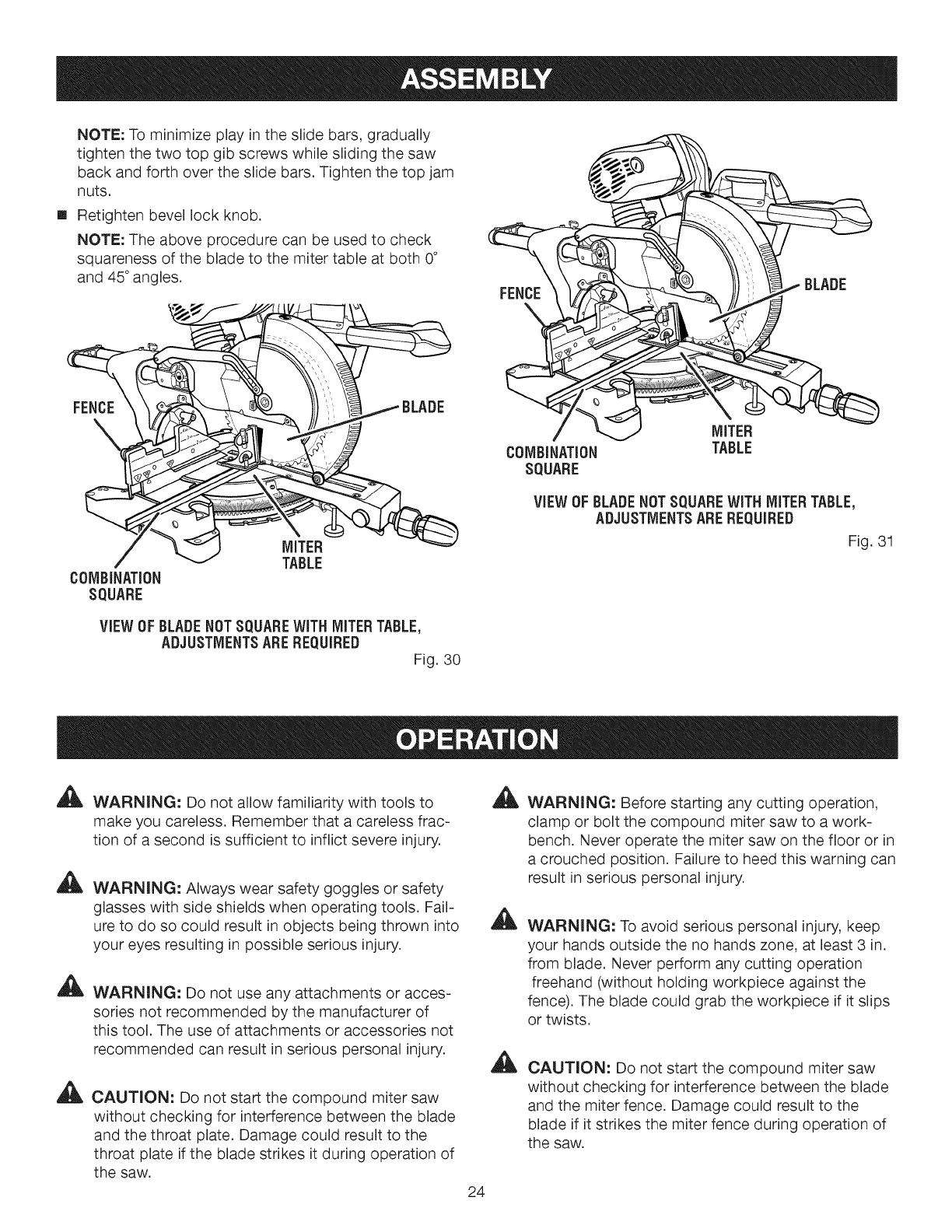

NOTE:Tominimizeplayin the slide bars, gradually

tighten the two top gib screws while sliding the saw

back and forth over the slide bars. Tighten the top jam

nuts.

[] Retighten bevel lock knob. FENCE .....

NOTE: The above procedure can be used to check

squareness of the blade to the miter table at both 0°

and 45 ° angles.

VIEW OF BLADENOTSQUAREWITH MITERTABLE,

ADJUSTMENTSAREREQUIRED

Fig. 31

TABLE

COMBiNATiON

SQUARE

VIEWOF BLADENOTSQUAREWITH MITERTABLE,

ADJUSTMENTSARE REQUIRED Fig. 30

_IL WARNING: Do not allow familiarity with tools to A

make you careless. Remember that a careless frac-

tion of a second is sufficient to inflict severe injury.

WARNING: Always wear safety goggles or safety

glasses with side shields when operating tools. Fail-

ure to do so could result in objects being thrown into

your eyes resulting in possible serious injury.

WARNING: Do not use any attachments or acces-

sories not recommended by the manufacturer of

this tool. The use of attachments or accessories not

recommended can result in serious personal injury.

CAUTION: Do not start the compound miter saw

without checking for interference between the blade

and the throat plate. Damage could result to the

throat plate if the blade strikes it during operation of

the saw.

WARNING: Before starting any cutting operation,

clamp or bolt the compound miter saw to a work-

bench. Never operate the miter saw on the floor or in

a crouched position. Failure to heed this warning can

result in serious personal injury.

WARNING: To avoid serious personal injury, keep

your hands outside the no hands zone, at least 3 in.

from blade. Never perform any cutting operation

freehand (without holding workpiece against the

fence). The blade could grab the workpiece if it slips

or twists.

CAUTION: Do not start the compound miter saw

without checking for interference between the blade

and the miter fence. Damage could result to the

blade if it strikes the miter fence during operation of

the saw.

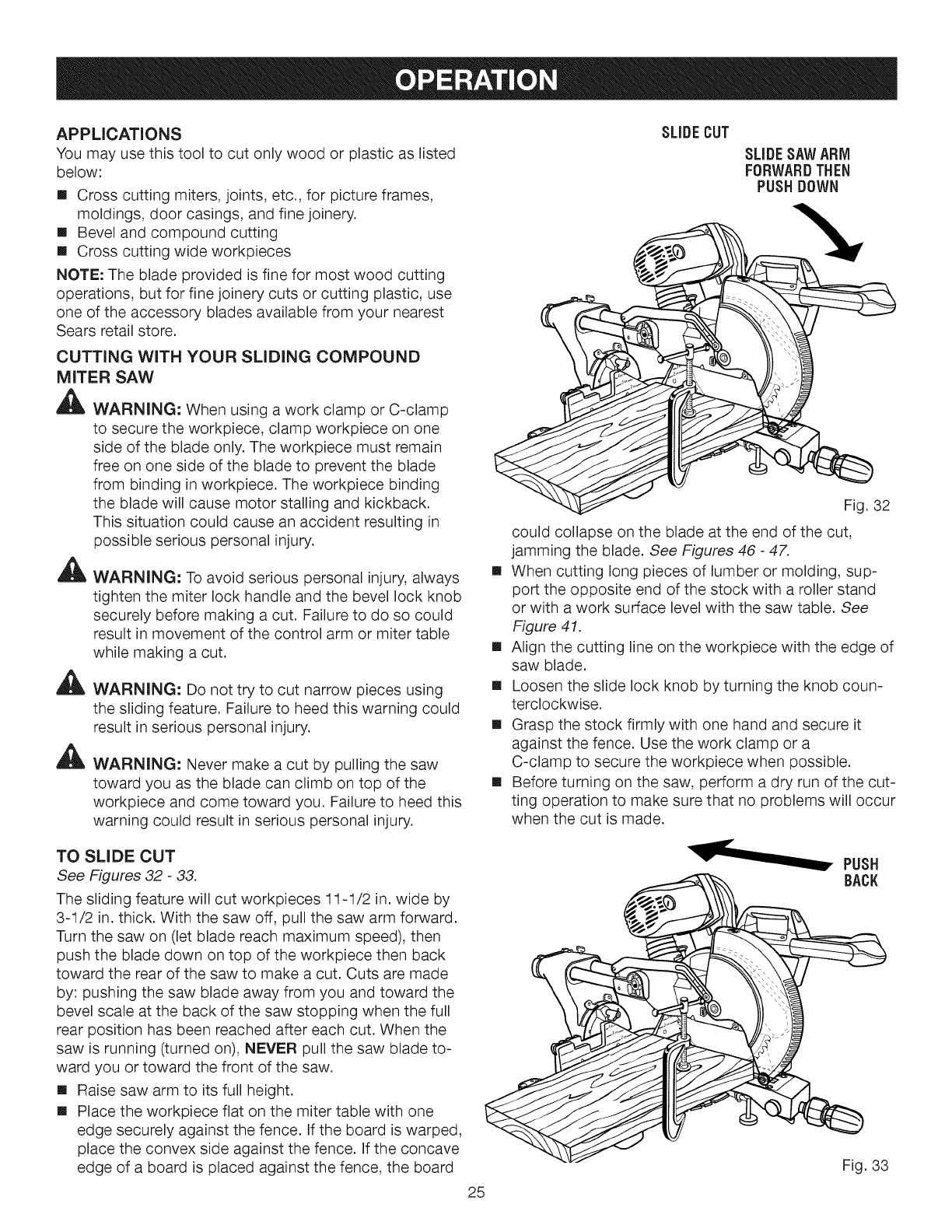

APPLiCATiONS

Youmayusethistoolto cutonlywoodorplasticaslisted

below:

[] Crosscuttingmiters,joints,etc.,forpictureframes,

moldings,doorcasings,andfinejoinery.

[] Bevelandcompoundcutting

[] Crosscuttingwideworkpieces

NOTE:Thebladeprovidedisfineformostwoodcutting

operations,butforfinejoinerycutsorcuttingplastic,use

oneoftheaccessorybladesavailablefromyournearest

Searsretailstore.

CUTTINGWiTH YOUR SLiDiNG COMPOUND

MITER SAW

,_L, WARNING: When using a work clamp or C-clamp

to secure the workpiece, clamp workpiece on one

side of the blade only. The workpiece must remain

free on one side of the blade to prevent the blade

from binding in workpiece. The workpiece binding

the blade will cause motor stalling and kickback.

This situation could cause an accident resulting in

possible serious personal injury.

WARNING: To avoid serious personal injury, always

tighten the miter lock handle and the bevel lock knob

securely before making a cut. Failure to do so could

result in movement of the control arm or miter table

while making a cut.

WARNING: Do not try to cut narrow pieces using

the sliding feature. Failure to heed this warning could

result in serious personal injury.

WARNING: Never make a cut by pulling the saw

toward you as the blade can climb on top of the

workpiece and come toward you. Failure to heed this

warning could result in serious personal injury.

TO SLIDE CUT

See Figures 32 -33.

The sliding feature will cut workpieces 11-1/2 in. wide by

3-1/2 in. thick. With the saw off, pull the saw arm forward.

Turn the saw on (let blade reach maximum speed), then

push the blade down on top of the workpiece then back

toward the rear of the saw to make a cut. Cuts are made

by: pushing the saw blade away from you and toward the

bevel scale at the back of the saw stopping when the full

rear position has been reached after each cut. When the

saw is running (turned on), NEVER pull the saw blade to-

ward you or toward the front of the saw.

[] Raise saw arm to its full height.

[] Place the workpiece flat on the miter table with one

edge securely against the fence, if the board is warped,

place the convex side against the fence. If the concave

edge of a board is placed against the fence, the board

SLIDECUT

SLIDESAWARM

FORWARDTHEN

PUSHDOWN

could collapse on the blade at the end of the cut,

jamming the blade. See Figures 46 -47.

[] When cutting long pieces of lumber or molding, sup-

port the opposite end of the stock with a roller stand

or with a work surface level with the saw table. See

Figure 41.

[] Align the cutting line on the workpiece with the edge of

saw blade.

[] Loosen the slide lock knob by turning the knob coun-

terclockwise.

[] Grasp the stock firmly with one hand and secure it

against the fence. Use the work clamp or a

C-clamp to secure the workpiece when possible.

[] Before turning on the saw, perform a dry run of the cut-

ting operation to make sure that no problems will occur

when the cut is made.

"_f_m_l_mmmm_,PUSH

Fig. 33

[] Withthesawoff,graspthesawhandlefirmlythenpull

thesawforwarduntilthebladearbor(centerofthesaw

blade)isoverthefrontoftheworkpiece.

[] Depresstheswitchlockwiththumbthensqueezethe

switchtrigger.Allowseveralsecondsforthebladeto

reachmaximumspeed.

[] Slowlylowerthebladeintoandthroughthefrontedge

oftheworkpiece.

[] Pushthesawhandleawayfromyouandtowardthe

bevelscaleatthebackofthesaw.

[] Releasetheswitchtriggerandallowthesawblade

to stoprotatingbeforeraisingthebladeoutofthe

workpieceandremovingtheworkpiecefrommiter

table.

NOTE:Acrosscutismadebycuttingacrossthegrainof

theworkpiece.A straightcrosscutismadewiththemiter

tablesetatthe0° position.Mitercrosscutsaremadewith

themitertablesetatsomeangleotherthan0°.

TO MAKE NON-SLIDING CUTS

_t_ WARN(NG: Securely tighten the slide lock knob

when making any non-sliding cuts. Failure to tighten

the knob could result in the saw head moving during

the cutting operation.

[]

TO MITER CUT /CROSS CUT

See Figures 34 -35.

A cross cut is made by cutting across the grain of the

workpiece. A straight cross cut is made with the miter

table set at the 0° position. Miter cross cuts are made with

the miter table set at some angle other than zero.

Make sure the slide lock knob is tightened securely.

Pull out the lock pin and lift saw arm to its full height.

Loosen the miter lock handle.

[]

Lift the miter lock plate to disengage.

Rotate the miter table until the pointer aligns with the

desired angle on the miter scale.

Release the miter lock plate.

NOTE: You can quickly locate 0°, 15°, 22.5 °, 31.6 °, and

45 ° left or right by releasing the lock plate as you rotate

the control arm. The lock plate will seat itself in one of

the positive stop notches, located in the base.

[] Tighten the miter lock handle securely.

[] Place the workpiece flat on the miter table with one edge

securely against the fence. If the board is warped, place

the convex side against the fence. If the concave edge of

a board is placed against the fence, the board could col-

lapse on the blade at the end of the cut, jamming the blade.

[] When cutting long pieces of lumber or molding, sup-

port the opposite end of the stock with a roller stand

or with a work surface level with the saw table. See

Figure 41.

CROSSOUT Fig. 34

[] Align cutting line on the workpiece with the edge of

blade.

[] Grasp the stock firmly with one hand and secure it

against the fence or use the work clamp or a C-clamp

to secure the workpiece.

[] Before turning on the saw, perform a dry run of the cut-

ting operation just to make sure that no problems will

occur when the cut is made.

MITERCUT Fig. 35

[] Graspthesawhandlefirmlythensqueezetheswitch

trigger.Allowseveralsecondsforthebladeto reach

maximumspeed.

[] Slowlylowerthebladeintoandthroughtheworkpiece.

[] Releasetheswitchtriggerandallowthebladeto stop

rotatingbeforeraisingthebladeoutoftheworkpiece.

Waituntiltheelectricbrakestopsbladefromturning

beforeremovingtheworkpiecefromthemitertable.

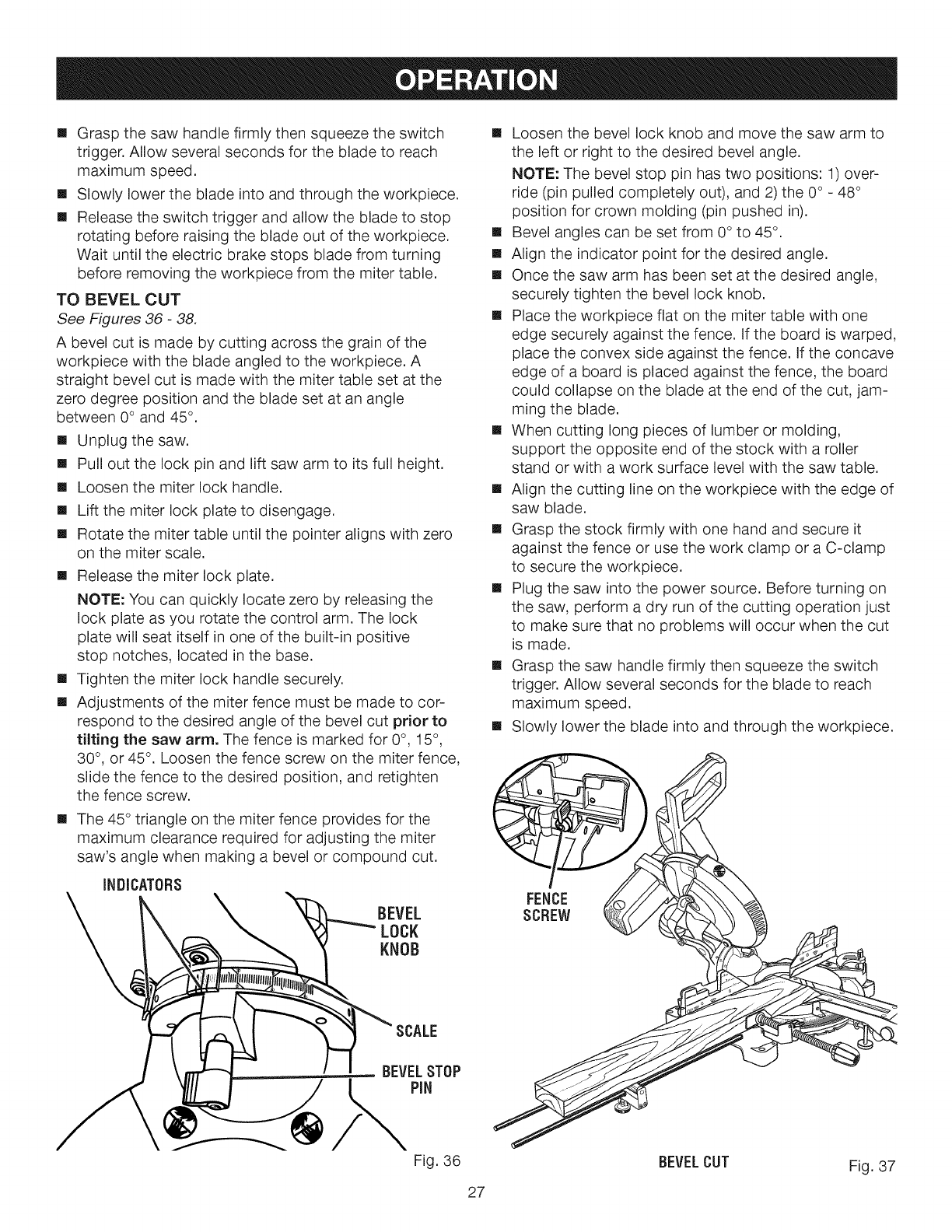

TO BEVEL CUT

See Figures 36 -38.

A bevel cut is made by cutting across the grain of the

workpiece with the blade angled to the workpiece. A

straight bevel cut is made with the miter table set at the

zero degree position and the blade set at an angle

between 0° and 45°.

[] Unplug the saw.

[] Pull out the lock pin and lift saw arm to its full height.

[] Loosen the miter lock handle.

[] Lift the miter lock plate to disengage.

[] Rotate the miter table until the pointer aligns with zero

on the miter scale.

[] Release the miter lock plate.

NOTE: You can quickly locate zero by releasing the

lock plate as you rotate the control arm. The lock

plate will seat itself in one of the built-in positive

stop notches, located in the base.

[] Tighten the miter lock handle securely.

[] Adjustments of the miter fence must be made to cor-

respond to the desired angle of the bevel cut prior to

tilting the saw arm. The fence is marked for 0°, 15°,

30 °, or 45° . Loosen the fence screw on the miter fence,

slide the fence to the desired position, and retighten

the fence screw.

[] The 45° triangle on the miter fence provides for the

maximum clearance required for adjusting the miter

saw's angle when making a bevel or compound cut.

INDICATORS

BEVEL

LOCK

KNOB

BEVELSTOP

[] Loosen the bevel lock knob and move the saw arm to

the left or right to the desired bevel angle.

NOTE: The bevel stop pin has two positions: 1) over-

ride (pin pulled completely out), and 2) the 0° - 48°

position for crown molding (pin pushed in).

[] Bevel angles can be set from 0° to 45°.

[] Align the indicator point for the desired angle.

[] Once the saw arm has been set at the desired angle,

securely tighten the bevel lock knob.

[] Place the workpiece flat on the miter table with one

edge securely against the fence. If the board is warped,

place the convex side against the fence. If the concave

edge of a board is placed against the fence, the board

could collapse on the blade at the end of the cut, jam-

ming the blade.

[] When cutting long pieces of lumber or molding,

support the opposite end of the stock with a roller

stand or with a work surface level with the saw table.

[] Align the cutting line on the workpiece with the edge of

saw blade.

[] Grasp the stock firmly with one hand and secure it

against the fence or use the work clamp or a C-clamp

to secure the workpiece.

[] Plug the saw into the power source. Before turning on

the saw, perform a dry run of the cutting operation just

to make sure that no problems will occur when the cut

is made.

[] Grasp the saw handle firmly then squeeze the switch

trigger. Allow several seconds for the blade to reach

maximum speed.

[] Slowly lower the blade into and through the workpiece.

FENCE

SCREW

Fig. 36

BEVELCUT Fig. 37

[] Release the switch trigger and allow the saw blade

to stop rotating before raising the blade out of the

workpiece. Wait until the electric brake stops blade

from turning before removing the workpiece from miter

table.

BEVEL

STOPPiN

Fig. 38

TO COMPOUND MITER CUT

A compound miter cut is a cut made using a miter angle

and a bevel angle at the same time. This type of cut is

used to make picture frames, cut molding, make boxes

with sloping sides, and for certain roof framing cuts.

To make this type of cut the control arm on the miter table

must be rotated to the correct angle and the saw arm

must be tilted to the correct bevel angle. Care should

always be taken when making compound miter setups

due to the interaction of the two angle settings.

Adjustments of miter and bevel settings are interde-

pendent with one another. Each time you adjust the miter

setting you change the effect of the bevel setting. Also,

each time you adjust the bevel setting you change the

effect of the miter setting.

It may take several settings to obtain the desired cut. The

first angle setting should be checked after setting the

second angle, since adjusting the second angle affects

the first.

Once the two correct settings for a particular cut have

been obtained, always make a test cut in scrap material

before making a finish cut in good material.

[] Pull out the lock pin and lift saw arm to its full height.

[] Loosen the miter lock handle.

[] Lift the miter lock plate to disengage.

[] Rotate the miter table until the pointer aligns with the

desired angle on the miter scale.

[] Release the miter lock plate.

NOTE: You can quickly locate 0°, 15°, 22.5 °, 31.6 °, and

45 ° left or right by releasing the miter lock plate as you

rotate the control arm. The miter lock plate will seat

itself in one of the positive stop notches, located in the

base.

[] Retighten the miter lock handle securely.

[] Adjustments of the miter fence must be made to cor-

respond to the desired angle of the bevel cut prior to

tilting the saw arm. The fence is marked for 0°, 15°,

30 °, or 45° . Loosen the fence screw on the miter fence,

slide the fence to the desired position, and retighten

the fence screw.

[] The 45° triangle on the miter fence provides for the

maximum clearance required for adjusting the miter

saw's angle when making a bevel or compound cut.

[] Loosen the bevel lock knob and move the saw arm to

the left or right to the desired bevel angle.

[] Bevel angles can be set from 0° to 45°.

[] Once the saw arm has been set at the desired angle,

securely tighten the bevel lock knob.

[] Recheck miter angle setting. Make a test cut in scrap

material.

[] Place the workpiece flat on the miter table with one

edge securely against the fence. If the board is warped,

place the convex side against the fence. If the concave

edge of a board is placed against the fence, the board

could collapse on the blade at the end of the cut, jam-

ming the blade.

[] When cutting long pieces of lumber or molding, sup-

port the opposite end of the stock with a roller stand or

with a work surface level with the saw table.

[] Align the cutting line on the workpiece with the edge of

saw blade.

[] Grasp the stock firmly with one hand and secure it

against the fence or use the work clamp or a C-clamp

to secure the workpiece when possible.

COMPOUNDMITERCUT

Fig. 39

[] Beforeturningonthesaw,performadryrunofthecut-

tingoperationjustto makesurethatnoproblemswill

occurwhenthecutis made.

[] Graspthesawhandlefirmlythensqueezetheswitch

trigger.Allowseveralsecondsforthebladeto reach

maximumspeed.

[] Slowlylowerthebladeintoandthroughtheworkpiece.

[] Releasetheswitchtriggerandallowthebladeto stop

rotatingbeforeraisingthebladeoutoftheworkpiece.

Waituntiltheelectricbrakestopsbladefromturning

beforeremovingtheworkpiecefrommitertable.

SUPPORTLONG WORKP(ECES

See Figure 38.

Long workpieces need extra supports. Supports should

be placed along the workpiece so it does not sag. The

support should let the workpiece lay flat on the base of

the saw and work table during the cutting operation. Use

the work clamp or a C-clamp to secure the workpiece.

45°X 45° COMPOUNDMITERCUT Fig. 4O

LONGWORKPIECE

ROLLER

SUPPORT

Fig. 41

CUTTINGCOMPOUNDMITERS

Toaidin making the correct settings, the compound angle setting chart below has been provided. Since compound cuts

are the most difficult to accurately obtain, trial cuts should be made in scrap material, and much thought and planning

made, prior to making your required cut.

NUMBER OF SIDES

PITCH

OF SIDE

5°

10°

15°

20 °

25°

30°

35 °

40 °

45°

50°

55°

60°

65°

70°

75°

80°

85°

90°

M- 45.00 °

B- 0.00 °

M- 44.89 °

B- 3.53 °

M- 44.56 °

B- 7.05 °

M- 44.01 o

B- 10.55 °

M- 43.22 °

B- 14.00 °

M- 42.19 °

B- 17.39 °

M- 40.89 °

B- 20.70 °

M- 39.32 °

B- 23.93 °

M- 37.45 °

B- 27.03 °

M- 35.26 °

B- 30.00 °

M- 32.73 °

B- 32.80 °

M- 29.84 °

B- 35.40 °

M- 26.57 °

B- 37.76 °

M- 22.91 o

B- 39.86 °

M- 18.88 °

B- 41.64 °

M- 14.51 °

B- 43.08 °

M- 9.85 °

B- 44.14 °

M- 4.98 °

B- 44.78 °

M- 0.00 °

B- 45.00 °

| 5

M- 36.00 °

B- 0.00 °

M- 35.90 °

B- 2.94 °

M- 35.58 °

B- 5.86 °

M- 35.06 °

B- 8.75 °

M- 34.32 °

B- 11.60 °

M- 33.36 °

B- 14.38 °

M- 32.18 °

B- 17.09 °

M- 30.76 °

B- 19.70 °

M- 29.10 °

B- 22.20 °

M- 27.19 °

B- 24.56 °

M- 25.03 °

B- 26.76 °

M- 22.62 °

B- 28.78 °

M- 19.96 °

B- 30.60 °

M- 17.07 °

B- 32.19 °

M- 13.95 °

B- 33.53 °

M- 10.65 °

B- 34.59 °

M- 7.19 °

B- 35.37 °

M- 3.62 °

B- 35.84 °

M- 0.00 °

B- 36.00 °

M- 30.00 °

B- 0.00 °

M- 29.91 o

B- 2.50 °

M- 29.62 °

B- 4.98 °

M- 29.15 °

B- 7.44 °

M- 28.48 °

B- 9.85 °

M- 27.62 °

B- 12.20 °

M- 26.57 °

B- 14.48 °

M- 25.31 o

B- 16.67 °

M- 23.86 °

B- 18.75 °

M- 22.21 o

B- 20.70 °

M- 20.36 °

B- 22.52 °

M- 18.32 °

B- 24.18 °

M- 16.10 °

B- 25.66 °

M- 13.71 °

B- 26.95 °

M- 11.17 °

B- 28.02 °

M- 8.50 °

B- 28.88 °

M- 5.73 °

B- 29.50 °

M- 2.88 °

B- 29.87 °

M- 0.00 °

B- 30.00 °

1 7 j

M- 25.71 o

B- 0.00 °

M- 25.63 °

B- 2.17 °

M- 25.37 °

B- 4.32 °

M- 24.95 °

B- 6.45 °

M- 24.35 °

B- 8.53 °

M- 23.56 °

B- 10.57 °

M- 22.64 °

B- 12.53 °

M- 21.53 °

B- 14.41 °

M- 20.25 °

B- 16.19 °

M- 18.80 °

B- 17.87 °

M- 17.20 °

B- 19.41 °

M- 15.44 °

B- 20.82 °

M- 13.54 °

B- 22.07 °

M- 11.50 °

B- 23.16 °

M- 9.35 °

B- 24.06 °

M- 7.10 °

B- 24.78 °

M- 4.78 °

B- 25.30 °

M- 2.40 °

B- 25.61 o

M- 0.00 °

B- 25.71 o

M- 22.50 °

B- 0.00 °

M- 22.42 °

B- 1.91°

M- 22.19 °

B- 3.81 o

M- 21.81 o

B- 5.68 °

M- 21.27 °

B- 7.52 °

M- 20.58 °

B- 9.31 o

M- 19.73 °

B- 11.03 °

M- 18.74 °

B- 12.68 °

M- 17.60 °

B- 14.24 °

M- 16.32 °

B- 15.70 °

M- 14.91 °

B- 17.05 °

M- 13.36 °

B- 18.27 °

M- 11.70 °

B- 19.35 °

M- 9.93 °

B- 20.29 °

M- 8.06 °

B- 21.08 °

M- 6.12 °

B- 21.69 °

M- 4.11 °

B- 22.14 °

M- 2.07 °

B- 22.41 o

M- 0.00 °

B- 22.50 °

1 9 1

M- 20.00 °

B- 0.00 °

M- 19.93 °

B- 1.71°

M- 19.72 °

B- 3.40 °

M- 19.37 °

B- 5.08 °

M- 18.88 °

B- 6.72 °

M- 18.26 °

B- 8.31 o

M- 17.50 °

B- 9.85 °

M- 16.60 °

B- 11.31 °

M- 15.58 °

B- 12.70 °

M- 14.43 °

B- 14.00 °

M- 13.17 °

B- 15.19 °

M- 11.79 °

B- 16.27 °

M- 10.31 °

B- 17.23 °

M- 8.74 °

B- 18.06 °

M- 7.10 °

B- 18.75 °

M- 5.38 °

B- 19.29 °

M- 3.62 °

B- 19.68 °

M- 1.82 °

B- 19.92 °

M- 0.00 °

B- 20.00 °

M- 18.00 °

B- 0.00 °

M- 17.94 °

B- 1.54 °

M- 17.74 °

B- 3.08 °

M- 17.42 °

B- 4.59 °

M- 16.98 °

B- 6.07 °

M- 16.41 °

B- 7.50 °

M- 15.72 °

B- 8.89 °

M- 14.90 °

B- 10.21 °

M- 13.98 °

B- 11.46 °

M- 12.94 °

B- 12.62 °

M- 11.80 °

B- 13.69 °

M- 10.56 °

B- 14.66 °

M- 9.23 °

B- 15.52 °

M- 7.82 °

B -16.26 °

M- 6.34 °

B- 16.88 °

M- 4.81 o

B- 17.37 °

M- 3.23 °

B- 17.72 °

M- 1.62 °

B- 17.93 °

M- 0.00 °

B- 18.00 °

Each B (Bevel) and M (Miter) Setting is Given to the Closest 0.005 °.

COMPOUND=ANGLE SETTINGS FOR POPULAR STRUCTURES

CUTTINGCROWNMOLDING

The compound miter saw does an excellent job of cut-

ting crown molding. In general, compound miter saws do

a better job of cutting crown molding than any other tool

made.

In order to fit properly, crown molding must be compound

mitered with extreme accuracy.

The two contact surfaces on a piece of crown molding

that fit fiat against the ceiling and the wall of a room are at

angles that, when added together, equal exactly 90°. Most

crown molding has a top rear angle (the section that fits

fiat against the ceiling) of 52 ° and a bottom rear angle (the

section that fits fiat against the wall) of 38°.

LAYING MOLDING FLAT ON THE MITER TABLE

See Figure 42.

To use this method for accurately cutting crown molding

for a 90° inside or outside corner, lay the molding with its

broad back surface flat on the miter table and against the

fence.

When setting the bevel and miter angles for compound

miters, remember that the settings are interdependent;

changing one angle changes the other angle as well.

Keep in mind that the angles for crown moldings are very

precise and difficult to set. Since it is very easy for these

angles to shift, all settings should first be tested on scrap

molding. Also most walls do not have angles of exactly

90, therefore, you will need to fine tune your settings.

When cutting crown molding by this method the bevel

angle should be set at 33.9 ° either right or left. The crown

molding stops are marked either 33.9°or 45°for the exact

angle for cutting crown molding.The miter angle should be

set at 31.6 ° either right or left, depending on the desired

cut for the application. See the chart on page 32 for cor-

rect angle settings and correct positioning of crown mold-

ing on miter table.

The settings in the chart on page 32 can be used for cut-

ting All Standard (U.S.) crown molding with 52 ° and 38°

angles. The crown molding is placed fiat on the miter table

using the compound features of your miter saw.

38°

52° CEILING

FENCE

TOP EDGEAGAINSTFENCE=

®LEFTSIDE, INSIDECORNER

e RIGHTSIDE, OUTSIDECORNER

MITERTABLE

0 0

INSIDE

CORNER

FENCE

OUTSIDE

CORNER

BOTTOMEDGEAGAINSTFENCE=

• RIGHTSIDE, iNSiDECORNER

®LEFTSIDE, OUTSIDECORNER

MITERTABLE

CROWNMOLDINGFLATONMITERTABLE

Fig. 42

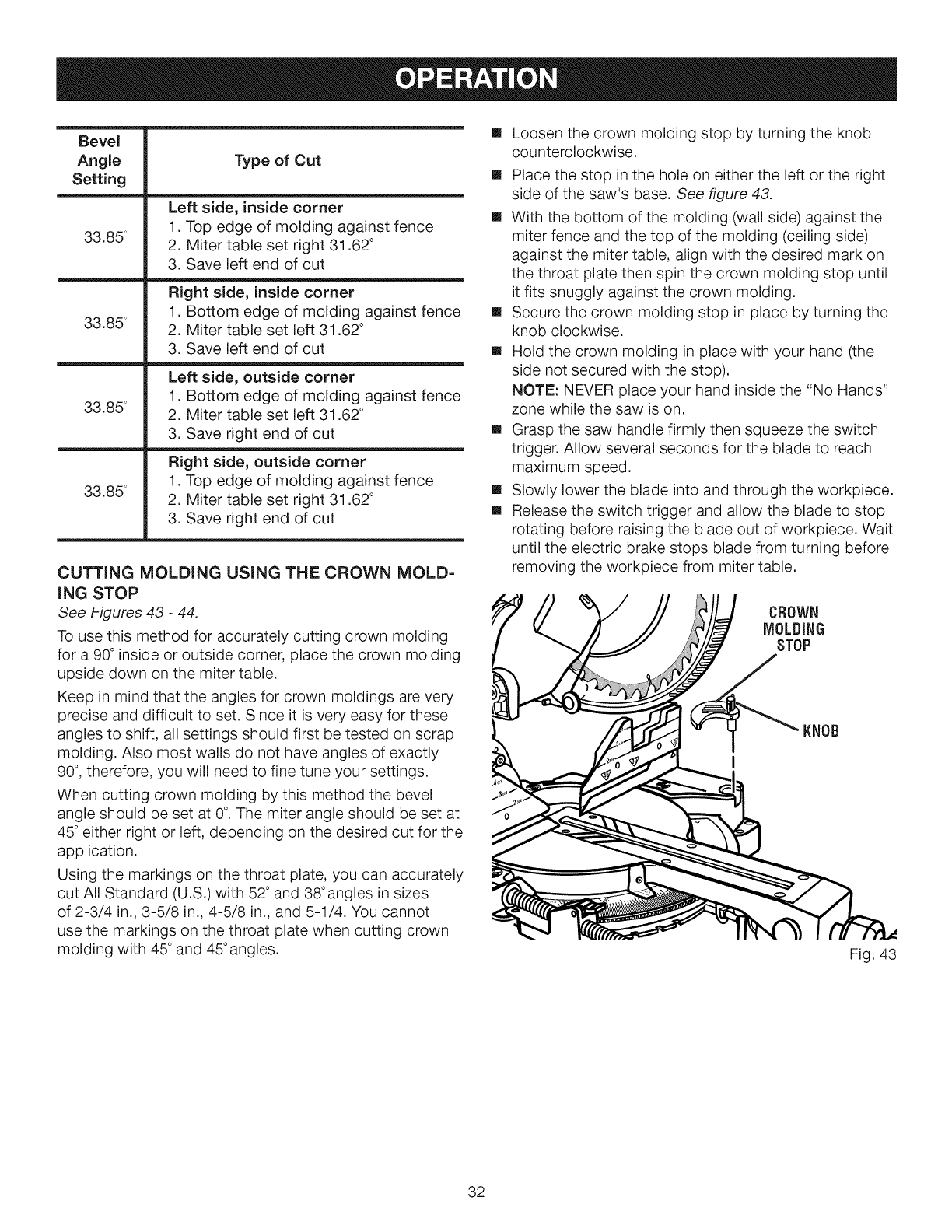

Bevel

Angle

Setting

33.85 ':=

33.85:

Type of Cut

Left side, inside corner

1. Top edge of molding against fence

2. Miter table set right 31.62 °

3. Save left end of cut

Right side, inside corner

1. Bottom edge of molding against fence

2. Miter table set left 31.62 °

3. Save left end of cut

Left side, outside corner

1. Bottom edge of molding against fence

2. Miter table set left 31.62 °

3. Save right end of cut

Right side, outside corner

1. Top edge of molding against fence

2. Miter table set right 31.62 °

3. Save right end of cut

CUTTING MOLDING USING THE CROWN MOLD=

ING STOP

See Figures 43 -44.

To use this method for accurately cutting crown molding

for a 90° inside or outside corner, place the crown molding

upside down on the miter table.

Keep in mind that the angles for crown moldings are very

precise and difficult to set. Since it is very easy for these

angles to shift, all settings should first be tested on scrap

molding. Also most walls do not have angles of exactly

90°, therefore, you will need to fine tune your settings.

When cutting crown molding by this method the bevel

angle should be set at 0°. The miter angle should be set at

45° either right or left, depending on the desired cut for the

application.

Using the markings on the throat plate, you can accurately

cut All Standard (U.S.) with 52° and 38°angles in sizes

of 2-3/4 in., 3-5/8 in., 4-5/8 in., and 5-1/4. You cannot

use the markings on the throat plate when cutting crown

molding with 45° and 45°angles.

[] Loosen the crown molding stop by turning the knob

counterclockwise.

[] Place the stop in the hole on either the left or the right

side of the saw's base. See figure 43.

[] With the bottom of the molding (wall side) against the

miter fence and the top of the molding (ceiling side)

against the miter table, align with the desired mark on

the throat plate then spin the crown molding stop until

it fits snuggly against the crown molding.

[] Secure the crown molding stop in place by turning the

knob clockwise.

[] Hold the crown molding in place with your hand (the

side not secured with the stop).

NOTE: NEVER place your hand inside the "No Hands"

zone while the saw is on.

[] Grasp the saw handle firmly then squeeze the switch

trigger. Allow several seconds for the blade to reach

maximum speed.

[] Slowly lower the blade into and through the workpiece.

[] Release the switch trigger and allow the blade to stop

rotating before raising the blade out of workpiece. Wait

until the electric brake stops blade from turning before

removing the workpiece from miter table.

CROWN

MOLDING

STOP

KNOB

Fig. 43

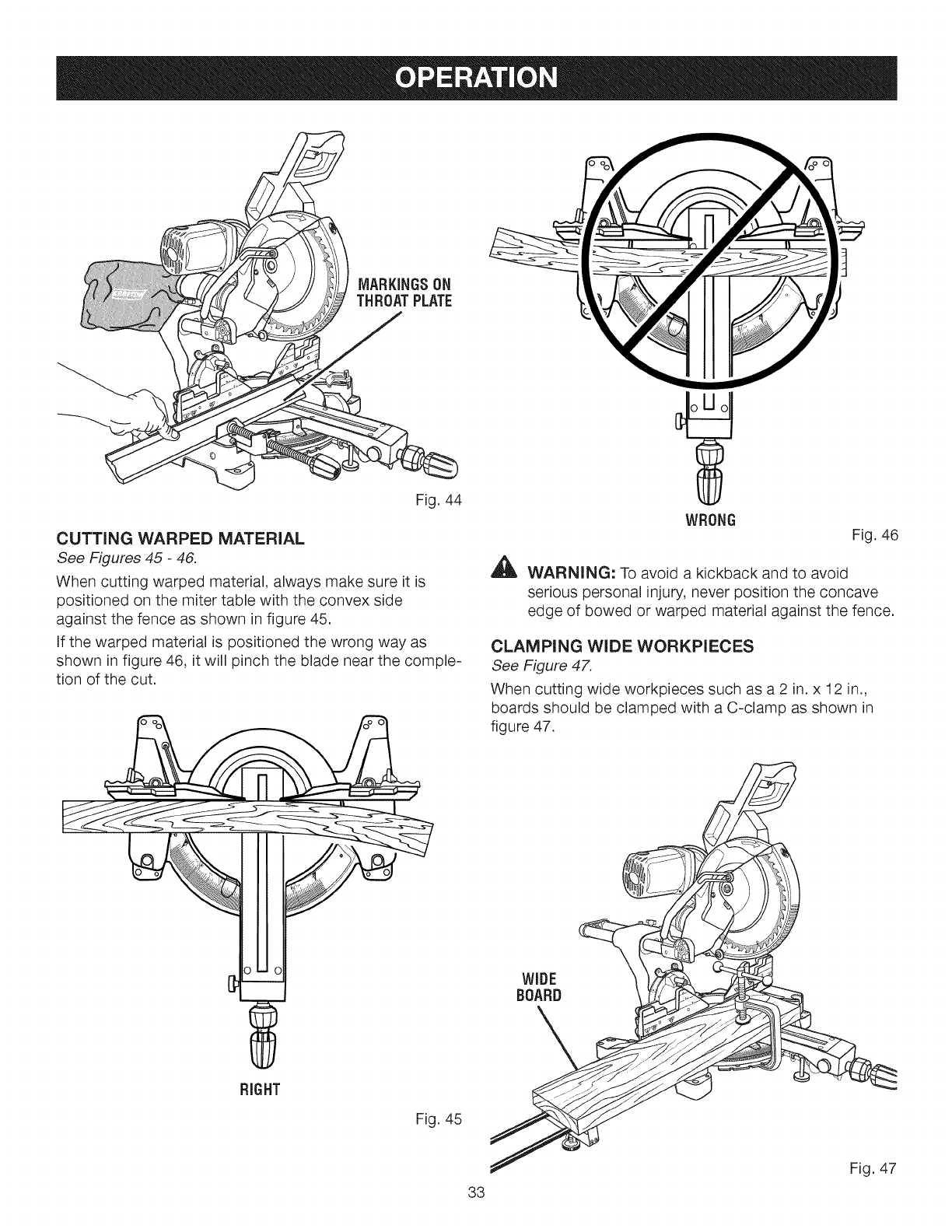

MARKINGSON

THROATPLATE

Fig. 44

CUTTING WARPED MATERIAL

See Figures 45 -46.

When cutting warped material, always make sure it is

positioned on the miter table with the convex side

against the fence as shown in figure 45.

If the warped material is positioned the wrong way as

shown in figure 46, it will pinch the blade near the comple-

tion of the cut.

WRONG Fig. 46

WARNING: To avoid a kickback and to avoid

serious personal injury, never position the concave

edge of bowed or warped material against the fence.

CLAMPING WIDE WORKPIECES

See Figure 47.

When cutting wide workpieces such as a 2 in. x 12 in.,

boards should be clamped with a C-clamp as shown in

figure 47.

RIGHT

Fig. 45

Fig. 47

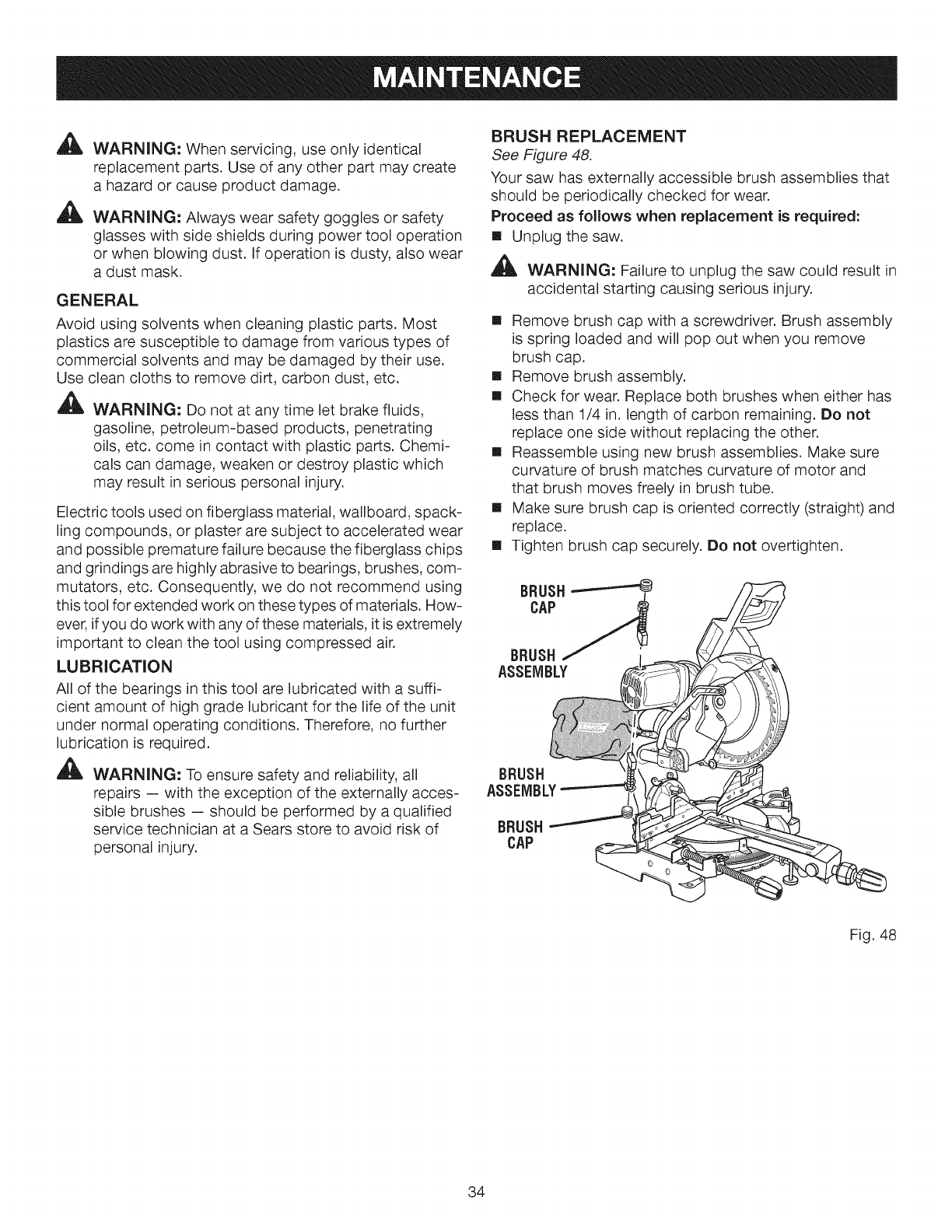

WARNING: When servicing, use only identical

replacement parts. Use of any other part may create

a hazard or cause product damage.

WARNING: Always wear safety goggles or safety

glasses with side shields during power tool operation

or when blowing dust. If operation is dusty, also wear

a dust mask.

GENERAL

Avoid using solvents when cleaning plastic parts. Most

plastics are susceptible to damage from various types of

commercial solvents and may be damaged by their use.

Use clean cloths to remove dirt, carbon dust, etc.

,_ WARNING: Do not at any time let brake fluids,

gasoline, petroleum-based products, penetrating

oils, etc. come in contact with plastic parts. Chemi-

cals can damage, weaken or destroy plastic which

may result in serious personal injury.

Electric tools used on fiberglass material, wallboard, spack-

ling compounds, or plaster are subject to accelerated wear

and possible premature failure because the fiberglass chips

and grindings are highly abrasive to bearings, brushes, com-

mutators, etc. Consequently, we do not recommend using

this tool for extended work on these types of materials. How-

ever, if you do work with any of these materials, it is extremely

important to clean the tool using compressed air.

LUBRICATION

All of the bearings in this tool are lubricated with a suffi-

cient amount of high grade lubricant for the life of the unit

under normal operating conditions. Therefore, no further

lubrication is required.

_IL WARNING: To ensure safety and reliability, all

repairs -- with the exception of the externally acces-

sible brushes -- should be performed by a qualified

service technician at a Sears store to avoid risk of

personal injury.

BRUSH REPLACEMENT

See Figure 48.

Your saw has externally accessible brush assemblies that

should be periodically checked for wear.

Proceed as follows when replacement is required:

[] Unplug the saw.

_1_ WARNING: Failure to unplug the saw could result in

accidental starting causing serious injury.

[] Remove brush cap with a screwdriver. Brush assembly

is spring loaded and will pop out when you remove

brush cap.

[] Remove brush assembly.

[] Check for wear. Replace both brushes when either has

less than 1/4 in. length of carbon remaining. Do not

replace one side without replacing the other.

[] Reassemble using new brush assemblies. Make sure

curvature of brush matches curvature of motor and

that brush moves freely in brush tube.

[] Make sure brush cap is oriented correctly (straight) and

replace.

[] Tighten brush cap securely. Do not overtighten.

BRUSH_

CAP_,

BRUSH/

ASSEMBLY

BRUSH

ASSEMBLY

BRUSH

CAP

Fig. 48

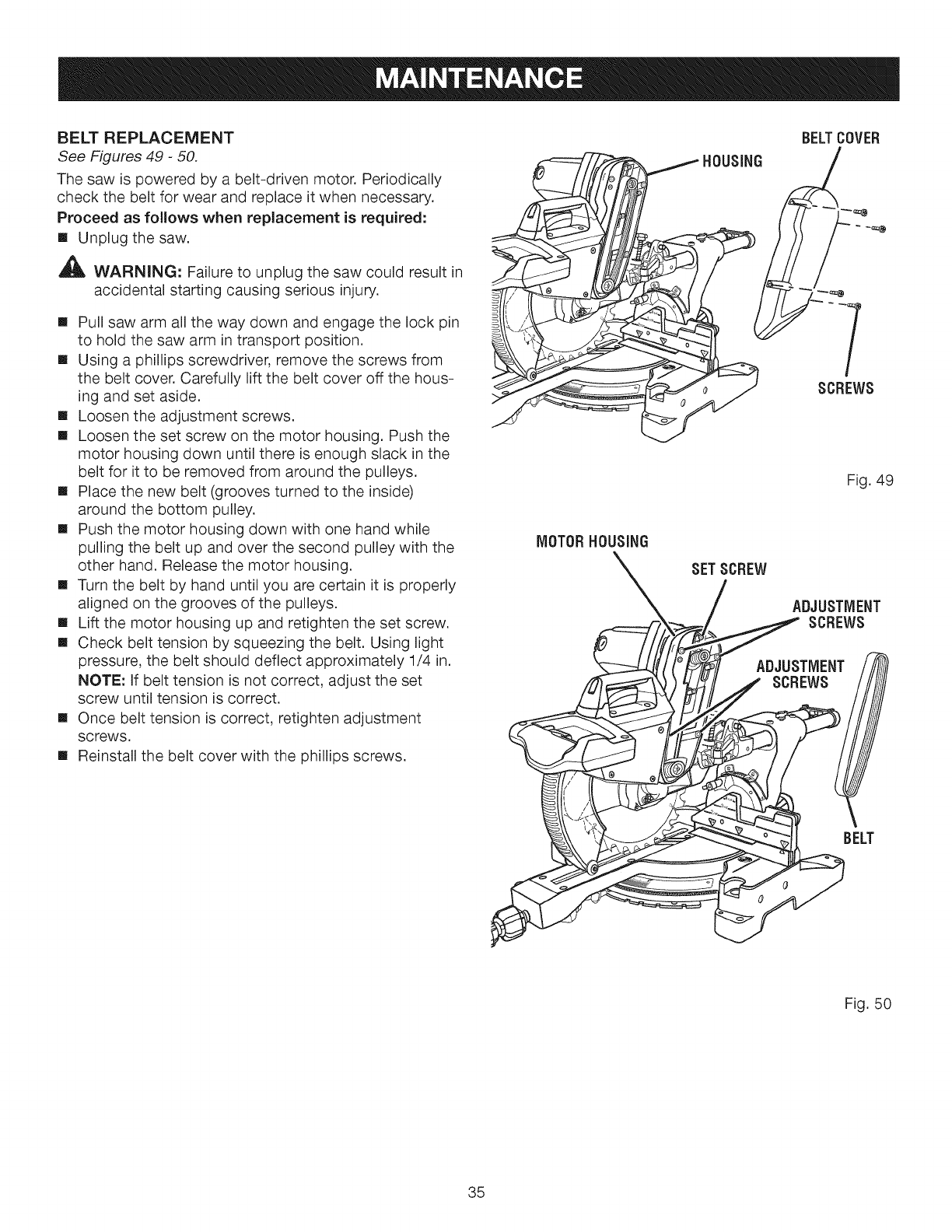

BELTREPLACEMENT

See Figures 49 -50,

The saw is powered by a belt-driven motor. Periodically

check the belt for wear and replace it when necessary.

Proceed as follows when replacement is required:

[] Unplug the saw.

WARNING: Failure to unplug the saw could result in

accidental starting causing serious injury.

[] Pull saw arm all the way down and engage the lock pin

to hold the saw arm in transport position.

[] Using a phillips screwdriver, remove the screws from

the belt cover. Carefully lift the belt cover off the hous-

ing and set aside.

[] Loosen the adjustment screws.

[] Loosen the set screw on the motor housing. Push the

motor housing down until there is enough slack in the

belt for it to be removed from around the pulleys.

[] Place the new belt (grooves turned to the inside)

around the bottom pulley.

[] Push the motor housing down with one hand while

pulling the belt up and over the second pulley with the

other hand. Release the motor housing.

[] Turn the belt by hand until you are certain it is properly

aligned on the grooves of the pulleys.

[] Lift the motor housing up and retighten the set screw.

[] Check belt tension by squeezing the belt. Using light

pressure, the belt should deflect approximately 1/4 in.

NOTE: If belt tension is not correct, adjust the set

screw until tension is correct.

[] Once belt tension is correct, retighten adjustment

screws.

[] Reinstall the belt cover with the phillips screws.

MOTOR HOUSING

HOUSING

SETSCREW

BELTCOVER

-7

SCREWS

Fig. 49

ADJUSTMENT

SCREWS

ADJUSTMENT

BELT

Fig. 50

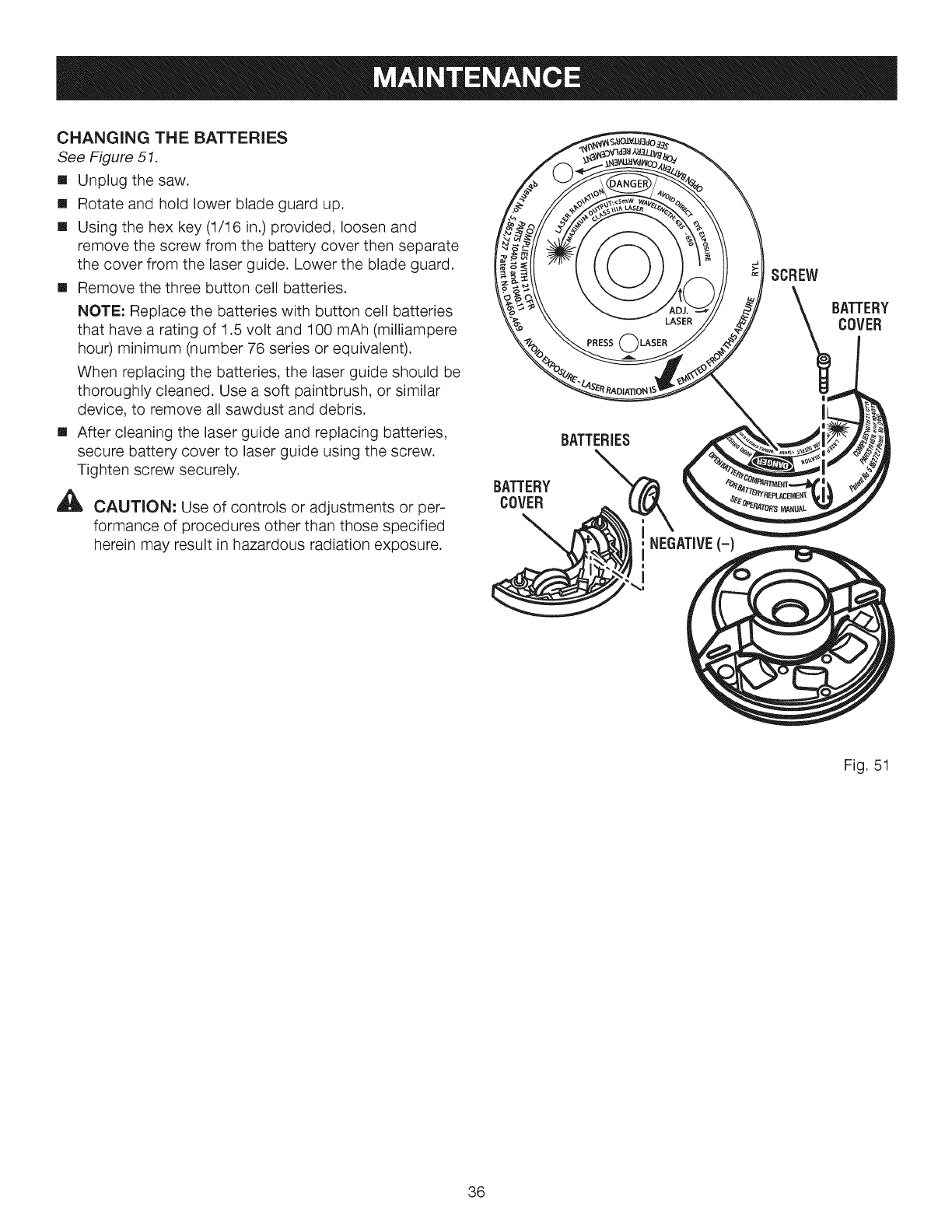

CHANGINGTHE BATTERIES

See Figure 51.

[] Unplug the saw.

[] Rotate and hold lower blade guard up.

[] Using the hex key (1/16 in.) provided, loosen and

remove the screw from the battery cover then separate

the cover from the laser guide. Lower the blade guard.

[] Remove the three button cell batteries.

NOTE: Replace the batteries with button cell batteries

that have a rating of 1.5 volt and 100 mAh (milliampere

hour) minimum (number 76 series or equivalent).

When replacing the batteries, the laser guide should be

thoroughly cleaned. Use a soft paintbrush, or similar

device, to remove all sawdust and debris.

[] After cleaning the laser guide and replacing batteries,

secure battery cover to laser guide using the screw.

Tighten screw securely.

CAUTION: Use of controls or adjustments or per-

formance of procedures other than those specified

herein may result in hazardous radiation exposure.

BATTERY

COVER

BATTERIES

NEGAT(VE(-)

SCREW

BATTERY

COVER

Fig. 51

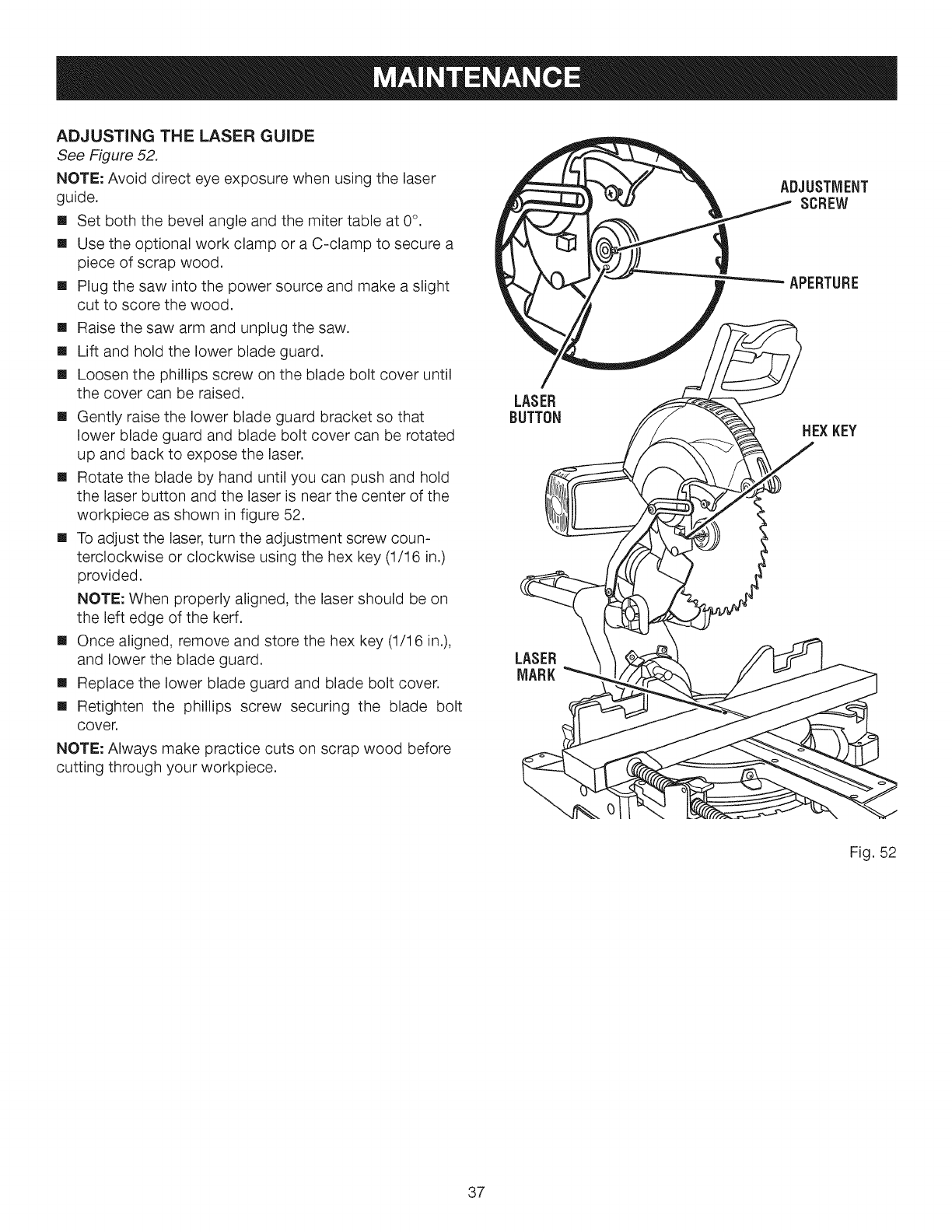

ADJUSTING THE LASER GUIDE

See Figure 52.

NOTE: Avoid direct eye exposure when using the laser

guide.

[] Set both the bevel angle and the miter table at 0°.

[] Use the optional work clamp or a C-clamp to secure a

piece of scrap wood.

[] Plug the saw into the power source and make a slight

cut to score the wood.

[] Raise the saw arm and unplug the saw.

[] Lift and hold the lower blade guard.

[] Loosen the phillips screw on the blade bolt cover until

the cover can be raised.

[] Gently raise the lower blade guard bracket so that

lower blade guard and blade bolt cover can be rotated

up and back to expose the laser.

[] Rotate the blade by hand until you can push and hold

the laser button and the laser is near the center of the

workpiece as shown in figure 52.

[] To adjust the laser, turn the adjustment screw coun-

terclockwise or clockwise using the hex key (1/16 in.)

provided.

NOTE: When properly aligned, the laser should be on

the left edge of the kerf.

[] Once aligned, remove and store the hex key (1/16 in.),

and lower the blade guard.

[] Replace the lower blade guard and blade bolt cover.

[] Retighten the phillips screw securing the blade bolt

cover.

NOTE: Always make practice cuts on scrap wood before

cutting through your workpiece.

LASER

BUTTON

LASER

MARK

ADJUSTMENT

SCREW

APERTURE

REX KEY

Fig. 52

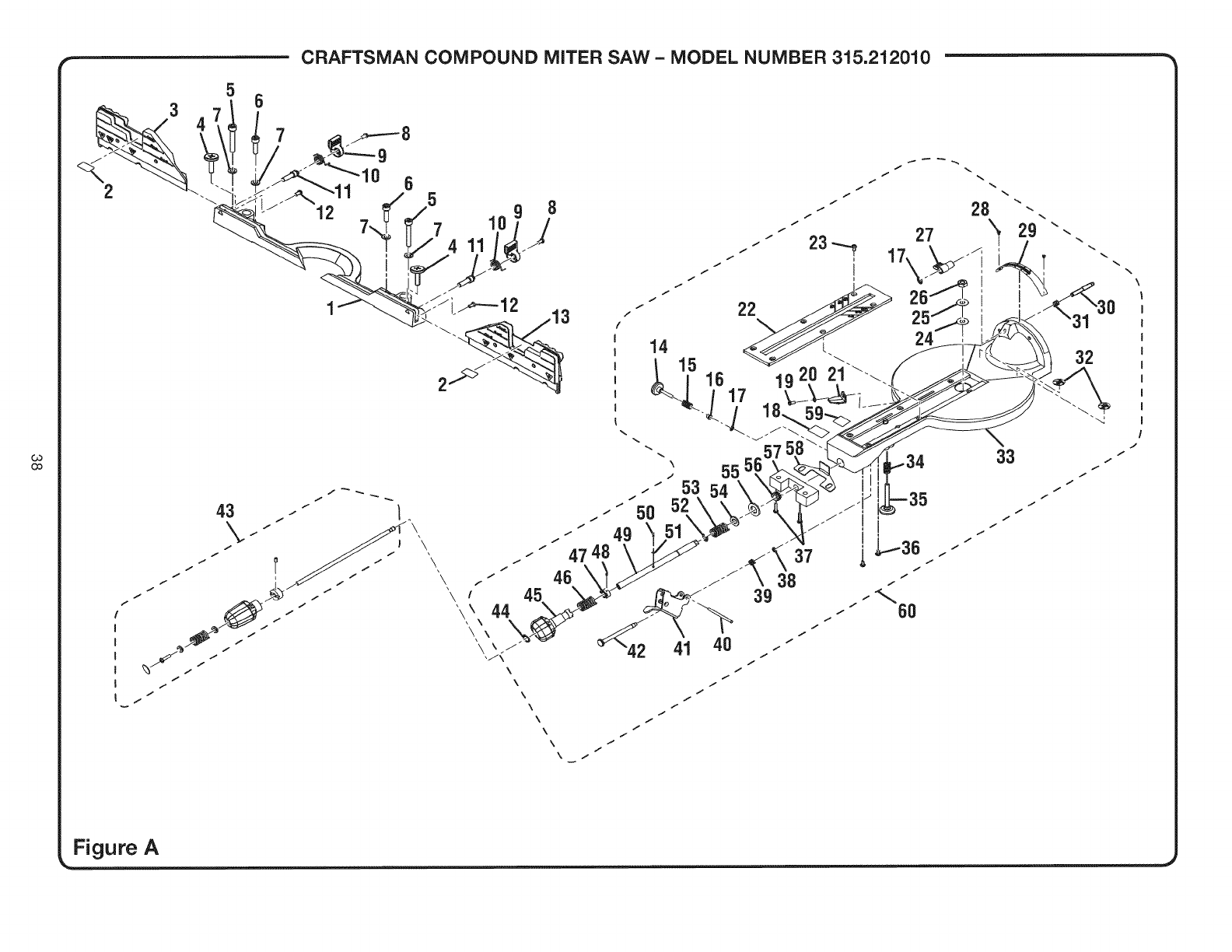

CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212010

5 6

.--"'""

5 8

710 j/

411

41 40

Figure A

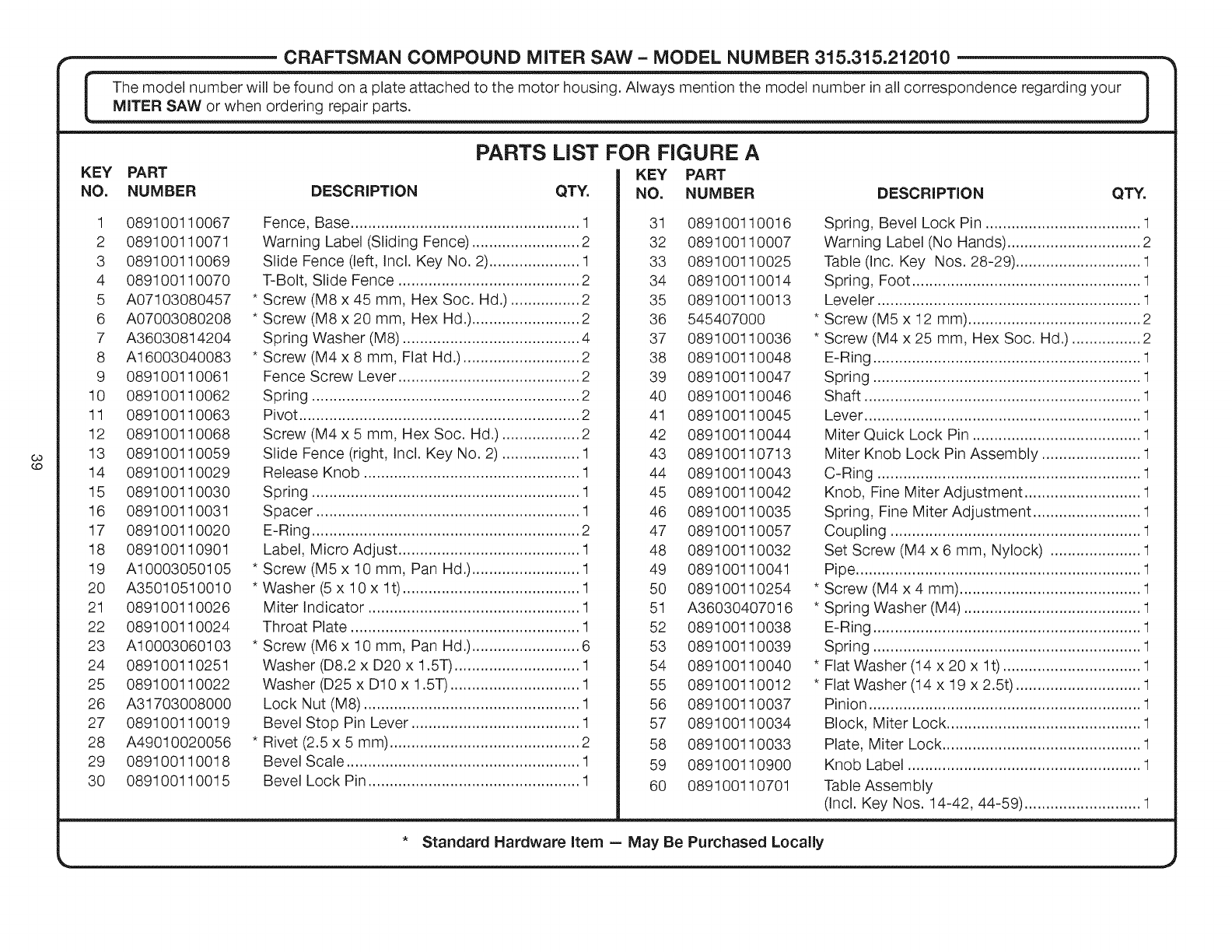

_- CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.315.212010

The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your 1

MITER SAW or when ordering repair parts. J

KEY PART

NO. NUMBER DESCRIPTION QTY.

1 089100110067

2 089100110071

3 089100110069

4 089100110070

5 A07103080457

6 A07003080208

7 A36030814204

8 A16003040083

9 089100110061

10 089100110062

11 089100110063

12 089100110068

13 089100110059

14 089100110029

15 089100110030

16 089100110031

17 089100110020

18 089100110901

19 A10003050105

20 A35010510010

21 089100110026

22 089100110024

23 A10003060103

24 089100110251

25 089100110022

26 A31703008000

27 089100110019

28 A49010020056

29 089100110018

30 089100110015

PARTS LIST FOR FIGURE A

KEY PART

Fence, Base ..................................................... 1

Warning Label (Sliding Fence) ......................... 2

Slide Fence (left, Incl. Key No. 2)..................... 1

T-Bolt, Slide Fence .......................................... 2

* Screw (M8 x 45 mm, Hex Soc. Hd.) ................ 2

* Screw (M8 x 20 mm, Hex Hd.) ......................... 2

Spring Washer (M8) ......................................... 4

* Screw (M4 x 8 mm, Flat Hd.) ........................... 2

Fence Screw Lever .......................................... 2

Spring .............................................................. 2

Pivot ................................................................. 2

Screw (M4 x 5 mm, Hex Soc. Hd.) .................. 2

Slide Fence (right, Incl. Key No. 2) .................. 1

Release Knob .................................................. 1

Spring .............................................................. 1

Spacer ............................................................. 1

E-Ring .............................................................. 2

Label, Micro Adjust .......................................... 1

* Screw (M5 x 10 mm, Pan Hd.) ......................... 1

* Washer (5 x 10 x lt) ......................................... 1

Miter Indicator ................................................. 1

Throat Plate ..................................................... 1

* Screw (M6 x 10 mm, Pan Hd.) ......................... 6

Washer (D8.2 x D20 x 1.5T) ............................. 1

Washer (D25 x D10 x 1.5T) .............................. 1

Lock Nut (M8) .................................................. 1

Bevel Stop Pin Lever ....................................... 1

* Rivet (2.5 x 5 mm) ............................................ 2

Bevel Scale ...................................................... 1

Bevel Lock Pin ................................................. 1

NO. NUMBER DESCRIPTION QTY.

31 089100110016

32 089100110007

33 089100110025

34 089100110014

35 089100110013

36 545407000

37 089100110036

38 089100110048

39 089100110047

40 089100110046

41 089100110045

42 089100110044

43 089100110713

44 089100110043

45 089100110042

46 089100110035

47 089100110057

48 089100110032

49 089100110041

50 089100110254

51 A36030407016

52 089100110038

53 089100110039

54 089100110040

55 089100110012

56 089100110037

57 089100110034

58 089100110033

59 089100110900

60 089100110701

Spring, Bevel Lock Pin .................................... 1

Warning Label (No Hands) ............................... 2

Table (Inc. Key Nos. 28-29) ............................. 1

Spring, Foot ..................................................... 1

Leveler ............................................................. 1

* Screw (M5 x 12 mm) ........................................ 2

* Screw (M4 x 25 mm, Hex Soc. Hd.) ................ 2

E-Ring .............................................................. 1

Spring .............................................................. 1

Shaft ................................................................ 1

Lever ................................................................ 1

Miter Quick Lock Pin ....................................... 1

Miter Knob Lock Pin Assembly ....................... 1

C-Ring ............................................................. 1

Knob, Fine Miter Adjustment ........................... 1

Spring, Fine Miter Adjustment ......................... 1

Coupling .......................................................... 1

Set Screw (M4 x 6 mm, Nylock) ..................... 1

Pipe .................................................................. 1

* Screw (M4 x 4 mm) .......................................... 1

* Spring Washer (M4) ......................................... 1

E-Ring .............................................................. 1

Spring .............................................................. 1

* Flat Washer (14 x 20 x lt) ................................ 1

* Flat Washer (14 x 19 x 2.5t) ............................. 1

Pinion ............................................................... 1

Block, Miter Lock ............................................. 1

Plate, Miter Lock .............................................. 1

Knob Label ...................................................... 1

Table Assembly

(Incl. Key Nos. 14-42, 44-59) ........................... 1

* Standard Hardware Item = May Be Purchased Locally

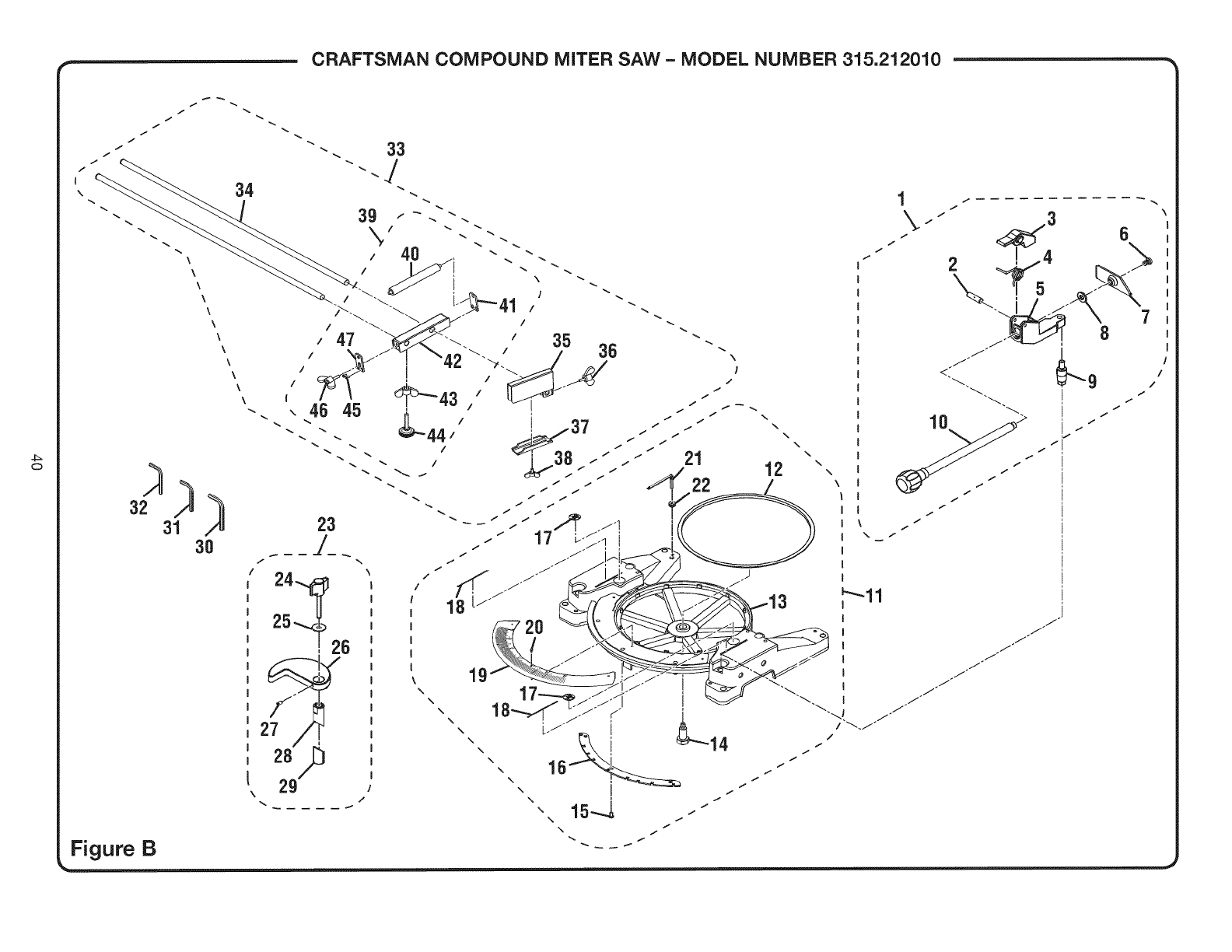

€CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212010 -_

31 30

Figure B

I.I

I t /

/3\

j-f /

<_ /

"_. /

/ / "_"

.._

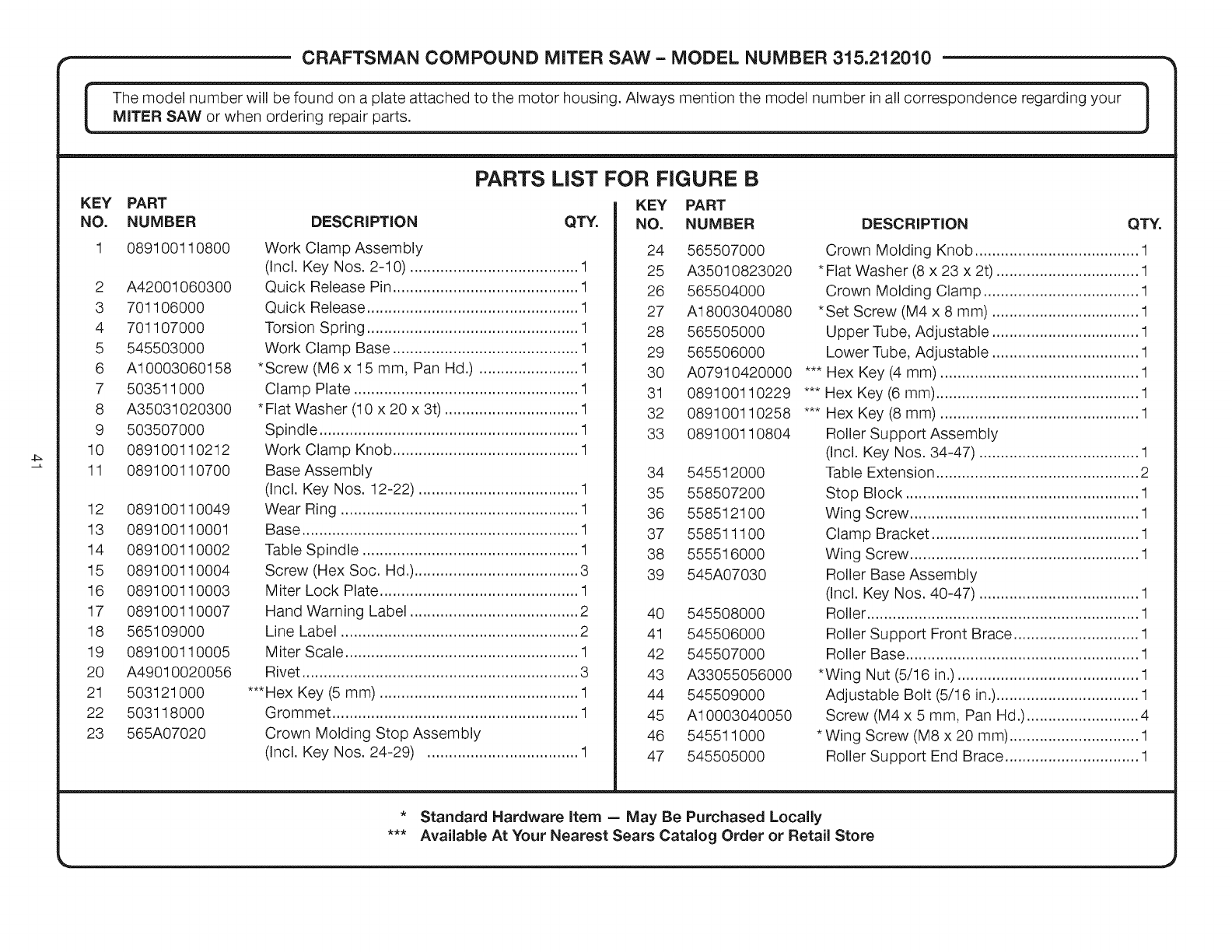

*CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212010

The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your |MITER SAW or when ordering repair parts. J

KEY PART

NO. NUMBER

1 089100110800

2 A42001060300

3 701106000

4 701107000

5 545503000

6 A10003060158

7 503511000

8 A35031020300

9 503507000

10 089100110212

11 089100110700

12 089100110049

13 089100110001

14 089100110002

15 089100110004

16 089100110003

17 089100110007

18 565109000

19 089100110005

20 A49010020056

21 503121000

22 503118000

23 565A07020

PARTS LIST FOR FIGURE B

DESCRI PTION QTY.

Work Clamp Assembly

(Incl. Key Nos. 2-10) ....................................... 1

Quick Release Pin........................................... 1

Quick Release ................................................. 1

Torsion Spring ................................................. 1

Work Clamp Base ........................................... 1

*Screw (M6 x 15 mm, Pan Hd.) ....................... 1

Clamp Plate .................................................... 1

*Flat Washer (10 x 20 x 3t) ............................... 1

Spindle ............................................................ 1

Work Clamp Knob ........................................... 1

Base Assembly

(Incl. Key Nos. 12-22) ..................................... 1

Wear Ring ....................................................... 1

Base ................................................................ 1

Table Spindle .................................................. 1

Screw (Hex Soc. Hd.) ...................................... 3

Miter Lock Plate .............................................. 1

Hand Warning Label ....................................... 2

Line Label ....................................................... 2

Miter Scale ...................................................... 1

Rivet ................................................................ 3

***Hex Key (5 mm) .............................................. 1

Grommet ......................................................... 1

Crown Molding Stop Assembly

(Incl. Key Nos. 24-29) ................................... 1

KEY PART

NO. NUMBER

24 565507000

25 A35010823020

26 565504000

27 A18003040080

28 565505000

29 565506000

30 A07910420000

31 089100110229

32 089100110258

33 089100110804

34 545512000

35 558507200

36 558512100

37 558511100

38 555516000

39 545A07030

40 545508000

41 545506000

42 545507000

43 A33055056000

44 545509000

45 A10003040050

46 545511000

47 545505000

DESCRIPTION QTY.

Crown Molding Knob ...................................... 1

* Flat Washer (8 x 23 x 2t) ................................. 1

Crown Molding Clamp .................................... 1

*Set Screw (M4 x 8 mm) .................................. 1

Upper Tube, Adjustable .................................. 1

Lower Tube, Adjustable .................................. 1

Hex Key (4 mm) .............................................. 1

Hex Key (6 mm) ............................................... 1

Hex Key (8 mm) .............................................. 1

Roller Support Assembly

(Incl. Key Nos. 34-47) ..................................... 1

Table Extension ............................................... 2

Stop Block ...................................................... 1

Wing Screw ..................................................... 1

Clamp Bracket ................................................ 1

Wing Screw ..................................................... 1

Roller Base Assembly

(Incl. Key Nos. 40-47) ..................................... 1

Roller ............................................................... 1

Roller Support Front Brace ............................. 1

Roller Base ...................................................... 1

*Wing Nut (5/16 in.) .......................................... 1

Adjustable Bolt (5/16 in.)................................. 1

Screw (M4 x 5 mm, Pan Hd.) .......................... 4

* Wing Screw (M8 x 20 mm) .............................. 1

Roller Support End Brace ............................... 1

*Standard Hardware Item = May Be Purchased Locally

*** Available At Your Nearest Sears Catalog Order or Retail Store

r" CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212010 "_

26 -

Figure C

_- CRAFTSMAN COMPOUND MITER SAW -MODEL NUMBER 315.212010

i The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your

MITER SAW or when ordering repair parts. }

PARTS LIST FOR FIGURE C

KEY PART

NO. NUMBER DESCRIPTION QTY.

089100110704

2 089100110090

3 089100110091

4 A30003008001

5 089100110093

6 089100110098

7 089100110099

8 089100110100

9 089100110101

10 089100110102

11 089100110105

12 089100110106

13 089100110104

14 A10003050120

15 089100110097

Pivot & Pivot Support Assembly

(Incl. Key Nos. 2-16, 18-25) ......................... 1

Pivot Bracket, Bevel ................................... 1

Set Screw (M8 x 18 mm) ............................. 4

* Hex Nut (M8) ................................................ 4

Fixed Screw, Rail ......................................... 1

Spacer, Rail Cover ....................................... 4

Linear Bearing ............................................. 2

Dust Seal ..................................................... 4

Plate, Rail Cover .......................................... 2

Bumper, Rail ................................................ 2

Set Screw (M8 x 10 mm, Nylock) ................ 4

Strain Relief ................................................. 1

Rear Cap, Rail .............................................. 1

* Screw (M5 x 12 mm, Pan Hd.)..................... 2

Screw (M10 x 48 mm

Hex Socket Hd., Trilobular) .......................... 1

Wavy Washer ............................................... 2

Bevel Lock Knob ......................................... 1

* Washer (4xl0xlt) ..................................... 1

Bevel Indicator (right) ................................... 1

16 089100110094

17 089100110096

18 A35030401008

19 089100110087

KEY PART

NO. NUMBER

20 A35010510010

21 A10003050105

22 089100110088

23 089100110249

24 089100110085

25 089100110089

26 089100110703

27 089100110084

28 089100110083

29 089100110082

30 545209000

31 089100110074

32 089100110076

33 089100110077

34 089100110072

35 089100110073

36 089100110078

37 089100110081

38 A63000000051

39 089100110075

DESCRIPTION QTY.

Washer (5 x 10 x lt) ..................................... 2

Screw (M5 x 10 mm, Pan Hd.) ..................... 2

Bevel Lock Plate .......................................... 1

Spring .......................................................... 2

Screw (M6 x 12 mm, Flat Hex Socket Hd.).2

Bevel Indicator (left) ..................................... 1

Pivot Bracket Bevel Assembly

(Incl. Key Nos. 11 and 27-39) ...................... 1

Slide Rail A .................................................. 1

Slide Rail B .................................................. 1

Grommet ...................................................... 1

Stop Pin Cap ............................................... 1

Pin, Spring ................................................... 1

Block, Groove Set Up .................................. 1

Bolt, Groove Set Up .................................... 1

Steel Ball ...................................................... 1

Spring .......................................................... 1

Pivot Shaft ................................................... 1

Pin, Fixed ..................................................... 1

O-Ring ........................................................ 1

Pivot Bracket, Guard ................................... 1

*Standard Hardware Item -- May Be Purchased Locally

CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212010

'%,

%` ,%.

%` f

%` J

%" f

%` f

18 %`

%` f

Figure D

CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212010

I The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your 1

MITER SAW or when ordering repair parts. J

PARTS LIST FOR FIGURE D

KEY PART

NO. NUMBER DESCRIPTION QTY.

089100110709

A10003060156 *

545306000

A53010100000

545311000

A46100280000

A50060010050

A63030001220

A46000150008

Gear Case Assembly

(Incl. Key Nos. 2-17) ........................................ 1

Screw (M6 x 15 mm, Pan Hd.) ......................... 3

Bearing Cover .................................................. 1

Needle Bearing ................................................ 2

Gear Shaft ....................................................... 1

C-Ring ............................................................. 1

Ball Bearing (6001 2RS) ................................... 1

O-Ring ............................................................ 1

C-Ring ............................................................. 1

KEY

NO.

PART

NUMBER DESCRIPTION QTY.

A45204040080 Parallel Key (4 x 4 x 8) ..................................... 1

545309000 Master Gear ..................................................... 1

545310000 Bearing Plate ................................................... 1

A10003040066 * Screw (M4 x 6 mm, Pan Hd. Nylock) ............... 2

A50060030041

545308000

565306000

A63030001260

089100110708

Ball Bearing (6003Z/RS) .................................. 1

Gear Shaft /Arbor ........................................... 1

Gasket ............................................................. 1

O-Ring ............................................................ 1

Lower Guard Assembly ................................... 1

* Standard Hardware item = May Be Purchased Locally

CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212010 '_

Note: For Laser Guide repair

or replacement, contact your

nearest Sears Service Center

2--11

Figure E

CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212010

The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your

MITER SAW or when ordering repair parts.

KEY PART

NO. NUMBER

1 511505000

2 089100300723

3 089100110805

4 510502007

5 588035105

6 538327000

7 089100110107

PARTS LIST FOR FIGURE E

DESCRIPTION QTY.

Laser Guide Bolt .......................................... 1

Adjustable Laser .......................................... 1

Flange /Arbor Bolt Set ................................ 1

Blade ........................................................... 1

Inner Blade Washer ..................................... 1

Spacer ......................................................... 2

Torsion Spring .............................................. 1

KEY PART

NO. NUMBER

8 089100110247

9 A70003060250

10 545328000

11 089100300719

12 089100300726

13 089100300727

14 089100110707

DESCRIPTION QTY.

Hang Tag (Tip Over) ..................................... 1

Screw (M6 x 25 mm) .................................... 2

Carrying Handle ........................................... 1

Adjustable Laser Replacement Kit

(inc. Key Nos. 1-2 and 12-13) ..................... 1

Hex Key (1/16 in.) ........................................ 1

Warning Label .............................................. 1

Upper Guard Assembly ............................... 1

* Standard Hardware Item -- May Be Purchased Locally

*** Complete Assortment Available At Your Nearest Sears Catalog Order or Retail Store

NOTE: The assembly shown represents an important part of the Double Insulated System. To avoid the possibility of alteration or damage

to the system, service should be performed by your nearest Sears Repair Center. Contact your nearest Sears Catalog Order or Retail

Store for Service Center Information.

_, CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212010 ,_

]

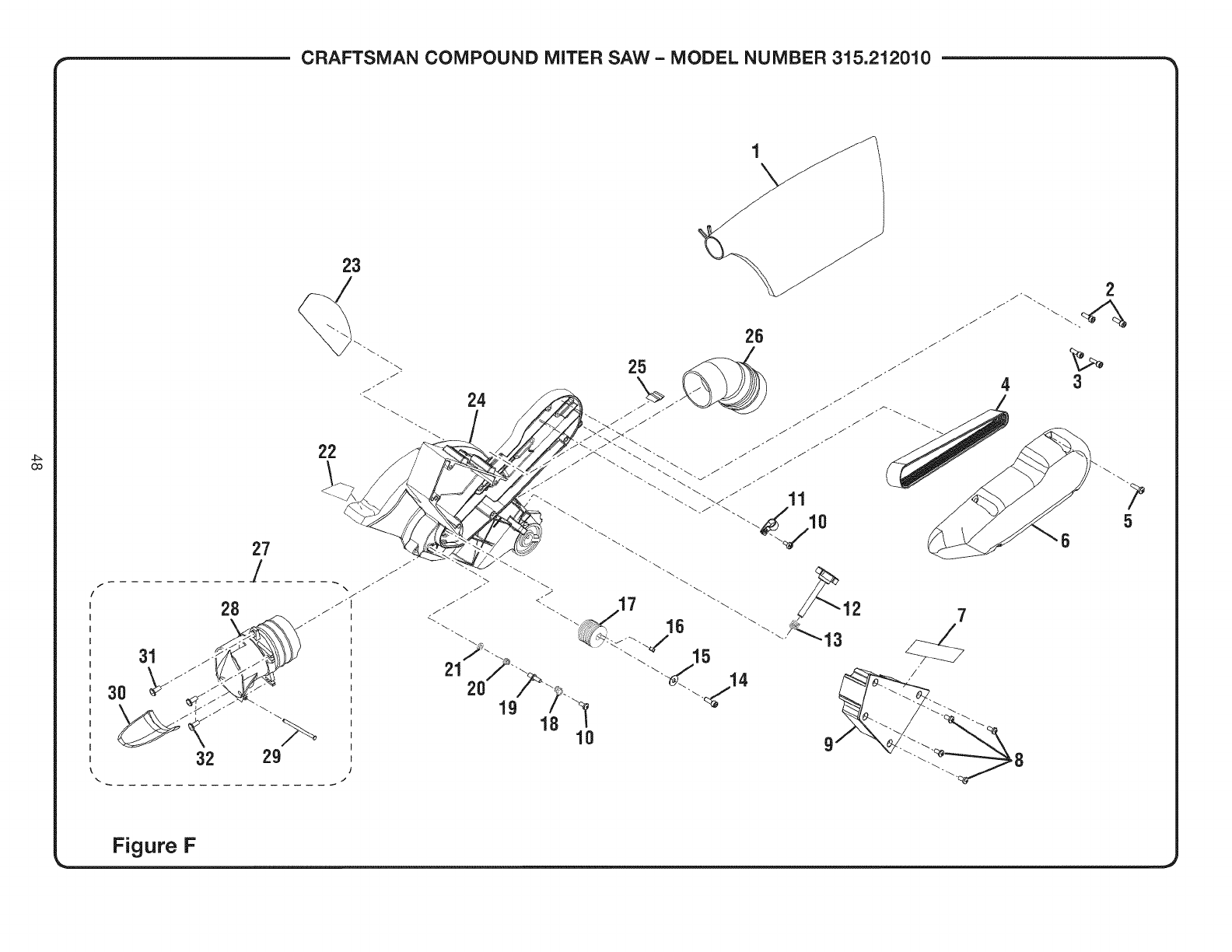

18 10

_- CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212010 -_

I The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your l

MITER SAW or when ordering repair parts. J

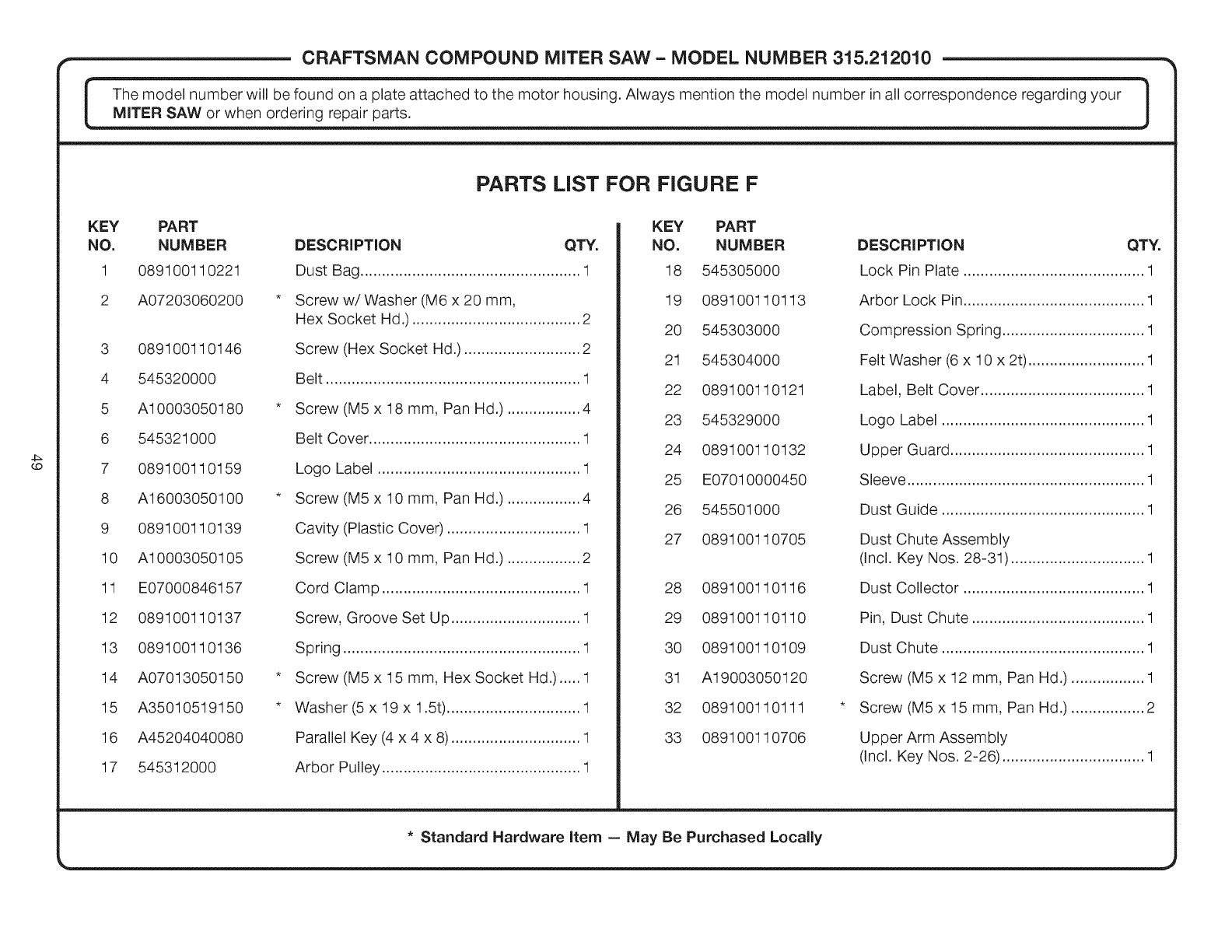

PARTS LIST FOR FIGURE F

KEY PART

NO. NUMBER

1 08910011 0221

2 A07203060200

3 089100110146

4 545320000

5 A10003050180

6 545321000

7 089100110159

8 A16003050100

9 089100110139

10 A10003050105

11 E07000846157

12 089100110137

13 089100110136

14 A07013050150

15 A35010519150

16 A45204040080

17 545312000

DESCRIPTION QTY.

Dust Bag ................................................... 1

* Screw w/Washer (M6 x 20 mm,

Hex Socket Hd.) ....................................... 2

Screw (Hex Socket Hd.) ........................... 2

Belt ........................................................... 1

* Screw (M5 x 18 mm, Pan Hd.) ................. 4

Belt Cover ................................................. 1

Logo Label ............................................... 1

* Screw (M5 x 10 mm, Pan Hd.) ................. 4

Cavity (Plastic Cover) ............................... 1

Screw (M5 x 10 mm, Pan Hd.) ................. 2

Cord Clamp .............................................. 1

Screw, Groove Set Up .............................. 1

Spring ....................................................... 1

* Screw (M5 x 15 mm, Hex Socket Hd.) ..... 1

* Washer (5 x 19 x 1.5t) ............................... 1

Parallel Key (4 x 4 x 8) .............................. 1

Arbor Pulley .............................................. 1

KEY PART

NO. NUMBER

18 545305000

19 089100110113

20 545303000

21 545304000

22 089100110121

23 545329000

24 089100110132

25 E07010000450

26 545501000

27 089100110705

28 089100110116

29 089100110110

30 089100110109

31 A19003050120

32 089100110111

33 089100110706

DESCRI PTION QTY.

Lock Pin Plate ......................................... 1

Arbor Lock Pin......................................... 1

Compression Spring ................................ 1

Felt Washer (6 x 10 x 2t) .......................... 1

Label, Belt Cover ..................................... 1

Logo Label .............................................. 1

Upper Guard ............................................ 1

Sleeve ...................................................... 1

Dust Guide .............................................. 1

Dust Chute Assembly

(Incl. Key Nos. 28-31) ............................... 1

Dust Collector .......................................... 1

Pin, Dust Chute ........................................ 1

Dust Chute ............................................... 1

Screw (M5 x 12 mm, Pan Hd.) ................. 1

Screw (M5 x 15 mm, Pan Hd.) ................. 2

Upper Arm Assembly

(Incl. Key Nos. 2-26) ................................. 1

* Standard Hardware Item -- May Be Purchased Locally

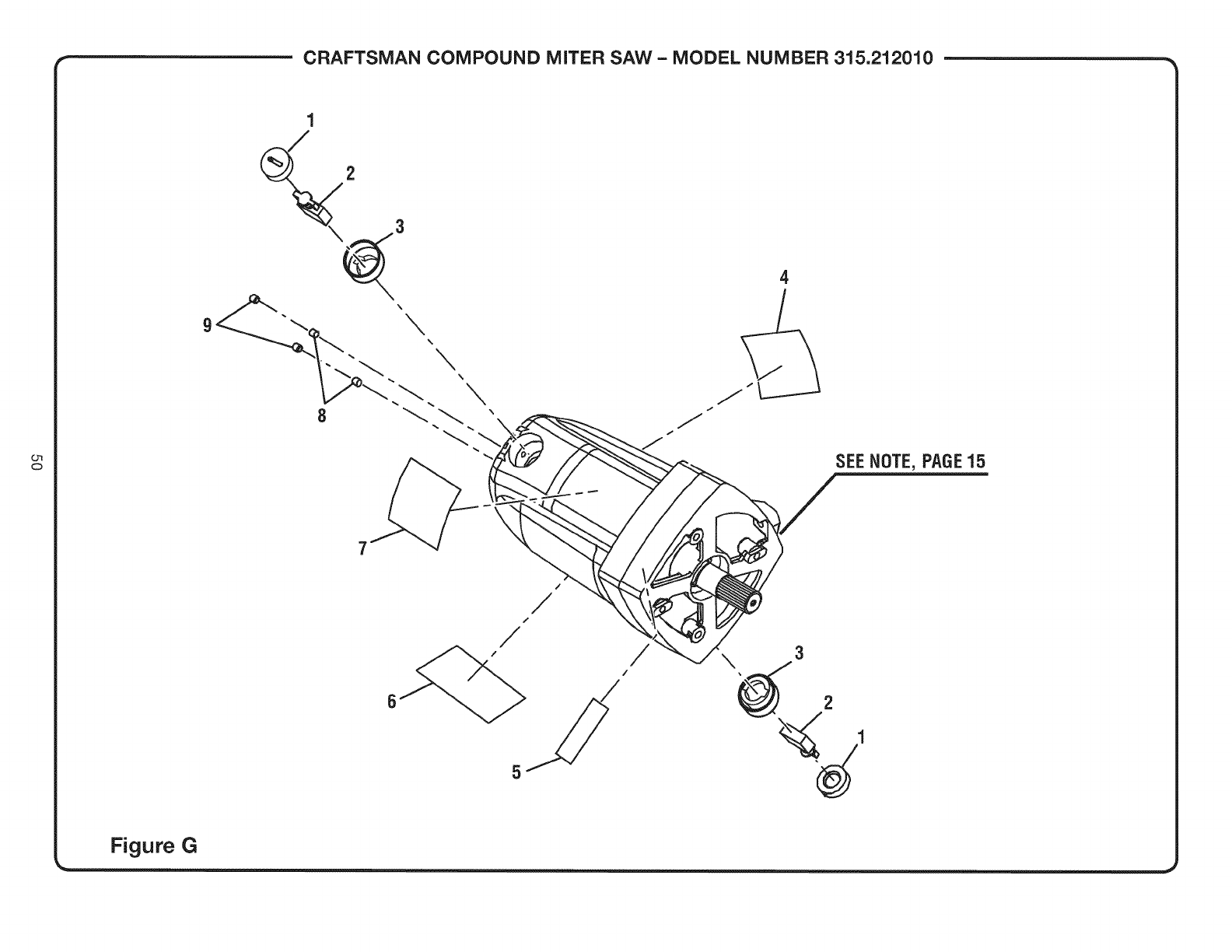

_, CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212010 ._

Figure G

\\\

SEENOTE,PAGE15

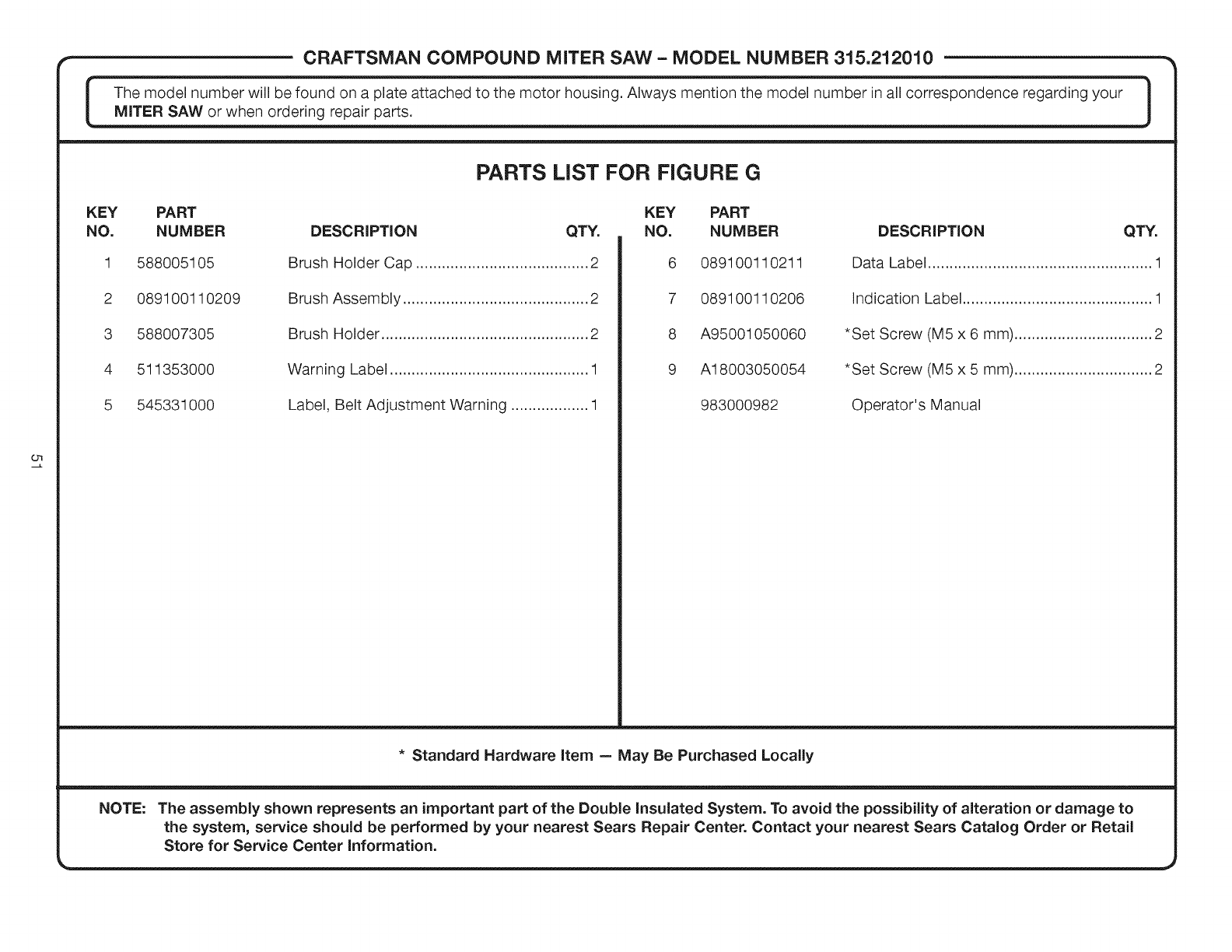

*- CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212010

The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your

MITER SAW or when ordering repair parts. J

KEY PART

NO. NUMBER

1 588005105

2 089100110209

3 588007305

4 511353000

5 545331000

PARTS LiST FOR FIGURE G

KEY PART

DESCRIPTION QTY.

Brush Holder Cap ........................................ 2

Brush Assembly ........................................... 2

Brush Holder ................................................ 2

Warning Label .............................................. 1

Label, Belt Adjustment Warning .................. 1

NO. NUMBER

6 089100110211

7 089100110206

8 A95001050060

9 A18003050054

983000982

DESCRIPTION QTY.

Data Label .................................................... 1

Indication Label ............................................ 1

*Set Screw (M5 x 6 mm) ................................ 2

*Set Screw (M5 x 5 mm) ................................ 2

Operator's Manual

* Standard Hardware item -- May Be Purchased Locally

NOTE: The assembly shown represents an important part of the Double insulated System. To avoid the possibility of alteration or damage to

the system, service should be performed by your nearest Sears Repair Center. Contact your nearest Sears Catalog Order or Retail

Store for Service Center Information.

Your Home

For repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourse If.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

(1-888-784-6427)

Au Canada pour service en fran£ais:

1-800-LE-FOYER M°

(1-800-533-6937)

www.sears.ca

® Registered Trademark /TIVTrademark /SM Service Mark of Sears Brands, LLC

® Marca Registrada /TM Marca de Fabrica /Marca de Servicio de Sears Brands, LLC

Craftsman 315212010 User Manual MILTER SAW Manuals And Guides L0906035

CRAFTSMAN Miter Saw Manual L0906035 CRAFTSMAN Miter Saw Owner's Manual, CRAFTSMAN Miter Saw installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
