Owner's Manual

ICRlaFTSMRN'I

OSCILLATING SANDER

Double Insulated

Model No.

315.215700

Save this manual for

future reference

,_ CAUTION: Read and follow

all Safety Rules and Operating

Instructions before first use of

this product.

Customer Help Line: 1-800-932-3188

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

Visit the Craftsman web page: www.sears.com/craftsman

972000-481

10-00

•Safety

• Features

•Adjustments

•Operation

• Maintenance

•Parts List ®

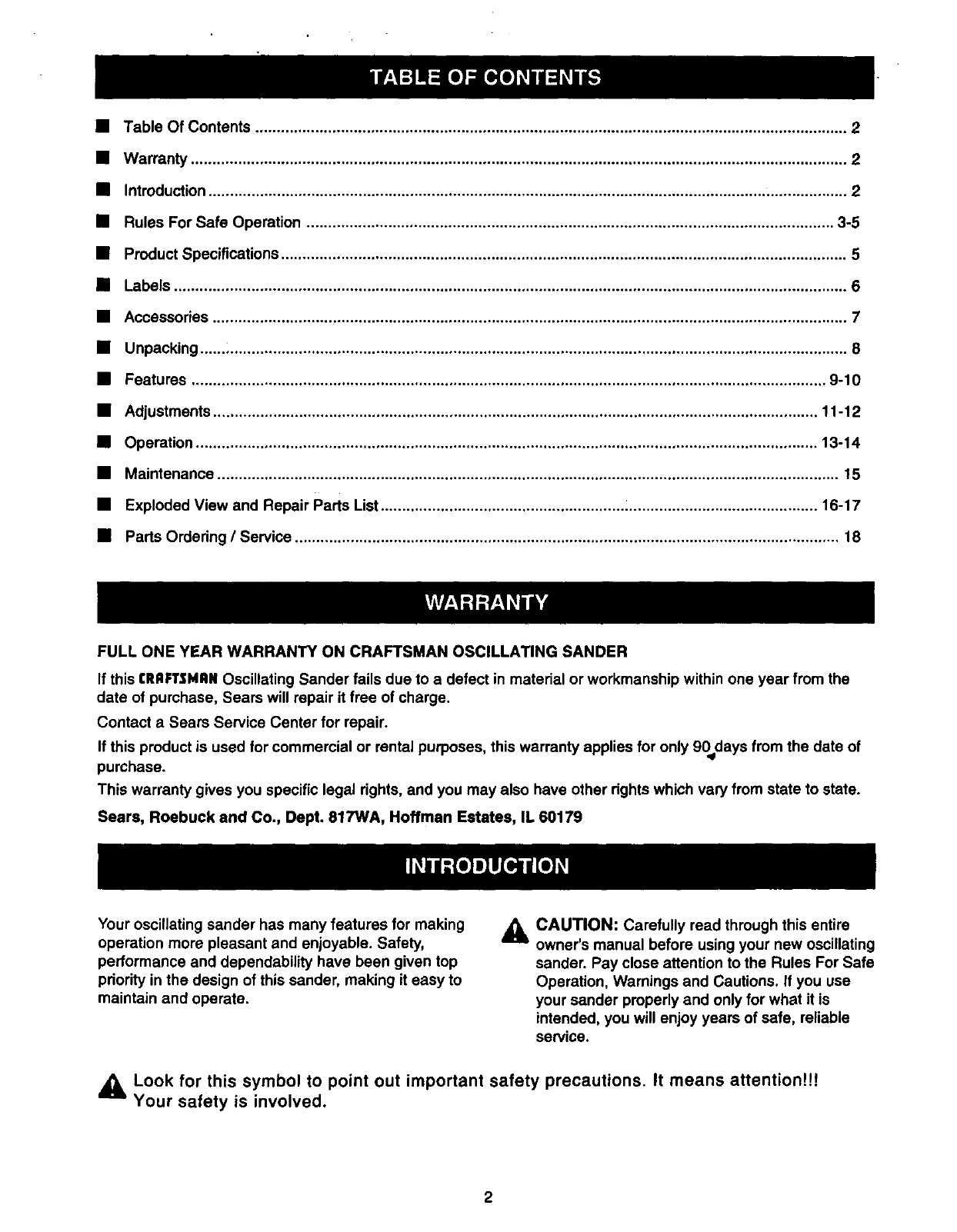

•Table Of Contents .......................................................................................................................................... 2

•Warranty ......................................................................................................................................................... 2

•Introduction ..................................................................................................................................................... 2

•Rules For Safe Operation ........................................................................................................................... 3-5

•Product Specifications .................................................................................................................................... 5

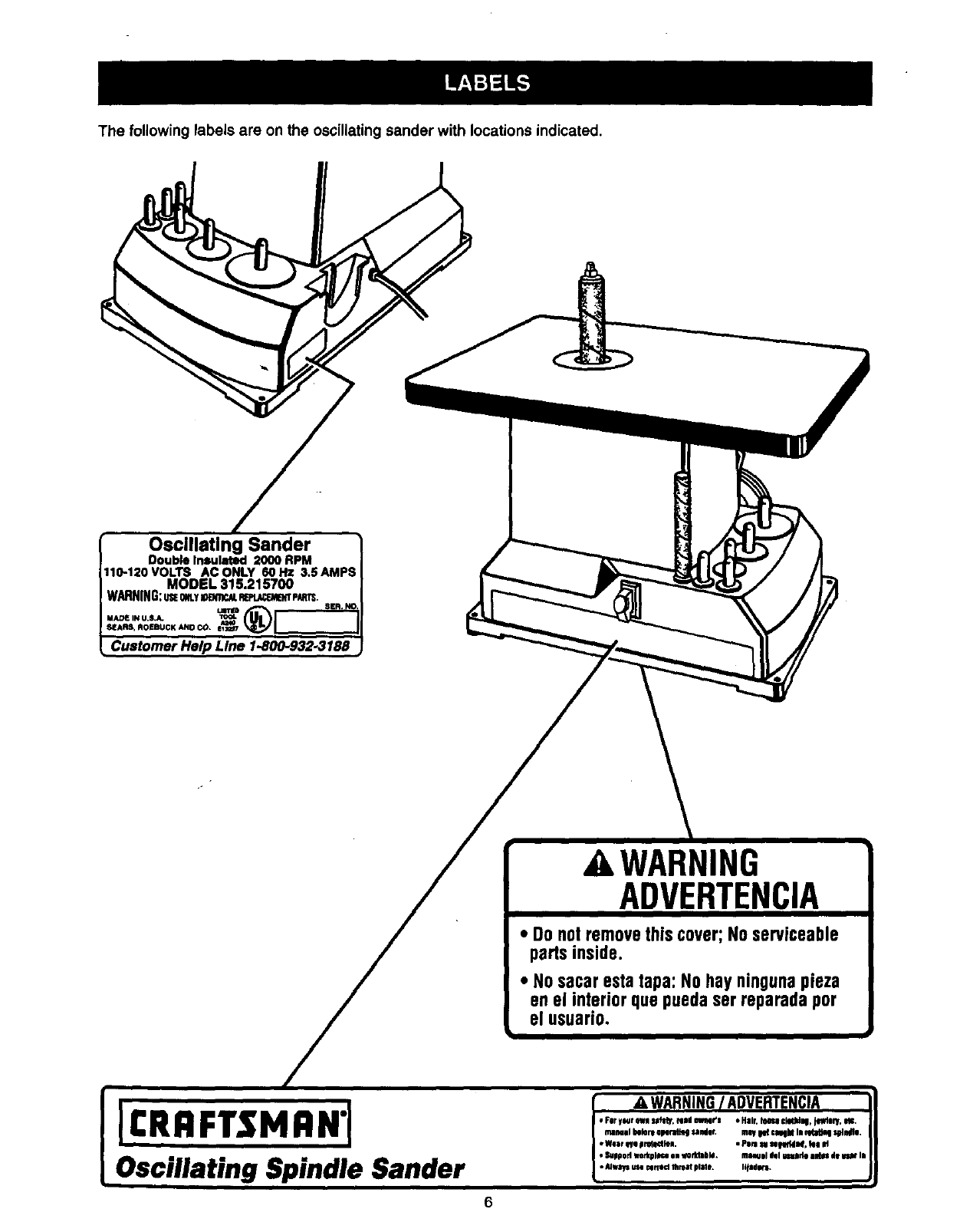

•Labels ............................................................................................................................................................. 6

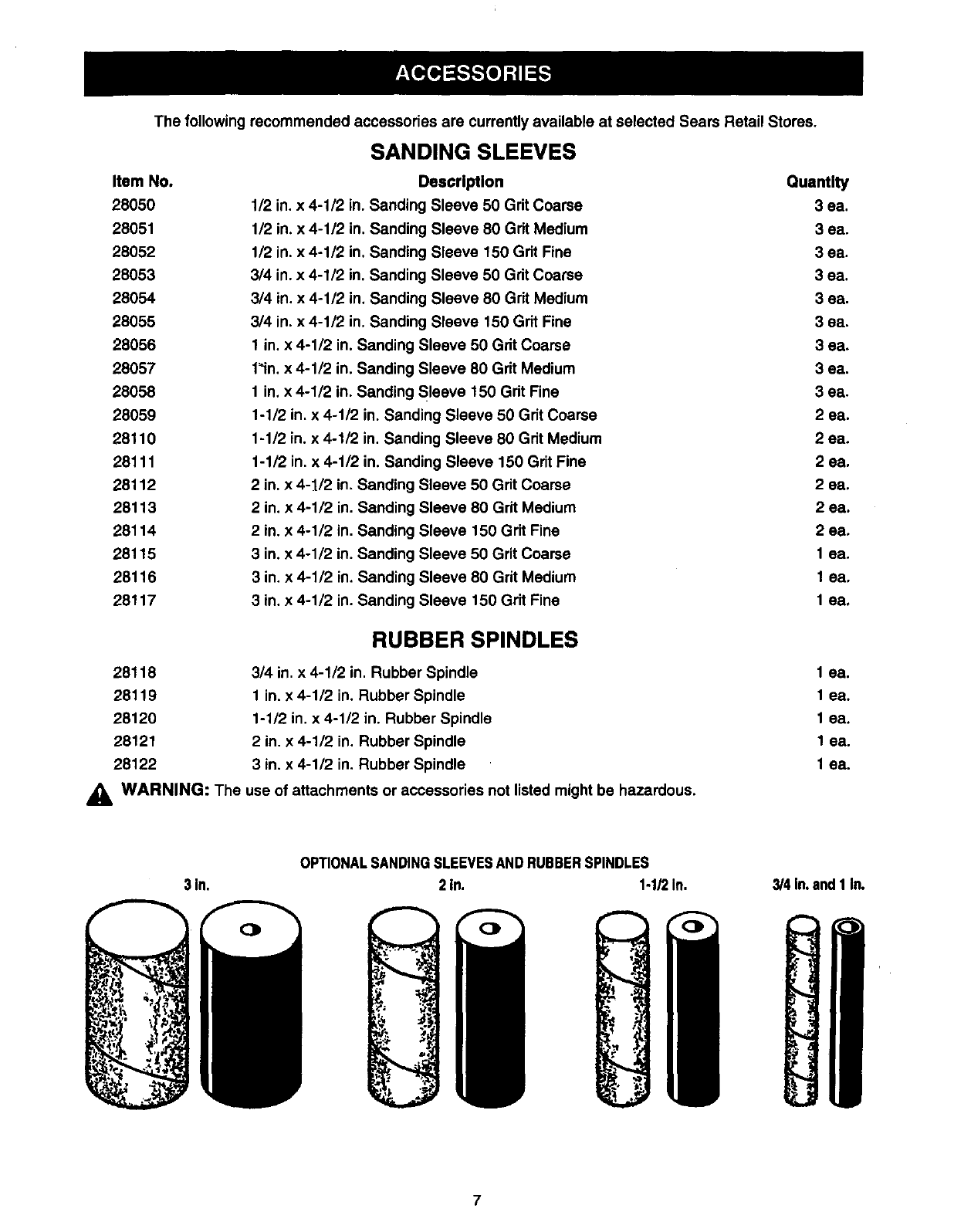

•Accessories .................................................................................................................................................... 7

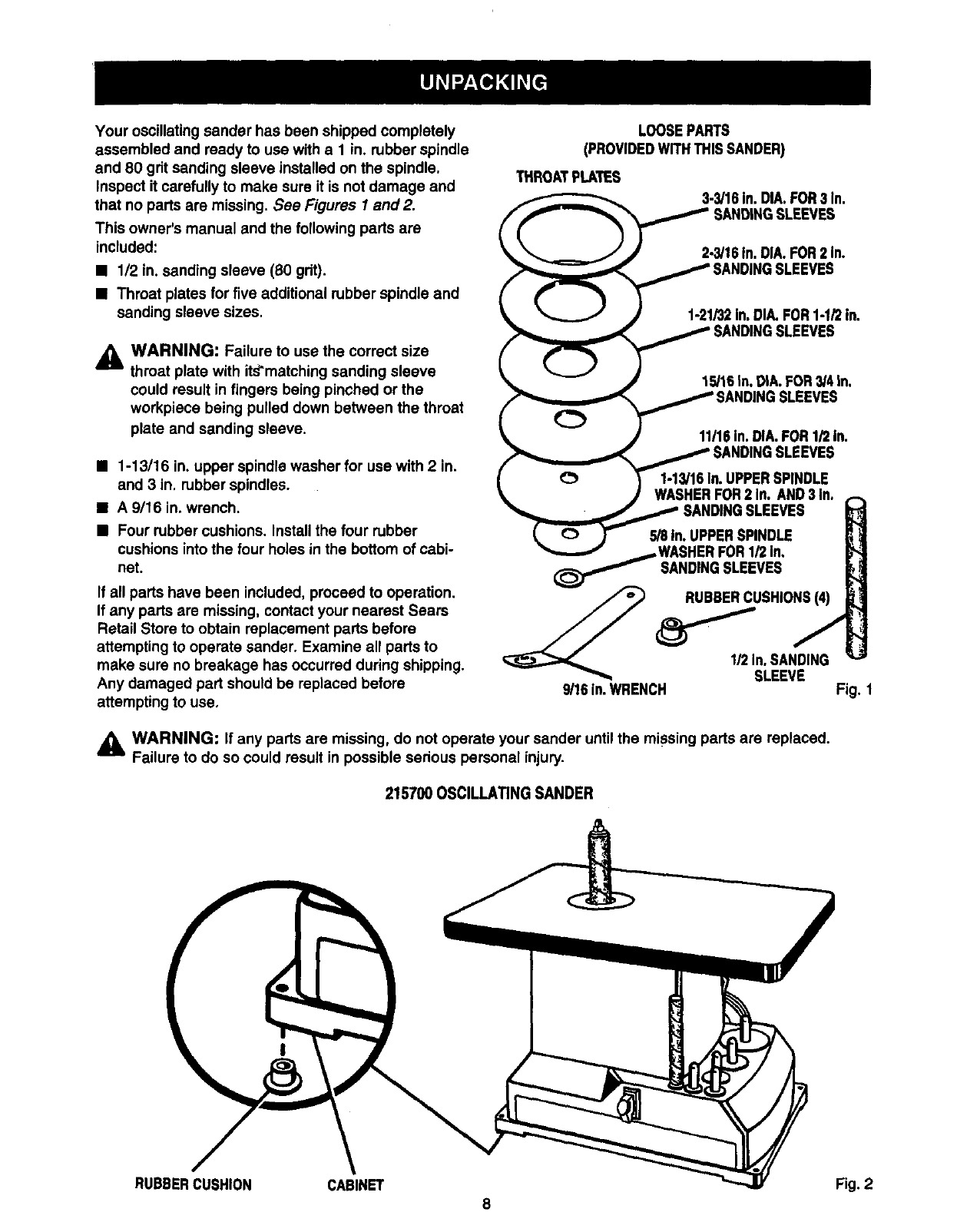

•Unpacking ....................................................................................................................................................... 8

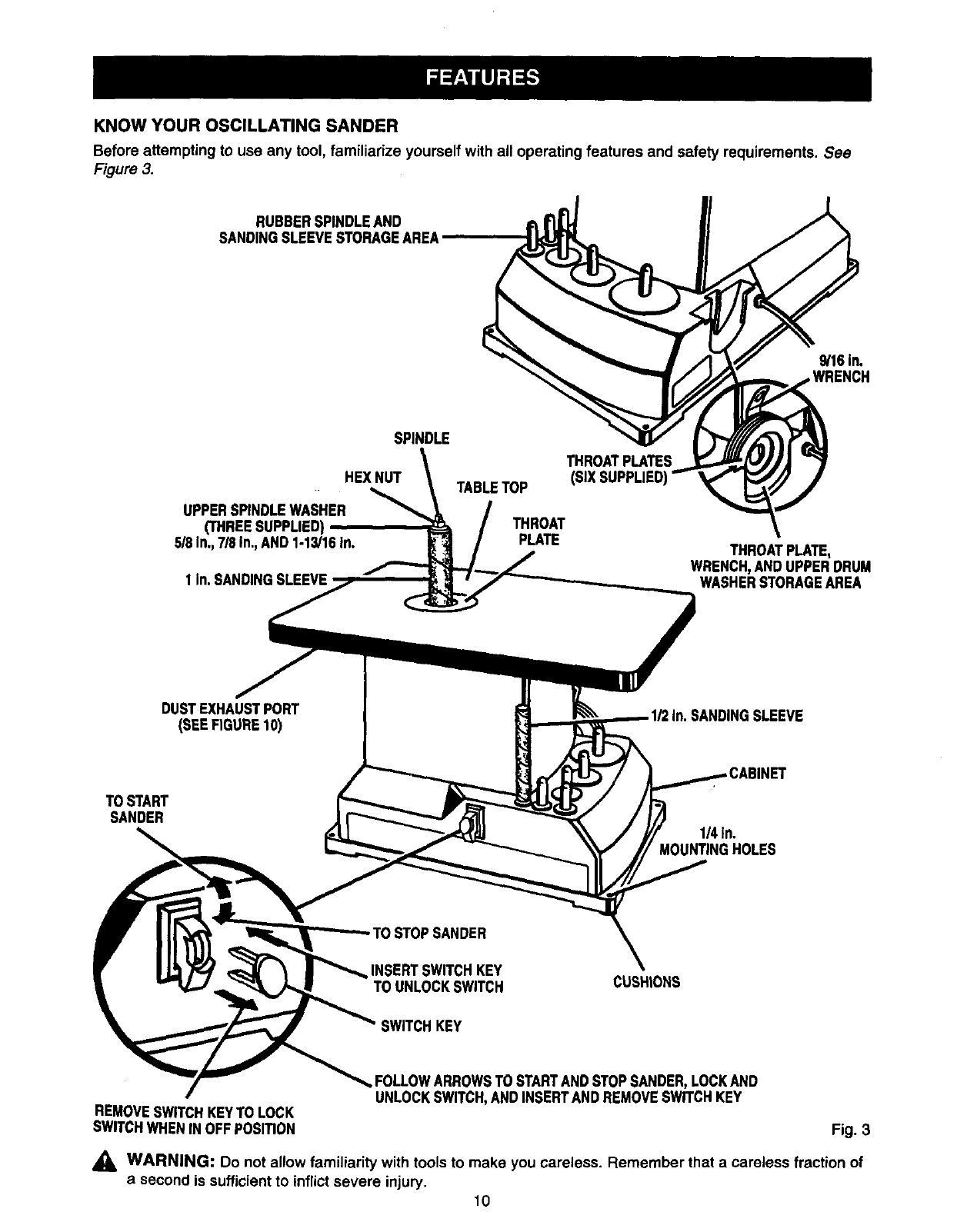

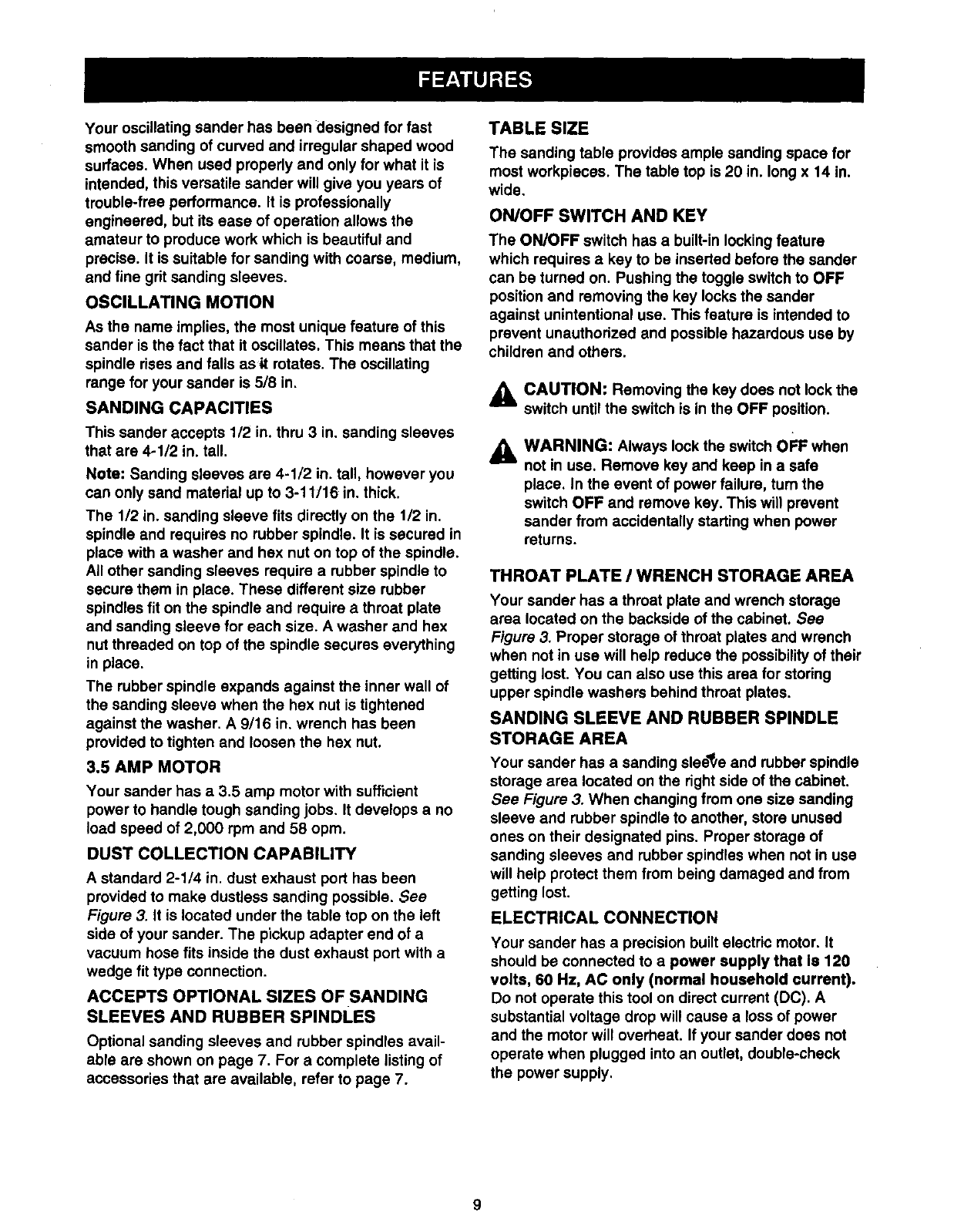

•Features .................................................................................................................................................... 9-10

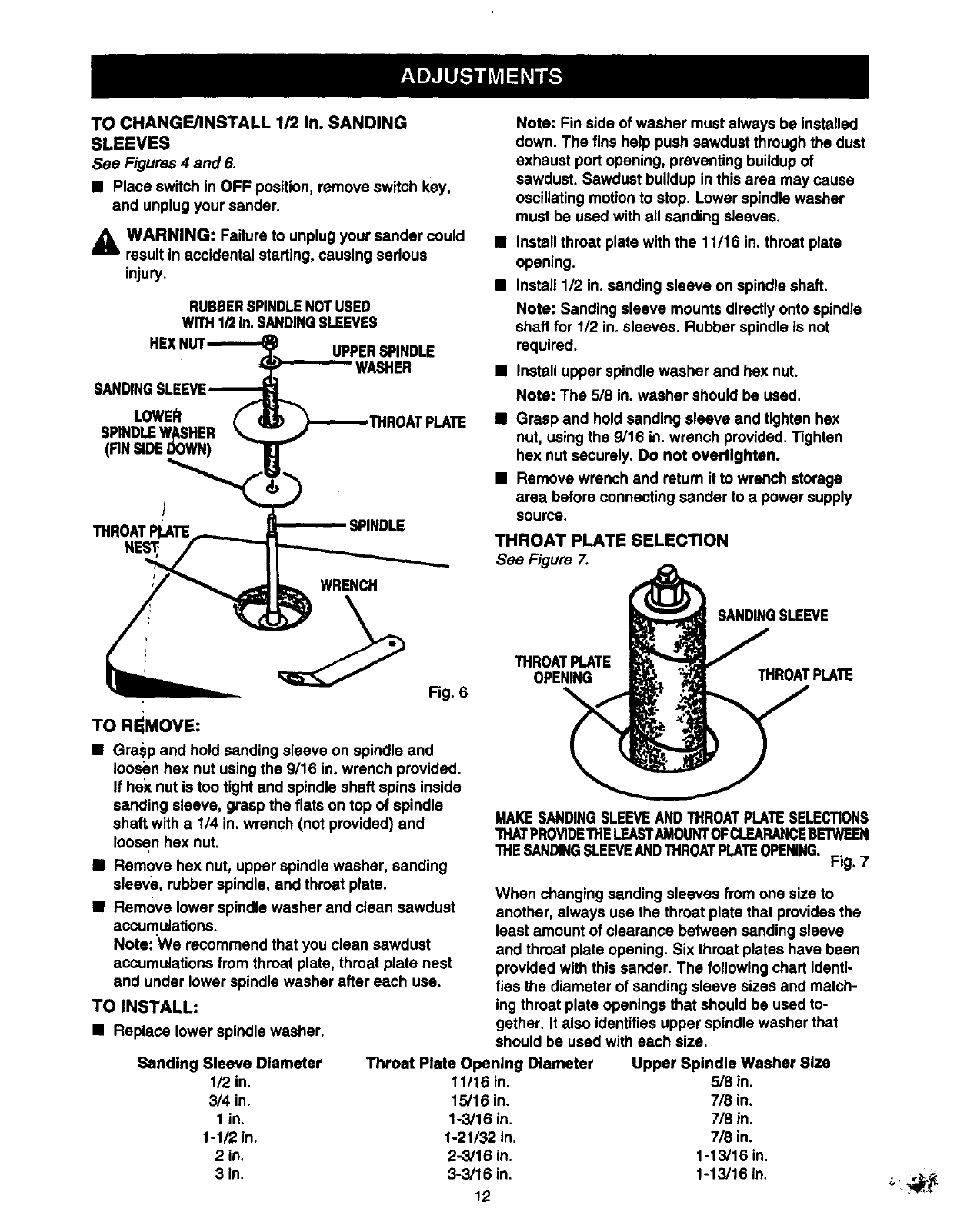

•Adjustments ............................................................................................................................................. 11-12

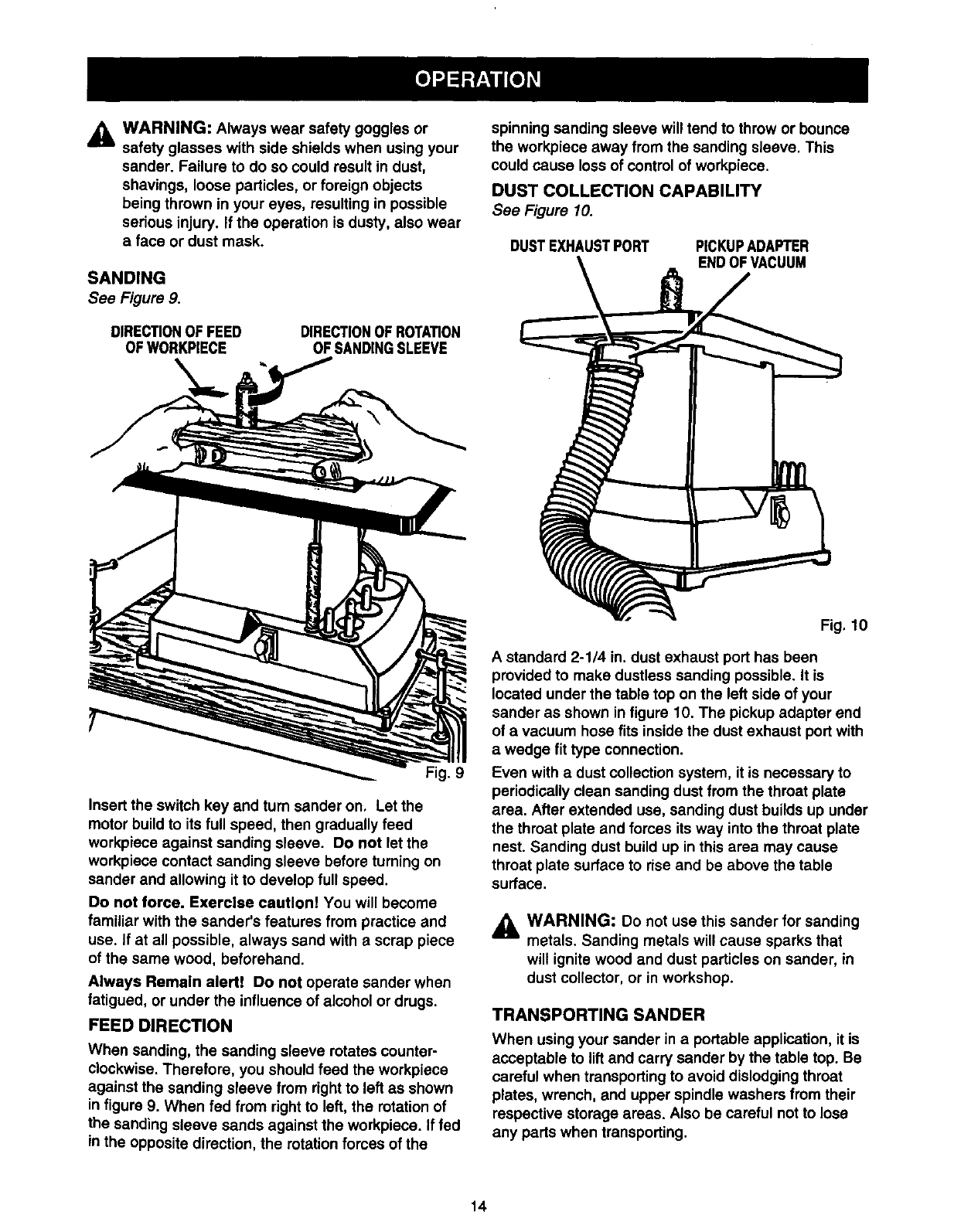

•Operation ................................................................................................................................................. 13-14

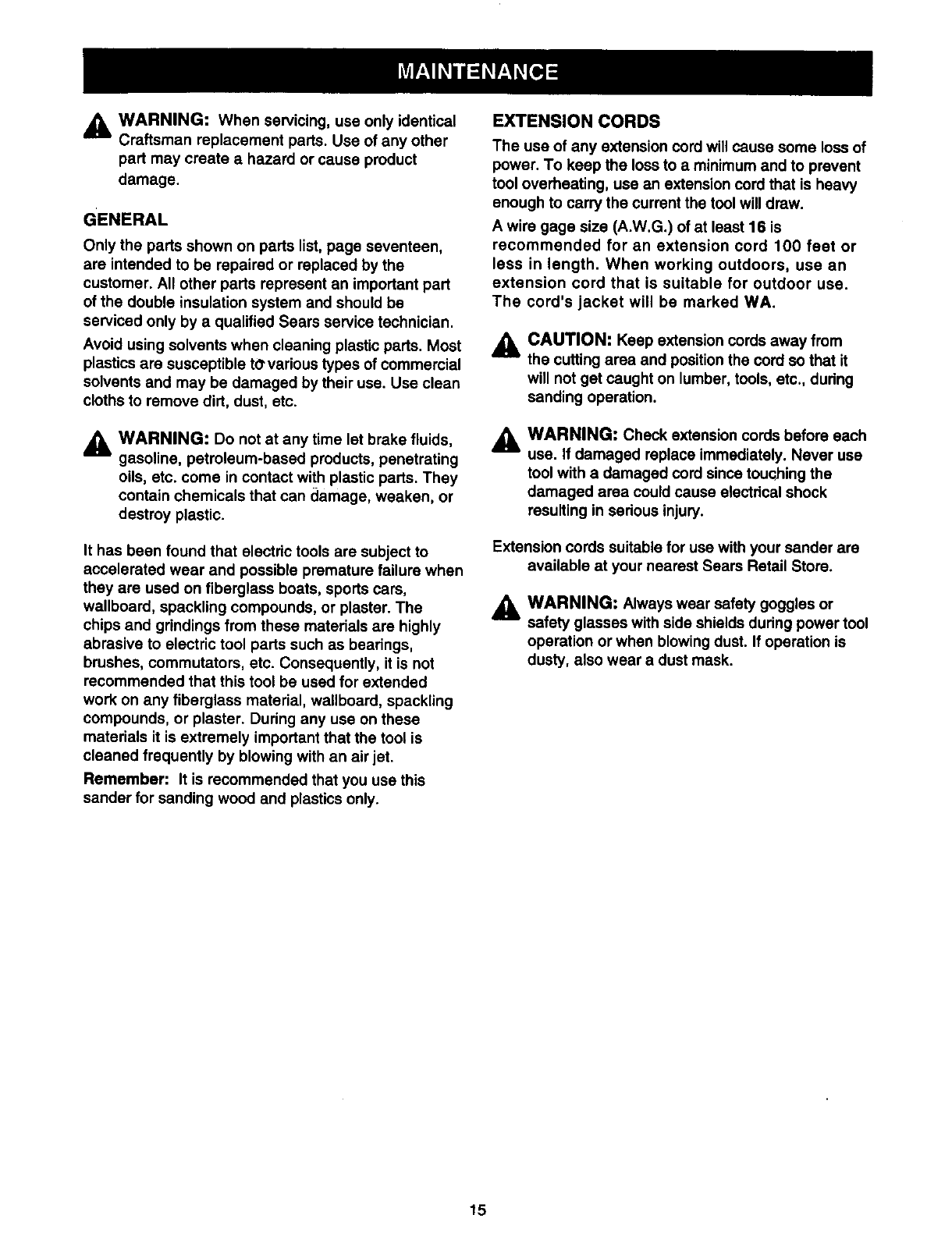

•Maintenance ................................................................................................................................................. 15

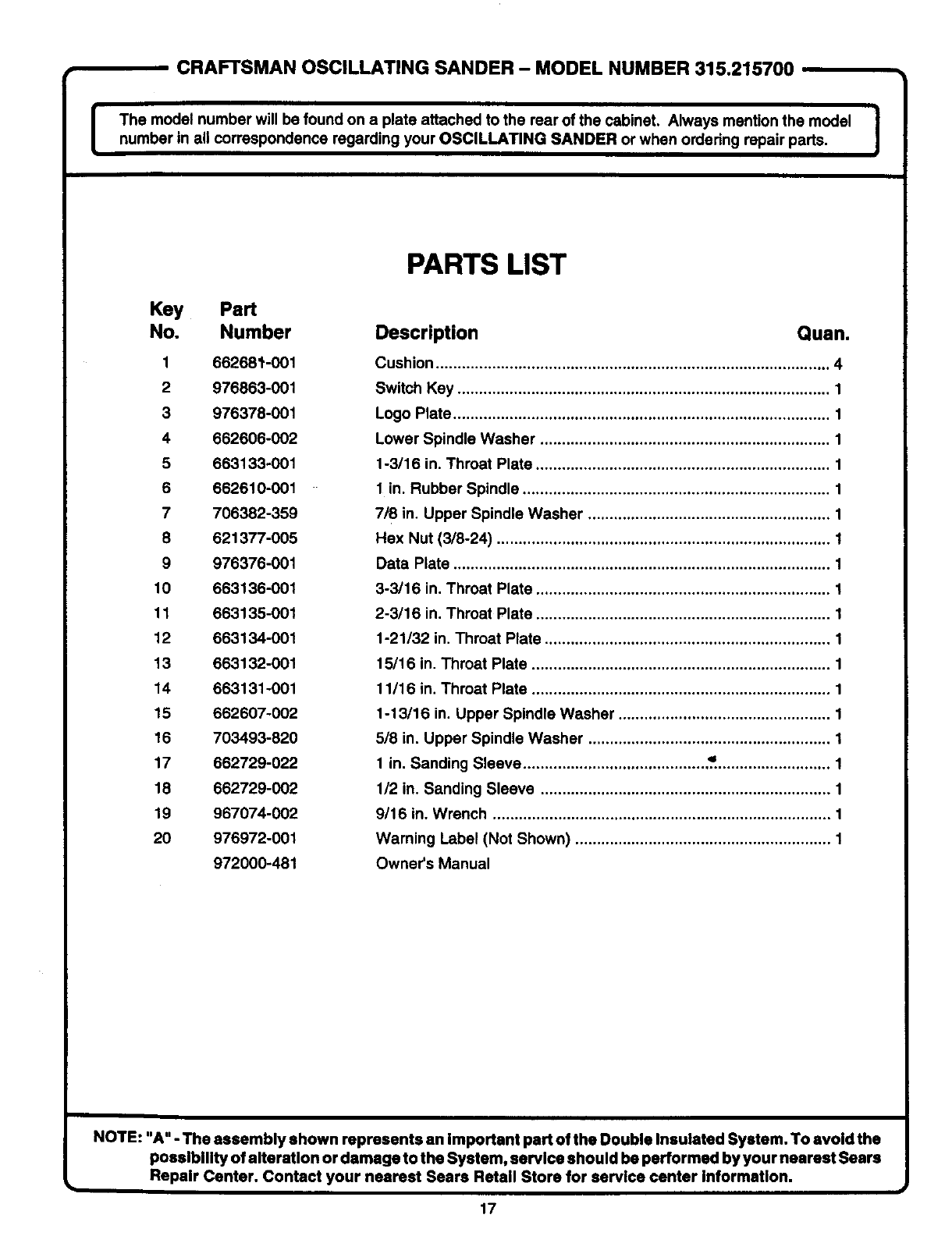

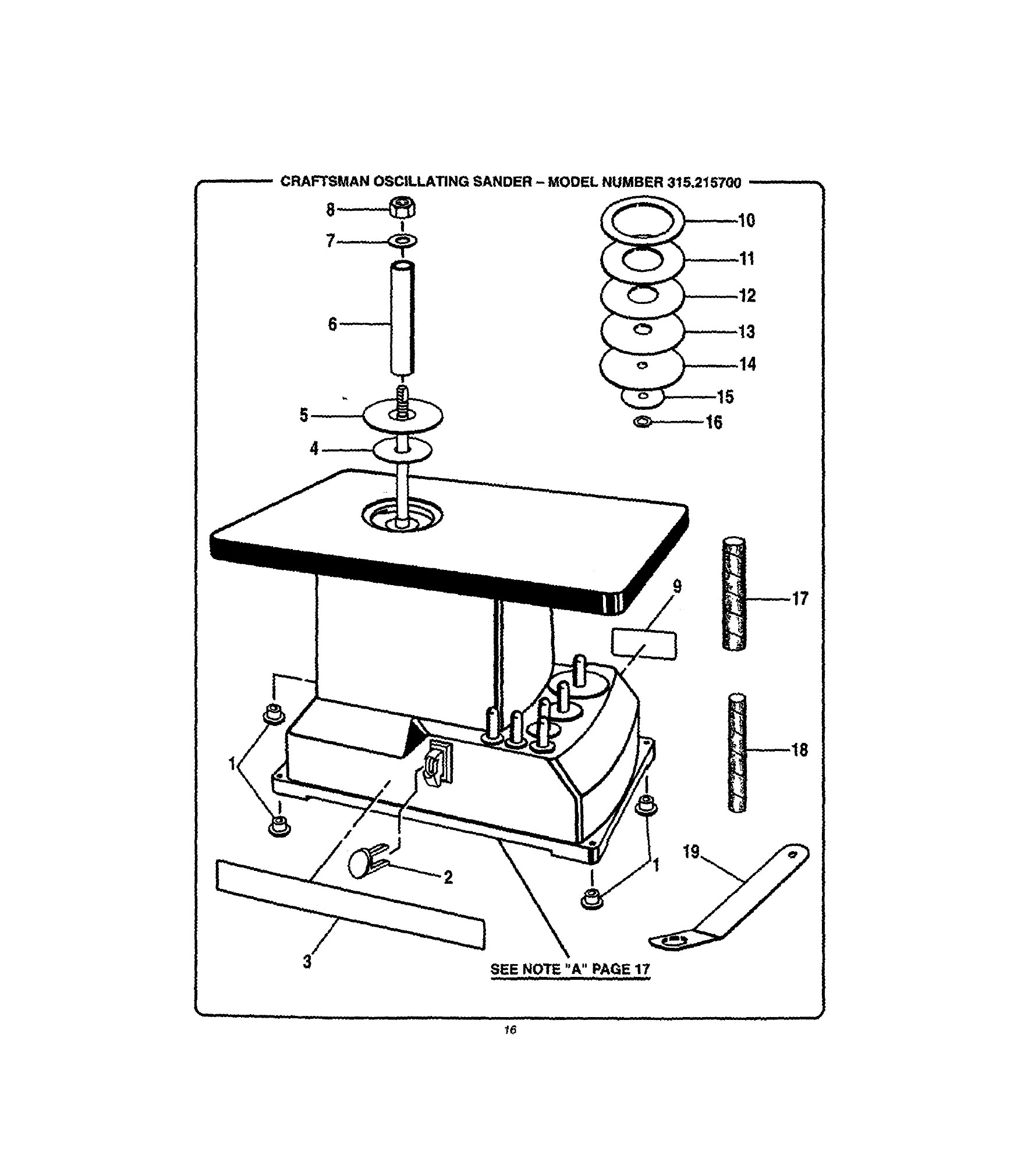

•Exploded View and Repair Parts List...................................................................................................... 16-17

•Parts Ordering /Service ............................................................................................................................... 18

FULL ONE YEAR WARRANTY ON CRAFTSMAN OSCILLATING SANDER

If this rRWI=TSMRHOscillating Sander fails due to adefect in material or workmanship within one year from the

date of purchase, Sears will repair it free of charge.

Contact a Sears Service Center for repair.

If this product is used for commercial or rental purposes, this warranty applies for only 90 days from the date of

purchase.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Your oscillating sander has many features for making

operation more pleasant and enjoyable. Safety,

performance and dependability have been given top

priority in the design of this sander, making it easy to

maintain and operate.

CAUTION: Carefully read through this entire

owner's manual before using your new oscillating

sander. Pay close attention to the Rules For Safe

Operation, Warnings and Cautions. If you use

your sander properly and only for what it is

intended, you will enjoy years of safe, reliable

service.

_Look for this symbol to point out important safety precautions. It means attention!!!

Your safety is involved.

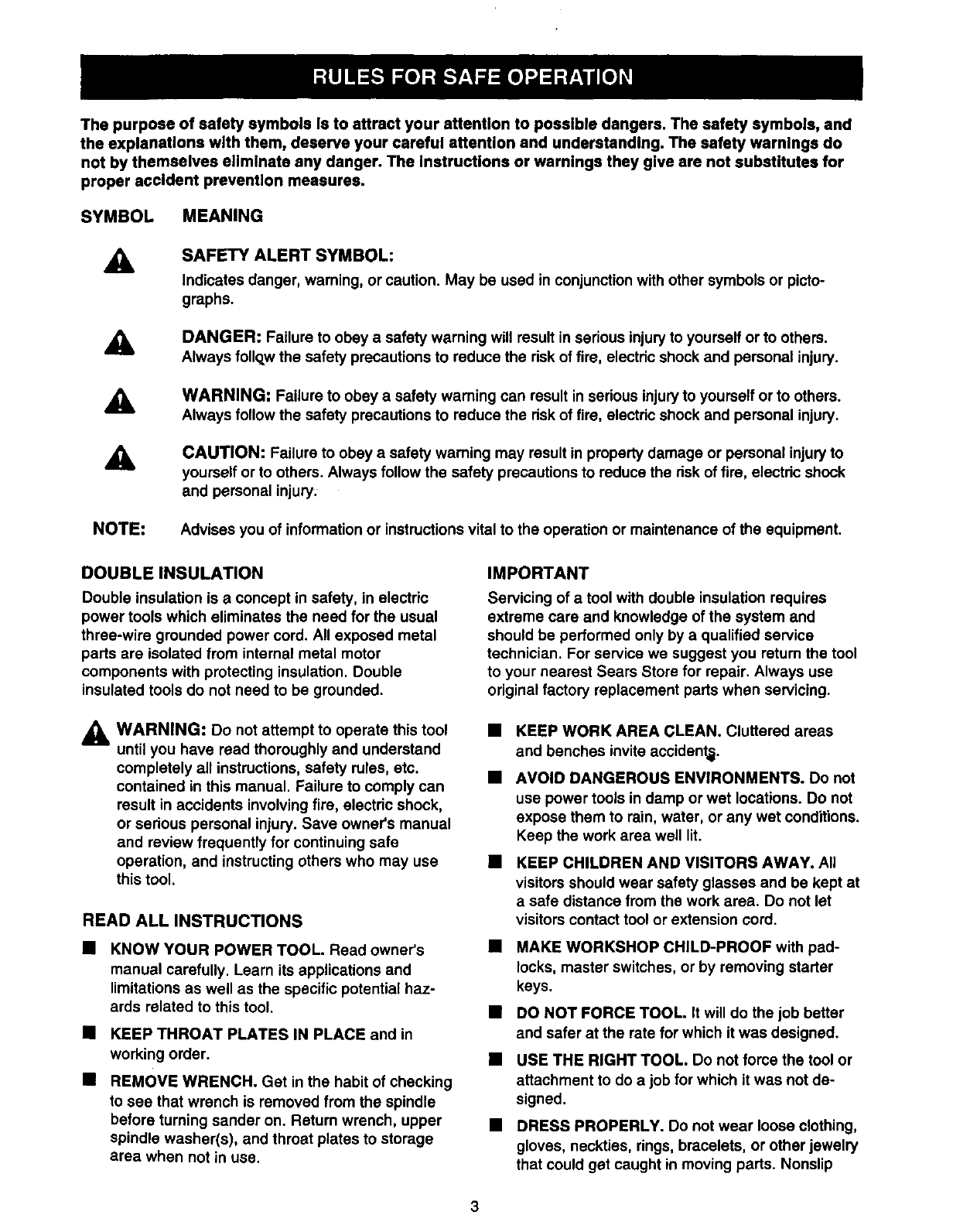

The purpose of safety symbols Is to attract your attention to possible dangers. The safety symbols, and

the explanations with them, deserve your careful attention and understanding. The safety warnings do

not by themselves eliminate any danger. The Instructions or warnings they give are not substitutes for

proper accident prevenUon measures.

SYMBOL MEANING

ASAFETY ALERT SYMBOL:

Indicates danger, warning, or caution. May be used in conjunction with other symbols or picto-

graphs.

ADANGER: Failure to obey a safety warning will result in serious injury to yourself or to others.

Always follqw the safety precautions to reduce the risk of fire, electric shock and personal injury.

AWARNING: Failure to obey a safety warning can result in serious injury to yourself or to others.

Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

ACAUTION: Failure to obey a safety waming may result in property damage or personal injury to

yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock

and personal injury.

NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.

DOUBLEINSULATION

Double insulation is a concept in safety, in electric

power tools which eliminates the need for the usual

three-wire grounded power cord. All exposed metal

parts are isolated from internal metal motor

components with protecting insulation. Double

insulated tools do not need to be grounded.

_WARNING: Do not attempt to operate this tool

until you have read thoroughly and understand

completely all instructions, safety rules, etc.

contained in this manual. Failure to comply can

result in accidents involving fire, electric shock,

or serious personal injury. Save owner's manual

and review frequently for continuing safe

operation, and instructing others who may use

this tool.

READ ALL INSTRUCTIONS

•KNOW YOUR POWER TOOL. Read owner's

manual carefully. Learn its applications and

limitations as well as the specific potential haz-

ards related to this tool.

•KEEP THROAT PLATES IN PLACE and in

working order.

•REMOVE WRENCH. Get in the habit of checking

to see that wrench is removed from the spindle

before turning sander on. Return wrench, upper

spindle washer(s), and throat plates to storage

area when not in use.

IMPORTANT

Servicing of a tool with double insulation requires

extreme care and knowledge of the system and

should be performed only by a qualified service

technician. For service we suggest you return the tool

to your nearest Sears Store for repair. Always use

original factory replacement parts when servicing.

•KEEP WORK AREA CLEAN. Clutteredareas

and benches invite accident_.

•AVOID DANGEROUS ENVIRONMENTS. Do not

use power tools in damp or wet locations. Do not

expose them to rain, water, or any wet conditions.

Keep the work area well lit.

•KEEP CHILDREN AND VISITORS AWAY. All

visitors should wear safety glasses and be kept at

a safe distance from the work area. Do not let

visitors contact tool or extension cord.

•MAKE WORKSHOP CHILD-PROOF with pad-

locks, master switches, or by removing starter

keys.

•DO NOT FORCE TOOL. It will do the job better

and safer at the rate for which it was designed.

•USE THE RIGHT TOOL. Do not force the tool or

attachment to do a job for which it was not de-

signed.

•DRESS PROPERLY. Do not wear loose clothing,

gloves, neckties, rings, bracelets, or other jewelry

that could get caught in moving pads. Nonslip

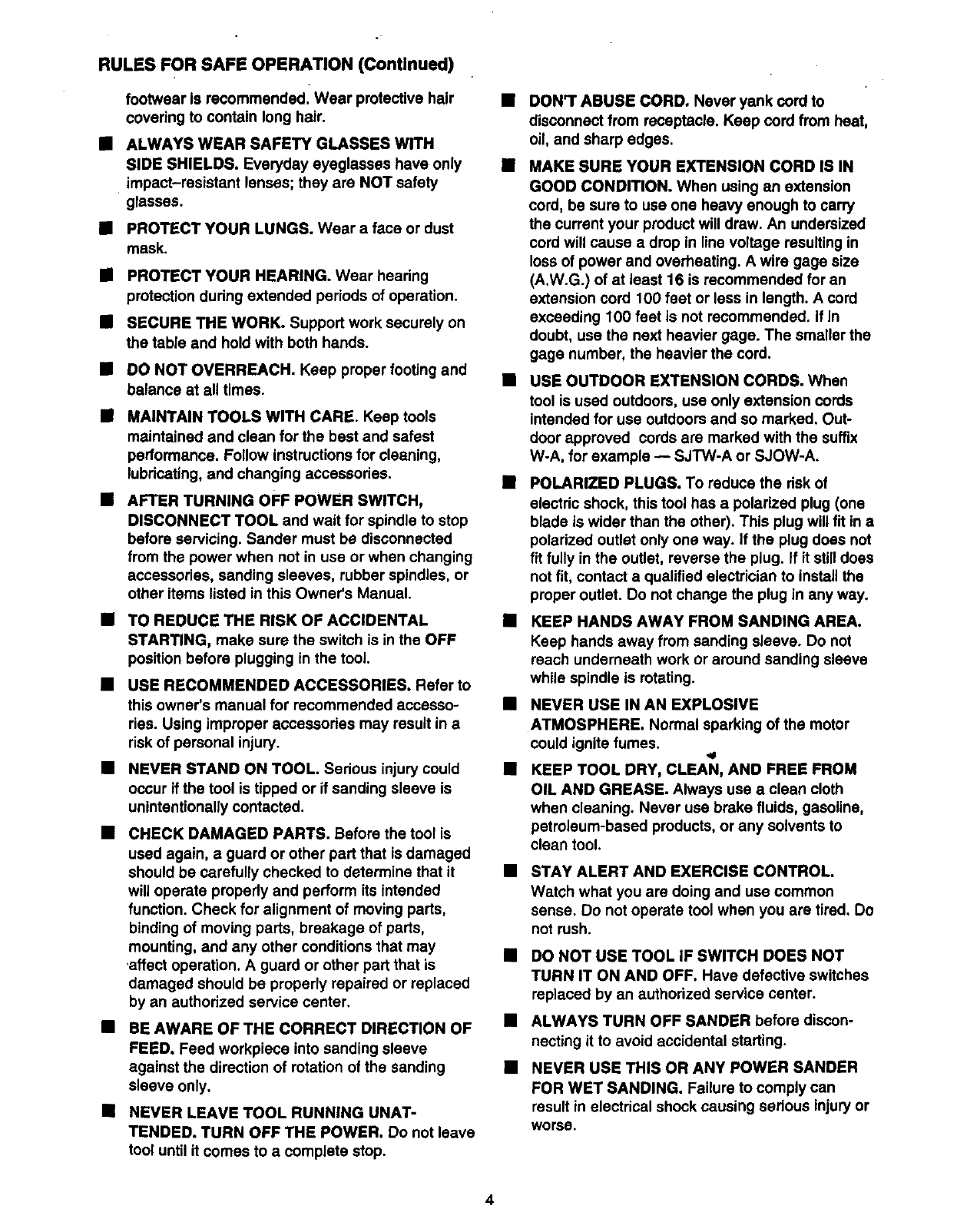

RULES FOR SAFE OPERATION (Continued)

footwear Is recommended. Wear protective hair

covering to contain long hair.

•ALWAYS WEAR SAFETY GLASSES WITH

SIDE SHIELDS. Everyday eyeglasses have only

impact-resistant lenses; they are NOT safety

glasses.

•PROTECT YOUR LUNGS. Wear a face or dust

mask.

•PROTECT YOUR HEARING. Wear hearing

protection during extended periods of operation.

•SECURE THE WORK. Support work securely on

the table and hold with both hands.

•DO NOT OVERREACH. Keep proper footing and

balance at all times.

•MAINTAIN TOOLS WITH CARE. Keep tools

maintained and clean for the best and safest

performance. Follow instructions for cleaning,

lubdcating, and changing accessories.

•AFTER TURNING OFF POWER SWITCH,

DISCONNECT TOOL and wait for spindle to stop

before servicing. Sander must be disconnected

from the power when not in use or when changing

accessories, sanding sleeves, rubber spindles, or

other items listed in this Owner's Manual.

•TO REDUCE THE RISK OF ACCIDENTAL

STARTING, make sure the switch is in the OFF

position before plugging in the tool.

USE RECOMMENDED ACCESSORIES. Refer to

this owner's manual for recommended accesso-

ries. Using improper accessories may result in a

risk of personal injury.

NEVER STAND ON TOOL. Serious injury could

occur if the tool is tipped or if sanding sleeve is

unintentionally contacted.

CHECK DAMAGED PARTS. Before the tool is

used again, a guard or other part that is damaged

should be carefully checked to determine that it

will operate properly and perform its intended

function. Check for alignment of moving pads,

binding of moving parts, breakage of parts,

mounting, and any other conditions that may

,affect operation. A guard or other part that is

damaged should be properly repaired or replaced

by an authorized service center.

BE AWARE OF THE CORRECT DIRECTION OF

FEED. Feed workpiece into sanding sleeve

against the direction of rotation of the sanding

sleeve only.

NEVER LEAVE TOOL RUNNING UNAT-

TENDED. TURN OFF THE POWER. Do not leave

tool until it comes to a complete stop.

•DON'T ABUSE CORD. Never yank cord to

disconnect from receptacle. Keep cord from heat,

oil, and sharp edges.

MAKE SURE YOUR EXTENSION CORD IS IN

GOOD CONDITION. When using an extension

cord, be sure to use one heavy enough to carry

the current your product will draw. An undersized

cord will cause a drop in line voltage resulting in

loss of power and overheating. Awire gage size

(A.W.G.) of at least 16 is recommended for an

extension cord 100 feet or less in length. A cord

exceeding 100 feet is not recommended. If Jn

doubt, use the next heavier gage. The smaller the

gage number, the heavier the cord.

USE OUTDOOR EXTENSION CORDS. When

tool is used outdoors, use only extension cords

intended for use outdoors and so marked. Out-

door approved cords are marked with the suffix

W-A, for example -- SJTW-A or SJOW-A.

POLARIZED PLUGS. To reduce the risk of

electric shock, this tool has a polarized plug (one

blade is wider than the other). This plug will fit in a

polarized outlet only one way. If the plug does not

fit fully in the outlet, reverse the plug. If it still does

not fit, contact a qualified electrician to install the

proper outlet. Do not change the plug in any way.

KEEP HANDS AWAY FROM SANDING AREA.

Keep hands away from sanding sleeve. Do not

reach underneath work or around sanding sleeve

while spindle is rotating.

NEVER USE IN AN EXPLOSIVE

ATMOSPHERE. Normal sparking of the motor

could ignite fumes,

KEEP TOOL DRY, CLEAN, AND FREE FROM

OIL AND GREASE. Always use a clean cloth

when cleaning. Never use brake fluids, gasoline,

petroleum-based products, or any solvents to

clean tool,

STAY ALERT AND EXERCISE CONTROL.

Watch what you are doing and use common

sense. Do not operate tool when you are tired. Do

not rush.

•DO NOT USE TOOL IF SWITCH DOES NOT

TURN IT ON AND OFF. Have defective switches

replaced by an authorized service center.

•ALWAYS TURN OFF SANDER before discon-

necting it to avoid accidental starting.

•NEVER USE THIS OR ANY POWER SANDER

FOR WET SANDING. Failure to comply can

result in electrical shock causing serious injury or

worse.

RULES FOR SAFE OPERATION (Continued)

•INSPECT FOR and remove all nails from lumber

before sanding. PRECAUTIONS TO TAKE WHEN SANDING

PAINT

•DRUGS, ALCOHOL, MEDICATION. Do not

operate tool while under the influence of drugs,

alcohol, or medication.

WHEN SERVICING USE ONLY IDENTICAL

CRAFTSMAN REPLACEMENT PARTS.

SAVE THESE INSTRUCTIONS. Refer to them

frequently and use to instruct other users. If you

loan someone this tool, loan them these instruc-

tions also.

_k WARNING: Some dust created by power

sanding, sawing, griq.ding,drilling, and other •

construction activities contains chemicals known

to cause cancer, birth defects or other

reproductive harm. Some examples of these

chemicals are:

• lead from lead-based paints,

•crystalline silica from bricks and cement

and other masonry products, and

•arsenic and chromium from chemically-

treated lumber.

Sanding of lead based paint is NOT

RECOMMENDED. It is very difficult to control the

contaminated dust that could cause lead poisoning.

It is also difficult to identify whether or not a paint

contains lead. Therefore, we recommend the following

precautions when sanding all paints:

•PROTECT YOUR LUNGS. Wear a dust mask or

respirator at all times. Wear only dust masks that

are suitable for working in lead paint sanding

environments. Ordinary painting masks do not

offer this protection.

Your risk from these exposures varies,

depending on how often you do this type of •

work. To reduce your exposure to these

chemicals: work in a well ventilated area, and

work with approved safety equipment, such as

those dust masks that are specially designed

to filter out microscopic particles. •

WARNING:

DO NOT ALLOW CHILDREN OR PREGNANT

WOMEN TO ENTER THE WORK AREA UNTIL

PAINT SANDING JOB IS FINISHED AND ALL

CLEAN UP COMPLETED.

TO PREVENT INGESTING CONTAMINATED

PAINT PARTICLES, DO NOT EAT, DRINK, OR

SMOKE IN A WORK AREA WHERE PAINT IS

BEING SANDED. After sanding paint, wash and

clean up before eating, drinking, or smoking. Do

not leave food, drinks, or tobacco products in the

work area where dust can settle on them.

PROTECT THE ENVIRONMENT WHEN

SANDING PAINT. Use a dust collection system

if possible. Seal the work area with plastic if

necessary. DO NOT track paint dust outside the

work area.

THOROUGHLY CLEAN THE WORK AREA

UPON COMPLETION OF PAINT SANDING

PROJECT. If project lasts for an extended period

of time, clean work area often. Items such as

sanding dust, vacuum filtePbags, plastic drop

cloths, etc. should be placed in a sealed

container and disposed of properly. Clean all

items exposed to sanding dust.

The operation of any oscillating sander can result in foreign objects being thrown into your

eyes, which can result in severe eye damage. Before beginning power tool operation, always

wear safety goggles or safety glasses with side shields and afull face shield when needed.

We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses

with side shields, available at Sears Retail Stores.

SAVE THESE INSTRUCTIONS

Oscillating Range

Sanding Sleeve Capacity

Sanding Sleeve Height

Sanding Thickness

No Load Speed

Oscillations Per Minute

Toggle Switch w/Removable Key

518 in. Table Size 20 in. x 14 in.

1/2 in. - 3 in. Spindle Size 1/2 in.

4-1/2 in. Rating 120 volts, 60 Hz, AC only

3-11/16 in. Input 3-1/2 Amperes

2000 RPM Dust Collection Capacity 2-1/4 in. Outlet

58 OPM Net Weight 26 Lbs.

Thefollowing labels are on the oscillating sander with locations indicated.

Oscillating Sander

Double Insulated 2000 RPM

110-120VOLTS ACONLY 60Hz 3.SAMPS

MODEL 315.215700

WARNING:us=o_y_ _PARTS.

Customer Help Line 1-800-932-3188

WARNING

ADVERTENCIA

• Donotremovethiscover;Noserviceable

partsinside.

• Nosacarestatapa: Nohayningunapieza

en el interiorquepuedaser reparadapor

el usuario.

I I

Oscillating Spindle Sander

Thefollowing recommended accessories are currently available at selected Sears Retail Stores.

SANDING SLEEVES

Item No.

28050

28051

28052

28053

28054

28055

28056

28057

28058

28059

28110

28111

28112

28113

28114

28115

28116

28117

Description

1/2 in. x 4-1/2 in. Sanding Sleeve 50 Grit Coarse

1/2 in. x 4-1/2 in. Sanding Sleeve 80 Grit Medium

1/2 in. x 4-1/2 in. Sanding Sleeve 150 Gdt Fine

3/4 in. x 4-1/2 in. Sanding Sleeve 50 Gdt Coarse

3/4 in. x 4-1/2 in. Sanding Sleeve 80 Gdt Medium

3/4 in. x 4-1/2 in. Sanding Sleeve 150 Gdt Fine

1 in, x 4-1/2 in. Sanding Sleeve 50 Gdt Coarse

l_in. x 4-1/2 in, Sanding Sleeve 80 Grit Medium

1 in. x 4-1/2 in. Sanding Sleeve 150 Gdt Fine

1-1/2 in. x 4-1/2 in. Sanding Sleeve 50 Grit Coarse

1-1/2 in. x 4-1/2 in. Sanding Sleeve 80 Grit Medium

1-1/2 in, x 4-1/2 in. Sanding Sleeve 150 Grit Fine

2 in. x 4-1/2 in. Sanding Sleeve 50 Grit Coarse

2 in. x 4-1/2 in. Sanding Sleeve 80 Gdt Medium

2 in. x 4-1/2 in, Sanding Sleeve 150 Grit Fine

3 in. x 4ol/2 in. Sanding Sleeve 50 Grit Coarse

3 in. x 4-1/2 in. Sanding Sleeve 80 Grit Medium

3 in. x 4-1/2 in. Sanding Sleeve 150 Grit Fine

Quantity

3 ea.

2 ea.

1 ea.

RUBBER SPINDLES

28118

28119

28120

28121

28122

3/4 in. x 4-1/2 in. Rubber Spindle

1 in. x 4-1/2 in. Rubber Spindle

1-1/2 in. x 4-1/2 in. Rubber Spindle

2 in. x 4-1/2 in. Rubber Spindle

3 in. x 4-1/2 in. Rubber Spindle

_, WARNING: The use of attachments or accessories not listed might be hazardous.

1 ea.

1ea.

3 in.

OPTIONALSANDINGSLEEVESANDRUBBERSPINDLES

2 in. 1-1/2in. 3/4 In.and I In.

Youroscillatingsander has been shipped completely LOOSEPARTS

assembled and ready to use with a 1 in. rubber spindle (PROVIDEDWITHTHISSANDER)

and 80 grit sanding sleeve installed on the spindle. THROATPLATES

Inspect it carefully to make sure it is not damage and

that no parts are missing. See Figures I and 2. /__,_ -3/16 In. DIA. FOR3 In.

SANDINGSLEEVES

This owner's manual and the following parts are

included: __.j/ 2-3/16in. DIA. FOR2 In.

•1/2 in. sanding sleeve (SOgrit). _ /SANDING SLEEVES

•Throat plates for five additional rubber spindle and

sandingsleevesizes. _ _ _ 1-21/32in.DIA.FOR I-IQin.

SANDING SLEEVES

_1= WARNING: Failure to use the correct size f_=_--_=_ '`d_

throat plate with its'matching sanding sleeve I, _._ JJ_ _ J 15/16In. DIA. FOR3/4 In.

could result in fingers being pinched or the _SANDINGSLEEVES

workpiece being pulled down between the throat (y.---

plate and sanding sleeve. _ J 11116in. DIA.FOR1/2 In.

¢F__fN_._..._ SANDINGSLEEVES

•1-13/16 in. upper spindle washer for use with 2 in. IO_1-13/16In. UPPERSPINDLE

and 3 in. rubber spindles. _JWASHERFOR2 In. AND3 In.

•A 9/16 in. wrench. _SANDINGSLEEVES

•Four rubber cushions. Install the four rubber _ _ _'_ 518In.UPPER SPINDLE

cushions into the four holes in the bottom of cabi- V _,.WASHER FOR1/2 In.

net. _SANDINGSLEEVES

If all parts have been included, proceed to operation. RUBBERCUSHIONS(4)

If any parts are missing, contact your nearest Sears

Retail Store to obtain replacement parts before

attempting to operate sander. Examine all parts to

make sure no breakage has occurred during shipping.

Any damaged part should be replaced before

attempting to use,

1/2 In. SANDING

SLEEVE

9/16in. WRENCH Fig, 1

_WARNING: If any parts are missing, do not operate your sander until the missing parts are replaced.

Failure to do so could result in possible serious personal injury.

215700 OSCILLATING SANDER

RUBBERCUSHION CABINET Fig. 2

Youroscillatingsanderhasbeendesigned for fast

smooth sanding of curved and irregular shaped wood

surfaces. When used properly and only for what it is

intended, this versatile sander will give you years of

trouble-free performance. It is professionally

engineered, but its ease of operation allows the

amateur to produce work which is beautiful and

precise. It is suitable for sanding with coarse, medium,

and fine grit sanding sleeves.

OSCILLATING MOTION

As the name implies, the most unique feature of this

sander is the fact that it oscillates. This means that the

spindle rises and falls as+t rotates. The oscillating

range for your sander is 5/8 in.

SANDING CAPACITIES

This sander accepts 1/2 in. thru 3 in. sanding sleeves

that are 4-1/2 in. tall.

Note: Sanding sleeves are 4-1/2 in. tall, however you

can only sand material up to 3-11/16 in. thick.

The 1/2 in. sanding sleeve fits directly on the 1/2 in.

spindle and requires no rubber spindle. It is secured in

place with a washer and hex nut on top of the spindle.

All other sanding sleeves require a rubber spindle to

secure them in place. These different size rubber

spindles fit on the spindle and require a throat plate

and sanding sleeve for each size. A washer and hex

nut threaded on top of the spindle secures everything

in place.

The rubber spindle expands against the inner wall of

the sanding sleeve when the hex nut is tightened

against the washer. A 9/16 in. wrench has been

provided to tighten and loosen the hex nut,

3.5 AMP MOTOR

Your sander has a 3.5 amp motor with sufficient

power to handle tough sanding jobs. It develops a no

load speed of 2,000 rpm and 58 opm.

DUST COLLECTION CAPABILITY

A standard 2-1/4 in. dust exhaust port has been

provided to make dustless sanding possible. See

Figure 3. It is located under the table top on the left

side of your sander. The pickup adapter end of a

vacuum hose fits inside the dust exhaust port with a

wedge fit type connection.

ACCEPTS OPTIONAL SIZES OF SANDING

SLEEVES AND RUBBER SPINDLES

Optional sanding sleeves and rubber spindles avail-

able are shown on page 7. For a complete listing of

accessories that are available, refer to page 7.

TABLE SIZE

The sanding table provides ample sanding space for

most workpieces. The table top is 20 in. long x 14 in.

wide.

ON/OFF SWITCH AND KEY

The ON/OFF switch has a built-in locking feature

which requires a key to be inserted before the sander

can be turned on. Pushing the toggle switch to OFF

position and removing the key locks the sander

against unintentional use. This feature is intended to

prevent unauthorized and possible hazardous use by

children and others.

_k CAUTION: Removing the key does not lock the

switch until the switch is in the OFF position.

_Ib WARNING: Always lock the switch oFF when

not in use. Remove key and keep in a safe

place, In the event of power failure, turn the

switch OFF and remove key. This will prevent

sander from accidentally starting when power

returns.

THROAT PLATE /WRENCH STORAGE AREA

Your sander has a throat plate and wrench storage

area located on the backside of the cabinet. See

Figure 3. Proper storage of throat plates and wrench

when not in use will help reduce the possibility of their

getting lost. You can also use this area for storing

upper spindle washers behind threat plates.

SANDING SLEEVE AND RUBBER SPINDLE

STORAGE AREA

Your sander has a sanding sleeve and rubber spindle

storage area located on the right side of the cabinet.

See Figure 3. When changing from one size sanding

sleeve and rubber spindle to another, store unused

ones on their designated pins. Proper storage of

sanding sleeves and rubber spindles when not in use

will help protect them from being damaged and from

getting lost.

ELECTRICAL CONNECTION

Your sander has a precision built electric motor. It

should be connected to a power supply that Is 120

volts, 60 Hz, AC only (normal household current).

Do not operate this tool on direct current (DC). A

substantial voltage drop will cause a loss of power

and the motor will overheat. If your sander does not

operate when plugged into an outlet, double-check

the power supply.

KNOWYOUROSCILLATINGSANDER

Beforeattemptingto useanytool,familiarize yourself with all operating features and safety requirements. See

Figure 3.

RUBBERSPINDLEAND

SANDINGSLEEVESTORAGEAREA

9/16in,

SPINDLE

HEXNUT

UPPERSPINDLEWASHER

(THREESUPPUED)

5/8 In.,7/8 In.,AND 1-13/16In.

1 In. SANDINGSLEEVE

THROATPLATES

TABLETOP

THROAT

PLATE THROATPLATE,

WRENCH,AND UPPERDRUM

WASHERSTORAGEAREA

DUSTEXHAUSTPORT

(SEERGURE 10) SLEEVE

TOSTART

SANDER 1/4 In.

MOUNTINGHOLES

TO STOPSANDER

INSERTSWITCHKEY

TO UNLOCKSWITCH CUSHIONS

SWITCHKEY

REMOVESWITCHKEYTO LOCK

SWITCHWHENIN OFFPOSITION

FOLLOWARROWSTO STARTANDSTOPSANDER,LOCKAND

UNLOCKSWITCH,AND INSERTANDREMOVESWITCHKEY

Fig. 3

_1_ WARNING: Do not allow familiarity with tools to make you careless. Remember that a careless fraction of

a second is sufficient to inflict severe injury. 10

,_ WARNING: Your sander should never be

connected to power supply when you are

assembling parts; making adjustments;

changing, installing, or removing sanding

sleeves; changing, installing, or removing rubber

spindles; changing, installing, or removing threat

plates; or when not in use. Placing switch in OFF

position, disconnecting sander, and removing

switch key will prevent accidental starting that

could cause serious injury.

As mentioned previously, your sander has been

shipped completely assembled with a 1 in. sanding

sleeve installed. The throat plate with a 1-3/16 in.

opening has been used. When changing sanding

sleeve sizes, change as follows:

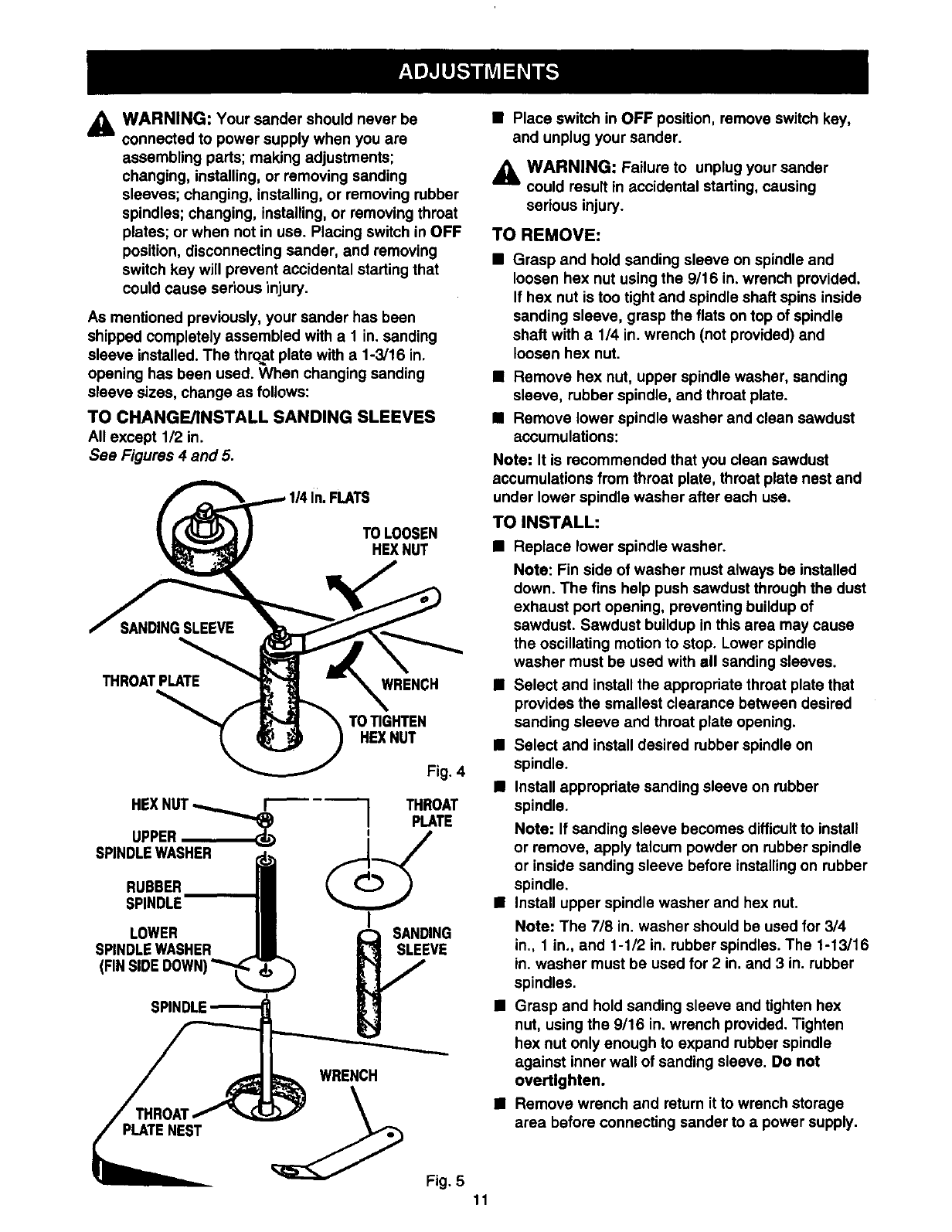

TO CHANGE/INSTALL SANDING SLEEVES

All except 1/2 in.

See Figures 4 and 5.

FLATS

TO LOOSEN

HEXNUT

SANDINGSLEEVE

THROATPLATE WRENCH

TOTIGHTEN

HEXNUT

Fig. 4

HEX NUT__ /'_- -"_-] THROAT

/ PLATE

UPPER_ I

SPINDLEWASHER F"_'_

LOWER SANDING

SPINDLEWASHER SLEEVE

(FIN SIDEDOWN)'_

WRENCH

PLATENEST

•Place switch in OFF position, remove switch key,

and unplug your sander.

,_ WARNING: Failure to unplug your sander

could result in accidental starting, causing

serious injury.

TO REMOVE:

•Grasp and hold sanding sleeve on spindle and

loosen hex nut using the 9/16 in. wrench provided.

If hex nut is too tight and spindle shaft spins inside

sanding sleeve, grasp the flats on top of spindle

shaft with a 114in. wrench (not provided) and

loosen hex nut.

•Remove hex nut, upper spindle washer, sanding

sleeve, rubber spindle, and throat plate.

•Remove lower spindle washer end clean sawdust

accumulations:

Note: It is recommended that you clean sawdust

accumulations from threat plate, throat plate nest and

under lower spindle washer after each use.

TO INSTALL:

•Replace lower spindle washer.

Note: Fin side of washer must always be installed

down. The fins help push sawdust through the dust

exhaust port opening, preventing buildup of

sawdust. Sawdust buildup in this area may cause

the oscillating motion to stop. Lower spindle

washer must be used with ell sanding sleeves.

•Select and install the appropriate throat plate that

provides the smallest clearance between desired

sanding sleeve and throat plate opening.

•Select and install desired rubber spindle on

spindle.

•Install appropdate sanding sleeve on rubber

spindle.

Note: If sanding sleeve becomes difficult to install

or remove, apply talcum powder on rubber spindle

or inside sanding sleeve before installing on rubber

spindle.

•Install upper spindle washer and hex nut.

Note: The 7/8 in. washer should be used for 3/4

in., 1 in., and 1-1/2 in. rubber spindles. The 1-13/16

in. washer must be used for 2 in. and 3 in. rubber

spindles.

•Grasp and hold sanding sleeve and tighten hex

nut, using the 9/16 in. wrench provided. Tighten

hex nut only enough to expand rubber spindle

against inner wall of sanding sleeve. Do not

overUghten.

•Remove wrench and return it to wrench storage

area before connecting sander to a power supply.

Fig. 511

TO CHANGE/INSTALL 1/2 In. SANDING

SLEEVES

See Figures 4 and 6.

•Place switch in OFF position, remove switch key,

and unplug your sander.

A WARNING: Failure to unplug your sander could

result in accidental starting, causing sedous

injury.

RUBBERSPINDLENOTUSED

WITH1/2In. SANDINGSLEEVES

UPPERSPINDLE

WASHER

SANDINGSLE

LOWER

SPINDLEW/kSHER

(RN SIDEDOWN)

THROATP!_,ATE

Note: Fin side of washer must always be installed

down. The fins help push sawdust through the dust

exhaust port opening, preventing buildup of

sawdust. Sawdust buildup in this area may cause

oscillating motion to stop. Lower spindle washer

must be used with all sanding sleeves.

•Install throat plate with the 11116 in. throat plate

opening.

•Install 112in. sanding sleeve on spindle shaft.

Note: Sanding sleeve mounts directly onto spindle

shaft for 1/2 in. sleeves. Rubber spindle is not

required.

•Install upper spindle washer and hex nut.

Note: The 5/8 in. washer should be used.

•Grasp and hold sanding sleeve and tighten hex

nut, using the 9/16 in. wrench provided. Tighten

hex nut securely. Do not overtlghten.

•Remove wrench and return it to wrench storage

area before connecting sander to a power supply

source.

THROAT PLATE SELECTION

See Figure 7.

TO RE MOVE:

WRENCH

Fig. 6

•Grasp and hold sanding sleeve on spindle and

loosen hex nut using the 9/16 in. wrench provided.

If heJ(nut is too tight and spindle shaft spins inside

sanding sleeve, grasp the flats on top of spindle

shaft with a 1/4 in. wrench (not provided) and

loosen hex nut.

•Remove hex nut, upper spindle washer, sanding

sleeve, rubber spindle, and throat plate.

•Remove lower spindle washer and clean sawdust

accumulations.

Note: We recommend that you clean sawdust

accumulations from threat plate, throat plate nest

and under lower spindle washer after each use.

TO INSTALL:

•Replace lower spindle washer.

SANDINGSLEEVE

THROATPLATE

OPENING THROATPLATE

MAKESANDINGSLEEVEAND THROATPLATESELECTIONS

THATPROVIDETHELEASTAMOUNTOFCLEARANCEBETWEEN

THESANDINGSLEEVEANDTHROATPLATEOPENING. Fig. 7

When changing sanding sleeves from one size to

another, always use the throat plate that provides the

least amount of clearance between sanding sleeve

and throat plate opening. Six throat plates have been

provided with this sander. The following chart identi-

fies the diameter of sanding sleeve sizes and match-

ing throat plate openings that should be used to-

gether. It also identifies upper spindle washer that

should be used with each size.

Sanding Sleeve Diameter

1/2 in.

3/4 in.

1 in.

1-1/2 in.

2 in,

3 in.

Throat Plate Opening Diameter

11/16 in.

15/16 in.

1-3/16 in.

1-21132 in.

2-3/16 in.

3-3/16 in.

Upper Spindle Washer Slzo

5/8 in.

7/8 in.

1-13/16 in.

APPLICATIONS

(Use only for the purposes listed below)

• Sanding on wood surfaces.

•Sanding plastics.

,_l WARNING: Do not use this sander for sanding

metals. Sanding metals will cause sparks that

will ignite wood and dust particles on sander, in

the dust collector, or in workshop.

SANDING SLEEVE SELECTION

Selecting the correct size diameter, correct size grit,

and correct type sanding Sleeve is an extremely

important step in achieving ahigh quality sanded

finish. Aluminum oxide, silicon carbide, and other

synthetic abrasives are best for power sanding.

Natural abrasives, such as flint and garnet are too soft

for economical use in power sanding.

In general, coarse grit will remove the most material

and finer grit will produce the best finish in all sanding

operations. The condition of the surface to be sanded

will determine which grit will do the job. If the surface

is rough, start with a coarse grit and sand until the

surface is uniform. Medium grit may then be used to

remove scratches left by the coarser grit and finer grit

used for finishing of the surface. Always continue

sanding with each grit until surface is uniform.

Note: Oo not use sander without a sanding sleeve,

Doing so will damage the rubber spindle.

Select and install the desired sanding sleeve for your

particular application. As mentioned previously,

sanding sleeves from 1/2 in. to 3 in. can be used with

this sander. Choose one that is close in size to the

workpiece you are sanding. Also install the

appropriate throat plate, with the least amount of

clearance for the sanding sleeve you choose.

_k WARNING: Failure to use the correct size

throat plate with its matching sanding sleeve

could result in fingers being pinched or the

workpiece being pulled down between the throat

plate and sanding sleeve.

PREPARING FOR OPERATION

See Figure 8.

When preparing for operation we recommend that

your sander be secured in a permanent location such

as to a workbench.

If sander is to be used in a portable application, we

recommend that you fasten it permanently to a

mounting board that can easily be clamped to a

workbench or other supporting surface. See Figure 8.

The mountingboard should be of sufficientsize to avoid

tippingof sander while in use. Any good grade plywood

or chipboard with a 3/4 in. thickness is recommended.

SANDERSHOWNMOUNTEDTO A MOUNTINGBOARDFOR

PORTABLEAPPLICATIONS.ALSOSHOWNSECURELY

CLAMPEDTO A WORKBENCH. Fig. 8

Mount sander to board using holes in cabinet as a

template for hole pattern. A 1/4 in. hole is located on

each of the four corners of the cabinet. Use 1/4 in.

bolts for securing sander to a workbench or mounting

board. If lag bolts are used, make sure they are long

enough to go through holes in sander, holes in

cushions and material sander is being mounted to. If

machine bolts are being used, make sure bolts are

long enough to go through holes in sander cabinet,

holes in cushions, material being mounted to, lock

washers, and hex nuts.

Note: It may be necessary to countersink hex nuts

and washers on bottom side of mounting board.

The supporting surface where sander is mounted

should be examined carefully after mounting to make

sure that no movement during use can result. If any

"tipping" or "walking" is noticed, secure workbench

legs or supporting surface before beginning sanding

operations. Support workpiece with miter gage,

backstop or worktable. A worktable should be a stable

support. A backstop is a support for the workpiece.

When preparing for operation, make sure hex nut on

top of spindle is tightened securely. Also make sure

that wrench has been removed from hex nut and

returned to wrench storage area.

_k WARNING: Do not wear loose clothing or

jewelry when operating sander. They could get

caught in moving parts, causing serios injury.

Keep head away from sander and sanding area.

Hair could get caught in the rotating parts,

causing serious personal injury,

_i WARNING: Always wear safety goggles or

safety glasses with side shields when using your

sander. Failure to do so could result in dust,

shavings, loose particles, or foreign objects

being thrown in your eyes, resulting in possible

serious injury. If the operation is dusty, also wear

aface or dust mask.

SANDING

See Figure 9.

DIRECTIONOF FEED

OF WORKPIECE DIRECTIONOF ROTATION

OF SANDINGSLEEVE

spinning sanding sleeve will tend to throw or bounce

the workpiece away from the sanding sleeve. This

could cause loss of control of workpiece.

DUST COLLECTION CAPABILITY

See Figure 10.

DUSTEXHAUSTPORT PICKUPADAPTER

ENDOF VACUUM

Fig. 9

Insert the switch key and tum sander on, Let the

motor build to its full speed, then gradually feed

workpiece against sanding sleeve. Do not let the

workpiece contact sanding sleeve before turning on

sander and allowing it to develop full speed.

Do not force. Exercise caution! You will become

familiar with the sander's features from practice and

use. If at all possible, always sand with a scrap piece

of the same wood, beforehand.

Always Remain alert! Do not operate sander when

fatigued, or under the influence of alcohol or drugs.

FEED DIRECTION

When sanding, the sanding sleeve rotates counter-

clockwise. Therefore, you should feed the workpiece

against the sanding sleeve from right to left as shown

in figure 9. When fed from right to left, the rotation of

the sanding sleeve sands against the workpiece. If fed

in the opposite direction, the rotation forces of the

Fig. 10

A standard 2-1/4 in. dust exhaust port has been

provided to make dustless sanding possible. It is

located under the table top on the left side of your

sander as shown in figure 10. The pickup adapter end

of a vacuum hose fits inside the dust exhaust port with

a wedge fit type connection.

Even with a dust collection system, it is necessary to

periodically clean sanding dust from the throat plate

area. After extended use, sanding dust builds up under

the throat plate and forces its way into the throat plate

nest. Sanding dust build up in this area may cause

throat plate surface to rise and be above the table

surface.

_i WARNING: Do not use this sander for sanding

metals. Sanding metals will cause sparks that

will ignite wood and dust particles on sander, in

dust collector, or in workshop.

TRANSPORTING SANDER

When using your sander in a portable application, it is

acceptable to lift and carry sander by the table top. Be

careful when transporting to avoid dislodging throat

plates, wrench, and upper spindle washers from their

respective storage areas. Also be careful not to lose

any parts when transporting.

_i WARNING: When servicing, use only identical

Craftsman replacement pads. Use of any other

part may create a hazard or cause product

damage.

GENERAL

Only the parts shown on parts list, page seventeen,

are intended to be repaired or replaced by the

customer. All other parts represent an important part

of the double insulation system and should be

serviced only by a qualified Sears service technician.

Avoid using solvents when cleaning plastic pads. Most

plastics are susceptible tO'various types of commercial

solvents and may be damaged by their use. Use clean

clothe to remove dirt, dust, etc.

_L WARNING: Do not at any time let brake fluids,

gasoline, petroleum-based products, penetrating

oils, etc. come in contact with plastic parts. They

contain chemicals that can damage, weaken, or

destroy plastic.

It has been found that electric tools are subject to

accelerated wear and possible premature failure when

they are used on fiberglass boats, sports care,

wallboard, spackling compounds, or plaster. The

chips and grindings from these materials are highly

abrasive to electric tool parts such as bearings,

brushes, commutators, etc. Consequently, it is not

recommended that this tool be used for extended

work on any fiberglass material, wallboard, spackling

compounds, or plaster. During any use on these

materials it is extremely important that the tool is

cleaned frequently by blowing with an air jet.

Remember: It is recommended that you use this

sander for sanding wood and plastics only.

EXTENSION CORDS

The usa of any extension cord will cause some loss of

power. To keep the lossto a minimum and to prevent

tool overheating, use an extension cord that is heavy

enough to carry the current the tool will draw.

A wire gage size (A.W.G.) of at least 16 is

recommended for an extension cord 100 feet or

less in length. When working outdoors, use an

extension cord that is suitable for outdoor use.

The cord's jacket will be marked WA.

,_ CAUTION: Keep extension cords away from

the cutting area and position the cord so that it

will not get caught on lumber, tools, etc., during

sanding operation.

AWARNING: Check extension cords before each

use. If damaged replace immediately. Never use

tool with a damaged cord since touching the

damaged area could cause electdcal shock

resulting in serious injury.

Extension cords suitable for use with your sander are

available at your nearest Sears Retail Store.

d_i, WARNING: Always wear safety goggles or

safety glasses with side shields during power tool

operation or when blowing dust. If operation is

dusty, also wear a dust mask.

" CRAFTSMAN OSCILLATING SANDER - MODEL NUMBER 315,215700

7---,zp

€:

"!r

¢€_----.-16

917

SEE NOTE "A" PAGE 17

ii ii i i i i| ., , ............... o_,, ..

CRAFTSMAN OSCILLATING SANDER - MODEL NUMBER 315.215700

IThe model number will be found on a plate attached to the rear of the cabinet. Always mention the model |

number in all correspondence regarding your OSCILLATING SANDER or when ordering repair parts. J

Key

No. Number

I 662681-001

2 976863-001

3 976378-001

4 662606-002

5 663133-001

6 662610-001

7 706382-359

8 621377-005

9 976376-001

10 663136-001

11 663135-001

12 663134-001

13 663132-001

14 663131-001

15 662607-002

16 703493-820

17 662729-022

18 662729-002

19 967074-002

20 976972-001

972000-481

PARTS LIST

Description Quan.

Cushion ........................................................................................... 4

Switch Key ...................................................................................... 1

Logo Plate ....................................................................................... 1

Lower Spindle Washer ................................................................... 1

1-3/16 in. Throat Plate .................................................................... 1

1 in. Rubber Spindle ....................................................................... 1

7t8 in. Upper Spindle Washer ........................................................ 1

Hex Nut (3/8-24) ............................................................................. 1

Data Plate ....................................................................................... 1

3-3/16 in, Throat Plate .................................................................... 1

2-3/16 in. Throat Plate .................................................................... 1

1-21/32 in. Throat Plate .................................................................. 1

15/16 in. Throat Plate ..................................................................... 1

11/16 in. Throat Plate ..................................................................... 1

1-13/16 in. Upper Spindle Washer ................................................. 1

5/8 in. Upper Spindle Washer ........................................................ 1

1 in. Sanding Sleeve .......................................... .._........................... 1

1/2 in. Sanding Sleeve ................................................................... 1

9/16 in. Wrench .............................................................................. 1

Warning Label (Not Shown) ........................................................... 1

Owner's Manual

NOTE: "A" - The assembly shown represents an Important part of the Double Insulated System. To avoid the

possibility of alteration or damage to the System, servlca should be performed by your nearest Sears

Repair Center. Contact your nearest Sears RCtall Store for service center Information.

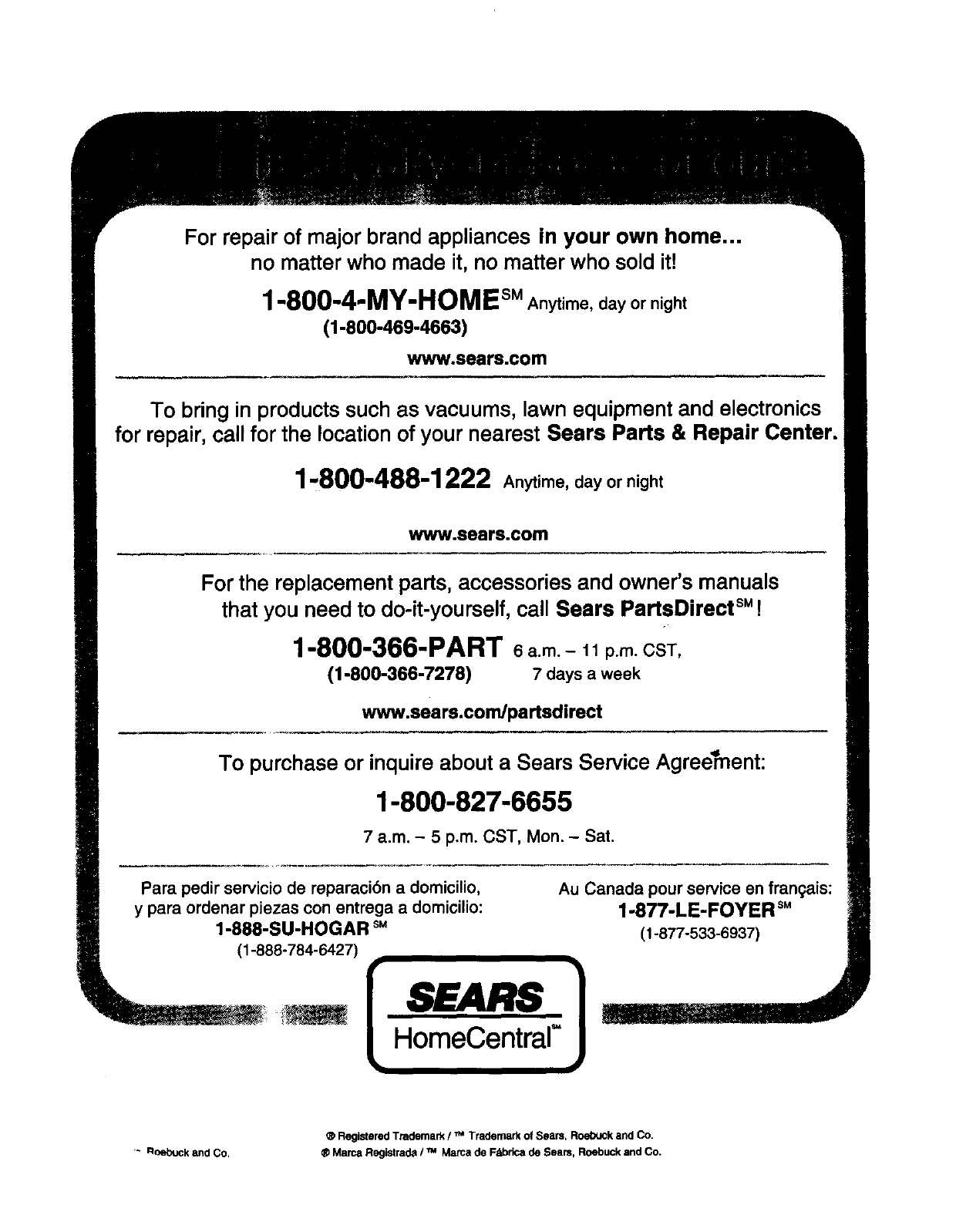

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

1-800-4-MY-HOME sMAnytime, day or night

(1-800-469-4663)

www.sears.com

To bring in products such as vacuums, lawn equipment and electronics

for repair, call for the location of your nearest Sears Parts & Repair Center.

1-800-488-1222 Anytime, day or night

www.sears.com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirect sM!

1-800-366-PART 6a.m.- 11 p.m. CST,

(1-800-366-727'8) 7 days a week

www.sears.com/partsdirect

To purchase or inquire about a Sears Service Agree_ment:

1-800-827-6655

7 a.m. - 5 p.m. CST, Mon. - Sat.

Para pedir servicio de reparaci6n a domicilio,

y para ordenar piezas con entrega adomicilio:

1-888-SU-HOGAR s.

(1-888-784-6427)

Au Canada pour service en frangais:

1"877-LE'FOYER s.

ISEARS ]

HomeCentral" J

(t-877-533-6937)

®Registered Trademark /TM Trademark of Seam, Roeb_lck and Co.

•~¢loebuck and Co. ®Mama Registrade / n* Mama de Fdbrica de Seam, Roebuck and Co.

Craftsman 315215700 User Manual OSCILLATING SANDER Manuals And Guides L0011173

CRAFTSMAN Sander Manual L0011173 CRAFTSMAN Sander Owner's Manual, CRAFTSMAN Sander installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
