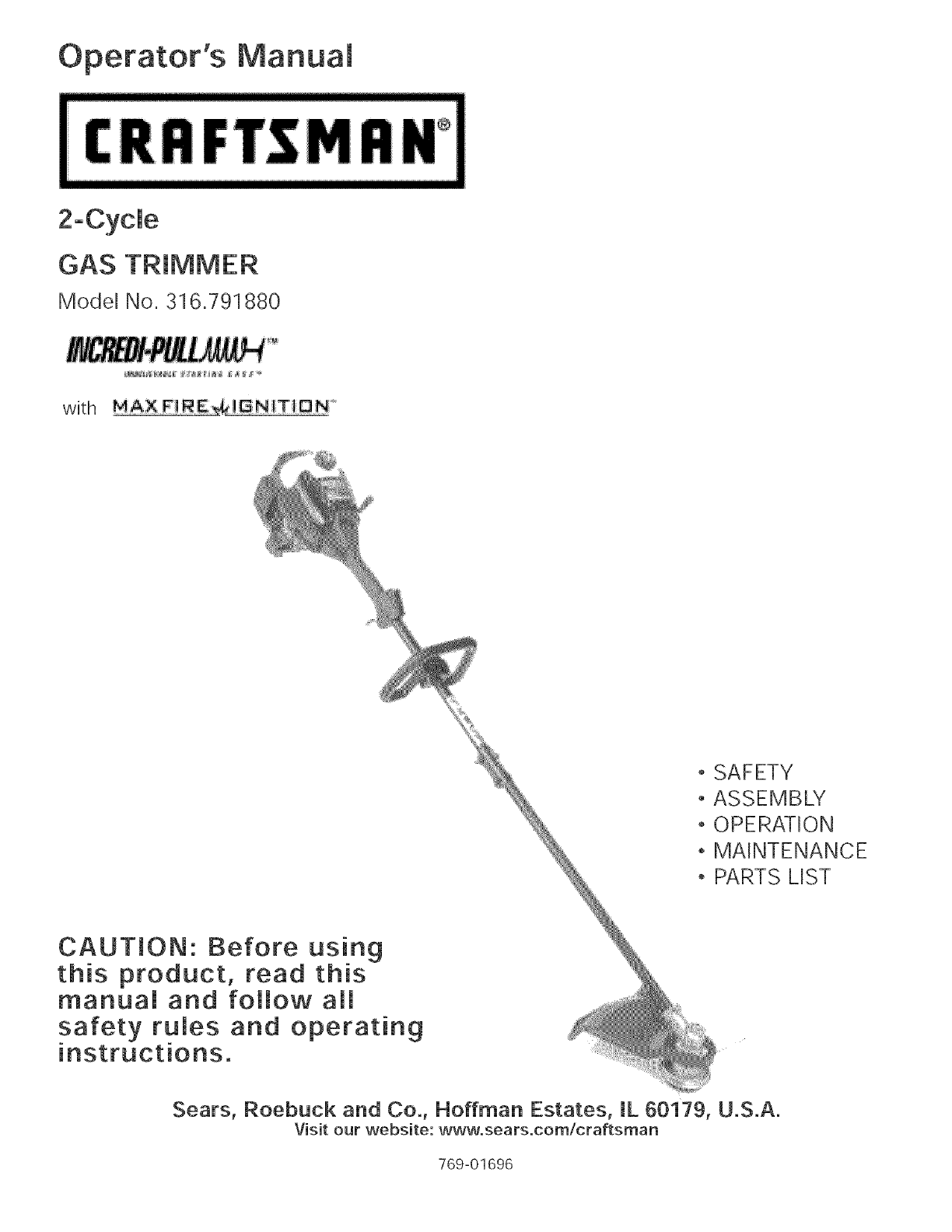

Operator's Manuam

2-Cycme

GAS TRIMMER

Mode[ No. 316.791880

with

• SAFETY

• ASSEMBLY

• OPERATION

o MAINTENANCE

• PARTS LIST

CAUTION: Before using

this product, read this

manual and follow a[[

safety rules and operating

instructions.

Sears, Roebuck and Co., Hoffman Estates, [L 60179, U.S.A.

Visit our website: www.sears.com/craftsman

769-01696

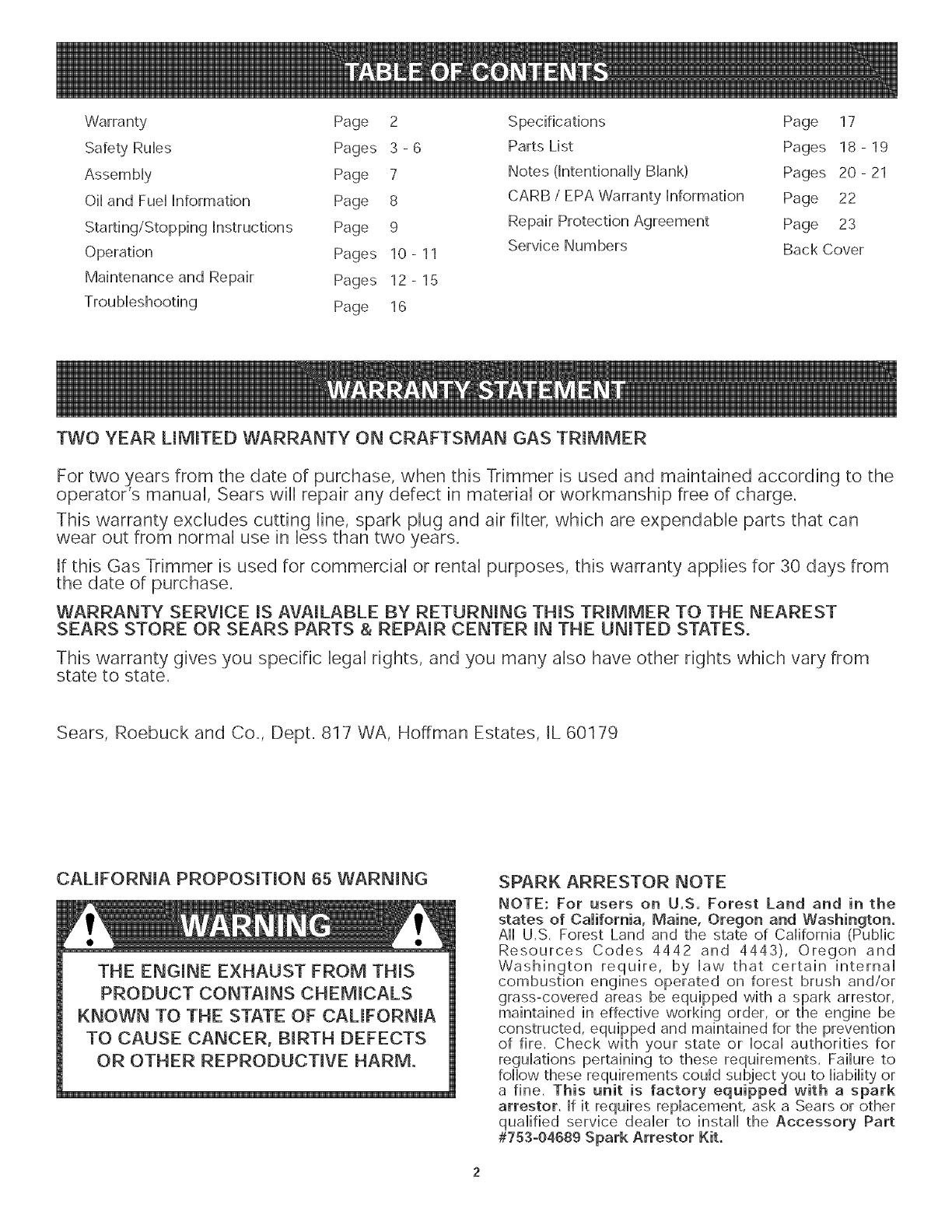

Warranty Page 2 Spedfications Page 17

Safety Rules Pages 3 - 6 Parts List Pages 18 - 19

Assembly Page 7 Notes (Intentionally Blank) Pages 20 - 21

Oil and Fuel Information Page 8 CARB/ EPA Warranty Information Page 22

Starting/Stopping Instructions Page 9 Repair Protection Agreement Page 23

Service Numbers Back Cover

Operation Pages 10- 11

Maintenance and Repair Pages 12 - 15

Troubleshooting Page 16

TWO YEAR LiMiTED WARRANTY ON CRAFTSMAN GAS TRIMMER

For two years from the date of purchase, when this Trimmer is used and maintained according to the

operator's manuaU, Sears wiUUrepair any defect in materiaU or workmanship free of charge.

This warranty excludes cutting Uine, spark phg and air fluter, which are expendabUe parts that can

wear out from normaU use in Uessthan two years.

If this Gas Trimmer is used for commercial or rental purposes, this warranty applies for 30 days from

the date of purchase.

WARRANTY SERVICE iS AVAILABLE BY RETURNING THiS TRIMMER TO THE NEAREST

SEARS STORE OR SEARS PARTS & REPAIR CENTER iN THE UNITED STATES.

This warranty gives you specific legal rights, and you many also have other rights which vary from

state to state.

Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179

CALiFORNiA PROPOSiTiON 65 WARNING

THE ENGINE EXHAUST FROM THiS

PRODUCT CONTAINS CHEMICALS

KNOWN TO THE STATE OF CALiFORNiA

TO CAUSE CANCER, BIRTH DEFECTS

OR OTHER REPRODUCTIVE HARM.

SPARK ARRESTOR NOTE

NOTE: For users on U.S. Forest Land and in the

states of California, Maine, Oregon and Washington.

All U.S. Forest Land and the state of California (Public

Resources Codes 4442 and 4443), Oregon and

Washington require, by law that certain internal

combustion engines operated on forest brush and/or

grass-covered areas be equipped with a spark arrestor,

maintained in effective working order, or the engine be

constructed, equipped and maintained for the prevention

of fire. Check with your state or local authorities for

regulations pertaining to these requirements. Failure to

follow these requirements could subject you to liability or

a fine. This unit is factory equipped with a spark

arrestor. If it requires replacement, ask a Sears or other

qualified service dealer to install the Accessory Part

#753-04689 Spark Arrestor Kit.

Thepurposeof safetysymbolsistoattractyour

attentionto possibledangers.Thesafetysymbols,

andtheirexplanations,deserveyourcarefulattention

andunderstanding.Thesafetywarningsdonotby

themselveseliminateanydanger.Theinstructionsor

warningstheygivearenotsubstitutesfor proper

accidentpreventionmeasures.

SYMBOL MEANING

SAFETY ALERT: indicates

danger,

warning or caution. Attention is required in

order to avoid serious personal injury. May

be used in conjunction with other symbols

or pbtographs.

NOTE: Advises you of information or instructions vital to

the operation or maintenance of the equipment.

Read the Operator's Manual(s} and follow all

warnings and safety instructions.

Failure to do so can result in serious injury to the

operator and/or bystanders.

SYMBOL MEANING

DANGER: Failure to obey a

safety warning will

result in serious injury to yourself or to

others. Always follow the safety precautions

to reduce the risk of fire, electric shock and

personal injury,

WARNING: Fa,ureto obey a

safetywarning can

resultininjurytoyourselfand others,

Always followthe safetyprecautionsto

reduce the riskof fire,electricshock and

personal injury.

, Failure to obey a

• safety warning may

result in property damage or personal injury

to yourself or to others. Always follow the

safety precautions to reduce the risk of fire,

electric shock and personal injury.

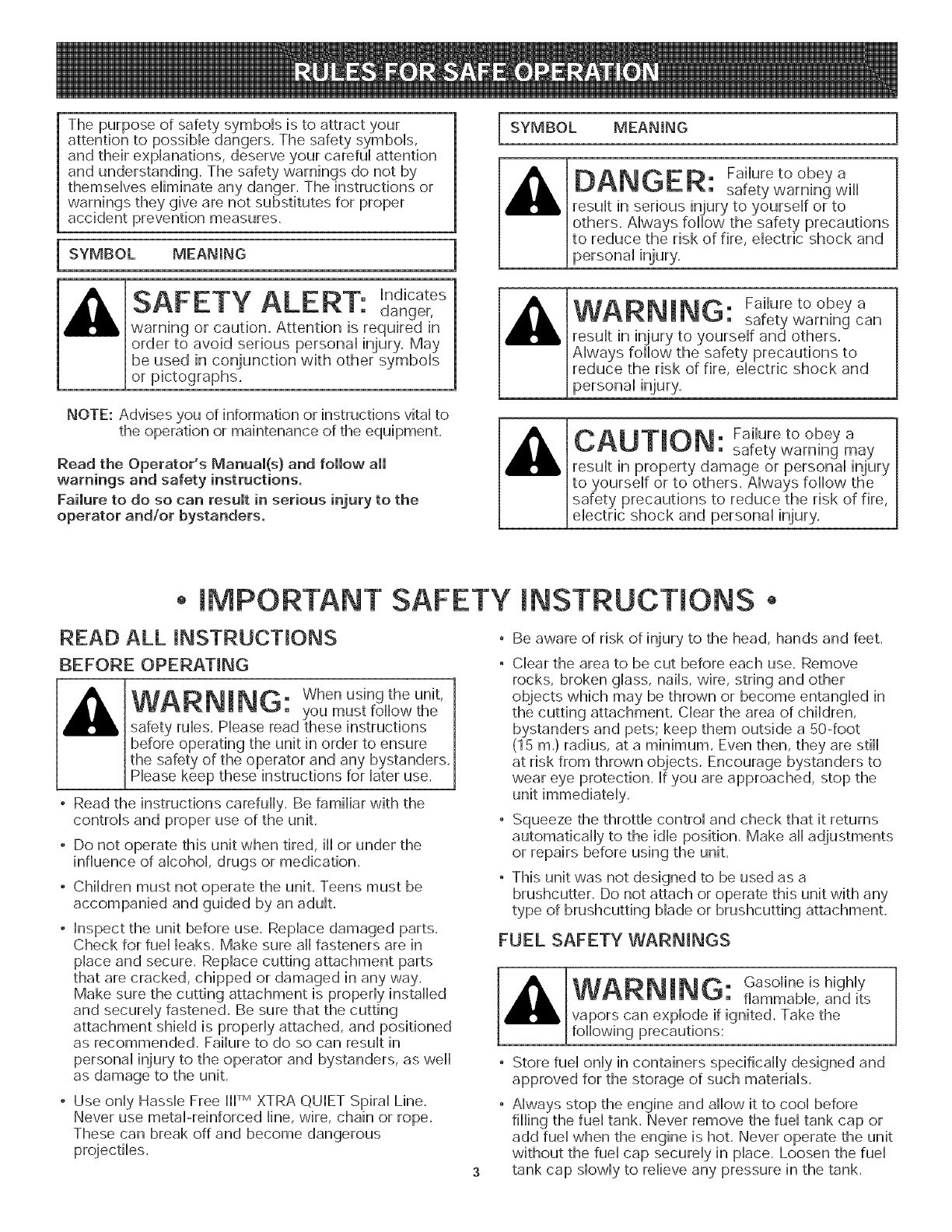

, IMPORTANT SAFETY INSTRUCTIONS,

READ ALL INSTRUCTIONS

BEFORE OPERATmNG

WARNING: When using the unit,

you must follow the

safety rubs. Please read these instructions

Please keep these instructions for later use.

• Read the instructions carefully. Be familiar with the

controls and proper use of the unit.

Do not operate this unit when tired, ill or under the

influence of alcohol, drugs or medication.

• Children must not operate the unit. Teens must be

accompanied and guided by an adult.

Inspect the unit before use. Replace damaged parts.

Check for fuel leaks. Make sure all fasteners are in

place and secure. Replace cutting attachment parts

that are cracked, chipped or damaged in any way.

Make sure the cutting attachment is properly installed

and securely fastened. Be sure that the cutting

attachment shield is properly attached, and positioned

as recommended. Failure to do so can result in

personal injury to the operator and bystanders, as well

as damage to the unit.

• Use only Hassle Free lIFM XTRA QUIET Spiral Line.

Never use metal-reinforced line, wire, chain or rope.

These can break off and become dangerous

projectiles.

Be aware of risk of injury to the head, hands and feet.

Clear the area to be cut before each use. Remove

rocks, broken glass, nails, wire, string and other

objects which may be thrown or become entangled in

the cutting attachment. Clear the area of children,

bystanders and pets; keep them outside a 50-foot

(15 m.) radius, at a minimum. Even then, they are still

at risk from thrown objects. Encourage bystanders to

wear eye protection. If you are approached, stop the

unit immediately.

Squeeze the throttle control and check that it returns

automatically to the idle position. Make all adjustments

or repairs before using the unit.

This unit was not designed to be used as a

brushcutter. Do not attach or operate this unit with any

type of brushcutting blade or brushcutting attachment.

FUEL SAFETY WARNmNGS

WARNING: Gaso,ne shighly

flammable, and its

vapors can explode if ignited. Take the

following precautions:

• Store fuel only in containers specificaiiy designed and

approved for the storage of such materials.

Always stop the engine and allow it to cool before

filling the fuel tank. Never remove the fuel tank cap or

add fuei when the engine is hot. Never operate the unit

without the fuel cap securely in place. Loosen the fuel

tank cap siowiy to relieve any pressure in the tank.

•Mix and add fuel in a dean, well-ventilated outdoor

area where there are no sparks or flames. Remove the

fuel cap slowly, and only after the engine stops. Do

not smoke while fueling or mixing fuel. Wipe up any

spilled fuel from the unit immediately.

Avoid creating a source of ignition for spilled fuel. Do

not start the engine until fuel vapors dissipate.

Move the unit at least 30 feet (9.1 m) from the fueling

source and site before starting the engine. Do not

smoke. Keep sparks and open flames away from the

area while adding fuel or operating the unit.

WHmLE OPERATmNG

• Never start or run the unit inside a dosed room or

building. Breathing exhaust fumes can be fatal.

Operate this unit only in a well-ventilated outdoor area.

Wear safety glasses or goggles that meet ANSI Z87.1

standards and are marked as such. Wear ear/hearing

protection when operating this unit. Wear a face or

dust mask if the operation is dusty.

• Wear heavy long pants, boots, gloves and a long

sleeve shirt. Do not wear loose clothing, jewelry, short

pants, sandals or go barefoot. Secure hair above

shoulder level.

The cutting attachment shield must always be in place

while operating the unit. Do not operate unit without

both trimming lines extended, and the proper line

installed. Do not extend the trimming line beyond the

length of the shield.

• This unit has a dutch. The cutting attachment remains

stationary when the engine is idling. If it does not, take

the unit to a Sears or other qualified service dealer for

an adjustment.

•Adjust the D-handle to your size in order to provide the

best grip.

•Be sure the cutting attachment is not in contact with

anything before starting the unit.

•Use the unit only in daylight or good artificial light.

• Avoid accidental starting. Be in the starting position

whenever pulling the starter rope. The operator and

unit must be in a stable position while starting. Refer

to Starting/Stopping Instructions.

• Use the right tool. Only use this tool for its intended

purpose.

• Do not overreach or use on unstable surfaces such as

ladders, trees, steep slopes, rooftops, etc. Always

keep proper footing and balance.

• Always hold the unit with both hands when operating.

Keep a firm grip on both handles or grips.

Keep hands, face, and feet away from all moving

parts. Do not touch or try to stop the cutting

attachment when it rotates.

• Keep outside surface free from oil and fuel.

Do not touch the engine, gear housing or muffler.

These parts get extremely hot from operation, even

after the unit is turned off.

Do not operate the engine faster than the speed

needed to cut, trim or edge. Do not run the engine at

high speed when not cutting.

Always stop the engine when cutting is delayed or

when walking from one cutting location to another.

If you strike or become entangled with a foreign

object, stop the engine immediately and check for

damage. Do not operate before repairing damage. Do

not operate the unit with loose or damaged parts.

Turn the engine to off and disconnect the spark plug

for maintenance or repair.

Use only replacement parts or accessories

recommended for this tool that are sold by Sears or a

Craftsman outlet. Use of any replacement parts or

accessories purchased elsewhere may be hazardous,

and will also void your warranty.

Keep unit clean of vegetation and other materials.

They may become lodged between the cutting

attachment and shield.

To reduce fire hazard, replace a faulty muffler and

spark arrestor. Keep the engine and muffler free from

grass, leaves, excessive grease or carbon build up.

OTHER SAFETY WARNINGS

Never store the unit, with fuel in the tank, inside a

building where fumes may reach an open flame (pilot

lights, etc.) or sparks (switches, electrical motors,

etc.).

• Allow the engine to cool before storing or transporting.

Be sure to secure the unit while transporting.

Store the unit in a dry place, secured or at a height to

prevent unauthorized use or damage Keep out of the

reach of children.

Never douse or squirt the unit with water or any other

liquid. Keep handles dry, clean and free from debris.

Clean after each use, see Cleaning and Storage

instructions.

• Keep these instructions. Refer to them often and use

them to instruct other users. If you loan this unit to

others, also loan them these instructions.

SPECIAL NOTE: Exposure to vibrations through

prolonged use of gasoline- powered hand tools could

cause blood vessel or nerve damage in the fingers,

hands, andjoints of people prone to circulation

disorders or abnormal swelling. Prolonged use in cold

weather has been linked to blood vessel damage in

otherwise healthy people. If symptoms occur such as

numbness, pain, loss of strength, change in skin color

or texture, or loss of feeling in the fingers, hands or

joints, discontinue use of this tool and seek medical

attention. A reduced vibration system does not

guarantee avoidance of these problems. Users who

operate power tools on a regular basis must closely

monitor their physical condition and the condition of

this tool.

SAVE THESE

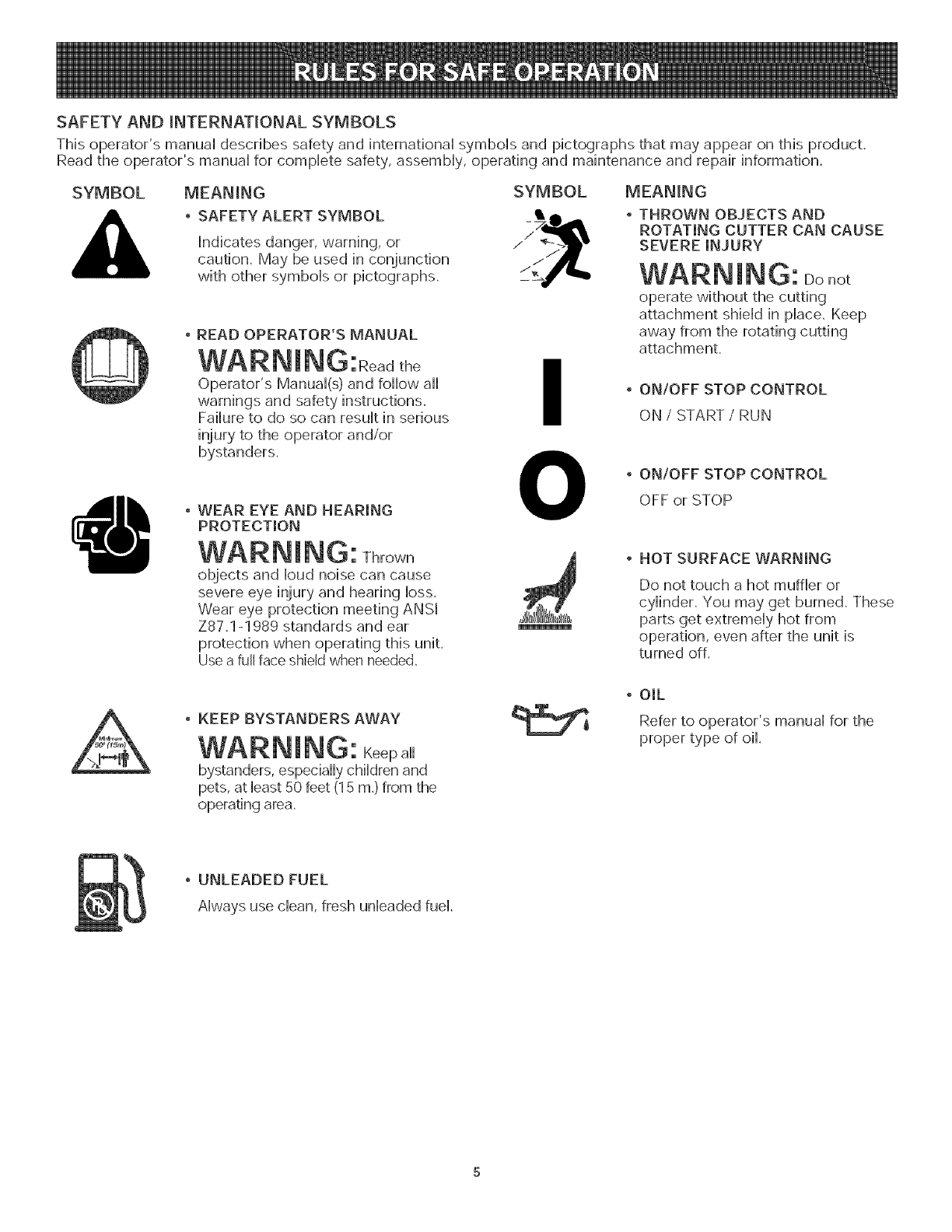

SAFETY AND _NTERNAT_ONAL SYMBOLS

This operator's manuaHdescribes safety and internationaH symboHs and pictographs that may appear on this product.

Read the operator's manuaHfor compHete safety, assembHy, operating and maintenance and repair information,

SYMBOL MEANING SYMBOL

_ SAFETY ALERT SYMBOL •

Indicates danger, warning, or

caution, May be used in conjunction

with other symboHs or pictographs,

READ OPERATOR'S MANUAL

WARNiNG:Read the I

Operator's ManuaH(s)and foHHowaHH

warnings and safety instructions,

FaiHureto do so can resuHt in serious

injury to the operator and/or

bystanders, 0

WEAR EYE AND HEARING

PROTECTION

WARNmNG: Thrown

objects and Houd noise can cause

severe eye injury and hearing Hoss.

Wear eye protection meeting ANSI

Z87.1-1989 standards and ear

protection when operating this unit,

Use a full face shield when needed,

MEANLNG

THROWN OBJECTS AND

ROTATING CUTTER CAN CAUSE

SEVERE INJURY

WARNmNG: Donot

operate without the cutting

attachment shieHdin pHace, Keep

away from the rotating cutting

attachment.

ON/OFF STOP CONTROL

ON /START /RUN

ON/OFF STOP CONTROL

OFF or STOP

HOT SURFACE WARNING

Do not touch a hot muffler or

cyHinder, You may get burned, These

parts get extremeHy hot from

operation, even after the unit is

turned off,

KEEP BYSTANDERS AWAY

WARNmNG: KeepaUU

bystanders,especiaHHychiHdrenand

pets, at Heast50 feet (15 m,) from the

operating area,

o OIL

Refer to operator's manuaH for the

proper type of oil

UNLEADED FUEL

AHwaysuse dean, fresh unHeadedfuel

APPUCAT_ONS

Cutting grass and Hight weeds

Edging

• Decorative trimming around trees, fences, etc.

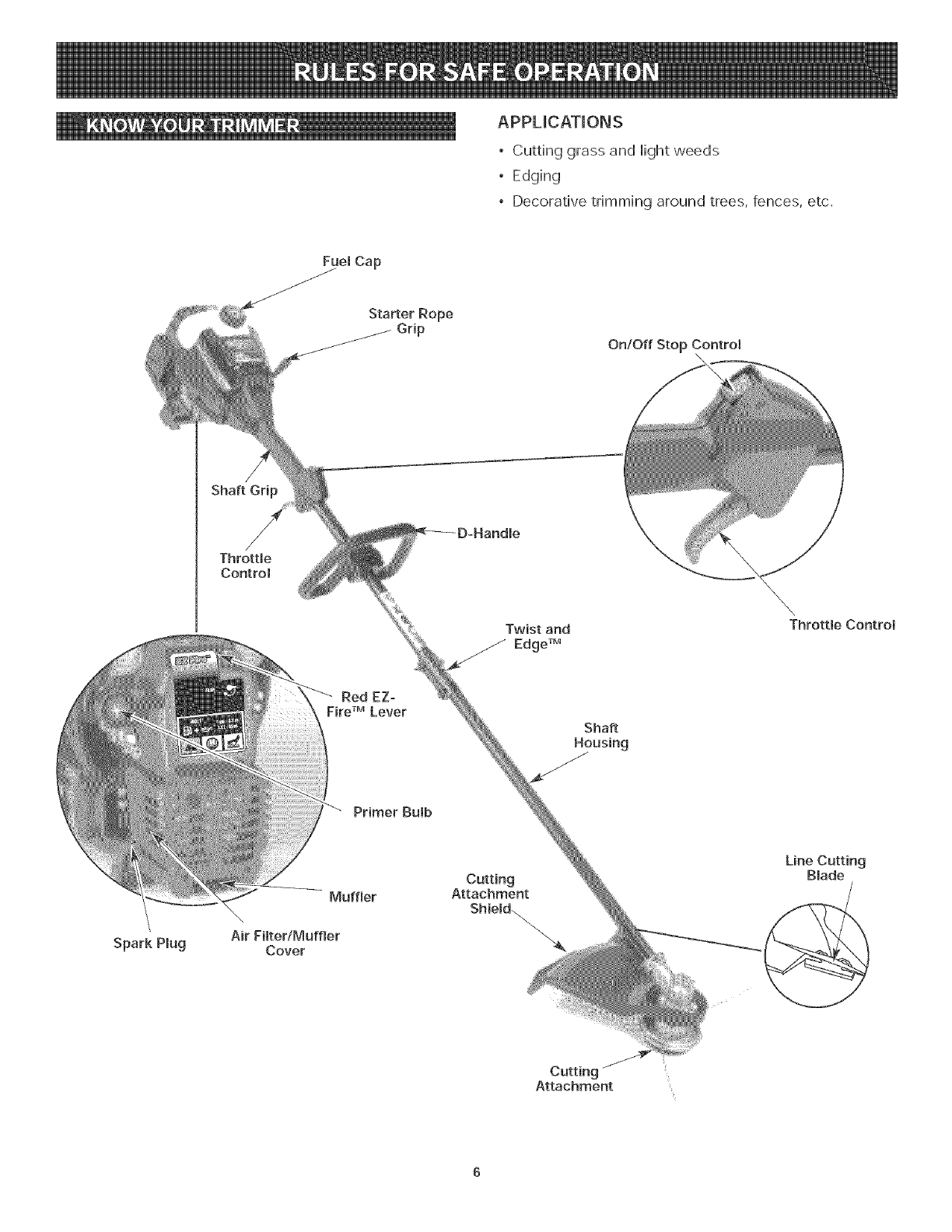

Fuel Cap

Starter Rope

Grip

On/Off Stop Control

Shaft Grip

Throttme

Control

Twist and

Edge TM

"\ \Throttle Control

Red EZ:

Fire TMLever

Shaft

Housing

Primer Bumb

Spark Pmug

Muffler

Air Filter/Mumer

Cover

Cutting

Attachment

Shie_d_

Line Cutting

Blade

Cutting

Attachment

INSTALL AND ADJUST THE D-HANDLE

(nsta((

1. Mace the D-handHe down on to the shaft housing and

the bottom champ so that the handHe sHantstowards

the shaft gdp (Fig. 1). Mace handHeand champ a

minimum of 6 inches from the end of the shaft grip.

2. Start screws with a HargeHat-head or T-25 Torx

screwdriver. Do not tighten untiHyou make the handHe

Shaft Grip

On/Off Stop Control

Minimum 6 inches

Bottom Clamp

F_g. 1

Adjust

3. WhiHehoHding the unit in the operating position

(Fig. 2), position the D-handHe to the Hocation that

provides you the best grip.

4. Tighten the champ screws evenHy untiHthe D-handHe is

secure. F_g. 2

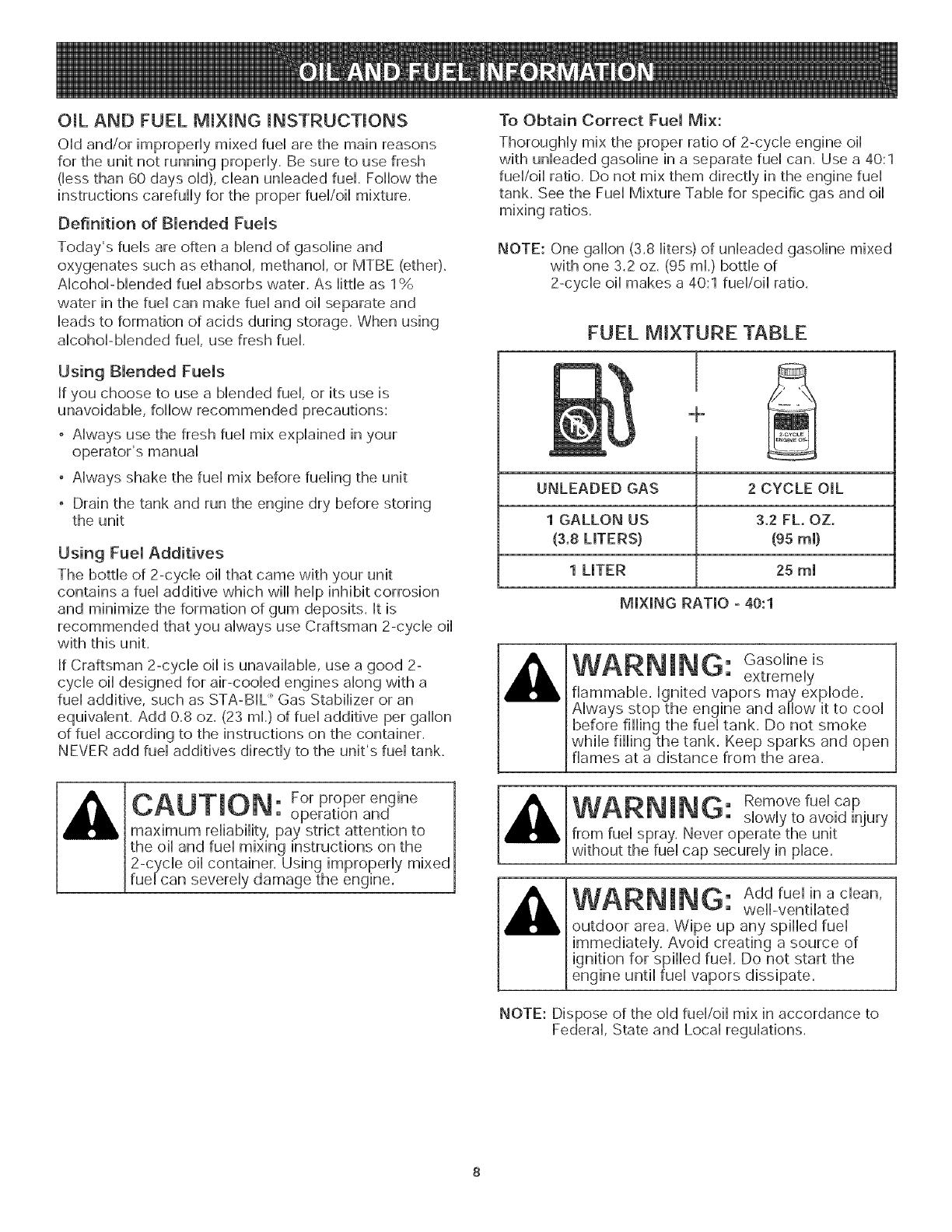

OraLAND FUEL MmXH_G H_STRUCTmONS

Old and/or improperly raked fuel are the main reasons

for the unit not running properly. Be sure to use fresh

(less than 60 days old), clean unleaded fuel. Follow the

instructions carefully for the proper fuel/oil mixture.

Definition of Blended Fuels

Today's fuels are often a blend of gaso%e and

oxygenates such as ethanol, methanol, or MTBE (ether).

Alcohol-blended fuel absorbs water. As little as 1%

water in the fuel can make fuel and oil separate and

leads to formation of adds during storage. When using

alcohol-blended fuel, use fresh fuel.

Using Blended Fuels

if you choose to use a blended fuel or its use is

unavoidable, follow recommended precautions:

• AHways use the fresh rue[ mix explained in your

operator's manual

• Always shake the fuel mix before fueling the unit

• Drain the tank and run the engine dry before storing

the unit

Using Fuel Additives

The bottle of 2-cycle oil that came with your unit

contains a fuel additive which will help inhibit corrosion

and minimize the formation of gum deposits, it is

recommended that you always use Craftsman 2-cycle oil

with this unit.

if Craftsman 2-cycle oil is unavailable, use a good 2-

cycle oil designed for air-cooled engines along with a

fuel additive, such as STA-B[L" Gas Stabilizer or an

equivalent. Add 0.8 oz. (23 ml.) of fuel additive per gallon

of fuel according to the instructions on the container.

NEVER add fuel additives directly to the unit's fuel tanL

To Obtain Correct Fuel Mix:

Thoroughly mix the proper ratio of 2-cycle engine oil

with unleaded gasoline in a separate fuel can. Use a 40:1

fuel/oil ratio. Do not mix them directly in the engine fuel

tank. See the Fuel Mixture Table for specific gas and oil

mixing ratios.

NOTE: One gallon (3.8 liters) of unleaded gasoline mixed

with one 3.2 oz. (95 ml.) bottle of

2-cycle oil makes a 40:1 fuel/oil ratio.

FUEL MIXTURE TABLE

UNLEADED GAS

1 GALLON US

(&8 LITERS)

1 LITER

2CYCLE OIL

32 FL OZ.

msram)

25 mm

MIXING RATIO - 40:1

WARNING: Gasolineis

extremely

flammable. Ignited vapors may explode.

Always stop the engine and allow it to cool

the fuel tank. Do not smoke

while filling the tank. Keep sparks and open

flames at a distance from the area.

, For proper engine

• operation and

maximum re[lability, pay strict attention to

the oil and fuel mixing instructions on the

2-cycle oil container. Using improperly mixed

rue[ can severeJy damage the engine.

WARNING: Remove fue, cap

slowly to avoid injury

from fuel spray. Never operate the unit

without the fuel cap securely in place.

WARNING: Add fue, in a c,ean,

well-ventilated

outdoor area, Wipe up any spilled fuel

immediately, Avoid creating a source of

ignition for spilled fuel, Do not start the

engine until fuel vapors dissipate,

NOTE: Dispose of the old fuel/oil mix in accordance to

Federal, State and Local regulations.

WARNING: Operate this unit onIy in a

weII-ventiIated outdoor area.

Carbon monoxide exhaust fumes can be lethal in a

confined area.

WARNING; Avoid acddental starting,

Make sure you are in the

starting position when pulling the starter rope (Fig. 5).

To avoid serious injury, the operator and unit must be

in a stable position while starting.

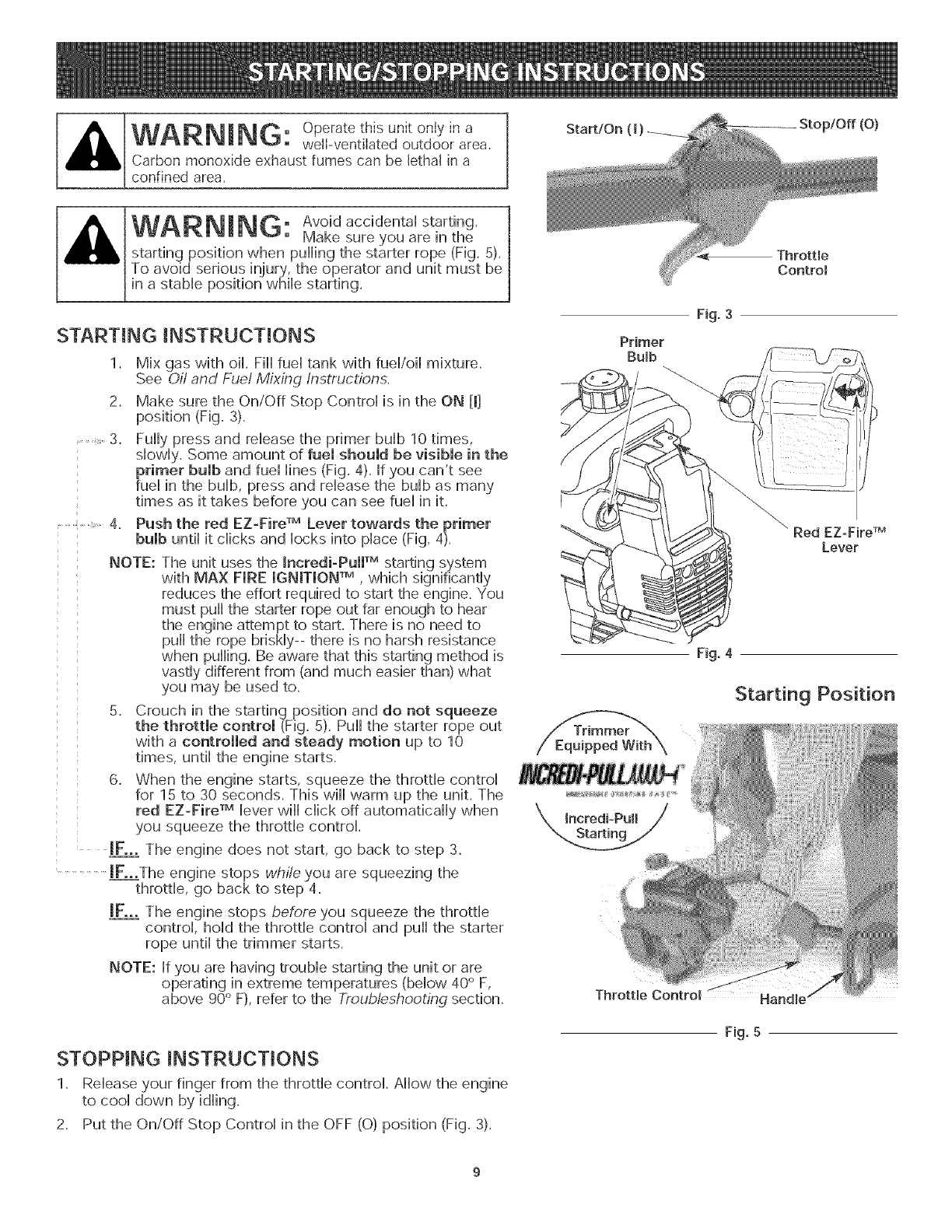

STARTING iNSTRUCTiONS

,_ ,, ,,i@,_ 3.

NOTE:

Mix gas with oil. Fill fuel tank with fuel/oil mixture.

See Oil and Fuel Mixing Instructions.

Make sure the On/Off Stop Contro] is in the ON [m]

position (Fig. 3).

Fully press and release the primer bulb 10 times,

slowly. Some amount of fuel should be visible in the

primer bulb and fuel lines (Fig. 4). [f you can't see

fuel in the bulb, press and release the bulb as many

times as it takes before you can see fuel in it.

Push the red EZ-Fire TM Lever towards the primer

bulb until it clicks and locks into place (Fig. 4).

The unit uses the Jncredi-Pull TM starting system

with MAX FiRE iGNiTiON TM ,which significandy

reduces the effort required to start the engine. You

must pull the starter rope out far enough to hear

the engine attempt to start. There is no need to

pull the rope briskly-- there is no harsh resistance

when pulling. Be aware that this starting method is

vastly different from (and much easier than) what

you may be used to.

with a controlled and steady motion up to 10

times, until the engine starts.

6. When the engine starts, squeeze the throttle control

for 15 to 30 seconds. This will warm up the unit. The

red EZ-Fire TM lever will click off automatically when

you squeeze the throttle control.

JFoooThe engine does not start, go back to step 3.

......................JFoooTheengine stops while you are squeezing the

throttle, go back to step 4.

JFoooThe engine stops before you squeeze the throttle

control, hold the throttle control and pull the starter

rope until the trimmer starts.

NOTE: If you are having trouble starting the unit or are

operating in extreme temperatures (below 40° F,

above 90° F), refer to the Troubleshooting section.

STOPPING iNSTRUCTiONS

1. Release your finger from the throttle control. Allow the engine

to cool down by idling.

2. Put the On/Off Stop Control in the OFF (O) position (Fig. 3).

Start/On,

F_g.3

Primer

Bulb

Fig. 4

\lnered,-Pu,!

_ Stop/Off (O)

Throttle

Control

Red EZ:Fire TM

Lever

Starting Position

Handle

Fig. 5

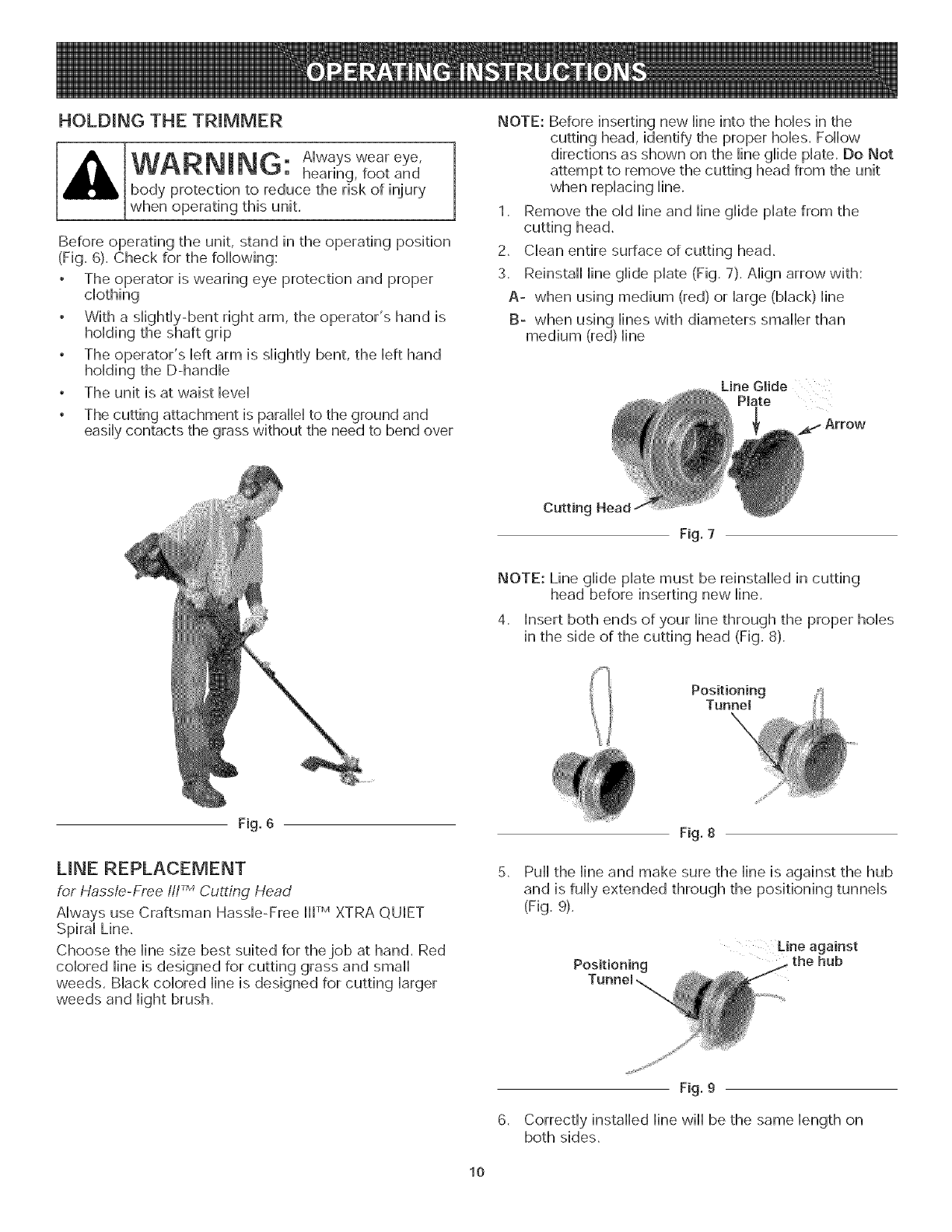

HOLDING THE TRmMMER

WARNmNG: Always wear eye,

hearing,footand

body protectiontoreduce theriskofinjury

when operating this unit.

Before operating the unit, stand in the operating position

(Fig. 6). Check for the following:

The operator is wearing eye protection and proper

dotMng

• With a siighdy-bent right arm, the operator's hand is

hoiding the shaft grip

• The operator's Heftarm is siightiy bent, the Hefthand

hoiding the D-handb

The unit is at waist bvei

• The cutting attachment is paraHei to the ground and

easiiy contacts the grass without the need to bend over

NOTE: Before inserting new line into the holes in the

cutting head, identify the proper holes. Follow

directions as shown on the line glide plate. Do Not

attempt to remove the cutting head from the unit

when replacing line.

1. Remove the old line and line glide plate from the

cutting head.

2. Clean entire surface of cutting head.

3. Reinstall line glide plate (Fig. 7). Align arrow with:

A- when using medium (red) or large (black) line

B- when using lines with diameters smaller than

medium (red)line

Line Glide

Plate

Cutting Head

F_g. 7

NOTE: Line glide plate must be reinstalled in cutting

head before inserting new line.

4. Insert both ends of your line through the proper holes

in the side of the cutting head (Fig. 8).

Positioning

Tunnel

F_g. 6

UNE REPLACEMENT

for Hassle-Free III TMCutting Head

Always use Craftsman Hassb-Free IIFM XTRA QUIET

Spiral Line.

Choose the line size best suited for thejob at hand. Red

colored line is designed for cutting grass and small

weeds. Black colored line is designed for cutting larger

weeds and light brush.

F_g. 8

5. Pull the line and make sure the line is against the hub

and is fully extended through the positioning tunnels

(Fig, 9).

Positioning

Line against

the hub

F_g.9

6. Correctly installed line will be the same length on

both sides.

NOTE: Do not rest the HassHe-Free IWM Cutting Head on

the ground whiHethe unit is running.

Some Hinebreakage will occur from:

• EntangHement with foreign matter

Attempting to cut thick, staHkyweeds

Forcing the Hineinto objects such as walls or fence

posts

WARN mNG: DonotremoveoraUter

the Hinecutting Made

assemMy. Excessive HineHengthwill make the

dutch overheat. This may Headto serious

personal injury or damage to the unit.

TraPS FOR BEST TRmMMmNG RESULTS

• Keep the cutting attachment paraHeHto the ground.

• Do not force the cutting attachment. AHow the tip of

the Hineto do the cutting, especially along walls.

Cutting with more than the tip will reduce cutting

efficiency and may overload the engine.

• Cut grass over 8 inches (200 mm) by working from

top to bottom in small increments to avoid

premature line wear or engine drag.

• Cut from left to right whenever possible, Cutting to

the right improves the unit's cutting efficiency,

Clippings are thrown away from the operator,

• Slowly move the trimmer in and out of the cutting

area at the desired height. Move either in a forward-

backward or side-to-side motion. Cutting shorter

lengths produces the best results.

• Trim only when grass and weeds are dry,

• The life of your cutting line is dependent upon:

• Following the trimming techniques

• What vegetation is being cut

• Where vegetation is cut

For example, the line will wear faster when trimming

against a foundation wall as opposed to trimming

around a tree,

DECORATIVE TR_MM_NG

Decorative trimming is accomplished by removing all

vegetation around trees, posts, fences and more,

Rotate the whole unit so that the cutting attachment is at

a 30" angle to the ground (Fig, 10),

Fig. 10

USING THE TWIST AND EDGE TM FEATURE

You can use the Twist and Edge TM coupler to convert the

unit to edge grass:

1, Make sure the unit is turned completely off,

2, Turn the knob counterclockwise to loosen,

3, Grasp the boom below the coupler and firmly twist it

90" in either direction (depending on which way you

want to edge).

4, Turn the knob clockwise to tighten (Fig. 11),

Coupler

Boom

Knob

Fig. 11

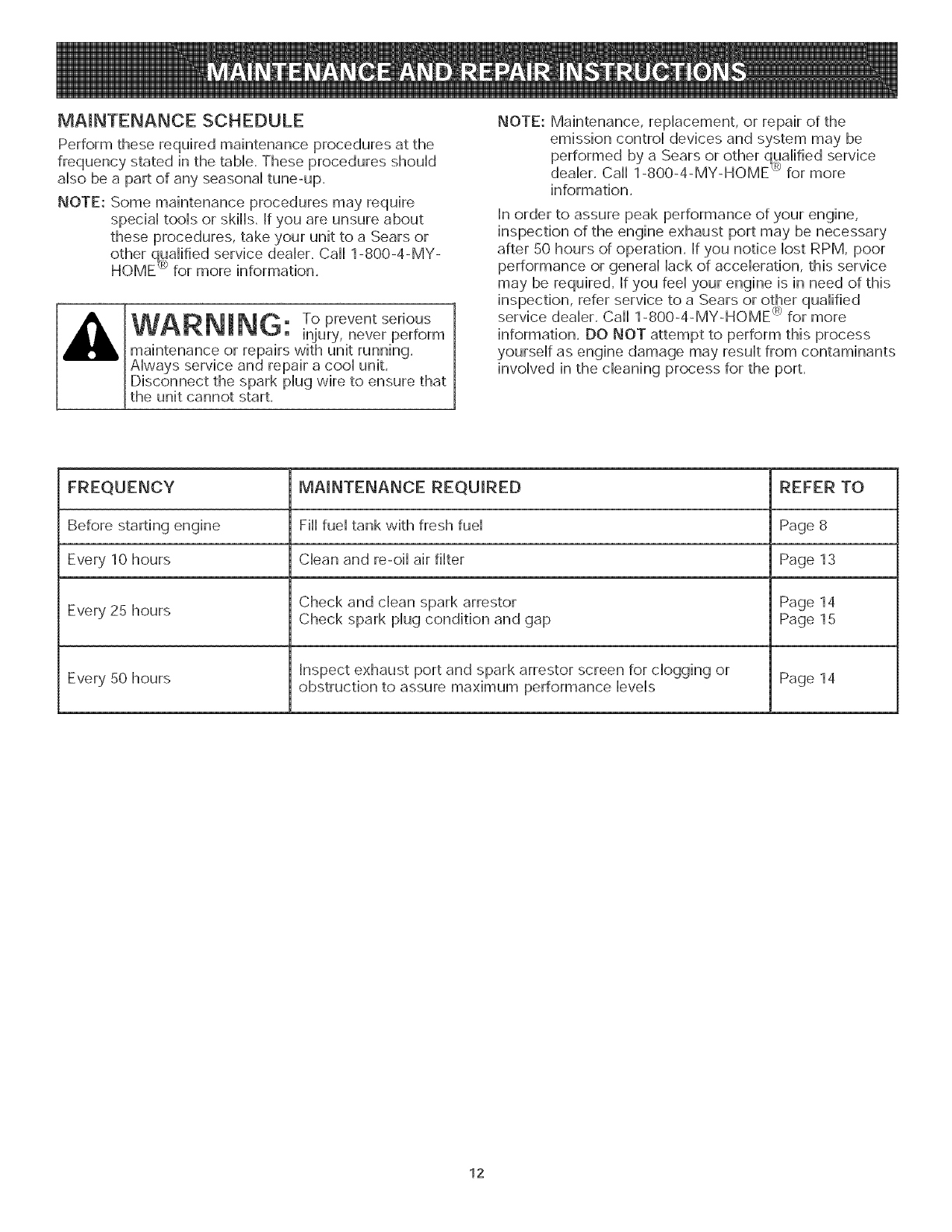

MAINTENANCE SCHEDULE

Perform these required maintenance procedures at the

frequency stated in the tame. These procedures shouHd

also be a part of any seasonaHtune-up.

NOTE: Some maintenance procedures may require

special tooHsor sMHs, If you are unsure about

these procedures, take your unit to a Sears or

other qualified service dealer. Call 1-800-4-MY-

HOME te for more information,

WARNING: To prevent serious

inJury, never perform

maintenance or repairs with unit running,

AHways service and repair a cooHunit,

Disconnect the spark pHugwire to ensure that

the unit cannot start,

NOTE: Maintenance, repHacement, or repair of the

emission controH devices and system may be

information,

In order to assure peak performance of your engine,

inspection of the engine exhaust port may be necessary

after 50 hours of operation, If you notice lost RPM, poor

performance or general lack of acceleration, this service

may be required, If you feel your engine is in need of this

inspection, refer service to a Sears or other qualified

service dealer, Call 1-800-4-MY-HOME <_)for more

information, DO NOT attempt to perform this process

yourself as engine damage may result from contaminants

involved in the cleaning process for the port.

FREQUENCY MAINTENANCE REQUIRED REFER TO

Before starting engine Fill fuel tank with fresh fuel Page 8

Every 10 hours Clean and re-oil air filter Page 13

Every 25 hours Check and clean spark arrestor Page 14

Check spark plug condition and gap Page 15

Inspect exhaust port and spark arrestor screen for clogging or Page 14

Every 50 hours obstruction to assure maximum performance levels

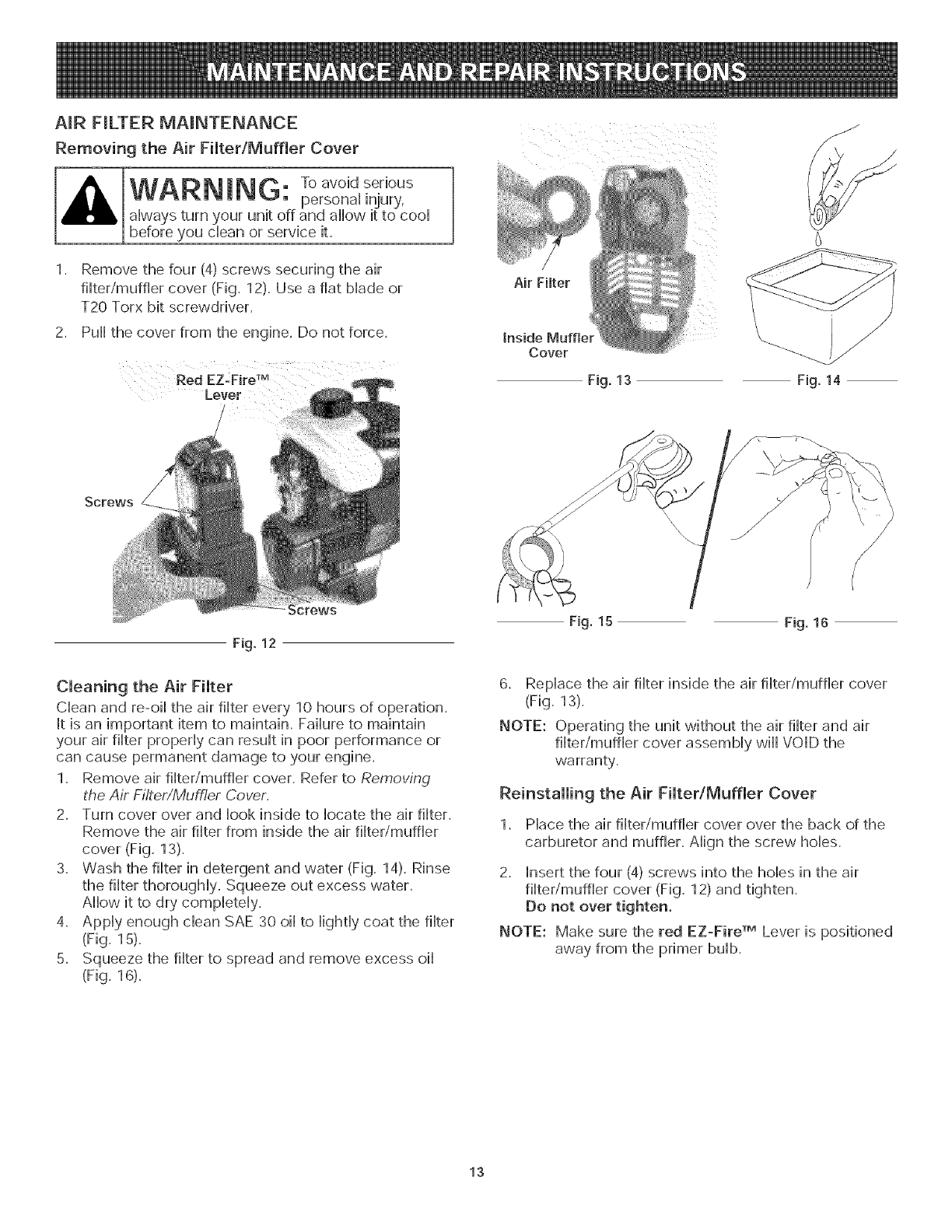

AmR FmLTER MAmNTENANCE

Removing the Air FiBter/Muffler Cover

JNG"Toavoid serious

• personaU injury,

aUwaysturn your unit off and allow it to cooU

before you dean or service it.

Remove the four (4) screws securing the air

fiHter/muffler cover (Fig. 12). Use a flat Made or

T20 Torx bit screwdriver.

2. Pull the cover from the engine. Do not force.

Red EZ-Fire TM

Air Filter

Inside Muffler

Cover

Fig. 13 Fig. 14

Screws

Fig. 12

Cleaning the Air Filter

CHeanand re-oiH the air fiHterevery 10 hours of operation.

It is an important item to maintain. FaiHureto maintain

your air filter properly can result in poor performance or

can cause permanent damage to your engine.

1. Remove air filter/muffler cover. Refer to Removing

the Air Filter/Muffler Cover.

2. Turn cover over and look inside to locate the air filter.

Remove the air filter from inside the air filter/muffler

cover (Fig. 13).

3. Wash the filter in detergent and water (Fig. 14). Rinse

the filter thoroughly. Squeeze out excess water.

Allow it to dry completely.

4. Apply enough clean SAE 30 oil to lightly coat the filter

(Fig. 15).

5. Squeeze the filter to spread and remove excess oil

(Fig. 16).

Fig. 15 Fig. 16

6. Replace the air filter inside the air filter/muffler cover

(Fig. 13).

NOTE: Operating the unit without the air filter and air

filter/muffler cover assembly will VOID the

warranty.

Reinstalling the Air Filter/Muffler Cover

1. Place the air filter/muffler cover over the back of the

carburetor and muffler. Align the screw holes.

2. Insert the four (4) screws into the holes in the air

filter/muffler cover (Fig. 12) and tighten.

Do not over tighten.

NOTE: Make sure the red EZWire TM Lever is positioned

away from the primer bulb.

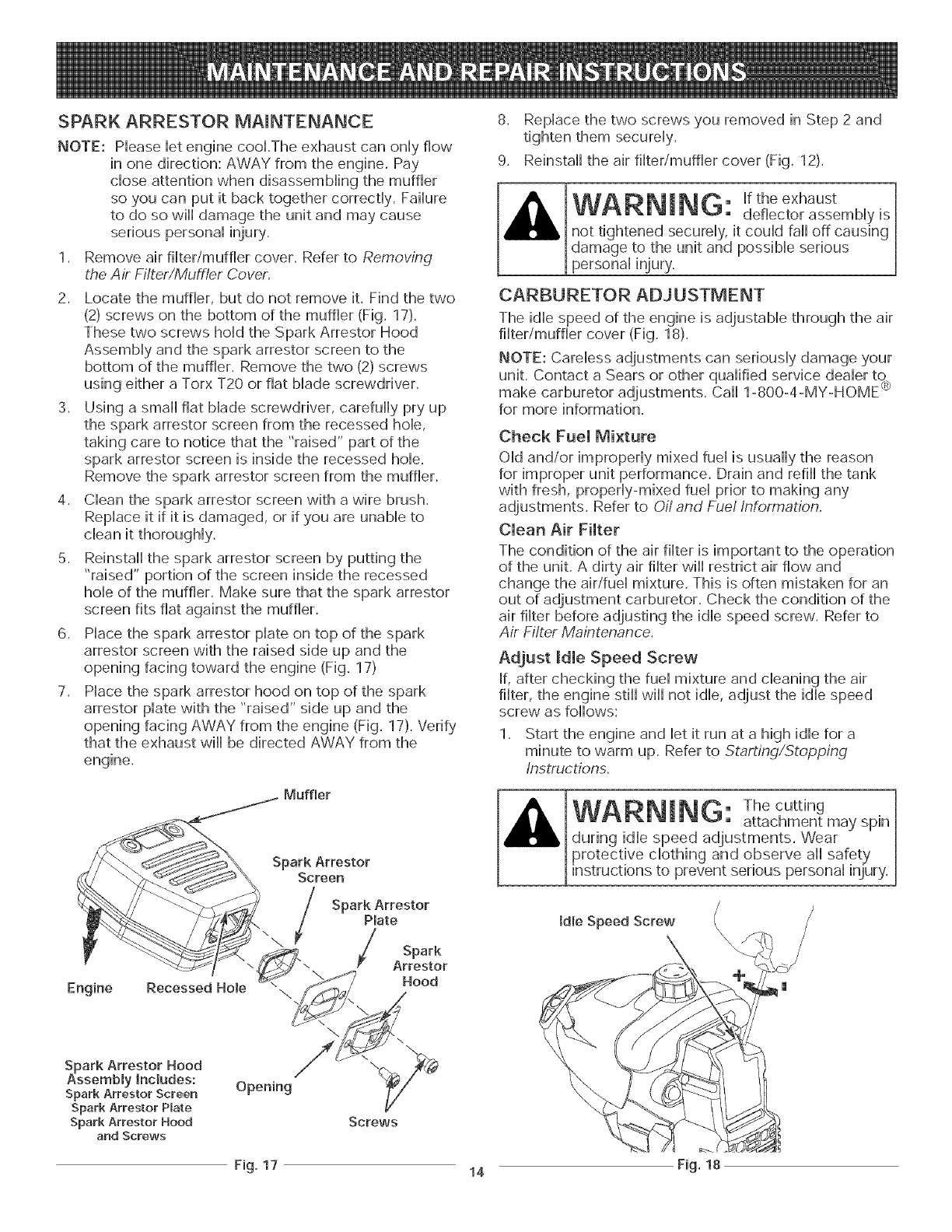

SPARK ARRESTOR MAINTENANCE

NOTE: Mease Hetengine cooLThe exhaust can onHyflow

in one direction: AWAY from the engine. Pay

chose attention when disassemMing the muffler

so you can put it back together correctHy. FaiHure

to do so will damage the unit and may cause

serious personaH injury.

Remove air filter/muffler cover. Refer to Removing

the Air Filter/Muffler Cover,

2. Locate the muffHer, but do not remove it. Find the two

(2) screws on the bottom of the muffHer (Fig. 17).

These two screws hoHdthe Spark Arrestor Hood

AssemMy and the spark arrestor screen to the

bottom of the muffHer. Remove the two (2) screws

using either a Torx T20 or fiat Made screwdriver.

3. Using a small flat Made screwdriver, carefully pry up

the spark arrestor screen from the recessed hoD,

taking care to notice that the "raised" part of the

spark arrestor screen is inside the recessed hoHe.

Remove the spark arrestor screen from the muffHer.

4. CHeanthe spark arrestor screen with a wire brush.

Replace it if it is damaged, or if you are unable to

clean it thoroughly.

5. Reinstall the spark arrestor screen by putting the

"raised" portion of the screen inside the recessed

hole of the muffler. Make sure that the spark arrestor

screen fits flat against the muffler.

6. Place the spark arrestor plate on top of the spark

arrestor screen with the raised side up and the

opening facing toward the engine (Fig. 17)

7. Place the spark arrestor hood on top of the spark

arrestor plate with the "raised" side up and the

opening facing AWAY from the engine (Fig. 17). Verify

that the exhaust will be directed AWAY from the

engine.

Muffler

Engine Recessed HoJe

Spark Arrestor

Screen

Spark Arrestor

Plate

"\ /Spark

Arrestor

Hood

Spark Arrestor Hood

Assembmy Includes:

Spark Arrestor Screen

Spark Arrestor Plate

Spark Arrestor Hood

and Screws

Opening

Screws

8. Replace the two screws you removed in Step 2 and

tighten them securely.

9. Reinstall the air filter/muffler cover (Fig. 12).

WARNING: iftheexhaust

deflector assembly is

not tightened securely, it could fall off causing

damage to the unit and possible serious

personal injury,

CARBURETOR ADJUSTMENT

The idle speed of the engine is adjustable through the air

filter/muffler cover (Fig. 18).

NOTE: Careless adjustments can seriously damage your

unit. Contact a Sears or other qualified service dealer to

make carburetor adjustments. Call 1-800-4-MY-HOME <m

for more information.

Check Fuel Mixture

Old and/or improperly mixed fuel is usually the reason

for improper unit performance. Drain and refill the tank

with fresh, properly-mixed fuel prior to making any

adjustments. Refer to Off and Fuel Information.

Clean Air Filter

The condition of the air filter is important to the operation

of the unit. A dirty air filter will restrict air flow and

change the air/fuel mixture. This is often mistaken for an

out of adjustment carburetor. Check the condition of the

air filter before adjusting the idle speed screw. Refer to

Air Filter Maintenance.

Adjust _die Speed Screw

If, after checking the fuel mixture and cleaning the air

filter, the engine still will not idle, adjust the idle speed

screw as follows:

1. Start the engine and let it run at a high idle for a

minute to warm up. Refer to Starting/Stopping

Instructions.

WARNING: The cutting

attachmentmay spin

duringidlespeed adjustments,Wear

protectiveclothingand observe allsafety

instructionsto preventseriouspersonalinjury,

Idle Speed Screw

Fig. 17 14 Fig. 18

2. ReHeasethe throttHe trigger and Herthe engine idHe.If

the engine stops, insert a small phillips or flat Made

screwdriver into the hod in the air fiHterimuffler cover

(Fig. 18). Turn the idHespeed screw in, clockwise,

1/8 of a turn at a time (as needed) unti[ the engine

idHessmootMy.

3. If the engine appears to be idHingtoo fast, turn the

idHespeed screw counterclockwise 1/8 of a turn at

a time (as needed), to reduce idHespeed.

Checking the fue[ mixture, cHeaning the air fiHter,and

adjusting the idHespeed shouHd soHvemost engine

proMems. If not and all of the following are true:

• the engine will not idle

• the engine hesitates or stalls on acceleration

• there is a loss of engine power

Have the carburetor adjusted by a Sears or other qualified

service dealer. Call 1-800-4-MY-HOME @for more

information..

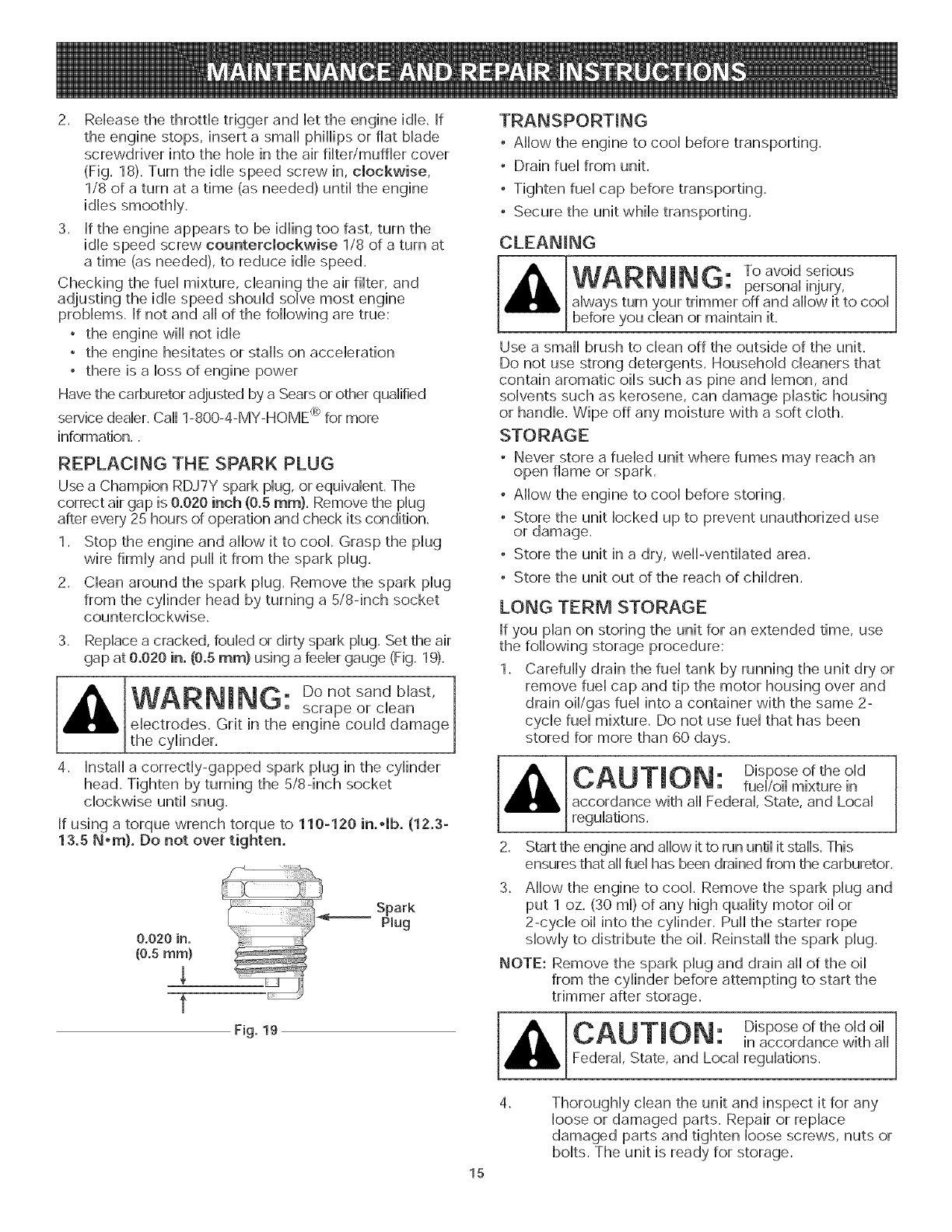

REPLACING THE SPARK PLUG

Use a Champion RDJ7Y spark plug, or equivalent. The

correct air gap is 0.020 inch (0.5 ram}. Remove the plug

after every 25 hours of operation and check its condition.

1. Stop the engine and allow it to cool. Grasp the plug

wire firmly and pull it from the spark plug.

2. Clean around the spark plug. Remove the spark plug

from the cylinder head by turning a 5/8-inch socket

counterclockwise.

3. Replace a cracked, fouled or dirty spark plug. Set the air

gap at 0.020 in. (0.5 mm} using a feeler gauge (Fig+19)+

WARNING: Do not sand blast,

scrape or clean

electrodes. Grit in the engine could damage

the cylinder.

4. Install a correctly-gapped spark plug in the cylinder

head. Tighten by turning the 5/8-inch socket

clockwise until snug.

If using a torque wrench torque to 110-120 in.+ib. (12.3-

13.5 N+m}o Do not over tighten.

Spark

Plug

0.020 in.

(0.5 mm}

Fig. 19

TRANSPORTING

Allow the engine to cool before transporting.

Drain fuel from unit.

• Tighten fuel cap before transporting.

Secure the unit while transporting.

CLEANING

WARNING: Toavo+dser+ous

personalinjury,

alwaysturnyourtrimmeroffand allowittocool

beforeyou cleanormaintainit.

Use a small brush to dean off the outside of the unit.

Do not use strong detergents. Household cleaners that

contain aromatic oils such as pine and lemon, and

solvents such as kerosene, can damage plastic housing

or handle. Wipe off any moisture with a soft cloth.

STORAGE

• Never store a fueled unit where fumes may reach an

open flame or spark.

• Allow the engine to cool before storing.

• Store the unit locked up to prevent unauthorized use

or damage.

• Store the unit in a dry, weDventilated area.

• Store the unit out of the reach of children.

LONG TERM STORAGE

If you plan on storing the unit for an extended time, use

the following storage procedure:

1. Carefully drain the fuel tank by running the unit dry or

remove fuel cap and tip the motor housing over and

drain oiFgas fuel into a container with the same 2-

cycle fuel mixture. Do not use fuel that has been

stored for more than 60 days+

CAUTION" Dispose of the old

• fuel/oil mixture in

accordance with all Federal, State, and Local

regulations.

2. Start the engine and allow it to run until it stalls. This

ensures that all fuel has been drained from the carburetor.

3. Allow the engine to coo[. Remove the spark plug and

put 1 oz. (30 ml) of any high quality motor oil or

2-cycle oil into the cylinder. Pull the starter rope

slowly to distribute the oil. Reinstall the spark plug.

NOTE: Remove the spark plug and drain all of the oil

from the cylinder before attempting to start the

trimmer after storage.

. Dispose of the old oil

• in accordance with a[[

Federal State, and Local regulations.

4. ThorougHy dean the unit and inspect it for any

loose or damaged parts. Repair or replace

damaged parts and tighten loose screws, nuts or

bolts. The unit is ready for storage.

CAUSE

1. Empty fueHtank

2. Primer buHbwasn't pressed enough

3. Engine is flooded

4. OHdor improperly mixed fueH

5, FouHedspark pHug

6. Mugged spark arrestor

7. Red EZ-Fke TM Heverwasn't flipped/set

8, The outside temperature is bellow 40° F

9. The outside temperature is above 90° F

CAUSE

1. Air fiHteris pHugged

2. OM or improperly mixed fueH

3. Improper carburetor adjustment

CAUSE

I.OHd or improperlymixed fueH

2. Improper carburetor adjustment

3. Cutting attachment bound with grass

4. Dirty air fiHter

5. Mugged spark arrestor

CAUSE

I.OHd or improperlymixed fueH

2.AirfiHterispHugged

3. Improper carburetor adjustment

4. FouHedspark pHug

5. Mugged spark arrestor

ACTION

I.Fillfueltankwithproperlymixed fuel

2. Press primer bulb fully and slowly 10 times

3. Squeeze the trigger and pull the starter rope

4. Drain gas tank and add fresh fuel mixture

5. Replace or clean the spark plug

6. Clean or replace spark arrestor

7. Move lever to the starting position

8. Pull the starter rope up to 10-15 times

9. Squeeze the throttle control and pull the starter rope

without moving the Red EZ-Fire TM lever

ACTION

1. Replace or clean the air filter

2. Drain gas tank and add fresh fuel mixture

3. Adjust according to the Carburetor Adjustments

ACTION

1, Drain gas tank and add fresh fuel mixture

2. Take to a Sears or other qualified service dealer for

3. Stop the engine and clean the cutting attachment

4. Clean or replace the air filter

5. Clean or replace spark arrestor

ACTION

1. Drain gas tank and add fresh fuel mixture

2. Replace or clean air filter

3. Take to a Sears or other qualified service dealer for

an adjustment

4. Replace or clean the spark plug

5. Clean or replace spark arrestor

NOTE: For repairs beyond the minor adjustments listed above, contact your nearest Sears Parts &

Repair center (1 800 4 M%HOME ) or other qualified service dealer for an adjustment.

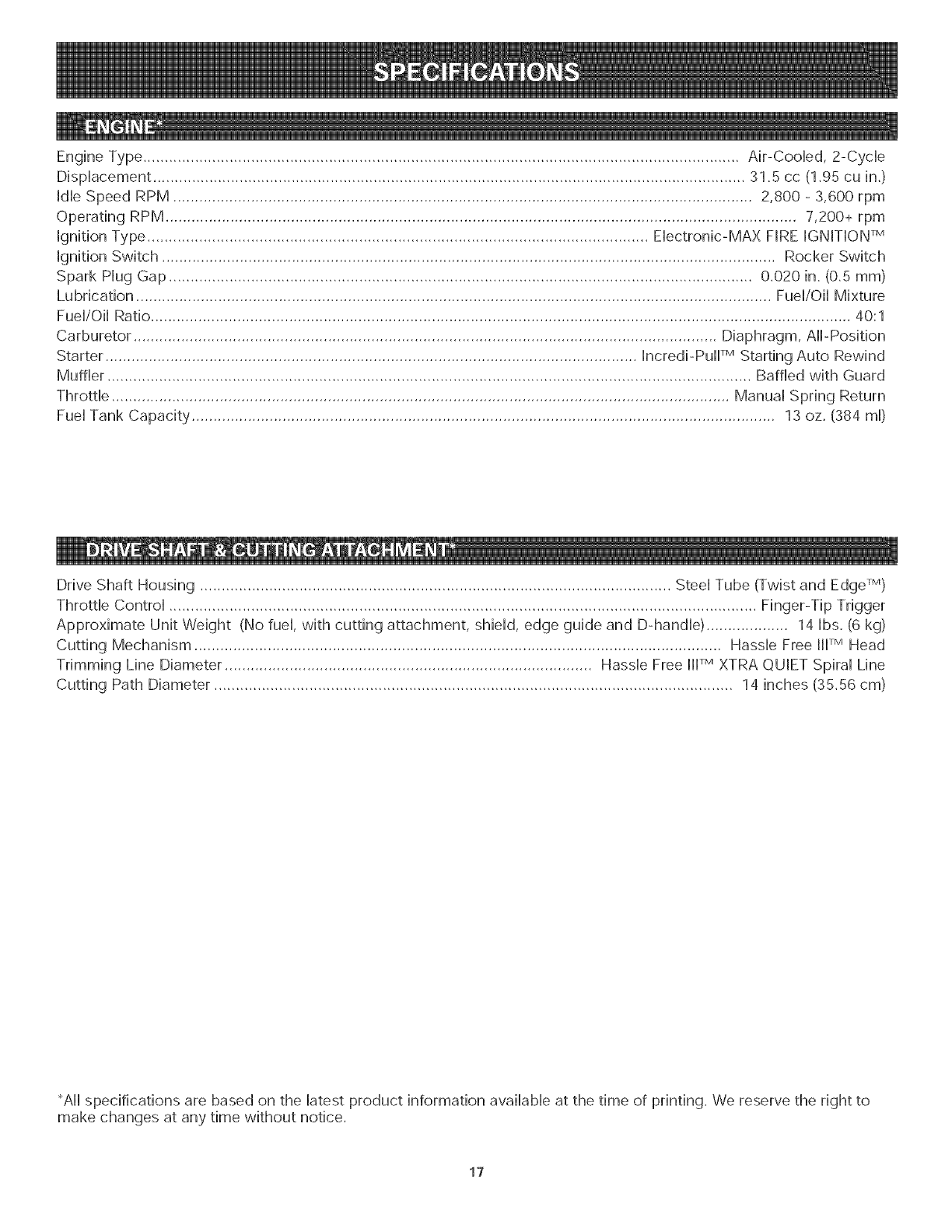

EngineType ..........................................................................................................................................Air-Cooled,2-Cycle

Displacement ......................................................................................................................................... 31.5 cc (1.95 cu in.)

Idle Speed RPM ...................................................................................................................................... 2,800 - 3,600 rpm

Operating RPM .................................................................................................................................................. 7,200+ rpm

Ignition Type .................................................................................................................... Electronic-MAX FBREIGNITION TM

Ignition Switch .............................................................................................................................................. Rocker Switch

Spark Hug Gap ....................................................................................................................................... 0.020 in. (0.5 mm)

Lubrication ................................................................................................................................................... Fuel/Oil Mixture

FueFOil Ratio .................................................................................................................................................................. 40:1

Carburetor ....................................................................................................................................... Diaphragm, AN-Position

Starter ........................................................................................................................... Incredi-PuN TM Starting Auto Rewind

Muffler ..................................................................................................................................................... Baffled with Guard

Throttle ............................................................................................................................................... Manual Spring Return

Fuel Tank Capacity ....................................................................................................................................... 13 oz. (384 ml)

Drive Shaft Housing ............................................................................................................. Steel Tube (Twist and Edge TM)

Throttle Control ........................................................................................................................................ Finger-Tip Trigger

Approximate Unit Weight (No fuel, with cutting attachment, shield, edge guide and D-handle) ................... 14 Ibs. (6 kg)

Cutting Mechanism .......................................................................................................................... Hassle Free IIFM Head

Trimming Line Diameter ..................................................................................... Hassle Free IIITM XTRA QUIET Spiral Line

Cutting Path Diameter ........................................................................................................................ 14 inches (35.56 cm)

+All specifications are based on the latest product information available at the time of printing. We reserve the right to

make changes at any time without notice.

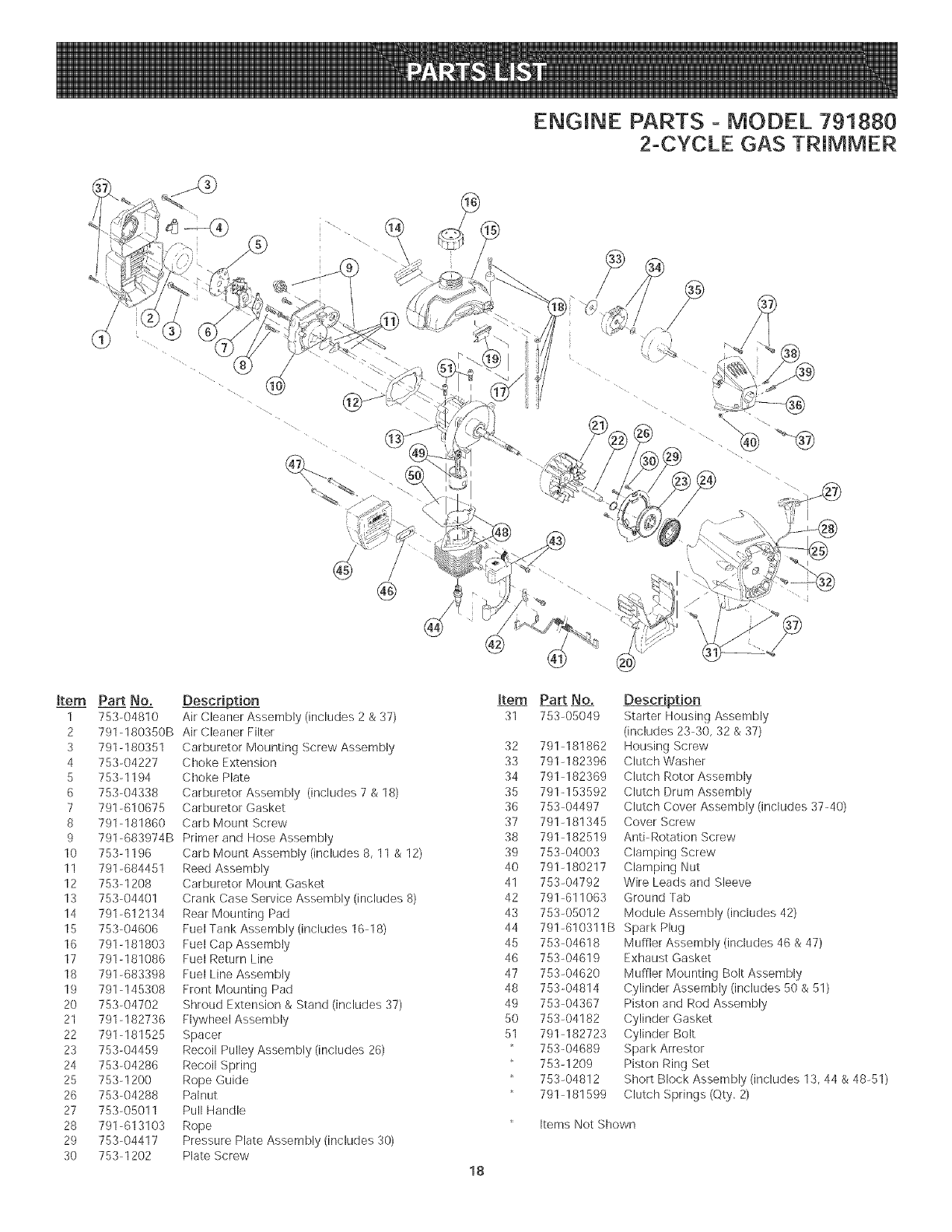

ENGINE PARTS - MODEL 791880

2-CYCLE GAS TRIMMER

item

Part No.

753-04810

791-180350B

791-180351

753-04227

753-1194

753-04338

791-610675

791-181860

791-683974B

753-1196

791-684451

753-1208

753-04401

791-612134

753-04606

791-181803

791-181086

791-683398

791-145308

753-04702

791-182736

791-181525

753-04459

753-04286

753-1200

753-04288

753-05011

791-613103

753-04417

753-1202

Description

Air Cleaner Assembly (includes 2 & 37)

Air Cleaner Filter

Carburetor Mounting Screw Assembly

Choke Extension

Choke Plate

Carburetor Assembly (includes 7 & 18)

Carburetor Gasket

Carb Mount Screw

Primer and Hose Assembly

Carb Mount Assembly (includes 8, 11 & 12)

Reed Assembly

Carburetor Mount Gasket

Crank Case Service Assembly (includes 8)

Rear Mounting Pad

Fuel Tank Assembly (includes 16-18)

Fuel Cap Assembly

Fuel Return Line

Fuel Line Assembly

Front Mounting Pad

Shroud Extension & Stand (includes 37)

Flywheel Assembly

Spacer

Recoil Pulley Assembly (includes 2(_)

Recoil Spring

Rope Guide

Palnut

Pull Handle

Rope

Pressure Plate Assembly (includes 30)

Plate Screw

Item

Part No,

753-05049

791-181862

791-182396

791-182369

791-153592

753-04497

791-181345

791-182519

753-04003

791-180217

753-04792

791-611063

753-05012

791-610311B

753-04618

753-04619

753-04620

753-04814

753-04367

753-04182

791-182723

753-04689

753-1209

753-04812

791-181599

Description

Starter Housing Assembly

(includes 23-30, 32 & 37)

Housing Screw

Clutch Washer

Clutch Rotor Assembly

Clutch Drum Assembly

Clutch Cover Assembly (includes 37-40)

Cover Screw

Anti-Rotation Screw

Clamping Screw

Clamping Nut

Wire Leads and Sleeve

Ground Tab

Module Assembly (includes 42)

Spark Plug

Muffler Assembly (includes 46 & 47)

Exhaust Gasket

Muffler Mounting Bolt Assembly

Cylinder Assembly (includes 50 & 51)

Piston and Rod Assembly

Cylinder Gasket

Cylinder Bolt

Spark Arrestor

Piston Ring Set

Short Block Assembly (includes 13, 44 & 48-51)

Clutch Springs (Qty. 2)

Items Not Shown

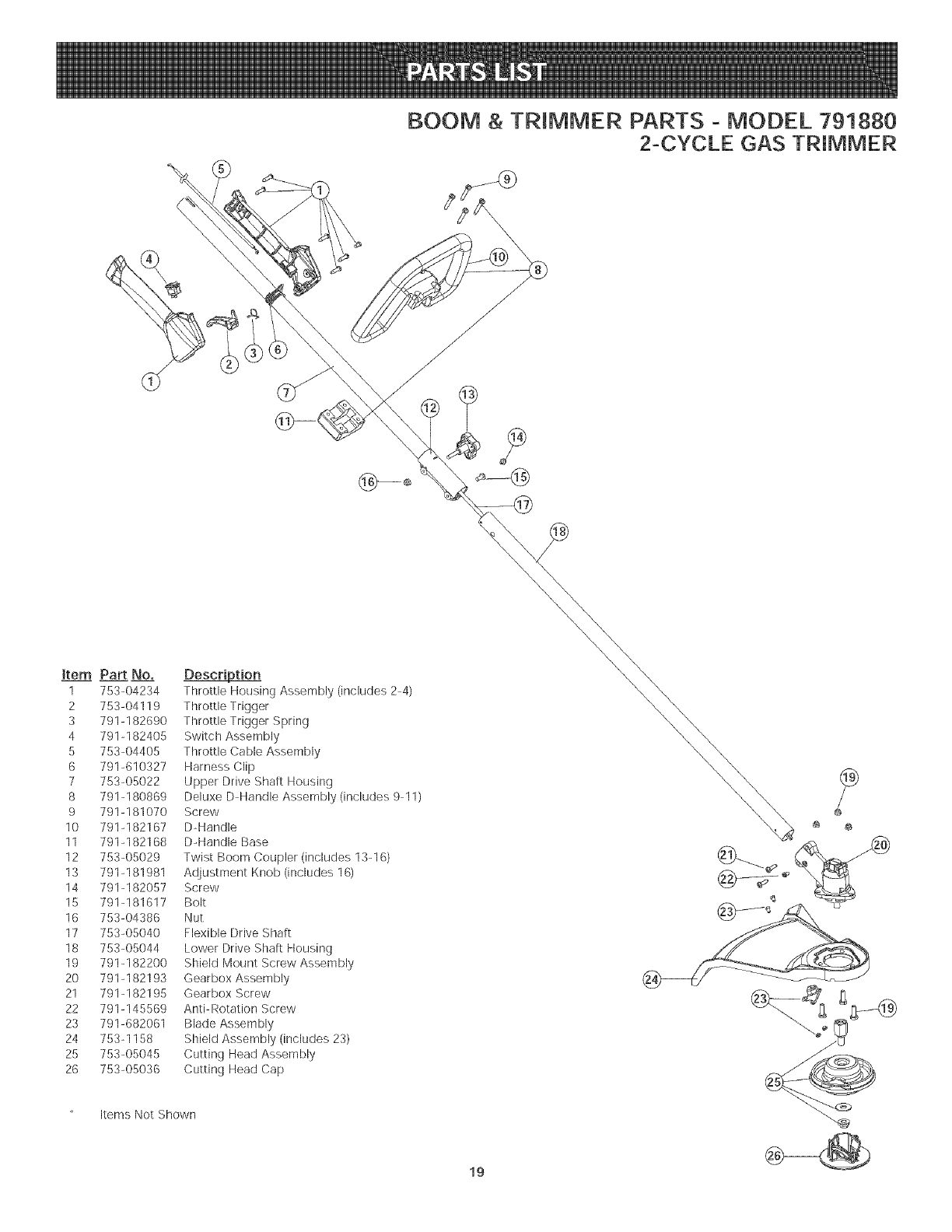

BOOM & TRIMMER PARTS - MODEL 791880

2-CYCLE GAS TRIMMER

Item Part No,

1 753-04234

2 753-04119

3 791-182690

4 791-182405

5 753-04405

6 791-610327

7 753-05022

8 791-180869

9 791-181070

10 791-182167

11 791-182168

12 753-05029

13 791-181981

14 791-182057

15 791-181617

16 753-04386

17 753-05040

18 753-05044

19 791-182200

20 791-182193

21 791-182195

22 791-145569

23 791-682061

24 753-1158

25 753-05045

26 753-05036

Description

Throttle Housing Assembly (includes 2-4)

Throttle Trigger

Throtde Trigger Spring

Switch Assembly

Throttle Cable Assembly

Harness Clip

Upper Drive Shaft Housing

Deluxe D-Handle Assembly (includes 9-11)

Screw

[)-Handle

[)-Handle Base

Twist Boom Coupler (includes 13-16)

Adjustment Knob (includes 16)

Screw

Bolt

Nut

Flexible Drive Shaft

Lower Drive ShaR Housing

Shield Mount Screw Assembly

Gearbox Assembly

Gearbox Screw

Anti-Rotation Screw

Blade Assembly

Shield Assembly (includes 23)

Cutting Head Assembly

Cutting Head Cap

Items Not Shown

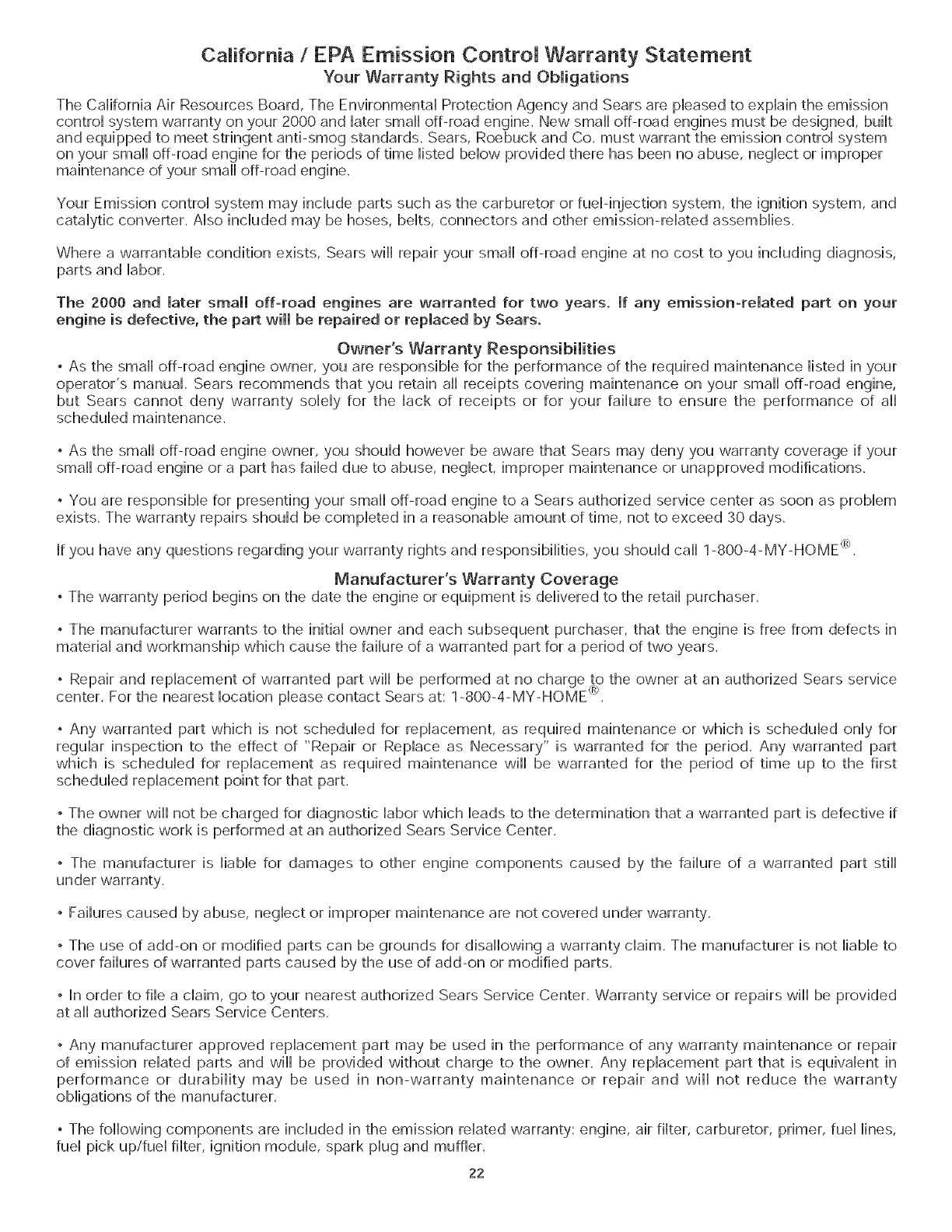

California / EPA Emission Control Warranty Statement

Your Warranty Rights and Obligations

The California Air Resources Board, The Environmental Protection Agency and Sears are pleased to explain the emission

control system warranty on your 2000 and later small off-road engine. New small off-road engines must be designed, built

and equipped to meet stringent anti-smog standards. Sears, Roebuck and Co. must warrant the emission control system

on your small off-road engine for the periods of time listed below provided there has been no abuse, neglect or improper

maintenance of your small off-road engine.

Your Emission control system may include parts such as the carburetor or fueNnjection system, the ignition system, and

catalytic converter. Also included may be hoses, belts, connectors and other emission-related assemblies.

Where a warrantable condition exists, Sears will repair your small off-road engine at no cost to you including diagnosis,

parts and labor.

The 2000 and later small off-road engines are warranted for two years, if any emission-related part on your

engine is defective, the part w+mmbe repaired or replaced by Sears.

Owner's Warranty Responsibilities

° As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your

operator's manual. Sears recommends that you retain all receipts covering maintenance on your small off-road engine,

but Sears cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all

scheduled maintenance.

, As the small off-road engine owner, you should however be aware that Sears may deny you warranty coverage if your

small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.

You are responsible for presenting your small off-road engine to a Sears authorized service center as soon as problem

exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

_(_)

If you have any questions regarding your warranty rights and responsibilities, you should call 1-800-4-MY-HOML .

Manufacturer's Warranty Coverage

, The warranty period begins on the date the engine or equipment is delivered to the retail purchaser.

• The manufacturer warrants to the initial owner and each subsequent purchaser, that the engine is free from defects in

material and workmanship which cause the failure of a warranted part for a period of two years.

Repair and replacement of warranted part will be performed at no charge Lothe owner at an authorized Sears service

center. For the nearest location please contact Sears at: 1-800-4-MY-HOME _.

, Any warranted part which is not scheduled for replacement, as required maintenance or which is scheduled only for

regular inspection to the effect of "Repair or Replace as Necessary" is warranted for the period. Any warranted part

which is scheduled for replacement as required maintenance will be warranted for the period of time up to the first

scheduled replacement point for that part.

, The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective if

the diagnostic work is performed at an authorized Sears Service Center.

• The manufacturer is liable for damages to other engine components caused by the failure of a warranted part still

under warranty.

° Failures caused by abuse, neglect or improper maintenance are not covered under warranty.

• The use of add-on or modified parts can be grounds for disallowing a warranty claim. The manufacturer is not liable to

cover failures of warranted parts caused by the use of add-on or modified parts.

, In order to file a claim, go to your nearest authorized Sears Service Center. Warranty service or repairs will be provided

at all authorized Sears Service Centers.

• Any manufacturer approved replacement part may be used in the performance of any warranty' maintenance or repair

of emission related parts and will be provided without charge to the owner. Any replacement part that is equivalent in

performance or durability may be used in non-warranty maintenance or repair and will not reduce the warranty

obligations of the manufacturer.

• The following components are included in the emission related warranty: engine, air filter, carburetor, primer, fuel lines,

fuel pick up/fuel filter, ignition module, spark plug and muffler.

Repair Protection Agreements

Congratulations on making a smart purchase.

Your new Craftsman _ product is designed and

manufactured for years of dependable opera-

tion. But like all products, it may require repair

from time to time. That's when having a Repair

Protection Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement now

and protect yourself from unexpected hassle

and expense.

Here's what's included in the Agreement:

[] Expert service by our 12,000 professional

repair specialists

[] Unlimited service and no charge for parts

and labor on all covered repairs

[] Product replacement if your covered prod-

uct can't be fixed

[] Discount of 10% from regular price of

service and service-related parts not cov-

ered by the agreement; also, 10% off regular

price of preventive maintenance check

[] Fast help by phone - phone support from a

Sears technician on products requiring in-home

repair, plus convenient repair scheduling

Once you purchase the Agreement, a simple

phone call is all that it takes for you to schedule

service. You can call anytime day or night, or

schedule a service appointment online.

Sears has over 12,000 professional repair spe-

cialists, who have access to over 4.5 million

quality parts and accessories. That's the kind of

professionalism you can count on to help pro-

long the life of your new purchase for years to

come. Purchase your Repair Protection Agree-

ment today!

Some limitations and exclusions apply.

For prices and additional information call

1-800-827-6655.

Sears Installation Service

For Sears professional installation of home

appliances, garage door openers, water heaters,

and other major home items, in the U.S.A. call

1-800-4-MY-HOME®

TM SM

® Registered Trademark /Trademark /Service Mark of Sears, Roebuck and Co.

TM SM

® Marca Registrada /Marca de Fabrica /Marca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce /Marque d@osee de Sears, Roebuck and Co. ® Sears, Roebuck and Co.

Craftsman 316791880 User Manual TRIMMER Manuals And Guides L0503332

CRAFTSMAN Line Trimmers/Weedwackers, Gas Manual L0503332 CRAFTSMAN Line Trimmers/Weedwackers, Gas Owner's Manual, CRAFTSMAN Line Trimmers/Weedwackers, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
