Craftsman 32028127 User Manual SABRE SAW Manuals And Guides L0907103

CRAFTSMAN Saw Sabre Manual L0907103 CRAFTSMAN Saw Sabre Owner's Manual, CRAFTSMAN Saw Sabre installation guides

User Manual: Craftsman 32028127 32028127 CRAFTSMAN SABRE SAW - Manuals and Guides View the owners manual for your CRAFTSMAN SABRE SAW #32028127. Home:Tool Parts:Craftsman Parts:Craftsman SABRE SAW Manual

Open the PDF directly: View PDF .
Page Count: 28

•_ WARNtNG: To reduce the risk

of injury, the user must read and

understand the operator's manual

before using this product

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

Visit the Craftsman web page: www.sears.com/craftsman

" WARRANTY

,SAFETY

"ASSEMBLY

• DESCRIPTION

.OPERATION

• r_AINTENANCE

•TROUBLESHOOTING

CHARGE BATTERY

BEFORE FIRST USE

Save this manual for future reference

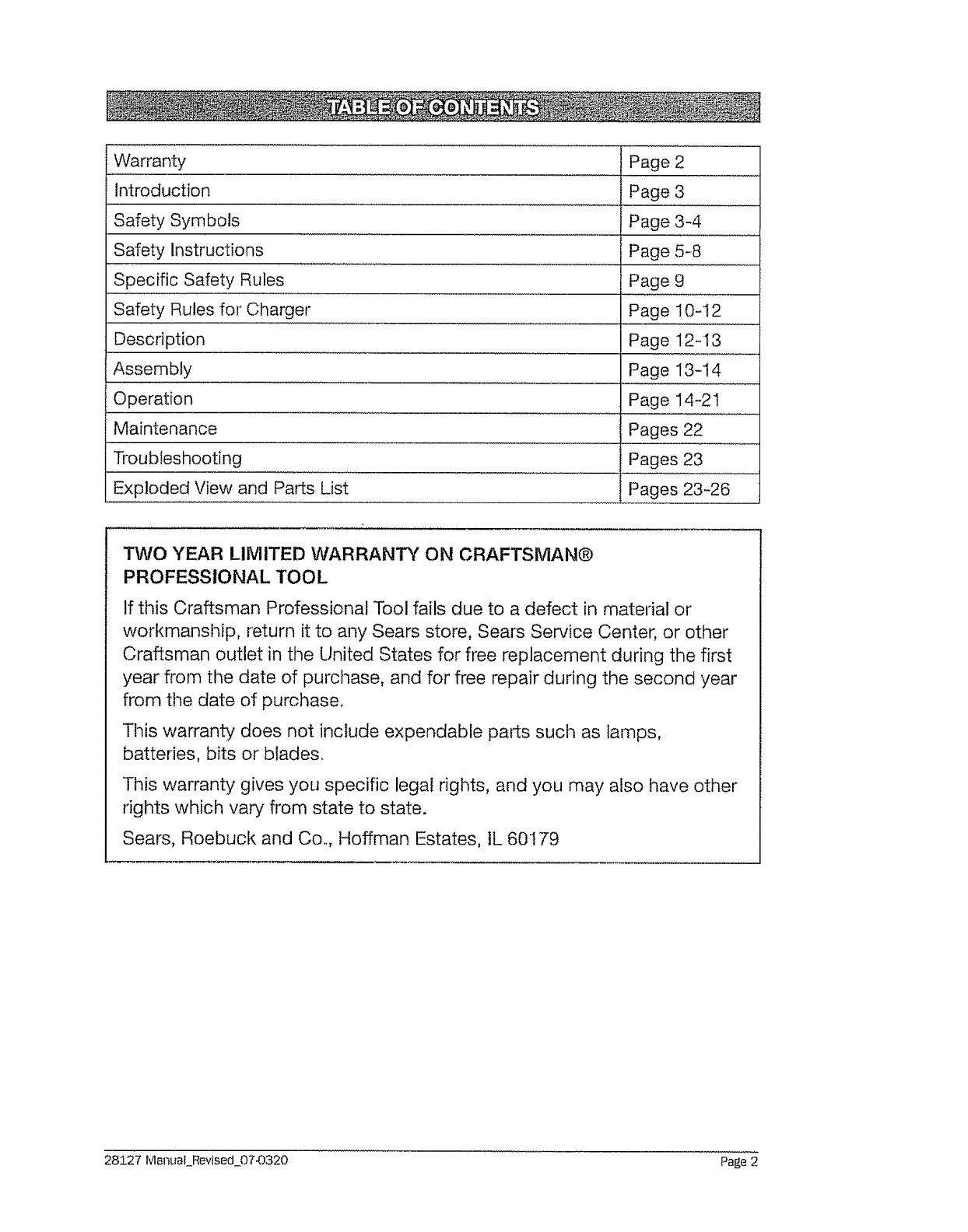

Warranty Page 2

Introduction Page 3

Safety Symbols Page 3-4

Safety Instructions Page 5-8

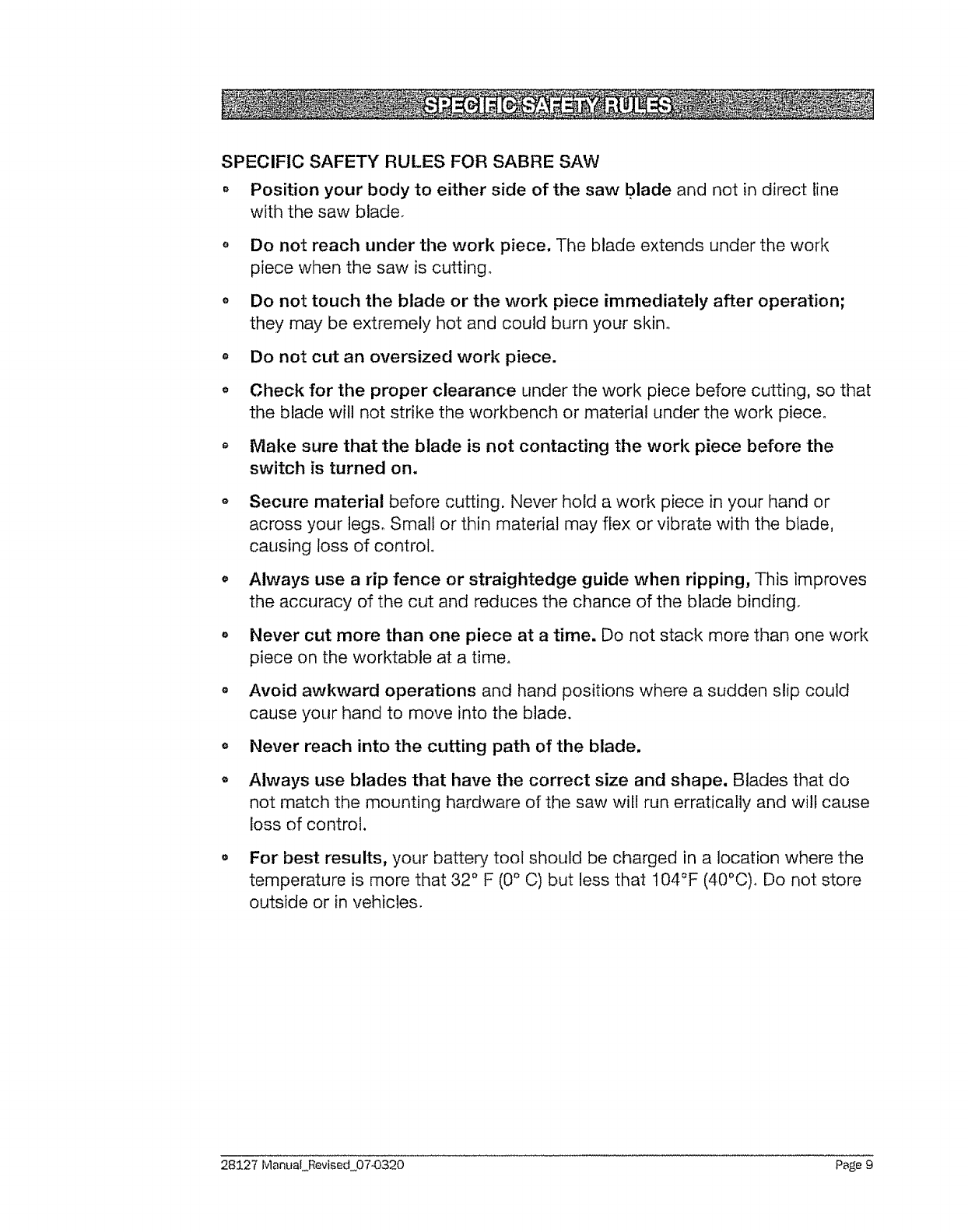

Specific Safety Rules Page 9

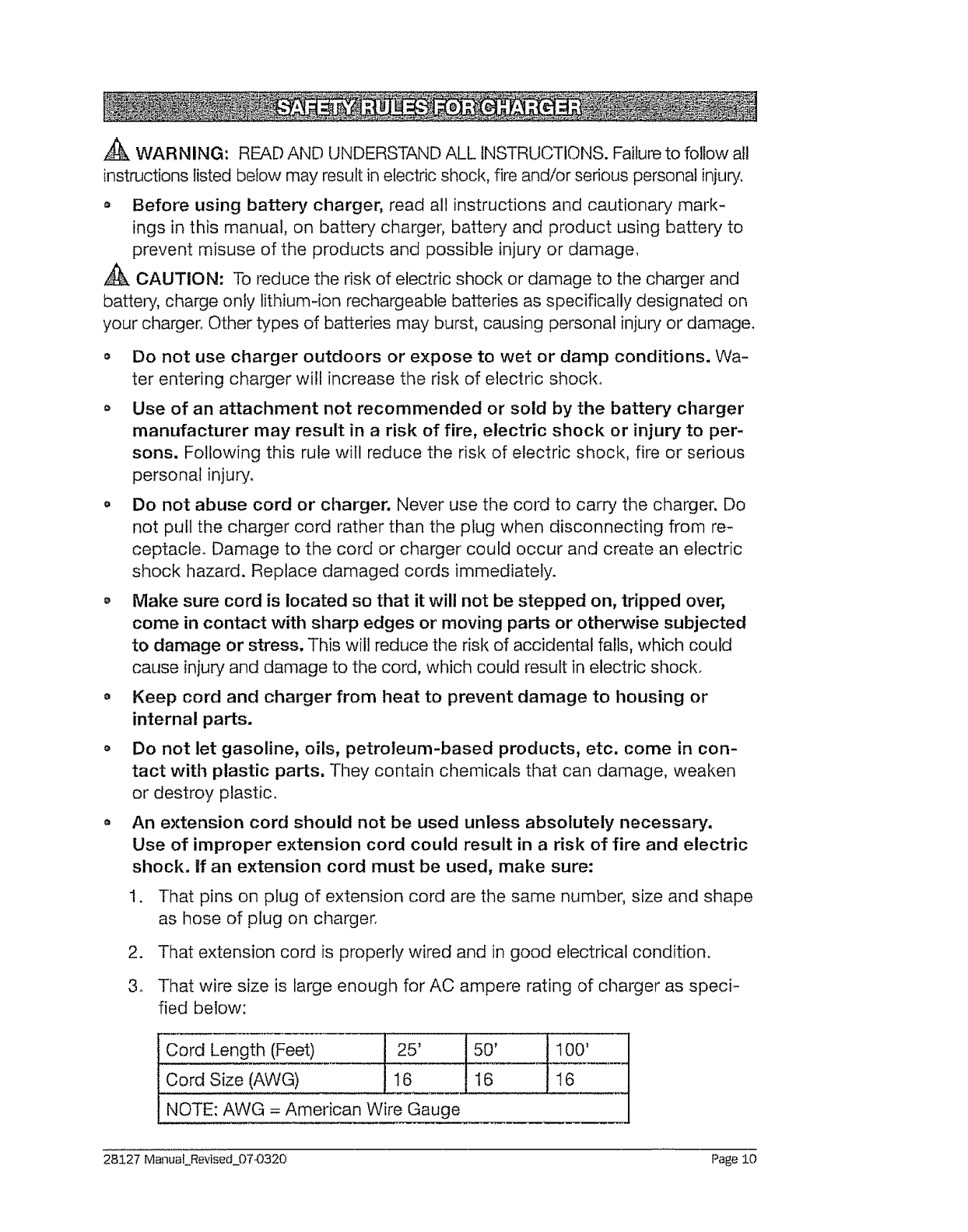

Safety Rules for" Charger Page 10-!2

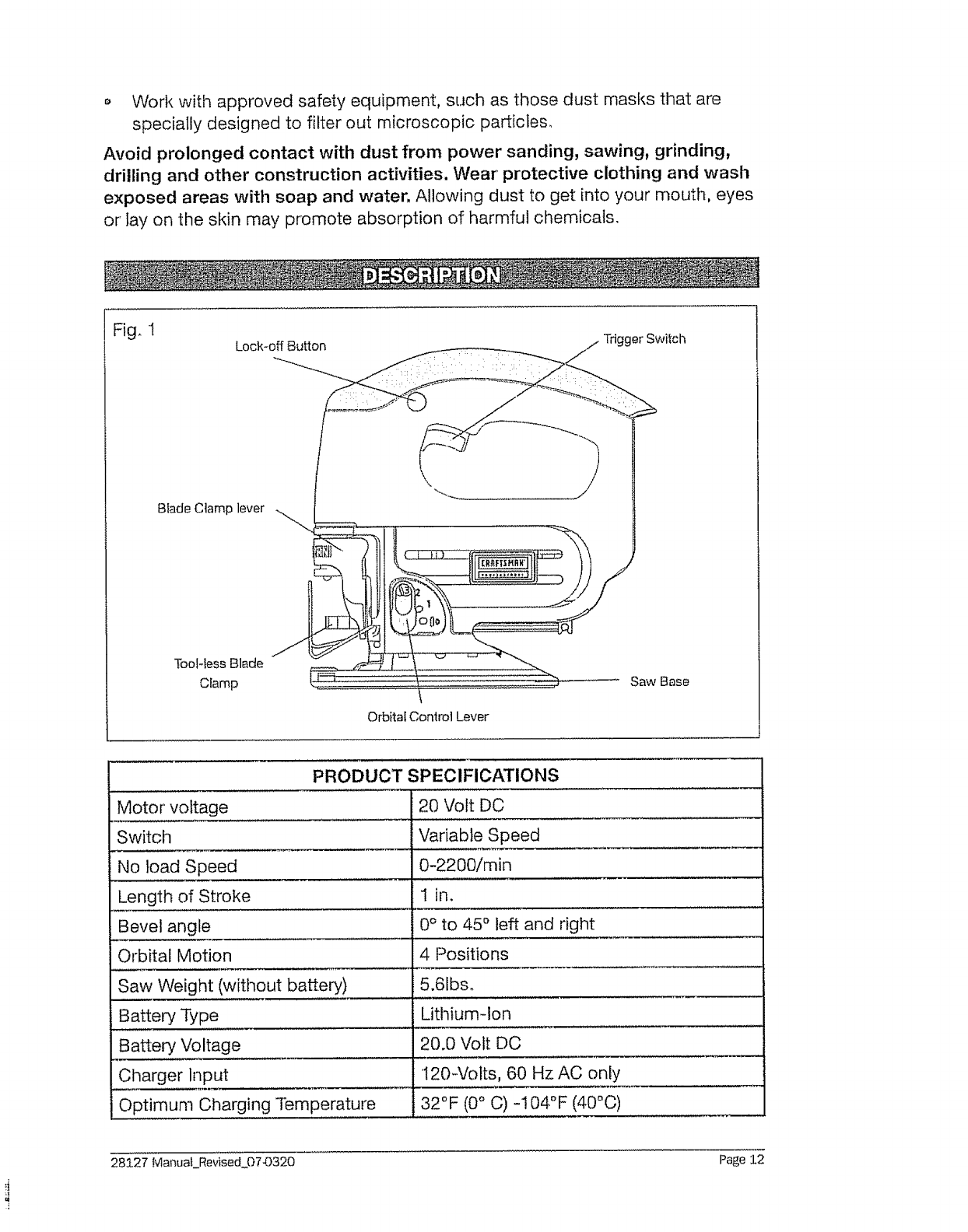

Description Page 12-13

Assembly Page 13-14

Operation Page 14-21

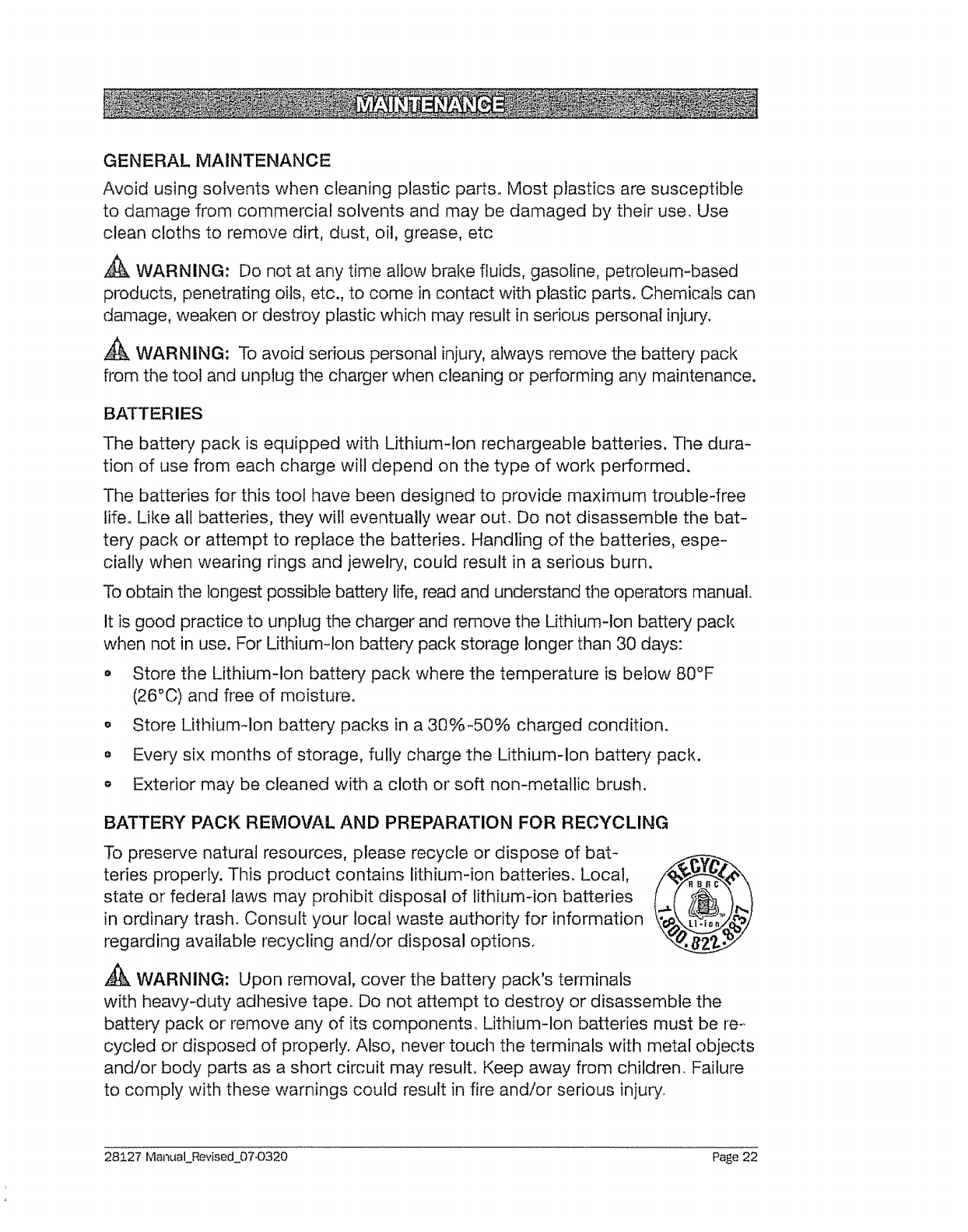

Maintenance Pages 22

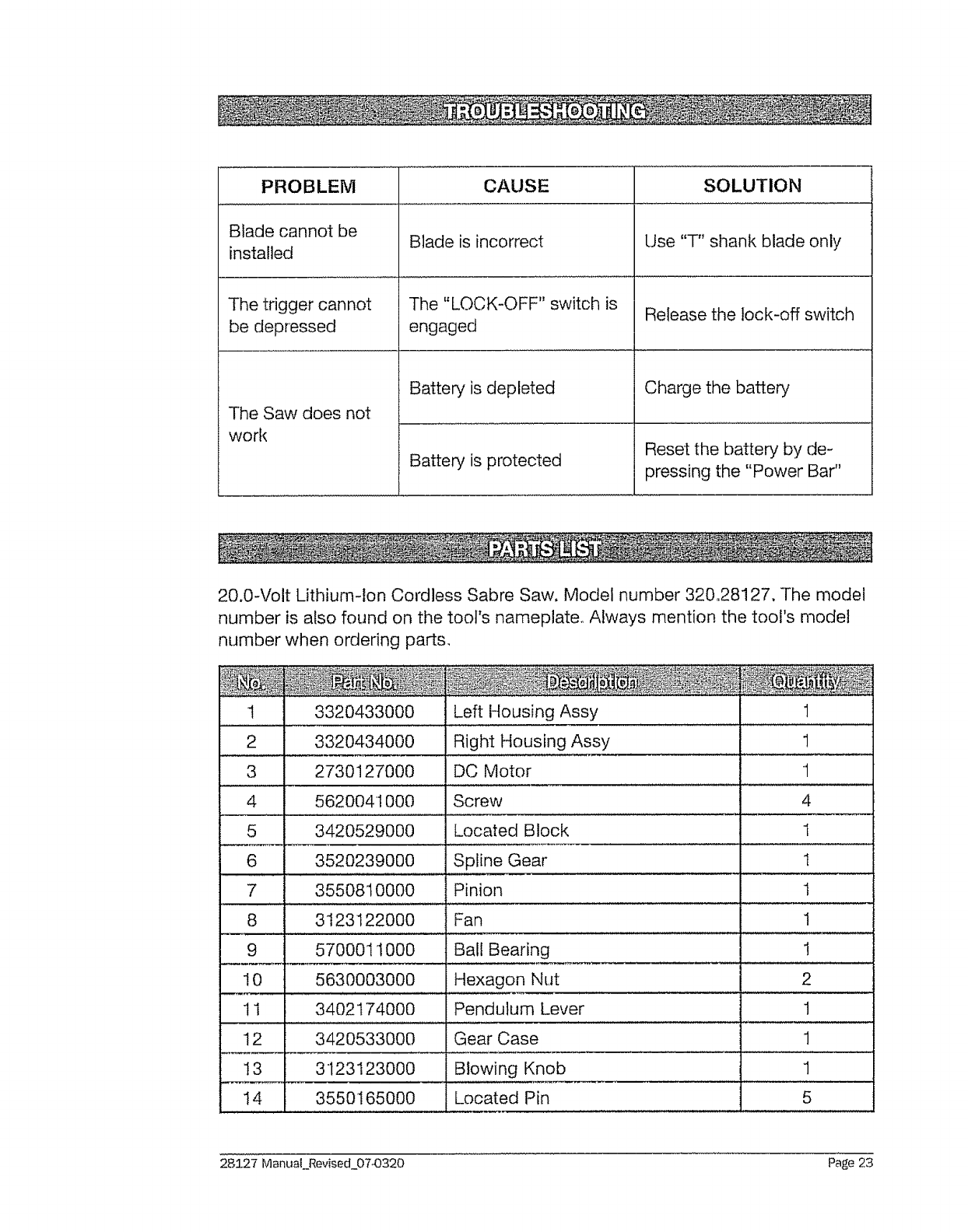

Troubleshooting Pages 23

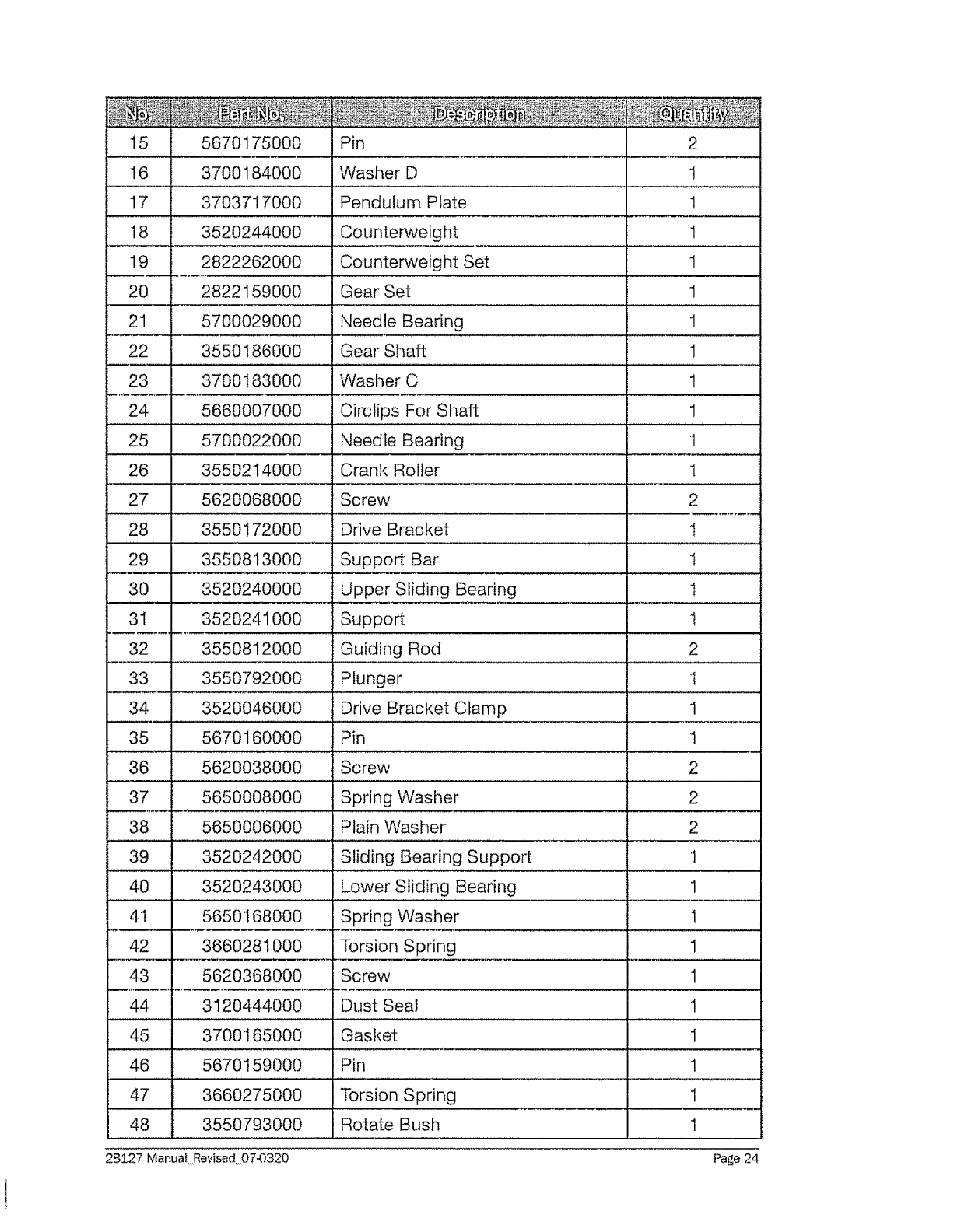

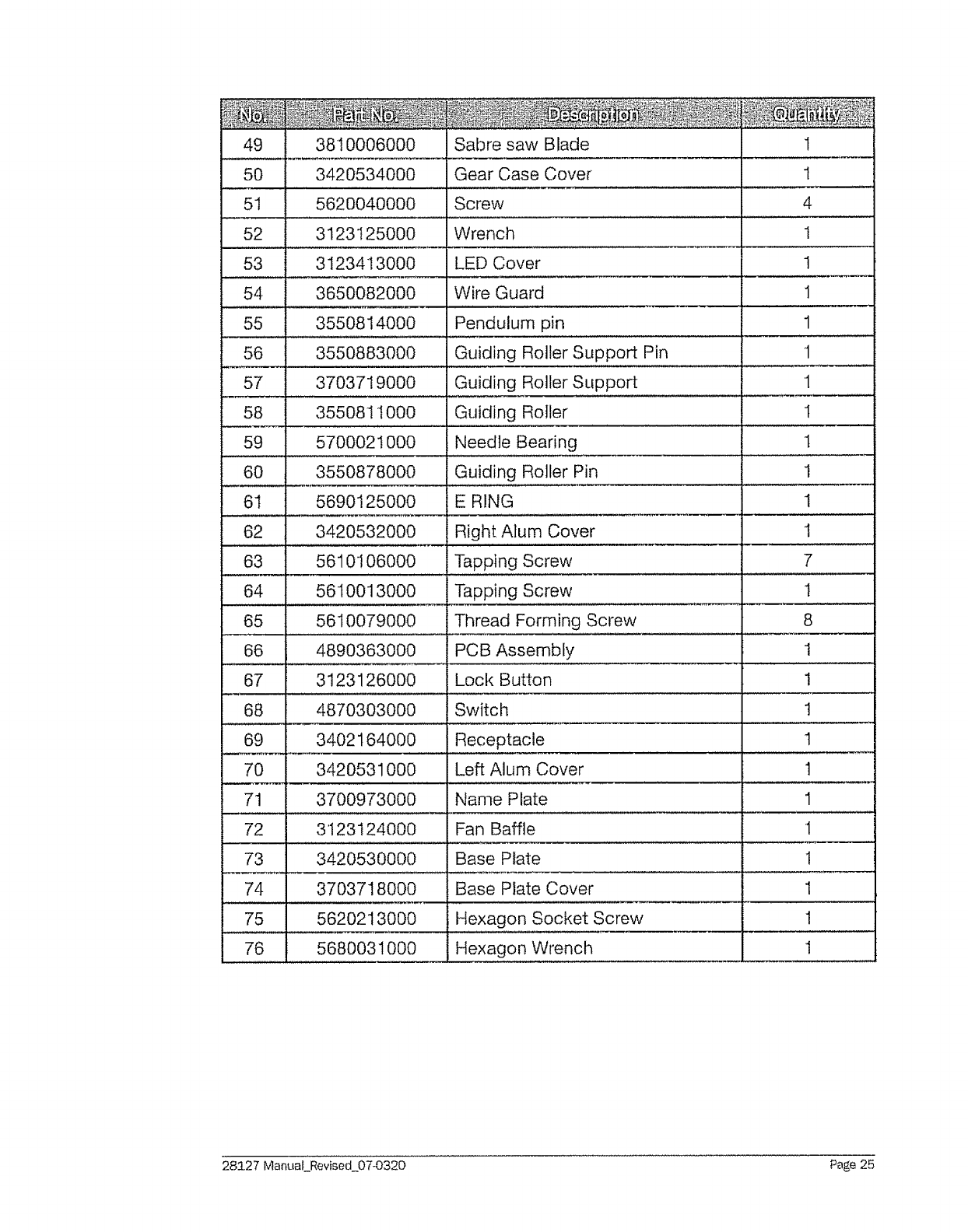

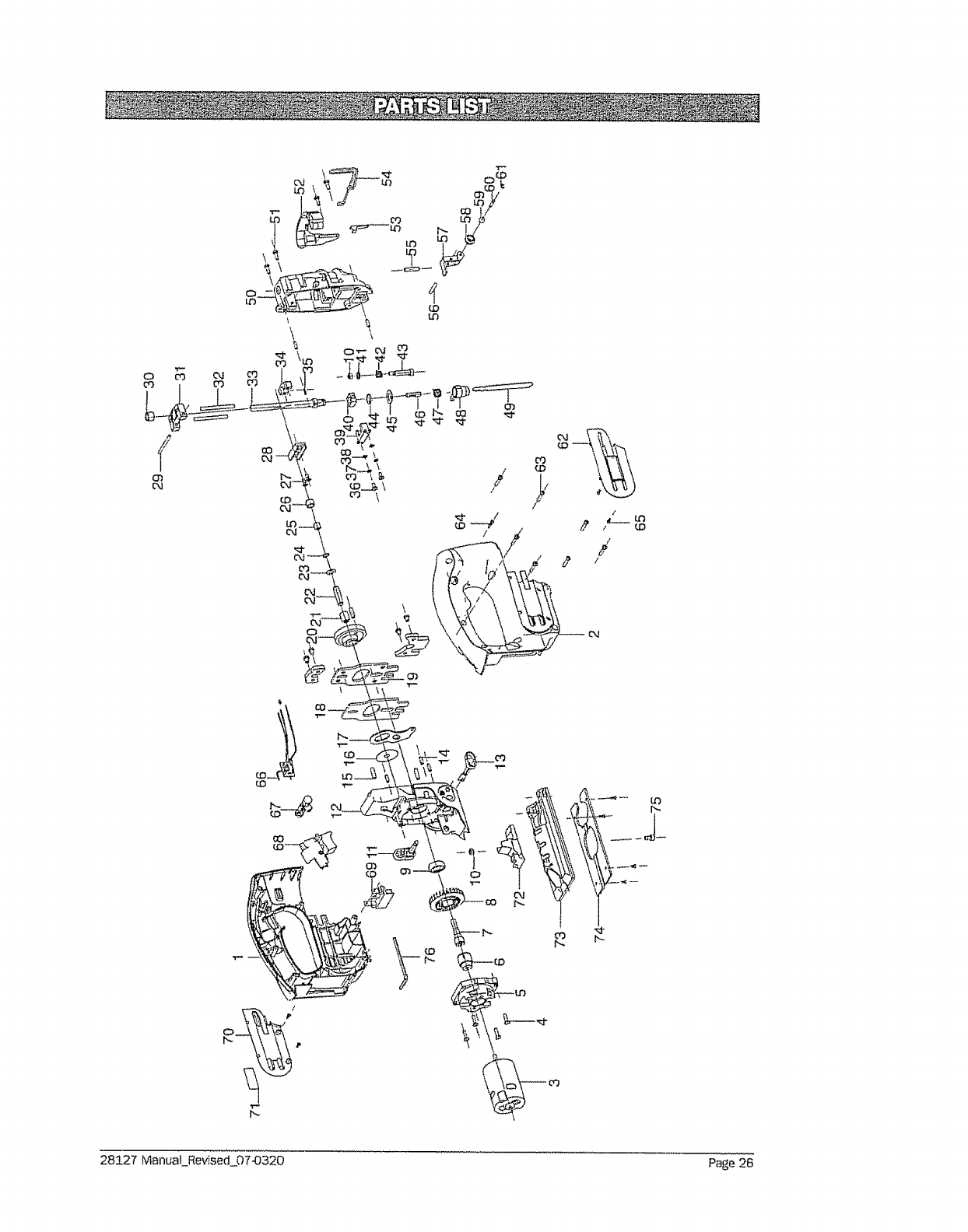

Exploded View and Parts List Pages 23-26

TWO YEAR LIMITED WARRANTY ON CRAFTSMAN®

PROFESSIONAL TOOL

If this Craftsman Professional Tool fails due to a defect in material or

workmanship, return it to any Sears store, Sears Service Center, or other

Craftsman outlet in the United States for free replacement during the first

year from the date of purchase, and for free repair during the second year

from the date of purchaser

This warranty does not include expendable parts such as lamps,

batteries, bits or blades.

This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

Seal's, Roebuck and Co,,, Hoffman Estates, IL 60179

28127 IvlanuaLRevised_07©320 Page 2

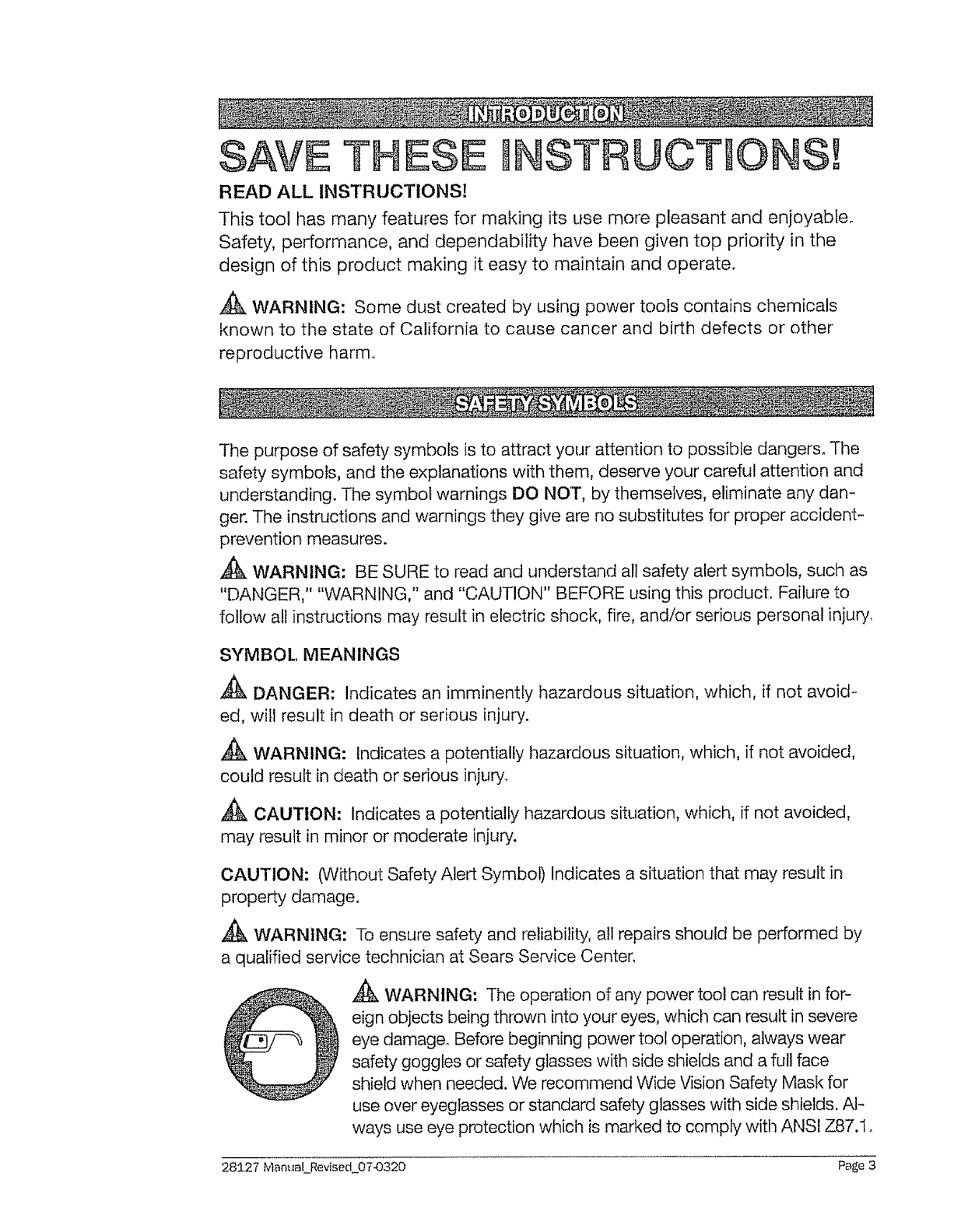

SAVE THESE INSTRUOTIONS!

READ ALL INSTRUCTIONS!

This tool has many features for making its use more pleasant and enjoyabte_

Safety, performance, and dependability have been given top priority in the

design of this product making it easy to maintain and operate.

_, WARNING: Some dust created by using power tools contains chemicals

known to the state of California to cause cancer and birth defects or other

reproductive harm

The purpose of safety symbols is to attract your attention to possible dangers, The

safety symbols, and the explanations with them, deserve your careful attention and

understanding. The symbol warnings DO NOT, by themselves, eliminate any dan-

ger. The instructions and warnings they give are no substitutes for proper accident-

prevention measures.

WARNING: BE SURE to read and understand all safety alert symbols, such as

"DANGER," "WARNING," and "CAUTION" BEFORE using this product, Failure to

follow all instructions may result in electric shock, fire, and/or serious personal injury,

SYMBOL, MEANINGS

,_ DANGER: Indicates an imminently hazardous situation, which, if not avoid-

ed, will result in death or serious injury.

,_ WARNING: Indicates a potentially hazardous situation, which, if not avoided,

could result in death or serious injury.

,_ CAUTION: Indicates a potentially hazardous situation, which, if not avoided,

may result in minor or moderate injury.

CAUTION: Cv",/ithout Safety Alert Symbol) indicates a situation that may result in

property damage.

,_k WARNING: To ensure safety and reliability, all repairs should be performed by

a qualified service technician at Sears Service Center,

_k WARNING: The operation of any power tool can result in for-

eign objects being thrown into your eyes, which can result in severe

eye damage. Before beginning power tool operation, always wear

safety goggles or safety glasses with side shields and a full face

shield when needed. We recommend Wide Vision Safety Mask for

use over eyeglasses or standard safety glasses with side shields. At-

ways use eye protection which is marked to comply with ANSI Z87.1.

28127 ManuaLRevised 07-0320 Page 3

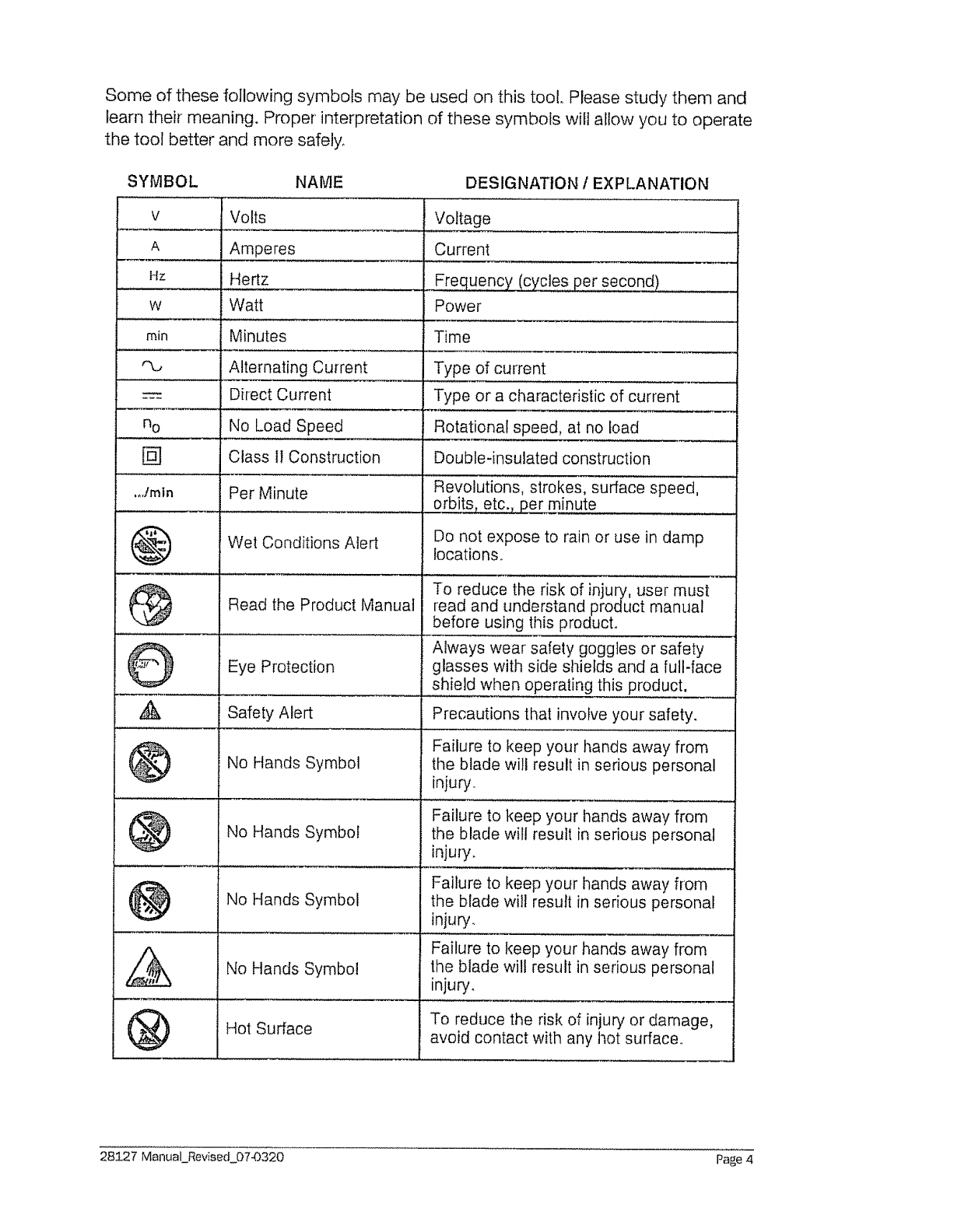

Some of these following symbols may be used on this tool. Please study them and

learn their meaning. Proper interpretation of these symbols will allow you to operate

the tool better and more safely_

SYMBOL NAME DESIGNATION /EXPLANATION

rain

.oJmln

Volts

Amperes

Hertz

Watt

Minutes

Alternating Current

Direct Current

No Load Speed

Class II Construction

Per Minute

Wet Conditions Alert

Read the Product Manual

Eye Protection

Safety Alert

No Hands Symbol

Hot Surface

Voltage

Current

FrequencY circles per second)

Power

Time

Type of current

Type or a characteristic of current

Rotational speed, at no load

Double-insulated construction

Revolutions, strokes, surface speed,

orbits, etc, per minute

Do not expose to rain or use in damp

locations

To reduce the risk of injury, user must

read and understand product manual

before using this product.

Always wear safety goggles or safety

glasses with side shields and a full-face

shield when operating this product.

Precautions that involve your safety.

Failure to keep your hands away from

the blade will result in serious personal

injury.

Failure to keep your hands away from

the blade will result in serious personal

injury.

Failure to keep your hands away from

the blade will result in serious personal

injury.

Failure to keep your hands away from

the blade will result in serious personal

injury.

To reduce the risk of injury or damage,

avoid contact with any hot surface.

28127 Manual_Revised 07-0320 Page 4

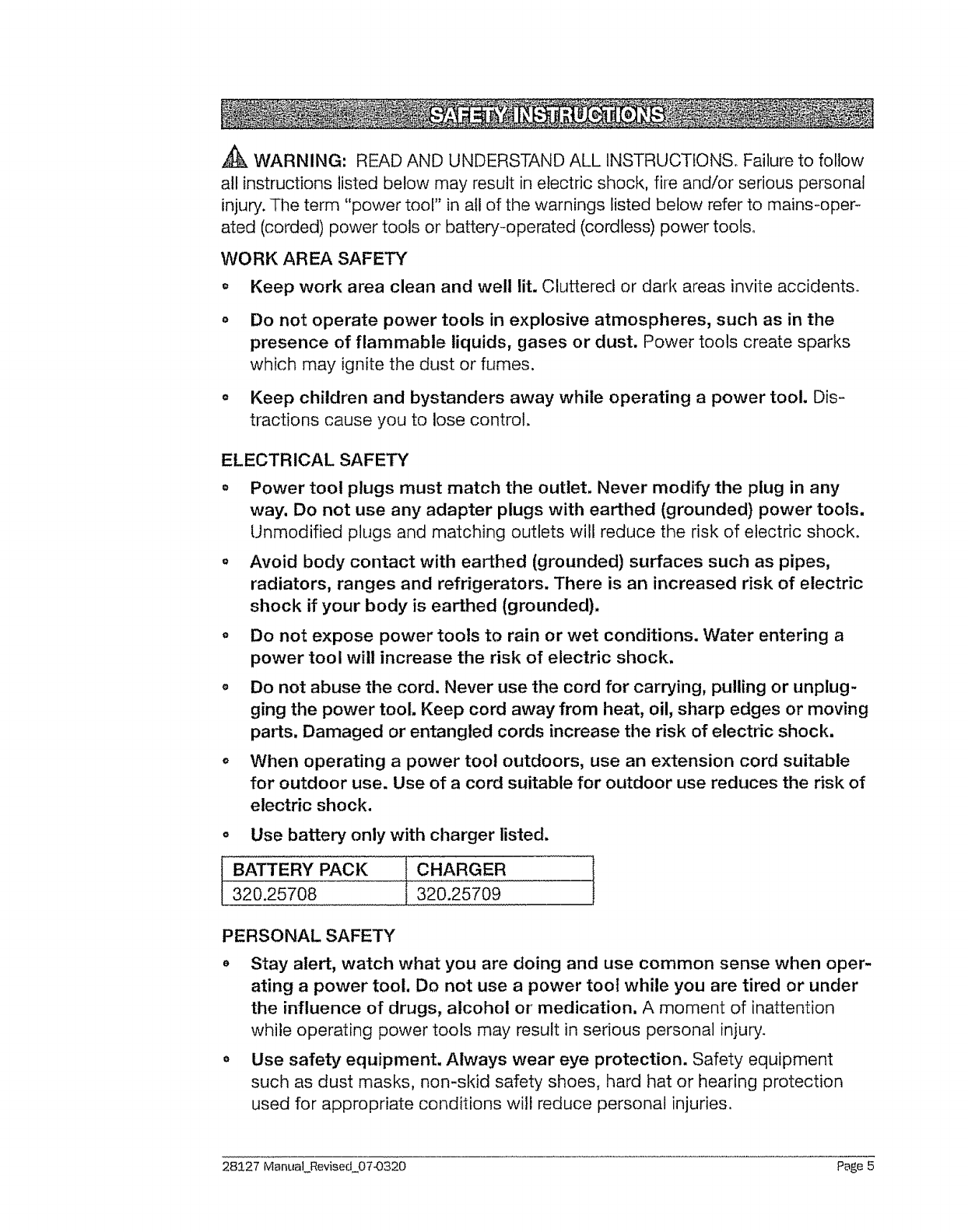

_k WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS° Failure to follow

all instructions listed below may result in electric shock, fire and/or serious personal

injury. The term "power tool" in atl of the warnings listed below refer to mains-oper-

ated (corded) power tools or battery-operated (cordless) power tools,

WORK AREA SAFETY

o Keep work area clean and well lit. Cluttered or dark areas invite accidents°

Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

o Keep children and bystanders away while operating a power tool. Dis-

tractions cause you to lose control.

ELECTRICAL SAFETY

Power tool plugs must match the outlet. Never modify the plug in any

way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce the risk of electric shock°

Avoid body contact with earthed (grounded) surfaces such as pipes,

radiators, ranges and refrigerators. There is an increased risk of electric

shock if your body is earthed (grounded).

Do not expose power tools to rain or wet conditions. Water entering a

power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord for carrying, pulling or unplug-

ging the power tool. Keep cord away from heat, oil, sharp edges or moving

parts. Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable

for outdoor use. Use of a cord suitable for outdoor use reduces the risk of

electric shock.

o Use battery only with charger listed.

BATTERY PACK CHARGER

320.25708 320.25709

PERSONAL SAFETY

Stay alert, watch what you are doing and use common sense when oper-

ating a power tool. Do not use a power tool while you are tired or under

the influence of drugs, alcohol or medication. A moment of inattention

while operating power tools may result in serious personal injury.

Use safety equipment. Always wear eye protection. Safety equipment

such as dust masks, non-skid safety shoes, hard hat or hearing protection

used for appropriate conditions will reduce personal injuries.

28127 Manual Revised 07-0320 Page 5

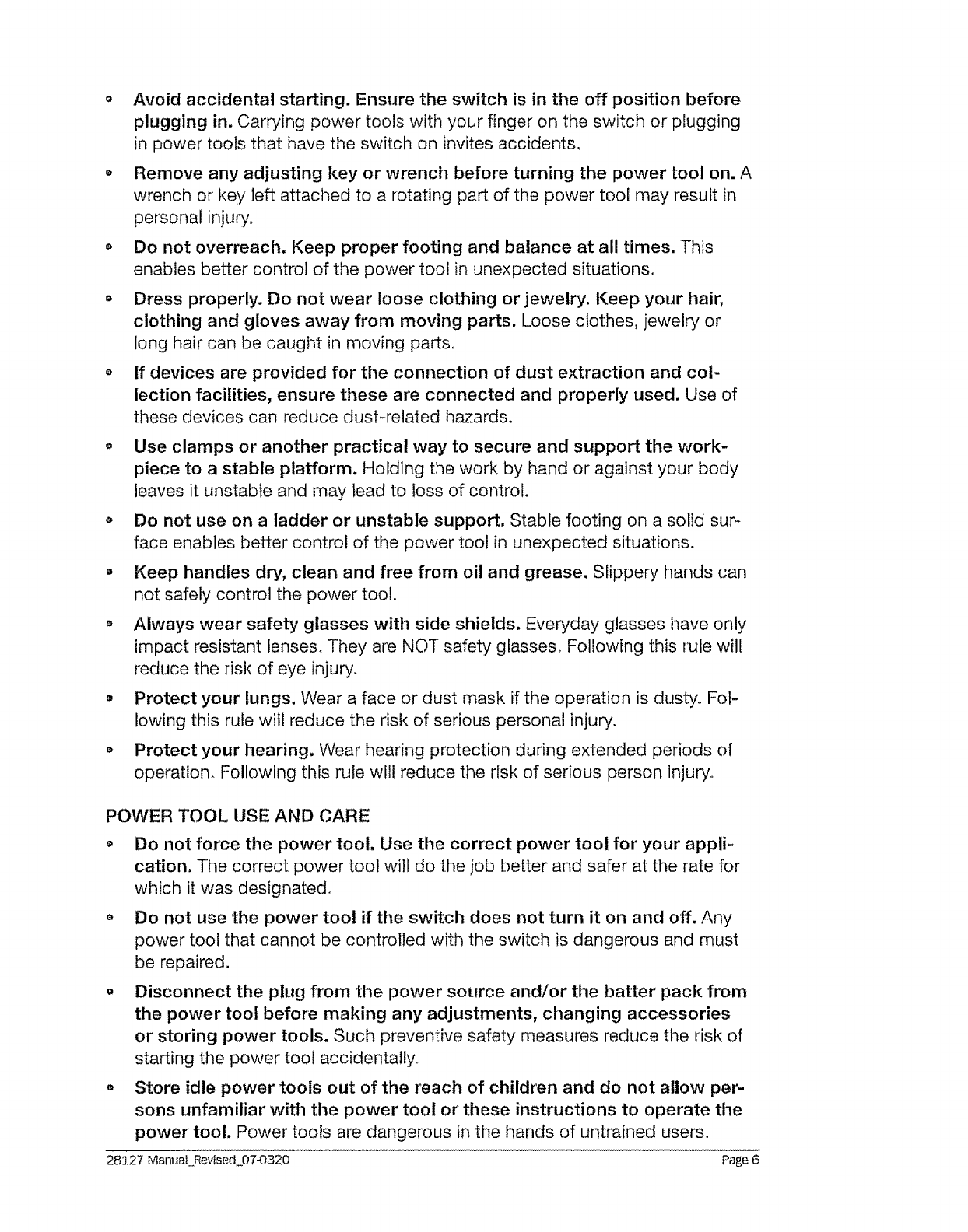

Avoid accidental starting. Ensure the switch is in the off position before

plugging in. Carrying power tools with your finger on the switch or plugging

in power tools that have the switch on invites accidents,

Remove any adjusting key or wrench before turning the power tool on. A

wrench or' key left attached to a rotating part of the power tool may result in

personal injury,

Do not overreach. Keep proper footing and balance at all times. This

enables betler control of the power tool in unexpected situations.

Dress properly. Do not wear loose clothing or jewelry. Keep your hair,

clothing and gloves away from moving parts. Loose clothes, jewelry or

long hair can be caught in moving parts,,

if devices are provided for the connection of dust extraction and col-

lection facilities, ensure these are connected and properly used, Use of

these devices can reduce dust-related hazards.

Use clamps or another practical way to secure and support the work-

piece to a stable platform. Holding the work by hand or against your body

leaves it unstable and may lead to loss of control.

Do not use on a ladder or unstable support. Stable footing on a solid sur-

face enables better control of the power tool in unexpected situations.

Keep handles dry, clean and free from oil and grease, Slippery hands can

not safely control the power tool

Always wear safety glasses with side shields, Everyday glasses have only

impact resistant lenses. They are NOT safety glasses, Following this rule will

reduce the risk of eye injury,

Protect your lungs. Wear a face or dust mask if the operation is dusty° Fol-

lowing this rule will reduce the risk of serious personal injury.

Protect your hearing, Wear hearing protection during extended periods of

operation. Following this rute will reduce the risk of serious person injury°

POWER TOOL USE AND CARE

Do not force the power tool. Use the correct power tool for your appli-

cation. The correct power tool will do the job better and safer at the rate for

which it was designated°

Do not use the power tool if the switch does not turn it on and off. Any

power tool that cannot be controlled with the switch is dangerous and must

be repaired.

Disconnect the plug from the power source and/or the batter pack from

the power tool before making any adjustments, changing accessories

or storing power tools. Such preventive safety measures reduce the risk of

starting the power tool accidentally.

Store idle power tools out of the reach of children and do not allow per-

sons unfamiliar with the power tool or these instructions to operate the

power tool, Power tools are dangerous in the hands of untrained users.

28127 ManuaLRevised 07-O320 Page 6

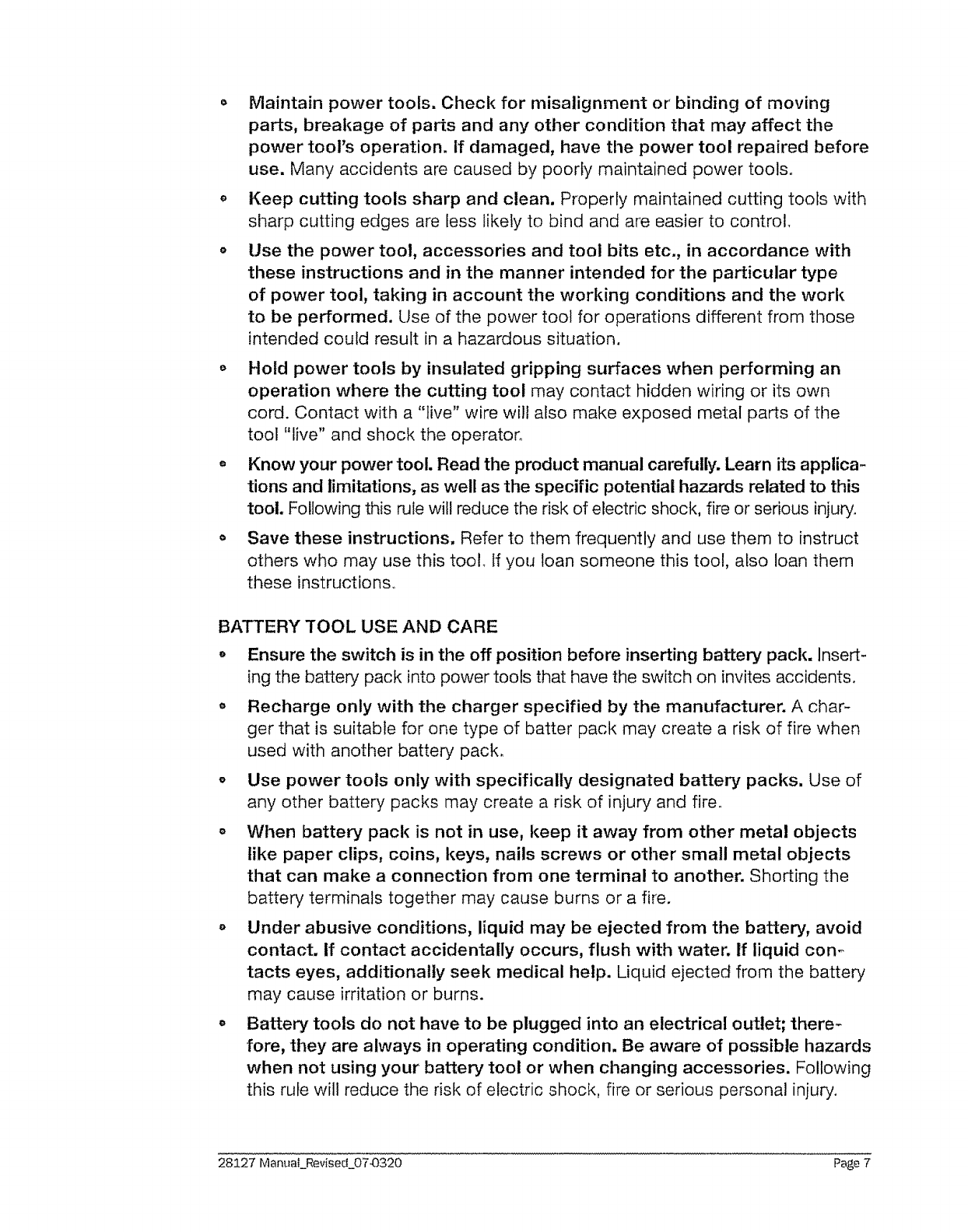

Maintain power tools. Check for misalignment or binding of moving

parts, breakage of parts and any other condition that may affect the

power tool's operation, if damaged, have the power tool repaired before

use. Many accidents are caused by poorly maintained power tools+

Keep cutting tools sharp and clean. Properly maintained cutting tools with

sharp cutting edges are less likely to bind and are easier to control,

Use the power tool, accessories and tool bits etc., in accordance with

these instructions and in the manner intended for the particular type

of power tool, taking in account the working conditions and the work

to be performed. Use of the power tool for operations different from those

intended could result in a hazardous situation.

Hold power tools by insulated gripping surfaces when performing an

operation where the cutting tool may contact hidden wiring or its own

cord. Contact with a "live" wire will also make exposed metal parts of the

tool "live" and shock the operator,

Know your power tool. Read the product manual carefully. Learn its applica-

tions and limitations, as well as the specific potential hazards related to this

tool. Following this rule will reduce the risk of electric shock, fire or serious injury,

Save these instructions, Refer to them frequently and use them to instruct

others who may use this tool, If you loan someone this tool, also loan them

these instructions+

BATTERY TOOL USE AND CARE

o Ensure the switch is in tile off position before inserting battery pack. Insert-

ing the battery pack into power tools that have the switch on invites accidents.

Recharge only with the charger specified by the manufacturer. A char-

ger that is suitable for one type of batter pack may create a risk of fire when

used with another battery pack

o Use power tools only with specifically designated battery packs. Use of

any other battery packs may create a risk of injury and fire.

When battery pack is not in use, keep it away from other metal objects

like paper clips, coins, keys, nails screws or other small metal objects

that can make a connection from one terminal to another. Shorting the

battery terminals together may cause burns or a fire,

Under abusive conditions, liquid may be ejected from the battery, avoid

contact, if contact accidentally occurs, flush with water, if liquid con+

tacts eyes, additionally seek medical help. Liquid ejected from the battery

may cause irritation or burns.

Battery tools do not have to be plugged into an electrical outlet; there-

fore, they are always in operating condition. Be aware of possible hazards

when not using your battery tool or when changing accessories. Following

this rule will reduce the risk of electric shock, fire or serious personal injury.

28127 ManuaLRevised_0743320 Page 7

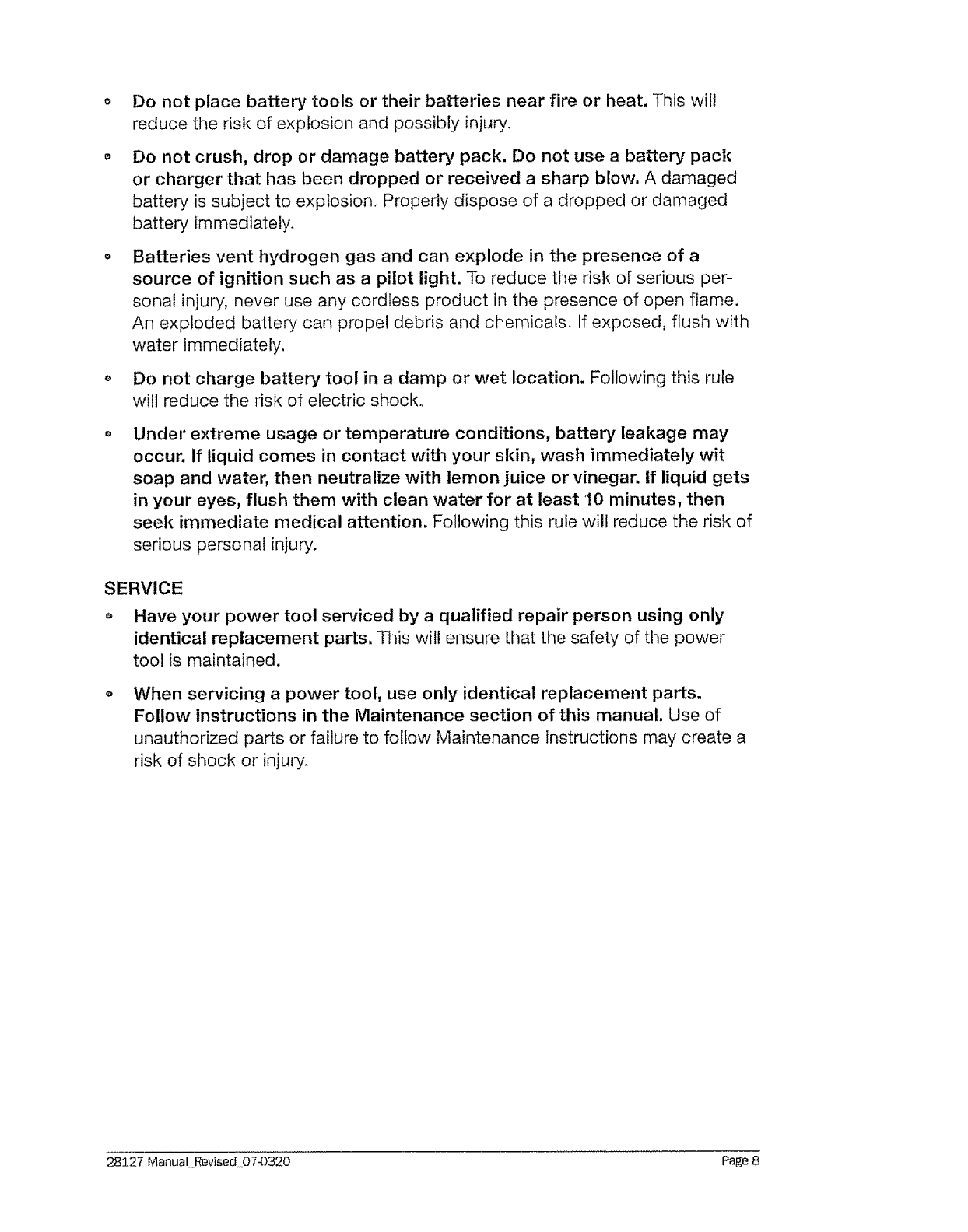

Do not place battery tools or their batteries near fire or heat. This will

reduce the risk of explosion and possibly injury.

Do not crush, drop or damage battery pack. Do not use a battery pack

or charger that has been dropped or received a sharp blow. A damaged

battery is subject to explosion. Properly dispose of a dropped or damaged

battery immediately.

Batteries vent hydrogen gas and can explode in the presence of a

source of ignition such as a pilot light. To reduce tile risk of serious per-

sonal injury, never use any cordless product in the presence of open flame.

An exploded battery can propel debris and chemicals_ If exposed, flush with

water immediately,

Do not charge battery tool in a damp or wet location, Following this rule

will reduce the risk of electric shock,

Under extreme usage or temperature conditions, battery leakage may

occur. If liquid comes in contact with your skin, wash immediately wit

soap and water, then neutralize with lemon juice or vinegar. If liquid gets

in your eyes, flush them with clean water for at least '10 minutes, then

seek immediate medical attention. Following this rule will reduce the risk of

serious personal injury.

SERVICE

o Have your power tool serviced by a qualified repair person using only

identical replacement parts. This will ensure that the safety of the power

tool is maintained.

When servicing a power tool, use only identical replacement parts.

Follow instructions in the Maintenance section of this manual. Use of

unauthorized parts or failure to follow Maintenance instructions may create a

risk of shock or injury°

28127 Manual_Revised_0743320 Page 8

SPECIFIC SAFETY RULES FOR SABRE SAW

o Position your body to either side of the saw blade and not in direct line

with the saw blade.

oDo not reach under the work piece. The blade extends under the work

piece when the saw is cutting.

o Do not touch the blade or the work piece immediately after operation;

they may be extremely hot and could burn your skin.

Do not cut an oversized work piece.

o Check for the proper clearance under the work piece before cutting, so that

the blade will not strike the workbench or material under the work piece.

Make sure that the blade is not contacting the work piece before the

switch is turned on.

Secure material before cutting. Never hold a work piece in your hand or

across your legs. Small or thin material rnay flex or vibrate with the blade,

causing loss of control.

Always use a rip fence or straightedge guide when ripping, This improves

the accuracy of the cut and reduces the chance of the blade binding,

Never cut more than one piece at a time. Do not stack more than one work

piece on the worktable at a timer

Avoid awkward operations and hand positions where a sudden slip could

cause your hand to move into the blade.

Never reach into the cutting path of the blade,

Always use blades that have the correct size and shape. Blades that do

not match the mounting hardware of the saw will run erratically and will cause

loss of control.

• For best results, your battep/tool should be charged in a location where the

temperature is more that 32 ° F (0 ° C) but less that 104°F (40°C)o Do not store

outside or in vehicles.

28127 ManuaLRevised_07-0320 Page 9

/J_k WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all

instructions listed below may result in electric shock, fire and/or serious personal injury,

o Before using battery charger, read all instructions and cautionary mark-

ings in this manual, on battery charger', battery and product using battery to

prevent misuse of the products and possible injury or damage,

CAUTION: To reduce the risk of electric shock or damage to the charger and

battery, charge only lithiumqon rechargeable batteries as specifically designated on

your charger_ Other types of batteries may burst, causing personal injury or damage.

Do not use charger outdoors or expose to wet or damp conditions, Wa-

ter entering charger will increase the risk of electric shock°

Use of an attachment not recommended or sold by the battery charger

manufacturer may result in a risk of fire, electric shock or injury to per-

sons. Following this rule will reduce the risk of electric shock, fire or serious

personal injury,

Do not abuse cord or charger. Never use the cord to carry the charger. Do

not pull the charger cord rather than the plug when disconnecting from re-

ceptacle. Damage to the cord or charger could occur and create an electric

shock hazard. Replace damaged cords immediately.

Make sure cord is located so that it will not be stepped on, tripped over,

come in contact with sharp edges or moving parts or otherwise subjected

to damage or stress. This will reduce the risk of accidental falls, which could

cause injury and damage to the cord, which could result in electric shock.

Keep cord and charger from heat to prevent damage to housing or

internal parts.

Do not let gasoline, oils, petroleum-based products, etc. come in con-

tact with plastic parts. They contain chemicals that can damage, weaken

or destroy plastic.

An extension cord should not be used unless absolutely necessary.

Use of improper extension cord could result in a risk of fire and electric

shock, if an extension cord must be used, make sure:

I, That pins on plug of extension cord are the same number, size and shape

as hose of plug on charger,

2. That extension cord is properly wired and in good electrical condition,

3. That wire size is large enough for AC ampere rating of charger as speci-

fied below:

Cord Length (Feet) 25' 150' { 100'

Cord Size (AWG) 16 I 16 ! 6

NOTE: AWG = American Wire Gauge

...................... ___.,

28127 ManuaLRevised 07©320 Page 10

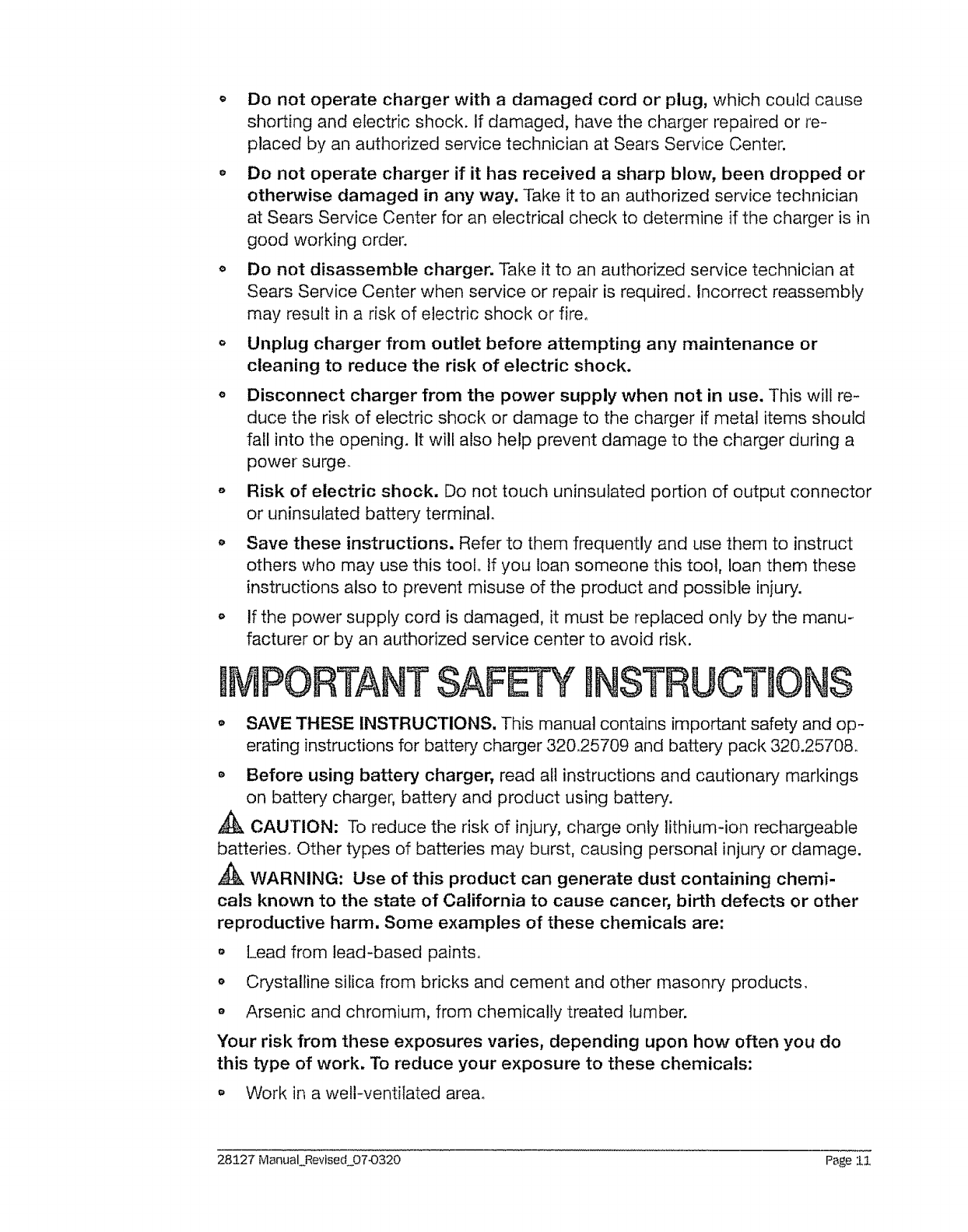

Do not operate charger with a damaged cord or plug, which could cause

shorting and electric shock. If damaged, have the charger repaired or re-

placed by an authorized service technician at Sears Service Center.

Do not operate charger if it has received a sharp blow, been dropped or

otherwise damaged in any way. Take it to an authorized service technician

at Sears Service Center for an electrical check to determine if the charger is in

good working ordel:

Do not disassemble charger. Take it to an authorized service technician at

Sears Service Center when service or repair is required. Incorrect reassembly

may result in a risk of electric shock or fire.

Unplug charger from outlet before attempting any maintenance or

cleaning to reduce the risk of electric shock.

Disconnect charger from the power supply when not in use. This wil! re-

duce the risk of electric shock or damage to the charger if metal items should

fall into the opening, It wilt also help prevent damage to the charger during a

power surge_

Risk of electric shock. Do not touch uninsulated portion of output connector

or uninsulated battery terminal.

Save these instructions. Refer to them frequently and use them to instruct

others who may use this toolo tf you loan someone this toot, loan them these

instructions also to prevent misuse of the product and possible injury.

If the power supply cord is damaged, it must be replaced only by the manu-

facturer or by an authorized service center to avoid risk.

IMPORTANTSAFEr{ NSTRUOTBONS

,, SAVE THESE INSTRUCTIONS, This manual contains important safety and op-

erating instructions for battery charger 32025709 and battery pack 320.25708.

o Before using battery charger, read all instructions and cautionary markings

on battery charger, battery and product using battery.

CAUTION: To reduce the risk of injury, charge only litMum-ion rechargeable

batteries. Other types of batteries may burst, causing personal injury or damage.

_k WARblING: Use of this product can generate dust containing chemi-

cals known to the state of California to cause cancer, birth defects or other

reproductive harm, Some examples of these chemicals are:

Lead from lead-based paints_

Crystalline silica from bricks and cement and other masonry products,

Arsenic and chromium, from chemically treated lumber.

Your risk from these exposures varies, depending upon how often you do

this type of work. To reduce your exposure to these chemicals:

o Work in a well-ventilated area.

28127 Manual Revised O7-0320 Page 11

o Work with approved safety equipment, such as those dust masks that are

specially designed to filter out microscopic particles.

Avoid prolonged contact with dust from power sanding, sawing, grinding,

drilling and other construction activities. Wear protective clothing and wash

exposed areas with soap and water, Allowing dust to get into your mouth, eyes

or' lay on the skin may promote absorption of harmful chemicals.

Fig, i

Lock- /,. Trigger Switch

Blade Clamp lever

Toot-less Blade

Clamp

Orbital Control Lever

Saw Base

PRODUCT SPECIFICATIONS

Motor voltage 20 Volt DC

Switch Variable Speed

No load Speed 0-2200/min

Length of Stroke 1 in,

Bevel angle 0° to 45 ° left and right

Orbital Motion 4 Positions

Saw Weight (without battery) 5.61bso

Battery Type Lithium-Ion

Battery Voltage 20.0 Volt DC

Charger Input 120-Volts, 60 Hz AC only

Optimum Charging Temperature 32°F (0° C) -104°F (40°0)

28127 ManuaLRevised 0743320 Page $2

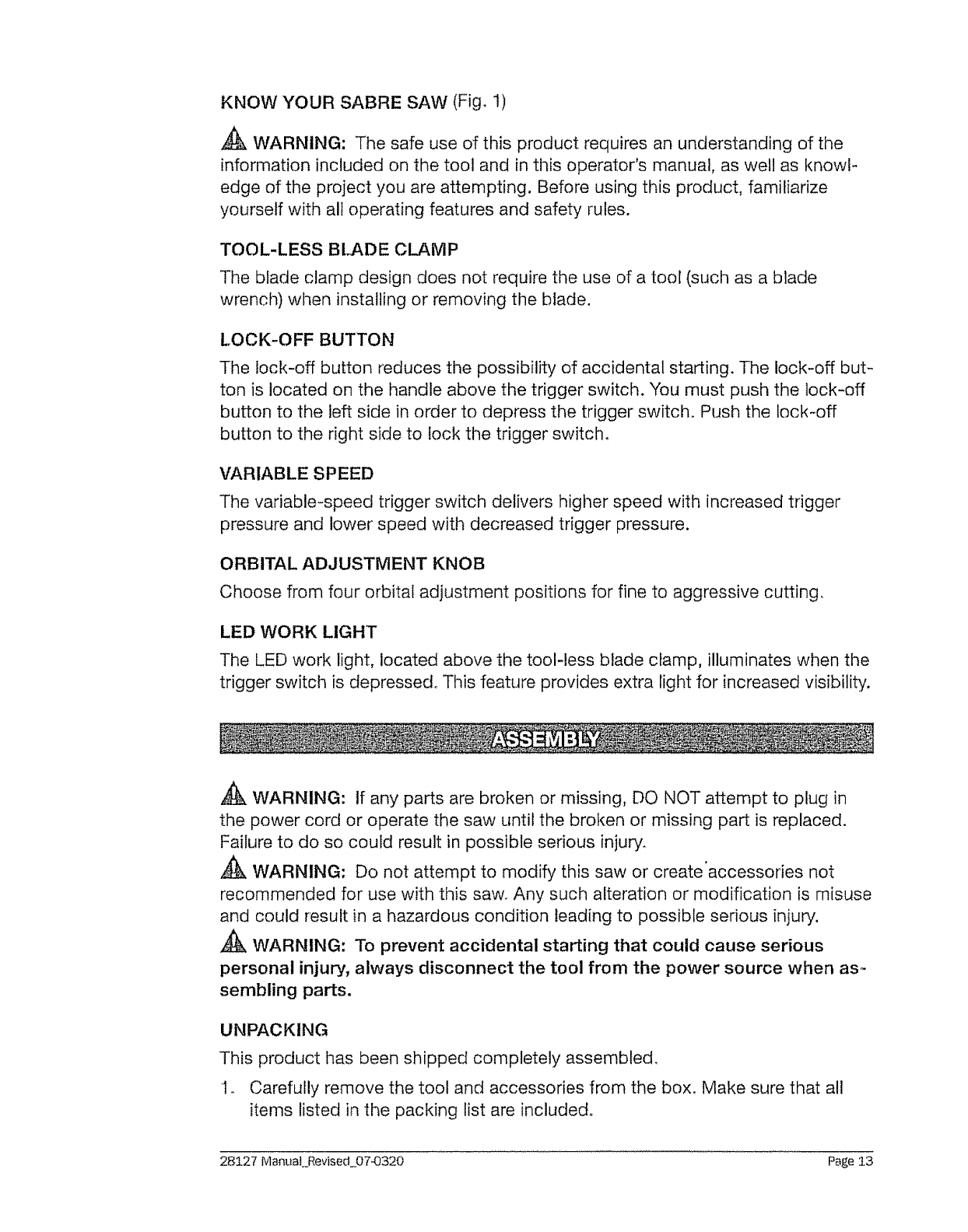

KNOW YOUR SABRE SAW (Fig, 1)

,_ WARNING: The safe use of this product requires an understanding of the

information included on the tool and in this operator's manual, as well as knowl-

edge of the project you are attempting. Before using this product, familiarize

yourself with all operating features and safety rules.

TOOL-LESS BLADE CLAMP

The blade clamp design does not require the use of a tool (such as a blade

wrench) when installing or removing the blade.

LOCK-OFF BUTTON

The lock-off button reduces the possibility of accidental starting. The lock-off but-

ton is located on the handle above the trigger switch. You must push the lock-off

button to the left side in order to depress the trigger switch. Push the lock-off

button to the right side to lock the trigger switch,

VARIABLE SPEED

The variable-speed trigger switch delivers higher speed with increased trigger

pressure and lower speed with decreased trigger pressure.

ORBITAL ADJUSTMENT KNOB

Choose from four orbital adjustment positions for fine to aggressive cutting,

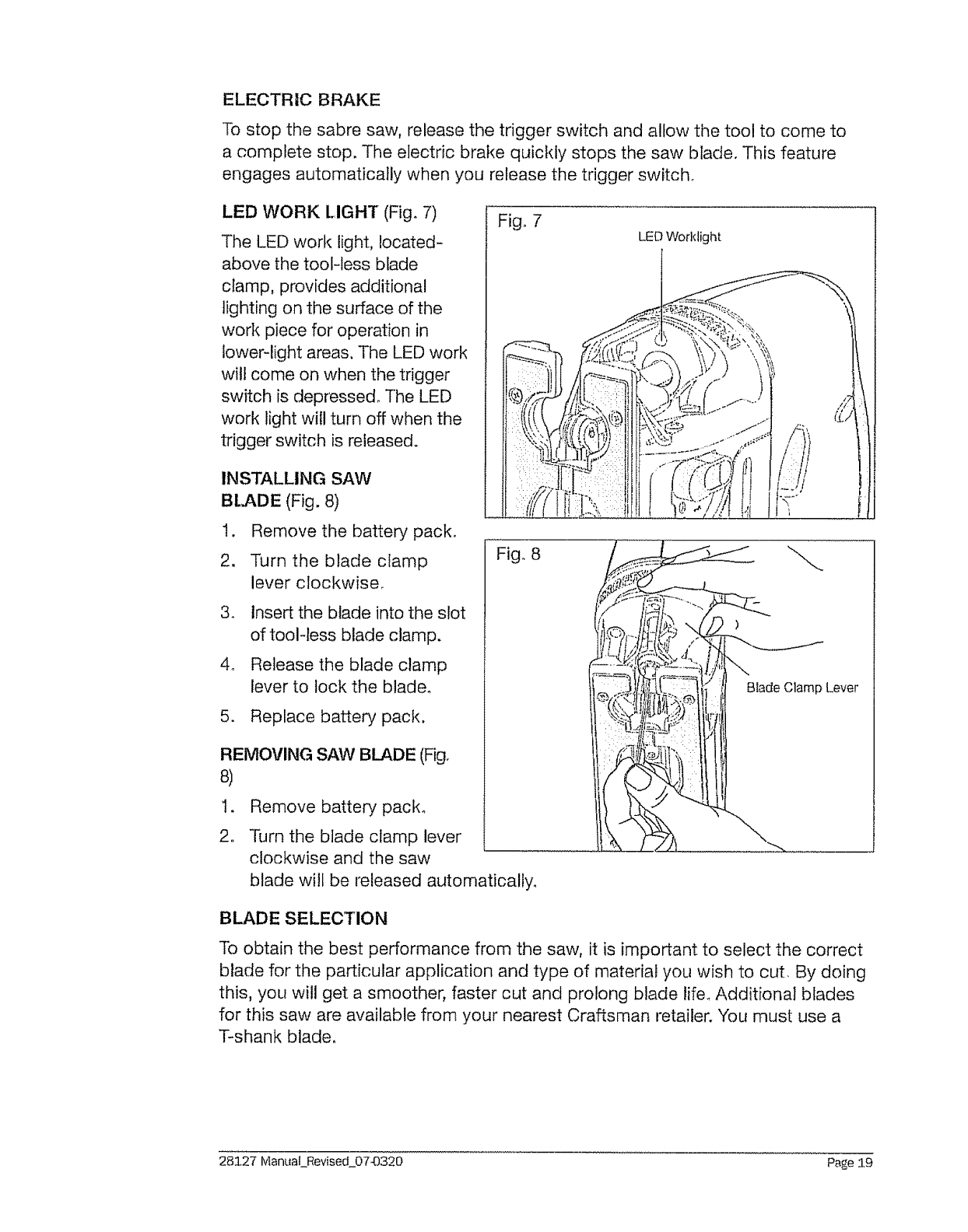

LED WORK LIGHT

The LED work light, located above the tool-less blade clamp, illuminates when the

trigger switch is depressed° This feature provides extra light for increased visibility.

_ik WARNING' tf any parts are broken or missing, DO NOT attempt to plug in

the power cord or operate the saw until the broken or missing part is replaced.

Failure to do so could result in possible serious injury,

WARNING: Do not attempt to modify this saw or create'accessories not

recommended for use with this saw, Any such alteration or modification is misuse

and could result in a hazardous condition leading to possible serious injury.

iJ_ WARNING: To prevent accidental starting that could cause serious

personal injury, always disconnect the tool from the power source when as-

sembling parts.

UNPACKING

This product has been shipped completely assembled,

1. Carefully remove the tool and accessories from the box. Make sure that al!

items listed in the packing list are included°

28127 ManuahRevised 07-0320 Page 13

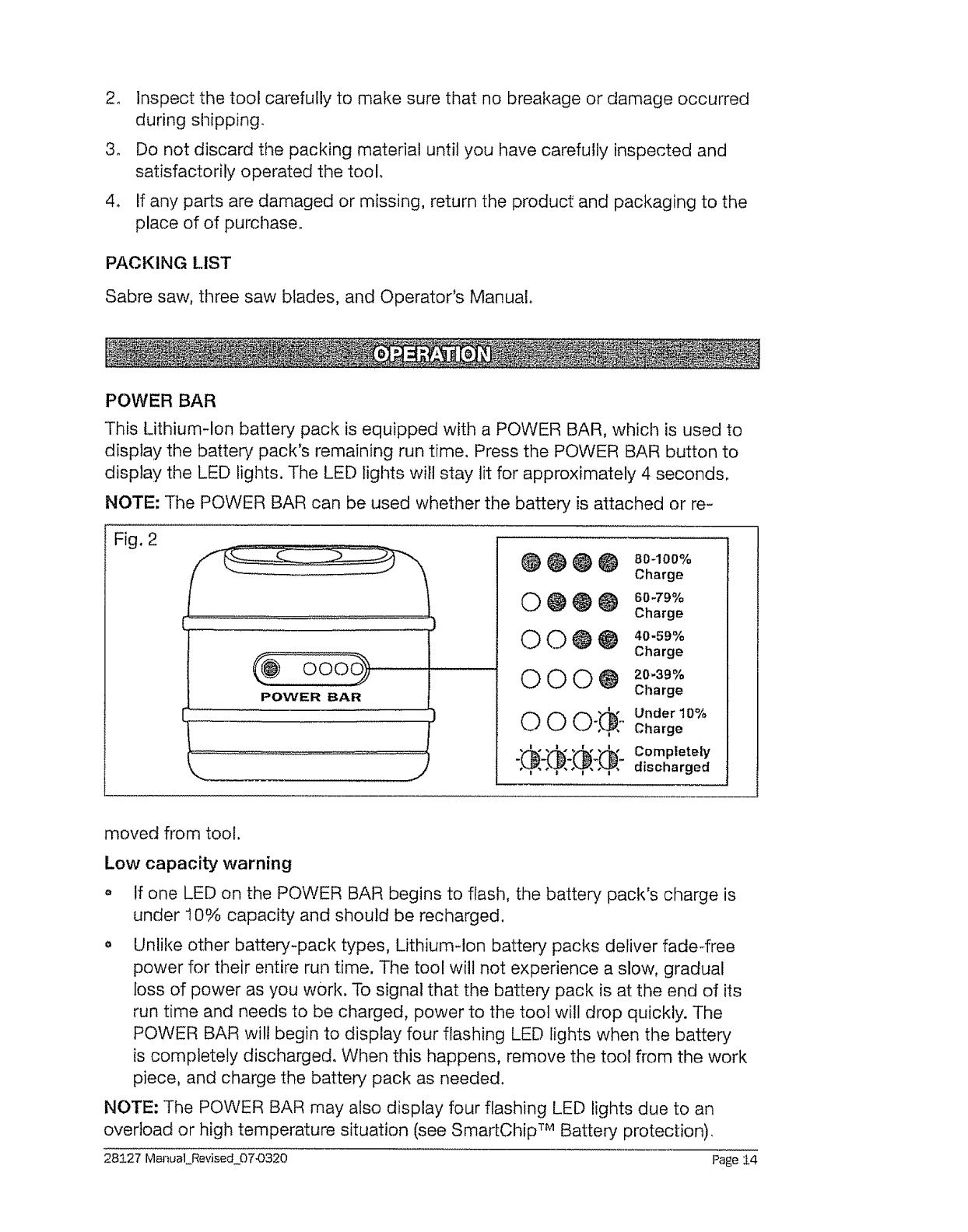

Inspect the tool carefully to make sure that no breakage or damage occurred

during shipping.

Do not discard the packing material until you have carefully inspected and

satisfactorily operated the tool.

If any parts are damaged or missing, return the product and packaging to the

place of of purchase,

PACKING LIST

Sabre saw, three saw blades, and Operator's Manual.

POWER BAR

This Lithium-ion battery pack is equipped with a POWER BAR, which is used to

display the battery' pack's remaining run time. Press the POWER BAR button to

display the LED lights. The LED lights will stay tit for approximately 4 seconds,

NOTE: The POWER BAR can be used whether the battery is attached or re-

Fig. 2

@ooo ....

POWER BAR

.........

@@@@ 80-400%

Charge

O@@@ 60.79O/o

Charge

O O @® 4o-_%

Charge

O O O ® 2o._9O/o

Charge

0 00"_" Ohar_eU"d°__0o/o

• '"''''"'' Completely

',(, "!_, _{_, _'_, _" discharged

moved from tool.

Low capacity warning

If one LED on the POWER BAR begins to flash, the batten/pack's charge is

under I0% capacity and should be recharged,

Unlike other battery-pack types, Lithium-ton battery packs deliver fade-free

power for their entire run time. The tool will not experience a slow, gradual

loss of power as you work. To signal that the battery pack is at the end of its

run time and needs to be charged, power to the tool will drop quickly. The

POWER BAR will begin to display four flashing LED lights when the battery

is completely discharged. When this happens, remove the tool from the work

piece, and charge the battery pack as needed°

NOTE: The POWER BAR may also display four flashing LED lights due to an

overload or high temperature situation (see SmartChip TM Battery protection),

28127 ManuaLRevised_07-0320 Page 14

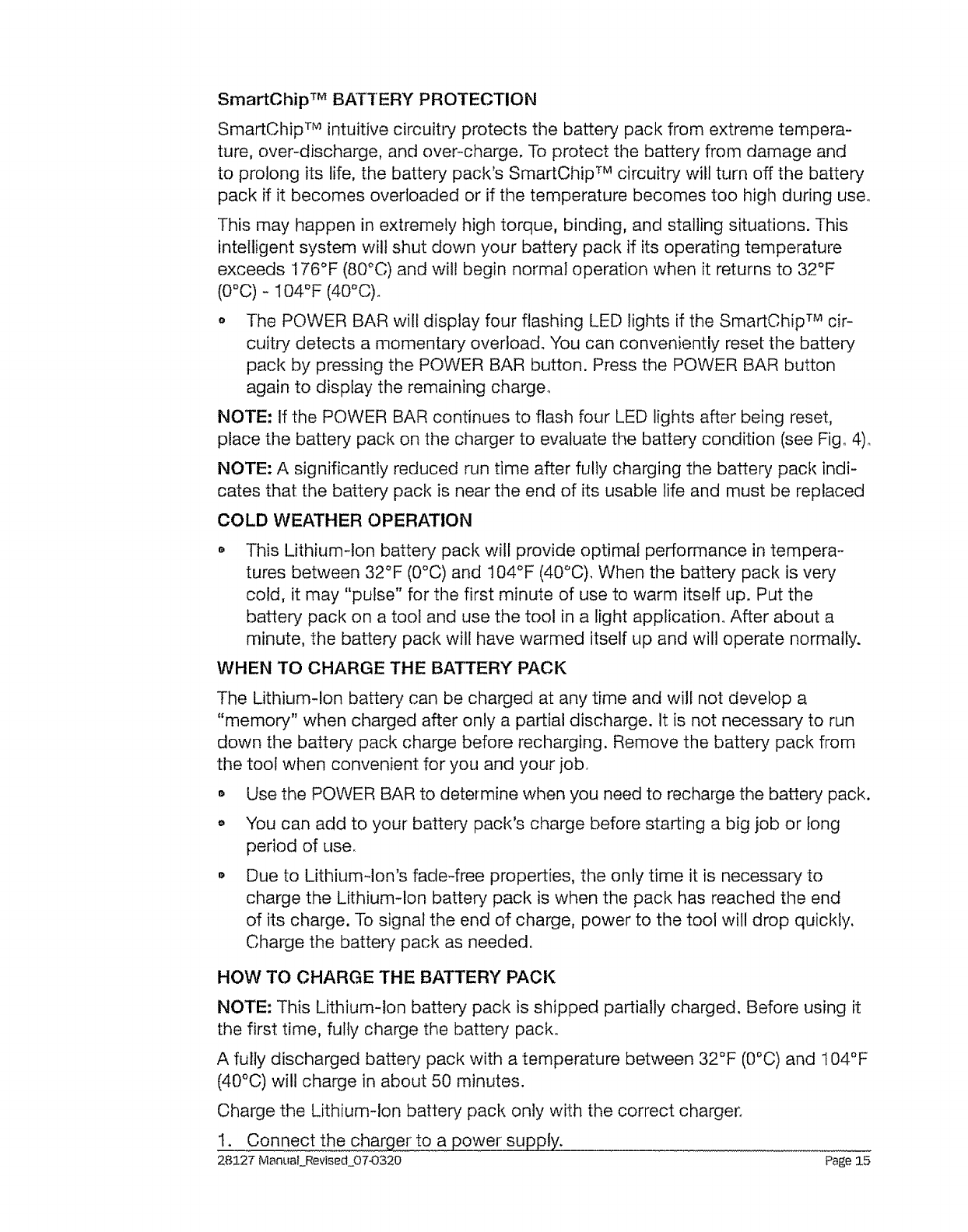

SmartChip TM BATIERY PROTECTION

SmartChip TM intuitive circuitry protects the battery pack from extreme tempera-

ture, over-discharge, and over-charge. To protect the battery from damage and

to prolong its life, the batten./pack's SmartChip TM circuitry will turn off the battery

pack if it becomes overloaded or if the temperature becomes too high during use°

This may happen in extremely high torque, binding, and stalling situations. This

intelligent system wilt shut down your battery pack if its operating temperature

exceeds 176°F (80°C) and will begin normal operation when it returns to 32°F

(0oc) - I04OF (40°C)_

The POWER BAR will display four flashing LED lights if the SmartChip TM cir-

cuitry detects a momentary overload. You can conveniently reset the battery

pack by pressing the POWER BAR button. Press the POWER BAR button

again to display the remaining charge_

NOTE: if the POWER BAR continues to flash four LED lights after being reset,

place the batter,/pack on the charger to evaluate the battery condition (see Fig. 4).

NOTE: A significantly reduced run time after fully charging the batter,i pack indi-

cates that the batter,/pack is near the end of its usable life and must be replaced

COLD WEATHER OPERATION

This Lithium-lon battery pack will provide optimal performance in tempera-

tures between 32°F (0°C) and 104°F (40°C), When the battery pack is very

cold, it may "pulse" for the first minute of use to warm itself up. Put the

battery pack on a too! and use the tool in a light application° After about a

minute, the battery pack wilt have warmed itself Lip and will operate normally.

WHEN TO CHARGE THE BATTERY PACK

The Lithium-!on battery can be charged at any time and will not develop a

"memory" when charged after only a partial discharge. It is not necessary to run

down the battery pack charge before recharging, Remove the battery pack from

the toot when convenient for you and your job.

Use the POWER BAR to determine when you need to recharge the battery pack.

You can add to your battery pack's charge before starting a big job or long

period of use.

Due to Lithiumqon's fade-free properties, the only time it is necessary to

charge the Lithium-Ion battery pack is when the pack has reached the end

of its charge. To signal the end of charge, power to the tool will drop quickly,

Charge the battery pack as needed,

HOW TO CHARGE THE BATTERY PACK

NOTE: This Lithium-ion battery pack is shipped partially charged, Before using it

the first time, fully charge the battery pack°

A fully discharged battery pack with a temperature between 320F (0°C) and 104°F

(40°C) will charge in about 50 minutes.

Charge the Lithium-Ion battery pack only with the correct charger,

I. Connect the cha_rger to a power supply.

28127 ManuaLRevised 0743320 Page 15

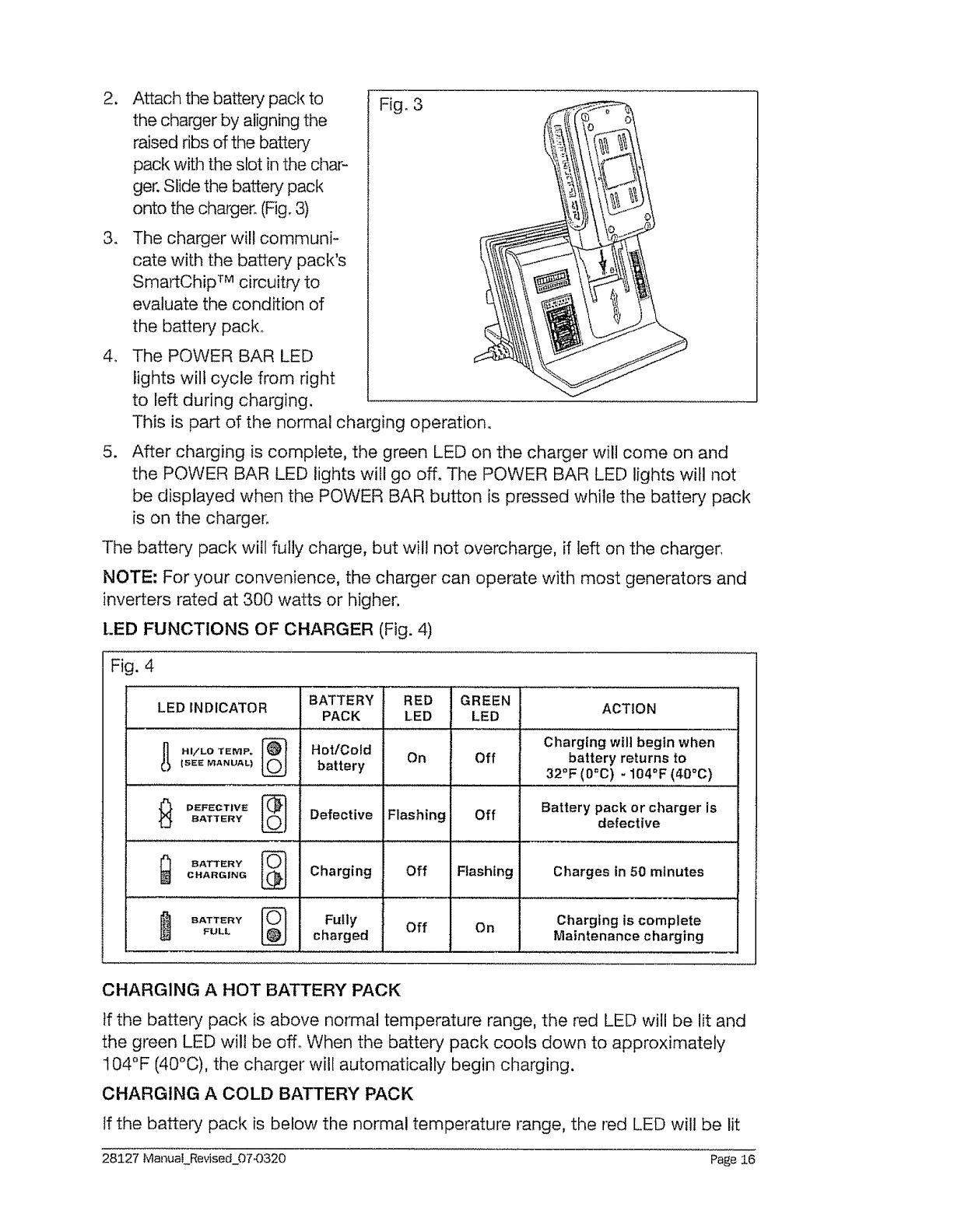

2. Fig. 3

Attach the battery pack to

the charger by aligning the

raised ribs of the battery

pack with the slot in the char-

ger. Slide the battery pack

onto the charger. (Fig. 3)

The charger will cornmuni-

cate with the battery pack's

SmartChip TM circuitry to

evaluate the condition of

the battery pack_

The POWER BAR LED

lights will cycle from right

to left during charging.

This is part of the normal charging operation.

After charging is complete, the green LED on the charger will come on and

the POWER BAR LED lights will go off. The POWER BAR LED lights will not

be displayed when the POWER BAR button is pressed while the battery pack

is on the charger:

The battery pack will fully charge, but will not overcharge, if left on the charger,

NOTE: For your convenience, the charger can operate with most generators and

inverters rated at 300 watts or higher.

LED FUNCTIONS OF CHARGER (Fig. 4)

Fig. 4

LE[_ IN D,CATOR BATTERY F{E_D _RF_EN

PACK LED LED ACT,ON

_ [_ Charging wilt begin whe

HI/LO TEIViP. HotlCold On Off battery returns to

_sEEMANUAL_ battery 32OF (0cO) . 104OF (4Doc

-- ..._......=_ ::,_::

DEFECTIVE [--_ Battery pack or charger is

BATTERY Defective Flashing Off defective

BATTERY

CHARGING Charging Off Flashing Charges in 50 minutes

_BATTERY [O----_,___}Fully Off On Charging is complete

FULL charged Maintenance charging

I_ L_

CHARGING A HOT BATTERY PACK

tf the battery pack is above normal temperature range, the red LED will be lit and

the green LED will be off. When the battery pack cools down to approximately

I04°F (40°C), the charger wil! automatically begin charging.

CHARGING A COLD BATTER"( PACK

If the battery pack is below the normal temperature range, the red LED will be lit

28127 ManuaLRevised_074)320 Page 16

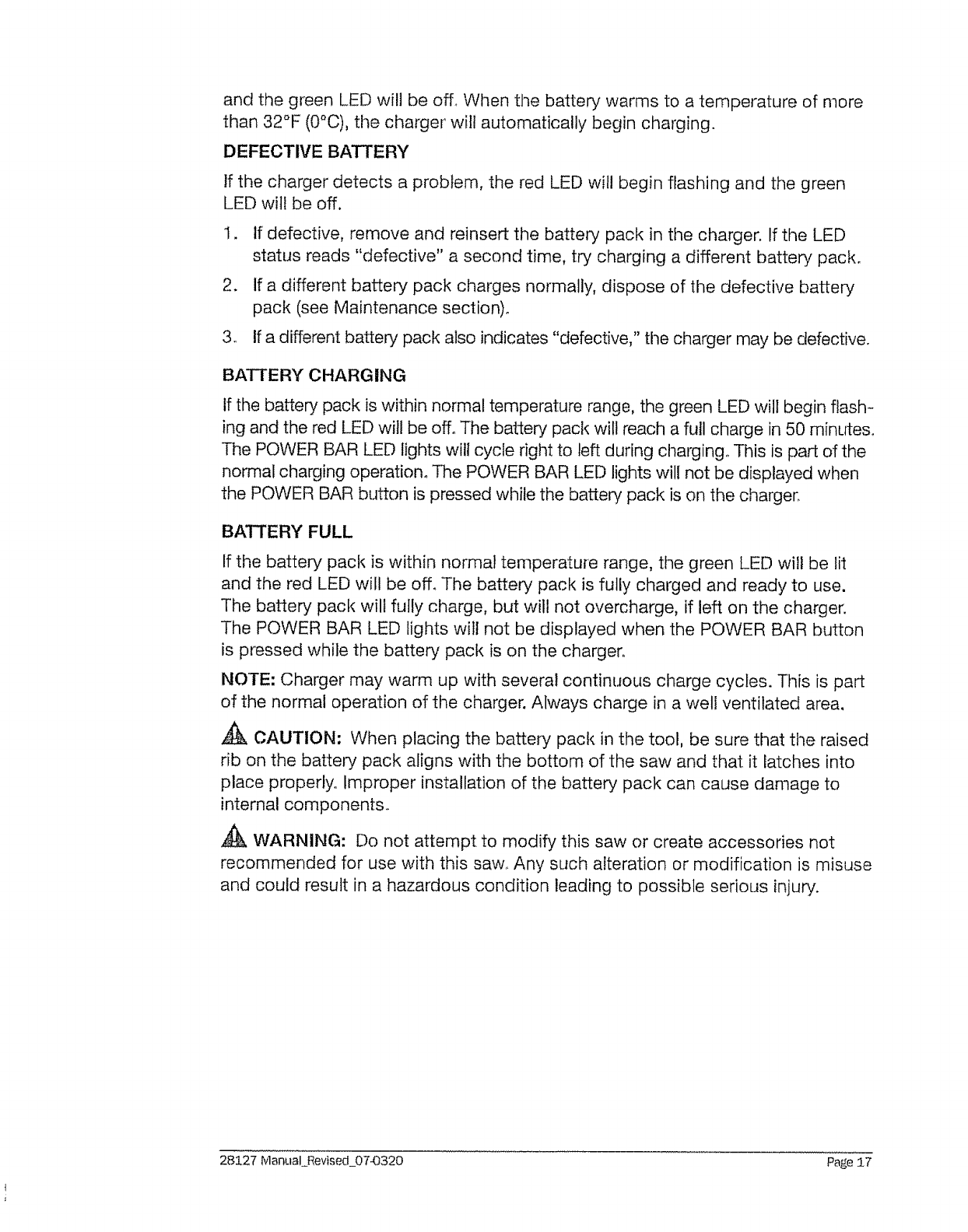

and the green LED will be off_ When the battery warms to a temperature of more

than 32°F (0°C), the charger' wilt automatically begin charging.

DEFECTIVE BATTERY

If the charger detects a problem, the red LED wil! begin flashing and the green

LED will be off.

1, If defective, remove and reinsert the battery pack in the charger. If the LED

status reads "defective" a second time, try charging a different battery pack.

2. if a different battery pack charges normally, dispose of the defective battery

pack (see Maintenance section)°

3. If a different batter,! pack also indicates "defective," the charger may be defective.

BATTERY CHARGING

if the batten/pack is within normal temperature range, the green LED will begin flash-

ing and the red LED will be off. The battery pack will reach a full charge in 50 minutes_

The POWER BAR LED lights will cycle right to left during charging. This is pant of the

normal charging operation. The POWER BAR LED lights will not be displayed when

the POWER BAR button is pressed while the battery pack is on the charger.

BATTERY FULL

If the battery pack is within normal temperature range, the green LED will be lit

and the red LED will be off. The battery pack is fully charged and ready to use.

The battery pack will fully charge, but will not overcharge, if left on the charger.

The POWER BAR LED lights will not be displayed when the POWER BAR button

is pressed while the battery pack is on the charger.

NOTE: Charger may warm up with several continuous charge cycles. This is part

of the normal operation of the charger. Always charge in a well ventilated area.

_k CAUTION: When placing the battery pack in the tool, be sure that the raised

rib on the battery pack aligns with the bottom of the saw and that it latches into

place properly° Improper installation of the battery pack can cause damage to

internal components.

WARNING: Do not attempt to modify this saw or create accessories not

recommended for use with this saw,. Any such alteration or modification is misuse

and could result in a hazardous condition leading to possible serious injury.

28127 Manual Revised_074)320 Page !7

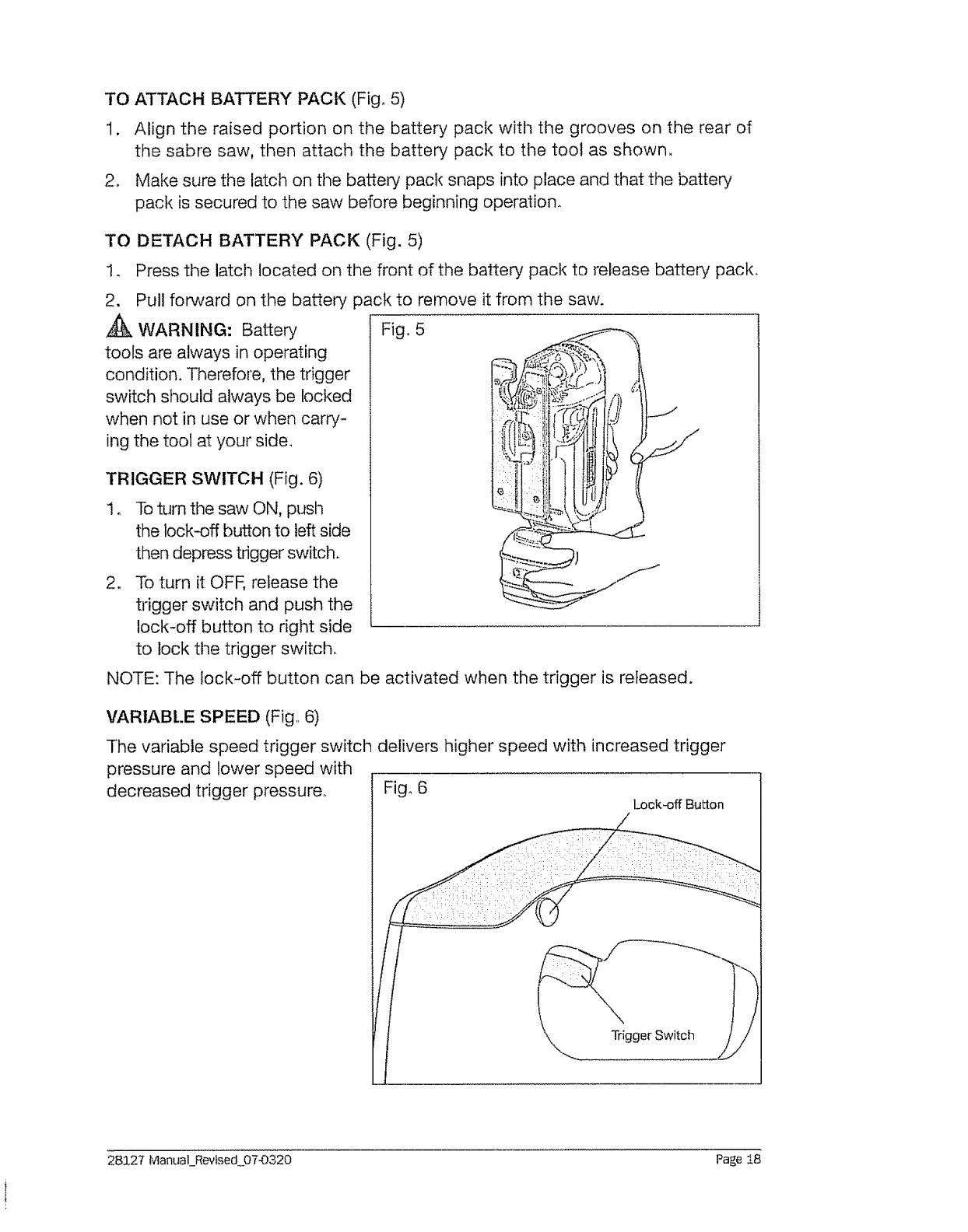

TO ATTACH BATTERY PACK (Fig, 5)

1. Align the raised portion on the battery pack with the grooves on the rear of

the sabre saw, then attach the battery pack to the tool as shown,

2. Make sure the latch on the battery pack snaps into place and that the batter,/

pack is secured to the saw before beginning operation°

TO DETACH BATTERY PACK (Fig. 5)

1. Press the latch located on the front of the battery pack to release battery pack.

Pull forward on the battery pack to remove it from the saw.

,4_ WARNING: Battery

tools are always in operating

condition. Therefore, the trigger

switch should always be locked

when not in use or when carry-

ing the tool at your side.

TRIGGER SWITCH (Fig. 6)

Toturn the saw ON, push

the lock-off button to left side

then depress tdgger switch.

To turn it OFF, release the

trigger switch and push the

lock-off button to right side

to lock the trigger switch.

Fig, 5

l'; :i' ,C ,lilFj

½: ,_u ,j.j

NOTE: The lock-off button can be activated when the trigger is released.

VARIABLE SPEED (Fig. 6)

The variable speed trigger switch delivers higher speed with increased trigger

pressure and lower speed with

decreased trigger pressure° Fig_ 6 Lock-off Bu_on

Trigger Switch

28127 Manual_Revised 07-0320 Page 18

ELECTRIC BRAKE

To stop the sabre saw, release the trigger switch and allow the tool to come to

a complete stop. The electric brake quickly stops the saw blade. This feature

engages automatically when you release the trigger switch_

LED WORK LIGHT (Fig° 7)

The LED work light, located-

above the tool-less blade

clamp, provides additional

lighting on the surface of the

work piece for operation in

lower-light areas. The LED work

will come on when the trigger

switch is depressed. The LED

work light will turn off when the

trigger switch is released.

INSTALLING SAW

BLADE (Fig. 8)

1. Remove the battery pack.

2. Turn the blade clamp

lever clockwise_

3. Insert the blade into the slot

of tool-less blade clamp.

4o Release the blade clamp

lever to lock the blade°

5. Replace batlery pack.

REMOVING SAW BLADE (Fig.

IFig. 7 LED Worklight

1. Remove battery pack°

2. Turn the blade clamp lever

clockwise and the saw

Fig. 8

:llll;J4'J :

blade will be released automatically°

BLADE SELECTION

To obtain the best performance from the saw, it is important to select the correct

blade for the particular application and type of material you wish to cut, By doing

this, you will get a smoother, faster cut and prolong blade life_ Additional blades

for this saw are available from your nearest Craftsman retailer. You must use a

T-shank blade.

28127 Manual_Revised 074_320 Page 19

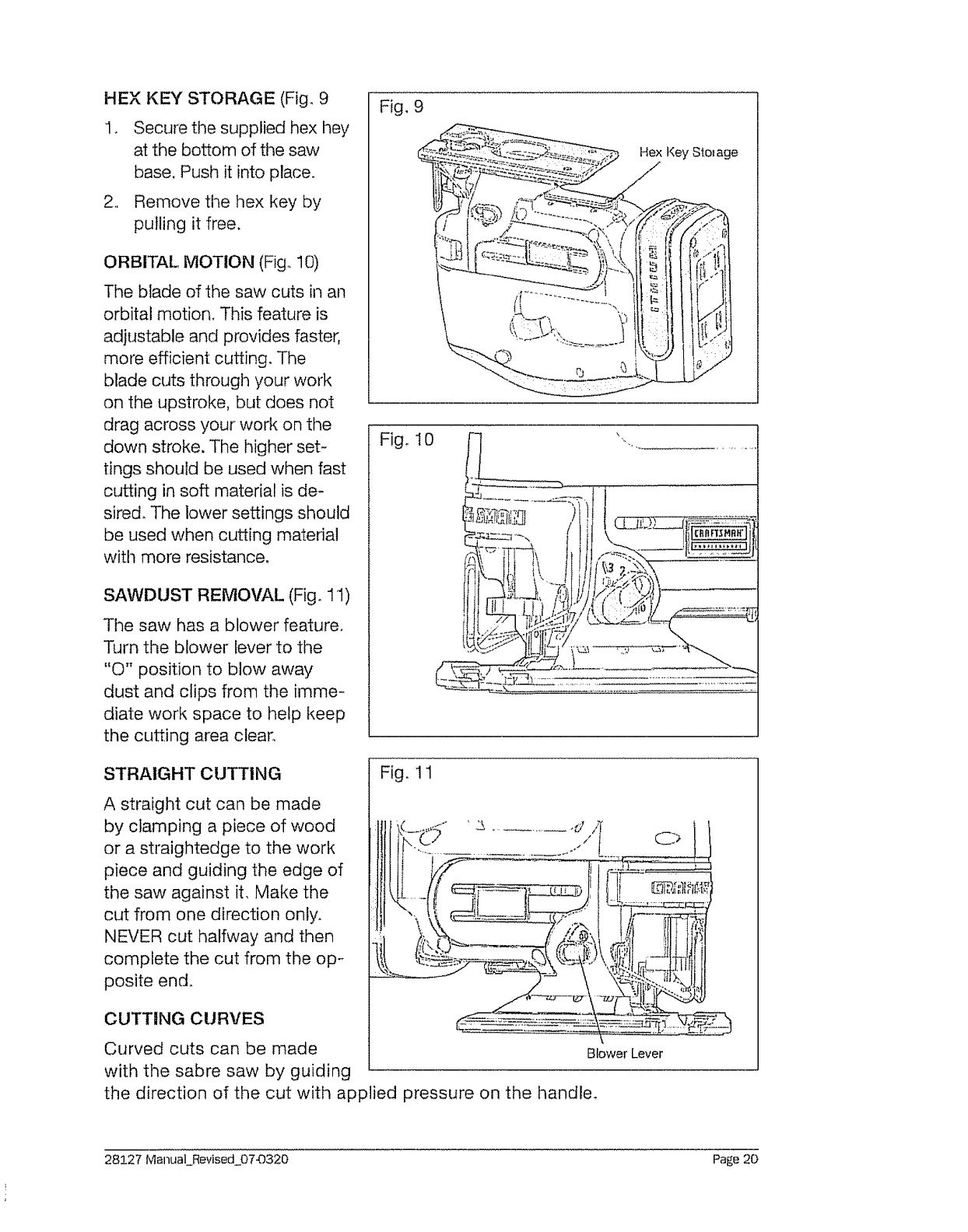

HEX KEY STORAGE (Fig. 9

I. Secure the supplied hex hey

at the bottom of the saw

base. Push it into place.

2., Remove time hex key by

pulling it free.

ORBITAL MOTION (Fig. 10)

The blade of the saw cuts ill an

orbital motion. This feature is

adjustable and provides faster,

more efficient cutting. The

blade cuts through your work

on the upstroke, but does not

drag across your work on the

down stroke. The higher set-

tings should be used when fast

cutting in soft material is de-

sired. The lower settings should

be used when cutting material

with more resistance_

SAWDUST REMOVAL (Fig. 11)

The saw has a blower feature.,

Turn the blower lever to the

"0" position to blow away

dust and clips from the imme-

diate work space to help keep

the cutting area clem

Fig. 9

Fig. 10 "-.................

:)] i; _ _IL),',_IF__-_:::..I..:i_

/u t. - lli lit

STRAIGHT CUTTING

A straight cut can be made

by clamping a piece of wood

or a straightedge to the work

piece and guiding the edge of

the saw against iL Make the

cut from one direction only.

NEVER cut halfway and then

complete the cut from the op-

posite end.

CUTTING CURVES

Curved cuts can be made

with the sabre saw by guiding

Fig. 11

_'t,f,2 ![_ '""" -

Blower Lever

the direction of the cut with applied pressure on the handle.

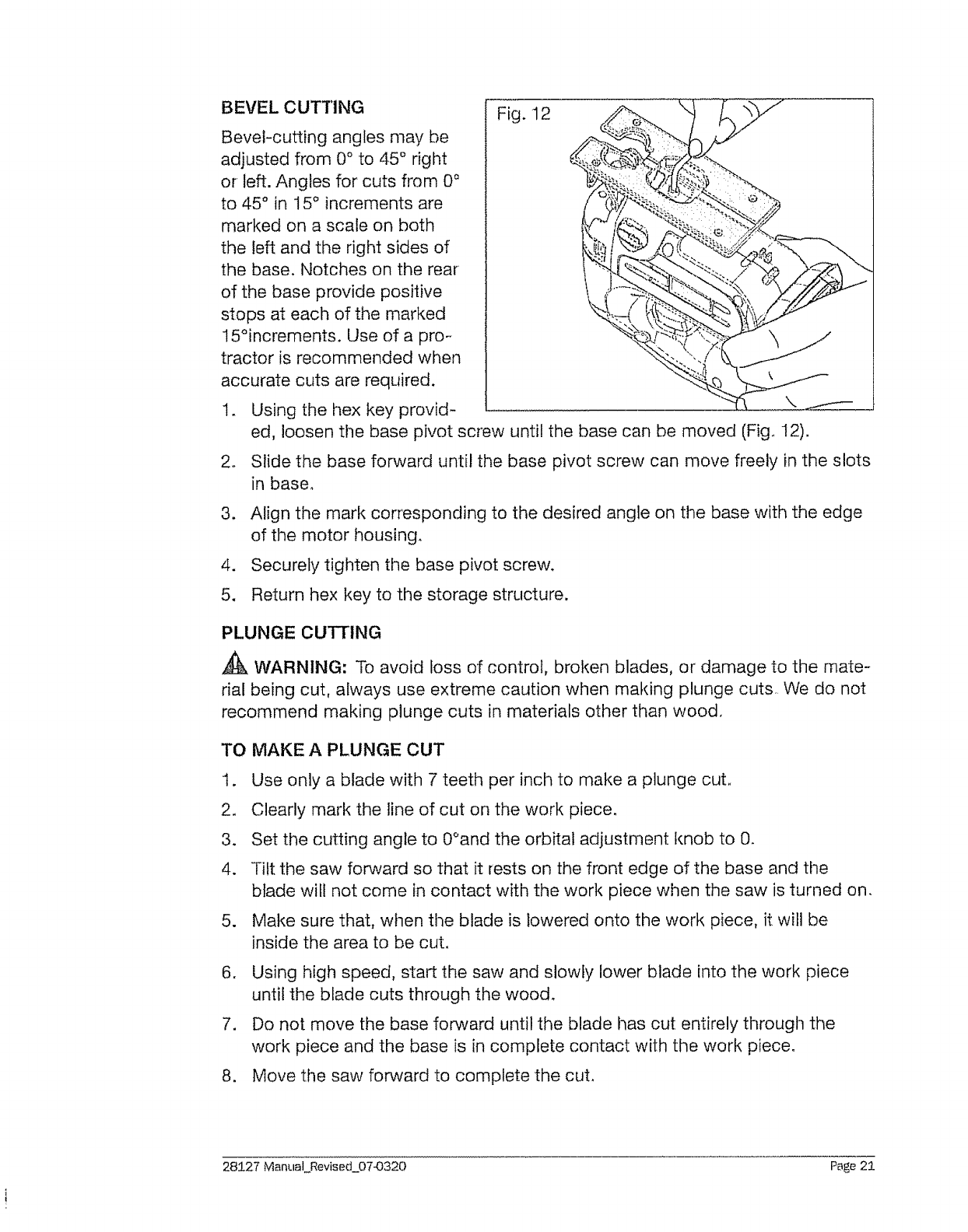

BEVEL CUTTING

Bevel-cutting angles may be

adjusted from 0° to 45 ° right

or left. Angles for cuts from 0 °

to 45 ° in 15 ° increments are

marked on a scale on both

the left and the right sides of

the base, Notches on the rear

of the base provide positive

stops at each of the marked

15°increments. Use of a pro-

tractor is recommended when

accurate cuts are reqLIired.

1, Using the hex key provid-

Fig. 12

ed, loosen the base pivot screw until the base can be moved (Fig, 12).

Slide the base forward until the base pivot screw can move freely in the slots

in base,

3. Align the mark corresponding to the desired angle on the base with the edge

of the motor housing,

4. Securely tighten the base pivot screw.

5. Return hex key to the storage structure,

PLUNGE CUTTING

WARNING: To avoid loss of control, broken blades, or damage to the mate-

rial being cut, always use extreme caution when making plunge cuts, We do not

recommend making plunge cuts in materials other than wood.

TO MAKE A PLUNGE CUT

t. Use only a blade with 7 teeth per inch to make a plunge cuL

2. Clearly mark the line of cut on the work piece.

3. Set the cutting angle to 0°and the orbital adjustment knob to 0.

4. Tilt the saw forward so that it rests on the front edge of the base and the

blade will not come in contact with the work piece when the saw is turned on.

5. Make sure that, when the blade is lowered onto the work piece, it will be

inside the area to be cut.

6. Using high speed, start the saw and slowly lower blade into the work piece

until the blade cuts through the wood.

7. Do not move the base forward until the blade has cut entirely through the

work piece and the base is in complete contact with the work piece.

8. Move the saw forward to complete the cut.

28127 Manual Revised 07-0320 Page 21

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible

to damage from commercial solvents and may be damaged by their user Use

clean cloths to remove dirt, dust, oil, grease, etc

WARNING: Do not at any time allow brake fluids, gasoline, petroleum-based

products, penetrating oils, etc., to come in contact with plastic parts. Chemicals can

damage, weaken or destroy plastic which may result in serious personal injur,/.

WARNING: To avoid serious personal injury, always remove the battery pack

from the tool and unplug the charger when cleaning or performing any maintenance.

BATTERIES

The battery pack is equipped with Lithium-Ion rechargeable batteries. The dura-

tion of use from each charge will depend on the type of work performed.

The batteries for this tool have been designed to provide maximum trouble-free

life, Like all batteries, they will eventually wear out, Do not disassemble the bat-

tery pack or attempt to replace the batteries. Handling of the batteries, espe-

cially when wearing rings and jewelry, could result in a serious burn.

To obtain the longest possible battery life, read and understand the operators manual.

It is good practice to unplug the charger and remove the Lithium-lon battery pack

when not in use. For Lithium-Ion battery pack storage longer than 30 days:

o Store tile Lithium-Ion battery pack where the temperature is below 80°F

(26°0) and free of moisture,

o Store Lithium-Ion battery packs in a 30%_50% charged condition.

o Every six months of storage, fully charge the Lithium-Ion battery pack.

• Exterior may be cleaned with a cloth or soft non-metallic brush,

BATTERY PACK REMOVAL AND PREPARATION FOR RECYCLING

To preserve natural resources, please recycle or dispose of bat-

teries properly. This product contains lithium-ion batteries. Local,

state or federal laws may prohibit disposal of lithium-ion batteries

in ordinary trash. Consult your local waste authority for information

regarding available recycling and/or disposal options.

,_k WARNING: Upon removal, cover the battery pack's terminals

•

with heavy-duty adhesive tape. Do not attempt to destroy or disassemble the

battery pack or remove any of its components. Lithium-Ion batteries must be re-

cycled or disposed of properly. Also, never touch the terminals with metal objects

and/or body parts as a short circuit may result. Keep away from children. Failure

to comply with these warnings could result in fire and!or serious injury_

PROBLEM

Blade cannot be

installed

CAUSE

Blade is incorrect

SOLUTION

Use "T" shank blade only

The trigger cannot

be depressed

The "LOCK-OFF" switch is

engaged

The Saw does not

work

Battery is depleted

Battery is protected

Release the lock-off switch

Charge the battery

Reset the battery by de-

pressing the "Power Bar"

20.0-Volt Lithium-lon Cordless Sabre Saw. Model number 320.28127, The model

number is also found on the toot's nameplate° Always mention the tool's model

number when ordering parts,

3320433000 LeE Housing Assy

3320434000 Right Housing Assy

2730127000 DC Motor

5620041000 Screw

5 3420529000

352023900O

Located Block

Spline Gear

7 3550810000 Pinion

8 3123122000 Fan

9 5700011000 Ball Bearing

10 5630003000 Hexagon Nut 2

11 3402174000 Pendulum Lever 1

12 3420533000 Gear Case 1

I3 3123123000 Blowing Knob 1

14 3550165000 Located Pin 5

I 7

, ,,,,,,,, ,,,, ,,,,

5670175000

3700184000

3703717000

3520244000

2822262000

2822159000

5700029000

Washer D

Pendulum Plate

Counterweight

Counterweight Set

Gear Set

Needle Bearing

3550186000 Gear Shaft 1

3700183000 Washer C 1

5660007000 i Circlips For Shaft . 1

25 5700022000 Needle Bearing

3550214000 Crank Roller

5620068000 Screw

3550172000 Drive Bracket

3550813000

3520240000

3520241000

Suppod Bar I

UpperSliding Bearing I

Suppo_ I

3550812000 , Guiding Rod • ., 2

3550792000 Plunger 1

3520046000 Drive Bracket Clamp 1

35 5670160000 Pin 1

36 5620038000 Screw 2

37 5650008000 Spring Washer 2

38 5650006000 Plain Washer 2

39 3520242000 Sliding Bearing Support 1

40 3520243000 Lower Sliding Bearing 1

4I 5650168000 Spring Washer I

42 3660281000 Torsion Spring 1

43 5620368000 Screw 1

44 3120444000 Dust Seal 1

45 3700165000 Gasket

46 5670159000 Pin

, ,,,,,,,,,,, .... ,........ ,,, ,,,, ,, ,,,,, ,,, ,,,, ,,, ,,, ,,,

47 3660275000 Torsion Spring

48 3550793000 Rotate Bush

28127 ManuaLRevised_07-0320 Page 24

49 3810006000 Sabre saw Blade 1

50 3420534000 Gear Case Cover 1

51 5620040000 Screw 4

52 3123125000 Wrench 1

53 3123413000 LED Cover

54 3650082000 Wire Guard

55 3550814000 Pendulum pin

.......................

56 3550883000 Guiding Roller Support Pin

57 3703719000 Guiding Roller Support 1

58 3550811000 I

59 5700021000

60 3550878000

61 5690125000

62 3420532000

Guiding Roller

Needle Bearing 1

Guiding Roller Pin 1

E RING 1

Right Alum Cover 1

63 5610106000

64 5610013000

67 3123126000

68 4870303000

.......,... _ .

69 3402164000

Tapping Screw

5610079000 Thread Forming Screw 8

4890363000 PCB Assembly 1

70 3420531000

Lock Button 1

Switch 1

Receptacle 1

Left Alum Cover 1

r........................ _..

71 3700973000 Name Plate

72 3123124000 Fan Baffle

73 3420530000 Base Plate

74 3703718000 Base Plate Cover

75 5620213000

76 5680031000

Hexagon Socket Screw

Hexagon Wrench

28127 ManuaLRevised 07-O320 Page 25

28127Manual_Revised07-0320 Page 26

28127ManualRevised_07-0320 Page27

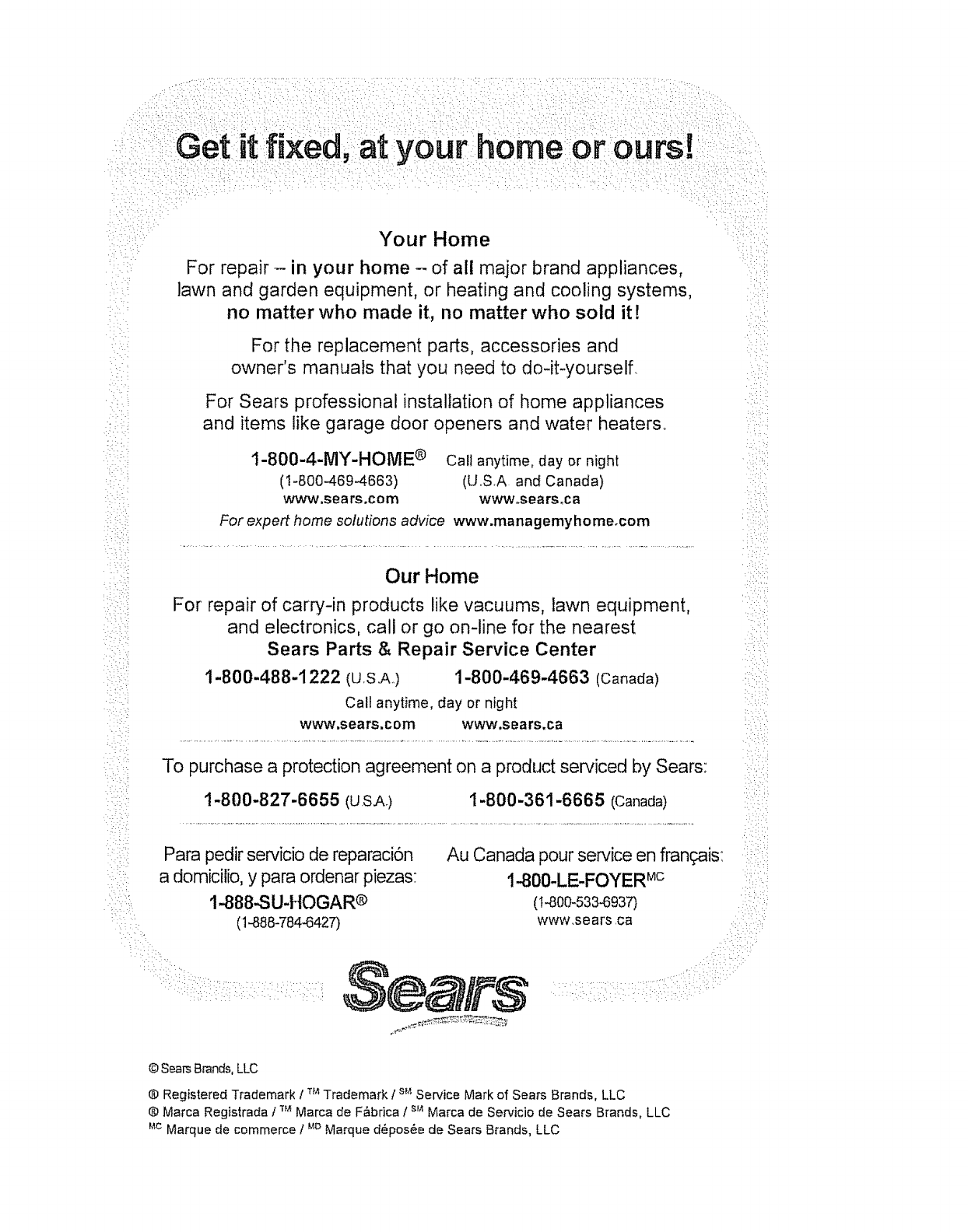

Get tried, at your homeor ours!

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters..

1-800-4-MY-HOME ® Call anytime, day Dr night

(1-8004694663) (U.SA and Canada)

www,sears,com WWWoSears.ca

For expert home solutions advice www.managemy home.corn

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts & Repair Service Center

1-800-488-1222 (US,A,) 1-800-469-4663 (Canada)

Cali anytime, day or night

www.sears.corn www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (USA) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR®

(1-888-784-6427)

Au Canada pour service en franr_,,ais:

1-800-LE-FOYER Mc

(I-800-533-6937)

www,se airs ,ca

® Registered Trademark 1_r_4Trademark Is,4 Service Mark of Sears Brands, LLC

® Marca Registrada tT_ Marca de F_,brica /sf4 Marca de Servicio de Sears Brands, LLC

Mc Marque de commerce f_D Marque d_pos_a de Sears Brands, LLC

Craftsman 32028127 User Manual SABRE SAW Manuals And Guides L0907103

CRAFTSMAN Saw Sabre Manual L0907103 CRAFTSMAN Saw Sabre Owner's Manual, CRAFTSMAN Saw Sabre installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
