Operator's Manual

CRRFTSMRNo

Bench Top

JOINTER/PLANER

Model No.

351.217680

CAUTION: Read and follow

all Safety Rules and Operating

Instructions before First Use

of this Product.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

16303.00 Draft (01/04/00)

Warranty.................................. 2

Safety Rules .............................. 2-3

Unpacking ................................. 3

Assembly ................................. 3

Installation ............................... 4-5

Operation ................................ 5-9

Maintenance ............................ 9-10

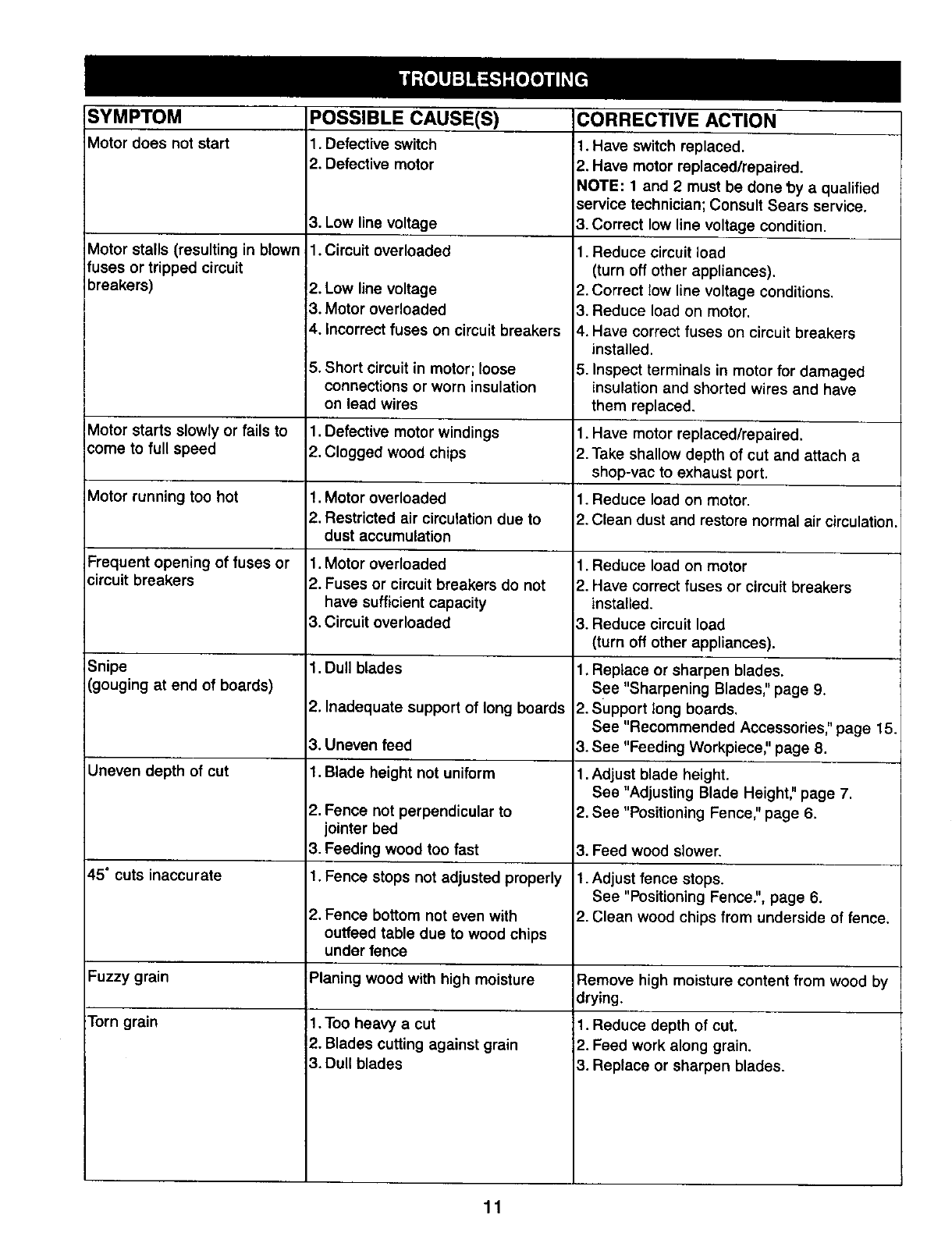

Troubleshooting ............................ 11

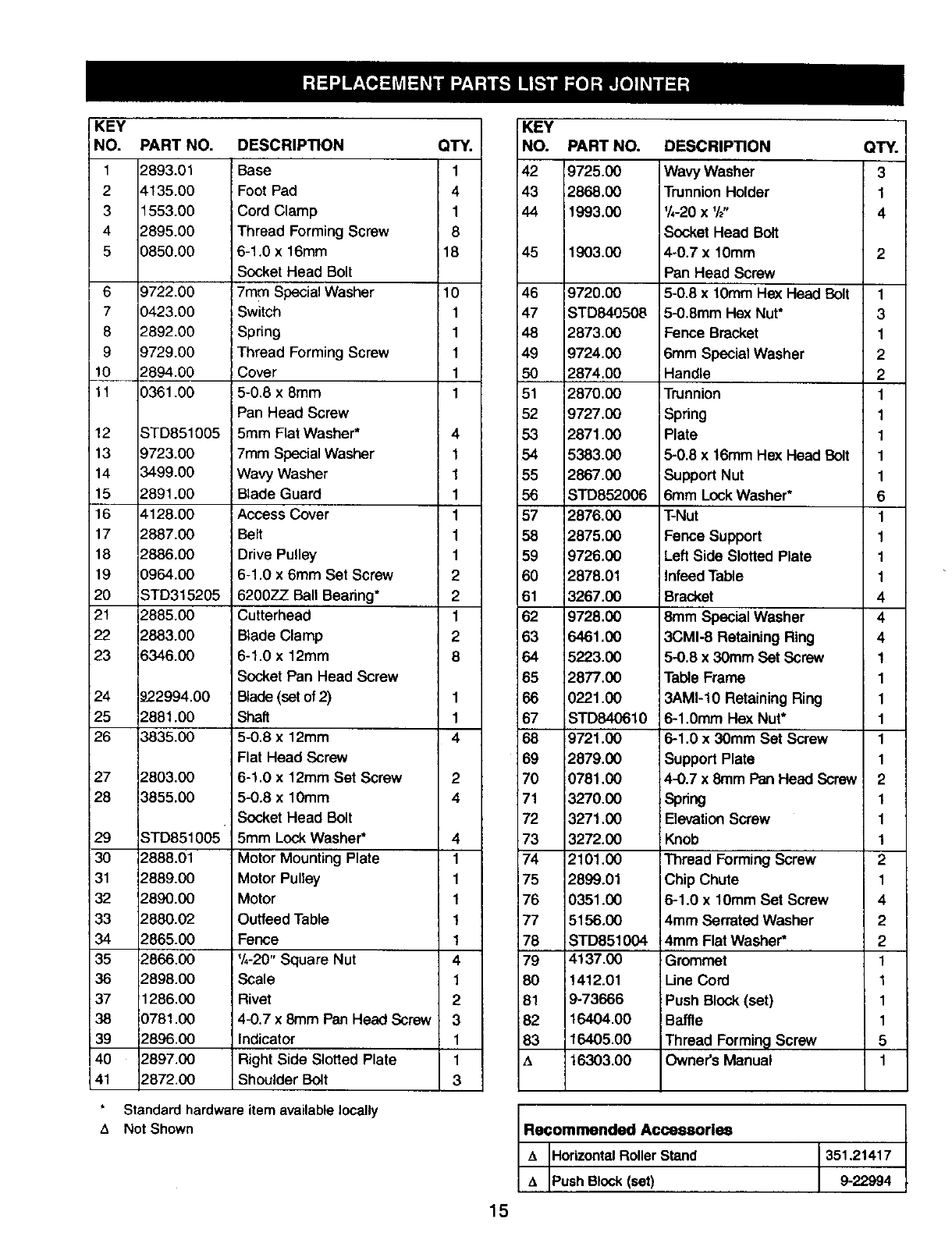

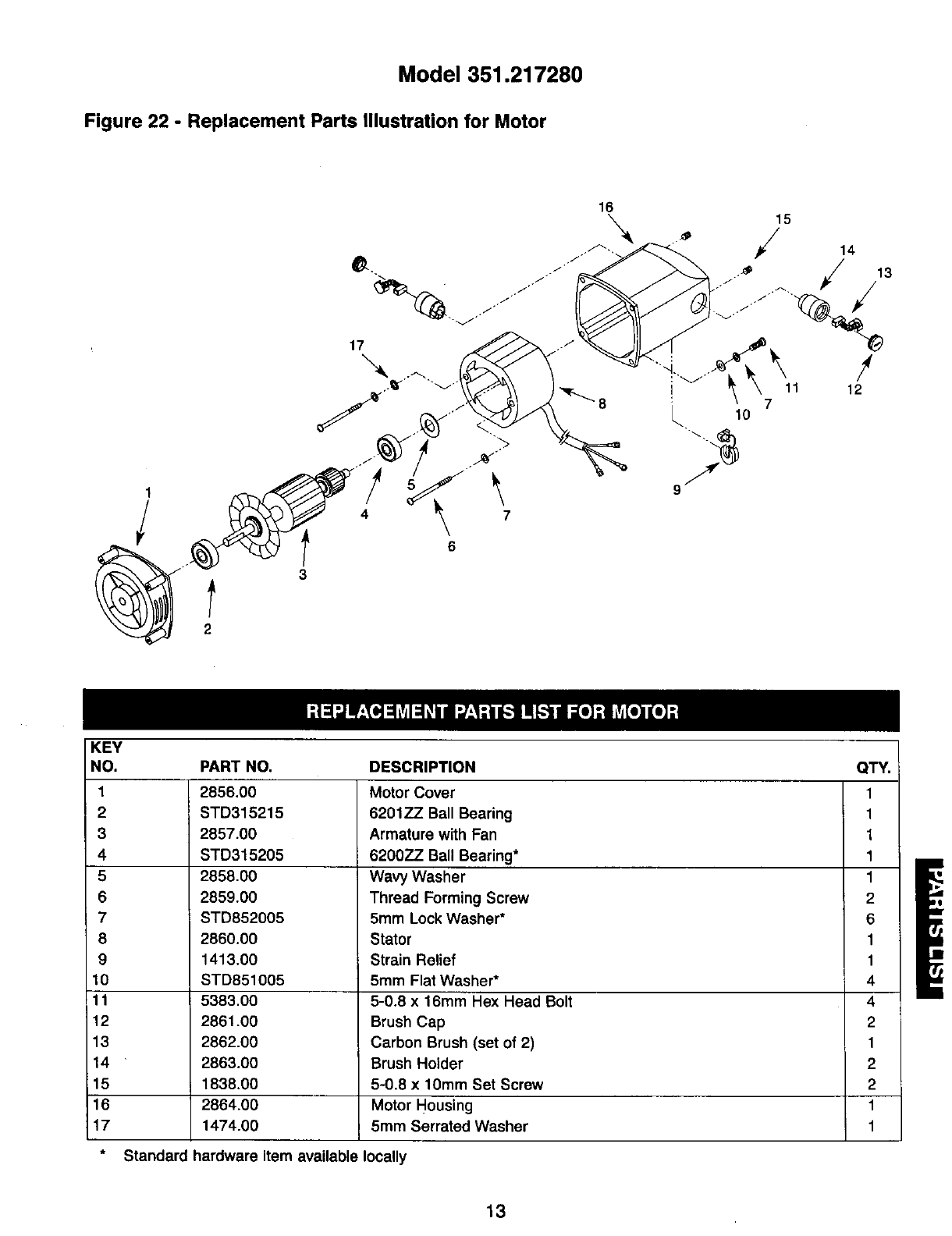

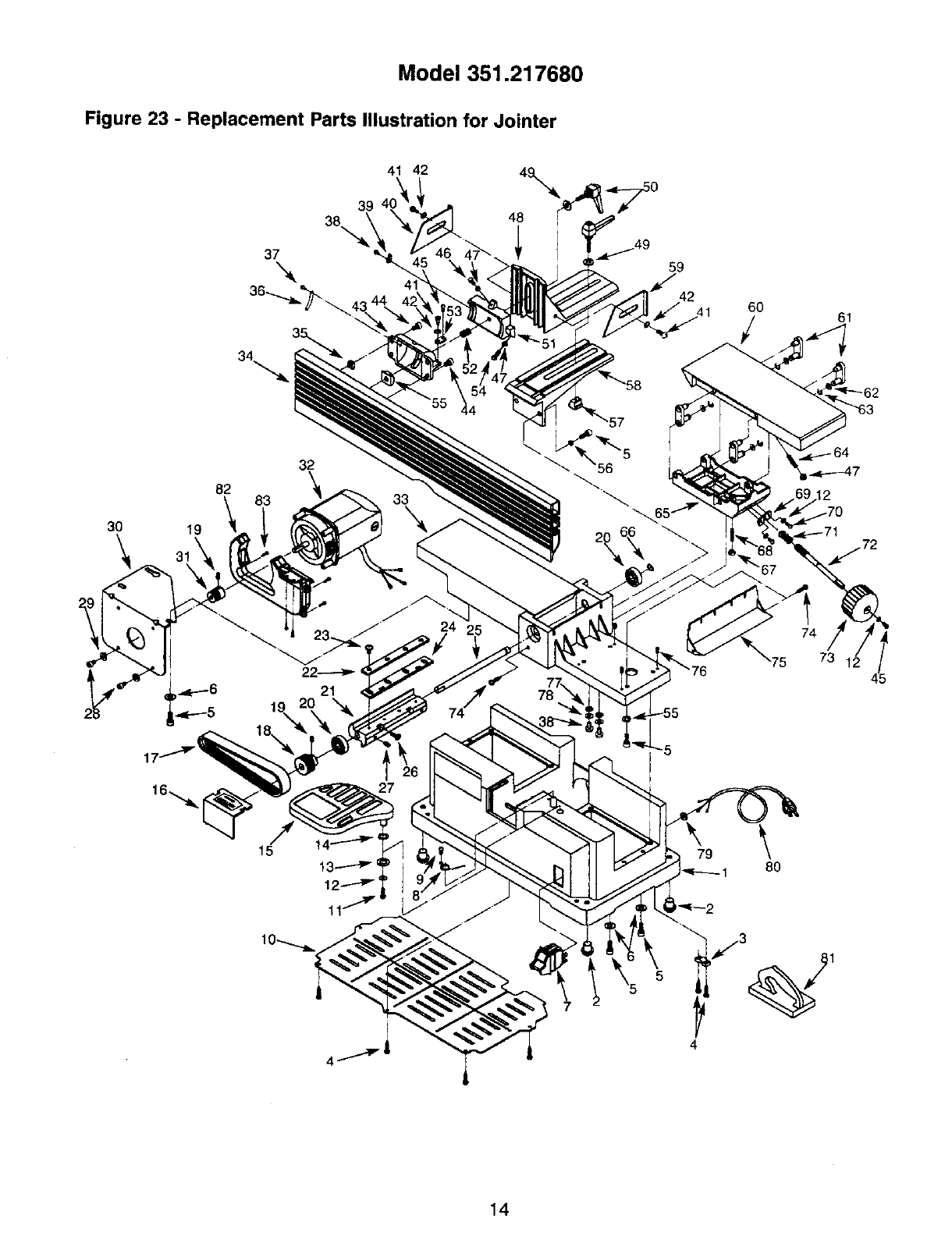

Parts Illustration and List .................. 13-15

Espahol ............................... 16-26

FULL ONE YEAR WARRANTY

If this product fails due to adefect in material or work-

manship within one year from the date of purchase,

Sears will at its option repair or replace it free of

charge.

Contact your nearest Sears Service Center to arrange

for product repair, or return this product to place of pur-

chase for replacemnt.

If this product is used for commercial or rental purpos-

es, this warranty will apply for 90 days from the date of

purchase.

This warranty gives you specific legal rights, and you

may also have other dghts which vary from state to

state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman

Estates, IL 60179

WARNING: For your own safety, road all of the rules

and precautions before operating tool.

CAUTION: Always follow proper operating procedures

as defined in this manual even if you are familiar with

use of this or similar tools. Remember that being care-

less for even afraction of a second can result in severe

personal injury.

BE PREPARED FOR JOB

• Wear proper apparel. Do not wear loose clothing,

gloves, neckties, rings, bracelets or other jewelry

which may get caught in moving parts of machine.

• Wear protective hair covering to contain long hair.

•Wear safety shoes with non-slip soles.

• Wear safety glasses complying with United States

ANSi Z87.1. Everyday glasses have only impact

resistant lenses. They are NOT safety glasses.

• Wear face mask or dust mask if operation is dusty.

• Be alert and think clearly. Never operate power tools

when tired, intoxicated or when takin9 medicat'_ons

that cause drowsiness.

PREPARE WORK AREA FOR JOB

•Keep work area clean. Cluttered work areas invite

accidents.

• Do not use power tools in dangerous environments.

•Do not use power tools in damp or wet locations. Do

not expose power tools to rain.

•Work area should be properly lighted.

•Proper electrical receptacle should be available for

tool. Three prong plug should be plugged directly

into propedy grounded, three-prong receptacle.

•Extension cords should have a grounding prong and

the three wires of the extension cord should be of

the correct gauge.

•Keep visitors at a safe distance from work area.

•Keep children out of workplace. Make workshop child-

proof. Use padlocks, master switches or remove switch

keys to prevent any unintentional use of power tools.

TOOL SHOULD BE MAINTAINED

•Always unplug tool prior to inspection.

•Consult manual for specific maintaining and adjust-

ing procedures.

•Keep tool lubricated and clean for safest operation.

•Remove adjusting tools. Form habit of checking to

see that adjusting tools are removed before switch-

ing machine on.

• Keep all parts in working order. Check to determine

that the guard or other parts will operate propedy

and perform their intended function.

•Check for damaged parts. Check for alignment of

moving parts, binding, breakage, mounting end any

other condition that may affect a tool's operation.

•A guard or other part that is damaged should be

prepedy repaired or replaced. Do not perform

makeshift repairs. (Use parts list provided to order

replacement parts.)

KNOW HOWTO USE TOOL

•Use right tool for job. Do not force tool or attachment

to do a job for which it was not designed.

•Disconnect tool when changing blades.

•Avoid accidental start-up. Make sure that the switch

is in the OFF position before plugging in.

•Do not force tool. It will work most efficiently at the

rate for which it was designed.

•Keep hands away from moving pads and cutting

surfaces.

•Never leave tool running unattended. Turn the power

off and do not leave tool until it comes to a complete

stop.

•Do not overreach. Keep proper footing and balance.

• Never stand on tool.Serious injury couldoccur if tool is

tipped or if blade is unintentionally contacted.

• Know your tool. Learn the tool's operation, applica-

tion and specific limitations.

• Use recommended accessories (refer to page 15).

Use of improper accessories may cause risk of

injury to persons.

• Handle workpiece correctly. Protect hands from pos-

sible injury.

• Turn machine off if it jams. Blade jams when it digs

too deeply into workpiece. (Motor force keeps it

stuck in the work.)

• Always keep drive, cutterhead and blade guards in

place and in proper operating condition.

• Feed work into blade or cutter against direction of

rotation.

CAUTION: Think safety! Safety is a combination of

operator common sense and alertness at all times

when tool is being used.

WARNING: Do not attempt to operate tool until it is

completely assembled according to the instructions.

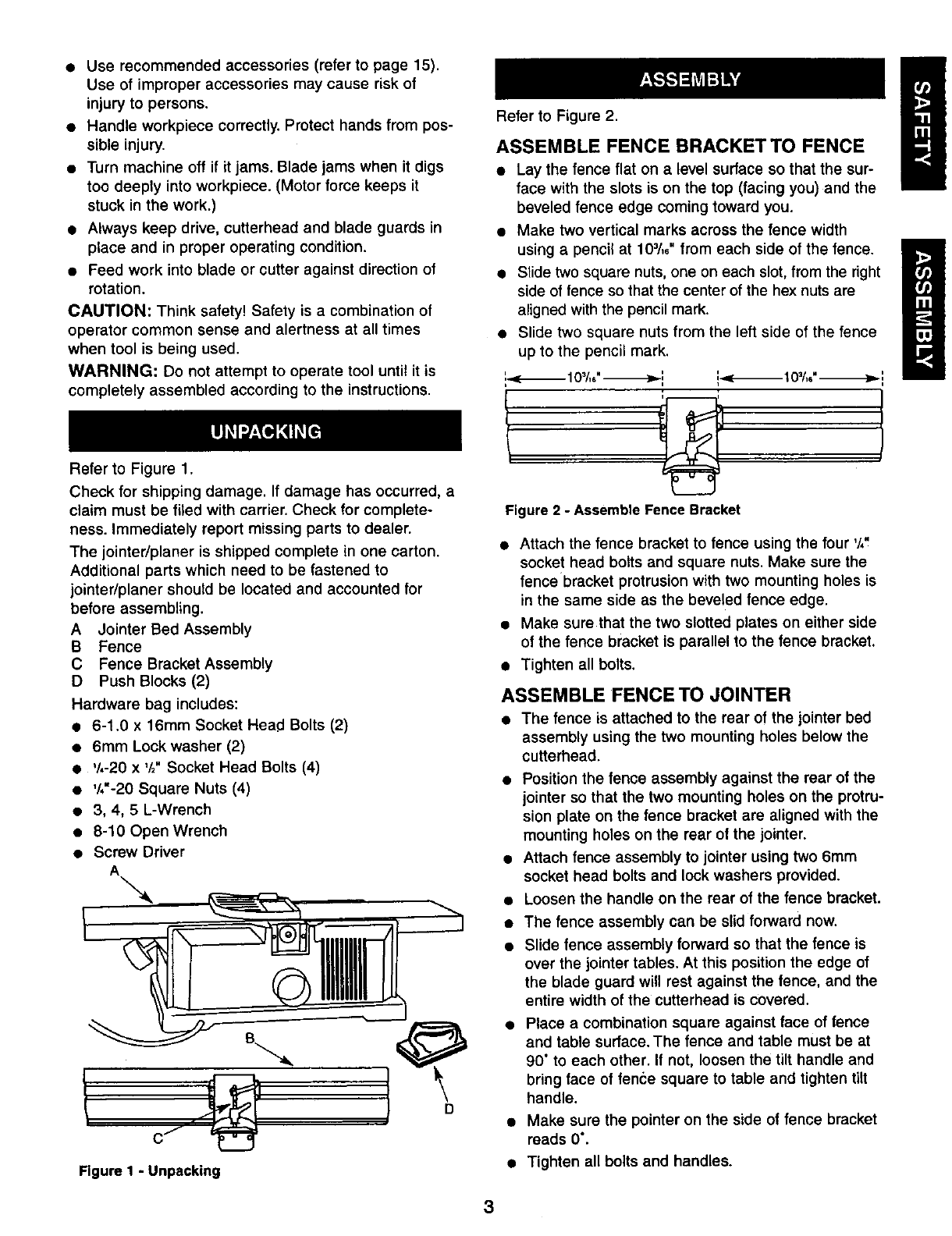

Refer to Figure 1.

Check for shipping damage. If damage has occurred, a

claim must be filed with carrier. Check for complete-

ness. Immediately report missing parts to dealer.

The jointer/planer is shipped complete in one carton.

Additional parts which need to be fastened to

jointer/planer should be located and accounted for

before assembling.

A Jointer Bed Assembly

B Fence

C Fence Bracket Assembly

D Push Blocks (2)

Hardware bag includes:

• 6-1.0 x 16mm Socket Head Bolts (2)

• 6mm Lock washer (2)

• '/,-20 x '/2"Socket Head Bolts (4)

•V,'-2O Square Nuts (4)

• 3, 4, 5 L-Wrench

• 8-10 Open Wrench

• Screw Driver

Figure I - Unpacking

Refer to Figure 2.

ASSEMBLE FENCE BRACKETTO FENCE

•Lay the fence flat on alevel surface so that the sur-

face with the slots is on the top (facing you) and the

beveled fence edge coming toward you.

•Make two vertical marks across the fence width

using a pencil at 103/,6"from each side of the fence.

• Slide two square nuts, one on each slot, from the right

side of fence so that the center of the hex nuts are

aligned with the pencil mark.

• Slide two square nuts from the left side of the fence

up to the pencil mark.

Figure 2 -Assemble Fence Bracket

• Attach the fence bracket to fence using the four '/,"

socket head bolts and square nuts. Make sure the

fence bracket protrusion with two mounting holes is

in the same side as the beveled fence edge.

• Make sure that the two slotted plates on either side

of the fence bracket is parallel to the fence bracket.

• Tighten all bolts.

ASSEMBLE FENCE TO JOINTER

• The fence is attached to the rear of the jointer bed

assembly using the two mounting holes below the

cutterhead.

• Position the fence assembly against the rear of the

jointer so that the two mounting holes on the protru-

sion plate on the fence bracket are aligned with the

mounting holes on the rear of the jointer.

• Attach fence assembly to jointer using two 6mm

socket head bolts and lock washers provided.

• Loosen the handle on the rear of the fence bracket.

• The fence assembly can be slid forward now.

• Slide fence assembly forward so that the fence is

over the jointer tables. At this position the edge of

the blade guard will rest against the fence, and the

entire width of the cutterhead is covered.

•Place a combination square against face of fence

and table surface. The fence and table must be at

90" to each other. If not, loosen the tilt handle and

bring face of fence square to table and tighten tilt

handle.

• Make sure the pointer on the side of fence bracket

reads 0°.

•Tighten all bolts and handles.

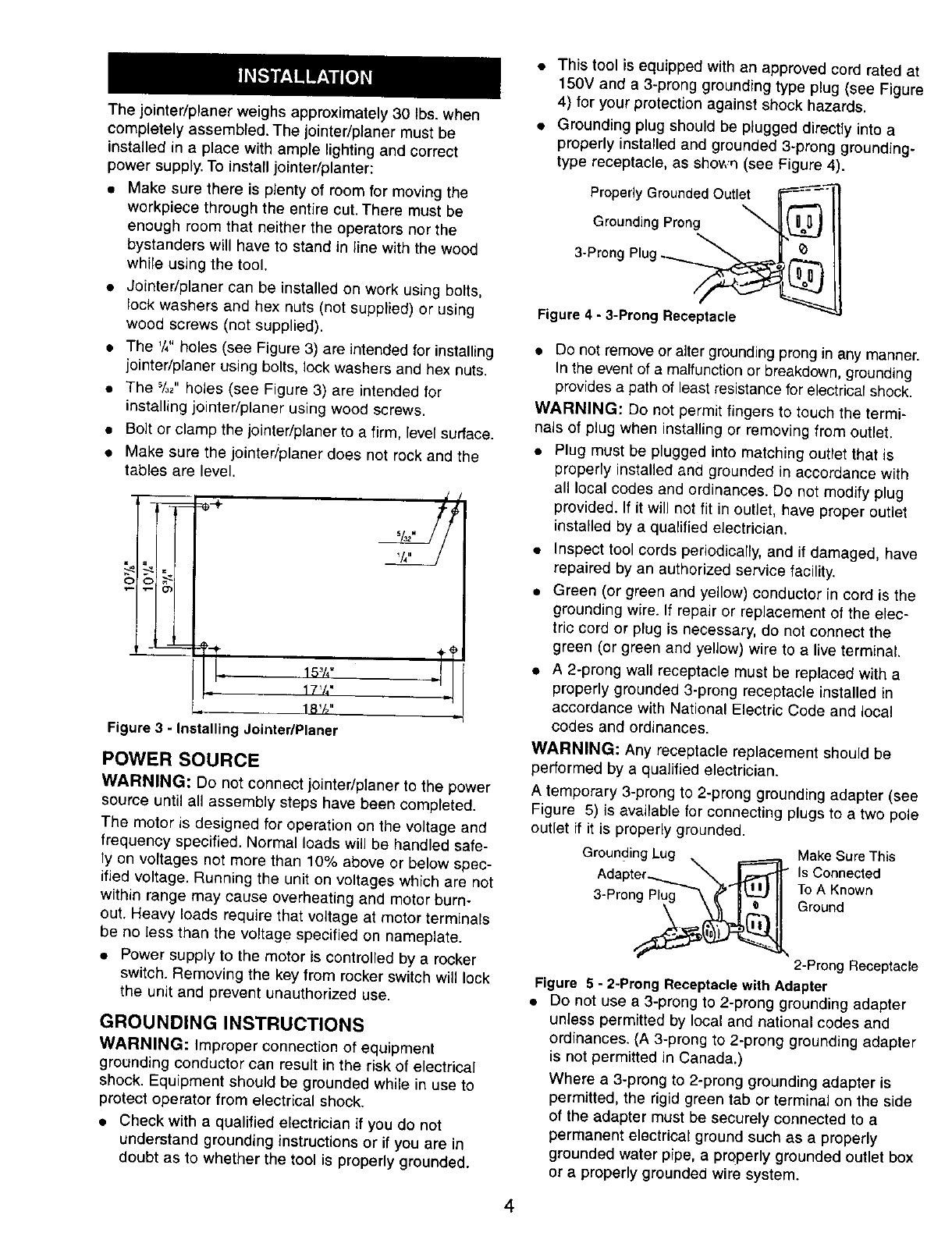

The jointer/planer weighs approximately 30 Ibs. when

completely assembled. The jointer/planer must be

installed in a place with ample lighting and correct

power supply. To install jointer/planter:

• Make sure there is plenty of room for moving the

workpiece through the entire cut. There must be

enough room that neither the operators nor the

bystanders will have to stand in line with the wood

while using the tool.

• Jointer/planer can be installed on work using bolts,

lock washers and hex nuts (not supplied) or using

wood screws (not supplied).

•The '/," holes {see Figure 3) are intended for installing

jointer/planer using bolts, lock washers and hex nuts.

• The %2"holes (see Figure 3) are intended for

installing jointer/planer using wood screws.

• Bolt or clamp the jointer/planer to a firm, level surface.

• Make sure the jointedplaner does not rock and the

tables are level.

17V,"

18'/_"

Figure 3 - Installing JointedPlaner

POWER SOURCE

WARNING: Do not connect jointedplaner to the power

source until all assembly steps have been completed.

The motor is designed for operation on the voltage and

frequency specified. Normal loads will be handled safe-

ly on voltages not more than 10% above or below spec-

ified voltage. Running the unit on voltages which are not

within range may cause overheating and motor burn-

out. Heavy loads require that voltage at motor terminals

be no less than the voltag especified on nameplate.

• Power supply to the motor is controlled by a rocker

switch. Removing the key from rocker switch will lock

the unit and prevent unauthorized use.

GROUNDING INSTRUCTIONS

WARNING: Improper connection of equipment

grounding conductor can result in the risk of electrical

shock. Equipment should be grounded while in use to

protect operator from electrical shock.

• Check with a qualified electrician if you do not

understand grounding instructions or if you are in

doubt as to whether the tool is properly grounded.

• This tool is equipped with an approved cord rated at

150V and a 3-prong grounding type plug (see Figure

4) for your protection against shock hazards.

• Grounding plug should be plugged directly into a

properly installed and grounded 3-prong grounding-

type receptacle, as shov,'q (see Figure 4).

Properly Grounded Outlet i_--=-'--_

3-Prong P!ug :_=,,'a_/"_

Figure 4 -3-Prong Receptacle

• Do not remove or alter grounding prong in any manner.

In the event of amalfunction or breakdown, grounding

provides a path of least resistance for electrical shock.

WARNING: Do not permit fingers to touch the termi-

nals of plug when installing or removing from outlet.

• Plug must be plugged into matching outlet that is

properly installed and grounded inaccordance with

all local codes and ordinances. Do not modify plug

provided. If it will not fit in outlet, have proper outlet

installed by a qualified electrician.

• Inspect tool cords periodically, and it damaged, have

repaired by an authorized service facility.

• Green (or green and yellow) conductor in cord is the

grounding wire. If repair or replacement of the elec-

tric cord or plug is necessary, do not connect the

green (or green and yellow) wire to a live terminal.

• A 2-prong wall receptacle must be replaced with a

properly grounded 3-prong receptacle installed in

accordance with National Electric Code and local

codes and ordinances.

WARNING: Any receptacle replacement should be

performed by a qualified electrician.

A temporary 3-prong to 2-prong grounding adapter (see

Figure 5) is available for connecting plugs to a two pole

outlet if it is properly grounded.

Grounding Lug _ i========_

Adapter_ "X%_ I

3Pron__

Make Sure This

Is Connected

To A Known

Ground

2-Prong Receptacle

Figure 5 -2-Prong Receptacle with Adapter

• Do not use a 3-prong to 2-prong grounding adapter

unless permitted by local and national codes and

ordinances. (A 3-prong to 2-prong grounding adapter

is not permitted in Canada.)

Where a 3-prong to 2-prong grounding adapter is

permitted, the rigid green tab or terminal on the side

of the adapter must be securely connected to a

permanent electrical ground such as a properly

grounded water pipe, a properly grounded outlet box

or aproperly grounded wire system.

• Many cover plate screws, water pipes and outlet

boxes are not properly grounded. To ensure proper

ground, grounding means must be tested by a quali-

fied electrician.

EXTENSION CORDS

• The use of any extension cord will cause some drop

in voltage and loss of power.

•Wires of the extension cord must be of sufficient size

to carry the current and maintain adequate voltage.

•Use the table to determine the minimum wire size

(A.W.G.) extension cord.

•Use only 3-wire extension cords having 3-preng

grounding type plugs and 3-pole receptacles which

accept the tool plug.

•If the extension cord is worn, cut or damaged in any

way, replace it immediately.

EXTENSION CORD LENGTH

Wire Size A.W.G.

Up to 50 ft................................ 16

50-100 ft.................................. 14

NOTE: Using extension cords over 100 ft. long is not

recommended.

MOTOR

Jointer/planer is supplied with a 1'/2 HP (max devel-

oped) motor.

The 120 Volt AC universal motor has the following

specifications:

Horsepower (Maximum Developed) ............. 1_/2

Voltage ..................... "............ 120

Amps ................................... 10

Hertz .................................... 60

Phase ................................ Single

RPM .................................. 8000

ELECTRICAL CONNECTIONS

WARNING: Make sure unit is turned oft and discon-

nected from power source before inspecting any wiring.

The unit is wired as illustrated in the wiring schematic

(see Figure 6).

Switch

White'L_ White

Figure 6 - Wiring Schematic

The motor is assembled with an approved three con-

ductor cord to be used on 120 volts as indicated. The

power supply to the motor is controlled by a double

-pole locking rocker switch.

•Remove the key to prevent unauthorized use.

The power lines are inserted directly onto the switch.

The green ground line must remain securely fastened

to the frame to properly protect against electrical shock.

DESCRIPTION

Craftsman 6'/8" jointer/planer is used to surface the faces

and edges of boards, produce a flat surface on warped

boards and shape bevels, chamfers and tapers. The joint-

er/planer features cast aluminum infeed and outfeed

tables, lightweight plastic body with smooth work sur-

faces and leadscrews for precise table height adjustment.

Balanced guide fence tilts 45" (inward) and 45" (outward).

Tool comes with locking rocker switch with removable key

and push blocks. Jointer/planer easily handles rough-cut

lumber, planes hard and soft woods up to 6'/6" wide using

a two blade cutterhead, and takes cuts up to '/8"

OPERATION SAFETY RULES

Jointing is a surfacing operation in which a small

amount of wood is removed from the edges and faces of

boards to get smooth, straight and even surfaces such

that the two edges that run across the planing blocks

would fit together perfectly, forming a seamless joint.

Planing refers to the sizing of lumber to a desired thick-

ness while creating a level surface parallel to the oppo-

site size of the board. Depth of cut is the term used to

indicate how deep the blades will cut into the workpiece.

WARNING: Operation of any power tool can result in

foreign objects being thrown into eyes which can result

in severe eye damage. Always wear safety goggles

complying with United States ANSI Z87.1 (shown on

package) before commencing power tool operation.

WARNING: For your own safety, read all of the

instructions and safety precautions before operating

tool.

• Know general power tool safety. Make sure all pre-

cautions are understood (see pages 2, 3, 5 and 6).

• Whenever adjusting or replacing any parts on

jointer/planer, turn switch oft and remove plug from

power source.

• Make sure all guards are properly attached and

securely fastened.

• Make sure all moving parts are free from interference.

• Always wear eye protection or face shield.

• Make sure blades are aligned and properly attached

to cutterhead.

• Do not plug in jointer/planer unless switch is in "off"

position. After turning switch on, allow jointer/planer

to come to full speed before operating.

• Keep hands clear of all moving parts.

• Do not force cut. Slowing or stalling will overheat

motor,

•Use quality lumber. Blades last longer and cuts are

smoother with good quality wood.

•Do not perform jointing/planing operations on materi-

al shorter than 8'!,", narrower than _/,",or _essthan

_/4"thick

•Never make jointing cut deeper than '/,".

• Always keep cutterhead and blade guards in proper

working condition.

•Maintain the proper relationships of infeed and out-

feed table surfaces and cuttarhead blade path.

• Do not back the work toward the infeed table.

• Support the workpiece adequately at all times during

operation; maintain control of the workpiece.

• Use hold-down/push blocks for jointing material nar-

rower than 3" or planing material thinner than 3".

• Take precautions against kickback. Do not permit any-

one to stand or cross in line of cutterheadis rotation.

Kickback or thrown debris will travel in this direction.

• Turn switch off and disconnect power whenever

jointer/planer is not in use.

• Replace or sharpen blades as they become damaged

or dull.

• Do not attempt to perform an abnormal or little used

operation without study and the use of adequate hold-

down/push blocks, jigs, fixtures, stops and the like.

• Keep jointer/planer maintained. Follow maintenance

instructions (see pages 9-10).

DEPTH OF CUT

Refer to Figure 7.

The depth of cut is adjusted by the relative positioning

of the infeed table with respect to the cutterhead. Infeed

table can be raised or lowered using the handwheel.

Turning the handwheel counterclockwise will lower the

infeed table causing more wood to be removed from

workpiece. Turning the handwheel clockwise will raise

the infeed table causing less wood to be removed from

workpiece.

Do not make jointing or planing cuts deeper than '/,".

InfeedTable

Depth of Cut

Hand Knob

Figure 7 - Depth of Cut

CHECK DEPTH OF CUT

Refer to Figure 8.

•Place a straight edge on the outfeed table extending

over the infeed table.

•Measure from the surfaceof the infeed table to the bot-

tom of the straightedge.This will be the depth of cut.

Outteed

Table Max Depth

of Cut %"

Figure 8 - Check Depth of Cut

NOTE: This jointer/planer will make amaximum %"

deep cut. To reduce the danger of kickback and possi-

ble injury, the depth of cut should not exceed '/,6".

CAUTION: Make sure the switch is in the "off" position

and the cord is unplugged from power source before

performing this check.

POSITIONING FENCE

The fence can be adjusted to cut various angles from

0"-45" inward and outward. The fence can be tilted

inward up to 45" (toward the cutterhead) to maintain

greater stability of a narrow workpiece or up to 45°out-

ward (away from cutterhead) for larger angle cutting

operations.

To adjust tilt angle:

• Loosen fence tilt handle.

• The fence tilt handle is spring loaded. To continue

turning the handle, gently pull the handle away from

the fence and return it to the original position.

• Release the handle and continue loosening.

• Manually tilt fence inward/outward to the desired

angle. Use the scale on the left side of fence bracket

to measure tilt angle.

NOTE: The fence has positive stops at 0" (90" from

table) and at 45" inward.

• Tighten fence tilt handle.

• To continue tightening, gently pull the handle away

from fence and return the handle to the original posi-

tion.

• Release the handle and continue tightening.

• Make sure the fence is tight and secure.

The slotted plates on the fence bracket prevent the

blades from being exposed. Do not remove the plates

at any time. The fence can be positioned so that the

desired width of the blade is exposed.

To adjust fence position:

•Loosen fence slide handle.

•Slide fence forward to the desired position.

• Tighten fence slide handle.

• Make sure fence is tight and secure.

• Loosen fence lock handle.

CAUTION: Do not remove blade guard and slotted

plates. Make sure that the cutterhead is covered all the

time.

CAUTION: Do not slide fence away from the jointer

body.All sides of the cutterhead must be covered all the

time.

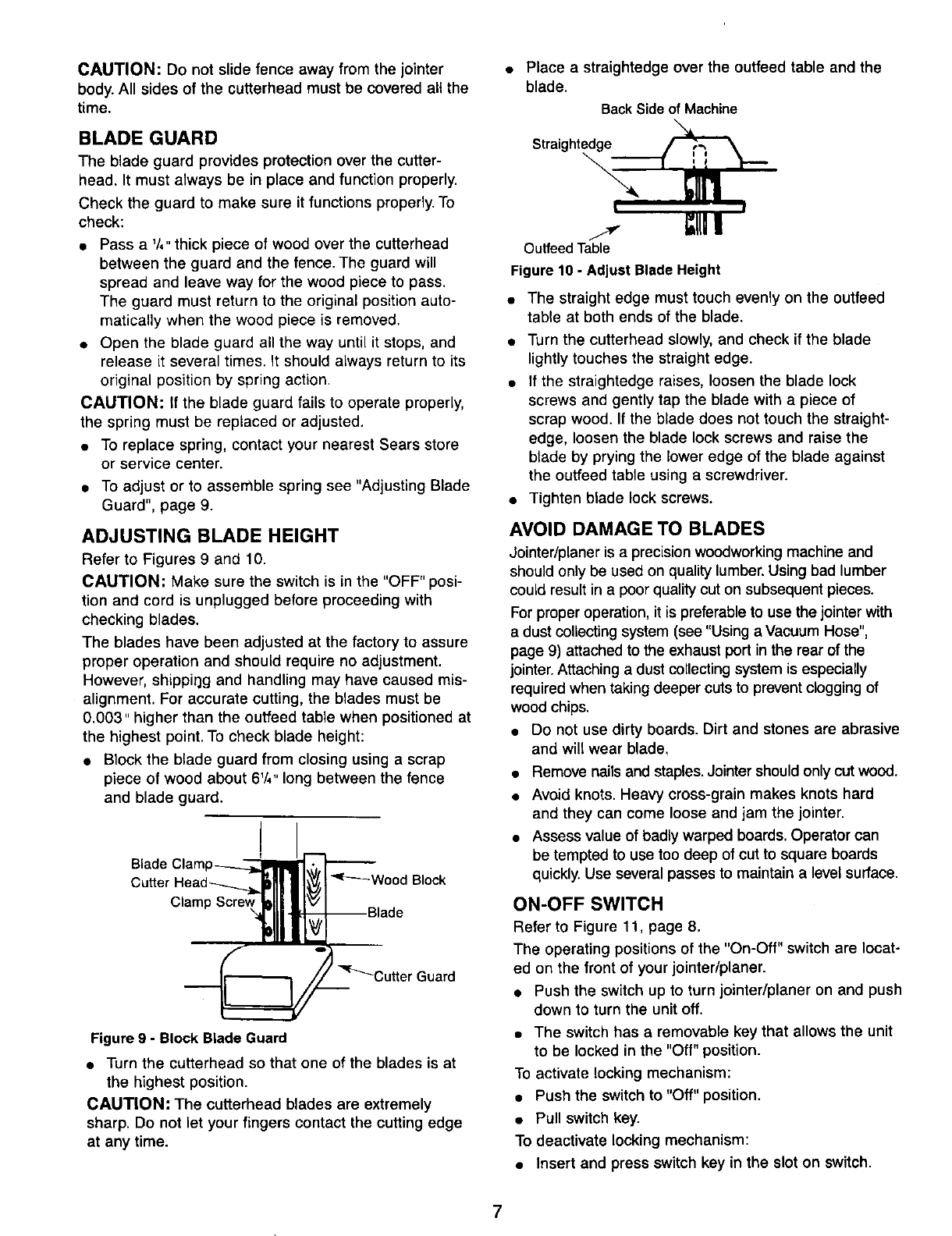

BLADE GUARD

The blade guard provides protection over the cutter-

head. It must always be in place and function properly.

Check the guard to make sure it functions properly. To

check:

•Pass a 1/4"thick piece of wood over the cutterhead

between the guard and the fence. The guard will

spread and leave way for the wood piece to pass.

The guard must return to the original position auto-

matically when the wood piece is removed.

•Open the blade guard all the way until it stops, and

release it several times. It should always return to its

original position by spring action.

CAUTION: If the blade guard fails to operate properly,

the spring must be replaced or adjusted.

• To replace spring, contact your nearest Sears store

or service center.

• To adjust or to assemble spring see "Adjusting Blade

Guard", page 9.

ADJUSTING BLADE HEIGHT

Refer to Figures 9 and 10.

CAUTION: Make sure the switch is in the "OFF" posi-

tion and cord is unplugged before proceeding with

checking blades.

The blades have been adjusted at the factory to assure

proper operation and should require no adjustment.

However, shippir_gand handling may have caused mis-

alignment. For accurate cutting, the blades must be

0.003" higher than the outfeed table when positioned at

the highest point. To check blade height:

•Block the btade guard from closing using a scrap

piece of wood about 6_/4"long between the fence

and blade guard.

Blade

Clamp

"_--_-Wood Block

Figure 9 -Block Blade Guard

•Turn the cutterhead so that one of the blades is at

the highest position.

CAUTION: The cutterhead blades are extremely

sharp. Do not let your fingers contact the cutting edge

at any time.

• Place a straightedge over the outfeed table and the

blade,

Back Side of Machine

Straight_,,,._ @

I !

Ouffeed Table

Figure 10 -Adjust Blade Height

• The straight edge must touch evenly on the outfeed

table at both ends of the blade.

• Turn the cutterhead slowly, and check if the blade

lightly touches the straight edge.

• If the straightedge raises, loosen the blade lock

screws and gently tap the blade with a piece of

scrap wood. If the blade does not touch the straight-

edge, loosen the blade lock screws and raise the

blade by prying the lower edge of the blade against

the outfeed table using a screwdriver.

• Tighten blade lock screws.

AVOID DAMAGE TO BLADES

Jointer/planer is a precision woodworkingmachine and

should only be used on quality lumber. Using bad lumber

could result in a poor quality cut on subsequent pieces.

For proper operation, it is preferable to use the jointer with

a dust collecting system (see "Using a Vacuum Hose",

page 9) attached to the exhaust port in the rear of the

jointer. Attaching a dust collecting system is especially

required when taking deeper cuts to prevent clogging of

wood chips.

• Do not use dirty boards. Dirt and stones are abrasive

and will wear blade,

• Remove nails and staples. Jointer shouldonly cut wood.

• Avoid knots. Heavy cross-grain makes knots hard

and they can come loose and jam the jointer.

• Assess value of badly warped boards. Operator can

be tempted to use too deep of cut to square boards

quickly. Use several passes to maintain a level surface.

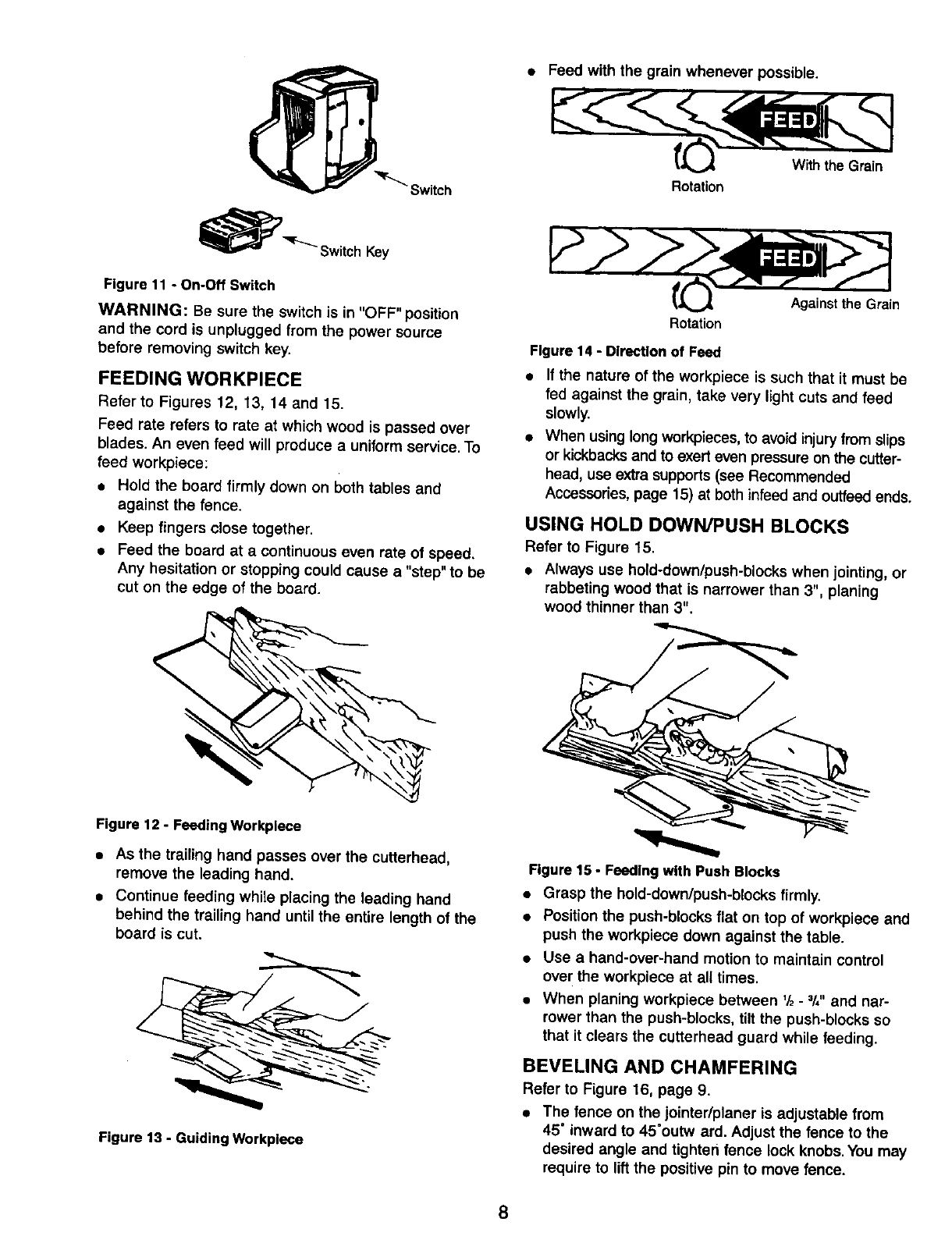

ON-OFF SWITCH

Refer to Figure 11, page 8.

The operating positions of the "On-Off" switch are locat-

ed on the front of your jointer/planer.

•Push the switch up to turn jointer/planer on and push

down to turn the unit off.

•The switch has a removable key that allows the unit

to be locked in the "Off" position.

To activate locking mechanism:

•Push the switch to "Off" position.

•Pull switch key.

To deactivate locking mechanism:

•Insert and press switch key in the slot on switch.

Figure 11 - On-Off Switch

WARNING: Be sure the switch is in "OFF" position

and the cord is unplugged from the power source

before removing switch key.

FEEDING WORKPIECE

Refer to Figures 12, 13, 14 and 15.

Feed rate refers to rate at which wood is passed over

blades. An even feed will produce a uniform service, To

feed workpiece:

•Hold the board firmly down on both tables and

against the fence.

• Keep fingers close together.

•Feed the board at a continuous even rate of speed.

Any hesitation or stopping could cause a "step" to be

cut on the edge of the board.

Feed with the grain whenever possible.

'_,(_ With the Grain

Rotation

Figure 14 - Direction of Feed

• If the nature of the workpiece is such that it must be

fed against the grain, take very light cuts and feed

slowly.

•When using longwork.pieces,to avoid injury from slips

or kickbacksand to exert even pressure on the cutter-

head, use extra supports (see Recommended

Accessories, page 15) at both infeed and outfeed ends.

USING HOLD DOWN/PUSH BLOCKS

Refer to Figure 15.

• Always use hold-down/push-blocks when jointing, or

rabbeting wood that is narrower than 3", planing

wood thinner than 3".

Figure 12- Feeding Workplece

•As the trailing hand passes over the cutterhead,

remove the leading hand.

•Continue feeding while placing the leading hand

behind the trailing hand until the entire length ol the

board is cut.

Figure 13 -Guiding Workpiece

Figure 15 - Feeding with Push Blocks

• Grasp the hold-down/push-blocks firmly.

•Position the push-blocks flat on top of workpiece and

push the workpiece down against the table.

•Use a hand-over-hand motion to maintain control

over the workpiece at all times.

• When planing workpiece between 'h - _/,"and nar-

rower than the push-blocks, tilt the push-blocks so

that it clears the cutterhead guard while feeding.

BEVELING AND CHAMFERING

Refer to Figure 16, page 9.

• The fence on the jointer/planer is adjustable from

45" inward to 45"outw ard. Adjust the fence to the

desired angle and tighten fence lock knobs. You may

require to liftthe positive pin to move fence.

= Beveling refers to cutting the entire edge of a board

at an angle. Beveling may require several passes

due to the depth of cut needed.

. Chamfering refers to removing only the corner of the

edge of a board. Normally a chamfer is made on one

pass; so a '/1," depth of cut is made.

BevelEdge

Chamfer Edge

Figure 16 - Beveling and Chamfering

USING A VACUUM HOSE

A standard dust collection hose can be attached to the

exhaust port (2 lk" Dia.) on the rear of the jointer. Jointer

will perform properly at all depths of cuts up to %" when

used with a dust collecting system. (See "Avoid Damage

to Blades", page 7.) To attach a dust collecting system:

•Insert the dust collection hose to the exhaust port on

the rear of the jointer.

• Turn the dust collecting system on.

• Turn the jointer on.

• Periodically replace/empty bag in dust collecting system.

If the blades are nicked they must be replaced or

reground. They can be reground several times until they

become _/_6"wide.

NOTE: Many shops do not have capabilities to resur-

face blades. Yellow pages should list"Sharpening

Services" or"Tool Grinding."

Figure 17 -Sharpening Blades

Never install unbalanced blades or reground blades

less than ,3/_,, wide.

REPLACING BLADES

Refer to Figures 18 and 19, pages 9 and 10.

• Unplug the jointer/planer from power source and turn

the switch to "OFF" position.

•Block the blade guard from closing down.

•Loosen and remove three blade lock screws secur-

ing blade and blade clamp.

WARNING: Turn the switch to "Off" position and

unplug jointer/planer from power source before pro-

ceeding to do maintenance work.

CHECKING FOR WORN BLADES

Condition of blades will affect precision of cut. If blade

wear is not observed when checking the blade height,

the quality of cut will indicate the blade condition. Dull

blades will tear rather than sever wood fiber. A raised

grain will occur when dull blades pound on wood where

there is difference in density. Araised ridge will be pro-

duced where the blades have been nicked.

SHARPENING BLADES

Refer to Figure 17,

The blades can be honed individually by whetting them

with a fine sharpening stone, Make sure oilstone is flat

and is not worn. To sharpen blades:

•Partially cover the stone with paper to protect the

table top.

•Position infeed table so stone will contact blade

along its beveled surface.

•Stroke the stone across blade from one side to other

while stone is also moved slightly in the direction of

feed.

•Make sure to do the same number of strokes on

each place.

Blade Clam

Clam

Guard

Figure 18 -Block Blade Guard

• Lift blade and blade clamp from cutterhead

• Clean any sawdust and resin buildup from cutter-

head and blade clamp.

• Place blade clamp against the replacement blade

and replace in cutterhead.

• Secure blade and blade clamp using three blade

lock screws. Do not tighten blade lock screws.

NOTE: Check blade height at both ends of blade (see

Adjusting Blade Height, page 7).

• Tighten blade lock screws.

• Recheck blade adjustment and make sure blade is

still level with outfeed table.

• Repeat the procedure to replace the other blade.

• Remove the scrap wood and release blade guard.

• Make sure all the blade lock screws are tight and snug.

Blade

Cutterhead

Blade Lock Screw

Figure 19 -Replacing Blades

ADJUSTING BLADE GUARD

CAUTION: Do not lubricate the pivot point of the blade

guard. Oil and lubricating products may contain chemi-

cals that can damage and/or destroy blade guard or

other plastic parts.

The blade guard needs adjustment or spring replace-

ment if it does not cover the cutterhead when released.

To adjust or replace spring:

• Lay the jointer/planer on the side so that the switch

is facing the roof.

•Loosen and remove screw and wavy washer on the

base that secure the blade guard.

• Slide out blade guard.

•If the spring is out of tension, it must be replaced.

Slide out spring from the dimple. Contact your near-

est Sears store or service center for replacement.

•Replace new spring so that the short arm of the

spring is inside the hole on the body.

•Position blade guard so that the long arm of the

spring is against the wall of the blade guard.

• Secure blade guard using pan head screw and

washer.

• Make sure blade guard functions appropriately.

REPLACING TIMING BELT

Refer to Figures 20 and 21.

• Turn the switch to "OFF" position and unplug the tool

from power source.

• Lay the jointer/planer on the side so that the switch

faces the roof.

• Remove old timing belt by turning belt and maintain-

ing pressure.

__ I

'"Re

Figure 20 -Removing Timing Belt

• Replace with new timing belt by maintaining inward

pressure.

Replace "_

Figure 21 -Replacing Timing Belt

NOTE: Make sure that the full width of belt is on both

pulleys.

GENERAL MAINTENANCE

Jointer/planer will operate best if it is kept in good oper-

ating condition. Keep unit adjusted as described in

"Operation."

• Do not allow gum and pitch to accumulate on the

tables, fence, blades and blade guard.

• Apply a thin coat of paste type wax to the tables and

the fence so that the wood slides easily while feed-

ing.

• Do not allow chips to accumulate on the underside

of the jointer/planer.

• Keep blades sharp (see "Sharpening Blades;' page

9). Sometimes replacing blades is less expensive

than resurfacing them. Keeping a spare set of blades

on hand is recommended. Blades should always be

sharpened or replaced in sets of two.

LUBRICATION

WARNING: Make sure the switch is in the "OFF" posi-

tion and the tool is disconnected from the power

source.

WARNING: Do not at any time let brake fluids, gaso-

line, penetrating oils, etc. come in contact with plastic

parts. They contain chemicals that can damage and/or

destroy plastics.

•Motor and cutterhead bearings are sealed and need

no lubrication.

• Fence, trunnion, trunnion cover and elevation screws

should be cleaned of debris and greased as needed.

MACHINED SURFACES

•Surface of tablesand fence must be kept smooth and

clean for easy workfeed.

• Apply a paste wax to surfaces to keep them slick

and prevent corrosion.

SYMPiuM POSSIBLE CAUSE(S)

Motor does not start 1. Defective switch

2. Defective motor

3. Low line voltage

Motor stalls (resulting in blown 1. Circuit overloaded

fuses or tripped circuit

breakers)

Motor starts slowly or fails to

come to full speed

Motor running too hot

Frequent opening of fuses or

circuit breakers

Snipe

(gouging at end of boards)

Uneven depth of cut

2. Low line voltage

3. Motor overloaded

4. Incorrect fuses on circuit breakers

5. Short circuit in motor; loose

connections or worn insulation

on lead wires

1. Defective motor windings

2. Clogged wood chips

!. Motor overloaded

2. Restricted air cimulation due to

dust accumulation

1. Motor overloaded

2. Fuses or circuit breakers do not

have sufficient capacity

3. Circuit overloaded

1. Dull blades

2. inadequate support of long boards

3. Uneven feed

1, Blade height not uniform

2. Fence not perpendicular to

jointer bed

3. Feeding wood too fast

CORRECTIVE ACTION

1. Have switch replaced.

2. Have motor replaced/repaired.

NOTE: 1 and 2 must be done t)y a qualified

service technician; Consult Sears service,

3, Correct low line voltage condition,

1, Reduce circuit load

(turn off other appliances).

2. Correct low line voltage conditions,

3. Reduce load on motor,

4. Have correct fuses on circuit breakers

installed.

5, Inspect terminals in motor for damaged

insulation and shorted wires and have

them replaced,

1. Have motor replaced/repaired.

2, Take shallow depth of cut and attach a

shop-vac to exhaust port.

1. Reduce load on motor,

2, Clean dust and restore normal air circulation.

1. Reduce load on motor

2. Have correct fuses or circuit breakers

installed.

3. Reduce circuit load

(turn off other appliances).

1. Replace or sharpen blades.

See "Sharpening Blades," page 9.

2. Support long boards.

See "Recommended Accessories," page 15.

3. See "Feeding Workpiece," page 8.

1. Adjust blade height.

See "Adjusting Blade Height," page 7.

2. See "Positioning Fence," page 6.

3. Feed wood slower.

45" cuts inaccurate 1. Fence stops not adjusted properly 1. Adjust fence stops.

See "Positioning Fence.", page 6.

2. Fence bottom not even with 2. Clean wood chips from underside of fence.

outfeed table due to wood chips

under fence

Fuzzy grain Planing wood with high moisture

Torn grain 1. Too heavy a cut

2. Blades cutting against grain

3. Dull blades

Remove high moisture content from wood by

drying.

1. Reduce depth of cut.

2. Feed work along grain.

3. Replace or sharpen blades.

NOTES

Model 351.217280

Figure 22 - Replacement Parts Illustration for Motor

4 7

KEY

NO. PART NO. DESCRIPTION QTY.

1 2856.00 Motor Cover 1

2 STD315215 6201ZZ Ball Bearing 1

3 2857.00 Armature with Fan 1

4 STD315205 620077 Ball Bearing* 1

5 2858.00 Wavy Washer 1

6 2859.06 Thread Forming Screw 2

7STD852005 5ram Lock Washer* 6

8 2860.00 Stator 1

9 1413.00 Strain Relief 1

10 STD851005 5mm Flat Washer* 4

11 5383.00 5-0.8 x 16mm Hex Head Bolt 4

12 2861.00 Brush Cap 2

13 2862.00 Carbon Brush (set of 2) 1

14 2863.00 Brush Holder 2

15 1838.00 5-0.8 x 10mm Set Screw 2

16 2864.00 Motor Housing 1

17 1474.00 5mm Serrated Washer 1

Standard hardware item available locally

Model351.217680

Figure 23 - Replacement Parts Illustration for Jointer

41 42

42 60 61

30 19

83 33

73 1:

\79

\80

KEY

NO.

PART NO.

2893.01

4135.00

1553.00

2895.00

0850.00

9722.OO

0423.00

2892.00

9729.00

2894.00

0361.00

STD851005

9723.00

3499.00

2891.00

4128.00

2887.00

2886.00

0964.00

STD315205

2885.00

2883.00

6346.00

922994.00

2881.00

3835.00

2803.00

3855.00

QTY.

DESCRIPTION

Base

Foot Pad

Cord Clamp

Thread Forming Screw

6-1.0 x 16mm

Socket Head Bolt

7mm Special Washer

Switch

Spring

Thread Forming Screw

Cover

5-0.8 x 8mm

Pan Head Screw

5mm Flat Washer*

7mm Special Washer

Wavy Washer

Blade Guard

Access Cover

Belt

Drive Pulley

6-1.0 x 6mm Set Screw

6200ZZ Ball Bearing*

Cutterheed

Blade Clamp

6-1.0 x 12mm

Socket Pan Head Screw

Blade (set of 2)

Shalt

5-0.8 x 12mm

Flat Head Screw

6-!.0 x 12ram Set Screw

5-0.8 x 10ram

Socket Head Bolt

5ram Lock Washer*

Motor Mounting Plate

Motor Pulley

Motor

Outfeed Table

Fence

V,-20" Square Nut

Scale

Rivet

4-0.7 x 8ram Pan Heed Screw

Indicator

Right Side Slotted Plate

Shoulder Bolt

29 STD851005 4

30 2888.01 1

31 2889.00 1

32 289O.0O 1

33 2880.02 !

34 2865.00 1

35 2866.00 4

36 2898.00 1

37 1286.00 2

38 0781.00 3

39 2896.00 1

140 2897.00 1

41 2872.00 3

Standa_ hardwam item availablelocally

&NotShown

KEY

NO.

PART NO. DESCRIPTION

9725.00

2868.00

1993.00

1903.00

9720.00

STD840508

2873.00

9724.00

2874.00

2870.00

9727.00

2871 .(30

5383.00

2867.00

S'rD852006

2876.00

2875.00

9726.00

2878.01

3267.00

9728.00

6461.00

5223.00

2877.00

0221.00

STD840610

9721.00

2879.00

0781.00

3270.00

3271.00

3272.00

2101.00

2899.01

0351.00

5156.00

STD851004

4137.00

!412.01

9-73666

16404.OO

16405.00

16303.00

QTY.

Wavy Washer 3

Trunnion Holder 1

'/,-20 xW' 4

Socket Head Bolt

4-0.7 x 10mm 2

Pan Head Screw

5-0.8 x 10ram Hex Head Bolt 1

5-0.8mm Hex Nut* 3

Fence Bracket 1

6mm Special Washer 2

Handle 2

Trunnion 1

Spring 1

Plate 1

5-0.8 x 16mmHex Head Bolt 1

Support Nut 1

6mm LockWasher* 6

T-Nut 1

Fence Support 1

Left Side Slotted Plate 1

Infeed Table 1

Bracket 4

8ram Special Washer 4

3CMI-8 Retaining Ring 4

5-0.8 x 30mm Set Screw 1

Table Frame 1

3AMI-10 Retaining Ring 1

6-1.0ram Hex Nut* 1

6-1.0 x 30ram Set Screw 1

Support Plate 1

4-0.7 x 8ram Pan Heed Screw 1 2

Spring 1

ElevationScrew 1

Knob 1

Thread FormingScrew 2

Chip Chute 1

6-1.0 x 10ram Set Screw 4

4mm Serrated Washer 2

4ram Flat Washer* 2

Grommet 1

Une Cord 1

Push Block(set) 1

Baffle 1

iThread Forming Screw 5

Owner's Manual 1

I Recommended Accessories

t,, IHorizontal Roller Stand 351.21417

aIPushBlock (set) 9-22994

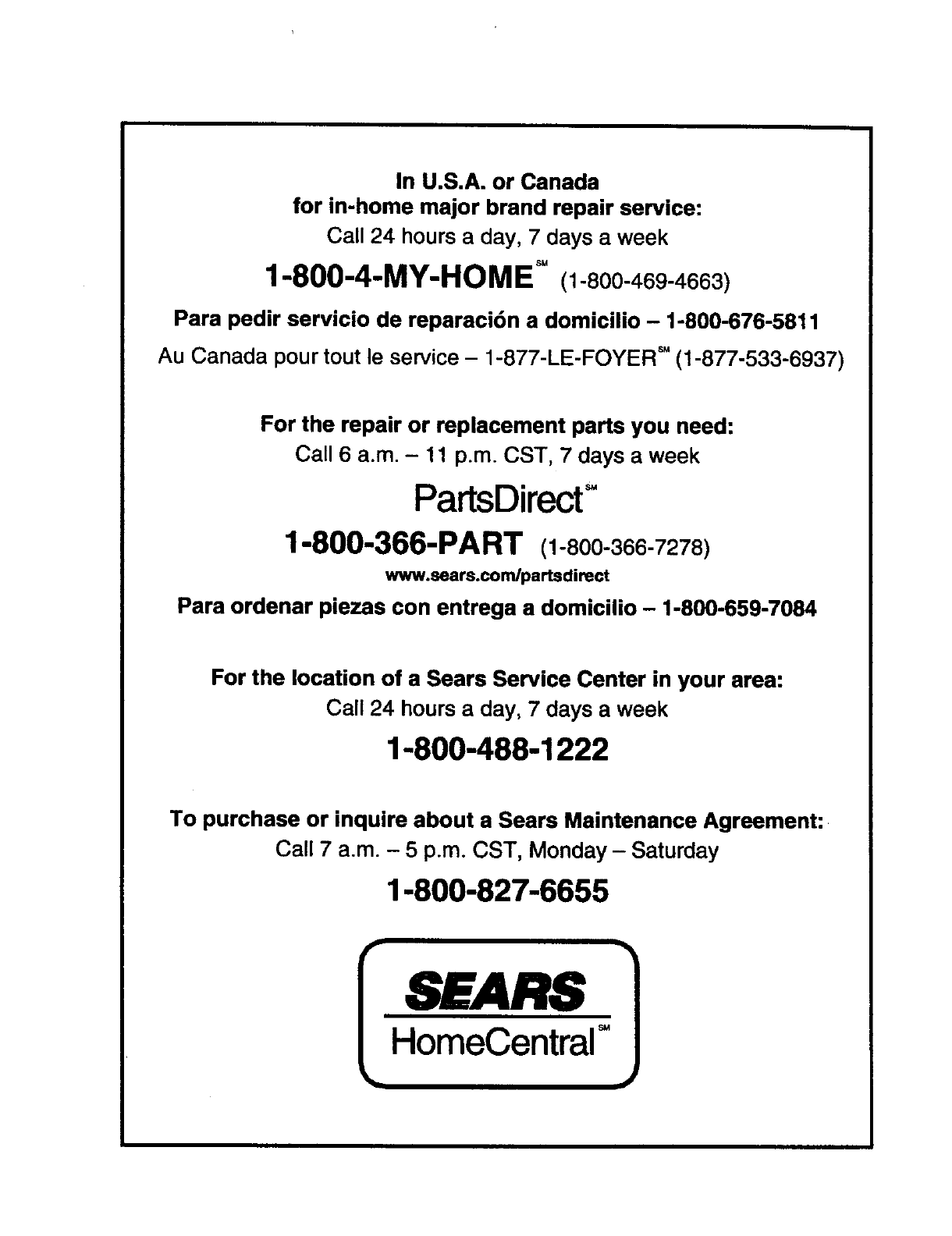

In U.S.A. or Canada

for in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME °_(1-800-469-4663)

Para pedir servicio de reparaci6n a domicilio - 1-800-676-5811

Au Canada pour tout le service -1-877-LE-FOYER" (1-877-533-6937)

For the repair or replacement parts you need:

Call 6 a.m. - 11 p.m. CST, 7days aweek

PartsDirect"

1-800-366-PART (1-800-366-7278)

www.sears.com/partsdirect

Para ordenar piezas con entrega a domicilio - 1-800-659-7084

For the location of a Sears Service Center in your area:

Call 24 hours a day, 7 days a week

1-800-488-1222

To purchase or inquire about a Sears Maintenance Agreement:

Call 7 a.m. - 5 p.m. CST, Monday - Saturday

1-800-827-6655

Craftsman 351217680 User Manual Jointer/Planer Manuals And Guides L0080131

CRAFTSMAN Jointer/Planer Manual L0080131 CRAFTSMAN Jointer/Planer Owner's Manual, CRAFTSMAN Jointer/Planer installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
