IMPORTANT MANUAL
operator's
manual
• Assembly
• Operation
• Maintenance
• Repair Parts
MODEL NO.
358.34120" 2.0/12"
358.34150 - 2.0/14"
2.0114" P.S.
AkWAR N! NG:
read and follow
Safety Rules, PreQautions
and Operating "lnstruc.
tions. Failure to do so can
result in serious personal
injury.
DoNot Throw Away
°
@/____,_S/CRI:1FTSMRN®
.2.0/12".. 2.0/14" 2.0/14"-ES.
ELECTRIC CHAIN SAWS
,u i .,ll,
Record in the space provided below the Model No. and Serial No. of
your saw. These numbers are located on the starting instructions
decal.
Model No. Serial No.
Retain these numbers for future reference.
530.067381-3-21088
Sears, Roebuck and Co., Chicago, Ill 60684 U.S.A.
•-_©S_'slko_b.ck_a Coi_1988
FULL 1 YEAR-WARRANTY ON ELECTRIC CHAIN SAW
(Excluding Bar & Chain)
Forone yearfrom date of purchase, Sears w_ltrepairdefects in material or wo_manshtp in _is 2X)ElectricChain Saw at no charge,
This warrantyexCludesb_r &chain, whic_hare expendable partsand become wornduring normaluse.
Ifthis2J0 EfectdcChain Sawis usedforcommerciai orrentalpurposes,thiswarrantyappliesforonly30 days fromdateofpurch ase_WARRANTY
SERV{CE ISAVAI/_ABLEBYRETUR NING THE CHAIN SAWTO THE NEAREST SEARSSERVICE C ENTER/DEPARTMENT INTHE UNITED
STATES.
Th_Swarrantygives you specificlegal dghts,and youmay also haVe other rightswhichvary from stateto state.
Sears, Roebuck and Co., Sears Tower, Dept. 698/731A, Ctdcago, IL60684
TABLE OF CONTENTS
Specifications ............................... 2
SPECIAL SAFETY SECTION .................... 5
Know Your Chain Saw ........................ 6
Preparing Your Saw For Use ................... 7
A. Getting Ready ............... ............ 7
B. Power Source and Extension Cord--... -::: .... 7

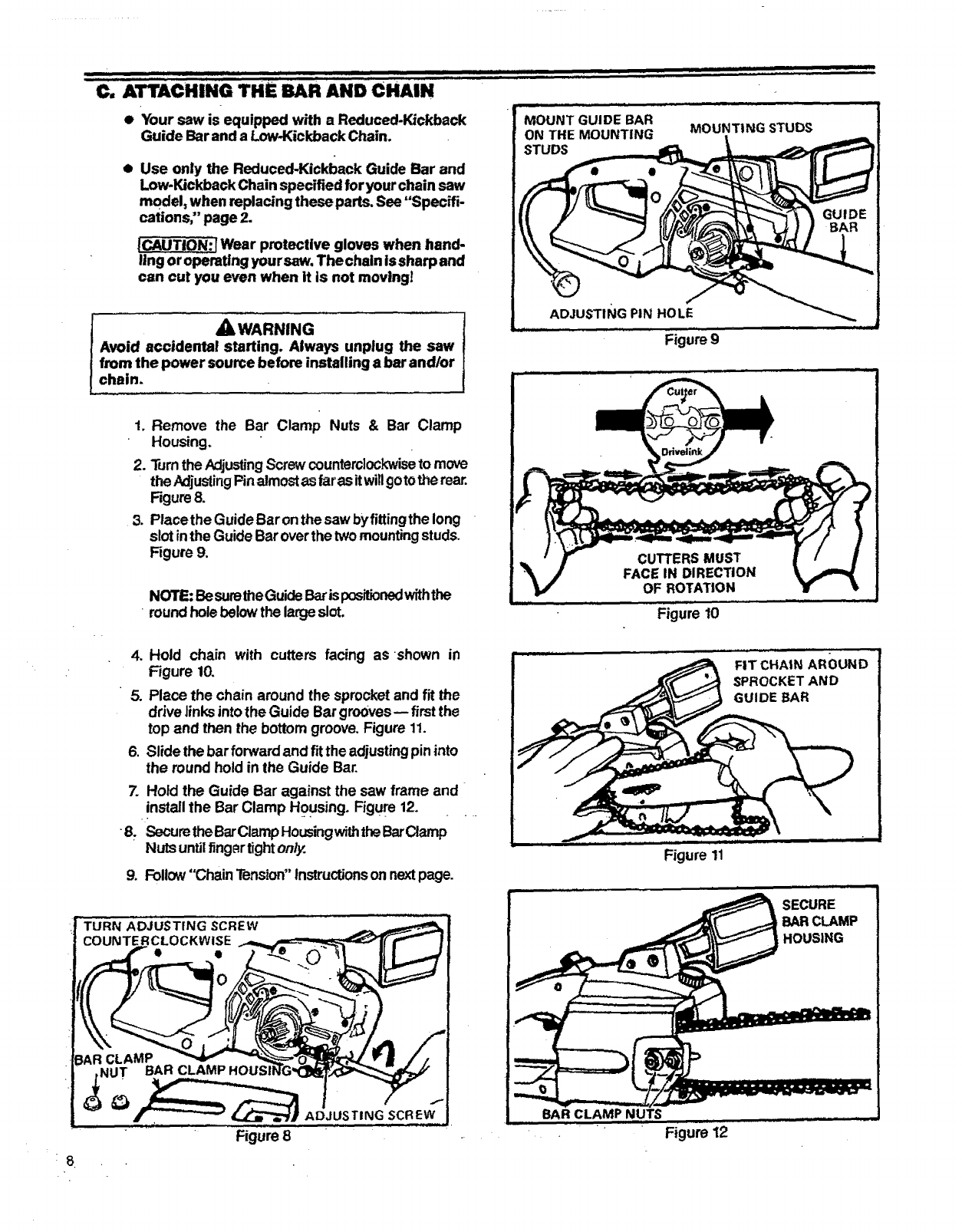

C. Attaching the Bar and Chain ................ 8

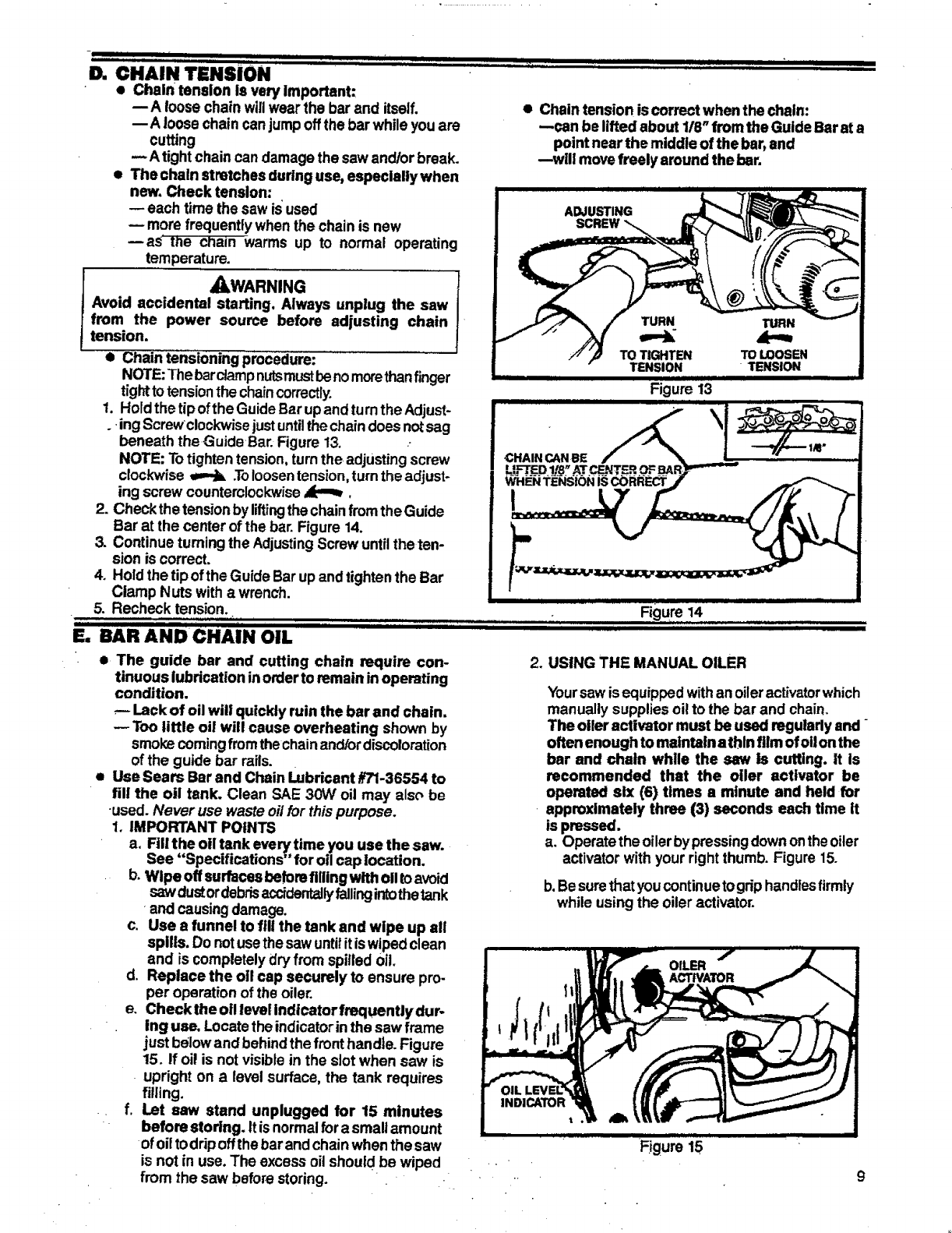

D. Chain Tension ............ :.............. 8
E. Bar and Chain Lubricant..................... 9
Using Your Saw ............................. 10
A, Control Devices .......................... 10
B. Pre-Operation Checks .... "............. ... 10
C. Starting and Stopping the Saw ............. 10
Using the Power Sharp _System ............... 11
Types of Cutting ............................ 13
A. BasicCutting Technique .................. 13
B. Tree Felling Techniqqes-. ................. 13

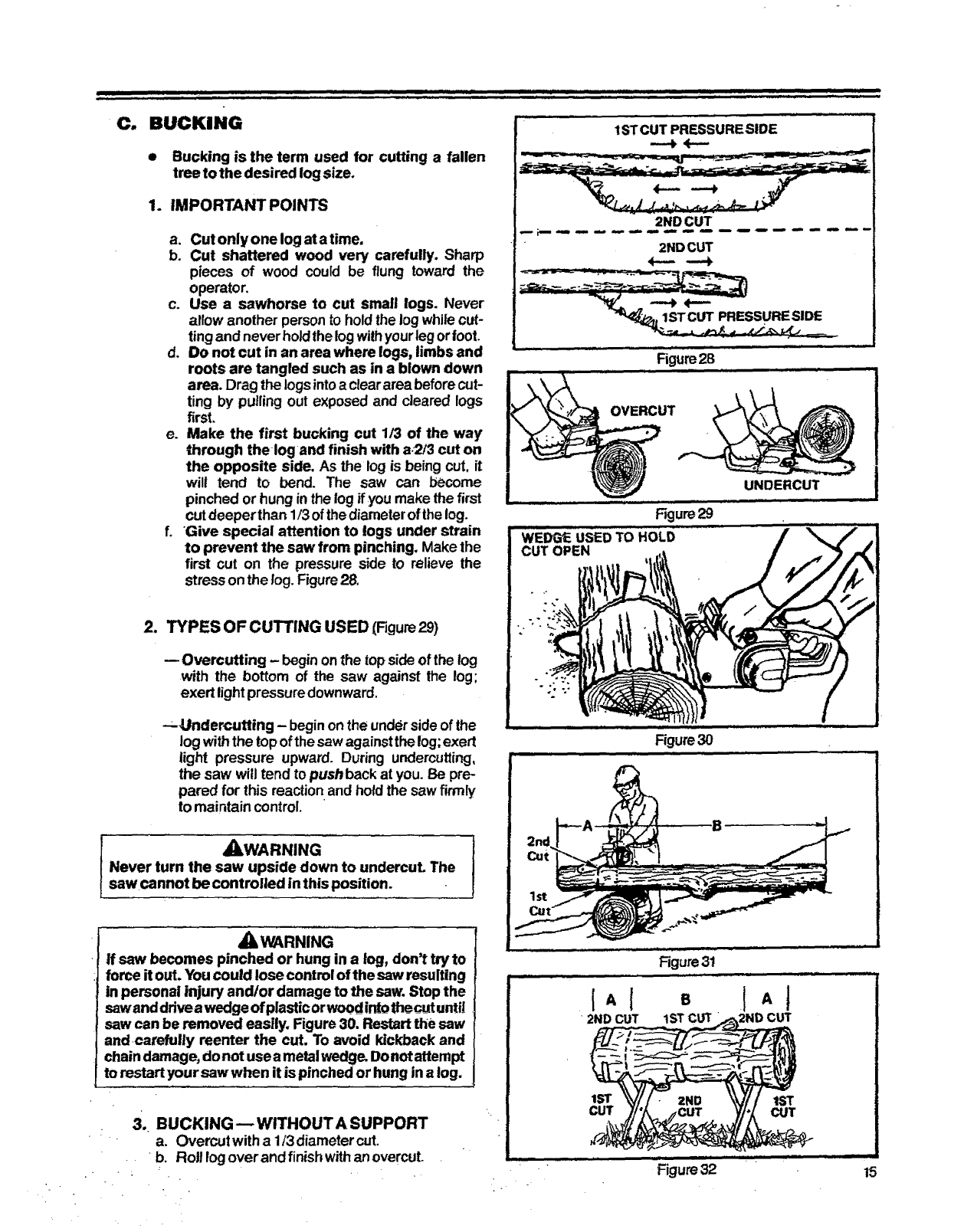

C. Bucking ............................... 15
D. Debranching and Pruning ............. ,. ,... 16

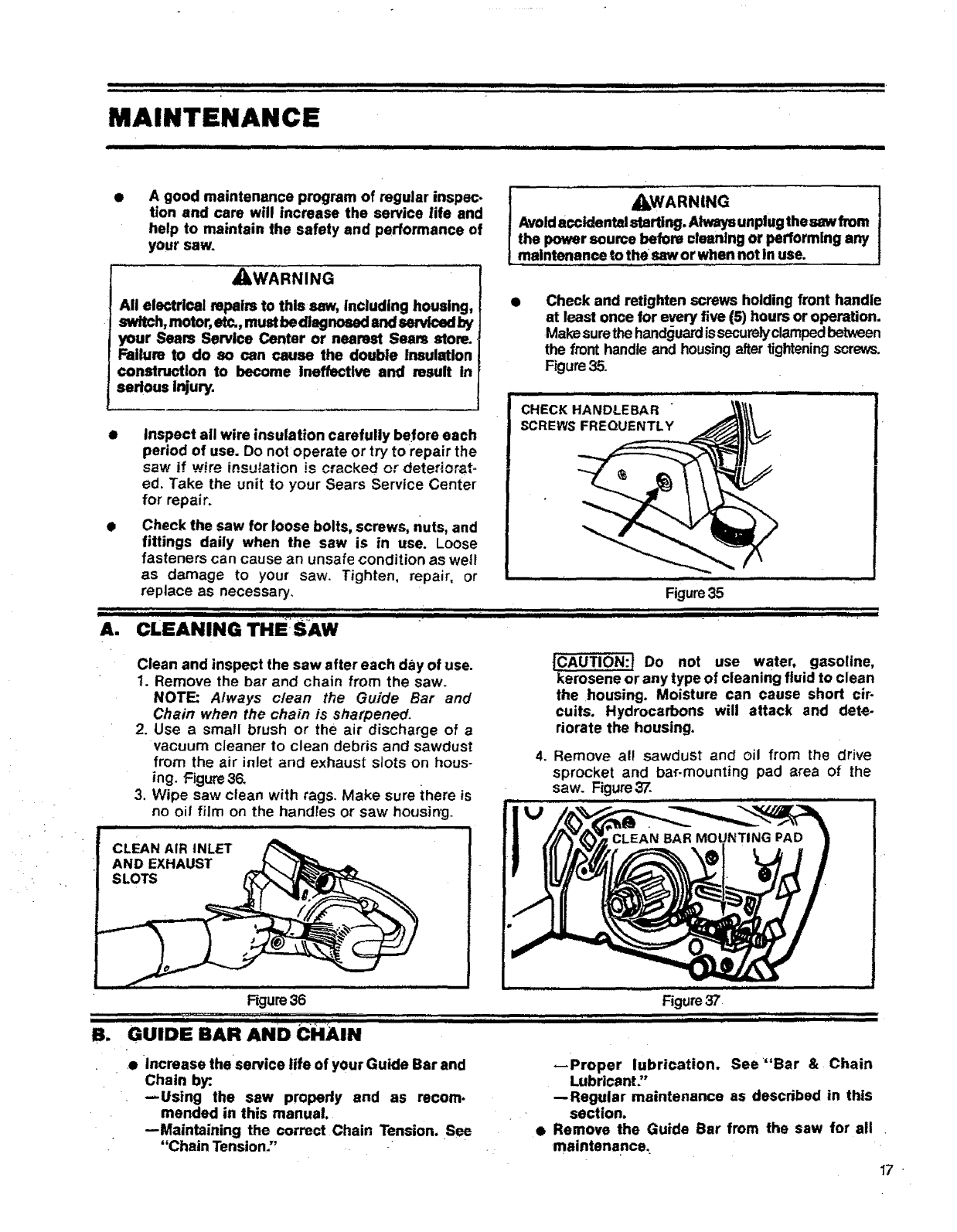

Maintenance ............................... 17
A. Cleaning the Saw ............ :.......... 17
B. Guide Bar and Chain .................... 17

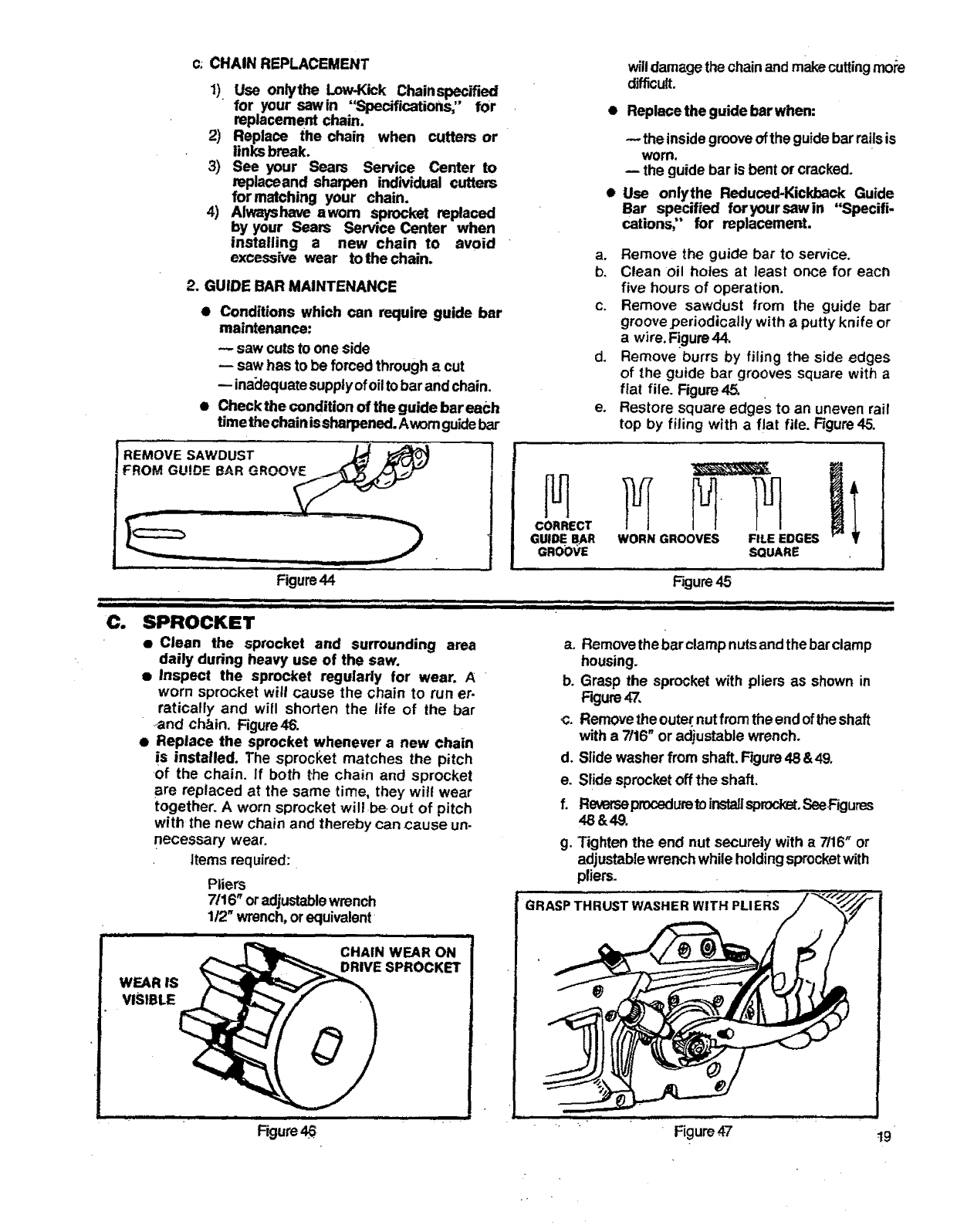

C. Sprocket .............................. 19

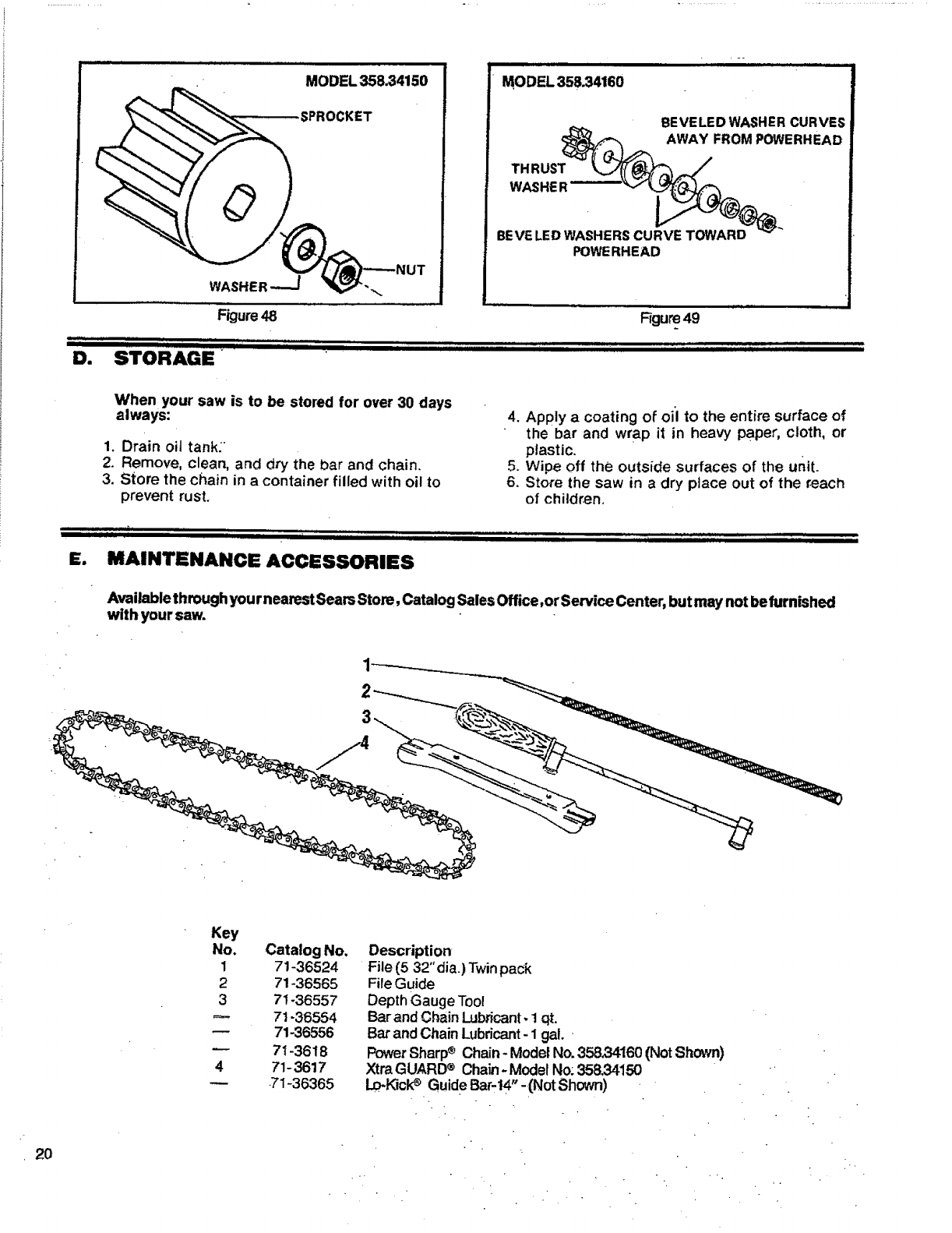

D. Storage ............................... 20
E. Maintenance Accessor'_s ................. 20

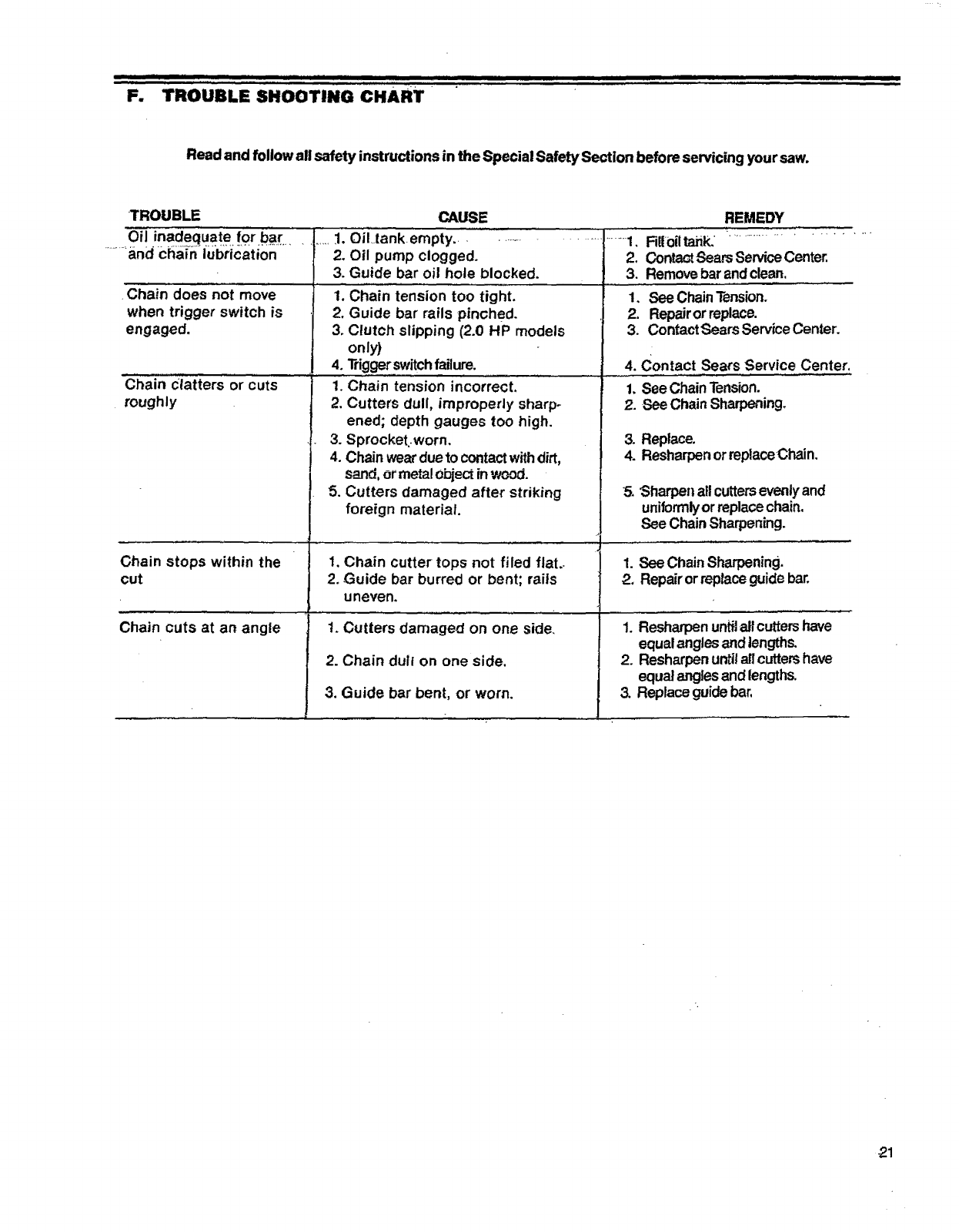

F. Trouble Shooting Chart ................... 21

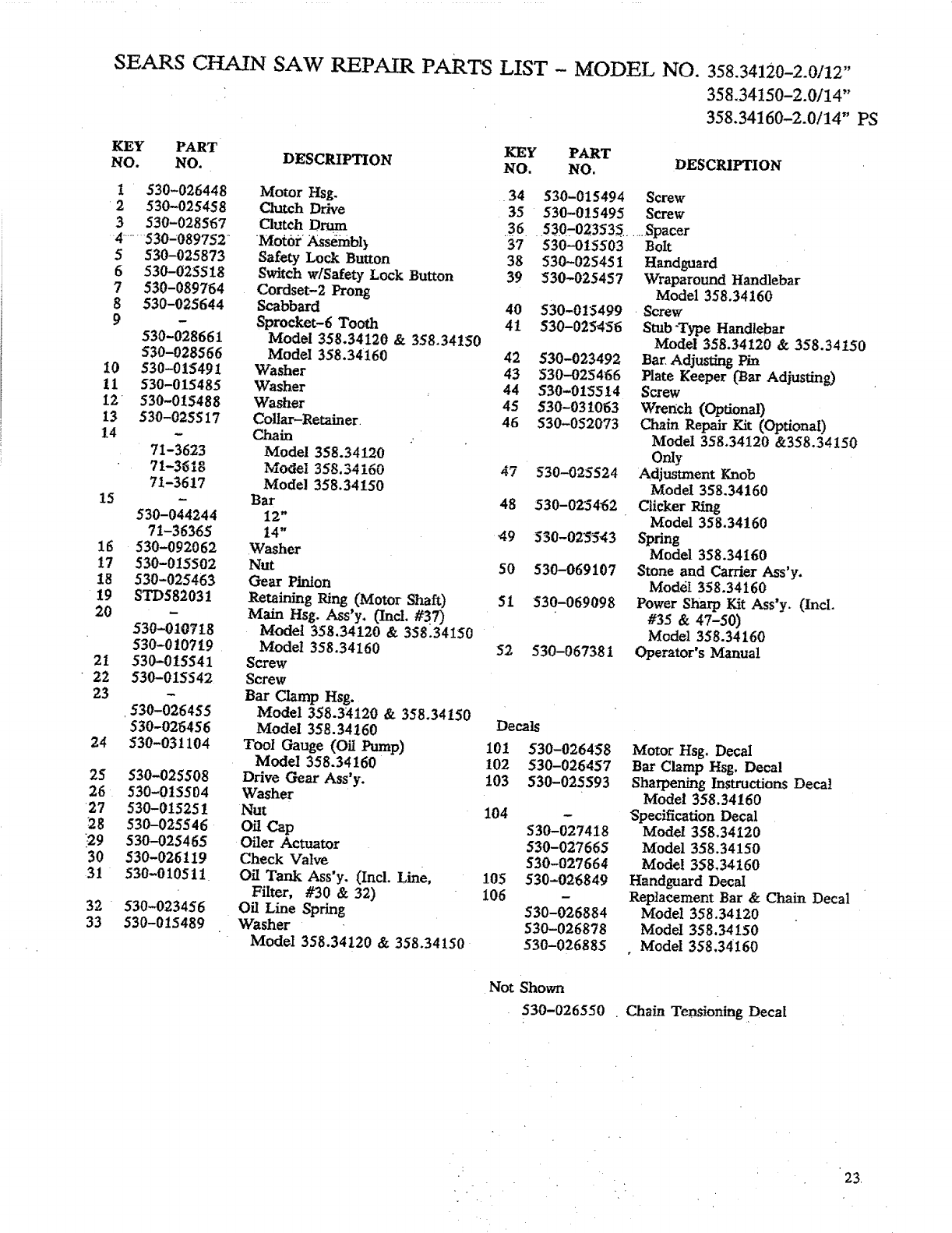

Repair Parts List ............................. 22

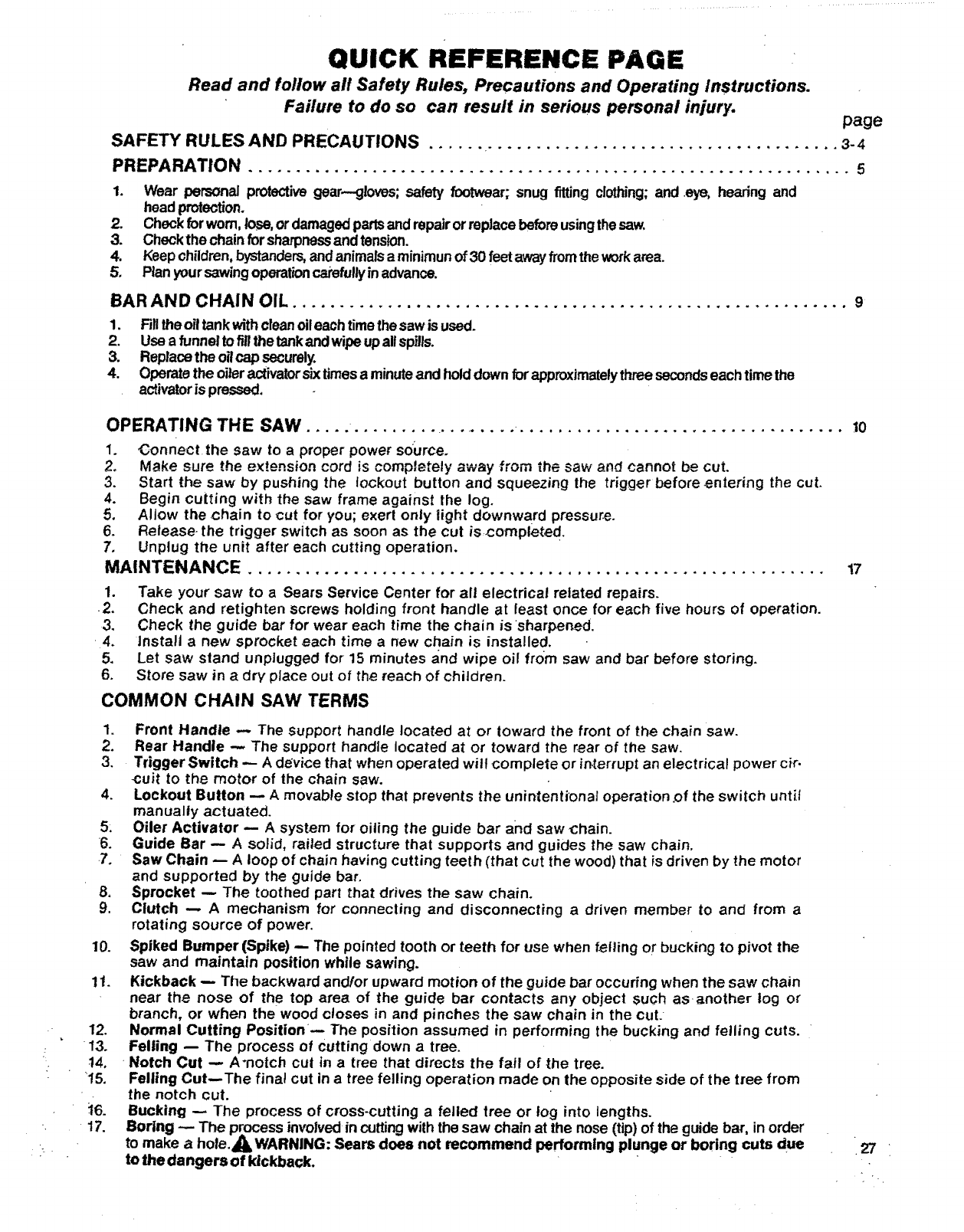

Quick Reference Page ....................... 27
SPECIFICATIONS
MODEL ............
POWER SUPPLY
I,. -EDCu.R
MAXIMUM MOTOR OUTPUT
; SPROCKETiDRrv_
CHNN-- Oregon®
GUIDE BAR -- LO-K3C{_
OILER
CHAtN SHARPENING
....._._.#120(__0/1_,)_,_4Is0(_.o/t4,)
110-120Vo_AC 110-120Vo!_sAC
_Hz 50-60 HZ
2.0 Horsepower _ .......................2.0Hopepower
0irectDdve Direct Ddve
.......................3i8P_ch, LowProfile 3/8 Pitch, LowP_fi|e
Non-ChromeCuttem . Non,ChromeC_l_rs
_1"t0.120Vo_tSAC
50-60Hz
2,0 Horsepower
........... 6 Tooth-SlipCJutch
3/8 Pitch, Low Pmt_e
PowerSharp _ Chromed Cutters
Rep_tcemer_tStockNo. 71,_;23 Replacement Stock No, 71-36'/7 Repla_e,'TmntStock No..7/-3618
12" Non-Armored T_ Nose 14" Notl-ArmomdTip Nose t4 •Sprocket Nose
Replacement Stock No.r44244 Rep_._t '_0_No. 7t -36365 Repl_ceme_ Stock NO.
M_nual Manual Manual
ManueJ ................:Manua! ......] PowerSharp ®System
Stub Handle
Power
Sharp. Oiler Activator
=Oil Level
Indicator
Lock-out Button
Powe!Cord
Motor Housing
i " i iiii iiiiiiiiiii ii i ii i JI ii i, iiii i iiiiiiiiiiiiiiiiiii iiiiiii iiiiiii i IIIIIIIII i IIII i : L_, k ,,

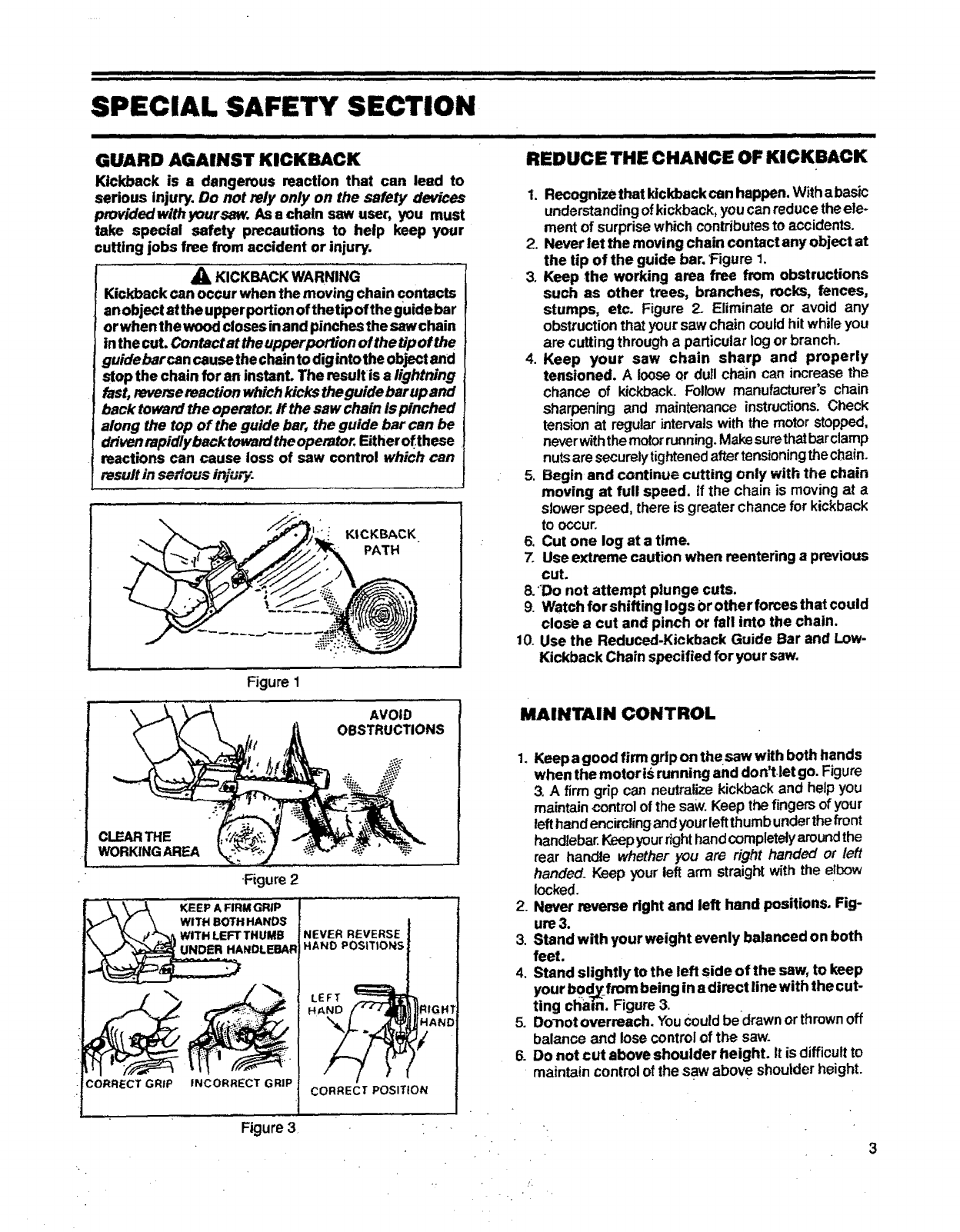

SPECIAL SAFETY SECTION
'i ................ I11 IIIH Ill II IIIIIIIIIIIIIIIIIIIIIIIII III I I I III III
GUARD AGAINST KICKBACK
Kickback is a dangerous reaction that can lead to
serious injury. Do not rely only on the safety devices
provided wtth your saw. As achin saw user, you must
take special safety precautions to help keep your
cutting jobs free from accident or injury.
_k KICKBACK WARNING
Kickback can occur when the moving chain contacts
an object atthe upper portionof the tip of the guide bar
or when the woodcloses inand pinches the saw chain
in the cut. Contactattheupperportionofthetipofthe
guidebarcan cause the chainto dig intothe object and
stop the chain for an instant. The result is a h'ghtning
fast, reversereaction which kicks theguide bar up and
back toward the operator, ff the saw chain is pinched
along the top of the guide bar, the guide bar can be
dttvenrapidly back towardthe operator. Either ol_these
reactions can cause loss of saw control which can
result in se,'lous injurj.
KICKBACK
PATH
Figure 1
1. Recognize that kickbackcan happen. With abasic
understandingofkickback, youcan reduce theele-
ment of surprise which contributes to accidents.
2. Never let the moving chain contact any object at
the tip of the guide bar. Figure 1.
3. Keep the working area free from obstructions
such as other trees, branches, rocks, fences,
stumps, etc. Figure 2. Eliminate or avoid any
obstructionthat your saw chain couldhit while you
are cutting through aparticular log or branch.
4. Keep your saw chain sharp and properly
tensioned. A loose or dull chain can increase the
chance of kickback. Follow manufacturer's chain
sharpening and maintenance instructions.Check
tensionat regular intervals with the motorstopped,
neverwiththemotor running.Makesurethatbarclamp
nuts are securelytightenedaftertensioningthe chain.
5, Begin and continue cutting only with the chain
moving at full speed. If the chain is moving at a
slower speed, there is greater chance for kickback
to o_ur.
6. Cut one log at a time.
7. Use extreme caution when reentering a previous
cut.
8."Do not attempt plunge cuts.
9. Watch for shiffing logs Orother forces that could
close a cut and pinch or fall into the chain.
10. Use the Reduced-Kickback Guide Bar and Low-
Kickback Chain specified for your saw.
.5
CLEARTHE
WORKINGAREA
•Figure 2
KEEP A RRMGRIP
WITH BOTH HANDS
WITH LEFT THUMB
CORRECT GRIP INCORRECT GRIP
AVOID
OBSTRUCTIONS
CORRECT POSITION
MAINTAIN CONTROL
1. Keepa good firm grip on thesaw with both hands
when the motoris running and don't let go. Figure
3. A firm grip can neutralize kickbackand help you
maintain controlof the saw. Keep the fingersof your
lefthandencirclingandyourleftthumb underthefront
handlebar.Keepyourrighthandcompletelyaroundthe
rear handle whether you are right handed or left
handed_Keep your left arm straightwith the elbow
locked.
2. Never reverse right and left hand positions. Fig-
ure3.
3. Stand with your weight evenly balanced on both
feet.
4. Stand slightly to the left side of the saw, to keep
your bod_ from being in a direct line with the cut-
ting chain. Figure 3.
5. Do-notoverreach. YouCouldbedrawn orthrownoff
balance and lose control of the saw.
6. Do not cut above shoulder height. It is difficultto
maintain control ofthe saw above shoulder height.
Figure 3
/,
• . iii i iiiiii ,i iiiiiiiiiiiiiiiiiiii ii i I iii i iiiiiii i m iimi i ,i i IH,HIH ,11 II tll IIIIIII

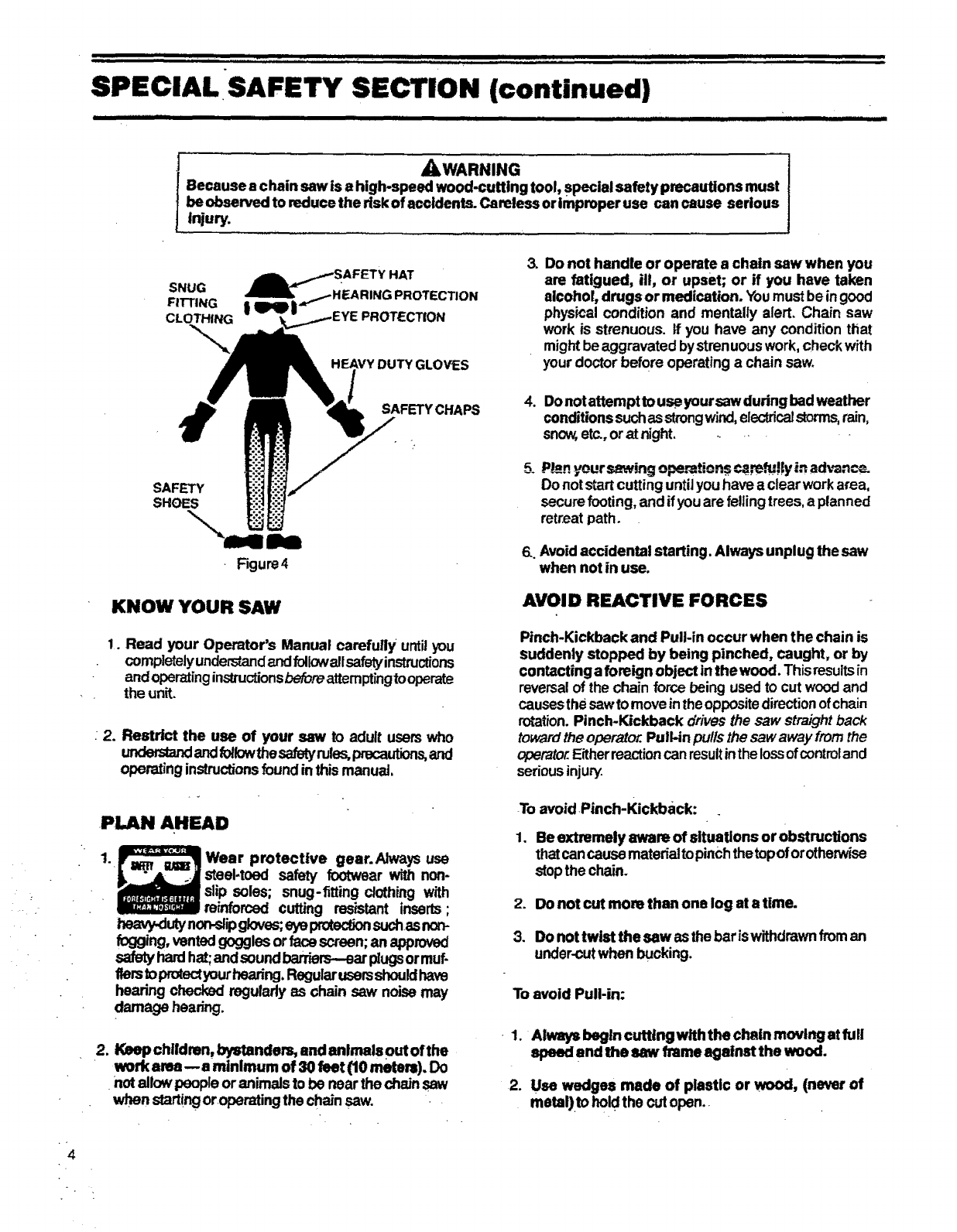

SPECIAL SAFETY SECTION (continued)
,1111 I i i i mm,wml,,i ml,II I I i H iml=l, i= i. ill ,mHIml .H "I
_kWARNING
Because a chain saw is a high-speed wood-cutting tool, Special safety precautions must
beobserved to reduce the rlskof accidents. Careless orImproper use can cause serious
injury.
SNUG
FITTING
CL_
DUTY GLOVES
:t Do not handle or operate a chain saw when you
are fatigued, ill, or upset; or if you have taken
alcohol, drugs or medication. Youmust be ingood
physical condition and mentally alert. Chain saw
work is strenuous. If you have any condition that
mightbe aggravated bystrenuouswork,check with
your doctor before operating a chain saw.
SAFETY
SHOES
""\m!l lie
Figure4
SAFETYCHAPS .Donotattempt to use yoursaw during badweather
conditions suchasstrongwind,electricarstorms,rain,
snow,etc.,or at night.....
.P_n your sewing opemtions c_l!y in advance.
Do notstartcutting until youhave aclearworkarea,
securefooting, and ifyouare felling trees,a planned
retreat path.
6..Avoidaccidental starting. Always unplug the saw
when not in use.
KNOW YOUR SAW
1. Read your Operator's Manual carefully untilyou
completelyunders_ndandfollowallsafetyinstructions
andoperatingins_nJctionsbeforeattemptingtooperate
the unit.
2. Restrict the use of your saw to adult userswho
underaandand_k_vthesef_rule_ _and
operating instructionsfoundinthis manual
PLAN AHEAD
1. Wear protective gear.Always use
steel-toed safety footwear with non-
slip soles; snug-fitting clothing with
Jm_rorcod cutting resistant inserts;
heawAuty non-slipgloves;eyeproCecfJonsuch.asnon-
fogging, vented gogglesorface screen;an approved
safetyhardhat;and soundbarriers--ear p_ugsormuf-
fte_ toprotectyourhearing,Regularusersshouldhave
hearing checked regularlyas chain saw noise may
damage hearing.
2. Keep children, bystandem, and animals out ofthe
work area-- aminlmum of 30 feet (10 meters). Do
not allowpeople or animalsto be near the chainsaw
when startingoroperating the chain saw.
AVOID REACTIVE FORCES
Pinch-Kickback and Pull-in occur when the chain is
suddenly stopped by being pinched, caught, or by
contacting a foreign object in the wood. Thisresultsin
reversalof the chain force being used to cut woodand
causesthesawto move inthe opposite directionofchain
rotation.Pinch-Kickback drivesthe saw straightback
towardtheoperator.Pull-in pullsthe saw awayfromthe
operator.Eitherreactioncan resultinthe lossofcontroland
sedousinjury.
To avoid Pinch-Kickback:
,
.
3.
Be extremely aware of situations or obstructions
that cancause matedaltopinchthetopoforotherwise
stopthe chain.
Do not cut more than one log at a time.
Do nottwist the saw as the bariswithdrawn froman
under-cutwhen bucking.
To avoid Pull-in:
•1. Alwa_beglncutt/ngwlththecl_inmovl_3atfull
speed and the saw frame against the wood.
2. Use wedges made of plastic or wood, (never of
metal)to holdthe cut open.
4
SPECIAL SAFETY SECTION (continued)
...... III ..III II I II I mIIIIII I I El IIII IIIIIIIII
OPERATE YOUR SAW SAFELY
1. Do not operate a chain saw that is damaged,
improperly adjusted, or not completely and
securely assembled.
2. Do not use the saw if the trigger switch does not
turn the unit on and off properly. Repairstothe trig-
ger switch must be made by your Sears Service
Center.
3. Do not operate the saw from a ladder or in a tree.
4. Position all parts of your body to the left of cut
when the motor is running.
5. Cut wood only. Donotcut metal, plastics,masonry,
non.vKx_ buildingmaterials,etc. Donotuseyoursaw
topryor shoveawaylimbs,rootsorotherobjects.
6. Make sure the chain will not make contact with
any object before starting the motor. Never try to
start the saw when the guide bar is in a cut or kerf.
7. Use extreme Caution when cutting small size
brush and saplings. Slender materialcan catch the
saw chain and be whipped tov;ardyou or pul!youoff
balance.
8. Be alert for springback when cuttinga limb that is
undertension to avoid being struck bythe limb or saw
when"the tension in the wood fibers is released.
9. Do not force the saw through a cut. Exert light
pressure only.Pressure on the sawat the end of a
cut could cause loss of control when the Cut is
completed.
Avoid body contact with the chain anytime the
saw is plugged into a power source. The chain will
continue to move forashorttime afterthe trigger is
released.
Avoid dangerous situations. Donotexposethe saw
to rain, or use in damp, wet, gaseous, or explosive
locations.
Unplug the power connection when the saw is not
in use.
10.
11.
I2.
MAINTAIN YOUR SAW IN
GOOD WORKING ORDER
I. Unplug the saw before servicing or changing
accessories.
2. Have all chainsawservice,(other than theservice
described in the maintenance section of this
manual) performed byyour Sears Service Center.
3, Keep chain and guide bar clean and properly
lubricated.
4. Keep oii cap, screws and fasteners tight.
5. Keep the handles dry, clean, and free of oil
6. Stop the saw if the chain strikes a foreign object.
Checkforalignment,binding,breakage,and mount-
ingof moving partsand anyotherconditionthat may
affectthe operationof the unit.Check guardsand all
other pads to see if each willoperate properlyand
perform its intendedfunction. Any partthat is dam-
aged should be properly repaired or replaced by
using the instructionsin this manual or by seeing
your Sears Service Center.
7 Be certain the saw chain stops moving when the
trigger switch is released.
8. Make certain that alrhand tools are removed from
the saw before connecting the saw to the power
source.
9. Nevermodify your sawin any way.Use onlyattach.=
ments suppliedor specificallyrecommended by the
manufacturer.
Always replace the handguard immediately if it
becomes damaged, broken or otherwise
removed.
CARRY AND SI"ORE
YOUR SAW SAFELY
10.
o
.
3.
Never carry yoursaw while climbing. Both hands
are needed for safe climbing,
Carry the unit unplugged, by the front handle,
finger off tWetrigger switch, and with the guide
bar and chain to the rear.
4.
5.
Carry the saw with guide bar and chain covered
by the scabbard.
Before transporting in any vehicle or storing in
any enclosure, allow yoursaw to cool completely,
coverthe barand chainand propedysecureto avoid
turnover or damage.
Drain oil tank before storing your saw for 30 or
more days.
6. Store in a dry area out of the reach of children.
NOTE
Exposuretovibrations throughprolonged use of this tool may produce Whitefingerdisease (Raynaud's phenomenon)
This phenomenon reduces the hand's ability to feel and regulate temperature, produces numbness and burning
sensations and can cause nerve and circulation damage and tissue necrosis.
An anti-vibration system designed to reduce engine vibration is recommended for those using power tools on a
regular or sustained basis. An anti-vibration system does not guarantee the avoidance of Whitefinger disease,
Continual and regular users must monitor closely theii- use of power tools and physical condition.
THIS CHAIN SAW IS FOR OCCASIONAL USE ONLY.
Notice:
Refer to the Code of Federal Regulations,Section 1910.266(5);2.5.1 ofAmerican NationalStandard Safety Require-
ments for Pulpwood Logging,ANSI 03.1-t978; and relevant state safety codes when usinga chain saw for logging
••.. • • . , . , •
purposes.

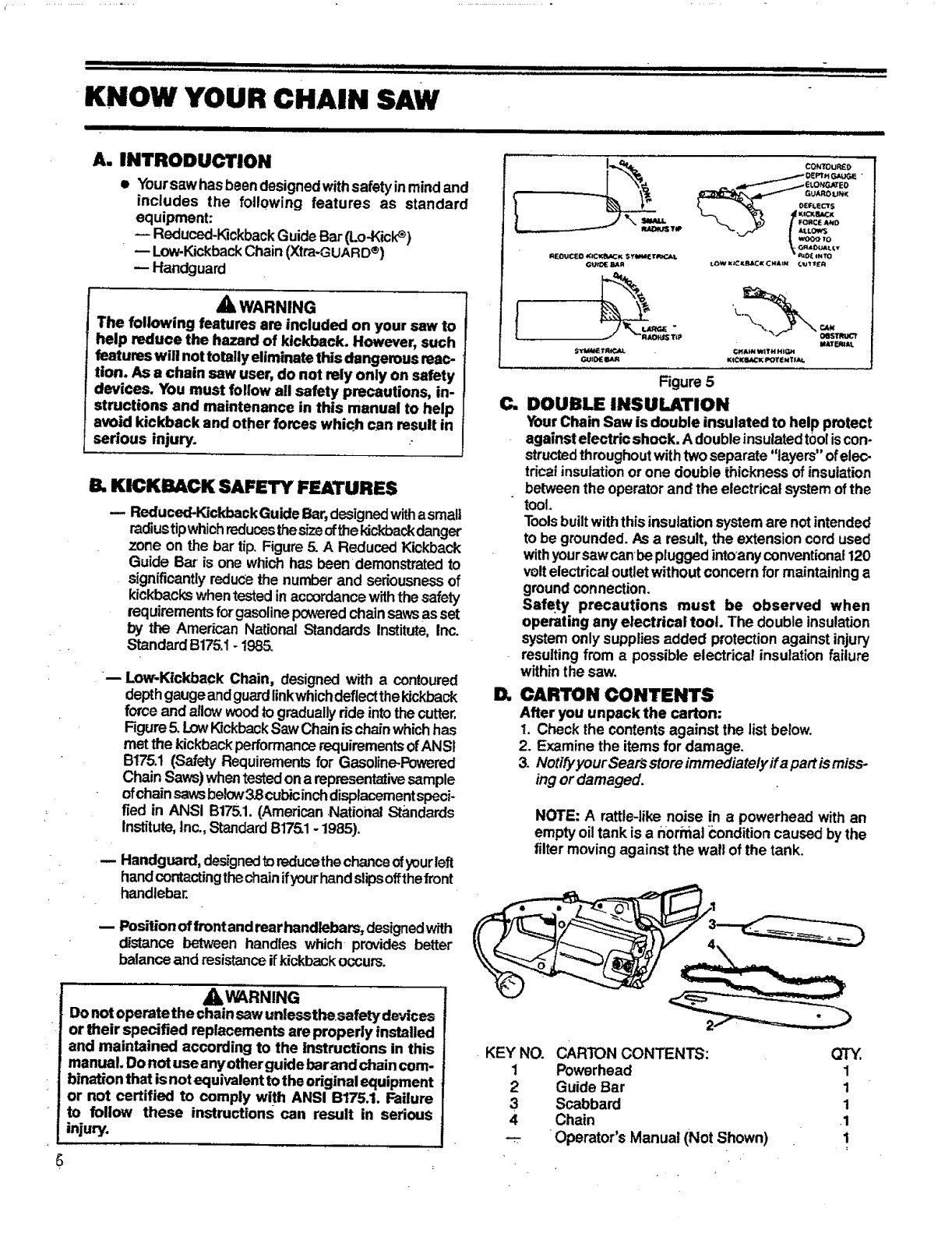

KNOW YOUR CHAIN SAW
A. INTRODUCTION
•Yoursaw has beendesignedwithsafetyin mind and
includes the following features as standard
equipment:
Reduced-KickbackGuide Bar (Lo-Kick_)
mLow-KickbackChain (Xtra-GUARD®)
Handguard
AWARNING
The following features are included on your saw to
help reduce the hazard of kickback. However, such
features will not totally eliminate this dangerous mac-
tion. As a chain saw user, do not rely only on safety
devices. You must follow all safety precautions, in-
structions and maintenance in this manual to help
avoid kickback and other forces which can result in
serious injury.
B. KICKBACK SAFETY' FEATURES
-- Reduced-KJckbackGuide Bar,designedwithasmal|
radiustipwhichreducesthesfzeofthekickbackdanger
zone on the bar tip. Figure 5. AReduced Kickback
Guide Bar is one which has been demonstrated to
significantlyredu(/ethe number and seriousnessof
kickbacks whentested inaccordancewiththe safety
requirementsfor gasolinepoweredchainsawsas set
by the American National Standards Institute, Inc.
Standard B175.1- 1985.
_--Low-Kickback Chain, designed with a contoured
depthgauge andguardlinkwhichdeflectthekickback
force and allowwood_ograduallyride intothe cutter,
Figure5. LowKickback SawChain ischain whichhas
met the kickbackperformancerequirementsof ANSI
B175.1(Safety Requirementsfor Gasoline-Powered
Chain Saws)whentestedonarepresentativesample
ofchainsaws below38 cubicinch displacementspeci-
fied in ANSI B175.1.(American.NationalStandards
In_tute, inc.,StandardBi75.1 -1985).
-- Handguard, designed toreducethe chanceofyourleft
handcontactingthe chainifyourhandslipsoffthefront
handlebar.
-- Position of front andrear handlebars, designedwith
distance between handles which provides better
balance and resistanceif kickbackoccurs.
_kWARNING
Do not operate the chain saw unlessthesafety devices
or their specified replacements are properly installed
and maintained according to the instructions in this
manual. Do not useanyotherguide barand chain com-
bination that is not equivalent to the original equipment
or not certified to comply with ANSI B175.1. Failure
to follow these instructions can result in serious
injury.
,,L .......... _ , ,,,,,
Figure 5
C, DOUBLE INSULATION
Your Chain Saw is double insulated to help protect
against electric shock. A double insulatedt0oliscon-
strucl_dthroughoutwithtwo separate "layers" ofelec-
trical insulationor one double thickness of insulation
between the operatorand the electrical systemof the
toot.
Toolsbuiltwith thisinsulation systemare notintended
to be grounded. As aresult, the extensioncord used
withyoursawcanbe pluggedintoanyconventional 120
voltelectricaloutletwithout concern for maintaining a
groundconnection.
Safety precautions must be observed when
operating any electrical tool. The double insulation
systemonly supplies added protectionagainst injury
resultingfrom apossible electrical insulation failure
withinthe saw.
D. CARTON CONTENTS
After you unpack the carton:
1. Check the contents against the list below.
2. Examine the items for damage.
3. Notifyyour Sears storeimmediately ffapart ismiss-
ing or damaged.
NOTE: A rattle-like noise in a powerhead with an
empty oil tank is a nori-nal_ondition caused by the
filter moving against the wall of the tank.
KEY NO.
1
2
3
4
CARTON CONTENTS: QTY,
Powerhead 1
Guide Bar 1
Scabbard 1
Chain 1
Operator's Manual (Not Shown) 1
i i im ii " ....I............
i; ,.... ,,,, ,,,ll i

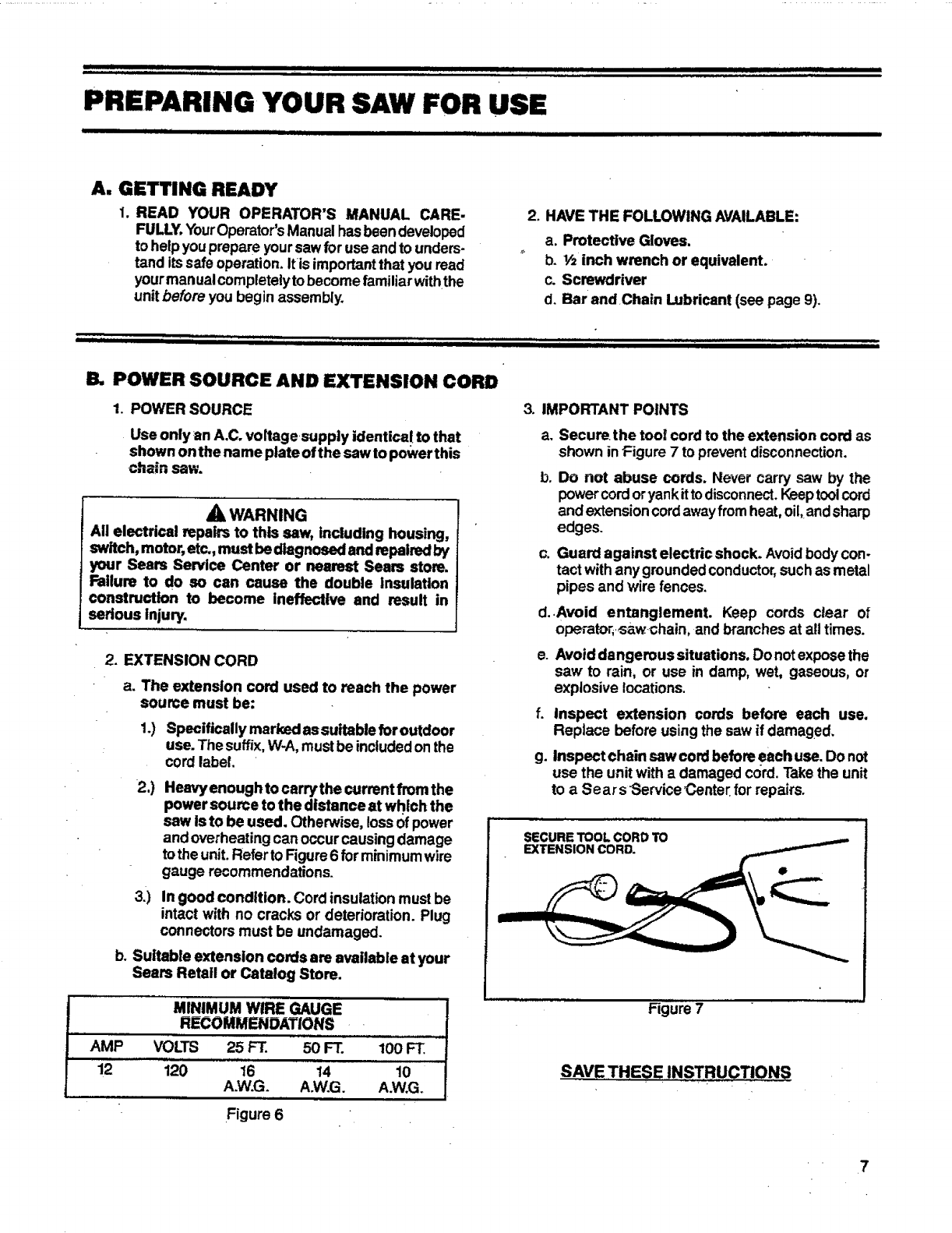

PREPARING YOUR SAW FOR USE
iiiiiiiiiiii
A. GETTING READY
I. READ YOUR OPERATOR'S MANUAL CARE-
FULLY.YourOperator'sManualhas beendeveloped
to help youprepare yoursawfor use and to unders-
tand itssafeoperation. Iris importantthat you read
yourmanuat completelytobecome familiarwiththe
unit before you begin assembly.
2. HAVE THE FOLLOWING AVAILABLE:
a. Protective Gloves.
b. ½inch wrench or equivalent.
c. Screwdriver
d. Bar and Chain Lubricant (see page 9).
....... J,,_,,,,,ii illl iii ill iill
ii ,,,,,,,,,,,,,,, • ii iiii II i iii ii iii
B. POWER SOURCE AND EXTENSION CORD
1. POWER SOURCE
Use only an A.C. voftagesupply identica! to that
shown onthe name plate of the saw to power this
chain saw.
_k WARNING
All elactdcal repairs to this saw, including housing,
switch, motor,etc., must be diagnosed andrepaired by
your Sears Service Center or nearest Sears store.
Failure to do so can cause the double insulation
construction to become ineffective and result in
serious injury.
2. EXTENSION CORD
a. The extension cord used to reach the power
source must be:
1.) Specifically marked as suitable for outdoor
use. The suffix,W-A, must be includedon the
cord label.
2,) Heavyenough to carry'the current from the
power source to the distance at which the
saw is to be used. Otherwise, lossof power
and overheating can occur causingdamage
tothe unit. Referto Figure6 forminimum wire
gauge recommendations.
3.) In good condition. Cord insulation must be
intact with no cracks or deterioration. Plug
connectors must be undamaged.
b. Suitable extension cords are available at your
Seam Retail or Catalog Store.
MINIMUM WIRE GAUGE I
RECOMMENDATIONS i
AMP VOLTS 25 FT. 50 FT. 100 F_. ]
r
12 120 16 14 10
A.W.G. A.W.G. A.W.G.
Figure 6
3. IMPORTANT POINTS
a. Secure, the tool cord to the extension cord as
shown inFigure 7 to prevent disconnection,
b, Do not abuse cords. Never carry saw by the
powercordoryank ittodisconnect,Keeptoolcord
and extensioncordawayfrom heat, oil,andsharp
edges.
c. Guard against electric shock. Avoidbody con-
tact withany grounded conductor,suchas metal
pipes and wire fences.
d. Avoid entanglement. Keep cords clear of
operator,sawchain, and branches at all times.
e. Avoid dangerous situations, Donor exposethe
saw to rain, or use in damp, wet, gaseous, or
explosive locations.
f. inspect extension cords before each use.
Replace before using the saw if damaged,
g, Inspect chain saw cord before .eachuse. Do not
use the unit with adamaged cord. Take the unit
to a Sears Service Center.for repairs.
SECURE TOOL CORD TO
EXTENSION CORD._
. t Figure 7
SAVE THESE INSTRUCTIONS
7
¢, ATTACHING THE BAR AND CHAIN
• Your saw is equipped with aReduced-Kickback
Guide Barand a Low-Kickback Chain.
eUse only the Reduced.Kickback Guide Bar and
Low-Kickback Chainspecified for your chain saw
model: when replacing these parts, See "Specifi-
cations;' page 2.
|CAUTION._ Wear protective gloves when hand-
ling or operating your saw, Thechain issharp and
can cut you even when it is not moving!
l AWARNING
Avoid accidental starting. Always unplug the saw
from the power source before installing a bar and/or
chain.
1, Remove the Bar Clamp Nuts & Bar Clamp
Housing,
2. Turnthe AdjustingScrew counterclockwiseto move
the AdjustingPinalmostasParasitwillgotothe rear.
Figure8.
3 Placethe Guide Bar on the sawbyfittingthe long
slotinthe Guide Baroverthe two mountingstuds.
Figure 9,
NOTE: BesuretheGuideBarispositionedwiththe
• roundhole belowthe largeslot,
4. Hold chain with cutters facing as shown in
Figure 10.
5. Place the chain around the sprocket and fit the
drive Jinksinto the Guide Bargrooves-- first the
top and then the bottom groove. Figure 11.
6. Slide the bar forward and fitthe adjustingpin into
the round hold in the Guide Bar.
7. Hold the Guide Bar against the saw frame and
installthe Bar Clamp Housing. Figure 12. . ..
8, 'SecuretheBarClamp Housingwiththe BarClamp
Nuts untilfingertighton/y.
9. Follow"Chain Tension"Instructionsonnextpage.
TURN ADJUSTING SCREW
COUNTE
•Figure 8
Figure g
CUTTERSMUST
FACE IN DIRECTION
OF ROTATION
Figure 10
FIT CHAIN AROUND
SPROCKET AND
GUIDE BAR
Figure 11
,jr
SECURE
BARCLAMP
HOUSING
......BARCLAMP N_U.1"S , r _ ...... -
0Figure 12
f
............. _! IIIIFIIIIIIII _IIIIILI II I IIII _llili II I LIIIII I i III il I
D. CHAIN TtNSi0N
* Chain tension Is very important:
--A loose chain will wear the bar and itself.
--A loose chain can jump offthe bar while you are
cutting
-- A tight chain can damage the saw andlor break.
eThe chain stretches dudng use, especlallywhen
new. Check tension:
-- each time the saw is'used
-- more frequently when the chain is new
--as' the chain warms up to normal operating
temperature.
_WARNING
Avoid accidental starting. Always unplug the saw
from the power source before adjusting chain
tension.
• Chain tensioning procedure:
NOTE:Thebardamp nutsmustbenomorethanfinger
tighttotensionthe chaincorrectly.
1. Holdthe tipofthe Guide Bar upand turn the Adjust-
.ing Screwclockwise just untilthe chain doesnot sag
beneath the Guide Bar.Figure 13. .-
NOTE: Totighten tension, turnthe adjustingscrew
clockwise _.Toloosentension,turn the adjust-
ing screw counterclockwise_.
2. Check the tensionby liftingthechain from the Guide
Bar at the center of the bar. Figure 14.
3. Continue turning the AdjustingScrew untilthe ten-
sion is correct.
4. Hold the tip ofthe Guide Barup andtightenthe Bar
Clamp Nuts with a wrench.
5. Recheck tension.
E' BAR ANDCHAIN OIL II III II III'1 I
Iipjiiiiiiiiiii Iiiiiiiiiiiiiii I II iiiii i iiiiiiiiiii *1 I i iiiiii
i, , , , i,
• Chain tension is correct when the chain:
--can be lifted about 118"from the Guide Bar at a
point near the middle of the bar,and
--will move freely around the bar.
Figure 13
CHAIN, CAN BE t
Figure 14 ....
i i i [ i i ii
• The guide bar and cutting chain require con-
tinuous lubrication inorderto remain in operating
condition.
--- Lack of oil will quickly ruin the bar and chain.
-- Too little oil will cause overheating shown by
smoke comingfrom thechain and/or discoloration
of the guide bar rails.
• Use Sears Bar and Chain Lubricant #71-36554 to
fill the oil tank. Clean SAE 30W oil may also be
-used. Never use waste oi/for thispurpose.
1. IMPORTANT POINTS
a. RI! the oil tank every time you use the saw.
See "Specifications" for oil cap location.
b. Wipe off surfacesbe_reflliing with oil toavoid
sawdust ordebrisaccidentallyfallingintothetank
•andcausingdamage.
c. Use afunnel to fill the tank and wipe up all
spills. Do notuse the sawuntilitiswiped clean
and is completely dry from spilled oil.
d. Replace the oil cap securely to ensure pro-
per operation of the oiler.
e. Check the otl level indicator frequentJydur-
ing use. Locatetheindicatorinthe saw frame
just below and behindthe front handte. Figure
15. If oil is not visible in the slot when saw is
upright on a level surface, the tank requires
filling.
f. Let saw stand unplugged for 15 minutes
before storing, It isnormal fora small amount
of oil todripoff the barand chain when the saw
is not {n use. The excess oil should be wiped
from the saw before storing.
2. USING THE MANUAL OILER
Yoursaw isequipped withan oileractivatorwhich
manually supplies oil to the bar and chain.
The oiler activator must be used regularly and-
often enough to maintain athin film of oil on the
bar and chatn whlle the saw Is cutting. It is
recommended that the oiler activator be
operated six {6) times aminute and held for
approximately three (3) seconds each time It
is pressed.
a. Operate the oilerbypressingdown onthe oiler
activator with your rightthumb. Figure 15.
b. Be surethat youcontinuetogrip handlesfirmly
while using the oiler activator.
Figure 15
• " i i ,i = "'=' " '_1 ,......., i iii a•,I IIIII II =_1 II

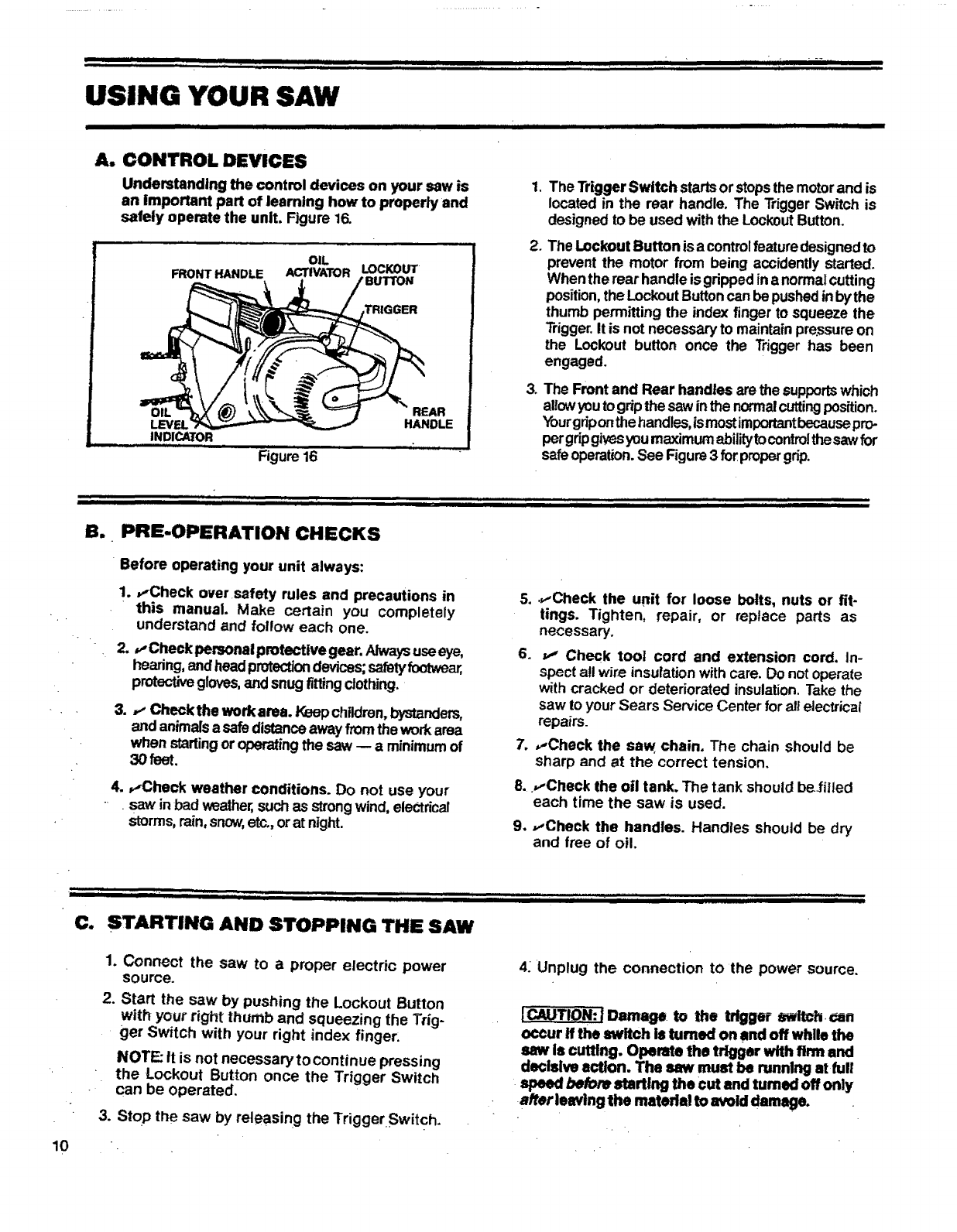

USING YOUR SAW
A. CONTROL DEVICES
Understanding the control devices on your saw is
an Important part of learning how to properly and
safely operate the unit. Figure 16.
OIL
FRONT HANDLE ACTIVATOR LOCKJOUT
OIL REAR
LEVEL HANDLE
INDICATOR
J J JU:L_L__ __
,
.
3_
The Trigger Switch startsor stopsthe motorand is
located in the rear handle. The Trigger Switch is
designed to be used with the LockoutButton.
The Lockout Button is a controlfeaturedesignedto
prevent the motor from being accidently started.
When the rear handle isgripped inanormalcutting
position,the LockoutButtoncan bepushedinbythe
thumb permitting the index finger to squeeze the
Trigger.It is not necessary to maintainpressureon
the Lockout button once the Trigger has been
engaged.
The Front and Rear handles are the supportswhich
allowyou to gripthe saw inthe normalcutting position.
Yourgriponthe handles,ismost importantbecausepro-
pergripgivesyoumaximum abilitytocontrolthesawfor
safeoperation.See Figure3 for propergrip.
B. PRE-OPERATION CHECKS
Before operating your unit always:
1. ,-Check over safety rules and precautions in
this manual. Make certain you completely
understand and follow each one.
2. ,--'Checkpersonal protective gear. Alwaysuseeye,
hearing,andheadprotectiondevices;safetyfootwe_
protectivegloves,andsnug tiffingclothing.
3. ,.- Checkthe workama. Keep children,bystanders,
and animals asafedistanceawayfrom the workarea
when startingor operatingthe saw -- a minimumof
30 feet.
4. ,,,,Check weather conditions. Do not use your
•saw inbad weather,suchas strongwind, electrical
storms,rain,snow,etc.,orat night.
5, .,,-Check the unit for loose bolts, nuts or fit-
tings. Tighten, repair, or replace parts as
necessary.
6. _Check tool cord and extension cord. In-
spect all wire insulationwith care. Do not operate
with cracked or deteriorated insulation.Take the
saw to your Sears Service Center forall electrical
repairs
7. ,.,Check the saw chain. The chain Should be
sharp and at the correct tension.
8. ,.-Check the oil tank. The tank should be.filled
each time the saw is used.
9. ,.-Check the handles. Handles should be dry
and free of oil.
IIIIII1[11 IIIII II ,lib I
C. STARTING AND STOPPING THE SAW
1.Connect the saw to aproper electric power
source.
2. Start the saw by pushing the Lockout Button
with your right thumb and squeezing the Trig-
ger Switch with your right index finger.
NOTE It is not necessary to continue pressing
the Lockout Button once the Trigger Switch
can be operated,
3. Stop the saw by releasing the Trigger Switch.
,"' '" =,,,
4. Unplug the connection to the power source.
ICAUTION---_.Danmge to the trigger switch can
occur tf the switch is turned on and off while the
saw Is cuffing. Operate the trigger with firm and
decisive action. The saw must be running at ful!
speed before _rtlng the cut and turned off only
after leaving the matedsi to avoid damage.
0 • .
"i / IIII i HI i I

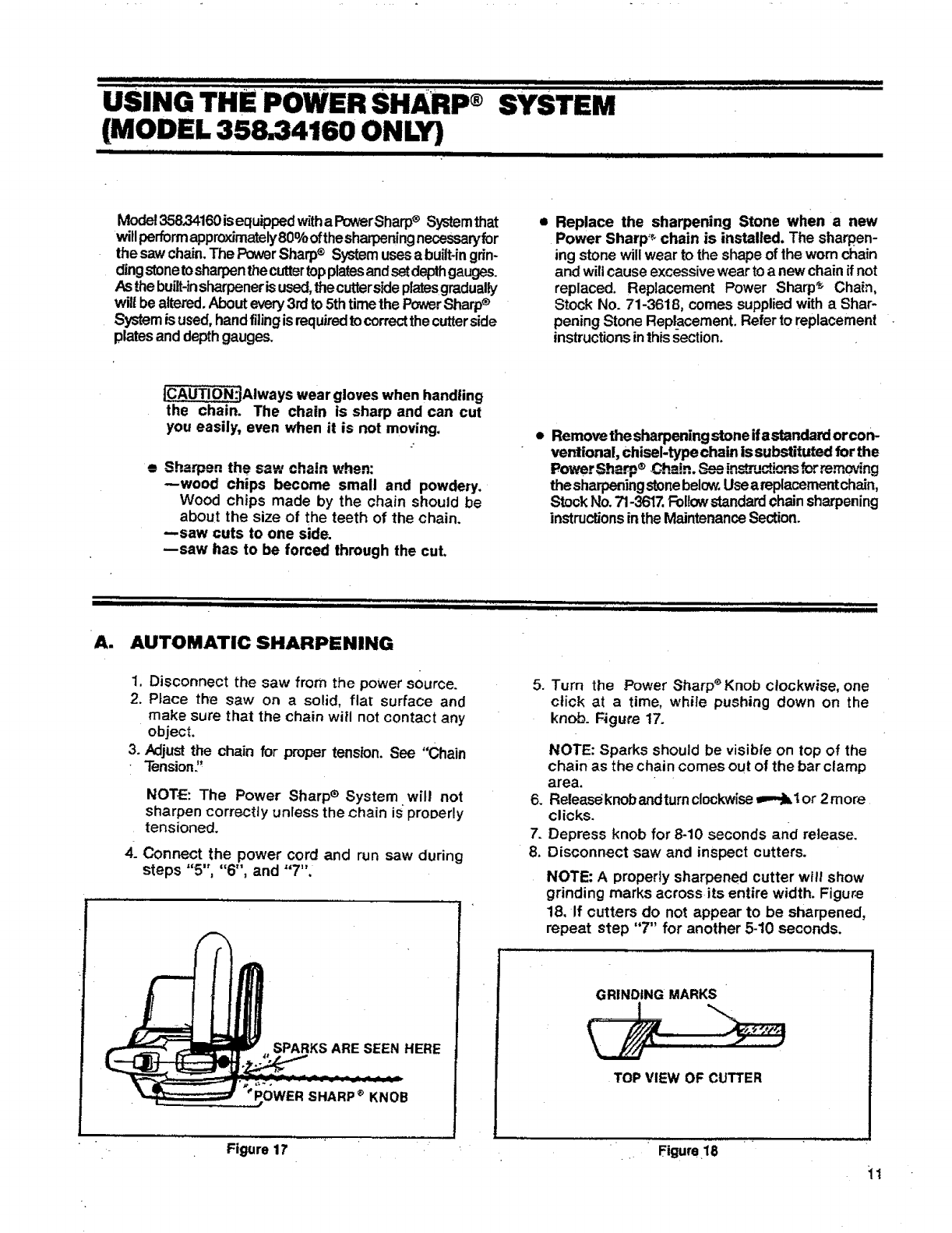

uSiNG THE POWER SHARP ®SYSTEM
(MODEL 358.34160 ONLY)
-- IIIIIIUIIIIIII I I II I I I I I II III I I IIII!I II | II Ii I I
Modet358,34160isequippedwithaPowerSharp®Systemthat
will performappro_Jma_ly80%ofthesharpeningnecessaPjfor
thesaw chain.The PowerSharp® Systemusesabuilt+ingrin-
dingstonetosharpenthecuttertopplatesandsetdepthgauges.
As thebuilt-insharpenerisused,thecuttersideplatesgraduaity
will be altered.Aboutevery3rd to 5thtimethe PowerSharp®
Systemis used,handfilingisrequiredtocorrectthe cutterside
platesanddepthgauges+
•Replace the sharpening Stone when a new
Power Sharp +chain is installed, The sharpen-
ing stone will wear to the shape of the worn chain
and will cause excessivewear to anew chain if not
replaced. Replacement Power Sharp_+ Chain,
Stock No. 71-3618, comes suppliedwith a Shar-
pening Stone Replacement. Referto replacement
instructionsinthissection.
tCAUTIONilAIways wear gloves when handling
the chain. The chain is sharp and can cut
you easily, even when it is not moving.
e Sharpen the saw chain when:
--wood chips become small and powdery.
Wood chips made by the chain should be
about the size of the teeth of the chain.
--saw cuts to one side.
--saw has to be forced through the cut.
• Removethe sharpening stone ifastandard orcon-
ventional, chisel-type chain is substituted for the
PowerSha_ ®Chain. See inst.j._Jonsfor,_moving
the sharpeningstonebelow.Useareplacementchain,
StockNo. 71-361ZFoliowstandard chainsharpening
instructionsinthe MaintenanceSection.
iiiiiiiiiii i iiiiiiiiiiiiiiiiiiiiiii
A. AUTOMATIC SHARPENING
1. Disconnect the saw from the power source.
2. Place the saw on a solid, flat surface and
make sure that the chain will not contact any
object.
3. Adjust the chain for proper tension. See "Chain
Tension."
NOTE: The Power SharpeSystem will not
sharpen correctly unless the chain is properly
tensioned.
4. Connect the power cord and run saw during
steps "5", "6", and "7".
SPARKS ARE SEEN HERE
'PC)WER SHARP _KNOB
Figure 17
.
.
7+
8.
,JllJ i
II II III IIIIIIII II I ".l +II III !
Turn the Power Sharp +Knob clockwise, one
click at a time, while pushing down on the
knob. F4gut_ 17.
NOTE: Sparks should be visible on top of the
chain as the chain comes out of the bar clamp
area.
Release knob andturnclockwise _ 1or 2more
clicks.
Depress knob for 8-10 seconds and release.
Disconnect saw and inspect cutters.
NOTE: A properly sharpened cutter will show
grinding marks across its entire width. Figure
18. If cutters do not appear to be sharpened,
repeat step "7" for another 5-10 seconds.
GRINDING MARKS
TOP VIEW OF CUTTER
, ,+,, • L,
Figure.18
I I II I • I I i i i IIIIIIIIIIIIIII[ . . . nJllllllllllllllllll I I I I II I I. I I II I • I I /

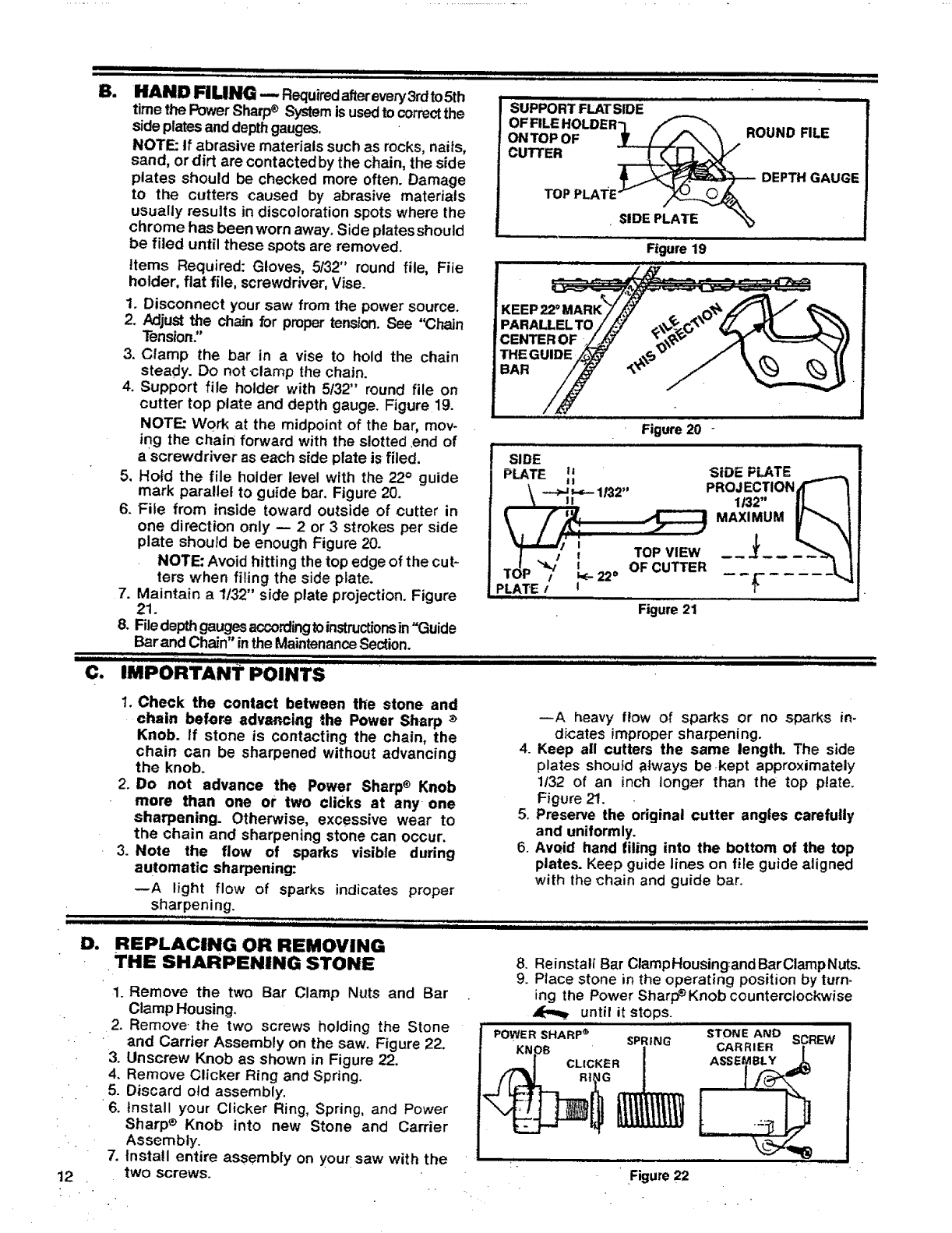

S_ HAND FILING--, Requiredafterevery3rdto5th
time the PowerSharp® Systemis usedto correctthe
side platesanddepthgauges,
NOTE: tf abrasive materials such as rocks, naits,
sand, or dirt are contactedby the chain, the side
plates should be checked more often. Damage
to the cutters caused by abrasive materials
usually results in discoloration spots where the
chrome has been worn away. Side plates should
OFFILEHOLDER"I_ _ aOUND FILE
ONTOPOF ____'_ _t ,,. '"
CUTTER
pLATE_ DEPTH GAUGE
TOP
SIDE PLATE "_
Ill=
be filed until these spots are removed.
Items Required: Gloves, 5/32" round file, Fite
holder, flat file, screwdriver, Vise.
1. Disconnect your saw from the power source.
2. Adjust the chain for proper tension. See "Chain
Tension:'
3, Clamp the bar in a vise to hold the chain
steady. Do not clamp the chain.
4. Support file holder with 5/32" round file on
cutter top plate and depth gauge. Figure 19.
NOTE: Work at the midpoint of the bar, mov-
ing the chain forward with the slotted ,end of
a screwdriver as each side plate is filed,
5, Hofd the file holder level with the 22° guide
mark parallel to guide bar. Figure 20.
6. File from inside toward outside of cutter in
one direction only -- 2 or 3 strokes per side
plate should be enough Figure 20.
NOTE: Avoid hitting the top edge of the cut-
ters when filing the side p_ate.
7. Maintain a 1132" side plate projection. Figure
21.
8. File depth gauges accordingtoinstructionsin"Guide
Barand Chain" in the MaintenanceSection.
C. IMPORTANT POINTS ii ii iiill i iiii i
DI
,
12
1. Check the contact between the stone and
chain before advancing the Power Sharp _
Knob. If stone is contacting the chain, the
chain can be sharpened without advancing
the knob.
2. Do not advance the Power Sharp®Knob
more than one or two clicks at any one
sharpening. Otherwise, excessive wear to
the chain and sharpening stone can occur.
3. Note the flow of sparks visible during
automatic sharpening:
_A light flow of sparks indicates proper
sharpening.
--A heavy flow Of sparks or no sparks in-
dicates improper sharpening.
4. Keep all cutters the same length. The side
plates shou}d always bekept approximately
1132 of an inch longer than the top plate.
Figure 21.
5. Preserve the original cutter angles carefully
and uniformly.
6. Avoid hand filing into the bottom of the top
plates. Keep guide lines on file guide aligned
with the chain and guide bar.
." _':,'_ ' .._ - . -_ _,",I,, ; -
REPLACING OR REMOVING
THE SHARPENING STONE
I. Remove the two Bar Clamp Nuts and Bar
Clamp Housing.
2. Remove • the two screws holding the Stone
• and Carrier Assembly on the saw. Figure 22.
3. Unscrew Knob as shown in Figure 22.
4. Remove Clicker Ring and Spring.
5. Discard old assembly.
6. Install your Clicker Ring, Spring, anc! Power
Sharp ® Knob into new Stone and Carrier
Assembly.
Install entire assembly on your saw with the
two screws.
,
9.
POWER SHARP ®
KNOB
J CLICKER
Reinstal! Bar ClampHousing:and BarClampNuts.
Place stone in the operating position by turn-
ing the Power Sharp _ Knob counterclockwise
until it stops.
STONE ANO SCREW
SPRING CARRIER l
ASSEMBLY ,L,
Figure 22

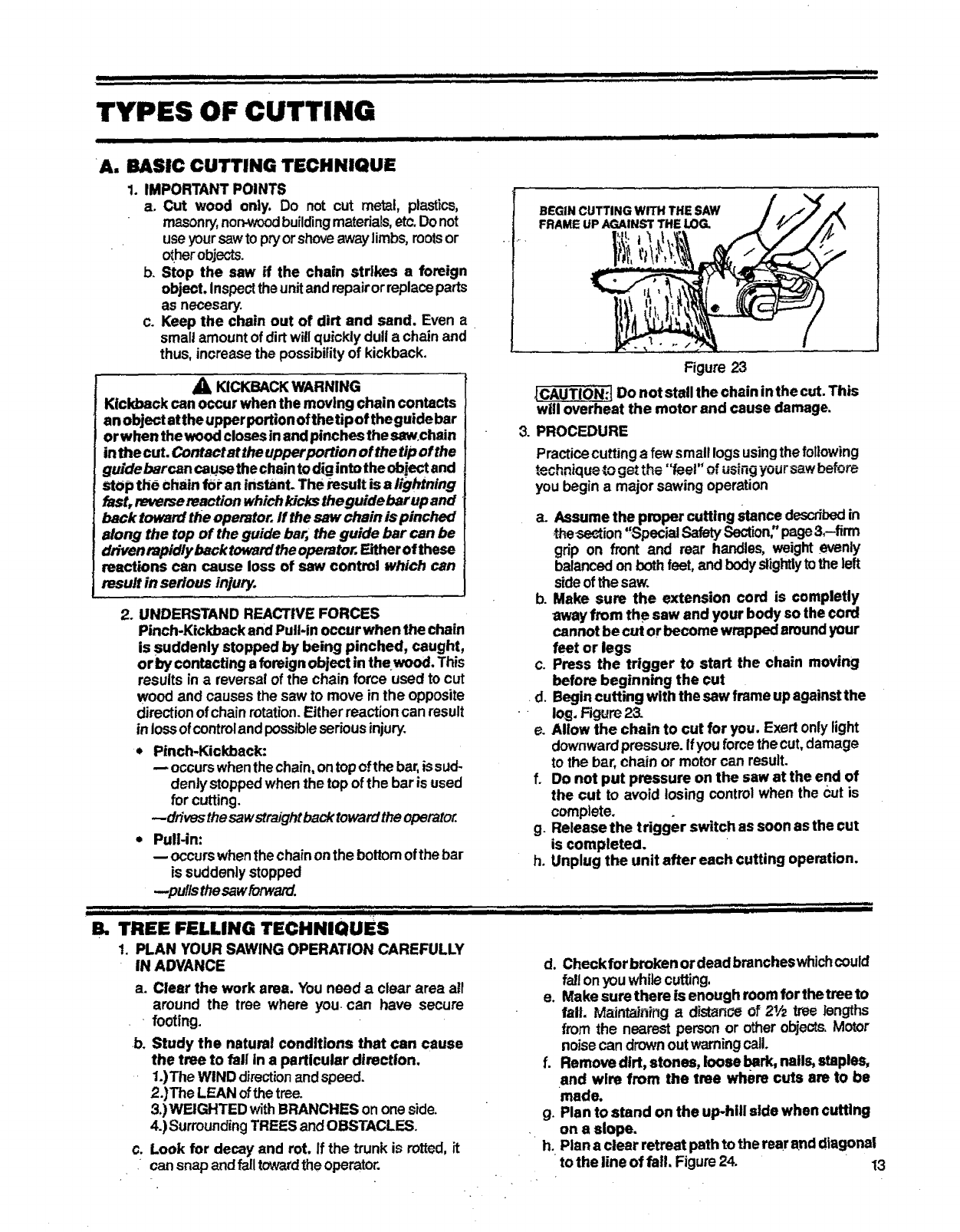

TYPES OF CUTTING
I IIIIIIIIIIIIIIII IIIIIII I IIIIIIIIIIIIIIIIIIIIIIIIIlJ . II I IIIIIIIIIIIIIII II I IIIIIIIIIWIIIIJ III I , , ,!
A. BASIC CUTTING TECHNIQUE
1. IMPORTANT POINTS
a, Cut wood only. Do not cut metal, plastics,
masonry,non-woodbuildingmaterials,etc.Donot
use yoursawtopryorshoveawaylimbs,rootsor
otherobjects+
b. Stop the saw if the chain strikes a foreign
object. Inspecttheunitandrepairorreplaceparts
as necesary+
c. Keep the chain out of dirt and sand. Even a
small amount of dirt willquickly dull a chain and
thus, increase the possibilityof kickback.
AKICKBACKWARNING
Kickback can occur when the moving chain contacts
an object atthe upperportionofthetipof theguidebar
orwhen the wood closes inand pinches the sawochain
in the cut. Contact at the upperportion of the tip of the
guide barcan caLU+Sethe chainto d{ginto the object and
stop the chain foPan instant. The result is a lightning
fast, reversereaction which kicks the guide bar up and
back toward the operator, ff the saw chain is pinched
along the top of the guide bar,+the guide bar can be
drivenrapid/ybacktowardthe operator..Either of these
remmtionscan cause loss of saw control which can
result in serious injury.
2. UNDERSTAND REACTIVE FORCES
Pinch-Kickback and Pull-in occur when the chain
is suddenly stopped by being pinched, caught,
or by contacting aforeign object in therWOOd.This
results in areversal of the chain force used to cut
wood and causes the saw to move in the opposite
directionof chain rotation.Either reactioncan result
inlossofcontrolandpossibleseriousinjury+
*Pinch-Kickback:
-- occurswhenthechain, ontopofthe bar,issud-
denly stoppedwhen the topof the bar is used
for cutting.
_drives the sawstraightback towardthe operator.
* Pull-in:
-- occurswhenthe chainonthe bottomof the bar
is suddenly stopped
--pulls thesawforward.
I t II, ++'_ _
BEGIN CUTTING WITH THE SAW
FRAME UP AGAINST THE LOG.
Figure 23
J_CAUT!0"N:tDo not stall the chain in the cut. This
will overheat the motor and cause damage.
3. PROCEDURE
Practicecutting a few small logs usingthe following
f,.,i-, " _+.+_,..t 4+÷
te,.,,nlque _ _e, ,h_ '_eel" of using yoursaw before
you begin a major sawing operation
a. Assume the proper cutting stance describedin
.thesect+ion"Special SafetySection"page&-firm
grip on front and rear handles, weight +evenly
balancedonboth feet, and bodyslightlytothe left
sideof the saw.
b+Make sure the extension cord is completly
away from the saw and your body so the cord
cannot be cut or become wrapped around your
feet or legs
c+ Press the trigger to start the chain moving
before beginning the cut
•d. Begin cutting with the saw frame up against the
•log, Fig,jre 23.
e+Allow the chain to cut for you. Exert only light
downwardpressure. If youforcethe cut,damage
to the bar, chain or motorcan result+
f. Do not put pressure on the saw at the end of
the cut to avoid losing control when the Cutis
complete.
g. Release the trigger switch as soon as the cut
is complete(].
h. Unplug the unit after each cutting operation.
i • • i
111111111ii
B. TREE FELLING TECHNIQUES
1. PLAN YOUR SAWING OPERATION CAREFULLY
IN ADVANCE
a. Clear the work area. You need a clear area all
around the tree where you+can have secure
footing+
+b+Study the natural conditions that can cause
the tree to fall in a particular direction,
1.)The WIND directionand speed+
2.)The LEAN ofthetree.
&)WEIGHTED withBRANCHES on one side.
4.) SurroundingTREES and OBSTACLES.
c. Look for decay and rot. If the trunk is rotted, it
•can snap and fall towardthe operator.
d. Check for broken or dead brancheswhichcould
fallonyouwhile cutting,
e. Make sure there is enough room for the tree to
fall. Maintaining a distance of 21/2tree lengths
from the nearest person or other objects.Motor
noisecan drownoutwarningcall.
f. Remove dirt, stones, loose bark, nails, staples,
and wire from the tree where cuts are to be
made.
g. Plan to stand on the up-hill side when cuffing
on aslope.
h. Plan a clear retreat path to the rear and diagonal
to the line of fall. Figure 24. 13

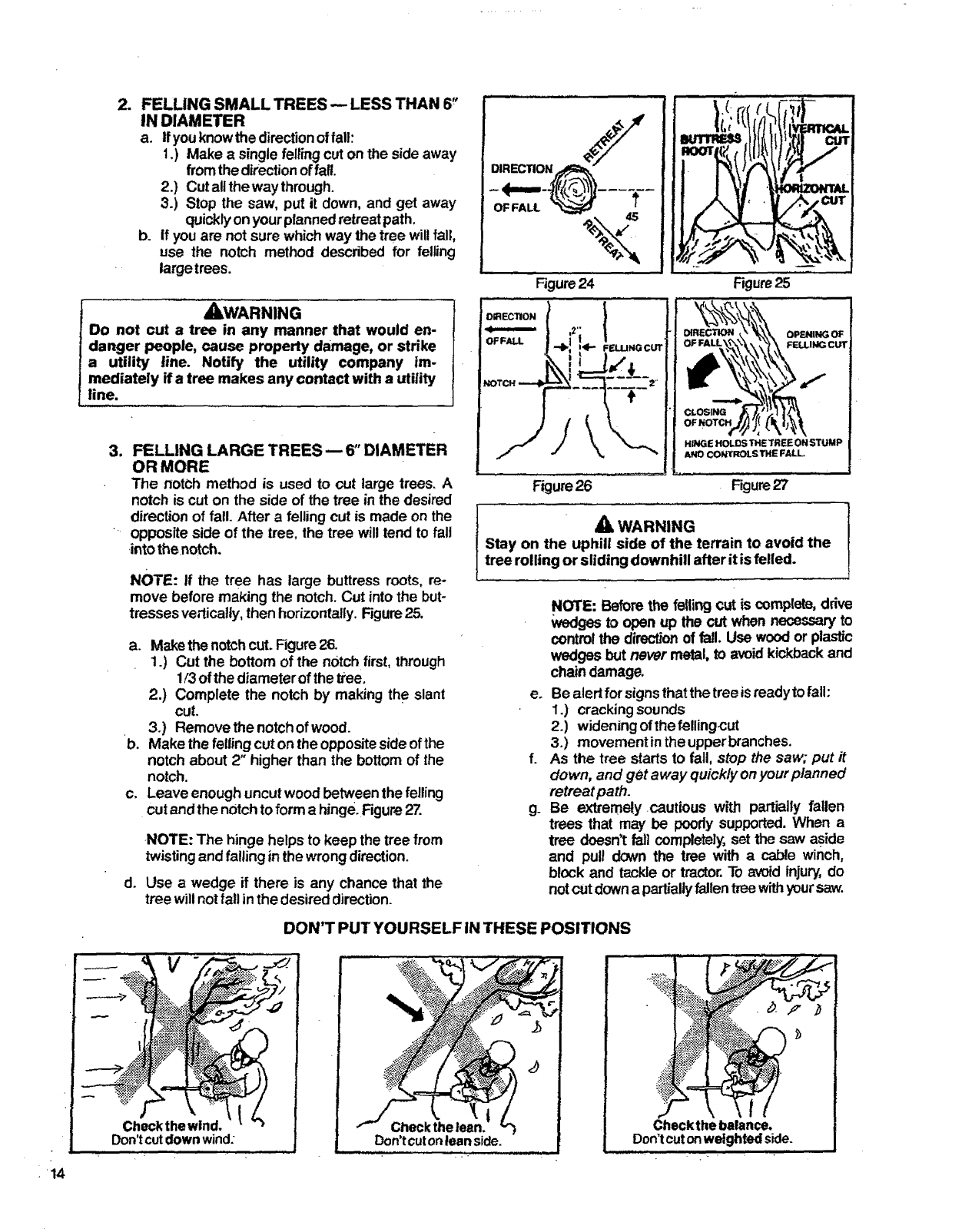

gFELLING SMALL TREES _LESS THAN 6_'
IN DIAMETER
a. If youknowthe directionoffall:
1.) Make asingle felting cut on the sideaway
from the directionof fall
2.) Cut all the way through.
3.) Stop the saw, put it down, and get away
quickly on your planned retreat path.
b. If you are not sure which way the tree willfall,
use the notch method described for felling
large trees.
AWARNING
Do not cut a tree in any manner that would en-
danger people, cause property damage, or strike
a utility line. Notify the utility company im-
mediately if a tree makes any contact with a utility
line.
,_, 4s
Figure24 Figure25
3. FELLING LARGE TREES-- 6" DIAMETER
OR MORE
The notch method is used to cut large trees, A
notch is cut on the side of the tree in the desired
direction of fall. After a felling cut is made on the
opposite side of the tree, the tree will tend to fall
into the notch.
NOTE: if the tree has large buttress roots, re-
move before making the notch Cut intothe but-
tresses ve,_calty, then horizontally Figure25.
a. Make the notchcut. Figure26.
1) Cut the bottom of the n0tch first, through
1/3 ofthe diameter of the tree.
2.) Complete the notch by making the slant
cut.
3.) Remove the notchof wood.
b, Make the feiling cut on the opposite side of the
notch about 2" higher than the bottom of the
notch.
c. Leave enough uncut wood between the felling
cut and the notch to form a hinge. Figure 27.
d,
NOTE: The hinge helps to keep the tree from
twistingand failinginthe wrong direction.
Use awedge if there is any chance that the
tree wil!notfall in the desired direction
HINGE HOLDS THE TREE ON STUMP
ANO CONTROLS THE FALL.
Figure26 F_jure27
AWARNING
Stay on the uphill side of the terrain to avoid the
tree rolling or sliding downhill after it is felled.
e_
g_
NOTE: Before the felling cut is complete,drive
wedges to open up the cut when necessaryto
controlthe directionof fall. Use wood or plastic
wedges but never metal, to avoid kickbackand
chain damage,
Be alert for signsthat the tree isreadyto fall:
1.) cracking sounds
2.) widening ofthe felling<:ut
3.) movement inthe upperbranches.
As the tree starts to fall, stop the saw; put it
down, and get away quickly onyour planned
retreat path.
Be extreme!y cautious with partially fallen
trees that may be poody supported. When a
tree doesn'tfall completely, set the saw aside
and pull down the tree with a cable winch,
block and tackle or tractor.To _oid injury,do
notcut downa partiallyfallentree withyoursaw.
DON'T PUT YOURSELF IN THESE POSITIONS
Checkthewind.
Don'tcutdownwind:
i 14
Check the lean.
Don'tcut onlean side. Checkthebalance.
Don't cuton weighted side.
iiiii i iii I ii,,,,,,,,,,,,,,,,,j ii iIIIIIIIIH
C. BUCKING
Bucking is the term used for cuffing a fallen
tree to the desired log size.
1. IMPORTANT POIN_
a. Cutonlyone log ata time,
b. Cut shattered wood very carefully. Sharp
pieces of wood could be flung toward the
operator.
c. Use a sawhorse to cut small logs. Never
allow another personto holdthe log while cut-
ting and never holdthe logwithyourlegortoot.
d. Do not cut in an area where logs, limbs and
roots are tangled such as in a blown down
area. Drag the logsintoacleararea beforecut-
ting by pulling out exposed and cleared logs
first.
e. Make the first bucking cut 1/3 of the way
through the log and finish with a.2/3 cut on
the opposite side. As the log is being cut, it
will tend to bend. The saw can become
pinched or hung in the log if you make the first
cutdeeper than 1/3 ofthe diameter of the log.
f. "Give special attention to logs under strain
to prevent the saw from pinching, Make the
first cut on the pressure side to relieve the
stress on the log. Figure28,
2. TYPES OF CUTTING USED (Rgure 29)
-- Overcutting - beginon the top sideof the log
with the bottom of the saw against the log;
exert lightpressuredownward.
---Undercutting - beginon the underside of the
log withthe topof thesaw againstthe log;exert
light pressure upward. During undercutting,
the saw will tend topushback at you. Be pre-
pared for this reaction•and holdthe sawfirmly
to maintain control.
1STCUT PRESSURESIDE
---t <---.
•ow ,... -_,_.J,, _ __-_ .__4,._L.___ _-___; "-'__mm¢_
2NDCUT
2ND CUT
4---
_t 1STCtrr PRESSURESIDE
"_a___.;__4. _ __'._. _ .
.......... Figure28
Figure29
Figure30
_WARNING
Never turn the saw upside down to undercut. The
saw cannot be controlled in this position.
,£k WARNING
If saw becomes pinched or hung in a log, don't try to
force it out. Youcould lose control of the saw resulting
in personal injury and/or damage to the saw. Stop the
sawanddrivea wedge ofplasticor wood intothec_until
saw can be removed eastly, Figure 30. Restart the saw
and carefully reenter the cut. To avoid kickback and
chain damage, donot usea metal wedge. Donot attempt
to restart your saw when it is pinched or hung inalog.
3, BUCKING_WITHOUTA SUPPORT
a. Overcut with a 1/3 diameter cut.
• b. Roll logoverand finishwithan overcuL
1ST
CUT tST
CUT
i _ i i, Figure32 15
1
t

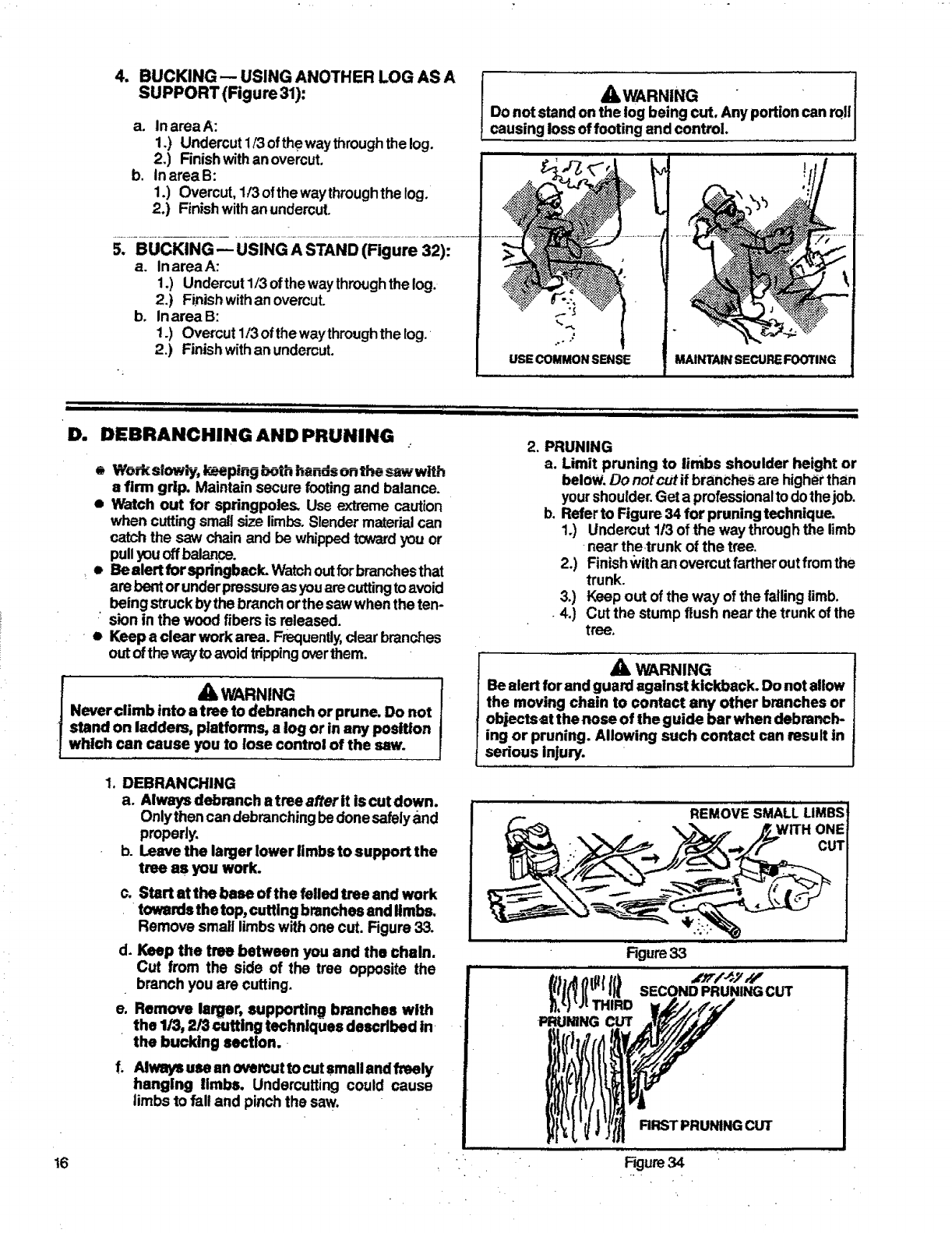

BUCKING-- USING ANOTHER LOG AS A
SUPPORT(Figure 31):
a. In areaA:
1.) Undercut 1/3 oftheway throughthe log.
2.) Finishwith anovercut.
b. in areaB:
1.) Overcut, 1/3 ofthe waythroughthe tog.
2.) Finish withan undercut.
BUCKING-- USING A STAND (Figure 32):
a. inareaA:
t.) Undercut 1/3 ofthe waythroughthe log.
2.) Rnish withan overcut.
b. Inarea B:
1.) Overcut 1i3ofthewaythroughthe log._
2.) Finish withan undercut.
,_WARNING "•
Do not stand on the log being cut. Any portion can roll
causing Jossof footing and control,
MAINTAIN SECURE FOOTING
i iiiiiiiiiii i i i _i
D. DEBRANCHING AND PRUNING
iiJ,uLi" I
•Work slowly, keeping both hands onthe sawwith
a firm grip. Maintain secure footing and balance.
• Watch out for spdngpoles. Use extreme caution
when cutting smallsize limbs.Slendermatedal can
catch the saw chain and be whippedtowardyou or
pullyouoffbalance.
•Be alert for spdngbsck. Watchoutforbranchesthat
are bent orunderpressureasyouarecuttingto avoid
being struck bythe branchorthe saw when the ten-
sion in the wood fibers is released.
•Keep a clear work area. Frequently,dear branches
out ofthe way_oavoidtrippingoverthem.
WARNING
Never climb into atree to debranch or prune. Do not
stand on laddem, platforms, a log or in any posltTon
which can cause you to lose control of the saw.
k
i ii ' i i I II I| i I ii
2. PRUNING
a. Limit pruning to limbs shoulder height or
below. Do notcut if branches are higherthan
yourshoulder.Get a professionalto dothejob.
b. Refer to Figure 34 for pruning technique.
1.) Undercut 1/3 of the way throughthe limb
near thetrunk of the tree.
2.) Finish_vithan overcut fartheroutfromthe
trunk.
3.) Keep out of the way of the falling limb.
4.) Cut the stump flush near the trunk of the
tree.
A WARNING
Be alert forand guard against kickback. Do not allow
the moving chain to contact any other branches or
ob_=ctset the nose of the guide bar when debmnch-
ing or pruning. Allowing such contact can result in
serious Injury.
16
1. DEBRANCHING
a. Always debranch a tree after It is cut down.
Onlythen can debranchingbedone safelyand
properly.
b. Leave the langerlower limbs to support the
tree as you work.
c. Start at the base of the felled tree and work
towards the top, cutting branches and limbs.
Remove small limbs with one cut. Figure 33.
d. Keep the tree between you and the chain.
Cut from the side of the tree opposite the
branch you are cutting.
e. Remove larger, supporting branches with
the 1/3, 2/3 cutting techniques deecdhed in
the bucking section.
f. Always use an ovemuttocutsmallandfreely
hanging limbs. Undercutting could cause
limbs to fall and pinch the saw.
REMOVE SMALL LIMBSi
ONE
CUT
Figure33
SECOND PRUNINGCUT
I),%1"J[THIRD
PRUNING CUT
RRST PRUNINGCUT
Figure34
L
iiiiiiiii I [i ii. i i i i ,i ,, ,,,,,i, i ill i ii :iiiii .i iiii ii iiiiii i _iiiiiiiiiiiii
MAINTENANCE
I IIIIIIIIIIIIIIIIIIIIIIII II IIII IIII11111 IIIIII I II lJllllllII IIIIIIIII I III III I I IIIIIIIIIII
eA good maintenance program of regular inspec-
tion and care will increase the service life and
help to maintain the safety and performance of
your saw.
41_WARNiNG
All electrical mpeim to this saw, including housing,
switch, motor, eta, mustbe diagnosed andserviced by
your Sears Service Center or nearest Seam store.
Failure to do so can cause the double insulation
construction to become ineffective and result in
serious Injury.
• Inspect all wire insulation carefully before each
period of use. Do not operate or try to-repair the
saw if w._reinsu!ation is cracked or deteriorat-
ed. Take the unit to your Sears Service Center
for repair.
•Check the saw for loose bolts, screws, nuts, and
fittings daily when the saw is in use. Loose
fasteners can cause an unsafe condition as wet!
as damage to your saw. Tighten, repair, or
replace as necessary.
¸_I¸- '_ - _ ..... _ iiii.i....
A. CLEANING THE SAW
_WARNING
Avoidaccidental starting. Alwaysunpiug thesewfrom
the power source before cleaning or performing any
maintenance to thesaw or when not in use.
e
iiiii iiii m ii ,ll i- i
Check and retighten screws holding front handle
at least once for every five (5) hours or operation.
Makesurethehandguardissecurelyclampedbetween
the front handle and housingafter tighteningscrews,
Figure35.
,, ,.................. .... i
CHECK HANDLEBAR
SCREWS FREQUENTLY
, ,r , ,,,,,,,,, ,I........
Figure 35
llll| H ,,,,,,HHHI _ __ I . .
Clean and inspect the saw after each day of use.
1. Remove the bar and chain from the saw.
NOTE: Always clean the Guide Bar and
Chain when the chain is sharpened.
2. Use a small brush or the air discharge of a
vacuum cteaner to clean debris and sawdust
from the air inlet and exhaust sfots on hous-
ing. Figure 36.
3. Wipe saw clean with rags. Make sure there is
no oil film on the handtes or saw housing.
.
JCAUTION:] Do not use water, gasoline,
kerosene or any type of cleaning fluid to clean
the housing. Moisture can cause short cir-
cults. Hydrocarbons will attack and dete-
riorate the housing.
Remove all sawdust and oil from the drive
sprocket and bar-mounting pad area of the
saw. Figure 3Z
iii
B.
Figure36
II ,- -_ I i MiHH"
GUIDE BAR AND CHAIN
,'..m,,.. .,,,,I f, ,... I Ill'
Figure37
ill
.e increase theservice life of your Guide Bar and
Chain by:.
--Using the saw propedy and as recom.
mended in this manual.
--Maintaining the correct Chain Tension. See
"Chain Tension:'
--Proper lubrication. See"'Bar & Chain
Lubricant"
--Regular maintenance as described in this
section.
• Remove the Guide Bar from the saw for all
maintenance.
17.
18
JCAUTION:! Always wear gloves when handling the
chain. The chain is sharp enough to cut you even
though it is too dull to cut wood.
SUPPORT
FLAT SIDE
OF FILE HOLDER
ON TOP OF CUTTER
1. CHAIN MAINTENANCE
* Sharpen the chain when:
-- Wood chips are small and powdery, Wood
chips made by the saw chain should be
..........about,thesizeof the teeth of the chain....................
-- Saw has to be forced through the cut.
-- Saw cuts to one side.
a. CLEAN TREE SAP FROM THE CHAIN
BEFORE IT IS SHARPENED:
1.) Soak chain ina petroleum based solvent
or adetergent and water solution
2.) Dry chain thoroughly.
3.) Immersethe clean chainin lightoil untiloit
seeps into the rivetholes.
NOTE:Do notrun a chainwhich has been
cleaned w!thout lubricatingitfirst,.
SHARPENING INSTRUCTIONS :
(MODEL 358.34150)
Depth Gauge Tool
Screwdriver
Vise
b.
Support the square rod on the file holder
(with 5/32" round file) on cutter top plate
and depth gauge. Figure 38.
b.) Holdthe file holder level withthe 30oguide
mark parallel to the center of the chain.
Figure 39.
c.) File from inside toward outside of cutter,
straight across, on forward strokeonly. Use
2 or3 strokes per cuttingedge. Figure 33.
d.) Keep all cutters the same length. Figure
40.
e,) File enough to remove any damage tocut-
ting edge (side & top plate) ofcutter.Figure
40.
f.) File9tSG chaintomeetspecificationsshovm
in Figure41.
Items required:
Gloves
5/32" file
6" file holder
Flat file
5.)Sharpen cutters.
a.)
! LILWARNING
Maintain the proper hook angle according to the
manufacturer's specification for the chain you are
using. Too much hook angle will increase the chance
of kickbaekwhich can result in serious injury Figures
41 and 43.
6.) Correct Depth Gauges
a.) Place depth gauge tool (Catalog No.
71_-36557)over each cutter depth gauge.
Figure 42.
b.) File level with the flat fileif depth gauge is
higher than the _epth gauge tool.
€.) =Maintain rounded front corner of depth
gauge with a flat file. Figure 42 &43.
NOTE: The very top of the depth gauge
should be flat withthe front half rounded
off with a flat file.
OUND FILE
DEPTH
AUGE
TOP
PLATE SIDE PLATE
Figure39
CUTTERS
__H
I i
REMOVE DAMAGE
+
SiDEPLATE TOPPATE
Figure40
Figure41
DEPTH GAUGE TOOL
DEPTH GAUGE
Rgure42
HOOK
AN_LE 025
RIGHT WAY
•Figure-4,3
TOO MUCH SOUARED
HOOK ANGLE.... OFF CORNER
WRONG WAY "
I _WARNING
Depth gauge tool Is requlred to Insure proper depth
gauge. Flilng the depth gauge too deep will Increase
the chance of klcld)ack which can result In serious
Injury.
C;CHAINREPLACEMENT
1) Use on,f the Low-Kick Chainspecified
•for yoursawin "Specifications," for
replacement chain.
2) Replace the chain when cutters or
links break.
3) See your Sears Service Center to
rep]aceand sharpen individual cutters
for matching your chain.
4) Alwayshave awom sprocket replaced
by your Sears Service Center when
installing a new chain to avoid "
excessive wear to the chain.
Ca
2, GUIDE BAR MAINTENANCE
• Conditions which can require guide bar
maintenance:
.-,-saw cuts to one side
-- saw has to be forced through acut
inadequatesupplyofoil tobar and chain.
• Checkthe condition of the guide bar each
time thechain issharpened. Avx_mguidebar
Figure 44
WEAR IS
VISIBLE
willdamagethe chainand makecuttingmope
difficult.
• Replace the guide barwhen:
--the insidegrooveofthe guidebarrailsis
worn,
-- the guide bar is bent orcracked.
Use onlythe Reduced-Kickback Guide
Bar specified foryoursawin Specifi-
cations,' for replacement.
a. Remove the guide bar to service.
b, Clean oil holes at least once for each
five hours of operation.
c. Remove sawdust from the guide bar
groove periodically with a putty knife or
a wire. Figure44.
d. Remove burrs by filing the side edges
of the guide bar grooves square with a
flat file. Figure45.
e. Restore square edges to an uneven rail
top by filing with a fiat file. Figure 45.
CORRECT
GUli)e BAR
GROOVE WORN GROOVES FILE EDGES
SQUARE
Figure45
;;.: ........._ ...._, _, ,,, ;
SPROCKET
• Clean the sprocket and surrounding area
daily during heavy use of the saw.
•Inspect the sprocket regularly for wear. A
worn sprocket will cause the chain to run er.
raticatly and will shorten the life of the bar
and chain. Figure46.
• Replace the sprocket whenever a new chain
is installed. The sprocket matches the pitch
of the chain. If both the chain and sprocket
are replaced at the same time, they wilt wear
together. A worn sprocket will be out of pitch
with the new chain and thereby can cause un-
necessary wear.
Items required:
Pliers
7116"oradjustablewrench
112"wrench,or equivalent
i
CHAIN WEAR ON
_SPROCKet
a. Removethe bar clamp nutsandthe barclamp
housing.
b. Grasp the sprocket with pliers as shown in
Rgure 47.
c. Remove the outer nutfromthe endof theshaft
with a 7116"or adjustable wrench.
d. Slide washer from shaft.Figure48 &49o
e. Slide sprocketoff the shaft.
f. Reverseproceduret0instaJlsprock_,SeeFigures
hgure i,i ,i,,i,i, i i
48 &49.
g. Tighten the end nut securely wffh a7/16" or
adjustablewrench while holdingsprocketwith
pliers.
GRASPTHRUST WASHERWITH PLIERS
Figure47 t9
D.
MODEL 358.34150
SPROCKET
.Lii,ui, i,,,,,,, i i
MODEL 358.34160
THRUST
WASHER
BEVE LED WASHER CURVES
AWAY FROM POWERHEAD
BEVE LED WASHERS CURVE TOWARD
POWERHEAD
,_, ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,j _, .... ii,l,,,
When your saw is to be stored for over 30 days
always:
1. Drain oit tank:
2. Remove, clean, and dry the bar and chain.
3. Store the chain in a container filled with oil to
prevent rust.
4. Apply acoating of oi'l to the entire surface of
the bar and wrap it in heavy paPer, cloth, or
plastic.
5. Wipe off the outside surfaces of the unit.
6. Store the saw in a dry place out of the reach
of children.
i i_,,,j _ ill i Lii i
E. MAINTENANCE ACCESSORIES
Available through your nearestSears Store, Catalog Sales Office,or Service Center, but may not befurnished
with your saw.
20
Key
No.
1
2
3
4
Catalog No.
71-36524
71-36565
71-36557
71-36554
71-36556
71-3618
71-3617
.71-36365
Description
File (5 32"dia.) Twin pack
File Guide
Depth Gauge Tool
Bar and Chain Lubricant, 1 qt.
Bar and Chain Lubricant- 1gal. •
PowerSharp®Chain- ModelNo. 35834160 (NotShown)
Xtra GUARD®Chain- Model No;358.34150
Lp-.KiQk_Guide Bar-14"-.(NotShown)
.... i ............t '.....................'" , ,,i ' "I"'_I_,' '_"':"""'"'i................... ,....,,,,i...........
F. I"ROUBI.E SHOOTING CHART
Read and follow all safety instructions in the Special Safety Section before servicing your saw.
TROUBLE
Oil inadequate for bar,,
..........and cfla_rt_lu_brication
CAUSE
Chain does not move
when trigger switch is
engaged.
Chain Clatters or cuts
roughly
Chain stops within the
cut
Chain cuts at an angle
.....1. Ofllank empty ...........
2. Oil pump clogged.
3. Guide bar oil hole blocked.
1. Chain tension too tight.
2. Guide bar rails pinched.
3. Clutch slipping (2.0 HP models
only)
4. Triggerswitchfailure.
1. Chain tension incorrect.
2. Cutters dull, improperly sharp*
ened; depth gauges too high.
3. Sprocket..worn.
4. Chain weardueto contactwithdirt,
sand,ormetalobjectinwDod.
5. Cutters damaged after striking
foreign material.
REMEDY
........1. Rlloiltank. *..........................
2. ContactSearsServiceCenter.
3. Remove bar and clean,
1. See Chain Tension.
2. Repair or replace.
3. ContactSears Service Center.
4. Contact Sears Service Center,
1. see Chain Tension.
2. SeeChain Sharpening.
3. Replace.
4. Resharpen orreplaceChain.
5. Sharpenall cuttersevenlyand
uniformlyor replacechain.
See ChainSharpening.
1. Chain cutter tops not filed flat.. 1.
2. Guide bar burred or bent; rails 2.
uneven.
1. Cutters damaged on one side.
2. Chain dull on one side.
3. Guide bar bent, or worn.
See ChainSharpening.
Repairor replaceguidebar.
1. Resharpenun_ all cuttershave
equal anglesand lengths.
2. Resharpen untilall cuttershave
equal anglesand lengths.
3. Replace guidebar,
21
SEARS CHAIN SAW REPAIR PARTS LIST - MODEL NO. 358.341-20-2.0/12;'
358.34150-2.0/14"
358.34160-2.0/14" PS
8-- 3
MODEL 358.34124) &
358.34150
17
28
_29
32
MODEL 358.34160
ONLY
_47
L', /48
25
26
MODEL 358.34160 ONLY
MODEL 358.34120 &
358.34150
105
42
43
37 44
MODEL 358.34160 ONLY
103
23
102
22
SEARS CHAIN SAW REPAIR PARTS LIST - MODEL NO. 358.34120-2.0/12"
358.34150-2.0/14"
358.34160-2.0/14" PS
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
I 530-026448
2530-025458
3 530-028567
4 ........530=089752 .`
5 530-025873
6 530-025518
7 530-089764
8 530-025644
9530-028661
530-028566
10 530-015491
11 530-015485
12 530-015488
13 530-025517
14 71-3623
71-3618
71-3617
15 530-044244
71-36365
16 530-092062
17 530-015502
18 530-025463
19 STD582031
20 530-0107t8
530-010719
21 530-015541
22 530-015542
23 530-026455
530-026456
24 530-031104
25 530-025508
26 530-015504
27 530-015251
28 530-025546
29 530-025465
30 530-026119
31 530-010511
32 530-023456
33 530-015489
Motor Hsg, 34 530-015494
Clutch Drive 35 530-015495
Clutch Drum 36 530-023535
Mof0i"_sembl_ 37 530-015503
Safety Lock Button 38 530-02545 i
Switch w/Safety Lock Button 39 530-025457
Cordset-2 Prong
Scabbard 40 530-015499
Sprocket-6 Tooth 41 530-025456
Model 358.34120 & 358,34150
Model 358.34160 42 530-023492
Washer 43 530-025466
Washer 44 530-015514
Washer 45 530-031063
Collar-Retainer 46 530-052073
Chain
Model 358.34120
Model 358,34160 47 530-025524
Model 358.34150
Bar 48 530-0254"62
12"
14" 49 550-02"5543
Washer
Nut 50 530--069107
Gear Pinion
Retaining Ring (Motor Shaft) 51 530-069098
Main Hsg. Ass'y. 0nd. #3.7)
Model 358,34120 & 358.34150
Model 358.34160 52 530-067381
Screw
Screw
Bar Clamp Hsg.
Model 358.34120 & 358.34150
Model 358.34160 Decals
Tool Gauge (Oil Pump) 101 530-026458
Model 358.34160 102 530-026457
Drive Gear Ass'y. !03 530-025593
Washer
Nut 104 -
Oil Cap 530-027418
Oiler Actuator 530-027665
Check Valve 530-027664
Oil Tank Ass'y. (Incl. Line, 105 530-026849
Filter, #30 &32) 106 -
Oil Line Spring 530-026884
Washer 530-026878
Model 358,34120 & 358.34150 530-026885
Screw
Screw
....,_pacer
Bolt
Handguard
Wraparound Handlebar
Model 358,34160
Screw
Stub-Type Handlebar
Model 358.34120 & 358,34150
Bar.Adjusting Pin
Plate Keeper (Bar Adjusting)
Screw
Wrench (Optional)
Chain Repair Kit (Optional)
Model 358.34120 &358.34150
Only
Adjustment Knob
Model 358,34160
Clicker Ring
Model 358,34160
Spring
Model 358.34160
Stone and Carrier Ass'y.
Model 358.34160
Power Sharp Kit Ass'y. (Incl.
#35 & 47-50)
Model 358.34160
Operator's Manua!
Motor Hsg. Decal
Bar Clamp Hsg, Decal
Sharpening Instructions Decal
Model 358.34160
Specification Decal
Modd 358.34120
Model 358.34150
Model 358.34160
Handguard Decal
Replacement Bar &Chain Decal
Mode! 358.34120
Model 358,34150
Model 358.34160
Not Shown
530-026550 Chain TenSioning Decal
: 23
NOTES
24
NOTES
.25
NOTES
"26
QUICK REFERENCE PAGE
Read and follow all Safety Rules, Precautions and Operating instructions.
Failure to do so can result in serious personal iniury. page
SAFETY RULES AND PRECAUTIONS ....... ..................................... 3-4
PREPARATION ............................................................... 5
1. Wear persona] protectivegear-gloves; safety footwear; snug fitting clothing;and eye, hearing and
head protection.
2. Checkfor worn,lose, ordamagedpartsandrepairor repJacebeforeusingthesaw,
&Checkthe chain for sharpnessand tension.
4, Keepchildren, bystanders,andanimalsa minimun of 3Ofeet awayfrom theworkarea.
5. Ran your sawingoperationcarefullyinadvance.
BAR AND CHAIN OIL .......................................................... 9
1. Fillthe oiltank withcreanoileach time the saw is used.
2. Use afunnel to fittthe tankand wipeupallspilts.
3. Replacethe oilcap securely.
4. Operate the oileractivatorsixtimesa minute and holddown for approximatelythreesecondseach time the
activator is pressed,
OPERATING THE SAW ..... ................... .................................. 10
1. Connect the saw to a proper power source.
2. Make sure the extension cord is completely, away from the saw and cannot be cut.
3. Start the saw by pushing the lockout button and squeezing the trigger before entering the cut.
4. Begin cutting with the saw frame against the log.
5, Allow the chain to cut for you; exert only light downward pressure.
6. Release- the trigger switch as soon as the cut is,complete d.
7. Unplug the unit after each cutting operation.
MAINTENANCE ............................................................ !7
1. Take your saw to aSears Service Center for all electrical related repairs.
2. Check and retighten screws holding front handle at least once for each five hours of operation.
3. Check the guide bar for wear each time the chain is sharpened.
r4. tnsta/l a new sprocket each time a new chain is installed.
5. Let saw stand unplugged for 15 minutes and wipe oil from saw and bar before storing.
6. Store saw in a dry pJace out of the reach of children.
COMMON CHAIN SAW TERMS
12.
:13.
14.
1. Front Handle _ The Support handle located at or toward the front of the chain saw.
2. Rear Handle _The support handle located at or toward the rear of the saw.
3. Trigger Switch _ A device that when operated will complete or ir_terruptan electrical power cir.
_uit to the motor of the chain saw.
4. Lockout Button mAmovable stop that prevents the unintentiona/operation.of the switch until
manually actuated.
5: Oiler Activator -- Asystem for oiting the guide bar and saw _chain.
6. Guide Bar -- A solid, railed structure that supports and guides the saw chain.
7. Saw Chain -- A loop of chain having cutting teeth (that cut the wood) that is driven by the motor
and supported by the guide bar.
8. Sprocket -- The toothed part that drives the saw chain.
9. Clutch _A mechanism for connecting and disconnecting a driven member to and from a
rotating source of power.
10. Spiked Bumper (Spike) -- The pointed tooth or teeth for use when felling or bucking to pivot the
saw and maintain position while sawing.
1t. Kickback _The backward and!or upward motion of the guide bar occuring when the saw chain
near the nose of the top ares of the guide bar contacts any object such as another log or
branch, or when the wood closes in and pinches the saw chain in the cut.
Normal Cutting Position mThe position assumed in performing the bucking and felling cuts.
Felling -- The process of cutting down a tree.
•Notch Cut _A-notch cul in a tree that directs the fail of the tree.
Felling Cut--The final cut in a tree felling operation made on the opposite side of the tree from
the notch cut.
_6. Bucking -- The process of cross-cutting a felled tree or log into lengths.
•17. Boring _The process involved incuttingwith the saw chain at the nose (tip) of the guide bar, in order
to make ahole.41]I,WARNING: Sears does not recommend performing plunge or boring cuts due
to the dangers of kickback.

Navigation menu
