Scars ]

owner's

manual

®Assembly

® Operation

•Maintenance

® Repair Parts

MODEL NO.

358.354830.3.7/18"

358.354870-3.7/18"P5

WARNING:

Carefully read and follow

Safety Rules, Precautions

and Operating Instructions°

Failure to do so can result

in serious personal injury.

3.7/18" 3.7/18"PS

CHAIN SAWS

Record in the space provided below the Model No. and Serial No,, of

your saw, These numbers are located on the starting instructions

decal,

Model No Serial No.

Retain these numbers for future reference

Sears, Roebuck and Co., Cl_ioa_o, Ill. 6068.4 U.S,A.

u, PRINTED IN U, S. A,

64754-3-08383-1-(}8383

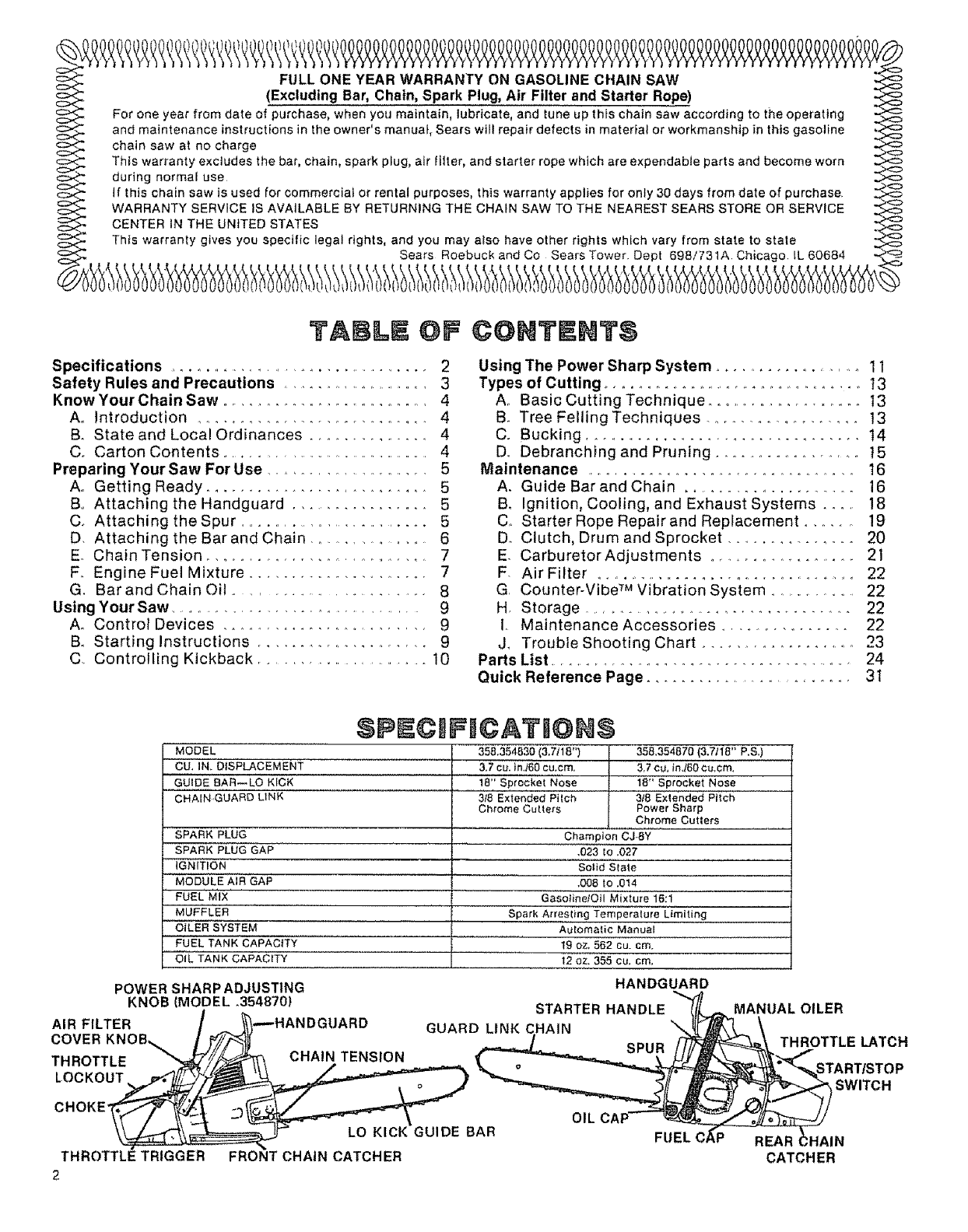

FULL ONE YEAR WARRANTY ON GASOLINE CHAIN SAW

(Excluding Bar, Chain, Spark Plug, Air Filter and Starter Rope)

For one year from date of

and maintenance instructions in the owner s manual, Sears wtlt repair defects in material or workmanship in this gasoline

chain saw at no charge _:_

This warranty excludes the bar, chain, spark plug, air filter, and starter rope which are expendable parts and become worn

during normal use

if this chain saw is used for commercial or rental purposes, this warranty applies for only 30 days from date of purchase.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CHAIN SAW TO THE NEAREST SEARS STORE OR SERVICE

CENTER IN THE UNITED STATES

This warranty gives you specific legal rights, and you may also have other rights which vary from state to stale

Sears Roebuck and Co Sears Tower Dept 698/73tA Chicago IL 60684

TABL OF ©@NT NT$

Specifications ................................. 2

Safety Rules and Precautions .................... 3

Know Your Chain Saw ......................... 4

A, Introduction ........................... 4

B, State and Local Ordinances ............... 4

C. Carton Contents ....................................... 4

Preparing Your Saw For Use ..................... 5

A., Getting Ready .......................... 5

B, Attaching the Handguard ................. 5

C, Attaching the Spur ............................. 5

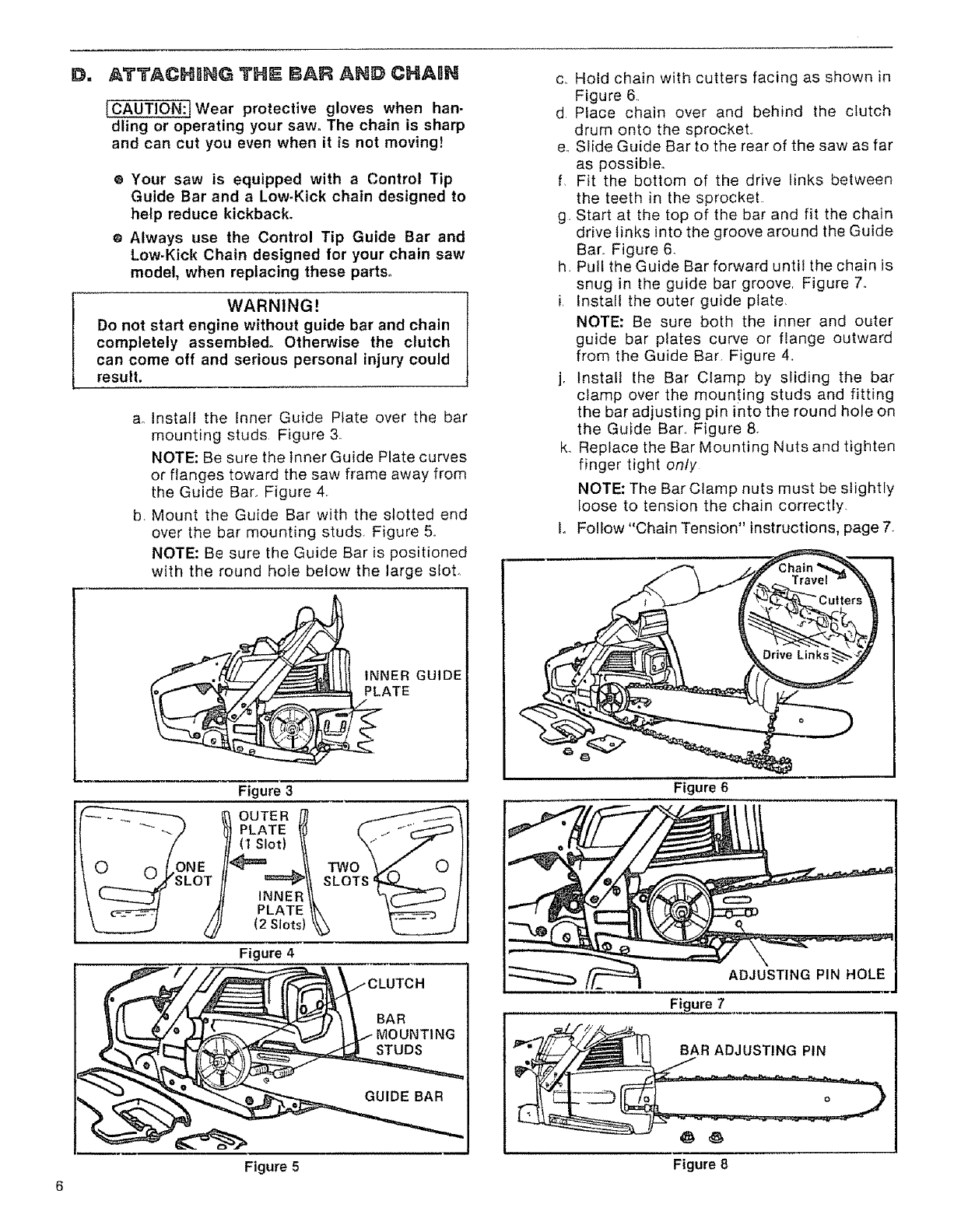

D, Attaching the Bar and Chain ................... 6

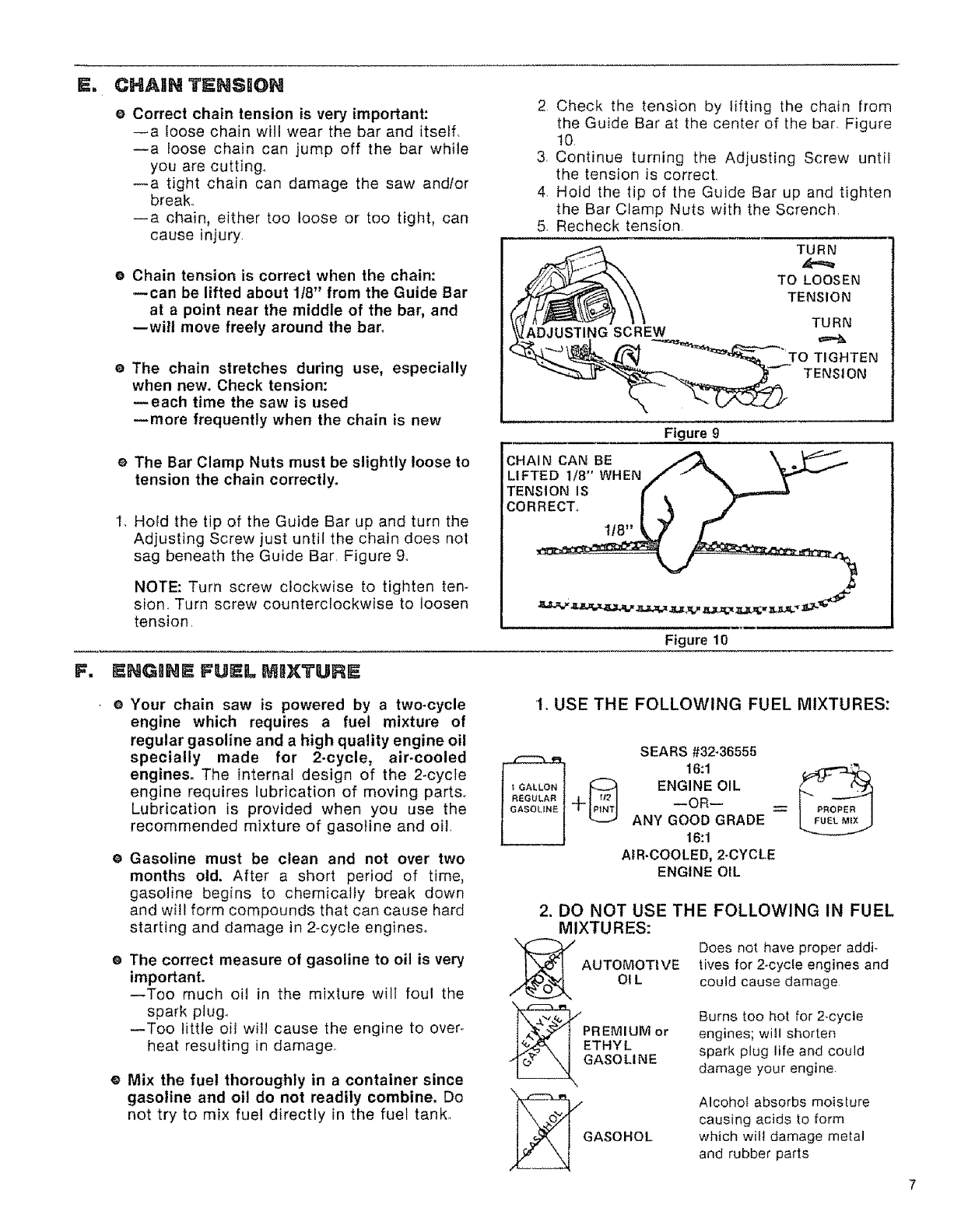

E. Chain Tension ............................ 7

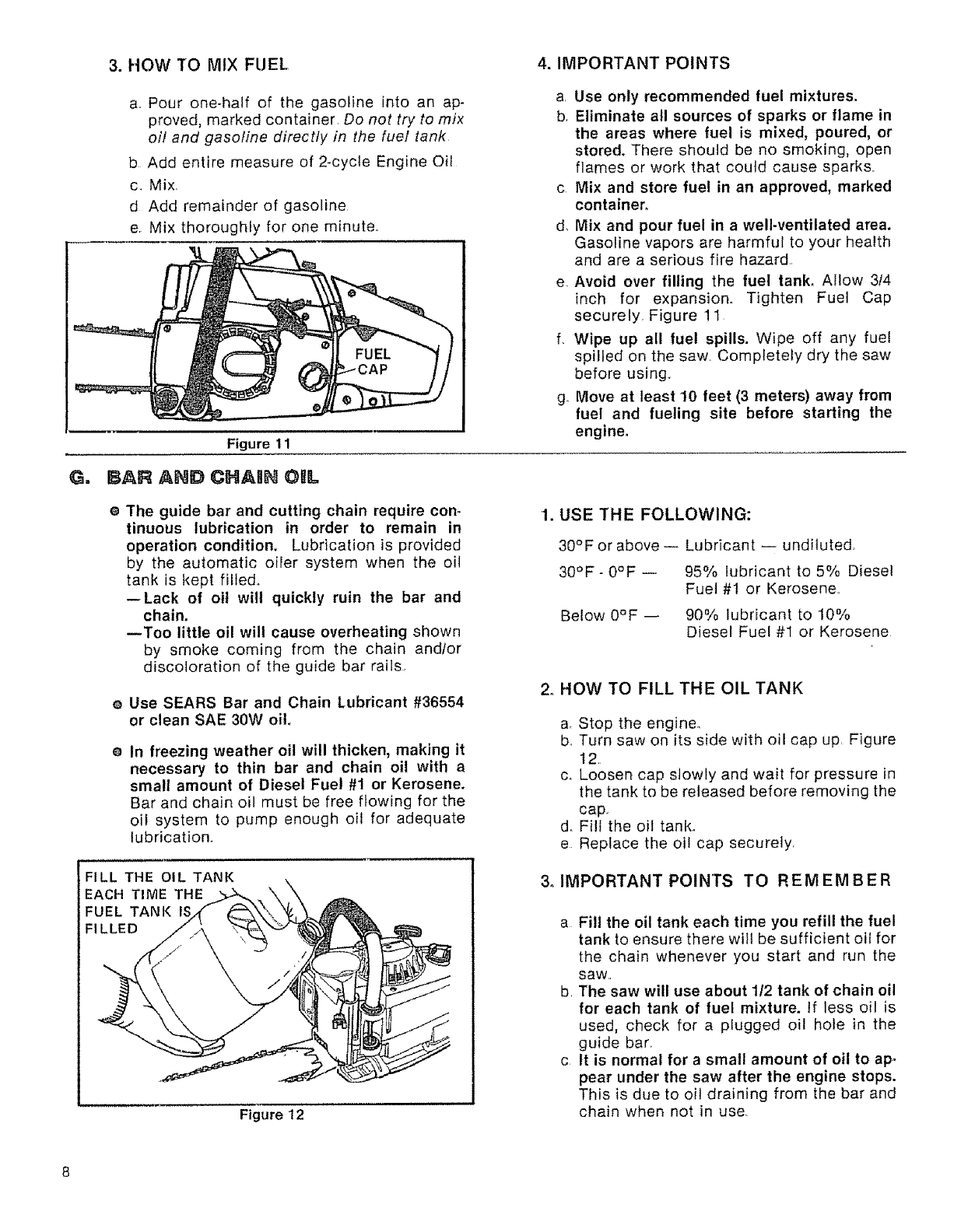

Fo Engine Fuel Mixture ...................... 7

G. Bar and Chain Oil ......................... 8

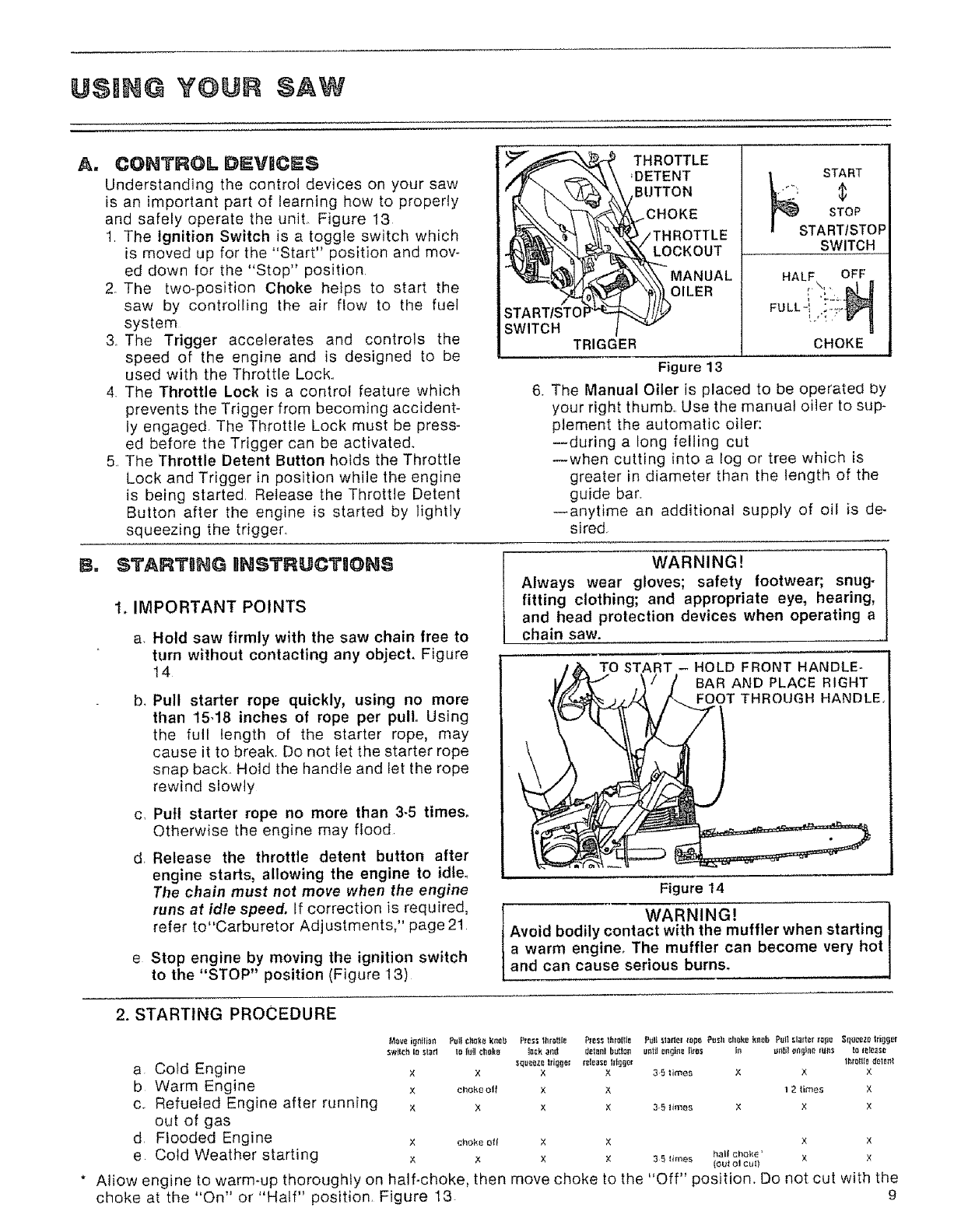

Using Your Saw .................................. 9

A. Control Devices ........................... 9

B, Starting Instructions ..................... g

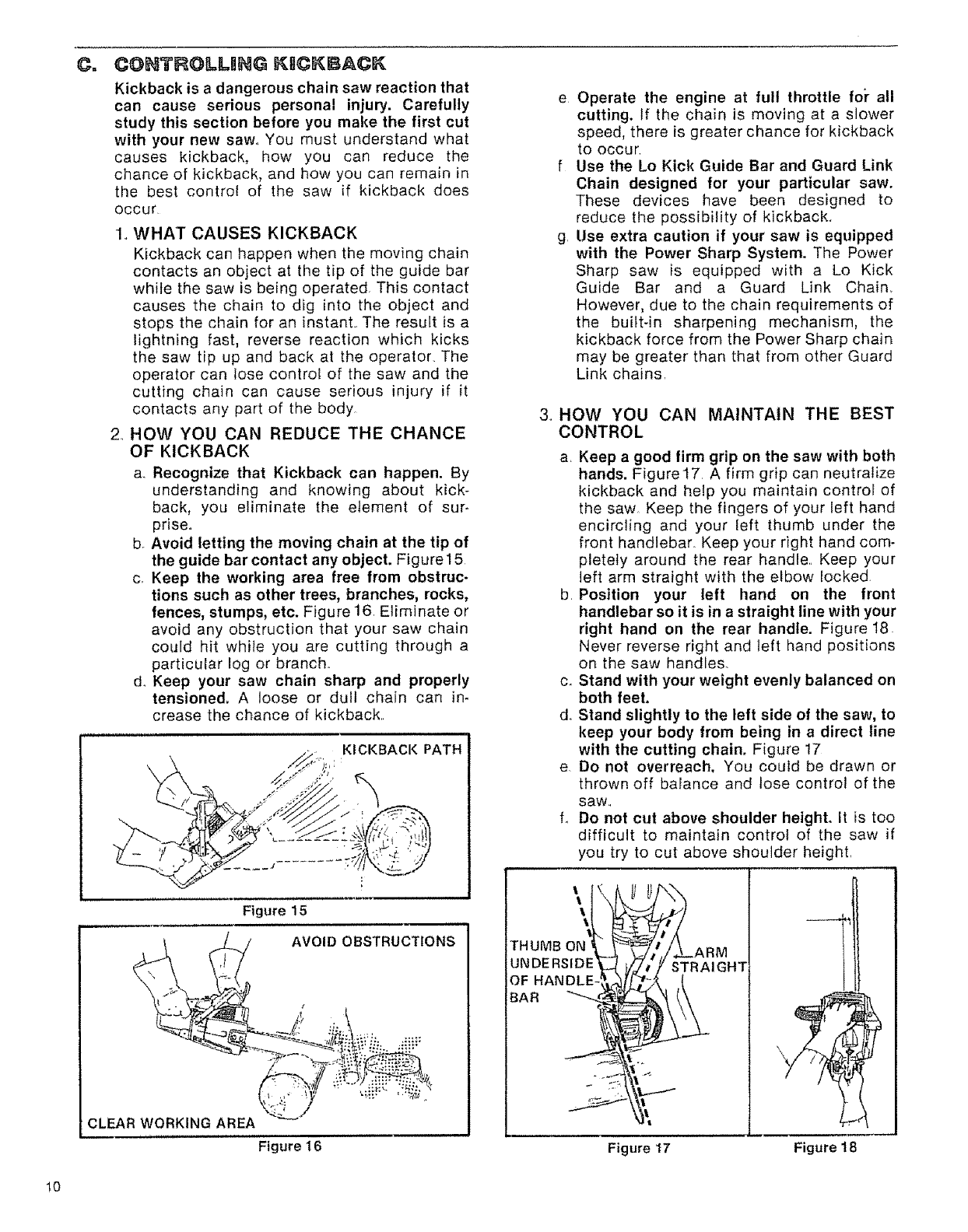

C Controlling Kickback ........................... 10

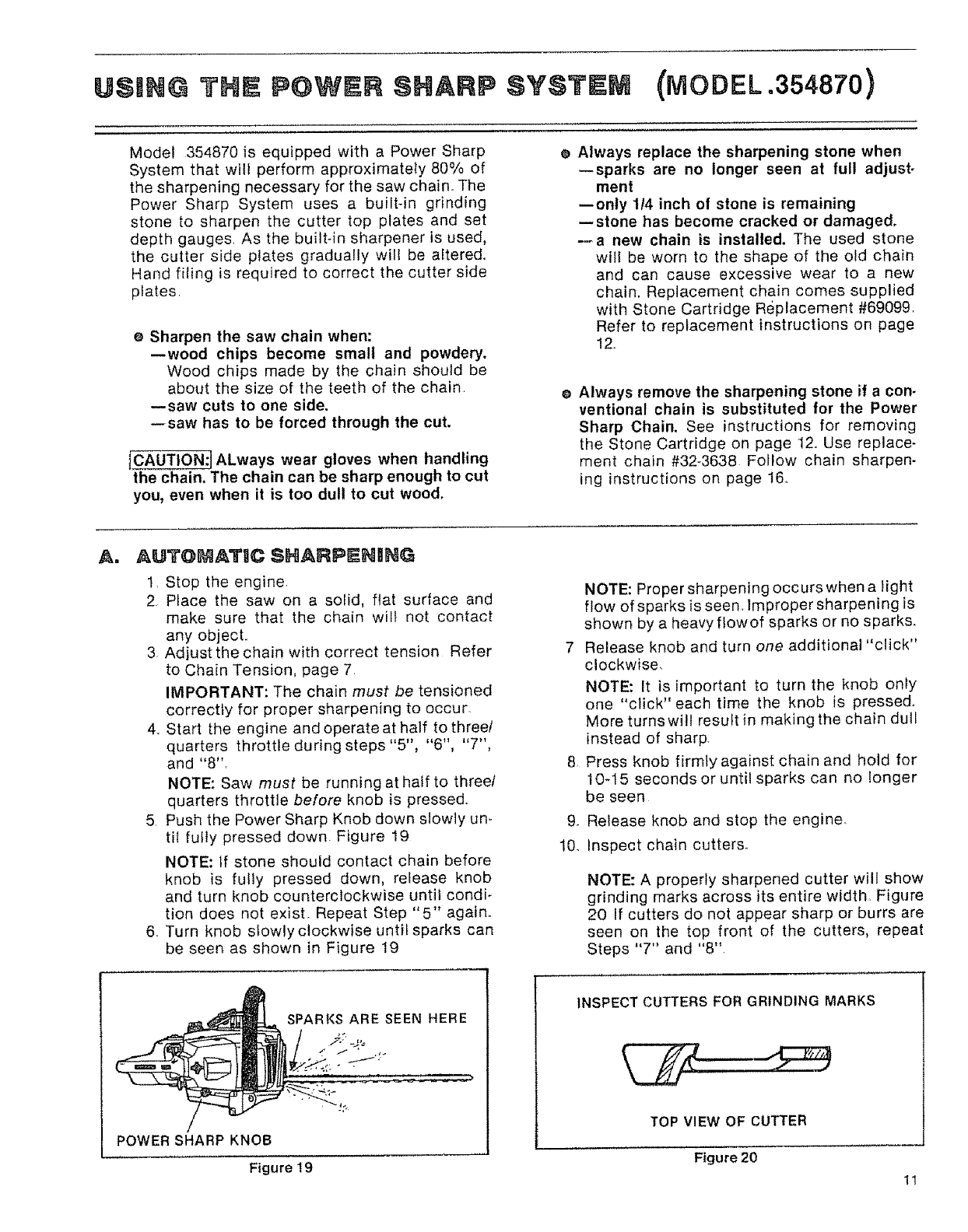

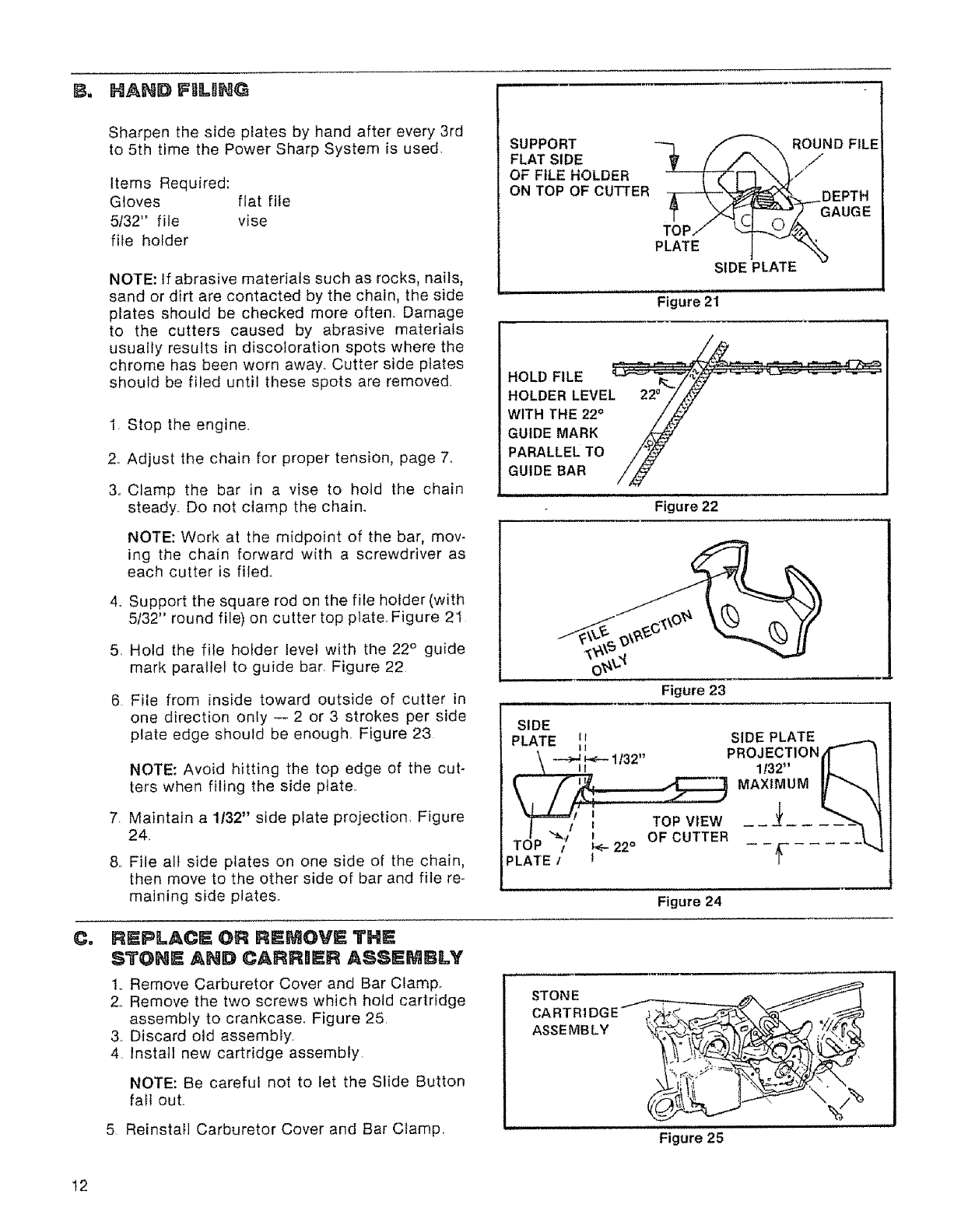

Using The Power Sharp System ................... 11

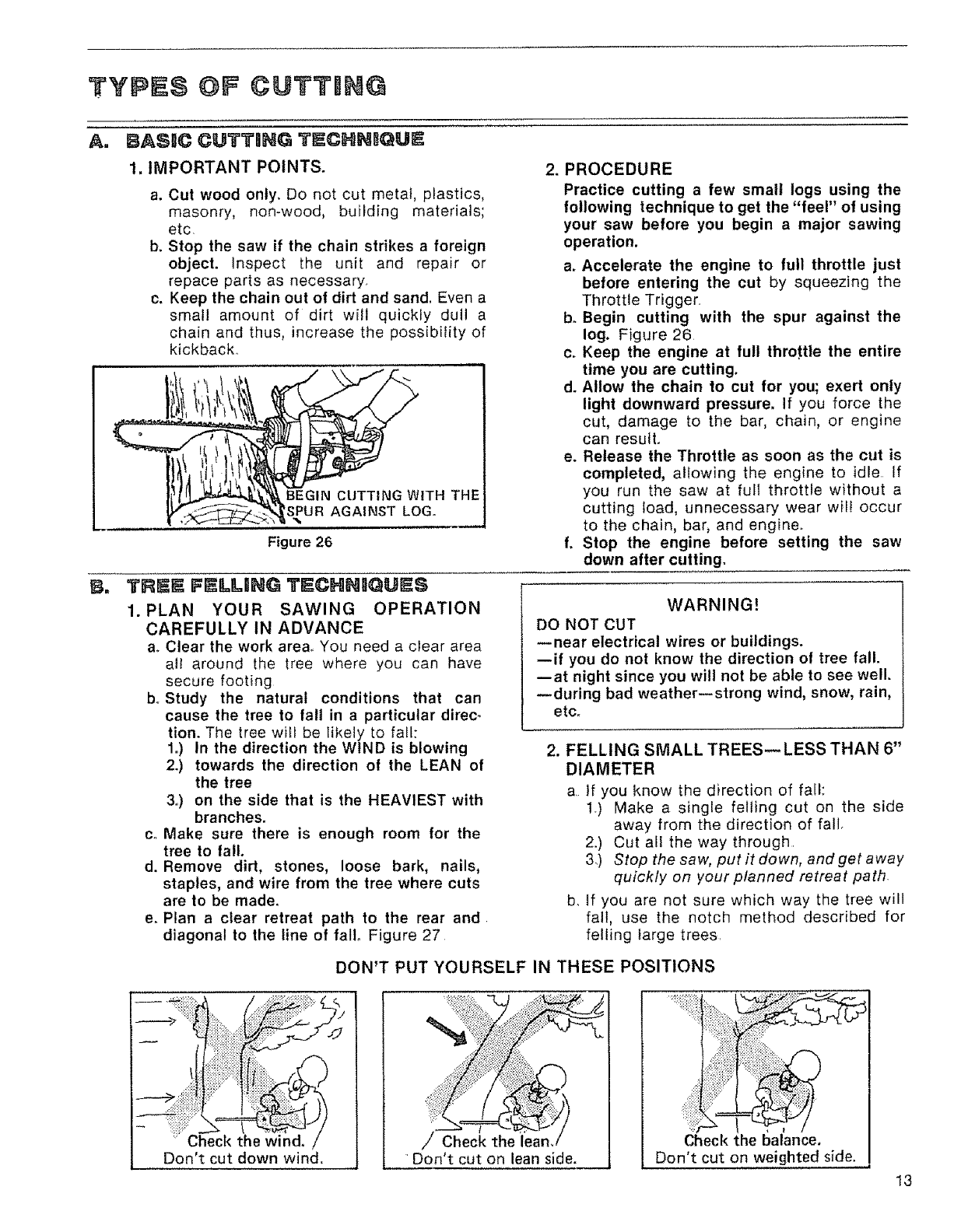

Types of Cutting ...................................... 13

Ao Basic Cutting Technique .................... 13

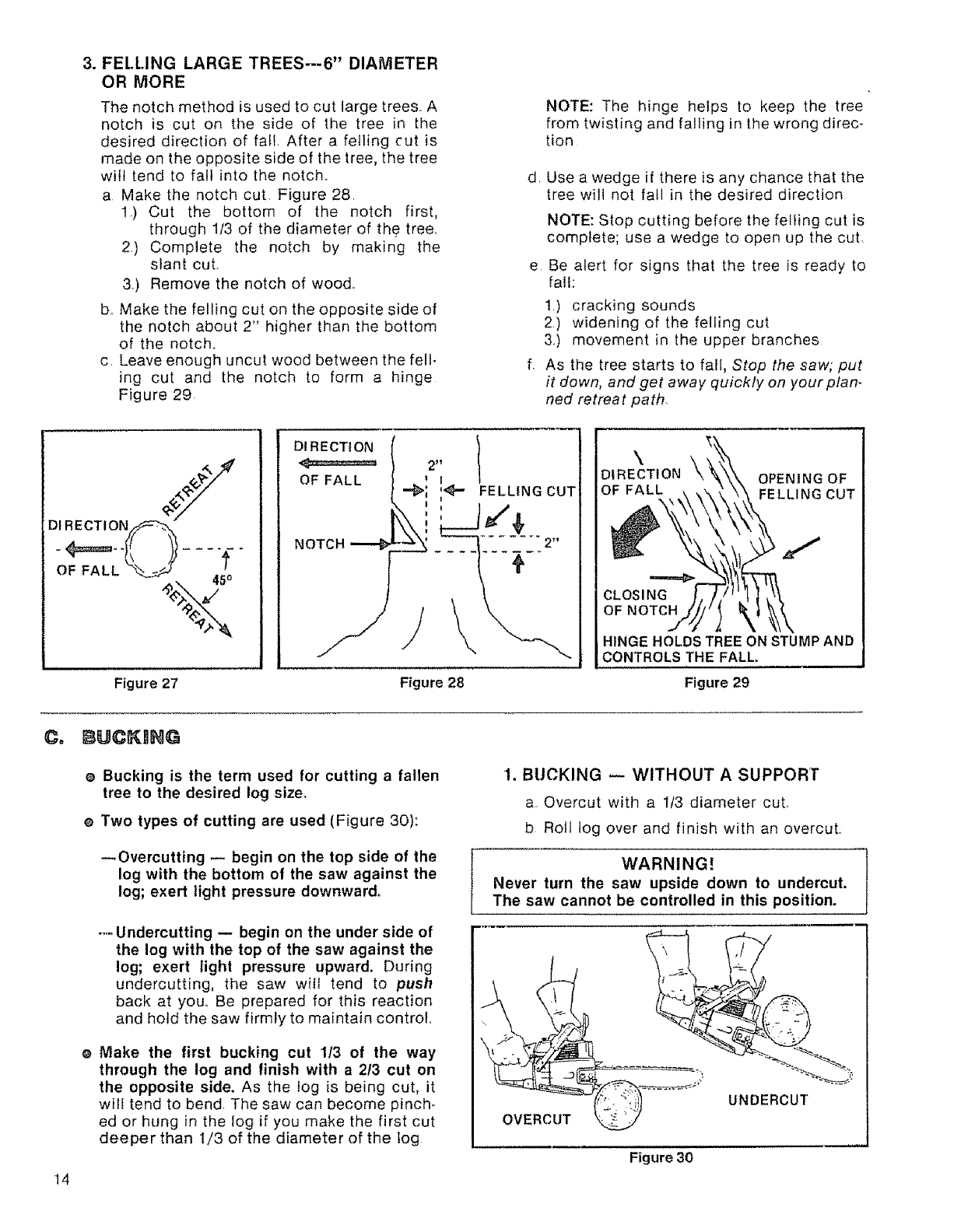

B. Tree Felling Techniques .................. 13

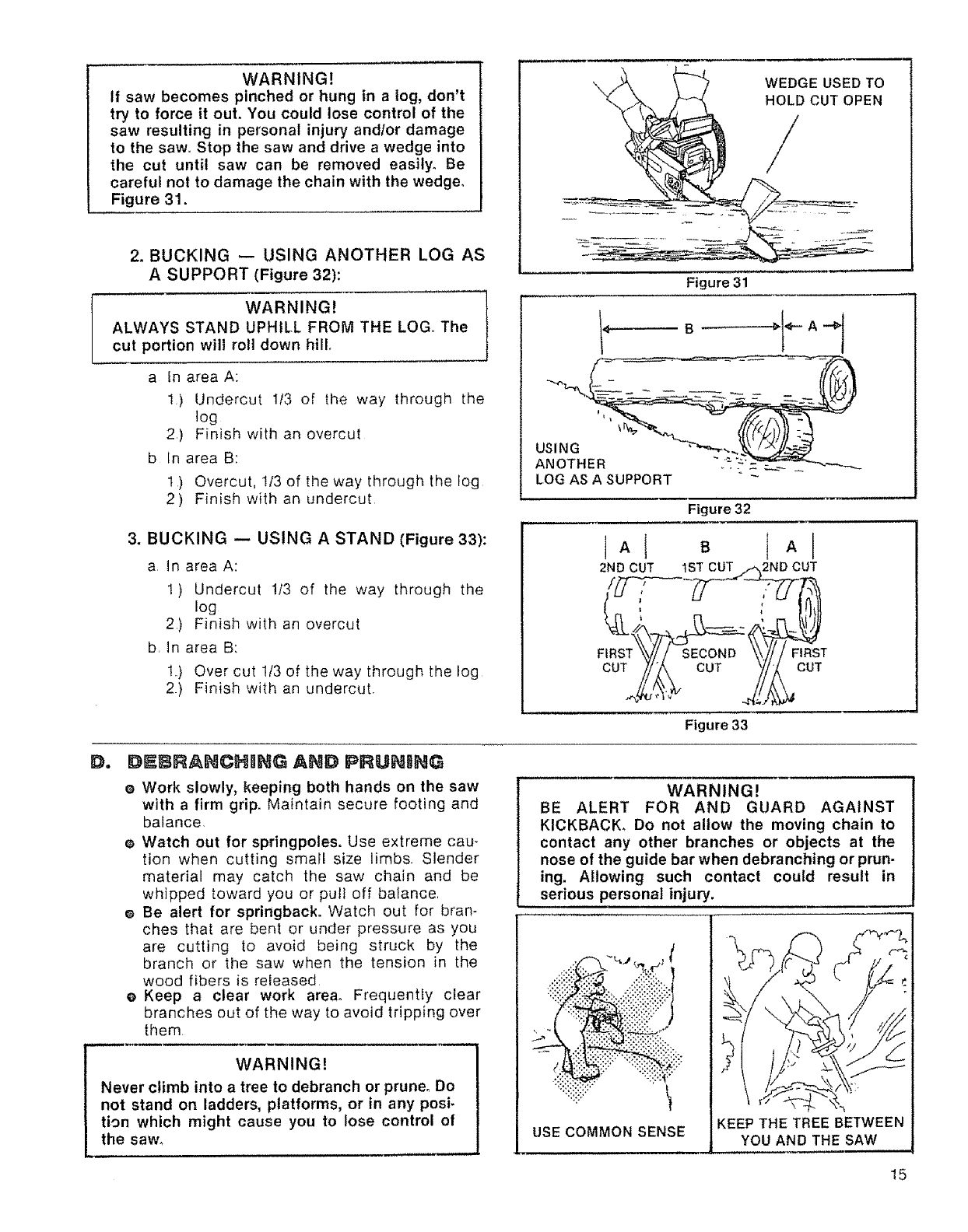

C. Bucking ................................. t4

Dr Debranching and Pruning ...................... !5

Maintenance .................................. 16

A. Guide Bar and Chain ..................... 16

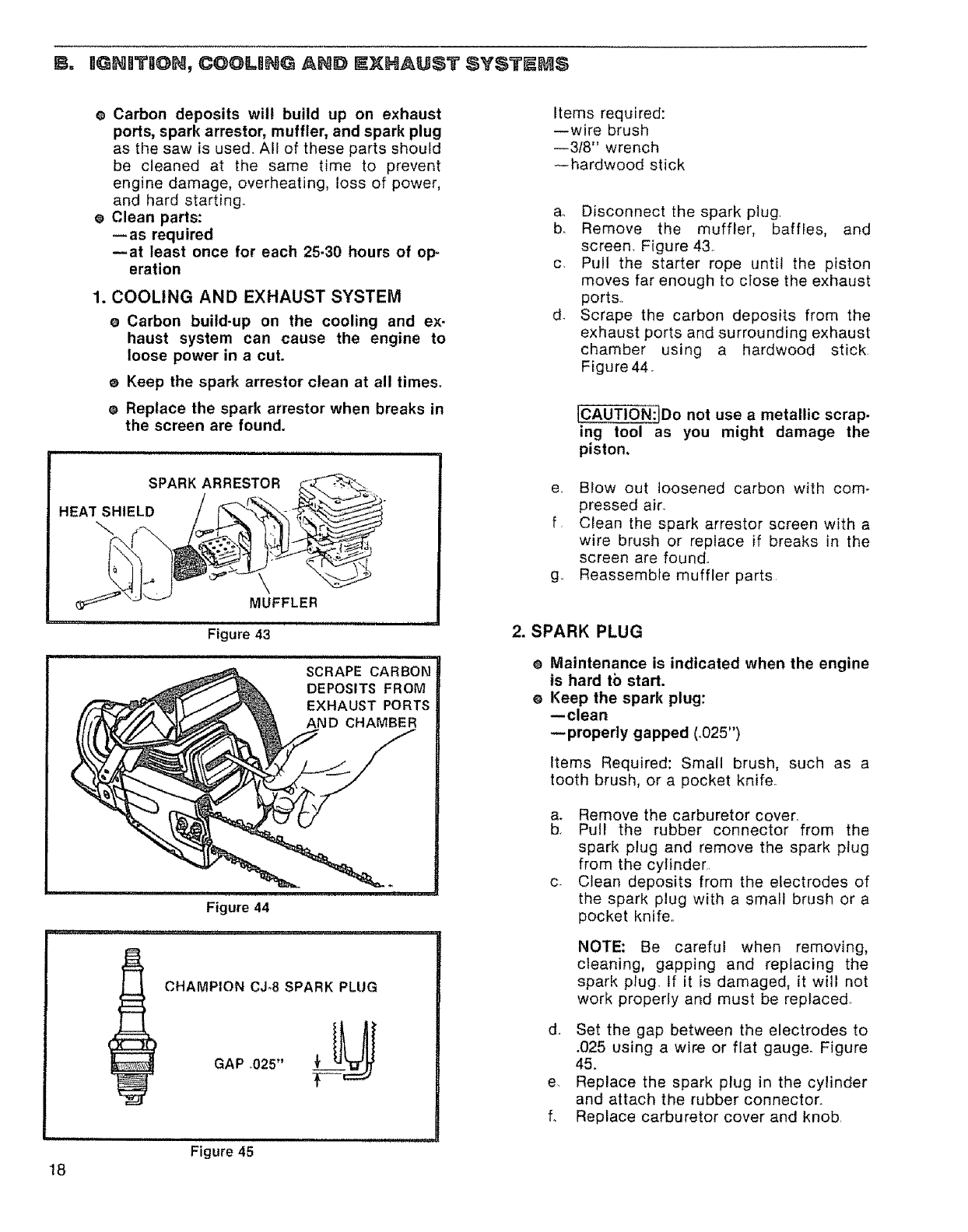

B. Ignition, Cooling, and Exhaust Systems ..... 18

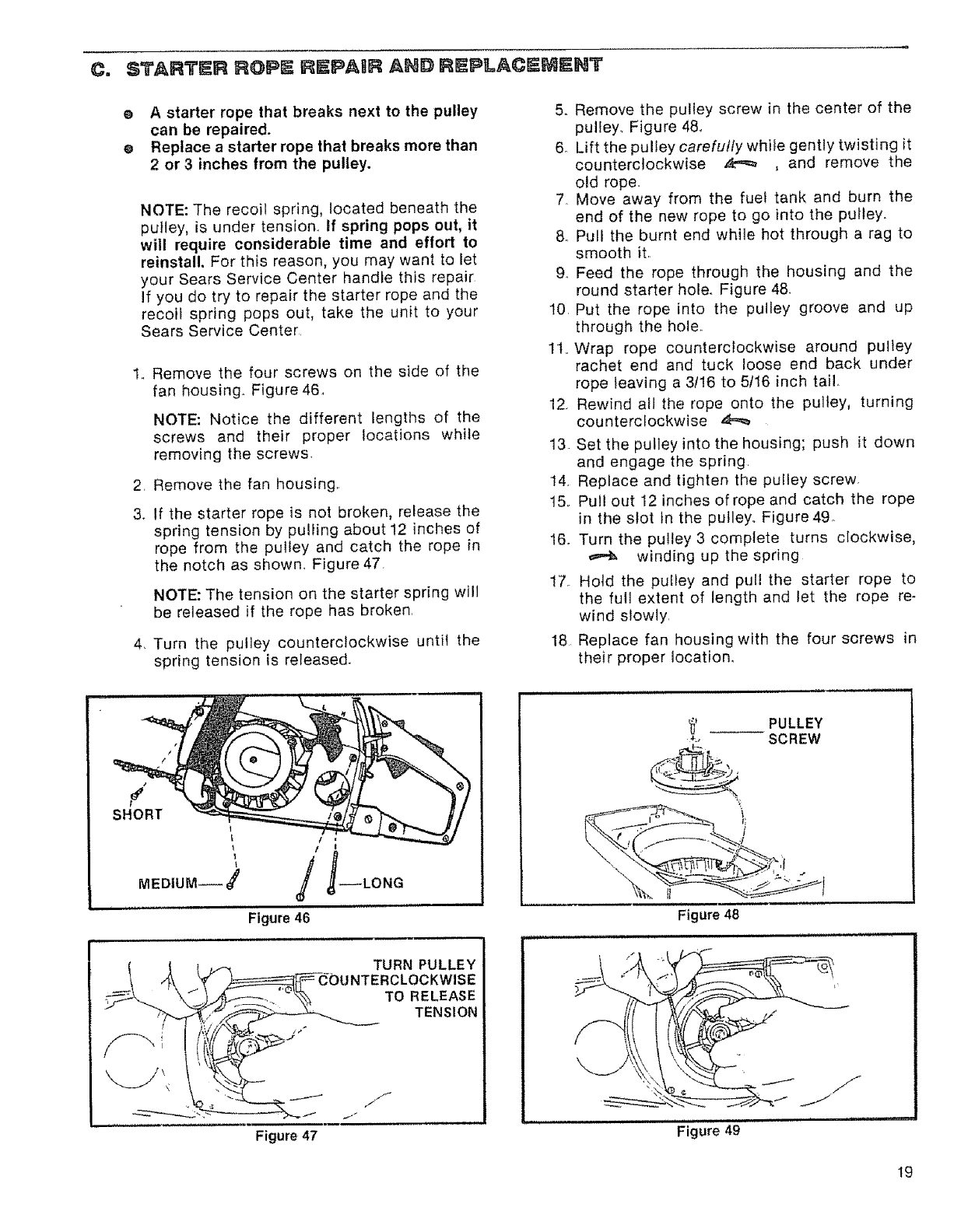

Co Starter Rope Repairand Replacement ...... 19

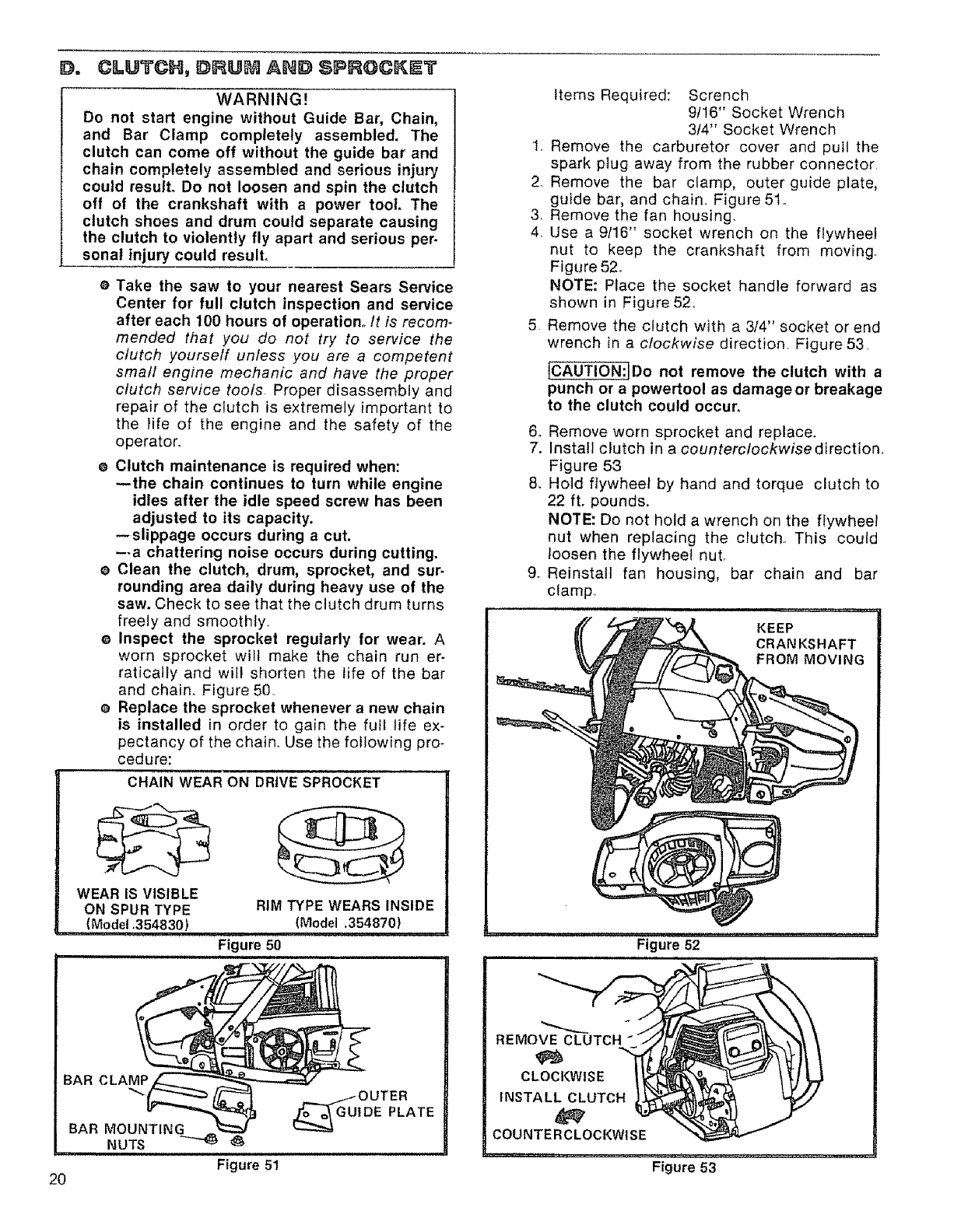

D. Clutch, Drum and Sprocket ................. 20

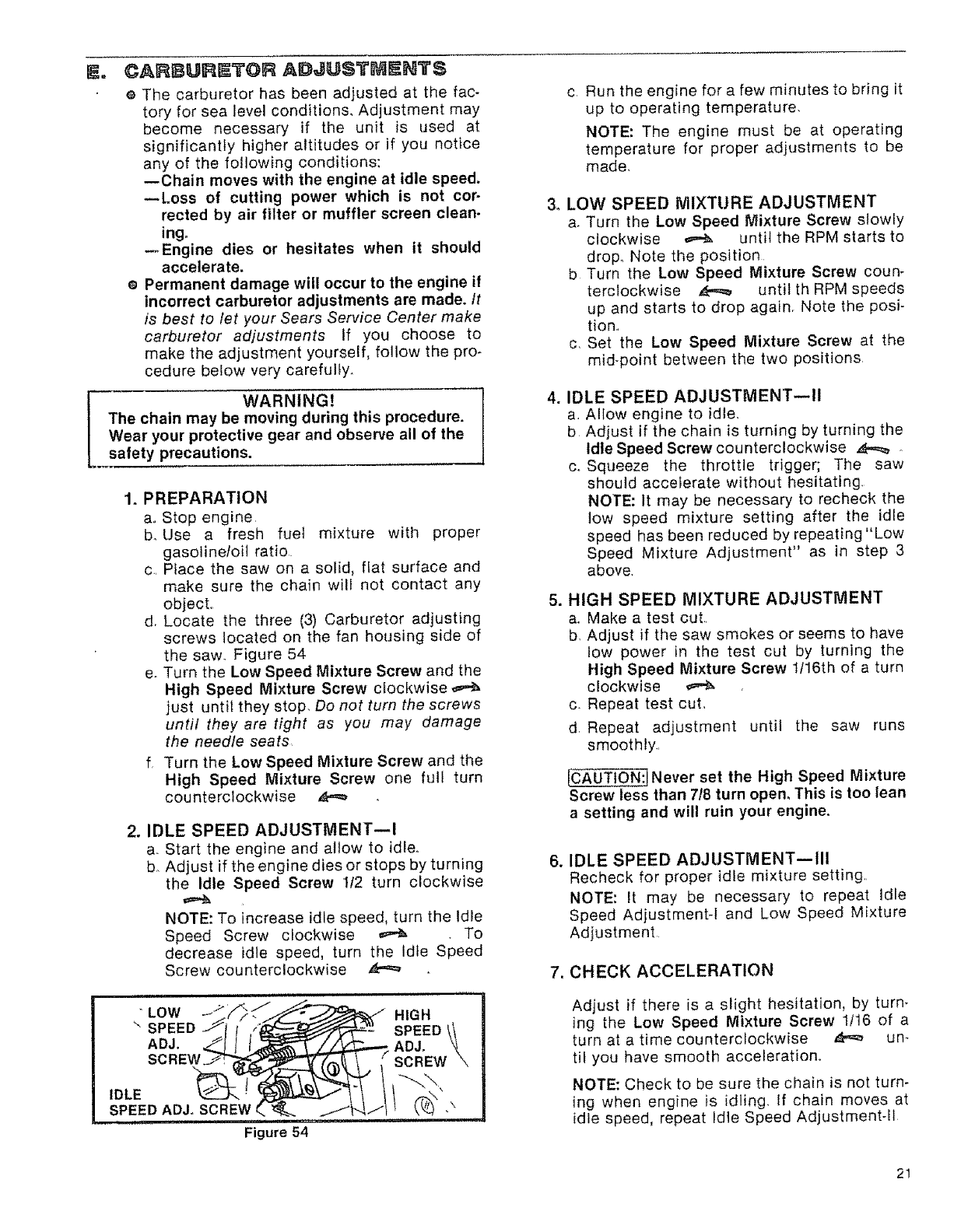

E. Carburetor Adjustments ..................... 21

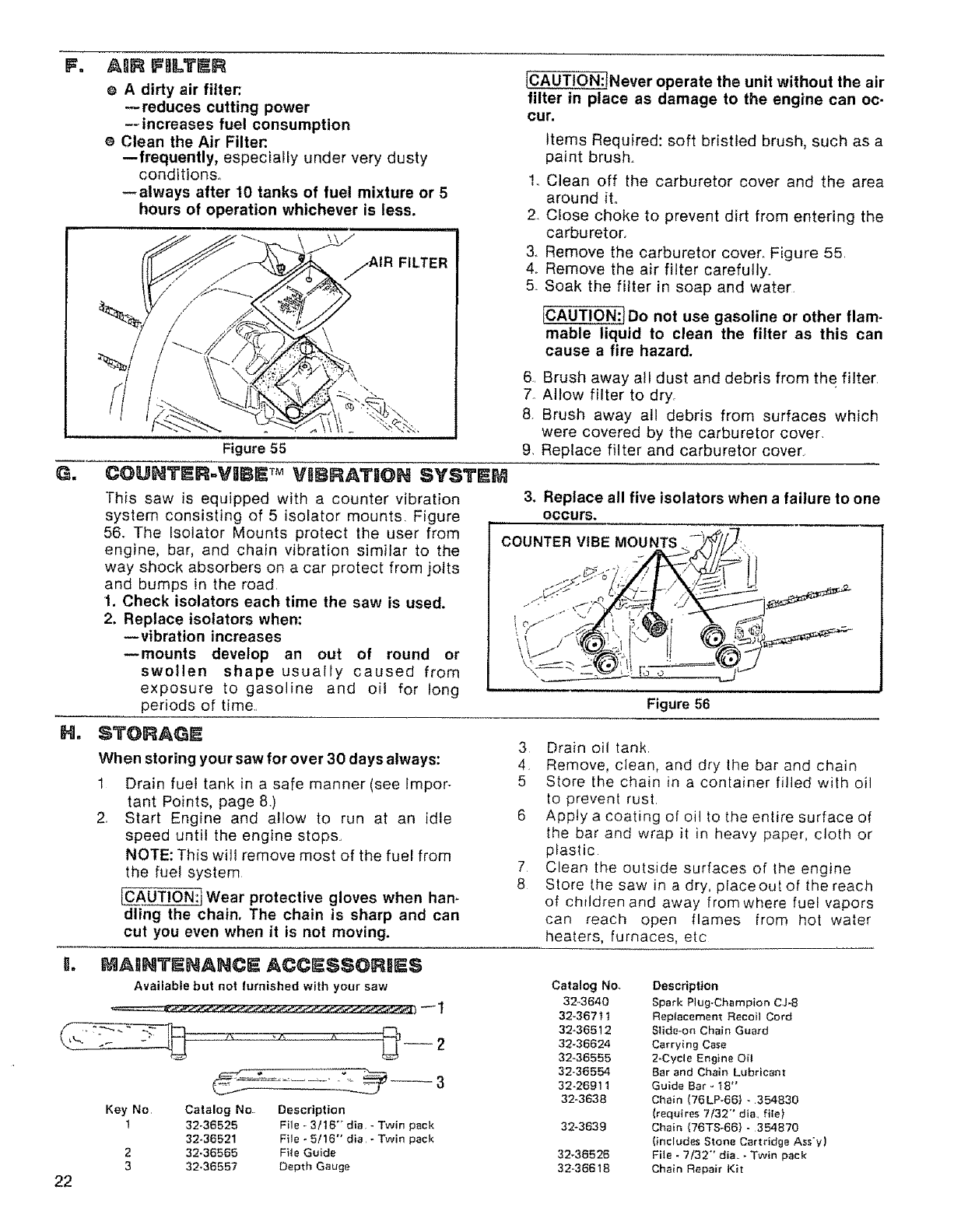

F. Air Filter ..................................... 22

G, Counter-Vibe TM Vibration System ............. 22

H, Storage ...................................... 22

1, Maintenance Accessories ................ 22

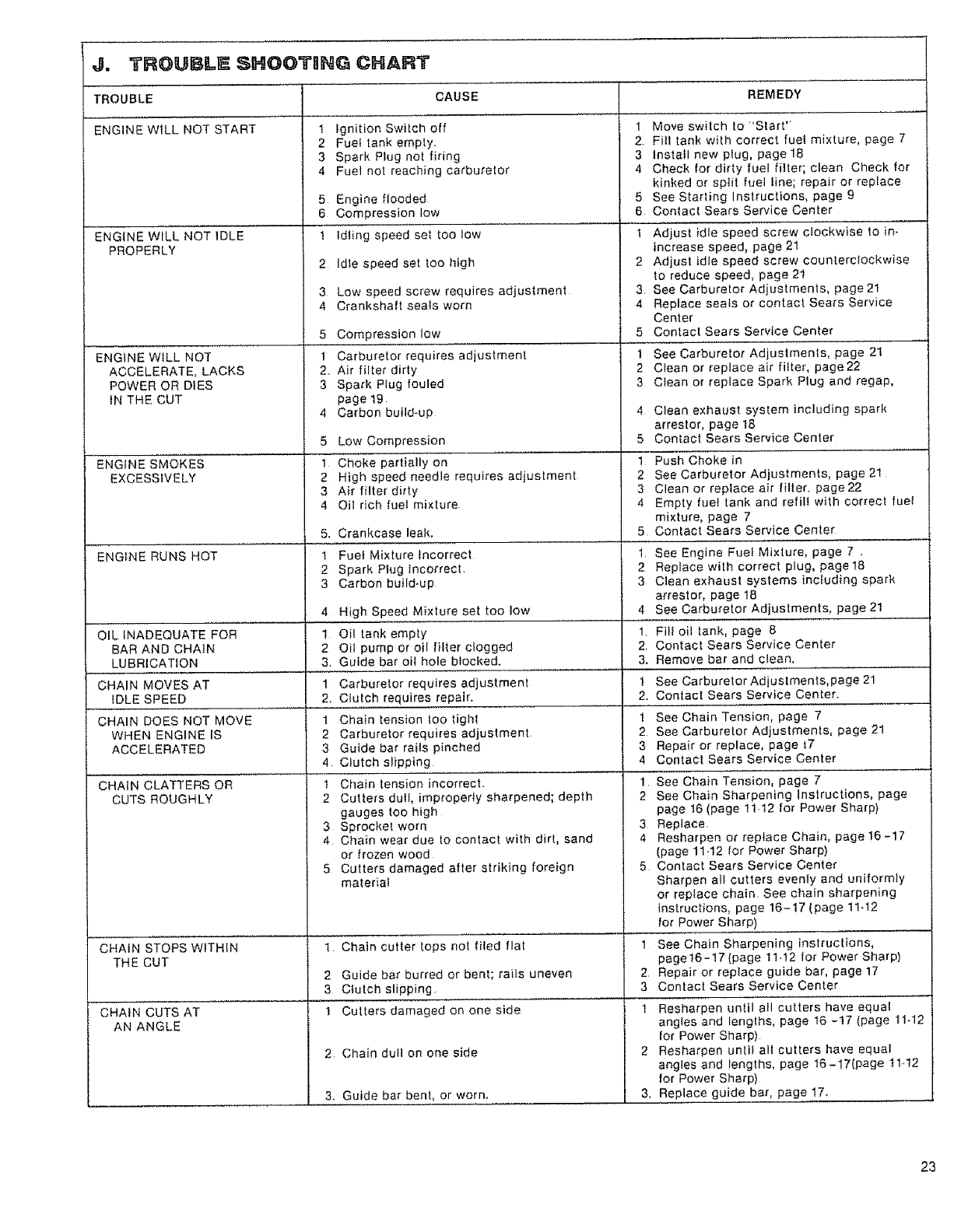

J, Trouble Shooting Chart .................... 23

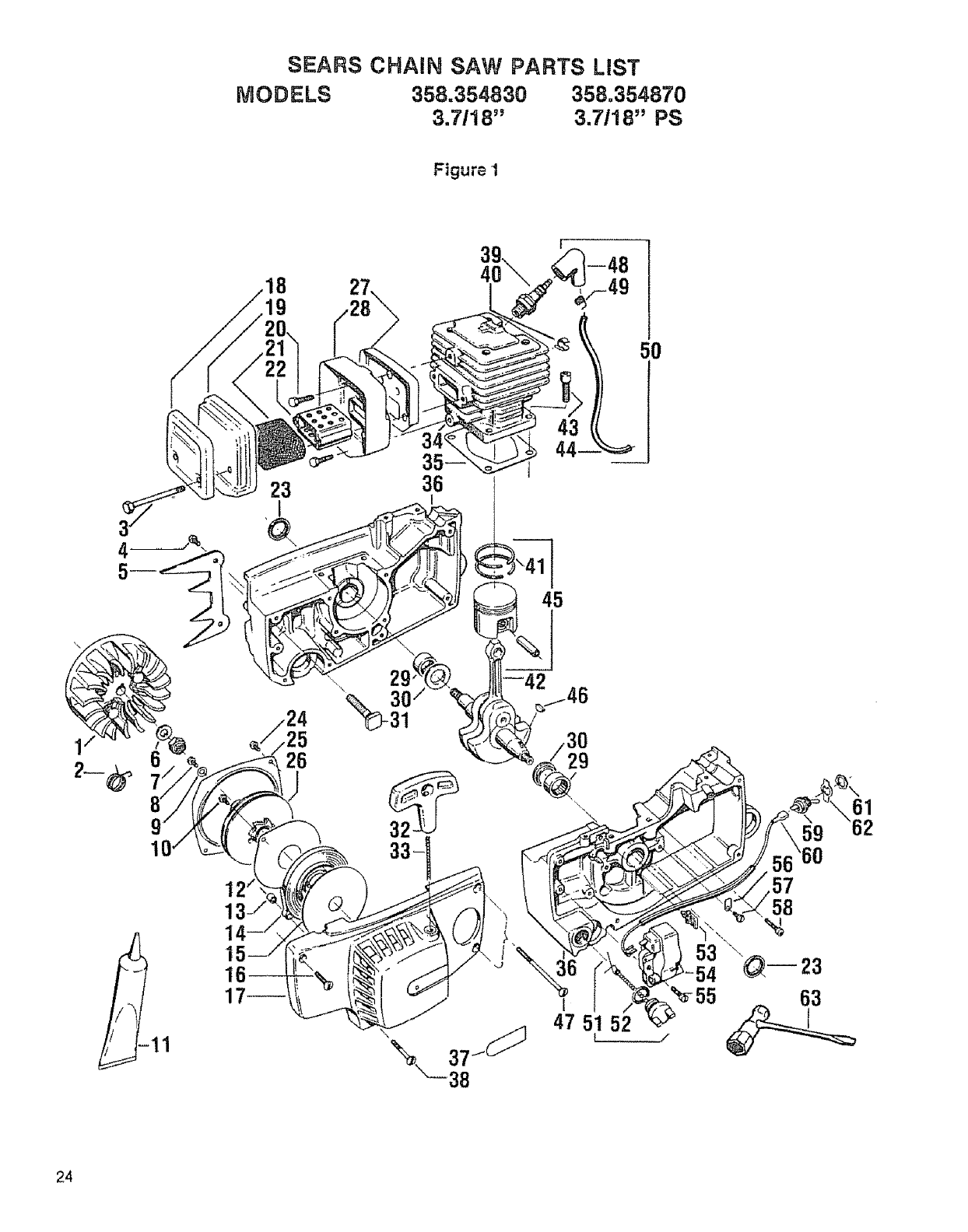

Parts List ...................................... ..... 24

Quick Reference Page ........................... 31

MODEL

CU_iN_DISPLACEMENT

GUIDE BAR--LO KICK

CHAIN,GUARD LINK

SPARK PLUG

SPARK PLUG GAP

IGNrflON

MODULE AiR GAP

FUEL MIX

MUFFLER

OILER SYSTEM

FUEL TANK CAPACITY

OIL TANK CAPACITY

SPE©WFU©ATla@N$

358.354830 (3.7118") 358.354870 (3.71i8" P.S.)

3.7 cu. in.t60 cu.cm. 3,7 cu. tn,160 cu,cm,

18" Sprocket Nose 18" Sprocket Nose

318 Extended Pitch 318 Extended Pitch

Chrome Cutters Power Sharp

Chrome Cutters

Champion CJ,8Y

.023 to ,027

Solid Slate

,008 to ,0t4

Gasoline/Oil Mixture 16:1

' ' ' Spark Arresling Temperature Li"'iting,, " '

Aulomatic Manual

_9OZ.562cu:Cm:

12 OZ. 355 cu. cm.

POWER SHARP ADJUSTING

KNOB (MODEL °354870)

AIR FILTER 3UARD

COVER

THROTTLE CHAIN TENSION

LOCKOUT

HANDGUARD

STARTER HANDLE

GUARD LINK CHAIN

SPUR

MANUAL OILER

THROTTLE LATCH

SWITCH

CHOKE"

THROTTLE TRIGGER

LO KICK GUIDE BAR

FRONT CHAIN CATCHER

OIL

P REAR HAIN

CATCHER

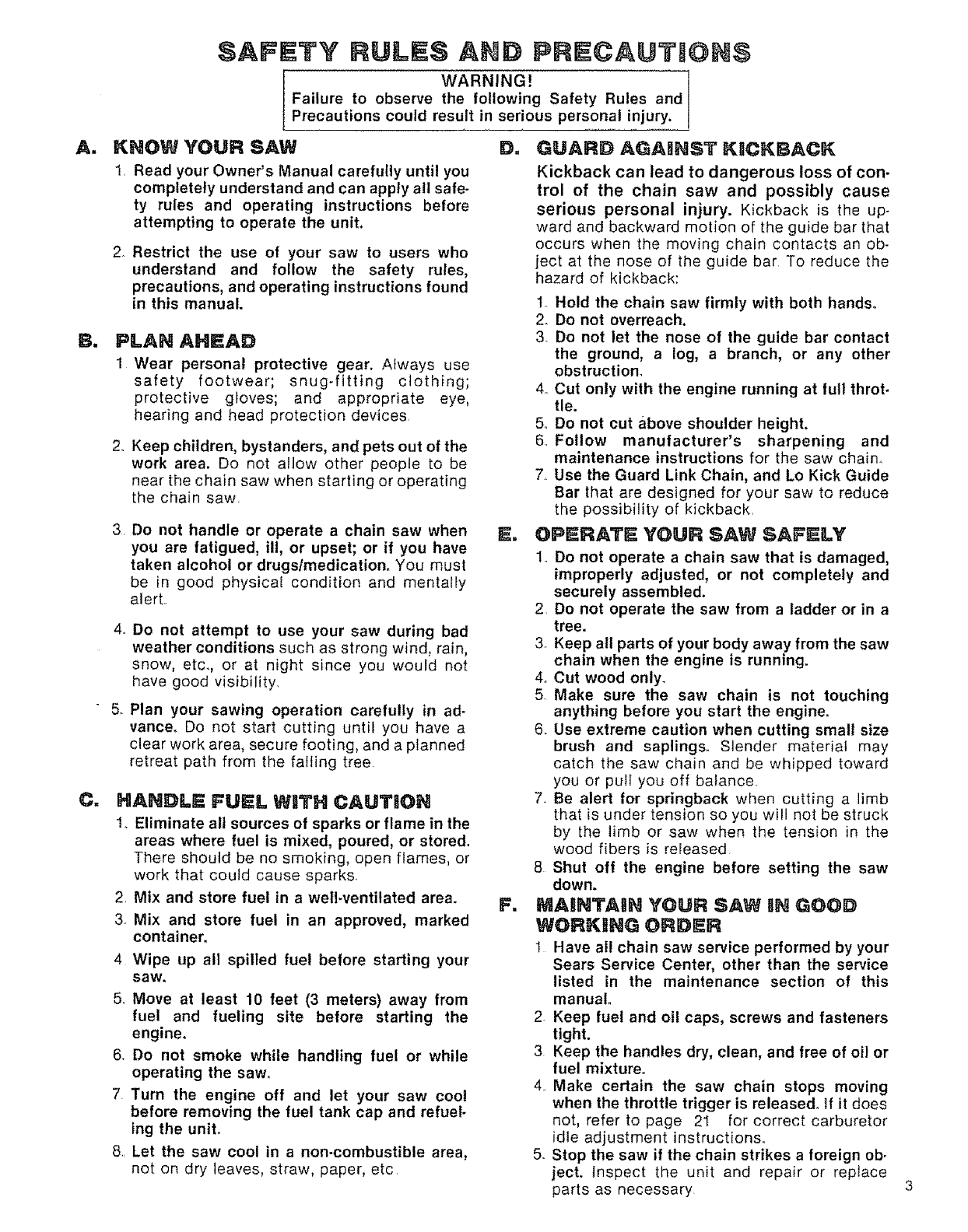

SAFETY RULES AND PRECAUTIONS

WARNING!

Failure to observe the following Safety Rules and

Precautions could result in serious personal injury.

KNOW YOUR SAW

1. Read your Owner's Manual carefully until you

completely understand and can apply all safe-

ty rules and operating instructions before

attempting to operate the unit.

,Restrict the use of your saw to users who

understand and follow the safety rules,

precautions, and operating instructions found

in this manual.

PLAN AHHAD

1Wear personal protective gear. Always use

safety footwear; snug-fitting clothing;

protective gloves; and appropriate eye,

hearing and head protection devices.

.Keep children, bystanders, and pets out of the

work area. Do not allow other people to be

near the chain saw when starting or operating

the chain saw.

Do not handle or operate achain saw when

you are fatigued, ill, or upset; or if you have

taken alcohol or drugs/medication. You must

be in good physical condition and mentally

alert1

Do not attempt to use your saw during bad

weather conditions such as strong wind, rain,

snow, etc. or at night since you would not

have good visibility.

Plan your sawing operation carefully in ad-

vance. Do not start cutting until you have a

clear work area, secure footing, and a planned

retreat path from the falling tree

HANDLE FUI=L WiTH CAUTIOH

1. Eliminate all sources of sparks or flame in the

areas where fuel is mixed, poured, or stored.

There should be no smoking, open flames, or

work that could cause sparks.

2Mix and store fuel in a well-ventilated area.

3.. Mix and store fuel in an approved, marked

container,

4 Wipe up all spilled fuel before starting your

saw.

5, Move at least 10 feet (3 meters) away from

fuel and fueling site before starting the

engine_

6Do not smoke while handling fuel or while

operating the saw.

7 Turn the engine off and let your saw coo!

before removing the fuel tank cap and refuel-

ing the unit.

8. Let the saw cool in anon-combustible area,

not on dry leaves, straw, paper, etc

GUARD AGAnNST KUCKBACK

Kickback can lead to dangerous loss of con.

trol of the chain saw and possibly cause

serious personal injury. Kickback is the up-

ward and backward motion of the guide bar that

occurs when the moving chain contacts an ob-

ject at the nose of the guide bar To reduce the

hazard of kickback:

1_ Hold the chain saw firmly with both hands.

2o Do not overreach.

3. Do not let the nose of the guide bar contact

the ground, alog, a branch, or any other

obstruction.

4o Cut only with the engine running at full throt.

tie.

5 Do not cut above shoulder height.

6. Follow manufacturer's sharpening and

maintenance instructions for the saw chain.

7. Use the Guard Link Chain, and Lo Kick Guide

Bar that are designed for your saw to reduce

the possibility of kickback.

OPI=RATI_ YOUR SAW' SAFELY

1_ Do not operate achain saw that is damaged,

improperly adjusted, or not completely and

securely assembled.

2Do not operate the saw from a ladder or in a

tree,

3_ Keep all parts of your body away from the saw

chain when the engine is running.

4Cut wood only.

5 Make sure the saw chain is not touching

anything before you start the engine..

6Use extreme caution when cutting small size

brush and saplings_ Slender material may

catch the saw chain and be whipped toward

you or pull you off balancer

7. Be alert for springback when cutting a limb

that is under tension so you will not be struck

by the timb or saw when the tension in the

wood fibers is released

8 Shut off the engine before setting the saw

down.

IMAIlNTAIIIR YOUR SAW ltN GOOD

WORKI|NG ORDER

tHave all chain saw service performed by your

Sears Service Center, other than the service

listed in the maintenance section of this

manual°

2Keep fuel and oil caps, screws and fasteners

tight.

3 Keep the handles dry, clean, and free of oil or

fuel mixture.

4_ Make certain the saw chain stops moving

when the throttle trigger is released. If it does

not, refer to page 21 for correct carburetor

idle adjustment instructions..

5. Stop the saw if the chain strikes a foreign ob-

ject. Inspect the unit and repair or replace

parts as necessary

G= CARRY AHD STORE YOUR SAW

SAFELY

1 Never carry your saw while climbing. Both

hands are needed for safe climbing

2. Carry the unit with the engine stopped, the

Guide Bar and Chain to the rear, and the Muf-

fler away f_om your body.

3 Carry the saw with Guide Bar and Chain

covered, preferably with an appropriate scab-

bard°

4 Allow your saw to cool completely before

transporting in any vehicle or storing in any

enclosure.

5. Drain oil and fuel tank before storing for more

than 30 days.

6 Store in adry area out of the reach of children

and away from where fuel vapors can reach

an open flame from hot water heaters, fur.

nances, etc.

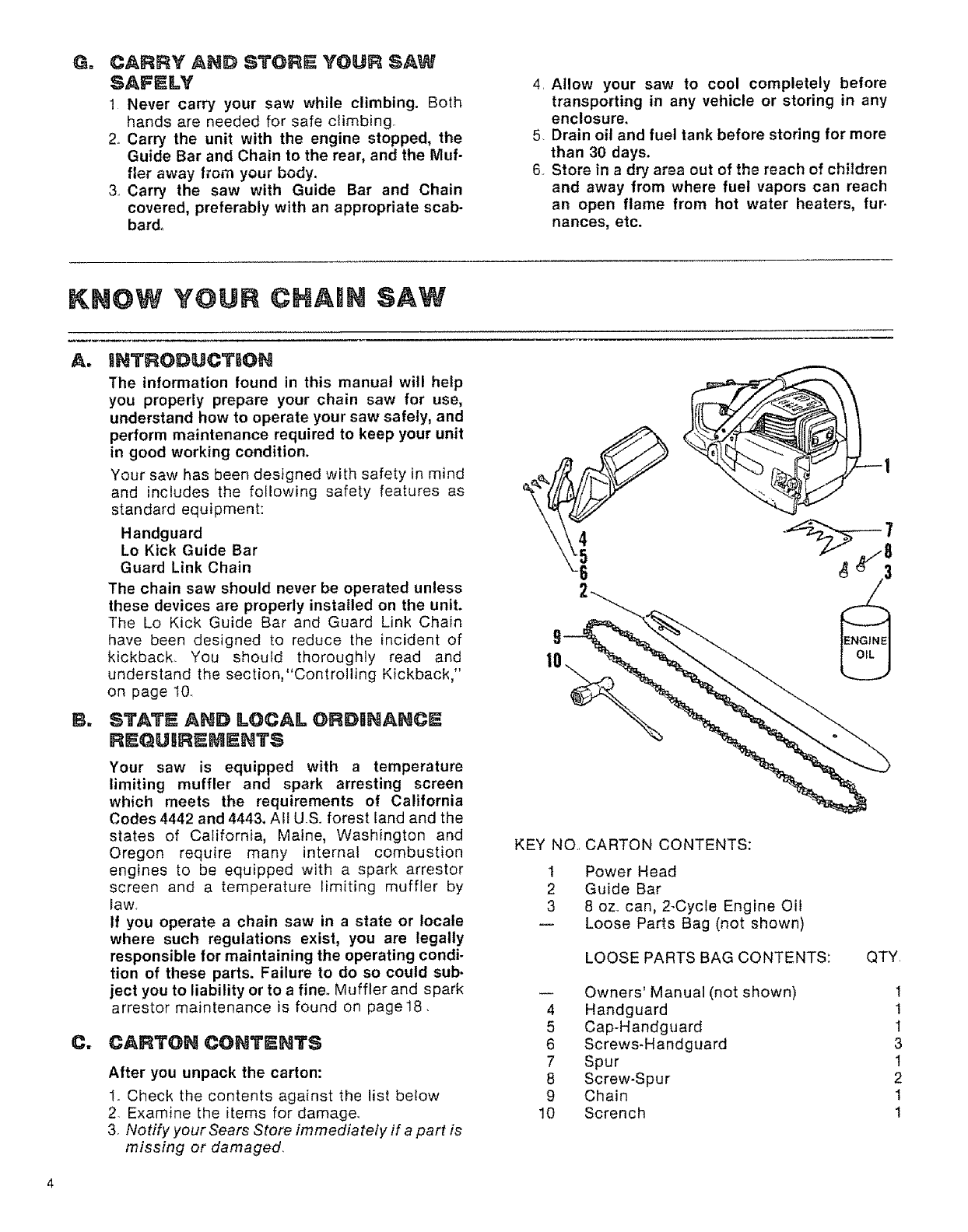

KNOW YOUR CHAroN SAW

A. INTRODUCTmON

The information found in this manual will help

you properly prepare your chain saw for use,

understand how to operate your saw safely, and

perform maintenance required to keep your unit

in good working condition.

Your saw has been designed with safety in mind

and includes the following safety features as

standard equipment:

Handguard

Lo Kick Guide Bar

Guard Link Chain

The chain saw should never be operated unless

these devices are properly installed on the unit.

The Lo Kick Guide Bar and Guard Link Chain

have been designed to reduce the incident of

kickback. You should thoroughly read and

understand the section,"Controlling Kickback,"

on page 10.

Bm STATE AND LOCAL ORDSNANCE

R_QUmREM_NTS

Your saw is equipped with a temperature

limiting muffler and spark arresting screen

which meets the requirements of California

Codes 4442 and 4443. All U.S. forest land and the

states of California, Maine, Washington and

Oregon require many internal combustion

engines to be equipped with a spark arrestor

screen and a temperature limiting muffler by

law.

If you operate achain saw in a state or locale

where such regulations exist, you are legally

responsible for maintaining the operating condi-

tion of these parts. Failure to do so could sub.

ject you to liability or to a finer Muffler and spark

arrestor maintenance is found on page 18.

C. CARTOH CONTENTS

After you unpack the carton:

1. Check the contents against the list below

2. Examine the items for damage.

3. Notify your Sears Store immedia tely if a part is

missing or damaged,

KEY NO. CARTON CONTENTS:

I Power Head

2 Guide Bar

3 8 oz, can, 2-Cycle Engine Oil

-- Loose Parts Bag (not shown)

LOOSE PARTS BAG CONTENTS:

-- Owners' Manual (not shown)

4 Handguard

5 Cap-Handguard

6 Screws-Handguard

7 Spur

8 Screw-Spur

9 Chain

10 Scrench

QTY

PREPARmH@ YOUR SAW FOR USlE

A. GETTmNG READY

READ YOUR OWNER'S MANUAL CARE. 2. HAVE THE FOLLOWING AVAILABLE:

FULLY. a. Protective gloves

Your Owner's Manuat has been developed to

help you prepare your saw for use and to

understand its safe operation_ tt is important

that you read your manual completely to

become familiar with the unit before you

begin assembly.

B, ATTACHING THE HANDGUARD

b° Approved, marked fuel container

c. One gallon leaded or unleaded, regular

gasoline

d. Bar and Chain Lubricant (See page 8).

e. Scrench--provided with your unit No other

tool is necessary for assembly. The tong

end of the tool can be used as a slotted

screwdriver. The small pipe end can be us-

ed as a socket wrench., The larger pipe end

can be used to remove the spark plug

The Handguard is a protective device designed

WARNING! 1

Do not use the saw without the handguard in

place°

to help prevent your hand from coming in con-

tact with the cutting chain should your hand slip

off the handlebar. It wilt not eliminate the

possibility of injury from kickback or loss of con-

trol of the saw,

CAP HANDGUARD

/'J_ PIt'_

Figure 1

®Lift and carry the chain saw by the handlebar

or rear handle, not by the handguard°

eKeep the handguard securely fastened at all

times_ Check the handguard screws each

time the saw is used

To install:

1 Align the Handguard and Handguard Cap

around the handlebar as shown in Figure !

2 Fit the mounting pin on the Handguard into

the hole in the handlebar Figure 1

3 Insert the 3 mounting screws into the 3 holes

on the Handguard Cap

Turn each screw a little at a time clockwise,

until the Handguard Cap and Handguard

meet and there is no gap between the two

parts-

C. ATTACHING THE SPUR

The spur is a special piece of equipment de-

signed to assist the cutting operation. When

assembfed to the saw, the spur will dig into the

tree or tog and:

--relieve contact pressure adding ease to the

sawing operation.

--allow the saw to be more easily rotated or

pivoted into the cut.

To Install:

1_ Remove Bar Clamp nuts, Bar Clamp and Guide

Bar Plates,,

2. Align the spur over the two holes on the bar

clamp side of the saw. Figure 2,

31 Insert the two screws and tighten evenly and

securely, Figure 2

D, ATTACHRN@ THE BAR AND CHAnN

!CAUTION:IWear protective gloves when han-

dling or operating your saw. The chain is sharp

and can cut you even when it is not moving!

eYour saw is equipped with a Control Tip

Guide Bar and a Low.Kick chain designed to

help reduce kickback.

e Always use the Control Tip Guide Bar and

Low-Kick Chain designed for your chain saw

model, when replacing these parts=

WARNING!

Do not start engine without guide bar and chain

completely assembled. Otherwise the clutch

can come off and serious personal injury could

result.

ao Install the Inner Guide Plate over the bar

mounting studs Figure&

NOTE: Be sure the Inner Guide Plate curves

or flanges toward the saw frame away from

the Guide Bar, Figure 4.

b. Mount the Guide Bar with the slotted end

over the bar mounting studs, Figure 5.

NOTE: Be sure the Guide Bar is positioned

with the round hole below the large slot,

Figure 3

OUTER f_

PLATE {0

(1 Slot) tt

s °s

INNER \_,

PLATE I_.

Figure 4

iTCH

BAR

MOUNTING

STUDS

GUIDE BAR

c,. Hold chain with cutters facing as shown in

Figure 6

d Place chain over and behind the clutch

drum onto the sprocket.,

e_ Slide Guide Bar to the rear of the saw as far

as possible..

f Fit the bottom of the drive links between

the teeth in the sprocket

g, Start at the top of the bar and fit the chain

drive links into the groove around the Guide

Bar. Figure 6.

h, Pull the Guide Bar forward until the chain is

snug in the guide bar groove, Figure 7o

i, install the outer guide plate,

NOTE: Be sure both the inner and outer

guide bar plates curve or flange outward

from the Guide Bar. Figure 4,

j, Install the Bar Clamp by sliding the bar

clamp over the mounting studs and fitting

the bar adjusting pin into the round hole on

the Guide Bar_ Figure 8,

k, Replace the Bar Mounting Nuts and tighten

finger tight only

NOTE: The Bar Clamp nuts must be slightly

loose to tension the chain correctly.

Io Follow "Chain Tension" instructions, page 7_

Figure 6

ADJUSTING PIN HOLE

Figure 7

BAR ADJUSTING PIN

Figure 8

Figure 5

Ell CHAMN TENSUON

eCorrect chain tension is very important:

--a loose chain will wear the bar and itself,

--a loose chain can jump off the bar while

you are cutting_

--a tight chain can damage the saw andtor

break,

--a chain, either too loose or too tight, can

cause injury,

Chain tension is correct when the chain:

--can be lifted about 1/8" from the Guide Bar

at a point near the middle of the bar, and

--will move freely around the bar.

The chain stretches during use, especially

when new. Check tension:

--each time the saw is used

--more frequently when the chain is new

The Bar Clamp Nuts must be slightly loose to

tension the chain correctly.

2 Check the tension by lifting the chain from

the Guide Bar at the center of the bar, Figure

10,

3, Continue turning the Adjusting Screw until

the tension is correct.

4, Hold the tip of the Guide Bar up and tighten

the Bar Clamp Nuts with the Scrench

5, Recheck tension,

TURN

TO LOOSEN

TENSION

ADJUSTING SCREW TU RN

TO TIGHTEN

TENSION

Hold the tip of the Guide Bar up and turn the

Adjusting Screw just until the chain does not

sag beneath the Guide Bar, Figure 9.

NOTE: Turn screw clockwise to tighten ten-

sion, Turn screw counterclockwise to loosen

tension.

F, ENGgNE FU_L MSXTURE

CHAIN CAN BE

LIFTED 1/8" WHEN

TENSION IS

CORRECT,,

e Your chain saw is powered by atwo-cycle

118"

Figure 9

1, USE THE FOLLOWING FUEL MIXTURES:

engine which requires a fuel mixture of

regular gasoline and a high quality engine oil

specially made for 2.cycle, air.cooled

engines. The internal design of the 2-cycle

engine requires lubrication of moving part&

Lubrication is provided when you use the

recommended mixture of gasoline and oil,

! GALLON

REGULAR

GASOLINE

Gasoline must be clean and not over two

months old. After a short period of time,

gasoline begins to chemically break down

and will form compounds that can cause hard

starting and damage in 2-cycle engines°

SEARS #32-36555

16:1 :_

ENGINE OIL

4- --OR-- =

ANY GOOD GRADE I_

16:1

AIR-COOLED, 2-CYCLE

ENGINE OIL

2. DO NOT USE THE FOLLOWING IN FUEL

MIXTURES:

The correct measure of gasoline to oil is very

important.

--Too much oil in the mixture wilt foul the

spark plug.

--Too littte oil will cause the engine to over-

heat resulting in damage.

Mix the fuel thoroughly in a container since

gasoline and oil do not readily combine. Do

not try to mix fuel directly in the fuel tank,,

._ AUTOMOTIVE

Oi L

PREMIUg/f or

ETHYL

GASO LI NE

GASOHOL

Does not have proper addi.

fives for 2-cycle engines and

could cause damage

Burns too hot for 2-cycle

engines; will shorten

spark plug life and could

damage your engine

Alcohol absorbs moisture

causing acids to form

which wil! damage metal

and rubber parts

Figure 10

3. HOW TO MIX FUEL

a,. Pour one-half of the gasoline into an ap-

proved, marked container Do not try to mix

oif and gasoline directly in the fuel tank

b Add entire measure of 2-cycle Engine Oil

c. Mix,

d Add remainder of gasoline

e, Mix thoroughly for one minute.

Figure 11

4. IMPORTANT POINTS

G. RAR AND CHAIIN OliL

aUse only recommended fuel mixtures.

b, Eliminate all sources of sparks or flame in

the areas where fuel is mixed, poured, or

stored. There should be no smoking, open

flames or work that could cause sparks

cMix and store fuel in an approved, marked

container.

d. Mix and pour fuel in a well-ventilated area.

Gasoline vapors are harmful to your health

and are a serious fire hazard

e. Avoid over filling the fuel tank. Allow 3/4

inch for expansion. Tighten Fuel Cap

securely Figure 11

f. Wipe up all fuel spills. Wipe off any fuel

spilled on the saw, Completely dry the saw

before using,,

g. Move at least 10 feet (3 meters) away from

fuel and fueling site before starting the

engine,

e The guide bar and cutting chain require con-

tinuous lubrication in order to remain in

operation condition. Lubrication is provided

by the automatic oiler system when the oil

tank is kept filled.,

--Lack of oil will quickly ruin the bar and

chain.

--Too little oil will cause overheating shown

by smoke coming from the chain and/or

discoloration of the guide bar rails

1. USE THE FOLLOWING:

30°F or above -- Lubricant -- undiluted,

30OF . 0OF _

Below O°F --

95% lubricant to 5% Diesel

Fuel #1 or Kerosene,

90% lubricant to 10%

Diesel Fuel #I or Kerosene

2, HOW TO FILL THE OIL TANK

Use SEARS Bar and Chain Lubricant #36554

or clean SAE 30W oil.

In freezing weather oil will thicken, making it

necessary to thin bar and chain oil with a

small amount of Diesel Fuel #1 or Kerosene.

Bar and chain oil must be free flowing for the

oil system to pump enough oiI for adequate

a. Stop the engine.

bl Turn saw on its side with oil cap up Figure

CoLoosen cap slowly and wait for pressure in

the tank to be released before removing the

cap.

d. Fill the oil tank°

Figure 12

Replace the oil cap securely,

3, IMPORTANT POINTS TO REMEMBER

Fill the oil tank each time you refill the fuel

tank to ensure there wil! be sufficient oil for

the chain whenever you start and run the

saw,,

The saw will use about t/2 tank of chain oil

for each tank of fuel mixture. If less oil is

used, check for a plugged oil hole in the

guide bar,

It is normal for a small amount of oil to ap-

pear under the saw after the engine stops.

This is due to oil draining from the bar and

chain when not in use

USBN@ Y@UR SAW

A= COHTROL DEVBCES

Understanding the control devices on your saw

is an important part of learning how to properly

and safely operate the unit, Figure 13

t The Ignition Switch is a toggle switch which

is moved up for the "Start" position and mov-

ed down for the "Stop" position,

2, The two-position Choke helps to start the

saw by controlling the air flow to the fuel

system

3, The Trigger accelerates and controls the

speed of the engine and is designed to be

used with the Throttle Lock..

4 The Throttle Lock is a control feature which

prevents the Trigger from becoming accident-

ly engaged, The Throttle Lock must be press-

ed before the Trigger can be activate&

5,, The Throttle Detent Button holds the Throttle

Lock and Trigger in position while the engine

is being started, Release the Throttle Detent

Button after the engine is started by lightly

squeezing the trigger°

THROTTLE

DETENT

BLITTON

.CHOKE

/THROTTLE

LOCKOUT

MANUAL

OILER

TRIGGER

START

PSTA RT/STOP

SWITCH

HALF OFF

FULL-!

CHOKE

Figure 13

6. The Manual Oiler is placed to be operated by

your right thumb, Use the manual oiler to sup-

plement the automatic oiler:

--during a long felling cut

--when cutting into a log or tree which is

greater in diameter than the length of the

guide bar.

wanytime an additional supply of oil is de-

sired,

g, STARTBNG BNSTRUCTIGN$

1. IMPORTANT POINTS

a, Hold saw firmly with the saw chain free to

turn without contacting any object. Figure

Pull starter rope quickly, using no more

than 15,18 inches of rope per pull. Using

the full length of the starter rope, may

cause it to break. Do not let the starter rope

snap back, Hold the handle and tet the rope

rewind slowly

Putl starter rope no more than 3-5 time&

Otherwise the engine may flood

Release the throttle detent button after

engine starts, allowing the engine to idle.

The chain must not move when the engine

runs at idle speed, If correction is required,

refer to"Carburetor Adjustments." page 21

e Stop engine by moving the ignition switch

to the "STOP" position (Figure 13)

WARNING!

Always wear gloves; safety footwear; snug-

fitting clothing; and appropriate eye, hearing,

and head protection devices when operating a

chain saw.

TO START - HOLD FRONT HANDLE-

BAR AND PLACE RIGHT

FOOT THROUGH HANDLE,

Figure 14

f WARNING! 1

Avoid bodily contact with the muffler when starting

a warm engine, The muffler can become very hot

and can cause serious burns,

2. STARTING PROCEDURE

a Cold Engine

b Warm Engine

c.. Refueled Engine after running

out of gas

d Flooded Engine

e Cold Weather starting

t_ove igeili0n

sw_t_hla stud

Pull c)lake kno_ Pfe._ thrD_le P_es_thretlte p_?_S1_nollope P_I_ choEe kaeh Pull _t_te_ _epe Sq'aeezotri_jL_r

1oTuIIch_ErJ t_k _nd _lenl butl0a unt_e_gine I_{_s _ until en_l_ ru_ t{_l_I_asc

X × × 35 _imes × X ×

choke oil × )_ 12 times X

X × × 3.5 limes XXX

choke oil X X

hall choke'

X X X 35 _imes (out Ot CU_)

* Allow engine to warm-up thoroughly on half-choke, then move choke to the "Off" position, Do not cut with the

choke at the "On" or "Half" position, Figure 13 g

C= CONTROU- NG KmCKBACK

Kickback is a dangerous chain saw reaction that

can cause serious personal injury. Carefully

study this section before you make the first cut

with your new saw. You must understand what

causes kickback, how you can reduce the

chance of kickback, and how you can remain in

the best control of the saw if kickback does

OCCUr

WHAT CAUSES KICKBACK

Kickback can happen when the moving chain

contacts an object at the tip of the guide bar

while the saw is being operated This contact

causes the chain to dig into the object and

stops the chain for an instant. The result is a

lightning fast, reverse reaction which kicks

the saw tip up and back at the operator The

operator can lose control of the saw and the

cutting chain can cause serious injury if it

contacts any part of the body,

HOW YOU CAN REDUCE THE CHANCE

OF KICKBACK

a. Recognize that Kickback can happen. By

understanding and knowing about kick-

back, you eliminate the element of sur-

prise.

b. Avoid Setting the moving chain at the tip of

the guide bar contact any object. Figure 15

c_ Keep the working area free from obstruc-

tions such as other trees, branches, rocks,

fences, stumps, etc. Figure 16 Eliminate or

avoid any obstruction that your saw chain

could hit white you are cutting through a

particular log or branch

do Keep your saw chain sharp and properly

tensioned. A loose or dull chain can in-

crease the chance of kickback

KICKBACK PATH

Figure 15

AVOID OBSTRUCTIONS

CLEAR WORKING AREA

Figure 16

e Operate the engine at full throttle foi" all

cutting. If the chain is moving at a slower

speed, there is greater chance for kickback

to occur.

f Use the Lo Kick Guide Bar and Guard Link

Chain designed for your particular saw.

These devices have been designed to

reduce the possibility of kickback.

g. Use extra caution if your saw is equipped

with the Power Sharp System. The Power

Sharp saw is equipped with a Lo Kick

Guide Bar and a Guard Link Chain_

However, due to the chain requirements of

the built-in sharpening mechanism, the

kickback force from the Power Sharp chain

may be greater than that from other Guard

Link chains.

&HOW YOU CAN MAINTAIN THE BEST

CONTROL

a, Keep a good firm grip on the saw with both

hands. Figure17 A firm grip can neutralize

kickback and help you maintain control of

the saw, Keep the fingers of your left hand

encircling and your left thumb under the

front handlebar, Keep your right hand com-

pletely around the rear handle Keep your

left arm straight with the elbow locked

b Position your left hand on the front

handlebar so it is in a straight line with your

right hand on the rear handle. Figure 18

Never reverse right and left hand positions

on the saw handles..

c° Stand with your weight evenly balanced on

both feet.

dr Stand slightly to the left side of the saw, to

keep your body from being in a direct line

with the cutting chain. Figure 17

e Do not overreach, You could be drawn or

thrown off balance and lose control of the

saw..

f, Do not cut above shoulder height, it is too

difficult to maintain control of the saw if

you try to cut above shoulder height,

IIIIt

THUMB ON '

UNDERSIDE

OF HANDLE-

BAR

STRAIGHT

Figure 17 Figure ! 8

USING THE POWER SHARP SYSTEM (iVIODEL.354870)

Model 354870 is equipped with a Power Sharp

System that will perform approximately 80% of

the sharpening necessary for the saw chain.. The

Power Sharp System uses a built-in grinding

stone to sharpen the cutter top plates and set

depth gauges. As the built-in sharpener is used,

the cutter side plates gradually will be alteredr

Hand filing is required to correct the cutter side

plates

e Sharpen the saw chain when:

--wood chips become small and powdery.

Wood chips made by the chain should be

about the size of the teeth of the chain

--saw cuts to one side.

--saw has to be forced through the cut.

ICAUTION:I ALways wear gloves when handling

the chain. The chain can be sharp enough to cut

you, even when it is too dull to cut wood.

® Always replace the sharpening stone when

--sparks are no longer seen at lull adjust-

ment

--only 1/4 inch of stone is remaining

--stone has become cracked or damaged.

wa new chain is installed. The used stone

will be worn to the shape of the old chain

and can cause excessive wear to a new

chain. Replacement chain comes supplied

with Stone Cartridge Replacement #69099.

Refer to replacement instructions on page

12..

®Always remove the sharpening stone if a con-

ventional chain is substituted for the Power

Sharp Chain, See instructions for removing

the Stone Cartridge on page 12. Use replace-

ment chain #32-3638 Follow chain sharpen-

ing instructions on page 16..

A. AUTOMATIC SHARPEHIN@

1, Stop the engine.

2. Place the saw on a solid, flat surface and

make sure that the chain wilt not contact

any object..

3. Adjust the chain with correct tension Refer

to Chain Tension, page 7.

IMPORTANT: The chain must be tensioned

correctly for proper sharpening to occur.

4.. Start the engine and operate at half to three/

quarters throttle during steps "5", "6", "7",

and "8".

NOTE: Saw must be running at half to three/

quarters throttle before knob is pressedr

5 Push the Power Sharp Knob down slowly un-

til fully pressed down. Figure 19

NOTE: if stone should contact chain before

knob is fully pressed down, release knob

and turn knob counterclockwise until condi-

tion does not exist. Repeat Step "5" again..

6. Turn knob slowly clockwise until sparks can

be seen as shown in Figure 19

NOTE: Proper sharpening occurs when a light

flow of sparks is seen. Improper sharpening is

shown by a heavy fiowof sparks or no sparks.

7 Release knob and turn one additional "click"

clockwise,

NOTE: It is important to turn the knob only

one "click" each time the knob is pressed,.

More turnswill result in making the chain dull

instead of sharp.

8 Press knob firmly against chain and hold for

10-15 seconds or until sparks can no longer

be seen

9. Release knob and stop the engine.

t0. Inspect chain cutters..

NOTE: A properly sharpened cutter will show

grinding marks across its entire width, Figure

20 If cutters do not appear sharp or burrs are

seen on the top front of the cutters, repeat

Steps "7" and "8".

SPARKS ARE SEEN HERE

POWER SHARP KNOB

Figure !9

INSPECT CUTTERS FOR GRINDING MARKS

TOP VIEW OF CUTTER

Figure 20

B. HAHD FUL,H@

Sharpen the side plates by hand after every 3rd

to 5th time the Power Sharp System is used.

Items Required:

Gloves flat file

5132" file vise

file holder

NOTE: If abrasive materials such as rocks, nails,

sand or dirt are contacted by the chain, the side

plates should be checked more often. Damage

to the cutters caused by abrasive materials

usually results in discoloration spots where the

chrome has been worn away. Cutter side plates

should be filed until these spots are removed.

3.,

8,,

Stop the engine,

Adjust the chain for proper tension, page 7.

SUPPORT

FLAT SIDE

OF FILE HOLDER

ON TOP OF CUTTER

PLATE

SIDE PLATE

Figure 21

HOLD FILE

HOLDER LEVEL

WITH THE 22°

GUIDE MARK

PARALLEL TO

GUIDE BAR

Clamp the bar in a vise to hold the chain

steady. Do not clamp the chain.

NOTE: Work at the midpoint of the bar, mov-

ing the chain forward with a screwdriver as

each cutter is filed°

Support the square rod on the fife holder(with

5132" round file) on cutter top plate,, Figure 21

Hold the file holder level with the 22 ° guide

mark parallel to guide bar. Figure 22

File from inside toward outside of cutter in

one direction only -- 2 or 3 strokes per side

plate edge should be enough, Figure 23

NOTE: Avoid hitting the top edge of the cut-

ters when filing the side plate,,

Maintain a 1/32" side plate projection. Figure

24.

Figure 22

0 NV

Figure 23

ROUND FILE

GAUGE

File all side plates on one side of the chain,

then move to the other side of bar and file re-

maining side plates.,

REPLACE OR RBMOVE THE

,'STONE AND CARRUER ASSEMBLY

1. Remove Carburetor Cover and Bar Clamp,

2. Remove the two screws which hold cartridge

assembly to crankcase_ Figure 25,

3. Discard old assembly.

4, Install new cartridge assembly,

PLATE t1

SIDE

PLATE fl SIDE PLATE

-"_ _-- 1132" PROJ ECTIO N _'_

\ I!.... 1132"

T 22°ggV' gR___L

NOTE: Be careful not to let the Slide Button

fall ouL

5 Reinstall Carburetor Cover and Bar Clamp,

STON E

CARTRIDGE

ASSEMBLY

Figure 24

Figure 25

TYPES OF CUTT N@

A. BAS!;C CUTTONG T_CHNIQUE

1. IMPORTANT POINTS.

a. Cut wood only. [3o not cut metal, plastics,

masonry, non-wood, building materials;

etc

b. Stop the saw if the chain strikes a foreign

object. Inspect the unit and repair or

repace parts as necessary,

Keep the chain out of dirt and sand. Even a

small amount of dirt will quickly dull a

chain and thus, increase the possibility of

kickback.

u,,

BEGIN CLJTTING WITH THE

!SPUR AGAINST LOG.

Figure 26

PROCEDURE

Practice cutting a few small logs using the

following technique to get the "feel" of using

your saw before you begin a major sawing

operation.

a. Accelerate the engine to full throttle just

before entering the cut by squeezing the

Throttle Trigger.

b. Begin cutting with the spur against the

log. Figure 26

c. Keep the engine at full throttle the entire

time you are cutting.

d. Allow the chain to cut for you; exert only

light downward pressure, If you force the

cut, damage to the bar, chain, or engine

can result.

e. Release the Throttle as soon as the cut is

completed, allowing the engine to idle If

you run the saw at full throttle without a

cutting toad, unnecessary wear will occur

to the chain, bar, and engine..

f. Stop the engine before setting the saw

down after cutting.

3"RI_E FELII UNG TI_CHNUQUES

1. PLAN YOUR SAWING OPERATION

CAREFULLY IN ADVANCE

a. Clear the work area,, You need a clear area

all around the tree where you can have

secure footing

b_ Study the natural conditions that can

cause the tree to fall in a particular direc-

tion. The tree wilt be likely to fall:

1.) In the direction the WIND is blowing

2.) towards the direction of the LEAN of

WARNING!

DO NOT CUT

--near electrical wires or buildings.

--if you do not know the direction of tree fall.

--at night since you will not be able to see well.

--during bad weather--strong wind, snow, rain,

etc.

2. FELLING SMALL TREES--LESS THAN 6"

DIAMETER

the tree

3,) on the side that is the HEAVIEST with

branches.

c° Make sure there is enough room for the

tree to fall.

d. Remove dirt, stones, loose bark, nails,

staples, and wire from the tree where cuts

are to be made.

e. Plan a clear retreat path to the rear and

diagonal to the line of fall Figure 27

a, if you know the direction of fail:

t.) Make a single felling cut on the side

away from the direction of fall,

2.) Cut all the way through,

3,) Stop the saw, put it down, and get away

quickly on your planned retreat path.

b. If you are not sure which way the tree will

fall, use the notch method described for

felling large trees,

DON'T PUT YOURSELF IN THESE POSITIONS

r t" ili ii

,,,, iiiiiiiii!ii!iiiiii

- '!ii_';?Checkthe Wi_?

Don't cut down wind. /Check the

•Don't cut on lean side.

r,,

Check the bal'ance.

Don't cut on weighted side: .

3. FE/.LING LARGE TREES--6" DIAMETER

OR MORE

The notch method is used to cut large trees A

notch is cut on the side of the tree in the

desired direction of fall, After a felling cut is

made on the opposite side of the tree, the tree

wilt tend to fall into the notch.

a Make the notch cut Figure 28,

1) Cut the bottom of the notch first,

through 113of the diameter of the tree,.

2) Complete the notch by making the

slant cut,

3) Remove the notch of wood,,

b., Make the felling cut on the opposite side of

the notch about 2" higher than the bottom

of the notch.

c Leave enough uncut wood between the fell-

ing cut and the notch to form a hinge

Figure 29

NOTE: The hinge helps to keep the tree

from twisting and falling in the wrong direc-

tion

Use a wedge if there is any chance that the

tree will not fail in the desired direction

NOTE: Stop cutting before the felling cut is

complete; use a wedge to open up the cut.

Be alert for signs that the tree is ready to

fail:

1,) cracking sounds

2) widening of the felling cut

3) movement in the upper branches

As the tree starts to fall, Stop the saw; put

it down, and get away quickly on your plan-

ned retreat path.

OFFAL " .... f

DIRECTION

<=========

OF FALL

NOTCH

FELLING CUT

\ \

DIRECTION OPENING OF

OF FALL FELLING CUT

==-,,=,e_

CLOSING

OF NOTCH

HINGE HOLDS TREE ON STUMP AND

CONTROLS THE FALL.

Figure 27 Figure 28 Figure 29

C. BUCKIN@

eBucking is the term used for cutting a fallen

tree to the desired log size,

eTwo types of cutting are used (Figure 30):

--Overcutting -- begin on the top side of the

log with the bottom of the saw against the

log; exert light pressure downward.

-- Undercutting -- begin on the under side of

the log with the top of the saw against the

log; exert light pressure upward. During

undercutting, the saw will tend to push

back at you,_ Be prepared for this reaction

and hotd the saw firmly to maintain control

e Make the first bucking cut 1/3 of the way

through the log and finish with a 2/3 cut on

the opposite side. As the tog is being cut, it

will tend to bend, The saw can become pinch.

ed or hung in the log if you make the first cut

deeper than 1/3 of the diameter of the log

1. BUCKING -- WITHOUT A SUPPORT

a Overcut with a 1t3 diameter cut

b Roll log over and finish with an overcut

WARNING!

Never turn the saw upside down to undercut.

The saw cannot be controlled in this position.

OVERCUT

Figure 30

, ,,,,,,,_ u ,,, ,,r

WARNING!

tf saw becomes pinched or hung in a tog, don't

try to force it out. You could lose control of the

saw resulting in personal injury and/or damage

to the saw° Stop the saw and drive awedge into

the cut until saw can be removed easily° Be

careful not to damage the chain with the wedge,

Figure 31.

2, BUCKING -- USING ANOTHER LOG AS

A SUPPORT (Figure 32):

WARNING!

ALWAYS STAND UPHILL FROM THE LOG.. The

cut portion will roll down hill,

a In area A:

1) Undercut 1/3 of the way through the

log

2) Finish with an overcut

b In area B:

1) Overcut, 113of the way through the log

2) Finish with an undercut

3. BUCKING m USING A STAND (Figure 33):

a In area A:

1) Undercut 1/3 of the way through the

log

2) Finish with an overcut

b, tn area B:

I,) Over cut 1/3 of the way through the tog

2) Finish with an undercut

#, DEBRANCHnNG AND PRUHmNG

e Work slowly, keeping both hands on the saw

with a firm grip, Maintain secure footing and

balance,

• Watch out for springpoles. Use extreme cau-

tion when cutting small size limbs. Slender

material may catch the saw chain and be

whipped toward you or pull off balance,

e Be alert for springbacko Watch out for bran-

ches that are bent or under pressure as you

are cutting to avoid being struck by the

branch or the saw when the tension in the

wood fibers is released

e Keep a clear work area° Frequently clear

branches out of the way to avoid tripping over

them

WARNING!

Never climb into a tree to debranch or prune° Do

not stand on ladders, platforms, or in any posi.

tign which might cause you to lose control of

the saw°

LOG AS A SUPPORT

Figure 31

Figure 32

IAI B IA

2ND CUT 1ST CUT 2ND CUT

FIRST

CUT CUT CUT

Figure 33

KEEP THE TREE BETWEEN

YOU AND THE SAW

USE COMMON SENSE

WARNING!

BE ALERT FOR AND GUARD AGAINST

KICKBACK° DO not allow the moving chain to

contact any other branches or objects at the

nose of the guide bar when debranching or prun-

ing. Allowing such contact could result in

serious personal injury.

1. DEBRANCHING

a, Limit debranching to limbs shoulder height

or below. Always debranch a tree after it is

cut down, Only then can debranching be

done safely and properly_

b. Leave the larger lower limbs to support the

tree as you work.

co Start at the base of the felled tree and work

towards the top cutting branches and

limbs, Remove small limbs with one cut

Figure 34

d. Keep the tree between you and the chain.

Cut from the side of the tree opposite the

branch you are cutting

e, Remove larger, supporting branches with

the 1/3, 213 cutting technique described in

the bucking section.

1,) Start with an overcut

2,) Finish with an undercut

Remove small limbs

with one cut,

Figure 34

NAINTNNAN@N

2. PRUNING

a, Limit pruning to limbs shoulder height or

below. Do not cut if branches are higher

than your shoulder. Get a professional to

do the job

b. Refer to Figure 35 for the pruning techni-

que,

1) Undercut 1/3 of the way through the

limb near the trunk of the tree

2) Finish with an overcut farther out from

the trunk,

3) Keep out of the way of the falling limb,

4) Cut the stump flush near the trunk of

the tree

_J I! t_ Zi/

SECOND PRUNING CUT

,v j

_ FIRST PRUNING CUT

Figure 35

A good maintenance program of regular inspec.

tion and care will increase the service life and

help to maintain the safety and performance of

your saw,

•Make all adjustments or repairs (except car-

buretor adjustments) with:

e Check the saw for loose bolts, screws, nuts,

and fittings on aregular basis. Loose fas.

tenors can cause an unsafe condition as well

as damage to your saw

WARNtNG_

All chain saw service other than the main-

--spark plug wire disconnected

--engine cool as opposed to a unit that has

just been run,

tenance described in this manual should be per-

formed by your SEARS Service Center.

@U DE BAR AND CHAllN

Increase the service life of your Guide Bar and

Chain by:

--Using the saw properly and as recommended

in this manual

--Maintaining correct Chain Tension, page 7.

[CAUTION:]Wear protective gloves when han-

dling the chain, The chain can be sharp enough

to cut you even though it it too dull to cut wood.

a, SHARPENING INSTRUCTIONS (Model

--Proper lubrication, page 8,

--Regular maintenance as described in this sec-

tion.

1. CHAIN MAINTENANCE

eSharpen the chain when:

_wood chips are small and powdery. Wood

chips made by the saw chain should be

about the size of the teeth of the chain

--saw has to be forced through the cut,

--saw cuts to one side°

3.)

.354830)

Items required:

Gloves Medium file

3116" file Depth Gauge Tool

6" file holder Vise

l r) Stop engine.

2.) Adjust the chain for proper tension,

page 7

Clamp bar in a vise to hold chain

steady, Do not clamp chain

Work at the midpoint of the bar, moving

the chain forward by hand as each cut-

ter is filed

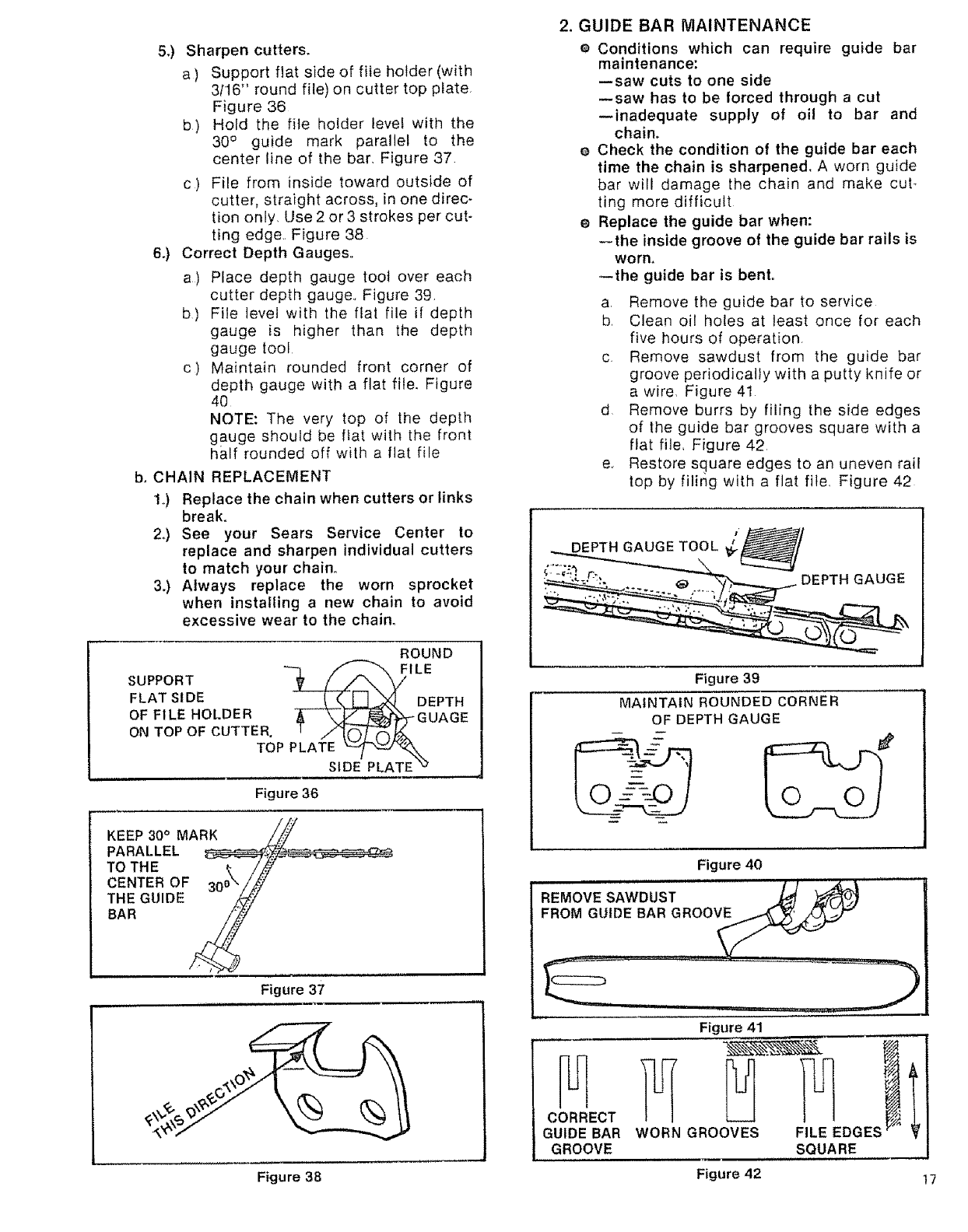

5.) Sharpencutters.

a) Support flat side of file holder (with

3116" round file) on cutter top plate,

Figure 36

b) Hold the file holder levef with the

30° guide mark parallel to the

center Iine of the bar, Figure 37

c) File from inside toward outside of

cutter, straight across, in one direc-

tion only, Use 2 or 3 strokes per cut-

ting edge., Figure 38

6.) Correct Depth Gauges°

a) Place depth gauge tool over each

cutter depth gauger Figure 39

b) File level with the flat file if depth

gauge is higher than the depth

gauge tool

c) Maintain rounded front corner of

depth gauge with a flat file. Figure

NOTE: The very top of the depth

gauge should be fiat with the front

half rounded off with a flat file

b. CHAIN REPLACEMENT

1,,) Replace the chain when cutters or links

break.

2.) See your Sears Service Center to

replace and sharpen individual cutters

to match your chain°

3.) Always replace the worn sprocket

when installing a new chain to avoid

excessive wear to the chain.

ROUND

"-7 _'-'_x. FILE

SUPPORT V

FLAT SIDE I _ [:11]_ DEPTH

OF FILE HOLDER _ k__._GUAGE

oNTOPOFCUTTER

TEPPLATE

SIDE PLATE v

Figure 36

KEEP 30°MARK

PARALLEL

TO THE

CENTER OF

THE GUIDE

BAR

Figure 37

,ll

Figure 38

2. GUIDE BAR MAINTENANCE

eConditions which can require guide bar

maintenance:

--saw cuts to one side

--saw has to be forced through acut

--inadequate supply of oil to bar and

chain.

e Check the condition of the guide bar each

time the chain is sharpened. A worn guide

bar will damage the chain and make cub

ring more difficult

e Replace the guide bar when:

--the inside groove of the guide bar rails is

worn.

.--the guide bar is bent°

a Remove the guide bar to service

b, Clean oil holes at least once for each

five hours of operation,

c Remove sawdust from the guide bar

groove periodically with a putty knife or

a wire, Figure 41

d Remove burrs by filing the side edges

of the guide bar grooves square with a

flat file, Figure 42

e,, Restore sguare edges to an uneven rail

top by filing with a flat file, Figure 42

Figure 39

MAINTAIN ROUNDED CORNER

OF DEPTH GAUGE

Figure 40

REMOVESAWD'US,..........J2

FROM GUIDE BAR GROOV_

CORRECT

GUIDE BAR

GROOVE

Figure 41

WORN GROOVES FILE EDGES

SQUARE

Figure 42 17

B= BGHaTBON, COOLnN@ AND EXMAUST SYSTEMS

eCarbon deposits will build up on exhaust

pods, spark arrestor, muffler, and spark plug

as the saw is used, All of these parts should

be cleaned at the same time to prevent

engine damage, overheating, loss of power,

and hard starting.

eClean pads:

--as required

--at least once for each 25-30 hours of op-

eration

1. COOLING AND EXHAUST SYSTEM

eCarbon build-up on the cooling and ex-

haust system can cause the engine to

loose power in acut.

eKeep the spark arrestor clean at all times.

eReplace the spark arrestor when breaks in

the screen are found.

SPARK ARRESTOR

HEAT SHIELD

MUFFLER

SCRAPE CARBON

DEPOSITS FROM

EXHAUST PORTS

AND CHAMBER

Figure 44

CHAMPION C jo8 SPARK PLUG

,,i, i i

Figure 45

Items required:

--wire brush

--3/8" wrench

--hardwood stick

a_ Disconnect the spark plug

b. Remove the muffler, baffles, and

screen. Figure 43,

c. Pull the starter rope until the piston

moves far enough to close the exhaust

ports.

d. Scrape the carbon deposits from the

exhaust ports and surrounding exhaust

chamber using a hardwood stick.

Figure44o

ICAUTIONiJDo not use a metallic scrap.

ing tool as you might damage the

piston,

e. Blow out toosened carbon with com-

pressed air.

f. Clean the spark arrestor screen with a

wire brush or replace if breaks in the

screen are found.

g. Reassemble muffler parts

2. SPARK PLUG

e Maintenance is indicated when the engine

is hard ti) start.

e Keep the spark plug:

--clean

--properly gapped (°025")

items Required: Small brush, such as a

tooth brush, or a pocket knife°

a_ Remove the carburetor cover_

b, Pull the rubber connector from the

spark plug and remove the spark plug

from the cylinder

c. Clean deposits from the electrodes of

the spark plug with a small brush or a

pocket knife,

NOTE: Be careful when removing,

cleaning, gapping and replacing the

spark plug If it is damaged, it will not

work properly and must be replaced_

d Set the gap between the electrodes to

.025 using a wir_ or flat gauge° Figure

45.

e, Replace the spark plug in the cylinder

and attach the rubber connector.

fo Replace carburetor cover and knob.

•A starter rope that breaks next to the pulley

can be repaired.

e Replace a starter rope that breaks more than

2or 3 inches from the pulley.

NOTE: The recoil spring, located beneath the

pulley, is under tension_ If spring pops out, it

will require considerable time and effort to

reinstall. For this reason, you may want to let

your Sears Service Center handte this repair

If you do try to repair the starter rope and the

recoil spring pops out, take the unit to your

Sears Service Center

Remove the four screws on the side of the

fan housing. Figure 46.

NOTE: Notice the different lengths of the

screws and their proper locations while

removing the screws

Remove the fan housing..

If the starter rope is not broken, release the

spring tension by pulling about 12 inches of

rope from the pulley and catch the rope in

the notch as shown.. Figure 47.

NOTE: The tension on the starter spring will

be released if the rope has broken.

Turn the pulley counterclockwise untit the

spring tension is released.

Figure 46

Figure 47

TURN PULLEY

TO RELEASE

TENSION

5. Remove the pulley screw in the center of the

pulley. Figure 48.

6. Lift the puiJey carefully whi_e gent_y twisting it

counterclockwise _ , and remove the

old rope.

7. Move away from the fuei tank and burn the

end of the new rope to go into the pulley.

8. Pull the burnt end while hot through a rag to

smooth it.,

9. Feed the rope through the housing and the

round starter hole.. Figure 48,

10 Put the rope into the pulley groove and up

through the hole,.

11 Wrap rope counterclockwise around puiley

rachet end and tuck loose end back under

rope leaving a 3t16 to 5/16 inch tail.

12. Rewind atl the rope onto the pulley, turning

counterclockwise

13 Set the pulley into the housing; push it down

and engage the spring.

14, Replace and tighten the pulley screw,

15. Pull out 12 inches of rope and catch the rope

in the slot in the pulley. Figure 49.

16. Turn the pulley 3 complete turns clockwise,

winding up the spring

17o Hold the pulley and pull the starter rope to

the full extent of length and let the rope re-

wind slowly.

18 Replace fan housing with the four screws in

their proper location,

_' PULLEY

SCREW

Figure 48

i,H,l,,, ,,H,,,,ll,,,,m, N

Figure 49

D, CLUTCH, DRUM AND SFROCKET

WARNING!

Do not start engine without Guide Bar, Chain,

and Bar Clamp completely assembled, The

clutch can come off without the guide bar and

chain completely assembled and serious injury

could result° Do not loosen and spin the clutch

off of the crankshaft with a power tool. The

clutch shoes and drum could separate causing

the clutch to violently fly apart and serious per-

sonal injury could result.

eTake the saw to your nearest Sears Service

Center for full clutch inspection and service

after each t00 hours of operation°/t is recom-

mended that you do not try to service the

clutch yourself unless you are a competent

small engine mechanic and have the proper

clutch service tools, Proper disassembly and

repair of the clutch is extremely important to

the life of the engine and the safety of the

operator.,

e Clutch maintenance is required when:

_the chain continues to turn while engine

idles after the idle speed screw has been

adjusted to its capacity,

--slippage occurs during a cut.

--a chattering noise occurs during cutting.

e Clean the clutch, drum, sprocket, and sur-

rounding area daily during heavy use of the

saw. Check to see that the clutch drum turns

freely and smoothly

• Inspect the sprocket regularly for wear. A

worn sprocket will make the chain run er-

ratically and wil! shorten the life of the bar

and chain. Figure 50.

e Replace the sprocket whenever a new chain

is installed in order to gain the full life ex-

pectancy of the chain. Use the following pro-

cedure: ,ll, ,,,,J,,,,, ,,,,,,, ,,,,Li

CHAIN WEAR ON DRIVE SPROCKET

WEAR IS VISIBLE

ON SPUR TYPE

(Model .354830)

RIM TYPE WEARS INSIDE

(Model .354870)

Figure 50

BAR CLAMP

BAR MOUNTING

NUTS

OUTER

|DE PLATE

Items Required: Scrench

9116" Socket Wrench

3t4" Socket Wrench

1, Remove the carburetor cover and pull the

spark plug away from the rubber connector.

2. Remove the bar clamp, outer guide plate,

guide bar, and chain. Figure 51_

3, Remove the fan housing.

4, Use a 9116" socket wrench on the flywheel

nut to keep the crankshaft from moving

Figure 52,,

NOTE: Place the socket handle forward as

shown in Figure 52.

5 Remove the clutch with a 314" socket or end

wrench in a clockwise direction, Figure 53,

[CAUTION:IDo not remove the clutch with a

punch or a powertool as damageor breakage

to the clutch could occur.

6o Remove worn sprocket and replace.

7. Install clutch in a counterclockwise direction,

Figure 53

8, Hoid flywheel by hand and torque clutch to

22 ft. pounds.

NOTE: Do not hold a wrench on the flywheel

nut when replacing the clutch., This could

loosen the flywheel nut,

9. Reinstall fan housing, bar chain and bar

clamp,

,11111,,i,i ,

Figure 52

KEEP

CRANKSHAFT

FROM MOVING

REMOVE CLUTCH

CLOCKWISE

INSTALL CLUTCH

COUNTERCLOCKWtSE

Figure 53

Ea CARBURETOR ADJUSlFIM N3'S

e The carburetor has been adjusted at the fac-

tory for sea level conditions, Adjustment may

become necessary if the unit is used at

significantly higher altitudes or if you notice

any of the following conditions:

--Chain moves with the engine at idle speed.

--Loss of cutting power which is not cor-

rected by air filter or muffler screen clean.

ingo

--Engine dies or hesitates when it should

accelerate.

ePermanent damage will occur to the engine if

incorrect carburetor adjustments are made./t

is best to let your Sears Service Center make

carburetor adjustments If you choose to

make the adjustment yourself, follow the pro-

cedure below very carefully.

WARNING!

The chain may be moving during this procedure.

Wear your protective gear and observe all of the

safety precautions. .... i

1. PREPARATION

a. Stop engine

b. Use a fresh fuel mixture with proper

gasoline/oil ratio

c, Place the saw on a solid, flat surface and

make sure the chain will not contact any

object,.

d Locate the three (3) Carburetor adjusting

screws located on the fan housing side of

the saw. Figure 54

e. Turn the Low Speed Mixture Screw and the

High Speed Mixture Screw clockwise

just until they stop, Do not turn the screws

until they are tight as you may damage

the needle seats,

f, Turn the Low Speed Mixture Screw and the

High Speed Mixture Screw one full turn

counterclockwise

2. IDLE SPEED ADJUSTMENT--I

a. Start the engine and allow to idle.

b, Adjust if the engine dies or stops by turning

the Idle Speed Screw I/2 turn clockwise

NOTE: To increase idle speed, turn the Idle

Speed Screw clockwise _ To

decrease idle speed, turn the Idle Speed

Screw counterclockwise

c, Run the engine for a few minutes to bring it

up to operating temperature.

NOTE: The engine must be at operating

temperature for proper adjustments to be

made.

3o LOW SPEED MIXTURE ADJUSTMENT

a, Turn the Low Speed Mixture Screw slowly

clockwise _ until the RPM starts to

drop° Note the position,.

b Turn the Low Speed Mixture Screw coun-

terclockwise _ until th RPM speeds

up and starts to drop again, Note the posi-

tion.

c, Set the Low Speed Mixture Screw at the

mid-point between the two positions

4. IDLE SPEED ADJUSTMENT--II

a, Allow engine to idle.

b Adjust if the chain is turning by turning the

Idle Speed Screw counterclockwise _ o

c° Squeeze the throttle trigger; The saw

should accelerate without hesitating,

NOTE: It may be necessary to recheck the

low speed mixture setting after the idle

speed has been reduced by repeating "Low

Speed Mixture Adjustment" as in step 3

above,

5. HIGH SPEED MIXTURE ADJUSTMENT

a. Make atest cuL

b, Adjust if the saw smokes or seems to have

low power in the test cut by turning the

High Speed Mixture Screw 1t16th of a turn

clockwise

c. Repeat test cut,

d Repeat adjustment until the saw runs

smoothly..

[CAUTION: 1Never set the High Speed Mixture

Screw less than 7/8 turn open, This is too lean

a setting and will ruin your engine.

.IDLE SPEED ADJUSTMENT--Ill

Recheck for proper idle mixture setting,,

NOTE: It may be necessary to repeat Idle

Speed Adjustment-t and Low Speed Mixture

Adjustment

7. CHECK ACCELERATION

Adjust if there is a slight hesitation, by turn-

ing the Low Speed Mixture Screw 1/16 of a

turn at a time counterclockwise _ un-

til you have smooth acceleration,

NOTE: Check to be sure the chain is not turn-

ing when engine is idling. If chain moves at

idle speed, repeat Idle Speed Adjustment-ll

AmR F_LTER

eAdirty air filter.

_reduoes cutting power

--increases fuel consumption

eClean the Air Filter:.

--frequently, especially under very dusty

conditions.

--always after 10 tanks of fuel mixture or 5

hours of operation whichever is less.

.,_AI R FILTER

Figure 55 9.

CO_T_R=V_ TM V_RATIO_ SYSTEM

This saw is equipped with a counter vibration 3.

system consisting of 5 isolator mounts Figure

56 The Isolator Mounts protect the user from

engine, bar, and chain vibration similar to the

way shock absorbers on a car protect from jolts

and bumps in the road

1. Check isolators each time the saw is used.

2, Replace isolators when:

--vibration increases

--mounts develop an out of round or

swollen shape usually caused from

exposure to gasoline and oil for long

periods of time

H. STORA@E

When storing your saw for over 30 days always:

Drain fuel tank in a safe manner (see Impor-

tant Points, page 8.)

Start Engine and allow to run at an idle

speed until the engine stops..

NOTE: This will remove most of the fuel from

the fuel system

ICAUTION_ Wear protective gloves when han-

dling the chain. The chain is sharp and can

cut you even when it is not moving.

11. MAIINTtENANCE ACCESSORES

Available but not furnished with your saw

--t

Key No Catalog No Description

1 32-36525 File - 3/tS" die. -Twin peck

32-36521 File -5/16" die - Twin pack

2 32-36565 FideGuide

3 32-36557 Depth Gauge

ICAUTION:jNever operate the unit without the air

filter in place as damage to the engine can oc-

our.

Items Required: soft bristled brush, such as a

paint brush.

1_ Clean off the carburetor cover and the area

around ito

2. Close choke to prevent dirt from entering the

carburetor.

& Remove the carburetor cover. Figure 55.

4. Remove the air filter carefully_

5. Soak the filter in soap and water.

[CAUTION:] Do not use gasoline or other flam.

mable liquid to clean the filter as this can

cause a fire hazard.

6. Brush away all dust and debris from the filter.

7. Allow filter to dry.

8. Brush away all debris from surfaces which

were covered by the carburetor cover.

Replace filter and carburetor cover.

Replace all five isolators when afailure to one

OCCURS.

COUNTER VtBE MOUN

Figure 56

3 Drain oil tank

4 Remove, clean, and dry the bar and chain

5 Store the chain in a container filled with oil

to prevent rust.

6 Apply a coating of oil to the entire surface of

the bar and wrap it in heavy paper, cloth or

plastic

7 Clean the outside surfaces of the engine

8 Store the saw in a dry, placeout ol the reach

of children and away fromwhere fuel vapors

can reach open flames from hot water

heaters, furnaces, etc

Catalog No.

32_3640

32-36711

32-36512

32-36624

32-36555

32.36554

32-26911

32.3638

32-3639

32-36526

32-36618

Description

Spark Plug-Champion CJ*8

Replacement Recoil Cord

S;ide-on Chain Guard

Carrying Case

2-Cycle Engine Oil

Bar and Chain Lubricant

Guide Bar -t8"

Chain (76LP-66} -354830

(requires 7/32'" din, file)

Chain (76TS-66) -354870

(includes S_one Cartridge Ass'y)

File - 7/32" din. - Twin pack

Chain Repair Kit

J. TROUBLE SHOOT_HG CHART

TROUBLE CAUSE REMEDY

ENGINE W1LL NOT START

ENGINE WILL NOT ]DLE

PROPERLY

1 ignition Swilch off

2 Fuel tank empty.

3 Spark Plug not firing

4 Fuel not reaching carburetor

ENGINE WILL NOT

ACCELERATE, LACKS 2.

POWER OR DIES 3

5 Engine flooded

6 Compression low

! Idling speed set too low

2 Idle speed set too high

3 Low speed screw requires adjustment

4 Crankshaft seals worn

5 Compression low

1 Carburetor requires adjustment

Air filter dirty 2

Spark Plug fouled 3

1 Move switch to "Start"

2r FNI tank with correct rue! mixture, page 7

3 install new plug, page18

4 Check for dirty fuel filler; clean Check for

kinked or split fuel line; repair or replace

5 See Starling Instructions, page 9

6 Contact Sears Service Center

t Adjusf idle speed screw clockwise to in-

increase speed, page 2l

2 Adjust idle speed screw counterclockwise

to reduce speed, page 2!

3 See Carburetor Adjustments, page 21

4 Replace seals or contact Sears Service

Center

5 Contact Sears Service Center

t See Carburetor Adjustments, page 2!

Ctean or replace air lifter, page22

Clean or replace Spark Plug and recaP,

IN THE CUT page 19.

4 Carbon build-up

5 Low Compression

4 Clean exhaust system including spark

arrestor, page !8

5 Contact Sears Service Center

ENGINE SMOKES

EXCESSIVELY

ENGINE RUNS HOT

OIL INADEQUATE FOR

BAR AND CHAIN

LUBRICATION

CHAIN MOVES AT

Choke partially on 1

High speed needle requires adjustment 2

Air filter dirty 3

Oil rich fuel mixture 4

5, Crankcase leak,

t Fuel Mixture Incorrect

2 Spark Plug incorrect

3 Carbon build-up

4 High Speed Mixture set too low

1 Oil tank empty

20it pump or oil filter clogged

3. Guide bar oil hole blocked.

IDLE SPEED 2,

CHAIN DOES NOT MOVE l

WHEN ENGINE IS 2

ACCELERATED 3

CHAIN CLATTERS OR 1

CUTS ROUGHLY 2

Push Choke in

See Carburetor Adjustments, page 21

Clean or repiace air filler, page 22

Empty fue_ tank and refil! with correct luei

mixture, page 7

Contact Sears Service Center

See Engine Fuel Mixture, page 7 .

Replace with correct plug, page 18

Clean exhaust systems including spark

arrestor, page 18

See Carburetor Adjustments, page 21

Fill oil lank, page 8

Contact Sears Service Center

Remove bar and clean.

CHAIN STOPS WITHIN

THE CUT

1 Carburetor requires adjustment See CarburetorAdjustments, page 21

CtuLch requires repair. Contact Sears Service Center.

Chain tension too tighi See Chain Tension, page 7

Carburetor requires adjustment See Carburetor Adjustments, page 21

Guide bar rails pinched Repair or replace, page t7

Ciutch slipping Contact Sears Service Center

Chain tension incorrect 1

CHAIN CUTS AT

AN ANGLE

Cutters dull, improperly sharpened; depth

gauges too high

Sprocket worn

Chain wear due to contact with dirt, sand

or frozen wood

Cutters damaged after striking foreign

material

1 Chain cutter tops not filed flat

2 Guide bar burred or bent; rails uneven

3 Clutch slipping.

1 Cutters damaged on one side

2 Chain dull on one side

3. Guide bar bent, or worn.

See Chain Tension, page 7

See Chain Sharpening Instructions, page

page 16 (page ttt2 for Power Sharp)

Replace

Resharpen or replace Chain, page 16 -17

(page 11.12 for Power Sharp)

Contact Sears Service Center

Sharpen aH cutters evenly and uniformly

or replace chain See chain sharpening

instructions, page 16-17 (page 11-12

for Power Sharp)

See Chain Sharpening instructions,

paget6-t7{page t1.12 for Power Sharp)

Repair or replace guide bar, page 17

Contact Sears Service Center

Resharpen until all cutters have equal

angles and lengths, page 16 -17 (page 1t-12

lor Power Sharp)

Resharpee until all cutters have equal

angles and lengths, page 16-17(page 1H2

for Power Sharp)

Replace guide bar, page 17.

SEARS CHAIN SAW PARTS LiST

MODELS 358.354830 358.354870

3.7118" 3.7/18" PS

Figure I

23 36

\\\,

47 51 52

-\_ _ /,_ \59 62

k___/

SEARS CHAIN SAW PARTS LIST

MODELS 358.354830 358.354870

3.7/18" 3.7/18" PS

Figure I

Key No.

23_1-7

STD522525

15434

24476

1626

1722

15468

15123

STD600603

30054

42066

24329

42051

42054

15364

11866

24392

24391

STD522505

24385

24384

19097

STD600603

24232

28487

24388

24387

32051

15354

1684

42056

42052

24799

19098

10479

10461

Qty. Description Key No. Part No.

1 Flywheel Assembly _;3_- z;.59L,,_5"37 25556

(incl # 2) 38 15365

2 Spring -Starter Dog 5_o-zJ._9_7

2 Screw- Muffler Cover 39 30073

2 Screw- Spur 40 15195

1 Spur

1 Washer- Flywheel 41 24756

1 Flywheel Nut 42 24492

1 Screw- Starter Pulley

1 Washer- Starter Pulley 43 1624

Retainer 44 39096

1 Screw Disc Mounting 45 10355

AR* Sealant Crankcase 3 oz_ %_ ¢,_(_

1 Disc - Recoil Spring Outer _'-" a_ STD580008

1 Bushing - Recoil Sprmg_ _ ,c,#L!_ -115366

1 Spring - Starter RecoilS"_o rC_&CS_,&_ 39097

1 Disc " Recoil Spring Inner:;_ _'q,;__ 39071

1 Screw- Fan Housing 5-_ ¢ j5;5_ 39102

(Top Front)

1 Fan Housing Assembfy.? .5o -L*iulq O.3

1 Shield Muffler 51 10444

1 Muffler Cover

2 Screw - Muffler 52 19119

BodyfCylinder 53 24334

1 Screen - Spark Arrestor

2 Diffuser- Muffler 54 39093

2 Seat- Crankshaft

2 Screw - Air - Baffle 55 15425

1 Baffle- Air 56 23661

1 Pulley - Starter 5_' c _ _ _ __,o 57 STD600603

1 Back Plate- Muffler 58 STD511007

1 Muffler Body 59 23732

2 Bearings -Crankshaft 60 39099

2 Thrust Washers -Crankshaft 61 23575

2 Stud - Bar Mounting 62 24858

1 Handle- Starter Rope 63 31107

t Rope- Starter 64754

1 Cylinder

1 Gasket - Cylinder

1 Crankcase Assembly (.354870 * As Required

& _354830) Right & Left Half

(incl, # 23, 29, & 31 on Fig. 1;

aIso includes from Fig 3, 22,

30, 43 & one of 37.)

Qty. Description

1 Decal Fan Housing

! Screw- Fan Housing

(Lower Front)

1 Spark Plug (CJ-8Y) _iyl .:._._

1 Clip- High Tension

Lead Cylinder

2 Piston Ring

1 Crankshaft and

Rod Assembly

4 Screw- Cylinder

1 High Tension Lead

1 Piston Assembly

(incL #41)

1 Key- Flywheel

2 Screw - Fan Housing (Rear)

! Boot- Spark Plug

1 Connector- Spark Plug

1 High Tension

Lead Assembly

(Incl.# 44, 48, & 49)

1 Oil Cap Assembly

(Incl 52)

1 "O" Ring- Oil Cap

1 Clamp - High Tension Lead

(Crankcase)

1 Ignition Module (incf #

60 & 50)

2 Screw -Module Mounting

2 Clamp- Lead

2 Screw- Lead Clamp

9 Screw - Crankcase

1 Switch- Toggle

1 Switch Lead

1 Ignition Switch Nut

1 Plate- StartlStop

1 Scrench

I Owner's Manual (not shown)

SEARS CHAIN SAW PARTS LIST

MO DELS 358.354830 358.354870

3.7/18" 3.7/18" PS

33__

Figure 2

MODEL

358.354870

3.7/18" PS

CARBURETORASSEMBLY

PARTNO, 35094

-24

Key No.

Pa_ No.

24338

STD511003

10347

19107

24229

19101

15387

11865

24383

35094

19099

15462

24373

24376

25258

24349

15414

24-8-28-

15252

23364

23363

19093

10286

11827

24357

32053

25469

15245

SEARS CHAIN SAW PARTS LIST

M O DELS 358.354830 358.354870

Qty,

Description

Choke Rod

Screw. Choke Bracket

Brackel & Bushing Ass'y

Seal. Carburetor Adaptor

Adaptor -

CarburetorlCylinder

Gasket _AdaptorlCylinder

Screw Brace to

Rear Handle

Brace -Handle

Wire- Choke

Carburetor Assembly

Gasket Carburetor

to Adaptor

Shoulder -Screw _ Isolator

Isolator., Powerhead

to Rear Handle

Cup- Isolator

Spacer - Isolator (Center)

Bracket _Carburetor Seat

Screw - Adaptor/Cylinder

Fuel Line 5_0-_&_ 2/(,=

Washer Fuel Pick-Up

Filter- Fuet PickUp

Weight .. Fuel

Seal- Fuel Tank Neck

Fuel Tank Assembly

(Incl. #30 & 35)

Rear Handle -Right

Throttle Lock

Bushing Throttle Lock

Spring -Trigger

Screw _Carburetor/Adaptor

3.7/18"

Figure 2

Key No_ Part No.

29 19104

3O 285O5

31 32059

32 24699

33 15168

25515

25516

10331

36 STD302213

37 25468

38 15403

39 24482

40 24976

25486.

41 24378

42 --14,8.26---"

43 15369

44 15393

45 15397

46 24877

3.7/18" PS

47 24548

49 25555

5O 25425

51 25586

Qty,, Description

1 Seal Adaptor

1 Fuel Line and Filter

Assembly (lncl,#18, t9, 20 & 21

1 Bushing -Trigger

1 Throttle Link

3 . Screw -Cylinder Shield

to Crankcase

Decal -Starting Instructions

1 _354830

1 .354870

1 Fuel Cap Assembly

(IncI #36)

1 "O" Ring Fuer Cap

1 Trigger- Throttle

1 Screw -Throttle Trigger

1 Knob'

Cover- Carburetor Ass'y.

1 °354830

1 ,354870

1 Spring -Throttle Lock

1 Rear Handle _Left 3.30 .. Q_

2 Screw- Rear Handle

t Screw -Rear Handle

(Throttle Lock)

1 Screw - Rear Handle (Lower)

1 Retaining Ring -Carb.

Cover Knob

1 Air Filter

1 Gasket -Air Fi lter-5_'_,9- O / 9/.:

1 Cylinder Shields_O.- #2_5"8_5 _

1 Knob - Adjusting (354870)

1 Decal Sharpening

instructions -(,.354870)

Key Noo

Part No.

35102

35015

35123

35119

35101

35115

35099

35109

35113

35069

35111

35106

35118

35097

35125

35105

35107

CARBURETOR ASSEMBLY

PART NO. 35094

Qty. Description Key No. Part No,

1 Valve.Throttle 18 35022

3 Screw - Valve 19 35124

1 Fitting - Inlet (Elbow) 20 35096

1 Spring ,rThrottle Rot 21 35126

1 Shaft Ass'y-Throttle 22 35116

1 Screw - Pump Cover 23 35108

1 Cover- Fuel Pump 24 351 t4

1 Gasket -Fuel Pump 25 35098

1 Diaphragm -Fuel 26 35021

1 Screen -Inlet 27 35104

1 Gasket - Circuit 28 35103

1 Valve-Inlet Needle 29 35121

1 Spring, Mtrg Lever 30 35117

1 Lever - Throttle (Outer) 31 35122

1 Bushing -Throttle Lv 32 35023

1 Stop- Throttle

1 Ball. Choke Friction

Qty. Description

1 Spring - Choke Friction

1 Screen- Check Valve

1 Ring -Screen Retaining

1 Plate Ass'y- Circuit

2 Screw -Circuit Plate

1 Gasket - Mtrg Diaphragm

1 Diaph.. Ass'y _ Mtrg

1 Cover- Mtrg./Diaphragm

4 Screw Ass'y- Mtrg Cover

1 Valve- Choke

t Shaft Ass'y- Choke

1 Spring- Idle Screw

1 Screw- Idle- Adj.

2 Needle- Hi & Lo

2 Spring - Needle's

SEARS CHAIN SAW PARTS LIST

MODELS 358.354830 358.354870

3.7118" 3.7118" PS

Figure 3

34\

48--

_55 .56

\66

59 60

68j

@MODEL

358.354870

3.7118" PS

See Fig, 1#36

_:/71 72

Key No.

Part No. Qty,

STD511003 1

2 24351 1

3 24348 I

5 15357 1

6 32049 I

7 48069 I

8 24465 1

9 24353 1

10291 1

10466 1

24352 3

11625 1

25428 1

13 23373 1

14 24347 1

15 24225 t

16 15406 I

17 23356 t

18 STD583037 1

19 23357 1

20 2;467 1

2t 15509 3

22 STD560907 1

23 19103 1

24 2615 1

25 19029 1

26 15418 1

27 23358 1

28 10352 I

29 24677 1

30 21038 1

3l 10353 1

32 23699 1

33 22197 1

34 10289 1

35 24676 1

36 21031 1

37 2464 2

38 24691 I

39 24345 1

SEARS CHAIN SAW PARTS LIST

/IODELS 358.354830 358.354870

3.7/18" 3.7/18" PS

Figure 3

Description Key No. Part No.

Screw-Bracket to 40 19102

Crankcase 41 24321

Bracket-Lever to Crankcase 42 15297

Lever- Manua_ Oiler 43 15422

Thrust Washer 44 2602

Bearing -Clutch 46 STD510810

Drum & Sprocket Assembly 47 24399

Plate -Clutch 48

Spring. Clutch

Clutch Ass'y. 10462

(IncL #9, 11 &12) 10463

.354830 49 2603

354870 50 STD600603

Shoe Clutch 51 25556

Spider _Clutch 52 24466

.354830 53 25631

.354870 54 22258

Boot - Oiler Rod 55 STD522510

Rod - Manual Oiler

isolator *Crankcase Side 56

Screw*Side lsolatod 51166

Crankcase 51241

Cap - Oil Pump 57 44209

Retainer Ring - Oil Pump 58 15362

Plunger- Oil Pump

Cap - Handguard 59 24373

Screw/Handguard 60 24376

Cotter Pin *Vent

Gasket Body 61 25044

to Crankcase 62 15445

Tubing Nut - Oiler 63 15361

Quad Ring - Oil Pump 64 STD581018

Washer - Oiler 65 25414

Spring - Oil Pump 66 15385

Oil Pump Assembly. 67 15391

AutofManual (Incl. #17, 18,

19, 24, 25, 26, 27, 30, 31, 32, 68 48071

33, 34, 38, 39, 40, 41, 42 &

one of 37)

Spring - Oil Line Protector 69 15484

Discharge Oil Line 70 4746

Pump Body Assembly

Spring -Diaphragm 7t 25421

Button and Pintle Assembly 72 69099

Oil Line Pick-Up Assembly

(lncL #29, 35 and 36) 73

Weight - Oil Pick.Up Line 74

Oil Line

Sleeve - 1/8 Tubing

Filter - Oil Pump Vent

Diaphragm - Oil Pump

STD511005

052077

O25612

Qtyo Description

1 Gasket- Cover to Body

1 Cover- Pump

1 Screw-Oil Pump Cover

1 Tubing Nut- Crankcase

1 Guide Bar Plate- Inner

3 Screw- Pump to Crankcase

t Cover Plate _Oiler

Bar Clamp Assembly

(tnC/o #61, 64, 65 &66)

1 354830

1 .354870

1 Guide Bar Plate - Outer

4 Screw Oiler Cover Plate

1 Decal- Bar Clamp

1 Handguard

1 Decal Handguard

! Handle Bar Assembly

2 Screw - Handlebar/

Rear Handle

Chain

1 35483O

1.354870- Incl° #72

1 Bar. 18" SN

2 isolator Mount Spacer

Front Handlebar

2 Isolator- Front Handlebar

4 Isolator Cups- Front

Handlebar

1 Pin- Bar Adj.

2 Flange Nut- Bar Mounting

1 Spacer- Isolator

1 E Ring • Adj Screw

1 U-Clip - Bar Clamp

1 Screw- Bar Adjo

1 Screw- Isolator Mount to

Handlebar

1 Clutch Drum & Adaptor

Ass'y. * (7 Spline 3t8P) -

(.354870)

1 Plate Clutch (.354870)

! Floating Rim- Sprocket

(3/8P - 7 Tooth)-(.354870)

1 Slide Button

1 Stone & Carrier Ass'y,

(lncl #71) - (,354870)

2 Screw- (,354870)

AR* Chain Repair Kit ( 354830 on

t Label- Warranty (Guide Bar)

not shown

* As Required

NOTES

QUICK REFERENCE PAGE

Read and follow all Safety Rules, Precautions and Operating Instructions.

Failure to do so can result in serious personal injury.

page

SAFETY RULES AND PRECAUTIONS ............................................ 3-4

PREPARATION ................................................................................. 3

1, Wear personal protective gear -- gloves; safety footwear; snug fitting clothing; and eye, hearing, and

head protection.

2_ Check for worn, loose, or damaged parts and repair or replace as necessary

3. Check the chain for sharpness and tension.

4. Keep children, bystanders and pets out of the work area

5 Plan your sawing operation carefully in advance

FUEL AND OIL ................................................................ 7

1. Eliminate all sources of sparks or flame where fuel is mixed, poured, or stored°

2 Use 1 part air-cooled, 2-cycle engine oil to 16 parts regular gasoline

3. Use gasoline not over 2 months old.

4 Mix and store fuel in an approved, marked container.

5 Mix and pour fuel in a weN-ventilated area

6. Move a minimum of 10 feet away from fuel and fueling site before starting engine,

7. Fill the oil tank each time the fuel tank is refueled

STARTING THE ENGINE ......................................................... 9

1. Hold saw firmly with the saw chain free to turn without making contact with any object

2., Push saw away from you with your right hand while pulling the starter rope with your left hand.

3 Use no more than 15-18 inches of rope per pull

4 Putt _pe no more than 5-6 times

5 Release the trigger after engine starts allowing engine to idle.

OI:ERATING THE UNIT ......................................................... 11

1, Cut wood only

2 Accelerate the engine to full throttle before entering the cuL

3 Begin cutting with the saw frame up against the log,

4. Cut only at full throttle..

5, Release the trigger as soon as the cut is completed

6 Stop the engine before setting the saw down after cutting.

MAINTENANCE ....................................................................... 16

1 Disconnect spark plug before performing maintenance except for carburetor adjustment

2 Adjust or have the carburetor adjusted if the chain moves when the engine idles

3 Check the guide bar for wear each time the chain is sharpened.

4. Clean the air filter frequently and always after 10 tanks of fuel mixture or 5 hours of operation, whichever

is less..

Clean ignition, cooling and exhaust systems at least once for each 25-30 hours of operation.

Take the saw to your SEARS Service Center for full clutch inspection after each 100 hours of operation.

Drain fuel tank in a safe manner after each use

Store saw in a dry place out of the reach of children,

WATCH OUT FOR

KICKBACK THE SAW WHEN

IT NEEDS REPAIR

NEVER USE THE SAW

WHEN TIRED

NI'L

useAFiRMQRIP

WITH BOTH HANDS

[Searsj

MODEL NO.

358.354830.3.7/18"

358.354870.3.7/18" PS

How to Order

Repair Parts

SEARS SERVICE

The Model Number will be found under the handle with the Serial

Number Always mention the Model Number when requesting ser-

vice or repair parts for your Chain Saw

All parts listed herein may be ordered from any Sears Service Center

and most Sears Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION AS SHOWN 1N THIS LIST_

1. The PART NUMBER 3 The PART DESCRIPTION

2 The MODEL NUMBER

358.354830-3.7/18"

358.354870-3,7118" PS

4 The NAME OF ITEM --

Chain Saw

If the parts you need are not stocked localfy, your order will be

electronically transmitted to a Sears Repair Parts Distribution

center for expedited handling

When you buy merchandise

from Sears you get an extra

something that nobody else

can offer ,_, Sears Service,

Across town or across the

country, Sears Service follows

you, providing trustworthy,

competent service technicians

using only Sears specified

factory parts, 1

_, ..... " ( 4

Sea1 s, l&oebuck and C()., Cbacag,), IlL 6 )68 U.S.A.

64754-3-08383-1-08383 PRINTED IN U,S A,

Craftsman 358354830 User Manual 3.7/18 INCH PS CHAIN SAWS Manuals And Guides L0710014

CRAFTSMAN Chainsaw, Gas Manual L0710014 CRAFTSMAN Chainsaw, Gas Owner's Manual, CRAFTSMAN Chainsaw, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
