IMPORTANT MANUAL

__.ARS

operator's

manual

• Assembly

• Operation

• Maintenance

• Repair Parts

MODEL NO.

358.356091-3.7120"

358.356101-3.7118"PS

AWARNING

This chainsawis capableof severe

kickbackthatcouldtesultinserious

lr_uryto theuser.Donotoperatethis J

sawunless you haveextraordinary

cuttingneeds,andha_especialized

trainingand experiencefor dealing

with kickback.Chainsawswith slg-

nificantlyreducedkickback potential

areavailable.

Do Not Throw Away

_A/RSICRRFTSMRN I

3.7/20" 3.7,/t8"PS

GASOLINE CHAIN SAWS

i1: i,,,ii ii

Record in the space provided below the Model N% and Serial No. of

your saw. These numbers are located on the starting instructions

decal.

M6del No. Serial No.

Retain these numbers for future reference.

,i

530-066648-5-21188

Sears, Roebuck and Cx)., Chicago, Ill. 60684 U.S.A.

.

©Sears, Roebuck and Co., 1988.

FULLONE YEARWARRANTYON GASOLINECHAINSAW

(ExcludingBar_Chain_Spark Plu9, A!rFilterandStarterRope)

Foroneyear fromdateof purchase,whenyou maintain, lubricate, and tune up thisgasoline chain saw according tothe

operating andmaintenanceinstructionsin theowner's manual, Searswillrepair aetectsin mazedal or workmanship inthis

igasoline chainsawat no charge.

This warranty excludesthe bar, chain, spark plug, air filter, andstarterropewhichare expendable parts andbecomeworn ._

during normaluse. .....

If this gasolinechain,saw is usedforcommercial or rental p_Jrposes, this warranty applies for only 30 days fromdateof ._

purchase.WARRANTYSERVICEIS AVAILABLEBYRETURNINGTHE CHAINSAWTO THE NEARESTSEARSSERVICE

_CENTER/DEPARTMENTIN THE UNITEDSTATES. '" -.

Thiswarrantygivesyouspecificlegal dghts,andyoumay alsohaveotherrights whichvaryfromstateto state. .<

TABLE OFCONTENTS

Specifications ............................... 2

SPECIAL SAFETY SECTION ............... 3, 4 & 5

Know Your Chain Saw ........................ 6

Preparing Your Saw For Use-., "7

A; Getting Ready .................. :.. ...... 7

B. Attaching the Handguard .............. .... 7

C. Attaching the o,_r,.... 7

D. Attaching the Bar and Chain ....... . ........ 8

E. Chain Tension ........................... 9

F. Fueling Your Engine ............... ........ 9

G. Bar and Chain Lubricant. ... 10

Using Your Saw ........................ ".... 11

A. Control Devices " 11

B. Starting Instructions .... -................. 11

Using the Power Sharp" System .............. 12

Types of Cutting ............................ 14

A. Basic Cutting Technique .................. 14

B. Tree Felling Techniques ................... 14

C. Bucking ............................... 16

D. Debranching and Prunin.g ................. 17

Maintenance

A. Guide Bar and Chain ..................... 18

B. Spark Arrestor .......................... 19

C. Starter Rope ............................ 20

D. Carburetor Adjustments ................... 21

E. Clutch and Drum/Sprocket ................. 22

F. Air Filter ............................... 22

G. Storage ................................ 22

H. Maintenance Accessodes ................. 23

LTrouble Shooting Chart ................... 24

J. Maintenance Chart ....................... 25

Repair Parts List ............................ 28

Quick Reference Page ........................ 35

SPECIFICATIONS

MODEL

cu:iN.DISPU_CE.E.Ti

GUIDE BAR - L,O*KICK"

CHAIN

SPARK PLUG' ,,

SPARK PLUG GAP

IGNITION

MODULE AIR GAP

FUEL MIX

MUFFLER

OILER SYSTEM ..........

FUEL TANK CAPACITY

OIL TANK CAPACITY

_r_K6091{3.7/20 _) ,,, ,, , ,358.356101(3.7/t6"1_.S.)

3.7 cu. inJ60 cu. cm. 3.7 cu.

20"SprocketNose-StockNo.7t_ 18" Sprocket Nose StockNo.7t-36370

318Extended 'Pitch 318 _' Pitch

" O_,gon® OtegorPPowerSham_

ChromeCutters*70 DriveLinks-ChromeCutters'-66 DriveLinks

: Stock No.T1-36867 " _'tock No. 71-3639

Champion cJ-aY , ,

_025"

Solid State'

.008 to .014

.. ' ...... Gasoline/Oi! Mitre 16:1 (_ "FuelingYourEngine';)

Spark Arresting /USDA Approved,,

Automatic /Manual .......

.... 19 oz. 562 cu. cm. ......

12 oz. 355 cu. cm. ,,

POWER SHARP ADJUSTING

KNOB (MODEL 358.356101 )

AIR FILTER

COVER

THROTTLE

LOCKOUT

CHAIN TEI_SION

CHOKE'

HANDGUARD

STARTER HANDLE

LOW-KICKBACK CHAIN

TRIGGER

REDUCED-KICKBACKGUIDE BAR

CHAII_ATCHER

FU

.ER

THROTTLE DE

ISWITC

REAR !HAIN

CATCHER

UL I i I IHIIIIIIIIIIIJlIJl II I II I /.I I roll=l, ,,,,,,H,II

SPECIAL SAFETY SECTION

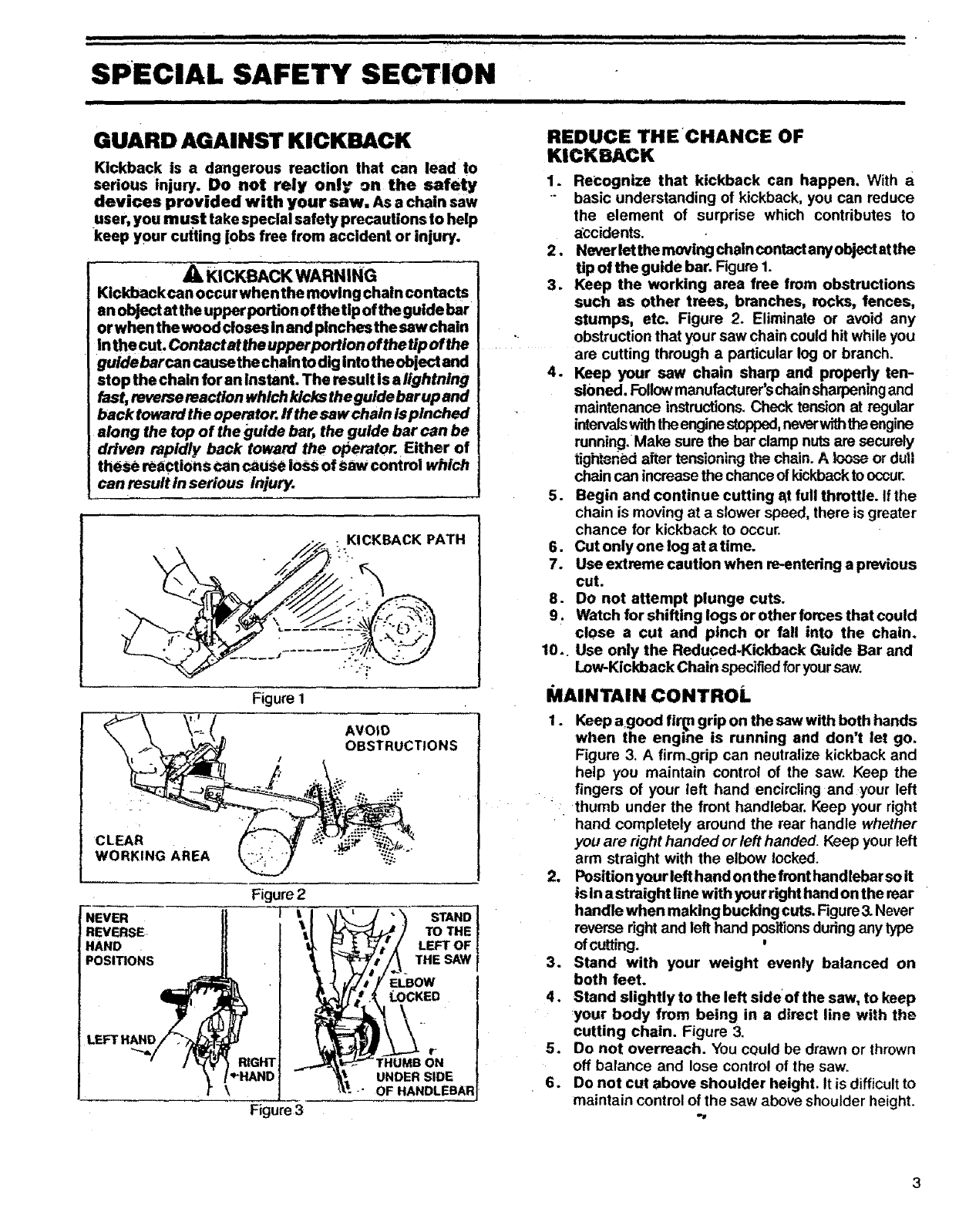

GUARD AGAINST KICKBACK

Kickback is a dangerous reaction that can lead to

serious injury. Do not rely only on the safety

devices provided with your saw. As a chain saw

user, you must take special safely precautions to help

keep your cutting jobs free from accident or injury.

AKICKBACK WARNING

Kickback can occur when the moving chain contacts

an object atthe upperportionof the tip ofthegulde bar

or when the wood doses in and pinches the saw chain

inthe cut. Contact at the upper portion of the tip of the

guidebarcan causethechaintodig into theobject and

atop the chain for an Instant. The result is a lightning

fast, reverse reaction which kicks the guide bar up and

back toward the operator, ff the saw chain is pinched

along the top of the guide bar, the guide bar can be

driven rapidly back toward the operator. Either of

these re=icti0ns Can Cause io_,sof saw control which

can result in serious injury.

KICKBACK PATH

Figure 1

AVOID

OBSTRUCTIONS

CLEAR

WORKING AREA

Figure 2

NEVER It STAND

REVERSE TO THE

HAND LEFT OF

POSITIONS THE SAW

ELBOW

I_.OCKED

LEFT HANo

Figure 3

f

ON

UNDER SIDE

-" OF HANDLEBAF_

REDUCE THECHANCE OF

KICKBACK

1. ReCognize that kickback can happen. With a

basic understanding of kickback, you can reduce

the element of surprise which contributes to

_ccidents.

2. Never let the moving chain contact anyobject at the

tip of the guide bar. Figure 1.

3. Keep the working area free from obstructions

such as other trees, branches, rocks, fences,

stumps, etc. Figure 2. Eliminate or avoid any

-obstruction that your saw chain could hit while you

are cutting through a particular log or branch.

4. Keep your saw chain sharp and properly ten-

sioned. Followmanufacturer's chain sharpeningand

maintenance instructions.Check tension at regular

intervalswiththe enginestopped,neverwiththeengine

running.Make sure the bar clamp nuts are securely

tighter,ed after tensioning the chain. A _ or dull

chain can increase the chance of kickback to occur.

5. Begin and continue cutting ait full throttle. If the

chain is moving at a slower speed, there is greater

chance for kickback to occur.

6. Cut only one log at a time.

7. Use extreme caution when re-entering a previous

cut.

8. Do not attempt plunge cuts.

9. Watch for shifting logs or other forces that could

close a cut and pinch or fall into the chain.

10. Use only the Reduced-Kickback Guide Bar and

Low-Kickback Chain specifiedforyoursaw.

MAINTAIN CONTROL

1. Keep agood firl_ grip on the saw with both hands

when the engine is running and don't let go.

Figure 3. A firm.grip can neutralize kickback and

help you maintain control of the saw. Keep the

•fingers of your left hand encircling and your left

thumb under the front handlebar. Keep your right

hand completely around the rear handle whether

you are right handed or left handed. Keep your left

arm straight with the elbow locked.

2. Position your left hand on the front handlebar so it

is In a straight line with your right hand on the rear

handle when making bucking cuts. Figure 3. Never

reverse right and left hand positions during any lype

of cutting.

3. Stand with your weight evenly balanced on

both feet.

4. Stand slightly to the left side of the saw, to keep

your body from being in a direct line with the

cutting chain. Figure 3.

5. Do not overreach. You could be drawn or thrown

off balance and lose control of the saw.

6. Do not cut above shoulder height. It is difficult to

maintain control of the saw above shoulder height.

SPECIAL SAFETY SECTION (continued)

_i i i iml. ,,, .............. j i

,i_ WARNING

Because a chain saw is a high-speed wood-cutting tool, special safety precautions must

be observed to re(zuce the risk of accidents, Careless or improper use can cause

.serious injury.

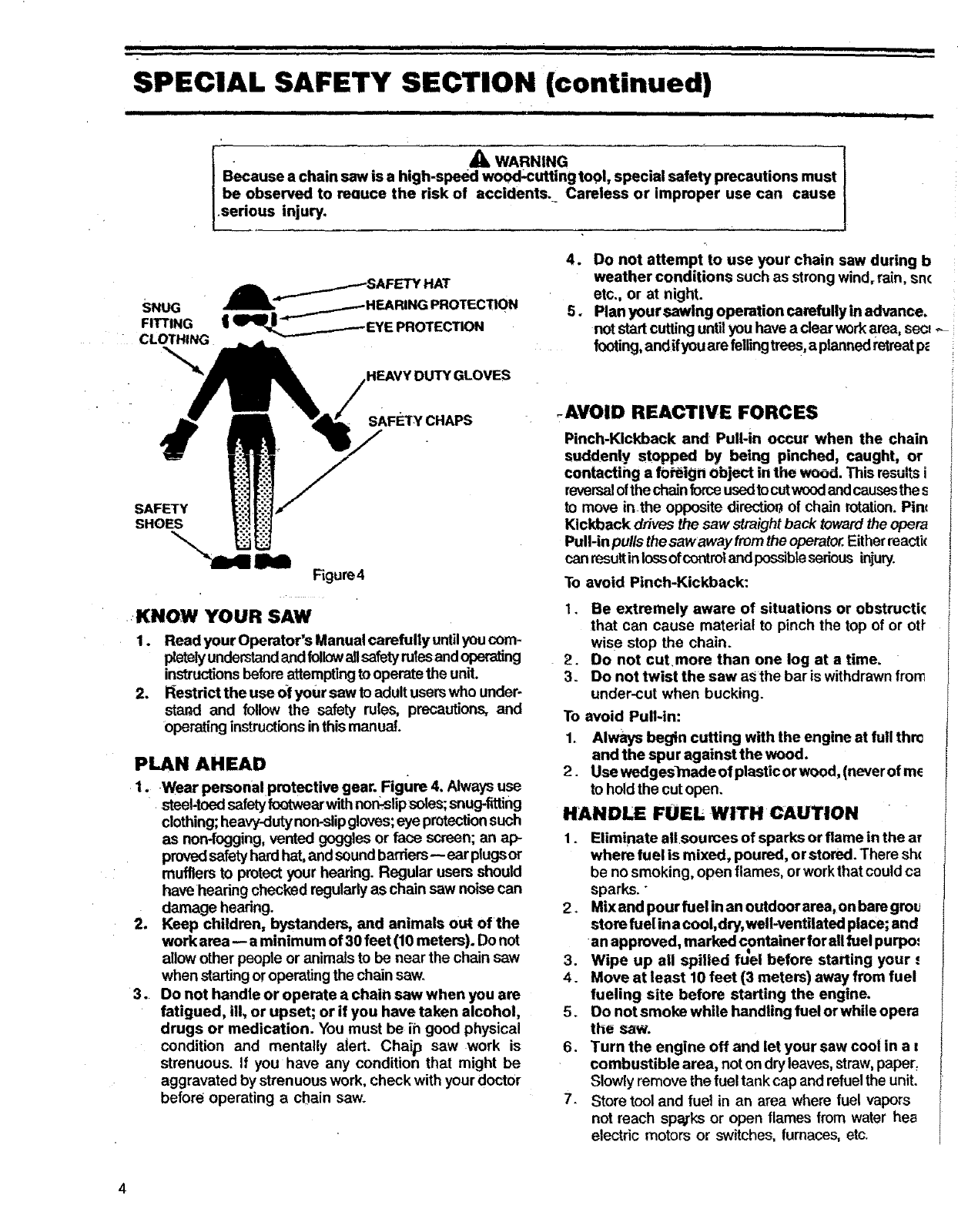

SNUG

FITTING

4. Do not attempt to use your chain saw during b

weather conditions such as strong wind, ralnzsn(

etc., or at night.

5. Plan your sawing operation carefully in advance.

not startcutting untilyou have a clear workarea, sect ,--

footing,andifyouare fellingtrees,aptanned retreatp_

SAFETY CHAPS

SAFETY

SHOES

Figure4

,KNOW YOUR SAW

1. Read your Operator's Manual carefully untilyou com-

pletelyunderstandandfollowagsafetyrotes andoperating

instructionsbefore attemptingto operate the unit.

2. I_estdct the use o'fyour saw to adult userswho under-

stagd and follow the safety rules, precautions, and

operating instructionsinthismanual.

PLAN AHEAD

1. Wear personal protective gear. Figure 4, Alwaysuse

steel-toed safetyfoQtwearwithnon,slipsoles;snug-fitting

clothing;heavy-dutynon-slipgloves;eye protectionsuch

as norvfogging, vented goggtes or face screen; an ap-

provedsafetyhardhat,and soundbarriers-- ear plugsor

mufflers to protect your hearing. Regular users should

have headng checked regularlyas chain saw noise can

damage hearing.

2. Keep children, bystanders, and animals out of the

work area-- aminimum of 30 feet (10 meters). Donot

allow other people or animals to be near the chain saw

when startingor operatingthe chain saw.

3. Do not handle or operate a chain saw when you are

fatigued, ill, or upset; or if you have taken alcohol,

drugs or medication. You must be in good physical

condition and mentally alert. Chaip saw .work is

strenuous. If you have any condition that might be

aggravated by strenuous work, check with your doctor

before operating a chain saw.

_AVOID REACTIVE FORCES

Pinch-Kickback and Pull-in occur when the chain

suddenly stopped by being pinched, caught, or

contacting a foi_ign object in the wood. This resultsi

reversalofthe chainforceusedtocutwoodand causesthes

to move inthe opposite directior_of chain rotation.Pine

Kickback drives the saw straightback toward the opera

Pull-inpuffs the saw awayfromthe operator.Eitherreactk

can result inloss ofcontrol and possible serious inju_.

To avoid Pinch-Kickback:

1, Be extremely aware of situations or obstructk

that can cause material to pinch the top of or otf

wise stop the chain.

2. Do not cutmore than one log at a time.

3. Do not twist the saw asthe bar is withdrawn from

under-cut when bucking.

To avoid Pull-in:

1. Always begin cutting with the engine at full thin

and the spur against the wood.

2. Use wedges_nade of plastic orwood, (never of me

to holdthe cut open.

HANDLE FUEL WITH CAUTION

1. Eliminate allsources of sparks or flame in the ar

where fuel is mixed, poured, or stored. There sh(

be no smoking, open flames, orworkthat couldca

sparks."

2. Mix and pour fuelin an outdoor area, on bare grou

store fuel ina cool, dry, well-ventilated place; and

an approved, marked container for all fuel purpo.,

3. Wipe up all spilled f_el before starting your.,

4. Move at least 10 feet (3 meters) away from fuel

fueling site before starting the engine.

5. Oo not smoke while handling fuel or while opera

the saw.

6. Turn the engine off and let your saw cool in a I

combustible area, noton dryleaves,straw,paper:

Slowly remove the fuel tank cap and refuelthe unit.

7. Store tool and fuel in an area where fuel vapors

not reach sparks or open flames from water hea

electric motors or switches, furnaces, etc.

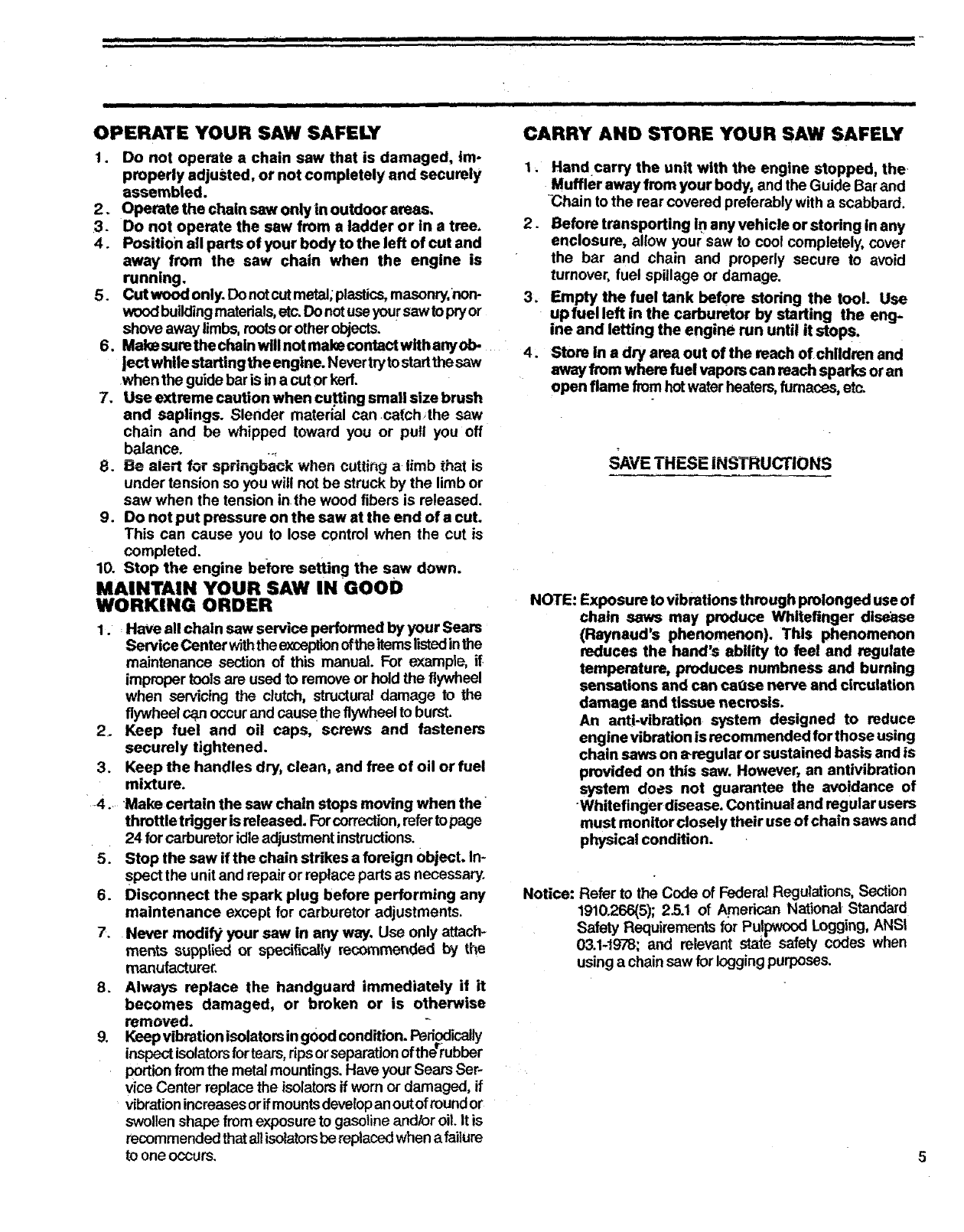

OPERATE YOUR SAW SAFELY

1. Do not operate a chain saw that is damaged, im-

properly adjusted, or not completely and securely

assembled.

2. Operate the chain saw only in outdoor areas.

3. Do not operate the saw from a ladder or in a tree.

4. Position all parts of your body to the left of cut and

away from the saw chain when the engine is

running.

5. Cut wood only. Do notcutmetal; plastics,masonry,'non-

wood bu,ding materials, etc.Donotuse yoursaw to pryor

shove away limbs,rootsor other objects.

6. Make sure the chain will not makecontact with anyob-

Jectwhile startingthe engine. NeverWto stadthe saw

when the gu'rdebar isin a cut or kerf.

7. Use extreme caution when cutting small size brush

and saplings. Slender material can catchlthe saw

chain and be whipped toward you or pull you off

balance.

8. Be alert for springback when cutting alimb that is

under tension so you will not be struck by the limb or

saw when the tension in the wood fibers is released.

9. Do not put pressure on the saw st the end of a cut.

This can cause you to lose control when the cut is

completed.

10. Stop the engine before setting the saw down.

MAINTAIN YOUR SAW IN GOOD

WORKING ORDER

1. Have all chain saw service performed by your Sears

Service Center withthe e00cept_ oftheitems listedinthe

maintenance section of this manual. For example, if

improper tools are used to removeor hold the flywheel

when servicing the clutch, structural damage to the

flywheel c_ occur and cause the flywheelto burst.

2. Keep fuel and oil caps, screws and fasteners

securely tightened.

3. Keep the handles dry, clean, and free of oil or fuel

mixture.

4. Make certain the saw chain stops moving when the

throttle trigger is released. Forcorrection,referto page

24 for carburetor idle adjustmentinstructions.

5. Stop the saw if the chain strikes a foreign object. In-

sPect the unit and repair or replace parts as necessary.

6. Disconnect the spark plug before performing any

maintenance except for carburetor adjustments.

7. Never modify your saw in any way. Use only attach-

ments supplied or specifically recommended by the

n_nufacturer.

8. Always replace the handguard immediately if it

becomes damaged, or broken or is otherwise

removed.

9. Keep vibrstion isolators in good condition. Peri,odically

inspectisolatorsfortears,ripsorseparation ofthe'rubber

portionfromthe metal mountings. Have your Sears Ser-

vice Center replace the isolatorsif worn or damaged, if

Vibrationincreases orifmountsdevelopan outofroundor

swollenshape from exposure to gasoline and/or oil.it is

recommended that_isolatorsbe replaced when a failure

to one occurs.

CARRY AND STORE YOUR SAW SAFELY

1. Handcarry the unit with the engine stopped, the

Muffler away from your body, and the Guide Barand

"Chain to the rear covered preferably with a scabbard.

2. Before transporUng in any vehicle or storing in any

enclosure, allow your saw to cool completely, cover

the bar and chain and properly secure to avoid

turnover, fuel spillage or damage.

3. Empty the fuel tank before storing the tool. Use

up fuel left in the carburetor by starting the eng-

ine and letting the engine run until it stops.

4. Store in a dry area out of the reach of children and

away from where fuel vapors can reach sparks or an

open flame from hotwater heaters,furnaces,etc.

SAVE THESE INSTRUCTIONS

NOTE: Exposure to vibrations through prolonged use of

chain saws may produce Whiteflnger disease

(Raynaud's phenomenon). This phenomenon

reduces the hand's ability to feet and regulate

temperature, produces numbness and burning

sensations and can cause nerve and circulation

damage and tissue necrosis.

An anti-vibration system designed to reduce

engine vibration is recommended for those using

chain saws on a-regular or sustained basis and is

provided on this saw. However, an antivibration

system does not guarantee the avoidance of

•Whitefingerdisease. Continual and regular users

must monitor closely their use of chain saws and

physical condition.

Notice: Refer to the Code of Federal Regulations, Section

1910.266(5); 2.5.1 of American National Standard

Safety Requirements for Pulpwood Logging, ANSI

03.1-1978; and relevant state safety codes when

using a chain saw for logging purposes.

ii ilill ii i ii i i iii

KNOW YOUR CHAIN SAW

i iiiii i i iii

A. INTRODUCTION

• Your saw has been designed with safetyinmind and

includesthefollowing feature_ _s standardequipment:

-Reduced-Kickback Guide Bar

- Low-Kickback Chain

- Spark Arrestor

-Temperature Limiting Muffler

- Handguards

-Counter-Vibe ®Anti-Vibration System

WARNING

The following features are included on your saw to help

reduce the hazard of kickback, however, such features

will not totally eliminate this dangerous reaction. As a

chain saw user, do not rely only on safety devices. You

must follow all safety precautions, instructions and

maintenance in this manual to help avoid kickback and

other forces which can result in serious injury.

B, KICKBACK SAFETY FEATURES

-- Reduced-Kickback Guide Bar, designed with a

smallradiustipwhichreduces the sizeofthe kickback

danger zone on the bar tip. Figure 5. A Reduced-

KickbackGuide Bar isone which has been demon-

strated to significantly redt'Jce the number and

seriousnessof kickbackswhen testedinaccordance

with the safety requirements for gasoline powered

chainsawsassetbythe AmericanNational Standards

Institute,Inc., Standard B175.1-1985.

Low-Kickback Chain, designed with acontured

depthgaugeandguardlinkwhichdeflectthe kickback

force and allowwoodto graduallyrideintothe cutter.

Figure5. Low-KickbackSaw Chainischainwhichhas

met thekickbackperformancerequirementsofANSI

B175.1when tested on a representative sample of

chain saws below 3.8 cubic inch displacement

specified in ANSI B175.1-1985.(American National

Standard for PowerTools-Gasoline Powered Chain

Saws- Safety Requirements)_

-- Handguard, designed toreduce the chanceof your

tefthandcontactingthechaJnifyourhand slipsoffthe

front handlebar.

_-_ PosiUon of f_mnt and mar handlebars, designed

withdistancebetweenhandlesand "in line"witheach

other.The spread and "in line" positionofthehandle-

barsworktogetherto givebalance and resistancein

contmflingthe saw ifkickback occurs.

_,WARNING

Do not operate the chain saw unless the safety

devices or their specified replacements are properly

installed and maintained according to the instruc-

tions in this manual. Do not use any othefguide bar

and chain combination that is not equivalent to the

original equipment or not certified to comply with

ANSI B175.1-1985. Failure to follow these instructions

can result in serious injury.

OEFTHGAUG_

_ELONGATED

i[IEFUEC'rs

-IFOR_ _KO

GU_0_ _ R _OW'KICK_ Ken'lAIN _T_rl_*

S_ CHAI_ WlTH HIGH

Rgure5

STATE AND LOCAL REQUIREMENTS.

Your saw Is equipped with a temperature limiting

muffler and spark arresting screen which meets the

requirements of California Codes 4442 and 4443.

Aft U.S. forest !and and the s_tes of California, Maine,

Washington and Oregon require many internal com-

bustion engines to be equipped with aspark arrestor

screen by taw. J

If you operate a chain saw in a state or locale where

such regulations exist, you are legally responsible for

maintaining the operatingcondition of these parts.

Failure to do so is a violation of the law.See"_park

Arrestor" for maintenance.

D. CARTON CONTENTS

1. Remove contents fromthe carton if you have not

done so.

"2.Check the contents against the list below.

3. Examine the items for d_mage. Do notuse damaged

parts.

4. Notify your Sears store immediately if a part is

missing or damaged.

NOTE: Iris normalto hearthe fuel filter rattlein an empty

fuel tank. CARTON CONTENTS:

• Key No. __ Qt_

1 Powerhead 1

2 GuideBar 1

3 8 oz.can,2-Cycle Engine Oil 1

Operator's Manual (not shown) 1

-- LoosePartsBag(notshown) 1

LOOSE PARTS BAG CONTENTS:

4 Handguard 1

5 CapHandguard 1

6 Scmws-Handguard (10x 1") 3

7Screw-Spur (10- 24x9/16") 1

8Screw-Spur 2

9 Chain 1

10 Scrench 1

Ae

S.

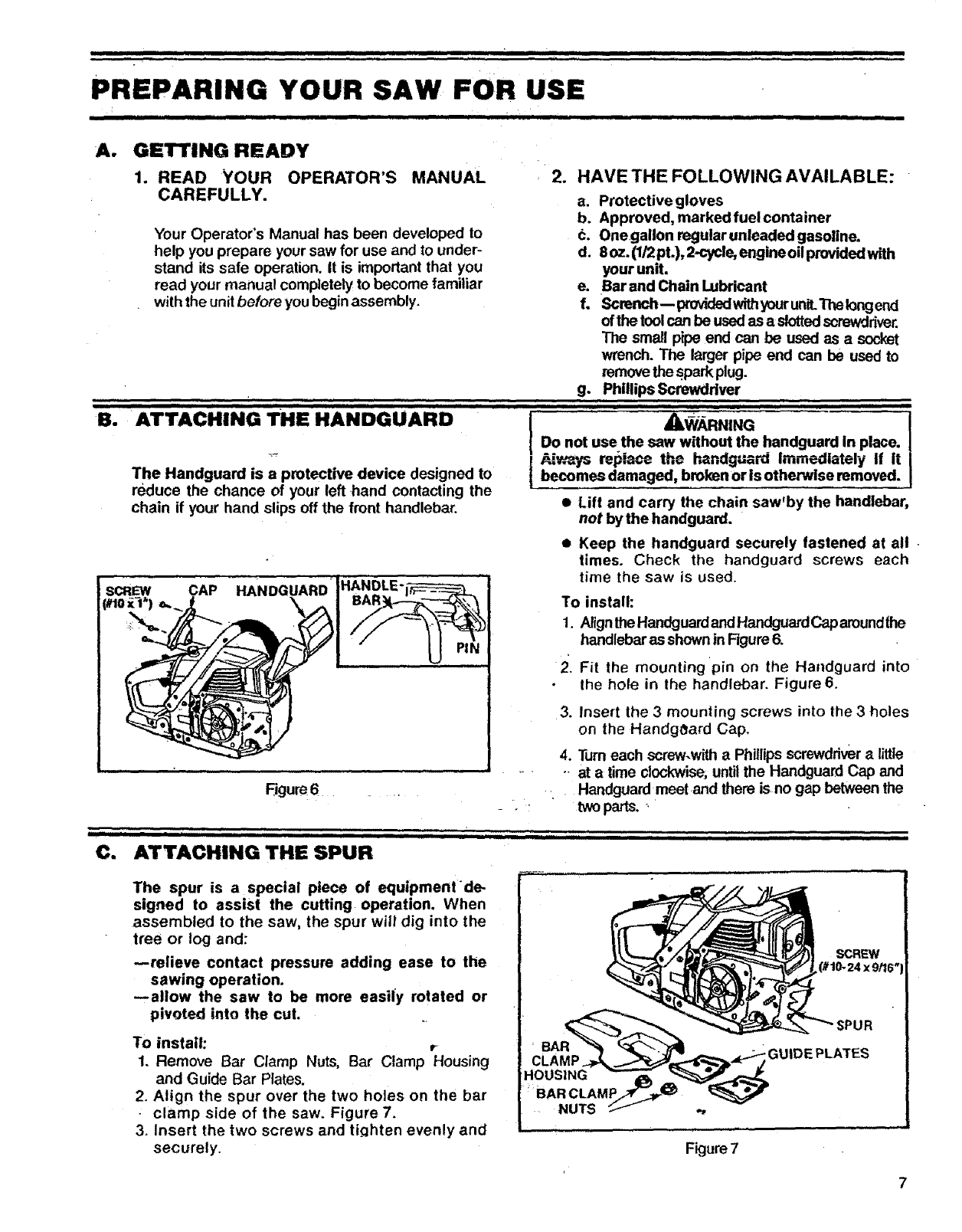

GETTING READY

1. READ YOUR OPERATOR'S MANUAL

CAREFULLY.

Your Operator's Manual has been developed to

help you prepare your saw for use and to under-

stand its safe operation, It is important that you

read your manual completely to become familiar

with the unit before you begin assembly.

2. HAVE THE FOLLOWING AVAILABLE:

a. Protective gloves

b. Approved, marked fuel container

c. Onegallon regular unleaded gasoline.

d. 8 oz. (1/2pt.), 2-cycle,engine oil provided with

your unit.

e. Bar and Chain Lubdcant

f. Scrench -- providedwithyouruniLThe longend

of the tool can be used as a slottedscrewdriver.

The small pipe end can be used as a socket

wrench. The larger pipe end can be used to

removethe spark plug.

g. Phillips Screwdriver

ATTACHING TH'E HANDGUARD ......... [......................Do notuse" the sawA_ti/_RNINGwithoutthe handguard In place. I

Aiways rel_lace the handguard Immediately if itThe Handguard is a protective device designed to becomes damaged, broken or is otherwise removed.

reduce the chance of your left hand contacting the

chain if your hand slips off the front handlebar. •Lift and carry the chain saw'by the handlebar,

not by the handguard.

• Keep the handguard securely fastened at all

limes. Check the handguard screws each

time the saw is used.

SCREW

(//10il *) To install:

1. Align lhe Handguardand HandguardCap aroundthe

handlebaras shown in Figure 6.

2",Fit the mounting pin on the Handguard into

the hole in the handlebar. Figure 6.

Rgure6 ....

3. Insert the 3mounting screws into the 3 holes

on the Handg_ard Cap.

4. Turn each screw.with aPhillips screwdriver a little

"- at a time cloclcwise; untilthe HandguaEI Cap and

., Handguard meet and there is no gap between the

two parts.,

C. ATTACHING THE SPUR

,, ,, , ,, iiiiiii

The spur is a special piece of equipmentde-

signed to assist the cutting operation. When

.assembled to the saw, the spur will dig into the

tree or log and:

--relieve contact pressure adding ease to the

sawing operation.

--allow the saw to be more easi|y rotated or

pivoted into the cut.

To install: r

1. Remove Bar Clamp Nuts, Bar Clamp Housing

and Guide Bar Plates.

2. Align the spur over the two holes on the bar

clamp side of the saw. Figure 7.

3. Insert the two screws and tighten evenly and

securely.

BAR

CLAMP

HOUSING

BAR CLAMP

NUTS

Figure 7

,,,,,,,,,,,,,,,,,, =ll =. ill i ii

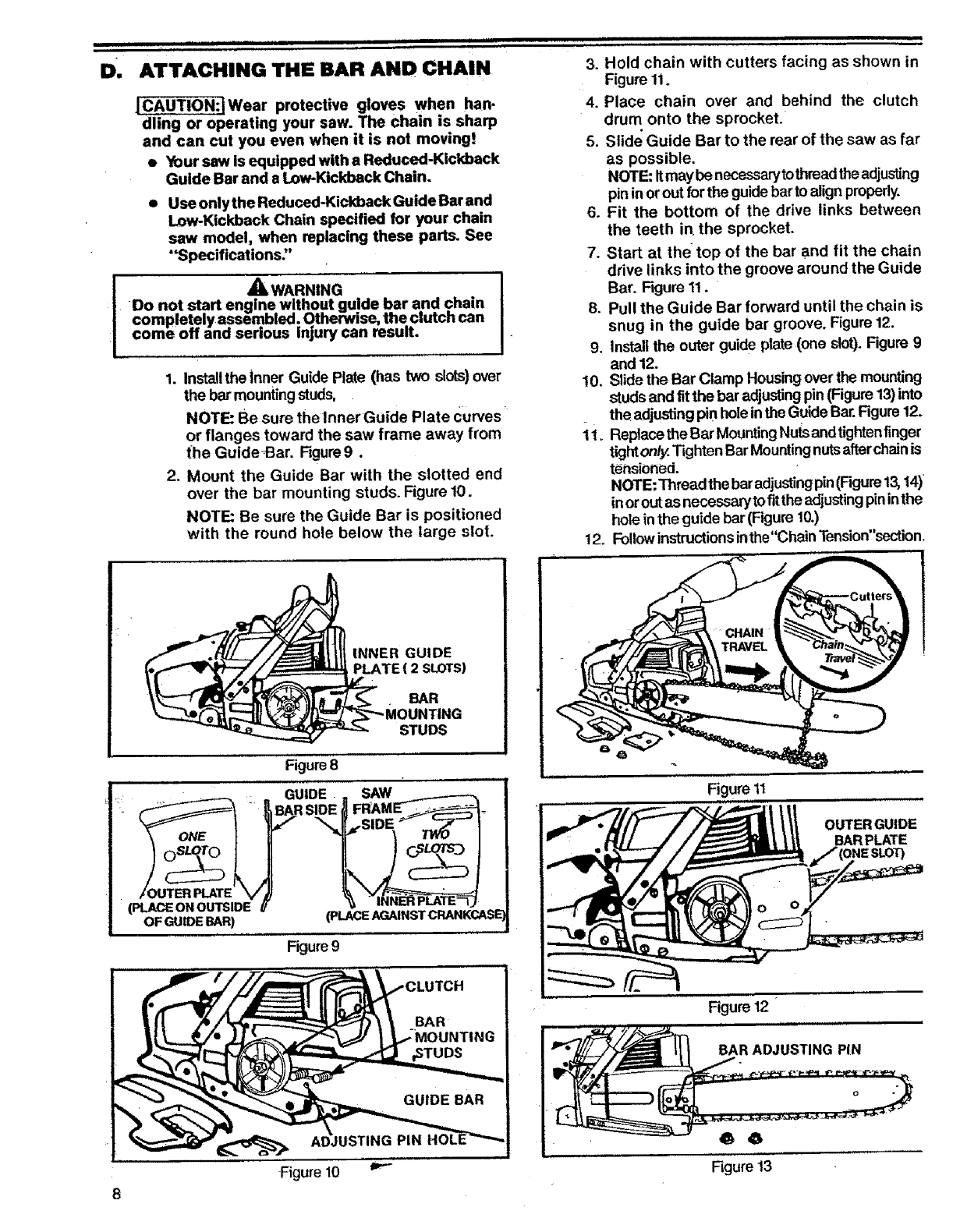

D, ATTACHING THE BAR AND CHAIN

JCAUT!ON:JWear protective gloves when ban.

dling or operating your saw. The chain is sharp

and can cut you even when it is not moving!

•Your saw is equipped with aReduced-Kickback

Guide Bar and a Low-Kickback Chain.

•Use only the Reduced-Kickback Guide Bar and

Low-Kickback Chain specified for your chain

saw model, when replacing these parts. See

•'Specifications:'

AWARNING

i Do not sta..rt engine without guide bar an.d chain

completely assembled: Otherwise, zne czutcn can

com_ on ano serious injury can result.

1. Installthe inner Guide Plate (has two slots)over

the bar mountingstuds, .

NOTE: Be sure the InnerGuide Plate curves

or flanges toward the saw frame away from

the Guide_Bar. Figure9.

2. Mount the Guide Bar with the slotted end

over the bar mounting studs. Figure 10.

NOTE: Be sure the Guide Bar is positioned

with the round hole below the large slot.

Figure8

j.... _ GUIDE

/OUTER PLATE

PLACE ON OUTSIDE

OF GUIDE BAR)

INNER GUIDE

PLATE ( 2 SLOTS)

BAR

STUDS

SAW .... !

(PLACE AGAINST CRANKCAS_

Figure9

3. Hold chain with cutters facing as shown in

Figure 11.

4. Place chain over and behind the clutch

drum onto the sprocket.

5. Slide Guide Bar to the rear of the saw as far

as possible,

NOTE; Itmay be necessarytothreadthe adjusting

pin in orout for the guidebarto align properly.

6. Fit the bottom of the drive links between

the teeth in the sprocket.

7. Start at the top of the bar and fit the chain

drive links into the groove around the Guide

Bar. Figure 11.

8. Pull the Guide Bar forward until the chain is

snug in the guide bar groove. Figure 12.

9. Install the outer guidepla_e(one slot). Figure 9

and 12.

10. Slide the Bar Clamp Housing over the mounting

studs and fit the bar adjusting pin (Figure 13)into

the adjusting pin hole in the Guide Bar. Figure12.

11. Replace the Bar Mounting Nuts and tighten finger

tightonly. Tighten Bar Mounting nuts afterchain is

tensioned.

NOTE: Thread the bar adjusting pin(Figure 13,14)

in or out as necessaryto fit the adjusting pin in the

hole in the guide bar (Figure 10.)

12. Follow instructions inthe "ChainTension"section,

Figure 11

OUTER GUIDE

BAR PLATE

Figure 12 "

BAR ADJUSTING PIN

4_ 6

Figure 13

,i

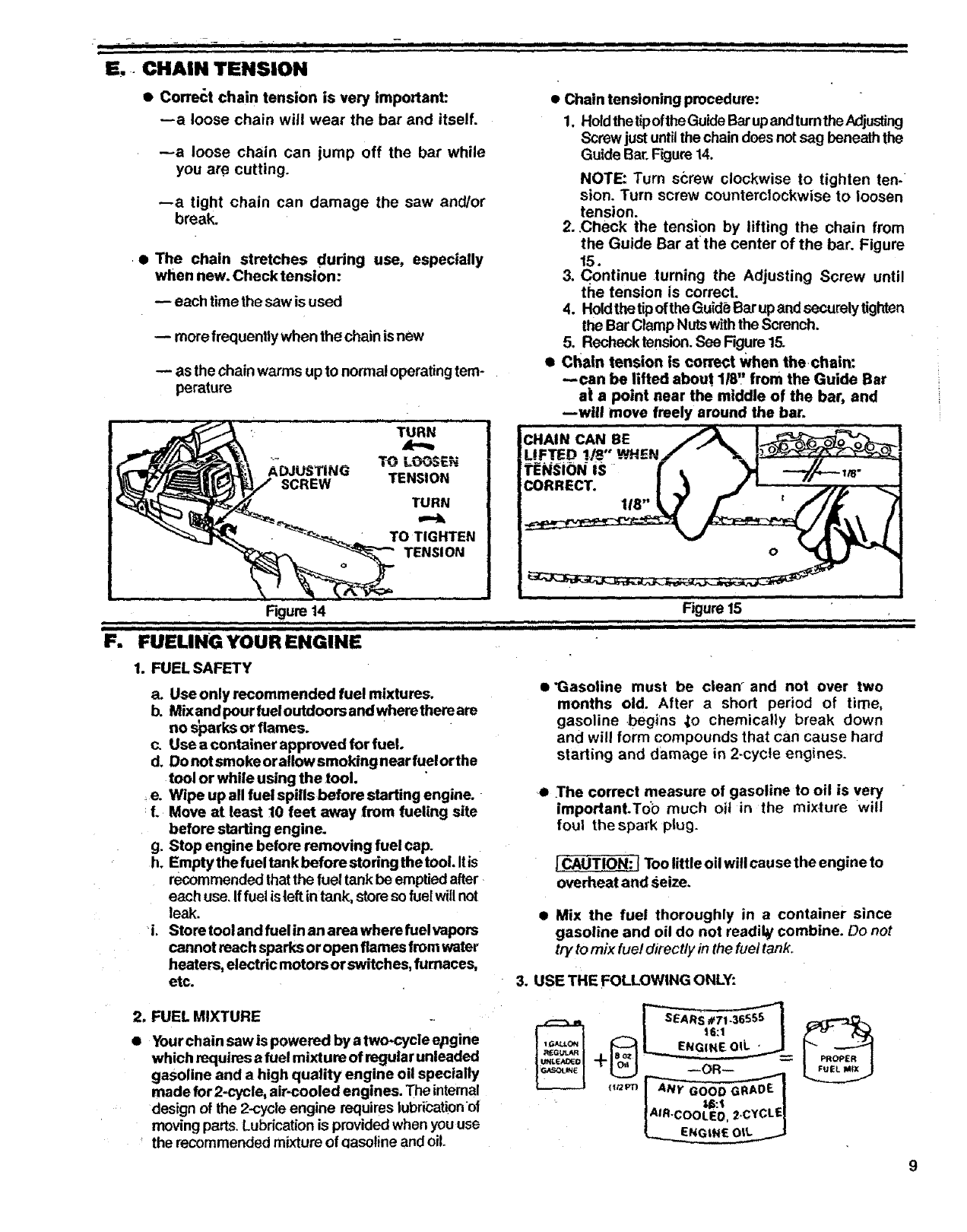

E, - CHAIN TENSION

• Correct chain tension is very important:.

--a loose chain will wear the bar and itself.

--a loose chain can jump off the bar while

you are cutting.

--a tight chain can damage the saw and/or

break.

• The chain stretches during use, especially

when new. Check tension:

each time the saw is used

more frequently when the chain is new

as the chain warms up to normal operatingtem-

perature

•Chain tensioning procedure:

1. Holdthe t{poftheGuideBarupandturntheAdjusting

Screw justuntilthe chain does notsag beneath the

Guide Bar.Figure 14.

NOTE: Turn s_:rew clockwise to tighten ten-

sion. Turn screw counterclockwise to loosen

tension.

2..Check the tension by lifting the chain from

the Guide Bar atthe center of the bar. Figure

15.

3. Continue turning the Adjusting Screw until

the tension is correct.

4. Holdthe tipof the Guide Barupand securely tighten

the Bar Clamp Nutswiththe Scrench.

5. Recheck tension.See Figure 15.

• Chain tension is correct When the,chain:

--can be lifted about. 1/8" from the Guide Bar

at a point near the middle of the bar, and

--will move freely around the bar.

Figure 14

iiiiiii ii iiii ii i iiiii i

F. FUELING YOUR ENGINE

1. FUEL SAFETY

Figure 15 !_

lift IIIII1[ II I IIIII i IIII IIIIIII IIIIII i iiiii n I iiiiiiiii IIIII I IIIIIIII

a. Use only recommended fuel mixtures.

b. Mix and pour fuel outdoors and where there are

no s_arks or flames.

c. Use a container approved for fuel.

d. Do not smoke or allow smoking near fuel orthe

tool or while using the tool.

e. Wipe upall fuelspillsbeforestarting engine. -

f. Move at least 10 feet away ,from fueling site

before starting engine.

g. Stop engine before removing fuel cap.

h. Emptythefueltankbeforestoringthetool. Iris

recommended thatthe fuel tank be emptied after

each use. If fuelisleft intank, storesofuelwill not

leak.

_i. Store tool and fuelin an area where fuelvapors

cannot reach sparks or open flames from water

heaters, electric motors or switches, furnaces,

etc.

•"Gasoline must be clean _and not over two

months old. After ashort period of time,

gasoline .begins _to chemically break down

and will form compounds that can cause hard

starting and damage in 2-cycle engines.

• The correct measure of gasoline to oil is very

important.Too much oit in the mixture •will

foul thespark plug.

I _UTION.:_J Too little oil will cause the engine to

overheat and seize.

• Mix the fuel thoroughly in a container since

gasoline and oil do not readily combine. Do not

try to mix fuel directly in the fuel tank°

3, USE THE FOLLOWING ONLY:

2, FUEL MIXTURE

• Yourchainsawispowered byatwo.cycleepgine

which requires afuel mixture of regular unleaded

gasoline and a high quality engine oil specially

made for2-cycle, air-cooled engines. The internal

design of the 2-cycle engine requires lubrication'of

moving parts.Lubrication is provided when youuse

the recommended mixtureof qasoline and oiL

10

4. DO NOT USE:

• BIA C)il (Boating Institute of America)

Doesnothave properadditivesfor_r-cooled,

2-cycleengines and can cause damage.

• AUTOMOTIVE OIL-

•_ Does not have proper additivesfor 2-cycle

enginesand can cause damage.

c; Covercontainer tighUyand shake forone minute.

d. Slowly remove fuel container cover.

e. Add remainder of gasoline.

f. Cover container tightly and shake again.

g. Slowly remove fuel container cover.

h. Slowly remove fuel cap. See Figure 16for location:

i. Fill the tank using a spout or funnel.

j. Reinstall the fuel cap securely.

5. HOWTO MIX FUELAND RLL TANK

a, Pour 1/2gallonof regular unleaded gasoline

intoan approved, marked container.Do nottry

to mix oitand gasoline directly in the fuel tank.

b. Add entire measurez)f engine oil.

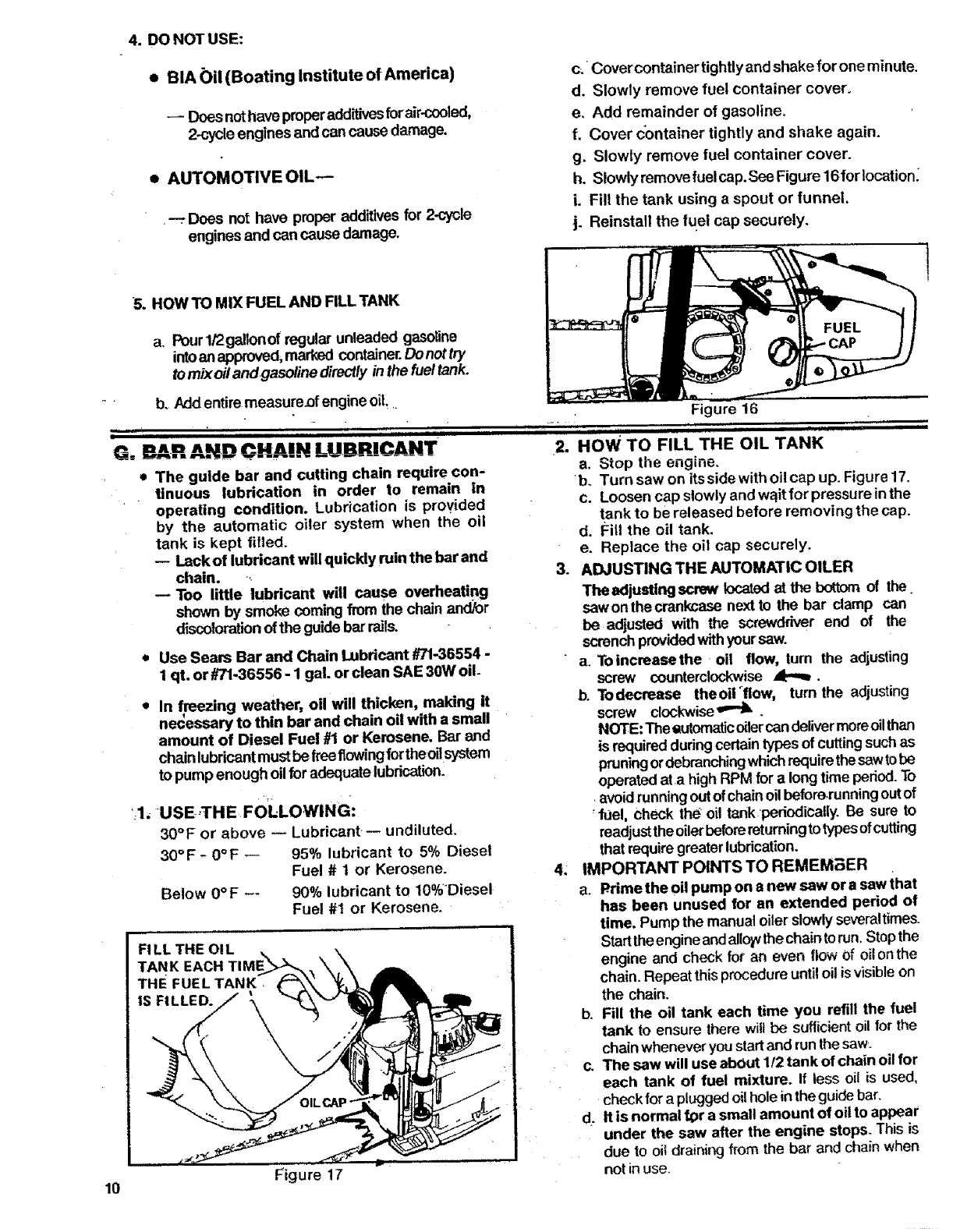

G, PAR AHD'cHA!" LUBB!¢ANi;

•The guide bar and cutting chain require con-

tinuous lubrication in order to remain in

operating condition. Lubrication is provided

by the automatic oiler system when the oil

tank is kept filled.

-- Lackof lubricant will quickly ruin the bar and

chain.

--Too little lubricant will cause overheating

shown by smoke coming from the chain and/or

discolorationof the guide bar rails,

Use Sears Bar and Chain Lubricant #71-36554 -

I qt. or #71-36556 - 1 gal. or clean SAE 30W oil.

In f_eezing weather, oil will thicken, making it

necessary to thin bar and chain oil with a small

amount of Diesel Fuel #1 or Kerosene. Bar and

chain lubricantmust be freeflowingfortheoilsystem

to pump enough oil for adequate lubrication,

USE:THE FO'LLowING:

30°F or above -- Lubricant.-- undiluted.

30°F -0°F -- 95% lubricant to 5% Diesel

Fuel # 1 or Kerosene.

Below 0° F -* 90% lubricant to t0%'Diesel

Fuel #t or Kerosene.

FILL THE OIL

TANK EACH'

IS FILLED.

Figure 17

2.

3.

4;

Figure 16

..............."' '

HOW TO FILL THE OIL

a. Stop the engine.

b. Turn saw on its side withoil cap up. Figure 17.

c. Loosen cap slowly and w_litfor pressure in the

tank to be released before removing the cap.

d. Fill the oil tank.

e. Replace the oil cap securely.

ADJUSTING THE AUTOMATIC OILER

The adjustlng screw k)catadat the b(_:)m of the

saw on the crankcase next to the bar clamp can

be adjusted with the screwdriver end of the

scronchprovided withyour saw.

a. Toincrease the - oil flow, turn the adjusting

screw counterclockwise 4b,,_,

b. Todecreasa the oil _flow, turn the adjusting

screw clockwise_'-'jk .

NOTE: Theeutomatic oilercan delivermoreoilthan

is requiredduringcertaintypes of cuttingsuchas

pruningordebranchingwhichrequirethesawtobe

operatedata high RPM for a longtime period. To

avoid runningoutofchain oilbefore_runningoutof

'_el, Check the=oil tank:pedodicaUy. Be sure to

readjustthe oiler before returning to types of cutting

that requiregreater lubrication.

IMPORTANT POINTS TO REMEM3ER

a. Prime the oil pump on a new saw or a saw that

has been unused for an extended period of

time. Pump the manual oiler slowlyseveraltimes.

Startthe engineandallo_vthechaintorun. Stop the

engine and check for an even flow Ofoil onthe

chain. Repeat thisprocedureuntiloil is visible on

the chain.

b. Fill the oil tank each time you refill the fuel

tank to ensure there wiltbe stJfficientoil for the

chain whenever you startand runthe saw.

c. The saw will use about 1/2 tank of chain oil for

each tank of fuel mixture. If less oil is used,

check for a pluggedoilhole inthe guidebar.

d- it is normal tor a small amount of oil to appear

under the saw after the engine stops. This is

due to oil drainingfrom the bar and chainwhen

not inuse.

!

USING YOUR SAW

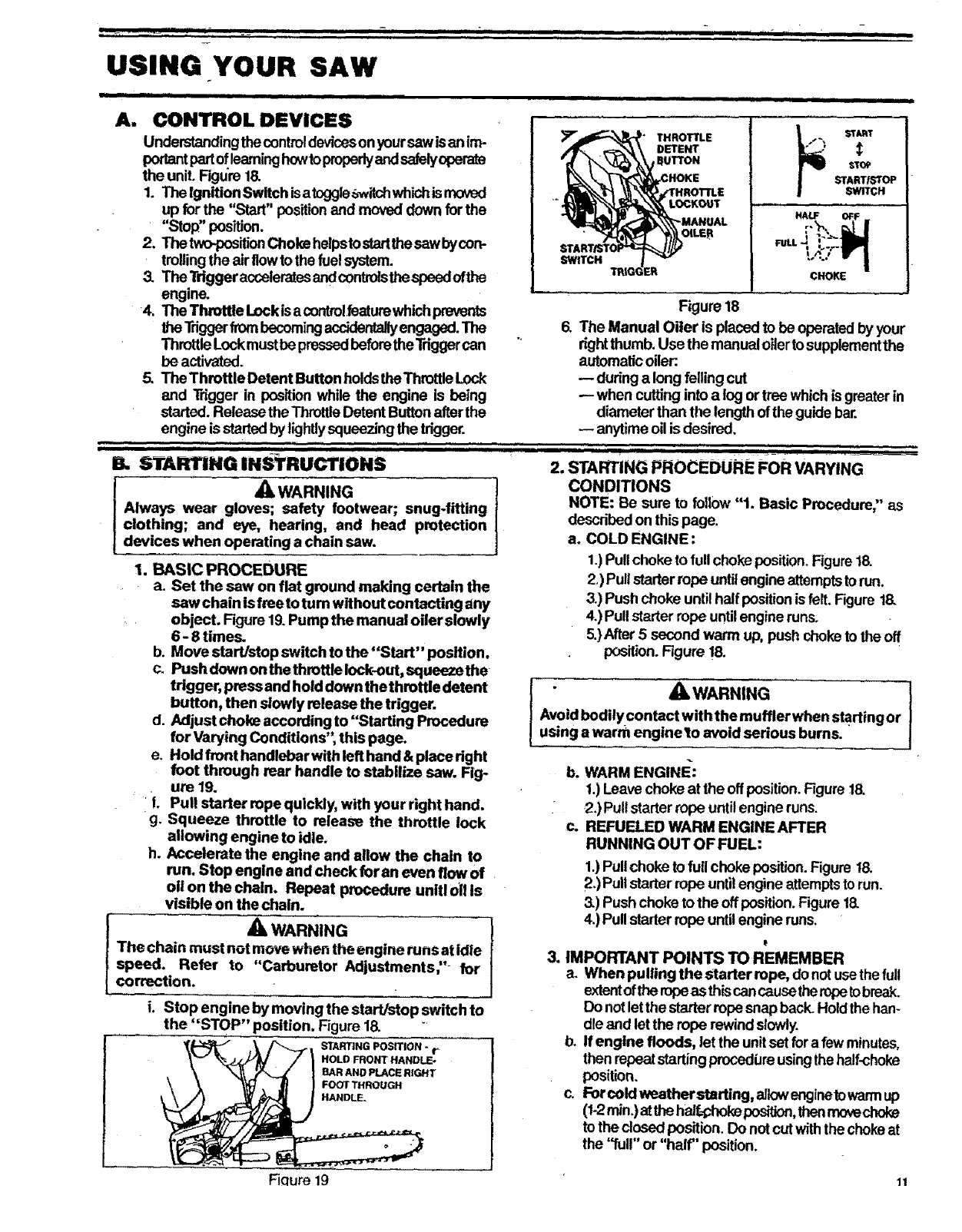

A! CONTROL DEVICES

Understandingthe controldevicesonyoursawisan irn-

portantpartof learninghowtoproperlyandsafelyoperate

the unit. Figu're18.

1. The Ignition Switch isa toggle_,witchwhiohismoved

up for the "Start" positionand moved down for the

"Stop" position,

2. Thetwocosition Choke helpstostartthe sawbycorv

trollingthe airflow tothe fuel system.

3. TheTdggeracceleratesandcontrolsthespeedofthe

engine.

4. The Throttle Lockis a controlfeaturewhichprevents

the Triggerfrom becomingaccidentallyengaged. The

ThrottleLockmust be pressedbefore the Triggercan

be activated.

5, The Throttle Detent Button holdsthe ThrottleLock

and Trigger in position while the engine is being

started. Release the ThrottleDetentButtonafterthe

engine is startedby lightlysqueezingthe trigger.

B. STARTING INSTRUCTIONS

_,WARNING

Always wear gloves; safety footwear; snug-fitting

clothing; and eye, hearing, and head protection

devices when operating a chain saw.

1. BASIC PROCEDURE

a. Set the saw on fiat ground making certain the

saw chain is free to turn without contacting any

object. F'igure19.Pump the manual oiler slowly

6- 8 times.

b. Move start/stop switch to the "Start" position.

c. Push down on the throttle lock.out, squeezethe

trigger, press and hold down thethrottle detent

button, then slowly release the trigger.

d. Adjust choke according to "Starting Procedure

for Varying Conditions" this page.

e. Hold front handlebarwith left hand & place dght

foot through rear handle to stabilize saw. Fig-

ure 19.

f. Pull starter rope quickly, with your right hand.

g. Squeeze throttle to release the throttle lock

allowing engine to idle.

h. Accelerate the engine and allow the chain to

run. Stop engine and check for an even flow of

oil on the chain. Repeat procedure unitl 0il is

visible on the chain.

WARNING

The chain must not move when the engine runs atIdle

speed. Refer to "Carburetor Adjustments;'- for

correction.

i. Stop engine by moving the start/stop switch to

the "STOP" position, Figure 18.

_,\ F'-_. STAmlNGPosrnoN-,-

_..>_.v_ /|.OLDmO_.AN.UE.

!xJ_Y'--Z I_RANO_AC_R_T

_'_\ _ ! FOOTTHROUGH

Figure t9

SWITCH

THROTTLE

DETENT

b"Tt,,_T

_'tOl;'

$TARTISffOP

SWITCH

H&LF OFF _

,.- =t I

t_.., Wl

CHOKE

Figure 18

6. The Manual Oiler is placed to be operatedby your

rightthumb,Use the manualoiler tosupplementthe

automaticoiler:

duringa longfellingcut

when cutting intoa log ortree which isgreater in

diameter than the length ofthe guide bar.

-- anytimeoil is desired,

3. IMPORTANT POINTS TO REMEMBER

a. When pulling the Starter rope, do notusethefull

extentofthe ropeasthis cancausetheropeto break.

Do notletthe starterropesnap back. Holdthe han-

dle and let the rope rewindslowly.

b. If engine floods, let the unitset for a few minutes,

then repeatstartingprocedbreusingthe half-choke

position.

c. For cold w_.atherstarting, allowenginetowarmup

(1-2min.)atthe haJf.t::hokeposition, then movechoke

to the dosed position. Do not cut withthe chokeat

the "full" or "half" position.

11

t¸ }

_kWARNING

Avoidbodily contact with the muffler when starting or

using a warm enginelto avoid serious burns.

b. WARM ENGINE:

1.)Leave choke at the off position.Figure 18.

2.) Pull starterrope untilengine runs.

c. REFUELED WARM ENGINE AFTER

RUNNING OUT OF FUEL:

1.)Pullchoke to fullchoke position.Figure 18.

2.) Pullstarter rope untilengine attemptsto run.

3.) Pushchoke to the off position.Figure 18.

4.) Pull starter rope untilengine runs.

2. STARTING PROCEDURE FOR VARYING

CONDITIONS

NOTE: Be sure to follow "1. Basic Procedure" as

described on thispage.

a. COLD ENGINE:

1.) Pullchoke tofullchoke position. Figure18.

2.) Pull starterrope until engine attemptsto run.

3.) Push choke untilhalfpositionis felt.Figure t8.

4.) Pull starterrope untilengine runs.

5.)After 5 second warm up, push choketo the off

position.Figure !8.

, , ,,,,,,,,, ,,,,,, , , ,,,, ii i iiiii iiiiiiiiii i iii

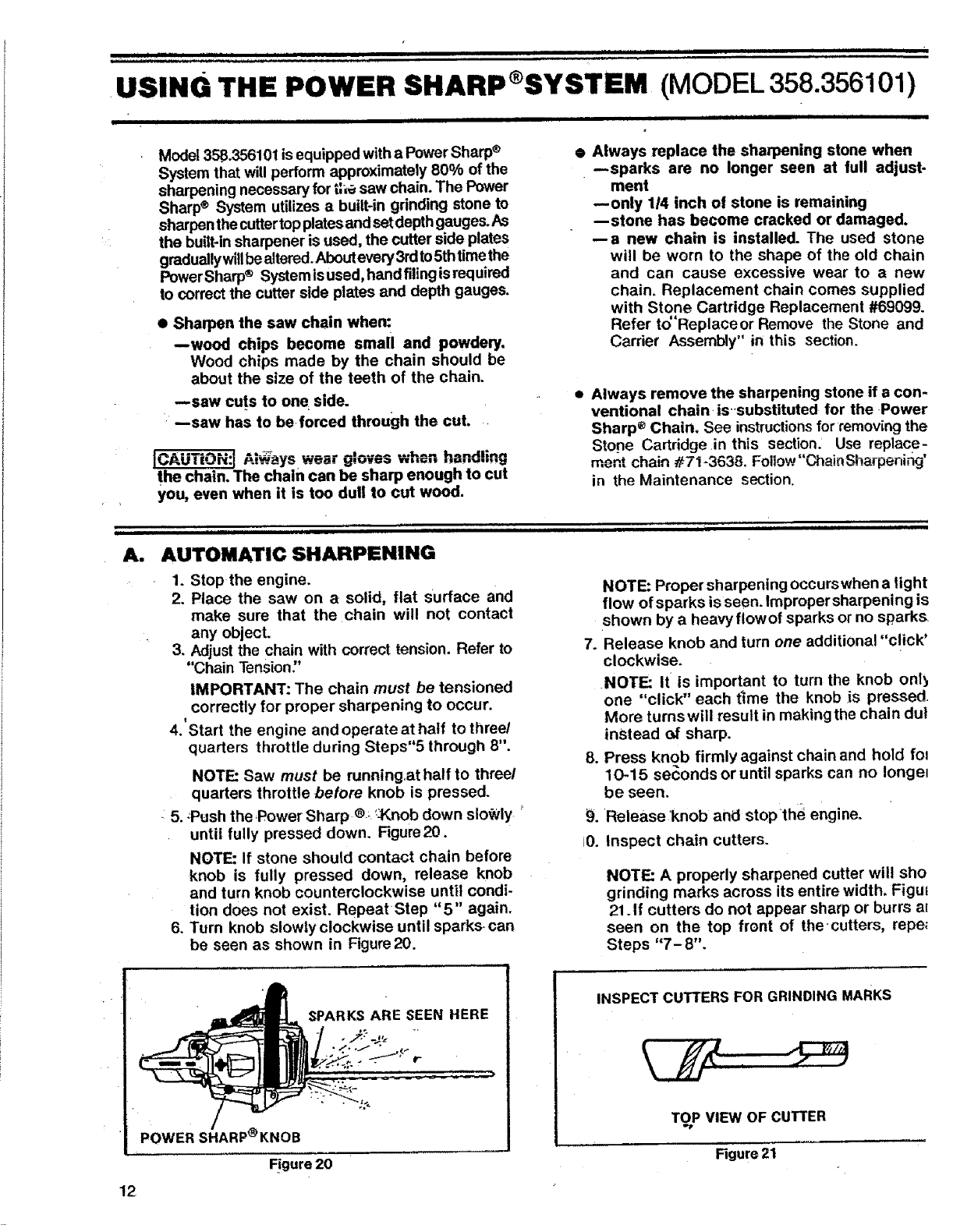

USING THE POWER SHARP®SYSTEM (MODEL 358.356101)

i i i| i i ii i ii ii ii i] i iii i

Model 35_.356101 is equipped with a Power Sharp®

System that will perform approximately 80% of the

sharpening necessary for t;,a saw chain. The Power

Sharp ® System utilizes a built-in gdnding stone to

sharpen the cuttertop platesand setdepth gauges. As

the built-in sharpener is used, the cutter side plates

graduallywillbe altered.Aboutevery3rd to 5thtime the

Power Sharp® Systemis used, hand filing is required

to correct the cutter side plates and depth gauges.

• Sharpen the saw chain when:

--wood chips become small and powdery.

Wood chips made by the chain should be

about the size of the teeth of the chain.

--saw cuts to one side.

--saw has to be forced through the cut.

ICAUTiON: 1Ai_ays wear -' ......y..vvu_ v,,'hOn _'''";"_

the chain. The chain can be sharp enough to cut

you, even when it is too dull to cut wood.

• Always replace the sharpening stone when

•--sparks are no longer seen at full adjust-

ment

--only 1/4 inch of stone is remaining

--stone has become cracked or damaged.

--a new chain is installed. The used stone

will be worn to the shape of the old chain

and can cause excessive wear to anew

chain. Replacement chain comes supplied

with Stone Cartridge Replacement #69099.

Refer to"Replaceor Remove the Stone and

Carrier Assembly" in this section.

• Always remove the sharpening stone if a con-

ventional chain, is-substituted for the ,Power

Sharp sChain. See instructionsforremoving the

Stone Cartridge in this section. Use replace-

ment chain #7I-3638• Foliow "ChainSha_rpeni,_g'

in the Maintenance section•

Am AUTOMATIC SHARPENING

1. Stop the engine.

2. Place the saw on asolid, flat surface and

make sure that the chain will not contact

any object.

3. Adjust the chain with correct tension. Refer to

"Chain Tension"

IMPORTANT: The chain must be tensioned

correctly for proper sharpening to occur•

!

4. Start the engine and operate athalf to three/

quarters throttle during Steps"5 through 8".

NOTE: Saw must be runningathalf to three/

quarters throttle before knob is pressed.

5. :Push the Power Sharp ® __Knob down slowly :

until fully pressed down. Figure20.

NOTE: If stone should contact chain before

knob is fully pressed down, release knob

and turn knob counterclockwise until condi-

tion does not exist. Repeat Step "5" again.

6. Turn knob slowly clockwise until sparks can

be seen as shown in Figure 20.

SPARKS ARE SEEN HERE

Figure 20

NOTE: Proper sharpening occurswhen a light

flow of sparks is seen. Improper sharpening is

shown by a heavy flowof sparks or no sparks

7. Release knob and turn one additional "click'

clockwise.

NOTE: It is important to turn the knob onl_

one "click" each time the knob is pressed.

More turns will result in making the chain dul

instead of sharp.

8. Press knob firmly against chain and hold fo=

10-15 seconds or until sparks can no long el

be seen.

9. Release knob and stop the engine.

i0. Inspect chain cutters.

NOTE: A properly sharpened cutter will sho

grinding marks across its entire width. Figul

21.If cutters do not appear sharp or burrs a[

seen on the top front of the cutters, repel

Steps "7-8".

INSPECT CUTTERS FOR GRINOING MARKS

TOP VIEW OF CUTTER

Figure 21

12

i ,,,,,,,.,, ,,,,,,,,,,,,,, ,,, ,,,,,,,, ............., ,

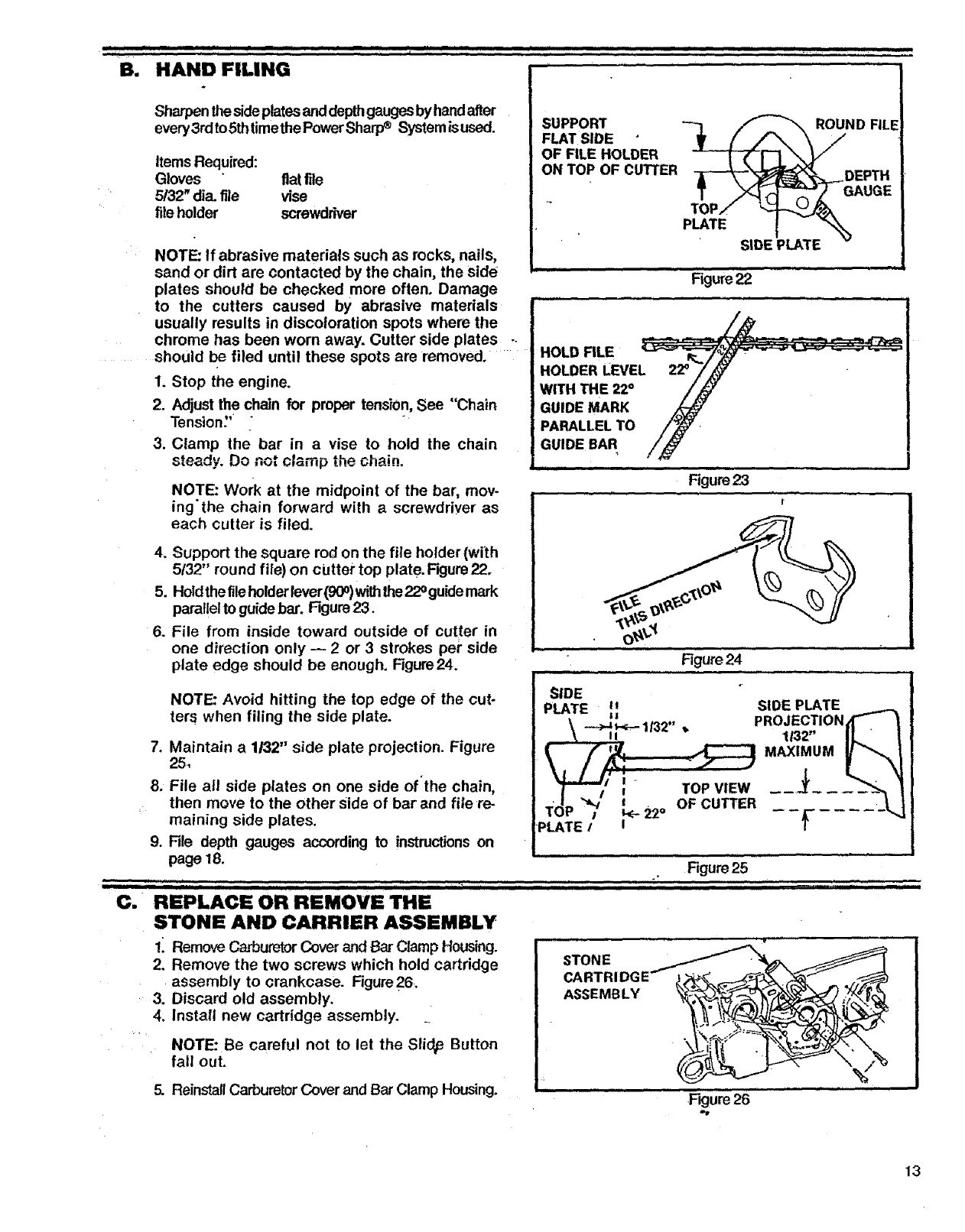

B. HAND FILING

Sharpen thesideplatesanddepthgaugesby handafter

every3rd to 5th time the PowerSharp_Systemis used.

Items Required:

Gloves flat file

5/32" dia. file vise

file holder screwdriver

NOTE: If abrasive materials such as rocks, nails,

sand or dirt are contacted by the chain, the side

plates should be checked more often. Damage

to the cutters caused by abrasive materials

usually results in discoloration spots where the

chrome has been worn away. Cutter side plates -

should be filed until these spots are removed.

1. Stop the engine.

2. Adjust the chain for proper tension, See "Chain

Tension:'

3. Clamp the bar in a vise to hold the chain

stead','. Do not ctamp the chain.

NOTE: Work at the midpoint of the bar, mov-

ing'the chain forward with ascrewdriver as

each cutter is filed.

4. Support the square rod on the file holder (with

5/32" round file) on cUttei"top plate. Figure 22.

5. Holdthe fileholder lever(900)withthe22° guidemark

parallelto guidebar. Figure 23.

6. File from inside toward outside of cutter in

one direction only -- 2or 3 strokes pep side

plate edge should be enough. Figure24.

NOTE: Avoid hitting the top edge of the cut-

ter_ when filing the side plate.

7. Maintain a1/32" side plate projection. Figure

25,

8. File all side plates on one side of'the chain,

then move to the other Side of bar and file re-

maining side plates.

9. File depth gauges according to instructions on

page 18.

SUPPORT -_ iF-_ DFILl

FLAT SIDE ;_ L_ N

OF FILE HOLDER

ON TOP OF CUTI'ER _DEPTH

AUGE

• SIDE PLATE

, ,i i i,ii

Figure22

HOLD FILE

HOLDER LEVEL

WITH THE 22°

GUIDE MARK

PARALLEL TO

GUIDE BAR

Figure23

t

Figure 24

_IDE SIDE PLATE

PLATE li

!!,, PROJECTION,_"- _

-ll32 " 132" IL t

"t-'-',' TOP .........

_,JI "-_" eOF CUTTER

TOP /l k_l 22° _ -- --

PLATE

c. "..... '...............

STONE AND CARRIER ASSEMBLY

.,u , i

Figure 25

ii iiiiii iii i lib '1IIIIIIIlflll III

!_ Remove Ca.,buretorCover and Bar Clamp Housing.

2. Remove the two screws which hold cartridge

assembly to crankcase. Figure 26.

3. Discard old assembly.

4. Insta!l new cartridge assembly.

NOTE: Be careful not to let the Slid# Button

fall out.

5. Reinstall Carburetor Cover and Bar Clamp Housing.

I•I

ASSEMBLY

................,figure26"

13

•:........ i ii I i iii ii HIIHIIIIIIIIIIIII I II I -- III i,

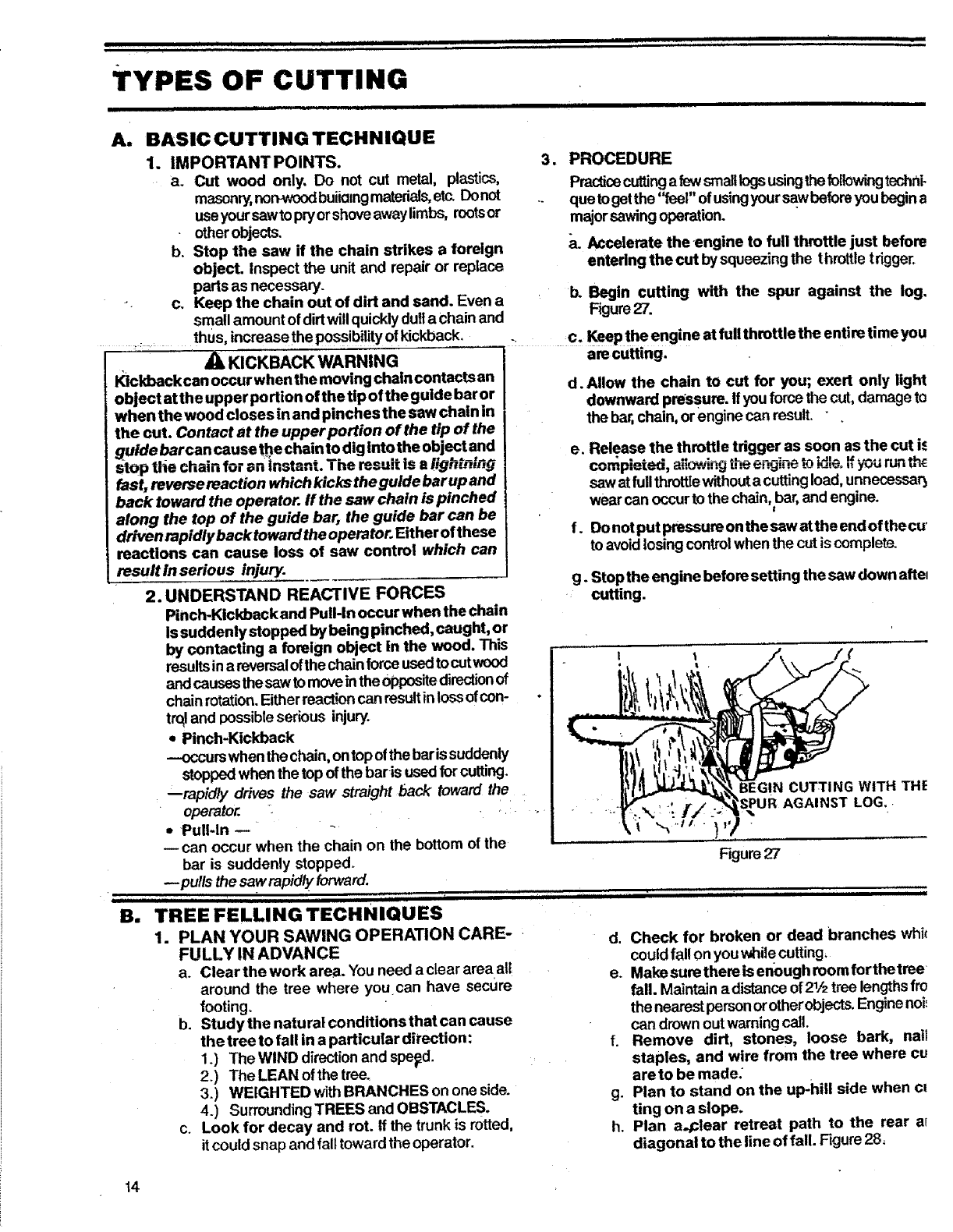

TYPES OF CUTTING

IIIHIIIIIIIIIIIIII I I III II

A. BASlC CUTTING TECHNIQUE

1. IMPORTANT POINTS.

a. Cut wood only. Do not cut metal, plastics,

masonry,non-wo_ buiiomgmatedais,et_ Donor

useyoursawto pryorshoveawaylimbs, rootsor

otherobjects.

b. Stop the saw if the chain strikes a foreign

object. Inspect the unit and repair or replace

parts as necessary.

_c. Keep the chain out of dirt and sand. Even a

small amount ofdirt will quickly dulla chain and

..... thus, increase the possibilityof kickback.

A KICKBACK WARNING

Kickbackcan occur when the moving chain contacts an

object at the upper pc rtion of the tip of the guide bar or

when the wood closes in and pinches the saw chain in

the cut. Contact at the upper portion of the tip of the

guide barcan cause the chain to dig into the object and

stop the chain for an instant. The resuit is a lightning

fast, reverse reaction which kicks the guide bar up and

back toward the operator, ff the saw chain is pinched

along the top of the guide bar, the guide bar can be

driven rapidly back toward the operator. Either of these

reactions can cause loss of saw control which can

result in serious injury.

2. UNDERSTAND REACTIVE FORCES

Pinch-Kickbackand Pull-in occur when the chain

is suddenly stopped bybeing pinched, caught, or

by contacting a foreign object in the wood. This

resultsin a reversalofthe chain force used tocutwood

and causesthe sawtomoveinthe Oppositedirectionof

chain rotation.Eitherreactioncan resultin lossofcon-

trql and possible serious injury.

=Pinch-Kickback

--occurs when the chain,ontopof the barissuddenly

stoppedwhen the top of the bar is usedforcutting.

--rapidly drives the saw straight back toward the

operator.

• Pull-In-

--can occur when the chain on the bottom of the

bar is suddenly stopped.

--pulls the sawrapidly forward.

- ii i ij

B. TREE FELLING TECHNIQUES

1. PLAN YOUR SAWING OPERATION CARE-

FULLY IN ADVANCE

a. Clear the work area. You need a clear area all

around the tree where youcan have secure

footing.

b. Study the natural conditions that can cause

the tree to fall in a particular direction:

1.) TheWIND directionand spe_d.

2.) The LEAN ofthe tree.

3.) WEIGHTED withBRANCHES on one side.

4.) SurroundingTREES and OBSTACLES.

c. Look for decay and rot. If the trunk is rotted,

it could snap and fall toward the operator.

3. PROCEDURE

Practicecuttingafew small logsusingthefollowing techni-

que toget the "feel" of usingyour sawbeforeyou begina

maior sawingoperation.

a. Accelerate the engine to full throttle just before

entering the cut by squeezingthe throttle trigger.

b. Begin cutting with the spur against the log.

Figure27.

-. c. Keep the engine at full throttle the entire time you

are cutting.

d. Allow the chain to cut for you; exert only light

downward pressure. If you force the cut, damage to

the bar,chain, orengine can result. "

e. Release the throttle trigger as soon as the cut is

co ' _t. ai1_n theenn_nnt_idle if" u h_

mp ed, ..... g.... u....... yo runt]

saw atfull throttle without acutting load, unnecessai3

wear can occur to the chain, bar, and engine.

t

f. Donot put pressure on the saw atthe endof thecu.

to avoidlosingcontrolwhen the cut is complete.

g. Stop the engine before setting the saw down aftea

cutting.

/(

BEGIN CUTTING WITH THE

:_' /-/'. AGAINST LOG,.

F_ure27

i¸" ii iii

d. Check for broken or dead branches whi(

could fall on you while cutting.

e. Make sure thereis enough room for thetree

fall. Maintain adistanceof 21/2tree lengthsfro

the nearestperson orotherobjects.Enginenoi=

can drownoutwarning call.

f. Remove dirt, stones, loose bark, hall

staples, and wire from the tree where cu

are to be made:

g. Plan to stand on the up-hill side when cl

ting on a slope.

h. Plan a,,clear retreat path to the rear ar

diagonal to the line of fall. Figure 28,

t4

2, FELLING SMALL TREES -- LESS THAN

6" IN'DIAMETER

a. If you knowthe directionof fall:

1.) Make a single felling cut on the side away

fromthe directionof fall.

2.) Cut alithe waythrough.

3.) Stop the saw, put it down, and get away

quicklyon yourplanted retreat path.

b. If you are not sure which way the tree will fall,

use the notch method described for felling

iarge trees.

A_,WARNING

DONOTCUT:

near electrical wires or buildings.

if you do not knowthe direction of tree fall.

-- at night since you will not be able to see well.

mduring bad weather _strong wind, snow, rain,

etc.

3. FELUNG LARGE TREES m6" DIAMETER

OR MORE _

The notch method is used to cut large trees. A

notch is cut on the side of the tree in the desired

direction of fall. After a felling cut is made on the

opposite sideof the tree, the tree will tend to fall

into the notch_

NOTE: If the tree has large buttress roots, re-

move before making the notch. Cut into the but-

tresses vertically, then horizontally. Figure 29.

a. Make the notchcuL Figure30.

1.) Cut the bottom of the notch first, through

1/3 of thediameter of the tree.

2.) Complete the notch by making the slant

cut.

3.) Remove the notchof wood.

b.

. C.

Make the felling cut on the opposite side of the

notch about 2" higher than the bottom of the

notch.

Leave enough uncut wood between the felling

cut and the notchto forma hinge. Figure 31.

d*

NOTE: The hinge helps to keep the tree from

twisting andfalling inthe wrong direction.

Use a wedge ifthere is any chance that the tree

will not fall inthe desired direction.

CUT

I

HORIZONTAL

Figure 28

OFF_

Figure29

WARNING ,

Stay on the uphill side of the terrain to avoid the

tree rolling or sliding downhill after it is felled.

e.

f.

g-

NOTE: Before the felling cut is complete, drive

wedges toopen upthe cutwhen necess_y to con-

trolthe directionoffal Use weedor plasticwedges

but never metal, to avoid kickback and chain

damage.

Be alert for signs that t_hetree is ready tofall:

1.) cracking sounds

2.) widening of the feltingcut

3.) movement inthe upper branches.

As the tree starts to fall, stop the saw; put it

down, and get away quickly on your planned

_retreat patho

Be ex_emely cautious with partially fallen trees

thatmay be poorlysupported.When atreedoesn't

fall completely, set the saw aside and pulldown

the tree with acable winch, block and tackle or

tractor.To avoid injurydo not cutdownapartially

fallen tree with yoursaw.

Check the wind.

Don't cut down wind.

DON'T PUT YOURSELF iN THESE

Check the

"Don't cut on lean side.

15

uiii iiiiiii iii

C. BUCKING

Bucking is the term used for cutting a fallen tree

to the desired log size.

1. IMPORTANT POINTS

a. Cut only one log atatim e.

b. Cut shattered wood very carefully. Sharp

pieces of wood could be flung toward the

operator.

c. Use a sawhorse to cut small logs. Never

allow another person to holdthe log while cut-

ting and never holdthelogwith your legor foot.

d. Give special attention to logs under strain to

prevent the saw from pinching. Make the first

cut on the pressureside to relieve the stress on

the log.Figure 32.

e. Do not cut in an area where logs, limbs and

roots are tangled such as in a blown down

area. Drag the logs intoa clear area before cut-

ting by pulling out exposedand cleared logs_

first.

f. Make the f_rst bucking cut 1/3 of the way

through the log and finish with a2/3 cut on

the opposite side. As the log is being cut, it

wilt tend to bend. The saw can become

pinched or hung inthe log if you make the first

cut deeper than 1/3 of the diameter of the log.

2. TYPES OF CUTTING USED Figure33.

-- Overcutting - begin on the top side of the

log with the spur against the log: exert light

pressure downward.

.- Undercutting - begin on the under sideof the

log with the top of the sawagainst the log;exert

light pressure upward. During undercutting,

the saw will tend to push back at you. Be pre-

pared for this reaction and hold the saw firmly

to maintain control.

• AWARNING " _ _I

Never turn the saw upside down to undercut. The

saw cannot be controlled in this position.

_WARNING

If saw becomes pinched or hung in alog, don't try to

force it out. You can lose control of the saw resulting

in injury and/or damage to the saw. Stop the saw,

drive a wedge of plastic orwood into the cut until the

saw can be removed easily. Figure 34, Restart the

saw and carefully reenter the cut. To avoid kickback

and chain damage, do not use a metal wedge. Do

not attempt to restart your saw when it is pinched or

hung in a log.

3. BUCKING--WlTHOUTA SUPPORT

a. Overcutwith a 1/3 diametercut.

b. Roll log over and finishwith an overcut.

i i i 111111iii ii iiiii

i1

ISTCUT

PRESSURESIDE _4-_

4-,-- _2NDCUT

LFigure32

UNDERCUT

Figure33

WEDGE USED TO

HOLD CUT OPEN

/

Figure 34

I. , .I.-A-.i

|. IstCut : 12ndCutl

US,N a,t

ANOTHER "._,?'_

LOG AS A SUPPORT "_"

I

Figure35

[,1 B t,I

lst_ 2nd _'_

cut cut c=

Figure 36

16

4. BUCKING-- USINGANOTHERLOGAS A

" SUPPORT(Figure35):

a. In areaA:

1.) Undercut 1/3 of the way through the log.

2.) Finish with an overcut.

_WARNING !

Do not stand on the log being cut. Anyportion can roll

causing loss of footing and control.

b.. Inarea B:

1.) Overcut, 1/3 of the way th;ough the log.

2.) Finish with an undercut.

5. BUCKING-- USING A STAND (Figure 36,):

•a. tnareaA:

1.) Undercut 1/3 of the way through the log.

2.) Finish with an overeut.

b. Inarea B:

1.) Overcut 113of the way through the log.

2.) Finish with an undercut. USE COMMON SENSE

,)

MAINTAINSECUREFOOTING

,,,,111i i , i r ,,,

O. DEBRANCHING AND PRUNING

•Work slowly, keeping both hands on the saw

with a firm grip. Maintain secure footing and bal-

ance.

•Watch out for springpoles. Use extreme caution

when cutting small size limbs. Slender material can

catch the saw chain and be whipped toward you or

pull you off balance.

• Be alert for springback. Watch out for branches

that are bent or under pressure as you are cutting

to avoid being struckby the branchor the saw when

the tension in the wood fibers is released.

• Keep a clear work area. Frequently clear bran-

ches out of the way to avoid trippingoverthem.

AWARNING

Never climb into a tree to debranch or prune. Do not

stand on laUders, platforms, a log or in any position

which can cause you to lose your balance or control of

the saw.

i_ DEBRANCHING ........

a. Always debranch a tree after it is cut down.

Only then can debranching be done safely

and properly.

b. Leave the larger lower limbs to supportthe

tree as you work.

c. Start at the base of the felled tree and work

towards the top, cutting branches and

limbs. Remove small limbs with one cut. Fig-

ure 37.

d. Keep the tree between you and the chain.

Cut from the side of the tree opposite the

branch you are cutting.

e. Remove larger, supporting branch_s with

the 1/3, 2/3 cutting techniques described in

the bucking section.

f. Always use an overcut to cut small and

freely hanging limbs. Undercutting can cause

limbs to fall and pinch the saw,

oPRUNING

a. Limit pruning to limbs shoulder height or

below. Do not cut if branches are higherthan

your shoulder. Get a professional to do the

job.

b. Refer to Figure38 for the pruning tech-

nique.

1.) Undercut 1/3 of the way through the limb

near the trunk ofthe tree.

2.) Finish with an overcut farther out from the

trunk.

3.) Keep out of the way of the falling limb.

.4.) Cut the stump flush near the trunk of the

tree.

_ILWARNING

Be alert for and guard against kickback. Do not allow

the moving chain to aontact any other branches or

objects at the nose of the guide bar when debranching

Orpruning. Allowing such contact can result inserious

injury.

Remove small limbs

with one

FIRST PRUNING CUT

Figure 38 17

•°11 "" i i- i ii _=_ iii : .ii • i i iii iii iiiiiiiii i

MAINTENANCE

ii i i i i IH

t8

Agood maintenance program of regular inspec-

tion and care will increase the service life and help

to maintain _he safety and performance of your

saw.

• Check the saw for loose bolts, screws, nuts,

and fittings on a regular basis. Loose fasten-

ers can cause an unsafe condition as well as

damage to your saw.

• Make all adjustments or repairs (except car-

buretor adjustments) with:

spark plug wire disconnected

Bengine cool as opposed to a unit that has

just been run.

.......... AND ..........

A. GUIDE BAR CHAIN

Increase the service life of your Guide Bar and

Chain by:

--Using the saw propedy and as recommended

in this manual.

•--Maintaining correctChain Tension. See "Chain -.

Tension".

_. Proper lubrication.See 'Bar and ChainLubricant".

Regular maintenance as desc.'ibed In this sec-

tion.

1. CHAIN MAINTENANCE

• Sharpen the chain when:

--wood chips are small and powdery. Wood

chips made by the saw chain should be

about the size of the teeth of the chain.

--saw has to be forced through the cut.

--saw cuts to one side.

ICAUTION:I Always wear gloves when handling

the chain. The chain is sharp enough to cut you

even though it is too dull to cut wood.

a. SHARPENING INSTRUCTIONS

Ite_ns required:

Gloves Medium Flat File

7/32" dis. file Depth Gauge Tool

6" file holder Vise

i:)

2.)

3.)

.

Stop engine and disconnect spark plug,

Adjust the chain for proper tension. See

"Chain Tension':

Work at the midpoint of the bar, moving the

chain forward by hand as each cutter is

filed.

) Sharpen cutters.

a.) Position flat side of file holder (with

7132" round file)on cu_er topplateand depth

gauge. Figure 39.

b. ) Hold the fite holder level with the 30° guide

mark parallel to the center of the chain.

Figure 40.

c.) File from inside toward outside of cutter,

straight across, on forward strokeronly.Use

2 or3 strokes per cutting edge. Figure 40,

d. ) Keep all cutters the same length. Figure 41.

e. ) Fileenoughtoremoveanydamagetocutting

edge(side & top plate) of cutter. Figure 41 •

f. )File 72SG chain to meet specificationsshown

inFigure 42..

_ILWARNING 1

Have all chain saw se_ice with the exception of the

items listed in the maintenance section of this man-

ual performed by your Sears Service Center.

iiiii i ii ii iiii

sue_,T .ou.D

FLAT SLIDE _ILE

OF FILE HOLDER

Rgure 39

'KE ,...............

PARALLEL30° MARKT.o_CUi-tER4

==°°'=°="/7

Rgure4O

TOP PLATE SIDE PLATE

Rgure 41

Figure 42

DEPTH GAUGE TOOL'

GAUGE

Rgure43 •

HOOK _fOO MUCH

&HGLE .02f' HOOK ANGLE

tl

_f _nOUNOEO

COF_NER

' 50UARED

OFF COF_NER

RIGHT WAY WRONG WAY

Figure 44

WARNING

Maintain the proper hook angle according to the

manufacturer's specification for the chain you are

using. Improperhookanglewigincreasethe chanceof

kickback which can result in serious injury

Figure 42 & 44

5. )CorrectDepthGauges

a.)'Placedepthgaugetool(CatalogNo.

71.36557)overeachcutterdepth

gauge.Figure43.

b.) Filelevelwiththefiatfife ifdepth

gauge is higherthan the depth gauge

tool.

c. ) Maintain rounded frontcorner of

depth gauge with afiat file. Figure 44.

NOTE: The very top of the depth gauge should be flat with

lhe front half rounded off with a fiat file.

_WARNING

Depth gauge toO! Is required to Insure proper depth

gauge. Rlingthedepth gaugetoodeep will increase the

chance of kickback which can result in sedous Injury.

• b. CHAIN REPLACEMENT

1.) Use onlythe Low-Kick Chain specified for

your saw in "Specifications, for replace-

ment chain.

2.) Replace the chain when cutters or links

break.

3.)

4.)

See your Sears Service Center to replace

and sharpen individual cutters for match-

ing your chain.

Always have a worn sprocket replaced by

your Sears Service Center when installing

a new chain to avoid excessive wear to the

chain.

2. GUIDE BAR MAINTENANCE

• Conditions which can require guide bar

maintenance:

--saw cuts to one side

--saw has to be forced through a cut

inadequate oil supply to bar and chain.

'e Check the condition of the guide bar each

time the chain is sharpened. A worn guide

bar will damage the chain and make cut-

ting more difficult.

• Replace the guide bar when:

--the inside groove of the guide bar rails is

worn.

--the guide bar is bent or Cracked.

• Use only the Reduced-Kickback Guide Bar

specified for your saw in "Specifications"

for replacemenL

a. Remove the guide bar to service.

b. Clean oil holes at least once for each

five hours of operation.

c. Remove sawdust from the guide bac

groove periodically with a putty knife oc

a wire. Figure45.

d.

"e.

Remove burrs by filing the side edges

of the guide bar grooves square with a

flat file. Figure46.

Restore square edges to an uneven rail

top by filing with a flat file. Figure39.

I'"REMOVE SAWDUST _,

Figure45

li[ll ii i i i

B. SPARK ARRESTOR

CORRECT "

GUIDE BAR WORN GROOVES FILE EDGES , .

GROOVE . SQUARE " .

• ii .

i

Figure 46

iiiii ii ii

HI ii_ illlll,i i i q I,,HI ,,I,I, I

• Carbon deposits build up on the spark ar-

nestor,asthe saw isusedand must be rernovedto

avoidcreatingafire hazardorcausingengine dam-

age.

• Replace the sparkarrestor if breaks occur.

• Keep the spark arrestor clean at all times,

Clean:

--as required

---at leastonce for each 25-30houm of operation.

SPARK ARF

HEAT SHIELD

\

IIHII i,,,ll

a. Disconnectthe sparkplug wire.

b. Remove the heat shield. Figure 36.

c. Remove thescreen from the diffuser.

Items requir_,3_:

wire brush,318"wrench _

d. Clean the screenw,i_hawire brush or replace if

breaks are found.

e. Reassemble pads.

19

-- =Y'l i i •i i iiiiiiiiiiiii ul i|lllllll ., _,

C. STARTER ROPE

2O

• Replace a starter rope that breaks.

_I_WARNING

Always wear eye protection when servic-

ing the starter rope. The recoil spring

beneath the pulley is under tension. Ifthe

spring pops out serious Injury can

result.

NOTE: The recoil spring, located beneath the

pulley, is Under tension. If spring pops out, it

will require considerable time and effort to

reinstall. For this reason, you may want to let

your Sears Service Center handle this repair.

If you do try to repair the starter rope and the

recoil spring pops out, take the unit to your

Sears Service Center.

1. Remove the four screws on the side of the

"__housing. Fi,gum 48.

|Q!I

NOTE: Notice the different lengths of the

screws and their proper locations while

removing the screws.

.

3. Remove the fan housing.

if the starter rope is not broken, release the

spring tension by pulling about 12 inches of

rope from the pulley and catch the rope in

the notch as shown. F_jure49,

NOTE: The tension on the starter spring will

be released if the rope has broken.

4. Turn the pulley counterclockwise

until thespring tension is released. Rgure49.

5. 'Remove the pulley screw in the center of the

pulley. Figure 50.

6. Lift the pulley carefully while gently twisting it

counterclockwise _, and remove the

.old rope.

/

€

/

/

i

/

MEDIUM--_

NOTCH

u.oERSIDE

;CREWORIVER

/ /

//--_-" LONG

Figure48

TURN PULLEY .....

rNTERCLOCKWtSE

TO RELEASE

TENSION

Figure 49

_-,_-'------ PULLEYSCREW

PULLEYRATCHET

_I"O_IOEPUU.EY HOLE

LE

• _ Figure 50

14. Set the pulley into the housing; push it do_

and engage the spring.

15. Replace and tighten the pulley screw.

16. Pull out t2 inches of:repe and catch the rope

_7,

8,

Move away, from.the .fuel _tbhk-and melt the -, " .... the notoh ir_ the pulley, Ftgure51.

end of the new rope to go into the pulley.

Allowthe metted end todriponce;thenwhilethe rope

is stillhot,pullthe melted end througha clean ragto

obtaina smooth, pointedend.

9. Insert one end of the rope through the handle and

secure with a knot. Leave 3/16" pigtailbehind knot.

Figure 49 (inset).

10. Feed the rope through the housingand the

round sta_er hole. Rgure50.

11. Guide rope inside pulley,then through the topside

pulleyhole by pushingthe rope from the underside

hole with a small round object such as aPhillips

screwdriver.See insert,Figure 50. r

12. Wrap rope counterclockwise _around

pulley ratchet and tuck loose end back under

rope leaving a3/8-1/2 inch tail. Pull tightly around

ratchet.Figure 50.

13. Rewind all the rope onto the pulley, turning

counterclockwise _P'_

17, Turn the pulley 3 complete turns clockwi_

winding up the spring.

18. Hold the pulley and pull the starter rope

the full extent of length and let the rope

wind slowly.

19. Replace fan housing with the fourscrews

their proper Iocatibn.

=,l i =

NOTCH

Figure 51

i i i1.,,,,,,,,ii i ii i i i i I,,,,,,,,,i ,i i i i iiiiiii iiii

D. CARBURETOR AD3USTM ENlrS

• The carburetorhas been adjusted at the factoryfor

sea level conditions. Adjustments may become

necessary if the unit is used at significantlyhigher

altitudesorjfyounoticeanyofthe following conditions.

NOTE: Be sure to propedy p_,_i)arethe saw as

describedin"1. Preparation" below,beforemaking

any adjustments.

--Chain moves when the engine runs at idle

speed. See "2. Idle Speed Adjustment:'

-- Saw will not idle. See "2. Idle Speed Adjust-

ment" and "3. Low Speed Mixture Adjust-

ment."

-- Loss of cuffing power which is not corrected by

a|r filtercleaning, "See "5. High Speed Mixture

Adjustment."

Engine dies or hesitates when itshould accel-

ICAUTION: I Permanent damage will occur to any

2-cycle engine if incorrect carburetor adjust-

merits are made,

• If the unit will not operate properly after making

these adjustments, take the unit to•your Sears

Service Center.

A_,WARNING

The chain may be moving during most of this pro_.

eedure. Wear your protective gear and observe all

safety precautions.

!, PREPARATION

a. Stop engine.

': _?b.Use afresh fuel mixture withproper gasoline/oil

ratio.See "Fueling YourEngine".

c. Placethe sawon asofid,flatsurfaceandmakesure

the chain will not contact any object.

d. Locate the three (3) carburetor adjusting screw

openingsto therightofthe airfiltercover.F_jure52.

e. Startthe engineandallowengine to idle3 minutes

to warm up. The engine must be at operating

temperature for proper adjustments to be made.

IDLE

SPEED ADJ. SCREW'

F_gure52

2. IDLE SPEED ADJUSTMENT

a. Allowengine to idle.

r bw AdjustIdle Speed Screwuntilenginecontinues|o

run withoutstallingandwithout the chain moving

Turn screw clockwise _to increase

engine speed if enginestallsordies.

Turnscrew counterclockwise It.._ to slow

engine down and!or to keep the chain from

turning.

c.-No further adjustments are necessary if the

chain does not move at idlespeed and if perfor-

mance is satisfactory.

J_WARNING

Recheck idle speed after each adjustment below. The

.,chainmustnotmoveatidle speed to avoid serious

injury.

3. LOW SPEED MIXTURE ADJUSTMENT

a. Allowengine to idle.

b Turn the Low Speed Mixture Screw slowly

clockwise _untilthe RPM starts to drop.

Note the position.

c. Turnthe Low Speed Mixture Screw counterclock-

wise _untilthe RPM speedsup andsta_s

to drop again• Notethe position.'

d. Set the Low Speed Mixture Screw at the m_d-

_int between the two positions.

4. ACCELERATION ADJUSTMENT

Ifenginediesorhesitatesinsteadofaccelerating, turn

the LowSpeed Mixture Screw 1/16ofatum atatime

counterclockwise _until you have smooth

acceleration.

5. HIGH SPEED MIXTURE ADJUSTMENT

ICAUTION: IAdjustments as small as 1/16 of a

.turn can affect engine performance, It is Impor-

tant totum the screw only 1/16of aturn peradjust-

ment and test the performance of the saw before

making further adjustments.

a. Make a testcut.

b. Adjust the High Sl_._lMixture S_'ew 1/16ofatum

as follows:

--CloCkwise _ ifsawsmokesorlesespower.

-- Counterclockwise_if the saw has speed

outof the cut butlackspower in the cut.

c. Repeat test cut.

d. Continue 1/1.6of a turn adjustmentsuntilthe saw

runs smoothlyin cut.

JCAUTION: IA too lean high speed setting (clock-

wise _adjustment)willcauseenginedam-

age to any 2-cycle engine fror_ overheating and

lack of lubrication. Never set the high speed mix-

ture screw so far clockwise _thatyouhave

high engine speed but lack power while cutting.

An effective approach follows:

Turn screw counterclockwise _until

engine loses power while cutting.

Then, turn screw clockwise _in 1116of a

turn increments only until the engine has

power while cutti_l.

NOTE: If the unit will not operate propedy after

makingthese adjustments,takethe unittoyourSears

Service Center, 21

iiii iii ii i i i i i iiii ii iiii

-E CLUTCH DRUM AND SPROCKET

• I

_WARNING

Do not start engine without Guide Bar, Chain, and Bar

Clamp Housing completely assembled. The clutch can

come off without the guide bar and chain completely

assembled and serious injury can result.Do not loosen

and spin the clutch offthe crsp_haft with a powertool

Theclutch shoes and drum can separate causing the

clutchtoviolentlyfly apart and sedous injury can

result.

•Take the saw to your Sears Service Center for

full clutch inspection and service after each

100 hours of operation, it is recommended that

you do not try to service the clutch ordrum/sproc-

ket yourself unless you are a competent small..

engine mechanic and have the proper clutch ser-

vice tools. Proper disassembly and repair of the

clutch is extremely important to the life of the

engine and the safety of the operator.

•Clutch maintenance is required when:

--the chain0continues to turn while engine

idles after the idle speed screw has been

adjusted to its capacity.

--slippage occurs dudng a cuL

--a chattedng noise occurs dudng cutting.

i

• Clean the clutch, drum/sprocket and sur-

rounding area daily during heavy use of the

saw. Check to see that the clutch drum turns

freely arid smoothly.

•Inspect the drum/sprocket regutarly for wear.

A worn sprocket will make the chain run erratically

and will shorten the lifeof the bar and chain. Fig-

ure 53.

Replace the drum/sprocket whenever a new

chain is installed in orderto gain the fulllifeex-

pectancy of the chain. Use the following proce-

dure:

CHAIN WEAR ON DRIVE SPROCKET

e

F. AIR FILTER

(Model358.3560911

Figure_3

• A dirty air filter:.

--reduces cutting power

--increases fuel consumption

• Clean the Air Filter,

--frequently, especially under very dusty

conditions.

--always after 10 tanks of fuel mixture or 5

hours of operation whichever is less.

fCAUTION:I Never operate the unit without th(

air filter in placeto avoid engine damage,

Items Required: soft bristled brush, such as

•paint brush.

1. Clean off the .carburetor cover and the are_

around it.

2. Close choke to prevent dirt from entering th_

carburetor,

3. Remove t_e carburetor cover. Figure 54.

4. Remove the air filter carefully.

5. Soak the _lter in soap and water.

ICAUTION:J Do not use gasoline or other flam

•:-__. bleliquid to clean the filter to a_toidcreating a

hazard.

H,ii iHi

G. STORAGE

22

Figure 54

__ IIIII iiiii..........

6. Brush away al! dust and debris from the filter

7. Allow filter to dry.

8. Brush away all debris from surfaces whict

were covered by the carburetor cover.

9, Replace filter and carburetor cover.

, , u,,,

ii i H. ..,...I

ICAUTIONilWear protective gloves when h

dling the chain. The chain is sharp and can

you even when it is not moving.

4. Remove, clean, and dry the bar and chain.

5. Store the chain in a container filled with oil to _:

vent rust.

6. Apply a coating of oil to the entire surface of the

and wrap it in heavy paper, cloth or plastic.

7. Clean the Outsidesurfaces of the engine.

8. Store the saw in a dry place, out of the react

chiidren, and awayfromwherefuel vapors can re;

open flames from hot water heater,electric motor

switches, furnaces, etc.

When your saw is to be stored for over 30 days,

always:

1. Drainfueltank inasafe manner..S_e "FuelingYour

Engine-- Fuel Safety"

2. Start engine and allow to run at i(_lespeed until the

engine stops.

NOTE: This wit! remove most of the fuel from the

fuel _%_'tem.

& Drain oil tank.

i iiiii iiiiiiiiiiiii] •i iiiiiiiiiiiii .......

H. MAINTENANCE AccE--SSORIES

Available through your nearest Sears Store, Catalog Sales Office ,or Servk_eCenter, but may not be furnished

with your s.ap,.

Key No. Catalog No.

1 71-36565

2 71-36524

71-36526

371-36557

471- 36867

71-3639

Description

FileGuide

File-5/32" dia.-TwinPack

File-7/32" dia.-TwinPack

Depth GaugeTool "

Xtra GUARD ®Chain- Oregon® (72SG -70) - 358.356091

(requires 7!32"alia.file)

PowerSharp®Chain - Oregon®(76PS-66)- 358.356101 -

(includesStoneCartridge Ass'y.)- notshown

Catalog No. Description

71-36407 -- Spark Plug-Champior_CJ-8Y

71-36627 -- Carrying Case

71-36555 -- 2-Cycte Engine Oil

71-36554 -- Barand Chain Lubricant(gallon size)

71-36556 -- Bar and Chain Lubricant(quart size)

71-36370 -- Lo-Kick_Guide Bar- 18"-358.356101 (notshown)

71-30583 -- Lo-Kicl_ Guide Bar- 20" -358.356091 (not shown)

23

i i/jl ii1' I iii ii iiiiiiii i

i1,1 i ........ i ,,_1 •i ,, i, _, ,

!. TROUBLE SHOOTING CHART

TROUBLE

ENGINE WILE Nor START

ENGINE WILL Nor IDLE

PROPERLY

ENGINE WILL Nor

ACCELERATE,LACKS.

POWER OR DIES

IN THE CUT

CAUSE

ENGINE SMOKES

EXCESSIVELY

ENGINE RUNS HOT

OIL INADEQUATE FOR

BAR AND CHAIN

LUBRICATION

IDLE SPEED

1. ignition Switch off,

2. Fuel tank empty.

3, Spark Plug not firing. .-

4, Fuel notreeching ce_uretsr.

5. Engine flouded.

6. Compre-_ion low.

...,,

1. Idlespeed set too low.

2, Idte speed set teo high,

3, Low speed screw requires adjustment•

4. Crankshaft seals Wom.

5. Compression low.

,,, .,, ,..,.w

1, Carburetsr requiresadjustment.

2. Air flJteris dirty.

3. Spark plug fouled,

4. Carbon build-up an exhaust ports,

5. LowCompression

1, O{1rich fuel mixture.

2. Chokeparfiaily on.

3. Highspeedn_'dle requiresadjustment.

4. Airfilterdirty.

5. Crankcaseieak.

1. Fanhousingdirty,

2. FuelMixtureincorrect.

3. HighSpeedMixturesettoolow.

4. Carbonbuild:uponsparkarrestorscreen.

REMEDY

1. 'Move switchto "Start:'

2` Filltank with conrsctfuet mixture.

3. Installnew plug,

4. Check for dirty fuel filter;siean. Check for

kinked or split fuel line; repair or replace.

5. See Starting instructions.

6. Contactyour Sears Sendce Center.

, ,,,,,,,,,,,,,

1. Adjust idle speed screw clockwise to

increase speed.

2. Adjust idle speed screw counterclockwise to

reduce speed.

3. See Carburetor Adjustments.

4, Contact yourSears Service Center.

5. Coelact your Sears Service Center.

1. See Carburetor Adjustments.

2, Clean or replace air filter.

3, Clean or replace SparkPlug'and regap.

4. Contact your Sears Service CenteL

5. Contact y_ur Sears Service Center.

, ,,,....,,.,,

1. Empty fuel ta:nkand rsfill with correct fuel

mixture.

2. Push Choke in,

3. See Carburetor Adjustments,

4. Clean or replace air filter.

5. ContaCtyour Sears Service Center,

1. Clean fan housing.

2. See Engine Fuel Mixture.

3. See Carburetor Adjustments.

4. Clean spark arrestor screen.

5- Spark Plug incorrect. 5. Repfacewithoormctplug.

6. Carbonbuiid-uponexhaustports. 6. ContactyourSeamServ_eCenter.

1. Oil tank empty. I. FUloiltank.

2. Impmpedyadjuaiedoiler. ,

3. Oil pump or oil filter clogged.

4. Guide bar oil hole blocked.

1. Idle speed requkesadjustment.

2. Clutch requires repair,

, , ,,,,,,,,, •,, ;

CHAIN DOES NOT MOVE

"WHEN ENGINE,S

•ACCELERATED "- "

" "AtNC Tr RS'0R

CUTS ROUGHLY

CHAIN STOPSWITHtN

THECUT

CHAIN CUTS AT

AN ANGLE

WBRA ONIN.EASES

2. Adjust oiter.

3. Contact you_Sears Sen/ice Center.

4. Remove bar and clean.

', ,,,,,J,........ , ......

1• "see Carburetor Adjustment_

2. Contact your Sears Service Center.

1." Chain tension too tight.. L1. SeeChaJn Tension.

!2. Carburetor mquires adjustment. 2. SeeCarburetorAdjustments,

• 3.: Guide bar r=ils pinched. 3. Repair or replace, ,

4. Clu_chstipping: 4. ContactyoursearsServiceCenter,

,,,, ,,,u .......................... ,,_

1. Contact your Sears Service Center.

2. See Chain Tension.

3, Resharpen orreplece chain.

4. Contact your Sears Service Center.

5. See Chain Sharpening Instrustions.

t

1. Cuttem damaged afterstriking foreign

matedaL

2. Chain tension incenrect orloose.

3. Chain wear due to contact withdirt, sand or

metal object inwood.

4. Sprocket worn.

5, Cutters dull, improperly sharpened; depth

gauges toohigh,

, ,,,,,, , ,,,,,,,,,.......... , , ,,,,,,

1, Chain cutter tops not filedflat. 1. SeeChainSharpeninglnstructions.

2`. Guide bar burred or bent; rait uneven. 2. Repair or reptace Guide Bar.

3. Clutch slipping, 3. Contact your Sears Service Center.

1. Cuttersdamagedononestde. 1. Resharpen until all cutters have equal angles

and lengths.

Re.sharpen tmti!alt cutters haveequal angles

and lengths.

Replace guide bar.

Gentact your Sears Sentice Center.

Contact ,yourSears Service Center.

r

2. Chain dull on one side, 2.

3. Guide bar bent, orworn. 3.

1. Vibration isolatorsworn 1.

2, Vibration iso!atom ripped, tom separated 2,

orout-of-round.

24

,lllllllliIiIii i i ii i lll ,i ,m,,, ,,,,,,,,,,,,,,, ..............

d. MAINTENANCE CHAFIT

Completemachine

Throtiletrigger,safetythrottlelock.stopswitch

Filtarin fueltank

Fuel tank

Chainoiltank

Chainlubrication

Saw chain

!Guide bar

Visualinspection(cond_on,leaks)

Clean

Checkoperation I- x"

CleanFelt

Replacefelt+-- whencloggedordirty

=

x X

x

"x

x

X

X

X

Clean . x

Clean x

Check

X

X

xIX

Inspect( sharpness,wear,damage)

Check chain tension

Sharpen -- whendull

Inspect(wear,damage)

Clean when chain is rem_,d for

maintenance

Lubricatesprocket nose .

Deburr

Replace-- whenwornordamaged

Chainsprocket Check x

Clean x

Ai[fllter ..........................

Replace-- whenwornoidamaged

Exhaustports Clean x

Cylinder fins :Clean x

Check idleadjustment-

Carburetor chainmustnotturn x x

g

Spark plug

All accessible,screwsandnuts

(notadjusting screws)

Vitiation mounts

Spark arrestor screen

Readjustidle-- whenchainturnsatidle

Replace-- whenfouledordamaged

rRetJghten

! inspect(tears, rips,separation,

¢uFof-round)

Replace-- whenwornordamaged

inspect

Replace-- whenworn ordamaged._

X

x

X

25

NOT[5

26

NOTES

27

SEARS CHAIN SAW REPAIR PARTS-MODEL NO. 358.356091-3.7/20"

MODEL NO. 358,356101-3.7/18"

19

49

14

16

23 36

,25

26

29

,oI

44

36

46

I01_

37

I

64

62

28

SEARS CHAIN SAW REPMR PA_TS-MODEL NO. 358.356091-3.7/20"

MODEL NO. 358.356101-3.7/18"

KEY KEY PART

NO, DESCRIPTION NO. NO. DESCRIPTION

I

2

3

4

5

6

7

8

9:

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

PART

NO,

530-039()95 Flywheel Ass'y. (Incl. #2) 37 530-015365

530-023817 Starter Dog Spring 38.- 530-030073

STD522525 Screw 39 530-015195

530-015434 Screw 40 530-025933

530-024476 Spur 41 530-024492

530-001626 Washer 42 530-001624

530-001722 Flywheel Nut 43 530-039096

530-015468 Screw 44 530-010626

530-015123 Washer

STD600603 Screw 45 STD580008

530-030054 Crankcase Sealant 46 530-015366

530-042066 Recoil Spring Inner Disc 47 530-039097

530-024329 Recoil Spring Bushing 48 530-039071

530-042051 Starter Recoil Spring 49 530-039102

530-042053 Recoil Spring Outer Disc

530-015364 Screw 50 530-010444

530-010720 Fan Hsg. Ass'y, 52 530-024334

•530-024392 Muffler Shield 53 530-039093

530-024391 Muffler Cover

STD522505 Screw 54 530-015425

530-024385 Spark Arrestor Screen 55 530-023661

530-024384 Muffler Diffuser 56 STD600603

*530-019097 Crard_sha ft Seal 57 STD511007

STD600603 Screw 58 530-023732

530-024232 Air Baffle 59 -

530-028487 Starter Pulley 530-039099

530-024388 Muffler Back Plate 530-039115

530-024387 Muffler Body 60 530-023575

530-032051 Crankshaft Bearings 61 530-024858

530-015354 Thrust Washers 62 530-031107

530-030039 Bar Stud Replacement Kit 63. 530-069190

530-042056 Starter Rope Handle

530-069233 Rope Kit 64 530-066648

530A012067 Cylinder

*530-019129 Cylinder Gasket

Crankcase Ass'y. (Incl. 101 530-026468

#23,29,31 & 50 o/_ tl-ds

page;also includes from

page 31, #22,30,37.&

43)

530-010696 358,356091

530-010699 358,356101

Screw

Spark Plug (CJ-8Y)

CUp

,Piston Ping

Crankshaft and Rod Ass'y,

Screw

High Tension Lead

Piston Ass'y. Kit (Incl, #40

and pin)

Flywheel Key

Screw •

Spark Plug Boot

Spark Plug Connector

High Tension Lead Ass'y.

(Incl.#43,47, &48)

OilCap Ass'y.

High Tension Lead Clamp

ignition Module (incl. #49

59)

Screw

Lead Clamp

Screw

Screw

Toggle Switch

Switch Lead

(3/16)

(i/4)

Ignition Switch Nut

Start/Stop Plate

Scrench

Gaske_Kit (*IndicatesCon-

tents)

Operator's Manual

" Fan Hsg. Decal

*Indicates Contents of Gasket Kit #691tP_ 29

SEARS CHAIN SAW REPAIR PARTS-MODEL NO. 358.356091-3.7/20"

MODEL NO. 358.356101-3.7/18"

39

45

"18 46

101 47

"-- 19 48 •

MODEL

358.356101

3.7/18"PS (ONLY)

49

102

3O

22

\23

32

34

103

4O

12

43

44

42

12

CARBURETOR ASSEMBL]

PAR_F NO. 530-035094

/

SEARS CHAIN SAW REPAIR pARTS-MODEL NO. 358.3-56091-3.7/20"

MODEL NO. 358.356101-3.7/18"

KEY PAinT KEY PART

NO. NO, DESCRIPTION NO. NO. DESCRIPTION

1530-025919

2 STD511003

3 530-010347

4*530-019107

5 530-024229

6*530-019101

7530-015194

8530-012056

9 530-024383

10 530-035094

11 *530-019099

12 530-015462

13 530-024373

14 530-024376

15 530-025258

16 530-024349

17 530-015414

18 530-069216

19 530-091878

22 *530-019122

23 530-010286

24 530-012055

25 530-024357

26 530-032053

27 530-025469

28 530-015245

Choke Rod

Screw

Bracket & Bushing Ass°y.

Carb. Adaptor Seal

Adaptor

Gasket

Screw

Handle Brace

Choke Wire

Carburetor Ass'y.

Gasket

Screw

Isolator

Isolator Cup

Spacer

Carb. Seal Bracket

Screw

Line Kit

Fuel Pie'k-Up Ass'y.

Seal

Fuel Tank Ass'y_ (Incl.

#19 &34)

Right Rear Handle

Throttle Lock

Bushing Throttle Lock

Trigger Spring

Screw

*Indicates Contents of Gasket Kit, Key No. 62, p. 29.

_ll ii i ul.,i,iiiHiii .II.IN i i .

II[lllllll[I]]] I I UII Ill [llll

29 * 530-019104 Seal Adaptor

31 530-032059 Bushing

32 530-024699 Throttle Link

33 530-015168 Screw

34 -530-010331 Fuel Cap Ass'y.

36 530-026013 Throttle Trigger

37 530-015369 Screw

38 530-024482 Knob

39 - Carb. Cover Ass'y.

530-024976 358.356091

530-025486 358.356101

40 530-024378 Throttle Lock Spring

.41 530-012054 Left Rear Handle

42 530-015403 Screw

43 530-015393 Screw

44 530-015608 Screw

45 530-024877 Retaining Ring

46 530-024548 • Air Filter

47 530-019123 Gasket

48 * 530-025895 Cylinder Shield

49 530-025425 Adjusting Knob

(358.356101)

I01 - Starting Instructions Decal

530-026872 358.356091

530-026871 358.356101

102 530-025586 Sharpening Instructions De-

cal (358.356101)

103 -Replacement Bar & Chain

Deca!

530-026883 358.356091

530-026882 358.356101

,,,,i i lilll .ill li,.lll illNil

Jill |]llllll I II llllllllllllllll..ll i

Carburetor Assembly

Part No. 530-035094

KEY PART

NO. NO. DESCRIPTION

51 530-035102 Throttle Valve

52 +530=035015 Screw

53 530-035123 Fitting

54 530-035119 Throttle Ret. Spring

55 530-035101 Throttle Shaft Ass'y.

56 530-0351 t5 Screw

57 530-035099 Fuel Pump Cover

58 0530-035109 Fuel Pump Gasket

59 + 530-035113 Fuel Diaphragm

60 + 530-035069 Inlet Screen

61 + 530-035111 Circuit Gasket

62 530-035106 Inlet Needle Valve

63 + 530-035118 Mtrg. Lever Spring

64 + 530-035097 Throttle Lever (Outer)

65 530-035125 Throttle Lv. Bushing

66 : 530-035105 Throttle Stop

67 _'530-035107 Choke Friction Ball

KEY PART

NO. NO.

68 +530-035022

69 +530-035124

70 +530-035096

71 530=035126

72 +530-035116

73 +o530-035108

74 +530-035114

75 530-035098

76 +530-035021

77 530-035104

78 530-035103

79 530-035121

80 530-035117

81 530-035122

82 530-035202

83 530-035112

84 530-035127

DESCPdPTION

Choke Friction Spring

,Check Valve Screen

Screen Retaining Ring

Circuit Plate Ass'y.

Circuit Plate Screw

•Mtrg. Diaphragm Gasket

Mtrg. Diaphragm Ass'y.

Mtrg. Diaphragm Cover

Mtrg. Cover Screw Ass'y.

Choke Valve ,

Choke Shaft Ass'y.

Idle Screw Spring

Idle Adj. Screw

Hi &Lo Needle

Mixture Needle Retainer

Carb. Gasket Kit (olndieates

Contents)

Carb. Repair Kit (+Indicates

Contents)

31

SEARS CHAIN SAW REPAIR PARTS-MODEL NO. 358.356091-3.7120"

MODEL NO. 358.356101-3.7/18"

21

102

See page 29, #36

22

/

5

6

.7

14

27 3_

33

43

44

52

54

55

Chain

Repair

Kit

I

72

47

48_

I01

58 _ 65

61

56

63

57

•60

MODEL 358.356101

3mlS"PS (Only)

I IIIllll

See page 29, #36

%

69

32

SEARS CHAIN SAW REPAIR PARTS-MODEL NO. 358.356091-3.7/20"

MODEL NO, 358.356101-3.7/18"

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO DESCRIPTION

1 STD511003

2530-024351

3 530-024348

5 530-015357

6 530-032049

7530-048069

530-048071

8530-024465

9530-024353

10

530-010291

530-010466

11 530-024352

12 530-026246

530-025428

13 *530-023373

14 530-024347

15 530-024225

16 STD511005

17 530-023356

18 STD583037

19 530,023357

20 530-024467

21 530-015509

22 530-069185

23 *530-019103

24 530-002615

25 530-019029

26 530-015418

27 530-023358

28 530-069062

29 530-024677

30 530-021038

32 530-023699

33 530-022197

34 530-010289

35 530-024676

36 530-021031

37 530-002464

38 530-024691

39 *530-024345

Screw

Bracket

Manual Oile, Lever

Thrust Washer

Clutch Bearing

Dnnn & Sprocket Ass'y.

358.356091

358.356101

Clutch Plate

(358.356091)

Clutch Spring

Clutch Ass'y. (Incl.

#9,11 &12

358.356091

358.356101

Shoe Clutch

ClutchSpider

358.356091

358.356101

Oiler Rod Boot

Manual Oiler Rod

Crankcase Side Isolator

Screw

OilPump Cap

-Oil Pump Retainer Ring

Oil Pump Plunger

Handguard Cap

Screw

Oil Vent Replacement

Kit

Gasket

Oiler Tubing Nut

Oil Pump Quad Ring

Washer

Oil Pump Spring

Oil Pump Service Kit

Auto/Manual (Incl#17,

18,19,24,25,26,27,30,

32,33,34,37,38,39,

40,41,&42)

Oil Line Protector Spring

Discharge Oil Line

Diaphragm Spring

Button and Pintle Ass'y.

Oil Line Pick-Up Ass'y.

(Incl. #29,35 and 36)

Oil Pick-Up Line Weight

Oil Line

Sleeve - 1/8 Tubing

Oil Pump Vent Filter

Oil Pump Diaphragm

40 *530-019102

41 530-025987

42 530-015297

43 530-015422

4.4 530-025925

46 STD510810

47 530-024399

48

530-010727

530-010741

•49 530-025924

50 STD600603

51 530-024466

52 530-022258

53 STD522510

54 71-36867

71-3639

55 71-30583

71-36370

56 530-015362

57 530-024373

58 530-024376

59 530--025044

60 530-015445

61 530-015361

62 STD581018

63 530-025414

64 -530-015385

65 530-015391

66 530-048071

67 530-o15484

68 952-004746

69 530-025421

70 530-069099

71 STD511005

72 530-052079

101 530-026468

102 530-026849

-530--026550

Gasket

Pump Cover

Screw

Tubing Nut

Inner Guide Bar Plate

Screw

Oiler Cover Plate

Bar Clamp Hsg. Ass'y.

(Incl. #59,62,63 & 64)

358.356091

358.356101

Outer Guide Bar Plate

Screw

Handguard

Handlebar Ass'y.

Screw

Chain

358.35609.!

358.356101-Inel. #70

Bar20" SN-358.356091

18" SN-35_.356101

Isolator Mount Spacer

Front Handlebar Isolator

Front Isolator Cups

Bar Adj. Pin

Flange Nut

Spacer

ERing Adj. Screw

U-Clip

Screw

Screw

Clutch Drum &Adaptor

Ass'y. -(7 Sptine

v3/8P)-(358.356101)

Plate Clutch (358.356101)

-FMmLng Rim Sprocket (318P

- 7 Tooth) (358.356101)

Slide Button

Stone &Carrier Ass'y.

(Incl. #69) -(358.356101)

Screw- (358.356101)

Chain Repair Kit

(358,356101 Only) Op--

tional

Bar Clamp Hsg. Decal

Handguard Decal

Chain Tensioning Decal

Not Shown

*Indicates Comems of Gasket Kit, No. 63, p.29.

33

NOTES

34

QUICK REFERENCE PAGE

Read and follow all Safety Rules, Precautions and Operating Instructions.

Failure to do so can result in serious personal injury.

page

SAFETY RULES AND PRECAUTIONS .................................. .. ......... 3-5

PREPARATION 3-5

1. Wear personal protective gear -, gloves; safety footwear; snug fitting clothing; and eye,

hearing and head protection•

2. Check for worn, loose; missing or damaged pads and repair or replace as necessary.

3. Check the chain for sharpness and tension.

4. Keepchildren,bystanders and animals a minimum of 30feet (10meters) awayfrom the w0rkarea.

5. plan your sawing operation carefully in advance. -.

AND OIL 9 loFUEL

1. Eliminate all sources of sl_arks or flame where fuel is mixed, poured, or stored,

2. Use 16parts regular, unleaded gasoline to 1 part air-cooled, 2-cycle engine oil.

3. Use gasoline not over 2 months old.

4. Mix and pour fuel in an approved, marked containerand in an outdoorarea. _

5• Move a minimum of 10feet (3 meters) away from fueland fueling site before starting engine.

6. Fill "" " _",,.,e O_1ta..._ each time the fuel tank is refueled.

STARTING THE ENGINE ........................................................ 11

1. Set saw on flat ground with the saw chain free to turn without making contact with any object.

2. Hold front handlebar with left hand and place right foot through rear handle to stabilize saw.

3, Use less than the full extent of the rope per pull.

4. Release the throttle detent button afterengine starts, allowing engine to idle.

•OPERATING THE SAW ......................................................... 14

1. Cut wood on!y.

2. Accelerate the engine to full throttle before entering the cut.

3. Begin cutting with the spur up against the logo

4. Cut only at full throttle.

5. Release the trigger as soon as the cut is completed•

6. Stop the'engine before setting the saw down after cutting.

MAINTENANCE ............................................................... 18

1. Adjust or have the carburetor adjusted if the chain moves when the engine idles.

2. Disconnect spark plug before performing maintenance except for carburetor adjustment, r

3. Check the guide bar for wear each time the chain is sharpened.

4. Clean the ai_ filter frequently and always after 10 tanks of fuel mixture or 5 hours of operation,

whichever is less.

5. Clean spark arrestor at least once for each 25-30 hours of operation•

6, Take the-saw to your Sears Service Center for full clutch inspection after each 100 hours

of operation.

7. Drain fuel tank in a safe manner before storing the unit for 30 or more days.

8. Store saw in a dry place out of the reach of children.

%

WATCH OUT FOR

KICKBACK

........ , ,,,,,, _ -

NOT USE

THE SAW WHEN

•IT NEED_EPAIR

1

NEVER USE THE SAW

WHEN TIRED J

USE A FIRM GRIP

WITH BOTH HANDS

, 35

TheModelNumberwill befound underthe handlewith the Serial

Number.AlwaysmentiontheModelNumberwhenrequestingser-

vice or repair parts for your Chain Saw.

operator's

manual

MODEL NO.

358.356091-3.7/20"

358.356101-3.7/18"PS

How to Order

Repair Parts

SEARS SERVICE

All parts listed herein may be ordered from any Sears Service Center

and most Sears. Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION AS SHOWN IN THIS LIST.

1. The PART NUMBER 3. The PART DESCRIPTION

2. The MODEL NUMBER

358.356091-3.7120"

358.356101-3.7/18"PS

4. The NAME OF ITEM

Chain Saw

If the parts you need are not stocked locally, your order will be

• electronically transmitted to. a Sears Repair Parts Distffbution

center-for handling.

When you buy merchandise

from Sears you get an extra

something that nobody else

can offer :.. Sears Service.

Across town or across th_

country, Sears Service follow_

you, providing trustworthy

competent" service technician.,

using 0nly Sears spe.cifie(

factory parts.

i,h

S(.aI s,_ebue and Co., Chieagx),llt 60684 U.S,A.

5302066648-5-21188 PRINTEDINU.t
