•,k

IMPORTANT MANUAL

• ,,IHI

manual

• Assembly

•Operation

• Maintenance

• Repair Parts

MODEL NO.

358-356280-2.8/18 '_

358.356330-3.3/20"

,_WARNING:

Carefully read and follow

Safety Rules, Precautions

and Operating Instructions.

Failure to do so can result

inserious personal injury.

........ t=- "-% -"•

530-067180-5.-01t30/90

Not Throw

SF_/_RS /I:RRFTSMRN_

'228/i8" ' 3.3/20"SAWGASOLINE CHAIN

Record in the space provided below the Model No. and Serial No. of

your saw. These numbers are located _n the starting instructions

decal.

,,,,,u

Model No. Serial No.

Away

Retain "th_se numbersforfuture reference:

Sears, Roebuck and Co., Cl_ea__,o_), Ill. 60684 U.S.A.

""'. '...........i"............... @Seats, Roebuck and C0., 1990

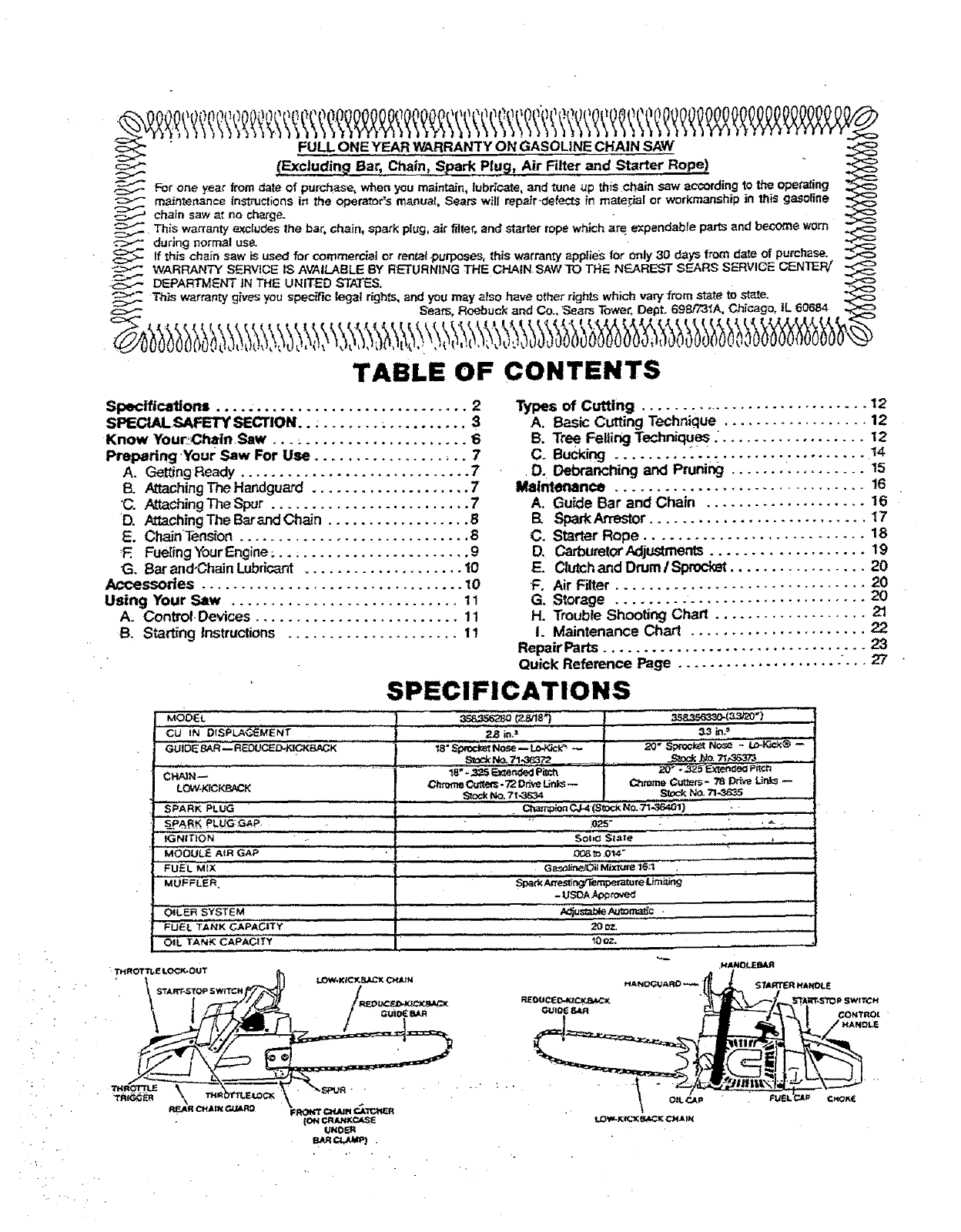

" F_NT ON GASOLINE CHAIN SAW

(Excluding Bar,. Chain, Sparl< pfu 9, Air Filter and Starter Rope) "

For one year from date of purchase, when you maintain, lubricate, and tune up this chain saw according to tf_. opeta_.:ng

maintenance instructiorts irt the operators m._nual, Sears will repair-defects in mate.r.ial or work:mansnip in mis ga.._,o_ne

chain saw at no ¢hatge. '

This warranty excludes the bar, chain, spark plug, air filter, and"starter rope which are e._endabie parts and become worn

during normal use_

If this chain saw is used for commercial er renlat pulposes, this warranty sppliek; for only 30 days from date of pumhase.

WARRANTY S_-J_VICE IS AVAILABLE BY RE't'URNI_IG THE CHAIN SAW TO THE N_REST SEARS SERVICE CENTER/

<:>.-_ DEPAFTTMENT IN THE UNWED STATES.

This warranty gives you specific legal rights, and you may also have other rights which vary"from state to state.

Sears, Roebuck and Co., _ears Tower, Dept. 698F/3_A, Chicago, IL 60684

TABLE OF CONTENTS

Sl_lflmitlons .... ;.......................... 2

SI=IECIAL._FEI_ SECTION... ....... ;.......... 3

Know Your:Chaln Saw ........................ 6

Preparing .your saw For Use ................... 7

A. GettingReady .............................. 7

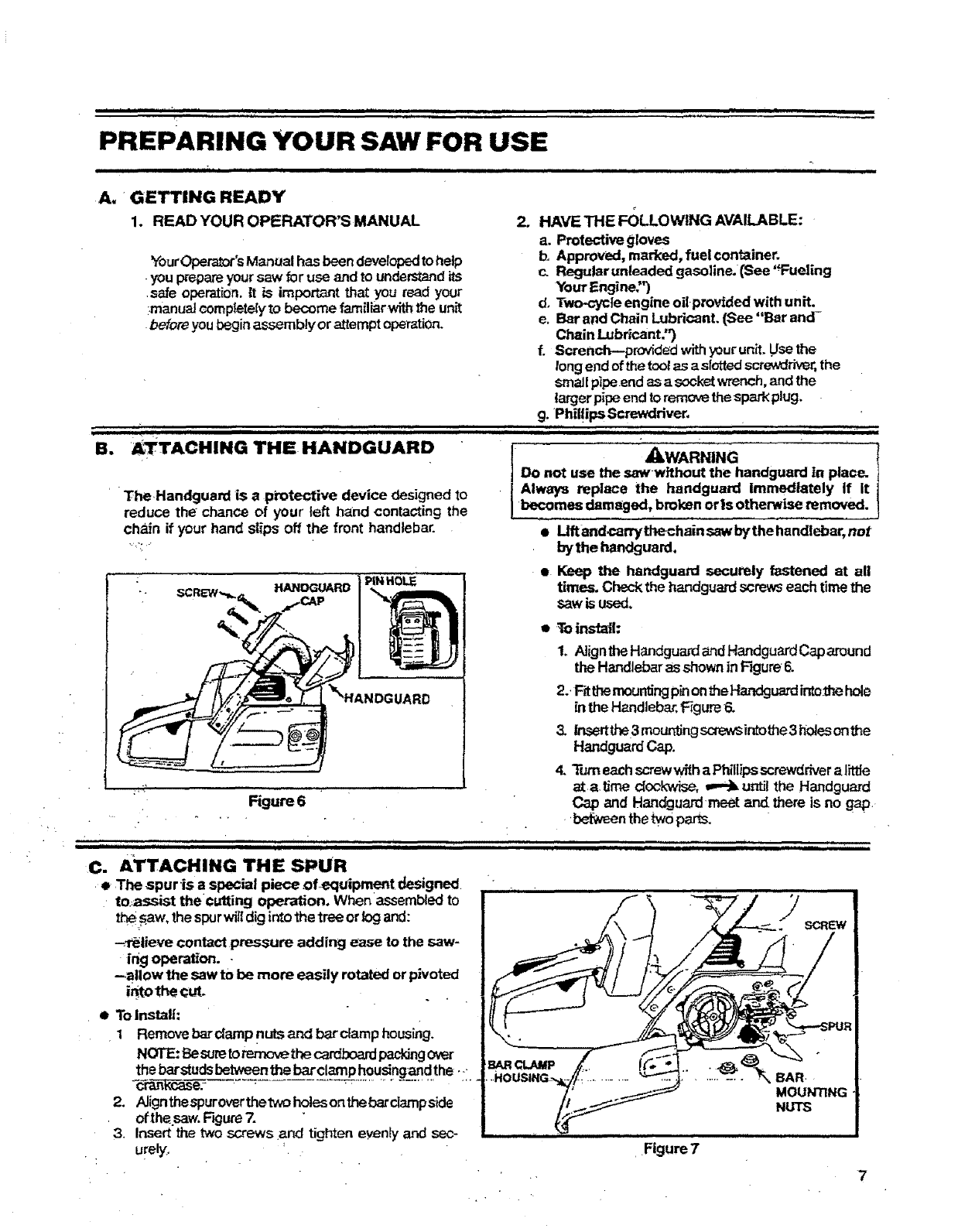

B. Attaching The Handguard .................... 7

"C. Attaching The Spur ......................... 7

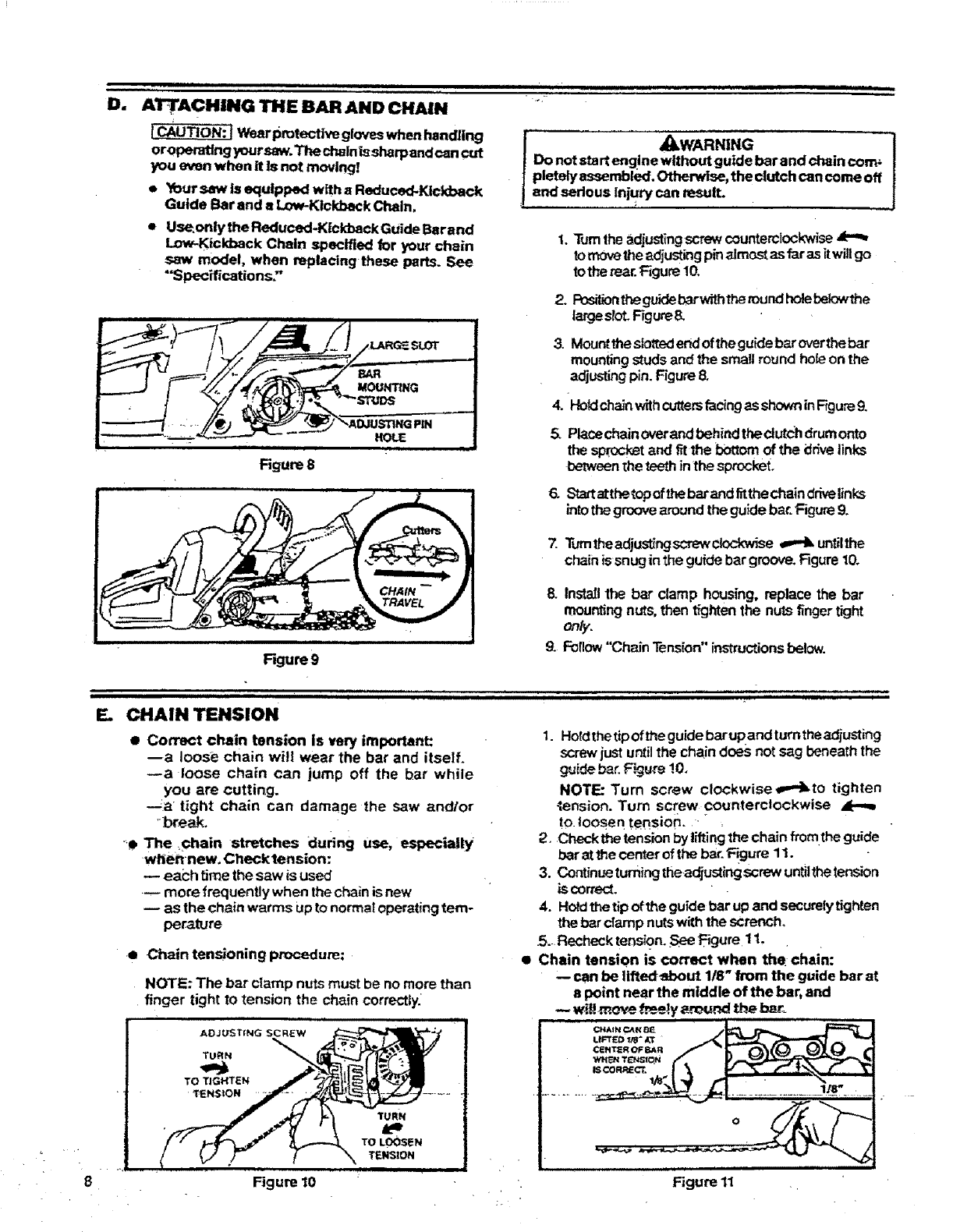

D. /k_'mchingTheBarandOhain .................. 8

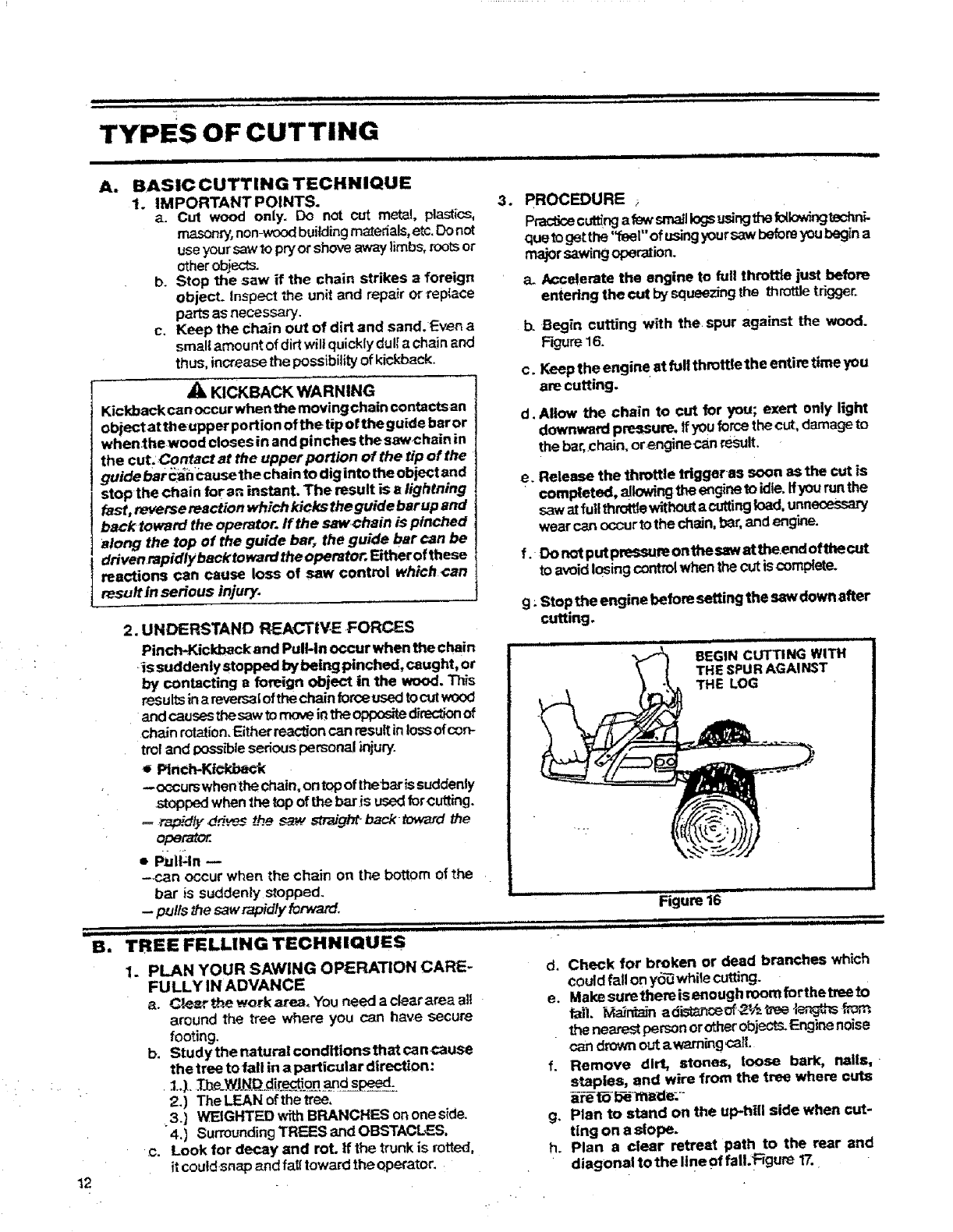

Types of Cutting ....... ...................... 12

A, Basic Cutting Technique .................. 12

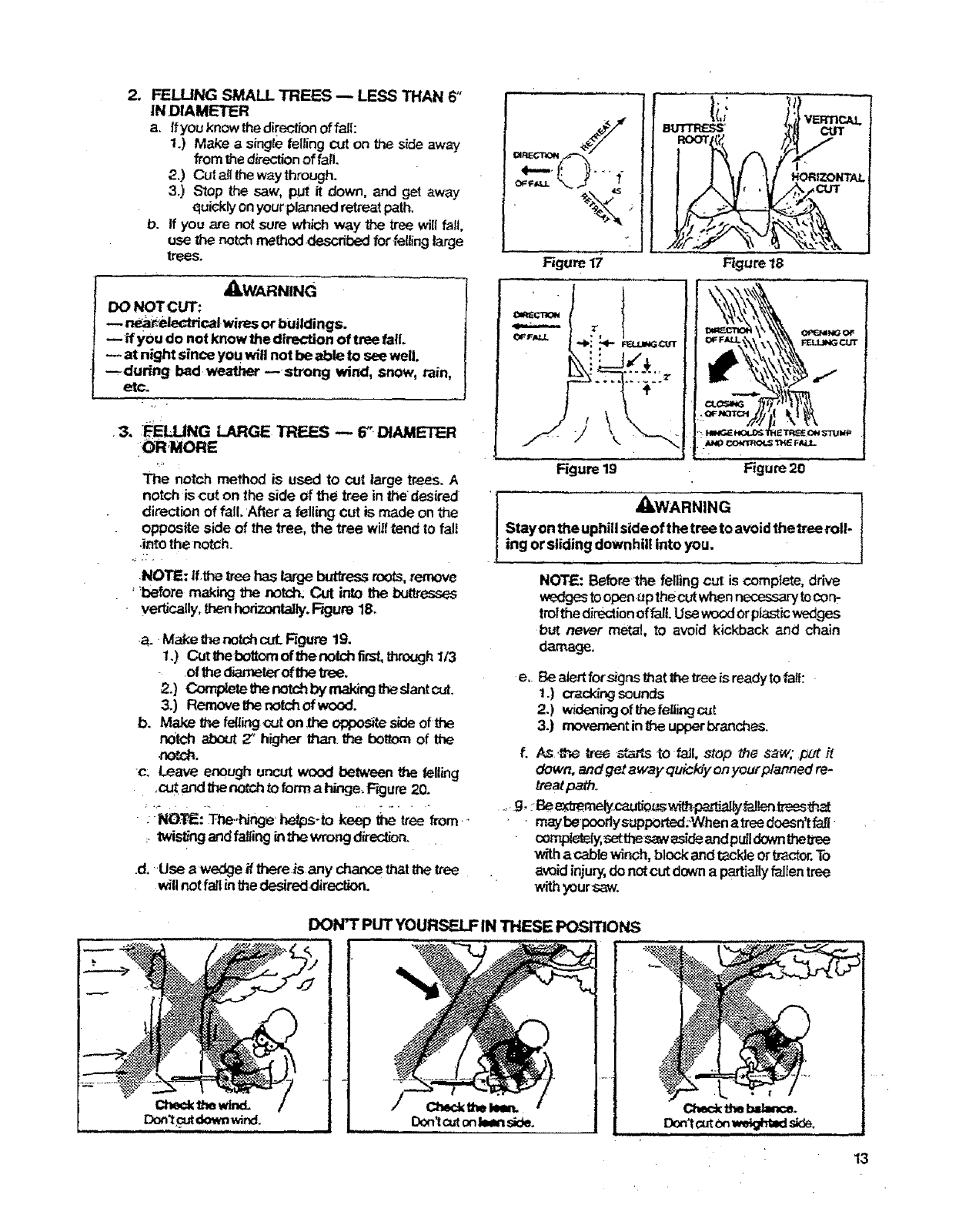

B. Tree Fel|ing Techniques . .................. 12

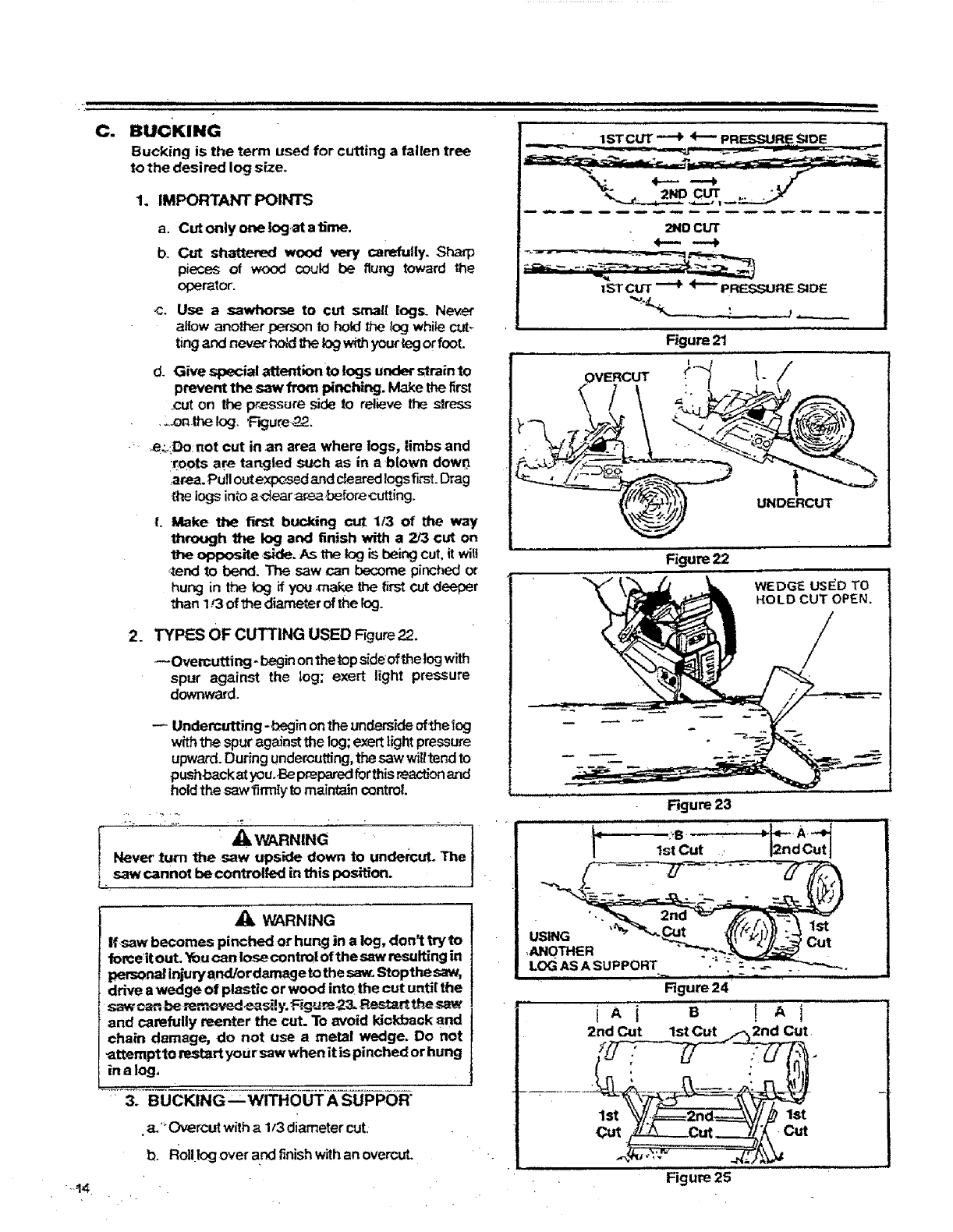

C. Bucking ............ - ........ ........... _4

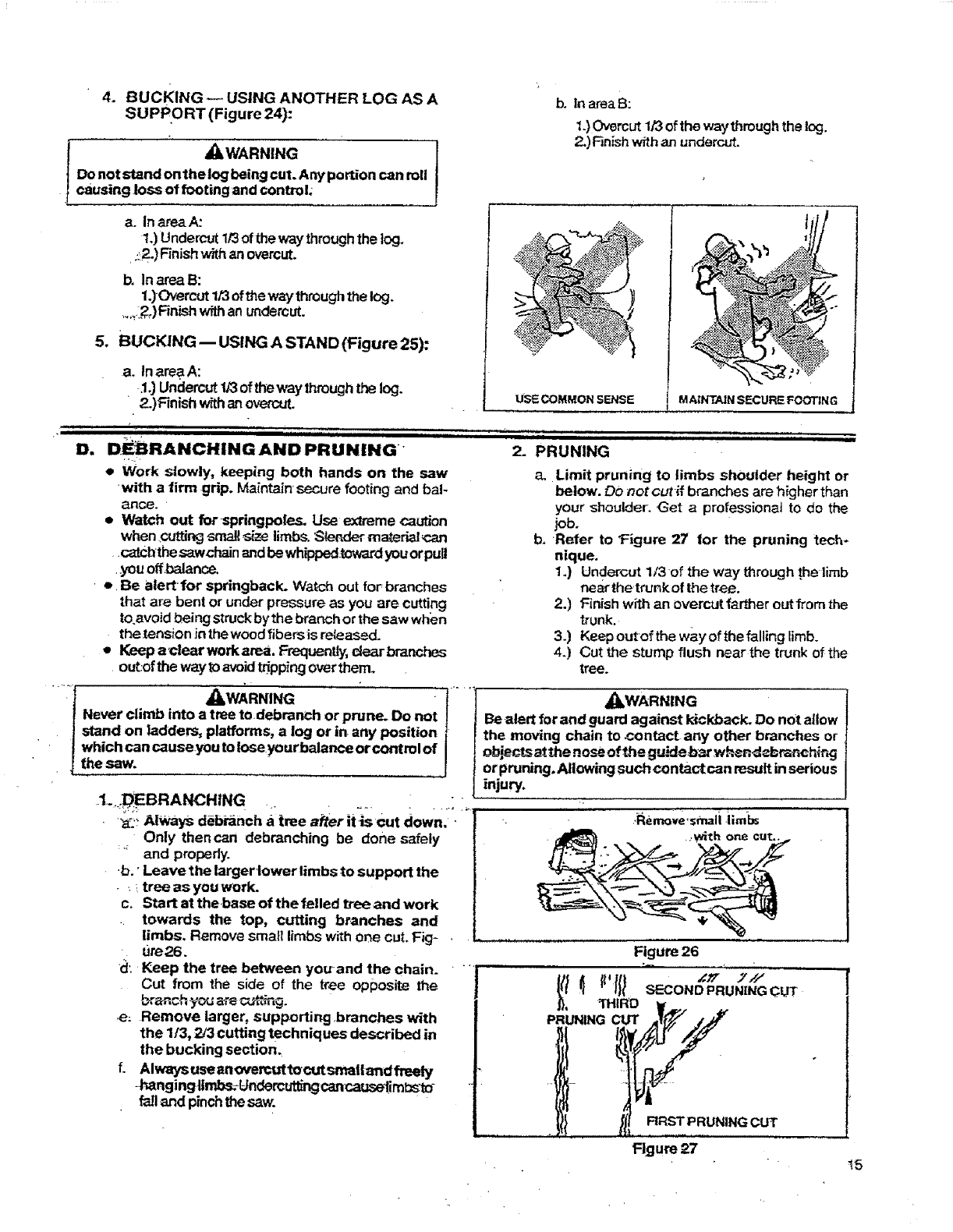

O. Debranching and Pruning ................. 15

Mal(,_mance ............................... 16

A. Guide Bar and Chain .................... 16

RSpark Arrestor ........................... 17

E. ChainTension ............................. 8

:E FuelingYourEngine; ........................ 9

G. Bar and_hain Lubricant .................... 10

Accessories ................................. "tO

Using Your Saw ............................ 1

A. Control Devices ......................... 11

C. Starter Rope ........................... 18

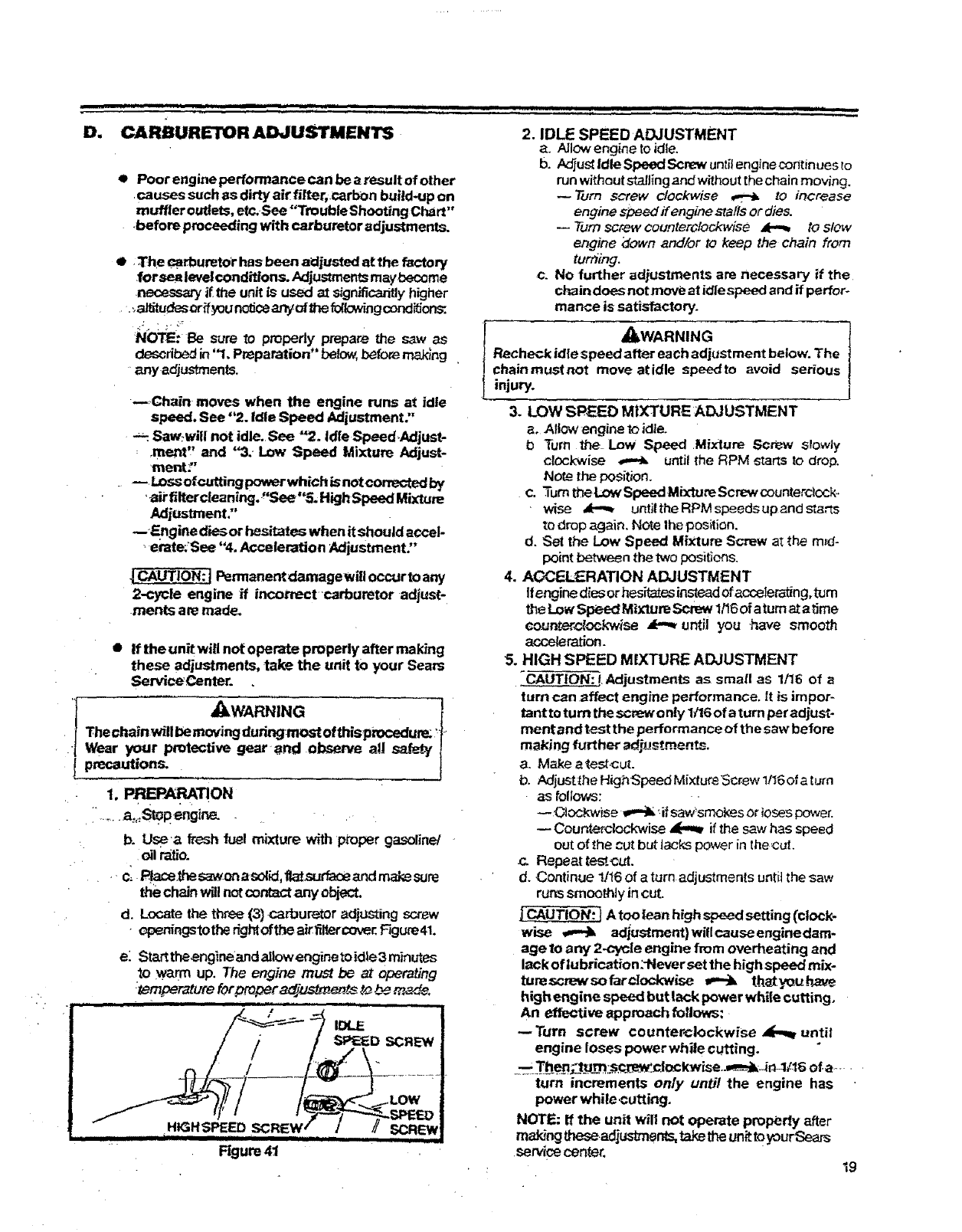

D, CarburetorAdjustments................... 19

E. CILr_ch_u'(dDrum ISprocket ................. 20

F, Air Filter ............................... 20

G. Storage ............................... 20

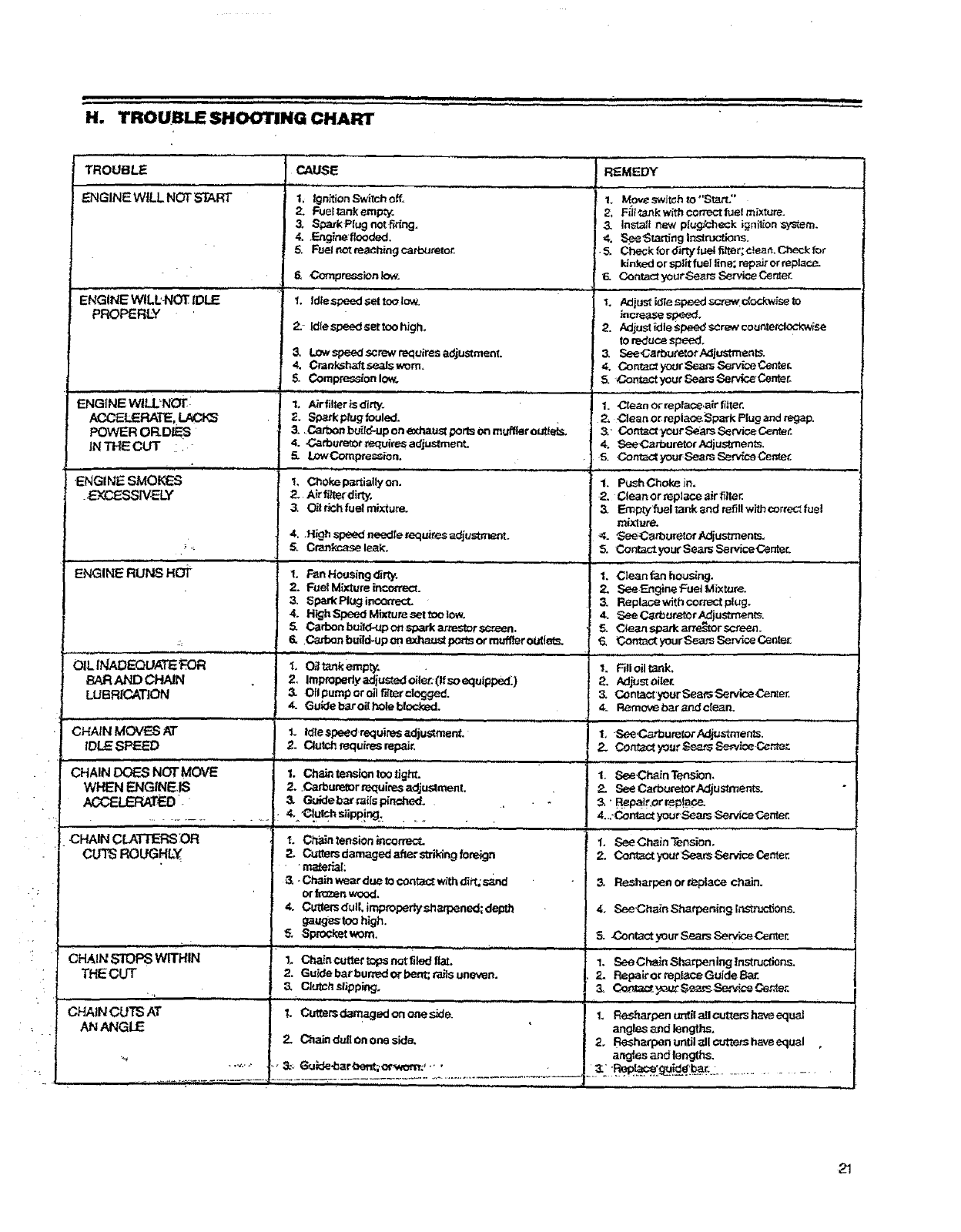

I-f. Trouble Shooting Chart ................... 21

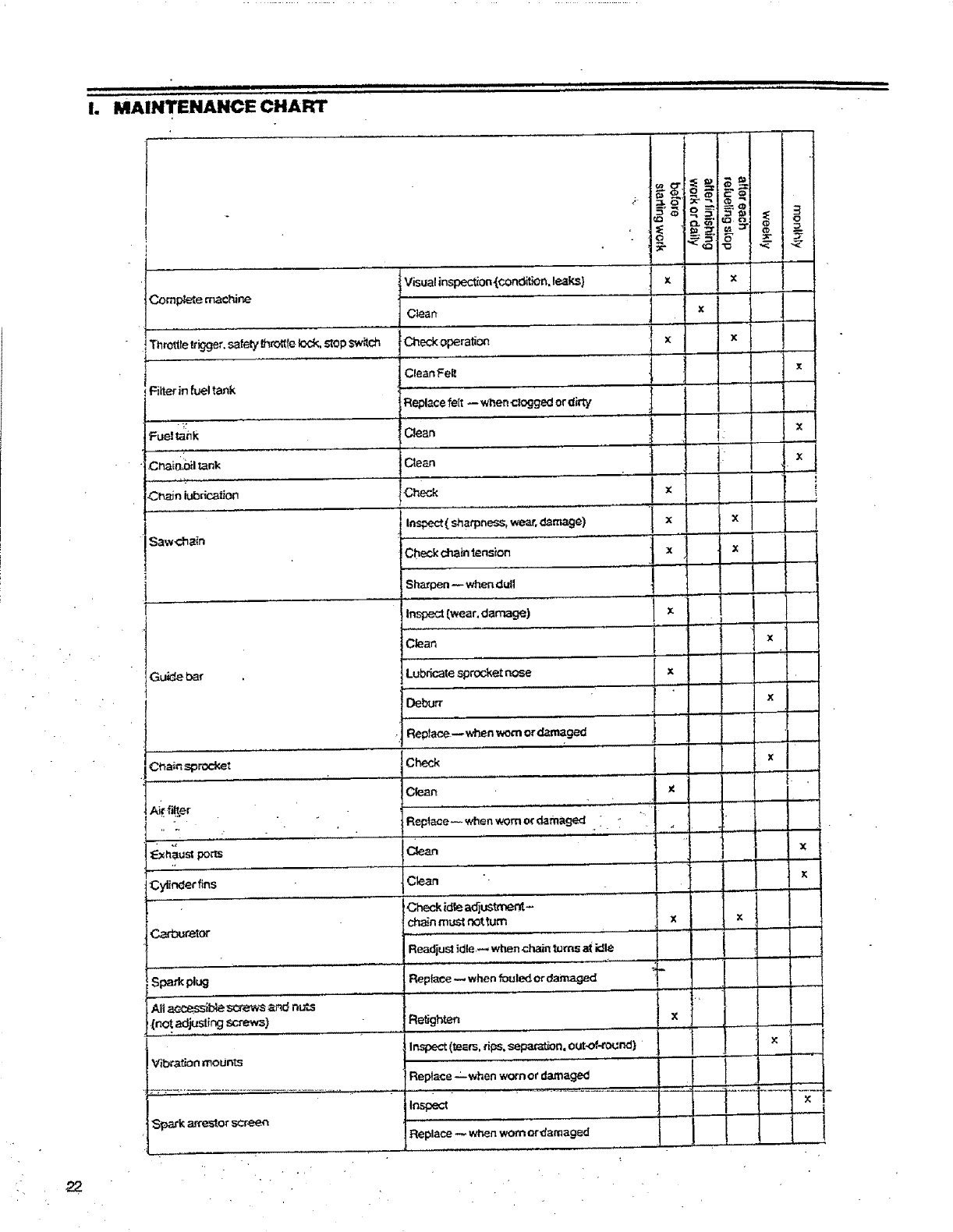

B. Starting Instruclions ..................... 11 I. Maintenance Chart ...................... 22

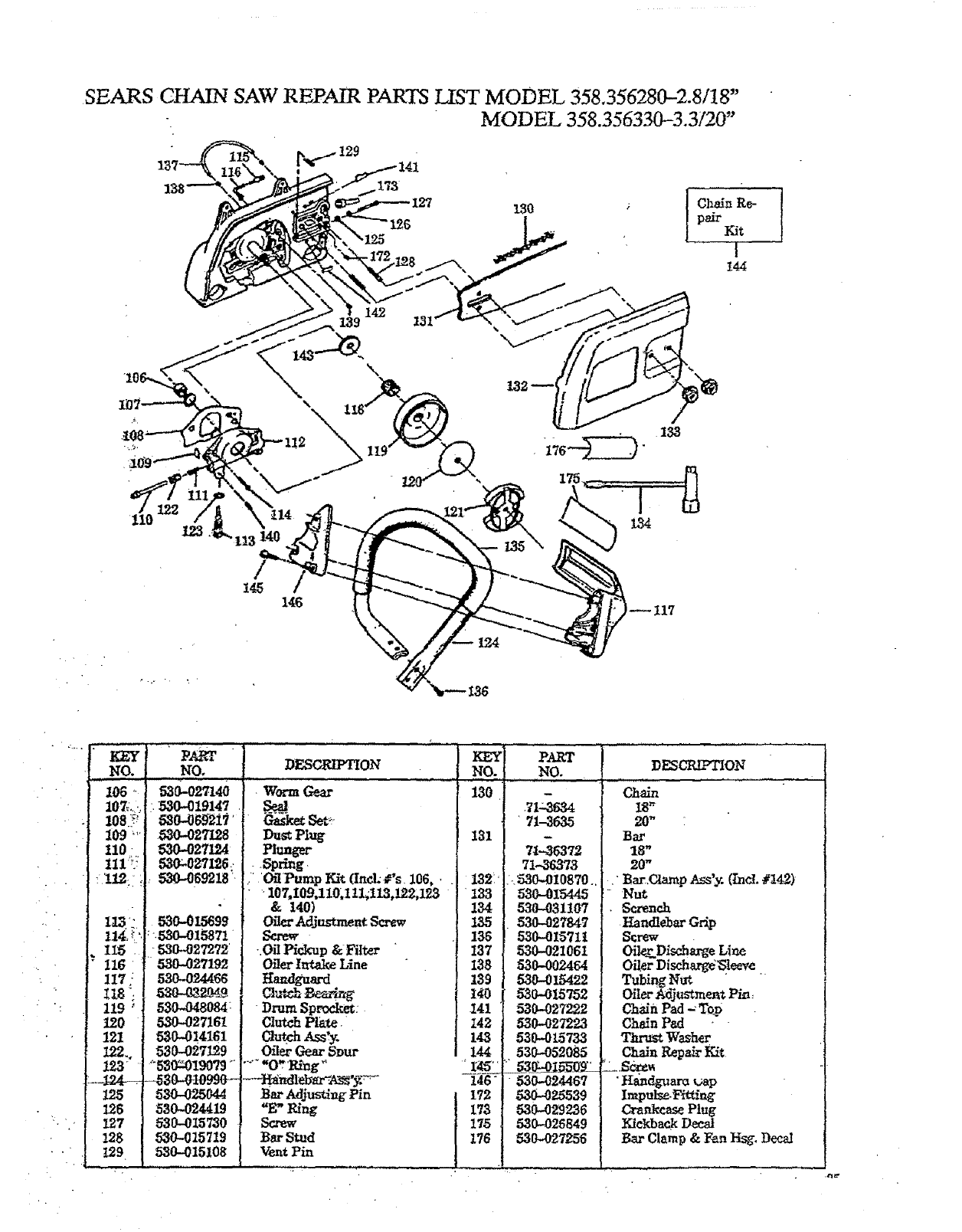

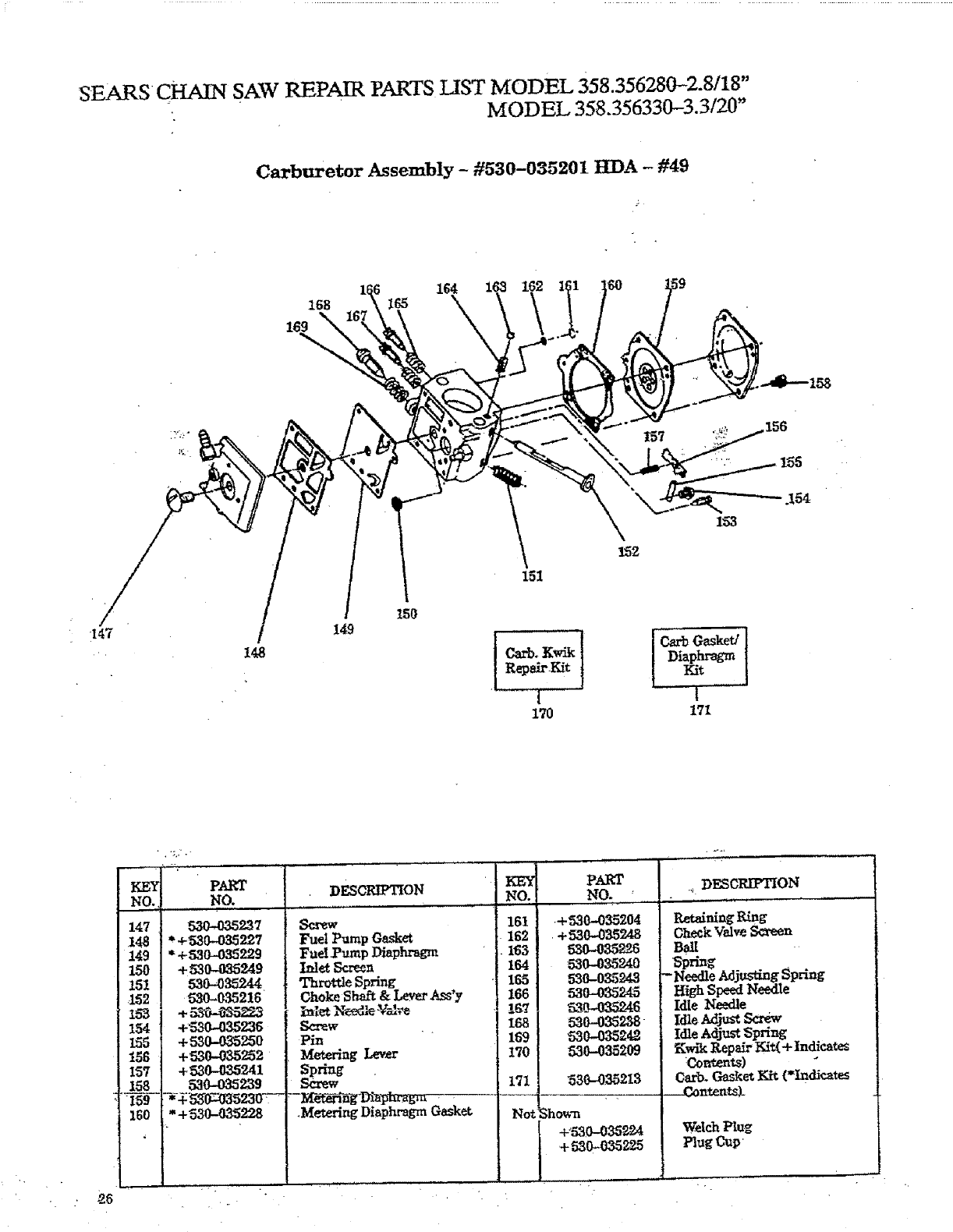

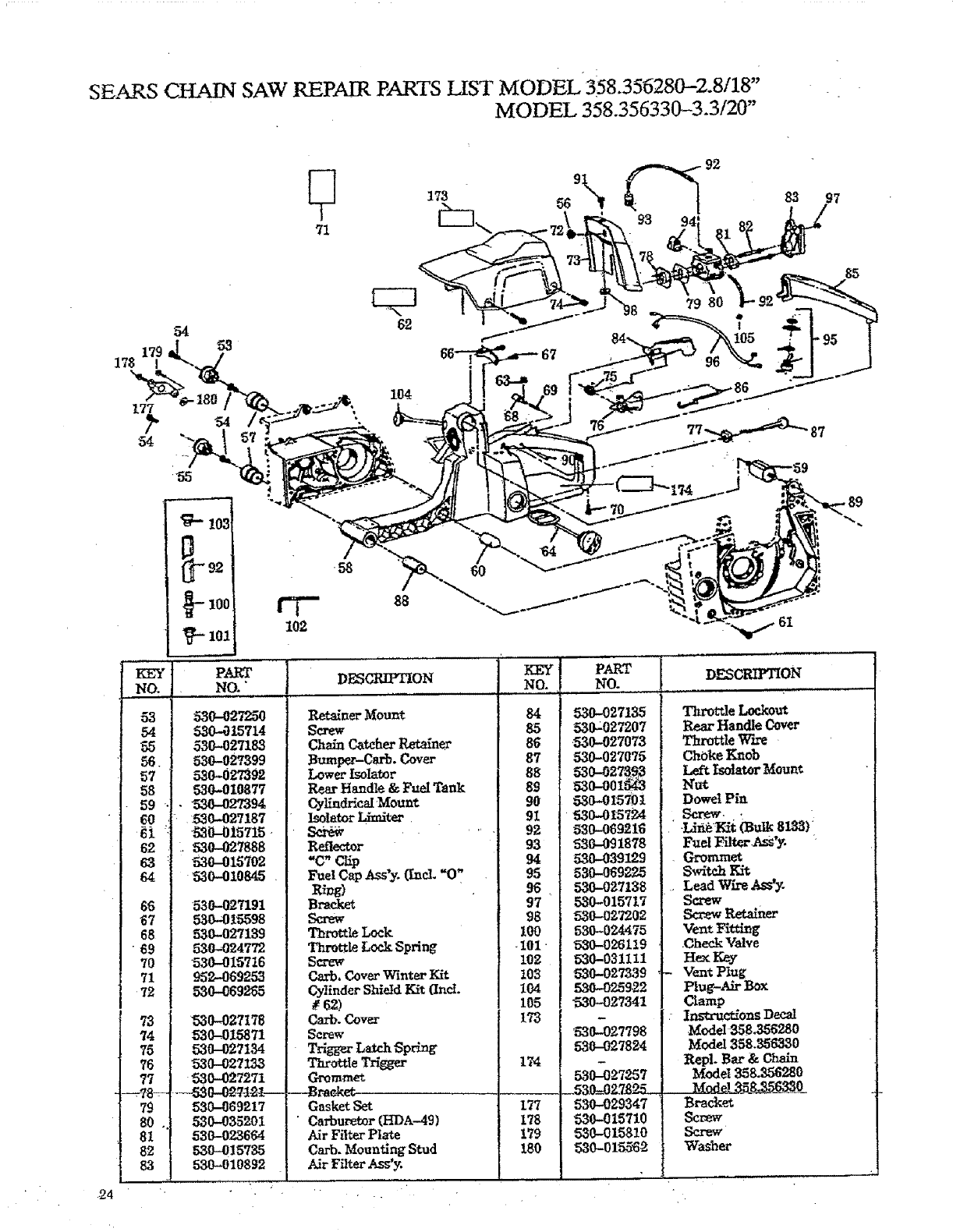

Repair Parts ................................. 23

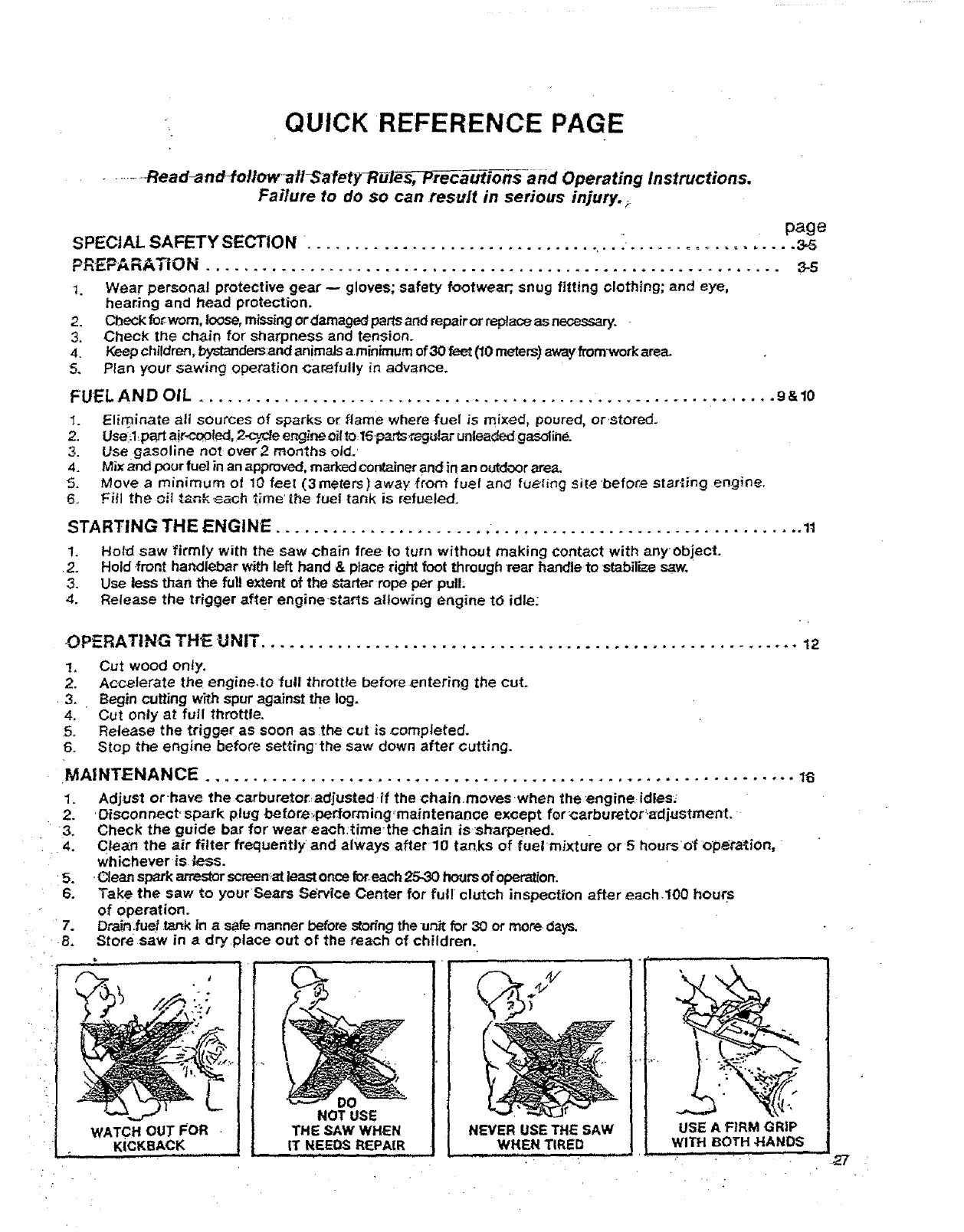

Quick Reference Page ........................ 27

iii ii , , i iiii i,,11 i

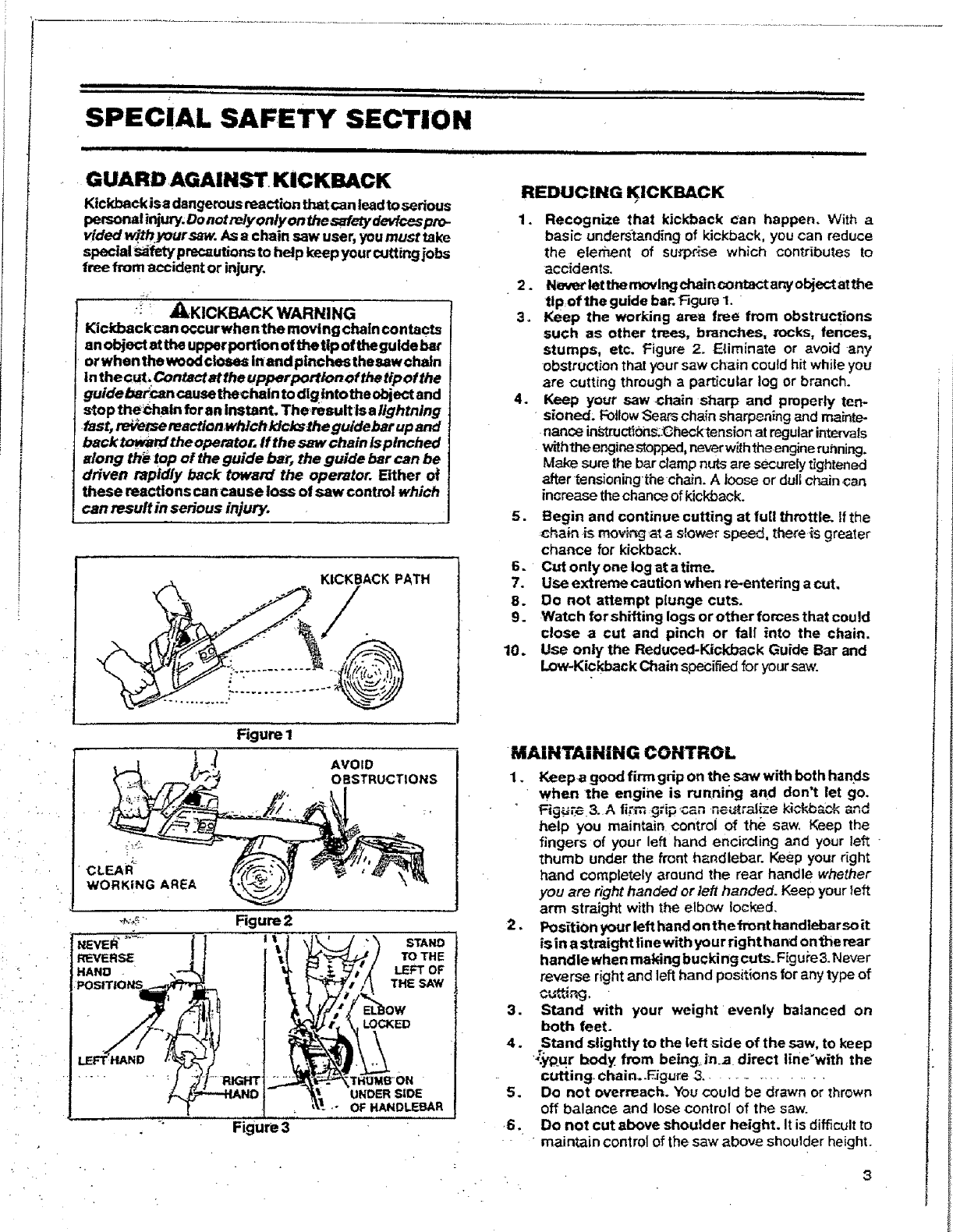

SPECIAL SAFETY SECTION

i]11 i ii ii "i

GUARDAGAINST. KIC KBACK

KickbackJsa dangerous reaction that(an le_d tosedous

personal injury. Do not reJy only on the safety devtces pto-

vided withyoursaw. As a chain saw user, you must take

special safety pre_utions to help keep your cutting jobs

free from accident or injury.

!"' _I_KICKBACK WARNING

Kickbackcanoccurwhenthe moving chain contacts

an object at the upper portion of the tip of thegu Ide bar

or whenthe wood closes Inand pinches thesewchain

ln the cut _Contact at the upperportion of tim tip ot the

guideba_can cause thechain to dig tntothe object and

stop the_haln foran Instant. The_result Is a lightning

fast, teVetse reaction,whlch kicks the guldebar up and

back toward the operator. If the saw chain is pinched

along th_ top of the guide bai; the guide bar can be

driven rapidly back toward the operator. Either of

these reactions can cause loss of saw control which 1

can msult in serious injury, j

KICKBACK PATH

.................. ! ...........

REDUCING K,ICKIM, CK

1. Recognize that kickback can happen. With a

basic understanding of kickback, you can reduce

the element of surprise which contributes to

accidents.

2. Ne_r let the moving chain contact any object atthe

tlpof the guide bar. Figure 1.

3. Keep the working area free from obstructions

such as other trees, branches, rocks, fences,

stumps, etc. Figure 2. Eliminate or avoid any

obstruction that your saw chain could hit while you

are cutting through a particular log or branch.

4. Keep your saw chain stzarp and properly ten-

sloned. FotlowSears chain sharpening and mainte-

nance in_rucg0ns:(3heck tension at regular intervats

withthe engine stopped, neverw_ththe enginerunning.

Make sure the bar cJampnuts are securely tightened

after tensicningthe chin. A loose or duli chain can

increase the chance of kickback.

5. Begin and continue cutting at full throttle. If the

chain-is movi_'_ga'_aslow_, speed, there is greater

chance for kickback,

6. Cut only one log at a time.

7. Use extremecaution when re-entering a cut,

8. Do not attempt piunge cuts,

9. Watch forshifting logs orotherforcesthat could

close a cut and pinch or Pall into the chain.

10. Use only the Reduced-Kickback Guide Bar and

Low-Kickback Chain specified for your saw.

Figure 1

AVOID

OBSTRUCTIONS

"CLEAR"

,. WORKING AREA

Figure 3

_"_STAND

/TO THE

.','/( LEFTOF

,\ THESAW

iE_LOW

T_raMB"ON

INDERSIDE

OF HANDLEBAR

MAINTAINING CONTROL

1. Keepa good firm grip on the saw with both hands

when the engine is running and don't let go.

Fig_.3. Afi;_mgrip ,can neutral!ze kickback and

help you maimain control of the saw, Keep the

fingers of your left hand encircling and your left -

thumb under the front h_,ndlebar. Keep your right

hand completely around the rear handle whether

you are right handed or left handed. Keep your left

arm straight with the elbow locked.

2. Position your left hand on the front handlebar soit

is in a straight line with your right ha nd on the rear

handle when making bucking cuts. Figure 3.Never

reverse right and left hand positions for any type of

3. Stand with your weight evenly balanced on

both feet.

4. Stand slightly to the left side of the saw, to keep

'_'pur body from being.,in adirect line'with the

cutting, chain..Eigure 3 ..............

5. Do not overreach. You could be drawn or thrown

off balance and lose control of the saw.

•6, Do not cut above shoulder height. It is difficult to

_"maintain control of the saw above shoulder height.

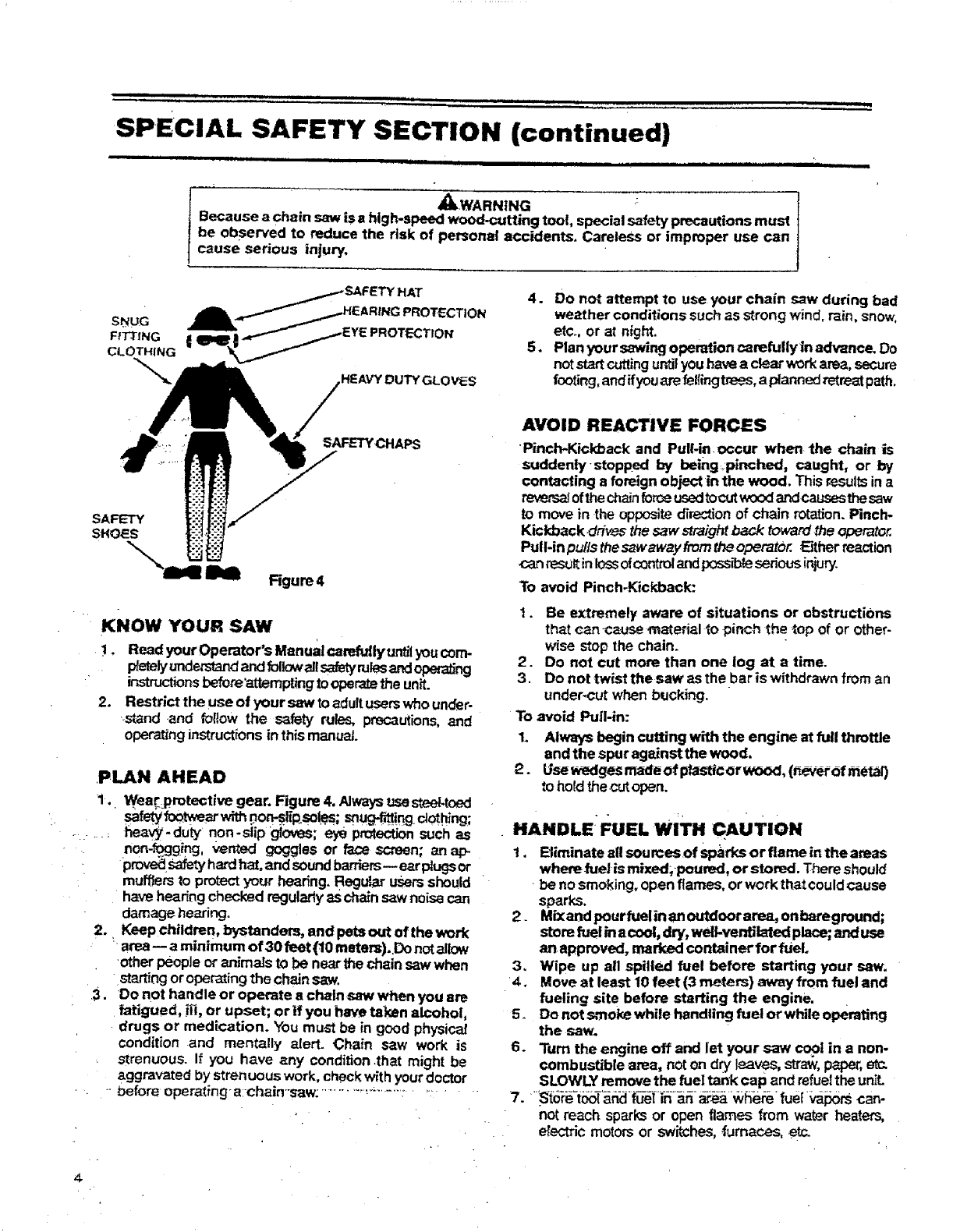

sPECIAL SAFETY SECTION (continued)

i ii ,,,,,i iii ...............

_.WARNtNG : j

Because a chain saw is a hlgh-speed wood-cutting tool, special safety precautions must

De ooserved to reduce the risk of personal accidents. Careless or improper use can

c_use serious injury.

HEAVY DUTY GLOVES

4. DO not attempt to use your chain Saw during bad

weather conditions suchas strongwind, rain, snow,

etc. or at night.

5. Plan your sawingoperation carefullyin advance. Do

not startcuttingur_ityouhavea clearworkarea,secure

footing,andifyouarefal(ingtrees,aplanned retreatpath.

Figure4

KNOW YOUR SAW

!. Read yourOperator's Manual camfuflyuntilyoucorm

ptetely_mde,'_d andfolk_walls_atyroles_,_dopera,rig

instruotionsbefore'attemptingtooperatethe unit.

2. Restrict the use of your saw to adultuserswhounder-

.stand .and follow the safety rules, precautions,and

operatinginstructionsinthis manual.

PLAN AHEAD

1. Wear protective gear. Figure 4, Alwaysusesteel.toed

safetYfootwearwithpoP_p.sot_; snug.#__!n9clothing;

t_eav_-duty non-slip g_oves;eye protections_Jchas

non-.f_j_ping, _ented goggles or face screen; an ap-

provedSafetyhardhat,and soundbarriers_ear plugsor

mufflersto protectyour hearing. Regu]_ usePsshould

have hearingchecked regularlyaschainsawnoisa can

damage hearing°

2. Keepchildren, bystanders, and pets out of the work

'area -- a minimum of 30 feet (10 meters). Do notallow

other people oranimals to be nearthe chainsawwhen

startingor operating the chain saw.

3. Do not handle or operate achain saw when you are

fatigued, ii|, or upset; or if you have taken alcohol,

drugs or medication. You must be in good physical

condition and mentally alert. Chain saw work is

strenuous. If you have any condition.that might be

aggravated by strenuous work, checkwith yourdoctor

-before operating-a:chain-saw: ............_.........:.......

AVOID REACTIVE FORCES

Pinch-Kickback and PuIFin occur when the chain is

suddenty-stopped by being_pinched, caught, or by

contacting a foreign object in the wood. This results in a

_ofthe chainfor_e used tocut wood ar_lcausesthe saw

to move in the opposite direction of chain rotation. Pinch-

Kickback drives the saw slraight back toward _operator.

Pull*inpul/s_esawawayfromtheoperatOr. Either reaction

can result in lossofc_r_ol and poss_te sedous injury.

To avoid Pinch,Kickback:

t. Be extremely aware of situations or obstructions

that can _se mate,_ial _opinch the top of or other-

wise stopthe chain.

2. Do not cut more than one log at a time.

3. Do not twist the saw asthe bar is withdrawn from an

under-cut when bucking.

To avoid Pull-in:

1. Always begin cutting with the engine at full throttle

and the spur against the wood.

2. Usewedges made of plasticor _, (_er Of metal)

to hotd thecutopen.

HANDLE FUEL WiTH CAUTION

1. Etiminate all sources of spad(s or flame in theareas

where fuel is mixed, poured, or stored. There should

•be no smoking, open flames, or work that could cause

sparks.

2. Mix and pourfuelin an outdoor area_ on bateground;

store fuel ina coot, dry, well-vent,.ated place;,and use

an approved, marked container for fuel.

3, Wipe up all spilled fuel before starting your saw.

4, Move at least 10 feet (3 meters} away from fuel and

fueling site before starting the engine.

5. Do not smoke while handling fuel or while opereting

the saw.

6. Turn the engine off and let your saw cool in a non-

combustible area, not on dry leaves, straw, p_er, etc.

SLOWLY remove the fuel tank cap and refuelthe unit

7. -'St_'r:e-t_"a_J_;__K _;_vV_e_e fuel_rS can-

not reach sparks or open flames from water heaters,

etectric motors or switches, _urnaces, etc.

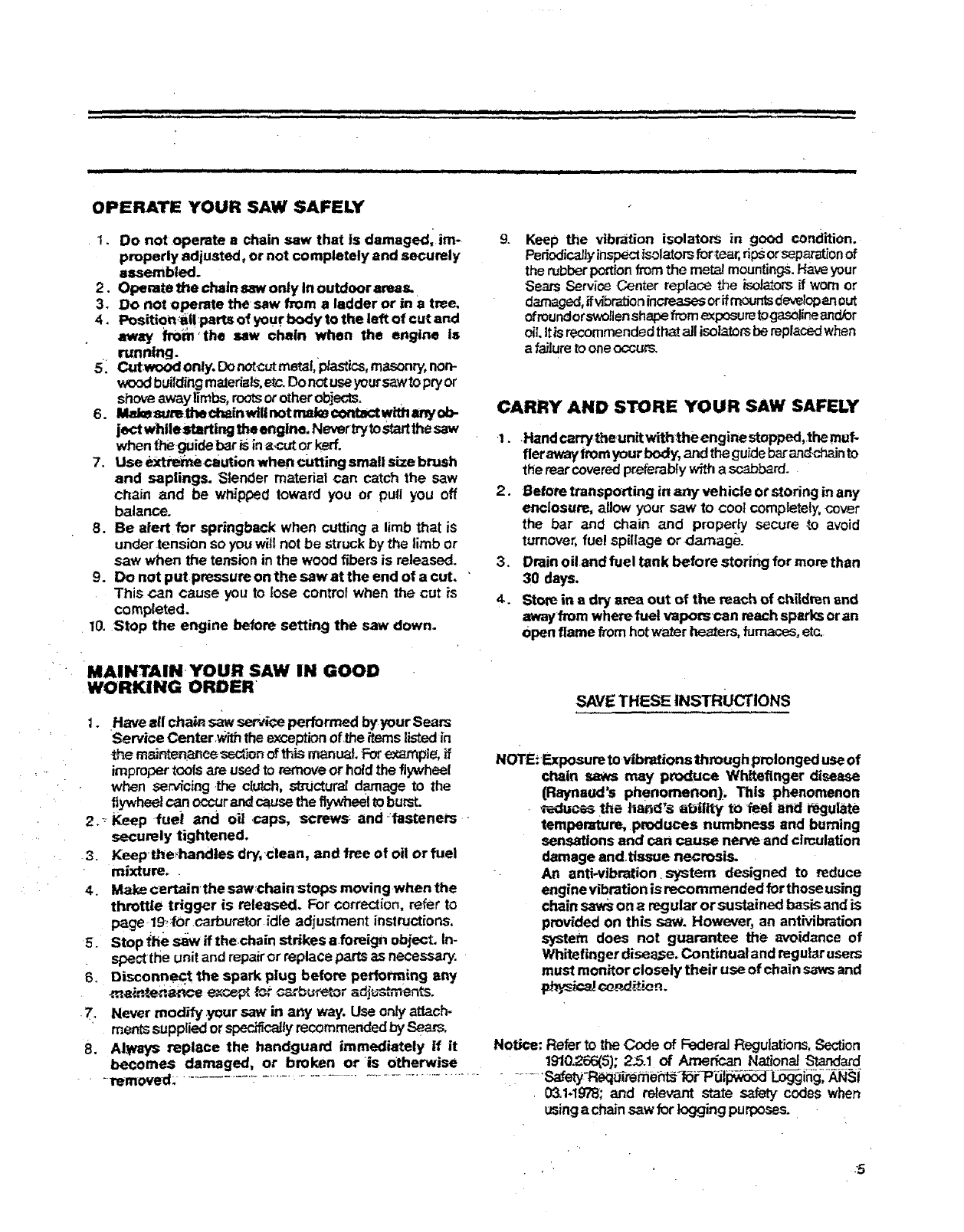

OPERATE YOUR SAW SAFELY

1. Do not operate a chain saw that is damaged, im-

properly adjusted, or not completely and securely

assembled.

2. Operate the chain saw only In outdoor areas.

3. Do not operate the saw from a ladder or in a tree,

4. Position_8!!parts of your body to the left of cut and

away froth'the saw chain when the engine Is

•running.

5. Cutwood onty.Donotcutmetal,plastics,masonry,non-

woodbuildingmated_lsoetc.Do not useyour sawto pryor

shoveaway limbs,rootsorotherobjects.

6. Ma_stzre.the chain willnot mai_ €_XttactWithar_ ob-

ject while_arting the engine. Ne_rtryto startthe saw

when the guidebar isina-cut or kerr.

7. Use extremecaution when cutting small size brush

and saplings. Slender material can catch the saw

chain and be whipped toward you or pull you off

balance.

8. Be alert for springback when cutting a limb that is

under tension so you witlnot be struck by the limb or

saw when the tensionin the wood fibers is released.

9. Do not put.pressure on the saw at the end of a cut.

This can cause you to lose control when the cut is

completed.

10. Stop the engine before setting the saw down.

MAINTAIN YOUR SAW IN GOOD

WORKING ORDER

t..Have all chai_ saw service performed byyour Sears

Service Center .Withthe exception0fthe itemslistedin

the ma;'t_*enance._-ct_onof thismanual,Forexample,if

improperta0fsare usedto felt'roveor holdthe flywheel

when servicing.the clutch,st_'Ucturaldamage to the

flywheetcan occur andcause the flywhe!l toburst.

2. _Keep fuel and oil caps, screws: and fasteners

securely tightened.

3 Keep the_handles dry, Clean, and free of oil or fuel

mixture..

4. Make certain the sawchainstops moving when the

throttle trigger is released. For correction, refer to

page 19.for.carburetor idle adjustment instructions,

5. Stop fhe saw ff the.chaln strikes aforeign object. In-

spect the unit and repairor replace partsas necessary.

6. Disconnect the spark plug before performing any

m_t_..,.ten_ncee_ce_ fo,_ca,_bur_or a_t,.st ,m_nts.

-7. Never modify ,your saw in any way, Use onlyattach-

ments suppliedorspecificallyrecommendedby Sears,

8. AlWays replace the handguard immediately if it

becomes damaged, or broken or is Otherwise

removed; ............. :.............................................

Keep the vlbr_ion isolators in good condition.

Periodicallyinspectisolators fortea_,dpsor separationof

the rubberp_on fromthe metalmountings.Haveyour

Sears ServiceCenter replace the isolatorsif wornor

damaged,if vibrationincreasesorifmountsde.top an_ut

ofroundorswollenshapefromexposuretOgasolineand/or

oil itis recommended thatall isol_torsbereplacedwhen

afailure tooneoccur_

CARRY AND S_RE YOUR SAW SAFELY

.1..Hand carrytheunit with the engine stopped,Ihe muf-

flerawayfromyourbody, and theguidebarand.c%_into

tlie rearcoveredpreferablyv_h ascabbard.

2. Before transporting in any vehicle orstodng in any

enclosure, allow your saw to cool completely,cover

the bar and chain and properly secure _o avoid

turnover,fuel spillage or damage.

3. Drain oil and fuel tank before storing for morethan

30 days.

4. Store in adry area out of the reach of children _nd

awayfrom where fuel vapomcan reachsparks oran

Openflame fromhctwater beaters, furnaces,etc.

SAVE THESE INSTRUCTIONS

NOTE_-Exposureto vibrations through prolonged use of

chain saws may produce Whtteflnger disease

(Raynaud's phenomenon ). This phenomenon

_edu_-'_ the hatld's ability to fie_| _i_julate

temperature, produces numbness and burning

sensations and can cause nerve and clmulation

damage andttssue necrosis.

,An anti-vibration system designed to reduce

enginevibration is recommended forthose using

chain saws on aregular or sustained b_sisand is

provided on this saw. However, an antivibration

system does not guarantee the avoidance of

Whitefinger disease, Continualand regular users

must monitor closely their use of chain sawsand

phy_ca_cop_d_mn.

Notice: Refer to the Code of Federal Regulations,Section

1910.266(5);2_1 of American National Standard

r0_1-19"78;and relevant state safety codes when

using achainsaw forlogging purposes.

_ i i .i i i i ii i .iii ii ii Ull i ii i i iiiiiiiii Ji ,, ,, /,ii i

KNOW YOUR CHAIN SAW

i i i I i i .,,,,,,,,,,,,,,,,,,,, ,,,,,,,,,,,, ,,l,= ii i| i .. ,........

A. INTRODUCTION

Yoursaw has been designed with safety in mind and

includesthe followingf_atumsasstandard equipment:

Reduced-f<ickbackGuide B_ (Lo-Kick_)

_- Low;Kickback Chain (Ek:_Guard Link)

Spark Arrestor

"7 Temperature Limiting Muffler

Handguards

--Full Vibration IsolationSystem

_kWARN{NG

The following features areincluded on your saw to help

reduce the hazard of kickback, however, such features

will not totally eliminate this dangerous reaction. Asa

chainsawuser, do not rely only on safety devices. You

must follow all safety precautions, instructions and

maintenance in this manual to help avoid kickbackand

other fomes which czn result in serious injury.

IL KICKBACK SAFETY FEATURES

-- Reduced-Kickback Guide Bar, designed with a

smaIIradius tipwhichreducesthesizeofthekickback

danger zone on the bar tip. Figure 5. A Reduced-

Kickback Guide Baris one which has been demon.

strafed to significantly reduce the number and

, .seriousnessOfkickbackswhen testedin accordance

w_ththe safety requ,'ements for gasolinepowered

chainsav,sas setbytheAmer_cenNationa_Sta_dards

Institute,In_, StandardB175.1-1985.

-- Low.Kickback Chain, designed withacontoured

d,epth gaugeandguardlink whichdeflectthe kickback

force and _{Iowwoodtogradually fide intothe cutter.

•F'_jure5. Low-K'JckbackSaw Chain is chain whichhas

metthe kickback performance requirements ofANSI

B175.1when tested on a representative sampleof

chain saws below 3B cubic inch displacement

_fied _nANS! B175.1-198,5.(.Am,e,tcan Nativ,,a!

"Standard for PowerTools- Gasoline PoweredChaln

:. S_.:Safety Requirements).

• Handguard, designed to reducethe chanceofyour

}e_thandcor_cting the cha_ ffyourhandsfipsoffthe

frontlhandleb_.

-- Position of front arid rear handlebms, des_gr_ed

withdtstan_ebetweenhandlesand'_nline"wftheach

other.Thespr_ad _nd'_nline" position ofthel'_J_dle-

batsworktogethertogive balanc_and resistancein

- controllingthesaw if kickbackOccurs.

",_ WARNING

Do not operate the chain saw unless the safety

devices ortheir specified replacements are prepedy

installed and maintained according to the instruc.

:tioms.in/hismanual..Do-notusa. anyother-guide bar

and chain combination that is not equivalent to the

odginal equipment or not certified to comply with

_,NSIB175.1-1985.Fai{ureto follow these instructions

can result tn serious injury,

.............

wf/OU_O _XI_X S_rlm_1;rm?Ai.

S_attm_L

_Lt_l_S_J_

Figure 5

GUJ4_OU*_K

KK:KI_C_

IM0_ _1_

LOW_CREkt_ _m CUT.JR

C. STATE AND LOCAL REQUIREMENTS,

Yoursaw is equipped with _temperature limiting

. mufffe_ and spark a rmst{ng_reen which m_ts the

raqui_ments of California Codes 4442 and 4443.

A][ U.S. f_e_ {and and the statesof California,Maine,

Washington andOregon requiremany _nternalcombus-

_tionenginesto be equipped withaspark arrestorscreen

by law.Other statesare enacting s_milazlaws.

If you operate achain saw ina state or locale where

such regulations exist, you are legally responsiblefor

maintaining the operating condition of these parts.

F_ilure to do so is a violation of the law. See "Spar_

ArrestorS'inthemaintenance section.

D, CARTON CONTENTS

After you unpack the carton:

1. Check the contents against the list below.

2 Examine the items for damage.

3. NotiiyyourS_arsStoreimmediatelyffaP_rt_smtssing

or damaged.

NOTE: It is notmalto hearthefiJelfilter rafflein

an empty fuel tank.

KEY N0. CARTON CONTENT_: Qrl'yo

1 Powe_ Head ,:1

Z GuideBar

:3 8 OZ. can, 2-Cycle Engine Oil 1

-- Loose Part_Sag (not shown) 1

" LOOS_ PAR3_ £_,GCONTIENTS:

4 Handguar_ 1

.5 C_p-Handgu_rd 1

sScrews-Hat,guard(#_0__") 3

7 Spur 1

8 " Screw -Spur(#'_0- 24 x 5t8'_ 2

9 Chain "t

10 Scrench 1

_HexWr_,r:ch(Sr_")forS_,_-head

4 fan houslng_rews I

__ C_e_a_'s Mat_ua,[ (not shown) 1

PREPARING YOUR SAW FOR USE

i i HIII IIII I{ I

A. •GETTING READY

1. READ YOUR OPERATOR'S MANUAL

YourOperator's Manual has been developed to help

.you prepare your saw for use and to understand its

•safe operation, tt _s irnport,3nt that you mad your

;manuat ¢ornptete_yto become familiar with the unit

before you begin assembly or attempt operation.

2. HAVE THE FOLLOWING AVAILABLE:

a. Protective gloves

b, ApproVed, marked, fuel container.

Regular unleaded gasoline. (See "Fueling

Your Engine;')

d, Two-cycle engine oil provided with unit.

e. Bar and Chain Lubricant. (See "Bar and-

Chain Lubricant")

f. Screnc_rovided with your unit. Use the

long end of the tool as aslotted screwdriver, the

srnaJIpipe end as asocket wrench, and the

larger pipe end to remove the spark plug.

g. PhifiipsScrewdriver.

'.i i iiiiiii i i" i " i i i Jl,,, ,

B' ATTACHING THE HANDGUARD ............ :...........................:...................... "

_WARNING I

DO not use the saw without the handguard in place.

Always replace the handguafd immediately if It

The.Handguard is a protective device designed to Jbecomes damaged, bmi0enorls otherwise n_moved,

reduce the chance of your left h_nd contacting the

chain if your hand Slips Offthe front handlebar. •Llftandcarrythechainsawbythehandlebar, not

.:r bythe handguard.

• Keep the handguatd securely fastened at all

times, Checkthe handguardscrewseach time the

sawis used.

C. ATTACHING THE SPUR

e The ,spuris a special piece ofequipment designed

to,assist the cuffing operation. When assembledto

tl_ _saw, the spurwif{dig into the tree orlog and:

-_lr_lievecontact pressure adding ease to the saw-

[ngoperation.

-allow the saw to be more easily rotated or pivoted

i_o the cut.

• ToInstall:

1 Removebarclampnutsand bar ctamphousing.

NOTE:Besureto_the cardboardpecldngover

the barstudsbetweenthe barclamphousingandthe ._-

2. Align thespuroverthetwo hol_ onthebar dampside

of the_.saw,F_jure7.

3. Insert the two screws and tighten evenlyand sec-

urely

• Toinstath

1. Atignthe Handguan_andHandguardCaparound

the HandlebarasshowninRgure 6.

2. Rt themountingpinontheHandguazdinto_'_hole

inthe Handlebar.F_gure6.

3. lrksertthe3 mountingsaev,sintothe3 h01eson/_e

HandguardCap.

4. "rumeachscrewwitha Ph{liipsscrewdrivera littie

at a.time dock'wise,_--'JL untilthe Handguard

Cap and Handguardmeet and there is no gap.

_n thetwo pans.

,,,,,, ,'I"',"''" ,,,, i-,, i ,............

Figure 7

iii i ., .......

i iiiii i i ii i iii IHII I

D. ATTACHING THE BAR AND CHAIN

I_TlON'i lWear protective gloves when handling

oroperattng yoursaw. The chalnissharpandcan cut

you even when it iS not mcMng!

eYour saw is equipped with a Reduced-Kickback

Guide Bar and a Low-Kickback Chain.

• Use.only the Reduced-Kickback Guide Bar and

Low-Kickback Chain specified for your chain

saw model, when replaclngthese parts. See

"'Specifications:'

iiiIIIIIIIHIIIIIIIIII

Figure 8

CHAIN _ _

Figureg

•,WARNING 1

Do not sta rtengine without guide bar and chain corn,

pletely assembled. Otherwise, the clutch can come off

and sedous Injury can IvP_ult.

t. "rumthe adjustingscrew counterclockwise

tomovetheadjusting pinalmost asfarasitwillgo

tothemar._gure 10,

2. F_silionthe guide bar withthe round hole be_the

large sFot.Figure&

3. Mountthe sletted end ofthe guide bar overthe bar

mounting s_Jds and the smatl round hole on the

adjusting pin. Figure 8.

4. HoU chain with cuttersfacing as shown in Figure 9.

5. Piece chain overand behind thedutch drum onto

the sL:_'ocketand fit the bottom of the ddve links

between the teeth in the sprockeL

6. Start atthe topofthe barand fitthe chain drive links

into the groove around the guide bar. Figure 9.

7. Tumtheadjust_ngscTewclockwise_untilthe

chainissnucjinthe guide bargroove. F_gure10.

8. lnstaJtthe bar clamp housing, replace the bar

mountingnuts,then _htan the nutsf_ngertight

only,

9. Forlow"Chain Tension" instructions below.

i . iiiiii i iii ii i i

r. CHAIN TENSION

• Correct chain tension is very important:

--a loose chain will wear the bar and itself.

--a loose chain can jump off the bar while

you are cutting.

_a r tight chain can damage the saw andlor

'break,

_e The _¢hain stretches during use, especially

when new. Check tension:

each time the saw is used

._ more frequently when thechain isnew

as the chain warms Upto normaloperatingtem-

perature

•Chain tensioning procedure:

NOTE: The bar clamp nuts must be no more than

finger tight to tension the chain correctly.

iiiiii ii ii i ii i i i

1. Hotdthetipoft_eguidebarupandtumtheadjusting

screw just until the chain does not sag beneath the

guide ba_ Figure 10.

NOTE: Turn screw clockwise_"ikto tighten

_ension. Turn screw counterclockwise

to. loosen tensior_.

2. Checkthe tension by lifting the chain fromthe guide

bar at the center of the bar. Figure 11.

3. Continue turning theadjusting screw untilthe tension

is correct.

4. Hotdtf_etlp of the guide bar up and securely tighten

the bar clamp nuts with the scrunch.

5.. Recheck tension. _SeeFigure 11.

• Chain tension is correct when the Ichain:

can be lifted-about 118" from the guide bar at

apoint near the middle of the bar, and

w*:t_move _J.y _round the i=_r._

Figure 10 Rgure 11

F. FUELING YOUR ENGINE

t. FUEL SAFETY

a. Use only recommended fuel mlxtures.

,b. MIx and pour fueloutdoors and where there are

nO sparksor flames.

c. Use e contatnerapproved for fuel

d. Do not smoke or aliowsmoking near fuel or the

tool or while using the tool.

e. Wipe up all fuel spills before starting engtne.

f. Move at least 10 feet away from fueling s_e

before starting engine.

g. st0p:engine before removing fuel cap.

ho Empty the fuel tank before storing the tool.

i. Store tooland fuel inan area where fuel vapors

cannot reach sparksoropen flames from water

hes;e_s, electric motors or switches, furnaces,

etc.

2' FUEL MIXTURE

• Your tool is poured by atwo-cycle engine

which requires a fuel mixture of regular

unleaded gasoline andahighquality engine el{

_spe_t;_llymade for 2-cyCte,atr cooled engtnes.

The intema_designof the 2<_3_1eengine requires

lubricationofmoving pats. Lubricationispro,tided

• whentherecommendedmLxtuteofgasolineando_

is used.

•Gasoline must bec_eanand notover.twomonths

old,:Gasolinewitlchernicaltybreakdown andform

•compoundsth_ causehardstartir_J_.ndd_'=magein

•2-6ycieengines.

• The correct measure of gasoline to oil is very

important. Toomuchoil inthe mixture willfoulthe

spark plug,

_CAUTIONJ.'ToolittleOffor incon'ectollWill cause

the....._al_glneto ovedleat lind

•Always mix the fuel thoroughly in a container

sincegasoline andoildonotreadily_ombin_ Donot

3. USE THE FOLLOWING ONLY:

(16 parts gasoline to ipart oil)

I'.,6:i I

-3L_ ......

(|t2 PT_

4. DO NOT USE:

•BIA OIL {Boating Institute of America) --

-- Does not.haveproper:additives for air-cooled

2-cycle eng!nes, a_.d can caus e damage to your

unit.

•AUTOMOTIVE OIL

-- Doesn_haveproperadditivesfor2._cleengine

andcan cause damage

5. HOW TO MIX FUEL AND FILL TANK

a. Pour 1/2 gallon regular unleaded gasoline into

an appreved, marked _;tntainer. Do not mix

gasoline and oil directly in the fuel_ntc.

b, Addentire measure of engine oil,

c, Cm,ercontainertightlyand shake for one minute.

d, S!owlyremovefuel containercover. .

e. Add-remainder of gasoline,

f. Ceveroont_nertightlyancl shake sge}n.

g- Slmviyremove fuel containercover.

h. Slowlyremove fuel containercover. Referto "Specifi-

cal{ons"forfuel cap location.

i. _l tj_ t_r_kU_g a'SpOUtorfunnek

j. Reinstall the_fuel:capsecurely.

,.i. ij,,, ." ' i , .................. ,........... " " t

•FUEL

"Figure 12

G. BAR AND CHAIN LUBRICANT

•The Guide _and Cuffing Chain require

continuous lutx-lcl_fonIn oi_dertoremain In

operating condition.Lubricationisprovided

,by the automatic oiler sy$-_emwhen the oiltank

is kept filled.

-- L_ckof oilwlll qUlek:lyrutn the bar and chain.

-- Too little oit Willcause overheating shown by

smokecoming fromthe chain and/ordiscolora-

-_mA'rof,theguide bar rails.

• Use Sears 9at and Chain Lubrlcant (#71-36554

-gal. or/f71-36556 - qt.) or clean SAE 30W oil.

• In freezing weather oil will thicken, making

it necessary to thin bar and chain oil withe

small amount of Diesel Fuel #I or

Kerosene. Bar and chain oil must be free flow-

ing for the oi! system to pump enough oi! for ad-

equ ate lubrication.

1. USETHE FOLLOWING:

3(PFor above -- lubricant-- undiluted.

30o-0°F--95% lubdcant to 5% Dlese! Fuel

:"#1 or Kerosene.

Below0°F--90% lubricant to 10% Diesel

Fuel # 1or Kerosene,

2. HOW TO RLL THE OIL TANK

a. Gtop theengine.

b. "_Jmsaw on its side with oil cap up.

c. Loosencapslowly andwaitfor pressureinthetank

¢obe_eleasedbeforeremovingt,hecap.Figure.12_

d. Fill theoiltank.

e. Replacethe 9ilcap securely.

iii i iiii i i iiii H I m,

ACCESSORIES

3. ADJU STING THE AUTOMATIC OILER

The adjust_bleautomatic Oiler is set for max-

imum output at the factory. Some 1ypes of

cutting will require adjusting the oi|er.

-- less oil is required for soft or freshly cut

wood.

--maximum ol! Is reqmred for hardwood or

wood that has been cut for aperiod of time.

The adjusting screw is located at the bottom of

the.saw on the cra_e ne.xtto the bar clamp

houSingand can be adjusted withthe screwdriver

end of the scrench provided with your saw.

_Figure _3.

-- To increase the 0il flow, turn the adjusting

screwcountemlockwise _.

-- To decrease the oil flow, turn the adjusting

_crewdockwise _.

ffthe oileris adjustedtodecmase the oilflOW,

be sureto readjustthe oilerbefore returning to

typesofcuttingthat_uire greaterlubrication.

When the sew is tun at high RPM's for long

periods of time during certain types of cut-

ring,suchas pruningordel:iranching,moreoil

can bedeliveredthan isrequired.TOavoidrunn-

ing outof.chain oUbefore running out of fuel,

checkthe oil"_nk periodically.

IMPORTANT POINTS TO REMEMBER

a. Fill the oil tank each time you refill the fuel

tank _oensure there will be suffic|ent oil for the

(:ham whenever you start, end_un _e saw.

b. Keep sawdust and debris cleaned from the

oil holes in the guide barto allow an adequate

Offflow tOthe _ and chin,

C. Keepspilled and spattered oilwiped from the

unit toavoid sm_ust and debris build-up. Pay

patt_ular attention to oil on thefan housing and

starterassemblyto avoid overheating the engine.

d. it is normal for asmall amount of oil to ap

pear under the saw after the engine stops.

This is due tooil drain=ngfrom the bar and chain

-when not'in use. " •

A_i!able through your nearest Sears Store, Catalog Sales Office, or Serv'meCenter_

Description

FileGuide

File(11/64" Dia.)TwinPack

D,3pthG_uge Tool,

RePlacement Chain?or _8 - Low-Kickback -_33SL-

72 drive links) (requires 11164"dia.file)

71.3635 Replacementchain for 32 Low-Kickback-(78 drive links)•

(requires 11/64"die. file)

-7....t-36372:..._......Replaeement:Guide._ar--=18"*--J-o-Kic!__

Catalog No.

71-365_

71-36527

71-36557

7_1-,3_34

71-36373

71-36401

71-36555

7t *36554

7,1-36556

ReplacementGuide BB_-- -20 "- Low-Kic_ -Symmetrical

Spark Plug-ChampionCJ-4

2-Cycte Engine Oil

Barand Chain Lubricant_gaIIonsize)

Bar and Chain Lubrioant:,(quart-size)

,J i,i

USING YOUR SAW

Jl= .... ,111111ii

A. CONTROL DEVICES

Understanding the control devices on your saw is

an important part of learning how to properly and

safely operate the unit. Figure 14.

_l IIH

5TART/S3OP

SwtTc,H

START _STOP

•.HALF

The tgnition Switch is moved forward for the "Stz_"

pos_on and re_.rward for the "Stop" p<_ition.

The two-position Choke helps to star the saw by

con[roiling the airflow tothe fuel system.

The Trigge_'acceleraL.,=s andcontrols the speeder the

engine and is designed to be used with the throttle

lock-out.

The Throttle Lock,out preverrts the trigger from

becoming acc_den'_ e ng_ged. The throttle rock-out

must be pressed before the trigger can be acl_vated,

Figure 14

"" |i I

i_' STARTING IN_rRU_ONS

"WARNING

Alway_ wear glo_s; safety footwear;, snug-fitting

clothing;-and eye, hearing, and head protection

devices when operating achain saw.

1. BASIC PROCEDURE

a. Set the saw on fiat ground making certain the

sawchain isfree to turn without contactit_j any

object. Figure15.

b. Moveignition switch to the "Start" position.

c_ Pushdownon thethrottle lock-out, squeezethe

trigger, press and ho_ down the throttle lock,

then slowly release the trigger.

d. Ad|u_'chokeaccord_rig to"Starting Procedure

for Varyin9 Conditions'_ thispage,

e. Holdfront handlebarwithlefthand &p|aceright

foot through rear handle to stabilize saw.

5. TheYhmttteLockholdsthe,throt_elock-outandtr_g-

ger in positionwhilethe engine is being started.

Releasethe throttleIockaftertheengineis _ by

lightly,squeezingthetrigger.

"'.... " ''" L = LL' 't"_''L' ' ........ "" ....................' ' ' .

2. STARTING PROCEDURE FOR VARYING

CONDITIONS

NOTE: Be sure to follow "1. Basic Procedure;' as

described on this page.

a. COLD ENGINE

I.) Pullchoketo full chokeposition. Figure 14.

2.)Pullstarterropeunti!engine attemptsto run.

3.)Pushchokeuntil halfpositionis felt. Figure 14.

4.) Pullstarter ropeuntilengineruns.

5.) After 5 secondwarm up, push choketo the off

position. F_jure14.

1 "WARNING l

Avoidbodily contactwith the muffler when starting or

using awarm engine to avoid serious burns.

f. R_tl starter rope quickly, with your righthand.

•.g.:SqueP, ze th_ttl_ t_ _elease.the throttle_lock

al!owing engine to idle.

_LWARNING

Thechain must not movewhen the engine runsat idle

speed. Refer to "Carburetor Adjustment,' Page 19,

•for correction.

•h. Stop engine:by mbving the ignition switch to

the "STOP" position (Figure 14).

ST_,R_3NGPO_

_-F!]ONT MANI_E.aAR

ANDPt.ACEIt_

F(X_ _NROfJGH HANOLE.

_L ....

b. WARMENGINE

i.)Leavech0ke at the off position. Figure 14.

2.) Pull statter:repe until engine runs.

c, FEFUELED WARM ENGINE AFTER

RUNNING OUT OF FUEL

1.) Pullchoke to full choke posit_on. _"igure 14.

2.) Pul! sta_er rope until engine attempts to run.

&) Push choke to the off position. Figure 14,

4.) Pull sta_er rope until engine runs,

3. IMPORTANT POINI_S TO REMEMBER

a. When pulling the starter rope, do not use the full

_'_T'_Y_ofth_rope a.sthL_can cause the rope to breal<.

Do not let thest_er rope snap back. Hold the han-

dle and let the rope rewind slowly.

b. If engine floods, let the unit set for a few minutes,

then r_peat starting p_um using the half-choke

,,, ,,,, ,= i ......... :

FigUre 15

.........'position=...................................................

c. Forcold v,__.atherstarting, a!l_wengine to warmup

(1-2-rain.)at the half-chokeposhion,then movechoke

to the closedpos_on. Do no,cut wft_ the chokeat

the"fU!_"or "half' position.

L_B.

TYPES OF CUTTING

A. BASIC CUTTING TECHNIQUE

1. IMPORTANT POINTS.

a. Cut wood only. Do not cut meta!, plastk_s,

rnasorm/,non-woodbuildingmatenals,et¢.Donot

useyour saw_opryorshove awaylimbs, rootsor

otherobjects.

b. Stop the saw if the chain strikes aforeign

object. Inspect ",heunit and repair or replace

parts as necessary.

c. Keep the Chain OUt of dirt and sand.Even a

smaitamount ofdirtwill quicklydullachainand

thus, increasethe possibilityof kickback.

KICKBACK WARNING

Kickback can occur when the movingchain contactsan

ob]ectat tlt e-upperportion of the tip orthe guide baror

when _hewood closes in and pinches the sawchain in

the cut.Contact at the upper portion of the tip of the

guide bar claShcausethe chain to dig into the object and

stop the chain fora_ instant. The result is alightning

fast, reverse reaction which kicks the guide bar upand

back toward the operator. If the saw chain is pinched

along the top of the guide bar, the guide bar can be

driven rapidly back toward the operator. Either of these

reactions can cause loss of saw control whichcan

result in serious injury.

2. UNDERSTAND REACTIVE FORCES

Pincb-Kickbackand Pul_-Inoccur when the chain

•is suddenly stopped by being pinched, caught, or

by contacting aforeign object in the wood, This

r_..sultsin areversalofthechain forceusedto cutwood

at_l causesthe saw_omove intheopposite directionof

chain rotati0n.Eitherreactioncan resu{tinlossofc0n-

tmtand Doss_teseriouspersonalinjury.

Pinch-KiCkback

--o_curswhenthe chain,ontopof thebarissuddenty

stopped whenthe top of the baris usedforcut_ng.

r_dty dd._ the =_.awstrai_, back toward the

operator.

• P_Jli_ln--

-.can occur when the chain on the bottom of the

bar is suddenly stopped.

--pulls the sawrapidly forward.

3_ PROCEDURE ,

P_ce cuttingafewsmaillogsusingthek_lowingt_hni-

queto getthe'Teer'of usingyoursawbeforeyou begina

major sawing operation.

_L Accelerate the engine to full throttle just before

entering the cut by squeezingthe throttletrigger.

b. Begin cutting with the spur against the wood.

Figure16.

c. Keep the engine at full throttle the entire time you

are cutting.

d. Allow the chain to cut for you; exert only light

downward pressuP_ ffyoUforce the cut, damageto

the bar,chain, orenginecan result.

e. Release the throttle trigger as soon as the cut is

completed, allowingthe engineto idfe.Ifyourunthe

saw at fullthrottle withoutacuffingload,unneoessaty

wear can occurto the chain,bar,and engine.

f. Do not putpressure onthemat theend ofthecut

to avoidlosing controlwhen tl-_cut iscomplete.

g: Stop the engine before setting the sawdown after

cutting.

= =,lll=l

BEGIN CUTTING WITH

THE SPURAGAINST

THE LOG

Figure 16-

TREE FELLING TECHNIQUES

1- PLAN YOUR SAWING OPERATION CARE-

FULLY IN ADVANCE

a. C_s._ _.e work area, Youneed aclear area at_

around the tree where you can have secure

footing.

b. Study the natural conditions that cancause

the tree to fall in aparticular direction:

2.) TheLEAN ofthetree,

.3.} WEIGHTED with BRANCHES on one sfde.

4,} SurroundingTREES and OBSTACLES,

c. Look for decay and rot, If the trunk is rotted,

it coutdsnap and fall toward the operator.

•i=u.=l ii.J= j == i

d. Check for broken or dead branches which

couldfall on yo'0while cutting.

e. Maimsure there isenough room forthetres to

fall Ma_r_n adis_eof_'_ _ee _-f_m

the nearestperson or_her objects.Enginenoise

can drow_ outawam_ngcarl

f. Remove dirt, stones, loose bark, trolls,.

staples, and wire from the tree where cuts

g. Plan to stand on the uphill side when cut.

ttng on a siope.

h. Plan a clear retreat path to the rear and

diagonal tothe Ilne0f falLF_gure 17.

2. FELLING SMALL TREES -- LESS THAN 6"

|NDIAMETER

a. If you know the direction of fall:

1.) Make asingte felling cut on the side away

from the direction of fail

2.) Cut aJlthe way through.

3.) Stop the saw, put it down, and get away

quickly on your planned retreat path,

b. If you are not sure which way 1he tree wili fall,

use the notch method de_soribed for felling large

trees,

_,WARNING

DO NOTCUT:

-- nea_eleclricatwires or buildings.

mif you do not knowthe direction of tree fall.

at night since YoUwill not be able to seewell.

---during I_d weather ---strong wind, snow, rain,

etc.

.3. iFELUNG LARGE TREES -- 6"_DIAMETER

OR MORE

T'e notch method is used to cut large trees. A

notch is ,cut on the side of the tree in the desired

direction of fall. After a felling cut is made on the

opposite side of the tree, the tree willtend to fall

•into the notch.

NOTE; If.thetree has large buttressroots,remove

'before making_the notch. Cut into the buU.resses

vertically,thenhorizontaJly.Figure 18.

.a. Make thenotchcut.Figure 19.

1.) Cut_-_ebottomof the notchfirst,through1/3

,ofthe diameterof the bee.

2.} Completethenotchby makingtheslantcut.

3.) Removethenotchofwood.

b. Make lt,_efelling,c_t on,the opposite side of the

notch about ,2' higher Ihan the bottom of the

¢: Leave enough uncut wood between the felling

,cut and thenoah to form a hinge,F_gure20.

;,,= . ...........

•NOllE: Tt_e,-hingehetps-to keep the tree from

:. twistir_jandfallinginthe wrongdirection.

.d. ,Use awedge if thereis any chancethat the tree

will not fallin thedesireddireclJon.

Figure 19 Figure 20

_WARNING

Stayon the uphillside of the tree to avoidthe tree roll-

ing or sliding downhill into you.

NOTE: Before the felling cut is complete,drive

wedges toopen upthecut when necessaryto con-

trolthedirectionoffalt. Use wood orplastic wedges

but never meta!, to avoid kickback and chain

damage.

Be alertforsigns that theBee is ready to fall:

1.) crackingsounds

2.) wideningof the feUingcut

3.) movement in the upperbranches.

6 As .the tree st,_rts 'to fail, stop _e saw,"put it

down, and get away quickly on your planned re-

treat path.

..g, -Be extmmely.cau_usw_.p_____/_J._. L,-ees_

•maybepoodysupported:When atree doesn'tfall

compiet_,,settf_esawasideandpulldownthettee

withacablewitch, block and tackle or tractor.To

avoid injury,donotcut downapartiallyfallen tree

withyoursaw.

DON'T PUT YOURSELF IN THESE PosmoI_S

tl i¸

Checkthe Imdince.

Don'tc_tonv_ght=d slde.

C. BucKING

Bucking is the term used for cutting a fallen tree

to the desired log size.

1. IMPORTANT POINTS

iiiii i ii ii i1|1 m

Cut only one log.at atime,

Cut shattered wood very carefully. Sharp

pieces of wood could be flung toward the

operator.

<:. Use a sawhorse to cut small logs. Never

allow another person to hotd the log whi_e cut-

ting and never hold the log wi_ your _j orfoot.

d. Give special attentlon to logs under strainto

prevent the saw from pinching. Make the first

.cut on the pr_3sure side to relieve the stre<.,s

.,_onthe log, 'F_jure22.

Je-.-{_:not cut in an area where togs, limbs and

;ro0ts are tangled SUCh as in a blown down

,area. Pull outexpo_d and cleared Iogsfi_st.Drag

the logs into aciear _r_before cutting.

Make the first bucking cut 1/3 of the way

through the log and finish with a 2i3 cut on

the opposite side. As the log is being cut, it wil|

_end to bend. The saw can become pinched or

hung in the kx3if you ,make the first cut deeper

than 1/3 of the diameter of the log.

2. TYPES OF CUTTING USED FKjure22.

_Ovemutting - beginonthetopsideofthe logwith

spur against the log; exert light pressure

downward.

Undercutting -begin onthe undersideoftheiog

withthe spuragainstthe log;exertlightpressure

upward.Duringundercutting,the sawwil!tendto

push_ck atyou.Be preparedforthisreactionand

holdthe sawfirmly tomaintain control

I "AWARNING

Iever turn the saw upside down to undemut. The

saw cannot becontrolted in this position.

WARNING

ifsaw becomes pinched or hung in a log, don't try to

rome:it ouL You can Iosecontro! of the saw resulting in

personal injuryand/ordame_e to the saw. Stopthe saw,

drive a wedge of plastic or wood into the cut until the

s_w _a_. be m:v_..ved _!y. _gu_ 2_ PJ=_r_ the saw

and carefully reenter the cut. To avoid kicld_ack and

chain damage, do not use a metal wedge, Do not

_ttempt to restart your saw when it is pinched or hung

in alog,

" 3. BUCKINGmWlTHOUTASUPPOR"

-t4

•a. "_Overcut with a1/3 diameter cut,

b. Roll!og over and finish with an overcu[

2flO CUT

TSTCUT _ _--" PRESSURE SIDE

Figure 21

OVERCUT 1-

UNDERCUT

Figure 22

WEDGE USE_DTO

HOLD CUT OPEN.

Figure 23

...... .

!1st Cut., 12ndCut J

1st

USING Cut

,ANOTHER

LOG AS A SUPPORT -_:._-- ..

Figure 24

iAi e{Ai

Figure 25

4. BucKING -- USING ANOTHER LOG AS A

SUPPORT (Figure 24):

_i _i, WARNING t

Do not stand onthelogbeing cut. Any po_don can roll

causing loss of footing and control;

a. Inareah

1.) Undercut 1/3of the way through the tog.

.::20 Finish with an overcut.

b. Inarea B:

1.)Overcut1/3oft_ewaythroughthe log.

......:2,)Finishwfthan undercut.

BUCKING-- USING A STAND (Figure 25):

a. In areaA:

• .1.)Undercut1/3of the waythroughthe log.

2.)Finish wRhan overcuL

b. tn areaB:

1.) Overcut 1/3 of the waythmugh the leg.

2.) Finish with an undercut.

U_SECOMMON SENSE M A_NTAJN SECURE FOOTING

,,i i i iiiiiilUl i i

D. DE'BRANCHING AND PRUN|NG

• Work slowly, keeping both hands on the saw

with a firm grip. Maintain secure footing and bal-

ance. '

• Watch out for springpoles. Use extreme caution

when _:uttir_j srna_ _J.zelimbs. S_ material__.an

catchthe sawchain and be whipped toward you or pull

•.you offbalanc_

• Be alert for springback, Wat_ out for branches

that are bent or under pressure as you are cutting

to.avoid being struck by the branch or the saw when

the tension in the wood fibersis re_eased.

• Keep a,clear work area. Frequently, dear branches

out:of the way to avoid trj'pp_ngover them.

":I ,&WARNING ""I.....[I

lNever climb into a tree to debranch or prune. Do not

stand on ladders, platforms, a log or in any position

Jwhich can causeyou tolose yourbalance or control of

Jthe saw.

1. .D:EBRANCHING

-_::- AlWayS debi_nch a tree after it is cut down.

Only then can debranching be done safely

:_ and properly.

•b.' Leave the larger lower limbs to support the

•__tree as you work.

c. Start at the base of the felled tree and work

towards the top, cutting branches and

limbs. Remove small limbs with one CUt.Fig-

'Ure26.

'd: Keep the tree between youand the chain. " "

Cut from the side of the tree opposite the

_-a_,ch-y_ ace_t_'_.

,e; Remove larger, supporting,branches with

the 1/3, ?d3cutting techniques described in

the bucking section.

f- Always use anovemut tocut smalland freety

-hanging llmb_-Undercutt_ngcan causelimbs-to-

fall and pinchthe saw.

iii iiiii ilU i lUllUUu i iiiii ii

2. PRUNING

&Limit pruning to limbs shoulder height or

below. Do not cut if bra.nches are higher than

your shoulder. Get a professional to do the

job.

b. Refer to 'Figure 27 for the pruning tech-

nique.

1.) Undercut 113of the way through the limb

near the trunk of the tree.

2.) Finish with an overcut farther out from the

trunk.

3-) Keep outer the way ofthe falling limb.

40 Cut the stump flush near the trunk ofthe

tree.

_WARNING

Be alert forand guard against kickback. Do not allow

the moving chain to contact any other branches or

objects atthe nose.ofthe guidebar whend_bm,nchir_cj

orpruning. Allowingsuch contact can result inserious

injury.

-. .Remove,srnali .iimbs

,_JL_ _with one cut..

Figure 26

iX#" 2//

j_, tHiRD w

.........R! Ill °=

Figure 27 t5

MAINTENANCE

i {i re{ill Ii i i

A good maintenance program of regular inspec-,

tion and care will increase the service life and help

to maintain the safety and performance of yOur

saw,

• Checkthesawforloosebolts, scmws, nutsandfit.

tings regularly. Loose fasteners can cause an unsafe

conditionas v_e!lasdamage to yoursaw. Toolsrequired

are described on page 7.

•Make all adjustments or repairs (except car*

buretor adjustments) with:

spark plug wire disconnected

engine cool as opposed to a unit that has

just been run.

A. GUIDE BAR AND CHAIN

Increase the service life of your Guide Bar and

Chain by:

_Using the saw properly and as recommended

in this_manuaL

_Maintaining correct Chain Tension, page_J.

_ProperJubrication, page 10.

=Regular maintenance as described in this sec-

tion.

_1_WARNING

Haveail chain saw serviceperformed by your Sears

Service Center with the exception of the itemsllsted

inthe maintenance section ofthlsmanual

1. CHAIN MAINTENANCE

•Sharpen the chain when:

_wood chips are small and powdery. Wood

chips made by the ,saw chain should be

about the size of the _;eethof the chain.

--saw has to be forced through the cut.

--saw cuts _o one side.

|CA(JTIONiJ Always wear gloves when handling

the chain. The chain is sharp enough to cut you

even though it is too dull to cut wood.

a. SHARPENING INSTRUCTIONS

Items required:

Gloves Medium Flat File

11/64adia. File Depth Gauge Tool

6_Fife Holder V_se

i,) StoP,,_ngine and di¢_'onnect spark plug,

2.) Adjus_ _he chain for p_'ol_r tett_ion;page

3.) Work at the midpoint of the bar, moving the

chain forward by hand as each cutter is

filed.

4.) Sharpen cutters.

a. ) Pos_on tileholder (with 11/64_round Be) oncut-

ter top plate and depth gauge. Figure 28.

b. ) Hold,the file holder leve_ with the 30° guide

mark paraltel to the center of the chain.

F_jure29.

_c.) _File from inside toward outside of cutter,

straight ac_'oss, on forward stroke only. Use

2or 3strokes per cutting edge. _gure 29,

d. ) Keep all cutters the same length.F_jure 30.

...... Figure 32

Figure 33

_, WARNING

._,) F_!leenough to remove any damage to cutting

_ge (sicle&{Spp]&-_)-6fc_tt_r.-F_j_Jfe-30:.............. Maintain -the-LPr°per-hoQ k-a og_--a-c-c-° -rdi-i---ng--t°-the.

fo) File chain to.m_et specificationsshown it_ manufacturer s specification for the chain you a_re

using. Improper hookangle will increase the chance of

Figure31. kickback which c_n result in serious injury._gure 31

&33,

:16 •

5,) Correct Depth Gauges

a.); Place depth gauge tool over each cutter

•depth gauge. Figure 32,

b.) File level with the flat tile if depth gauge is

higher than the depth gauge tool,

c,) Maintain rounded front corner of depth

gauge with a fiat file. Figure 32&33.

NOT_: The very top of the depth gauge

shoutd be flat withthe front half-rounded -

' • off with a flat tile.

I& WARNING

Depth ga_e tool is required to insure proper depth

gauge. Fifi_he depth gauge too deep wilt increase

the chance Of kickback which-can result in serious

iniury.

b. CHAIN RIEPLACEMENT

1.) Use only the Low-Kick Chain specified for

_your saw in "Specifications" for replace.

.Z,::_:.ment chain.

_)_i;Reptace the chain when cutters or links

.... br_,ako

3.) See your Sears Service Center to replace

and sharpen individual cutters for match-

.ing your chain.

4.) Atwayshave aworn sprocket replaced by

...... y0urSearsServiceCenterwheninstalling

a new chain to.avoid excessivewear to the

chain.

REMOVE SAWDUST

FROM GUIDE BAR GROOVE

2. GUIDE BAR MAINTENANCE

• Conditions which can require guide bar

maintenance:

_saw cuts to one side

--saw has to be forced through acut

--inadequate supply of oil to bar and

chain,

•Check the condition of the guide bar each

time the chain is sharpened. Aworn guide

bar will damage the chain and make cut-

ting more difficult.

•Replace the guide bar when:

--the inside groove of the guide bar rails is

WON'I.

--the guide bar is bent 0rcracked.

• Use only the ReducedJ<ickback Guide Bar

specified for your saw in "Specifications" for

replacement.

a. Remove the guide bar to Service.

b. Clean oil-holes at least once for each five

hours Of operation:Figure 34,

c. Remove Sawdust from the guide bar

groove periodically witt_ a putty knife or

a wire, Figure 34,

d. Remove buKs by filing the side edges

of the guide bar grooves square with a

'flat fi-le:Figure 35.

e. Restore eqUateedges to an uneven rai!

top by filing with a tlal file. F_jure 35.

CORRECT

GUIDE BAR WORN-GROOVES FILE EDGES

GROOVE SQUARE

OIfL HOLES

13. SPARK ARRESTOR AND SPARK PLUG

: -dep s ts bu.dup onthe sparkar-

.'restor, aslhesawisusedand must be removed to

avoid creating a fire hazard orcausing engine dam-

age.

•Rep_v_ethesparkarrestorifbre.aks occur.

•__l?;the spark arrestor.clean at alt times.

.C]_:-

Rgure 35

sp K ............

Figure 36

2. SPARK PLUG

_--_asrequired

--at least once foreach,25-30 hours of operation.

items required:

wire brush, 3/8 _wrench

a. Disconnect the spark plug wire.

-,b. Removethe heatshield. Figure 36.

.c: ..Een_ore i:__. o'eenS__m._e .d.iff.u_.F: _

d, Clean the screen with a ._re brush or replace it

breaks are found.

e. Reassemb_ parts.

• Replace the spark-plug when necessary. Use

Stock No, 71_6401.

IIf you perform thts maintenance yourself, note

the "Caution" below.

|CAUTION:IDo not mix chrome-colored fan

ho__sln_g.._...W.._ ._tf:_...b..!.a.c__l_=_qy_l_der.

.shroud screws.Otherthan color,thesescrewsare

similar In appearance; but If interchanged, they

can strip out andJor cause, permanent engine

damage.

i iii ii ii ii i i ii i i i i -_i

:18

C. STARTER ROPE REPAIRAND REPLACEMENT

• A Starter rope that breaks next to the pulley 6,

can be repaired.

• Replace the starter rope if the rope breaks more 7

than 2-3 inches away from the pulley as the rope

will be too short to repair properly,

_WARNING

Nwa3tswear eyeprotection when scrvic.

inSthe starter rope, The ,recoil spdng

the pulleyis undertension. Ifthe

_pdngpops out, serious injury can

result.

INO'_: There¢_]spring,locatedbeneaththepulley,

is undertension. If the spring pops out, it will

requireconslderabletime andeffort tOreinstall.

Forthisreason,you maywant to let yourSears Ser-

vice Center handlethis repair. If you do tryto repair

thestarter ropeandthe recoilspdng pops out,take

the unit to your SearsService Center.

Rei_ove the four screws on the side of the fan

•housing. Figure38.

_CAUTION:J Do not mix chrome-colored fan

housingscrewswiththe black-colored cylinder

shroud screws.Other than color, these screws

are similar in appearance; but if interchanged,

they can strip out andlor cause permanent

engine damage.

Remove the fan housing.

Ifthe starterropeisbroken,proceedto step'14"]fthe

starter ropeis notbroken, releasethe tensiononthe

spring asfollows:

a. Pult about t2 inches of rope from the pulleyand

•catchtheropeinthenotchasshowninRgure38.

b. Tumthepulleycounterctockwise _ untilthe

spring tensionis released.

Unthread thepulleyscrewinthecenterofthe pulley

withaS/32" ai_enwrenchunti!the pulleyassembly

can be removedfrom the _anhousing.

lift _e pulleycamfu#ywhi3egentlytwisting t_ePUl!ey

counterclockwise_.Remove theold rope.

10.

11.

t2.

14.

15.

I6.

F'_r_ _"

TURN PU L LEY

COUNTERCLOCKWISE

" _ TO RE LEA._E

TENSI ON

Figure 38

17.

18.

SCREWDRNER

Move_from thefu_ tankandrne_,e endofthe

new rope to go into the pulley.

Allowthe melted end tOdriponce:thenwhile the

ropeis still hot, pullthe melted endthrougha rag

to obtain a smooth, pointed end.

Feedtheropethroughthe roundstarterholeinthe

.thefan housing. F_gure39.

Guk_eropeins_de_ _en thr=ucjhtops;_epuzk_/

hole by pushingthe rope fromthe undemidehole

with a small round object, such as aPhillips

screwdriver.See inset. F_um 39.

T_ aknotintheendofthe ropeleavingnomorethan

a 3/8to 1/4inch tail and pullthe knotsnuglyinto the

cornerof the groovein the pulley.Figure 38.

Tuckthe _ailonthe rope knot into the innercuwed

sectionto avoidinterferencewiththe ft,,heel. Figure

38 &4O.

Set_pu]l_f_inthe housing;pushitdown

and engagethe spdng. :

T_ghten_hepu!!ey screw. DQnotovertightenscrew.

NOT_: Ifyouremovethepulleyscrewfromthepulley

makesurethe starterdog, retainer,cam and wave

washer are positioned and installed properiyas

showninFigure39. Ifpar_ havebeencteaned,apply

a small amountof greaseto bothsidesofthe cam

andwavewasher.

Makesure thecam:isinstalled Onthestarterdogin

the directionshow_inFigure39.Also makesurethe

wavewasherissealedaround the top outeredge of

the retainer and not caught between the top of the

retainerand the pulleyscrew.

Catchtheropeinthe notchinthe pulley.Figure40,

"rum the pulley clockwise _to wind up the

spdngu_t itwillturnnomorewithout forcing.Donct

/etgoofthepu/ley.Letthe pulleyunwindonefull turn

and releasetheropefrom the slot.Continuetohold

pulley.

Hold thepulley, pul! thestarterropetothefu!textent

oflengththenlet the rope rewind s!owl_

Reinstallfan housingand the four chmmecotored

screws.Tightenscrews securely.

._-,-- WAVE WASHER

r"_...,--------'--'_M

Figure 39

TURN PULLEY

CLOC_VtS_

TOWINDUP

-SPRING

Figure40

• mllul ii iiiii ,,,,i i

D. CARBURETOR ADJUSTMENTS

• Poorengineperformancecanbearesultofother

causes such as dirty air filter, carbon build-up on

muffler outlets, etc,See "Trouble Shooting Chart"

,before proceeding with carburetor adjustments,

e The carburetor has been adjusted at the factory

forse_ level conditions. Adjustments may become

n_ il_the unit is used at significantly higher

._altitudesorif y0u no/iceanyof/t_ followingcond_ons:.

NOTE:Be sure to properly prepare the s_w as

described in"1. Preparation" l_low, before making

anyadjustments.

_ Chain moves when the engine runs at idle

speed. See "2. Idle Speed Adiustment:'

-_. Saw:will not idle. See "2. Idle SpeedAdjust-

ment, and "3. _Low Speed Mixture Adjust-

menU'

.... Lossofcuffin9power which isnotcorrected by

•aWfiltercleaning.."See "5. HighSpeed Mixture

Adjustment."

-- J=nginedies or f_sltates when it should accel-

emte;'See "4. Acceleration Adjustment"

CAUTION: j Permanent damagewiil oc_jr to any

2-cycle engine if incorrect carburetor adjust-

ments am made,

• Iftheunitwillnotoperateproperlyaftermaking

•these adjustments, take the unit to your Seam

Service'Center.

_WARNING t

The chain will bemoving dudngmost of thisprocedure__l_

Wear your protective gear _nd observe al! safe_

Iprecaut,ons. 1

1. PREPARATION

'.._..a,_,Stop engine. .

b. Use'a. fresh fuel mixture with proper gasoline/ -

oil r_io.

•c_ _ace_thes_yonasolid, flatsudace and maP,esure

the chain will n_ contact any object.

d. Locate the three (3) carburetor adjusting screw

openingsto the rightofthe air _lter cover.Figure 41.

e: Start theengine and allowengine to idte3 minutes

lo warm up. The engine must be at operating

:temperature forproper ad_jJ_t_J_s to be m_de.

= HHHH H'_ ,N,H U" ............

/ ; / SPE_D SCR_'W

I-

...... i: ........................... "' --

Figure 4_1

,,,,,,,,,,, , i,m , ,

2. IDLE SPEED ADJUSTMENT

a. Allow engine to idle•

b. Pd_ustldleSpe_dScrew untilenginecontinues_o

run without _Jing and without the chain moving.

Turn screw clockwise _to increase

engine _Tpeedif engine stalls or dies.

Turn screw counterclockwise _ tO slow

engine down and/or to keep the chain from

turtiing.

c. No further adjustments are necessary if the

chain does not move at idle speed and if perfor*

mance is satislacto ry.

_WARNING

Recheck id{e speed after each adjust ment below. The

chain must not move at idle speed to avoid serious

injury.

3. LOW SPEED MIXTURE ADJUSTMENT

a, Allow engine to idle.

bTurn the Low Speed .Mixture Screw Slowly

clockwise _ until the RPM starts to drop.

Note the position.

c. TurntheLowSpeed MixtureScrewcounterclock-

wise _ untiltheRPMspeedsupand_a,-ts

to drop again, Note lhe position.

d. Set the low Speed Mixture Screw a_the m_d-

I;_,intbetween the two positions.

AOCEL_RATION ADJUSTMENT

Ifengine dies or hesitates instead of accelerat:ing, turn

the Low Speed Mixture Screw 1/16of aturn at a_ime

coun_er,c!ockw'_e _until you have smooth

acceleration.

HIGH SPEED MIXTURE ADJUSTMENT

CAUTIONS. Adjustments as small as 1/16 of a

turn can affect engine performance. It is impor-

tant to turn the screw only 1/16ofa turn per adjust-

mentand test the performance of the saw befo re

m_king further adjustments.

a. Make a_est,cut.

b. Adjustthe High Speed Mixtu_ Scr_w l!16 of a turn

as follows:

--Clockwise _ _ifsaw'smokes or loSespower,

-- Counterclockwise _ if the saw has speed

out of the cut but Jackspower in the _ut.

Repeat te_. cut.

d. Continue 1/16 of a turnadju3tments untit the saw

runs smoothly in cut.

jC_ALtTION: JAtoo lean high speed setting (clock-

wise _adiustment) will cause engine dam.

age to any 2-cycle engine from overheating and

lack of lubrication :-Never set the high speed mix-

turescrewsofarclockwise _-_ th_youh_e

high engine speed but lack power while cutting,

An effective approach follows:

-- Turn screw counterclockwise _until

engine loses power while cutting.

_-__Thenr,_Ltum.".S.C.t_=_r.C.lO_kwise.._ ir_1l_; of a .....

turn increments only until the engine has

power while ,cutting.

NOTE: _f the unit will not operate propedy after

making theseadjustments,take _e un_ to y_urSears

service center, 19

l!li iiii i | ,i iiiiiiiiiiiii iiii ii iii i

- ,,,, i,,,,,,,,, .

E. CLUTCH AND DRUM/SPROCKET

_II_WARNING

Do not start engine without Guide Bar, Chain, and Bar

Clamp Housing completelyassembled. The clutch can

come off without the guide bar and chain completely

assembled and serious injury can result. The clutch

•shoes and drum can separate causing the clutch to

violently fly apart and serious injury can result.

•Take the saw to your Seam Service Center for

full clutch inspection and service after each 100

hours of operation, itis recommended thatyou do

notttyto service the dutch or dtum/sprocketyourself

unless you are a competent small engine mechanic

and'have the proper clutch service tools. Proper dis-

assemblYat_d repair of the clutch is extremelyimpor-

tant to the:!ife of the engine and _e safety of the

operator.

• Clutch maintenance is required when:

-- the chain continues to turn while engine idles

after the idle speed screw has been adjusted

tO its capacity.

slippage occurs during acut.

achattering noise occurs during cutting.

•Clean the clutch, drum, sprocket and surrounding

area daily during heavy use of the saw. Check to see

that the dutch drum turns freely and smoothly.

• Inspect the sprocket regularly for wear. A worn

sprocket will make the chain run er_aticaJly and wilt

shorten the life of the bar and chain: Figure 42.

•Always have aworn sprocket replaced by your

Sears Service Center whenever a new chain is

installed in order to gain full life expectancy of

the chain.

SPROCKETWEAR

F. AIR FILTER

"H""" •'' I" 'ii

•A dirty air filter:

-- reduces cutting power

mincreases fuel consumption

• Clean the air filter:

frequently, especially in very dus_ cond'_ons.

always after 10 tanks of fuel mixture or 5 hours

of operation, whichever is less.

• Replace the air filter if any damage occum to it,

jCAUTION:j Never operate the unit without the

air filter in place to avoid damage to the engine.

Items Required: soft bristled brush, such as apaint

brush.

1. Clean off ther..aYouretorcover and the area around it.

2. Pull choke to the ful} position (Figure 14, page 11)to

prevent dirtfrom entering the carburetor.

3. Remove the carburetor cover.

4. Removetheairfiitercarefully. Rgure4&

5. _ singletop screw andseparate the two halve_

_CAUTION: ] Do not use gasoline or other flam-

mable liquid to clean the filter toavoid creating a

tim hazard.

6_ _filter in soap and water.

7. Brush away all dust and debris from the fitter.

8. Allow filter to dry.

9. Reassemble fitter.

10. Brush away all debrisfrom surfaces onwhich the f_tter

ism be placed.

11. Rel_ace the fitter and carburetor cover.

;,0.

Figure42

G. STORAGE-

Figure 43

When your saw is to be stored for over 30days aF

ways:

.1. DPJ_r_5.eJta__in asafe manner (see"I_ Poir_ •

to Remember;', ' page g).

2. Start engine and aliow to run at idle speed until the

engine s_ops.

fuel system.

_CAUT]ON: t Wear protective gloves wh_ han-

dling the chain. The chain is sharp and can cut

you even when it is not moving,

3. Drain oil tank..

4. Remove, dean, a'nddrythe bar and chain.

S.._Gtorethe chain ",_ac_,,t_er fi_-_ _d to pre-

vent rust

6. Applyacoatingof oilto the entire surfaceof the bar

andwrapitin heavy paper, clothorplastic,

8, Storethesawinadryplaceoutofthe reachofchildren

andz_wayfrom wherefuel vaporscan reachsparksor

openflames from hotwater.heaters,furnaces, ere.

•LIIIIII,IIIIIII IIIIIIIIIIIIIIIIIt _ III i .U,l,ll_lllllllllll III

.,Hi H ill ,,

H. TROUBLE SHOOTING CHART

TROUBLE

_€_IGINE WiLL NOT START

CAUSE

1. Ignition Swilch off.

2, Fuel tankerupt.

3. Spad_Plug notFAng.

4..F._ineffooded•

5. Fuelr_z reaching carburetor.

6, C_mpression tow•

ENGINE WtLk NOT IDI I= 1. Idtespeed settoolow.

PROPERLY

ENGINE WILL_N=-

ACCELERATE LACKS

POWER OF;LDES

IN--CUT

ENGINi_ SMOKES

_-X_SSIVELY

"ENGINE RUNS HOT

oi tNAomu r-o.

ANDCHAIN

LUBRfCATiON

cHAiN ........

IDLESPEED

CHAIN DOES NOT MOVE

WHEN FJ_IGINE,IS

ACCELERATF_.D -

2: Idle speed set too high.

3. Lowspeed screw requires adjustment.

4. Crankshafts,_=_swom.

SCompressionlow.

l,J ,,, ,=u_

1. Air filt;eris dir_.

2. Spark plug fouled.

3..Carbon build-upon exhaust portson muffleroutlets.

4. _-_.arburemtt_:_uires adjustment.

5. LowCornpression.

.......,..., ....

1. Choke partiallyon.

2., AirfiRet'dirty.

3. Oil richfuel mixture.

4. •Highspeed need_ requites adjustmen;.

5. Crankcaseleak•

1. F_nRousingdff'ty. 1.

2. Fue_M,3ctureincm"tect. 2.

3, SparkPlug incO_-_:t. 3.

,,,,, ,,,

"L O_tank empty.

2, Imp_'opedyadjestedoiler=(If soequipped:)

3. Oil pump or oil filler clogged.

4. Guide baroilhole blocked.

,..H ........ ..., ,

1. Idlespeed'requiresadjus_ment.

2. Qutch requites repair,

REMEDY

1. Movcswitsh to"Start;'

2, F_{_-_aJ_kwithcor_'_ fuel mixture.

3, Install new plug/check ignition _stem.

4. See <Jtartingin_ructlons.

.5` Check forditty fuel fitter;cleam Check for

kinkedor spZitfuel line; repairorreplace_

6. Contactyout,Se,_u'sSeryice Center-

I. Adjustidlesp_-_°ds_'ewc{ock'wiseto

increase speed.

2. Adjestidle speed screw countetctock-w_se

toreduce speed.

3, See,CarburetorAdjustments.

,5. -Contact your _ars ,',',',',',',',','_ervi¢_ Center.

1_ Clean or replace,air filter.

2* Clean orreplace.Spark Plug andregap.

3,- Comact yc_JrSears _rv_ Center.

4. See_arburetor Adjus_'nents.

5. Cont;_t your Se_rs SeP.,_ceCente_

1. Pu._hChoke in.

2, Clean or mp_ace air filter.

3. Em_,y fuel tank and refillwith cor_ec_fuel

mixture.

_.. _Z.ee_arburetorAdjustments.

5. Contact you_Seers Ser_ceCenter.

..... ,.,,. ,

Clean fan housing.

See F_tgineFuel Mixture.

Replace withco_ plug.

4. HighSpeedMixturesettoolow. 4. SeeC_rbur_0rAdjustments•

5, Catbonbu_d--uponsparkarmstorsCr,_n. 5. Cteansparkar_e_orscreen.

6. .Carbonbuild-uponaxh_a,'_po_ormuffletOLlliet_ _. _;ontactyourSearsServ_ceCenter.

,,,,,,,,,,,

I. Chain tension too tigtrt.

2. .Ca_uRtor requires adjustmenL

3. Guide b_rails p_

................ • 4. _l_h sIipp!ng.....

I. Chin tensionincorrect.

2. Cuttersdamaged afler striking foreign

•material:

-3,. Chain wear du_ toconta_w_ diPt;sand

orfrozen w_X_.

4. Craters dull improperly sharpened; dept.h

gauges toohlgh.

5. Spresket worn,

[lUl i I IIII II II

I. Chain cutlet tops n_ filed fiat,

2. Guide b_r burred orbe..nt;rails uneven.

3, CJ_h slipping.

I. Cutters dam_g_l on one s_ie.

I. Filloiltank.

2. Adjus_oiler.

3, COntact yourSea_3Service C_n[er.

4. Remove bar _cle_n.

1, -See,Carbu_tor Adjustments.

1. S_eChain Tension,

2. See Cat'buteto_'Mjustments.

3," .Repair.or rep!ae._.

4..:Contact yourSeam ServlceCentec

1, SeeCh_in Tension,

2. Contactyou_Seam Se..viceCentec

3, Resharpenor_._ace chain.

4. S_eCha_n Shafpen{n9 l_st_'uc_ons.

5. _.ontactyourSearsSeEviceCemer.

1. See Chin Sharpen ing Instructions.

2. Repair o_ rep.i_ceGuide _a_.

1. Reshazpen u_ila!lcuttershaveequ_l

angles and lengths.

2. C;_aindu_lon one side. 2. Re_haq_enuntJl_lh=.,'ttershaveequal .

a_es andlengths.

......... 3.; Gulde-bar_-=t;o_om; .... _3:- :..p_._.L_:g_4!d_.:_.r..:.......................

, Ill II I I III III II r IIII III1,11 """"""""''"' """' I

I• i ,,, ,,,H.i ,

L MAINTENANCE CHART

• 1

IC°mplete n_chine

iI TllrOttle trigger, sate{y throt_{elock. stop Switch

IFilter _nfuel tank

Fuel _h_

Chai&oil lank

._ rt ....

Chain iubdcation

Saw_:hain

IGu_e bar

.!Cha_ sprocket

!Cy_in_"f_rts

C=_rb_etor

Spark_ug

Alla¢_ess_ s_ev,_ _rd n_s

(no}adjustingscrews)

Vib:ation mounts

Sparka_restorscreen

lisualinspection {COndition. leaks)

Clean

Checkoperation

CleanFelt

Replace fe[t -- when clogged or dirt7'

Clean

tCheck

t27;2

i Inspect (wear. damage)

Clean

Lubricate sprocket

Deburr

Replace _ when worn or dam_.ged

Check

Clean

Repl_ce_ whenworn or damaged . ". ,.

Clean

Ch_:k idle &d_ustment -

chs_n must not turn

ReadjuSt idte,_ when chain _ums at idle

SEARS CHAIN SAW REPAIR PARTS LIST MODEL 358.356280-2.8/I8"

•MODEL 358.356330-3.3/20"

•Gask_ !

\23 35

45 42

EL% PART

NO. NO.

3t 530-015710

32 530-4127184

33 530-019160

1_4 530-014137

r_o-olSTlS

3_ 53P.-01572_

37 530-028645

38 g30-027095,

39 _530-028647

40 530-4"28"_16

41 530-,028644 •

412 536-012155

530-012200

43 530-O3OO34

44 530-03OO54

45 530-027838

46 530-015697

47 530-001_24

48 530-067180

49 530-027218

530--027090

530-027607

51 530-015707

52 530--027285

Not Shoz_a

530-061329

53O--061330

DES_ON

Screw

Spur

Cra -nksl_t Seal

Crankcase/_'y. (Ind. _s 18,

26,33 ,L_,I26,127, L37,138,

141 & I42)

Screw

Washer

MufflerCover

Spark Arrestor Sa'een

MufflerDiffuser

_ Muffler Ba_le_Fl_te

-Muffler Body

•' _rlinder

Model 358,356280

Model 358,356330

Spark Plug (C2-4)

Sealant

Deflector

Model 358.356330 Only

Sc_e_

Operator's Manu_d

Carb. Adaptor

P_n Ring

Mode/358.355280

Model 358.356330

Screw

Clamp Ass'2_

......................B_.Clamp=&..F_n.I_g-i)_ah

Carton

Model358.356280

Model358.356330

SEA2.S CHAIN SAW REPAIR PARTS LIST MODEL358.356280-2.8/18":

MODEL 358.356330-3.3/20"

oo9

71 93

83 97

178 1719

79 80

,,,,,,, ,,,,,,,....

[PART

,, ........NO-'

53_0

530-.0157H

530-027183

_0--027399

530-010877

• 530-027394

'5,q0-.027187

_10-015715 _

:, 530--027888

._0-015702

530-O1O845

538-027191

53_0_598 '

530-027139

fi30-024772

530-015716

952-069253

530-069265

530-027178

530-015871

530-027134

530-027133

530-027271

530-069217

530-035201

530-023664

530-015785

530-010892

,, ;[,,,,,,

DESCRIPTION

Retainer Moun_

Screw

Chain C._tcher P_taLncr

Buraper-Carb. Cover

Lower Isolator

Rear Handle & Fuel Tank

CylLud_e_l Mount

Lqolator L4miter.

Renector

"C _ CIip

Fuel Cap ,_ss'y. (bad. _0"

Bracket

Screw

Throttle Lock

Throttle Lock Spring

Screw

Carb. Cover Winter Kit

Cylinder Shield Kit (IneL

62)

Carb. Cover

Screw

_gger Latch Spring

Throttle Trigger

Grommet

----Bm_ke_

Gasket Set

Carburetor (HI)A--49)

Air Filter Pt_e

Carb.Mounting Stud

Air FiIter.M_'_

KEY

NO.

•I 91

"92

I00

•101 '

102

t0S

104

105

t73

t74

I77

178

179

180

PART

NO., DP-qCRIFI20N

,,,,,,

,530-027135 Thro_le Lockout

531_027207 Rear Handle Cover

_30-027073 Throttle W'_e

530-027075 ChOke Knob

580--027393 _ Isolator Moua_

530-001_ Nut

530-015701 Dowel Pin

530-015_4 .Scrr_. :

_30--069210 ,LineI_t (Bulk 81831"

530-091878 Fuel Filter Ass'_ "

530-039129 ,Grommet

530-06922_ Switch Kit

530-027138 . Lead Wire _'y.

530-01_717 Screw

53_02_0_ _ Retainer

530-024475 Vent Fitting

530-026H9 Check Valve

530-031111 Hex Key

_530-02T339 -Ven_ Plug

530-02_922 Plug-AirBox

530-027341 Clamp

- ,_l_c_ons Decal

"530-027798 Model 358.356280

53_-027824 Model 358.356330

- RepL Bar & Chain

530-027257 Model 358.3,56'280

_.530=027_,o-___3_8.__35_ 9_

530-029347 Braek_

_30-015710 Scre_

530-015810

530-0155._2 Washer

SEARS CHAIN SAW REPAIR PARTS LIST MODEL 358356280-2.8t18"

MODEL 358.356330-3.3120"

1, t!29

ChainRe-

pair Kit

144

142 131

Ii0 122

SEARS cHAIN SAW REPAIR PARTS LIST MODEL 358.356280-2.8/18"

MODEL 358.356330-3.3/20"

Carburetor Assembly -//530-03520I HDA -#49

"I47 t

148

168

169

164 163 162

149

151

RepsirKit1

170

CarbGasket/

Diaphragm

Kit

171

•';S •"

KEY

NO.,

147

i48

149

150

151

.i_i2

L_3

157

158

160

PART

NO.

_237

*+530-038227

*+530.-035229

÷530-035249

53a-_35244

530-035216

+5Y,O-V_352_.3

+_53041_236

+530-0352_0

+_,30-035252

+530-0,35241

530-035239

-_.g_0_5230 _-_

*+530-03.5228

DESCRIPTION KEY

...................................... NO.

Screw 161

Fuel Pump Gasket 162

Fuel Pump Diaphragm 163

Inlet Screen 164

Throttle Spring 165

ChokeShe_ &Le_er _'y 166

I_et _c_Je V_;'e !_7

Screw 168

Pin 169

Metering Lever

SpriRg

SCrew

•Metering DiaphragmGasket

PART

NO.

+_0-035204

+_0-_35248

,530-0352_6

5,q0_.3SPA0

530--035243

530-035245

_,3__35246

530-035242

I70 530--03,5209

171 530---035213

NotBhown

+_03,5S24

+ g30.-035_25

..... :77

._DESCRIPTION

RetainingRing

Ch_k ValveS_-en

BMI

Spring

- Needle Adjusting Spring

HighSpeedNeedle

IdleNeedle

IdleAdjustScrdw

Idle Adjust Spring

Kwik RepOt Kit( + Indicates

Cor_e_nt@

Garb.Oa_k_Kit(=Indi_

------Conten*__

Welch Plug

PlugCup'

: QUICK REFERENCE PAGE

"3.

. . 4o

......... Read-and-fottowall-Safety-R[ilb__i_,-and Operating Instructions.

Failure to do so can result in serious injury. _

".8.

page

SPECJAL SAFETY SECTION. .............................. .. :. ................. 3-5

PREPARA_ON ............................................................. 3-5

1. Wear personal protective gear -- gloves; safety footwear;, snug fitting clothing; and eye,

hearing and head protection,

2. Check fo_worn,loose, missingordamagedpartsandrepairorreplaceas necessary. •

3. Check the chain for sharpness and tension.

4. Keepchildren,bystanders:andanimaJsa minimumof30feet (10meters) awayfromwork area.

5. Plan your sawing operation carefully in advam,_e.

FUELAND OIL ............................................................. g&10

1. Eliminate all sources of sparks or flame where fuel is mixed, poured, or.stored.

2. Use:1part air<_o.Led,2-cycte englneoil to:lSpa,'ts_',_g'_arunteadedgasoline.

3. Use gasoline not over 2months old.

4. Mix and pour fuel in anapproved, markedcontainerand in an outdoor area.

5. Move aminimum of 10 feet (3 meters)away from fuel and fueling site before starting engine.

6_ Fiti the ,_1 t_nk ,_ach dime _he fuel tank is refueled.

STARTING THE ENGINE ........................................................ 1-1

1. Hold saw firmly with the saw chain free to turn without making contact with any object.

•2. Hold front handlebar with left hand &ptace right foot through rear handleto stabilize saw,

3. Use less than the full extent of the starterrope per pull;

4. Release the trigger after engine-starts allowing engine tO idle:

OPERATING THE UNIT ......................................................... I:='

l. Cut wood only.

2. Accelerate the engine.to full throttte before entering the cut.

3. Begin cutting with spur against the log.

4. Cut only at furl throttle.

5. Release the trigger as soon as the cut is completed.

6. Stop the engine before settingthe saw down after cutting.

MAINTENANCE .............................................................. lt_

1. Adjust orhave the carburetor,adjusted if the chain.moves .when the engine: idles,

Disconnect" spark plug befor,e:.pet:forming_maintenanoe except for _:arburetor-.adjustment.

Check the guide bar for wear each:timethe chain is sharpened.

Clea_nthe air filter frequently and always after 10 tanks of fueim_xture or 5 hoursOf o_er_tion,

Whichever is tess.

5. -Clean sparkarres_r screen_atleastonce foreach25-30 hoursof Opera,on.

6. Take the saw to yourSears Service Center for full clutch inspection after each .100 hours

of operation.

Drain-fueltank in a safe manner before stodngthe unit for 30 or more.days.

Store saw in a dry.place out of the reach of children.

WATCH OUT F'OR •

KICKBACK

NOT USE

THE SAW WHEN

IT NEEDS REPAIR NEVER USE THE SAW

WHEN TIRED

USE A FIRM GRiP

WITH BOTH ,HANDS

............. L ' •27

MODEL NO.

358.356280-2_/18"

358.356330-3.3120"

How to Order

Repair Parts

SEARS SERVICE

The Model Number will be found under the handle with the Seria!

"NUmb-_r:-Always-menfion_the.ModetJ_lumber-when._reques.tir'_g_ s_E

vice or repair parts for your Chain Saw.

All parts listed herein may be ordered ,from any SF_.ARS Service

Center and most Sears Stores.

WHeN ORDERING REPAIR PARTS, ALWAYS GIVE THE

'FOLLOWING INFORMATION AS SHOWN IN THIS LIST.

1. The PART NUMBER 3. The PART D_SORIPTtON

2. The MODEL NUMBER 4. The NAME OF ITEM

358.356280-2J]/18" Chain Saw

358.356330-3,3/20"

If the parts you need are not stocked locally, your Order wilt be

_tectronically transmitted to a Sears 1_epair Parts Distribution

center for _handling.

When you buy merchandise from

Sears you get an extra something

that nobody else can .offer...Sears

Service.

Across town oracrossthe country,

SearS Service.follows you, provid-

ing trustworthy, competent service

technicians using onlySearsspeci-

fied factory parts.

.az s. R(_ buck and Co.. Chic,%._). IlL 60684 U.S.A.

• . : " . . . '

PRtNT_DIN U.S.A.

Craftsman 358356280 User Manual CHAIN SAW Manuals And Guides L0709417

CRAFTSMAN Chainsaw, Gas Manual L0709417 CRAFTSMAN Chainsaw, Gas Owner's Manual, CRAFTSMAN Chainsaw, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
