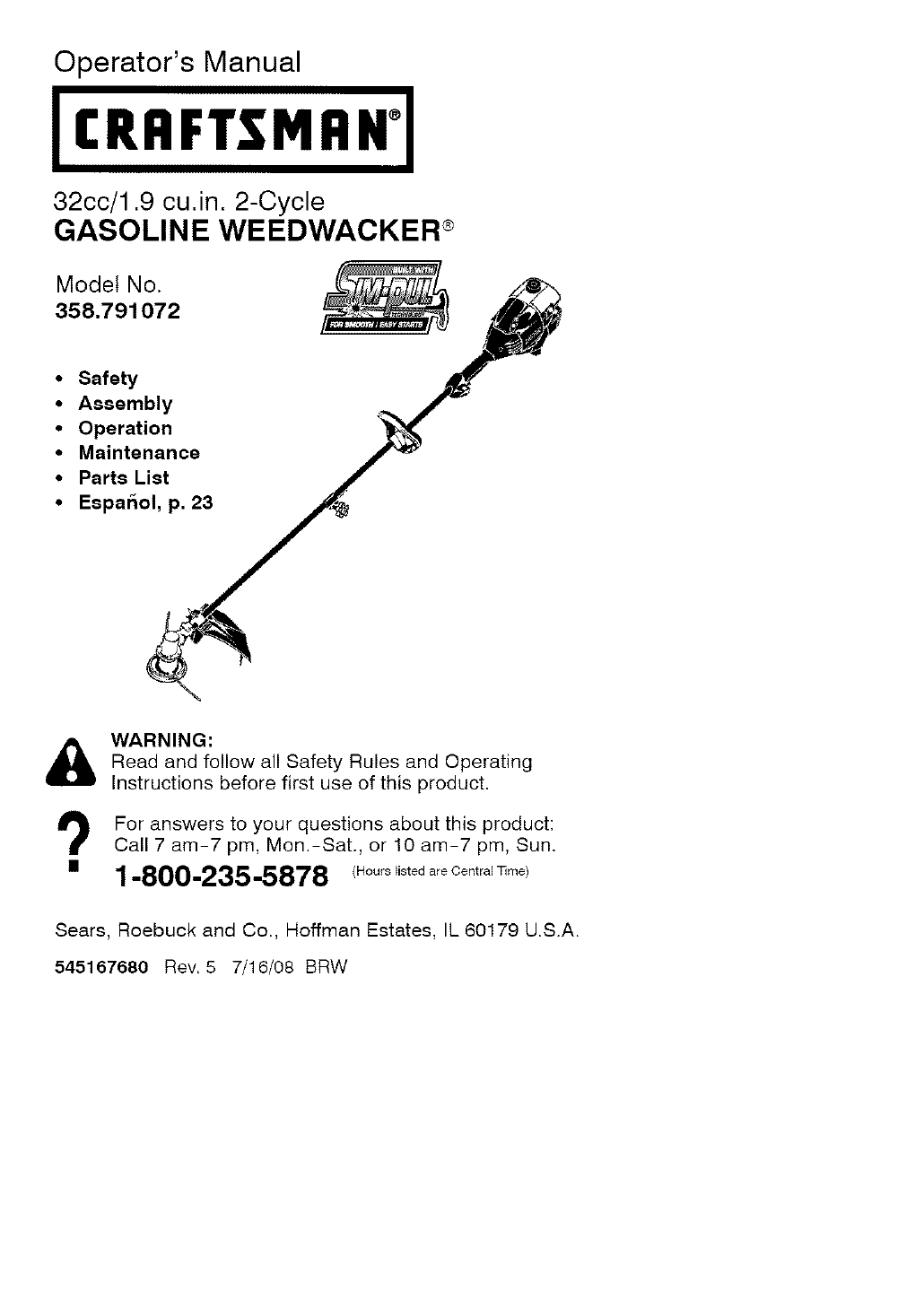

32cc/1.9 cu.in. 2-Cycle

GASOLINE WEEDWACKER ®

Model No.

358.791072

•Safety

•Assembly

•Operation

•Maintenance

•Parts List

•Eapa_ol, p. 23

WARNING:

Read and follow all Safety Rules and Operating

Instructions before first use of this product.

For answers to your questions about this product:

Call 7 am-7 pm, Mon.-Sat., or 10 am-7 pm, Sun.

1-800-235-5878 _Hou,s listed are Central ]qme)

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

545167680 Rev. 5 7/16/08 BRW

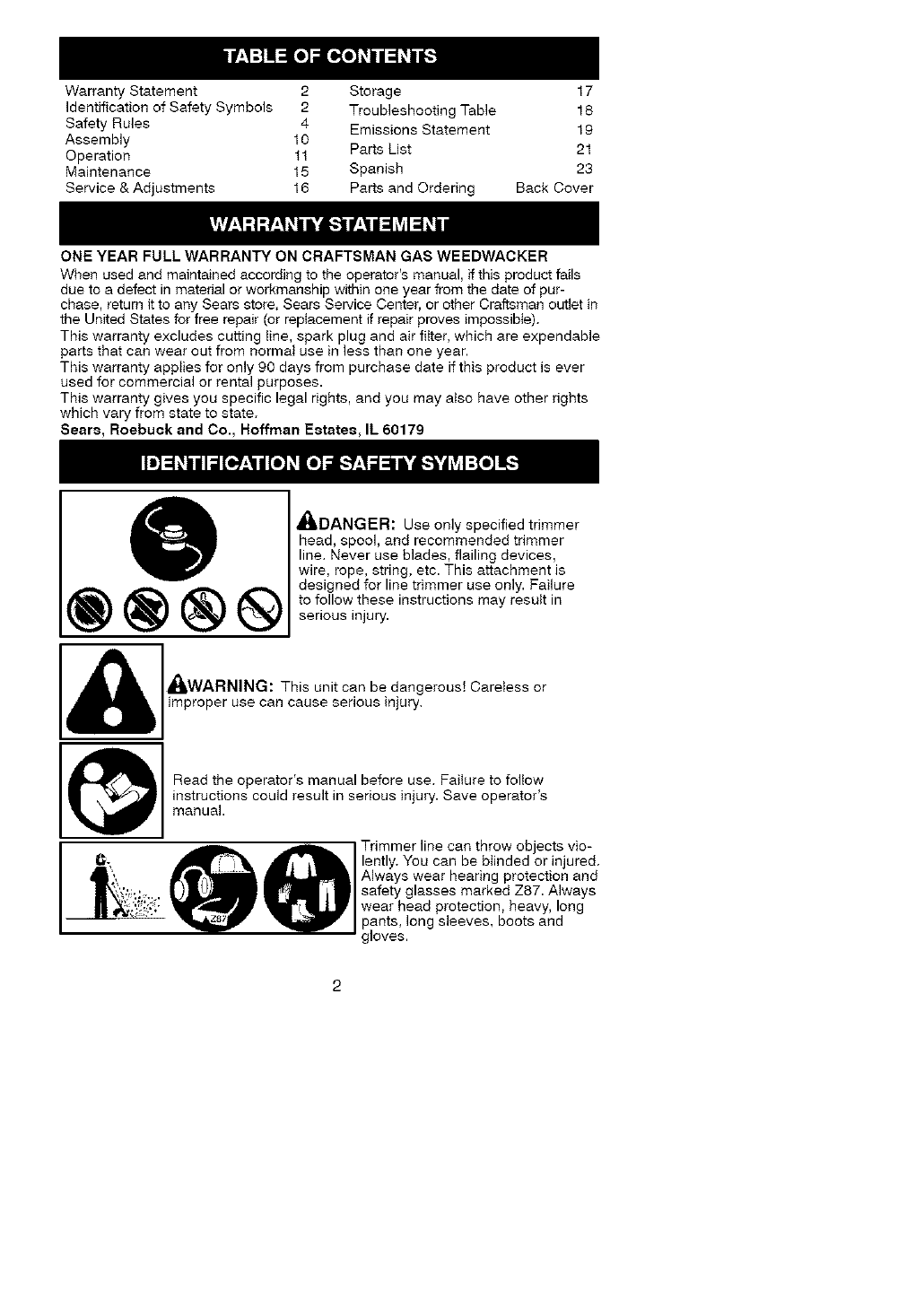

Warranty Statement 2 Storage 17

Identification of Safety Symbols 2 Troubleshooting Table 18

Safety Rules 4 Emissions Statement 19

Assembly 10

Operation 11 Parts List 2t

Maintenance 15 Spanish 23

Service & Adjustments 16 Parts and Ordering Back Cover

ONE YEAR FULL WARRANTY ON CRAFTSMAN GAS WEEDWACKER

When used and maintained according to the operator's manual, if this product fails

due to a defect in material or workmanship within one year from the date of pur-

chase, return it to any Seals store, Sears Service Center, or other Craftsman outlet in

the United States for free repair (or replacement if repair proves impossible).

This warranty excludes cutting line, spark plug and air filter, which are expendable

parts that can wear out from normal use in less than one year.

This warranty applies for only 90 days from purchase date if this product is ever

used for commercial or rental purposes.

This warranty gives you specific legal rights, and you may also have other rights

which vary from state to state.

Sears, Roebuck and Co., Hoffman E_tates, IL 60179

®®

_DANGER: Use only specified trimmer

head, spool, and recommended trimmer

line. Never use blades, flailing devices,

wire, rope, string, etc. This attachment is

designed for line trimmer use only. Failure

to follow these instructions may result in

serious injury.

I& I_WARNING: This unit can be dangerous! Careless or

Iimproper use can cause serious injury.

Read the operator's manual before use. Failure to follow

instructions could result in serious injury. Save operator's

manual.

_ Trimmer line can throw objects vio-

lently. You can be blinded or injured.

Always wear hearing protection and

safety glasses marked Z87. Always

wear head protection, heavy, long

pants, long sleeves, boots and

gloves.

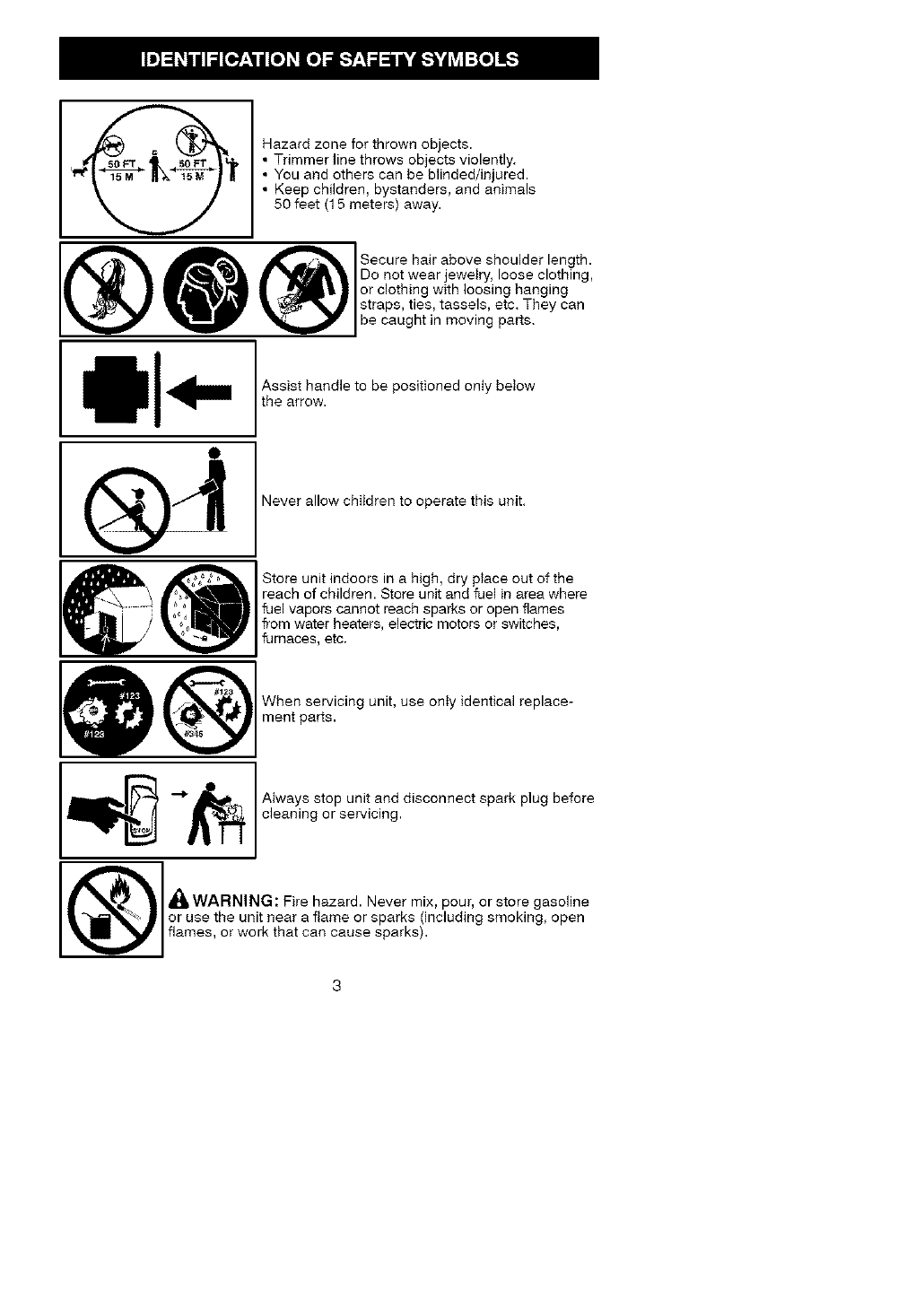

Hazardzoneforthrownobjects.

•Trimmerlinethrowsobjectsviolently<

• Youandotherscanbeblinded/injured.

• Keepchildren,bystanders,andanimals

50feet(15meters)away.

_O _ ISecure hair above shoulder length.

f _ • I Do not wear jewelry, loose clothing,

|..._li IIor clothing with loosing hanging

• _[I Istraps, ties, tassels, etc< They can

_lllll_ J be caught in moving parts<

Ill Assist handle to be positioned only below

the arrow.

Never allow children to operate this unit<

Store unit indoors in a high, dry place out of the

reach of children. Store unit and fuel in area where

fuel vapors cannot reach sparks or open flames

from water heaters, electric motors or switches,

furnaces, etc.

When servicing unit, use only identical replace-

ment parts.

Always stop unit and disconnect spark plug before

cleaning or servicing.

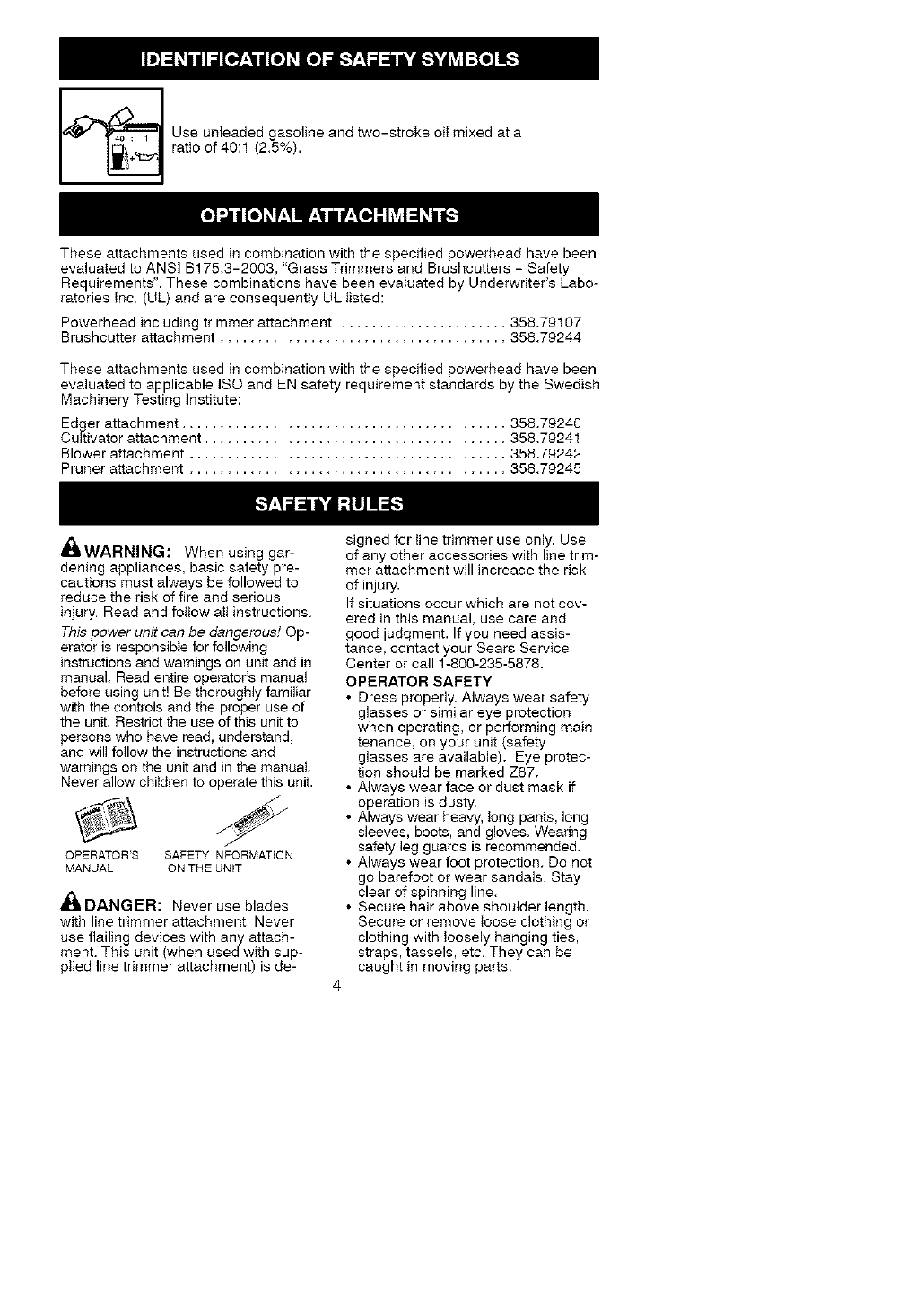

_ i o_ruTeAtt_eNul_tGn;eFile _aaZmardorNse;e_m(iiXcP°cUrng°rsst°rkengas°/lene

Iflames, or work that can cause sparks).

I_1 se unleaded gasoline and two-stroke oit mixed at a

ratio of 40:1 (2<5%).

These attachments used in combination with the specified powerhead have been

evaluated to ANSI B175.3-2003, "Grass Trimmers and Brushcutters - Safety

Requirements". These combinations have been evaluated by Underwriter's Labo-

ratories Inc. (UL) and are consequently UL listed:

Powerhead including trimmer attachment ...................... 358<79107

Brushcutter attachment ...................................... 358<79244

These attachments used in combination with the specified powerhead have been

evaluated to applicable ISO and EN safety requirement standards by the Swedish

Machinery Testing Institute:

Edger attachment ........................................... 358<79240

Cultivator attachment ........................................ 358<79241

Blower attachment .......................................... 358<79242

Pruner attachment .......................................... 358<79245

A'l

IllWARNING: When using gar-

dening appliances, basic safety pre-

cautions must always be followed to

reduce the risk of fire and serious

injury. Read and follow all instructions.

This power unit can be dangerousf Op-

erator is responsible for following

instructions and warnings on unit and in

manual. Read entire operator's manual

before using unit! Be thoroughly familiar

with the controls and the proper use of

the unit. Restrict the use of this unit to

persons who have read, understand,

and will follow the instructions and

wamings on the unit and in the manual.

Never allow children to operate this unit.

OPERATOR'S SAFETY INFORMATION

MANUAL ON THE UNIT

_ DANGER: Never use blades

with line trimmer attachment. Never

use flailing devices with any attach-

ment, This unit (when used with sup-

ptied line trimmer attachment) is de-

signed for line trimmer use only. Use

of any other accessories with line trim-

mer attachment will increase the risk

of injury.

If situations occur which are not cov-

ered in this manual, use care and

good judgment. If you need assis-

tance, contact your Sears Service

Center or call 1-800-235-5878.

OPERATOR SAFETY

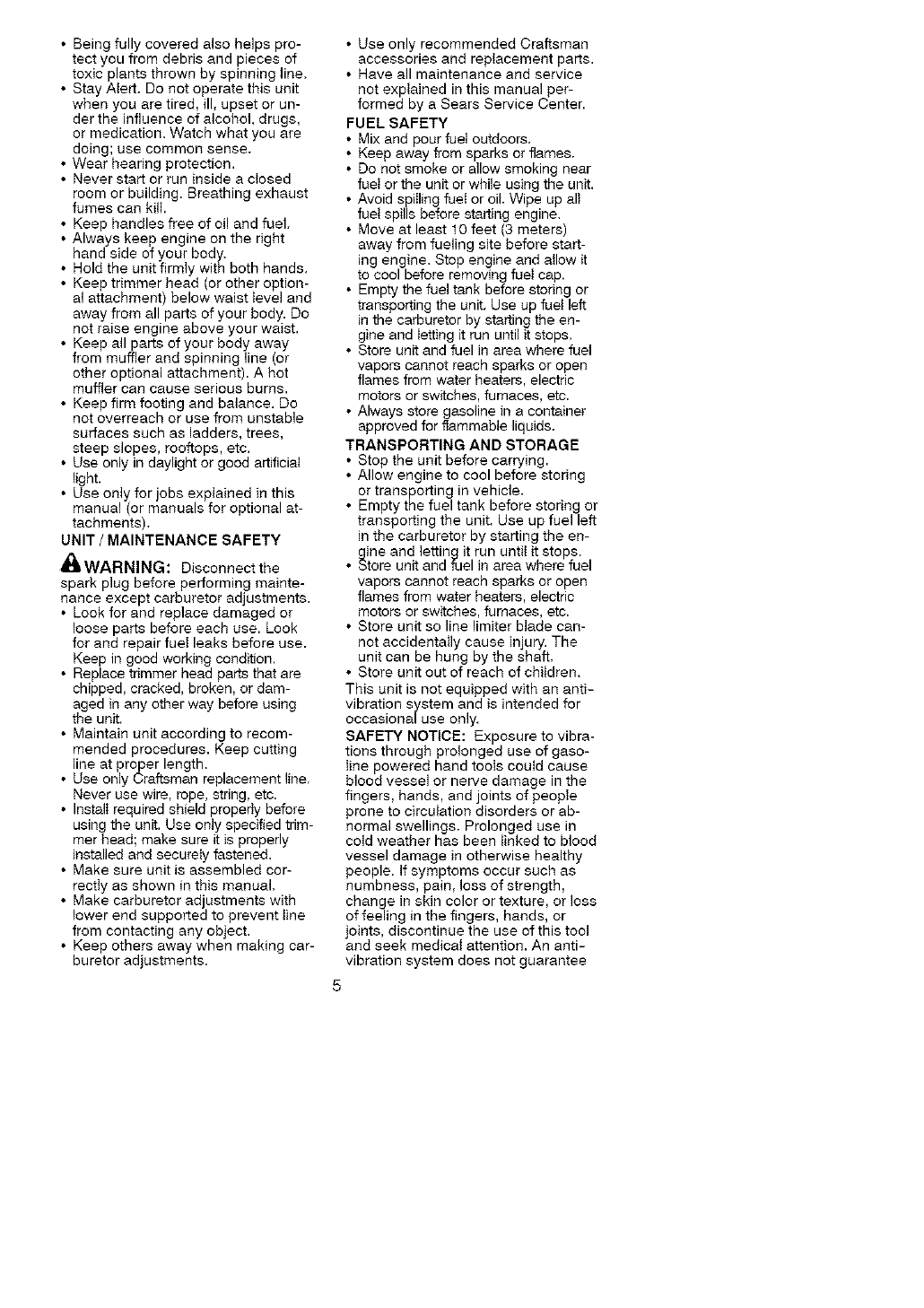

• Dress properly. Always wear safety

glasses or similar eye protection

when operating, or performing main-

tenance, on your unit (safety

glasses are available). Eye protec-

tion should be marked Z87.

• Always wear face or dust mask if

operation is dusty.

• Always wear heavy, tong pants, long

sleeves, boots, and gloves. Wearing

safety leg guards is recommended.

• Always wear foot protection. Do not

go barefoot or wear sandals. Stay

clear of spinning line.

• Secure hair above shoulder length.

Secure or remove loose clothing or

clothing with loosely hanging ties,

straps, tassels, etc> They can be

caught in moving parts.

• Beingfullycoveredalsohelpspro-

tectyoufromdebrisandpiecesof

toxicplantsthrownbyspinningline.

• StayAlert.Donotoperatethisunit

whenyouaretired,ill,upsetorun-

dertheinfluenceofalcohol,drugs,

ormedication.Watchwhatyouare

doing;usecommon sense.

• Wear hearing protection.

• Never start or run inside a closed

room or building. Breathing exhaust

fumes can kill.

• Keep handles free of oil and fuel.

• Always keep engine on the right

hand side of your body.

• Hold the unit firmly with both hands.

• Keep trimmer head (or other option-

al attachment) below waist level and

away from all parts of your body. Do

not raise engine above your waist.

• Keep all parts of your body away

from muffler and spinning line (or

other optional attachment). A hot

muffler can cause serious burns.

• Keep firm footing and balance. Do

not overreach or use from unstable

surfaces such as ladders, trees,

steep slopes, rooftops, etc.

• Use only in daylight or good artificial

light.

• Use only for jobs explained in this

manual (or manuals for optional at-

tachments).

UNIT /MAINTENANCE SAFETY

_WARNING: Disconnect the

spark plug before performing mainte-

nance except carburetor adjustments.

• Look for and replace damaged or

loose parts before each use. Look

for and repair fuet leaks before use.

Keep in good working condition.

• Replace trimmer head parts that are

chipped, cracked, broken, or dam-

aged in any other way before using

tile unit.

• Maintain unit according to recom-

mended procedures. Keep cutting

line at proper length.

• Use only Craftsman replacement line.

Never use wire, rope, string, etc.

• Install required shield propedy before

using the unit. Use only specified trim-

mer head; make sure it is properly

installed and securely fastened.

• Make sure unit is assembled cor-

rectly as shown in this manual.

• Make carburetor adjustments with

lower end supported to prevent tine

from contacting any object.

• Keep others away when making car-

buretor adjustments.

• Use only recommended Craftsman

accessories and replacement parts.

• Have all maintenance and service

not explained in this manual per-

formed by a Sears Service Center.

FUEL SAFETY

Mix and pour fueloutdoors.

Keep away from sparks or flames.

• Do not smoke or allow smoking near

fuet or the unit or while using the unit.

• Avoid spilling fuel or oil Wipe up alt

fuel spills before starting engine.

• Move at least t0 feet (3 meters)

away from fueling site before start-

ing engine. Stop engine and allow it

to cool before removing fuel cap.

• Empty the fuel tank before storing or

transporting the unit. Use up fuel left

in the carburetor by starting the en-

gine and letting it run until it stops.

• Store unit and fuel in area where fuel

vapors cannot reach sparks or open

flames from water heaters, electric

motors or switches, furnaces, etc.

• Always store gasoline in a container

approved for flammable liquids.

TRANSPORTING AND STORAGE

• Stop the unit before carrying.

• Allow engine to cool before storing

or transporting in vehicle.

• Empty the fuel tank before storing or

transporting the unit. Use up fuel left

in the carburetor by starting the en-

gine and lettingit run until it stops.

• Store unit and fuel in area where fuel

vapors cannot reach sparks or open

flames from water heaters, electric

motors or switches, furnaces, etc.

• Store unit so line limiter blade can-

not accidentally cause injury. The

unit can be hung by the shaft.

• Store unit out of reach of children.

This unit is not equipped with an anti-

vibration system and is intended for

occasional use only.

SAFETY NOTICE: Exposure to vibra-

tions through prolonged use of gaso-

line powered hand tools could cause

blood vessel or nerve damage in the

fingers, hands, and joints of people

prone to circulation disorders or ab-

normal swellings. Prolonged use in

cold weather has been linked to blood

vessel damage in otherwise healthy

people. If symptoms occur such as

numbness, pain, loss of strength,

change in skin color or texture, or loss

of feeling in the fingers, hands, or

joints, discontinue the use of this tool

and seek medical attention. An anti-

vibration system does not guarantee

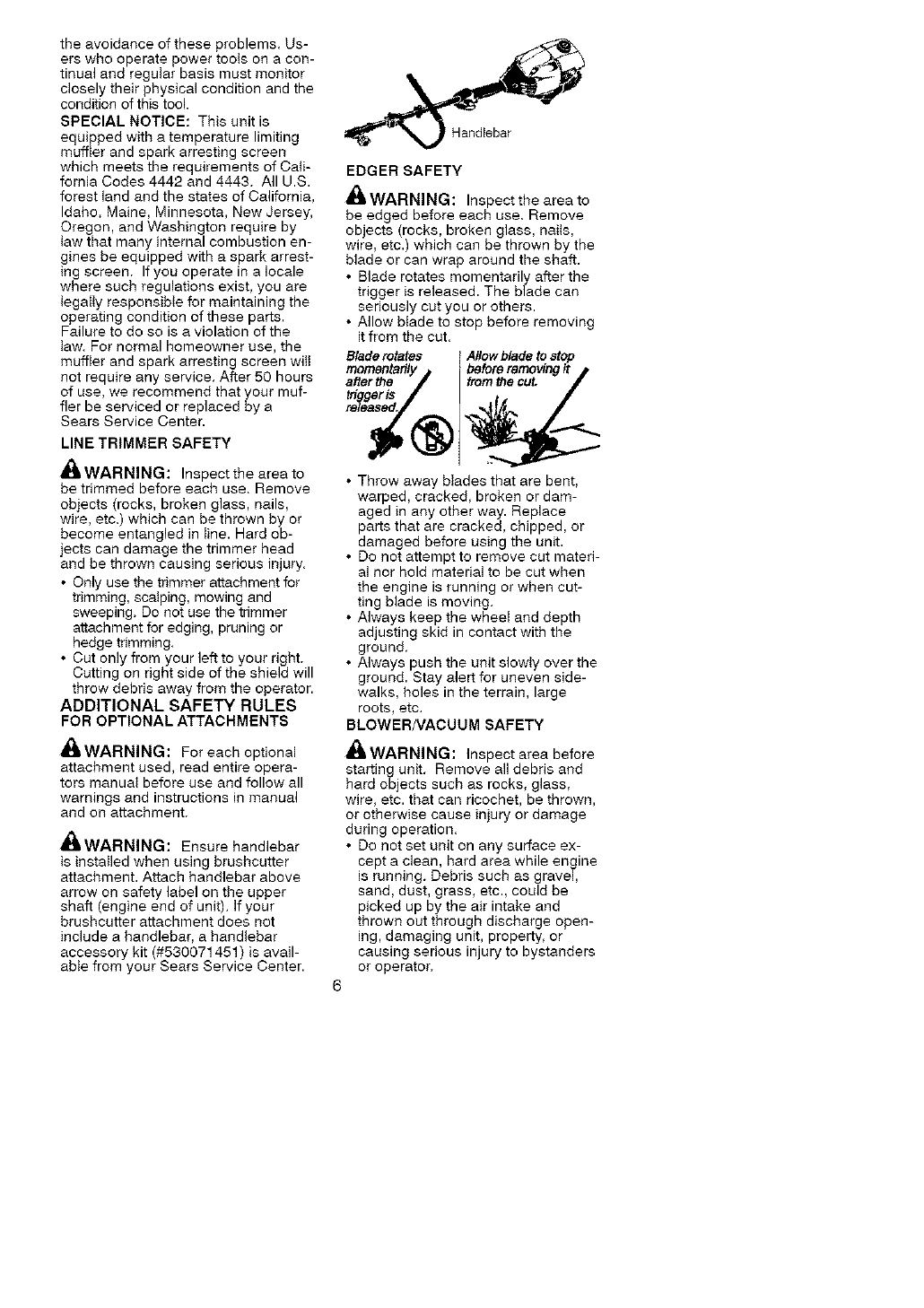

theavoidanceoftheseproblems.Us-

erswhooperatepowertoolsonacon-

tinualandregularbasismustmonitor

closelytheirphysicalconditionandthe

conditionofthistool.

SPECIALNOTICE:Thisunitis

equippedwithatemperaturelimiting

muffterandsparkarrestingscreen

whichmeetstherequirementsofCali-

forniaCodes4442and4443.AllU.S.

forestlandandthestatesofCalifornia,

Idaho,Maine,Minnesota,NewJersey,

Oregon, and Washington require by

taw that many internal combustion en-

gines be equipped with a spark arrest-

ing screen. If you operate in a locale

where such regulations exist, you are

tegalty responsible for maintaining the

operating condition of these parts.

Failure to do so is a violation of the

taw. For normal homeowner use, the

muffter and spark arresting screen wilt

not require any service. After 50 hours

of use, we recommend that your muf-

fler be serviced or replaced by a

Sears Service Center.

LINE TRIMMER SAFETY

AI)&WARNING: Inspect the area to

be trimmed before each use. Remove

objects (rocks, broken glass, nails,

wire, etc.) which can be thrown by or

become entangled in line. Hard ob-

jects can damage the trimmer head

and be thrown causing serious injury.

• Only use the trimmer attachment for

trimming, scalping, mowing and

sweeping. Do not use the trimmer

attachment for edging, pruning or

hedge trimming.

• Cut only from your lef_ to your right.

Cutting on right side of the shield will

throw debris away from the operator.

ADDITIONAL SAFETY RULES

FOR OPTIONAL ATTACHMENTS

A_)&WARNING: For each optional

attachment used, read entire opera-

tors manual before use and follow all

warnings and instructions in manual

and on attachment.

_WARNING: Ensure handlebar

is instailed when using brushcutter

attachment. Attach handlebar above

arrow on safety label on the upper

shaft (engine end of unit). If your

brushcutter attachment does not

include a handlebar, a handlebar

accessory kit (#530071451) is avail-

abie from your Sears Service Center.

EDGER SAFETY

A_)&WARNING: Inspect the area to

be edged before each use. Remove

objects (rocks, broken glass, naits,

wire, etc.) which can be thrown by the

blade or can wrap around the shaft.

• Blade rotates momentarily after the

trigger is released. The blade can

seriously cut you or others.

• Allow btade to stop before removing

it from the cut.

Blade rotates Allow blade tostop

before removing it

after the fromthe cut.

• Throw away blades that are bent,

warped, cracked, broken or dam-

aged in any other way. Replace

parts that are cracked, chipped, or

damaged before using the unit.

• Do not attempt to remove cut materi-

al nor hold material to be cut when

the engine is running or when cut-

ting blade is moving.

• Always keep the wheel and depth

adjusting skid in contact with the

ground.

• Always push the unit slowly over the

ground. Stay alert for uneven side-

walks, holes in the terrain, large

roots, etc.

BLOWER/VACUUM SAFETY

_ WARNING: Inspect area before

starting unit. Remove all debris and

hard objects such as rocks, glass,

wire, etc. that can ricochet, be thrown,

or otherwise cause injury or damage

during operation.

• Do not set unit on any surface ex-

cept a clean, hard area while engine

is running. Debris such as gravel,

sand, dust, grass, etc., could be

picked up by the air intake and

thrown out through discharge open-

ing, damaging unit, property, or

causing serious injury to bystanders

or operator.

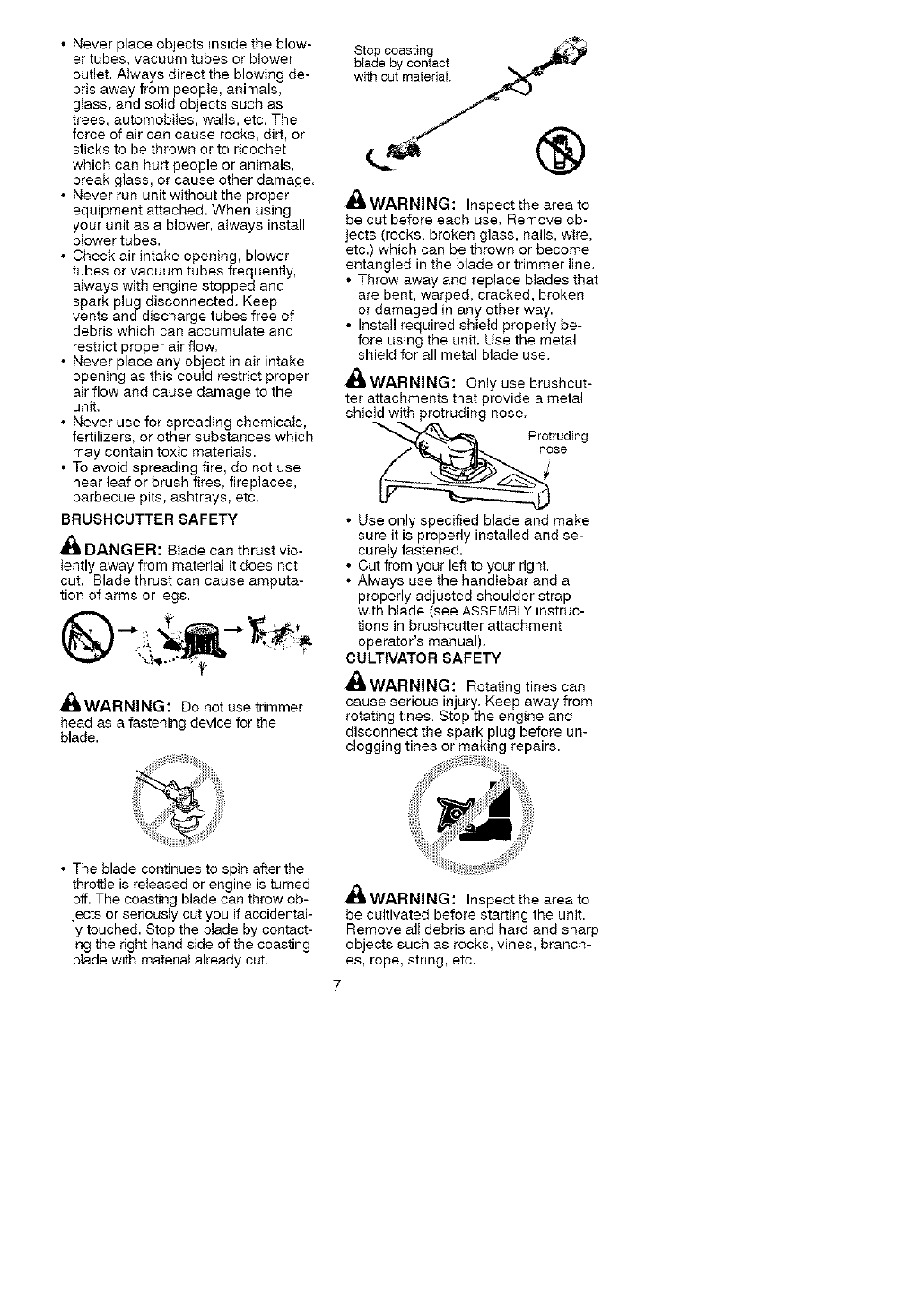

• Neverplaceobjectsinsidetheblow-

ertubes,vacuumtubesorblower

outlet.Alwaysdirecttheblowingde-

brisawayfrompeople,animals,

glass,andsolidobjectssuchas

trees,automobiles,wails,etc.The

forceofaircancauserocks,dirt,or

stickstobethrownortoricochet

whichcanhurtpeopleoranimals,

breakglass,orcauseotherdamage.

• Neverrununitwithouttheproper

equipmentattached.Whenusing

yourunitasablower,alwaysinstall

blowertubes.

• Checkairintakeopening,blower

tubesorvacuumtubesfrequently,

alwayswithenginestoppedand

sparkplugdisconnected.Keep

ventsanddischargetubesfreeof

debriswhichcanaccumulateand

restrictproperairflow.

• Neverplaceanyobjectinairintake

openingasthiscouldrestrictproper

airflowandcausedamagetothe

unit.

• Neveruseforspreadingchemicals,

fertilizers,orothersubstanceswhich

maycontaintoxicmaterials.

• Toavoidspreadingfire,donotuse

nearleaforbrushfires,fireplaces,

barbecuepits,ashtrays,etc.

BRUSHCUTTERSAFETY

DANGER: Blade can thrust vio-

lently away from material it does not

cut. Blade thrust can cause amputa-

tion of arms or legs.

mIWARNING: Do not use trimmer

head as a fastening device for tile

blade.

_ WARNING: Inspect the area to

be cut before each use. Remove ob-

jects (rocks, broken glass, nails, wire,

etc.) which can be thrown or become

entangled in the blade or trimmer line.

• Throw away and replace blades that

are bent, warped, cracked, broken

or damaged in any other way.

• Install required shield properly be-

fore using the unit. Use the metal

shield for all metal blade use.

_ WARNING: Only use brushcut-

ter attachments that provide a metal

shield with protruding nose.

Protruding

R_SO

• Use only specified blade and make

sure it is properly installed and se-

curely fastened.

• Cut from your left to your right.

• Always use the handlebar and a

properly adjusted shoulder strap

with blade (see ASSEMBLY instruc-

tions in brushcuttar attachment

operator's manual).

CULTIVATOR SAFETY

_ WARNING: Rotating tines can

cause serious injury. Keep away from

rotating tines. Stop the engine and

disconnect the spark plug before un-

clogging tines or makinc repairs.

• The blade continues to spin after the

throttle is reteased or engine is turned

off. The coasting blade can throw ob-

jects or seriously cut you if accidental-

ly touched. Stop the blade by contact-

ing tile right hand side of the coasting

blade with materiat already cut.

_ WARNING: Inspect the area to

be cultivated before starting the unit.

Remove all debris and hard and sharp

objects such as rocks, vines, branch-

es, rope, string, etc.

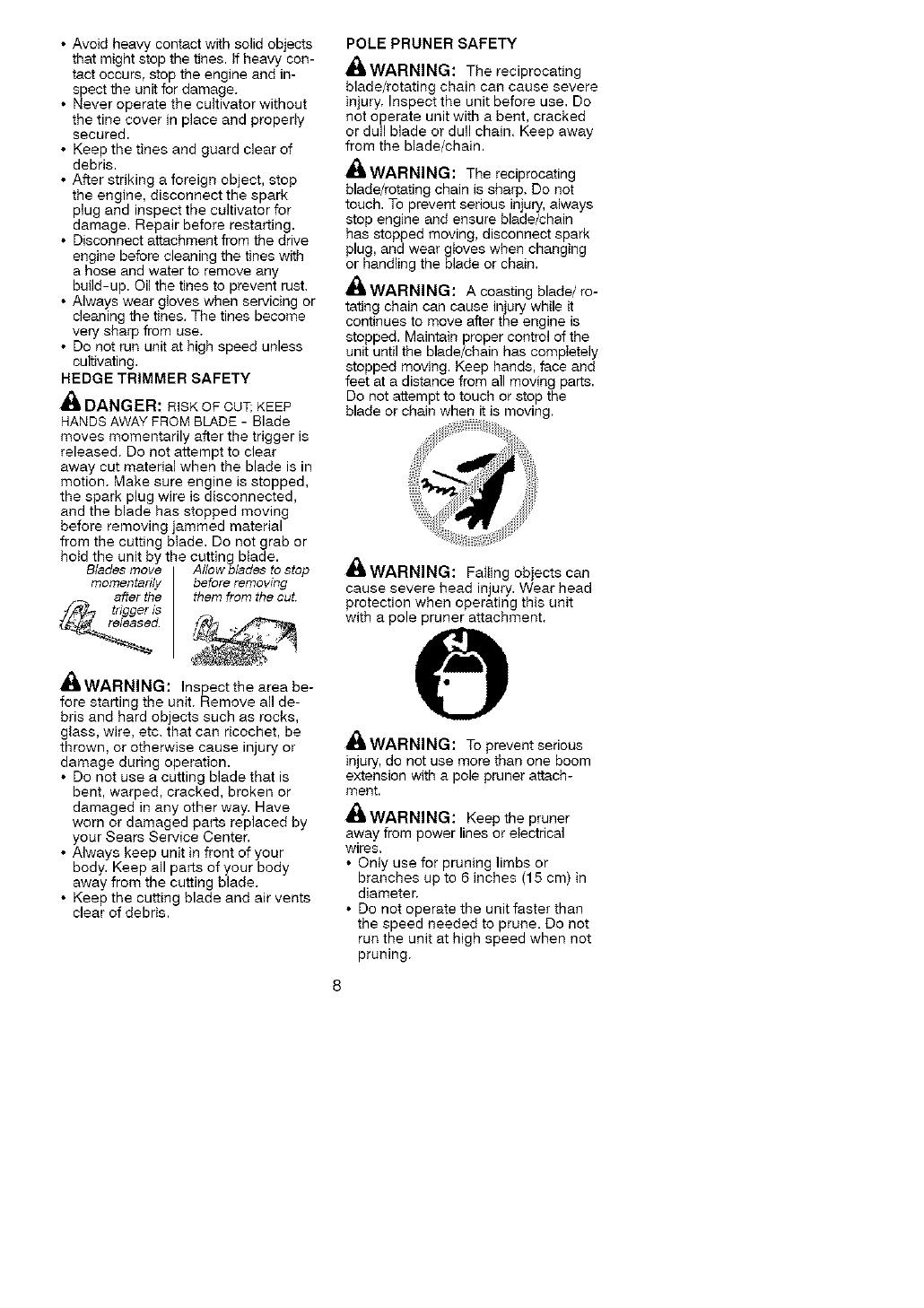

• Avoidheavycontactwithsolidobjects

thatmightstopthetines.Ifheavycon-

tactoccurs,stoptheengineandin-

specttheunitfordamage.

• Neveroperatethecultivatorwithout

thetinecoverinplaceandproperly

secured.

• Keepthetinesandguardclearof

debris.

• Afterstrikingaforeignobject,stop

theengine,disconnectthespark

plugandinspectthecultivatorfor

damage.Repairbeforerestarting.

• Disconnectattachmentfromthedrive

enginebeforecleaningthetineswith

ahoseandwatertorernoveany

build-up.Oilthetinestopreventrust.

• Alwaysweargloveswhenservicingor

cleaningthetines,Thetinesbecome

verysharpfromuse.

• Donotrununitathighspeedunless

cultivating.

HEDGETRIMMERSAFETY

DANGER: RISK OF OUT: KEEP

HANDS AWAY FROM BLADE - Blade

moves momentarily after the trigger is

released, Do not attempt to clear

away cut material when the blade is in

motion. Make sure engine is stopped,

the spark plug wire is disconnected,

and the blade has stopped moving

before removing jammed material

from the cutting blade. Do not grab or

hotd the unit by the cutting blade.

Blades move Aflow blades to stop

momentarily before removing

after the them from the cut

_WARNING: thspect the area be-

fore starting the unit. Remove all de-

bris and hard objects such as rocks,

glass, wire, etc. that can ricochet, be

thrown, or otherwise cause injury or

damage during operation.

• Do not use a cutting blade that is

bent, warped, cracked, broken or

damaged in any other way. Have

worn or damaged parts replaced by

your Sears Service Center.

• Always keep unit in front of your

body. Keep all parts of your body

away from the cutting blade.

• Keep the cutting blade and air vents

clear of debris.

POLE PRUNER SAFETY

_ WARNING: The reciprocating

blade/rotating chain can cause severe

injury. Inspect the unit before use. Do

not operate unit with a bent, cracked

or dull blade or dull chain. Keep away

from the blade/chain.

_WARNING: The reciprocating

blade/rotating chain is sharp. Do not

touch. To prevent sedous injury, always

stop engine and ensure blade/chain

has stopped moving, disconnect spark

plug, and wear gloves when changing

or handling the blade or chain.

WARNING: A coasting blade/ro-

tating chain can cause injury while it

continues to move after the engine is

stopped. Maintain proper control of the

unit until the blade/chain has completely

stopped moving. Keep hands, face and

feet at a distance from all moving parts.

Do not attempt to touch or stop the

blade or chain when it is moving.

_ WARNING: Falling objects can

cause severe head injury. Wear head

protection when operating this unit

with a pole pruner attachment.

WARNING: To prevent serious

injury, do not use more than one boom

extension with a pole pruner attach-

ment.

_ WARNING: Keep the pruner

away from power lines or electrical

wires.

• Only use for pruning limbs or

branches up to 6 inches (15 cm) in

diameter.

• Do not operate the unit faster than

the speed needed to prune. Do not

run the unit at high speed when not

pruning.

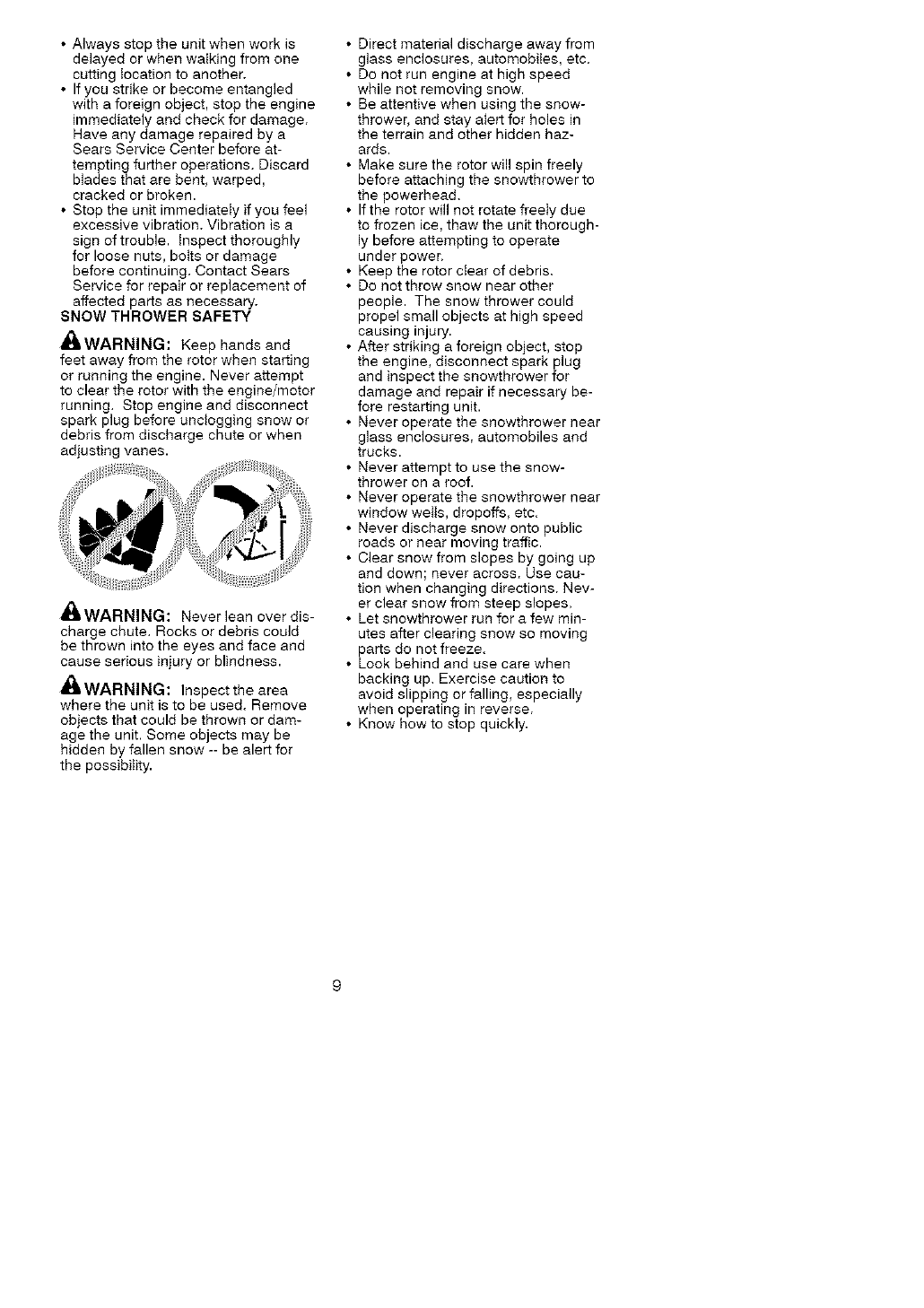

• Alwaysstoptheunitwhenworkis

delayedorwhenwalkingfromone

cuttinglocationtoanother.

• Ifyoustrikeorbecomeentangled

withaforeignobject,stoptheengine

immediatelyandcheckfordamage.

Haveanydamagerepairedbya

SearsSewiceCenterbeforeat-

temptingfurtheroperations.Discard

bladesthatarebent,warped,

crackedorbroken.

• Stoptheunitimmediatelyifyoufeel

excessivevibration.Vibrationisa

signoftrouble.Inspectthoroughly

forloosenuts,boltsordamage

beforecontinuing.ContactSears

Serviceforrepairorreplacementof

affectedpartsasnecessary.

SNOWTHROWERSAFETY

,_ WARNING: Keep hands and

feet away from the rotor when starting

or running the engine. Never attempt

to clear the rotor with the engine/motor

running. Stop engine and disconnect

spark plug before unclogging snow or

debris from discharge chute or when

adjusting vanes.

_WARNING: Never lean over dis-

charge chute. Rocks or debris could

be thrown into the eyes and face and

cause serious injury or blindness.

_WARNING: Inspect the area

where the unit is to be used. Remove

objects that could be thrown or dam-

age the unit. Some objects may be

hidden by fallen snow -- be alert for

the possibility.

• Direct material discharge away from

glass enclosures, automobiles, etc.

• Do not run engine at high speed

while not removing snow.

• Be attentive when using the snow-

thrower, and stay alert for holes in

the terrain and other hidden haz-

ards.

• Make sure the rotor will spin freely

before attaching the snowthrower to

the powerhead.

• If the rotor will not rotate freely due

to frozen ice, thaw the unit thorough-

ly before attempting to operate

under power,

• Keep the rotor clear of debris.

• Do not throw snow near other

people. The snow thrower could

propel small objects at high speed

causing injury.

• After striking a foreign object, stop

the engine, disconnect spark plug

and inspect the snowthrower for

damage and repair if necessary be-

fore restarting unit.

• Never operate the snowthrower near

glass enclosures, automobiles and

trucks.

• Never attempt to use the snow-

thrower on a roof.

• Never operate the snowthrower near

window wells, dropoffs, etc.

• Never discharge snow onto public

roads or near moving traffic.

• Clear snow from slopes by going up

and down; never across. Use cau-

tion when changing directions. Nev-

er clear snow from steep slopes.

• Let snowthrower run for a few min-

utes after clearing snow so moving

parts do not freeze.

• Look behind and use care when

backing up. Exercise caution to

avoid slipping or falling, especially

when operating in reverse.

• Know how to stop quickly.

CARTONCONTENTS

Checkcartoncontentsagainstthefol-

lowinglist.

Model358.791072

Powerhead

Trimmer attachment

Shield

Wing Nut (screwed onto shield)

Container of line

Container of oil

Examine parts for damage. Do not

use damaged parts.

NOTE: If you need assistance or find

parts missing or damaged, call

1-800-235-5878.

It is normal for the fuel filter to rattle in

the empty fuel tank.

Finding fuel or oil residue on muffler is

normal due to carburetor adjustments

and testing done by the manufacturer.

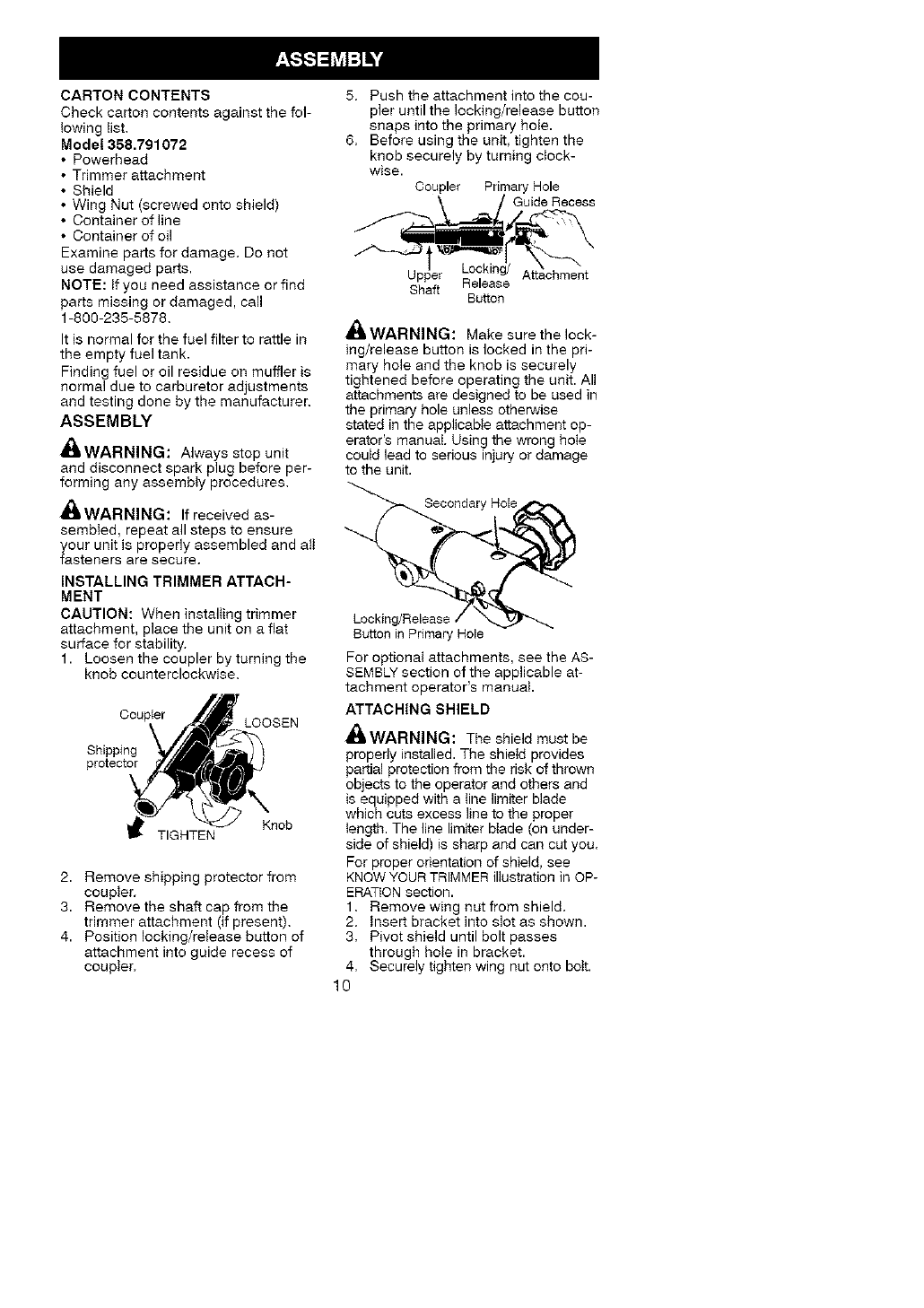

ASSEMBLY

mlWARNING: Always stop unit

and disconnect spark plug before per-

forming any assembiy procedures.

_WARNING: If received as-

sembled, repeat all steps to ensure

your unit is properly assembled and att

fasteners are secure.

INSTALLING TRIMMER ATTACH-

MENT

CAUTION: When installing trimmer

attachment, place the unit on a flat

surface for stability.

1. Loosen the coupler by turning the

knob counterclockwise.

Coupler

Shipping

protector

Knob

TIGHTEN

2. Remove shipping protector from

coupler.

3. Remove the shaft cap from the

trimmer attachment (if present).

4. Position locking/release button of

attachment into guide recess of

coupler.

5. Push the attachment into the cou-

pler until the locking/release button

snaps into the primary hole.

6. Before using the unit, tighten the

knob securely by turning clock-

wise.

Upper Locking/ Attachment

Shaft Release

Button

_ WARNING: Make sure the lock-

ing/release button is locked in the pri-

mary hole and the knob is securely

tightened before operating the unit. All

attachments are designed to be used in

the primary hole unless otherwise

stated in the applicable attachment op-

erator's manual. Using the wrong hote

could lead to serious injury or damage

to the unit.

Secondary Hole

Locking/Release

Button in Primary Hole

For optional attachments, see the AS-

SEMBLY section of the applicable at-

tachment operator's manual.

ATTACHING SHIELD

_WARNING: The shield must be

properly installed. The shieid provides

partial protection ftom the risk of thrown

objects to the operator and others and

is equipped with a line limiter blade

which cuts excess line to the proper

length. The line limiter blade (on under-

side of shield) is sharp and can cut you.

For proper orientation of shield, see

KNOW YOUR TRIMMER illustration in OP-

ERATION section.

1. Remove wing nut from shield.

2. Insert bracket into slot as shown.

3. Pivot shield until bolt passes

through hole in bracket.

4. Securely tighten wing nut onto bolt.

/Gearbox

Shield

ADJUSTING THE HANDLE

_WARNING: When adjusting the

assist handle, be sure it remains above

the safety label and below the mark or

arrow on the shaft.

1. Loosen wing nut on handle.

2. Rotate tlle handle on the shaft to an

upright position; retighten wing nut.

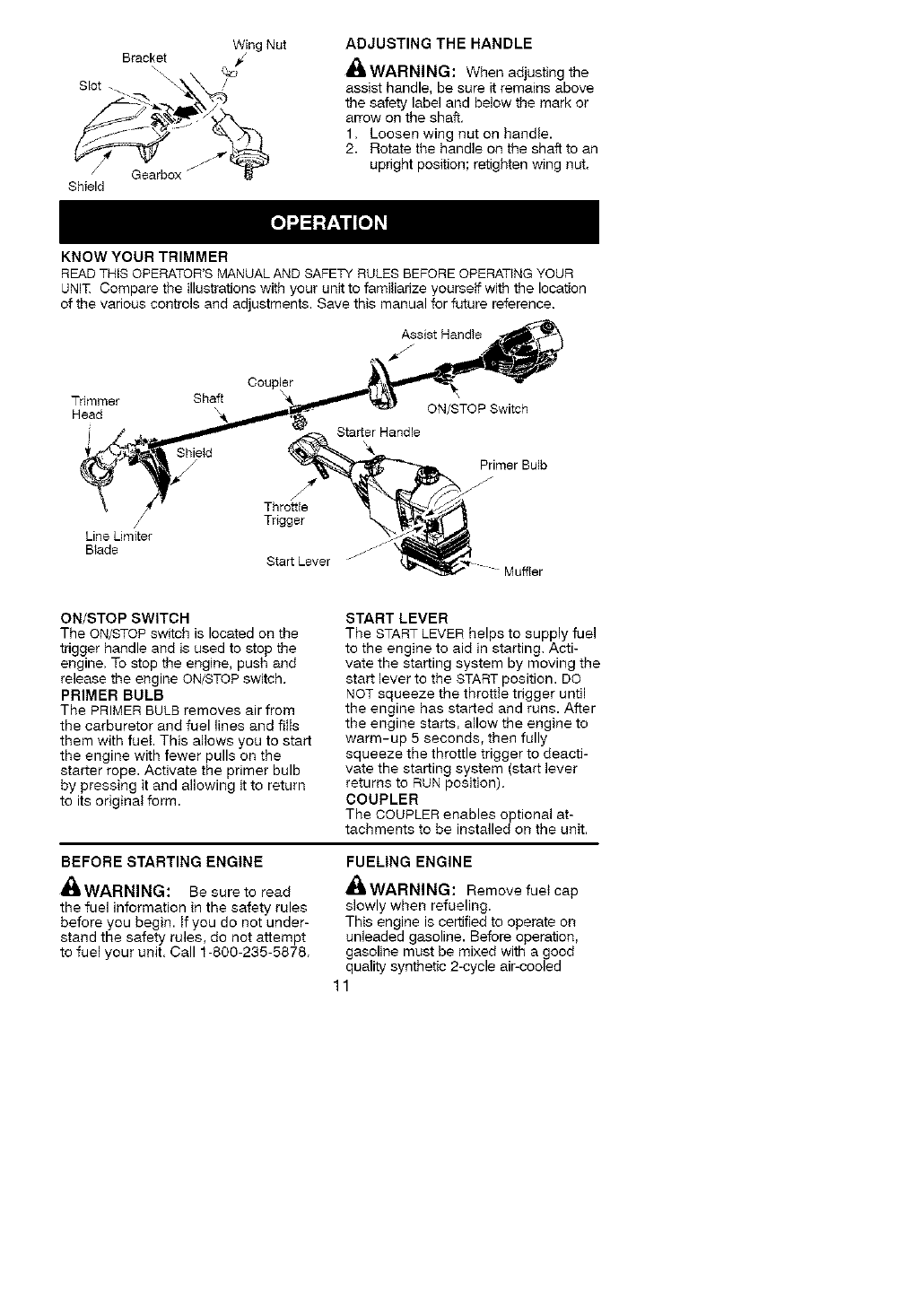

KNOW YOUR TRIMMER

READ THIS OPERATOR'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

UNIT Compare file illustrations with your unit to familiarize yourself with the location

of file various controls and adjustments. Save this manual for future reference.

Trimmer Shaft Coup_

._, ON/STOP Switch

Head

Starter Handle

Line Umiter

Blade

Shield

Thro_{e

Trigger

Start Lever

Primer Bulb

ON/STOP SWITCH

The ON/STOP switch is located on tile

trigger handle and is used to stop the

engine. To stop the engine, push and

release the engine ON/STOP switch.

PRIMER BULB

The PRIMER BULB removes air from

the carburetor and fuel lines and fills

them with fuel. This allows you to start

the engine with fewer pulls on the

starter rope. Activate the primer bulb

by pressing it and allowing it to return

to its original form.

START LEVER

The START LEVER helps to supply fuel

to the engine to aid in starting. Acti-

vate the starting system by moving the

start lever to the START position. DO

NOT squeeze the throttle trigger until

the engine has started and runs. After

the engine starts, allow the engine to

warm-up 5 seconds, then fully

squeeze the throttle trigger to deacti-

vate the starting system (start lever

returns to RUN position).

COUPLER

The COUPLER enables optional at-

tachments to be installed on the unit.

BEFORE STARTING ENGINE

_WARNING: Be sure to read

the fuel information in the safety rules

before you begin. If you do not under-

stand the safety rules, do not attempt

to fuel your unit. Call 1-800-235-5878.

FUELING ENGINE

_ WARNING: Remove fuel cap

slowly when refueling.

This engine is certified to operate on

unleaded gasoline. Before operation,

gasoline must be mixed with a good

quality synthetic 2-cycle air-cooled

engineoil.WerecommendCraftsman

brandsyntheticoil.Mixgasolineandoil

ataratioof40:1.A40:tratioisob-

tainedbymixing3.2ouncesofoilwith1

gallonofunleadedgasoJine.Included

withthistrimmerisa3.2ouncecontain-

elofoil.Pourtheentirecontentsofthis

containerinto1gallonofgasolineto

achievetheproperf_elmixture.DO

NOTUSEautomotiveoilormarineoil.

Theseoilswitlcauseenginedamage.

Whenmixingfuel,followinstructions

printedoncontainer.

Once oil is added to gasoline, shake

container momentarily to assure that

the fuel is thoroughly mixed. Always

read and follow the safety rules relat-

ing to fuel before fueling your unit.

IMPORTANT

Alcohol blended fuels (called gasohot

or using ethanot or methanol) can at-

tract moisture which leads to separa-

tion and formation of acids during stor-

age. Acidic gas can damage the fuel

system of an engine while in storage.

To avoid engine problems, empty the

fuel system before storage for 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use flesh

fuel next season.

Never use engine or carburetor clean-

er products in the fuel tank or perma-

nent damage may occur.

See the STORAGE section for addition-

al information.

HOW TO STOP YOUR UNIT

• Release the throttle trigger.

• Push and release the engine ON/

STOP switch. The switch wilt auto-

matically return to the ON position.

Wait 5 seconds before attempting to

restart unit to allow switch to reset.

ON/STOP Switch

HOW TO START YOUR UNIT

_WARNING: Avoid any contact

with the muffler. A hot muffler can

cause serious burns.

STARTING ACOLD ENGINE

NOTE: DO NOT squeeze the throttle

trigger until the engine has started and

runs.

1. Set unit on a flat surface.

2. Slowly press the primer bulb 6

times.

3. Move the start lever to the START

position.

Starter Handle

Start

Muffler

4. This unit has the Sim-pul_ starting

system. You do not have to pull the

starter rope handle sharply or brisk-

ly. Pull starter rope handle with a

controJled and steady motion until

engine starts and runs.

5. Allow unit to run for 5 seconds, then

_lly squeeze the throttle trigger to

disengage the starting system (start

lever returns to RUN position).

STARTING A WARM ENGINE

1. Squeeze and hold the throttle trig-

ger,

2. Pull starter rope handle with a con-

troiled and steady motion while

squeezing throttle trigger untit en-

gine starts and runs.

NOTE: Normally, the warm starting

procedure can be used within 5-t0

minutes after the unit is turned off. If

the unit sits for more than 10 minutes

without being used, it wilt be neces-

sary to start the unit by following the

steps under STARTING A COLD

ENGINE or following the starting in-

struction steps shown on the unit.

STARTING A FLOODED ENGINE

Flooded engines can be started by

placing the start lever in the RUN posi-

tion. Fully squeeze throttle trigger.

Pull the starter rope handle repeatedIy

while squeezing throttle trigger until

engine starts and runs.

This coutd require pulling the starter

rope handle many times, depending

on how badly the unit is flooded.

If the unit still doesn't start, refer to

TROUBLESHOOTING TABLE or catt

1-800-235-5878.

CRAFTSMAN®

CONVERTIBLETM FEATURE

This model is equipped with a coupler

which enables optional attachments to

be installed. The optional attachments

are:

Edger ................. 358.79240

Cultivator .............. 358.79241

Blower ................ 358.79242

Brushcutter ............ 358.79244

Pruner ................ 358.79245

_WARNING: Always stop unit

and disconnect spark plug before re-

moving or installing attachments.

REMOVING TRIMMER ATTACH-

MENT (OR OTHER OPTIONAL AT-

TACHMENTS)

CAUTION: When removing or instal-

ling attachments, place the unit on a

fiat surface for stability.

1. Loosen the coupler by turning the

knob counterclockwise.

Upper Shaft

Coupler

C°uple_eide Recess

Upper Locking/ Attachment

Shaft Release

Button

_ WARNING: Make sure the lock-

ing/release button is locked in the pri-

mary hole and the knob is securely

tightened before operating the unit. All

attachments are designed to be used in

the primary hole unless otherwise

stated in the applicable attachment op-

erator's manual. Using the wrong hoie

could lead to sedous injury or damage

to the unit.

Secondary Hole

Attachment

TIGHTEN Knob

2. Press and hold the locking/release

button.

Locking/Release

Button

Upper Shaft

Attachment

3. While securely holding the engine

and upper shaft, pull the attach-

ment straight out of the coupler.

INSTALLING OPTIONAL ATTACH-

MENTS

1. Remove the shaft cap from the at-

tachment (if present).

2. Position locking/release button of

attachment into guide recess of

coupler.

3. Push the attachment into the cou-

pler until the locking/release button

snaps into the primary hole.

4. Before using the unit, tighten the

knob securely by turning clock-

wise.

Locking/Release

Button in Primary Hole

OPERATING INSTRUCTIONS

To maximize operating efficiency, do

not run the engine for longer than 1

minute at a time at full throttle.

OPERATING POSITION

ALWAYS USE:

Eye Protection

Long

Pants

Heavy

Cut from your left to your right. _1_

_ WARNING: Always wear eye

protection and hearing protection. Never

tean over the trimmer head. Rocks or

debds can ricochet or be thrown into

eyes and face and cause blindness or

other serious injury.

Whenoperatingunit,standasshown

andcheckforthefollowing:

• Weareyeprotection,hearingprotec-

tionandheavyclothing.

• Holdtriggerhandlewithrighthand

andassisthandlewithlefthand.

• Holdunitsothatengineisbelow

waistlevel.

• Cutonlyfromyourlefttoyourrightto

ensuredebrisistilrownawayfrom

you.Withoutbendingover,keeptine

nearandparalleltothegroundand

notcrowdedintomaterialbeingcut.

Donotruntheengineatahigherspeed

thannecessary.Thecuttinglinewillcut

efficientlywhentileengineisrunatless

thanfullthrottle.Atlowerspeeds,there

islessenginenoiseandvibration.

Alwaysreleasethethrottletriggerand

allowtheenginetoreturntoidle

speedwhennotcutting.

HOWTOSTOPYOURUNIT

• Releasethethrottletrigger.

• PushandreleasetheengineON/

STOPswitch.

CUTTINGMETHODS

_WARNING: Use minimum

speed and do not crowd the line when

cutting around hard objects (rock,

gravel, fence posts, etc.), which can

damage the trimmer head, become

entangled in the line, or be thrown

causing a serious hazard.

• The tip of the line does the cutting.

You will achieve the best perform-

ance and minimum line wear by not

crowding the line into the cutting

area. The right and wrong ways are

shown below.

Tip of line does the Line crowded into

Right

• The line wilt easily remove grass

and weeds from around walls,

fences, trees and flower beds. but it

also can cut the tender bark of trees

or shrubs and scar fences.

• For trimming or scalping, use less

than full throttle to increase line life

and decrease head wear, especially:

• During light duty cutting.

• Near objects around which the line

can wrap such as small posts,

trees or fence wire.

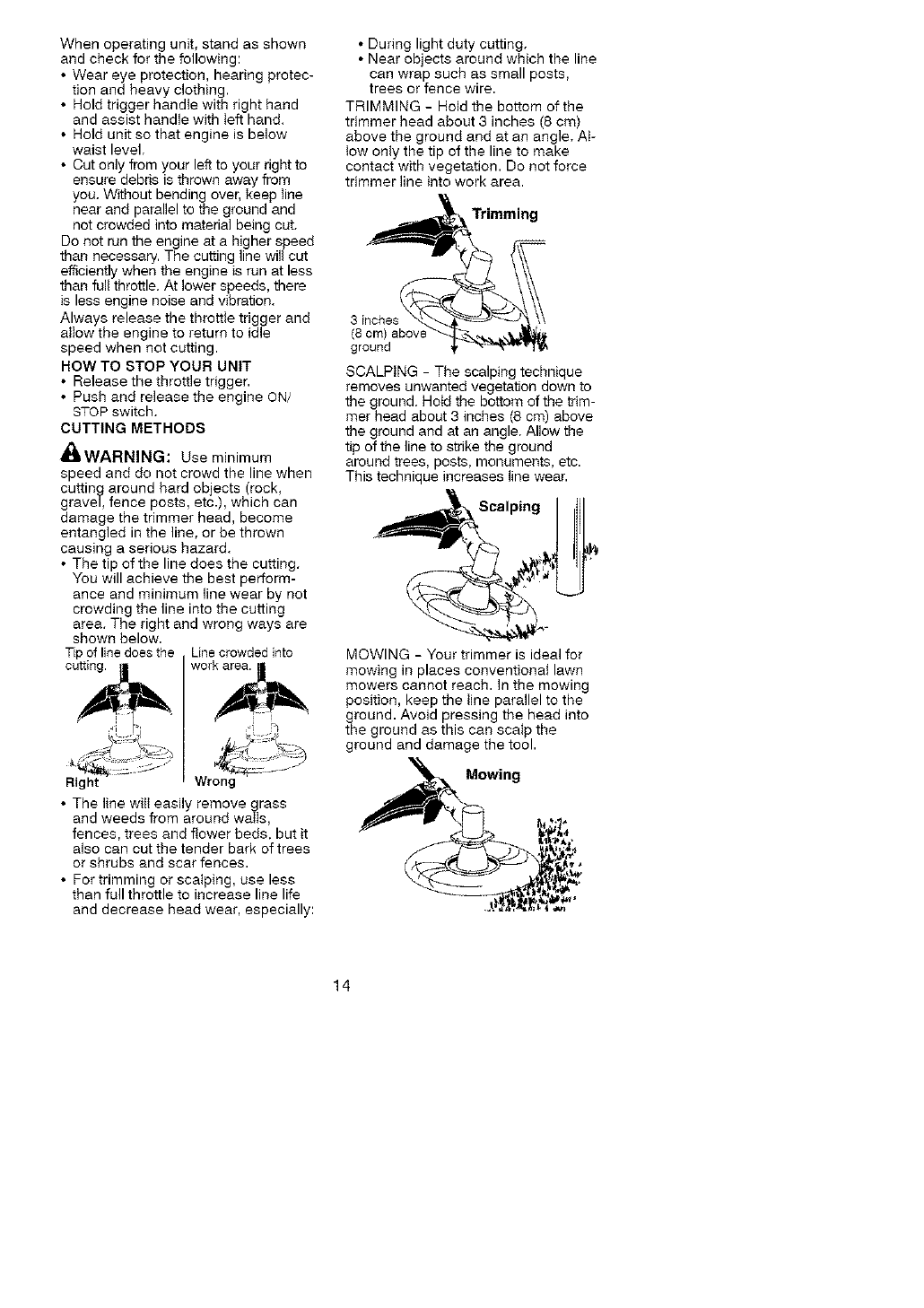

TRIMMING - Hold the bottom of the

trimmer head about 3 inches (8 cm)

above the ground and at an angle. AI-

tow only the tip of the line to make

contact with vegetation. Do not force

trimmer line into work area.

Trimming

(8 cm) above

ground

SCALPING - The scalping technique

removes unwanted vegetation down to

the ground. Hold the bottom of the trim-

mer head about 3 inches (8 cm) above

the ground and at an angle. Allow the

tip of the line to strike the ground

around trees, posts, monuments, etc.

This technique increases line wear.

Scalping

MOWING - Your trimmer is ideal for

mowing in places conventional lawn

mowers cannot reach. In the mowing

position, keep the line parallel to the

ground. Avoid pressing the head into

the ground as this can scalp the

ground and damage the tool.

Mowing

SWEEPING - The fanning action of the

rotating line can be used to blow away

toose debris from an area. Keep the tine

parallel to and above the area surface

and swing the tool from side to side.

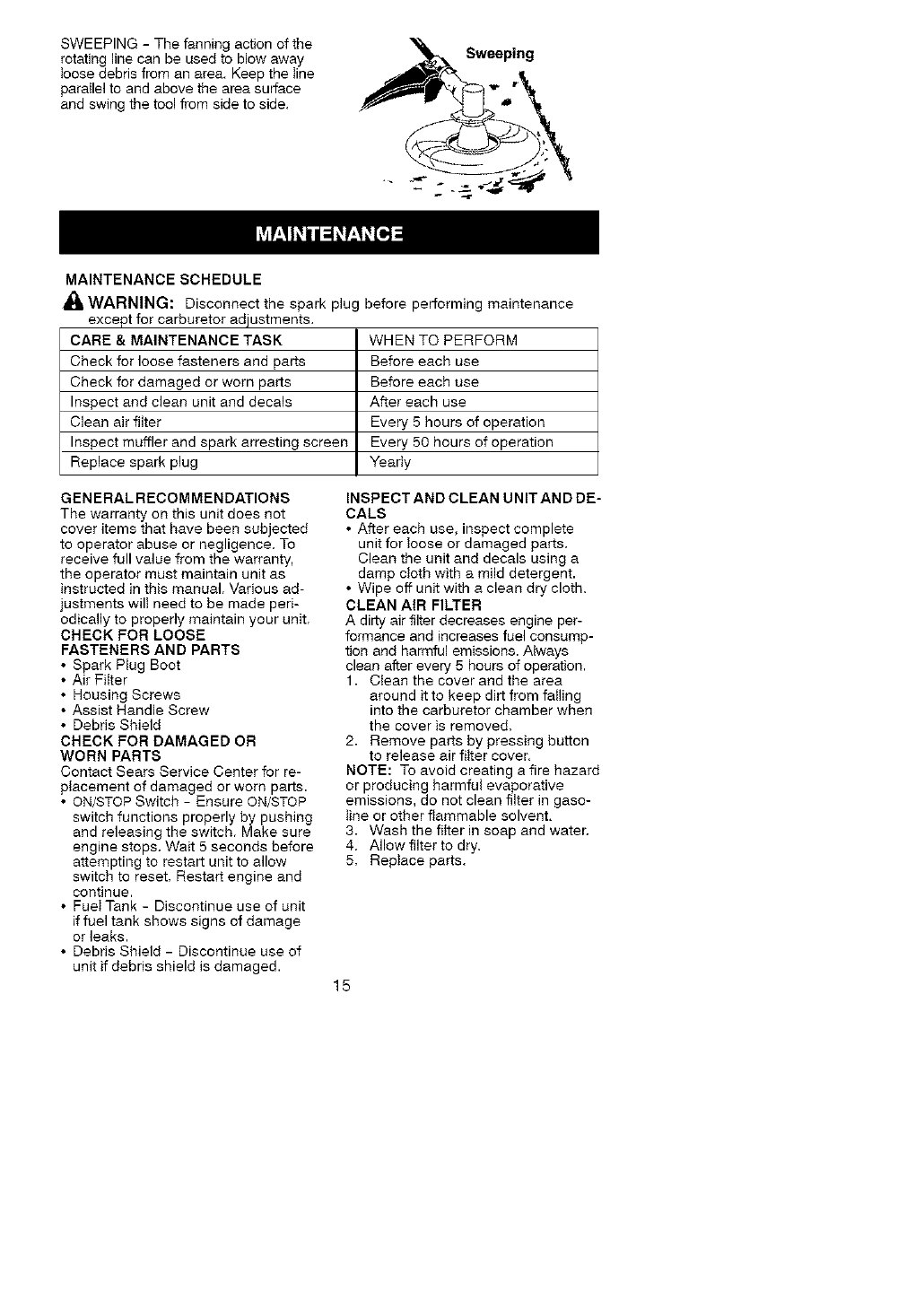

MAINTENANCE SCHEDULE

WARNING: Disconnect the spark plug before performing maintenance

except for carburetor adjustments.

CARE & MAINTENANCE TASK

Check for loose fasteners and parts

Check for damaged or worn parts

Inspect and clean unit and decals

Clean air filter

Inspect muffler and spark arresting screen

Replace spark plug

WHEN TO PERFORM

Before each use

After each use

Every 5 hours of operation

Every 50 hours of operation

Yearly

GEN ERAL RECOM MENDATIONS

The warranty on this unit does not

cover items that have been subjected

to operator abuse or negligence. To

receive full value from the warranty,

the operator must maintain unit as

instructed in this manual. Various ad-

justments wilt need to be made peri-

odically to properly maintain your unit.

CHECK FOR LOOSE

FASTENERS AND PARTS

• Spark Ptug Boot

• Air Fitter

• Housing Screws

• Assist Handle Screw

• Debris Shield

CHECK FOR DAMAGED OR

WORN PARTS

Contact Sears Service Center for re-

placement of damaged or worn parts.

• ON/STOP Switch - Ensure ON/STOP

switch functions properly by pushing

and releasing the switch. Make sure

engine stops. Wait 5 seconds before

attempting to restart unit to allow

switch to reset. Restart engine and

continue.

• Fuel Tank - Discontinue use of unit

if fuel tank shows signs of damage

or leaks.

• Debris Shield - Discontinue use of

unit if debris shield is damaged.

INSPECTAND CLEAN UNITAND DE-

CALS

• After each use, inspect complete

unit for toose or damaged parts.

Clean the unit and decals using a

damp ctoth with a mild detergent.

• Wipe off unit with a clean dry cloth.

CLEAN AIR FILTER

A dirty air filter decreases engine per-

formance and increases fuel consump-

tion and harmful emissions. Always

clean after every 5 hours of operation.

1. Ctean the cover and the area

around it to keep dirt from falling

into the carburetor chamber when

the cover is removed.

2. Remove parts by pressing button

to release air fitter cover.

NOTE: To avoid creating a fire hazard

or producing harmful evaporative

emissions, do not clean filter in gaso-

line or other flammable solvent.

3. Wash the fitter in soap and water.

4. Allow filter to dry.

5. Reptace parts.

Button

L._ "--_" Air Filter Cover

INSPECT MUFFLER AND SPARK

ARRESTING SCREEN

dllWARNING: The muffler on this

product contains chemicals known to

the State of California to cause cancer.

As your unit is used, carbon deposits

build up on the muffler and spark ar-

resting screen.

For normal homeowner use, however,

the muffler and spark arresting screen

will not require any service. After 50

hours of use, we recommend that your

muffler be serviced or replaced by your

Sears Service Center.

REPLACE SPARK PLUG

Replace the spark plug each year to

ensure the engine starts easier and

runs better. Set spark plug gap at

0.025 inch. Ignition timing is fixed and

nonadjustable.

1. Twist, then pull off spark plug boot.

2. Remove spark plug from cylinder

and discard.

3. Replace with Champion RCJ-6Y

spark plug and tighten securely

with a 3/4 inch socket wrench.

4. Reinstall the spark plug boot.

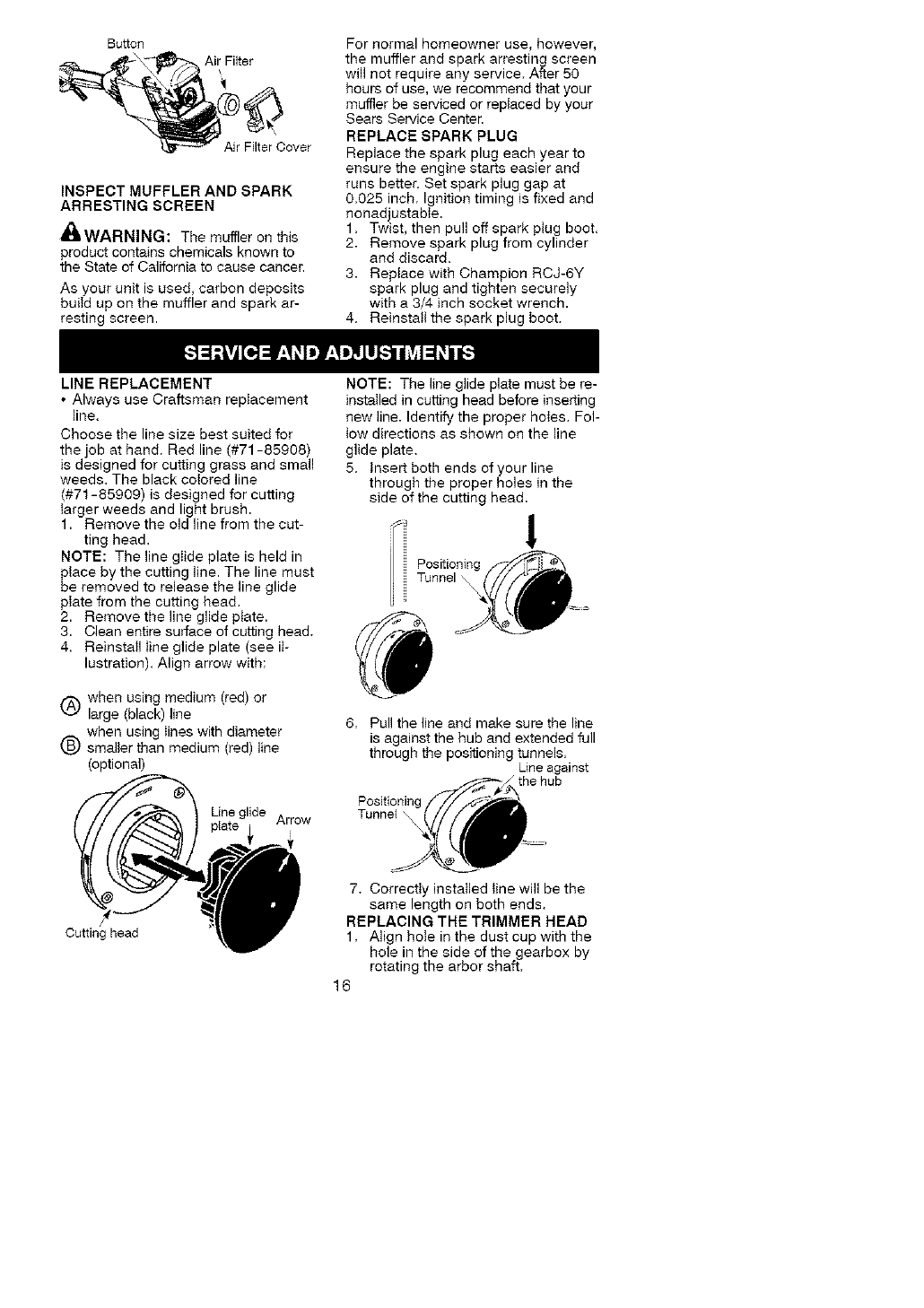

LINE REPLACEMENT

• Always use Craftsman replacement

line.

Choose the line size best suited for

the job at hand. Red line (#71-85908)

is designed for cutting grass and small

weeds. The black colored line

(#71-85909) is designed for cutting

larger weeds and light brush.

1. Remove the old line from the cut-

ting head.

NOTE: The line glide plate is held in

place by the cutting line. The line must

be removed to release the line glide

plate from the cutting head.

2. Remove the line glide plate.

3. Clean entire surface of cutting head.

4. Reinstall line glide plate (see il-

lustration). Align arrow with:

when using medium (red) or

(_) large (black) line

1_ when using lines with diameter

smaller than medium (red) line

(optional)

Line glide Arrow

NOTE: The line glide plate must be re-

installed in cutting head before inserting

new line, Identify the proper holes. Fol-

low directions as shown on the line

glide plate.

5. Insert both ends of your line

through the proper holes in the

side of the cutting head. !

Positioning

Tunnel \

6. Pull the line and make sure the line

is against the hub and extended full

through the positioning tunnels,

Line against

"the hub

Tunnel

Cutting head

7, Correctly installed tine will be the

same length on both ends.

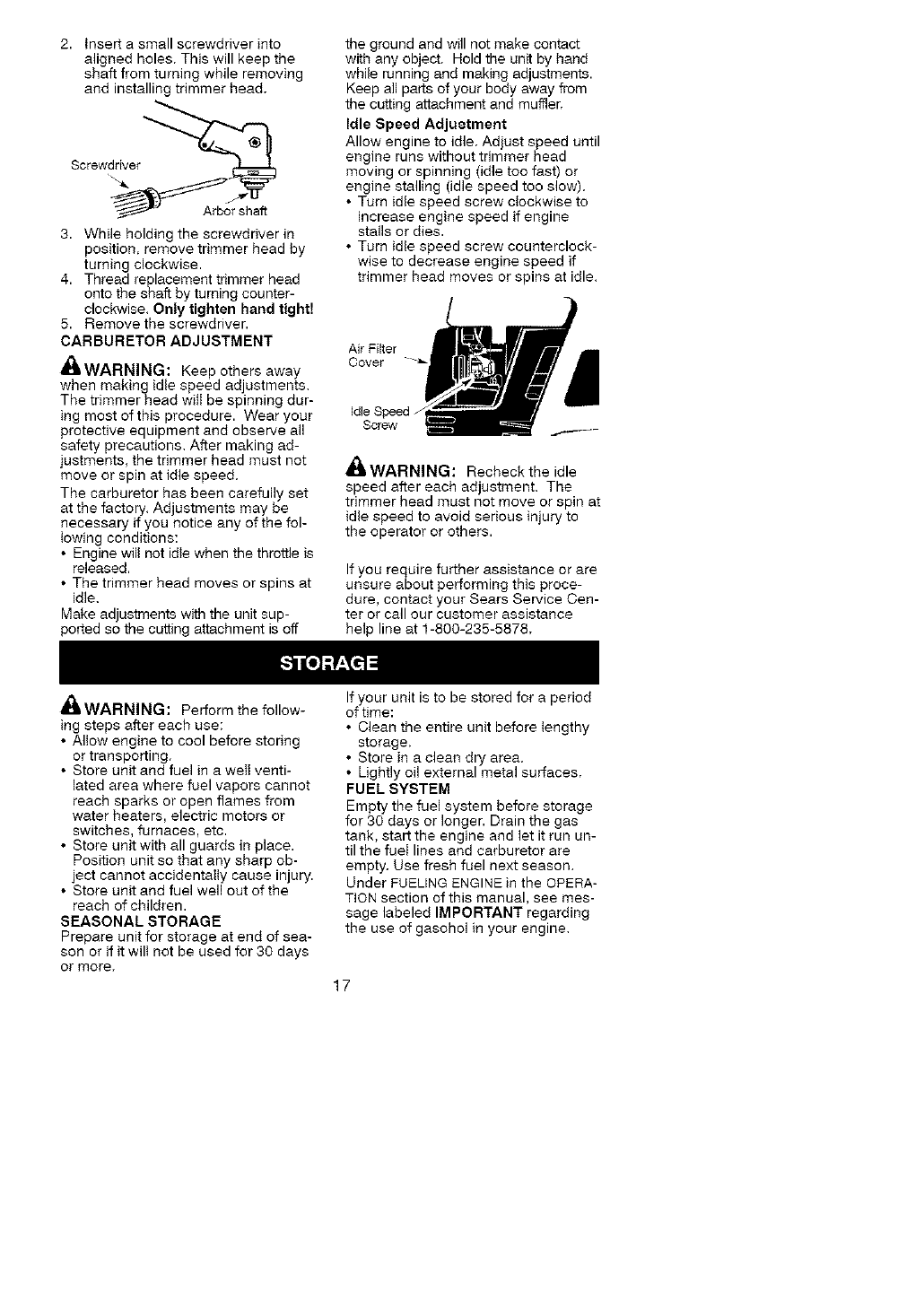

REPLACING THE TRIMMER HEAD

1. Align hole in the dust cup with the

hole in the side of the gearbox by

rotating the arbor shaft,

2. Insertasmallscrewdriverinto

alignedholes,Thiswillkeepthe

shaftfromturningwhileremoving

andinstallingtrimmerhead.

Screwdriver

Arborshaft

3. Whileholdingthescrewdriverin

position,removetrimmerheadby

turningclockwise.

4. Threadreplacementtrimmerhead

ontofileshaftbyturningcounter-

clockwise.Onlytightenhandtight!

5. Removethescrewdriver.

CARBURETORADJUSTMENT

_WARNING: Keep others away

when making idle speed adjustments.

The trimmer head witt be spinning dur-

ing most of this procedure. Wear your

protective equipment and observe all

safety precautions. After making ad-

justments, the trimmer head must not

move or spin at idle speed.

The carburetor has been carefully set

at the factory. Adjustments may be

necessary if you notice any of the fol-

lowing conditions:

• Engine will not idte when the throttle is

released.

• The trimmer head moves or spins at

idle.

Make adjustments with the unit sup-

ported so the cutting attachment is off

the ground and will not make contact

with any object. Hold the unit by hand

while running and making adjustments.

Keep all parts of your body away from

the cutting attachment and muffler.

Idle Speed Adjustment

Allow engine to idle, Adjust speed until

engine runs without trimmer head

moving or spinning (idle too fast) or

engine stalling (idle speed too slow).

• Turn idle speed screw clockwise to

increase engine speed if engine

stalls or dies.

• Turn idle speed screw counterclock-

wise to decrease engine speed if

trimmer head moves or spins at idle.

Air Filter

Cover

Idle S

Screw

_ WARNING: Recheck the idle

speed after each adjustment. The

trimmer head must not move or spin at

idle speed to avoid serious injury to

the operator or others.

If you require further assistance or are

unsure about performing this proce-

dure, contact your Sears Service Cen-

ter or call our customer assistance

help line at 1-800-235-5878.

m_WARNING: Perform the follow-

ing steps after each use:

• Allow engine to cool before storing

or transporting.

• Store unit and fuel in a welt venti-

lated area where fuel vapors cannot

reach sparks or open flames from

water heaters, electric motors or

switches, furnaces, etc.

• Store unit with all guards in place.

Position unit so that any sharp ob-

ject cannot accidentally cause injury.

• Store unit and fuel well out of the

reach of children.

SEASONAL STORAGE

Prepare unit for storage at end of sea-

son or if it wilt not be used for 30 days

or more.

If your unit is to be stored for a period

of time:

• Clean the entire unit before lengthy

storage.

• Store in a clean dry area.

• Lightly oil external metal surfaces.

FUEL SYSTEM

Empty the fuel system before storage

for 30 days or longer. Drain the gas

tank, start the engine and let it run un-

til the fuet lines and carburetor are

empty. Use fresh fuel next season.

Under FUELING ENGINE in the OPERA-

TION section of this manual, see mes-

sage labeled IMPORTANT regarding

the use of gasohol in your engine.

Fuel stabilizer is an acceptable alter-

native in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to the gasoline in the fuet

tank or fuel storage container. Follow

the mix instructions found on stabilizer

container. Run engine at least 3 min-

utes after adding stabilizer.

Craftsman 40:1,2-cycle engine oil (air

cooled) is already blended with fuel

stabilizer. If you do not use this Sears

oit, you can add a fuet stabilizer to

your fuel tank.

ENGINE

• Remove spark plug and pour 1 tea-

spoon of 40:1,2-cycle engine oit (air

cooled) through the spark plug

opening. Slowly pull the starter rope

8 to 10 times to distribute oil.

• Replace spark plug with new one of

recommended type and heat range.

• Clean air filter.

• Check entire unit for loose screws,

nuts, and bolts. Replace any dam-

aged, broken, or worn parts.

• At the beginning of the next season,

use only fresh fuel having the proper

gasoline to oit ratio.

OTHER

• Do not store gasoline from one sea-

son to another.

• Replace your gasoline can if it starts

to rust.

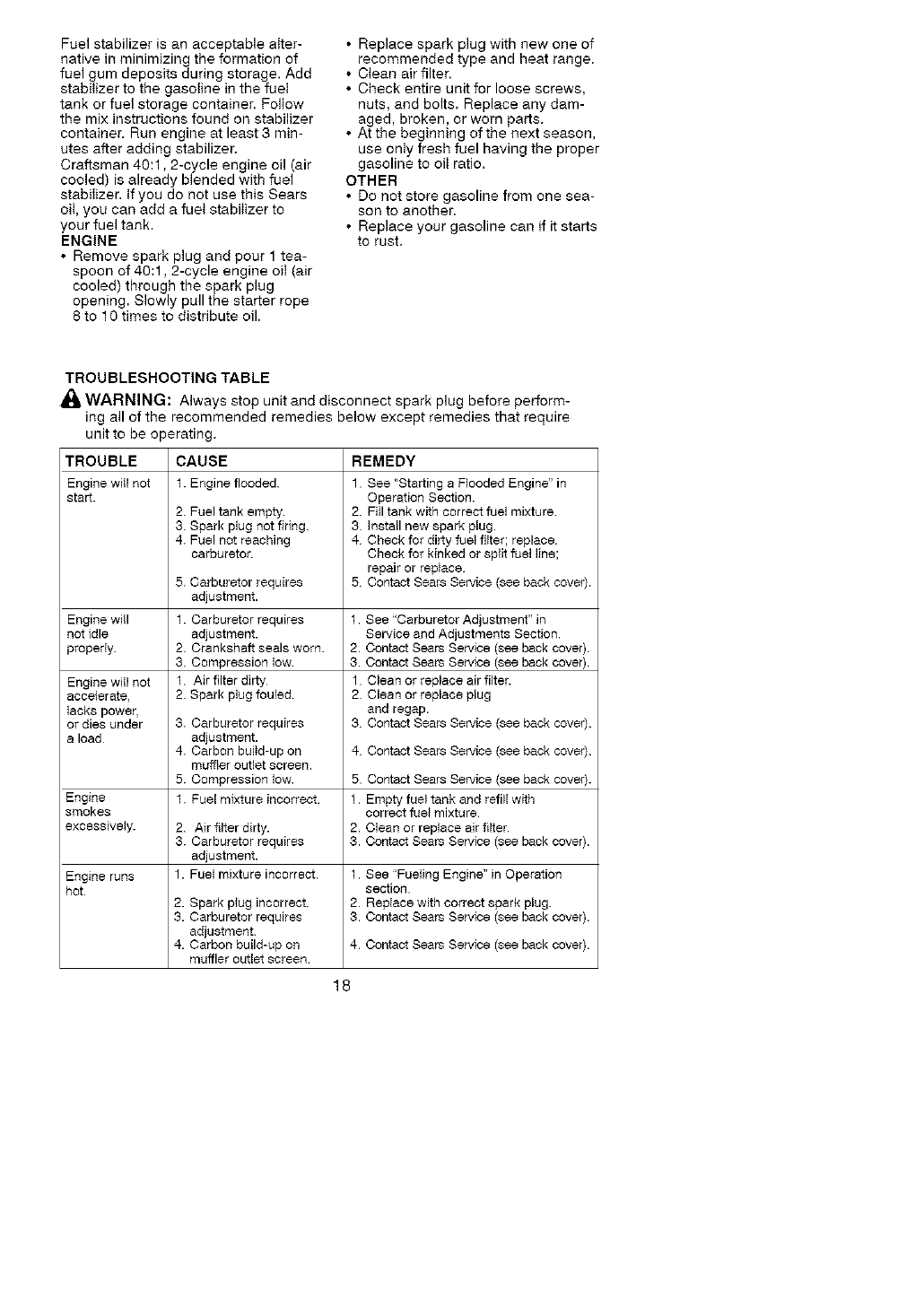

TROUBLESHOOTING TABLE

WARNING: Always stop unit and disconnect spark plug before perform-

ing all of the recommended remedies below except remedies that require

unit to be operating.

TROUBLE CAUSE REMEDY

Engine will not 1. Engine flooded. 1 See "Starting a Flooded Engine" in

start. Operation Section.

2. Fuel tank empty 2. Fill tank with correct fuel mixture

3. Spark plug not firing. 3 Install new spark plug.

4. Fuel not reaching 4 Check for dirty fuel filter; replace.

carburetor. Check for kinked or split fuel line;

repair or replace

5. CaR)uretor requires 5 Contact Sears Service (see back cover).

adjustment.

Engine will 1. Carburetor requires 1. See "Carburetor Adjustment" in

not idle adjustment. Service and Adjustments Section.

properly. 2. Crankshaft seals worn. 2. Contact Sears Service {see back cover).

3. Compression low. 3. Contact Sears Service (see back cover).

Engine will not t. Air filter dirty 1 Clean or replace air filter.

accelerate, 2. Spark plug fouled. 2 Clean or replace plug

lacks power, and regap.

or dies under 3. Carburetor requires 3 Contact Sears Service (see back cover).

a load adjustment.

4. Carbon buitd-up on 4 Contact Sears Service (see back cover).

muffler outlet screen.

5. Compression low. 5 Contact Sears Service (see back cover).

Engine 1. Fuel mixture incorrect 1. Empty fue_ tank and refill with

smokes correct fuel mixture.

excessively. 2. Air filter dirty. 2. Clean or replace air filter.

3. Carburetor requires 3. Contact Sears Service (see back cover).

adjustment.

Engine runs 1. Fuel mixture incorrect, t. See "Fueling Engine" in Operation

hot. section

2. Spark plug incorrect. 2. Replace with correct spark plug.

3. Carburetor requires 3. Contact Sears Service (see back cover).

adjustment.

4. Carbon build-up on 4. Contact Sears Service (see back cover).

muffler outlet screen

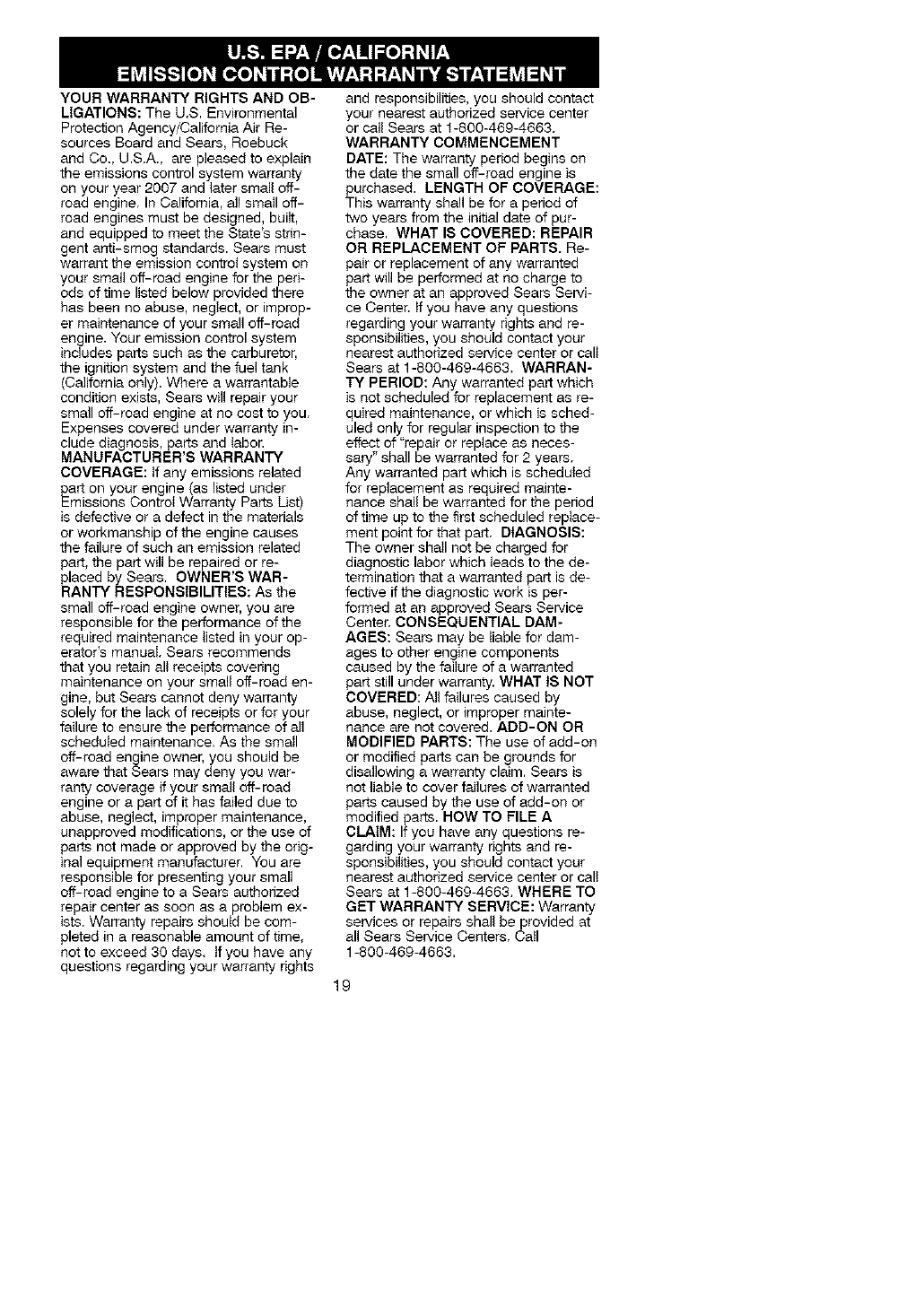

YOUR WARRANTY RIGHTS AND OB-

LIGATIONS: The U.S. Environmental

Protection Agency/California Air Re-

sources Board and Sears, Roebuck

and Co., U.S.A., are pleased to explain

the emissions control system warranty

on your year 2007 and later small off-

road engine. In Califomia, all small off-

road engines must be designed, built,

and equipped to meet the State's strin-

gent anti-smog standards. Sears must

warrant the emission control system on

your small off-road engine for the peri-

ods of time listed below provided there

has been no abuse, neglect, or improp-

el maintenance of your small off-road

engine. Your emission control system

includes parts such as the carburetor,

the ignition system and the fuel tank

(California only). Where a warrantable

condition exists, Seals will repair your

small off-road engine at no cost to you.

Expenses covered under warranty in-

clude diagnosis, parts and labor.

MANUFACTURER'S WARRANTY

COVERAGE: If any emissions related

_=arton your engine (as listed under

missions Controt Warranty Parts List)

is defective or a defect in file materials

or workmanship of the engine causes

the failure of such an emission related

part, file part will be repaired or re-

placed by Sears. OWNER'S WAR-

RANTY RESPONSIBILITIES: As the

small off-road engine owner, you are

responsible for the performance of the

required maintenance listed in your op-

erator's manual. Sears recommends

that you retain alt receipts covering

maintenance on your small off-road en-

gine, but Sears cannot deny warranty

solely for the lack of receipts or for your

failure to ensure the performance of all

scheduled maintenance. As the small

off-road engine owner, you should be

aware that Sears may deny you war-

rarity coverage if your small off-road

engine or a part of it has failed due to

abuse, neglect, improper maintenance,

unapproved modifications, or the use of

parts not made or approved by the orig-

inal equipment manufacturer. You are

responsible for presenting your small

off-road engine to a Sears authorized

repair center as soon as a problem ex-

ists. Warranty repairs should be com-

pleted in a reasonable amount of time,

not to exceed 30 days. If you have any

questions regarding your warranty rights

and responsibilities, you should contact

your nearest authorized service center

or call Sears at 1-800-469-4663.

WARRANTY COMMENCEMENT

DATE: The warranty period begins on

the date the small off-road engine is

purchased. LENGTH OF COVERAGE:

This warranty shall be for a period of

two years from the initial date of pur-

chase. WHAT IS COVERED: REPAIR

OR REPLACEMENT OF PARTS. Re-

pair or replacement of any warranted

part will be performed at no charge to

the owner at an approved Sears Servi-

ce Center. If you have any questions

regarding your warranty rights and re-

sponsibilities, you should contact your

nearest authorized service center or call

Sears at 1-800-469-4663. WARRAN-

TY PERIOD: Any warranted part which

is not scheduled for replacement as re-

quired maintenance, or which is sched-

uled only for regular inspection to the

effect of "repair or replace as neces-

sary" shall be warranted for 2 years.

Any warranted part which is scheduled

for replacement as required mainte-

nance shall be warranted for the period

of time up to the first scheduled replace-

ment point for that part. DIAGNOSIS:

The owner shall not be charged for

diagnostic labor which leads to the de-

termination that a warranted part is de-

fective if the diagnostic work is pet-

formed at an approved Sears Service

Center. CONSEQUENTIAL DAM-

AGES: Sears may be liable for dam-

ages to other engine components

caused by the failure of awarranted

part still under warranty. WHAT IS NOT

COVERED: All failures caused by

abuse, neglect, or improper mainte-

nance are not covered. ADD-ON OR

MODIFIED PARTS: The use of add-on

or modified parts can be grounds for

disallowing a warranty claim. Sears is

not liable to cover failures of warranted

parts caused by the use of add-on or

modified parts. HOW TO FILE A

CLAIM: If you have any questions re-

garding your warranty rights and re-

sponsibilities, you should contact your

nearest authorized service center or call

Sears at 1-800-469-4663. WHERE TO

GET WARRANTY SERVICE: Warranty

services or repairs shall be provided at

all Sears Service Centers. Call

1-800-469-4663.

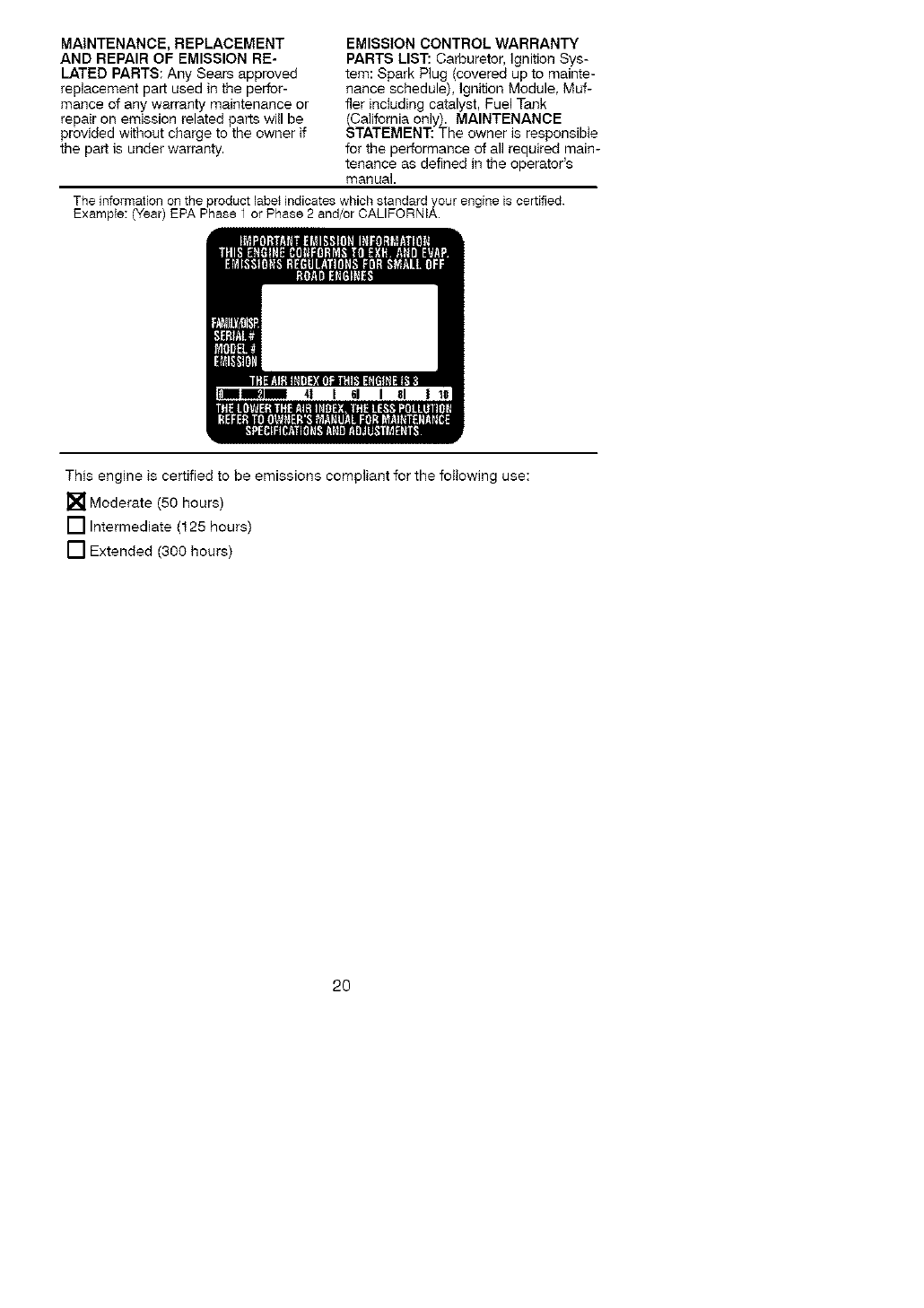

MAINTENANCE, REPLACEMENT

AND REPAIR OF EMISSION RE-

LATED PARTS: Any Sears approved

replacement part used in the perfor-

mance of any warranty maintenance or

repair on emission related parts will be

provided without charge to the owner if

the part is under warranty.

EMISSION CONTROL WARRANTY

PARTS LIST: Carburetor, Ignition Sys-

tem: Spark Plug (covered up to mainte-

nance schedule), Ignition Module, Muf-

fler including catalyst, Fuel Tank

(California only). MAINTENANCE

STATEMENT: The owner is responsible

for tile performance of all required main-

tenance as defined in the operator's

manual

The information on the product labet indicates which standard your engine is certified.

Example: (Year) EPA Phase 1 or Phase 2 and/or CALIFORNbA.

This engine is certified to be emissions compliant for the following use:

[] Moderate (50 hours)

[] Intermediate (t25 hours)

[] Extended (300 hours)

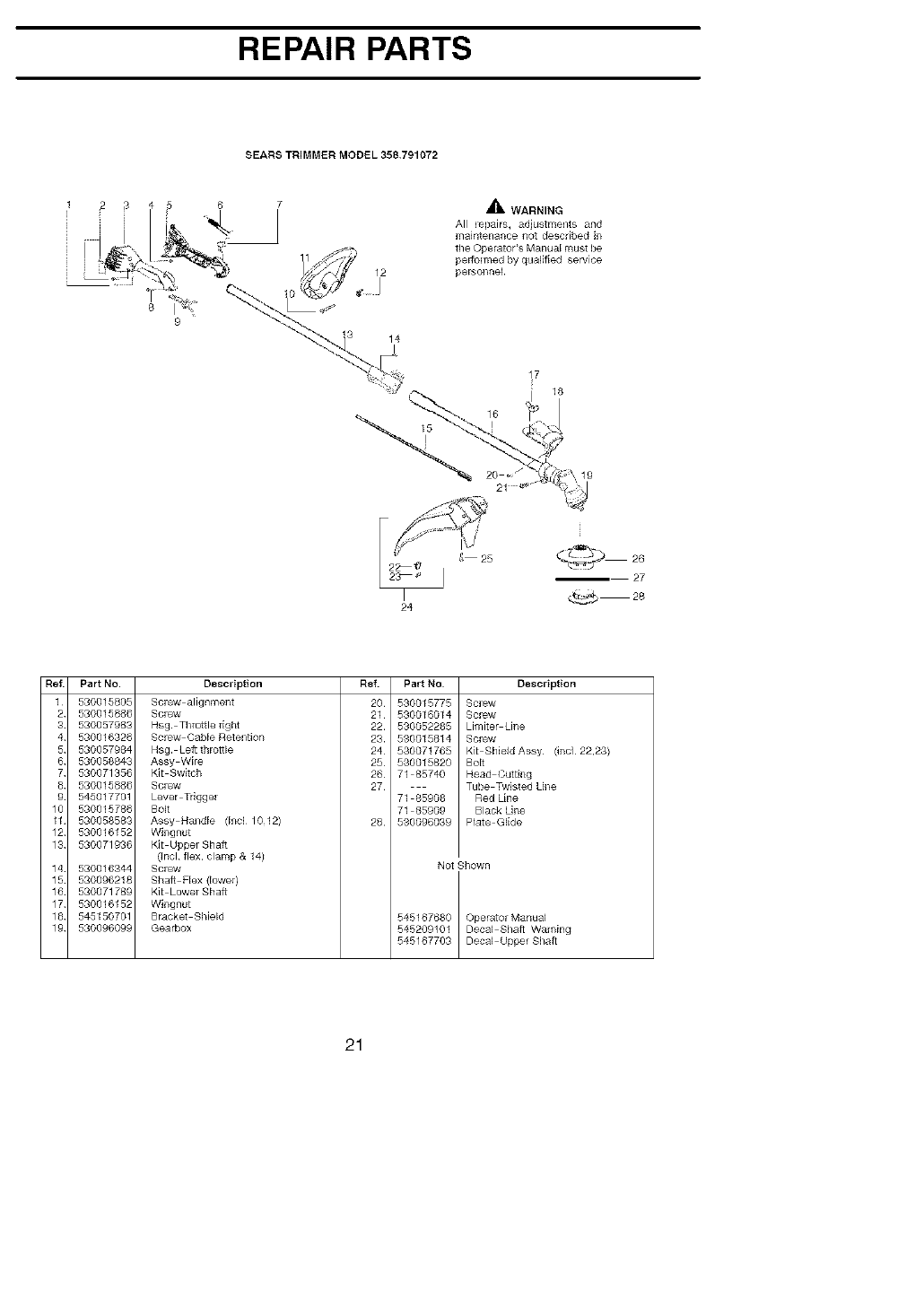

REPAIR PARTS

SEARS TRIMMER MODEL 358.791072

Ref. Part No. Description

1 530015805 Sclew alignrner_t

2 530015886 Scl÷w

3 530057983 Hsg Throtlle fight

4 530016326 Sclew Cable Retention

5 530057984 Hsg Left throttle

6 530058843 Assy Wire

7 530071356 Kit Switch

8 530015886 Sclew

9 545017701 Lever Tdgge_

10 530015786 Bo_t

11 530058583 Assy Handle (Incl 1012)

12 530016152 Wingnut

13 530071936 Kit Upper Shalt

(Incl flex, clamp & 14)

14 530016344 Sclew

15 530096218 Shaft Flex (lower)

16 530071789 Kit Lower Shat;

17 530016152 Wingnut

18 545150701 Bracket Shield

19 530096099 Gearbox

Ref. Part No Description

20 530015775 Sclew

21 530016014 Scl÷w

22 530052285 Limiter Line

23. 530015814 Scl_w

24 530071765 Kit ShieldAssy (i_cl 22,23)

25 530015820 Bolt

26 71 85740 Head Cutting

27 Tube Twisted Line

71 85908 Red Line

71 85909 Black Line

28 530096039 Plate Glide

Not Shown

545167680 Operatol Manual

545209101 Decal Shaft Warning

545167703 Decal Upper Shaft

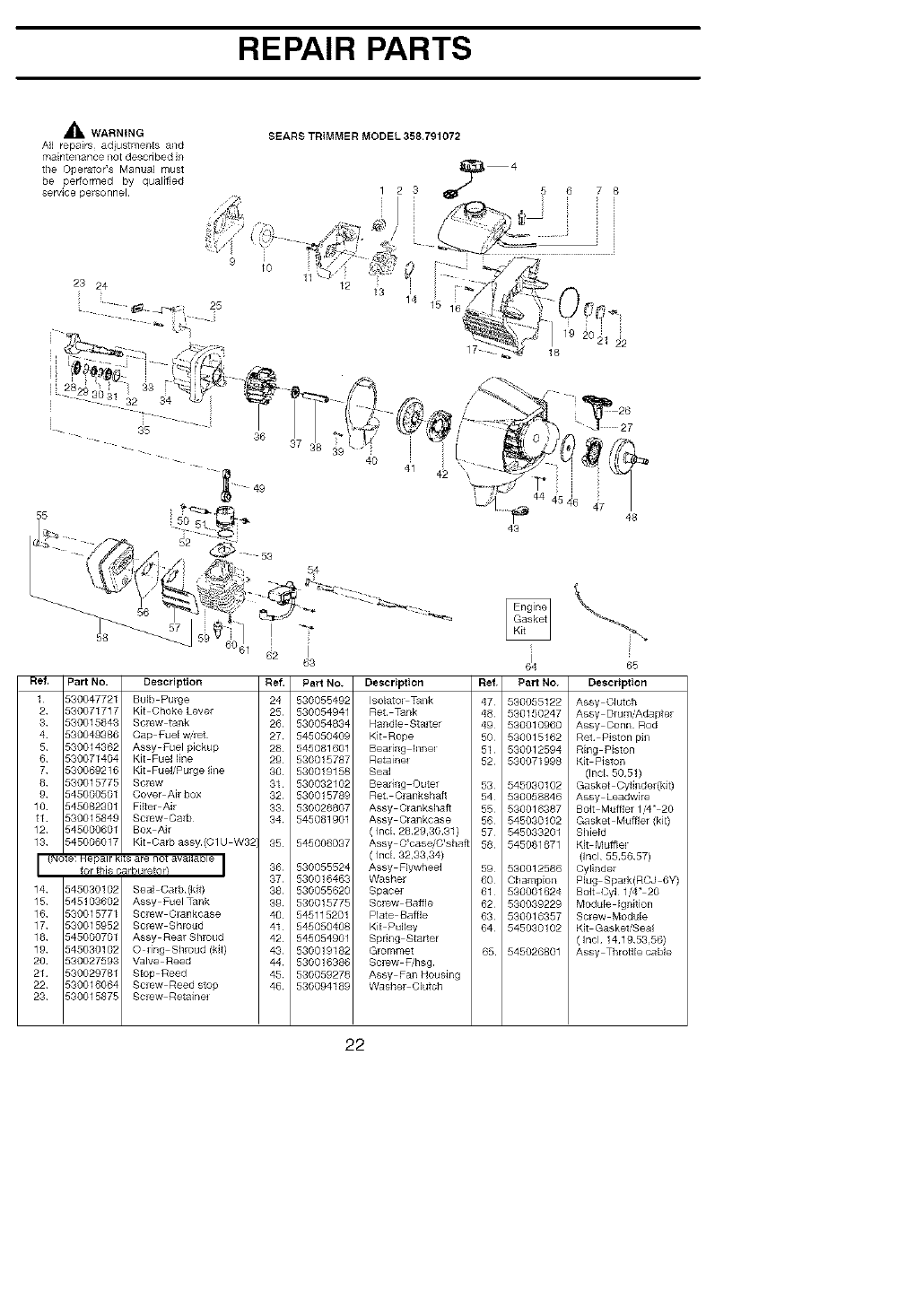

REPAIR PARTS

_ WARNING

All repairs adiustments al]d

mainte_ance _ot deseribed in

tl_e Operator's Manua_ mu3t

be periormed by qualified

service personnel¸

23 24

SEARS TRIMMER MODEL 358.791072

2 3

9 i

10 11"12 i

13 1:4 15

Ref.

Part No. Description

330047721 Bulb Purge

330071717 Kit ChokeLever

330015843 Screw tank

330049386 Cap FueIwj÷t

330014362 Assy Fuel pickup

330071404 Kit Fuel line

330069216 K_t FueliPurgeline

330015775 Screw

i45000501 Cover Air box

i45082301 Filter Ai_

330015849 Sclew Carb

i45000601 Box Air

345006017 K_t Oarbassy(OlU W32)

e: tlepalr KE_Sare no_ ava_aole

for tills carburetor/

Ref.

35.

36.

I i

Part No. Description Ref. Part No.

530055492 Isolatol T_nk 47 530055122

530054941 Ret Tank 48 530150247

530054834 Handle Starter 49 530010960

545050409 Kit Rope 50 530015162

545081601 BeaHng Inne_ 51 530012594

530015787 Retaine_ 52 530071998

530019158 Seal

530032102 Bea_ng Outer 53 545030102

530015789 Ret C_nksha_ 54 530058846

530028807 Assy Crankshaft 55 530016387

545081901 Assy Crankcase 56 545030102

(Inc[ 28,2930,31) 57 545033201

545006037 Assy C'caselC'shaff 58 545081871

(Inc[ 32,3334)

530055524 Assy F[ywhee_ 59 530012586

i45030102

i45109602

330015771

330015952

i45000701

i45030102

330027593

330029781

330016064

i30015875

Seal Carb (kit}

Assy Fuel Tank

Sclew Cl_nkcase

Scl_w Shroud

Assy Rear Shroud

O Hng Shroud (kit}

Valve Reed

Stop Reed

Sclew Reed stop

Screw Retaihe_

37 530016463

38 530055620

39 530015775

40 545115201

41 545050408

42 545054901

43 530019182

44 530016386

45 530059278

46 530094189

Washer 60 Champion

Space_ 61 530001624

Sc_÷w Baffle 62 530039229

Plate Baffle 63 530016357

Kit Pulley 64 545030102

Spring Starter

Grommet 65 545026801

Scl÷w F,'hsg

Assy Fan Housing

Washe_ Clutch

Description

Assy Clutch

Assy DmmJAdapte_

Assy Conn Rod

Ret Piston pin

Ring Piston

Kit Piston

(Incl 50,51)

Gasket Cylinder(kit)

Assy Leadwire

Bolt Muffler 1_ ¸' 20

Gasket Muffler (kit)

Shield

Kit Muff[e_

(Incl 55,56,57)

Cylinder

Plug Spa_(ROJ 6Y)

Bolt Oyl 1_ ¸' 20

Module Ignition

Screw Module

Kit GaskePSeal

( Incl 14,19,53¸56)

Assy Throttle cable

Craftsman 358791072 User Manual TRIMMER Manuals And Guides L0808008

CRAFTSMAN Line Trimmers/Weedwackers, Gas Manual L0808008 CRAFTSMAN Line Trimmers/Weedwackers, Gas Owner's Manual, CRAFTSMAN Line Trimmers/Weedwackers, Gas installation guides

358.79107 L0808008

Navigation menu

Versions of this User Manual:

Views

Navigation
