Operator's Manual

CRRFTZMRN

32cc 2-Cycle Engine

17 Inch Cutting Path / .080 In. Line

GASOLINE BRUSHWACKER ®

Model No.

358.795050

DANGER:

Read and follow all Safety Rules and Operating

Instructions before first use of this product.

I_ For answers to Your questions about this product:

Call 7am-7 pm, Mon--Sat; Sun, 10 am-7 pm

•1-800-235-5878 (.o,,_.,,=._._o.._.)

Se_IYs,Roebuck and Co., Hoffman Estates, IL 60179 USA

530-087633 08/17/98

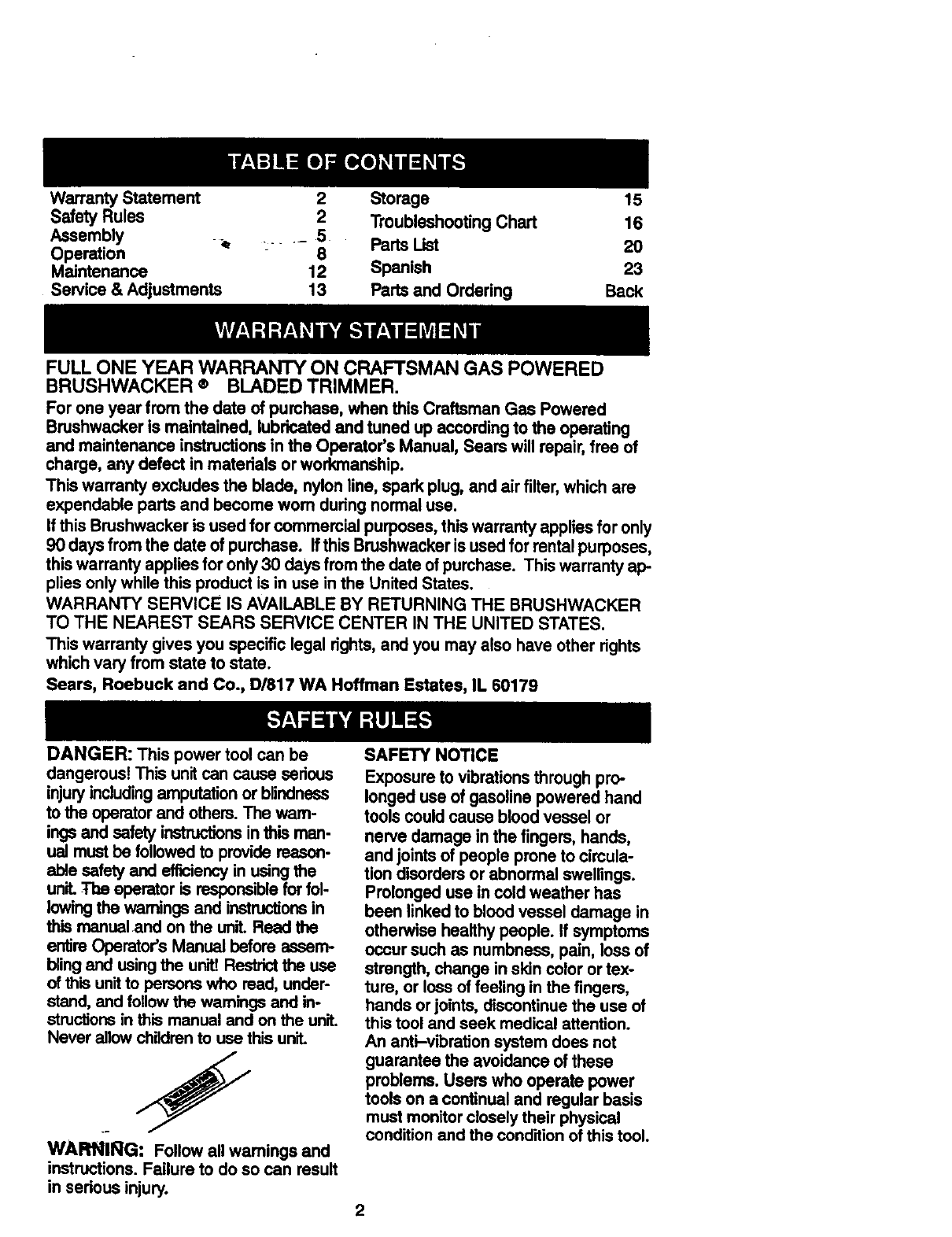

Warranty Statement 2 Storage 15

Safety Rules 2 Troubleshooting Chart 16

Assembly _ ..... 5 Parts List 20

Operation 8

Maintenance 12 Spanish 23

Sewice & Adjustments 13 Parts and Ordering Back

FULL ONE YEAR WARRANTY ON CRAFTSMAN GAS POWERED

BRUSHWACKER ®BLADED TRIMMER.

For one year from the date of purchase, when thisCraftsman Gas Powered

Brushwackeris maintained, lubricatedand tuned up accordingto the operating

and maintenance instructionsin the Operator's Manual, Sears will repair,free of

charge, any defect in materials or workmanship.

This warranty excludes the blade, nylonline, sparkplug, and air filter, which are

expendable parts and become wom duringnormal use.

If this Brushwacker is used for commercial purposes, thiswarranty applies for only

90 days from the date of purchase. If thisBrushwackeris used for rental purposes,

this warranty applies for only30 days from the date of purchase. This warranty ap-

plies onlywhile this product is in use in the United States.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE BRUSHWACKER

TO THE NEAREST SEARS SERVICE CENTER IN THE UNITED STATES.

This warranty gives you specific legal rights,and you may also have other rights

which vary from state to state.

Sears, Roebuck and Co., D/817 WA Hoffman Estates, IL 60179

DANGER: This power tool can be

dangerous! This unit can cause serious

injuryincludingamputationor blindness

to the operatorand others. The warn-

ingsand safety instructionsin thisman-

ual mustbe followedto providemason-

able safety and efficiencyin usingthe

unit.3"beeperator is responsiblefor fol-

lowingthe wamings and instructionsin

this manualand on the unit.Read the

entire Operator'sManual before assern-

blingand usingthe unit!Restrictthe use

of this unitto personswho read, under-

stand,and followthe warningsand in-

structions in thismanual and on the unit.

Never allowchildrento use this uniL

WARNII_G: Follow all wamings and

instructions. Failure to do so can result

in sedous injury.

SAFETY NOTICE

Exposure to vibrations through pro-

longed use of gasoline powered hand

tools could cause blood vessel or

nerve damage in the fingers, hands,

and joints of people prone to circula-

tion disorders or abnormal swellings.

Prolonged use in cold weather has

been linked to blood vessel damage in

otherwise healthy people. If symptoms

occur such as numbness, pain, lose of

strength, change in skin color or tex-

ture, or loss of feeling in the fingers,

hands or joints, discontinue the use of

this tool and seek medical attention.

An anti-vibration system does not

guarantee the avoidance of these

problems. Users who operate power

tools on a continual and regular basis

must monitor closely their physical

condition and the condition of this tool.

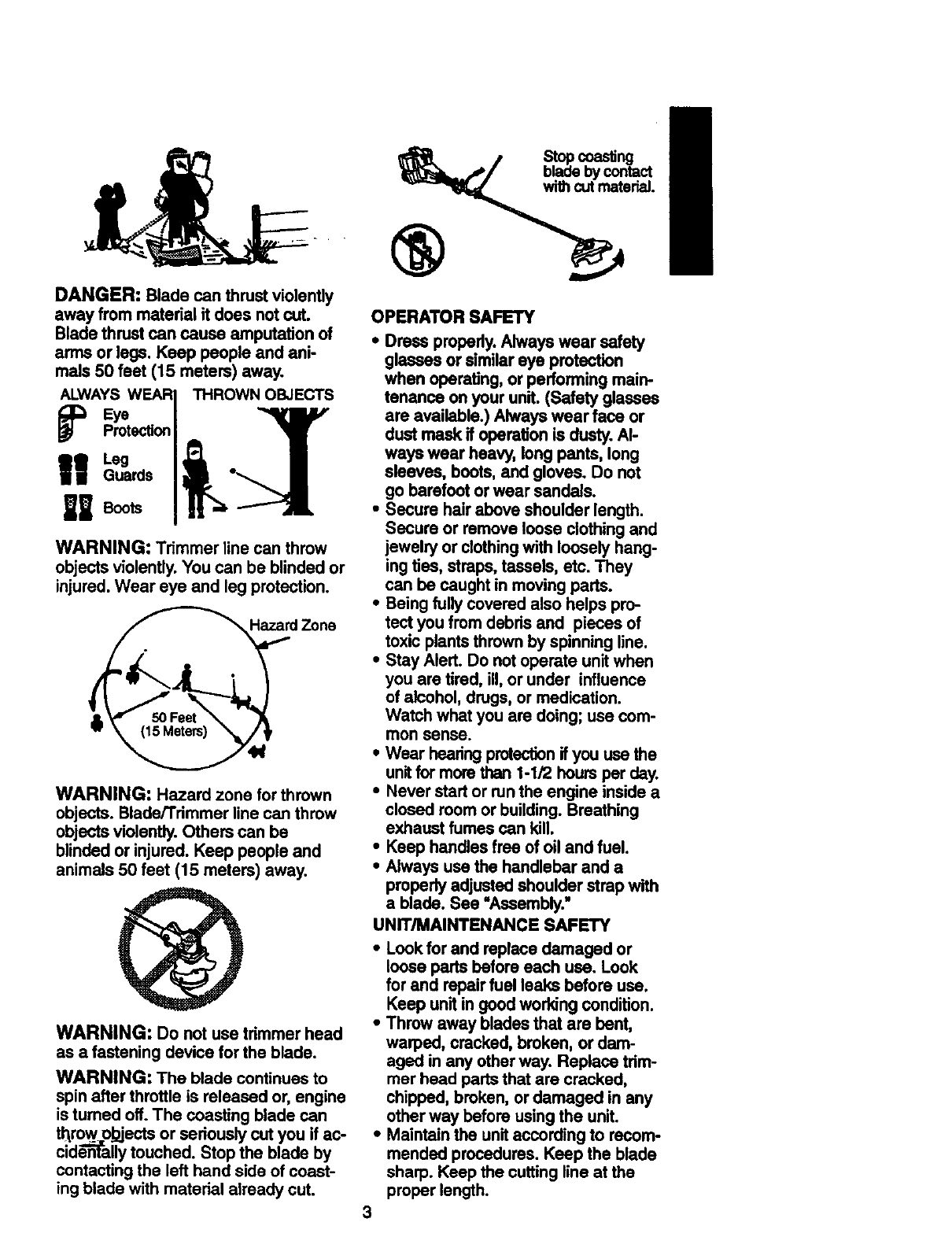

DANGER: Bladecanthrustviolently

awayfrommaterialit doesnotcut.

Bladethrustcancause amputation of

arms or legs. Keep people and ani-

mals 50 feet (15 meters) away.

ALWAYS WEAR

Leg J

Guards I •

U BootaI

WARNING: Trimmer line can throw

objects violently. You can be blinded or

injured. Wear eye and leg protection.

HazardZone

WARNING: Hazard zone for thrown

objects. Blade/Trimmer line can throw

objects violently. Others can be

blinded or injured. Keep people and

animals 50 feet (15 meters) away.

WARNING: Do not use trimmer head

as a fastening device for the blade.

WARNING: The blade continues to

spin after throttle is released or, engine

is turned off. The coasting blade can

throw obiects or seriously cut you if ac-

ciden-fft-allytouched. Stop the blade by

contacting the left hand side of coast-

ing blade with material already cut.

tiSt_ coas_ng

•by contact

with cut material

OPERATOR SAFETY

• Dress properly. Always wear safety

glasses or similar eye protection

when operating, or performing main-

tenance on your unR. (Safety glasses

are available.) Always wear face or

dust mask if operation is dusty. Al-

ways wear heavy, long pants, long

sleeves, boots, and gloves. Do not

go barefoot or wear sanda/s.

• Secure hair above shoulder length.

Secure or remove loose clothing and

jewelry or clothing with loosely hang-

ing ties, straps, tassels, etc. They

can be caught in moving parts.

•Being fully covered also helps pro-

tect you from debris and pieces of

toxic plants thrown by spinning line.

•Stay Alert. Do not operate unit when

you are tired, ill, or under influence

of alcohol, drugs, or medication.

Watch what you are doing; usa com-

mon sense.

•Wear hearing protection if you use the

unit for more than 1-1/2 hours per day.

•Never start or run the engine inside a

closed room or building. Breathing

exhaust fumes can kill.

•Keep handles free of oil and fuel.

•Always usa the handlebar and a

properly adjusted shoulder strap with

a blade. See "Assembly."

UNIT/MAINTENANCE SAFETY

•Look for and replace damaged or

loose parts before each usa. Look

for and repair fuel leaks before usa.

Keep unit in good working condition.

•Throw away blades that are bent,

warped, cracked, broken, or dam-

aged in any other way. Replace trim-

mer head parts that are cracked,

chipped, broken, or damaged in any

other way before using the unit.

• Maintain the unit according to recom-

mended procedures. Keep the blade

sharp. Keep the cutting line at the

proper length.

•Use only .080" (2.4 ram) diameter

Craftsman © brand line. Never use

wire, rope, stdng, etc.

•Install required shield properly before

using the uniL Use the metal shield

for all metal blade use. Usethe plas-

tic shield for all line trimmer-use.

-•Use only specified blade or tdmmer

head; make sure it is properly in-

stalled and securely fastened,

* Never start engine with clutch shroud

removed. The clutch can fly off and

cause serious injury.

• Be sure blade or tdmmer head stops

turning when engine idles,

•Disconnect the spark plug before

performing maintenance (except car-

buretor adjustments).

•Make carburetor adjustments with

the lower end supported to prevent

the blade or trimmer line from con-

tacting any object. Hold the unit by

hand; do not use the shoulder strap

for support.

•Keep others away when making car-

buretor adjustments.

• Use only recommended Craftsman

accessories and replacement parts.

•Have all maintenance and service

not explained in this manual per-

formed by a Sears Service_Center.

FUEL SAFETY

•Mix and pour fuel outdoors.

•Keep away from sparks or flames.

•Use a container approved for fuel.

•Do not smoke or allow smoking near

fuel or the unit or while using the unit.

• Wipe up all fuel spills before starting

engine.

•Moye,r_at-least 10 feet (3 meters) away

from fueling site before starling engine.

•Stop engine and allow-it to-cool be-

fore removing fuel cap.

•Empty the fuel tank before storing

the unit. Use up fuel left in the carbu-

retor by starting the engine and let-

ting it run until it stops.

•Storeunitandfuel in an area where

fuel vaporscannotreachsparksor

openflames from water heaters,elec-

tricmotorsor switches,furnaces, etc.

CUTTING SAFETY

•Inspectthe area to be cut before

each use. Remove objects (rocks,

broken glass, nails, wire, string, etc.)

which can be thrown or become en-

tangled inthe blade or trimmer head.

•Keep othersincludingchildren,ani-

mals, bystanders,and helpersat

least 50 feet (15 meters) away. Stop

the engine immediatelyif you are ap-

proached.

•Always keep engine on the right-

hand side of yourbody.

•Hold the unitfirmly withboth hands.

•Keep firmfootingand balance. Do

notoverreach.

•Keep blade or trimmer head below

waist level.

•Do not raise engineaboveyourwaist.

•Keep all pads ofyour body away

from blade, trimmer head, and muf-

flerwhen engine is running.

•Cut from your righttoyour left.

•Use onlyfor jobs explained in this

manual.

TRANSPORTING AND STORAGE

•Stop the unitbefore carrying.

•Keep muffleraway from yourbody.

•Allowengine to cool and secure unit

before storing ortransportingit in a

vehicle.

•Emptythe fuel tank before storingor

transportingthe unit. Use up fuel left

in the carburetor by startingthe en-

gine and lettingit run untilit stops.

•Store unit and fuel in an area where

fuel vapors cannot roachsparks or

open flamesfrom water heaters,

electdcmotors or switches,fumaces,

etc.

• Store unit so the blade or line limiter

cannot accidentallycause injury.The

unitcan be hung bythe tube.

•Store unit out of reach of children.

CARTON CONTENTS

Check carton contents against the fol-

lowing list. _ .....

Model: 358,795050

• Brushcutter

•Handlebar screws (2)

•Blade shield screws (4)

•Cupped washer

• Large nut for installing blade

•Long hex wrench

•Short hex wrench

•Bracket cover

• Metal shield

• Plastic shield

• Shoulder strap with waming

•Weed blade

•Trimmer head

•Handlebar

•Container of oil

Examine parts for damage. Do not use

damaged parts.

NOTE: If you need assistance or find

that parts are missing or damaged, call

1-800-235-5878,

It is normal for the fuel filter to rattle in the

empty fuel tank.

Finding fuel or oil residue on muffler is

normal due to carburetor adjustments

and testing done by the manufacturer.

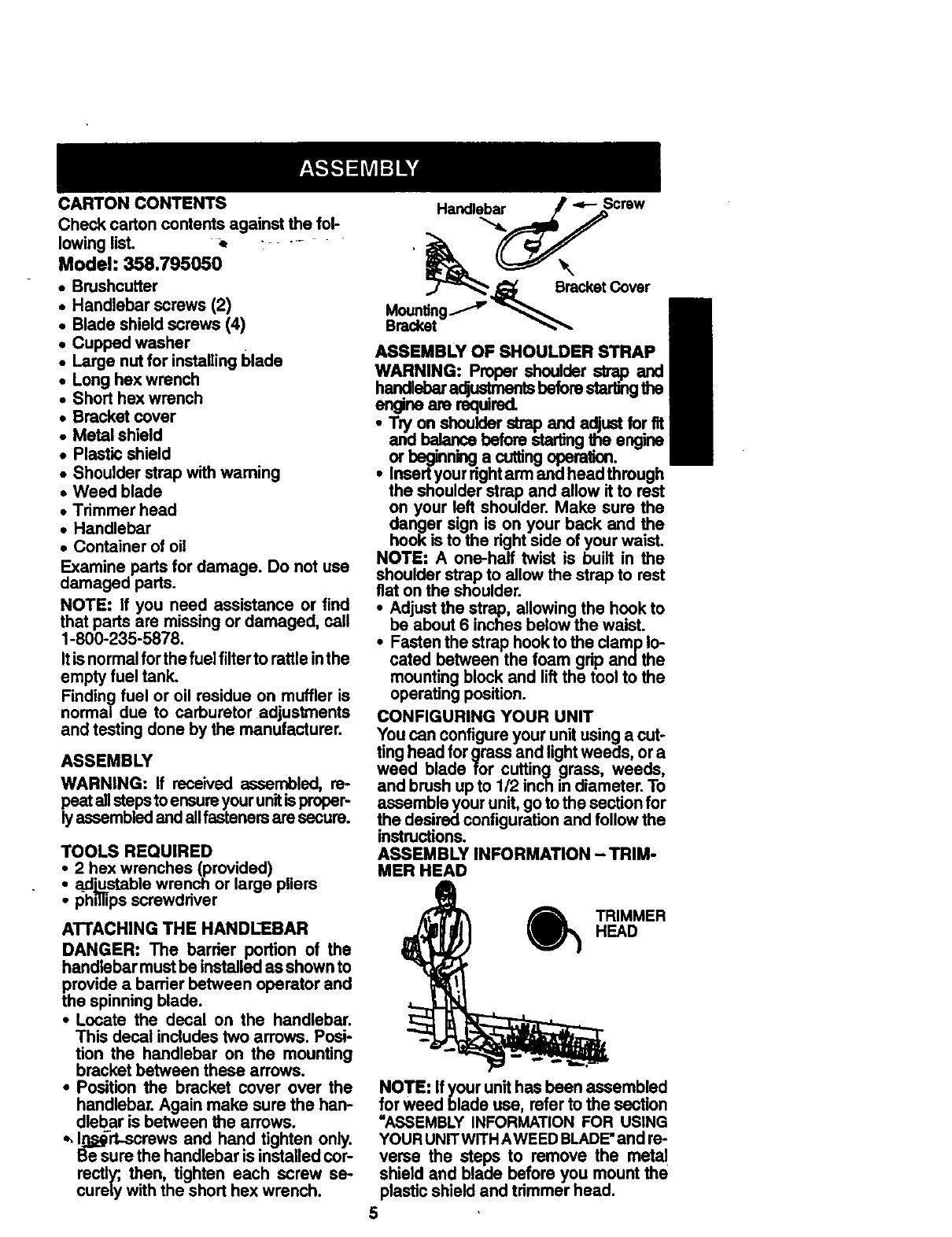

ASSEMBLY

WARNING: If received assembled, re-

_.atatatata_allsteps to ensure your unit is proper-

mbled and allfastenem are secure.

TOOLS REQUIRED

2 hex wrenches (provided)

adjustable wrench or large pliers

phmips screwdriver

ATTACHING THE HANDLEBAR

DANGER: The barrier portion of the

handlebar must be installed as shown to

provide a barrier between operator and

the spinning blade.

•Locate the decal on the handlebar.

This decal includes two arrows. Posi-

tion the handlebar on the mounting

bracket between these arrows.

•Position the bracket cover over the

handlebar. Again make sure the han-

dlebar is between the arrows.

*, I_,_rt-screws and hand tighten only.

Be sure the handlebar is installed cor-

rectly; then, tighten each screw se-

curely with the short hex wrench.

ASSEMBLY OF SHOULDER STRAP

WARNING:

engineare required.

• Insert'

the

on your left Make sure the

danger sign is on your back and the

hook is to the right side of your waist.

NOTE: A one-half twist is built in the

shoulder strap to allow the strap to rest

flat on the shoulder.

•Adjust the strap, allowing the hook to

be about 6 inches below the waist.

•Fasten the strap hook to the clamp lo-

cated between the foam grip and the

mounting block and lift the tool to the

operating position.

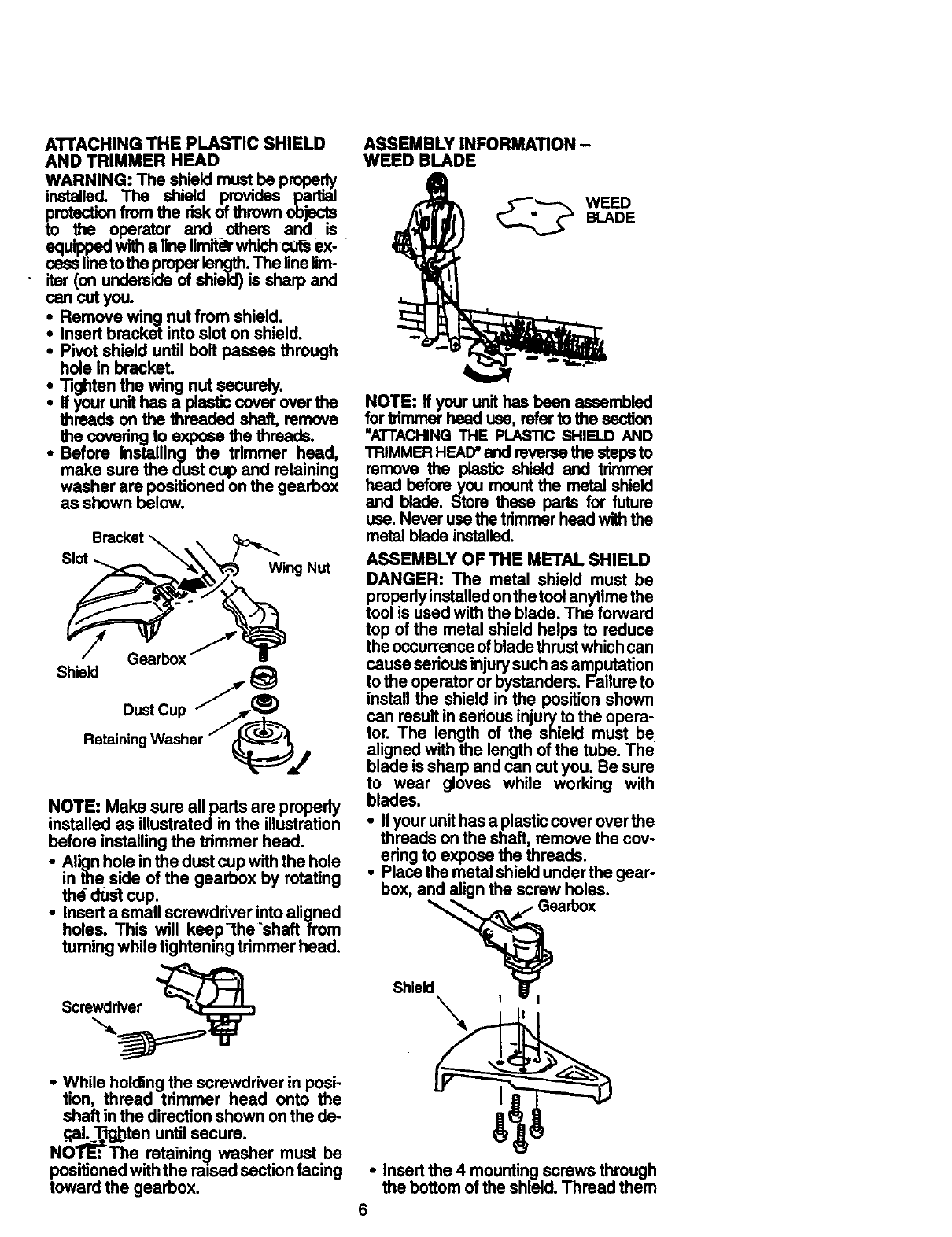

CONFIGURING YOUR UNIT

You can configure your unit using a cut-

ting head for grass and light weeds, or a

weed blade for cutting grass, weeds,

and brush up to 1/2 inch in diameter. To

assemble your unit, go to the section for

the desired configuration and follow the

instructions.

ASSEMBLY INFORMATION - TRIM-

MER HEAD

) TRIMMER

HEAD

NOTE: If your unit has been assembled

for weed blade use, refer to the section

=ASSEMBLY INFORMATIONFOR USING

YOURUNITWITHAWEEDBLADE"and re-

verse the steps to remove the metal

shield and blade before you mountthe

plasticshieldand trimmer head.

ATTACHINGTHE PLASTICSHIELD

ANDTRIMMERHEAD

WARNING:Theshieldmustbeproperly

installed.The shield provides partial

pmtsctionfromthe riskofthrown objects

to _operator and others and is

equil_3edwithalinelirnltdr whichct_sex-

cass linetotheproper length.The linelim-

- iter(on undersideof shield) is sharp and

can cut you.

Remove wing nut from shield.

Insert bracket into slot on shield.

• Pivot shield until bolt passes through

hole in bracket.

Tighten the wing nut securely.

If yourunithas a plasticcoverover the

threads on the threaded shaft,remove

the covetingto expose the threads.

•Before installing the trimmer head,

make sure the dust cup and retaining

washer are positionedon the gearbox

as shown below.

Bracket _.c__

RotainiDnU_er /_

NOTE: Make sure all parts are propedy

installed as illustratedin the illustration

before installingthe trimmer head.

•Alignholein the dust cupwiththe hole

inthe side of the gearbox by rotating

thd _st cup.

• Inserta smallscrewdriver intoaligned

holes. Th_ will keep-the'shaft from

tuming wholetighteningtrimmer head.

Screwdriver

•While holdingthe screwdriver in posi-

tion, thread trimmer head onto the

shaft inthe directionshown onthe de-

.qal_T_jbtenuntil secure.

NOTE:The ratainin(j washer must be

positionedwiththe ra0sedsectionfacing

toward the gearbox.

ASSEMBLY INFORMATION -

WEED BLADE

WEED

BLADE

NOTE: If your unit has been assembled

for _mmer head use, refer to the section

"ATTACHING THE PLASTIC SHIELD AND

TRIMMER HEAD"and reverse the steps to

remove the plastic shield and trimmer

head before you mount the metal shield

and blade. Store these pads for future

use. Never use the trimmer head with the

metal blade installed.

ASSEMBLY OF THE METAL SHIELD

DANGER: The metal shield must be

properiyinstalled on the tool anytime the

tool is used with the blade. The forward

top of the metal shield helps to reduce

the occurrence of blade thrust which can

cause serious injury such as amputation

to the operator or bystanders. Failure to

install the shield in the position shown

can result in serious injury to the opera-

tor. The length of the shield must be

aligned with the length of the tube. The

blade is sharp and can cut you. Be sure

to wear gloves while working with

blades.

•If your unit has a plastic cover over the

threads on the shaft, remove the cov-

ering to expose the threads.

•Place the metal shield under the gear-

box, and align the screw holes.

Shield_J, Gearb°x

• Insertthe 4 mountingscrews through

the bottomof the shield.Thread them

into the gearbox. Tighten evenly and

securely with one of the hex wrenches

provided.

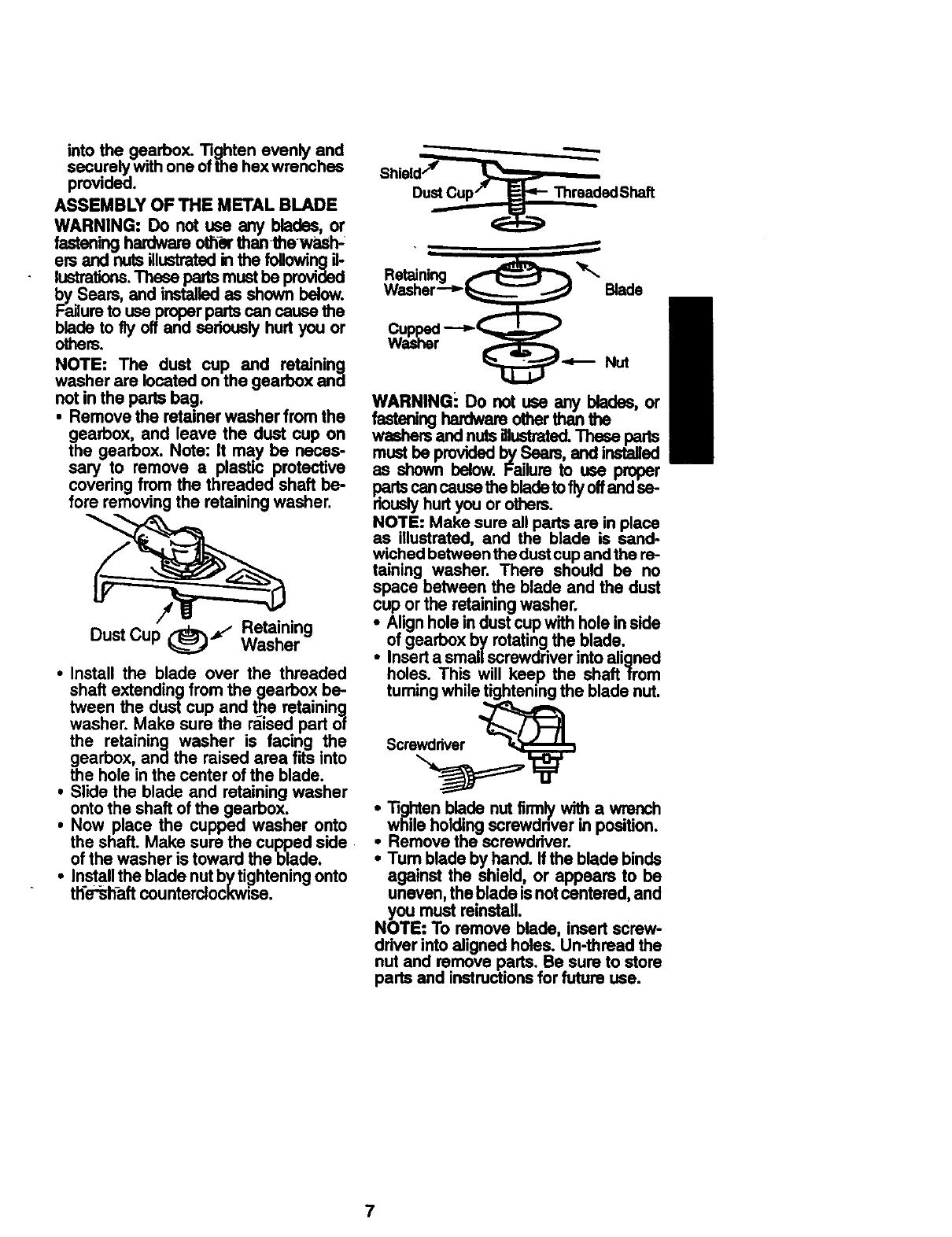

ASSEMBLY OF THE METAL BLADE

WARNING: Do not use any blades, or

fasteninghardwareoffie"thanthewash-

ers and nutsillustratedinthe followingil.

lustrations.These partsmustbe provided

by Sears, and installedas shown below.

Failureto use properpartscan cause the

blade to fly offand seriouslyhurtyou or

others.

NOTE: The dust cup and retaining

washer are located on the gearbox and

notin the parts bag.

• Remove the retainerwasher from the

gearbox, and leave the dust cup on

the gearbox. Note: It may be neces-

sary to remove a plastic protective

covering from the threaded shaft be-

fore removingthe retaining washer.

Dust Cup (_='_ WasherRetaining

•Install the blade over the threaded

shaft extending from the gearbox be-

tween the dust cup and the retaining

washer. Make sure the raised part of

the retaining washer is facing the

gearbox, and the raised area fits into

the hole in the center ofthe blade.

•Slide the blade and retaining washer

ontothe shaft of the gearbox.

•Now place the cupped washer onto

the shaft. Make sure the cupped side

ofthe washer is toward the blade.

•Installthe blade nut b_/ti_ghteningonto

th'e'_haftcounterolockwJse.

Shield''_

DustCup/" _ThreadedShaft

Retaining _ _'_

Washer--__ Blade

WARNINGi Do not use any blades, or

fasteninghardwareotherthanthe

washersand nutsillustrated.These parts

mustbe providedbySeam, and installed

as shown below. Failureto use proper

partscancause thebladeto tiy offandse-

riouslyhurtyou or others.

NOTE: Make sure all parts are inplace

as illustrated, and the blade is sand-

wichedbetween thedustcupandthe re-

taining washer. There should be no

space between the blade and the dust

cup or the retainingwasher.

iAlignholein dustcupwith hole inside

of gearbox by rotatingthe blade.

Inserta smallscrewdriverintoaligned

holes. This will keep the shaft from

tuming while tighteningthe blade nut.

Scre__

Tightenblade nutfirmlywitha wrench

iwhile holding position.

screwdnverin

Remove the screwdriver.

•Turn blade by hand. Ifthe blade binds

against the shield, or appears to be

uneven,the blade isnotcentered,and

you must reinstall.

NOTE: To remove blade, insert screw-

ddver into aligned holes. Un-thread the

nut and remove parts. Be sure to store

parts and instructionsfor future use.

KNOW YOUR BRUSHWACKER

READ THIS OPERATOR'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

UNIT. Compare the illustmtionswith your unit to familiarize yourself with the loca-

tion of various controls and adjustments. Save this manual for future reference.

Trigger Handle

Handlebar

Pdrner

Starter Bulb

Muffler

ON/STOP SWITCH

The On/Stop switch is located on the

engine and is used to stop the engine.

Push the switch to the stop position to

stop the unit•

PRIMER BULB

The primer bulb removes air from the

fuel lines and fills them with fuel. This

allows you to start the engine with few-

er pulls on the starter rope. Activate

the primer bulb by pressing it and al-

lowing it to retum to its original form.

CHOKE

The choke helps to supply fuel to the

carburetor during starting. This allows

you to start a cold engine. Activate the

choke by moving the choke lever to

the Full position. After the engine has

started, move the choke to the Off

position.

BEFORE STARTING ENGINE

WARNING: Be sure to read the fuel

informationin the safety rules before

you begin. Ifyou do not understand

the safety rules, do not attempt to fuel

•yourIJi'_t._,all 1-800-235-5878.

FUELING ENGINE -

This engine is certifiedto operate on

unleaded gasoline. Before operation,

gasoline mustbe mixed with a good

quality2-cycle air-cooled engine oil.

We recommend Craftsman brand oil.

Mix gasoline and oil at a ratioof 40:1

(A 40:1 ratio is obtained by mixing3.2

ounces of oil with I gallon of unleaded

gasoline). DO NOTUSE automotive oil

or boat oil. These oils will cause

engine damage. When mixingfuel,

foliow']f_]'mctions printed on container.

IMPORTANT

Experience indicates that alcohol

blended fuels (called gasohol or using

ethanolor methanol)can attract mois-

turs which leadsto separation and

formationof acids duringstorage.

Acidicgas can damage the fuel sys-

tam of an engine while in storage.

To avoid engine problems,empty the

fuel system before storage for 30 days

or longer.Drain the gas tank, startthe

engine and let it run untilthe fuel lines

and carburetor are empty. Use fresh

fuel nextseason.

Never use engine or carburetor clean-

er products in the fuel tank or perma-

nent damage may occur.

See the STORAGE section for addi-

tionalinformation.

STOPPING YOUR ENGINE

• Move the On/Stop switch to the

STOP position.

•If engine does not stop, move choke

to the Full Choke position.

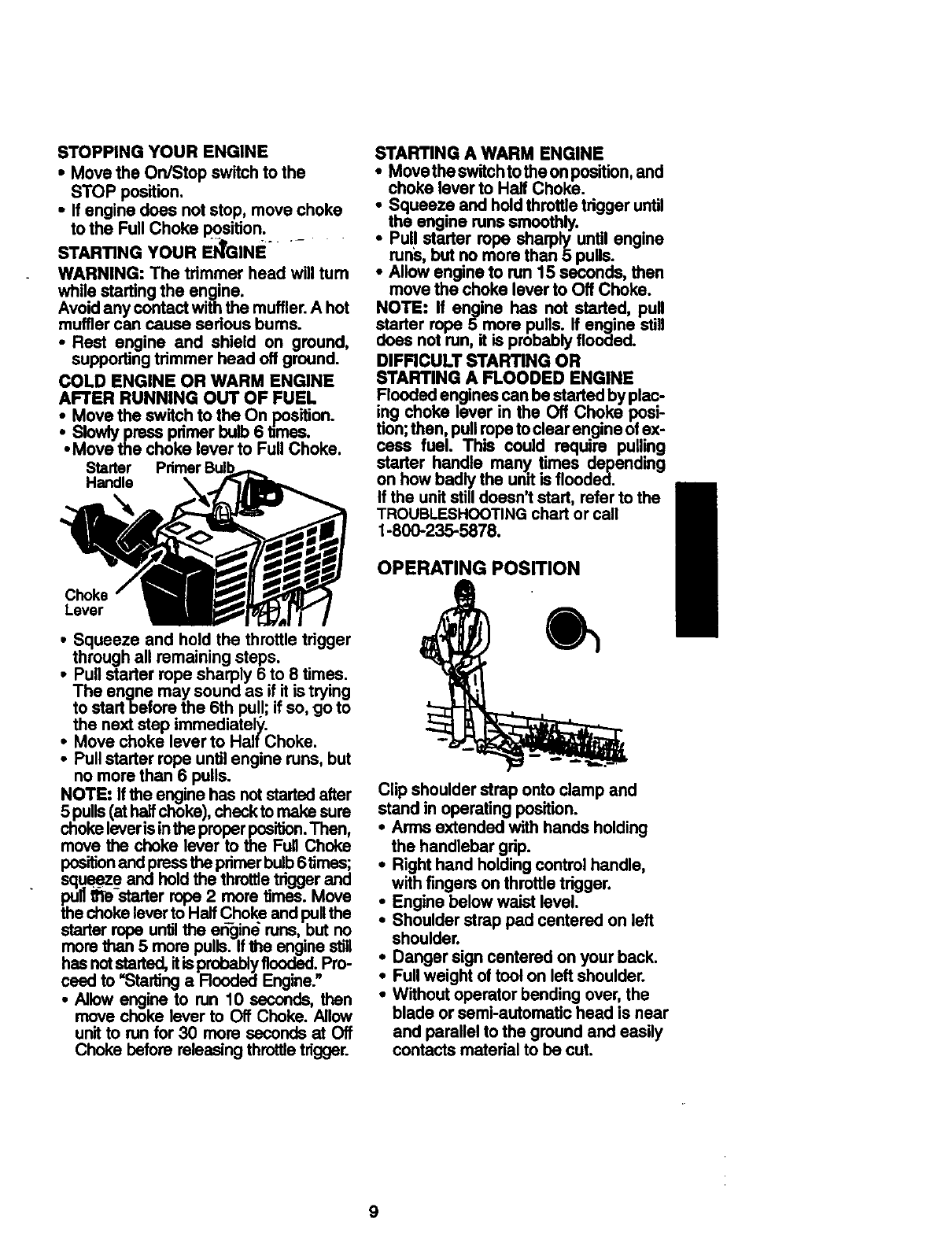

STARTING YOUR Ei_GINI=" "-

WARNING: The trimmer head will turn

while starling the engine.

Avoid any contact with the muffler. A hoz

muffler can cause serious bums.

•Rest engine and shield on ground,

supporting tdmmer head off ground.

COLD ENGINE OR WARM ENGINE

AFTER RUNNING OUT OF FUEL

•Move the switch to the On position.

•Slowly press pdmer bulb 6 times..

•Move the choke lever to Full ChoKe.

Starter Pdmer BulbA

Handle _._-_1_

Lever TI

• Squeeze and hold the throttle tdgger

through all remaining steps.

iull starter rope sharply 6 to 8 times.

The engne may sound as if it is trying

to startbefore the 6th pull; if so, go to

the next step immediately.

Move choke lever to Half Choke.

•Pull starter rope until engine runs, but

no more than 6 pulis.

NOTE: If the engine has not started after

5 pulls (at half choke), check to .make_sure

choke lever is in the proper position. Inen,

move the choke lever to the Full Choke

positionand press the primer bulb 6timas i

squeeze and hold the throme trigger ano

pull 8Te-starter rope 2 more times.. Move

the choke lever to Half ChoKe ano pullthe

starter rope until the e_gin_ runs, but

more than 5 more pulls. If the engine so,

has not started, itis probably flooded;Pro-

need to "Starting a Flooded Engine.

•Allow engine to run 10 seconds, then

move choke lever to Off Choke. Allow

unit to run for 30 more seconds at Off

Choke before releasing throttle trigger.

STARTING A WARM ENGINE

•Movetheswitchtotheonposition, and

choke lever to Half Choke.

•Squeeze and hold throttle trigger until

the engine runs smoothly.

•Pull starter rope sharply until engine

runs, but no more than 5 pulls.

• Allow engine to run 15 seconds, then

move the choke lever to Off Choke.

NOTE: If engine has not started, pull

starter rope 5 more pulls. If engine still

does not run, it is probably flooaea.

DIFFICULT STARTING OR

STARTING A FLOODED ENGINE

Floodedenginescan be started.by plac-

ing choke lever in the Off ChOKe.posi-

tion;then pullropeto clear engine oiex-

cass fuel. This could require pulling

starter handle many times delpending

on how badly the unit is floooea.

If the unit still doesn't start, refer to the

TROUBLESHOOTINGchartor call

1-800-235-5878.

OPERATING POSITION

Clip shoulder strap onto clamp and

stand in operating position.

•Arms extended with hands holding

the handlebar gdp.

•Right hand holding control handle,

with fingers on throttle tdgger.

•Engine below waist level.

•Shoulder strap pad centered on left

shoulder.

•Danger sign centered on your back.

•Full weight of toot on left shoulder.

•Without operator bending over, the

blade or semi-automatic head is near

and parallel to the ground and easily

contacts material to be cut.

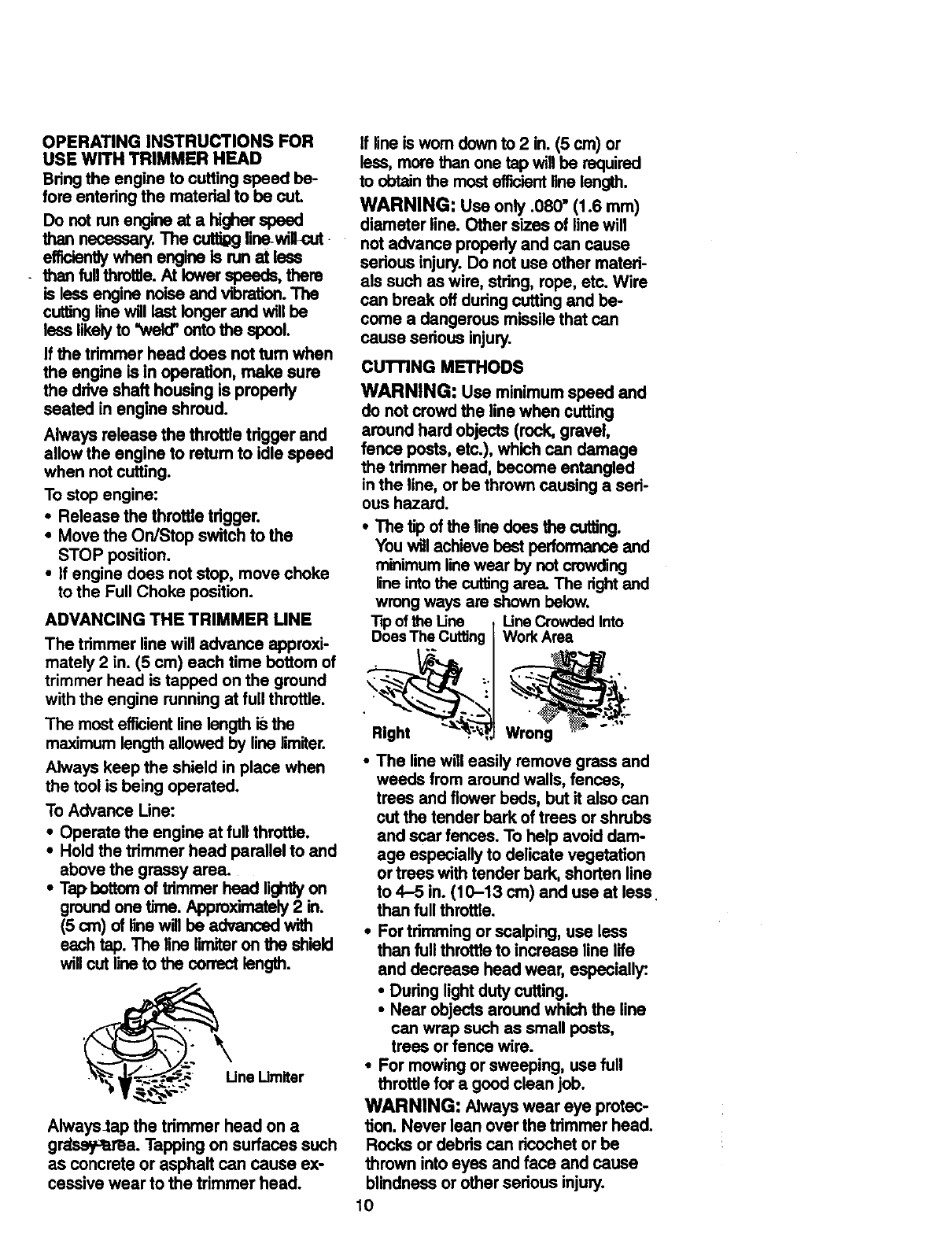

OPERATING INSTRUCTIONS FOR

USE WITH TRIMMER HEAD

Bring the engine to cutting speed be-

fore entering the material to be cut.

Do not run engine at a higher speed

than necessary. The cuttigg line-willo_

efficiently when engine is run at less

than full throtlJe. At lower speeds, there

is less engine noise and vibration. The

cutting line will last longer and will be

less likely to "weld' onto the spool.

If the trimmer head does not tum when

the engine is in operation, make sure

the drive shaft housing is properly

seated in engine shroud.

Always release the throttle trigger and

allow the engine to retum to idle speed

when not cutting.

To stop engine:

•Release the throttle tdgger.

• Move the On/Stop switch to the

STOP position.

• if engine does not stop, move choke

to the Full Choke position.

ADVANCING THE TRIMMER UNE

The trimmer line will advance approxi-

mately 2 in. (5 cm) each time bottom of

trimmer head is tapped on the ground

with the engine running at full throttle.

The most efticient line length is the

maximum length allowed by line lirniter.

Always keep the shield in place when

the tool is being operated.

To Advance Line:

•Operate the engine at full throttle.

•Hold the trimmer head parallel to and

above the grassy area.

•Tap, bottom of trimrner head lightly on

ground one time. Approximately 2 in.

(5 cm) of line wig be advanced with

each tap. The line limiter on _shield

will cut line to the correct length.

Always_ap the trimmer head on a

grdsey_ma. Tapping on surfaces such

as concrete or asphalt can cause ex-

cessive wear tothe trimmer head.

If lineis worn downto 2 in.(5 cm) or

less, more than one tap willbe required

to obtainthe mostefficientlinelength.

WARNING: Use only .080" (1.6 mm)

diameter line. Other sizes of line will

notadvance propedy and can cause

serious injury.Do notuse other materi-

als such as wire, stdng, rope, etc. Wire

can break off duringcuttingand be-

come a dangerous missilethat can

cause serious injury.

CUTrlNG METHODS

WARNING: Use minimum speed and

do not crowd the line when cutting

around hard objects (rock, gravel,

fence pests, etc.), which can damage

the trimmer head, become entangled

in the line, or be thrown causing a seri-

ous hazard.

•The tip of the line does the cutting.

You will achieve best performance and

minimum line wear by not crowding

line into the cuffing area. The right and

wrong ways are shown below.

Tip of the Line Une Crowded Into

DoesThe Cutting Work Area

Right :_._'_"_

•The line will easily remove grass and

weeds from aroundwalls, fences,

trees and flower beds, but it also can

cutthe tender bark of trees or shrubs

and scar fences. To help avoid darn-

age especiallyto delicate vegetation

or trees with tender bark, shorten line

to 4-5 in. (10-13 cm) and use at less

than full throttle.

• For trimmingor scalping, use less

than fullthrottleto increase line life

and decrease head wear, especially:.

•During lightduty cutting.

•Near objectsaround which the line

can wrap such as small posts,

tress or fence wire.

•For mowingor sweeping, use full

throttle for a good clean job.

WARNING: Alwayswear eye protec-

tion. Never lean over the trimmer head.

Racks or debds can ricochetor be

thrown intoeyes and face and cause

blindnessor other serious injury.

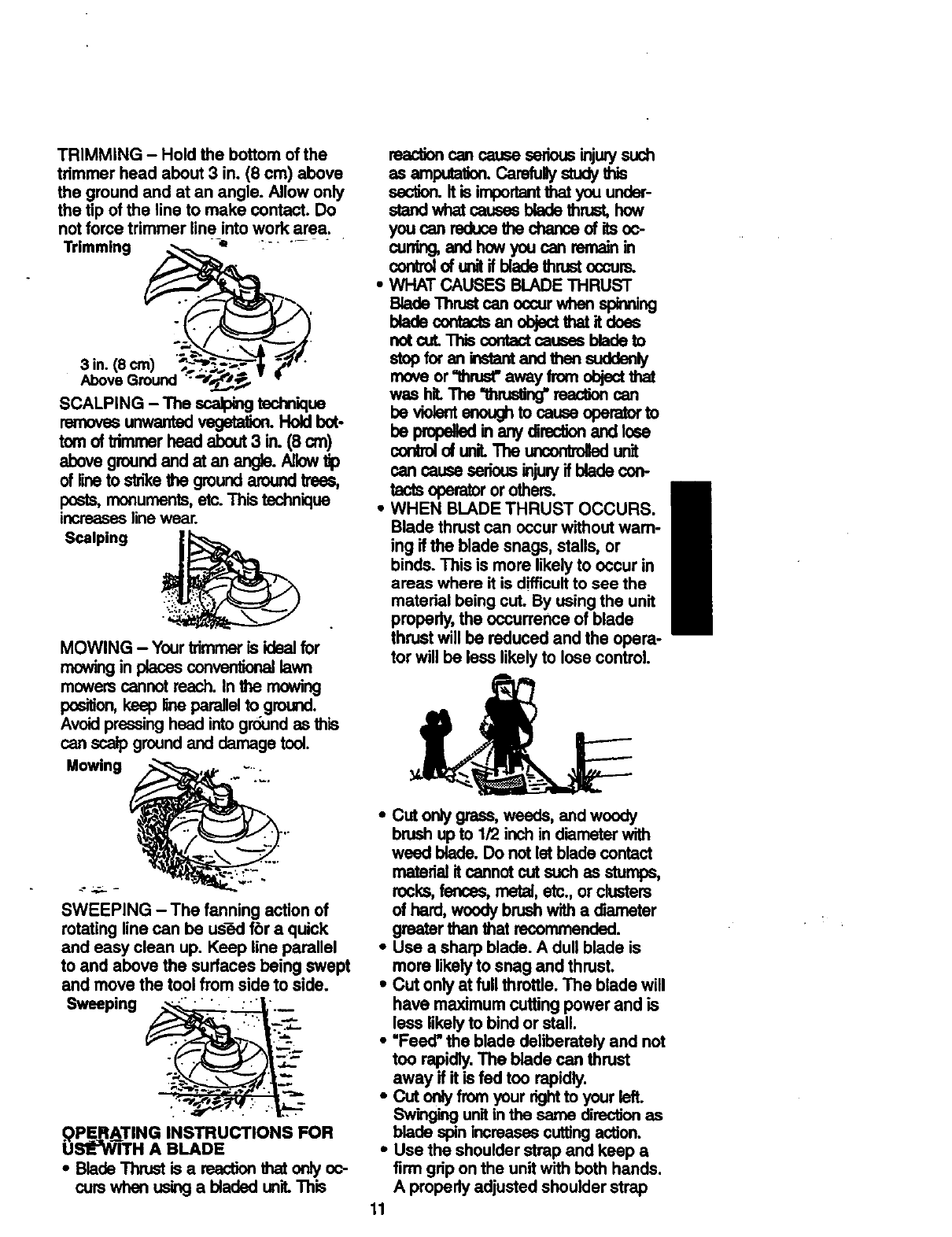

TRIMMING- Holdthebottomofthe

trimmerheadabout3 in.(8cm) above

thegroundandat anangle.Allowonly

thetipof thelineto makecontact.Do

notforcetrimmerlineintoworkarea.

Trimming :.....

3 in. (8 cro) _ _"_.___._'-1 _-'"

AboveGround ',___*_

SCALPING -The scalping technique

removesuowantedvegetal_. Holdbot-

tomof Vimmer head about 3 in. (8 cm)

abevegroundandatan angla.Allow_

of line to sirra the ground around troes,

posts, monuments, etc. This technique

increases line wear.

Scalping

MOWING - Yourtrimmeris idealfor

mowingin placesconventionallawn

mowerscannotroach.Inthe mowing

position,keep lineparallelto ground.

Avoidpressinghead intogroundas this

can scalpgroundand damagetool.

Mowing

SWEEPING - The fanning action of

rotating line can be used fbr a quick

and easy clean up. Keep line parallel

to and above the surfaces being swept

and move the tool from side to side.

Sweeping __

b0PERATING INSTRUCTIONS FOR

S_"WITH A BLADE

•Blade "rhrust is a reaction that only oc-

curs when using abladed unit This

reactioncancaussssriousinjurysuch

asamputation.CarofuUystudythis

_. It is important that you under-

stand what causas blade thrust, how

you can reduce the chance of its oc-

cur_g, and how you can remain in

control of unit if blade thrust occurs.

•WHAT CAUSES BLADE THRUST

Blade Thrust can occur when spinning

bladscor_actsanobjectthatitdoas

not cut. This contact causes blade to

stop for _instant and then suddenly

move or "lhrus_ away from object that

w=,s hit The "thrusting"reaction can

be violent enough to causs oparator to

beprope_ bl anydrec0onand_ose

conbol of uniL The uncontrolled unit

cancauseserisusinjunjifbladecon-

tactsoperator or others.

•WHEN BLADE THRUST OCCURS.

Blade thrust can occur without wam-

ing if the blade snags, stalls, or

binds. This is more likely to occur in

areas where it is difficult to see the

material being cut. By using the unit

properly, the occurrence of blade

thrust will be reduced and the opera-

tor will be less likely to lose control.

•Cut only grass, weeds, and wcody

brush up to 1/2 inch in diameter with

weed blade. Do not let blade contact

material it cannot cut such as stumps,

rocks, fences, metal, etc., or clusters

of hard, woody brush with a diameter

greater than that recommended.

•Use a sharp blade. A dull blade is

more likely to snag and thrust.

•Cut only at full throttle. The blade will

have maximum cutting power and is

leas likely to bind or stall.

•"Feed" the blade deliberately and not

too rapidly. The blade can thrust

away if it is fed too rapidly.

•Cut only from your dght to your lefL

Swinging unit in the same direction as

blade spin increases cutting action.

•Use the shoulder strap and keep a

firm grip on the unit with both hands.

A properly adjusted shoulder strap

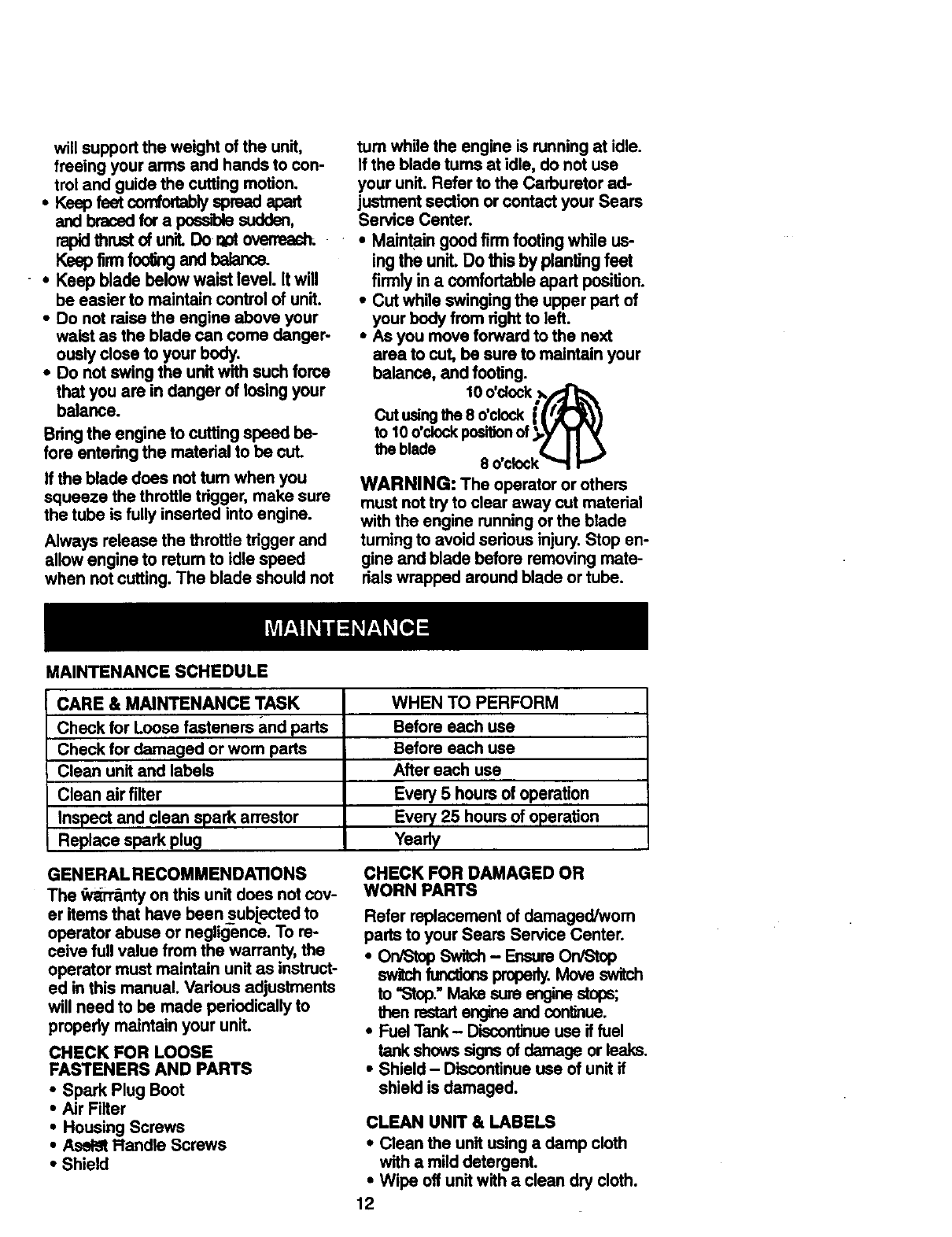

willsupporttheweightof theunit,

freeingyourarmsandhandsto con-

trolandguidethecuttingmotion.

•Ksepfsetcon_o_aUyspreadapart

andbracedfora possrolesudden,

rapidthrustofunit.Dor_oto_.

Keep foo andba .x=

•Keepbladebelowwaistlevel.Itwill

be easier to maintain control of unit.

•Do not raise the engine above your

waist as the blade can come danger-

ously close to your body.

•Do not swing the unit with such force

that you are in danger of losing your

balance.

Bring the engine to cuffing speed be-

fore entering the material to be cut.

If the blade does not tum when you

squeeze the throttle trigger, make sure

the tube is fully inserted into engine.

Always release the throttle trigger and

allow engine to return to idle speed

when not cutting. The blade should not

MAINTENANCE SCHEDULE

tum while the engine is running at idle.

if the blade turns at idle, do not use

your unit. Refer to the Carburetor ad-

justment section or contact your Sears

Service Center.

•Maintain good firm footing while us-

ing the unit. Do this by planting feet

firmly in a comfortable apart position.

•Cut while swinging the upper part of

your body from right to left.

•As you move forward to the next

area to cut, be sure to maintain your

balance, and footing.

lOo'c ,k

eo'clo I

to 10 O'ClOCkpositionof _,.y' 1'I

the blade •II •

8 O'Clock""t

WARNING: The operator or others

must not try to clear away cut material

with the engine running or the blade

fuming to avoid serious injury. Stop en-

gine and blade before removing mate-

dais wrapped around blade or tube.

CARE & MAINTENANCE TASK

Check for Loose fasteners and parts

Check for damaged or worn parts

Clean unit and labels

Clean air filter

Inspect and clean spark arrestor

Replace spark plug

WHEN TO PERFORM

Before each use

After each use

Every 5 hours of operation

Every 25 hours of operation

Yearly

GENERAL RECOMMENDATIONS

The _r'_r_nty on this unit does not cov-

er items that have beensubjected to

operator abuse or negligence. To re-

ceive full value from the warranty, the

operator must maintain unit as instruct-

ed in this manual. Various adjustments

will need to be made periodically to

properly maintain your unit.

CHECK FOR LOOSE

FASTENERS AND PARTS

•Spark Plug Boot

•Air Filter

•Housing Screws

•Asel_ Flandle Screws

•Shield

CHECK FOR DAMAGED OR

WORN PARTS

Refer replacement of damaged/worn

partsto your Sears Service Center.

• On/Stop Switch-EnsureOn/Stop

switchfunctionsproperty.Move swiPJn

to"Stop."Make sure enginestops;

then rsstart angine and continue.

•Fuel Tank - Discontinueuse if fuel

tankshowssignsof damageor leaks,

• Shield - Discontinueuse of unit if

shield is damaged.

CLEAN UNIT & LABELS

•Clean the unit using a damp cloth

with a mild detergent.

•Wipe off unit with a clean dry cloth.

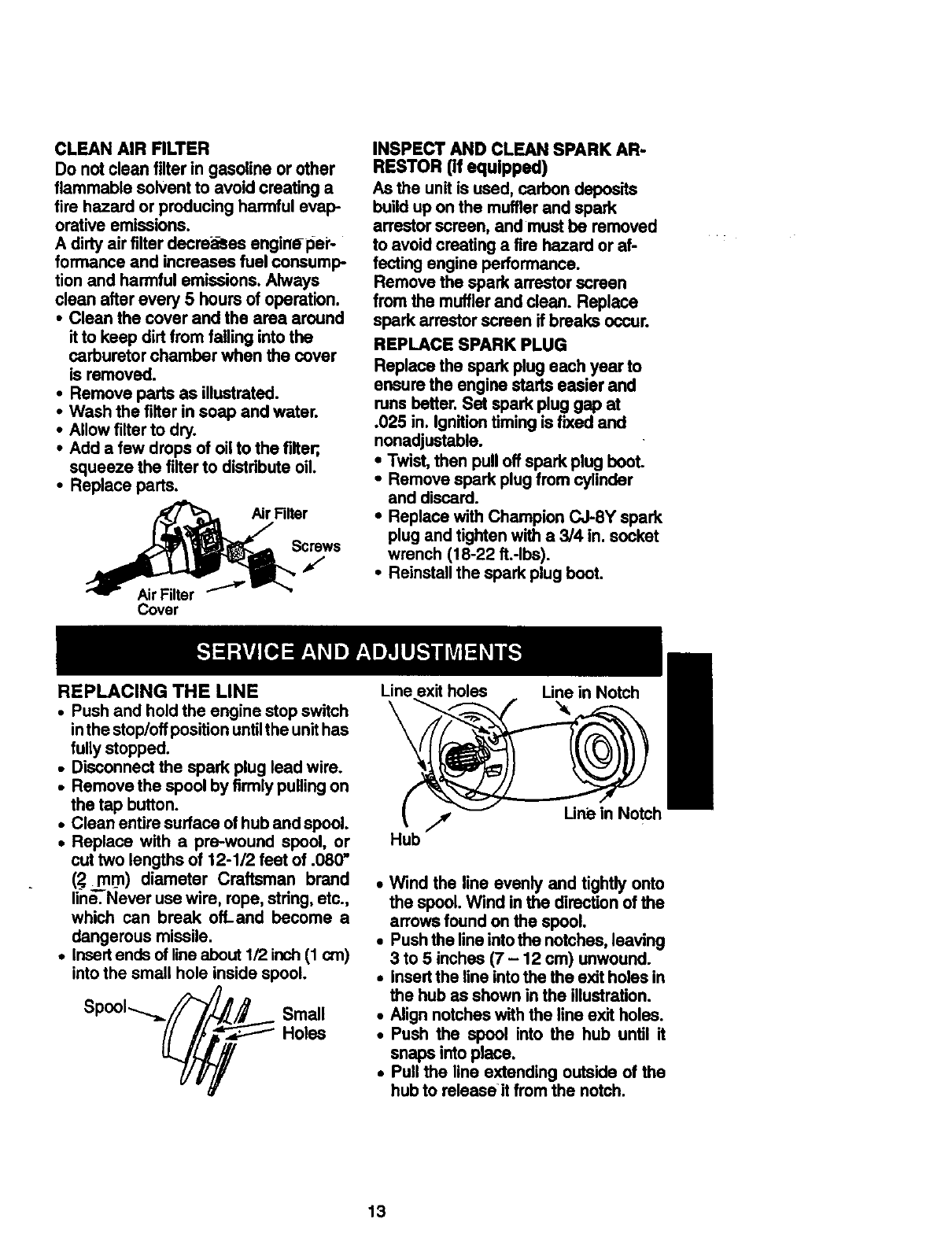

CLEAN AIR FILTER

Do notclean filterin gasoline or other

flammable solvent to avoid creating a

fire hazard or producing harmful evap-

orative emissions.

A dirtyair filter decre_es engine-pei'-

formance and increases fuel consump-

tion and harmful emissions.Always

clean after every 5 hours of operation.

• Clean the cover and the area around

it to keep dirtfrom fallinginto the

carburetor chamber when the cover

is removed.

•Remove pads as illustrated.

•Wash the filter in soap and water.

•Allow filter to dry.

•Add a few drops of oilto the filter;,

squeeze the filterto distributeoil.

•Replace parts.

Cover

INSPECT AND CLEAN SPARK AR-

RESTOR (if equipped)

As the unit is used, carbon deposits

build up on the mufflerand spark

arrestor screen, and mustbe removed

to avoid creating a fire hazard or af-

fecting engine performance.

Remove the spark arrestorscreen

from the mufflerand clean. Replace

spark arrestorscreen if breaks occur.

REPLACE SPARK PLUG

Replace the sparkplug each year to

ensure the engine starts easier and

runs better.Set spark plug gap at

.025 in. Ignitiontimingis fixed and

nonadjustable.

•Twist, then pull offspark plug boot.

•Remove spark plug from cylinder

and discard.

•Replace with Champion CJ-8Y spark

plug and tighten with a3/4 in. socket

wrench (18-22 ft.-Ibs).

•Reinstallthe spark plug boot.

REPLACING THE LINE

• Push and hold the engine stop switch

inthe stop/off position until the unit has

fully stopped.

•Disconnect the spark plug lead wire.

•Remove the spool by firmly pulling on

the tap button.

• Clean entire surface of hub and spool.

•Replace with a pre-wound spool, or

cut two lengths of 12-1/2 feet of .080"

(2J_mrn) diameter Craftsman brand

line. Never use wire, rope, string, etc.,

which can break off-and become a

dangerous missile.

•Insert ends of line about 1/2 inch (1 cm)

into the small hole inside spool.

Lineexit holes Line in Notch

Hub

Une in Notch

•Wind the line evenly and tightly onto

the spool. Wind in the direction of the

arrows found on the spool.

•Push the line into the notches, leaving

3 to 5 inches (7 - 12 cm) unwound.

•insert the line into the the exit holes in

the hub as shown in the illustration.

•Align notches with the line exit holes.

•Push the spool into the hub until it

snaps into place.

•Pull the line extending outside of the

hub to relesseit from the notch.

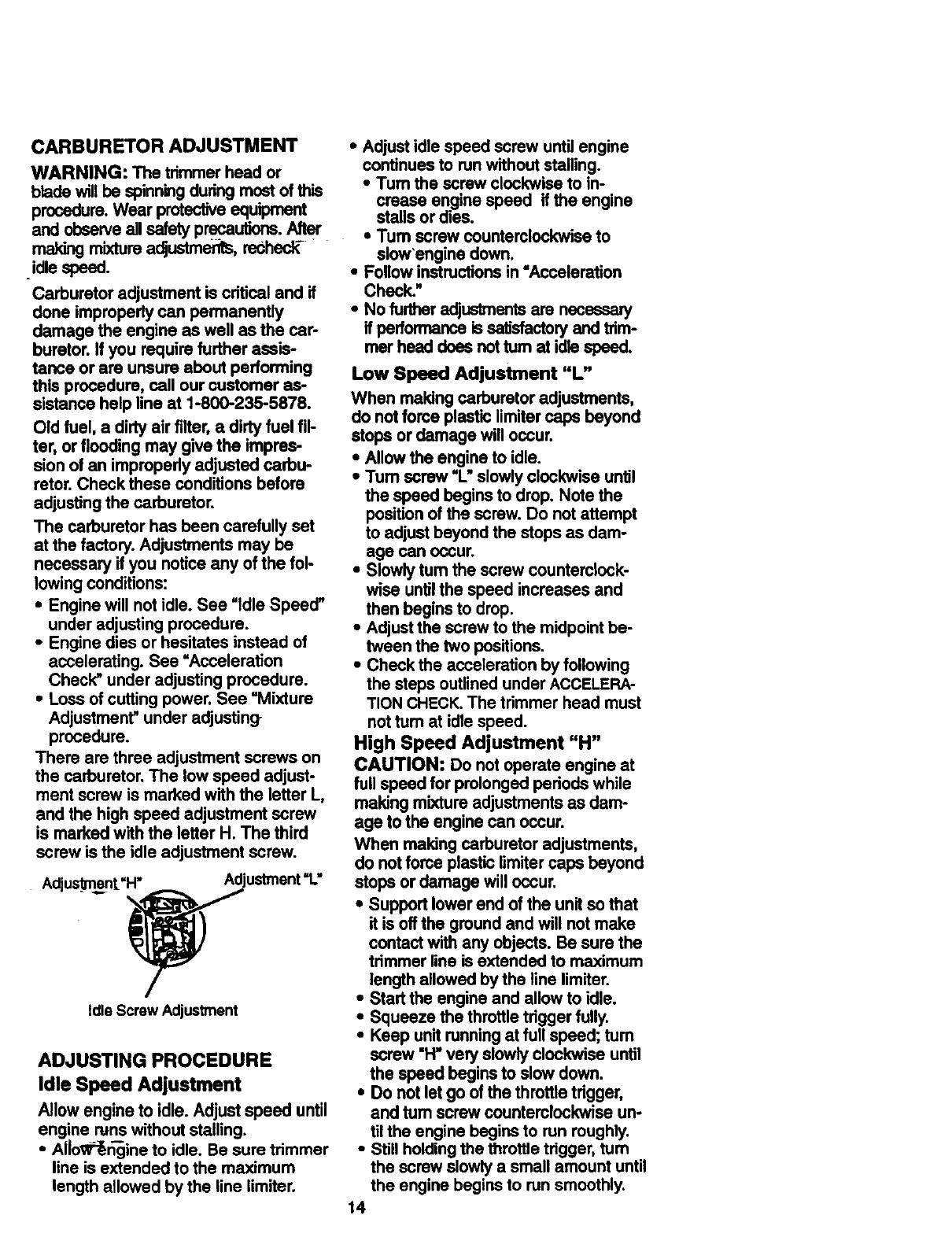

CARBURETOR ADJUSTMENT

WARNING: The trimmer head or

blade will be spinning dudng most of this

procedure. Wear protective equipment

and observe all safety precautions. After

making mixture adjustment, resheck-

.idle speed.

Carburetor adjustment is cdfical and if

done improperly can permanently

damage the engine as well as the car-

buretor. If you require further assis-

tance or are unsure about performing

this procedure, call our customer as-

sistance help line at 1-800-235-5878.

Old fuel, a dirty air filter, a dirty fuel fil-

ter, or flooding may give the impres-

sion of an improperly adjusted carbu-

retor. Check these conditions before

adjusting the carburetor.

The carburetor has been carefully set

at the factory. Adjustments may be

necessary if you notice any of the fol-

lowing conditions:

• Engine will not idle. See =Idle Speed"

under adjusting procedure.

• Engine dies or hesitates instead of

accelerating. See "Acceleration

Check" under adjusting procedure.

•Loss of cutting power. See "Mixture

Adjustment" under adjusting

procedure.

There are three adjustment screws on

the carburetor. The low speed adjust-

ment screw is marked with the letter L,

and the high speed adjustment screw

is marked with the letter H. The third

screw is the idle adjustment screw.

Adjuslm_ent=H" Adjustment'1."

Idle Screw Adjustment

ADJUSTING PROCEDURE

Idle Speed Adjustment

Allow engine to idle. Adjust speed until

engine runswithoutstalling.

•Al_o_P_ine to idle. Be sure trimmer

line is extended to the maximum

length allowed by the line limiter.

•Adjust idle speed screw until engine

continues to run w'Rhout stalling.

•Turn the screw clockwise to in-

crease engine speed if the engine

stalls or dies.

•Tum screw counterclockwise to

slow'engine down.

•Follow instructions in "Acceleration

Check."

•No further adjustments am necessary

if performance is sstisfactory and trim-

mer head does not turn at idle speed.

Low Speed Adjustment "L"

When makingcarburetor adjustments,

do not force plasticlimitercaps beyond

stops or damage will occur.

• Allowthe engine to idle.

•Turn screw "L"slowlyclockwise until

the speed begins to drop, Note the

positionof the screw. Do not attempt

to adjust beyondthe stops as dam-

age can occur.

•Slowly tum the screw countemlock-

wise untilthe speed increases and

then begins to drop.

•Adjustthe screw to the midpointbe-

tween the two positions.

•Check the acceleration by following

the steps outlinedunder ACCELERA-

TION CHECK.The tdmmer head must

nottum at idle speed.

High Speed Adjustment "H"

CAUTION: Do not operate engine at

full speed for prolongedpedods while

making mixture adjustmentsas dam-

age to the engine can occur.

When making carburetor adjustments,

do notforce plasticlimitercaps beyond

stops or damage will occur.

•Support lower end of the unit so that

it is offthe ground and will not make

contactwith any objects. Be sure the

trimmer line is extended to maximum

length allowedby the line limiter.

•Start the engine and allow to idle.

•Squeeze the throttletdgger fully.

•Keep unitrunningat full speed; turn

screw "H"very slowlyclockwise until

the speed begins to slow down.

•Do notlet go of the throttletdgger,

and tum screw counterclockwiseun-

tilthe engine beginsto run roughly.

•Still holdingthe throttle trigger,turn

the screw slowly a small amount until

the engine beginsto run smoothly.

TION CHECK. The trimmer head must

not tum at idle speed.

Acceleration Check

•Allow engine to idle. Be sure trimmer

line is extended to the maxim.urn

length allowed by th6 line limiter.

• Squeeze trigger fully:. If the engine

does not accelerate smoothly, turn

screw =L"countemlockwise a small

amount (no more than the width of

the slot in the adjustingscrew). Do

notattempt to adjustscrews beyond

the stops as damage can occur.

•Repeat above steps untilsmooth ac-

celeration is obtained. Do not at-

tempt to adjustthe screw beyondthe

stopsas damage can occur.

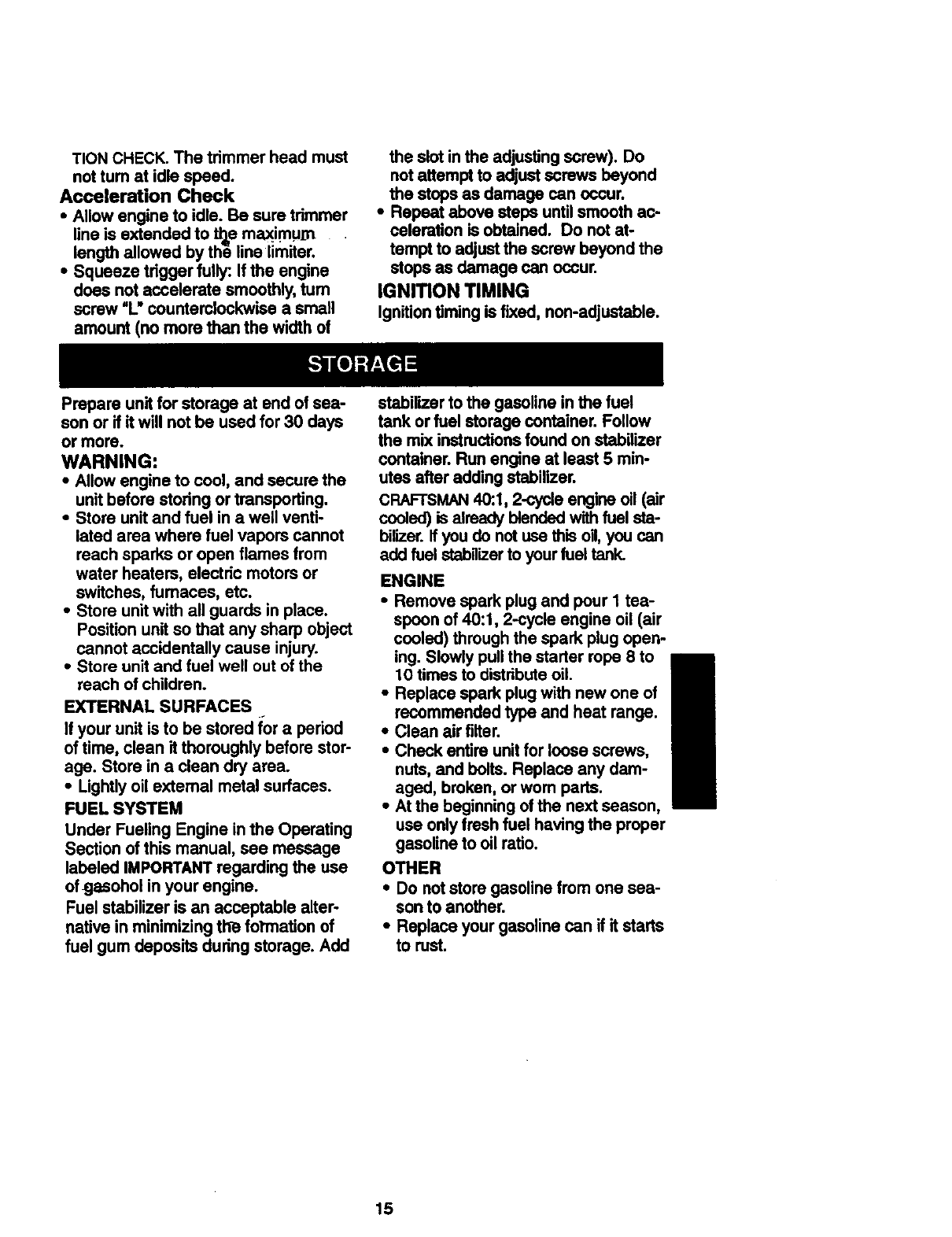

IGNITION TIMING

Ignitiontiming is fixed, non-adjustable.

Prepare unit for storage at end of sea-

son or if it will not be used for 30 days

or more.

WARNING:

•Allow engine to cool, and secure the

unit before storing or transporting.

•Store unit and fuel in a well venti-

lated area where fuel vapors cannot

reach sparks or open flames from

water heaters, electric motors or

switches, fumaces, etc.

•Store unit with all guards in place.

Position unit so that any sharp object

cannot accidentally cause injury.

•Store unit and fuel well out of the

reach of children.

EXTERNALSURFACES

If your unit is to be stored for aperiod

of time, clean it thoroughly before stor-

age. Store in a clean dry area.

•Lightly oil external metal surfaces.

FUEL SYSTEM

Under Fueling Engine in the Operating

Section of this manual, see message

labeled IMPORTANT regarding the use

ofgasohol in your engine.

Fuel stabilizer is an acceptable alter-

native in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to the gasoline in the fuel

tank or fuel storage container. Follow

the mix instructions found on stabilizer

container. Run engine at least 5 min-

utes after adding stabilizer.

CRAFTSMAN 40:.1, 2-cycle engine oil (air

cooled) is already blended with fuel sta-

bir,:,er,if you do not use this oil, you can

add fuel stabnizer to your fuel tank.

ENGINE

•Remove spark plug and pour I tea-

spoon of 40:1, 2-cycle engine oil (air

cooled) through the spark plug open-

ing. Slowly pull the starter rope 8 to

10 times to distribute oil.

•Replace spark plug with new one of

recommended type and heat range.

• Clean air filter.

•Check entire unit for loose screws,

nuts, and belts. Replace any dam-

aged, broken, or wom parts.

•At the beginning of the next season,

use only fresh fuel having the proper

gasoline to oil ratio.

OTHER

• Do not store gasoline from one sea-

son to another.

•Replace your gasoline can if it starts

to rust.

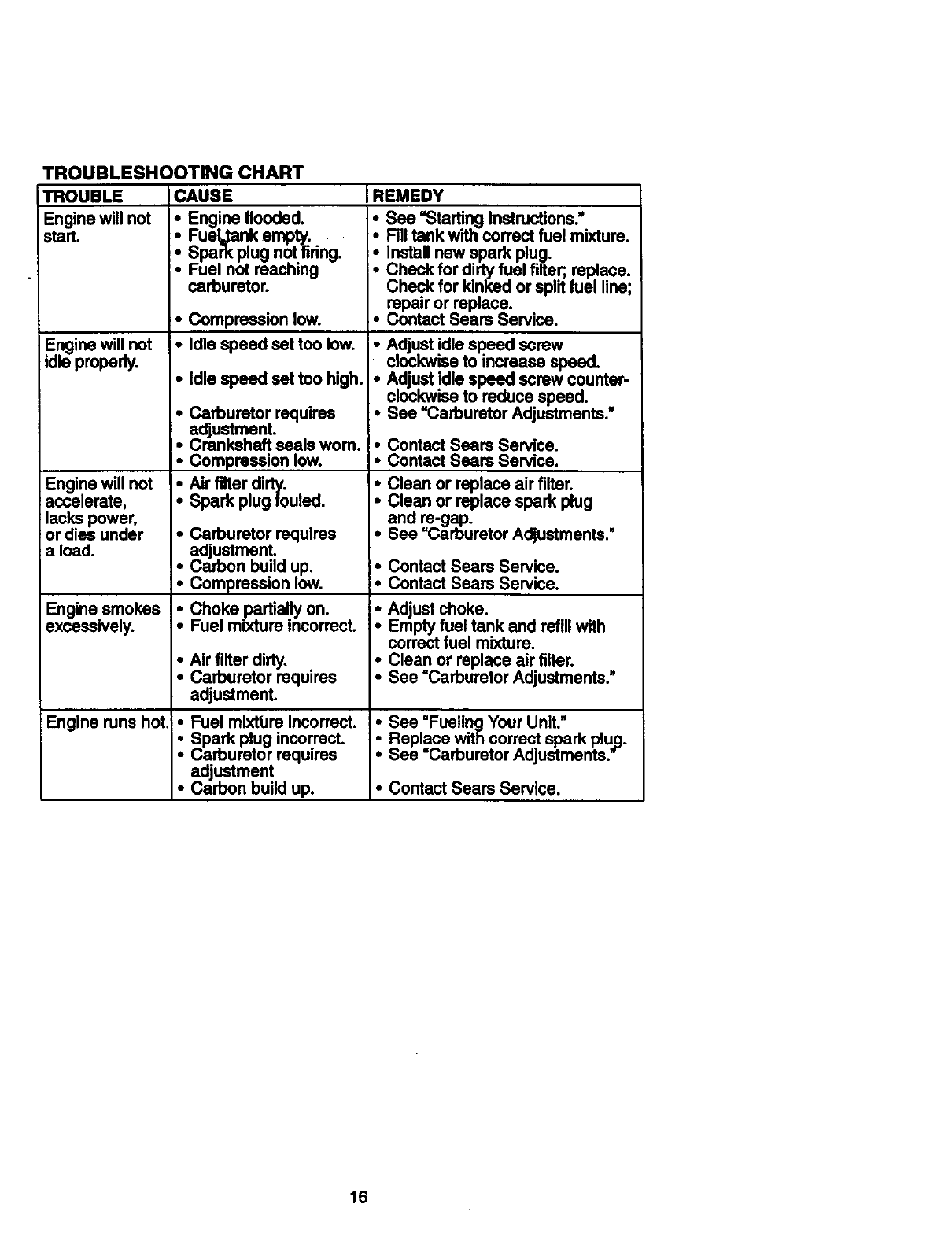

TROUBLESHOOTING CHART

TROUBLE

Engine will not

start.

Engine will not

idle properly.

Engine will not

accelerate,

lacks power,

or dies under

a load.

Engine smokes

excessively.

Engine runs hot.

CAUSE

_Engine flooded.

Fueljank empty.

Spark plug not firing.

Fuel not reaching

carburetor.

• Compression low.

• Idle speed set too low.

•Idle speed set too high.

•Carburetor requires

adjustment.

•Crankshaft seals wom.

•Compression low.

• Air filterdirty.

•Spark plug fouled.

•Carburetor requires

adjustment.

• Carbon build up.

•Compression low.

•Choke partially on.

•Fuel mixture incorrect.

•Air filter dirty.

•Carburetor requires

adjustment.

•Fuel mixtbre incorrect.

•Spark plug incorrect.

Carburetor requires

adjustment

•Carbon build up.

REMEDY

See "StartingInstructions."

Filltank with correct fuel mixture.

•Install new spark plug.

Check for dirty fuel filter;, replace.

Check for kinked or split fuel line;

repair or replace.

• Contact Sears Service.

iAdjust idle speed screw

clockwiseto increase speed.

Adjust idle speed screw counter-

clockwise to reduce speed.

•See "Carburetor Adjustments."

•Contact Sears Service.

• Contact Seam Service.

•Clean or replace air filter.

•Clean or replace spark plug

and re-gap.

•See =Carburetor Adjustments."

•Contact Sears Service.

Adjust choke.

Empty fuel tank and refill with

correct fuel mixture.

•Clean or replace air filter.

See =Carburetor Adjustments."

•See "FueiingYour Unit,"

Replace with correct spark plug.

•See =Carburetor Adjustments."

•Contact Sears Service.

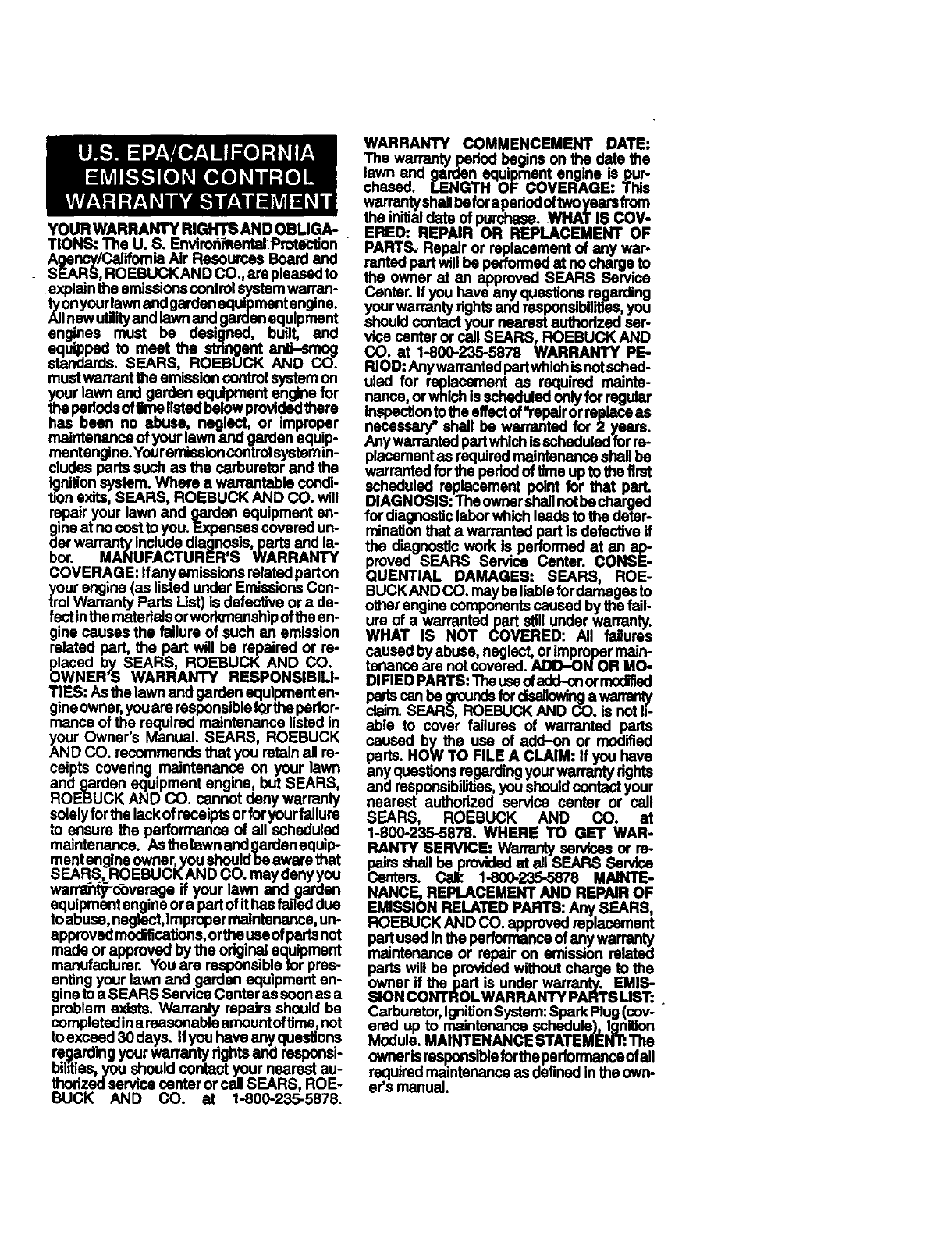

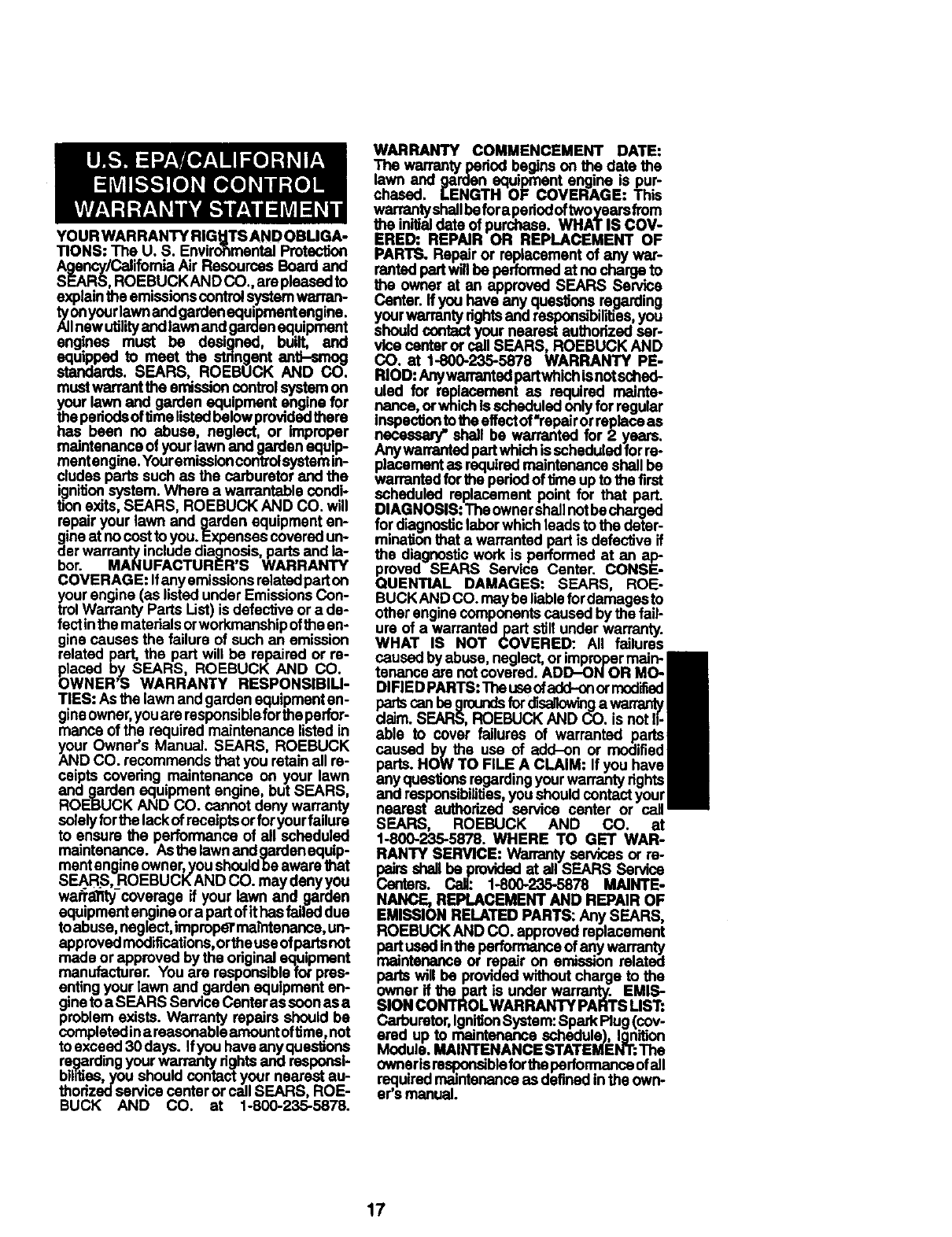

YOUR WARRANTY RIGI;;ITSAND OSUGA-

TIONS: The U. S. Enviro_rnsntaiProtection

Agency/CaliforniaAir Resources Board and

SEARS, ROEBUCK AND CO., are pleasedto

explainthe emissionscontrolsystemwarran-

tyonyourlawn andgardanequipmantangine.

Allnew _lity andlawnand gardenequipment

engines must be designed, built, and

equipped to meet the stringent anti-smog

standards. SEARS, ROEBUCK AND CO.

mustwarrant the emission controlsystemon

your lawn and garden equipment engine for

thepedodsof time listedbelow providedthere

has been no abuse, neglect, or improper

maintenance of your lawnand gardenequip-

mant engine.Youremissioncontrolsystemin-

dudes parts such as the carburetor and the

ignitionsystem. Where a warrantable condi-

tion exits,SEARS, ROEBUCK AND CO. will

repair your lawn and garden equipment en-

gine at nocostto you. Expenses covered un-

der warranty includediagnosis, partsand la-

bor. MANUFACTURER'S WARRANTY

COVERAGE: Ifany emissionsrelatedparton

your engine (as listed under EmissionsCon-

trol Warranty Parts List)is defective or a de-

fectinthe matsdaisorworkmanshipofthe en-

gine causes the failure of such an emission

related part, the part will be repaired or re-

placed b_ SEARS, ROEBUCK AND CO.

OWNER S WARRANTY RESPONSlBIM-

TIES: Asthe lawnand gardenequipmentan-

ginsowner,youare responsiblafortheperfor-

mance of the required maintenance listed in

yAourOwner's Manual. SEARS, ROEBUCK

ND CO. recommends that you retain all re-

csipts covering maintenance on your lawn

and garden equipment engine, but SEARS,

ROEBUCK AND CO. cannot deny warranty

solalyforthe lackof receiptsor for your failure

to ensure the performance of all scheduled

WARRANTY COMMENCEMENT DATE:

The warranty period beginson the date the

lawn and garden equipment engine is pur-

chased. LENGTH OF COVERAGE: This

warrantyshailbe for a pedodoftwoyears from

the init_ data of purchase. WHAT IS COV-

ERED: REPAIR OR REPLACEMENT OF

PARTS. Repair or replacement of any war-

ranted partwill be performed at no charge to

the owner at an approved SEARS Service

Center. If you have any questions rejgarding

yourwarranty dghtsand responsibilities,you

should contactyour nearest authorized ser-

vice center or callSEARS, ROEBUCK AND

CO. at 1-800-235-5878 WARRANTY PE-

RIOD: Anywarrantedpartwhichisnotsched-

uisd for replacement as required mainte*

nanca, or whichIs scheduledonly forregular

Inspactionto _ effectof =repairorreplaceas

necessary" shall be warranted for 2 years.

Anywarrantedpartwhichisscheduled for re-

plasemantas requiredmaintenanceshall be

warrantedfor the pedodof time up to the first

scheduled mplasement point for that part.

DIAGNOSIS: Theownershallnotbecharged

for diagnostic laborwhich leads to the deter-

ruination that a warranted part is defective if

the diagnosticwork is performed at an ap-

proved SEARS Service Center. CONSE-

QUENTIAL DAMAGES: SEARS, ROE-

BUCK AND CO. may be liablefordamagesto

other enginecomponentscaused by the fail-

ure of a warrantedpart stiltunder warranty.

WHAT IS NOT COVERED: All failures

caused byabuse, neglect,or impropermain-

tenance are notcovered. ADD-ON OR MO-

DIRE D PARTS. Thaussofedd-on or modified_

padscan be groundsfordissJlowingawarranty_

daim. SEARS, ROEBUCK AND CO. is not li-_

able to cover failures of warranted parts_

caused by the use of add-on or modified

parts. HOW TO FiLE A CLAIM: If you have_

any questionsregardingyour warrantyrights

and responsibilities,you shouldcontact your

nearest authorized service center or callm

SEARS, ROEBUCK AND CO. at

1-800-235-5878. WHERE TO GET WAR-

maintenance. Asthelawnandgardenequip- RANTY SERVICE: Warranty services or re-

mantangins owner,youshouldbe aware that pairsshall be providedat all SEARS Se_..

SE/_RS, ROEBUCKANDCO.maydenyyOU Centers. Call: 1-800-235-5878 MAIN'rE

wafraflty-covemge if your lawn and garden NANCE, REPLACEMENT AND REPAIR OF

equipmantangine ora pert of ithes failed due EMISSION RELATED PARTS: Any SEARS,

toabuse, neglect,impmpeTmathtenance,un- ROEBUCK AND CO. approved replacement

approved modifications,orthe useofpartsnot partusedinthe performanceof any warranty

made or approved by the originalequipment maintenance or repair on emission related

manufacturer. You are responsiblefor pres- parts will be providedwithout charge to the

entingyour lawn and garden equipment an- owner if the part is under warranty. EM!,TS_.

ginsto a SEARS Service Center assoon asa SION CONTROLWARRANTY PARTS LIST:

problem exists. Warranty repairs should be Carburetor,IgnitionSystem:Spark Plug(cov-

completedinareasonablearnountoftime,not ered up to maintenance schedule), Ignition

to exceed 30 days. Ifyou have any questions Module. MAINTENANCE STATEMENT: The

re._rding your warranty dghts and respoasi- ownsrisresponsibleforthe performance of all

bihtias,you should contact your nearest au- requiredmaintenanceas definedin the own-

thodzed servicecenter or callSEARS, ROE- er's manual.

BUCK AND CO. at 1-800-235-5878.

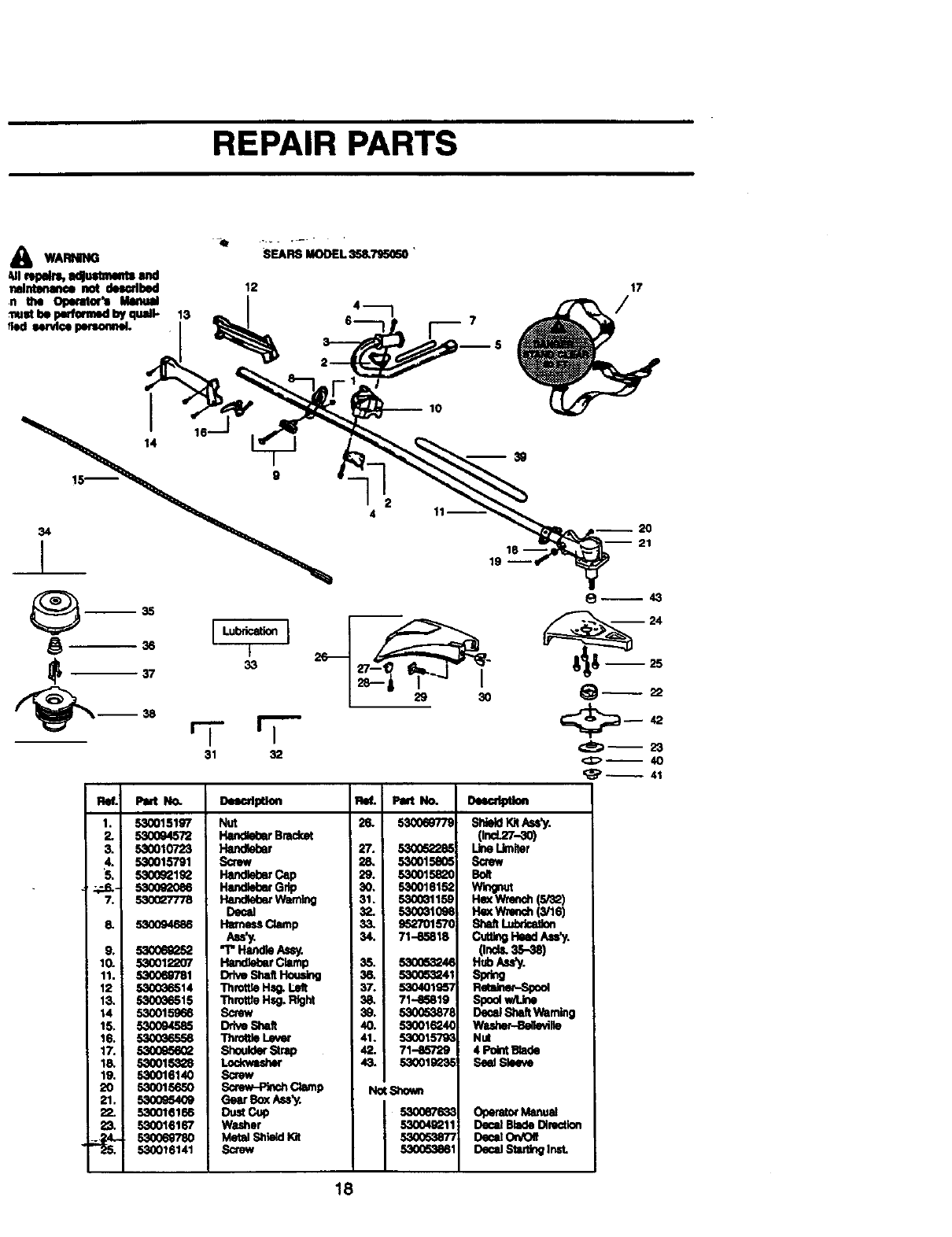

REPAIR PARTS

WARNING SEARS MODEL358._ '

--38

n35

31"71 32 €_)-- 23

<:1;;>--40

Ref. Part No.

1. 530015197

2. 53OO94572

3. 5,30010723

4. 530015791

S. S300S21g2

--.,_.- 5300e20e6

7. 530027778

10.

11.

13.

15,

16.

17.

lg.

21.

5300946_

53ooe_P.s2

530o122o7

530069781

530036514

53oo86515

53oo15_6

53oo94585

53oo_sss6

53oo_2

53oo15328

530016140

530015650

53oo_54o9

530016166

5,30016167

53oo6878o

530016141

Nut Bmd_

Hendg_r

Screw

HandlebarCap

HandlebarG_

HandWaerWarning

Decal

HmnessClamp

"I" HandleAssy.

Hand_r Clamp

Drh_e,ShaRHou_g

ThrotUeHs_ Left

ThroWeHsg. Right

Screw

Drive Sl,aft

ThrottleLevw

Shoul_"Strap

Lockwuher

Screw

Screw-Pinch Clamp

Gear Box Ass'y.

o.._ cup

Washer

Metal ShieldKit

Suew

26.

27,

28.

29.

30.

31.

32.

33.

34.

Pair No.

5300_9"/79

S300_.eS

530015e06

530015_0

530016152

53000115_

5300_109e

95270157G

71-85818

35. 53005_4_

36. 530053241

37. 53040195"/

38. 71--85819

39. 53005387e

40. 53001624€

41. 530015"/_

42. 71-85729

43. 53001S1_3_

NotS_:_n

53ooe7_3_

53oo4_11

53oor_

53oo53_1

Sh_dm/_y.

Oncl.2'r.-.,_o)

Une Umiter

Screw

Bolt

H_ Wmedn(S/'_)

HexW.._h (_S)

c,t_ H*_ _'y.

(Or_._-,_)

H,b_,'y.

Sp_

Spoolwrd_e

Decal S;'mftWarning

WMher-Belle_Ne

Nut

4 PointB_de

Seel Sfe_N*

O_era_xMsnual

DecalBladeD_re_tion

De_dOn,Oil

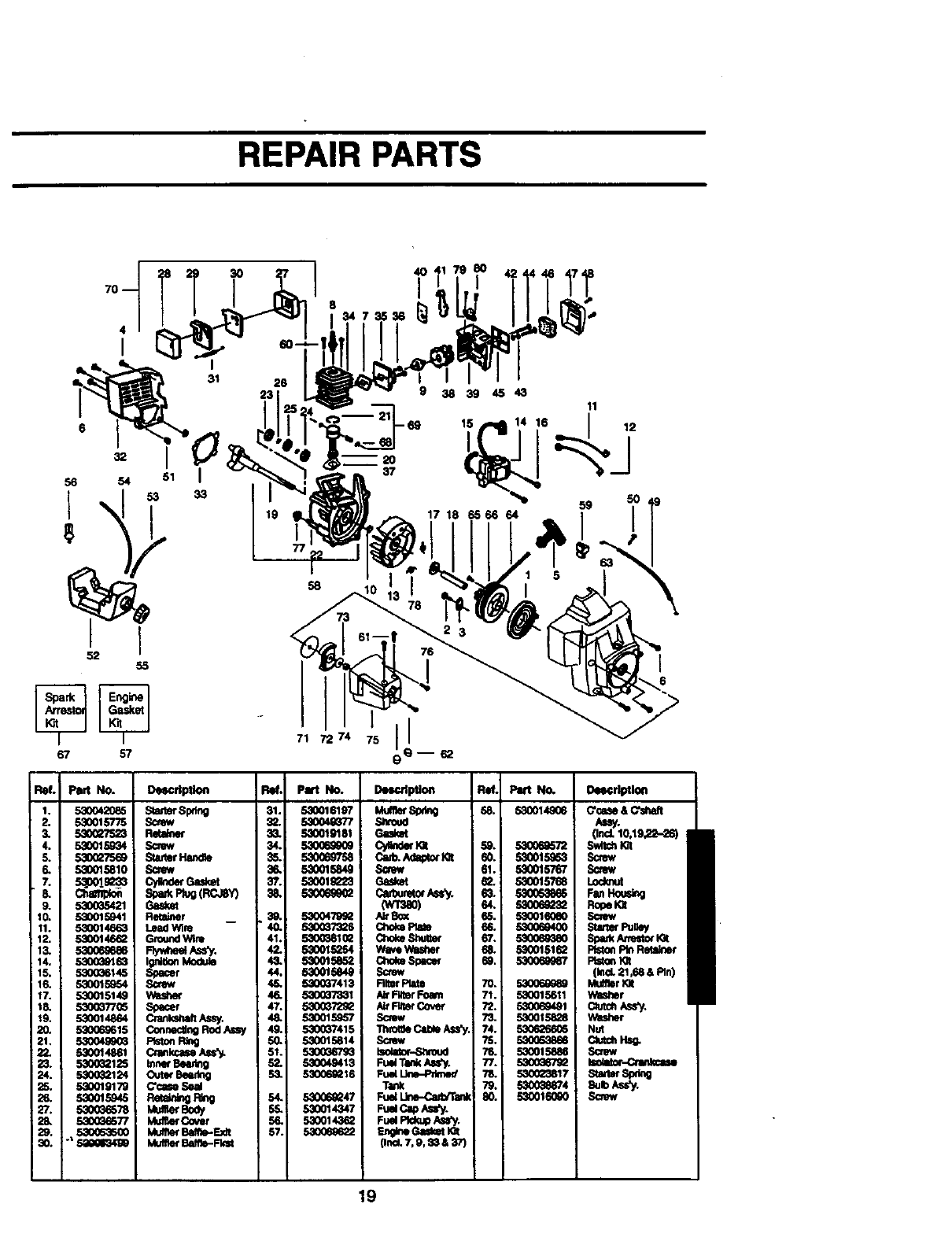

REPAIR PARTS

I 1

56 54 51

67 57

9 38394543

17 18 65 66 64 5_0

71 72 74 75 !!__ 62

Ref. Part NO.

1. 530042085

2. 53001b'775

3. 530G_523

4. 533O15g_14

S. 5300275_

6. _530015810

11. 530014_3

12. 5300146_2

13. 53O06_86

14. 5300_)163

15. 530_6145

16. 5,30015954

17. 5300t514,9

18. 530_T/G5

I_ 530O14864

20. 530069615

21, 53004990_

122. 530014861

_124

LeadWlm

G_ _

Cr_W_,

MullerCover

Ba_e-Ex_

MuffetB_-_

RM. Pitt No.

31. 530O16197

32. $3O04_7

$3O01_81

34. 53006_eOe

35. 59O069758

36. 58O015849

37. 533O1_Q23

38. 53006_g_2

• 4_. $300479_

41. 5,.q003810_

42. 533O15254

SS0015eS2

44. 530015849

45. 530_7413

46. ,S,.q00_331

47. 53O0372_

48. 530015957

49. 530037415

50. 530015814

51. 5300_/93

630049413

S3 ,S3006_ 8

5_ 53006_47

55._ 530014347

56. S300143_

57. 53006_2

Deecrl_on

REPAIR PARTS

KIT •

Carb.

I, 530069629

53003_18

530_8317

530O69844

5300352_

53OO35433

53O035295

530035388

_P,m_ m

(KIT,, Ind_tu Comenm)

umJtercap0_,-R_')

UmiterCap0.o+-mue)

YOUR WARRANTY RIGHTS AND OBLIGA-

TIONS: The U. S. EnvironPasntaLProt_rc_on

Agency/Callfomis Air Resources Board and

SEARS, ROEBUCKAND CO., me pleasedto

exp_aintheen_ssi_s qpntrotsystem.war(an-

tyonyourlawnana garaan equIpmemengine:

AllneWutilityand lawnand garaen equipmem

engines must be designed, built, and

equipped to meet the stringent anti-smog

standards. SEARS, ROEBUCK AND CO.

must warrant the emissioncontrol systemon

your lawn and garcl,an equipment engine ror

the pe.dodsoftime dstedbemwpmvtaea mere

has been no abuse, neglect, or impmp.er

maintanance of yourlawn and galen equ!p-

mantanglne.Your emlasloncomrolsystemp-

dudes parts such as the carburetorano me

ignition system. Where a wsnantabis cona_-

tion exits, BEARS, ROEBUCK AND CO. will

repair your lawn and i_zrdan equipment en-

gine at no cost.to you.P.xpens..escoverea .u.n-

der warranty includediagnosis, parts ano ta-

bor. MANUFACTURER'S WARRANTY

COVERAGE: Ifany emissionsrelatedparton

your engine (as listedunder EmissionsC.on-

trol Warranty Parts Ust) is oefe_ve ora ae-

fectinthe matafialsor workmansnlpof me en-

g ne causes the failure of such an emission

related part, the part will be repaired or re-

placed by. SEARS, ROEBUCK AND CO.

OWNER S WARRANTY RESPONSIBILi-

TIES: As the lawn and garden equipment en-

gineowner,youare responsiblef_the penor-

manca of the required maintenance listed in

your Owner's Manual. SEARS, ROEBUCK

AND CO. recommends that you retain all re-

caipts coveting malnter_mco on your lawn

and garden equipment engine, but _P_AH_,

ROEBUCK AND CO. cannot deny warranty

solelyforthe le,ckof receiptsorforyourfailure

to ensure the performance of all scheduled

maintenance. As thelawn ariagaman equip-

mentengine owner,youshouldbe aware that

SEARS, ROEBUCKAND CO. mayoeny you

warrahb_-cbverageif your lawn _garden

equipmentengineor a pan orit hasfallea oue

toabuse, nsgisct, lmpropermalntonance,un-

approved modificat_:)nsor_e u,se.ofpeuls not

made or approvea oy me ongin_, equipmenz

manufacturer. You are responsible;or pres-

entingyour lawn and gar_len.equipmenten-

gineto a SEARS Service uenrer as soon_a

problem exists, warranty rap_drs,sn.._la oe.

completedinareasonable amountoftJme,noz

toexceed 30 days. Ifyou have any questions

regarding yourwarranty rightsand resp?nsi-

billties,you should contact your nearest au-

thorized servicecenter or callSEARS, ROE-

BUCK AND CO. at 1-800-235-5878.

WARRANTY COMMENCEMENT DATE:

The warranty pedod begins on the date the

lawn and garoan equipment eng|ne mpur-

chased. LENGTH OF COVERAGE. This

warran.,tyshallbeforapedodottwoyeersfrom

the nnitialdate of purchase. WHAT IS COV-

ERED: REPAIR OR REPLACEMENT OF

PARTS. Repair or replacement of _war-

ranted partwill be performedat no charge,to

the owner at an approved SEARS Sennca

Center.Ifyou _ye _ ques_o_.,reg_iog

yourwarranty rightsand raspum,_n.mes.,you

should contactyour nearest authodzee ser-

vice canter or call SEARS, ROEBUCK AND

CO. at 1-800-235-5878 WARRANTY PE

RIOD: Anywarrantad partwhichienotsched-

uied for replacement as required mainte-

nanca, or whichis scheduledonly for regular

inspeclJontothe effestof "repalrorreplanees

necessary" shall be warranted for 2 years.

AnywarrantedpartwhichIsscheduled,forre.

placementas required maintenance smmDe.

warrantedfor the periodof time upto the .rst

scheduled replacement pok_tfor that part:

DIAGNOSIS: The ownershallnotbe chargso

for diagnosticlaborwhich leads to the deter.:

ruination that _warranted part is detecave a

the diagnostic work is performed at an ap-

proved SEARS Service Center. CONSE-

QUENTIAL DAMAGES: SEARS, ROE-

BUCK AND CO. maybe liablefor .dan_..ge..s"to

other enginecomponentscaused by me fail-

ure of a warrantedpart still under warranty.

WHAT IS NOT COVERED: All failures

caused by abuse, neglect,or improparmain-

tenance are not covered.ADD-ON OR MO-

DIFIED PARTS: "Theuseof add--onormoditisd

parts,cenbe for " a

able to cover failures of warranted parts

caused by the use of add-on or modified

parts. HOW TO FILE A CLAIM: If you have

any questionsmgardh_gyourwarranty dghte

and msponsibiEties,you shouldcontactyour

nearest authorized service center or ca,

SEARS, ROEBUCK AND CO. at

1-800235-5878. WHERE TO GE'F WAR-

RANTY SERVICE: Warrantyservices or re-

pairsshall be providedat all SEARS Service

Centers. Call: 1-800-235-5878 MAINTE-

NANCE, REPLACEMENT AND REPAIR OF

EMISSION RELATED PARTS: Any SEARS,

ROEBUCK AND CO. approved replacement

pertused inthe performanceofany w_

maintenance or repair on emission remso

parts will be providedwithout charge to the

owner if thepart is under warranty. EMIS-

SION CONTROLWARRANTY PARTS MST: .

Carburetor,IgnitionSystem:.S._. Plug(..c?v-

ered up to n_aintanancescneaule), Ignmon

Module. MAINTENANCE STATEMENT: The

ownerlsmsponsiblefortheperfo..r...m_,.,ofall

requiredmaintenance as oe.ned In me own-

er's manual.

For the repair or replacement parts you need

delivered directly to Your home

Call 7 am - 7 pm, 7 days a week

1-800-366-PART ....

(!-800-366-7278)

Para ordenar piezas con entrega a

domicilio - 1-800-659-7084

For in-house major brand repair service

Call 24 hours a day, 7 days a week

1-800-4-REPAIR

(1-800-473-7247)

Para pedir servicio de reparaci6n a

domicilio - 1-800-676-5811

For the location of a Sears Parts and

Repair Center in your area

Call 24 hours a day, 7days a week

1-800-488-1222 =_ ......

For information on purchasing a Sears

Maintenance Agreement or to inquire

about°a_-existing Agreement

Call 9 am - 5 pm, Monday-Saturday

1-800-827-6655

When requesting service or ordering

parts, always provide the following

information:

:Product Type •Part Number

Model-Number •Part Description

SEARS

America's Repair Specialists

Craftsman 358795050 User Manual GASOLINE BRUSHWACKER Manuals And Guides 98110056

CRAFTSMAN Line Trimmers/Weedwackers, Gas Manual 98110056 CRAFTSMAN Line Trimmers/Weedwackers, Gas Owner's Manual, CRAFTSMAN Line Trimmers/Weedwackers, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
