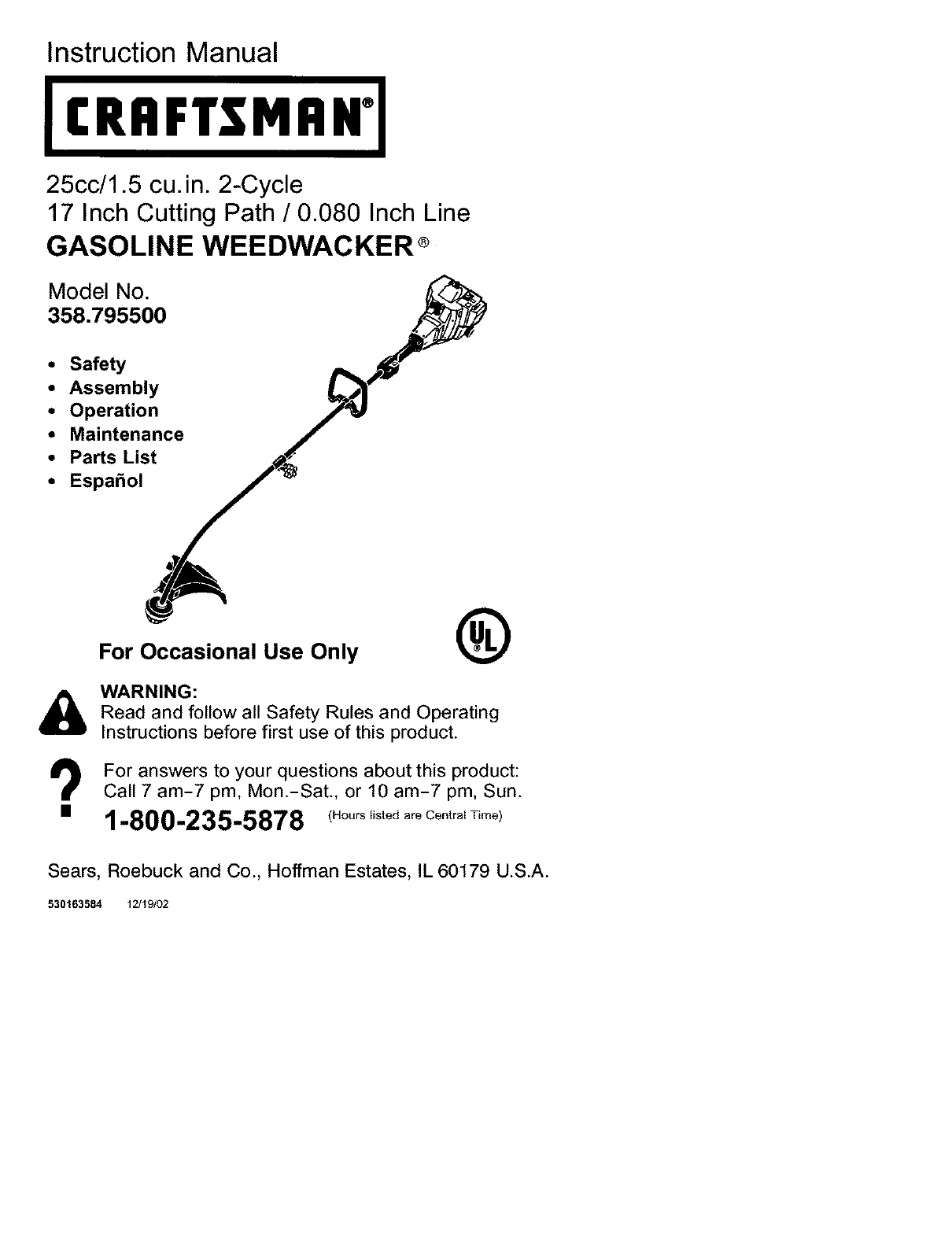

Instruction Manual
25cc/1.5 cu.in. 2-Cycle
17 Inch Cutting Path /0.080 Inch Line
GASOLINE WEEDWACKER ®
Model No.
358.795500 y
Safety p_ _"
:Assembly _,4_"
Operation J'V
• Maintenance /
Parts List _
Espa_ol /"_
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating
Instructions before first use of this product.
For answers to your questions about this product:
Call 7 am-7 pm, Mon.-Sat., or 10 am-7 pm, Sun.
1-800-235-5878 _.o._ listed are Central Time)
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
530163584 12/19/02

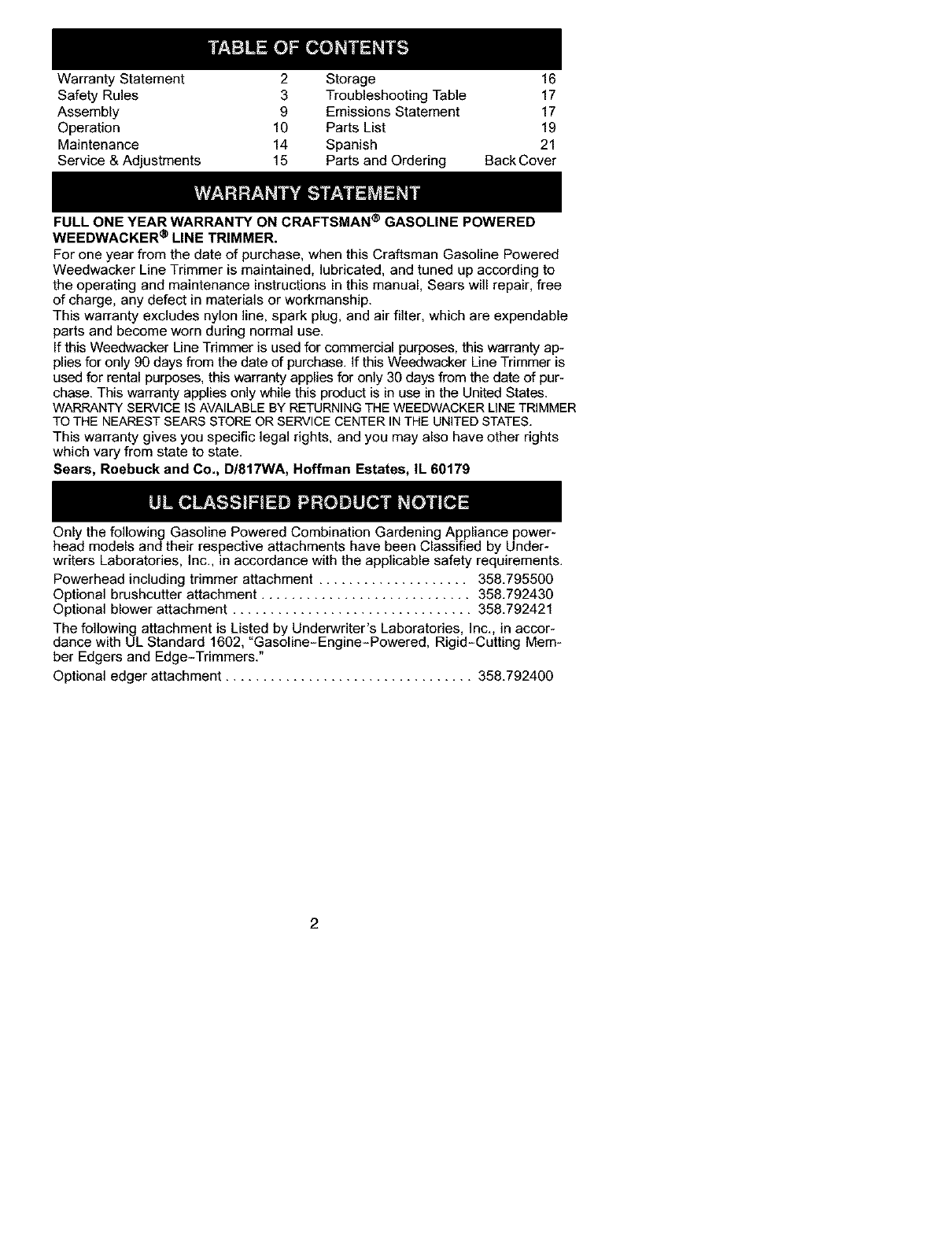

Warranty Statement 2 Storage 16
Safety Rules 3 Troubleshooting Table 17
Assembly 9 Emissions Statement 17
Operation 10 Parts List 19
Maintenance 14 Spanish 21
Service & Adjustments 15 Parts and Ordering Back Cover
FULL ONE YEAR WARRANTY ON CRAFTSMAN ® GASOLINE POWERED
WEEDWACKER ®LINE TRIMMER.
For one year from the date of purchase, when this Craftsman Gasoline Powered
Weedwacker Line Trimmer is maintained, lubricated, and tuned up according to
the operating and maintenance instructions in this manual, Sears will repair, free
of charge, any defect in materials or workmanship.
This warranty excludes nylon line, spark plug, and air filter, which are expendable
parts and become worn during normal use.
If this Weedwacker Line Trimmer is used for commercial purposes, this warranty ap-
plies for only 90 days from the date of purchase. If this Weedwacker Line Trimmer is
used for rental purposes, this warranty applies for only 30 days from the date of pur-
chase. This warranty applies only while this product is in use in the United States.
WARRANTY SERVICE IS AVAILABLE BY RETURNINGTHE WEEDWACKER LINE TRIMMER
TO THE NEAREST SEARS STORE OR SERVICECENTER INTHE UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Sears, Roebuck and Co., D/817WA, Hoffman Estates, IL 60179
Only the following Gasoline Powered Combination Gardening Appliance power-
head models and their respective attachments have been Classified by Under-
writers Laboratories, Inc., in accordance with the applicable safety requirements.
Powerhead including trimmer attachment .................... 358.795500
Optional brushcutter attachment ............................ 358.792430
Optional blower attachment ................................ 358.792421
The following attachment is Lis!ed by Underwriter's Laboratories, Inc., in accor-
dance with UL Standard 1602, Gasoline-Engine-Powered, Rigid-Cutting Mem-
ber Edgers and Edge-Trimmers."
Optional edger attachment ................................. 358.792400
2

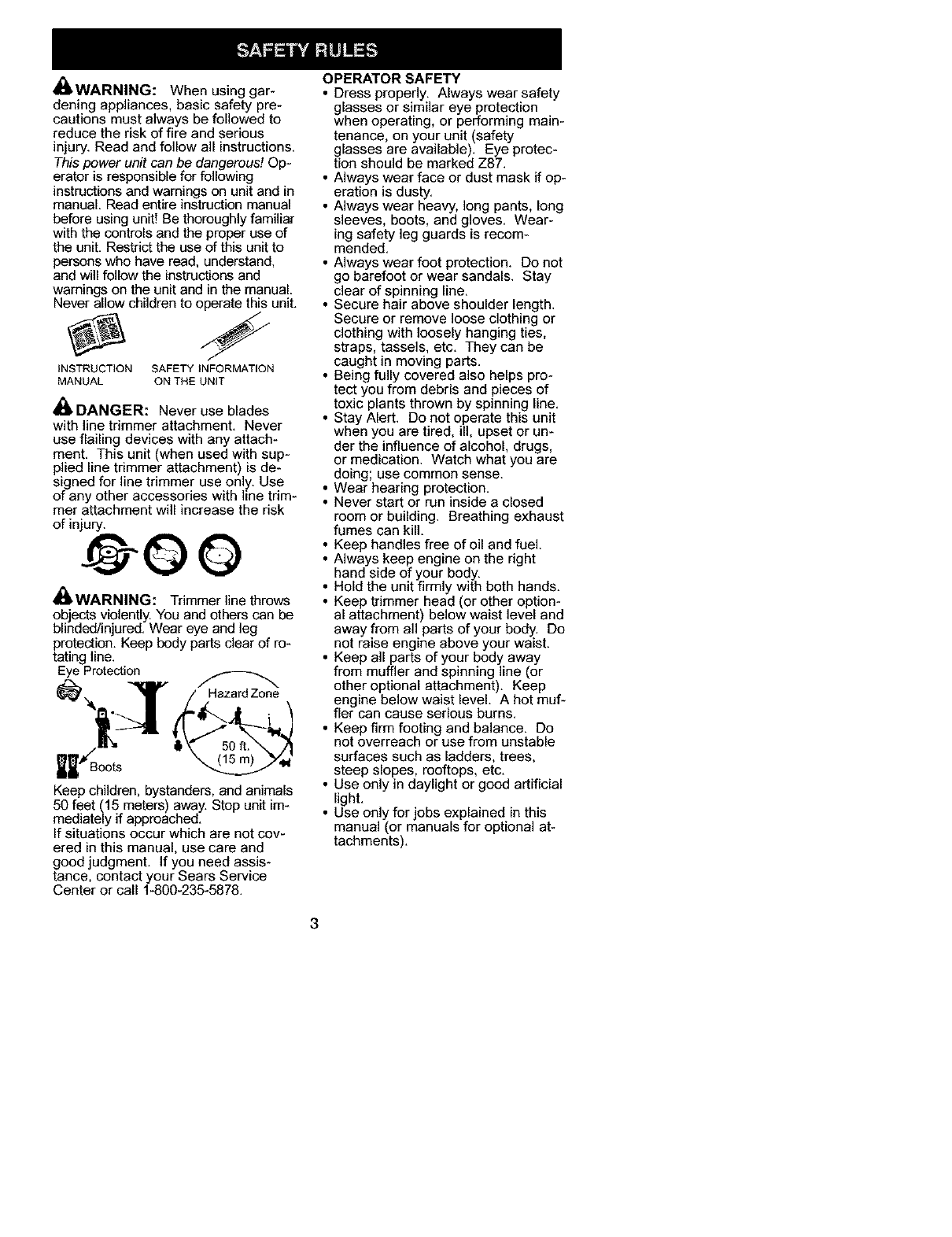

4re.WARNING: When using gar-
dening appliances, basic safety pre-
cautions must always be followed to
reduce the risk of fire and serious
injury. Read and follow all instructions.
This power unit can be dangerous! Op-
erator is responsible for following
instructions and warnings on unit and in
manual. Read entire instruction manual
before using unit! Be thoroughly familiar
with the controls and the proper use of
the unit. Restrict the use of this unit to
persons who have read, understand.
and will follow the instructions and
warnings on the unit and in the manual.
Never allow children to operate this unit.
INSTRUCTION SAFETY INFORMATION
MANUAL ON THE UNIT
DANGER: Never use blades
with line trimmer attachment. Never
use flailing devices with any attach-
ment. This unit (when used with sup-
plied line trimmer attachment) is de-
signed for line trimmer use only. Use
of any other accessories with line trim-
mer attachment will increase the risk
of injury.
O@@
4re.WARNING: Trimmer line throws
objects violently. You and others can be
blinded/injured. Wear eye and leg
protection. Keep body parts clear of ro-
tating line.
Eye Protection HazardZone
'.\--
Keep children, bystanders, and animals
50 feet (15 meters) away. Stop unit im-
mediately if approached.
If situations occur which are not cov-
ered in this manual, use care and
good judgment. If you need assis-
tance, contact your Sears Service
Center or call 1-800-235-5878.
OPERATOR SAFETY
Dress properly. Always wear safety
glasses or similar eye protection
when operating, or performing main-
tenance, on your unit (safety
glasses are available). Eye protec-
tion should be marked Z87.
Always wear face or dust mask if op-
eration is dusty.
Always wear heavy, long pants, long
sleeves, boots, and gloves. Wear-
ing safety leg guards is recom-
mended.
Always wear foot protection. Do not
go barefoot or wear sandals. Stay
clear of spinning line.
• Secure hair above shoulder length.
Secure or remove loose clothing or
clothing with loosely hanging ties,
straps, tassels, etc. They can be
caught in moving parts.
• Being fully covered also helps pro-
tect you from debris and pieces of
toxic plants thrown by spinning line.
Stay Alert. Do not operate this unit
when you are tired, ill, upset or un-
der the influence of alcohol, drugs,
or medication. Watch what you are
doing; use common sense.
• Wear hearing protection.
Never start or run inside aclosed
room or building. Breathing exhaust
fumes can kill.
• Keep handles free ofoil and fuel.
Always keep engine on the right
hand side of your body.
Hold the unit firmly with both hands.
Keep trimmer head (or other option-
al attachment) below waist level and
away from all parts of your body. Do
not raise engine above your waist.
• Keep all parts of your body away
from muffler and spinning line (or
other optional attachment). Keep
engine below waist level. A hot muf-
fler can cause serious burns.
Keep firm footing and balance. Do
not overreach or use from unstable
surfaces such as ladders, trees,
steep slopes, rooftops, etc.
Use only in daylight or good artificial
light.
Use only for jobs explained in this
manual (or manuals for optional at-
tachments).
3

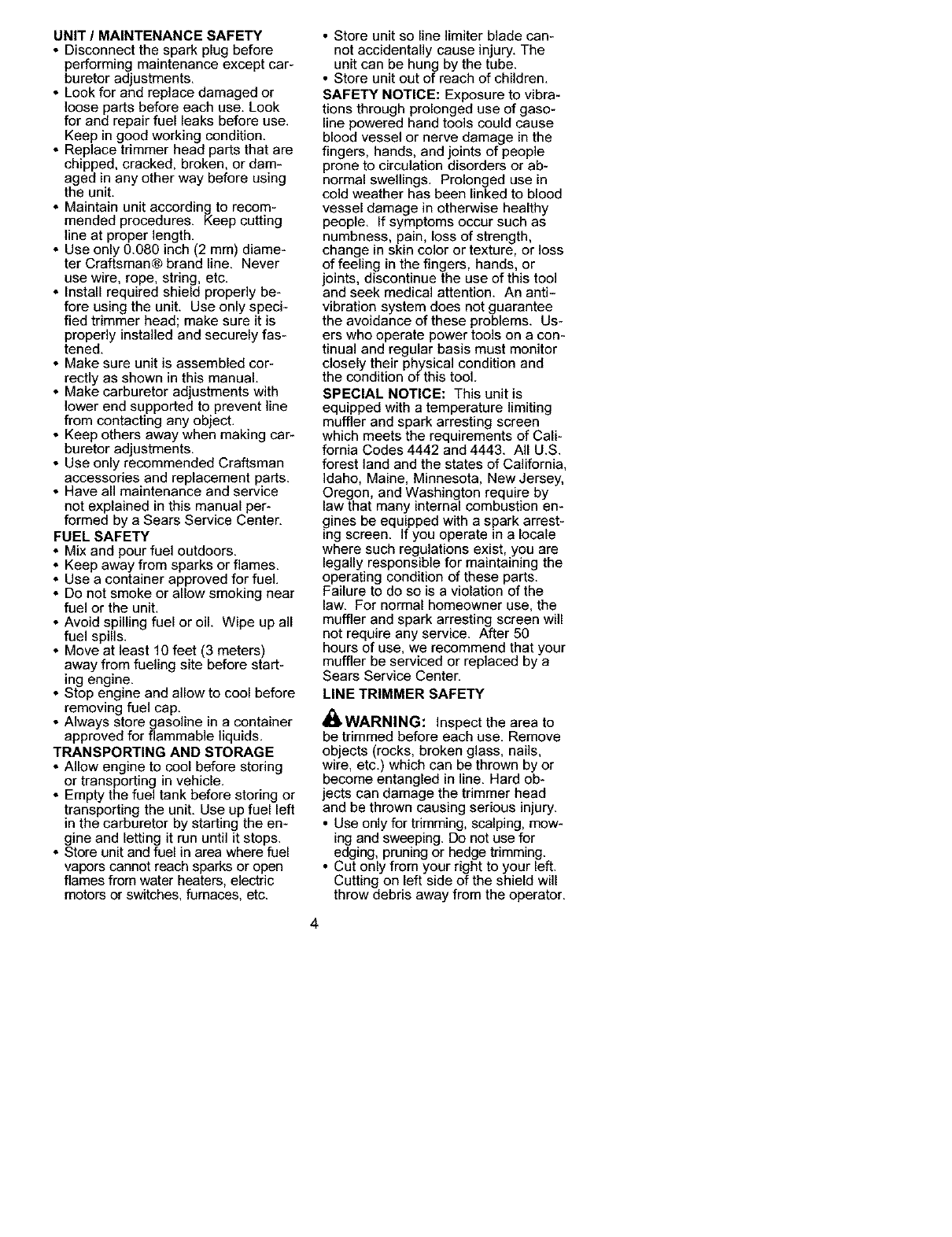

UNIT /MAINTENANCE SAFETY
Disconnect the spark plug before
performing maintenance except car-
buretor adjustments.
Look for and replace damaged or
loose parts before each use. Look
for and repair fuel leaks before use.
Keep in good working condition.
Replace trimmer head parts that are
chipped, cracked, broken, or dam-
aged in any other way before using
the unit.
Maintain unit according to recom-
mended procedures. Keep cutting
line at proper length.
Use only 0.080 inch (2 mm) diame-
ter Craftsman® brand line. Never
use wire, rope, string, etc.
Install required shield properly be-
fore using the unit. Use only speci-
fied trimmer head; make sure it is
properly installed and securely fas-
tened.
Make sure unit is assembled cor-
rectly as shown in this manual.
Make carburetor adjustments with
lower end supported to prevent line
from contacting any object.
Keep others away when making car-
buretor adjustments.
Use only recommended Craftsman
accessories and replacement parts.
Have all maintenance and service
not explained in this manual per-
formed by a Sears Service Center.
FUEL SAFETY
Mix and pour fuel outdoors.
Keep away from sparks or flames.
Use a container approved for fuel.
Do not smoke or allow smoking near
fuel or the unit.
• Avoid spilling fuel or oil. Wipe up all
fuel spills.
Move at least 10 feet (3 meters)
away from fueling site before start-
ing engine.
Stop engine and allow to cool before
removing fuel cap.
Always store gasoline in a container
approved for flammable liquids.
TRANSPORTING AND STORAGE
• Allow engine to cool before storing
or transporting in vehicle.
Empty the fuel tank before storing or
transporting the unit. Use up fuel left
in the carburetor by starting the en-
gine and letting it run until it stops.
Store unit and fuel in area where fuel
vapors cannot reach sparks or open
flames from water heaters, electric
motors or switches, furnaces, etc.
Store unit so line limiter blade can-
not accidentally cause injury. The
unit can be hung by the tube.
• Store unit out of reach of children.
SAFETY NOTICE: Exposure to vibra-
tions through prolonged use of gaso-
line powered hand tools could cause
blood vessel or nerve damage in the
fingers, hands, and joints of people
prone to circulation disorders or ab-
normal swellings. Prolonged use in
cold weather has been linked to blood
vessel damage in otherwise healthy
people. If symptoms occur such as
numbness, pain, loss of strength,
change in skin color or texture, or loss
of feeling in the fingers, hands, or
joints, discontinue the use of this tool
and seek medical attention. An anti-
vibration system does not guarantee
the avoidance of these problems. Us-
ers who operate power tools on a con-
tinual and regular basis must monitor
closely their physical condition and
the condition of this tool.
SPECIAL NOTICE: This unit is
equipped with a temperature limiting
muffler and spark arresting screen
which meets the requirements of Cali-
fornia Codes 4442 and 4443. All U.S.
forest land and the states of California,
Idaho, Maine, Minnesota, New Jersey,
Oregon, and Washington require by
law that many internal combustion en-
igines be equipped with a spark arrest-
ng screen, if you operate in a locale
where such regulations exist, you are
legally responsible for maintaining the
operating condition of these parts.
Failure to do so is a violation of the
law. For normal homeowner use, the
muffler and spark arresting screen will
not require any service. After 50
hours of use, we recommend that your
muffler be serviced or replaced by a
Sears Service Center.
LINE TRIMMER SAFETY
_ WARNING: Inspect the area to
be trimmed before each use. Remove
objects (rocks, broken glass, nails,
wire, etc.) which can be thrown by or
become entangled in line. Hard ob-
jects can damage the trimmer head
and be thrown causing serious injury.
Use only for trimming, scalping, mow-
ing and sweeping. Do not use for
edging, pruning or hedge trimming.
• Cut only from your right to your left.
Cutting on left side of the shield will
throw debris away from the operator.
4
ADDITIONAL SAFETY RULES
FOR OPTIONAL ATTACHMENTS
_ WARNING: For each optional
attachment used, read entire opera-
tors manual before use and follow all
warnings and instructions in manual
and on attachment.
i_ WARNING: Ensure handlebar is
installed when using edger or brush-
cutter attachments. Attach handlebar
above arrow on safety label on the up-
per tube (engine end of unit). If your
edger or brushcutter attachment does
not include a handlebar, a handlebar
accessory kit (#530071451) is avail-
able from your Sears Service Center.
_Han61ebar
EDGER SAFETY
_WARNING: Inspect the area to
be edged before each use. Remove
objects (rocks, broken glass, nails,
wire, etc.) which can be thrown by the
blade or can wrap around the shaft.
* Blade rotates momentarily after the
trigger is released. The blade can
seriously cut you or others.
* Allow blade to stop before removing
it from the cut.

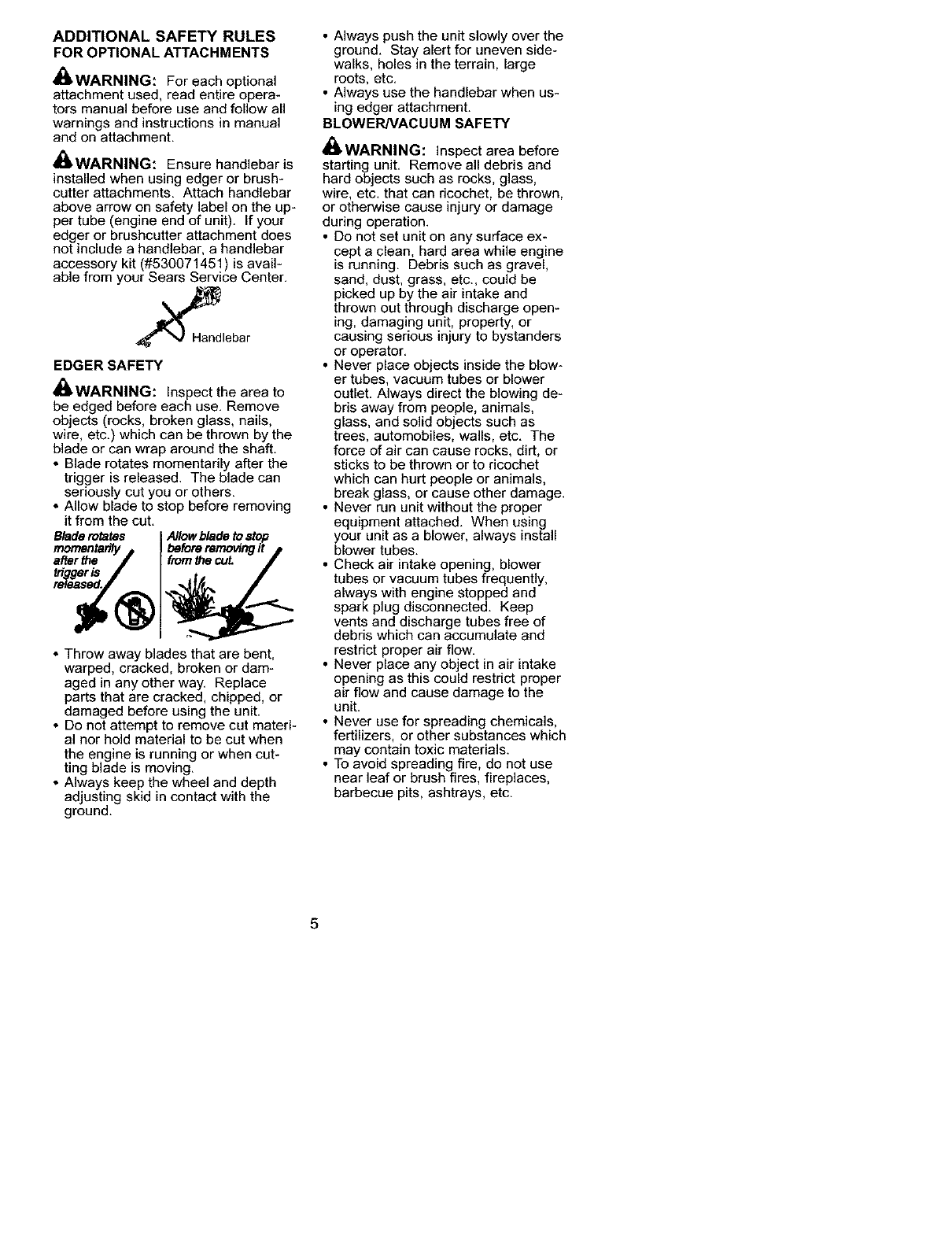

Blade rotates
*Throw away blades that are bent,
warped, cracked, broken or dam-
aged in any other way. Replace
parts that are cracked, chipped, or
damaged before using the unit.
* Do not attempt to remove cut materi-
al nor hold material to be cut when
the engine is running or when cut-
ting blade is moving.
* Always keep the wheel and depth
adjusting skid in contact with the
ground.
Always push the unit slowly over the
ground. Stay alert for uneven side-
walks, holes in the terrain, large
roots, etc.
Always use the handlebar when us-
ing edger attachment.
BLOWER/VACUUM SAFETY
_WARNING: Inspect area before
starting unit. Remove all debris and
hard objects such as rocks, glass,
wire, etc. that can ricochet, be thrown,
or otherwise cause injury or damage
during operation.
• Do not set unit on any surface ex-
cept aclean, hard area while engine
is running. Debris such as gravel,
sand, dust, grass, etc., could be
picked up by the air intake and
thrown out through discharge open-
ing, damaging unit, property, or
causing serious injury to bystanders
or operator.
Never place objects inside the blow-
er tubes, vacuum tubes or blower
outlet. Always direct the blowing de-
bris away from people, animals,
glass, and solid objects such as
trees, automobiles, walls, etc. The
force of air can cause rocks, dirt, or
sticks to be thrown or to ricochet
which can hurt people or animals,
break glass, or cause other damage.
Never run unit without the proper
equipment attached. When using
your unit as a blower, always install
blower tubes.
• Check air intake opening, blower
tubes or vacuum tubes frequently,
always with engine stopped and
spark plug disconnected. Keep
vents and discharge tubes free of
debris which can accumulate and
restrict proper air flow.
Never place any object in air intake
opening as this could restrict proper
air flow and cause damage to the
unit.
Never use for spreading chemicals,
fertilizers, or other substances which
may contain toxic materials.
To avoid spreading fire, do not use
near leaf or brush fires, fireplaces,
barbecue pits, ashtrays, etc.
5

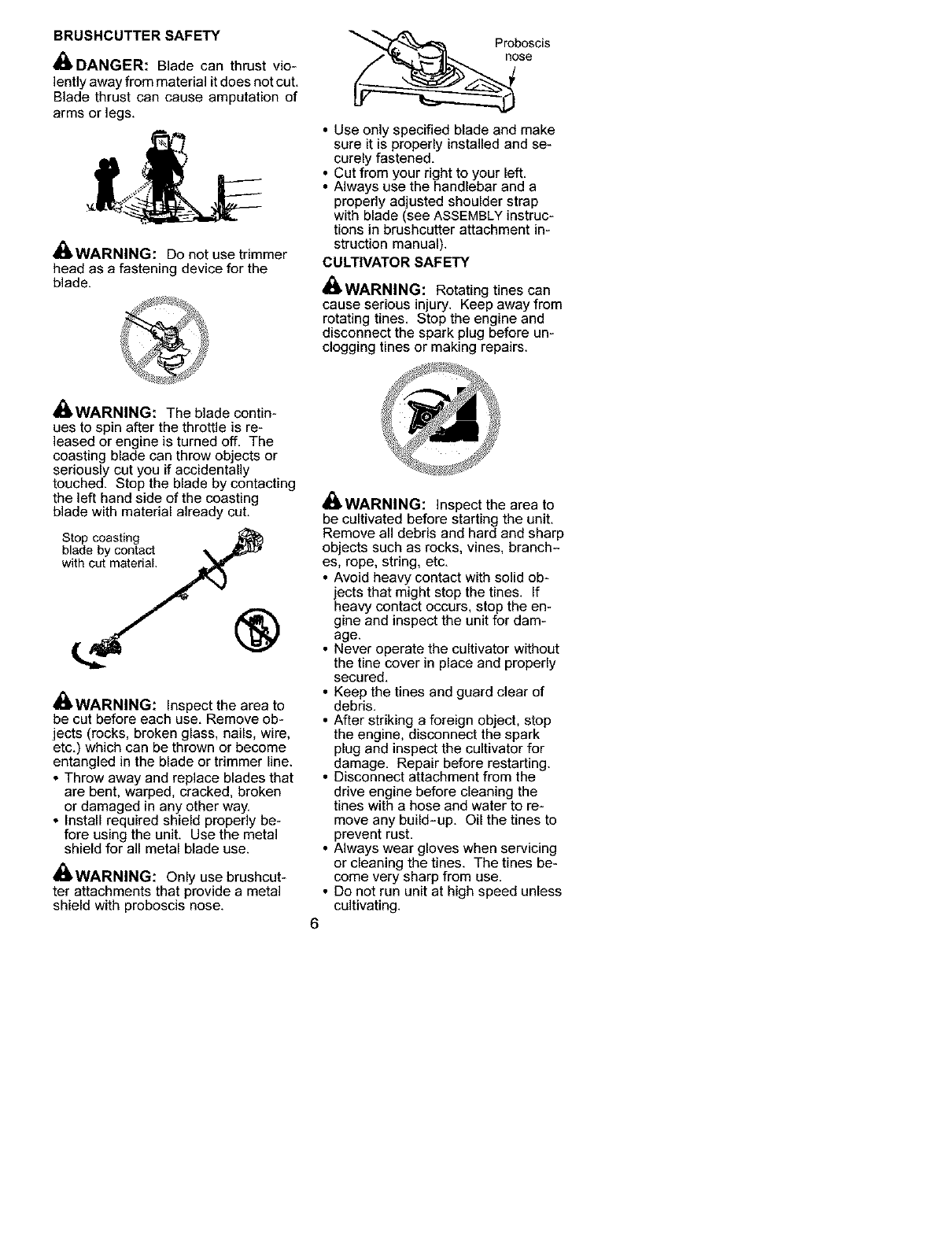

BRUSHCUTTER SAFETY
DANGER: Blade can thrust vio-
lently away from material it does not cut.
Blade thrust can cause amputation of
arms or legs.
_ WARNING: Do not use trimmer
head as a fastening device for the
blade.
se
Use only specified blade and make
sure it is properly installed and se-
curely fastened.
• Cut from your right to your left.
Always use the handlebar and a
properly adjusted shoulder strap
with blade (see ASSEMBLY instruc-
tions in brushcutter attachment in-
struction manual).
CULTIVATOR SAFETY
i_ WARNING: Rotating tines can
cause serious injury. Keep away from
rotating tines. Stop the engine and
disconnect the spark plug before un-
clogging tines or making repairs.
_ WARNING: The blade contin-
ues to spin after the throttle is re-
leased or engine is turned off. The
coasting blade can throw objects or
seriously cut you if accidentally
touched. Stop the blade by contacting
the left hand side of the coasting
blade with material already cut.
Stop coasting
blade by contact
with cut material,
®
4re.WARNING: Inspect the area to
be cut before each use. Remove ob-
jects (rocks, broken glass, nails, wire.
etc.) which can be thrown or become
entangled in the blade or trimmer line.
Throw away and replace blades that
are bent. warped, cracked, broken
or damaged in any other way.
Install required shield properly be-
fore using the unit. Use the metal
shield for all metal blade use.
_ WARNING: Only use brushcut-
ter attachments that provide a metal
shield with proboscis nose.
_ WARNING: Inspect the area to
be cultivated before starting the unit.
Remove all debris and hard and sharp
objects such as rocks, vines, branch-
es, rope, string, etc.
• Avoid heavy contact with solid ob-
jects that might stop the tines. If
heavy contact occurs, stop the en-
gine and inspect the unit for dam-
age.
• Never operate the cultivator without
the tine cover in place and properly
secured.
Keep the tines and guard clear of
debris.
After striking a foreign object, stop
the engine, disconnect the spark
plug and inspect the cultivator for
damage. Repair before restarting.
• Disconnect attachment from the
drive engine before cleaning the
tines with a hose and water to re-
move any build-up. Oil the tines to
prevent rust.
• Always wear gloves when servicing
or cleaning the tines. The tines be-
come very sharp from use.
Do not run unit at high speed unless
cultivating.
6

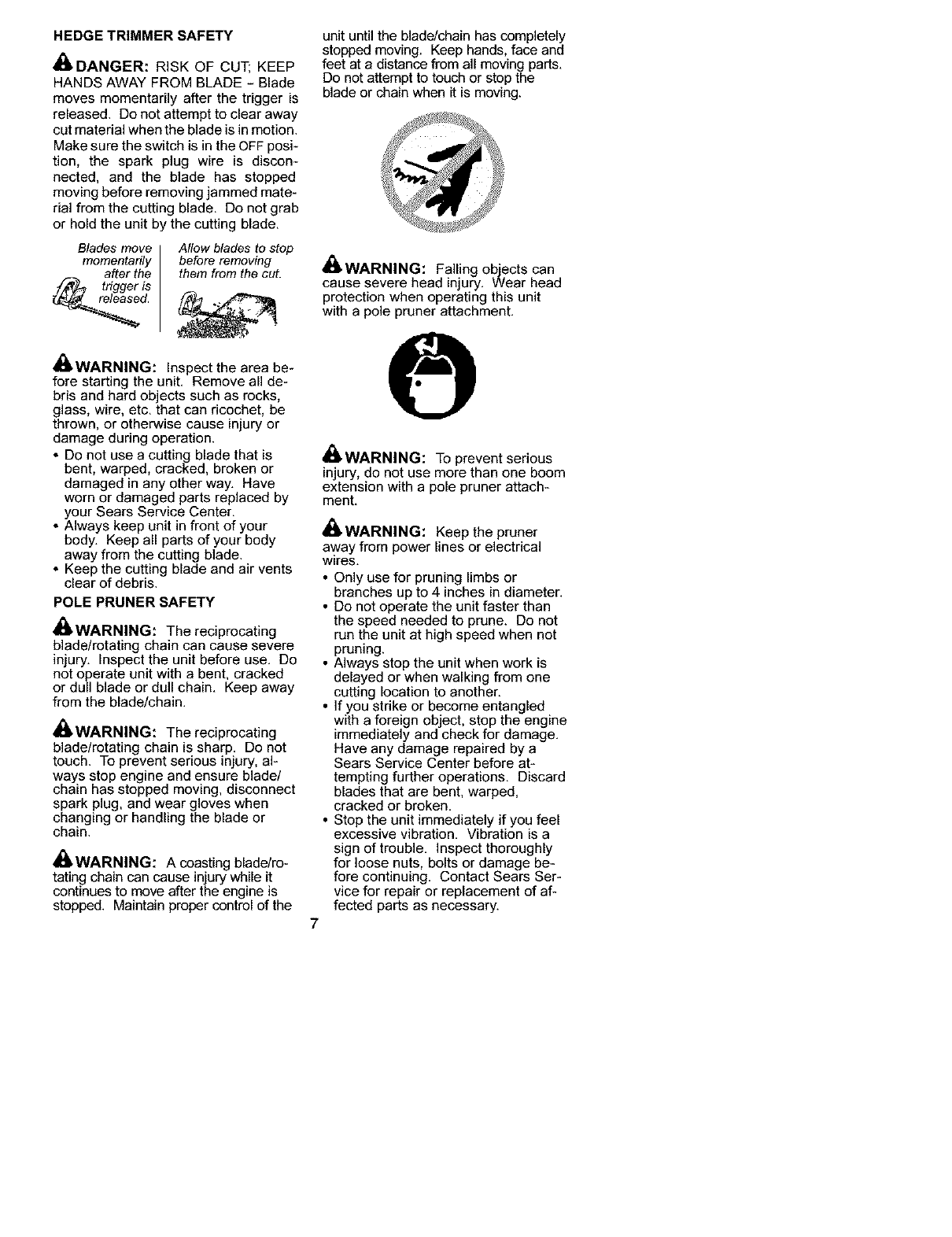

HEDGE TRIMMER SAFETY
DANGER: RISK OF CUT; KEEP
HANDS AWAY FROM BLADE - Blade
moves momentarily after the trigger is
released. Do not attempt to clear away
cut material when the blade is in motion.
Make sure the switch is in the OFF posi-
tion, the spark plug wire is discon-
nected, and the blade has stopped
moving before removing jammed mate-
rial from the cutting blade. Do not grab
or hold the unit by the cutting blade.
Blades move
momentarily
after the
trigger s
d.
Allow blades to stop
before removing
them from the cut.
_ WARNING: Inspect the area be-
fore starting the unit. Remove all de-
bris and hard objects such as rocks,
glass, wire, etc. that can ricochet, be
thrown, or otherwise cause injury or
damage during operation.
*Do not use a cutting blade that is
bent, warped, cracked, broken or
damaged in any other way. Have
worn or damaged parts replaced by
your Sears Service Center.
* Always keep unit in front of your
body. Keep all parts ofyour body
away from the cutting blade.
* Keep the cutting blade and air vents
clear of debris.
POLE PRUNER SAFETY
_ WARNING: The reciprocating
blade/rotating chain can cause severe
injury. Inspect the unit before use. De
not operate unit with a bent, cracked
or dull blade or dull chain. Keep away
from the blade/chain.
_ WARNING: The reciprocating
blade/rotating chain is sharp. Do not
touch. To prevent serious injury, al-
ways stop engine and ensure blade/
chain has stopped moving, disconnect
spark plug, and wear gloves when
changing or handling the blade or
chain.
_ WARNING: A coasting blade/ro-
tating chain can cause injury while it
continues to move after the engine is
stopped. Maintain proper control of the
unit until the blade/chain has completely
stopped moving. Keep hands, face and
feet at adistance from all moving parts.
Do not attempt to touch or stop the
blade or chain when it is moving.
_ WARNING: Falling objects can
cause severe head injury. Wear head
protection when operating this unit
with a pole pruner attachment.
O
_ WARNING: To prevent serious
injury, do not use more than one boom
extension with a pole pruner attach-
ment.
_ WARNING: Keep the pruner
away from power lines or electrical
wires.
Only use for pruning limbs or
branches up to 4 inches in diameter.
Do not operate the unit faster than
the speed needed to prune. Do not
run the unit at high speed when not
pruning.
Always stop the unit when work is
delayed or when walking from one
cutting location to another.
If you strike or become entangled
with a foreign object, stop the engine
immediately and check for damage.
Have any damage repaired by a
Sears Service Center before at-
tempting further operations. Discard
blades that are bent, warped,
cracked or broken.
• Stop the unit immediately if you feel
excessive vibration. Vibration is a
sign of trouble. Inspect thoroughly
for loose nuts, bolts or damage be-
fore continuing. Contact Sears Ser-
vice for repair or replacement of af-
fected parts as necessary.
7

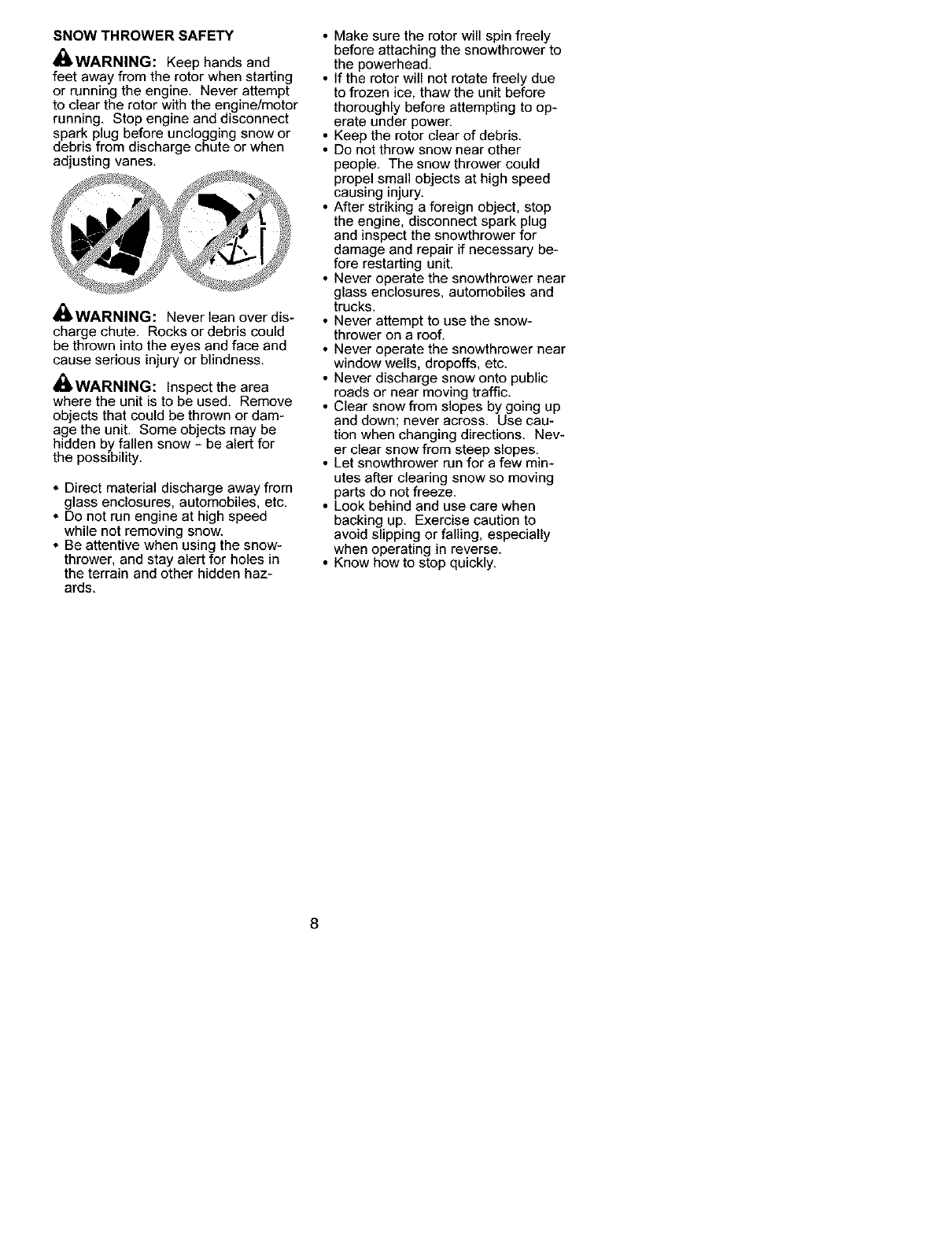

SNOW THROWER SAFETY
_WARNING: Keep hands and
feet away from the rotor when starting
or running the engine. Never attempt
to clear the rotor with the engine/motor
running. Stop engine and disconnect
spark plug before unclogging snow or
debris from discharge chute or when
adjusting vanes.
_WARNING: Never lean over dis-
charge chute. Rocks or debris could
be thrown into the eyes and face and
cause serious injury or blindness.
_ WARNING: Inspect the area
where the unit is to be used. Remove
objects that could be thrown or dam-
age the unit. Some objects may be
hidden by fallen snow -be alert for
the possibility.
Direct material discharge away from
glass enclosures, automobiles, etc.
Do not run engine at high speed
while not removing snow.
Be attentive when using the snow-
thrower, and stay alert for holes in
the terrain and other hidden haz-
ards.
• Make sure the rotor will spin freely
before attaching the snowthrower to
the powerhead.
If the rotor will not rotate freely due
to frozen ice, thaw the unit before
thoroughly before attempting to op-
erate under powen
Keep the rotor clear of debris.
Do not throw snow near other
people. The snow thrower could
propel small objects at high speed
causing injury.
After striking a foreign object, stop
the engine, disconnect spark plug
and inspect the snowthrower for
damage and repair if necessary be-
fore restarting unit.
• Never operate the snowthrower near
glass enclosures, automobiles and
trucks.
Never attempt to use the snow-
thrower on a roof.
• Never operate the snowthrower near
window wells, dropoffs, etc.
• Never discharge snow onto public
roads or near moving traffic.
Clear snow from slopes by going up
and down; never across. Use cau-
tion when changing directions. Nev-
er clear snow from steep slopes.
Let snowthrower run for a few min-
utes after clearing snow so moving
parts do not freeze.
Look behind and use care when
backing up. Exercise caution to
avoid slipping or falling, especially
when operating in reverse.
Know how to stop quickly.
8

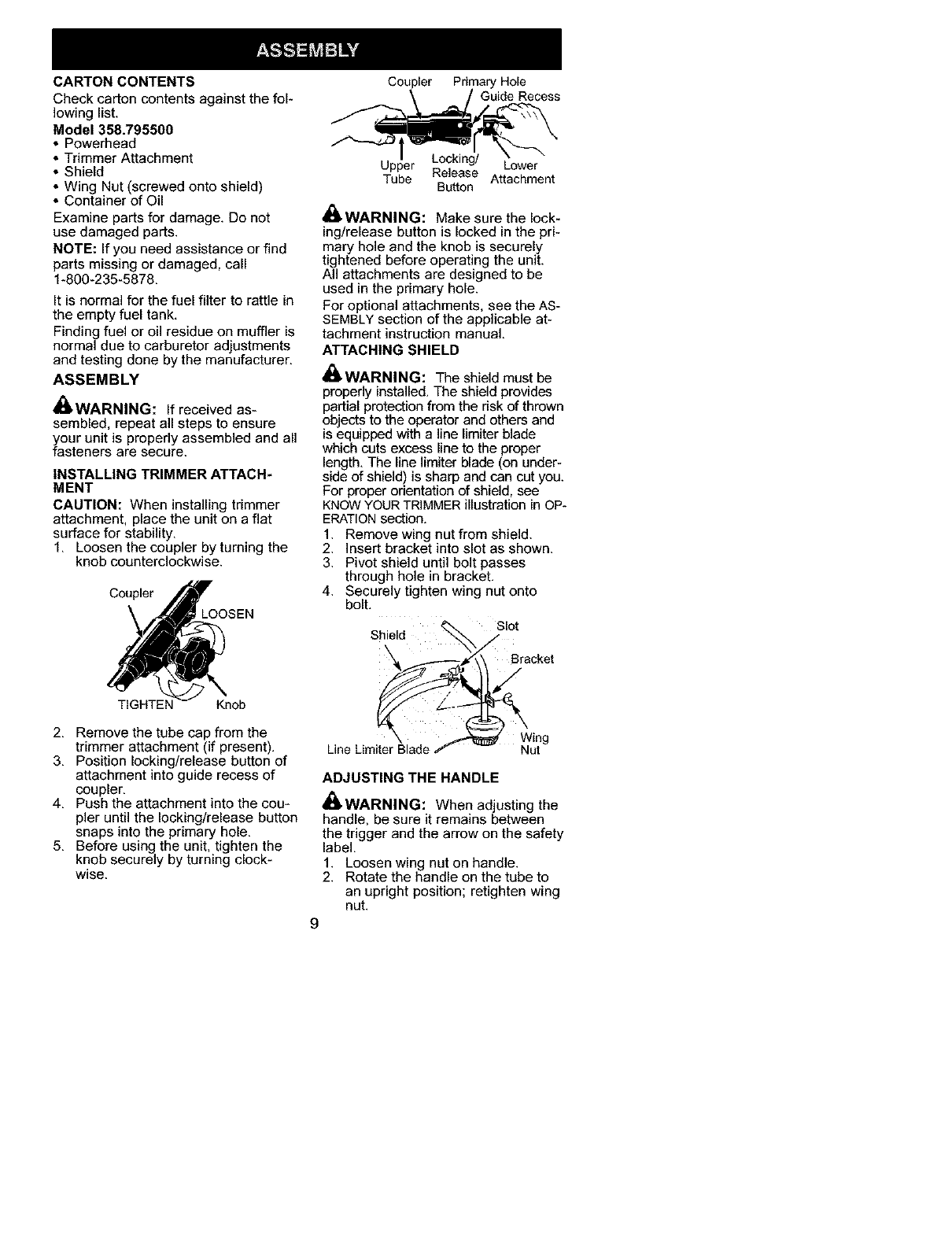

CARTON CONTENTS
Check carton contents against the fol-
lowing list.
Model 358.795500
• Powerhead
• Trimmer Attachment
• Shield
• Wing Nut (screwed onto shield)
Container of Oil
Examine parts for damage. Do not
use damaged parts.
NOTE: If you need assistance or find
parts missing or damaged, call
1-800-235-5878.
It is normal for the fuel filter to rattle in
the empty fuel tank.
Finding fuel or oil residue on muffler is
normal due to carburetor adjustments
and testing done by the manufacturer.
ASSEMBLY
_ WARNING: If received as-
sembled, repeat all steps to ensure
your unit is properly assembled and all
fasteners are secure.
INSTALLING TRIMMER ATTACH-
MENT
CAUTION: When installing trimmer
attachment, place the unit on a flat
surface for stability.

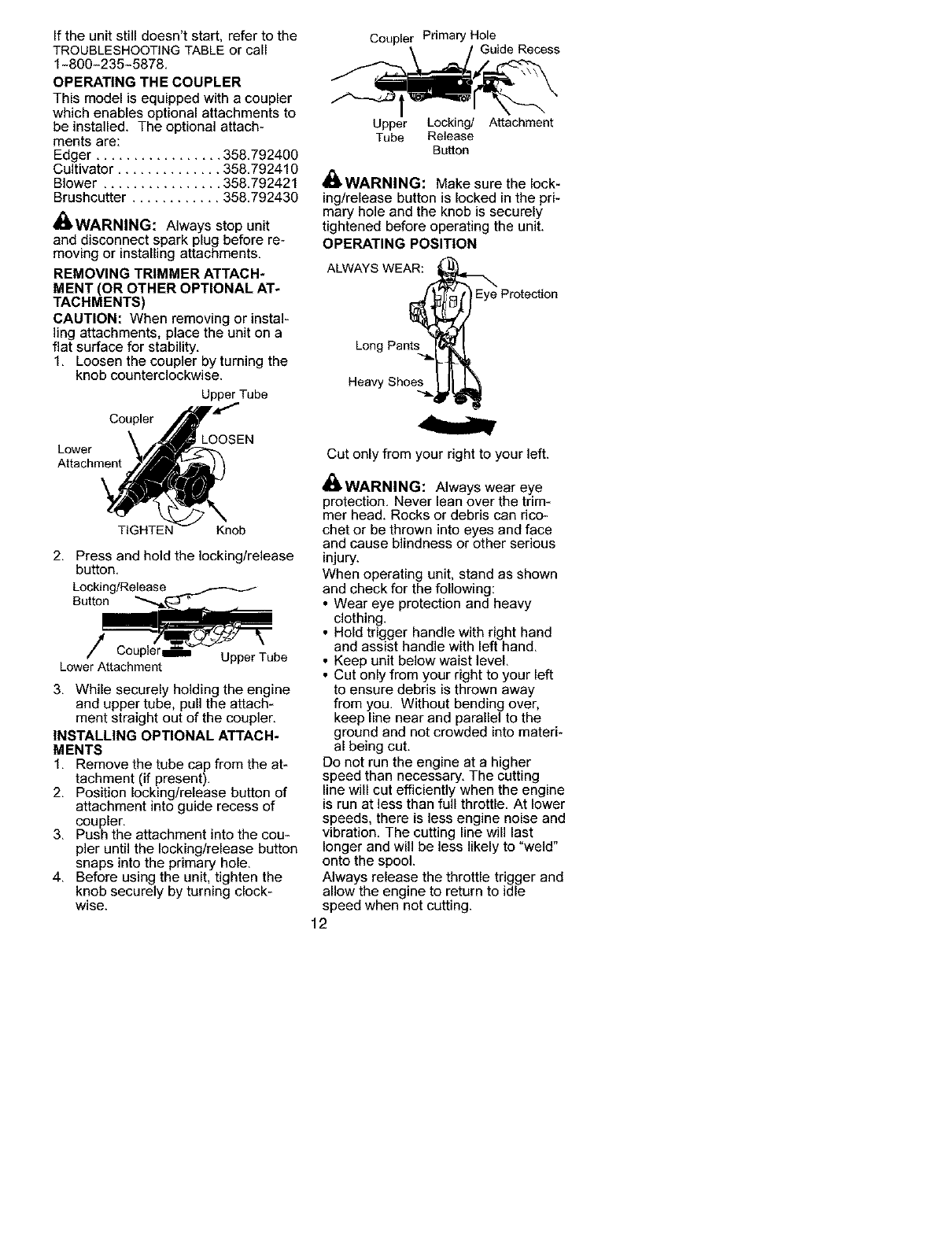

1. Loosen the coupler by turning the
knob counterclockwise.
Coupler
LOOSEN
TIGHTEN Knob
2. Remove the tube cap from the
trimmer attachment (if present).
3. Position locking/release button of
attachment into guide recess of
coupler.
4. Push the attachment into the cou-
pler until the locking/release button
snaps into the primary hole.
5. Before using the unit, tighten the
knob securely by turning clock-
wise.
Coupler Primary Hole
\/Guide Recess
Upper oc ' g/ Lower
Tube Release Attachment
Button
_ WARNING: Make sure the lock-
ing/release button is locked in the pri-
mary hole and the knob is securely
tightened before operating the unit.
All attachments are designed to be
used in the primary hole.
For optional attachments, see the AS-
SEMBLY section of the applicable at-
tachment instruction manual.
ATTACHING SHIELD
i_ WARNING: The shield must be
properly installed. The shield provides
partial protection from the risk of thrown
objects to the operator and others and
is equipped with a line limiter blade
which cuts excess line to the proper
length. The line limiter blade (on under-
side of shield) is sharp and can cut you.
For proper orientation of shield, see
KNOWYOURTRIMMER illustration in OP-
ERATIONsection.
1. Remove wing nut from shield.
2. insert bracket into slot as shown.
3. Pivot shield until bolt passes
through hole in bracket.
4. Securely tighten wing nut onto
bolt.
Shield _NjS lot
k _ ,_\_ Bracket
_ng
Line Limiter Blade Nut
ADJUSTING THE HANDLE
_WARNING: When adjusting the
handle, be sure it remains between
the trigger and the arrow on the safety
label.
1. Loosen wing nut on handle.
2. Rotate the handle on the tube to
an upright position; retighten wing
nut.
9

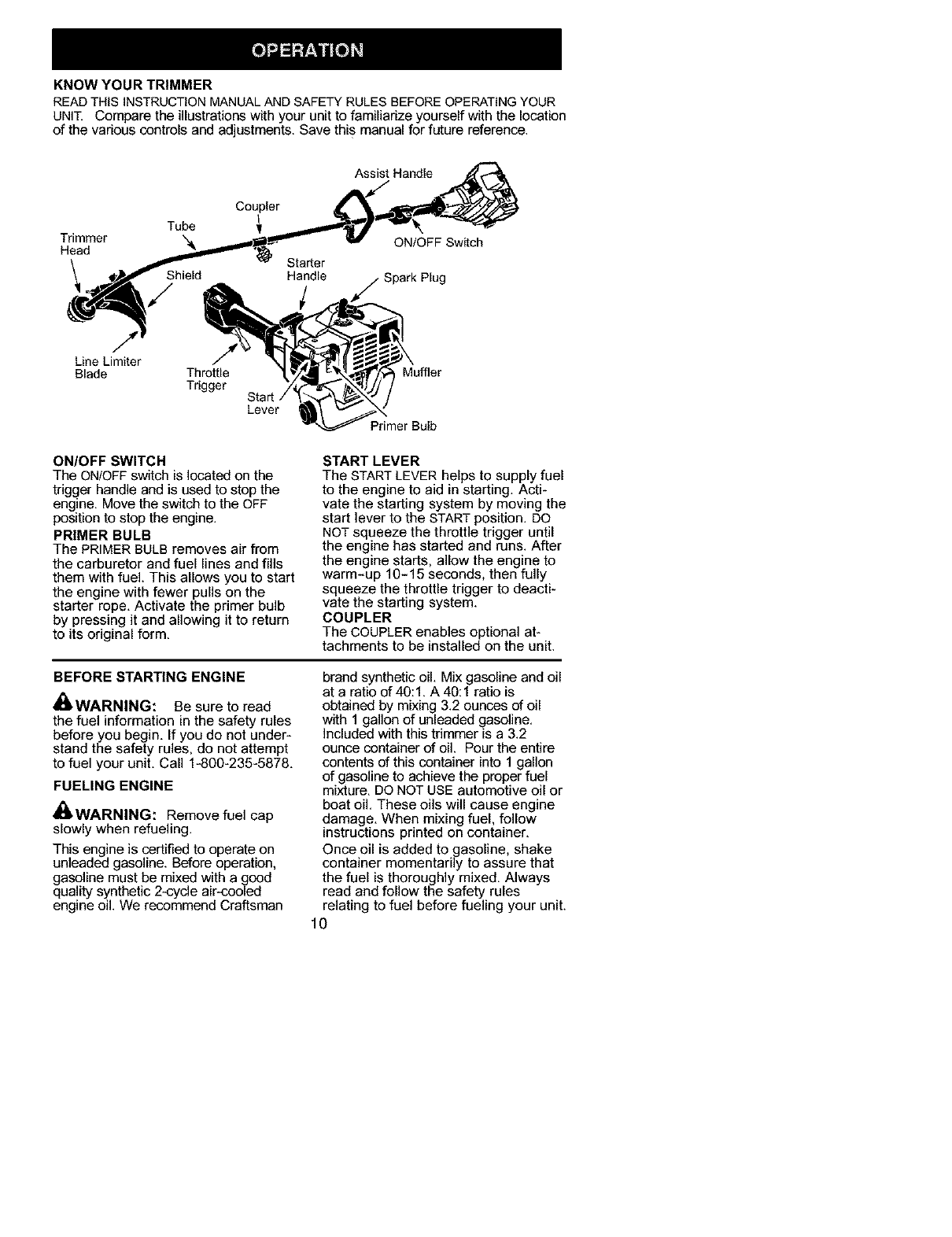

KNOW YOUR TRIMMER
READ THIS INSTRUCTIONMANUALAND SAFETY RULES BEFOREOPERATINGYOUR
UNIT. Compare the illustrations with your unit to familiarize yourself with the location
of the various controls and adjustments. Save this manual for future reference.
Assist Handle
Coupler
Tube
Trimmer "-& ON/OFF Switch
Head Starter
Shield Handle /Spark Plug
/
Line Limiter
Blade Throttle Muffler
Trigger
Lever
Primer Bulb
ON/OFF SWITCH
The ON/OFF switch is located on the
trigger handle and is used to stop the
engine. Move the switch to the OFF
position to stop the engine.
PRIMER BULB
The PRIMER BULB removes air from
the carburetor and fuel lines and fills
them with fuel. This allows you to start
the engine with fewer pulls on the
starter rope. Activate the primer bulb
by pressing it and allowing it to return
to its original form.
START LEVER
The START LEVER helps to supply fuel
to the engine to aid in starting. Acti-
vate the starting system by moving the
start lever to the START position. DO
NOT squeeze the throttle trigger until
the engine has started and runs. After
the engine starts, allow the engine to
warm-up 10-15 seconds, then fully
squeeze the throttle trigger to deacti-
vate the starting system.
COUPLER
The COUPLER enables optional at-
tachments to be installed on the unit.
BEFORE STARTING ENGINE
WARNING: Be sure to read
the fuel information in the safety rules
before you begin. If you do not under-
stand the safety rules, do not attempt
to fuel your unit. Call 1-800-235-5878.
FUELING ENGINE
_WARNING: Remove fuel cap
slowly when refueling.
This engine is certified to operate on
unleaded gasoline. Before operation,
gasoline must be mixed with a good
quality synthetic 2-cycle air-cooled
engine oil. We recommend Craftsman
brand synthetic oil. Mix gasoline and oil
at a ratio of 40:1. A 40:1 ratio is
obtained by mixing 3.2 ounces of oil
with 1 gallon of unleaded gasoline.
included with this trimmer is a 3.2
ounce container of oil. Pour the entire
contents of this container into 1 gallon
of gasoline to achieve the proper fuel
mixture. DO NOT USE automotive oil or
boat oil. These oils will cause engine
damage. When mixing fuel, follow
instructions printed on container.
Once oil is added to gasoline, shake
container momentarily to assure that
the fuel is thoroughly mixed. Always
read and follow the safety rules
relating to fuel before fueling your unit.
10

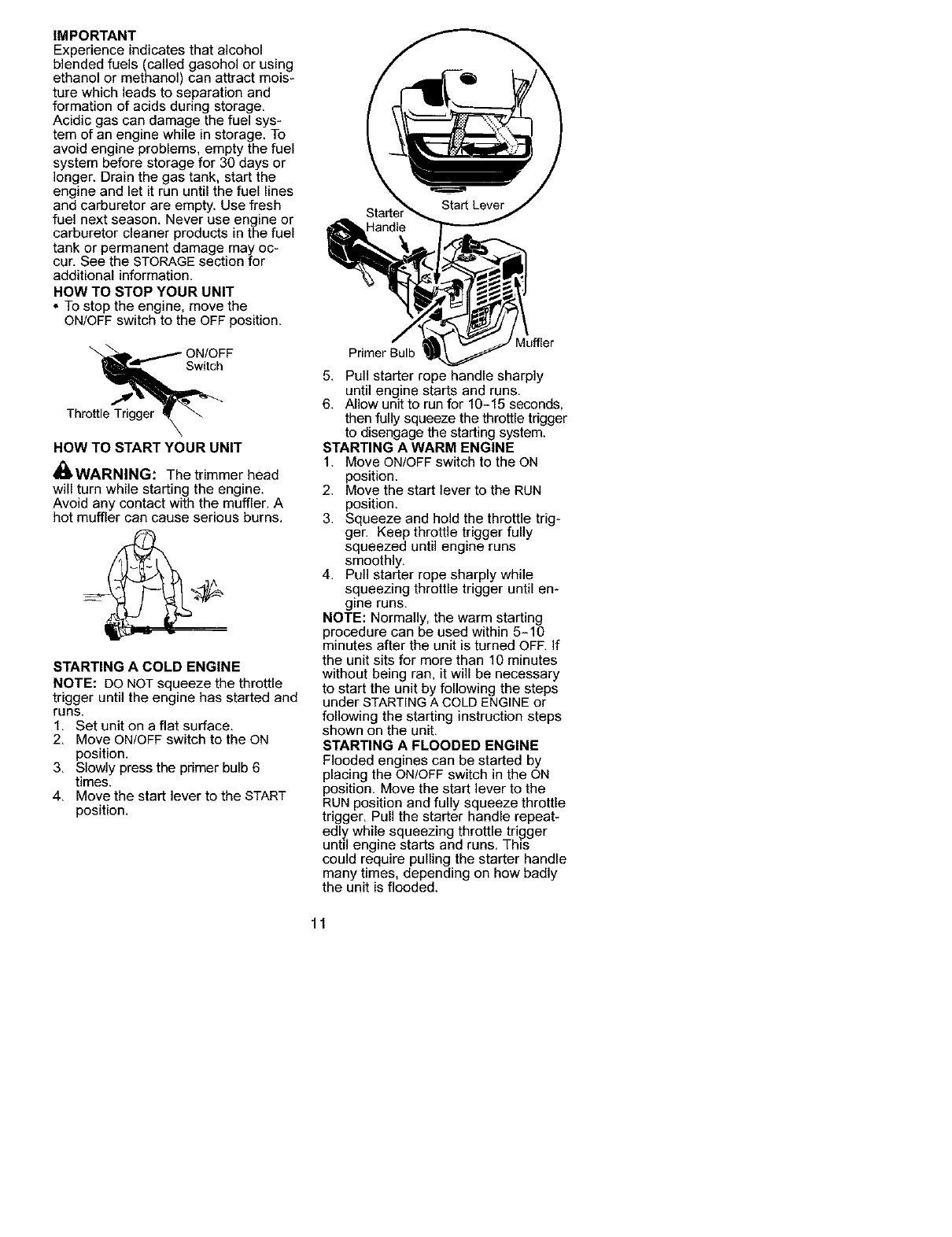

IMPORTANT
Experienceindicatesthatalcohol
blendedfuels(calledgasoholorusing
ethanolormethanol)canattract mois-
ture which leads to separation and
formation of acids during storage.
Acidic gas can damage the fuel sys-
tem of an engine while in storage. To
avoid engine problems, empty the fuel
system before storage for 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh
fuel next season. Never use engine or
carburetor cleaner products in the fuel
tank or permanent damage may oc-
cur. See the STORAGE section for
additional information.
HOW TO STOP YOUR UNIT
To stop the engine, move the
ON/OFF switch to the OFF position.
_lb_ ON/OFF
Thro_le Trigger _
HOW TO START YOUR UNIT
i_ WARNING: The trimmer head
will turn while starting the engine.
Avoid any contact with the muffler. A
hot muffler can cause serious burns.
STARTING A COLD ENGINE
NOTE: DO NOT squeeze the throttle
trigger until the engine has started and
runs.
1. Set unit on a flat surface.
2. Move ON/OFF switch to the ON
position.
3. Slowly press the primer bulb 6
times.
4. Move the start lever to the START
position.
Primer Bulb
5. Pull starter rope handle sharply
until engine starts and runs.
6. Allow unit to run for 10-15 seconds,
then fully squeeze the throttle trigger
to disengage the starting system.
STARTING A WARM ENGINE
1, Move ON/OFF switch to the ON
position,
2, Move the start lever to the RUN
position,
3, Squeeze and hold the throttle trig-
ger, Keep throttle trigger fully
squeezed until engine runs
smoothly,
4, Pull starter rope sharply while
squeezing throttle trigger until en-
gine runs.
NOTE: Normally, the warm starting
procedure can be used within 5-10
minutes after the unit is turned OFF. If
the unit sits for more than 10 minutes
without being ran, it will be necessary
to start the unit by following the steps
under STARTING A COLD ENGINE or
following the starting instruction steps
shown on the unit.
STARTING A FLOODED ENGINE
Flooded engines can be started by
placing the ON/OFF switch in the ON
position. Move the start lever to the
RUN position and fully squeeze throttle
trigger. Pull the starter handle repeat-
edly while squeezing throttle trigger
until engine starts and runs. This
could require pulling the starter handle
many times, depending on how badly
the unit is flooded.
11
If the unit still doesn't start, refer to the
TROUBLESHOOTING TABLE or call
1-800-235-5878.
OPERATING THE COUPLER
This model is equipped with a coupler
which enables optional attachments to
be installed. The optional attach-
ments are:
Edger ................. 358.792400
Cultivator .............. 358.792410
Blower ................ 358.792421
Brushcutter ............ 358.792430
411.WARNING: Always stop unit
and disconnect spark plug before re-
moving or installing attachments,
REMOVING TRIMMER ATTACH*
MENT (OR OTHER OPTIONAL AT-
TACHMENTS)
CAUTION: When removing or instal-
ling attachments, place the unit on a
flat surface for stability.
1. Loosen the coupler by turning the
knob counterclockwise.
UpperTube
Coupler
Coupler Primary Hole
Upper Locking/ Attachment
Tube Release
Button
_ WARNING: Make sure the lock-
ing/release button is locked in the pri-
mary hole and the knob is securely
tightened before operating the unit.
OPERATING POSITION
ALWAYS WEAR: _.,x
Eye Protection
Heavy Shoes _1_[t_
Lower
Attachment
TIGHTEN Knob
2. Press and hold the locking/release
button.
Locking/Release
Button
/
LowerAttachment UpperTube
3. While securely holding the engine
and upper tube, pull the attach-
ment straight out of the coupler.
INSTALLING OPTIONAL ATTACH*
MENTS
1, Remove the tube cap from the at-
tachment (if present),
2. Position locking/release button of
attachment into guide recess of
coupler.
3. Push the attachment into the cou-
pler until the locking/release button
snaps into the primary hole.
4. Before using the unit, tighten the
knob securely by turning clock-
wise.
Cut only from your right to your left.
_WARNING: Always wear eye
protection, Never lean over the trim-
mer head. Rocks or debris can rico-
chet or be thrown into eyes and face
and cause blindness or other serious
injury.
When operating unit, stand as shown
and check for the following:
• Wear eye protection and heavy
clothing.
Hold trigger handle with right hand
and assist handle with left hand.
Keep unit below waist level.
• Cut only from your right to your left
to ensure debris is thrown away
from you. Without bending over,
keep line near and parallel to the
ground and not crowded into materi-
al being cut.
Do not run the engine at a higher
speed than necessary. The cutting
line will cut efficiently when the engine
is run at less than full throttle. At lower
speeds, there is less engine noise and
vibration. The cutting line will last
longer and will be less likely to "weld"
onto the spool.
Always release the throttle trigger and
allow the engine to return to idle
speed when not cutting.
12
To stop engine:
Release the throttle trigger.
Move the ON/OFF switch to the OFF
position.
TRIMMER LINE ADVANCE
The cutting head advances line au-
tomatically. Do not tap head on the
ground to advance line. This may
break parts and cause cutting head to
malfunction.
Upon unit start up, the line will advance
automatically to the correct cutting path
length.
Always keep the shield in place when
the tool is being operated.
WARNING: Use only 0.080"
(2 mm) diameter round line. Other
sizes and shapes of line will not ad-
vance properly and will result in im-
proper cutting head function or can
cause serious injury. Do not use other
materials such as wire, string, rope,
etc. Wire can break off during cutting
and become a dangerous missile that
can cause serious injury.
CUTTING METHODS
I_WARNING: Use minimum
speed and do not crowd the line when
cutting around hard ob ects (rock,
gravel, fence posts, etc.), wh ch can
damage the trimmer head, become
entangled in the line, or be thrown
causing a serious hazard.
The tip of the line does the cutting.
You will achieve the best perform-
ance and minimum line wear by not
crowding the line into the cutting
area. The right and wrong ways are
shown below.
Tip of the Line I Line Crowded Into
Does The Cutting Work Area
Right .... Wrong "_'_----
The line will easily remove grass
and weeds from around walls,
fences, trees and flower beds, but it
also can cut the tender bark of trees
or shrubs and scar fences.
For trimming or scalping, use less
than full throttle to increase line life
and decrease head wear, especially:
• During light duty cutting.
• Near objects around which the line
can wrap such as small posts,
trees or fence wire.
For mowing or sweeping, use full
throttle for a good clean job.
TRIMMING - Hold the bottom of the
trimmer head about 3 in. (8 cm) above
the ground and at an angle. Allow only
the tip of the line to make contact. Do
not force trimmer line into work area.

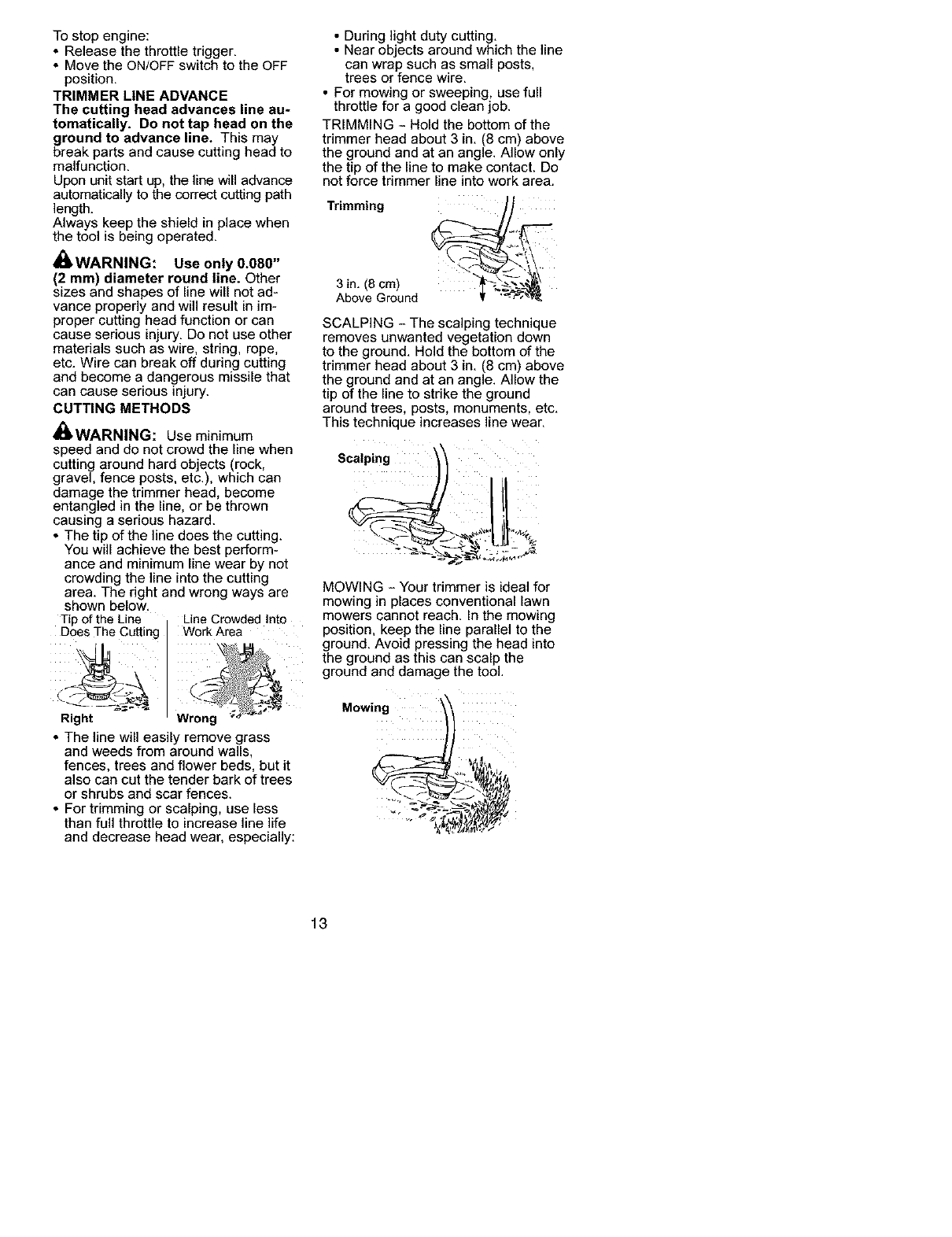

Trimming
3 in. (8 cm)
Above Ground
SCALPING - The scalping technique
removes unwanted vegetation down
to the ground. Hold the bottom of the
trimmer head about 3 in. (8 cm) above
the ground and at an angle. Allow the
tip of the line to strike the ground
around trees, posts, monuments, etc.
This technique increases line wear.
Scalping
MOWING - Your trimmer is ideal for
mowing in places conventional lawn
mowers cannot reach. In the mowing
position, keep the line parallel to the
ground. Avoid pressing the head into
the ground as this can scalp the
ground and damage the tool.
Mowing
13
SWEEPING - The fanning action of
the rotating line can be used to blow
away loose debris from an area, Keep
the line parallel to and above the area
surface and swing the tool from side
to side.
Sweeping _

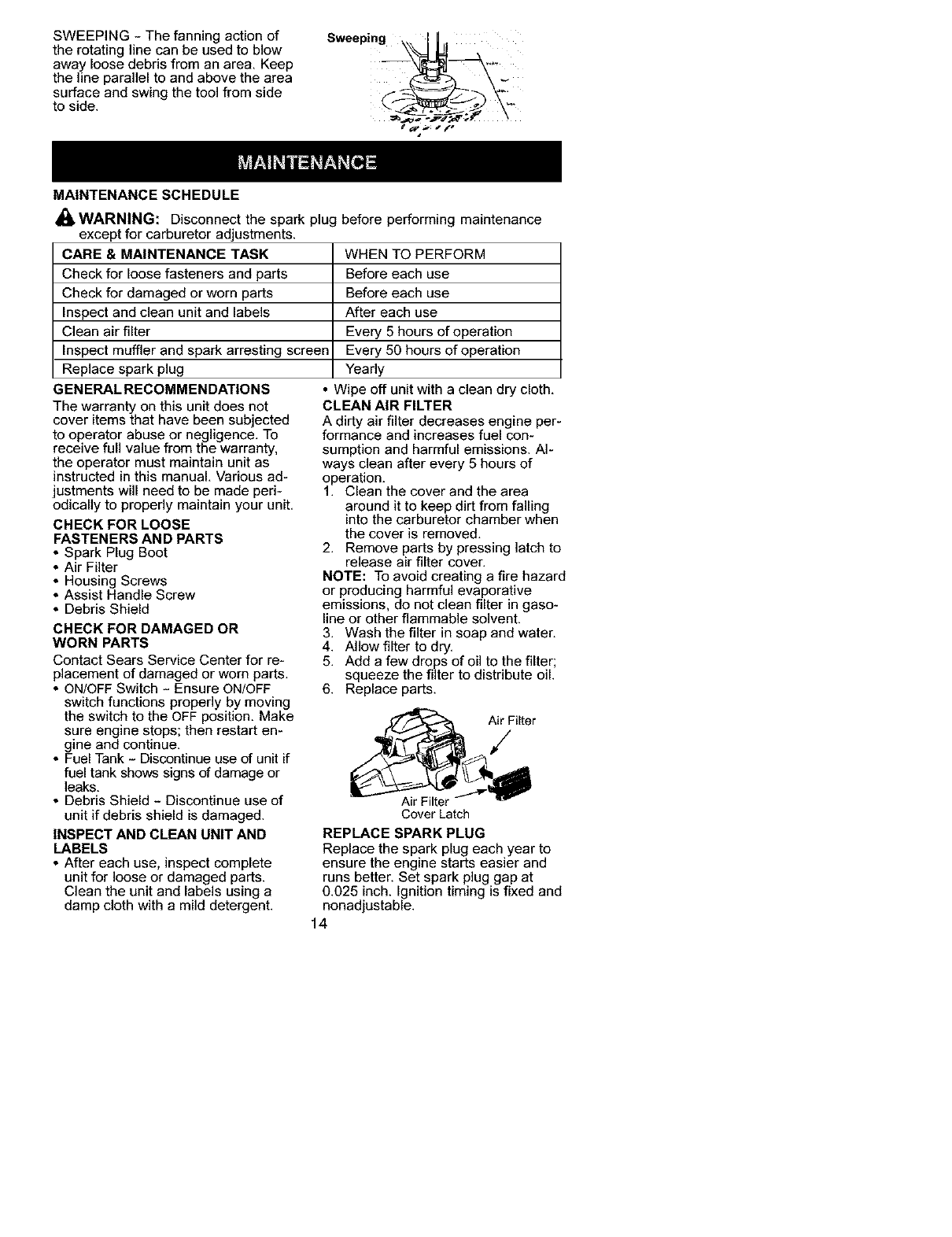

MAINTENANCE SCHEDULE
WARNING: Disconnect the spark plug before performing maintenance
except for carburetor adjustments.
CARE &MAINTENANCE TASK
Check for loose fasteners and parts
Check for damaged or worn parts
Inspect and clean unit and labels
Clean air filter
Inspect muffler and spark arresting screen
Replace spark plug
_ENERAL RECOMMENDATIONS
The warranty on this unit does not
cover items that have been subjected
to operator abuse or negligence. To
receive full value from the warranty,
the operator must maintain unit as
instructed in this manual. Various ad-
justments will need to be made peri-
odically to properly maintain your unit.
WHEN TO PERFORM
Before each use
Before each use
After each use
Every 5 hours of operation
Every 50 hours of operation
Yearly
Wipe off unit with a clean dry cloth.
CLEAN AIR FILTER
A dirty air filter decreases engine per-
formance and increases fuel con-
sumption and harmful emissions. Al-
ways clean after every 5 hours of
operation.
1. Clean the cover and the area
around it to keep dirt from falling
into the carburetor chamber when
CHECK FOR LOOSE
FASTENERS AND PARTS
,Spark Plug Boot
* Air Filter
* Housing Screws
* Assist Handle Screw
* Debris Shield
CHECKFORDAMAGED OR
the cover is removed,
2. Remove parts by pressing latch to
release air filter cover.
NOTE: To avoid creating a fire hazard
or producing harmful evaporative
emissions, do not clean filter in gaso-
line or other flammable solvent.
3. Wash the filter in soap and water.
WORN PARTS 4.
Contact Sears Service Center for re- 5.
placement of damaged or worn parts.
ON/OFF Switch - Ensure ON/OFF 6.
switch functions properly by moving
the switch to the OFF position. Make
sure engine stops; then restart en-
gine and continue.
Fuel Tank - Discontinue use of unit if
fuel tank shows signs of damage or
leaks.
Debris Shield - Discontinue use of
unit if debris shield is damaged.
INSPECT AND CLEAN UNIT AND
LABELS
, After each use, inspect complete
unit for loose or damaged parts,
Clean the unit and labels using a
damp cloth with a mild detergent.
Allow filter to dry,
Add a few drops of oil to the filter;
squeeze the filter to distribute oil.
Replace parts.
_ilter
Cover Latch
REPLACE SPARK PLUG
Replace the spark plug each year to
ensure the engine starts easier and
runs better. Set spark plug gap at
0.025 inch. Ignition timing is fixed and
nonadjustable.
14
1. Twist, then pull off spark plug boot.
2. Remove spark plug from cylinder
and discard.
3. Replace with Champion RCJ-6Y
spark plug and tighten securely
with a 3/4 inch socket wrench.
4. Reinstall the spark plug boot.

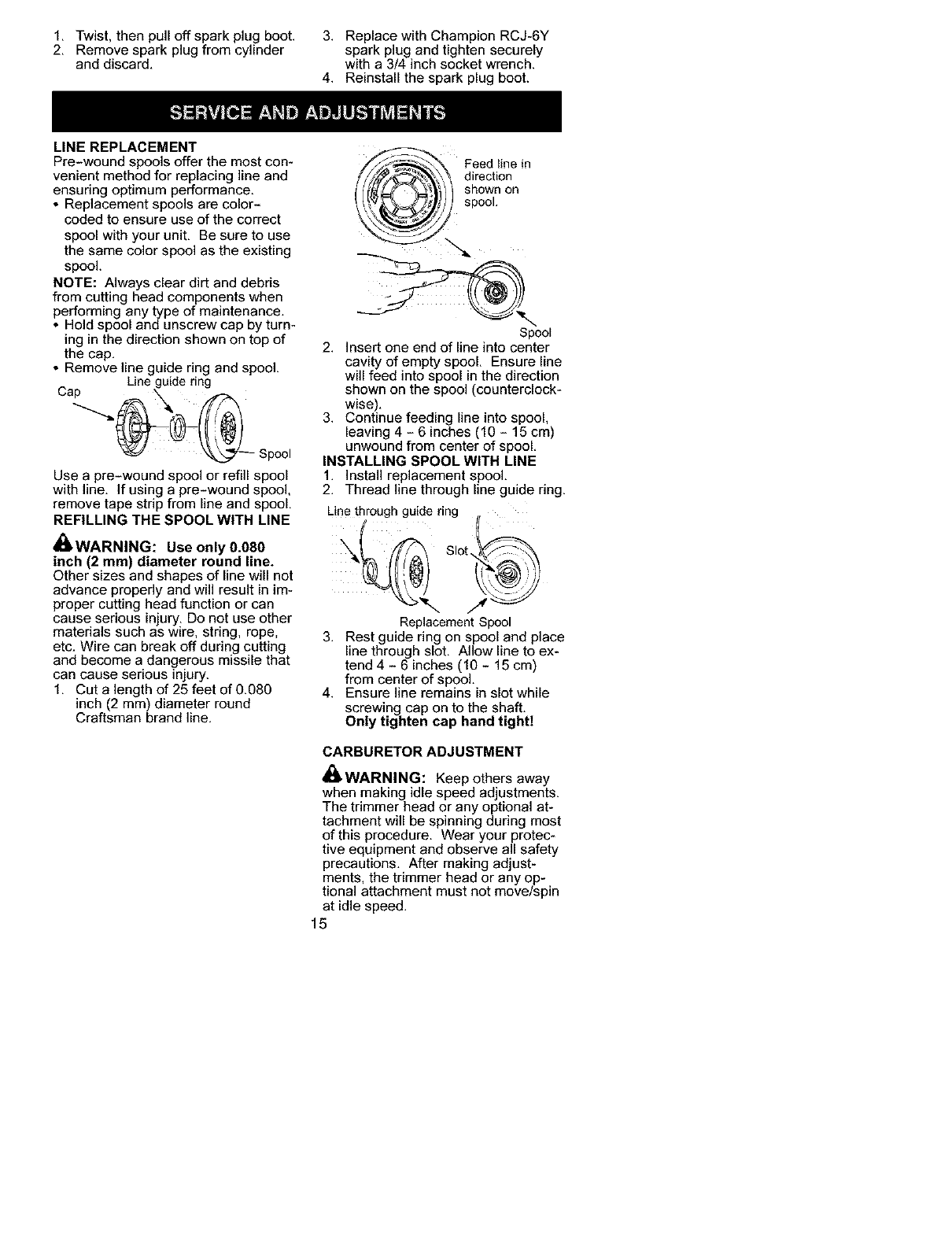

LINE REPLACEMENT
Pre-wound spools offer the most con-
venient method for replacing line and
ensuring optimum performance.
*Replacement spools are color-
coded to ensure use of the correct
spool with your unit. Be sure to use
the same color spool as the existing
spool.
NOTE: Always clear dirt and debris
from cutting head components when
performing any type of maintenance.
* Hold spool andunscrew cap by turn-
ing in the direction shown on top of
the cap.
* Remove line guide ring and spool.
Line guide ring
Cap \
Use a pre-wound spool or refill spool
with line. If using a pre-wound spool,
remove tape strip from line and spool.
REFILLING THE SPOOL WITH LINE
i_ WARNING: Use only 0.080
inch (2 mm) diameter round line.
Other sizes and shapes of line will not
advance properly and will result in im-
proper cutting head function or can
cause serious in ury. Do not use other
mater a s such as w re, str ng, rope,
etc. Wire can break off during cutting
and become a dangerous missile that
can cause serious injury.
1. Cut a length of 25 feet of 0.080
inch (2 ram) diameter round
Craftsman brand line.
_> Feeedtiiionne in
on
Spool
2. insert one end of line into center
cavity of empty spool. Ensure line
will feed into spool in the direction
shown on the spool (counterclock-
wise).
3. Continue feeding line into spool,
leaving 4 - 6 inches (10 - 15 cm)
unwound from center of spool.
INSTALLING SPOOL WITH LINE
1. Install replacement spool.
2. Thread line through line guide ring.
Line through guide ring 1
Sio
Replacement Spool
3. Rest guide ring on spool and place
line through slot. Allow line to ex-
tend 4 - 6 inches (10 - 15 cm)
from center of spool.
4. Ensure line remains in slot while
screwing cap on to the shaft.
Only tighten cap hand tightI

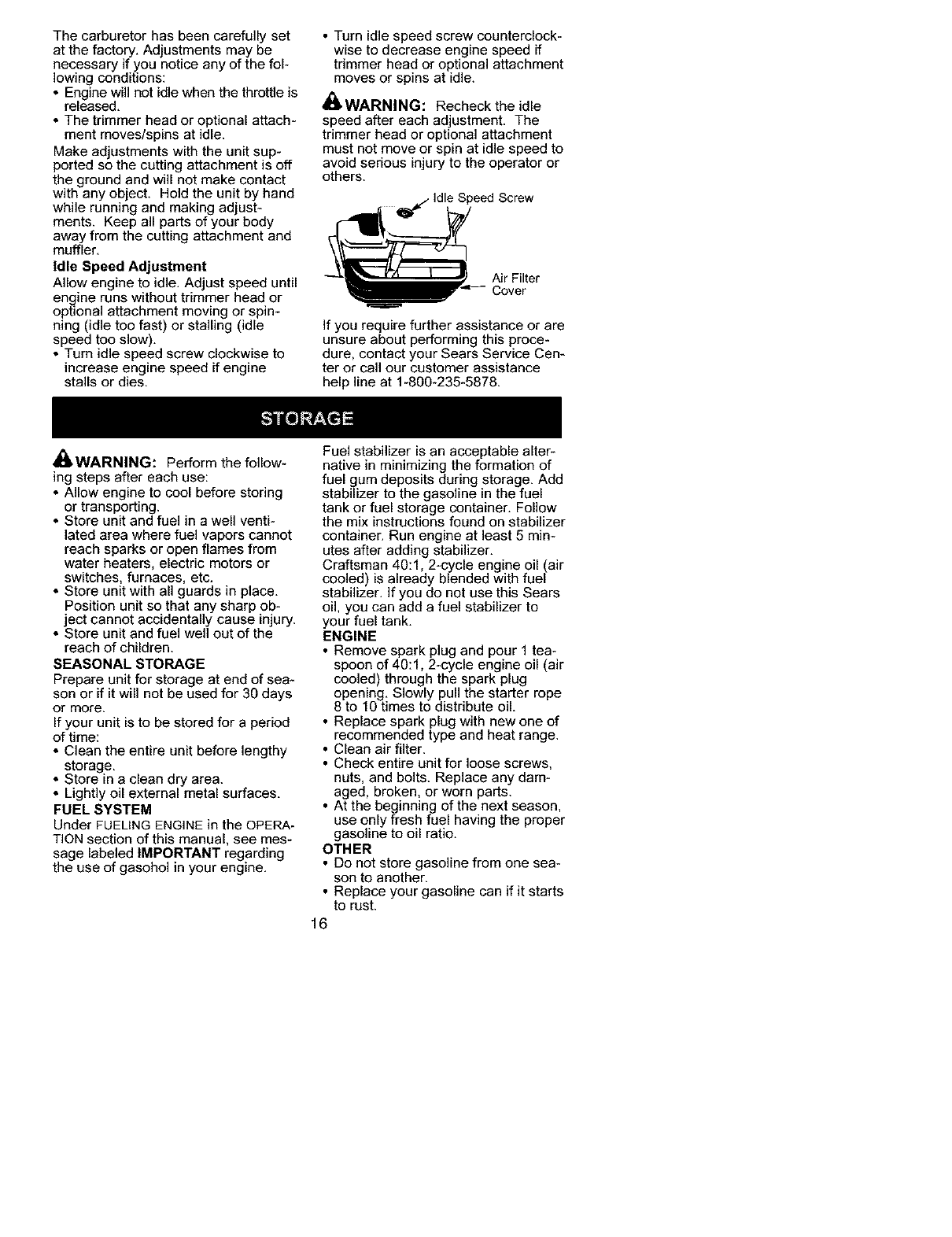

CARBURETOR ADJUSTMENT
i_ WARNING: Keep others away
when making idle speed adjustments.
The trimmer head or any optional at-
tachment will be spinning during most
of this procedure. Wear your protec-
tive equipment and observe all safety
precautions. After making adjust-
ments, the trimmer head or any op-
tional attachment must not move/spin
at idle speed.
15
Thecarburetorhasbeencarefullyset
atthefactory.Adjustmentsmaybe
necessaryifyounoticeanyofthefol-
lowingconditions:
Engine will not idlewhen the throttle is
released.
The trimmer head or optional attach-
ment moves/spins at idle.
Make ad ustments with the unit sup-
ported so the cutt ng attachment s off
the ground and will not make contact
with any object. Hold the unit by hand
while running and making adjust-
ments. Keep all parts of your body
away from the cutting attachment and
muffler.
Idle Speed Adjustment
Allow engine to idle. Adjust speed until
engine runs without trimmer head or
optional attachment moving or spin-
ning (idle too fast) or stalling (idle
speed too slow).
Turn idle speed screw clockwise to
increase engine speed if engine
stalls or dies.
Turn idle speed screw counterclock-
wise to decrease engine speed if
trimmer head or optional attachment
moves or spins at idle.
i_ WARNING: Recheck the idle
speed after each adjustment. The
trimmer head or optional attachment
must not move or spin at idle speed to
avoid serious injury to the operator or
others.
Speed Screw
Air Filter
Cover
If you require further assistance or are
unsure about performing this proce-
dure, contact your Sears Service Cen-
ter or call our customer assistance
help line at 1-800-235-5878.
_ WARNING: Perform the follow-
ing steps after each use:
• Allow engine to cool before storing
or transporting.
Store unit and fuel in awell venti-
lated area where fuel vapors cannot
reach sparks or open flames from
water heaters, electric motors or
switches, furnaces, etc.
Store unit with all guards in place.
Position unit so that any sharp ob-
ject cannot accidentally cause injury.
Store unit and fuel well out of the
reach of children.
SEASONAL STORAGE
Prepare unit for storage at end of sea-
son or if it will not be used for 30 days
or more.
If your unit is to be stored for a period
of time:
Clean the entire unit before lengthy
storage.
Store in aclean dry area.
Lightly oil external metal surfaces.
FUEL SYSTEM
Under FUELING ENGINE in the OPERA-
TION section of this manual, see mes-
sage labeled IMPORTANT regarding
the use of gasohol in your engine.
Fuel stabilizer is an acceptable alter-
native in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to the gasoline in the fuel
tank or fuel storage container. Follow
the mix instructions found on stabilizer
container. Run engine at least 5 min-
utes after adding stabilizer.
Craftsman 40:1, 2-cycle engine oil (air
cooled) is already blended with fuel
stabilizer. ]f you do not use this Sears
oil, you can add a fuel stabilizer to
your fuel tank.
ENGINE
• Remove spark plug and pour 1 tea-
spoon of 40:1, 2-cycle engine oil (air
cooled) through the spark plug
opening. Slowly pull the starter rope
8 to 10 times to distribute oil.
Replace spark plug with new one of
recommended type and heat range.
Clean air filter.
• Check entire unit for loose screws,
nuts, and bolts. Replace any dam-
aged, broken, or worn parts.
At the beginning of the next season,
use only fresh fuel having the proper
gasoline to oil ratio.
OTHER
Do not store gasoline from one sea-
son to another.
Replace your gasoline can if it starts
to rust.
16

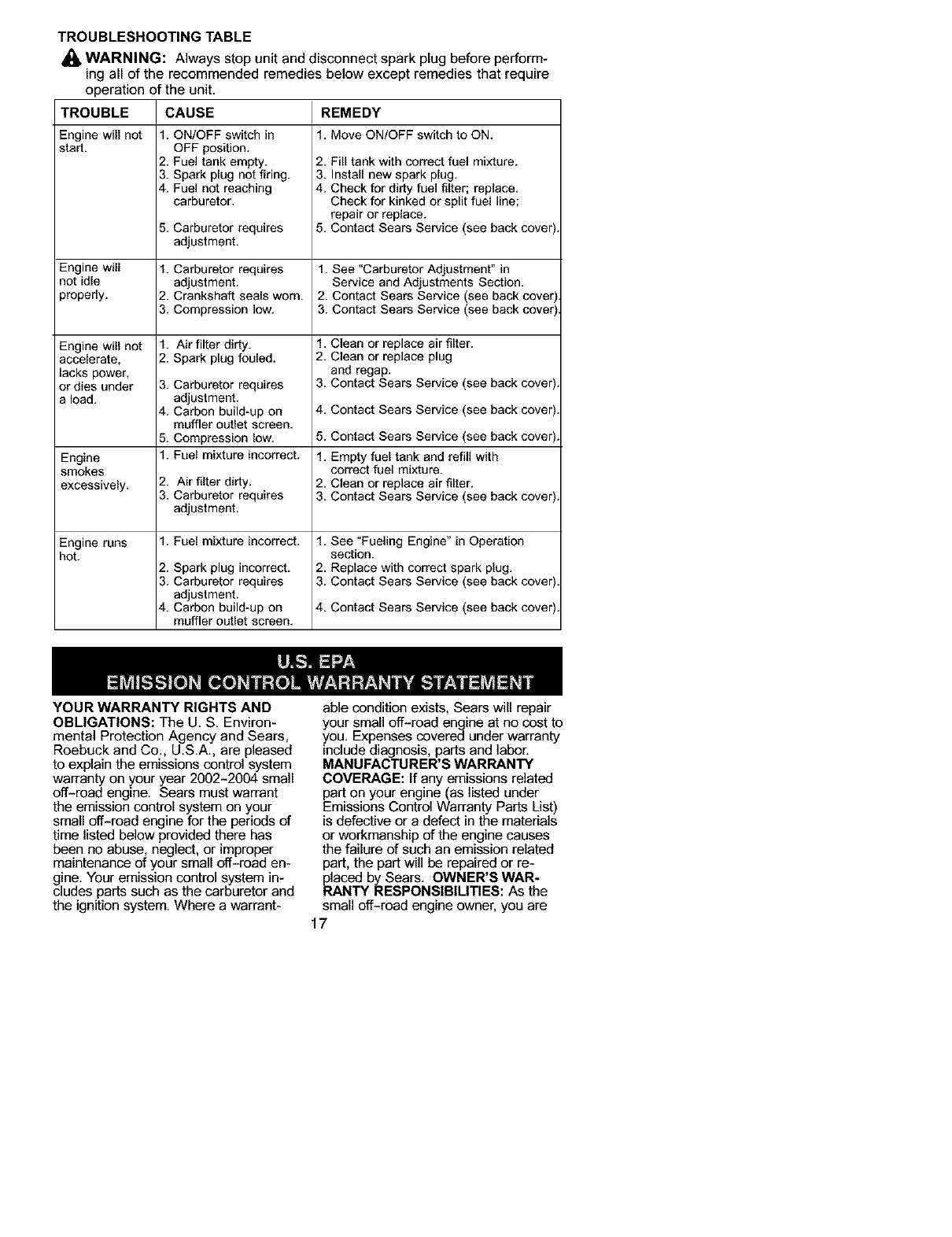

TROUBLESHOOTING TABLE
WARNING: Always stop unit and disconnect spark plug before perform-
ing all of the recommended remedies below except remedies that require
TROUBLE
Engine will not
start.
Engine will
not idle
properly.
Engine will not
accelerate,
lacks power,
or dies under
a load.
Engine
smokes
excessively,
Engine runs
hot.
operation of the unit.
CAUSE REMEDY
1. Move ON/OFF switch to ON.1. ON/OFF switch in
OFF position.
2. Fuel tank empty.
3. Spark plug not firing.
4. Fuel not reaching
carburetor,
5. Carburetor requires
adjustment.
1. Carburetor requires
adjustment.
2. Crankshaft seals worn.
3. Compression low.
1. Air filter dirty.
2. Spark plug fouled.
3. Carburetor requires
adjustment.
4. Carbon build-up on
muffler outlet screen,
5. Compression low,
1. Fuel mixture incorrect,
2. Air filter dirty.
3. Carburetor requires
adjustment.
1. Fuel mixture incorrect.
2. Spark plug incorrect.
3. Carburetor requires
adjustment.
4. Carbon build-up on
muffler outlet screen.
2. Fill tank with correct fuel mixture.
3. Install new spark plug.
4. Check for dirty fuel filter; replace,
Check for kinked or split fuel line;
repair or replace.
5. Contact Sears Service (see back cover)
1. See "Carburetor Adjustment" in
Service and Adjustments Section,
2. Contact Sears Service (see back cover
3. Contact Sears Service (see back cover
1. Clean or replace air filter.
2. Clean or replace plug
and regap.
3. Contact Sears Service (see back cover)
4. Contact Sears Service (see back cover)
5_
1.
2_
3.
Contact Sears Service (see back cover)
Empty fuel tank and refill with
correct fuel mixture.
Clean or replace air filter.
Contact Sears Service (see back cover)
2.
3.
4.
See "Fueling Engine" in Operation
section.
Replace with correct spark plug.
Contact Sears Service (see back cover)
Contact Sears Service (see back cover)
YOUR WARRANTY RIGHTS AND
OBLIGATIONS: The U. S. Environ-
mental Protection Agency and Sears,
Roebuck and Co., U.S.A., are pleased
to explain the emissions control system
warranty on your year 2002-2004 small
off-road engine. Sears must warrant
the emission control system on your
small off-road engine for the periods of
time listed below provided there has
been no abuse, neglect, or improper
maintenance of your small off-road en-
gine. Your emission control system in-
cludes parts such as the carburetor and
the ignition system. Where a warrant-
able condition exists, Sears will repair
your small off-road engine at no cost to
you, Expenses covered under warranty
include diagnosis, parts and labor,
MANUFACTURER S WARRANTY
COVERAGE: If any emissions related
part on your engine (as listed under
Emissions Control Warranty Parts List)
is defective or adefect in the materials
or workmanship of the engine causes
the failure of such an emission related
part, the part will be repaired or re-
placed by Sears. OWNER'S WAR-
RANTY RESPONSIBILITIES: As the
small off-road engine owner, you are
17
responsiblefortheperformanceofthe
requiredmaintenancelistedinyourin-
structionmanual.Searsrecommends
thatyouretainallreceiptscovering
maintenanceonyoursmalloff-roaden-
gine.butSearscannotdenywarranty
solelyforthelackofreceiptsorforyour
failuretoensuretheperformanceofall
scheduledmaintenance.Asthesmall
off-roadengineowner,youshouldbe
awarethatSearsmaydenyyouwar-
rantycoverageifyoursmalloff-road
engineorapartofithasfaileddueto
abuse,neglect,impropermaintenance,
unapprovedmodifications,ortheuseof
partsnotmadeorapprovedbytheorig-
inalequipmentmanufacturer.Youare
responsibleforpresentingyoursmall
off-roadenginetoaSearsauthorized
repaircenterassoonasaproblemex-
ists.Warrantyrepairsshouldbecom-
pletedinareasonableamountoftime,
nottoexceed30days.Ifyouhaveany
questionsregardingyourwarrantyrights
andresponsibilities,youshouldcontact
yournearestauthorizedservicecenter
orcallSearsat1-800-469-4663.
WARRANTY COMMENCEMENT
DATE: The warranty period begins on
the date the small off-road engine is
purchased. LENGTH OF COVERAGE:
This warranty shall be for a period of
two years from the initial date of pur-
chase. WHAT IS COVERED: REPAIR
OR REPLACEMENT OF PARTS. Re-
pair or replacement of any warranted
part will be performed at no charge to
the owner at an approved Sears servic-
ing center. If you have any questions
regarding your warranty rights and re-
sponsibilities, you should contact your
nearest authorized service center or call
Sears at 1-800-469-4663. WARRAN-
TY PERIOD: Any warranted part which
is not scheduled for replacement as re-
quired maintenance, or which is sched-
uled only for regular inspection to the
effect of "repair or replace as neces-
sary" shall be warranted for 2 years.
Any warranted part which is scheduled
for replacement as required mainte-
nance shall be warranted for the period
of time up to the first scheduled replace-
ment point for that part. DIAGNOSIS:
The owner shall not be charged for
diagnostic labor which leads to the de-
termination that awarranted part is de-
fective if the diagnostic work is per-
formed at an approved Sears servicing
center. CONSEQUENTIAL DAMAGES:
Sears may be liable for damages to
other engine components caused by
the failure of a warranted part still under
warranty. WHAT IS NOT COVERED:
All failures caused by abuse, neglect, or
improper maintenance are net covered.
ADD-ON OR MODIFIED PARTS: The
use of add-on or modified parts can be
grounds for disallowing a warranty
claim. Sears is net liable to cover fail-
ures of warranted parts caused by the
use of add-on or modified parts. HOW
TO FILE A CLAIM: If you have any
questions regarding your warranty rights
and responsibilities, you should contact
your nearest authorized service center
or call Sears at 1-800-469-4663.
WHERE TO GET WARRANTY SER-
VICE: Warranty services or repairs shall
be provided at all Sears service centers.
Call 1-800-469-4663. MAINTE-
NANCE, REPLACEMENT AND RE*
PAIR OF EMISSION RELATED
PARTS: Any Sears approved replace-
ment part used in the performance of
any warranty maintenance or repair on
emission related parts will be provided
without charge to the owner if the part is
under warranty. EMISSION CONTROL
WARRANTY PARTS LIST: Carburetor,
Ignition System: Spark Plug (covered
up to maintenance schedule). Ignition
Module. MAINTENANCE STATE-
MENT: The owner is responsible for the
performance of all required mainte-
nance as defined in the instruction
manual.
This engine is certified to be emissions compliant for the following use:
[] Moderate (50 hours)
[] Intermediate (125 hours)
[] Extended (300 hours)
18

Navigation menu
